EN FRONT LOAD DRYER
FR SÉCHEUSE Á CHARGEMENT FRONTAL
ES SECADORA DE CARGA FRONTAL
USE & CARE GUIDE
GUIDE D’UTILISATION ET D’ENTRETIEN
GUÍA DE USO Y CUIDADO
A16331701 June 2019
2
Important Safety Information
©2019 Electrolux Major Appliances All rights reserved.
Electrolux model number
Electrolux serial number
NOTE
The instructions appearing in this
Use & Care Guide
are not meant to
cover every possible condition and
situation that may occur. Common sense
and caution must be practiced when
installing, operating and maintaining
any appliance.
Purchase date
Keep a record for quick
reference
Table of Contents
Important Safety Information .................2
Features ...............................................8
Pre-Installation Requirements ...............9
Installation ..........................................17
Controls and Settings .........................26
Operating Instructions ........................36
Normal Operating Sounds ..................38
Care and Cleaning .............................. 39
Troubleshooting .................................. 41
Limited Warranty ................................44
Electrolux model series*
* The series number can be found
within the Model number (example
EFME627UIW = 600 series)
NOTE
Registering your product with Electrolux
enhances our ability to serve you. You
can register online at
www.electroluxappliances.com, by
sending your Product Registration Card
in the mail, or PHOTOREGISTER
SM
using
a smart phone.
See registration card for
details.
READ ALL INSTRUCTIONS BEFORE OPERATING THIS WASHER.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Please read and save
this guide
Thank you for choosing Electrolux, our
premium brand in home appliances.
This
Use & Care Guide
is part of our
commitment to customer satisfaction and
product quality throughout the service life
of your new appliance.
We view your purchase as the beginning
of a relationship. To ensure our ability to
continue serving you, please use this page
to record important product information.
Questions?
For toll free telephone support or online
support in the US and Canada contact:
U.S.
1-877-4ELECTROLUX (1-877-435-3287)
www.electroluxappliances.com
Canada
1-800-265-8352
www.electroluxappliances.ca
3
Important Safety Information
Important safety instructions - gas dryer
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warning exactly
could result in serious injury, death, or
property damage.
DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• DO NOT try to light any appliance.
• DO NOT touch any electrical switch; DO
NOT use any phone in your building.
• Clear the room, building or area of all
occupants.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
4
Important Safety Information
WARNING
RISK OF FIRE
• Ensure the entire dryer exhaust system is clean and free of lint and debris
prior to the installation of your new dryer. The entire exhaust system should
be inspected and cleaned a minimum of every 18 months with normal us-
age. Failure to comply with cleaning your exhaust system will increase the
RISK of FIRE.
• DO NOT install a clothes dryer with flexible plastic or flexible foil venting material.
Flexible venting materials are known to collapse, be easily crushed and trap lint.
These conditions will obstruct clothes dryer airflow and increase the risk of fire.
• DO NOT screen the exhaust ends of the vent system, or use any screws, rivets
or other fasteners that extend into the duct to assemble the exhaust system. NO
screen or grate of any mesh size is allowed to cover the outdoor exhaust opening.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• Clothes dryer installation and service must be performed by a qualified installer,
service agency or the gas supplier.
• The electrical service to the dryer must conform with local codes and ordinances
and the latest edition of the National Electrical Code, ANSI/NFPA 70, or in Canada,
the Canadian Electrical Code CSA C22.1 part 1.
• The gas service to the dryer must conform with local codes and ordinances and the
latest edition of the National Fuel Gas Code ANSI Z223.1/NFPA 54, or in Canada,
the Natural Gas and Propane Installation Code, CSA B149.1. An individual manual
shutoff valve must be installed within 6 ft. (1.83 m) of the dryer in accordance with
the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
• DO NOT stack a dryer on top of washer already installed on pedestal. DO NOT stack
washer on top of dryer. DO NOT stack washer on top of another washer.
• The dryer is designed under ANSI Z21.5.1/CSA 7.1 or UL 2158 - CAN/CSA C22.2
No. 112 (latest editions) for HOME USE only. This dryer is not recommended for
commercial applications such as restaurants, beauty salons, etc.
• Destroy the carton and plastic bags after the dryer is unpacked. Children might use
them to play. Cartons covered with rugs, bedspreads, or plastic sheets can become
airtight chambers causing suffocation. Place all materials in a garbage container or
make materials inaccessible to children.
• To reduce the risk of severe injury or death, follow all installation instructions in this
manual.
The instructions in this manual and all other literature included with this dryer are not
meant to cover every possible condition and situation that may occur. Good safe
practice and caution MUST be applied when installing, operating and maintaining any
appliance.
WARNING
For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury or loss of life. DO NOT
store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
5
Prevent fire
• DO NOT dry items that have been
previously cleaned in, soaked in, or
spotted with gasoline, cleaning solvents,
kerosene, waxes, or other flammable or
explosive substances. DO NOT store
these items on or near the dryer. These
substances give off vapors that could
ignite or explode.
WARNING
FIRE HAZARD
Clean the lint screen before or after each
load. The interior of the dryer, lint
screen housing and exhaust duct
should be cleaned approximately
every 18 months by qualified service
professional. An excessive amount of
lint build-up in these areas could result
in inefficient drying and possible fire. See
Care and Cleaning
.
WARNING
FIRE HAZARD
To reduce the risk of fire, electrical shock,
or injury to persons when using this
dryer, comply with the basic warnings
listed below. Failure to comply with the
Important Safety Instruction warnings
could result in property damage, serious
personal injury, or death.
Important Safety Information
WARNING
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or serious
injury.
IMPORTANT
Indicates installation, operation, or
maintenance information which is
important but not hazard-related.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
DANGER
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
Definitions
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety messages
that follow this symbol to avoid possible
injury or death.
• DO NOT place items exposed to cooking
oils in your dryer. Items contaminated
with cooking oils may contribute to a
chemical reaction that could cause a load
to catch fire. To reduce the risk of fire
due to contaminated loads, the final part
of a tumble dryer cycle occurs without
heat (cool down period). Avoid stopping
a tumble dryer before the end of the
drying cycle unless all items are quickly
removed and spread out so that the heat
is dissipated.
• DO NOT dry articles containing rubber,
plastic or similar materials such as
bras, galoshes, bath mats, rugs, bibs,
baby pants, plastic bags and pillows
that may melt or burn. Some rubber
materials, when heated, can under
certain circumstances produce fire by
spontaneous combustion.
• DO NOT operate the dryer if the lint
screen is blocked, damaged or missing.
Fire hazard, overheating and damage to
fabrics can occur.
• DO NOT obstruct the flow of ventilating
air. DO NOT stack or place laundry or
throw rugs against the front or back of
the dryer.
• DO NOT spray any type of aerosol into,
on or near dryer at any time.
WARNING
FIRE HAZARD
A clothes dryer produces combustible
lint. The dryer must be connected to an
outdoor exhaust. Regularly inspect the
outdoor exhaust opening and remove
any accumulation of lint around the
opening and in the surrounding area.
6
Important Safety Information
• DO NOT use fabric softeners or products
to eliminate static unless recommended
by the manufacturer of the fabric softener
or product.
Before you throw away your old
washer or dryer:
• Remove doors
• Remove the electric power cord
• Secure all hoses and drain pipes to
prevent water from leaking out and
creating a slip hazard.
Prevent injury
• To prevent shock hazard and assure
stability during operation, the dryer must
be installed and electrically grounded by
a qualified service person in accordance
with local codes. Installation instructions
are included in this manual for reference.
Refer to the installation sections for
detailed grounding procedures. If the
dryer is moved to a new location, have
it checked and reinstalled by a qualified
service professional.
• To prevent personal injury or damage
to the dryer, the electrical power cord
of a gas dryer must be plugged into a
properly grounded and polarized 3-prong
outlet. The third grounding prong must
never be removed. Never ground the
dryer to a gas pipe. DO NOT use an
extension cord or an adaptor plug.
• ALWAYS disconnect the dryer from the
electrical supply before attempting any
service or cleaning. Failure to do so can
result in electrical shock or injury.
• DO NOT use any type of spray cleanser
when cleaning dryer interior. Hazardous
fumes or electrical shock could occur.
• To prevent injury, DO NOT reach into the
dryer if the drum is moving. Wait until
the dryer has stopped completely before
reaching into the drum.
Prevent injury and damage to the
dryer
• All repairs and servicing must be
performed by an authorized service
provider unless specifically recommended
in this
Use & Care Guide
. Use only
authorized factory parts.
• DO NOT tamper with controls.
• DO NOT sit on, step on or stand on the
dryer. DO NOT rest heavy loads on top.
The dryer is not meant to support weight.
• DO NOT install or store the dryer where
it will be exposed to water and/or to the
weather.
WARNING
DO NOT continue to use the dryer if you
hear squeaking, grinding, rubbing or other
unusual noises. This could be a sign of
mechanical breakdown and lead to fire
or serious injury. Contact a qualified
technician immediately.
• Failure to comply with these warnings
could result in fire, explosion, serious
bodily injury and/or damage to the dryer.
Protect children
• DO NOT allow children to play on or in
the dryer. Close supervision of children is
necessary when the dryer is used near
children. As children grow, teach them
the proper, safe use of all appliances.
• Destroy the carton, plastic bag and
other packing materials after the dryer
is unpacked. Children might use them
for play. Cartons covered with rugs,
bedspreads or plastic sheets can
become airtight chambers.
• Keep laundry products out of children’s
reach. To prevent personal injury, observe
all warnings on product labels.
• Before the dryer is removed from service
or discarded, remove the dryer door to
prevent accidental entrapment.
• Failure to comply with these warnings
could result in serious personal injuries.
Risk of child entrapment
Child entrapment and suffocation are
not problems of the past. Junked or
abandoned washers and dryers are still
dangerous – even if they will sit for “just
a few days”. If you are getting rid of
your old washer or dryer, please follow
the instructions below to help prevent
accidents.
We strongly encourage responsible
appliance recycling/disposal methods.
Contact your State/Provence Energy
Office, Local Electric and Water Utilities
or Conservation Program Office or visit
www.energystar.gov/recycle for more
information on recycling your old washer
or dryer.
7
Important Safety Information
WARNING
FIRE/ELECTRICAL SHOCK HAZARD
Avoid fire hazard or electrical shock. DO NOT use an adaptor plug or extension cord or
remove grounding prong from electrical power cord. Failure to follow this warning can
cause serious injury, fire, or death.
240 v Electric Dryer
120 v Gas Dryer
UL-approved service
cord must be installed
on electric dryers (not
provided with unit
except those
manufactured for sale
in Canada).
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power cord
with 3-prong
grounded plug
10-30R
3-wire
(fused 30 amp)
14-30R
4-wire
(fused 30 amp)
Grounding
type wall
receptacle
• Thermal limiter switches automatically
turn off the motor in the unlikely event
of an overheated situation. A service
technician must replace the thermal
limiter switch(es) after correcting the fault.
• Failure to comply with these warnings
could result in serious personal injuries.
8
Features
Control
Lock
LED
Display
Drum Light
(on select models)
Exhaust
Channel
Outlet
Optional Heavy Duty
Collapsible Drying Rack*
Reversible
Door
Door Striker
Cycle
Selector
Door Latch
3 Drum
Vanes
LuxCare
TM
Lint Shield
Front-Mounted
Moisture
Sensor
(on select
models)
Adjustable
Leveling Legs
Optional Stacking
Kit for Mounting on
Matching Washer*
Wide-Angle
Door Hinge
*Not included with initial purchase. May be purchased as accessory.
Serial Number and
Model Number
drum light
door
reversibility
LuxCare Dry
Predictive Dry
LuxCare
TM
Lint Shield filter
perfect steam
anti-static
fast dry
extended
tumble
300 Series
no yes no no yes no no no no
400 Series
yes yes no no yes yes no 20
min
no
500 Series
yes yes yes no yes yes yes 18
min
yes
600 Series
yes yes yes yes yes yes yes 15
min
yes
Cycle selection ...................................31
Cycle settings ..................................... 32
Cycle options .....................................33
Other features .....................................34
Not all cycles, options, or features listed are available on every model.
A full listing of available settings for each model and detailed explanations of their settings
and options are described in the following sections:
Model series ....................................... 26
Setting chart - 300 series dryer ...........27
Setting chart - 400 series dryer ...........28
Setting chart - 500 series dryer ...........29
Setting chart - 600 series dryer ...........30
Refer to the table below for an overview of features available for each model series.
9
Pre-Installation Requirements
Tools and materials needed for installation:
Exhaust Venting
Free-flowing, clear of lint buildup
4 inch (102 mm) rigid metal or
semi-rigid metal transition ducting
of minimal length and turns
NO foil or plastic venting material
Approved vent hood exhausted to
outdoors
Leveling
Dryer is level, side-to-side and front-
to-back
Cabinet is sitting solid on all corners
Gas Supply (Gas Dryer)
Manual shutoff valve present in
supply
All connections sealed with approved
sealer and wrench tight
Conversion kit for LP GAS system
Gas supply turned on
No leaks present at all connections
- check with soapy water, NEVER
check with flame
Water Hookup (Select Models)
Inspect hoses for proper placement
of rubber washers
Water supply is turned on
Check for leaks
Steam model dryers require use of
ASSEMBLY HOSE KIT #5304495002
(not included) and must be
purchased separately.
240v Electric Supply
(Electric Dryer)
Approved NEMA 10-30 or 14-30
service cord with all screws tight on
terminal block
Approved strain relief installed
Terminal access cover installed
before initial operation
Door Reversal
Follow detailed instructions in this
guide
Test hinge and latch for function
Electrical Power
House power turned on
Dryer plugged in
Final Checks
Installation Instructions and Use &
Care Guide read thoroughly
Door latches and drum tumbles
when cycle starts
Registration card sent in
Installation Checklist
10
Electrical system
requirements
Electrical requirements for
electric dryer:
CIRCUIT - Individual 30 amp. branch circuit
fused with 30 amp. time delay fuses or
circuit breakers. Use separately fused
circuits for washer and dryer. DO NOT
operate washer and dryer on same circuit.
POWER SUPPLY - 3-wire or 4-wire,
120/240 volt, single phase, 60 Hz,
Alternating Current.
NOTE
Because of potentially inconsistent
voltage capabilities, the use of this dryer
with power created by gas powered
generators, solar powered generators,
wind powered generators or any other
generator other than the local utility
company is not recommended.
NOTE
A 120/208 volt, single phase, 60 Hz,
Alternating Current supply may be used on
dryers marked for use on rating plate.
IMPORTANT
Dryer is internally grounded to neutral
unless it was manufactured for sale in
Canada.
Only a 4-conductor cord shall be used
when the appliance is installed in a
location where grounding through the
neutral conductor is prohibited. Grounding
through the neutral link is prohibited for: (1)
new branch circuit installations, (2) mobile
homes, (3) recreational vehicles, and (4)
areas where local codes DO NOT permit
grounding through the neutral.
WARNING
FIRE HAZARD
• Failure to follow safety warnings
exactly could result in serious injury,
death, or property damage.
• DO NOT install a booster fan in
dryer exhaust duct.
• Install all clothes dryers in
accordance with the installation
instructions in this manual.
Adjustable
pliers
4 inch, rigid metal or
semi-rigid metal exhaust duct work
Adjustable
wrench
Metal foil
tape (not
duct tape)
External
vent hood
or
Carpenter’s
level
Pipe wrench
for gas
supply
Gas line
shutoff valve
(gas dryer)
or
LP-resistant
thread tape
(for natural
gas or
LP supply)
½” NPT
union flare
adapters (x2)
and flexible
gas supply line
(gas dryer)
3-wire or 4-wire
240 volt cord kit
(electric dryer)
Phillips,
straight, &
square bit
screwdrivers
4 in.
(10.2 cm)
clamp
Pre-Installation Requirements
Tools and materials
needed for installation:
ASSEMBLY HOSE
KIT
-
P/N 5304495002
,
for steam models only,
is not included and
must be purchased
separately.
11
1. The gas service to the dryer must
conform with local codes and
ordinances and the latest edition of the
National Fuel Gas Code ANSI Z223.1/
Pre-Installation Requirements
3-wire power supply cord
(not supplied)
OUTLET RECEPTACLE - NEMA 14-30R
receptacle to be located so the power
supply cord is accessible when the
dryer is in the installed position.
GROUNDING CONNECTION - See
“Grounding requirements” in Electrical
Installation section.
The dryer MUST employ a 3-conductor
power supply cord NEMA 10-30 type
SRDT rated at 240 volt AC minimum,
30 amp, with 3 open end spade lug
connectors with upturned ends or closed
loop connectors and marked for use with
clothes dryers. For 3-wire cord connection
instructions see “Electrical connection
(non-Canada) - 3-wire cord” in Electrical
Installation section.
OUTLET RECEPTACLE - NEMA 10-30R
receptacle to be located so the power
supply cord is accessible when the
dryer is in the installed position.
GROUNDING CONNECTION - See
“Grounding requirements” in Electrical
Installation section.
4-wire power supply cord
(not supplied)
The dryer MUST employ a 4-conductor
power supply cord NEMA 14-30 type
SRDT or DRT (as required) rated at 240
volt AC minimum, 30 amp, with 4 open end
spade lug connectors with upturned ends
or closed loop connectors and marked for
use with clothes dryers. For 4-wire cord
connection instructions see “Electrical
connection (non-Canada) - 4-wire cord” in
Electrical Installation section.
Electrical requirements for
gas dryer:
CIRCUIT - Individual, properly polarized
and grounded 15 amp. branch circuit
fused with 15 amp. time delay fuse or
circuit breaker.
POWER SUPPLY - 2-wire, with ground,
120 volt, single phase, 60 Hz, Alternating
Current.
POWER SUPPLY CORD - Dryer is equipped
with 120 volt 3-wire power cord.
GROUNDING CONNECTION - See
“Grounding requirements” in Electrical
Installation section.
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
3-wire receptacle
(NEMA type 10-30R)
4-wire receptacle
(NEMA type 14-30R)
NOTE
Dryers manufactured for sale in Canada
have factory-installed, 4-wire power
supply cord (NEMA 14-30).
Gas supply requirements
WARNING
EXPLOSION HAZARD
Uncoated copper tubing will corrode when
subjected to natural gas, causing gas leaks.
Use ONLY black iron, stainless steel, or
plastic-coated brass piping for gas supply.
WARNING
Improper grounding of the dryer may
cause serious injury or death. Check with
a licensed electrician if you are in doubt
as to whether the appliance is properly
grounded.
12
Pre-Installation Requirements
Exhaust system
requirements
Correct Incorrect
Correct Incorrect
The following are specific
requirements for proper and safe
operation of your dryer.
WARNING
FIRE HAZARD
Failure to follow these instructions can
create excessive drying times and fire
hazards.
WARNING
FIRE HAZARD
• Failure to follow safety warnings
exactly could result in serious injury,
death, or property damage.
• DO NOT install a booster fan in dryer
exhaust duct.
• Install all clothes dryers in
accordance with the installation
instructions in this manual.
NFPA 54, or in Canada, the Natural Gas
and Propane Installation Code, CSA
B149.1.
2. The gas supply line should be 1/2 inch
(1.27 cm) pipe.
3. If codes allow, flexible metal tubing may
be used to connect your dryer to the
gas supply line. The tubing MUST be
constructed of stainless steel or plastic-
coated brass.
4. The gas supply line MUST have an
individual shutoff valve installed in
accordance with the B149.1, Natural
Gas and Propane Installation Code.
5. A 1/8 inch (0.32 cm) N.P.T. plugged
tapping, accessible for test gauge
connection, MUST be installed
immediately upstream of the gas supply
connection to the dryer.
6. The dryer MUST be disconnected from
the gas supply piping system during
any pressure testing of the gas supply
piping system at test pressures in
excess of 1/2 psig (3.45 kPa).
7. The dryer MUST be isolated from the
gas supply piping system during any
pressure testing of the gas supply
piping system at test pressures equal to
or less than 1/2 psig (3.45 kPa).
8. Connections for the gas supply
must comply with the Standard for
Connectors for Gas Appliances, ANSI
Z21.24/CSA 6.10.
Use only 4 inch (102 mm) diameter
(minimum) rigid or semi rigid metal duct
and approved vent hood which has a
swing-out damper or dampers that open
when the dryer is in operation. When
the dryer stops, the damper or dampers
automatically close to prevent drafts and
the entrance of insects and rodents. To
avoid restricting the outlet, maintain a
minimum of 12 inches (30.5 cm) clearance
between the vent hood and the ground or
any other obstruction.
WARNING
FIRE HAZARD
• DO NOT install a clothes dryer with
flexible plastic or foil venting materials.
Flexible venting materials are known
to collapse, be easily crushed and
trap lint. These conditions will obstruct
clothes dryer airflow and increase the
risk of fire.
• If your present system is made up of
plastic or foil duct, replace it with a
rigid or semi-rigid metal duct. Ensure
the present duct is free of any lint
prior to installing dryer duct.
13
Pre-Installation Requirements
Exhaust direction
Directional exhausting can be accom-
plished by installing a quick-turn 90° dryer
vent elbow directly to exhaust outlet of
dryer. Dryer vent elbows are available
through your local parts distributor or
hardware store.
Number of 90° turns
MAXIMUM LENGTH
of 4” (102 mm) Rigid Metal Duct
VENT HOOD TYPE
(Preferred)
4”
(10.2 cm) louvered
2.5”
(6.35 cm)
0 125 ft. (38 m) 110 ft. (33.5 m)
1 115 ft. (35 m) 100 ft. (30.5 m)
2 105 ft. (32 m) 90 ft. (27.5 m)
3 95 ft. (29 m) 80 ft. (24.5 m)
4 85 ft. (26 m) 70 ft. (21.5 m)
See also CLEARANCE
REQUIREMENTS.
WARNING
FIRE HAZARD
• A clothes dryer must be exhausted
outdoors.
• DO NOT
exhaust dryer into a
chimney, a wall, a ceiling, an attic, a
crawl space or any concealed space
of a building.
• A clothes dryer produces
combustible lint. If the dryer is not
exhausted outdoors, some fine lint
will be expelled into the laundry area.
An accumulation of lint in any area of
the home can create a health and fire
hazard.
• The dryer must be connected to an
exhaust outdoors.
• Regularly inspect the outdoor
exhaust opening and remove any
accumulation of lint around the
outdoor exhaust opening and in the
surrounding area.
WARNING
Exceeding the length of duct pipe
or number of elbows allowed in the
“MAXIMUM LENGTH” charts can cause
an accumulation of lint in the exhaust
system. Plugging the system could
create a fire hazard, as well as increase
drying times.
WARNING
FIRE HAZARD
• DO NOT install flexible plastic or
flexible foil venting material.
• DO NOT exceed 8 ft. (2.4 m)
duct length if installing semi-
rigid venting.
• DO NOT use screws, rivets or other
fasteners that extend into the duct to
assemble the exhaust system.
WARNING
FIRE HAZARD
• DO NOT allow combustible materials
(for example: clothing, draperies/
curtains, paper) to come in contact
with exhaust system. The dryer MUST
NOT be exhausted into a chimney, a
wall, a ceiling, or any concealed space
of a building which can accumulate
lint, resulting in a fire hazard.
• DO NOT screen the exhaust ends of
the vent system, or use any screws,
rivets or other fasteners that extend
into the duct to assemble the exhaust
system. No screen, grate, or guard
of any mesh
size is allowed
to cover the
exhaust
opening. Lint
can become
caught in the screen, grate,
guard, or on the screws or
rivets, clogging the duct work
and creating a fire hazard as well
as increasing drying times. Use
an approved vent hood to terminate
the duct outdoors, and seal all joints
with metal foil tape. All male duct pipe
fittings MUST be installed downstream
with the flow of air.
14
Pre-Installation Requirements
In installations where the exhaust system
is not described in the charts, the following
method must be used to determine if the
exhaust system is acceptable:
Correct Incorrect
Install male fittings in correct direction:
1. Connect an inclined or digital
manometer between the dryer and the
point the exhaust connects to the dryer.
2. Set the dryer timer and temperature to
air fluff (cool down) and start the dryer.
3. Read the measurement on the
manometer.
4. The system back pressure MUST
NOT be higher than 1.0 inch of water
column. If the system back pressure is
less than 1.0 inch of water column, the
system is acceptable. If the manometer
reading is higher than 1.0 inch of water
column, the system is too restrictive and
the installation is unacceptable.
Although vertical orientation of the
exhaust system is acceptable, certain
extenuating circumstances could affect the
performance of the dryer:
• Only the rigid metal duct work should
be used.
• Venting vertically through a roof may
expose the exhaust system to down
drafts causing an increase in vent
restriction.
Manufactured or mobile
home installation
1. Installation MUST conform to current
Manufactured Home Construction &
Safety Standard, Title 24 CFR, Part
32-80 (formerly the Federal Standard for
Mobile Home Construction and Safety
for Mobile Homes, Title 24, HUD Part
280) or Standard CAN/CSAZ240 MH.
2. Dryer MUST be exhausted outside
(outdoors, not beneath the mobile
home) using metal ducting that will
not support combustion. Metal ducting
must be 4 inches (10.16 cm) in
diameter with no obstructions. Rigid
metal duct is preferred.
3. If dryer is exhausted through the floor
and area beneath the mobile home is
enclosed, the exhaust system MUST
terminate outside the enclosure with
the termination securely fastened to a
non-combustible portion of the mobile
home structure.
4. Refer to previous sections in this guide
for other important exhaust venting
system requirements.
5. When installing a gas dryer into a
mobile home, a provision must be made
for outside make up air. This provision is
to be not less than twice the area of the
dryer exhaust outlet.
6. Installer MUST anchor this (1) dryer
or (2) dryer mounted on pedestal to
the floor with approved Mobile Home
Installation Kit - P/N 137067200.
WARNING
FIRE HAZARD
DO NOT install the dryer where gasoline
or other flammables are kept or stored.
If the dryer is installed in a garage, it
must be a minimum of 18 inches (45.7
cm) above the floor. Failure to do so can
result in death, explosion, fire or burns.
NOTE
Use of 90° quick-
turn elbow required
to meet minimum installation depth.
• Running the exhaust system through
an uninsulated area may cause
condensation and faster accumulation
of lint.
• Compression or crimping of the exhaust
system will cause an increase in vent
restriction.
• The exhaust system should be
inspected and cleaned a minimum
of every 18 months with normal
usage. The more the dryer is used,
the more often you should check the
exhaust system and vent hood for
proper operation and that it is free of
obstructions.
15
Pre-Installation Requirements
MIN INSTALLATION CLEARANCES -
Inches (cm)
Sides Rear Top Front
Alcove
0”
(0 cm)
0”
(0 cm)
0”
(0 cm)
n/a
Under-
Counter
0”
(0 cm)
0”
(0 cm)
0”
(0 cm)
n/a
Closet
0”
(0 cm)
0”
(0 cm)
0”
(0 cm)
1”
(2.5 cm)
Clearance requirements
60 sq. in.
(387.1cm²)
3"
(7.6cm)
60 sq. in.
(387.1cm²)
3"
(7.6cm)
Installation in a recess
or closet
1. A dryer installed in a bedroom,
bathroom, recess or closet, MUST be
exhausted outdoors.
2. No other fuel burning appliance shall be
installed in the same closet as the gas
dryer.
3. Your dryer needs the space around it for
proper ventilation. DO NOT install your
dryer in a closet with a solid door.
4. Closet door ventilation required: A
minimum of 120 square inches (774.2
cm²) of opening, equally divided at
the top and bottom of the door, is
required. Openings should be located
3 inches (7.6 cm) from bottom and top
of door. Openings are required to be
unobstructed when a door is installed.
A louvered door with equivalent air
openings for the full length of the door is
acceptable.
closet door
F
or other than straight back venting, a
quick-turn 90° dryer vent elbow must be
installed to achieve 0” (0 cm) installation.
0"
(0 cm)
0"
(0 cm)
1"
(2.5 cm)
0"
(0 cm)
NOTE
To achieve an installation with 0” (0
cm) clearance for the back of the dryer
(for other than straight back venting), a
quick-turn 90° dryer vent elbow must be
installed as described previously in this
manual.
IMPORTANT
DO NOT INSTALL YOUR DRYER:
1. In an area exposed to dripping water
or outside weather conditions.
2. In an area where it will come in
contact with curtains, drapes, or
anything that will obstruct the flow of
combustion and ventilation air.
3. On carpet. Floor MUST be solid with
a maximum slope of 1 inch (2.5 cm).
16
Pre-Installation Requirements
Dryer dimensions
* Connection of water inlet hose on steam dryer adds 3/4 in. (2 cm) to installation depth.
1
Power supply cord length on gas dryer or electric Canadian dryer approximately 60
inches (152.5 cm).
2
Drain hose length on washer approximately 59 inches (150 cm).
3
Power supply cord length on washer approximately 60 inches (152.5 cm).
electrical
supply on
rear of unit
1
gas supply
pipe on rear
of gas unit
centerline
height of
rear vent
53.5” (136 cm)*
to clear open door
32” (81.25 cm)*
to front of closed door
27.0”
(68.5 cm)
floor line
floor line
freestand dryer
on floor
dryer mounted on
optional pedestal
38.0”
(96.5 cm)
53.25”
(135.5 cm)
17.0”
(43 cm)
19.0”
(48 cm)
3.7”
(9.5
1.5”
(4 cm)
3.75”
(9.5 cm)
electrical
supply on
rear of unit
1
gas supply
pipe on rear
of gas unit
centerline
height for
rear vent
53.5” (136 cm)*
to clear open door
32.0” (81.25 cm)*
to front of closed door
75.75”
(192.5 cm)
41.0”
(105 cm)
39.0”
(99 cm)
water supply
connection on
rear of unit
drain hose on
rear of unit
2
power cord on
rear of unit
3
floor line
approved stacking
kit (STACKIT7X)
required for
stacked installation
13.5”
(34.5 cm)
to center of
rear vent
17
Installation
Connecting the
electrical system
The following are specific requirements
for proper and safe electrical installation
of your dryer. Failure to follow these
instructions can create electrical shock
and/or a fire hazard.
Grounding requirements -
electric dryer (USA)
For a grounded, cord-connected
dryer:
1. The dryer MUST be grounded. In the
event of a malfunction or breakdown,
grounding will reduce the risk of
electrical shock by providing a path of
least resistance for electrical current.
2. After you purchase and install a 3-wire
or 4-wire power supply cord having an
equipment-grounding conductor and a
grounding plug that matches your wiring
system, the plug MUST be plugged into
an appropriate, copper wired receptacle
that is properly installed and grounded
in accordance with all local codes and
ordinances. If in doubt, call a licensed
electrician.
3. DO NOT modify the plug you’ve
installed on this appliance. If it will not fit
the outlet, have a proper outlet installed
by a qualified electrician.
For a permanently connected dryer:
The dryer MUST be connected to a
grounded metal, permanent wiring system;
or an equipment grounding conductor
must be run with the circuit conductors
and connected to the equipment-
grounding terminal or lead on the
appliance.
WARNING
ELECTRICAL SHOCK HAZARD
• This appliance MUST be properly
grounded. Electrical shock can result
if the dryer is not properly grounded.
Follow the instructions in this manual
for proper grounding.
• DO NOT use an extension cord with
this dryer. Some extension cords
are not designed to withstand the
amounts of electrical current this
dryer utilizes and can melt, creating
electrical shock and/or fire hazard.
Locate the dryer within reach of the
receptacle for the length power cord
to be purchased, allowing some slack
in the cord. Refer to the
Pre-Installation Requirements
section
of this manual for the proper power
cord to be purchased.
WARNING
Improper grounding of the dryer may
cause serious injury or death. Check with
a licensed electrician if you are in doubt
as to whether the appliance is properly
grounded.
WARNING
ELECTRICAL SHOCK HAZARD
• A U.L.-approved strain relief must be
installed onto power cord. If the strain
relief is not attached, the cord can
be pulled out of the dryer and can
be cut by any movement of the cord,
resulting in electrical shock.
• DO NOT use an aluminum wired
receptacle with a copper wired
power cord and plug (or vice versa).
A chemical reaction occurs between
copper and aluminum and can cause
electrical shorts. The proper wiring
and receptacle is a copper wired
power cord with a copper wired
receptacle.
NOTE
Dryers operating on 208 volt power supply
will have longer drying times than dryers
operating on 240 volt power supply.
The dryer, when installed, must be electri-
cally grounded in accordance with local
codes and the National Electrical code
ANSI/NFPA 70 or the Canadian Electrical
Code, Part 1, CSA C22.1.
18
Installation
Grounding requirements -
electric dryer (Canada)
Grounding requirements -
gas dryer
For a grounded, cord-connected
dryer:
1. The dryer MUST be grounded. In the
event of a malfunction or breakdown,
grounding will reduce the risk of
electrical shock by providing a path of
least resistance for electrical current.
2. Since your dryer is equipped with
a power supply cord having an
equipment-grounding conductor and
a grounding plug, the plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances. If in doubt, call a licensed
electrician.
3. DO NOT modify the plug provided with
this appliance. If it will not fit the outlet,
have a proper outlet installed by a
qualified electrician.
1. The dryer is equipped with a three-
prong (grounding) plug for your
protection against shock hazard
and should be plugged directly into
a properly grounded three-prong
receptacle.
2. The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances. If in
doubt, call a licensed electrician.
3. DO NOT modify the plug provided with
this appliance. If it will not fit the outlet,
have a proper outlet installed by a
qualified electrician.
WARNING
Improper grounding of the dryer may
cause serious injury or death. Check with
a licensed electrician if you are in doubt
as to whether the appliance is properly
grounded.
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
WARNING
Improper grounding of the dryer may
cause serious injury or death. Check with
a licensed electrician if you are in doubt
as to whether the appliance is properly
grounded.
19

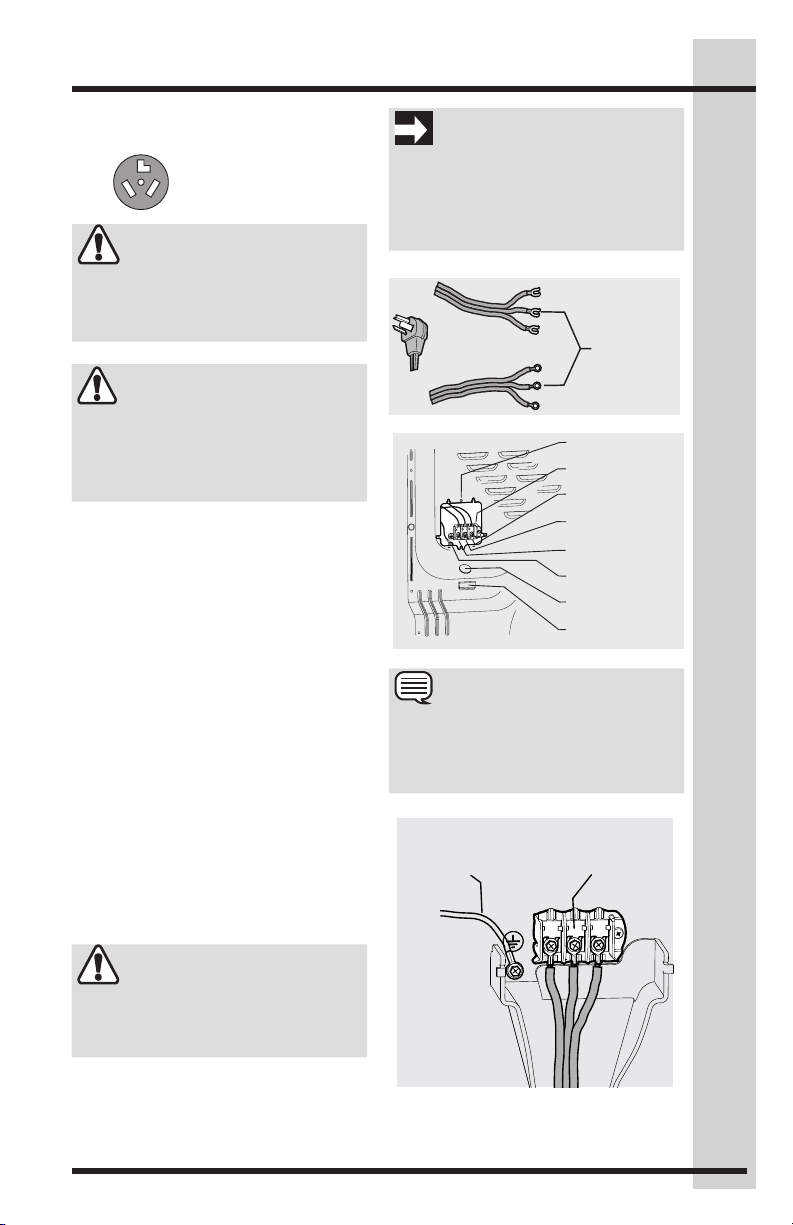

Electrical connection
(non-Canada) - 3 wire cord
Installation
1. Turn off power supply to outlet.
2. Remove the screw securing the
terminal block access cover in the lower
corner on the back of the dryer.
3. Install a UL-approved strain relief
according to the power cord/strain relief
manufacturer’s instructions in the power
cord entry hole below the
access panel. At this time, the strain
relief should be loosely in place.
4. Thread an UNPLUGGED, UL-approved,
30 amp. power cord, NEMA 10-30 type
SRDT, through the strain relief.
5. Attach the power cord neutral (center
wire) conductor to the SILVER colored
center terminal on the terminal block.
Tighten the screw securely.
6. Attach the remaining two power cord
outer conductors to the outer, BRASS
colored terminals on the terminal block.
Tighten both screws securely.
3-wire receptacle
(NEMA type 10-30R)
Access
Cover Screw
Terminal
Block
Line 2
(BRASS Terminal)
Neutral
(SILVER Terminal)
Line 1
(BRASS Terminal)
Internal Ground
(GREEN Screw)
Install UL-Approved
Strain Relief Here
Terminal Screw
Recovery Slot
Neutral
(center wire)
30 AMP
NEMA 10-30
7. Follow manufacturer’s guidelines for
firmly securing the strain relief and
power cord.
8. Reinstall the terminal block cover.
DO NOT remove
internal ground in
a 3-wire system!!
Neutral
terminal
NOTE
If a terminal screw falls during cord
installation, it can be retrieved in the
terminal screw recovery slot below the
access panel.
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source
before servicing could result in personal
injury or even death.
WARNING
ELECTRICAL SHOCK HAZARD
DO NOT make a sharp bend or crimp
wiring/conductor at connections.
IMPORTANT
If moving dryer from a 4-wire system and
installing it in a 3-wire system, move the
internal ground from the center terminal
back to the GREEN screw next to the
terminal block.
WARNING
ELECTRICAL HAZARD
Label all wires prior to disconnection when
servicing controls. Wiring errors can cause
improper and dangerous operation. Verify
proper operation after servicing.
20
Installation

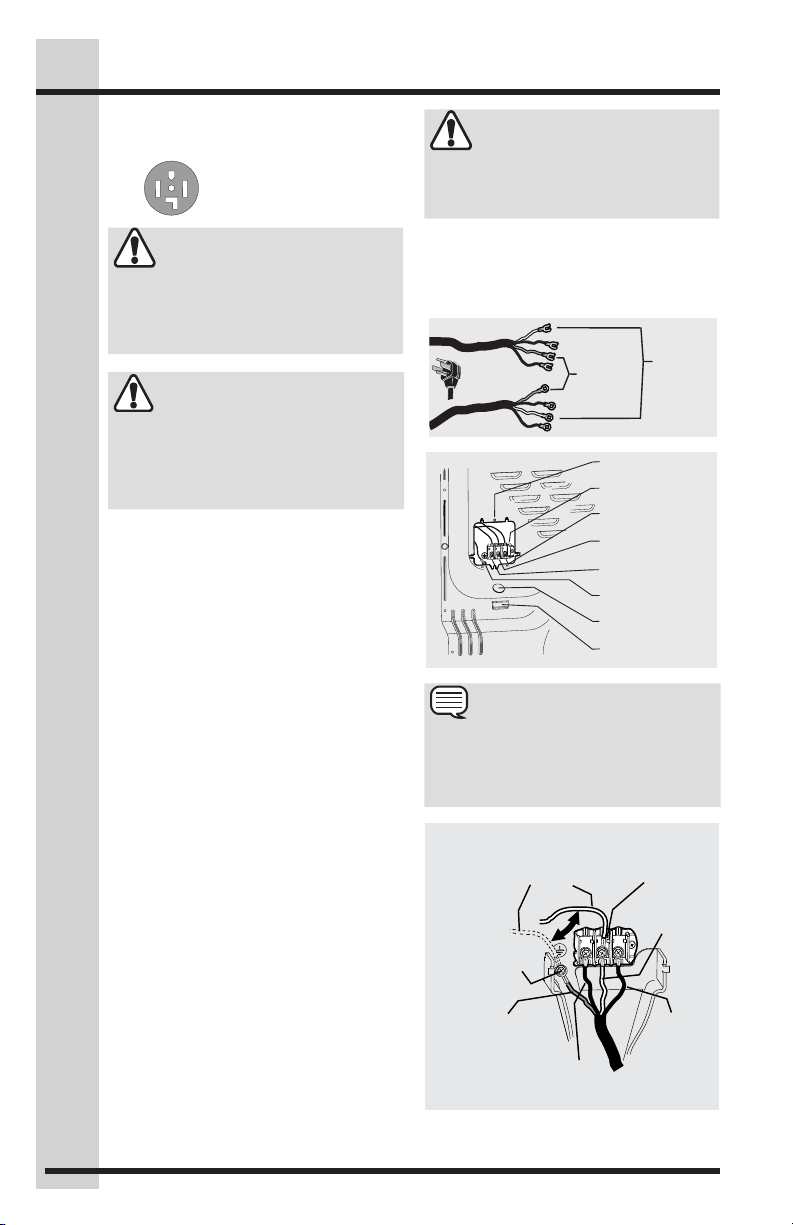

Electrical connection
(non-Canada) - 4 wire cord
Access
Cover Screw
Terminal
Block
Line 2
(BRASS Terminal)
Neutral
(SILVER Terminal)
Line 1
(BRASS Terminal)
Internal Ground
(GREEN Screw)
Install UL-Approved
Strain Relief Here
Terminal Screw
Recovery Slot
4-wire receptacle
(NEMA type 14-30R)
1. Turn off power supply to outlet.
2. Remove the screw securing the
terminal block access cover in the
lower corner on the back of the dryer.
3. Install a UL-approved strain relief
according to the power cord/strain
relief manufacturer’s instructions in
the power cord entry hole below the
access panel. At this time, the strain
relief should be loosely in place.
4. Thread an UNPLUGGED, UL-
approved, 30 amp. power cord, NEMA
14-30 type DRT or SRDT, through the
strain relief.
5. Disconnect the internal (WHITE) dryer
harness ground wire from the (GREEN)
ground screw next to terminal block.
6. Attach the ground (GREEN) power
cord wire to the cabinet with the
ground (GREEN) screw. Tighten the
screw securely.
7. Move the internal dryer harness ground
(WHITE) wire to the terminal block
and attach it along with the neutral
(WHITE) power cord wire conductor
to center, SILVER colored terminal on
the terminal block. Tighten the screw
securely.
8. Attach the RED and BLACK power
cord conductors to the outer, BRASS
colored terminals on the terminal block.
Tighten both screws securely.
Neutral
(WHITE
wire)
30 AMP
NEMA 14-30
Ground
(GREEN
wire)
9. Follow manufacturer’s guidelines for
firmly securing the strain relief and
power cord.
10. Reinstall the terminal block cover.
Move internal ground (WHITE)
wire to neutral (SILVER)
terminal for 4-wire system.
Neutral
terminal
GREEN
ground screw
BLACK or
RED power wire
BLACK
or RED
power wire
GREEN
ground wire
WHITE
neutral wire
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source
before servicing could result in personal
injury or even death.
WARNING
ELECTRICAL SHOCK HAZARD
DO NOT make a sharp bend or crimp
wiring/conductor at connections.
NOTE
If a terminal screw falls during cord
installation, it can be retrieved in the
terminal screw recovery slot below the
access panel.
WARNING
ELECTRICAL HAZARD
Label all wires prior to disconnection when
servicing controls. Wiring errors can cause
improper and dangerous operation. Verify
proper operation after servicing.
21
Installation

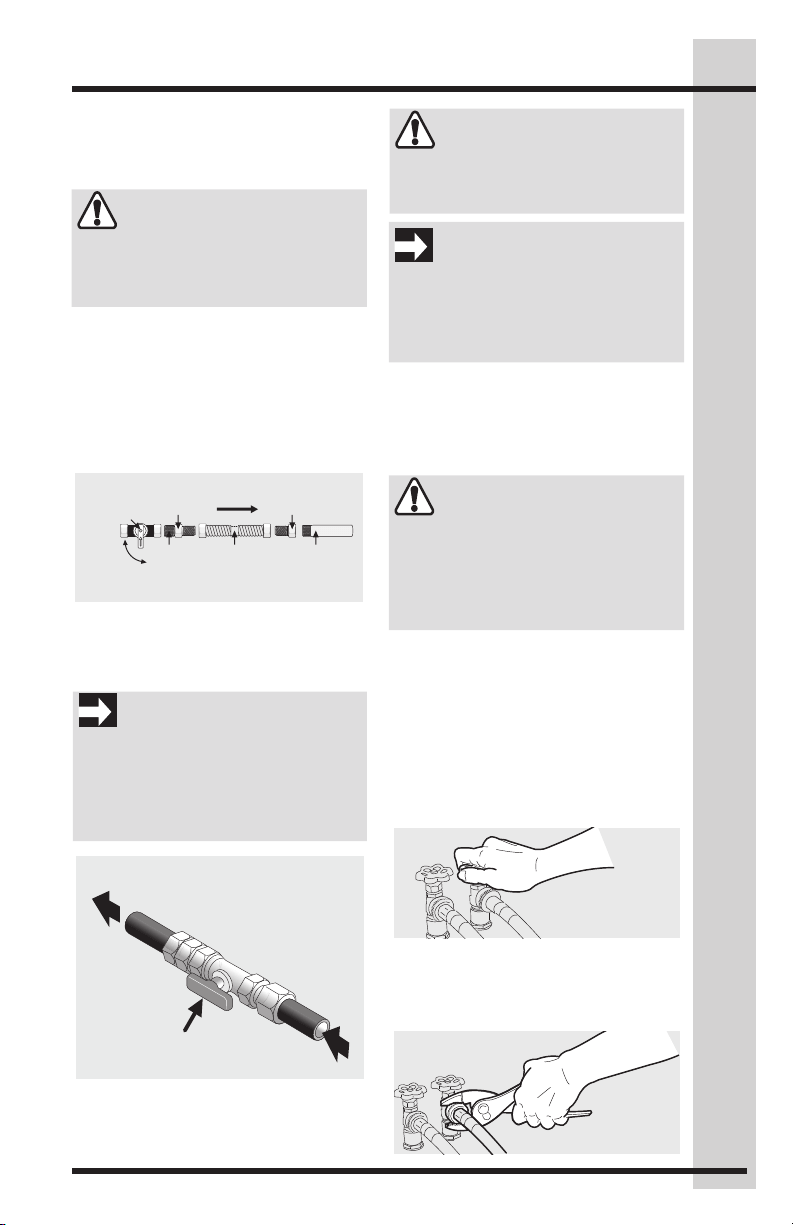

Connecting the gas
1. Remove the shipping cap from gas pipe
at the rear of the dryer.
2. Connect a 1/2 inch (1.27 cm) I.D.
semi-rigid or approved pipe from gas
supply line to the 3/8 inch (0.96 cm) pipe
located on the back of the dryer. Use
a 1/2 inch to 3/8 inch (1.27 cm to 0.96
cm) reducer for the connection. Apply an
approved thread sealer that is resistant
to the corrosive action of liquefied gases
on all pipe connections.
3. Open the shutoff valve in the gas supply
line to allow gas to flow through the
pipe. Wait a few minutes for gas to
move through the gas line.
All connections must be wrench-tightened
Flare
Union
Flare
Union
Manual
Shutoff
Valve
Closed
Open
Flexible
Connector
GAS FLOW
Inlet Pipe on
Back of Dryer
Nipple
Shutoff Valve - Open position
to dryer
from gas supply
4. Check for gas system leaks with a
manometer. If a manometer is not
available, test all connections by
brushing on a soapy water solution.
WARNING
DO NOT connect the dryer to L.P. gas
service without converting the gas valve.
An L.P. conversion kit must be installed
by a qualified gas technician.
WARNING
EXPLOSION HAZARD
NEVER test for gas leaks with an open
flame.
IMPORTANT
Installation to the gas service must
follow local codes and ordinances and
the latest edition of the National Fuel
Gas Code ANSI Z223.1/NFPA 54 or in
Canada, CSA B149.1.
IMPORTANT
The supply line must be equipped with an
approved manual shutoff valve. This valve
should be located in the same room as
the dryer and should be in a location that
allows ease of opening and closing. DO
NOT block access to the gas shutoff valve.
Connecting the water
(steam models only)
Water supply requirements
Cold water faucet MUST be installed within
42 inches (107 cm) of your dryer’s water
inlet. The faucet MUST be 3/4 inch (1.9 cm)
with threading for laundry hose connection.
Water pressure MUST be between 20 and
120 psi. Your water department can advise
you of your water pressure.
1. Turn off COLD water supply to washer.
2. Remove COLD inlet hose from COLD
water supply and inspect for rubber
washer. Replace washer if it is torn or
worn out.
WARNING
Periodically inspect all water inlet hoses
for water leaks, wear, cuts, corrosion and
bulges. Replace all hoses, if any sign of
the above is visible. All hoses should be
replaced every 5 years to reduce the risk
of hose failures.
22
Rubber Washers
MUST BE PRESENT
NOTE
If you were able to install the “Y”
connector directly to the COLD water
supply, please skip to step 8.
Installation
6. If there is not room to install the “Y”
connector directly, thread the short
extension hose on to the COLD water
supply and snug it by hand; then
tighten it another 2/3 turn with pliers.
4. Inspect hose couplings for proper
placement of rubber washers. Use
hoses from ASSEMBLY HOSE KIT#
5304495002 (not included).
3. Turn on COLD supply and run water to
clear any contaminants in the line.
7. Thread the “Y” connector to the short
extension hose and snug it by hand;
then tighten it another 2/3 turn with
pliers.
8. Connect the COLD inlet hose for the
washer to the “Y” connector and snug
it by hand; then tighten it another 2/3
turn with pliers.
9. Connect the straight end of the long
hose from the kit to the other outlet
on the “Y” connector and snug it by
hand. Connect the hose’s 90° coupling
to the brass water inlet on the back of
the dryer and snug it by hand. Tighten
each connection of the dryer inlet hose
another 2/3 turn with pliers.
10. Turn on the water and check for leaks
at all connections.
Cold Inlet Hose
to Washer
Rubber Washer
Must be Present
and Undamaged
Short Hose
Water Inlet
on Dryer
Cold Water Supply
Hose to Washer
“Y” Connector
5. If your installation has room for the
COLD water supply to accept the
“Y” connector directly, thread the “Y”
connector to the COLD water supply
and snug it by hand; then tighten it
another 2/3 turn with pliers.
23
Installation
Completing the installation
1. Connect the exhaust duct to the outside
exhaust system. Use of a 4” (102 mm)
clamp (item A) is recommended to
connect the dryer to the exhaust vent
system. Use metal foil tape to seal all
other joints.
2. Use a carpenter’s level to level your
dryer front-to-back and side-to-side.
3. Use adjustable pliers to adjust the
leveling legs so the dryer is level front-
to-rear and side-to-side, and stable
corner-to-corner.
CAUTION
When discarding or storing your old
dryer, remove the door.
IMPORTANT
Be sure the power is off at a circuit
breaker/fuse box before plugging the
power cord into an outlet.
4. Press down on alternate corners
and sides and feel for the slightest
movement. Adjust the appropriate
leg(s) so the dryer sits solidly on the
floor on ALL four legs. Keep the leveling
leg extension at a minimum for best
performance of the dryer.
NOTE
A wiring diagram and technical data
sheet are located under the dryer top
panel.
WARNING
Improper grounding of the dryer may
cause serious injury or death. Check with
a licensed electrician if you are in doubt
as to whether the appliance is properly
grounded.
WARNING
Do not store combustible materials,
gasoline, and other flammable vapors
and liquids near this dryer.
5. Plug the power cord into a grounded
outlet.
6. Turn on the power at the circuit breaker/
fuse box.
7. Read the Use & Care Guide provided
with the dryer. It contains valuable and
helpful information that will save you
time and money.
8. If you have any questions during initial
operation, please review the “Avoid
Service Checklist” in your Use & Care
Guide before calling for service.
9. Place these instructions in a location
near the dryer for future reference.
24
Screwdriver
with #2
square bit
Installation
Removing latch and hole plugs
1. Open the door.
2. Remove plastic hole plugs and save to
reinstall later. You may have to use a
non-scratching plastic knife if you are
unable to dislodge the plugs manually.
3. Remove both screws from door latch.
Save latch and screws for reinstallation
later.
x2
x2
NOTE
Door reversibility is available on all dryer models.
Plastic knife
Tools needed for reversal:
IMPORTANT
BEFORE YOU REVERSE YOUR DRYER
DOOR:
1. Be sure you have adequate swing area
before reversing door.
2. Gather your tools - including a screw
driver with a #2 square bit and plastic
knife (or small, flat prying tool that won’t
damage paint).
3. Be sure dryer is unplugged from power
source!
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing could result in personal injury or
even death.
Reversing the door
25
Installation
x2
x2

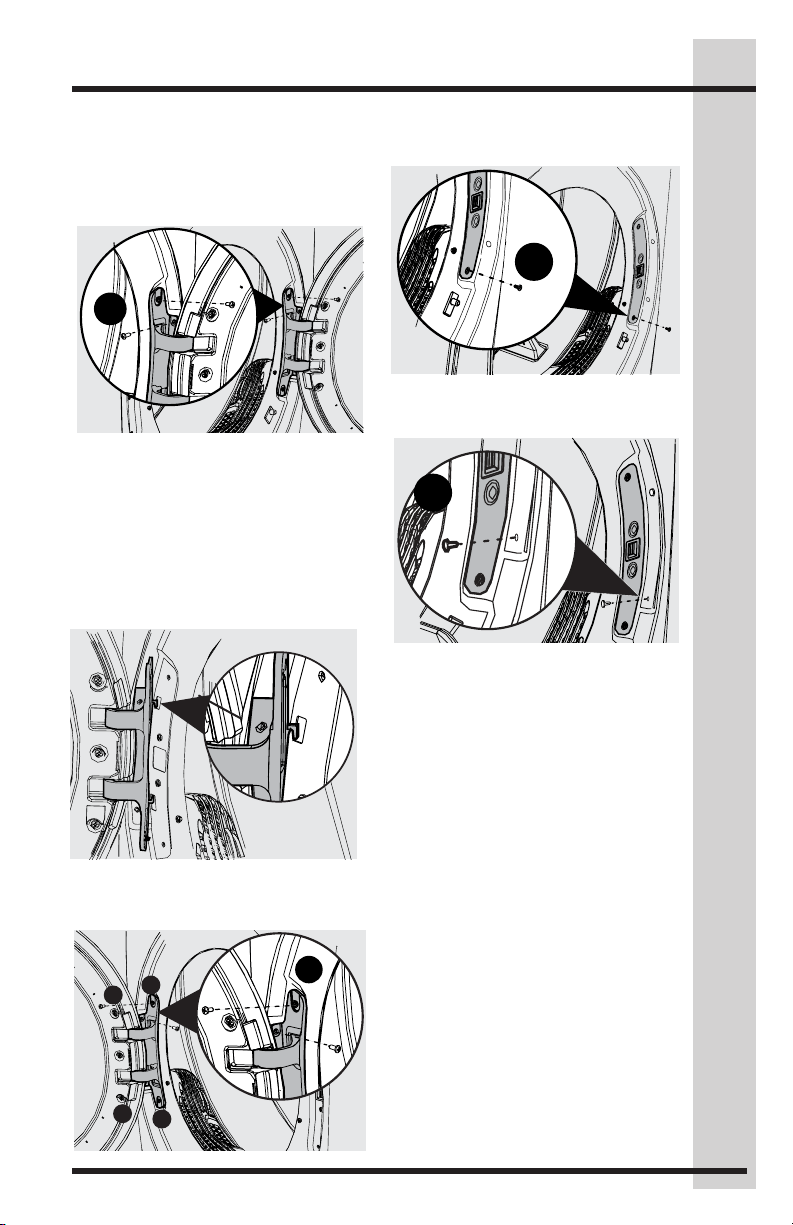

Reinstalling door assembly
1. Rotate the door and hang the upper
hook on the back of the hinge in the
upper hole of the front panel.
Reinstalling latch and hole plugs
1. Install door latch with screws removed
earlier.
Verify reversed door operation
1. Test door for free, smooth swinging
operation and secure latching when
closed.
2. Plug in dryer and close the door. Start
a test cycle: drum should tumble until
door is pulled open or cycle is paused
or canceled.
2. Reinstall and tighten all four screws
removed earlier - two front screws first,
then two side screws.
2. Insert plastic hole plugs removed earlier.
x4
1
2
3
4
Removing door assembly
1. Completely open the door to expose all
four hinge screws.
2. Remove all four hinge screws with #2
square bit driver. Save for reinstalling
later.
x4
3. Grasp the door with both hands and lift
slightly as you pull door and hinge away
from the front panel.
26
Model series
Controls and Settings
1
power
2
cycle LED display
3
cycle selector
4
temperature
5
dryness (dry level)
6
time dry (dry time)
7
options/select (set)
8
cancel
9
start/pause
This manual covers many models and not all cycles, options, or features listed are
available on every model. Consoles shown above for reference only. Your model may differ.
300 SERIES
400 SERIES
500 SERIES
600 SERIES
2
7
1 63 954 10
8
2 71 63 854 9
2
7
1 6 954 10
8
3
2 71 6 954 10
8
3
27
Controls and Settings
These temperature, dryness levels and options are available with the
following cycles:
dry time
heavy duty
towels
normal
delicates
temperature (temp)
high
normal
air dry
dry level (dryness)
high
normal
damp
dry time (dry time)
auto
60 min
30 min
options
wrinkle release
eco
control lock
press & hold chime
= Available selections.
= Factory presets. = Non-modifiable presets.
Setting chart - 300 series dryer
CYCLE SELECTIONS
CYCLE SETTINGSCYCLE OPTIONS
28
Controls and Settings
These temperature, dryness levels and options are available with the following cycles:
heavy
duty
towels
normal
20
min
fast dry
delicates
mixed
load
time dry
temperature (temp)
high
normal
low
air dry
dry level (dryness)
high
normal
less
damp
dry time (dry time)
auto dry
60 min
45 min
30 min
options
perfect steam™
wrinkle release
eco
delay time
press & hold chime
control lock
= Available selections.
= Factory presets. = Non-modifiable presets.
Setting chart - 400 series dryer
CYCLE SELECTIONS
CYCLE SETTINGSCYCLE OPTIONS
29
Setting chart - 500 series dryer
These temperature, dryness levels and options are available with the following cycles:
heavy/
towels
normal
active-
wear
mixed
load
18
min
fast dry
delicates
time dry
instant
refresh
temperature (temp)
sanitize
high
normal
low
air dry
dry level (dryness)
max
high
normal
less
damp
dry time (dry time)
auto dry
75 min
60 min
45 min
30 min
options
anti-static
perfect steam™
wrinkle release
extended tumble
eco
delay time
press & hold chime
control lock
= Available selections.
= Factory presets. = Non-modifiable presets.
Controls and Settings
CYCLE SELECTIONS
CYCLE SETTINGS
CYCLE OPTIONS
30
Controls and Settings

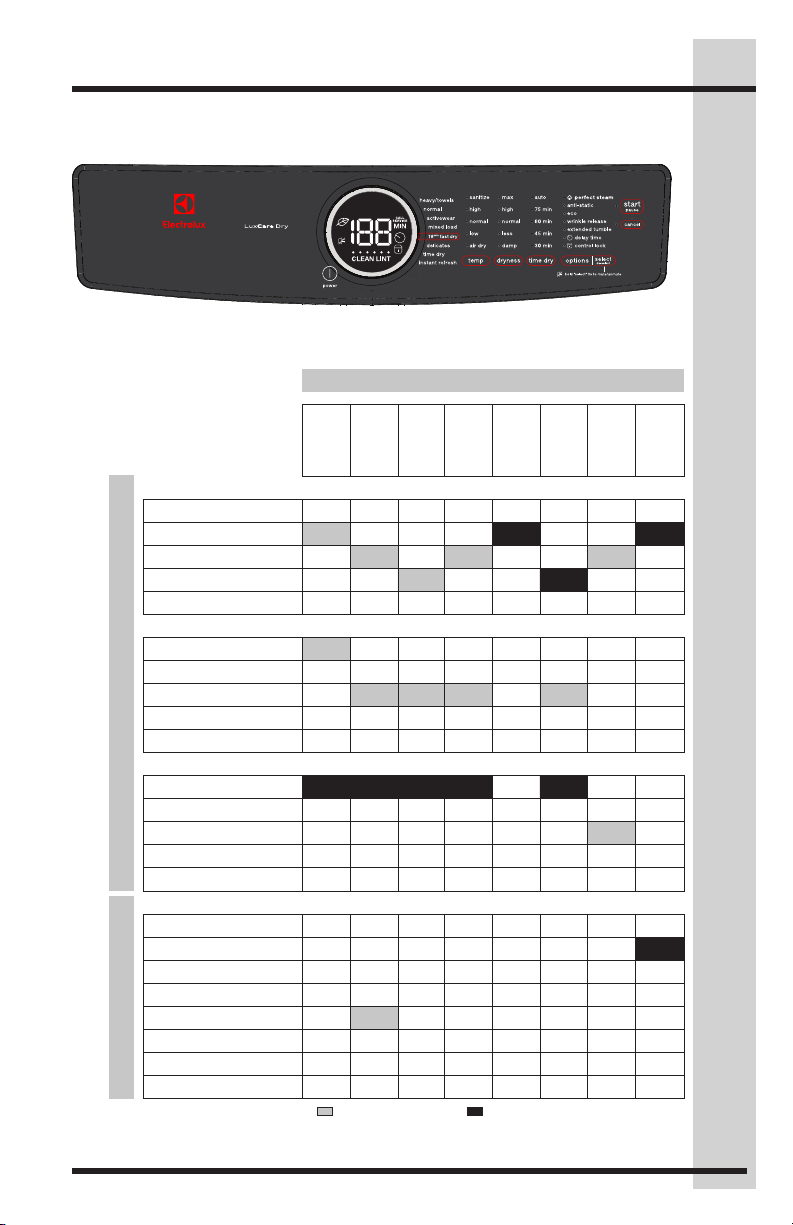

Setting chart - 600 series dryer
These temperature, dryness levels and options are available with the following cycles:
heavy/
towels
allergen
normal
active-
wear
mixed
load
15
min
fast dry
delicates
time dry
instant
refresh
temperature (temp)
sanitize
high
normal
low
air dry
dry level (dryness)
max
high
normal
less
damp
time dry (dry time)
auto dry
75 min
60 min
45 min
30 min
options
anti-static
perfect steam™
wrinkle release
extended tumble
eco
delay time
press & hold chime
control lock
= Available selections.
= Factory presets. = Non-modifiable presets.
CYCLE SELECTIONS
CYCLE SETTINGS
CYCLE OPTIONS
31
Press the power button to turn on the
unit. Turn the cycle selector in either direc-
tion or repeatedly press the cycles button
(depending on your model) to scroll to the
desired cycle. The indicator light for the
cycle selected will be illuminated and the
estimated drying time for Auto Dry cycles or
the actual drying time for Time Dry cycles
will be displayed on the LED display screen.
Default settings and options will automati-
cally be indicated for the cycle selected. In
most cases cycle settings and options can
be changed. See
Cycle Settings, Cycle Op-
tions,
and
Setting Charts
for more details.
To change the cycle once it has begun,
press the cancel button before select-
ing a new cycle. Just turning the cycle
selector ring or pressing the cycles
button WILL NOT change the cycle.
Auto dry cycles
Auto dry cycles take the guesswork out of
selecting the correct drying time for each
load. Moisture sensors sense the moisture
level of the load as it tumbles through the
heated air. With auto dry cycles, the load
will automatically be dried at the selected
temperature to the desired dryness level.
Auto dry cycles save time and energy and
protect fabrics. When the load has reached
the selected dryness level, it will continue to
tumble, unheated, during a cool down pe-
riod. This helps reduce wrinkling and makes
items easier to handle during unloading.
Controls and Settings
Selecting the right cycle to save energy
This dryer has been specifically designed with options to help you save energy and at
the same time utilize the optimal drying setting for your clothing.
The normal cycle was used to rate the dryer for energy efficiency. The
normal cycle defaults to normal temperature setting, normal dryness level
and eco mode option (if available).
Some cycles save more energy than others. Cycles that use the least amount of heat
save the most energy. Use the lowest heat setting (auto and timed dry cycles) and less
dry setting (auto dry cycles) to save on energy and prevent over drying your clothing.
NOTE
Initial cycle times for auto dry cycles are
only estimates, the actual drying time
may differ slightly from the time displayed.
Cycle selection
Drying times vary depending on size and
dampness of the load and fabric type. If
the load is too small or almost dry, the
moisture sensors may not detect enough
moisture to continue the cycle and the
cycle may end after a few minutes. If this
NOTE
Models equipped with the Predictive Dry
feature use the first 90 seconds of Auto
Dry cycles to sense the load in the dryer.
During this 90 second period
the LED display will show 3 dots
(
) cycling one to the next. When
the sensing is complete, the LED display
will show the remaining cycle time in min-
utes and will accurately count down to the
end of the cycle.
occurs, then select the time dry cycle to
dry such loads.
Room temperature and humidity, type of
installation and electrical voltage or gas
pressure can also affect drying time.
heavy duty (on select models)
Select this cycle to dry durable fabrics
such as jeans and overalls.
towels (on select models)
Select this cycle to dry heavy loads such as
towels and non-rubber-backed bath mats.
heavy/towels (on select models)
Select this cycle to dry heavy loads and
durable fabrics such as towels, jeans and
overalls.
allergen (on select models)
Select this cycle where you wish to reduce
allergens as you dry your load. Items prone
to heat damage are not recommended for
this cycle.
normal
Select this cycle to dry everyday fabrics
including cottons, linens and sheets.
activewear (on select models)
Select this cycle to dry lightweight synthetic
athletic apparel including stretch fabrics.
delicates
Select this cycle to dry knits and delicates.
mixed load (on select models)
Select this cycle to dry loads containing a
mix of fabrics.
32
Controls and Settings
Follow the fabric care label in-
structions on items to be dried.
For best results
To change the temperature, press the temp
button to scroll to the desired setting.
Drying temperature (temp)
time dry
Select this cycle to manually set the drying
time from 30 to 75 minutes (depending on
model) for any load.
20
min
fast dry (400 series model)
Select this cycle to quickly dry small loads
in 20 minutes.
18
min
fast dry (500 series model)
Select this cycle to quickly dry small loads
in 18 minutes.
15
min
fast dry (600 series model)
Select this cycle to quickly dry small loads
in 15 minutes.
instant refresh (on select models)
Select this cycle to refresh fabrics, remove
odors and reduce static by injecting the
perfect amount of steam into clothing that
has been left in the dryer, stored in crowded
closets, drawers, or unpacked luggage.
NOTE
It is not recommended to use fabric softener
sheets with steam cycles or steam options
as it may cause staining on clothes.
NOTE
To change a cycle setting once the
cycle has begun, press the start/pause
button, make the new selection and
press start/pause again.
sanitize (on select models)
Recommended for durable fabrics and tow-
els. Use this selection to remove harmful
bacteria from your clothing or other items
where sanitization is desired. This option will
kill 99.9% of bacteria. A higher temperature
is required to kill bacteria. Please check fab-
ric care labels to prevent damage.
high
Recommended for most cotton fabrics.
normal
Recommended for wrinkle free, easy care,
lightweight fabrics and bulky loads.
low (on select models)
Recommended for delicate fabrics.
air dry
This setting (no heat) should only be used
with a time dry cycle to dry items contain-
ing feathers, down, foam rubber, plastics
or rubber-like materials; to refresh clothing,
stuffed animal, pillows or blankets; and to
dust draperies.
To return to factory settings,
press the dryness and options
buttons at the same time and hold
until the signal sounds.
Cycle settings
To set or change the drying temperature,
dryness level, or drying time press the temp,
dryness or time dry buttons to scroll to the
desired settings. The indicator light for each
setting will be illuminated when selected.
With exception of the sanitize temperature
setting and the perfect steam
tm
option,
adjustments made to cycle settings and op-
tions will be remembered and recalled each
time that cycle is selected in the future.
WARNING
FIRE HAZARD
To avoid fire hazard, DO NOT use heat
to dry items containing feathers or down,
foam rubber, plastics similarly textured,
rubber-like materials. Use the time dry
cycle and the air dry (no heat) setting.
To protect your fabrics, not all tempera-
tures or dryness levels are available with
every cycle. If a temperature or dryness
level is not appropriate for the cycle, it
cannot be selected and will not be lit when
scrolling through the settings.
Timed dry cycles
The timed drying cycles allow the selection
of exact drying times. The time dry cycle
allows the option to select drying time
settings ranging from 30 to 75 minutes
(depending on the model). Various drying
times and temperature settings can be
selected when using this cycle.
The fast dry cycles (on select models)
have preset times of 15, 18 or 20 minutes
(dependent on model) with a preset tem-
perature of high only.
Dryness levels will not be an available option
when using either of the timed drying cycles.
33
Controls and Settings
Cycle options
To select an option, press options and
scroll though the options until the indicator
light for the desired option flashes, then
press select (set). The indicator will illumi-
nate when the option has been selected.
Follow the same steps to deselect an
option. The indicator light will turn off when
the option is deselected.
NOTE
To change a cycle option once the cycle
has begun, press the start/pause
button, make the new selection and
press start/pause again.
perfect steam
TM
(on select models)
The perfect steam
TM
option injects steam
into the clothing prior to cool down to
reduce wrinkling, ironing and static cling.
NOTE
It is not recommended to use fabric
softener sheets with steam cycles or steam
options as it may cause staining on clothes.
options
select
de-select
To protect your fabrics, not all options are
available with every cycle. If an option is
not available for a cycle, the indicator will
not light.
Occasionally, two options or settings in the
same cycle will conflict with each other, like
anti-static (on select models)
The anti-static option injects steam into
the clothing just before cycle completion to
reduce static.
eco
The eco option reduces the dry-
ing temperature a few degrees
to save energy. In conjunction
with automatic moisture sensors, cycle
times will increase slightly, but overall en-
ergy usage will decrease. The eco icon will
illuminate on the LED display to indicate
the eco option is activated.
wrinkle release
The wrinkle release option helps prevent
wrinkles and tangling by tumbling the dry
load without heat for 5 minutes out of every
10 minutes. The 5 minutes on and 5 min-
utes off is repeated for a total 45 minutes.
A chime will sound after each tumble as a
reminder to remove the dried load.
extended tumble (on select models)
Select the extended tumble option if the
dried load might not be removed promptly
at the end of the cycle. The dried load will
tumble continuously without heat for 30
minutes. A chime will sound periodically to
remind you to remove the dried load.
NOTE
When extended tumble and wrinkle
release options are both selected the
amount of time the load will tumble with-
out heat will increase to a period of up to
75 minutes.
Dryness level (dryness)
To set or change the dryness level, press
the dryness button to scroll to the desired
setting.
The dryness levels include max (on select
models), high, normal, less (on select
models), and damp. Most Auto Dry cycles
default to the normal dryness level.
Occasionally a load may seem too damp
or over-dried at the end of the cycle. To
increase drying time for similar loads in the
future, select high or max (on select mod-
els). To decrease drying time for similar
loads, select less (on select models).
Select damp for items you wish to partially
dry before hanging or ironing.
Drying time (time dry)
Manually select or change the drying time
for a time dry cycle (on select models)
by pressing the time dry button to scroll
though the available options. Time dry
options include 30, 45, 60 and 75 minutes
(dependent on model).
The auto selection is a default for all auto
dry cycles and fast dry cycles and can-
not be selected or changed. All actual or
predicted dry times will count down on the
LED display.
delay time (on select models)
Use delay time to delay the
start of the drying cycle to a time
convenient to your schedule or
eco option and sanitize temperature (on
select models). When this happens, the
option selected first will cause the conflict-
ing option to not be selectable.
34
Controls and Settings
Other features
LED display
chime
A signal will sound at the end of the cycle
(and periodically during extended tumble
or wrinkle release). To mute or unmute
the chime, press and hold the select
button for 3 seconds.
Muting the end of cycle signal will not
mute the button tones.
options
select
de-select
hold ‘select’ 3 s to mute/unmute
NOTE
For step-by-step instructions on door
reversal, refer to the installation sections
of this manual.
WARNING
Clean the filter after every load. A
CLEAN LINT message will appear on
the LED display at the end of the cycle
to remind you to remove the lint from
the filter.
LuxCare
TM
Lint Shield filter
The dryer is equipped with a clamshell
style LuxCare
TM
Lint Shield filter.
control lock
To lock the controls between cycles,
scroll to the control lock option and
press select. The control lock icon
will show on the LED display. To unlock the
controls scroll to the control lock option again
and press select. Use this feature to reduce
the likelihood of accidental operation by
children. Dryer cycles will not run when
Control Lock is activated.
The estimated cycle time for auto dry,
the actual time for time dry, or the delay
time countdown will be displayed when
the cycle is selected. Once the cycle has
started, the estimated remaining time
will be displayed for the remainder of the
cycle.
As the dryer progresses through the cycle
phases, the row of cycle phase indicators
lights up under the cycle time.
Delay time, eco, control lock, mute
icons (select models) and CLEAN LINT
will also appear on this LED display when
activated.
Drum light (on select models)
The drum light will come on whenever
the door is opened to illuminate the drum
during loading and unloading. Closing the
door turns off the light. The drum light will
automatically turn off if the door is left open
more than 3 minutes.
Reversible door
The dryer is equipped with a reversible
door. The door can be hinged on the right
or left side.
NOTE
While counting down during delay time,
you will notice your dryer periodically
tumbling for a few minutes without heat
to redistribute the load, maximizing load
freshness.
during off-peak energy hours. The start of
any cycle can be delayed for 30 minutes to
12 hours. After selecting the delay time op-
tion, use the cycle button (models 300/400)
or the cycle selector (models 400/500) to
scroll to the desired delay time and press
start. The delay time icon will illuminate
on the LED display to indicate the delay
time option is activated, The delay time
will begin counting down on the LED display
once activated.
Icons may vary according to model.
35
If rack is in separate pieces, press tabs
down and insert rear into front.
Insert rack until
tabs click.
After use, press
tabs down and
collapse rack for
storage.
NOTE
The drying rack accessory should only
be used with time dry cycles. Use of
rack with auto dry cycles will result in
a shortened cycle with unwanted drying
results.
Controls and Settings
Optional drying rack
(not included)
Use the drying rack for items which should
not be tumble dried. Extend the collapsed
drying rack and insert the rack into the
dryer drum. Place the front legs into the
front air grill and lower the rear of the rack
onto the back of the dryer drum.
Place items to be dried on top of the rack,
leaving space between items and not
allowing them to hang over the sides or
through the holes. The weight should not
exceed 10 lbs (4.5 kg).
Select the air dry setting for items con-
taining plastic, foam rubber, rubber-like
materials, feathers or down. When items
are dry, remove the rack and store it in a
convenient location.
Assemble the drying rack
Installing drying rack
Front legs in
side of grill
Rear legs
on drum
backsheet
Back-
sheet
of dryer
drum
Install the drying rack
NOTE
For step-by-step instructions cleaning
the lint filter, refer to
Cleaning the Filter
in
the Care and Cleaning
section of this Use
& Care Guide.
36

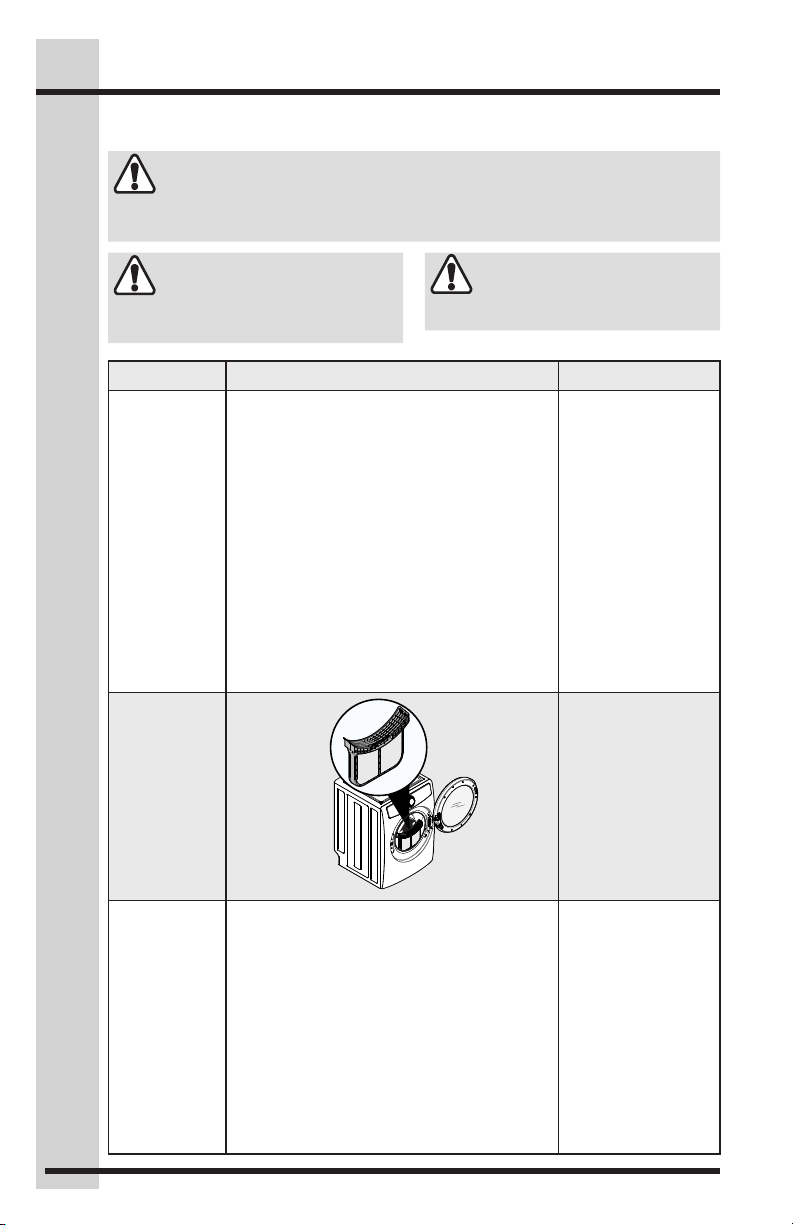

Operating Instructions
WARNING
DO NOT operate dryer without lint filter
in place.
STEPS TIPS IMPORTANT
1. Prepare
load for
drying.
• Dry items of similar fabric, weight and
construction in the same load.
• Separate dark items from light-colored
items. Separate items that shed lint from
those that attract lint.
• Check for stains which may not have been
removed in washing. Repeat stain removal
process and wash again before drying. Dryer
heat may permanently set some stains.
• Place delicate, rubber coated, or small items
in a mesh bag (not included).
• Be sure buckles, buttons and trim are
heatproof and won’t damage the drum
finish. Close zippers; fasten hooks and loop
fasteners. Tie strings and sashes to prevent
snagging and tangling.
DO NOT machine
wash items
containing fiberglass.
Small particles of
fiberglass left in
drum may transfer
to fabrics in other
loads and cause
skin irritation and/or
damage to fabrics.
DO NOT wash
water resistant and
water repellent type
clothing or other
materials.
2. Check that
the lint filter
is clean and
in place.
DO NOT operate
dryer without lint filter
in place.
3. Load the
dryer and
close the
door.
• Load items loosely. The average wet load
will fill the drum 1/3 to 1/2 full. Items need
room to tumble freely for even drying and
less wrinkling.
• If desired, place a dryer fabric softener sheet
on top of the load at the beginning of the
cycle.
• When drying large items, dry only two or
three items at a time. Fill out the load with
smaller items.
• For delicate or very small loads, add two
or three similar items to improve tumbling
action.
DO NOT overload
the dryer. To save
energy, time and
avoid uneven drying
and wrinkling avoid
overloading the dryer.
DO NOT over-dry.
Over-drying can
cause wrinkles,
shrinkage, lint, and
a build up of static
electricity.
Operating the dryer
WARNING
Clean the lint filter after every load.
WARNING
To reduce the risk of fire, electric shock or injury to persons, read the Important Safety
Information in this
Use & Care Guide
before operating your dryer.
37
Operating Instructions
STEPS TIPS IMPORTANT
4. Select the
appropriate
cycle and
settings for
each load.
• See
Cycle Selection
and
Cycle Settings
for
detailed descriptions of cycle controls.
• See
Cycle Setting Charts
to determine which
settings are available for each cycle.
• To provide the best care, not every setting
or option is available with every cycle. If a
setting or option is not available for the cycle
selected, the indicator will not light. See
Setting Chart
for information of available
options for each cycle by model.
• Adjustments made to most cycle settings will
be remembered and recalled each time that
cycle is selected in the future. To return to
factory settings, press the dryness button
and the options button at the same time
and hold until the signal sounds.
Over-drying can
cause wrinkles,
shrinkage, lint,
harshness, and a
build up of static
electricity.
To prevent
unintentional and
accidental exposure
of delicate material
to excess heat
or unexpected
steam, the sanitize
temperature setting
and the perfect
steam™ option will
not be remembered
and must be
reselected each time.
5. Close the
dryer door
and start
the drying
cycle.
• To start the drying cycle, close the door and
press the start/pause button.
• To add an item to the dryer drum, press
start/pause. Add the item, close the door
and press start/pause to resume the cycle.
• To change settings or options after the cycle
has begun, press start/pause, change the
settings, and then press start/pause. If the
cycle is not paused first, the unit will emit
several beeps when the buttons are pressed
but no changes to the cycle will be applied.
• To change the cycle once the cycle has
begun, press cancel to cancel the cycle,
select the new cycle, and press start/pause
to begin the new cycle. Changing a cycle
selection without cancelling the current WILL
NOT change the cycle.
• To cancel a cycle, press cancel.
The dryer WILL NOT
operate with the door
open.
When drying a single
large or bulky item,
such as a comforter,
pause the cycle part
way through to turn
the item “inside out”
and maximize drying
effectiveness.
6. Remove
items when
done.
• A signal will sound at the end of the cycle if
the chime option is not set to mute.
• Immediately remove items when the cycle is
completed and hang or fold.
See product
manufacturer’s
instructions.
7. Clean the
lint filter.
• See
Care and Cleaning
section of this
instruction.
• CLEAN LINT will be displayed at the end of
the cycle as a reminder to remove lint from
filter.
ALWAYS REMOVE
LINT at the end
of the cycle
(see warning on
previous page).
To return to factory settings,
38

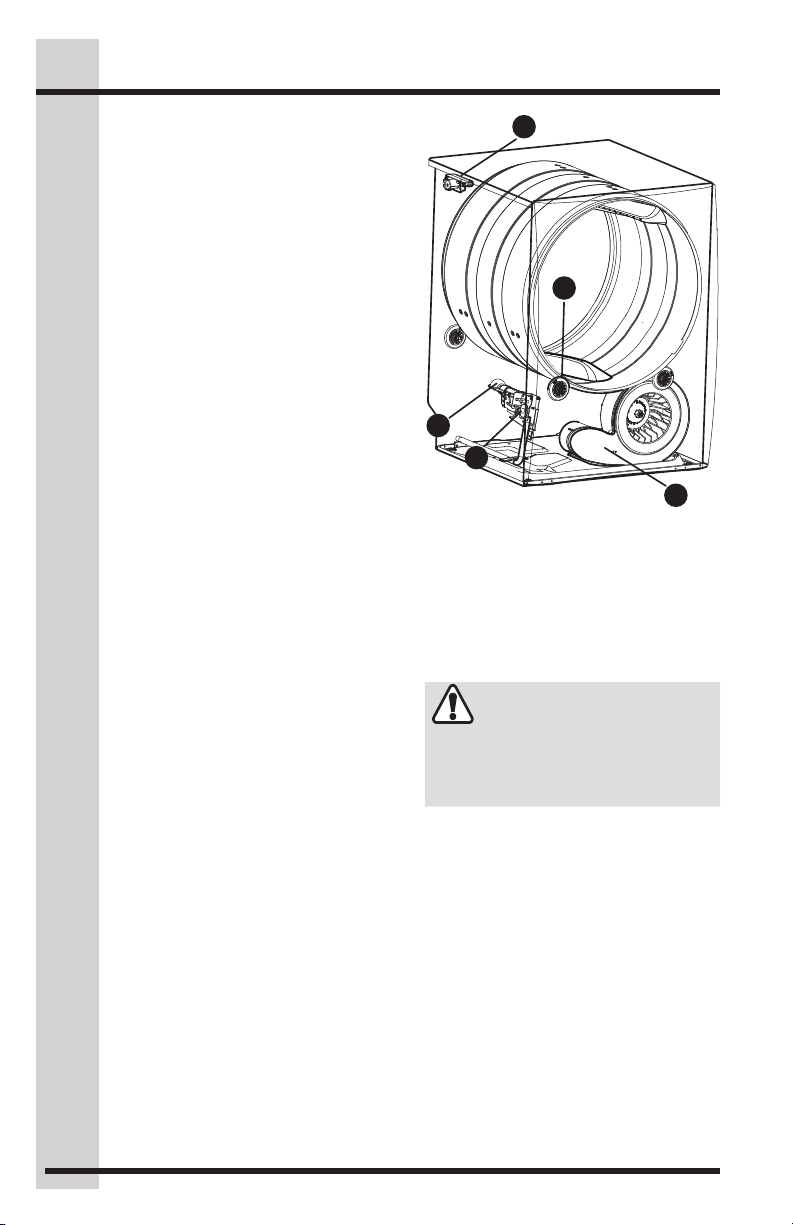

Normal Operating Sounds
Normal operating sounds
B
C
D
E
A
You may or may not hear the following
sounds from your new dryer:
A. WATER VALVE (Steam models only.)
The flow of water is controlled by
electric solenoids. During operation
there may be a clicking sound as the
valve opens and closes to control the
water flow.
B. SUSPENSION ROLLERS The
dryer drum is supported by a set of
suspension rollers. At times there may
be a thumping or rolling sound when
the dryer starts. This may happen if the
dryer has not been in use for a period of
time, or after a heavy load has remained
in the dryer drum for an extended
period, creating a temporary flat spot on
the edge of the roller. The noise should
dissipate as the dryer operates and the
flat spots smooth out.
C. AIR FLOW SYSTEM Your dryer
is equipped with a high volume air
handling system. In some installations
there may be some sounds associated
with air movement throughout the
dryer, including the air duct, blower, and
exhaust system. This is normal and can
vary with load size and type.
D. GAS VALVE (Gas models only.) The
flow of gas is controlled by electric
solenoids. During operation there may
be a clicking sound as the valve opens
and closes to control the gas flow.
E. GAS BURNER (Gas models only.)
When the burner is operating, there may
be sounds generated as the air flow
mixes with the gas flame. This noise is
normal and will only occur when the gas
is ignited in the combustion tube.
Before operating your
dryer
Read the important instructions in this
section of the
Use & Care Guide
before
operating your dryer.
WARNING
To reduce the risk of fire, electric shock or
injury to persons, read the Important Safety
Information in this
Use & Care Guide
before
operating your dryer.
39
Care and Cleaning
Inside
• Occasionally a waxy build-up may form
on the lint filter and/or moisture sensing
bars from using dryer-added fabric
softener sheets. To remove this build-up,
wash them with warm, soapy water. Dry
the filter thoroughly and replace. DO
NOT operate the dryer without the lint
filter in place.
• If the dryer drum becomes stained from
non colorfast fabrics, clean the drum
with a damp cloth and a mild liquid
household cleanser. Remove cleanser
residue before drying the next load.
• Before cleaning the dryer drum interior,
unplug the electrical power cord to avoid
electrical shock hazards.
• DO NOT use any type spray cleanser
when cleaning the dryer interior. Hazard-
ous fumes or electrical shock could occur.
• Every 18 months a qualified service
professional should clean the dryer
cabinet interior, lint screen housing
and exhaust duct. These areas can
collect lint and dust over time. An
excessive amount of lint build-up
could result in inefficient drying and
possible fire hazard.
WARNING
To reduce risk of fire or serious injury to
persons or property, comply with the
basic warnings listed in the Important
Safety Information and those listed
below.
Outside
• Clean the dryer cabinet with mild soap
and water. Never use harsh, gritty or
abrasive cleansers.
• If the cabinet becomes stained, clean
with diluted chlorine bleach (1 part
bleach to 8 parts water). Rinse several
times with clear water.
• Remove glue residue from tape or labels
with a mixture of warm water and mild
detergent. Or, touch residue with the
sticky side of the tape or label.
WARNING
Clean the lint filter after every load.
CLEAN LINT will be displayed at
the end of the cycle to remind you to
remove lint from the filter.
Cleaning the filter
IMPORTANT
• DO NOT open the clamshell filter
beyond the hinge limit.
• ALWAYS handle the clamshell filter by
the frame, not by the mesh material.
Clean the lint filter after every load. Lint
build-up on the filter restricts air flow, which
causes longer drying times. The filter is
located at the bottom of the door opening.
2. Press down the center tab on the top
of the filter to open the clamshell.
3. Gently clean the lint from the filter.
1. Remove the filter by pulling it straight up
from the dryer.
Cleaning the LuxCare
TM
Lint Shield
filter
4. Snap the filter closed and place back
into the dryer.
40
Care and Cleaning
Rubber Washers
Must Be Present
USE ONLY
NEW HOSES
1. Turn off the water supply to dryer (steam
models only) to avoid water leaks due to
water pressure surges and unforeseen
occurrences in the water supply.
2. Disconnect or unplug the electrical
power to the dryer.
1. Review the installation instructions
provided with the dryer to ensure the
appliance is level and the water and
electrical power supply is properly
connected.
2. Ensure the water lines are flushed of
debris, prior to connecting the water
lines to the dryer inlet.
3. Check for water leaks and replace
supply hoses if needed.
Limited use, vacation,
and away from home
Reconnecting water
supply and electrical
Water inlet hose
inspection (steam models only)
Periodically inspect all water inlet hoses
for water leaks, wear, cuts, corrosion and
bulges. Replace all hoses, if any sign of
the above is visible. All hoses should be
replaced every 5 years to reduce the risk
of hose failures. When replacing hoses,
refer to the installation instructions for
proper installation. DO NOT overtighten
CAUTION
Your dryer should be operated ONLY
when you are home. If you are away
from home or not using your dryer for
extended periods of time, follow these
steps:
IMPORTANT
When reinstalling the dryer after
disconnecting the water supply lines
(steam models only) and electrical
power, please follow the steps below:
IMPORTANT
DO NOT store or place laundry products
on top of dryer at any time. They can
damage the finish or controls. It is
recommended to keep laundry products
in the storage drawer between cycles if
installed on a pedestal.
WARNING
FIRE HAZARD
A clothes dryer produces combustible
lint. The dryer must be connected to an
outdoor exhaust. Regularly inspect the
outdoor exhaust opening and remove
any accumulation of lint around the
opening and in the surrounding area.
or cross thread the fittings. DO NOT allow
the hose to rub against sharp objects. Al-
ways ensure the hose fitting rubber gasket
is installed and free from water leaks when
water pressure is applied.
• When cleaning chrome parts, it is best
to use only a damp cloth.
• Before moving the dryer, place a strip of
cardboard or thin fiberboard under the
front leveling legs to prevent damage to
the floor.
41
Troubleshooting
Common drying inquiries
Many drying problems involve poor cleaning results, poor soil and stain removal, resi-
dues of lint and scum, and fabric damage. For satisfactory drying results, follow these
suggestions provided by The Soap and Detergent Association.
PROBLEM POSSIBLE
CAUSES
SOLUTIONS PREVENTIVE
MEASURES
Greasy, oily
stains
• Fabric softener
sheet
• Rub fabric softener
stains with bar soap.
Rinse and rewash.
• Add a few bath towels
to small loads for proper
tumbling.
• Some “silk-like” fabrics
should be air dried.
• Use proper drying tem-
perature.
• Place fabric softener
sheet on top of load
before starting the dryer.
Lint • Overloading
• Overdrying
causes static
electricity
• Lint screen not
clean when cycle
began
• Lint is attached
to “pills”
• Reduce load size
and rewash using
liquid fabric softener
in the final rinse.
• Or, add a fabric
softener sheet and
tumble without heat.
• Use lint brush or
roller to remove lint.
• DO NOT overload dryer.
• Use fabric softener in
washer or dryer to re-
duce static electricity.
• Remove items when
they are slightly damp to
avoid overdrying.
• Check that lint filter is
clean and in place.
Pilling
(fibers break
off, ball up
and cling to
fabric)
• Overdrying • Use a lint brush or
shaver to remove
pills.
• Use fabric softener to
lubricate fibers.
• When ironing, use spray
starch or fabric finish on
collars and cuffs.
• Turn items inside out to
reduce abrasion.
Shrinking • Temperature too
high
• Overdrying
• Irreversible
condition.
• Follow fabric care label
directions.
• If shrinking is a concern,
check load often.
• Remove items while
slightly damp and hang
or lay flat to complete
drying.
• Block knits into shape.
Wrinkling • Overloading
• Leaving items in
dryer after cycle
ends
• Reduce load size
and tumble at me-
dium or low heat for
5-10 minutes.
• Remove items im-
mediately. Hang or
fold.
• DO NOT overload dryer.
• Remove items as soon
as cycle ends.
Isolated wet
spots on
fabrics after
completed
Steam cycle
• Low water pres-
sure in home is
not sufficient to
atomize incom-
ing water during
steam cycle
• Check water line
pressure.
• Ensure water line pres-
sure is minimum of 20
psi. DO NOT exceed
120 psi.
42
Troubleshooting
Before calling
Before calling for service, review this list. It may save both time and expense. The list
includes common occurrences that are not the result of defective workmanship or
materials in this dryer.
PROBLEM POSSIBLE CAUSES SOLUTIONS
Dryer does
not start.
• Electrical power cord is not
securely plugged in or plug
may be loose.
• House fuse blown or circuit
breaker tripped.
• Action of pressing start but-
ton on “touch screen” style
console not recognized
• Thermal limiter tripped.
• Delay time inadvertently
activated.
• Door may be open. Unit will
not operate with door open.
• Make sure the plug fits tightly in
wall outlet.
• Reset circuit breaker or replace
fuse.
• Make sure electrical line is not
overloaded and the dryer is on a
separate circuit.
• Press start button with bare fin-
gertip.
• Call authorized service person for
replacement.
• Ensure delay time not activated.
• Ensure door is closed.
LED
displays
”
”.
• Dryer has been programmed
to temporarily perform a
repeating demo cycle.
• Reset the unit back to factory de-
fault settings as described earlier.
Dryer runs
but won’t
heat.
• There are 2 house fuses in
the dryer circuit. If 1 of the 2
fuses is blown, the drum may
turn but the heater will not
operate (electric models).
• Gas supply valve is not open
(gas models).
• Dryer does not have enough
air supply to support the
burner flame (gas models).
• LP gas supply tank is empty
or there has been a utility
interruption of natural gas
(gas models).
• Replace fuse.
• Check to make sure supply valve
is open. Refer to the installation
instructions provided with the dryer.
• See the
Installation
sections of this
guide.
• Refill or replace tank. Dryer should
heat when utility service is restored.
43
Troubleshooting
PROBLEM POSSIBLE CAUSES SOLUTIONS
Drying cycle
takes too
long, outside
of the dryer
feels too hot
or smells hot.
• Lint filter is clogged with lint.
• Exhaust duct requirements
have not been met.
• Electric dryer is connected to
a 208 volt circuit.
• Drying procedures have not
been followed.
• Outside exhaust hood or
exhaust duct may be clogged
or restricted.
• High humidity.
• Make sure all lint has been removed
from the dryer lint filter before start-
ing each cycle.
• Exhaust duct must be at least 4
inches in diameter and made of
rigid or semi-rigid metal.
• When in place, the duct must not
exceed length listed in the installation
instructions.
• Drying time will be 20% longer than
drying on a 240 volt circuit.
• See
Operating Instructions
.
• Clean out any obstruction.
• Use a dehumidifier near the dryer.
Excess
moisture
in drum
between
cycles.
• Exhaust damper stuck open
or not present.
• Fix or clean the damper, or install
new one.
Excessive
wrinkling.
• Dryer is overloaded.
• Items left in dryer too long.
• Insufficient sorting of items.
• Drying temperature too high.
• Drying load is very small.
• DO NOT overload. See
Operating
Instructions
.
• Remove items as soon as cycle
ends.
• See
Operating Instructions
.
• Follow fabric care label instructions.
• Add two or three larger items.
Scratching
or chipping
of the drum
finish.
• Foreign objects such as
coins, pins, clips or buttons
are inside the dryer.*
• Permanently attached items
such as belt buckles, zippers
and fasteners may be hitting
the inside of the drum.*
• Always remove foreign objects from
pockets before laundering. Remove
objects from drum and restart
dryer.
• It may be necessary to sew a scrap
of material securely around orna-
ments before drying to prevent
scratching and damage to the
dryer.
* Drum damage caused by foreign objects or permanently attached
items is not covered by the warranty.
44
Limited Warranty
For the applicable warranty period as set forth below, as measured from your original date of
purchase, Electrolux will repair or replace any parts of this appliance that prove to be defective in
materials or workmanship when such appliance is installed, used and maintained in accordance with
the provided instructions.
Warranty Periods:
All parts — One year including labor. In addition, your appliance is covered by a one year, parts only,
limited warranty. During the 2nd year from your original date of purchase, Electrolux will pay for parts
needed for this appliance that have proven to be defective in materials or workmanship when your
appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily
determined.
2. Product that has been transferred from its original owner to another party or removed outside the
USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Products used in a commercial setting.
6. Service calls which DO NOT involve malfunction or defects in materials or workmanship, or for
appliances not in ordinary household use or used other than in accordance with the provided
instructions.
7. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
8. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
9. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables,
or knobs, handles, or other cosmetic parts.
10. Pickup and delivery costs; your appliance is designed to be repaired in the home.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during transportation or installation, including
but not limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL
BE REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD
ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE
LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE
AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED
WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS
ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY
NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU
MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty
period should service be required. If service is performed, it is in your best interest to obtain and keep
all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses
or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico,
your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux
Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service
and parts under this warranty must be performed by Electrolux or an authorized service company.
Product features or specifications as described or illustrated are subject to change without notice.
