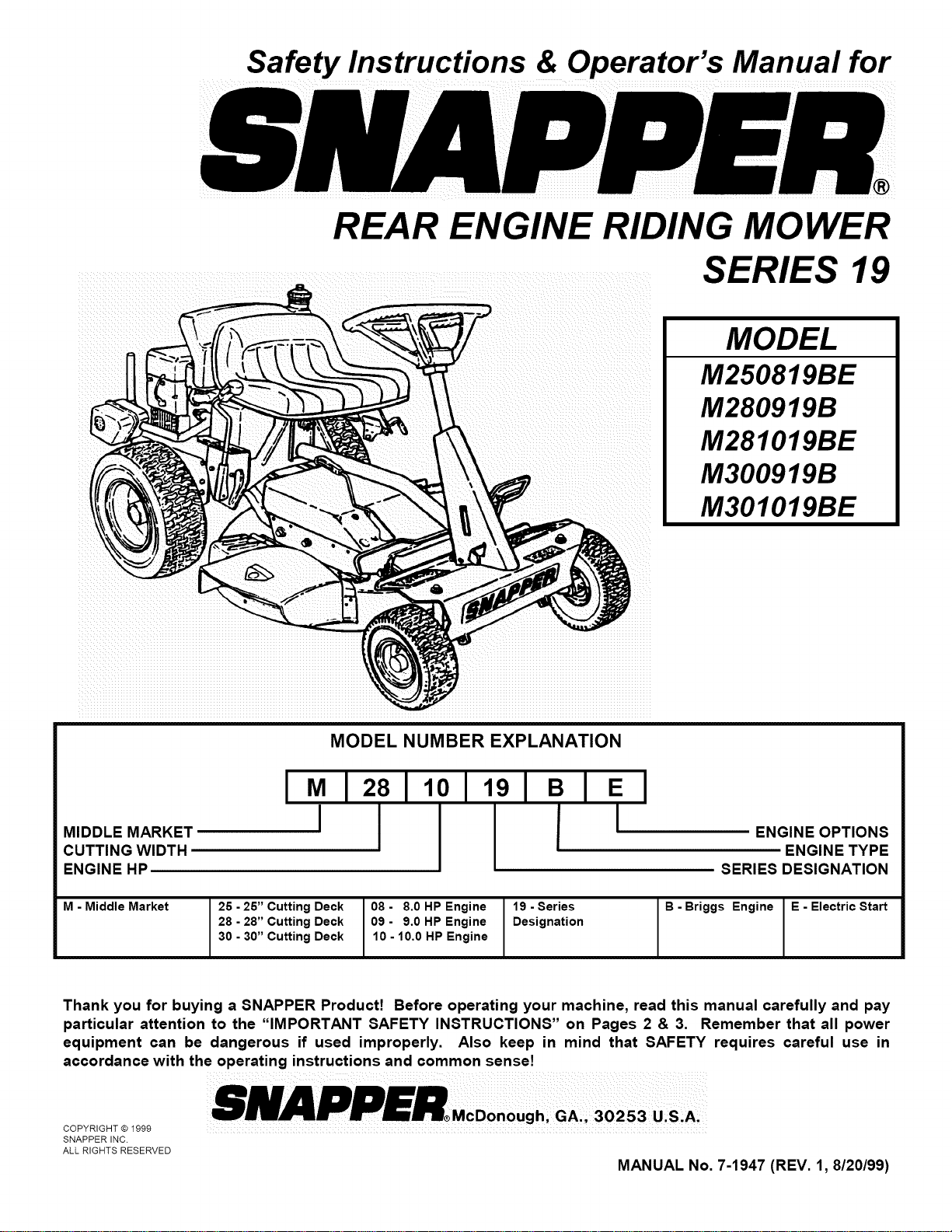

Safety Instructions & Operator's Manual for
REAR ENGINE RIDING MOWER
SERIES 19
MODEL
M250819BE
M280919B
M281019BE
M300919B
M301019BE
MODEL NUMBER EXPLANATION
MIDDLE MARKET
CUTTING WIDTH
ENGINE HP
I M 12811
I
01191 B IEI
I
ENGINE OPTIONS
ENGINE TYPE
SERIES DESIGNATION
M - Middle Market
26 - 25" Cutting Deck
28 - 28" Cutting Deck
30 - 30" Cutting Deck
08 - 8.0 HP Engine 19 -Series
09 - 9.0 HP Engine Designation
10 - 10.0 HP Engine
B - Briggs Engine E - Electric Start
Thank you for buying a SNAPPER Product! Before operating your machine, read this manual carefully and pay
particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 & 3. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in
accordance with the operating instructions and common sense!
COPYRIGHT © 1999
SNAPPER INC.
ALL RIGHTS RESERVED
MANUAL No. 7-1947 (REV. 1, 8/20/99)

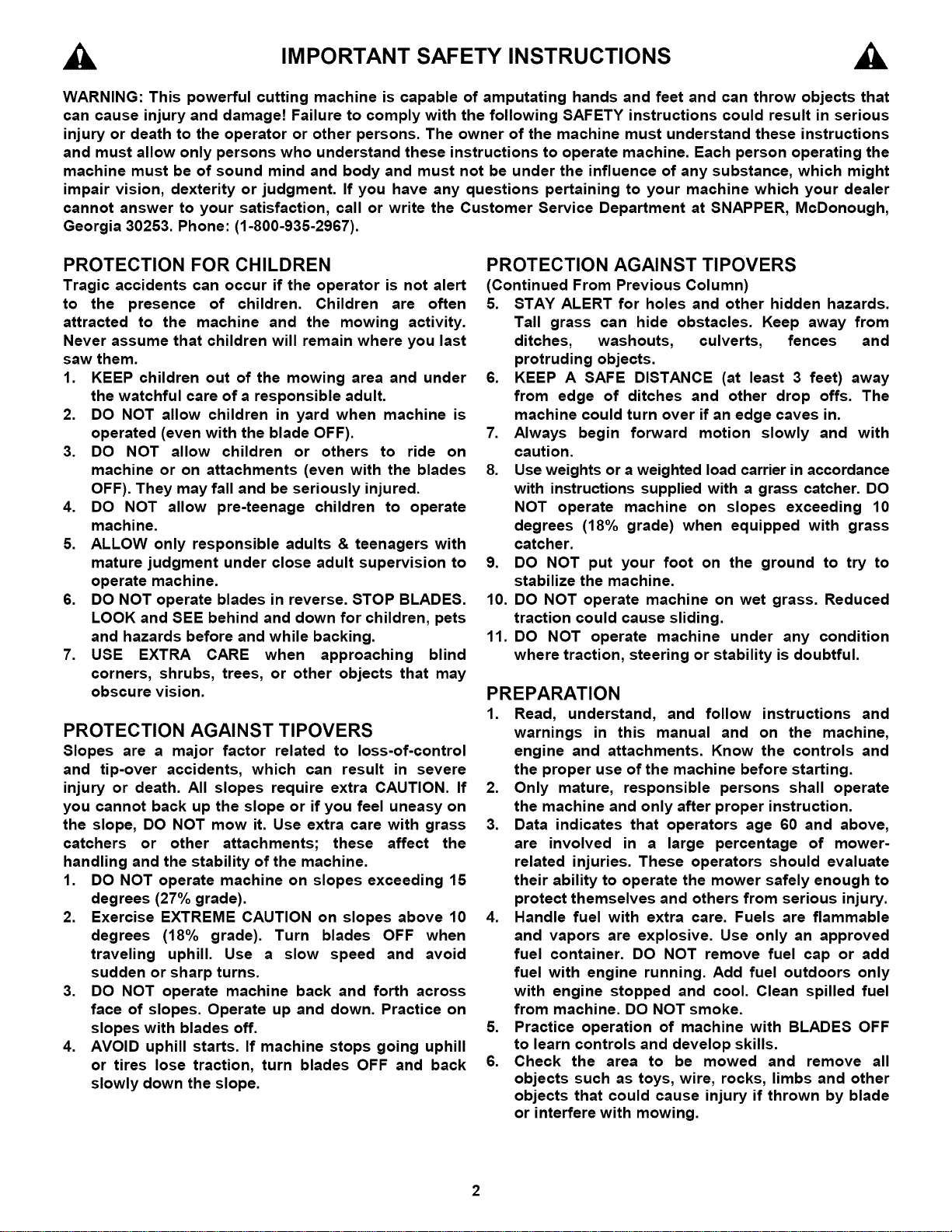

IMPORTANT SAFETY INSTRUCTIONS
WARNING: This powerful cutting machine is capable of amputating hands and feet and can throw objects that
can cause injury and damage! Failure to comply with the following SAFETY instructions could result in serious
injury or death to the operator or other persons. The owner of the machine must understand these instructions
and must allow only persons who understand these instructions to operate machine. Each person operating the
machine must be of sound mind and body and must not be under the influence of any substance, which might
impair vision, dexterity or judgment. If you have any questions pertaining to your machine which your dealer
cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough,
Georgia 30253. Phone: (1-800-935-2967).
PROTECTION FOR CHILDREN
Tragic accidents can occur if the operator is not alert
to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain where you last
saw them.
1. KEEP children out of the mowing area and under
the watchful care of a responsible adult.
2. DO NOT allow children in yard when machine is
operated (even with the blade OFF).
3. DO NOT allow children or others to ride on
machine or on attachments (even with the blades
OFF). They may fall and be seriously injured.
4. DO NOT allow pre-teenage children to operate
machine.
5. ALLOW only responsible adults & teenagers with
mature judgment under close adult supervision to
operate machine.
6. DO NOT operate blades in reverse. STOP BLADES.
LOOK and SEE behind and down for children, pets
and hazards before and while backing.
7. USE EXTRA CARE when approaching blind
corners, shrubs, trees, or other objects that may
obscure vision.
PROTECTION AGAINST TIPOVERS
Slopes are a major factor related to loss-of-control
and tip-over accidents, which can result in severe
injury or death. All slopes require extra CAUTION. If
you cannot back up the slope or if you feel uneasy on
the slope, DO NOT mow it. Use extra care with grass
catchers or other attachments; these affect the
handling and the stability of the machine.
1. DO NOT operate machine on slopes exceeding 15
degrees (27% grade).
2. Exercise EXTREME CAUTION on slopes above 10
degrees (18% grade). Turn blades OFF when
traveling uphill. Use a slow speed and avoid
sudden or sharp turns.
3. DO NOT operate machine back and forth across
face of slopes. Operate up and down. Practice on
slopes with blades off.
4. AVOID uphill starts. If machine stops going uphill
or tires lose traction, turn blades OFF and back
slowly down the slope.
PROTECTION AGAINST TIPOVERS
(Continued From Previous Column)
5. STAY ALERT for holes and other hidden hazards.
Tall grass can hide obstacles. Keep away from
ditches, washouts, culverts, fences and
protruding objects.
6. KEEP A SAFE DISTANCE (at least 3 feet) away
from edge of ditches and other drop offs. The
machine could turn over if an edge caves in.
7. Always begin forward motion slowly and with
caution.
8. Use weights or a weighted load carrier in accordance
with instructions supplied with a grass catcher. DO
NOT operate machine on slopes exceeding 10
degrees (18% grade) when equipped with grass
catcher.
9. DO NOT put your foot on the ground to try to
stabilize the machine.
10. DO NOT operate machine on wet grass. Reduced
traction could cause sliding.
11. DO NOT operate machine under any condition
where traction, steering or stability is doubtful.
PREPARATION
1. Read, understand, and follow instructions and
warnings in this manual and on the machine,
engine and attachments. Know the controls and
the proper use of the machine before starting.
2. Only mature, responsible persons shall operate
the machine and only after proper instruction.
3. Data indicates that operators age 60 and above,
are involved in a large percentage of mower-
related injuries. These operators should evaluate
their ability to operate the mower safely enough to
protect themselves and others from serious injury.
4. Handle fuel with extra care. Fuels are flammable
and vapors are explosive. Use only an approved
fuel container. DO NOT remove fuel cap or add
fuel with engine running. Add fuel outdoors only
with engine stopped and cool. Clean spilled fuel
from machine. DO NOT smoke.
5. Practice operation of machine with BLADES OFF
to learn controls and develop skills.
6. Check the area to be mowed and remove all
objects such as toys, wire, rocks, limbs and other
objects that could cause injury if thrown by blade
or interfere with mowing.

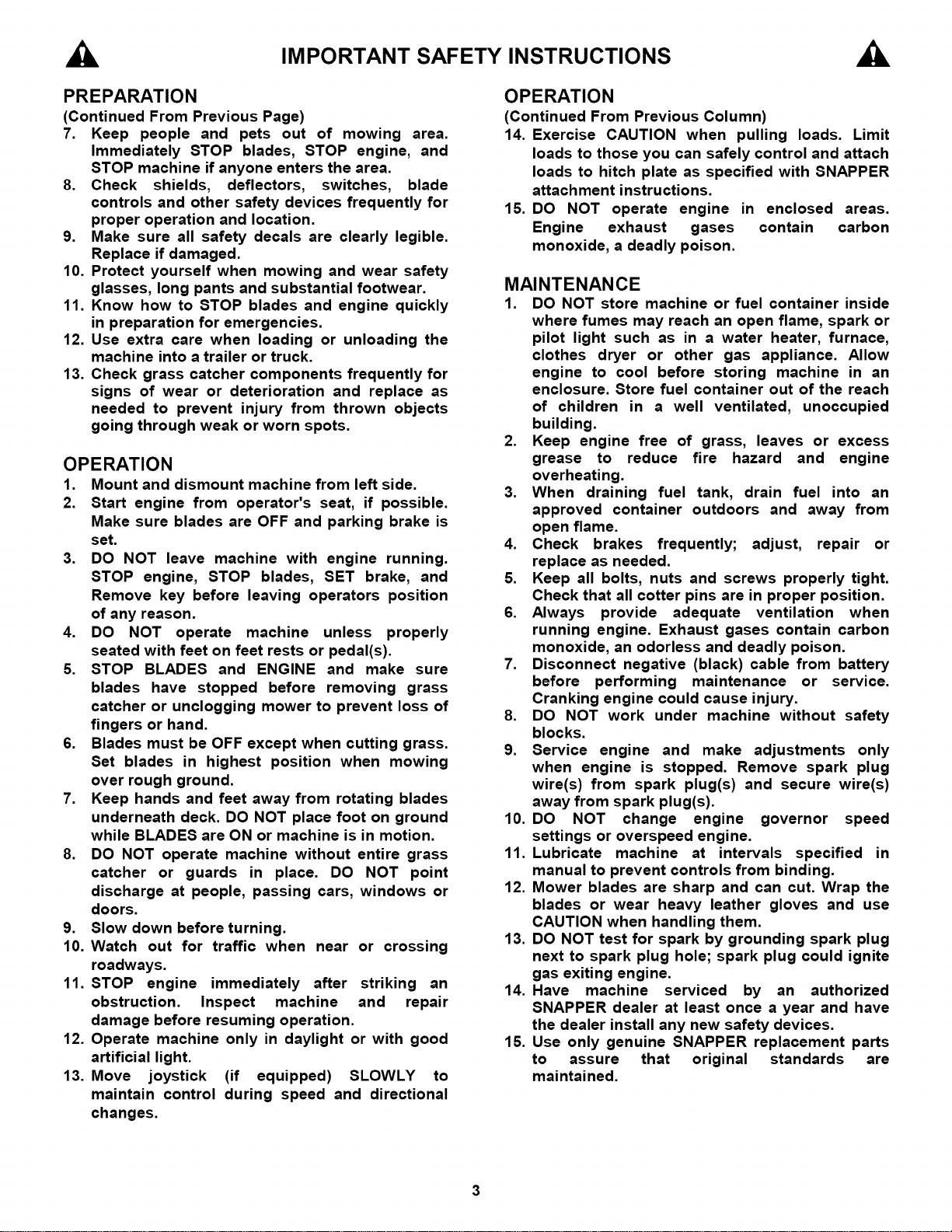

IMPORTANT SAFETY INSTRUCTIONS
PREPARATION
(Continued From Previous Page)
7. Keep people and pets out of mowing
area.
Immediately STOP blades, STOP engine, and
STOP machine if anyone enters the area.
8. Check shields, deflectors, switches, blade
controls and other safety devices frequently for
proper operation and location.
9. Make sure all safety decals are clearly legible.
Replace if damaged.
10. Protect yourself when mowing and wear safety
glasses, long pants and substantial footwear.
11. Know how to STOP blades and engine quickly
in preparation for emergencies.
12. Use extra care when loading or unloading the
machine into a trailer or truck.
13. Check grass catcher components frequently for
signs of wear or deterioration and replace as
needed to prevent injury from thrown objects
going through weak or worn spots.
OPERATION
1. Mount and dismount machine from left side.
2. Start engine from operator's seat, if possible.
Make sure blades are OFF and parking brake is
set.
3. DO NOT leave machine with engine running.
STOP engine, STOP blades, SET brake, and
Remove key before leaving operators position
of any reason.
4. DO NOT operate machine unless properly
seated with feet on feet rests or pedal(s).
5. STOP BLADES and ENGINE and make sure
blades have stopped before removing grass
catcher or unclogging mower to prevent loss of
fingers or hand.
6. Blades must be OFF except when cutting grass.
Set blades in highest position when mowing
over rough ground.
7. Keep hands and feet away from rotating blades
underneath deck. DO NOT place foot on ground
while BLADES are ON or machine is in motion.
8. DO NOT operate machine without entire grass
catcher or guards in place. DO NOT point
discharge at people, passing cars, windows or
doors.
9. Slow down before turning.
10. Watch out for traffic when near or crossing
roadways.
11. STOP engine immediately after striking an
obstruction. Inspect machine and repair
damage before resuming operation.
12. Operate machine only in daylight or with good
artificial light.
13. Move joystick (if equipped) SLOWLY to
maintain control during speed and directional
changes.
OPERATION
(Continued From Previous Column)
14. Exercise CAUTION when pulling loads. Limit
loads to those you can safely control and attach
loads to hitch plate as specified with SNAPPER
attachment instructions.
15. DO NOT operate engine in enclosed areas.
Engine exhaust gases contain carbon
monoxide, a deadly poison.
MAINTENANCE
1. DO NOT store machine or fuel container inside
where fumes may reach an open flame, spark or
pilot light such as in a water heater, furnace,
clothes dryer or other gas appliance. Allow
engine to cool before storing machine in an
enclosure. Store fuel container out of the reach
of children in a well ventilated, unoccupied
building.
2. Keep engine free of grass, leaves or excess
grease to reduce fire hazard and engine
overheating.
3. When draining fuel tank, drain fuel into an
approved container outdoors and away from
open flame.
4. Check brakes frequently; adjust, repair or
replace as needed.
5. Keep all bolts, nuts and screws properly tight.
Check that all cotter pins are in proper position.
6. Always provide adequate ventilation when
running engine. Exhaust gases contain carbon
monoxide, an odorless and deadly poison.
7. Disconnect negative (black) cable from battery
before performing maintenance or service.
Cranking engine could cause injury.
8. DO NOT work under machine without safety
blocks.
9. Service engine and make adjustments only
when engine is stopped. Remove spark plug
wire(s) from spark plug(s) and secure wire(s)
away from spark plug(s).
10. DO NOT change engine governor speed
settings or overspeed engine.
11. Lubricate machine at intervals specified in
manual to prevent controls from binding.
12. Mower blades are sharp and can cut. Wrap the
blades or wear heavy leather gloves and use
CAUTION when handling them.
13. DO NOT test for spark by grounding spark plug
next to spark plug hole; spark plug could ignite
gas exiting engine.
14. Have machine serviced by an authorized
SNAPPER dealer at least once a year and have
the dealer install any new safety devices.
15. Use only genuine SNAPPER replacement parts
to assure that original standards are
maintained.

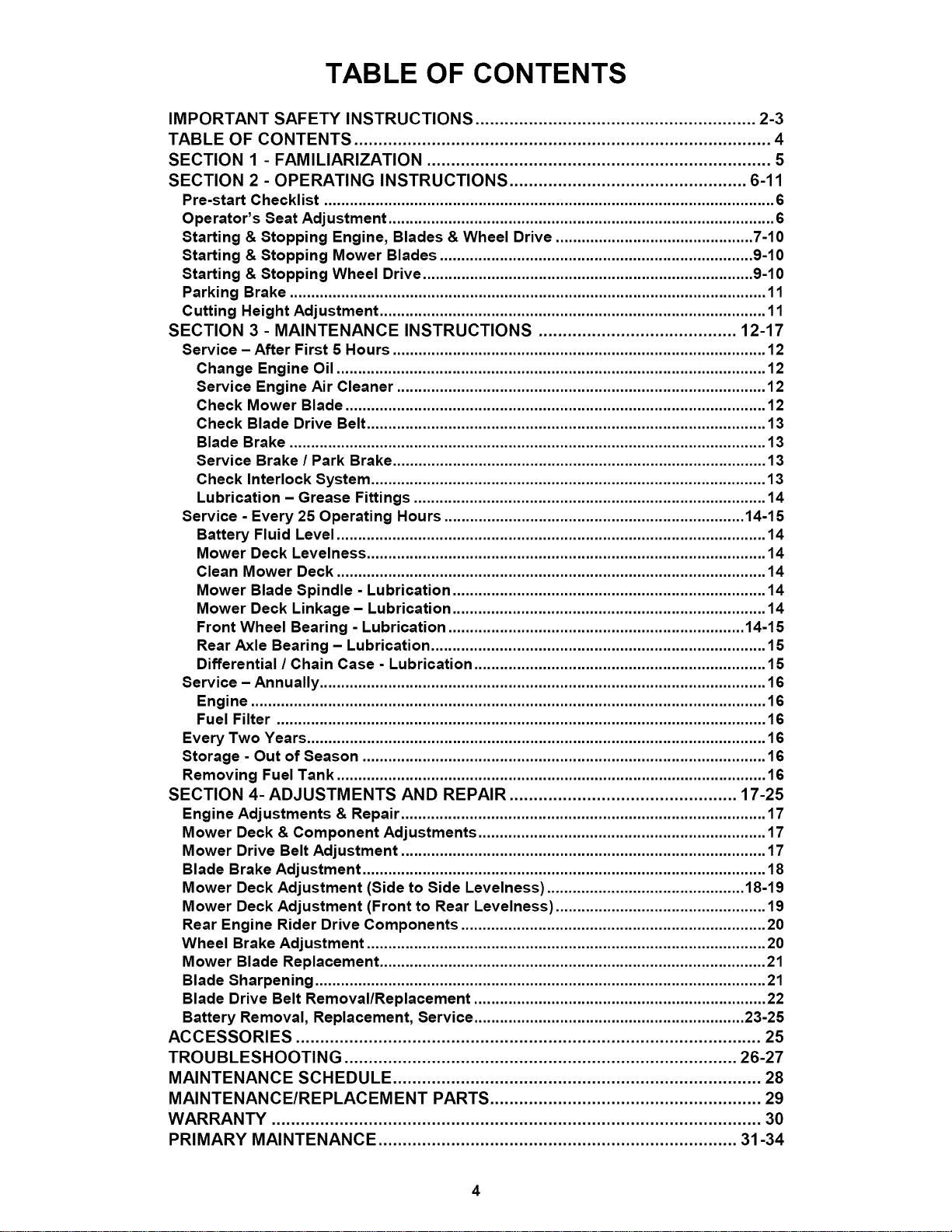

TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .......................................................... 2-3
TABLE OF CONTENTS ...................................................................................... 4
SECTION 1 - FAMILIARIZATION ....................................................................... 5
SECTION 2 - OPERATING INSTRUCTIONS ................................................. 6-11
Pre-start Checklist ......................................................................................................... 6
Operator's Seat Adjustment .......................................................................................... 6
Starting & Stopping Engine, Blades & Wheel Drive .............................................. 7-10
Starting & Stopping Mower Blades ......................................................................... 9-10
Starting & Stopping Wheel Drive ............................................................................. 9-10
Parking Brake ............................................................................................................... 11
Cutting Height Adjustment .......................................................................................... 11
SECTION 3 - MAINTENANCE INSTRUCTIONS ......................................... 12-17
Service -After First 5 Hours ....................................................................................... 12
Change Engine Oil .................................................................................................... 12
Service Engine Air Cleaner ...................................................................................... 12
Check Mower Blade .................................................................................................. 12
Check Blade Drive Belt ............................................................................................. 13
Blade Brake ............................................................................................................... 13
Service Brake / Park Brake ....................................................................................... 13
Check Interlock System ............................................................................................ 13
Lubrication - Grease Fittings .................................................................................. 14
Service - Every 25 Operating Hours ...................................................................... 14-15
Battery Fluid Level .................................................................................................... 14
Mower Deck Levelness ............................................................................................. 14
Clean Mower Deck .................................................................................................... 14
Mower Blade Spindle - Lubrication ......................................................................... 14
Mower Deck Linkage- Lubrication ......................................................................... 14
Front Wheel Bearing - Lubrication ..................................................................... 14-15
Rear Axle Bearing - Lubrication .............................................................................. 15
Differential / Chain Case - Lubrication .................................................................... 15
Service - Annually ........................................................................................................ 16
Engine ........................................................................................................................ 16
Fuel Filter .................................................................................................................. 16
Every Two Years ........................................................................................................... 16
Storage - Out of Season .............................................................................................. 16
Removing Fuel Tank .................................................................................................... 16
SECTION 4- ADJUSTMENTS AND REPAIR ............................................... 17-25
Engine Adjustments & Repair ..................................................................................... 17
Mower Deck & Component Adjustments ................................................................... 17
Mower Drive Belt Adjustment ..................................................................................... 17
Blade Brake Adjustment .............................................................................................. 18
Mower Deck Adjustment (Side to Side Levelness) .............................................. 18-19
Mower Deck Adjustment (Front to Rear Levelness) ................................................. 19
Rear Engine Rider Drive Components ....................................................................... 20
Wheel Brake Adjustment ............................................................................................. 20
Mower Blade Replacement .......................................................................................... 21
Blade Sharpening ......................................................................................................... 21
Blade Drive Belt Removal/Replacement .................................................................... 22
Battery Removal, Replacement, Service ............................................................... 23-25
ACCESSORIES ................................................................................................ 25
TROUBLESHOOTING ................................................................................. 26-27
MAINTENANCE SCHEDULE ............................................................................ 28
MAINTENANCE/REPLACEMENT PARTS ........................................................ 29
WARRANTY ..................................................................................................... 30
PRIMARY MAINTENANCE .......................................................................... 31-34

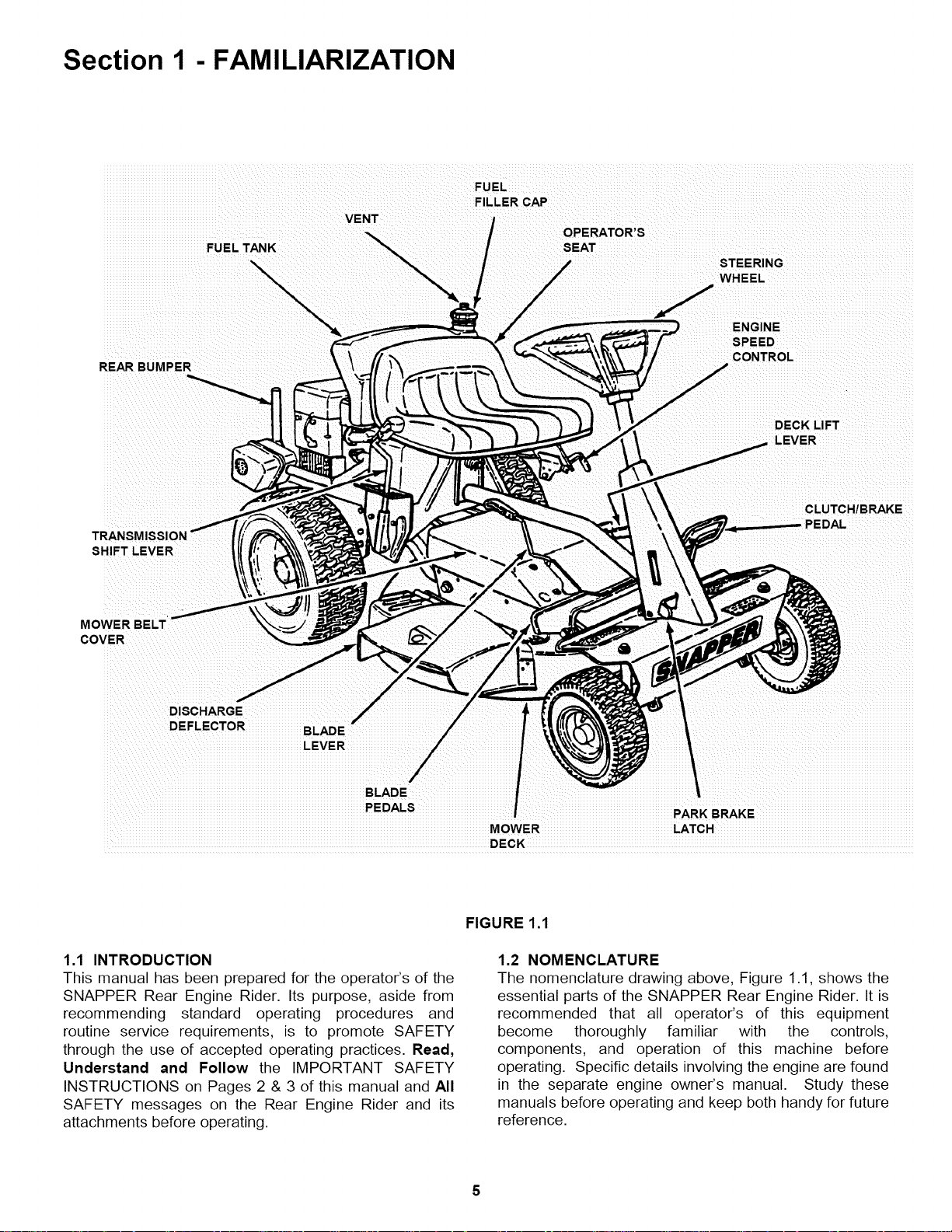

Section 1 - FAMILIARIZATION
FUEL
FILLER CAP
VENT
FUEL
REAR BUMPER
OPERATOR'S
SEAT
STEERING
WHEEL
.t--
SPEED
CONTROL
DECK LIFT
LEVER
CLUTCH/BRAKE
SHIFT LEVER
MOWER BELT
COVER
DISCHARGE
DEFLECTOR
BLADE
LEVER
BLADE
PEDALS PARK BRAKE
MOWER LATCH
DECK
1.1 INTRODUCTION
This manual has been prepared for the operator's of the
SNAPPER Rear Engine Rider. Its purpose, aside from
recommending standard operating procedures and
routine service requirements, is to promote SAFETY
through the use of accepted operating practices. Read,
Understand and Follow the IMPORTANT SAFETY
INSTRUCTIONS on Pages 2 & 3 of this manual and All
SAFETY messages on the Rear Engine Rider and its
attachments before operating.
FIGURE 1.1
1.2 NOMENCLATURE
The nomenclature drawing above, Figure 1.1, shows the
essential parts of the SNAPPER Rear Engine Rider. It is
recommended that all operator's of this equipment
become thoroughly familiar with the controls,
components, and operation of this machine before
operating. Specific details involving the engine are found
in the separate engine owner's manual. Study these
manuals before operating and keep both handy for future
reference.
Section 2 - OPERATING INSTRUCTIONS
2.1 PRE-START CHECK LIST 2.2
Make the following checks and perform the service
required before each start-up.

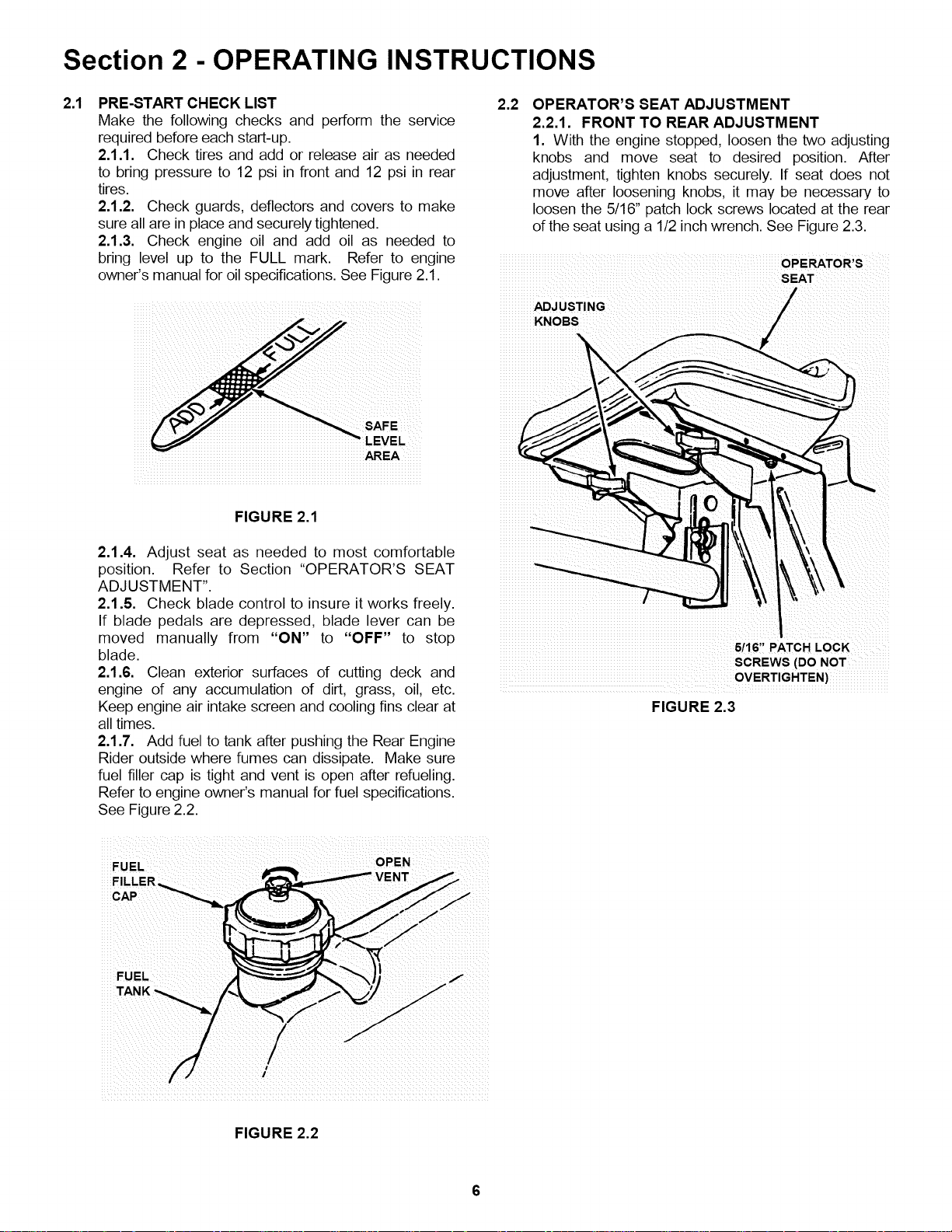

2.1.1. Check tires and add or release air as needed
to bring )ressure to 12 psi in front and 12 psi in rear
tires.
2.1.2. Check guards, deflectors and covers to make
sure all are in place and securely tightened.
2.1.3. Check engine oil and add oil as needed to
bring level up to the FULL mark. Refer to engine
owner's manual for oil specifications. See Figure 2.1.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
FIGURE 2.1
2.1.4. Adjust seat as needed to most comfortable
position. Refer to Section "OPERATOR'S SEAT
ADJUSTMENT".
2.1.5. Check blade control to insure it works freely.
If blade pedals are depressed, blade lever can be
moved manually from "ON" to "OFF" to stop
blade.
2.1.6. Clean exterior surfaces of cutting deck and
engine of any accumulation of dirt, grass, oil, etc.
Keep engine air intake screen and cooling fins clear at
all times.
2.1.7. Add fuel to tank after pushing the Rear Engine
Rider outside where fumes can dissipate. Make sure
fuel filler cap is tight and vent is open after refueling.
Refer to engine owner's manual for fuel specifications.
See Figure 2.2.
OPERATOR'S SEAT ADJUSTMENT
2.2.1. FRONT TO REAR ADJUSTMENT
1. With the engine stopped, loosen the two adjusting
knobs and move seat to desired position. After
adjustment, tighten knobs securely. If seat does not
move after loosening knobs, it may be necessary to
loosen the 5/16" patch lock screws located at the rear
of the seat using a 1/2 inch wrench. See Figure 2.3.
iiiiiiiiiiiiiiiiiiiiiii! iii!iiiii iiiiiii OPERATOR'S
SEAT
iiiiiiiiiiiiADJUSTING
iiiiiiiiiiiiKNOBS !i!i iiiiii .................
iiiiiiiiiiiiiiiiii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i ........
iiiiiiiiiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii 5/16"PATCHLOCK
iiiiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i SCREWS(DO NOT iiiiiiiiiii
iiii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i ii!Ii!IiOVERTIGHTEN) iiiiiiiiiiiiiiiiii
FIGURE 2.3
OPEN
FIGURE 2.2
Section 2 - OPERATING INSTRUCTIONS
2.3 STARTING & OPERATION

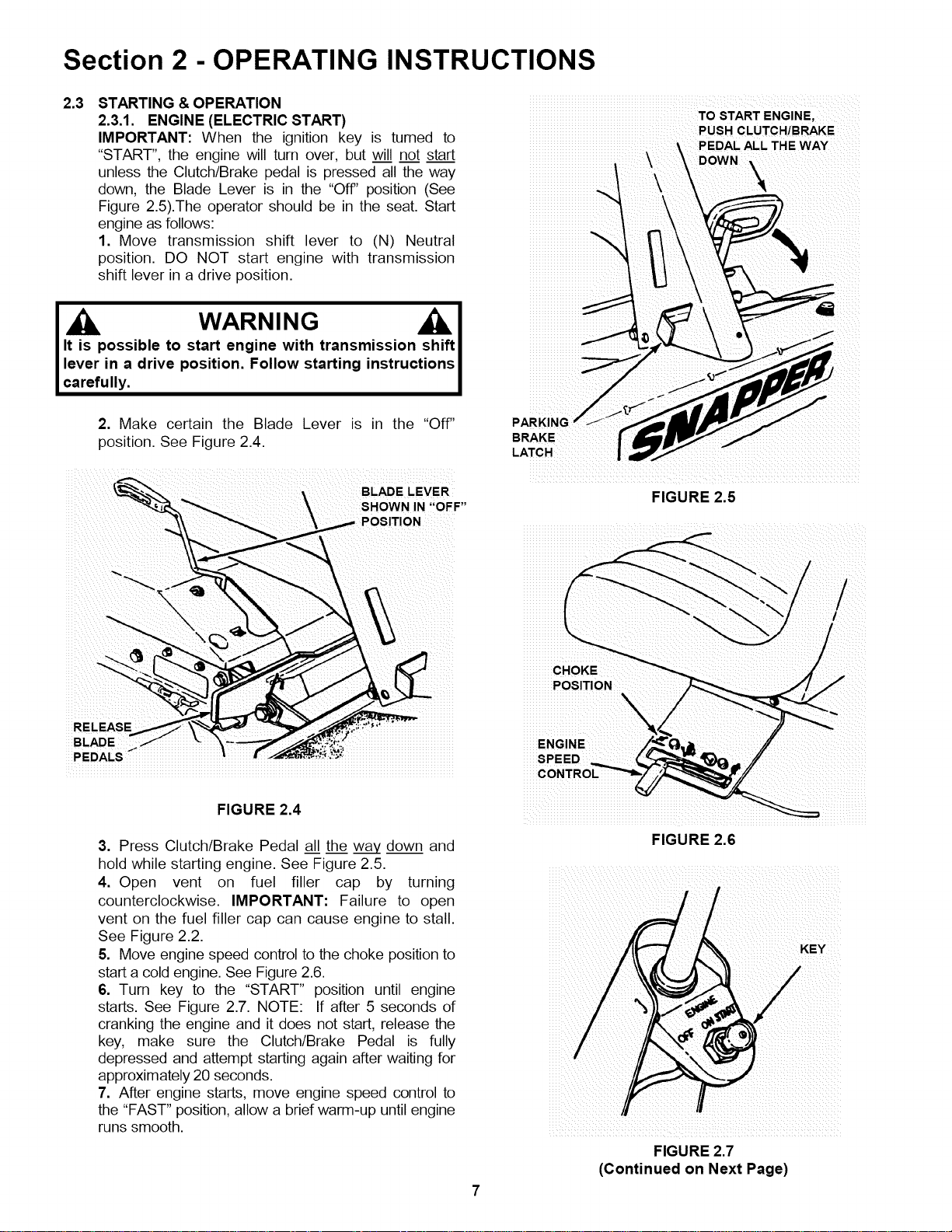

2.3.1. ENGINE (ELECTRIC START)
IMPORTANT: When the ignition key is turned to
"START", the engine will turn over, but will not start
unless the Clutch/Brake pedal is pressed all the way
down, the Blade Lever is in the "Off" position (See
Figure 2.5).The operator should be in the seat. Start
engine as follows:
1. Move transmission shift lever to (N) Neutral
position. DO NOT start engine with transmission
shift lever in a drive position.
WARNING A,I
It is possible to start engine with transmission shift I
lever in a drive position. Follow starting instructions I
carefully. I
2. Make certain the Blade Lever is in the "Off"
position. See Figure 2.4.
RELEASE
iiPEDALS
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
FIGURE 2.4
3. Press Clutch/Brake Pedal all the wa_ down and
hold while starting engine. See Figure 2.5.
4. Open vent on fuel filler cap by turning
counterclockwise. IMPORTANT: Failure to open
vent on the fuel filler cap can cause engine to stall.
See Figure 2.2.
5. Move engine speed control to the choke position to
start a cold engine. See Figure 2.6.
6. Turn key to the "START" position until engine
starts. See Figure 2.7. NOTE: If after 5 seconds of
cranking the engine and it does not start, release the
key, make sure the Clutch/Brake Pedal is fully
depressed and attempt starting again after waiting for
approximately 20 seconds.
7. After engine starts, move engine speed control to
the "FAST" position, allow a brief warm-up until engine
runs smooth.
TO START ENGINE,
PUSH CLUTCH/BRAKE
PEDAL ALL THE WAY
DOWN _
/
PARKING//t
BRAKE
LATCH
FIGURE 2.5
CHOKE
POSITION
ENGINE
SPEED
CON'I'
FIGURE 2.6
iiii_
iiii_
KEY
FIGURE 2.7
(Continued on Next Page)
Section 2 - OPERATING INSTRUCTIONS
2.3 STARTING & OPERATION
2.3.1. ENGINE (ELECTRIC START) (Continued)
8. Should the battery be too weak to start the engine,
Refer to Section "ENGINE (MANUAL START)" to
manually start the electric start engines.

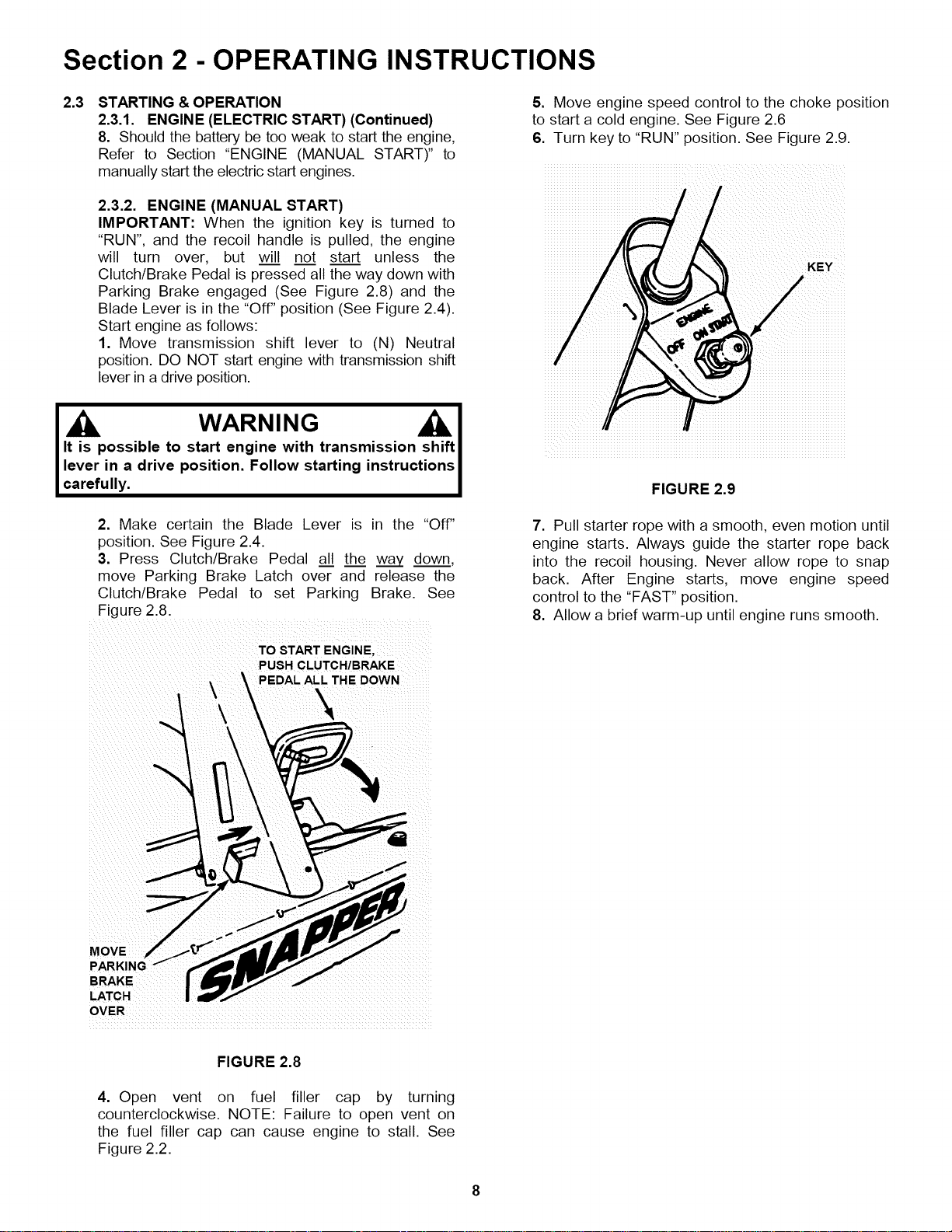

2.3.2. ENGINE (MANUAL START)
IMPORTANT: When the ignition key is turned to
"RUN", and the recoil handle is pulled, the engine
will turn over, but will not start unless the
Clutch/Brake Pedal is pressed all the way down with
Parking Brake engaged (See Figure 2.8) and the
Blade Lever is in the "Off" position (See Figure 2.4).
Start engine as follows:
1. Move transmission shift lever to (N) Neutral
position. DO NOT start engine with transmission shift
lever in adrive position.
WARNING I
It is possible to start engine with transmission shift
lever in a drive position. Follow starting instructions
carefully.
2. Make certain the Blade Lever is in the "Off"
position. See Figure 2.4.
3. Press Clutch/Brake Pedal all the wa_z down,
move Parking Brake Latch over and release the
Clutch/Brake Pedal to set Parking Brake. See
Figure 2.8.
MOVE
BRAKE
LATCH
TO START ENGINE,
PUSH CLUTCH/BRAKE
PEDAL ALL THE DOWN
\
OVER
5. Move engine speed control to the choke position
to start a cold engine. See Figure 2.6
6. Turn key to "RUN" position. See Figure 2.9.
!C i!i!i! ! !iCiiii iiiiii !iI
FIGURE 2.9
7. Pull starter rope with a smooth, even motion until
engine starts. Always guide the starter rope back
into the recoil housing. Never allow rope to snap
back. After Engine starts, move engine speed
control to the "FAST" position.
8. Allow a brief warm-up until engine runs smooth.
FIGURE 2.8
4. Open vent on fuel filler cap by turning
counterclockwise. NOTE: Failure to open vent on
the fuel filler cap can cause engine to stall. See
Figure 2.2.
Section 2 - OPERATING INSTRUCTIONS
WARNING
Once blade is disengaged, it should come to a
complete stop in 3 seconds or less. If the blade
continues to rotate after 3 seconds, the blade brake
must be adjusted. Refer to Section "BLADE BRAKE
ADJUSTMENT" for adjustment procedures or return
machine to an authorized SNAPPER dealer for
adjustment. DO NOT CONTINUE to operate machine
until blade brake is adjusted and functioning
properly.
2.3 STARTING & OPERATION

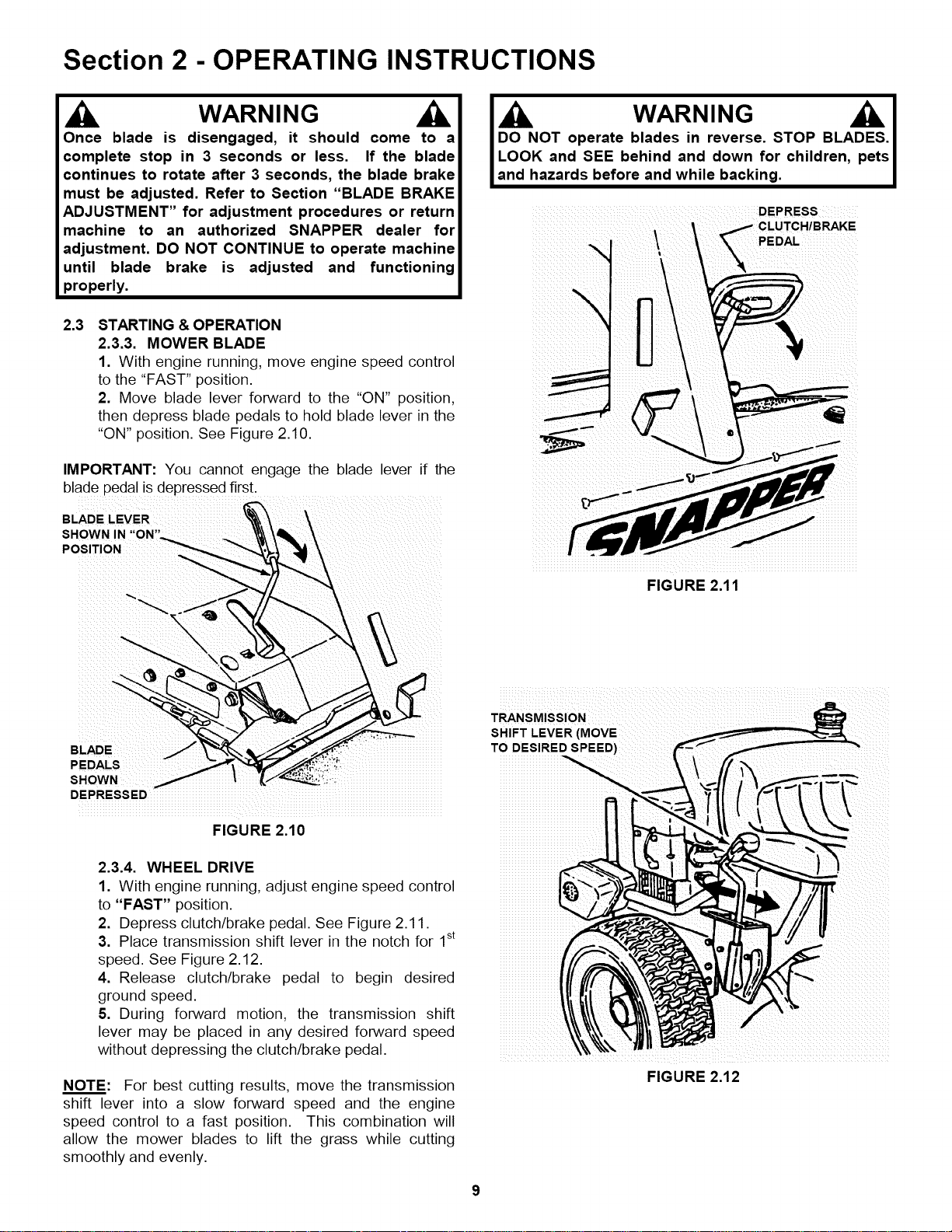

2.3.3. MOWER BLADE
1. With engine running, move engine speed control
to the "FAST" position.
2. Move blade lever forward to the "ON" position,
then depress blade pedals to hold blade lever in the
"ON" position. See Figure 2.10.
IMPORTANT: You cannot engage the blade lever if the
blade pedal is depressed first.
isITION
_\
EDALS
PEDALS
SHOWN
DEPRESSED
FIGURE 2.10
2.3.4. WHEEL DRIVE
1. With engine running, adjust engine speed control
to "FAST" position.
2. Depress clutch/brake pedal. See Figure 2.11.
3. Place transmission shift lever in the notch for 1st
speed. See Figure 2.12.
4. Release clutch/brake pedal to begin desired
ground speed.
5. During forward motion, the transmission shift
lever may be placed in any desired forward speed
without depressing the clutch/brake pedal.
NOTE: For best cutting results, move the transmission
shift lever into a slow forward speed and the engine
speed control to a fast position. This combination wilt
allow the mower blades to lift the grass while cutting
smoothly and evenly.
ik WARNING I
DO NOT operate blades in reverse. STOP BLADES.I
LOOK and SEE behind and down for children, pets [
and hazards before and while backing. [
DEPRESS
PEDAL
FIGURE 2.11
TRANSMISSION
SHIFT LEVER (MOVE
TO DESIRED SPEED)
FIGURE 2.12
Section 2 - OPERATING INSTRUCTIONS
WARNING
DO NOT leave machine with the engine running.

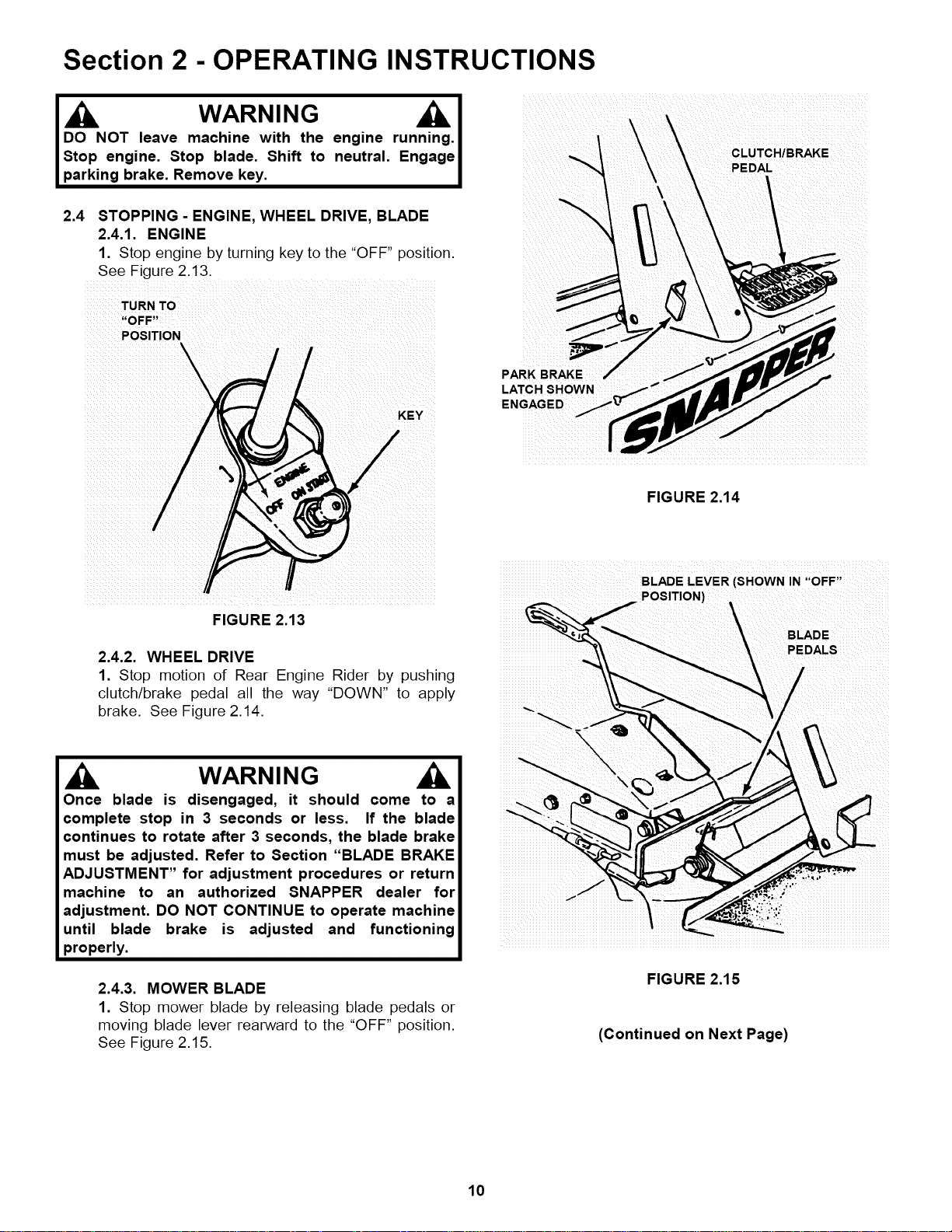

Stop engine. Stop blade. Shift to neutral. Engage
parking brake. Remove key.
2.4
STOPPING - ENGINE, WHEEL DRIVE, BLADE
2.4.1. ENGINE
1. Stop engine by turning key to the "OFF" position.
See Figure 2.13.
CLUTCH/BRAKE
PEDAL
FIGURE 2.13
2.4.2. WHEEL DRIVE
1. Stop motion of Rear Engine Rider by pushing
clutch/brake pedal all the way "DOWN" to apply
brake. See Figure 2.14.
PARK BRAKE
LATCH SHOWN
ENGAGED
FIGURE 2.14
BLADE LEVER (SHOWN IN "OFF"
POSITION)
BLADE
PEDALS
WARNING
Once blade is disengaged, it should come to a
complete stop in 3 seconds or less. If the blade
continues to rotate after 3 seconds, the blade brake
must be adjusted. Refer to Section "BLADE BRAKE
ADJUSTMENT" for adjustment procedures or return
machine to an authorized SNAPPER dealer for
adjustment. DO NOT CONTINUE to operate machine
until blade brake is adjusted and functioning
properly.
2.4.3. MOWER BLADE
1. Stop mower blade by releasing blade pedals or
moving blade lever rearward to the "OFF" position.
See Figure 2.15.
FIGURE 2.15
(Continued on Next Page)
10
Section 2 - OPERATING INSTRUCTIONS
2.4
STOPPING - ENGINE, WHEEL DRIVE, BLADE
2.4.4. PARK BRAKE

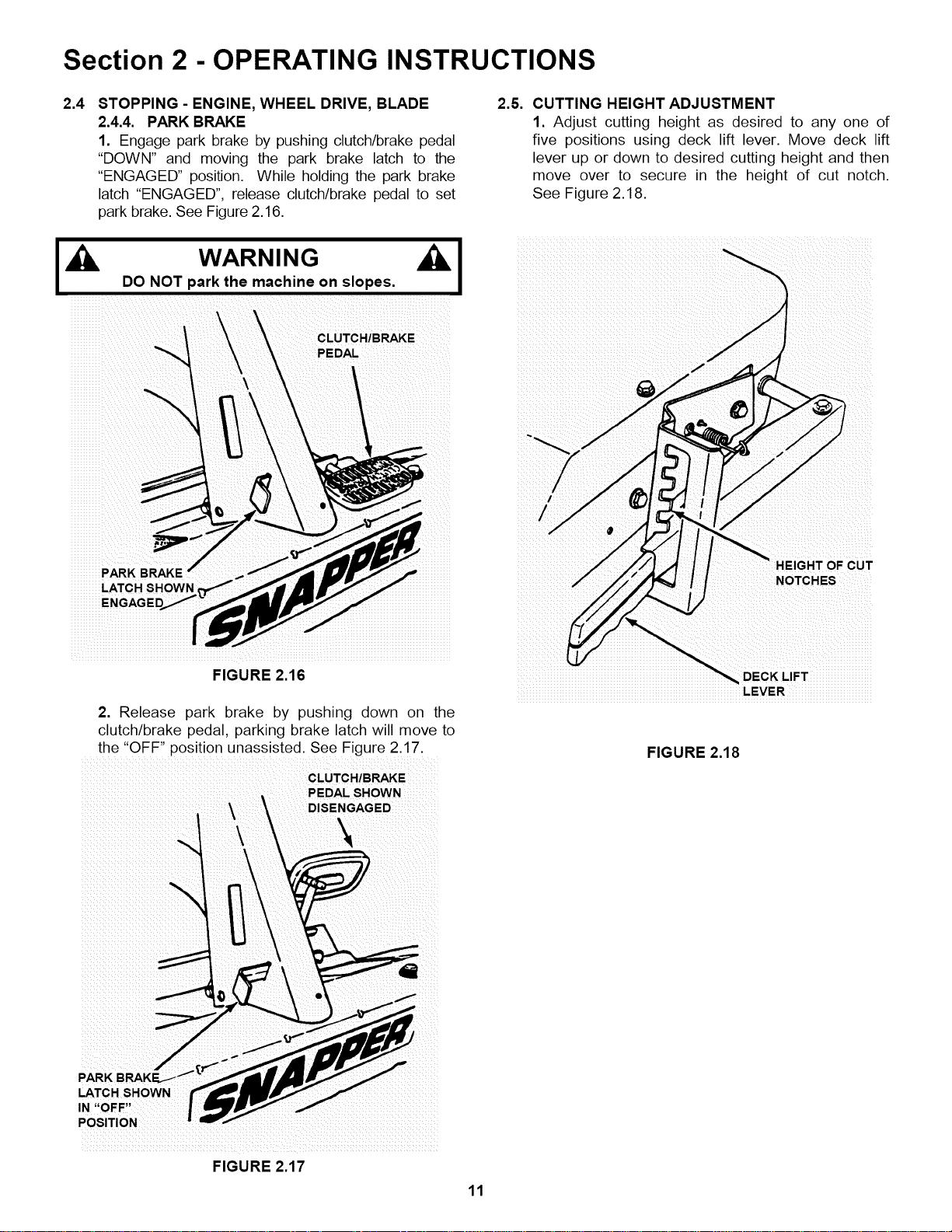

1. Engage park brake by pushing clutch/brake pedal
"DOWN" and moving the park brake latch to the
"ENGAGED" position. While holding the park brake
latch "ENGAGED", release clutch/brake pedal to set
park brake. See Figure 2.16.
2.5. CUTTING HEIGHT ADJUSTMENT
1. Adjust cutting height as desired to any one of
five positions using deck lift lever. Move deck lift
lever up or down to desired cutting height and then
move over to secure in the height of cut notch.
See Figure 2.18.
I, WARNING
DO NOT park the machine on slopes.
CLUTCH/BRAKE
PEDAL
PARK BRAKE
LATCH SHOWN
x x _ _ii_xx
HEIGHT OF CUT
NOTCHES
FIGURE 2.16
2. Release park brake by pushing down on the
clutch/brake pedal, parking brake latch will move to
the "OFF" position unassisted. See Figure 2.17.
CLUTCH/BRAKE
PEDAL SHOWN
PARK BRAKE
LATCH SHOWN
I FFN O
POSITION .............
FIGURE 2.17
11
DECK LIFT
LEVER
FIGURE 2.18
Section 3 - MAINTENANCE
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.

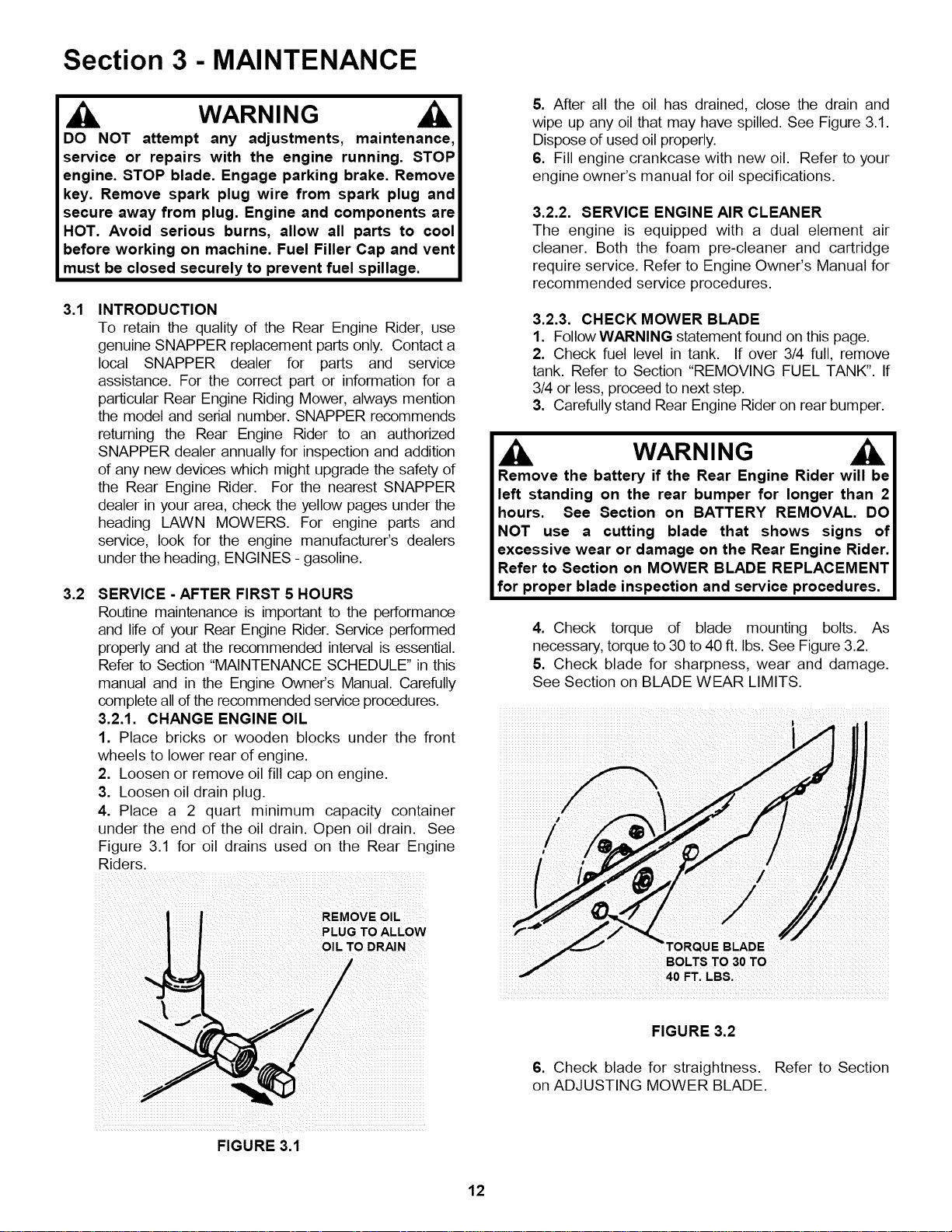

3.1
3.2
INTRODUCTION
To retain the quality of the Rear Engine Rider, use
genuine SNAPPER replacement parts only. Contact a
local SNAPPER dealer for parts and service
assistance. For the correct part or information for a
particular Rear Engine Riding Mower, always mention
the model and serial number. SNAPPER recommends
returning the Rear Engine Rider to an authorized
SNAPPER dealer annually for inspection and addition
of any new devices which might upgrade the safety of
the Rear Engine Rider. For the nearest SNAPPER
dealer in your area, check the yellow pages under the
heading LAWN MOWERS. For engine parts and
service, look for the engine manufacturer's dealers
under the heading, ENGINES - gasoline.
SERVICE - AFTER FIRST 5 HOURS
Routine maintenance is important to the performance
and life of your Rear Engine Rider. Service performed
properly and at the recommended interval is essential.
Refer to Section "MAINTENANCE SCHEDULE" in this
manual and in the Engine Owner's Manual. Carefully
complete all of the recommended service procedures.
3.2.1. CHANGE ENGINE OIL
1. Place bricks or wooden blocks under the front
wheels to lower rear of engine.
2. Loosen or remove oil fill cap on engine.
3. Loosen oil drain plug.
4. Place a 2 quart minimum capacity container
under the end of the oil drain. Open oi drain. See
Figure 3.1 for oil drains used on the Rear Engine
Riders.
REMOVE OIL
PLUG TO ALLOW
OIL TO DRAIN
5. After all the oil has drained, close the drain and
wipe up any oil that may have spilled. See Figure 3.1.
Dispose of used oil properly.
6. Fill engine crankcase with new oil. Refer to your
engine owner's manual for oil specifications.
3.2.2. SERVICE ENGINE AIR CLEANER
The engine is equipped with a dual element air
cleaner. Both the foam pre-cleaner and cartridge
require service. Refer to Engine Owner's Manual for
recommended service procedures.
3.2.3. CHECK MOWER BLADE
1. Follow WARNING statement found on this page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK". If
3/4 or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear bumper.
WARNING
Remove the battery if the Rear Engine Rider will be
left standing on the rear bumper for longer than 2
hours. See Section on BATTERY REMOVAL. DO
NOT use a cutting blade that shows signs of
excessive wear or damage on the Rear Engine Rider.
Refer to Section on MOWER BLADE REPLACEMENT
for proper blade inspection and service procedures.
4. Check torque of blade mounting bolts. As
necessary, torque to 30 to 40 ft. Ibs. See Figure 3.2.
5. Check blade for sharpness, wear and damage.
See Section on BLADE WEAR LIMITS.
BOLTS TO 30 TO
40 FT. LBS.
FIGURE 3.2
6. Check blade for straightness.
on ADJUSTING MOWER BLADE.
Refer to Section
FIGURE 3.1
12
Section 3 - MAINTENANCE
WARNING
DO NOT attempt any adjust_nents,maintenance, service or
repairswith the engine running. STOP engine. STOP blade.
Engage parking brake. Remove key. Remove spark plug
wire from spark plug and secure away from plug. Engine
and components are HOT. Avoid serious bums, allow all
partsto coolbeforeworking on machine. FuelFillerCap and
vent mustbe closedsecurelyto preventfuel spillage.

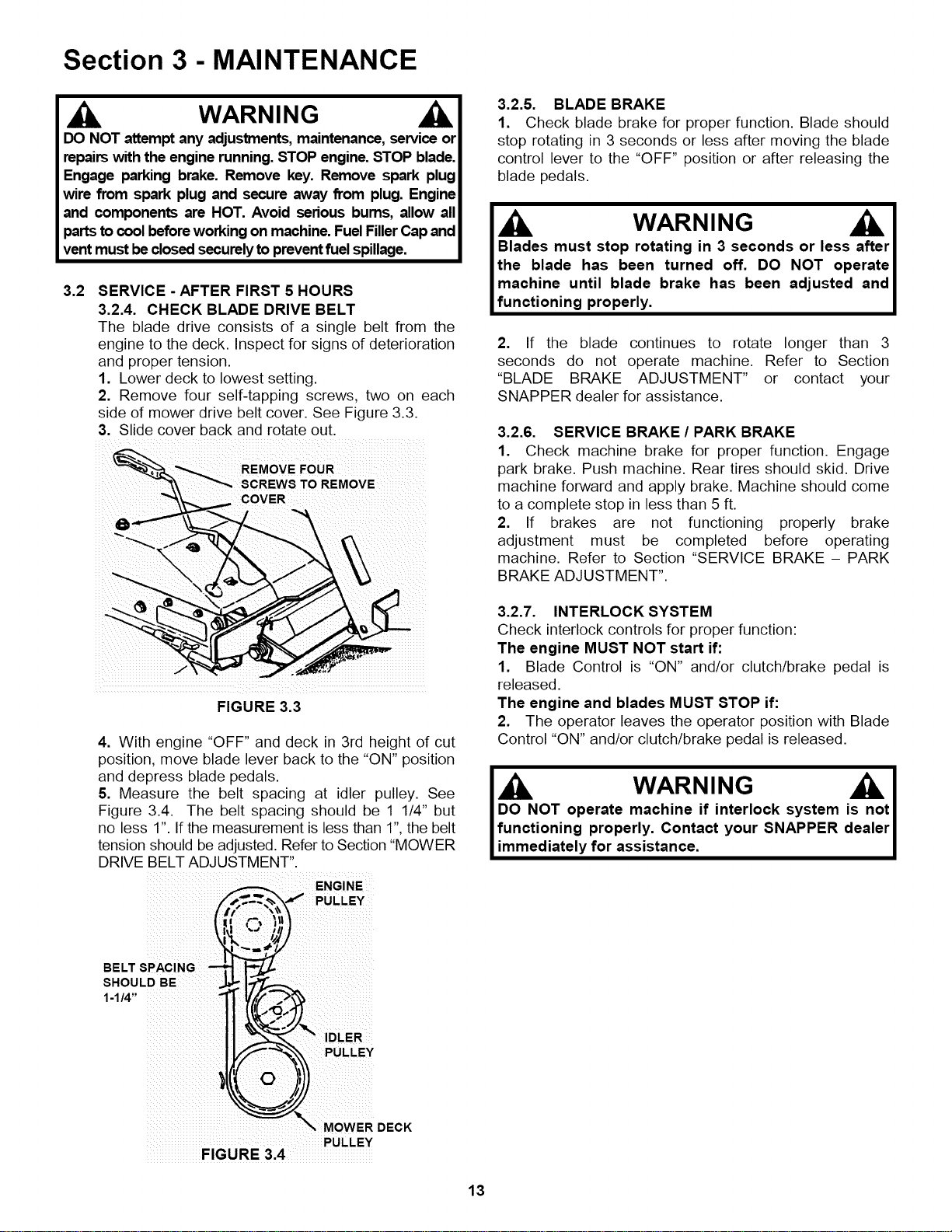

3.2 SERVICE - AFTER FIRST 5 HOURS
3.2.4. CHECK BLADE DRIVE BELT
The blade drive consists of a single belt from the
engine to the deck. Inspect for signs of deterioration
and proper tension.
1. Lower deck to lowest setting.
2. Remove four self-tapping screws, two on each
side of mower drive belt cover. See Figure 3.3.
3. Slide cover back and rotate out.
REMOVE FOUR
SCREWS TO REMOVE
_ COVER
FIGURE 3.3
4. With engine "OFF" and deck in 3rd height of cut
position, move blade lever back to the "ON" position
and depress blade pedals.
5. Measure the belt spacing at idler pulley. See
Figure 3.4. The belt spacing should be 1 1/4" but
no less 1". If the measurement is less than 1", the belt
tension should be adjusted. Refer to Section "MOWER
DRIVE BELT ADJUSTMENT".
_,,r _ ENGINE
PULLEY
Q PULLEY
"_ MOWER DECK
PULLEY
FIGURE 3.4
3.2.5. BLADE BRAKE
1. Check blade brake for proper function. Blade should
stop rotating in 3 seconds or less after moving the blade
control lever to the "OFF" position or after releasing the
blade pedals.
I Blades must stop rotating in 3 seconds or less after I
the blade has been turned off. DO NOT operate l
machine until blade brake has been adjusted and l
functioning properly.
2. If the blade continues to rotate longer than 3
seconds do not operate machine. Refer to Section
"BLADE BRAKE ADJUSTMENT" or contact your
SNAPPER dealer for assistance.
3.2.6. SERVICE BRAKE / PARK BRAKE
1. Check machine brake for proper function. Engage
park brake. Push machine. Rear tires should skid. Drive
machine forward and apply brake. Machine should come
to a complete stop in less than 5 ft.
2. If brakes are not functioning properly brake
adjustment must be completed before operating
machine. Refer to Section "SERVICE BRAKE - PARK
BRAKE ADJUSTMENT".
3.2.7. INTERLOCK SYSTEM
Check interlock controls for proper function:
The engine MUST NOT start if:
1. Blade Control is "ON" and/or clutch/brake pedal is
released.
The engine and blades MUST STOP if:
2. The operator leaves the operator position with Blade
Control "ON" and/or clutch/brake pedal is released.
WARNING I
DO NOT operate machine if interlock system t
functioning properly. Contact your SNAPPER r
immediately for assistance,
13
Section 3 - MAINTENANCE

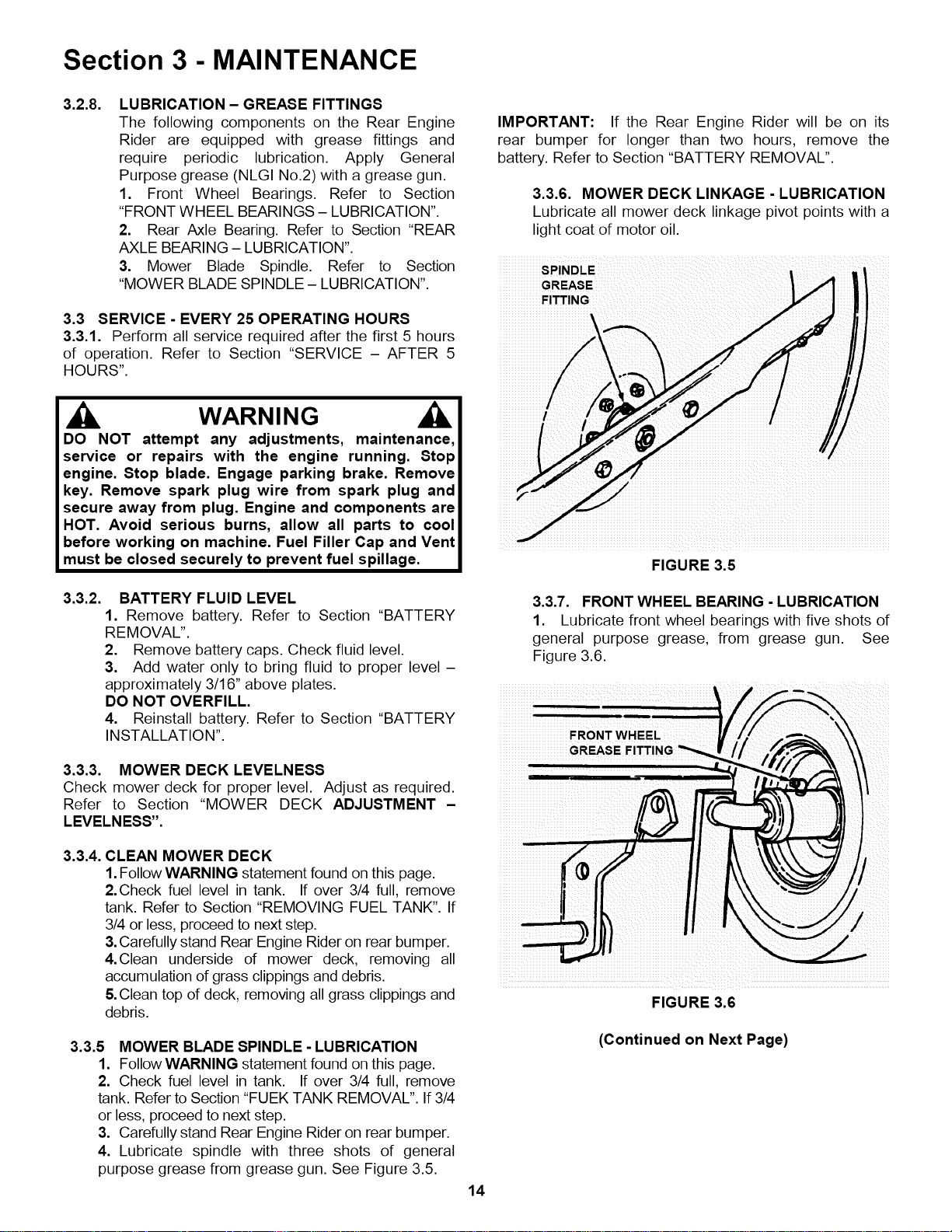

3.2.8. LUBRICATION - GREASE FITTINGS
The following components on the Rear Engine
Rider are equipped with grease fittings and
require periodic lubrication. Apply General
Purpose grease (NLGI No.2) with a grease gun.
1. Front Wheel Bearings. Refer to Section
"FRONT WHEEL BEARINGS - LUBRICATION".
2. Rear Axle Bearing. Refer to Section "REAR
AXLE BEARING - LUBRICATION".
3. Mower Blade Spindle. Refer to Section
"MOWER BLADE SPINDLE - LUBRICATION".
3.3 SERVICE - EVERY 25 OPERATING HOURS
3.3.1. Perform all service required after the first 5 hours
of operation. Refer to Section "SERVICE - AFTER 5
HOURS".
IMPORTANT: If the Rear Engine Rider will be on its
rear bumper for longer than two hours, remove the
battery. Refer to Section "BATTERY REMOVAL".
3.3.6. MOWER DECK LINKAGE - LUBRICATION
Lubricate all mower deck linkage pivot points with a
light coat of motor oil.
SPINDLE
GREASE
FITTING
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
FIGURE 3.5
3.3.2. BATTERY FLUID LEVEL
1. Remove battery. Refer to Section "BATTERY
REMOVAL".
2. Remove battery caps. Check fluid level.
3. Add water only to bring fluid to proper level -
approximately 3/16" above plates.
DO NOT OVERFILL.
4. Reinstall battery. Refer to Section "BATTERY
INSTALLATION". FRONT WHEEL
GREASE
3.3.3. MOWER DECK LEVELNESS
Check mower deck for proper level. Adjust as required. ....
Refer to Section "MOWER DECK ADJUSTMENT -
LEVELNESS". .....
3.3.4.
3.3.7. FRONT WHEEL BEARING - LUBRICATION
1. Lubricate front wheel bearings with five shots of
general purpose grease, from grease gun. See
Figure 3.6.
CLEAN MOWER DECK
1.Follow WARNING statement found on this page.
2.Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK". If
3/4 or less, proceed to next step.
3.Carefully stand Rear Engine Rider on rear bumper. _ Z
4.Clean underside of mower deck, removing all _ .....
accumulation of grass clippings and debris. .................................................... ...............................................
5.Clean top of deck, removing all grass clippings and FIGURE 3.6
debris.
3.3.5 MOWER BLADE SPINDLE- LUBRICATION
1. Follow WARNING statement found on this page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "FUEK TANK REMOVAL". If 3/4
or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear bumper.
4. Lubricate spindle with three shots of general
purpose grease from grease gun. See Figure 3.5.
(Continued on Next Page)
14
Section 3 - MAINTENANCE
3.3 SERVICE - EVERY 25 OPERATING HOURS

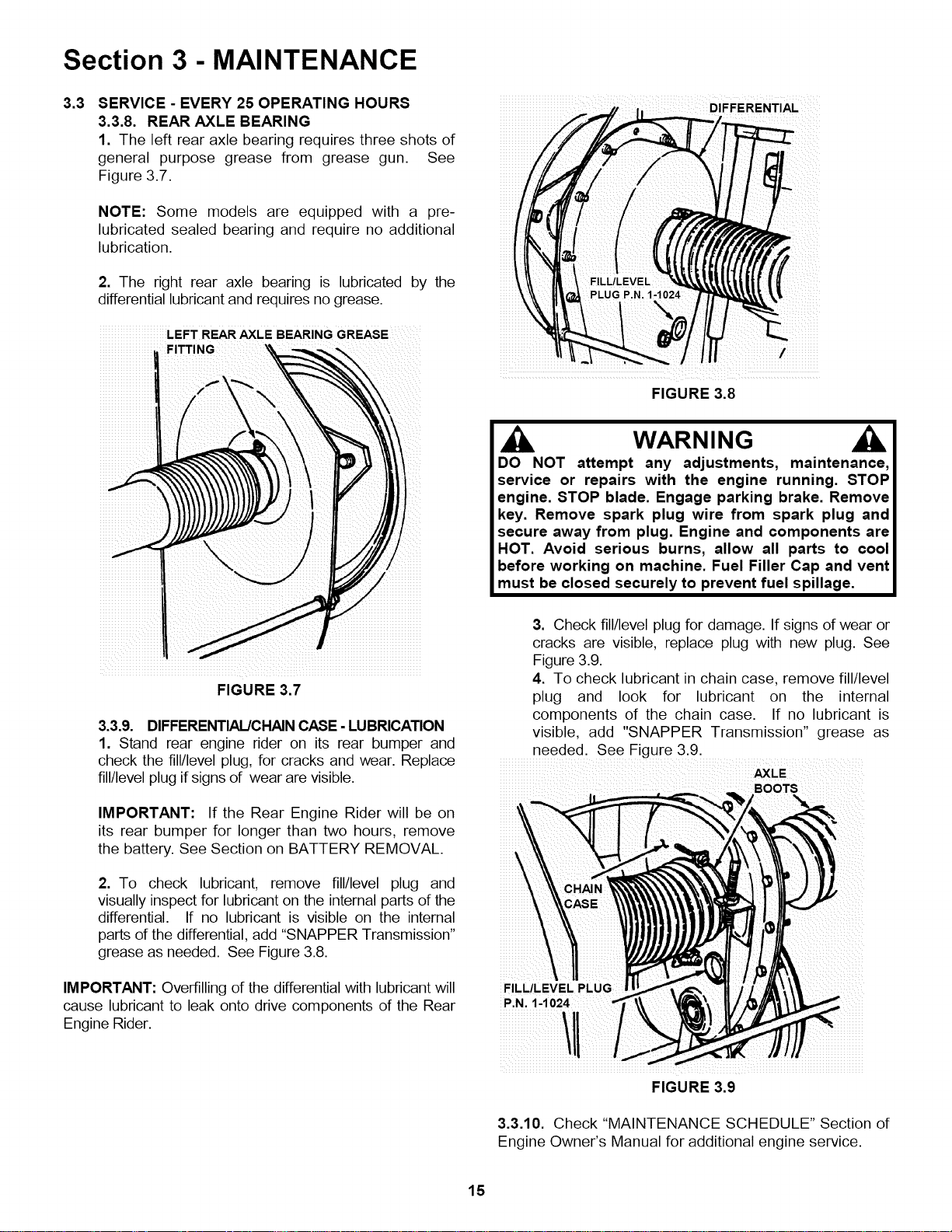

3.3.8. REAR AXLE BEARING
1. The left rear axle bearing requires three shots of
general purpose grease from grease gun. See
Figure 3.7.
DIFFERENTIAL
NOTE: Some models are equipped with a pre-
lubricated sealed bearing and require no additional
lubrication.
2. The right rear axle bearing is lubricated by the
differential lubricant and requires nogrease.
LEFT REAR AXLE BEARING GREASE
.....
FIGURE 3.8
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
/
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_ii
FIGURE 3.7
3.3.9. DIFFERENTIAL/CHAINCASE- LUBRICATION
1. Stand rear engine rider on its rear bumper and
3. Check fill/level plug for damage. If signs of wear or
cracks are visible, replace plug with new plug. See
Figure 3.9.
4. To check lubricant in chain case, remove fill/level
plug and look for lubricant on the internal
components of the chain case. If no lubricant is
visible, add "SNAPPER Transmission" grease as
needed. See Figure 3.9.
check the fill/level plug, for cracks and wear. Replace
fillllevel plug if signs of wear are visible.
BOOTS
IMPORTANT: If the Rear Engine Rider will be on
its rear bumper for longer than two hours, remove
the battery. See Section on BATTERY REMOVAL ....
2. To check lubricant, remove fill/level plug and
visually inspect for lubricant on the internal parts of the
differential. If no lubricant is visible on the internal
parts of the differential, add "SNAPPER Transmission"
grease as needed. See Figure 3.8.
IMPORTANT: Overfilling of the differential with lubricant will FILL/LEVELPLUG
cause lubricant to leak onto drive components of the Rear P.N.
Engine Rider. Ill
FIGURE 3.9
3.3.10. Check "MAINTENANCE SCHEDULE" Section of
Engine Owner's Manual for additional engine service.
15
Section 3 - MAINTENANCE

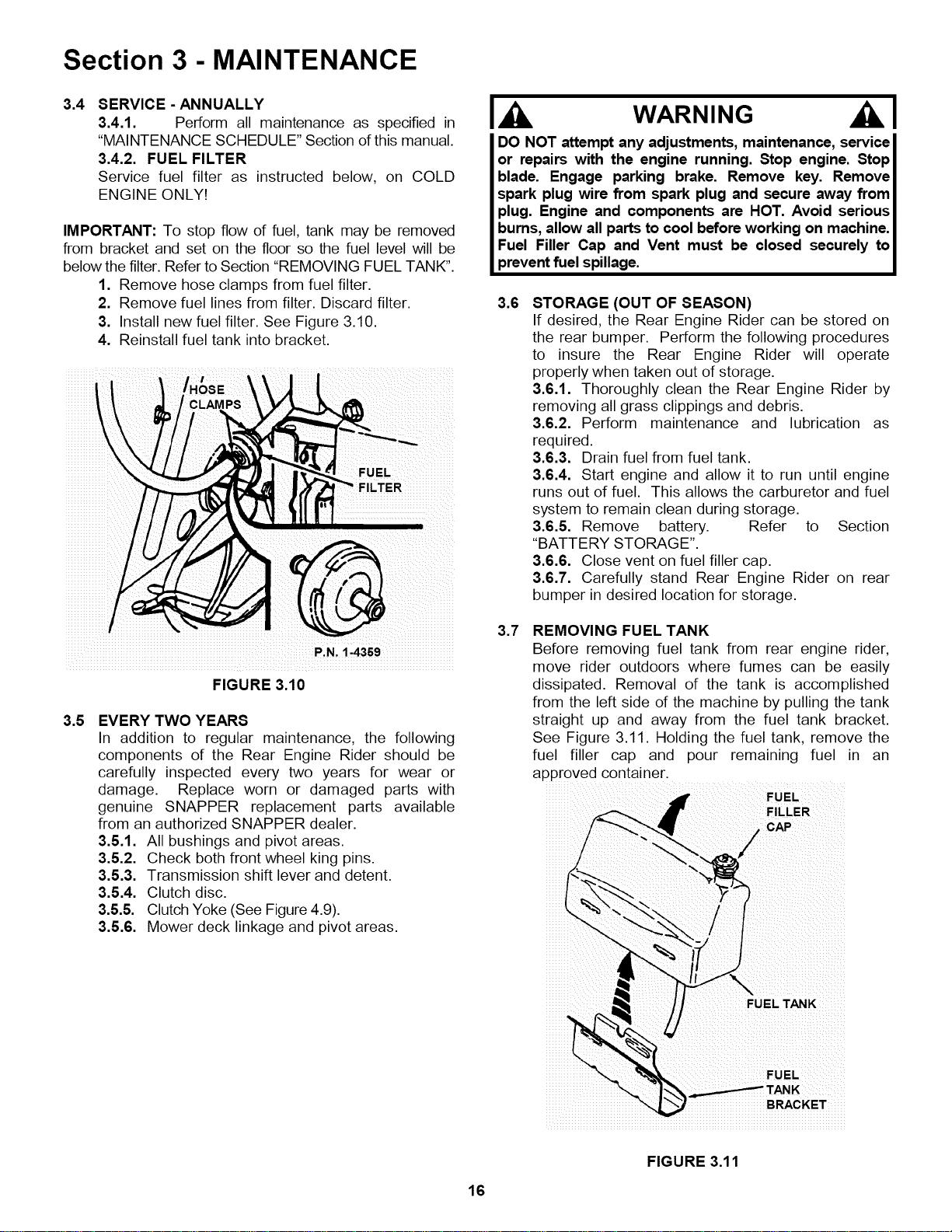

3.4 SERVICE - ANNUALLY
3.4.1. Perform all maintenance as specified in
"MAINTENANCE SCHEDULE" Section of this manual.
3.4.2. FUEL FILTER
Service fuel filter as instructed below, on COLD
ENGINE ONLY!
IMPORTANT: To stop flow of fuel, tank may be removed
from bracket and set on the floor so the fuel level will be
below the filter. Refer to Section "REMOVING FUEL TANK".
1. Remove hose clamps from fuel filter.
2. Remove fuel lines from filter. Discard filter.
3. Install new fuel filter. See Figure 3.10.
4. Reinstall fuel tank into bracket.
FUEL
xxxx_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_i_iii_i_i xxx_i_x ix i_ _iiiiiiiiiiiiiiiiiii
iiiii _iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_i_iii_i_ _iii_P,N, 1-4369 _iiiiiiiiiiiiiiiiiiiiii
FIGURE 3.10
3.5 EVERY TWO YEARS
In addition to regular maintenance, the following
components of the Rear Engine Rider should be
carefully inspected every two years for wear or
damage. Replace worn or damaged parts with
genuine SNAPPER replacement parts available
from an authorized SNAPPER dealer.
3.5.1. All bushings and pivot areas.
3.5.2. Check both front wheel king pins.
3.5.3. Transmission shift lever and detent.
3.5.4. Clutch disc.
3.5.5. Clutch Yoke (See Figure 4.9).
3.5.6. Mower deck linkage and pivot areas.
DO NOT attempt any adjustments, maintenance, service
or repairs with the engine running. Stop engine. Stop
blade. Engage parking brake. Remove key. Remove
spark plug wire from spark plug and secure away from
plug. Engine and components are HOT. Avoid serious
bums, allow all parts to cool before working on machine.
Fuel Filler Cap and Vent must be closed securely to
prevent fuel spillage.
3.6
STORAGE (OUT OF SEASON)
If desired, the Rear Engine Rider can be stored on
the rear bumper. Perform the following procedures
to insure the Rear Engine Rider will operate
properly when taken out of storage.
3.6.1. Thoroughly clean the Rear Engine Rider by
removing all grass clippings and debris.
3.6.2. Perform maintenance and lubrication as
required.
3.6.3. Drain fuel from fuel tank.
3.6.4. Start engine and allow it to run until engine
runs out of fuel. This allows the carburetor and fuel
system to remain clean during storage.
3.6.5. Remove battery. Refer to Section
"BATTERY STORAGE".
3.6.6. Close vent on fuel filler cap.
3.6.7. Carefully stand Rear Engine Rider on rear
bumper in desired location for storage.
3.7 REMOVING FUEL TANK
Before removing fuel tank from rear engine rider,
move rider outdoors where fumes can be easily
dissipated. Removal of the tank is accomplished
from the left side of the machine by pulling the tank
straight up and away from the fuel tank bracket.
See Figure 3.11. Holding the fuel tank, remove the
fuel filler cap and pour remaining fuel in an
approved container.
FUEL
FILLER
, CAP
/
#
FUEL TANK
FUEL
BRACKET
FIGURE 3.11
16
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
4. If the distance is less than 1", adjust belt tension.
5. Remove hairpin and flat washers from pivot stud.
See Figure 4.2.
6. Pull front frame forward until distance between
belt, with blade lever "ON", measures 1-1/4".
4.1 ENGINE ADJUSTMENTS & REPAIR
Refer to the engine owner's manual for those ..................
adjustments and/or repairs that can be made by the ........
owner.
WASHERS
4.2
MOWER DECK & COMPONENT ADJUSTMENTS
The following mower deck and component
adjustments and repairs can be made by the owner.
However, if there is difficulty in achieving these
adjustments and repairs, it is recommended that
FIGURE 4.2
these repairs be made by an authorized SNAPPER
dealer.
WARNING
Once blade is disengaged it should come to a stop in 3
seconds or less. If the blade continues to rotate after 3
seconds the blade brake must be adjusted. DO NOT
continue to operate the machine if the blade brake is
not operating properly.

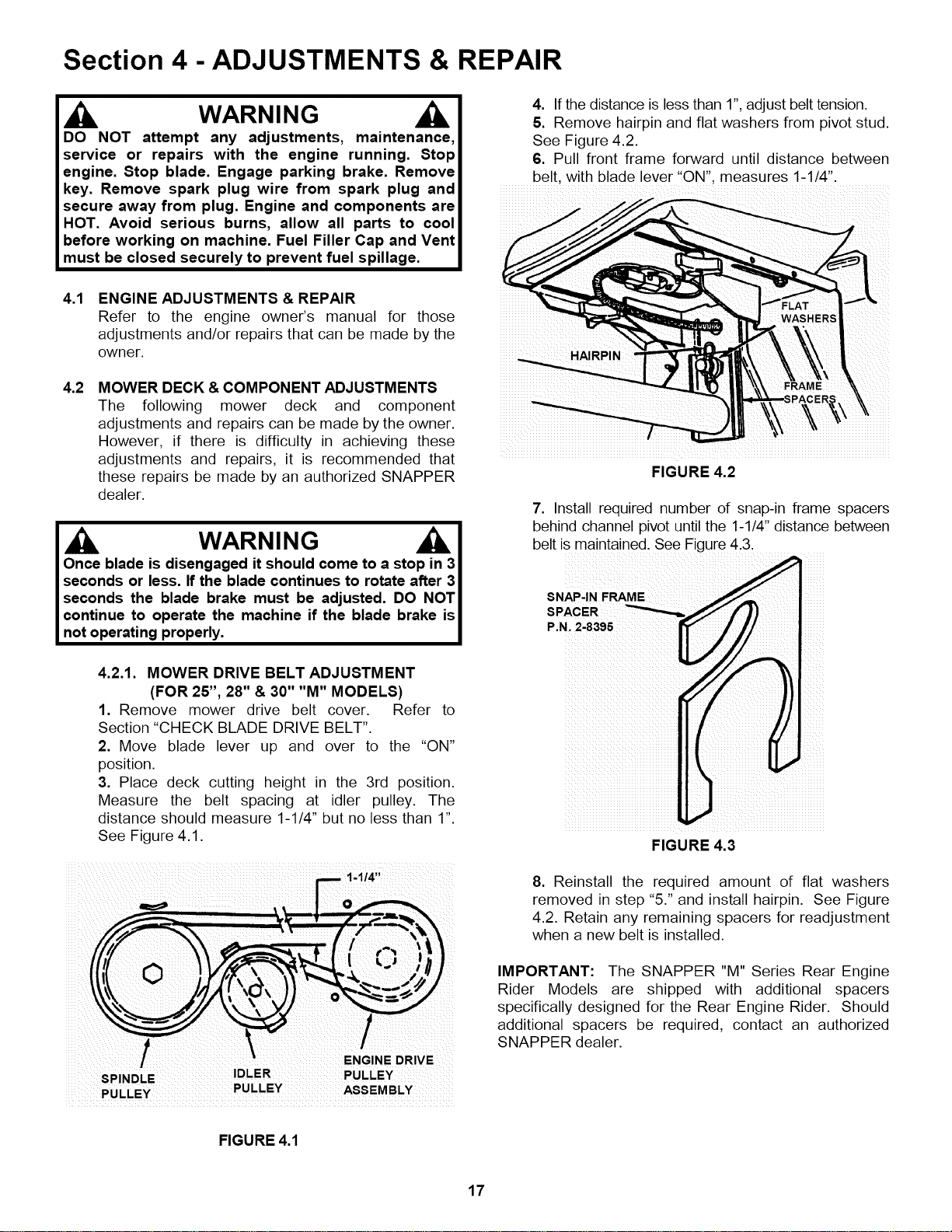

4.2.1. MOWER DRIVE BELT ADJUSTMENT
(FOR 25", 28" & 30.... M" MODELS)
1. Remove mower drive belt cover. Refer to
Section "CHECK BLADE DRIVE BELT".
2. Move blade lever up and over to the "ON"
position.
3. Place deck cutting height in the 3rd position.
Measure the belt spacing at idler pulley. The
distance should measure 1-1/4" but no less than 1".
See Figure 4.1.
7. Install required number of snap-in frame spacers
behind channel pivot until the 1-1/4" distance between
belt is maintained. See Figure 4.3.
FIGURE 4.3
_i_iiii _ _iii_i__ i_iiiii _ i_i_i_i_ _ i_iiii _i _ _i_
!-1!4"
)
8. Reinstall the required amount of flat washers
removed in step "5." and install hairpin. See Figure
4.2. Retain any remaining spacers for readjustment
when a new belt is installed.
IMPORTANT: The SNAPPER "M" Series Rear Engine
Rider Models are shipped with additional spacers
specifically designed for the Rear Engine Rider. Should
additional spacers be required, contact an authorized
SNAPPER dealer.
SPINDLE
PULLEY PULLEY ASSEMBLY
FIGURE 4.1
17
Section 4 - ADJUSTMENTS & REPAIR
WARNING
Once blade is disengaged it should come to a stop
in 3 seconds or less. If the blade continues to rotate
after 3 seconds the blade brake must be adjusted.
DO NOT continue to operate the machine if the blade
brake is not operating properly.
iiiiiii iii ¸¸ : i iiiiiiiiiiiiiii ......
PLATE

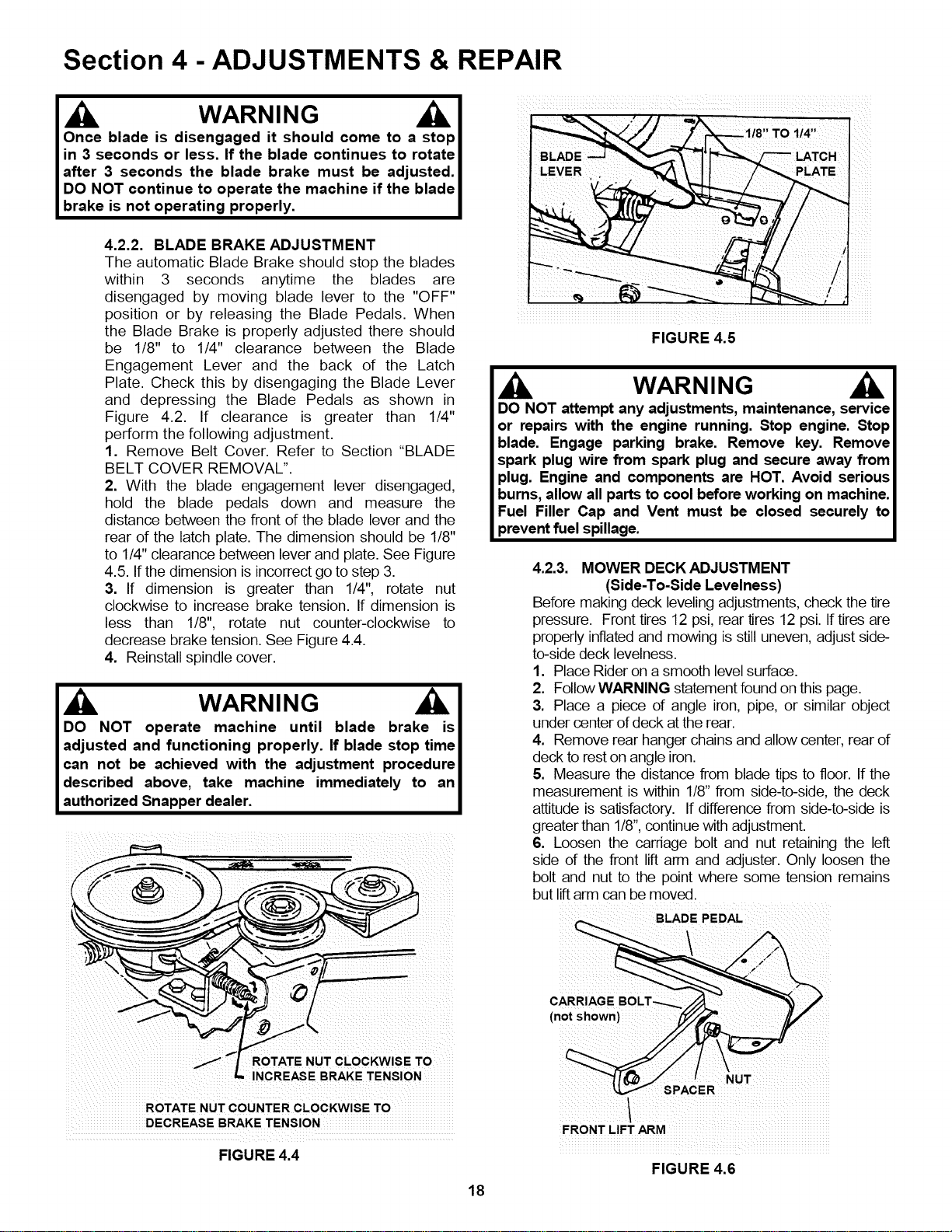

4.2.2. BLADE BRAKE ADJUSTMENT
The automatic Blade Brake should stop the blades
within 3 seconds anytime the blades are
disengaged by moving blade lever to the "OFF"
position or by releasing the Blade Pedals. When
the Blade Brake is properly adjusted there should
be 1/8" to 1/4" clearance between the Blade
Engagement Lever and the back of the Latch
Plate. Check this by disengaging the Blade Lever
and depressing the Blade Pedals as shown in
Figure 4.2. If clearance is greater than 1/4"
perform the following adjustment.
1. Remove Belt Cover. Refer to Section "BLADE
BELT COVER REMOVAL".
2. With the blade engagement lever disengaged,
hold the blade pedals down and measure the
distance between the front of the blade lever and the
rear of the latch plate. The dimension should be 1/8"
to 1/4" clearance between lever and plate. See Figure
4.5. If the dimension is incorrect go to step 3.
3. If dimension is greater than 1/4", rotate nut
clockwise to increase brake tension. If dimension is
less than 1/8", rotate nut counter-clockwise to
decrease brake tension. See Figure 4.4.
4. Reinstall spindle cover.
WARNING
DO NOT operate machine until blade brake is
adjusted and functioning properly. If blade stop time
can not be achieved with the adjustment procedure
described above, take machine immediately to an
authorized Snapper dealer.
• • i _
ROTATENUTCLOCKW,SETO
"L,NCREASEBRAKETENS,ON
ROTATE NUT COUNTER CLOCKWISE TO
DECREASE BRAKE TENSION
FIGURE 4.4
FIGURE 4.5
DO NOT attempt any adjustments, maintenance, service
or repairs with the engine running. Stop engine. Stop
blade. Engage parking brake. Remove key. Remove
spark plug wire from spark plug and secure away from
plug. Engine and components are HOT. Avoid serious
burns, allow all parts to cool before working on machine.
Fuel Filler Cap and Vent must be closed securely to
prevent fuel spillage.
4.2.3. MOWER DECK ADJUSTMENT
(Side-To-Side Levelness)
Before making deck leveling adjustments, check the tire
pressure. Front tires 12 psi, rear tires 12 psi. Iftires are
properly inflated and mowing is still uneven, adjust side-
to-side deck levelness.
1. Place Rider on a smooth level surface.
2. Follow WARNING statement found on this page.
3. Place a piece of angle iron, pipe, or similar object
under center of deck atthe rear.
4. Remove rear hanger chains and allow center, rear of
deck to rest on angle iron.
5. Measure the distance from blade tips to floor. If the
measurement is within 1/8" from side-to-side, the deck
attitude is satisfactory. If difference from side-to-side is
greater than 1/8".continue with adjustment.
6. Loosen the carriage bolt and nut retaining the left
side of the front lift arm and adjuster. Only loosen the
bolt and nut to the point where some tension remains
but liftarm can be moved.
BLADE PEDAL
CARRIAGE
(notshown)
18
SPACER
FRONT LIFT ARM
\
NUT
FIGURE 4.6

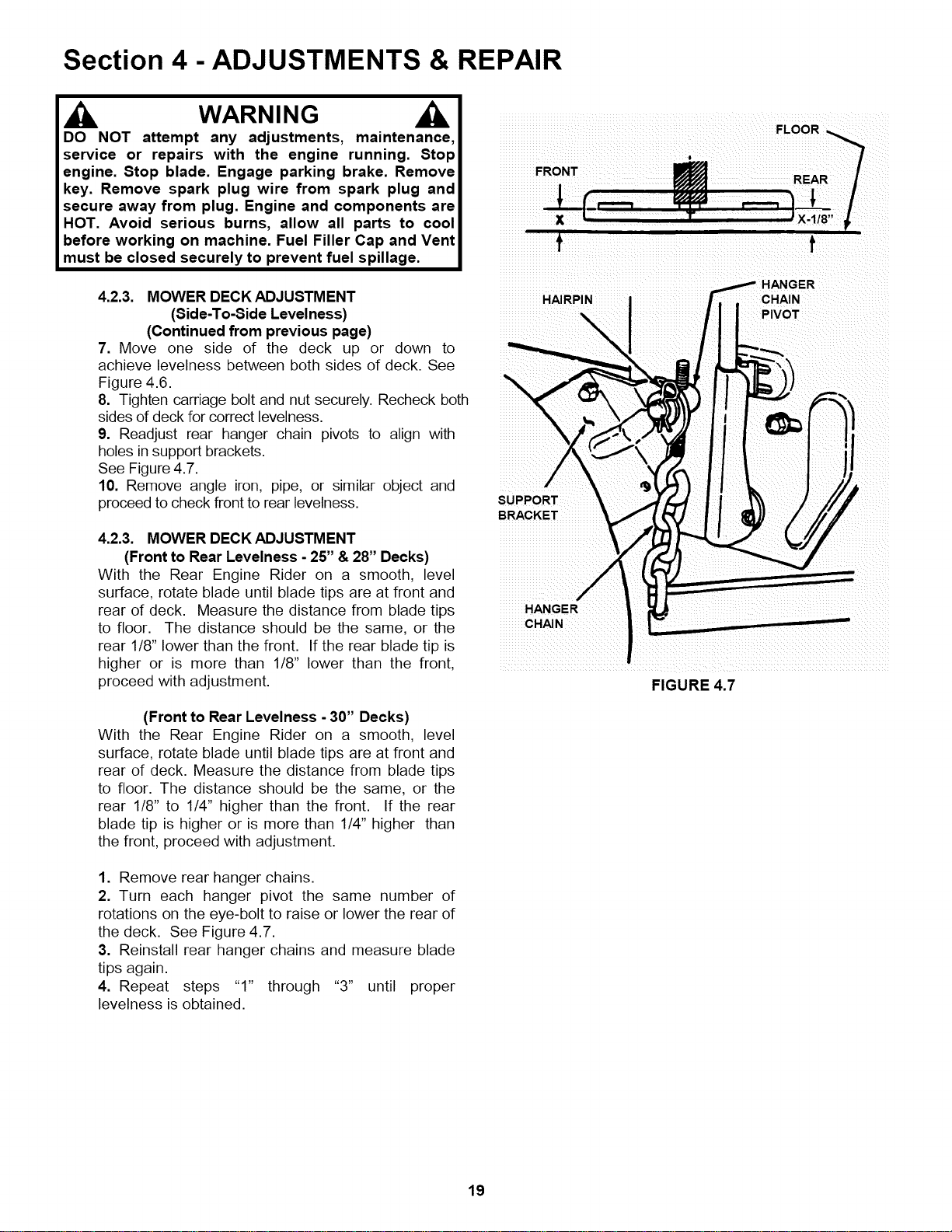

Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
FRONT
x
t
t
4.2.3. MOWER DECK ADJUSTMENT
(Side-To-Side Levelness)
(Continued from previous page)
7. Move one side of the deck up or down to
achieve levelness between both sides of deck. See
Figure 4.6.
8. Tighten carriage bolt and nut securely. Recheck both
sides of deck for correct levelness.
9. Readjust rear hanger chain pivots to align with
holes in support brackets.
See Figure 4.7.
10. Remove angle iron, pipe, or similar object and
proceed to check front to rear levelness.
BRACKET
HAIRPIN
4.2.3. MOWER DECK ADJUSTMENT
(Front to Rear Levelness - 25" & 28" Decks)
With the Rear Engine Rider on a smooth, level
surface, rotate blade until blade tips are at front and
rear of deck. Measure the distance from blade tips HANGER
to floor. The distance should be the same, or the CHAIN
rear 1/8" lower than the front. If the rear blade tip is
higher or is more than 1/8" lower than the front,
proceed with adjustment. FIGURE 4.7
CHAIN
PIVOT
(Front to Rear Levelness - 30" Decks)
With the Rear Engine Rider on a smooth, level
surface, rotate blade until blade tips are at front and
rear of deck. Measure the distance from blade tips
to floor. The distance should be the same, or the
rear 1/8" to 1/4" higher than the front. If the rear
blade tip is higher or is more than 1/4" higher than
the front, proceed with adjustment.
1. Remove rear hanger chains.
2. Turn each hanger pivot the same number of
rotations on the eye-bolt to raise or lower the rear of
the deck. See Figure 4.7.
3. Reinstall rear hanger chains and measure blade
tips again.
4. Repeat steps "1" through "3" until proper
levelness is obtained.
19

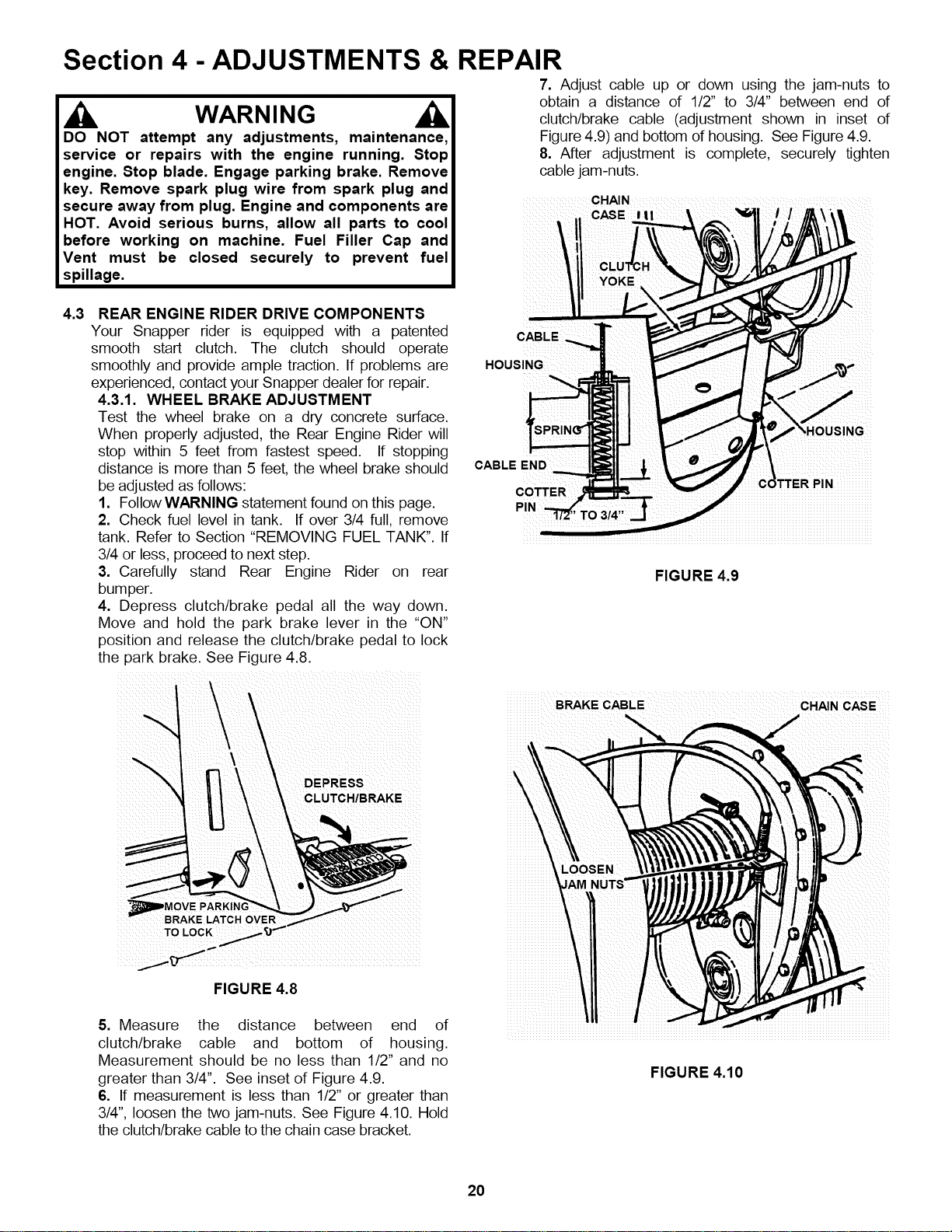

Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and
Vent must be closed securely to prevent fuel
spillage.
7. Adjust cable up or down using the jam-nuts to
obtain a distance of 1/2" to 3/4" between end of
clutch/brake cable (adjustment shown in inset of
Figure 4.9) and bottom of housing. See Figure 4.9.
8. After adjustment is complete, securely tighten
cable jam-nuts.
4.3 REAR ENGINE RIDER DRIVE COMPONENTS
Your Snapper rider is equipped with a patented
smooth start clutch. The clutch should operate
smoothly and provide ample traction. If problems are
experienced, contact your Snapper dealer for repair.
4.3.1. WHEEL BRAKE ADJUSTMENT
Test the wheel brake on a dry concrete surface.
When properly adjusted, the Rear Engine Rider will
stop within 5 feet from fastest speed. If stopping
distance is more than 5 feet, the wheel brake should
be adjusted as follows:
1. Follow WARNING statement found on this page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK". If
3/4 or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear
bumper.
4. Depress clutch/brake pedal all the way down.
Move and hold the park brake lever in the "ON"
position and release the clutch/brake pedal to lock
the park brake. See Figure 4.8.
CABLE
HOUSING .....
CABLE END
COTTER PIN
PIN "_' TO 3/4"
FIGURE 4.9
_ DEPRESS
CLUTCH/BRAKE
b
BRAKE CABLE CHAIN CASE
|
J
FIGURE 4.8
5. Measure the distance between end of
clutch/brake cable and bottom of housing.
Measurement should be no less than 1/2" and no
greater than 3/4". See inset of Figure 4.9.
6. If measurement is less than 1/2" or greater than
3/4", loosen the two jam-nuts. See Figure 4.10. Hold
the clutch/brake cable to the chain case bracket.
FIGURE 4.10
20

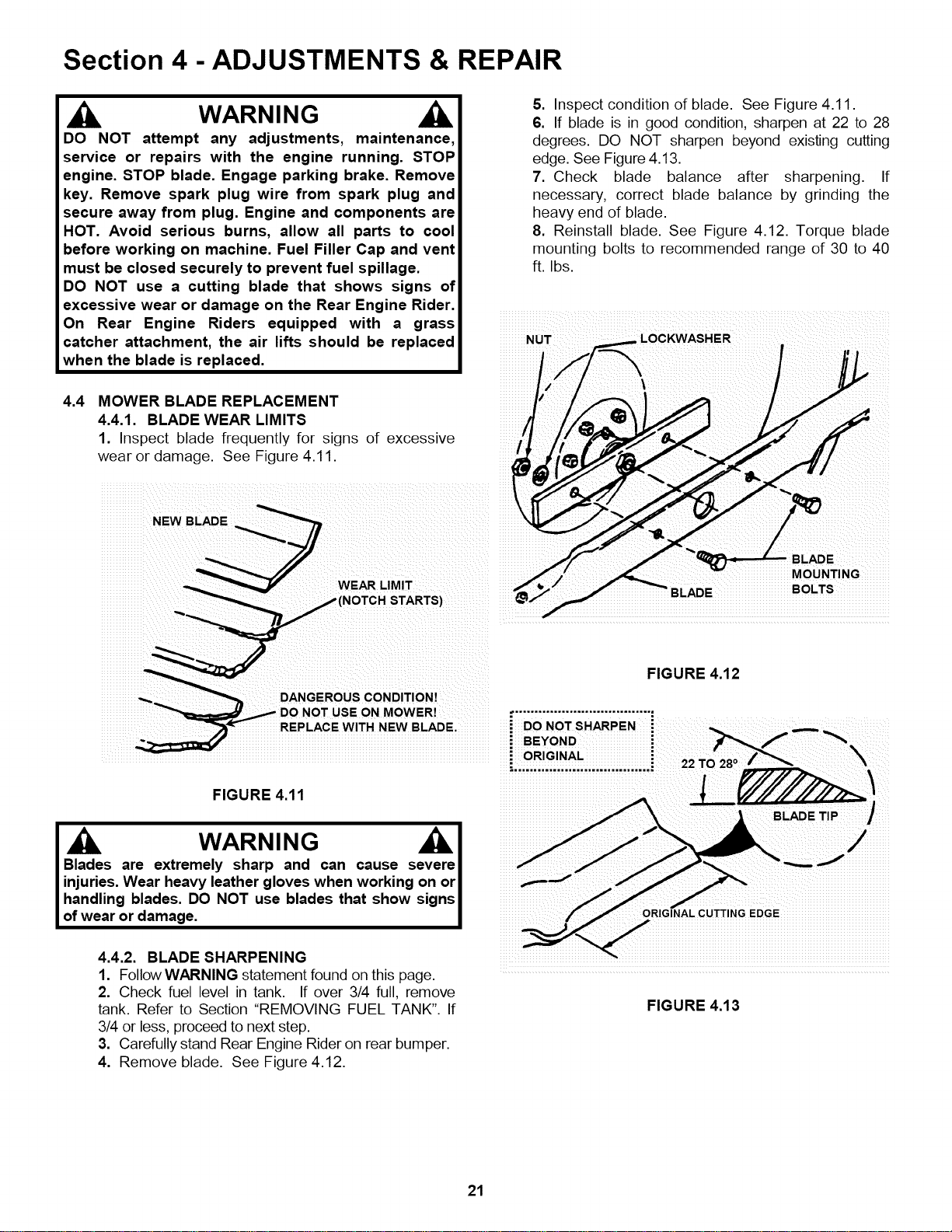

Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
DO NOT use a cutting blade that shows signs of
excessive wear or damage on the Rear Engine Rider.
On Rear Engine Riders equipped with a grass
catcher attachment, the air lifts should be replaced
when the blade is replaced.
5. Inspect condition of blade. See Figure 4.11.
6. If blade is in good condition, sharpen at 22 to 28
degrees. DO NOT sharpen beyond existing cutting
edge. See Figure 4.13.
7. Check blade balance after sharpening. If
necessary, correct blade balance by grinding the
heavy end of blade.
8. Reinstall blade. See Figure 4.12. Torque blade
mounting bolts to recommended range of 30 to 40
ft. Ibs.
NUT
LOCKWASHER
4.4 MOWER BLADE REPLACEMENT
4.4.1. BLADE WEAR LIMITS
1. Inspect blade frequently for signs of excessive
wear or damage See Figure 4.11.
NEW BLADE
WEAR LIMIT
(l_= BLADE
MOUNTING
BOLTS
FIGURE 4.11
WARNING AI
Blades are extremely sharp and can cause severe I
injuries. Wear heavy leather gloves when working on orl
handling blades. DO NOT use blades that show signs
of wear or damage. I
4.4.2. BLADE SHARPENING
1. Follow WARNING statement found on this page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK". If
3/4 or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear bumper.
4. Remove blade. See Figure 4.12.
!
BLADE TIP j
/
ORIGINAL CUTTING EDGE
FIGURE 4.13
21

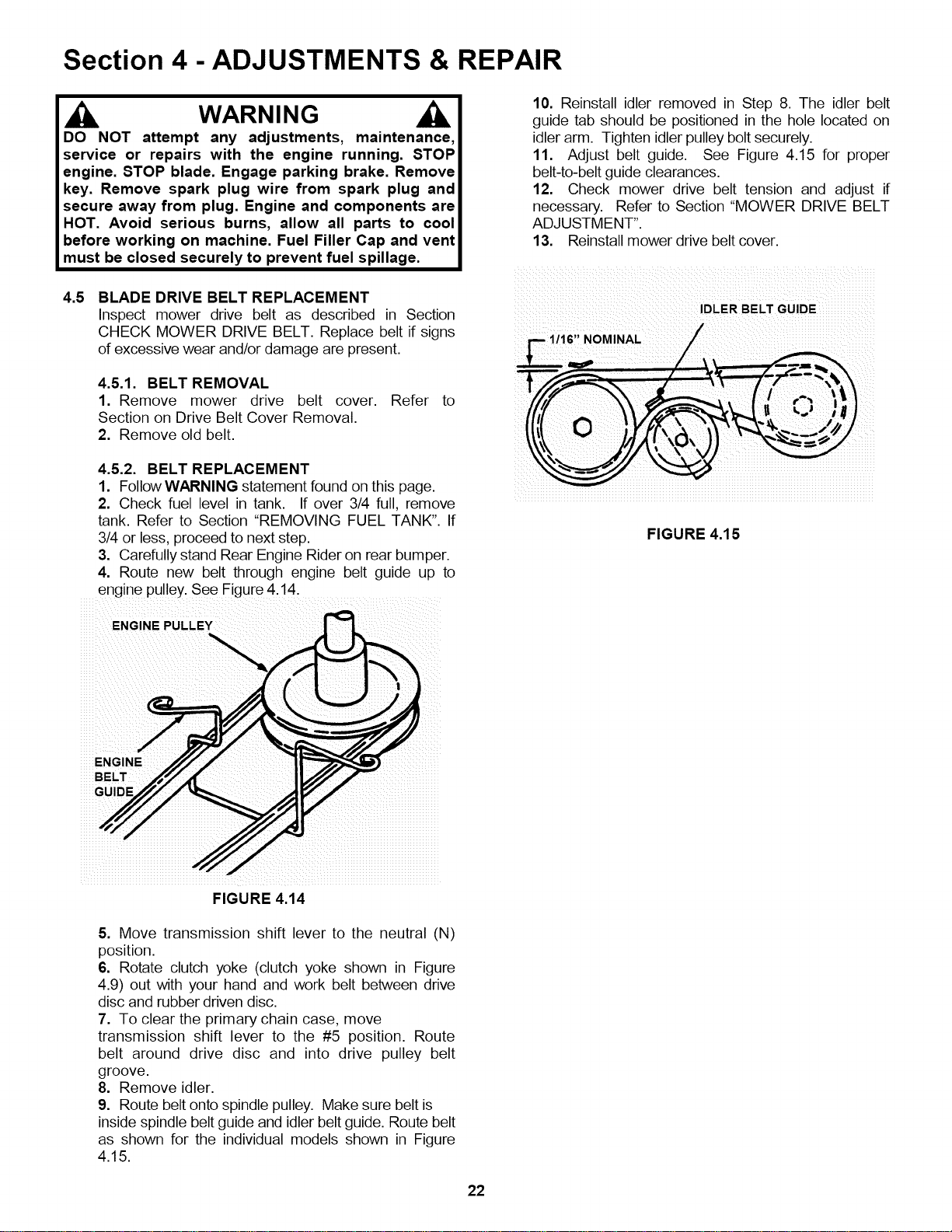

Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
4.5
10. Reinstall idler removed in Step 8. The idler belt
guide tab should be positioned in the hole located on
idler arm. Tighten idler pulley bolt securely.
11. Adjust belt guide. See Figure 4.15 for proper
belt-to-belt guide clearances.
12. Check mower drive belt tension and adjust if
necessary. Refer to Section "MOWER DRIVE BELT
ADJUSTMENT".
13. Reinstall mower drive belt cover.
_ _ _ _ _ _ _ ii_i_i _ _iii _ _/_i ii_i __/ i _iiiiiiiiii_i
BLADE DRIVE BELT REPLACEMENT ........... IDLER BELT GUIDE
Inspect mower drive belt as described in Section ....... ................
CHECK MOWER DRIVE BELT. Replace belt if signs
of excessive wear and/or damage are present.
NOMINAL ................
4.5.1. BELT REMOVAL
1. Remove mower drive belt cover. Refer to
Section on Drive Belt Cover Removal. 0
2. Remove old belt.
4.5.2. BELT REPLACEMENT
1. Follow WARNING statement found on this page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK". If
3/4 or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear bumper.
4. Route new belt through engine belt guide up to
engine pulley. See Figure 4.14.
FIGURE 4.15
ENGINE PULLEY
ENGINE
BELT
FIGURE 4.14
5. Move transmission shift lever to the neutral (N)
position.
6. Rotate clutch yoke (clutch yoke shown in Figure
4.9) out with your hand and work belt between drive
disc and rubber driven disc.
7. To clear the primary chain case, move
transmission shift lever to the #5 position. Route
belt around drive disc and into drive pulley belt
groove.
8. Remove idler.
9. Route belt onto spindle pulley. Make sure belt is
inside spindle belt guide and idler belt guide. Route belt
as shown for the individual models shown in Figure
4.15.
22

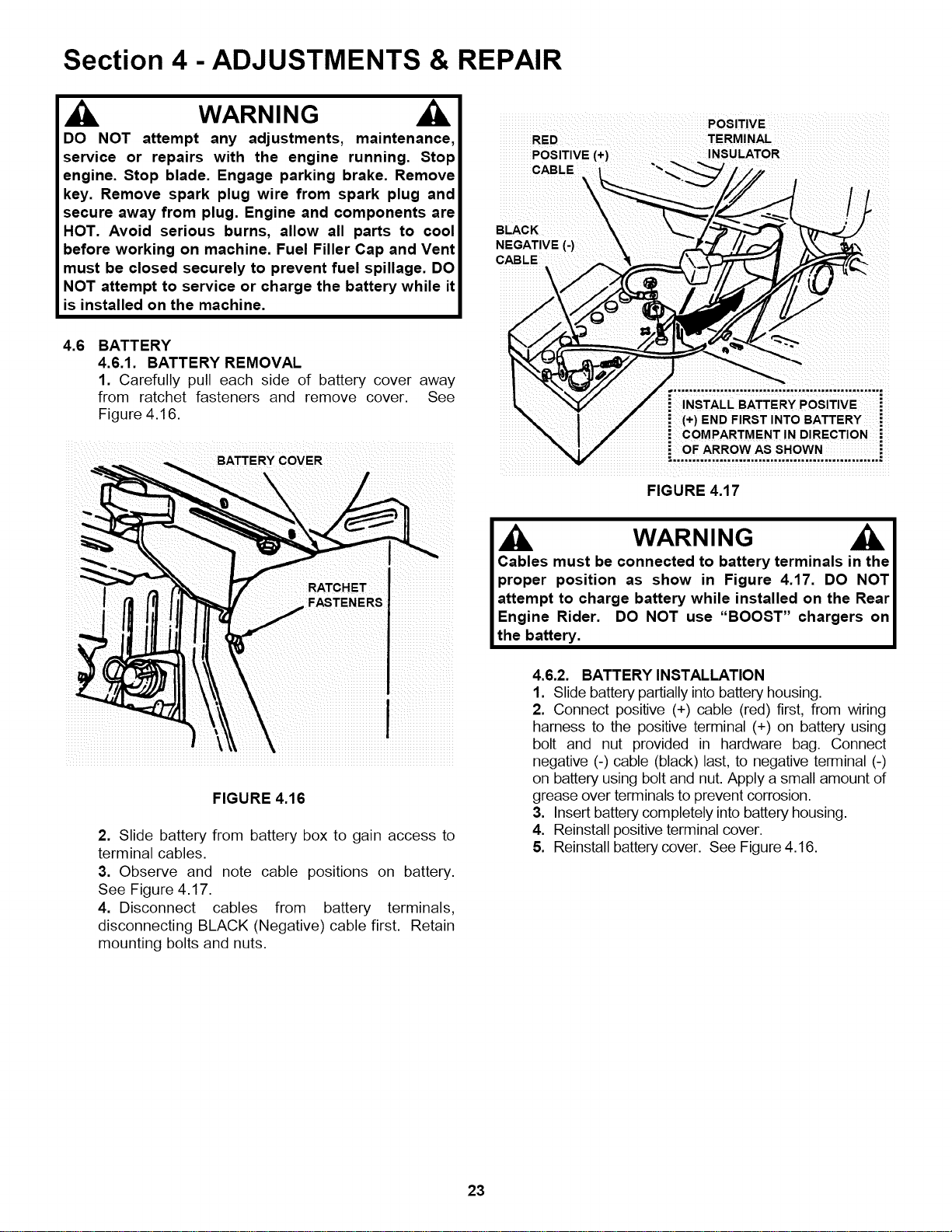

Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage. DO
NOT attempt to service or charge the battery while it
is installed on the machine.
RED
POSITIVE (+)
CABLE
BLACK
NEGATIVE (-)
CABLE
POSITIVE
TERMINAL
INSULATOR
4.6 BATTERY
4.6.1. BATTERY REMOVAL
1. Carefully pull each side of battery cover away
from ratchet fasteners and remove cover. See
Figure 4.16.
FIGURE 4.16
2. Slide battery from battery box to gain access to
terminal cables.
3. Observe and note cable positions on battery.
See Figure 4.17.
4. Disconnect cables from battery terminals,
disconnecting BLACK (Negative) cable first. Retain
mounting bolts and nuts.
. ..................................................... =
•: INSTALL BATTERY POSITIVE
(+) END FIRST INTO BATTERY
COMPARTMENT IN DIRECTION :
OF ARROW AS SHOWN i
FIGURE 4.17
I Cables must be connected to battery terminals in the I
proper position as show in Figure 4.17. DO NOT I
attempt to charge battery while installed on the Rear I
Engine Rider. DO NOT use "BOOST" chargers on I
the battery. I
4.6.2. BATTERY INSTALLATION
1. Slide battery partially into battery housing.
2. Connect positive (+) cable (red) first, from wiring
harness to the positive terminal (+) on battery using
bolt and nut provided in hardware bag. Connect
negative (-) cable (black) ast. to negative terminal (-)
on battery using bolt and nut. Apply a small amount of
grease over terminals to prevent corrosion.
3. Insert battery completely into battery housing.
4. Reinstall positive terminal cover.
5. Reinstall battery cover. See Figure 4.16.
23

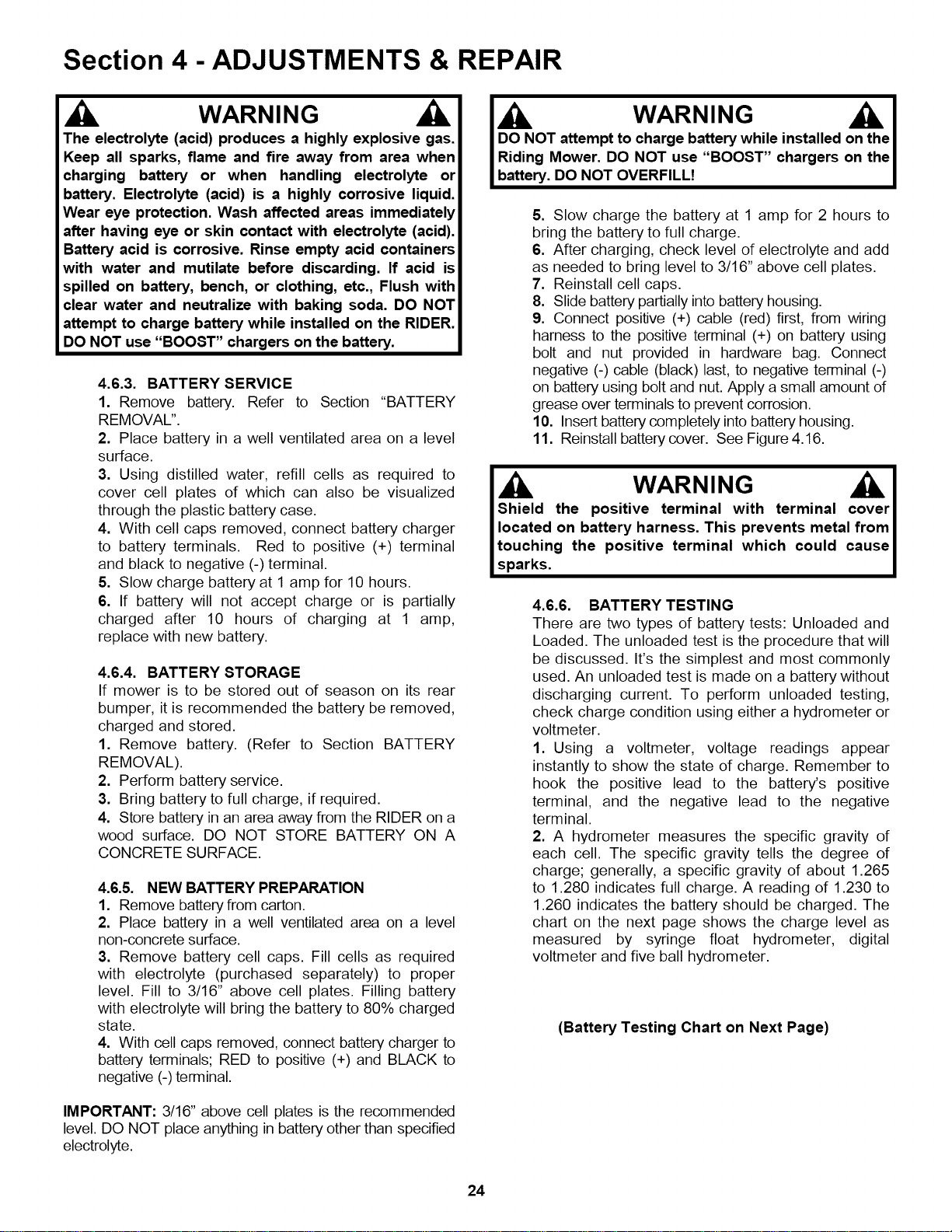

Section 4 - ADJUSTMENTS & REPAIR
WARNING
The electrolyte (acid) produces a highly explosive gas.
Keep all sparks, flame and fire away from area when
charging battery or when handling electrolyte or
battery. Electrolyte (acid) is a highly corrosive liquid.
Wear eye protection. Wash affected areas immediately
after having eye or skin contact with electrolyte (acid).
Battery acid is corrosive. Rinse empty acid containers
with water and mutilate before discarding. If acid is
spilled on battery, bench, or clothing, etc., Flush with
clear water and neutralize with baking soda. DO NOT
attempt to charge battery while installed on the RIDER.
DO NOT use "BOOST" chargers on the battery.
4.6.3. BATTERY SERVICE
1. Remove battery. Refer to Section "BATTERY
REMOVAL".
2. Place battery in a well ventilated area on a level
surface.
3. Using distilled water, refill cells as required to
cover cell plates of which can also be visualized
through the plastic battery case.
4. With cell caps removed, connect battery charger
to battery terminals. Red to positive (+) terminal
and black to negative (-) terminal.
5. Slow charge battery at 1 amp for 10 hours.
6. If battery will not accept charge or is partially
charged after 10 hours of charging at 1 amp,
replace with new battery.
4.6.4. BATTERY STORAGE
If mower is to be stored out of season on its rear
bumper, it is recommended the battery be removed,
charged and stored.
1. Remove battery. (Refer to Section BATTERY
REMOVAL).
2. Perform battery service.
3. Bring battery to full charge, if required.
4. Store battery in an area away from the RIDER on a
wood surface. DO NOT STORE BATTERY ON A
CONCRETE SURFACE.
4.6.5. NEW BATTERY PREPARATION
1. Remove battery from carton.
2. Place battery in a well ventilated area on a level
non-concrete surface.
3. Remove battery cell caps. Fill cells as required
with electrolyte (purchased separately) to proper
level. Fill to 3/16" above cell plates. Filling battery
with electrolyte will bring the battery to 80% charged
state.
4. With cell caps removed, connect battery charger to
battery terminals; RED to positive (+) and BLACK to
negative (-) terminal.
IMPORTANT: 3/16" above cell plates is the recommended
level. DO NOT place anything in battery other than specified
electrolyte.
WARNING
DO NOT attempt to charge battery while installed on the I
Riding Mower. DO NOT use "BOOST" chargers on the
battery. DO NOT OVERFILL! I
5. Slow charge the battery at 1 amp for 2 hours to
bring the battery to full charge.
6. After charging, check level of electrolyte and add
as needed to bring level to 3/16" above cell plates.
7. Reinstall cell caps.
8. Slide battery partially into battery housing.
9. Connect positive (+) cable (red) first, from wiring
harness to the positive terminal (+) on battery using
bolt and nut provided in hardware bag. Connect
negative (-) cable (black)last, to negative terminal (-)
on battery using bolt and nut. Apply a small amount of
grease over terminals to prevent corrosion.
10. Insert battery completely into battery housing.
11. Reinstall battery cover. See Figure4.16.
Shield the positive terminal with terminal cover I
located on battery harness. This prevents metal from
touching the positive terminal which could cause l
sparks. I
4.6.6. BATTERY TESTING
There are two types of battery tests: Unloaded and
Loaded. The unloaded test is the procedure that will
be discussed. It's the simplest and most commonly
used. An unloaded test is made on a battery without
discharging current. To perform unloaded testing,
check charge condition using either a hydrometer or
voltmeter.
1. Using a voltmeter, voltage readings appear
instantly to show the state of charge. Remember to
hook the positive lead to the battery's positive
terminal, and the negative lead to the negative
terminal.
2. A hydrometer measures the specific gravity of
each cell. The specific gravity tells the degree of
charge; generally, a specific gravity of about 1.265
to 1.280 indicates full charge. A reading of 1.230 to
1.260 indicates the battery should be charged. The
chart on the next page shows the charge level as
measured by syringe float hydrometer, digital
voltmeter and five ball hydrometer.
(Battery Testing Chart on Next Page)
24

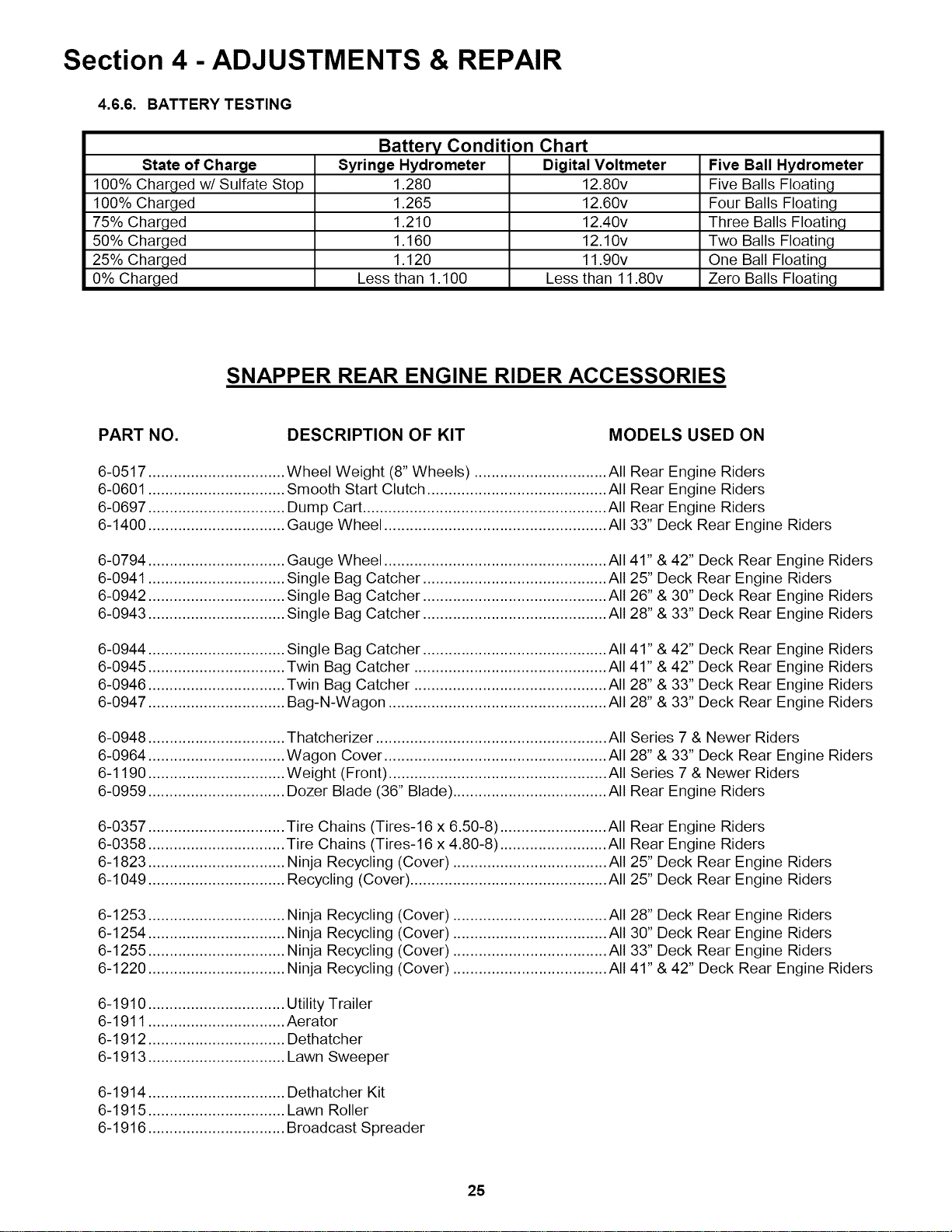

Section 4 - ADJUSTMENTS & REPAIR
4.6.6. BATTERY TESTING
State of Charge
100% Charged w/Sulfate Stop
100% Charged
75% Charged
50% Charged
25% Charged
0% Charged
Batten/Condition Chart
Syringe Hydrometer
1.280
1.265
1.210
1.160
1.120
Less than 1.100
Digital Voltmeter
12.80v
12.60v
12.40v
12.10v
11.90v
Less than 11.80v
Five Ball Hydrometer
Five Balls Floating
Four Balls Floating
Three Balls Floating
Two Balls Floating
One Ball Floating
Zero Balls Floating
SNAPPER REAR ENGINE RIDER ACCESSORIES
PART NO. DESCRIPTION OF KIT MODELS USED ON
6-0517 ..............................
6-0601 ..............................
6-0697 ..............................
6-1400 ..............................
..Wheel Weight (8" Wheels) ............................... All Rear Engine Riders
..Smooth Start Clutch .......................................... All Rear Engine Riders
.. Dump Cart ......................................................... All Rear Engine Riders
..Gauge Wheel .................................................... All 33" Deck Rear Engine Riders
6-0794 ..............................
6-0941 ..............................
6-0942 ..............................
6-0943 ..............................
..Gauge Wheel .................................................... All 41"& 42" Deck Rear Engine Riders
..Single Bag Catcher ........................................... All 25" Deck Rear Engine Riders
..Single Bag Catcher ........................................... All 26" & 30" Deck Rear Engine Riders
..Single Bag Catcher ........................................... All 28" & 33" Deck Rear Engine Riders
6-0944 ..............................
6-0945 ..............................
6-0946 ..............................
6-0947 ..............................
..Single Bag Catcher ........................................... All 41"& 42" Deck Rear Engine Riders
..Twin Bag Catcher ............................................. All 41" & 42" Deck Rear Engine Riders
..Twin Bag Catcher ............................................. All 28" & 33" Deck Rear Engine Riders
.. Bag-N-Wagon ................................................... All 28" & 33" Deck Rear Engine Riders
6-0948 ................................ Thatcherizer ...................................................... All Series 7 & Newer Riders
6-0964 ................................ Wagon Cover .................................................... All 28" & 33" Deck Rear Engine Riders
6-1190 ................................ Weight (Front) ................................................... All Series 7 & Newer Riders
6-0959 ................................ Dozer Blade (36" Blade) .................................... All Rear Engine Riders
6-0357 ................................ Tire Chains (Tires-16 x 6.50-8) ......................... All
6-0358 ................................ Tire Chains (Tires-16 x 4.80-8) ......................... All
6-1823 ................................ Ninja Recycling (Cover) .................................... All
6-1049 ................................ Recycling (Cover) .............................................. All
Rear Engine Riders
Rear Engine Riders
25" Deck Rear Engine Riders
25" Deck Rear Engine Riders
6-1253 ..............................
6-1254 ..............................
6-1255 ..............................
6-1220 ..............................
.. Ninja Recycling (Cover) .................................... All 28" Deck Rear Engine Riders
.. Ninja Recycling (Cover) .................................... All 30" Deck Rear Engine Riders
.. Ninja Recycling (Cover) .................................... All 33" Deck Rear Engine Riders
.. Ninja Recycling (Cover) .................................... All 41" & 42" Deck Rear Engine Riders
6-1910 ................................ Utility Trailer
6-1911 ................................ Aerator
6-1912 ................................ Dethatcher
6-1913 ................................ Lawn Sweeper
6-1914 ................................ Dethatcher Kit
6-1915 ................................ Lawn Roller
6-1916 ................................ Broadcast Spreader
25

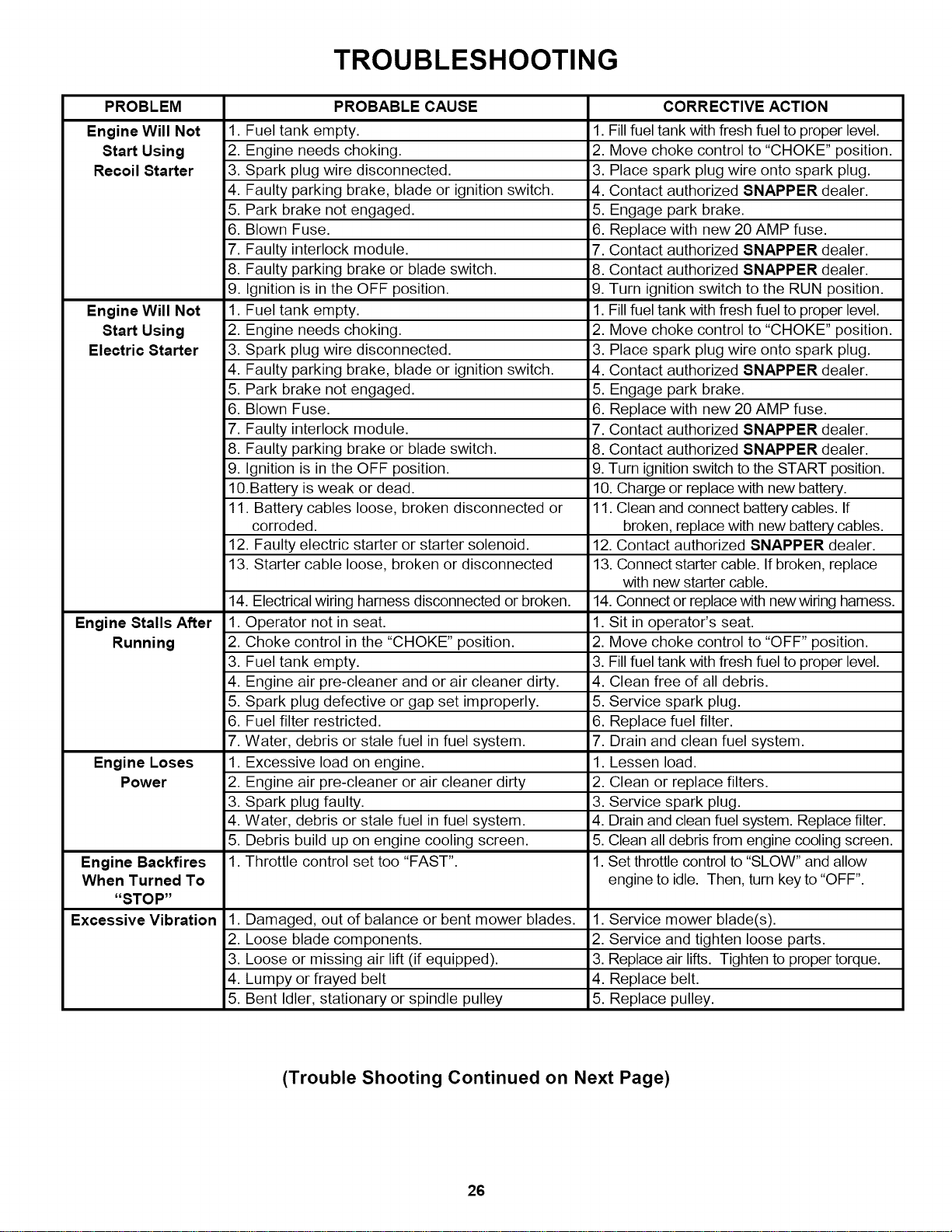

PROBLEM
EngineWillNot
Start Using
Recoil Starter
Engine Will Not
Start Using
Electric Starter
TROUBLESHOOTING
,
2.
3.
4.
5.
6.
7.
8.
9.
1.
2.
3.
4.
5.
6.
7.
PROBABLE CAUSE
Fuel tank empty. 1.
Engine needs choking. 2.
Spark plug wire disconnected. 3.
Faulty parking brake, blade or ignition switch. 4.
Park brake not engaged. 5.
Blown Fuse. 6.
Faulty interlock module. 7.
Faulty parking brake or blade switch. 8.
Ignition is inthe OFF position. 9.
Fuel tank empty. 1.
Engine needs choking. 2.
Spark plug wire disconnected. 3.
Faulty parking brake, blade or ignition switch. 4.
Park brake not engaged. 5.
Blown Fuse. 6.
Faulty interlock module. 7.
8. Faulty parking brake or blade switch.
9. Ignition is in the OFF position.
10.Battery is weak or dead.
11. Battery cables loose, broken disconnected or
corroded.
12. Faulty electric starter or starter solenoid.
13. Starter cable loose, broken or disconnected
CORRECTIVE ACTION
Fill fuel tank with fresh fuel to proper level.
Move choke control to "CHOKE" position.
Place spark plug wire onto spark plug.
Contact authorized SNAPPER dealer.
Engage park brake.
Replace with new 20 AMP fuse.
Contact authorized SNAPPER dealer.
Contact authorized SNAPPER dealer.
Turn ignition switch to the RUN position.
Fill fuel tank with fresh fuel to proper level.
Move choke control to "CHOKE" position.
Place spark plug wire onto spark plug.
Contact authorized SNAPPER dealer.
Engage park brake.
Replace with new 20 AMP fuse.
Contact authorized SNAPPER dealer.
14. Electrical wiring harness disconnected or broken.
Engine Stalls After 1. Operator not in seat.
Running 2. Choke control in the "CHOKE" position.
3. Fuel tank empty.
4. Engine air pre-cleaner and or air cleaner dirty. 4.
5. Spark plug defective or gap set improperly. 5.
6. Fuel filter restricted. 6.
7. Water, debris or stale fuel in fuel system. 7.
Engine Loses 1. Excessive load on engine. 1.
Power 2. Engine air pre-cleaner or air cleaner dirty 2.
3. Spark plug faulty. 3.
4. Water, debris or stale fuel in fuel system. 4.
5. Debris build up on engine cooling screen. 5.
Engine Backfires 1. Throttle control set too "FAST". 1.
When Turned To
"STOP"
8. Contact authorized SNAPPER dealer.
9. Turn ignition switch to the START position.
10. Charge or replace with new battery.
11. Clean and connect battery cables. If
broken, replace with new battery cables.
12. Contact authorized SNAPPER dealer.
13. Connect starter cable. If broken, replace
with new starter cable.
14. Connect or replace with new wiring harness.
1. Sit in operator's seat.
2. Move choke control to "OFF" position.
3. Fill fuel tank with fresh fuel to proper level.
Clean free of all debris.
Service spark plug.
Replace fuel filter.
Drain and clean fuel system.
Lessen load.
Clean or replace filters.
Service spark plug.
Drain and clean fuel system. Replace filter.
Clean all debris from engine cooling screen.
Set throttle control to "SLOW" and allow
engine to idle. Then, turn key to "OFF".
Excessive Vibration 1. Damaged, out of balance or bent mower blades. 1. Service mower blade(s).
2. Loose blade components. 2. Service and tighten loose parts.
3. Loose or missing air lift (if equipped). 3. Replace air lifts. Tighten to proper torque.
4. Lumpy or frayed belt 4. Replace belt.
5. Bent Idler, stationary or spindle pulley 5. Replace pulley.
(Trouble Shooting Continued on Next Page)
26

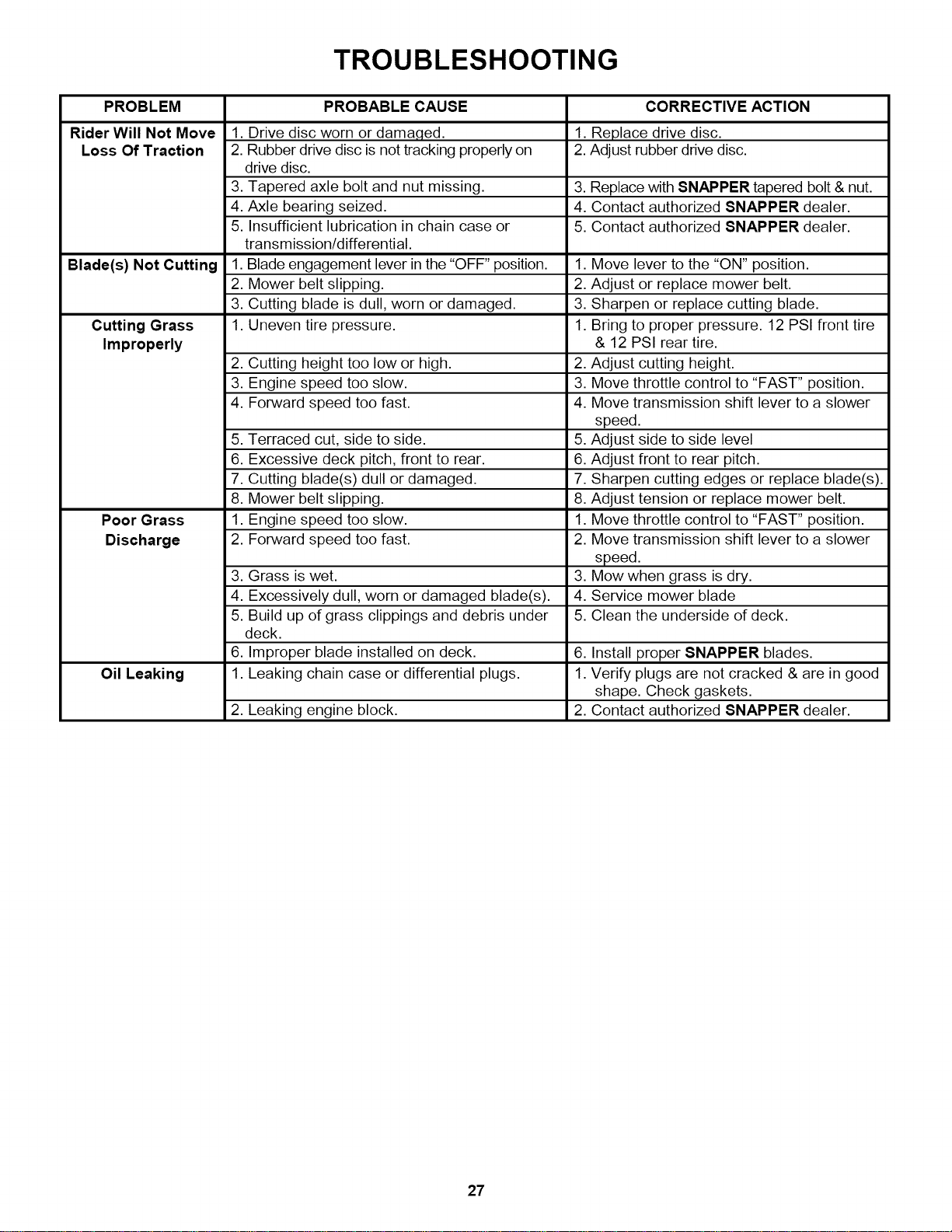

PROBLEM
RiderWill NotMove
LossOfTraction
Blade(s)NotCutting
CuttingGrass
Improperly
PoorGrass
Discharge
TROUBLESHOOTING
CORRECTIVE ACTION
Replace drive disc.
Adjust rubber drive disc.
PROBABLE CAUSE
1. Drive disc worn or dama,qed. 1.
2. Rubber drive disc is not tracking properly on 2.
drive disc.
3. Tapered axle bolt and nut missing. 3.
4. Axle bearing seized. 4.
5. Insufficient lubrication in chain case or 5.
transmission/differential.
1. Blade engagement lever in the "OFF" position. 1.
2. Mower belt slipping. 2.
3. Cutting blade is dull, worn or damaged. 3.
1. Uneven tire pressure. 1.
2. Cutting height too low or high. 2.
3. Engine speed too slow. 3.
4. Forward speed too fast. 4.
5. Terraced cut, side to side. 5.
6. Excessive deck pitch, front to rear. 6.
7. Cutting blade(s) dull or damaged. 7.
8. Mower belt slipping. 8.
1. Engine speed too slow. 1.
2. Forward speed too fast. 2.
3. Grass is wet. 3.
4. Excessively dull, worn or damaged blade(s). 4.
5. Build up of grass clippings and debris under 5.
deck.
6. Improper blade installed on deck. 6.
1. Leaking chain case or differential plugs. 1.
2. Leaking engine block. 2.
Replace with SNAPPER tapered bolt & nut.
Contact authorized SNAPPER dealer.
Contact authorized SNAPPER dealer.
Move lever to the "ON" position.
Adjust or replace mower belt.
Sharpen or replace cutting blade.
Bring to proper pressure. 12 PSI front tire
& 12 PSI rear tire.
Adjust cutting height.
Move throttle control to "FAST" position.
Move transmission shift lever to a slower
speed.
Adjust side to side level
Adjust front to rear pitch.
Sharpen cutting edges or replace blade(s).
Adjust tension or replace mower belt.
Move throttle control to "FAST" position.
Move transmission shift lever to a slower
speed.
Mow when grass is dry.
Service mower blade
Clean the underside of deck.
Install proper SNAPPER blades.
Oil Leaking Verify plugs are not cracked & are in good
shape. Check gaskets.
Contact authorized SNAPPER dealer.
27

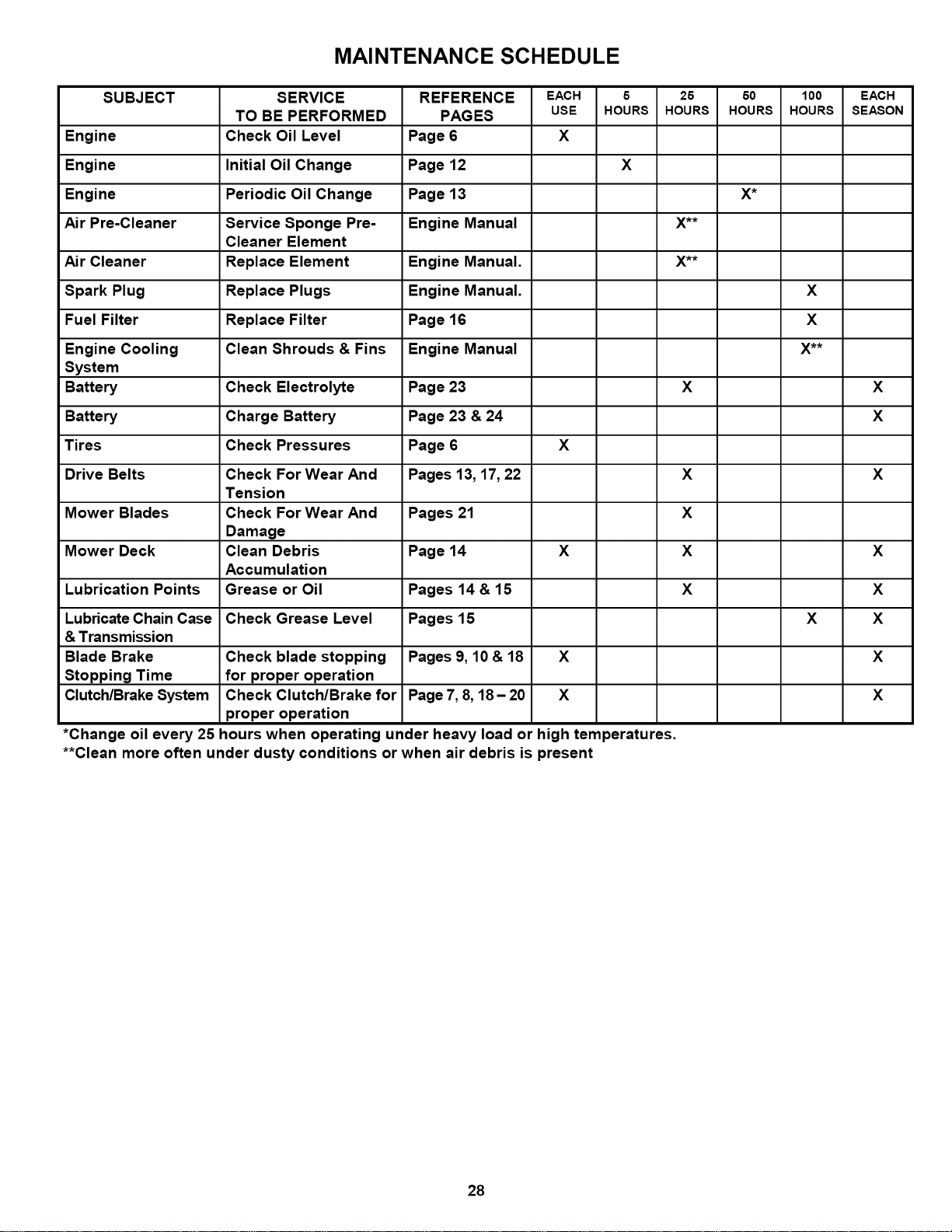

MAINTENANCE SCHEDULE
SUBJECT
Engine
Engine
Engine
Air Pre-Cleaner
Air Cleaner
Spark Plug
Fuel Filter
Engine Cooling
System
Battery
Battery
Tires
Drive Belts
Mower Blades
Mower Deck
Lubrication Points
Lubricate Chain Case
& Transmission
Blade Brake
Stopping Time
Clutch/Brake System
SERVICE
TO BE PERFORMED
Check Oil Level
Initial Oil Change
Periodic Oil Change
Service Sponge Pre-
Cleaner Element
Replace Element
Replace Plugs
Replace Filter
Clean Shrouds & Fins
Check Electrolyte
Charge Battery
Check Pressures
Check For Wear And
Tension
Check For Wear And
Damage
Clean Debris
Accumulation
Grease or Oil
Check Grease Level
Check blade stopping
for proper operation
Check Clutch/Brake for
proper operation
REFERENCE
PAGES
Page 6
Page 12
Page 13
Engine Manual
Engine Manual.
Engine Manual.
Page 16
Engine Manual
Page 23
Page 23 & 24
Page 6
Pages13,17,22
Pages 21
EACH
USE
X
X
Page 14 X
Pages 14 & 15
Pages 15
Pages 9,10 & 18 X
Page 7,8,18-20 X
6
HOURS
X
26
HOURS
X
X
X
X
X
60
HOURS
X*
*Change oil every 25 hours when operating under heavy load or high temperatures.
**Clean more often under dusty conditions or when air debris is present
100
HOURS
X
X
X**
X
EACH
SEASON
X
X
X
X
X
X
X
X
28

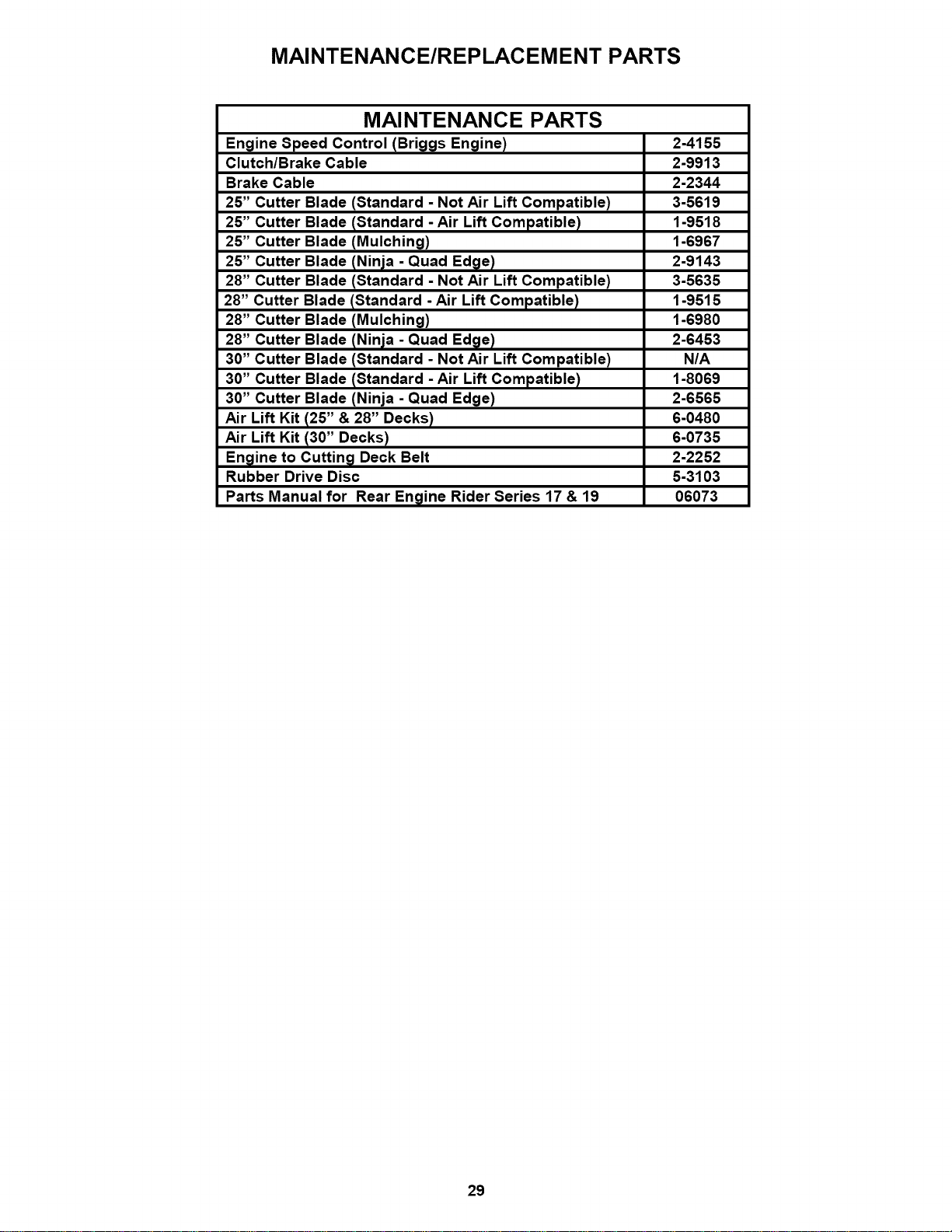

MAINTENANCE/REPLACEMENT PARTS
MAINTENANCE PARTS
Engine Speed Control (Briggs Engine)
Clutch/Brake Cable
Brake Cable
25" Cutter Blade (Standard - Not Air Lift Compatible)
25" Cutter Blade IStandard - Air Lift Compatible I
25" Cutter Blade (Mulching)
25" Cutter Blade INinia - Quad Edge I
28" Cutter Blade (Standard - Not Air Lift Compatible)
28" Cutter Blade IStandard - Air Lift Compatible I
28" Cutter Blade (Mulching)
2-4155
2-9913
2-2344
3-5619
1-9518
1-6967
2-9143
3-5635
1-9515
1-6980
28" Cutter
30" Cutter
30" Cutter
30" Cutter
Air Lift Kit
Air Lift Kit (30" Decks)
En_line to Cuttin_l Deck Belt
Rubber Drive Disc
Parts Manual for Rear En_line Rider Series 17 & 19
Blade INinia - Quad EddieI
Blade (Standard - Not Air Lift Compatible)
Blade IStandard - Air Lift Compatible I
Blade (Ninja - Quad Edge)
125" & 28" Decks)
2-6453
N/A
1-8069
2-6565
6-0480
6-0735
2-2252
5-3103
06073
29
3 YEAR LIMITED WARRANTY
For three (3) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through
any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found
upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
For ninety (90) days from purchase date for the original purchaser's commercial, rental, or other non-residential use,
SNAPPER, through any authorized SNAPPER dealer will replace, free of charge, any part or parts found upon
examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
All transportation costs incurred by the purchaser in submitting material to an authorized SNAPPER dealer for
replacement under this warranty must be paid by the purchaser.
This warranty does not apply to engines and their components, and batteries, as these items are warranted separately.
This warranty does not apply to parts that have been damaged by accident, alteration, abuse, improper lubrication,
normal wear, or other cause beyond the control of SNAPPER. This warranty does not cover any machine or component
part that has been altered or modified changing safety, performance, or durability.
Batteries have a one (1) year prorated warranty period with free replacement if required during the first ninety (90) days
from the original purchase date. SNAPPER will not be responsible for any installation cost incurred. The battery warranty
only covers original equipment batteries and does not cover damage to the battery or machine caused by neglect or
abuse, destruction by fire, explosion, freezing, overcharging, improper maintenance, or use of improper electrolyte.
There is no other express warranty.
DISCLAIMER OF WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to three
(3) years from purchase date for the original purchaser's residential or other non-commercial use, and ninety
(90) days from purchase for the original purchaser's commercial, rental or other non-residential use, and to the
extent permitted by law, any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for
consequential damages, under any and all warranties are excluded.
Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
WARNING: THE USE OF REPLACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY IMPAIR THE
SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND WARRANTY BY SNAPPER
ASSOCIATED WITH THE USE OF SUCH PARTS.
IMPORTANT: Please fill out the attached SNAPPER Product Registration Card immediately and mail to:
Snapper's Product Registration Center, P.O. Box 1379, McDonough, Georgia 30253
30
PRIMARY MAINTENANCE
an
illustration of
how dirt can
damage your
engine & how
maintenance
Snapper uses the best avail-
gines and components n
In their products in order to
provide long, satisfactory ._
service. However, proper
care is essential In
prolonging engine life. Dirt
Is your engine's enemy I
number 11
The engine on your Snapper
product spends Its entire life
operating close to the ground at
high speed creating a virtual
storm of dust and dlrtl
31

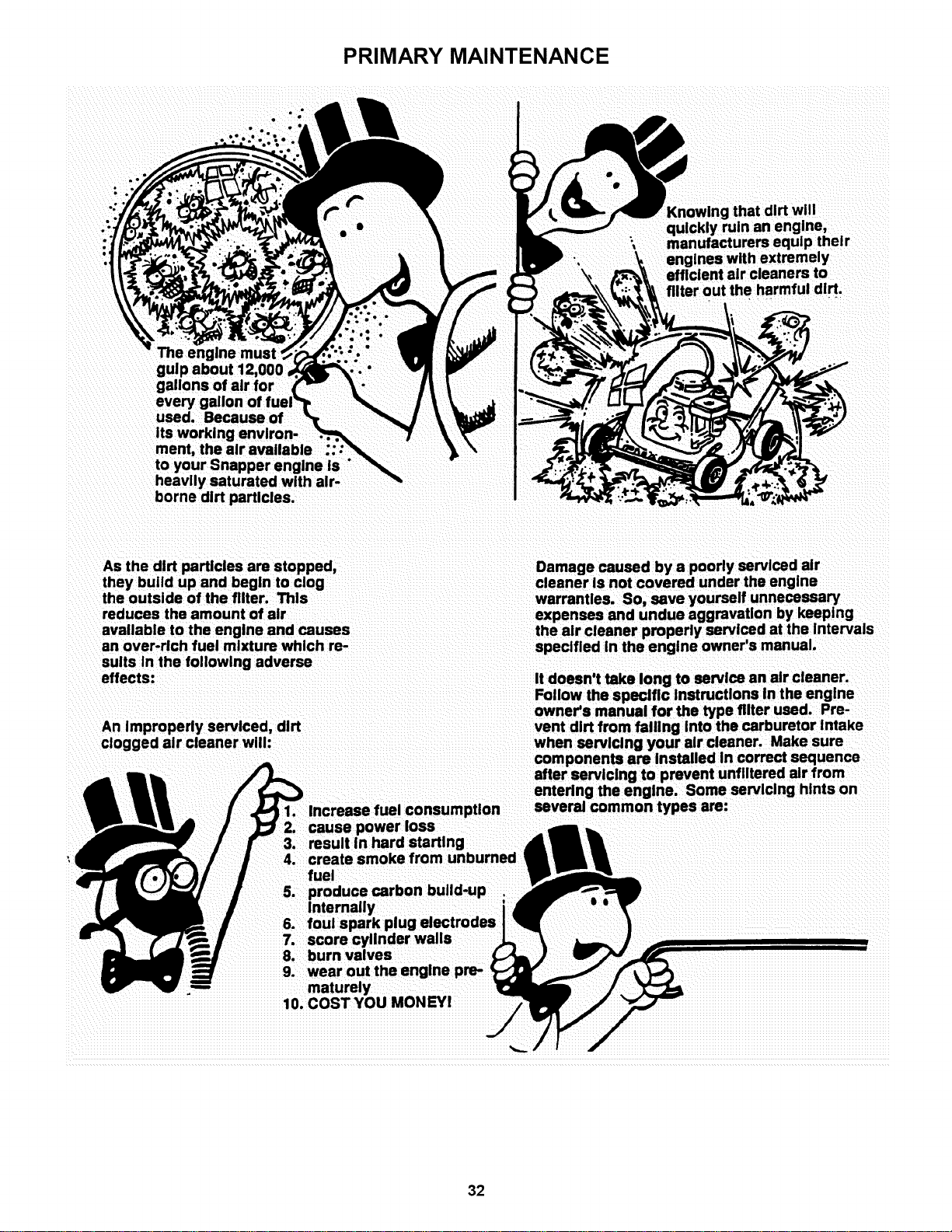

PRIMARY MAINTENANCE
g that dirt will
quickly ruin an engine,
manufacturers equip their
engines with extremely
efficient air cleaners to
filter out the harmful dirt.
The engine must
gallons of air for
every g
_f
its working
ment, the air available
to your Snapper en
heavily saturated with air-
borne dirt particles.
As the dirt particles are stopped,
they build up and begin to clog
the outside of the filter. This
reduces the amount of air
available to the engine and causes
an over-rich fuel mixture which re-
sults In the following adverse
effects:
An Improperly serviced, dirt
clogged air cleaner will:
1. Increase fuel consumption
2. cause power loss
3. result in hard starting (
4. create smoke from unburned
fuel
5. produce carbon build-up ;
Internally
Damage caused by a poorly serviced air
cleaner Is not covered under the engine
warranties. So, save yourself unnecessary
expenses and undue aggravation by keeping
the air cleaner properly serviced at the Intervals
specified In the engine owner's manual.
It doesn't take long to service an air cleaner.
Follow the specific Instructions In the engine
owner's manual for the type filter used. Pre-
vent dirt from falling Into the carburetor Intake
when servicing your air cleaner. Make sure
components are Installed in correct sequence
after servicing to prevent unfiltered air from
entering the engine. Some servicing hints on
several common types are:
6. foul spark plug electrodes
8. burn valves
9. wear out the engine pre-
maturely
10. COST YOU MONEY!
32

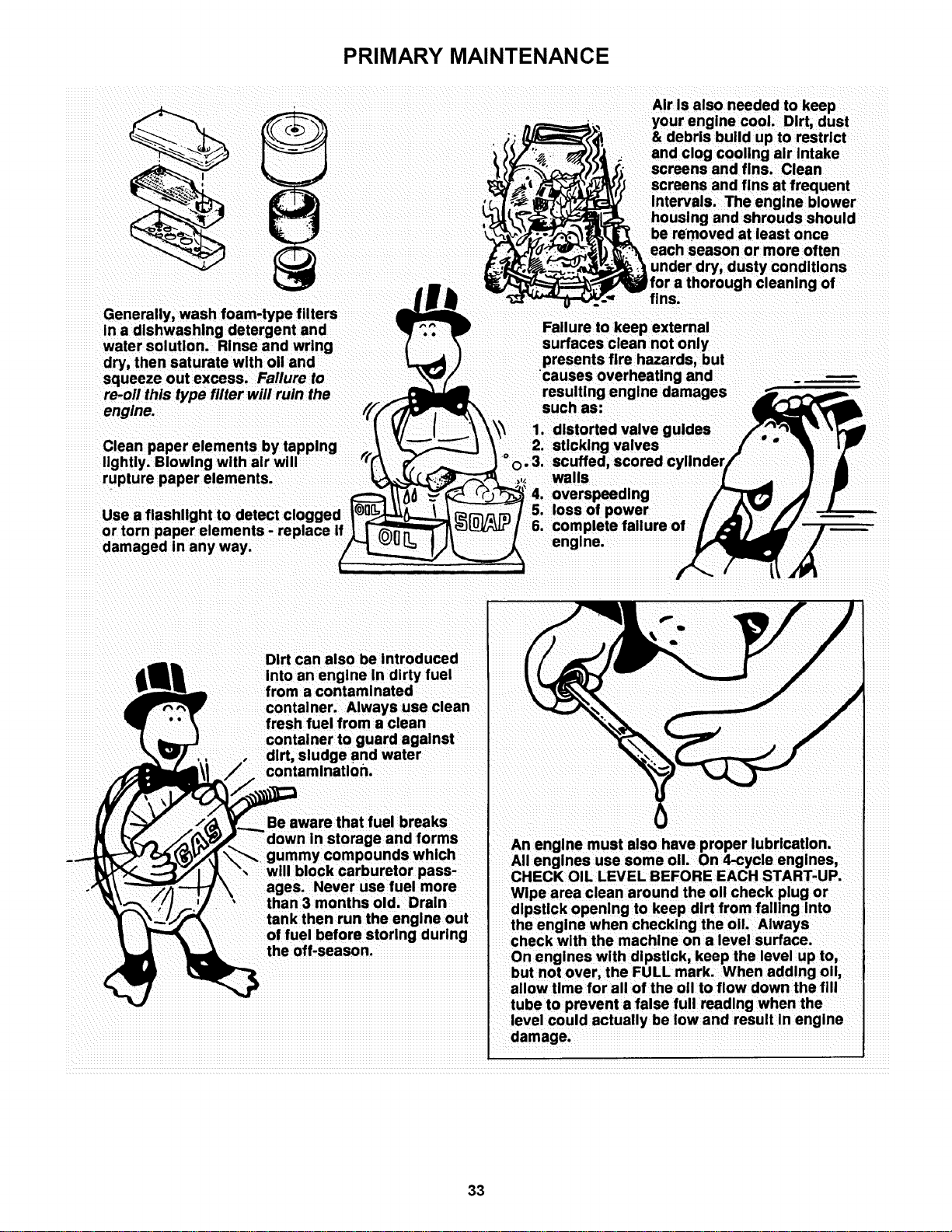

PRIMARY MAINTENANCE
Generally, wash foam-type filters
in a dlshwashlng detergent and
water solution. Rinse and wring
dry, then saturate with oil and
squeeze out excess. Failure to
re-oil this type filter will ruin the
engine.
Clean paper elements by tapping
lightly. Blowing with air will
rupture paper elements.
Use a flashlight to detect clogged
or torn paper elements - replace If
damaged in any way.
Air Is also needed to keep
, your engine cool. Dirt, dust
& debris build up to restrict
• and clog cooling air Intake
screens and fins. Clean
i screens and fins at frequent
Intervals. The engine blower
housing and shrouds should
be removed at least once
each season or more often
under dry, dusty conditions
ugh cleaning of
fins.
Failure to keep external
surfaces clean not only
presents fire hazards, but
causes overheating and _
resulting engine damages
such as:
\ 1. distorted valve guides
ng valves
t_°o- 3. scuffed,
,.,. walls
power
6. complete failure of
engine.
Dirt can also be Introduced
Into an engine In dirty fuel
from a contaminated
container. Always use clean
fresh fuel from a clean
container to guard against
, dirt, sludge and water
:aminatlon.
breaks
down in storage and forms
;which
_S.Never use fuel more
tank then run the engine out
of fuel before storing during
the off-seaso n.
An engine must also have proper lubrication.
All engines use some oil. On 4-cycle engines,
CHECK OIL LEVEL BEFORE EACH START-UP.
Wipe area clean around the oll check plug or '
dipstick opening to keep dirt from falling Into
the engine when checking the oil Always
check _Niththe machine on a level surface.
On engines with dipstick, keep the level up to,
but not over, the FULL mark. When adding o11,
allow time for all of the oll to flow down the fill
tube to prevent a false full reading when the
33

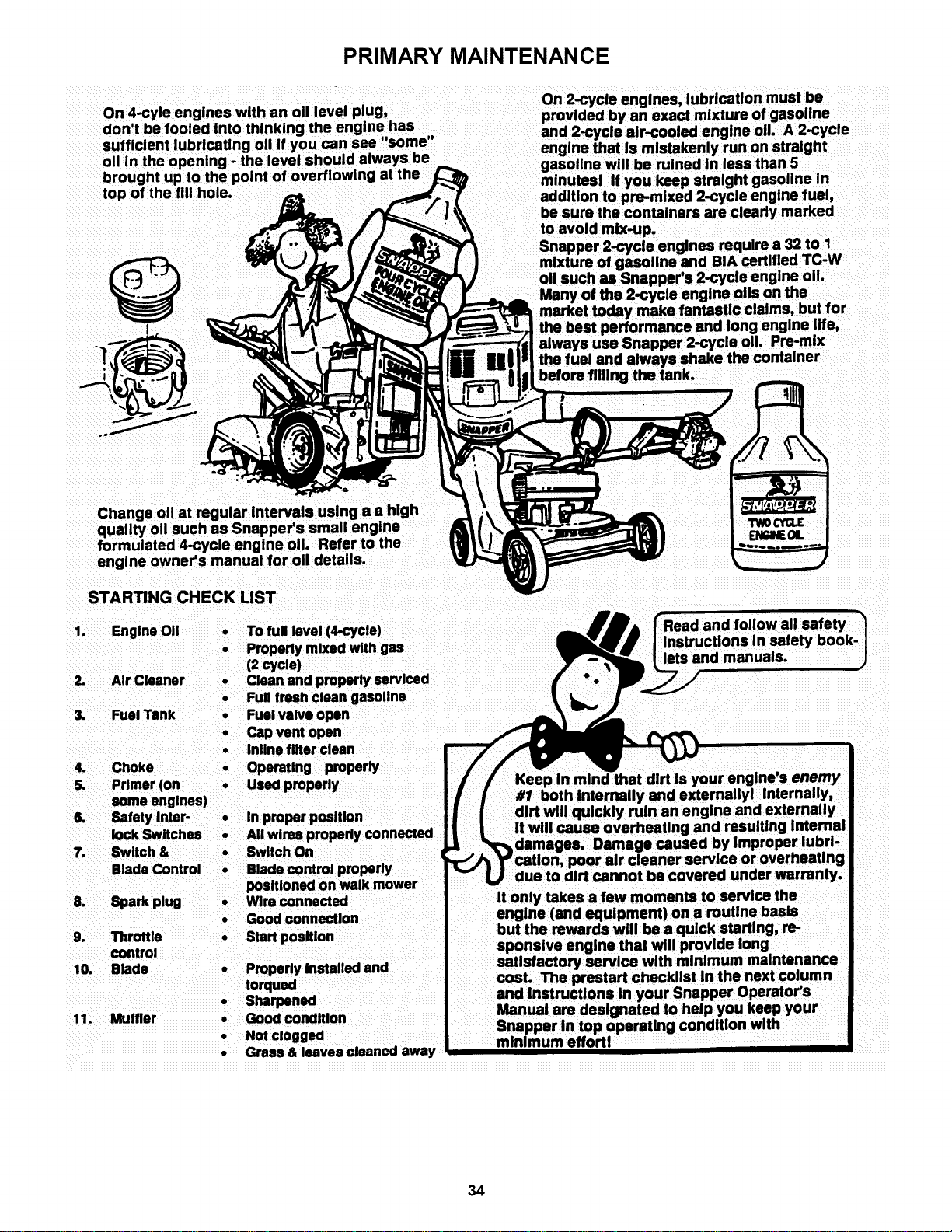

PRIMARY MAINTENANCE
On 4-cyle engines with an oll level plug,
don't be fooled into thinking the engine has
sufficient lubricating oii if you can see "some"
oil in the opening - the level should always be
brought up to the point
top of the fill hole,
On 2-cycle engines, lubrication must be
provided by an exact mixture of gasoline
and 2-cycle air-cooled engine oil A 2-cycle
engine that Is mistakenly run on straight
gasoline will be ruined in less than 5
minutasl If you keep straight gasoline In
addition to pre-mixed 2-cycle engine fuel,
be sure the containers are clearly marked
to avoid mix-up.
Snapper 2-cycle engines require a 32 to 1
mixture of gasoline and BIA certified TC-W
oil such as Snapper's 2-cycle engine oil
Many of the 2-cycle engine oils on the
market today make fantastic claims, but for
the best performance and long engine life,
always use Snapper 2-cycle oil Pre-mix
the fuel and always shake the container
before filling the tank.
Change oil at regular Intervals using a a high
quality oil such as Snapper's small engine
formulated 4-cycle engine oil Refer to the
engine owner's manual for oil details.
STARTING CHECK LIST
1. Engine OII • To full level (4-cycle)
• Properly mixed with gas
(2 cycle)
2. Air Cleaner • Clean and properly serviced
• Full fresh clean gasoline
3. Fuel Tank • Fuel valve open
• Cap vent open
• Inline filter clean
4. Choke • Operating properly
5. Primer (on • Used properly
some englnea)
6. Safety Inter- • In proper position
lock Switches • All wlras properly connected
7. Switch & • Switch On
Blade Control * Blade comrol properly
positioned on walk mower
Read and follow all safety
Instructions in safety book-
lets and manuals.
Keep in mind that dirt Is your engine's enemy
#1 both Internally and externallyl Internally,
dirt will quickly ruin an engine and externally
It will cause overheaUng and resulting Internal
poor air cleaner service or overheating"
due to dirt cannot be covered under warranty.
It only takes a few moments to servisa the
8. Spark plug • Wireconnected
• GoodconnecUon engine (and equipment) on a routine basis
9. Throttle . Start position
control
10. Blade . Properly Installed and
torqued
• Sharpened
11. Muffler • Good condition
• Not clogged
• Grass & leaves cleaned away
but the rewards will be a quick starting, re-
sponsive engine that will provide long
satisfactory service with minimum maintenance
cosL The prestart checklist In the next column
and Instructions In your Snapper Operator's
Manual are designated to help you keep your
Snapper In top operating €ondition with
minimum effortl
34
SERVICE NOTES
35
Safety Instructions & Operator's Manual for
REAR ENGINE RIDING MOWER
SERIES 19
IMPORTANT
Snapper products are built using engines that meet or exceed all applicable emissions requirements on the
date manufactured. The labels on those engines contain very important emissions information and critical
safety warnings. Read, Understand, and Follow all warnings and instructions in this manual, the engine
manual, and on the machine, engine and attachments. If you have any questions about your Snapper product,
contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper, McDonough,
GA. 30253. Phone: (1-800-935-2967).
I_WARNING:
The engine exhaust from this product contains chemicals known to the State I
of California to cause cancer, birth defects or other reproductive harm.
I
COPYRIGHT © 1999
SNAPPER INC.
ALL RIGHTS RESERVED
Ih, GA. 30253 U;S.A.
36
MANUAL No. 7-1947 (REV. 1, 8/20/99)
