USER MANUAL
Pure Morning APH230C
HEPA AIR PURIFIER
READ AND SAVE THESE INSTRUCTIONS
CONTENTS
2
3
4
5
6
7
9
10
COMPONENTS
SPECIFICATIONS
IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION INSTRUCTIONS
OPERATION
MAINTENANCE
TROUBLESHOOTING
WARRANTY
1
COMPONENTS
2
Air Outlet
Front Shell
Control Panel
HEPA Filter
Air Intake
Front Shell
SPECIFICATIONS
Series
Model
CADR
Applicable Area
Filter Structure
Filter Lifespan
Noise Level
Related Power
Rated Power
Power Supply
Operating TEMP
Dimension (H*L*W)
Weight
Pure Morning
APH230C
230m³/h (135CFM)
Up to 315sq.ft. (30m²)
• Pre-Filter
• True HEPA Filter
• Activated Carbon Filter also contains:
- Nano Mineral
- Cold Catalyst
- Photo Catalyst
- Molecular Sieve
6 months
Sleep Mode <24dB
Low Speed <30dB
Middle Speed <40dB
High Speed <49 dB
< 2W
60W
AC120V, 60Hz (18AWG 70-inch cord)
15°F ~ 130°F (-10°C ~ 55°C)
20*13*7.5 inches (50*33*18.5cm)
10lbs (4.5kg)
SAFETY INSTRUCTIONS
3
COMFORMS TO UL STD.507
CERTIFIED TO CSA STD.C22.2 NO.113
5012499
MPORTANT:
Please read and comply with all of the instructions and warnings in this manual before use.
Failure to comply with the instructions and warnings provided herein may result in inaccurate results
and/or damage to the product itself.
4
General Safety
Only use this air purifier as described in this manual.
• Ensure the plug fits properly into an AC power outlet.
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric
shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat
this safety feature.
• When not being used, turn the air purifier off and disconnect it from its power source by unplugging
from the electrical outlet.
• DO NOT operate the unit if its cord or plug is damaged. It may result in damage to the unit or injury.
It must be replaced by the manufacturer or other qualified person so as to avoid all risks.
• NOT recommend using an extension cord. If necessary, the extension cord should be same size
as the original one.
• Thoroughly dry your hands before operation.
• DO NOT immerse air purifier in water or liquids. It may result in damage to the appliance, electric
shock, or fire.
• DO NOT use the air purifier outdoors. This appliance is designed for indoor use only.
• DO NOT use the air purifier in an enclosed space where flammable, combustible, or explosive
gases are present.
• DO NOT use in an area where toxic vapors, flammable dust or oxygen tanks are present.
• DO NOT insert fingers or objects into the air outlet.
• Child supervision is required while the air purifier is on. Do not allow children to play on or near the
air purifier.
WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-
State Speed Control Device
Use & Care
• Always make sure to place the air purifier on a flat, level surface before operation.
• Always allow 15 inches (38 cm) of clearance on all sides of the purifier.
• DO NOT ROUTE CORD UNDER FURNITURE OR APPLIANCES. Do not run the power cord under
carpeting. Do not cover cord with throw rugs, runners or similar coverings. Place the power cord
away from high traffic areas.
• DO NOT sit on or place anything on top of the purifier.
• DO NOT place the air purifier near sources of heat, such as stoves, ovens, radiators or computers.
• DO NOT use this appliance with indoor smoke-type insect repellents or in places with oily residues,
burning incense or chemical fumes.
• DO NOT open the back shell while the air purifier is on. It will automatically turn off the unit.
• Always unplug the appliance from the power supply before servicing.
• DO NOT clean the appliance with water or any other liquid to avoid electric shock or injury.
• DO NOT attempt to repair this device in any way or use any replacement components or parts to
modify the air purifier. Contact Customer Support immediately if your appliance is no longer working.
• Only use Airthereal Pure Morning APH230C replacement filters for this unit.
• If you experience any problems while operating the air purifier, refer to the Troubleshooting section
in the manual. If the problem is NOT solved, contact Customer Support.
• If the unit is damaged or NOT functioning properly, discontinue use and contact Customer Support.
5

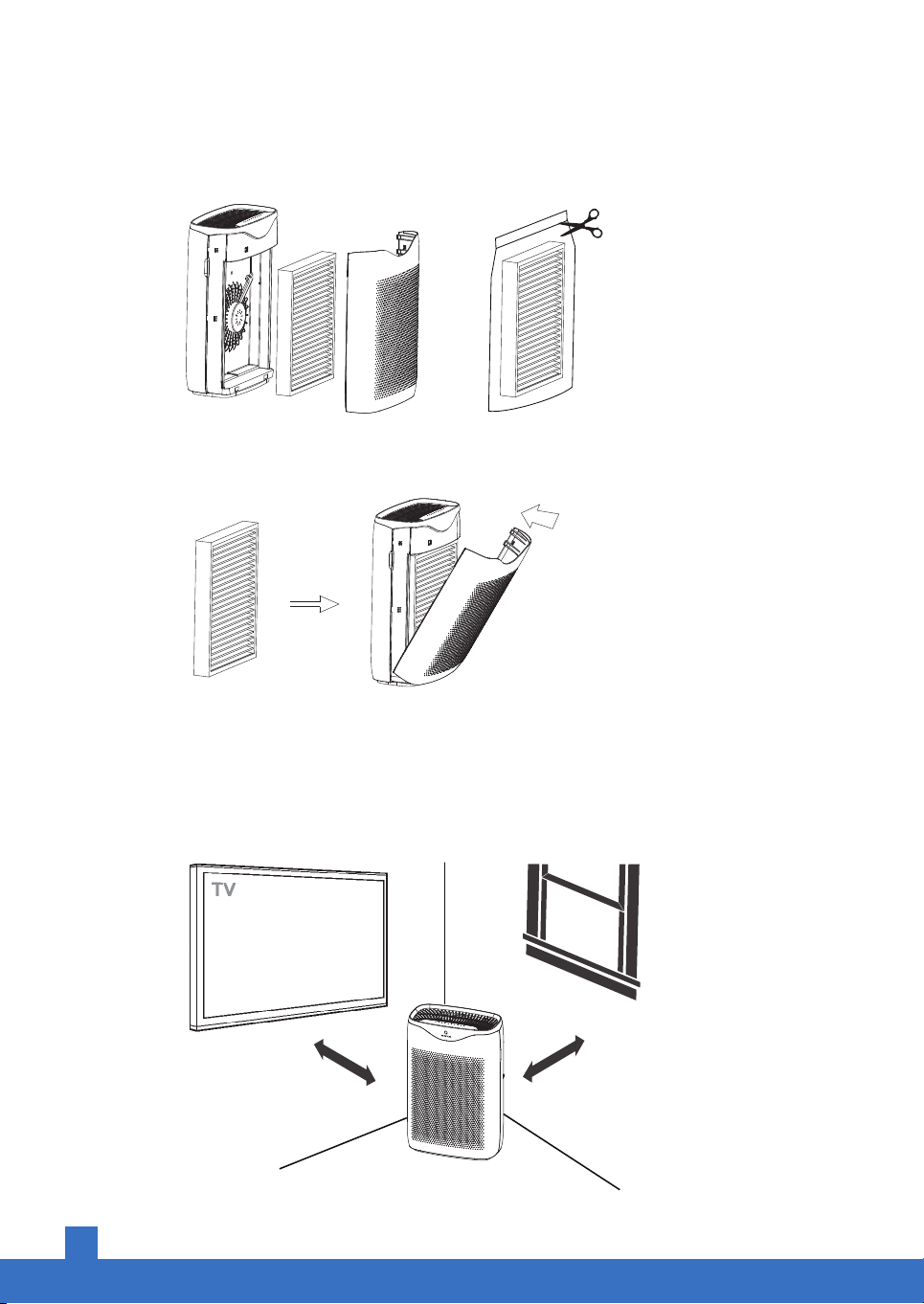

INSTALLATION INSTRUCTIONS
1. Open the front shell of the air purifier and unwrap the plastic package of the HEPA filter.
2. Reinstall the HEPA filter. Make sure the pull-tab is facing outward. Then reinstall the front shell.
pull tab
NOTE: If the front shell is not
reinstalled properly, the air
purifier will not power on.
3. Place the air purifier on a flat and firm position.
Place the air purifier at least 15 inches away from TVs, radios, and other electronic products.
Electromagnetic interference from certain electronics may cause product malfunction. Flimsy
or slanted surfaces may increase noise and vibrations.
15 inches
(38 cm)
15 inches
(38 cm)
6
OPERATION
1. Insert the power cord into an electrical outlet.
WARNING
Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
Please make sure the operating voltage is the same as the parametric label.
For American and Canadian users, our product will be equipped with a polarized plug that will
fit into the 120V power outlet only one way. If the plug does not fit fully into the outlet, reverse
the plug. If it still does not fit, contact qualified personnel to install the proper outlet.
2. Control Panel Introduction
On/Off Button
• Press this button to turn the air purifier on or off.
Note:
Filter Reset Function
• The On/Off Button will flash continuously when it is time to replace the filter.
• Replace the filter, and then press and hold the On/Off Button for 5 seconds to reset it.
The light will stop glowing and the system will start to record the filter usage.
Fan Speed Setting
• Press to cycle between 3 fan speeds: low, medium, and high.
Sleep Mode Button
• Press the Sleep Mode Button to select Sleep Mode.
• In Sleep Mode, the fan will run at the quietest level.
On/Off Timer Button
• Delay Start Timer:
Set the delay start while the machine is powered on but not running. The timer can be
set for 1, 2, 4, or 8 hours. Once the timer reaches zero, the air purifier will start running.
7
• Delay Off Timer:
Set the delay off while the machine is powered on and running. The timer can be set for
1, 2, 4, or 8 hours. Once the timer reaches zero, the air purifier will enter standby mode.
Note:
• To cancel a timer, press the timer button until the timer button light turns off.
• The timer will restart every time you select a new timer length.
Child Lock
• Press and hold the Child Lock button for 5 seconds until the light glows. At this time,
other buttons are unable to be used.
• Press and hold the child lock button for 5 seconds again to unlock .
Memory Function
• When your APH230C restarts, it will remember and resume your last used setting.
MAINTENANCE
Know the 7-in-1 HEPA Filter
When the On/Off Button keeps flashing, it is a reminder to check and change the air filter.
We Recommend replacing the air filter every 6-8 months for optimal Use, or according to your air
filter status.
If you notice any of the below symptoms it may be time to replace the air filter.
• Increased noise
• Decreased airflow
• Clogged filters
• Presence of odors from the unit
Purchase a new Airthereal Air Filter Replacement:
www.airthereal.com
Search on Amazon: APH230C filter / B081Z3PRPL
Only use Airthereal Pure Morning APH230C replacement filters for this unit.
Replace the Air Filter
Power off and unplug before operating.
Remove the front shell.
8

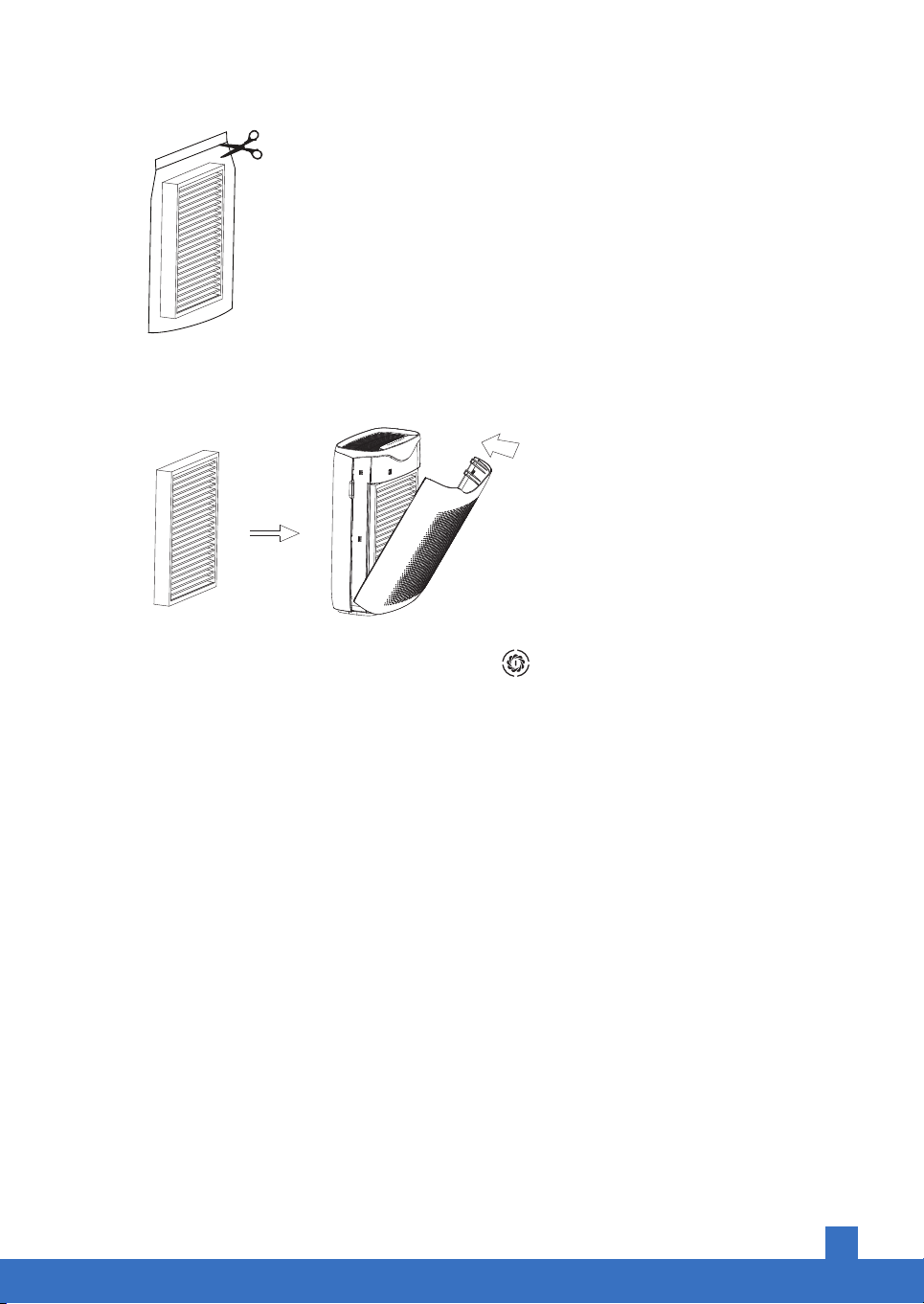

Take out the old filter by pulling the tab. Unwrap a new one.
Install a new filter in the unit. Make sure the pull-tab on the filter is facing outward and put the front
shell on.
pull tab
Power the unit on. Press and hold the On/Off Button for 5 seconds to reset the replacement
reminder.
Cleaning
Unplug the power cord before cleaning.
• Plastic housing should be cleaned with a soft cloth moistened with mild soap. Thoroughly remove
soap film with a dry cloth.
• Open the front panel and clean the interior and air outlet with a vacuum cleaner.
• For better maintenance, it’s recommended to clean the unit every 2 months.
9
TROUBLESHOOTING
Problem Cause Solution
No power or
response.
The unit is not plugged into
an electrical outlet.
Connect the plug to a powered electrical
outlet.
The outlet is not working
properly.
Try plugging the air purifier into a
different outlet.
The power cord is damaged.
Immediately discontinue use and contact
Customer Support.
The air purifier is defective
or malfunctioning.
Unpleasant Smell.
The filter may be too dirty if
it’s used for a long time.
Using the air purifier in moist
conditions or water entered
in the filter.
Replace the filter.
Replace the filter.
Place the filter properly.
Make sure unwrap the plastic bag of the
filter before using.
Dirty filters.
Filters installed improperly.
Unusual noise while
operating.
Ensure that there are at least 15 inches
(38cm) between the unit and other objects.
Not enough space around
the unit.
Significantly reduced
airflow.
The air inlet or outlet is
blocked.
Properly place filter as noted.
Remove objects that block the air inlet or
outlet.
The filter is not properly
placed in housing.
Poor air purification
quality.
The plastic bag of the filter
wasn’t unwrapped yet
10
WARRANTY
Product Name Airthereal Pure Morning APH230C HEPA Air Purifier
Series Pure Morning
Manufacturer Warranty Period 4 Years
Please keep your order receipt for future reference.
TERMS & POLICY
Quality has always been Airthereal’s top priority. For your 100% hassle-free shopping experience,
Airthereal provides a 4-Year manufacturer´s limited warranty for APH230C Air Purifiers.
Online information: airthereal.com/pages/warranty
• What’s covered?
Defects due to faulty materials and workmanship of the product.
• What’s NOT covered?
1. Damage caused by the owner when attempting to fix or altering the product by himself or herself.
2. Damage caused by misuse, abuse, neglect, alterations, or unauthorized repair.
3. Natural depreciation.
• Warranty Period
Warranty becomes effective since the date of the original purchase and will last for four(4) years.
• Who’s covered?
This limited warranty is only effective for the original purchaser. It is NOT transferable.
• How to request warranty services?
To obtain the benefit of this warranty, please leave a message online
(https://airthereal.com/pages/warranty), or send an email to [email protected].
Our customer service will address your issue promptly
• What will Airthereal do?
1. Repair the item.
2. Replace the item if repairable.
3. Refund the item under certain circumstances.
ALL EXPRESSED AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Model APH230C
AN ETHEREAL AMBIANCE
www.airthereal.com
Always here to help you
