811065
E-Series Wall Oven/Microwave Trim Kit - MWTRIM30-2/S
815100 / Rev A / August, 2010
INSTALLATION PROCEDURE:
Cabinet Opening Preparations and Installation of Mounting Brackets
1. Locate properly grounded 3-prong receptacle within 4” (102mm) from the right side and 4” (102mm) up from
bottom of microwave oven cabinet.
Install the MW24 with a 120V, 60Hz, on a dedicated circuit. This outlet must be checked by a qualified
electrician to see if it is wired with correct polarity and is correctly grounded. A GFCI outlet is not rec-
ommended as this may cause product operation interruptions.
2. The floor of the opening should be constructed of
plywood strong enough to support the weight of the
oven and floor load (about 100lbs/.45kg). The floor
should be level for proper operation of oven. Be
sure to check local building code as it may require
that the opening be enclosed with sides, ceiling and
rear partition. The proper functioning of the oven
does not require this enclosure.
3. Locate mounting brackets and attach them with six
#6x1'' screws, making sure brackets do not extend
beyond front surface of the cabinet opening.
QTY
DESCRIPTION
1 Frame Assembly
1 Mtg Bracket, Rt
1 Mtg Bracket, Lt
6 Screw, 8-18x3/8'' Type B H/W/HD
6 Screw, 6-18x1'' TPG Type A
2 Screw, #8-15x1/2’’ Truss HD
2 Framed SS Trim
QTY
DESCRIPTION
2 Small Glass Trim
2 Large Glass Trim
1 Bottom Ductwork MW24
2 Large Foam
2 Small Foam
1 Instructions
E-Series MW24
CONT
AINS:

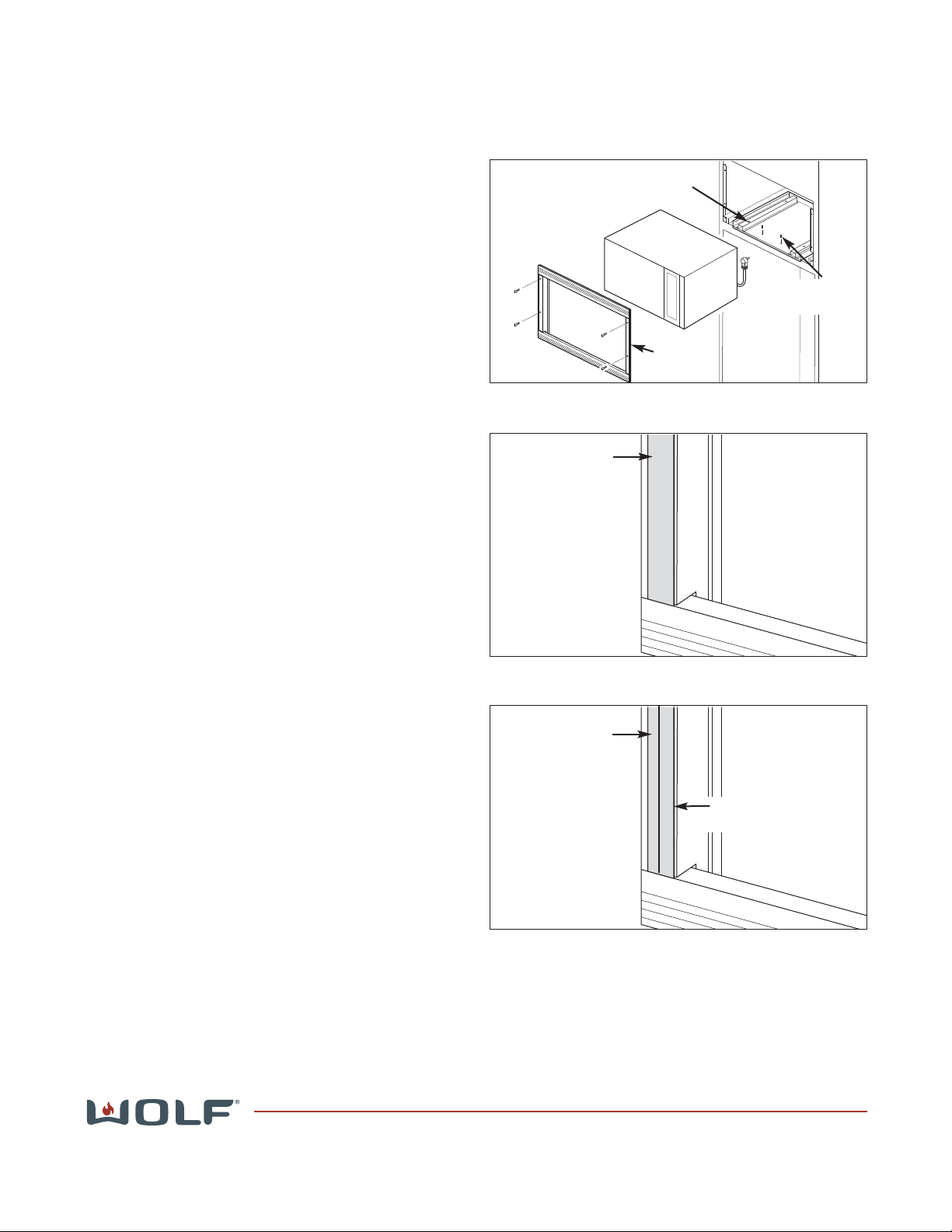

Figure 1. Cabinet Preparation
Mounting
Brackets
Cabinet
Opening
Mounting
Screws
Page 1 of 2
NOTE: Make
sure brackets
don’t extend
beyond cabinet
opening.
NOTES:
• Always pre-drill a pilot hole before installing screws to avoid damage to cabinet or trim kit hardware.
• The location of the mounting bracket will control the height of the trim kit relative to the surrounding cabinetry
and microwave (See Figure 1).
