DRAPER 70066 User Manual
User Manual DRAPER 70066 High Frequency Plasma Cutter
Documents for DRAPER 70066
The following documents are available:
User Manual
Original Instructions - (English)
Read Online
|
Download pdf
User Service
Parts Listing - (English)
Download
Other Documents
Declaration Of Conformity - (English)
Download
Photos
Photos:
View Photos
Original Instructions
For 70066. Also, The document are for others DRAPER models: 70058
Page 1/28
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Contents
Table of Contents
Search
Previous
Next
Troubleshooting
Bookmarks
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for DRAPER 70066:
Preface
2
Product Reference
2
Revisions
2
Understanding The Safety Content
2
Copyright © Notice
2

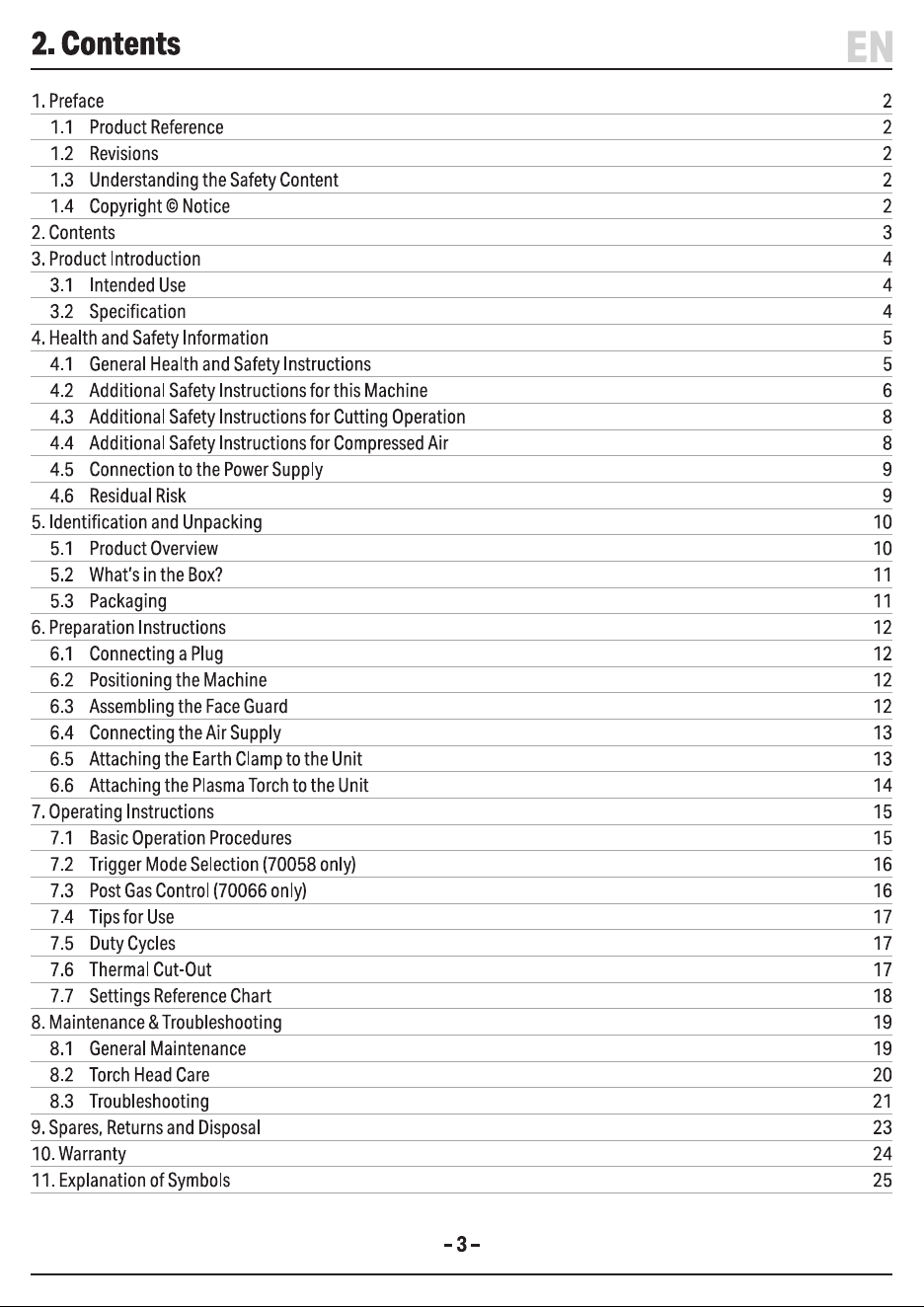

Contents
3
Product Introduction
4
Intended Use
4
Specification
4

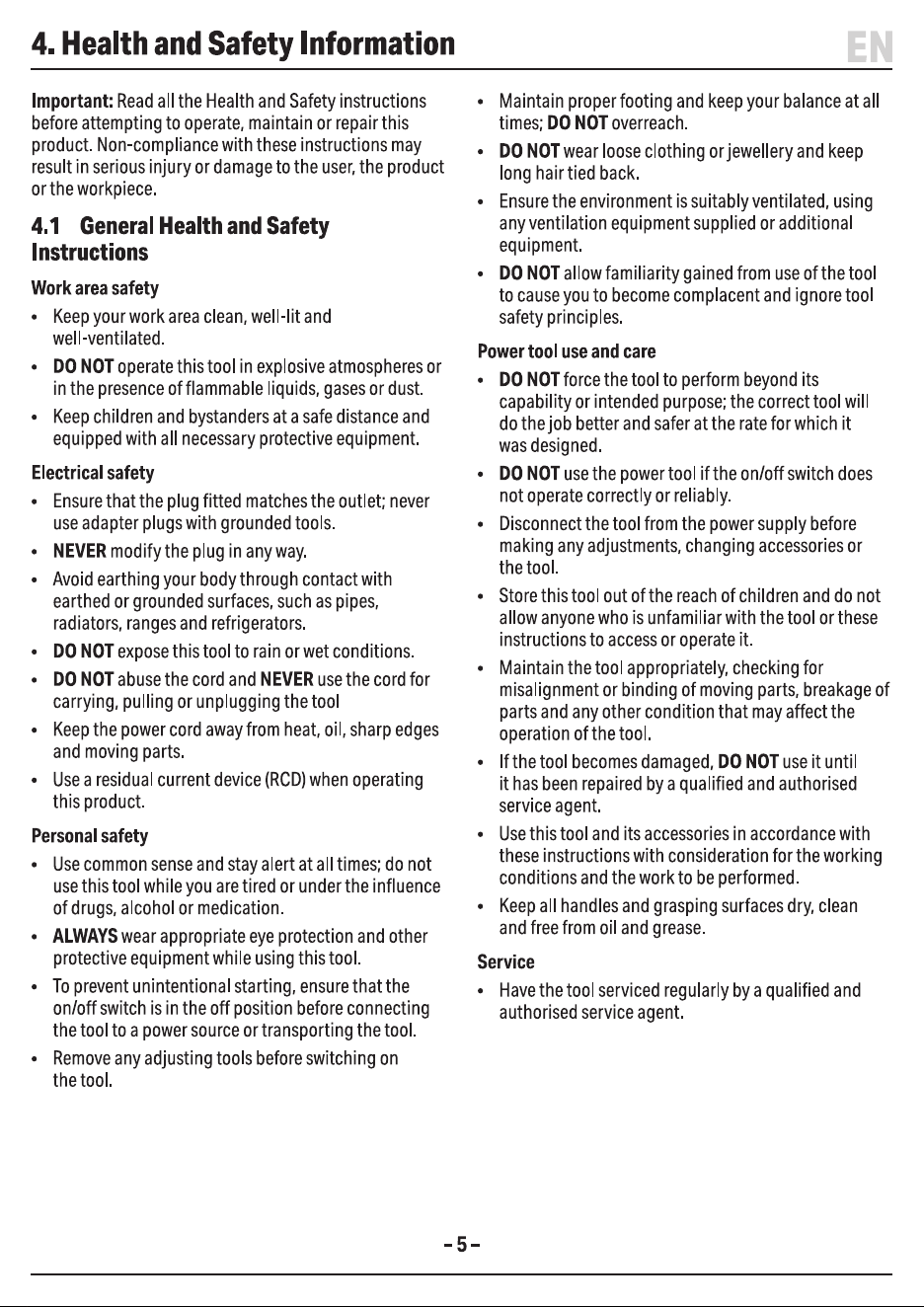

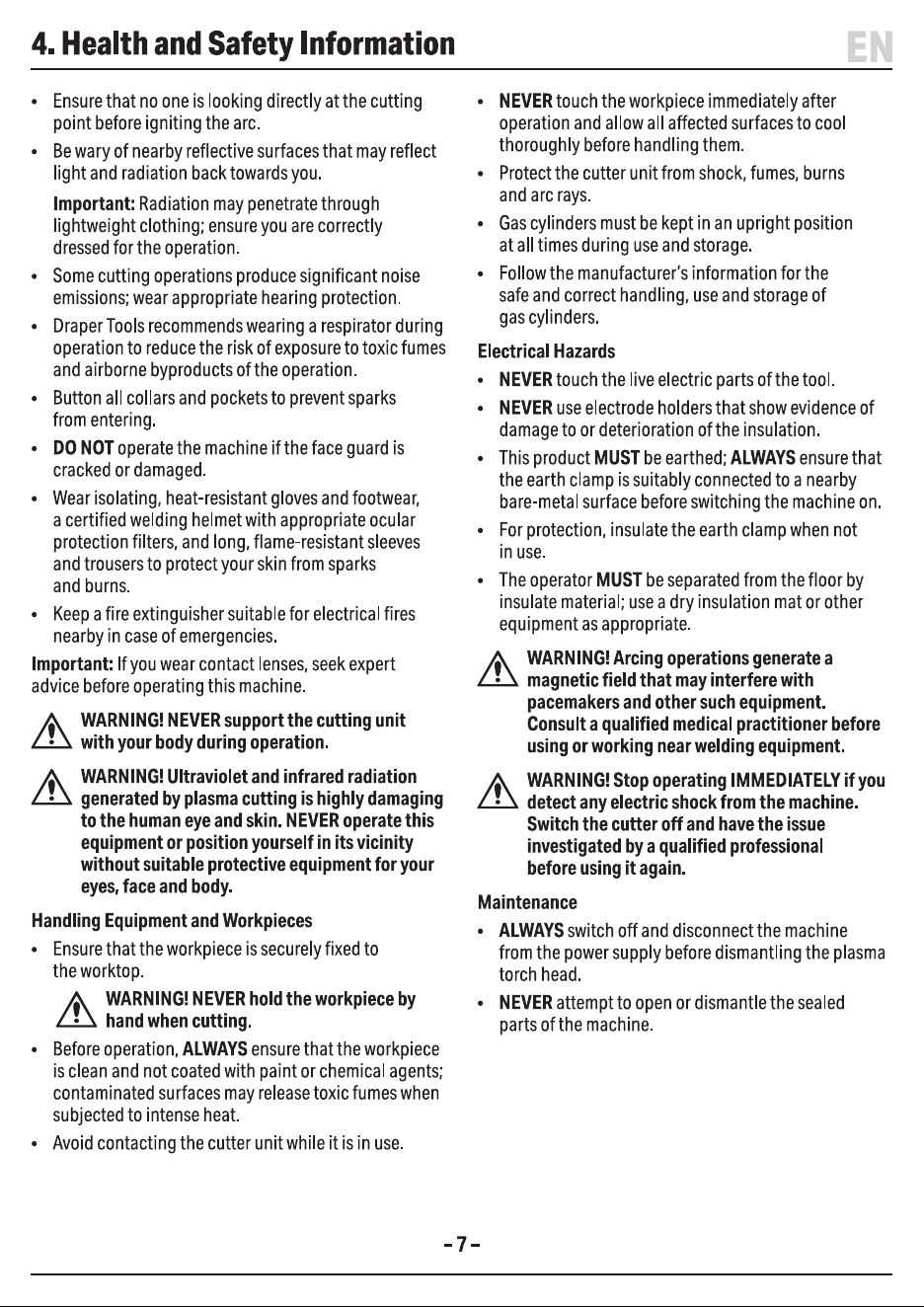

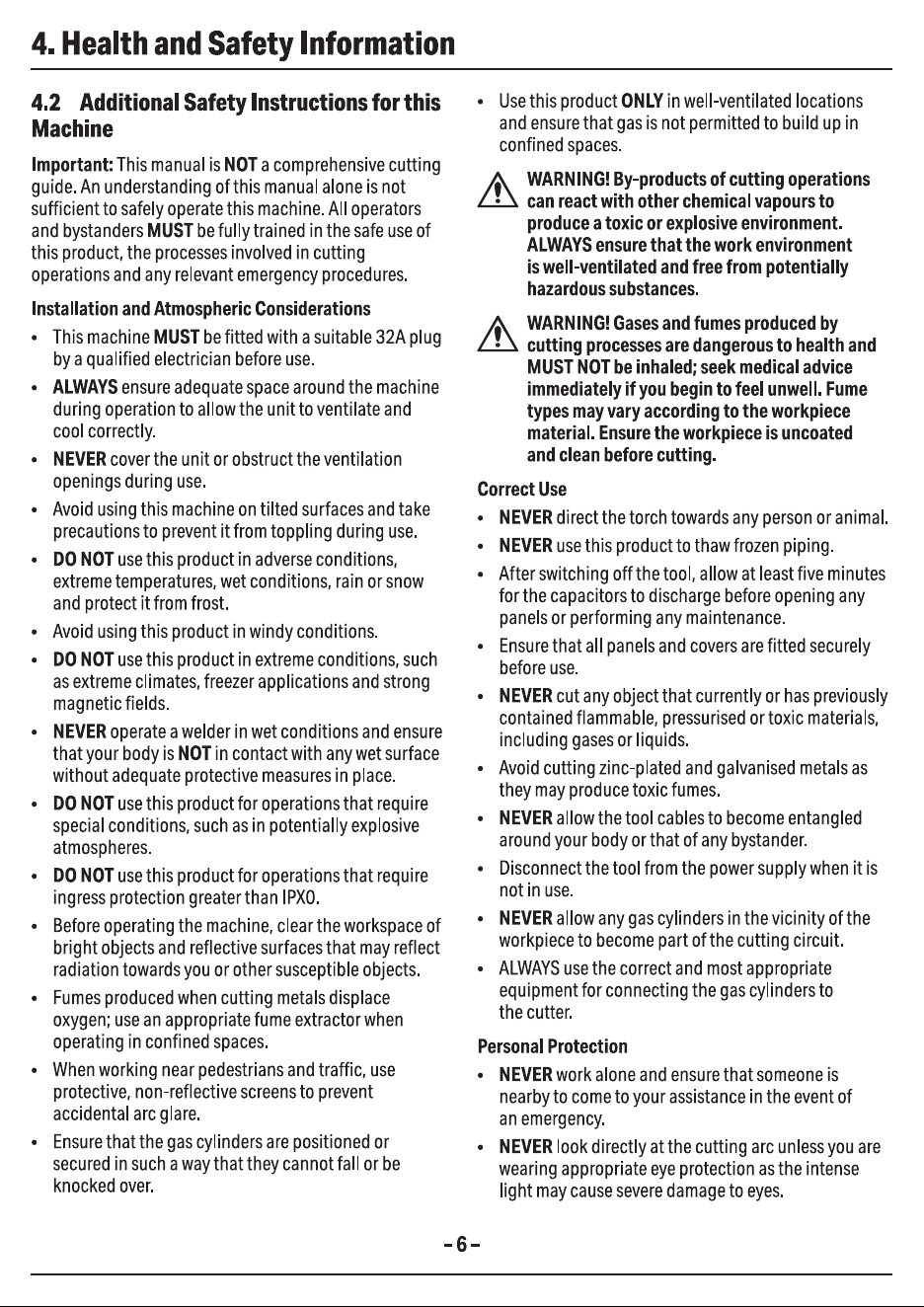

Health And Safety Information
5
General Health And Safety Instructions
5
Additional Safety Instructions For This Machine
6
Additional Safety Instructions For Cutting Operation
8
Additional Safety Instructions For Compressed Air
8
Connection To The Power Supply
9
Residual Risk
9
Identification And Unpacking
10

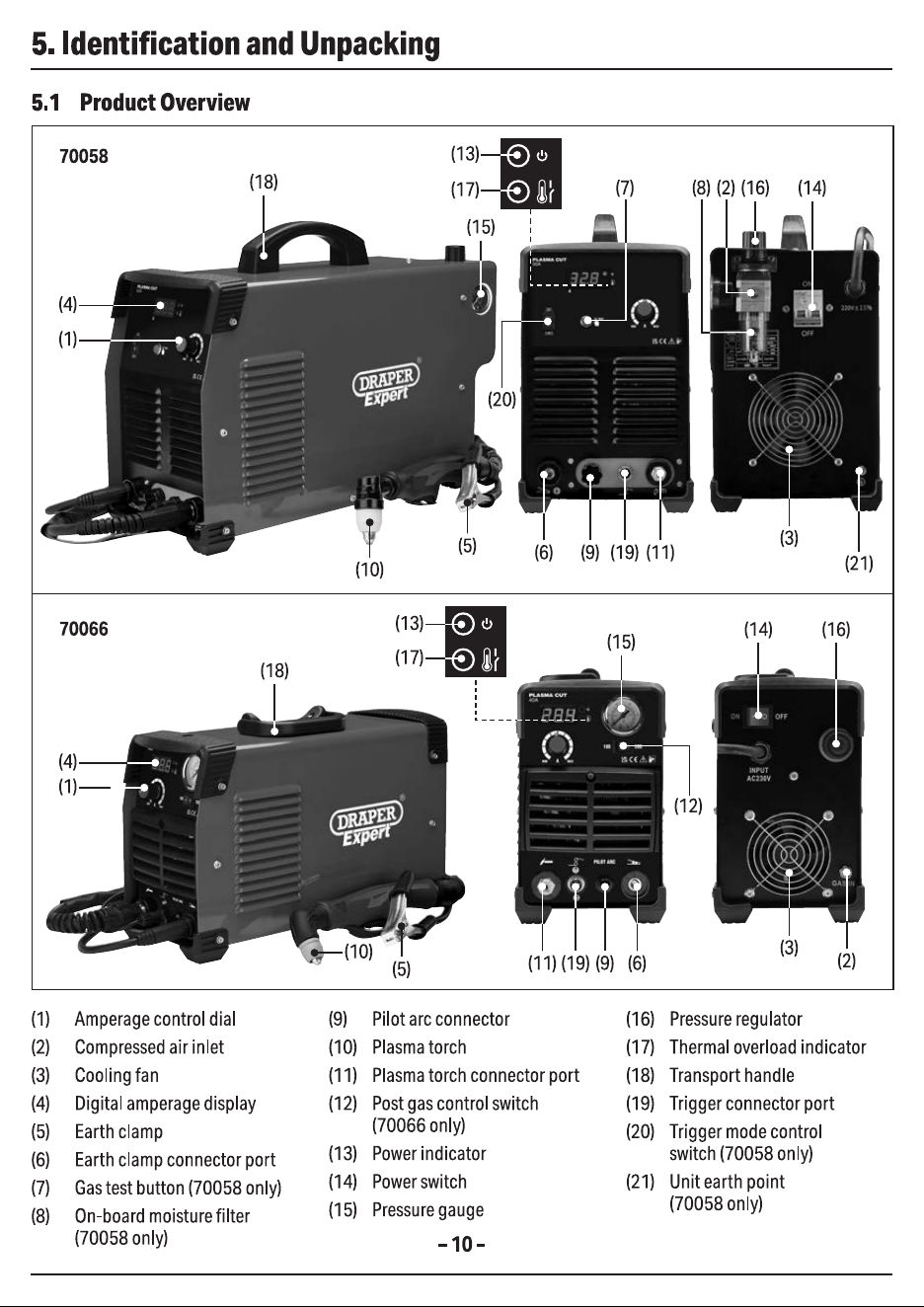

Product Overview
10

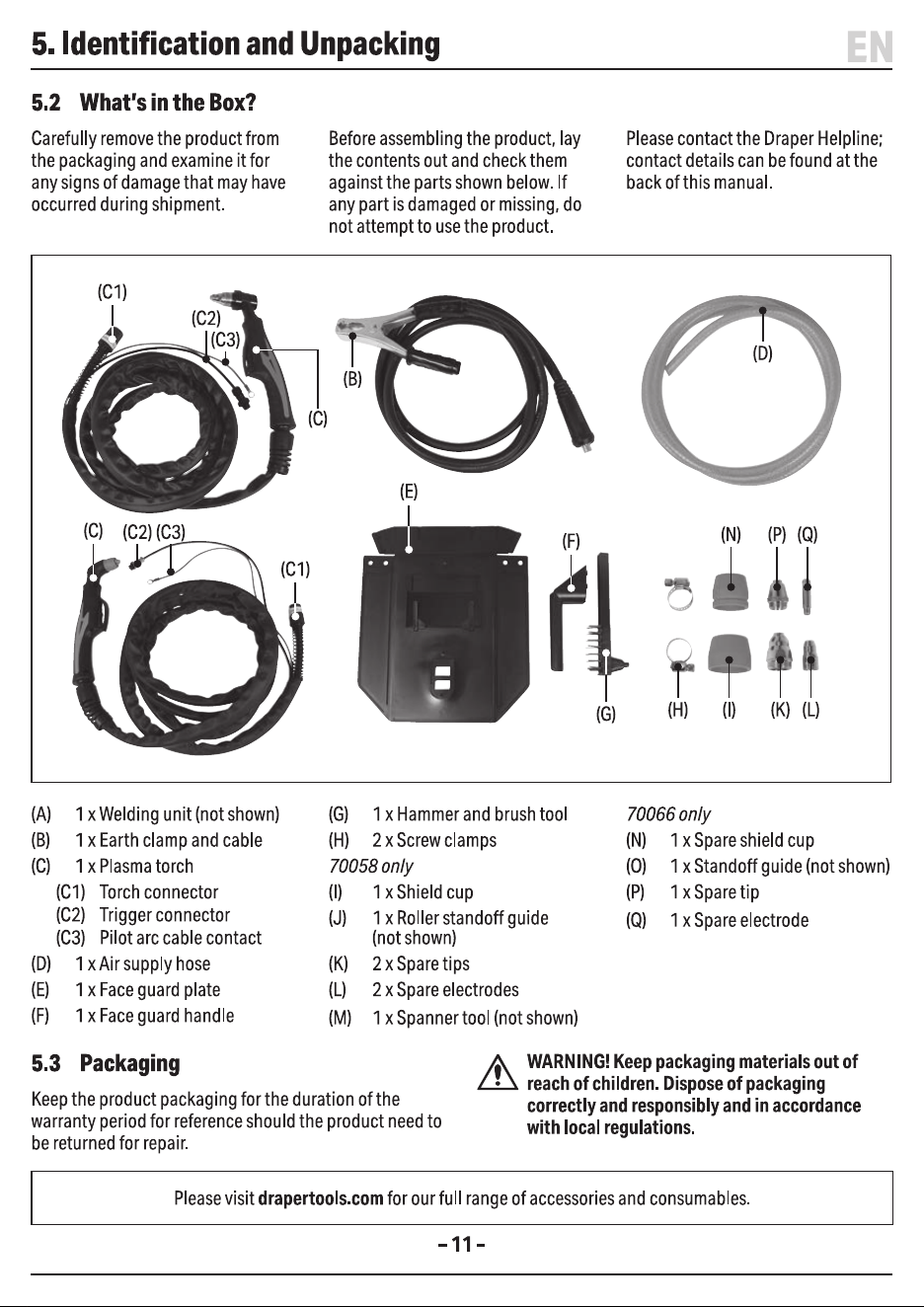

What's In The Box?
11
Packaging
11
Preparation Instructions
2
Connecting A Plug
2
Positioning The Machine
2
Assembling The Face Guard
2

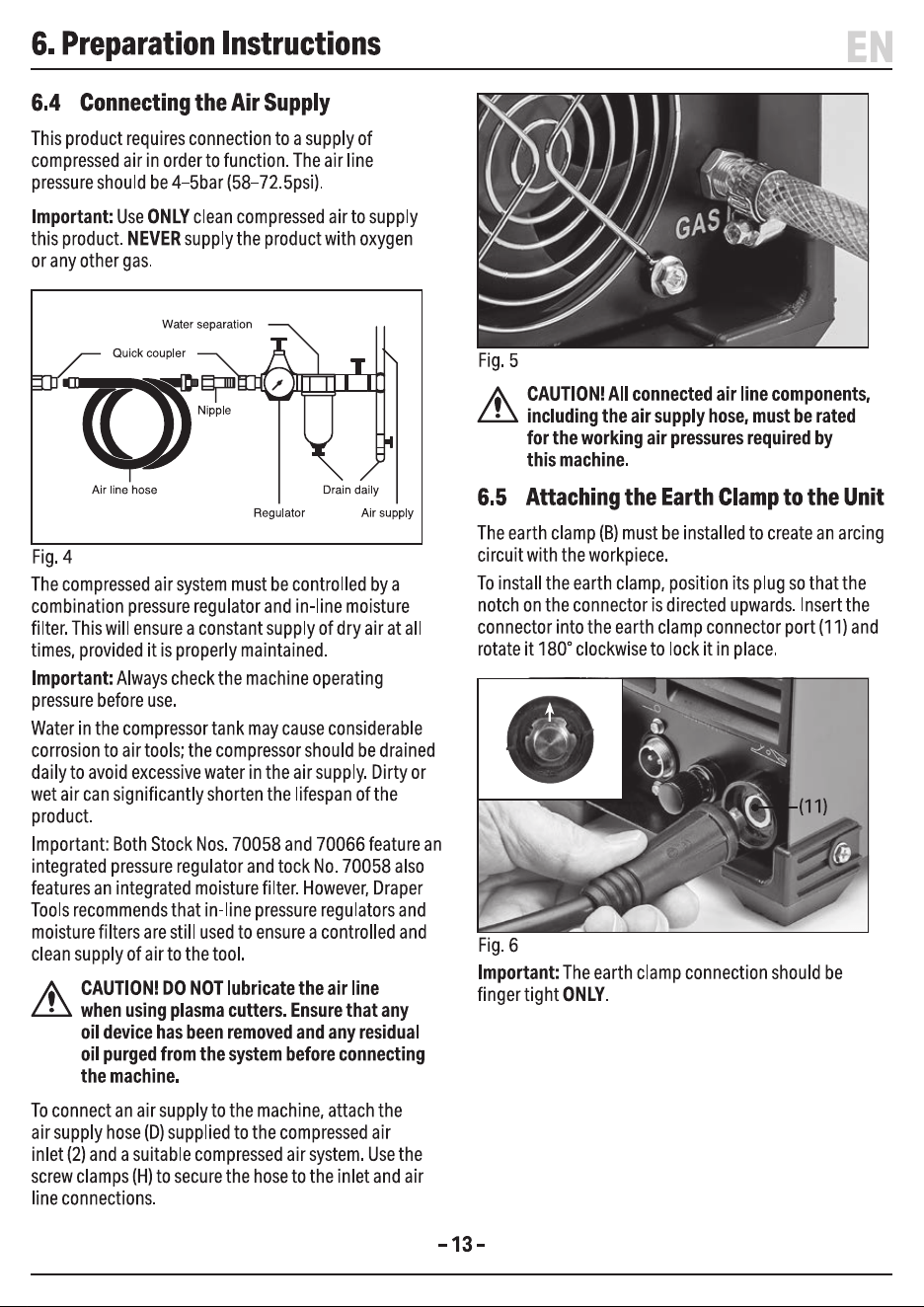

Connecting The Air Supply
13
Attaching The Earth Clamp To The Unit
3

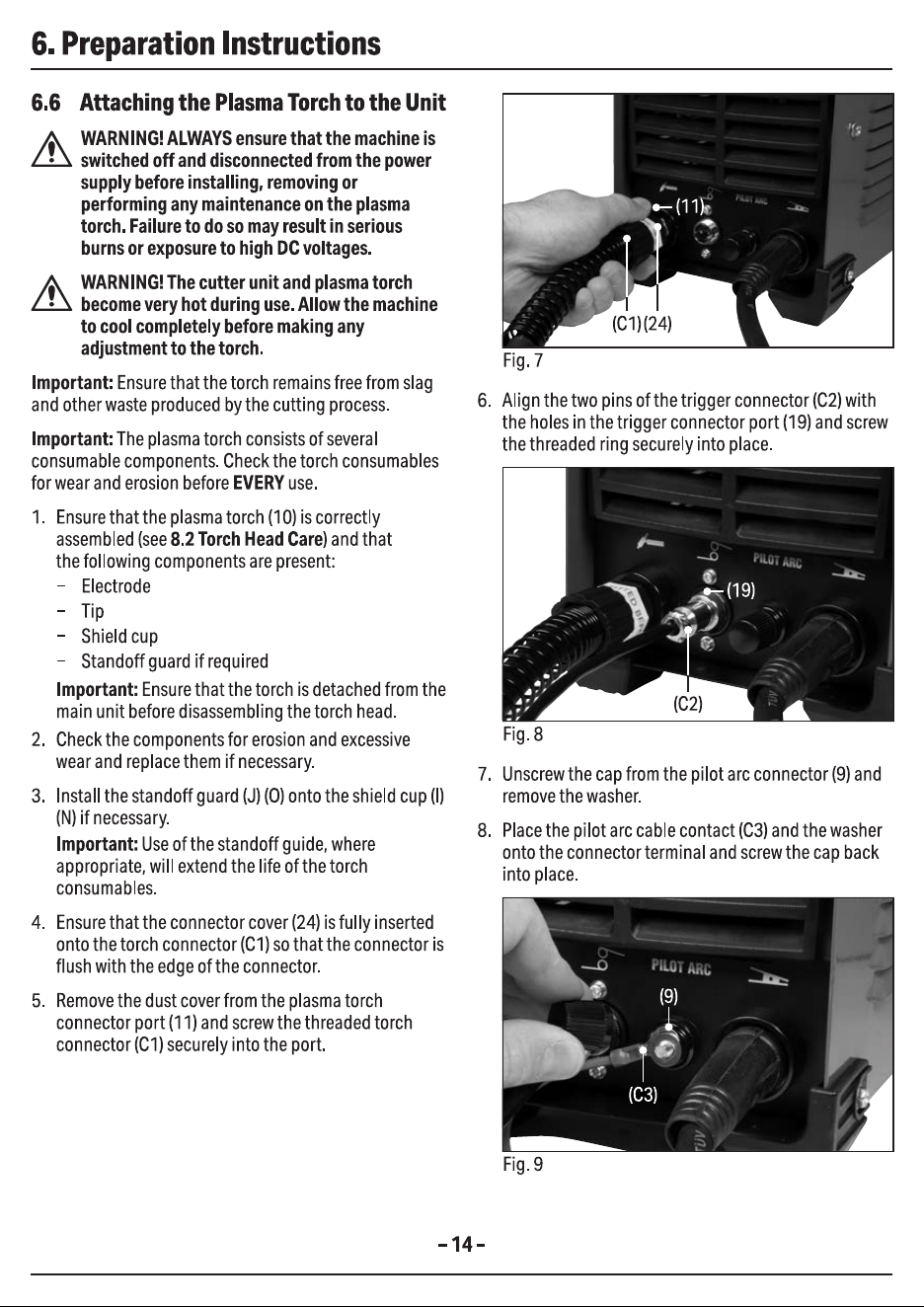

Attaching The Plasma Torch To The Unit
4

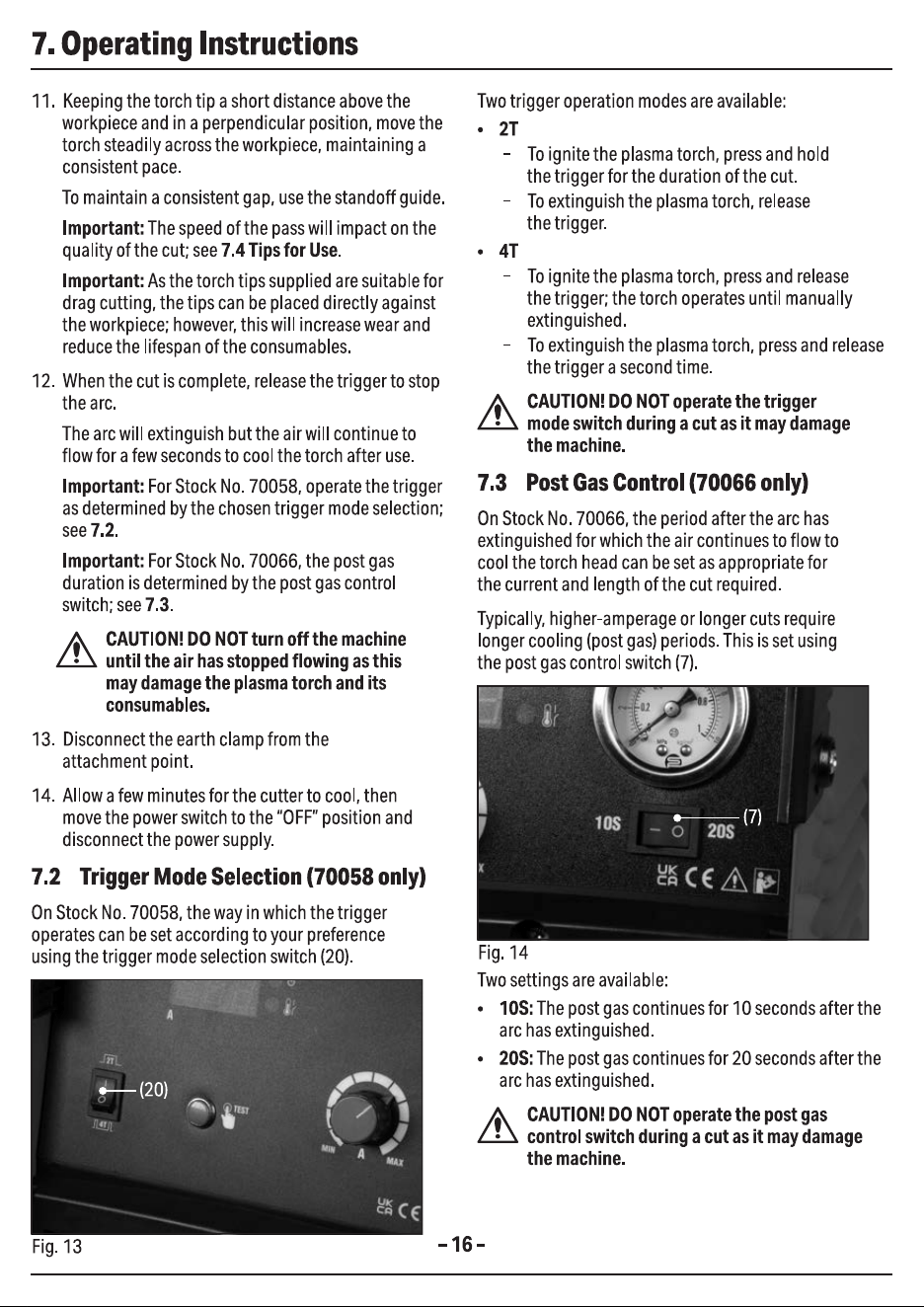

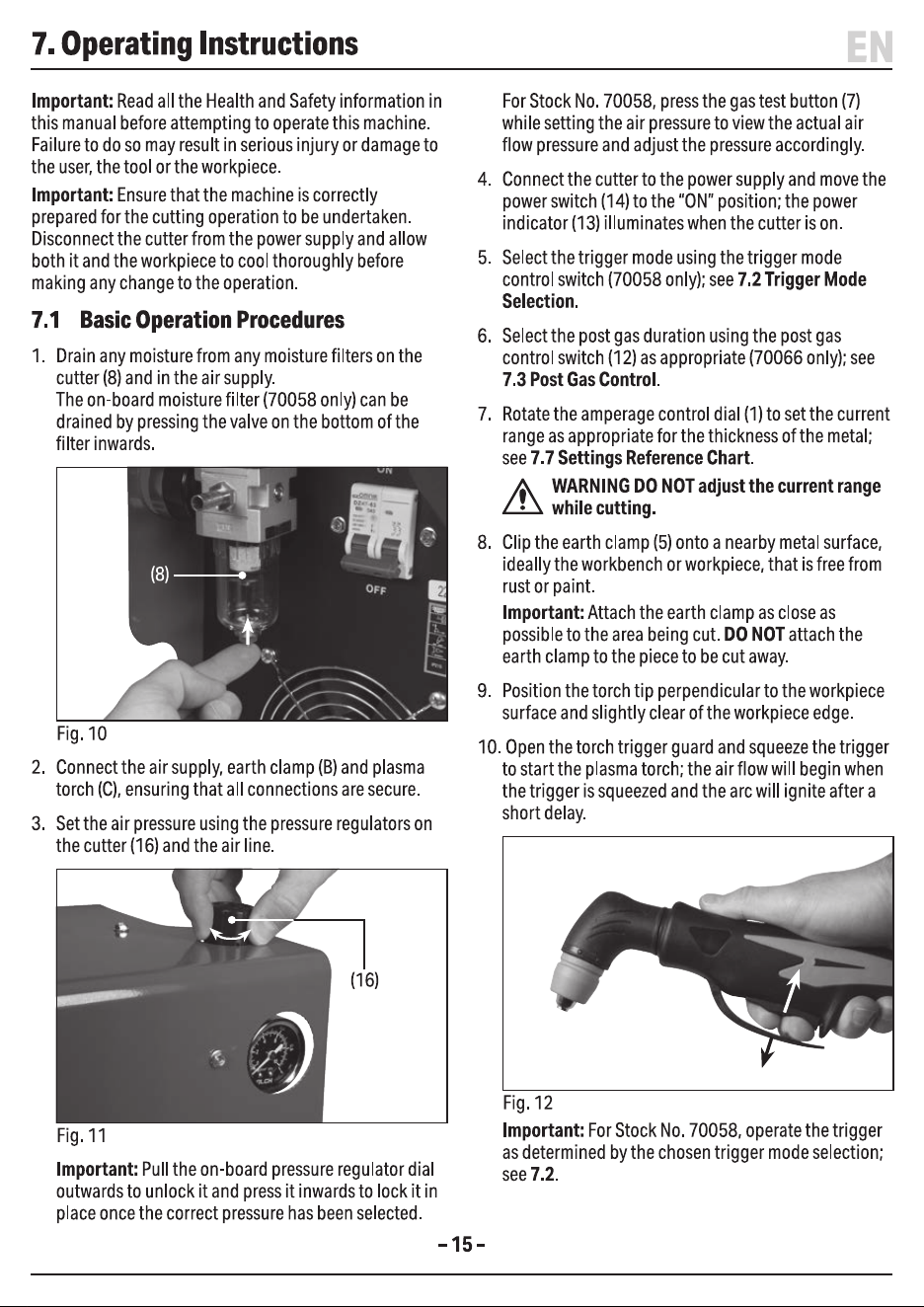

Operating Instructions
15
Basic Operation Procedures
15
Trigger Mode Selection (70058 Only)
16
Post Gas Control (70066 Only)
16

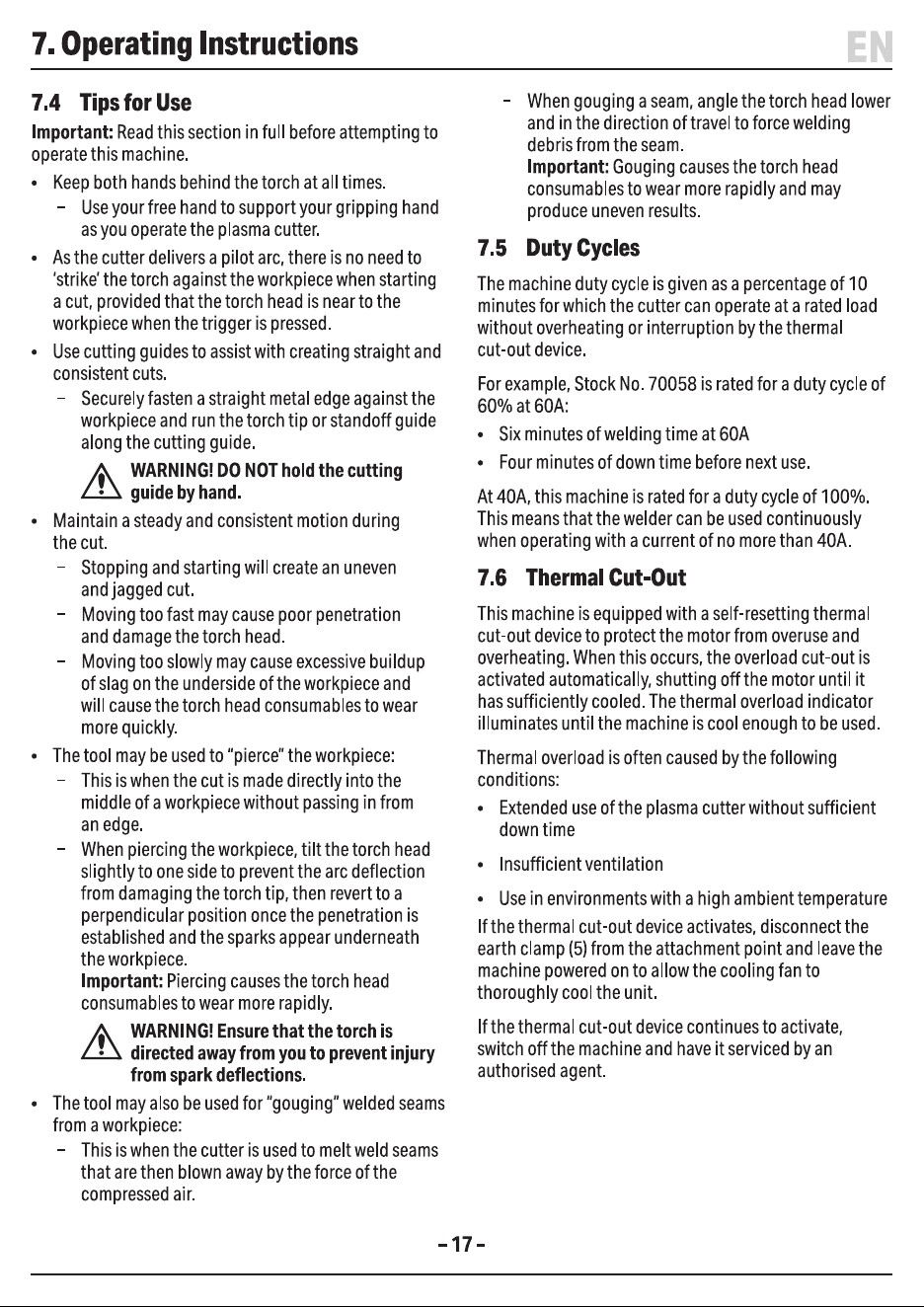

Tips For Use
7
Duty Cycles
7
Thermal Cut–Out
7
Settings Reference Chart
18

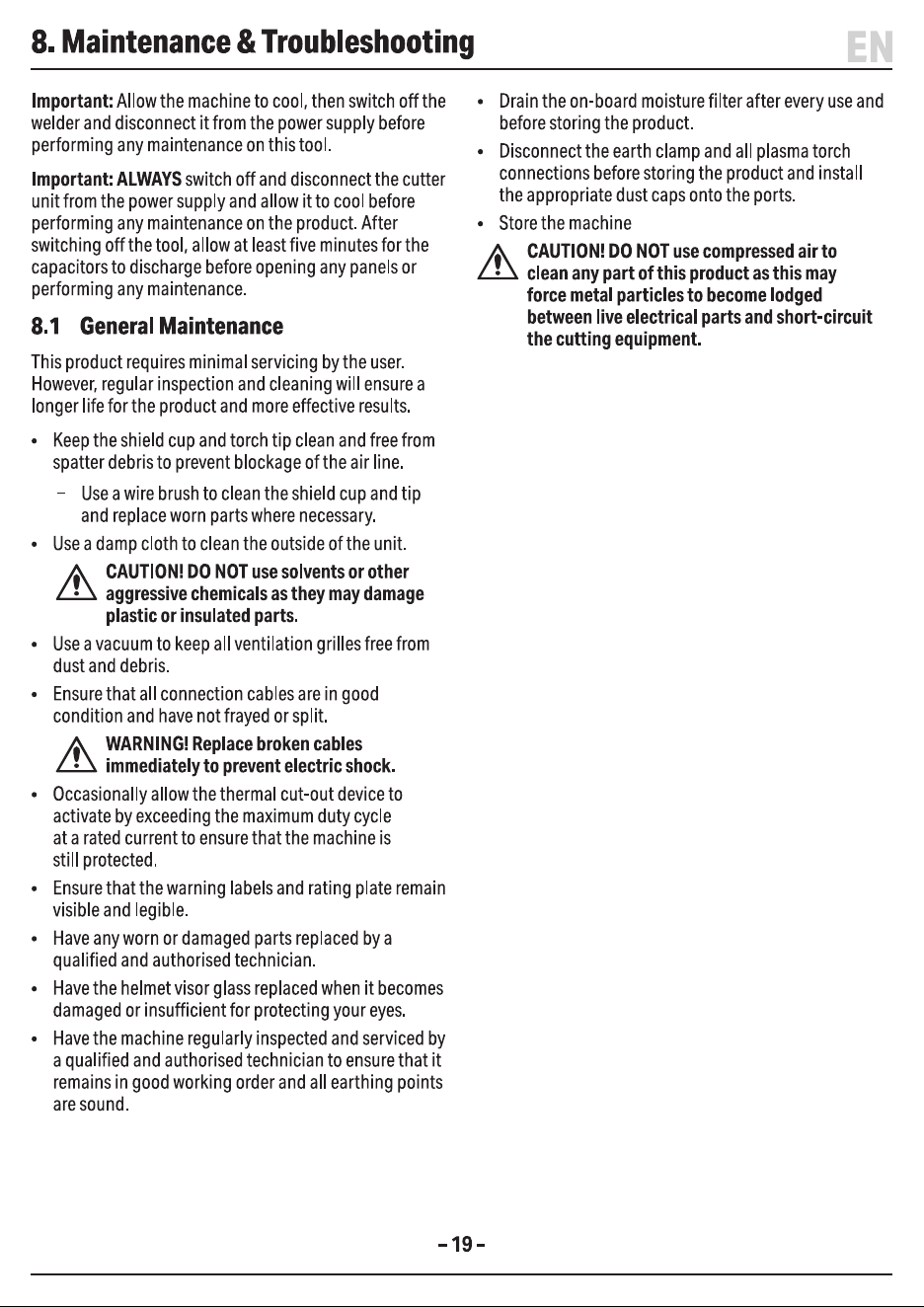

Maintenance & Troubleshooting
19
General Maintenance
19
Torch Head Care

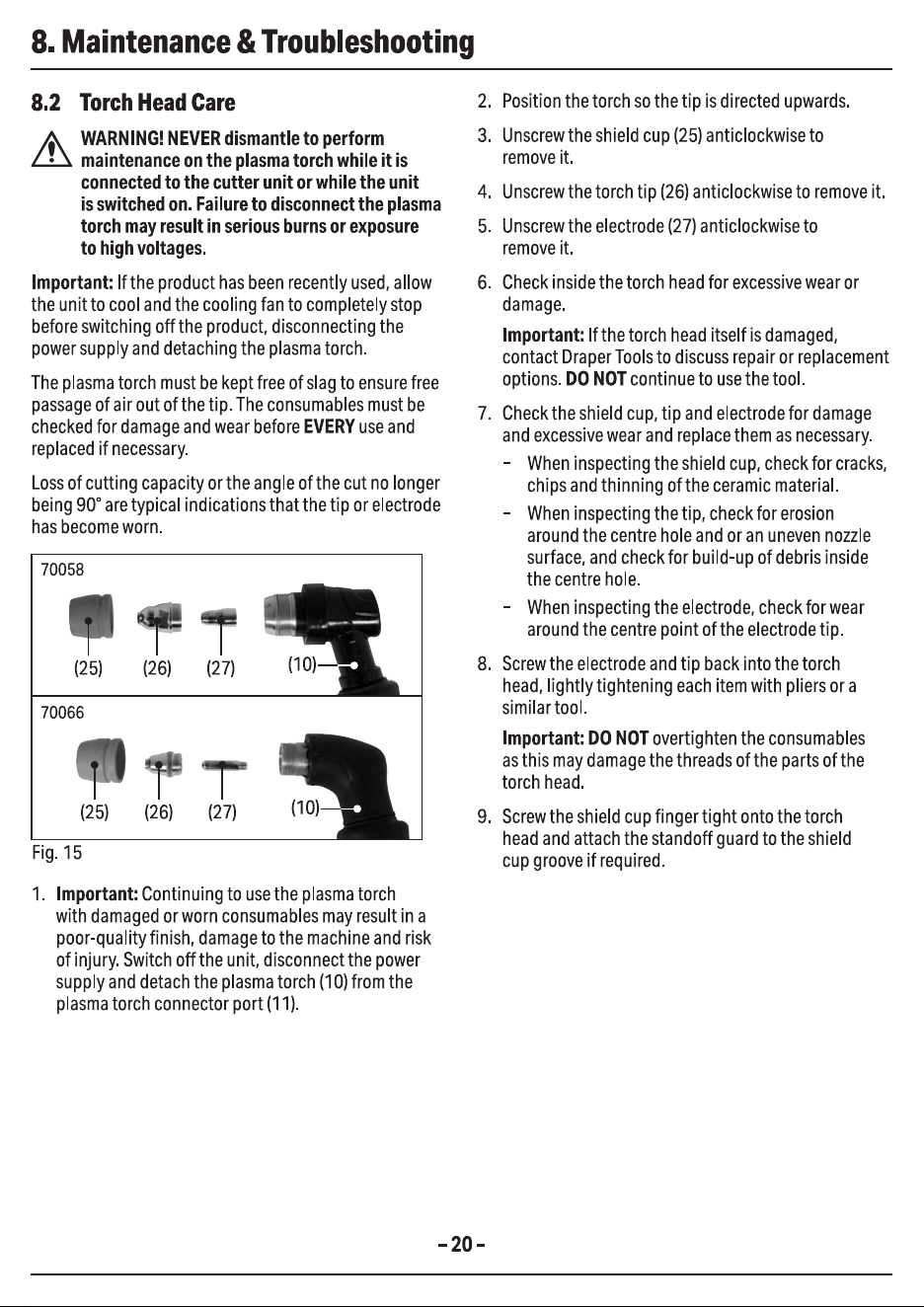

20
Troubleshooting
21
Spares, Returns And Disposal
23
Warranty
24

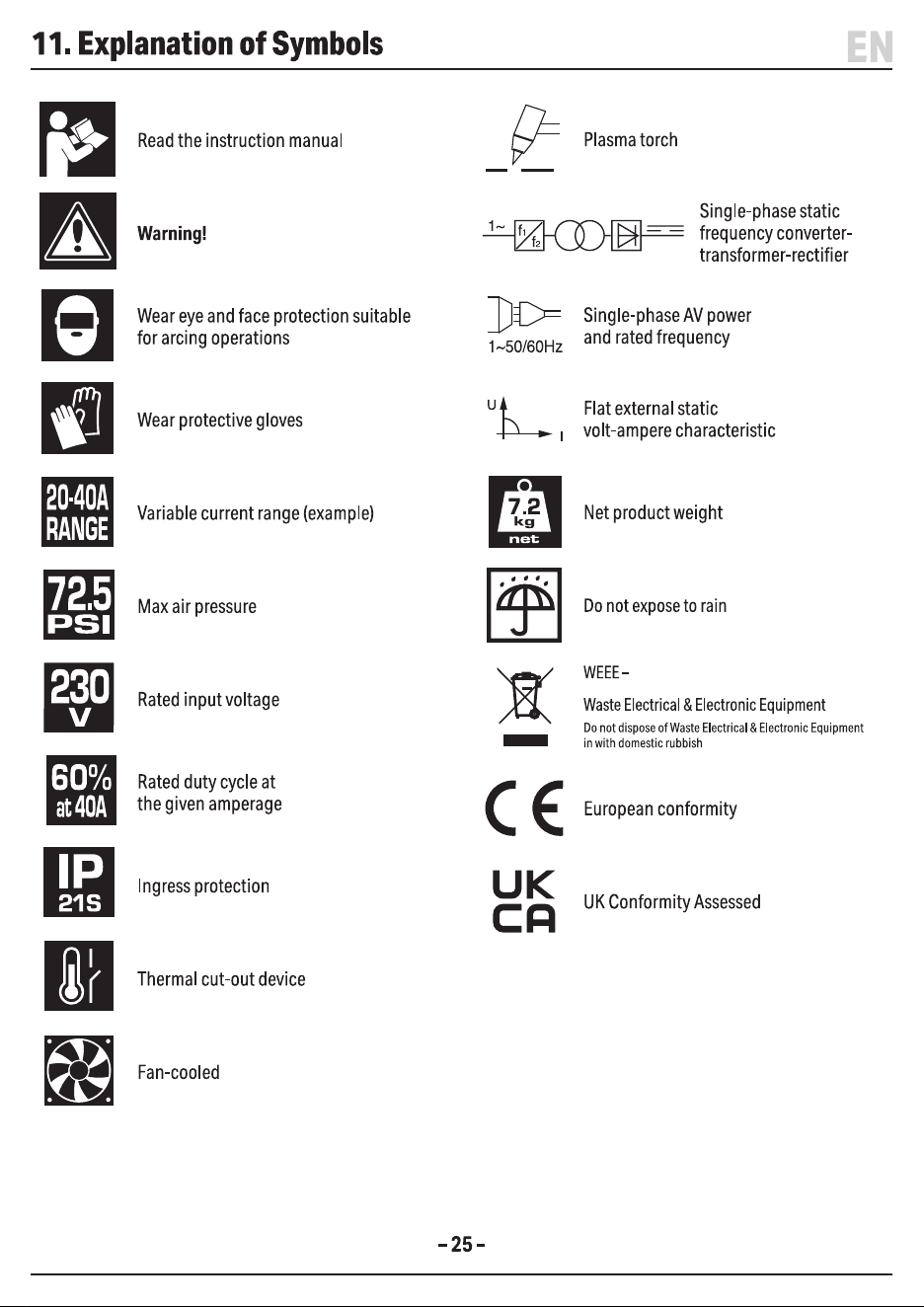

Explanation Of Symbols
