Instructions for installation
and use
Extractor hood
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Neff D79MH52N1:
[en] Instructions for installation and use
1
Ú Table of contents[en] Instructions for installation and use
2
Instruction manual
2
Produktinfo
2
: Important safety information
2
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
2
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
2
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
2
Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
2
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
2
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
2
This appliance is not intended for operation with an external clock timer or a remote control.
2
Danger of suffocation!
3
Packaging material is dangerous to children. Never allow children to play with packaging material.
3
Danger of death!
3
Risk of poisoning from flue gases that are drawn back in.
3
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
3
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air t...
3
In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked ...
3
■ Adequate incoming air must therefore always be ensured.
3
■ An incoming/exhaust air wall box alone will not ensure compliance with the limit.
3
Safe operation is possible only when the partial vacuum in the place where the heat- producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that can...
3
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
3
Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
3
Risk of fire!
3
■ Grease deposits in the grease filter may catch fire.
3
Clean the grease filter at least every 2 months.
3
Never operate the appliance without the grease filter.
3
Risk of fire!
3
■ Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat- producing appliance for solid fuel (e.g. wood or coal) unless a closed, non- rem...
3
Risk of fire!
3
■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
3
Risk of fire!
3
■ When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them.
3
Risk of fire!
3
■ Operating several gas burners at the same time gives rise to a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Never operate two gas burners simultaneously on the highest flame for longer t...
3
Risk of burns!
4
The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
4
Risk of injury!
4
■ Components inside the appliance may have sharp edges. Wear protective gloves.
4
Risk of injury!
4
■ Items placed on the appliance may fall down. Do not place any objects on the appliance.
4
Risk of injury!
4
■ The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.
4
Risk of electric shock!
4
■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
4
Risk of electric shock!
4
■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker...
4
Risk of electric shock!
4
■ Penetrating moisture may cause an electric shock. Do not use any high- pressure cleaners or steam cleaners.
4
Causes of damage
4
Caution!
4
Environmental protection
5
Environmental protection
5
Operating modes
5
Exhaust air mode
5
Note
5
Circulating-air mode
5
Notes
5
Operation
6
Note
6
Control panel model 1
6
Control panel
6
Setting the fan
6
Intensive setting
6
Fan run-on time
6
AirFresh function
6
Lighting
6
Saturation display
6
Audible signal
6
Control panel model 2
7
Control panel
7
Setting the fan
7
Intensive setting
7
Fan run-on time
7
AirFresh function
7
Noise reduction function
7
Lighting
7
Saturation display
7
Audible signal
7
Cleaning and maintenance
8
: Risk of burns!
8
: Risk of electric shock!
8
: Risk of electric shock!
8
: Risk of injury!
8
Cleaning agents
8
Cleaning the metal mesh grease filters
8
: Risk of fire!
8
Notes
8
In the dishwasher:
8
Note
8
By hand:
8
Note
8

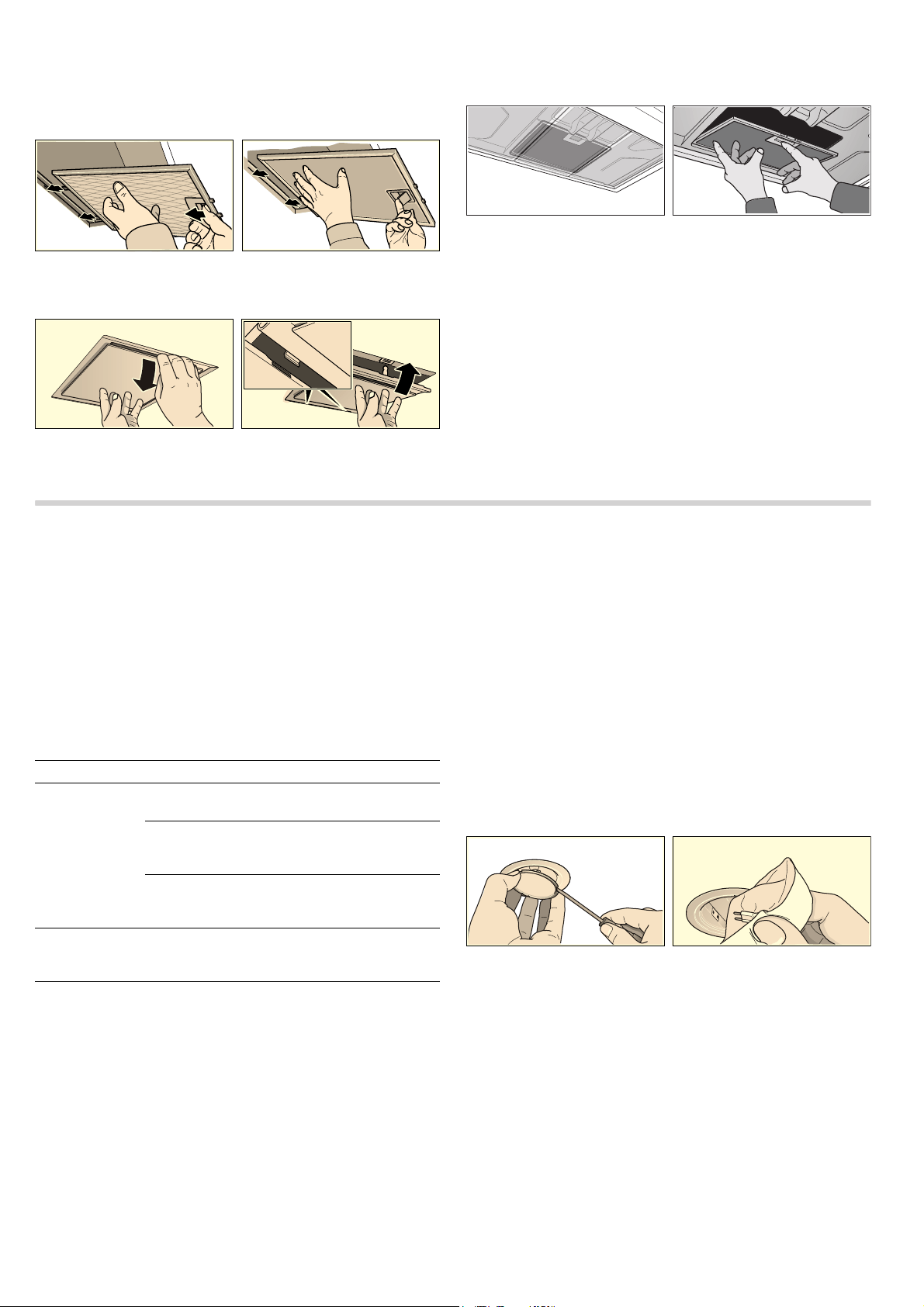

Removing metal mesh grease filter
9
1. Open the lock and fold down the metal grease filter. While doing this, place the other hand under the metal grease filter.
9
2. Take the metal grease filter out of the holder.
9
For edge extraction filters, pull the metal grease filter downwards. While doing this, place the other hand under the metal grease filter.
9
For additional filters, open the lock and fold down the metal grease filter. While doing this, place the other hand under the metal grease filter.
9
Notes
9
3. Clean the metal grease filter.
9
Installing the metal mesh grease filter
9
1. Insert the metal mesh grease filter.
9
2. Fold the metal mesh grease filter upwards, locking it in place.
9
Trouble shooting
9
: Risk of electric shock!
9
Malfunction table
9
Replacing bulbs
9
: Risk of electric shock!
9
Replacing halogen bulbs
9
Note
9
1. Carefully remove the bulb ring using a suitable tool.
9
2. Pull out the bulb and replace it with a bulb of the same type.
9
3. Insert the bulb cover.
9
4. Insert the mains plug or switch on the fuse again.
9
LED lights
9
: Risk of injury!
9
After-sales service
10
To book an engineer visit and product advice
10
Accessories for circulating-air mode
10
Notes
10
Installation instructions
11
Installation instructions
11
: Important safety information
11
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
11
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
11
The width of the extractor hood must correspond at least with the width of the hob.
11
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
11
When conveying the exhaust air, official and legal regulations (e.g. state building regulations) must be followed.
11
Risk of death!
11
Risk of poisoning from flue gases that are drawn back in. The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms that contain heating appliances. If the exhaust ...
11
Danger of death!
11
Risk of poisoning from flue gases that are drawn back in.
11
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
11
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air t...
12
In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked ...
12
■ Adequate incoming air must therefore always be ensured.
12
■ An incoming/exhaust air wall box alone will not ensure compliance with the limit.
12
Safe operation is possible only when the partial vacuum in the place where the heat- producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that can...
12
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
12
Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
12
Danger of death!
12
Risk of poisoning from flue gases that are drawn back in. If installing a ventilation system in a room with a heat-producing appliance connected to a chimney/flue, the electricity supply to the hood must be equipped with a suitable safety switch.
12
Risk of fire!
12
Grease deposits in the grease filter may catch fire. The specified safety distances must be observed in order to prevent an accumulation of heat. Observe the specifications for your cooking appliance. If gas and electric hobs are operated together, t...
12
Only one side of the appliance may be installed directly next to a high-sided unit or a wall. The distance between the appliance and wall or high-sided unit must be at least 50 mm.
12
Risk of injury!
12
■ Components inside the appliance may have sharp edges. Wear protective gloves.
12
Risk of injury!
12
■ The appliance may fall down if it has not been properly fastened in place. All fastening components must be fixed firmly and securely.
12
Risk of injury!
12
■ The appliance is heavy. To move the appliance, 2 people are required. Use only suitable tools and equipment.
12
Risk of electric shock!
12
Components inside the appliance may have sharp edges. These may damage the connecting cable. Do not kink or pinch the connecting cable during installation.
12
Risk of electric shock!
12
It must always be possible to disconnect the appliance from the electricity supply. The appliance must only be connected to a protective contact socket which has been correctly installed. If the plug is no longer accessible following installation of ...
12
Danger of suffocation!
12
Packaging material is dangerous to children. Never allow children to play with packaging material.
12
General information
13
Exhaust air mode
13
: Risk of death!
13
Exhaust duct
13
Note
13
Checking the wall
13
Electrical connection
13
: Risk of electric shock!
13
: Risk of electric shock!
13
Installation
13
Preparing the installation
13
Caution!
13
1. Mark a vertical centre line on the wall from the ceiling to the lower edge of the extractor hood.
13
2. Mark positions for the screws and the contour of the attachment area.
13
3. Drill five 8 mm Ø holes to a depth of 80 mm for the attachments and press in the wall plugs flush with the wall.
13

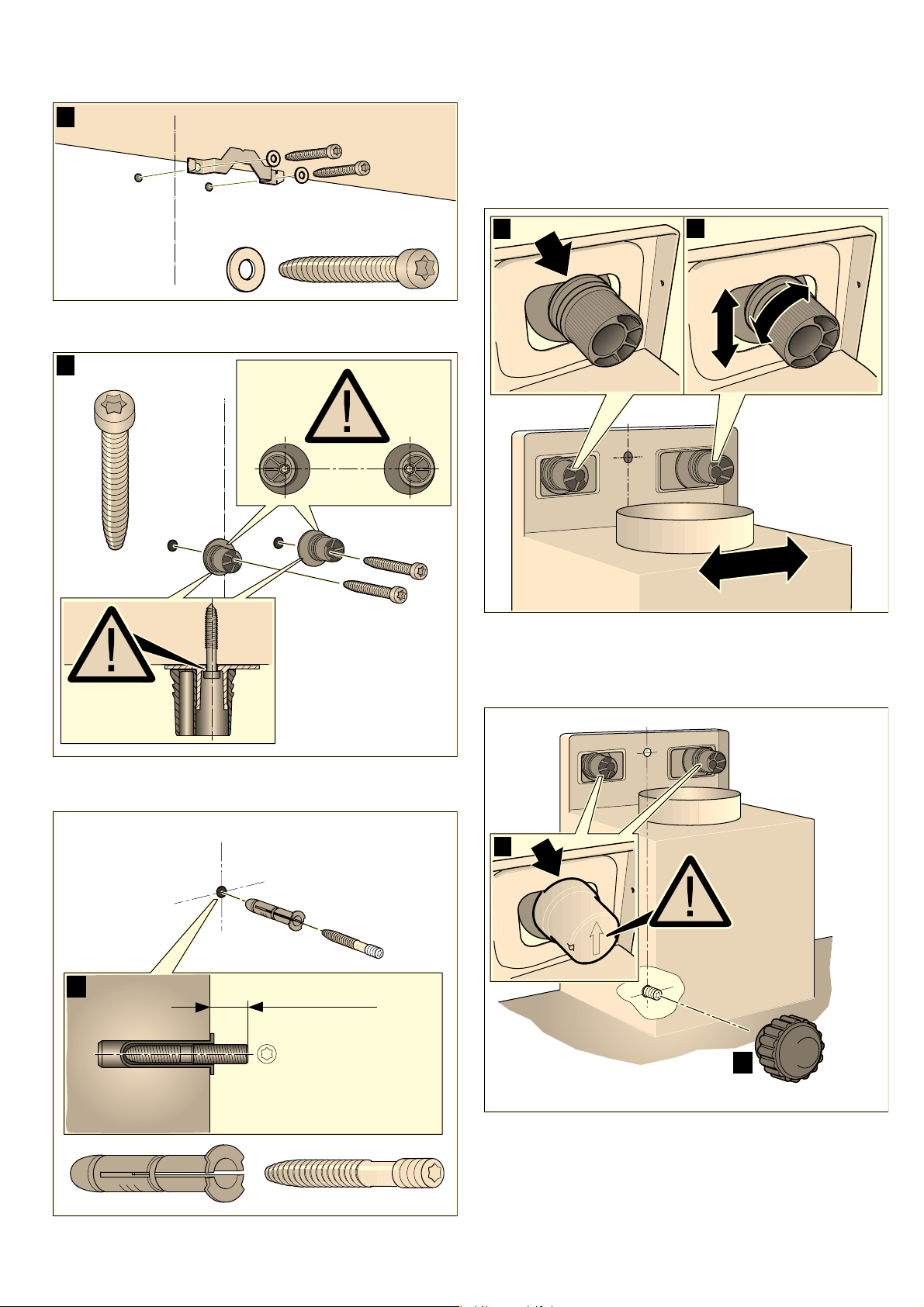

Installation
14
1. Screw on the fixing bracket for the flue duct. ¨
14
2. Screw on brackets for the extractor hood hand-tight, max. 3 Nm.©
14
3. Screw in threaded pin, leaving it protruding out of the wall by 5 - 9 mm..ª
14
Attaching and aligning the appliance
14
1. Initially remove the protective foil from the back of the appliance and, following installation, remove the foil completely.
14
2. When attaching the appliance, ensure that it engages firmly with the brackets. «
14
3. Align the appliance horizontally by turning the brackets. If required, the appliance can be moved to the right or left. ¬
14
Securing the appliance
14
1. Press the safety caps with the arrow upwards onto the brackets until they engage. ®
14
2. Screw on the knurled nut and washer firmly. ¯
14

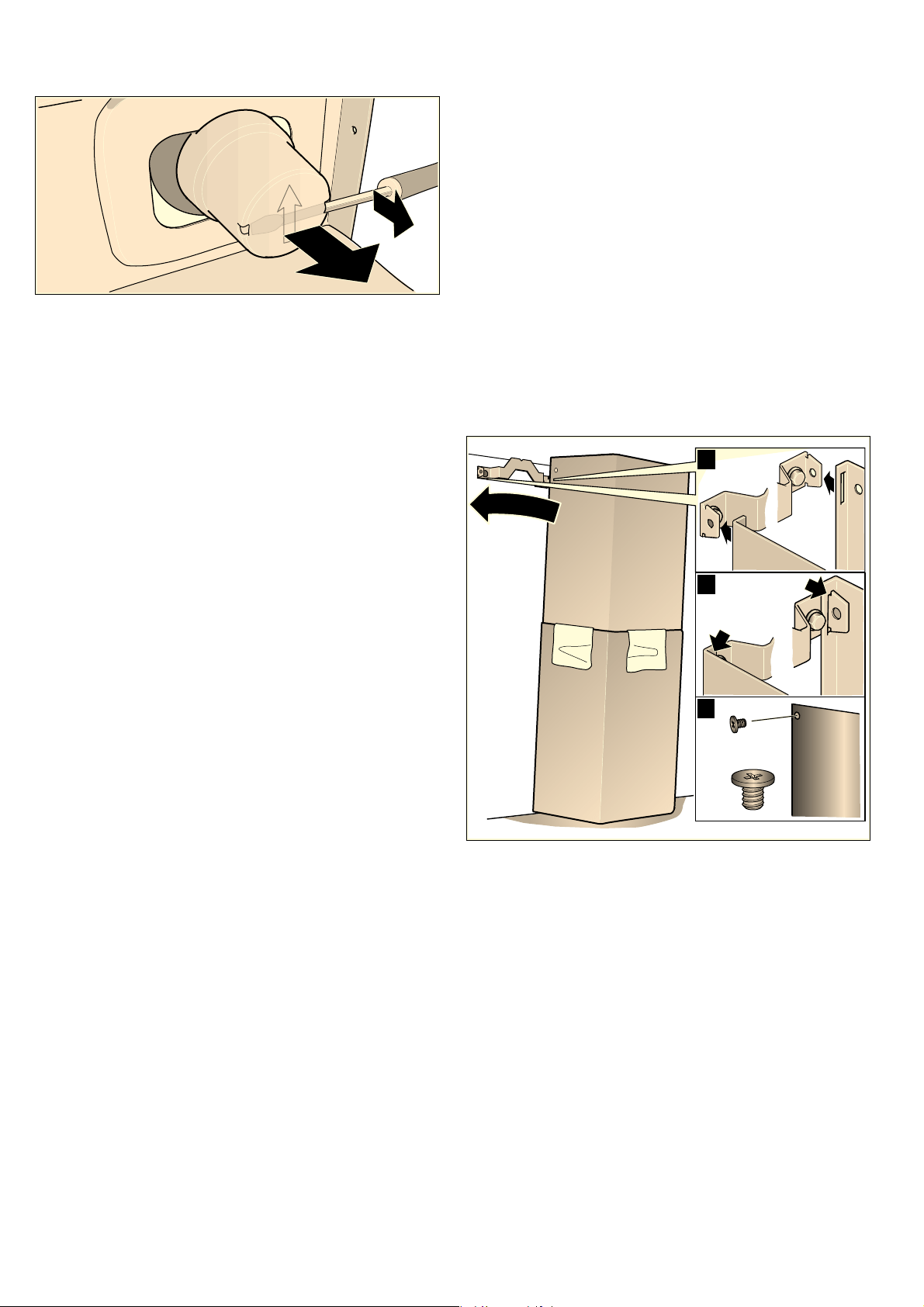

Removing the safety caps
15
Connecting the pipes
15
Note
15
Exhaust-air pipe Ø 120 mm
15
1. Attach the reducing connector directly to the air-pipe connector.
15
2. Attach the exhaust air pipe to the reducing connector.
15
3. Seal both joints appropriately.
15
Attaching the flue duct
15
: Risk of injury!
15
1. Separate the flue ducts.
15
2. Remove the protective foil from both flue ducts.
15
3. Push one flue duct into the other.
15
Notes
15
4. Place flue ducts on the appliance.
15
5. Push the inner flue duct upwards and attach it to the fixing brackets on the left and right. ¨
15
6. Press the flue duct downwards until it engages. ©
15
7. Screw the flue duct to the sides of the fixing bracket using two screws. ª
15
File type: PDF
File name: 92204529_d79mh52n1.pdf
File size: 1.32 MB
File Language: English
Pages: 16
Author: Neff
File created: 2013-08-06
Published: 2022-04-24
Updated: 2023-05-23
Download File
Specifications
Brand:
Neff
Model: D79MH52N1
Category:
Hoods
View in the file:
Full Specifications
See other models:
T56TS31N0B57CR22N0B
C17KS61N0
S425T80S0A
NEFFKITCHENPACK
T58UD10X0
Photos
View more photos
Download User Manual
Related Products
Miele PUR98W
Asko CW4938G
Neff T29DA79N0A
Hestan KVP48BK
Hestan KVP48BG
Viking VWHO6078
Viking VWHO3678
Viking VWHO4878
Neff D8002N0GB/01
Neff T62R26S0/01
Neff B8732A0/02
Neff K1514X4/01
Neff N23TA29N0/01
Neff Z9416X2
Neff Z51FXJ0X0
Table of Contents
×
[en] Instructions for installation and use
1
Ú Table of contents[en] Instructions for installation and use
2
Instruction manual
2
Produktinfo
2
: Important safety information
2
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
2
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
2
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
2
Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
2
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
2
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
2
This appliance is not intended for operation with an external clock timer or a remote control.
2
Danger of suffocation!
3
Packaging material is dangerous to children. Never allow children to play with packaging material.
3
Danger of death!
3
Risk of poisoning from flue gases that are drawn back in.
3
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
3
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air t...
3
In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked ...
3
■ Adequate incoming air must therefore always be ensured.
3
■ An incoming/exhaust air wall box alone will not ensure compliance with the limit.
3
Safe operation is possible only when the partial vacuum in the place where the heat- producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that can...
3
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
3
Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
3
Risk of fire!
3
■ Grease deposits in the grease filter may catch fire.
3
Clean the grease filter at least every 2 months.
3
Never operate the appliance without the grease filter.
3
Risk of fire!
3
■ Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat- producing appliance for solid fuel (e.g. wood or coal) unless a closed, non- rem...
3
Risk of fire!
3
■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
3
Risk of fire!
3
■ When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them.
3
Risk of fire!
3
■ Operating several gas burners at the same time gives rise to a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Never operate two gas burners simultaneously on the highest flame for longer t...
3
Risk of burns!
4
The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
4
Risk of injury!
4
■ Components inside the appliance may have sharp edges. Wear protective gloves.
4
Risk of injury!
4
■ Items placed on the appliance may fall down. Do not place any objects on the appliance.
4
Risk of injury!
4
■ The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.
4
Risk of electric shock!
4
■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
4
Risk of electric shock!
4
■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker...
4
Risk of electric shock!
4
■ Penetrating moisture may cause an electric shock. Do not use any high- pressure cleaners or steam cleaners.
4
Causes of damage
4
Caution!
4
Environmental protection
5
Environmental protection
5
Operating modes
5
Exhaust air mode
5
Note
5
Circulating-air mode
5
Notes
5
Operation
6
Note
6
Control panel model 1
6
Control panel
6
Setting the fan
6
Intensive setting
6
Fan run-on time
6
AirFresh function
6
Lighting
6
Saturation display
6
Audible signal
6
Control panel model 2
7
Control panel
7
Setting the fan
7
Intensive setting
7
Fan run-on time
7
AirFresh function
7
Noise reduction function
7
Lighting
7
Saturation display
7
Audible signal
7
Cleaning and maintenance
8
: Risk of burns!
8
: Risk of electric shock!
8
: Risk of electric shock!
8
: Risk of injury!
8
Cleaning agents
8
Cleaning the metal mesh grease filters
8
: Risk of fire!
8
Notes
8
In the dishwasher:
8
Note
8
By hand:
8
Note
8
Removing metal mesh grease filter
9
1. Open the lock and fold down the metal grease filter. While doing this, place the other hand under the metal grease filter.
9
2. Take the metal grease filter out of the holder.
9
For edge extraction filters, pull the metal grease filter downwards. While doing this, place the other hand under the metal grease filter.
9
For additional filters, open the lock and fold down the metal grease filter. While doing this, place the other hand under the metal grease filter.
9
Notes
9
3. Clean the metal grease filter.
9
Installing the metal mesh grease filter
9
1. Insert the metal mesh grease filter.
9
2. Fold the metal mesh grease filter upwards, locking it in place.
9
Trouble shooting
9
: Risk of electric shock!
9
Malfunction table
9
Replacing bulbs
9
: Risk of electric shock!
9
Replacing halogen bulbs
9
Note
9
1. Carefully remove the bulb ring using a suitable tool.
9
2. Pull out the bulb and replace it with a bulb of the same type.
9
3. Insert the bulb cover.
9
4. Insert the mains plug or switch on the fuse again.
9
LED lights
9
: Risk of injury!
9
After-sales service
10
To book an engineer visit and product advice
10
Accessories for circulating-air mode
10
Notes
10
Installation instructions
11
Installation instructions
11
: Important safety information
11
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
11
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
11
The width of the extractor hood must correspond at least with the width of the hob.
11
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
11
When conveying the exhaust air, official and legal regulations (e.g. state building regulations) must be followed.
11
Risk of death!
11
Risk of poisoning from flue gases that are drawn back in. The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms that contain heating appliances. If the exhaust ...
11
Danger of death!
11
Risk of poisoning from flue gases that are drawn back in.
11
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
11
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air t...
12
In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked ...
12
■ Adequate incoming air must therefore always be ensured.
12
■ An incoming/exhaust air wall box alone will not ensure compliance with the limit.
12
Safe operation is possible only when the partial vacuum in the place where the heat- producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that can...
12
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
12
Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
12
Danger of death!
12
Risk of poisoning from flue gases that are drawn back in. If installing a ventilation system in a room with a heat-producing appliance connected to a chimney/flue, the electricity supply to the hood must be equipped with a suitable safety switch.
12
Risk of fire!
12
Grease deposits in the grease filter may catch fire. The specified safety distances must be observed in order to prevent an accumulation of heat. Observe the specifications for your cooking appliance. If gas and electric hobs are operated together, t...
12
Only one side of the appliance may be installed directly next to a high-sided unit or a wall. The distance between the appliance and wall or high-sided unit must be at least 50 mm.
12
Risk of injury!
12
■ Components inside the appliance may have sharp edges. Wear protective gloves.
12
Risk of injury!
12
■ The appliance may fall down if it has not been properly fastened in place. All fastening components must be fixed firmly and securely.
12
Risk of injury!
12
■ The appliance is heavy. To move the appliance, 2 people are required. Use only suitable tools and equipment.
12
Risk of electric shock!
12
Components inside the appliance may have sharp edges. These may damage the connecting cable. Do not kink or pinch the connecting cable during installation.
12
Risk of electric shock!
12
It must always be possible to disconnect the appliance from the electricity supply. The appliance must only be connected to a protective contact socket which has been correctly installed. If the plug is no longer accessible following installation of ...
12
Danger of suffocation!
12
Packaging material is dangerous to children. Never allow children to play with packaging material.
12
General information
13
Exhaust air mode
13
: Risk of death!
13
Exhaust duct
13
Note
13
Checking the wall
13
Electrical connection
13
: Risk of electric shock!
13
: Risk of electric shock!
13
Installation
13
Preparing the installation
13
Caution!
13
1. Mark a vertical centre line on the wall from the ceiling to the lower edge of the extractor hood.
13
2. Mark positions for the screws and the contour of the attachment area.
13
3. Drill five 8 mm Ø holes to a depth of 80 mm for the attachments and press in the wall plugs flush with the wall.
13
Installation
14
1. Screw on the fixing bracket for the flue duct. ¨
14
2. Screw on brackets for the extractor hood hand-tight, max. 3 Nm.©
14
3. Screw in threaded pin, leaving it protruding out of the wall by 5 - 9 mm..ª
14
Attaching and aligning the appliance
14
1. Initially remove the protective foil from the back of the appliance and, following installation, remove the foil completely.
14
2. When attaching the appliance, ensure that it engages firmly with the brackets. «
14
3. Align the appliance horizontally by turning the brackets. If required, the appliance can be moved to the right or left. ¬
14
Securing the appliance
14
1. Press the safety caps with the arrow upwards onto the brackets until they engage. ®
14
2. Screw on the knurled nut and washer firmly. ¯
14
Removing the safety caps
15
Connecting the pipes
15
Note
15
Exhaust-air pipe Ø 120 mm
15
1. Attach the reducing connector directly to the air-pipe connector.
15
2. Attach the exhaust air pipe to the reducing connector.
15
3. Seal both joints appropriately.
15
Attaching the flue duct
15
: Risk of injury!
15
1. Separate the flue ducts.
15
2. Remove the protective foil from both flue ducts.
15
3. Push one flue duct into the other.
15
Notes
15
4. Place flue ducts on the appliance.
15
5. Push the inner flue duct upwards and attach it to the fixing brackets on the left and right. ¨
15
6. Press the flue duct downwards until it engages. ©
15
7. Screw the flue duct to the sides of the fixing bracket using two screws. ª
15
Search:
×
Search
