FRENCHDOOR
REFRIGERAIOR
t,S_:RSCUH}_&
INS/AttA/IONINSIfiUC/IONS
Please read this guide
thoroughly before
operating and keep it handy
for reference at afttimes.
To contact LG Electronics, 24 hours a day,
7 days aweek:
1-800-243-0000
@visit us on the Web at; us.lge.com
Pour contacter LG Electronics, 24 heures par
jour, 7jours par semaine:
1-800-243-0000
Ou visitez notre site Web & I'adresse: us.lge.com
Para comunicarse con LG Electronics,
24 horas al dia, 7 dias a la semana:
1-800-243-0000
0 visitenos en laWeb en: us.lge.com
REERICERAIEURA
PonIESFRANCAISES
CUDED'UHIBAlIONE[
INSBUClIONSdINS[AIIAHON
Veuillez lire ce guide atlentivement
avant la raise en service de I'appareit
et gardez-Ie & portee de main
pou_ Ieconsuller en cas de besoin.
REFRICERADORDE
PUERIAFRANCES
OUiAPARAE[[SOE
IINSIRUCCIION_:SI)[ III_SIAIAqON
Lea detenidamenle estas
inslrucciones antes utilizar
el frigorifico y guardetas como
referencia para el futuro,
ModelsiModelos/Modeles
LMX25¢ISI_, LMX21gsI_
P/No. MFL37933514

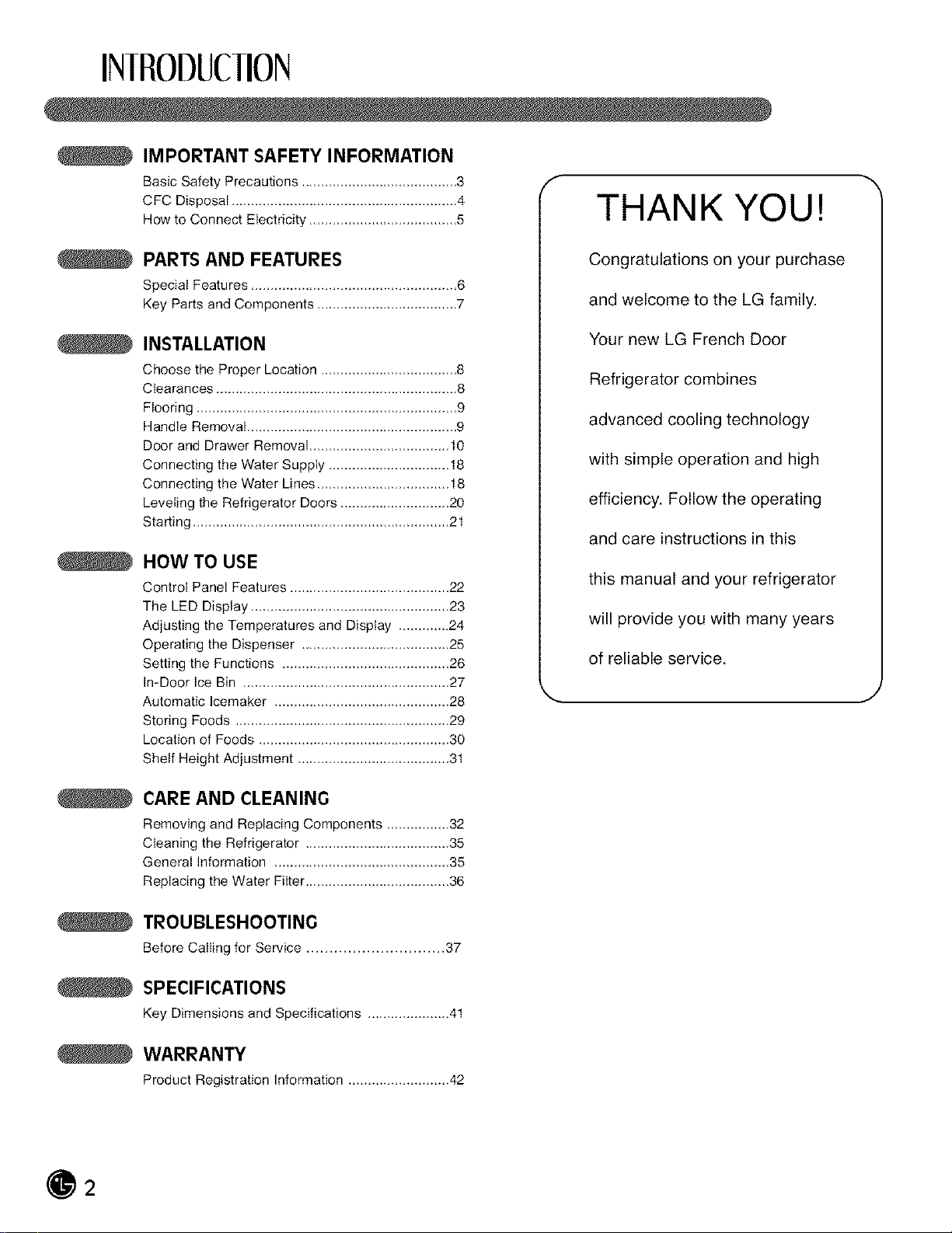

INIfIODU€IION
IMPORTANT SAFETY INFORMATION
Basic Safety Precautions ...................... 3
CFC Disposal ............................... 4
How to Connect Electricity ...................................... 5
PARTS AND FEATURES
Special Features 6
Key Parts and Components ........................... 7
INSTALLATION

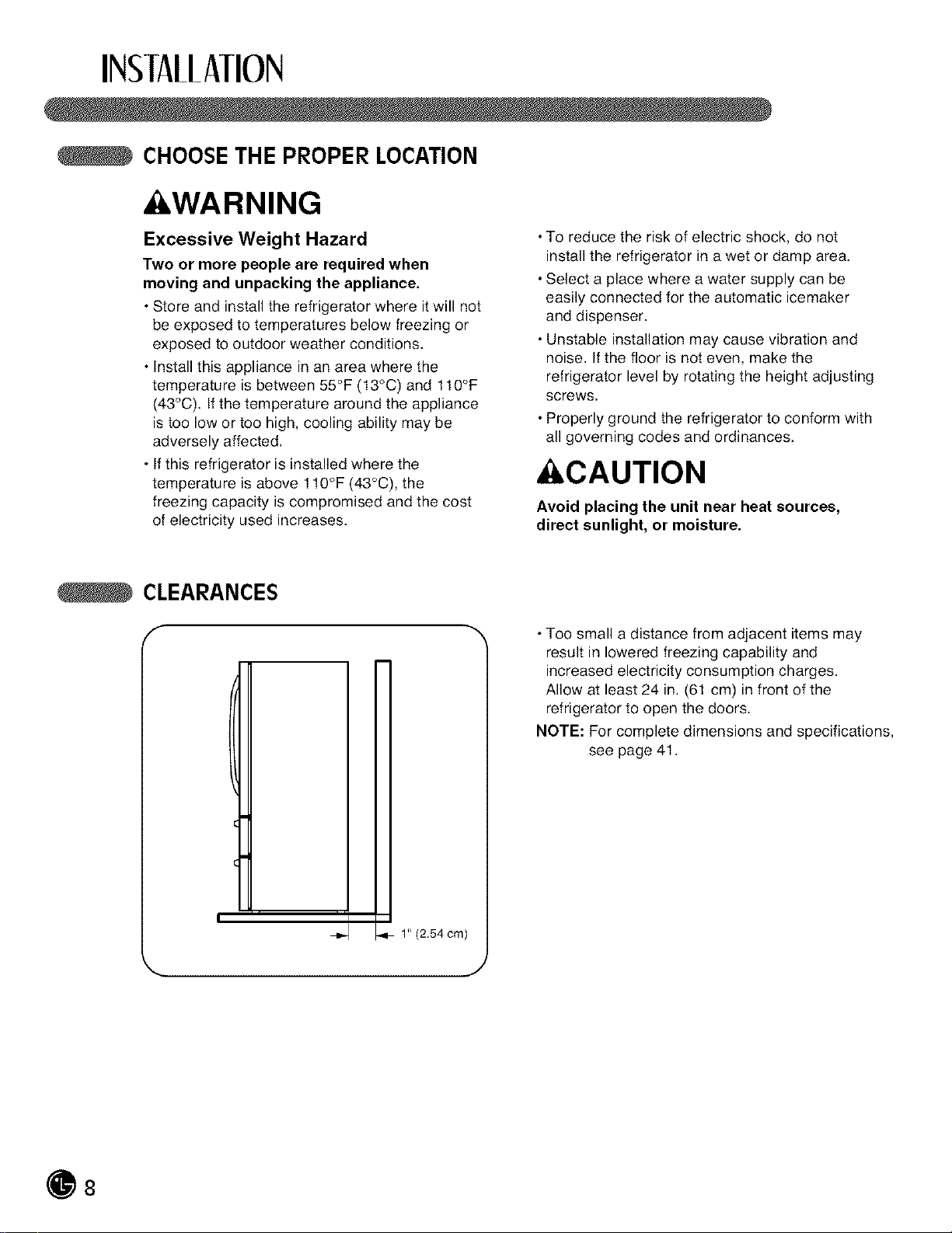

Choose the Proper Location ................... 8
Clearances ............................................. 8
Flooring ................................................................... 9
Handle Removal ...................................................... 9

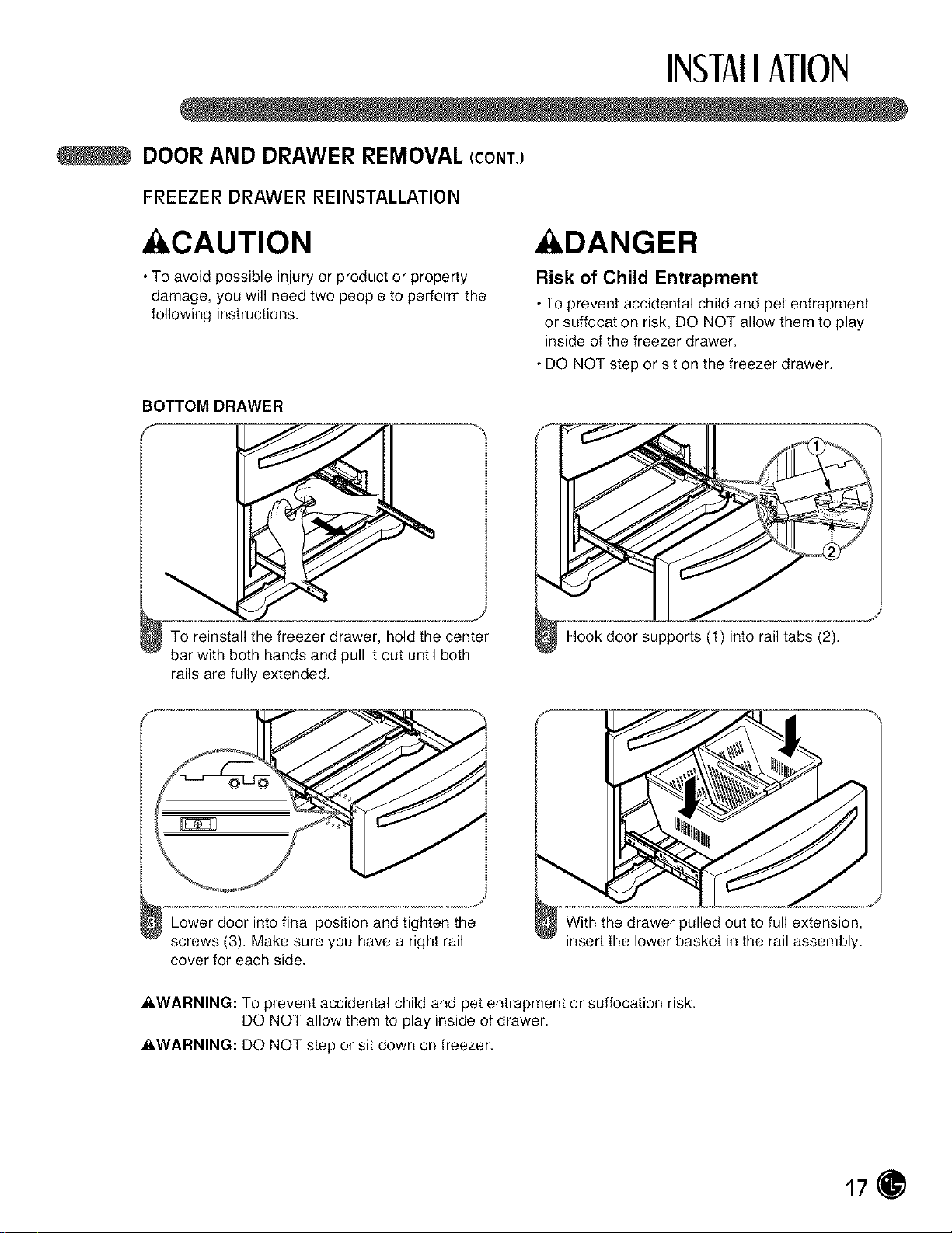

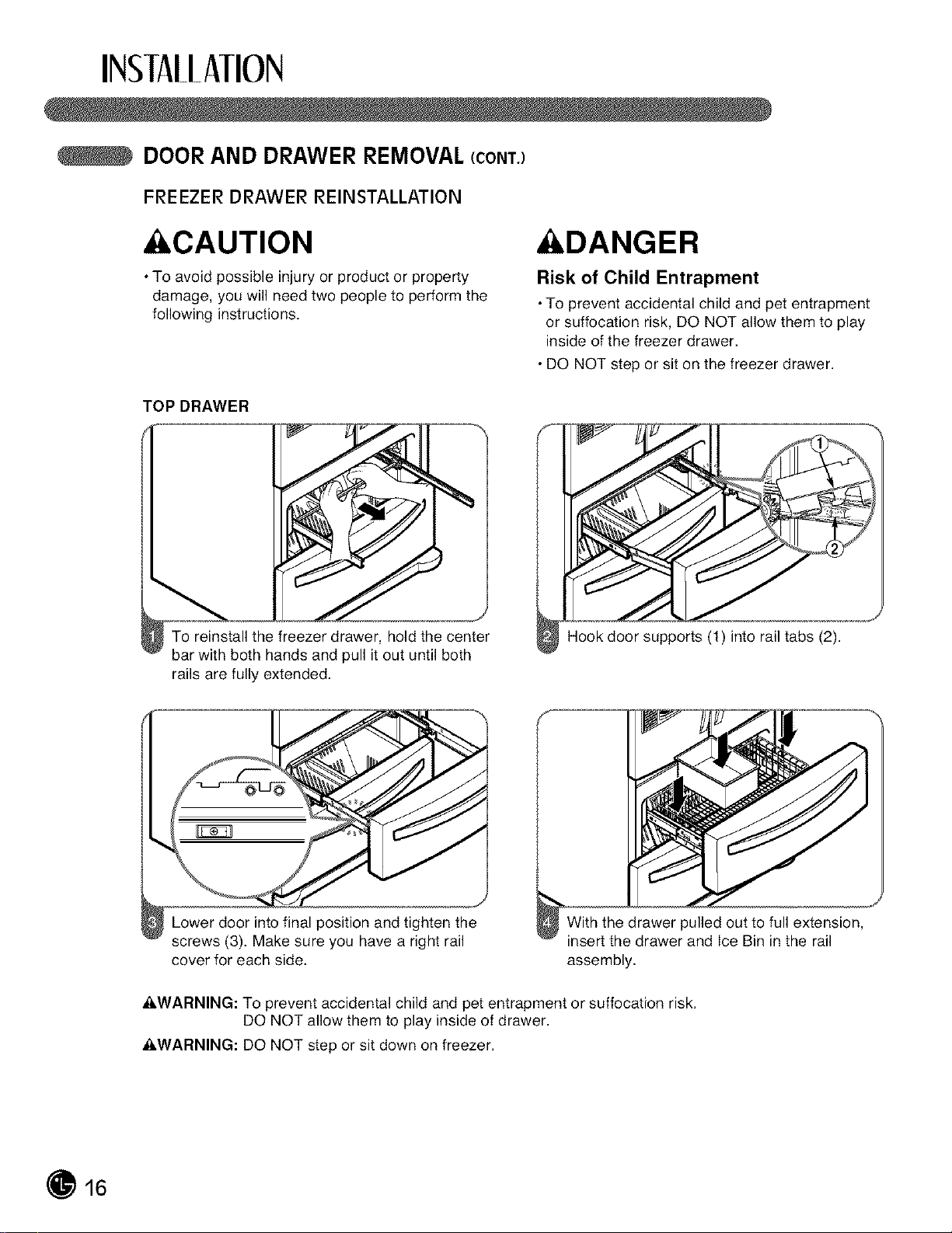

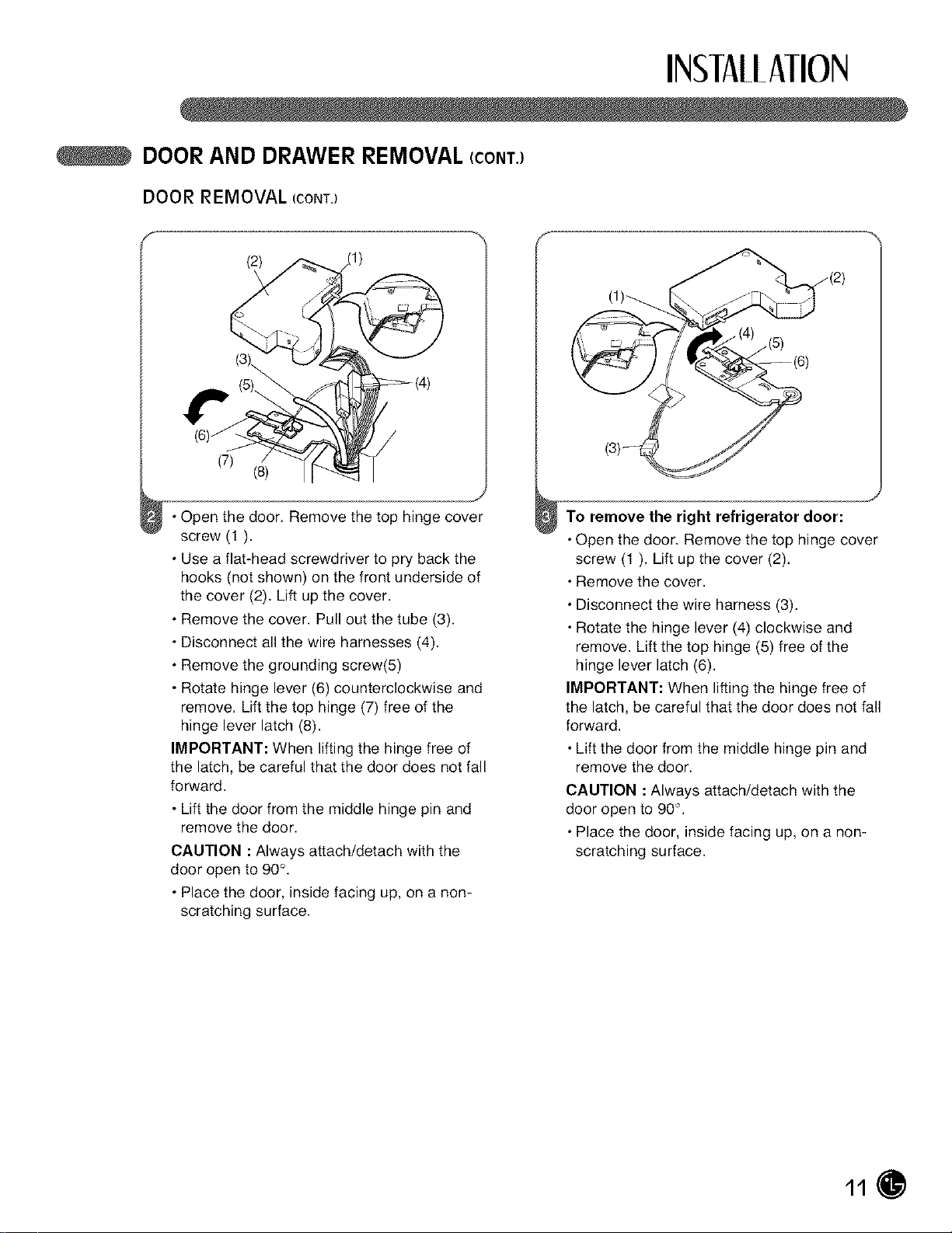

Door and Drawer Removal .................................... 10

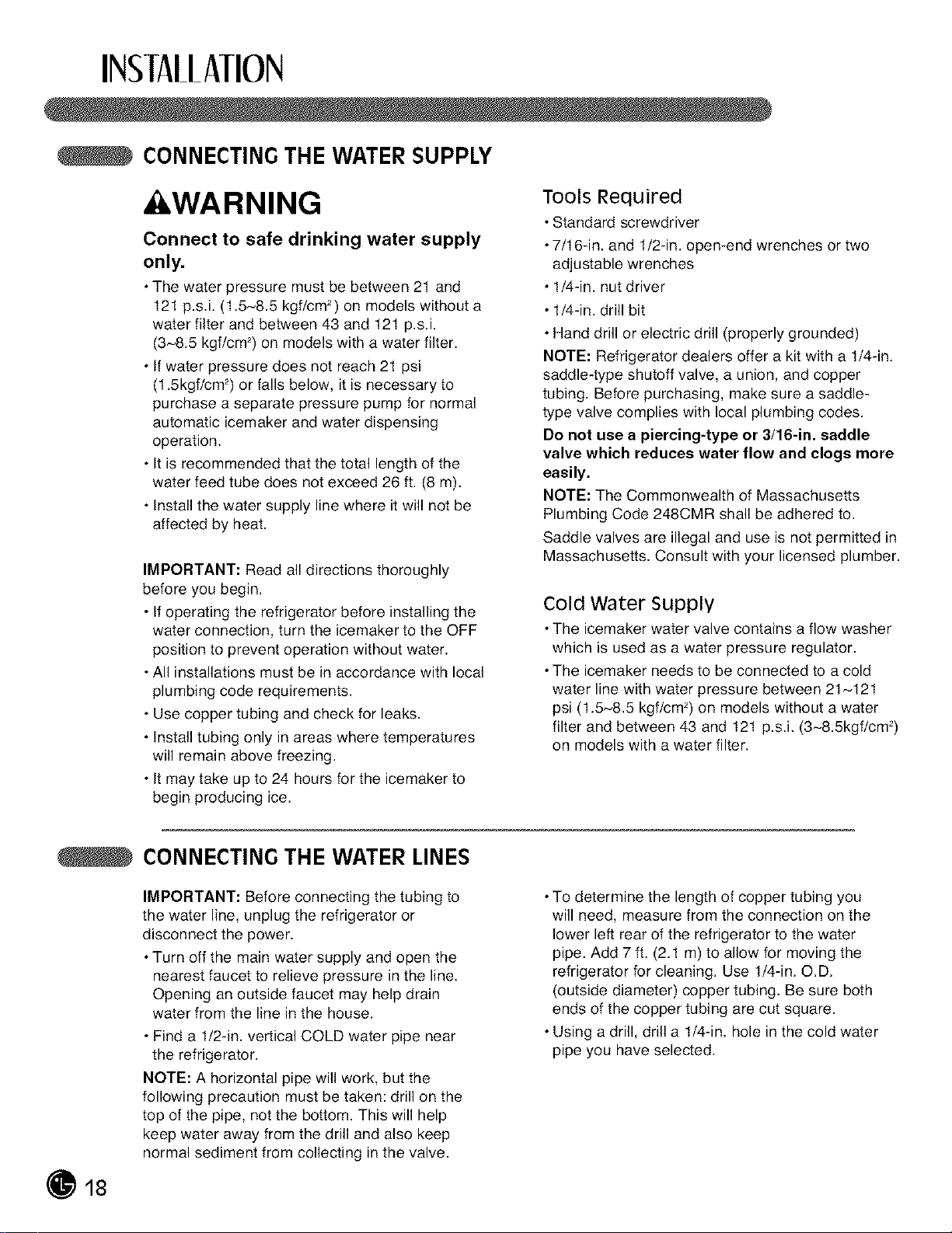

Connecting the Water Supply ............................... t8
Connecting the Water Lines ............................ t8

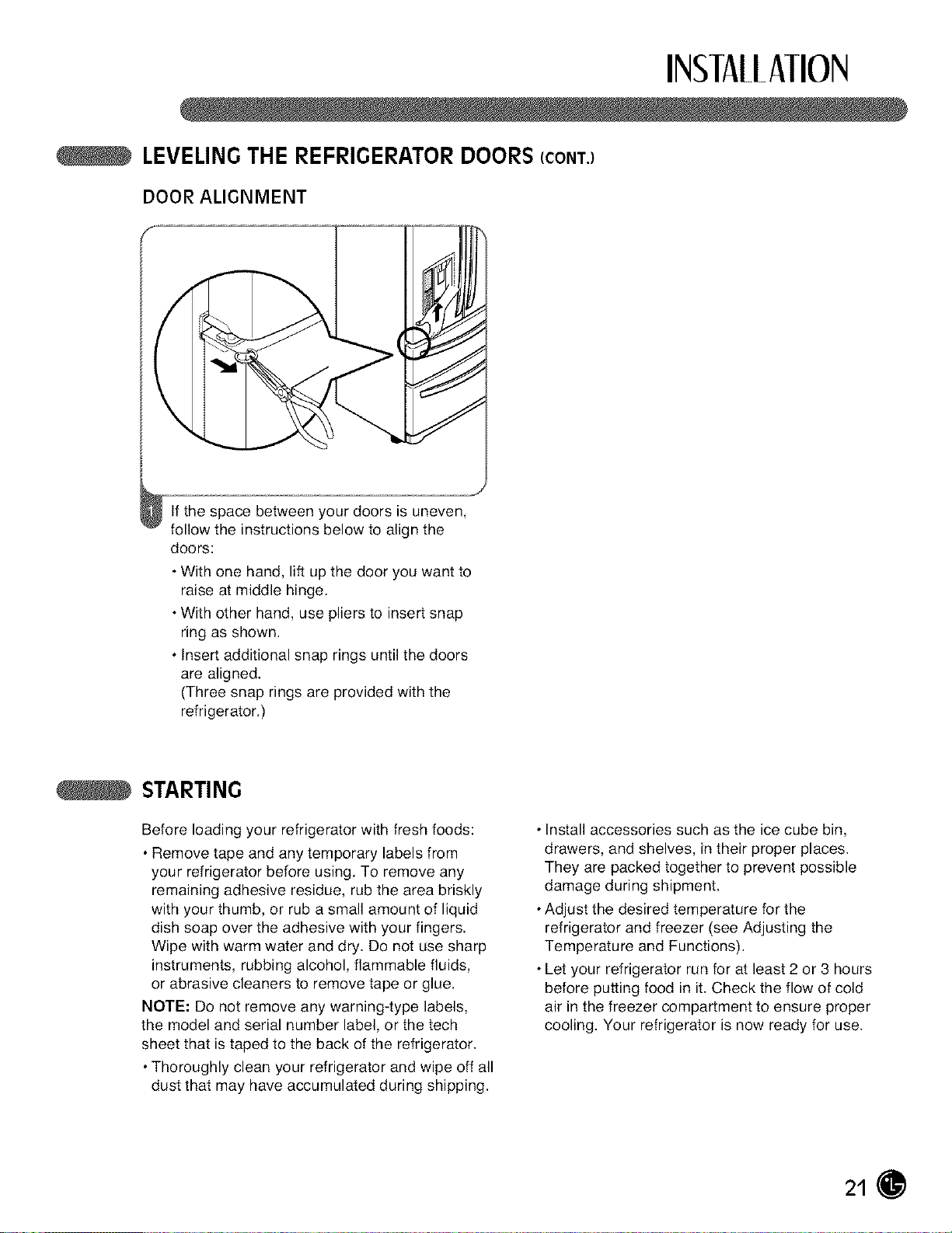

Leveling the Refrigerator Doors ............................ 20
Starting .................................................................. 2t
HOW TO USE
Control Panel Features .............................. 22

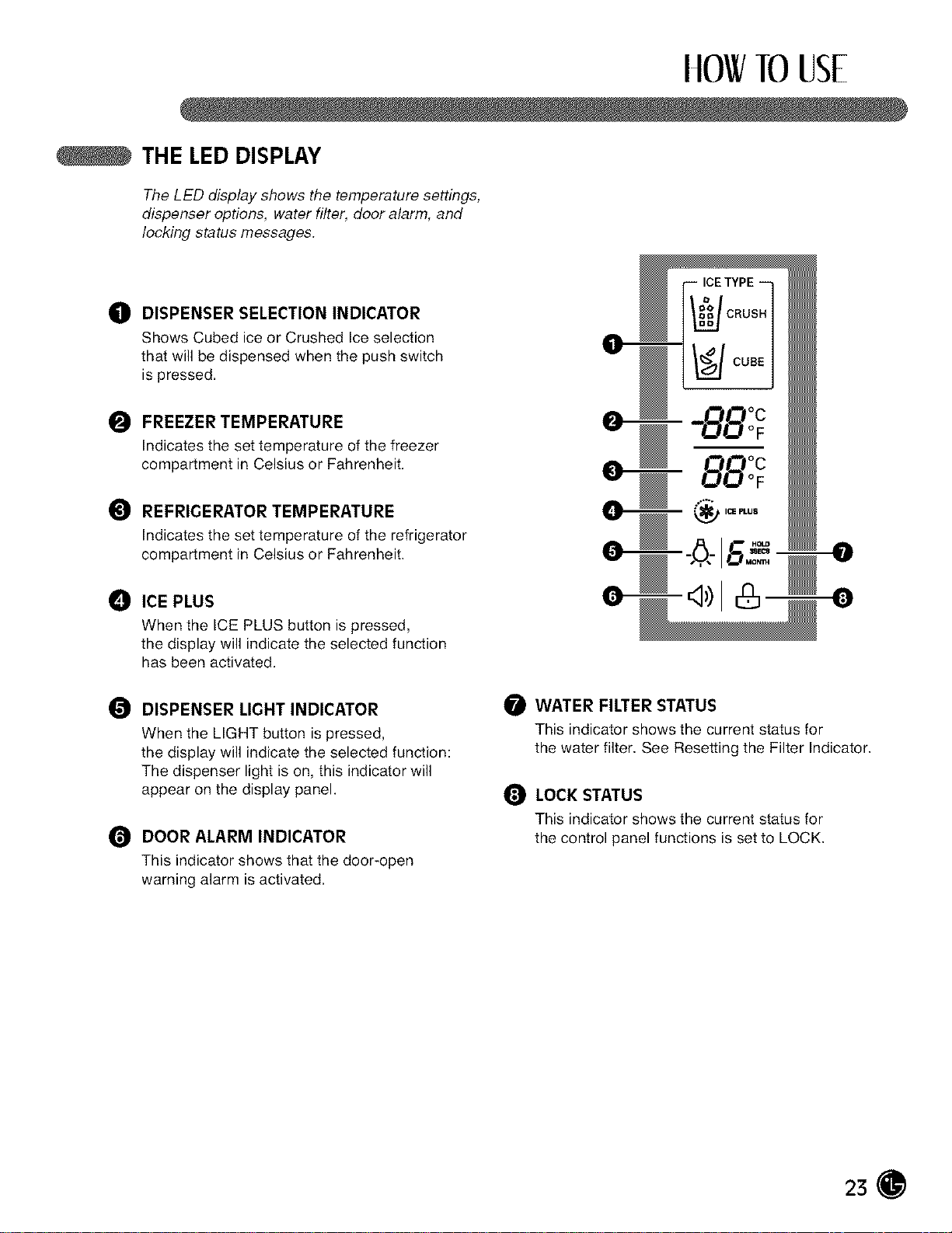

The LED Display ................................................... 23
Adjusting the Temperatures and Display ............. 24

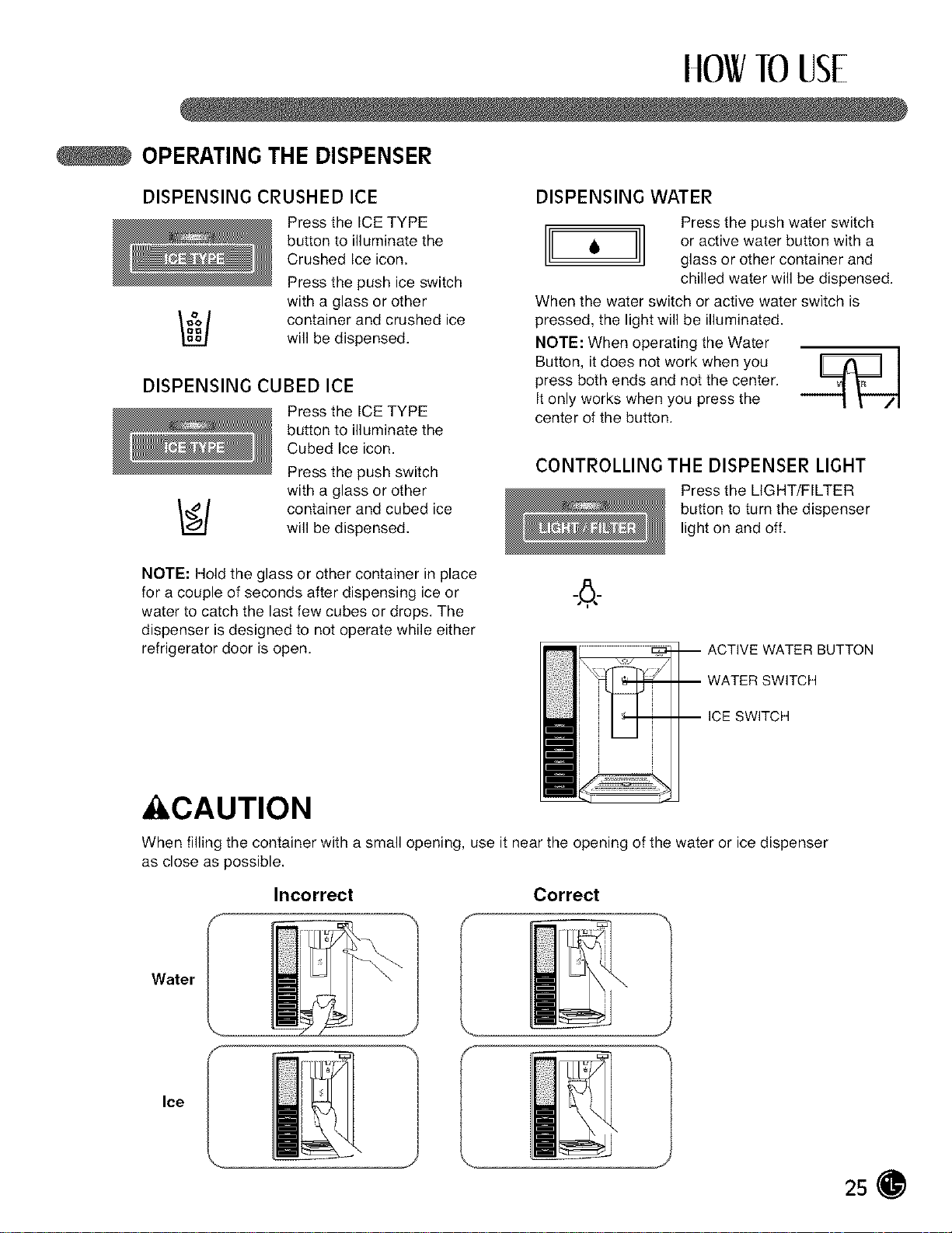

Operating the Dispenser ...................................... 25
Setting the Functions ........................................... 26

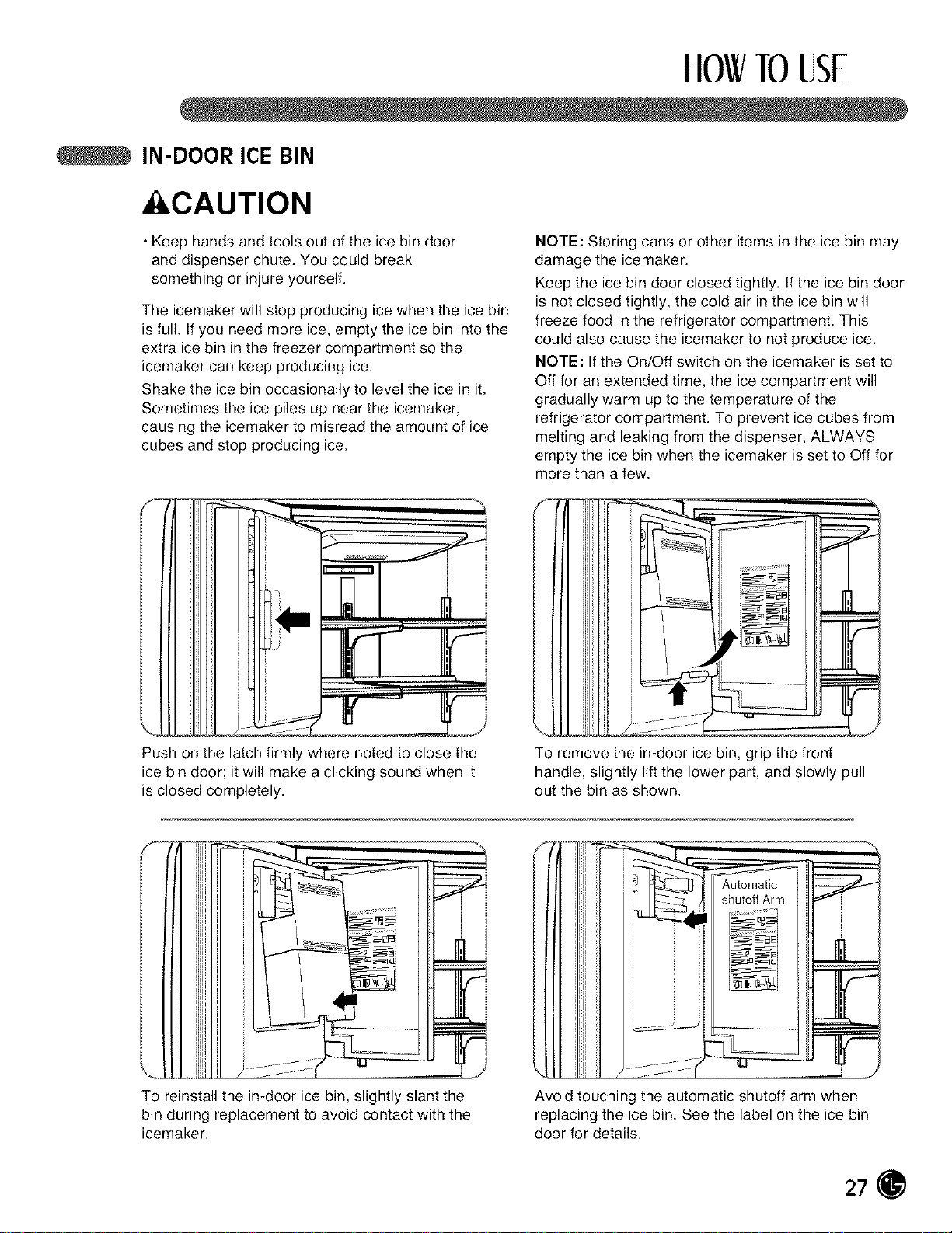

In-Door Ice Bin ..................................................... 27
Automatic Icemaker ............................................. 28
Storing Foods ....................................................... 29
Location of Foods ................................................. 30
Shelf Height Adjustment ....................................... 31
CARE AND CLEANING

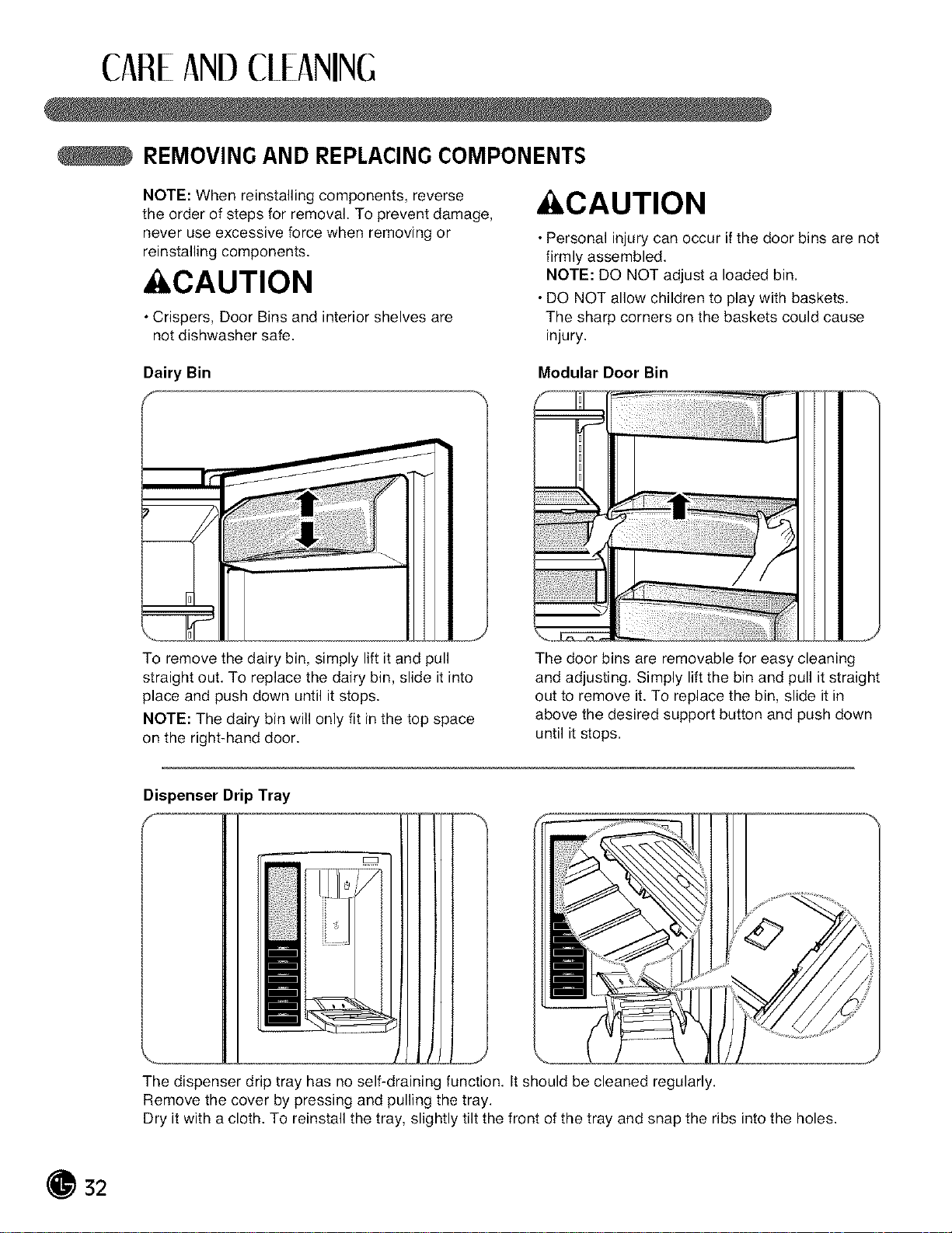

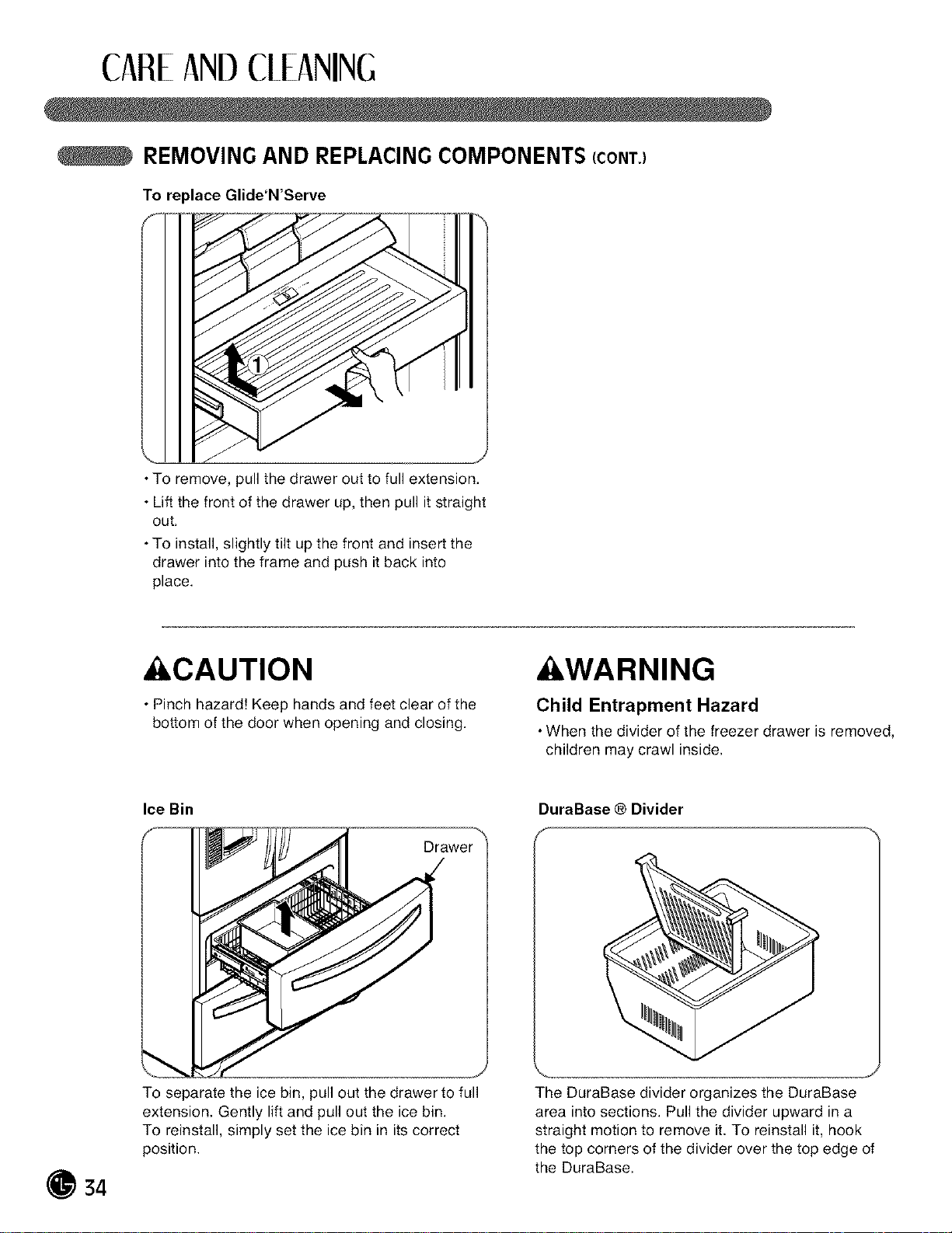

Removing and Replacing Components ......... 32
Cleaning the Refrigerator ..................................... 35
General Information ............................................. 35
Replacing the Water Filter ..................................... 36
TROUBLESHOOTING
Before Calling for Service ............................ 37
SPECIFICATIONS
Key Dimensions and Specifications ..................... 4t
WARRANTY
Product Registration Information .................... 42
THANK YOU!
Congratulations on your purchase
and welcome to the LG family.
Your new LG French Door
Refrigerator combines
advanced cooling technology
with simple operation and high
efficiency. Follow the operating
and care instructions in this
this manual and your refrigerator
will provide you with many years
of reliable service.
J
2

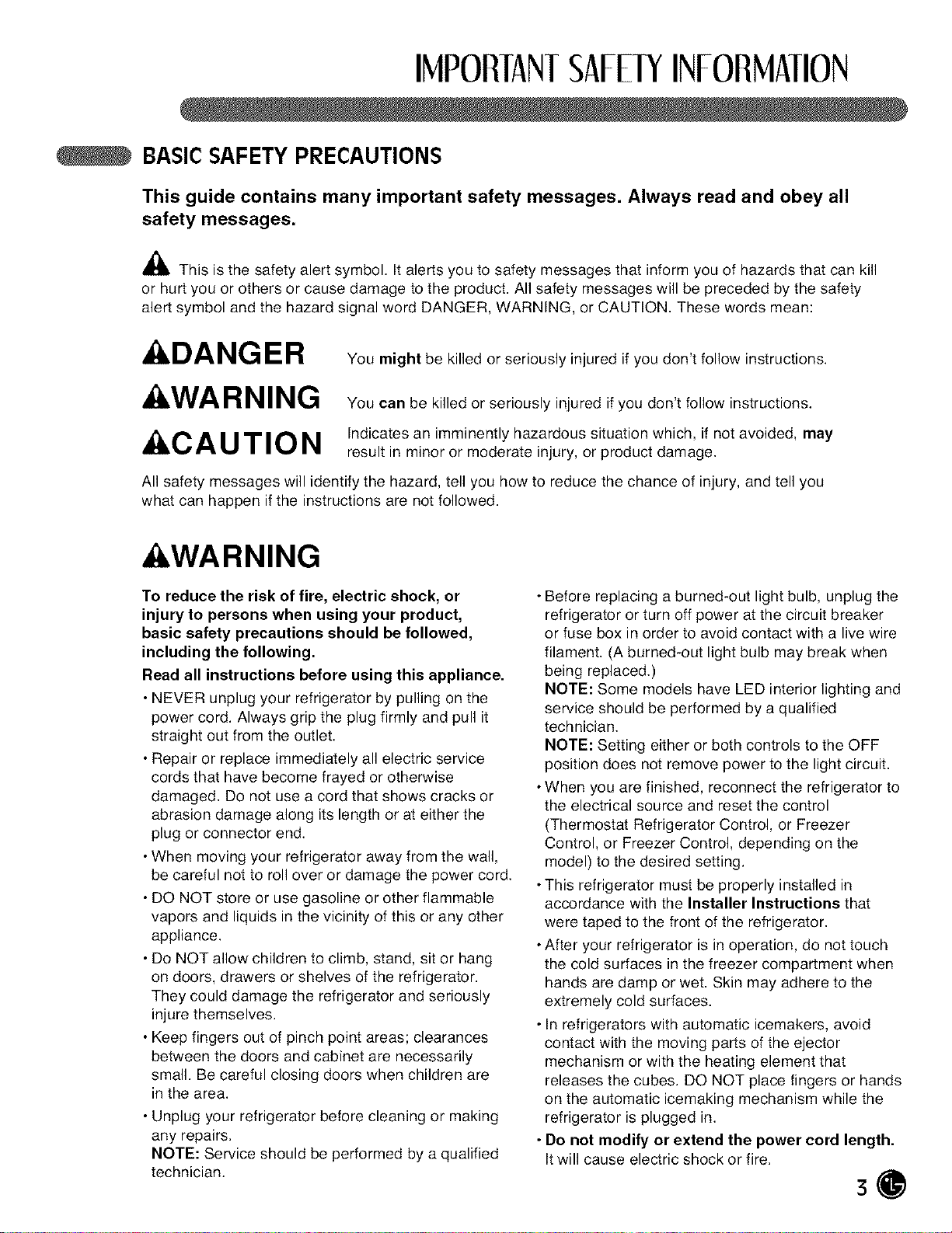

IMPORIANISAFELYINFORMAIION
BASICSAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all
safety messages.
,_i This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill
or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety
alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:
&DANGER
kWARNING
You might be killed or seriously injured if you don't follow instructions.
You can be killed or seriously injured if you don't follow instructions.
• ,CAUTI0 N Indicates an imminently hazardous situation which, if not avoided, may
result in minor or moderate injury, or product damage.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
kWARNING
To reduce the risk of fire, electric shock, or
injury to persons when using your product,
basic safety precautions should be followed,
including the following.
Read all instructions before using this appliance.
•NEVER unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull it
straight out from the outlet.
•Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or
abrasion damage along its length or at either the
plug or connector end.
•When moving your refrigerator away from the wall,
be careful not to roll over or damage the power cord.
•DO NOT store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
•Do NOT allow children to climb, stand, sit or hang
on doors, drawers or shelves of the refrigerator.
They could damage the refrigerator and seriously
injure themselves.
•Keep fingers out of pinch point areas; clearances
between the doors and cabinet are necessarily
small. Be careful closing doors when children are
in the area.
•Unplug your refrigerator before cleaning or making
any repairs.
NOTE: Service should be performed by a qualified
technician.
•Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker
or fuse box in order to avoid contact with a live wire
filament. (A burned-out light bulb may break when
being replaced.)
NOTE: Some models have LED interior lighting and
service should be performed by a qualified
technician.
NOTE: Setting either or both controls to the OFF
position does not remove power to the light circuit.
•When you are finished, reconnect the refrigerator to
the electrical source and reset the control
(Thermostat Refrigerator Control, or Freezer
Control, or Freezer Control, depending on the
model) to the desired setting.
•This refrigerator must be properly installed in
accordance with the Installer Instructions that
were taped to the front of the refrigerator.
•After your refrigerator is in operation, do not touch
the cold surfaces in the freezer compartment when
hands are damp or wet. Skin may adhere to the
extremely cold surfaces.
• In refrigerators with automatic icemakers, avoid
contact with the moving parts of the ejector
mechanism or with the heating element that
releases the cubes. DO NOT place fingers or hands
on the automatic icemaking mechanism while the
refrigerator is plugged in.
• Do not modify or extend the power cord length.
It will cause electric shock or fire.
3
IMPORIANISAFELYINFORMATION
BASICSAFETY PRECAUTIONS (CONT.)
• DO NOT refreeze frozen foods which have
thawed completely. The United States
Department of Agriculture in Home and Garden
Bulletin No. 69 says:
...You may safely refreeze frozen foods that have
thawed if they still contain ice crystals or ifthey are
still cold--below 40°F (4°C).
...Thawed ground meats, poultry, or fish that have
any off-odor or off-color should not be refrozen
and should not be eaten. Thawed ice cream
should be discarded. If the odor or color of any
food is poor or questionable, dispose of it. The
food may be dangerous to eat.
Even partial thawing and refreezing reduces the
quality of foods, particularly fruits, vegetables,
and prepared foods. The eating quality of red
meats is affected less than that of many other
foods. Use refrozen foods as soon as possible to
save as much of their quality as you can.
,DANGER
Risk of Child Entrapment
Discarded or abandoned refrigerators are
dangerous, even if they will sit for just a few
days. If you are disposing of your old refrigerator,
please follow the instructions below to help prevent
accidents.
Before you throw away your old refrigerator or
freezer:
•Take off the doors.
• Leave the shelves in place so that children may
not easily climb inside.
CFC DISPOSAL
Your old refrigerator may have a cooling system
that used CFCs (chlorofluorocarbons). CFCs are
believed to harm stratospheric ozone.
If you are throwing away your old refrigerator,
make sure the CFC refrigerant is removed for
proper disposal by a qualified servicer. If you
intentionally release this CFC refrigerant, you can
be subject to fines and imprisonment under
provisions of environmental legislation.
4
IMPORIANISAFELYINFORMAIION
HOW TO CONNECT ELECTRICITY
IMPORTANT: Please read carefully.
WARNING
Electrical Shock Hazard
For personal safety, this appliance must be
properly grounded. Have the wall outlet and
the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into
its own individual properly grounded electrical
outlet rated for 120 volts, 60 Hz, AC only, and
fused at 20 amperes. This provides the
best performance and also prevents overloading
house wiring circuits which could cause a fire
hazard from overheated wires. It is
recommended that a separate circuit serving
only this appliance be provided.
Use a receptacle which cannot be turned off with
a switch or pull chain. Do not use an extension
cord. Where a standard two-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with a properly
grounded three-prong wall outlet.
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not use an adapter plug.
NOTE: Some models have LED interior lighting and
service should be performed by a qualified technician.
When you are finished, reconnect the refrigerator to
the electrical source and reset the control
(Thermostat, Refrigerator Control, or Freezer Control,
depending on the model) to the desired setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under
certain conditions, we strongly recommend
against the use of an extension cord.
However, if you still elect to use an extension
cord, it is absolutely necessary that it be a UL-listed
(USA), 3-wire grounding-type appliance
extension cord having a grounding-type plug
and outlet and that the electrical rating of the
cord be 20 amperes (minimum) and 120 volts.
Use of an extension cord will increase the
clearance needed for the back of the
refrigerator.
SAVE THESE INSTRUCTIONS
5

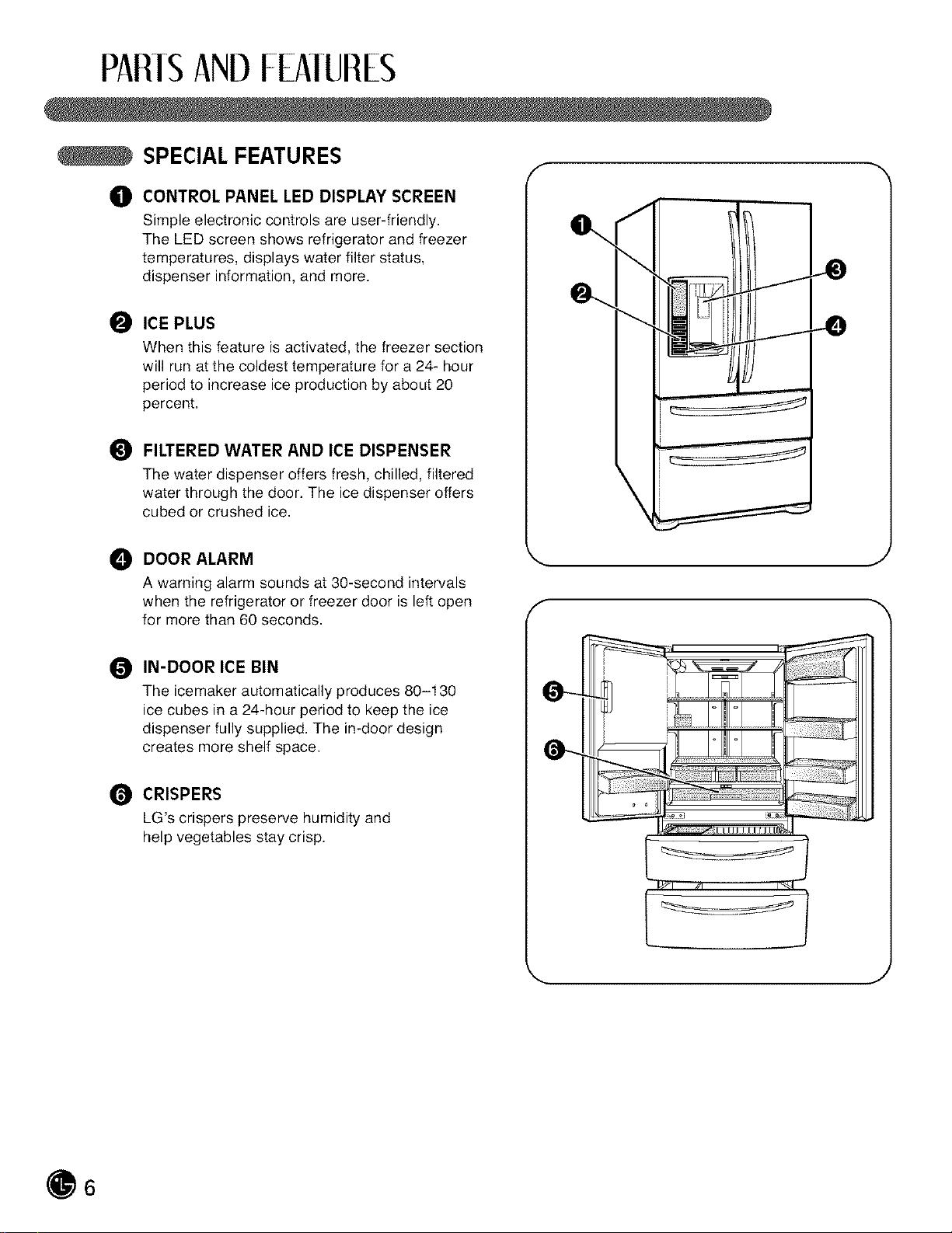

PARISANDFEATURES
SPECIAL FEATURES
O CONTROL PANEL LED DISPLAY SCREEN
Simple electronic controls are user-friendly.
The LED screen shows refrigerator and freezer
temperatures, displays water filter status,
dispenser information, and more.
O ICE PLUS
When this feature is activated, the freezer section
will run at the coldest temperature for a 24- hour
period to increase ice production by about 20
percent.
O
FILTERED WATER AND ICE DISPENSER
The water dispenser offers fresh, chilled, filtered
water through the door. The ice dispenser offers
cubed or crushed ice.
f
DOOR ALARM
A warning alarm sounds at 30-second intervals
when the refrigerator or freezer door is left open
for more than 60 seconds.
IN-DOOR ICE BIN
The icemaker automatically produces 80-130
ice cubes in a 24-hour period to keep the ice
dispenser fully supplied. The in-door design
creates more shelf space.
CRISPERS
LG's crispers preserve humidity and
help vegetables stay crisp.
J
J
6
PARISANDFEAIURES
KEY PARTSAND COMPONENTS
In addition to the special features and components outlined in the Special Features section,
there are several other important components that are referenced in this manual.
O ADJUSTABLE REFRIGERATOR SHELVING
The refrigerator compartment shelves are
adjustable to allow flexibility for storage needs.
LED INTERIOR LAMPS
Two separate LED arrays light the freezer and
refrigerator interiors.
O MODULAR DOOR BINS
Three interchangeable bins can be arranged to
suit your storage needs.
TILTING DOOR BIN
REMOVABLE ICE STORAGE BIN
The ice storage bin can be removed to fill ice
buckets, coolers, or pitchers.
FIXED DOOR BIN
7
INSIAllATION
CHOOSETHE PROPER LOCATION
&WARNING
Excessive Weight Hazard
Two or more people are required when
moVing and unpacking the appliance.
• store and install the refrigerator where it will not
be exposed to temperatures below freezing or
exposed to outdoor weather conditions.
• Install this appliance in an area where the
temperature is between 55°F (13°C) and 110°F
(43°C). If the temperature around the appliance
is too low or too high, cooling ability may be
adversely affected.
• If this refrigerator is installed where the
temperature is above 1IO°F (43°C), the
freezing capacity is compromised and the cost
of electricity used increases.
•To reduce the risk of electric shock, do not
install the refrigerator in a wet or damp area.
• Select a place where a water supply can be
easily connected for the automatic icemaker
and dispenser.
• Unstable installation may cause vibration and
noise. If the floor is not even, make the
refrigerator level by rotating the height adjusting
screws.
• Properly ground the refrigerator to conform with
all governing codes and ordinances.
&CAUTION
Avoid placing the unit near heat sources,
direct sunlight, or moisture.
CLEARANCES
4_. _ 1" (2.54 cm)
•Too small a distance from adjacent items may
result in lowered freezing capability and
increased electricity consumption charges.
Allow at least 24 in. (61 cm) in front of the
refrigerator to open the doors.
NOTE: For complete dimensions and specifications,
see page 41.
8
INSTAllATION
FLOORING
•TO minimize noise and vibration, the refrigerator
MUsT be installed on a solidly constructed
floor.
•To avoid vibration, the unit must be level. If
required, adjust the leveling legs to compensate
for unevenness of the floor. The front should be
slightly higher than the rear to aid in door
closing. The leveling legs can be turned easily
by pushing against the top of the refrigerator to
take the weight off the feet. Turn the leveling
legs clockwise to raise the unit or
counterclockwise to lower it.
•Carpeting and soft tile surfaces are not
recommended.
•Never install the refrigerator on a platform or
weakly supported structure.
NOTE: When moving the refrigerator for cleaning
or service, be sure to protect the floor. Always
pull the refrigerator straight out when moving it.
Do not wiggle or walk the refrigerator when trying
to move it; floor damage could occur.
NOTE: It is recommend that the doors be removed when it is necessary to move the refrigerator through a
narrow opening.
HANDLE REMOVAL
To move the refrigerator through a house door, it
may be necessary to remove the refrigerator
door handles.
NOTE: Handle appearance may vary from
illustrations on this page.
&CAUTION
•Use special care when removing handles to
prevent scratching the doors.
•The handle could be damaged if you hit it with
a hammer while removing or attaching.
•When you assemble or disassemble a handle,
you must push or pull with reasonable force.
f
Mountin
Fasteners
Set Screw
Allen Wrench
Loosen the set screws with a 2.5 mm (3/32")
Allen wrench and remove the handle.
NOTE: Ifthe handle mounting fasteners need
to be tightened or removed, use a 1/4" Allen
wrench.
F
Loosen the set screws located on the lower
side of the handle with a 2.5 mm (3/32") Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners need
to be tightened or removed, use a 1/4" Allen
wrench.
9
INSIAllATION
HANDLE REMOVAL (cONT.)
HANDLE REINSTALLATION
f
Mounting
Fasteners
\
Place the handle on the door by aligning
handle footprints to fit mounting fasteners and
tighten the set screws with a 2.5 mm (3/32")
Allen wrench.
NOTE: If the handle mounting fasteners need
to be tightened or removed use a 1/4" Allen
wrench
Place the handle on the door by aligning
handle footprints to fit mounting fasteners and
tighten the set screws on the bottom of the
handle with a 2.5 mm (3/32") Allen wrench.
NOTE: If the handle mounting fasteners need
to be tightened or removed use a 1/4" Allen
wrench.
DOOR AND DRAWER REMOVAL
DOOR REMOVAL
&WARNING
Electric Shock Hazard
• Disconnect electrical supply to the refrigerator
before installing. Failure to do so could result in
death or serious injury.
• Do not put hands or feet or metal sticks into the air
vents, base grille, or bottom of the refrigerator. You
may be injured or receive an electrical shock.
• Be careful when you work with the hinge, base
grille, and stopper. You may be injured.
Before you begin, remove food and bins from the
doors.
If your entrance door is too narrow for the refrigerator
to pass through, remove the refrigerator door and
move the refrigerator sideways through the doorway.
10
To remove the left refrigerator door:
Pullthe water tube out of the fitting while
pressing the release ring on the fitting.
NOTE : When you pull out the tube, first you
have to push the collet by opposite direction
of arrow in the upper picture and pull the tube
out by direction of arrow.
INSTAllATION
DOOR AND DRAWER REMOVAL (CONT.)
DOOR REMOVAL (CONT.)
f
(2)
(7)
(8)
.m
• Open the door. Remove the top hinge cover
screw (1).
• Use a flat-head screwdriver to pry back the
hooks (not shown) on the front underside of
the cover (2). Lift up the cover.
• Remove the cover. Pull out the tube (3).
• Disconnect all the wire harnesses (4).
• Remove the grounding screw(5)
• Rotate hinge lever (6) counterclockwise and
remove. Lift the top hinge (7) free of the
hinge lever latch (8).
IMPORTANT: When lifting the hinge free of
the latch, be careful that the door does not fall
forward.
• Lift the door from the middle hinge pin and
remove the door.
CAUTION : Always attach/detach with the
door open to 90 °.
• Place the door, inside facing up, on a non-
scratching surface.
f
(1)_
_(2)
To remove the right refrigerator door:
•Open the door. Remove the top hinge cover
screw (1). Lift up the cover (2).
• Remove the cover.
•Disconnect the wire harness (3).
•Rotate the hinge lever (4) clockwise and
remove. Lift the top hinge (5) free of the
hinge lever latch (6).
IMPORTANT: When lifting the hinge free of
the latch, be careful that the door does not fall
forward.
•Lift the door from the middle hinge pin and
remove the door.
CAUTION : Always attach/detach with the
door open to 90°.
•Place the door, inside facing up, on a non-
scratching surface.
11
INSIAllATION
DOOR AND DRAWER REMOVAL (CONT.)
DOOR REINSTALLATION
Install the right-side door first.
• Lower the door onto the middle hinge pin as
shown.
• Fit the top hinge (1) over the hinge lever
latch (2) and into place. Insert the hinge
lever (3) under the lever latch. Rotate the
lever counterclockwise to secure the hinge.
•Connect the wire harness (4),
• Hook the tab on the door-switch side of the
cover (5) under the edge of the wire opening
in the cabinet top. Position the cover into
place, Insert and tighten the cover screw (6),
f
Install the left-side door,
• Lower the door onto middle hinge pin.
(2)_ (4)
(3)
• Fit the top hinge (1) over the hinge lever
latch (2) and into place, Insert the hinge
lever (3) under the lever latch, Rotate the
lever clockwise to secure the hinge,
• Install the grounding screw (4) and connect
all the wire harnesses (5),
12
INSTAllATION
DOOR AND DRAWER REMOVAL (CONT.)
DOOR REINSTALLATION (cont.)
Cover Cover Screw
• Push the water supply tube (6) into the hole
on the top case and pull it through the
backplate.
&CAUTION
f
Insert the water supply tube into the
connector,
• Insert the tube at least 5/8 in, (15 mm) into
the connector,
•Hook the tab on the door-switch side of the
cover under the edge of the wire opening in
the cabinet top. Position the cover into
place, Insert and tighten the cover screw,
Collet
Tube
Insert Line
Clip
1. Insert the tube until you can see only one of the lines printed on the tube.
2. After inserting, pull the tube to ascertain that it is secure.
3. Assemble the clip.
Correct
J
Incorrect
J
13
INSIAllATION
DOOR AND DRAWER REMOVAL (CONT.)
FREEZER DRAWER REMOVAL
, CAUTION
•To avoid possible injury or product or property
damage, you will need two people to perform the
following instructions.
• When you remove the drawer, do not hold the
handle. It may come off and could cause injury.
TOP DRAWER
f
mm
To remove the freezer drawer, pull the drawer
open to full extension. Remove the drawer
and Ice bin by lifting the basket from the rail
system.
• When laying the drawer down, be careful not to
damage the floor or hurt your feet with the sharp
edges on the hinge side.
Remove the screws of the rail on both sides.
14
With both hands, hold both sides of the door
and pull it up to separate it from the rails.
With both hands, flex the center bar enough
to allow the gears on both ends to release
from the track.
ACAUTION: When you remove the drawer, do not hold the handle. If it may come off and it could cause
personal injury.
&CAUTION: When laying the drawer down, be careful not to damage the floor or hurt your feet by the
sharp edges on hinge side.
INSTAllATION
DOOR AND DRAWER REMOVAL (CONT.)
FREEZER DRAWER REMOVAL
, CAUTION
•To avoid possible injury or product or property
damage, you will need two people to perform the
following instructions.
•When you remove the drawer, do not hold the
handle. It may come off and could cause injury.
BOTTOM DRAWER
•when laying the drawer down, be careful not to
damage the floor or hurt your feet with the sharp
edges on the hinge side.
f
To remove the freezer drawer, pull the drawer
open to full extension. Remove the lower
DuraBase ® basket by lifting the basket from
the rail system.
Remove the screws of the rail on both sides.
f
With both hands, hold both sides of the door
and pull it up to separate it from the rails.
With both hands, flex the center bar enough
to allow the gears on both ends to release
from the track.
ACAUTION: When you remove the drawer, do not hold the handle. If it may come off and it could cause
personal injury.
&CAUTION: When laying the drawer down, be careful not to damage the floor or hurt your feet by the
sharp edges on hinge side.
15
INSIAllATION
DOOR AND DRAWER REMOVAL (CONT.)
FREEZERDRAWERREINSTALLATION
&CAUTION
•To avoid possible injury or product or property
damage, you will need two people to perform the
following instructions.
TOP DRAWER
&DANGER
Risk of Child Entrapment
•To prevent accidental child and pet entrapment
or suffocation risk, DO NOT allow them to play
inside of the freezer drawer.
• DO NOT step or sit on the freezer drawer.
To reinstall the freezer drawer, hold the center
bar with both hands and pull it out until both
rails are fully extended.
Hook door supports (1) into rail tabs (2).
Lower door into final position and tighten the
screws (3). Make sure you have a right rail
cover for each side.
With the drawer pulled out to full extension,
insert the drawer and Ice Bin in the rail
assembly.
Ait,WARNING: To prevent accidental child and pet entrapment or suffocation risk.
DO NOT allow them to play inside of drawer.
&WARNING: DO NOT step or sit down on freezer.
16
INSTAllATION
DOOR AND DRAWER REMOVAL (CONT.)
FREEZERDRAWERREINSTALLATION
&CAUTION
•To avoid possible injury or product or property
damage, you will need two people to perform the
following instructions.
BOTTOM DRAWER
f
&DANGER
Risk of Child Entrapment
•To prevent accidental child and pet entrapment
or suffocation risk, DO NOT allow them to play
inside of the freezer drawer.
•DO NOT step or sit on the freezer drawer.
f.
To reinstall the freezer drawer, hold the center
bar with both hands and pull it out until both
rails are fully extended.
Hook door supports (1) into rail tabs (2).
Lower door into final position and tighten the
screws (3). Make sure you have a right rail
cover for each side.
With the drawer pulled out to full extension,
insert the lower basket in the rail assembly.
Ait,WARNING: To prevent accidental child and pet entrapment or suffocation risk.
DO NOT allow them to play inside of drawer.
&WARNING: DO NOT step or sit down on freezer.
17
INSIAllATION
CONNECTING THE WATER SUPPLY
&WARNING
Connect to safe drinking water supply
only.
•The water pressure must be between 21 and
121 p.s.i. (1.5~8.5 kgf/cm 2) on models without a
water filter and between 43 and 121 p.s.i.
(3~8.5 kgf/cm 2) on models with a water filter.
• If water pressure does not reach 21 psi
(1.5kgficm 2)or falls below, it is necessary to
purchase a separate pressure pump for normal
automatic icemaker and water dispensing
operation.
• It is recommended that the total length of the
water feed tube does not exceed 26 ft. (8 m).
• Install the water supply line where it will not be
affected by heat.
IMPORTANT: Read all directions thoroughly
before you begin.
• If operating the refrigerator before installing the
water connection, turn the icemaker to the OFF
position to prevent operation without water.
• All installations must be in accordance with local
plumbing code requirements.
• Use copper tubing and check for leaks.
• Install tubing only in areas where temperatures
will remain above freezing.
• It may take up to 24 hours for the icemaker to
begin producing ice.
Tools Required
•Standard screwdriver
•7/16-in. and 1/2-in. open-end wrenches or two
adjustable wrenches
• !/4-in. nut driver
• 1/4-in. drill bit
•Hand drill or electric drill (properly grounded)
NOTE: Refrigerator dealers offer a kit with a 1/4-in.
saddle-type shutoff valve, a union, and copper
tubing. Before purchasing, make sure a saddle-
type valve complies with local plumbing codes.
Do not use a piercing-type or 3/16-in. saddle
valve which reduces water flow and clogs more
easily.
NOTE: The Commonwealth of Massachusetts
Plumbing Code 248CMR shall be adhered to.
Saddle valves are illegal and use is not permitted in
Massachusetts. Consult with your licensed plumber.
Cold Water Supply
•The icemaker water valve contains a flow washer
which is used as a water pressure regulator.
•The icemaker needs to be connected to a cold
water line with water pressure between 21 ~121
psi (1.5~8,5 kgf/cm2)on models without a water
filter and between 43 and 121 p.s.i. (3~8.5kgf/cm 2)
on models with a water filter.
CONNECTINGTHE WATER LINES
IMPORTANT: Before connecting the tubing to
the water line, unplug the refrigerator or
disconnect the power.
•Turn off the main water supply and open the
nearest faucet to relieve pressure in the line.
Opening an outside faucet may help drain
water from the line in the house.
• Find a 1/2-in. vertical COLD water pipe near
the refrigerator.
NOTE: A horizontal pipe will work, but the
following precaution must be taken: drill on the
top of the pipe, not the bottom. This will help
keep water away from the drill and also keep
normal sediment from collecting in the valve.
•To determine the length of copper tubing you
will need, measure from the connection on the
lower left rear of the refrigerator to the water
pipe. Add 7 ft. (2.1 m) to allow for moving the
refrigerator for cleaning. Use 1/4-in. O.D.
(outside diameter) copper tubing. Be sure both
ends of the copper tubing are cut square.
•Using a drill, drill a 1/4-in. hole in the cold water
pipe you have selected.
18
INSTAllATION
CONNECTING THE WATER LINES (CONT.)
•Fasten the shutoff valve to the cold water pipe
with the pipe clamp. Be sure the outlet end is
solidly in the 1/4-in. drilled hole in the water
pipe and the washer is under the pipe clamp.
Tighten the packing nut. Tighten the pipe clamp
screws carefully and evenly so the washer
makes a watertight seal. Do not overtighten or
you may crush the copper tubing, especially if
soft (coiled) copper tubing is used. Now you are
ready to connect the copper tubing.
• Slip the compression sleeve and the
compression nut onto the copper tubing as
shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw
the compression nut onto the outlet end with a
wrench. A flare nut wrench works best, but an
open-end wrench will suffice. Do not
overtighten.
•Place the free end of the tubing into a container
or sink, and turn on the main water supply.
Flush out the tubing until the water is clear.
Turn off the shutoff valve on the water pipe.
Coil the copper tubing as shown below.
Cold Water Pipe
Pipe CIamp
Coil of PoIyethetyne
or Copper Tubing
Sleeve Nut
IMPORTANT: Before connecting the tubing to the
refrigerator, be sure the refrigerator power cord is
not plugged into the wall outlet.
NOTE: If your refrigerator is equipped with an
internal water filter, an external in-line water filter
should not be used.
f'-- "_ 1/4,, _'_&
U /'q_F _.." Tub,no Tubing.
U / ILL/\ c'amp ._/
C°tPressi°n IUI {_l I
• Remove the plastic flexible cap from the water
valve.
• Place the compression nut and ferrule (sleeve)
onto the end of the tubing as shown.
• Insert the end of the copper tubing into the
connection as far as possible. While holding the
tubing, tighten the fitting.
IMPORTANT: Tighten any connections that leak.
Open the water at the shutoff valve.
•Plug in the refrigerator.
•Arrange the coil of copper tubing behind the
refrigerator so it does not vibrate against the
back of the refrigerator or against the wall.
•Check for leaks.
•Before connecting the water line to house, purge
house line for 2 minute.
NOTE: It may take a few seconds for water to
begin to flow as the internal tank fills and air clears
from the lines.
•Push the refrigerator back to the wall.
•Set the icemaker switch to the ON position.
NOTE: The icemaker will not begin to operate until
it reaches its operating temperature of 15°F (-9°C).
It will then begin operation automatically.
NOTE: Throw away the first few batches of ice
(about 20 pieces).
19
INSIAllATION
LEVELINGTHE REFRIGERATOR DOORS
&WARNING
Electrical Shock Hazard
• Be careful when you work with the hinges,
base grille, and stopper. You may be injured.
• Do not put hands, feet, or metal items into
the air vents, base grille, or the bottom of the
refrigerator. You may be injured or receive
an electrical shock.
Leveling
After installing, secure the product with the LEG
not to move left or right.
Your refrigerator has two front leveling legs--
one on the right and one on the left. Adjust the
legs to alter the tilt from front to back or side to
side. If your refrigerator seems unsteady or you
want the doors to close more easily, adjust the
refrigerator's tilt using the following instructions:
Kick PIate
.m
Plug the power cord into a 3-prong grounded
outlet, and move the refrigerator into its final
position. Remove the kick plate screws and
then the kick plate.
• Open the Freezer Drawer.
• Once the drawer is open, there is sufficient
clearance to remove the screws on top of
the kick plate.
NOTE: To replace the kick plate, place it into
position, and then insert and tighten the
screws.
&CAUTION
• To avoid possible injury or product or property
damage, you will need two people to perform the
following instructions.
Level the refrigerator by using an ! !/32 inch
(8ram) wrench or a flat blade screw driver.
Turn the leveling legs (CCW) to raise or (CW)
to lower the height of the front of the
refrigerator.
NOTE: The front of the refrigerator should be
slightly higher than the back.
NOTE: If someone pushes backward against
the top of the refrigerator, weight is lifted off of
the leveling legs, which makes adjustment
easier.
Open both doors to make sure they close
easily. If not, raise the leveling legs higher by
turning both clockwise the same amount.
Once the refrigerator is level, replace the kick-
plate.
NOTE: Your new refrigerator is uniquely
designed with two fresh food doors. Either
door can be independently opened or closed.
You will have to exert slight pressure on the
doors to close them completely.
NOTE: In order not to move the refrigerator
back and forth, fix it with the 'Adjust' to the
floor to install and use.
2O
INSTAllATION
LEVELINGTHE REFRIGERATORDOORS (CONT.)
DOOR ALIGNMENT
f'
If the space between your doors is uneven,
follow the instructions below to align the
doors:
• With one hand, lift up the door you want to
raise at middle hinge.
• With other hand, use pliers to insert snap
ring as shown.
• Insert additional snap rings until the doors
are aligned.
(Three snap rings are provided with the
refrigerator.)
STARTING
Before loading your refrigerator with fresh foods:
•Remove tape and any temporary labels from
your refrigerator before using. To remove any
remaining adhesive residue, rub the area briskly
with your thumb, or rub a small amount of liquid
dish soap over the adhesive with your fingers.
Wipe with warm water and dry. Do not use sharp
instruments, rubbing alcohol, flammable fluids,
or abrasive cleaners to remove tape or glue.
NOTE: Do not remove any warning-type labels,
the model and serial number label, or the tech
sheet that is taped to the back of the refrigerator.
•Thoroughly clean your refrigerator and wipe off all
dust that may have accumulated during shipping.
• Install accessories such as the ice cube bin,
drawers, and shelves, in their proper places.
They are packed together to prevent possible
damage during shipment.
•Adjust the desired temperature for the
refrigerator and freezer (see Adjusting the
Temperature and Functions).
•Let your refrigerator run for at least 2 or 3 hours
before putting food in it. Check the flow of cold
air in the freezer compartment to ensure proper
cooling. Your refrigerator is now ready for use.
21
ItOW[0 USE

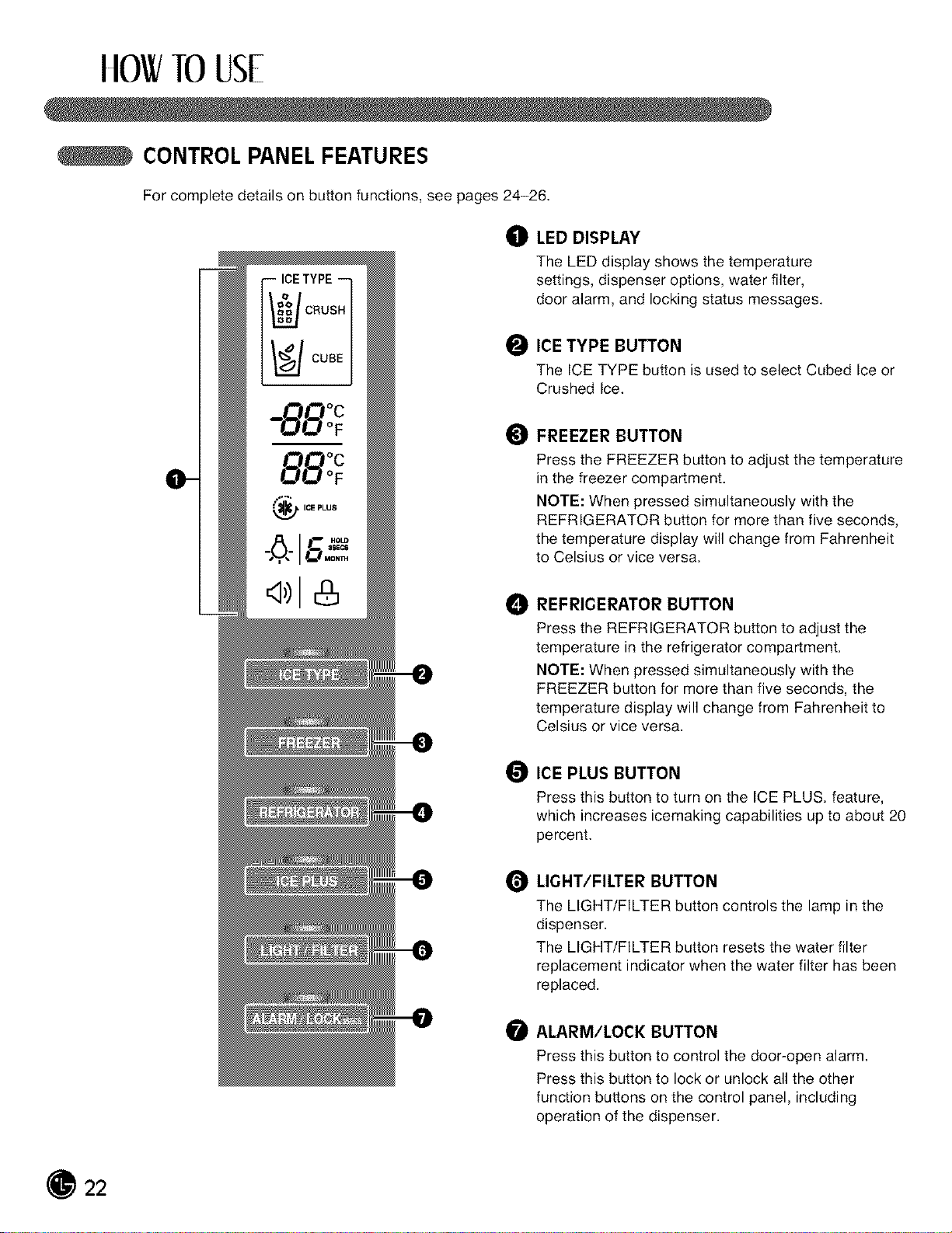

CONTROL PANEL FEATURES
For complete details on button functions, see pages 24-26.
O LED DISPLAY
The LED display shows the temperature
settings, dispenser options, water filter,
door alarm, and locking status messages.
O ICE TYPE BUTTON
The ICE TYPE button is used to select Cubed Ice or
Crushed Ice.
FREEZER BUTTON
Press the FREEZER button to adjust the temperature
in the freezer compartment.
NOTE: When pressed simultaneously with the
REFRIGERATOR button for more than five seconds,
the temperature display will change from Fahrenheit
to Celsius or vice versa.
REFRIGERATOR BUTTON
Press the REFRIGERATOR button to adjust the
temperature in the refrigerator compartment.
NOTE: When pressed simultaneously with the
FREEZER button for more than five seconds, the
temperature display will change from Fahrenheit to
Celsius or vice versa.
ICE PLUS BUTTON
Press this button to turn on the ICE PLUS. feature,
which increases icemaking capabilities up to about 20
percent.
LIGHT/FILTER BUTTON
The LIGHT/FILTER button controls the lamp in the
dispenser.
The LIGHT/FILTER button resets the water filter
replacement indicator when the water filter has been
replaced.
ALARM/LOCK BUTTON
Press this button to control the door-open alarm.
Press this button to lock or unlock all the other
function buttons on the control panel, including
operation of the dispenser.
22
ItOW10 USE
THE LED DISPLAY
The LED display shows the temperature settings,
dispenser options, water filter, door alarm, and
locking status messages.
O DISPENSER SELECTION INDICATOR
Shows Cubed ice or Crushed Ice selection
that will be dispensed when the push switch
is pressed.
O FREEZER TEMPERATURE
Indicates the set temperature of the freezer
compartment in Celsius or Fahrenheit.
REFRIGERATOR TEMPERATURE
Indicates the set temperature of the refrigerator
compartment in Celsius or Fahrenheit.
O ICE PLUS
When the ICE PLUS button is pressed,
the display will indicate the selected function
has been activated.
DISPENSER LIGHT INDICATOR
When the LIGHT button is pressed,
the display will indicate the selected function:
The dispenser light is on, this indicator will
appear on the display panel.
DOOR ALARM INDICATOR
This indicator shows that the door-open
warning alarm is activated.
O
0
0
0
0
ICETYPE i
_ CRUSH
__/ CUBE
O
WATER FILTER STATUS
This indicator shows the current status for
the water filter. See Resetting the Filter Indicator.
O LOCK STATUS
This indicator shows the current status for
the control panel functions is set to LOCK.
23
ItOWTOUSE
ADJUSTING THE TEMPERATURES AND DISPLAY
Adjust Freezer Temperature
TO adjust the temperature in the freezer
compartment, press the FREEZER button to CyCle
through the the range of available SettingS.
Temperature Display
TO Change the temperature display from Fahrenheit
to Celsius:
FI
U°F
Adjust Refrigerator Temperature
TO adjust the temperature in the refrigerator
compartment, press the REFRIGERATOR button to
cycle through the range of available settings.
37°F
NOTE: The actual inner temperature varies
depending on the food status, since the indicated
temperature setting is the target temperature and not
the actual temperature within the refrigerator.
initially set the REFRIGERATOR CONTROL at 37
degrees F and the FREEZER CONTROL at 0
degrees F. Leave them at these setting for 24 hours
(one day) to stabilize. Then adjust the compartment
temperature as illustrated above.
• Simultaneously press and hold the FREEZER and
REFRIGERATOR buttons for more than 5 seconds.
• Do the same to convert back to Fahrenheit,
Display Power-Saving Mode
This function places the display into the Power-
Saving Mode.
• Simultaneously press the FREEZER and ICE PLUS
buttons and hold them for 5 seconds until a tone
sounds.
• All LED lights will turn on and then off.
• When the Power-Saving Mode is activated, the
display will remain off until the next time the door is
opened. The display will also turn on when any
button is pressed, and it will remain on for 20
seconds after the last door opening or button
selection.
•To deactivate the Power-Saving Mode, press the
FREEZER and ICE PLUS buttons simultaneously
and hold them for 5 seconds until the tone sounds.
24
ItOW10 USE
OPERATING THE DISPENSER
DISPENSING cRUSHED ICE
Press the ICE TYPE
button to illuminate the
Crushed Ice icon.
Press the push ice switch
with a glass or other
container and crushed ice
will be dispensed.
DISPENSING CUBED ICE
Press the ICE TYPE
button to illuminate the
Cubed Ice icon.
Press the push switch
with a glass or other
container and cubed ice
will be dispensed.
DISPENSING WATER
e . 1]
Press the push water switch
or active water button with a
glass or other container and
chilled water will be dispensed.
When the water switch or active water switch is
pressed, the light will be illuminated.
NOTE: When operating the Water
Button, it does not work when you
press both ends and not the center.
It only works when you press the
center of the button.
CONTROLLING THE DISPENSER LIGHT
Press the LIGHT/FILTER
button to turn the dispenser
light on and off.
NOTE: Hold the glass or other container in place
for a couple of seconds after dispensing ice or
water to catch the last few cubes or drops. The
dispenser is designed to not operate while either
refrigerator door is open.
ACTIVE WATER BUTTON
WATER SWITCH
ICE SWITCH
&CAUTION
When filling the container with a small opening, use it near the opening of the water or ice dispenser
as close as possible.
Incorrect Correct
Water
Ice
I •
25
ItOWTOUSE
SETTINGTHE FUNCTIONS
Press the button for the desired function to view and
select other settings.
SETTINGTHE DISPENSER LOCK
Press and hold the
ALARM/LOCK
button for three seconds
to lock the dispenser and
all of the other control panel
E_ functions. Press and hold
again for 3 seconds to
unlock.
SETTINGTHE DOOR ALARM
The ALARM/LOCK button
also controls the door
alarm that sounds three
times in 30-second
intervals when a
compartment door is
4)) left open for more than
60 seconds. The alarm
stops sounding when
the door is closed.
Press the ALARM/LOCK button once to activate
and deactivate the door alarm function.
NOTE: Contact your local service center
if the alarm continues to sound after the
doors are closed.

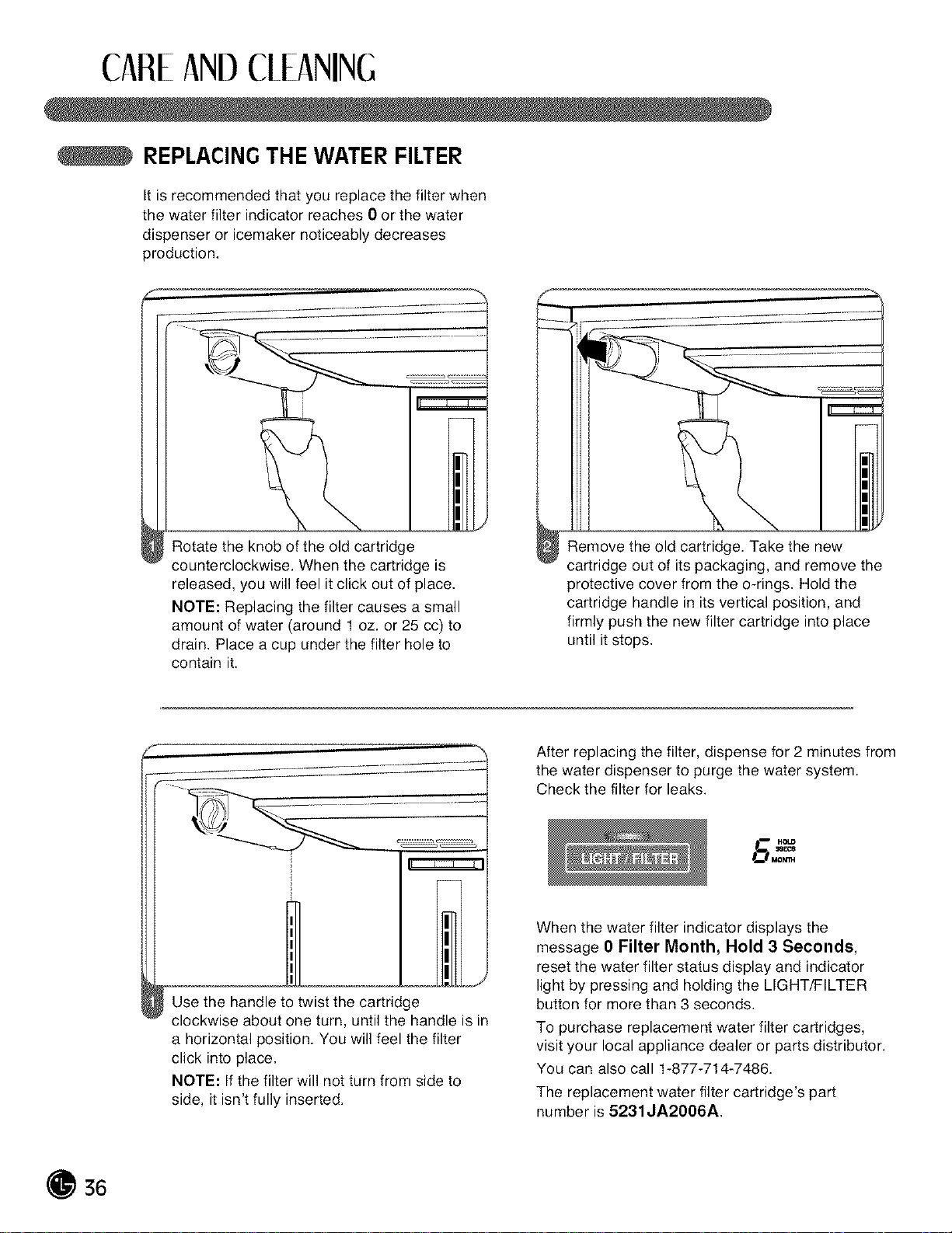

RESETTING THE FILTER INDICATOR
Press and hold the
LIGHT/FILTER button for more
than 3 seconds to reset
the filter indicator after the
water filter has been
5_,__ replaced.
NOTE: It is recommended that you replace the filter
when the water filter indicator light reaches 0 or
whenever the water or ice cube taste deteriorates
noticeably.
ACTIVATING ICE PLUS
Press the ICE PLUS button
once to activate the ICE PLUS
function. The ICE PLUS icon on
the display panel will illuminate
when activated.
The ICE PLUS function runs the
freezer compartment at the
coldest setting for a 24-hour
period to increase icemaking by
up to about 20%, and then turns
off automatically.
NOTE: Press the button again to cancel
the ICE PLUS function.
DIAGNOSTIC FAILURE DETECTION
The diagnostic function automatically detects problems with your refrigerator, and a diagnostic code will
appear in the display. NOTE: If a diagnostic code appears in the display during use, note the code and
then call 1-800-243-0000 (24 hours per dayt7 days per week) and select the option to locate an
authorized servicer.
26
ItOW10 USE
IN-DOOR ICE BIN
, CAUTION
•Keep hands and tools out of the ice bin door
and dispenser chute. You could break
something or injure yourself.
The icemaker will stop producing ice when the ice bin
is full. If you need more ice, empty the ice bin into the
extra ice bin in the freezer compartment so the
icemaker can keep producing ice.
Shake the ice bin occasionally to level the ice in it.
Sometimes the ice piles up near the icemaker,
causing the icemaker to misread the amount of ice
cubes and stop producing ice.
Push on the latch firmly where noted to close the
ice bin door; it will make a clicking sound when it
is closed completely.
NOTE: Storing cans or other items in the ice bin may
damage the icemaker.
Keep the ice bin door closed tightly. If the ice bin door
is not closed tightly, the cold air in the ice bin will
freeze food in the refrigerator compartment. This
could also cause the icemaker to not produce ice.
NOTE: If the On/Off switch on the icemaker is set to
Off for an extended time, the ice compartment will
gradually warm up to the temperature of the
refrigerator compartment. To prevent ice cubes from
melting and leaking from the dispenser, ALWAYS
empty the ice bin when the icemaker is set to Off for
more than a few.
f
To remove the in-door ice bin, grip the front
handle, slightly lift the lower part, and slowly pull
out the bin as shown.
F
To reinstall the in-door ice bin, slightly slant the
bin during replacement to avoid contact with the
icemaker.
Avoid touching the automatic shutoff arm when
replacing the ice bin. See the label on the ice bin
door for details.
27
ItOWTOUSE
AUTOMATIC ICEMAKER
Ice is made in the automatic icemaker and sent to
the dispenser. The automatic icemaker can make 6
ice cubes at a time, 80-130 cubes per 24-hour
period. This quantity may vary by circumstance,
including freezer compartment temperature, room
temperature, number of door openings, freezer load,
and other operating conditions.
• It takes about 12 to 24 hours for a newly installed
refrigerator to make ice.
• Icemaking stops when the ice storage bin is full.
•To turn off the automatic icemaker, set the
icemaker switch to OFF (O). To turn on the
automatic icemaker, set the switch to ON (I).
•The cube size will vary depending on the Water
Amount Selection Setting, as well as the water
pressure of the connected water line.
• You can regulate the cube size by pressing the
Water Amount Selection Button.
NOTE: It is normal that a noise is produced when
ice drops into the ice storage bin.
• Even when the water pipe is not connected and
the Ice Maker is turned on, the water valve
operates. The noise is generated because the
water pipe is not connected, which does not
mean the icemaker is defective.
&WARNING
Personal Injury Hazard
• Avoid contact with the moving parts of the
ejector mechanism or with the heating element
that releases the cubes.
• DO NOT place fingers or hands on the automatic
icemaking mechanism while the refrigerator is
plugged in.
f
lcemeker
_} matic
Water Shutoff Arm
Amount Water ON/OFF
Indicator Amount Swilch
Lights Selection
NOTE: Raising the automatic shutoff arm does
not turn off the icemaker.
28
&CAUTION
•The first ice and water may include particles or
odor from the water supply line or the water tank.
•Throw away the first few batches of ice (about
20 pieces) and purge the water line for 2 minutes
after installation to eliminate air and odd tastes.
•This is also necessary if the refrigerator has not
been used for a long time.
• Never store beverage cans or other foods in the
ice bin for the purpose of rapid cooling.
Doing so may damage the icemaker or the
containers may burst.
• If discolored ice is dispensed, check the water
filter and water supply. If the problem continues,
contact an Authorized Service Center. Do not
use the ice or water until the problem is corrected.
• Keep children away from the dispenser.
Do not allow children to play in or around dispenser.
•The ice passage may also become blocked
with frost if only crushed ice is used. Remove
the frost that accumulates.
• Never use thin crystal glass or crockery to
collect ice. Such glasses or containers may
break, and glass fragments could be in the ice.
• Dispense ice into a glass before filling it with
water or other beverages. Splashing may occur
if ice is dispensed into a glass that already
contains liquid.
• Never use a glass that is exceptionally narrow
or deep. Ice may jam in the ice passage and
refrigerator performance may be affected.
• Keep the glass at a proper distance from the
ice outlet. A glass held too close to the outlet
may prevent ice from dispensing.
•To avoid personal injury, keep hands out of
the ice door and passage.
• Never remove the icemaker cover.
• If you find ice or water dispensed unexpectedly,
turn off the water supply and contact an Authorized
Service Center. Call 1-800-243-0000 (24 hours
a day, 365 days a year) and select the option to
locate an authorized servicer.
ItOW10 USE
STORING FOODS
•Store fresh food in the refrigerator compartment.
• How food is frozen and thawed is an important
factor in maintaining freshness and flavor.
•Do not store food that spoils easily, such as
bananas and melons, at low temperatures.
•Allow hot food to cool prior to storing; placing hot
food in the refrigerator could spoil other food and
lead to higher energy consumption.
•When storing food, cover it with vinyl wrap or store
in a container with a lid. This prevents moisture from
evaporating and helps food to keep its flavor and
nutrition.
•Do not block air vents with food or containers.
Smooth circulation of chilled air keeps the
refrigerator temperatures even.
•Do not open the doors frequently. Opening the
doors allows warm air to enter the refrigerator and
freezer compartments, which causes temperatures
to rise.
•Never overload the door racks; overloading may
push against the inner racks and prevent the doors
from closing correctly.
Freezer compartment
•DO not store glass bottles in the freezer
compartment; glass may break when the contents
are frozen.
•Do not refreeze food that has been thawed.
This causes loss of flavor and nutrition.
•Do not touch cold foods or containers, especially
those made of metal, with wet hands or place glass
products in the freezer compartment.
•Do not use the egg box as an ice bin in the freezer.
The egg box will break easily if it freezes.
Refrigerator compartment
•Avoid placing moist food on the top refrigerator
shelves; it could freeze from direct contact with
chilled air.
•Always clean food prior to refrigeration.
Vegetables and fruits should be washed and wiped
and packed food should be wiped to prevent
adjacent food from spoiling.
NOTE: If you keep the refrigerator in a hot and humid
place, frequent opening of the door or storing a lot of
vegetables in the refrigerator may cause
condensation to form. Wipe the condensation with a
clean cloth or a paper towel.
29
ItOWTOUSE
LOCATIONOF FOODS
i_ REFRIGERATOR COMPARTMENT SHELVES
Store larger food items, platters, and containers
on the expansive refrigerator compartment
shelves.
O CRISPERS
Store vegetables or fruits with humidity control.
O DAIRY CORNER
Store milk products such as butter and cheese.
O MODULAR REFRIGERATOR DOOR BINS
Store small packed food or beverages such as
condiments, salad dressings, baby foods, milk,
or juice.
3O
ItOW10USE
SHELF HEIGHT ADJUSTMENT
The shelves in your refrigerator are adjustable to
meet your individual storage needs.
storing similar food items together in your
refrigerator and adjusting the shelves to fit
different heights of items will make finding the
exact item you want easier; it will also reduce
the amount of time the refrigerator door is open,
saving energy.
IMPORTANT: Do not clean glass shelves with warm
water when they are cold. Shelves may break if
exposed to sudden temperature changes or impact,
such as bumping. For your protection, glass shelves
are made with tempered glass, which will shatter into
small, pebble-sized pieces.
NOTE: Glass shelves are heavy. Use special care
when removing them to avoid dropping them.
Adjusting Shelves
Remove shelves from the shipping position and place
shelves in the position you want.
&CAUTION
Make sure that shelves are level from one side to the
other. Failure to do so may result in the shelf's falling
or spilling food.
Remove Shelf
Tilt up the front of the shelf. Lift up the back
and pull out the shelf.
Reinstall Shelf
Tilt up the front of the shelf and guide the shelf
hooks into the slots at a desired height. Then
lower the front of the shelf so that the hooks drop
into the slots.
Folding Shelf
You can store taller items such as a gallon
container or bottles by simply pushing the front
half of shelf underneath back half of shelf,
Pull toward you to returm to a full shelf,
31
CAREANDCLEANING
REMOVING AND REPLACINGCOMPONENTS
NOTE: When reinstalling components, reverse
the order of steps for removal. To prevent damage,
never use excessive force when removing or
reinstalling components.
,CAUTION
• Crispers, Door Bins and interior shelves are
not dishwasher safe.
&CAUTION
• Personal injury can occur if the door bins are not
firmly assembled.
NOTE: DO NOT adjust a loaded bin.
• DO NOT allow children to play with baskets.
The sharp corners on the baskets could cause
injury.
Dairy Bin
To remove the dairy bin, simply lift it and pull
straight out. To replace the dairy bin, slide it into
place and push down until it stops.
NOTE: The dairy bin will only fit inthe top space
on the right-hand door.
Modular Door Bin
J
The door bins are removable for easy cleaning
and adjusting. Simply lift the bin and pull it straight
out to remove it. To replace the bin, slide it in
above the desired support button and push down
until it stops.
Dispenser Drip Tray
J
The dispenser drip tray has no self-draining function. It should be cleaned regularly.
Remove the cover by pressing and pulling the tray.
Dry it with a cloth. To reinstall the tray, slightly tilt the front of the tray and snap the ribs into the holes.
32

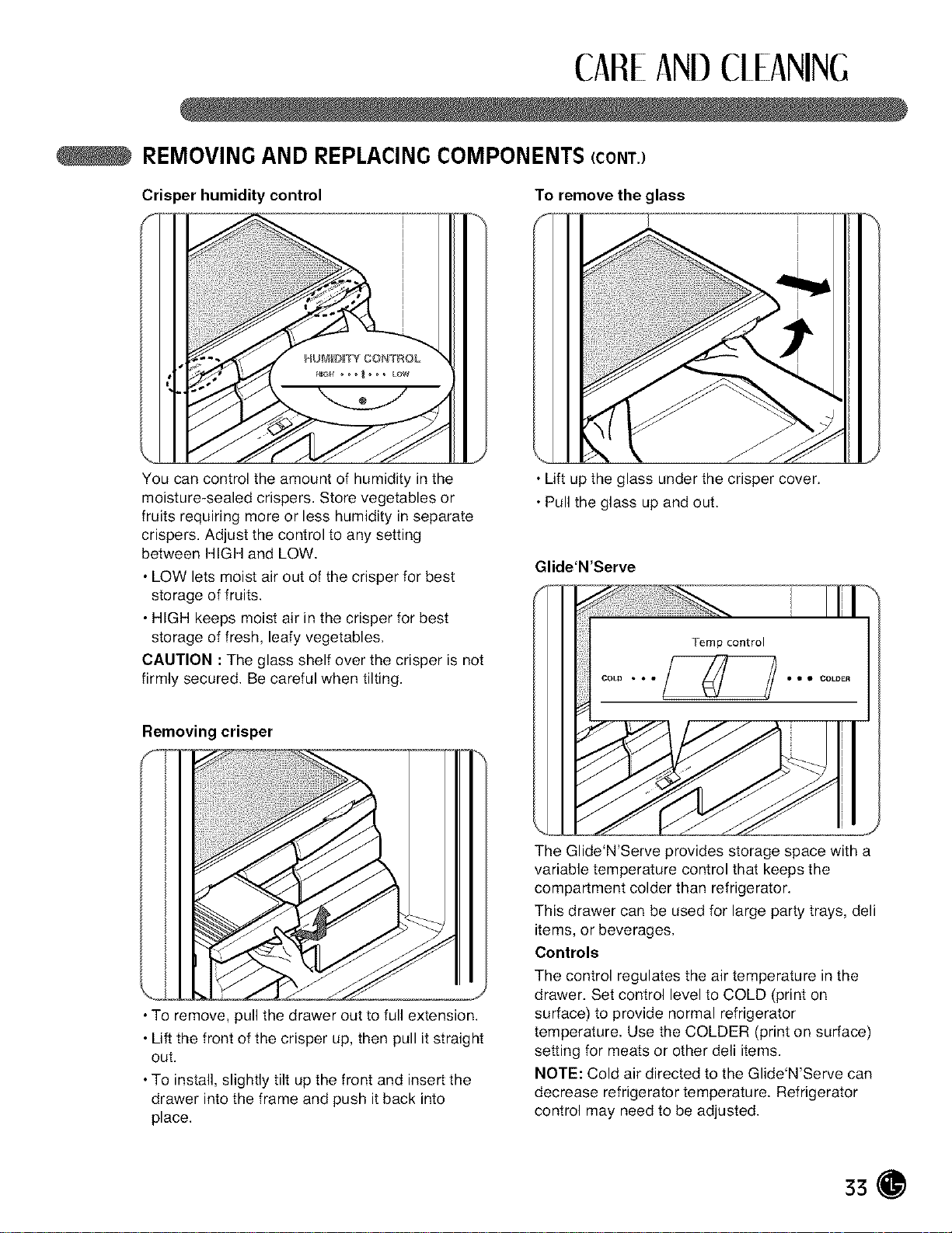

CAREANDCLEANING
REMOVING AND REPLACING COMPONENTS (CONT.)
Crisper humidity control
J
You can control the amount of humidity in the
moisture-sealed crispers. Store vegetables or
fruits requiring more or less humidity in separate
crispers. Adjust the control to any setting
between HIGH and LOW.
•LOW lets moist air out of the crisper for best
storage of fruits.
•HIGH keeps moist air in the crisper for best
storage of fresh, leafy vegetables.
CAUTION : The glass shelf over the crisper is not
firmly secured. Be careful when tilting.
Removing crisper
To remove the glass
f
• Lift up the glass under the crisper cover.
• Pull the glass up and out.
Glide'N'Serve
•To remove, pull the drawer out to full extension.
•Lift the front of the crisper up, then pull it straight
out.
•To install, slightly tilt up the front and insert the
drawer into the frame and push it back into
place.
The Glide'N'Serve provides storage space with a
variable temperature control that keeps the
compartment colder than refrigerator.
This drawer can be used for large party trays, deli
items, or beverages.
Controls
The control regulates the air temperature in the
drawer. Set control level to COLD (print on
surface) to provide normal refrigerator
temperature. Use the COLDER (print on surface)
setting for meats or other dell items.
NOTE: Cold air directed to the Glide'N'Serve can
decrease refrigerator temperature. Refrigerator
control may need to be adjusted.
33
CAREANDCLEANING
REMOVING AND REPLACING COMPONENTS (CONT.)
To replace Glide'N'Serve
•To remove, pull the drawer out to full extension.
• Lift the front of the drawer up, then pull it straight
out.
•To install, slightly tilt up the front and insert the
drawer into the frame and push it back into
place.
&CAUTION
• Pinch hazard! Keep hands and feet clear of the
bottom of the door when opening and closing.
&WARNING
Child Entrapment Hazard
• When the divider of the freezer drawer is removed,
children may crawl inside.
34
Ice Bin
f--
To separate the ice bin, pull out the drawer to full
extension. Gently lift and pull out the ice bin.
To reinstall, simply set the ice bin in its correct
position.
DuraBase ® Divider
_m
The DuraBase divider organizes the DuraBase
area into sections. Pull the divider upward in a
straight motion to remove it. To reinstall it, hook
the top corners of the divider over the top edge of
the DuraBase.
CAREANDCLEANING
CLEANINGTHE REFRIGERATOR
&WARNING
Explosion Hazard
• Use nonflammable cleaner.
• Failure to do so can result in death,
explosion, or fire.
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about
once a month to prevent odors. Wipe up spills
immediately.
•Unplug the refrigerator.
•Remove all removable parts, such as shelves and
crispers.
•Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use abrasive or
harsh cleaners.
•Hand wash, rinse, and thoroughly dry all surfaces.
•Plug in the refrigerator.
NOTE: Window sprays, abrasive cleaners, or
flammable fluids can scratch or damage plastic
covers or panels.
Cleaning the Exterior
For models with a stainless steel exterior, use a
commercially available stainless steel cleaner in
accordance with the manufacturer's instructions.
You may also use a clean sponge or soft cloth and
a mild detergent in warm water. Do not use abrasive
or harsh cleaners. Dry thoroughly with a soft cloth.
IMPORTANT: Do not use cleaning waxes,
concentrated detergents, or cleaners containing
petroleum on plastic refrigerator parts such as door
liners or gaskets.
Care and Cleaning of the Interior
NOTE: Allow the freezer to warm so the cleaning
clothwill not stick,
To help remove odors, you can wash the inside of
the refrigerator with a mixture of baking soda and
warm water. Mix 2 tbsp. baking soda to ! qt. of water
(26 g soda to 1 L of water). Be sure the baking soda
dissolves completely so it does not scratch the
surfaces of the refrigerator.
IMPORTANT: Do not use a spray nozzle to clean
the interior.
GENERALINFORMATION
Storage
During averageqength vacations, you will
probably find it best to leave the refrigerator in
operation. Place freezable items in the freezer for
longer life.
When you plan to store the refrigerator, remove
all food, disconnect the power cord, clean the
interior thoroughly, and block the doors open to
prevent mold and mildew. Be certain the stored
refrigerator does not present a child entrapment
danger.
Power Failure
Most power failures that are corrected within an
hour or two will not affect your refrigerator
temperatures. However, you should minimize the
number of door openings while the power is off.
Water may drip from the ice bin during a power
outage. To prevent this, remove the ice bin, discard
all of the ice, towel dry, and replace.
Moving
Unload the refrigerator to move it. (This is probably
not necessary when pulling it out to clean behind it.)
Be sure to let the refrigerator warm up to room
temperature, and dry the inside before closing the
doors to pack it for moving. To avoid damaging the
height-adjusting screws, turn them all the way into the
base.
35
CAREANDCLEANING
REPLACING THE WATER FILTER
It is recommended that you replace the filter when
the water filter indicator reaches 0 or the water
dispenser or icemaker noticeably decreases
production.
Rotate the knob of the old cartridge
counterclockwise. When the cartridge is
released, you will feel it click out of place.
NOTE: Replacing the filter causes a small
amount of water (around 1 oz. or 25 cc) to
drain. Place a cup under the filter hole to
contain it.
Remove the old cartridge. Take the new
cartridge out of its packaging, and remove the
protective cover from the o_rings. Hold the
cartridge handle in its vertical position, and
firmly push the new filter cartridge into place
until it stops.
/*
Use the handle to twist the cartridge
clockwise about one turn, until the handle is in
a horizontal position. You will feel the filter
click into place.
NOTE: If the filter will not turn from side to
side, it isn't fully inserted.
After replacing the filter, dispense for 2 minutes from
the water dispenser to purge the water system.
Check the filter for leaks.
5 Mof, r_
When the water filter indicator displays the
message 0 Filter Month, Hold 3 Seconds,
reset the water filter status display and indicator
light by pressing and holding the LIGHT/FILTER
button for more than 3 seconds.
To purchase replacement water filter cartridges,
visit your local appliance dealer or parts distributor.
You can also call 1-877-714-7486.
The replacement water filter cartridge's part
number is 5231JA2006A.
36
IROUBIESHOOIING
BEFORE CALLING FOR SERVICE
Before calling for service, review this list. It may save you both time and expense. This list includes
common occurrences that are not the result of defective workmanship or materials in this appliance.
Refrigerator
compressor does
not run.
Refrigerator runs
too frequently or
too long.
• Refrigerator control is off
• Refrigerator is in defrost
cycle.
• Plug at the wall outlet is
disconnected.
• Power outage. Check house
lights.
Temperature in
the freezer is too
cold, but the
refrigerator
temperature is
satisfactory.
• Refrigerator is larger than the
previous one you owned
• The room or the outdoor
weather is hot
• Refrigerator was recently
disconnected for a while.
• Large amounts of warm or
hot food may have been
stored recently
• Doors are opened too
frequently or for too long.
• Refrigerator or freezer door
may be slightly open.
• Refrigerator contr@ is set too
cold,
• Refrigerator or freezer gasket
is dirty, worn, cracked, or
poorly fitted
• Set the refrigerator control.
• This is normal for a fully automatic defrosting
refrigerator. The defrost cycle occurs periodically.
• Make sure the plug is tightly pushed into the
outlet.
• Call the local electric company.
• This is normal. Larger, more efficient units run
longer.
• It is normal for the refrigerator to work longer
under these conditions
• It takes a few hours for the refrigerator to reach
cooling temperatures.
•Warm food will cause the refrigerator to run longer
until the desired temperature is reached
• Warm air entering the refrigerator causes it to run
more. Open the door less often.
• Make sure the refrigerator is level. Keep food and
containers from blocking the door.
• Adjust the refrigerator control to a warmer setting
until the refrigerator temperature is satisfactory.
• Clean or change the gasket. Leaks in the door
seal will cause the refrigerator to run longer in
order to maintain desired temperatures.
Refrigerator • The thermostat is keeping the • This is normal. The refrigerator cycles on and off
compressor refrigerator at a constant to keep the temperature constant.
cycles on and off, temperature
• Freezer control is set too • Adjust the freezer control to a warmer setting until
cold. the freezer temperature is satisfactory
Temperature in
the refrigerator is
too cold, but the
freezer
temperature is
satisfactory.
• Refrigerator control is set too
cold.
• Adjust the refrigerator control to a warmer setting.
J
37
IROUBIESHOOIING
BEFORE CALLINGFOR SERVICE (CONT.)
38
Food stored in
refrigerator
drawers freezes.
Temperatures in
the refrigerator or
freezer are too
warm,
Temperature in
the refrigerator
is too warm,
but the freezer
temperature is
satisfactory.
Louder sound
levels when
compressor
comes on.
Vibrating or
rattling noise.
Moisture collects
on the inside walls
of the refrigerator.
• Refrigerator contr@ is set too
cold
• Freezer or refrigerator control
is set too warm
• Doors are opened too
frequently or for too long
• Door is slightly open.
• Large amounts of warm or
hot food may have been
stored recently.
• Refrigerator has recently
been disconnected for a
period of time.
• Refrigerator contr@ is set too
warm
• Refrigerator operates at
higher pressures during the
start of the ON cycle
• Floor is uneven or weak The
refrigerator rocks on the floor
when it is moved slightly.
• Items placed on the top of the
refrigerator are vibrating.
• Dishes are vibrating on the
shelves in the refrigerator.
• The refrigerator is touching
the wall or cabinets
•The weather is hot and humid
which increases the rate of
frost buildup and internal
sweating.
• Door is slightly open.
• Door is opened too often or
for too long
•Adjust the refrigerator to a warmer setting,
•Adjust the freezer or refrigerator control to a colder
Moisture forms on • Weather is humid •This is normal in humid weather When humidity is
the outside of the lower, the moisture should disappear.
refrigerator or
k_. between the doors. • Door is slightly open. •Close the door completely.
J
•Adjust the refrigerator contr@ to a colder setting.
•This is normal.
• Be sure floor is level and solid and can adequately
support the refrigerator,
• Remove items.
• It is normal for dishes to vibrate slightly. Move
dishes slightly. Make sure refrigerator is level and
firmly set on floor.
• Move the refrigerator so that it does not touch the
wall.
•This is normal.
•Close the door.
•Open the door less often.
• it takes a few hours for the refrigerator to reach
the set temperatures
setting until the freezer or refrigerator temperature
is satisfactory.
•Warm air enters the refrigerator/freezer whenever
the door is opened. Open the door less often.
•Close the door completely
•Wait until the refrigerator or freezer has had a
chance to cool food to the set temperature
IROUBIESHOOIING
BEFORE CALLINGFOR SERVICE (CONT.)
Moisture forms
on the dispenser,
Odors in the
refrigerator.
The door(s) will
not close,
• Moisture may form when the
temperature or humidity are
high.
• Interior needs to be cleaned.
\
• Food with strong odor is in
the refrigerator.
• Some containers and
wrapping materials produce
odors
• Food package is keeping the
door open.
• Door was closed too hard,
causing other door to open
slightly.
• Refrigerator is not level. It
rocks on the floor when it is
moved slightly.
• Floor is uneven or weak. The
refrigerator rocks on the floor
when it is moved slightly.
• Refrigerator is touching the
wall or the cabinets.
• Wipe off the moisture.
• Clean interior with sponge, warm water, and
baking soda. Be sure the soda is completely
dissolved so it will not act as an abrasive
compound
• Cover food completely.
• Use a different container or brand of wrapping
materials.
• Move the packages that keep the door from
closing.
• Gently close both doors.
• Adjust the height-adjusting screw.
• Be sure the floor is level and can adequately
support the refrigerator. Contact a carpenter to
correct sagging or sloping floor.
• Move the refrigerator.
Drawers are • Food is touching the shelf on • Keep less food in the drawer.
difficult to move. top of the drawer.
• The drawer track is dirty. • Clean the drawer and the track
The dispenser • Open the household water-line valve.
will not dispense
water,
• The household water-line
valve is not open.
• The refrigerator or freezer
door is not closed.
• When a installed tube is bent
• When a filter is old
• The water has been in the
tank for too long
Water has an odd
taste and/or odor,
• The unit is not properly
connected to cold water line.
• When a filter is old.
• Be sure both doors are closed
• Check the installed tube.
• Replace with a new filter.
• Dispense for 2 minutes and discard to freshen the
supply. Dispense and discard for an additional 2
minutes to rinse the tank completely.
• Connect the unit to a cold water line that supplies
water to the kitchen faucet.
• Replace with a new filter.
J
39

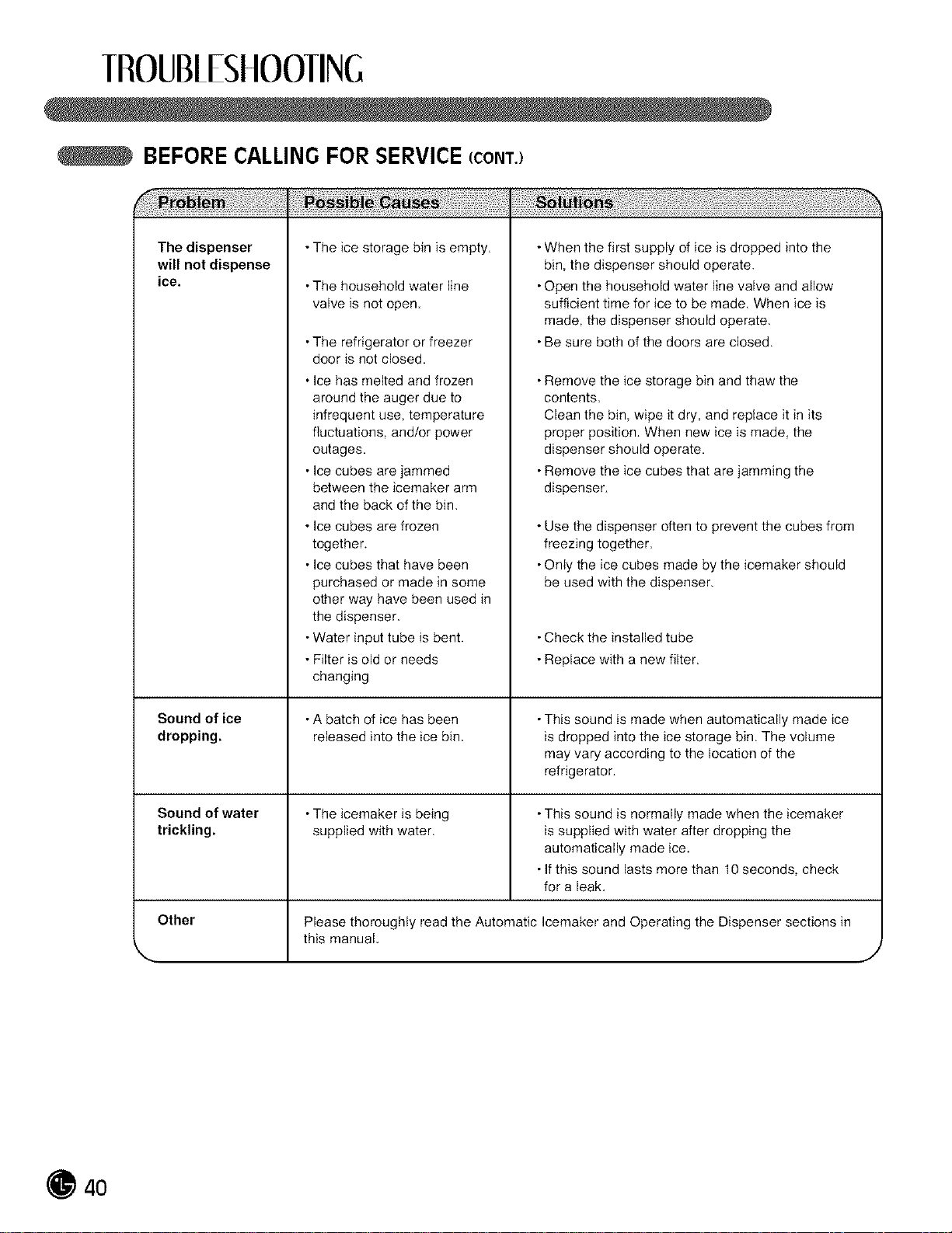

IROUBIESHOOIING
BEFORE CALLINGFOR SERVICE (CONT.)
The dispenser
will not dispense
ice.
Sound of ice
dropping.
Sound of water
trickling.
Other
\
• The ice storage bin is empty.
•The household water line
valve is not open
•The refrigerator or freezer
door is not closed
• Ice has melted and frozen
around the auger due to
infrequent use, temperature
fluctuations, and/or power
outages
• Ice cubes are jammed
between the icemaker arm
and the back of the bin.
• Ice cubes are frozen
together.
• Ice cubes that have been
purchased or made in some
other way have been used in
the dispenser.
• Water input tube is bent.
• Filter is old or needs
changing
• A batch of ice has been
released into the ice bin
• The icemaker is being
supplied with water.
•When the first supply of ice is dropped into the
bin, the dispenser should operate.
•Open the household water line valve and allow
sufficient time for ice to be made. When ice is
made, the dispenser should operate.
• Be sure both of the doors are closed.
• Remove the ice storage bin and thaw the
contents
Clean the bin, wipe it dry, and replace it in its
proper position. When new ice is made, the
dispenser should operate.
• Remove the ice cubes that are jamming the
dispenser.
• Use the dispenser often to prevent the cubes from
freezing together.
•Only the ice cubes made by the icemaker should
be used with the dispenser.
•Check the installed tube
• Replace with a new filter.
•This sound is made when automatically made ice
is dropped into the ice storage bin. The volume
may vary according to the location of the
refrigerator.
•This sound is normally made when the icemaker
is supplied with water after dropping the
automatically made ice.
• If this sound lasts more than t0 seconds, check
for a leak.
Please thoroughly read the Automatic Icemaker and Operating the Dispenser sections in
this manual.
J
4O
SPECIFICAIIONS
KEY DIMENSIONS AND SPECIFICATIONS
The appearance and specifications listed in this guide may vary due to constant product improvements.
Description French Door Refrigerator
Electrical Requirements 115 VAC @ 60 Hz
Min. / Max. Water Pressure 21~121 PSi (1.5~8.5 kgf/cm2)
Dimensions 35 3/4"(w) x 34 w' (D) X 69 3/4"(H), 46 W' (D w/door open)
908 mm (W) X 870 mm (D)X t772 mm (H), t t8t mm (D w/door open)
Net Weight 324 lb. (147 kg)
Refrigerator Storage Capacity 17.6 cu. ft.
_ Freezer Storage Capacity 7.1 cu. ft.
J
Description French Door Refrigerator
Electrical Requirements 115 VAC @ 60 Hz
Min. / Max. Water Pressure 21~121 PSi (1.5~8.5 kgf/cm2)
Dimensions 35 3q,,(w) x 30 w' (D) X 69 3q,,(H), 42 W' (D w/door open)
908 mm (W) X 768 mm (D)X 1772mm (H), 1073 mm (D w/door open)
288 lb. (131 kg)
14.7 cu. ft.
5.8 cu. ft.
Net Weight
Refrigerator Storage Capacity
_ Freezer Storage Capacity
J
41
Your LG Refrigerator will be repaired or replaced, at LG's option, if it proves to be defective in material or workmanship
under normal use, during the warranty period ("Warranty Period") set forth below, effective from the date ("Date of
Purchase") of original consumer purchase of the product. This warranty is good only to the original purchaser of the
)roduct and effective only when used in the United States, including Alaska, Hawaii, and U.S. Territories.
WARRANTY PERIOD:
REFRIGERATOR/FREEZER
LABOR: One Year from the Date of Purchase.
PARTS: One Year from the Date of Purchase.
SEALED SYSTEM
(Compressor, Condenser, and Evaporator)
LABOR: One Year from the Date of Purchase.
PARTS: Seven years from the Date of Purchase.
Replacement Units and Repair Parts are warranted for
the remaining portion of the original unit's warranty
period.
HOW SERVICE IS HANDLED:
in-Home Service:
Please retain dealer's dated bill of sale or delivery
ticket as evidence of the Date of Purchase for proof of
warranty, and submit a copy of the bill of sale to the
service person at the time warranty service is
provided.
Please call 1-800-243-0000 and choose the
appropriate option to locate your nearest LG
Authorized Service Center.
Or visit our website at: http://us.lgservice.com
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE
FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE,
INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER
BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not
apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses or correct wiring, or
correction of unauthorized repairs.
Damages or operating problems that result from misuse, abuse, operation outside environmental specifications or contrary to the
requirements of precautions in the Operating Guide, accident, vermin, fire, flood, improper installation, acts of God, unauthorized
modification or alteration, incorrect electrical current or voltage, or commercial use, or use for other than intended purpose.
Repairs when your LG refrigerator is used in other than normal, single-family household use
Damages caused during and/or after delivery.
Display, discount, or refurbish units purchased with scratches, dents, or defects.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
Proof of purchase is required and must be provided to LG in order to validate warranty.
CUSTOMER INTERACTIVE CENTER NUMBERS
To obtain Customer Assistance, Product Information, or Call 1-800-243-0000 (24 hours a day, 365 days a year)
Dealer or Authorized Service Center location: and select the appropriate option from the menu.
Or visit our Web site at http://us.lgservice.com
TO CONTACT LG ELECTRONICS BY MAIL:
LG Customer Interactive Center
P. O. Box 240007
201 James Record Road
Huntsville, Alabama 35813
ATTN: CIC
42
Product Registration Information
Model:
Serial Number:
Date of Purchase:
The model and serial number can be located on the inner
case or back of the refrigerator compartment.
LG Electronics will repair or at its option replace, without charge, your product which proves to be defective in material or
workmanship under normal use, during the warranty period listed below from the date of original purchase.
This warranty is good only to the original purchaser of the product during the warranty period as long as it is in
any Canadian Province.
WARRANTY PERIOD:
REFRIGERATOR/FREEZER
LABOR: One Year from the Date of Purchase.
PARTS: One Year from the Date of Purchase.
SEALED SYSTEM
(Compressor, Condenser, and Evaporator)
LABOR: One Year from the Date of Purchase.
PARTS: Seven Years from the Date of Purchase.
HOW SERVICE IS HANDLED:
Call 1-888-542-2623 (1-888-LG-CANADA) and
choose the appropriate prompt. Please have product
type (refrigerator) and Postal Code ready.
See our Web site at www.lg.ca
This warranty provides in-home service.
NOTE: To prove warranty covers, retain your Sales
Receipt to prove date of purchase. A copy of your Sales
Receipt must be submitted at the time warranty service
is provided.
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING
THE IMPLIED WARRANTY OF MERCHANTABILITY, INC. IS LIMITED TO THE DURATION OF THE EXPRESS
WARRANTY HEREIN. LG ELECTRONICS CANADA, INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF
THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING
OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS
PRODUCT. Some provinces do not allow the exclusion or limitation of incidental or consequential damages or limitations
on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from province to province
THIS LIMITED WARRANTY DOES NOT APPLY TO:
Service trips to your home to deliver, pick up and/or install the product, instruct, or replace house fuses or correct wiring, or
correction of unauthorized repairs
Damages or operating problems that result from misuse, abuse, operation outside environmental specifications or contrary to the
requirements of precautions in the Operating Guide, accident, vermin, fire, flood, improper installation, acts of God, unauthorized
modification or alteration, incorrect electrical current or voltage, or commercial use, or use for other than intended purpose.
Repairs when your LG refrigerator is used in other than normal, single-family household use.
Damages caused during and/or after delivery.
Display, discount, or refurbish units purchased with scratches, dents, or defects.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
Proof of purchase is required and must be provided to LG in order to validate warranty.
CUSTOMER ASSISTANCE NUMBERS
To obtain Customer Assistance, Product
Information, or Dealer or Authorized Service
Center location:
Call 1-888-542-2623 (1-888-LG-CANADA) and
choose the appropriate prompt. Pleasehave your product type
(refrigerator) and Postal Code ready.
Or visit our Website at www.lg.ca.
Product Registration Information
Model:
Serial Number:
Date of Purchase:
The model and serial number can be located on the inner
case or back of the refrigerator compartment.
43
P/No. MFL37933514
