Installation Instructions and Use and Care
Part No.626870A/8284867 Rev. A
www.whirlpool.com
IMPORTANT:
Read and save
these instructions.
IMPORTANT:
Installer: Leave Installation Instructions
with homeowner.
Homeowner: Keep Installation Instructions
for future reference.
Save: Installation Instructions for electrical
inspector’s use.
24", 30" and 36"
Custom Series
Range Hood
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some
states do not allow the exclusion or limitation of incidental or consequential damages so this limitation or
exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Outside the United States, a different warranty may also apply. For details, please contact your
franchised Whirlpool distributor or military exchange.
Part No. 626870A/8284867 Rev. A
© 2001 Whirlpool Corporation
® Registered Trademark/SM Trademark of Whirlpool, U.S. A.
Benton Harbor, Michigan 49022
Printed in U.S.A.
Whirlpool
®
Range Hood Warranty
LENGTH OF WARRANTY
WHIRLPOOL WILL NOT PAY FOR
WHIRLPOOL WILL PAY FOR
FULL ONE-YEAR WARRANTY
From date of purchase
FSP
®
replacement parts and repair labor to correct
defects in materials or workmanship. Service must
be provided by an authorized Whirlpool
SM
service
company.
A. Any labor costs incidental to the replacement of defective parts.
B. Consumable parts such as light bulbs and filters.
C. Service calls to:
1. Correct the installation of the range hood.
2. Instruct you how to use the range hood.
3. Replace house fuses or correct house wiring.
D. Repairs when range hood is used in other than normal, single-family household use.
E. Pickup and delivery. This product is designed to be repaired in the home.
F. Damage to range hood caused by accident, misuse, fire, flood, act of God or use of
products not approved by Whirlpool.
RH2300 SERIES
RH2600 SERIES

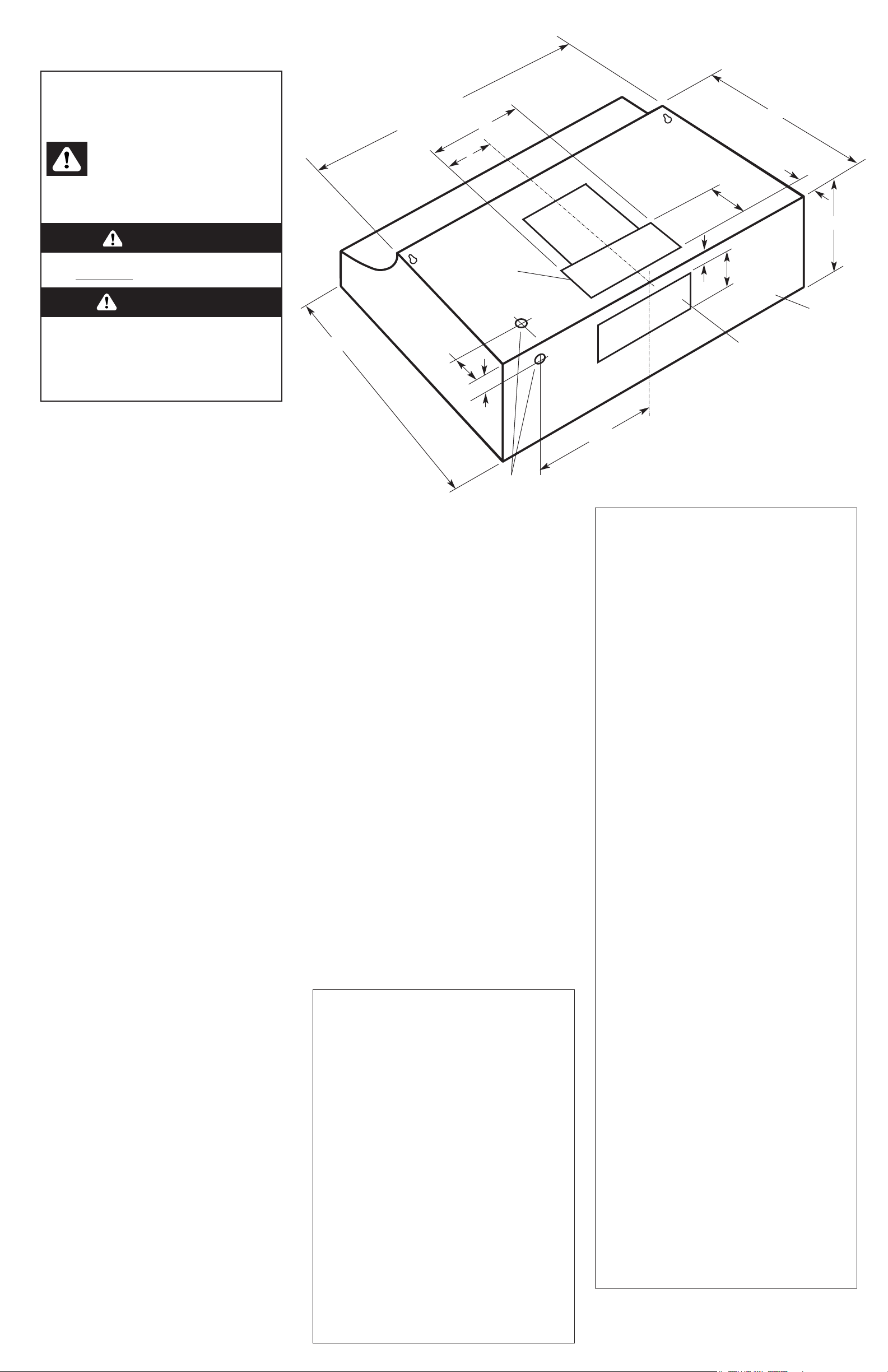

Product
dimensions
Proper installation is your responsibility.
Make sure you have everything necessary
for correct installation. It is the responsibility
of the installer to comply with the
clearances specified.
Check the location where the range hood
will be installed. The location should be
away from strong draft areas, such as
windows, doors, and strong heating vents.
RH2300 series vent hoods can be
used for vented installations
only.
RH2600 series vent hoods can be
used for non-vented
(recirculating) installations only.
Mobile home installation
The installation of this range hood must
conform to the Manufactured Home
Construction Safety Standards, Title 24 CFR,
Part 328 (formerly the Federal Standard for
Mobile Home Construction and Safety, Title
24, HUD, Part 280) or when such standard is
not applicable, the Standard for
Manufactured Home Installation 1982
(Manufactured Home Sites, Communities
and Setups) ANSI A225.1/NFPA 501A, or
latest edition, or with local codes.
Important: Observe all governing codes
and ordinances.
Important: Observe all governing codes
and ordinances.
It is the customer’s responsibility:
To contact a qualified electrical
installer.
To assure that the electrical
installation is adequate and in
conformance with National Electrical
Code, ANSI/NFPA 70 — latest edition*,
and all local codes and ordinances.
If codes permit and a separate ground wire
is used, it is recommended that a qualified
electrician determine that the ground path
is adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are
not sure range hood is properly grounded.
Do not have a fuse in the neutral or ground
circuit.
Tools and materials
needed for
installation:
24" model: 23-7/8"
30" model: 29-7/8"
36" model: 35-7/8"
10"
5"
17-5/8"
2"
3/4"
7-1/2"
knockout for
rectangular
roof vent
(RH2300
series only)
1/4"
3-1/4"
knockout for
rectangular
back vent
(RH2300
series only)
rear of
hood
6"
12"
3-1/4"
1-1/2"
wiring
knockouts
Panel A
Electrical
requirements
A.
A 115-volt, 60-Hz, AC-only, fused
electrical supply is required. The total
ampere load used, including the range
hood, must not exceed 90% of the rated
capacity of the circuit. The ampere rating
of the range hood is located on the
model/serial number rating plate located
on the side cover of the blower motor
housing.
B.
The range hood must be
connected with copper wire only.
C.
The range hood can be
connected directly to the fused disconnect
(or circuit breaker) box through flexible
armored or nonmetallic sheathed copper
cable. A U.L.-listed strain relief must be
provided at each end of the power supply
cable. Wire sizes (COPPER WIRE ONLY) and
connections must conform with the rating
of the appliance as specified on the
model/serial rating plate.
For power cord connected installations, a
U.L.-listed range hood cord-connection kit
MUST be used. Note: Some models come
with a factory installed 3 ft. long power
cord having a 3-prong ground plug.
Wire sizes must conform to the requirements
of the National Electrical Code ANSI/NFPA
70 — latest edition
*, and all local codes
and ordinances.
WARNING — TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Installation work and electrical wiring must
be done by qualified person(s) in
accordance with all applicable Codes and
Standards, including Fire Rated
Construction. Sufficient air is needed for
proper combustion and exhausting of
gases through the flue (chimney) of fuel
burning equipment to prevent back
drafting. Follow the heating equipment
manufacturer’s guideline and safety
standards such as those published by the
National Fire Protection Association
(NFPA),and the American Society of
Heating Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code
authorities.
When cutting or drilling into wall or ceiling,
do not damage electrical wiring and other
hidden utilities.
Ducted fans must always be vented to the
outdoors.
WARNING — To reduce the risk of fire, use
only metal ductwork.
• compass or 7"
circle template
• pliers
• level
• Phillips screwdriver
• metal snips
• drill
• 1-1/4" drill bit
• pencil
• ruler
• caulking gun
• saber saw
• keyhole saw
• duct tape
WARNING — To reduce the risk of fire or
electrical shock, do not use this fan with any
solid-state speed control device.
WARNING — TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by
the manufacturer. If you have questions,
contact the manufacturer. Before servicing
or cleaning unit, switch power off at service
panel and lock switch power off at service
panel and lock service panel to prevent
power from being switched on accidentally.
When the service disconnecting means
cannot be locked, securely fasten a
prominent warning device such as a tag to
the service panel
CAUTION: For general ventilating use only.
Do not use to exhaust hazardous or explosive
materials and vapors.
WARNING — TO REDUCE THE RISK OF A
RANGE TOP GREASE FIRE:
Never leave surface units unattended at
high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
Always turn hood ON when cooking at high
heat or when cooking flaming foods.
Clean ventilating fans frequently. Grease
should not be allowed to accumulate on fan
or filter.
Use proper pan size. Always use cookware
appropriate for the size of the surface
element.
WARNING — TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING:
SMOTHER FLAMES with a close-fitting lid,
cookie sheet, or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If the
flames do not go out immediately, EVACUATE
AND CALL THE FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN — You may
be burned.
DO NOT USE WATER, including wet dishcloths
or towels — a violent steam explosion will
result. Use an extinguisher ONLY if:
You know you have a Class ABC extinguisher,
and you already know how to operate it.
The fire is small and contained in the area
where it is started.
The fire department is being called.
You can fight the fire with your back to an
exit.
This is the safety alert symbol.
This symbol alerts you to potential hazards
that can kill or hurt you and others.
All safety messages will follow the safety alert
symbol and either the word “DANGER” or
“WARNING”. These words mean:
Before you start...
You can be killed or seriously injured if you
don’t follow instructions.
DANGER
WARNING
Your safety and the safety of others
are very important.
We have provided many important safety
messages in this manual and on your appliance.
Always read and obey all safety messages.
All safety messages will tell you what the potential
hazard is, tell you how to reduce the chance of
injury, and tell you what can happen if the
instructions are not followed.
You can be killed or seriously injured if you
don’t immediately
follow instructions.
Copies of standards listed may be obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
Vent system needed for installation is not
included. Backdraft damper supplied with
product must be used. If roof or wall cap
has a damper, do not use damper supplied
with hood. Use metal vent only. Rigid metal
vent is recommended.
Determine which outside venting method
you need to use.
The length of the vent and number of
elbows should be kept to a minimum to
provide efficient performance. The size of
the vent should be uniform. Do Not install
two elbows together. Use duct tape to seal
all joints in the vent system. Vent can
terminate either through the roof or wall.
Use caulking to seal exterior wall or roof
opening around exhaust hood. For the
most efficient and quiet operation, it is
recommended that the range hood be
vented vertically through the roof using 7"
round vent.

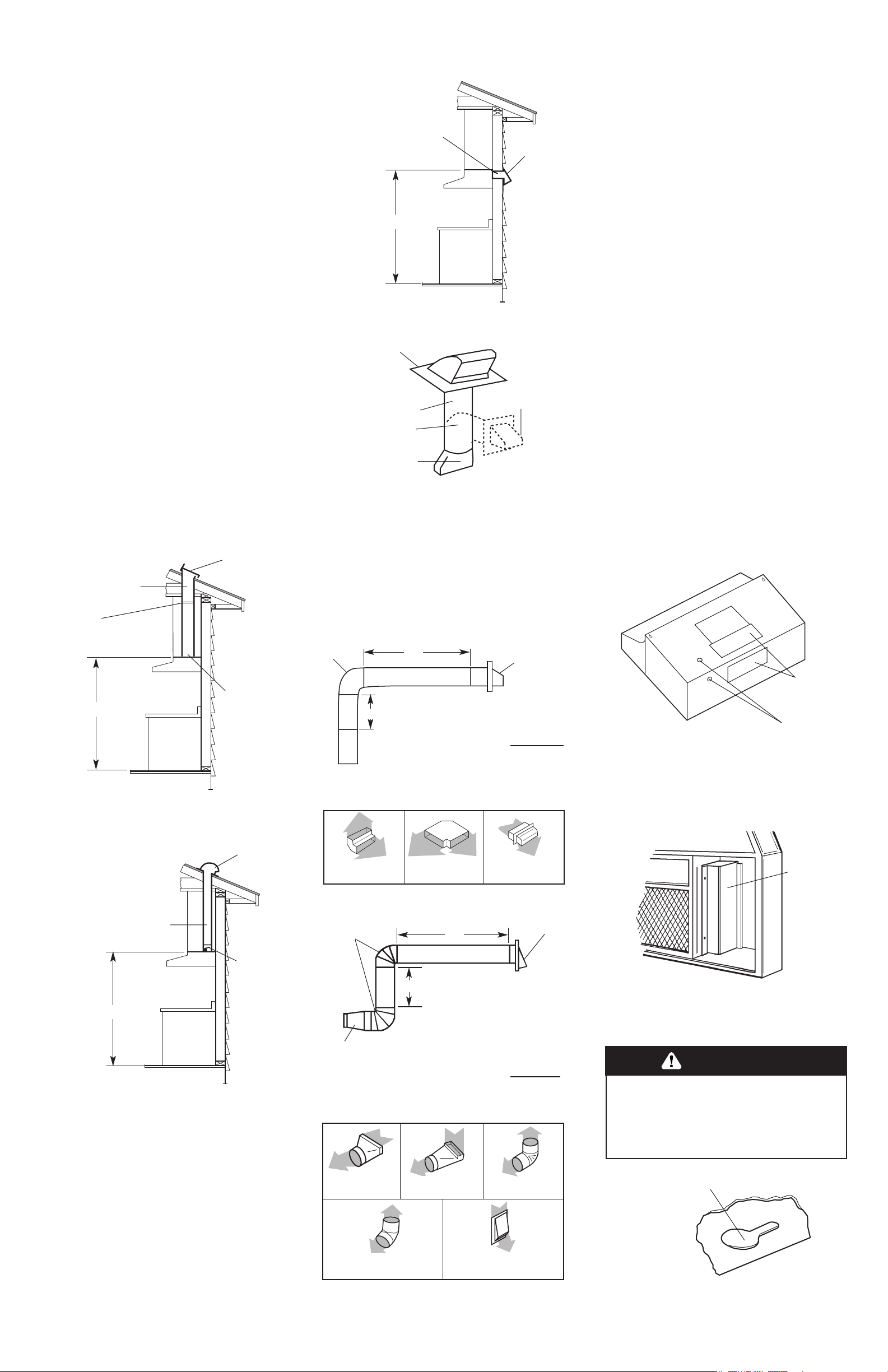

Figures 1-4 show common venting methods
and what types of materials are needed.
Recommended vent length
Use 3-1/4" x 10" or 7" vent with a maximum
length of 26 feet for vent system. For best
performance, use no more than three 90°
elbows. To calculate the length of system
you need, add the equivalent feet for
each vent piece used in the system. See
the following examples.
Figure 1
Panel B
7" round
through roof
roof cap
66"
66"
3-1/4" x 10"
through the roof
roof cap
3-1/4" x 10"
damper
damper
located as far
from hood as
possible
Vertical roof venting
wall cap
66"
3-1/4" x 10"
through the wall
Vertical roof venting
Horizontal wall venting
roof cap
wall cap
elbows
3-1/4" x 10" to round
vent transition
7" min. diameter
round vent
Figure 4
Figure 3

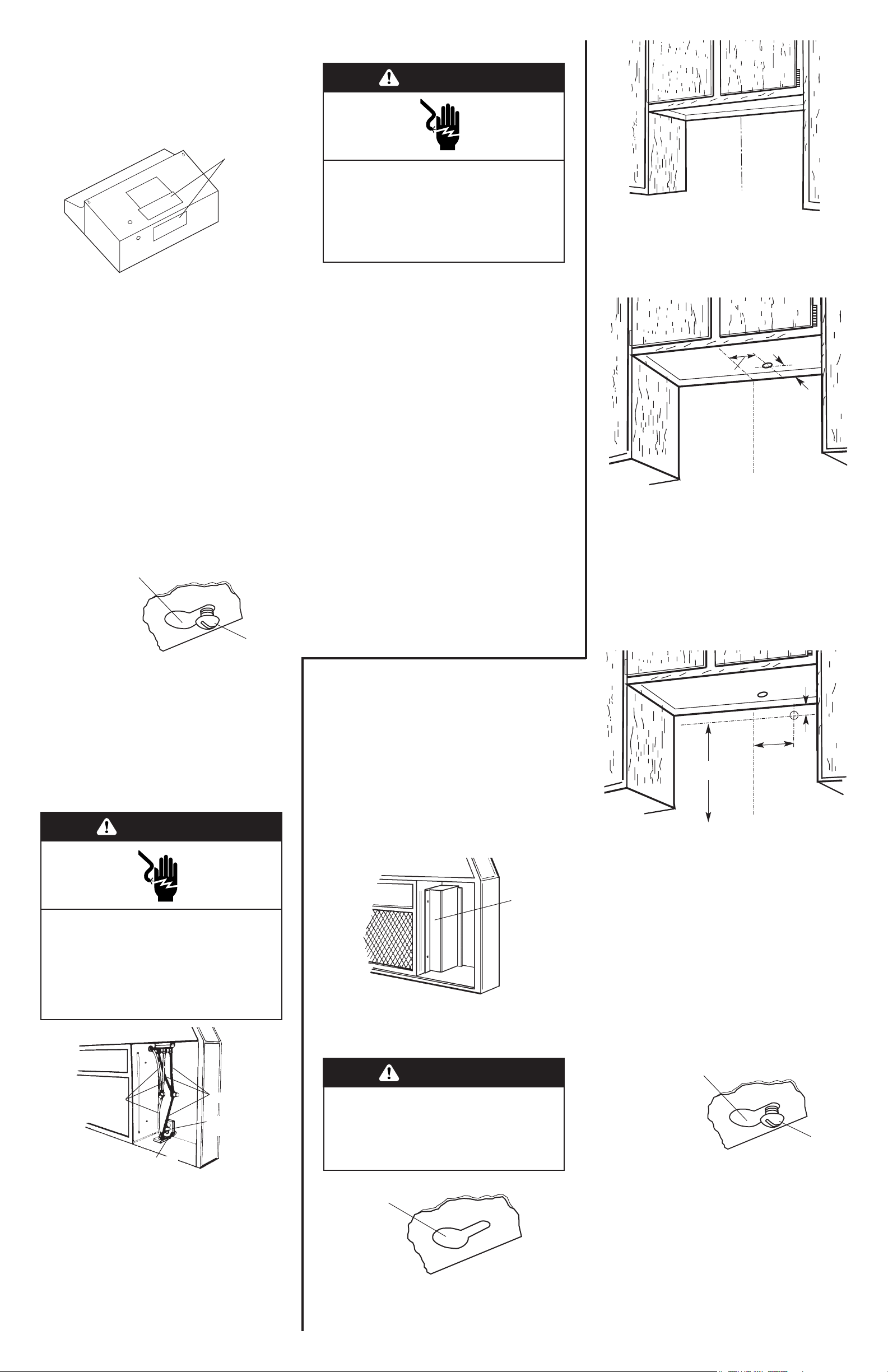

4.If your model does NOT have a
factory installed power cord, remove
terminal box cover from range hood.
Figure 2
3-1/4" x 10" vent system
Recommended standard fittings
7" vent system
90° elbow
wall cap
3-1/4" x 10"
to 7"
transition
Maximum length = 26 feet
1 - transition = 4.5 ft.
2 - 90° elbows = 10 ft.
1 - wall cap = 0 ft.
8 feet straight = 8 ft.
Length of 7" system = 22.5 ft.
Maximum length = 26 feet
1 - 90° elbow = 5 ft.
8 feet straight = 8 ft.
1 - wall cap = 0 ft.
Length of 3-1/4" x
10" system = 13 ft.
Recommended standard fittings
6 ft.
2 ft.
3-1/4" x 10" 90°
elbow = 5 ft.
3-1/4" x 10" flat
elbow = 12 ft.
3-1/4" x 10" wall
cap = 0 ft.
3-1/4" x 10" to
7" = 4.5 ft.
90° elbow = 5 ft.
45° elbow = 2.5 ft.
3-1/4" x 10" to 7"
90° elbow = 5 ft.
7" wall cap = 0 ft.
To install a
vented-only model
installation:
Now start...
With range hood in kitchen.
Slide cardboard or hardboard under range
before moving range across floor to
prevent damaging floor covering.
Cover countertop, cooktop or set-in range
with a thick, protective covering to prevent
damaging countertop.
wiring
knockouts
rectangular vent
knockouts

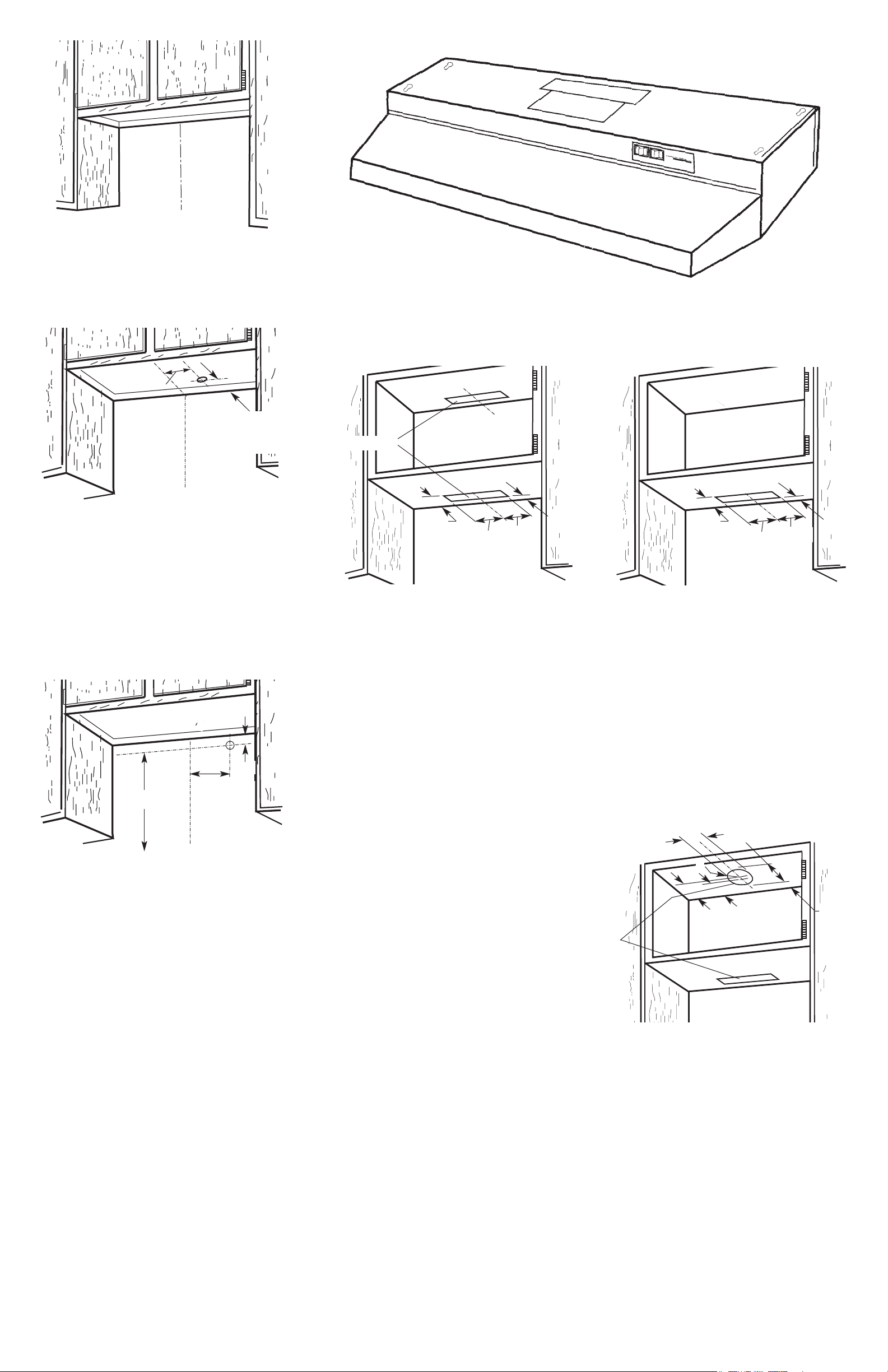

1.Disconnect and move freestanding
range from cabinet opening to provide
easier access to upper cabinet and rear
wall. Put a thick, protective covering over
cooktop, set-in range or countertop to
protect from damage or dirt.
2.If your range hood is a vented-only
model, determine which venting method
(roof or wall venting) you need to use.
If your range hood is a non-vented-
(recirculating) only model, go to Step 3a,
Panel D.
3.Remove knockout from the wiring
opening (top or rear) to be used.
For rectangular venting, remove only the
3-1/4" x 10" rectangular opening knockout
for the venting method (roof or wall) you
have selected.
terminal
box
cover
2 ft.
6 ft.
wall cap
3-1/4" x 10"
elbow
5.Lift the range hood into final
position and center. Mark on the underside
of cabinet the location of the four keyhole
mounting slots. Set range hood aside on a
protected surface.
Excessive Weight Hazard
Use two or more people to move and
install range hood.
Failure to follow this instruction can
result in back or other injury.
keyhole slot
front
of hood
Venting requirements
Vented-only models
Note: Non-vented (recirculating-only) models
cannot be converted to vent.
WARNING
Venting system must terminate to the
outside.
Do not terminate the vent in an attic or
other enclosed space.
Do not use four-inch laundry-type wall
caps.
Do not use plastic vent.
3-1/4" x 10"
to 7" fitting
required for
some models
centerline
Panel C
7.
To wire through top, mark a line
7-1/2" from the right of the centerline on
the underside of the cabinet. Mark the
point on this line that is 2" from back wall.
Drill a 1-1/4" diameter hole through the
cabinet at this point. Note: If a cord-
connection kit is used, drill a 1-5/8"
diameter hole.
Numbers
correspond
to steps.
6.Determine and clearly mark a
vertical centerline on the wall and cabinet
in the area the vent opening will be made.
3.
10.
4. 14.
5. 12. 13.
5. 12. 13.
7-1/2"
centerline
2"
from wall
(not cabinet
frame)
7-1/2"
centerline
centerline
3/4"
65-1/4"
(to floor)
To wire through rear, mark a line 7-1/2" from
the right of the centerline on the wall. Mark
the point on this line that is 65-1/4" from the
floor (or 3/4" from underside of cabinet).
Drill a 1-1/4" diameter hole through wall at
this point.
To transition from a 3-1/4" x 10" rectangular
vent to a 7" round vent and vent through
the roof —
Start by making a 4" x 10-1/2" rectangle on
the underside of cabinet bottom:
a. Mark lines 1-1/2" and 5-1/2" from the
back wall on the centerline of the
underside of cabinet.
b. Mark lines 5-1/4" to the right and left of
the centerline on the underside of
cabinet.
c. Use saber and keyhole saws to cut a
rectangular opening for vent.
To make a 4" x 10-1/2" rectangle on the
underside of cabinet top and bottom:
a. Mark lines 1-1/2" and 5-1/2" from the
back wall on the centerline of the
underside of cabinet.
b. Mark lines 5-1/4" to the right and left of
the centerline on the underside of
cabinet.
c. Use saber and keyhole saws to cut a
rectangular opening for vent.
d. Repeat steps a-c for the underside of
the top of the cabinet.
If venting through the wall with 3-1/4" x 10"
rectangular vent —
To make a 4" x 10-1/2" rectangle in the wall:
a. Measure from floor 65-7/8" and 62-3/8"
(or 1/8" and 3-5/8" down from underside
of cabinet) and mark on the centerline
on the back wall.
b. Mark lines 5-1/4" to the right and left of
the centerline on the underside of
cabinet.
c. Use saber and keyhole saws to cut a
rectangular opening for vent.
Now make a 7-1/8" x 7-5/8" slot on the
underside of the cabinet tops.
d. Mark lines 5" and 5-1/2" from the back
wall on the centerline on the underside
of the top of cabinet.
e. Draw two 7-1/8" circles using the marks
made in step d as center points.
f. Use saber and keyhole saws to cut a
slotted (oval) opening to make installing
7" round vent easier.
*1-1/2"
5-1/4"
cabinet cutouts
5-1/4"
7-5/8"
*5-1/2"
*5"
* from wall, not
cabinet frame
*1-1/2"
* from
wall not
cabinet
frame
7-1/8"
R
*1-1/2"
*5-1/2"
* from wall, not
cabinet frame
*5-1/2"
5-1/4"
5-1/4"
cabinet
cutouts
8.
Electrical Shock Hazard
Disconnect power before making
electrical connections.
Connect ground wire to green ground
screw in terminal box.
Failure to do so can result in death or
electrical shock.
WARNING
Panel D
centerline
keyhole slot
5a.Lift range hood into final
position and center. Mark on underside of
cabinet the location for the four keyhole
mounting slots. Set range hood aside on a
protected surface.
To install a non-vented
(recirculating-only)
model:
3a.Remove knockout from the
wiring opening (rear or top) to be used.
The range hood cabinet may have venting
knockouts. Do not remove these venting
knockouts. The model cannot be vented.
4a.If your model does NOT have a
factory installed power cord, remove
terminal box cover on range hood.
6a.Determine and clearly mark a
vertical centerline in the cabinet opening.
7a.To wire through top, mark a line
7-1/2" from the right of the centerline on
the underside of the cabinet. Mark the
point on this line that is 2" from the back
wall. Drill a 1-1/4" diameter hole through
cabinet at this point. Note: If a cord-
connection kit is used, drill a 1-5/8"
diameter hole.
To wire through rear, mark a line 7-1/2" from
the right of the centerline on the wall. Mark
the point on this line that is 65-1/4" from the
floor (or 3/4" from underside of cabinet).
Drill a 1-1/4" diameter hole through wall at
this point.
terminal
box
cover
7-1/2"
centerline
2" from
wall, (not
cabinet
frame)
front of hood
centerline
Excessive Weight Hazard
Use two or more people to move and
install range hood.
Failure to follow this instruction can
result in back or other injury.
WARNING
14.

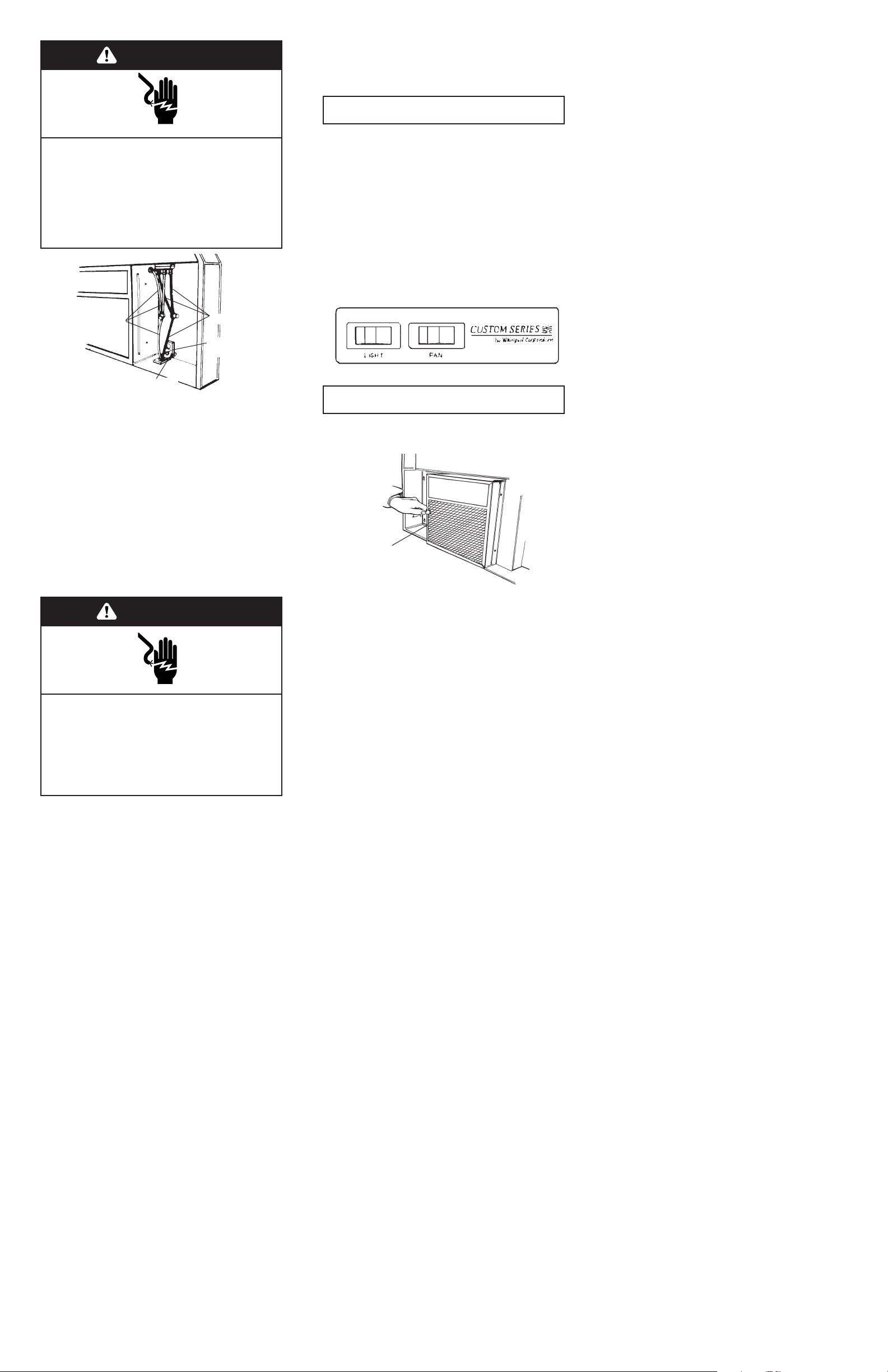

For models requiring direct wiring:
Connect the white and black wires of the
power supply cable to the white and black
leads in the range hood with twist-on
connectors.
Connect the power supply ground wire to
the green ground screw inside the range
hood terminal box.
Use caulking to seal wire opening.
Replace terminal box cover
white
green ground
screw
ground
wire
black
13.Lift range hood into final
position, feeding electrical wire through
wiring opening. Tighten mounting screws to
cabinet, making sure mounting screws are
in narrow neck of slots. .
keyhole slot front of hood
Check that screw is in
narrow neck of slot.
screw
9.Install vent through the vent
opening in upper cabinet or wall.
Complete venting system according to
method needed. See “Venting
requirements.” Use caulking to seal exterior
wall or roof opening.
10.If roof or wall cap does not
have a damper, attach rectangular
damper supplied with hood to selected
rectangular vent opening. If damper is
attached to back of range hood, be sure
damper hinge is toward the top.
If roof or wall cap does not have a damper
and round vent is used, install damper
(supplied with hood) in vent to prevent air
from flowing back into vent.
If roof or wall cap has a damper, Do not
use damper blade supplied with range
hood.
11.Do not turn on power until
installation is complete. Run wiring through
wall or cabinets according to the National
Electrical Code and local codes and
ordinances. Use caulking to seal ceiling or
outside wall opening.
12.Start screws in the center of
the narrow neck of each of the four
keyhole mounting screw slots marked on
the cabinet bottom.
10a.Lift range hood into final
position, feeding electrical wire through
wiring opening. Tighten mounting screws to
cabinet, making sure mounting screws are in
narrow neck of slots.
keyhole slot front of hood
Check that screw is in
narrow neck of slot.
screw
8a.Do not turn on power until
installation is complete. Use caulking to seal
ceiling or outside wall opening. Run wiring
through wall or cabinets according to the
National Electrical Code and local codes
and ordinances.
9a.Start screws in the center of the
narrow neck of each of the four keyhole
mounting screw slots marked on the
cabinet bottom.
dampers
7-1/2"
centerline
3/4"
65-1/4"
(to floor)
Electrical Shock Hazard
Plug into a grounded 3-prong outlet.
Do not remove ground prong.
Do not use an adapter.
Failure to follow these instructions can
result in death, fire, or electrical shock.
WARNING
For your personal safety, this range hood
must be grounded. To minimize possible
shock hazard, the cord must be plugged
into a mating, 3-prong, ground-type outlet,
grounded in accordance with National
Electrical Code, ANSI/NFPA 70 – latest
edition* and all local codes and
ordinances.
If mating outlet is not available, it is the
responsibility and obligation of the
customer to have a properly grounded, 3-
prong outlet installed by a qualified
electrician.
Do not use an extension cord.
Using a U.L.-listed power supply
cord-connection kit:
Follow Power Cord Kit instructions for
connecting wiring.
Replace terminal box cover.
For models with a factory
installed power cord:
Plug power cord into grounded 3-prong
outlet.
15 . Turn power supply on.
For cord connected models:
Use & Care
Information
Filter/light lens
For best results, remove and clean often.
To remove filter/light lens:
Pull firmly on filter tab to remove
filter/light lens from range hood.
To clean filter/light lens:
Place filter/light lens in dishwasher or hot
sudsy water to clean.
To reinstall filter/light lens:
Place edge of filter/light lens in opening so
that right side is above flange and tab
faces downward. Press filter/light lens into
position.
When it's time to replace your
aluminum filter/light lens, or charcoal filter
pads:
1. Find the model/serial number rating
plate located on the side cover of the fan
motor housing.
Model Series RH2300 (vented):
Order Filter/Light Lens no. 883103
Model Series RH2600 (recirculating):
Order complete filter replacement kit
no. 883093 (includes Filter/Light Lens
no.883149 and Charcoal Filter Pads no.
883151.)
Filter/Light Lens, no. 883149 and
Charcoal Filter Pads, no. 883151 can be
ordered separately.
2. Call Whirlpool's Telesales line at
1-800-442-9991
3. Give the Telesales Representative the
part number needed.
4. The Representative will give you the
current price.
5. Place your order using your Master
Card
®
, Visa
®
or Discover
®
credit card.
6. If you wish: mail a check or money order
to:
Whirlpool Corporation
1900 Whirlpool Drive
LaPorte, IN 46350-9980
Attn: Accessory Accounting
7. Be sure to ask the Telesales
Representative about the wide variety
of other Whirlpool Product Accessories.
To clean blower motor
Clean exterior of motor with a damp cloth
and grease-cutting detergent.
Exterior surfaces
Clean the range hood with a mild
detergent and soft cloth. Do Not use
abrasive cleansers or steel wool pads.
Light
Do not use bulb larger than 60 watts in light
socket.
Light bulb is not included.
For best results, turn range hood fan on at
beginning of cooking and allow it to run
until all smoke and odors are removed from
room.
To operate fan:
Press fan control to turn fan on and off and
adjust fan speed. Speed may be increased
or decreased anytime during range hood
operation.
To operate light:
Press light control to turn light on or off.
Light may be turned to off or on anytime
during range hood operation.
Panel E
filter tab
If range hood
does not operate...
Check that the circuit breaker is not
tripped or the house fuse blown.
Electrical Shock Hazard
Disconnect power before making
electrical connections.
Connect ground wire to green ground
screw in terminal box.
Failure to do so can result in death or
electrical shock.
WARNING
Electrical Shock Hazard
Plug into a grounded 3-prong outlet.
Do not remove ground prong.
Do not use an adapter.
Failure to follow these instructions can
result in death, fire, or electrical shock.
WARNING
11a.
For models requiring direct wiring:
Connect the white and black wires of the
power supply cable to the white and black
leads in the range hood with twist-on
connectors.
Connect the power supply ground wire to
the green ground screw inside the range
hood terminal box.
Use caulking to seal wire opening.
Replace terminal box cover.
white
green ground
screw
ground
wire
black
OPERATION OF RANGE HOOD
CARE OF RANGE HOOD
If you need FSP
®
replacement parts...
FSP is a registered trademark of Whirlpool
Corporation for quality parts. Look for this
symbol of quality whenever you need a
replacement part for your WHIRLPOOL
®
appliance. FSP replacement parts will fit
right and work right, because they are
made to the same exacting specifications
used to build every new WHIRLPOOL
appliance.
To locate FSP replacement parts in your
area, refer to “If you need service” or call
the Whirlpool Consumer Assistance Center
number in “If you need assistance.”
If you need
assistance...
Call the Whirlpool Consumer Assistance
Center telephone number. Dial toll-free
from anywhere in the U.S.A. 1-800-253-1301
and talk with one of our trained
consultants. The consultant can instruct you
in how to obtain satisfactory operation from
your appliance or, if service is necessary,
recommend a qualified service company
in your area.
If you prefer, write to:
Consumer Assistance Representative
Whirlpool Corporation
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in
your correspondence.
If you need service...
Whirlpool has a nationwide network of
authorized Whirlpool service companies.
Whirlpool service technicians are trained to
fulfill the product warranty and provide
after-warranty service, anywhere in the
United States. To locate the authorized
Whirlpool service company in your area,
call our Consumer Assistance Center
telephone number (see “If you need
assistance”) or look in your telephone
directory Yellow Pages under:
• APPLIANCE—HOUSEHOLD— MAJOR,
SERVICE & REPAIR
— See: Whirlpool Appliances or
Authorized Whirlpool Service
(Example: XYZ Service Co.)
• WASHING MACHINES & DRYERS, SERVICE
& REPAIR
— See: Whirlpool Appliances or
Authorized Whirlpool Service
(Example: XYZ Service Co.)
For your personal safety, this range hood
must be grounded. To minimize possible
shock hazard, the cord must be plugged
into a mating, 3-prong, ground-type outlet,
grounded in accordance with National
Electrical Code, ANSI/NFPA 70 – latest
edition* and all local codes and
ordinances.
If mating outlet is not available, it is the
responsibility and obligation of the
customer to have a properly grounded, 3-
prong outlet installed by a qualified
electrician.
Do not use an extension cord.
Using a U.L.-listed power supply
cord-connection kit:
Follow Power Cord Kit instructions for
connecting wiring.
Replace terminal box cover.
For models with a factory
installed power cord:
Plug power cord into grounded 3-prong
outlet.
12a.Turn power supply on.
Copies of standards listed may be obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
When asking for help or service:
Please provide a detailed description of
the problem, your appliance’s complete
model and serial numbers and the
purchase date. This information will help us
respond properly to your request.
For cord connected models:
Installation Instructions and Use and Care
Part No.626870A/8284867 Rev. A
www.whirlpool.com
IMPORTANT:
Read and save
these instructions.
IMPORTANT:
Installer: Leave Installation Instructions
with homeowner.
Homeowner: Keep Installation Instructions
for future reference.
Save: Installation Instructions for electrical
inspector’s use.
24", 30" and 36"
Custom Series
Range Hood
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some
states do not allow the exclusion or limitation of incidental or consequential damages so this limitation or
exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Outside the United States, a different warranty may also apply. For details, please contact your
franchised Whirlpool distributor or military exchange.
Part No. 626870A/8284867 Rev. A
© 2001 Whirlpool Corporation
® Registered Trademark/SM Trademark of Whirlpool, U.S. A.
Benton Harbor, Michigan 49022
Printed in U.S.A.
Whirlpool
®
Range Hood Warranty
LENGTH OF WARRANTY
WHIRLPOOL WILL NOT PAY FOR
WHIRLPOOL WILL PAY FOR
FULL ONE-YEAR WARRANTY
From date of purchase
FSP
®
replacement parts and repair labor to correct
defects in materials or workmanship. Service must
be provided by an authorized Whirlpool
SM
service
company.
A. Any labor costs incidental to the replacement of defective parts.
B. Consumable parts such as light bulbs and filters.
C. Service calls to:
1. Correct the installation of the range hood.
2. Instruct you how to use the range hood.
3. Replace house fuses or correct house wiring.
D. Repairs when range hood is used in other than normal, single-family household use.
E. Pickup and delivery. This product is designed to be repaired in the home.
F. Damage to range hood caused by accident, misuse, fire, flood, act of God or use of
products not approved by Whirlpool.
RH2300 SERIES
RH2600 SERIES
