30 Litre Electronic Microwave
Read the Instructions carefully and Keep for Future Reference
Owner s Instruction Manual
IV600FBI
IMPORTANT SAFETY INSTRUCTIONS
When Using Electrical Appliance Basic Safety Pre-
cautions Should Be Followed, Including The Follow-
ing:
Warning: To Reduce The Risk Of Burns, Electric
Shock, Fire, Injury To Persons Or Exposure To Ex-
cessive Microwave Energy:
1.Read All Instructions Before Using The Appliance.
2.Use This Appliance Only For Its Intended Use As
Described In This Manual. Do Not Use Corrosive
Chemicals Or Vapors In This Appliance. This Type
Of Oven Is Specifically Designed To Heat, Cook Or
Dry Food. It Is Not Designed For Industrial Or Labo-
ratory Use.
3.Do Not Operate The Oven When Empty.
4.Do Not Operate This Appliance If It Has A Dam-
aged Cord Or Plug, If It Is Not Working Properly Or
If It Has Been Damaged Or Dropped. If The Supply
Cord Is Damaged, It Must Be Replaced By The
Manufacturer Or Its Service Agent Or A Similarly
Qualified Person In Order To Avoid A Hazard.
5.Warning: When The Appliance Is Operated In The
Combination Mode, Children Should Only Use The
Oven Under Adult Supervision Due To The Tem-
peratures Generated.
6.Warning: Only Allow Children To Use The Oven
Without Supervision When Adequate Instructions
Have Been Given So That The Child Is Able To Use
2
The Oven In A Safe Way And Understands The Haz-
ards Of Improper Use.
7.To Reduce The Risk Of Fire In The Oven Cavity:
A.When Heating Food In Plastic Or Paper Container,
Keep An Eye On The Oven Due To The Possibility
Of Ignition.
B.Remove Wire Twist-ties From Paper Or Plastic
Bags Before Placing Bag In Oven.
C.If Smoke Is Observed, Switch Off Or Unplug The
Appliance And Keep The Door Closed In Order To
Stifle Any Flames.
D.Do Not Use The Cavity For Storage Purposes. Do
Not Leave Paper Products, Cooking Utensils Or
Food In The Cavity When Not In Use.
8.Warning: Liquid Or Other Food Must Not Be
Heated In Sealed Containers Since They Are Liable
To Explode.
9.Microwave Heating Of Beverage Can Result In
Delayed Eruptive Boiling, Therefore Care Has To Be
Taken When Handle The Container.
10.Do Not Fry Food In The Oven. Hot Oil Can
Damage Oven Parts And Utensils And Even Result
In Skin Burns.
11.Eggs In Their Shell And Whole Hard-boiled Eggs
Should Not Be Heated In Microwave Ovens Since
They May Explode Even After Microwave Heating
Has Ended.
12.Pierce Foods With Heavy Skins Such As Pota
3
toes, Whole Squashes, Apples And Chestnuts
Before Cooking.
13.The Contents Of Feeding Bottles And Baby Jars
Should Be Stirred Or Shaken And The Temperature
Should Be Checked Before Serving In Order To
Avoid Burns.
14.Cooking Utensils May Become Hot Because Of
Heat Transferred From The Heated Food. Pothold-
ers May Be Needed To Handle The Utensil.
15.Utensils Should Be Checked To Ensure That
They Are Suitable For Use In Microwave Oven.
16.Warning: It Is Hazardous For Anyone Other Than
A Trained Person To Carry Out Any Service Or
Repair Operation Which Involves The Removal Of
Any Cover Which Gives Protection Against Expo-
sure To Microwave Energy.
17.This Product Is A Group 2 Class B Ism Equip-
ment. The Definition Of Group 2 Which Contains All
Ism (Industrial, Scientific And Medical) Equipment In
Which Radio-frequency Energy Is Intentionally Gen-
erated And/or Used In The Form Of Electromag-
netic Radiation For The Treatment Of Material, And
Spark Erosion Equipment. For Class B Equipment
Is Equipment Suitable For Use In Domestic Estab-
lishments And In Establishments Directly Con-
nected To A Low Voltage Power Supply Network
Which Supplies Buildings Used For Domestic Pur-
pose. For Domestic Purpose.
4
18.This Appliance Is Not Intended For Use By Per-
sons (Including Children) With Reduced Physical,
Sensory Or Mental Capabilities, Or Lack Of Experi-
ence And Knowledge, Unless They Have Been
Given Supervision Or Instruction Concerning Use Of
The Appliance By A Person Responsible For Their
Safety.
19.Children Should Be Supervised To Ensure That
They Do Not Play With The Appliance.
20.The Microwave Oven Is Only Used In Freestand-
ing.
21.Warning: Do Not Install Oven Over A Range
Cooktop Or Other Heat-producing Appliance. If
Installed Could Be Damaged And The Warranty
Would Be Avoid .
22.The Accessible Surface May Be Hot During Op-
eration.
23.The Microwave Oven Shall Not Be Placed In A
Cabinet.
24.The Door Or The Outer Surface May Get Hot When
The Appliance Is Operating.
25.The Temperature Of Accessible Surfaces May Be
High When The Appliance Is Operating.
26.The Appliance Shall Be Placed Against A Wall.
27.Appliance Is Not To Be Used By Children Or Per-
sons With Reduced Physical, Sensory Or Mental Ca-
pabilities, Or Lack Of Experience And Knowledge,
5
Unless They Have Been Given Supervision Or
Instruction.
28.Children Being Supervised Not To Play With Appli-
ance
29.Warning: If The Door Or Door Seals Are Dam-
aged, The Oven Must Not Be Operated Until It Has
Been Repaired By A Competent Person
30.The Instructions Shall State That Appliances Are
Not Intended To Be Operated By Means Of An Exter-
nal Timer Or Separate Remote-control System.
31.The Microwave Oven Is For Household Use Only
And Not For Commercial Use.
32.Never Remove The Distance Holder In The Back
Or On The Sides, As It Ensures A Minimum Distance
From The Wall For Air Circulation.
33.Please Secure The Turn Table Before You Move
The Appliance To Avoid Damages.
34.Caution: It Is Dangerous To Repair Or Maintain
The Appliance By No Other Than A Specialist Be-
cause Under These Circumstances The Cover
Have To Be Removed Which Assures Protection
Against Microwave Radiation. This Applies To
Changing The Power Cord Or The Lighting As Well.
Send The Appliance In These Cases To Our Service
Centre.
35.The Microwave Oven Is Intended For Defrosting,
Cooking And Steaming Of Food Only.
36. Use Gloves If You Remove Any Heated Food.
6
37.Caution! Steam Will Escape, When Opening
Lids Or Wrapping Foil.
38.If Smoke Is Emitted, Switch Off Or Unplug The
Appliance And Keep The Door Closed In Order To
Stifle.
This appliance can be used by children aged
from 8 years and above and persons with
reducted Physical,sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction con-
cerning use of the appliance in a safe way and
understand the hazards involved.Children shall
not play with the appliance.Cleaning and
user maintenance shall not be made by children
unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of
children less than 8 years.
CAUTION: Hot surface.
7
SPECIFICATIONS
RADIO INTERFERENCE
Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be
eliminated or reduced by the following procedures.
a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.
BEFORE YOU CALL FOR SERVICE
1. If the oven will not perform at all, the display does not
appear or the display disappears:
a) Check to ensure that the oven is plugged in securely. If it
is not, remove the plug from the outlet, wait 10 seconds
and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped
main circuit breaker. If these seem to be operating properly,
test the outlet with another appliance.
2. If the microwave power does not function:
a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to
engage the safety interlocks. Otherwise, the microwave
energy will not flow into the oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT.
Note:
The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor
use only.
Power consumption:
Output:
Grill Heater:
Operating Frequency:
Outside Dimensions:
Oven Cavity Dimensions:
Oven Capacity:
Uncrated Weight:
240V~50Hz,1450W
900W
1 00W
2,450MHz
592mm(W) X 430mm(D) X 390mm(H)
350mm(W) X 372mm(D) X 232mm(H)
30 litres
Approx. 17.5kg
2
8

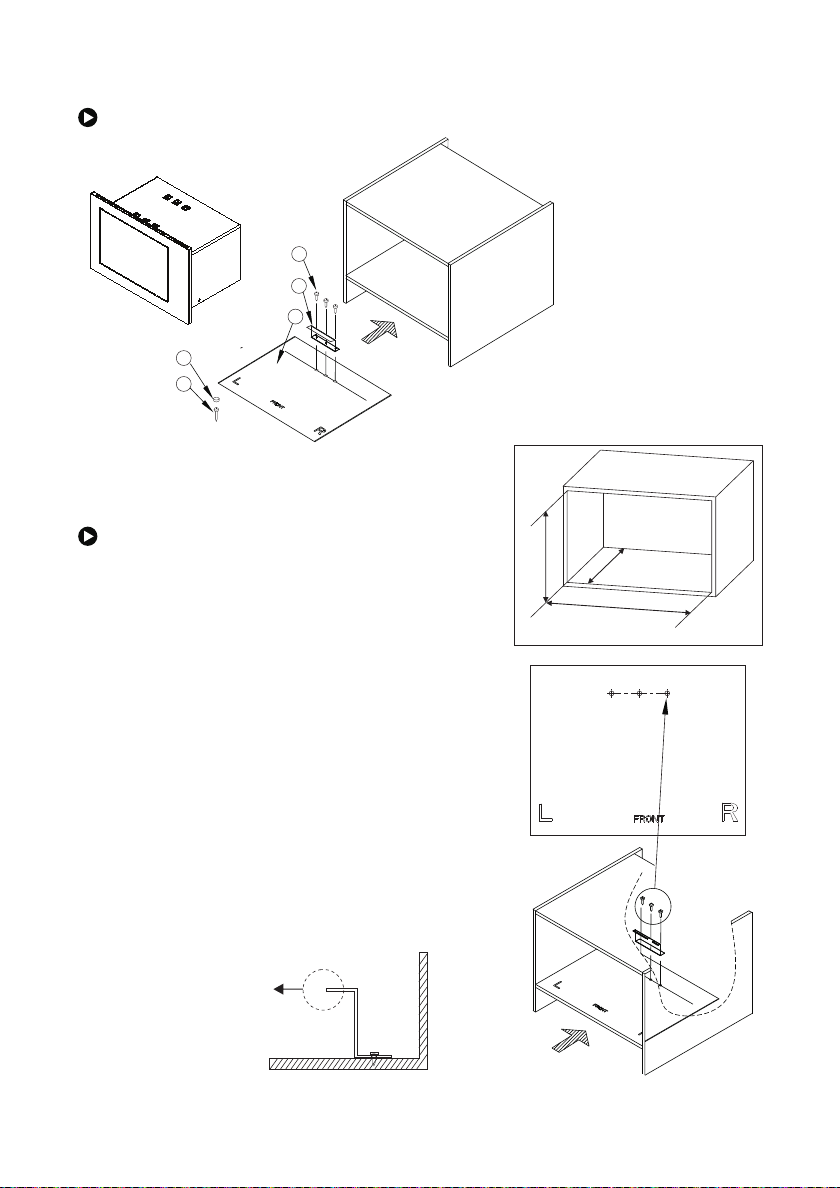

INSTALLATION
1. Make sure all the packing materials are removed from
the inside of the door.
2. Inspect the oven after unpacking for any visual
damage such as:
Misaligned Door
Damaged Door
Dents or Holes in Door Window and Screen
Dents in Cavity
If any of the above are visible, DO NOT use the
oven.
3. This Microwave Oven weighs 1 .5 kg and must be
placed on a horizontal surface strong enough to
WARNING-THIS APPLIANCE MUST BE EARTHED.
1. The plug socket should be within easy reach
of the power cord
2. This oven requires 1.5 KVA for its input.
consultation with service engineer is
suggested when installing the oven.
support this weight.
4. The oven must be placed away from high temperature
and steam.
5. DO NOT place anything on top of the oven.
6. DO NOT remove the turn -table drive shaft.
7. As with any appliance, close supervision is necessary
when used by children.
CAUTION:This oven is protected internally by
ac 250V,10 Amp Fuse.
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the
letter E or by the earth symbol coloured green of green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
4
9
SAFETY INSTRUCTIONS FOR GENERAL USE
Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from
this oven:
1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any
other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage,such a papers, cookbooks, etc.
5.Do not cook any food surrounded by a membrane,such as egg yolks,potatoes,chicken livers,etc without
first being pierced several times with a fork.
IMPORTANT SAFETY INSTRUCTIONS
-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult
supervision due to the temperatures generated; (Only for the model with grill function)
-WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a
competent person;
-WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation
that involves the removal of a cover which gives protection against exposure to microwave energy;
-WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
-WARNING: Only allow children to use the oven without supervision when adequate instructions have been given
so that the child is able to use the oven in a safe way and understands the hazards of improper use;
- The oven must have sufficient air flow.Keep 10 cm space at back;15 cm at both sides and 30cms from top of the
oven.Don't remove oven's feet, do not block air events of the oven.
- Only use utensils that are suitable for use in microwave ovens.
- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling
the container;
- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before
consumption, in order to avoid burns;
- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode,
even after microwave heating has ended;
- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents
applied with a sponge or soft cloth.
- The oven should be cleaned regularly and any food deposits removed;
- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect
the life of the appliance and possibly result in a hazardous situation;
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
10
6. Do not insert any object into the openings on the outer
case.
7. Do not at any time remove parts from the oven such as
the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food
in/on proper cooking utensil before placing in the oven.
9. IMPORTANT-COOKWARE NOT TO USE IN YOUR
MICROWAVE OVEN
Do not use metal pans or dishes with metal handles.
Do not use anything with metal trim.
Do not use paper covered wire twist-ties on plastic bags.
Do not use melamine dishes as they contain a material
which will absorb microwave energy. This may cause
the dishes to crack or char and will slow down the
cooking speed.
Do not use Centura Tableware. The glaze is not suitable
for microwave use. Corelle Livingware closed handle
cups should not be used.
Do not cook in a container with a restricted opening,
such as a pop bottle or salad oil bottle, as they may
explode if heated in a microwave oven.
Do not use conventional meat or candy thermometers.
There are the thermometers available specifically for
microwave cooking. These may be used.
10. Microwave utensils should be used only in
accordance with manufacturer's instructions.
11. Do not attempt to deep-fry foods in this oven.
12. Please remember that a microwave oven only
heats the liquid in a container rather than the
container itself.Therefore, even though the lid
of a container is not hot to the touch when
removed from the oven, please remember that
the food/liquid inside will be releasing the same
amount of steam and/or spitting when the lid is
removed as in conventional cooking.
13. Always test the temperature of cooked food
yourself especially if you are heating or cooking
food/liquid for babies. It is advisable never to
consume food/liquid straight from the oven but
allow it to stand for a few minutes and stir food/
liquid to distribute heat evenly.
14. Food containing a mixture of fat and water,
e.g.stock,should stand for 30-60 seconds in the
oven after it has been turned off. This is to allow
the mixture to settle and to prevent bubbling when
a spoon is placed in the food/liquid or a stock cube
is added.
15. When preparing/cooking food/liquid and remember
that there are certain foods, e.g. Christmas
puddings, jam and mincemeat, which heat up very
quickly. When heating or cooking foods with a high
fat or sugar content do not use plastic containers.
16. Cooking utensil may become hot because of heat
transferred from the heated food. This is especially
true if plastic wrap has been covering the top and
handles of the utensil. Potholders may be needed
to handle the utensil.
17.To reduce the risk of fire in the oven cavity:
(a)Do not overcook food. Carefully attend microwave
oven if paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
(b)Remove wire twist-ties from bags before placing
bag in oven.
(c)If materials inside the oven should ignite, keep oven
door closed, turn the oven off at the wall switch, or
shut off power at the fuse or circuit breaker panel.
FEATURE DIAGRAM
(1) Door Safety Lock System
(2) Oven Window
(3) Roller Ring
(4) Glass Tray
(5) Control Panel
(6) Grill rack
2
1
3
4
5
6
11
&20387(5&21752/3$1(/
(1) DISPLAY WINDOW
(4) Micro
(7) Auto Menu
(2) Grill
(3) Defrost
(10
(11) Time Setting
) Start
(9) Pause/Cancel
(5) Memory
(8) Clock/Timer
(6) Combi
Defrost MicroGrill
CombiMemory Auto Menu
Pause/Cancel StartClock/Timer
T
i
m
e
S
e
t
t
i
n
g
12

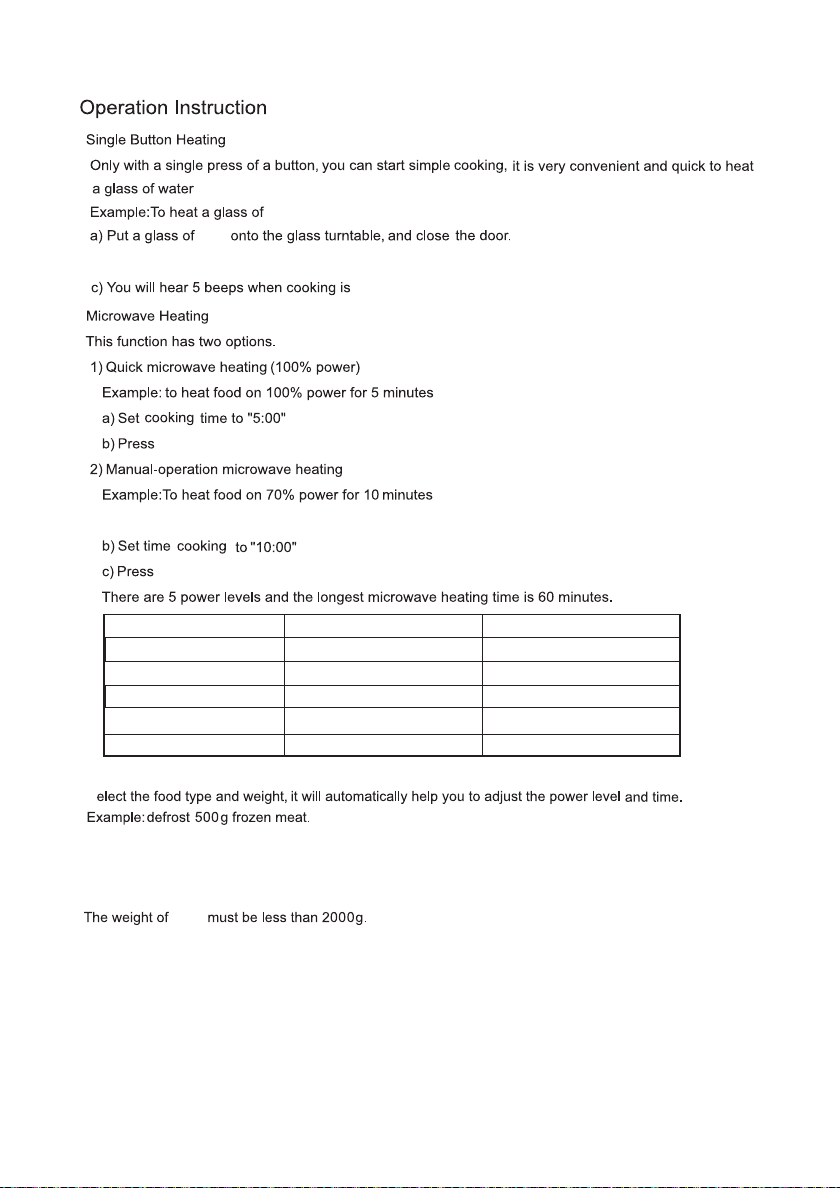

E3UHVVWKHEXWWRQ6WDUWWKHPLFURZDYHRYHQZLOOZRUNRQSRZHUIRUPLQXWHV
HWF
7RXFKLQJWLPHV
0LFURZDYHSRZHU
'LVSOD\
3
3
3
3
3
FRPSOHWHG
D3UHVV0LFUREXWWRQVHOHFWSRZHU
6WDUW
6WDUW
PLON
PLON
$XWR0HQX
<RXRQO\QHHGWRVHOHFWWKHIRRGW\SHDQGZHLJKWLWZLOODXWRPDWLFDOO\DGMXVWWKHSRZHUDQGWLPH
([DPSOH$XWRFRRNLQJ400JILVK
food
a) Press the button "Auto defrost" ,
b) Rotate the knob "Time setting" to set the weight 500g.
c) Press "Start"
"dEF" will be displayed
.
S
3.Auto weight defrost
$3UHVV$XWRPHQXEXWWRQXQWLO$GLVSOD\
%5RWDWHWKHNQRETime settingXQWLO400GLVSOD\
&3UHVV6WDUW
13
g
Weight
Touching Times
100
200
300
400
500
1
2
3
4
5
6
7
8
9
10
600
500
400
300
200
100
600
800
1000
500
400
300
200
600
700
800
900
1000
500
400
300
200
100
600
500
400
300
200
1001
2
Menu
A-1
Rice
A-2
Vegetable
A-3
Meat
A-4
Bread
A-5
Fish
A-6
Spaghetti
5. Memory cooking function:
This function can memorize some useful cooking programes to avoid reseting time and power operation.
a) If no memory has been set press "memory" "1" will be displayed, input cooking power and time, press
"memory" again, the set program will be menorized. If you press "Start" instead of "menory" button, the
oven will start work, and the program also will be menorized.
b) It there is any memory has been set already, when you press "menory" button, "1" will be displayed, the
oven will operate according to the memorized program after you press "Start" button.
The progrume will not be kept when the electrity is off.
6. Grill
This function has two patterns, you may press "Grill" to select such functions: (the longest cooking time is
60 minutes).
Pattern 1: 85% grill power, display G-1
Pattern 2: 50% grill power, display G-2
Example: Cooking food with G-1 for 20 minutes
A) Press "Grill" until the LED displayed "G-1".
B) Set cooking time "20:00"
C) Press "Start"
When grilling, the food isn't heated by microwave, heat is radiated from the metal heater at the top of the oven.
When grill is working, the cooking time has 2 stages, after the 1st half of the cooking, the program will
automatically pause and sound 2 beeps, indicating you to open the oven and turn food over, close the door
after turn the food over, press "Start" button, the cooking will continue for the 2nd half. If you do not want to turn
the food over, the oven will re-start after 1 min pause.
14
0&KLOGVDIHW\ORFN
7RDFWLYDWHWKHFKLOGVDIHW\ORFNSUHVV$XWR0HQX DQG&ombiEXWWRQDWWKHVDPHWLPHIRUVHFRQGV
3UHVV$XWR0HQX DQG&ombiEXWWRQDWWKHVDPHWLPHIRUVHFRQGVDJDLQLWZLOOXQORFNWKLVIXQFWLRQ
8&ORFN
7KHRYHQFDQEHXVHGDVDFORFN
([DPSOHWRLQSXWFXUUHQWWLPH
$3UHVV&lockWKHFORFNV\PEROZLOOIODVKLQGLVSOD\5RWDWHWKH7LPHVHWWLQJNQREWRVHW
%3UHVV&lockDJDLQURWDWHWKH7LPHVHWWLQJNQREWRVHW
&3UHVV&lockDJDLQWKHFORFNVHWWLQJLVILQLVKHGWKHWLPHVWDUWWRJRRQZRUNLQJ
9 7LPHU
7KHWLPHUIXQFWLRQKHOSVWKHPLFURZDYHRYHQEHJLQDXWRPDWLFFRRNLQJDWVHWWLPHDQGDXWRPDWLFDOO\
VWRSRSHUDWLRQDIWHUILQLVKLQJFRRNLQJ<RXVKRXOGVHWWKHFORFNEHIRUHXVLQJWLPHUIXQFWLRQ
([DPSOHWKHFXUUHQWWLPHRIPLFURZDYHRYHQLVWRVHWFRRNLQJDWRQSRZHUIRU
PLQXWHV
$3UHVV7imerDQGVHWWLPHWRVDPHSURFHGXUHDVVHWWLQJFORFN
%3UHVV0LFURWRVHWSRZHU
&,QSXWFRRNLQJWLPHPLQXWHVE\URWDWLQJWKHNQRE7LPH6HWWLQJ
'3UHVV6WDUW
,I\RXGRQWVHWSRZHUDQGFRRNLQJWLPHRPLW%DQG&VWHSVDQGGLUHFWO\SUHVV6WDUWEXWWRQ
WKHPLFURZDYHRYHQZLOOZRUNRQO\DVDFORFNWKHUHZLOOEHEHHSVDWEXWQRRWKHUIXQFWLRQZLOOUXQ
11. Pause/Cancel
a) In the course of operation, pressing "Pause/Cancel" button will stop operation.
b) If any program was set before pressing start, pressing this button will cancel all the set program.
7. Combination Cooking
This appliance offers you a choice of two methods of combination cooking.
Option 1 : 55% Micro + 45% Grill), display "C-1"
Option 2 : 30% Micro + 70% Grill), display "C-2"
Example : Cooking food using option 2 for 30 minutes.
a) Press "Combi" button to select "C-2"
b) Set cooking time for 30 minutes
c) Press "Start "
15
&$5(2)<2850,&52:$9(29(1
7XUQWKHRYHQRIIDQGUHPRYHWKHSRZHUSOXJIURPWKHZDOOVRFNHWEHIRUHFOHDQLQJ
.HHSWKHLQVLGHRIWKHRYHQFOHDQ:KHQIRRGVSODWWHUVRUVSLOOHGOLTXLGVDGKHUHWRRYHQZDOOVZLSHZLWKD
GDPSFORWK7KHXVHRIKDUVKGHWHUJHQWRUDEUDVLYHVLVQRWUHFRPPHQGHG
7KHRXWVLGHRYHQVXUIDFHVKRXOGEHFOHDQHGZLWKDGDPSFORWK7RSUHYHQWGDPDJHWRWKHRSHUDWLQJSDUWV
LQVLGHWKHRYHQZDWHUVKRXOGQRWEHDOORZHGWRVHHSLQWRWKHYHQWLODWLRQRSHQLQJV
'RQRWDOORZWKH&RQWURO3DQHOWREHFRPHZHW&OHDQZLWKDVRIWGDPSFORWK'RQRWXVHGHWHUJHQWV
DEUDVLYHVRUVSUD\RQFOHDQHUVRQWKHFRQWURO3DQHO
,IVWHDPDFFXPXODWHVLQVLGHRUDURXQGWKHRXWVLGHRIWKHRYHQGRRUZLSHZLWKDVRIWFORWK7KLVPD\RFFXU
ZKHQWKHPLFURZDYHRYHQLVRSHUDWHGXQGHUKLJKKXPLGLW\FRQGLWLRQVDQGLQQRZD\LQGLFDWHVPDOIXQFWLRQ
RIWKHXQLW
,WLVRFFDVLRQDOO\QHFHVVDU\WRUHPRYHWKHJODVVWUD\IRUFOHDQLQJ:DVKWKHWUD\LQZDUPVXGV\ZDWHURULQ
DGLVKZDVKHU
7KHUROOHUULQJDQGRYHQFDYLW\IORRUVKRXOGEHFOHDQHGUHJXODUO\WRDYRLGH[FHVVLYHQRLVH6LPSO\ZLSHWKH
ERWWRPVXUIDFHRIWKHRYHQZLWKPLOGGHWHUJHQWZDWHURUZLQGRZFOHDQHUDQGGU\7KHUROOHUULQJPD\EH
ZDVKHGLQPLOGVXGV\ZDWHURUGLVKZDVKHU&RRNLQJYDSRXUFROOHFWGXULQJUHSHDWHGXVHEXWLQQRZD\
DIIHFWWKHERWWRPVXUIDFHRUUROOHUULQJZKHHOV
:KHQUHPRYLQJWKHUROOHUULQJIURPFDYLW\IORRUIRUFOHDQLQJEHVXUHWRUHSODFHLWLQWKHSURSHUSRVLWLRQ
5HPRYHRGRUVIURP\RXURYHQE\FRPELQLQJDFXSRIZDWHUZLWKWKHMXLFHDQGVNLQRIRQHOHPRQLQD
GHHSPLFURZDYHDEOHERZO0LFURZDYHIRUPLQXWHVZLSHWKRURXJKO\DQGGU\ZLWKDVRIWFORWK
:KHQLWEHFRPHVQHFHVVDU\WRUHSODFHWKHRYHQOLJKWSOHDVHFRQVXOWDGHDOHUWRKDYHLWUHSODFHG
TRANSFORMER
MAGNETRON
H: HEATER
TM: TURNTABLE MOTOR
FM: FAN MOTOR
L: LAMP
SWC: THE MONITOR INTERLOCK SWITCH
SWB: SECONDARY INTERLOCK SWITCH
SWA: PRIMARY INTERLOCK SWITCH
*CIRCUIT SUBJECT TO CHANGE WITHOUT NOTICE
( DOOR OPENED,COOK OFF CONDITION)
SCHEMATIC DIAGRAM
R4-1
C4
D2
RY
N
R3
D1
R2
CONTROLLER
JP1-2
JP1-1
RY
K4
K2 GNDK3 D_ SW
RY
H( OUT)
SW2
R4-2
T( IN)
N
P( OUT)
C2
RY
SWB
SO
D
NEL
L
L
C1
R1
F1
NOISE FILTER
L
C3
FU
L
FM
TM
SWA
H
SH
F2
C
SWC
FA
F
16
565
4
5
3
2
1
INSTALLATION
INSTALLATION METHOD
36 5
550
1: Make sure the cabinet dimenision are as follows:
550 (depth) 56 5mm (width) x 36 5mm (height)
2: Put the indicator chart paper into the cabinet, and assemble
the orientation in the position with three screw, this position has
marked in the indicator chart paper
Attention:
1. Indicator chart should aligned with the left edge, right edge
and front edge
2. The orientation fixing is shown as per picture 3
front
1. The Indicator Chart Paper
2. Orientation
3. Bolts M4 × 10mm
4. Screw Cover
5. Bolts M4 × 35mm
Assemble Indicator Figure
x
17
3. Put the microwave oven into the cabinet.
make sure both sides of microwave walls
are equally arranged and installed to the
cabinet and the orientation must securely
hold the back of the microwave oven
4. After the position fixed ,then open the
door of the microwave oven and locate
the screw hole infront of the cavity.
Assemble the screw (M4 x 35mm) to
tighten the microwave oven to the
cabinet and cover the screw head with
the screw cover provided to finish the
last step
Attention:
100m m
Attention:
Cabinet back and bottom should
keep a distance of not less than 100mm
as shown below for heat venting purpose
Screw hole
Screw (M4 x 35mm)
Screw Cover
18
É¿®®¿²¬§ Ý¿®¼
Û«®±´·²¨ Ь§ Ô·³·¬»¼ ßòÞòÒò ëð ððï ìéí íìé
¬®¿¼·²¹ ¿- ×ÔÊÛ ø•×ÔÊÛŒ÷
ÉßÎÎßÒÌÇ ÎÛÙ×ÍÌÎßÌ×ÑÒ
DZ«® ±²¹±·²¹ -¿¬·-º¿½¬·±² ©·¬¸ §±«® ×ÔÊÛ °®±¼«½¬
·- ·³°±®¬¿²¬ ¬± «-ò É» ¿-µ ¬¸¿¬ §±« ½±³°´»¬» ¬¸»
»²½´±-»¼ É¿®®¿²¬§ λ¹·-¬®¿¬·±² Ý¿®¼ ¿²¼ ®»¬«®²
·¬ ¬± «- -± ¬¸¿¬ ©» ¸¿ª» ¿ ®»½±®¼ ±º ¬¸» ×ÔÊÛ
°®±¼«½¬ °«®½¸¿-»¼ ¾§ §±«ò
ÐÎ×ÊßÝÇ
×ÔÊÛ ®»-°»½¬- §±«® °®·ª¿½§ ¿²¼ ·- ½±³³·¬¬»¼
¬± ¸¿²¼´·²¹ §±«® °»®-±²¿´ ·²º±®³¿¬·±² ·²
¿½½±®¼¿²½» ©·¬¸ ¬¸» Ò¿¬·±²¿´ Ю·ª¿½§ Ю·²½·°´»-
¿²¼ ¬¸» Ю·ª¿½§ ß½¬ ïçèè øݬ¸÷ò ß ½±°§ ±º ¬¸»
×ÔÊÛ Ð®·ª¿½§ б´·½§ ·- ¿ª¿·´¿¾´» ¿¬ ©©©ò·´ª»ò
½±³ò¿«ò ×ÔÊÛ ©·´´ ²±¬ ¼·-½´±-» ¿²§ °»®-±²¿´
·²º±®³¿¬·±² -»¬ ±«¬ ·² ¬¸» É¿®®¿²¬§ λ¹·-¬®¿¬·±²
Ý¿®¼ ø•Ð»®-±²¿´ ײº±®³¿¬·±²Œ÷ ©·¬¸±«¬ §±«®
½±²-»²¬ «²´»-- ®»¯«·®»¼ ¾§æ
ïò ´¿©å
îò ¿²§ ×ÔÊÛ ®»´¿¬»¼ ½±³°¿²§å
íò ¿²§ -»®ª·½» °®±ª·¼»® ©¸·½¸ °®±ª·¼» -»®ª·½»-
¬± ×ÔÊÛ ±® ¿--·-¬ ×ÔÊÛ ·² °®±ª·¼·²¹ -»®ª·½»-
ø·²½´«¼·²¹ ®»°¿·® ¿²¼ ©¿®®¿²¬§ -»®ª·½»-÷ ¬±
½«-¬±³»®-ò Ñ«® °«®°±-» ·² ½±´´»½¬·²¹ ¬¸»
л®-±²¿´ ײº±®³¿¬·±² ·-
¬± µ»»° ¿ ®»½±®¼ ±º ¬¸» ×ÔÊÛ °®±¼«½¬ °«®½¸¿-»¼
¾§ §±«ô ·² ±®¼»® ¬± °®±ª·¼» ¿ ¾»¬¬»® ©¿®®¿²¬§
-»®ª·½» ¬± §±« ·² ¬¸» «²´·µ»´§ »ª»²¬ ¬¸¿¬ ¬¸»®»
·- ¿ °®±¾´»³ ©·¬¸ §±«® ×ÔÊÛ °®±¼«½¬ò ×ÔÊÛ ³¿§
½±²¬¿½¬ §±« ¿¬ ¿²§ ±²» ±® ³±®» ±º ¬¸» ¿¼¼®»--ô
»³¿·´ ¿¼¼®»-- ±® ¬»´»°¸±²» ²«³¾»®- -»¬ ±«¬ ·²
¬¸» É¿®®¿²¬§ λ¹·-¬®¿¬·±² Ý¿®¼ò д»¿-» ½±²¬¿½¬
×ÔÊÛ ±² ïíðð êçì ëèí -¸±«´¼ §±« ²±¬ ©·-¸ ¬± ¾»
½±²¬¿½¬»¼ ¾§ ×ÔÊÛò
ÉßÎÎßÒÌÇ
ïò É¿®®¿²¬§
×ÔÊÛ ©¿®®¿²¬- ¬¸¿¬ »¿½¸ ×ÔÊÛ °®±¼«½¬ ©·´´
®»³¿·²ô º±® ¿ °»®·±¼ ±º ¬©»²¬§ º±«® øîì÷ ³±²¬¸-
½±³°«¬»¼ º®±³ ¬¸» ¼¿¬» ±º °«®½¸¿-» ±º ¬¸»
×ÔÊÛ °®±¼«½¬ô º®»» º®±³ ¼»º»½¬- ¿®·-·²¹ ·² ¬¸»
³¿²«º¿½¬«®» ±º ¬¸» ×ÔÊÛ °®±¼«½¬ ø•É¿®®¿²¬§Œ÷ò
Û¨½»°¬ º±® ½±²-«³»® ¹«¿®¿²¬»»- -»¬
±«¬ ·² ¬¸» ݱ³°»¬·¬·±² ¿²¼ ݱ²-«³»® ß½¬ îðïð
øݬ¸÷ ø•ß½¬Œ÷ô ×ÔÊÛ ¼±»- ²±¬ ³¿µ» ¿²§ º«®¬¸»®
©¿®®¿²¬·»- ±® ®»°®»-»²¬¿¬·±²- ·² ®»´¿¬·±² ¬± ×ÔÊÛ
°®±¼«½¬-ò
îò ɸ¿¬ ·- ²±¬ ݱª»®»¼ ¾§ ¬¸» É¿®®¿²¬§ò
̸» É¿®®¿²¬§ ¼±»- ²±¬ ¿°°´§ ·º ¿² ×ÔÊÛ °®±¼«½¬
·- ¼»º»½¬·ª» ¾§ ¿ º¿½¬±® ±¬¸»® ¬¸¿² ¿ ¼»º»½¬
¿®·-·²¹ ·² ¬¸» ³¿²«º¿½¬«®» ±º ¬¸» ×ÔÊÛ °®±¼«½¬ô
·´ª»ò½±³ò¿«
·²½´«¼·²¹ ¾«¬ ²±¬ ´·³·¬»¼ ¬±æ
ø¿÷ ¼¿³¿¹» ¬¸®±«¹¸ ³·-«-» ø·²½´«¼·²¹ º¿·´«®»
¬± ³¿·²¬¿·²ô -»®ª·½» ±® «-» ©·¬¸ °®±°»® ½¿®»÷ô
²»¹´»½¬ô ¿½½·¼»²¬ ±® ±®¼·²¿®§ ©»¿® ¿²¼ ¬»¿®
ø·²½´«¼·²¹ ¼»¬»®·±®¿¬·±² ±º °¿®¬- ¿²¼ ¿½½»--±®·»-
¿²¼ ¹´¿-- ¾®»¿µ¿¹»÷å
ø¾÷ «-» º±® °«®°±-» º±® ©¸·½¸ ¬¸» ×ÔÊÛ °®±¼«½¬
©¿- ²±¬ -±´¼ ±® ¼»-·¹²»¼å
ø½÷ «-» ±® ·²-¬¿´´¿¬·±² ©¸·½¸ ·- ²±¬ ·² ¿½½±®¼¿²½»
·²-¬¿´´¿¬·±²å
ø¼÷ «-» ±® ±°»®¿¬·±² ¿º¬»® ¿ ¼»º»½¬ ¸¿- ±½½«®®»¼ ±®
¾»»² ¼·-½±ª»®»¼å
ø»÷ ¼¿³¿¹» ¬¸®±«¹¸ º®»·¹¸¬ô ¬®¿²-°±®¬¿¬·±² ±®
¸¿²¼´·²¹ ·² ¬®¿²-·¬ ø±¬¸»® ¬¸¿² ©¸»² ×ÔÊÛ ·-
®»-°±²-·¾´»÷å
øº÷ ¼¿³¿¹» ¬¸®±«¹¸ »¨°±-«®» ¬± ½¸»³·½¿´-ô ¼«-¬-ô
®»-·¼«»-ô »¨½»--·ª» ª±´¬¿¹»ô ¸»¿¬ô ¿¬³±-°¸»®·½
½±²¼·¬·±²- ±® ±¬¸»® º±®½»- ±® »²ª·®±²³»²¬¿´
º¿½¬±®- ±«¬-·¼» ¬¸» ½±²¬®±´ ±® ×ÔÊÛå
°«®½¸¿-»® ±® ¿²§ °»®-±² ±¬¸»® ¬¸¿² ×ÔÊÛô ¿²
»³°´±§»» ±º ×ÔÊÛ ±® ¿² ¿«¬¸±®·-»¼ ×ÔÊÛ -»®ª·½»
½±²¬®¿½¬±®öå
ø¸÷ «-» ±º °¿®¬-ô ½±³°±²»²¬- ±® ¿½½»--±®·»-
¿°°®±ª»¼ ¾§ ×ÔÊÛò
ø·÷ ¼¿³¿¹» ¬± -«®º¿½» ½±¿¬·²¹- ½¿«-»¼ ¾§ ½´»¿²·²¹
±® ³¿·²¬»²¿²½» «-·²¹ °®±¼«½¬- ²±¬ ®»½±³³»²¼»¼
·² ¬¸» ×ÔÊÛ °®±¼«½¬ ¸¿²¼¾±±µ °®±ª·¼»¼ ¬± ¬¸»
°«®½¸¿-»® «°±² °«®½¸¿-» ±º ¬¸» ×ÔÊÛ °®±¼«½¬å
ø¶÷ ¼¿³¿¹» ¬± ¬¸» ¾¿-» ±º ¿² »´»½¬®·½ ±ª»² ¼«» ¬±
·¬»³- ¸¿ª·²¹ ¾»»² °´¿½»¼ ±² ¬¸» ¾¿-» ±º ¬¸» ±ª»²
½¿ª·¬§ ±® ½±ª»®·²¹ ¬¸» ¾¿-»ô -«½¸ ¿- ¿´«³·²·«³
º±·´ ø¬¸·- ·³°»¼»- ¬¸» ¬®¿²-º»® ±º ¸»¿¬ º®±³ ¬¸»
»´»³»²¬ ¬± ¬¸» ±ª»² ½¿ª·¬§ ¿²¼ ½¿² ®»-«´¬ ·²
·®®»°¿®¿¾´» ¼¿³¿¹»÷å ±®
øµ÷ ¼¿³¿¹»-ô ¼»²¬- ±® ±¬¸»® ½±-³»¬·½
·³°»®º»½¬·±²- ²±¬ ¿ºº»½¬·²¹ ¬¸» °»®º±®³¿²½» ±º ¬¸»
×ÔÊÛ ·² ®»-°»½¬ ±º ¿² ×ÔÊÛ °®±¼«½¬ °«®½¸¿-»¼ ¿- ¿
•º¿½¬±®§ -»½±²¼Œ ±® º®±³ ¼·-°´¿§
̸» É¿®®¿²¬§ ¼±»- ²±¬ »¨¬»²¼ ¬± ´·¹¸¬ ¹´±¾»-
«-»¼ ·² ×ÔÊÛ °®±¼«½¬-ò
íò ܱ³»-¬·½ Ë-»
Û¿½¸ ×ÔÊÛ °®±¼«½¬ ·- ³¿¼» º±® ¼±³»-¬·½ «-»ò ̸·-
É¿®®¿²¬§ ³¿§ ²±¬ »¨¬»²¼ ¬± ×ÔÊÛ °®±¼«½¬- «-»¼
º±® ½±³³»®½·¿´ °«®°±-»-ò
ìò Ì·³» º±® Ý´¿·³ «²¼»® ¬¸» É¿®®¿²¬§
DZ« ³«-¬ ³¿µ» ¿²§ ½´¿·³ «²¼»® ¬¸·- É¿®®¿²¬§
©·¬¸·² ¬©»²¬§ »·¹¸¬ øîè÷ ¼¿§- ¿º¬»® ¬¸» ±½½«®®»²½»
±º ¿² »ª»²¬ ©¸·½¸ ¹·ª»- ®·-» ¬± ¿ ½´¿·³ °«®-«¿²¬
¬± ¬¸» É¿®®¿²¬§ô ¾§ ¾±±µ·²¹ ¿ -»®ª·½» ½¿´´ ±² ¬¸»
¬»´»°¸±²» ²«³¾»® ¾»´±©ò
ݱ²¬·²«»¼ ±ª»®òòò
ëò Ю±±º ±º Ы®½¸¿-»
Ý«-¬±³»®- ³«-¬ ®»¬¿·² °®±±º ±º °«®½¸¿-» ·² ±®¼»®
¬± ¾» »´·¹·¾´» ¬± ³¿µ» ¿ ©¿®®¿²¬§ ½´¿·³ ·² ®»-°»½¬
±º ¿² ×ÔÊÛ °®±¼«½¬ò
êò Ý´¿·³·²¹ «²¼»® ¬¸» É¿®®¿²¬§
Ý«-¬±³»®- ©·´´ ¾»¿® ¬¸» ½±-¬ ±º ½´¿·³·²¹ «²¼»® ¬¸·-
É¿®®¿²¬§ «²´»-- ×ÔÊÛ ¼»¬»®³·²»- ¬¸» »¨°»²-»-
¿®» ®»¿-±²¿¾´»ô ·² ©¸·½¸ ½¿-» ¬¸» ½«-¬±³»®
³«-¬ ½´¿·³ ¬¸±-» »¨°»²-»- ¾§ °®±ª·¼·²¹ ©®·¬¬»²
»ª·¼»²½» ±º »¿½¸ »¨°»²-» ¬± ×ÔÊÛ ¿¬ ¬¸» ¿¼¼®»--
±² ¬¸» É¿®®¿²¬§ λ¹·-¬®¿¬·±² Ý¿®¼ò
éò ͬ¿¬«¬±®§ η¹¸¬-
ø¿÷ ̸»-» ¬»®³- ¿²¼ ½±²¼·¬·±²- ¼± ²±¬ ¿ºº»½¬ §±«®
-¬¿¬«¬±®§ ®·¹¸¬-ò
ø¾÷ ̸» ´·³·¬¿¬·±²- ±² ¬¸» É¿®®¿²¬§ -»¬ ±«¬ ·² ¬¸·-
¼±½«³»²¬ ¼± ²±¬ »¨½´«¼» ±® ´·³·¬ ¬¸» ¿°°´·½¿¬·±²
±º ¬¸» ½±²-«³»® ¹«¿®¿²¬»»- -»¬ ±«¬ ·² ¬¸» ß½¬ ±®
¿²§ ±¬¸»® »¯«·ª¿´»²¬ ±® ½±®®»-°±²¼·²¹ ´»¹·-´¿¬·±²
·² ¬¸» ®»´»ª¿²¬ ¶«®·-¼·½¬·±² ©¸»®» ¬± ¼± -± ©±«´¼æ
ø·÷ ½±²¬®¿ª»²» ¬¸» ´¿© ±º ¬¸» ®»´»ª¿²¬ ¶«®·-¼·½¬·±²å
±®
ø··÷ ½¿«-» ¿²§ °¿®¬ ±º ¬¸» É¿®®¿²¬§ ¬± ¾» ª±·¼ò
ø½÷ ×ÔÊÛ »¨½´«¼»- ·²¼·®»½¬ ±® ½±²-»¯«»²¬·¿´ ´±--
±º ¿²§ µ·²¼ ø·²½´«¼·²¹ô ©·¬¸±«¬ ´·³·¬¿¬·±²ô ´±-- ±º
«-» ±º ¬¸» ×ÔÊÛ °®±¼«½¬÷ ¿²¼ ø±¬¸»® ¬¸¿² »¨°®»--´§
°®±ª·¼»¼ º±® ·² ¬¸»-» ¬»®³- ¿²¼ ½±²¼·¬·±²-÷
-«¾¶»½¬ ¬± ¿´´ ¬»®³-ô
½±²¼·¬·±²- ¿²¼ ©¿®®¿²¬·»- ·³°´·»¼ ¾§ ½«-¬±³ô ¬¸»
¹»²»®¿´ ´¿©ô ¬¸» ß½¬ ±® ±¬¸»® -¬¿¬«¬»ò
ø¼÷ ̸» ´·¿¾·´·¬§ ±º ×ÔÊÛ ¬± §±« º±® ¿ ¾®»¿½¸ ±º ¿²§
»¨°®»-- ±® ²±²ó»¨½´«¼¿¾´» ·³°´·»¼ ¬»®³ô ½±²¼·¬·±²
±® ©¿®®¿²¬§ ·- ´·³·¬»¼ ¿¬ ¬¸» ±°¬·±² ±º ×ÔÊÛ ¬±æ
ø·÷ ®»°´¿½·²¹ ±® ®»°¿·®·²¹ ¬¸» ¼»º»½¬·ª» °¿®¬ ±º ¬¸»
×ÔÊÛ °®±¼«½¬å
ø··÷ °¿§·²¹ ¬¸» ½±-¬ ±º ®»°´¿½·²¹ ±® ®»°¿·®·²¹ ¬¸»
¼»º»½¬·ª» °¿®¬ ±º ¬¸» ×ÔÊÛ °®±¼«½¬å
ø···÷ ®»°´¿½·²¹ ¬¸» ×ÔÊÛ °®±¼«½¬å ±®
ø·ª÷ °¿§·²¹ ¬¸» ½±-¬ ±º ®»°´¿½·²¹ ¬¸» ×ÔÊÛ °®±¼«½¬ò
ø»÷ Ñ«® ¹±±¼- ½±³» ©·¬¸ ¹«¿®¿²¬»»- ¬¸¿¬ ½¿²²±¬
¾» »¨½´«¼»¼ «²¼»® ¬¸» ß«-¬®¿´·¿² ݱ²-«³»®
Ô¿©ò DZ« ¿®» »²¬·¬´»¼ ¬± ¿ ®»°´¿½»³»²¬ ±® ®»º«²¼
º±® ¿ ³¿¶±® º¿·´«®» ¿²¼ º±® ½±³°»²-¿¬·±² º±® ¿²§
±¬¸»® ®»¿-±²¿¾´§ º±®»-»»¿¾´» ´±-- ±® ¼¿³¿¹»ò
DZ« ¿®» ¿´-± »²¬·¬´»¼ ¬± ¸¿ª» ¬¸» ¹±±¼- ®»°¿·®»¼
±® ®»°´¿½»¼ ·º ¬¸» ¹±±¼- º¿·´ ¬± ¾» ±º ¿½½»°¬¿¾´»
¯«¿´·¬§ ¿²¼ ¬¸» º¿·´«®» ¼±»- ²±¬ ¿³±«²¬ ¬± ¿
³¿¶±® º¿·´«®»ò
èò Ü»º»½¬-
ß²§ °¿®¬ ±º ¿² ×ÔÊÛ °®±¼«½¬ ¼»»³»¼ ¬± ¾»
¼»º»½¬·ª» ¿²¼ ®»°´¿½»¼ ¾§ ×ÔÊÛ ·- ¬¸» °®±°»®¬§ ±º
×ÔÊÛò ×ÔÊÛ ®»-»®ª»- ¬¸» ®·¹¸¬ ¬± ·²-°»½¬ ¿²¼ ¬»-¬
×ÔÊÛ °®±¼«½¬- ·² ±®¼»® ¬± ¼»¬»®³·²» ¬¸» »¨¬»²¬ ±º
¿²§ ¼»º»½¬ ¿²¼ ¬¸» ª¿´·¼·¬§ ±º ¿ ½´¿·³ «²¼»® ¬¸»
É¿®®¿²¬§ò
ö̱ ´±½¿¬» §±«® ½´±-»-¬ ×ÔÊÛ ¿«¬¸±®·-»¼ -»®ª·½»
¿¹»²¬ °´»¿-» ½±²¬¿½¬ ×ÔÊÛ ±² ïíðð èëê ìïï ±®
ª·-·¬ ¸¬¬°æññ-«°°±®¬ò·´ª»ò½±³ò¿«ñ
ßÔÔ ÍÛÎÊ×ÝÛ ÝßÔÔÍ ÓËÍÌ ÞÛ ÞÑÑÕÛÜ
ÌØÎÑËÙØ ÌØÛ ×ÔÊÛ ÍÛÎÊ×ÝÛ ßÒÜ
É¿®®¿²¬§ Ý¿®¼
·´ª»ò½±³ò¿«
êí×ÔÊÛ Ñ°»®¿¬·²¹ Ó¿²«¿´
д»¿-» ½±³°´»¬» ¿²¼ -»²¼ ¬± ×ÔÊÛ ¿¬æ ÎÛÐÔÇ Ðß×Ü èíêïé
ÔÛ×ÝØØßÎÜÌ ÒÍÉ îðìð
Ô¿-¬ Ò¿³»æ Ú·®-¬ Ò¿³»æ
ß¼¼®»--æ
ͬ¿¬»æ б-¬½±¼»æ Û³¿·´æ
ر³» и±²»æ Ó±¾·´»æ
Ы®½¸¿-» Ü¿¬»æ ñ ñ øд»¿-» ¿¬¬¿½¸ °®±±º ±º °«®½¸¿-» ¬± ª¿´·¼¿¬» ©¿®®¿²¬§÷
ÓÑÜÛÔ ÒËÓÞÛÎ
ÍÛÎ×ßÔ ÒËÓÞÛÎ
ø·º §±« ½¿²²±¬ ´±½¿¬» ¬¸» -»®·¿´ ²«³¾»® °´»¿-» ½¿´´ ×ÔÊÛ ±² ïíðð èë êì ïï÷
ï
î
í
ì
ÉßÎÎßÒÌÇ ÎÛÙ×ÍÌÎßÌ×ÑÒ ÝßÎÜ
ðïðïîðïí
ðïðïîðïí
É¿®®¿²¬§ Ý¿®¼ ¬»¿® ±ºº
