Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
SKU Number: 351-8782
1-LIGHT SEMI-FLUSH MOUNT
Model Number: MH317
PACKAGE CONTENTS
HARDWARE CONTENTS
210605
Mounting Screw
X2
Wire Connector
X3
AA
A
Bolt Nut
X2
DD
BB
CC
Mounting Strap Unit
X1
Note: Hardware not shown actual size.
Vintage Bulb 60W
X1
EE
Turn off the power at the fuse or circuit box.
Page 2 of 3
210605
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
●
Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or
switching off circuit breaker).
● Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
● All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
● Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
● Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
PREPARATION
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire
Cutters, Safety Glasses, Ladder, Wire Stripper.

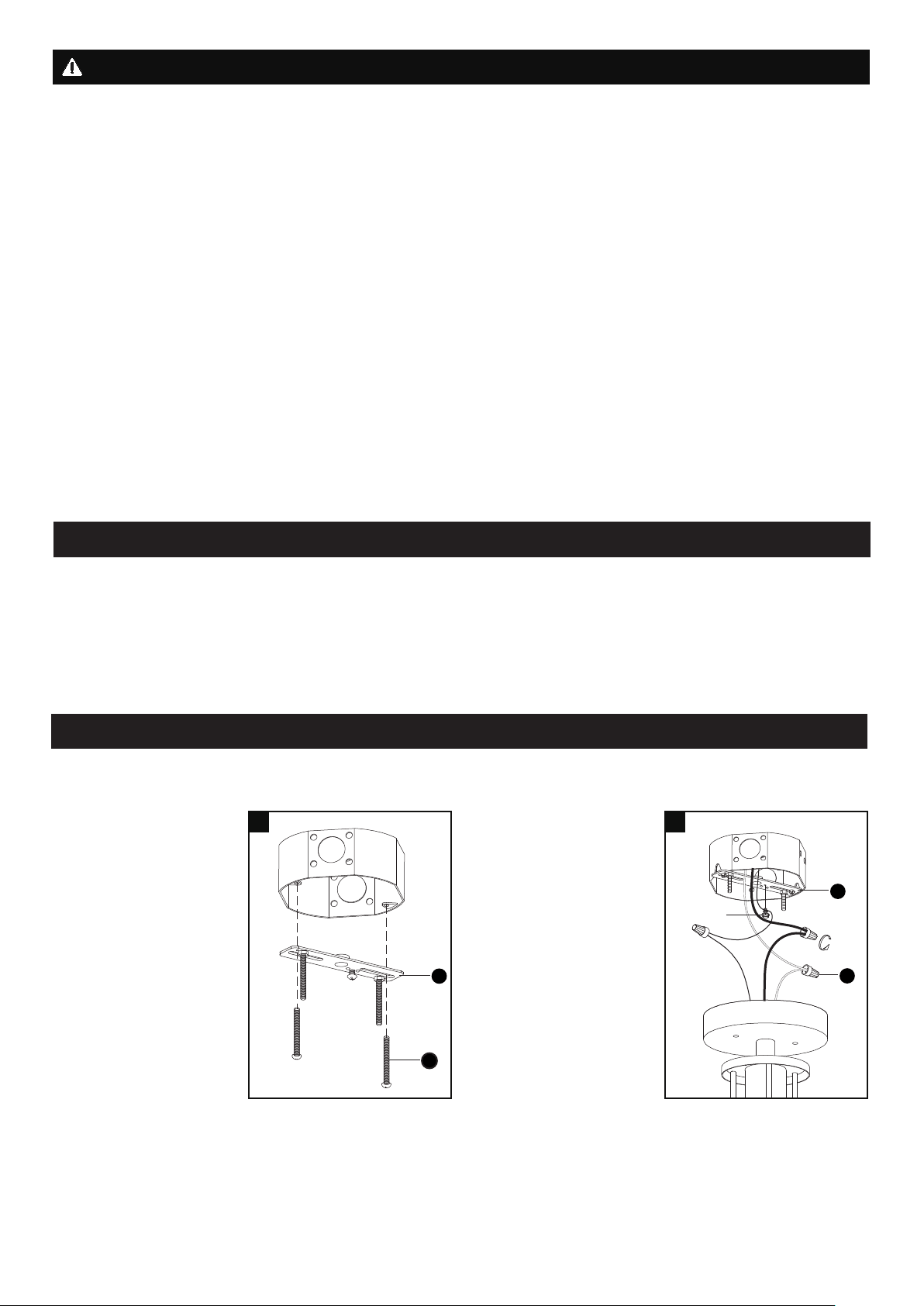

ASSEMBLY INSTRUCTIONS
SAFETY INFORMATION
1. Attach mounting strap
unit(AA) to outlet box by
using two mounting
screws(BB).
Note: The depth of
threaded pipe on the
mounting strap unit may
need to be adjusted to
properly fit the fixture.
1
AA
BB
2
Green
Groud Screw
CC
AA
2. Pull out the source wires
from the outlet box, make
wire connections using
wire connectors(CC) as
follows:
---Connect the black(hot)
wire from the fixture to the
black(hot) wire from the
power source.
---Connect the white
(neutral) wire from the
fixture to the white
(neutral) wire from the
power source.
---Attach the fixture
ground wire(bare wire) to the mounting strap unit (AA)
with the green ground screw, then connect the fixture
ground wire to the house ground wire with a wire
connector(CC).
Carefully put all of the wires back into the outlet box.
Page 3 of 3
Spare Parts List:
The following parts are available for re-order if damaged of missing. Call our toll free at 1-800-887-6326.
Assembly Kit
6402MM (1 SET)
210605
4
● To clean, turn off and wipe with a damp, non-abrasive cloth.
1) The light does not work:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
Check for crossed wires, ensure wiring is correct.
CARE AND MAINTENANCE
TROUBLESHOOTING
If unable to fix any of the above issues, please consult a certified electrician.
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST

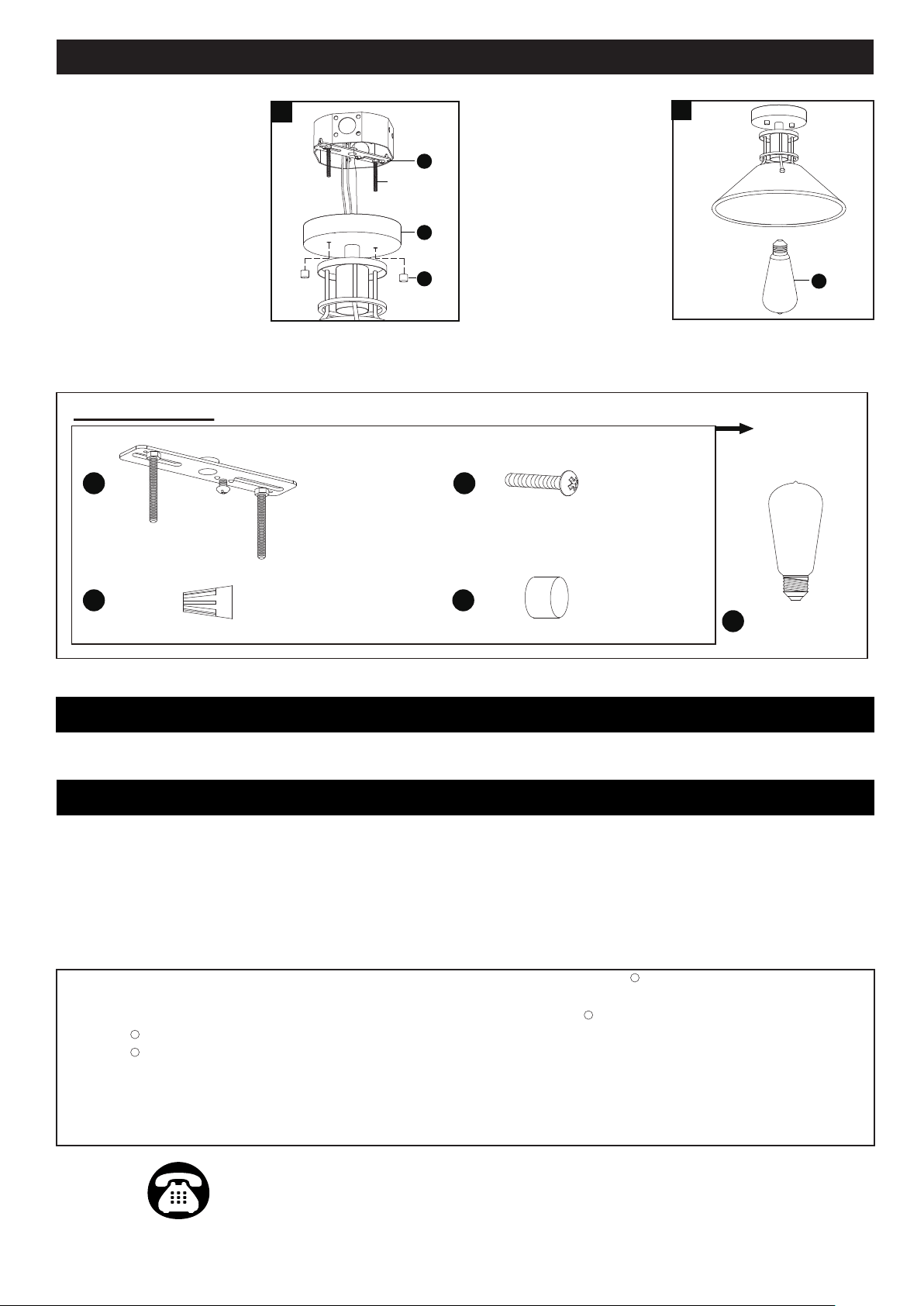

ASSEMBLY INSTRUCTIONS (continued)
Fixture Mounting
Screw
3
AA
A
DD
3. Attach the canopy(A) of
the fixture to the mounting
strap unit(AA) by aligning
and inserting the two
fixture mounting screws
from the mounting strap
unit(AA) into the open
holes on the canopy(A),
then secure the canopy(A)
with two bolt nuts(DD).
EE
Turn on the power at the
fuse or circuit box.
4. Install 1x60W medium
base vintage bulb(EE).
(included)
See relamping label at
socket area or packaging
for maximum allowed
wattage.
Mounting Screw
X2
Wire Connector
X3
AA AA
Bolt Nut
X2
DDCC
Mounting Strap Unit
X1
Vintage Bulb 60W
8072EB
EE
