OWNER’S manual WASHING MACHINE

WM3488H*

Please read this owner’s manual thoroughly before operating and keep it handy for reference at all times.

MFL63288674

ENGLISH ESPAÑOL FRANÇAIS

TABLE OF CONTENTS

TABLE OF CONTENTS

3 PRODUCT FEATURES

4 IMPORTANT SAFETY INSTRUCTIONS

BASIC SAFETY PRECAUTIONS GROUNDING INSTRUCTIONS SAFETY INSTRUCTIONS FOR INSTALLATION SAFETY INSTRUCTIONS FOR USE, CARE. CLEANING, AND DISPOSAL

8 PRODUCT OVERVIEW

Parts Accessories Control Panel Features

11 INSTALLATION

Installation Overview Choosing the Proper Location Unpacking and Removing Shipping Bolts Connecting the Water Lines Connecting the Drain Line Leveling the Washer Connecting to the Power Supply Testing the Washer

18 PREPARATION

Sorting Wash Loads
- Fabric Care Labels
- Sorting Laundry Using Detergent/Fabric Softener
- Recommended Detergent
- Loading the Dispenser

22 OPERATION

Using the Washer Cycle Guide Wash Cycles
- Sanitary: Reducing Laundry Bacteria

Newest Added: LW1816ER/00 LFXS30766D/00 32LD350-UB LRFC25750SW/00 WM8000HWA/00
- Baby Wear: Lightly Soiled Baby Clothes
- Bulky/Large: Blankets or Bulky Items
- Heavy Duty: Heavily Soiled Items
- Perm. Press: Wrinkle-Free Items
- Cotton/Normal: Normal Items
-  Sports Wear: High-Performance Fabrics
-  Hand Wash/Wool: Items Labeled Wool or Hand-Wash
- Delicates: Sheer Items
- Speed Wash: Washing Quickly

-  Wash+Dry: A Small Load which Can Be Tumble Dried
- Drain+Spin: Drain and Spin Only Cycle Modifier Buttons Setting Options Before Cycle
- Soil Level

- Temp.

- Spin Speed

- Dry

- Delay Wash

- Water Plus

- Rinse+Spin

- Extra Rinse

- Pre Wash

Setting Options During Cycle

- Child Lock

- PGM Save

-  Custom PGM

Adding Garments

29 MAINTENANCE

Regular Cleaning
- Care After Wash
- Care in Cold Climates Cleaning
- Tub Clean

- Cleaning the Detergent Dispenser Drawer
- Cleaning the Water Inlet Filters
- Cleaning the Drain Pump Filter
- Cleaning the Door Seal

35 TROUBLESHOOTING

Checking Error Messages Before Calling for Service

38 SPECIFICATIONS

39 USING SMART DIAGNOSIS™

40 USING THE TAG ON FUNCTION

41 WARRANTY

PRODUCT FEATURES

ENGLISH

PRODUCT FEATURES

INVERTER DIRECT-DRIVE MOTOR

The inverter direct drive motor, which is directly connected to the drum, is capable of producing multiple distinct motions for optimal wash performance with very little noise and vibration. The motor assembly also contains fewer moving parts, resulting in fewer repairs.

SMART DIAGNOSIS™

Should you experience any technical difficulty with your washing machine, it has the capability of transmitting diagnostic data to your smart phone via a free app or directly to the Customer Information Center for quick and efficient troubleshooting (refer to page 39).

TUB CLEAN

Regular cleaning of the tub on a monthly basis using TUB CLEAN can help keep the tub clean and fresh.

MAGNETIC DOOR PLUNGER

Safely and conveniently secure the door slightly ajar with the magnetic door plunger. This will promote air circulation and allow the interior of the machine to dry. To use this feature, remove the clean laundry then position the door so that the door is almost closed. When the magnetic door plunger comes into contact with the metal washer cabinet, it will secure the door slightly open allowing the interior of the washer to dry.

LARGE CAPACITY STAINLESS STEEL DRUM

The large capacity stainless steel drum offers extreme durability and is tilted to improve efficiency and allow easier access for large items.

CHILD LOCK

Use this option to disable the controls during a wash cycle. This option can prevent children from changing cycles or operating the machine.

DETERGENT DISPENSER DRAWER

The four-compartment dispenser drawer makes it easy to separate the pre-wash detergent, the main laundry detergent, liquid bleach, and fabric softener into different compartments and will be dispensed automatically at the appropriate time.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or electric shock, or to prevent property damage, injury to persons, or death.

Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
 This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or CAUTION.
These words mean:
 DANGER You will be killed or seriously injured if you don’t immediately follow instructions.
 WARNING You can be killed or seriously injured if you don’t follow instructions.

CAUTION You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

BASIC SAFETY PRECAUTIONS
 WARNING

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following : •  Use this appliance only for its intended purpose as described in this owner’s manual. •  Before use, the washer must be properly installed as described in this manual. •  Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode. •  Do not add gasoline, dry cleaning solvents, or other flammable or explosive substances to the wash water.
These substances give off vapors that could ignite or explode. •  Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable. do not smoke or use an open flame during this time. •  Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. •  Before the washer is removed from service or discarded, remove the lid to prevent children from climbing inside. •  Do not install or store the washer where it will be exposed to the weather or freezing temperatures. •  Do not tamper with controls. •  Keep the area underneath and around your appliances free of combustible materials (lint, paper.

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING For your safety, the information in this manual must be followed to minimize the risk of fire. explosion, or electric shock, or to prevent property damage, injury to persons, or death.

GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or servicer if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician. Failure to follow these warnings can cause serious injury, fire, electric shock, or death.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire. explosion, or electric shock, or to prevent property damage, injury to persons, or death.

SAFETY INSTRUCTIONS FOR INSTALLATION

WARNING To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following :

•  Refer to the INSTALLATION INSTRUCTIONS for detailed grounding procedures. Installation instructions are packed with the washer for the installer’s reference. If the washer is moved to a new location, have it checked and reinstalled by a qualified service technician. Failure to follow this warning can cause serious injury, fire. electric shock, or death. •  Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
Failure to follow this warning can cause serious injury, fire, electric shock, or death. •  For personal safety, this appliance must be properly grounded. Failure to follow this warning can cause serious injury, fire, electric shock, or death. •  The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock from this appliance. •  This washer must be plugged into a 120 VAC, 60 Hz grounded outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death. •  Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Failure to follow this warning can cause serious injury, fire, electric shock, or death. •  Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Failure to follow this warning can cause serious injury, fire. electric shock, or death. •  Do not install on carpet. Install washer on a solid floor. Failure to follow this warning can cause serious leak damage. •  Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong outlet. Failure to follow these warnings can cause serious injury, fire, electric shock, or death. •  The washer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING For your safety, the information in this manual must be followed to minimize the risk of fire. explosion, or electric shock, or to prevent property damage, injury to persons, or death.

SAFETY INSTRUCTIONS FOR USE, CARE, CLEANING, AND DISPOSAL

WARNING To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following :

SAVE THESE INSTRUCTIONS

•  Unplug the washer before cleaning to avoid the risk of electric shock. •  Never use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage the finish. •  Do not put oily or greasy rags or clothing on top of the washer. These substances give off vapors that could ignite the materials. •  Do not wash items that are soiled with vegetable or cooking oil. These items may contain some oil after laundering. Due to the remaining oil, the fabric may smoke or catch fire by itself. •  Disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply.
Failure to follow this warning can cause serious injury, fire, electric shock, or death. •  Do not combine laundry products for use in one load unless specified on the label. •  Do not mix chlorine bleach with ammonia or acids such as vinegar. Follow package directions when using laundry products. Incorrect usage can produce poisonous gas, resulting in serious injury or death. •  Do not reach into the washer while parts are moving. Before loading, unloading, or adding items, press the START/PAUSE button and allow the drum to coast to a complete stop before reaching inside. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

•  Do not allow children to play on or in the washer.
Close supervision of children is necessary when the washer is used near children. As children grow, teach them the proper, safe use of all appliances. Failure to comply with these warnings could result in serious injury to persons or death. •  Destroy the carton, plastic bag, and other packing materials after the washer is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers. Failure to comply with these warnings could result in serious injury to persons or death. •  Keep laundry products out of children’s reach. To prevent injury to persons, observe all warnings on product labels. Failure to comply with these warnings could result in serious injury to persons or death.. •  Before your washer is removed from service or discarded, remove the door to the washing compartment to avoid the danger of children or small animals getting trapped inside Failure to do so can result in serious injury to persons or death. •   Make sure the dispenser drawer is closed at all times when not being filled with laundry products.
Failure to keep the drawer closed can result in personal injury or flooding. •  Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel - Do not contact the following parts while the appliance is energized: pump, valve, motor, control board. drying heater.

PRODUCT OVERVIEW

PRODUCT OVERVIEW

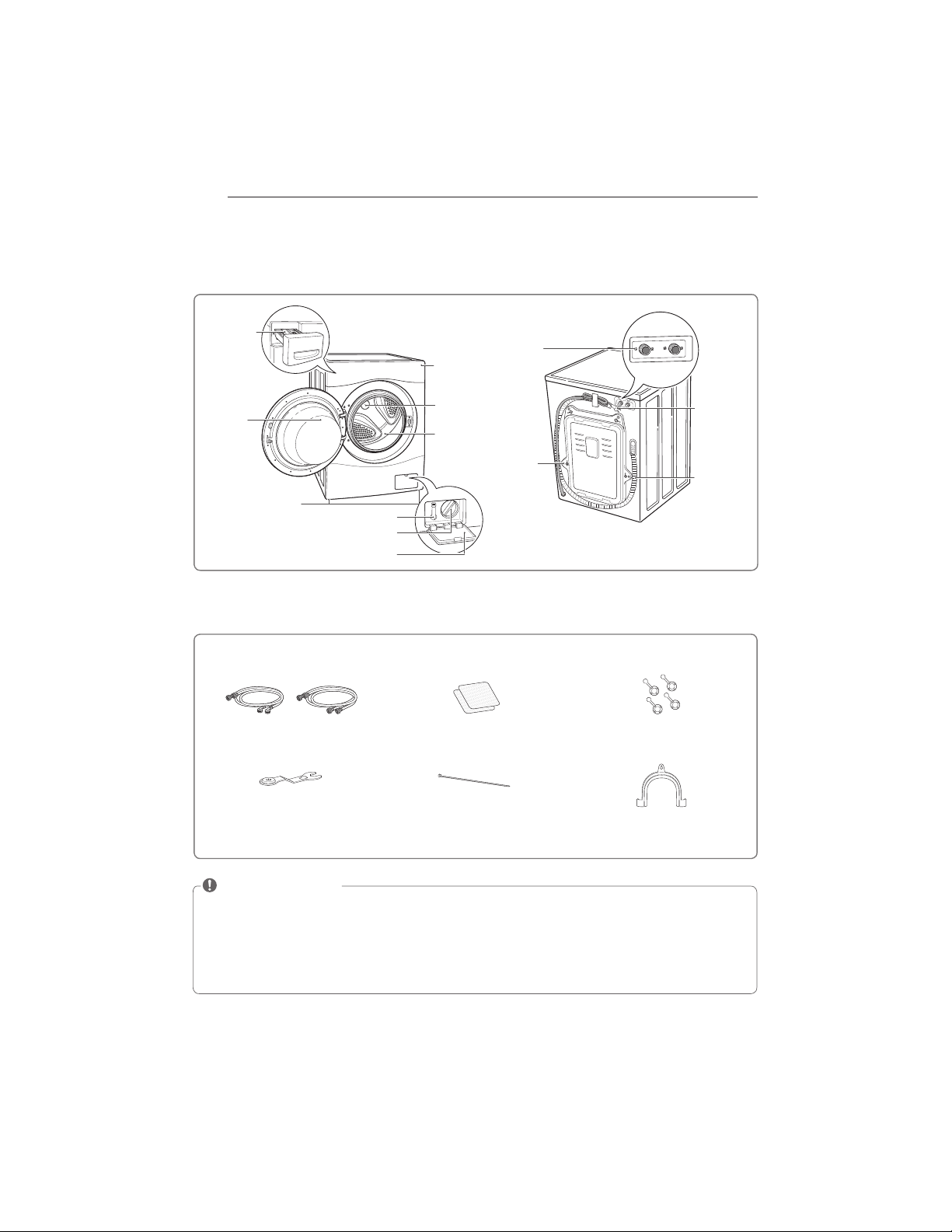

Parts

Accessories

NOTE Contact LG Customer Service at  1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are missing.
For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized components or parts.
The images in this guide may be different from the actual components and accessories, and are subject to change by the manufacturer without prior notice for product improvement purposes.

Hot/cold water hoses Non-skid pads Caps for covering shipping bolt holes

Wrench Tie strap Elbow bracket (for securing drain hose)

Included Accessories

Detergent dispenser drawer (See page 20)

Door

Control panel (See page 9)

Leveling feet

Drain pump filter cover

Drain pump filter

Drain hose

Water inlets

Shipping bolts

Power cord

Drain hose

Large-capacity stainless steel drum

Inverter direct- drive motor

PRODUCT OVERVIEW

ENGLISH

Control Panel Features

Operation

Button Description

Turns the washing machine on and off. (During the wash cycle) stops operation, and cancels the settings.

Tub Clean
-  For tub clean (see page 30).
Sanitary
-  For underwear, diapers, etc. (see page 24).
Baby Wear
-  For lightly soiled baby clothes (see page 24).
Bulky/Large
-  For blankets or large, bulky items (see page 24).
Heavy Duty
-  For heavily soiled cotton fabric (see page 24).
Perm. Press
-  For wrinkle-free fabric (see page 24).
Cotton/Normal
-  For general laundry, such as cotton T-shirts or towels (see page 24).
Sports Wear
-  For high-performance fabrics which need special care (see page 24).
Hand Wash/Wool
-  For wool or hand-wash fabrics (see page 24).
Delicates
-  For sheer and delicate fabrics (see page 24).
Speed Wash
-  For small quantities of lightly soiled items (see page 24).
Wash+Dry
-  For a small load which can be washed and dried in the same cycle (see page 24).
Drain+Spin
-  For items that only require draining and spinning (see page 24).

Starts or pauses the wash cycle.
-  If you do not press the Start/Pause button within 4 minutes of selecting a cycle, the washing machine will turn off automatically and all settings will be lost.

(Press repeatedly) Selects a wash cycle by soil level (see page 25).
- Selects soil level from 3 settings.

(Press repeatedly) Selects the water temperature for the wash cycle (see page 25).
- Select water temperature from 5 settings.

(Press repeatedly) Selects the spin speed (see page 25).
- Selects spin speed from 5 settings.

(Press repeatedly) Selects a dry cycle. Pressing this button enables drying. (See page 26).

Operation Custom PGM Button Display Cycle selector

Soil Level Selection Button

Dry Selection Button

Spin Speed Selection Button

Pre Wash Button Water Temperature Selection Button

Start/ Pause Button

Power Button

PRODUCT OVERVIEW

Operation (continued)

Button Description

Set the delay time of starting the cycle (see page 27).

Use this option to add extra water to the wash and rinse cycles for better wash performance with large or bulky items.

Use this option to save a special combination of settings that you use frequently. (See page 28).

Use this option to rinse detergent from the load. (See page 27).

(Press before wash cycle) Add an extra rinse to the selected cycle (see page 27). (Press and hold during wash cycle) The drum is equipped with a white LED light that illuminates when the washer is turned on. (See page 28). (Press before wash cycle) Pre-wash heavily soiled laundry (see page 27). (Press and hold during wash cycle) Lock/Unlock the buttons (see page 28).

Display

Door lock indicator Child lock indicator

Cycle process indicator

Estimated time remaining/ error message display (See page 35)

Display Icon Description

This portion of the display shows which stage of the wash cycle is currently underway (Wash, Rinse, Spin, Dry).

This indicator shows that the door is locked. The washer door will lock while the washer is operating. The door can be unlocked by pressing the START/ PAUSE button to stop the washer.

This indicator shows that the washer has been set for Child Lock. The Child Lock function locks the buttons on the control panel to prevent them from being used.

When the START/PAUSE button is pressed, the washer automatically detects the wash load (weight) and optimizes the washing time, based on the selected cycle and options. The display will then indicate the estimated time remaining for the selected wash cycle.

INSTALLATION

ENGLISH

INSTALLATION

Installation Overview

WARNING Washer is heavy! Two or more people are required when moving and unpacking the washer. Failure to follow this warning can result in back or other injury.
Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
Properly ground washer to conform with all governing codes and ordinances. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
To reduce the risk of electric shock, do not install the washer in humid spaces. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
The base opening must not be obstructed by carpeting when the washer is installed on a carpeted floor.
Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

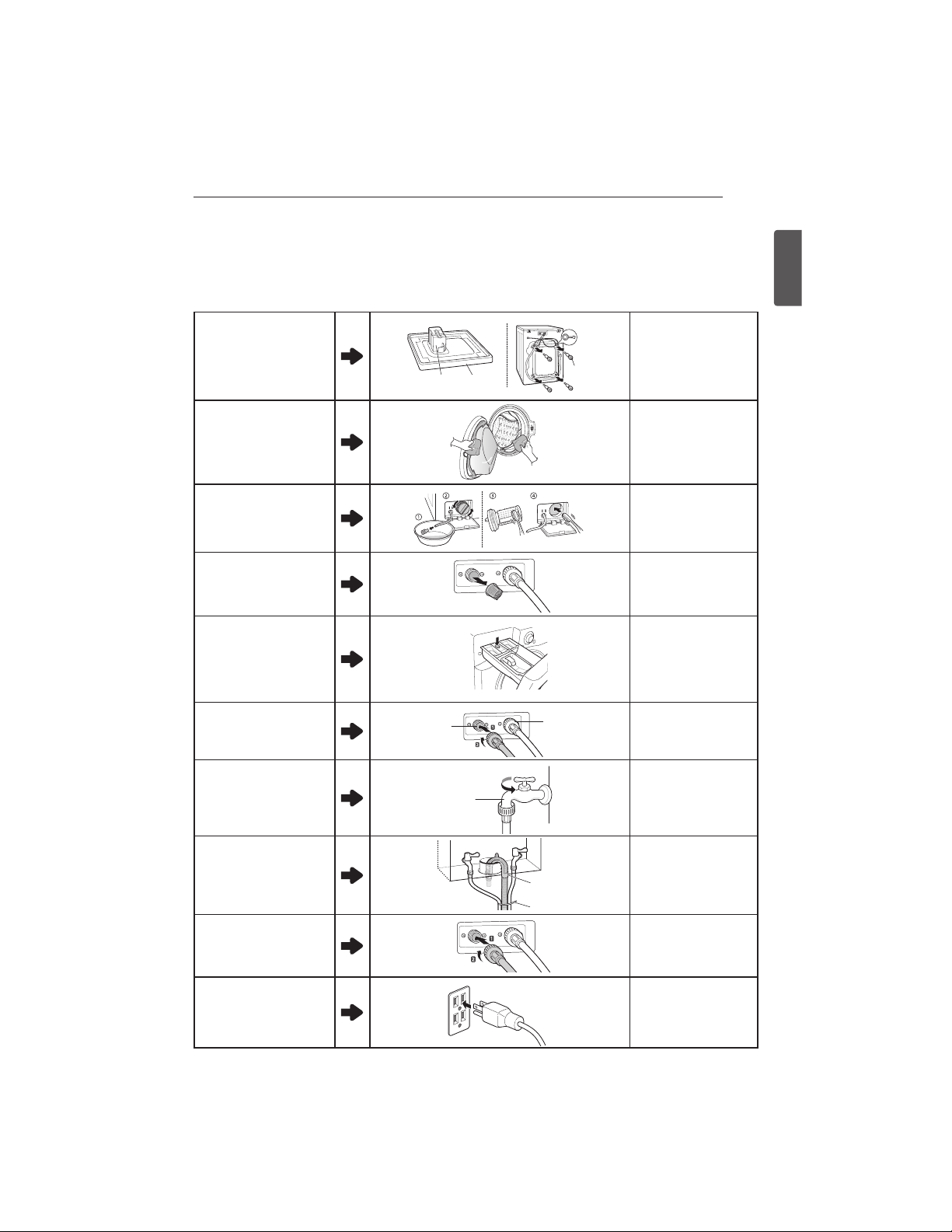

Choosing the proper location Unpacking and removing shipping bolts Connecting the water line

Connecting the drain line Leveling the washer Connecting to the power supply

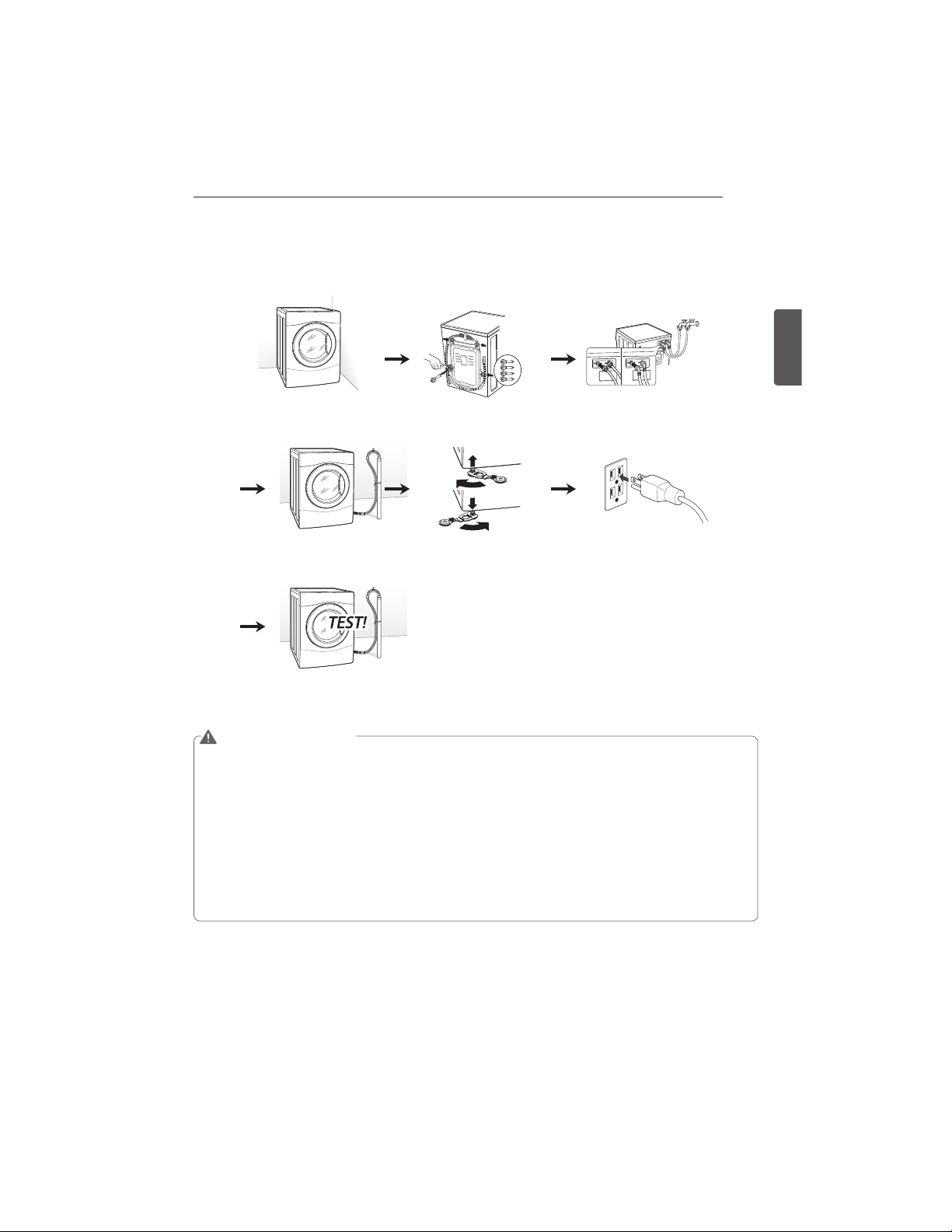

Testing the washer

INSTALLATION

Choosing the Proper Location

Install the washing machine on a solid floor that is strong and rigid enough to support the weight of the washing machine, even when fully loaded. without flexing or bouncing. If the floor has too much flex, you may need to reinforce it to make it more rigid. If the floor is not solid, it may cause severe vibration and noise.
1 Clean the floor before installation.
- Make sure to select solid and smooth ground.

2 Two or more people are needed for moving and unpacking the washing machine.

3 Allow for sufficient space between the walls and the washing machine for installation.

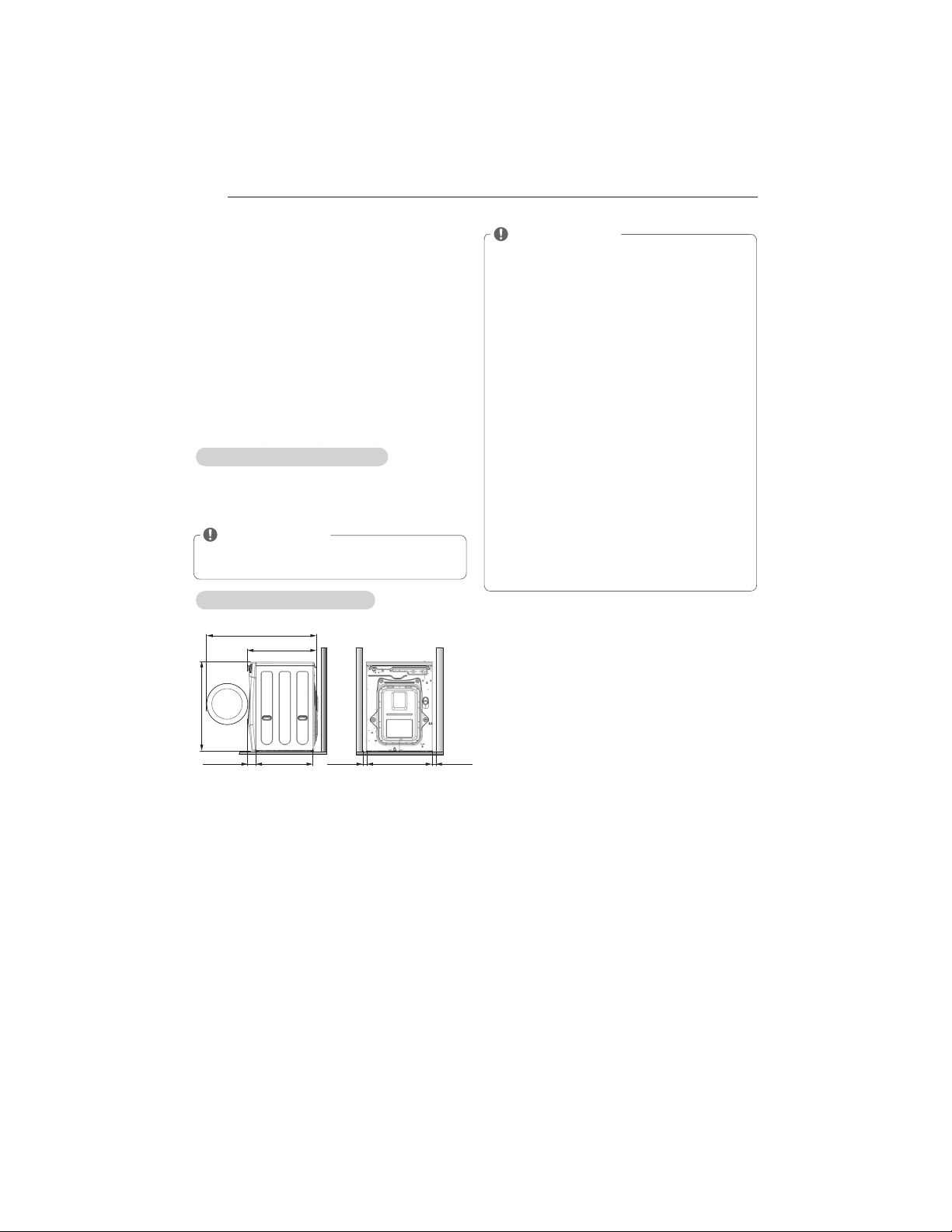

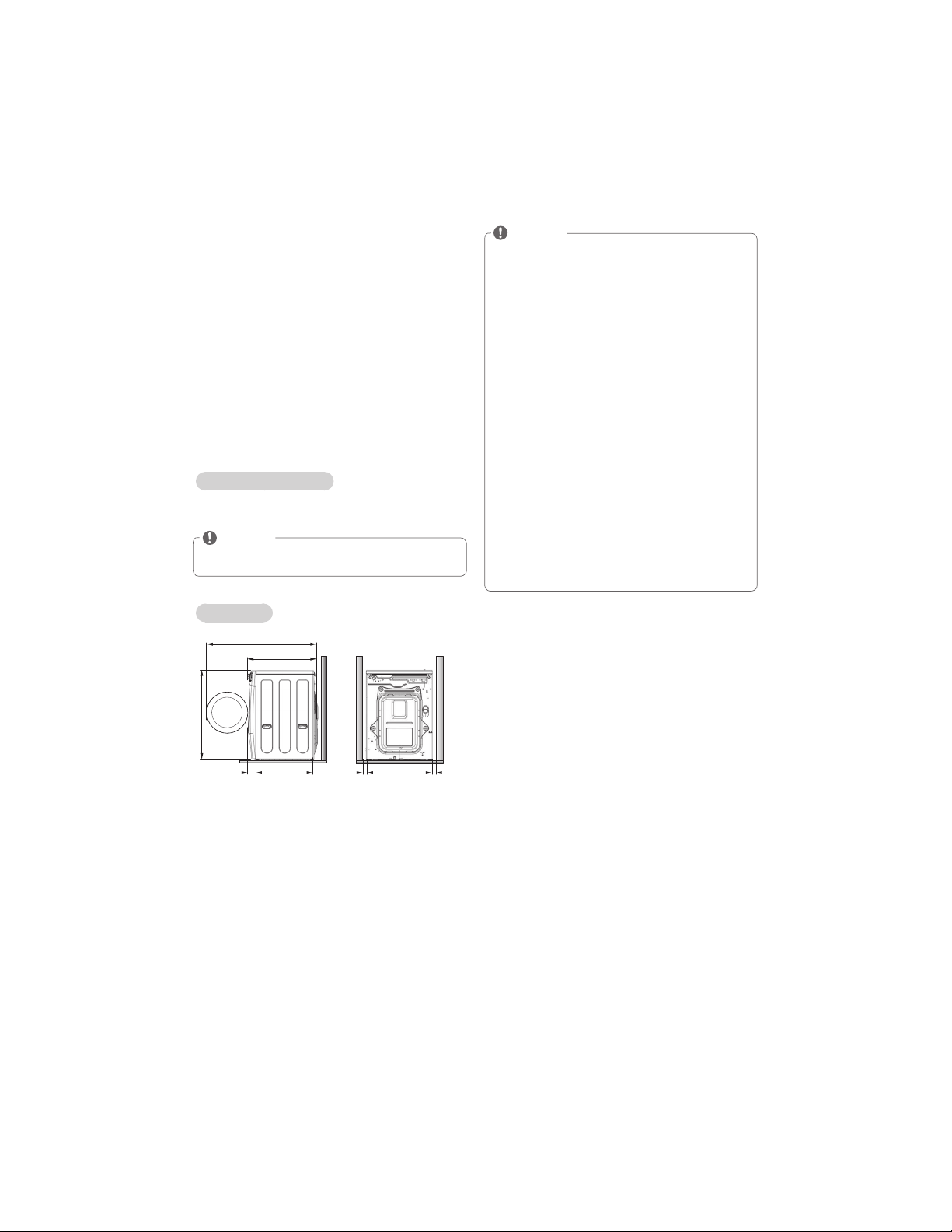

Space Requirements

You must allow sufficient space for water lines. the drain line, and airflow.

NOTE Be sure to allow for wall, door, or floor moldings that may incr he required clearances.

Clearances

21.6" (54.86 cm)

25.2" (64 cm)

45" (114.3 cm)

33.5" (85.09 cm)

3.5" (8.89 cm)

24" (60.96 cm)
1" (2.5 cm)

NOTE The floor must be strong and rigid enough to support the weight of the washer, when fully loaded, without flexing or bouncing. If your floor has too much flex. you may need to reinforce it to make it more rigid.
A floor that is adequate for a top-loading washer may not be rigid enough for a front loading washer, due to the difference in the spin speed and direction. If the floor is not solid, your washer may vibrate and you may hear and feel the vibration throughout your house.
Before installing the washer, make sure the floor is clean, dry and free of dust, dirt, water and oils so the washer feet can not slide easily.
Leveling feet that can move or slide on the floor can contribute to excess vibration and noise due to poor contact with the floor.
If a drip pan must be used, take extra care to follow the instructions provided with the drip pan and make sure the leveling feet are adjusted for firm and even contact with the pan. Use of drip pans and failure to properly level the machine may result in increased vibration and noise during operation.

INSTALLATION

ENGLISH

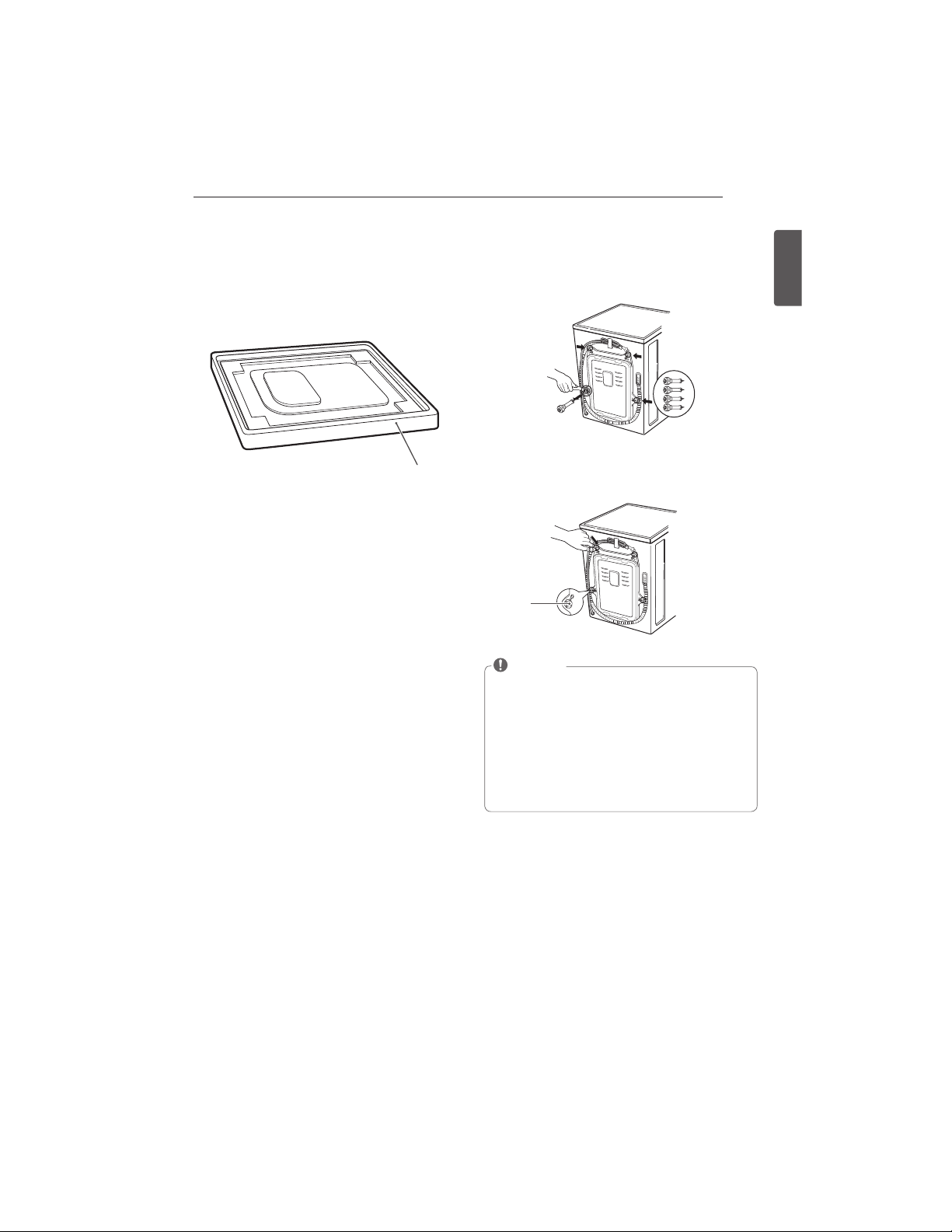

1 Starting with the bottom two shipping bolts. use the wrench (included) to fully loosen all four shipping bolts by turning them counterclockwise.
Remove the bolt assemblies by wiggling them slightly while pulling them out.

2 Locate the four hole caps included in the accessory pack and install them in the shipping bolt holes.

NOTE Save the bolt assemblies for future use. To prevent damage to internal components, do not transport the washer without reinstalling the shipping bolts.
Failure to remove shipping bolts and retainers may cause severe vibration and noise, which can lead to permanent damage to the washer.
The cord is secured to the back of the washer with a shipping bolt to help prevent operation with shipping bolts in place.

Unpacking and Removing Shipping Bolts

Remove the washer from the carton base.

If you must lay the washer down to remove the base packaging materials, always lay it carefully on its side. Do not lay the washer on its front or back.

Carton Base

INSTALLATION

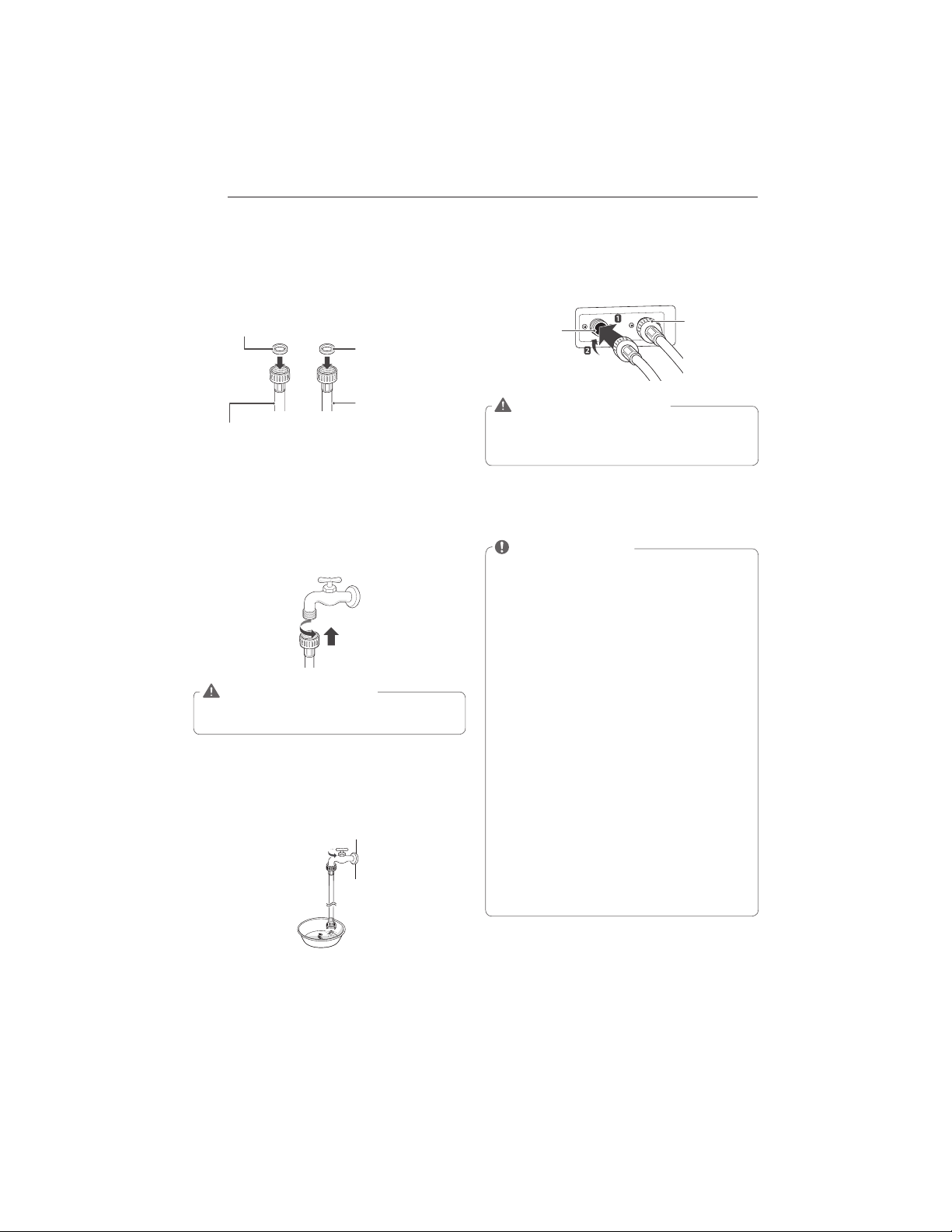

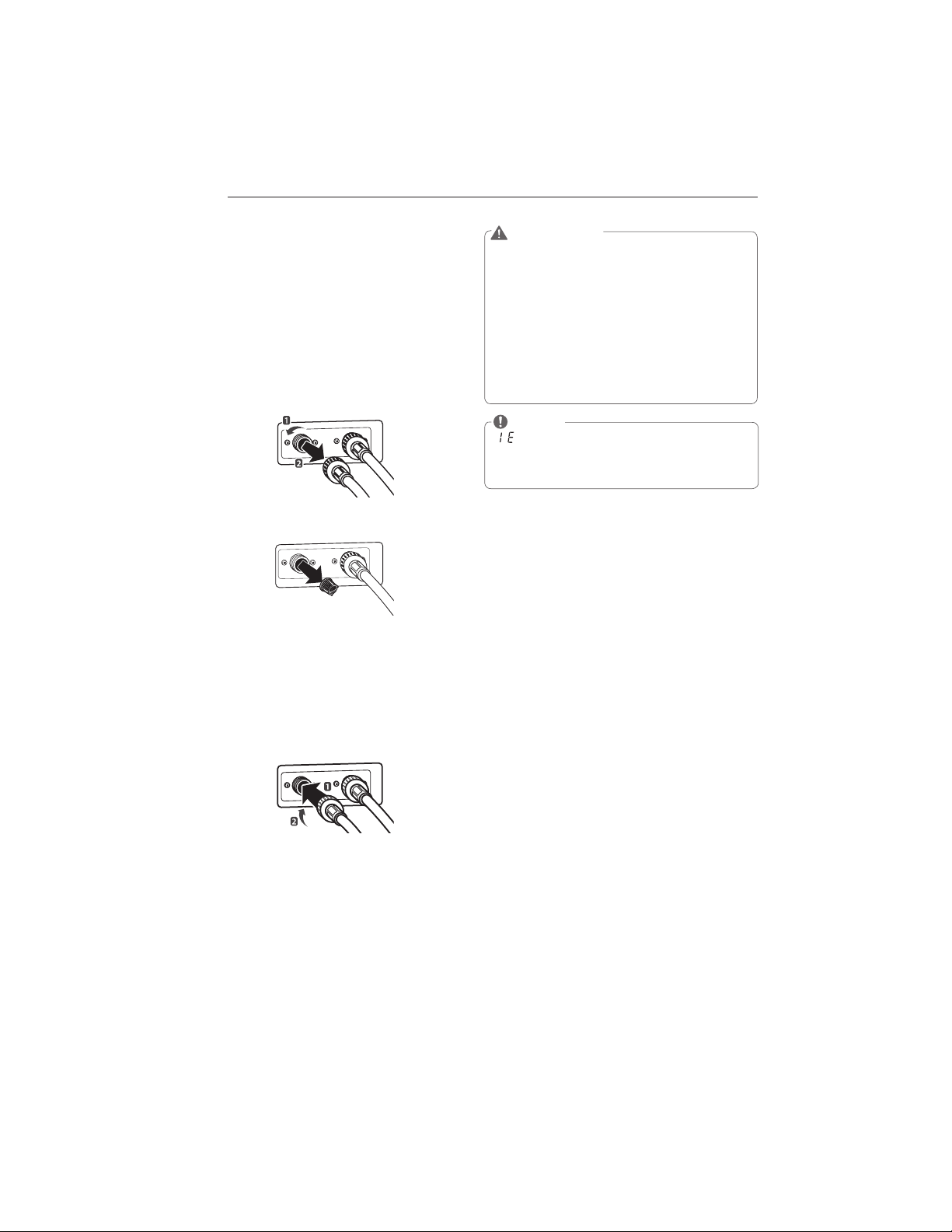

4 Connect the hoses to the water inlets tightly by hand and then tighten another 2/3 turn with pliers.
-  Connect the blue hose to the cold water inlet and the red hose to the hot water inlet.

Cold water inlet

Hot water inlet

WARNING Do not overtighten the hoses. Overtightening can damage the valves resulting in leaking and property damage.

5 Check for leaks by turning on the faucets.
- If water leaks, check steps 1 to 4 again.
NOTE For your safety, and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased, unauthorized parts.
Use new hoses when installing the washing machine. Do not reuse old hoses.
Contact LG Customer Service for Assistance in buying hoses : 1-800-243-0000.
Periodically check the hoses for cracks. leaks and wear, and replace the hoses every
5 years. Do not stretch the water hoses intentionally, and make sure that they are not crushed by other objects.
Water supply pressure must be between 20 psi and 120 psi (138 – 827 kPA). If the Water supply pressure is more than 120 psi, a Pressure reducing valve must be installed.
To provide optimum washing performance the hot water temperature should be set at
120 – 135°F (48-57°C) and the cold at 60°F (15°C).

Connecting the Water Lines

1 Check the rubber seals on both sides of the hose.
- Insert a rubber seal into the threaded fittings on each hose to prevent leaking.

Rubber seal

Water hose (To water inlet on the washing machine)

Rubber seal

Water hose (To faucet)

2 Connect the water supply hoses to the HOT and COLD water faucets tightly by hand and then tighten another 2/3 turn with pliers.
- Connect the blue hose to a cold water faucet and the red hose to a hot water faucet.

WARNING Do not overtighten. Damage to the coupling can result.

3 After connecting the inlet hoses to the water faucets, turn on the water faucets to flush out foreign substances (dirt, sand or sawdust) in the water lines. Let the water drain into a bucket, and check the water temperature.

INSTALLATION

ENGLISH

Connecting the Drain Line

Secure the drain hose in place to prevent moving and leaking.

NOTE The drain hose should be properly secured. Failure to properly secure the drain hose can result in flooding and malfunction.
Total height of the hose end should not exceed
96 inches (244.8 cm) from the bottom of the washer.
The drain must be installed in accordance with any applicable local codes and regulations.
Make sure that the water lines are not stretched, pinched, crushed, or kinked.

Using a Standpipe

1 Clip the end of the hose into the elbow bracket.
- Connect the elbow bracket within 4 inches (10 cm) of the end of the drain hose. If the drain hose is extended more than 4 inches (10 cm) beyond the end of the elbow bracket, mold or microorganisms could spread to the inside of the washer.

No more than
4 inches (10 cm)

Elbow bracket

2 Insert the end of the drain hose into the standpipe.

Drain Hose

Elbow Bracket

3 Use a tie strap to secure the drain hose in place.

Using a Laundry Tub

1 Clip the end of the hose into the elbow bracket.
- Connect the elbow bracket within 4 inches (10 cm) of the end of the drain hose. If the drain hose is extended more than 4 inches (10 cm) beyond the end of the elbow bracket, mold or microorganisms could spread to the inside of the washer.

No more than
4 inches (10 cm)

Elbow bracket

2 Hang the end of the drain hose over the side of the laundry tub.

Elbow Bracket

Drain Hose

3 Use a tie strap to secure the drain hose in place.

INSTALLATION

Leveling the Washer

The drum of your new washing machine spins at very high speeds. To minimize vibration, noise, and unwanted movement, the floor must be perfectly level and solid.
1 Check that the washing machine is level.
- Ensure it is level by rocking the top edges of the washing machine or placing a level on the washing machine. The slope beneath the washing machine must not exceed 1°, and all four leveling feet must rest firmly on the floor.
 Level

2 Turn the lower leveling feet clockwise to level the washing machine.
- Turning the lower leveling feet clockwise raises the washing machine.

Raise Lower

3 Turn the locknuts counterclockwise and tighten them when the washing machine is level.

Tighten all 4 lock nuts securely using the wrench.

4 Check again to make sure the machine is level.
- Push or rock the top edges of the washing machine gently to make sure that the washing machine does not rock.
- If the washing machine rocks, repeat steps 1 to 3.

WARNING Using the washing machine without leveling. it may result in malfunction caused by the production of excess vibration and noise.
If you are installing the washing machine on the optional pedestal, you must adjust the leveling feet on the pedestal to level the washing machine. The washing machine´s leveling feet should be minimized and the locknuts turned counterclockwise to secure them.
Use the leveling feet only when you level the washing machine. If you raise the leveling feet unnecessarily, it may cause abnormal vibration of the washing machine.

Using Non-Skid Pads (Optional)

If you install the washing machine on a slippery surface, it may move because of excessive vibration.
Incorrect leveling may cause malfunction through noise and vibration. If this occurs, lay the non-skid pads under the leveling feet and adjust the level.
1 Clean the floor to attach the non-skid pads.
- Use a dry rag to remove and clean foreign objects or moisture. If moisture remains, the non-skid pads may slip.

2 Adjust the level after placing the washing machine in the installation area.

3 Place the adhesive side of the non-skid pad on the floor.
- It is most effective to install the non-skid pads under the front legs. If it is hard to place the pads under the front legs, place them under the back legs.

Remove backing

This side up

Adhesive side

4 Check the washing machine’s level again.
- Push or rock the top edges of the washing machine gently to make sure that the washing machine does not rock. If the washing machine rocks, level the washing machine again.

INSTALLATION

ENGLISH

Connecting to the Power Supply

Make sure to ground the washing machine to prevent a short circuit or an electric shock when plugging in.

Using a 3-Prong Outlet

If plugged into a grounded, 3-prong outlet rated for use with this appliance, no further grounding is necessary.

WARNING The power outlet must be within 60 inches (1.5
m) of either side of the washer.
The appliance and outlet must be positioned so that the plug is easily accessible.
Do not overload the outlet with more than one appliance.
The outlet must be grounded in accordance with current wiring codes and regulations.
Time-delay fuse or circuit breaker is recommended.
It is the personal responsibility and obligation of the product owner to have a proper outlet installed by a qualified electrician.
Do not use a worn or damaged power cord or power plug. Replace or repair worn or damages cords or plugs it immediately. Failure to do so may result in death, fire, electric shock, or malfunction.
Do not modify the power cord and take care not to damage it when installing or moving the washing machine. Failure to follow this warning may result in death, fire, electric shock, or malfunction.
Make sure that the washing machine is grounded.
Connect this washing machine to a grounded outlet conforming to the rating prior to use.
Failure to do so may result in fire, electric shock, or malfunction.
Do not use adaptors or extension cords. The washing machine should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. Failure to do so may result in fire, electric shock or malfunction.
Do not damage or cut off the ground prong of the power cord. Doing so may cause death. fire, electric shock, or product malfunction.

Testing the Washer

Check if the washing machine is properly installed and run a test cycle.
1 Load the washing machine with 6 pounds of laundry (approximately 14 shirts).

2 Press the Power button and turn the cycle selector knob to the right.

3 Press the Rinse+Spin button to select Rinse+Spin.

4 Press the Start/Pause button.
- The wash cycle starts.

5 Check if water is supplied, that the washing machine does not rock or vibrate excessively. and that it drains well during the spin cycle.
- If water leaks during water supply, see page
14, Connecting the water lines, to connect them properly.
- If the washing machine rocks and vibrates excessively, see page 16, Leveling the washing machine, to level it again.
- If the drain does not work, see page 15. Connecting the drain line, to install it properly.

PREPARATION

Check all pockets to make sure that they are empty.
-Items such as clips, matches, pens, coins, and keys can damage both your washer and your clothes.

Close zippers, hooks, and drawstrings to prevent these items from snagging or tangling on other clothes.

Pretreat heavily stained areas before washing.

- Doing so will produce clean, stain-free results.

Combine large and small items in a load. Load large items first.

Large items should not be more than half of the total washload.

The washer can be fully loaded, but the drum should not be tightly packed with items.
-The door of the washer should close easily.

Do not wash single items, except for bulky items such as blankets. Make sure to wash laundry in similar types of loads.
-  Washing a single small item may result in the tub becoming unbalanced, vibrating and making a noise.

Do not wash waterproof clothes.

-  This may cause abnormal vibration, or may cause the load to bounce, which could damage the tub.

Check if there are any foreign objects in the door seal and take extra care that clothes do not get caught there.
-  Foreign objects in the door seal may stain clothes, and water may leak if clothes get caught in the door seal.

Wash underwear or small, light items in a laundry net (mesh bag).
-  Small, light items may get caught in the door seal, and a brassiere hook may damage other items or the tub.

Brush heavy soil, dust, or hair off fabrics before washing.
-  Laundry may not wash clean if there is dirt or sand on the fabrics, or items may be damaged due to particles rubbing against sheer fabrics.

Wash blankets individually.

-  Washing more than one blanket in a load may produce inferior results due to tangling or an unbalanced load.

Always separate fabrics according to their colors and wash them separately to prevent colors from running.
-  Fabrics may be damaged or become stained due to fabric dyes running, or due to foreign objects transferring from one fabric to another.

For best performance, load clothes as shown.

-     Load clothes loosely, and do not overfill the drum. Clothes need room to circulate in order to get clean.
-   Do not press down on items while stacking them in the drum.

PREPARATION

Sorting Wash Loads

Read and observe the following to prevent shrinkage or damage to clothes.

PREPARATION

ENGLISH

Category Label Directions

Washing

Hand Wash

Machine Wash, Normal Cycle

Use Permanent Press/ Wrinkle Resistant washing machine setting (which has a cool down or cold spray before the reduced spin)

Use Gentle/Delicate washing machine setting (slow agitation and/ or reduced wash time).

Do Not Wash

Do Not Wring

Water Temperature

Warm

Cold/Cool

Bleach symbols

Any Bleach (When Needed)

Only Non-Chlorine Bleach (When Needed)

Do Not Bleach

Colors Whites / Lights / Darks Soil Heavy / Normal / Light Fabric Delicates / Easy Care / Sturdy Cottons Lint Lint Producers / Lint Collectors

Fabric Care Labels

Most articles of clothing feature fabric care labels that include instructions for proper care.

Sorting Laundry

Sort laundry into similar loads that are washable in the same cycle.
Refer to the following chart for sorting clothes.

PREPARATION

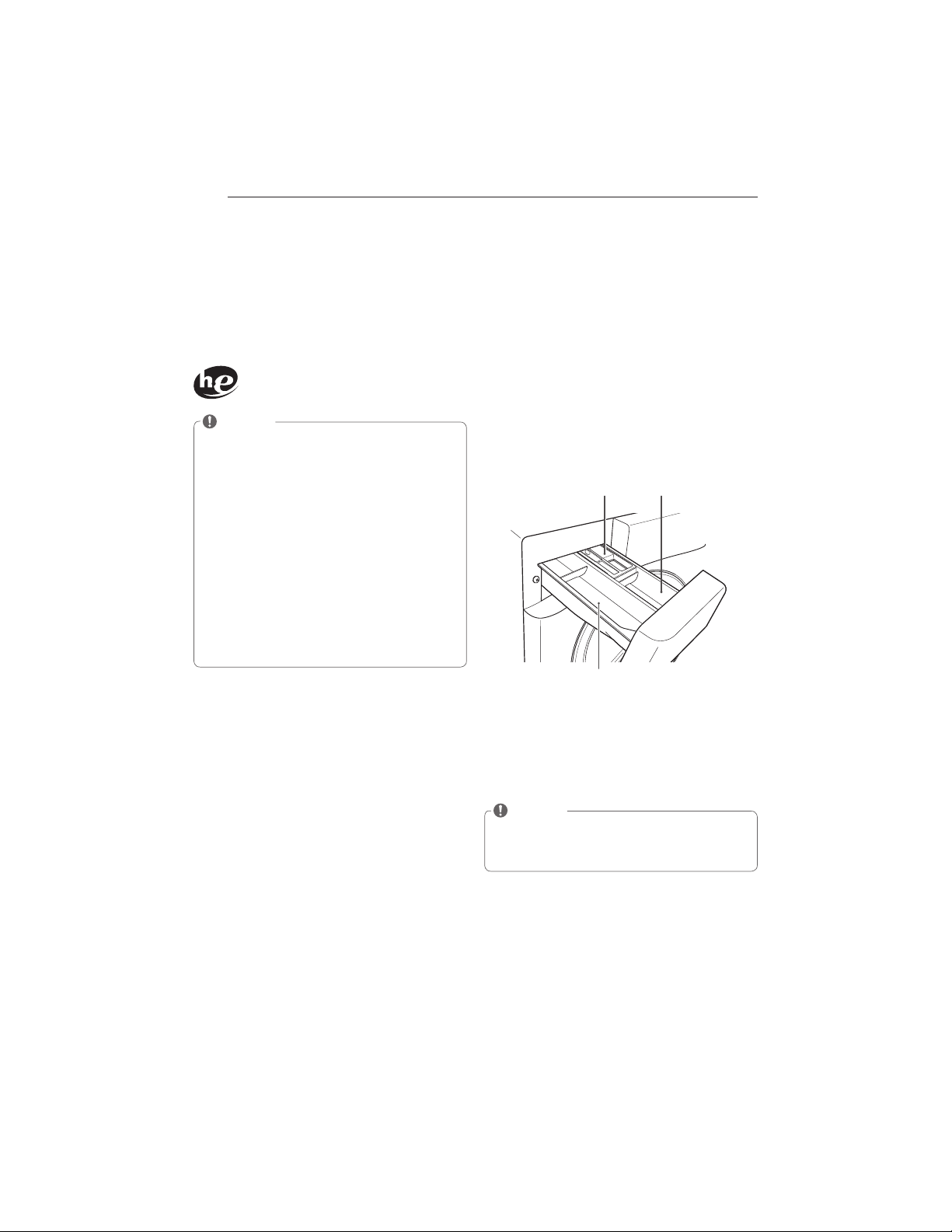

Loading the Dispenser

The detergent dispenser drawer of the washing machine has a dispenser compartment for each detergent type. Add each detergent to its appropriate compartment.

1 Pull out the detergent dispenser drawer.

2 Add each detergent to its appropriate compartment.
- If you use a liquid detergent, check if the liquid detergent cup is in place.
- If you use a powdered detergent, remove the liquid detergent cup and put the powder in the main wash detergent compartment.

Main wash detergent compartment

Pre-wash detergent compartment

Liquid fabric softener compartment

3 Close the detergent dispenser drawer slowly.
- Slamming the detergent dispenser drawer may result in the detergent overflowing into another compartment or pouring into the tub earlier than programmed.

NOTE

It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle.

Using Detergent/Fabric Softener

Recommended Detergent

Make sure to use HE (High-Efficiency) detergent for front-loading washing machines. HE detergents dissolve more efficiently and produce fewer suds to ensure efficient washing and rinsing. Use the correct amount of detergent as indicated on the detergent packaging.

Specially designed to use only HE (High-Efficiency) detergent

NOTE

Only use HE detergents, because using a regular detergent may produce excessive suds.
HE detergents produce fewer suds, dissolve more efficiently to improve washing and rinsing performance, and help to keep the interior of your washer clean.
Use less detergent for soft water. Wipe up any spills immediately, as liquids could damage the finish and the control panel of the washing machine.
Using too much detergent can cause a build- up in the tub resulting in unsatisfactory performance and machine malfunction.
If you use a detergent that does not dissolve easily or a detergent with high viscosity, it will leave a residue on the tub, which may not rinse properly.

PREPARATION

ENGLISH

Fabric Softener Compartment

This compartment holds liquid fabric softener. which will be automatically dispensed during the final rinse cycle.

NOTE Always follow the manufacturer’s recommendations when adding fabric softener.
Do not exceed the maximum fill line. Using too much fabric softener may result in stained clothes.
Dilute concentrated fabric softeners with warm water. Do not exceed the maximum fill line.
Never pour fabric softener directly onto the load or into the drum.

Pre-Wash Detergent Compartment

Add liquid or powdered detergent to this compartment when using the Pre-Wash option.
Always use HE (High-Efficiency) detergent with your washing machine.

NOTE

When using the pre-wash option, if liquid detergent is to be used for the main wash. the liquid detergent cup accessory must be used in the main wash dispenser, to prevent the main wash liquid detergent from being dispensed immediately.
The amount of detergent added for the Pre-Wash option is 1/2 the amount recommended for the main wash cycle. For example, if the main wash cycle requires one measure of detergent, add 1/2 measure for the Pre-Wash option.

Main Wash Detergent Compartment

This compartment holds laundry detergent for the main wash cycle, which is added to the load at the beginning of the cycle. Always use HE (High-Efficiency) detergent with your washing machine.
Never exceed the manufacturer’s recommendations when adding detergent. Using too much detergent can result in detergent buildup on clothing and the washer. Either powdered or liquid detergent may be used.

NOTE

Liquid or powdered color-safe bleach may be added to the main wash compartment with detergent of the same type.
When using liquid detergent, make sure the liquid detergent cup and insert are in place. Do not exceed the maximum fill line.
When using powdered detergent, remove the insert and liquid detergent cup from the compartment. Powdered detergent will not dispense with the liquid detergent cup and insert in place.

OPERATION

OPERATION

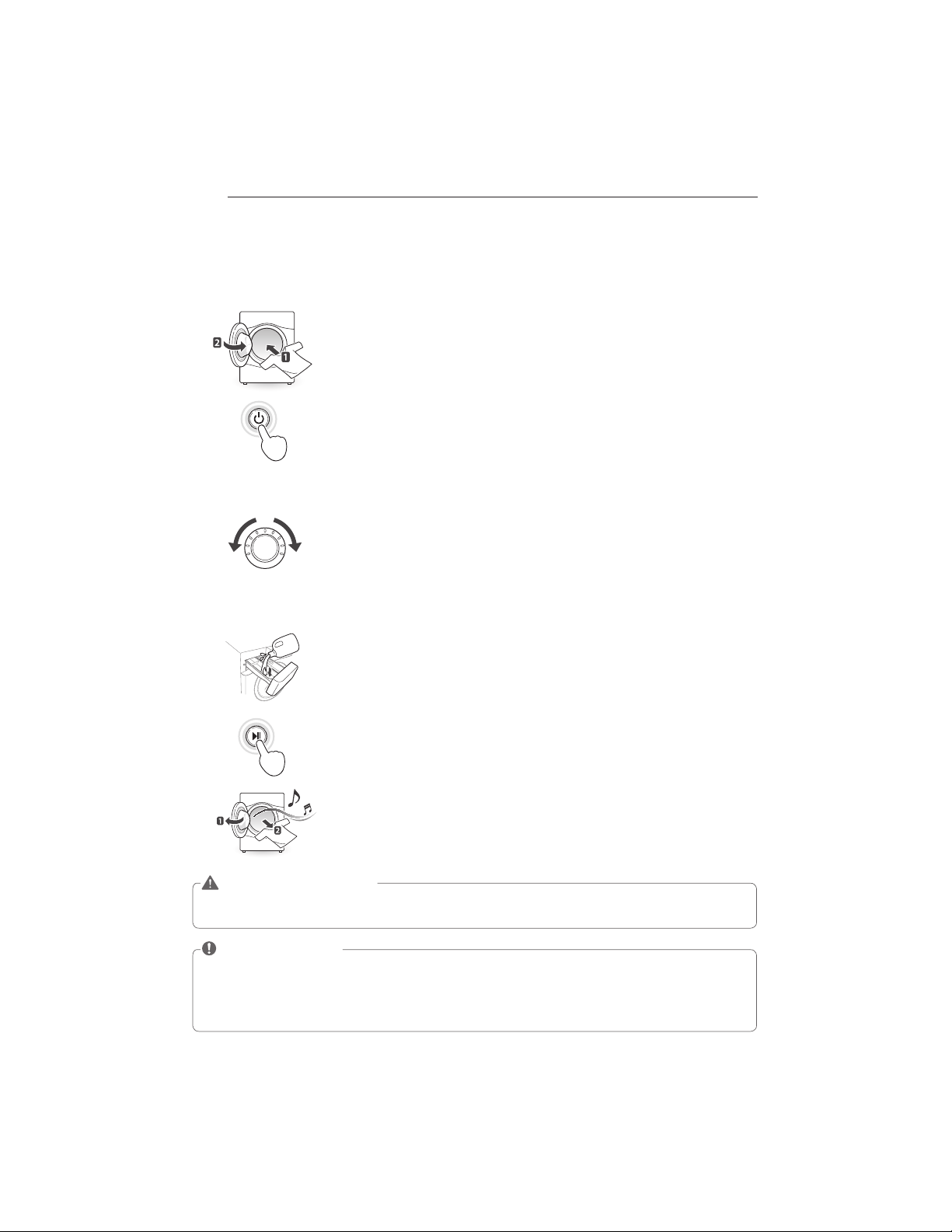

Using the Washer

Load the laundry into the washing machine and close the door.

Press the Power button.

- The lights around the cycle selector knob will illuminate and a chime will sound.

Turn the cycle selector knob in either direction to select the desired cycle.

-  The proper default option is automatically set according to the wash cycle. See page 23, Cycle Guide, for more detailed default options for each cycle.
-  See page 24, Wash Cycles, for details on the wash cycles.
-  To change the options, press the option button and select the desired option.
See page 25, Setting Options Before Cycle, for more details on options.
-  Skip to step 4 to use the default setting without changing the options.

Add the proper amount of detergent and additions (bleach, softener) into the detergent dispenser drawer.
-  See page 20, Using Detergent/Fabric Softener, for more details on using detergent.

Press the Start/Pause button.
-  The washing machine will start.

When the melody plays, the wash cycle is finished.
-  When the washing cycle is finished, the door will unlock. Open the door and remove the laundry immediately.
-  Make sure to check around the door seal when taking out the finished load.
Small items may be caught in the door seal.

NOTE The front-load washing machine rotates the laundry in a way that allows it to use less water while still fully saturating your clothing. It is normal to not be able to see water during the wash cycle.
If the temperature or the water level inside the machine is too high, the door locks and cannot be opened. To open the door while washing, use the Rinse + Spin feature.

WARNING To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

OPERATION

ENGLISH

Cycle Guide

The cycle guide below shows the options and recommended fabric types for each cycle.  ˜ = Available option

- Cycle time depends on water pressure, type and amount of load, and chosen additional options.
-  To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle.

CYCLE FABRIC TYPE BASIC OPTION (ê=DEFAULT) ADDITIONAL OPTIONS Soil Level Temp.
Spin Speed Delay Wash Water Plus Rinse+ Spin Extra Rinse Pre Wash Dry

Tub Clean Removes residue and odors from washer drum Normalê Extra Hotê Mediumê

Sanitary Heavily soiled underwear. work clothes, diapers, etc.
Heavy Normalê Extra Hotê Extra Highê High Medium Low No Spin

Baby Wear Lightly soiled baby clothes Heavy Normalê Hot ê Warm Highê Medium Low No Spin

Bulky/ Large Large items such as blankets and comforters

Heavy Normalê Light

Warmê Cold Tap Cold

High Mediumê Low No Spin

Heavy Duty Heavily soiled cotton fabrics Heavy Normalê Light

Hot Warmê Extra High High Mediumê Low No Spin

Perm.
Press

Dress shirts/pants, wrinkle free clothing,  poly/cotton blend clothing, tablecloths

Heavy Normalê Light

Warmê Cold Tap Cold

Extra Highê High Medium Low No Spin

Cotton/ Normal Cotton, linen, towels, shirts. sheets, jeans, mixed loads

Heavy Normalê Light

Hot Warmê Cold Tap Cold

Extra High Highê Medium Low No Spin

Sports Wear High-performance fabrics that need special care Heavy Normalê Light

Warmê Cold Tap Cold

Mediumê Low No Spin

Hand Wash/ Wool Items labeled "hand washable" Heavy Normalê Warmê Cold Tap Cold

Mediumê Low No Spin

Delicates Dress shirts/blouses nylons. sheer or lacy garments Heavy Normalê Warm Coldê Tap Cold

Mediumê Low No Spin

Speed Wash Lightly soiled clothing and small loads Heavy Normalê Warm Coldê Tap Cold

Extra High High Mediumê Low No Spin

Wash+Dry A small load which can be washed and dried in one cycle

Heavy Normalê Light

Hot Warmê Cold Tap Cold

Extra Highê High

Drain+Spin Drain and spin only Extra Highê High Medium Low No Spin

OPERATION

Hand Wash/Wool: Items Labeled Wool or Hand-Wash

This cycle is for washing shrinkable woolen or hand-washable items requiring delicate care.
Only wash woolen items that are labeled machine washable or hand-washable.

NOTE Laundry weight should be less than 8 pound (3.6 kg) to prevent damage to the fabric.
Use only natural or wool-safe detergent harmless to fabrics and load 1/2 of the normal amount of detergent.
The Hand Wash/Wool cycle uses a gentle tumble rotation angle and low speed spin for the ultimate fabric care.

Delicates: Sheer Items

This cycle is for washing lingerie or sheer and lacy clothes which can easily be damaged.

Speed Wash: Washing Quickly

Use the Speed Wash cycle to quickly wash lightly soiled clothing and small loads. For high wash and rinse efficiency, wash small loads of 2-3 lightly soiled garments

NOTE Use very little detergent in this cycle. For additional rinsing, add an extra rinse using the option button.

Wash+Dry: A Small Load Which Can Be Tumble Dried

This cycle washes and dries clothing in one continuous cycle.

Drain+Spin: Drain and Spin Only

This cycle is for draining and spinning without the wash and rinse cycle, or for removing the load from the washing machine in the middle of the cycle.

Wash Cycles

You can wash laundry items more thoroughly by selecting the wash cycle that best suits the type of items to be washed. Turn the cycle selector knob in either direction to select the desired cycle.
When you select a wash cycle, the light for the corresponding wash cycle will turn on. See page
22, Using the Washer, for more details on operating methods.

Sanitary: Reducing Laundry Bacteria

This wash cycle helps to remove heavy soil on laundry through high temperature.

Baby Wear: Lightly Soiled Baby Clothes

This cycle helps remove food stains from baby clothes using a powerful rinse.

Bulky/Large: Blankets or Bulky Items

This cycle is for washing blankets or bulky items.

Heavy Duty: Heavily Soiled Items

This cycle is for washing heavily soiled laundry through more powerful drum rotation.

Perm. Press: Wrinkle-Free Items

This cycle is for washing items such as wrinkle-free clothes or tablecloths to minimize wrinkles.

Cotton/Normal: Normal Items

Use this cycle to wash all normal items, except delicate fabrics such as wool or silk.

NOTE If you press the Power button and the Start/ Pause button without selecting another cycle. the washing machine defaults to the Cotton/ Normal cycle.

Sports Wear: High-Performance Fabrics

Use this cycle for garments that are specially designed and treated for sports.

OPERATION

ENGLISH

Cycle Modifier Buttons

Each cycle has preset settings that are selected automatically. You may also customize the settings using the cycle modifier buttons. Press the button for that option to view and select other settings.
The washer automatically adjusts the water level for the type and size of wash load for best results and maximum efficiency. It may seem there is no water inside the drum in some cycles, but this is normal.

NOTE To protect your garments, not every wash/ rinse temperature, spin speed, soil level, or option is available with every cycle. See the Cycle Guide for details

Setting Options Before Cycle

You can select and add the desired optional functions before you start the washing machine.

Soil Level

You can wash your laundry more thoroughly by setting the proper soil level on the washing machine.

1 Press the Power button and turn the cycle selector knob in either direction to select the desired cycle.

2 Press the Soil Level button repeatedly to select a soil level.

-  When you press the button, an indicator light for the corresponding selection will turn on in the display.

3 You can now modify other cycle settings and add options (see pages 25-28), or proceed to step 4 to begin the cycle.

4 Press the Start/Pause button.

NOTE This feature will add time time for heavily soiled loads or subtract time for lightly soiled loads.

Temp.

Set the water temperature for the wash cycle. Set the appropriate temperature, as specified in the fabric care label.
1 Press the Power button and turn the cycle selector knob in either direction to select the desired cycle.

2 Press the Wash Temp button repeatedly to select the desired water temperature:

-  When you press the button, an indicator light for the corresponding selection will turn on in the display.

3 You can now modify other cycle settings and add options (see pages 25-28), or proceed to step 4 to begin the cycle.

4 Press the Start/Pause button.

NOTE Cold rinses use less energy. Your washer features a heating element to boost the hot water temperature for Extra Hot settings. This provides improved wash performance at normal water heater settings.
Select the water temperature suitable for the type of load you are washing. Follow the fabric care label for best results.

Spin Speed

You can set the desired spin speed.
Use this feature properly according to the characteristics of the load.
1 Press the Power button and turn the cycle selector knob in either direction to select the desired cycle.

2 Press the Spin Speed button repeatedly to select the desired spin speed.

- When you press the button, an indicator light for the corresponding selection will turn on in the display.

3 You can now modify other cycle settings and add options (see pages 25-28), or proceed to step 4 to begin the cycle.

4 Press the Start/Pause button.

NOTE The Spin Speed button also activates the Drain & Spin cycle to drain the tub and spin clothes; for example, if you want to remove clothes before the cycle has ended.

OPERATION

Press the Dry button to select drying options. •   For consistently dry loads, all articles in the load should be similar in material and thickness. •   Do not overload the drum. Items must have room to tumble freely. •   Press Start/Pause to remove items before the dry cycle has finished.

Press the Dry button repeatedly to toggle through the selections:

By pressing the Dry button, you can select: LOW TEMP - For delicate fabrics DAMP - For damp drying fabrics NORMAL - For general drying MORE - For heavier fabrics
30/60/90/120 - For timed drying

NOTE

The capacity of the machine for washing clothes is twice as much as when drying clothes. If the machine is to be used to dry a load, then the wash load must be reduced by half for effective drying performance. If a full load is washed, remove half the clothes prior to starting the dry cycle.

Drying Guide–Automatic Dry Electronic sensors measure the temperature of the exhaust to increase or decrease the drying temperature for faster reaction time and tighter temperature control.

Recommended DRY settings by fabric type:
a) Perm Press – LOW TEMP
b) If clothes are to be ironed – DAMP
c) Cotton/Towels – NORMAL
d) Diapers – MORE

NOTE

On Automatic Dry settings, the estimated drying time may vary from the actual drying time. The type of fabric, size of the load, and the selected dryness level affect drying time.

Drying Guide–Timed Dry •  Press the Dry button repeatedly to select the drying time in 30 minute increments:
30–60–90–120 minutes. •  Timed dry can last up to 120 min. When selecting Dry only, drying will start after the final Spin cycle. •  The time required to dry a load can vary greatly depending on dampness, room temperature, and type of fabric. You may need to add additional time. Your own experience will be your best guide.

Drying Tips

Woolen Articles Do not tumble dry woolen articles. Block them (pull them to their original shape) and dry them flat.

Woven and Loopknit Materials •  Some woven and loopknit materials may shrink when dried. •  Always stretch them out immediately after drying.

Permanent Press and Synthetics • Do not overload the dryer. •  To reduce wrinkles, take out permanent press articles as soon as the dryer stops.

Fiber or Leather Materials Always check the manufacturer’s instructions.

Baby Clothes and Night Gowns Always check the manufacturer’s instructions.

Rubber and Plastics Do not dry any items made from or containing rubber or plastics, such as:
a) Aprons, bibs, chair covers
b) Curtains and tablecloths
c) Bathmats

Fiberglass Do not dry fiberglass articles in the dryer. Glass particles left in the washer could be picked up by clothes in the next load and irritate skin.

OPERATION

ENGLISH

Extra Rinse

You can add an extra rinse cycle to the default rinse cycle.
1 Press the Power button and turn the cycle selector knob in either direction to select the desired cycle.

2 Press the Extra Rinse button.
- The Extra Rinse indicator light will turn on.

3 You can now modify other cycle settings and add options (see pages 25-28), or proceed to step 4 to begin the cycle.

4 Press the Start/Pause button.

Pre Wash

Pre-wash for 16 minutes when clothes are covered in dirt or dust. This feature is suitable for heavily soiled items.
1 Press the Power button and turn the cycle selector knob in either direction to select the desired cycle.

2 Press the Pre Wash button.
- The indicator light will turn on.

3 You can now modify other cycle settings and add options (see pages 25-28), or proceed to step 4 to begin the cycle.

4 Press the Start/Pause button.

Delay Wash

Set the desired start time for the cycle.
1 Press the Power button and turn the cycle selector knob in either direction to select the desired cycle.

2 Modify the cycle settings and add other options (see pages 25-28), if desired.

3 Press the Delay Wash button repeatedly to select the desired start time.
- The Delay Wash indicator light will turn on.
- The set start time appears on the display panel.
- Each press of the button increases the delay time by one hour, up to 19 hours.

4 Press the Start/Pause button.

Water Plus

Use this option to add extra water to the wash and rinse cycles for better wash performance with large or bulky items.
1 Press the Power button and turn the cycle selector knob in either direction to select the desired cycle.

2 Press the Water Plus button..
- The indicator light will turn on.

3 You can now modify other cycle settings and add options (see pages 25-28), or proceed to step 4 to begin the cycle.

4 Press the Start/Pause button.

Rinse+Spin

Use this cycle to rinse detergent from the load.

1 Press the Power button and turn the cycle selector knob in either direction to select the desired cycle.

2 Press the Rinse+Spin button.

3 Press the Spin Speed button repeatedly to set the spin speed.
- The indicator light for the selected spin speed will turn on.

4 Press the Start/Pause button.

OPERATION

Setting Options During Cycle

You can add the desired options during the wash cycle.

Child Lock

You can lock the washing machine to prevent children or others from changing the cycle settings by pressing the buttons during the cycle.

Enabling Child Lock

Press and hold the Pre Wash button for 3 seconds during the wash cycle.
- When the Child Lock is enabled, a message and the remaining wash time are displayed, in turn, on the display panel of the washing machine.

Disabling Child Lock

(When the Child Lock is activated.) Press and hold the Pre Wash button for 3 seconds during the wash cycle.

NOTE Ÿ Child Lock lasts after the end of the cycle. If you want to deactivate this function, press and hold the Pre Wash button for 3 seconds.

PGM Save

Save a frequently used cycle with all the desired settings and options.

Saving a Cycle

1 Press the Power button and turn the cycle selector knob in either direction to select the desired cycle.

2 Modify other cycle settings and add options (see pages 25-28).

3 Press and hold the Custom PGM button for 3 seconds during the wash cycle.
-  The cycle with your preferred settings and options is saved.

Custom PGM

Recall the previously saved wash cycle and settings.

Recalling a Cycle

1 Press the Power button, then press the Custom PGM button.

2 Press the Start/Pause button.

Adding Garments

Garments can be added or removed after the cycle is started.

1 Press the Start/Pause button.

2 The door lock is released to open the door.

3 Add or remove laundry.

4 To continue the cycle, press the Start/Pause button again. The cycle continues automatically.

NOTE For safety reasons, the door remains locked when the water level or temperature is high.
It is not possible to add laundry during this time.

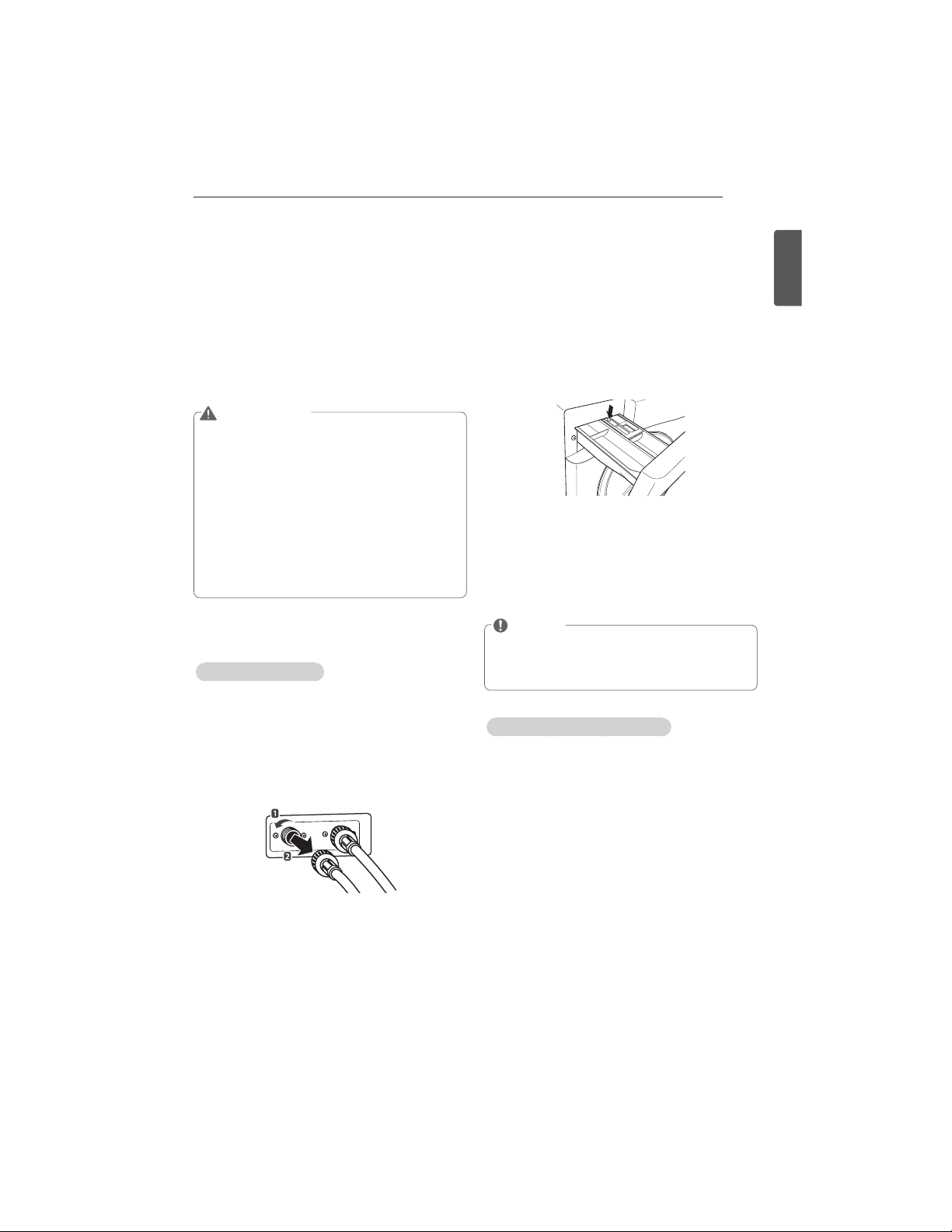

MAINTENANCE

ENGLISH

Regular Cleaning

Care After sh

After the cycle is finished, wipe the door and the inside of the door seal to remove any moisture.
Leave the door open to dry the washer tub interior.
Wipe the body of the washing machine with a dry cloth to remove any moisture.

WARNING Unplug the washer before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, fire. electric shock or death.
Never use harsh chemicals, abrasive cleaners. or solvents to clean the washer. They will damage the finish.
Do not use volatile substances (benzene, paint thinner, alcohol, acetone, etc.) or detergents with strong chemical components when cleaning the washing machine. Doing so may cause discoloration or damage to the machine, or it may cause a fire.

Care in Cold Climates

Long-Term Storage

Follow these instructions when storing the washer for an extended period where it might be exposed to freezing temperatures.

1 Turn off the faucets connected with the water lines.

2 Unscrew the water lines from the back of the washer.

3 Empty any water out of the water lines.

4 Press the Power button.

5 Open the door and add 1 gallon (3.8 L) of nontoxic recreational vehicle (RV) antifreeze to the empty washer tub. DO NOT use automotive anti-freeze. Close the door.

6 Press the Spin Speed button for draining and spinning.

MAINTENANCE

7 Press the Start/Pause button.
- Drain the water from the washing machine for
1 minute. Not all of the RV antifreeze will be expelled.

8 Press the Power button to turn off the washing machine and pull out the power plug.

9 Dry the interior of the washer tub with a soft cloth, and close the door.

10 Press down hard on the disengage button and pull out the detergent dispenser drawer.

11 Drain the water from the detergent dispenser drawer and dry out each compartment.

12 Store the washing machine in an upright position.
NOTE To remove the antifreeze after storing the washing machine, add detergent to the dispenser, and run one cycle. Do not load any laundry at this time.

Thawing Frozen Water Lines

1 Turn off the faucets connected with the water lines.

2 Pour hot water on the frozen faucets to thaw the water lines and pull them out.

3 Immerse the water lines in hot water to thaw them.

4 Connect the water lines with the water inlets of the washing machine and faucets.

- See page 14, Connecting the water lines for details.

5 Turn on the faucets.

6 Press the Power button.

7 Press the Rinse+Spin button.

8  Press the Start/Pause button.

- Verify the water fills properly.

MAINTENANCE

Thawing a Frozen Drain Line

1 Pour hot water in the washer tub and close the door.

- Leave it for 10 minutes.

2 Press the Power button after 10 minutes.

3 Press the Spin Speed button for draining and spinning.

4 Press the Start/Pause button.

- Check if the water drains.

Cleaning

Periodically clean the washing machine to help maintain its performance and to minimize the chance of malfunction.

Tub Clean

Improper installation or use of the washing machine in a humid space for a long period of time could  lead to a buildup of detergent residue in the washing machine that may produce mildew or musty smells. If you clean the washer tub regularly on a monthly basis using Tub Clean it will minimize the possibility that detergent residue will build up and mildew or musty smells may occur.
1 Add tub cleaner or lime scale remover into the detergent dispenser drawer.
- Do not exceed the maximum detergent limit line when you add it. Detergent may remain in the washer tub after cleaning.
- When you use liquid chlorine bleach, load it into the liquid chlorine bleach compartment.
- When you use a powdered cleaner, pull out the liquid detergent cup and add it into the main wash detergent compartment.
- When you use cleaning tablets, place them directly into the washer tub. (Do not add tablet cleaner to the drawer.)

2 Press the Power button.

3 Turn the cycle selector knob to select Tub Clean. message appears in the display.
- The indicator light for  Tub Clean turns on.

4 Press the Start/Pause button.

NOTE Never load laundry while using Tub Clean. The laundry may be damaged. Make sure to clean the washer tub when it is empty.
Leave the door open after finishing the laundry to help keep the tub clean.
Repeat the Tub Clean cycle monthly. If you notice mildew or musty smells, run Tub Clean once a week for three consecutive weeks.
Safely and conveniently secure the door slightly ajar with the magnetic door plunger.
This will promote air circulation and help the machine to dry.

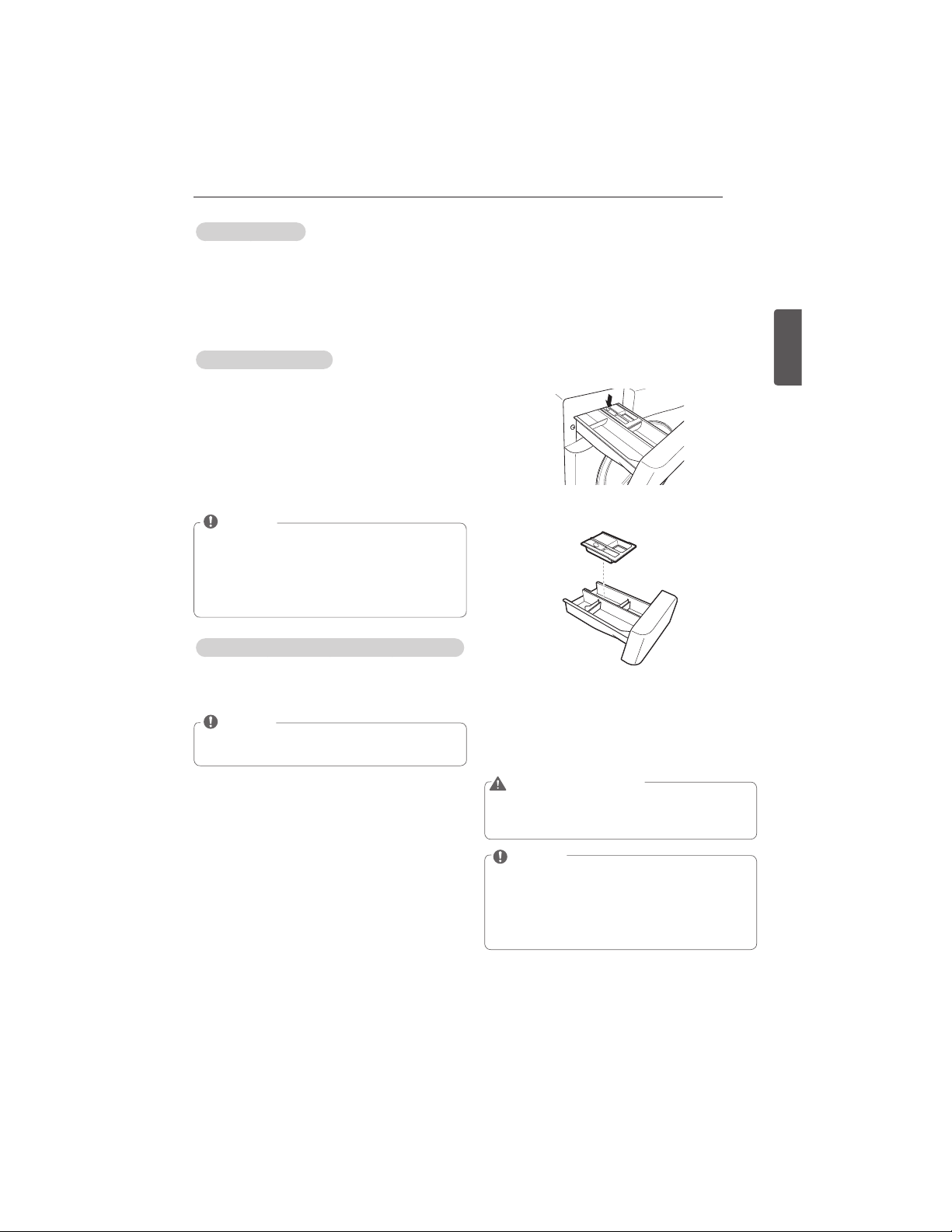

MAINTENANCE

ENGLISH

Automatic Alert

When the power is on and the message blinks. it means the washer tub needs cleaning. Use Tub Clean to clean the washer tub. The automatic indicator alert for cleaning the washer tub depends on the frequency of use, however, the message will generally blink every 1~2 months.

Removing Mineral Buildup

If you live in an area with hard water, mineral scale can form on the internal components of the washing machine. Take extra care to periodically clean the mineral buildup on the internal components to extend the lifespan of the washing machine.

Check if the descaler is suitable for cleaning the washer tub before using it and run the Tub Clean cycle. See page 30, Tub clean for details on tub clean.

NOTE In areas with hard water, use of a water softener is recommended.
Make sure to remove all laundry from the washer tub before cleaning the washer tub.
Cleaning the washer tub together with laundry may result in contamination of or damage to the laundry.

Removing Lime Buildup on Stainless Steel

Wipe lime buildup or other spots on stainless steel with a soft cloth soaked in stainless steel cleaner.

NOTE Never use steel wool or abrasive cleansers. Doing so may damage the washing machine.

Cleaning the Detergent Dispenser Drawer

Leaving detergent in the detergent dispenser drawer for an extended period of time or using the washing machine for a long period of time may cause the build-up of scales in the detergent dispenser drawer. Pull out and clean the detergent dispenser drawer once a week.
1 Pull out the detergent dispenser drawer.

2 Press down hard on the disengage button and pull out the detergent dispenser drawer.

3 Remove the inserts from the drawer.

4 Clean them with warm water.
- Use a soft cloth or brush for cleaning and remove any residue.

5 Wipe any moisture with a dry towel or cloth after cleaning.

6 Replace the detergent dispenser drawer.

WARNING Do not spray water inside the washing machine. Doing so may cause fire or electric shock.

NOTE Use only water to clean the detergent dispenser drawer. Make sure to use Rinse+Spin to rinse the washer tub before the next wash cycle when using a cleaning detergent to clean the washer tub.

MAINTENANCE

WARNING Unplug the power cord and turn off the faucets before cleaning. Failure to do so may cause electric shock.
Do not use the washing machine without the inlet filters. If you use the washing machine without the inlet filters it will cause leaks and malfunction.
If you use the washing machine in an area with hard water, the inlet filter may clog due to lime buildup. Contact your nearest LG customer service center if the inlet filter cannot be cleaned or is missing.

NOTE

Cleaning the Water Inlet Filters

Clean the water inlet filters periodically to prevent clogging. Take extra care to clean the water inlet filters in areas using hard water. Water may not be supplied if there are foreign objects, such as rust. sand, or stones in the water inlet filters.
1 Press the Power button to turn off the washing machine and pull out the plug.

2 Turn off the faucets connected with the water inlets.

3 Remove the water inlets.

4 Pull out the water inlet filter.

Inlet Filter

5 Remove foreign objects from the water filter inlet.
- Soak the water filter inlets in white vinegar or a lime scale remover or use a toothbrush to remove foreign objects and rinse thoroughly.

6 Press the water filter inlets back into place.

7 Reattach the water lines to the washing machine.

MAINTENANCE

ENGLISH

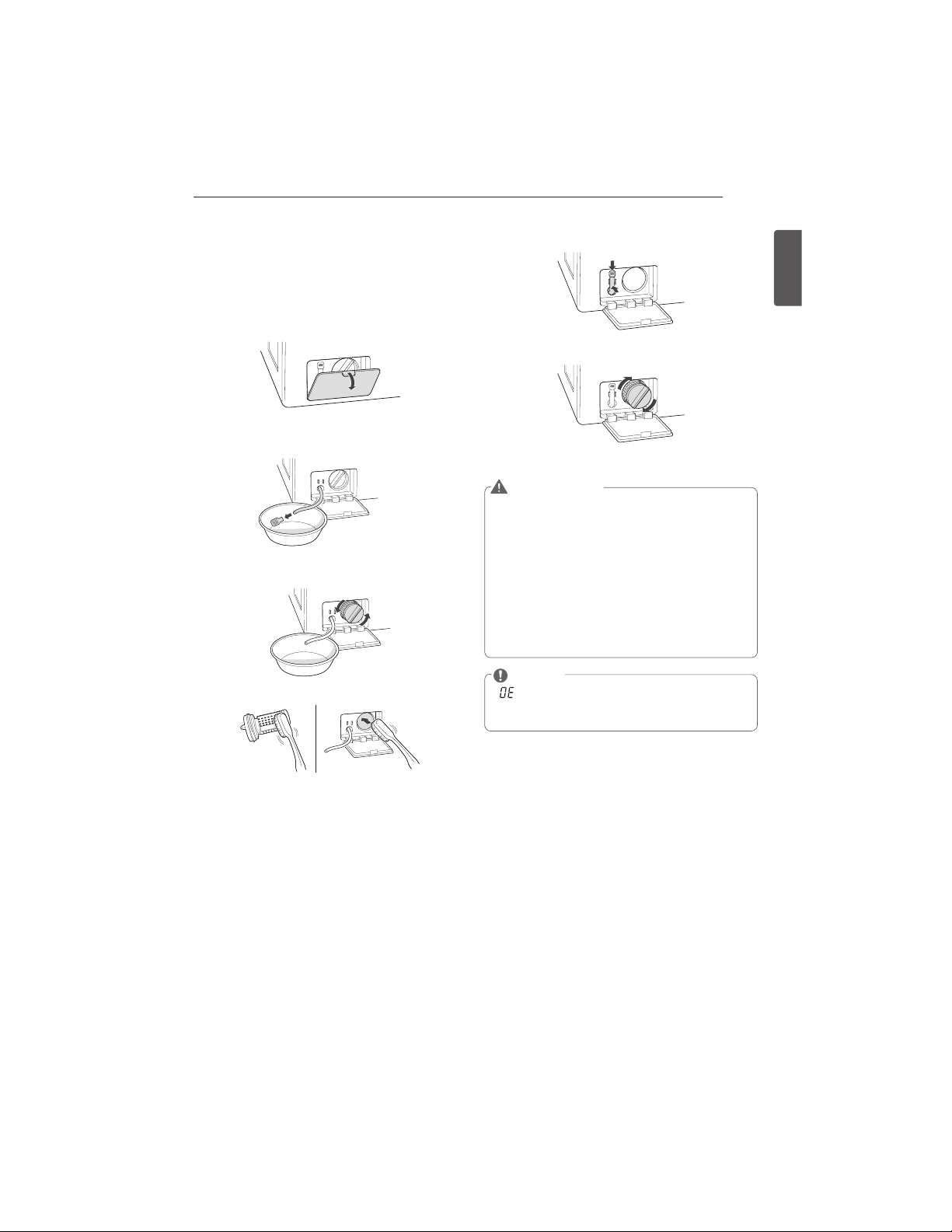

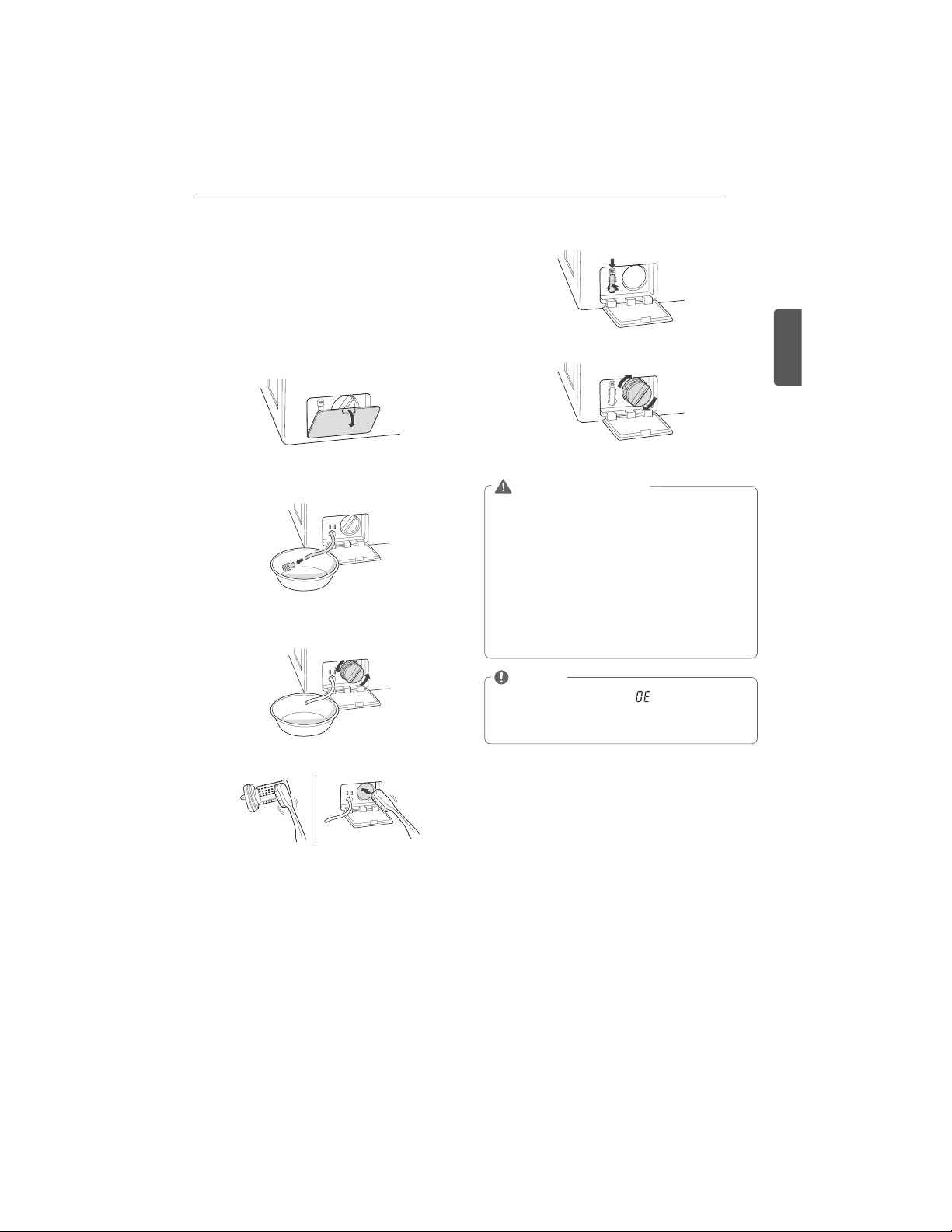

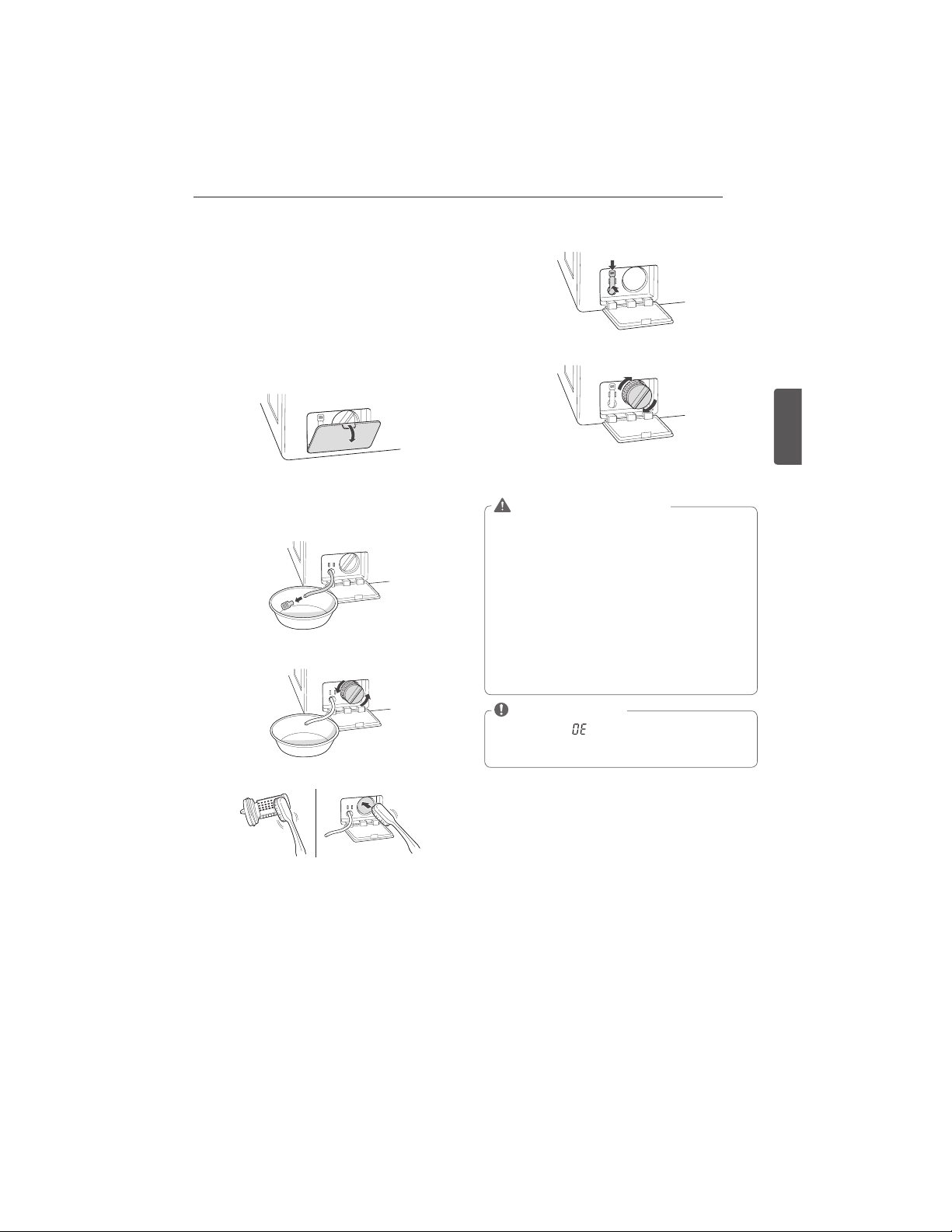

Cleaning the Drain Pump Filter

The washing machine fails to drain if the drain pump filter is clogged. Periodically clean the drain filter to prevent clogging with foreign objects.
1 Press the Power button to turn off the washing machine and pull out the plug.

2 Open the drain pump filter cover.

3 Unclip the drain hose and remove the plug from the drain hose to drain the remaining water.

4 Twist the pump filter counterclockwise to remove it.

5 Clean the pump filter and opening.

6 Recap the plug onto the drain hose and reattach the drain hose.

7 Insert the drain pump filter.

8 Close the drain pump filter cover.

WARNING Make sure to pull out the plug before cleaning.
 Failure to do so may cause electric shock.
Opening the drain filter will result in water overflowing if there is water in the washer tub. Make sure to check if the water is completely drained before opening the drain filter.
If you use the washing machine with the drain filter reassembled incorrectly after cleaning it, or if you use the machine without the filter, it may cause leaks or malfunction of the washing machine.

NOTE

MAINTENANCE

Cleaning the Door Seal

Clean the door seal once a month to prevent build- up of dirt in the door seal.
1 Wear rubber gloves and protective goggles.

2 Dilute 3/4 cup (177 ml) of liquid chlorine bleach in 1 gallon (3.8 L) of water.

3 Soak a sponge or a soft cloth in this diluted solution and wipe down all around the door seal.

4 Wipe any moisture with a dry towel or cloth after cleaning.

5 Leave the door open to allow the door seal to dry completely.
CAUTION Cleaning the door seal with undiluted liquid chlorine bleach may cause malfunction of the door seal and washing machine parts.

TROUBLESHOOTING

ENGLISH

TROUBLESHOOTING

Checking Error Messages

If the following message appears on the display, check the following and take the appropriate corrective action.

Message Possible Causes Solutions

Item of clothing has gathered on one side of the tub.
There are not enough items in the machine. Have your items gathered in one area, or is the load too small? Did you wash a stuffed animal, a mat, or knitwear?
 Did you wash two different blankets together?

Rearrange items to help balance the load. Stuffed animals or mats can become unbalanced during spinning and the washing machine may fail to drain. Rearrange the knitwear to help balance the load and drain it again.
Put one blanket in at a time.

Water is not supplied or the water pressure is low Is the faucet turned off? Is the water supply stopped or the faucet frozen? Is the water pressure low or is an inlet filter clogged? Is the water line properly connected with the cold water inlet? Is the water line pinched or bent?

Turn on the faucets. If a faucet is frozen, thaw it with warm water. If the inlet filter is clogged, clean it. (see page 32) Connect the water line properly with the cold water inlet. (see page 14) Check that the water lines are not pinched or bent. Take extra care that water lines are not twisted or pinched by other objects.
Water line leaks in connection Are the water lines connected with the faucets properly? Connect the water lines properly with the faucets. (see page 14)

The tub does not rotate • Is the door secured? Close and secure the door. If the message keeps appearing, unplug the power and contact your nearest LG service center.

The washing machine drains slowly or not at all Is the drain hose installed over 3 1/4 feet (1
m) beyond the end of the elbow bracket? Is the drain hose pinched or clogged inside? Is the drain hose frozen? Is the drain hose clogged with foreign objects?

Lower the drain hose within 3 feet below the end of the elbow bracket.
Place the drain hose on a smooth surface to prevent bending.
If the drain hoses are frozen, thaw them in warm water. Open the drain pump plug cap and remove the dirt.

A power failure has occurred.
Press the Power button to turn off the washing machine and press it again to turn it on.

Control Error.
Unplug the power cord and contact your nearest LG service center.

The water supply does not stop Do the water supply and the drain keep repeating in turn?

Unplug the power cord and contact your nearest LG service center

The water level is not controlled Is the water level too low or high compared with the size of the load?

The water level sensor is not working correctly. Unplug the power cord and contact your nearest LG service center.

The tub does not rotate Is the washing machine overloaded? Rearrange the load size and restart the washing machine.
If the load size is big, the tub may not rotate due to an overheated motor. Allow the washing machine to stand for a while and restart the cycle. Unplug the power cord and contact your nearest LG service center if the same error message appears.

To clean up the tub, please run the TUB CLEAN cycle.
Please empty the tub and insert bleach into the detergent dispenser and select the Tub Clean cycle.
If you want to skip the Tub Clean, turn the CYCLE SELECTOR KNOB or push the option buttons to select a cycle. The message will keep appearing until a few wash cycles have been completed, then it will disappear until the next scheduled time to clean the tub.

TROUBLESHOOTING

Before Calling for Service

Check the following before calling for service.

Problem Possible Causes Solutions

Clicking sound Do you hear a sound when you close or lock and unlock the door? This sound is normal and occurs when the door is closed, locked or unlocked.

Spraying or hissing sound

Is water spraying in the tub? This sound is normal as water is spraying or circulating during the cycle.

Buzzing or gushing sound

Is the washing machine draining water? This sound is normal as the drain pump drains water from the washing machine after the cycle.

Splashing sound Is the washing machine washing a load of laundry? This sound is normal as the load is moving up and down during the wash and rinse cycles.

Rattling and clanking noise

Are there any foreign objects such as keys, coins, or safety pins in the tub or drain filter?

Check if there are any foreign objects in the tub and drain the filter after stopping the cycle.
Unplug the power cord and contact your nearest LG service center if the noise persists.

Thumping sound Is the washing machine overloaded? Is the load out of balance? This sound is normal and occurs when the load is out of balance.
Stop the cycle and rearrange the load for balancing.

Vibrating noise Are the shipping bolts removed?

Is the load evenly distributed in the tub? Is the washing machine level balanced? Is the washing machine installed on a solid and smooth surface?

See page 13. Unpacking and Removing Shipping Bolts, to remove the shipping bolts.
Stop the cycle and rearrange the load for balancing.
See page 16. Leveling the Washer, to level the washing machine.
Check if the floor is solid and level.

Water leaking around washer

Is water leaking from a faucet or a water line?

Is a drain pipe or a drain hose clogged?

Check the faucets or water lines.
- If the water lines are loosely connected, see page 14, Connecting Water Lines, to connect them properly.
Unclog the drain pipe or drain hose. Contact a plumber if necessary.

Excessive suds or failure to rinse

Did you use more than the recommended amount of detergent? Is the soil level higher than the size of the load?

Use the recommended amount of detergent for the load.
If the soil level is low, reduce the detergent quantity to less than the recommended level.

Only use detergent with the HE (High-Efficiency) logo.

Staining Did you add detergent directly to the tub? Did you remove the load immediately after it finished? Did you sort and wash the clothes by color or soil?

Make sure to load detergent into the detergent dispenser drawer.
Remove the load immediately after it finishes.
Sort and separate dark colors from light or white ones, and heavily soiled items from lightly soiled ones. See page 19, Sorting Laundry. for details

TROUBLESHOOTING

ENGLISH

Problem Possible Causes Solutions

Wrinkling Did you remove the load immediately after it finished? Did you overload the tub? Did you reverse the hot and cold water inlets?

Remove the load immediately after it finishes.
Do not overload the tub. Hot water rinse can cause garments to wrinkle. Check the inlet hose connections.

Power will not turn on Is the power cord plugged in properly?

Has a house fuse blown, a circuit breaker tripped, or a power outage occurred?

Make sure that the plug is secured in a grounded 3-prong, 120 V (60 Hz) outlet.
Reset the circuit breaker or replace the fuse. Do not increase the fuse capacity.
If the problem is a circuit overload. have it corrected by a qualified electrician.

The door does not open when the cycle pauses or finishes

Is the temperature in the tub too high?

Is the water level in the washer high?

The washing machine has a safety lock built into the door to prevent burning.
Leave the door closed and wait until the door lock icon disappears from the display.
Allow the washer to complete the programmed cycle, or press the SPIN button.

The wash cycle time is longer than usual

Is the washing machine overloaded? Are other options added to the wash cycle?

This is normal. The washing machine automatically adjusts the cycle time for the amount of laundry, water pressure. water temperature, and other operating conditions.

It is musty or moldy in the tub

Has the incorrect detergent been used?

Did you clean the tub periodically?

Use only HE (High-Efficiency) detergent recommended for a front-loading washing machine.
See page 30, clean the inside and outside of the washing machine periodically.

Banging noise when washer is filling with water (Water Hammer)

Plumbing in the home moves or flexes when the water valves in the washer shut off.

Household water supply pressure is very high.

Water hammer is not caused by a defect in the washer. Install water hammer arrestors (purchased separately at hardware or home improvement store) between the fill hose and the washer for best results.
Adjust household water supply regulator to a  lower pressure or contact a plumber to have a regulator installed.

SPECIFICATIONS

SPECIFICATIONS

Model  WM3488H* Description Front-loading washing machine Electrical requirements
120 VAC @ 60 Hz Dimensions
60.96 cm(W) x 64.0 cm(D) x 85.09 cm(H) 114.3 cm (D, door open)
24"(W) x 25.20"(D) x 33.5"(H) / 45" (D, door open)

Capacity
2.3 cu.ft (IEC2.6 cu.ft) (Dry linen capacity 9 kg)

Net weight
73 kg (161 lbs) Max. spin speed
1,400 rpm max Max. water pressure
20 – 120 psi (138 – 827 kPA)

Problem Possible Causes Solutions

Strange odors coming from washer

Heater in dryer.

First time using washer

Buildup of dirt on gasket or drum. dirty or clogged drain pump filter. kinked or clogged drain hose

During the initial phase of operation. lint from laundry can settle on the heater and cause odors. This is normal and will not affect performance.
Smell comes from the rubber attached to the washer door. It will eventually dissipate after first couple of wash cycles.
Periodically clean the gasket. Mold and foreign substances inside the gasket may produce mildew or musty smells.
Clean the drain pump filter regularly. Foreign substances on the drain pump filter may produce mildew or musty smells.
If the drain hose is not installed properly, the odor may be emitted because of a backflow of drainage into the tub. Make sure that the drain hose is not kinked or clogged.

USING SMART DIAGNOSIS™

ENGLISH

Should you experience any problems with your washer, it has the capability of transmitting data to a smart phone using the LG Smart Laundry Application or via a telephone to the LG call center.
Smart Diagnosis™ cannot be activated unless the washer is turned on by pressing the POWER button.
If the washer is unable to turn on, then troubleshooting must be done without using Smart Diagnosis™.

Audible Diagnosis

Smart Diagnosis™ Using a Smart Phone

1.  Download the LG Smart Laundry application on your smart phone.
2.  Open the LG Smart Laundry application on your smart phone. Press the right arrow button to ad- vance to the next screen.
3.  Press the RECORD button on the smart phone and then hold the mouth piece of the smart phone near the Smart Diagnosis™ logo on the Washer.
4.  With the phone held in place, press and hold the Temp. button for three seconds.
5.  Keep the phone in place until the tone transmis- sion has finished. This takes about 6 seconds and the display will count down the time.
6.  When the recording is complete, view the diagno- sis by pressing the Next button on the phone.

NOTE Smart Diagnosis ™ is a troubleshooting feature designed to assist, not replace, the traditional method of troubleshooting  through service calls.  The effectiveness of this feature depends upon various factors, including, but not limited to, the reception of the cellular phone being used for transmission, any external noise that may be present during the transmission, and the acoustics of the room where the machine is located. Accordingly, LG does not guarantee that Smart Diagnosis™ would accurately trou- bleshoot any given issue.

Smart Diagnosis™ Through the Call Center

1.  Call the LG call center at: (LG U.S.) 1-800-243-0000 (LG Canada) 1-888-542-2623.
2.  When instructed to do so by the call center agent. hold the mouthpiece of your phone over the Smart Diagnosis™ logo on the machine. Hold the phone no more than one inch (but not touching) the machine.

NOTE Do not touch any other buttons or icons on the display screen.

3.  Press and hold hold the Temp button for three seconds.
4.  Keep the phone in place until the tone transmis- sion has finished. This takes about 6 seconds and the display will count down the time.
5.  Once the countdown is over and the tones have stopped, resume your conversation with the call center agent, who will then be able to assist you in using the information transmitted for analysis.

USING SMART DIAGNOSIS™

USING THE TAG ON FUNCTION

USING THE TAG ON FUNCTION

Conveniently use the smart features to communicate with the appliance right from a smart phone.

The Tag On function can only be used with most smart phones equipped with the NFC (Near Field Communication) function and based on the Android OS (operating system).

Application Installation

Search for the LG Smart Laundry&DW application from the Google Play Store on a smart phone.
Follow instructions to download and install the application.

Product Registration

1 Run the LG Smart Laundry & DW application on a smart phone.

2 Select Smart Appliance.

3 Select Washer.

4 Select Front Load.
If the NFC function is not turned on, turn on the NFC function in the smart phone.

5 Hold the back of the smart phone firmly on top of the Tag On logo.
If you can't make a connection, then move the smart phone up and down slowly.

NOTE Press

Using the Application

Use LG SMART DIAGNOSIS™, Download Cycle. Laundry Stats, Cycle Set, and other functions by touching the LG appliance's Tag On logo with an NFC-equipped smart phone.
Cycle Set

Choose the best cycle and settings based on laundry needs.
Once you have selected a cycle based on the cycle set guide, the cycle and settings are automatically set.
Download Cycle

Download new and special cycles that are not included in the basic cycles on the appliance.
Appliances that have been successfully registered can download a variety of specialty cycles specific to the appliance.
Only one cycle can be stored on the appliance at a time.
Once cycle download is completed in the washer. the product keeps the downloaded cycle until a new cycle is downloaded.
Smart Diagnosis™

Use a phone to record the Smart Diagnosis™ signal to solve problems with the appliance. The application can analyze the signal and help solve the problem without waiting for a technician.
Laundry Stats

Learn basic stats about the applian e such as the cycle history and basic maintenance timing.
Select Laundry Stats at the application to get the stats and find out when the washer’s next tub clean is due.

WARRANTY

ENGLISH

THIS LIMITED WARRANTY DOES NOT COVER:
1.   Service trips to deliver, pick up, or install the product or for instruction on product use.
2.   Replacing house fuses or resetting of circuit breakers, correction of house wiring or plumbing, or correction of product installation.
3.   Damage or failure caused by leaky/ broken/ frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
4.   Damage or failure caused by accidents, pests and vermin, lightning, wind, fire, floods or acts of God.
5.   Damage or failure resulting from misuse, abuse, improper installation, repair or maintenance. Improper repair includes use of parts not approved or specified by LG.
6.   Damage or failure caused by unauthorized modification or alteration to the product.
7.   Damage or failure caused by incorrect electrical current, voltage, or plumbing codes.
8.   Cosmetic damage, including scratches, dents, chips or  other damage to the finish of the product, unless such damage results from defects in materials or  workmanship and is reported to LG within seven (7) calendar days from the date of delivery.
9.   Damage or missing items to any display, open box, discounted, or refurbished product.
10.  Product where the original factory serial numbers have been removed, defaced or changed in any way.
11.  Repairs when product is used in other than normal and usual household use (e.g. rental, commercial use, offices, or recreational facilities) or contrary to the instructions outlined in the owner’s manual.
12.  The removal and reinstallation of the Product if it is installed in an inaccessible location.

HOW SERVICE IS HANDLED: In-Home Service In-home service will be provided, as available, during the warranty period subject to servicer availability within the U.S. To receive in-home service, the product must be unobstructed and accessible to service personnel. If the in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. If in-home service is unavailable, LG may elect, at its option, to provide for transportation of the product to and from an LG authorized service center.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING AND WITHOUT LIMITATION TO, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, THIS WARRANTY IS LIMITED IN DURATION TO THE TERM PERIOD EXPRESSED ABOVE.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CUSTOMER.
NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL. INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING AND WITHOUT LIMITATION TO, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.  THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

HOW TO OBTAIN WARRANTY SERVICE & ADDITIONAL INFORMATION: Write your warranty information below:

Call 1-800-243-0000 or visit our website at www.lg.com.
 Product Registration Information: Mail to: LG Customer Information Center (ATTN: CIC)
 Model:

201 James Record Road, Huntsville, AL 35824
 Serial Number:
 Date of Purchase:

WARRANTY: LG Electronics U.S.A., Inc. (“LG”) warrants your LG Washing Machine (“product”) against defect in materials or workmanship under normal household use, during the warranty period set forth below, LG will, at its option, repair or replace the product.
This limited warranty is valid only to the original retail purchaser of the product, is not assignable or transferrable to any subsequent purchaser or user, and applies only when the product is purchased through an LG authorized dealer or distributor and used within the United States (“U.S.”) including U.S. Territories.

Note: Replacement products and repair parts may be new or factory-remanufactured and are warranted for the remaining portion of the original unit’s warranty period or ninety (90) days, whichever is longer. Please retain dated receipt or delivery ticket as evidence of the Date of Purchase for proof of warranty (you may be required to submit a copy to LG or authorized representative).

WARRANTY PERIOD:

LG WASHING MACHINE LIMITED WARRANTY (USA)

Period One (1) year from date of original retail purchase: Ten  (10) years from date of original retail purchase: Lifetime  from date of original retail purchase:

Scope of  Warranty Any internal /functional Parts & Labor Drum Motor (Stator and Rotor) Stainless Steel Drum

Remark LG will provide parts & labor to repair or replace defective parts.
Parts only. Customer will be responsible for any labor or in-home service to replace defective parts.

WARRANTY

LG WASHING MACHINE LIMITED WARRANTY (CANADA)

WARRANTY: Should your LG Washer (“Product”) fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or  the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.

LG Canada’s sole liability is limited to the warranty set out above. Except as expressly provided above, LG Canada makes no and hereby disclaims all other warranties and conditions respecting the product, whether express or implied, including, but not limited to. any implied warranty or condition of merchantability or fitness for a particular purpose, and no representations shall be binding on LG Canada. LG Canada does not authorize any person to create or assume for it any other warranty obligation or liability in connection with the product. To the extent that any warranty or condition is implied by law, it is limited to the express warranty period above. LG Canada, the manufacturer or distributor shall not be liable for any incidental, consequential, special, direct or indirect damages, loss of goodwill, lost profits, punitive or exemplary damages or any other damage, whether arising Directly or indirectly from any contractual breach, fundamental or otherwise, or from any acts or omissions, tort, or otherwise.
This warranty gives you specific legal rights. You may have other rights which may vary from province to province depending on applicable provincial laws.
Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty’s terms.

This limited warranty does not cover:
1.  Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or correction of wiring, or correction of unauthorized repairs/installation.
2.  Failure of the product to perform during power failures and interruptions or inadequate electrical service.
3.  Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
4.  Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner’s manual.
5.  Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not approved or specified by LG Canada.
7.  Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting from any water leakage due to improper installation.
8.  Damage or Product failure caused by incorrect electrical current, voltage, commercial or industrial use, or use of accessories. components, or cleaning products that are not approved by LG Canada.
9.  Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
10.  Damage or missing items to any display, open box, discounted, or refurbished Product.
11.  Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.
12.  Increases in utility costs and additional utility expenses.
13.  Replacement of light bulbs, filters, or any consumable parts.
14.  Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use. in offices or recreational facilities) or contrary to the instructions outlined in the Product owner’s manual.
15.  Costs associated with removal of the Product from your home for repairs.
16.  The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including the Product owner’s and installation manuals.
17.  Accessories to the Product such as door bins, drawers, handles, shelves, etc. Also excluded are parts besides those that were originally included with the Product.
All costs associated with the above excluded circumstances shall be borne by the consumer.
For complete warranty details and customer assistance. please call or visit our website: Write your warranty information below:

Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the menu, or visit our website at http://www.lg.com

Product Registration Information: Model: Serial Number: Date of Purchase:

Period One (1) year from the date of original retail purchase Ten (10) years from the date of original retail purchase Five ( 5 ) years from the date of original retail purchase

Scope of Warranty Parts and Labor (internal/functional parts only) DD Motor (Stator and Rotor) Stainless Steel Drum

Remark Washer Extended Component Warranty (Parts Only) (Consumer will be charged for Labor after one (1) year from the date of purchase)

WARRANTY

ENGLISH

With regard to damages or failures resulting from misuse, improper installation, maintenance, natural disaster or repair (unauthorized technician or parts, as specified by LG), customer will be charged for the repair.

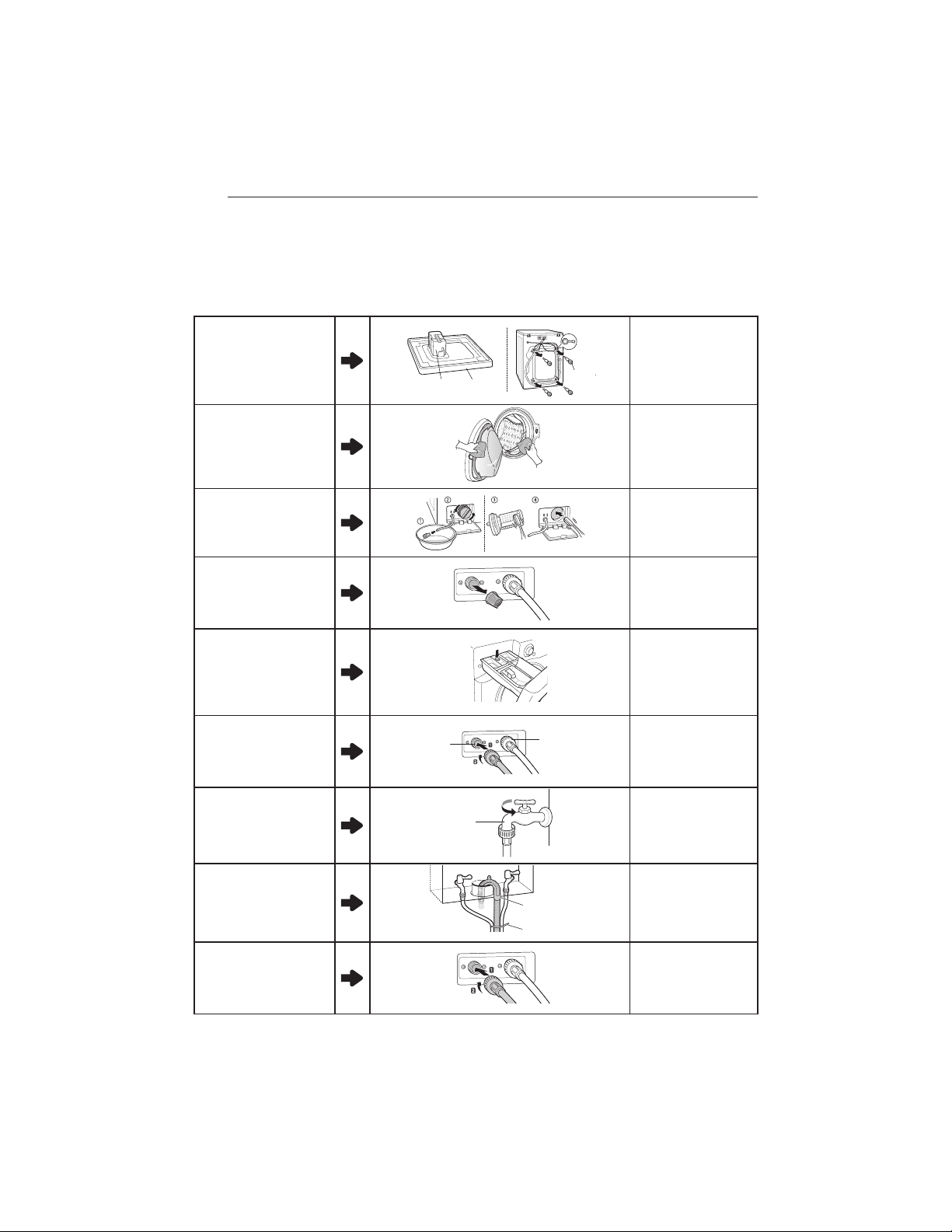

Strange vibration or noise caused by not removing transit bolts or tub support.

Tub support Carton base

Transit bolt

Remove the transit bolts & tub support.

Leakage caused by dirt (hair, lint) on gasket and door glass.

Clean the gasket & door glass.

Not draining caused by clogging of pump !lter.

Clean the pump !lter.

Water is not !lling properly because water inlet valve !lters are clogged or water inlet hoses are kinked.

Inlet Filter

Clean the inlet valve !lter or reinstall the water inlet hoses.

Water is not !lling properly because too much detergent use.

Dispenser

Clean the detergent disperser drawer.

Laundry is hot or warm after !nished washing because the inlet hoses are installed in reverse.

Cold Water Inlet

Hot Water Inlet

Reinstall the inlet hoses.

Water is not supplied because the water tap is not turned on. water tap

Turn on the water tap.

Leakage caused by improper installation of drain hose or clogged drain hose.

Elbow Bracket

Tie Strap

Reinstall the drain hose.

Leakage caused by improper installation of water inlet hose or using other brand inlet hoses.

Reinstall the inlet hose.

Lack of power caused by loose connection of power cord or electrical outlet problem.

Reconnect the power cord or change the electrical outlet.

THIS LIMITED WARRANTY DOES NOT COVER THE FOLLOWING CASES

WARRANTY

Service trips to deliver. pick up, install the product or for instruction on product use. The removal and reinstallation of the Product.

Level

The warranty covers manufacturing defects only. Service resulting from improper Installation is not covered.

If all screws are not installed properly, it may cause excessive vibration (Pedestal model only).

Install 4 screws at each corner (Total 16EA).

Water hammering (banging) noise when washing machine is !lling with water.

High Pressure Wate



Tags: Lg Ms253, Think Inverter Direct Drive Lg

LG Electronics WM3488HW/00 | Pages: 132 | Created on: 2016-09-13 | File type: PDF | Filename: 75193915_wm3488hw-00.pdf | Size: 5.63 MB | Language: English

Download User Manual

Product Infomation and Reviews - WM3488HW/00 photo

WM3488HW 00 Photo

LG Electronics in United States

(800) 243-0000 Consumer (7am-midnight CST) (888) 865-3026 Commercial (8am-6pm CST)
