Before you begin – Read these instructions completely and carefully.
IMPORTANT: Save these instructions for local inspector’s use.
IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES.
NOTE TO INSTALLER: Be sure to leave these instructions with the Consumer.
NOTE TO CONSUMER: Keep these instructions with your Use and Care Book for future reference.
CAUTION
WARNING
To prevent electric shock, discon-
nect electrical power supply to
dishwasher before changing
springs. Do not operate dish-
washer while changing panels or
when lower access panel assembly is removed.
Tools and Materials required:
• 1/4" socket driver
• Phillips screwdriver
• Gloves to protect against sharp edges
STEP 1:
• Turn off water supply.
• Latch dishwasher door.
• Turn off Power supply.
STEP 2:
Remove lower access panel assembly
• Remove the two screws below the access panel.
Retain screws.
• Loosen the two screws located between the door and
the access panel. Do not attempt to remove these
screws. They are secured to the access panel with
washers.
• Remove the access panel assembly and toekick from
the dishwasher. Set aside.
Installation Instructions For
GPF100 Dishwasher Door Spring Kit
For installation of a custom dishwasher door panel weighing 4 pounds to 8 pounds
GPF100 Kit
TYPE 1
2 springs 7-1/8” long
TYPE 2
2 springs 5-7/8” long and 2 plastic links
Loosen 2 Screws
Door
Panel
Access Panel
Toekick
Loosen 2 Screws
Door
Panel
Access Panel
Toekick

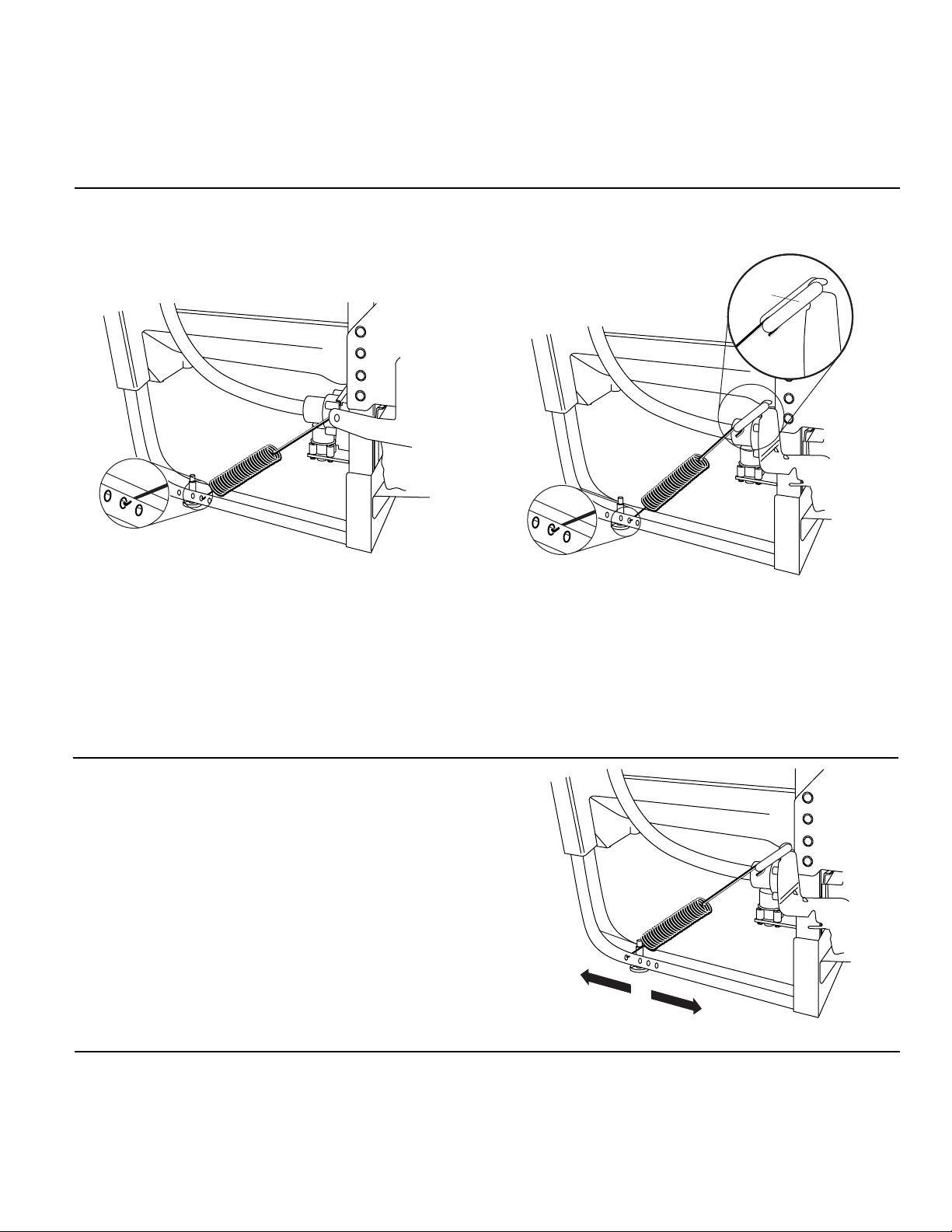

This kit contains two sets of springs to accommodate
different door counter-balance systems on dishwash-
ers. Use the type appropriate for your particular
dishwasher.
