Contents
1
1. IMPORTANT SAFETY INSTRUCTIONS ____________________ 2
2. INSTALLATION AND HOOK-UP _________________________ 10
3. DESCRIPTION OF THE CONTROLS _____________________ 18
4. WASHING PROGRAMS ________________________________ 23
5. OPERATING INSTRUCTIONS ___________________________ 27
6. CLEANING AND MAINTENANCE ________________________ 47
7. TROUBLESHOOTING. WHAT TO DO IF... _________________ 50
8. TROUBLESHOOTING _________________________________ 55
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
This manual contains only the basic information required to use the
appliance. The complete manual can be obtained from
www.smeg.com/download-manuals
by entering the product code shown on the plate attached to the inner
right hand edge of the dishwasher door.
The manual can be accessed quickly via the QR code using a device
with a QR reader application.
Warnings
2
TRANSLATION OF THE ORIGINAL
INSTRUCTIONS
1. IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Before using the appliance, carefully read all the
instructions contained in this manual.
During installation, take care not to injure yourself
on the sharp edges of the appliance: wear safety
gloves.
This manual is an integral part of the appliance; it
must always be kept intact together with the
dishwasher for future reference (even if sold).
Use the dishwasher only for its intended function.
This appliance is intended for indoor use in a
household environment and similar such as staff
kitchens of shops, offices and other workplaces,
institutions, and for the use by guests at hotels,
hostels, bed and breakfast and other residential
facilities. The appliance is designed and
manufactured to perform the following function:
washing and drying of dishes; any other use shall
be considered improper. The manufacturer
declines all responsibility for uses other than
those described above.
Do not use appliances which have been damaged
during transit! If in doubt, contact your dealer.
Warnings
3
Do not operate your dishwasher unless all
enclosure panels are properly in place.
Do not tamper with controls.
The appliance must be installed and connected in
accordance with the instructions provided by the
manufacturer. Installation must be performed by
qualified technicians in accordance with
applicable regulations.
The installation and repair or servicing shall be
carried out by qualified and authorised technical
personnel. Interventions by unauthorised personnel
can be dangerous and cause the warranty to lapse.
The installation must comply with all the directives of
the country where the dishwasher is installed, and in
the absence of them, in the United States the National
Electric Code; in Canada the Canadian Electric Code
C22.1 - Latest edition/provincial and municipal codes
and/or local codes
Under certain conditions, hydrogen gas might be
produced in a hot-water system that has not been
used for two weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot-water system has not been
used for such a period, before using the dishwasher
turn on all hot-water faucets and let the water flow
from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame
during this time.
Never leave waste packaging unattended. Do not
allow children to play with packaging materials.
Warnings
4
Separate waste packaging materials by type and
consign them to the nearest recycling centre.
The plate with the technical data, serial number and
marking is in a visible position on the inside edge of
the door. It must not be removed.
The appliance must be earthed in compliance with
electrical safety regulations. The manufacturer
declines all responsibility for damage to
persons or property resulting from failure to
earth the appliance or from a defective earth
connection.
During the installation the appliance must be
disconnected from the network.
Do not install the appliance in a place subject to
freezing.
Do not install the appliance near equipment with
high irradiation temperature (e.g. gas burners,
fireplaces, etc.).
If the appliance is installed in a compartment above
or below another equipment (e.g. gas burners,
ovens, etc.), read carefully the instructions provided
by the manufacturer of the equipment. If the
instructions of the equipment do not contain
information, contact the manufacturer of the
equipment to ensure that the appliance can be
installed above or below it.
Warnings
5
Building-in the appliance underneath a hob is
absolutely forbidden. Installing a hob on top of free-
standing appliance is absolutely forbidden.
To ensure stability, install the appliance only under
continuous worktop, securely fixed to adjacent
cabinets. If the appliance is installed in a high
cabinet, both the appliance and the cabinet must be
adequately fixed.
If the appliance is not built-in and is therefore
accessible on one side, the door hinge area must
be covered for safety reason (injury hazard). The
covering fixtures are available as an accessory from
specialist dealers or the after-sales.
Check that the voltage and the frequency of the
mains match the ratings on the name plate of the
appliance.
The plug on the supply cord and the corresponding
socket outlet must be of the same type and meet
the regulations in force. Do not use adaptors or
shunt connections in order to avoid the possibility of
overheating or burning.
The plug of the appliance must be accessible after
installation. Never disconnect the plug by pulling on
the power supply lead.
If the appliance is provided with a plugless supply
cord, an omnipolar circuit breaker providing a full
disconnection in overvoltage protection class III
must be installed in an easily accessible position on
the supply lineile.
Warnings
6
The appliance must be connected to the water
supply by means of new hoses.
Briefly test the appliance after installation. Run a
wash cycle with a temperature of between 113°F
and 158°F (45°C-70°C) with the dishwasher empty
and using a specific dishwasher detergent. (It is not
sufficient to run a soak cycle). If the dishwasher fails
to operate correctly, disconnect it from the electrical
power supply and call the nearest technical service
centre. Never attempt to repair the appliance
yourself.
The dishwasher should only be used by adults. Use
by children aged from eight years and persons with
reduced physical, sensor or mental capabilities or
lack of experience and knowledge is only permitted
under the supervision of a person responsible for
their safety.
To reduce the risk of injury, do not allow children to
play in or on a dishwasher.
Use only detergents or wetting agents
recommended for use in a dishwasher and keep
them out of the reach of children
Keep children away from the dishwasher when the
door is open. Always check that the detergent
distributor is empty after completion of the wash
cycle.
Cleaning and regular maintenance of the appliance
by children is only permitted under the supervision
of a person responsible for their safety.
Warnings
7
Some detergents are strongly alkaline. Avoid
contact with the skin and eyes. Detergents can be
extremely dangerous if swallowed. They contain
substances capable of causing permanent damage
to the mouth and throat, and even leading to
suffocation. Observe all the safety instructions on
the packaging of these products.
Do not drink the water residues which may be
present on the dishes or appliance at the end of the
washing program.
Never place solvents such as alcohol or turpentine,
which are potentially explosive, inside the
appliance. Never load dishes soiled with ash, wax
or paint.
Never leave the dishwasher door open; people
might trip over it.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Switch off the dishwasher after use to avoid wasting
electricity.
Locate sharp items so that they are not likely to
damage the door seal.
Load sharp knives with the handles up to reduce the
risk of cut-type injuries.
The appliance satisfies all applicable safety
regulations governing electrical equipment. Any
technical checks should be conducted exclusively
by trained and authorised technicians: repairs
performed by unauthorised persons not only
Warnings
8
void the warranty but may also put the user’s
safety at risk.
In the event of a fault, disconnect the dishwasher
from the electrical power supply and shut off the
water tap. In the event of damage to the supply
cord, have it replaced by the manufacturer or an
authorised technical service centre.
Some components are live even with the on/off
button in the off position. Before performing any
maintenance work on the appliance, disconnect it
from the electrical power supply.
Do not clean the machine with a water jet machine,
high-pressure or steam cleaners.
Do not introduce animals into the dishwasher.
Models with “acquastop” device
This device prevents flooding in case of water leak.
When the “acquastop” device is tripped, contact a
qualified technician to identify and repair the fault.
In these models the water intake hose contains a
solenoid valve. Do not cut the hose and do not
allow the solenoid valve to drop into water. In
case of damage to the water intake hose,
disconnect the appliance from the electrical and
water supply.
Warning: The device only works if the
dishwasher is connected to the mains.
Warnings
9
1.1 Disposal
The appliance does not contain substances in
quantities sufficient to be considered hazardous to
health and the environment, in accordance with current
European directives:
To dispose of the appliance:
Remove the washing compartment door.
Cut the power cable,
Make the lock unusable.
The manufacturer declines any liability for damage
or injury caused by failure to comply with the
instructions indicated above or as a result of
tampering with even just one part of the appliance
and the use of non
-
original spare parts.
Warnings
10
2. INSTALLATION AND HOOK-UP
2.1 Technical characteristics
Water supply pressure min. 0,05 - max. 0,9 MPa (min. 0.5
– max. 9 bar)
Water supply temperature
max. 140°F – 60°C
Capacity
12
-
13 standard place settings
Class of protection against
moisture
IPX0
Protection against electric
shock
class I
Electrical data
see the data plate
Appliance dimensions
Dimensions
H
P
L
Free standing 850 mm;
33”-15/32
627 mm
24”-11/16
600 mm
23”-5/8
Free standing
maxi
890 mm;
35”-3/64
627 mm
24”-11/16
Integrated 818-888 mm;
32”-13/64-34”-61/64
584 mm
22”-63/64
Integrated
maxi
858-928 mm;
34”-31/32-36”-35/64
584 mm
22”-63/64
Installation
11
2.2 General Information
This appliance may be placed up against walls or
other furniture units.
If the appliance is installed near a heat source, fit a
special insulating panel to prevent overheating and
malfunction of the appliance.
To facilitate the installation procedure, the intake and
drain hoses can be positioned in any directi
on; make
sure that the hoses are not kinked, crushed or pulled
too tightly.
A hole at least 8 cm (3" 5/32) in diameter is required
to allow the power supply cable and hoses to pass.
At the end of the installation, perform a short test of
the appliance: ope
n the water tap and check that
there are no leaks.
To install the dishwasher against the back wall, the
hoses should be passed through the lower area
where there is a dedicated space for them.
Level the appliance on the floor using the
appropriate Allen key to regulate the adjustable
feet. This operation is essential for ensuring
correct operation of the dishwasher.
Installation
12
Some models are equipped with only one
adjustable foot at the rear, which can be adjusted
by turning the screw on
the lower front part of the
appliance.
Building-in a dishwasher underneath a hob is
absolutely forbidden.
Moreover, dishwashers may not be installed
directly touching appliances which are not
conventional built-in kitchen appliances (e.g.
fireplaces, stoves, etc.).
When installing the dishwasher in a compartment
next to one or more other appliances, it is essential
to comply with all the recommendations provided
by the appliance’s manufacturer (minimum
dis
tances, installation procedures, etc.).
Installation
13
For free-standing models only
- Installing a hob on top of a free-
standing
dishwasher is absolutely forbidden.
-
If the appliance is accessible from one side, the
door hinge area has to be covered for safety
reasons (risk of injury). The covers are available
as an accessory and can be
ordered through the
Technical Assistance Service.
-
The top surface of the dishwashers can be
removed to allow installation under a worktop. The
appropriate kit
should be purchased from
authorised dealers or via the Technical Assistance
Service. This must be carried out by authorised
personnel.
Installation
14
2.3 Water supply connection
CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water
supply
with ¾” gas thread, inserting the filter A
supplied with the dishwasher.
Take care to
screw the hose firmly into place with your
hands and then complete by tightening
about ¼ of a turn with pliers.
In dishwashers equipped with the
AQUASTOP device,
the filters is already
fitted inside the threaded ring.
The dishwasher can also be connected to a hot
water supply not exceeding 60°C (140°F)
.
Supplying the appliance with hot water cuts down
the washing time be approximately 20 minutes,
but slightly reduces its effectiveness. Make the
connection to the domestic hot water supply
using the same procedure described for
connecting to the cold wate
r supply.
Installation
15
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm (1"37/64)
, or
alternatively, place it inside the
kitchen sink using the plastic support
provided, taking care not to c
rush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at
a height of between 30 and 100
cm
(11" 13/16 and 3' 3" 3/8),
and
should never be submerged in
water.
If a horizontal drain extension hose is used (for a
maximum 3 m -
9' 10" 7/64 ), the drain hose can be
placed at a maximum height of.85 cm
(2' 9" 15/32) from
the ground.
Installation
16
2.4 Electrical connection
Check that the
voltage and the frequency of
the mains match the ratings on the name plate
of the appliance positioned on the inner edge
of the door.
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electric
shock by providing a path of least
resistance for electric current. This appliance is
equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is
installed and grounded in
accordance with all local
codes and ordinances.
WARNING –
Improper connection of the
equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified electrician
or service representative if you are in doubt whether
the applianc
e is properly grounded. Do not modify
the plug provided with the appliance, if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
The plug must be accessible after installation.
Never disconnect the plug by
pulling on the
power supply lead.
After changing the supply cord, make sure that the
bracket which secures the cord is fixed securely in
place.
Installation
17
Do not use adaptors or shunt connections
in
order to
avoid the possibility of overheating or
burning.
The power cable must be replaced by the
manufacturer or by an Authorized Service
Centre.
User instructions
18
3. DESCRIPTION OF THE CONTROLS

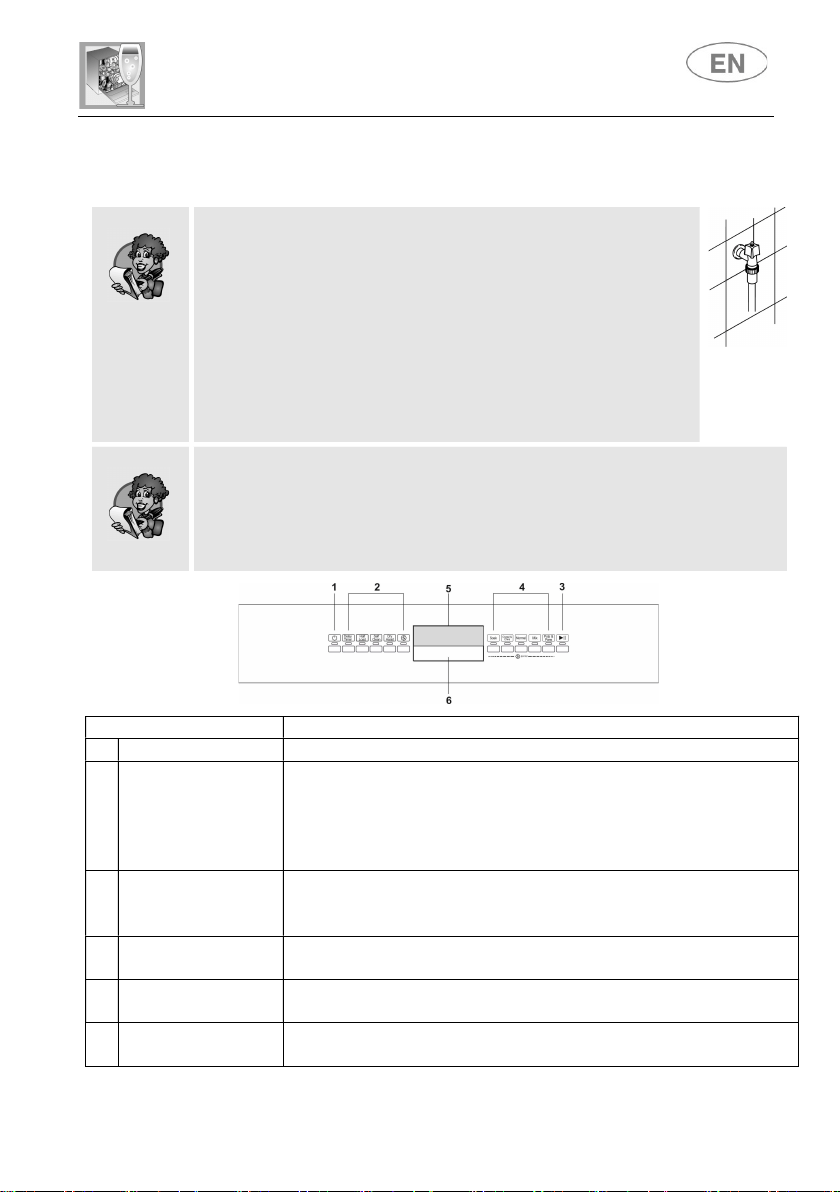

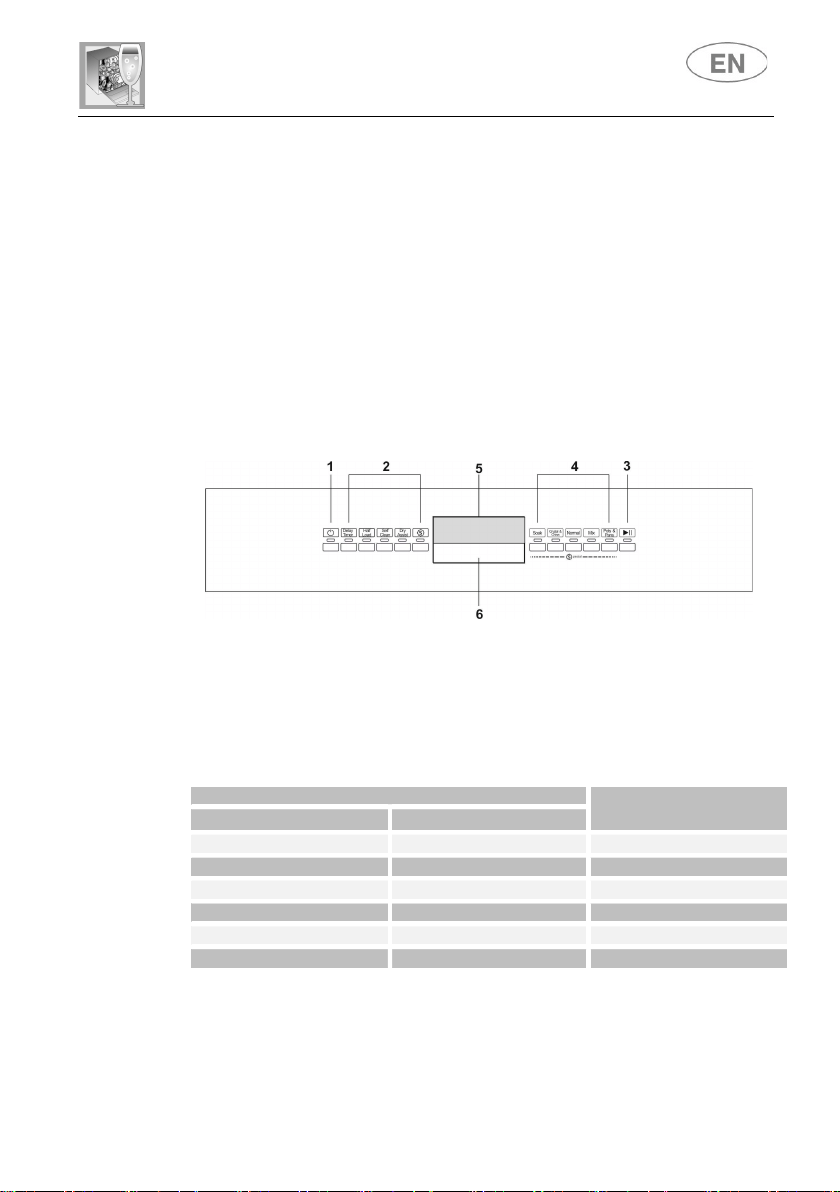

3.1 Upper panel
All the dishwasher controls are grouped on the front panel. Programming
and option selection are only possible with the door closed.
1 ON/OFF BUTTON AND WARNING LIGHT
2 OPTION SELECTION BUTTONS AND WARNING LIGHTS
3 START/PAUSE BUTTON
4 PROGRAM SELECTION BUTTONS
5 INFORMATION DISPLAY
6 HANDLE TO OPEN THE DOOR
N.B.: symbols and styling are guideline and may vary depending on
the model or version of the dishwasher purchased.
User instructions
19
3.2 Information display
The dishwasher is equipped with a practical DISPLAY which provides
information on the programmed dishwasher functions.
Rinse aid lack warning indicator
Salt lack warning indicator
End of cycle signal
Shows that sanitation has been completed.
000
Delayed start indicator, wash cycle duration and alarms
H0….H5
Water softener setting indicator
b0….b5
Rinse aid setting indicator
Program phases warning lights
With program in progress, it indicates
the status of the program
Prewash
Wash
Rinse
Drying
User instructions
20
LIGHTING
Pressing the ON/OFF button will start the dishwasher and will lit up the
dishwasher pilot light. After approximately 3 second from this operation
the DISPLAY will be turned on with a visualization that will depend upon
the state of the dishwasher.

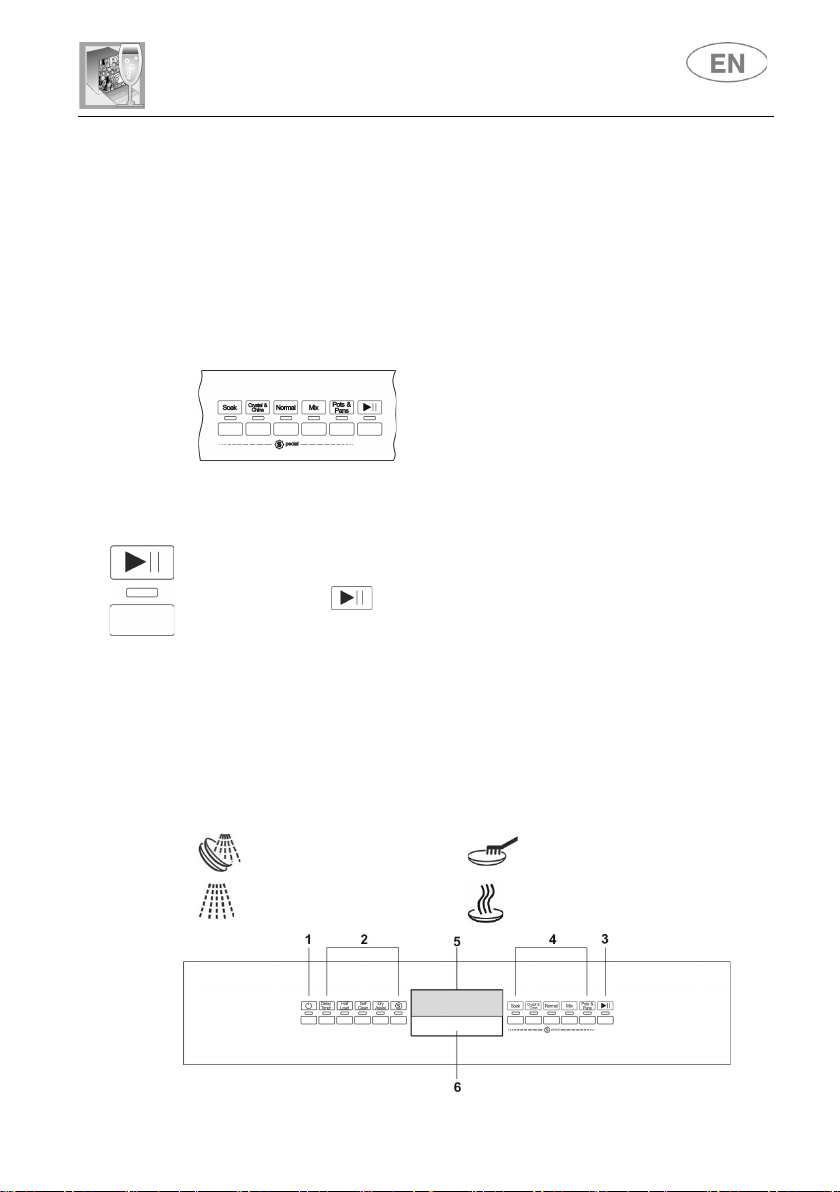

PROGRAMMING
All the programming operations are possible only with closed door. With
open door, on the
DISPLAY
will appear
-
-
:
-
-
.
SELECTION PROGRAM
The program selection is possible
through the relative buttons.
By pressing the relative button of the desired program (see table) it will
light up the relative pilot light to confirm that the operation occurred and
on the
DISPLAY
a program duration forecast will appear (“
h.mm
”).
START PROGRAM
At this point, in order to start the machine, it is only enough to press the
START/PAUSE for some seconds until the symbol START/PAUSE
start to flash and confirmation “beep” is heard. From this moment the cycle
duration on the
DISPLAY
starts to decrease.
Program progress is indicated by the program phases that show the status
of the current cycle.
The current phase flashes, while the next washing phases lights stay on.
At the end of each phase, the signal will turn off.
N.B.: when a program which does not need the prewash phase is
selected, the prewash signal stays off.
Prewash
Wash
Rinse
Drying
User instructions
21
Warning:
during the initial phase of the wash program the spray arms cannot be
heard in operation because they start turning about 5 minutes after the
start. This is the normal wash cycle sequence.
END PROGRAM
At the end of the program the DISPLAY shows “end”. By pressing one of
the program buttons the dishwasher is ready to start a new cycle.
INTERRUPTING A PROGRAM
In order to interrupt a running program it is necessary:
to press the START/PAUSE for some seconds until when the
led START/PAUSE remains lit on (confirmation beep). At this point,
it is possible to start the cycle again, otherwise:
TO CHANGE A PROGRAM
To change the running program it is necessary:
to interrupt the running program (see “INTERRUPTING A PROGRAM”);
select the new program;
to press again the START/PAUSE button to make start the new
program.
STOPPING A PROGRAM
To cancel a program which is running:
Interrupt the program (see "INTERRUPTING A PROGRAM")
Press the START/PAUSE button and hold it down; the
display will show "P0" and the dishwasher will immediately
switch to the end of the cycle and drain the tank (during this
process, the "START/PAUSE led will flash). When the drain
procedure ends, the end of cycle "End" message appears on
the display.
In case that the door is opened during the operation, to the next door
closing it is going to be necessary to start the program as shown in
paragraph “STARTING THE PROGRAM”. The program will resume from the
point in which it was interrupted.
In case that the tub temperature is higher than 50°C the program will
start about 60 seconds later.
User instructions
22
Description of the programs:
The number, type and the sequence of wash programs depend on the model
purchased. Refer to the instruction manual supplied together with the product.
SOAK
Pans and dishes awaiting completion of the load
AUTO (according to the model)
Normally soiled dishes including dried-on residues, for daily use.
NORMAL (according to the model)
Normally soiled dishes including dried-on residues, for daily use.
HALF LOAD
To wash just a few normally soiled dishes, washed immediately after use
DELICATE
Wash cycle for mixed loads such as wine glasses and lightly soiled dishes.
MIX
Mixed dishes very dirty, including dried-on residues.
POTS & PANS
Mixed dishes very dirty and pans dirty, including dried-on residues.
EXPRESS 27’
Dishes with light dirt, washed immediately after use
CRYSTAL & CHINA
Wash cycle for delicate items, such as wine glasses and lightly soiled fine china.
Ideal when you require dazzlingly clean glassware
ECO EXPRESS
Quick wash cycle with low water and energy consumption. Suitable for normally
soiled mixed loads, washed immediately after use.
EXPRESS 60’
Quick cycle for lightly soiled dishes, washed immediately after use.
STERILIZE
Quick wash cycle for normally soiled mixed loads such as dishes and pans, even with
dried-on residues. Dishes are washed and dried in 60 minutes.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
User instructions
23
4. WASHING PROGRAMS
Before starting a washing program make sure that:
The water supply tap is open.
The softener container contains regenerating salt.
The correct amount of detergent has been added to the
dispenser.
The baskets have been correctly loaded.
The spray arms are able to rotate freely and without
obstruction.
The dishwasher door is securely closed.
Warning:
during the initial phase of the washing program, the operation of sprayers
is not perceived because they start rotating about 5 minutes after the start.
This is the normal operation of the washing cycle.
Option
Description
1 SPECIAL Creates additional programs.
2 DRY ASSIST
Allows the dishes to be dried perfectly even at low rinse
temperatures, with significant energy savings. It starts
automatically if the selected program is compatible with it. If it
is not required, press the button to disable it.
3 EXTRA DRY Modifies some of the parameters to ensure improved drying.
4
½ LOAD FLEXY
ZONE
Ideal if just a few dishes need to be washed, allowing energy
savings and a shorter wash cycle.
5 DELAY
Allows the wash cycles 1 or 3 to be delayed by up to 9, 12 or
24 hours depending on the models.
6 SELF CLEAN
Dishwasher cleaning cycle. Must be started with the machine
empty, without dishes.
User instructions
24
SPECIAL (if present)
Allows you to enable additional programs when selected together with any
wash cycle. After having selected the required wash cycle, press the
button (the light turns on). It turns off automatically when the cycle has
finished.
½ LOAD FLEXI ZONE (if present)
Ideal if just a few dishes need to be washed, allowing energy savings. The
dishes should be placed in both baskets and less detergent should be
placed in the detergent dispenser compared to the amount used for a full
load.
EXTRA DRY (if present)
The option modifies the parameters to ensure improved drying.
Suitable for loads that contain dishes that are difficult to dry such as pots,
non-stick pans and plastic containers.
DRY ASSIST (if present)
The door opens automatically, allowing the dishes to be dried perfectly
even at low rinse temperatures, and therefore significant energy savings.
The door opens slowly by a few centimetres at the end of the wash cycle.
The dishwasher remains inactive between the final rinse and the end of
the cycle to allow the load to be properly dried (the display shows the time
remaining to the end of the cycle). The program is interrupted if the door
is opened during this stage. A short beep is emitted and cycle lights 4 and
5 flash to indicate that the cycle has finished. It starts automatically if the
selected program is compatible with the option. It can be disabled before
starting the program.
There must be sufficient space available for the door to open. The
door must not be forced open and closed before the wash cycle has
ended completely.
Note: some models are equipped with the dry assist function by default
on one or more cycles (check the manual supplied with the product).
These models are not fitted with a button to control this function. The door
opens automatically at the end of the wash cycle(s).
DELAY (if present)
Press the DELAY button to set the dishwasher cycle to start during the
required time period (e.g. night). According to the model, this may be
indicated on the display or by specific lights. The option cannot be
selected once the cycle is running. To cancel the setting, press the
button several times until the lights switch off or until the number on the
User instructions
25
display is reset. After the door has been closed, the dishwasher will carry
out a pre-wash cycle, after which the set “cycle delay” option will be
activated.
SELF CLEAN (if present)
Dishwasher cleaning cycle. The cycle should be started with the machine
empty, without dishes. It is recommended to run the program every 2-3
months, using special dishwasher detergents. The light flashes during
operation. At the end of the cycle it remains on and cycle lights 4 and 5
flash.
The display (if available) shows “End”.
User instructions
26
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
Always use the dishwasher with a full load.
Load the dishwasher as indicated in the instructions manual. If the
dishwasher is loaded incorrectly, it may lead to poor results as well
as waste water, energy and detergent.
Do not wash dishes under running water before placing them in the
dishwasher. It would just waste water and energy.
Use the washing program that is most appropriate for each type of
load.
If available, connect the dishwasher to a hot water supply up to 60°C.
If the manufacturer's instructions and recommendations are followed,
washing the same number of similarly soiled dishes in a dishwasher
consumes less water and energy than if they were washed by hand.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
separate the more delicate items from dishes that are more
resistant to aggressive detergents and high temperatures;
do not pour detergent directly onto the dishes.
If the door has to be opened while washing is in progress, the program will
be interrupted. The relative light will keep flashing and a beeper will signal
that the cycle has not been completed. You must wait about 1 minute
before closing the door to restart the program. When the door is closed
the program will continue from where it was interrupted. This operation
should only be carried out if strictly necessary, because it might cause
problems in execution of the program.
ENERGY MANAGEMENT
After 5 minutes of waiting (washing cycle completed, stopped or set but
not started) the dishwasher switches to a standby state to reduce energy
consumption.
In this state, the dishwasher indicator panel (lights or display depending
on model) functions more slowly (
switch
-
on once
every
5 seconds
).
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool. To ensure that any drops of
water left in the top basket cannot drip onto the dishes still in the bottom
basket, you are advised always to
empty the bottom basket first
.
User instructions
27
5. OPERATING INSTRUCTIONS
After having installed the dishwasher, remove the basket retainers and
prepare the machine for use as follows:
Regulate the water softening system;
Add regenerating salt;
Add rinse aid and detergent.
Setting the water hardness
The dishwasher must be switched on and the door open.
Press and hold the cycle delay button until “h” appears on the
display followed by the current setting (e.g. h3).
Press the cycle delay button once or several times to select the
required hardness (from h0 to h5).
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
WATER HARDNESS TABLE
WATER HARDNESS
SETTING
German degrees (°dH) French degrees (°dF)
0
-
6
0
-
11
h.-0 NO SALT
7
-
10
12
-
18
h.-1
11
-
15
19
-
27
h.-2
16
-
21
28
-
37
h.-3
22
-
28
38
-
50
h.-4
29
-
50
51
-
90
h.-5
Contact your local water board for information on the hardness of your
water supply. Default settings:
h3
-
16
-
21°dH
–
28
-
37°dF
User instructions
28

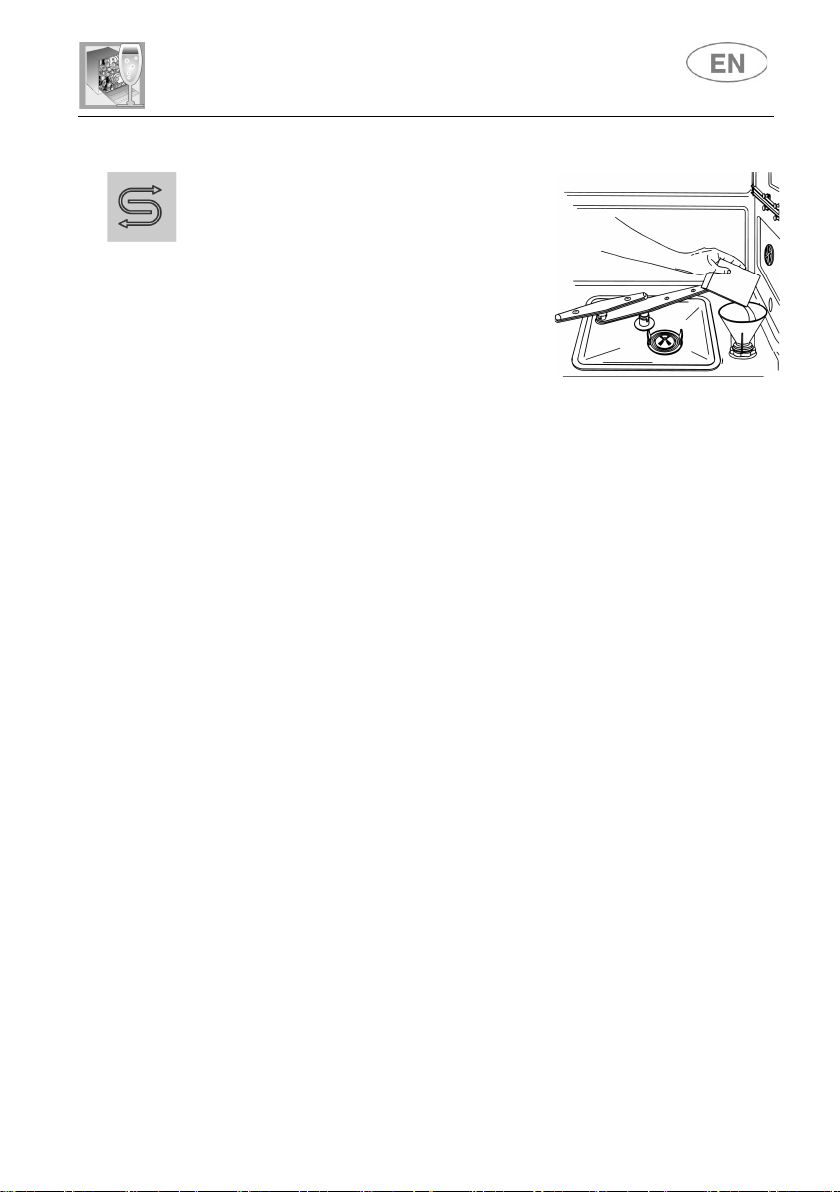

5.1 Adding the salt
The amount of scale contained in the water
(water hardness index) can cause whitish
staining on the dry dishes, which tend to
become dull over time. The dishwasher is
equipped with an automatic softening
system which uses a special regenerating
salt to reduce the hardness of the water.
When using water of medium hardness, the regenerating salt container
should be refilled after approximately 20 washing cycles. The salt
container can hold approximately 1 kg of salt in grains. Some models are
equipped with an optical no-salt indicator. In these models, the cap of the
salt container contains a green float which descends as the salt
concentration in the water drops. When the green float can no longer be
seen through the transparent cap, the container must be topped up with
regenerating salt. The container is situated at the bottom of the
dishwasher.
The salt prevents the formation of scale deposits.
Remove the lower basket.
Unscrew the cap of the salt container by turning it anticlockwise.
When using the dishwasher for the first time, fill the container with a
litre of water.
Pour salt (approx. 1 kg) into the container using the funnel provided
with the dishwasher.
When finished, remove any salt residues before screwing the cap
back on.
SALT
User instructions
29
In order for the water softening system to give fault-free service, the appliance
performs a regeneration cycle of the system at regular intervals.
The regeneration process consists of several stages. It starts at the end of the last
rinse cycle, after the amount of water indicated in the mains water hardness setting
has been reached during the wash cycle, and finishes at the beginning of the
following wash cycle.
The regeneration process increases the cycle time and consumption of water and
electricity.
Below is an overview of consumption of regeneration the softening system using the
Eco program with a water hardness setting of H2.
Water
consumption
according to
model
[refer to the
programs
table]
(litres)
Regeneration
frequency
(number of
cycles)
Water
consumption
during
regeneration
(litres)
Energy
consumption
during
regeneration
(Wh)
Duration of the
regeneration
process
(min)
At
the
end
of
the
last
rinse
At the
beginning
of the
following
wash
cycle
At
the
end
of
the
last
rinse
At the
beginning
of the
following
wash
cycle
At
the
end
of
the
last
rins
e
At the
beginning
of the
following
wash
cycle
7
8
0,2
4
(10x0,4
litri)
0,3 1,2 6 4
8,5
-
9
-
9,5
6
10,5
-
12
5
Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation
of the regeneration system. In this case warranty cover will be
forfeited.
Only use regeneration salt specifically for domestic
dishwashers. Do not use table salt, since it contains insoluble
substances that could damage the water softener system.
After having added salt, run a wash cycle to remove any excess salt.
In this way, the excess saline solution will be immediately removed
by the water; the prolonged presence of salt water inside the tank may
lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.
User instructions
30

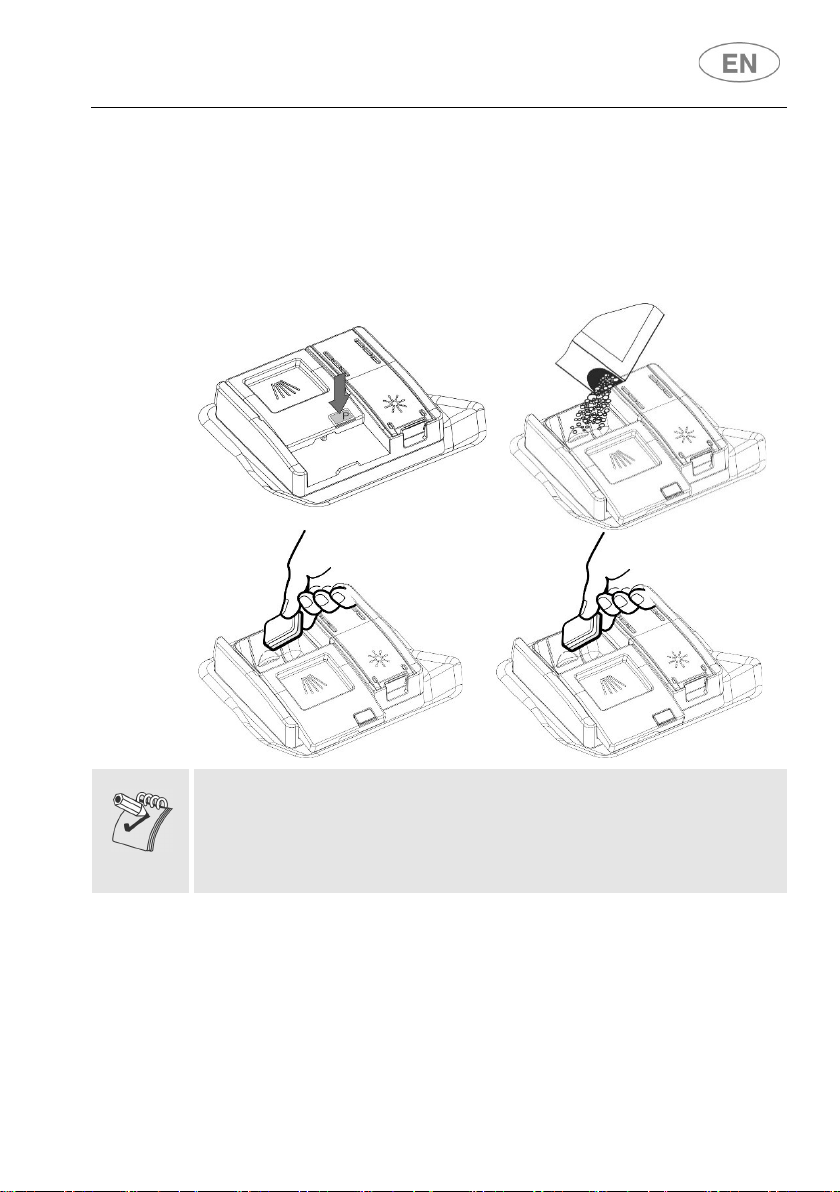

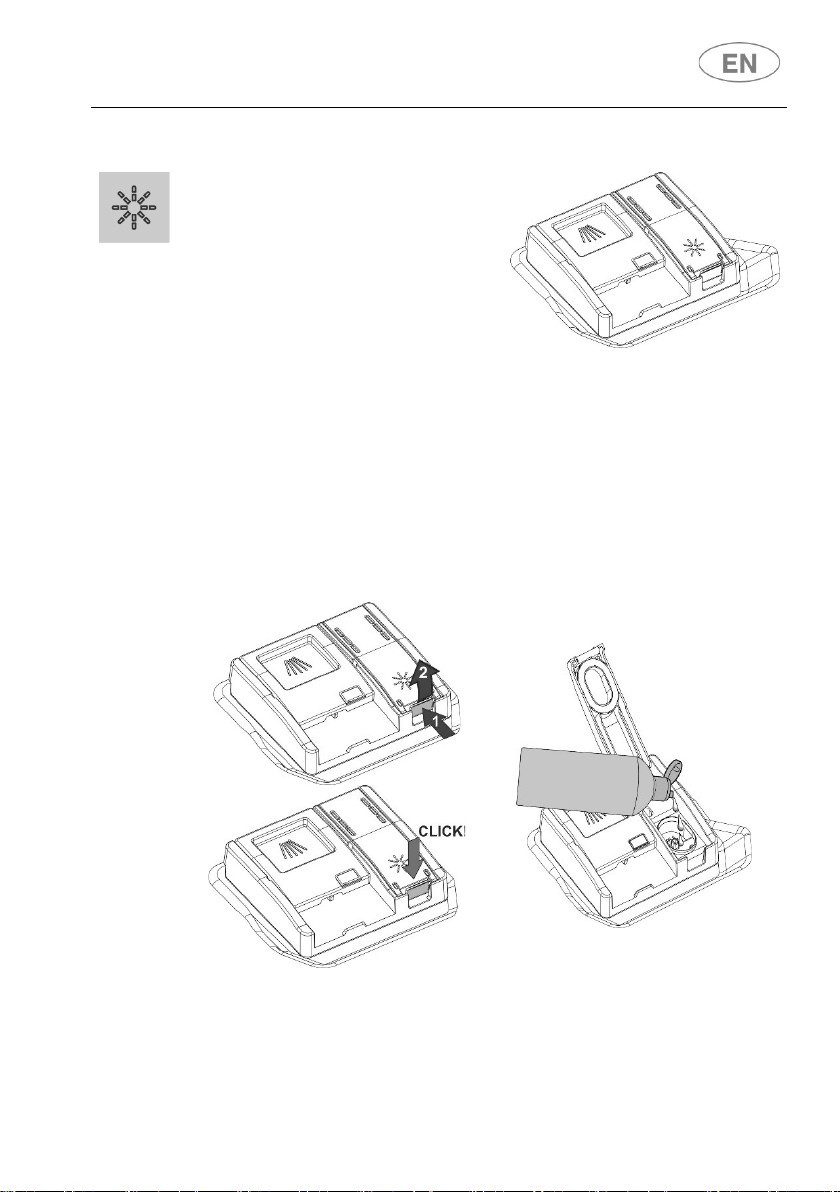

5.2 Adding the rinse aid
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is on the left, and the rinse
aid dispenser is on the right.
The rinse aid helps the dishes dry faster and prevents the formation of
scale deposits and staining; it is automatically added to the water during
the final rinse cycle, from the container situated on the inner side of the
door.
To add rinse aid:
Open the dispenser by pressing and lifting the tab on the cover.
Top up again when the rinse aid indicator light turns on.
Close the cover, a click indicates when it is closed.
Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
User instructions
31
Adjusting the amount of rinse aid
The dishwasher must be switched on and the door open.
Press and hold the cycle delay button until “b” appears on the
display followed by the current setting (e.g. b3).
Press the cycle delay button once or several times to select the
required hardness (from b0 to b5) according to the following table.
After carrying out the adjustment or displaying the current setting, if you
do not touch the button for a few seconds the dishwasher will
automatically exit from adjustment mode and return to the standard
operating mode.
RINSE AID ADJUSTMENT TABLE
b0
0 – not dispensed
b1
minimum 2 ml
b2
3 ml
b3
4 ml
b4
5 ml
b5
maximum 6 ml
Default settings:
b4
-
5 ml
The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
If, on the other hand, the dishes are sticky or have white streaks, it is
necessary to reduce the rinse aid setting.
User instructions
32
5.3 Adding the detergent
Open the detergent dispenser cover by lightly pressing the button P.
Add the detergent or tablet.
Close the cover by sliding it until it stops, indicated by a click.
The dispenser will open automatically during the wash cycle.
Only add the detergent or tablet if the dispenser is dry.
With the exception of the SOAK program, before every washing cycle it is
necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.
User instructions
33
With the exception of the SOAK program, before every washing cycle it is
necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.
When a program with a hot pre-wash is selected (see program table),
extra detergent must be placed in the cavity.
Use only detergents specially formulated for dishwashers.
The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.
Do not use detergents for washing dishes by hand because they may
affect the operation of the dishwasher.
Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
For the safeguarding of the environment we recommend the use of
phosphate
-
and chlorine free
detergents.
The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.
5.4 General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the
following recommendations concerning dish types to be washed and their
loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.
Before loading the dishes into the baskets it is necessary to:
remove coarse food remains: e.g. bones, fish-bones, etc. which may
clog the filter or damage the wash pump.
soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the lower basket.
There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.
Cor
rect loading of the dishes helps ensure optimal washing results.
User instructions
34
WARNING!
Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the washing
cycle.
Do not place very small objects in the baskets as these could fall and
obstruct the spray arms or the wash pump.
Containers such as cups, bowls, glasses and pots should always be
loaded with the opening facing downwards and with any cavities at
an angle, to allow the water to drain out.
Do not stack dishes or place them in such a way that they cover one
other.
Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the point
where they touch.
MAKE SURE that the items being washed are dishwasher-safe.
Items which are not dishwasher-safe:
Wooden dishes, pots or pans: these may be damaged by the high
washing temperatures.
Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.
Plastic dishes: heat resistant plastic dishes must be washed in the
upper basket.
Dishes and objects in copper, tin, zinc or brass: these tend to
stain.
Aluminium dishes: items made of anodised aluminium may lose
their colour.
Silverware: silver items may stain.
Glass and crystal: in general, glass and crystal objects can be
washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many
washings. Therefore, for these items we recommend using the least
aggressive program available.
Decorated items: the decorated objects available on the market are
generally able to withstand washing in the dishwasher, although the
colours may fade after many washes. If in doubt as to the fastness
of the colours, it is advisable to wash just a few items at a time for
approximately one month.
User instructions
35
5.5 Using the baskets
Capacity, including serving dishes: 12 or 13 place settings depending
on model (see energy label).
LOWER BASKET
The lower basket receives the full force of the lower spray arm, and should
therefore be used for the “toughest” items with a heavier degree of soiling.
All types and combinations of loads are
permitted, provided that the dishes, pots and
pans are arranged with all the soiled surfaces
exposed to the water jets coming from the
bottom.
With fixed supports
To make the most of the space inside the
basket when loading large items, certain
models are equipped with tip-up supports for
plates in 2 or 4 sections.
With tip
-
up supports
BOTTOM BASKET INSERTS
Some models are equipped with bottom basket inserts which improve the
drying of dishes. The inserts are supplied in the accessories bag; to use
them, simply fit them into place as shown. The inserts are supplied in the
accessories bag; to use them, simply fit them into place as shown.
User instructions
36
LOADING THE LOWER BASKET
Carefully load flat plates, soup plates, dessert and serving dishes,
positioning them vertically. Pots, pans and their covers must be loaded
upside down. When loading soup plates and dessert bowls, be sure to
leave a gap between them.
Loading examples:
UPPER BASKET
The upper basket should be loaded with small or medium-sized items
such as glasses, small plates and saucers, tea or coffee cups, shallow
bowls and light objects. If the upper basket is used in the lowermost
position, it can also be loaded with serving dishes, provided they are only
lightly soiled.
LOADING THE UPPER BASKET
Load plates facing forward; cups, bowls etc. must always be facing
downwards. The left side of the basket can be loaded with cups and
glasses on two levels. In the centre section, plates and saucers can be
loaded vertically into the supports provided.
Loading examples:
User instructions
37
CUTLERY BASKET (on some models only)
The basket is suitable for all types of cutlery, except long items that may
interfere with the upper spray arm. The cutlery should be arranged in the
spaces in the upper racks to allow the water to pass effectively between
the items.
Forks and spoons should be positioned with the handle facing
downwards, taking care not to injure yourself with the prongs of the forks.
Knives should be placed in the tray on the upper rack or in the cutlery
drawer, if present (depending on the model), otherwise position them with
the handles facing upwards.
Ladles, wooden spoons and kitchen knives can be placed on the upper
rack, making sure that the blades of the knives do not protrude from
the basket. The upper racks can be opened in order to insert, for example,
small items.
The cutlery basket slides across the dishwasher and can be placed in
any position
to allow optimal use of the space in the bottom basket.
User instructions
38
TOP CUTLERY BASKET (on some models only)
The basket is designed to take cutlery, placed in the spaces provided, and
long utensils, positioned lengthwise.
The “drawer” extraction system makes the basket easier to load, but it can
also be taken completely off its runners by removing the retainers (as
shown here).
Take great care to replace the retainers to ensure that the basket does
not come off the runners accidentally.
User instructions
39
FLEXIDUO TOP CUTLERY BASKET (on some models only)
This comprises two independent sliding, pull-out tray racks for easier
loading/unloading of cutlery. Various loading systems and configurations
are possible. For example, tea cups can be loaded with the right-hand
rack set in the low position, while the left-hand rack or both can be
removed to allow l
arge dishes
to be put in the
top basket.
User instructions
40

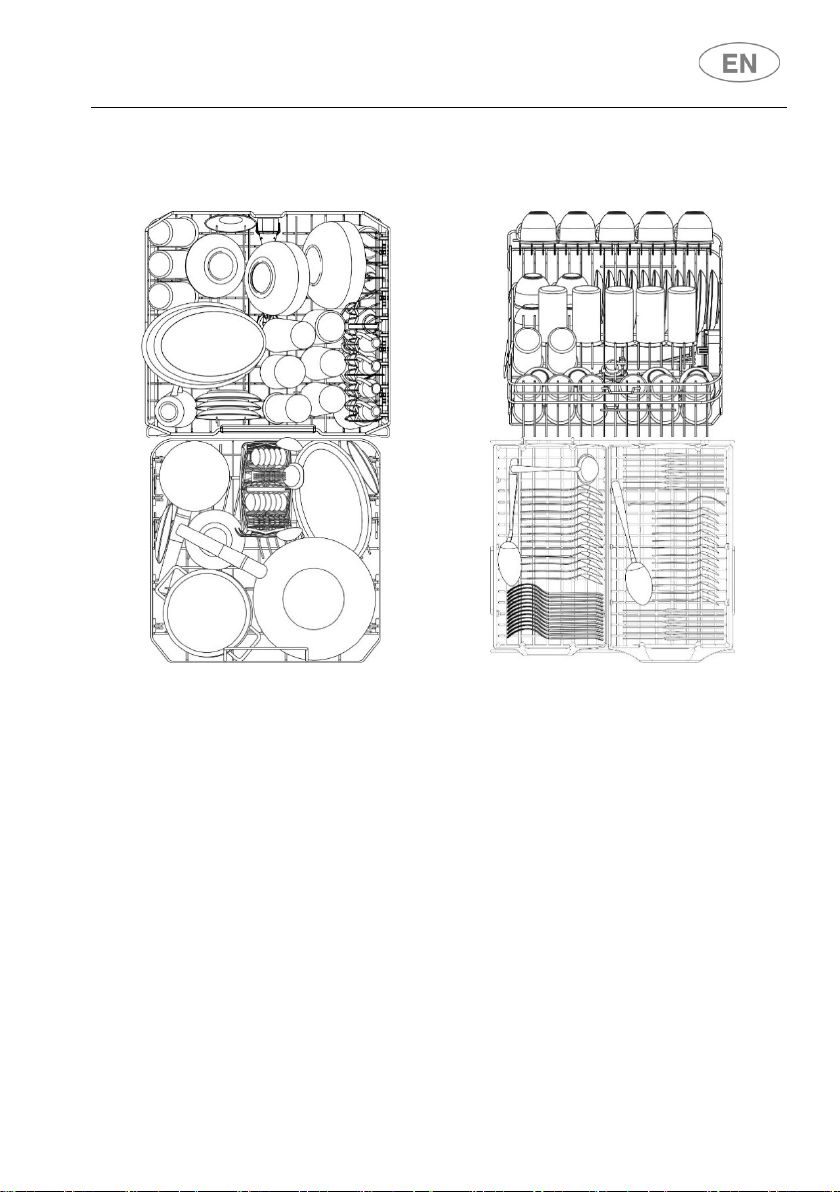

EXAMPLES OF LOADING FOR INTENSIVE DIRT
12 standard place setting
If the bottom basket inserts are of the fold-down type,
they should be laid flat for easier
loading.
13 standard place setting
If the bottom basket inserts are of the fold-down type,
they should be laid flat for easier loading.
User instructions
41

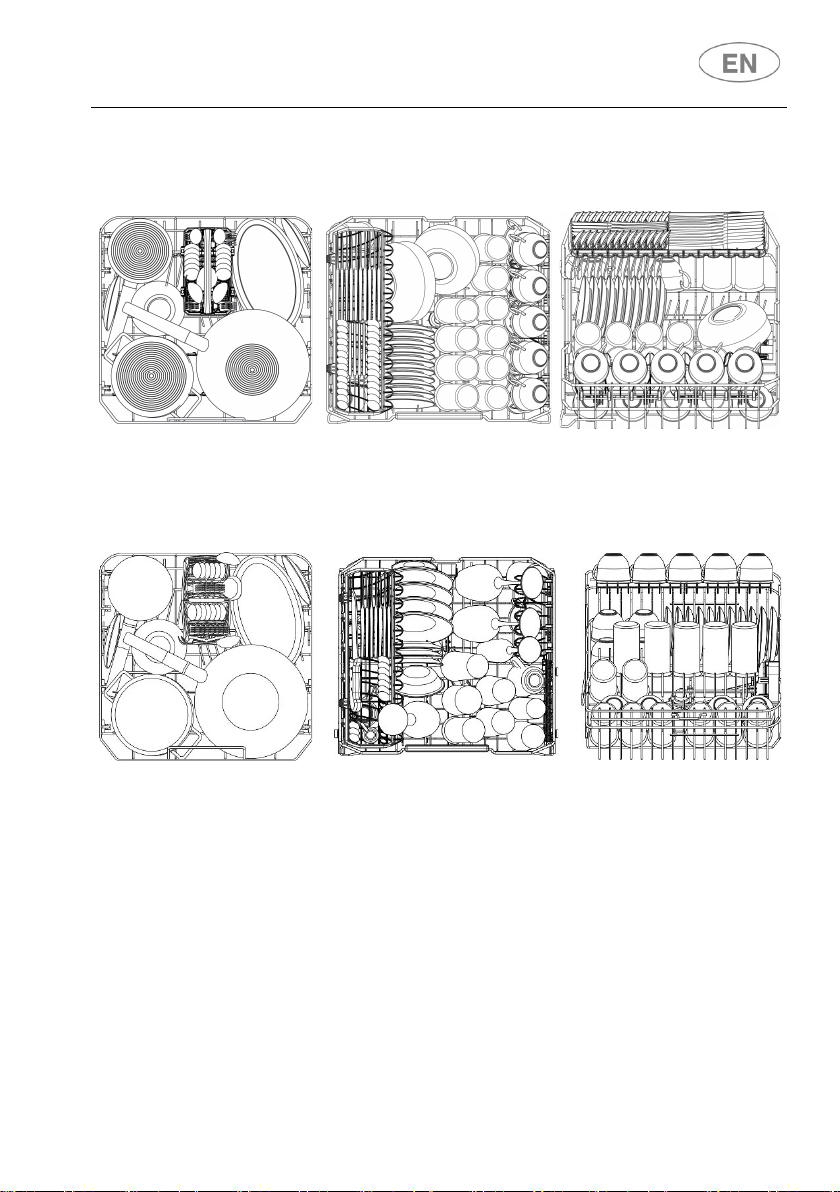

13 standard place setting
TOP CUTLERY BASKET (on some models only)
If the bottom basket inserts are of the fold-down type,
they should be laid flat for easier loading.
User instructions
42
13 standard place setting
FLEXIDUO TOP CUTLERY BASKET (on some models only)
If the bottom basket inserts are of the fold-down type,
they should be laid flat for easier loading.
User instructions
43
UPPER BASKET EQUIPMENT
(depending on the model)
Cutlery tray
For knives, spoons (tea and dessert) and long objects. The ends are
designed to hold long stemmed glasses.
- It can be removed by pressing and pushing the release levers
(B) at the same time.
- It has to be lowered if the upper basket is in the
topmost position. Press the catches (G) simultaneously.
User instructions
44

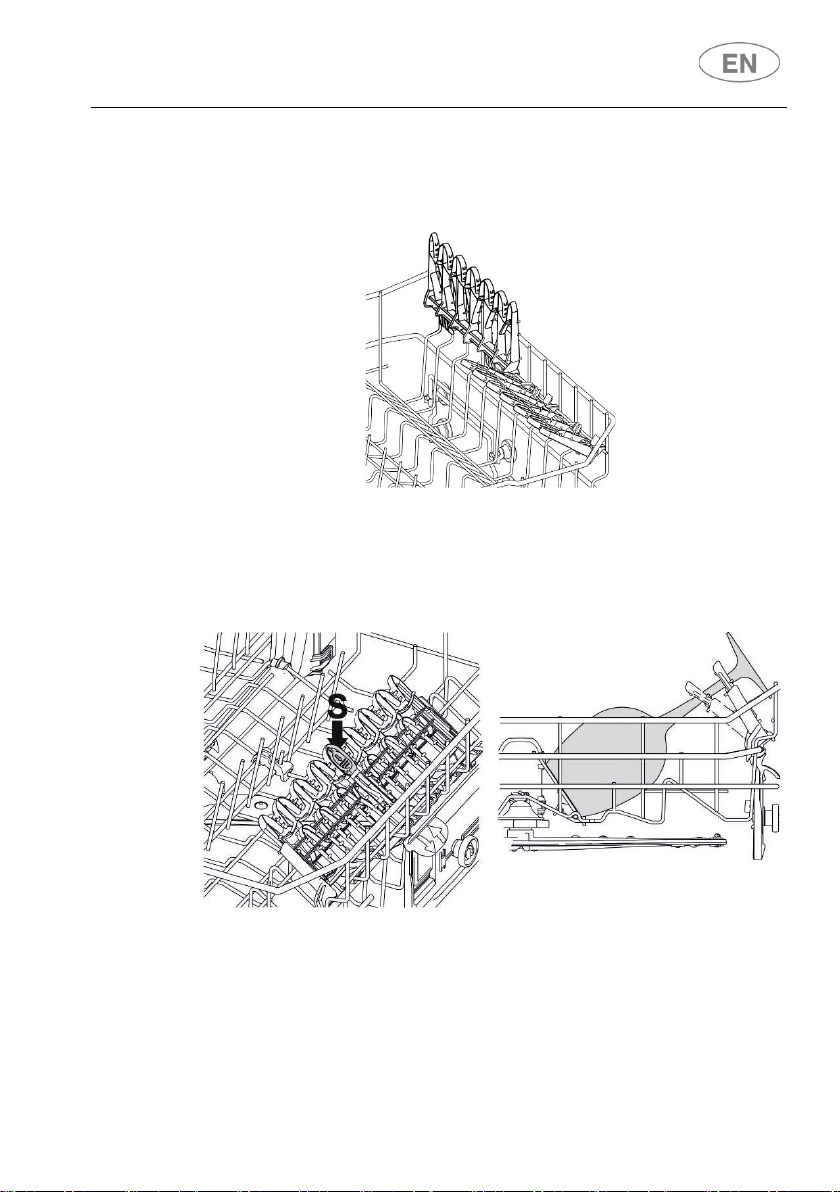

Fold-down shelves
For mugs, cups and long objects. The ends are designed to hold long
stemmed glasses
When not used they can be moved to a vertical position (until a click is
heard).
Shelves with expandable wings
For small objects, mugs and cups.
They can be used either closed or open (pull the upper, sliding part). To
close them, press the release device (S) and slide them downwards.
The ends are designed to hold long stemmed glasses (even when closed).
When not used they can be moved to a
vertical position (until a click is
heard).
User instructions
45

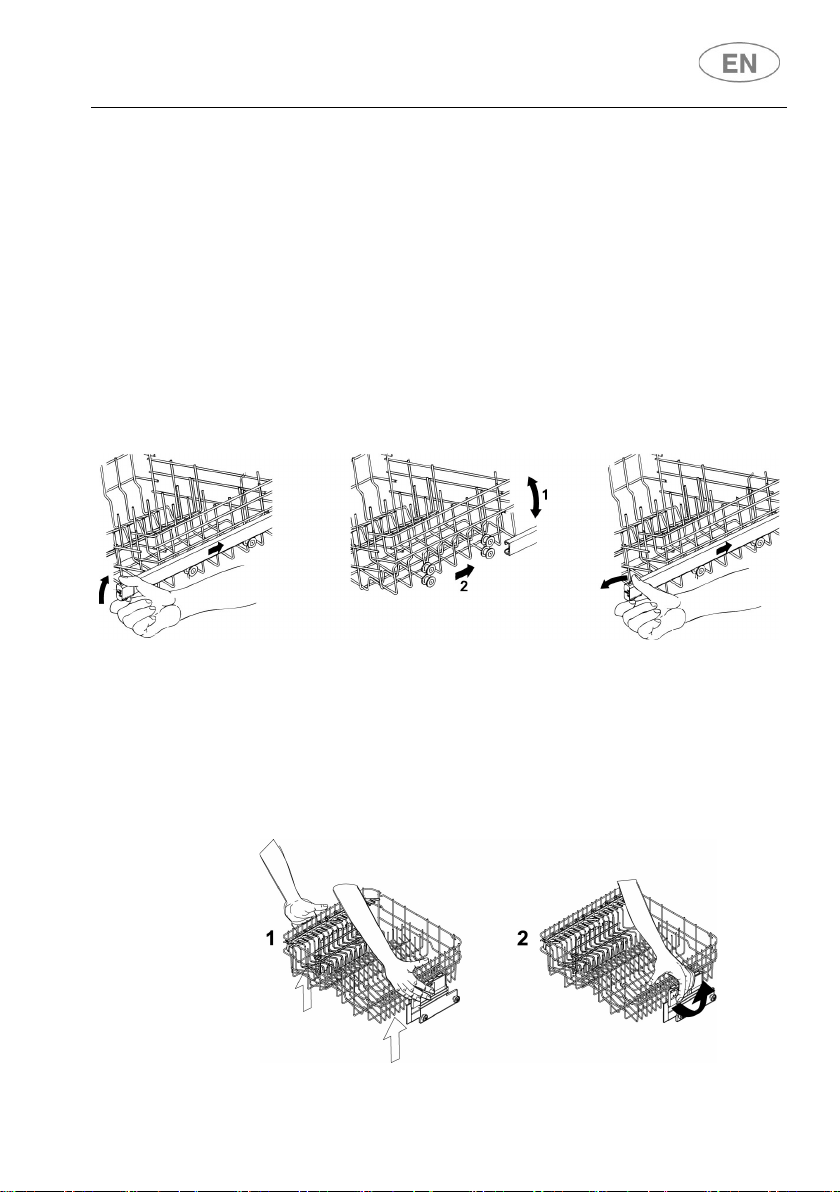

Fold-down tines
These can be secured in a vertical position, resting on the bottom of the
basket if unused, or placed in an intermediate position, as required.
The single tine on the right is ideal for supporting long stemmed glasses.
User instructions
46
ADJUSTING THE UPPER BASKET
The height of the top basket can be adjusted to allow large dishes or pans
to be placed in the bottom basket. The adjustment procedure may be type
A or B, depending on the dishwasher model purchased.
Version A: pull-out with adjustment in two positions.
Pull out both the basket guides.
Remove the stops, first releasing them as shown in the diagram.
Pull out the basket.
Fit the upper or lower pair of wheels into the guide, depending on the
setting required;
Return the stops to their original position.
The left hand and right hand sides of the basket must always be set at
the same height
.
Version B: with adjustment in three positions on both sides.
The sides of the basket must always be set at the same height.
Raise the basket by pulling on the top edge (1), to the first or second
catch depending on the height required.
To lower the basket, first release it by pulling the release lever (2).
Adjustment is also possible with the basket loaded, but in this case when
lowering the basket it should be held steady with one hand to avoid
knocking the dishes.
User instructions
47
6. CLEANING AND MAINTENANCE
Before carrying out any work, always unplug the appliance from the
electrical supply or switch off the omnipolar circuit breaker.
6.1 General warnings and recommendations
Avoid the use of acidic or abrasive detergents.
Clean the outer surfaces and door-lining of the dishwasher regularly using
a soft cloth moistened with water or with a normal detergent suitable for
painted surfaces. Clean the door gaskets with a damp sponge.
Periodically (once or twice a year) it is advisable to clean the tank gaskets
using a soft cloth and water to remove any deposits.
If the dishwasher is used every day, we recommend cleaning the chamber
and the water circuit monthly using a product that is specific for domestic
dishwashers.
CLEANING THE WATER INTAKE FILTER
The water intake filter A located at the outlet of the water supply tap needs
to be cleaned periodically. After having closed the water supply tap,
unscrew the end of the water intake hose, remove the filter A and clean it
delicately under running water. Reassemble filter A in its seat and
carefully screw the water intake hose back into position. We recommend
that you check and clean it, if necessary, at least once a year.
CLEANING THE SPRAY ARMS
If the dishwasher is used every day, we recommend that you clean it once
a week. The spray arms can be easily removed for periodic cleaning of
the nozzles, to prevent possible clogging. Wash them under running water
and carefully replace them in their seats, checking that their rotary
movement is in no way impeded.
To remove the upper spray arm, unscrew locking ring R.
ORBITAL
User instructions
48
To remove the lower spray arm, simply lift it up, pulling by the central
part.
To remove the orbital spray arm assembly, take hold of the longer
arm and pull the orbital unit upward. Wash the arms under a jet of
running water and return them carefully to their seat. After
reassembly, check that the spray arms turn freely. Otherwise,
check that they have been installed correctly.
To remove and clean the planetarium sprayer follow the instructions
provided.
CLEANING THE FILTER UNIT
If the dishwasher is used every day, we recommend that you clean it once
a week.
It is advisable to periodically inspect the centre filter C and, if
necessary, to clean it. To remove the filter, grip the tabs, turn them
anticlockwise and lift upwards;
push the centre filter D from the underside to remove it from the micro-
filter:
separate the two parts which make up the plastic filter by pressing the
body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
ORBITAL
PLANETARIUM
User instructions
49
CLEANING THE FILTER UNIT (models with planetarium sprayer)
If the dishwasher is used every day, we recommend that you clean it once
a week.
It is advisable to periodically inspect the centre filter and, if necessary,
to clean it.
remove the planetarium sprayer follow the instructions provided.
push the centre filter D from the underside to remove it from the micro-
filter:
separate the two parts which make up the plastic filter by pressing the
body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT
MAINTENANCE:
The filters should be cleaned under running water using a stiff
brush.
When removing the filter, take care that there are no food residues
on it. If any residues fall into the washing pit they might block hydraulic
components, or foul the spray arm nozzles.
It is essential to thoroughly clean the filters according to the above
instructions: the dishwasher cannot function if the filters are clogged.
Carefully replace the filters in their seats, to avoid damaging the
wash pump.
User instructions
50
7. TROUBLESHOOTING. WHAT TO DO IF...
Fault
Possible cause
Solution
The salt light does not turn on
There is still
enough salt
Check the fill level
The rinse aid light does not
turn on
There is still enough rinse aid Check the fill level
Water collects at the bottom
of the dishwasher
The water inlet hose is kinked
or crushed
Check the route of the hose
The drain siphon is clogged Make sure that the siphon is
not clogged or partially clogged
The filter unit is clogged Clean the filters as indicated in
the manual
Cutlery not dry Water in the bowls of spoons
or ladles
Cutlery (e.g. serving spoons) in
the cutlery drawer (if present),
on the bottom of the basket or
on the fold down shelves at the
side must be arranged with
their bowls facing downwards.
Tea or lipstick residues on the
dishes
Wash temperature too low
Check the fill level
Detergent insufficient or
unsuitable
Check the fill level
Cutlery arranged incorrectly in
the cutlery basket
Do not place items of cutlery
on top of one another or allow
them to touch one another
The inside of the dishwasher
is wet
Condensation The appliance is not faulty, it is
normal for there to be
condensation on the inside
walls
Change in colour of the plastic
parts inside the chamber
The colour of plastic parts
inside the dishwasher can fade
with use
This is normal and does not
affect the effectiveness of the
dishwasher
The salt and/or rinse aid light
is on
No salt
Add salt
No rinse aid
Add rinse aid
Detergent residues or dishes
not perfectly clean
Dishes are preventing the
cover of the detergent
dispenser from opening
completely
The dishes should not protrude
from the basket
The detergent dispenser cover
is blocked by the tablet
The tablet should be inserted
transversely, not vertically
Tablets used in a short
program; the detergent does
not have time to
dissolve
Use a powder detergent or a
more intensive program
Detergent stored in an open
box in a damp environment. It
has lost its effectiveness, aged
or become lumpy
Replace detergent
Dishes arranged incorrectly Water cannot pass correctly if
the dishes are arranged
incorrectly. Take greater care
when arranging the dishes.
Traces of rust on cutlery Cutlery not oxidation resistant.
Knife blades are particularly
subject to this.
Use only stainless cutlery.
User instructions
51
Cutlery becomes oxidized
even if washed together with
other items that are subject to
oxidation (pot handles,
damaged knives, etc.)
Avoid washing parts that can
become oxidized
Too much salt in the washing
water
Tighten the cap of the water
softener container properly
The dishwasher does not start The door does not close Check the position of the door
lock catch (D). If necessary,
raise it by adjusting the plastic
screw
(V)
next to the catch
The door does not close Check the condition of the door
lock catch:
- if it has not triggered (N), the
door opens and closes
normally
User instructions
52
- if it has triggered (S), close
the door with force (without
slamming it) until it rearms;
then open and close the door
again
Door does not close properly Make sure that there are no
obstacles that prevent it from
closing (e.g. objects protruding
from the baskets)
Failure
Contact technical assistance
No power
Check the power supply.
Check the power cable
It is not clear if the spray arms
are working
The spray arms start turning
approximately 5 minutes after
the dishwasher starts. This is
normal during the washing
cycle.
No water is taken in Make sure that the water tap is
open
User instructions
53
Dishes not dry
No rinse aid
Add rinse aid
A program has been used that
does not involve a final drying
cycle
See program table
Water in dishes or pans When loading the dishwasher,
make sure that you place
dishes and pans at an angle
The dishes were taken out too
soon
Wait at least 20 minutes after
the end of the prog
ram
Use of ecological rinse aids Ecological products may be
less effective than traditional
products
Plastic dishes Plastic has a lower heat
storage capacity and is
therefore harder to dry
The combined detergent used
does not produce good drying
results
Use a different combined
detergent. Using traditional
rinse aids improves drying.
Clouding of glassware Glass not dishwasher safe Only use glassware that is
dishwasher safe. Check the
water softener setting (reduce
if necessary). Use a detergent
that contains additives for
protecting glass
Water marks on some items
or on plastic dishes
The formation of drops on the
plastic parts is inevitable;
stains may therefore be visible
after drying
Use a more intense program
Arrange dishes at an angle so
that the water can drain off
easily
Use a traditional rinse aid or
increase the dosage
Increase the water softener
setting
Removable streaks on
glasses, metal items and
cutlery
Too much rinse aid Reduce the amount of rinse
aid
No rinse aid or setting too low Add rinse aid or increase
supply
Detergent not very effective Packets of detergent should
not be kept open for too long.
The detergent loses
effectiveness
Food residues on the dishes Dishes too close together,
baskets too full
There must always be enough
space between the dishes to
allow water jets to pass. Avoid
contact points
The spray arms do not rotate Take care not to prevent the
spray arms from rotating when
loading the
dishwasher
Clogged spray arm nozzles Clean the spray arms as
indicated in the manual
User instructions
54
Dirty filters Clean the filters as indicated in
the manual
Filters inserted incorrectly or
not fastened in place
Check and correct
Wash program unsuitable for
the type of soil
Find the suitable washing
program in the program table
Combined detergent used with
programs that are too short
Use a powder detergent or a
more intensive program
Not enough detergent (if you
are using a powder
detergent)
Increase the amount of
detergent used
Upper basket not horizontal The left and right sides of the
upper basket must be at the
same level
White film in the chamber or
on the door
The substances contained in
the detergent has settled out
Use a
dishwasher cleaner
Wash the appliance by hand
Change detergent
Incorrect water hardness
setting (too low or too high)
Adjust the water softener
setting
Change detergent
Salt container cap not
tightened (saline solution
mixing with the
wash water)
Tighten the salt container cap
properly
Combined detergent or bio/eco
detergent not very effective
Adjust the water softener
system
Use separate products
If after following the above troubleshooting instructions the problem
persists, call the nearest After-Sales Centre.
WARNING: any operations performed on the appliance by
unauthorised persons are not covered by the warranty and shall be
paid for by the user.
User instructions
55
8. TROUBLESHOOTING
The dishwasher is equipped with a self-diagnostics system that is capable
of detecting and signalling a number of possible faults.
TABLE OF FAULTS DETECTED BY THE SELF-DIAGNOSTICS SYSTEM
FAULT DESCRIPTION
E 01
The anti-flooding system (where present) has been tripped
service.
E 02
The water level limitation system has tripped.
E 03
The appliance cannot heat the water.
E 04
The temperature sensor is disconnected.
E 05
The appliance cannot take in the water.
E 06
The appliance cannot drain the water from the tank.
E 07
The dishwasher cannot measure the precise water quantity that
has been loaded.
E 08
Problem on the water distribution system to the baskets.
E 09
Water intake system malfunction.
E 11
Wash motor pump does not work
If an alarm occurs, the machine stops the current program and indicates the fault.
Alarms E1 and E11 require you to contact the technical assistance service.
Alarm E7 is displayed at the end of the cycle, which is anyway completed, as it
does not affect the operation of the dishwasher.
For all other alarms, proceed as follows: stop the current program, switch off the
dishwasher. Switch on and program the dishwasher again to start the new wash cycle.
If the malfunction persists, contact your authorised Service Centre and
provide it with the fault code.
The contact details of the Technical Assistance Department can be found
on the warranty certificate and the website
The manufacturer reserves the right to make any changes deemed necessary for the
improvement of its products without prior notice.
