User manual of Thermador DWHD650GFP/18 (66 pages)
file thumbnail

Congratulations. and Thank You from Thermadod

Thank you for selecting a Thermador dishwasher.

You have joined the many consumers who demand quiet and superior performance from their dishwashers.

This manual was written with your safety and convenience in mind. and the information contained herein is very important.

We highly recommend that you read this manual before you use your dishwasher for the first time.

To learn even more about your dishwasher and available accessories. as well as many other top quality Thermador appliances. visit our website at www.thermador.com.

Please contact us if you have any questions or comments.

You can call us at 1-800-735-4328. or you can write us at Thermador 5551 McFadden Avenue

Huntington Beach.

CA 92649

IMPORTANT SAFETY INSTRUCTIONS

Getting to know your appliance

Dishwasher Components

Dishwasher Setup

Salt ..

Detergent

Rinse Agent

Dishware Materials

Loading the Dishwasher

10-11

Rack Accessories

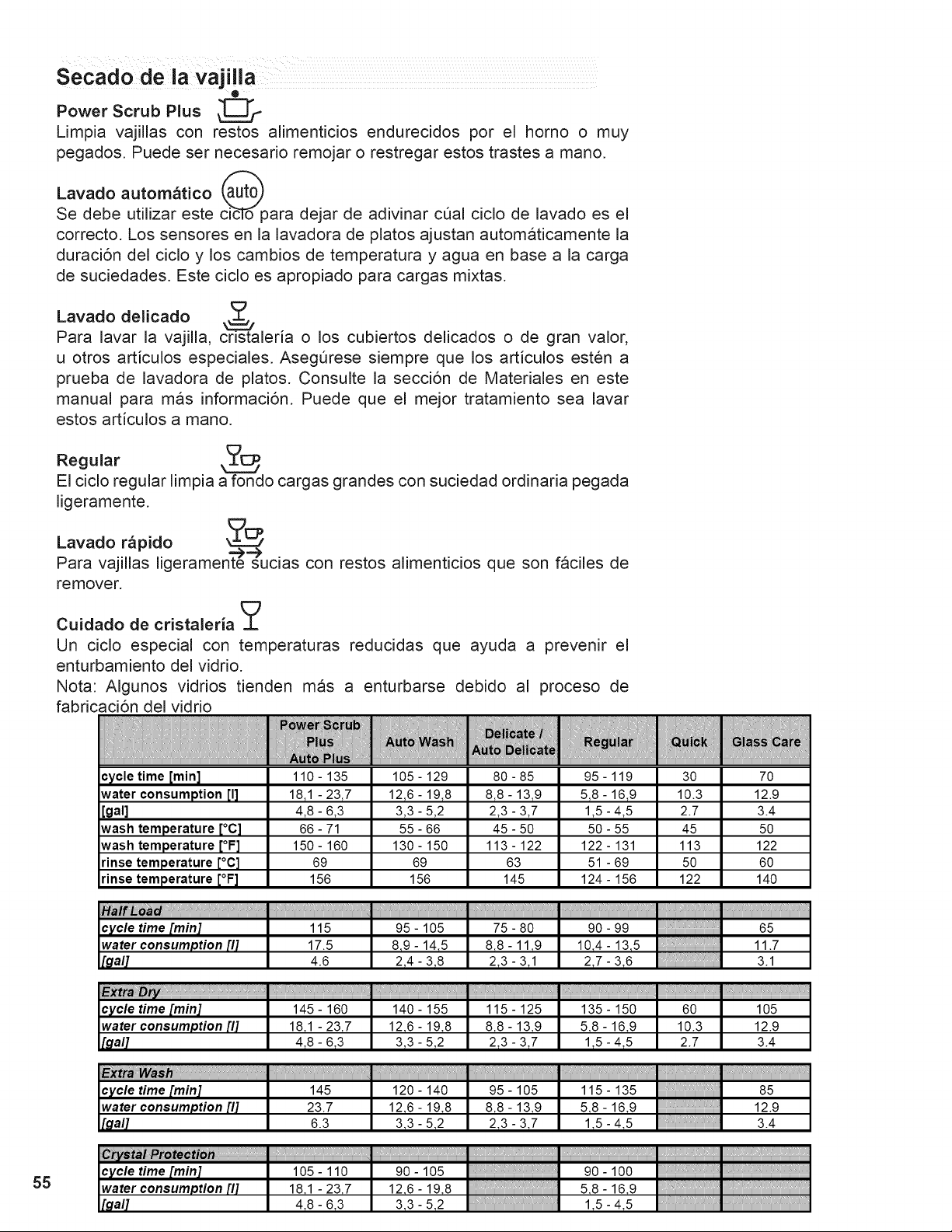

Wash Cycle Information

Additional Options and Features

14-15

Operating the Unit ..

15-16

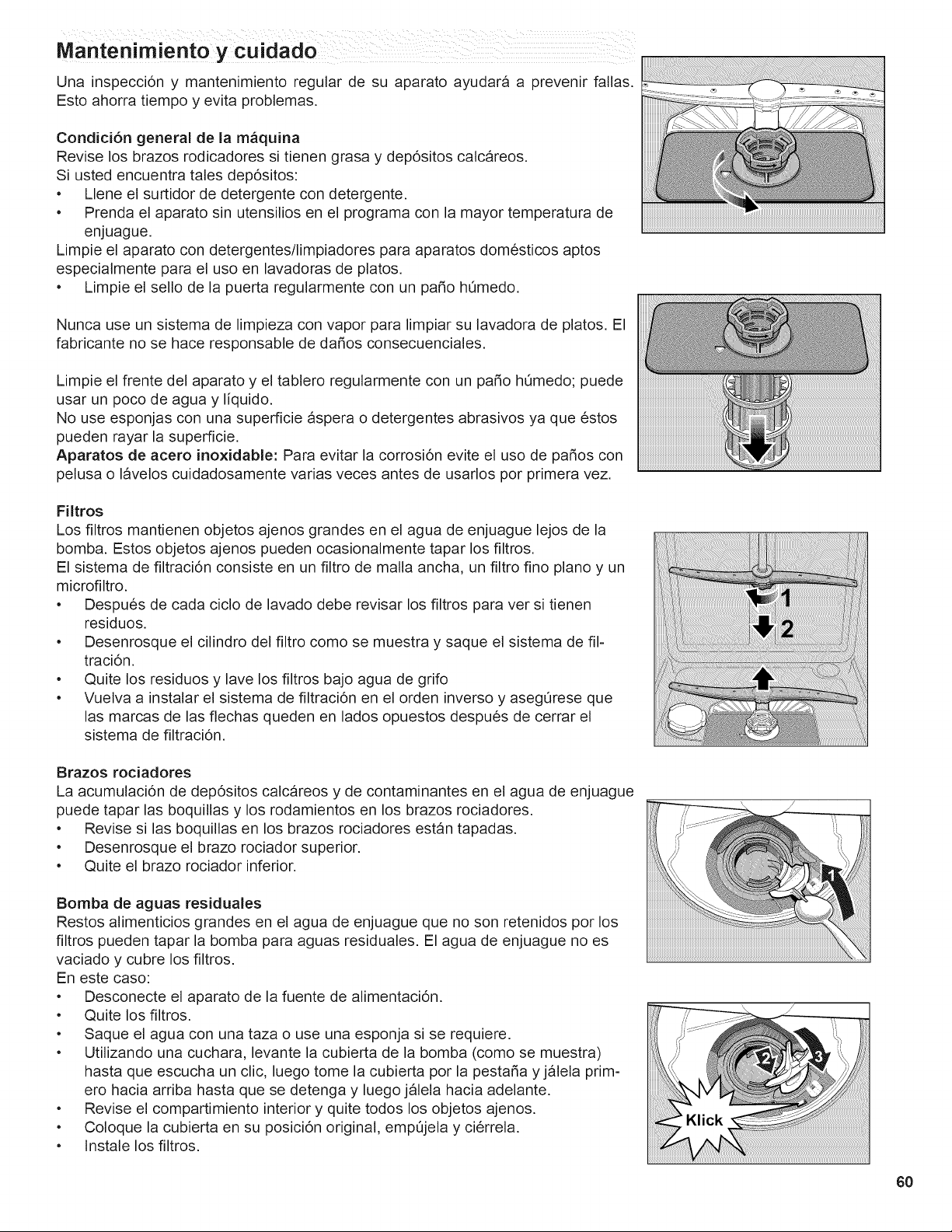

Care and Maintenance

17-18

Self Help ..

19-20

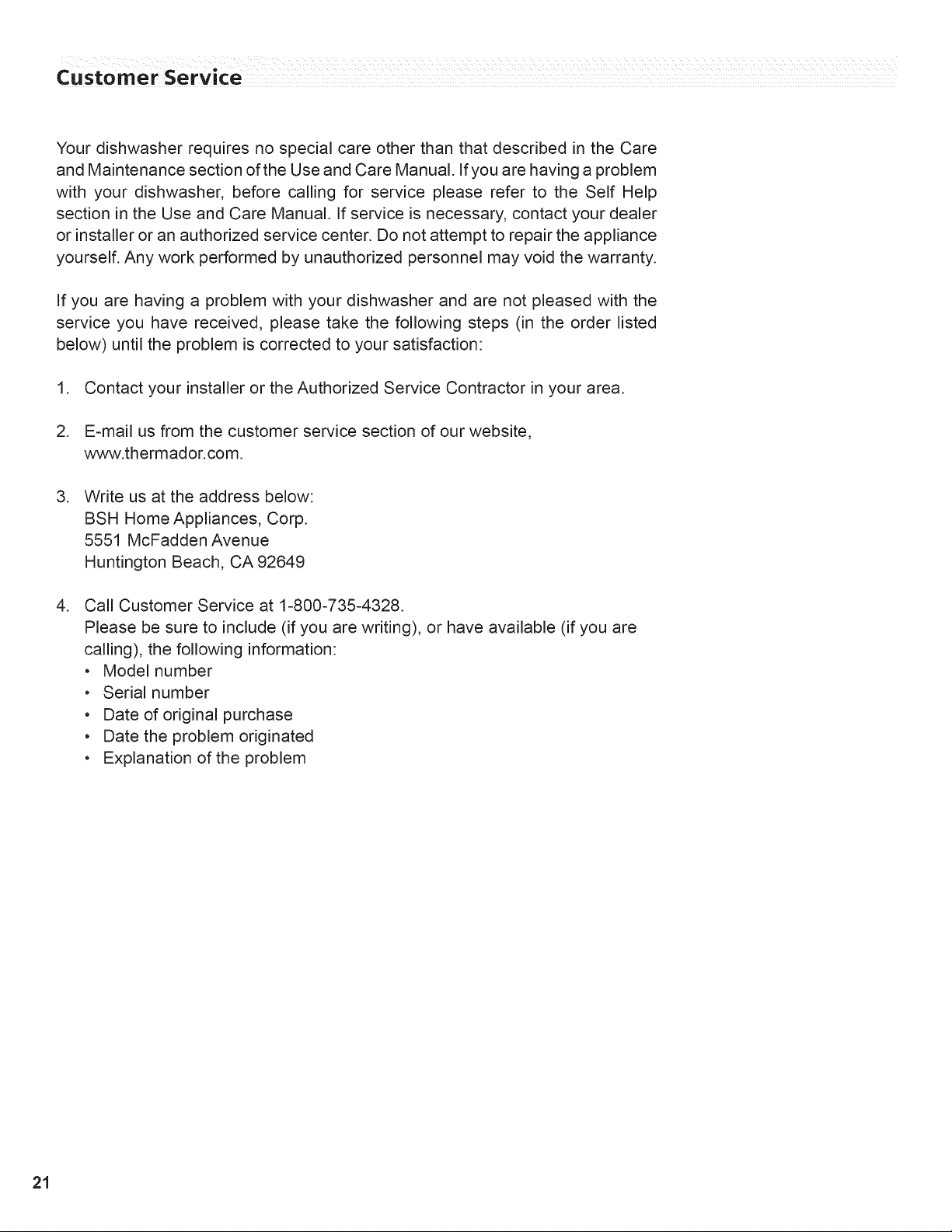

Customer Service

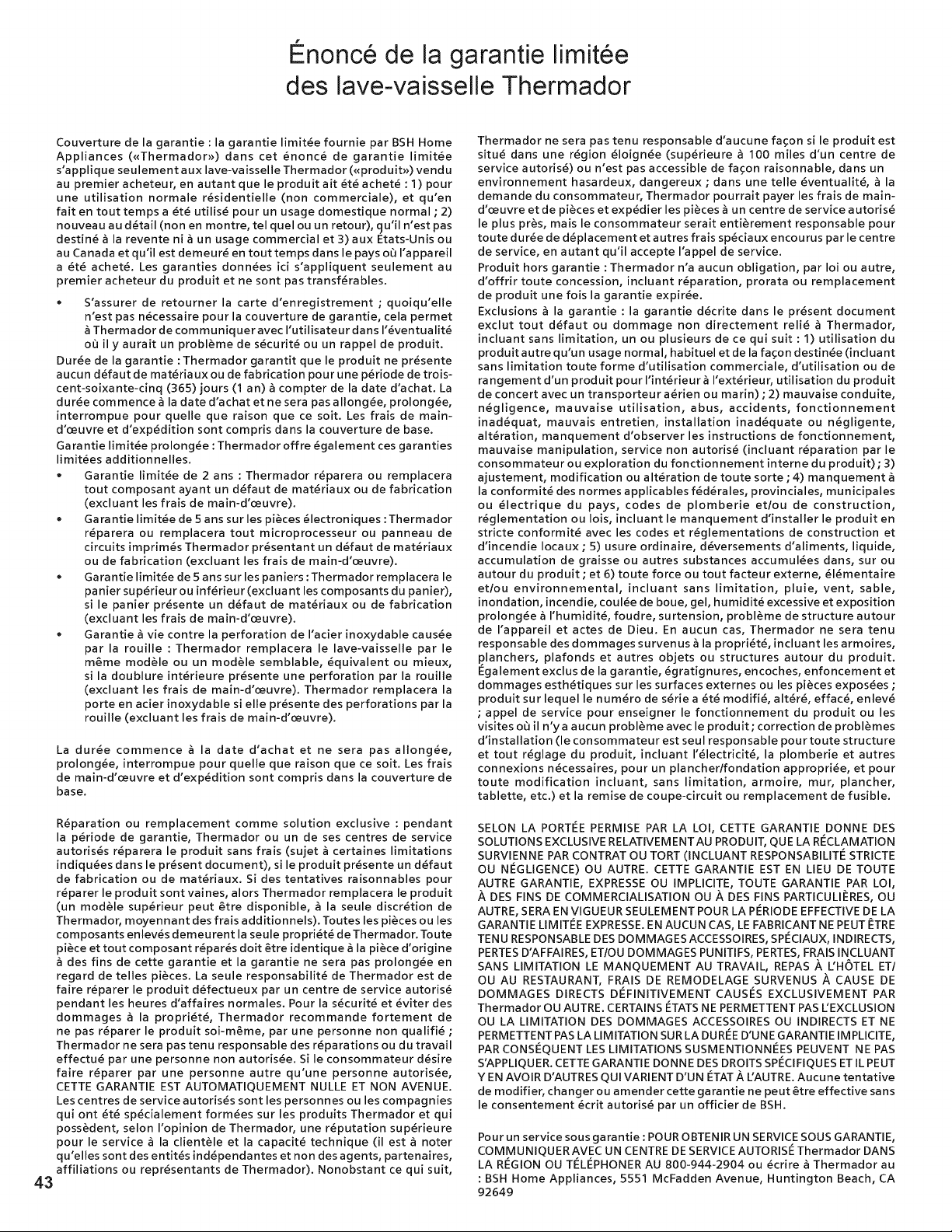

Limited Product Warranty

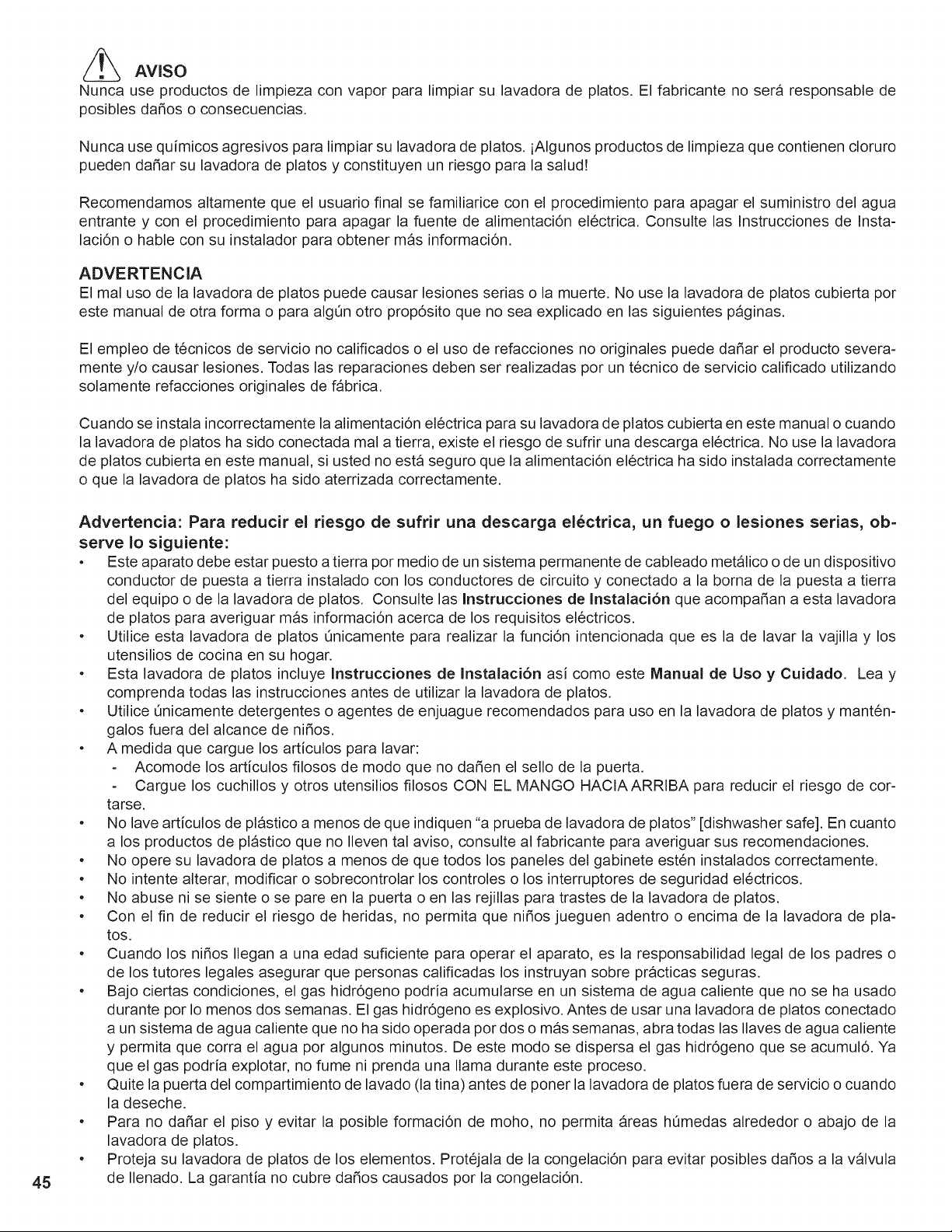

NOTICE Never use steam cleaning products to clean your dishwasher. The manufacturer will not be liable for possible damages or consequences.

It is highly recommended for the end use consumer to become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. See the Installation Instructions or speak with your installer for more information.

WARNING

Misuse of the dishwasher can result in serious injury or death. Do not use the dishwasher in any way not covered in this manual or for any purpose other than those explained on the following pages.

Severe product damage and/or injury could result from the use of unqualified service technicians or non-original replacement parts. All repairs must be performed by a qualified service technician using only original equipment factory replacement parts.

Electrical shock or fire could result if the electrical supply for the dishwasher covered in this manual is incorrectly installed or if the dishwasher has been improperly grounded.

Do not use the dishwasher covered in this manual if you are not certain the electrical supply has been correctly installed or the dishwasher has been properly grounded.

Never use harsh chemicals to clean your dishwasher. Some chloride-containing cleaning products can damage your dish washer and may present health hazards!

Warning: To reduce the risk of fire. electrical shock. or serious injury. observe the following: This appliance must be grounded to a metal. permanent wiring system. or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher. See the Installation Instructions included with this dishwasher for more information on electrical requirements. Use this dishwasher only for its intended function. which is the washing of household dishware and kitchenware. This dishwasher is provided with Installation Instructions and this Use and Care Manual. Please read and understand all instructions before using the dishwasher. Use only detergents or rinsing agents recommended for use in a dishwasher. and keep them out of the reach of chil dren.

When loading items to be washed:

Locate sharp items so that they are not likely to damage the door seal.

Load knives and other sharp utensils with their HANDLES UP to reduce the risk of cut-type injuries. Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.

For plastic items not so marked. check the manufacturer's recommendations.

Do not operate your dishwasher unless all enclosure panels are in place. Do not tamper with or override controls and interlocks. Do not abuse. sit on. or stand on the door or dish racks of the dishwasher. To reduce the risk of injury. do not allow children to play in or on the dishwasher. When children become old enough to operate the appliance. it is the legal responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons. Under certain conditions. hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. Hydrogen gas is explosive. Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer. turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas.

As the gas is explosive. do not smoke or use an open flame during this time.

Remove the door to the washing compartment when removing an old dishwasher from service or discarding. To avoid floor damage and possible mold growth. do not allow wet areas to remain around or under the dishwasher. Protect your dishwasher from the elements. Protect against freezing to avoid possible damage to the fill valve. Damage caused by freezing is not covered by the warranty.

Dis hWa sh e r C 0 rn po n e nts

Cutlery Rack

Top Rack

Top Rack Spray Arm

Tablet Collecting Tray

Bottom Rack Spray Arm

Salt Container

Bottom Rack

Rinse Aid Dispenser

Extra Tall item Sprinkler

WITH CUTLERY

RACK

Filter System

Detergent Dispenser

Knife Rack

Top Rack

Top Rack Spray Arm

Tablet Collecting Tray

Bottom Rack Spray Arm

Salt Container

Bottom Rack

Rinse Aid Dispenser

Detergent Dispenser

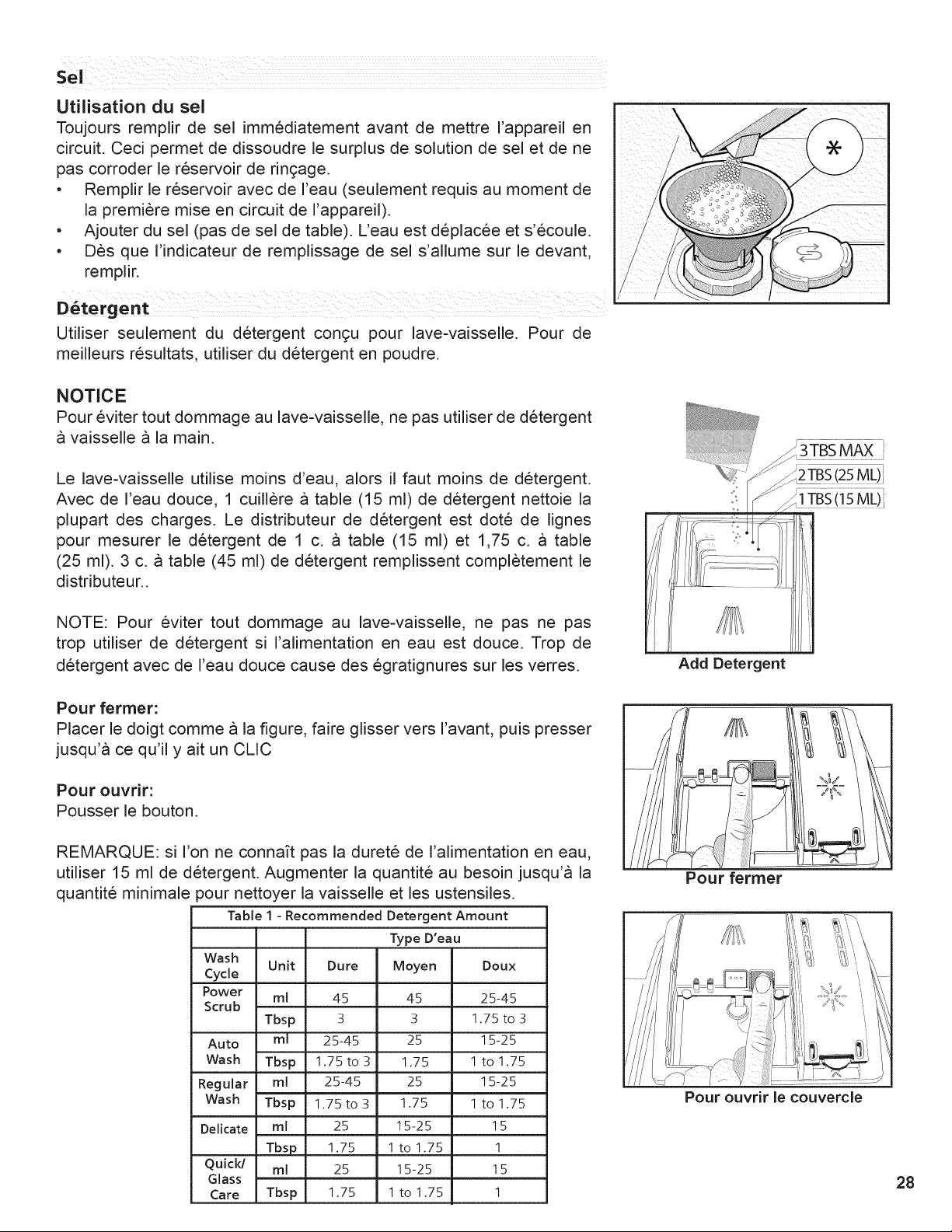

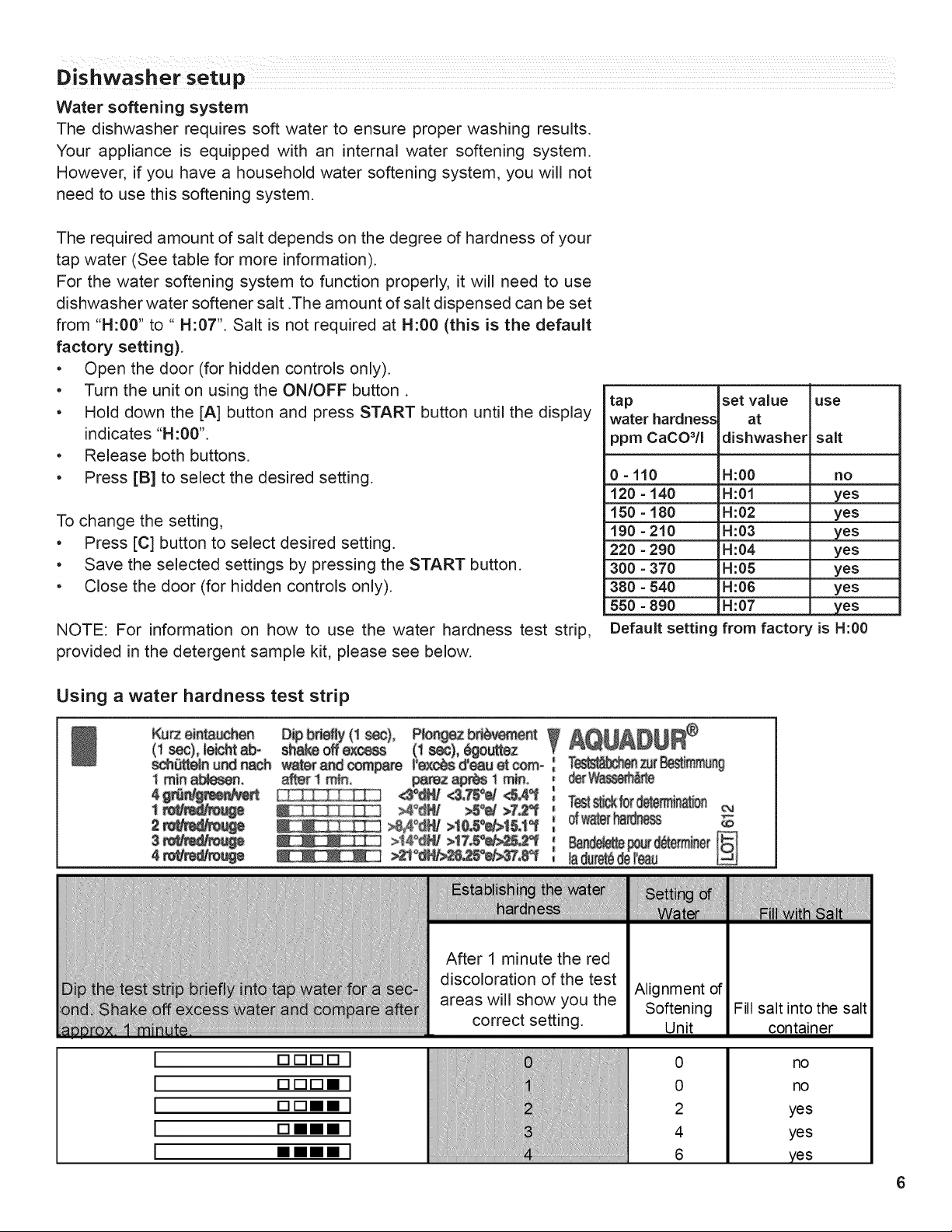

Salt

Using salt Refill the salt container (using the funnel supplied to pour) before switching on the unit to ensure that salt overflow is immediately washed away.

This prevents corrosion.

Open the screw-type cap of the salt container.

Fill the tank with water (only required when switching on the unit for the first time).

Add salt (dishwasher water softening salt) until the water is displaced and runs out.

Fill with salt as soon as the salt refill indicator "1" or LED is lit.

WARNING

Never fill the salt dispenser with detergent. You will destroy the water softening system.To prevent corrosion. refill with salt and immediately begin any cycle.

NOTE: Refill salt in the appliance only when the salt refill indicator is lit.

Do not use salt tablets or any salt other than dishwasher water softening salt. For more information about ordering salt please contact Customer Service. You could buy special dishwasher salt as spare part 469559 or as accessory SGZ9091UC.

D ete rg e n I:

+ model dependent

Use only detergent specifically designed for dishwashers.

For best results. use fresh dishwashing detergent.

The dishwasher is also equipped with a tablet collecting tray. designed to fully dissolve detergent tabs.

NOTICE To avoid dishwasher damage. do not use hand dishwashing products in your dishwasher.

This dishwasher uses less water so you need to use less detergent.

With

NOTE: if you do not know the hardness of your water supply. use 15ml of detergent. increase the amount of detergent. if necessary. to the least

To Close:

Place finger as shown above. slide forward. then press down FIRMLY until

To Open: Push button as shown in the figure.

Table 1 - Recommended Detergent Amount

Water Type Wash Unit Hard Medium Soft Cycle

Power ml 25-45 Scrub Tbsp 1.75 to 3

Auto ml 25-45 15-25

Wash Tbsp 1.75 to 3 1.75 1 to 1.75

Regular ml 25-45 15-25 Wash Tbsp 1.75to3 1.75 ltol.75

Delicate ml 15-25

Tbsp 1.75 1 to 1.75 Quick/ ml 15-25 Glass Care Tbsp 1.75 1 to 1.75

TBS(25ML)

TBS (1.5 ML)

Add Detergent

To close the cover

To open the cover

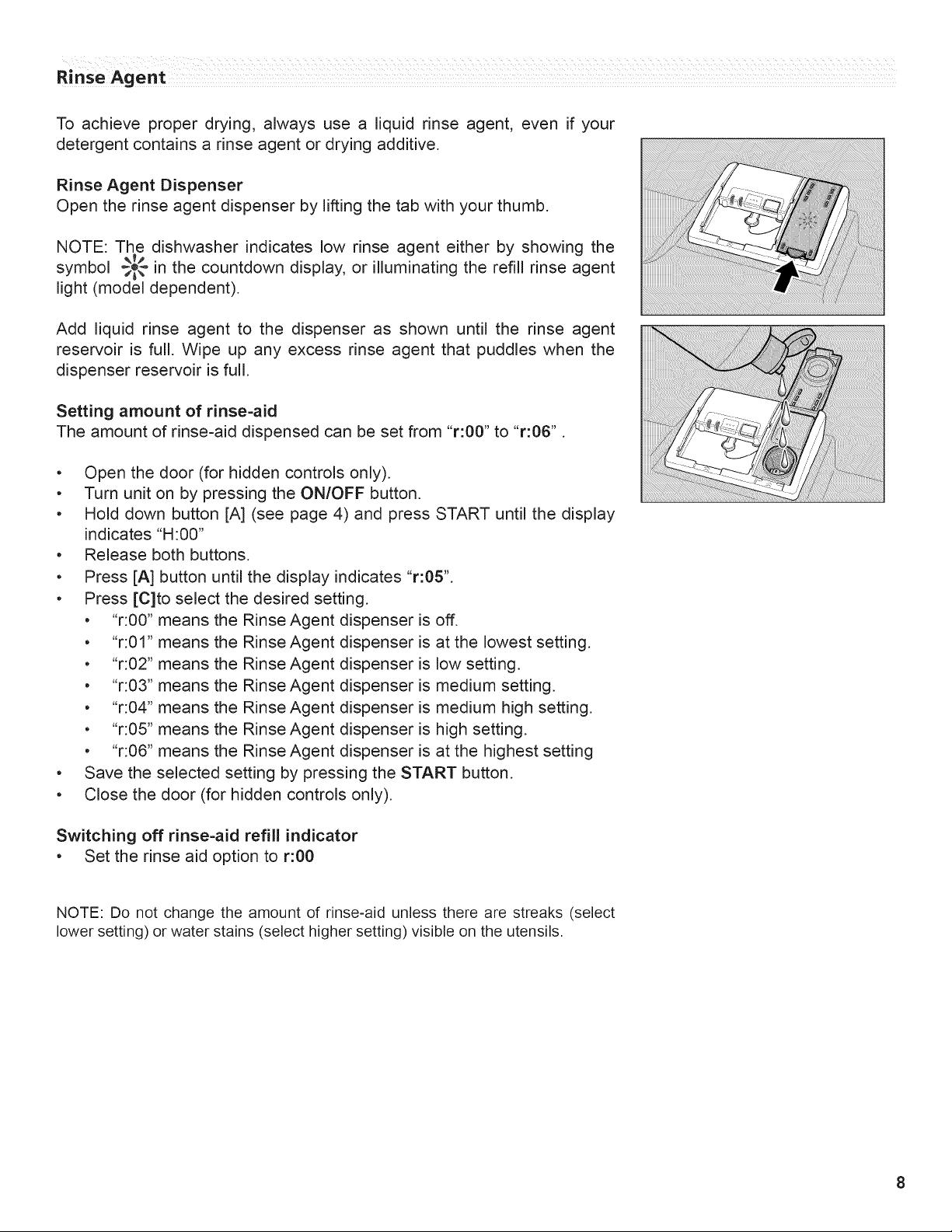

To achieve proper drying. always use a liquid rinse agent. even if your detergent contains a rinse agent or drying additive.

Rinse Agent Dispenser Open the rinse agent dispenser by lifting the tab with your thumb.

NOTE: The dishwasher indicates low rinse agent either by showing the symbol in the countdown display. or illuminating the refill rinse agent A% light (model dependent).

Add liquid rinse agent to the dispenser as shown until the rinse agent reservoir is full.

Wipe up any excess rinse agent that puddles when the

Setting amount of rinse-aid The amount of rinse-aid dispensed can be set from "r:00" to "r:06".

Open the door (for hidden controls only).

Turn unit on by pressing the ON/OFF button.

Hold down button [A] (see page 4) and press START until the display indicates "H:00"

Release both buttons.

Press [A] button until the display indicates "r:05".

Press [C]to select the desired setting. "r:00" means the Rinse Agent dispenser is off. "r:01" means the Rinse

"r:02" means the Rinse

"r:03" means the Rinse

"r:04" means the Rinse

"r:05" means the Rinse

"r:06"

Agent dispenser is at the lowest setting.

Agent dispenser is low setting.

Agent dispenser is medium setting.

Agent dispenser is medium high setting.

Agent dispenser is high setting. means the Rinse Agent dispenser is at the highest setting

Save the selected setting by pressing the START button.

Close the door (for hidden controls only).

Switching off rinse-aid refill indicator

Set the rinse aid option to r:00

NOTE: Do not change the amount of rinse-aid unless there are streaks (select lower setting) or water stains (select higher setting) visible on the utensils.

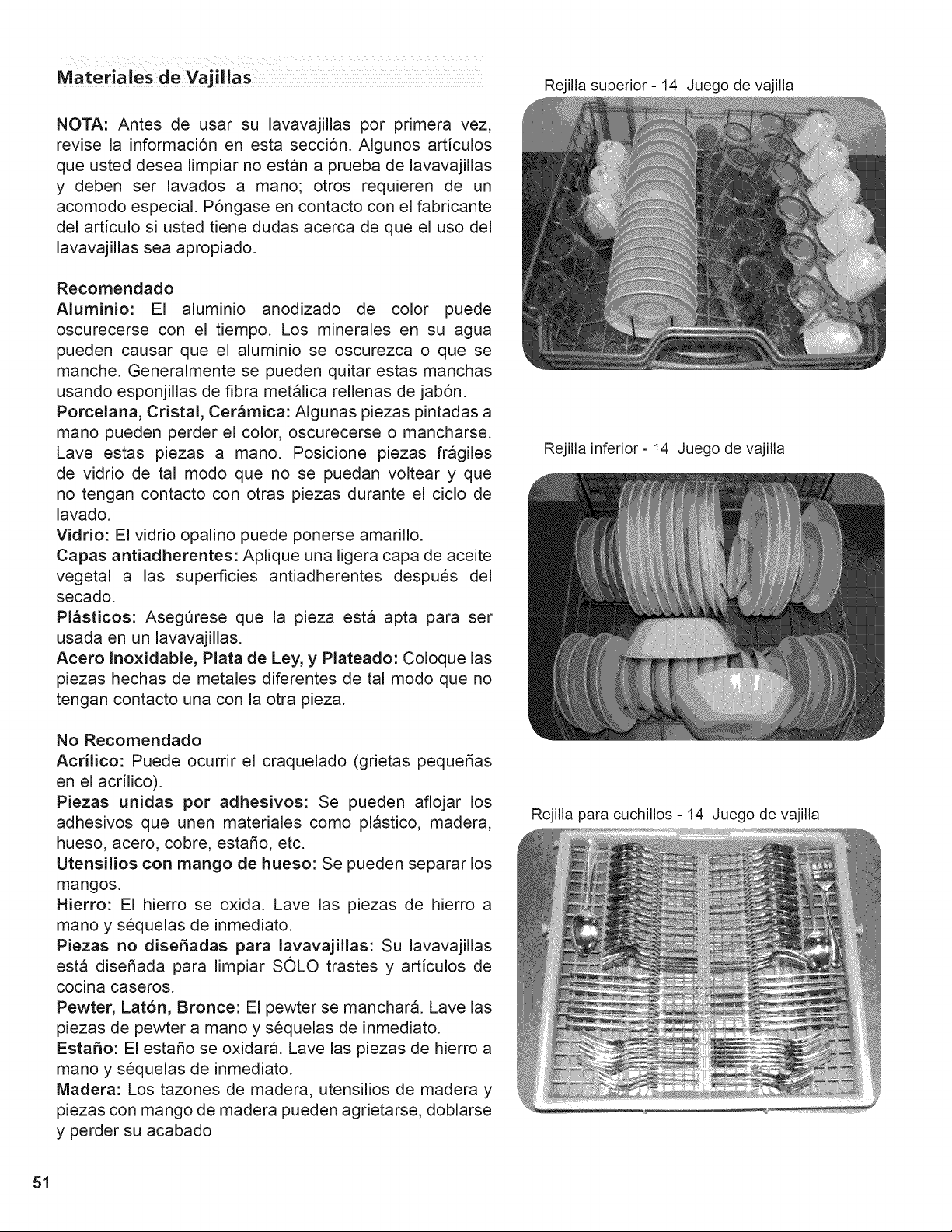

NOTE: Before using your dishwasher for the first time. check the information in this section.

Some items are

Recommended

Aluminum: Colored anodized aluminum may fade over

China.

Crystal.

Stoneware: Some hand-painted pieces

Non-Stick Coatings: Apply a light coating of vegetable oil to non-stick surfaces after drying.

Plastics: Make sure the piece is dishwasher safe.

Stainless Steel.

Sterling Silver. and Silver Plate: Place these pieces so that they do not contact dissimilar metals.

UPPER RACK =14 PLACE SETTING

LOWER RACK 14 PLACE SETTING

Not Recommended

Acrylic: Crazing (small cracks throughout the acrylic) may

Adhesive-Joined Pieces: Adhesives that join materials

Bone=Handled Utensils: Handles may separate.

Iron: Iron will rust.

Hand-wash and dry immediately.

Non=Dishware Items: Your dishwasher is intended for

Pewter.

Brass.

Bronze: Pewter will tarnish.

Hand-wash and dry immediately.

Tin: Tin will rust. Hand-wash and dry immediately.

Wood: Wooden bowls. wooden utensils. and wood-han

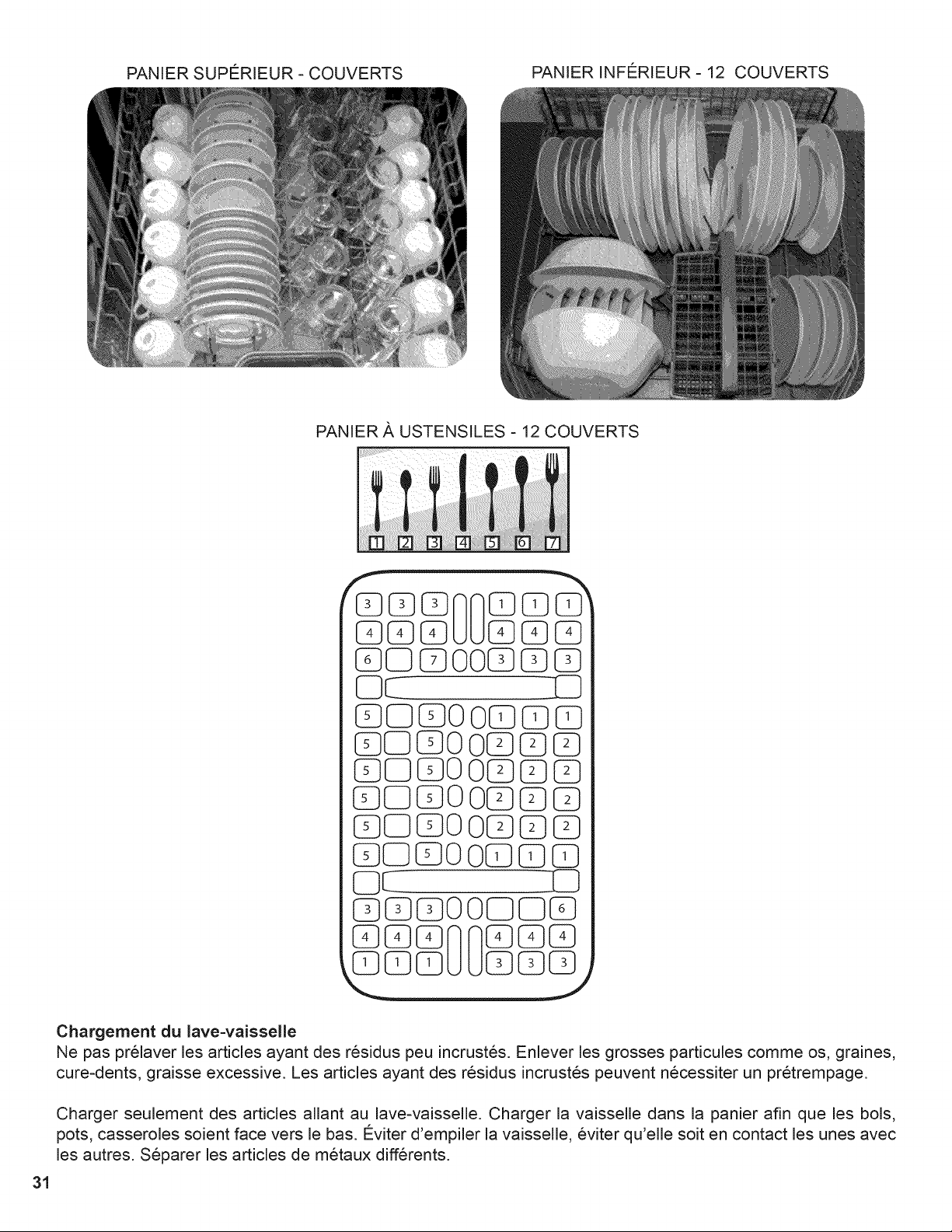

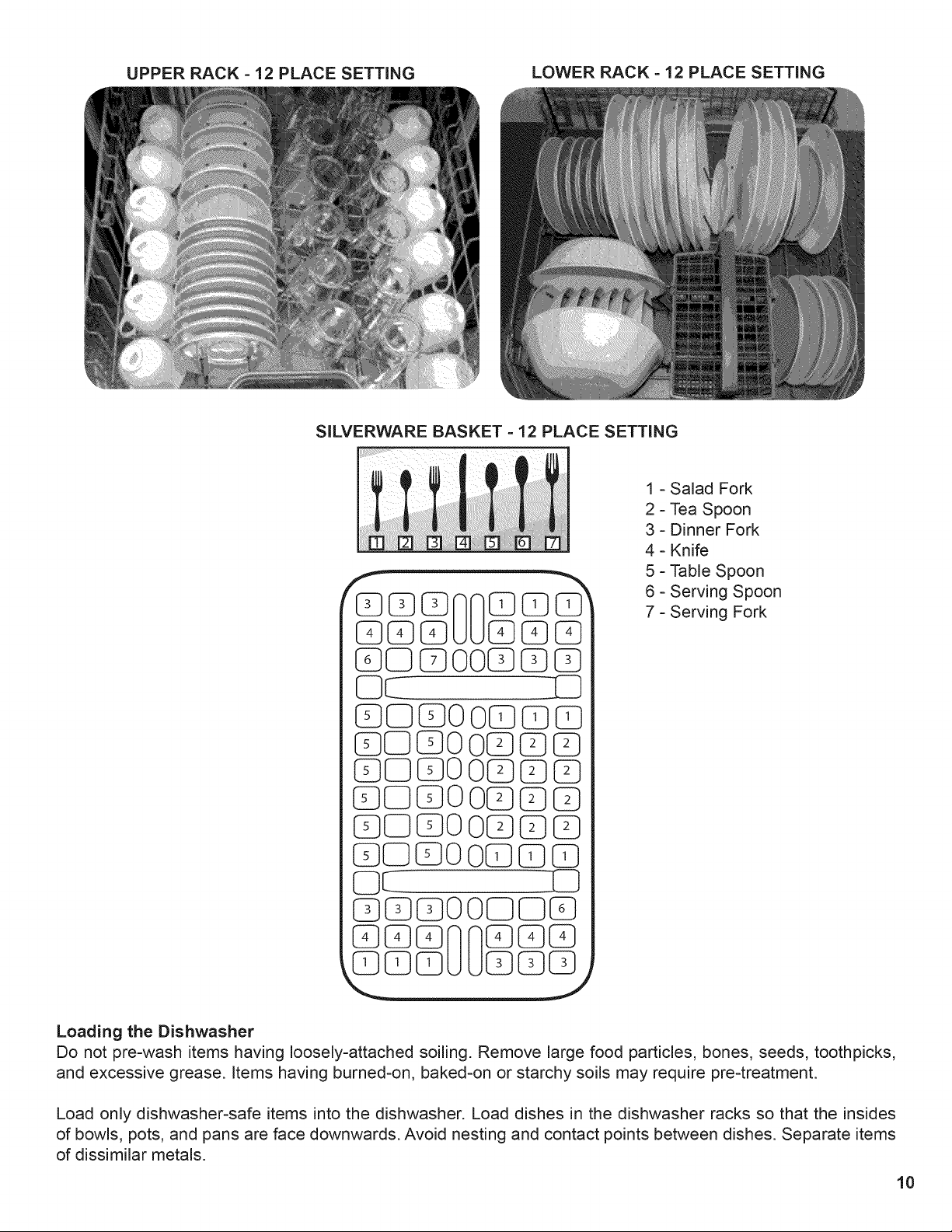

CUTLERY RACK - 14 PLACE SETTING

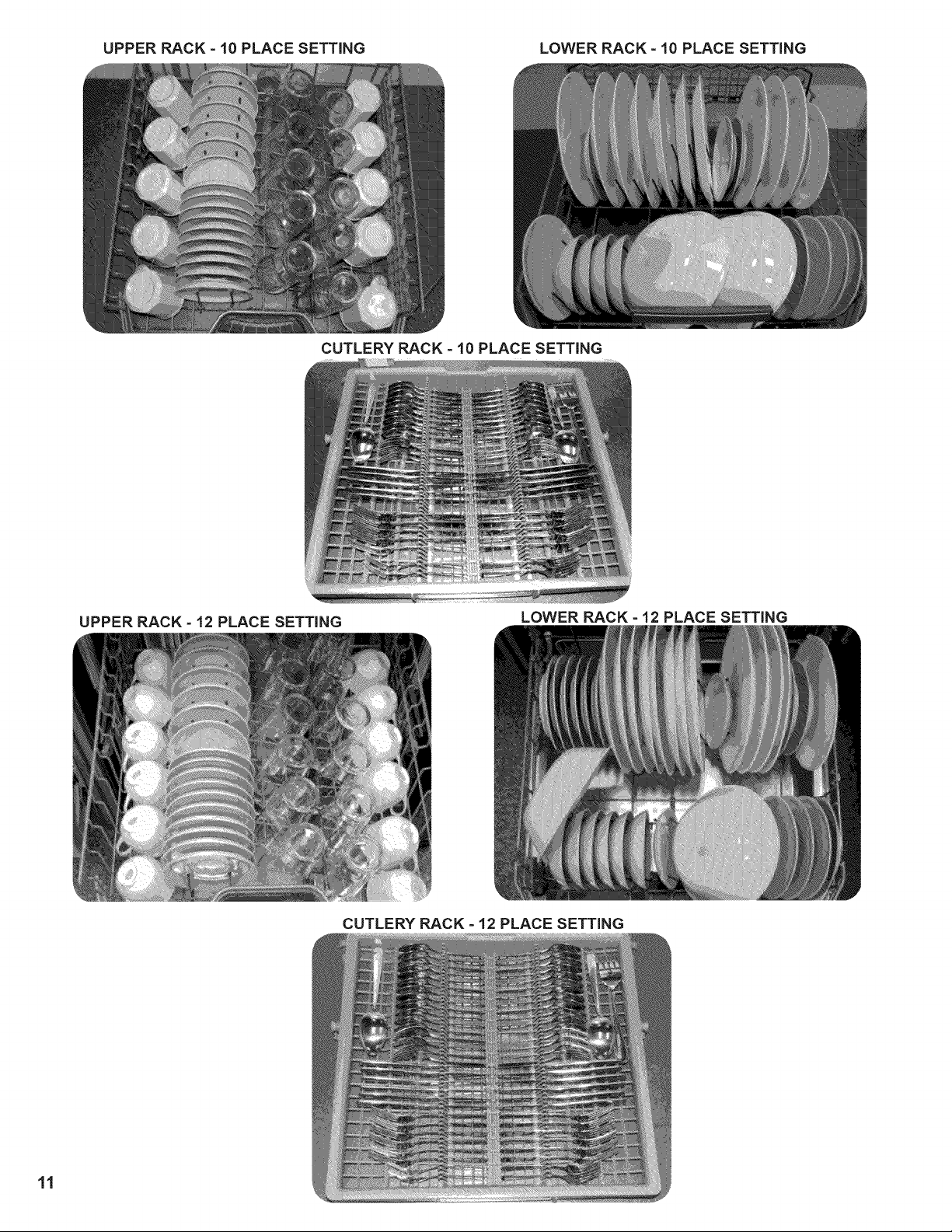

UPPER RACK 12 PLACE SETTING LOWER RACK = 12 PLACE SETTING

SILVERWARE BASKET 12 PLACE SETTING

+C E]OE]O OlDE] [D CD©E]O OE]@ E]

[3OO[3 E]O O(D

1 - Salad Fork

2 - Tea Spoon Dinner Fork 4 - Knife

5 - Table Spoon 6 - Serving Spoon 7 - Serving Fork

Loading the Dishwasher Do not pre-wash items having loosely-attached soiling.

Remove large food particles. bones. seeds. toothpicks. and excessive grease.

Items having burned-on. baked-on or starchy soils may require pre-treatment.

Load only dishwasher-safe items into the dishwasher.

Load dishes in the dishwasher racks so that the insides of bowls. pots. and pans are face downwards.

Avoid nesting and contact points between dishes.

Separate items of dissimilar metals.

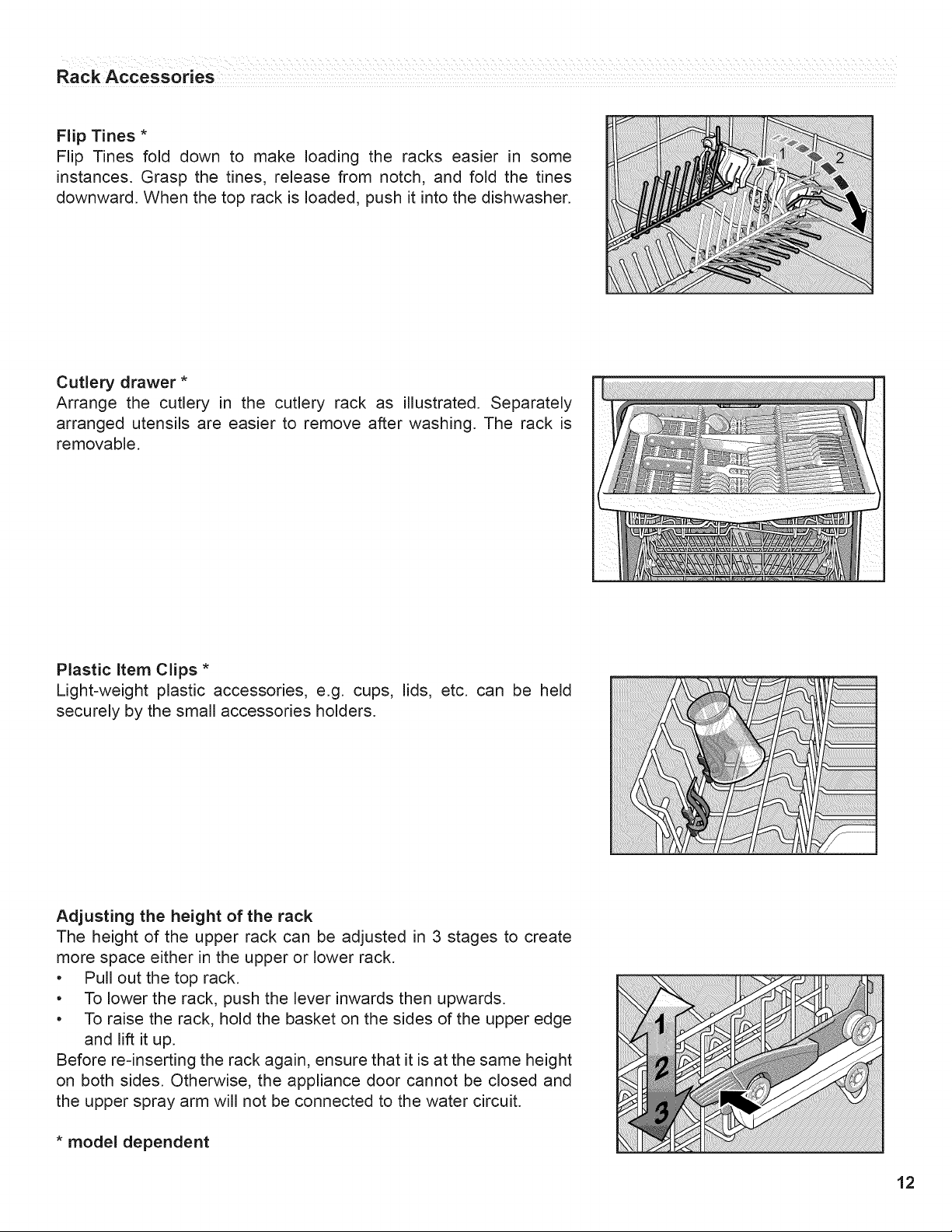

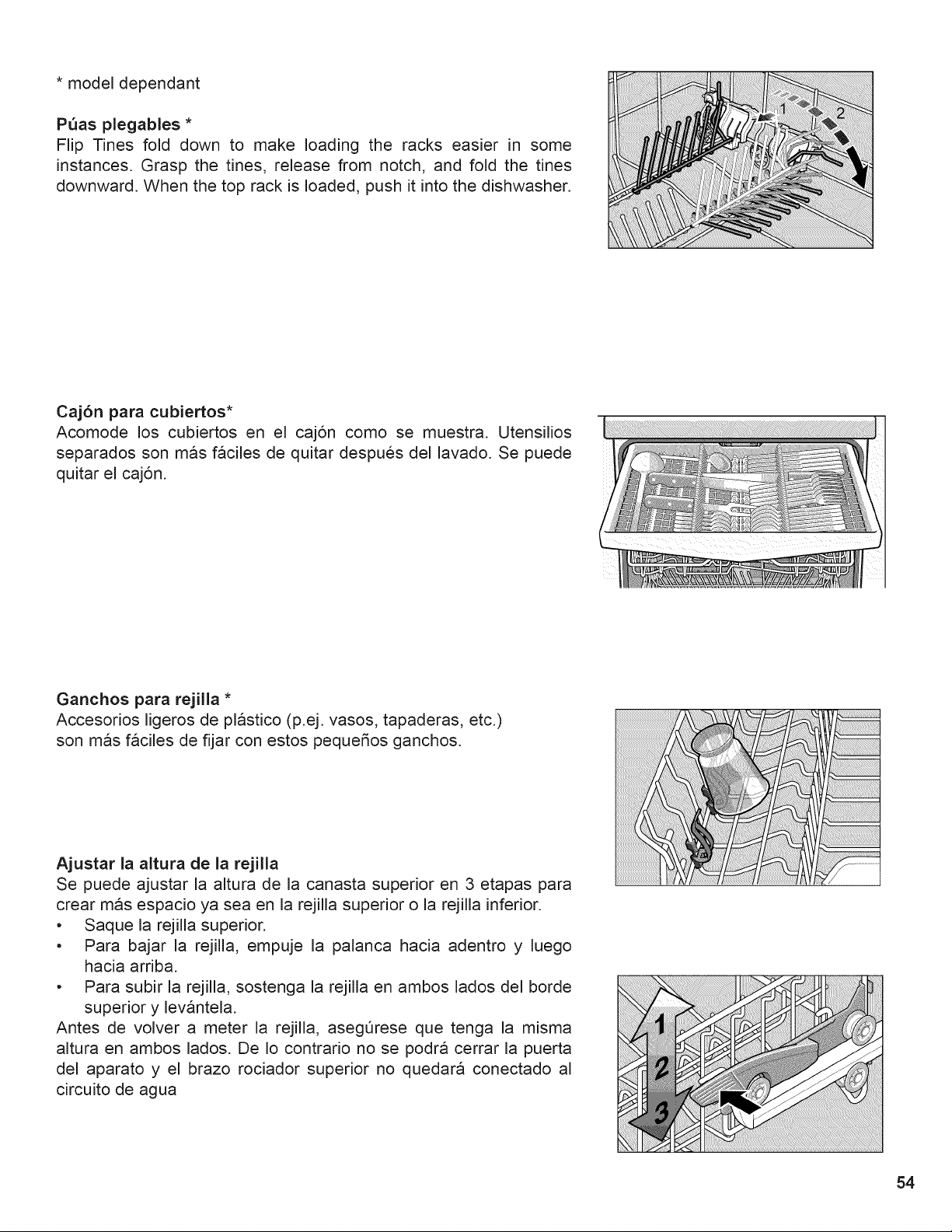

Rack Accessories

Flip Tines Flip Tines fold down to make loading the racks easier in some

Cutlery drawer Arrange the cutlery in the cutlery rack as illustrated.

Separately arranged utensils are easier to remove after washing.

The rack is removable.

Plastic Item Clips

Light-weight plastic accessories. e.g. cups. lids. etc. can be held securely by the small accessories holders.

Adjusting the height of the rack The height of the upper rack can be adjusted in 3 stages to create more space either in the upper or lower rack.

Pull out the top rack.

To lower the rack. push the lever inwards then upwards.

To raise the rack. hold the basket on the sides of the upper edge and lift it up.

Before re-inserting the rack again. ensure that it is at the same height on both sides.

Otherwise. the appliance door cannot be closed and

+ model dependent

+ modeldependant

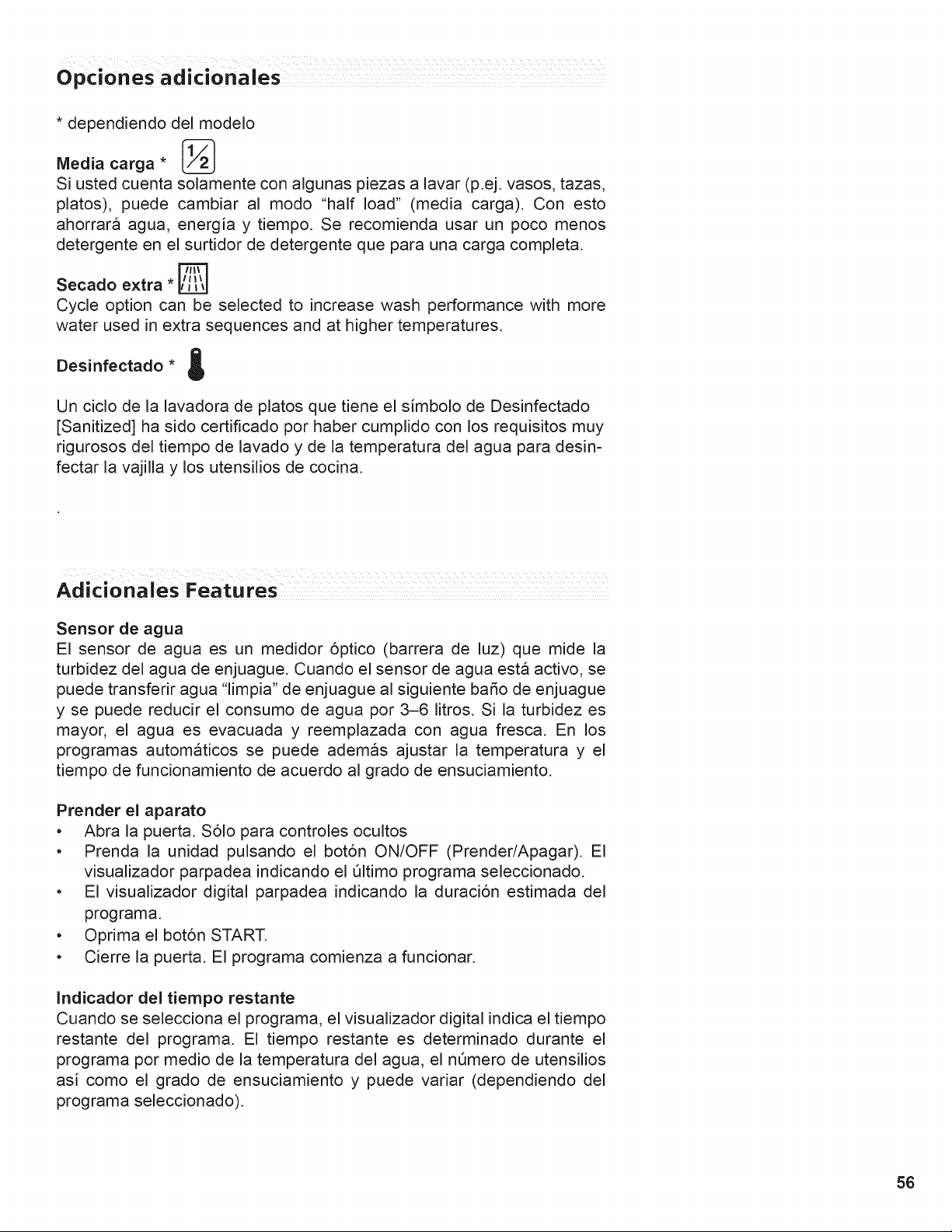

Half Load * If you haveonly a few items to wash (e.g. glasses. cups. plates). you can switch to "half load". This will save water. energy and time.

It is recommended to put a little less detergent in the detergent dispenser than for a full load.

Extra Wash

Cycle option can be selected to increase wash performance with more water used in extra sequences and at higher temperatures.

Sanitize option

All models are designed to sanitize the loaded dishes.

You must press the Sanitize Option button to active the Sanitation features.

The technical Sanitation measures may also improve the drying results

Eco Action

Lowers temperature and slightly increase performance while lowering energy usage. cycle length to maintain

Additional Features

EcoSense Wash Management System* An advanced sensor system determines the soil level in the wash water and automatically deletes fresh water fills if they're not needed. saving you time and money. while cutting energy usage.

Sanitized

A dishwasher cycle that has the Sanitized symbol has been tested to meet very strict requirements of wash time and water temperature to ensure dishware and kitchenware sanitization.

Time remaining Indicator When the program is selected. the remaining running time of the program

InfoLight* An LED illuminates the floor to indicate unit is running.

Do not open the dishwasher door until the LED is no longer visible on the floor.

If the appliance is installed at eye-level. the LED is not visible.

Turn unit on by pressing the ON/OFF button.

Hold down button [A] and press START until the display indicates "H:00".

Release both buttons

The LED for [A] flashes and display indicates "H:04".

Press [A] until the display shows "1:01"

Press [C] to switch between "1:01" and "1:00" and press START to save.

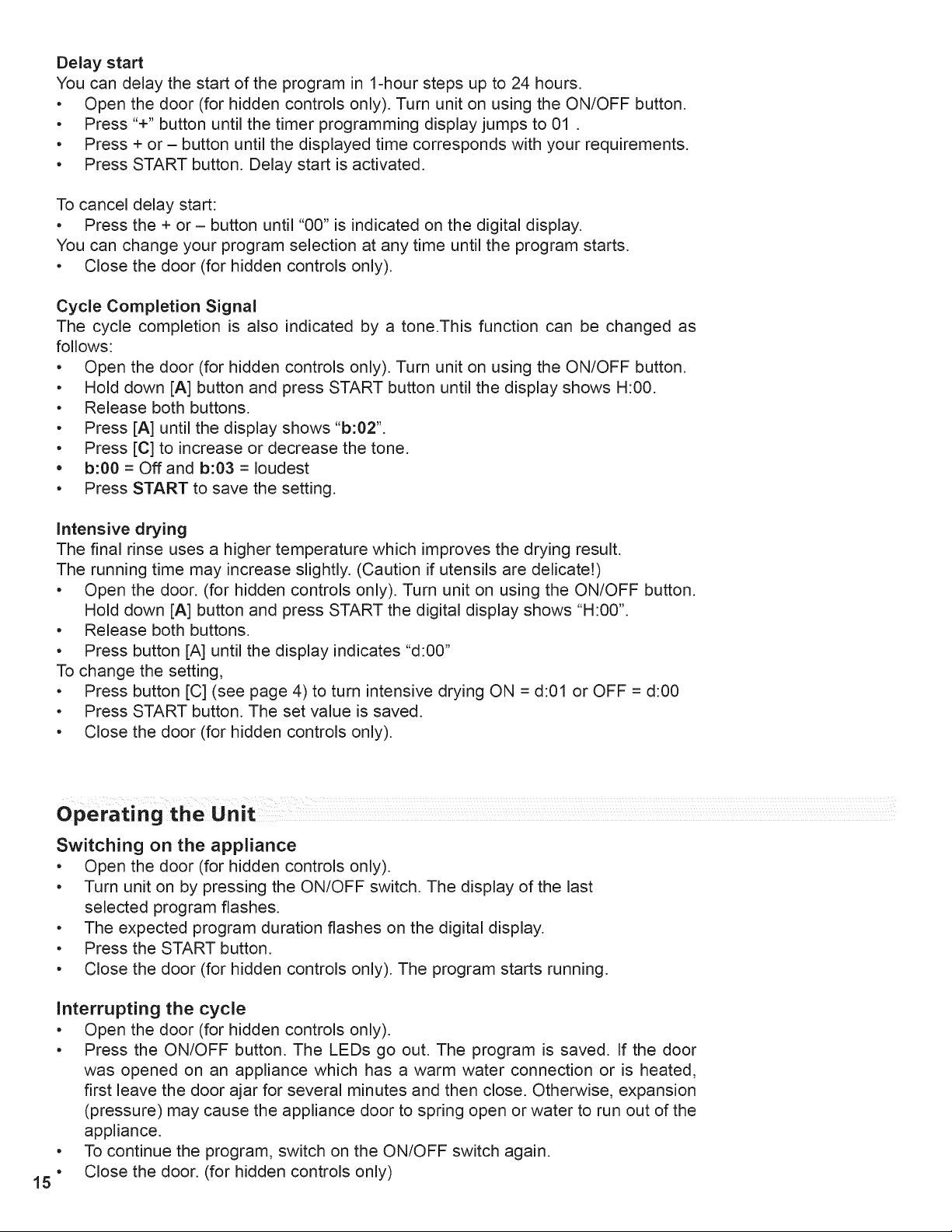

Delay start You can delay the start of the program in 1-hour steps up to 24 hours.

Open the door (for hidden controls only). Turn unit on using the ON/OFF button.

Press "+" button until the timer programming display jumps to 01 .

Press

+ or button until the displayed time corresponds with your requirements.

Press START button.

Delay start is activated.

To cancel delay start:

Press the + or button until "00" is indicated on the digital display.

You can change your program selection at any time until the program starts.

Close the door (for hidden controls only).

Cycle Completion Signal The cycle completion is also indicated by a tone.This function can be changed as follows:

Open the door (for hidden controls only). Turn unit on using the ON/OFF button.

Hold down [A] button and press START button until the display shows H:00.

Release both buttons.

Press [A] until the display shows "b:02".

Press [C] to increase or decrease the tone. b:00 = Off and b:03 = loudest

Press START to save the setting.

Intensive drying The final rinse uses a higher temperature which improves the drying result.

The running time may increase slightly. (Caution if utensils are delicate!)

Open the door. (for hidden controls only). Turn unit on using the ON/OFF button.

Hold down [A] button and press START the digital display shows "H:00".

Release both buttons.

Press button [A] until the display indicates "d:00" To change the setting.

Press button [C] (see page 4) to turn intensive drying ON = d:01 or OFF = d:00

Press START button.

The set value is saved.

Close the door (for hidden controls only).

Switching on the appliance

Open the door (for hidden controls only).

Turn unit on by pressing the ON/OFF switch.

The display of the last selected program flashes.

The expected program duration flashes on the digital display.

Press the START button.

Close the door (for hidden controls only). The program starts running.

Interrupting the cycle

Open the door (for hidden controls only).

Press the ON/OFF button.

The LEDs go out. The program is saved.

If the door was opened on an appliance which has a warm water connection or is heated. first leave the door ajar for several minutes and then close.

Otherwise. expansion (pressure) may cause the appliance door to spring open or water to run out of the appliance.

To continue the program. switch on the ON/OFF switch again.

Close the door. (for hidden controls only)

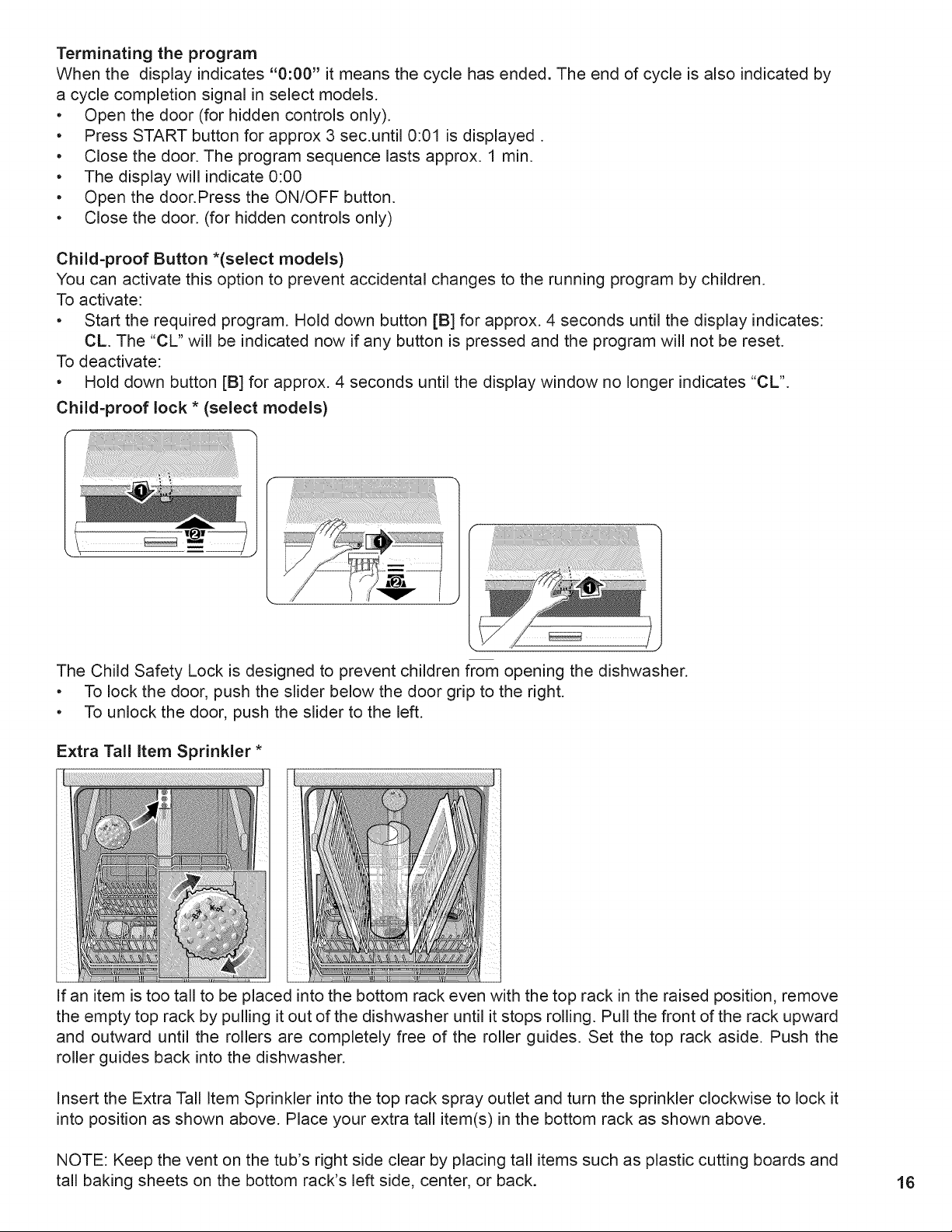

Terminatingthe program When the display indicates "0:00" it means the cycle has ended.

The end of cycle is also indicated by

Open the door.Press the ON/OFF button.

Close the door. (for hidden controls only)

Child-proof Button

+(select models) You can activate this option to prevent accidental changes to the running program by children.

To activate:

Start the required program.

Hold down button [B] for approx.

4 seconds until the display indicates: CL The "CL" will be indicated now if any button is pressed and the program will not be reset.

To deactivate:

Hold down button [B] for approx.

4 seconds until the display window no longer indicates "CL".

Child-proof lock

+ (select models)

The Child Safety Lock is designed to prevent children from opening the dishwasher.

To lock the door. push the slider below the door grip to the right.

To unlock the door. push the slider to the left.

Extra Tall item Sprinkler

If an item is too tall to be placed into the bottom rack even with the top rack in the raised position. remove the empty top rack by pulling it out of the dishwasher until it stops rolling.

Pull the front of the rack upward and outward until the rollers are completely free of the roller guides.

Set the top rack aside.

Push the

Insert the Extra Tall Item Sprinkler into the top rack spray outlet and turn the sprinkler clockwise to lock it into position as shown above.

Place your extra tall item(s) in the bottom rack as shown above.

NOTE: Keep the vent on the tub's right side clear by placing tall items such as plastic cutting boards and tall baking sheets on the bottom rack's left side. center. or back.

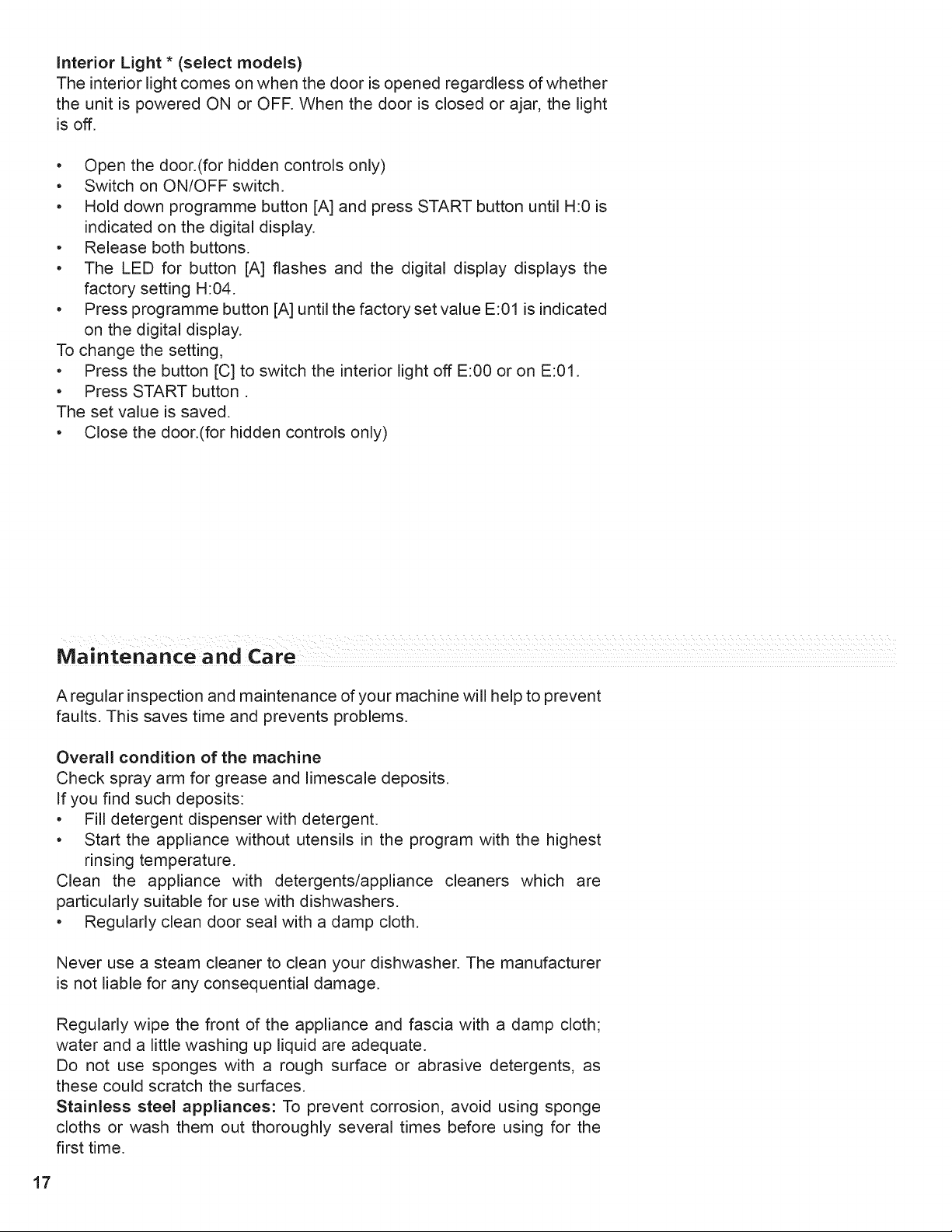

Open the door.(for hidden controls only)

Switch on ON/OFF switch.

Hold down programme button [A] and press START button until H:0 is indicated on the digital display.

Release both buttons.

The LED for button [A] flashes and the digital display displays the factory setting H:04.

Press programme button [A] until the factory set value E:01 is indicated on the digital display.

To change the setting.

Press the button [C] to switch the interior light off E:00 or on E:01.

Press START button.

The set value is saved.

Close the door.(for hidden controls only)

Maintenance a nd Care

A regular inspection and maintenance of your machine will help to prevent faults.

This saves time and prevents problems.

Overall condition of the machine

Check spray arm for grease and limescale deposits.

If you find such deposits:

Fill detergent dispenser with detergent.

Start the appliance without utensils in the program with the highest rinsing temperature.

Clean the appliance with detergents/appliance cleaners which are particularly suitable for use with dishwashers.

Regularly clean door seal with a damp cloth.

Never use a steam cleaner to clean your dishwasher.

The manufacturer is not liable for any consequential damage.

Regularly wipe the front of the appliance and fascia with a damp cloth;

Stainless steel appliances: To prevent corrosion. avoid using sponge cloths or wash them out thoroughly several times before using for the first time.

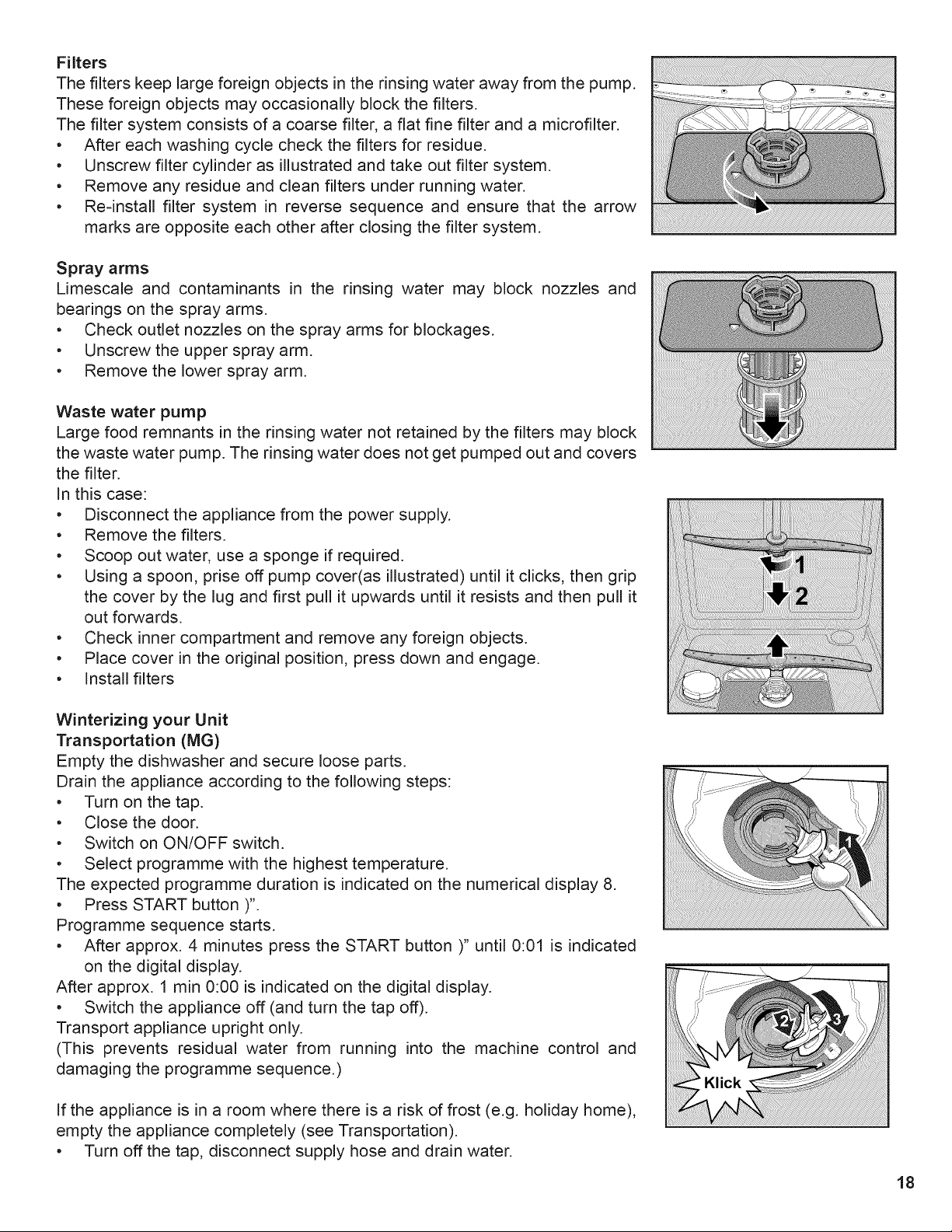

Filters Thefilterskeeplargeforeignobjectsin the rinsing water away from the pump.

These foreign objects may occasionally block the filters.

The filter system consists of a coarse filter. a flat fine filter and a microfilter.

After each washing cycle check the filters for residue.

Unscrew filter cylinder as illustrated and take out filter system.

Remove any residue and clean filters under running water.

Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.

Spray arms Limescale and contaminants in the rinsing water may block nozzles and

Waste water pump Large food remnants in the rinsing water not retained by the filters may block the waste water pump. The rinsing water does not get pumped out and covers the filter.

In this case:

Disconnect the appliance from the power supply.

Remove the filters.

Scoop out water. use a sponge if required.

Using a spoon. prise off pump cover(as illustrated) until it clicks. then grip the cover by the lug and first pull it upwards until it resists and then pull it out forwards.

Check inner compartment and remove any foreign objects.

Place cover in the original position. press down and engage.

Install filters

Winterizing your Unit Transportation (MG) Empty the dishwasher and secure loose parts.

Drain the appliance according to the following steps:

Turn on the tap.

Close the door.

Switch on ON/OFF switch.

Select programme with the highest temperature.

The expected programme duration is indicated on the numerical display

Press START button

Programme sequence starts.

After approx.

4 minutes press the START button )" until 0:01 is indicated on the digital display.

After approx.

1 min 0:00 is indicated on the digital display.

Switch the appliance off (and turn the tap off).

Transport appliance upright only. (This prevents residual water from running into the machine control and damaging the programme sequence.)

If the appliance is in a room where there is a risk of frost (e.g. holiday home).

SELF HELP

Dishwashers may occasionally exhibit problems that are unrelated to a malfunction of the dishwasher itself. The following information may help you

Problem

Dishwasher

Dishwasher

Display does not illuminate

Dishwasher

Dishes aren't

Dishes are not

Odor

Cause

Door may not be properly latched.

Unit may not be turned on.

Unit not reset or previous cycle not completed.

Delay start engaged.

Interruption of electrical power supply to dishwash er or blown fuse.

Child lock activated (select models).

The door may have been closed without first select ing a cycle.

Water supply may not be turned on.

Default factory settings alert the customer that the

A fuse may have been blown or circuit breaker

Note: For models with controls on the top portion of the

Incoming water is not warm enough.

Cycle time can vary due to soil and water condi tions.

Rinse agent dispenser is empty.

Dishwasher connected to cold water supply.

Note: Refer to "Cycle Chart Data" section in this manual

Spray arm movement is obstructed.

Spray arm nozzles clogged.

Improper use of detergents.

Filters could be clogged.

Dishes are nested or loaded too close together.

Selected wash cycle is not suitable for food soil condtions.

Rinse agent dispenser is empty. (Rinse agent indica

Improper loading of dishes.

Selected cycle does not include drying.

Note: Plastic or Teflon do not typically dry as completely

Food debris is present at the bottom of the dish washer.

Food particles are present near the door seal.

Dishes left too long in unit before running a cycle.

Residual water is present at the bottom of the dish washer.

Drain hose is obstructed.

Action

Shut the door completely.

Press the main power switch to turn unit on.

To reset. refer to "Canceling or changing the cycle" section in this manual.

To reset. refer to "Delay Start" section in this manual.

Check circuit breaker.

Deactivate the child lock.

Refer to "Child Lock" section in this

Select a cycle and close the door.

Check and turn on water supply.

To adjust the volume or deactivate. refer to "Cycle Completion Sig nal" section in this manual.

Check the fuse or circuit breaker box and replace the fuse or re

Ensure that door is properly latched and completely closed.

Before starting a cycle. run hot water faucet at the sink nearest to the dishwasher.

Sensors in the dishwasher automatically increase the cycle time to ensure a good wash when heavy soil is detected.

Add rinse agent.

Verify dishwasher isconnected to hot water supply plumbing.

Ensure that spray arm movement is not blocked by hand rotating spray arms.

Remove the spray arms and clean according to "Check/Clean the Spray Arm Nozzles" in Care and Maintenance section of this manual.

Increase or decrease detergent depending on the water hard ness. Refer to Table under "Adding Detergent and Rinse Agent".

Clean the filter.

Refer to "Check/Clean the Filter System" under Care and Maintenance section of this manual.

Rearrange load such that water spray can reach all items in the dishwasher.

See also "Preparing and Loading" section of this manual.

Refer to "Wash Cycle" section in Operating the Dishwasher sec tion of this manual.

Add rinse agent. The use of rinse agent improves drying.

Rearrange load to ensure items are not nested.

Refer also to the "Preparing and Loading" section of this manual.

Rinse and Hold setting does not include drying cycle.

Note: Select models offer an extra heating options to improve drying performance.

Refer to "Wash Cycle options" under the Operating the Dishwasher section of this manual.

Remove the filters and clean according to the "Check/Clean the Filter System" section of this manual.

Refer to "Clean the Door Gasket and Door Seal" in the Care and Maintenance section of this manual.

Run a Rinse/Hold cycle if you do not intend to immediately wash the dishes.

Ensure the unit has completely drained from the last cycle. Refer to the "Canceling or changing the cycle" section of this manual.

Remove any obstructions from the drain hose by calling qualified personnel.

Note: If odor still persists. run the Normal/Regular cycle until it flushes and interrupt the cycle and place an 8 oz. cup of distilled white vinegar solution on the top rack and then finish the cycle.

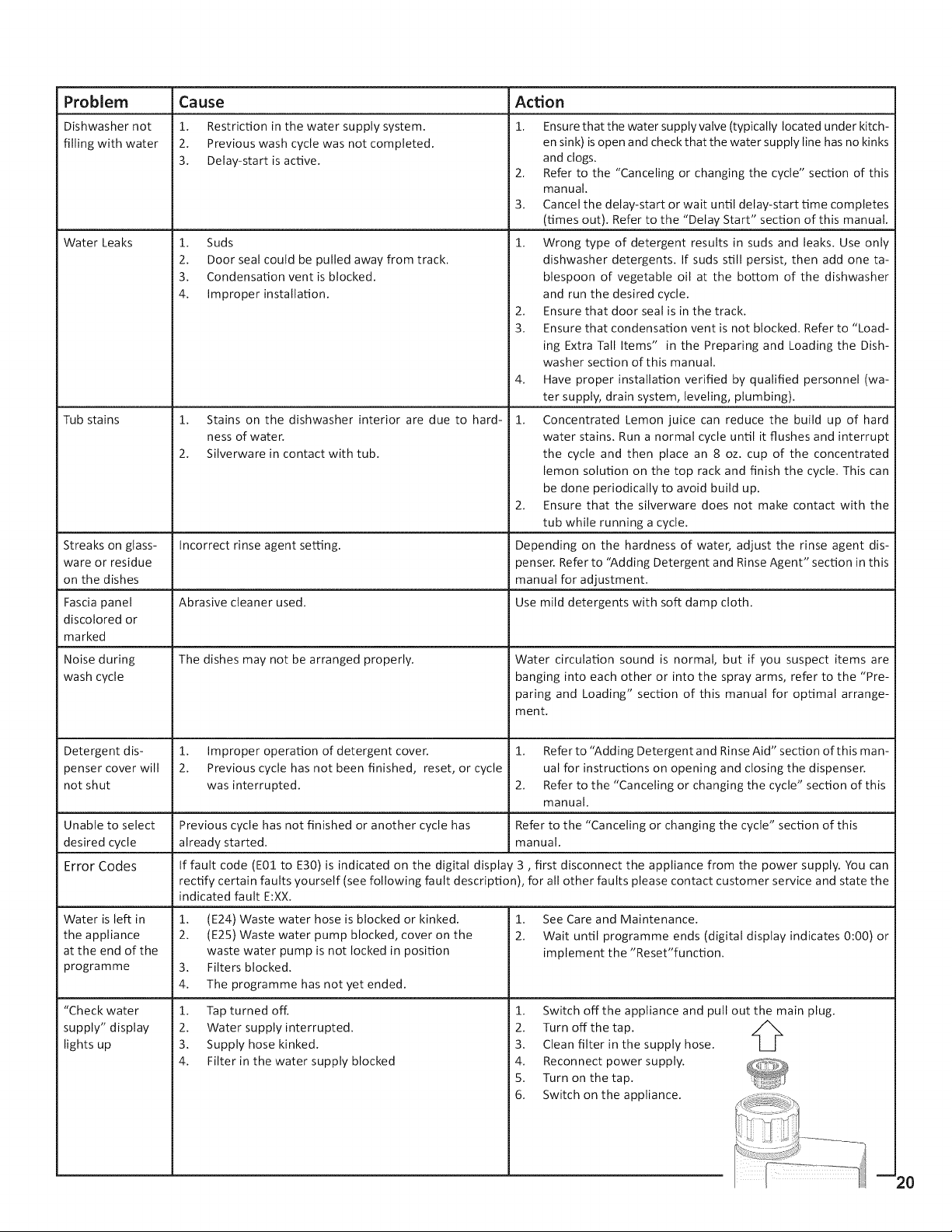

Problem

Dishwasher not

Water Leaks

Tub stains

Streaks on glass ware or residue

Fascia panel discolored or

Noise during

Detergent dis

Unable to select

Error Codes

Water is left in

"Check water

Cause

Restriction in the water supply system.

Previous wash cycle was not completed.

Delay-start is active.

Suds

Door seal could be pulled away from track.

Condensation vent is blocked.

Improper installation.

Stains on the dishwasher interior are due to hard

Silverware in contact with tub.

Action

Ensure that the water supply valve (typically located under kitch en sink) isopen and check that the water supply line has no kinks and clogs.

Refer to the "Canceling or changing the cycle" section of this manual.

Cancel the delay-start or wait until delay-start time completes (times out).

Refer to the "Delay Start" section of this manual.

Wrong type of detergent results in suds and leaks.

Use only

Ensure that condensation vent is not blocked.

Refer to "Load

[ng Extra Tall Items" [nthe Preparing and Loadingthe Dish washer section of this manual.

Have proper installation verified by qualified personnel (wa

Concentrated Lemon juice can reduce the build up of hard water stains.

Run a normal cycle until it flushes and interrupt

Depending on the hardness of water. adjust the rinse agent dis

Use mild detergents with soft damp cloth.

Water circulation sound is normal. but if you suspect items are

Refer to "Adding Detergent and Rinse Aid" section of this man

Refer to the "Canceling or changing the cycle" section of this manual.

Incorrect rinse agent setting.

Abrasive cleaner used.

The dishes may not be arranged properly.

Improper operation of detergent coven

Previous cycle has not been finished. reset. or cycle

Previous cycle has not finished or another cycle has Refer to the "Canceling or changing the cycle" section of this

If fault code (EO:1to E30) is indicated on the digital display 3. first disconnect the appliance from the power supply.

You can rectify certain faults yourself (see following fault description). for all other faults please contact customer service and state the indicated fault E:XX.

See Care and Maintenance.

Wait until programme ends (digital display indicates 0:00) or implement the "Reset'function.

(E24) Waste water hose is blocked or kinked. (E25) Waste water pump blocked. cover on the waste water pump is not locked in position Filters blocked.

The programme has not yet ended.

Tap turned off.

Water supply interrupted.

Supply hose kinked.

Filter in the water supply blocked

Switch off the appliance and pull out the main plug.

Turn off the tap.

Clean filter in the supply hose.

LJ

Reconnect power supply.

Turn on the tap.

Switch on the appliance.

If you arehavinga problemwith yourdishwasherand arenot pleasedwiththe serviceyou have received. leasetakethe followingsteps(in the order listed below)untiltheproblemis correctedto yoursatisfaction:

1. Contactyourinstalleror theAuthorizedServiceContractorinyourarea.

2. E-mailusfromthecustomerservicesectionof ourwebsite. www.thermador.com.

Write us at the address below:

BSH Home Appliances.

Corp.

5551 McFadden Avenue

Huntington Beach.

CA 92649

Call Customer Service at 1-800-735-4328.

Please be sure to include (if you are writing). or have available (if you are

Serial number

Date of original purchase

Date the problem originated

Explanation of the problem

Statement of Limited Product Warranty

What this Warranty Covers & Who it Applies to: The limited warranty provided by BBH Home Appliances in this Statement of Limited Product Warranty applies only to the Thermador Dishwashers ("Product") sold to you. the first using purchaser. provided that the Product was purchased:

(1) for your normal. household (non-commercial) use. and has in fact at all times only been used for normal household purposes; (2) new at retail (not a display. "as is". or previously returned model). and not for resale. or commercial use; and (3) within the United States or Canada. and has at all times remained within the country of original purchase. The warranties stated herein apply only to the first purchaser of the Product and are not transferable.

Thermador reserves the right to request proof of purchase at the time any warranty claim is submitted to confirm that the Product falls within the scope of this limited product warranty.

Please make sure to return your registration card; while not necessary to effectuate warranty coverage. it is the best way for Thermador to notify you in the unlikely event of a safety notice or product recall.

How Long the Warranty Lasts: Thermador warrants that the Product is free from defects in materials and workmanship for a period of three hundred sixty-five days (365) days from the date of purchase.

The foregoing

Repair/Replace as Your Exclusive Remedy: During this warranty period.

Thermador or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship.

Ifa reasonable number of attempts to repair the Product have been made without success. then Thermador will replace your Product (upgraded models may be available to you. in Thermador's sole discretion. for an additional charge).

All removed parts and components shall become the property of Thermador at its sole option.

All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. Thermador's sole liability and responsibility hereunder is to repair manufacturer-defective Product only. using a Thermador-authorized service provider during normal business hours. For safety and property damage concerns.

Thermador highly recommends that you do not attempt to repair the Product yourself. or use an un-authorized servicer; Thermador will have no responsibility or liability for repairs or work performed by a non-authorized servicer.

If you choose to have someone other than an authorized service provider work on your Product. THIS WARRANTY WILL AUTOMATICALLYBECOMENULLANDVOID. Authorized service providers are those persons or companies that have been specially trained on Thermador products. and who possess. in Thermador's opinion. a superior reputation for customer service and technical ability (note that they are independent entities and are not agents. partners. affiliates or representatives of Thermador).

Notwithstanding the foregoing.

Thermador will not incur any liability. or have responsibility. for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible. hazardous. threatening. or treacherous locale. surroundings. or environment; in any such event. if you request. Thermador would still pay for labor and parts and ship the parts to the nearest authorized service provider. but you would still be fully liable and responsible for any travel time or other special charges by the service company. assuming they agree to make the service call.

Out of Warranty Product: Thermador is under no obligation. at law or otherwise. to provide you with any concessions. including repairs. pro-rates. or Product replacement. once this warranty has expired.

Warranty Exclusions: The warranty coverage described herein excludes all defects or damage that are not the direct fault of Thermador. including without limitation. one or more of the following: use of the Product in anything other than its normal. customary and

BE LIABLE FOR CONSEQUENTIAL.

SPECIAL.

INCIDENTAL.

INDIRECT. "BUSINESS LOSS".

AND/OR PUNITIVE DAMAGES.

LOSSES.

OR EXPENSES.

INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK. HOTELS AND/OR RESTAURANT MEALS.

REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY Thermador.

OR OTHERWISE.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES.

AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG IMPLIED WARRANTY LASTS. SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU BPECI FIC LEGAL RIGHTS. AND YOU MAY ALSO HAVE OTHER RIGHTS.

WHICH VARY FROM STATE TO STATE.

No attempt to alter. modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH.

How to Obtain Warranty Service: To obtain warranty service for your Product. you should contact the nearest Thermador authorized service center.

BSH Home Appliances 5551 McFadden Avenue.

Huntington Beach.

CA 92649 / 800-944-2904

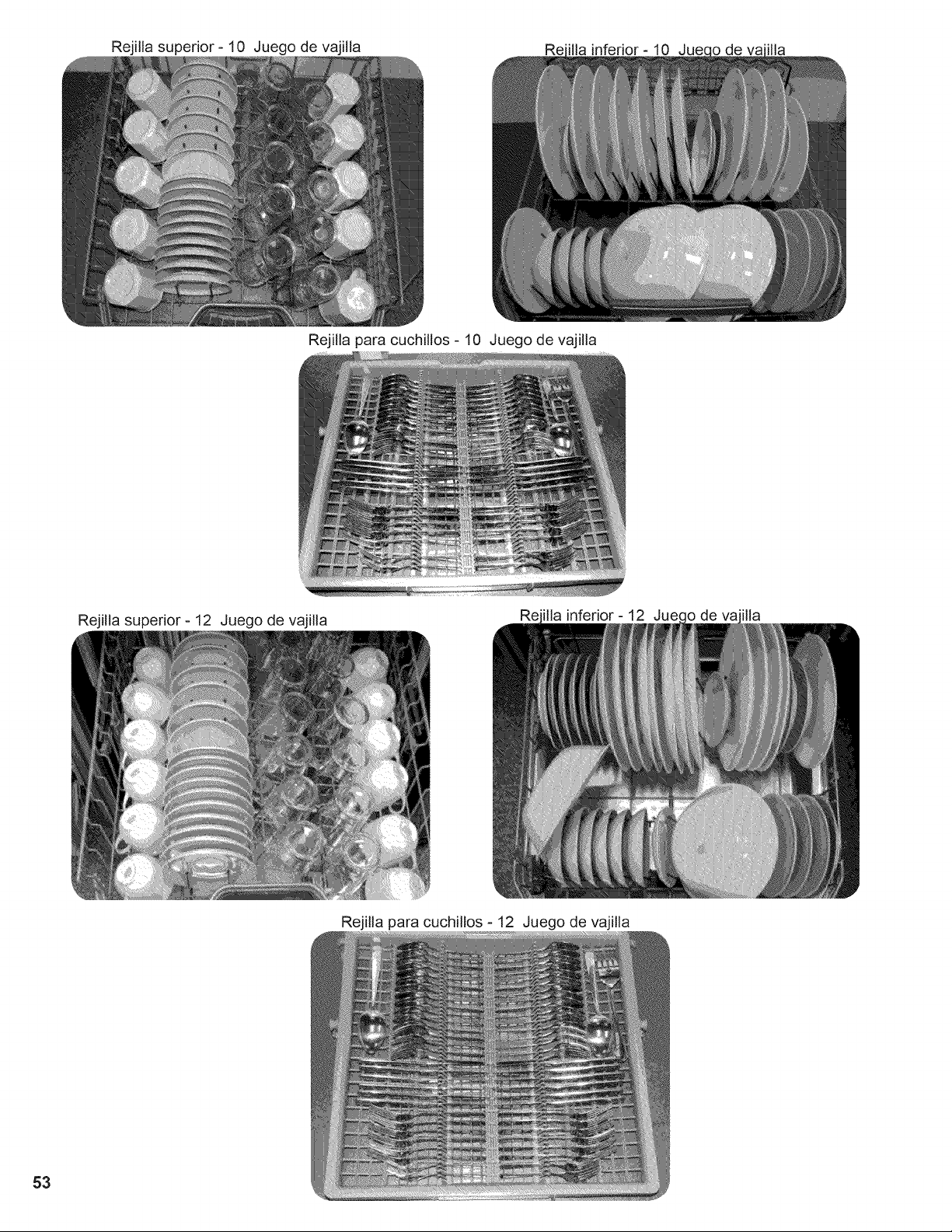

PANIER SUPIRIEUR - 10 COUVERTS PANIER INFIRIEUR - 10 COUVERTS

PANIER/_ USTENSILES 10 COUVERTS

PANIER SUPtRIEUR - 12 COUVERTS PANIER INFERIEUR - 12 COUVERTS

PANIER A USTENSILES 12 COUVERTS



Newest Added: UCVM36FS-01 T24IF70NSP/18 PCG304G-01 KBUDT4265E/04 KBUDT4860A/01

Thermador DWHD650GFP/18 | Pages: 66 | Created on: 2022-07-15 | File type: PDF | Filename: 92531751_dwhd650gfp-18.pdf | Size: 22.23 MB | Language: English | Other documents: 1 files.

Download User Manual

Contact us

T: @manualsFile

https://manualsFile.com
