EMDEL15SX/BK
CONTENTS
• Technical specifications ……………………………………………………..
4
• Conformity with the standards and Test data ……………………………..
4
Safety information and Recommendations…………………………………..
5
• Recycling .......……………………….........................................................
5
• Safety information ……………………………………………………………
5
• Recommendations …...………………………………………………………
8
• Items not suitable for dishwashing …………………………………………
9
Installing the machine ………………………………………………………….. 9
• Positioning the machine ……………………………………………………..
9
• Water connections …………………...............................................................
10
• Water inlet hose ….…………………………………………………………..
11

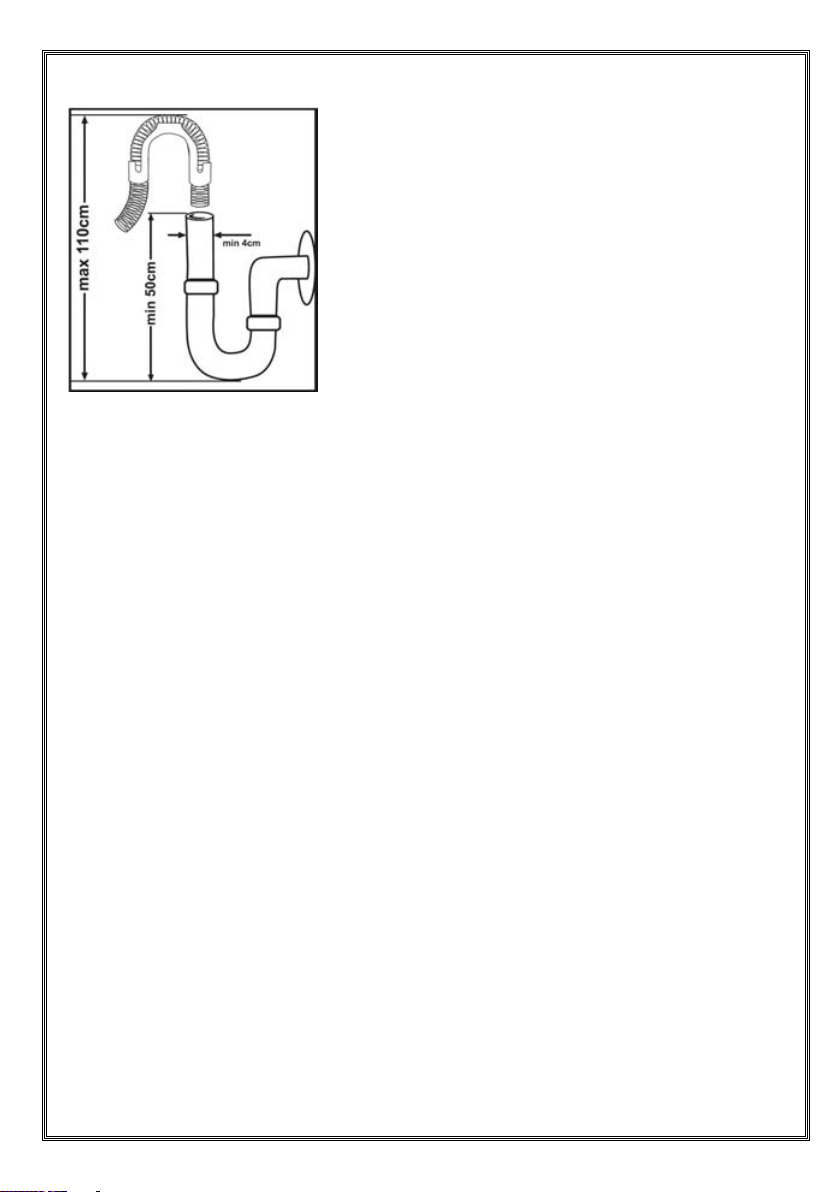

• Water outlet hose …..………………..............................................................
12
• Electrical connection…………………………………………………………
13
• Fitting the machine undercounter ………………………………………….
14
• Prior to using the machine ………………………………………………….
16
Preparing the machine for use ………………………………………………… 16
• Detergent usage ……………………........................................................
16
• Filling the detergent compartment………………………………………….
16
• Combined detergent….………………………………………………………
16
• Filling with rinse aid and making the setting……………………………….
17
1
Loading your dishwasher .……………………………………………………. 19
• Top basket…………………………………………………………………...
19
• Lower basket………………………………………………………………...
20
• Alternative basket loads …………………………………………………... 22
Programme descriptions .……………………………………………………..
24
• Programme items …………………………………………………………..
24
Selection of Program and Starting of the Machine.......……………........ 25
• Selection of Program and Starting of the Machine …………………….
28
• Programme follow-up ………………………………………………………
29
• Adding Additional Functions to the Program …………………………… 30
• Changing a programme /Changing a programme with resetting ……...
31
• Settings Menu ...................….……………………………………………...
32
Maintenance and Cleaning ........................................................................ 35
• Filters ..………………………………………………………………………
56
• Spray arms ………………………………………………………………….
36
• Hose filter ……………………………………………………………………
36
Failure codes and what to do in case of failure …………………………
37
Practical and useful information……......................................................... 39
2
3
7.
Rating plate
2.
Upper basket with racks
8.
Control Panel
3.
Upper spray arm
9.
Detergent and rinse-aid dispenser
4.
Lower basket
5.
Lower spray arm
10.
6.
Filters
Upper basket track latch
1.
Worktop
12
Turbo Drying Unit: This system provides
better drying performance for your dishes.
1
2
3
7
8
9
10
11
5
6
4
11. Upper Cutlery Basket
Ceiling Spray Arm: It provides
better washing for the dishes at
upper basket.
13
4
Capacity 15 place settings
Height 850 mm
Height
(without worktop) 820 mm
Width 598 mm
Depth 598 mm
Net Weight 50 kg
Electricity input 220-240 V, 50 Hz
Total Power 1900 W
Heating Power 1800 W
Pump Power 100 W
Drain Pump Power 30 W
Water supply pressure 0.03 MPa
(0,3 bar)-1 MPa (10 bar)
Current 10 A
Technical specifications
&RQIRUPLW\ZLWKWKHVWDQGDUGVDQG7HVWGDWD
(8'HFODUDWLRQRI&RQIRUPLW\
This product meets the requirements of all applicable
EU directives with the corresponding harmonised standards,
which provide for CE marking.
Important Note for User:For softcopy of this user manual,
please contact following address:
provide the model name and serial number (20 digits) which
you can find on the appliance door.
5
SAFETY INFORMATION AND RECOMMENDATIONS
Recycling
• Certain components and the packaging of your machine
have been produced from recyclable materials.
• Plastic parts are marked with international abbreviations:
(>PE< , >PS< , >POM<, >PP<, )
• Cardboard parts have been produced from recycled paper
and they should be disposed of into waste paper collection
containers for recycling.
• Such materials are not suitable for being disposed of into
garbage bins. They should be delivered to recycling centres
instead.
• Contact relevant centres in order to obtain information on
methods and points of disposal.
Safety Information
When you take delivery of your machine
• Check for any damage to your machine or to its packaging.
Never start a machine damaged in any way, make sure to
contact an authorised service.
• Unwrap the packaging materials as indicated and dispose
of them in accordance with the rules.
The points to pay attention during machine installation
•
Choose a suitable, safe and level place to install your
machine.
• Carry out the installation and connection of your machine by
following the instructions.
•
This machine should be installed and repaired by an
authorised service only.
• Only original spare parts should be used with the machine.
• Before installing, be sure that the machine is unplugged.
6
• Check whether the indoor electrical fuse system is connected
according to the regulations.
• All electrical connections must match the values indicated
on the rating plate.
• Pay special attention and be sure that the machine does not
stand on the electricity supply cable.
• Never use an extension cord or a multiple socket for making
a connection. The plug should be comfortably accessible
after the machine has been installed.
• After installing the machine to a suitable place, run it unloaded
for the first time.
In daily use
• This machine is for household use; do not use it for any
other purpose. Commercial usage of the dishwasher will void
the guarantee.
• Do not get up, sit or place a load on the open door of the
dishwasher, it may fall over.
• Never put into the detergent and rinse aid dispensers of
your machine anything other than those detergents and rinse
aids which are produced specifically for dishwashers. Our
company will not be responsible for any damage that might
occur in your machine otherwise.
• The water in the machine's washing section is no drinking
water do not drink it.
- Staff kitchen areas in shops, offices and other working
environments;
- Farm houses;
- By clients in hotels, motels and other residential type
environments;
- Bed and Breakfast type environments.
6
• Check whether the indoor electrical fuse system is connected
according to the regulations.
• All electrical connections must match the values indicated
on the rating plate.
• Pay special attention and be sure that the machine does not
stand on the electricity supply cable.
• Never use an extension cord or a multiple socket for making
a connection. The plug should be comfortably accessible
after the machine has been installed.
• After installing the machine to a suitable place, run it unloaded
for the first time.
In daily use
• This machine is for household use; do not use it for any
other purpose. Commercial usage of the dishwasher will void
the guarantee.
• Do not get up, sit or place a load on the open door of the
dishwasher, it may fall over.
• Never put into the detergent and rinse aid dispensers of
your machine anything other than those detergents and rinse
aids which are produced specifically for dishwashers. Our
company will not be responsible for any damage that might
occur in your machine otherwise.
• The water in the machine's washing section is no drinking
water do not drink it.
- Staff kitchen areas in shops, offices and other working
environments;
- Farm houses;
- By clients in hotels, motels and other residential type
environments;
- Bed and Breakfast type environments.
7
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
• Do not put into your machine those items which are not
suitable for dishwashing. Also, do not fill any basket above its
capacity.Our company will not be responsible for any scratch
or rust to form on the inner frame of your machine due to
basket movements otherwise.
• Especially because hot water may flow out, the machine
door should not be opened under any circumstances while
the machine is in operation. In any case, a safety devices
ensures that the machine stops if the door is opened.
• Do not leave the dishwasher's door in the open position since
this could present a tripping hazard.
:$51,1* Knives and other utensils with sharp points must
be loaded in the basket with their points down or placed in a
horizontal position.
• Due to danger of explosion, do not put into the machine’s
washing section any chemical dissolving agents such as
solvents.
• Check whether plastic items are heat-resistant before
washing them in the machine.
•
WARNING: Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed. Avoid contact
with the skin and eyes and keep children away from the
dishwasher when the door is open. Check that the detergent
receptacle is empty after completion of the wash cycle.
8
For your children’s safety
• After removing the machine’s packaging, make sure that the
packaging material is out of reach of children.
• Do not allow children to play with or start the machine.
• Keep your children away from detergents and rinse aids.
•
Keep children away from the machine while it is open
because there may still be residues of cleaning substances
inside the machine.
• Be sure that your old machine does not pose any threat to
your children. Children are known to have gotten themselves
locked in old machines. To forestall such a situation, break
your machine's door lock and tear off the electrical cables.
In case of malfunctioning
• Any malfunction in the machine should be repaired definitely
by qualified persons. Any repair work performed by anyone
other than the authorised service personnel will cause your
machine to be left outside the scope of warranty.
• If EnergySave option is selected as "Yes", The door will be
opened at the end of the program. Do not force to close the
door to avoid harm auto door mechanism during 1 minutes.
The door must be open during 30 minutes to get effective
drying.( in models with auto door opening system )
Warning: Do not stand in front of the door after the signal
sounds belonging auto-open.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• Prior to any repair work on the machine, be sure that the
machine is cut off from the mains.Switch off the fuse or unplug
the machine.Do not pull by the cable when unplugging. Make
sure to turn off the water tap.
9
Items not suitable for dishwashing:
• Cigarette ashes, candle leftovers, polish, paint, chemical
substances, iron-alloy materials;
• Forks, spoons and knives with wooden or bone, or ivory or
nacre-coated handles; glued items,items soiled with abrasive,
acidic or base chemicals.
• Plastic items that are not heat-resistant, copper or tin-coated
containers.
• Aluminium and silver objects (they may discolour, become
dull).
•
Certain delicate glass types, porcelains with ornamental
printed patterns as they fade even after the first wash; certain
crystal items as they lose their transparency over time,
adhered cutlery that is not heat-resistant, lead crystal glasses,
cutting boards, items manufactured with synthetic fibre;
• Absorbent items as sponges or kitchen rags are not suitable
for dishwashing.
Warning:Take care to buy dishwasher-proof sets in your
future purchases.
• Use the pre-wash programme only whenever necessary.
• Place such hollow items as bowls, glasses and pots into the
machine in such a way that they will face down.
• You are recommended not to load into your machine any
dishes different or more than indicated.
Recommendations
• For energy and water saving, remove coarse residues on
your dishes before placing the dishes into the machine. Start
your machine after having fully loaded it.
10
Position the machine close to a water tap or drain. You
need to site your machine, taking into consideration that its
connections will not be altered once they are made.
Do not grip the machine by its door or panel in order to move
it.
Take care to leave a certain clearance from all sides of the
machine so that you can comfortably move it back and forth
during cleaning.
Make sure that the water inlet and outlet hoses do not get
squeezed while positioning the machine. Also, make sure
that the machine does not stand on the electrical cable.
Adjust the machine’s adjustable feet so that it can stand level
and balanced. Proper positioning of the machine ensures
problem-free opening and closing of its door.
If the door of you machine does not close properly, check if
the machine is stable on the floor it stands; if not, adjust the
adjustable feet and ensure its stable position.
Do not put your machine in any location where there is the
probability for the room temperature to fall below 0°C.
Before positioning, take the machine out of its packaging by
following the warnings located on the package.
INSTALLING THE MACHINE
Positioning the machine
When determining the place to put your machine on, take
care to choose a place where you can easily load and unload
your dishes.
11
Water inlet hose
Do not use the water inlet hose of your
old machine,if any. Use the new water inlet
hose supplied with your machine instead.
If you are going to connect a new or long
- unused water inlet hose to your machine
,run water through it for a while before
making the connection. Connect the water
inlet hose directly to the water inlet tap.
The pressure supplied by the tap should
be at a minimum of 0.03 Mpa and and at a
maximum of 1 Mpa.If the water pressure is
above 1 Mpa,a pressure-relief valve should
be fitted inbetween.
After the connections are made, the tap should be turned on
fully and checked for water tightness.For the safety of your
machine, make sure to always turn off the water inlet tap after
each wash programme is finished.
NOTE: Aquastop water spout is used
in some models. In case of using
Aquastop, a dangerous tension exists.
Do not cut Aquastop water spout. Do
not let it get folded or twisted.
Water connection
Be sure that the indoor plumbing is suitable for installing a
dishwasher. Also, we recommend that you fit a filter at the
entrance of your place or apartment so as to avoid any damage
to your machine because of any contamination (sand, clay,
rust etc.) that might be occasionally carried in through the
mains water supply or the indoor plumbing, and to forestall
such complaints as yellowing and formation of deposits after
washing.
12
Water outlet hose
The water drain hose can be connected
either directly to the water drain hole
or to the sink outlet spigot. Using a
special bent pipe (if available), the
water can be drained directly into the
sink via hooking the bent pipe over
the edge of the sink. This connection
should be at a minimum of 50 cm and
at a maximum of 110 cm from the floor
plane.
Warning: When a drain hose longer than 4 m is used, the
dishes might remain dirty. In that case, our company will not
accept responsibility.
13
Electrical connection
The earthed plug of your machine should be connected to
an earthed outlet supplied by suitable voltage and current. If
there is no earthing installation, have a competent electrician
carry out an earthing installation. In case of usage without
earthing installed, our company will not be responsible for
any loss of usage that might occur.
The indoor fuse current value should be 10-16 A.
Your machine is set according to 220-240 V. If the mains
voltage in your location is 110 V, connect a transformer of
110/220 V and 3000 W inbetween. The machine should not
be plugged in during positioning.
Always use the coated plug supplied with your machine.
Running in low voltage will cause a decline in washing quality.
The machine’s electrical cable should be replaced by an
authorised service or an authorised electrician only. Failure
to do so may lead to accidents.
For safety purposes, always make sure to disconnect the
plug when a wash programme is finished.
In order not to cause an electric shock, do not unplug when
your hands are wet.
When disconnecting your machine from the mains supply,
always pull from the plug. Never pull the cord itself.
14
Fitting the machine undercounter
If you wish to fit your machine undercounter, check whether
you have sufficient space under your countertop and whether
the wiring-plumbing is suitable to do so.1 If you decide that
the space under the countertop is suitable for fitting your
machine, remove the worktop as shown in the illustration. 2
Warning:The stand part which we will settle our machine
under it by removing its worktop has to be stable in such a
way not to allow balance disorder.
To remove the worktop, remove the screws that hold the
worktop which are located at the rear of the machine; then
push the front panel 1 cm from the front side towards the rear
and lift it.
15
Adjust the machine feet according to the slope of the floor.3
Fit your machine by pushing it undercounter without letting
the hoses get crushed or bent.4
Warning: After removal of worktop, the machine should be
placed in such a closed place of which dimensions are shown
at fig.
H
WithoutInsulation
AllProduct For2ndBasket For3rdBasket
Height 820mm 830mm 835mm
WithInsulation
Product
Prior to using the machine for the first time
• Check whether the electricity and supply water specifications match the values indicated by the
installation instructions for the machine.
• Remove all packaging materials inside the machine.
• Fill the rinse aid compartment.
16
Detergent usage
Use a detergent specifically designed for use in domestic dishwashers.
You can find powder,gel,and tablet detergents in the market that have been designed for
household dishwashers.
Detergent should be put into the compartment prior to starting the machine. Keep your
detergents in cool, dry places out of reach of your children.
Do not fill detergent into the detergent compartment more than required; otherwise it may cause
scratches on your glasses as well as lead to a poorly dissolved detergent.
Should you need more information concerning the detergent you will use, contact detergent
manufacturers directly.
Filling the detergent compartment
Push the latch to open the detergent container as shown in the
image. 1 Detergent pod has level lines inside. It is possible to
measure the right
detergent amount using
these lines. Detergent
pod can take totally 40
cm
3
detergent.
Open the dishwasher
detergent and pour into
the larger compartment b 25 cm
3
if your dishes are
heavily soiled or 15 cm
3
if they are less soiled.2 If your
dishes have been kept dirty for a very long time, if there
are dried food wastes on them, and if you have overly
loaded the dishwasher, pour a 5 cm
3
detergent into the pre-wash compartment and start your
machine.
You may have to add more detergent into your machine, depending on the degree of soil and
on the water hardness level in your area.
Combined detergent
Detergent manufacturers also produce combined detergents called “2 in 1”, “3 in 1” or “5 in 1”
etc.
“2 in 1” detergents contain detergent + salt or rinse aid. When using “2 in 1” detergents make
sure to check the specifications of the tablet.
Other tablet detergents contain detergent + rinse aid + salt + varlous extra functions.
Generally, combined detergents produce sufficient results under certain usage conditions only.
Such detergents contain rinse aid and/or salt in preset amounts
PREPARING THE MACHINE FOR USE
17
Points to consider when using this type of products:
• Always make sure to check the specifications of the product you will use or whether or not
it is a combined product.
• Check if the detergent used is appropriate for the hardness of mains water that machine is
appertaining to.
• Observe the instructions on packagings when using such products.
• If such detergents are in the form of tablets, never put them into the interior section or the
cutlery basket of the dishwasher. Always put the tablets into the detergent compartment in
the detergent dispenser.
• They produce good results for certain types of usage only. If you are using this type of
detergents, you need to contact the manufacturers and find out about the suitable
conditions of use.
• When the conditions of use of such products and the machine settings are appropriate,
they ensure savings in rinse aid consumption.
• Contact the detergent manufacturers if you are not obtaining good wash results (if your
dishes stay calcareous and wet) after having used 2 in 1 or 3 in 1 detergents. The scope of
warranty for your machine does not cover any complaints caused by the use of these types
of detergents.
Recommended usage: If you want to obtain better results
while using combined detergents,
add rinse aid into your machine and adjust the rinse aid setting to the lowest position.
Solubility of the tablet detergents produced by different companies can vary
depending on the temperature and time. Therefore, it is not recommended to use such
detergents in short programs. It is more suitable to use powder detergents in such
programs.
Warning: Should any problem, which you have not encountered before, arise with the use of
this type of detergents, contact the detergent manufacturers directly.
When you give up using combined detergents
• Fill the rinse aid compartment.
• Make the suitable rinse aid setting.
Filling with rinse aid and making the setting
Rinse aid
is used to prevent the stay of white water drops, lime
stains, white film strip-shaped stains that may form on the dishes, as
well as to increase the drying performance. Contrary to the popular
beliefs, it is used not only for obtaining shinier dishes but also for
obtaining sufficiently dried dishes. For this reason, care should be
taken that there is adequate amount of rinse aid in the rinse aid
compartment and only polishing material produced for use at
dishwashers should be used.
If the rinse aid lamp on the control panel becomes on fill the rinse aid
compartment with rinse.

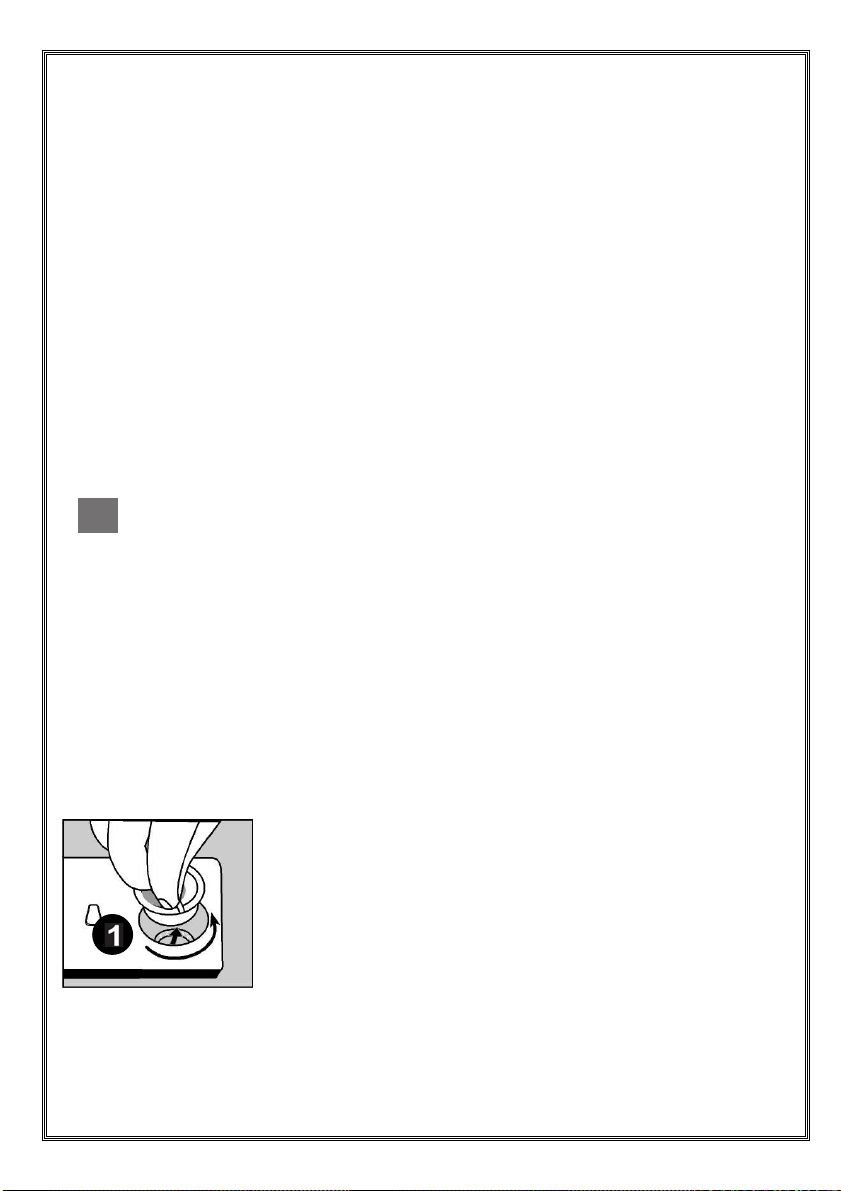

To put rinse aid, remove the rinse aid compartment cap by turning it.1 Fill the rinse aid
compartment with rinse aid until the rinse aid level indicator becomes dark;2 refit the cap and
close it by turning it in a way that the nails will correspond to one another. By checking the rinse
aid level indicator on the detergent dispenser, you can understand whether or not your machine
needs rinse aid. A dark indicator b means that there is rinse aid in the compartment, while a
light indicator a shows that you need to fill the compartment with
rinse aid.
The rinse aid level adjuster can be set
to a position between 1 and 6. Factory
setting for rinse aid is the position 3.
You need to increase the degree of the
adjuster if water stains form on your
dishes after a wash, whereas you need
to decrease the degree if a blue stain
is left when wiped by hand.3
18
Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse
aid residues left as a result of overflowing will create extremely high amounts of foam and thus
reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag.
19
If you properly place your dishes into the machine, you will be using it in the best way in terms
of energy consumption, washing and drying performance.
There are two separate baskets for you to load your dishes into your machine. You can load into
the lower basket such round and deep items as pots with long handles, pot lids, plates, salad
plates, cutlery sets.
The upper basket has been designed for tea plates, dessert plates, salad bowls, cups and
glasses. When placing long-stem glasses and goblets, lean them against the basket edge, rack
or glass supporter wire and not against other items. Do not lean long glasses against one
another or they cannot remain steady and may receive damage.
It is more appropriate to locate the thin narrow parts into the middle sections of baskets.
You can place spoons among the other cutlery sets in order to prevent them from sticking to
one another. You are recommended to use the cutlery grid in order to obtain the best result.
To avoid any possible injuries, always place such long-handle and sharp-pointed dishes as
serving fork, bread knife etc. with their sharp points facing down or horizontally on the baskets.
Warning: Place your dishes into your machine in a way that they will not prevent the upper and
lower spray arms from spinning.
LOADING YOUR DISHWASHER
Top basket
Height Adjustable Rack
These racks are designed to increase the capacity of the
top basket. You can place your glasses and cups on the
racks. You can adjust the height of these racks. Thanks to
this feature, you can place different sizes of glasses under
these racks.
Thanks to height adjustment plastics mounted on the
basket, you can use your racks in 2 different heights. In
addition, you can place long forks, knives and spoons on
these racks laterally, so that they do not block the
revolution of propeller.
2
1
Foldable racks on the upper basket are designed
in order to let you place big items easier such as
pots, pans, etc. If requested, each part can be
folded separately, or all of them can be folded
and larger spaces can be obtained. You can use
foldable racks by raising them upwards,or by folding
down.
20
Top basket height adjustment while it is full
Basket height adjustment mechanism on the top basket of your
machine is designed to let you adjust the height of your top
basket upwards or downwards, without removing it from your
machine when it is full, and create large spaces at the top or
bottom area of your machine as needed. Basket of your machine
is set to upper position in factory settings.
In order to raise your basket, hold it from both sides and pull it
upwards. In order to lower it, hold it from both sides again, and
leave it.
In loaded basket adjustment mechanism, make sure that both sides are in the same position (up
or down).
Lower Basket
Folding Racks
Folding racks consisting of four parts that are located on the lower basket of your machine are
designed in order to let you place big items easier such as pots, pans, etc. If requested, each
part can be folded separately, or all of them can be folded and larger spaces can be obtained.
You can use folding racks by raising them upwards, or by folding.
1
2
1
2
Upper Cutlery Basket
The upper cutlery basket is designed for you to place forks, spoons and knives, long dippers and small
items.
Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine
along with the basket after washing.
The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the
upper basket, you can take out the left or right part of the upper cutlery basket in order to obtain more
space.
.
Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket.
21
Alternative basket loads
Lower Basket
Top basket
22
Faulty loads
Important Note for Test Laboratories
For detailed information on performance tests, please contact following address:
"dishwasher@standardtest.info” . In your email, please provide the model name and
serial number (20 digits) which you can find on the appliance door.
23
18
138
50
113
0.57
0,65
1,21
1,33
7,7
12,2
10,77
15,4
15
0,02
4,2
121
46
93
0,62
1,21
1,28
12,2
10, 7
11,1
0,74
10,9
30
Program Period
( minutes )
Power
Consumption
(kW hour)
Water Consum-
ption (liters)
79-91
0,70-0,89
10,6-17,7
15
0,02
4,2
18
0.57
7,7
0,74
10,9
30
62-79
0,67-0,86
9,9-13,7
Program Period
( minutes )
Power
Consumption
(kW hour)
Water Consum-
ption (liters)
In case option of ½ Half-load is used, the values in the program list will be as follows.
Jetwash 18 min programme can be used for not kept for long, less dirty dishes. İt is suitable for dishes of four persons.
Jetwash 18 min. Only powder detergent should be used.
*Off mode and end of cycle mode test in accordance with AS/NZS 62301 must be carried out with Ecomode brightness level.
Dual Wash :
The delicate dishes on the upper basket are washed at a lower pressure and the heavily soiled dishes on the lower basket are washed at a higher pressure
by the help of a variable-speed engine. Therefore, you can wash both delicate/less soiled dishes and heavily soiled dishes at the same time.
99
1,28
14.9
87
1,25
11,1
102-122
1,03-1,36
10,9-18,5
82-102
1,00-1,33
10,5-14,3
107-179
1,20-1,85
12,3-24,6
123-159
1,17-1,82
11,9-19,9
24
PROGRAM DESCRIPTIONS
Prewash
ı
Program items
Referance
Super 50' .
Dual Pro Wash
35° C
Medium
Medium
high
A+B
A+B
A+B
40°C
Wash
End
50°CWash
Program No
Name of Program
Washing
Temperature
Type of Food
Fragment
Level of
Contamination
Amount of
Detergent
B: 25 cm
3
/
15
cm
3
A: 5 cm
3
*
Jet Wash 18' Quick 30' Economic 50°C
-
-
Cold Rinse
End
B
40° C
50° C
65° C
65° C
Prewash
ı
End
35°C
Wash
65°C
Wash
Warmish Rinse
Hot Rinse
Hot Rinse
small
**A
Fresh less dirty,
cofee,milk, tea
small
small
40°C
Wash
65°C Yıkama
hsaW C°56
Hot Rinse
Dry
Less dirty, coffee,
milk tea,not kept for
long
End
Prewash
-
45°C Wash
Washing steps are determined
automatically according to the
level of soil.
Hot Rinse
Dry
Warning: In Jetwash 18 min, Fast 30 min and Super 50 min programmes, there is no drying step. Values above have been tested according to related
standards in lab condition. These values may vary due to environment conditions (mains voltage, water pressure, water inlet temperature and ambient temperature).
End
Cold RinseHot Rinse
Fresh coffee, milk,
tea, cold meat,
vegetables
Recommended
for a normally
soiled load of
15 place
settings.
Tarried soup, sauce,
pastry, egg, rice,
potato and meals
cooked inoven,
fried food
Soups, sauces,
pasta, eggs, pilaf,
potato and oven
dishes, fried foods,
kept for long
Daily 60°C
Medium
A+B
60° C
End
60°C
Wash
Warmish Rinse
Hot Rinse
Tarried soup, sauce,
pastry, egg, rice,
potato and meals
cooked inoven,
fried food
Auto 30°C-50°C
small
B
30-50° C
Automatically adjust the washing time with
temperature and amount of water by determining the
soil level of dishes
Auto 50°C-60°C
high
A+B
50-60° C
Auto 60°C-70°C
high
A+B
60-70° C
End
Prewash
25

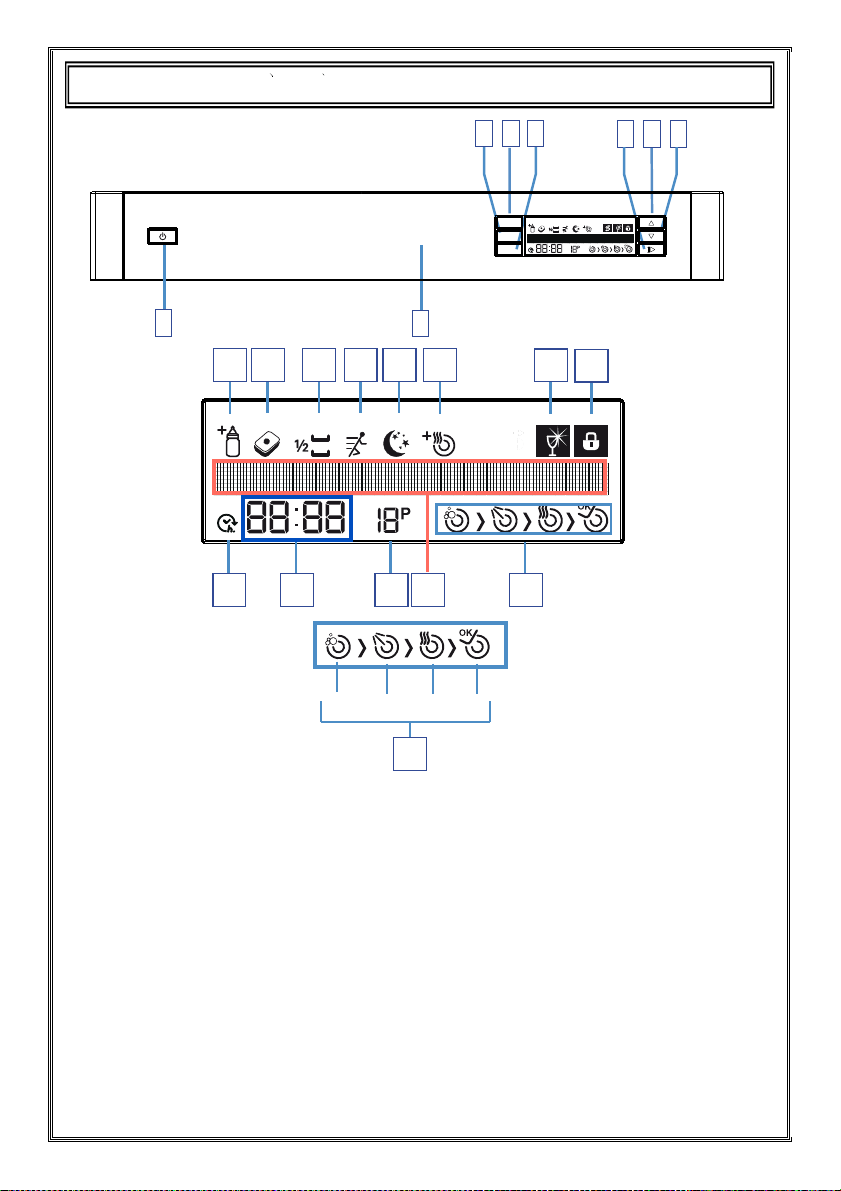

Selection of Program and Starting of the Machine
2
76
543
8
1-On/Off
2-Door Handle
3-Confirmation Button
4-Option Button
5-Delay Button
6-Start/Pause button
7-Up Selection Button
8-Down Selection Button
9-Extra Hygiene Indicator
10-Tablet Indicator
11-Half Load Indicator
12-Extra Fast Indicator
13-Extra Silent Indicator
14-Extra Drying Indicator
15-Rinse Aid Level Warning Indicator
16-Child Lock Indicator
17-Delay Indicator
18-Remaining Time/Delay Time Indicator
19-Program Number Indicator
20-Display Information Line
21-Washing cycle progress indicators
a-Washing Cycle Symbol
b-Rinse Cycle Symbol
c-Drying Cycle Symbol
d-End Cycle Symbol
1
9
10
11
12
13
14
15
16
17
18
19
21
20
21
a b c d
0
26
1
2
3
4
5
6
7 8
9
10
11
Power On/Off Button
When you press the on/off button, the machine is energized and the display shows the
last used program; in the off position, the LCD on the display are off.
Door Handle
Please use the door handle to open-close the door of your machine.
Confirmation Button
Confirms (saves) your additional functions and settings.
Option Button
Allows you to use the functions in the additional functions menu.( 9-10-11-12-13-14 )
Delay Button
Delays the starting time of the program you have selected (1-24 hours).
You may see the delay time in the Remaining Time/Delay Time Indicator (19).
When the delay button is pressed, Delay Indicator (18) is seen on the display.
Start/Pause Button
When you press the Start/Standby Button, the selected program starts and washing
symbol (a) appears on the display.
You may follow the washing phases on the display. ( 22-a-b-c-d )
Up / Down Buttons
Allows you to browse in Program, Additional functions, delay and settings menus.
Additional Functions
Extra Hygiene function
You may select this function in order to obtain extra hygiene and a cleaner washing
process by altering the water temperature and washing time of the program you have
selected.
Tablet Detergent function
Please use the Tablet Detergent function while using rinse agent and combined
deterjents with extra properties.
Half Load Function
Using the Half load function, three sorts of washing up can be done those being lower
basket, upper basket and both baskets.
BUTTONS
27
12
13
14
15
Extra Fast Function
Washes the dishes with more pressure, thus shortens the time of the selected
program and provides economical water usage.
Extra Silent Function
Washes the dishes with less pressure, thus provides more sensitive and silent
washing.
Extra Drying function
With extra drying function, you may add extra drying steps to your program and thus
obtain drier dishes.
Warning Indicator
Rinse Agent Level Warning Indicator
In order to understand whether the rinse agent in your machine is sufficient or not,
please check the rinse agent level warning display.
If this display is illuminated, fill the rinse agent section.
If you have little amount of dishes in your machine and if you
have to wash them, you can also activate the semi-filling
function for some programs.
If you have dishes in both baskets, select the half load
function and select the position in which both images are
highlighted.
If you have dishes only in the upper basket, select the position
in which the upper image is illuminated.
Thus, washing up shall be done only on the upper basket of
your machine.
If you have dishes only in the lower basket select the position
in which the lower image is illuminated. Thus, washing up
shall be done only on the lower basket of your machine. In
using this feature, make sure that there are no dishes in the
upper basket.
28
Selection of Program and Starting of the Machine
1- Press Power On/Off switch.
Note: Select your washing program appropriate for your dishes by the help of the
program items page in the user guide.
2- You may select the washing program by using up/down (7,8) selection buttons.
Note: You may follow the program time in the time indicator. ( 19 )
3- If necessary, you may select additional functions by using option button (4).
( 9-10-11-12-13-14 )
4- You may start the programme by pressing the Start/Pause button.
“Program Activated” will appear on the display and the selected program will start.
When the program starts, you may see the name of the selected program in the
Display information line (21), remaining washing time in the remaining time
indicator (19) and the program number of the selected program in the program
number indicator (20).
Note: Try not to open the door of the machine while it is operating; if you absolutely
need to, stop the programme by pressing Start/Pause button.
“Program Paused” will appear on the display. Once you see this text, you may
open the door. Steam might come out when you open the door – be careful.
You may resume the programme after closing the door and pressing the
Start/Pause button again. When you press the Start/Pause button,
“Program Activated” will appear on the display.
Program Activated
Super 50'
29
Program Follow-up
You can follow the progress by the help of the program follow-up symbols on
the display.( 22 - a,b,c,d).
As the washing proceeds, respectively Washing and Drying symbols will be illuminated.
When the drying symbol is on, the machine remains silent for about 40-50 minutes.
Do not open the door before the completion indicator light is on. When the programme
ends, Completion indicator light is illuminated.
When the program you have selected starts, you may see the estimated remaining
time in the time indicator.
NOTE: A few minutes after the program finishes and the Completion lamp is illuminated,
you may open the door slightly and leave it ajar in order for the drying process to be
faster.
NOTE:If the machine door is opened or a power failure occurs during washing, the
machine will proceed from where it stopped after the door is closed or power is restored.
NOTE:If a power cut occurs or if the door is opened during drying, the programme ends.
The machine will be ready for selecting a new programme.
NOTE:
The total time of the programme depends on the room temperature, mains
water temperature and amount of dishes.
30
PROGRAMS
OPTIONS
Delay
Start
Half Load
(3 modes)
Tablet
Child
Lock
Extra
Fast
Extra
Hygiene
Extra
Silent
Extra
Drying
Prewash X X - X - - - -
Jet Wash 18 X X - X - - - -
Quick 30' X X - X - - - X
Economic 50°C X X X X X X X X
Dual Pro Wash X X X X X X X X
Super 50‘
Daily 60 X X X X X X X X
Auto 50°C-60°C
X X X X - X - X
Auto 60°C-70°C
X X X X - X - X
“-“ Function cannot be selected “x” function can be selected.
Adding Additional Functions to the Program
You may change the program according to your preferences by adding additional
functions to the washing program.The washing programs have been designed so
as to obtain the best cleaning considering the type of smear, amount of smear
and properties of the washing materials. The additional functions were developed
in order to save time, water and electricity and thus allow you to wash your dishes
more conveniently. For example, if you think your dishes are slightly dirty, you may
select the Fast function (12) and make your washing process more economical in
terms of time and water.
If you are going to use a multipurpose detergent, you obtain better performance
by selecting tablet detergent (10) function.
If you live in a place where electricity is cheaper to use at night, you might select
the silent function (13) and wash your dishes more economically and silently;
this function was developed also for a more sensitive washing process.
Additional functions are not suitable for every program; you might find below
the functions suitable for the programs. For the programs not suitable for functions,
you will see that the function indicator is not illuminated.
** Programmes are indicated generally and might differ among models.
Auto 30°C-50°C
X X X X - X - X
X X X X - X - X
* Economic 50°C is used for a normal soiled load.
31
Options
Delay Start
Half Load
( 3 modes )
Tablet Child Lock
Extra
Fast
Extra
Hygiene
Extra
Silent
Extra
Drying
Delay Start
OK OK OK OK OK OK OK
Half Load ( 3 modes )
OK
OK OK OK OK OK OK
Tablet
OK OK
OK OK OK OK OK
Child Lock
OK OK OK
OK OK OK OK
Extra Fast
OK OK OK OK
- - OK
Extra Hygiene
OK OK OK OK -
- -
Extra Silent
OK OK OK OK - -
OK
Extra Drying
OK OK OK OK OK - OK
In order to add additional functions to the program;
1-Select the appropriate washing program for your dishes using the up/down buttons
(7,8) after pressing the option button.
2- Enter the additional functions menu (4) by pressing the option button. After selecting
the additional function using up/down buttons (7,8), illuminate the additional function
indicators (9-10-11-12-13-14) by pressing the confirmation button.
3- You may start the programme by pressing the Start/Standby button.
“Programme activated” will appear on the display.
Some functions cannot be selected at the same time; please refer to the scheme below
Changing the Program
If you want to change a washing programme after it has been started;
1- Pause the programme by pressing the Start/Pause (6) button. “Programme paused”
will appear on the display.
2- Select the desired programme by pressing the selection buttons (7,8).
3- You may start the programme by pressing the Start/Pause button again.
“Programme activated” will appear on the display.
Note: The new program starts from the step where the previous program was left.
NOTE: If you want the new program to start from the beginning, you must first
cancel the previous program and then select a new one.
Cancelling the Program
1- Hold the Start/pause button (6) for 3 seconds to cancel a program.
2- The display will show an expression (“Program Cancelling ..X”) to let you know how many
more seconds you have to hold the button. 1 minute after you do this,
“Program Finished” will appear.
3- After this warning, you may select and additional function or time setting.
NOTE: Depending on the step where the cancelled program was left, there may
be detergent leftovers within the machine or on the dishes.
32
Settings Menu
In order to enter the Settings Menu, hold the option and delay buttons for 3 seconds.
The display will show an expression (“Keep Pressing ..X”) to let you know how many more
seconds you have to hold the button. When this number is zero, you will see the Menu
settings on the display. You may navigate within the menu by using the selection buttons.
In order to exit the menu, you may hold the option and delay buttons for 3 seconds like you
did when entering the menu or you may select the seventh row in the menu with the
confirmation button.
The menu content is as follows:
1. Language
2. Water Hardness
3. Volume
4. Brightness
5. Eco mode
6. Factory Settings
7. Exit Menu ↙
1- Language settings
After you enter the menu settings, use up/down selection buttons to select the language.
You will see an expression (1.Language: X) in which “X” is the current language. After that,
press the confirmation button to activate the language selection and after selecting the new
language, save it by pressing the confirmation button again.
Avaible languages that you can select :
English
Turkish
French
Deutsch
Italian
Nederlands
Swedish
Dansk
Spanish
Portuguese
Greek
Croatian
Russian
Finnish
Norwegian
Polish
Czech
Slovene
Hungarian
2- Water hardness setting
You may find this in the section where water softening setting is explained.( page 15 )
3- Volume level
You may adjust the level of your machine’s audible alarms here. After entering the menu,
select the “3- Volume ” by using the selection buttons. Here you will see “Volume:X”
(X:L1,L2,L3 ). L1 is the lowest, L3 is the highest volume level. After pressing the
confirmation button, activate “X”, select the desired noise level and save the selection
by pressing the confirmation button once more.
33
4- Brightness level
You may adjust the level of your machine’s display brightness here After entering
the menu, select the “4- Brightness” by using the selection buttons. Here you
will see “brightness :X” (X:L1,L2,L3 ). L1 is the lowest, L3 is the highest brightness level.
select the desired brightness level and save the selection by pressing the confirmation button
After pressing the confirmation button, activate “X” and confirmation button once more.
5- Eco mode
This mode saves energy by minimizing the display brightness level after 30 seconds
of non-operation. After entering the menu, select the “5- Eco mode” by using the
selection buttons. Here you will see “Ecomode:X” (X:YES or NO ). After pressing the
confirmation button, activate “X”; you might use your machine with Eco mode on or off.
6- Factory Settings
In order to discard all the settings you made and restore the factory settings, select the
“6- Factory settings” by using the selection buttons. Here you will see “6.Factory settings:X”
(X:yes or no). After pressing the confirmation button, activate “ X ”; you might
save your selection by selecting “Yes“ or “No” expression and pressing the confirmation
button again.When you restore the factory settings, the machine will return to the following
settings:
1- Language : English
2- Water hardness setting : L1
3- Volume : L2
4- Brightness : L2
5 -Eco Mode : Yes
Child Lock
You might prevent others from modifying your settings while the machine is in operation.
After starting the programme, press the up selection button (7) and down selection
button (8) at the same time for 3 seconds. This screen will inform you as to how many
seconds you need to hold the buttons by “Keep Pressing..X”. When this time is over, the
child lock is activated, “Child Lock ON” appears on the screen and the indicator (17 ) is
illuminated. When the child lock is active, all the buttons are deactivated.
In order to cancel the child lock, press the up selection button (7) and down selection
button (6) at the same time for 3 seconds. This screen will inform you as to how many
seconds you need to hold the buttons by “Keep Pressing..X”. When this time is over, the
child lock is cancelled, “Child Lock OFF” appears on the screen and the indicator(17 )
.
Child Lock OFF
Child Lock ON
is off
34
Delayed Start:(Snooze)
You may delay the starting time of the selected programme up to 24 hours. You can not
make a delay setting after the programme starts. In order for you to be able to make a
delay setting, the selected programme needs not to be in operation.
1- Press the delay button (5)
2- Hour “00:00” is displayed on the display information line (19) and the delay symbol (18)
starts flashing.
3- You may set the delay time with the selection buttons (7,8) to the desired time. The “ ”
button (7) increases the time by 1 hour while “
v” button (8) decreases by 1 hour.
By pressing the Start/Pause button, you may start the countdown until the delay time.
The delay symbol (18) will continuously be illuminated during this period. Remaining
Time/Delay Time (19) indicators display the delay time. After the countdown is over,
the selected programme will start. The indicator screen will begin to show the time
remaining until the end of the selected programme.
Changing the programme or function on delay
Pause the machine by pressing the Start/Pause button; the countdown will stop and the
“program paused” and “Delay timer active” appear on screen.If you press the buttons without
pausing the machine, you will receive warnings such as “Delay timer active” or “invalid”.
After pausing the snooze,you may select programmes and add functions to the programme
like it was told in the relevant topics.
By pressing the Start/Pause button once more, start the countdown until the delay time.
If you want to cancel or make a new time setting when the machine is on snooze
If you want to reschedule the delay time, stop the countdown by pressing the start/standby
button. Press the delay button to enter the delay menu; set the new Delay time by pressing
the selection buttons. Start the countdown by pressing the Start/Standby button.
If you want to cancel the delay setting
Hold the Start/Pause button for 3 seconds.
The display will inform you how many seconds you need to hold the button by
“Program Cancelling .. X”. This way, the delay countdown is cancelled.
Warning Messages
Your machine provides feedbacks while in operation
When above warning is seen;
1- Make sure that the water is not cut off
2- Make sure that the hydrant is open
3- If both are true, call the qualified technician.
Whenever an error which you cannot fix occurs, above warning will be displayed.
When you see it, call the qualified technician.
v
Turn on the Tap
Call Service
When your machine gives the above warnings,
the error codes are specified after the definition.
You might find related information in the
“FAILURE CODES AND WHAT TO DO
IN CASE OF FAILURE” section in your user guide.
Cleaning the machine in regular intervals prolongs the machine’s service life.
Oil and lime may accumulate in the machine’s washi
ng section. In case of such accumulation
-Fill the detergent compartment without loading any dishes into the machine, select a programme that
runs at high temperature, and start the machine. In case of insufficiency, use special cleansing
material available in the market. (Cleansing material produced special to machines by detergent
producers.)
Cleaning the seals in the machine door
-To clean any accumulated residues in the door seals, wipe the seals regularly by using a dampened
cloth.
Cleaning the machine
Clean the filters and spray arms at least once a week.
Unplug your machine and turn off its tap before starting the cleaning.
Do not use hard materials when cleaning your machine. Wipe with a fine cleaning material and a
dampened cloth.
Filters
Check if any food wastes have remained on the coarse and fine filters.
If any food wastes are left, remove the filters and clean them
thoroughly under the water tap.
a. Micro Filter
b. Coarse Filter
c. Metal/Plastic Filter
To remove and clean the filter
combination, turn it counter clockwise
and take it out by lifting upwards.1
Pull and remove the metal/plastic filter. 3
Then pull the coarse filter out of the micro
filter.2 Rinse it with lots of water under
the tap. Refit the metal/plastic filter. Insert
the coarse filter into the micro filter in a
way that the marks will correspond to
one
another. Attach micro filter into the
metal/plastic filter and turn to the
direction of arrow and it is locked when
the arrow on micro filter can be seen
from across. 4
• Never use your dishwasher without any filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filte
rs are very important in terms of the proper running of the
machine.
MAINTENANCE AND CLEANING
35
Spray arms
Check whether or not the holes for the upper and
lower spray arms are clogged. If there is any
clogging, remove the spray
arms and clean them
under water.
You can remove the lower spray arm by pulling it
upwards, while the upper spray arm nut can be
removed by turning the nut to the left.
Be sure that the nut is perfectly tightened when
refitting the upper spray arm.
Hose filter
Water is prevented by the inlet hose filter so as to avoid any damage to your machine because of any
contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water
supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits
after washing. Check the filter and the hose from time to time and clean them if necessary. To clean
the filter, first turn off your tap and then remove the hose. After removing the filter from the hose, clean
it under the tap. Insert the cleaned filter back into its place inside the hose. Refit the hose.
36
FAILURE CODES AND
WHAT TO DO IN CASE OF
FAILURE
37
ERROR CODE ERROR DESCRIPTION CONTROL
F5
Inadequate water supply
• Make sure the water input tap is totally open and that there is no water cut.
• Close the water input tap, separate the water input hose from the tap and clean the filter at
the connection end of the hose.
• Restart your machine, contact the service person if the error resumes.
F3
Error of continuous water input
• Close the tap.
• Contact the service person.
F2
The waste water in the machine cannot be
discharged.
• Water discharge hose is clogged.
• The filters of your machine might be clogged.
• Power off-on your machine and activate the program cancellation command.
• If the error continues, contact the service person.
F8
Heater error
Contact the service person.
F1
Alarm is active against water overflow
• Power off your machine and close the tap.
• Contact the service person.
FE
Faulty electronic card
Contact the service person.
F7
Overheating error (temperature in the machine is
too high)
Contact the service person.
F9
Divisor position error
Contact the service person.
F6
Faulty heater sensor
Contact the service person.
If one of program monitor lights is on and start/Pause light is on and off
Your machine’s door is open, shut the door.
If the programme won’t start
• Check if the plug is connected.
• Check your indoor fuses.
• Be sure that the water inlet tap is turned on.
• Be sure that you have closed the machine door.
• Be sure that you switched off the machine by pressing the Power On / Off button.
• Be sure that the water inlet filter and the machine filters are not clogged.
If the control lamps won’t go out after a wash operation
The Power On/Off button is released yet.
If detergent residues are left in the detergent compartment
Detergent has been added when the detergent compartment was wet.
If water is left inside the machine at the end of the programme
• The water drain hose is clogged or twisted.
• The filters are clogged.
• The programme is not finished yet.
If the machine stops during a wash operation
• Power failure.
• Water inlet failure.
• Programme can be on standby mode.
If shaking and hitting noises are heard during a wash operation
• Dishes placed incorrectly.
• Spray arm hitting the dishes.
If there are partial food wastes left on the dishes
• Dishes placed incorrectly into the machine, sprayed water did not reach related places.
• Basket overly loaded.
• Dishes leaning against one another.
• Very small amount of detergent added.
• An unsuitable, rather weak wash programme selected.
• Spray arm clogged with food wastes.
• Filters clogged.
• Filters incorrectly fitted.
• Water drain pump clogged.
If there are whitish stains on the dishes
• A very small amount of detergent is being used.
• Rinse aid dosage setting at a very low level.
38
If the dishes won't dry up
• A programme without a dry operation selected.
• Rinse aid dosage set too low
• Dishes unloaded too fast.
If there are rust stains on the dishes
• Stainless-steel quality of the dishes washed is insufficient.
• Unhealthy mains grounding.
Call an authorised service if the problem still persists after the controls or in case of any
malfunction not described above.
1. Whenever you will not be operating your machine
• Unplug the machine and then turn the water off.
• Leave the door slightly ajar in order to prevent the formation of unpleasant smells.
• Keep the machine interior clean.
2. Eliminating water droplets
• Wash the dishes with the intensive programme.
• Take all of the metal containers in the machine out.
• Do not add detergent.
3. If you properly place your dishes into the machine, you will be using it in the best way in terms
of energy consumption, washing and drying performance.
4. Clean all rough waste before you place dirty dishes to the machine.
5. Operate the machine after it is completely full.
6. Use pre-washing program only when necessary.
7. Observe program information and average consumption values table when selecting a
program.
8. Since the machine will reach high temperatures, it should not be mounted near refrigerator.
PRACTICAL AND USEFUL INFORMATION
39
9. If the appliance is located in a place where the risk of freezing exists, you must completely drain
the water that has remained in the machine. Turn off the water tap, disconnect the water inlet hose
from the tap and allow the interior water to drain
.
5219XXXX R23
Head Office
Eurostyle Group Pty Ltd
6 Pattinson Road
Newton S.A. 5074
Ph. 1800 440 335
Ph (08) 8165 1012
Fax: (08) 8165 1018
Two Year Warranty On Euro Appliances
Warranty
Subject to the exclusions and limitations set out below we warrant to you that if you purchase Euro Appliances from one of our authorised
retailers that they will not contain defects as a result of faulty manufacturer workmanship or materials.
This warranty subsists for the periods set out below:
Euro Appliances warranty applies for a period of 24 months (2 Years) from the original date of purchase. Proof of purchase must be produced
upon request to obtain benefit of this warranty.
Where any product is used for commercial purposes by the purchaser the warranty period is strictly 90 days (3 months) from the date of
purchase.
This warranty only applies to the original purchaser of the product and is not transferrable to any other person or party under any
circumstances.
Exclusions and Limitations
No warranty is offered and Eurostyle Group Pty Ltd (Eurostyle) will not be liable for any damage caused by foreign objects (e.g. coins,
underwire, nails, buttons or jewellery), any wearable component, factors beyond its control, unauthorised alteration, modification or
substitution of any parts of the appliance, installation or use not in accordance with the instructions provided with the product, abnormal,
unauthorised or negligent use.
Eurostyle will not be liable for any special, indirect, consequential or economic loss or damage or loss of profits (in contract or tort or arising
from any other cause of action) suffered by you or any other person resulting from any act or omission by Eurostyle incl uding, but not
limited to, food loss or loss and damage as a result of non-operational appliances.
Total Liability
Eurostyle’s total liability in respect of this warranty is limited, at its option to, the replacement of the goods or repair of the goods.
Making a Claim
If your Eurostyle product is defective and covered by this warranty please contact Eurostyle on 1800 440 335. You must provide proof of
purchase to Eurostyle to make a claim under this warranty. Eurostyle may request that you return the defective product to Eurostyle or an
Authorised Service Agent for assessment. Eurostyle is not liable for any costs, loss or damage incurred in connection with transportation or
delivery of the product to Eurostyle or the cost of returning a new or repaired product to you. Eurostyle may organise for an Authorised
Service Agent to assess the product at your nominated address. In such circumstances you are liable for the reasonable travel costs of the
Authorised Service Agent to travel to your nominated address.
Statutory Guarantees
If you are a consumer for the purposes of the Australian Consumer Law this warranty is provided in addition to other rights you have at law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund
for a major failure and for compensation for any other foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Appliance Service
Should you consider that your appliance requires service, please contact euro appliances directly on 1800 440 335.
In case of service or product enquiry, we suggest you record the following information shown on both the outside of the carton, and on the
rating plate. Please complete below and keep in a safe place. Attach your original receipt to this form.
Model Name: ……..…..…..…………….….. Serial Number: …….…………..……..……..……..
Model Number: …………………………………..
