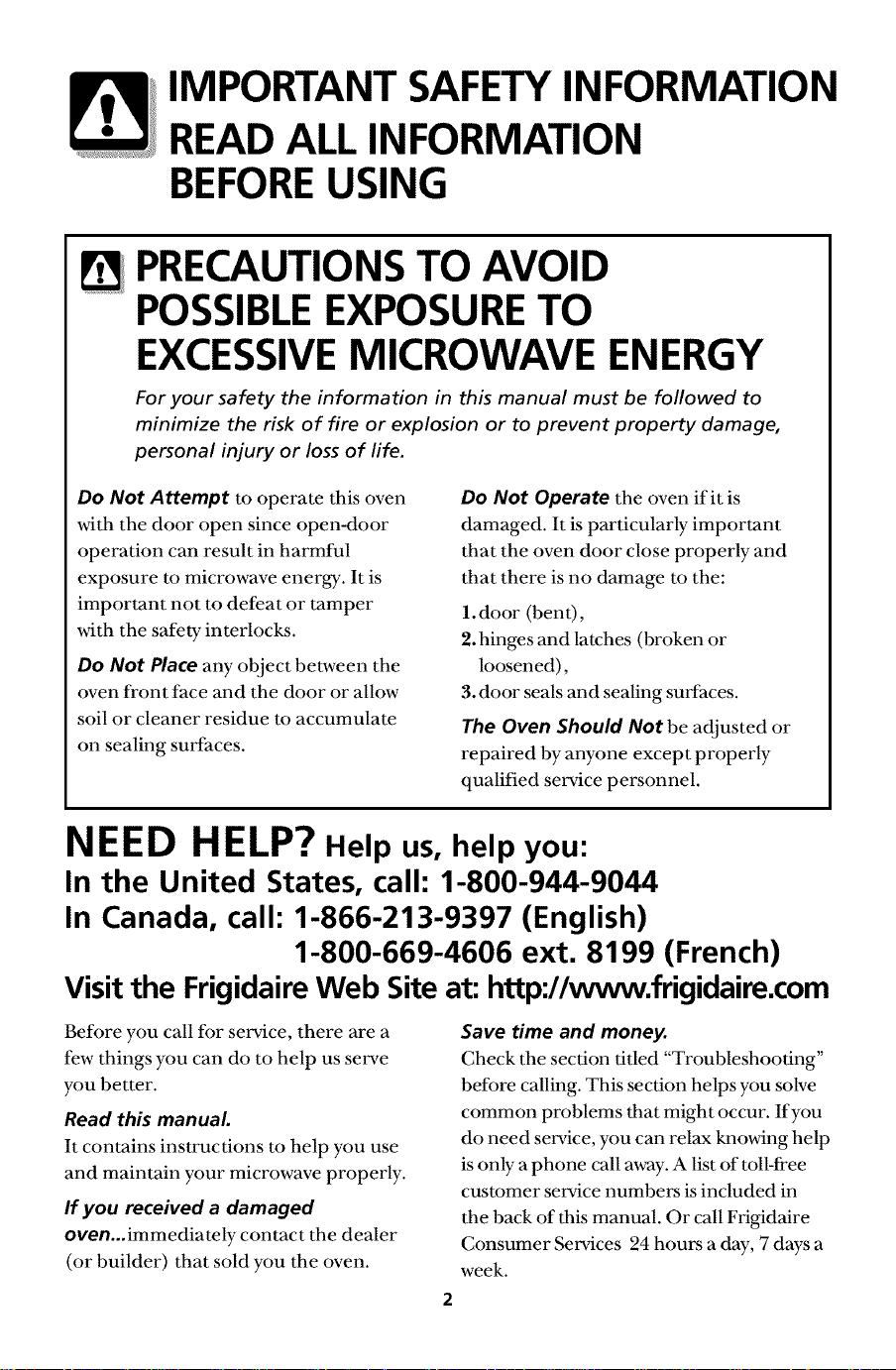

IMPORTANT SAFETY INFORMATION
READ ALL INFORMATION
BEFOREUSING
Fit!PRECAUTIONSTO AVOID
POSSIBLEEXPOSURETO
EXCESSIVEMICROWAVE ENERGY
For your safety the information in this manual must be followed to
minimize the risk of fire or explosion or to prevent property damage,
personal injury or loss of life.
Do Not Attempt to operate this oven
with the door open since open-door
operation can result in harmful
exposure to microwave energy. It is
important not to defeat or tamper
with the safety interlocks.
Do Not Place any object between the
oven front face and the door or allow
soil or cleaner residue to accumulate
on sealing surfaces.
Do Not Operate the oven if it is
damaged. It is particularly important
that the oven door close properly and
that there is no damage to the:
1.door (bent),
2.hinges and latches (broken or
loosened),
3. door seals and sealing surfaces.
The Oven Should Not be adjusted or
repaired by anyone except properly
qualified service personnel.
NEED HELP? Help us, help you"
In the United States, call: 1-800-944-9044
In Canada, call: 1-866-213-9397 (English)
1-800-669-4606 ext. 8199 (French)
Visit the Frigidaire Web Site at: http://www.frigidaire.com
Before you call for service, there are a
few things you can do to help us serve
you better.
Read this manual.
It contains instructions to help you use
and maintain your microwave properly.
If you received a damaged
oven...immediately contact the dealer
(or builder) that sold you the oven.
Save time and money.
Check the section titled "Troubleshooting"
before calling. This section helps you solve
common problems that might occur. If you
do need service, you can relax knowing help
is only a phone call away. A list of toll-free
customer service numbers is included in
the back of this manual. Or call Frigidaire
Consumer Services 24 hours a day, 7 days a
week.
49-401431v03 4/26/01 2:44 PM Page 3

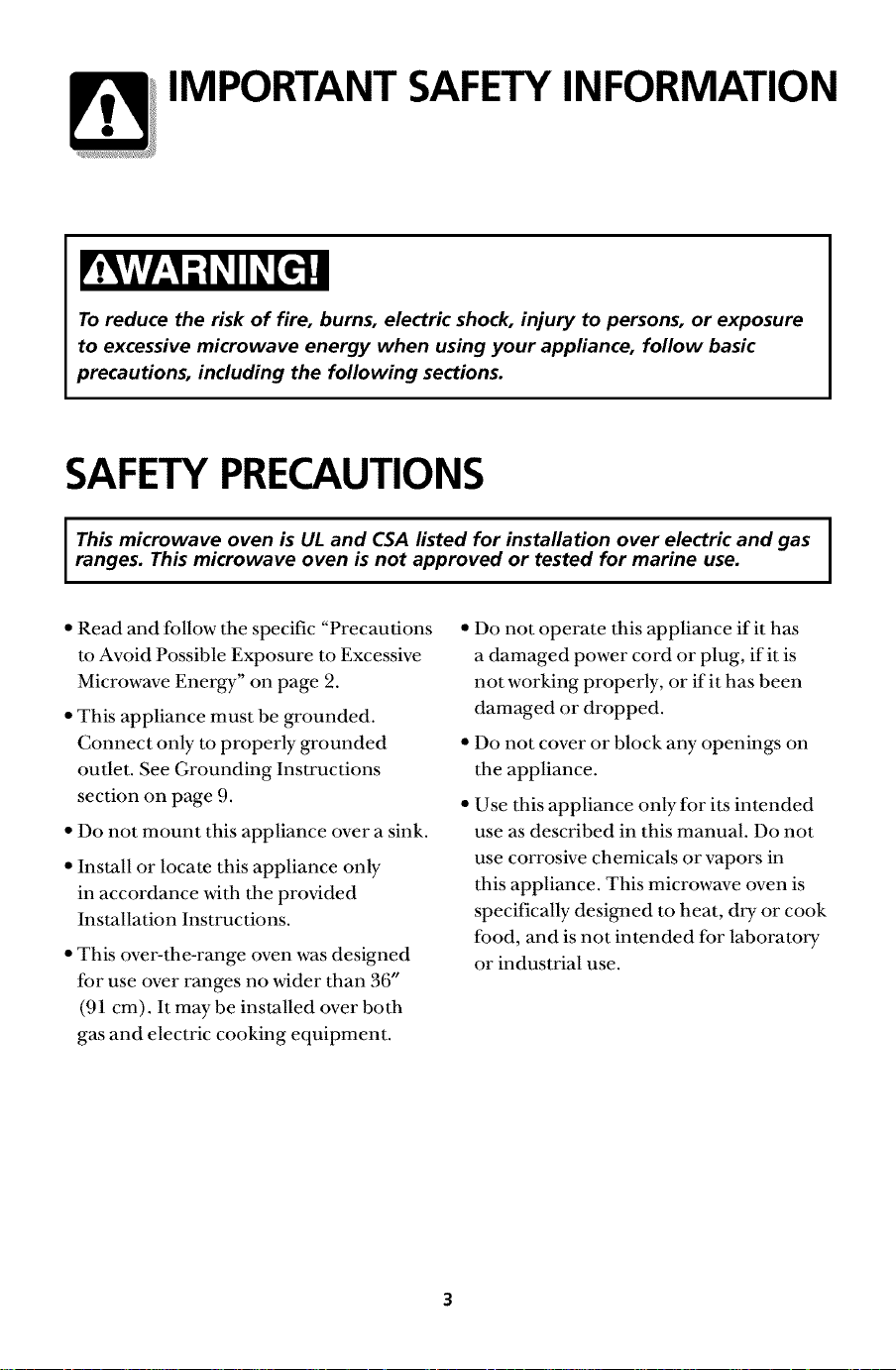

IMPORTANT SAFETY INFORMATION
To reduce the risk of fire, burns, electric shock, injury to persons, or exposure
to excessive microwave energy when using your appliance, follow basic
precautions, including the following sections.
SAFETY PRECAUTIONS
I This microwave oven is UL and CSA listed for installation over electric and gas I
I
ranges. This microwave oven is not approved or tested for marine use.
I
• Read and follow the specific "Precautions
to Avoid Possible Exposure to Excessive
Microwave Energy" on page 2.
• This appliance must be grounded.
Connect only to properly grounded
outlet. See Grounding Instructions
section on page 9.
• Do not mount this appliance over a sink.
• Install or locate this appliance only
in accordance with the provided
Installation Instructions.
• This over-the-range oven was designed
for use over ranges no wider than 36"
(91 cm). It may be installed over both
gas and electric cooking equipment.
• Do not operate this appliance if it has
a damaged power cord or plug, if it is
not working properly, or if it has been
damaged or dropped.
• Do not cover or block any openings on
the appliance.
• Use this appliance only for its intended
use as described in this manual. Do not
use corrosive chemicals or vapors in
this appliance. This microwave oven is
specifically designed to heat, dry or cook
food, and is not intended for laboratory
or industrial use.
49-401431v03 4/26/01 2:44 PM Page 4

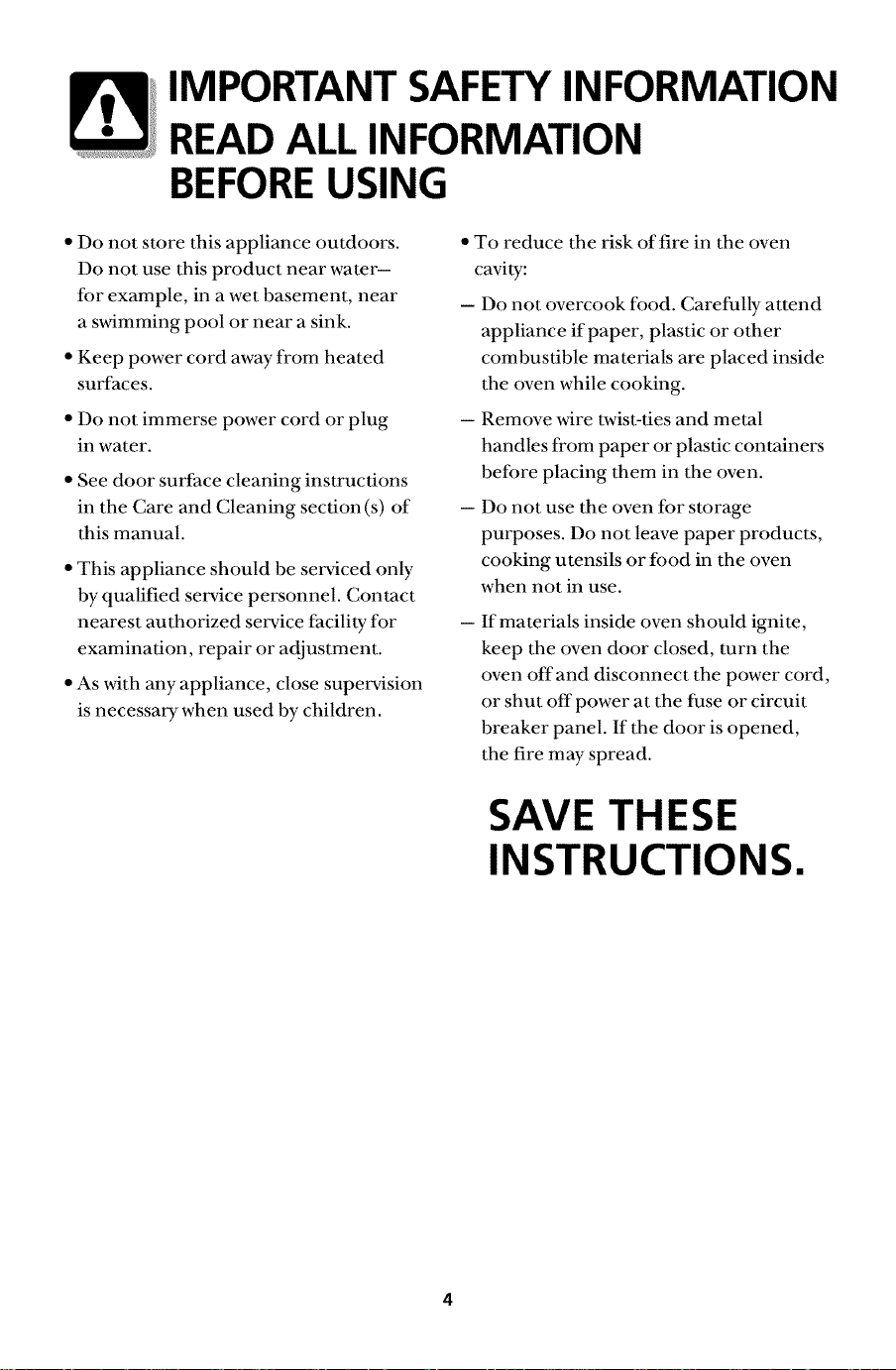

IMPORTANT SAFETY INFORMATION
READ ALL INFORMATION
BEFOREUSING
• Do not store this appliance outdoors.
Do not use this product near water-
for example, in a wet basement, near
a swimming pool or near a sink.
• Keep power cord away from heated
surfaces.
• Do not immerse power cord or plug
in water.
• See door surface cleaning instructions
in the Care and Cleaning section (s) of
this manual.
• This appliance should be serviced only
by qualified service personnel. Contact
nearest authorized service facility for
examination, repair or adjustment.
• As with any appliance, close supervision
is necessary when used by children.
• To reduce the risk of fire in the oven
cavity:
- Do not overcook food. Carefully attend
appliance if paper, plastic or other
combustible materials are placed inside
the oven while cooking.
-- Remove wire twist-ties and metal
handles from paper or plastic containers
before placing them in the oven.
- Do not use the oven for storage
purposes. Do not leave paper products,
cooking utensils or food in the oven
when not in use.
If materials inside oven should ignite,
keep the oven door closed, turn the
oven off and disconnect the power cord,
or shut off power at the fuse or circuit
breaker panel. If the door is opened,
the fire may spread.
SAVE THESE
INSTRUCTIONS.
49-401431v03 4/26/01 2:44 PM Page 5
IMPORTANT SAFETY INFORMATION

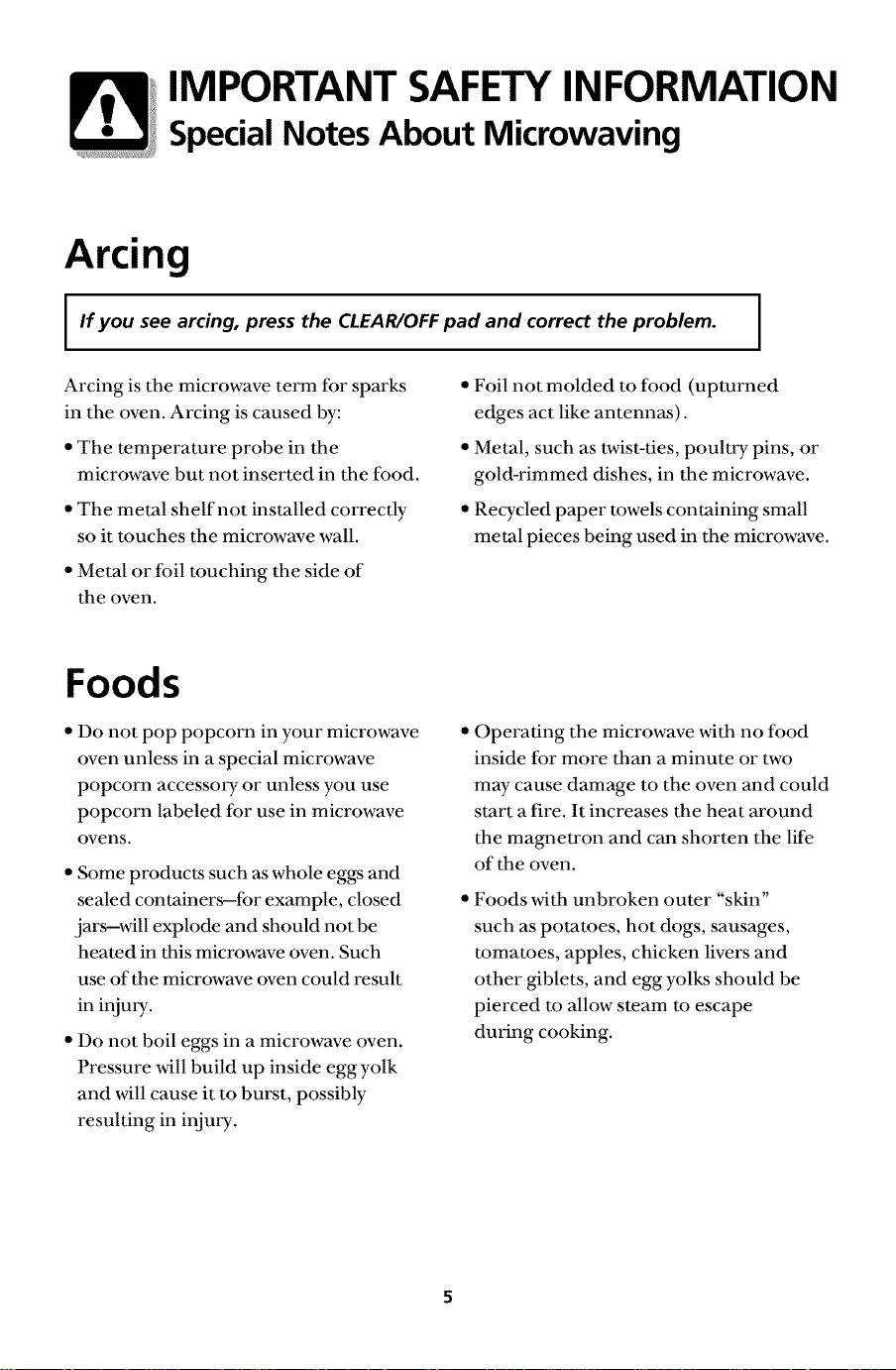

Special Notes About Microwaving
Arcing
I If you see arcing, press the CLEAR/OFF pad and correct the problem. I
Arcing is the microwave term for sparks
in the oven. Arcing is caused by:
• The temperature probe in the
microwave but not inserted in the food.
• The metal shelf not installed correctly
so it touches the microwave wall.
• Metal or foil touching the side of
the oven.
• Foil not molded to food (upturned
edges act like antennas).
• Metal, such as twist-ties, poultry pins, or
gold-rimmed dishes, in the microwave.
• Recycled paper towels containing small
metal pieces being used in the microwave.
Foods
Do not pop popcorn in your microwave
oven unless in a special microwave
popcorn accessory or unless you use
popcorn labeled for use in microwave
ovens.
• Some products such as whole eggs and
sealed containers-for example, closed
jars-will explode and should not be
heated in this microwave oven. Such
use of the microwave oven could result
in injury.
• Do not boil eggs in a microwave oven.
Pressure will build up inside egg yolk
and will cause it to burst, possibly
resulting in injury.
• Operating the microwave with no food
inside for more than a minute or two
may cause damage to the oven and could
start a fire. It increases the heat around
the magnetron and can shorten the life
of the oven.
• Foods with unbroken outer "skin"
such as potatoes, hot dogs, sausages,
tomatoes, apples, chicken livers and
other giblets, and egg yolks should be
pierced to allow steam to escape
during cooking.
49-401431v03 4/26/01 2:44 PM Page 6
IMPORTANT SAFETY INFORMATION
READ ALL INFORMATION
BEFOREUSING

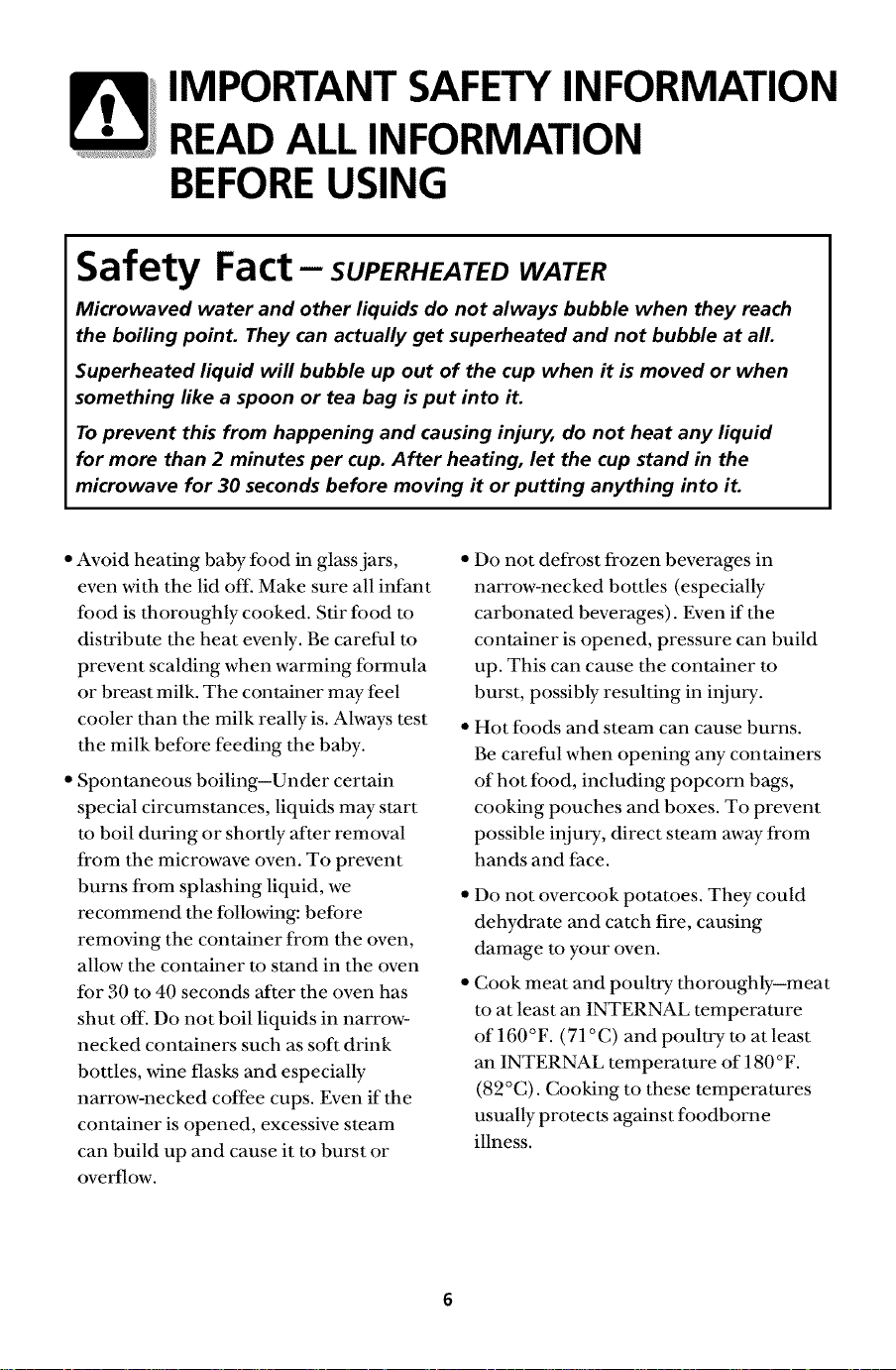

Safety Fact- SUPERHEATEDWATER
Microwaved water and other liquids do not always bubble when they reach
the boiling point. They can actually get superheated and not bubble at all.
Superheated liquid will bubble up out of the cup when it is moved or when
something like a spoon or tea bag is put into it.
To prevent this from happening and causing injury, do not heat any liquid
for more than 2 minutes per cup. After heating, let the cup stand in the
microwave for 30 seconds before moving it or putting anything into it.
• Avoid heating baby food in glass.jars,
even with the lid off. Make sure all infant
food is thoroughly cooked. Stir food to
distribute the heat evenly. Be careful to
prevent scalding when warming formula
or breast milk. The container may feel
cooler than the milk really is. Always test
the milk before feeding the baby.
• Spontaneous boiling-Under certain
special circumstances, liquids may start
to boil during or shortly after removal
from the microwave oven. To prevent
burns from splashing liquid, we
recommend the following: before
removing the container from the oven,
allow the container to stand in the oven
for 30 to 40 seconds after the oven has
shut off. Do not boil liquids in narrow-
necked containers such as soft drink
bottles, wine flasks and especially
narrow-necked coffee cups. Even if the
container is opened, excessive steam
can build up and cause it to burst or
overflow.
• Do not defrost frozen beverages in
narrow-necked bottles (especially
carbonated beverages). Even if the
container is opened, pressure can build
up. This can cause the container to
burst, possibly resulting in injury.
• Hot foods and steam can cause burns.
Be careful when opening any containers
of hot food, including popcorn bags,
cooking pouches and boxes. To prevent
possible injury, direct steam away from
hands and face.
• Do not overcook potatoes. They could
dehydrate and catch fire, causing
damage to your oven.
• Cook meat and poultry thoroughly-meat
to at least an INTERNAL temperature
of 160°F. (71°C) and poultry to at least
an INTERNAL temperature of 180 °F.
(82 °C). Cooking to these temperatures
usually protects against foodborne
illness.
49-401431v03 4/26/01 2:45 PM Page 7
IMPORTANT SAFETY INFORMATION
Special Notes About Microwaving

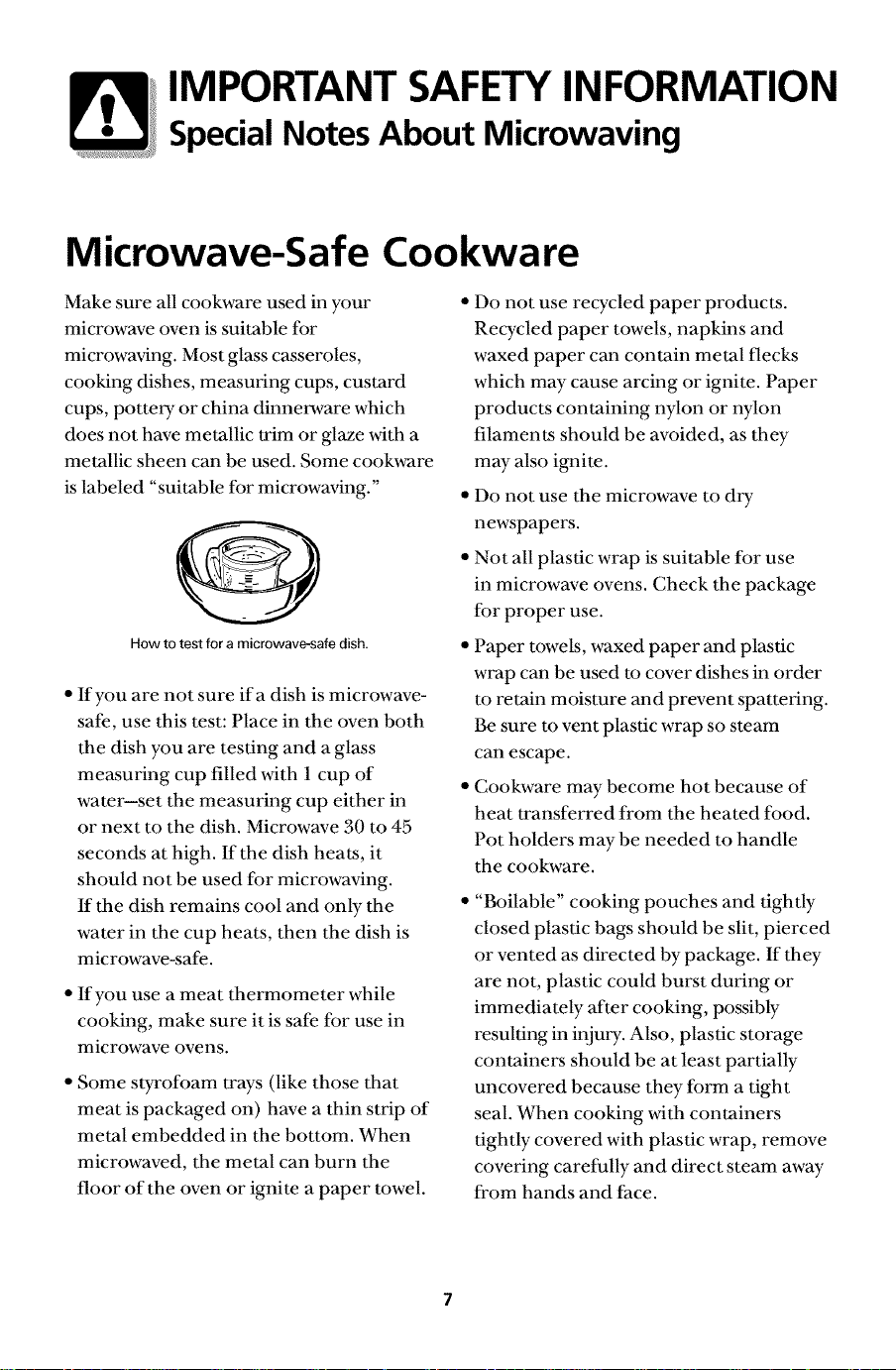

Microwave-Safe Cookware
Make sure all cookware used in your
microwave oven is suitable for
microwaving. Most glass casseroles,
cooking dishes, measuring cups, custard
cups, pottery or china dinnerware which
does not have metallic trim or glaze with a
metallic sheen can be used. Some cookware
is labeled "suitable for microwaving."
Q
How to test for a microwave-safe dish.
• If you are not sure ifa dish is microwave-
safe, use this test: Place in the oven both
the dish you are testing and a glass
measuring cup filled with 1 cup of
water-set the measuring cup either in
or next to the dish. Microwave 30 to 45
seconds at high. If the dish heals, it
should not be used for microwaving.
If the dish remains cool and only the
water in the cup heats, then the dish is
microwave-safe.
• If you use a meat thermometer while
cooking, make sure it is safe for use in
microwave ovens.
• Some styrofoam trays (like those that
meat is packaged on) have a thin strip of
metal embedded in the bottom. When
microwaved, the metal can burn the
floor of the oven or ignite a paper towel.
• Do not use recycled paper products.
Recycled paper towels, napkins and
waxed paper can contain metal flecks
which may cause arcing or ignite. Paper
products containing nylon or nylon
filaments should be avoided, as they
may also ignite.
• Do not use the microwave to dry
newspapers.
• Not all plastic wrap is suitable for use
in microwave ovens. Check the package
for proper use.
• Paper towels, waxed paper and plastic
wrap can be used to cover dishes in order
to retain moisture and prevent spattering.
Be sure to vent plastic wrap so steam
can escape.
• Cookware may become hot because of
heat transferred from the heated food.
Pot holders may be needed to handle
the cookware.
• "Boilable" cooking pouches and tightly
closed plastic bags should be slit, pierced
or vented as directed by package. If they
are not, plastic could burst during or
immediately after cooking, possibly
resulting in injury. Also, plastic storage
containers should be at least partially
uncovered because they form a tight
seal. When cooking with containers
tightly covered with plastic wrap, remove
covering carefully and direct steam away
from hands and face.
49-401431v03 4/26/01 2:45 PM Page 8

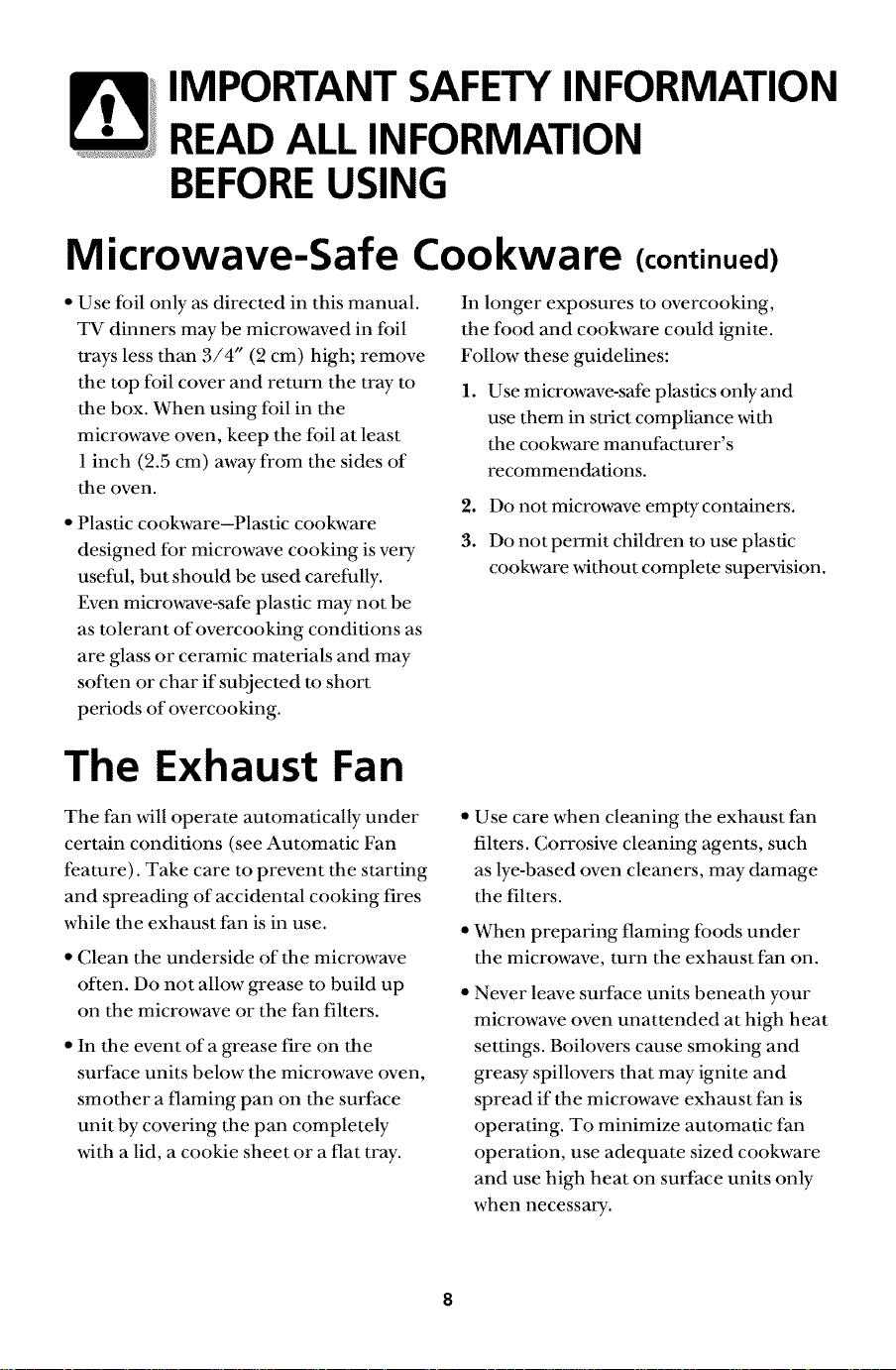

IMPORTANT SAFETY INFORMATION
READ ALL INFORMATION
BEFOREUSING
Microwave-Safe Cookware (continued)
• Use foil only as directed in this manual.
TV dinners may be microwaved in foil
trays less than 3/4" (9 cm) high; remove
the top foil cover and return the tray to
the box. When using foil in the
microwave oven, keep the foil at least
1 inch (9.5 cm) away from the sides of
the oven.
Plastic cookware-Plastic cookware
designed for microwave cooking is very
useful, but should be used carefully.
Even microwave-safe plastic may not be
as tolerant of overcooking conditions as
are glass or ceramic materials and may
soften or char if subjected to short
periods of overcooking.
In longer exposures to overcooking,
the food and cookware could ignite.
Follow these guidelines:
1. Use microwave-safe plastics only and
use them in strict compliance with
the cookware manufacturer's
recommendations.
2. Do not microwave empty containers.
3. Do not permit children to use plastic
cookware without complete supervision.
The Exhaust Fan
The fan will operate automatically under
certain conditions (see Automatic Fan
feature). Take care to prevent the starting
and spreading of accidental cooking fires
while the exhaust fan is in use.
• Clean the underside of the microwave
often. Do not allow grease to build up
on the microwave or the fan filters.
• In the event of a grease fire on the
surface units below the microwave oven,
smother a flaming pan on the surface
unit by covering the pan completely
with a lid, a cookie sheet or a flat tray.
• Use care when cleaning the exhaust fan
filters. Corrosive cleaning agents, such
as lye-based oven cleaners, may damage
the filters.
• When preparing flaming foods under
the microwave, turn the exhaust fan on.
• Never leave surface units beneath your
microwave oven unattended at high heat
settings. Boilovers cause smoking and
greasy spillovers that may ignite and
spread if the microwave exhaust fan is
operating. To minimize automatic fan
operation, use adequate sized cookware
and use high heat on surface units only
when necessary.
49-401431v03 4/26/01 2:45 PM Page 9
IMPORTANT SAFETY INFORMATION

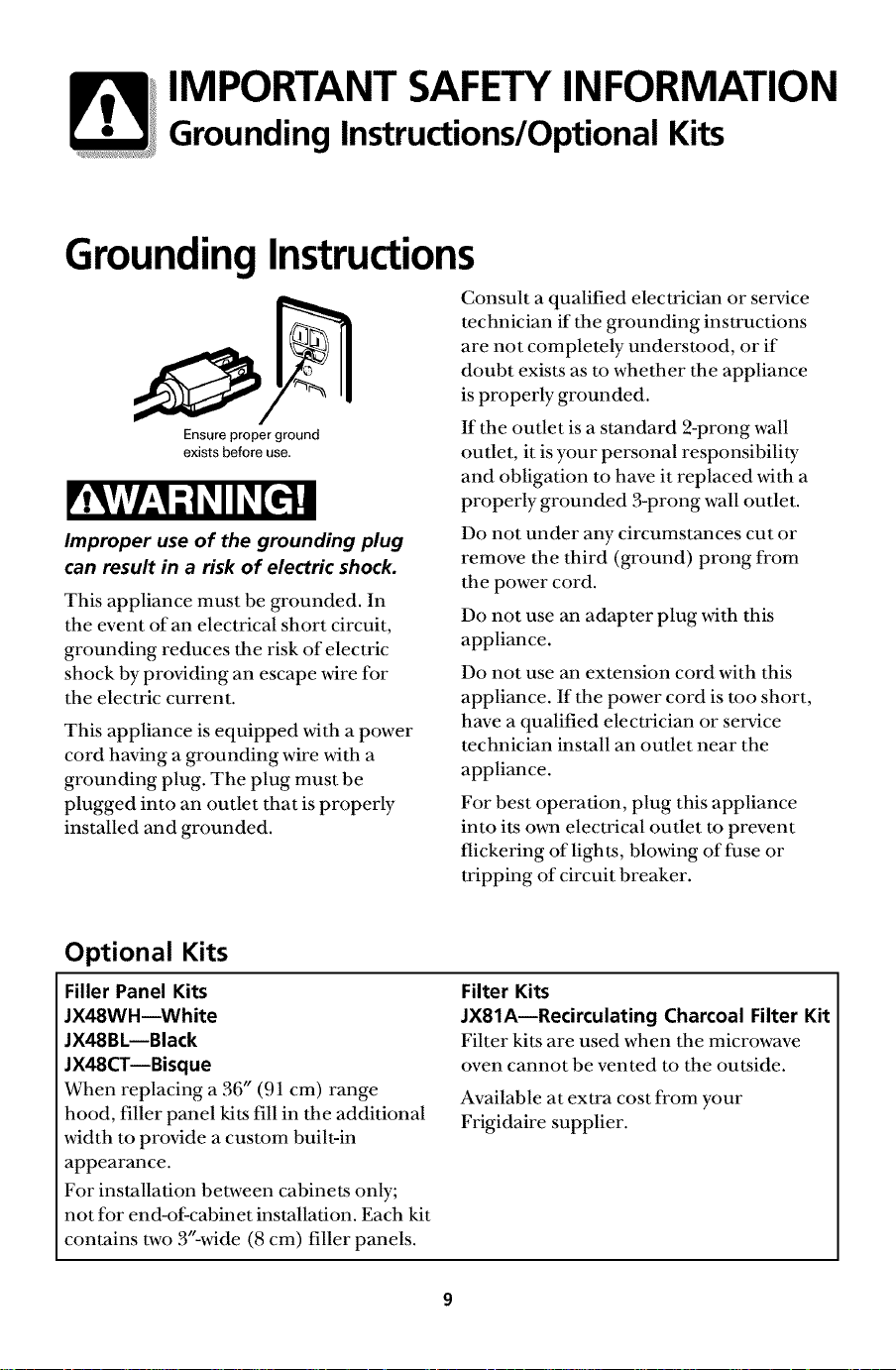

Grounding Instructions/Optional Kits
GroundingInstructions
Ensure proper ground
exists before use.
Improper use of the grounding plug
can result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current.
This appliance is equipped with a power
cord having a grounding wire with a
grounding plug. The plug must be
plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or service
technician if the grounding instructions
are not completely understood, or if
doubt exists as to whether the appliance
is properly grounded.
If the outlet is a standard 9-prong wall
outlet, it is your personal responsibility
and obligation to have it replaced with a
properly grounded 3-prong wall outlet.
Do not under any circumstances cut or
remove the third (ground) prong from
the power cord.
Do not use an adapter plug with this
appliance.
Do not use an extension cord with this
appliance. If the power cord is too short,
have a qualified electrician or service
technician install an outlet near the
appliance.
For best operation, plug this appliance
into its own electrical outlet to prevent
flickering of lights, blowing of fuse or
tripping of circuit breaker.
Optional Kits
Filler Panel Kits
JX48WH--White
JX48BL--Black
JX48CT--Bisque
When replacing a 36" (91 cm) range
hood, filler panel kits fill in the additional
width to provide a custom built-in
appearance.
For installation between cabinets only;
not for end-of-cabinet installation. Each kit
contains two 3'%vide (8 cm) filler panels.
Filter Kits
JX81A--Recirculating Charcoal Filter Kit
Filter kits are used when the microwave
oven cannot be vented to the outside.
Available at extra cost from your
Frigidaire supplier.
49-401431v03 4/26/01 2:45 PM Page i0

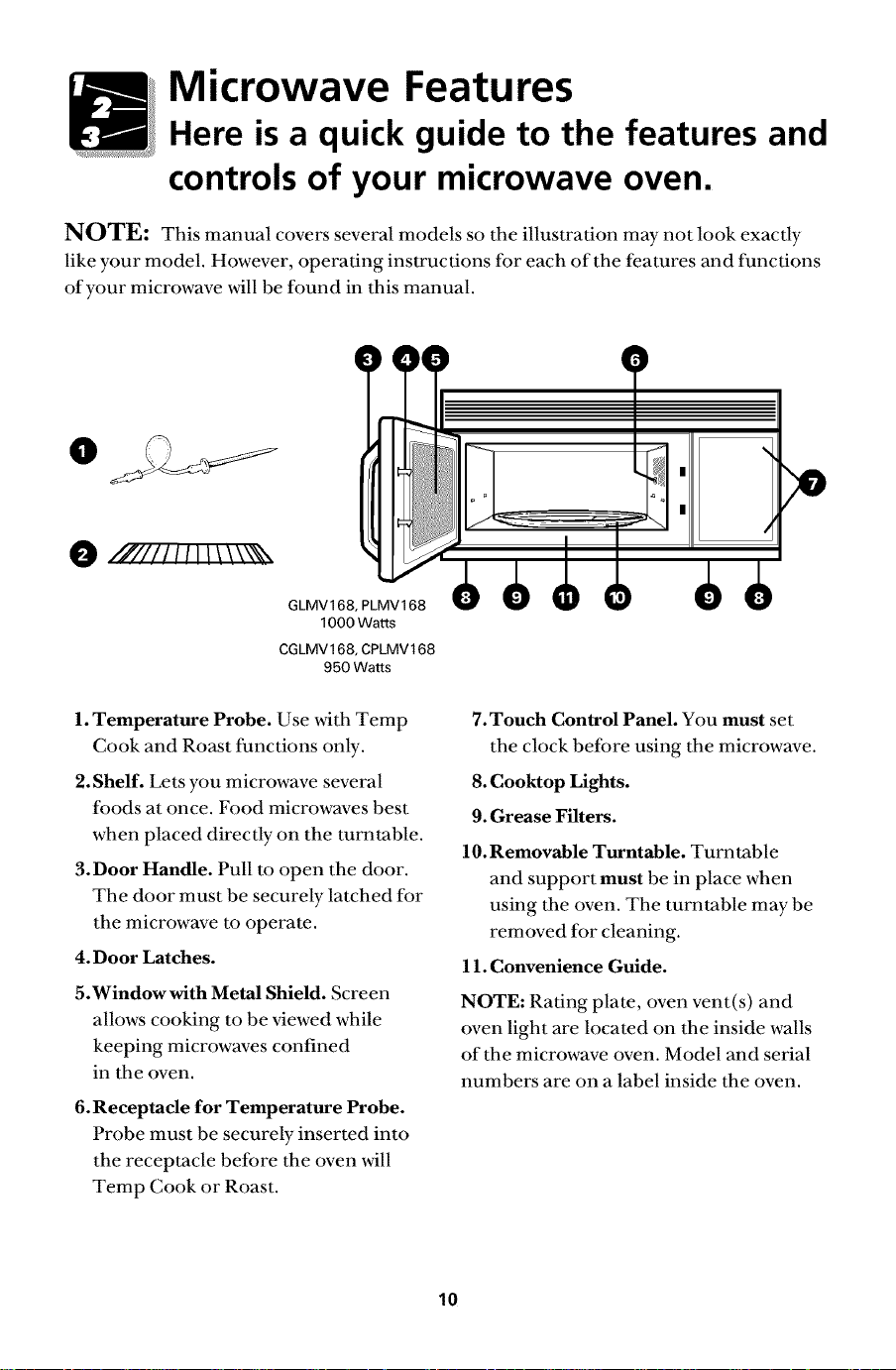

Microwave Features
Here is a quick guide to the features and
controls of your microwave oven.
NOTE: This manual covers several models so the illustration may not look exactly
like your model. However, operating instructions for each of the features and functions
of your microwave will be found in this manual.
0//////t t l!\\\\_,,
GLMV168, PLMV168
lO00Wa_s
CGLMV168, CPLMV168
950Wa_s
1.Temperature Probe. Use with Temp
Cook and Roast functions only.
2. Shelf. Lets you microwave several
foods at once. Food microwaves best
when placed directly on the turntable.
3.Door Handle. Pull to open the door.
The door must be securely latched for
the microwave to operate.
4. Door Latches.
5.Window with Metal Shield. Screen
allows cooking to be viewed while
keeping microwaves confined
in the oven.
6.Receptacle for Temperature Probe.
Probe must be securely inserted into
the receptacle before the oven will
Temp Cook or Roast.
7.Touch Control Panel. You must set
the clock before using the microwave.
8. Cooktop Lights.
9. Grease Filters.
10. Removable Turntable. Turn table
and support must be in place when
using the oven. The turntable may be
removed for cleaning.
11. Convenience Guide.
NOTE: Rating plate, oven vent(s) and
oven light are located on the inside walls
of the microwave oven. Model and serial
numbers are on a label inside the oven.
10
49-401431v03 4/26/01 2:45 PM Page ii

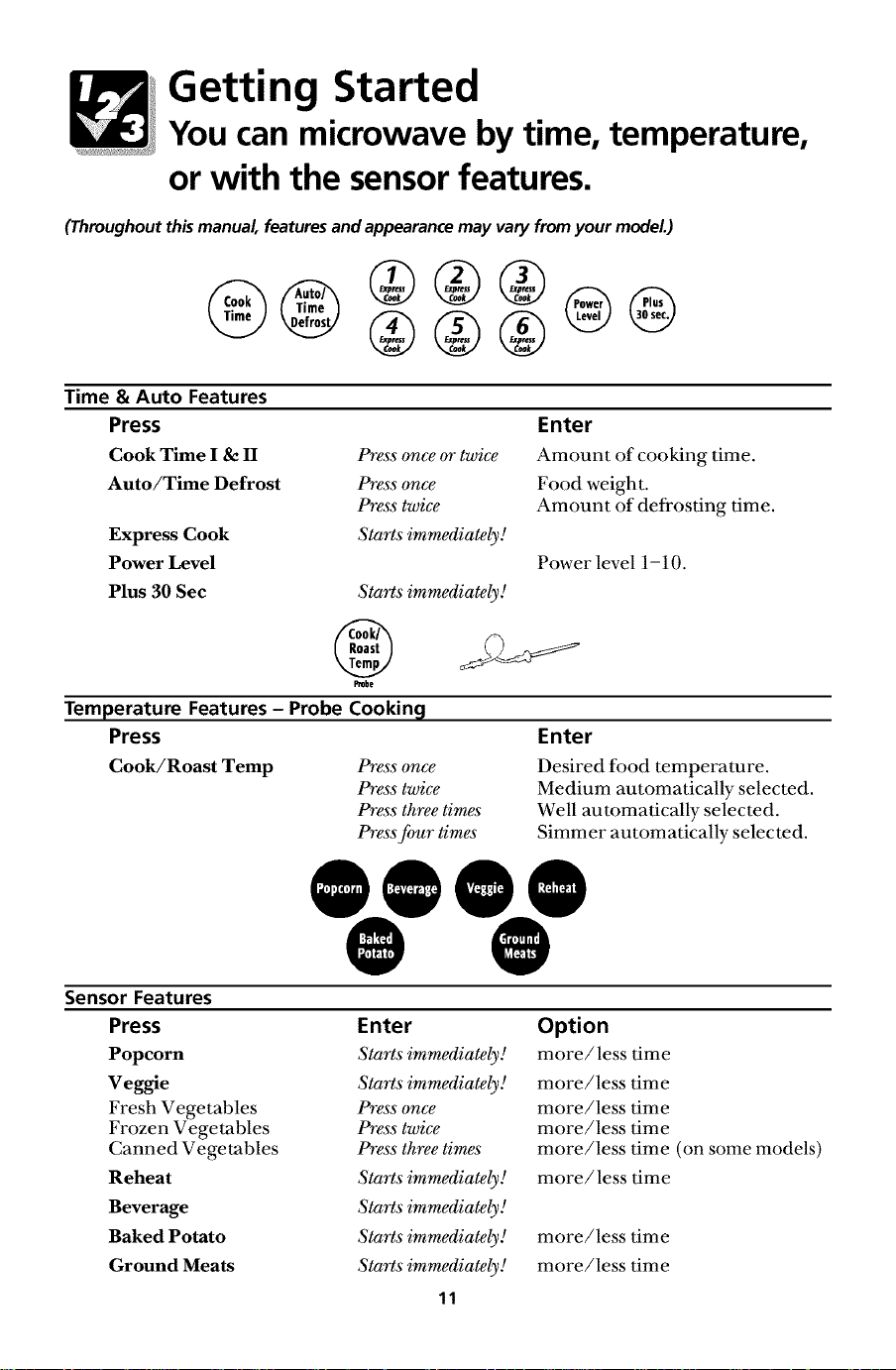

Getting Started
You can microwave by time, temperature,
or with the sensor features.
(Throughout thb manual, features and appearance may vary from your model.)
@®®®®
®®®@@
Time & Auto Features
Press
Cook Time I & I[
Auto/Time Defrost
PT_ss once or twice
PT"ess once
PT_ss twice
Starts immediately/Express Cook
Power Level
Plus 30 Sec Starts immediately!
®
I_be
Temperature Features - Probe Cookinq
Press
Cook/Roast Temp PT_ss once,
Press twic_
PT_ss thT_e times
Press four times
Sensor Features
Press
Popcorn
Veggie
Fresh Vegetables
Frozen Vegetables
Canned Vegetables
Reheat
Beverage
Baked Potato
Ground Meats
Enter
Amountofcoo_ngtime.
Food weight.
Amountofdeffosting time.
Power level 1-10.
Enter
Desired food temperature.
Medium automatically selected.
Well automatically selected.
Simmer automatically selected.
Enter
Starts immediately!
Starts immediately!
Press once
Press twic_
Press three times
Stm'ts immediately!
Stm'ts immediately!
Stm'ts immediately!
Stm'ts immediately!
11
Option
more/less time
more/less time
more/less time
more/less time
more/less time (on some models)
more/less time
more/less time
more/less time
49-401431v03 4/26/01 2:45 PM Page 12
Operating Instructions

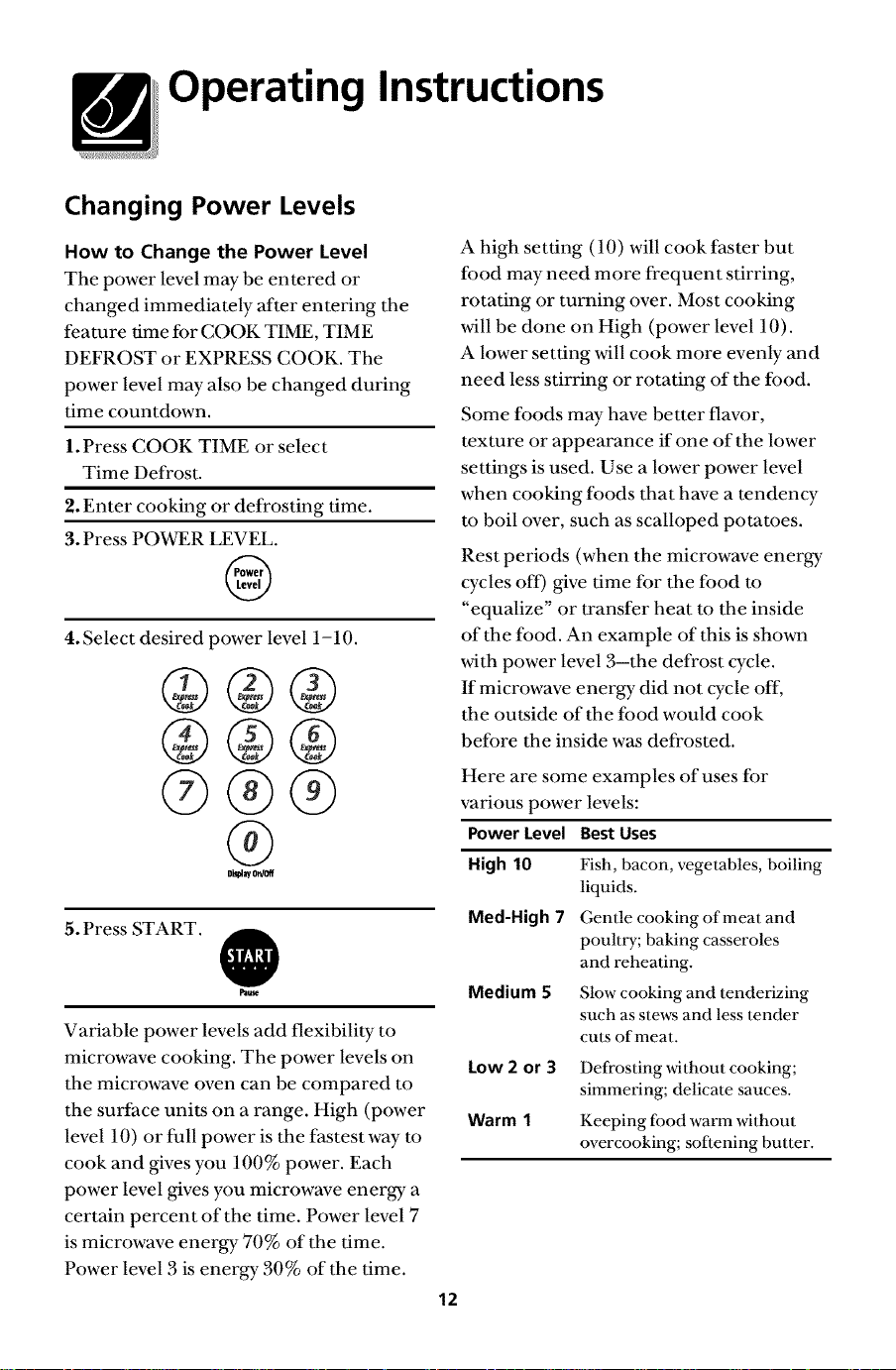

Changing Power Levels
How to Change the Power Level
The power level may be entered or
changed immediately after entering the
feature time for COOK TIME, TIME
DEFROST or EXPRESS COOK. The
power level may also be changed during
time countdown.
1.Press COOK TIME or select
Time Defrost.
2. Enter cooking or defrosting time.
3. Press POWER LEVEL.
@
4. Select desired power level 1-10.
0@@
@@®
G®®
@
oisplr/on/off
5.Press START. @
hu_
Variable power levels add flexibility to
microwave cooking. The power levels on
the microwave oven can be compared to
the surface units on a range. High (power
level 10) or full power is the fastest way to
cook and gives you 100% power. Each
power level gives you microwave energy a
certain percent of the time. Power level 7
is microwave energy 70% of the time.
Power level 3 is energy 30% of the time.
A high setting (10) will cook faster but
food may need more frequent stirring,
rotating or turning over. Most cooking
will be done on High (power level 10).
A lower setting will cook more evenly and
need less stirring or rotating of the food.
Some foods may have better flavor,
texture or appearance it"one of the lower
settings is used. Use a lower power level
when cooking foods that have a tendency
to boil over, such as scalloped potatoes.
Rest periods (when the microwave energy
cycles off) give time for the food to
"equalize" or transfer heat to the inside
of the food. An example of this is shown
with power level 3-the defrost cycle.
If microwave energy did not cycle off,
the outside of the food would cook
before the inside was defrosted.
Here are some examples of uses for
various power levels:
Power Level BestUses
High 10
Med-High 7
Medium 5
Low 2 or 3
Warm 1
Fish, bacon, vegetables, boiling
liquids.
Gentle cooking of meat and
poultry; baking casseroles
and reheating.
Slow cooking and tenderizing
such as stews and less tender
cuts of meat.
Defrosting without cooking;
simmering; delicate sauces.
Keeping food warm without
overcooking; softening butter.
12
49-401431v03 4/26/01 2:45 PM Page 13
Operating Instructions

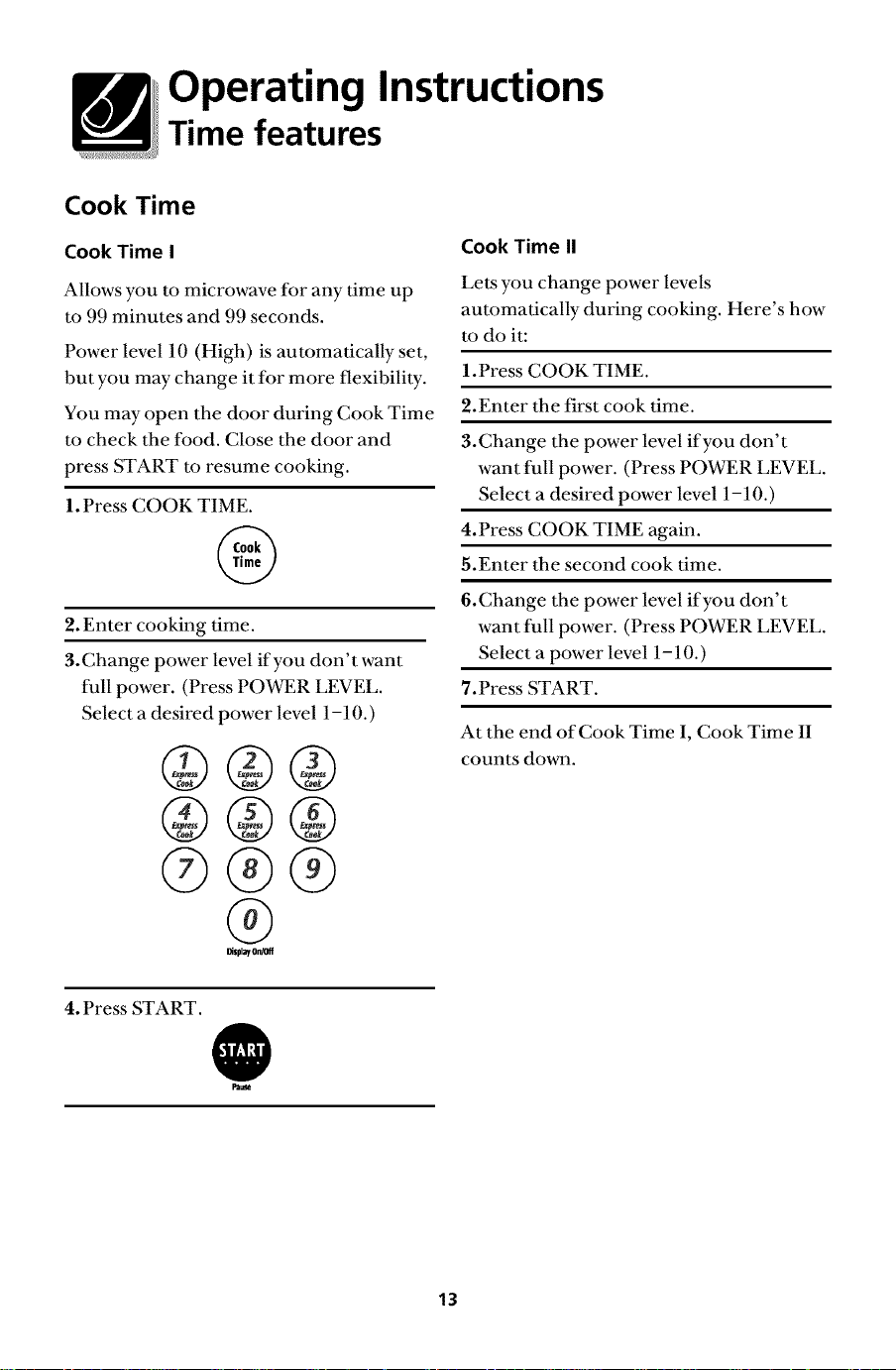

Time features
Cook Time
Cook Time I
Allows you to microwave for any time up
to 99 minutes and 99 seconds.
Power level 10 (High) is automatically set,
but you may change it for more flexibility.
You may open the door during Cook Time
to check the food. Close the door and
press START to resume cooking.
1. Press COOK TIME.
2.Enter cooking time.
3.Change power level if you don' t want
full power. (Press POWER LEVEL.
Select a desired power level 1-10.)
®®®
©®®
@
Display on/Off
Cook Time II
Lets you change power levels
automatically during cooking. Here's how
to do it:
1.Press COOK TIME.
2.Enter the first cook time.
3.Change the power level if you don't
want full power. (Press POWER LEVEL.
Select a desired power level 1-10.)
4.Press COOK TIME again.
5.Enter the second cook time.
6.Change the power level if you don't
want full power. (Press POWER LEVEL.
Select a power level 1-10.)
7.Press START.
At the end of Cook Time I, Cook Time II
counts down.
4. Press START.
@
13
49-401431v03 4/26/01 2:45 PM Page 14
Operating Instructions

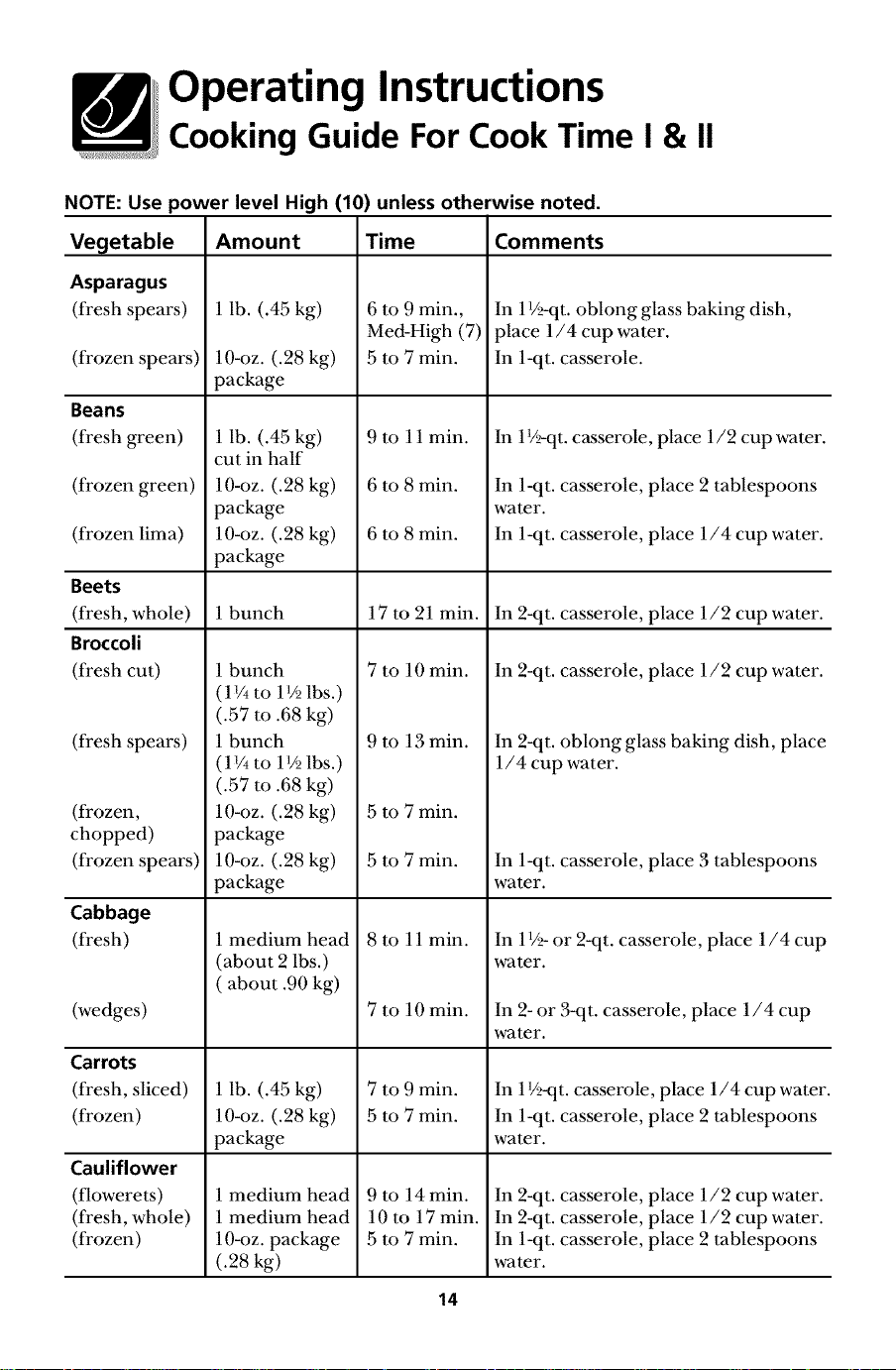

Cooking Guide For Cook Time I & II
NOTE: Use power level High (10) unless otherwise noted.
Amount Time Comments
Vegetable
Asparagus
(fresh spears)
(frozen spears)
Beans
(fresh green)
(frozen green)
(frozen lima)
Beets
(fresh, whole)
Broccoli
(fresh cut)
(fresh spears)
(_ozen,
chopped)
(_ozen spears)
Cabbage
(_esh)
(wedges)
Carrots
(fresh, sliced)
(frozen)
Cauliflower
(flowerets)
(fresh, whole)
(frozen)
1lb. (.45 kg)
lO-oz. (.28 kg)
package
1lb. (.45 kg)
cut in half
10-oz.(.28 kg)
package
10-oz.(.28 kg)
package
1 bunch
1 bunch
(1l/4 to 1% lbs.)
(.57 to .68 kg)
1 bunch
(1l/4 to 11/2lbs.)
(.57 to .68 kg)
10-oz. (.28 kg)
package
10-oz. (.28 kg)
package
1 medium head
(about 2 lbs.)
( about .90 kg)
1 lb. (.45 kg)
lO-oz. (.28 kg)
package
1 medium head
1 medium head
10-oz. package
(.28 kg)
6 to 9 min.,
Med-High (7)
5 to 7 min.
9 to 11 min.
6 to 8 min.
6 to 8 min.
17 to 21 min.
7 to 10 min.
9 to 13 min.
5 to 7 min.
5 to 7 min.
8 to 11 min.
7 to 10 min.
7 to 9 min.
5 to 7 min.
9 to 14 min.
10 to 17 min.
5 to 7 min.
In 11/2-qt.oblong glass baking dish,
place 1/4 cup water.
In 1-qt. casserole.
In 1½-qt. ca.sserole, place 1/2 cup water.
In 1-qt. casserole, place 2 tablespoons
water.
In 1-qt. casserole, place 1/4 cup water.
In 2-qt. casserole, place 1/2 cup water.
In 2-qt. casserole, place 1/2 cup water.
In 2-qt. oblong glass baking dish, place
1/4 cup water.
In 1-qt. casserole, place 3 tablespoons
water.
In 11/2-or 2-qt. casserole, place 1/4 cup
water.
In 2- or 3-qt. casserole, place 1/4 cup
water.
In 1lk-qt, casserole, place 1/4 cup water.
In 1-qt. casserole, place 2 tablespoons
water,
In 2-qt. casserole, place 1/2 cup water.
In 2-qt. casserole, place 1/2 cup water.
In 1-qt. casserole, place 2 tablespoons
water,
14
49-401431v03 4/26/01 2:45 PM Page 15

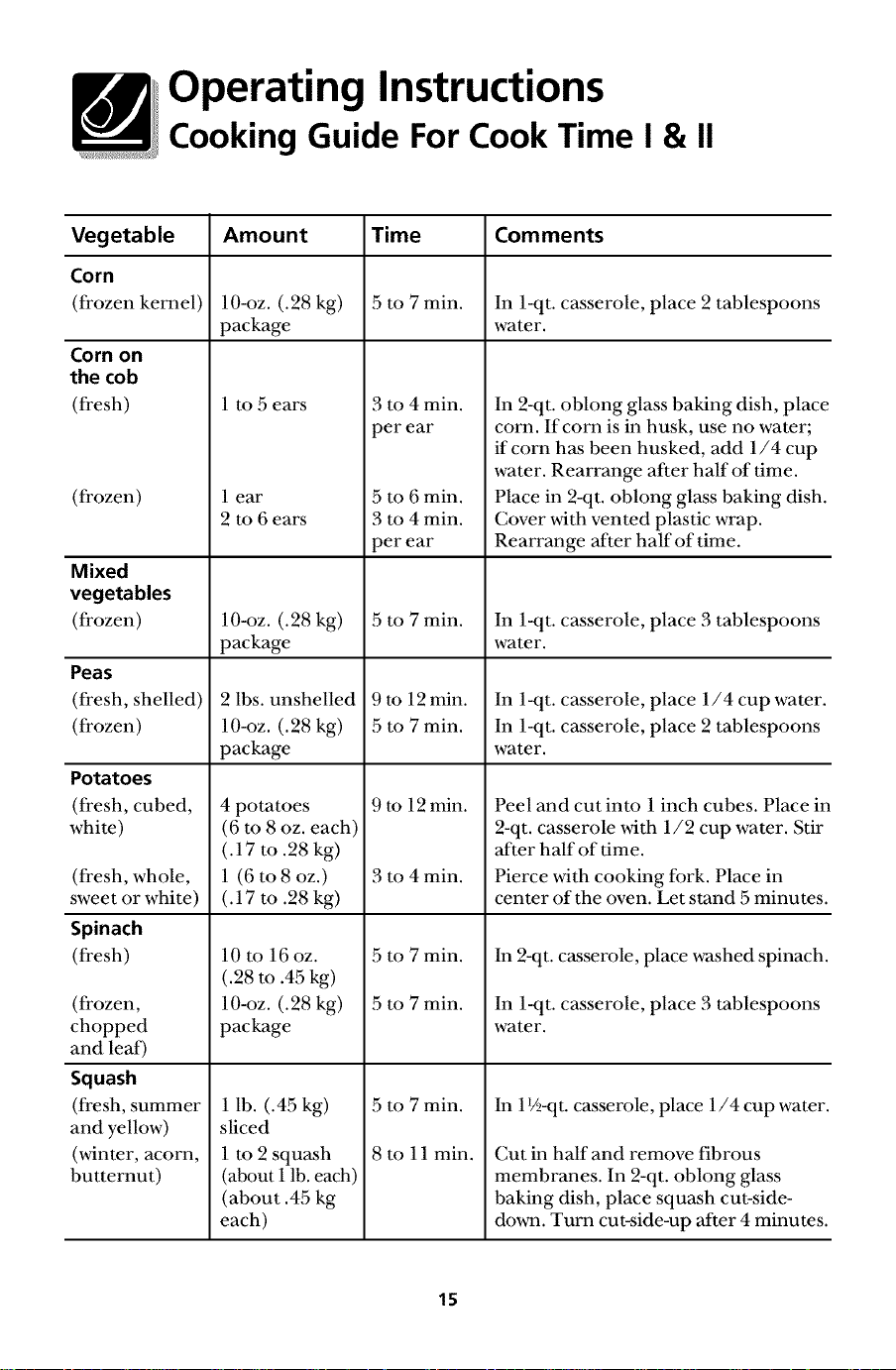

Operating Instructions
Cooking Guide For Cook Time I & II
Vegetable Amount Time Comments
Corn
(frozen kernel) lO-oz. (.28 kg) 5 to 7 min. In 1-qt. casserole, place 2 tablespoons
package water.
Corn on
the cob
(fresh)
(frozen)
1 to 5 ears
i ear
2 to 6 ears
3 to 4 min.
per ear
5 to 6 min.
3 to 4 min.
per ear
In 2-qt. oblong glass baking dish, place
corn. If corn is in husk, use no water;
if corn has been husked, add 1/4 cup
water. Rearrange after half of time.
Place in 2-qt. oblong glass baking dish.
Cover with vented plastic wrap.
Rearrange after half of time.
Mixed
vegetables
(frozen) 10-oz. (.28 kg) 5 to 7 min. In 1-qt. casserole, place 3 tablespoons
package water.
Peas
(fresh, shelled) 2 lbs. unshelled 9 to 12 min. In 1-qt. casserole, place 1/4 cup water.
(frozen) 10-oz. (.28 kg) 5 to 7 min. In 1-qt. casserole, place 2 tablespoons
package water.
4 potatoes
(6 to 8 oz. each)
(.17 to .28 kg)
1 (6 to 8 oz.)
(.17 to .28 kg)
10 to 16 oz.
(.28 to .45 kg)
lO-oz. (.28 kg)
package
I lb. (.45 kg)
sliced
1 to 2 squash
(about 1lb. each)
(about .45 kg
each)
Potatoes
(fresh, cubed,
white)
(fresh, whole,
sweet or white)
Spinach
(fresh)
9 to 12 min.
3 to 4 min.
5 to 7 min.
5 to 7 min.
5 to 7 min.
8 to 11 min.
(frozen,
chopped
and leaf)
Squash
(fresh, summer
and yellow)
(winter, acorn,
butternut)
Peel and cut into 1 inch cubes. Place in
2-qt. casserole with 1/2 cup water. Stir
after half of time.
Pierce with cooking fork. Place in
center of the oven. Let stand 5 minutes.
In 2-qt. casserole, place washed spinach.
In 1-qt. casserole, place 3 tablespoons
water.
In 11/2-qt.casserole, place 1/4 cup water.
Cut in half and remove fibrous
membranes. In 2-qt. oblong glass
baking dish, place squash cut-side-
down. Turn cut-side-up after 4 minutes.
15
49-401431v03 4/26/01 2:45 PM Page 16
Operating Instructions
Time Features

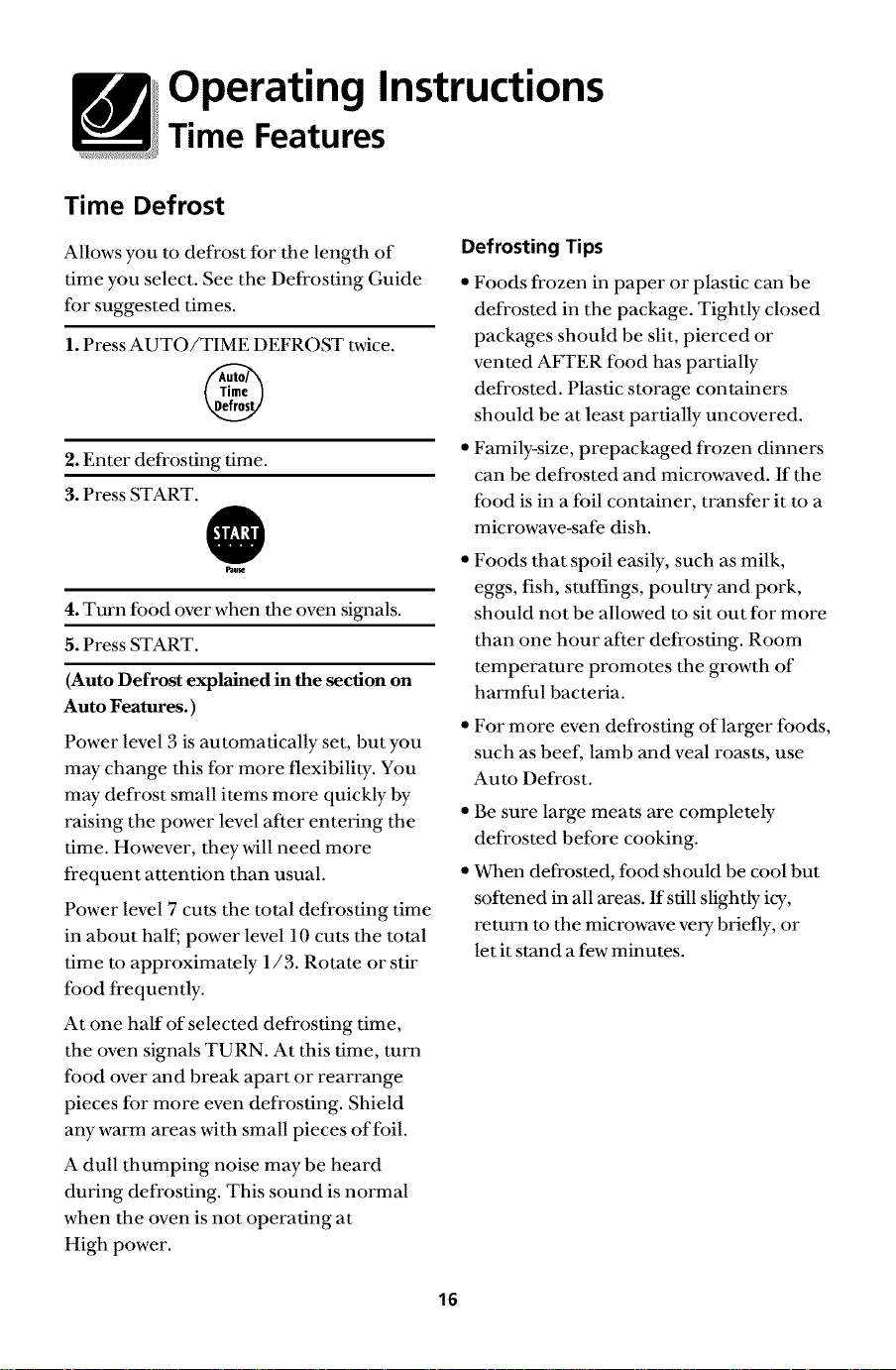

Time Defrost
Allows you to defrost for the length of
time you select. See the Defrosting Guide
for suggested times.
1. Press AUTO/TIME DEFROST twice.
®
2. Enter defrosting time.
3. Press START.
4. Turn food over when the oven signals.
5. Press START.
(Auto Defrost explained in the section on
Auto Features.)
Power level 3 is automatically set, but you
may change this for more flexibility. You
may defrost small items more quickly by
raising the power level after entering the
time. However, they will need more
frequent attention than usual.
Power level 7 cuts the total defrosting time
in about half; power level 10 cuts the total
time to approximately 1/3. Rotate or stir
food frequently.
At one half of selected defrosting time,
the oven signals TURN. At this time, turn
food over and break apart or rearrange
pieces for more even defrosting. Shield
any warm areas with small pieces of foil.
A dull thumping noise may be heard
during defrosting. This sound is normal
when the oven is not operating at
High power.
Defrosting Tips
• Foods frozen in paper or plastic can be
defrosted in the package. Tightly closed
packages should be slit, pierced or
vented AFTER food has partially
defrosted. Plastic storage containers
should be at least partially uncovered.
• Family-size, prepackaged frozen dinners
can be defrosted and microwaved. If the
food is in a foil container, transfer it to a
microwave-safe dish.
• Foods that spoil easily, such as milk,
eggs, fish, stuffings, poultry and pork,
should not be allowed to sit out for more
than one hour after defrosting. Room
temperature promotes the growth of
harmful bacteria.
• For more even defrosting of larger foods,
such as beef, lamb and veal roasts, use
Auto Defrost.
• Be sure large mea_s are completely
defrosted before cooking.
• When defrosted, food should be cool but
softened in all areas. If still slightly icy,
return to the microwave very briefly, or
let it stand a few minutes.
16
49-401431v03 4/26/01 2:45 PM Page 17
Operating Instructions

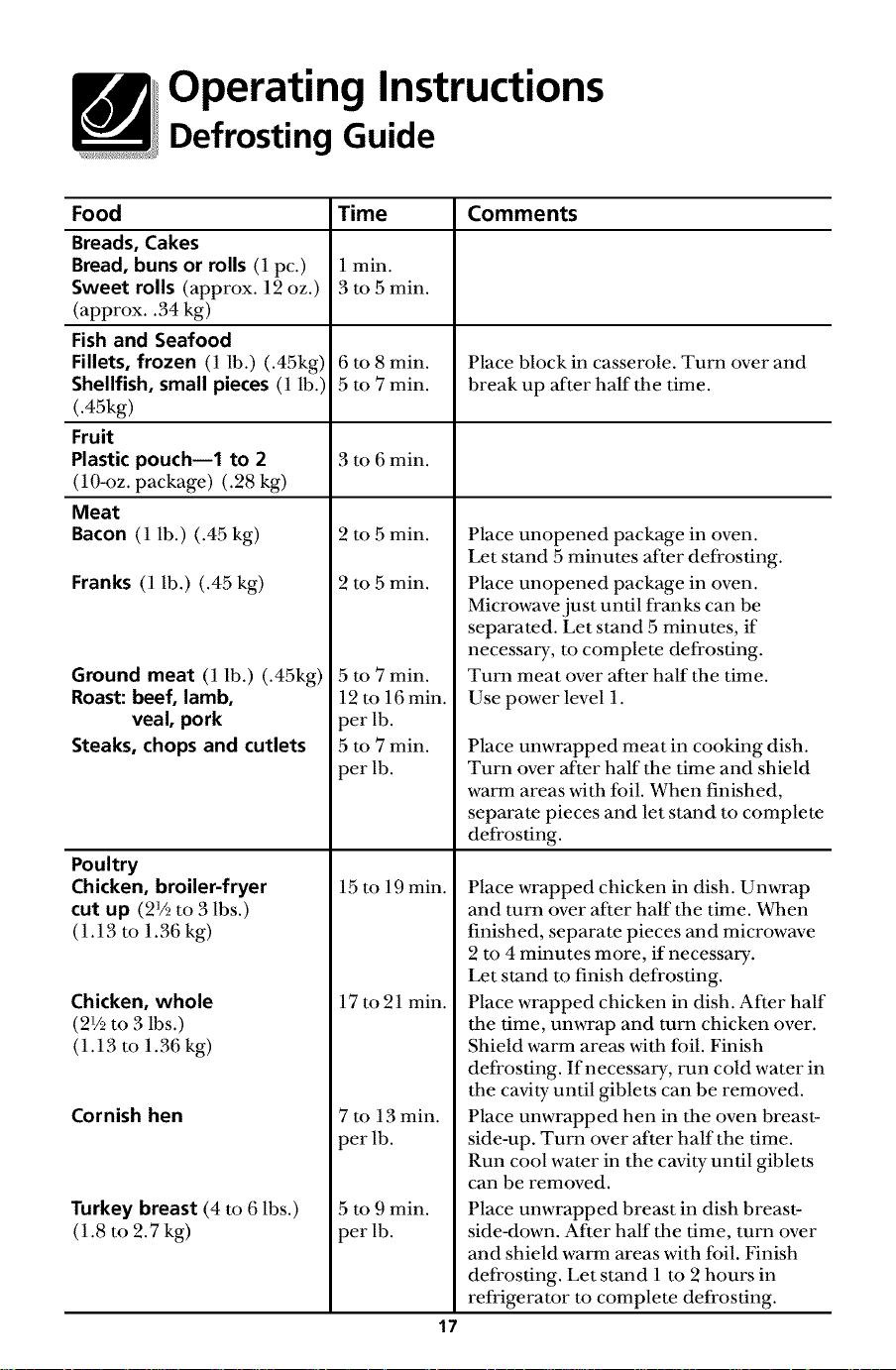

Defrosting Guide
Food Time Comments
Breads, Cakes
Bread, buns or rolls (1 pc.) 1rain.
Sweet rolls (approx. 12 oz.) 3 to 5 min.
(approx..34 kg)
Fish and Seafood
Fillets, frozen (1 lb.) (.45kg) 6 to 8 min. Place block in casserole. Turn over and
Shellfish, small pieces (1 lb.) 5 to 7 min. break up after half the time.
(.45kg)
Fruit
Plastic pouch--1 to 2 3 to 6 min.
(10-oz. package) (.28 kg)
Meat
Bacon (1 lb.) (.45 kg)
Franks(1 lb.) (.45 kg)
Ground meat (1 lb.) (.45kg)
Roast: beef, lamb,
veal, pork
Steaks, chops and cutlets
2 to 5 min.
2 to 5 min.
Poultry
Chicken, broiler-fryer
cut up (21/2to 3 lbs.)
(1.13 to 1.36 kg)
Chicken, whole
(21/2 to 3 lbs.)
(1.13 to 1.36 kg)
Cornish hen
Turkey breast (4 to 6 lbs.)
(1.8 to 2.7 kg)
5 to 7 min.
12 to 16 min.
per lb.
5 to 7 min.
per lb.
15 to 19 min.
17 to 21 min.
7 to 13 min.
per lb.
5 to 9 min.
per lb.
Place unopened package in oven.
Let stand 5 minutes after defrosting.
Place unopened package in oven.
Microwave just until franks can be
separated. Let stand 5 minutes, if
necessary, to complete defrosting.
Turn meat over after half the time.
Use power level 1.
Place unwrapped meat in cooking dish.
Turn over after half the time and shield
warm areas with foil. When finished,
separate pieces and let stand to complete
defrosting.
Place wrapped chicken in dish. Unwrap
and turn over after half the time. When
finished, separate pieces and microwave
2 to 4 minutes more, if necessary.
Let stand to finish defrosting.
Place wrapped chicken in dish. After half
the time, unwrap and turn chicken over.
Shield warm areas with foil. Finish
defrosting. If necessary, run cold water in
the cavity until giblets can be removed.
Place unwrapped hen in the oven breast-
side-up. Turn over after half the time.
Run cool water in the cavity until giblets
can be removed.
Place unwrapped breast in dish breast-
side-down. After half the time, turn over
and shield warm areas with foil. Finish
defrosting. Let stand 1 to 2 hours in
refrigerator to complete defrosting.
17
49-401431v03 4/26/01 2:45 PM Page 18
Operating Instructions
Time Features

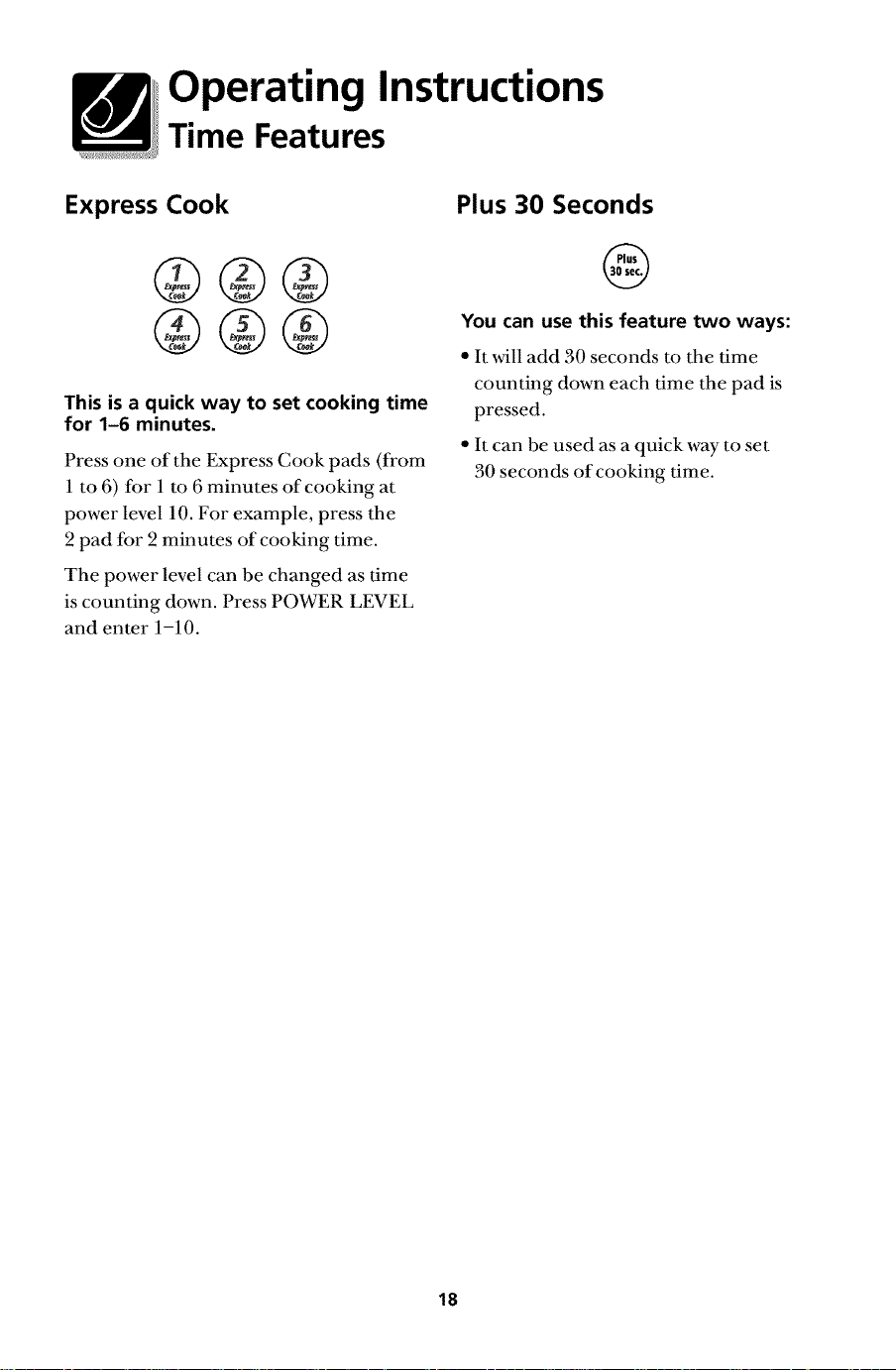

Express Cook
®®®
®®®
This is a quick way to set cooking time
for 1-6 minutes.
Press one of the Express Cook pads (from
1 to 6) for 1 to 6 minutes of cooking at
power level 10. For example, press the
2 pad for 2 minutes of cooking time.
The power level can be changed as time
is counting down. Press POWER LEVEL
and enter 1-10.
Plus 30 Seconds
@
You can use this feature two ways:
•It will add 30 seconds to the time
counting down each time the pad is
pressed.
• It can be used as a quick way to set
30 seconds of cooking time.
18
49-401431v03 4/26/01 2:45 PM Page 19
Operating Instructions

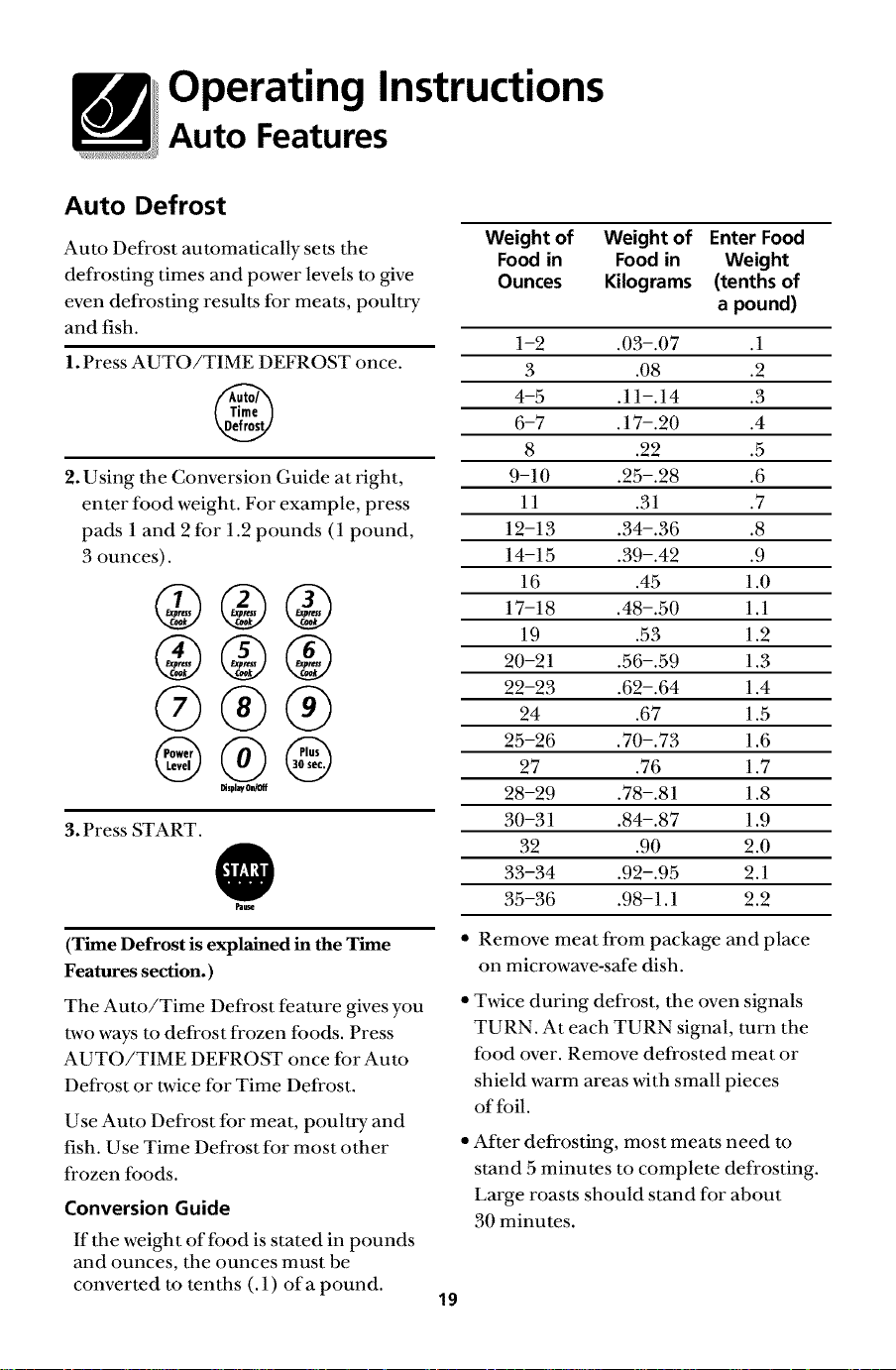

Auto Features
Auto Defrost
Auto Defrost automatically sets the
defrosting times and power levels to give
even defrosting results for meats, poultry
and fish.
1. Press AUTO/TIME DEFROST once.
®
2.Using the Conversion Guide at right,
enter food weight. For example, press
pads 1 and 2 for 1.2 pounds (1 pound,
3 ounces).
(>®®
@®©
DisplayOn_ff
3. Press START.
@
Pause
(Time Defrost is explained in the Time
Features section.)
The Auto/Time Defrost feature gives you
two ways to defrost frozen foods. Press
AUTO/TIME DEFROST once for Auto
Defrost or twice for Time Defrost.
Use Auto Defrost for meat, poultry and
fish. Use Time Defrost for most other
frozen foods.
Conversion Guide
If the weight of food is stated in pounds
and ounces, the ounces must be
converted to tenths (.1) of a pound.
Weight of Weight of Enter Food
Food in Food in Weight
Ounces Kilograms (tenths of
a pound)
1-2 .03-.07 .1
3 .08 .2
4-5 .11-.14 .3
6-7 .17-.20 .4
8 .22 .5
9-10 .25-.28 .6
11 .31 .7
12-13 .34-.36 .8
14-15 .39-.42 .9
16 .45 1.0
17-18 .48-.50 1.1
19 .53 1.2
20-21 .56-.59 1.3
22-23 .62-.64 1.4
24 .67 1.5
25-26 .70-.73 1.6
27 .76 1.7
28-29 .78-.81 1.8
30-31 .84-.87 1.9
32 .90 2.0
33-34 .92-.95 2.1
35-36 .98-1.1 2.2
• Remove meat from package and place
on microwave-safe dish.
• Twice during defrost, the oven signals
TURN. At each TURN signal, turn the
food over. Remove defrosted meat or
shield warm areas with small pieces
of foil.
• After defrosting, most meats need to
stand 5 minutes to complete defrosting.
Large roasts should stand for about
30 minutes.
19
49-401431v03 4/26/01 2:45 PM Page 20
Operating Instructions
Temperature Features

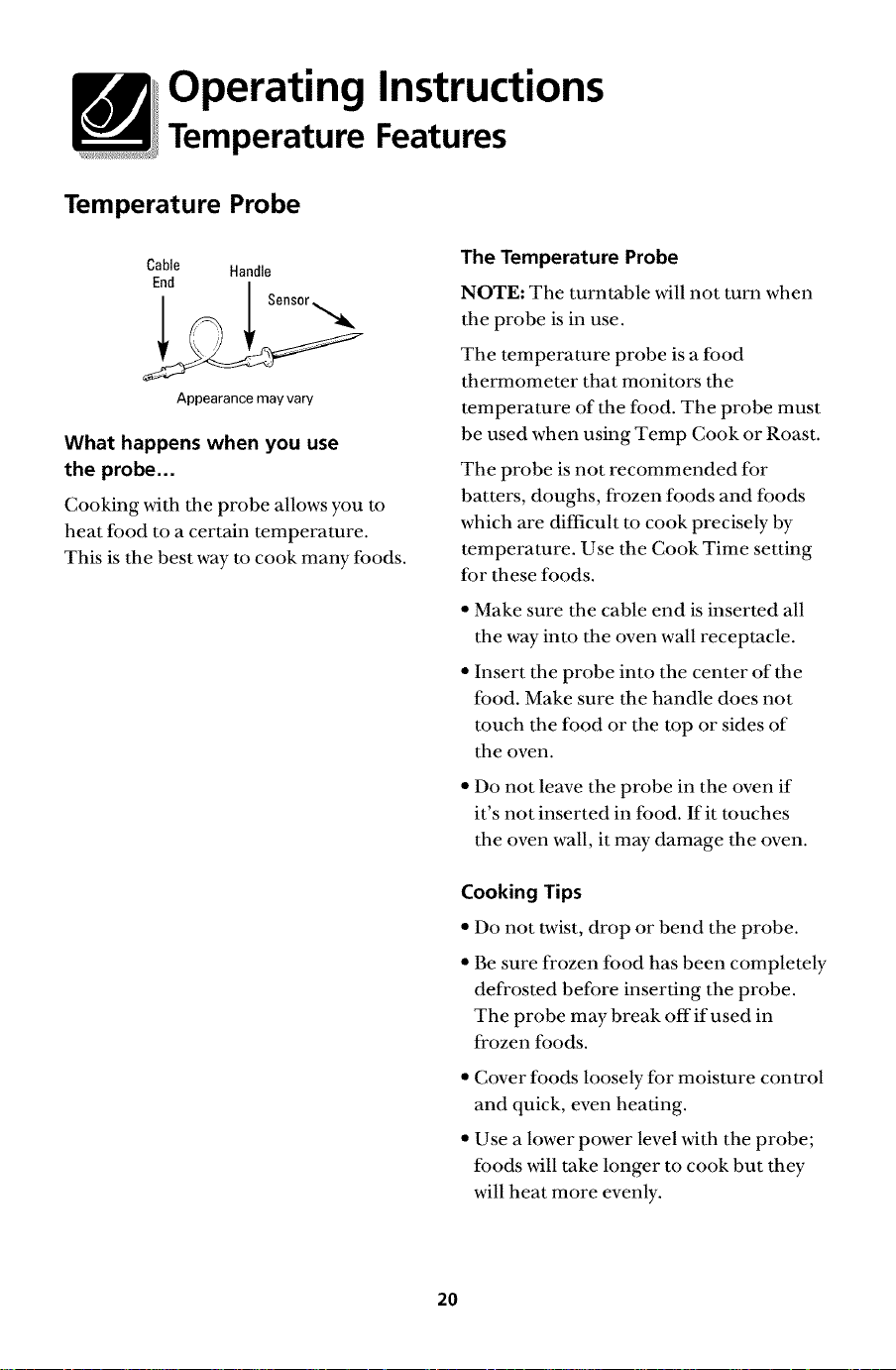

Temperature Probe
Cable Handle
End I
/ / Sensor
Appearance may vary
What happens when you use
the probe...
Cooking with the probe allows you to
heat food to a certain temperature.
This is the best way to cook many foods.
The Temperature Probe
NOTE: The turntable will not turn when
the probe is in use.
The temperature probe is a food
thermometer that monitors the
temperature of the food. The probe must
be used when using Temp Cook or Roast.
The probe is not recommended for
batters, doughs, frozen foods and foods
which are difficult to cook precisely by
temperature. Use the Cook Time setting
for these foods.
• Make sure the cable end is inserted all
the way into the oven wall receptacle.
• Insert the probe into the center of the
food. Make sure the handle does not
touch the food or the top or sides of
the oven.
• Do not leave the probe in the oven if
it's not inserted in food. If it touches
the oven wall, it may damage the oven.
Cooking Tips
• Do not twist, drop or bend the probe.
• Be sure frozen food has been completely
defrosted before inserting the probe.
The probe may break off if used in
frozen foods.
• Cover foods loosely for moisture control
and quick, even heating.
• Use a lower power level with the probe;
foods will take longer to cook but they
will heat more evenly.
2O
49-401431v03 4/26/01 2:45 PM Page 21
Operating Instructions
Temperature Features

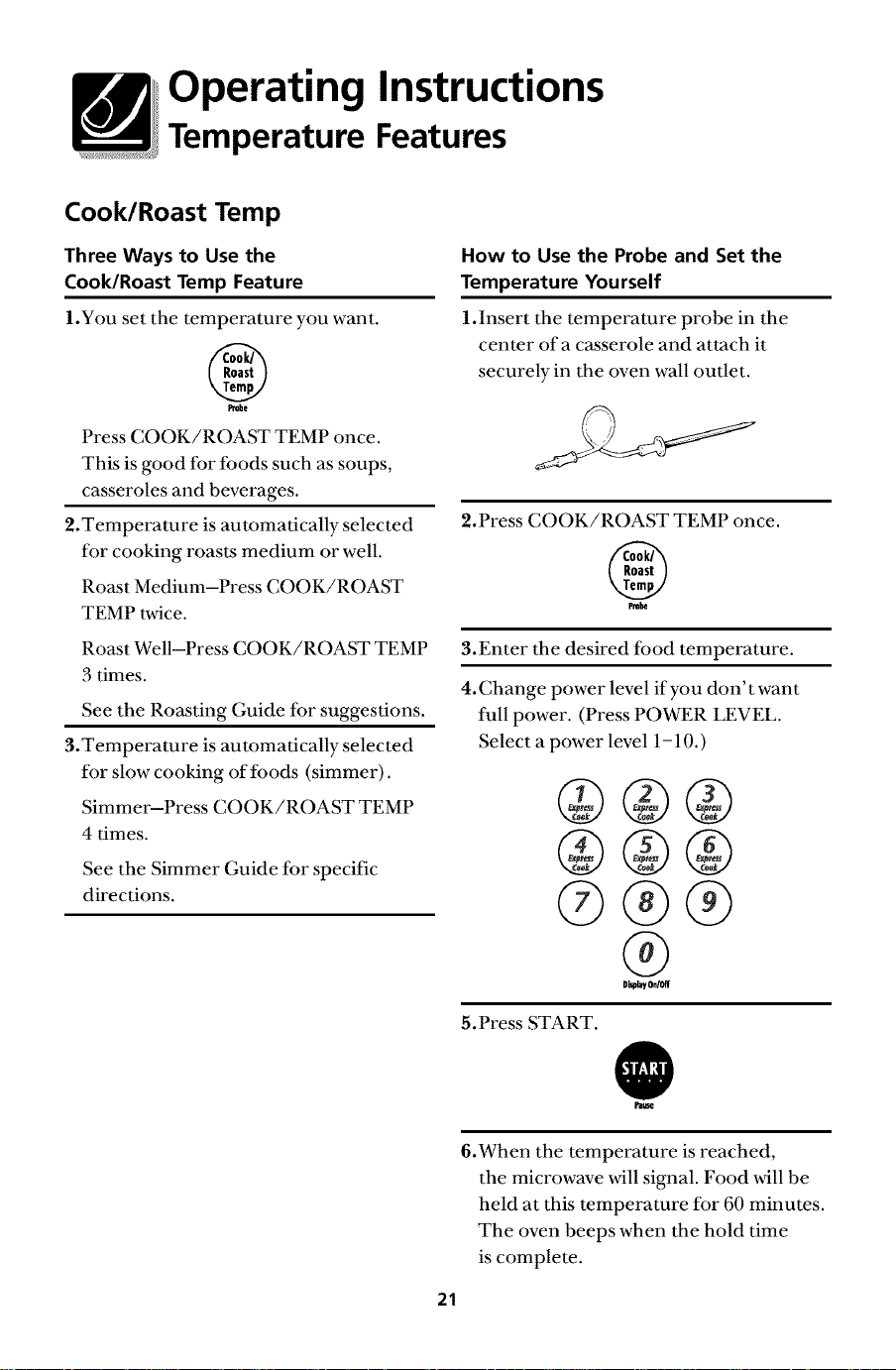

Cook/Roast Temp
Three Ways to Use the
Cook/Roast Temp Feature
1.You set the temperature you want.
®
Probe
Press COOK/ROAST TEMP once.
This is good for foods such as soups,
casseroles and beverages.
2.Temperature is automatically selected
for cooking roasts medium or well.
Roast Medium-Press COOK/ROAST
TEMP twice.
Roast Well-Press COOK/ROAST TEMP
3 times.
See the Roasting Guide for suggestions.
3.Temperature is automatically selected
for slow cooking of foods (simmer).
Simmer-Press COOK/ROAST TEMP
4 times.
See the Simmer Guide for specific
directions.
How to Use the Probe and Set the
Temperature Yourself
1.Insert the temperature probe in the
center of a casserole and attach it
securely in the oven wall outlet.
2.Press COOK/ROAST TEMP once.
®
3.Enter the desired food temperature.
4.Change power level if you don' t want
full power. (Press POWER LEVEL.
Select a power level 1-10.)
©®®
@
DisplayOn/Off
5.Press START.
@
6.When the temperature is reached,
the microwave will signal. Food will be
held at this temperature for 60 minutes.
The oven beeps when the hold time
is complete.
21
49-401431v03 4/26/01 2:45 PM Page 22
Operating Instructions
Temperature Features

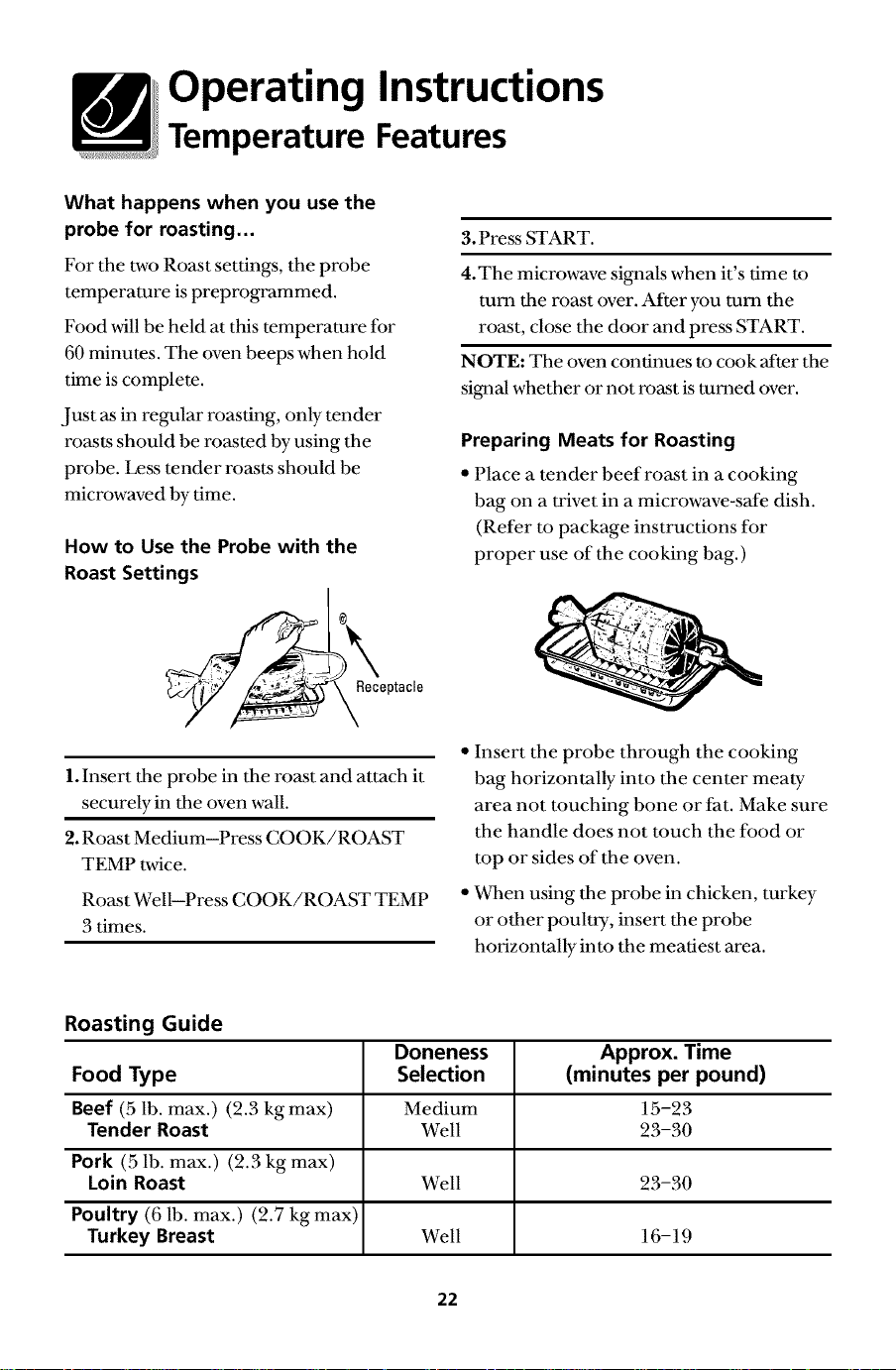

What happens when you use the
probe for roasting...
For the two Roast settings, the probe
temperature is preprogrammed.
Food will be held at this temperature for
60 minutes. The oven beeps when hold
time is complete.
Just as in regular roasting, only tender
roasts should be roasted by using the
probe. Less tender roasts should be
microwaved by time.
How to Use the Probe with the
Roast Settings
@)_ceptacle
1. Insert the probe in the roast and attach it
securely in the oven wall.
2. Roast Medium--Press COOK/ROAST
TEMP twice.
Roast Well--Press COOK/ROAST TEMP
3 times.
3. Press START.
4.The microwave signals when it's time to
turn the roast over. After you turn the
roast, close the door and press START.
NOTE: The oven continues to cook after the
signal whether or not roast is turned over.
Preparing Meats for Roasting
•Place a tender beef roast in a cooking
bag on a trivet in a microwave-safe dish.
(Refer to package instructions for
proper use of the cooking bag.)
•Insert the probe through the cooking
bag horizontally into the center meaty
area not touching bone or fat. Make sure
the handle does not touch the food or
top or sides of the oven.
• When using the probe in chicken, turkey
or other poultry, insert the probe
horizontally into the meatiest area.
Roasting Guide
Doneness Approx. Time
Food Type Selection (minutes per pound)
Beef (5 lb. max.) (2.3 kg max) Medium 15-23
Tender Roast Well 23-30
Pork (5 lb. max.) (2.3 kg max)
Loin Roast Well 23-30
Poultry (6 lb. max.) (2.7 kg max)
Turkey Breast Well 16-19
22
49-401431v03 4/26/01 2:45 PM Page 23
Operating Instructions
Temperature Features
Press COOK/ROAST TEMP
4 times to select Simmer.
How to Use the Probe to Simmer
The Simmer feature heats food to 180°F
(82°C). and holds it at that temperature
up to 12 hours or until you remove it and
press CLEAR/OFF.
1.Insert the temperature probe into the
food, resting it on the side of the dish.
Attach it securely in the oven wall.
2.Press COOK/ROAST TEMP 4 times to
select Simmer.
3.Press START. If you need to stir the food,
restart the oven by pressing START again.
When the simmer temperature is
reached, the oven holds the food at
that temperature until CLEAR/OFF
is pressed.

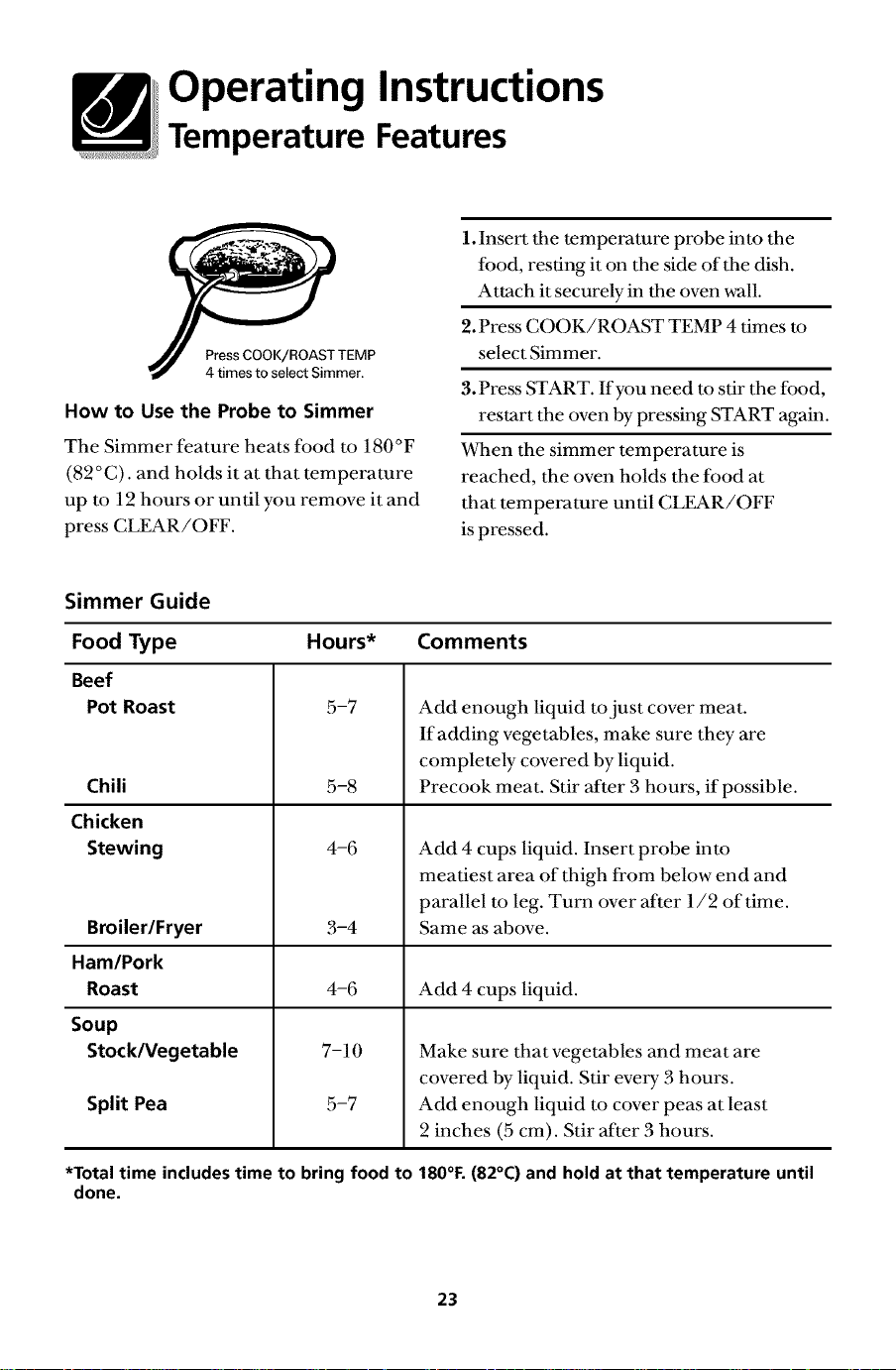

Simmer Guide
Food Type
Beef
Pot Roast
Chili
Chicken
Stewing
Hours* Comments
Broiler/Fryer
Ham/Pork
Roast
Soup
Stock/Vegetable
Split Pea
5-7
5-8
4-6
Add enough liquid to just cover meat.
If adding vegetables, make sure they are
completely covered by liquid.
Precook meat. Stir after 3 hours, if possible.
3-4
4-6 Add 4 cups liquid.
7-10
5-7
Add 4 cups liquid. Insert probe into
meatiest area of thigh from below end and
parallel to leg. Turn over after 1/2 of time.
Same as above.
Make sure that vegetables and meat are
covered by liquid. Stir every 3 hours.
Add enough liquid to cover peas at least
9 inches (5 cm). Stir after 3 hours.
*Total time includes time to bring food to 180°F. (82°C) and hold at that temperature until
done.
23
49-401431v03 4/26/01 2:45 PM Page 24
Operating Instructions
Sensor Features

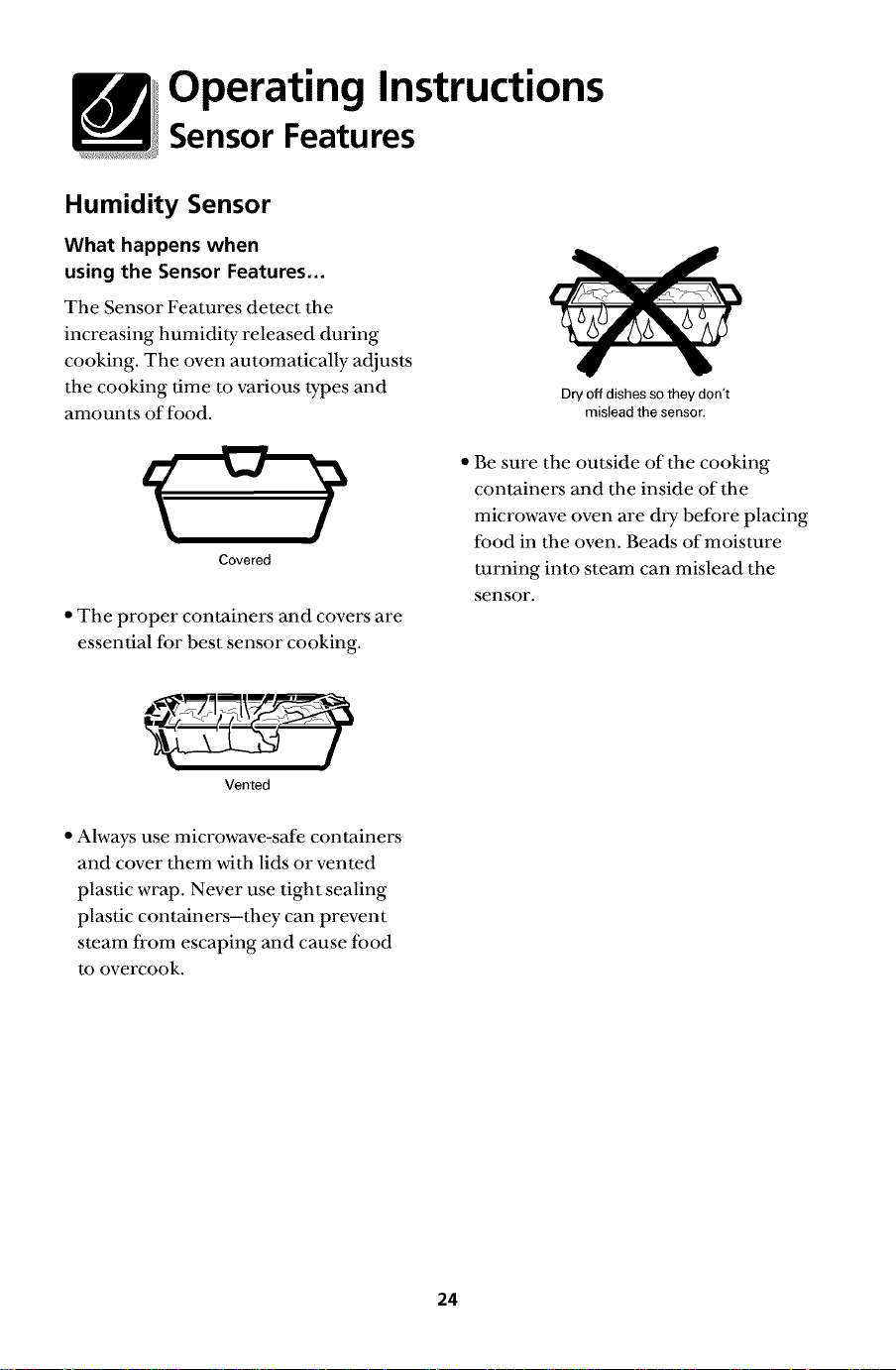

Humidity Sensor
What happens when
using the Sensor Features...
The Sensor Features detect the
increasing humidity released during
cooking. The oven automatically adjusts
the cooking time to various types and
amounts of food.
Covered
•The proper containers and covers are
essential for best sensor cooking.
Dry off dishes so they don't
mislead the sensor.
• Be sure the outside of the cooking
containers and the inside of the
microwave oven are dry before placing
food in the oven. Beads of moisture
turning into steam can mislead the
sensor.
Vented
• Always use microwave-safe containers
and cover them with lids or vented
plastic wrap. Never use tight sealing
plastic containers-they can prevent
steam from escaping and cause food
to overcook.
24
49-401431v03 4/26/01 2:45 PM Page 25
Operating Instructions
Sensor Features

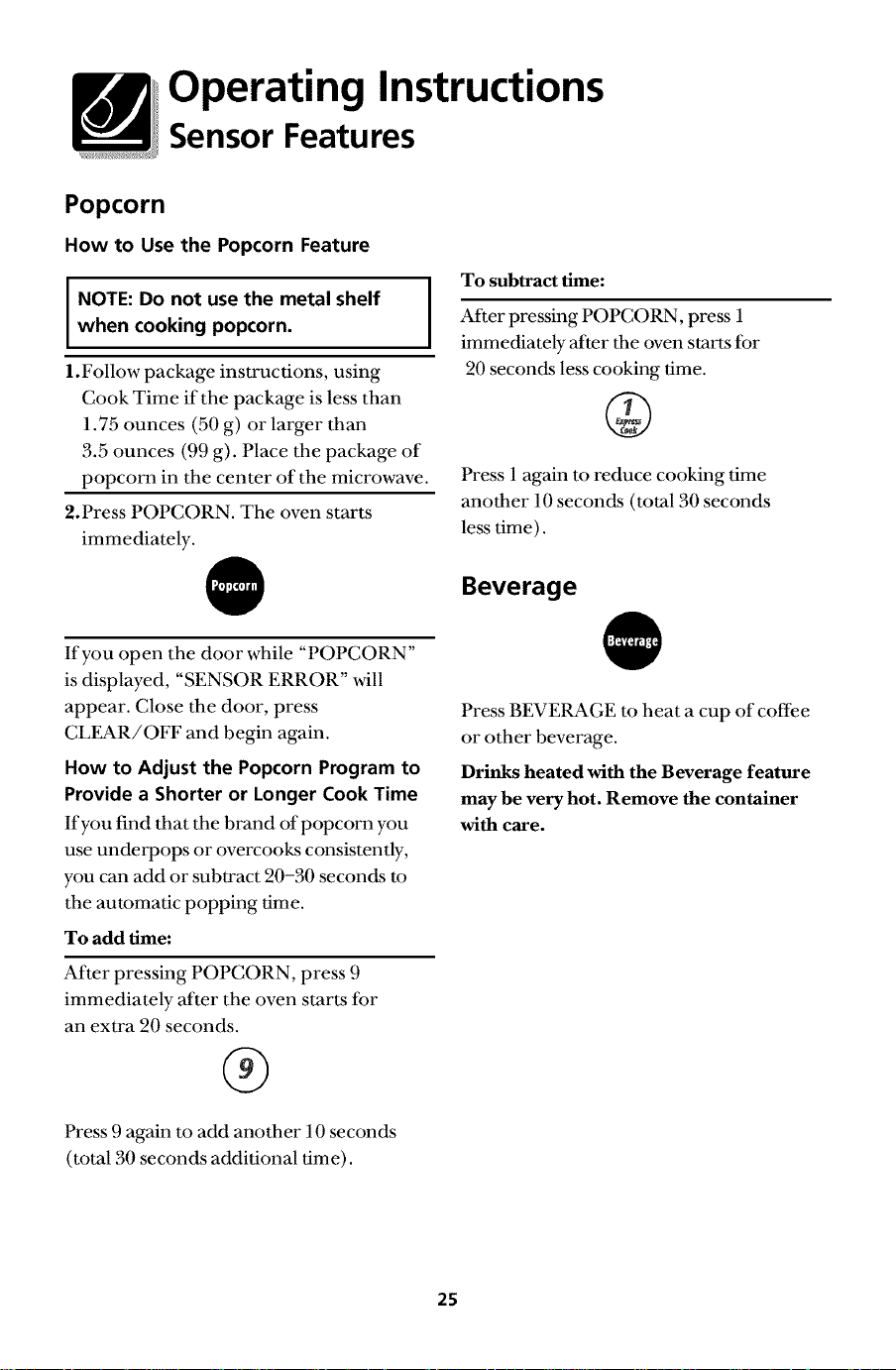

Popcorn
How to Use the Popcorn Feature
I
NOTE: Do not use the metal shelf I
I
when cooking popcorn.
1.Follow package instructions, using
Cook Time if the package is less than
1.75 ounces (50 g) or larger than
3.5 ounces (99 g). Place the package of
popcorn in the center of the microwave.
2.Press POPCORN. The oven starts
immediately.
To subtract time:
After pressing POPCORN, press 1
immediately after the oven starts for
20 seconds less cooking time.
©
Press 1 again to reduce cooking time
another 10 secon&s (total 30 seconds
less time).
Beverage
If you open the door while "POPCORN"
is displayed, "SENSOR ERROR" will
appear. Close the door, press
CLEAR/OFF and begin again.
How to Adjust the Popcorn Program to
Provide a Shorter or Longer Cook Time
If you find that the brand of popcorn you
use underpops or overcooks consistently,
you can add or subtract 90-30 secon&s to
the automatic popping time.
To add time:
After pressing POPCORN, press 9
immediately after the oven starts for
an extra 20 seconds.
®
Press 9 again to add another 10 seconds
(total 30 seconds additional time).
Press BEVERAGE to heat a cup of coffee
or other beverage.
Drinks heated with the Beverage feature
may be very hot. Remove the container
with care.
25
49-401431v03 4/26/01 2:45 PM Page 26
Operating Instructions
Sensor Features

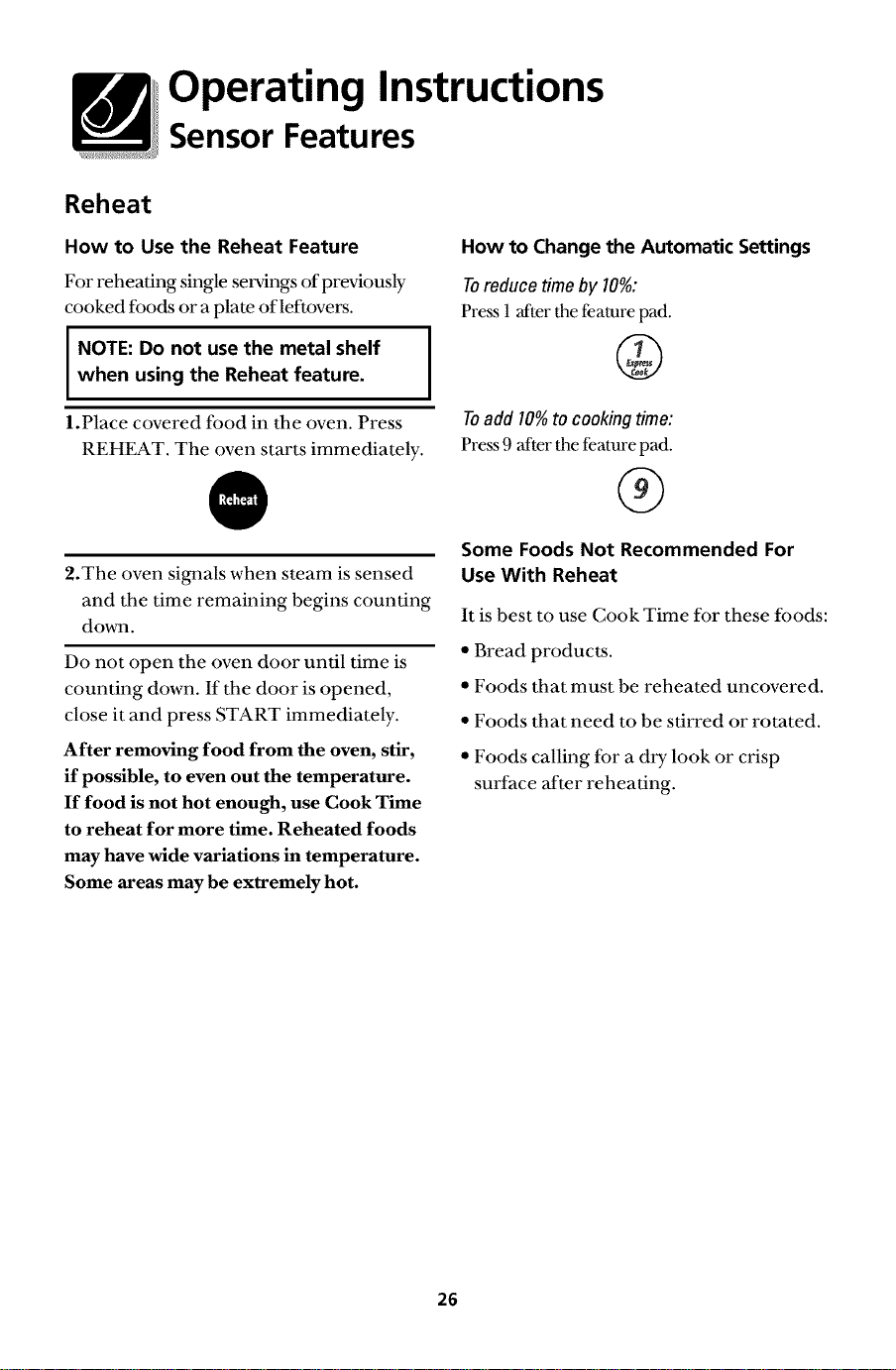

Reheat
How to Use the Reheat Feature
For reheating single servings of previously
cooked foods or a plate of leftovers.
NOTE: Do not use the metal shelf I
I
when using the Reheat feature.
l.Place covered food in the oven. Press
REHEAT. The oven starts immediately.
@
2.The oven signals when steam is sensed
and the time remaining begins counting
down.
Do not open the oven door until time is
counting down. If the door is opened,
close it and press START immediately.
After removing food from the oven, stir,
if possible, to even out the temperature.
If food is not hot enough, use Cook Time
to reheat for more time. Reheated foods
may have wide variations in temperature.
Some areas may be extremely hot.
How to Change the Automatic Settings
Toreduce time by 10%:
Press 1 after the feature pad.
©
Toadd 10%tocooking time:
Press 9 after the feature pad.
®
Some Foods Not Recommended For
Use With Reheat
It is best to use Cook Time for these foods:
• Bread products.
• Foods that must be reheated uncovered.
• Foods that need to be stirred or rotated.
• Foods calling for a dry look or crisp
surface after reheating.
26
49-401431v03 4/26/01 2:45 PM Page 27
Operating Instructions
Sensor Features

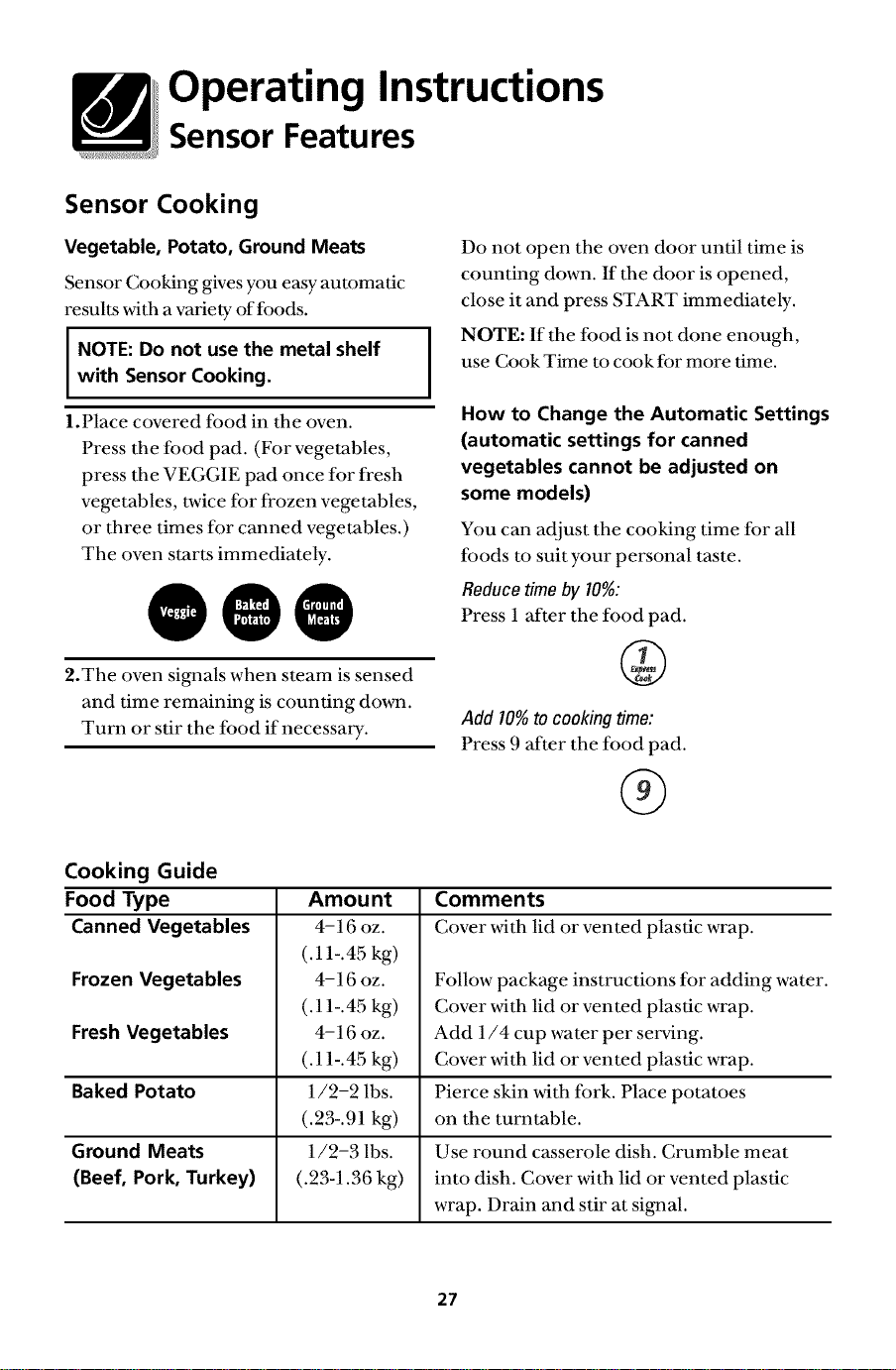

Sensor Cooking
Vegetable, Potato, Ground Meats
Sensor Cooking gives you easy automatic
results with a variety of foods.
NOTE: Do not use the metal shelf
with Sensor Cooking.
1.Place covered food in the oven.
Press the food pad. (For vegetables,
press the VEGGIE pad once for fresh
vegetables, twice for frozen vegetables,
or three times for canned vegetables.)
The oven starts immediately.
@00
2.The oven signals when steam is sensed
and time remaining is counting down.
Turn or stir the food if necessary.
I
Do not open the oven door until time is
counting down. If the door is opened,
close it and press START immediately.
NOTE: If the food is not done enough,
use Cook Time to cook for more time.
How to Change the Automatic Settings
(automatic settings for canned
vegetables cannot be adjusted on
some models)
You can adjust the cooking time for all
foods to suit your personal taste.
Reducetimeby 10%:
Press 1 after the food pad.
Add 10% to cooking time:
Press 9 after the food pad.
Cooking Guide
Food Type
Canned Vegetables
Frozen Vegetables
Fresh Vegetables
Comments
Cover with lid or vented plastic wrap.
Amount
4-16 oz.
(.] 1-.45 kg)
4-16 oz.
(.11-.45 kg)
4-16 oz.
(.11-.45 kg)
1/2-2 lbs.
(.23-.91 kg)
1/2-3 lbs.
(.23-1.36 kg)
Baked Potato
Ground Meats Use round casserole dish. Crumble meat
(Beef, Pork, Turkey) into dish. Cover with lid or vented plastic
wrap. Drain and stir at signal.
Follow package instructions for adding water.
Cover with lid or vented plastic wrap.
Add 1/4 cup water per serving.
Cover with lid or vented plastic wrap.
Pierce skin with fork. Place potatoes
on the turntable.
27
49-401431v03 4/26/01 2:45 PM Page 28
Operating Instructions
Other Features Your Model May
Have

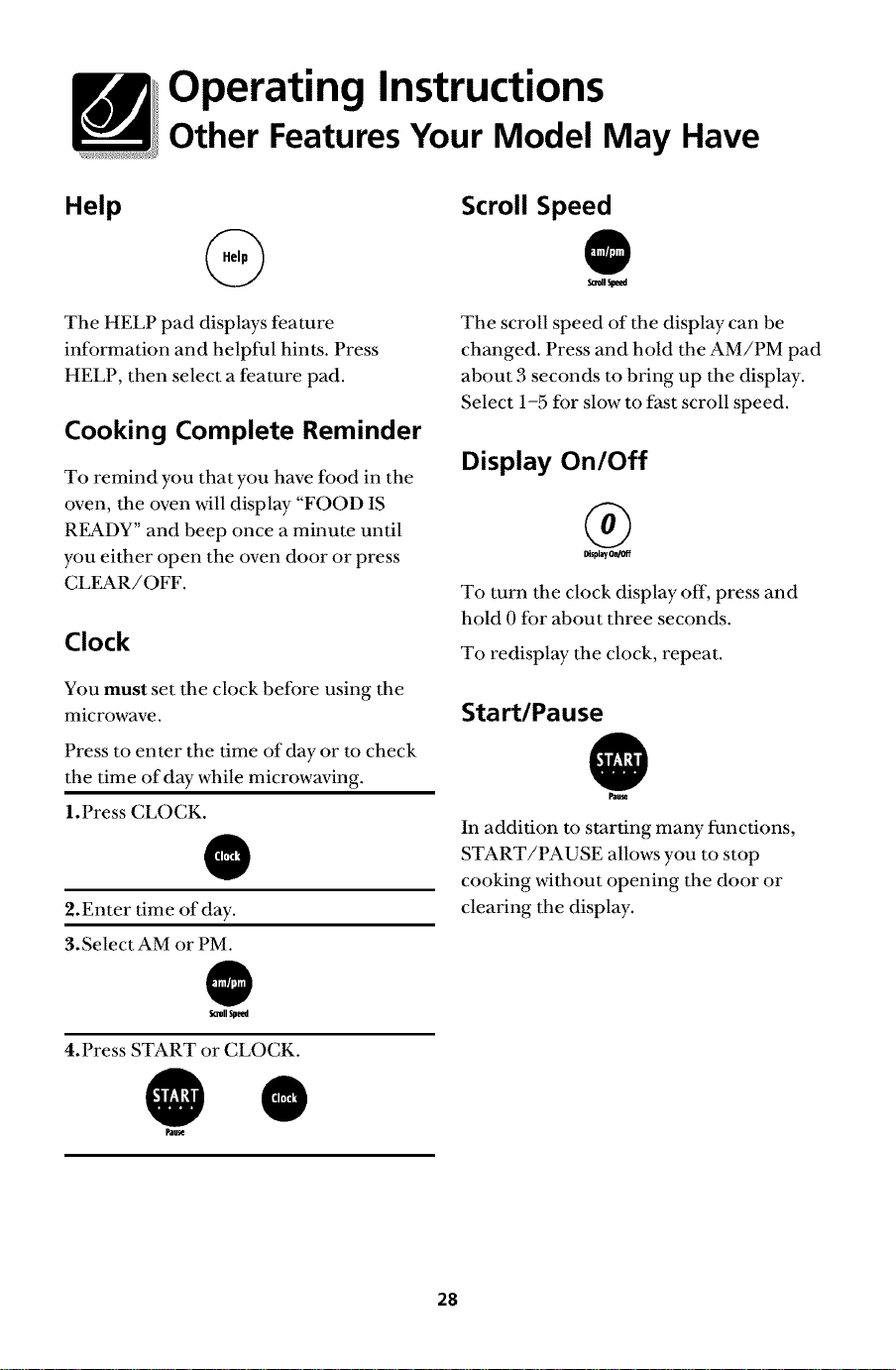

Help
The HELP pad displays feature
information and helpful hints. Press
HELP, then select a feature pad.
Cooking Complete Reminder
To remind you that you have food in the
oven, the oven will display "FOOD IS
READY" and beep once a minute until
you either open the oven door or press
CLEAR/OFF.
Clock
You must set the clock before using the
microwave.
Press to enter the time of day or to check
the time of day while microwaving.
1.Press CLOCK.
@
2.Enter time of day.
3.Select AM or PM.
_r011_ml
Scroll Speed
@
The scroll speed of the display can be
changed. Press and hold the AM/PM pad
about 3 seconds to bring up the display.
Select 1-5 for slow to fast scroll speed.
Display On/Off
®
Display On/Off
To turn the clock display off', press and
hold 0 for about three seconds.
To redisplay the clock, repeat.
Start/Pause
@
In addition to starting many functions,
START/PAUSE allows you to stop
cooking without opening the door or
clearing the display.
4.Press START or CLOCK.
@o
Pare
28

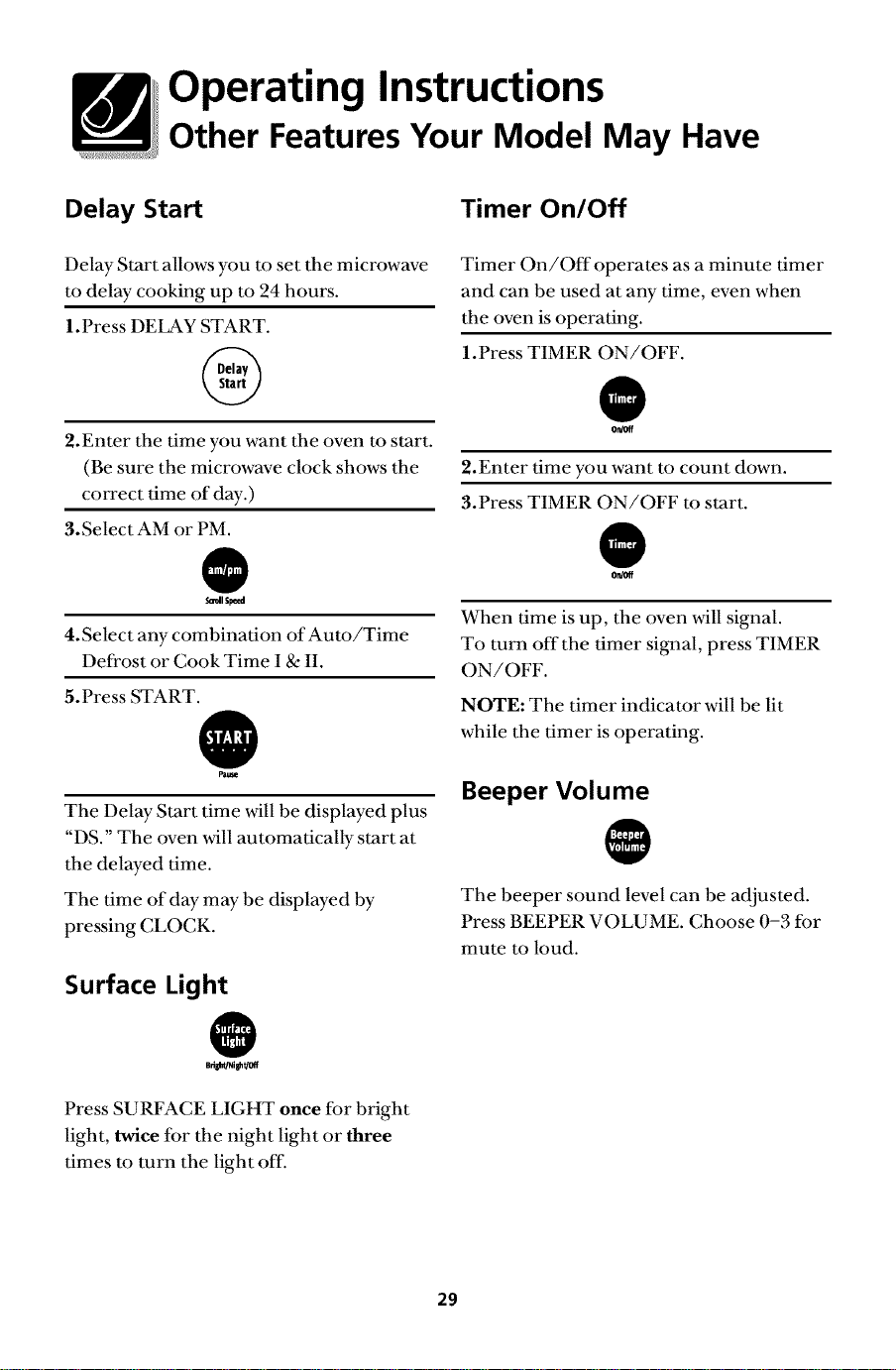

49-401431v03 4/26/01 2:45 PM Page 29
Operating Instructions
Other Features Your Model May
Have
Delay Start
Delay Start allows you to set the microwave
to delay cooking up to 24 hours.
1.Press DELAY START.
2.Enter the time you want the oven to start.
(Be sure the microwave clock shows the
correct time of day.)
3.Select AM or PM.
@
4. Select any combination of Auto/Time
Defrost or Cook Time I & II.
5. Press START.
The Delay Start time will be displayed plus
"DS." The oven will automatically start at
the delayed time.
The time of day may be displayed by
pressing CLOCK.
Surface Light
BHl_/Ni_lt/Off
Press SURFACE LIGHT once for bright
light, twice for the night light or three
times to turn the light off.
Timer On/Off
Timer On/Off operates as a minute timer
and can be used at any time, even when
the oven is operating.
1.Press TIMER ON/OFF.
@
0n/off
2.Enter time you want to count down.
3.Press TIMER ON/OFF to start.
@
0n/off
When time is up, the oven will signal.
To turn off the timer signal, press TIMER
ON/OFF.
NOTE: The timer indicator will be lit
while the timer is operating.
Beeper Volume
The beeper sound level can be adjusted.
Press BEEPER VOLUME. Choose 0-3 for
mute to loud.
29
49-401431v03 4/26/01 2:45 PM Page 30

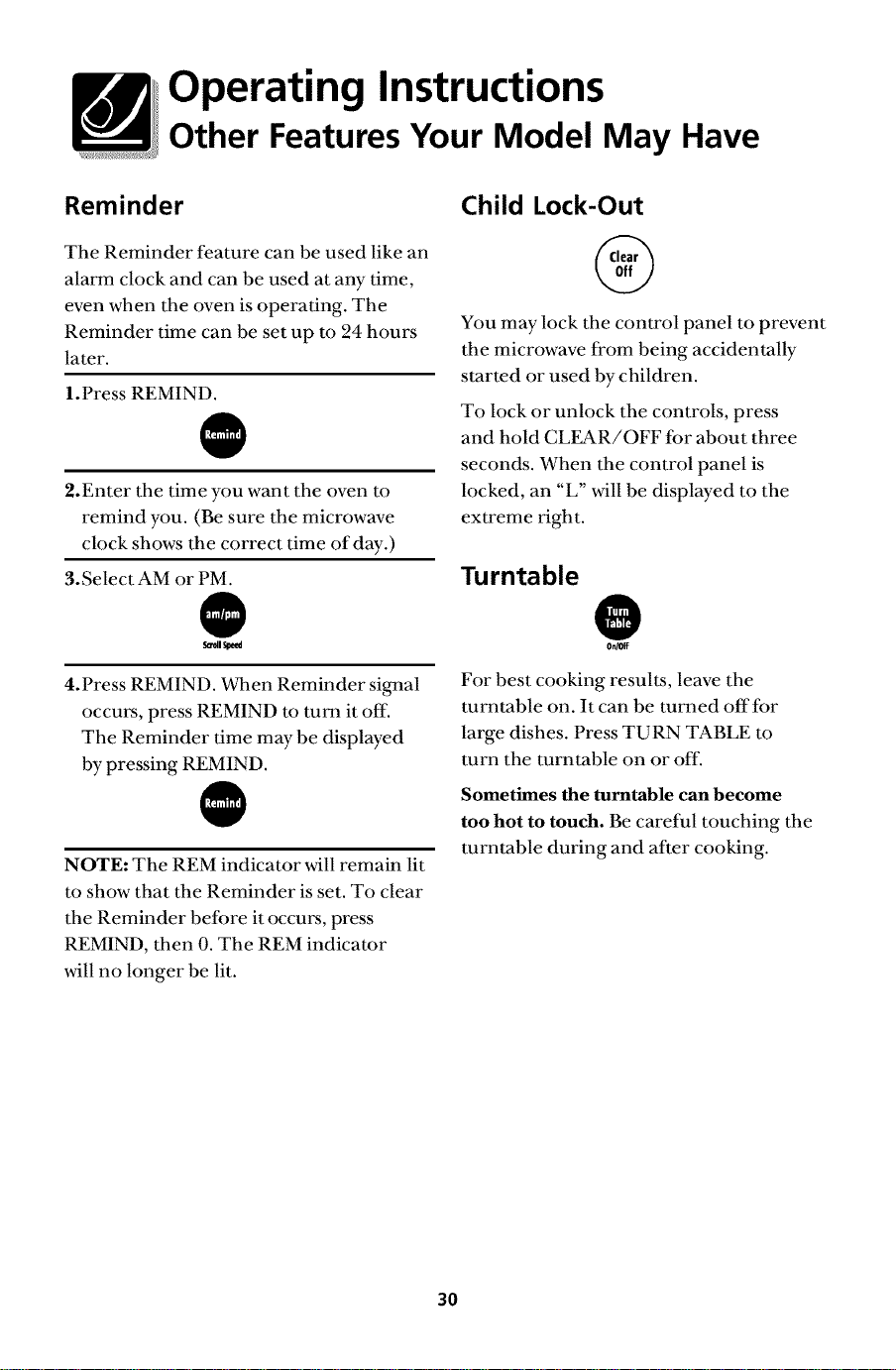

Operating Instructions
Other Features Your Model May
Have
Reminder
The Reminder feature can be used like an
alarm clock and can be used at any time,
even when the oven is operating. The
Reminder time can be set up to 24 hours
later.
1.Press REMIND.
2.Enter the time you want the oven to
remind you. (Be sure the microwave
clock shows the correct time of day.)
3.Select AM or PM.
@
4.Press REMIND. When Reminder signal
occurs, press REMIND to turn it off.
The Reminder time may be displayed
by pressing REMIND.
NOTE: The REM indicator will remain lit
to show that the Reminder is set. To clear
the Reminder before it occurs, press
REMIND, then 0. The REM indicator
will no longer be lit.
Child Lock-Out
@
You may lock the control panel to prevent
the microwave from being accidentally
started or used by children.
To lock or unlock the controls, press
and hold CLEAR/OFF for about three
seconds. When the control panel is
locked, an "L" will be displayed to the
extreme right.
Turntable
OnlOff
For best cooking results, leave the
turntable on. It can be turned offfor
large dishes. Press TURN TABLE to
turn the turntable on or off.
Sometimes the turntable can become
too hot to touch. Be careful touching the
turntable during and after cooking.
3O
49-401431v03 4/26/01 2:45 PM Page 31

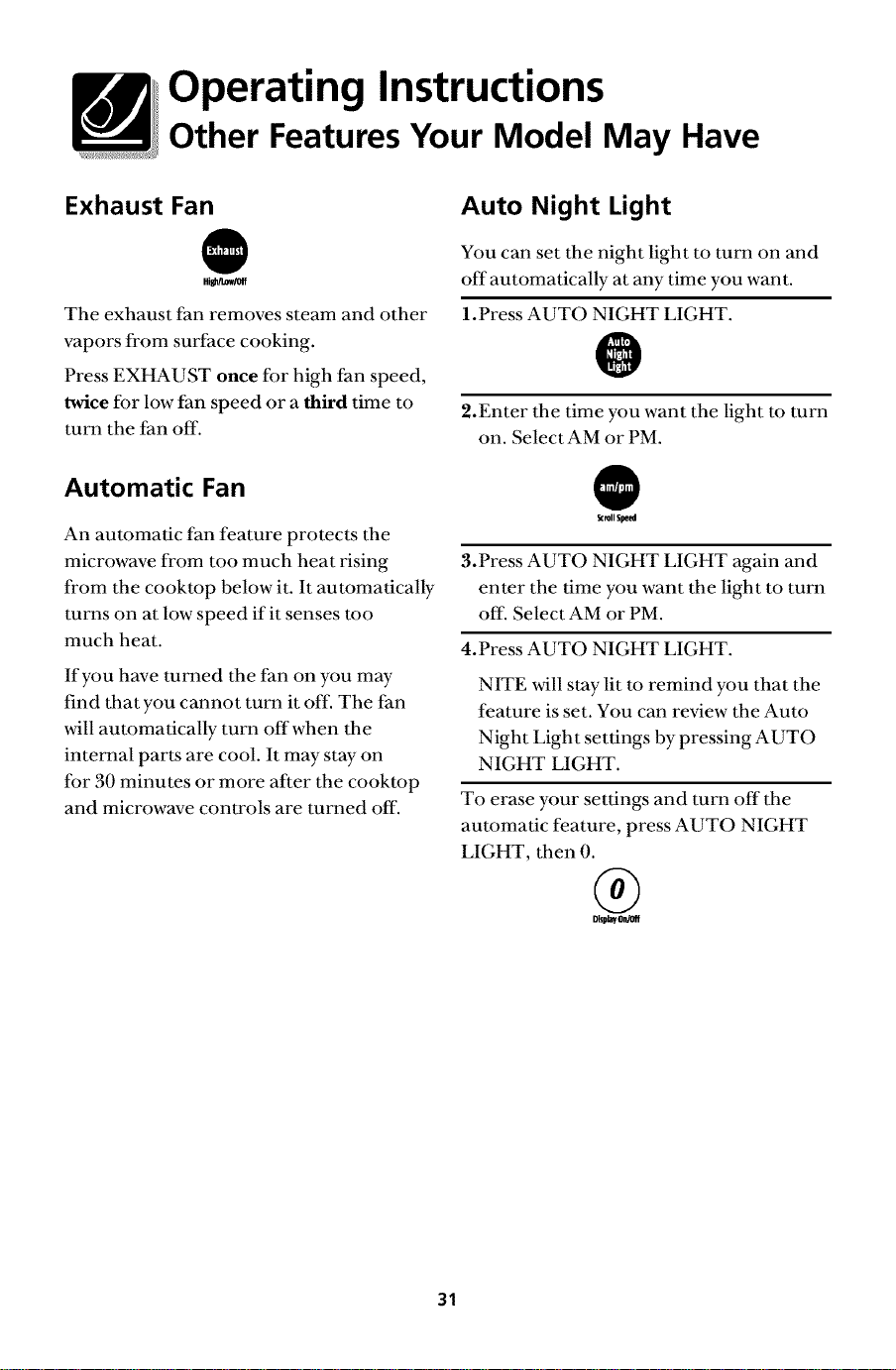

Operating Instructions
Other Features Your Model May
Have
Exhaust Fan
The exhaust fan removes steam and other
vapors from surface cooking.
Press EXHAUST once for high fan speed,
twice for low fan speed or a third time to
turn the fan off.
Automatic Fan
An automatic fan feature protects the
microwave from too much heat rising
from the cooktop below it. It automatically
turns on at low speed if it senses too
much heat.
If you have turned the fan on you may
find that you cannot turn it off. The fan
will automatically turn off when the
internal parts are cool. It may stay on
for 30 minutes or more after the cooktop
and microwave controls are turned off.
Auto Night Light
You can set the night light to turn on and
off automatically at any time you want.
1.Press AUTO NIGHT LIGHT.
2.Enter the time you want the light to turn
on. SelectAM or PM.
@
ScrOllspeed
3.Press AUTO NIGHT LIGHT again and
enter the time you want the light to turn
off. Select AM or PM.
4.Press AUTO NIGHT LIGHT.
NITE will stay lit to remind you that the
feature is set. You can review the Auto
Night Light settings by pressing AUTO
NIGHT LIGHT.
To erase your settings and turn off the
automatic feature, press AUTO NIGHT
LIGHT, then 0.
®
Dlspr_qOn/Off
31

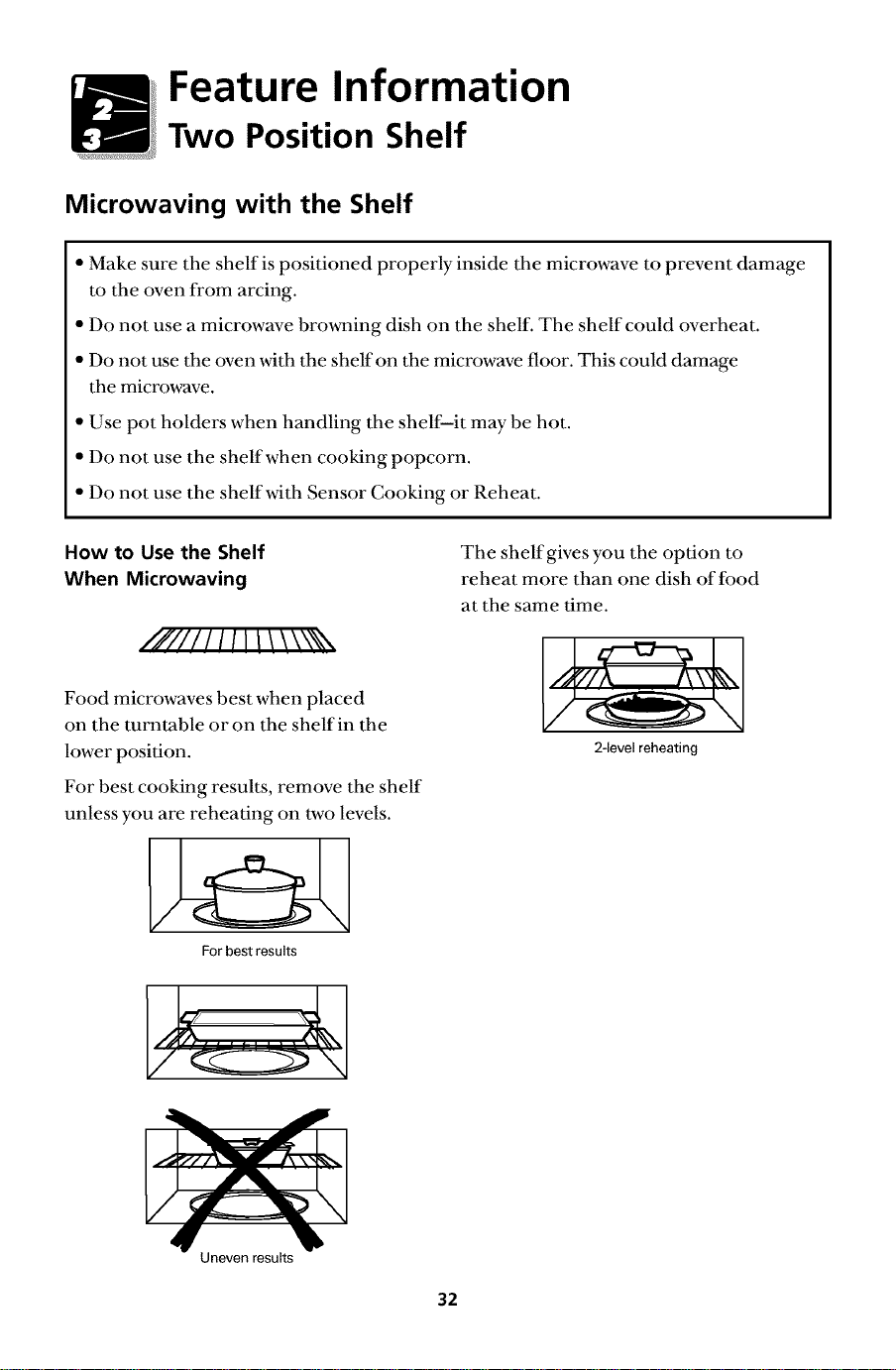

49-401431v03 4/26/01 2:45 PM Page 32
Feature Information
Two Position Shelf
Microwaving with the Shelf
• Make sure the shelf is positioned properly inside the microwave to prevent damage
to the oven from arcing.
• Do not use a microwave browning dish on the shelf. The shelf could overheat.
• Do not use the oven with the shelf on the microwave floor. This could damage
the microwave.
• Use pot holders when handling the shelf-it may be hot.
• Do not use the shelf when cooking popcorn.
• Do not use the shelf with Sensor Cooking or Reheat.
How to Use the Shelf
When Microwaving
////!//I tl !\\\\_\
Food microwaves best when placed
on the turntable or on the shelf in the
lower position.
For best cooking results, remove the shelf
unless you are reheating on two levels.
For best results
Uneven results
The shelf gives you the option to
reheat more than one dish of food
at the same time.
2-level reheating
32

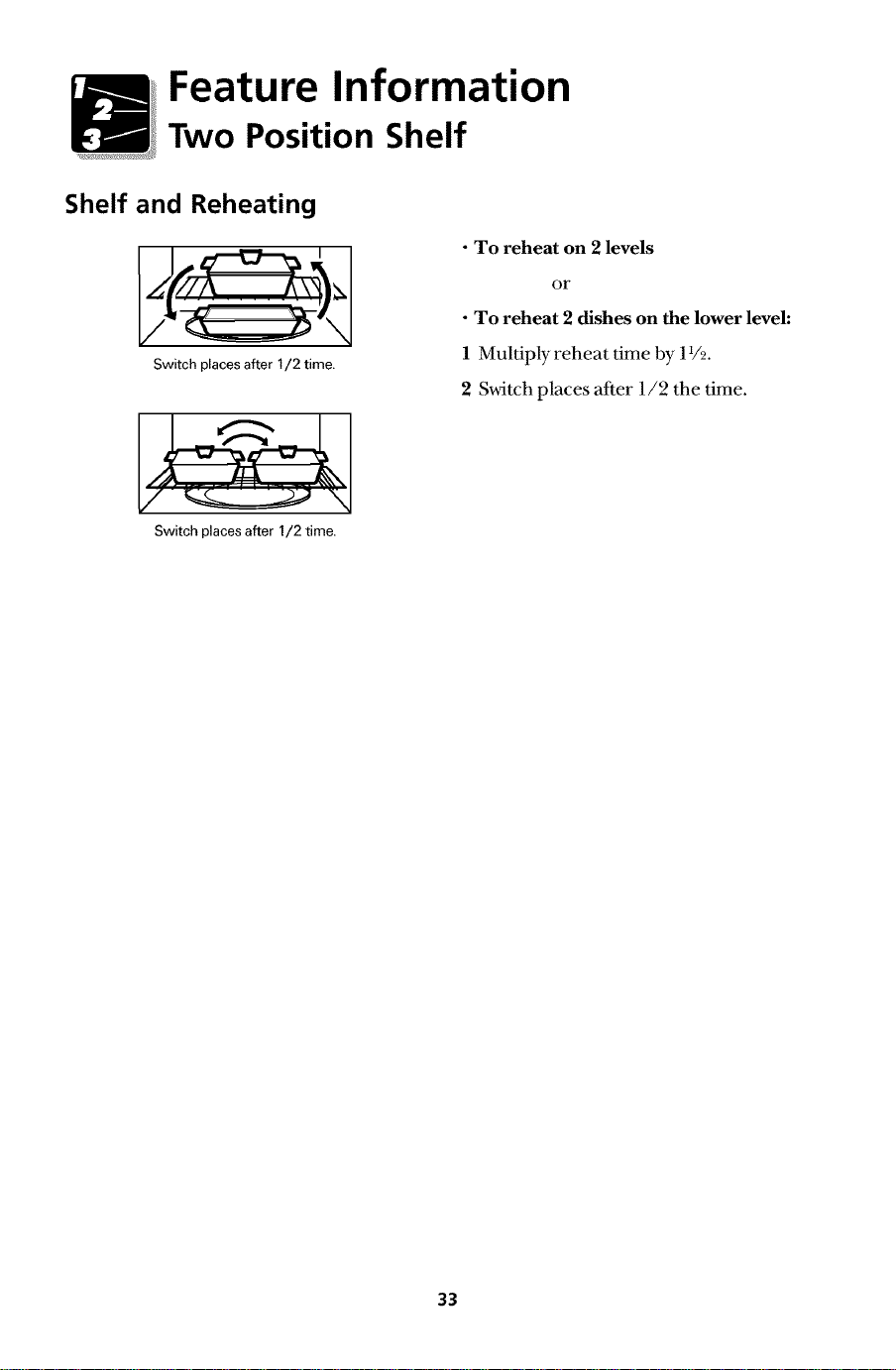

49-401431v03 4/26/01 2:45 PM Page 33
Feature Information
Two Position Shelf
Shelf and Reheating
Switch places after 1/2 time.
V__4
Switch places after 1/2 time.
• To reheat on 2 levels
OF
• To reheat 2 dishes on the lower level:
1 Multiply reheat time by 1I/2.
2 Switch places after 1/2 the time.
33
49-401431v03 4/26/01 2:45 PM Page 34

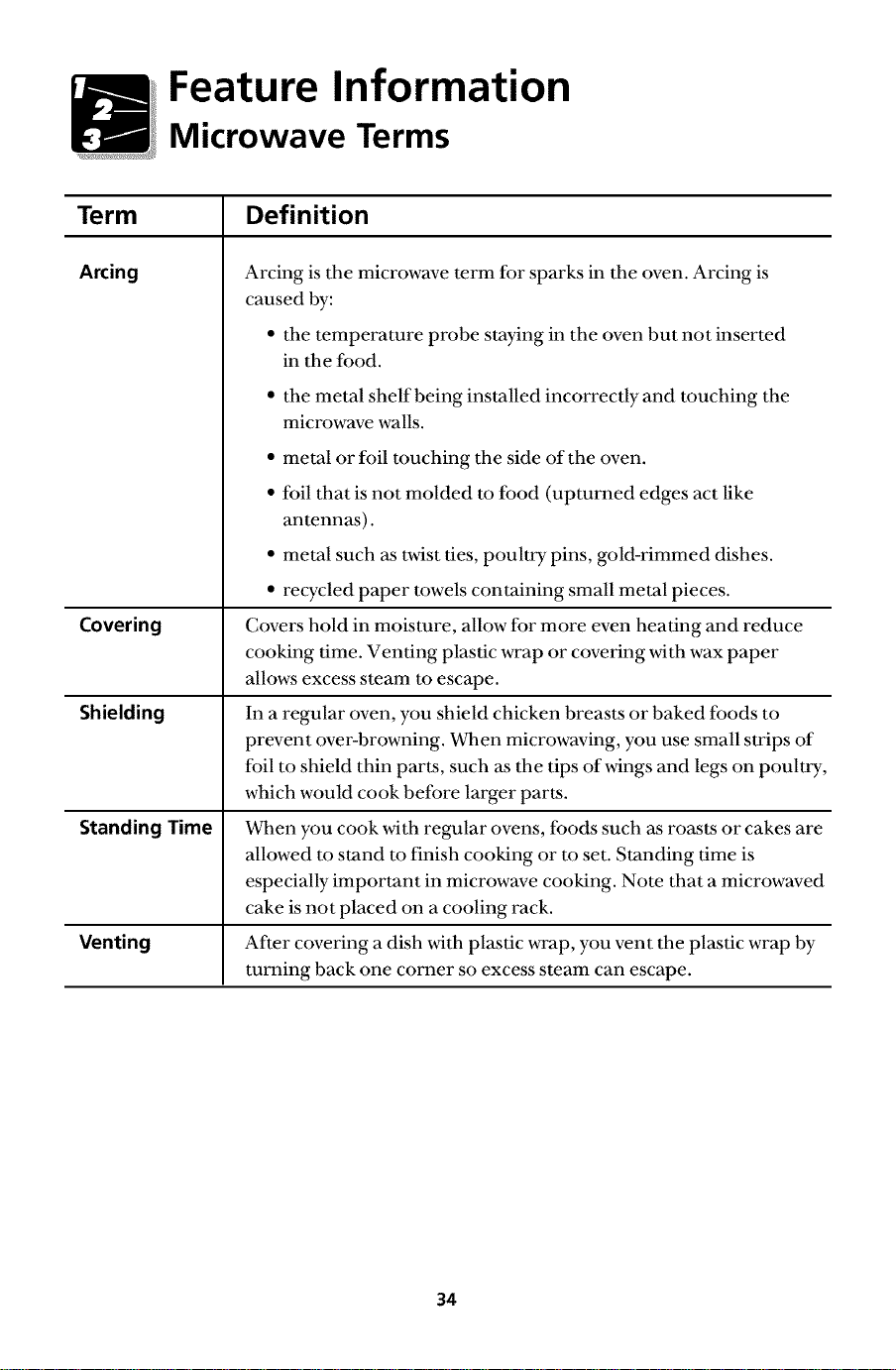

Feature Information
Microwave Terms
Term
Arcing
Covering
Shielding
Standing Time
Venting
Definition
Arcing is the microwave term for sparks in the oven. Arcing is
caused by:
• the temperature probe staying in the oven but not inserted
in the food.
• the metal shelf being installed incorrectly and touching the
microwave walls.
• metal or foil touching the side of the oven.
• foil that is not molded to food (upturned edges act like
antennas).
• metal such as twist ties, poultry pins, gold-rimmed dishes.
• recycled paper towels containing small metal pieces.
Covers hold in moisture, allow for more even heating and reduce
cooking time. Venting plastic wrap or covering with wax paper
allows excess steam to escape.
In a regular oven, you shield chicken breasts or baked foods to
prevent over-browning. When microwaving, you use small strips of
foil to shield thin parts, such as the tips of wings and legs on poultry,
which would cook before larger parts.
When you cook with regular ovens, foods such as roasts or cakes are
allowed to stand to finish cooking or to set. Standing time is
especially important in microwave cooking. Note that a microwaved
cake is not placed on a cooling rack.
After covering a dish with plastic wrap, you vent the plastic wrap by
turning back one corner so excess steam can escape.
34

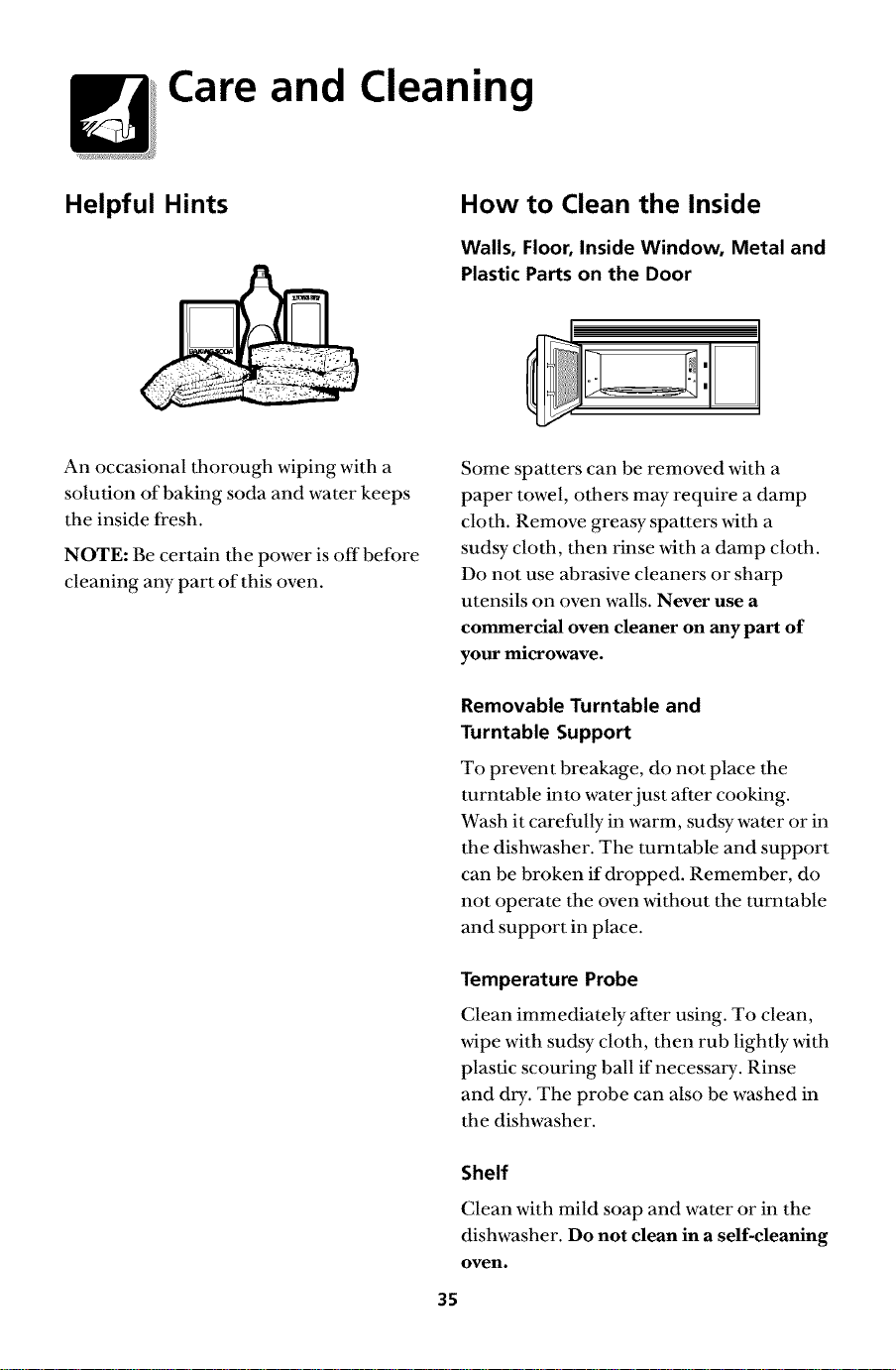

49-401431v03 4/26/01 2:45 PM Page 35
Care and Cleaning
Helpful Hints
How to Clean the Inside
Walls, Floor, Inside Window, Metal and
Plastic Parts on the Door
An occasional thorough wiping with a
solution of baking soda and water keeps
the inside fresh.
NOTE: Be certain the power is off before
cleaning any part of this oven.
Some spatters can be removed with a
paper towel, others may require a damp
cloth. Remove greasy spatters with a
sudsy cloth, then rinse with a damp cloth.
Do not use abrasive cleaners or sharp
utensils on oven walls. Never use a
commercial oven cleaner on any part of
your microwave.
Removable Turntable and
Turntable Support
To prevent breakage, do not place the
turntable into water just after cooking.
Wash it carefully in warm, sudsy water or in
the dishwasher. The turntable and support
can be broken if dropped. Remember, do
not operate the oven without the turntable
and support in place.
Temperature Probe
Clean immediately after using. To clean,
wipe with sudsy cloth, then rub lightly with
plastic scouring ball if necessary. Rinse
and dry. The probe can also be washed in
the dishwasher.
Shelf
Clean with mild soap and water or in the
dishwasher. Do not clean in a self-cleaning
oven.
35

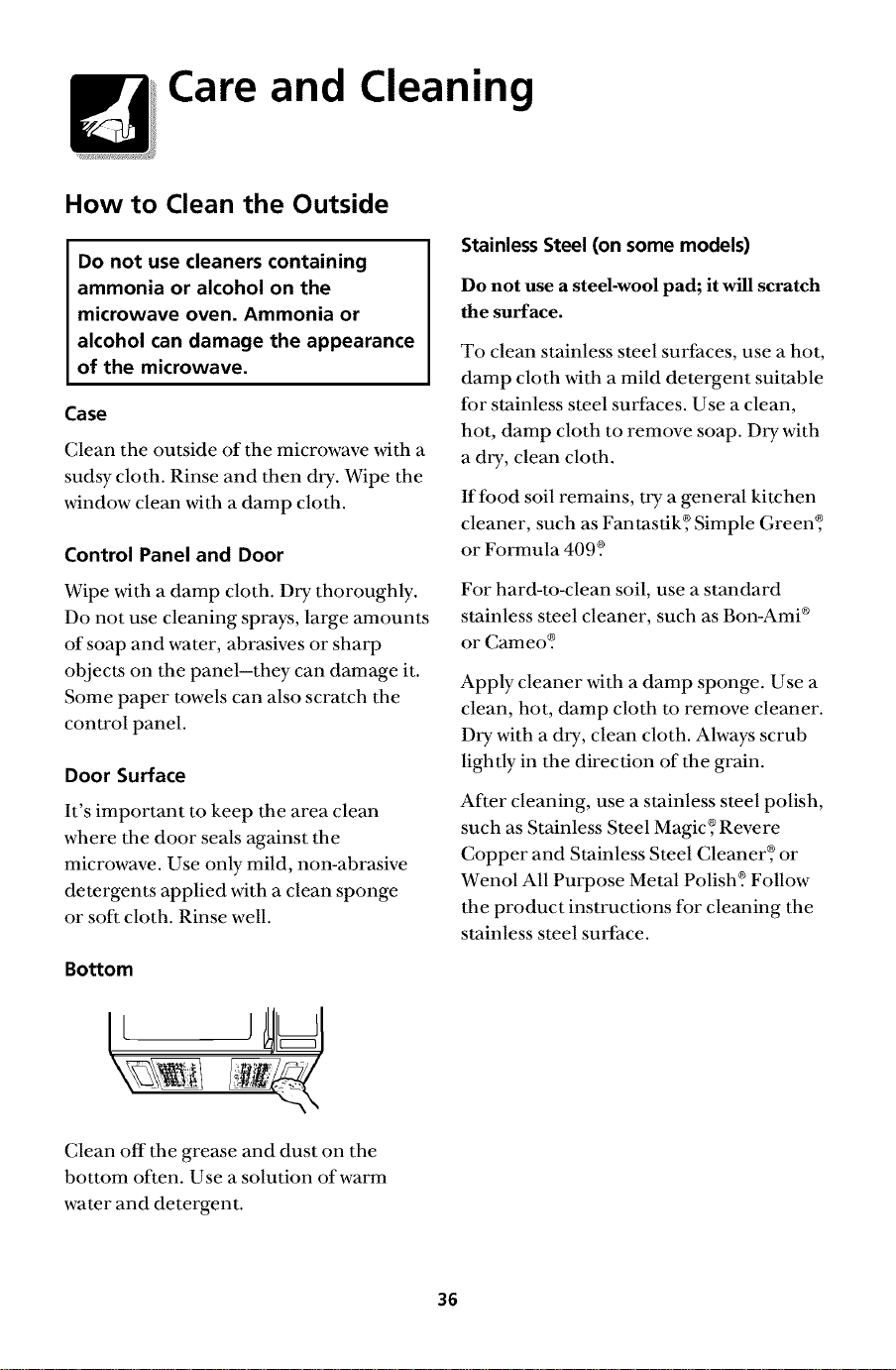

49-401431v03 4/26/01 2:45 PM Page 36
Care and Cleaning
How to Clean the Outside
Do not use cleaners containing
ammonia or alcohol on the
microwave oven. Ammonia or
alcohol can damage the appearance
of the microwave.
Case
Clean the outside of the microwave with a
sudsy cloth. Rinse and then dry. Wipe the
window clean with a damp cloth.
Control Panel and Door
Wipe with a damp cloth. Dry thoroughly.
Do not use cleaning sprays, large amounts
of soap and water, abrasives or sharp
objects on the panel-they can damage it.
Some paper towels can also scratch the
control panel.
Door Surface
It's important to keep the area clean
where the door seals against the
microwave. Use only mild, non-abrasive
detergents applied with a clean sponge
or soft cloth. Rinse well.
Bottom
Clean off the grease and dust on the
bottom often. Use a solution of warm
water and detergent.
Stainless Steel (on some models)
Do not use a steel-wool pad; it will scratch
the surface.
To clean stainless steel surfaces, use a hot,
damp cloth with a mild detergent suitable
for stainless steel surfaces. Use a clean,
hot, damp cloth to remove soap. Dry with
a dry, clean cloth.
If food soil remains, try a general kitchen
cleaner, such as Fantastik, ®Simple Green'+,
or Formula 409?
For hard-to-clean soil, use a standard
stainless steel cleaner, such as Bon-Ami ®
or Cameo?
Apply cleaner with a damp sponge. Use a
clean, hot, damp cloth to remove cleaner.
Dry with a dry, clean cloth. Always scrub
lightly in the direction of the grain.
After cleaning, use a stainless steel polish,
such as Stainless Steel Magic, _Revere
Copper and Stainless Steel Cleaner_ or
Wenol All Purpose Metal Polish? Follow
the product instructions for cleaning the
stainless steel surface.
36
49-401431v03 4/26/01 2:45 PM Page 37

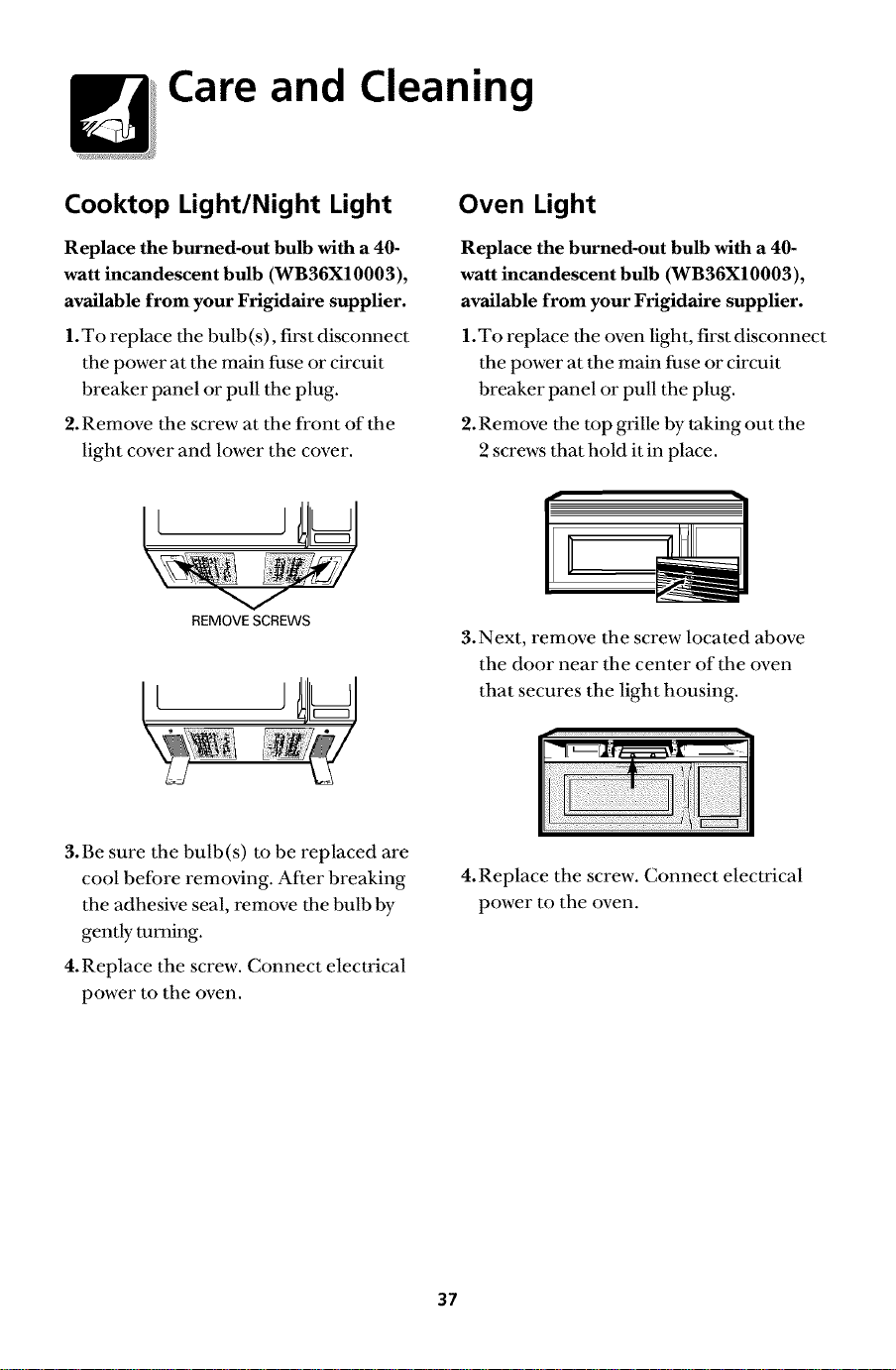

Care and Cleaning
Cooktop Light/Night Light
Replace the burned-out bulb with a 40-
watt incandescent bulb (WB36X10003),
available from your Frigidaire supplier.
1.To replace the bulb (s), first disconnect
the power at the main fuse or circuit
breaker panel or pull the plug.
2.Remove the screw at the front of the
light cover and lower the cover.
V
REMOVE SCREWS
3.Be sure the bulb(s) to be replaced are
cool before removing. After breaking
the adhesive seal, remove the bulb by
gently turning.
4. Replace the screw. Connect electrical
power to the oven.
Oven Light
Replace the burned-out bulb with a 40-
watt incandescent bulb (WB36X10003 ),
available from your Frigidaire supplier.
1.To replace the oven light, first disconnect
the power at the main fuse or circuit
breaker panel or pull the plug.
2. Remove the top grille by taking out the
2 screws that hold it in place.
3.Next, remove the screw located above
the door near the center of the oven
that secures the light housing.
/Lql_--I_d_ --_
4. Replace the screw. Connect electrical
power to the oven.
37

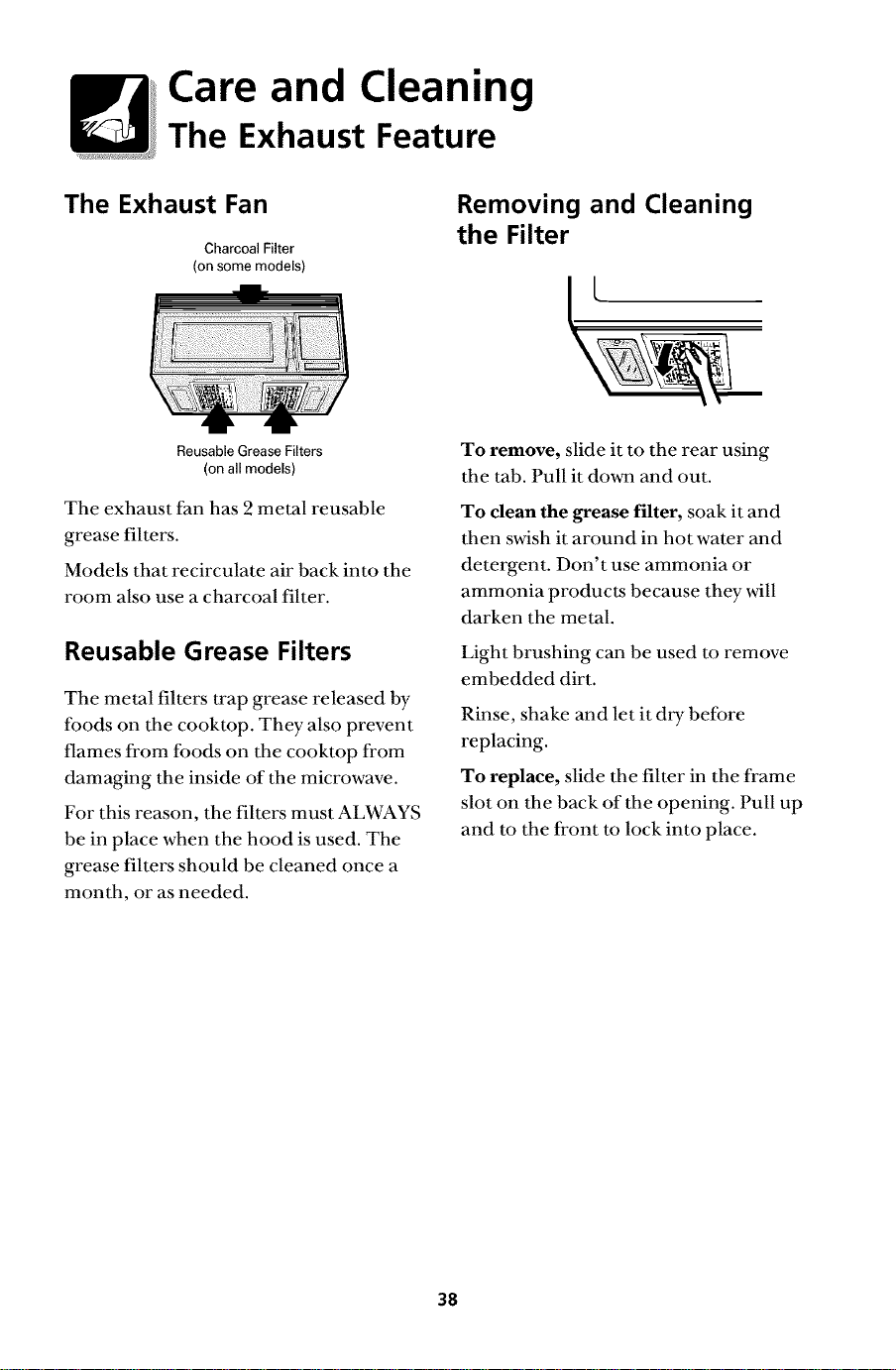

49-401431v03 4/26/01 2:45 PM Page 38
Care and Cleaning
The Exhaust Feature
The Exhaust Fan
Charcoal Filter
(on some models)
Removing and Cleaning
the Filter
Reusable Grease Filters
(on all models)
The exhaust fan has 2 metal reusable
grease filters.
Models that recirculate air back into the
room also use a charcoal filter.
Reusable Grease Filters
The metal filters trap grease released by
foods on the cooktop. They also prevent
flames from foods on the cooktop from
damaging the inside of the microwave.
For this reason, the filters must ALWAYS
be in place when the hood is used. The
grease filters should be cleaned once a
month, or as needed.
To remove, slide it to the rear using
the tab. Pull it down and out.
To clean the grease filter, soak it and
then swish it around in hot water and
detergent. Don't use ammonia or
ammonia products because they will
darken the metal.
Light brushing can be used to remove
embedded dirt.
Rinse, shake and let it dry before
replacing.
To replace, slide the filter in the frame
slot on the back of the opening. Pull up
and to the front to lock into place.
38

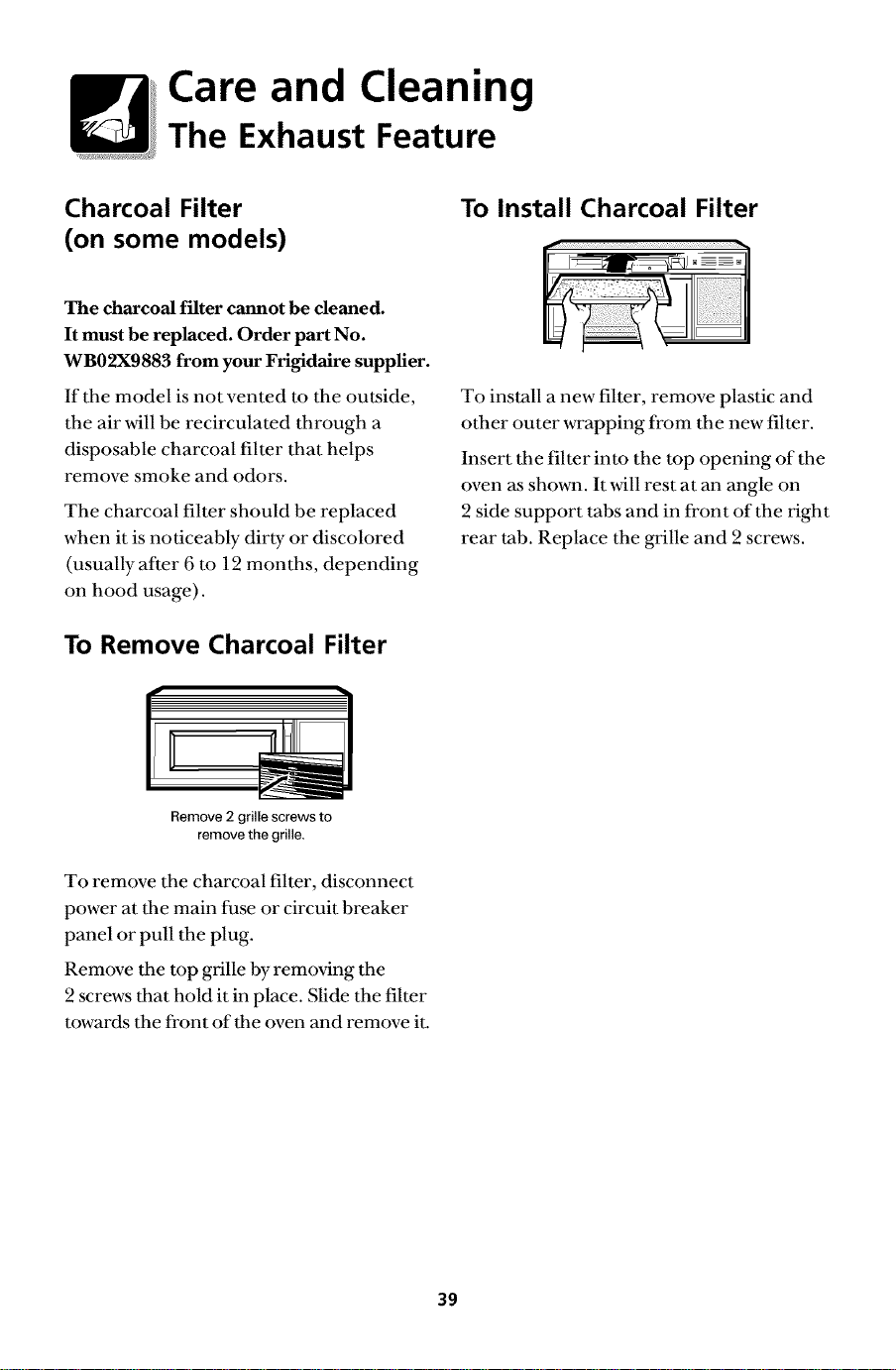

49-401431v03 4/26/01 2:45 PM Page 39
Care and Cleaning
The Exhaust Feature
Charcoal Filter
(on some models)
To Install Charcoal Filter
The charcoal filter cannot be cleaned.
It must be replaced. Order part No.
WB02X9883 from your Frigidaire supplier.
If the model is not vented to the outside,
the air will be recirculated through a
disposable charcoal filter that helps
remove smoke and odors.
The charcoal filter should be replaced
when it is noticeably dirty or discolored
(usually after 6 to 12 months, depending
on hood usage).
To Remove Charcoal Filter
[
Remove 2 grille screws to
remove the grille.
To remove the charcoal filter, disconnect
power at the main fuse or circuit breaker
panel or pull the plug.
Remove the top grille by removing the
2 screws that hold it in place. Slide the filter
towards the front of the oven and remove it.
To install a new filter, remove plastic and
other outer wrapping from the new filter.
Insert the filter into the top opening of the
oven as shown. It will rest at an angle on
2 side support tabs and in front of the right
rear tab. Replace the grille and 2 screws.
39
49-401431v03 4/26/01 2:45 PM Page 40

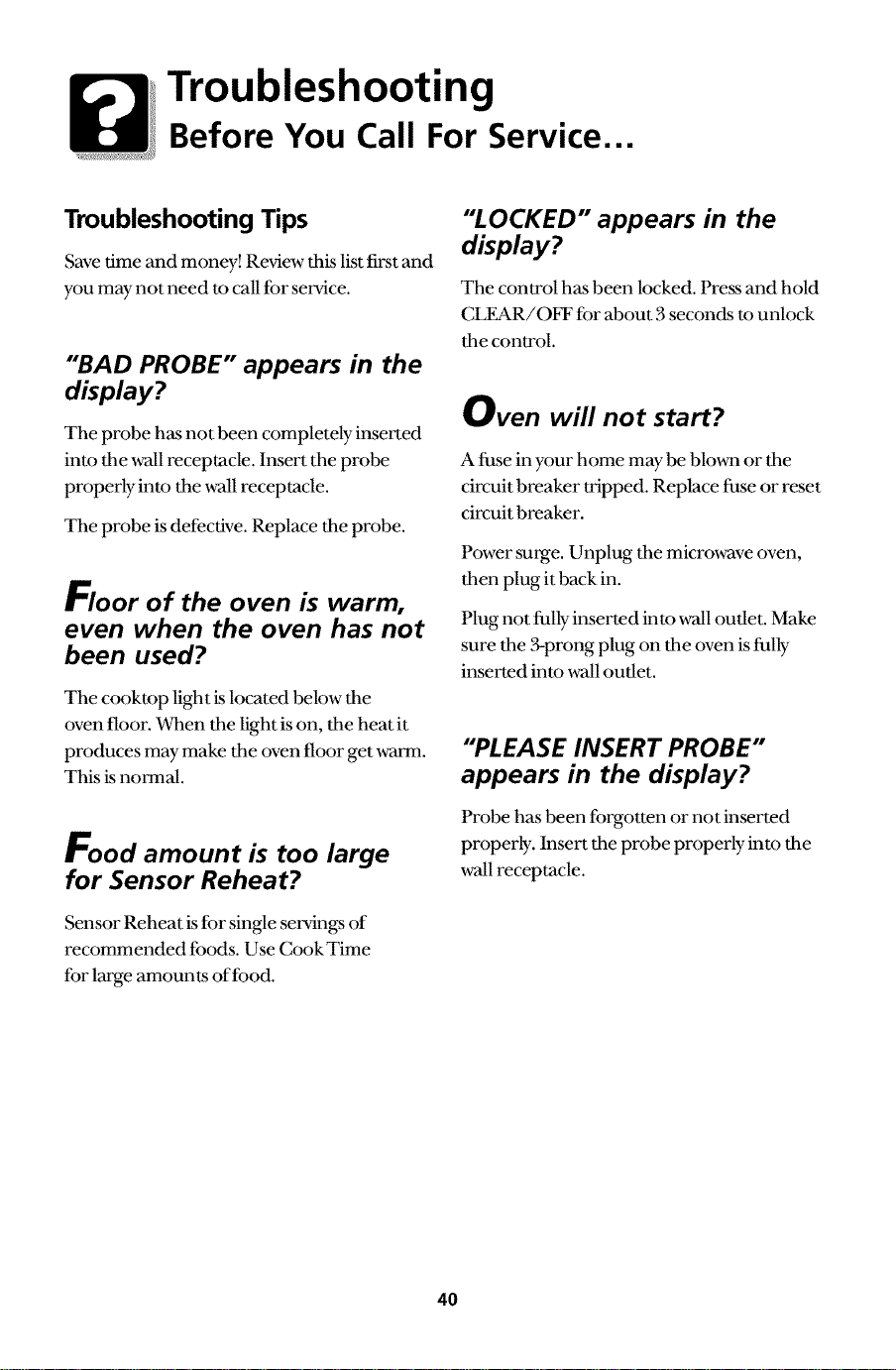

Troubleshooting
Before You Call For Service...
Troubleshooting Tips
Save time and money! Review this list first and
you may not need to call for service.
"BAD PROBE" appears in the
display?
The probe ha_snot been completely inserted
into the wall receptacle. Insert the probe
properly into the wall receptacle.
The probe is defective. Replace the probe.
Floor of the oven is warm,
even when the oven has not
been used?
The cooktop light kslocated below the
oven floor. When the light is on, the heat it
produces may make the oven floor get warm.
This ksnormal.
Food amount is too large
for Sensor Reheat?
Sensor Reheat is for single servings of
recommended foods. Use Cook Time
for large amounts of food.
"LOCKED" appears in the
display?
The control ha.s been locked. Press and hold
CLEAR/OFF for about 3 secon&s to unlock
the control.
Oven will not start?
A fuse in your home may be blown or the
circuit breaker tripped. Replace fuse or reset
circuit breaker.
Power su<ge. Unplug the microwave oven,
then plug it back in.
Plug not fully inserted into wall outlet. Make
sure the _prong plug on the oven is fully
inserted into wall outlet.
"PLEASE INSERT PROBE"
appears in the display?
Probe has been forgotten ornot inserted
properly. Insert the probe properly into the
wallreceptacle.
4O

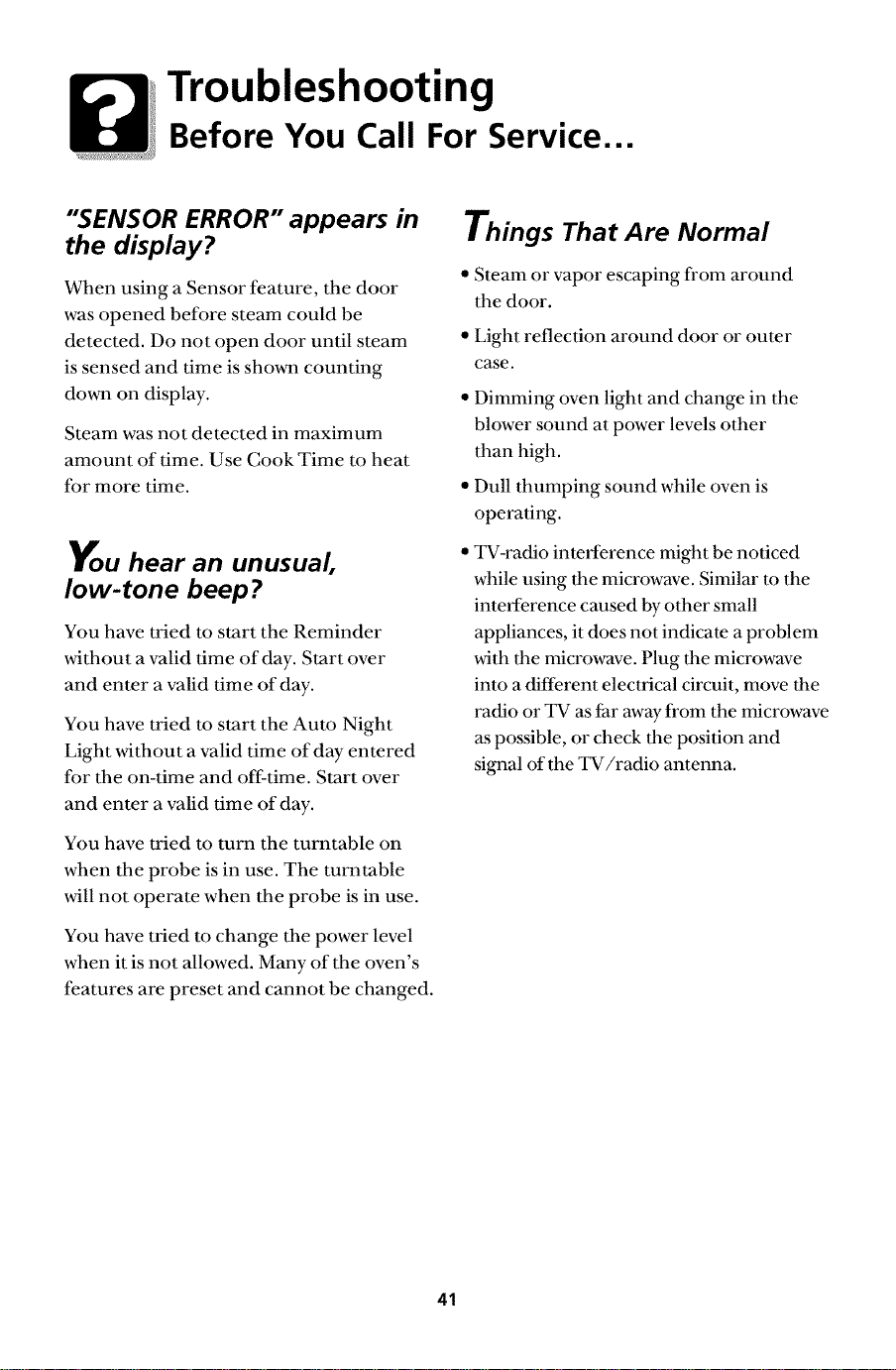

49-401431v03 4/26/01 2:45 PM Page 41
Troubleshooting
Before You Call For Service...
"SENSOR ERROR" appears in
the display?
When using a Sensor feature, the door
was opened before steam could be
detected. Do not open door until steam
is sensed and time is shown counting
down on display.
Steam was not detected in maximum
amount of time. Use Cook Time to heat
for more time.
You hear an unusual,
low-tone beep ?
You have tried to start the Reminder
without a valid time of day. Start over
and enter a valid time of day.
You have tried to start the Auto Night
Light without a valid time of day entered
for the on-time and off-time. Start over
and enter a valid time of day.
You have tried to turn the turntable on
when the probe is in use. The turntable
will not operate when the probe is in use.
You have tried to change the power level
when it is not allowed. Many of the oven's
features are preset and cannot be changed.
I hings That Are Normal
• Steam or vapor escaping from around
the door.
• Light reflection around door or outer
case.
• Dimming oven light and change in the
blower sound at power levels other
than high.
• Dull thumping sound while oven is
operating.
• TV-radio interference might be noticed
while using the microwave. Similar to the
interference caused by other small
appliances, it does not indicate a problem
with the microwave. Plug the microwave
into a different electrical circuit, move the
radio or TV as far away from the microwave
as possible, or check the position and
signal of the TV/radio antenna.
41
MICROWAVE WARRANTY
Your microwave is protected by this warranty
WARRANTY THROUGH OUR AUTHORIZED THE CONSUMER WILL BE
PERIOD SERVICERS, WE WILL: RESPONSIBLE FOR:
FULL ONE-YEAR One year from original Pay all costs for repairing or replacing any parts of this Costs of service calls that are listed under
WARRANTY purchase date. appliance which prove to be defective in materials or NORMAL RESPONSIBILITIES OF THE
workmanship. CONSUMER.*
LIMITED 2ND Two years from original Repair or replace any part of the microwave oven which Cost of shipping the replacement part to the
YEAR WARRANTY purchase date. proves to be defective in materials or workmanship, nearest authorized servicer; and all labor and
(Microwave Oven) service charges.
LIMITED 2ND-IOTH Second through tenth Provide a replacement for any magnetron tube which Cost of shipping the replacement part to the
YEAR WARRANTY years from original proves to be defective in workmanship or material, nearest authorized servicer; and all labor and
(Magnetron Tube) purchase date. service charges.
LIMITED WARRANTY Time periods listed above. All of the provisions of the full warranties above and the Costs of the technician's travel to the home
(Applicable to the exclusions listed below apply, and any costs for pick up and delivery of the
State of Alaska) appliance required because of service.
in the U.S.A., your appliance iswarranted by Electrolux Home Products North America, a division of White Consolidated industries, inc. We
authorize no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty
must be performed by us or an authorized Etectrolux Home Products North America servicer, in Canada, your appliance is warranted by WCI
Canada, inc.
03-U-MW-01
U'_
o
o
49-401431v03 4/26/01 2:45 PM Page 43
Consumer Services
WARRANTY (Continued)
* NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use, and
the consumer is responsible for the items listed below:
1. Proper use of the appliance in accordance with instructionsprovided with
the product.
2. Proper installation by an authorized servicer in accordance with instructions
provided with the appliance and in accordance with all local plumbing,
electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage,
replacement of blown fuses, repair of loose connections or defects in
house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal
of trim, cupboards, shelves, etc., which are not a part of the appliance when
it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with
these features).
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTYDAMAGE
AND INCIDENTAL EXPENSESRESULTINGFROM ANY BREACHOF THIS
WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or
consequential damages, so this limitation or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or
material, or for appliances not in ordinary household use. The consumer shall
pay for such service calls.
3. Damages caused by services performed by servicers other than Electrolux
Home Products North America or its authorized servicers; use of parts other
than genuine Electrolux Home Products parts; obtained from persons other
than such servicers; or external causes such asabuse, misuse, inadequate
power supply or acts of God.
4. Products with original serial numbers that have been removed or altered
and cannot be readily determined.
43
49-401431v03 4/26/01 2:45 PM Page 44
Consumer Services
IF YOU NEED SERVICE
Keep your bill of sale, delivery slip or some other appropriate payment
record. The date on the bill establishes the warranty period should
service be required. If service is performed, it is in your best interest to
obtain and keep all receipts. This written warranty gives you specific
legal rights. You may also have other rights that vary from state to state.
Service under this warranty must be obtained by contacting Electrolux
Home Products:
This warranty only applies in the 50 states of the U.S.A., Puerto Rico
and Canada. Product features or specifications as described or
illustrated are subject to change without notice. All warranties are
made by Electrolux Home Products North America, a division of
White Consolidated Industries, Inc. In Canada, your appliance is
warranted by WCI Canada, Inc.
USA
800.944.9044
Electrolux Home Products
North America
RO. Box 212378
Augusta, GA 30917
Canada
866.213.9397 (English)
866.294.9911 (French)
Electrolux Home Products
North America
6150 McLaughlin Road
Mississauga, Ontario, Canada
L5R4C2
164D3370P138
49-40143-1
Printed in Korea
44
CGLMV168
CPLMV168
GLMV168
PLMV168
04-01 JR
