HIH-T60HM-V
HIH-T90HM-V
Safety Precaution.........................................................................................................1
Important Information....................................................................................................4
Product Overview.........................................................................................................5
Packing List.................................................................................................................5
Installation...................................................................................................................6
Use Instruction.............................................................................................................9
Maintenance and Services..........................................................................................10
Prats Removal............................................................................................................11

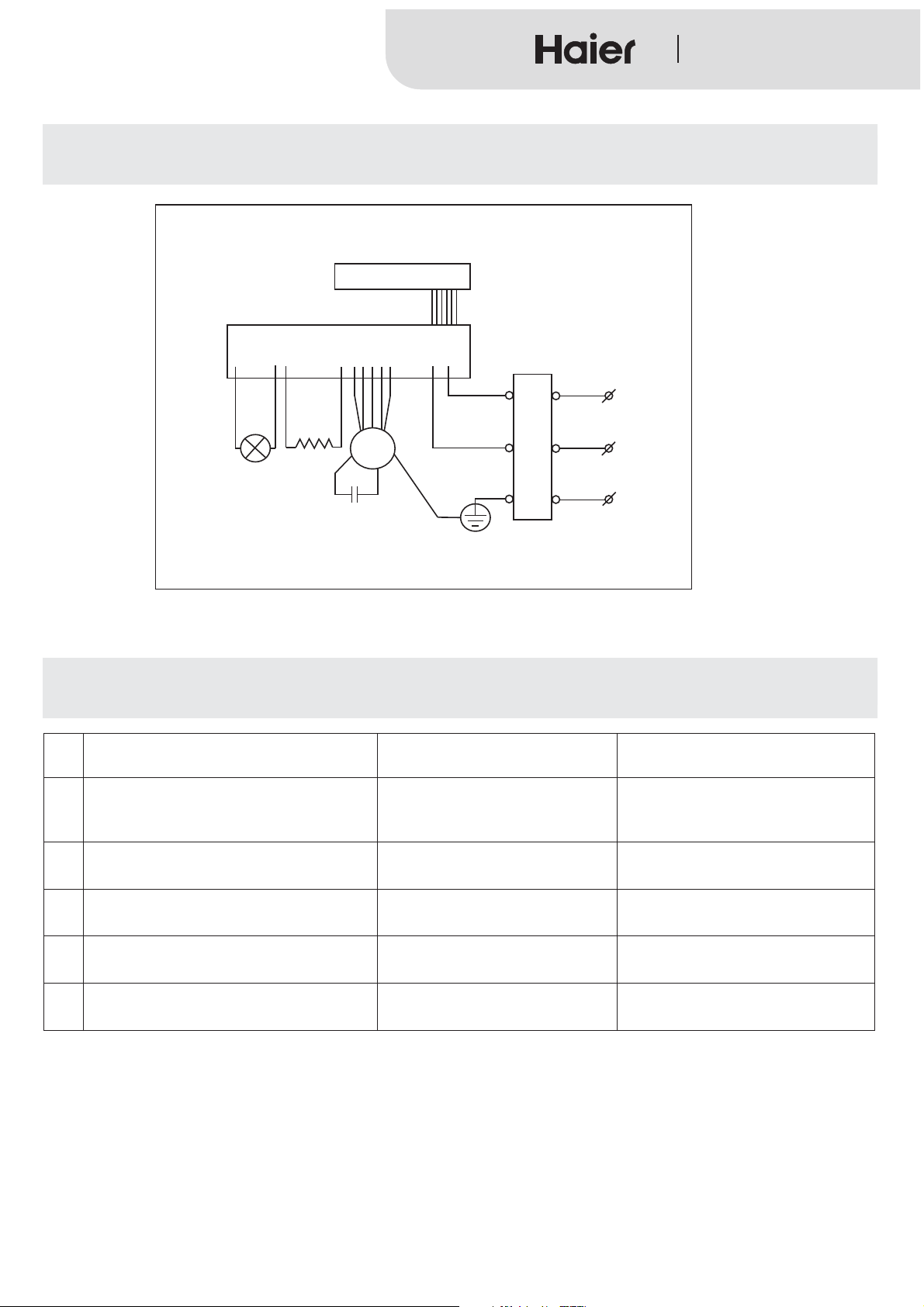

Circuit Diagram..........................................................................................................13
General Troubleshooting............................................................................................. 31
CONTENTS
1
Range Hood
Safety Precaution
Subject to harmful or destruct degree
In order to avoid harm or property damage to the users or other person, the following distinction and marks are stipulated.
They are important safety precaution, please comply strictly based on the full understanding.
Danger
If ignore this sign and operate product improperly, it’s highly possible to cause danger, serious
injury or fire.
If ignore this sign and operate product improperly, it’s possible to cause danger, serious injury
or fire.
If ignore this sign and operate product improperly, it’s possible to cause injury or loss.
Please use this product according to manual strictly, or ROBAM shall not take any responsible
caused by improper operation.
Notice and Prohibit Mark
Warning
Notice
Warning
Dear users:
Thank for your buying our range hood Please accept our best regards Please read this user manual carefully before..
installation and operation.
*The pictures in this manual only for your reference. If the picture isn’t accord with object, subject to object. We keep to right
to update appearance, structure or products without notice.
Don t allow children or weakling to use range hood separately, or it may'
cause electric shock or other accident.
Prohibit water on motor, switches or other electric parts; Prohibit wash
range hood by water spray. Don’t use range hood if wet or it may cause
electric leakage or shock.
Don’t touch plug, electric parts or button by wet hands, or it may cause
electric shock.
Don’t change, stretch, bind or press electric wire, or it’s possible to cause
electric shock or fire because of broken wire.
Prohibit any change of interior circuit, or it may cause injury or other
danger, for example, electric shock or fire.
Prohibit Touch
by Wet Hand
Prohibit
Prohibit
Prohibit
Prohibit
Danger
Prohibit Prohibit
Flame
Prohibit
Touch
Prohibit
Disassembly
Strict
Execution
Neccessary
Earthed
Caution
Electric Shock
Caution Scald
Prohibit Touch
by Wet Hand
Unplug before cleaning installing or maintaining avoiding from electric,,
shock.
Strict
Execution
2
Range Hood
Please turn off range hood immediately if pan got fire range hood(
shall aggravate fire if it’s working) and extinguish fire by effective action.
For example, cover flame by metal cover, turn off gas valve immediately
and remove inflammable things.
Any abnormal, please turn off power, take off plug or cut off electric
source, and contact service. It’s possible to cause electric shock or fire if
using range hood under abnormal situation.
Strict
Execution
Strict
Execution
Danger
Range hood must be installed, disassembled or maintained by professional
person.
Stove fire shall be extinguished timely when it is not used do not;
flambe under the range hood and it s prohibited to bake food under'
range hood directly to prevent range hood from damaging and causing
accidents.
Prohibit
In order to ensure safety, range hood must be installed by specific
accessory (especially expansion pipe and wooden screws, or it may
cause accidental drop of range hood). The pipe bore and hole must fit
tightly during the installation of metal expansion pipe. It is prohibited to
make excessively large hole to prevent accidental drop of loosening
expansion pipe.
The range hood must be used by specific plug and properly ground it. It’s
possible to cause electric shock, hot plug or fire because of improper
electric wire. Installation must be executed by professional person based
on local electrical regulations. Before connect electricity, power must be
turned off.
Strict
Execution
Strict
Execution
Strict
Execution
If the supply cord is damaged it must be replaced by the manufacturer
,,
its service agent or similarly qualified persons in order to avoid a hazard.
Warning
Don’t touch bulb if it’s on or just close in short time, or it may cause scald.
Prohibit
Touch
Prohibit
Disassembly
Strict
Execution
All operation must comply with our safety guidelines as well as local
safety regulations.
Strict
Execution
Strict
Execution
There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels.
This appliance just for household use only.And it’s not allowed to exhaust
dangerous or explosive matter or air. It should be put under dry and
ventilation environment without dangerous air.
Strict
Execution
Strict
Execution
The range hood and electric circuit must be installed by skilled and trained
personnel with required qualification. When installation, the related
regulation, standard or instruction on fire must be complied. It may cause
danger because of improper installation, for example, electric shock, drop or
fire accident.
The outlet must be connect with outside. In order to ensure safety and fresh
air, waste gas should be exhaust to outside. Don’t exhaust waste gas to the
wall, loft or garage.
Warning
Strict
Execution
Strict
Execution
There is a fire risk if cleaning is not carried out in accordance with the
instructions.
Keep a good habit to turn off gas hob and gas valve if go outside, sleep
or finish operation. Replace or check gas pipe regularly, since gas alarm
device can’t completely avoid accident caused by gas leakage.
Notice
Prohibit
The air must not be discharged into a flue that is used for exhausting fumes
from appliances burning gas or other fuels, the discharge of air must fulfill
the requirements of local regulations.
3
Strict
Execution
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their
safety.Children should be supervised to ensure that they do not play with the
appliance.
Strict
Execution
Before removing range hood for installation clean or maintainance
,,
power must be cut off avoiding from electric shock. When installation,
clean or maintainance protective gloove must be wear avoiding from
,
Strict
Execution
The temperature for range hood working can’t exceed 40℃.
Range Hood
44
Important Information
Package of Range Hood
Before use Range hood
Strict
Execution
Notice
Strict
Execution
Don t break electric wire or other invisible equipment when cutting'
something or drilling holes on ceiling.
When the oil exceeds 2/3 or near tick mark in the oil cup clean it in,
time Don t eat waste oil from oil cup.' .
When range hood is using in well sealed building, it should have air inlet
or open door to ensure good ventilation.
The wall of installing range hood needs enough strength. For hollow walls,
the thickness of solid layer of hollow wall must be more than 30mm, but for
concrete walls, it can be drill holes directly. The range hood must be fixed on
the wall firmly.
Strict
Execution
Strict
Execution
Because the installation is difficult and hood is heavy, the installation shall
be executed by professional person based on manul.
Strict
Execution
Please settle those packages carefully in order to protect environment.
Don’t allow children to play plastic film and package, it may cause asphyxia. Please avoid children near package material.
This range hood exhaust fume outside.
Please read this manual and all information carefully before installation and operation. Please comply with our suggestion. If
it’s necessary, please read manual for gas hob. And please keep these manual carefully for future reference.
If range hood has obvious damage, please don’t electrify and contact operator.
DISPOSAL Do not dispose this product as unsorted municipal waste.:
Collection of such waste separately for special treatment is necessary.
This product must not be disposed together with the domestic waste. This
product has to be disposed at an authorized place for recycling of electrical
and electronic appliances.
By collecting and recycling waste, you help save natural resources, and make
sure the product is disposed in an environmental friendly and healthy way.
Strict
Execution
Accessible parts may become hot when used with cooking appliances
.
Range Hood
Labeled dimensions are only
for reference ,Size in the
bracket is the height of Drawing
panel.(Unit: mm)
350Pa
≤59dB
≥23%
≤2W
400Pa
≥98%
282W
280W
≥91%
220-240V~ 50Hz
1200m /h
3
HIH-T60HM-V
HIH-T90HM-V
Note: When using the hood install the cup on the filter mesh,.
1
4
2
5
3
5
Product Parameter
size&Dimension
Model
Product Overview
Packing List
Please check lists if open the package.
Packing List
No. Name
Quantity
No.
Name
Quantity
Range Hood
1 piece
1 piece
1 piece
Turbo Airflow
Rated Main Motor Power Input
Rated Power Input
Lamp Power(max)
Grease Absorption Factor
Noise
Normal Odour Reduction Factor
Max static pressure
Total Pressure Efficiency
Nominal Wind Pressure
Power Supply
Range Hood
380
580
895/595
320
450
luminum oil ir uctAFAD
Operation Manual
Oil Cup
Hook
1 piece
2 pieces
50W
Heating Power
Installation
Installation Notice
6
Warning
1.The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels,
the discharge of air must fulfill the requirements of local regulations.
2. ote that when installing the metal expansion pipe, the pipe shall match with the hole in size Overlarge hole isN .
prohibited, as it will result in loose pipe and accidental drops.
3.There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas
or other fuels.
4 If the flue aperture is less than air duct aperture, it will influence the fume suction effect and the too long air duct will.
influence the fume suction effect, too.
5 This appliance just for household use only.And it’s not allowed to exhaust dangerous or explosive matter or air. It should.
be put under dry and ventilation environment without dangerous air.
●Surrounding environment
Range hood shall be avoided to be installed at the place where there are many doors and windows since it will cause
too large cross ventilation so as to influence the oil fume exhaust effect-.
●Tool preparation
The following tools shall be prepared when range hood installation: 1. Electric impact drill (with drill);
;;2.Wrench 3.Screw driver 4.Ruler
Preparation Before Installation
●I and circuit setting must be operated by professionals with experiences and non-professionals shall notnstallation
assemble, disassemble and repair range hood.
●Don t connect power before installation it may cause electric shock',.
●If your kitchen is in decoration state, please do not expose the range hood outside since construction material, dust,
paint, coating and the gases they volatile will corrode the surface of range hood and the surface will be tarnished.
Therefore, it s suggested to assemble the range hood after decoration.'
● If gas hob needs to be removed before installing range hood, please turn off gas valve firstly.
●' .Don t install range hood on the wooden or other flammable wall The wall of installation range hood shall be on
the nonflammable enough stable smooth and level surface,, .
● Range hood may have very sharp edge, please wear protective gloves while moving the range hood for
installation cleaning or maintenance,.
●When drilling holes on the wall, the electric wire buried in the wall shall be avoided to prevent from fire.
●Range hood shall not be installed too high, nor shall it be disturbed by external air flow so that the fume suction effect
will not be influenced.
●Please retain installation space for hood while fabricating cupboard so as for the care and maintenance .
●Please keep the hood body level while installing the machine.
● (Please use single phase socket with earthing, which shall be well earthed. Water pipe grounding is not reliable.The
grounding of gas piping may cause the danger of fire and explosion.)
●Use appointed accessories for installation or range hood may fall down and cause danger.
● If the supply cord is damaged it must be replaced by the manufacturer its service agent or similarly,,
qualified persons in order to avoid a hazard Don t stretch, change ,tie, or press supply cord, or it may cause fire.'
or electric shock.
●, , .If finish installation clean range hood firstly then connect power and test run
Range Hood
The hood shall be installed right above the hob The minimum distance between the bearing surface of cooking.
(appliance and the lowest part of hood is mm larger space specified in the installation instruction of gas hob shall650
,; , ) .be considered if any the distance for electric cooker may be reduced appropriately depending on the actual situations
:.Note All data units of the following diagram are expressed in mm
Installation
7
Range Hood
450
Ceiling
820-960
650-750
800-900
Figure 1
10
Figure 2
Hole size of the exhaust pipe Ø200
Wall
Ceiling hole sizes( Projection size of the hood top)
Use Instruction
9
Switch Control Panel
Range Hood
Note:
1. tir-fry:S Under the standby mode, then press this button to start the Stir-fry function,
and it will turn to the quick speed automatically after 1 minute.
2. Quick speed:Under the standby mode, then press this button to start the quick speed
function.
3. :Medium speed Under the standby mode, then press this button to start the medium
speed function.
4. Slow speed: Under the standby mode, then press this button to start the slow speed
function.
5. long press the setting key when the power is off, the middle speed key and
Setting:
slow speed key will flash to enter the clock adjustment state. The function now is setting
hour/ minute.
6.
Lighting:Press this button to turn on / off the light.
7. Heating: When range hood off, press this button to start the Auto clean-
electric dry heat mode. It will be lasted for 10 minutes, first 9 minutes, it is heating,
the last 1 minutes, remove the greasy quickly.
8. On key (power): Press this button, the range hood will be under power on/off;
When the motor just starts to work, then press this button , then it will be a 60
seconds’ delay;When the range hood off, long press this button can start / close
the Intelligent Somatosensory touch control.
9. Somatosensory control:
A. Under power off state:
1. Fast speed: from left to right, one time.
2. Medium speed:from left to right, twice.
3. Low speed:from left to right, three times.
B. Under working state: from right to left, turn off.
Stir-fry
Slow
speed
Quick
speed
Medium
speed
Setting
lighting Heating
on/off
delay
10
Maintenance and Services
Warning
1 There is a fire risk if cleaning is not carried out in accordance with the instructions..
2 Cleaning and maintenance shall be conducted under outage. Electrical components such as motor, switch, and.
connector shall not be spoiled by water so as to prevent from accidents.
3.
It s prohibited to wash with water so as to prevent accidents.'
4.
Stove fire shall be extinguished timely when it is not used do not flambe under the range hood and it s;'
prohibited to bake food under range hood directly to prevent range hood from damaging and causing accidents.
5.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
6.Accessible parts may become hot when used with cooking appliances.
Notice
● ,The hood shall be cleaned and maintained regularly depending on the surroundings so as to keep its
cleanness efficiency and extend its service life&.
We recommend: Clean the surface of hood each time after cooking.
To ensure smooth discharge of fumes, the mesh cover shall be cleaned regularly with warm water and detergent
according to actual situations Be careful to avoid damage..
●Don’t use the powerful detergent, we recommend to wipe with wet cloth soaked in neutral detergent and dry it by
soft cloth. And avoid detergent to touch switches.
●'Don t keep dirt on the surface of range hood for long time;
●' ,Don t use cleaning ball brush or other harsh tool to clean range hood. It may cause scoring.
●Wear gloves to clean or maintain range hood avoiding from hurt.
●Check oil cup regularly. Hold oil cup by hands as picture, then remove oil cup and pull out waste oil.
●'Don t touch lamp if turn on or turn off in short time. It may cause scald.
●If range hood don’t use for long time, pull out the plug. Don’t haul plug crudely.
Range Hood
11
Parts Removal
1.The machine body needs not to be disassembled in ordinary conditions. Disassembly shall be operated by professional
serviceman.
2. Before cleaning, installation or maintenance for the range hood, cut off the power supply to avoid electric shock.
Note The assembly steps are opposite with the disassembly steps:.
Please wear protective glove during operation avoiding from hurting hands.
Warning
Firstly take down the oil cup then one hand hold the oil collector the other hand Loose two fixing screws,, , ,
and then take down the oil collector Please be careful when taken down to avoid the oil in oil collector spill. .
Please wear protective gloves so as not to hurt your hand.
Filter Mesh Removal
Light Removal
Raise it outward forcibly to remove the spotlight
.from the hood Pull out the connector to replace
the spotlight.
Insert a small flathead screwdriver or something
sharp in the gap between the light cover and hood.
Lamp information
Lamp Type
Max Power
Voltage
Dimension
DC LED
12VDC
See the lamp image
2W
Range Hood
12
Switch Removal
This is under power disconnected situation to handle:
1. push the glass from right to left, then take out the glass panel, replace the control board. Then
assemble the glass with the opposite way, comparing with disassemble the glass. And make sure
the re-assembled glass is on the same level with the range hood body.
2. Pull out the glass (as a whole set) forward, then take out the glass panel, replace the control
board. Then assemble the glass with the opposite way, comparing with disassemble the glass. And
make sure the re-assembled glass is on the same level with the range hood body.
explosive view
Range Hood
Blower case
Blower box
Chimney cover
Glass panel
Sensor frame
LED
Hook
Cover
Control
Impeller
Motor
Retainer ring
Cap
Oil collector
Filter mesh
Filter mesh
Oil cup
13
Circuit Diagram
Range Hood
General Troubleshooting
1
2
3
4
5
No. Fault Phenomenon
Fault Cause
Elimination Methods
No response by pressing any switch
e g impeller does not rotate(.. ,
)lighting lamp is not on
Power plug is not well connected
or power outage
Well connect the power plug
Press the lighting switch but
the lighting is off
Lighting lamp is broken or power
plug is not well connected
Replace lighting lamp or well
connect the power plug
There is induced electricity on the
surface of machine body hand numbness,
Power socket is not well grounded
Use single phase tripolar
socket for well ground
abnormal sound when impeller is rotating
Impeller is loosened set screw,
of impeller is not tightened
Tighten the set screw of impeller
Oil dripping at rear back of hood
Oil cup is not assembled in place
after disassembly for cleaning
Assemble the oil cup in place
M
MOTOR
CAPACITOR
/6 F 450Vμ~
L
E
N
AC220-240V/50Hz
CONTROL BOARD
POWER BOARD
LED
Heating
Customer Name :- …………………………………………….. Address :- ……………………………………………………………………………………………....
Serial Number :- …………………………………………….. Date of Purchase :- …………………………… Model No. :- ………………….…………………..
Dealer Seal :- ………………………………………………..
HAIER WARRANTY
HAIER APPLIANCES (INDIA) PVT. LTD
. (here-in-after referred to as “the Company”) hereby
offers the following warranty to the original domestic purchaser commencing from the
Date of the
Purchase (DOP)
. The Company at its sole discretion, will free of charge repair or replace any defective part or parts which prove to be defective in workmanship and/or materials
and
not due to abnormal or improper usage
CONDITIONS OF WARRANTY
1) This warranty will be automatically terminated on the expiry of the warranty period from the Date of Purchase (DOP).
2) The Company is not liable for any delay in servicing due to reasons beyond the control of the Company or any of its authorized service center.
3) Parts replaced or repaired under this warranty are warranted throughout the remaining of the original warranty period.
4) It is entirely left to the Company's discretion to repair/replace parts at the site of installation or at the authorized service center.
5) This warranty shall be strictly limited to the repairs or replacement of the defective part specified in warranty. This warranty shall not cover any consequential
or resulting liability.
6) This warranty shall not, in any case, extend towards payment of any monetary consideration whatsoever or replacement or return of the product.
7) The Company may repair/supply parts free of cost during the warranty period. This warranty does not cover any Excise duty, Central or Sales tax, Octroi and
other local taxes or levies on the components/parts.
8) The parts shall be replaced by functionally operating equivalent material only and not with brand new ones and are likely to be different from the one
originally fitted. The parts thus removed shall be taken back by the Company.
9) The Company reserves the right to retain any part or component replaced at its sole discretion during the warranty period.
10) In no event the Company or its authorized service center, be liable for any consequential damages or resulting liability, damage or loss arising directly or indirectly out of
any defect in the product.
11) This warranty is not valid in case of the following events.
a) If the Product has been Installed/Serviced/Repaired/Opened or Tampered by any unauthorized personnel.
b) If defects arise/caused by accidents, alteration, misuse, neglect, substitution of original components with spurious/non- genuine components, attacked by
household pest / rodents, fire, flood, earthquake, lightning and/or any other act of God/natural calamities.
c) The product is shitted outside India.
12) (a) For any service under this warranty beyond city/town/municipal limits from the Company/authorized service center, a fixed charge of Rs. 100 will be
collected from the customer in addition to the actual to and for charges by the shortest route.
(b) Service charges applicable after expiry of comprehensive warranty.
13) Any change of location or change in the ownership during the warranty period must be intimated in writing to the Company.
14) The Company's employees or its authorized representatives have no authority to vary the terms of this warranty
15) Brass burners valve carry warranty against any manufacturing defect for 60 months. Warranty is not applicable for De-coloration of the burners.
16) The warranty does not cover rust, oxidation, discoloration, scratches, and wear & tear, plastic, rubber, aesthetic, filters, Consumable parts.
17) HOB Tempered glass top have 24 Month warranty for any manufacturing defect. The warrant of glass become null & void in following conditions.
a) Glass breakage due to improper use or accidental damage.
b) Use of gas tandoor / Gas Oven / Dosa Tawa.
c) Sprinkling of water on hot Glass surface.
d) Other safety norms / precaution not followed.
18) This warranty is affected in New Delhi and claims, if any, shall be made only before the courts having jurisdiction in New Delhi and no claim shall be made
against the Company outside New Delhi not withstanding that the Appliance may have been sold or delivered elsewhere.
Customer Name :- …………………………………………….. Address :- ……………………………………………………………………………………………....
Serial Number :- …………………………………………….. Date of Purchase :- …………………………… Model No. :- ………………….…………………..
Dealer Seal :- ………………………………………………..
Outer Body, Cavity, Door, Glass, Handle,
Knob/ Touch Panel, bulbs, Plastic Parts,
accidents or damage, etc.
BUILT - STERILIZER
1 Year Comprehensive
(1 + 1 Yr. on Glass) &
(1 + 4 Yrs. On Burner & Valve )
Pan Support, Leg, Drip Tray & Knob,
Mixing tube, Plastic Parts, accidents or
damage, etc.
1 Year Comprehensive
Glass, Duct Cover, Body, Filters, Oil
Collector & Cleaning, Bulbs, Switches,
Knobs, Plastic Parts, accidents or damage,
etc.
1 Year Comprehensive
1 Year Comprehensive
1 Year Comprehensive
BUILT - IN - HOB
HYBTID - HOB
TABLET - HOB
HOOD
BUILT - MWO
BUILT - IN - OVEN
Segment
Warranty
Period
Parts not Covered
Peri0d
p jgpq{
GwM
HTW62/65-187 Series
HTW65/70 -1187 Series
HTW70-178/186 Series
Comprehensive -12 Months
Motor - 60 Montfis
HM76-1159 Series
HTW80-1128/1159 Series
HTW82-178 Series
HTW85-186/178 Series
Comprehensive - 24 Month
s
/0\0f - 6/ /0fI!\8
Drain Pipe,
Inlet Pipe,
Lint Filter
HM92-178 Series
HM95-186/178 Series
HTW 100-178 Series
Magic Filter
Haier Appliances (India) Pvt. Ltd.
Building -1, Okhla Industrial Estate Phase III, New Delhi -110020
Tel- +91-1139496000,30674000,
Fax: +91-11-30674088
1800-102-9999, 1800-419-9999
(Toll Free - 24x7)
Whatsapp : 855 304 9999
For Quick Connect to Haier India Scan QR Code
