WINDOW-TYPE ROOM AIR CONDITIONER
Owner’s Manual &
Installation Manual
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.
Please check the applicable models, technical
data from the nameplate pasted on the unit.
Safety Precautions
Unit Parts Identification .............
Operation Instructions
Care and Maintenance

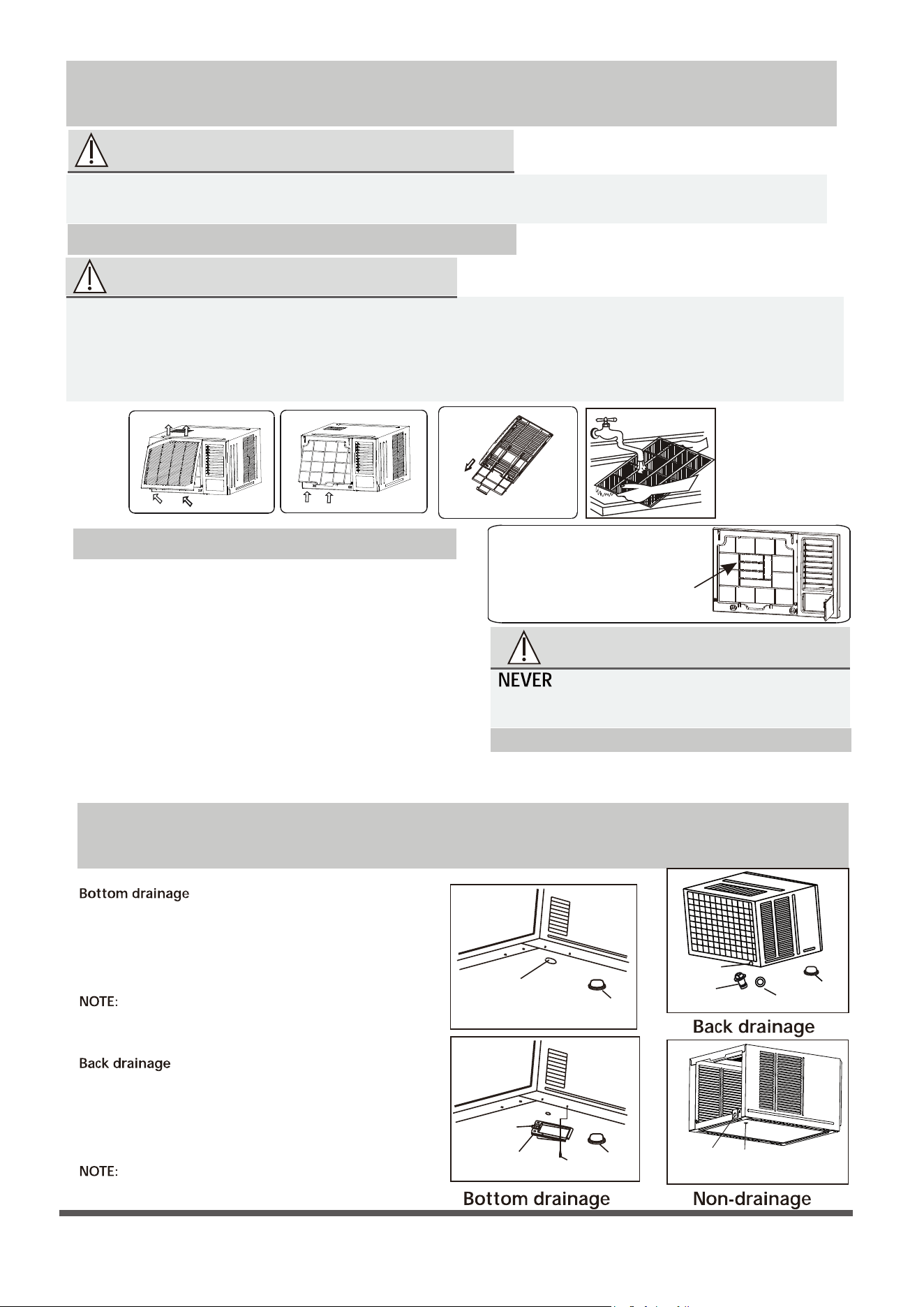

Water Drainage ..........................
Installation Instructions
Troubleshooting
Specifications .............
Table of Contents
European Disposal Guidelines
This appliance contains refrigerant and other potentially hazardous materials. When disposing of
this appliance, the law requires special collection and treatment.
Do not
dispose of this product as
household waste or unsorted municipal waste.
When disposing of this appliance, you have the following options:
• Dispose
of
the
appliance
at
designated
municipal
electronic
waste
collection
facility.
• When buying a new appliance, the retailer will take back the old appliance free of charge.
• The manufacturer will take back the old appliance free of charge.
• Sell the appliance to certified scrap metal dealers.
Special notice
Disposing of this appliance in the forest or other natural surroundings endangers your health and is
bad for the environment. Hazardous substances may leak into the ground water and enter the food
chain.
This marking shown on the product or its literature, indicates that waste electrical and
eletrical equipment should not be mixed with general household waste.
3
Safety
Read Safety Precautions Before Operation and Installation
The seriousness of potential damage or injuries is classified as either a
WARNING
or
CAUTION
.
Incorrect installation due to ignoring instructions can cause serious damage or injury.
WARNING
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision EN Standard requirements .
This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
WARNINGS FOR PRODUCT USE
•
If an abnormal situation arises (like a burning smell), immediately turn off the unit and disconnect the power. Call your
dealer for instructions to avoid electric shock, fire or injury.
•
Do not
insert fingers, rods or other objects into the air inlet or outlet. This may cause injury, since the fan may be rotat-
ing at high speeds.
•
Do not
use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause fire or combustion.
•
Do not
operate the air conditioner in places near or around combustible gases. Emitted gas may collect around the
unit and cause explosion.
•
Do not
•
•
Do not
expose your body directly to cool air for a prolonged period of time.
•
•
•
•
•
If the air conditioner is used together with burners or other heating devices, thoroughly ventilate the room to avoid
oxygen de
ciency.
Safety Precautions
Do not
allow children to play with the air conditioner. Children must be supervised around the unit at all times.
operate your air conditioner in a wet room such as a bathroom or laundry room. Too much exposure to water
can cause electrical components to short circuit.
In certain functional environments, such as kitchens, server rooms, etc., the use of specially designed air-conditioning
units is highly recommended.
Unplug the unit or disconnect the power supply to the unit if strange sounds, smell, or smokecomes from it.
To further optimize the performance of your unit, keep doors and windows closed during operation.
Pay attention when unpacking and installing. Sharp edges could cause injury.
•
Do not
clean the air conditioner with combustible cleaning agents. Combustible cleaning agents can cause fire or
deformation.
CLEANING AND MAINTENANCE WARNINGS
•
Turn off the device and disconnect the power before cleaning. Failure to do so can cause electrical shock.
•
Do not
clean the air conditioner with excessive amounts of water.
CAUTION
•
Turn off the air conditioner and disconnect the power if you are not going to use it for a long time.
•
Turn off and unplug the unit during storms.
•
Make sure that water condensation can drain unhindered from the unit.
•
Do not
operate the air conditioner with wet hands. This may cause electric shock.
•
Do not
use device for any other purpose than its intended use.
•
Do not
climb onto or place objects on top of the outdoor unit.
•
Do not
allow the air conditioner to operate for long periods of time with doors or windows open, or if the humidity is very high.
WARNING
This symbol indicates the possibility
of personnel injury or loss of life.
CAUTION
This symbol indicates the possibility of
property damage or serious consequences.
•
4
ELECTRICAL WARNINGS
•
Only use the specified power cord. If the power cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty plugs can cause fire
or electric shock.
Do not
pull power cord to unplug unit. Hold the plug firmly and pull it from the outlet. Pulling directly on the cord can
damage it, which can lead to fire or electric shock.
Do not
modify the length of the power supply cord or use an extension cord to power the unit.
Do not
share the electrical outlet with other appliances. Improper or insufficient power supply can cause fire or electrical
shock.Always install circuit breaker and a dedicated power circuit.
Do not
use the socket if it is loose or damaged.
Do not
place heavy object on the power cord and ensure that the cord is not compressed.
There is danger of fire or electric shock.
If water enters the unit, turn the unit off at the power outlet and switch off the circuit breaker.
Isolate supply by taking the power-plug out or disconnect the power supply to the unit, contacta qualified service
technician.
The product must be properly grounded at the time of installation, or electrical shock may occur.
For all electrical work, follow all local and national wiring standards, regulations, and the Electrical Connection Diagram
located on the top panel of the unit.
If connecting power to fixed wiring, an all-pole disconnection device which has at least 3mm clearances in all poles,
and have a leakage current that may exceed 10mA, the residual current device(RCD) having a rated residual operating
current not exceeding 30mA, and disconnection must be incorporated in the fixed wiring in accordance with the wiring
rules.
This unit is earthed through the power cord, make sure that the unit is correctly grounded. The wall outlet(Air-break
switch) should be provided with reliable earth wire.
The unit should be provided with an individual circuit and the circuit breaker/fuse rating should be the same as that
of the power cord and wall outlet. Power cord conductors are distinguished according to the color as shown in Wiring
Diagram located on the top of the machine.
WARNINGS FOR PRODUCT INSTALLATION
1. Installation must be performed by an authorized dealer or specialist. Defective installation can cause water leakage,
electrical shock, or fire.
2. Installation must be performed according to the installation instructions. Improper installation can cause water leakage,
electrical shock, or fire. (In North America,installation must be performed in accordance with the requirement of NEC
and CEC by authorized personnel only.)
3. Contact an authorized service technician for repair or maintenance of this unit. This appliance shall be installed in acc-
ordance with national wiring regulations.
4. Only use the included accessories, parts, and specified parts for installation. Using non-standard parts can cause water
leakage, electrical shock, fire, and can cause the unit to fail.
5. Install the unit in a firm location that can support the unit’s weight. If the chosen location cannot support the unit’s
weight, or the installation is not done properly, the unit may drop and cause serious injury and damage.
6. Install drainage piping according to the instructions in this manual. Improper drainage may cause water damage to your
home and property.
7. For units that have an auxiliary electric heater, do not install the unit within 1 meter (3 feet) of any combustible materials.
8.
Do not
install the unit in a location that may be exposed to combustible gas leaks. If combustible gas accumulates aro-
und the unit, it may cause fire.
9.
Do not
turn on the power until all work has been completed.
10. When moving or relocating the air conditioner, consult experienced service technicians for disconnection and reinsta-
llation of the unit.
11. How to install the appliance to its support, please read the information for details in "Installation instructions" section.
TAKE NOTE OF FUSE SPECIFICATIONS
Wall outlet
Air-break switch
The air conditioner’s circuit board (PCB) is designed with a fuse to provide overcurrent
protection. The specifications of the fuse are printed on the circuit board ,such as
T3.15A/250V(or 350V), etc,
•
•
•
•
•
•
•
•
•
•
•
Seal( )
(Used on
drain joint)
Drain Joint( )
1 pc 1 pc 1 pc
1~2 pc
(depending on
models)
2 pcs(For some units,
used to fasten the front
panel) 2 pcs or 4 pcs(used
to install the drain pan)
Drain pan( )
or
Rubber Plug Screw
Accessories
8 pcs
(depend on
model you
purchased)
Wooden screw
(optional)
( )
1 pc 4 pcs
PVC sheath and
cable ties( )

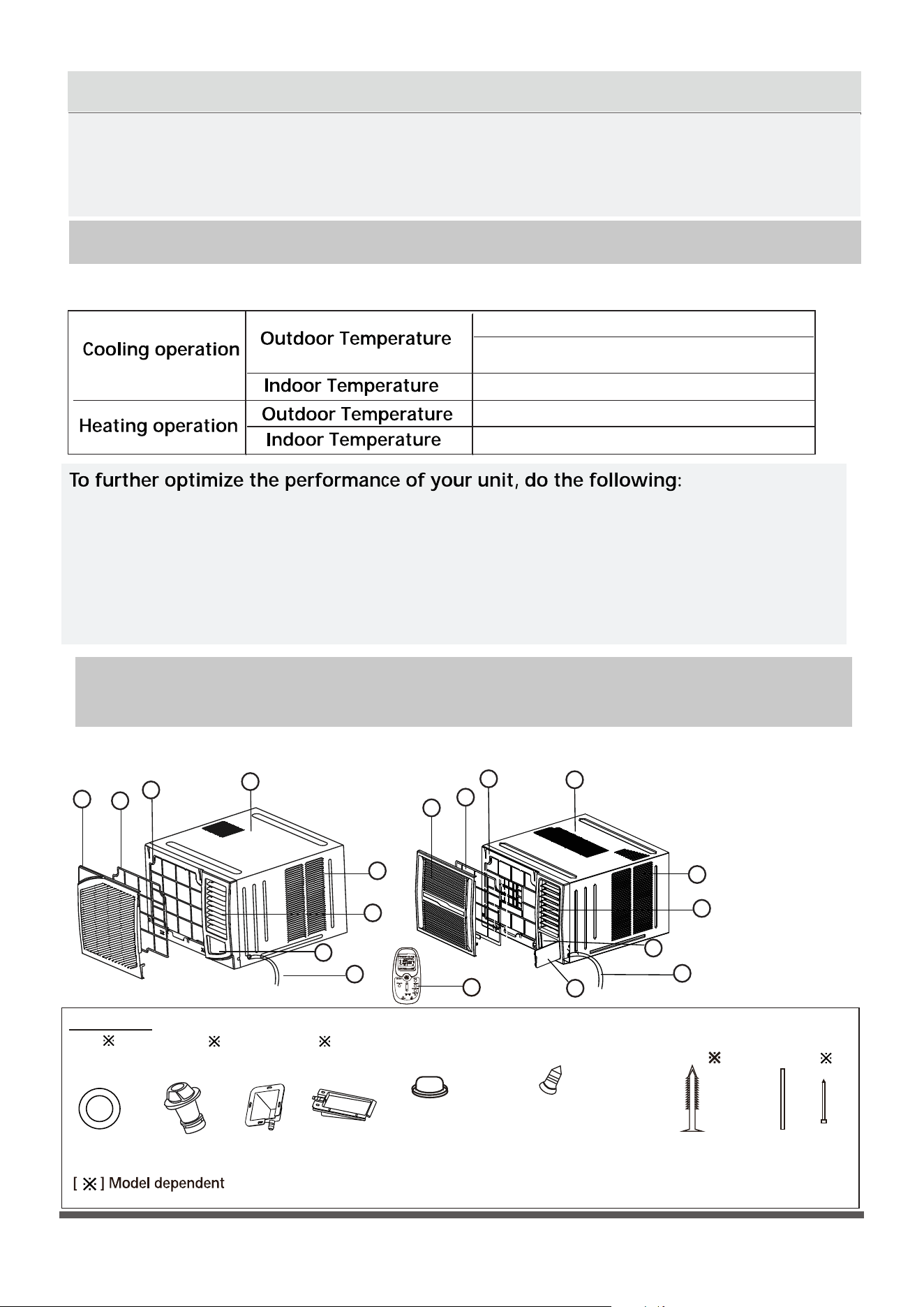

UNIT PARTS IDENTIFICATION
NOTE: Different models have different front panels and cabinets. Illustrations in this manual are for explanatory purposes. The actual
shape of your indoor unit may be slightly different. The actual shape shall prevail. See the following figures for references:
1
1. Front panel
2. Air filter
3. Frame
4. Cabinet
5. Air inlet grille
(outdoor side)
6. Air outlet grille
7. Electronic control
keypad
8. Power supply cord
9. Control panel cover
(some units)

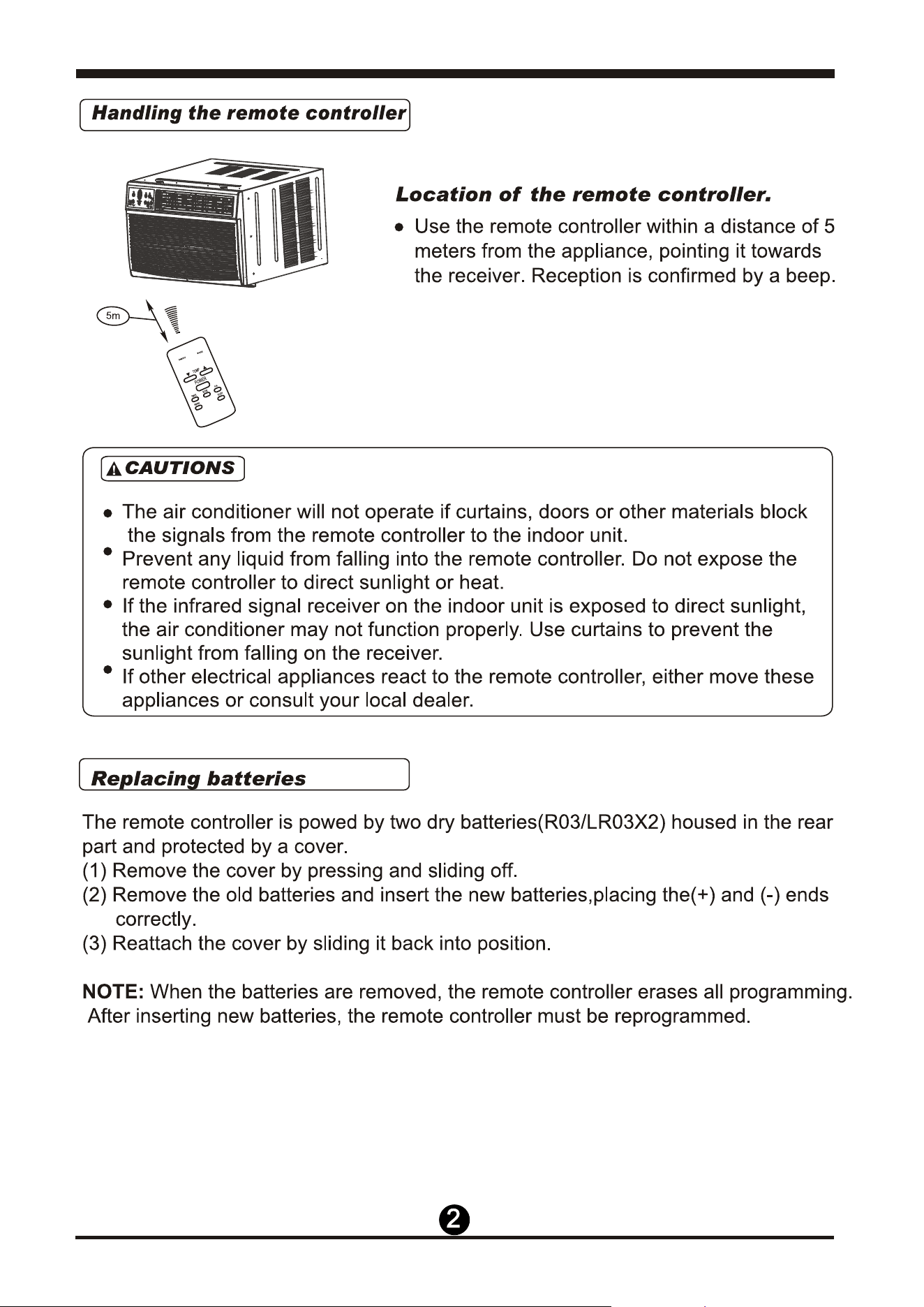

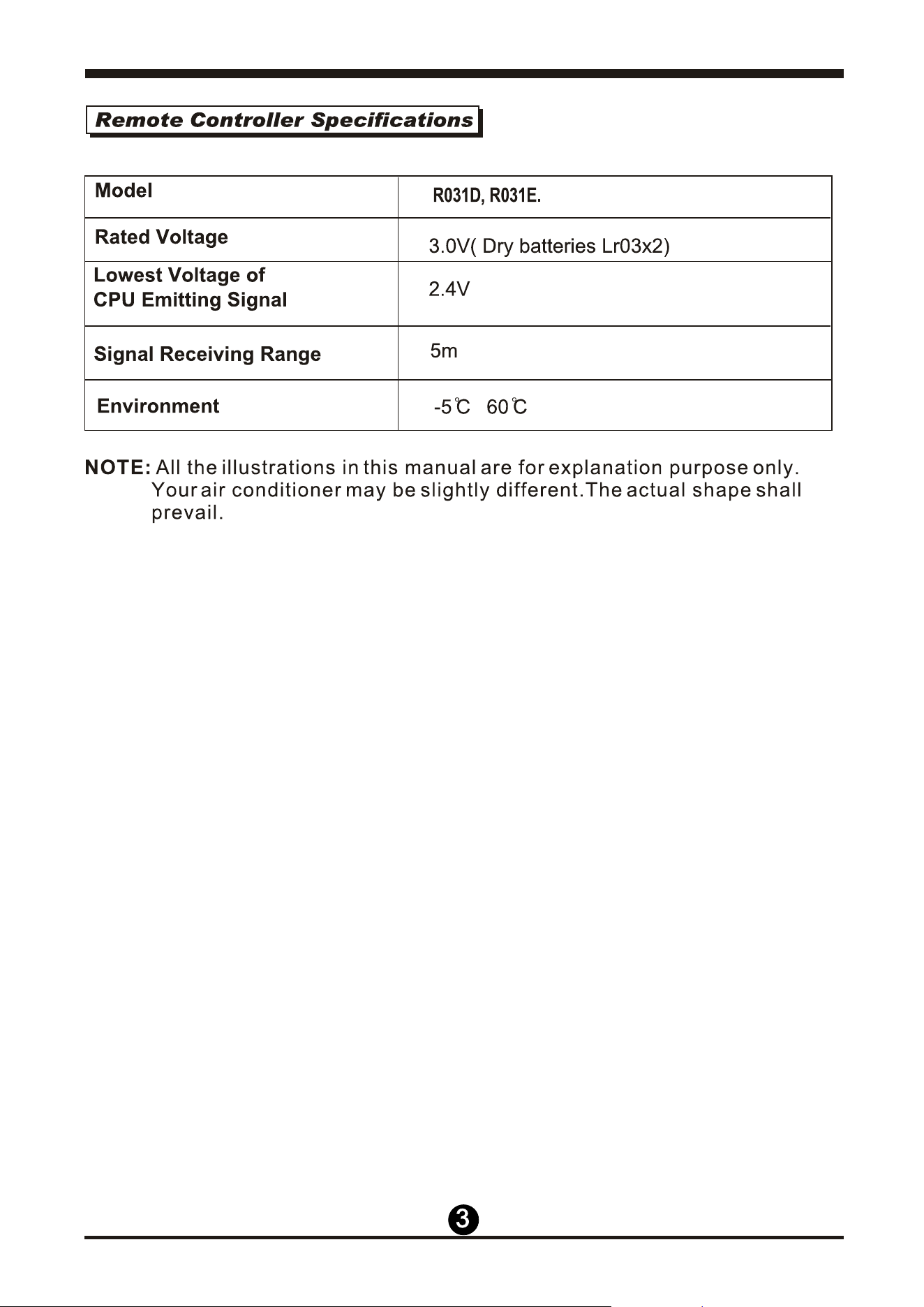

10. Remote controller
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
5
Operating temperature
When your air conditioner is used outside of the following temperature ranges, certain safety protection features may
activate and cause the unit to disable.
18°C-43°C (64°F-109°F)
17°C-32°C (62°F-90°F)
-5°C-24°C (23°F-76°F)
0°C-27°C (32°F-80°F)
18°C-52°C (64°F-126°F)
(For special tropical models)
•
•
•
•
•
•
Keep doors and windows closed.
The capacity of the room air conditioner must fit the room size for efficient and satisfactory operation.
Do not block air inlets or outlets.
Regularly inspect and clean air filters.
If the power supplied to the unit is not plus/minus 10% of the specified rating, the unit may not function and the fuse
may blow.
Noise from the air conditioner will be louder at night than in the daytime. This is because the noise in the surroundings
is comparatively low at night. If your feel that the noise is too loud, switch the thermostat to lower numbers.
Note about Fluorinated Gasses
1. Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific information on the type, the
amount and the CO2 equivalent in tonnes of the fluorinated greenhouse gas(on some models), please refer to the
relevant label on the unit itself.
2. Installation, service, maintenance and repair of this unit must be performed by a certified technician.
3. Product uninstallation and recycling must be performed by a certified technician.
M
O
D
E
S
L
E
E
P
L
E
D
C
L
O
C
K
C
A
N
C
E
L
T
I
M
E
R
F
A
N
R
E
S
E
T
L
O
C
K
C
L
O
C
K
E
O
N
O
F
F
S
E
T
T
E
M
P
.
F
A
N
S
P
E
E
D
A
U
T
O
F
S
W
I
N
G
10
Some models without MED fan speed feature and (or)
AUTO mode feature and (or) swing feature.
Press the POWER keypad to turn the unit on/off.
Press the "MODE" keypad to select the appropriate ope-
rating mode. The mode selection will alternate between
AUTO, HEAT(cooling only models without), COOL, FAN
and DRY.The indicator light beside the "MODE" option
will illuminate, identifying the mode selected.
Vent Control
The vent control is located above the control knobs. The operation method and the shape may vary in different models (see the following
figures) For maximum cooling efficiency, CLOSE the vent. It will allow internal air circulation. OPEN the vent to discharge stale air.
6
Different models have different operation panels. Not all the functions describing below are available for the air conditioner
you purchased. Please check the operation panel of the unit youpurchased. The following graphics are
for explanatory purposes.
The actual shape shall prevail.

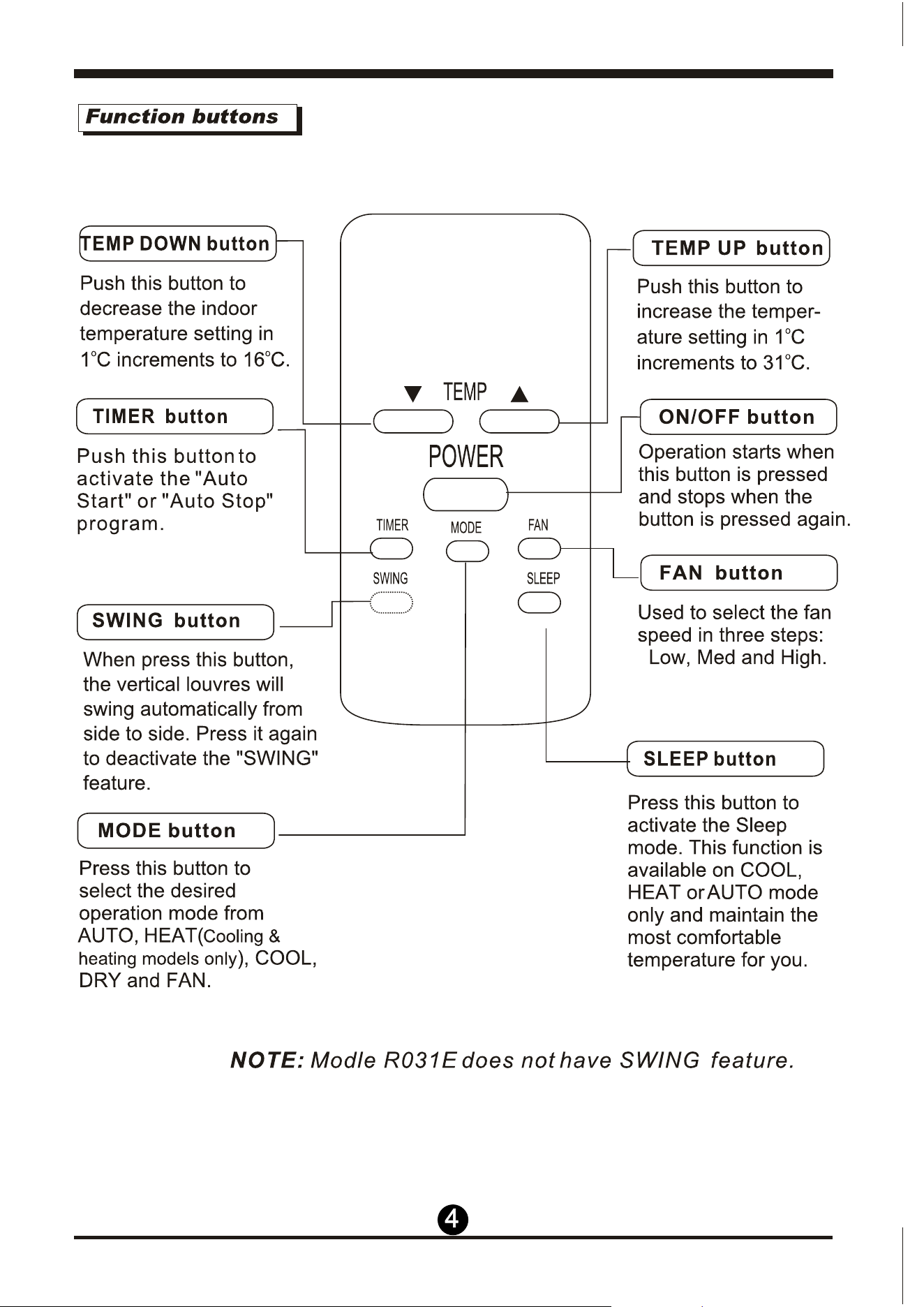

OPERATION INSTRUCTIONS
Press this keypad to activate the appropriate fan speed setting. Each depression of the keypad will alternate through LOW, MED(on some models),
HIGH fan speed options. The indicator light beside the FAN speed option will illuminate, identifying the fan speed selected.
Press the "SWING" keypad to activate the automatic air swing feature. The indicator light adjacent to the "SWING" keypad will illuminate, identifying
to the selected mode is operational. The vertical louvers will oscillate back and forth (side to side) automatically sweeping air alternately for comfortable
cooling/heating. To stop the air swing feature, press the "SWING" keypad again, the indicator light adjacent to the keypad will go off.
O
C
SWING
TIMER
SWING
TEMP
FAN
MODE
AUTO
POWER
HEAT
COOL
FAN
DRY
SLEEP
HIGH
MED LOW
Med
Heat
TEMP
HEAT
Press the keypad to increase the set (operating) temperature of the unit. Each time the keypad is pressed the temperature increases as follows:
1 (Celsius Scale) Maximum Setting 30 /31 .
Press the keypad to decrease the set (operating) temperature of the unit. Each time the keypad is pressed the temperature decreases as follows:
1 (Celsius Scale) Minimum Setting 17 /16

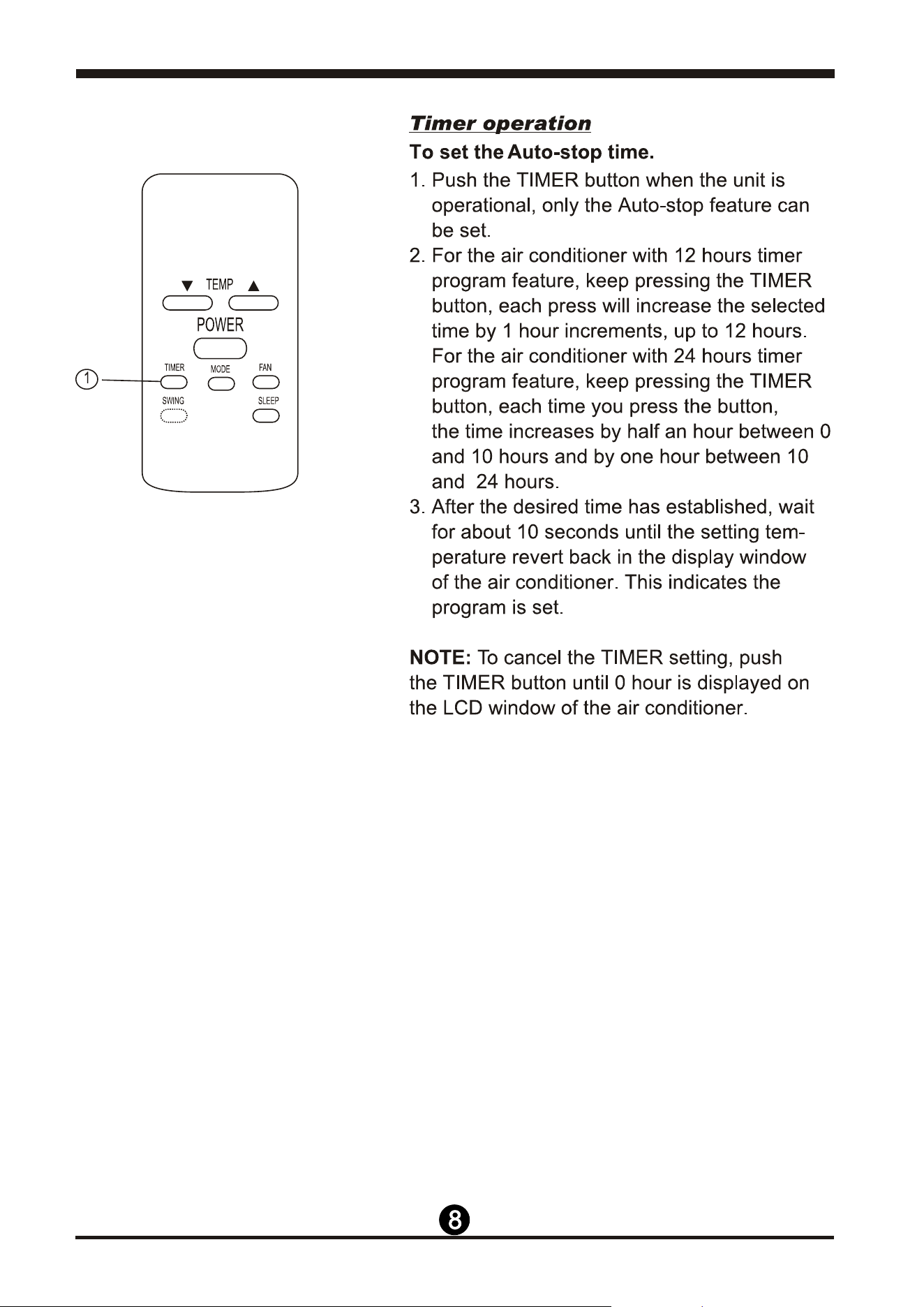

When the unit is on, press the Timer button will initiate the Auto stop program, the TIMER OFF indicator light illuminates. Press the UP or down but-
ton to select the desired time. Press the TI MER button again within 10 seconds, the Auto start program is initiated. And the TI MER ON indicator light
illuminates. Press the up or down button to select the desired Auto start time.
When the unit is off, press the Timer button to initiate the Auto start program, press it again within 10 seconds will initiate the Auto stop program.
Press or hold the UP or DOWN button to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours.
The control will count down the time remaining until start.
The system will automatically revert back to display the previous temperature setting if there is no operation in a 10 seconds period.
Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/Stop timer program.
Press the “TIMER” keypad to activate the “auto start/auto stop” timer function.
Auto start/stop programs can be set from 0~12 hours. Each depression of the “TIMER” keypad will incrase the selected time in 1 hour increments.
•
•
•
•
•
AUTO
HEAT

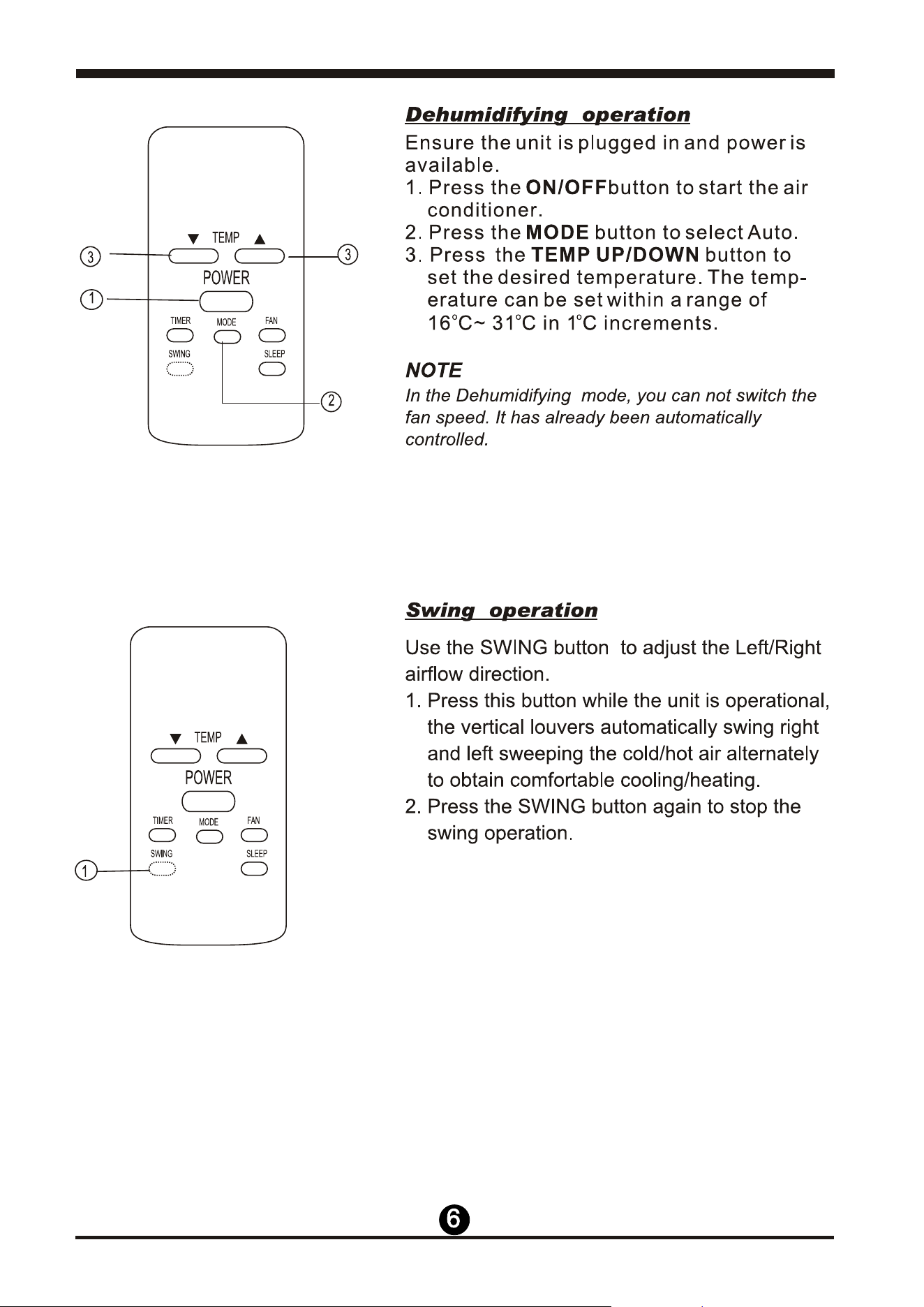

This mode is used to decrease the humidity in the room.
Under this mode, you cannot select a fan speed. The fan
motor operates at LOW speed. Keep windows and doors
closed for the best dehumidifying effect.
On the DRY mode, you can not adjust temperature
on some models.
The temperature setting are adjustable between 17 to
30 (or 16 to 31 ). You can select your desired fan speed.
The temperature settings are adjustable between 17 to
30 (or 16 to 31 ) in heating mode. You can select your
desired fan speed.

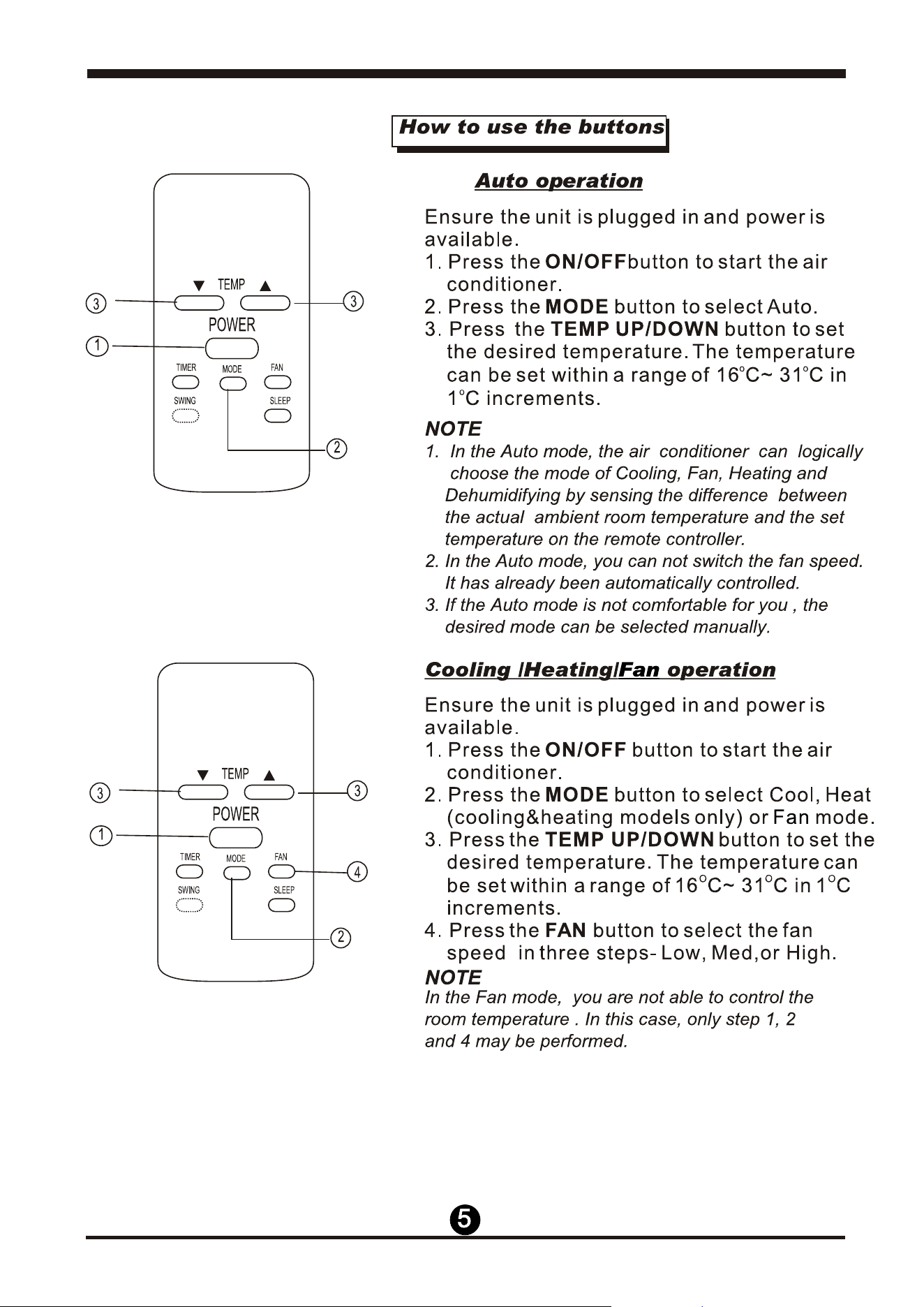

The fan motor remains on MED speed in AUTO mode. The
unit will select the appropriate operating mode from FAN,
COOL or HEAT(For reverse cycle models only) based upon the temperature difference between the actual and desired room temperature.Some models
wihtout MED speed,the fan motor operates on HIGH speed in AUTO mode.
On the AUTO mode, you can not adjust temperature and fan speed.
Press the "MODE" keypad to select the FAN mode, you can press "FAN" keypad to select your desired fan speed but you can not adjust temperature.
Indicates frosting protection (Turn off the unit and restart it to return to normal operation).
Indicates the requirement of a filter check after 720 hours of fan operation. Turn off the unit, disconnect/unplug from the power supply. Clean the
filter, then restore the power, the unit will return to normal operation.This is a reminder to clean the Air Filter for more efficient operation. In the
event of a power failure, the "EI" program is automatically re-set. Therefore we suggest you remove and clean the filter before restarting the unit
after any power failure. (On some models)
Indicates a malfunction of the indoor room temperature sensor
Indicates a malfunction of the evaporator temperature sensor
Indicates a malfunction of the outdoor condenser temperature sensor
When one of the above malfunctions occurs, turn off the unit, and check for any obstructions.
Restart the unit, if the malfunction is still present, turn off the unit and unplug the power cord.
Contact the manufacturer or its service agents or a similar qualified person for service.
Displays room temperature on fan only mode, displays the setting temperature on the other modes.
Displays times during Timer setting, afer 10 seconds, the system will revert back to display the setting temperature.
7
1. Grasp the top or the left of the operation coverand pull it to open it.
2. Close the operation cover and press the cover again until it snaps into
the locked position.
To adjust horizontal airflow direction, move the lever gently to the left or right by hand until the desired horizontal airflow direction is obtained
(see Fig.C).
When the unit is operating, use the hand to adjust the louvers to change the vertical airflow direction.The vertical angle of air flow can be set by
gripping the louver and move to the desired position (see Fig.D).
For some units, the connecting rod of the louver is provided with a convex block , it can be moved between the three grooves on the left side of
frame at an angle of 0-15 degrees(see Fig.E).
Grooves
Convex block

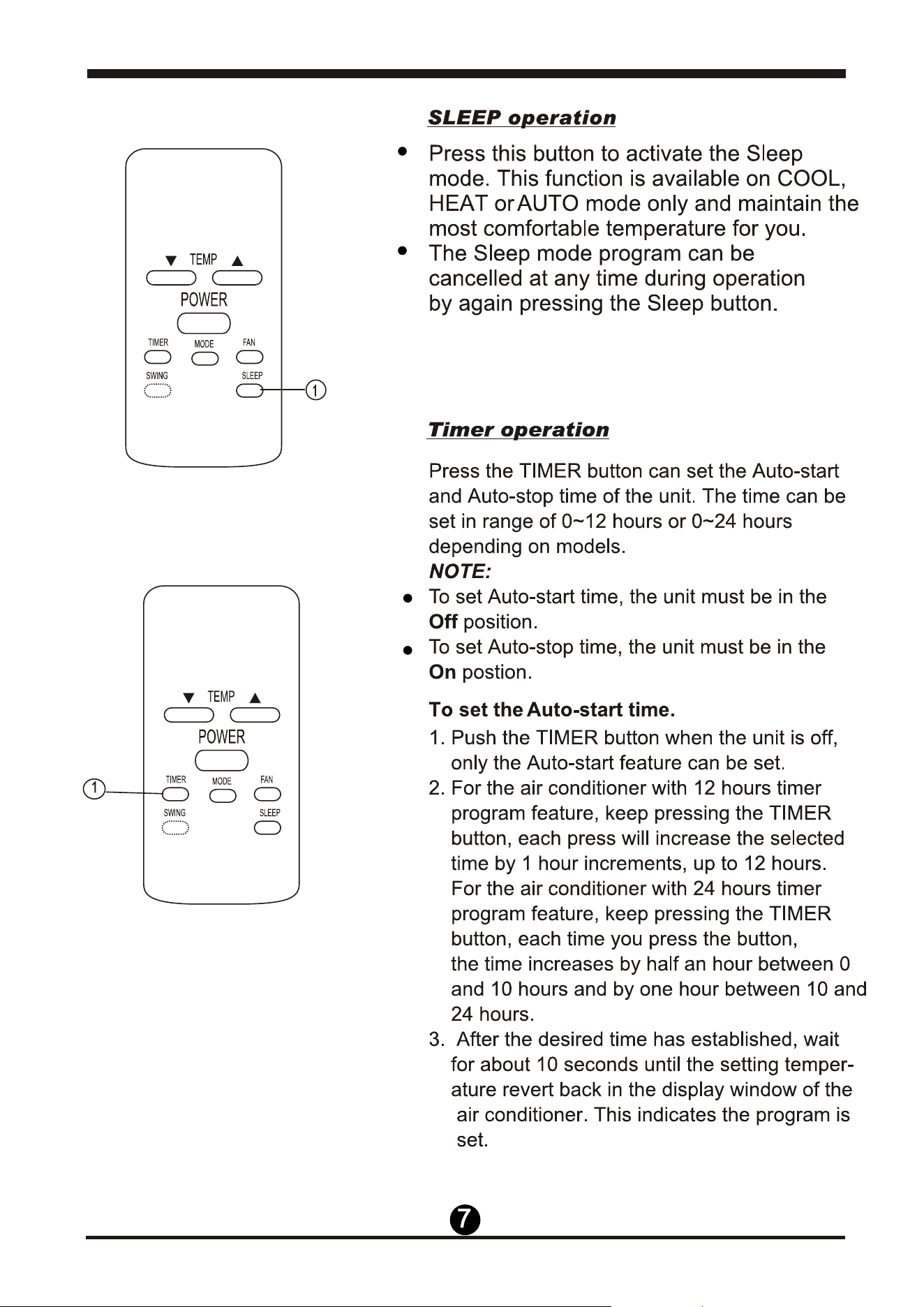

Press and hold the "SWING" keypad for 2 seconds or use the remote control to activate the "SLEEP" feature . Press and hold the "SWING" keypad for
2 seconds or use the remote control again to deactivate the "SLEEP" feature. In the Cooling mode, the cooling temperature set point will increase 1
per hour after the "SLEEP" mode is selected. Two hours later, the set point will continue at this temperature and the fan motor will remain on LOW
speed. In the Heating mode, the heating temperature set point will decrease 1 per hour after the "SLEEP" mode is selected. Two hours later, the set
point will continue at this temperature and the fan motor will remain on LOW speed. Using the "SLEEP" mode will reduce noise creating a comfortable
sleeping environment
This feature is not available under DRY and FAN ONLY operation.
Press the TURBO button by remote controller on COOL/HEAT (For models adopts Electrical heater only) mode, the air condetioner goes into powerful
cooling/heating operation. Press again to cancel the TURBO function.
•
•
On cool mode, press the TIMER button for 2 seconds, the TIMER OFF light illuminates and the cool mode light flashes, it indicates the Auto Stop
programe for cooling operation is initiated. Press the mode button, the fan mode light flashes, it indicates the Auto Stop programe for fan operation
is initiated. Press the UP or down button to select the desired time.
On fan mode, press the TIMER button for 2 seconds, the TIMER OFF light illuminates and the fan mode light flashes, it indicates the Auto Stop programe
for fan operation is initiated.Press the UP or down button to select the desired time.
Press or hold the UP or DOWN button to change the Auto Stop time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours.
The controlwill count down the time remaining until stop.
Adjusting the timer setting to 0.0 will cancel the Auto Stop timer program.
•
•
•
•
IMPORTANT
The cabinet and front panel may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid
dishwashing detergent. Rinse thoroughly and wipe dry.
•
Do not
use inflammable sprays such as lacquer or hair spray near the air conditioner
Do not
use benzene, alcohol, gasoline, acid,paint thinner, polishing powder or other solvents to clean the unit. The unit can be damaged.
•
•
Do not
use water hotter than 50°C (122°F) to clean the front panel. This can cause the panel to deform or become discolored.
Excess water in or around the controls may cause damage to the air condtioner. Be sure to wring excess water from the cloth before wipe
it clean.
Cleaning Your Air Filter
A clogged air filter can reduce the cooling efficiency of your unit and
increase operating noise.Make sure to clean the filter once every two
weeks (or as necessary) during periods of frequent operation.
1. Hold the slot under the front panel, then uplift it outwards, and
remove the front panel.
2. Pinch the handle under the air filter and make the air filter arched,
remove it from the slot from underside to upside(Model A). Grasp the
handle of the filter, then slide it downwards to remove the filter(Model B).
3. Clean the filter with warm, soapy water. The water should be below
40°C (104°F) to prevent distortion of the filter.
4. If your filter has a small air freshening filter, clean this air freshening
filter with a hand-held vacuum.
5. Rinse the air filter with fresh water, then shake off excess water.
6. Dry it in a cool, dry place, and refrain from exposing it to direct sunlight.
Winter Storage
CAUTION
operate the air conditioner without the
air filter, as dust/dirt particles can contribute to
equipment failure.
Model A
If your filter has a small air freshening
filter(optional),it can be installed at
any of the four positions, install it at
the postion as you like . Clean it with
a hand-held vacuum.
Model B
1
2
3
4
If you plan to store the air conditioner during the winter, remove it
carefully from the window according to the installation instructions.
Cover it with plastic or return it to the original carton.
•
WATER DRAINAGE
The condensed water can be treated as follows:
(Applicable for the units designed with
bottom drain hole only. )
- Remove the rubber plug from the bottom of cabinet(if any)
- Take out the drain pan and screws from accessary.
- Fix the drain pan onto the bottom of cabinet by screws.
- Connect an extension drain hose (locally purchased) to the
outlet of drain tray.
The bottom drainage will slightly affect cooling perfo-
rmance, but it can reduce the noise caused by spraying the
condensed water. For pump heating, the bottom drainage
must be choosed.
- Fit the seal onto the drain joint(provided as accessory).
- Insert the drain joint to the back drainage hole, and rotate
it by 90° to be well fitted.
- Connect an extension drain hose (locally purchased accor-
ding to the installation length request) to the drain joint.
- Make sure to plug the bottom drain hole by rubble plug.
The back drainage will slightly affect cooling perfor-
mance, but will reduce the noise caused by spraying the
condensed water.
Back drain
hole
Back drain
hole
Drain
joint
Seal
Rubber
plug
Screw
Drain pan
Drain
outlet
Rubber
plug
Rubber
plug
Bottom drain
hole
Bottom drain
hole
BEFORE CLEANING OR MAINTENANCE
ALWAYS TURN OFF YOUR AIR CONDITIONER SYSTEM AND DISCONNECT ITS POWER SUPPLY
BEFORE CLEANING OR MAINTENANCE.
CARE AND MAINTENANCE
Cleaning Your Unit
8
Step 3: Remove the frame
Step 2: Remove the front panel and air filter
1. Take out the air conditioner from it’s packaging.
2. Hold the slot under the front panel, then uplift it outwards, and
remove the front panel( See Fig. 1)
3. Grip the tab on the end of the filter, lift it up, then pull it towards
yourself, pull the filter out(see Fig.2)
Fig.3
Fig.5A-ModelA
1. Remove two screws at the bottom of the frame ( See Fig. 3)
2. Disconnect the coupler plugs and make sure not to interfere with
the temperature sensor cable. Hold the left bottom side of the
frame, lift it up to unlatch the lower side, remove it toward you
( See Fig. 4)
NOTE: For some units the front panel and frame do not install on the
machine placed at the back of the unit, step 2 and step 3 do not need.

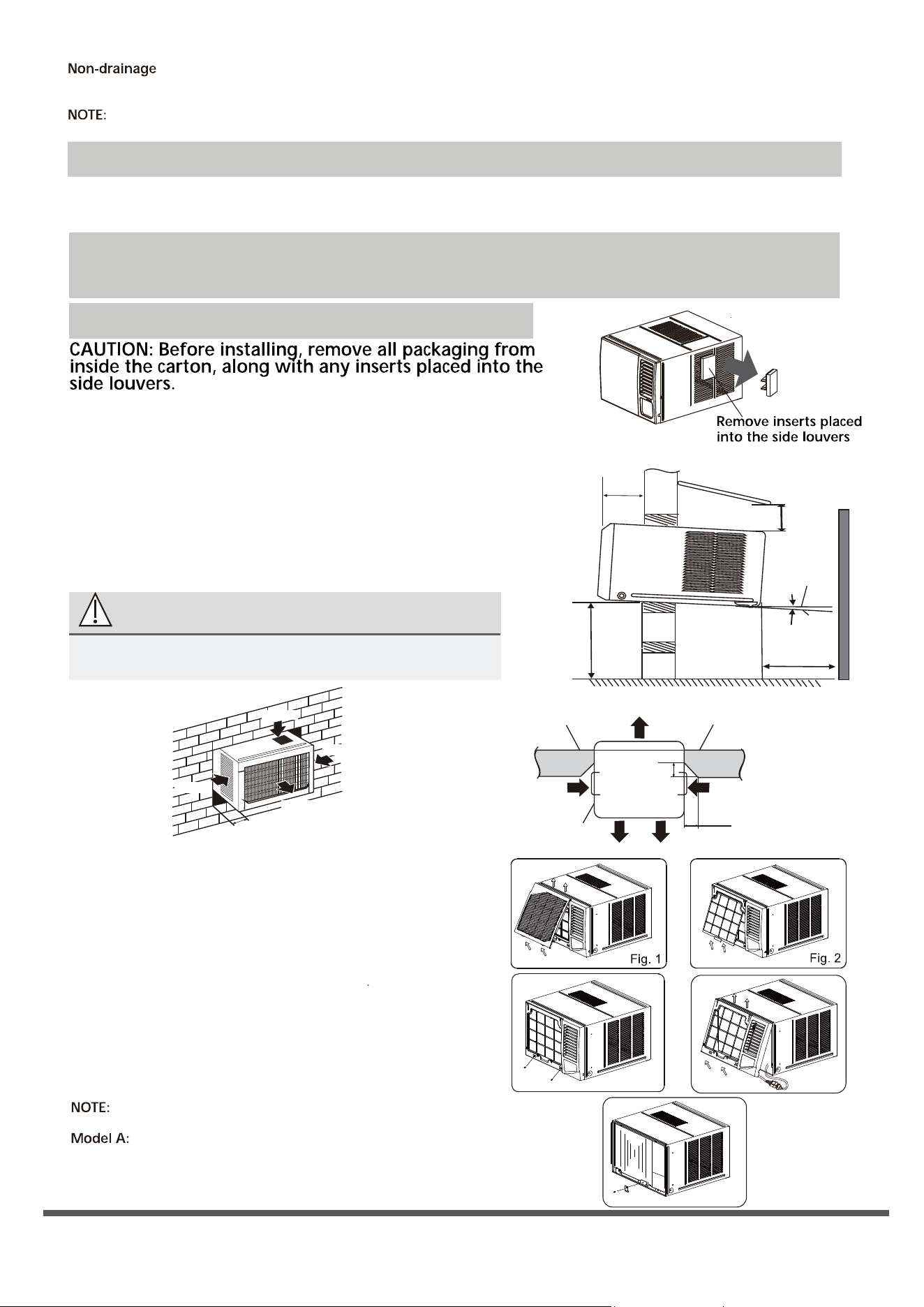

Step 1: Select the best location
Prior to installation
INSTALLATION INSTRUCTIONS
CAUTION
All side louvers of the cabinet must remain exposed
to the outside of the structure.
1. To avoid vibration and noise, make sure the unit is installed securely and firmly.
2. Install the unit where the sunlight does not shine directly on the unit. If the unit
receives direct unlight, build an awning to shade the cabinet.
3. There should be no obstacle, such as a fence or wall, within 50cm from the
back of the cabinet because it will prevent heat radiation of the condenser.
Restriction of outside air will greatly reduce the cooling and heating efficiency
of the air conditioner.
4. Install the unit a little obliquely downward to outside not to leak the condensed
water into the room (about 5~7mm).
5. Install the unit with its bottom portion 75~150cm above the floor level.
6. The power cord must be connected to an independent circuit. The yellow/
green wire must be grounded.
300mm or more
80mm or
more
Awning
Fence
Outdoor
side
Indoor
side
Wall
75~1
50c
m
500mm or more
Level
Unit
About 5~7mm
Option A
Air in
Air in
Air in
Air out
10
0
mm
Min.
50
0
mm
Min
.
Option B
45 brick cut away
to clear louvers
Front
O
45 brick cut away
to clear louvers
O
Brick
wall
Brick
wall
Air in
100mm
Air out
100mm
Air in
Louver
Top View
Note on the product
•
•
The rated cooling performance is tested under non-drainage status.
Make sure that water will not leak from the surrounding area when rubber plug and joint were used. Please seal it in case
leakage is found.
If you choose non-drainage when cooling, both the bottom and the back drain holes of the unit should be plugged with rubber
plugs. The condensed water will be sprayed to condenser, and will improve the cooling performance.
When you choose non-drainage, the air conditioner will be perfect cooling efficiency, but big noise may be caused by spr-
aying the condensed water. Please do not choose it if you are sensitive to the noise.
Fig.4

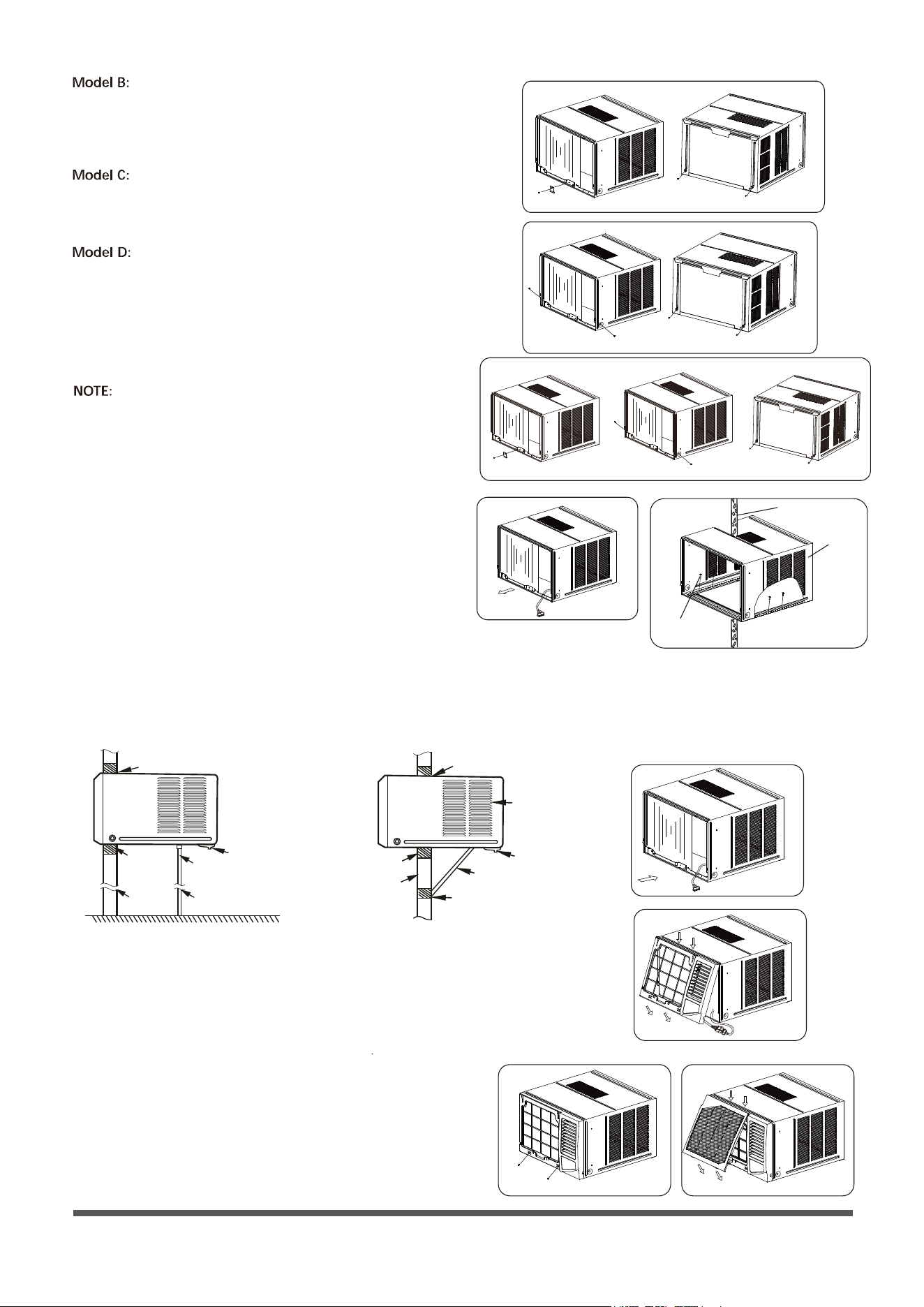

Step 4: Remove the cabinet
There are slight differences on removing the cabinet according
to the different models.
1. Remove one screw securing the chassis fixing bracket, then take
down the chassis fixing bracket as shown in Fig.5A.
2. Grasp the handle on the chassis and carefully slide the air cond-
itioner out of the cabinet.(see Fig.6)
9
10
Step 6: Install the unit into the cabinet
Step 7: Install the frame
1. Slide the unit into the cabinet until it is firmly against the rear of the cabinet. Care is required to ensure the foam sealing strips on
the cabinet remain in position (See Fig.8).
2. Connect the air conditioner to the power and position excess cord length beneath the air conditioner base.
3. Engage the chassis fixing brackets into the bottom cabinet rail and secure to the base with the screw provided.
1. Hook the upper edge of the frame. Then connect the coupler
plugs and make sure not to interfere with the temperature sensor
cable(see Fig.9).
2. Press the both side and lower edge of the frame, and secure it
with the two screws at the bottom of the frame ( See Fig. 10)
Step 8: Install the air filter and front panel
1. Insert the air filter into the frame’s slot from upside to underside.
(See Fig. 2)
2. Hang the front panel on the frame’s buckle, then press the front
panel into the frame’s slot until you hear a click (see Fig.11).
3. Switch unit on. Check for operation of the unit and check for
vibration after installation.
4. Fit the drain pan to the cabinet and run a drain hose to a suitable
location if required.
Fig.9
Fig.10 Fig.11
1. Remove one screw securing the chassis fixing bracket, then take
down the chassis fixing bracket. Remove two screws located on
the back of the cabinet as shown in Fig.5B.
2. Grasp the handle on the chassis and carefully slide the air cond-
itioner out of the cabinet.(see Fig.6)
1. Remove four screws located on both sides and the back of the
cabinet as shown in Fig.5C.
2. Grasp the handle on the chassis and carefully slide the air cond-
itioner out of the cabinet.(see Fig.6)
1. Remove one screw securing the chassis fixing bracket, then take
down the chassis fixing bracket.(see Fig.5D)
2. Remove four screws located on both sides and the back of the
cabinet as shown in Fig.5D.
3. Grasp the handle on the chassis and carefully slide the air cond-
itioner out of the cabinet.(see Fig.6)
Step 5: Install the cabinet
Unit may be supported by a solid frame from below or by
a hanger from a solid overhead support(not suppied, purchase
separately, please contact the dealer).
1. When need to drain off water, install the drain plug on the ch-
assis board.
2. Prepare the hole in the wall so that the bottom of the cabinet
is well supported, the top has minimum clearance and the air
inlet louvers have clearance as shown in previous page(Fig.
Option A & B). Holes from the outside through to the cavity
should be sealed. The cabinet should slop down towards the
rear by about 5~7mm to allow water formed during operation
to drain.
3. Install the cabinet into the wall and secure. Ensure the foam
seals are not damaged. Flash, seal or fill gaps around the inside
and outside to provide satisfactory appearance and protection
against the weather, insects and rodents. (see Fig.7)
Flash or seal around
external wall frame
or architrave
Drain pan
Preferred method of installation into a
timber framed wall, partition or window
Sturdy timber
frame all
round unit
Timber framed
wall or partition
External support
frame at balance
point of air conditioner
Alternatively, brackets as
illustrated below may be used
Flash or seal around
external wall frame
or architrave
Drain pan
Alternative method of installation if
external support can not be provided
Sturdy timber
frame
Timber framed
wall or partition
Ensure louvers
are entirely
outside the wall
Steadying bracket
(one per side)
Solid timber support
Fig.5C-ModelC
Fig.6
Fig.7
WALL
CABINET
SCREWS
Fig.5D-ModelD
Fig.8
Fig.5B-ModelB
11
Common Issues
The following problems are not a malfunction and in most situations will not require repairs.
Troubleshooting
SAFETY PRECAUTIONS
If ANY of the following conditions occurs, turn off your unit immediately!
The power cord is damaged or abnormally warm
You smell a burning odor
The unit emits loud or abnormal sounds
A power fuse blows or the circuit breaker frequently trips
Water or other objects fall into or out of the unit
•
•
•
•
•
Issue Possible Causes
Unit does not turn
on when pressing
ON/OFF button
Wall plug disconnected. Push plug firmly into wall outlet.
Thermostat set too low. Adjust thermostat to higher number for cooling.
Turn selector to a higher COOL position.
Thermostat set too cold for night-time cooling. To defrost the coil, set selector to a FAN
position. Then, set thermostat to a warmer position.
Air filter may be dirty. Clean filter. Refer to Care and Maintenance section. To defrost, set selector to FAN.
Thermostat set too warm. Set thermostat to colder temperature.
Temperature sensing tube touching cold coil, located behind air filter. Straighten tube away from coil.
Room temperature below 18 C(64 F). Cooling may not occur until room temperature rise above 18 C(64 F).
Unit turned off and then on too quickly. Turn unit off and wait for 3 minutes before restarting.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.
Selector Control in OFF position. Turn selector to the desired FAN or COOL setting.
Unit turned off by moving thermostat to a higher number and then immediately turning
back to a colder number. Wait approximately 3 minutes. Listen for compressor to start.
Air from unit does not
feel cold enough
Air conditioner cooling,
but room is too warm-
ice forming on cooling
coil behind decorative
front
Outdoor temperature below 18 C(64 F). To defrost the coil, set selector to FAN position.
Then, set thermostat to warmer position.
DO NOT ATTEMPT TO FIX THESE YOURSELF! CONTACT AN AUTHORIZED SERVICE PROVIDER
IMMEDIATELY!
NOTE: For the unit with power cord comes out from left side,
please perform the following steps:
1. Pull the power cord to the left side straightly(See Fig.a & b).
2. Wrap the PVC protecing sheath on the power cord with cable ties in the hole position (see Fig.c).
3. Tie up the power cord on the frame (see Fig.d & e) (Applicable for units with body dimension of 600mm*380mm*560mm only)
4. Install the frame and front panel according to the above Step 6 and Step 7.
Fig.a
Fig.b
Fig.c
Fig.d
Fig.e
Fig.f
Dirty air filter- air restricted. Clean air filter. Refer to Care and Maintenance section.
Unit recently turned on in hot room. Allow additional time to remove “Stored heat” from
walls, ceiling, floor and furniture.
Doors, windows, registers, etc. Open- cold air escapes. Close doors, windows, registers.
All directional louvers positioned improperly. Position louvers for better air distribution.
Thermostat set too warm. Turn thermostat clockwise to a colder setting.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit.
Dirty air filter - air restricted. Clean air filter.
Outside temperature extremely hot. Set to high cool to bring air past cooling coils more frequently.
Air conditioner turns
on and off rapidly
12
The design and specifications are subject to change without prior notice for product
improvement. Consult with the sales agency or manufacturer for details. Any updates
to the manual will be uploaded to the service website, please check for the latest
version.
Issue Possible Causes
Air movement sound. This is normal. If too loud, turn selector to lower FAN setting.
Sound of fan hitting water-moisture removal system. This is normal when humidity is high.
Close doors, windows and registers.
Window vibration - poor installation. Refer to installation instructions or check with installer.
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage.
Refer to installation instructions - check with installer.
Unit removing large quantity of moisture from humid room. This is normal during excessively humid days.
Noise when unit is
cooling
Water dripping INSIDE
when unit is cooling
Water dripping OUTSIDE
when unit is cooling
Unit dimensions: Choose the right cable size
MODEL(But/h)
Note: For the different customization requirements,
the deepth of the panel may be slightly different. So
the dimension of “D” is for reference only.
445x320x415
450x346x535
450x346x535
450x346x585
450x346x585
560x400x640
600x380x560
660x428x680
660x428x780
7000~9000
9000~12000
15000~24000
BODY DIMENSION(WxHxD)(mm)
SPECIFICATIONS
Minimum norminal cross-sectional area of conductors:
The size of the power supply cable, signal cable, fuse, and switch needed is determined by the
maximum current of the unit. The maximum current is indicated on the nameplate located on
the side panel of the unit. Refer to this nameplate to choose the right cable, fuse, or switch.
Rated Current of Appliance (A) Nominal Cross-Sectional Area (mm²)
> 3 and ≤ 6 0.75
1
1.5
2.5
4
6
TO be in compliance EN61000-3-11, the product MWT2F-21CM-QB4 shall be conn-
ected only to a supply of the system impedance: |Zsys| 0.156 ohms or less; the product
MWT2F1-22CM-QB4 shall be connected only to a supply of the system impedance: |Zsys|=0.132
ohms or less;the product MWT2F1-22CM- B8 shall be connected only to a supply of the
system impedance: |Zsys|=0.077 ohms or less. Before connect the product to public power
network, please consult your local power supply authority to ensure the power network meet
above requirement.
> 32 and ≤ 40
> 25 and ≤ 32
> 16 and ≤ 25
> 10 and ≤ 16
> 6 and ≤ 10
~
