Side bySide
Refrigerator
_i!i!i!i!i!i!i!i!i!i!i_!i_i!_i
Espafiol ........... 25
Fran_ais ........... 51
Welcome ....................... 2
Safety Instructions ........... 3 _l
Installation -- IncludesConnecting
Ice MakerTo Water Supply ............ 4 - 5
Door Removal
Instructions ................... 6

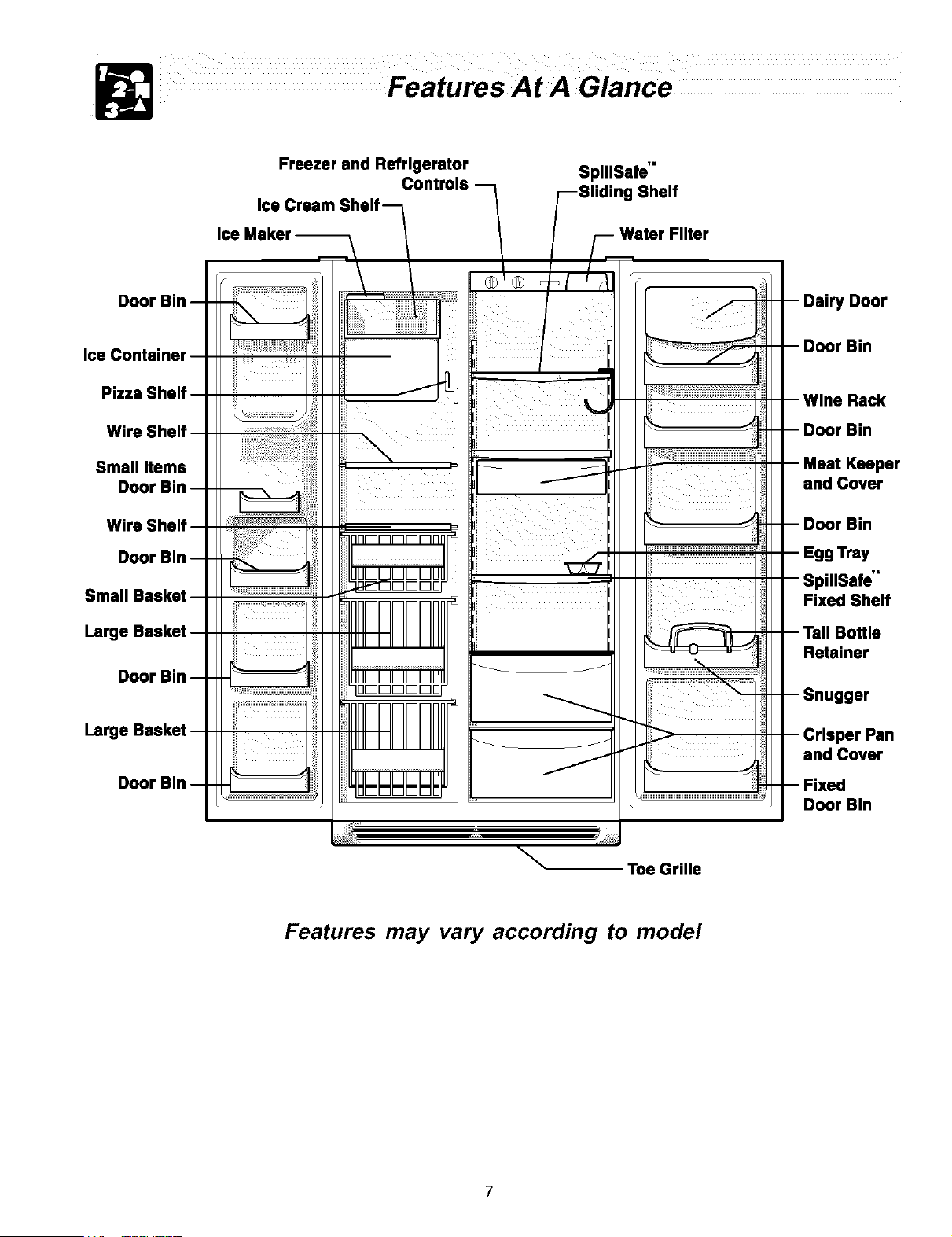

Features at a Glance ......... 7
m

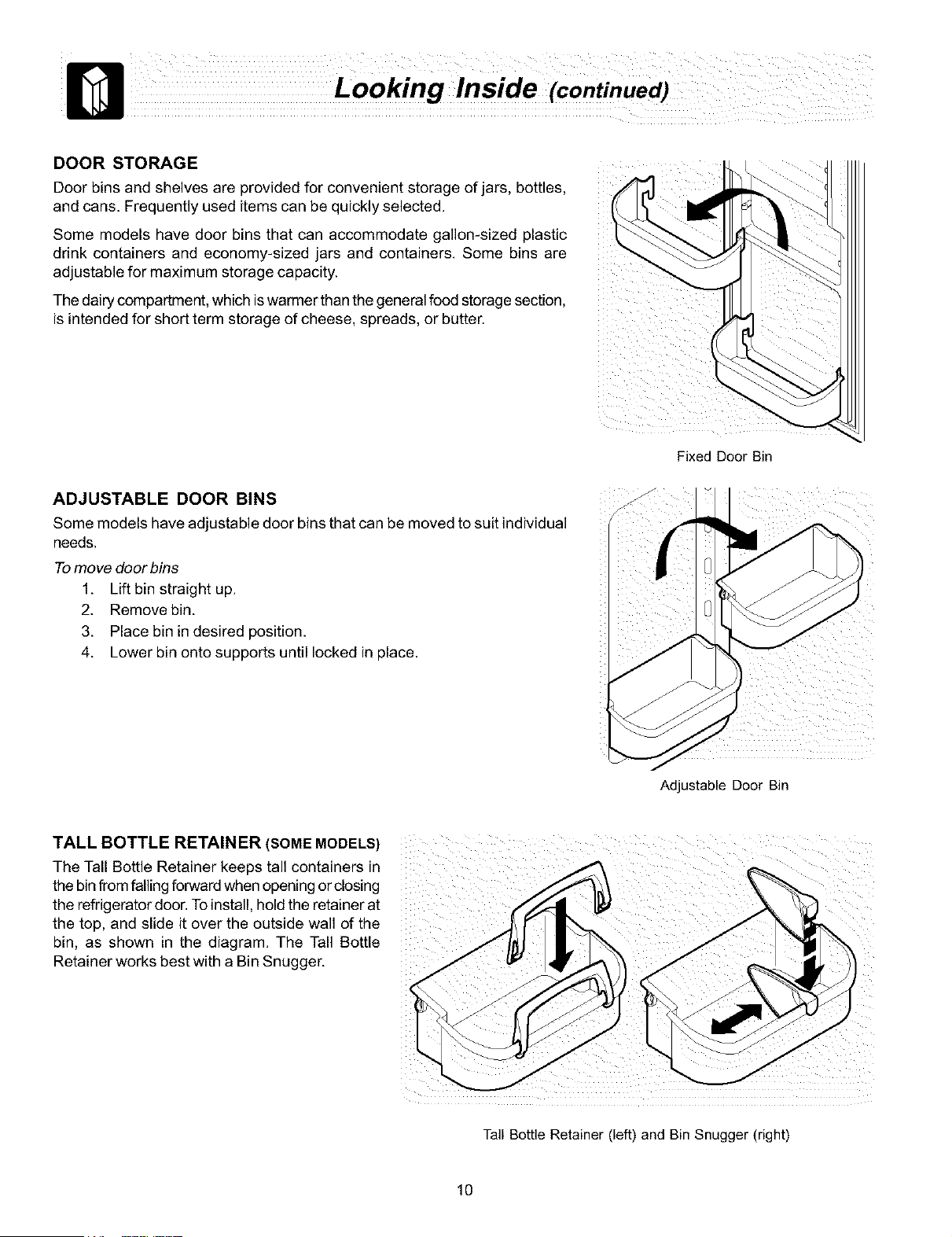

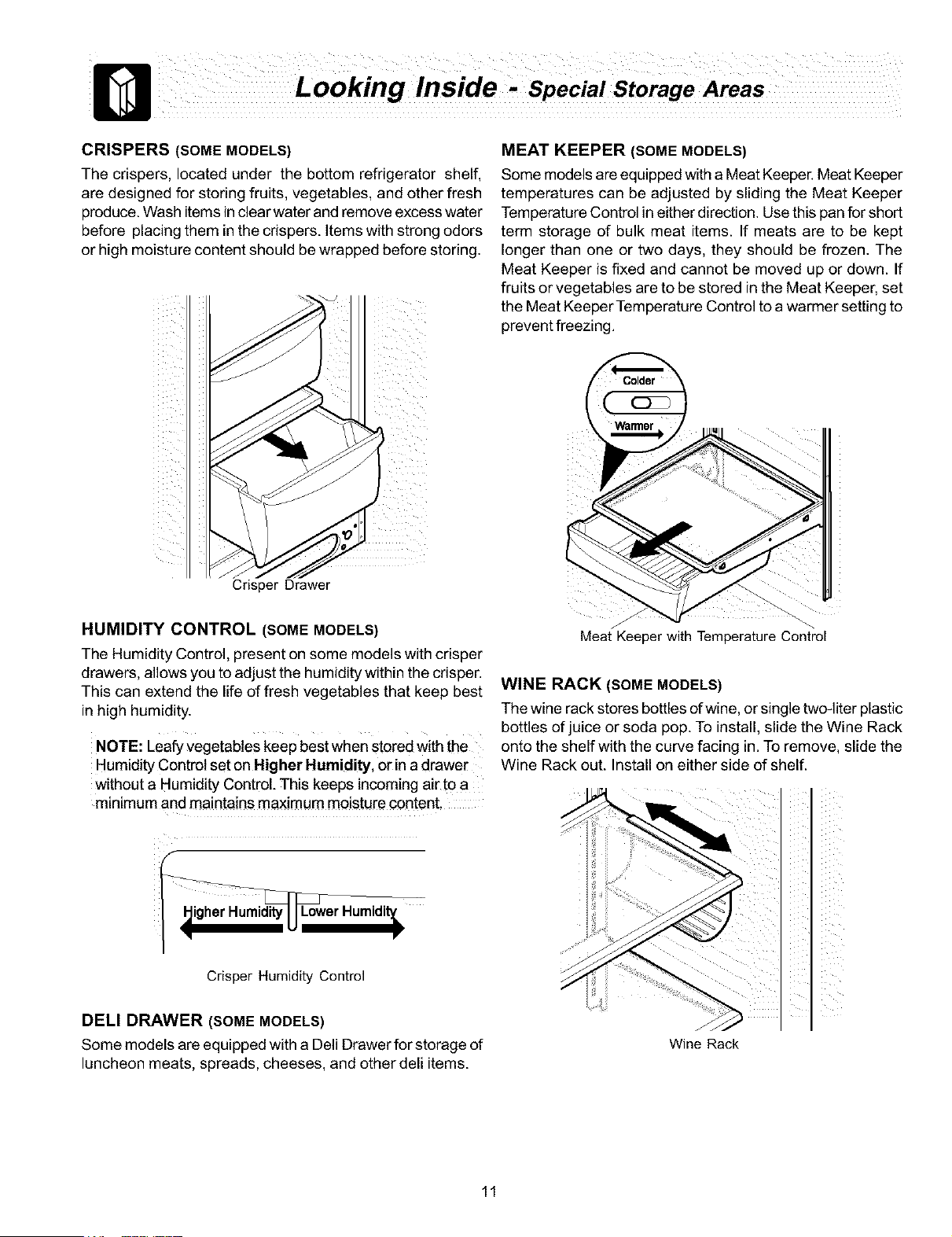

Looking Inside .......... 9

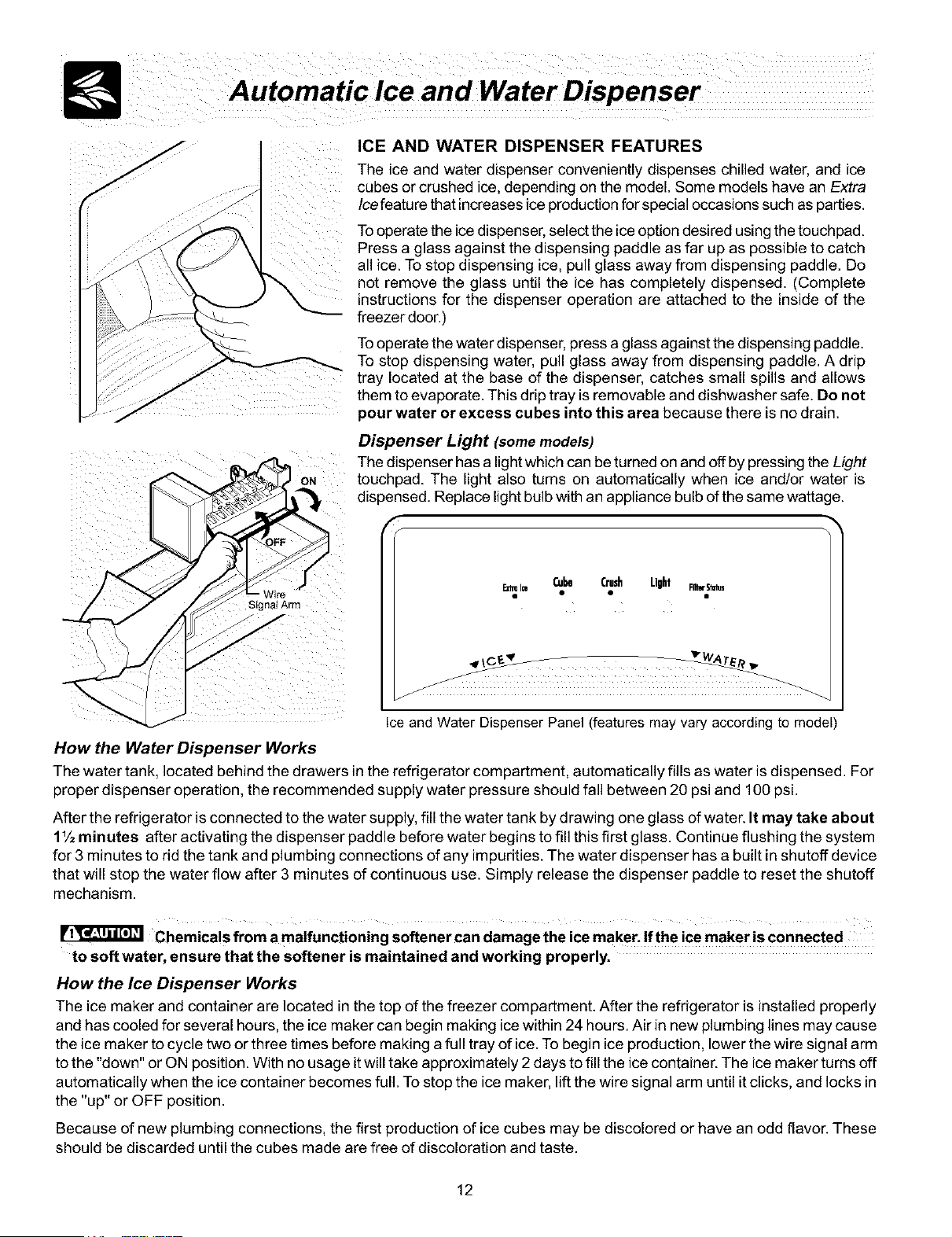

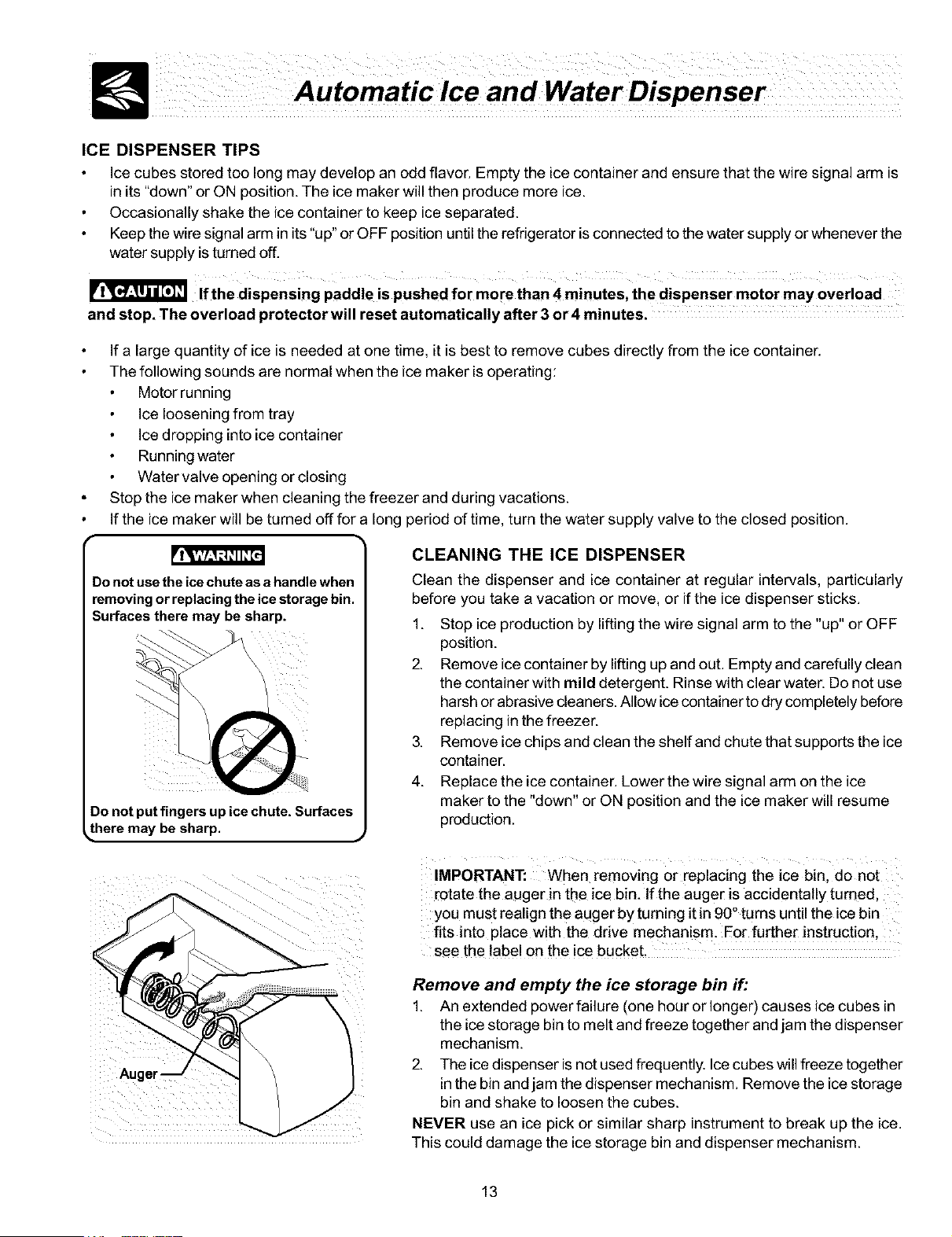

Automatic Ice and Water
Dispenser ................ 12
Food Storage

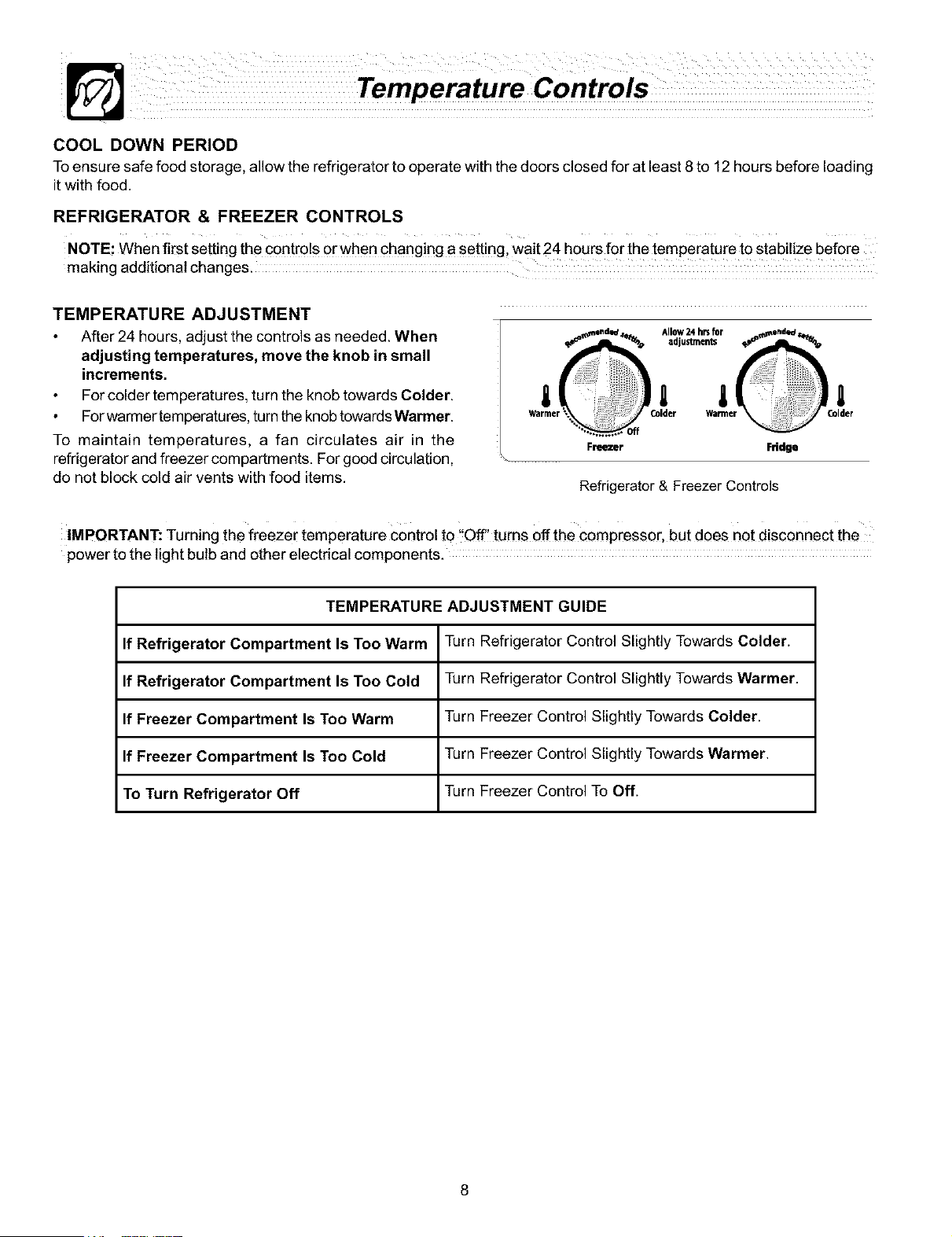

Temperature Controls ....... 8 _]
-11 D
-14 D

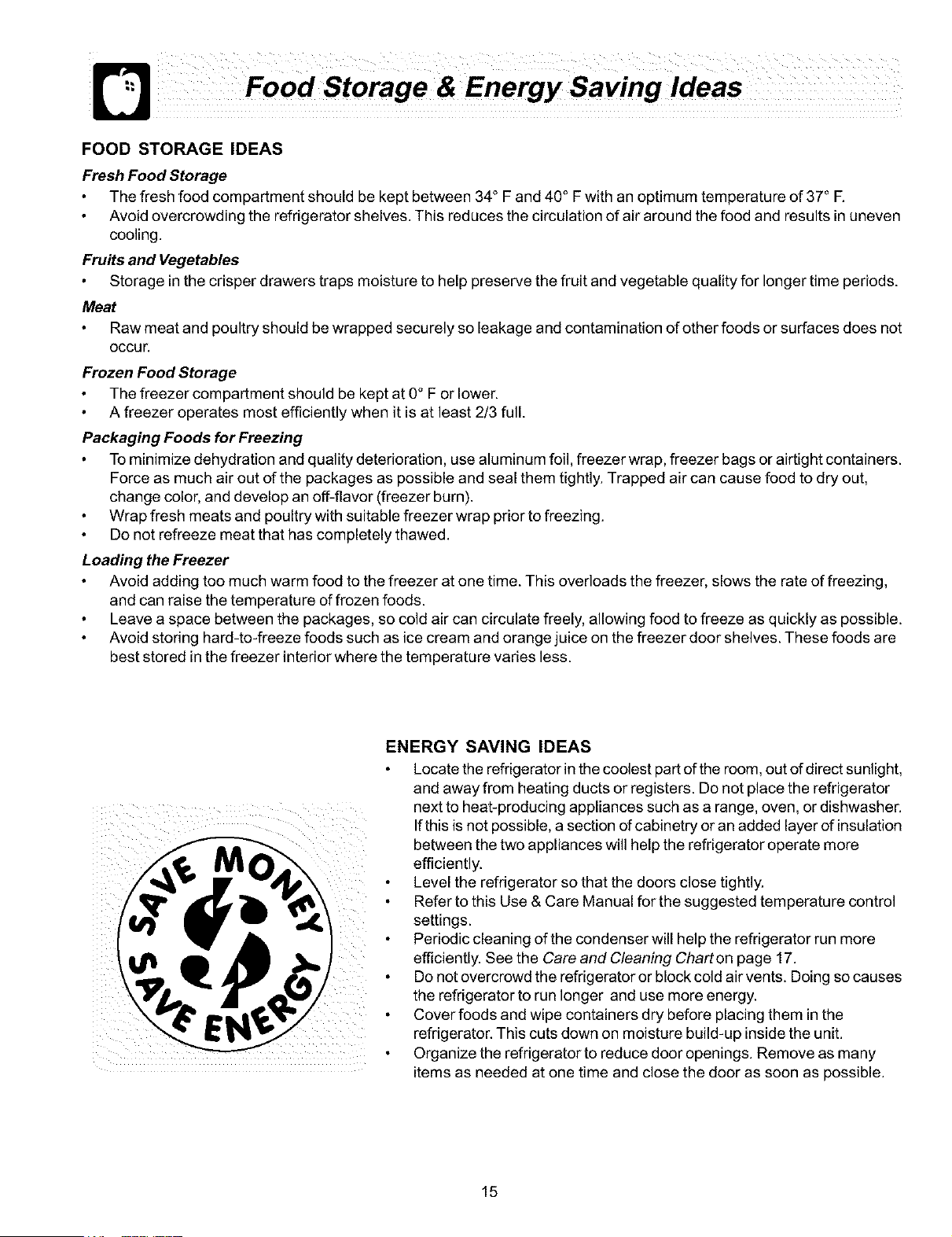

& Energy SavingTips ....... 15 D

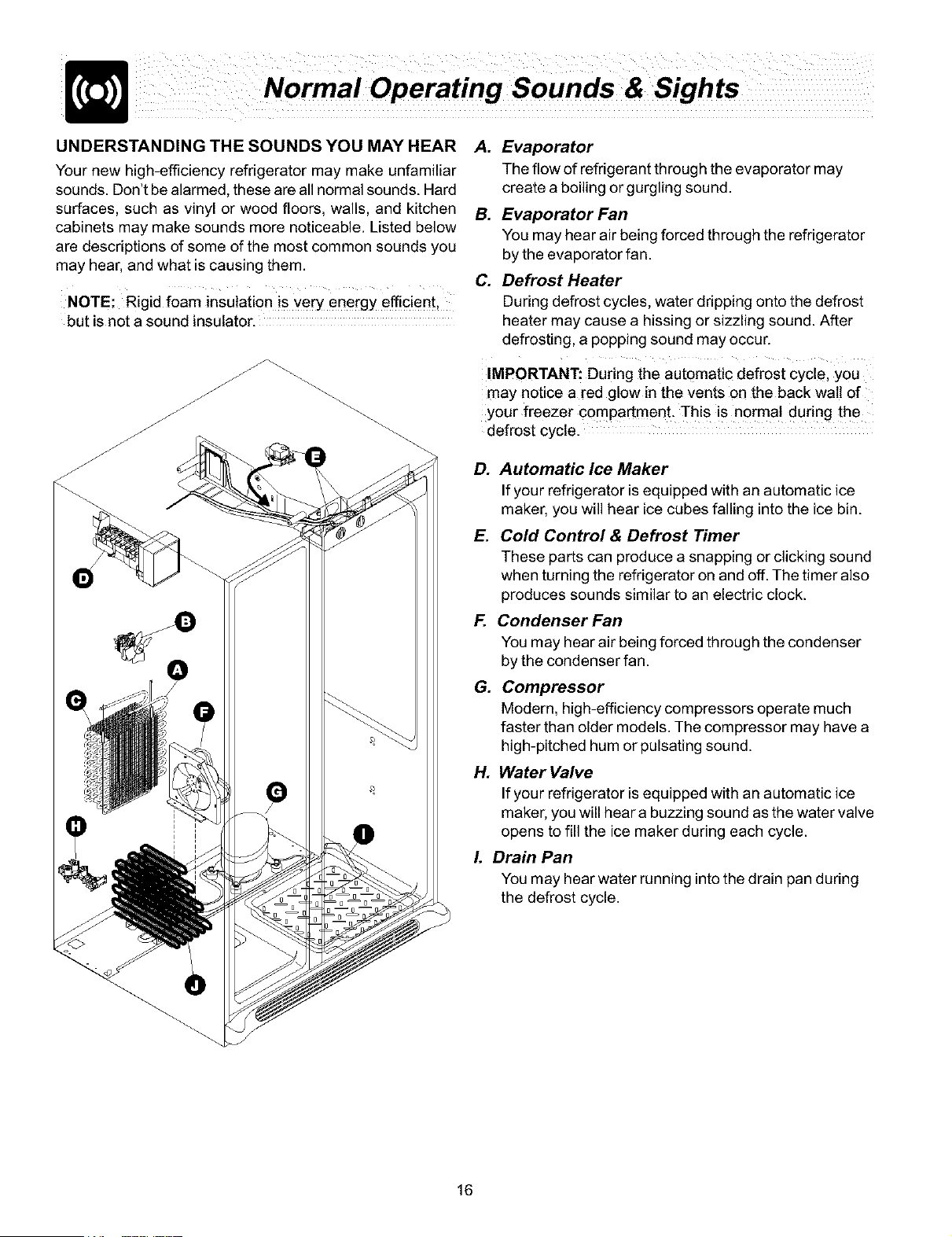

Normal Operating Sounds.. 16

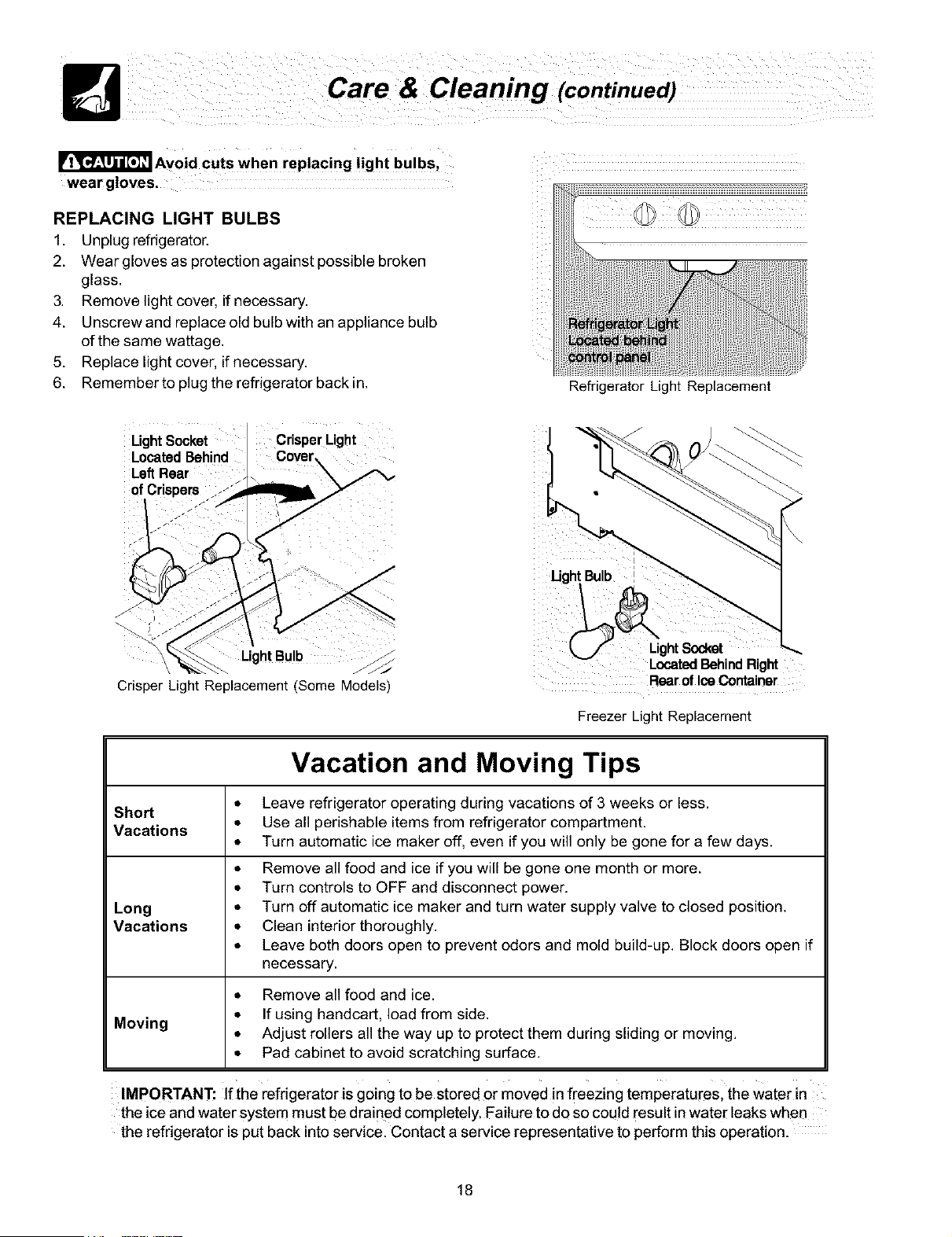

Care & Cleaning ......... 17 - 18

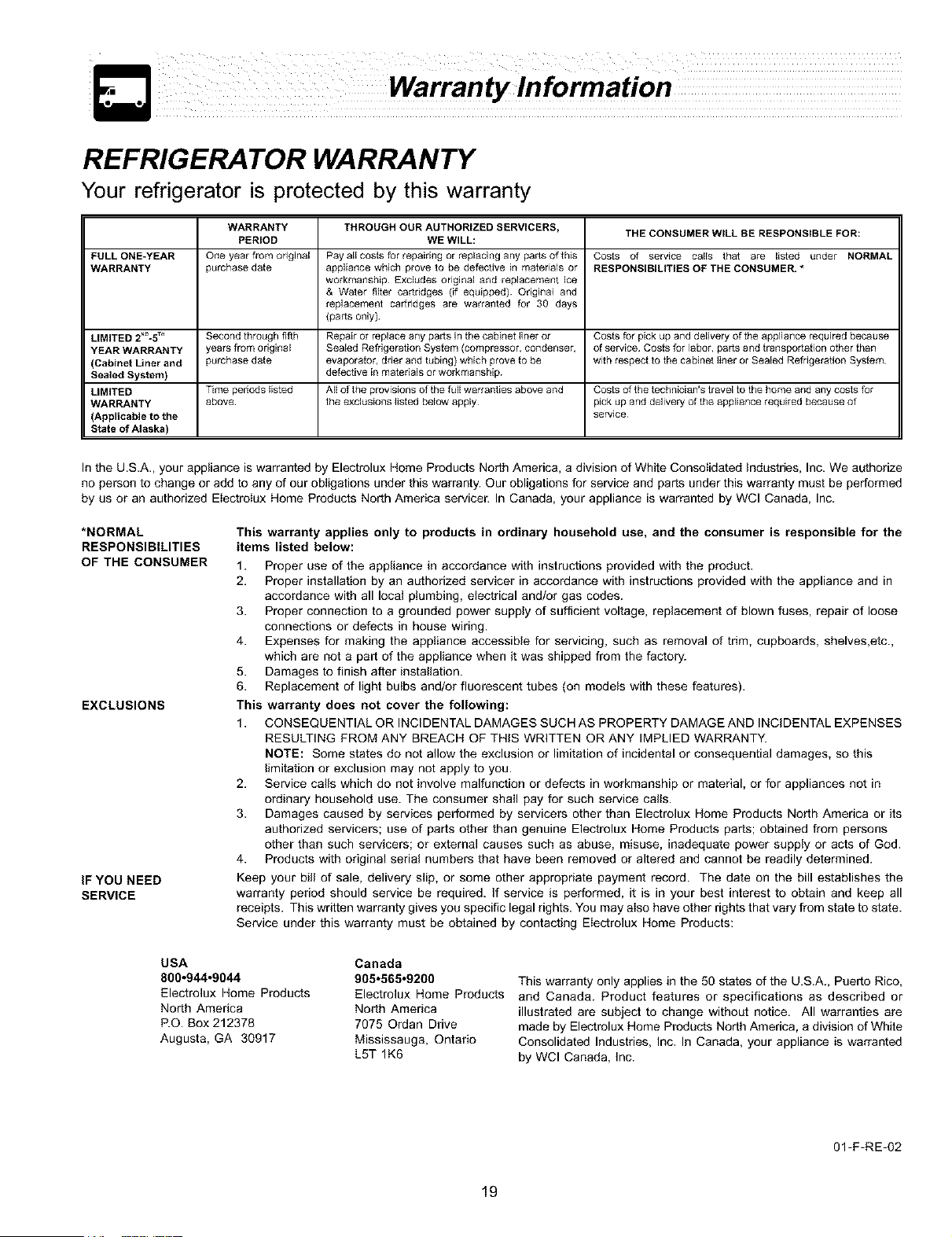

Warranty ...................... 19 _

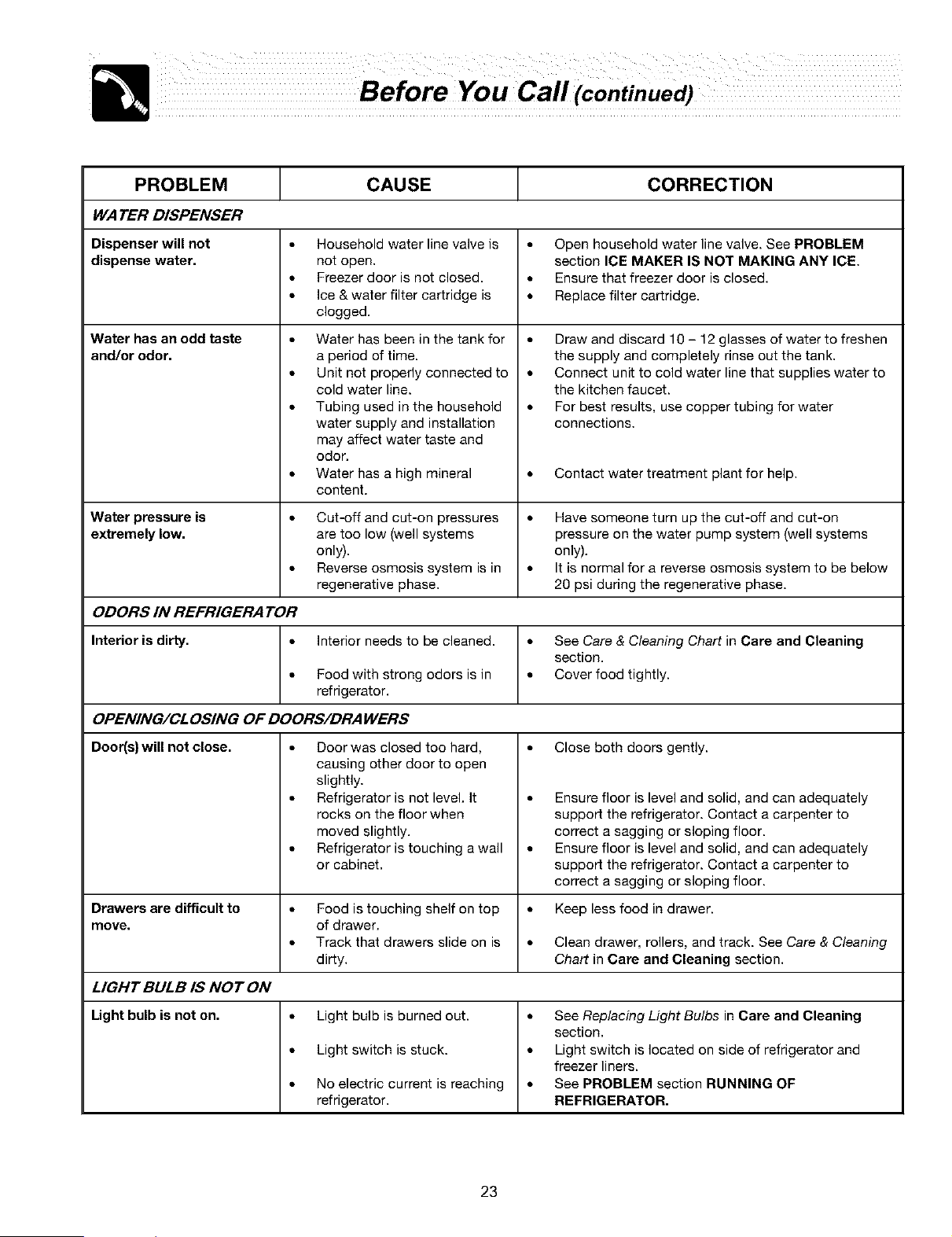

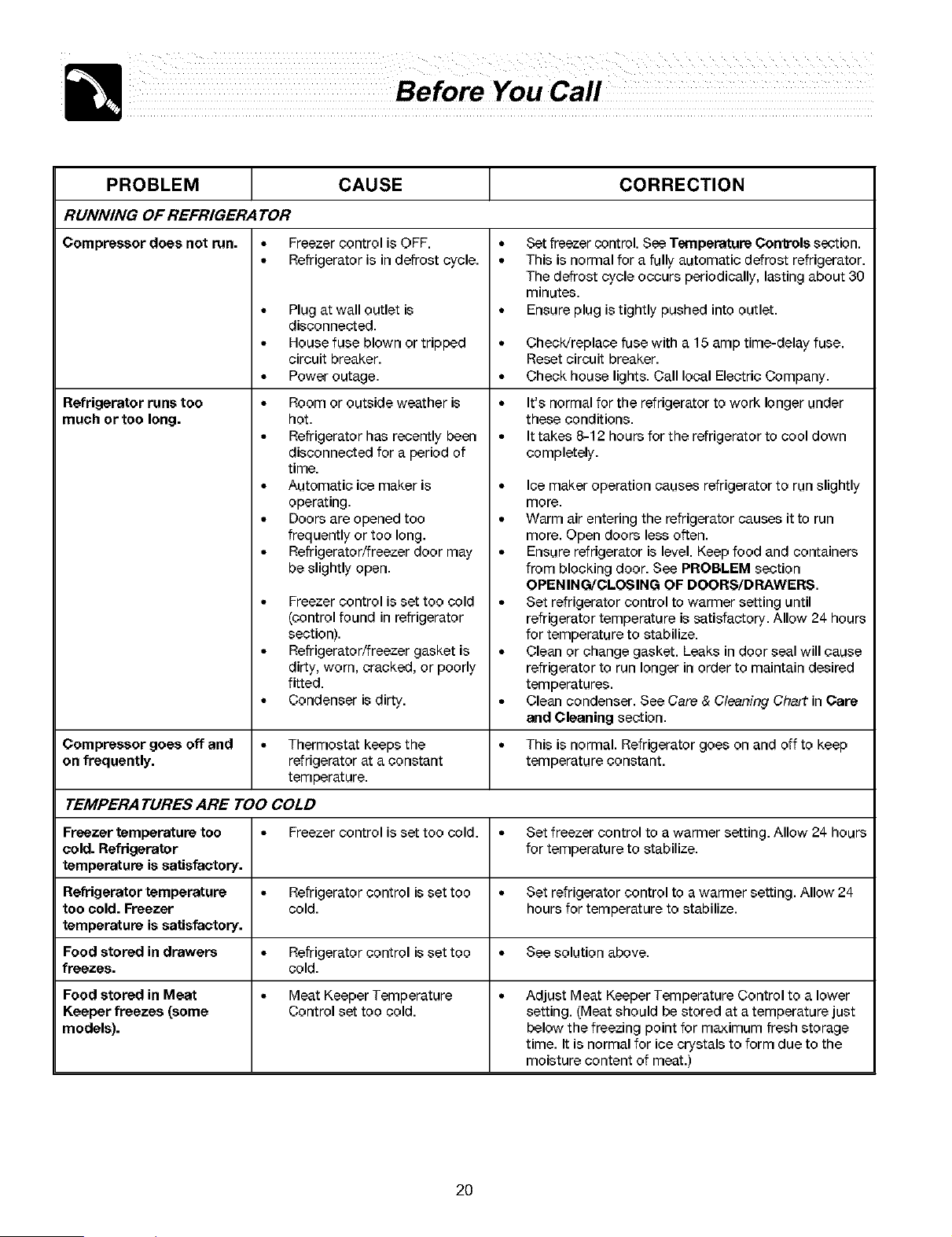

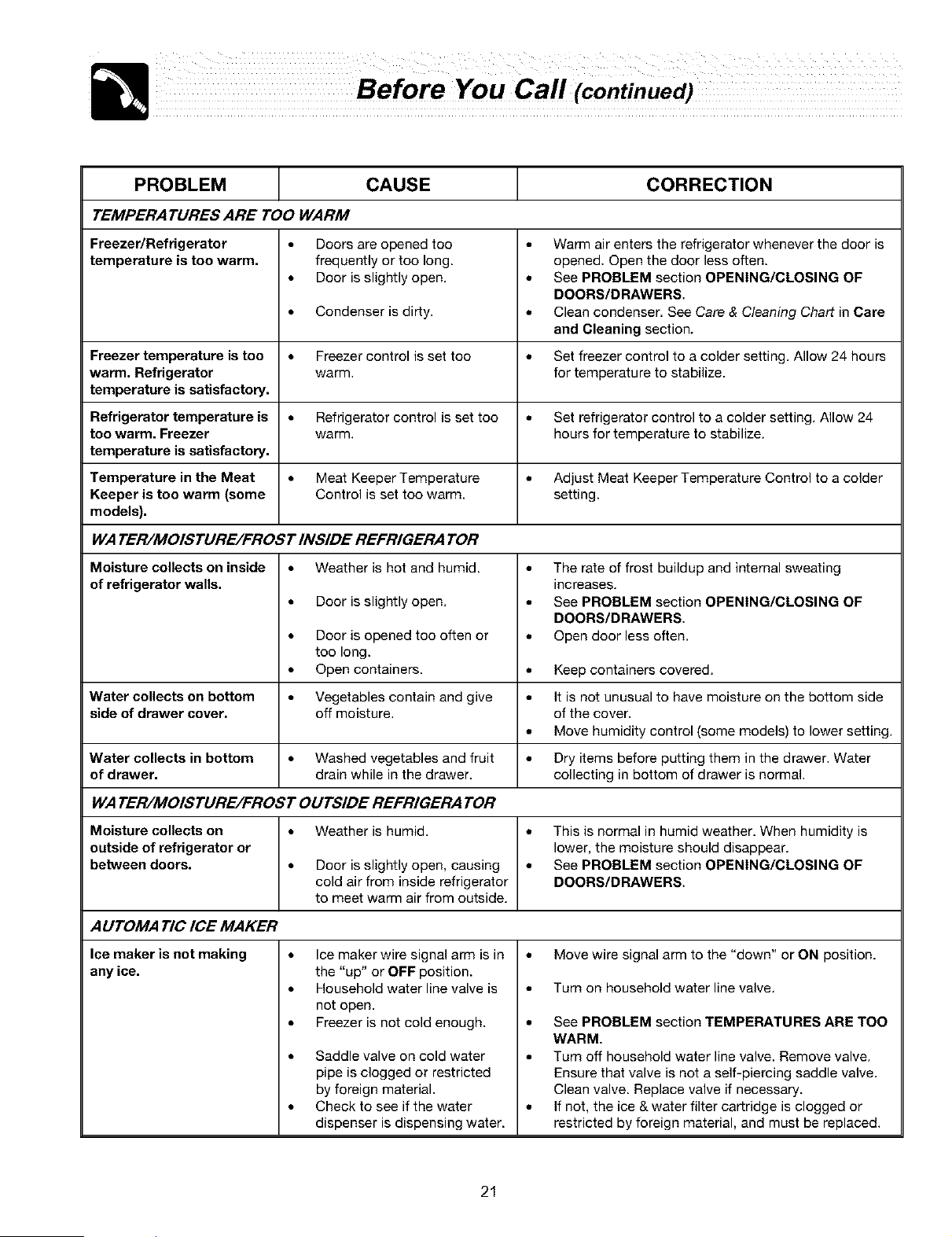

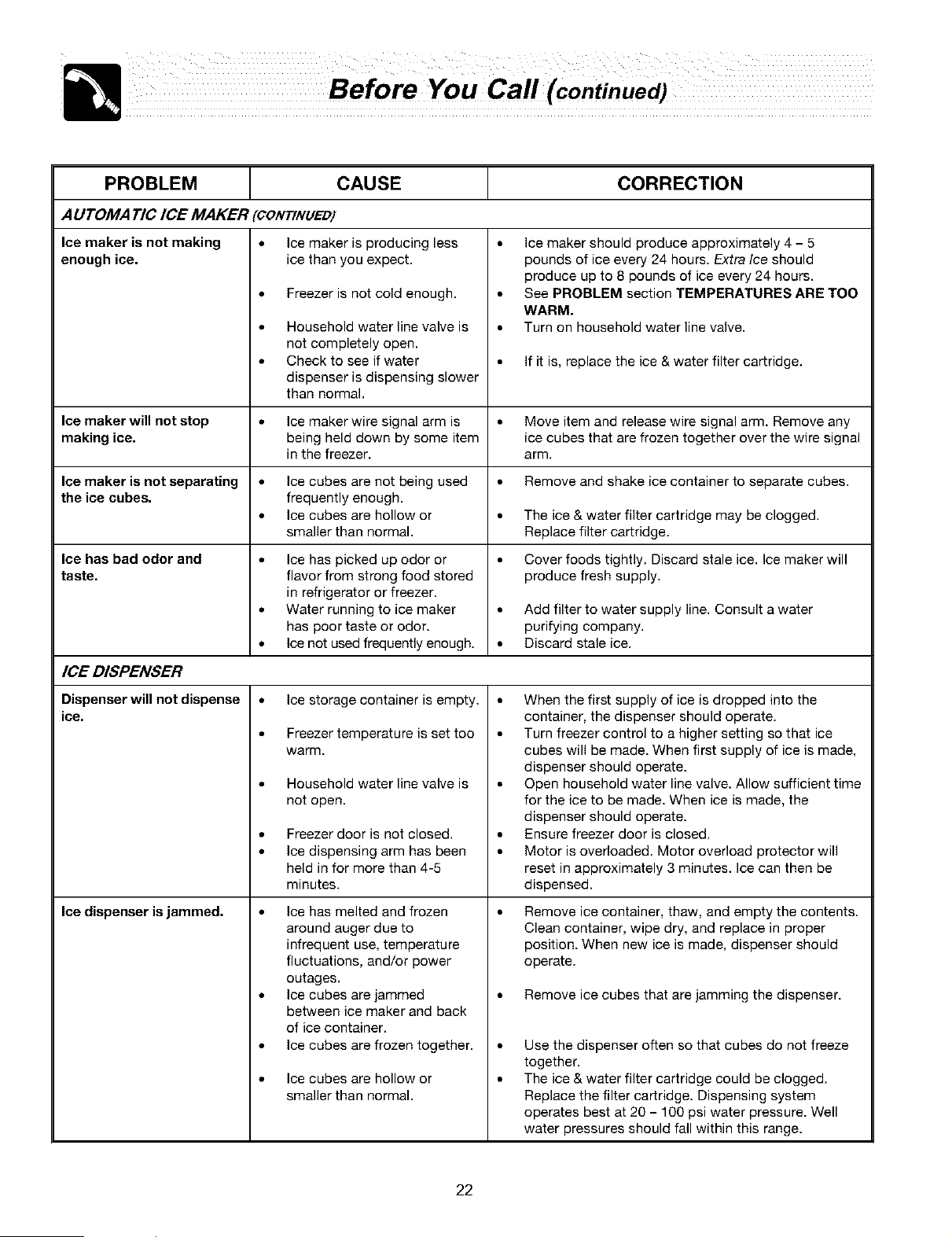

Before You Call
Solutions to
Common Problems .............. 20 " 23
READ AND SAVE THESE INSTRUCTIONS pIN240389300(oo11)
Congratulations on your purchase of a new refrigerator[ We
here at Electrolux Home Products are very proud of our
product and we are completely committed to providing you
with the best service possible. Your satisfaction is our #1
priority.
Please read this Use & Care Manual very carefully. Itcontains
valuable information on how to properly maintain your new
refrigerator.
We know you'll enjoy your new refrigerator and Thank You
for choosing oar product. We hope you consider usfor future
purchases.
PLEASE READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual provides specific operating
instructions for your model. Use your refrigerator ony as
instructed in this manual. These instructions are not meant
to cover every possible condition and situation that may
occur. Common sense and caution must be practiced when
installing, operating and maintaining any appliance.
Please record your model and serial numbers below for
future reference, This information isfound on the serial
plate located inside the refrigerator compartment.
NOTE: Use only soap and water to clean serial plate
Model Number:
Serial Number:
Purchase Date:
Questions?
1-800-944-9044
(United States)
1-905-565-9200
(Canada)
Please attach sales receipt
here for future reference.
Please complete and mail in the Product
Registration Card included with your
refrigerator.
2
_ Please Read All Instructions Before Using This Refrigerator.
FOR YOUR SAFETY
Do not store or use gasoline, or other flammable liquids
inthe vicinity of this or any other appliance. Read pro-
duct labels for warnings regarding flammability and other
hazards.
Do not operate the refrigerator inthe presence of
explosive fumes.
Avoid contact with any moving parts of automatic ice
maker.
Remove all staples from the carton. Staples can cause
severe cuts, and also destroy finishes ifthey come in
contact with other appliances or furniture.
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior
wrapping material immediately after the refrigerator is
unpacked. Children should NEVER use these items to play.
Cartons covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers, and can quickly
cause suffocation.
PROPER DISPOSAL OF YOUR REFRIGERATOR
OR FREEZER
Risk of child entrapment
Child entrapment and suffocation
are not problems of the past.
Junked or abandoned refrigerators
or freezers are still dangerous -
even if they will sit for "just afew
days." If you are getting rid of your
old refrigerator or freezer, please
follow the instructions below to
help prevent accidents.
Before you throw away your old refrigerator/freezer:
Remove doors.
Leave shelves in place so children may not easily climb
inside.
Have refrigerant removed by a qualified service
technician.
ELECTRICAL INFORMATION
The refrigerator must be plugged into its own
dedicated 115 Volt, 60 Hz., AC only electric outlet.
The power cord of the appliance is equipped with a
three-prong grounding plug for your protection against
electrical shock hazards. It must be plugged directly
into a properly grounded three-prong receptacle. The
receptacle must be installed in accordance with local
codes and ordinances. Consult a qualified electrician.
Do not use an extension cord or adapter plug.
Immediately repair or replace any power cord that
becomes frayed or damaged.
Never unplug the refrigerator by pulling on the power
cord. Always grip the plug frmly, and pull straight out
from the receptacle to prevent damaging the power cord.
Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
Performance may be affected if the voltage varies by
10% or more. Operating the refrigerator with insufficient
power can damage the compressor. Such damage is
not covered under your warranty.
Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being
turned off accidentally.
Avoid connecting refrigerator toa Ground Fault Interruptor
(GFI) circuit.
NOTE: Turning the freezer temperature control to OFF
turns off the compressor, but does not disconnect
electrica! power to the light bulb or other electrical
components.
Groundingtype
wa receptacle
under
Powercordwith
3-pronggroundedplug

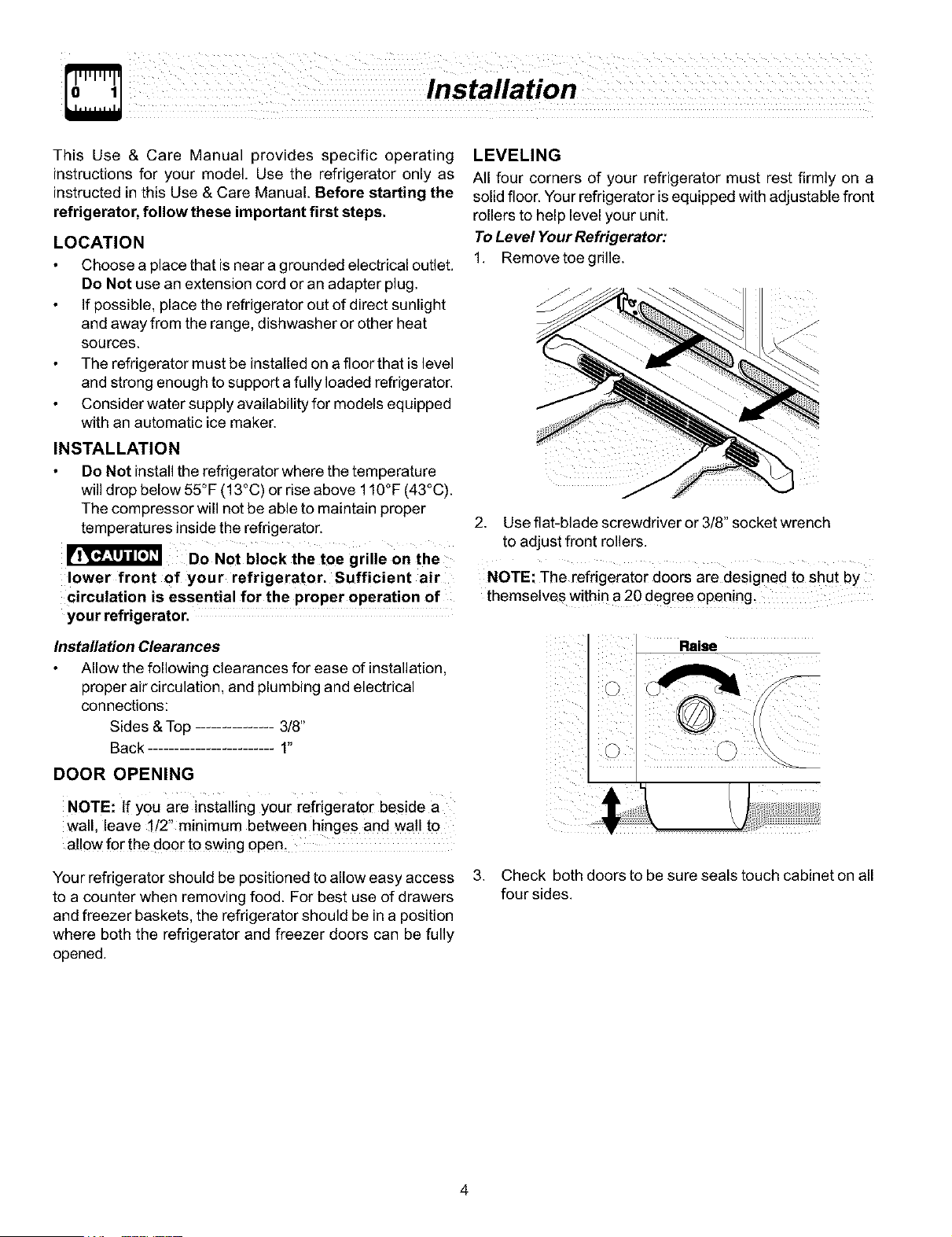

This Use & Care Manual provides specific operating
instructions for your model. Use the refrigerator only as
instructed in this Use & Care Manual. Before starting the
refrigerator, follow these important first steps.
LOCATION
Choose a place that is near a grounded electrical outlet.
Do Not use an extension cord or an adapter plug.
If possible, place the refrigerator out of direct sunlight
and away from the range, dishwasher or other heat
sources.
The refrigerator must be installedon a floor that is level
and strong enough to support a fully loaded refrigerator.
Consider water supply availability for models equipped
with an automatic ice maker.
INSTALLATION
Do Not installthe refrigerator where thetemperature
will drop below 55°F (13°C) or rise above 110°F (43°C).
The compressor will not be able to maintain proper
temperatures inside the refrigerator.
LEVELING
All four corners of your refrigerator must rest firmly on a
solid floor. Your refrigerator isequipped with adjustable front
rollers to help level your unit.
To Level Your Refrigerator:
1. Remove toe grille.
2. Use flat-blade screwdriver or 3/8" socket wrench
Do Not block the toe grille on the to adjust front rollers.
lower front of your refrigerator. Sufficient air NOTE: The refrigerator doors are designed to shut by
circulation is essential for the proper operation of themselves within a 20 degree open ng.
your refrigerator.
Installation Clearances
Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
Sides & Top 3/8"
Back 1"
DOOR OPENING
NOTE: If you are installing Your refrigerator beside a
wall, leave I/2" minimum between hinges and wall to
aUow for the door to swing open.
Raise
Your refrigerator should be positioned to allow easy access
to a counter when removing food. For best use of drawers
and freezer baskets, the refrigerator should be in a position
where both the refrigerator and freezer doors can be fully
opened.
3. Check both doors to be sure seals touch cabinet on all
four sides.
4

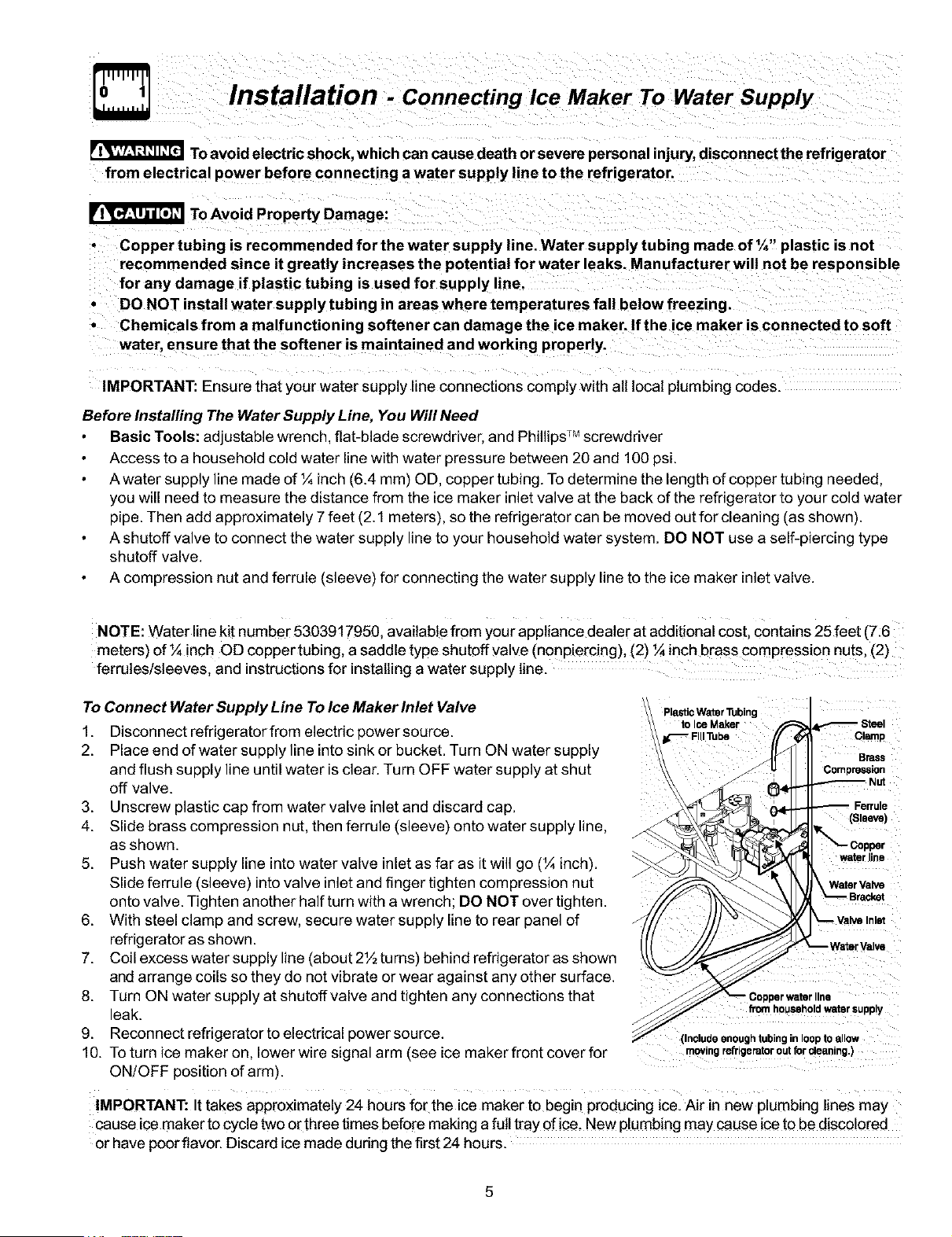

Installation - Connecting Ice Maker To Water Supply
To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator
from electrical power before con necting a water supply line to the refrigerator.
To Avoid Property Damage:
Copper tubing is recommended for the water supply line. Water supply tubing made of %" plastic is not
recommended since it greatly increases the potential for water leaks. Manufacturer will not be responsible
for any damage if plastic tubing is used for supply line.
DO NOT install water supply tubing in areas where temperatures fall below freezing.
Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to soft
water, ensure that the softener is maintained and working properly.
IMPORTANT: Ensure that your water supply lineconnections comply with all local plumbing codes.
Before Installing The Water Supply Line, You Will Need
Basic Tools: adjustable wrench, flat-blade screwdriver, and Phillips TM screwdriver
Access to a household cold water line with water pressure between 20 and 100 psi.
A water supply line made of ¼ inch (6.4 mm) OD, copper tubing. To determine the length of copper tubing needed,
you will need to measure the distance from the ice maker inletvalve at the back of the refrigerator to your cold water
pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown).
A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type
shutoff valve.
A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inletvalve.
NOTE: Water line kit number 5303917950, available from your appliance dealer at additional cost, Contains 25 feet (7:6
meters) of ¼ inch OD copper tubing, a saddle type shutoff valve (nonpiercing), (2) ¼ inch brass compression nuts, (2)
ferrules/sleeves, and instructions for installing a water supply line.
To Connect Water Supply Line To Ice Maker Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line intosink or bucket. Turn ON water supply
and flush supply line until water isclear. Turn OFF water supply at shut
off valve.
3. Unscrew plastic cap from water valve inletand discard cap.
4. Slide brass compression nut, then ferrule (sleeve) onto water supply line,
as shown.
5. Push water supply line into water valve inletas far as itwill go (¼ inch).
Slide ferrule (sleeve) intovalve inlet and finger tighten compression nut
onto valve. Tighten another half turn with a wrench; DO NOT over tighten.
6. With steel clamp and screw, secure water supply line to rear panel of
refrigerator as shown.
7. Coil excess water supply line (about 2½ turns) behind refrigerator as shown
and arrange coils so they do not vibrate or wear against any other surface.
8. Turn ON water supply at shutoff valve and tighten any connections that
leak.
9. Reconnect refrigerator to electrical power source.
10. Totum ice maker on, lower wire signal arm (see ice maker front cover for
ON/OFF position of arm).
Plastic Water Tubing
to Ice Maker
Brass
Compression
Nut
(Sleeve)
wate[line
WaterValve
Valve
Copper water line
fnxn household water supPlY
(Include enough tubing in loop to allow
moving refrigerator out for cleaning,)
IMPORTANT: It takes approximately 24 hours for the ice maker to begin producing icel Air innew plumbing lines may
cause ice maker to cycle two or three times before making a futltray Ofice, New plumbing may cause iceto be discolored
or have poorflavor. Discard ice made during the first 24 hours.
top

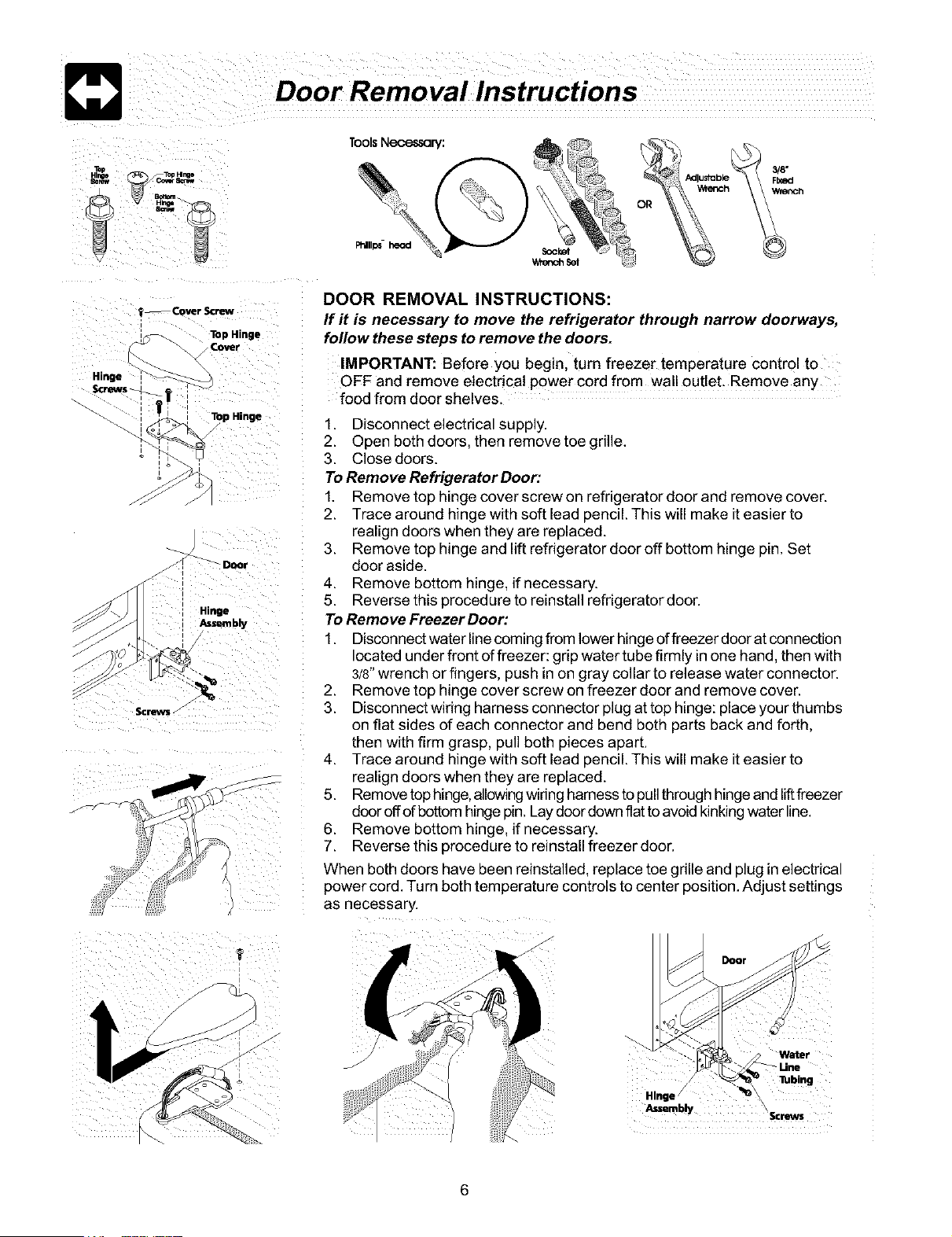

Door Removal Instructions
ToolsNecessQry:
Phillis- head
3/8"
Fb_d
T-- CoverScrew
Top Hinge
Cover
Hinge
Screw |
Top Hinge
_ Door
Hinge
Assembly
DOOR REMOVAL INSTRUCTIONS:
If it is necessary to move the refrigerator through narrow doorways,
follow these steps to remove the doors.
IMPORTANT: Before you begin turn freezer temperature control to
OFF and remove electrical power cord from wall outlet. Remove any
food from door shelves.
1. Disconnect electrical supply.
2. Open both doors, then remove toe grille.
3. Close doors.
ToRemove Refrigerator Door:
1. Remove top hinge cover screw on refrigerator door and remove cover.
2. Trace around hinge with soft lead oencil. This will make it easier to
realign doors when they are replaced.
3. Remove top hinge and lift refrigerator door off bottom hinge pin. Set
door aside.
4. Remove bottom hinge, if necessary.
5. Reverse this procedure to reinstall refrigerator door.
ToRemove Freezer Door:
1. Disconnect water line coming from lower hinge offreezer door atconnection
ocated under front offreezer: grip water tube firmly inone hand. then with
3 8"wrench or fingers, push in on gray collar to release water connector.
2. Remove top hinge cover screw on freezer door and remove cover.
3. Disconnect wiring qarness connector plug at top hinge: place your thumbs
on flat sides of each connector and bend both parts back and forth,
then with firm grasp, pull both pieces apart.
4. Trace around hinge with soft lead oencil. This will make it easier to
realign doors when they are replaced.
5. Remove top hinge,allowingwiring namess to pullthrough hinge and liftfreezer
door offof bottom hinge pin.Lay door down fiat to avoid kinking water line.
6. Remove bottom hinge, if necessary.
7. Reverse this procedure to reinstall freezer door.
When both doors have been reinstalled, replace toe grille and plug in electrical
power cord. Tum both temoerature controls to center 3osition. Adjust settings
as necessary.
?
Hinge
Assamb_
Door
Water
i Tubing
6
Features At A Glance
Door Bin --
Ice Container
Pizza Shelf
Win
Small Items
Large Basket
Door Bin --
Large Basket
Door Bin --
Freezer and Refrigerator
Controls
Ice Cream Shelf-_
Ice Maker-_ _ \
SpillSafe"
--Sliding Shelf
__ Water Filter
®1® f/ /_
/
!fiFF-F1F1
JUUUUUUU
Hnr-HH
IIIII
JUUUUUUU
' Door
r Bin
Rack
r Bin
and Cover
)illSafe'"
Fixed Shelf
Bottle
Retainer
Pan
end Cover
Door Bin
Features may vary according to model
COOL DOWN PERIOD
To ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 8 to 12 hours before loading
itwith food.
REFRIGERATOR & FREEZER CONTROLS
NOTE: When first setting the Controls or when changing a setting, Wait 24 hours for the temperature to stabilize before
making additional changes.
TEMPERATURE ADJUSTMENT
After 24 hours, adjust the controls as needed. When
adjusting temperatures, move the knob in small
increments.
For colder temperatures, tum the knob towards Colder.
Forwarmer temperatures, turn the knob towards Warmer.
To maintain temperatures, a fan circulates air in the
refrigerator and freezer compartments. For good circulation,
do not block cold air vents with food items.
Fr_=zer
;older
Fridge
Refrigerator & Freezer Controls
IMPORTANT: Turning the freezer temperature control to "Off' turns off the compressor, but does not disconnect the
power to the light bulb and other electrical components.
TEMPERATURE ADJUSTMENT GUIDE
If Refrigerator Compartment Is Too Warm Turn Refrigerator Control Slightly Towards Colder.
If Refrigerator Compartment Is Too Cold Turn Refrigerator Control Slightly Towards Warmer.
If Freezer Compartment Is Too Warm Turn Freezer Control Slightly Towards Colder.
If Freezer Compartment Is Too Cold Turn Freezer Control Slightly Towards Warmer.
To Turn Refrigerator Off Turn Freezer Control To Off.
8
PIZZA SHELF (SOME MODELS)
This shelf is attached to the freezer wall beside the ice dispenser container.
This convenient area allows for storage of pizza and other tall items placed
vertically between the ice dispenser container and the freezer wall.
ICE CREAM SHELF (SOME MODELS)
This shelf attaches to the top of the ice dispenser container. Itallows storage
of both round and rectangular cartons of your favorite ice cream.
TIP-UP SHELF (SOME MODELS)
A Tip-Up shelf in the freezer section allows tall items to be easily stored.
\
/ i ilii
Pizza Shelf
To avoid personal inju ry or property damage, handle
tempered glass shelves carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden temperatu re change.
CANTILEVER SHELF ADJUSTMENT
Refrigerator shelves are easily adjusted to suit individual needs. Before
adjusting the shelves, remove all food. Cantilever shelves are supported at
the back of the refrigerator.
To adjust cantilever shelves:
0 Lift front edge up.
0 Pull shelf out.
Replace the shelf by inserting the hooks at rear of the shelf into the wall
bracket. Lower the shelf intothe desired slots and lock into position.
SpillSafe TM glass shelves (some models) catch and hold accidental spills. In
some models, the TMSpillSafe shelves slide out for easy access to food and
forfast cleaning. The shelves slide out independently of their mounting brackets.
Just pull the front of the shelf forward. Shelves can be extended as far as the
stopper will allow but are not removable from their mounting brackets.
/
Ice Cream Shelf
_ZZZZ "_
Cantilever Glass Shelf
Cantilever Sliding Glass Shelf
DOOR STORAGE
Door bins and shelves are provided for convenient storage of jars, bottles,
and cans. Frequently used items can be quickly selected.
Some models have door bins that can accommodate gallon-sized plastic
drink containers and economy-sized jars and containers. Some bins are
adjustable for maximum storage capacity.
The dairy compartment, which iswarmer than the general food storage section,
is intended for short term storage of cheese, spreads, or butter.
ADJUSTABLE DOOR BINS
Some models have adjustable door bins that can be moved to suit individual
needs.
Tomove door bins
1. Lift bin straight up.
2. Remove bin.
3. Place bin in desired position.
4. Lower bin onto supports until locked in place.
Fixed Door Bin
Adjustable Door Bin
TheTALLBO rLERETA,NER(so.EMOOE.S,Ta,,Bo ,eRetainerkeepsta,Icontainersin / :i !¸¸
the bin from falling forward when opening or closing
the refrigerator door. Toinstall, hold the retainer at
the top, and slide it over the outside wall of the
bin, as shown in the diagram. The Tall Bottle
Retainer works best with a Bin Snugger.
Tall Bottle Retainer (left) and Bin Snugger (right)
10
CRISPERS (SOME MODELS)
The crispers, located under the bottom refrigerator shelf,
are designed for storing fruits, vegetables, and other fresh
produce. Wash itemsinclear water and remove excess water
before placing them in the crispers. Items with strong odors
or high moisture content should be wrapped before storing.
Crisper Drawer
HUMIDITY CONTROL (SOME MODELS)
The Humidity Control, present on some models with crisper
drawers, allows you to adjust the humidity within the crisper.
This can extend the life of fresh vegetables that keep best
in high humidity.
NOTE: Leafyvegetables keep best when stored With the
Humidity Control set on Higher Humidity, or in a drawer
without a Humidity Control. This keeps incoming air to a
minimum and maintains maximum moisture content,
_wer HumJdJt_
Crisper Humidity Control
DELl DRAWER (SOME MODELS)
Some models are equipped with a Dell Drawer for storage of
luncheon meats, spreads, cheeses, and other deli items.
MEAT KEEPER (SOME MODELS)
Some models are equipped with a Meat Keeper. Meat Keeper
temperatures can be adjusted by sliding the Meat Keeper
Temperature Control in either direction. Use this pan for short
term storage of bulk meat items. If meats are to be kept
longer than one or two days, they should be frozen. The
Meat Keeper is fixed and cannot be moved up or down. If
fruits or vegetables are to be stored in the Meat Keeper, set
the Meat Keeper Temperature Control to a warmer setting to
prevent freezing.
Meat Keeper with TemperatureControl
WINE RACK (SOME MODELS)
The wine rack stores bottles of wine, or single two-liter plastic
bottles of juice or soda pop. To install, slide the Wine Rack
onto the shelf with the curve facing in. To remove, slide the
Wine Rack out. Install on either side of shelf.
i
Wine Rack
11
Signa; Arm
How the Water Dispenser Works
ICE AND WATER DISPENSER FEATURES
The ice and water dispenser conveniently dispenses chilled water, and ice
CUBESor crushed ice, depending on the model. Some models have an Extra
Ice feature that increases ice production for special occasions such as parties.
Toooerate the ice dispenser, select the ice option desired using the touchpad.
Press a glass against the dispensing paddle as far up as possible to catch
all ice. To stop dispensing ice, pull glass away from dispensing paddle. Do
not remove the glass until the ice has completely dispensed. (Complete
instructions for the dispenser operation are attached to the inside of the
freezer door.)
Tooperate the water dispenser, press a glass against the dispensing paddle.
To stop dispensing water, pull glass away from dispensing paddle. A drip
tray located at the base of the dispenser, catches small spills and allows
them to evaporate. This drip tray is removable and dishwasher safe. Do not
pour water or excess cubes into this area because there is no drain.
Dispenser Light (some models)
The dispenser has a light which can be turned on and off by pressing the Light
touchpad. The light also turns on automatically when ice and/or water is
dispensed. Replace light bulb with an appliance bulb of the same wattage.
Exlml==Cube Crush Light F_S_s
Ice and Water Dispenser Panel (features may vary according to model)
The water tank, located behind the drawers in the refrigerator compartment, automatically fills as water is dispensed. For
proper dispenser operation, the recommended supply water pressure should fall between 20 psi and 100 psi.
After the refrigerator is connected to the water supply, fill the water tank by drawing one glass of water. It may take about
11/2minutes after activating the dispenser paddle before water begins to fill this first glass. Continue flushing the system
for 3 minutes to rid the tank and plumbing connections of any impurities. The water dispenser has a built in shutoff device
that will stop the water flow after 3 minutes of continuous use. Simply release the dispenser paddle to reset the shutoff
mechanism.
I1_ Chemica!s from a malfunctioning softener can damage the icemaker. Ifthe ice maker is connected
to soft water, ensure that the softener is maintained and working properly.
How the ice Dispenser Works
The ice maker and container are located in the top of the freezer compartment. After the refrigerator is installed properly
and has cooled for several hours, the ice maker can begin making ice within 24 hours. Air in new plumbing lines may cause
the ice maker to cycle two or three times before making a full tray of ice. To begin ice production, lower the wire signal arm
to the "down" or ON position. With no usage itwill take approximately 2 days to fill the ice container. The ice maker turns off
automatically when the ice container becomes full. To stop the ice maker, lift the wire signal arm until it clicks, and locks in
the "up" or OFF position.
Because of new plumbing connections, the first production of ice cubes may be discolored or have an odd flavor. These
should be discarded until the cubes made are free of discoloration and taste.
12
Automatic lce and Water Dispenser
ICE DISPENSER TIPS
Ice cubes stored too long may develop an odd flavor. Empty the ice container and ensure that the wire signal arm is
in its "down" or ON position. The ice maker will then produce more ice.
Occasionally shake the ice container to keep ice separated.
Keep the wire signal arm in its "up" or OFF position until the refrigerator isconnected to the water supply or whenever the
water supply is turned off.
and stop. The overload protector will reset automatically after 3 or 4 minutes.
If a large quantity of ice is needed at one time, it is best to remove cubes directly from the ice container.
The following sounds are normal when the ice maker is operating:
Motor running
Ice loosening from tray
Ice dropping into ice container
Running water
Water valve opening or closing
Stop the ice maker when cleaning the freezer and during vacations.
If the ice maker will be turned off for a long period of time, turn the water supply valve to the closed position.
_)onot usethe icechuteas ahandlewhen
removingorreplacingtheicestoragebin.
Surfacesthere may be sharp.
\
\
Do not put fingers up ice chute, Surfaces
there may be sharp. •
CLEANING THE ICE DISPENSER
Clean the dispenser and ice container at regular intervals, particularly
before you take a vacation or move, or if the ice dispenser sticks.
1. Stop ice production by lifting the wire signal arm to the "up" or OFF
position.
2. Remove ice container by lifting up and out. Empty and carefully clean
the container with mild detergent. Rinse with clear water. Do not use
harsh or abrasive cleaners. Allow ice container to dry completely before
replacing in the freezer.
3. Remove ice chips and clean the shelf and chute that supports the ice
container.
4. Replace the ice container. Lower the wire signal arm on the ice
maker to the "down" or ON position and the ice maker will resume
production.
Auger-_/
IMPORTANT: When removing or replacing the ice bin. do not
rotate the auger in the ice bin. If the auger is accidentally turned.
you must realign the auger by turning it in 90° turns until the ice bin
fits into place with the drive mechanism. For further instruction.
see the label on the ice bucket.
Remove and empty the ice storage bin if:
1 An extended oower failure lone hour or longer 1causes ice cubes in
the ice storage bin to melt and freeze together and jam the dispenser
mechanism
2. The ice disoenser isnot used frequently. Ice cubes will freeze together
in the bin and jam the dispenser mechanism. Remove the ice storage
bin and shake to loosen the cubes.
NEVER use an ice 3ick or similar sharp instrument to break up the ice.
This could damage the ice storage bin and dispenser mechanism.
13
PureSource TMIce and Water Filter (some models)
NOTE: If you purchased a refrigerator with a PureSource TMIce and Water filter, please read the following use and
care information. This ice and water filter system filters water to your ice maker and water dispenser. It is located in the
upper right back corner of the fresh food compartment.
System Startup:
Water supply does not need to be turned off, however, do not use ice and water dispenser while installingfilter.
The filter cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser
Works section to properly fill the system with water.
Changing the Filter:
F _ _ Water conditions vary throughout the world, but changing the water filter every
6 - 9 months normally will ensure the highest possible water quality. The Filter
Twistto
Order new filter cartridges through the
dealer where you bought the refrigerator,
or contact the Consumer Assistance
Center at 1-800-944-9044, k might be
good to order some filter cartridges when
you first install your refrigerator. Be sure
to ask for the RG-100 PureSource TM
replacement cartridge.
The PureSource TM NGRG-
2000 Ice and Water Filter
System with the RG-100
cartridge is tested and
certifed by NSF International,
the nationally recognized and respected,
not for profit, certification organization for
3ublic health safety, The PureSource TM
system is tested and certified to ANSI/NSF
Standard 42. See performance data sheet
for specifications, This system should not
be used on water that is microbiologically
unsafe or with water of unknown quality
unless the water has been adequately
disinfected before or after traveling through
the filtration system.
• Rated Capacity - 400 gallons
• Rated service flow - .5 GPM
• Maximum Rated Pressure - 100 PSI
• Maximum Operating Temp. - 100 ° F
Status light willtum red after 400 gallons of water has flowed through the ice and
water dispenser. Also, if the filter has been in a refrigerator that has not been in
use for awhile (during moving for example), change the filter before reinstalling
the refrigerator. The dispenser system will also operate without filtration (with
filter cartridge removed).
To change filter:
It is not necessary to turn the water supply off to change the filter.
1. Open freezer door and leave open until filter change is complete.
2. Set ice maker wire signal arm to the OFF (up) position (See illustration on
page 12).
3. Hold filter cup firmly, and unscrew towards left (Some water could
leak out as you remove cup. This is normal.). Filter cartridge should come
down with cup. If cartridge remains in housing, pull down gently, while
twisting filter back and forth.
4. Rinse out cup under running water.
5. The large o-ring that seals the filter system sets in the o-ring groove
down inside the cup. Should the o-ring fall out during filter cartridge
replacement, simply place it back in the groove prior to screwing the cup
back in place. If the o-ring becomes damaged, you will need to order one
from the ConsumerAssistance Center.
6. Discard old filter cartridge.
7. Remove new filter cartridge from packaging and place in cup. The end
with the small o-ring should be up, out of the cap.
8. Screw cup, with filter, back onto housing. Do Not Use Wrench To Reinstall
Cup. Filter cartridge will self-align as cup is tightened. Be sure cup is
completely tightened with PureSource TMlogo facing outward. Do Not
Tighten Past Stop.
9. Set ice maker wire signal arm to the ON (down) position.
10. Check for leaks. Open refrigerator door. Wipe any water droplets from the
filter cup. Fill a glass with water. If there is a leak, unscrew filter cup, and
reinsert the filter cartridge. Check placement of large O-ring. Reinstall
filter cup, making certain it is tightened completely.
11. To condition filter system and purge air from water line, fill a glass with
water. Continue flushing the system for 30 seconds to assure that the
purest water possible is stored in water tank.
IMPORTANT: Resetting The Filter Status Light (some models)
After replacing the filter cartridge, it will be necessary to press the Filter
Status reset button located on the ice and water dispenser. This will reset
the Filter Status light. Push the reset button until the green light flashes
(3-15 seconds). Please refer to the complete dispenser operating
instructions attached to the inside of the freezer door.
14
FOOD STORAGE IDEAS
Fresh Food Storage
The fresh food compartment should be kept between 34° F and 40° Fwith an optimum temperature of 37 ° F.
Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven
cooling.
Fruits and Vegetables
Storage inthe crisper drawers traps moisture to help preserve the fruit and vegetable quality for longer time periods.
Meat
Raw meat and poultry should be wrapped secu rely so leakage and contamination of other foods or surfaces does not
Occur.
Frozen Food Storage
The freezer compartment should be kept at 0° F or lower.
A freezer operates most efficiently when it is at least 2/3 full.
Packaging Foods for Freezing
To minimize dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags or airtight containers.
Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out,
change color, and develop an off-flavor (freezer burn).
Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.
Do not refreeze meat that has completely thawed.
Loading the Freezer
Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing,
and can raise the temperature of frozen foods.
Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.
Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves. These foods are
best stored in the freezer interior where the temperature varies less.
ENERGY SAVING IDEAS
Locate the refrigerator in the coolest part of the room, out of direct sunlight,
and away from heating ducts or registers. Do not place the refrigerator
next to heat-producing appliances such as a range, oven, or dishwasher.
If this is no[ possible, a section of cabinetry or an added layer of insulation
between the two appliances will help the refrigerator operate more
efficiently.
Level the refrigerator so that the doors close tightly.
Refer to this Use & Care Manual for the suggested temperature control
settings.
Periodic cleaning of the condenser will help the refrigerator run more
efficiently. See the Care and Cleaning Charton page 17.
Do not overcrowd the refrigerator or block cold air vents. Doing so causes
the refrigerator to run longer and use more energy.
Cover foods and wipe containers dry before placing them in the
refrigerator. This cuts down on moisture build-up inside the unit.
Organize the refrigerator to reduce door openings. Remove as many
items as needed at one time and close the door as soon as possible.
15
UNDERSTANDING THE SOUNDS YOU MAY HEAR
Your new high-efficiency refrigerator may make unfamiliar
sounds. Don't be alarmed, these are all normal sounds. Hard
surfaces, such as vinyl or wood floors, walls, and kitchen
cabinets may make sounds more noticeable. Listed below
are descriptions of some of the most common sounds you
may hear, and what is causing them.
NOTE: Rigid foam insulation is verY energy efficient,
but is not a sound insulator.
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
B. Evaporator Fan
You may hear air being forced through the refrigerator
by the evaporator fan.
C. Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.
IMPORTANT: During the automatic defrost CYclel you
may notice a red glow in the vents on the back wall of
your freezer compartment. This is normal during the
defrost cycle.
D. Automatic Ice Maker
If your refrigerator is equipped with an automatic ice
maker, you will hear ice cubes falling into the ice bin.
E. Cold Control & Defrost Timer
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off. The timer also
produces sounds similar to an electric clock.
F. Condenser Fan
You may hear air being forced through the condenser
by the condenser fan.
G. Compressor
Modern, high-efficiency compressors operate much
faster than older models. The compressor may have a
high-pitched hum or pulsating sound.
H. Water Valve
If your refrigerator is equipped with an automatic ice
maker, you will heara buzzing sound as the water valve
opens to fill the ice maker during each cycle.
L Drain Pan
You may hear water running into the drain pan during
the defrost cycle.
16
Keepyourrefrigeratorandfreezercleantopreventodorbuild-up.Wipeupanyspillsimmediatelyandcleanbothsectionsat
leasttwiceayear.Neverusemetallicscouringpads,brushes,abrasivecleanersorstrongalkalinesolutionsonany
surface.Do not wash any removable parts in a dishwasher. Always unplug the electrical power cord from the wall
outlet before cleaning.
When moving the refrigerator, pull straight out. Do not shift the refrigerator from side to side as this may
damage the floor. Be careful not to move the refrigerator beyond the plumbing connections.
Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
To avoid damage and help the refrigerator run as efficiently as possible, clean the condenser periodically.
NOTES:
Turning [he freezer temperature control to OFF turns off the compressor, but does not disconnect electrical
power to the light bulb or other electrical components.
Do not use razor blades or other sharp instruments which can scratch the appliance surface when removing
adhesive labels. Any glue left from tape or labels can be removed with a mixture of warm water and mild
detergent, or. touch the glue residue with the sticky side of tape you have already removed. Do not remove the
serial plate.
Care & Cleaning Chart
Part Cleaning Agents Tips and Precautions
Interior/Door * Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water. Be
Liner * Baking soda and sure to wring excess water out of sponge or cloth before
water cleaning around controls, light bulb or any electrical part.
Door Gaskets . Soap and water Wipe gaskets with a clean soft cloth.
Drawers/Bins * Soap and water Do not wash any removable items (bins, drawers, etc.) in
dishwasher.
Glass * Soap and water Allow glass to warm to room temperature before immersing in
Shelves * Glass cleaner warm water.
• Mild liquid sprays
Toe Grille • Soap and water Vacuum dust from front of toe grille. Remove toe grille (See
• Mild liquid sprays illustration on page 4). Vacuum backside and wipe with sudsy
• Vacuum attachment cloth or sponge. Rinse and dry.
Exterior and • Soap and water Do not use commercial household cleaners, ammonia, or alcohol
Handles to clean handles.
Exterior and
• Soap and water Clean stainless steel front and handles with soapy water. Use
Handles
(Stainless • Ammonia ammonia on stubborn spots. Some stainless steel cleaners are
Steel Models • Stainless Steel Sheila Shine, trademark of Sheila Shine, Inc., and Stainless Steel
Only) Cleaners Magic, trademark of Magic American Corp.
Condenser • Vacuum attachment Use the dusting tool attachment on your vacuum to remove dust
Coils build-up on the condenser coils (see item "J" in illustration on page
16 for location).
17
IF_[_IT_lIAv0id cuts when replacing light bulbs,
wear gloves.
REPLACING LIGHT BULBS
1. Unplug refrigerator.
2. Wear gloves as protection against possible broken
glass.
3. Remove light cover, if necessary.
4. Unscrew and replace old bulb with an appliance bulb
of the same wattage.
5. Replace light cover, ifnecessary.
6. Remember to plug the refrigerator back in.
Refrigerator Light Replacement
LightSocket
LocatedBehine
LeftRear
ofCrispers
Crisper Light
LightBulb
J
Criseer Light Replacement Some Models_
Lc_,atedBehindRight
RearofIceContainer
J
Freezer Light Replacement
Vacation and Moving Tips
• Leave refrigerator operating during vacations of 3 weeks or less.
Short
• Use all perishable items from refrigerator compartment.
Vacations
• Turn automatic ice maker off, even if you will only be gone for a few days.
• Remove all food and ice if you will be gone one month or more.
• Turn controls to OFF and disconnect power.
Long • Turn off automatic ice maker and turn water supply valve to closed position.
Vacations • Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block doors open if
necessary.
• Remove all food and ice.
• If using handcart, load from side.
Moving
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
IMPORTANT: If the refrigerat°r is g°ing t° be st°red °r m°ved in freezing temperatures, the water in
the ice and water system must be drained completely, Failure to do so could result in water leaks when
the refrigerator is put back intoservice. Contact a service representative to perform this operation.
18
REFRIGERATOR WARRANTY
Your refrigerator is protected by this warranty
WARRANTY THROUGH OUR AUTHORIZED SERVICERS, THE CONSUMER WILL BE RESPONSIBLE FOR:
PERIOD WE WILL:
FULLONE-YEAR Oneyearfromboginal Payallcoststorrepaidngorreplacinganypartsofthis Costs of service calls that are listed under NORMAL
WARRANTY purchase date appliance which prove to be defective in materials or RESPONSIBILITIES OF THE CONSUMER. *
workmanship Excludes original and replacement Ice
& Water filter cartridges (if equipped) Odginal and
replacement cartridges are warranted for 30 days
(parts only)
LIMITED 2N_-5T_ Second through fifth Repair or replace any parts in the cabinet liner or Costs for pick up and delivery of the appliance required because
YEAR WARRANTY years from original Sealed Refrigeration System (compressor, condenser, of service Costs for labor, parts and transportation other than
(Cabinet Liner and purchase date evaporator, drier and tubing) which prove to be with respect to the cabinet liner or Sealed Refrigeration System
Sealed System) defective in materials or workmanship
LIMITED Time periods listed All of the provisions of the full warranties above and Costs ofthe technician's travel to the home and any costs for
WARRANTY above the exclusions listed below apply pick up and delivery of the appliance required because of
(Applicable to the service
State of Alaska)
In the U.S.A., your appliance is warranted by Electrolux Home Products North America, a division of White ConsoIidated industries, Inc. We authorize
no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed
by us or an authorized Electrolux Home Products North America servicer. In Canada, your appliance is warranted by WCl Canada, Inc.
*NORMAL
RESPONSIBILITIES
OF THE CONSUMER
EXCLUSIONS
IFYOU NEED
SERVICE
This warranty applies only to products in ordinary household use, and the consumer is responsible for the
items listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc.,
which are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in
ordinary household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by servicers other than Electrolux Home Products North Amenca or its
authorized servicers; use of parts other than genuine Electrolux Home Products parts; obtained from persons
other than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the
warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all
receipts. This wntten warranty gives you specific legal rights. You may aIso have other rights that vary from state to state.
Service under this warranty must be obtained by contacting EIectrolux Home Products:
USA
800*944°9044
Electrolux Home Products
North America
P.O. Box 212378
Augusta, GA 30917
Canada
905°565°9200 This warranty only applies in the 50 states of the U.S.A., Puerto Rico,
Electrolux Home Products and Canada. Product features or specifications as described or
North America illustrated are subject to change without notice. All warranties are
7075 Ordan Drive made by Electrolux Home Products North America, a division of White
Mississauga, Ontario Consolidated Industries, Inc. In Canada, your appliance is warranted
L5T 1K6 by WCI Canada, Inc.
01-F-RE-02
19
il
PROBLEM CAUSE CORRECTION
RUNNING OF REFRIGERATOR
Compressor does not run.
Refrigerator runs too
much or too long.
• Freezer control is OFF.
• Refrigerator is in defrost cycle.
• Plug at wall outlet is
disconnected.
• House fuse blown or tripped
circuit breaker.
• Power outage.
• Room or outside weather is
hot.
• Refrigerator has recently been
disconnected for a period of
time.
• Automatic ice maker is
operating.
• Doors are opened too
frequently or too long.
• Refrigerator/freezer door may
be slightly open.
• Freezer control is set too cold
(control found in refrigerator
section).
• Refrigerator/freezer gasket is
dirty, worn, cracked, or poorly
fitted.
• Condenser is dirty.
• Set freezer control. See Temperature Controls section.
• This is normal for a fully automatic defrost refrigerator.
The defrost cycle occurs periodically, lasting about 30
minutes.
• Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15 amp time-delay fuse.
Reset circuit breaker.
• Check house lights. Call local Electric Company.
• It's normal for the refrigerator to work longer under
these conditions.
• It takes 8-12 hours for the refrigerator to cool down
completely.
• Ice maker operation causes refrigerator to run slightly
more.
• Warm air entering the refrigerator causes it to run
more. Open doors less often.
• Ensure refrigerator is level. Keep food and containers
from blocking door. See PROBLEM section
OPENING/CLO_ING OF DOORS/DRAWER8.
• Set refrigerator control to warmer setting until
refrigerator temperature is satisfactory. Allow 24 hours
for temperature to stabilize.
• Clean or change gasket. Leaks in door seal will cause
refrigerator to run longer in order to maintain desired
temperatures.
Clean condenser. See Care & Cleenin_ Chart in Care
and Cleaning section.
Compressor goes off and • Thermostat keeps the • This is normal. Refrigerator goes on and off to keep
on frequently, refrigerator at a constant temperature constant.
temperature.
TEMPERATURES ARE TOO COLD
Freezer temperature too • Freezer control is set too cold. • Set freezer control to a warmer setting. Allow 24 hours
cold. Refrigerator for temperature to stabilize.
temperature is satisfactory.
Refrigerator temperature • Refrigerator control isset too • Set refrigerator control to a warmer setting. Allow 24
too cold. Freezer cold. hours for temperature to stabilize.
temperature is satisfactory.
Food stored in drawers • Refrigerator control isset too • See solution above.
freezes, cold.
Food stored in Meat • Meat Keeper Temperature • Adjust Meat Keeper Temperature Control to a lower
Keeper freezes (some Control set too cold. setting. (Meat should be stored at a temperature just
models), below the freezing point for maximum fresh storage
time. It is normal for ice crystals to form due to the
moisture content of meat.)
20
PROBLEM CAUSE CORRECTION
TEMPERATURES ARE TOO WARM
Freezer/Refrigerator • Doors are opened too • Warm air enters the refrigerator whenever the door is
temperature is too warm. frequently or too long. opened. Open the door less often.
• Door is slightly open. • See PROBLEM section OPENING/CLOSING OF
DOORS/DRAWERS.
• Condenser is dirty. • Clean condenser. See Care & Cleaning Chart in Care
and Cleaning section.
Freezer temperature is too • Freezer control is set too • Set freezer control to a colder setting. Allow 24 hours
warm. Refrigerator warm. for temperature to stabilize.
temperature is satisfactory.
Refrigerator temperature is • Refrigerator control is set too • Set refrigerator control to a colder setting. Allow 24
too warm. Freezer warm. hours for temperature to stabilize.
temperature is satisfactory.
Temperature in the Meat • Meat Keeper Temperature • Adjust Meat Keeper Temperature Control to a colder
Keeper is too warm (some Control is set too warm. setting.
models).
WA TER/MOISTURE/FROS T INSIDE REFRIGERATOR
• Weather is hot and humid. •Moisture collects on inside
of refrigerator walls.
Door is slightly open.
Door is opened too often or
too long.
Open containers.
The rate of frost buildup and internal sweating
increases.
See PROBLEM section OPENING/CLOSING OF
DOORS/DRAWERS.
Open door less often.
Keep containers covered.
Water collects on bottom Vegetables contain and give It is not unusual to have moisture on the bottom side
side of drawer cover, off moisture, of the cover.
Move humidity control (some models) to lower setting.
Water collects in bottom • Washed vegetables and fruit Dry items before putting them in the drawer. Water
of drawer, drain while in the drawer, collecting in bottom of drawer is normal.
WA TER/MOISTURE/FROS T OUTSIDE REFRIGERATOR
Moisture collects on • Weather is humid. • This is normal in humid weather. When humidity is
outside of refrigerator or lower, the moisture should disappear.
between doors. • Door is slightly open, causing • See PROBLEM section OPENING/CLOSING OF
cold air from inside refrigerator DOORS/DRAWERS.
to meet warm air from outside.
AUTOMATIC ICE MAKER
Ice maker is not making
any ice.
• Ice maker wire signal arm is in
the "up" or OFF position.
• Household water line valve is
not open.
• Freezer is not cold enough.
• Saddle valve on cold water
pipe is clogged or restricted
by foreign material.
• Check to see if the water
dispenser is dispensing water.
• Move wire signal arm to the "down" or ON position.
• Turn on household water line valve.
• See PROBLEM section TEMPERATURES ARE TOO
WARM.
• Turn off household water line valve. Remove valve.
Ensure that valve is not a self-piercing saddle valve.
Clean valve. Replace valve if necessary.
• If not, the ice & water filter cartridge is clogged or
restricted by foreign material, and must be replaced.
21
PROBLEM CAUSE CORRECTION
AUTOMA TIC ICE MAKER (CONTfN/JED)
Ice maker is not making
enough ice.
• ice maker is producing less
ice than you expect.
• Freezer is not cold enough.
• Household water line valve is
not completely open.
• Check to see if water
• ice maker should produce approximately 4 - 5
pounds of ice every 24 hours. Extra Ice should
produce up to 8 pounds of ice every 24 hours.
• See PROBLEM section TEMPERATURES ARE TOO
WARM.
• Turn on household water line valve.
• if it is, replace the ice & water filter cartridge.
dispenser is dispensing slower
than normal.
Ice maker will not stop • ice maker wire signal arm is • Move item and release wire signal arm. Remove any
making ice. being held down by some item ice cubes that are frozen together over the wire signal
in the freezer, arm.
Ice maker is not separating • ice cubes are not being used • Remove and shake ice container to separate cubes.
the ice cubes, frequently enough.
• Ice cubes are hollow or • The ice & water filter cartridge may be clogged.
smaller than normal. Replace filter cartridge.
Ice has bad odor and • ice has picked up odor or • Cover foods tightly. Discard stale ice. ice maker will
taste, flavor from strong food stored produce fresh supply.
in refrigerator or freezer.
• Water running to ice maker • Add filter to water supply line. Consult a water
has poor taste or odor. purifying company.
• ice not used frequently enough. • Discard stale ice.
ICE DISPENSER
Dispenser will not dispense
ice.
Ice dispenser is jammed. •
• Ice storage container is empty.
• Freezer temperature is set too
warm.
Household water line valve is
not open.
Freezer door is not closed.
ice dispensing arm has been
held in for more than 4-5
minutes.
Ice has melted and frozen
around auger due to
infrequent use, temperature
fluctuations, and/or power
outages.
ice cubes are jammed
between ice maker and back
of ice container.
ice cubes are frozen together.
ice cubes are hollow or
smaller than normal.
• When the first supply of ice is dropped into the
container, the dispenser should operate.
• Turn freezer control to a higher setting so that ice
cubes will be made. When first supply of ice is made,
dispenser should operate.
• Open household water line valve. Allow sufficient time
for the ice to be made. When ice is made, the
dispenser should operate.
• Ensure freezer door is closed.
• Motor is overloaded. Motor overload protector will
reset in approximately 3 minutes. Ice can then be
dispensed.
Remove ice container, thaw, and empty the contents.
Clean container, wipe dry, and replace in proper
position. When new ice is made, dispenser should
operate.
• Remove ice cubes that are jamming the dispenser.
Use the dispenser often so that cubes do not freeze
together.
The ice & water filter cartridge could be clogged.
Replace the filter cartridge. Dispensing system
operates best at 20 - 100 psi water pressure. Well
water pressures should fall within this range.
22
PROBLEM CAUSE CORRECTION
WATER DISPENSER
Dispenser will not • Household water line valve is • Open household water line valve. See PROBLEM
dispense water, not open. section ICE MAKER IS NOT MAKING ANY ICE.
• Freezer door is not closed. • Ensure that freezer door is closed.
• ice & water filter cartridge is • Replace filter cartridge.
clogged.
Water has an odd taste
and/or odor.
• Water has been in the tank for
a period of time.
• Unit not properly connected to
cold water line.
• Tubing used in the household
water supply and installation
may affect water taste and
odor.
• Water has a high mineral
content.
• Draw and discard 10 - 12 glasses of water to freshen
the supply and completely rinse out the tank.
• Connect unit to cold water line that supplies water to
the kitchen faucet.
• For best results, use copper tubing for water
connections.
• Contact water treatment plant for help.
Water pressure is • Cut-off and cut-on pressures • Have someone turn up the cut-off and cut-on
extremely low. are too low (well systems pressure on the water pump system (well systems
only), only).
• Reverse osmosis system is in • It is normal for a reverse osmosis system to be below
regenerative phase. 20 psi during the regenerative phase.
ODORS IN REFRIGERATOR
Interior is dirty. • Interior needs to be cleaned. • See Care & Cleaning Chart in Care and Cleaning
section.
• Food with strong odors is in • Cover food tightly.
refrigerator.
OPENING/CLOSING OF DOORS/DRAWERS
Door(s} will not close. • Close both doors gently.• Door was closed too hard,
causing other door to open
slightly.
• Refrigerator is not level. It
rocks on the floor when
moved slightly.
• Refrigerator is touching a wall
or cabinet.
• Ensure floor is level and solid, and can adequately
support the refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
• Ensure floor is level and solid, and can adequately
support the refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
Drawers are difficult to • Food is touching shelf on top • Keep less food in drawer.
move. of drawer.
• Track that drawers slide on is • Clean drawer, rollers, and track. See Care & Cleaning
dirty. Chart in Care and Cleaning section.
LIGHT BULB IS NOT ON
Light bulb is not on. • Light bulb is burned out. • See Replacing Light Bulbs in Care and Cleaning
section.
• Light switch is stuck. • Light switch is located on side of refrigerator and
freezer liners.
• No electric current is reaching • See PROBLEM section RUNNING OF
refrigerator. REFRIGERATOR.
23
