TVM 3210 Series
TVM 3410 Series
TVM 3610 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no timeBefore you start
…we just wanted to say thanks for choosing Vogel’s. Smart choice.
And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient
installation, and how to use your new mount.
TVM 3210/3410/3610 Series English
1
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and
your family at substantial risk.
Don’t dare risk it… Read all
Vogel’s recommends that the mounting and/or installation of this product should be carried out by a
suitably qualified expert.
Vogel’s cannot be held responsible for any injury and/or damage caused by incorrect installation.
Please consult the manual for your TV and ensure that the weight and size of the TV is within the maximum
weight and size limits specified for this product, and that the TV mounting bolts used are of a suitable
length and diameter. Note that not all the TV mounting accessories provided are required for the
installation of any one TV.
The wall mounting accessories provided are exclusively intended for installation on walls made of solid
brick, solid concrete or solid wood columns.
Any material covering the wall must not exceed 3 mm/ 0.12 inch.
For mounting on walls made of other materials, such as hollow bricks, wood panels or plasterboard,
please consult your installer and/or specialist supplier.
Clean the product with a dry, lint-free cloth. Do not use detergents or other solvents to clean the product.
Only qualified, certified personnel may repair the product. Use only original spare parts. The use of other
parts will result in voiding the warranty, and could lead to injuries.
Alterations to the product and technical modifications are not permitted. This will void the warranty, and
could lead to injuries.
Always store the product in a dry and safe place with a temperature between -10°C to +50°C.
Handle and transport the product with care.
Repack the product when transporting or not using it for a longer period of time.
Lifting your TV is a two-person job. Don’t be bold!
TVM 3210/3410/3610 Series English
2
What’s in your box?

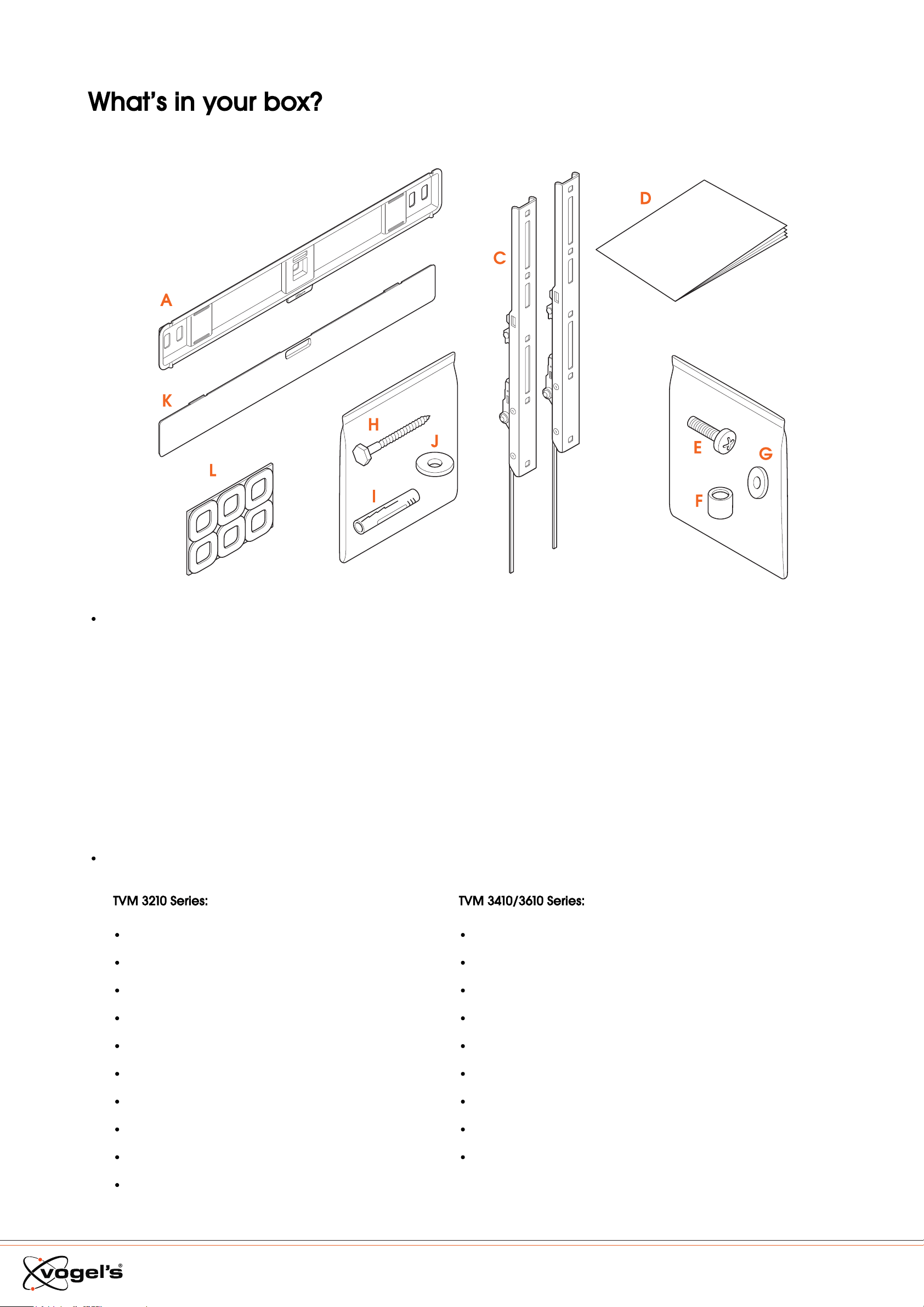

A. Wall mount
C. Strips
D. Safety instructions
E. Bolts for fastening strips on TV (see contents below)
F. Spacers
G. Washers Ø 18 mm
Contents of the TV fasteners kit:
TVM 3210 Series: TVM 3410/3610 Series:
TVM 3210/3410/3610 Series English
3
C.
D.
E.
F.
G.
H.
I.
J.
K.
L.
Strips
Safety instructions
Bolts for fastening strips on TV (see contents below)
Spacers
Washers Ø 18 mm
Screws
Plugs (fischer© DuoPower)
Washers Ø 22 mm
Cover
Protective TV patches
Something missing? Make sure your packaging has everything in place:
4x M4*12mm bolts
4x M4*25mm bolts
4x M6*12mm bolts
4x M6*25mm bolts
4x M6*35mm bolts
4x M8*12mm bolts
4x M8*25mm bolts
4x M8*45mm bolts
4x M6 washer
4x spacer 10mm
4x M6*12mm bolts
4x M6*25mm bolts
4x M6*35mm bolts
4x M8*12mm bolts
4x M8*25mm bolts
4x M8*45mm bolts
4x M6 washer
4x spacer 10mm
4x spacer 5mm
You don't need all fasteners to mount your TV. Store the rest for later or other use!
Got your tools ready?

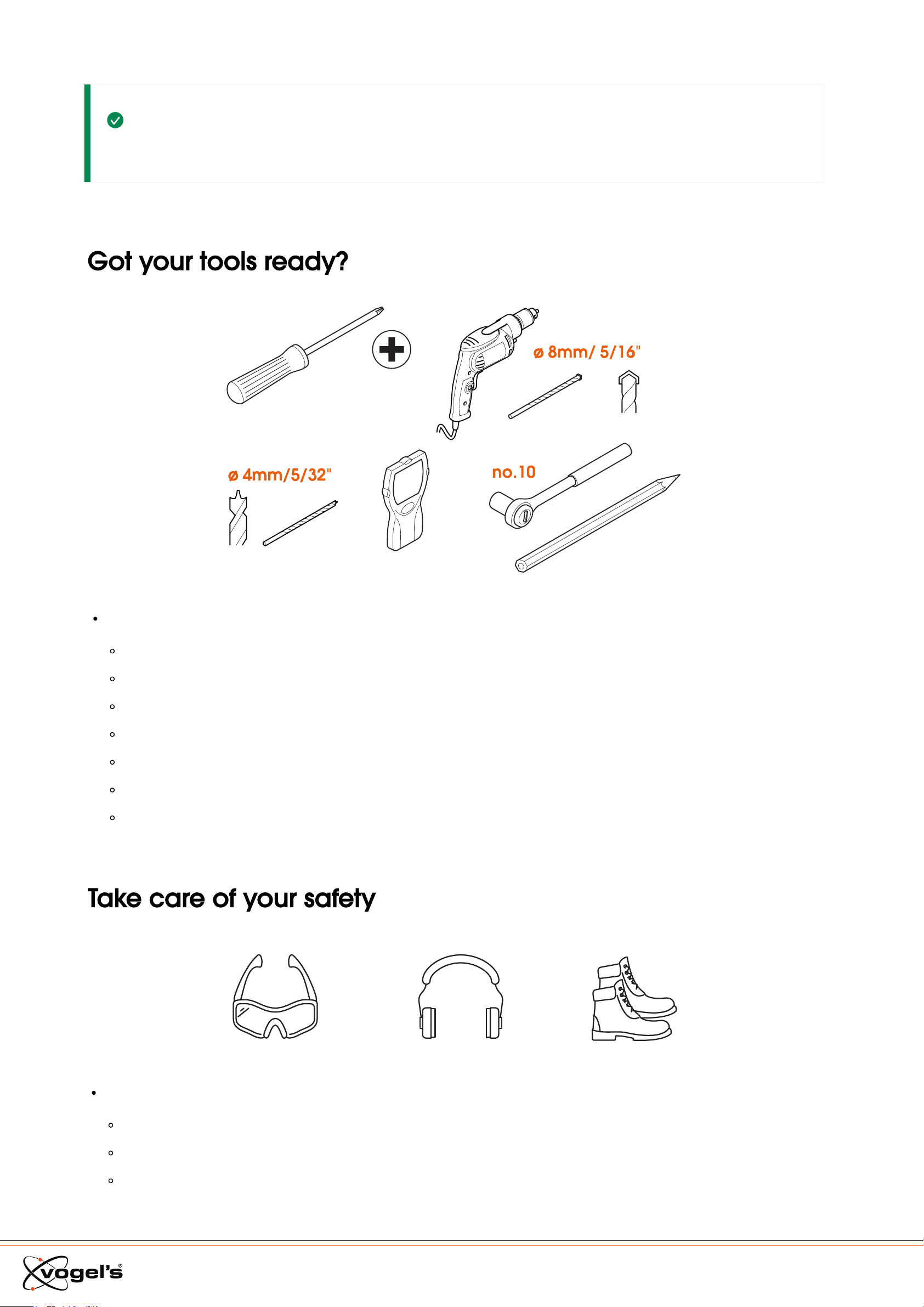

Don’t start without all the necessary tools:
Crosshead screwdriver
Drilling machine
8mm or 5/16” concrete/brick drill (for concrete/brick walls only)
4mm or 5/32” wood drill (for wooden walls only)
Stud finder (optional)
Socket wrench
Pencil
TVM 3210/3410/3610 Series English
4
Take care of your safety
Who cares about looking cool? Always wear personal protective equipment:
Eye protection
Ear protection
Safety shoes
Ready… set… get installing!

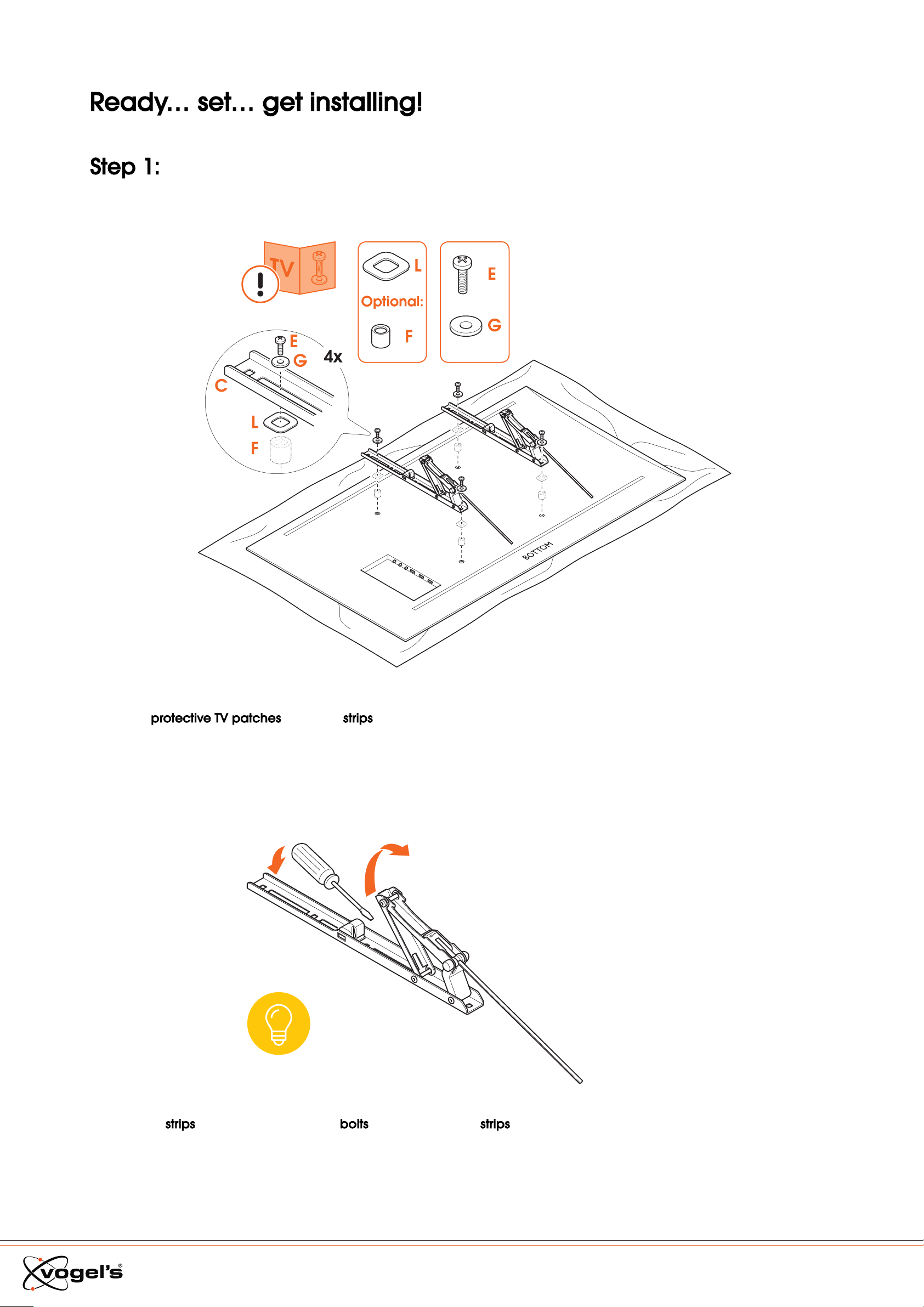

Step 1: Attach the strips to the TV
1. Put the protective TV patches Ⓛ on the strips Ⓒ.
2. Put the TV carefully on a clean surface without any obstacles.
3. Open the tilt strips with a screw driver.
TVM 3210/3410/3610 Series English
5
4. Screw the strips Ⓒ on to the TV with the bolts Ⓔ. Make sure the strips Ⓒ are at the same height and do not stick out.
Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help:
vogels.com/contact

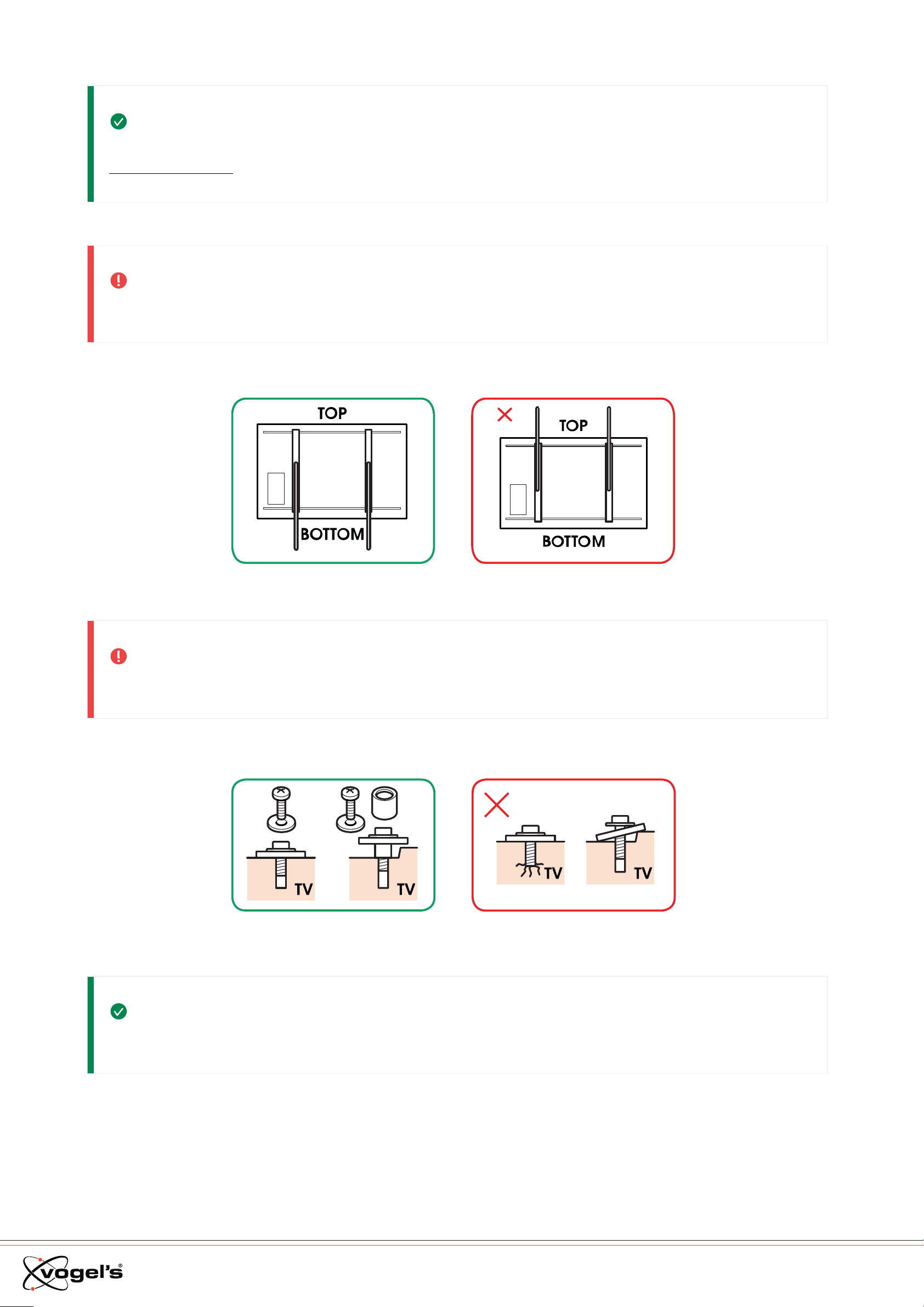

Make sure that the release cords are at the bottom of the TV when attaching the strips.
Make sure bolts and spacers are positioned correctly.
Refer to the user manual of your TV for the correct mounting material.
TVM 3210/3410/3610 Series English
6
Step 2: Attach the wall mount to the wall
How well do you know your walls? What they’re made of matters more than you think…
Concrete/Brick wall
Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily.

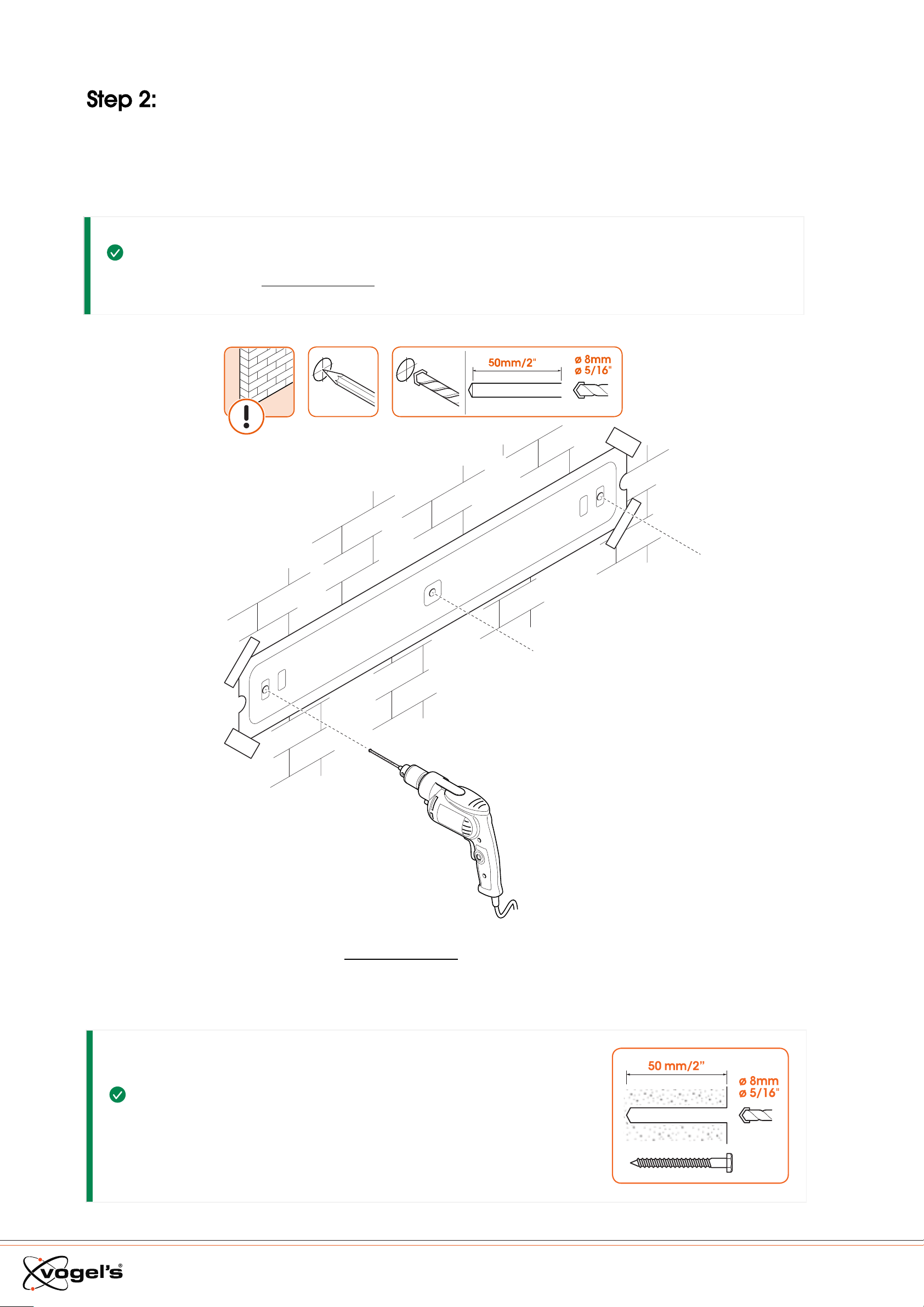

1. Find the perfect spot for drilling with our DrillRight™ AR app and the included drilling template.
2. Drill the holes.
How deep do you drill? Check the length of the screw (not the plug!) to find
the right depth – this stops things from breaking.
TVM 3210/3410/3610 Series English
7
Wooden wall with studs
TVM 3200 and TVM 3210 Series are not suitable for mounting on stud walls, without special mounting material. Ask
your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact for more
information.
Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily.
1. Don’t just guess! Always use a stud finder to determine the position of studs.
2. Find the perfect spot for drilling with our DrillRight™ AR app and the included drilling template.
TVM 3210/3410/3610 Series English
9

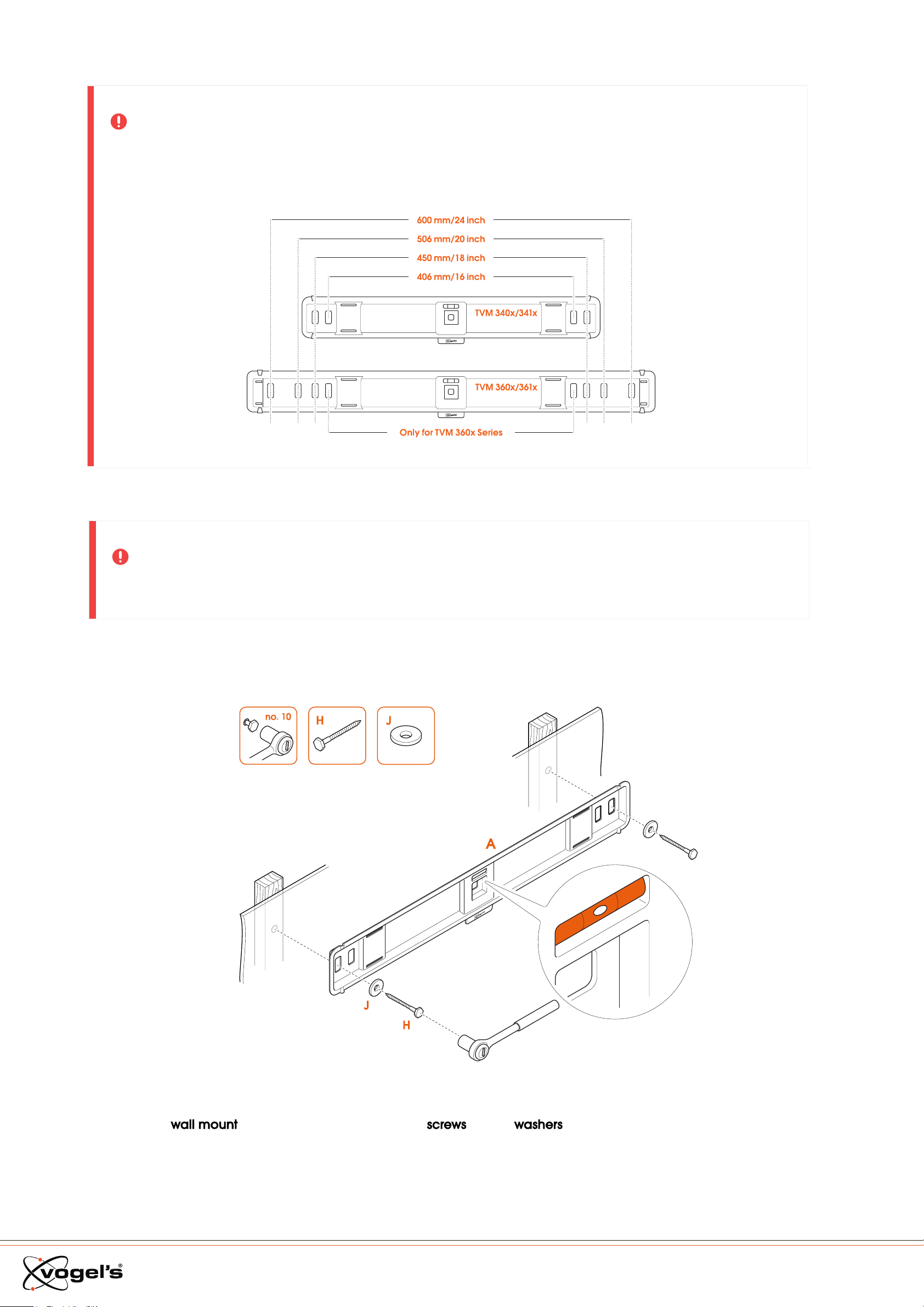

The inner 2 holes of the wall plate of the TVM 360x/361x Series are only intended for use for the TVM 360x Series.
Do not use these for the TVM 361x Series.
Don’t destroy your belongings! The wall mount must always be attached to the studs.
3. Now for the fun part… drilling the holes.

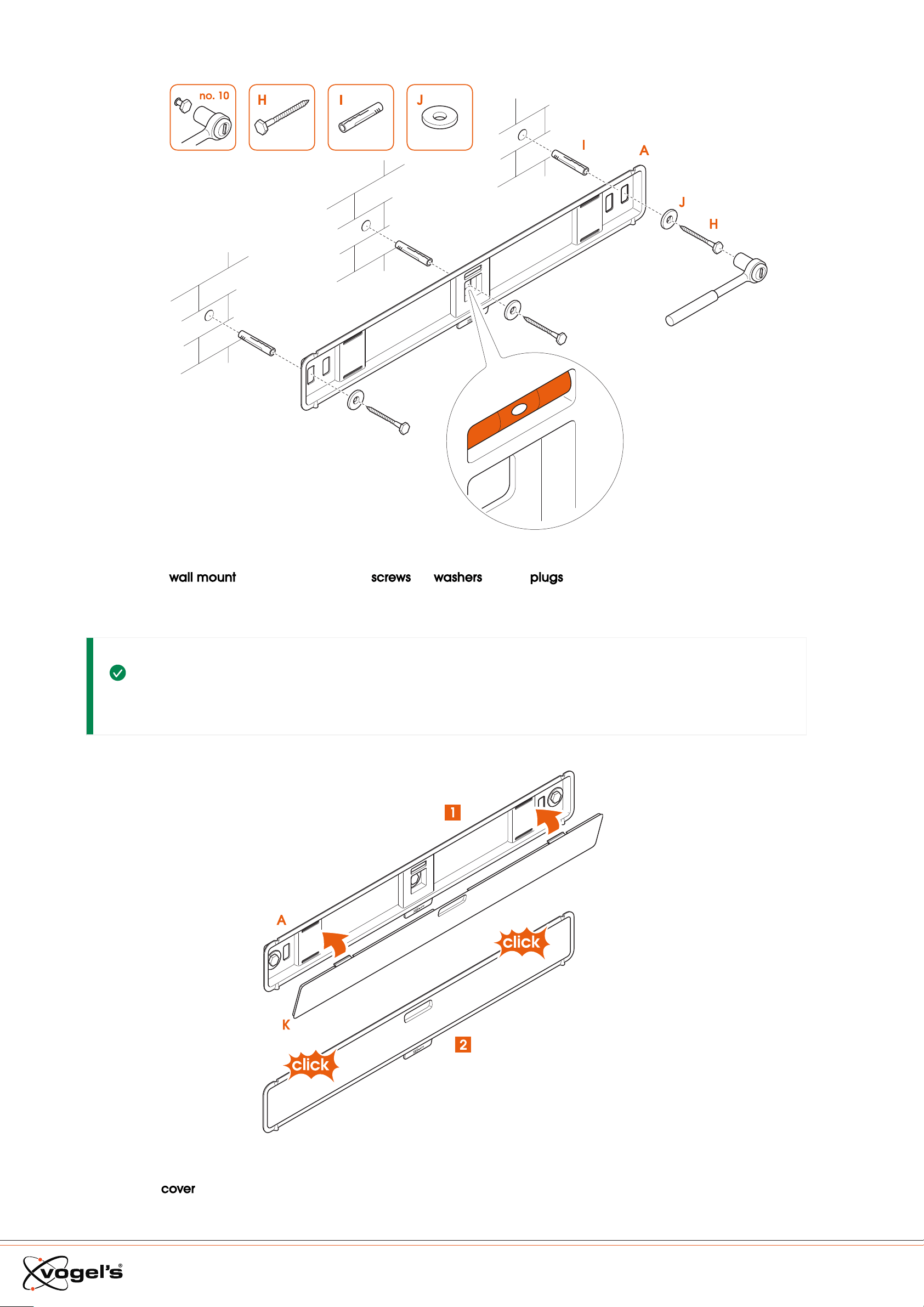

4. Attach the wall mount Ⓐ to the wooden wall with the screws Ⓗ and washers Ⓙ. Use the spirit level to level the wall
mount.
TVM 3210/3410/3610 Series English
10
Lubricate the screws for easy screwing in.

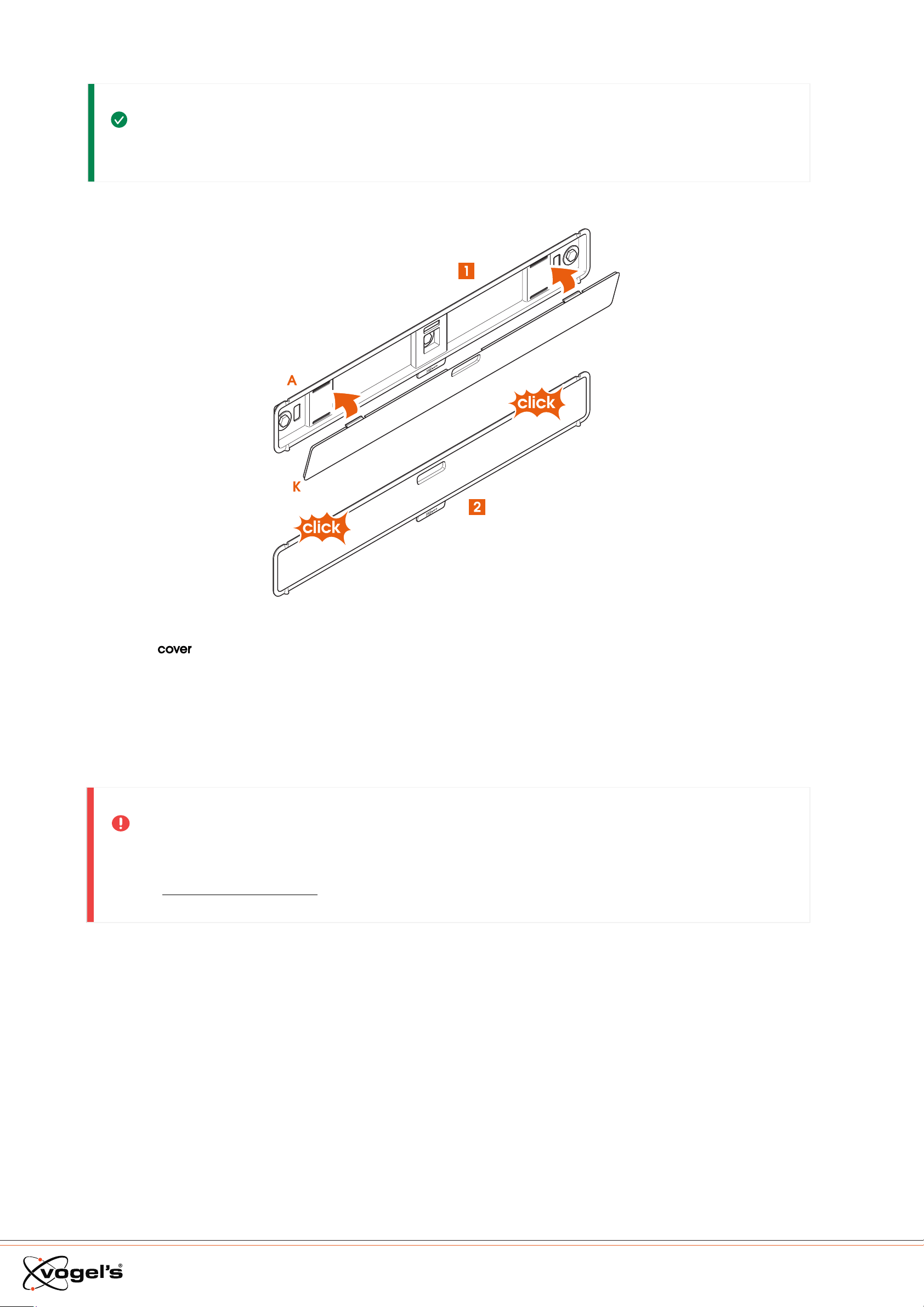

5. Click the cover Ⓚ into place. Simple!
TVM 3210/3410/3610 Series English
11
Other wall type/I don’t know my wall type
If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or
you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care
team at www.vogels.com/contact.
Step 3: Attach the TV to the wall mount
1. Make sure the tilt strips are still open.
2. Carefully lift and attach the TV to the
wall mount Ⓐ.
3. When you hear a satisfying click (ClickLoc™ Safety System), you know your TV is safely in place.
TVM 3210/3410/3610 Series English
12
Tuck the excess release cords between the wall and the TV to hide them, or…
Cut the excess release cords.
4. Optional: Choose one of the following:
Job done now! Enjoy watching your TV!
Lifting your TV is a two-person job.
Don’t be bold!

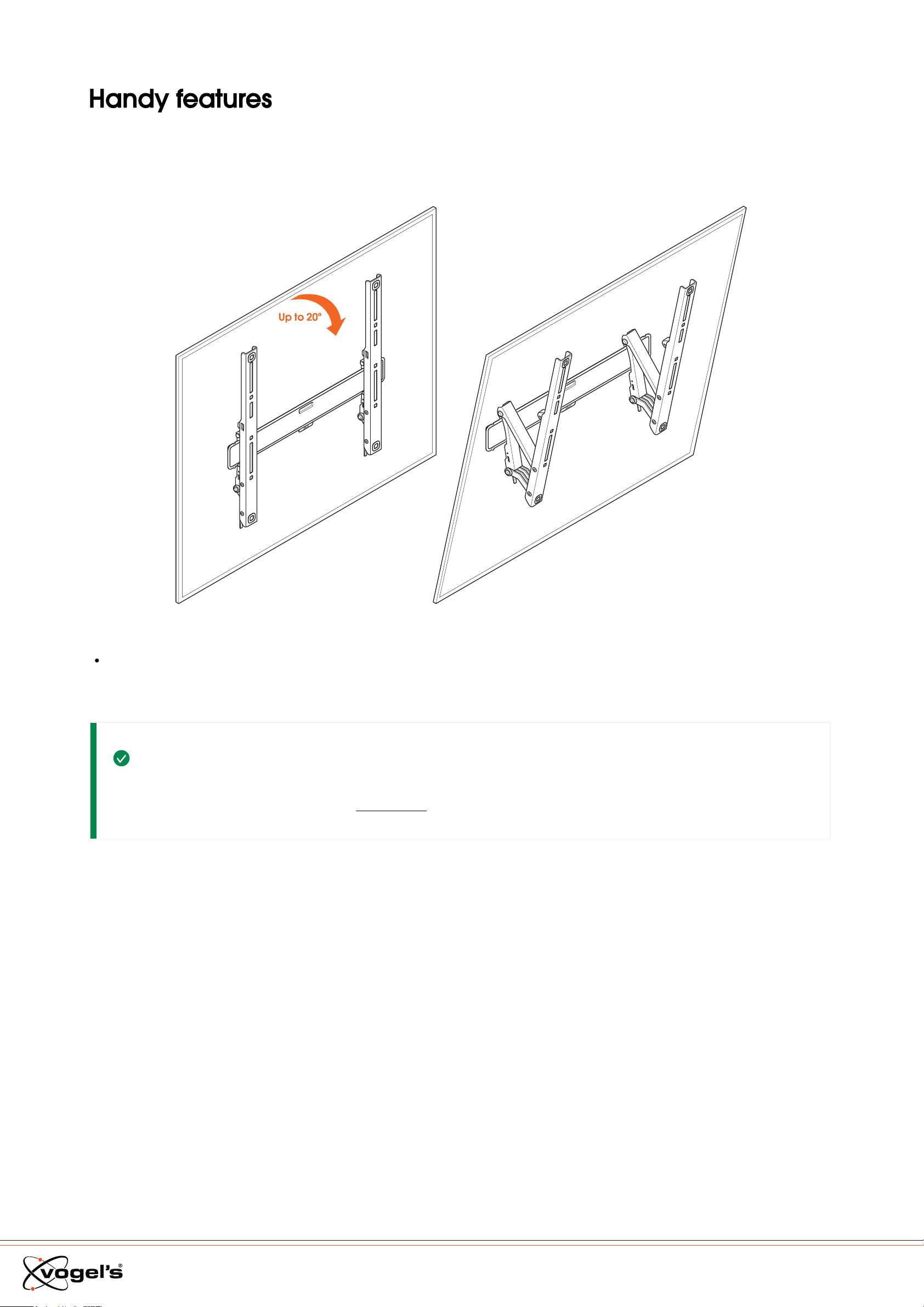

Tilt to avoid reflections
Need to avoid reflections? Tilt your screen easily up to 20°, without the need for tools. Just pull the TV forward to your
wishes.
TVM 3210/3410/3610 Series English
13
Having a cable mess? Do you need inspiration about how to hide and guide your cables or how to place other TV
accessories? Take a look at our website vogels.com!
Removing your TV

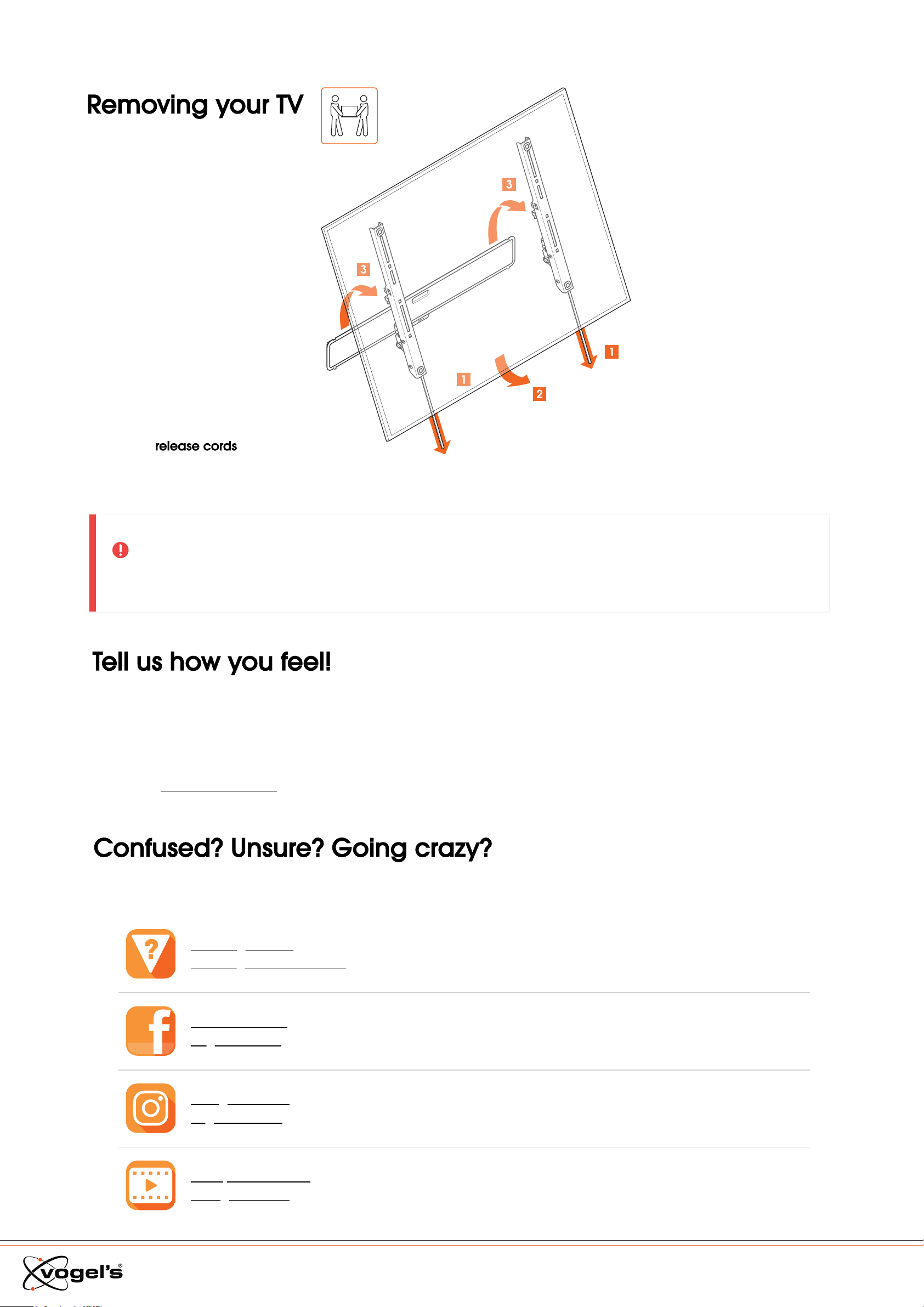

1. Pull the
release cords to unlock the TV.
2. Remove the TV, and put it down somewhere safe.
TVM 3210/3410/3610 Series English
14
T
ell us how you feel!
Your opinion matters more than you might think. It helps us make better products, and helps other customers make
informed choices.
Share your feedback, and sign up to win Vogel’s products!
Simply visit vogels.com/review for sharing or the Terms and Conditions.
Confused? Unsure? Going crazy?
There’s plenty of help waiting for you, online:
info@vogels.com
www.vogels.com/contact
facebook.com/
VogelsForSure/
instagram.com/
vogels_official/
www.youtube.com/
c/VogelsForSure
Again, lifting your TV is a two-person job. Always get help.
