Side by Side Refrigerator

Refrigerador de dos puertas

Rfrigrateur c6te & c6te

Sears Roebuck and Co. Hoffman Estates. IL 60179 U.S.A. www.sears.com Sears Canada Inc. Toronto.

Ontario. Canada M5B 2B8 www.sears.ca

TABLE OF CONTENTS

WARRANTY .

REFRIGERATOR SAFETY ..

INSTALLATION INSTRUCTIONS Unpack the Refrigerator Location Requirements . Electrical Requirements . Water Supply Requirements .. Base Grille Refrigerator Doors Adjust the Doors Connect the Water Supply .. Prepare the Water System .. Normal Sounds ..

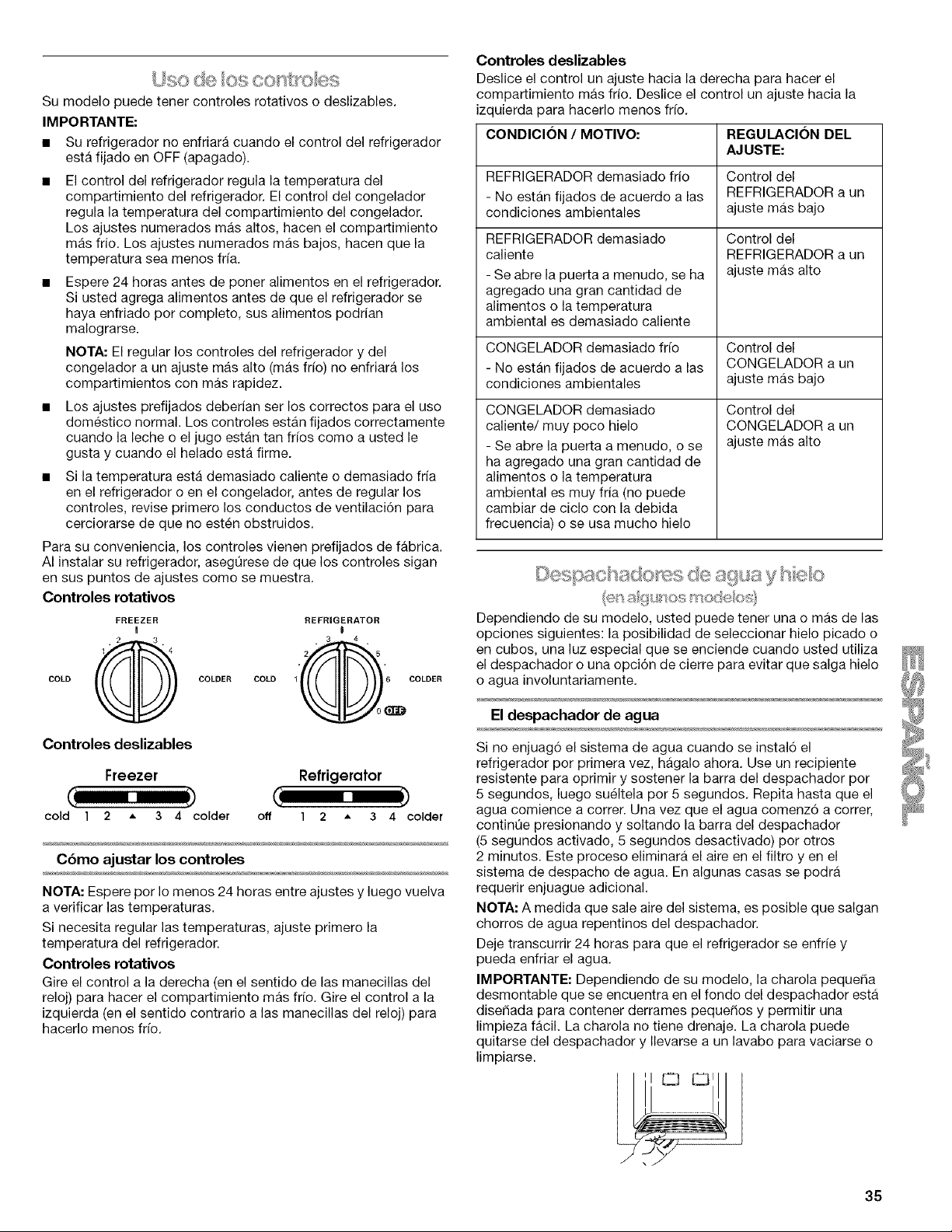

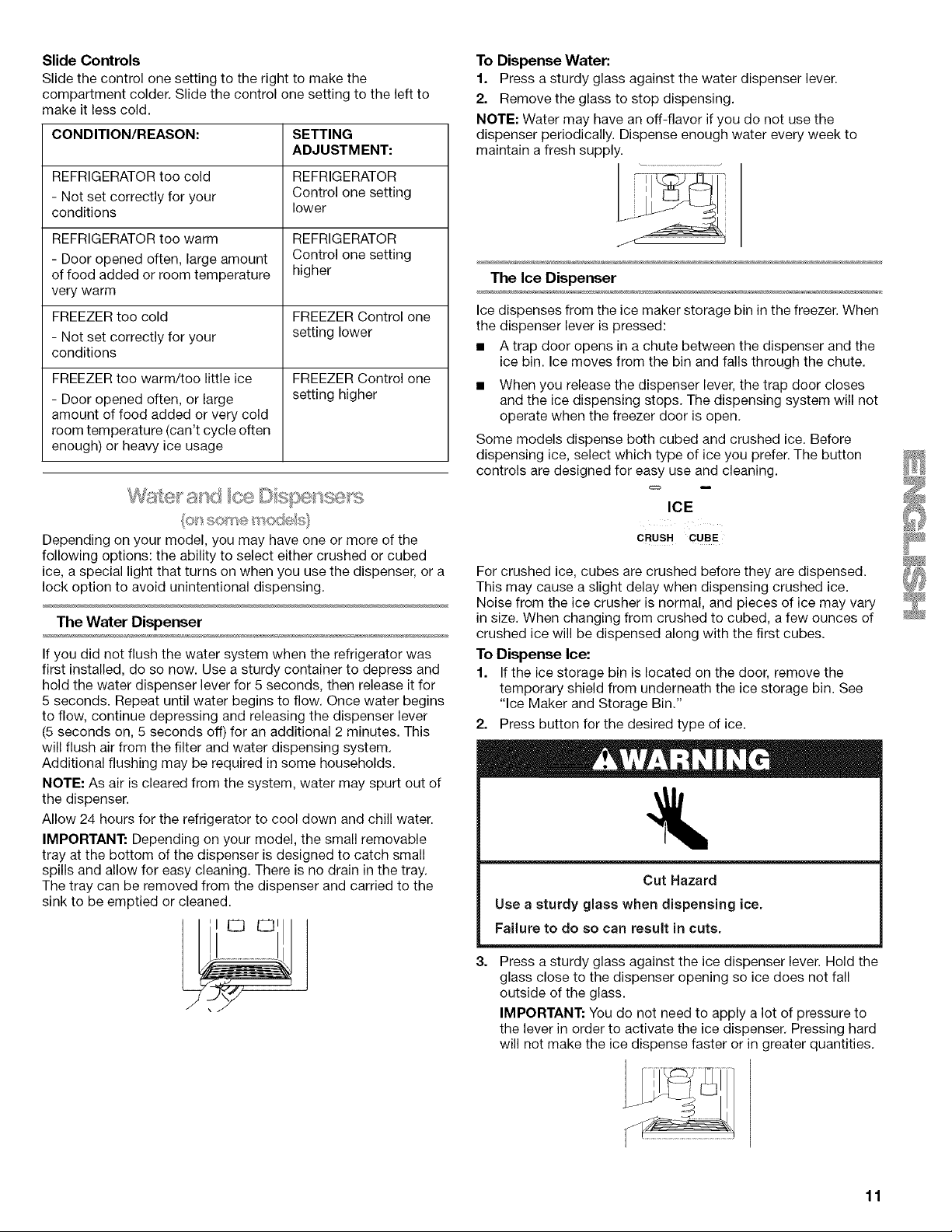

REFRIGERATOR USE .. Ensuring Proper Air Circulation . Using the Controls Water and Ice Dispensers Water Filter Status Light Water Filtration System . Ice Maker and Storage Bin .. REFRIGERATOR FEATURES .. Refrigerator Shelves Dell Drawer .. Convertible Vegetable/Meat Drawer. Crisper and Covers. 14 Convertible Vegetable/Meat Drawer Temperature Control 14 Crisper Humidity Control .. Wine Rack . Utility Bin FREEZER FEATURES .. Freezer Shelf Freezer Basket or Bin .

DOOR FEATURES .. Door Rails or Bins . Door Bins ..

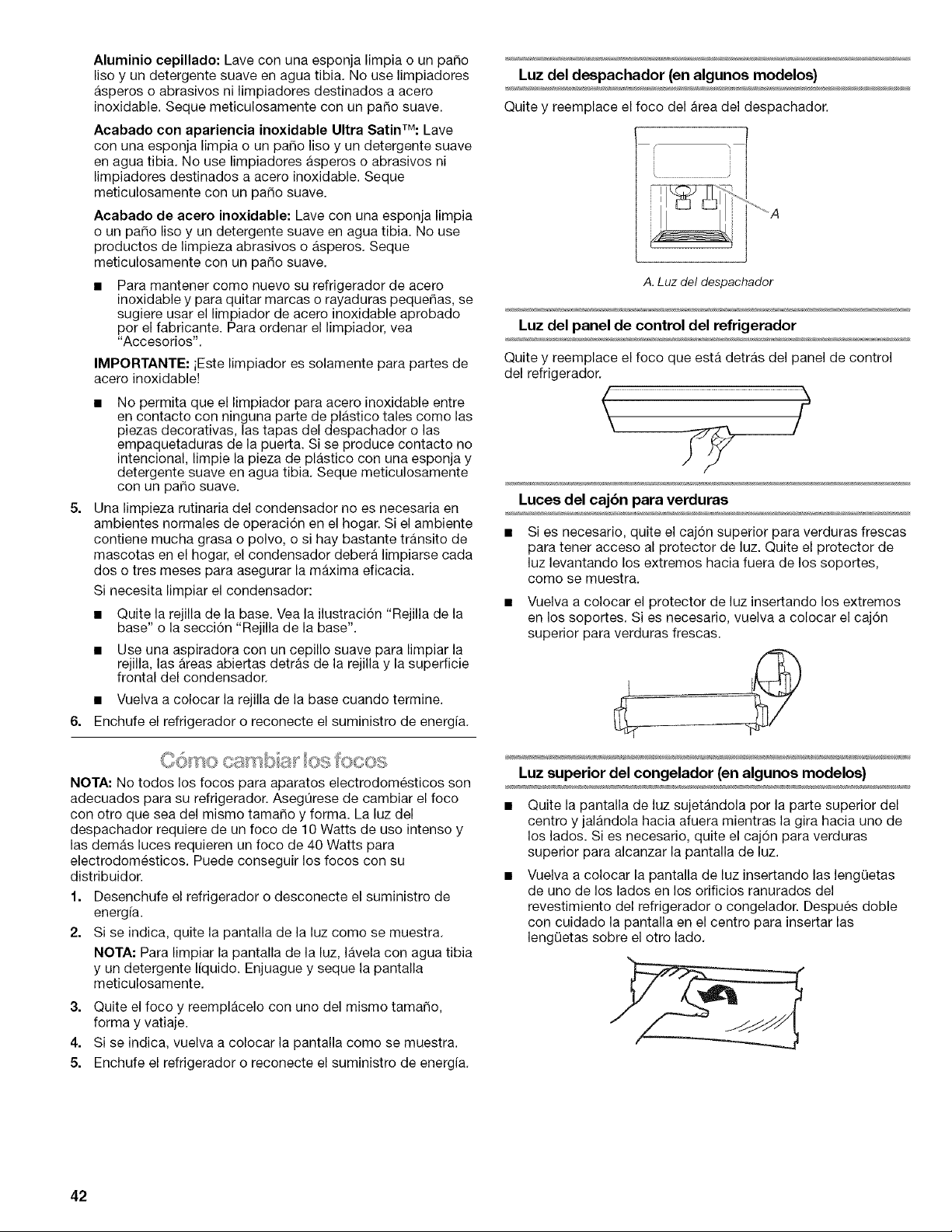

REFRIGERATOR CARE Cleaning . Changing the Light Bulbs . Power Interruptions

Vacation and Moving Care ..

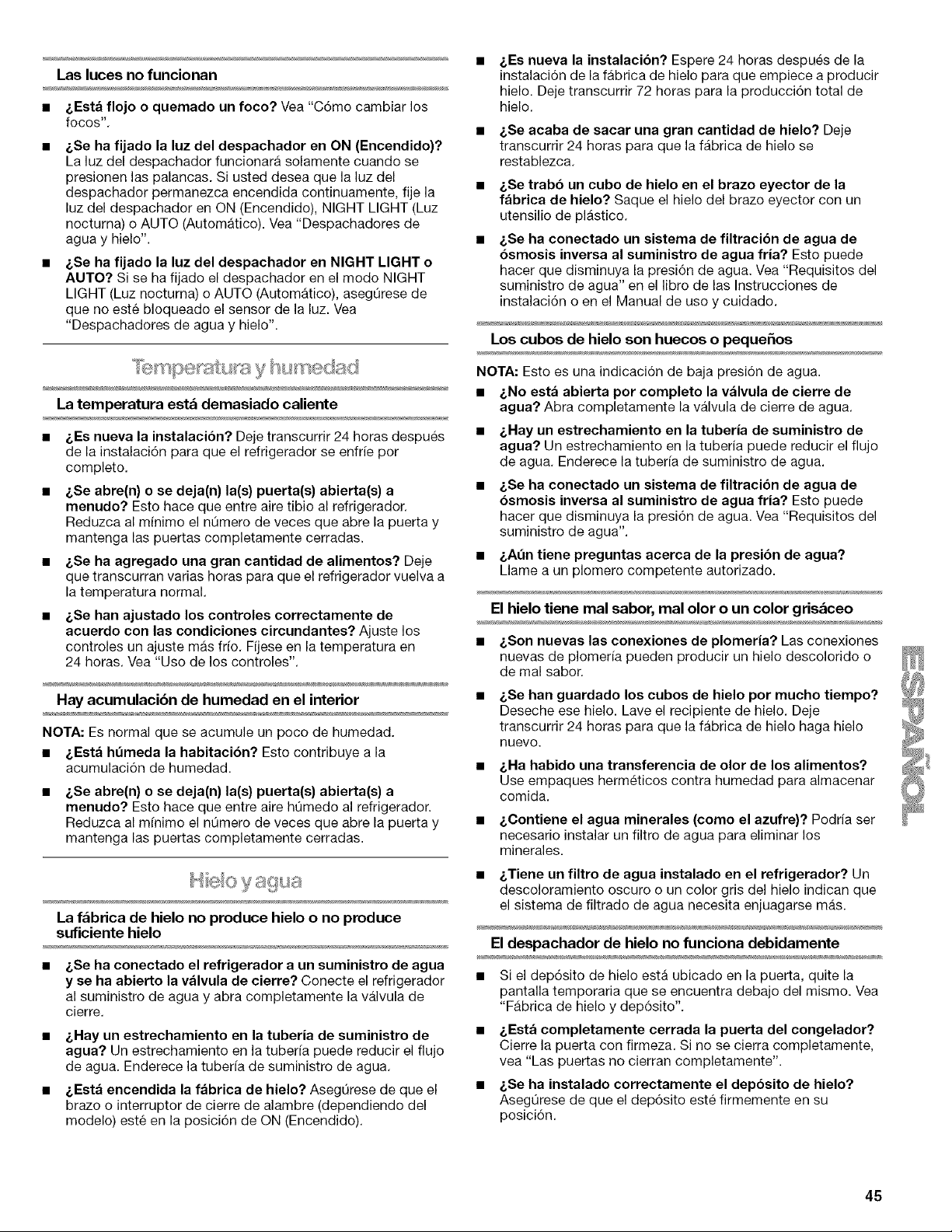

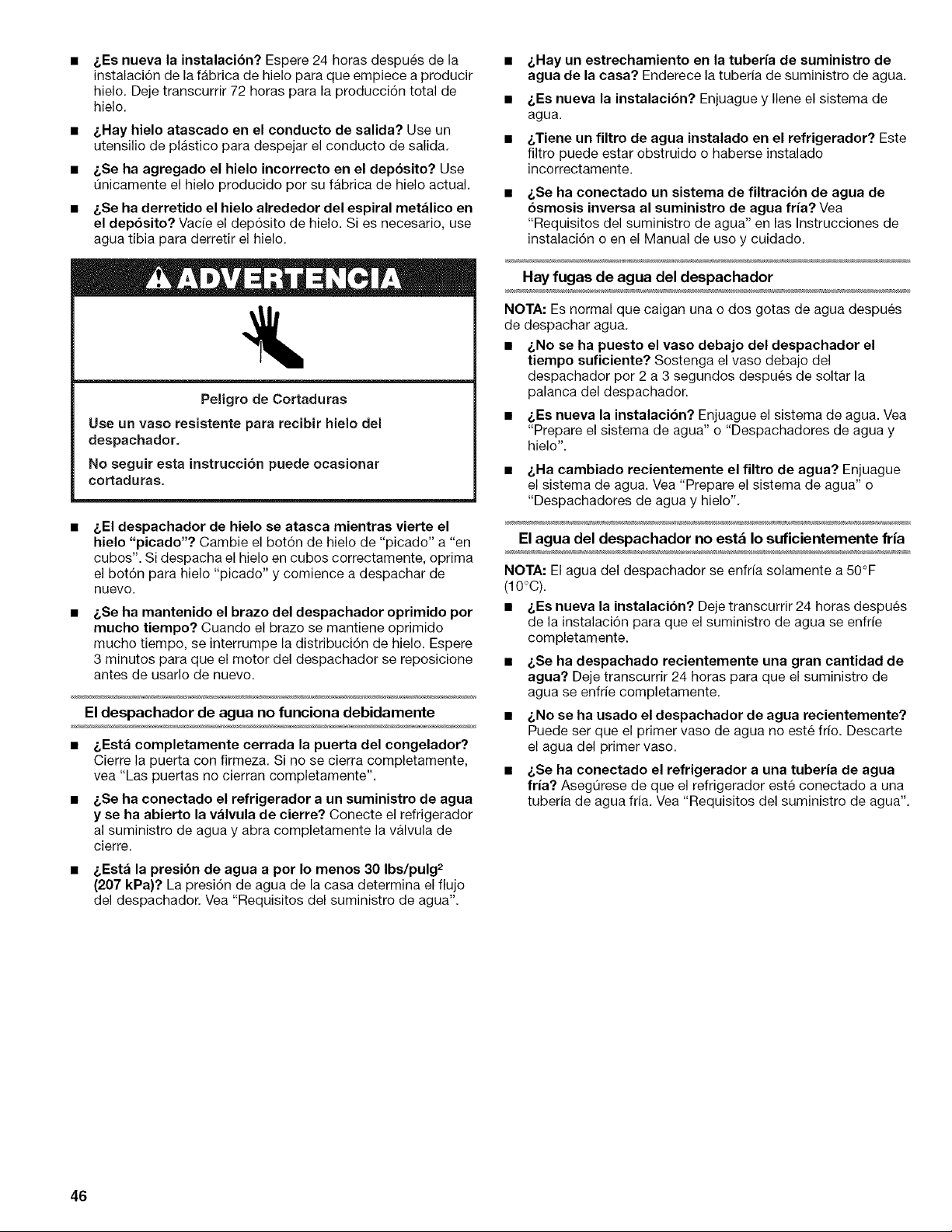

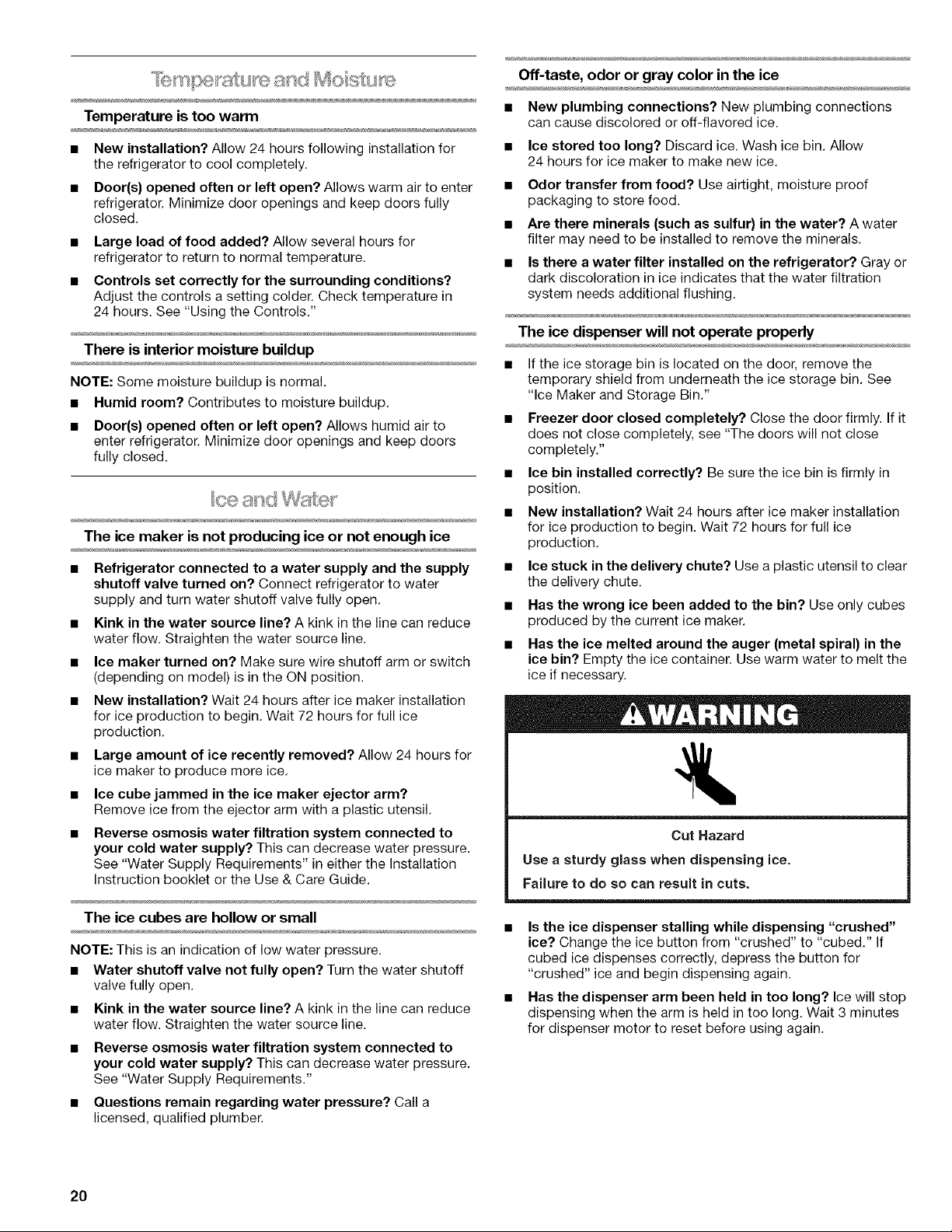

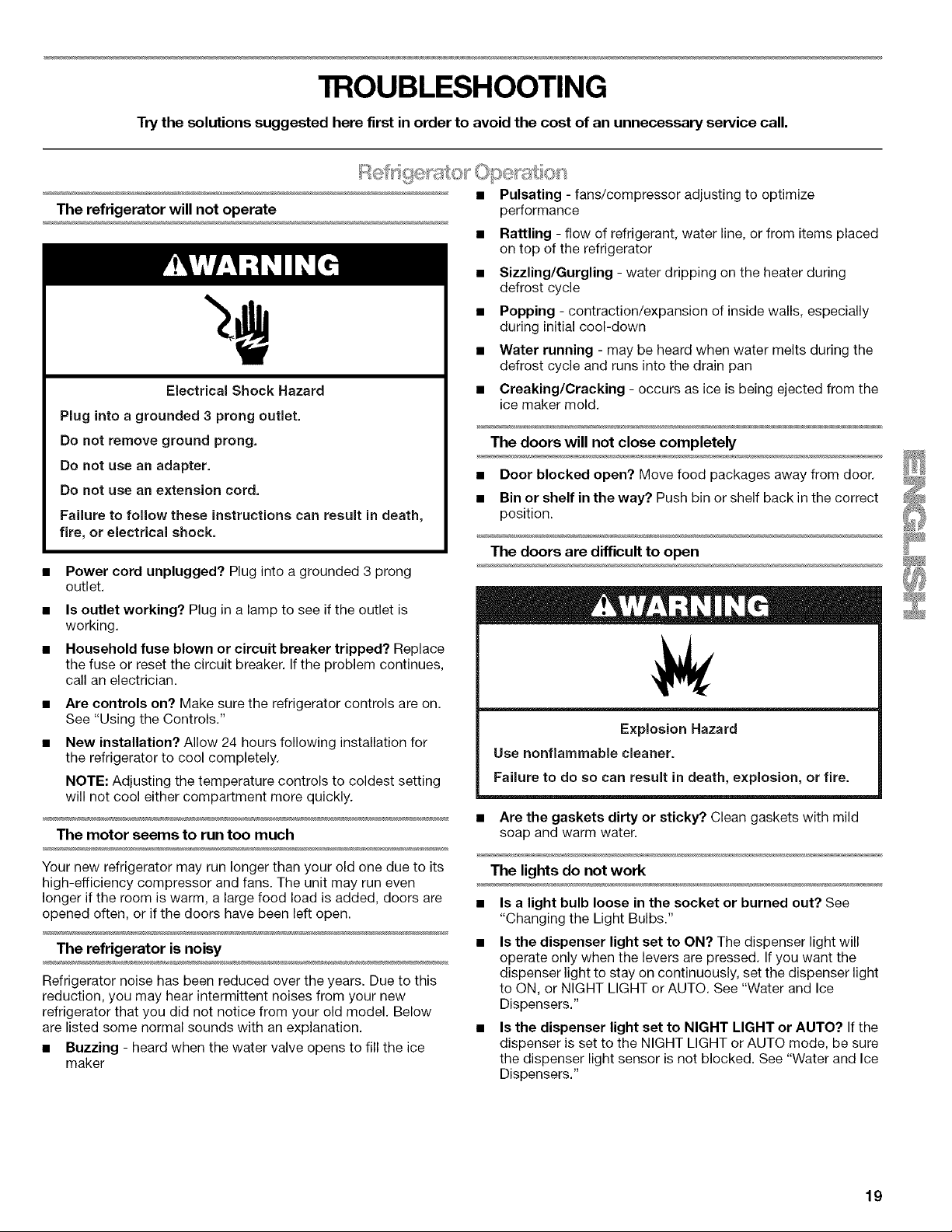

TROUBLESHOOTING

Refrigerator Operation Temperature and Moisture .. Ice and Water .

PROTECTION AGREEMENTS

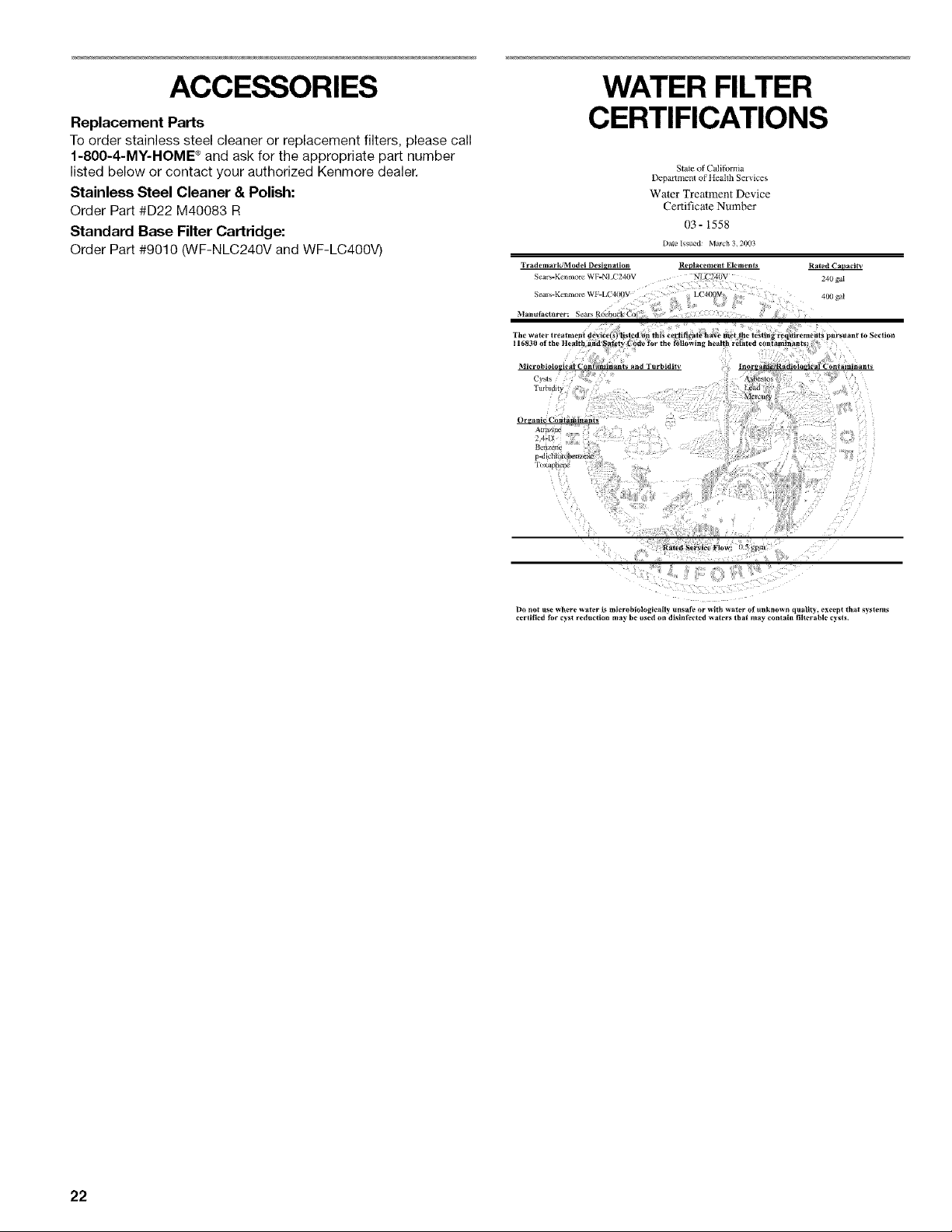

ACCESSORIES

WATER FILTER CERTIFICATIONS

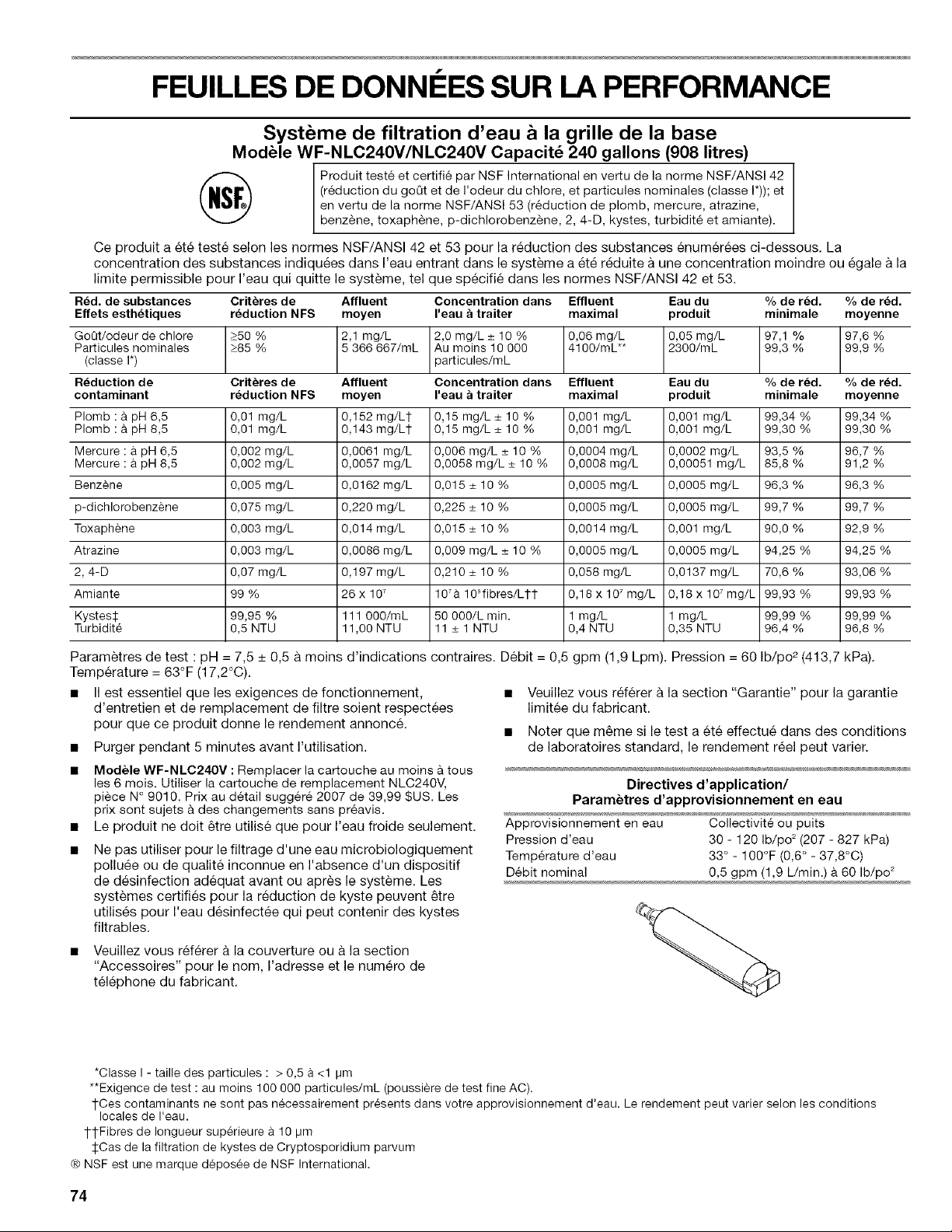

PERFORMANCE DATA SHEETS ..

SERVICE NUMBERS ..

BACK COVER

KENMORE APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

When installed. operated and maintained according to all instructions supplied with the product. if this appliance fails due to a defect in material or workmanship within one year from the date of purchase. call 1-800-4-MY-HOMP to arrange for free repair.

If this appliance is used for other than private family purposes. this warranty applies for only 90 days from the date of purchase.

THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL AND WORKMANSHIP.

SEARS WILL NOT PAY FOR:

Expendable items that can wear out from normal use. including but not limited to filters. belts. light bulbs. and bags.

A service technician to instruct the user in correct product installation. operation or maintenance.

A service technician to clean or maintain this product.

Damage to or failure of this product if it is not installed. operated or maintained according to all instructions supplied with the product.

Damage to or failure of this product resulting from accident. abuse. misuse or use for other than its intended purpose.

Damage to or failure of this product caused by the use of detergents. cleaners. chemicals or utensils other than those recommended in all instructions supplied with the product.

Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties. including warranties of merchantability or fitness for a particular purpose. are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages. or limitations on the duration of implied warranties of merchantability or fitness. so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada.

This warranty gives you specific legal rights. and you may also have other rights which vary from state to state.

Sears. Roebuck and Co.

Dept. 817WA. Hoffman Estates. IL 60179 Sears Canada Inc.

Toronto. Ontario. Canada M5B 2B8

PRODUCT RECORD

In the space below. record your complete model number. serial number. and purchase date. You can find this information on the model and serial number label located on the product.

Have this information available to help you obtain assistance or service more quickly whenever you contact Sears concerning your appliance.

Model number

Serial number

Purchase date

Save these instructions and your sales receipt for future reference.

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is. tell you how to reduce the chance of injury. and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire. electric shock. or injury when using your refrigerator. follow these basic precautions:

• Plug into a grounded 3 prong outlet.

• Do not remove ground prong.

• Do not use an adapter.

• Do not use an extension cord.

• Disconnect power before servicing.

• Replace all parts and panels before operating.

• Remove doors from your old refrigerator.

• Use nonflammable cleaner.

• Keep flammable materials and vapors. such as gasoline. away from refrigerator.

• Use two or more people to move and install refrigerator.

• Disconnect power before installing ice maker (on ice maker kit ready models only).

• Use a sturdy glass when dispensing ice (on some models).

SAVE THESE INSTRUCTIONS

Proper Disposal of Your Old Refrigerator

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous even if they will sit for "just a few days." If you are getting rid of your old refrigerator. please follow these instructions to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer: Take off the doors.

Leave the shelves in place so that children may not easily climb inside.

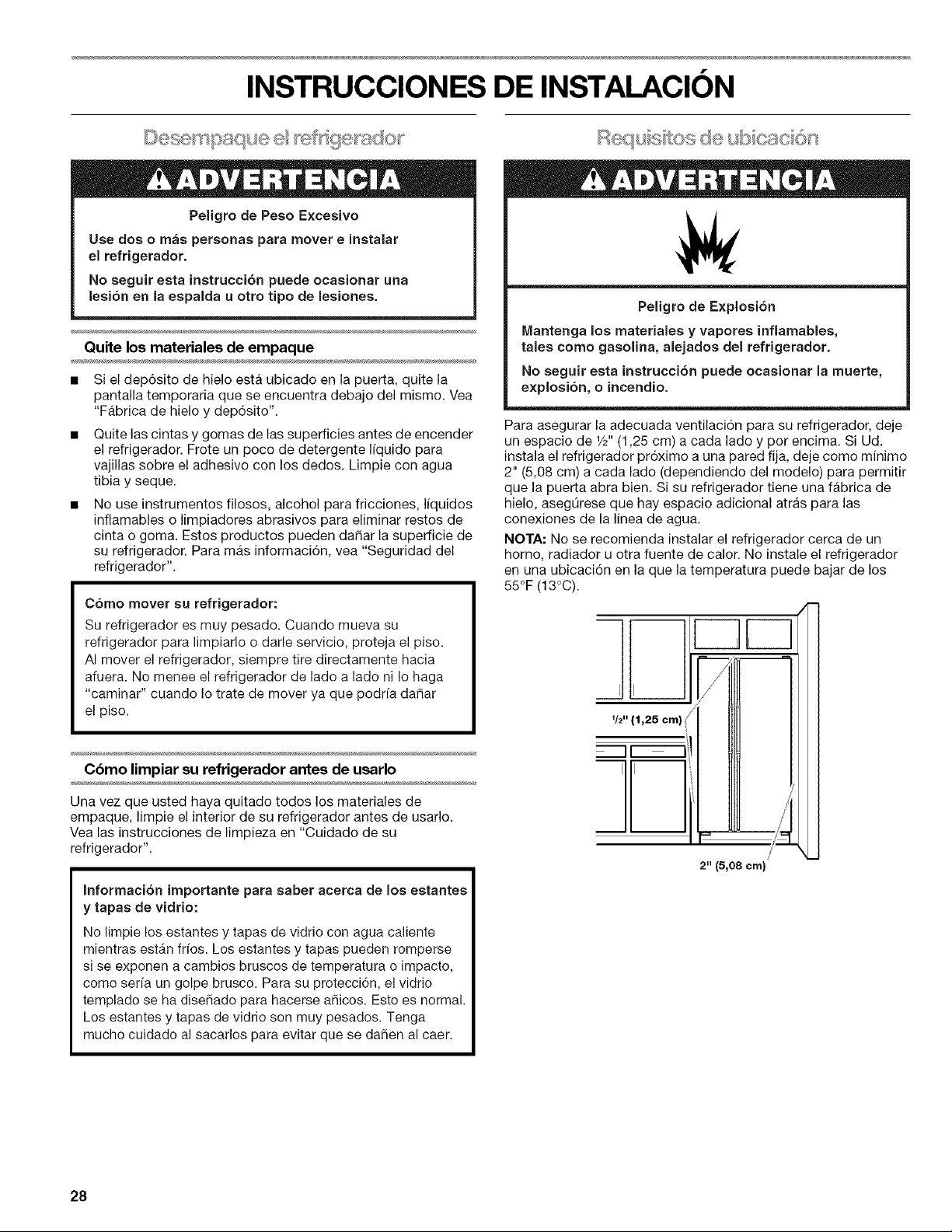

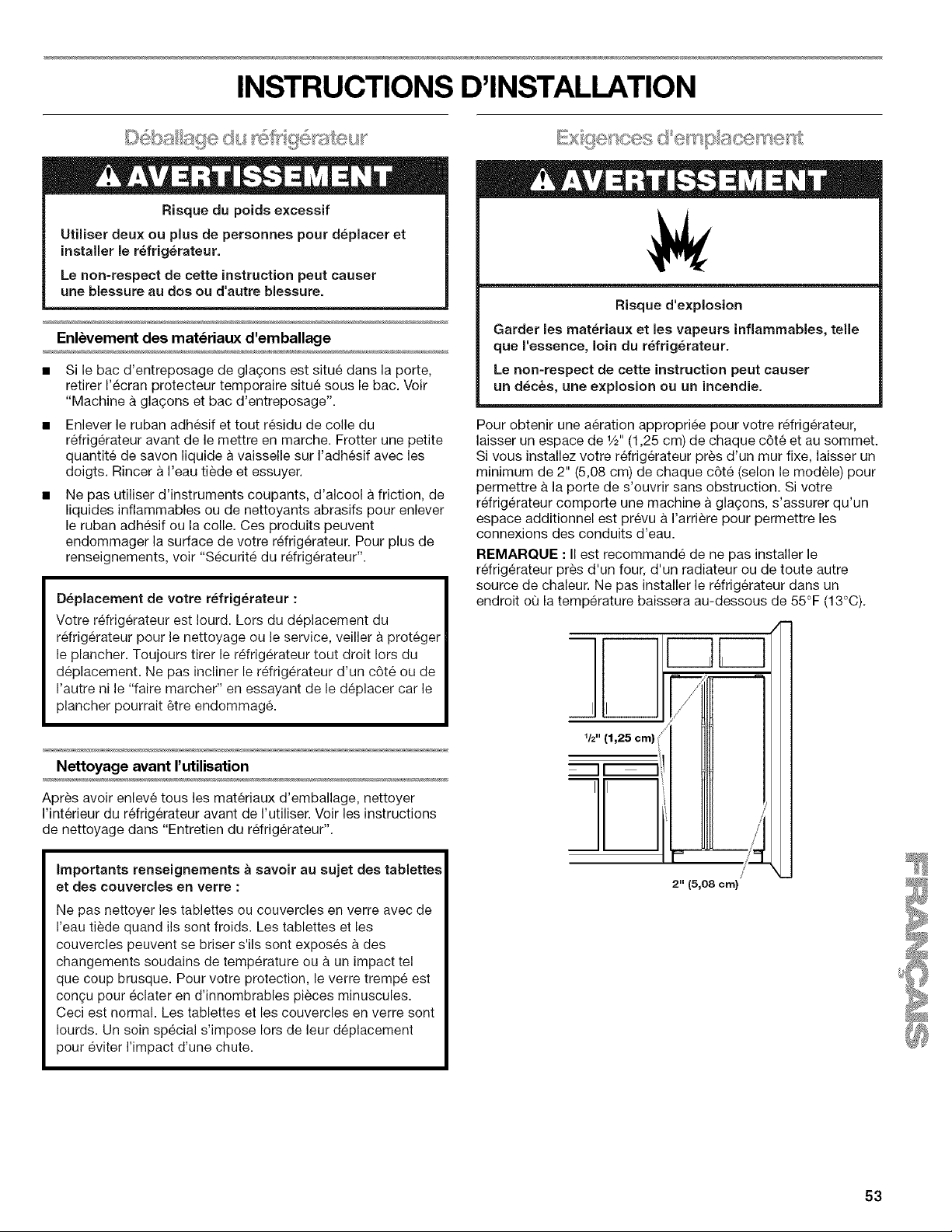

INSTALLATION INSTRUCTIONS

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

Remove the Packaging

If the ice storage bin is located on the door. remove the temporary shield from underneath the ice storage bin. See "Ice Maker and Storage Bin."

Remove tape and glue residue from surfaces before turning on the refrigerator.

Rub a small amount of liquid dish soap over the adhesive with your fingers.

Wipe with warm water and dry.

Do not use sharp instruments. rubbing alcohol. flammable fluids. or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.

For more information see "Refrigerator Safety."

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service. be sure to protect the floor.

Always pull the refrigerator straight out when moving it.

Do not wiggle or "walk" the refrigerator when trying to move it. as floor damage could occur.

Clean Before Using

After you remove all of the packaging materials. clean the inside of your refrigerator before using it. See the cleaning instructions in "Refrigerator Care."

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact. such as bumping.

For your protection. tempered glass is designed to shatter into many small. pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use special care when removing them to avoid impact from dropping.

Explosion Hazard

Keep flammable materials and vapors. such as gasoline. away from refrigerator.

Failure to do so can result in death. explosion. or fire.

To ensure proper ventilation for your refrigerator. allow for 1/2" (1.25 cm) space on each side and at the top. When installing your refrigerator next to a fixed wall. leave 2" (5.08 cm) minimum on each side (depending on your model) to allow for the door to swing open. If your refrigerator has an ice maker. allow extra space at the back for the water line connections.

NOTE: It is recommended that you do not install the refrigerator near an oven. radiator. or other heat source. Do not install in a location where the temperature will fall below 55°F (13°C).

V2" (1.25 cm) ii

2" 15.08ore)/

E ect ca 'sments

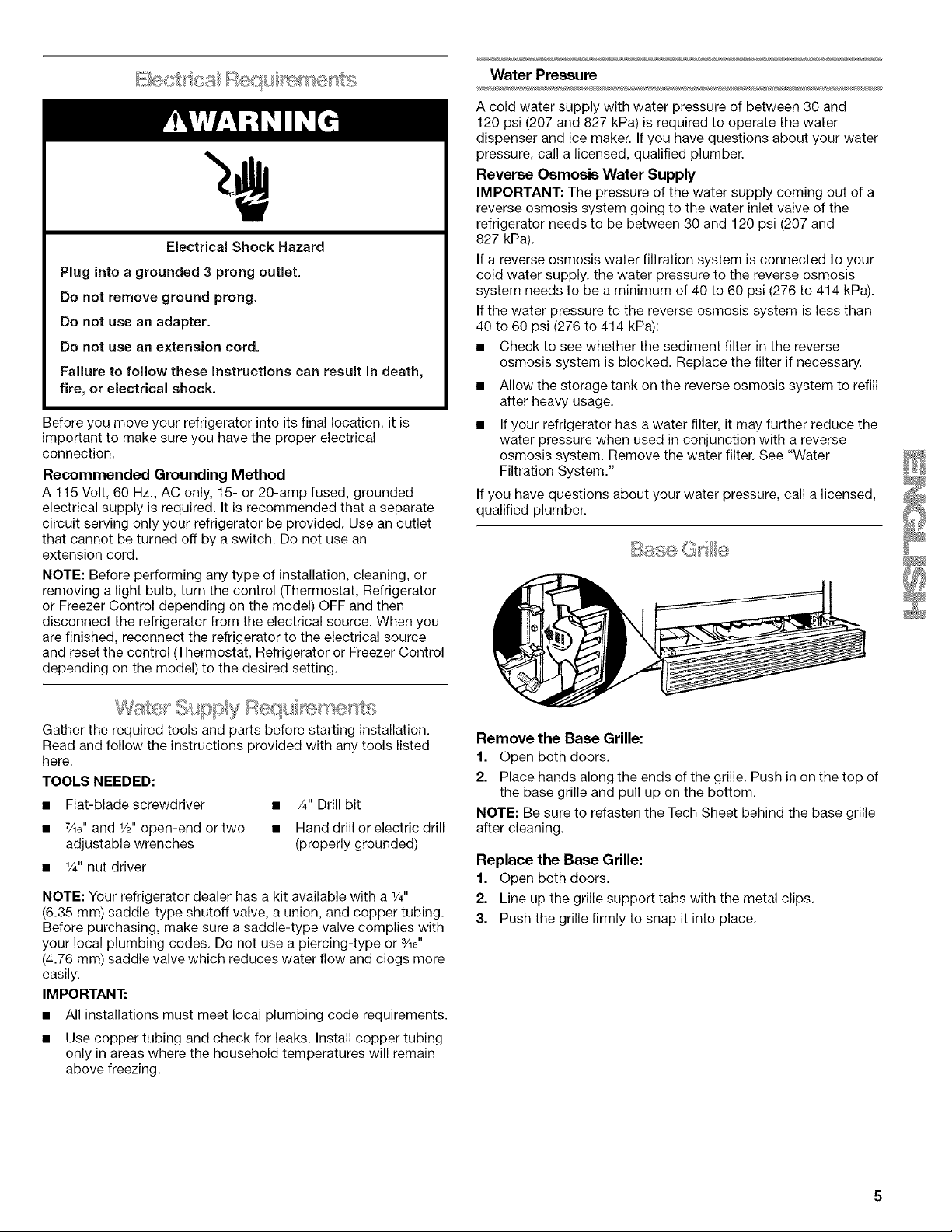

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death. fire. or electrical shock.

Before you move your refrigerator into its final location. it is important to make sure you have the proper electrical connection.

Recommended Grounding Method A 115 Volt. 60 Hz. AC only. 15- or 20-amp fused. grounded electrical supply is required.

It is recommended that a separate circuit serving only your refrigerator be provided.

Use an outlet that cannot be turned off by a switch.

Do not use an extension cord.

NOTE: Before performing any type of installation. cleaning. or removing a light bulb. turn the control (Thermostat. Refrigerator or Freezer Control depending on the model) OFF and then disconnect the refrigerator from the electrical source. When you are finished. reconnect the refrigerator to the electrical source and reset the control (Thermostat. Refrigerator or Freezer Control depending on the model) to the desired setting.

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed here.

TOOLS NEEDED:

Flat-blade screwdriver

7/16"and 1//open-end or two adjustable wrenches

1/4"nut driver

1/411Drill bit

Hand drill or electric drill (properly grounded)

NOTE: Your refrigerator dealer has a kit available with a 1/411 (6.35 mm) saddle-type shutoff valve. a union. and copper tubing.

Before purchasing. make sure a saddle-type valve complies with your local plumbing codes.

Do not use a piercing-type or 3/6" (4.76 mm) saddle valve which reduces water flow and clogs more easily.

IMPORTANT:

All installations must meet local plumbing code requirements.

Use copper tubing and check for leaks. Install copper tubing only in areas where the household temperatures will remain above freezing.

Water Pressure

A cold water supply with water pressure of between 30 and 120 psi (207 and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure. call a licensed. qualified plumber.

Reverse Osmosis Water Supply IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply. the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa): Check to see whether the sediment filter in the reverse osmosis system is blocked.

Replace the filter if necessary.

Allow the storage tank on the reverse osmosis system to refill after heavy usage.

If your refrigerator has a water filter. it may further reduce the water pressure when used in conjunction with a reverse osmosis system.

Remove the water filter. See "Water Filtration System."

If you have questions about your water pressure. call a licensed. qualified plumber.

Remove the Base Grille:

Open both doors.

Place hands along the ends of the grille. Push in on the top of the base grille and pull up on the bottom.

NOTE: Be sure to refasten the Tech Sheet behind the base grille after cleaning.

Replace the Base Grille:

Open both doors.

Line up the grille support tabs with the metal clips.

Push the grille firmly to snap it into place.

TOOLSNEEDED: 1/4"hex-head

IMPORTANT: Beforeyoubegin. urntherefrigerator controlOFEUnplugrefrigerator ordisconnect power.Remove foodandany adjustable doororutilitybinsfromdoors.

NOTE:Itmayonlybenecessary

Measure handlesorthedoors.

Disconnect power before removing doors.

Reconnect both ground wires before operating.

Failure to do so can result in death or electrical shock.

Electrical Shock Hazard

Top Left Hinge

A. Do Not Remove Screw

Water Dispenser Tubing Connection

A. Red Outer Ring

Door Removal

Handle Removal (Optional)

A. Do Not Remove Screw

Bottom Hinge

A. Do Not

Remove Screw

Level Door Alignment Front Leveling

A. Leveling Screw

Remove the Handles (optional)

Apply firm pressure with your hand on the face of trim. Slide top trim up and bottom trim down away from handle. Lift trim pieces off shoulder screws. See Graphic

Remove handle screws and handles. See Graphic

Move refrigerator into place. Replace handles as shown.

See Graphic

Remove the Doors

Electrical Shock Hazard

Disconnect power before removing doors.

Failure to do so can result in death or electrical shock.

Unplug refrigerator or disconnect power.

Open both refrigerator doors. Remove the base grille. Place hands along the ends of the grille. Push in on the top of the base grille and pull up on the bottom. See Graphic 2.

Close both doors and keep them closed until you are ready to lift them free from the cabinet.

If you have a dispenser (ice or water). disconnect the water dispenser tubing located behind the base grille on the freezer door side. See Graphic 3.

Press the red outer ring against the face of the fitting and pull the dispenser tubing free.

On some models. remove the tubing from hose clip.

Remove the top left hinge cover and screws as shown. See Graphic 4. Do not remove screw A.

Disconnect wiring:

Disconnect wiring plug.

Remove green ground wire screw to disconnect ground wires.

A. Do not remove screw A B. Ground wires

C. Green ground wire screw D. Wiring plug

Carefully lift freezer door straight up and off of the bottom hinge. See Graphic 5. The water dispenser tubing remains attached to the freezer door and pulls through the bottom left hinge. Make sure you protect the dispenser tubing from damage.

Remove the top right hinge cover and screws as shown.

See Graphic 6. Do not remove screw A.

Lift the refrigerator door straight up and off of the bottom hinge.

10. It may not be necessary to remove the bottom hinge to move the refrigerator through a doorway.

Both bottom hinges have similar construction.

Remove the hinges as shown. See Graphic 7. Do not remove screw A.

Replace the Doors and Hinges

Replace both bottom hinges. if removed.

Tighten screws.

Carefully feed the dispenser tubing through the bottom left hinge before replacing the freezer door on the hinge.

Assistance may be needed.

NOTE: Provide additional support for the doors while the top hinges are being replaced.

Do not depend on the door magnets to hold the doors in place while you are working.

Reconnect water dispenser tubing by pushing tubing into fitting until it stops and the red outer ring touches face of fitting.

See Graphic 3. On some models. replace tubing in hose clip.

Align and replace the top left hinge as shown. See Graphic 4.

Tighten screws.

Electrical Shock Hazard

Reconnect both ground wires.

Failure to do so can result in death or electrical shock.

Reconnect both ground wires.

Reconnect wiring plug.

_-_. y!_:. '. ---. / _-W. '_. ". ' / / //. ';.; i'. / /

A. Do not remove screw A B. Ground wires

C. Green ground wire screw D. Wiring plug

Replace left hinge cover and screws.

Replace the refrigerator door by carefully lifting the door onto the bottom right hinge.

Align and replace the top right hinge as shown. See Graphic 6. Tighten screws.

Replace hinge cover and screws. Tighten screws.

Plug in refrigerator or reconnect power.

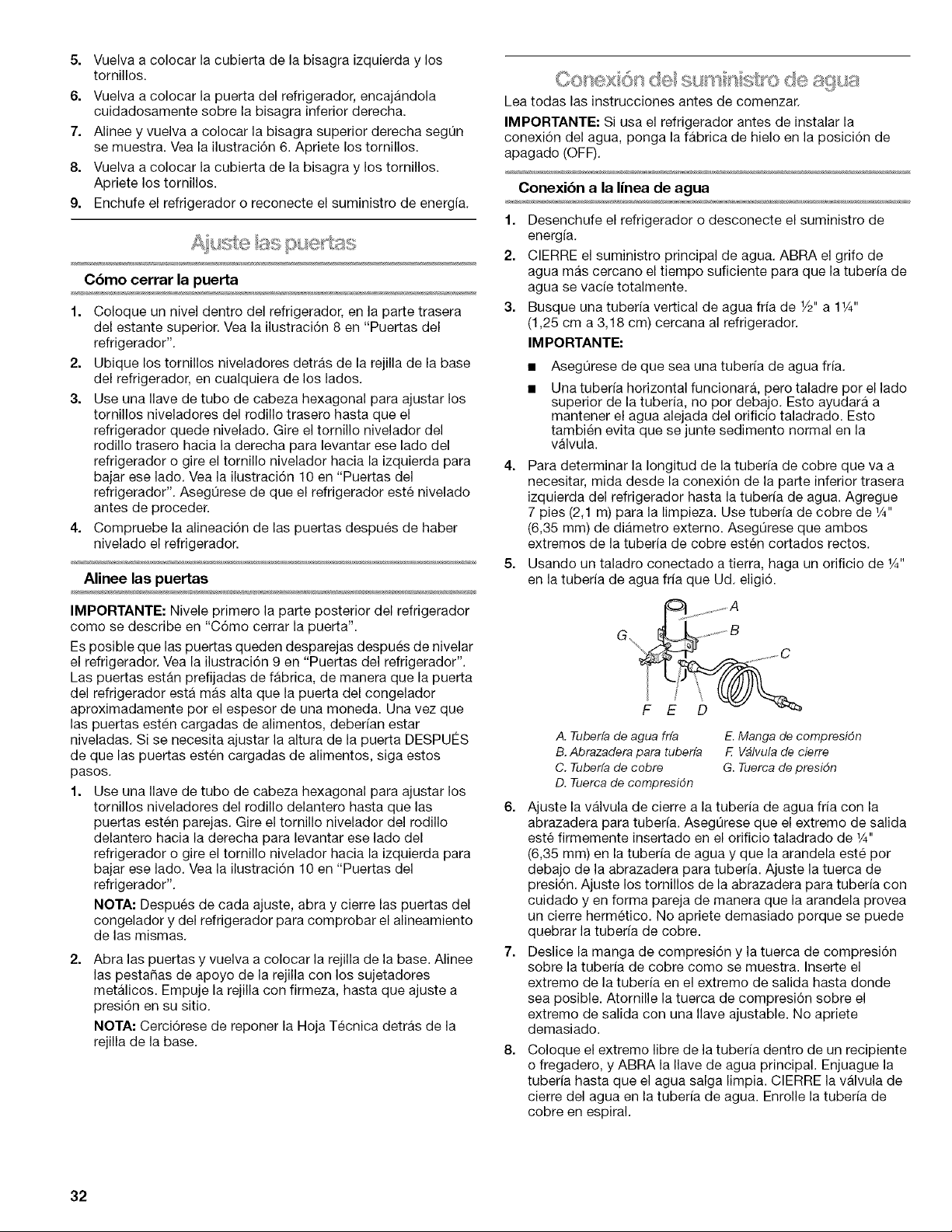

Door Closing

Place a level inside the refrigerator at the back of the top shelf. See Graphic 8 in "Refrigerator Doors."

Locate the leveling screws behind the base grille of the refrigerator on either side.

Use a hex-head socket wrench to adjust the rear roller leveling screws until the refrigerator is level. Turn the rear roller leveling screw to the right to raise that side of the refrigerator or turn the leveling screw to the left to lower that side. See Graphic 10 in "Refrigerator Doors." Make sure refrigerator is level before proceeding.

Check the door alignment after leveling the refrigerator.

Align the Doors

IMPORTANT: First level the back of the refrigerator as described in "Door Closing."

The doors may be uneven after leveling the refrigerator.

See Graphic 9 in "Refrigerator Doors." The doors are preset at the factory so that the refrigerator door is higher than the freezer door by approximately the thickness of a quarter. Once the doors are loaded with food. they should be even. If the door height needs to be adjusted AFTER the doors have been loaded with food. follow the these steps.

Use a hex-head socket wrench to adjust the front roller leveling screws until the doors are even. Turn the front roller leveling screw to the right to raise that side of the refrigerator or turn the leveling screw to the left to lower that side. See Graphic 10 in "Refrigerator Doors."

NOTE: Open and close both the refrigerator and freezer doors after each adjustment to check the door alignment.

Open the doors and replace the base grille. Line up the grille support tabs with the metal clips. Push the grille firmly to snap it into place.

NOTE: Be sure to refasten the Tech Sheet behind the base grille.

Read all directions before you begin.

IMPORTANT: If you turn the refrigerator on before the water line is connected. turn the ice maker OFE

Connect to Water Line

Unplug refrigerator or disconnect power.

Turn OFF main water supply. Turn ON nearest faucet long enough to clear line of water.

Locate a 1/2"to 11/4'' (1.25 cm to 3.18 cm) vertical cold water pipe near the refrigerator.

IMPORTANT:

Make sure it is a cold water pipe.

Horizontal pipe will work. but drill on the top side of the pipe. not the bottom. This will help keep water away from the drill and normal sediment from collecting in the valve.

Determine the length of copper tubing you need. Measure from the connection on the lower left rear of refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning.

Use 1/4" (6.35 mm)O.D. (outside diameter)copper tubing.

Be sure both ends of copper tubing are cut square.

Using a grounded drill. drill a %" hole in the cold water pipe you have selected.

A. Cold water pipe B. Pipe clamp C. Copper tubing D. Compression nut

& Compression sleeve £ Shutoff valve

G. Packing nut

Fasten the shutoff valve to the cold water pipe with the pipe clamp.

Be sure the outlet end is solidly in the 1/4"(6.35 mm) drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so the washer makes a watertight seal. Do not overtighten or you may crush the copper tubing.

Slip the compression sleeve and compression nut onto the copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench.

Do not overtighten.

Place the free end of the tubing in a container or sink. and turn ON the main water supply. Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe. Coil the copper tubing.

Connect to Refrigerator

Style I - Connection to Water Valve

Unplug refrigerator or disconnect power.

Attach the copper tube to the valve inlet using a compression nut and sleeve as shown. Tighten the compression nut. Do not overtighten.

Use the tube clamp on the back of the refrigerator to secure the tubing to the refrigerator as shown. This will help avoid damage to the tubing when the refrigerator is pushed back against the wall.

Turn shutoff valve ON.

Check for leaks. Tighten any connections (including connections at the valve) or nuts that leak.

A. Tube clamp B. Copper tubing C. Compression nut D. Valve inlet

The ice maker is equipped with a built-in water strainer. If your water conditions require a second water strainer. install it in the 1/4"(6.35 mm) water line at either tube connection.

Obtain a water strainer from your nearest appliance dealer.

Style 2 - Connection to Water Line

Unplug refrigerator or disconnect power.

Remove and discard the black nylon plug from the gray water tube on the rear of the refrigerator.

If the gray water tube supplied with the refrigerator is not long enough. a 1/4"x 1/4"(6. 5 mm x 6. 5 mm) coupling is needed in order to connect the water tubing to an existing household water line. Thread the provided nut onto the coupling on the end of the copper tubing.

NOTE: Tighten the nut by hand. Then tighten it with a wrench two more turns. Do not overtighten.

A. Refrigerator water tubing B. Nut (provided) C. Bulb D. Coupling (provided)

Turn shutoff valve ON.

Check for leaks. Tighten any nuts or connections (including connections at the valve) that leak.

E. Ferrule (purchased) £ Nut (purchased) G. Household water line

Style 3 - Connection to Shut-off Valve

Unplug refrigerator or disconnect power.

Remove and discard the black nylon plug from the gray water tube on the rear of the refrigerator.

Thread the provided nut onto the water valve as shown.

NOTE: Tighten the nut by hand. Then tighten it with a wrench two more turns. Do not overtighten.

A. Bulb B. Nut (provided)

Turn shutoff valve ON.

Check for leaks. Tighten any nuts or connections (including connections at the valve) that leak.

Complete the Installation

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death. fire. or electrical shock.

Plug into a grounded 3 prong outlet.

Flush the water system.

See "Prepare the Water System."

NOTE: It may take up to 24 hours for your ice maker to begin producing ice.

Please read before using the water system.

Immediately after installation. follow the steps below to make sure that the water system is properly cleaned.

Open the freezer door and turn off the ice maker by lifting up the wire shutoff arm as shown.

NOTE: If your model has a base grille filter system. make sure the base grille filter is properly installed and the cap is in the horizontal position.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Use a sturdy container to depress and hold the water dispenser lever for 5 seconds. then release it for 5 seconds.

Repeat until water begins to flow. Once water begins to flow. continue depressing and releasing the dispenser lever (5 seconds on. 5 seconds off) for an additional 2 minutes.

This will flush air from the filter and water dispensing system.

Additional flushing may be required in some households.

NOTE: As air is cleared from the system. water may spurt out of the dispenser.

Open the freezer door and turn on the ice maker by lowering the wire shutoff arm.

Allow 24 hours to produce the first batch of ice.

Discard the first three batches of ice produced.

Depending on your model. you may want to select the maximum ice feature to increase the production of ice.

Yournewrefrigerator maymakesoundsthatyouroldonedidn't make.Because thesoundsarenewtoyou. oumightbe concerned aboutthem.Mostofthenewsoundsarenormal.Hard surfaces. suchasthefloor. alls. ndcabinets. anmakethe soundsseemlouder.Thefollowingdescribes thekindsofsounds andwhatmaybemakingthem.

If your refrigerator is equipped with an ice maker. you will hear a buzzing sound when the water valve opens to fill the ice maker for each cycle.

Your refrigerator is designed to run more efficiently to keep your food items at the desired temperatures and to minimize energy usage. The high efficiency compressor and fans may cause your refrigerator to run longer than your old one. You may also hear a pulsating or high-pitched sound from the compressor or fans adjusting to optimize performance.

You may hear the evaporator fan motor circulating air through the refrigerator and freezer compartments.

The fan speed may increase as you open the doors or add warm food.

Rattling noises may come from the flow of refrigerant. the water line. or items stored on top of the refrigerator.

Water dripping on the defrost heater during a defrost cycle may cause a sizzling sound.

As each cycle ends. you may hear a gurgling sound due to the refrigerant flowing in your refrigerator.

Contraction and expansion of the inside walls may cause a popping noise.

You may hear air being forced over the condenser by the condenser fan.

You may hear water running into the drain pan during the defrost cycle.

REFRIGERATOR USE

I01" In order to ensure proper temperatures. you need to permit air to flow between the two sections.

Cold air enters the bottom of the freezer section and moves up. It then enters the refrigerator section through the top vent. Air then returns to the freezer as shown.

Do not block any airflow vents.

If the vents are blocked. airflow will be obstructed and temperature and moisture problems may occur.

IMPORTANT: Because air circulates between both sections. any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food. wrap or cover foods tightly.

Wait 24 hours before you put food into the refrigerator.

If you add food before the refrigerator has cooled completely. your food may spoil.

NOTE: Adjusting the Refrigerator and Freezer Controls to a higher (colder) setting will not cool the compartments any faster.

The preset settings should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

If the temperature is too warm or too cold in the refrigerator or freezer. first check the air vents to be sure they are not blocked before adjusting the controls.

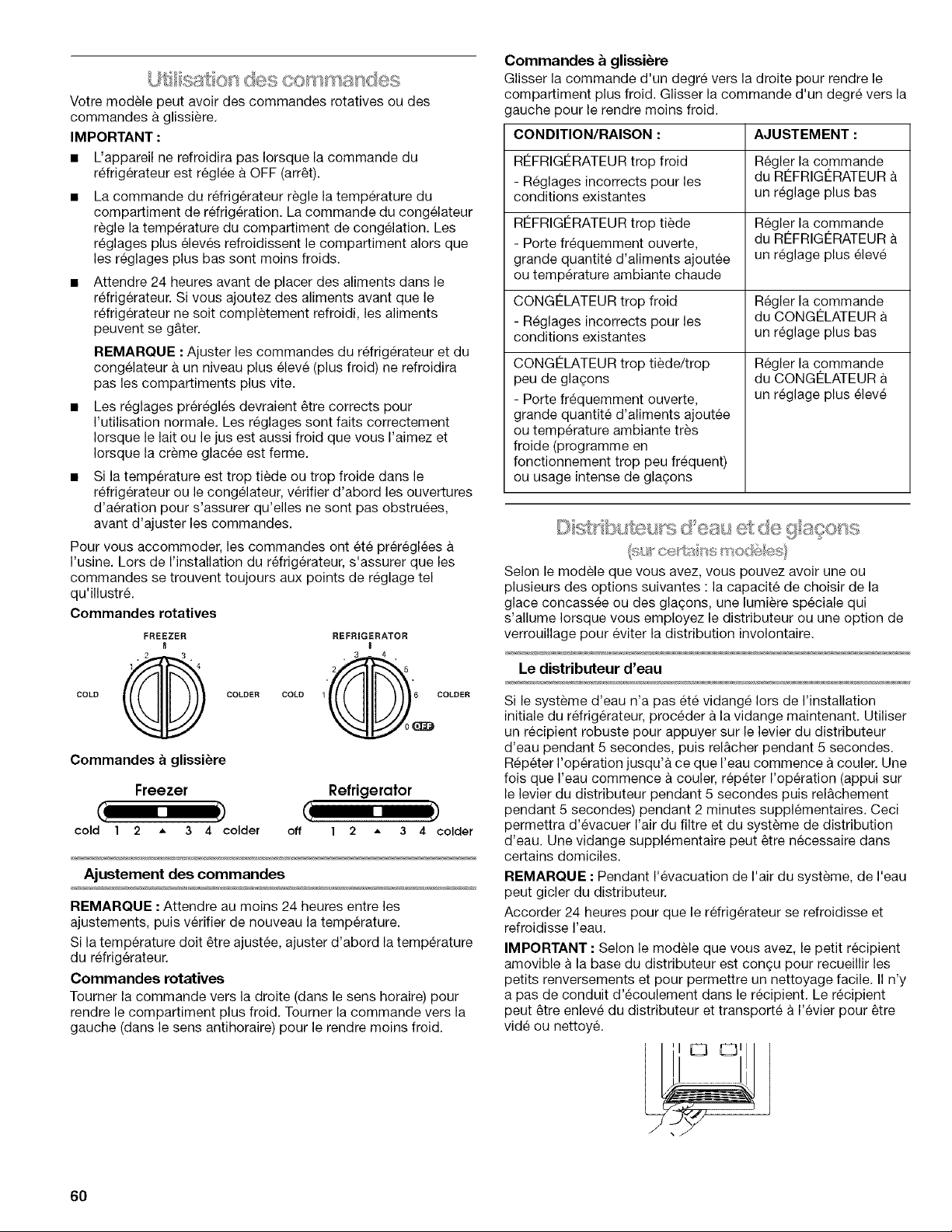

For your convenience. your controls are preset at the factory.

When installing your refrigerator. make sure that the controls are still at the set points as shown.

Rotary Controls

FREEZER REFRIGERATOR

COLD COLDER COLD COLDER

Slide Controls

Freezer Refrigerator

Your model may have Rotary Controls or Slide Controls.

IMPORTANT:

Your refrigerator will not cool when the Refrigerator Control is set to OFR

The Refrigerator Control adjusts the refrigerator compartment temperature.

The Freezer Control adjusts the freezer compartment temperature.

Higher numbered settings make the compartment colder. Lower numbered settings make the temperature less cold.

Adjusting Controls

NOTE: Wait at least 24 hours between adjustments and then recheck the temperatures.

If you need to adjust temperatures. adjust the refrigerator temperature first.

Rotary Controls Turn the control right (clockwise) to make the compartment colder. Turn the control left (counterclockwise) to make it less cold.

Slide Controls

Slide the control one setting to the right to make the compartment colder. Slide the control one setting to the left to make it less cold.

CONDITION/REASON: SETTING ADJUSTMENT:

REFRIGERATOR too cold REFRIGERATOR

Not set correctly for your Control one setting conditions lower

REFRIGERATOR too warm REFRIGERATOR

Door opened often. large amount Control one setting of food added or room temperature higher very warm

FREEZER too cold FREEZER Control one

Not set correctly for your setting lower conditions

FREEZER too warm/too little ice FREEZER Control one

Door opened often. or large setting higher amount of food added or very cold room temperature (can't cycle often enough) or heavy ice usage

Depending on your model. you may have one or more of the following options: the ability to select either crushed or cubed ice. a special light that turns on when you use the dispenser. or a lock option to avoid unintentional dispensing.

The Water Dispenser

If you did not flush the water system when the refrigerator was first installed. do so now. Use a sturdy container to depress and hold the water dispenser lever for 5 seconds. then release it for 5 seconds.

Repeat until water begins to flow. Once water begins to flow. continue depressing and releasing the dispenser lever (5 seconds on. 5 seconds off) for an additional 2 minutes. This will flush air from the filter and water dispensing system.

Additional flushing may be required in some households.

NOTE: As air is cleared from the system. water may spurt out of the dispenser.

Allow 24 hours for the refrigerator to cool down and chill water.

IMPORTANT: Depending on your model. the small removable tray at the bottom of the dispenser is designed to catch small spills and allow for easy cleaning. There is no drain in the tray.

The tray can be removed from the dispenser and carried to the sink to be emptied or cleaned.

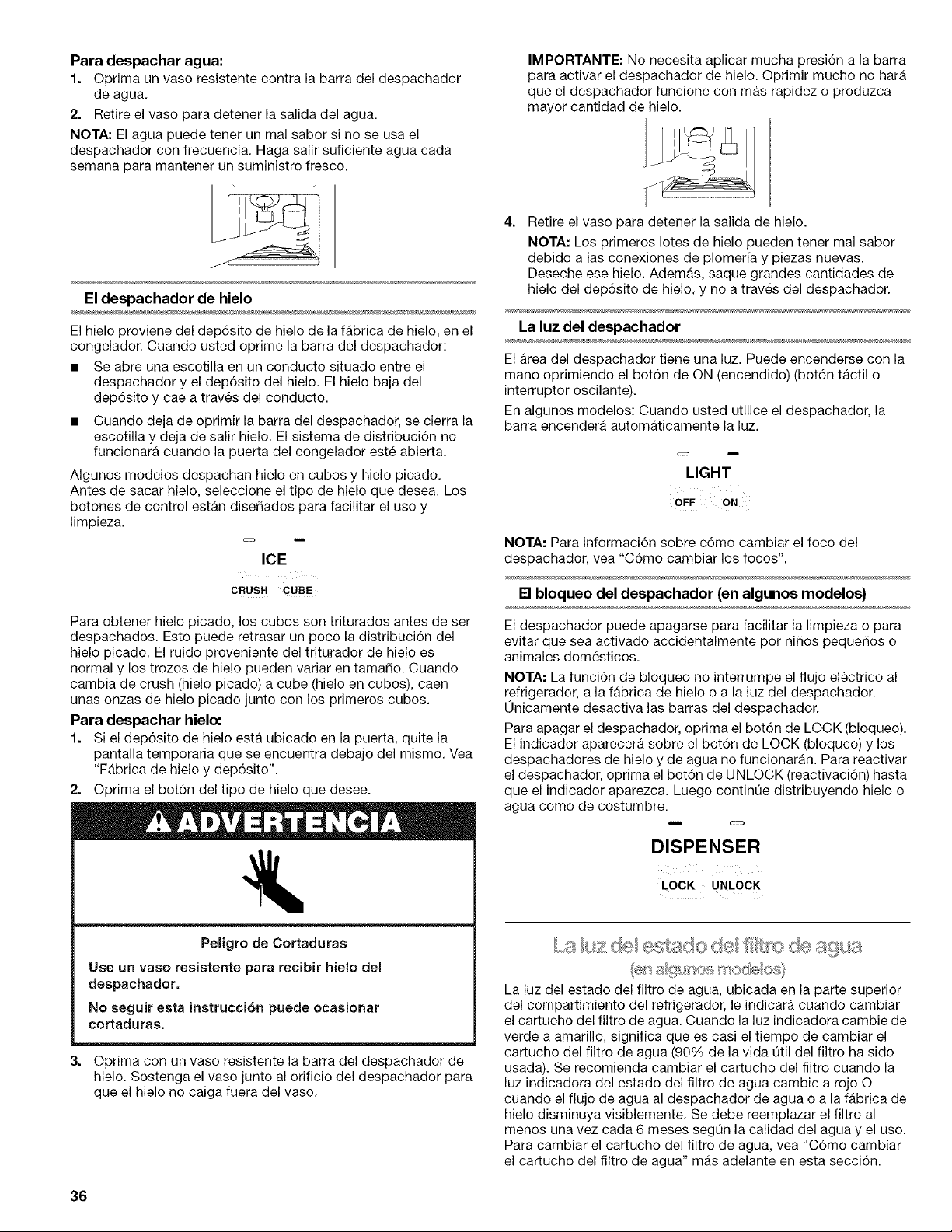

To Dispense Water:

Press a sturdy glass against the water dispenser lever.

Remove the glass to stop dispensing.

NOTE: Water may have an off-flavor if you do not use the dispenser periodically.

Dispense enough water every week to maintain a fresh supply.

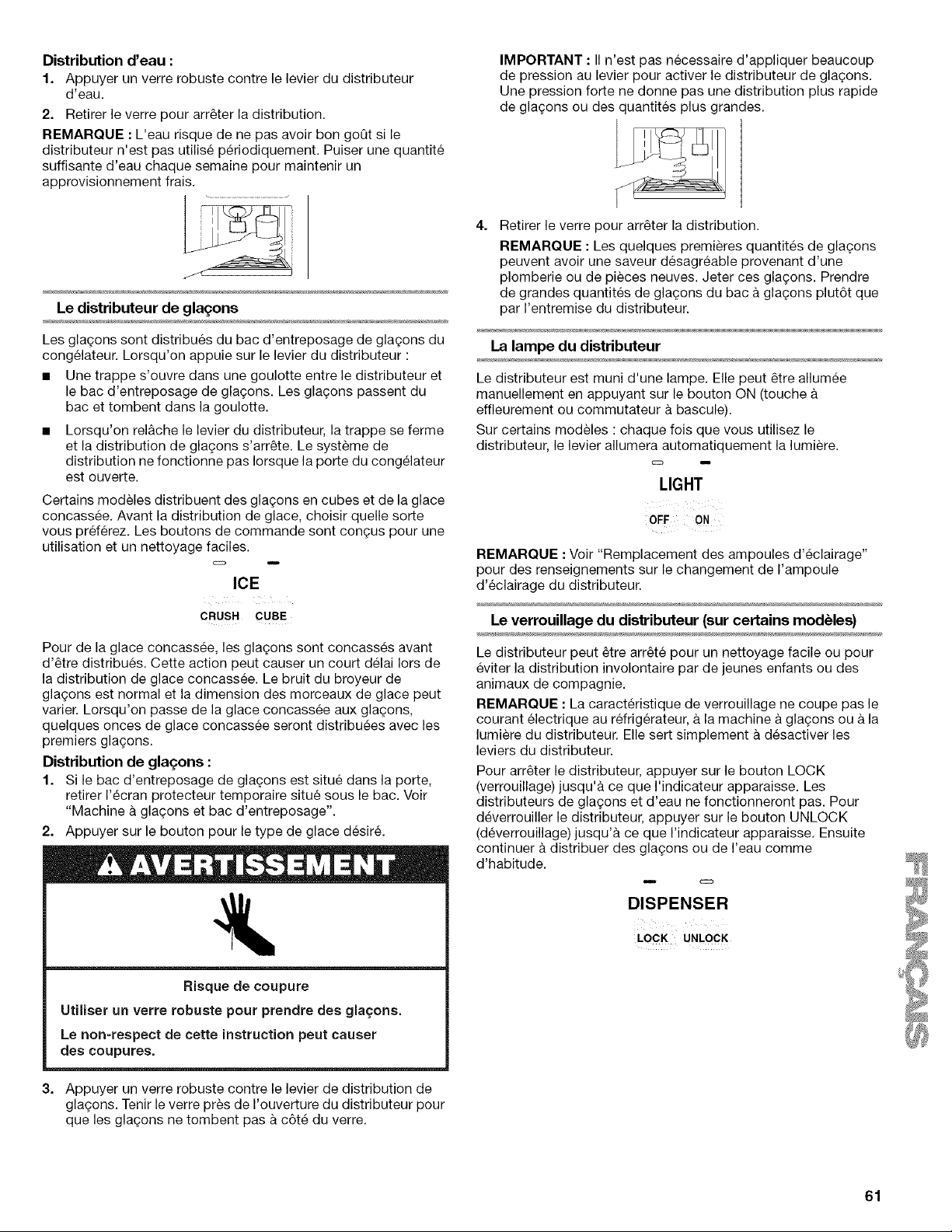

Thelce Dispenser

Ice dispenses from the ice maker storage bin in the freezer. When the dispenser lever is pressed:

A trap door opens in a chute between the dispenser and the ice bin. Ice moves from the bin and falls through the chute.

When you release the dispenser lever. the trap door closes and the ice dispensing stops. The dispensing system will not operate when the freezer door is open.

Some models dispense both cubed and crushed ice. Before dispensing ice. select which type of ice you prefer. The button controls are designed for easy use and cleaning.

CRUSH CUBE

For crushed ice. cubes are crushed before they are dispensed.

This may cause a slight delay when dispensing crushed ice.

Noise from the ice crusher is normal. and pieces of ice may vary in size. When changing from crushed to cubed. a few ounces of crushed ice will be dispensed along with the first cubes.

To Dispense Ice:

If the ice storage bin is located on the door. remove the temporary shield from underneath the ice storage bin. See "Ice Maker and Storage Bin."

Press button for the desired type of ice.

Cut Hazard

Use a sturdy glass when dispensing ice.

Failure to do so can result in cuts.

Press a sturdy glass against the ice dispenser lever. Hold the glass close to the dispenser opening so ice does not fall outside of the glass.

IMPORTANT: You do not need to apply a lot of pressure to the lever in order to activate the ice dispenser. Pressing hard will not make the ice dispense faster or in greater quantities.

Remove the glass to stop dispensing.

NOTE: The first few batches of ice may have an off-flavor from new plumbing and parts. Throw the ice away. Also. take large amounts of ice from the ice bin. not through the dispenser.

The Dispenser Light

The dispenser area has a light. It can be turned on manually by pressing the ON button (touchpad or rocker switch).

On some models: Whenever you use the dispenser. the lever will automatically turn the light on.

LIGHT

OFF ON

NOTE: See "Changing the Light Bulbs" for information on changing the dispenser light bulb.

The Dispenser Lock (on some models)

The dispenser can be turned off for easy cleaning or to avoid unintentional dispensing by small children and pets.

NOTE: The lock feature does not shut off power to the refrigerator. to the ice maker. or to the dispenser light. It simply deactivates the dispenser levers.

To turn off the dispenser. press the LOCK button.

The indicator will appear above the LOCK button and the ice and water dispensers will not work. To unlock the dispenser. press the UNLOCK button until the indicator appears. Then continue to dispense ice or water as usual.

DISPENSER

LOCK UNLOCK

The water filter status light. located at the top of the refrigerator compartment. will help you know when to change your water filter cartridge.

When the indicator light changes from green to yellow. this tells you that it is almost time to change the water filter cartridge (90% of the filter life has been used). It is recommended that you replace the water filter cartridge when the water filter indicator light changes to red OR water flow to your water dispenser or ice maker decreases noticeably.

The filter should be replaced at least every 6 months depending on your water quality and usage. To change the water filter cartridge. see "Changing the Water Filter Cartridge" later in this section.

After changing the water filter cartridge. reset the water filter indicator light by pressing the light switch 5 times within 10 seconds.

The indicator light will change from red to green when the system is reset.

A. Status light B. Light switch

Non-Indicator Water Filter (on some models)

If your refrigerator does not have the water filter status light. you should change the water filter cartridge at least every 6 months depending on your water quality and usage. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed. replace the water filter cartridge more often.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Changing the Water Filter Cartridge

The base grille water filter is located below the freezer compartment door. Depending on your model. you may have a filter that is installed behind the base grille (Style 1) or a filter that is installed through the base grille (Style 2).

Style 1: Behind the base grille

Remove the base grille. See "Refrigerator Doors." Rotate the cartridge counterclockwise to a vertical position and pull the filter cartridge out.

NOTE: There will be water in the cartridge.

Some spilling may occur.

Take the new cartridge out of its packaging and remove protective cover from O-rings.

Push the new filter cartridge into the base until it stops.

Rotate the cartridge clockwise to a horizontal position.

Flush the water system.

See "Flushing the Water System After Replacing Filter" later in this section.

Style 2: Through the base grille

Locate the water filter cartridge cap in the front base grille.

Rotate the cap counterclockwise to a vertical position and pull the cap and filter cartridge out through the base grille.

NOTE: There will be water in the cartridge.

Some spilling may occur.

Remove the cartridge cap by sliding it off the end of the old cartridge.

The cap will slide to the left or right.

IMPORTANT: Do not discard the cap. It is part of your refrigerator.

Keep the cap to use with the replacement filter.

Take the new cartridge out of its packaging and remove protective cover from O-rings.

To manually turn the ice maker off. lift the wire shutoff arm to the OFF (arm up) position and listen for the click to make sure the ice maker will not continue to operate.

Slide the cartridge cap onto the new cartridge.

See illustration in Step 2.

With cartridge cap in the vertical position. push the new filter cartridge into the base grille until it stops. Rotate the cartridge cap clockwise to a horizontal position.

Flush the water system.

See "Flushing the Water System After Replacing Filter" later in this section.

Flushing the Water System After Replacing Filter

After connecting the refrigerator to a water source. flush the water system.

Use a sturdy container to depress and hold the water dispenser lever for 5 seconds. then release it for 5 seconds.

Repeat until water begins to flow. Once water begins to flow. continue depressing and releasing the dispenser lever (5 seconds on. 5 seconds off) for an additional 2 minutes. This will flush air from the filter and water dispensing system.

Additional flushing may be required in some households.

NOTE: As air is cleared from the system. water may spurt out of the dispenser.

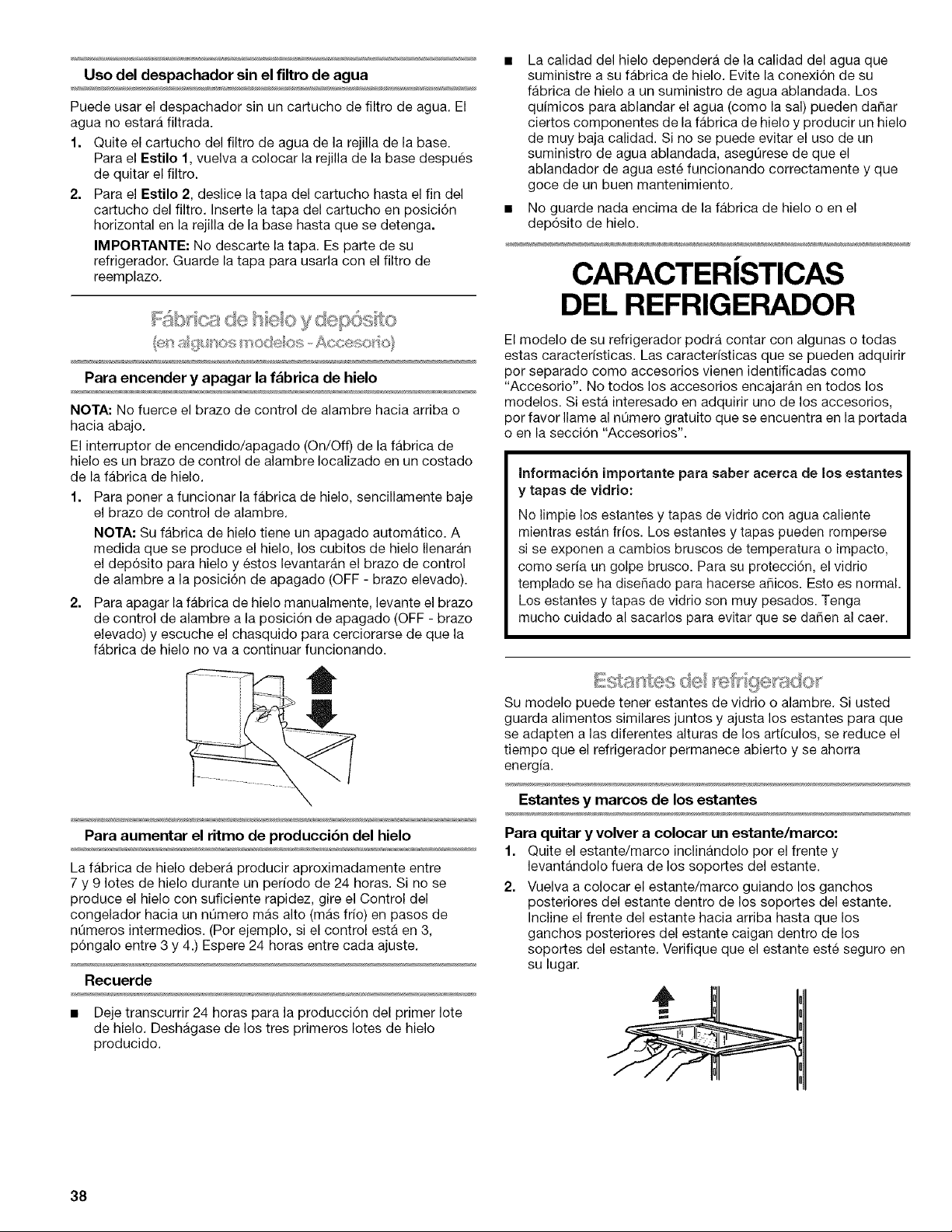

Using the Dispenser Without the Water Filter

You can run the dispenser without a water filter cartridge.

Your water will not be filtered.

Remove the base grille water filter cartridge.

For Style 1. replace the base grille after removing the filter.

For Style 2. slide the cartridge cap off the end of the filter cartridge.

With the cartridge cap in the horizontal position. insert the cap into the base grille until it stops.

IMPORTANT: Do not discard the cap. It is part of your refrigerator.

Keep the cap to use with the replacement filter.

Turning the Ice Maker On/Off

NOTE: Do not force the wire shutoff arm up or down.

The On/Off switch for the ice maker is a wire shutoff arm located on the side of the ice maker.

To turn the ice maker on. simply lower the wire shutoff arm.

NOTE: Your ice maker has an automatic shutoff. As ice is made. the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position.

Increasing Ice Production Rate

The ice maker should produce approximately 7 to 9 batches of ice in a 24-hour period.

If ice is not being made fast enough. turn the Freezer Control toward a higher (colder) number in half number steps. (For example. if the control is at 3. move it to between 3 and 4.) Wait 24 hours between each increase.

Remember

Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced.

The quality of your ice will be only as good as the quality of the water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided. make sure the water softener is operating properly and is well maintained.

Do not store anything on top of the ice maker or in the ice storage bin.

REFRIGERATOR FEATURES

Your model may have some or all of these features.

Features that can be purchased separately as product accessories are labeled with the word "Accessory." Not all accessories will fit all models.

If you are interested in purchasing one of the accessories. please call the toll-free number on the back cover or in the "Accessories" section.

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact. such as bumping.

For your protection. tempered glass is designed to shatter into many small. pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use special care when removing them to avoid impact from dropping.

Your model may have glass or wire shelves. Store similar foods together and adjust the shelves to fit different heights. This reduces the time the refrigerator door is open and saves energy.

Shelves and Shelf Frames

To Remove and Replace a Shelf/Frame:

Remove the shelf/frame by tilting it up at the front and lifting it out of the shelf supports.

Replace the shelf/frame by guiding the rear shelf hooks into the shelf supports.

Tilt the front of the shelf up until rear shelf hooks drop into the shelf supports.

Check to make sure that the shelf is securely in position.

To Remove and Replace the Dell Drawer:

Remove the den drawer by sliding it straight out to the stop.

Lift the front and slide the drawer out the rest of the way.

Replace the den drawer by sliding it back past the stop.

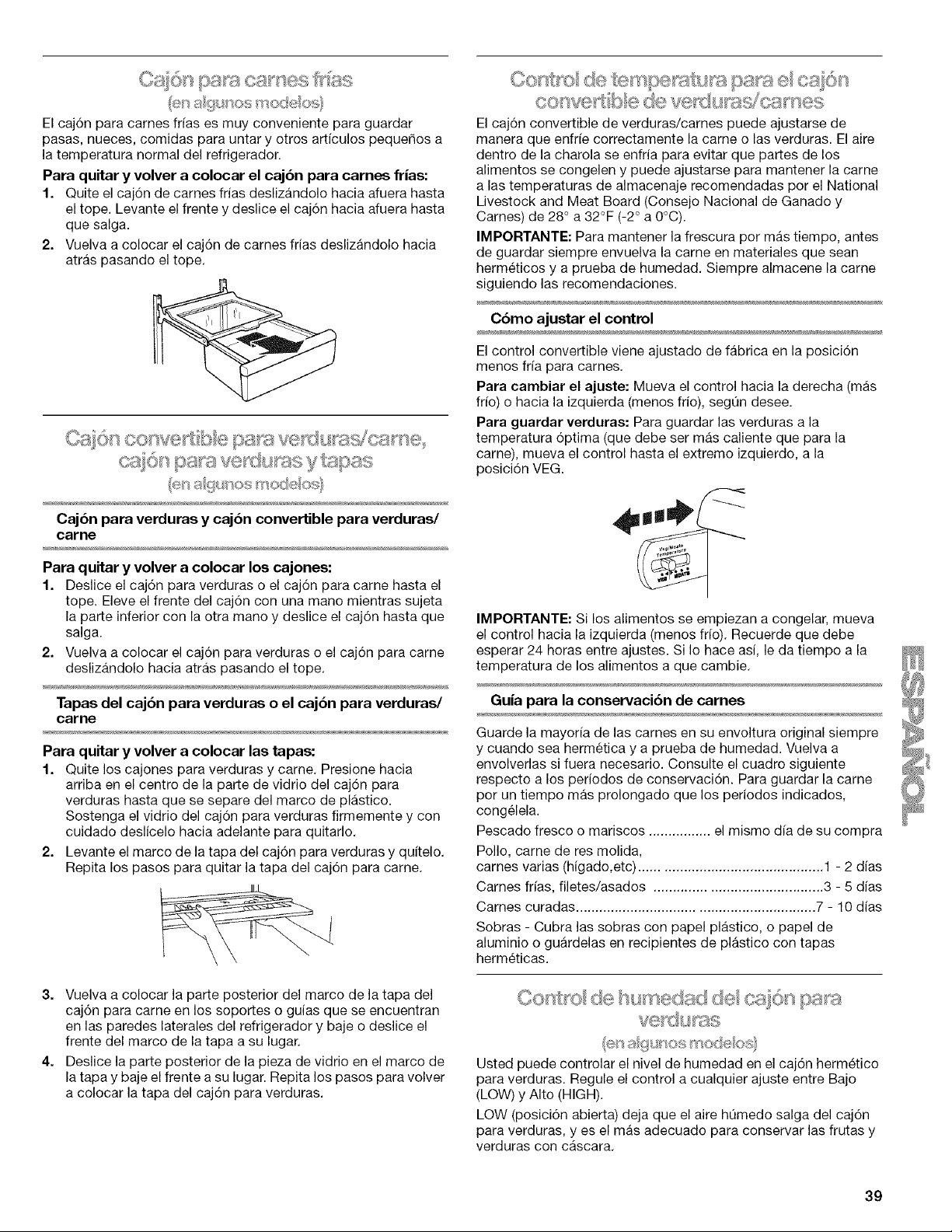

Crisper and Convertible Vegetable Meat Drawers

To Remove and Replace Drawers:

Slide crisper or meat drawer straight out to the stop. Lift the front of drawer with one hand while supporting the bottom of drawer with other hand and slide the drawer out the rest of the way.

Replace the crisper or meat drawer by sliding it back in fully past the drawer stop.

Crisper or Vegetable/Meat Drawer Covers

To Remove and Replace Covers:

Remove the crisper and meat drawer. Press up in center of crisper glass insert until it rises above the plastic frame.

Holding the crisper glass firmly. carefully slide the glass insert forward to remove.

Lift crisper cover frame and remove. Repeat steps to remove the meat drawer cover.

Replace back of meat drawer cover frame into supports or slides on side walls of the refrigerator and lower or slide the front of the cover frame into place.

Slide rear of glass insert into cover frame and lower front into place. Repeat steps to replace the crisper cover.

+e' _!H I:>eYs u. ..°

The convertible vegetable/meat drawer can be adjusted to properly chill meats or vegetables.

The air inside the pan is cooled to avoid "spot" freezing and can be set to keep meats at the National Livestock and Meat Board recommended storage temperatures of 28° to 32°F (-2 ° to O°C).

IMPORTANT: To extend freshness. wrap meats in airtight. moisture-proof materials before storing. Always store meat as recommended.

Adjusting the Control

The convertible control comes preset at the lowest meat setting.

To change a control setting: Move the control to the right (colder) or to the left (less cold) as desired.

To store vegetables: Set the control to VEG (all the way to the left) to store vegetables at their optimal storage temperatures (which need to be warmer than those for meat).

IMPORTANT: If food starts to freeze. move the control to the left (less cold). Remember to wait 24 hours between adiustments.

Doing so gives the temperature of the food time to change.

Meat Storage Guide

Store most meat in original wrapping as long as it is airtight and moisture-proof.

Rewrap if necessary. See the following chart for storage times. When storing meat longer than the times given. freeze the meat.

Fresh fish or shellfish . use same day as purchased

Chicken. ground beef. variety meat (liver. etc.) .. 1-2 days

Cold cuts. steaks/roasts

3-5 days

Cured meats .

7-10 days

Leftovers Cover leftovers with plastic wrap. aluminum foil. or plastic containers with tight lids.

You can control the amount of humidity in the moisture-sealed crisper. Adjust the control to any setting between LOW and HIGH.

LOW (open) lets moist air out of the crisper for best storage of fruits and vegetables with skins.

Fruit: Wash. let dry and store in refrigerator in plastic bag or crisper. Do not wash or hull berries until they are ready to use.

Sort and keep berries in original container in crisper. or store in a loosely closed paper bag on a refrigerator shelf.

Vegetables with skins: Place in plastic bag or plastic container and store in crisper.

HIGH (closed) keeps moist air in the crisper for best storage of fresh. leafy vegetables.

Leafy vegetables: Wash in cold water. drain and trim or tear off bruised and discolored areas. Place in plastic bag or plastic container and store in crisper.

Humidity Control Location: Humidity Control is located on the crisper drawer.

Humidity Control

Rack

To Remove and Replace the Wine Rack:

Remove the rack by pulling it straight out from the shelf.

Replace the rack by sliding it in between the shelf and the wall of the refrigerator.

NOTE: For long-term storage. place eggs in a covered container or in their original carton on an interior shelf.

FREEZER FEATURES

Your model may have some or all of these features.

Features that can be purchased separately as product accessories are labeled with the word "Accessory." Not all accessories will fit all models.

If you are interested in purchasing one of the accessories. please call the toll-free number on the cover or in the "Accessories" section.

{}_*rebel' s}e 'v:s vad<-'£wid mode

To Remove and Replace the Shelf:

Lift the shelf off of the supports.

Slide it out of the shelf support holes.

Replace shelf in the reverse order.

Frozen Food Storage Guide

Storage times will vary according to the quality and type of food. the type of packaging or wrap used (should be airtight and moisture-proof). and the storage temperature.

Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed. creating ice crystals.

Put no more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 Ibs of food per cubic foot [907 to 1. 50 g per 28 L] of freezer space). Leave enough space in the freezer for air to circulate around packages.

Be careful to leave enough room for the door to close tightly.

For more information on preparing food for freezing. check a freezer guide or reliable cookbook.

{p as{it bs on sose modes

The freezer basket or bin can be used to store bags of frozen fruits and vegetables that may slide off freezer shelves.

To Remove and Replace the Freezer Basket or Bin:

Remove basket or bin by sliding it out to the stop.

Lift the front of the basket or bin and slide it out the rest of the way.

Replace the basket or bin by positioning it on the side wall guide rails. Lift the basket or bin front slightly while pushing it past the guide rail stops and slide basket or bin in the rest of the way.

DOOR FEATURES

Your model may have some or all of these features.

Features that can be purchased separately as product accessories are labeled with the word "Accessory." Not all accessories will fit all models.

If you are interested in purchasing one of the accessories. please call the toll-free number on the cover or in the "Accessories" section.

+oo Ras Bns

The door rails may be removed for easier cleaning.

Snap-on Door Rails or Bins

To Remove and Replace the Rails or Bins:

Remove the rails by pushing in slightly on the front of the bracket while pulling out on the inside tab. Repeat these steps for the other end of the rail.

Replace the rails by aligning the ends of the brackets with the buttons on the sides of the door liner. Firmly snap bracket and rail assembly onto the tabs above the shelf as shown.

Drop-in Door Rails

To Remove and Replace the Rails:

Remove the rails by pulling straight up on each end of the rail.

Replace the rails by sliding the shelf rail into the slots on the door and pushing the rail straight down until it stops.

To Remove and Replace the Bins:

Remove the bin by lifting it and pulling it straight out.

Replace the bin by sliding it in above the desired support and pushing it down until it stops.

REFRIGERATOR CARE

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death. explosion. or fire.

Both the refrigerator and freezer sections defrost automatically.

However. clean both compartments about once a month to avoid build-up of odors. Wipe up spills immediately.

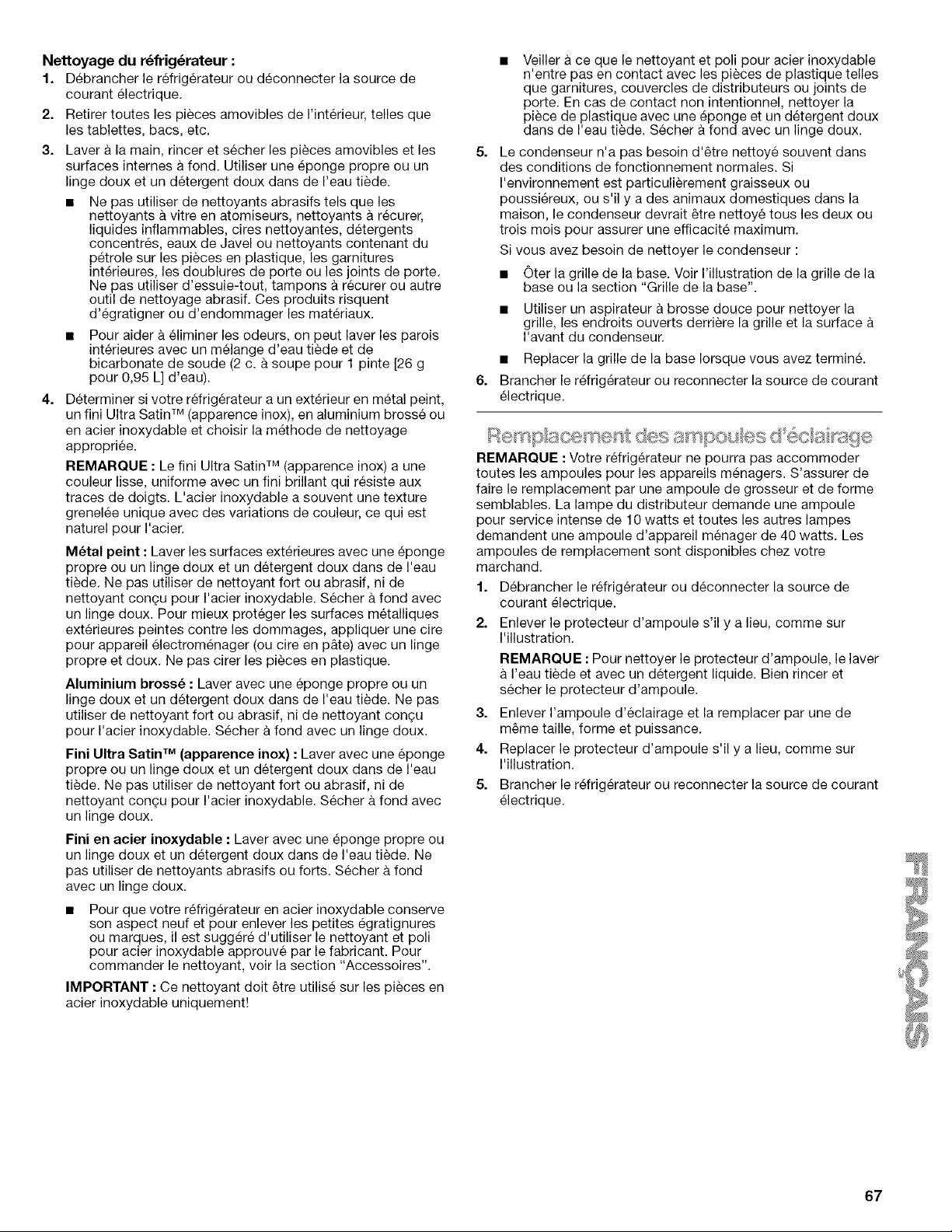

To Clean Your Refrigerator:

Unplug refrigerator or disconnect power.

Remove all removable parts from inside. such as shelves. crispers. etc.

Hand wash. rinse. and dry removable parts and interior surfaces thoroughly.

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners such as window sprays. scouring cleansers. flammable fluids. cleaning waxes. concentrated detergents. bleaches or cleansers containing petroleum products on plastic parts. interior and door liners or gaskets.

Do not use paper towels. scouring pads. or other harsh cleaning tools. These can scratch or damage materials.

To help remove odors. you can wash interior walls with a mixture of warm water and baking soda (2 tbs to 1 qt [26 g to 0.95 L] of water).

Determine whether your refrigerator exterior is painted metal.

Ultra Satin TM (stainless look) finish. brushed aluminum or stainless steel. and choose the appropriate cleaning method.

NOTE: Ultra Satin TM (stainless look) finish has a smooth. uniform color with a glossy finish that resists fingerprints.

Stainless steel has a distinct grainy texture with variation in color that is natural to steel.

Painted metal: Wash exteriors with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. or cleaners designed for stainless steel.

Dry thoroughly with a soft cloth.

For additional protection against damage to painted metal exteriors. apply appliance wax (or auto paste wax) with a clean. soft cloth. Do not wax plastic parts.

Brushed aluminum: Wash with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. or cleaners designed for stainless steel. Dry thoroughly with a soft cloth.

Ultra Satin TM (stainless look) finish: Wash with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. or cleaners designed for stainless steel. Dry thoroughly with a soft cloth.

Stainless steel finish: Wash with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners.

Dry thoroughly with a soft cloth.

To keep your stainless steel refrigerator looking like new and to remove minor scuffs or marks. it is suggested that you use the manufacturer's approved Stainless Steel Cleaner & Polish. To order the cleaner. see "Accessories."

IMPORTANT: This cleaner is for stainless steel parts only!

Do not allow the Stainless Steel Cleaner & Polish to come into contact with any plastic parts such as the trim pieces. dispenser covers or door gaskets.

If unintentional contact does occur. clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth.

There is no need for routine condenser cleaning in normal home operating environments.

If the environment is particularly greasy or dusty. or there is significant pet traffic in the home. the condenser should be cleaned every 2 to 3 months to ensure maximum efficiency.

If you need to clean the condenser:

Remove the base grille. See "Base Grille" graphic or "Base Grille" section.

Use a vacuum cleaner with a soft brush to clean the grille. the open areas behind the grille and the front surface area of the condenser.

Replace the base grille when finished.

Plug in refrigerator or reconnect power.

NOTE: Not all appliance bulbs will fit your refrigerator.

Be sure to replace the bulb with one of the same size and shape. The dispenser light requires a heavy duty 10-watt bulb. All other lights require a 40-watt appliance bulb. Replacement bulbs are available from your dealer.

Unplug refrigerator or disconnect power.

Remove light shield when applicable as shown.

NOTE: To clean the light shield. wash it with warm water and liquid detergent.

Rinse and dry the shield well.

Remove light bulb and replace with one of the same size. shape and wattage.

Replace light shield when applicable as shown.

Plug in refrigerator or reconnect power.

Dispenser Light (on some models)

Reach through the dispenser area to remove and replace light bulb.

A. Dispenser light

Refrigerator Control Panel Light

Reach behind the refrigerator control panel to remove and replace light bulb.

Crisper Lights

If necessary. remove the top crisper drawer to access the crisper light shield. Remove the light shield by lifting the ends out of the brackets as shown.

Replace the light shield by inserting the ends into the brackets.

If necessary. replace the top crisper drawer.

Upper Freezer Light (on some models)

Remove light shield by grasping the top center of the shield and pulling forward while turning it slightly to one side. If necessary. remove top crisper drawer to gain access to the crisper light shield.

Replace the light shield by inserting the tabs on one end into the slotted holes in the refrigerator or freezer liner. Then. carefully bend the shield at the center to insert the tabs on the other end.

Lower Freezer Light (on some models)

Remove the light shield by grasping the sides and squeezing in toward the center. Once the side hooks of shield are free from the freezer lining. pull down the shield.

Replace the light shield by squeezing the sides toward the center and inserting the side hooks into the slotted holes.

Once the side hooks are in place. snap the front tab into the slotted hole.

If the power will be out for 24 hours or less. keep the door or doors closed (depending on your model) to help food stay cold and frozen.

If the power will be out for more than 24 hours. do one of the following: Remove all frozen food and store it in a frozen food locker.

Place 2 Ibs (907 g) of dry ice in the freezer for every cubic foot (28 L) of freezer space. This will keep the food frozen for 2 to 4 days.

If neither a food locker nor dry ice is available. consume or can perishable food at once.

REMEMBER: A full freezer stays cold longer than a partially filled one. A freezer full of meat stays cold longer than a freezer full of baked goods.

If you see that food contains ice crystals. it may be refrozen. although the quality and flavor may be affected.

If the condition of the food is poor. dispose of it.

Vacations

If You Choose to Leave the Refrigerator On While You're Away:

Use up any perishables and freeze other items.

If your refrigerator has an automatic ice maker:

Raise wire shutoff arm to OFF (up) position or move the switch to the OFF (right) setting.

Shut off water supply to the ice maker.

Empty the ice bin.

If You Choose to Turn the Refrigerator Off Before You Leave:

Remove all food from the refrigerator.

If your refrigerator has an automatic ice maker:

Turn off the water supply to the ice maker at least one day ahead of time.

When the last load of ice drops. raise the wire shutoff arm to the OFF (up) position or move the switch to the OFF (right) setting.

Depending on the model. turn the Temperature Control or Refrigerator Control to OFR See "Using the Controls."

Clean refrigerator. wipe it. and dry well.

Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

Moving

When you are moving your refrigerator to a new home. follow these steps to prepare it for the move.

1. If your refrigerator has an automatic ice maker:

Turn off the water supply to the ice maker at least one day ahead of time.

Disconnect the water line from the back of the refrigerator.

When the last load of ice drops. raise the wire shutoff arm to the OFF (up) position or move the switch to the OFF (right) setting.

2. Remove all food from the refrigerator and pack all frozen food in dry ice.

3. Empty the ice bin.

4. Depending on the model. turn the Temperature Control or Refrigerator Control to OFR See "Using the Controls." 5. Unplug refrigerator.

6. Empty water from the defrost pan.

7. Clean. wipe. and dry thoroughly.

8. Take out all removable parts. wrap them well. and tape them together so they don't shift and rattle during the move.

9. Depending on the model. raise the front of the refrigerator so it rolls more easily OR screw in the leveling legs so they don't scrape the floor. See "Adjust the Doors." 10. Tape the doors closed and tape the power cord to the back of the refrigerator.

When you get to your new home. put everything back and refer to the "Installation Instructions" section for preparation instructions.

Also. if your refrigerator has an automatic ice maker. remember to reconnect the water supply to the refrigerator.

TROUBLESHOOTING

Trythe solutions suggested here first in order to avoid the cost of an unnecessary service call.

The refrigerator will not operate

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death. fire. or electrical shock.

Power cord unplugged?

Plug into a grounded 3 prong outlet.

Is outlet working?

Plug in a lamp to see if the outlet is working.

Household fuse blown or circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues. call an electrician.

Are controls on? Make sure the refrigerator controls are on.

See "Using the Controls."

New installation?

Allow 24 hours following installation for the refrigerator to cool completely.

NOTE: Adjusting the temperature controls to coldest setting will not cool either compartment more quickly.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm. a large food load is added. doors are opened often. or if the doors have been left open.

The refrigerator is noisy

Refrigerator noise has been reduced over the years. Due to this reduction. you may hear intermittent noises from your new refrigerator that you did not notice from your old model.

Below are listed some normal sounds with an explanation.

Buzzing - heard when the water valve opens to fill the ice maker

Pulsating fans/compressor adjusting to optimize performance

Rattling flow of refrigerant. water line. or from items placed on top of the refrigerator

Sizzling/Gurgling water dripping on the heater during defrost cycle

Popping contraction/expansion of inside walls. especially during initial cool-down

Water running may be heard when water melts during the defrost cycle and runs into the drain pan

Creaking/Cracking occurs as ice is being ejected from the ice maker mold.

The doors will not close completely

Door blocked open?

Move food packages away from door.

Bin or shelf in the way? Push bin or shelf back in the correct position.

The doors are difficult to open

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death. explosion. or fire.

Are the gaskets dirty or sticky? Clean gaskets with mild soap and warm water.

The lights do not work

Is a light bulb loose in the socket or burned out? See "Changing the Light Bulbs."

Is the dispenser light set to ON? The dispenser light will operate only when the levers are pressed. If you want the dispenser light to stay on continuously. set the dispenser light to ON. or NIGHT LIGHT or AUTO. See "Water and Ice Dispensers."

Is the dispenser light set to NIGHT LIGHT or AUTO?

If the dispenser is set to the NIGHT LIGHT or AUTO mode. be sure the dispenser light sensor is not blocked.

See "Water and Ice Dispensers."

Temperature is too warm

New installation?

Allow 24 hours following installation for the refrigerator to cool completely.

Door(s) opened often or left open?

Allows warm air to enter refrigerator.

Minimize door openings and keep doors fully closed.

Large load of food added?

Allow several hours for refrigerator to return to normal temperature.

Controls set correctly for the surrounding conditions?

Adjust the controls a setting colder. Check temperature in 24 hours. See "Using the Controls."

There is interior moisture buildup

NOTE: Some moisture buildup is normal.

Humid room?

Contributes to moisture buildup.

Door(s) opened often or left open? Allows humid air to enter refrigerator.

Minimize door openings and keep doors fully closed.

The ice maker is not producing ice or not enough ice

Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.

Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line.

Ice maker turned on? Make sure wire shutoff arm or switch (depending on model) is in the ON position.

New installation?

Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production.

Large amount of ice recently removed?

Allow 24 hours for ice maker to produce more ice.

Ice cube jammed in the ice maker ejector arm?

Remove ice from the ejector arm with a plastic utensil.

Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure.

See "Water Supply Requirements" in either the Installation Instruction booklet or the Use & Care Guide.

The ice cubes are hollow or small

NOTE: This is an indication of low water pressure.

Water shutoff valve not fully open?

Turn the water shutoff valve fully open.

Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line.

Reverse osmosis water filtration system connected to your cold water supply?

This can decrease water pressure.

See "Water Supply Requirements."

Questions remain regarding water pressure?

Call a licensed. qualified plumber.

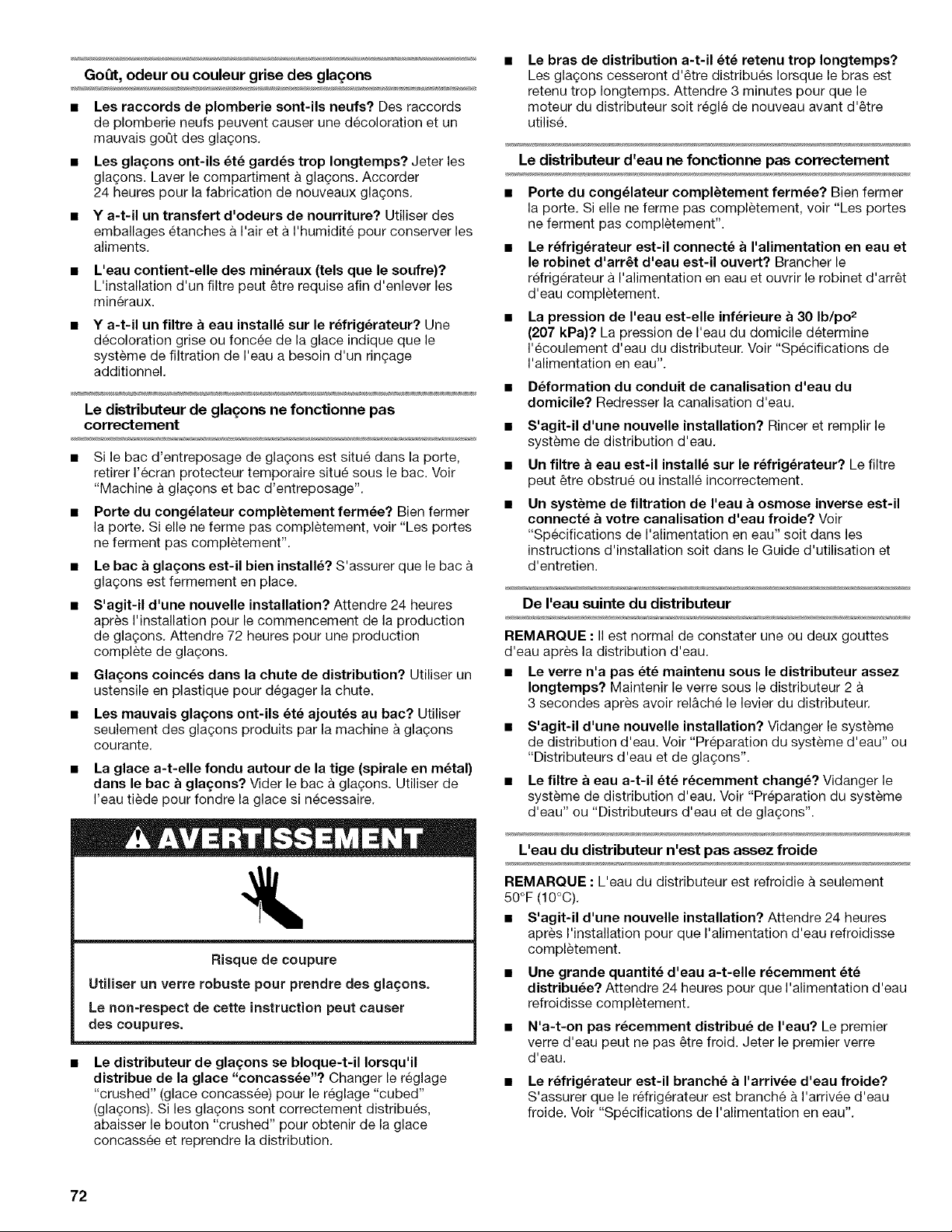

Off-taste. odor or gray color inthe ice

New plumbing connections?

New plumbing connections can cause discolored or off-flavored ice.

Ice stored too long?

Discard ice. Wash ice bin. Allow 24 hours for ice maker to make new ice.

Odor transfer from food?

Use airtight. moisture proof packaging to store food.

Are there minerals (such as sulfur) in the water? A water filter may need to be installed to remove the minerals.

Is there a water filter installed on the refrigerator?

Gray or dark discoloration in ice indicates that the water filtration system needs additional flushing.

The ice dispenser will not operate properly

If the ice storage bin is located on the door. remove the temporary shield from underneath the ice storage bin. See "Ice Maker and Storage Bin."

Freezer door closed completely?

Close the door firmly. If it does not close completely. see "The doors will not close completely."

Ice bin installed correctly?

Be sure the ice bin is firmly in position.

New installation?

Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production.

Ice stuck in the delivery chute?

Use a plastic utensil to clear the delivery chute.

Has the wrong ice been added to the bin? Use only cubes produced by the current ice maker.

Has the ice melted around the auger (metal spiral) in the ice bin? Empty the ice container.

Use warm water to melt the ice if necessary.

Cut Hazard

Use a sturdy glass when dispensing ice.

Failure to do so can result in cuts.

Is the ice dispenser stalling while dispensing "crushed" ice? Change the ice button from "crushed" to "cubed." If cubed ice dispenses correctly. depress the button for "crushed" ice and begin dispensing again.

Has the dispenser arm been held in too long?

Ice will stop dispensing when the arm is held in too long. Wait 3 minutes for dispenser motor to reset before using again.

The water dispenser will not operate properly

Freezer door closed completely?

Close the door firmly. If it does not close completely. see "The doors will not close completely."

Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.

Is the water pressure at least 30 psi (207 kPa)? The water pressure to the home determines the flow from the dispenser.

See "Water Supply Requirements."

Kink in the home water source line? Straighten the water source line.

New installation?

Flush and fill the water system.

Water filter installed on the refrigerator?

The filter may be clogged or incorrectly installed.

Is a reverse osmosis water filtration system connected to your cold water supply? See "Water Supply Requirements" in either the Installation Instructions or the Use & Care Guide.

Water is leaking from the dispenser

NOTE: One or two drops of water after dispensing is normal.

Glass not being held under the dispenser long enough?

Hold the glass under the dispenser 2 to 3 seconds after releasing the dispenser lever.

New installation?

Flush the water system.

See "Prepare the Water System" or "Water and Ice Dispensers."

Recently changed water filter?

Flush the water system. See "Prepare the Water System" or "Water and Ice Dispensers."

The dispenser water is not cool enough

NOTE: Water from the dispenser is chilled to only 50°F (10°C). New installation?

Allow 24 hours after installation for the water supply to cool completely.

Recently dispensed large amount of water?

Allow 24 hours for water supply to cool completely.

Water not been recently dispensed?

The first glass of water may not be cool. Discard the first glass of water.

Refrigerator connected to a cold water pipe?

Make sure the refrigerator is connected to a cold water pipe. See "Water Supply Requirements."

PROTECTION AGREEMENTS

Master Protection Agreements Congratulations on making a smart purchase.

Your new Kenmore ®product is designed and manufactured for years of dependable operation.

But like all products. it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product.

Here's what the Agreement* includes:

Once you purchase the Agreement. a simple phone call is all that it takes for you to schedule service. You can call anytime day or night. or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty period. we will provide a full refund. Or. a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 1-800-827-6655.

+Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances. garage door openers. water heaters. and other major home items. in the U.S.A. or Canada call 1-800-4-MY-HOME

ACCESSORIES

Replacement Parts To order stainless steel cleaner or replacement filters. please call 1-800-4-MY-HOME ®and ask for the appropriate part number listed below or contact your authorized Kenmore dealer.

Stainless Steel Cleaner & Polish: Order Part #D22 M40083

Standard Base Filter Cartridge: Order Part #9010 (WF-NLC240V and WF-LC400V)

WATER FILTER CERTIFICATIONS

State of Ca]ifbrma

Deparhnent of Health Services

Water Treatment Device Certifieale Number

(13- 1558

Dat Issued: Match 3. 2003

Trademar kJModl[ Desinalion Replacement Elements Rated

Scar. Kemoc W1 -NI. 240"v NLC240V 240 al

Sear-Knmore WF-LC400V LC400V ga

Manufaclurer: Sars Roebuck C.

Turbidity

Orank Cntamhlant

R/ed SerYice low; 05gpm

Do not use where water is microbiologkaily unsafe or ith ater of unknown quality:. except that systems cer tidied hr cyst reduction may be used on disinfected waters that may eontai filterable eysls.

PERFORMANCE DATASHEETS

Base Grille Water Filtration System Model WF-NLC240V/NLC240V Capacity 240 Gallons (908 Liters)

System tested and certified by NSF International against NSF/ANSI Standard

42 for the reduction of Chlorine Taste and Odor. Nominal Particulate Class I*;

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system. as specified in NSF/ANSl Standards 42 and

Substance Reduction NSF Reduction Average Influent Challenge Maximum Product Minimum Average% Aesthetic Effects Requirements Influent Concentration Effluent Water Reduction

Chlorine Taste/Odor >50% 2.1 mg/L 2.0 mg/L _+10% 0.06 mg/L 0.05 mg/L 97.1% 97.6%

Nominal Particulate Class I* _>85% 5.366. 67/mL Atparticles/mLleast 10.000 4.100/mL** 2.300/mL 99.3% 99.9%

Contaminant NSF Reduction Average Influent Challenge Maximum Product Minimum Average% Reduction Requirements Influent Concentration Effluent Water Reduction

Lead: (-®pH 6.5 0.01 mg/L 0.152 mg/L1 0.15 mg/L _+10% 0.001 mg/L 99.34% Lead: @ pH 8.5 0.01 mg/L 0.143 mg/L1 0.15 mg/L _+10% 0.001 mg/L 99.30%

Mercury:

+ pH 6.5 0.002 mg/L 0.0061 mg/L 0.006 mg/L _+10% 0.0004 mg/L 0.0002 mg/L 93.5% 96.7% Mercury:

+ pH 8.5 0.002 mg/L 0.0057 mg/L 0.0058 mg/L _+10% 0.0008 mg/L 0.00051 mg/L 85.8% 91.2%

Benzene 0.005 mg/L 0.0162 mg/L 0.015 _+10% 0.0005 mg/L 96.3%

Toxaphene 0.003 mg/L 0.014 mg/L 0.015 _+10% 0.0014 mg/L 0.001 mg/L 90.0% 92.9%

Atrazine 0.003 mg/L 0.0086 mg/L 0.009 mg/L _+10% 0.0005 mg/L 94.25%

2. 4-D 0.07 mg/L 0.197 mg/L 0.210 _+10% 0.058 mg/L 0.0137 mg/L 70.6% 93.06%

Asbestos 26 x 107 107to 10fibers/Ll-1 0.18 x 107 mg/L 99.93%

Cysts:l: 99.95% 111.0O0/mL O. 0O/L min.

1 mg/L 99.99% Turbidity 0.5 NTU 11.00 NTU 11 _+1 NTU 0.4 NTU 0.35 NTU 96.4% 96.8%

Test Parameters: pH = 7.5 _+0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = Temp. = 63°F (17.2°C).

It is essential that operational. maintenance. and filter replacement requirements be carried out for the product to perform as advertised. Flush for 5 minutes prior to use.

Model WF-NLC240V: Change cartridge at least every 6 months.

Use replacement cartridge NLC240V. part #9010.

2007 suggested retail price of $39.99 U.S.A.

Prices are subject to change without notice.

The product is for cold water use only. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. Refer to the front cover or "Accessories" section for the Manufacturer's name. address and telephone number.

60 psig (413.7 kPa).

Refer to the "Warranty" section for the Manufacturer's limited warranty. Note that while the testing was performed under standard laboratory conditions. actual performance may vary.

Application Guidelines/Water Supply Parameters

Water Supply City or Well

Water Pressure 30 - 120 psi (207 - 827 kPa) Water Temperature 33 ° - 100°F (0.6 ° - 37.8°C)

Service Flow Rate 0.5 gpm (1.9 L/min.)

+ 60 psi

+Class I particle size: >0.5 to <1 um

+*Test requirement is at least 100. 00 particles/mL of AC Fine Test Dust.

1-These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.

1-1-Fibers greater than 10 um in length SBased on the use of Cryptosporidium parvum oocysts ® NSF is a registered trademark of NSF International.

Base Grille Water Filtration System Model WF-LC400V/LC400V Capacity 400 Gallons (1514 Liters)

System tested and certified by NSF International against NSF/ANSI Standard

42 for the reduction of Chlorine Taste and Odor.

Nominal Particulate Class I*; and against NSF/ANSl Standard 53 for the reduction of Lead.

Mercury.

Atrazine.

Benzene.

Toxaphene. p-dichlorobenzene.

2. 4-D. Cysts.

Turbidity and Asbestos.

This system has been tested according to NSF/ANSl Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system. as specified in NSF/ANSI Standards 42 and

Substance Reduction NSF Reduction Average Influent Challenge Maximum Product Minimum Average Aesthetic Effects Requirements Influent Concentration Effluent Water Reduction

Chlorine Taste/Odor _>50% 2.1 mg/L 2.0 mg/L _+10% 0.06 mg/L 0.05 mg/L 97.1% 97.6%

Nominal Particulate Class I* _>85% 5.366. 67/mL Atparticles/mLleast 10.000 4.100/mL** 2.300/mL 99.3% 99.9%

Contaminant NSF Reduction Average Influent Challenge Maximum Product Minimum Average Reduction Requirements Influent Concentration Effluent Water Reduction

Lead: @ pH 6.5 0.01 mg/L 0.16 mg/L1 0.15 mg/L _+10% 0.001 mg/L 99.3% 99.35% Lead: @ pH 8.5 0.01 mg/L 0.15 mg/L1 0.15 mg/L _+10% 0.001 mg/L 99.2% 99.31%

Mercury:

+ pH 6.5 0.002 mg/L 0.0061 mg/L 0.006 mg/L _+10% 0.0004 mg/L 0.0003 mg/L 93.5% 96.7% Mercury:

+ pH 8.5 0.002 mg/L 0.0057 mg/L 0.006 mg/L _+10% 0.0008 mg/L 0.00051 mg/L 85.8% 91.2%

Benzene 0.005 mg/L 0.0138 mg/L 0.015 _+10% 0.0005 mg/L 0.005 mg/L 96.3%

Toxaphene 0.003 mg/L 0.014 mg/L 0.015 _+10% 0.0014 mg/L 0.001 mg/L 92.96%

Atrazine 0.003 mg/L 0.009 mg/L 0.009 mg/L _+10% 0.0013 mg/L 0.00036 mg/L 85.6%

2. 4-D 0.07 mg/L 0.197 mg/L 0.215 _+10% 0.058 mg/L 0.0137 mg/L 70.6% 93.06%

Asbestos 26 x 107 107to 10fibers/Ll-1 0.18 x 107 mg/L 99.93%

Cysts$ 99.95% 111.000/mL 50.000/L min.

1 mg/L 99.99% Turbidity 0.5 NTU 11.08 NTU 11 _+1 NTU 0.13 NTU 0.078 NTU 98.8% 99.3%

Test Parameters: pH = 7.5 _+0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = Temp. = 63°F (17.2°C).

It is essential that operational. maintenance. and filter replacement requirements be carried out for the product to perform as advertised. Flush for 5 minutes prior to use.

Model WF-LC400V: The filter monitor system measures the amount of water that passes through the filter and alerts you to replace the filter. When of the filter's rated life is used. the filter indicator light changes from green to yellow.

When 100% of the filter's rated life is used. the filter indicator light changes from yellow to red. and it is recommended that you replace the filter.

Use replacement cartridge LC400V. part #9010.

2007 suggested retail price of $39.99 U.S.A.

Prices are subject to change without notice.

The product is for cold water use only.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. Refer to the front cover or "Accessories" section for the Manufacturer's name. address and telephone number.

60 psig (413.7 kPa).

Refer to the "Warranty" section for the Manufacturer's limited warranty. Note that while the testing was performed under standard laboratory conditions. actual performance may vary.

Application Guidelines/Water Supply Parameters

Water Supply City or Well Water Pressure 30 - 120 psi (207 - 827 kPa) Water Temperature 33 ° - 100°F (0.6 ° - 37.8°C)

Service Flow Rate 0.5 gpm (1.89 L/min.)

+ 60 psi

+Class I particle size: >0.5 to <1 um

+*Test requirement is at least 100. 00 particles/mL of AC Fine Test Dust.

1-These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.

1-1-Fibers greater than 10 um in length SBased on the use of Cryptosporidium parvum oocysts

® NSF is a registered trademark of NSF International.

Your Home

For repair in your home of all major brand appliances. lawn and garden equipment. or heating and cooling systems. no matter who made it. no matter who sold it!

For the replacement parts. accessories and owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances and items like garage door openers and water heaters.

1-800-4-MY-HOME (1-800-469-4663)

Call anytime. day or night (U.S.A. and Canada)

For expert home solutions advice: www.managemyhome.com

Our Home

For repair of carry-in items like vacuums. lawn equipment. and electronics. call or go on-line for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

Call anytime. day or night

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n a domicilio. y para ordenar piezas: 1-888-SU-HOGAR

(1-888-784-6427) Sea/rs

Au Canada pour service en fran£ais: 1-800-LE-FOYER Mc

(1-800-533-6937) www.sears.ca

+ 2007 Sears Brands.

LLC

TM SM ® Registered Trademark Trademark Service Mark of Sears Brands.

LLC TM

SM

+ Marca reglstrada Marca de comerclo Marca de servlclo de Sears Brands.

LLC

TM SM

+ Marque deposee Marque de commerce Marque de service de Sears Brands.

LLC

6/07

Printed in U.S.A.

Impreso en EE. UU.

Imprim6 aux E.-U.



Newest Added: 79049523313 66513223N411 79047782404 66514579N611 79048883111

Kenmore 10657204602 | Pages: 76 | File type: PDF | Filename: 16810024_10657204602.pdf | Size: 9.47 MB | Language: English

Download User Manual

Contact us

T: @manualsFile

https://manualsFile.com
