Owner's Manual and
Installation Instructions
27-Inch Wide
GAS DRYERS
ml m,lwl m
IMPORTANT:
Read and follow all safety
and operating instructions
before first use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U,S,A.
www, sears.com
3979092 PRINTED IN U.S.A. 1/01

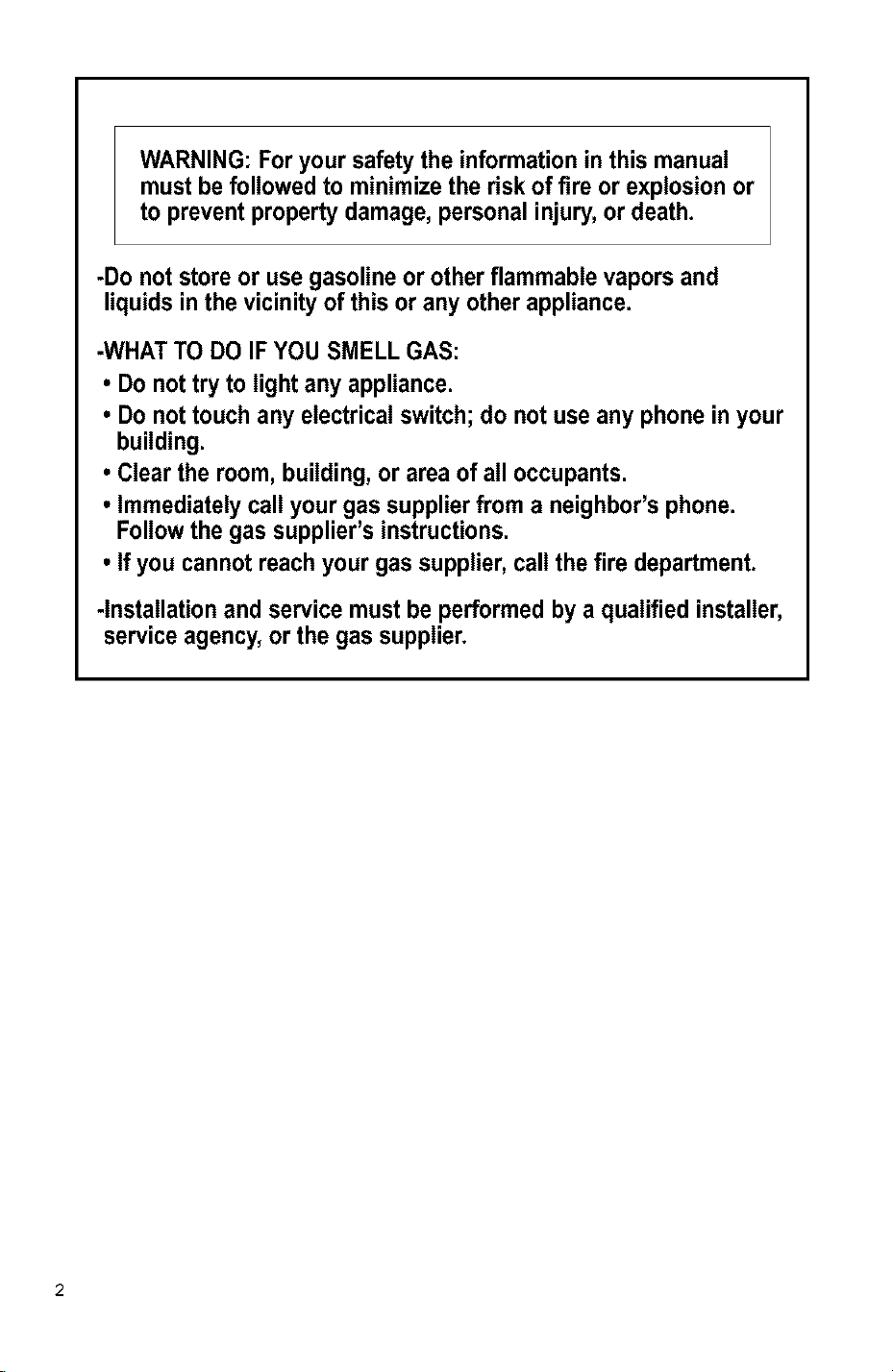

WARNING: For your safety the information in this manual
must be followed to minimize the risk of fire or explosion or
to prevent property damage, personal injury, or death.
-Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
-Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.

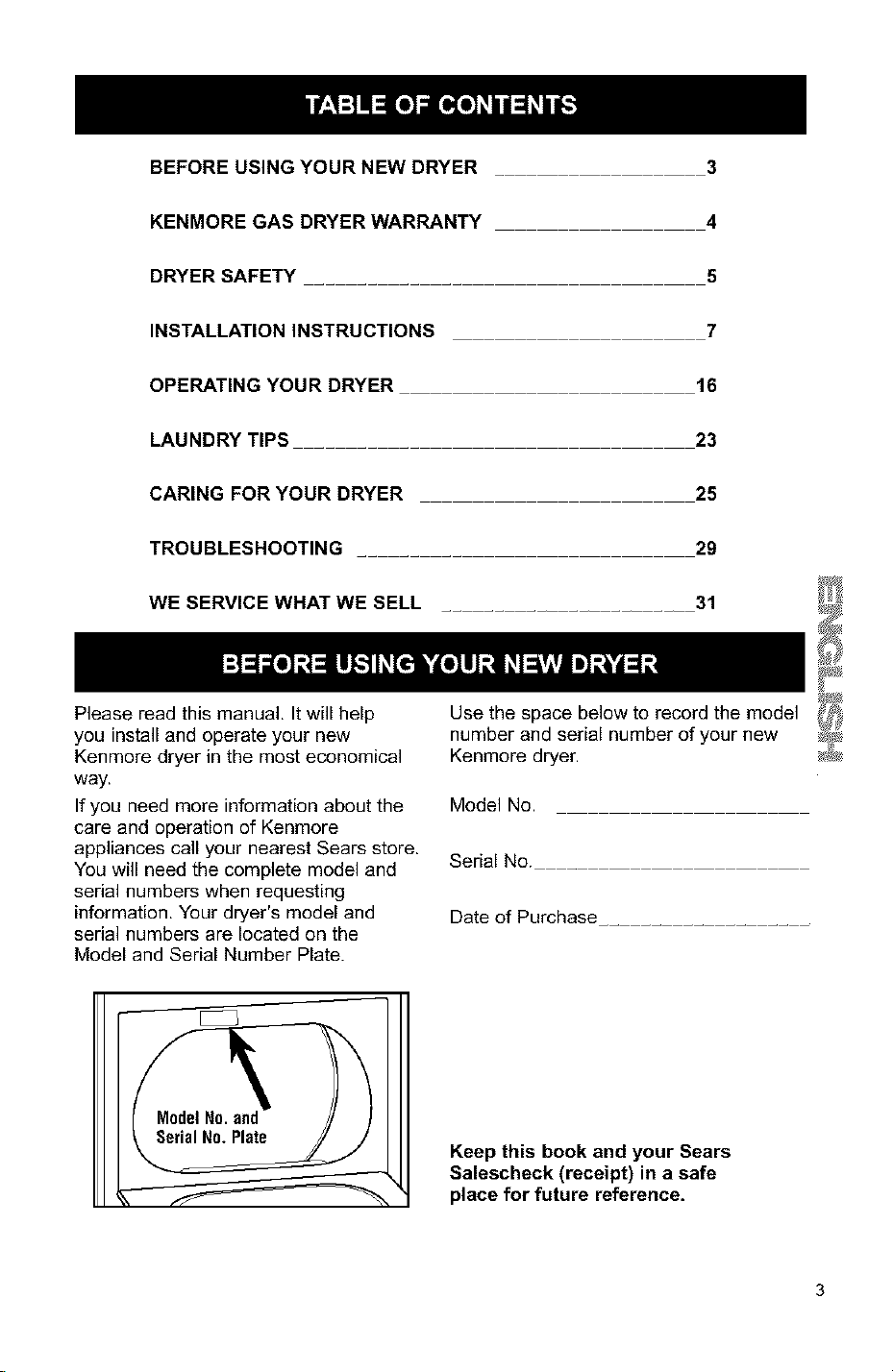

BEFORE USING YOUR NEW DRYER _ 3
KENMORE GAS DRYER WARRANTY
DRYER SAFETY
INSTALLATION INSTRUCTIONS
OPERATING YOUR DRYER 16
LAUNDRY TIPS ...... 23
CARING FOR YOUR DRYER 25
TROUBLESHOOTING ...... 29
WE SERVICE WHAT WE SELL 31
Please read this manual. It will help
you install and operate your new
Kenmore dryer in the most economical
way.
If you need more information about the
care and operation of Kenmore
appliances call your nearest Sears store.
You will need the complete model and
serial numbers when requesting
information. Your dryer's model and
serial numbers are located on the
Model and Serial Number Plate.
Use the space below to record the model
number and serial number of your new
Kenmore dryer.
Model No.
Serial No ....
Date of Purchase
Serial No. Plate
Keep this book and your Sears
Salescheck (receipt) in a safe
place for future reference,
3

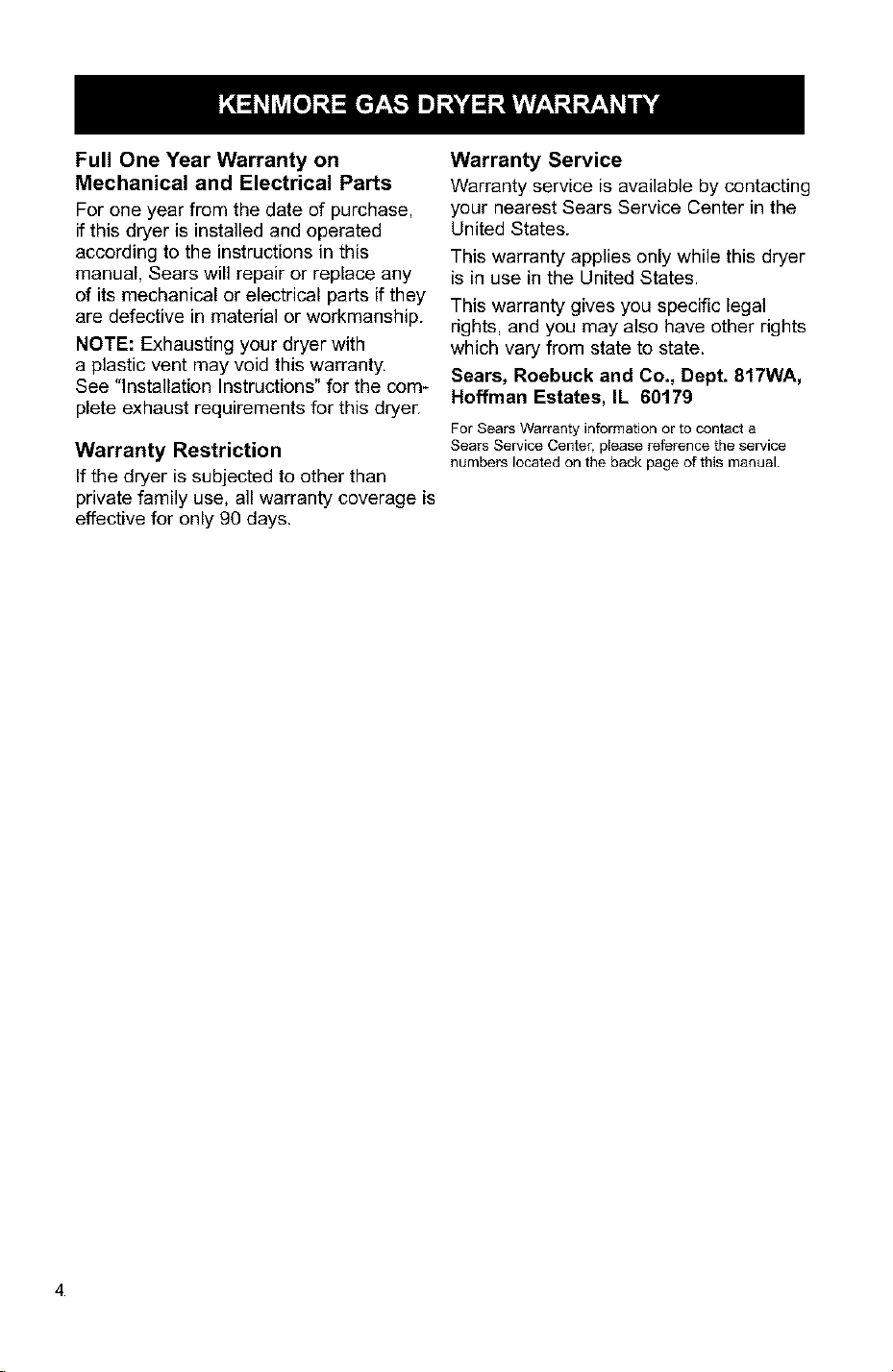

Full One Year Warranty on
Mechanical and Electrical Parts
For one year from the date of purchase,
if this dryer is installed and operated
according to the instructions in this
manual, Sears will repair or replace any
of its mechanical or electrical parts if they
are defective in material or workmanship.
NOTE: Exhausting your dryer with
a plastic vent may void this warranty,
See "Installation Instructions" for the com-
plete exhaust requirements for this dryen
Warranty Restriction
If the dryer is subjected to other than
private family use, all warranty coverage is
effective for only 90 days.
Warranty Service
Warranty service is available by contacting
your nearest Sears Service Center in the
United States.
This warranty applies only while this dryer
is in use in the United States.
This warranty gives you specific legal
rights, and you may also have other rights
which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffman Estates, IL 60179
For Sears Warranty information or to contact a
Sears Service Centert piease reference the service
numbers located on the back page of this manual.

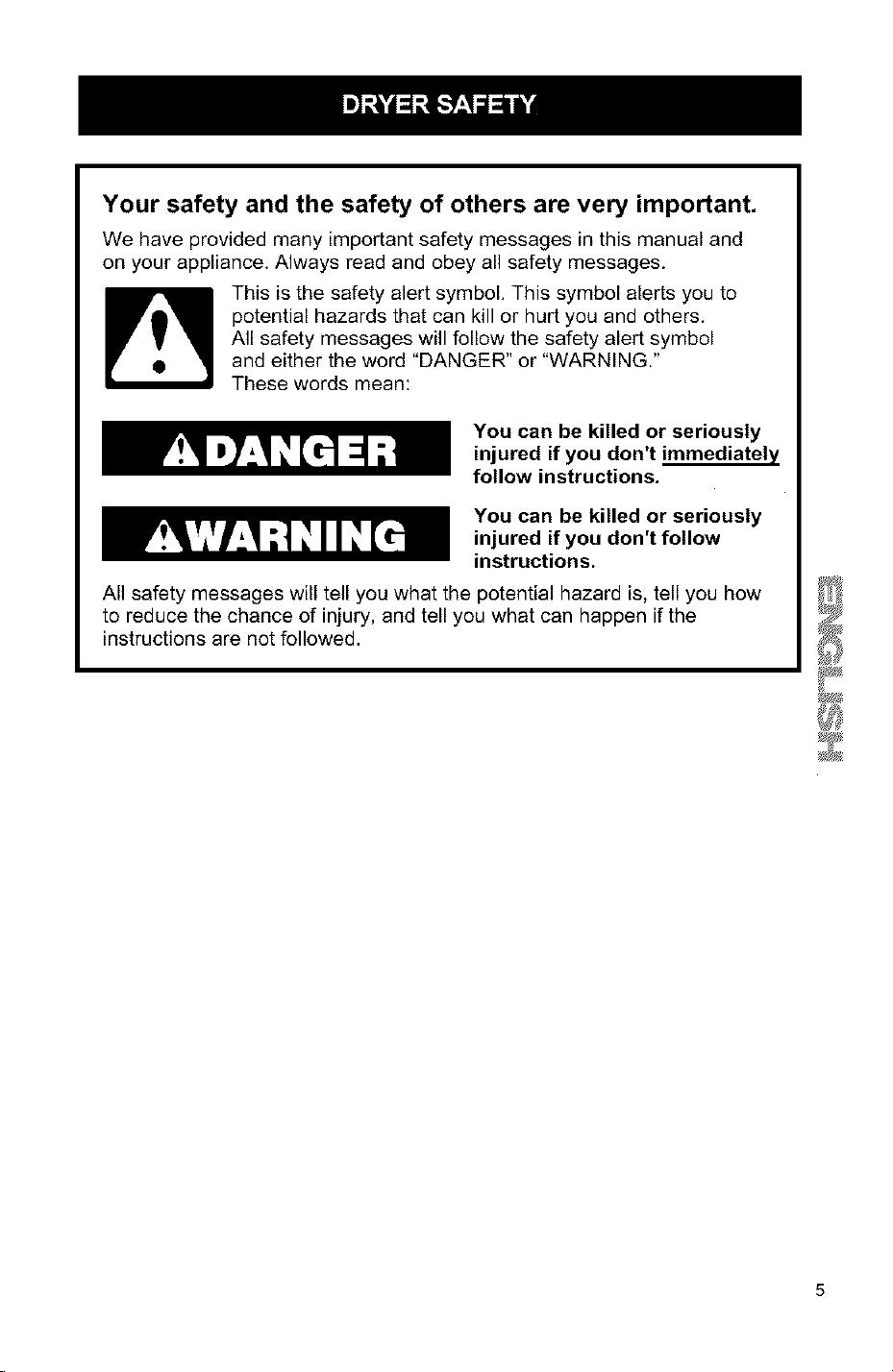

Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and
on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts you to
potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol
and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously
injured if you don't immediately
follow instructions.
You can be killed or seriously
injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how
to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
5

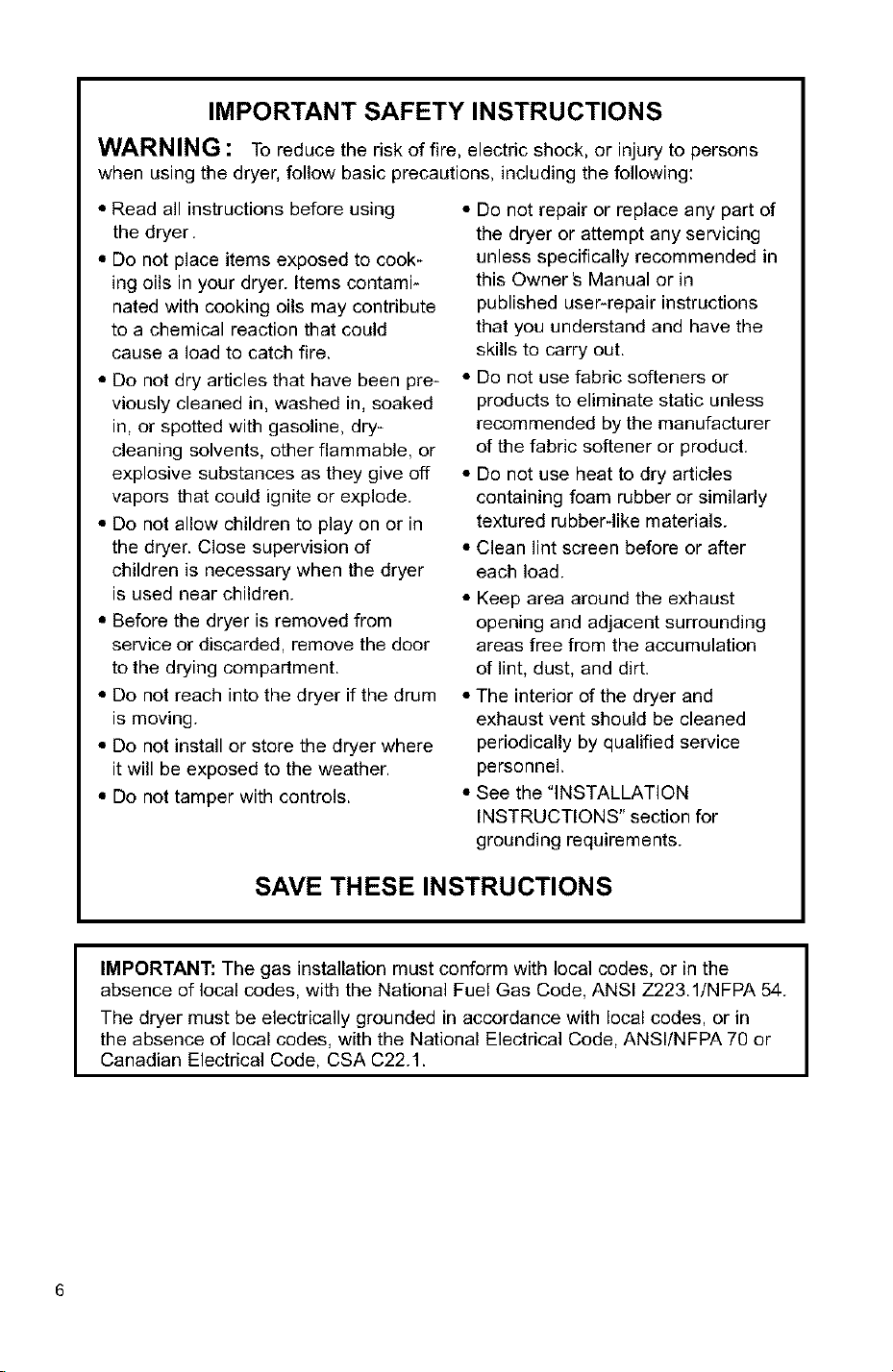

IMPORTANT SAFETY INSTRUCTIONS
WARNING : To reduce the risk of fire, electric shock, or injury to persons
when using the dryer, follow basic precautions, including the following:
• Read all instructions before using
the dryer.
• Do not place items exposed to cook-
ing oils in your dryer. Items contami-
nated with cooking oils may contribute
to a chemical reaction that could
cause a load to catch fire.
• Do not dry articles that have been pre-
viously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-
cleaning solvents, other flammable, or
explosive substances as they give off
vapors that could ignite or explode.
• Do not allow children to play on or in
the dryer. Close supervision of
children is necessary when the dryer
is used near children.
• Before the dryer is removed from
service or discarded, remove the door
to the drying compartment.
• Do not reach into the dryer if the drum
is moving.
• Do not install or store the dryer where
it will be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of
the dryer or attempt any servicing
unless specifically recommended in
this Owner's Manual or in
published user*repair instructions
that you understand and have the
skills to carry out.
• Do not use fabric softeners or
products to eliminate static unless
recommended by the manufacturer
of the fabric softener or product.
• Do not use heat to dry articles
containing foam rubber or similarly
textured rubber-like materials.
• Clean lint screen before or after
each load.
• Keep area around the exhaust
opening and adjacent surrounding
areas free from the accumulation
of lint, dust, and dirt.
• The interior of the dryer and
exhaust vent should be cleaned
periodically by qualified service
personnel.
• See the "INSTALLATION
INSTRUCTIONS" section for
grounding requirements.
SAVE THESE INSTRUCTIONS
IMPORTANT: The gas installation must conform with local codes, or in the
absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
The dryer must be electrically grounded in accordance with local codes, or in
the absence of local codes, with the National Electrical Code, ANSl/NFPA 70 or
Canadian Electrical Code, CSA C22.1.

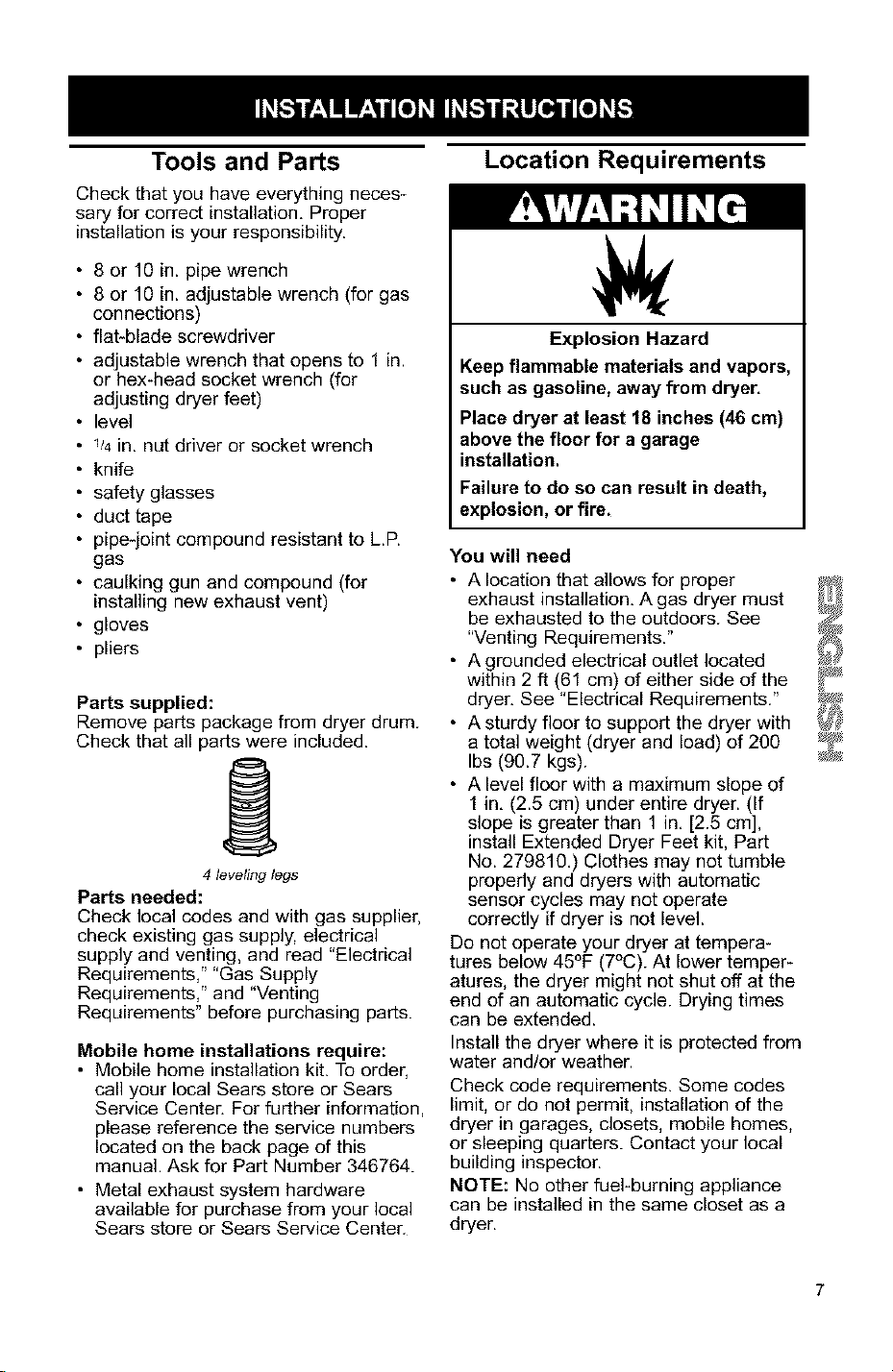

Tools and Parts
Check that you have everything neces-
sary for correct installation, Proper
installation is your responsibility.
• 8 or 10 in, pipe wrench
• 8 or 10 in. adjustable wrench (for gas
connections)
• flat-blade screwdriver
• adjustable wrench that opens to 1 in.
or hex-head socket wrench (for
adjusting dryer feet)
• level
• 1_4in. nut driver or socket wrench
• knife
• safety glasses
• duct tape
• pipe-joint compound resistant to L.R
gas
• caulking gun and compound (for
installing new exhaust vent)
• gloves
• pliers
Parts supplied:
Remove parts package from dryer drum.
Check that all parts were included.
4 leveling legs
Parts needed:
Check local codes and with gas supplier,
check existing gas supply, electrical
supply and venting, and read "Electrical
Requirements," "Gas Supply
Requirements," and "Venting
Requirements" before purchasing parts.
Mobile home installations require:
• Mobile home installation kit. To order,
call your local Sears store or Sears
Service Center, For further information,
please reference the service numbers
located on the back page of this
manual. Ask for Part Number 346764.
• Metal exhaust system hardware
available for purchase from your local
Sears store or Sears Service Center.
Location Requirements
Explosion Hazard
Keep flammable materials and vapors,
such as gasoline, away from dryer,
Place dryer at least 18 inches (46 cm)
above the floor for a garage
installation.
Failure to do so can result in death,
explosion, or fire.
You will need
• A location that allows for proper
exhaust installation. A gas dryer must
be exhausted to the outdoors. See
"Venting Requirements."
• Agrounded electrical outlet located
within 2 ft (61 cm) of either side of the
dryer. See "Electrical Requirements."
• A sturdy floor to support the dryer with
a total weight (dryer and load) of 200
Ibs (90.7 kgs).
• A level floor with a maximum slope of
1 in. (2.5 cm) under entire dryer. (If
slope is greater than 1 in. [2.5 cm],
install Extended Dryer Feet kit, Part
No. 279810.) Clothes may not tumble
properly and dryers with automatic
sensor cycles may not operate
correctly if dryer is not level.
Do not operate your dryer at tempera-
tures below 45°F (7°C). At lower temper-
atures, the dryer might not shut off at the
end of an automatic cycle. Crying times
can be extended.
Install the dryer where it is protected from
water and/or weather.
Check code requirements. Some codes
limit, or do not permit, installation of the
dryer in garages, closets, mobile homes,
or sleeping quarters. Contact your local
building inspector.
NOTE: No other fuel-burning appliance
can be installed in the same closet as a
dryer.
7

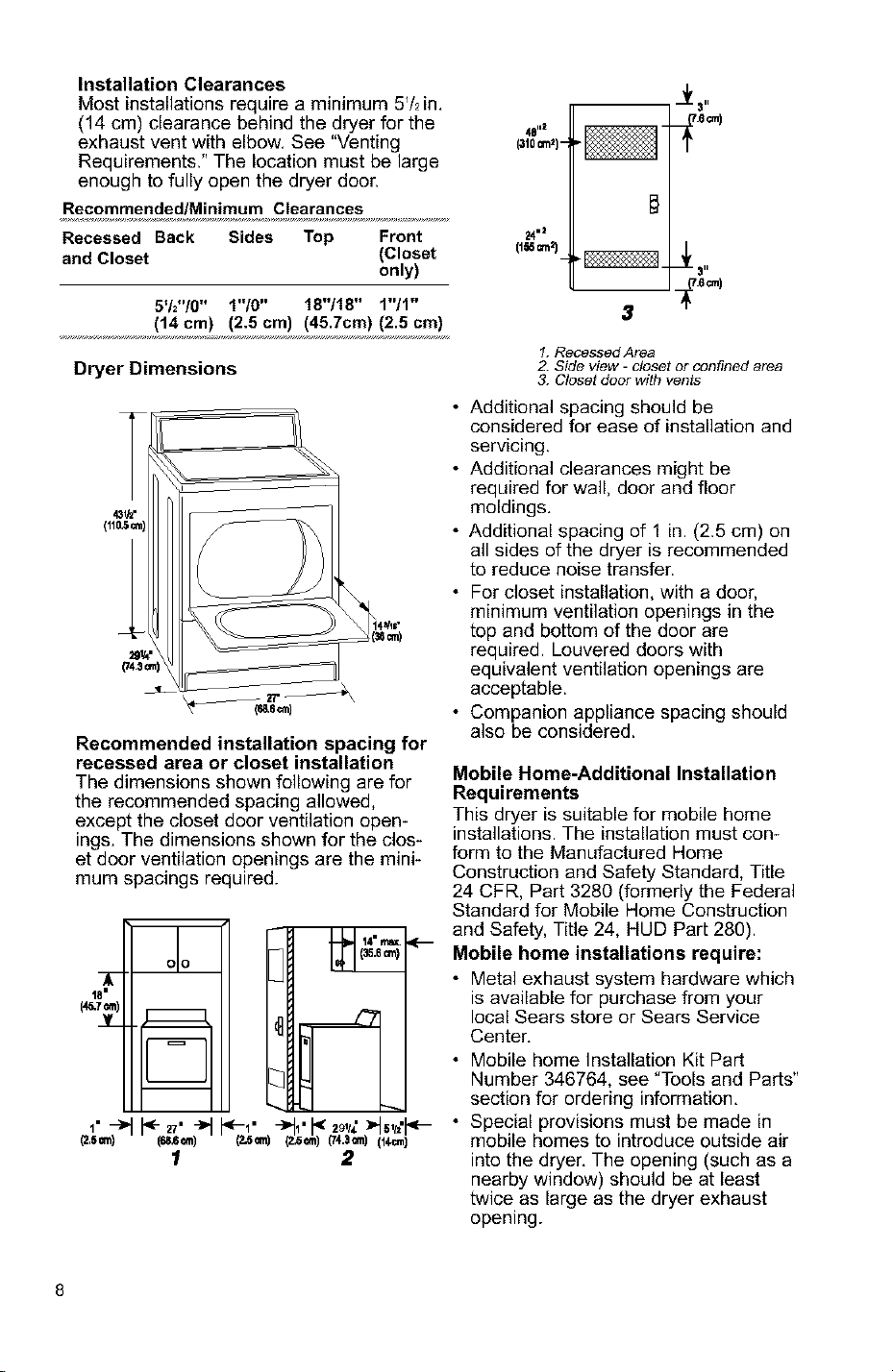

Installation Clearances
Most installations require a minimum 5_/2in,
(14 cm) clearance behind the dryer for the
exhaust vent with elbow, See "Venting
Requirements." The location must be large
enough to fully open the dryer door.
Recommended/Minimum Clearances
Recessed Back Sides Top Front
and Closet (Closet
only)
5V2"/0" 1"/0" 18"/18" 1"/1"
(14 cm) (2.5 cm) (45.7cm) (2.5 cm)
Dryer Dimensions
43t_
(110_)
Recommended installation spacing for
recessed area or closet installation
The dimensions shown following are for
the recommended spacing allowed,
except the closet door ventilation open-
ings. The dimensions shown for the clos-
et door ventilation openings are the mini-
mum spacings required.
3L
1.--),
(2.5_)
14"max. f¢_
o,o
m
m
1 2
_t 3 .
48"z _m)
(310_±)-
24 "1
3
1. Recessed Area
2. Side view - closet or confined area
3. Closet door with vents
• Additional spacing should be
considered for ease of installation and
servicing.
• Additional clearances might be
required for wall, door and floor
moldings,
• Additional spacing of 1 in. (2.5 cm) on
all sides of the dryer is recommended
to reduce noise transfer.
• For closet installation, with a door,
minimum ventilation openings in the
top and bottom of the door are
required. Louvered doors with
equivalent ventilation openings are
acceptable.
• Companion appliance spacing should
also be considered.
Mobile Home-Additional Installation
Requirements
This dryer is suitable for mobile home
installations. The installation must con-
form to the Manufactured Home
Construction and Safety Standard, Title
24 CFR, Part 3280 (formerly the Federal
Standard for Mobile Home Construction
and Safety, Title 24, HUD Part 280).
Mobile home installations require:
• Metal exhaust system hardware which
is available for purchase from your
local Sears store or Sears Service
Center,
• Mobile home Installation Kit Part
Number 346764, see "Tools and Parts"
section for ordering information,
• Special provisions must be made in
mobile homes to introduce outside air
into the dryer, The opening (such as a
nearby window) should be at least
twice as large as the dryer exhaust
opening.

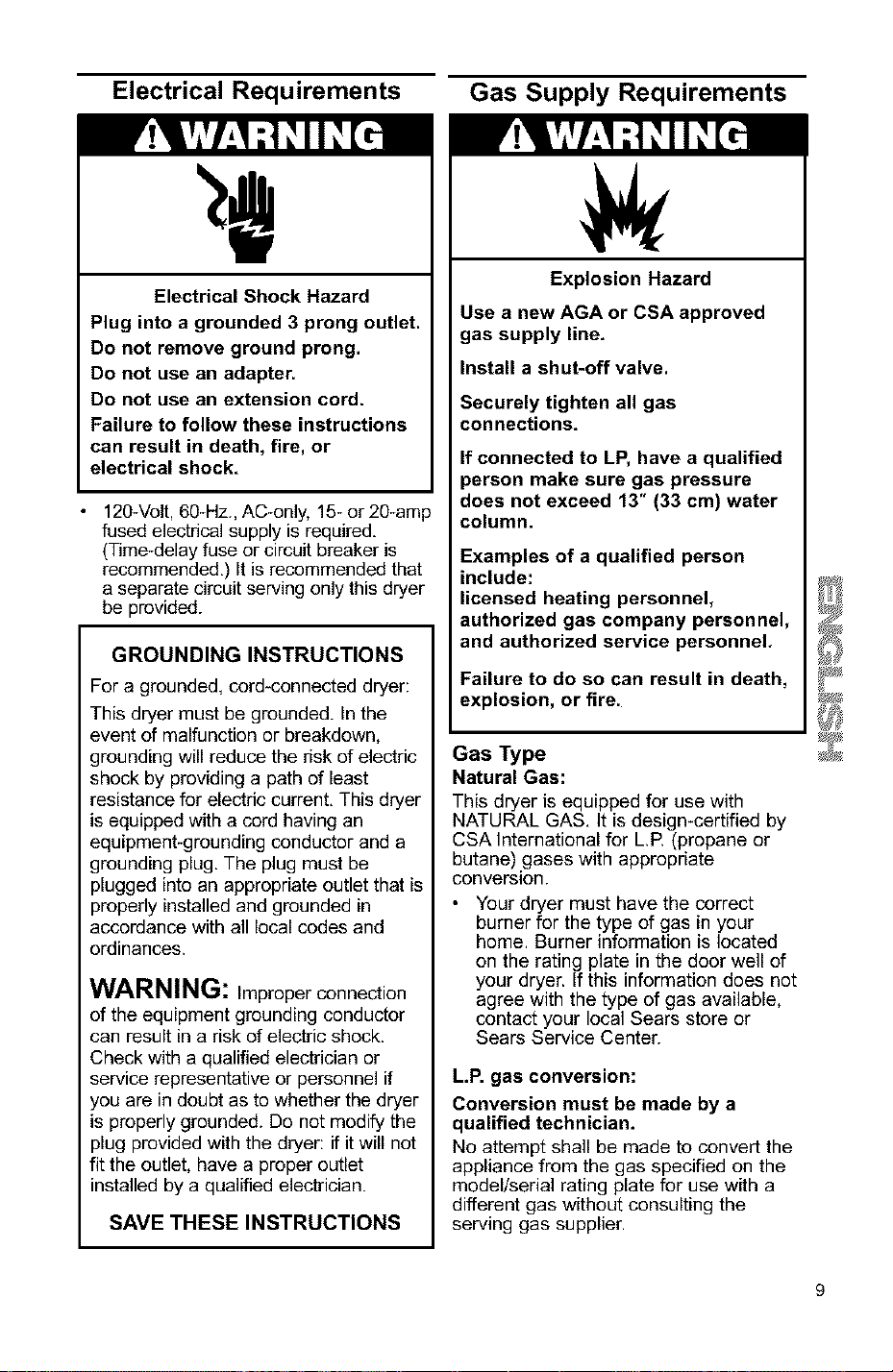

Electrical Requirements Gas Supply Requirements
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
• 120-Vofi, 60-Hz., AC-only, 15- or 20-amp
fused electdcal supply is required.
(Time-delay fuse or circuit breaker is
recommended.) It is recommended that
a separate circuit serving only this dryer
be provided.
GROUNDING INSTRUCTIONS
For a grounded, cord-connected dryer:
This dryer must be grounded. In the
event of malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least
resistance for electric current. This dryer
is equipped with a cord having an
equipment*grounding conductor and a
grounding plug. The plug must be
plugged into an appropriate outlet that is
properly installed and grounded in
accordance with all local codes and
ordinances.
WARNING: Improper connection
of the equipment grounding conductor
can result in a risk of electric shock.
Check with a qualified electrician or
service representative or personnel if
,ou are in doubt as to whether the dryer
is properly grounded. Do not modify the
plug provided with the dryer: if it will not
fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVETHESEINSTRUCTIONS
Explosion Hazard
Use a new AGA or CSA approved
gas supply line.
Install a shut-off valve.
Securely tighten all gas
connections.
If connected to LP, have a qualified
person make sure gas pressure
does not exceed 13" (33 cm) water
column.
Examples of a qualified person
include:
licensed heating personnel,
authorized gas company personnel,
and authorized service personnel.
Failure to do so can result in death,
explosion, or fire.
Gas Type
Natural Gas:
This dryer is equipped for use with
NATURAL GAS. It is design-certified by
CSA International for L.P. (propane or
butane) gases with appropriate
conversion.
• Your dryer must have the correct
burner for the type of gas in your
home. Burner information is located
on the rating plate in the door well of
your dryer. If this information does not
agree with the type of gas available,
contact your local Sears store or
Sears Service Center.
L.P. gas conversion:
Conversion must be made by a
qualified technician.
No attempt shall be made to convert the
appliance from the gas specified on the
model/serial rating plate for use with a
different gas without consulting the
serving gas supplier.
9

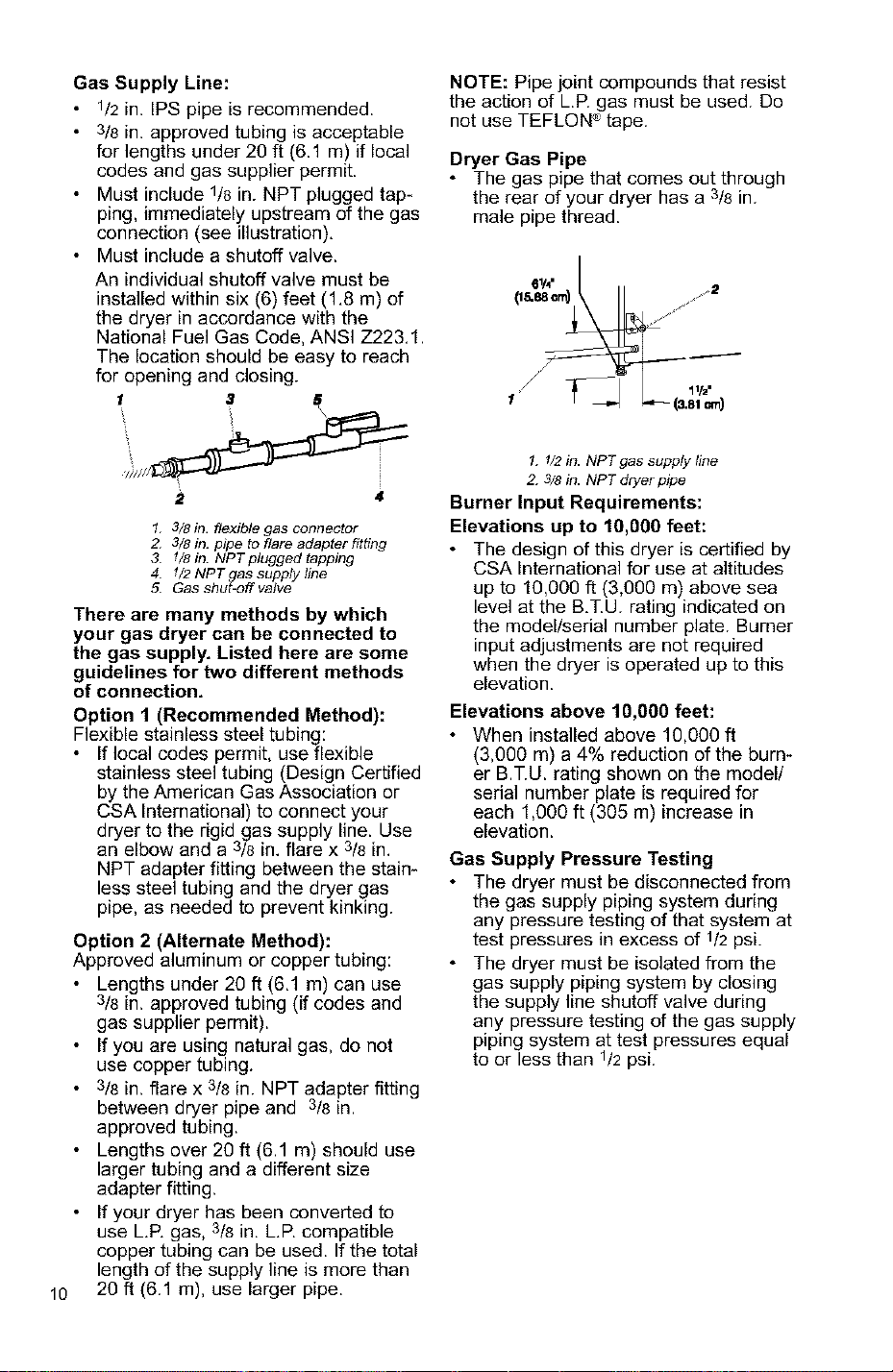

Gas Supply Line:
• 1/2 in. IPS pipe is recommended.
• 3/8 in. approved tubing is acceptable
for lengths under 20 ft (6.1 m) if local
codes and gas supplier permit.
• Must include 1/8 in. NPT plugged tap*
ping, immediately upstream of the gas
connection (see illustration).
• Must include a shutoff valve.
An individual shutoff valve must be
installed within six (6) feet (1.8 m) of
the dryer in accordance with the
National Fuel Gas Code, ANSI Z223.1.
The location should be easy to reach
for opening and closing.
NOTE: Pipe joint compounds that resist
the action of L.P. gas must be used. Do
not use TEFLON _'tape.
Dryer Gas Pipe
• The gas pipe that comes out through
the rear of your dryer has a 3/8 in.
male pipe thread.
2
1. 3/8 in. flexible gas connector
2. 3/8 in. pipe to flare adapter fitting
& 1/8in. NPT plugged tapping
4. l/2 NPT gas suppiy flne
5. Gas shut-off valve
There are many methods by which
your gas dryer can be connected to
the gas supply. Listed here are some
guidelines for two different methods
of connection.
Option 1 (Recommended Method):
Flexible stainless steel tubing:
• If local codes permit, use flexible
stainless steel tubing (Design Certified
by the American Gas Association or
CSA International) to connect your
dryer to the rigid gas supply line. Use
an elbow and a 3/8 in. flare x 3/8 in.
NPT adapter fitting between the stain-
less steel tubing and the dryer gas
pipe, as needed to prevent kinking.
Option 2 (Alternate Method):
Approved aluminum or copper tubing:
• Lengths under 20 ft (6.1 m) can use
3/8 in. approved tubing (if codes and
gas supplier permit).
• If you are using natural gas, do not
use copper tubing.
• 318in. flare x 318in. NPT adapter fitting
between dryer pipe and 318in.
approved tubing.
• Lengths over 20 ft (6.1 m) should use
larger tubing and a different size
adapter fitting.
• If your dryer has been converted to
use L.R gas, 3/8 in. L.R compatible
copper tubing can be used. If the total
length of the supply line is more than
10 20 ft (6.1 m), use larger pipe.
1. 1/2in. NPT gas supply line
2. 3/8 in. NPT dryer pipe
Burner Input Requirements:
Elevations up to 10,000 feet:
• The design of this dryer is certified by
CSA International for use at altitudes
up to 10,000 ft (3,000 m) above sea
level at the B.T.U. rating indicated on
the model/serial number plate. Burner
input adjustments are not required
when the dryer is operated up to this
elevation.
Elevations above 10,000 feet:
• When installed above 10,000 ft
(3,000 m) a 4% reduction of the burn-
er B.T.U. rating shown on the model/
serial number plate is required for
each 1,000 ft (305 m) increase in
elevation.
Gas Supply Pressure Testing
• The dryer must be disconnected from
the gas supply piping system during
any pressure testing of that system at
test pressures in excess of 1/2 psi.
• The dryer must be isolated from the
gas supply piping system by closing
the supply line shutoff valve during
any pressure testing of the gas supply
piping system at test pressures equal
to or less than 1/2 psi.

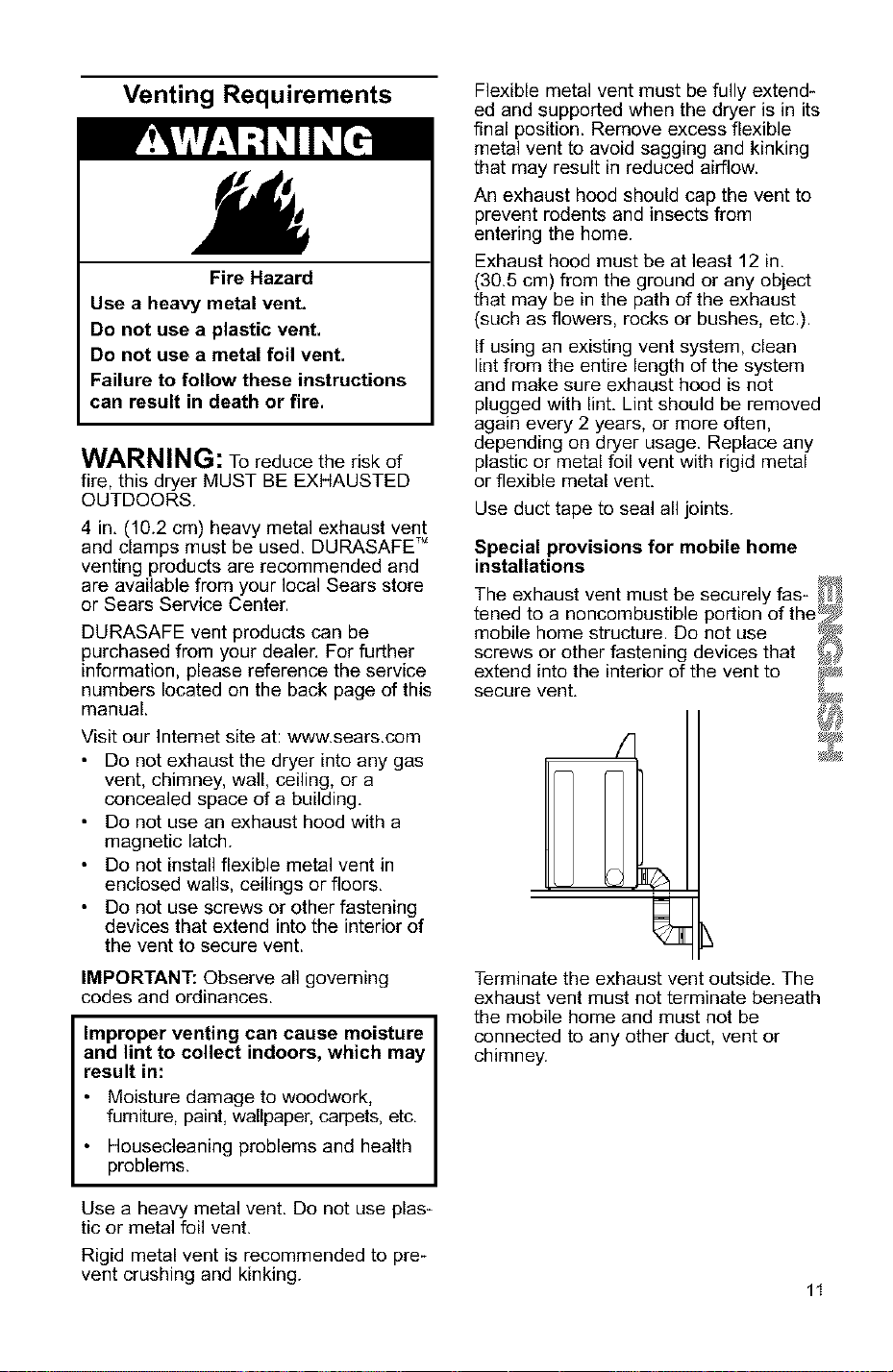

Venting Requirements
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions
can result in death or fire.
WARNING: To reduce the risk of
fire, this dryer MUST BE EXHAUSTED
OUTDOORS.
4 in. (10.2 cm) heavy metal exhaust vent
and clamps must be used. DURASAFE TM
venting products are recommended and
are available from your local Sears store
or Sears Service Center.
DURASAFE vent products can be
purchased from your dealer. For further
information, please reference the service
numbers located on the back page of this
manual.
Visit our Internet site at: www.sears.cem
• Do not exhaust the dryer into any gas
vent, chimney, wall, ceiling, or a
concealed space of a building.
• Do not use an exhaust hood with a
magnetic latch.
• Do not install flexible metal vent in
enclosed walls, ceilings or floors.
• Do not use screws or other fastening
devices that extend into the interior of
the vent to secure vent.
IMPORTANT: Observe all governing
codes and ordinances.
Improper venting can cause moisture
and lint to collect indoors, which may
result in:
• Moisture damage to woodwork,
furniture, paint, wallpaper, carpets, etc.
• Housecleaning problems and health
problems.
Flexible metal vent must be fully extend-
ed and supported when the dryer is in its
final position. Remove excess flexible
metal vent to avoid sagging and kinking
that may result in reduced airflow.
An exhaust hood should cap the vent to
prevent rodents and insects from
entering the home.
Exhaust hood must be at least 12 in.
(30.5 cm) from the ground or any object
that may be in the path of the exhaust
(such as flowers, rocks or bushes, etc.).
If using an existing vent system, clean
lint from the entire length of the system
and make sure exhaust hood is not
plugged with lint. Lint should be removed
again every 2 years, or more often,
depending on dryer usage. Replace any
plastic or metal foil vent with rigid metal
or flexible metal vent.
Use duct tape to seal all joints.
Special provisions for mobile home
installations
The exhaust vent must be securely fas- _.i!
tened to a noncombustible portion of the_
mobile home structure Do not use _
screws or other fastening devices that _
extend into the interior of the vent to
secure vent.
Terminate the exhaust vent outside. The
exhaust vent must not terminate beneath
the mobile home and must not be
connected to any other duct, vent or
chimney.
Use a heavy metal vent. Do not use plas_
tic or metal foil vent.
Rigid metal vent is recommended to pre_
vent crushing and kinking.
11

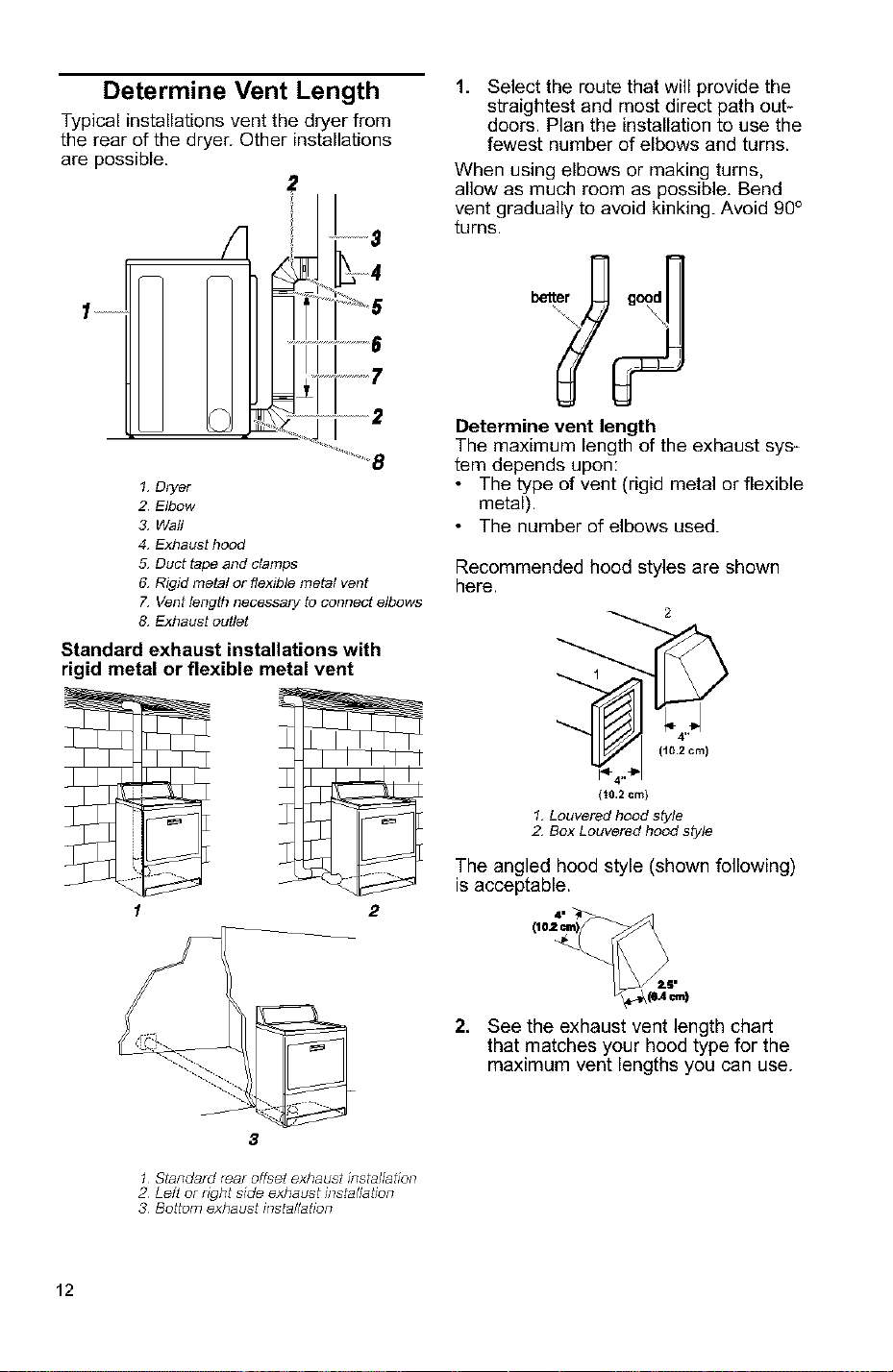

Determine Vent Length
Typical installations vent the dryer from
the rear of the dryer. Other installations
are possible.
2
I
................. 3
/
/
_ .
1. Dozer
2 Elbow
3. Wall
4. Exhaust hood
5. Duct tape and clamps
6. Rigid metal or flexible metal vent
7. Vent length necessary to connect elbows
8. Exhaust outlet
Standard exhaust installations with
rigid metal or flexible metal vent
1, Select the route that will provide the
straightest and most direct path out-
doors. Plan the installation to use the
fewest number of elbows and turns.
When using elbows or making turns,
allow as much room as possible, Bend
vent gradually to avoid kinking. Avoid 90°
turns.
be_er good
Determine vent length
The maximum length of the exhaust sys-
tem depends upon:
• The type of vent (rigid metal or flexible
metal).
• The number of elbows used.
Recommended hood styles are shown
here.
1
_ ( , )
(t0.2 cm)
1. Louvered hood style
2. Box Louvered hood style
The angled hood style (shown following)
is acceptable.
2, See the exhaust vent length chart
that matches your hood type for the
maximum vent lengths you can use.
3
1 Standard rear offset exhaust installation
2 Left or right side exhaust #_sta//atlon
3 Bottom exhaust insta//abon
12

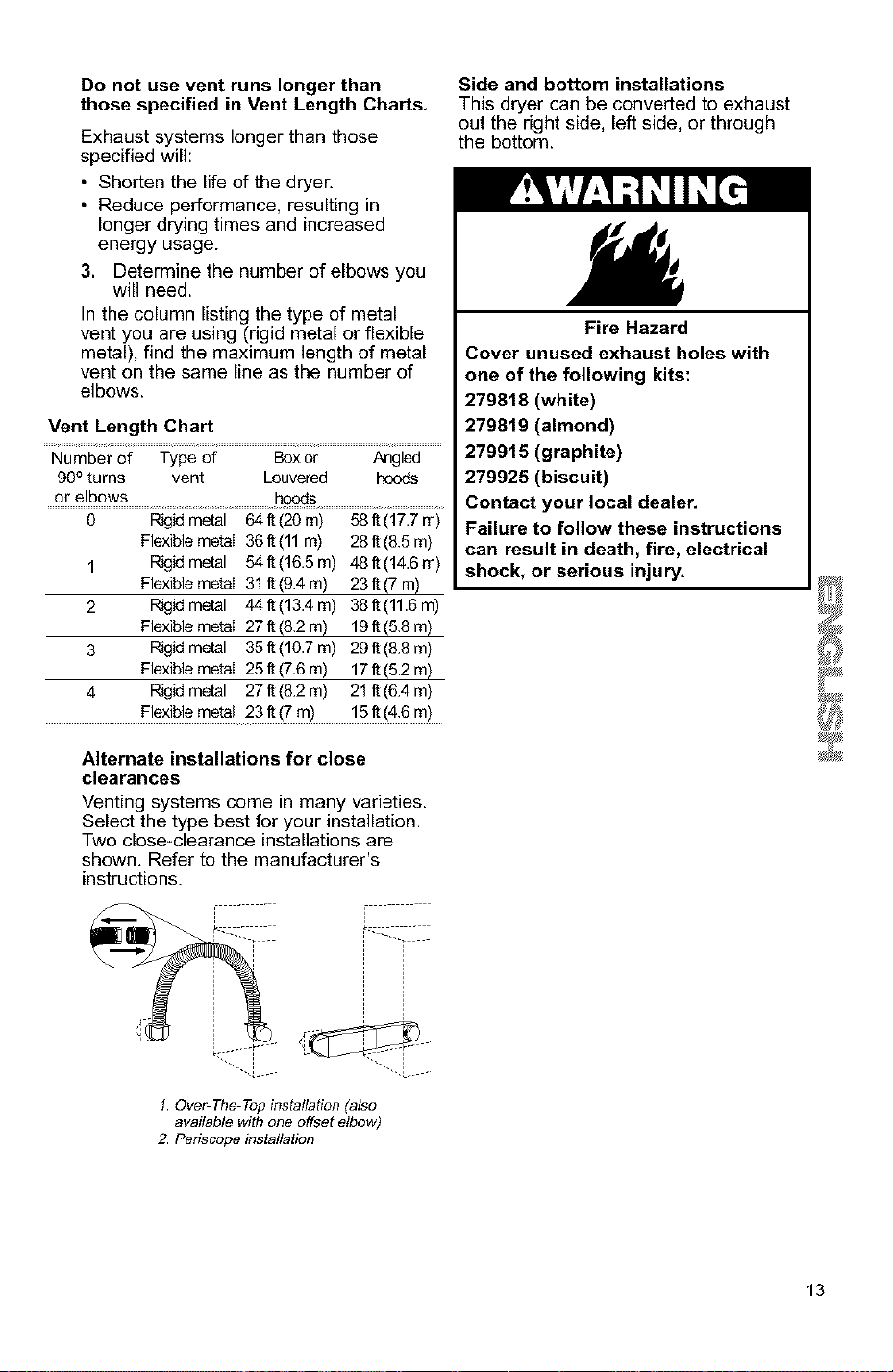

Do not use vent runs longer than
those specified in Vent Length Charts.
Exhaust systems longer than those
specified will:
• Shorten the life of the dryer,
• Reduce performance, resulting in
longer drying times and increased
energy usage.
3. Determine the number of elbows you
will need.
In the column listing the type of metal
vent you are using (rigid metal or flexible
metal), find the maximum length of metal
vent on the same line as the number of
elbows.
Side and bottom installations
This dryer can be converted to exhaust
out the right side, left side, or through
the bottom.
Vent Length Chart
Number of Type of Boxor Angled
90° turns vent Louvered hoods
.... ............................................................................_s .........................................................................Contact your local dealer.
0 Rigid metal 64 ft (20 m) 58 ft (17.7 m)
Flexiblemetai 36ft(11 m) 28ft(8.5 m)
1 Rigidmetal 54ft(16.5m) 48ft(14.6m)
Flexiblemetai 31ft(9.4m) 23ft(7m)
2 Rigidmetal 44ft(13.4m) 38ft(11.6m)
Flexiblemetai 27ft(8.2m) 19ft(5.Sm)
3 Rigidmetal 35ft(1O.7m) 29ft(8.Sm)
Flexiblemetai 25ft(7.6m) 17ft(5.2m)
4 Rigid metal 27 ft (8.2 m) 21 ft (6.4 m)
Fire Hazard
Cover unused exhaust holes with
one of the following kits:
279818 (white)
279819 (almond)
279915 (graphite)
279925 (biscuit)
.....................................................................
Failure to follow these instructions
can result in death, fire, electrical
shock, or serious injury.
Alternate installations for close
clearances
Venting systems come in many varieties.
Select the type best for your installation.
Two close-clearance installations are
shown, Refer to the manufacturer's
instructions.
1. Over-The-Top installation (also
available with one offset elbow)
2. Periscope installation
13

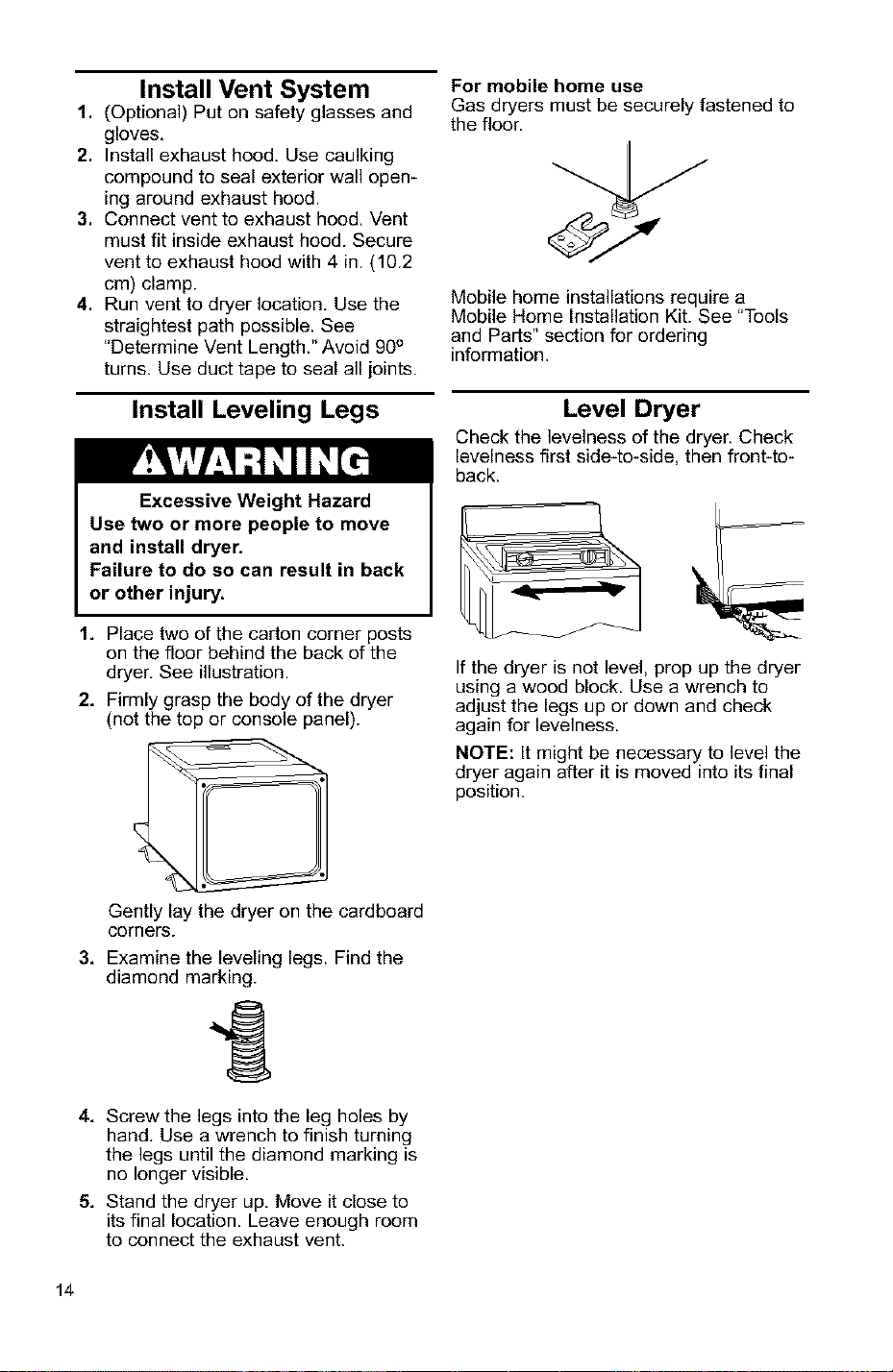

Install Vent System
1. (Optional) Put on safety glasses and
gloves,
2. Install exhaust hood, Use caulking
compound to seal exterior wall open-
ing around exhaust hood.
3. Connect vent to exhaust hood, Vent
must fit inside exhaust hood. Secure
vent to exhaust hood with 4 in. (10.2
cm) clamp.
4. Run vent to dryer location, Use the
straightest path possible. See
"Determine Vent Length." Avoid 90°
turns. Use duct tape to seal all joints.
Install Leveling Legs
Excessive Weight Hazard
Use two or more people to move
and install dryer.
Failure to do so can result in back
or other injury,
1, Place two of the carton corner posts
on the floor behind the back of the
dryer. See illustration.
2. Firmly grasp the body of the dryer
(not the top or console panel).
For mobile home use
Gas dryers must be securely fastened to
the floor.
Mobile home installations require a
Mobile Home Installation Kit. See "Tools
and Parts" section for ordering
information.
Level Dryer
Check the levelness of the dryer. Check
levelness first side4o-side, then front-to-
back.
If the dryer is not level, prop up the dryer
using a wood block. Use a wrench to
adjust the legs up or down and check
again for levelness.
NOTE: It might be necessary to level the
dryer again after it is moved into its final
position.
Gently lay the dryer on the cardboard
corners.
3, Examine the leveling legs. Find the
diamond marking.
1
4, Screw the legs into the leg holes by
hand, Use a wrench to finish turning
the legs until the diamond marking is
no longer visible.
5, Stand the dryer up, Move it close to
its final location. Leave enough room
to connect the exhaust vent.
14

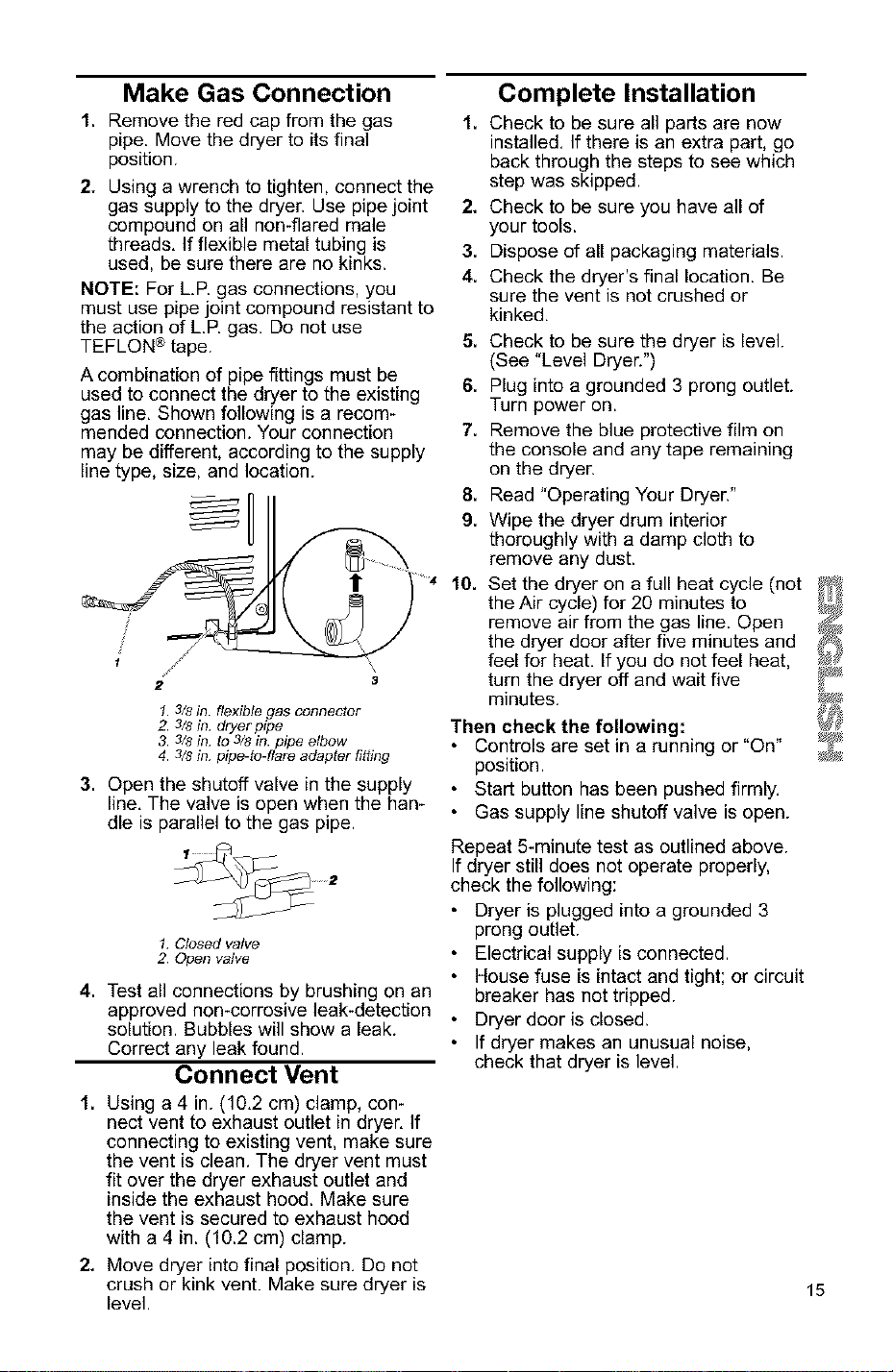

Make Gas Connection
1. Remove the red cap from the gas
pipe. Move the dryer to its final
position.
2, Using a wrench to tighten, connect the
gas supply to the dryer. Use pipe joint
compound on all non41ared male
threads. If flexible metal tubing is
used, be sure there are no kinks.
NOTE: For L.R gas connections, you
must use pipe joint compound resistant to
the action of L.R gas. Do not use
TEFLON ® tape.
A combination of pipe fittings must be
used to connect the dryer to the existing
gas line. Shown following is a recom-
mended connection. Your connection
may be different, according to the supply
line type, size, and location.
1
/
2 3
I. 3/8 in. flexible gas connector
2. 3/8in. dryerpipe
3. 3/8 in. to 3/8 in. pipe elbow
4. 3/8 in. pipe-to-flare adapter fitting
3. Open the shutoff valve in the supply
line, The valve is open when the han-
dle is parallel to the gas pipe.
1. Closed valve
2 Open valve
4. Test all connections by brushing on an
approved non-corrosive leak-detection
solution. Bubbles will show a leak.
Correct any leak found.
Connect Vent
1. Using a 4 in. (10.2 cm) clamp, con-
nect vent to exhaust outlet in dryer. If
connecting to existing vent, make sure
the vent is clean. The dryer vent must
fit over the dryer exhaust outlet and
inside the exhaust hood. Make sure
the vent is secured to exhaust hood
with a 4 in. (10.2 cm) clamp.
2. Move dryer into final position, Do not
crush or kink vent. Make sure dryer is
level.
Complete Installation
1. Check to be sure all parts are now
installed. If there is an extra part, go
back through the steps to see which
step was skipped.
2, Check to be sure you have all of
your tools.
3. Dispose of all packaging materials.
4. Check the dryer's final location. Be
sure the vent is not crushed or
kinked.
5. Check to be sure the dryer is level.
(See "Level Dryer,")
6. Plug into a grounded 3 prong outlet,
Turn power on.
7. Remove the blue protective film on
the console and any tape remaining
on the dryer.
8. Read "Operating Your Dryer."
9. Wipe the dryer drum interior
thoroughly with a damp cloth to
remove any dust.
10. Set the dryer on a full heat cycle (not
the Air cycle) for 20 minutes to
remove air from the gas line. Open
the dryer door after five minutes and
feel for heat, If you do not feel heat,
turn the dryer off and wait five
minutes.
Then check the following:
• Controls are set in a running or "On"
position.
• Start button has been pushed firmly,
• Gas supply line shutoff valve is open.
Repeat 5-minute test as outlined above.
If dryer still does not operate properly,
check the following:
• Dryer is plugged into a grounded 3
prong outlet.
• Electrical supply is connected.
• House fuse is intact and tight; or circuit
breaker has not tripped.
• Dryer door is closed.
• If dryer makes an unusual noise,
check that dryer is level.
15
Explosion Hazard
Keep flammable materials and
vapors, such as gasoline, away
from dryer.
Do not dry anything that has ever had
anything flammable on it (even after
washing).
Failure to follow these instructions can
result in death, explosion,
or fire.
STARTING YOUR DRYER
To get the best drying results, you must
operate your dryer properly. This section
gives you this important information.
NOTE: The drawings in this section
show the basic features of all models
covered by this manual. Refer to the
supplied "Feature Sheet" for your dryer's
particular features.
STEP 1. Clean lint screen.
STEP 2. Put laundry into dryer and
shut door.
STEP 3. Set Cycle Selector Control (Timer)
• (see "Cycle Descriptions").
STEP 4, Set FABRIC/Temperature
Control @ (see "FABRIC/Temperature
Control"). Check clothes label for manufac-
turer's recommendations.
Fire Hazard
No washer can completely
remove oil.
Do not dry anything that has ever had
any type of oil on it (including cooking
oils).
Items containing foam, rubber,
or plastic must be dried on a
clothesline or by using an Air Cycle.
Failure to follow these instructions can
result in death or fire.
STEP 5, Press PUSH TO START
Button _. Be sure door is closed.
STOPPING/RESTARTING
YOUR DRYER
• To stop the dryer at any time, open
dryer door.
• To restart, press PUSH TO START
Button _. Be sure door is closed.
• If you wish to end your drying cycle,
turn Cycle Selector Control (Timer)
to OFF.
S it il
16

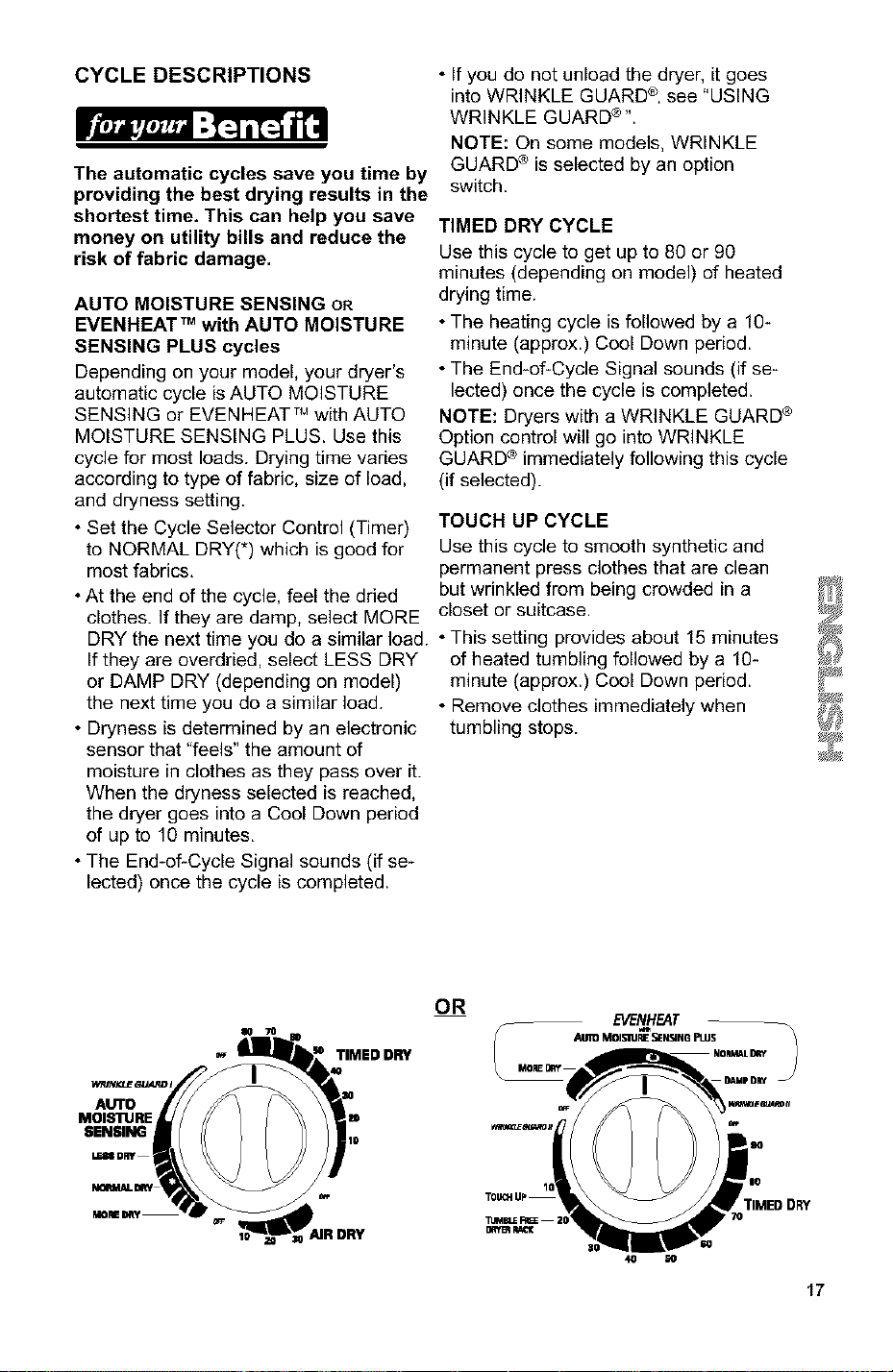

CYCLE DESCRIPTIONS • If you do not unload the dryer, it goes
into WRINKLE GUARD ®, see "USING
WRINKLE GUARD ®'.
The automatic cycles save you time by
providing the best drying results in the
shortest time. This can help you save
money on utility bills and reduce the
risk of fabric damage.
AUTO MOISTURE SENSING oR
EVENHEAT TM with AUTO MOISTURE
SENSING PLUS cycles
Depending on your model, your dryer's
automatic cycle is AUTO MOISTURE
SENSING or EVENHEAT TM with AUTO
MOISTURE SENSING PLUS. Use this
cycle for most loads. Drying time varies
according to type of fabric, size of load,
and dryness setting.
• Set the Cycle Selector Control (Timer)
to NORMAL DRY(*) which is good for
most fabrics.
• At the end of the cycle, feel the dried
clothes. If they are damp, select MORE
DRY the next time you do a similar load.
If they are overdried, select LESS DRY
or DAMP DRY (depending on model)
the next time you do a similar load.
• Dryness is determined by an electronic
sensor that "feels" the amount of
moisture in clothes as they pass over it.
When the dryness selected is reached,
the dryer goes into a Cool Down period
of up to 10 minutes.
• The End-of-Cycle Signal sounds (if se-
lected) once the cycle is completed.
NOTE: On some models, WRINKLE
GUARD ® is selected by an option
switch.
TIMED DRY CYCLE
Use this cycle to get up to 80 or 90
minutes (depending on model) of heated
drying time.
• The heating cycle is followed by a 10-
minute (approx.) Cool Down period.
• The End-of-Cycle Signal sounds (if se-
lected) once the cycle is completed.
NOTE: Dryers with a WRINKLE GUARD ®
Option control will go into WRINKLE
GUARD ® immediately following this cycle
(if selected).
TOUCH UP CYCLE
Use this cycle to smooth synthetic and
permanent press clothes that are clean
but wrinkled from being crowded in a
closet or suitcase.
• This setting provides about 15 minutes
of heated tumbling followed by a 10-
minute (approx.) Cool Down period.
• Remove clothes immediately when
tumbling stops.
TIMED DRY
OR
S--
EVENHEAT
MOI$11JRE SENSING PLUS
AUTO
MOIS'RJRE
SENSING
4O 5O
17

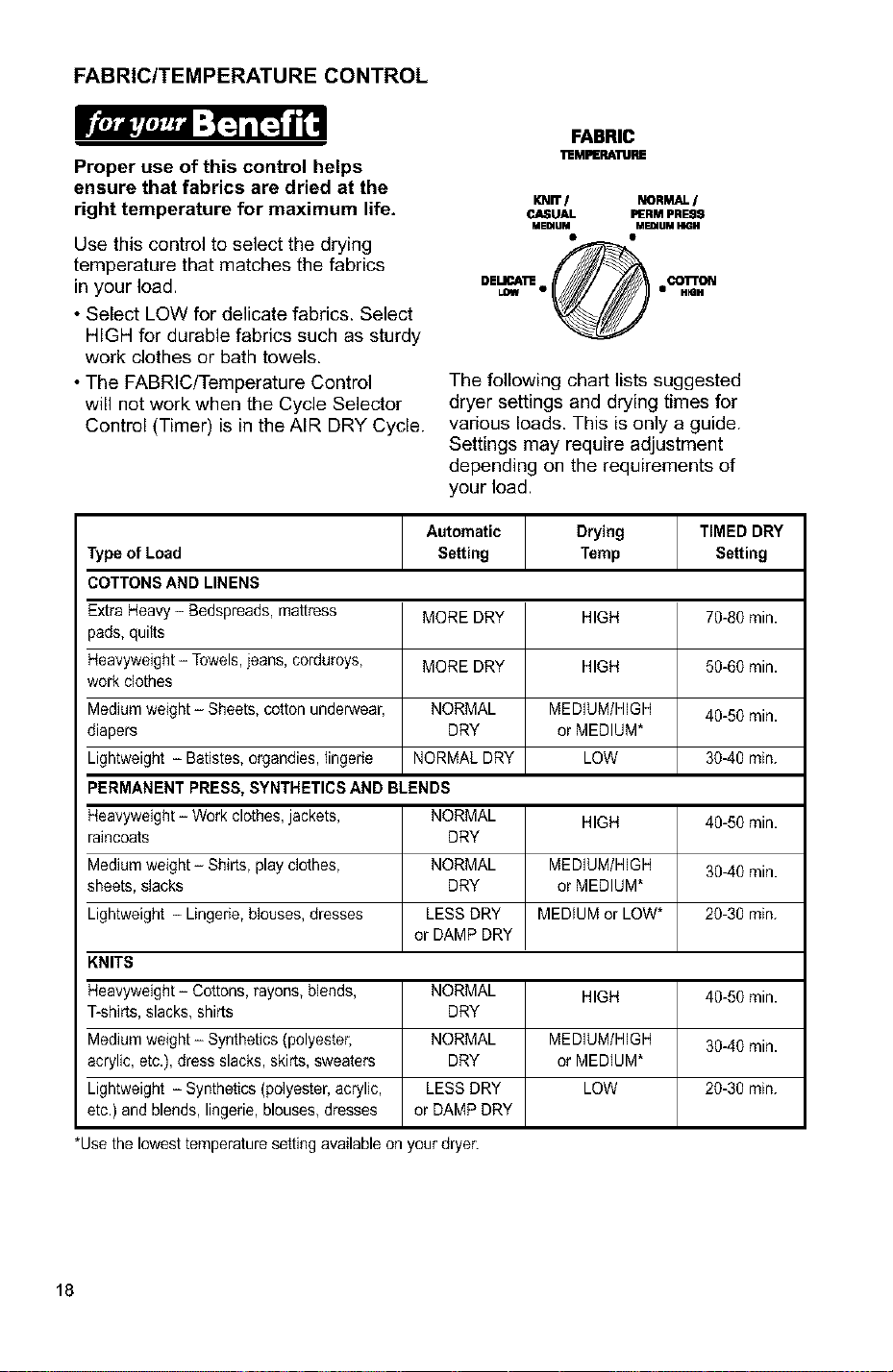

FABRIC/TEMPERATURE CONTROL
Proper use of this control helps
ensure that fabrics are dried at the
right temperature for maximum life.
Use this control to select the drying
temperature that matches the fabrics
in your load.
• Select LOW for delicate fabrics. Select
HIGH for durable fabrics such as sturdy
work clothes or bath towels.
• The FABRIC/Temperature Control
will not work when the Cycle Selector
Control (Timer) is in the AIR DRY Cycle.
FABRIC
11_MRERAI1BRE
_JiT I NORMAL /
C/_UAL FtERM PRESS
MEmUM MEDIUM HIGH
• HmH
The following chart lists suggested
dryer settings and drying times for
various loads. This is only a guide.
Settings may require adjustment
depending on the requirements of
your load.
Automatic Drying TIMED DRY
Type of Load Setting Temp Setting
COTTONS AND LINENS
Extra Heavy - Bedspreads, mattress MORE DRY HIGH 70-80 rain.
pads, quilts
Heavyweight - Towels, jeans, corduroys, MORE DRY HIGH 50-60 rain.
work clothes
Medium weight - Sheets, cotton underwear, NORMAL MEDIUM/HIGH 40-50 rain.
diapers DRY or MEDIUM*
Lightweight - Batistes, organdies, lingede NORMAL DRY LOW 3040 rain.
PERMANENT PRESS, SYNTHETICS AND BLENDS
Heavyweight - Work clothes, jackets, NORMAL HIGH 40-50 rain.
raincoats DRY
Medium weight - Shirts, play clothes, NORMAL MEDIUM/HIGH 3040 rain.
sheets, slacks DRY or MEDIUM*
Lightweight - Lingerie, blouses, dresses LESS DRY MEDIUM or LOW* 20-30 rain.
or DAMP DRY
KNITS
Heavyweight - Cottons, rayons, blends, NORMAL HIGH 40-50 rain.
T-shirts, slacks, shirts DRY
Medium weight - Synthetics (polyester, NORMAL MEDIUM/HIGH 3040 rain.
acrylic, etc.), dress slacks, skirts, sweaters DRY or MEDIUM*
Lightweight - Synthetics (polyester, acrylic, LESS DRY LOW 20-30 rain.
etc.) and blends, lingerie, blouses, dresses or DAMP DRY
*Use the lowest temperature setting available on your dryer.
18

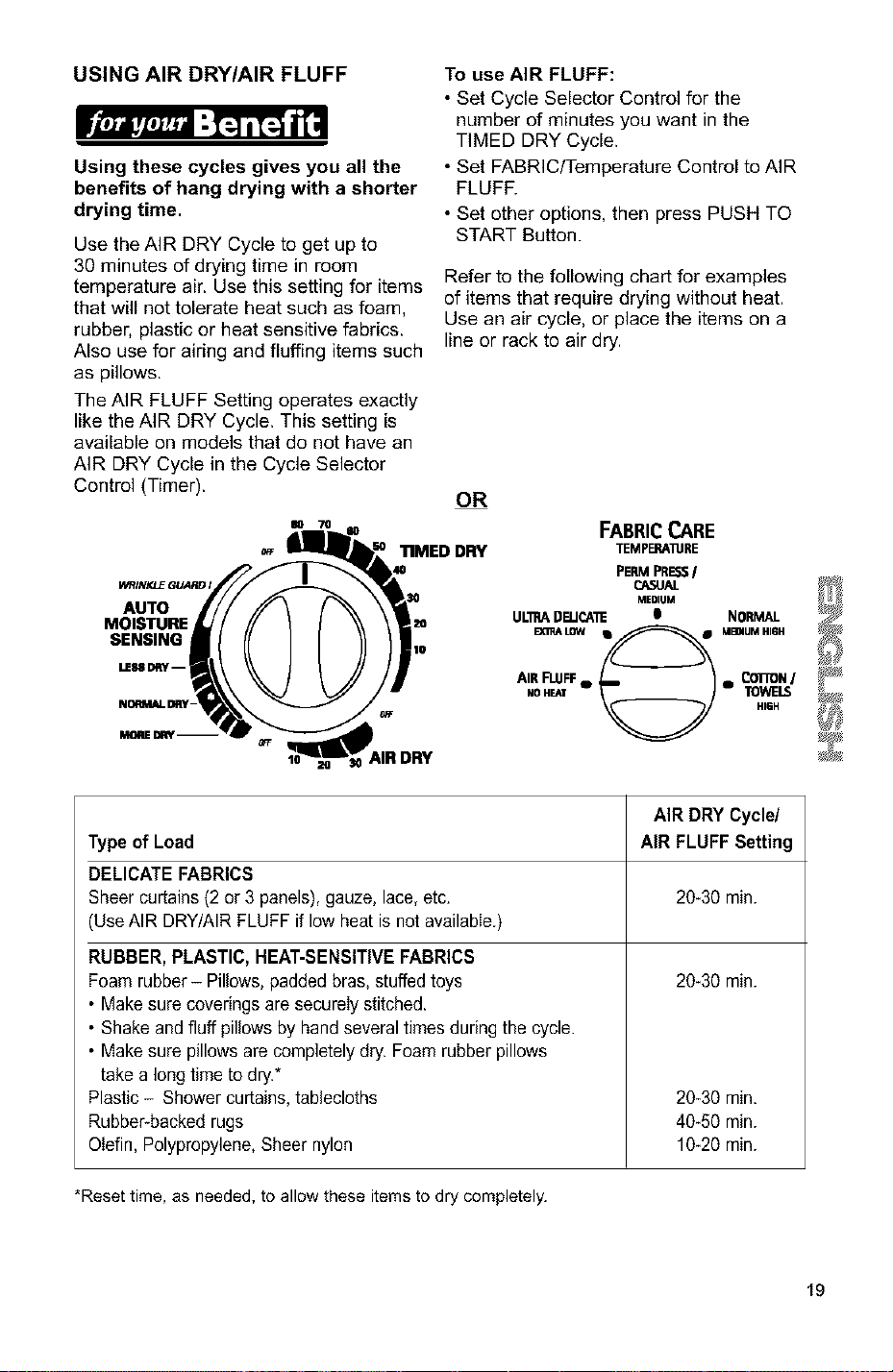

USING AIR DRY/AIR FLUFF
Using these cycles gives you all the
benefits of hang drying with a shorter
drying time.
Use the AIR DRY Cycle to get up to
30 minutes of drying time in room
temperature air. Use this setting for items
that will not tolerate heat such as foam,
rubber, plastic or heat sensitive fabrics.
Also use for airing and fluffing items such
as pillows.
The AIR FLUFF Setting operates exactly
like the AIR DRY Cycle. This setting is
available on models that do not have an
AIR DRY Cycle in the Cycle Selector
Control (Timer).
To use AIR FLUFF:
• Set Cycle Selector Control for the
number of minutes you want in the
TIMED DRY Cycle.
• Set FABRiC/Temperature Control to AIR
FLUFR
• Set other options, then press PUSH TO
START Button.
Refer to the following chart for examples
of items that require drying without heat.
Use an air cycle, or place the items on a
line or rack to air dry.
OR
FABRIC CARE
13MEDDRY TEMPERA]IJRE
PERMPRESS/
[_IINKLE GUARDI CASUAL
AUTO MEDIUM
MOISTURE UL'mADELICA'i'E e NORMAL
E(T_A LOW QQ_O MBDIUM HIGHSENSING
LIE88DRY--
AIR FLUFFe o COT[ON/
NO HE&T TOWELS
HIGH
MORE DRY
AIR DRY Cycle/
Typeof Load AiR FLUFF Setting
DELICATE FABRICS
Sheer curtains (2 or 3 panels), gauze, lace, etc. 20-30 min.
(Use AIR DRY/AIR FLUFF if low heat is not available.)
20-30 min.
RUBBER, PLASTIC, HEAT-SENSITIVE FABRICS
Foam rubber- Pillows, padded bras, stuffed toys
• Make sure coverings are secureiy stitched.
• Shake and fluff pillows by hand several times during the cycle.
• Make sure pillows are completely dry. Foam rubber pillows
take a long time to dry.*
Plastic - Shower curtains, tablecloths
Rubber-backed rugs
Otefin, Polypropylene, Sheer nylon
20-30 min.
40-50 min.
10-20 min.
*Reset time, as needed, to allow these items to dry completely.
19

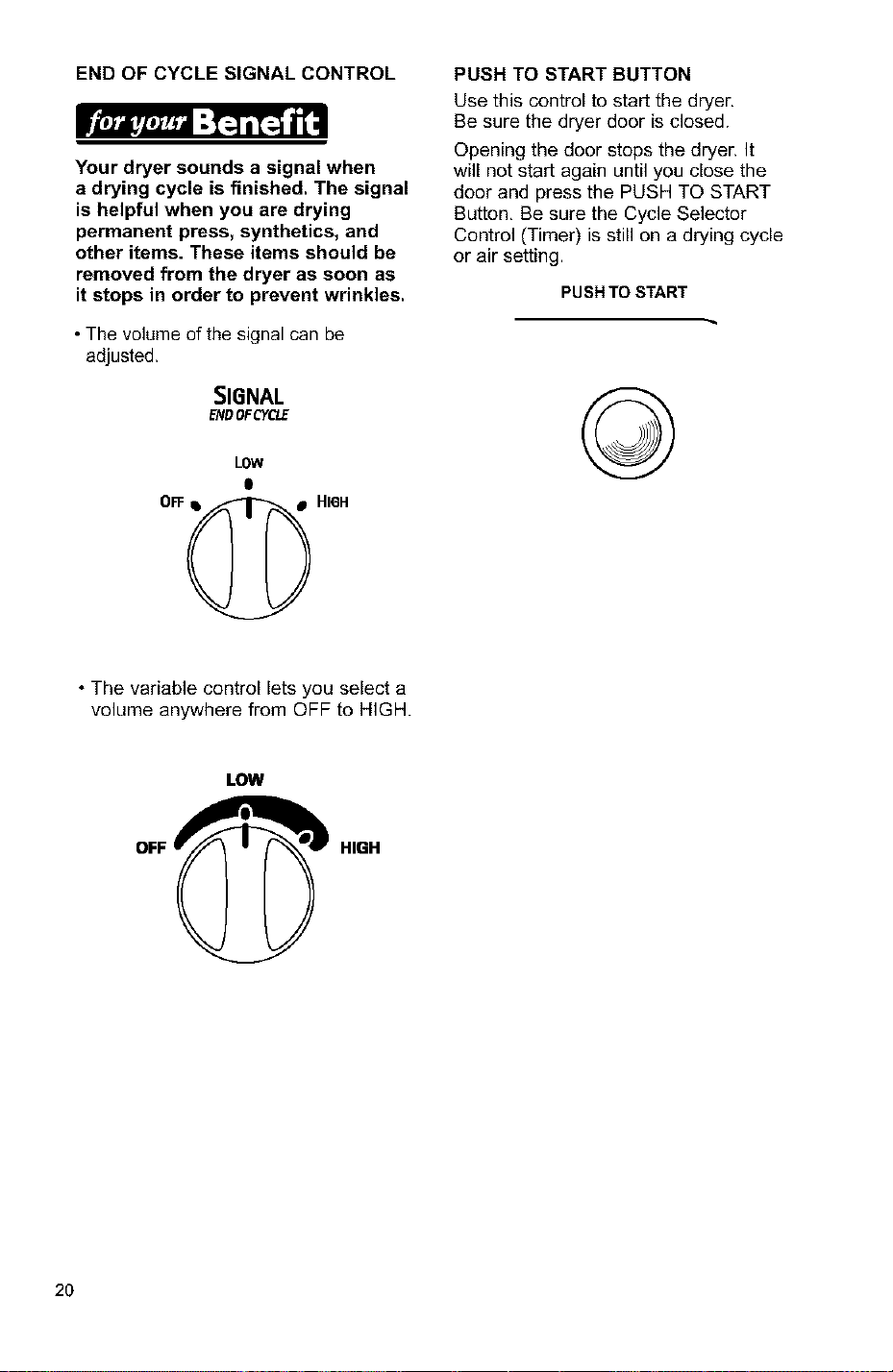

END OF CYCLE SIGNAL CONTROL
Your dryer sounds a signal when
a drying cycle is finished. The signal
is helpful when you are drying
permanent press, synthetics, and
other items. These items should be
removed from the dryer as soon as
it stops in order to prevent wrinkles.
• The volume of the signal can be
adjusted.
SIGNAL
ENDOFCYCLE
LOW
e
Off. HIGH
PUSH TO START BUTTON
Use this control to start the dryer.
Be sure the dryer door is closed.
Opening the door stops the dryer. It
will not start again until you close the
door and press the PUSH TO START
Button, Be sure the Cycle Selector
Control (Timer) is still on a drying cycle
or air setting.
PUSH TO START
• The variable control lets you select a
volume anywhere from OFF to HIGH
LOW
HIGH
20

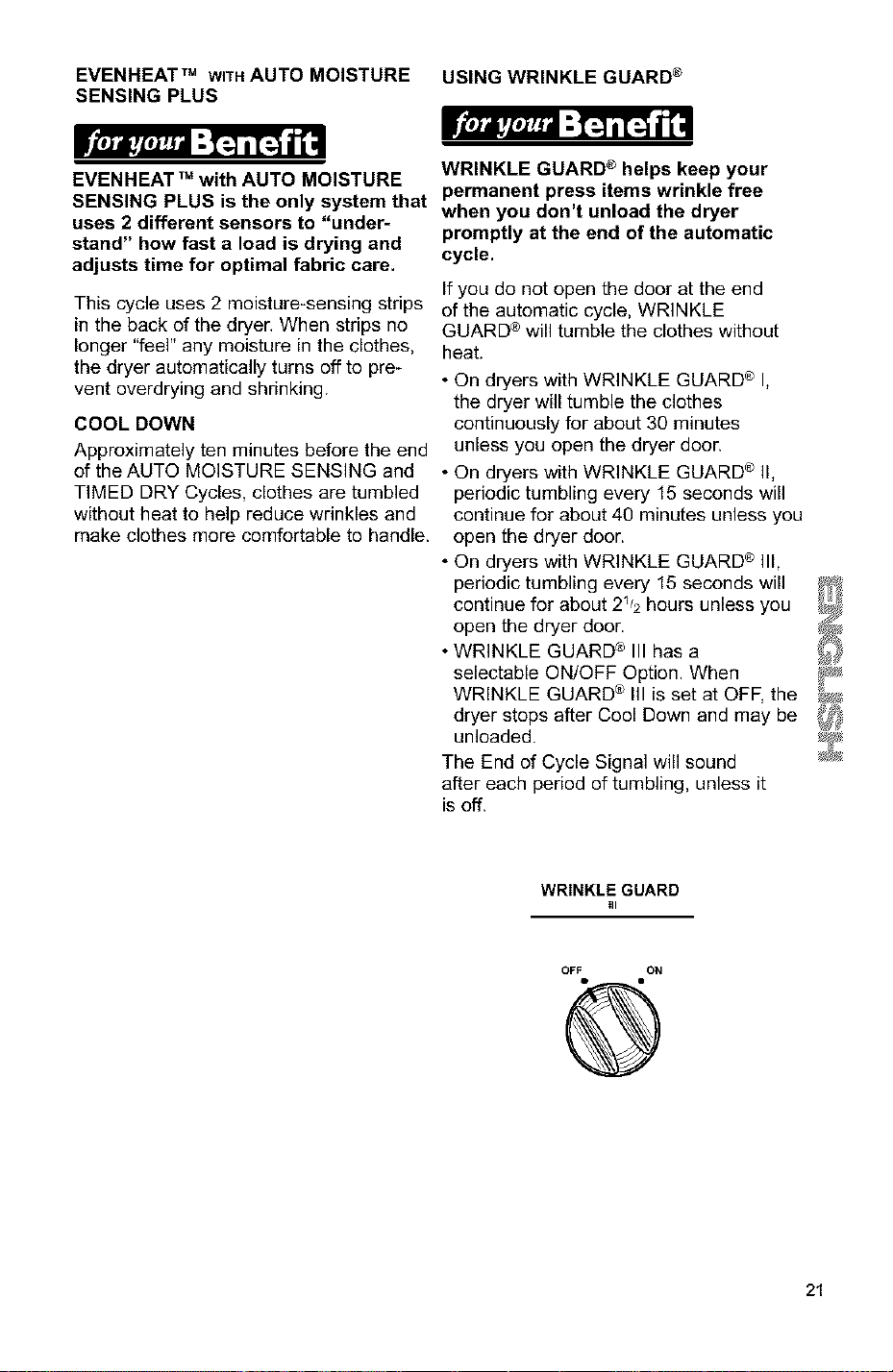

EVENHEAT TM WITHAUTO MOISTURE USING WRINKLE GUARD ®
SENSING PLUS
I:] 1 J[llq,
EVENHEAT TMwith AUTO MOISTURE
SENSING PLUS is the only system that
uses 2 different sensors to "under-
stand" how fast a load is drying and
adjusts time for optimal fabric care.
This cycle uses 2 moisture-sensing strips
in the back of the dryer, When strips no
longer "feel" any moisture in the clothes,
the dryer automatically turns off to pre-
vent overdrying and shrinking.
COOLDOWN
Approximately ten minutes before the end
of the AUTO MOISTURE SENSING and
TIMED DRY Cycles, clothes are tumbled
without heat to help reduce wrinkles and
make clothes more comfortable to handle.
WRINKLE GUARD ®helps keep your
permanent press items wrinkle free
when you don't unload the dryer
promptly at the end of the automatic
cycle.
If you do not open the door at the end
of the automatic cycle, WRINKLE
GUARD ®will tumble the clothes without
heat.
• On dryers with WRINKLE GUARD ® I,
the dryer will tumble the clothes
continuously for about 30 minutes
unless you open the dryer door.
• On dryers with WRINKLE GUARD ®II,
periodic tumbling every 15 seconds will
continue for about 40 minutes unless you
open the dryer door.
• On dryers with WRINKLE GUARD ®III,
periodic tumbling every 15 seconds will
continue for about 21/2hours unless you
open the dryer door.
• WRINKLE GUARD ® III has a
selectable ON/OFF Option. When
WRINKLE GUARD ® III is set at OFF, the
dryer stops after Cool Down and may be
unloaded.
The End of Cycle Signal will sound
after each period of tumbling, unless it
is off.
WRINKLE GUARD
OFF ON
@
21

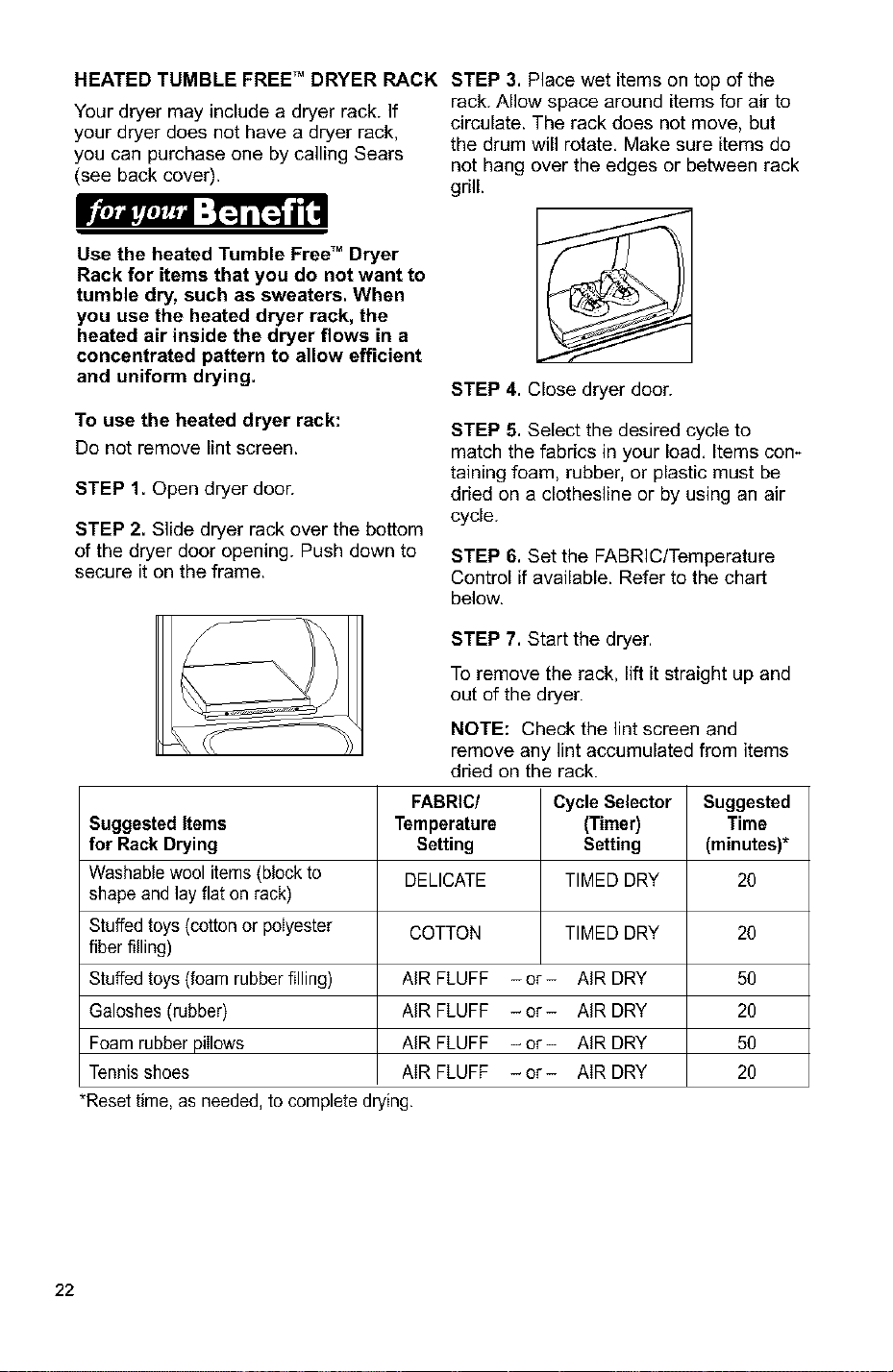

HEATED TUMBLE FREE TM DRYER RACK STEP 3. Place wet items on top of the
Your dryer may include a dryer rack. If
your dryer does not have a dryer rack,
you can purchase one by calling Sears
(see back cover).
Use the heated Tumble FreeTM Dryer
Rack for items that you do not want to
tumble dry, such as sweaters. When
you use the heated dryer rack, the
heated air inside the dryer flows in a
concentrated pattern to allow efficient
and uniform drying.
rack. Allow space around items for air to
circulate. The rack does not move, but
the drum will rotate, Make sure items do
not hang over the edges or between rack
grill.
STEP 4. Close dryer door.
To use the heated dryer rack:
Do not remove lint screen.
STEP 1. Open dryer door,
STEP 2. Slide dryer rack over the bottom
of the dryer door opening. Push down to
secure it on the frame.
STEP 5. Select the desired cycle to
match the fabrics in your load, Items con-
taining foam, rubber, or plastic must be
dried on a clothesline or by using an air
cycle.
STEP 6. Set the FABRIC/Temperature
Control if available. Refer to the chart
below.
STEP 7. Start the dryer.
To remove the rack, lift it straight up and
out of the dryer.
NOTE: Check the lint screen and
remove any lint accumulated from items
dried on the rack.
FABRIC/ Cycle Selector Suggested
Suggested Items Temperature (Timer) Time
for Rack Drying Setting Setting (minutes)*
Washable wool items (block to DELICATE TIMED DRY 20
shape and lay flat on rack)
Stuffed toys (cotton or polyester COTTON TIMED DRY 20
fiber filling)
Stuffed toys (foam rubber filling) AIR FLUFF -or- AIR DRY 50
Galoshes (rubber) AIR FLUFF -or- AIR DRY 20
Foam rubber pillows AIR FLUFF - or- AIR DRY 50
Tennis shoes AIR FLUFF -or- AIR DRY 20
*Reset time, as needed, to complete drying,
22
Follow these recommendations to help
save on utility bills and prolong the life
of your garments.
PREPARING CLOTHES
FOR DRYING
• Refer to your Washer Owner's Manual
for proper washing techniques and
additional laundry tips.
SORTING CLOTHES
CHOOSING LOAD SIZES
• Mix large items with small items,
Load the dryer by the amount of space
items take up, not by their weight. Do
not overload the dryer, Overcrowding
causes uneven drying and wrinkling,
and can cause items to wear out faster
(because of pilling).
• You may need to rearrange large items
(sheets, blankets, tablecloths) during
a cycle to reduce bailing or rolling up.
• For better tumbling action, when drying
only a few small items, add one or two
lint4ree towels, This also prevents small
lightweight items from blocking airflow.
• Separate dark colors from light colors;
colorfast from non-colorfast. Items
properly sorted by color for washing
are usually properly sorted for drying.
• Separate heavy fabrics (denim,
towels) from light fabrics (synthetics,
permanent press),
• Separate lint givers (towels, chenille)
from lint takers (corduroy, synthetics,
permanent press), When possible,
turn lint takers inside out.
KING SIZE CAPACITY DRYERS
Heavy Work
Clothes
4 jeans
4 workpants
4 workshirts
2 sweatshirts
2 sweatpants
Towels MixedLoad
10 bath towels 3 sheets
10 hand towels (1 king, 2 twin)
14 wash cloths 4 pillowcases
3 shirts
3 blouses
9 T-shirts
9 shorts
10 handkerchiefs
23

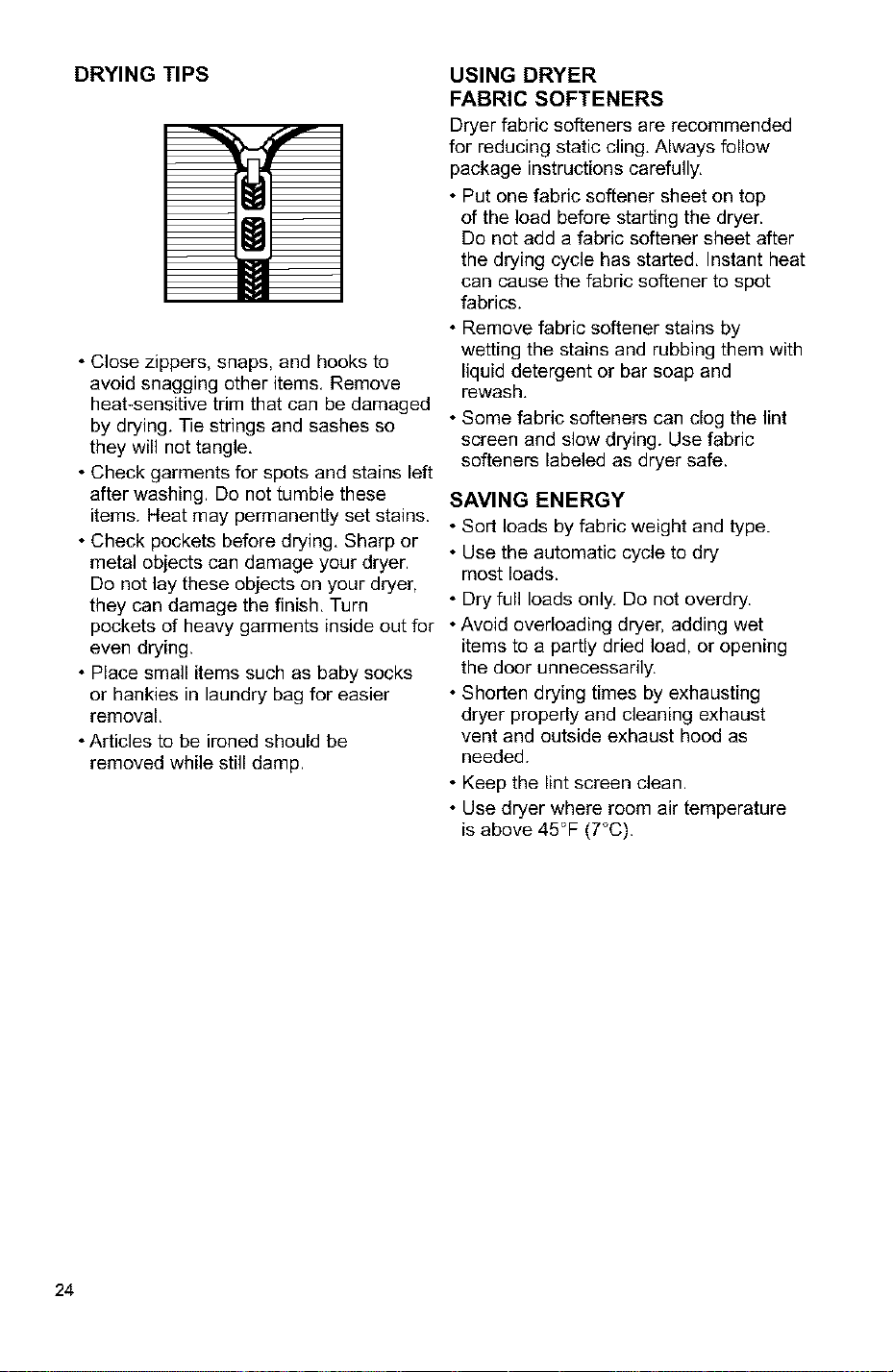

DRYING TIPS
• Close zippers, snaps, and hooks to
avoid snagging other items. Remove
heat-sensitive trim that can be damaged
by drying. Tie strings and sashes so
they will not tangle.
• Check garments for spots and stains left
after washing. Do not tumble these
items. Heat may permanently set stains.
• Check pockets before drying. Sharp or
metal objects can damage your dryer.
Do not lay these objects on your dryer,
they can damage the finish. Turn
pockets of heavy garments inside out for
even drying.
• Place small items such as baby socks
or hankies in laundry bag for easier
removal.
• Articles to be ironed should be
removed while still damp.
USING DRYER
FABRIC SOFTENERS
Dryer fabric softeners are recommended
for reducing static cling. Always follow
package instructions carefully.
• Put one fabric softener sheet on top
of the load before starting the dryer.
De not add a fabric softener sheet after
the drying cycle has started. Instant heat
can cause the fabric softener to spot
fabrics.
• Remove fabric softener stains by
wetting the stains and rubbing them with
liquid detergent or bar soap and
rewash.
• Some fabric softeners can clog the lint
screen and slow drying. Use fabric
softeners labeled as dryer safe.
SAVING ENERGY
• Sort loads by fabric weight and type.
• Use the automatic cycle to dry
most loads.
• Dry full loads only. Do not overdry.
• Avoid overloading dryer, adding wet
items to a partly dried load, or opening
the door unnecessarily.
• Shorten drying times by exhausting
dryer properly and cleaning exhaust
vent and outside exhaust hood as
needed.
• Keep the lint screen clean.
• Use dryer where room air temperature
is above 45°F (7°C).
24

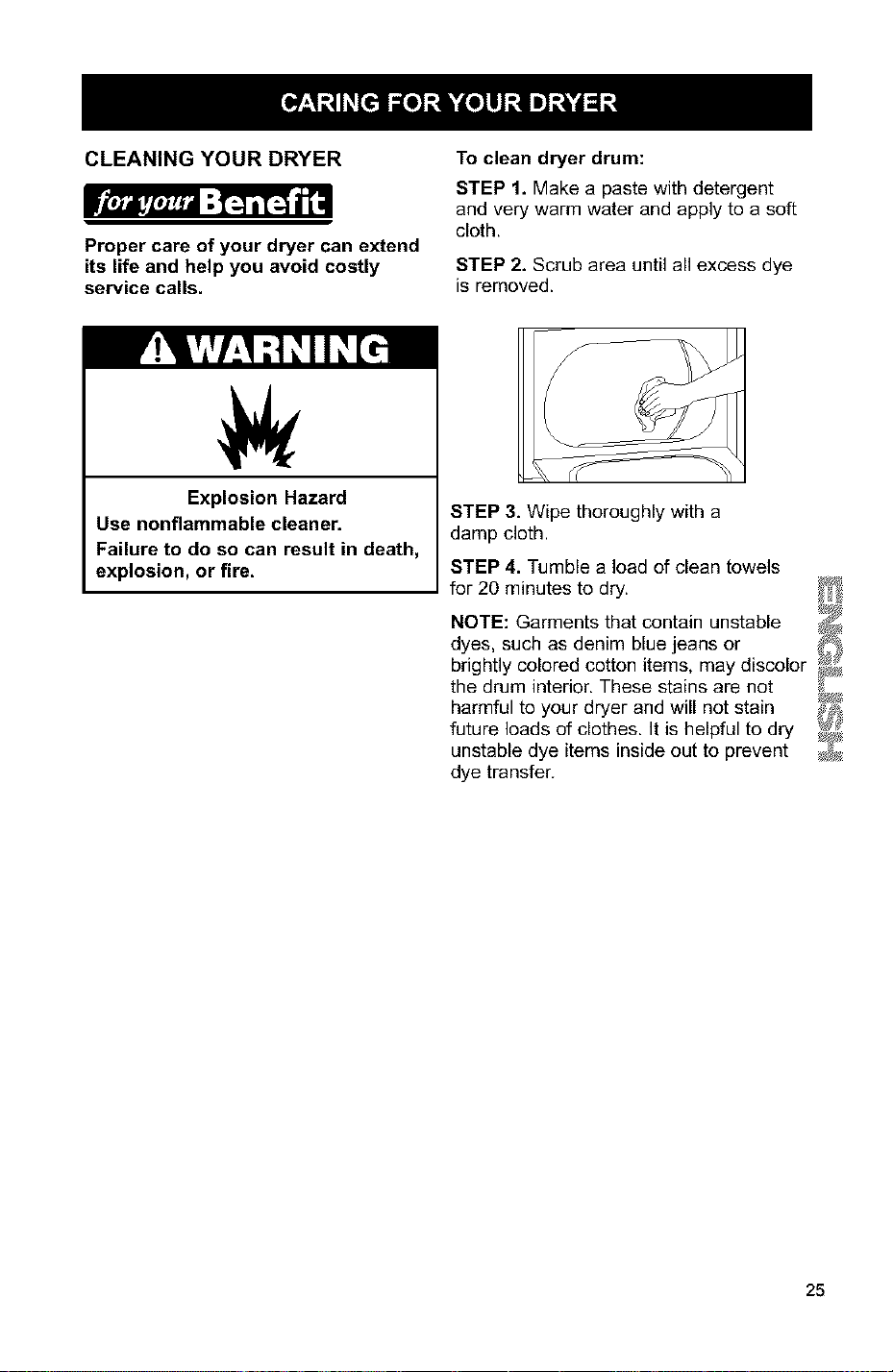

CLEANING YOUR DRYER
Proper care of your dryer can extend
its life and help you avoid costly
service calls.
To clean dryer drum:
STEP 1. Make a paste with detergent
and very warm water and apply to a soft
cloth.
STEP 2. Scrub area until all excess dye
is removed.
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death,
explosion, or fire.
STEP 3. Wipe thoroughly with a
damp cloth.
STEP 4. Tumble a load of clean towels
for 20 minutes to dry, _
NOTE: Garments that contain unstable _4_
dyes, such as denim blue jeans or _
brightly colored cotton items, may discolor
the drum interior. These stains are not _
harmful to your dryer and will not stain
future loads of clothes. It is helpful to dry
unstable dye items inside out to prevent
dye transfer.
25
CLEANING THE LINT SCREEN
Remove Lint Before Every Load
The lintscreen is located in the door
opening. Remove lint before starting
every load. A screen blocked by lint can
increase drying time.
To clean:
STEP 1. Pull the lint screen straight up.
Wash Lint Screen As Needed
Laundry detergents and fabric soft-
eners can cause a residue buildup on
the lint screen.
Wash the lint secreen with a nylon
brush if it becomes clogged due to
residure buildup.
To wash:
STEP 1. Wet both sides of lint screen
with hot water.
STEP 2. Wet a nylon brush with hot
water and liquid detergent; scrub lint
screen with the brush to remove
residue buildup.
STEP 2. Roll lint off the screen with your
fingers, Do not rinse or wash screen to
remove lint. Wet lint is hard to remove.
STEP 3. Rinse screen with hot water.
STEP 4. Thoroughly dry lint screen
with a clean towel; replace in dryer.
STEP 3. Push the lint screen firmly back
into place.
IMPORTANT:
• Do not run the dryer with the lint screen
loose, damaged, blocked, or missing,
Doing so can cause overheating and
damage to both the dryer and fabrics,
• Some towels made of synthetic fibers
and natural fibers (polyester and cotton
blends) may shed more lint than other
towels, causing your dryer's lint screen
to fill up faster. Be sure to remove lint
from the lint screen before and after
drying new towels.
• If lint falls off the screen during removal
and into the dryer, periodically check the
exhaust hood and remove the accumu-
lated lint (see "Venting Requirements").
26
REMOVING ACCUMULATED LINT
To remove accumulated lint from
exhaust vent:
STEP 1. Disconnect exhaust vent from
the dryer.
STEP 2. Clean one section of vent at
a time until you reach the exhaust hood.
To clean out lint, you can use the hose
attachment on your vacuum, or use a
pole or wire with a feather duster or rag
attached.
STEP 3. Reconnect vent as described
in the "Installation Instructions" of this
Owner's Manual.
-I
To remove accumulated lint from
inside the dryer:
Lint should be removed every 2 years, or
more often, depending on dryer usage,
Cleaning should be done by a qualified
person.
MOVING CARE
• Disconnect power.
• Close shut*off valve in gas supply line.
• Disconnect gas supply line pipe and
remove fittings attached to dryer pipe.
• Cap the open fuel supply line.
• Make sure leveling legs are secure
in dryer base.
• Use masking tape to secure dryer door.
VACATION CARE
• Disconnect power.
• Close shut*off valve in gas supply line.
• Wash lint screen.
27
TO CHANGE DRUM LIGHT
The dryer light automatically turns on
inside the dryer drum when you open the
door.
To change the drum light
STEP 1. Unplug dryer or disconnect
power.
STEP 2, Open the dryer door. Locate the
light bulb cover on the back wall of the
dryer, Remove the screw located in the
lower right corner of the cover. Remove
the cover.
STEP 3. Turn bulb couterclockwise.
Replace the bulb with a 10-watt appli-
ance bulb only. Replace the cover and
secure with the screw.
STEP 4. Plug in dryer or reconnect
power.
28
Most laundering problems are easily solved if you understand the cause. Using
the charts below will save you time and money by helping you avoid unneces-
sary service calls,
Problem Possible Cause Solution
Not Drying Lint screen is clogged with lint. Clean lint screen.
Satisfactorily Restricted air movement. Run dryer for 5-10 minutes. Hold
Exhaust vent or outside exhaust hand under outside exhaust hood to
hood is clogged with lint. check air movement. If you do not feel
air moving, clean exhaust system of
lint or replace exhaust vent with rigid
metal or flexible metal vent (see
"Installation Instructions").
Exhaust vent is crushed Replace with rigid metal or
or kinked, flexible metal vent (see "installation
Instructions").
Gas valve on supply line Open all valves.
is closed.
Timer or the temperature Select the right cycle for the types
control is set on AIR DRY of garments being dried (see
orAIR FLUFR "Operating Your Dryer").
Load not contacting the Level dryer (see "Installation
sensor strips and automatic Instructions").
cycle ending early.
Fabric softener sheets Use only one softener sheet per load
blocking outlet grill, and only use it once.
Dryer located in room with Move dryer where it can operate in
temperature below 45°F (7°C). ambient air temperatures above
45°F (7°0).
Large amount of moisture Expect longer dry times with items
in the load. that hold more moisture (cottons).
Cold rinse water used. Expect longer dry times, but you are
saving energy and reducing wrinkles.
Load too large and bulky Separate load to tumble freely.
to dry quickly.
Dryer Will Power cord not firmly Plug into a grounded 3 prong outlet.
Not Run pIugged in.
Fuse blown or circuit Replace fuse or reset breakers.
breaker tripped.
29
Problem Possible Cause Solution
Dryer Will Using a regular fuse. Replace with a time-delay fuse.
Not Run Dryer door notfirmly closed. Close dryer door tightly.
(cont'd)
PUSH TO START Button Press PUSH TO START Button again.
net firmlypressed.
Controls net set in an Reset controls in an ON position.
ON position.
Lint in Load Lint screen is clogged. Clean lint screen.Checkfor air
movement.
improper sorting. Sort lint givers from lint takers
and by color.
Load is too big or heavy. Dry smaller loads so lint can be
carried to the lint screen.
Load is overdried, Use correct dryer settings for fabric.
Overdrying can cause lint-attracting
static (see "Operating Your Dryer").
Paper or tissue in pockets. Clean out pockets before drying.
Pilling being mistaken for lint. Pilling (surface fuzz) is caused by
normal wear and laundering.
Stains on Load improper use of fabric softener Use fabric softener sheets in dryer. Add
in washer, at beginning of cycte when load is cold.
Drying soiled items, items need to be clean before
being dried.
Items Overdrying. Match dryer settings to fabric type
Shrinking (see "Operating Your Dryer").
Poor garment quality. Check quality of garment before
purchasing.
Manufacturer's care label Follow fabric care label instructions
instructions not followed, carefully.
Loads are Overloading. Dry smaller loads that can tumble freely.
Wrinkled Overdrying. Match dryer settings to fabric type
(see "Operating Your Dryer").
Load left in dryer at the Remove load as soon as tumbling
end of cycle, stops.
Odors Painting, staining or varnishing Ventilate the area. When the odors or
has recently taken place in the fumes are gone from the area, rewash
area where your dryer is located, the clothing and then dry it.
Gas Leak Turn off gas supply line. Leave your
house, then call your local gas
company.
Unusual Clicking (Gas Dryers) - Normal operation.
Sounds gas valve clicking.
Thumping of rollers when Thump will go away after 5 minutes
dryer has had a period of of drying.
non-use.
3O
YourpurchasehasaddedvaluebecauseyoucandependonSearsHomeCentral®
forservice,Withover12,000trainedrepairspecialistsandaccesstoover4,2million
partsandaccessories,wehavethetools,parts,knowledgeand skills to ensure our
pledge: We Service What We Sell.
Sears Maintenance Agreements
Your Kenmore appliance is designed, manufactured and tested to provide years of
dependable operation. Yet any major appliance may require service from time to time.
The Sears Maintenance Agreement offers you an outstanding service program,
affordably priced.
The Sears Maintenance Agreement
• Is your way to buy tomorrow's service at today's prices.
• Eliminates repair bills resulting from normal wear and tear.
• Provides for non-technical and instructional assistance,
• Even if you don't need repairs, provides an annual Preventive Maintenance Check,
at your request, to ensure that your appliance is in proper running condition.
Some limitations apply. For more information, call 1-800-827-6655
For information concerning Sears Canada Maintenance Agreements,
call 1-800-361-6665.
31
32
Forrepairof majorbrandappliancesin your own home...
nomatterwho made it,nomatterwhosoldit]
1-800-4-MY-HOME _ /_idm__,or n_ht
(1-800.469-4663) (U.S.A. and Canada)
II_INW,,laMLI=om II_II_W,SUlIlt_8
For repair of camj-inproducts likevacuums, lawn equipment,and
electronics,callfor the nearest Sears Parts and Repair Center.
1-800-488-1222 /_/ane,dayorright(U.S.A.on_
wwwJem'ikconl
Forthe replacement paris, accessories and owner'smanuals
that youneedto do-it-yourself,callSeam PartsDirectSM!
1-800-366-PART 6a.m.-11p.m.,7daysaweek
(1-800-366-7278) (U.S.A. only)
__rect
To purchase or inquireabout a Sears ServiceAgreement
orSearsMaintenance Agreement:
1-800-827-6655 (u.s.A.) 1-800-361-6665 (Canada)
7 a.m.- 5p.m.,CST,Mort.- Sat.
Parapetit serviciodemparaddn a AuCanada poursePi.ceen fTaJT;ab:
domiciio,y para ordenarpiezas; 1.Q00.LE,.FOYBqMC
1"888"SU'H_ sM (1-800-533-6937)
(1...888-784,.6427) w',_v.sea's.ca
[ 8F.AR8
HomeCentral®
