Inst cti n heet
for Mid-South ice Maker Conversion to Whirlpool 8 Cube ice Maker
Kit Contains:
1 Module Cover WI0460384
1 Switch 2313326
1 Harness WI0532397
1 8 Cube ice Maker WI0377149
I tmpinger WI0121269
3 Screws 12990511
I Shut OffArm WI0378254
1 Shut OffArm Extension W!035!0!9
1 Fill Cup insert WI0372171
1 instruction Sheet W104 7 7 2 2 9
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death
or electrical shock.
1. Unplug refrigerator or disconnect power.
2. Remove module cover from new ice maker and discard.
See Figure 1.
FIGURE!
5. Remove ice bin by depressing push button on side of ice
bin cover. Pull ice bin upward and slide out of ice box
compartment. See Figure 3.
3. Remove plastic mounting bracket and discard but save the
screw for use later. See Figure 1.
4. Turn ice maker over and reposition the clip closer to
module without damaging heater. See Figures 1 and 2.
NOTE: it is important to have clip repositioned to place thermal
fuse safely.
FIGURE2
6.
FIGURE3
Depress the tab holding the harness cover and slide cover
forward. See Figure 4.
RGURE4

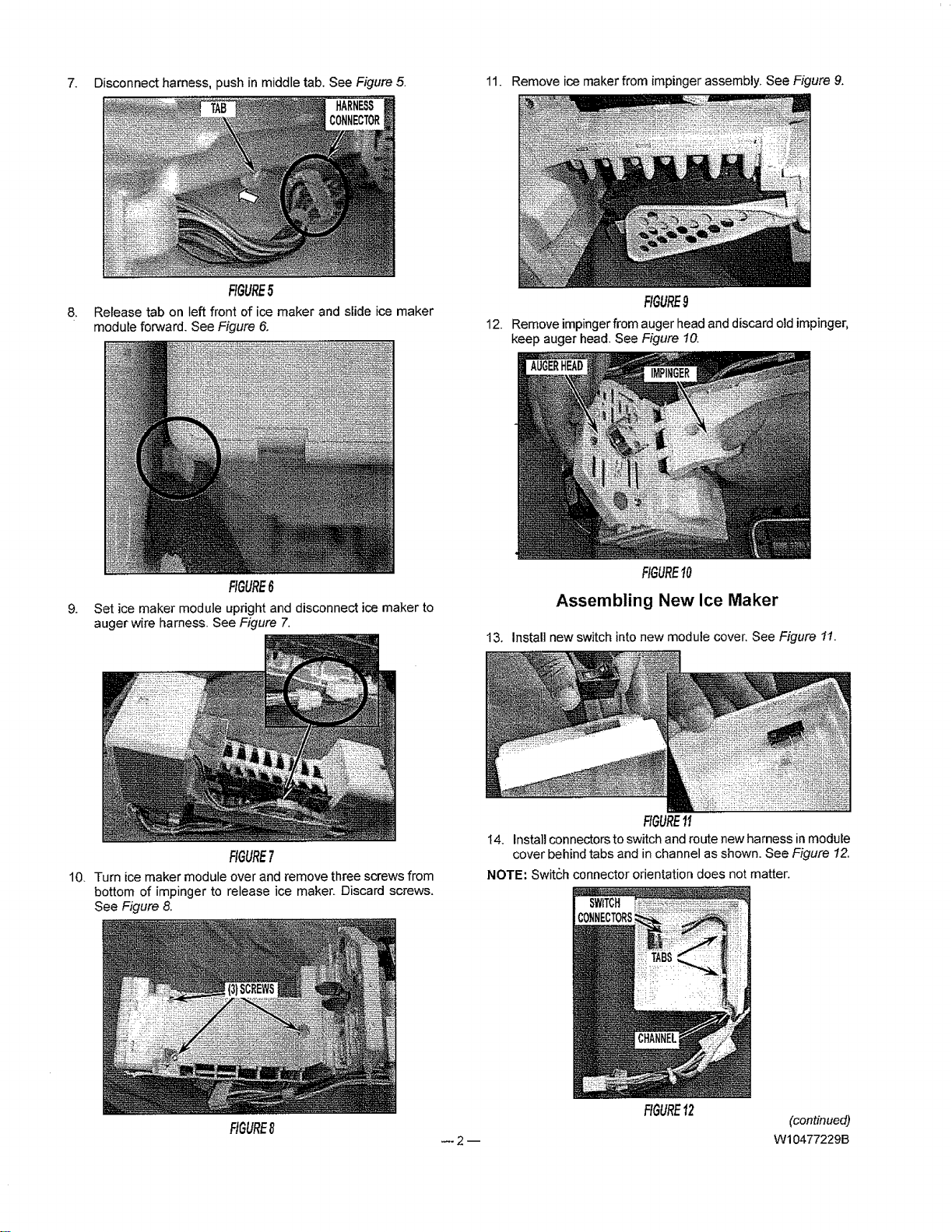

(continued)
instruction Sheet W10477229 Rev B 9/12 1
