Installation Instructions
36-3/4”-38” High Countertop Kit
Tools Required:
#2 Phillips screw driver
1 7/16” Adjustable wrench
Installing the Kit for Slide-In Ranges
The 4 extended leveling leg assemblies consist of the washer, leg spacers, modified plastic leg
levelers and the metal leg levelers.
A
A1
Prepare the location for the range by following the InstallationInstructions for a Slide-In Range.
A2
A3
Parts Suppled:
4 Modified Plastic Leg Levelers
4 Leg spacers
4 Washers
4 Metal Leg Levelers
2 Screws
1 Toe Plate
The following is the order of assembly:
Then follow the Slide-In Installation Instructions for proper installation of the range.
Pub. No. 31-10449
229C4053P432
Install the Toe Plate
B
B1

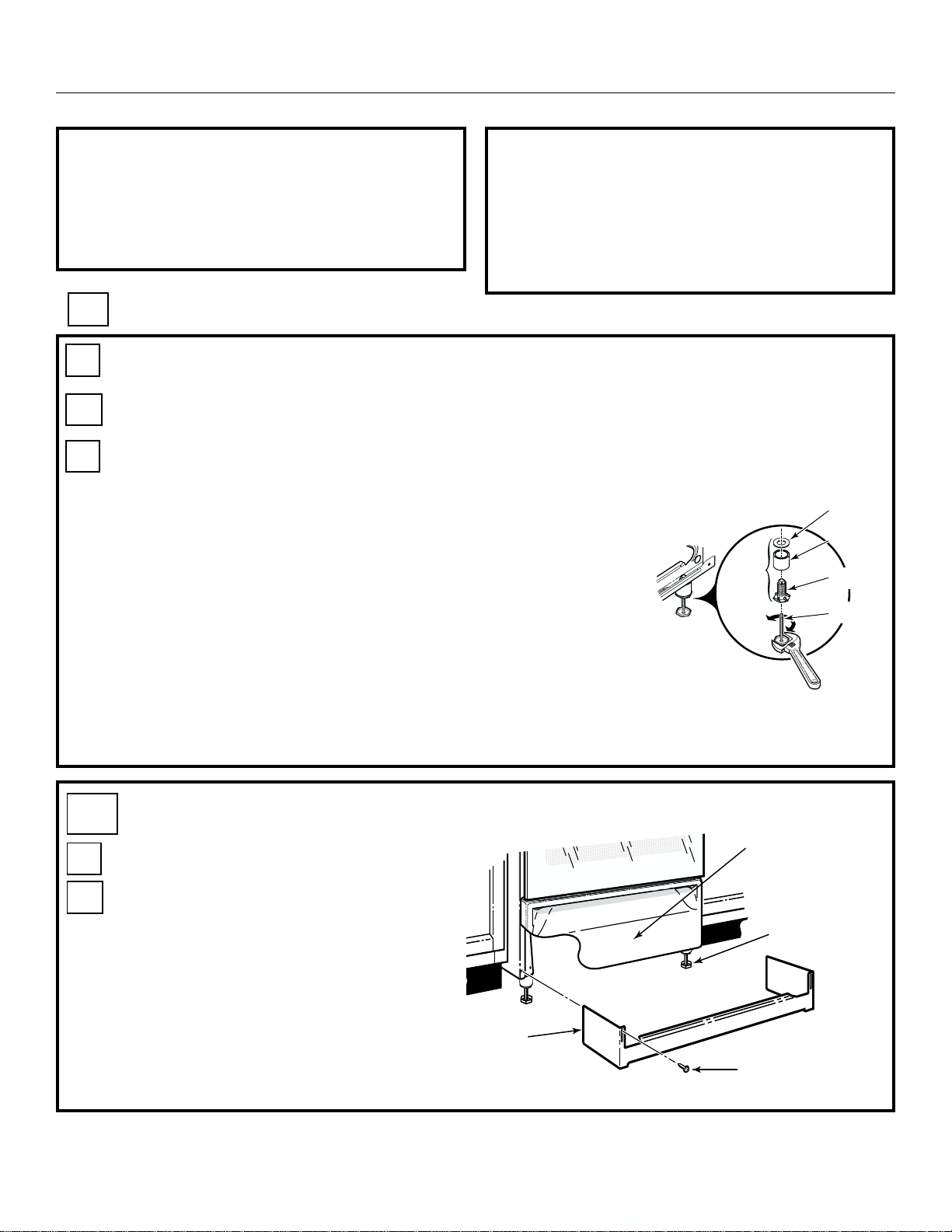

Put the toe plate in place.
B2
Secure the toe plates in place using the
two screws supplied in the kit.
a. Place the plastic leg leveler supplied in the kit through the hole in the
plastic leg spacer followed by the metal washer.
b. Remove the 4 existing leg levelers and replace with the 4
assemblies in (a).
c. With the adjustable wrench, slightly over hand tighten the
assemblies into the range base assembly.
d. Screw the metal leg levelers into the tapped holes in the end of the
plastic leg levelers.
e. Adjust the levelers so the glass and support flanges of the cooktop
clear the countertop.
2-SCREW
( 1-EACH SIDE )
TOE PLATE
ADJUST LEG LEVELER
HEIGHT, FRONT
& REAR
REMOVE STORAGE
DRAWER
Adjust
Range
Height
Tighten
This
Assembly
Washer
Spacer
Plastic
Leg Leveler
Metal
Leg Leveler
