De’Longhi Dishwasher
USER GUIDE
Please read this user guide carefully and retain for future reference
Model
DEDW6112S
Contents
Page 2
Parts and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
De’Longhi Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . 04
Dishwasher Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 05
Installation Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 07
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08
- Positioning the Appliance
- Levelling
- Cold Water Connection
- Drain Hose Connection
Using your Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
- Quick start guide
- Before Starting the Dishwasher
- Prior to using for the first time
- Rinse aid & detergent
- Loading the Dishwasher Baskets
- Adjusting the Upper Basket
- Starting a Washing Program
- Control Panel
- Turning on the Appliance
- Change the Program
- Forget to add a Dish?
- At the end of the Wash Cycle
Care and Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
- Filtering System
- Filter Assembly
- Cleaning the Filter
- Caring for the Dishwasher
- Protect against Freezing
- Cleaning the Spray Arms
- How to keep your Dishwasher in shape
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Help us Help You. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Parts and Features
Page 3
Model: DEDW6112S
Dimensions:
Height 845mm
Width 598mm
Depth 600mm (with door closed)
Voltage connected Load: see rating label
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 12 place settings
Components:
1. Cup Shelf 7. Inner Pipe
2. Upper Basket 8. Cutlery Basket
3. Top Spray Arm 9. Filter Assembly
4. Lower Basket 10. Water Inlet
5. Lower Spray Arm 11. Drain Pipe
6. Dispenser
11
10
5
9
8
6
0
0
(
w
i
th t
he d
oo
r clo
s
e
d
)
845
11
7
5
1
2
4
3
6
5
8
9
7
Page 4
De’Longhi’s Safety Precautions
De’Longhi pride themselves on their innovative range
of the highest quality consumer products.
De’Longhi ensures all of its products are 100% safe
through quality design and manufacture. All products
meet or exceed stringent laboratory-tested safety
requirements.
It is necessary for anyone using an electrical appliance
to be safety conscious. The following precautions are
essential for the safe use of an electrical appliance.
Carefully read all of the instructions provided with your
appliance:
Always turn the power off at the power outlet before
Ÿ
you insert or remove a plug. Remove by grasping
the plug, do not pull on the cord.
Always use your appliance from a power outlet of
Ÿ
the voltage (A.C. only) marked on the appliance.
Do not use an appliance for any purpose other than
Ÿ
its intended use.
Do not attempt to repair an electrical appliance.
Ÿ
Return a damaged or malfunctioning appliance to a
qualified service centre for adjustment or repair if
required.
The appliance must be positioned so the AC plug is
Ÿ
accessible.
This appliance is designed exclusively for
Ÿ
household use. All other uses are strictly forbidden.
The appliance is not intended for use by persons
Ÿ
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
If the power cable is damaged, it must be replaced
Ÿ
by the manufacturer, an authorised service centre
or a qualified electrician in order to eliminate all risk.
This appliance is intended to be used in household
Ÿ
and similar applications such as:
- staff kitchen areas in shops, offices and other
working environments;
- farm houses;
- by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments.
Page 5
Dishwasher Safety Precautions
DANGER
WARNING
CAUTION
Your safety and the safety of others is very important.
Safety messages are displayed in this manual and on
your appliance.
Read and obey these safety messages as they will alert
you to potential hazards and tell you how to reduce the
chance of injury.
Safety Alert Symbol
This symbol alerts you to potential hazards.
Danger
Danger indicates a high level of risk to yourself and others.
Ensure that care is taken to avoid severe injury or even
death.
Warning
Warning indicates a moderate level of risk to yourself, others
and the product. Ensure that care is taken to avoid extensive
product damage or serious injury.
Caution
Caution indicates a level of risk to yourself, others and the
product. Ensure care is taken to avoid moderate product
damage or injuries.
Page 6
Dishwasher Safety Precautions
Before the appliance is used, it must
be properly positioned and installed
as described in this manual, so read
the manual carefully. To reduce the
risk of fire, electrical shock or injury
when using the appliance, follow
basic precaution, including the
following:
DANGER
WARNING
Grounding Instructions
This appliance must be grounded. In the event of a
Ÿ
malfunction or breakdown, grounding will reduce
the risk of an electric shock by providing a path of
least resistance of electric current. This appliance is
equipped with a cord having an equipment-
grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with all
local codes and ordinances.
Improper connection of the equipment-grounding
Ÿ
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
Ÿ
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
When using your dishwasher, you should prevent
Ÿ
plastic items from coming into contact with the
heating element (This instruction is only applicable
to machines with a visual heating element).
Do not wash plastic items unless they are marked
Ÿ
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for
Ÿ
an automatic dishwasher.
Never use soap, laundry detergent, or hand
Ÿ
washing detergent in your dishwasher. Keep these
products out of the reach of children.
Keep children away from detergent and rinse aid,
Ÿ
keep children away from the open door of the
dishwasher, there could still be some detergent left
inside.
This appliance is not intended for use by persons
Ÿ
(including children )with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
Ÿ
do not play with the appliance.
Dishwasher detergents are strongly alkaline, they
Ÿ
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
The door should not be left open, since this could
Ÿ
increase the risk of tripping.
If the supply cord is damaged, it must be replaced
Ÿ
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
Remove the door to the washing compartment
Ÿ
when removing an old dishwasher from service or
discarding it.
Please dispose of packing materials properly.
Ÿ
Use the dishwasher only for its intended function.
Ÿ
During installation, the power supply must not be
Ÿ
excessively or dangerously bent or flattened.
Do not tamper with controls.
Ÿ
The appliance is to be connected to the water
Ÿ
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
Ÿ
washed is 12.
The maximum permissible inlet water pressure is
Ÿ
1Mpa.
The minimum permissible inlet water pressure is
Ÿ
0.04Mpa.
WARNING
Do not abuse, sit on, or stand on the door or dish
Ÿ
rack of the dishwasher.
Do not touch the heating element during or
Ÿ
immediately after use. (This instruction is only
applicable to machines with a visual heating
element.)
Do not operate your dishwasher unless all
Ÿ
enclosure panels are properly in place. Open the
door very carefully if the dishwasher is operating,
there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
Ÿ
door when it is open. The appliance could tip
forward.
When loading items to be washed:
Ÿ
1. Locate sharp items so that they are not likely to
damage the door seal;
2. Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points down or placed in a horizontal position.
Check that the detergent compartment is empty
Ÿ
after completion of the wash cycle.
Page 7
Installation Safety Precautions
Electrical Connection
This appliance should be properly grounded for
Ÿ
your safety. The power cord of this appliance is
equipped with a three-prong plug which mates
with standard three prong wall outlets to minimise
the possibility of electrical shock.
DO NOT UNDER ANY CIRCUMSTANCES CUT
Ÿ
OR REMOVE THE EARTHING CONNECTION
FROM THE POWER CORD SUPPLIED. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
Please look at the rating label to know the rating
Ÿ
voltage and connect the dishwasher to the
appropriate power supply. Use the required fuse
10 amp, time delay fuse or circuit breaker
recommended and provide separate circuit
serving only this appliance.
Ensure the voltage and frequency of the power
Ÿ
being used corresponds to those on the rating
plate. Only insert the plug into an electrical socket
which is earthed properly. If the electrical socket to
which the appliance must be connected is not
appropriate for the plug , replace the socket, rather
than using a adaptors or the like as they could
cause overheating and burns.
The cord should be secured behind the appliance
Ÿ
and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its
Ÿ
own individual electrical outlet which has a voltage
rating that matches the rating label on the
appliance. This provides the best performance and
also prevent overloading house wiring circuits that
could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord.
Always grip the plug firmly and pull straight out
from the receptacle. Repair or replace immediately
all power cords that have become frayed or
otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length or at
either end. When moving the appliance, be careful
not to damage the power cord.
Extension Cord
WARNING: DO NOT USE AN EXTENSION CORD
Ÿ
OR AN ADAPTER PLUG WITH THIS APPLIANCE.
Grounding Instructions
This appliance must be earthed. In the event of a
Ÿ
malfunction or breakdown, earthing will reduce the
risk of electric shock by providing a path of least
resistance for the electric current. This appliance
is equipped with a cord having an equipment-
earthing conductor and an earthing plug. The plug
must be plugged into an appropriate outlet that is
installed and earthed in accordance with all local
standards and requirements.
WARNING
Improper connection of the equipment earthing
Ÿ
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
Ÿ
representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the
Ÿ
appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician install a
proper outlet.
Installation
Page 8
Cold Water Connection
How to Connect the safety supply hose
The appliance must be connected to the water mains
using new hose-sets. The old hose-sets should not be
reused.
Water pressure must be between 0.04 MPa and
1 MPa. If the pressure is below the minimum, consult
our Service Department for advice.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure
that the water is clear. This precaution is needed to
avoid the risk of the water inlet getting blocked and
damaging the appliance.
1. Pull the safety supply hose completely out from the
storage compartment located at the rear of
dishwasher.
2. Connect the cold water supply hose to a threaded
3/4(inch) connector and make sure that it is
fastened tightly in place.
3. Turn water fully on before starting the dishwasher.
Positioning the Appliance
Position the appliance in the desired location. The
Ÿ
back should rest against the wall behind it, and the
sides, along the adjacent cabinets or walls. The
dishwasher is equipped with water supply and
drain hoses that can be positioned either to the
right or the left sides to facilitate proper installation.
WARNING! Where the dishwasher has ventilation
openings in the base, these openings must not be
obstructed by a carpet.

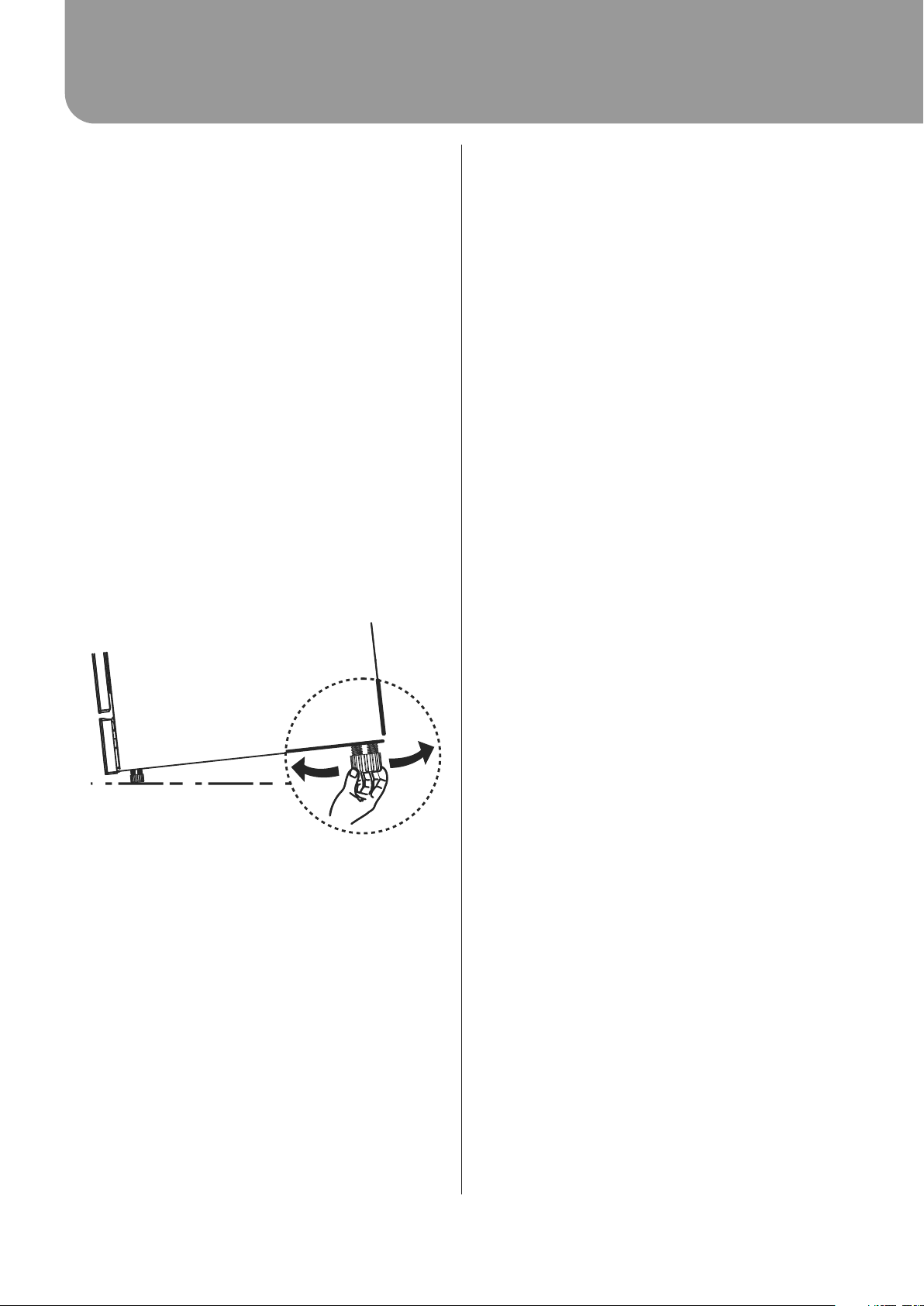

Levelling
Dishwasher must be level for proper dish rack
Ÿ
operation and wash performance.
Place a spirit level on door and rack track inside the
Ÿ
tub as shown to check that the dishwasher is level.
The height of the dishwasher may be altered via
Ÿ
adjustment of the screwing level of the feet. In any
case, the appliance should not be inclined more
than 2 °.
When levelling the dishwasher, please pay attention
Ÿ
not to let the dishwasher tip over.
NOTE: The maximum adjustment height of the feet
Ÿ
is 50 mm.
Installation
Page 9

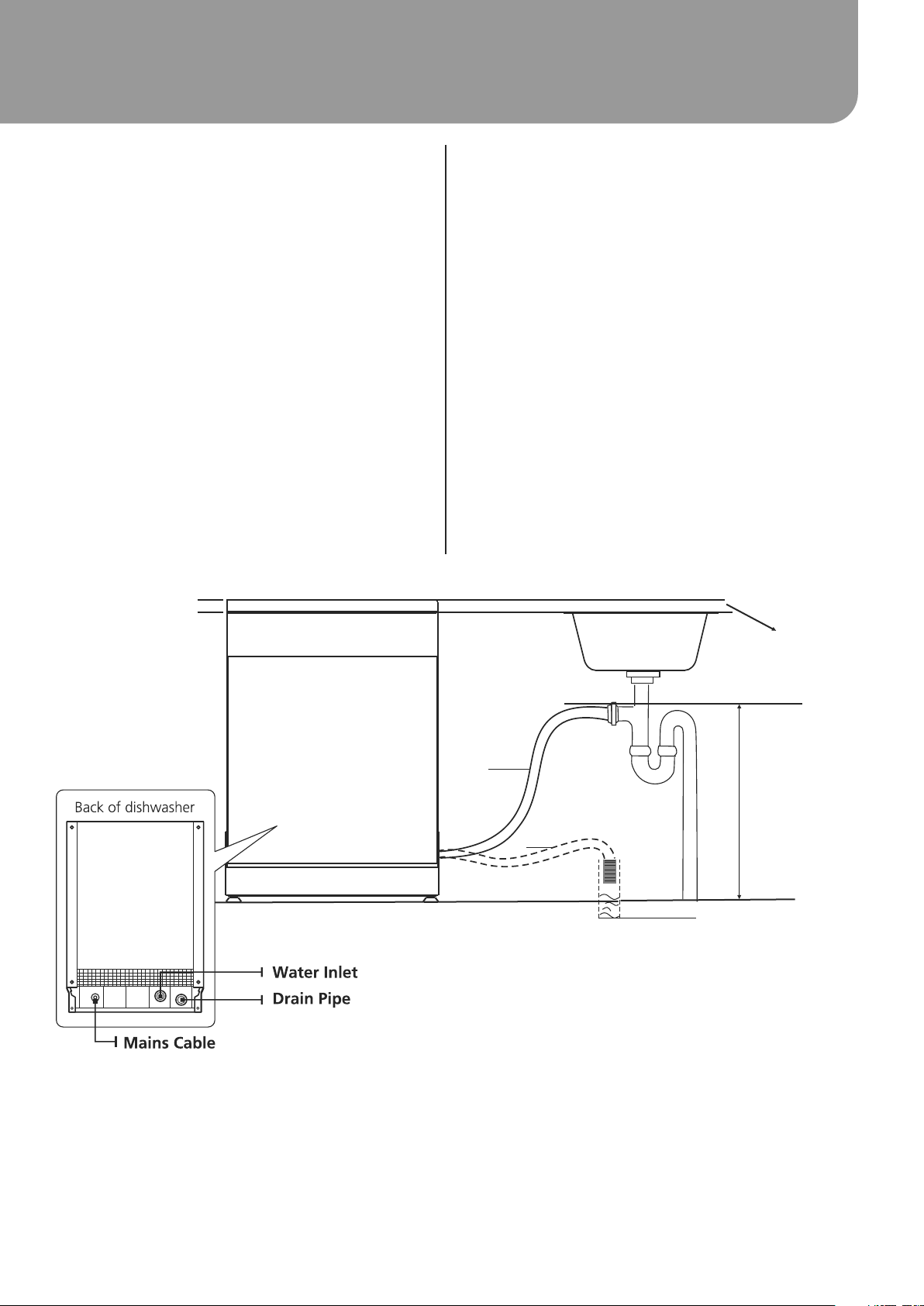

Drain Hose Connection
Insert the drain hose into a drain pipe with a
Ÿ
minimum diameter of 40mm (B), or let it run into the
sink (A), making sure to avoid bending or crimping
it. The top of the hose must be at a height less than
1000mm. The free end of the hose must not be
immersed in water to avoid back flow.
Syphon Connection
Insert the drain hose into a drain pipe with a
Ÿ
minimum diameter of 40mm, or let it run into the
sink, making sure to avoid bending or crimping it.
The top of the hose must be less than 1000mm.
How to Drain Excess Water from Hoses
If the sink is more than 1000mm higher than the
Ÿ
floor, the excess water in the hose cannot be
drained directly into the sink. It will be necessary to
drain excess water from the hose into a bowl or
suitable container that is held outside and lower
than the sink.
MAX 1000mm
A
Counter
Front
Drain hose
NOTE
The top of the hose
must be less than
1000mm.
¦40mm
B
Water Outlet
Connect the water drain hose. The drain hose
Ÿ
must be correctly fitted to avoid water leaks.
Ensure that the water drain hose is not kinked or
squashed.
Extension Hose
If you need a drain hose extension, make sure to
Ÿ
use a similar drain hose.
It must be no longer than 4 metres; otherwise the
Ÿ
cleaning effect of the dishwasher could be
reduced.
Page 10
Using Your Dishwasher
QUICK START GUIDE
For detailed operating method read the corresponding content on the instruction manual.
Compartment A:
For each wash cycle.
Compartment B:
For programmes with pre-wash only.
(Follow the !)User Manual
Mechanical indicator C.
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a programme
T urn on the water tap and press the Start/Pause Button. The machine will start working.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will also dry better.Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Close the door,press the Program Button until the selected program lights up.
( See the section entitled: Starting a Washing Program)
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appliance was in standby mode, it will power off automatically after 30 minutes without any operation.
If the appliance is switched
off during a wash cycle.
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state.
Switch on the appliance
Press the On/Off button to switch on the appliance, Open the door.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button, press the program button for more than three seconds,the
machine will be in standby state, then you can change the program to the desired cycle setting.
3. Press the Start/Pause Button.
1.Press the Start/Pause Button to stop the washing.
2.Open the door a little .
3.After the spray arms stop working, you can open the door
completely.
4.Add forgotten dishes.
5.Close the door.
6.Press the Start/Pause Button.
WARNING!
Open the door carefully
Hot steam may escape
when the door is opened!
A
B
C
Page 11
Using Your Dishwasher
BEFORE STARTING THE DISHWASHER
The following things should be checked before
starting the dishwasher:
1. That the dishwasher is level and fixed properly.
2. That the inlet valve is open .
3. There is no leakage at the connections of the
conducts.
4. The wires are tightly connected.
5. The power is switched on.
6. The inlet and drain hoses are not knotted or kinked.
7. All packing & print materials should be taken out of
the dishwasher.
PRIOR TO USING FOR THE FIRST TIME
Before using your dishwasher for the first time:
Fill the Rinse Aid Dispenser
The rinse aid is released during the final rinse to
prevent water from forming droplets on your dishes,
which can leave spots and streaks. It also improves
drying by allowing water to roll off the dishes. Your
dishwasher is designed to use liquid rinse aids. The
rinse aid dispenser is located inside the door next to
the detergent dispenser. To fill the dispenser, open the
cap and pour the rinse aid into the dispenser until the
level indicator turns completely black.
Function of the Rinse Aid
Rinse aid is automatically added during the last rinse,
ensuring thorough rinsing, and spot and streak free
drying.
WARNING!
Only use branded rinse aid for dishwashers. Never fill
the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent).
This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated
below.
Full
3/4 Full
1/2 Full
1/4 Full (Should refill to eliminate spotting)
Empty
C (Rinse-Aid indicator)
When to refill the Rinse Aid Dispenser
If there is no rinse-aid warning light on the control
panel, you can judge the amount of rinse-aid by the
colour of the optical level indicator "C" located next
to the cap. When the rinse-aid container is full, the
whole indicator will be dark. As the rinse-aid
diminishes, the size of the dark dot decreases. You
should never let the rinse aid get below 1/4 full.
Page 12
Using Your Dishwasher
How to fill the Rinse Aid Dispenser
1. Remove the rinse aid reservoir cap by rotating it
counterclockwise.
2. Pour the rinse aid into the dispenser, being careful
not to overfill.
3. Once the reservoir is full, refit the rinse aid cap by
rotating it clockwise.
Be careful not to overfill the dispenser, because this
could cause over sudsing. Wipe away any spills with a
damp cloth. Don't forget to replace the cap before you
close dishwasher door.
ATTENTION! Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess foaming
during the next wash.
1
2
3

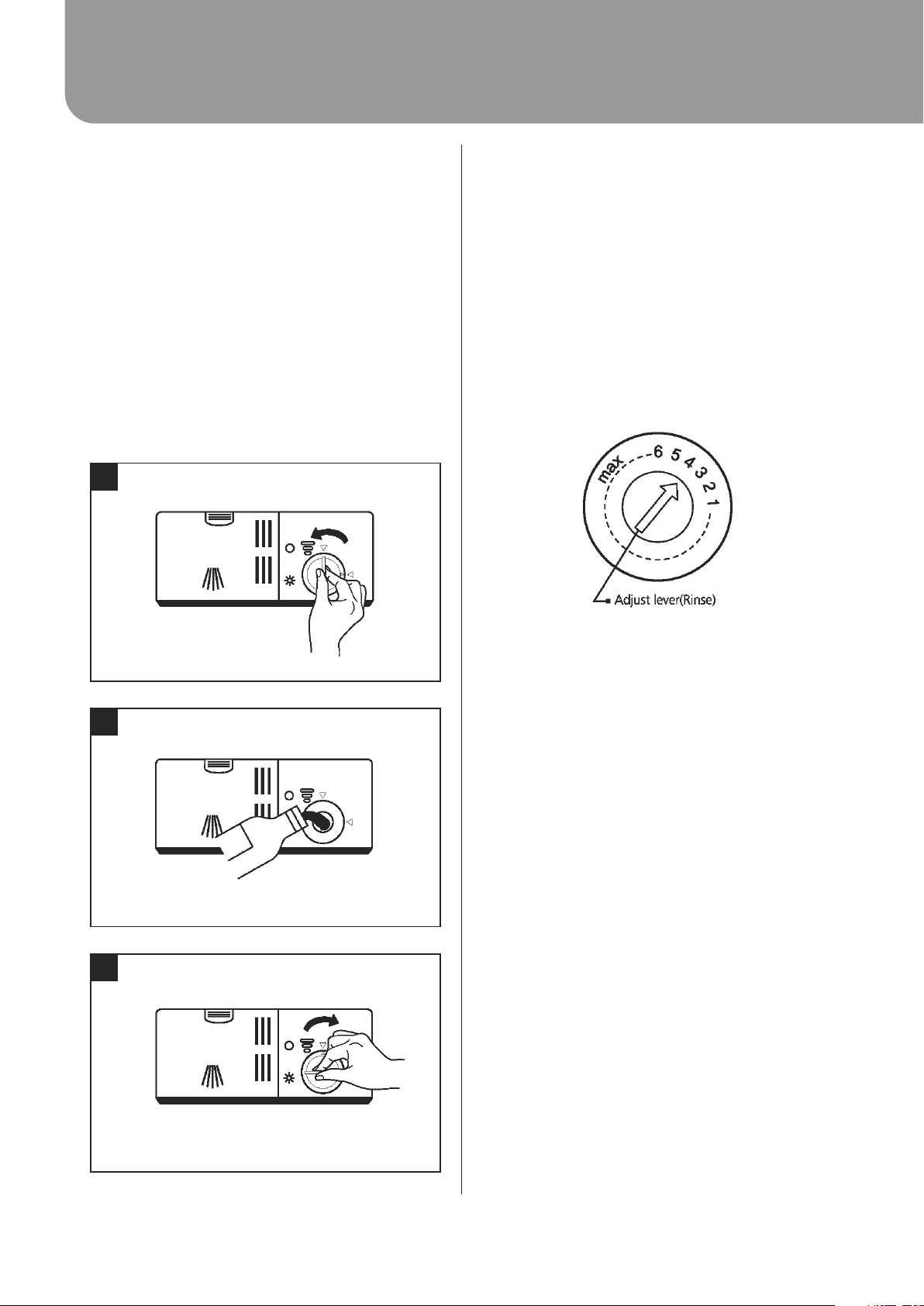

Adjusting the Rinse Aid Dispenser
The rinse aid dispenser has six or four settings. Always
start with the dispenser set on "4". If spots and poor
drying are a problem, increase the amount of rinse aid
dispensed by removing the dispenser lid and rotating
the dial to "5". If the dishes are still not drying properly
or show spots, adjust the dial to the next higher level
until your dishes are spot free. The recommended
setting is "4". (Factory value is "4".)
NOTE: Increase the dose if there are drops of water or
lime spots on the dishes after washing. Reduce it if
there are sticky whitish stains on your dishes or a
bluish film on glassware or knife blades.
Page 13
Using Your Dishwasher
Detergents
Detergents have chemical ingredients that are
necessary to remove dirt, crush dirt and transport it
out of the dishwasher. Most of the commercial
quality detergents are suitable for this purpose.
There are 3 sorts of detergents:
1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine
Normally new pulverised detergent is without
phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to
fill salt in the salt container even when the hardness of
water is only 6 °dH. If detergents without phosphate
are used in the case of hard water often white spots
appear on dishes and glasses. In this case please add
more detergent to reach better results. Detergents
without chlorine do only bleach a little. Strong and
coloured spots will not be removed completely. In this
case please choose a program with a higher
temperature.
Concentrated Detergent
Based on their chemical composition, detergents can
be split in two basic types:
Conventional, alkaline detergents with caustic
Ÿ
components
Low alkaline concentrated detergents with natural
Ÿ
enzymes
The use of “normal” washing programs in
combination with concentrated detergents reduces
pollution and is good for your dishes; these wash
programs are specifically matched to the dirt-
dissolving properties of the enzymes of the
concentrated detergent. For this reason
“normal”wash programs in which concentrated
detergents are used can achieve the same results
that can otherwise only be achieved using “intensive”
programs.
Detergent Tablets
Detergent tablets of different brands dissolve at
different speeds. For this reason some detergent
tablets cannot dissolve and develop their full cleaning
power during short programs. Therefore please use
long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
Detergent Dispenser
The dispenser must be refilled before the start of each
wash cycle following the instructions provided in the
wash cycle table. Your dishwasher uses less
detergent and rinse aid than Conventional
dishwasher. Generally, only one tablespoon of
detergent is needed for a normal wash load.
More heavily soiled items need more detergent.
Always add the detergent just before starting the
dishwasher, otherwise it could get damp and will not
dissolve properly.
Adding detergent to Dishwasher
1. Add detergent into the larger cavity (A) for the main
wash cycle . For more heavily soiled wash loads,
also add some detergent into the smaller cavity (B)
for the pre-wash cycle .
2. Add detergent or tablet into the larger cavity (A) for
the main wash cycle . For better cleaning result,
especially if you have very dirt items, pour a small
amount of detergent onto the door (B). The
additional detergent will activate during the pre-
wash phase.
Only use branded detergent for dishwasher.
2
Detergent tablet
Detergent powder
1
Page 14
Using Your Dishwasher
WARNING! Dishwasher detergent is poisonous!
Take care to keep it out of reach of children.
Proper Use of Detergent
Only use detergent specifically made for the use in
Ÿ
dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser
Ÿ
until you're ready to wash dishes.
Please observe the manufacturers dosing and
Ÿ
storage recommendations as stated on the
detergent packaging.
If the dishes are heavily soiled, place an additional
Ÿ
detergent dose in the pre-wash detergent
chamber. This detergent will take effect during the
pre-wash phase.
NOTE: See information about the amount of
detergent for the single programs on ‘Wash Cycle
Table’. Please be aware, that according to the level
soiling and the specific hardness of water differences
are possible.
3
Close the Detergent compartment
If your dishes are only moderately dirty. You may be
able to use less detergent
1. Close the cover and press down on it until it locks
into place.
If you are using detergent in tablet form, read the
manufacturer recommendations on the packaging
in order to determine where the tablets should be
placed inside the dishwasher (eg. in the cutlery
basket, detergent compartment etc;)
Make sure the lid on the detergent compartment is
closed, even if you are using a tablet.
Page 15
Using Your Dishwasher
LOADING THE DISHWASHER BASKET
Recommendation
Consider buying utensils which are identified as
Ÿ
dishwasher-proof.
Use a mild detergent that is described as 'kind to
Ÿ
dishes'. If necessary, seek further information
from the detergent manufacturers.
For particular items, select a program with as low
Ÿ
a temperature as possible.
To prevent damage, do not take glass and
Ÿ
cutlery out of the dishwasher immediately after
the programme has ended.
Suitability of use in the dishwasher
NOT SUITABLE FOR USE
Cutlery with wooden, horn china or mother-of-
Ÿ
pearl handles
Plastic items that are not heat resistant
Ÿ
Older cutlery with glued parts that are not
Ÿ
temperature resistant
Bonded cutlery items or dishes
Ÿ
Pewter or cooper items
Ÿ
Crystal glass
Ÿ
Steel items subject to rusting
Ÿ
Wooden platters
Ÿ
Items made from synthetic fibres
Ÿ
LIMITED SUITABILITY
Some types of glasses can become dull after a
Ÿ
large number of washes
Silver and aluminum parts have a tendency to
Ÿ
discolour during washing
Glazed patterns may fade if machine washed
Ÿ
frequently
Attention before or after Loading the Dishwasher
Baskets.
For best performance of the dishwasher, follow these
loading guidelines. Features and appearance of
baskets and cutlery baskets may vary from your
model.
Scrape off any large food particles. Soften remnants
of burnt food in pans.
It is not necessary to rinse the dishes under running
water. Place objects in the dishwasher in following
way:
1. Items such as cups, glasses, pots/pans, etc. are
faced downwards.
2. Curved items, or ones with recesses, should be
loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip
over.
4. All utensils are placed in the way that the spray
arms can rotate freely during washing.
NOTE: Very small items should not be washed in the
dishwasher as they could easily fall out of the baskets.
Load hollow items such as cups, glasses, pans
Ÿ
etc. With the opening facing downwards so that
water cannot collect in the container or a deep
base.
Dishes and items of cutlery must not lie inside
Ÿ
one another, or cover each other.
To avoid damage to glasses, they must not
Ÿ
touch.
Load large items which are most difficult to clean
Ÿ
into the lower basket.
The upper basket is designed to hold more
Ÿ
delicate and lighter dishware such as glasses,
coffee and tea cups.
Long bladed knives stored in an upright position
Ÿ
are a potential hazard!
Long and/or sharp items of cutlery such as
Ÿ
carving knives must be positioned horizontally in
the upper basket.
Please do not overload your dishwasher. This is
Ÿ
important for good results and for reasonable
consumption of energy.
Note: Very small items should not be washed in
Ÿ
the dishwasher as they could easily fall out of the
basket.
Page 16
Using Your Dishwasher
Loading the Upper Basket
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and tea
cup and saucers, as well as plates, small bowls and
shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they do not
get moved by the spray of water.
IN
Please be reminded that:
Pots, serving bowls, etc, must always be placed
Ÿ
top down.
Deep pots should be slanted to allow water to
Ÿ
flow out.
Ÿ The Bottom Basket features folding spikes so
that larger or more pots and pans can be loaded.
Folding back the cup shelves

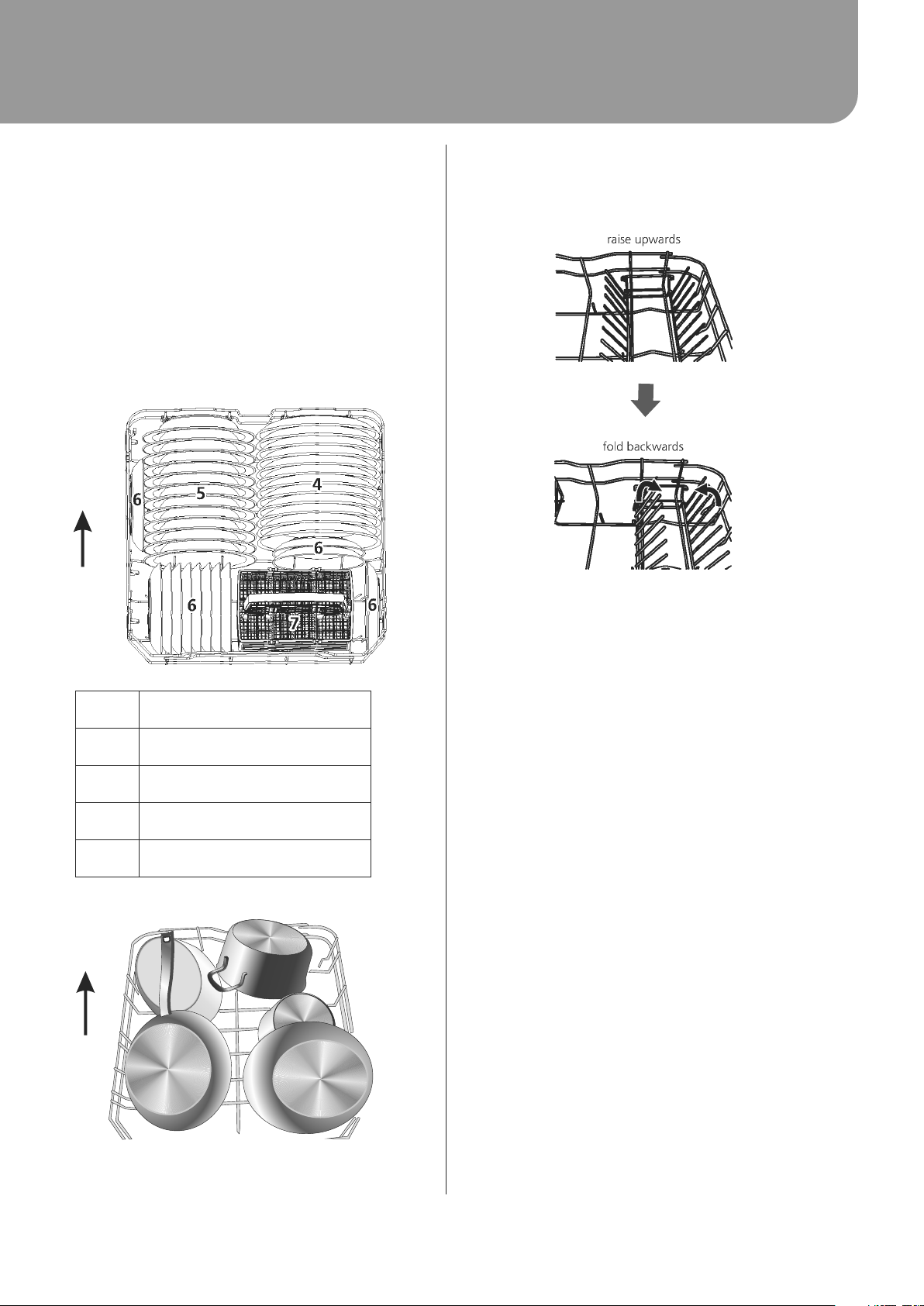

To make room for taller items in the upper basket,
raise the cup rack upwards. You can then lean the
tall glasses against it. You can also remove it when it
is not required for use.
Adjusting the Upper Basket
The height of the upper basket can be easily
adjusted to accommodate taller dishes in either the
upper or lower basket.To adjust the height of the
upper rack, follow these steps:
1. Pull out the upper basket.
2. Remove the upper basket.
3. Re-fit the upper basket to upper or lower rollers.
4. Push the upper basket all the way in.
2
3
4
1

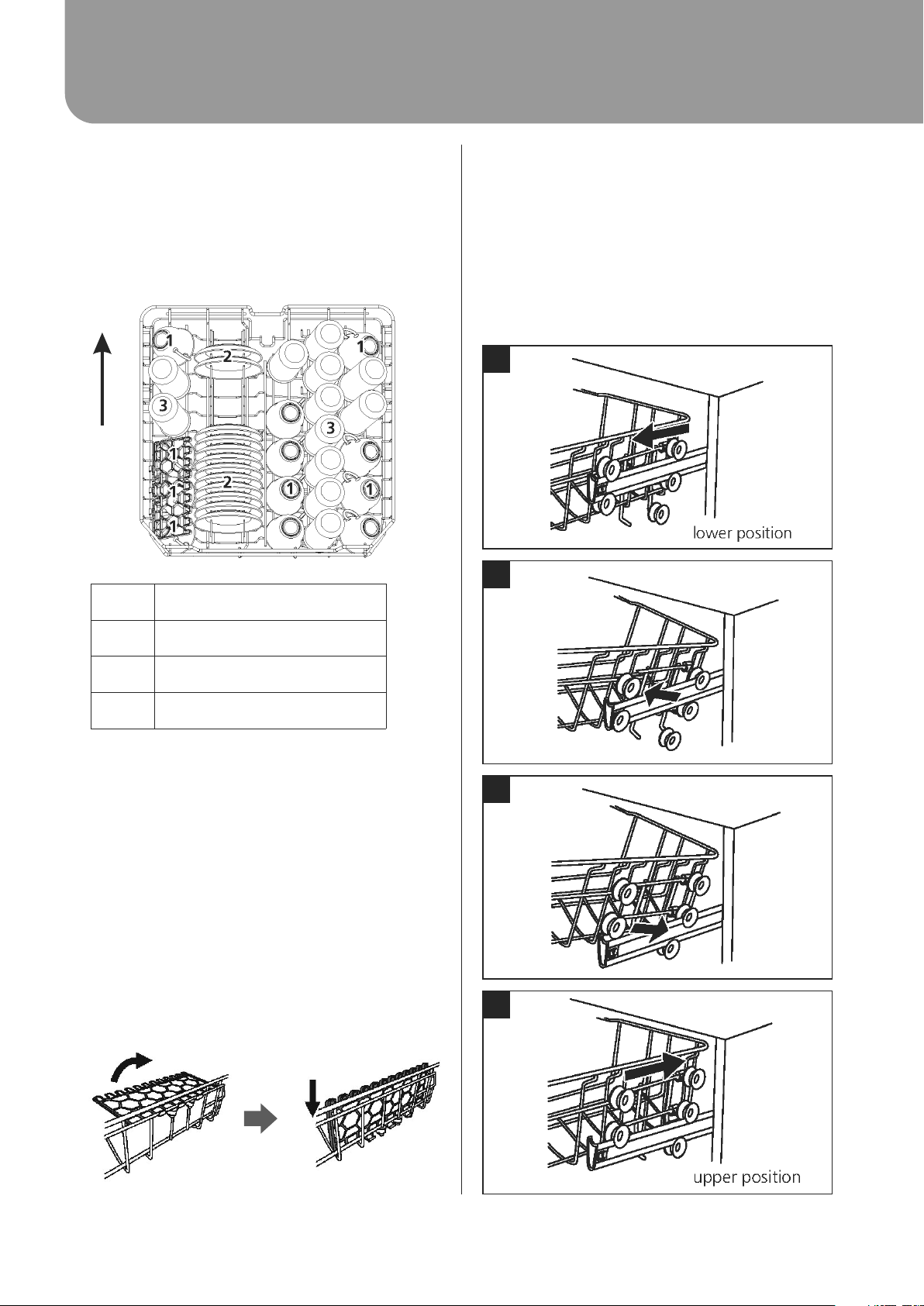

No.
Item
1
Cups
2
Saucers
3
Glasses
Page 17
Using Your Dishwasher
Loading the Lower Basket
We suggest that you place large items and the
most difficult to clean items are to be placed into
the lower basket: such as pots, pans, lids, serving
dishes and bowls, as shown in the figure below.
It is preferable to place serving dishes and lids on
the side of the racks in order to avoid blocking the
rotation of the top spray arm.
The maximum diameter advised for plates in front
of the detergent dispenser is 19cm in order to not
hamper the opening of it.
IN
IN
Folding the spikes in the Lower Basket
For better stacking of pots and pans, the spikes
can be folded down as shown below.
No.
Item
4
Dinner Plates
5
Soup Plates
6
Dessert Dishes
7
Cutlery Basket
Page 18
Using Your Dishwasher
Damage to glassware and other dishes
Possible Causes
Type of glass or manufacturing process. Chemical
Ÿ
composition of detergent.
Water temperature and duration of dishwasher
Ÿ
program.
Suggested remedy:
Use glassware or porcelain dishes that have been
Ÿ
marked dishwasher-proof by the manufacturer
Use a mild detergent that is described as kind of
Ÿ
dishes If necessary, seek further information from
detergent manufacturers.
Select a program with as low a temperature.
Ÿ
To prevent damage, take glass and cutlery out of
Ÿ
the dishwasher as soon as possible after the
program has ended. as possible after the program
has ended.

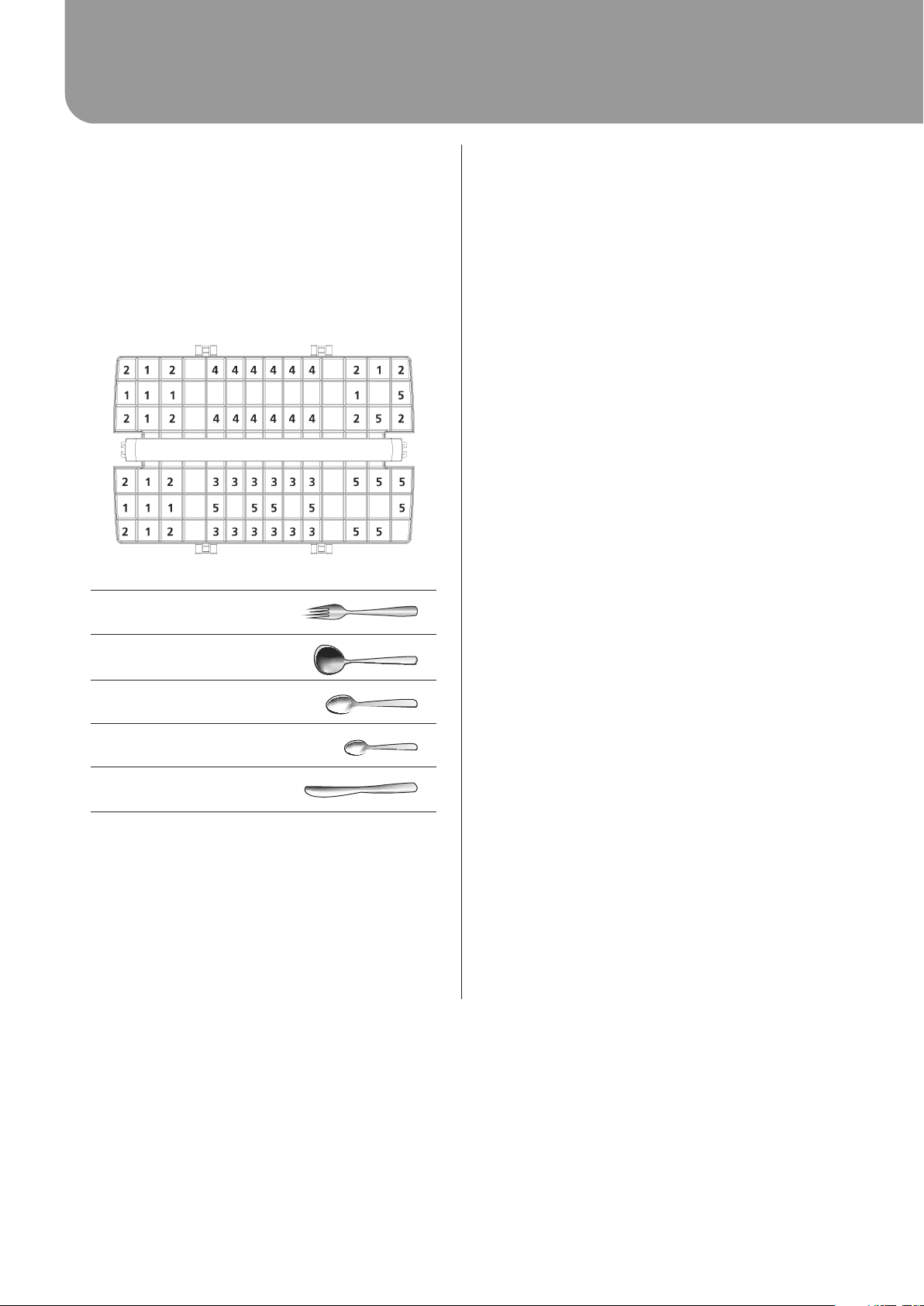

Cutlery Basket
Cutlery should be placed in the cutlery rack
separately from each other in the appropriate
positions. Make sure the utensils do not nest
together, this may cause bad performance.
Do not let any item extend through the bottom.
Always load sharp utensils with the sharp point
down!
Soup spoons
2
Knives
5
1
Forks
3
Dessert spoons
Teaspoons4
Page 19
Using Your Dishwasher
STARTING A WASHING PROGRAM
Wash Cycle Table
NOTE: Star ( ) means the need to fill rinse aid into the Rinse Aid Dispenser.
Detergent
pre/main
Cycle Selection
Information
Program
Running
time(min)
Water
(L)
Energy
(Kwh)
Rinse
Aid
A shorter wash for lighlty
soiled loads and quick wash.
Wash (40 )
Rinse
Rinse (45°C)
°C
30
0.6
11.5
Description
of Cycle
Wash(65°C)
Rinse
Rinse (65°C)
Drying
90 11.51.2
For lightly soiled plates &
pans that need a quick wash
For lightly soiled crockery
and glass.
125 0.9
14.5
Pre-wash
Wash (42 °C)
Rinse
Rinse(60°C)
Drying
Glass
90 mins
Rapid
AS/NZS 2007.1
For normally soiled loads, such
as pots, plates, glasses and
lightly soiled pans.
Standard daily cycle.
Wash (45°C)
Rinse
Rinse(45°C)
Drying
185
0.73
10.7
or 1 piece
5/25g
or 1 piece
5/25g
or 1 piece
30g
To rinse dishes that you plan
to wash later that day.
8 0.02
4
Soak
Prewash
Pre-wash(50°C)
Wash (60°C)
Rinse
Rinse
Rinse(65°C)
Drying
170
1.6
Intensive
or 1 piece
5/25g
18.5
25g
NOTE:
* AS/NZS 2007.1: This program is the test cycle.
The information for comparability test in accordance with AS/NZS 2007.1, as follows:
Capacity: 12 setting
Ÿ
Position Upper basket: Lower Position
Ÿ
Program: ECO
Ÿ
Detergent (Pre/Main): 5g / 25g
Ÿ
Rinse aid setting: 6
Ÿ
Door is open at the end of the drying cycle for the drying performance test and last 40mins.
Ÿ
(Door position: Open 50 mm)
NOTE: If you notice any detergent residue on your dishes after the wash cycle is complete, reduce the amount of
detergent for the next wash.
For heavily soiled loads,
such as pots.
Page 20
Using Your Dishwasher
CONTROL PANEL
5
1
Power button: Press this button to turn on your
dishwasher.
Extra Drying : For better drying result. (It can
only be used with Intensive, ECO, Glass and 90
mins.)
4
Half-Load: When you have about or less than
6 place setting dishware to wash, you can
choose this function to save energy and
water.(It can only be used with Intensive,
ECO, Glass and 90 mins.)
6
2
Program: Select the appropriate washing
program, the selected program indicator will be
lit.
3
Delay: Press the Delay button to increase the
delay start time. Delay a cycle for up to 24 hours
in one-hour increments.
Child Lock: This option allows you to lock the
buttons on the control panel - except the Power
button - so children cannot accidentally start
the dishwasher by pressing the buttons on the
panel. To lock or unlock the buttons on the
control panel, press and hold the Half-load
button + Extra drying button for 3 seconds
simultaneously.
7
Start / Pause button: To start the selected
washing program or pause it when the
dishwasher is working.
8
Warning Indicator:
Rinse Aid - If the ‘ ‘ indicator is lit, it means
the dishwasher is low on Rinse Aid and
requires a refill.
Program End - When the program is
finished, the indicator will be lit.
9
Program Indicator:
Intensive - For heaviest soiled crockery, such
as pots, pans, casserole dishes and dishes
that have been sitting with dried food on them
for a while.
ECO - For normally soiled loads, such as pots,
plates, glasses and lightly soiled pans,
standard daily cycle.
Glass - For lightly soiled crockery and glass.
90 Mins - For lightly soiled plates and pans that
need quick wash.
Rapid - A shorter wash for lightly soiled loads
that do not need drying.
Soak- To rinse dishes that you plan to wash
later that day.
10
1 8 2 9 3 4 56 7
10
Screen: To show which program has been
chosen, the real-time temperature and the
remaining time etc.
Page 21
Using Your Dishwasher
FORGET TO ADD A DISH?
A forgotten dish can be added at any time before the
detergent dispenser opens.
1. Press the Start/Pause button to pause the
washing.
2. After about 5 seconds, the spray arms stop
working, you can then open the door completely.
3. Load the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button.
WARNING! It is dangerous to open the door mid
cycle, as the hot water or steam may scald you.
AT THE END OF THE WASH CYCLE
When the working cycle has finished, the buzzer of
the dishwasher will sound for 8 seconds, then stop.
Turn off the appliance using the Power switch button,
shut off the water supply and open the door of the
dishwasher. Wait for a few minutes before unloading
the dishwasher to avoid handling the dishes and
utensils while they are still hot and more susceptible
to breakage. They will also dry better.
Switch off the Dishwasher
The program light is on but is not blinking, only in this
case the program has ended.
1. Switch off the dishwasher by pressing Power
button.
2. Turn off the water tap.
Open the door carefully
Hot dishes are sensitive to knocks. The dishes should
be allowed to cool down around 15 minutes before
removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a
few minutes before removing the dishes. Dishes will
be cooler and the drying will be improved.
Unloading the Dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one.
This will avoid water dripping from the upper Basket
onto the dishes in the lower one.
WARNING! Items will be hot! To prevent damage,
do not take glass and cutlery out of the dishwasher for
around 15 minutes after the program has ended.
TURNING ON THE APPLIANCE
Starting a wash cycle:
1. Draw out the lower and upper basket, load the
dishes and push them back. It is recommended to
load the lower basket first, then the upper one (see
the section entitled “Loading the Dishwasher”).
2. Add the detergent or tablet .
3. Insert the plug into the socket. The power supply is
220-240 VAC / 50 HZ, the specification of the
socket is 10A 250VAC. Make sure that the water
supply is turned on to full pressure.
4. Close the door, press the power button to turn on
the appliance.
5. Choose a program using the ‘P’ button, when the
program is selected, the corresponding icon will
light up. Then press the Start/Pause button, the
program will begin its cycle.
CHANGE THE PROGRAM ONCE RUNNING
A cycle that is underway can only be modified if it has
only been running for a short time. Otherwise, the
detergent may have already been released, and the
appliance may have already drained the wash water.
If this is the case, the dishwasher needs to be reset
and the detergent dispenser must be refilled (see the
section entitled "Adding Detergent"). To reset the
dishwasher, follow the instructions below:
1. Press the Start/Pause button to pause the
washing.
2. Press Program button for more than three
seconds, the appliance will be in stand by mode.
3. Press the Program button to select the desired
program.
4. Press the Start/Pause button.
3 sec
Page 22
Care and Cleaning
Filtering System
The filter prevents larger remnants of food or other
objects from getting inside the pump.
The residue may block the filter, in this case they must
be removed.
The filter system consists of a coarse filter, a flat (Main
filter) and a microfilter (Fine filter).
3
2
1
MAIN FILTER: Food and soil particles trapped
in this filter are pulverized by a special jet on the
lower spray arm and washed down the drain.
COARSE FILTER: Larger items, such as
pieces of bones or glass, that could clog the
drain are trapped in the coarse filter. To
remove an item caught in this filter, gently
squeeze the taps on the top of this filter and
lift it out.
FINE FILTER: This filter holds soil and food
residues in the sump area and prevents it from
being redeposit on the dishes during a cycle.
1
2
3

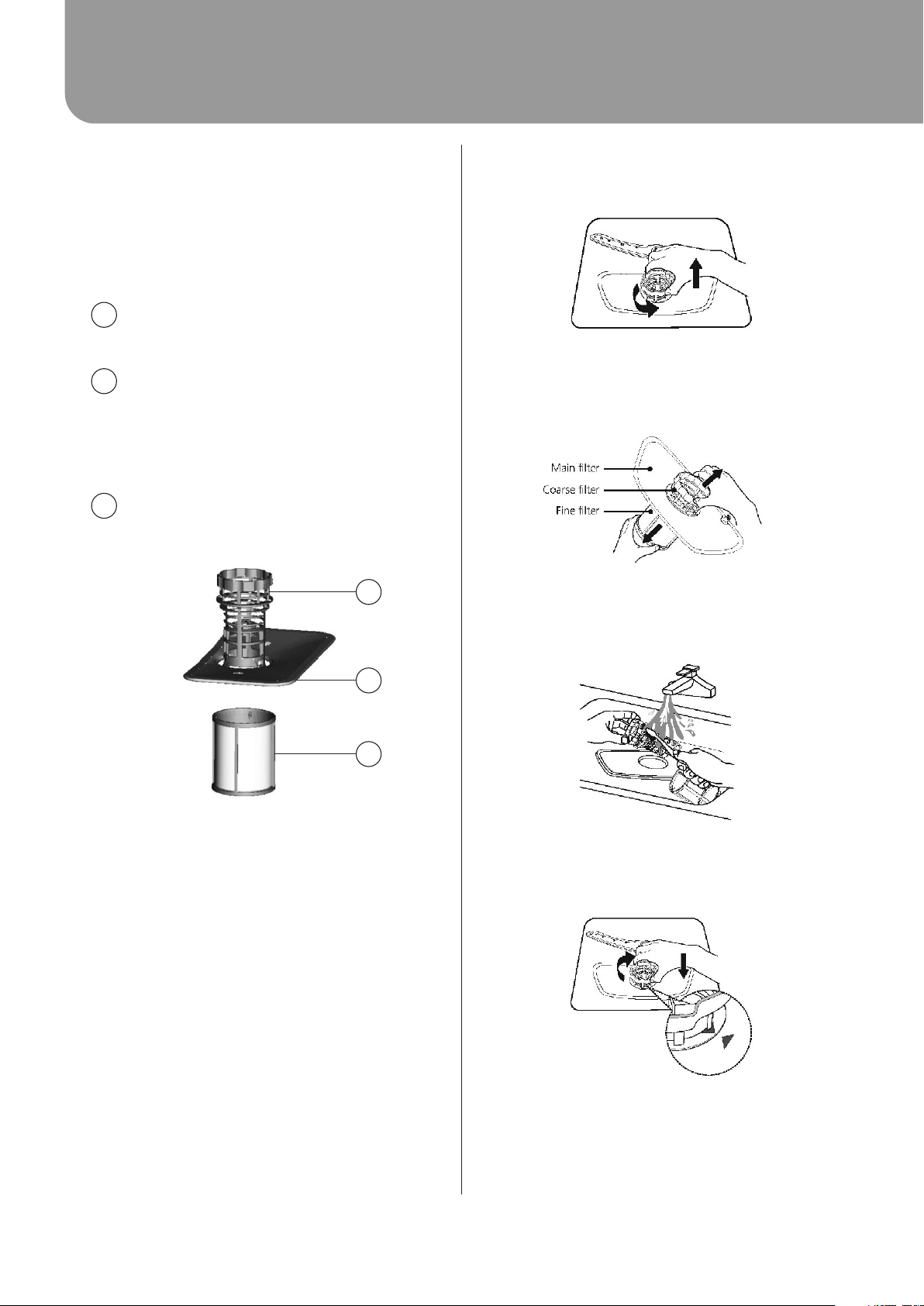

Filter Assembly & Cleaning
The filter efficiently removes food particles from the
wash water, allowing it to be recycled during the cycle.
For best performance and results, the filter must be
cleaned regularly. For this reason, it is a good idea to
remove the larger food particles trapped in the filter
after each wash cycle by rinsing the semicircular filter
and cup under running water.
To remove the filter device, pull the cup handle in the
upward direction.
WARNING!
The dishwasher must never be used without the
Ÿ
filters.
Improper replacement of the filter may reduce the
Ÿ
performance level of the appliance and damage
dishes and utensils.
STEP 1: Hold the coarse filter and rotate it
anticlockwise to unlock the filter.Lift the filter upwards
and out of the dishwasher.
STEP 2: The fine filter can be pulled off the bottom of
the filter assembly.The coarse filter can be detached
from the main filter by gently squeezing the tabs at the
top and pulling it away.
WARNING!
When cleaning the filters, do not knock on them.
Ÿ
Otherwise, the filters could be contorted and the
performance of the dishwasher could be
decreased.
STEP 3: Larger food remnants can be cleaned by
rinsing the filter under running water. For a more
thorough clean, use a soft cleaning brush.
STEP 4: Reassemble the filters in the reverse order of
the disassembly, replace the filter insert, and rotate
clockwise to the close arrow.
Page 23
Care and Cleaning
Caring for the Dishwasher
The control panel can be cleaned by using a lightly
dampened cloth. After cleaning, make sure to dry it
thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh
cleaners on any part of the dishwasher.
Cleaning the Door
To clean the edge around the door, you should use
only a soft warm, damp cloth.
To avoid penetration of water into the door lock and
electrical components, do not use a spray cleaner of
any kind.
2. To remove the lower spray arm, pull out the spray
arm upward.
3. Wash the arms in soapy and warm water and use a
soft brush to clean the jets. Replace them using the
reverse method after rinsing them thoroughly.
How to keep your Dishwasher in shape
After every wash, turn off the water supply to the
Ÿ
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
Before cleaning or performing maintenance,
Ÿ
always remove the electrical plug from the socket.
To clean the exterior and rubber parts of the
Ÿ
dishwasher, do not use solvents or abrasive
cleaning products. Only use a cloth with warm
soapy water.
To remove spots or stains from the surface of the
Ÿ
interior, use a cloth dampened with water and a
little vinegar, or a cleaning product made
specifically for dishwashers.
When not in Use for a long time
It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to last longer and prevent odours from forming
within the appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
Seals
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent
this from occurring.
WARNING!
Never use a spray cleaner to clean the door panel
Ÿ
as it may damage the door lock and electrical
components.
Abrasive agents or some paper towels should not
Ÿ
be used because of the risk of scratching or leaving
spots on the stainless steel surface.
Protect against Freezing
Please take frost protection measures on the
dishwasher in winter. After washing cycles, please
operate as follows:
1. Turn off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water
inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve.
(Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a
sponge to soak up water in the sump.
NOTE: If your dishwasher cannot work because of
the ice, please contact an authorised service person.

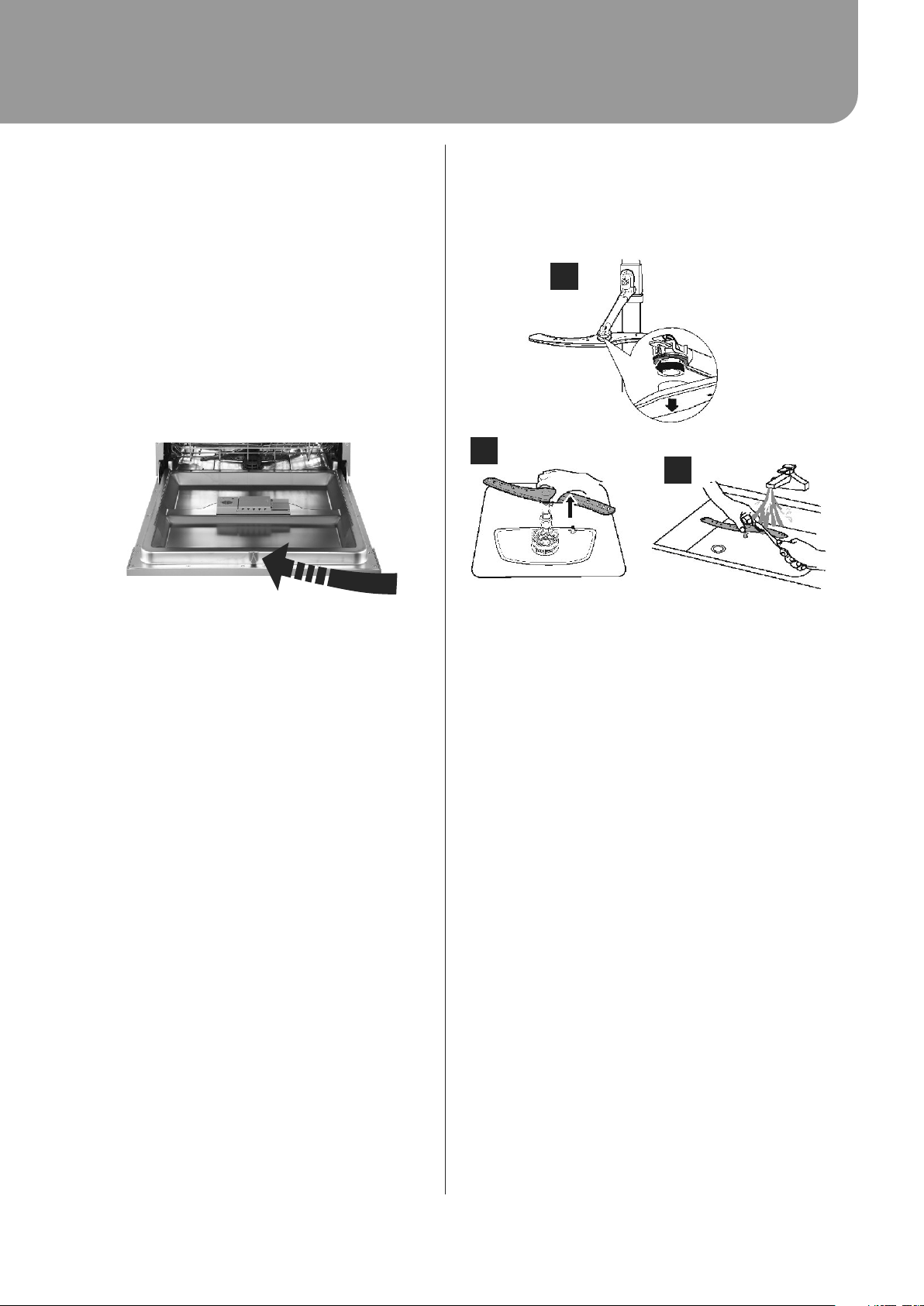

Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for
hard water chemicals will clog the spray arm jets and
bearings.
1. To remove the upper spray arm, hold the nut and
rotate the arm clockwise to remove it.
1
2
3
Page 24
Troubleshooting
Before Calling for Service, review the following troubleshooting tips.
Problem Possible Causes Solution
Fuse blown, or the
circuit breaker tripped
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Spilled rinse-aid
Always wipe up rinse-aid spills immediately.
Hard water minerals
The affected items are
not corrosion resistant.
A spray arm is
knocking against
an item in a basket
Items of crockery
are loose in the
dishwasher
This may be caused
by on-site installation
or the cross-section
of the piping.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent, it may cause foaming or suds.
Interrupt the program, and rearrange the items
which are obstructing the spray arm.
Interrupt the program,
and rearrange the items of crockery.
This has no influence on the dishwasher function.
if in doubt, contact a suitably qualified plumber.
Detergent with
colourant was used
Make sure that the detergent is the one without
colourant.
Improper detergent
Make sure the dishwasher is turned on and the door is
closed securely.
Check that the water supply is connected properly and
the water is turned on.
Make sure to close the door properly and latch it.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on
Error code:E1;
Water pressure is low
Door of dishwasher
not properly closed.
Kink in drain hose
Filter clogged
Kitchen sink clogged
Check drain hose.
Check and empty the filter.
(see section titled " Cleaning The Filter ")
Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink not draining ,you may
need a plumber rather than a serviceman for dishwashers.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 3.75 litres of cold water to the bottom tub
of the dishwasher. Close and latch the dishwasher, then
select any cycle. Dishwasher will drain out the water at the
first step. Open the door after the draining has stopped
and check suds have disappeared. Repeat if necessary.
Technical problems
General problems
Noise
Dishwasher
doesn’t start
Water not pumped
from dishwasher
Suds in the tub
Stained tub interior
White film on
inside surface
There are rust
stains on cutlery
Knocking noise
in the dishwasher
Rattling noise
in the dishwasher
Knocking noise
in the water pipes
Items should be corrosion resistant.
Page 25
Troubleshooting
The dishes were not
loaded correctly.
See notes in " Loading the Dishwasher Baskets ".
Select a more intensive program.
See" Wash Cycle Table ".
Use more detergent, or change your detergent.
Rearrange the items so that the spray can rotate freely.
Clean and/or fit the filter combination correctly.
Clean the spray arm jets. See "Cleaning the Spray
Arms".
Use less detergent if you have soft water and select
a shorter cycle to wash the glassware and to get
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Reload the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/refill the rinse-aid
dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once the
dishes are barely warm to the touch. Empty the low
basket first. This prevents water from dropping off
dishes in the upper basket.
In a short program the washing temperature is lower.
This also lowers cleaning performance. Choose
a program with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
The program was
not powerful enough.
Not enough detergent
was dispensed.
Items are blocking
the path of spray arms.
The filter combination
in the base of wash
cabinet is not clean or
is not correctly fitted.
This may cause
the spray arm jets
to get blocked.
Combination of soft
water and too much
detergent.
Aluminum utensils have
rubbed against dishes.
Dishes blocking
detergent cup.
Improper loading
Too little rinse-aid
Dishes are removed
too soon
Wrong program
has been selected
Use of cutlery with
a low-quality coating
Unsatisfactory washing result
Unsatisfactory
drying results
Problem Possible Causes Solution
The dishes
are not clean
Cloudiness
on glassware
Black or gray
marks on dishes
Detergent left in
dispenser cup
The dishes are
not drying
ERROR CODES
When some malfunctions occur, the appliance will display error codes to warn you:
Codes Meanings Possible Causes
E1 Longer inlet time. Faucets is not opened, or water intake is restricted, or water
pressure is too low.
E3 Not reaching temperature. Malfunction of the heating element.
E4 Overflow. Some element of dishwasher leaks.
ED Communication failure Open circuit or break wiring for the communication.
between main PCB & display PCB
WARNING!
If overflow occurs, turn off the main water supply before calling service.
Ÿ
If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting
Ÿ
the dishwasher.
Page 26
Help us Help You
Read this guide carefully, it is intended to help you
operate and maintain your new Dishwasher properly.
Keep it handy to answer your questions. If you don't
understand something or you need more assistance,
please call the De’Longhi Helpline.
To help us provide prompt answers to your queries,
please record your Dishwasher model and serial
numbers. You’ll find them on a plate located on the
rear outside wall of the Dishwasher.
Dishwasher details
Before you call for service
Check the Troubleshooting Section on page 25. It lists
causes of minor operating problems that you can
correct yourself.
Page 27
The De’Longhi Dishwasher is warranted against faults
resulting from manufacturing or material defects. The
warranty period for normal domestic installation and use is
two years from the date of purchase. In non-domestic use
De’Longhi limits the voluntary warranty to 6 months.
De’Longhi undertakes to repair or replace the Dishwasher
at our discretion if the product is found to be defective due
to a manufacturing fault during the warranty period.
This warranty excludes any damage caused by misuse,
neglect, shipping accident, or incorrect installation.
Normal wear and tear is also expressly excluded. The
warranty claim is void if no fault is found with the product
or if work is carried out by anyone other than an authorised
De’Longhi Service Agent.
In Australia, this warranty is additional to the conditions
and guarantees which are mandatory as implied under the
Trade Practices Act 1974 and State and Territory
legislation.
NOTE: Warranty is determined by unit serial number and
date of purchase.
How to contact us about a warranty claim
Talk to a De’Longhi representative for further warranty
or product information please call the number in your
country:
Australia
www.delonghicookingappliances.com.au
Phone : 1300 186 709
© 2020 De’Longhi Australia Pty Ltd.
06.2020
Australia
Elba Appliances Australia
Suite 1, 1107 Botany Road
Mascot NSW 2020
Phone 1300 186 709
www.delonghicookingappliances.com.au
Head Office
Fisher & Paykel Appliances Italy S.p.A.
Via Fabbian Matteo, 7
31030 Borso del Grappa (TV) ITALY
