1
VENT-FREE
GAS LOG SET
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
WARNING: This appliance
is equipped for (Natural and
Propane) gas. Field conversion is
not permitted other than between
natural or propane gases.
The Installation instructions for an appliance for installation on combustible ooring shall specify that
when the appliance is installed directly on carpeting, tile or other combustible material, other than wood
ooring, the appliance shall be installed on a metal or wood panel extending the full width and depth of
the appliance.
- Do not store or use gasoline or other ammable vapors and Iiquids in vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the re department.
- Installation and service must be performed by a qualied installer, service agency or the gas supplier.
This is an unvented gas-red heater. It uses air (oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air must be provided. Refer to Air For
Combustion and Ventilation section on page 9 of this manual.
This appliance may be installed in an aftermarket, permanently located manufactured (mobile) home,
where not prohibited by local codes. This appliance is only for use with propane or natural gas.
This appliance is equipped with a simple means to switch between propane and natural gas. Field
conversion by any other means including the use of a kit is not permitted.
Dual Fuel
ANS Z21.11.2 2013
80-10-442 - 2017-09-26
CAUTION - FOR YOUR SAFETY
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday or email us at
MODEL # VFL2-SO18DT
VFL2-EO18DT
VFL2-SO24DT
VFL2-EO24DT
VFL2-WW18DT
VFL2-WW24DT
C US
C US
NG LP
WARNING: Do not attempt to access or change the setting of the fuel selection means. Access
to and adjustment of the fuel selection means must only be a performed by a qualied service
person when connecting this appliance to a specied fuel supply at the time of installation.
Change of the selector setting to other than the fuel type specied at the time of installation could
damage this appliance and render it inoperable.
The installer shall replace the access cover before completing the installation and operating this
appliance.
Patent Pending Dual
Fuel System
2
WARNING: Read the Installation & Operating Instructions before using this appliance.
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in possible injury to persons or a re
hazard and will void the warranty.
TABLE OF CONTENTS
SERVICE HINTS
When Gas Pressure Is Too Low
• pilot will not stay lit
• burners will have delayed ignition
• heater will not produce specied heat
• for propane/LP units, propane/LP gas supply may be low
You may feel your gas pressure is too low. If so, contact your local natural or propane/LP gas supplier.
Specications ................................................................................................................................... 2
Important Safety Information ............................................................................................................3
Product Identication ........................................................................................................................ 5
Product Features .............................................................................................................................. 6
Preparing for Installation................................................................................................................... 7
Installation ...................................................................................................................................... 10
Unpacking....................................................................................................................................... 15
Log Assembly ................................................................................................................................. 21
Operation ........................................................................................................................................ 22
Care and Maintenance ................................................................................................................... 25
Troubleshooting .............................................................................................................................. 27
Replacement Parts ......................................................................................................................... 30
Warranty ......................................................................................................................................... 31
ITEM VFL2-SO18DT
VFL2-EO18DT
VFL2-WW18DT
VFL2-SO24DT
VFL2-EO24DT
VFL2-WW24DT
Input Rating 30,000 BTU/Hr 30,000 BTU/Hr
Minimum Input Rating 15,000 BTU/Hr 24,000 BTU/Hr 15,000 BTU/Hr 24,000 BTU/Hr
Gas Type Natural LP/Propane Natural LP/Propane
Ignition Electronic Push
Button
Electronic Push
Button
Electronic Push
Button
Electronic Push But-
ton
Manifold Pressure 5 in. W.C. 10 in. W.C. 5 in. W.C. 10 in. W.C.
Inlet Gas Pressure *For purposes of input adjustment
Maximum 14 in. W.C. 14 in. W.C. 14 in. W.C. 14 in. W.C.
Minimum* 6 in. W.C. 11 in. W.C. 6 in. W.C. 11 in. W.C.
3
IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate,
or service this heater. Improper use of this heater can cause serious injury or death from burns, re,
explosion, electrical shock, and carbon monoxide poisoning.
IMPORTANT SAFETY INFORMATION
Only a qualied installer, service agent, or local gas supplier may install and service this product.
WARNING: Do not store or use gasoline or other ammable vapors or liquids in the vicinity
of this or any other appliance.
WARNING: This appliance can be used with propane or natural gas. It is shipped
from the factory adjusted for use with propane.
CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning resemble the u
with headaches, dizziness, or nausea. If you have these signs, the heater may not be working properly.
Get fresh air immediately! Have heater serviced. Some people are more affected by carbon monoxide
than others. These include pregnant women, people with heart or lung disease, people who are
anemic, those under the inuence of alcohol, and those living in high altitudes.
NATURAL AND PROPANE/LP GAS: Natural and Propane/LP gases are odorless. An odor-making
agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the
gas can fade. Gas may be present even though no odor exists. Make certain you read and under-
stand all warnings. Keep this manual for reference. It is your guide to operating this heater safely.
CALIFORNIA PROPOSITION 65
Fuels used in gas or oil red appliances and the products of combustion of such fuels contain
chemicals known to the state of California to cause cancer, birth defects or other reproductive
harm. This product contains chemicals, including lead and lead compounds, known to the state of
California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.
WARNING:
- Due to high temperatures, locate this appliance out of trafc and away from furniture
and draperies.
- Heater becomes very hot when operating. Keep children and adults away from hot sur-
faces to avoid burns or clothing ignition. Heater will remain hot for a time after shutoff.
Allow surfaces to cool before touching.
- Carefully supervise young children when they are in the room with the heater.
- Do not place clothing or other ammable material on or near the appliance. Never place
any objects in the heater.
- Installation and repair should be done by a qualied service person. The appliance
should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding
material, etc. It is imperative that control compartments, burners and circulating air pas-
sageways of the appliance be kept clean.
- Any change to this heater or its controls can be dangerous.
- Do not use any accessories not approved for use with this heater.
- Keep the appliance are clear and free from combustible materials, gasoline, and other
ammable vapors and liquids.
- This appliance is intended for supplemental heating.
4
SAFETY INFORMATION
1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is
not convertible for use with other gases.
2.
Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors.
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in your building
• immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions
• if you cannot reach your gas supplier, call the re department
4. This heater shall not be installed in a bedroom or bathroom.
5. Do not use this heater as a wood-burning heater. Use only the logs provided with the heater.
6. Do not add extra logs or ornaments such as pine cones, vermiculite or rock wool. Using these
added items can cause sooting. Do not add lava rock inside the heater; only around the outside of
the heater.
7. This heater is designed to be smokeless. If logs ever appear to smoke, turn off heater and call a
qualied service person. Note: During initial operation, slight smoking could occur due to log curing
and heater burning manufacturing residues.
8. To prevent the creation of soot, follow the instructions in Cleaning and Maintenance, page 25 & 26.
9. Before using furniture polish, wax, carpet cleaner or similar products, turn heater off. If heated,
the vapors from these products may create a white powder residue within burner box or on adjacent
walls or furniture.
10. This heater needs fresh air ventilation to run properly. This heater has an Oxygen Depletion
Sensing (ODS) safety shutoff system. The ODS shuts down the heater if not enough fresh air is
available. See Air for Combustion and Ventilation, page 9. If heater keeps shutting off, see
Troubleshooting, page 27.
11. Do not run heater
• where ammable liquids or vapors are used or stored.
• under dusty conditions.
12. Do not use this heater to cook food or burn paper or other objects.
13. Never place any objects in the heater or on logs.
14. Do not use heater if any part has been under water. Immediately call a qualied service technician to
inspect the room heater and to replace any part of the control system and any gas control which has
been under water.
15. Turn off and unplug heater and let cool before servicing. Only a qualied service person should
service and repair heater.
16. Operating heater above elevations of 4,500 feet could cause pilot outage.
17.
Do not operate heater if log is broken. Do not operate heater if log is chipped (dime-sized or larger).
18. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lb. capacity.
19. Provide adequate clearances around air openings.
QUALIFIED INSTALLING AGENCY
Only a qualied agency should install and
replace gas piping, gas utilization equip-
ment or accessories, and repair and equip-
ment servicing. The term "qualied agency"
means any individual, rm, corporation, or
company that either in person or through a
representative is engaged in and is respon-
sible for:
a) Installing, testing, or replacing gas piping or
b)Connecting, installing, testing, repairing, or
servicing equipment; that is experienced in
such work; that is familiar with all precautions
required; and that has complied with all the re-
quirements of the authority having jurisdiction.
5

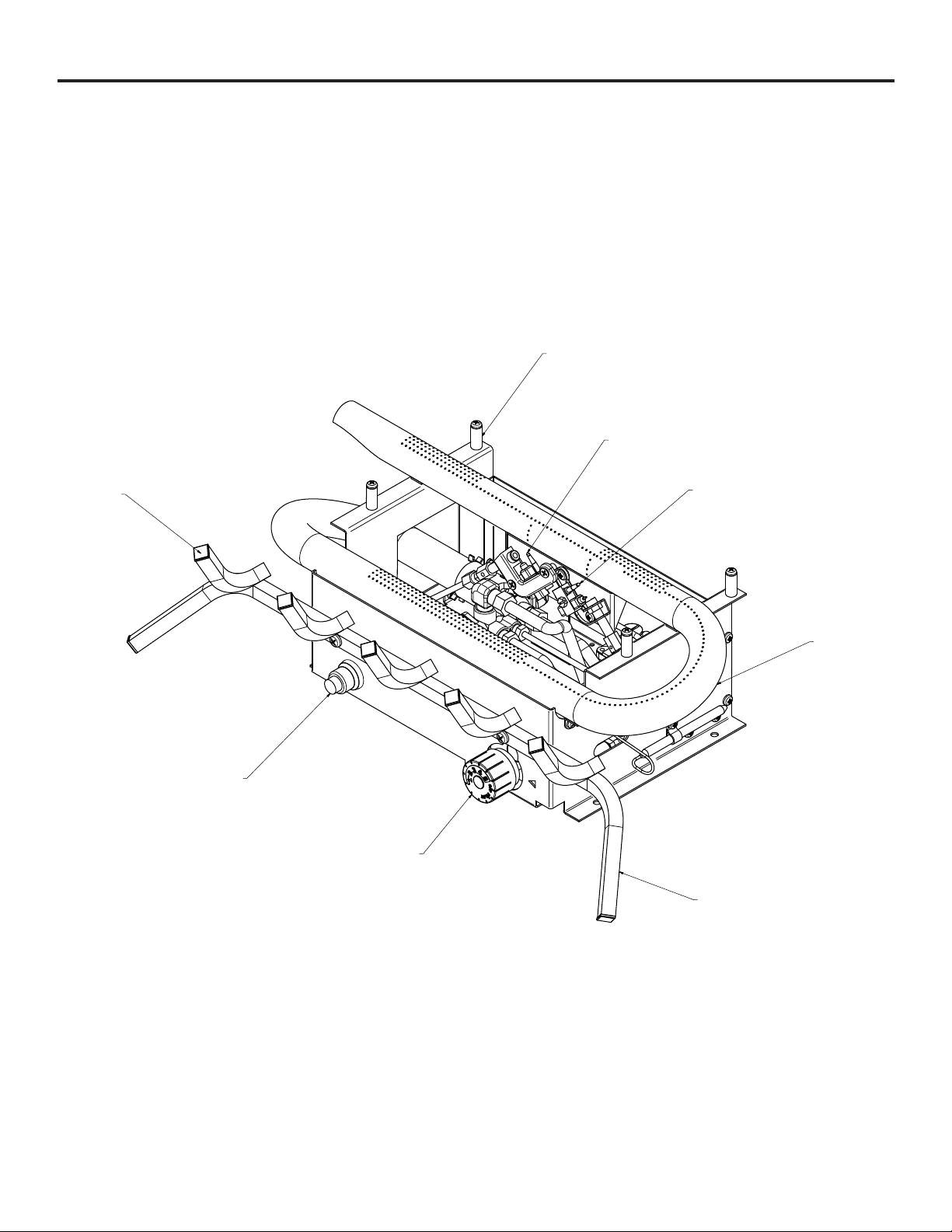

PRODUCT IDENTIFICATION
Burner Tube
Grate
Thermostatic
Control Valve
Battery Ignitor
Grate Cap
LP ODS Pilot
NG ODS Pilot
Log Locator
Spacer - (4)
6
This log set has been tested and approved to ANS Z21.11.2 2013 standard for Unvented Heaters
and can be operated with the ue damper closed. State and local codes in some areas prohibit the
use of vent-free heaters.
DUAL FUEL CAPABILITY
Your heater is equipped to operate on either propane or natural gas. The heater is
shipped from the factory ready for connecting to propane. The heater can easily be
changed to natural gas by having your qualied installer follow the instructions on page
16 and the markings on the heater.
SAFETY PILOT
This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system.
The ODS/pilot shuts off the heater if there is not enough fresh air and cuts off main burner gas in the
event of ame out.
ELECTRIC PUSH BUTTON IGNITION SYSTEM
This heater is equipped with an Electronic Push Button control system. This system requires
one AAA battery (provided).
THERMOSTAT HEAT CONTROL
The control automatically cycles the burner on and off to maintain a desired room temperature (See
page 23).
State of Massachusetts: The installation must be made by a licensed plumber or gas tter in
the Commonwealth of Massachusetts. Sellers of unvented propane or natural gas-red
supplemental room heaters shall provide to each purchaser a copy of 527 CMR 30 upon sale
of the unit.
In the State of Massachusetts, unvented propane or natural gas-red space heaters shall
be prohibited in bedrooms and bathrooms.
In the State of Massachusetts the gas cock must be a T-handle type. The State of
Massachusetts requires that a exible appliance connector cannot exceed three feet
in length.
LOCAL CODES
Install and use heater with care. Follow all codes. In the absence of local codes, use the latest edi-
tion of The National Fuel Gas Code, ANSI Z223.1, also known as NFPA 54*.
*Available from:
American National Standard Institute, Inc. National Fire Protection Association, Inc.
1430 Broadway 1 Batterymarch Park
New York, NY 10018 Quincy, MA 02269-9101
This heater is designed for vent-free operation. State and local codes in some areas prohibit the use
of vent-free heaters.
PRODUCT FEATURES
The installation of appliances designed for manufactured home (U.S. only) or mobile
home installation must conform with the Standard CAN/CSA Z240 MH, Mobile Housing,
in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24
CFR, Part 3280, in the United States, or when such a standard is not applicable, ANSI/
NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard.
7
PREPARING FOR INSTALLATION
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS
Water vapor is a by-product of gas combustion. An unvented room heater produces
approximately one (1) ounce (30 mL) of water for every 1,000 BTUs (.3 kw) of gas input
per hour. An unvented room heater is recommended as a supplemental heater (a room) rather than a
primary heat source (an entire house). In most supplemental heat
applications, the water vapor does not create a problem. In most applications, the water vapor en-
hances the low humidity atmosphere experienced during cold weather.
The following steps will help ensure that water vapor does not become a problem:
1. Be sure the heater is the proper size for the application, including adequate combustion air and
circulation air.
2. If there is high humidity, a dehumidier may be used to help lower the water vapor content
of the air.
3. Do not use an unvented room heater as the primary heat source.
AIR FOR COMBUSTION AND VENTILATION
This heater shall not be installed in a room or space unless the required volume of indoor combustion
air is provided by the method described in the Nation Fuel Gas Code, ANSI Z223.1/NFPA 54, the
International Fuel Gas Code, or applicable local codes.
PRODUCING ADEQUATE VENTILATION
All spaces in homes fall into one of the three following ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 8-10 will help you classify your space and provide adequate ventilation.
Conned and Unconned Space
A conned space as a space whose volume is less than 50 cu. ft. per 1,000 BTU/hr (4.8 m^3 per kw)
of the aggregate input rating of all appliances installed in that space and an unconning space as a
space whose volume is not less than 50 cu. ft. per 1,000 BTU/hr (4.8 m^3 per kw) of the aggregate
input rating of all appliances installed in that space. Rooms connecting directly with the space in
which the appliances are installed*, through openings not furnished with doors, are considered a
part of the unconned space.
This heater shall not be installed in a conned space or unusually tight construction unless provisions
are provided for adequate combustion and ventilation air.
* Adjoining rooms are connecting only if there are doorless passageways or ventilation
grills between them.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for combustion and venti-
lation. However, in buildings of unusually tight construction, you must provide additional
fresh air.
Unusually tight construction is dened as construction where:
a) walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder
with a rating of one perm (6x10-11kg per pa-sec-m2) or less with openings gasketed or sealed
and
b) weather stripping has been added on windows that can be opened and on doors and
c) caulking or sealants are applied to areas such as joints around window and door frames,
between sole plates and oors, between wall-ceiling joints, between wall panels, at
penetrations for plumbing, electrical, and gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide additional fresh air.
See “Ventilation Air From Outdoors” (page 9). If your home does not meet all of the
three criteria above, proceed to “Determining Fresh-Air Flow For Heater Location”.
8
PREPARING FOR INSTALLATION
DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION
Determining if You Have a Conned or Unconned Space
Use this worksheet to determine if you have a conned or unconned space.
Space: Includes the room in which you will install heater plus any adjoining rooms with
doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space Length × Width × Height = cu. ft. (volume of space)
Example: Space size 20 ft. (length) × 16 ft.(width) × 8 ft. (ceiling height) = 2560 cu. ft. (volume
of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these
rooms to the total volume of the space.
2. Divide the space volume by 50 cu. ft. to determine the maximum BTU/hr the space can support.
_______ (volume of space) ÷ 50 cu. ft.= (Maximum BTU/hr the space can support)
Example: 2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum BTU/hr the space
can support)
3. Add the BTU/hr of all fuel burning appliances in the space.
Vent-free heater _________ BTU/hr
Gas water heater* ________BTU/hr
Gas furnace _____________BTU/hr
Vented gas heater ________BTU/hr Example:
Gas heater logs __________BTU/hr Gas water heater 30,000 BTU/hr
Other gas appliances*+ ____BTU/hr Vent-free heater + 26,000 BTU/hr
Total = ____BTU/hr Total = 56,000 BTU/hr
*Do not include direct-vent gas appliances. Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
4. Compare the maximum BTU/hr the space can support with the actual amount of BTU/hr used.
_______ BTU/hr (maximum the space can support)
_______ BTU/hr (actual amount of BTU/hr used).
Example : 51,200 BTU/hr (maximum the space can support) 56,000 BTU/hr (actual amount of
BTU/hr used)
The space in the above example is a conned space because the actual BTU/hr used is more than
the maximum BTU/hr the space can support.
You must provide additional fresh air. Your options are as follows:
a) Rework worksheet, adding the space of an adjoining room. If the extra space provides an
unconned space, remove door to adjoining room or add ventilation grills between rooms. See
“Ventilation Air From Inside Building,” page 9.
b) Vent room directly to the outdoors. See “Ventilation Air From Outdoors”, page 9.
c) Install a lower BTU/hr heater if lower BTU/hr size makes room unconned. If the actual BTU/hr
used is less than the maximum BTU/hr the space can support, the space is an unconned space.
You will need no additional fresh air ventilation.
9
PREPARING FOR INSTALLATION
WARNING: If the area in which the heater may be operated does not meet the required
volume for indoor combustion air, combustion and ventilation air shall be provided by
one of the methods described in the NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA
54, the INTERNATIONAL FUEL GAS CODE, or applicable local codes.
Fig 1 - Ventilation Air from Inside Building
Fig 2 - Ventilation Air from Outdoors
12 in.
Ventilation Grills
Into adjoining Room
Option 2
Or
Remove
Door
Into
Adjoining
Room
Option 3
Ventilation
Grills
Into Adjoining
Room
Option 1
To
Attic
To
Crawl
Space
Outlet
Air
Ventilated
Crawl Space
Ventilated
Attic
Inlet Air
Inlet
Air
Outlet
Air
Ventilation Air From Inside Building
This fresh air would come from adjoining
unconned space. When ventilating to an
adjoining unconned space, you must
provide two permanent openings: one
within 12 in. of the wall connecting
the two spaces (see options 1 and 2,
Fig. 1). You can also remove door into
adjoining room (see option 3, Fig. 1).
Follow the National Fuel Gas Code
NFPA 54/ANS Z223.1. Air for Combustion
and Ventilation for required size of
ventilation grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or duct. You must provide two
permanent openings: one within 12 in. of
the ceiling and one within 12 in. of the oor.
Connect these items directly to the outdoors
or spaces open to the outdoors. These
spaces include attics and crawl spaces.
Follow the National Fuel Gas Code NFPA
54/ANS Z223.1. Air for Combustion and
Ventilation for required size of ventilation
grills or ducts.
IMPORTANT: Do not provide openings for
inlet or outlet air into attic if attic has a
thermostat-controlled power vent. Heated
air entering the attic will activate the power
vent. Rework worksheet, adding the space
of the adjoining unconned space. The
combined spaces must have enough fresh
air to supply all appliances in both spaces.
Fig. 2 - Ventilation Air from Outdoors
Fig. 1 - Ventilation Air from
Inside Building
10
INSTALLATION
NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your
primary heating system. Do not install this heater as your primary heat source. If you have a
central heating system, you may run system’s circulating blower while using heater. This will
help circulate the heat throughout the house.
WARNING: A qualied technician must install heater. Follow all local codes.
WARNING: Never install the heater:
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, clothing, or other ammable objects are less than 42
in. from the front, top or sides of the heater.
• in high trafc areas
• in windy or drafty areas
CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next
to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities
(such as tobacco smoke, aromatic candles, cleaning uids, oil or kerosene lamps, etc.) in the air
exist, may cause walls to discolor.
IMPORTANT: Vent-free heaters add moisture to the air. Although this is benecial, installing heater in
rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for
Combustion and Ventilation, pages 8 through 10.
CHECK GAS TYPE
Be sure your gas supply is right for your heater.
WARNING: This appliance is designed for installation in only a solid-fuel burning masonry or
UL 127 factory-built replace or in a listed ventless rebox enclosure. Exception: DO NOT
install this appliance in a factory-built replace that includes instructions stating it has not been
tested or should not be used with unvented gas logs. s worksheet to determine if you have a
conned or unconned space.
WARNING: Solid-fuels shall not be burned in a replace in which an unvented room heater is
installed.
WARNING: Any outside air ducts and/or ash dumps in the replace shall be permanently
closed at time of appliance installation.
WARNING: Any glass doors shall be fully opened when the appliance is in operation.
WARNING: Before installing in a solid-fuel burning replace, the chimney ue and rebox
must be cleaned of soot, creosote, ashes and loose paint by a qualied chimney cleaner.
WARNING: Do not allow fans to blow directly into the replace. Avoid any drafts that alter
burner ame patterns.
WARNING: Do not use a blower insert, heat exchanger insert or other accessory not ap-
proved for use with this heater.
11
Minimum Fireplace Clearance to Combustible Materials
Log size
18 in. 16 in. 42 in.
24in. 16 in. 42 in.
INSTALLATION
Heater CLEARANCES
CAUTION: If you install the heater in a home garage
• heater pilot and burner must be at least 18" above oor.
• locate heater where moving vehicle will not hit it.
For convenience and efciency, install heater
• where there is easy access for operation, inspection and service
• in coldest part of room
• If this appliance is to be installed directly on carpeting, tile or other combsutible material, other than
wood ooring, the appliance must be installed on a metal or wood panel extending the full width and
depth of the appliance.
Minimum Clearances For Side Combustible Material, Side Wall and Ceiling
A. Clearances from the side of the heater cabinet to any combustible material and wall should
follow diagram in Figure 3.
B. Clearances from the top of the heater opening to the ceiling should not be less than 36".
WARNING: Maintain the minimum clearances. If possible, provide greater clearances from the
oor, ceiling, and adjoining wall than required.
WARNING: Seal any fresh air vents or ash clean-out doors located on the oor or wall of re
place to prevent drafting caused by pilot outage or sooting. Use a heat-resistant sealant. Do
not seal chimney ue damper.
CHECK GAS TYPE
Make sure your gas supply is correct for your log set. If supply is not correct, do not install heater. Call
dealer where you purchased heater for proper gas log set.
LOG SIZING REQUIREMENTS
Log Size Minimum Firebox Size
Height Depth Front Width Rear Width
18" 24 in. 14 in. 28 in. 20 in.
24'' 24 in. 14 in. 32 in. 22 in.
From edge of replace
opening to side wall
From top of replace
to ceiling
Fig. 3
12
INSTALLATION
MINIMUM NONCOMBUSTIBLE MATERIAL CLEARANCE
If Not Using Mantel
You must have noncombustible material(s) above the replace opening. Noncombustible
materials (such as slate, marble, tile, etc.) must be at least 1/2 in. thick. With sheet metal,
you must have noncombustible material behind it, such as a noncombustible replace hood
accessory. See Fig. 5.
Fig. 4 - Minimum Clearance for Combustible to Wall Fig. 5 - Heat resistant material (slate,
marble, tile,etc.) above replace
If Using Mantel
You must have noncombustible material(s) (such as slate, marble, tile, etc.) at least 1/2 in. thick.
With sheet metal, you must have noncombustible material behind it. Noncombustible material must
extend at least 12 inches up. See Fig. 7.1 for minimum clearances requirements.
IMPORTANT: Cannot operate if the minimum clearances are not met.
Heat Resistant
Material
Heat Resistant
Material
(A)
Firebox
2 4 6 8 10 12 14 16 18
Inches
12" min.
13
INSTALLATION
MANTEL CLEARANCES
In addition to meeting noncombustible material clearances, you must also meet required clearances
between replace opening and mantel shelf. If the clearances listed below are
not met, you will need to raise the mantel.
Determining Mantel Clearances
If you meet minimum clearance requirements between mantel shelf and top of replace opening,
your installation (see Fig. 7.1).
Noncombustible
Material Distance
Requirements for Safe Installation
8 in. or more Noncombustible material okay.
Less than 8 in. Noncombustible material must be extended to at least 8 in. See
between 8 in. and 12 in. above.
Determining Minimum Mantel Clearance
NOTICE: Surface temperature of adjacent walls and mantels become hot during operation. Walls
and mantels above the rebox may become too hot to touch. If installed properly, these temperatures
meet the requirement of the national product standard. Follow all minimum clearances shown in this
manual.
2.5"Maximum
10"Maximum
10"Minimum
18"Minimum
Combustible
Mantel

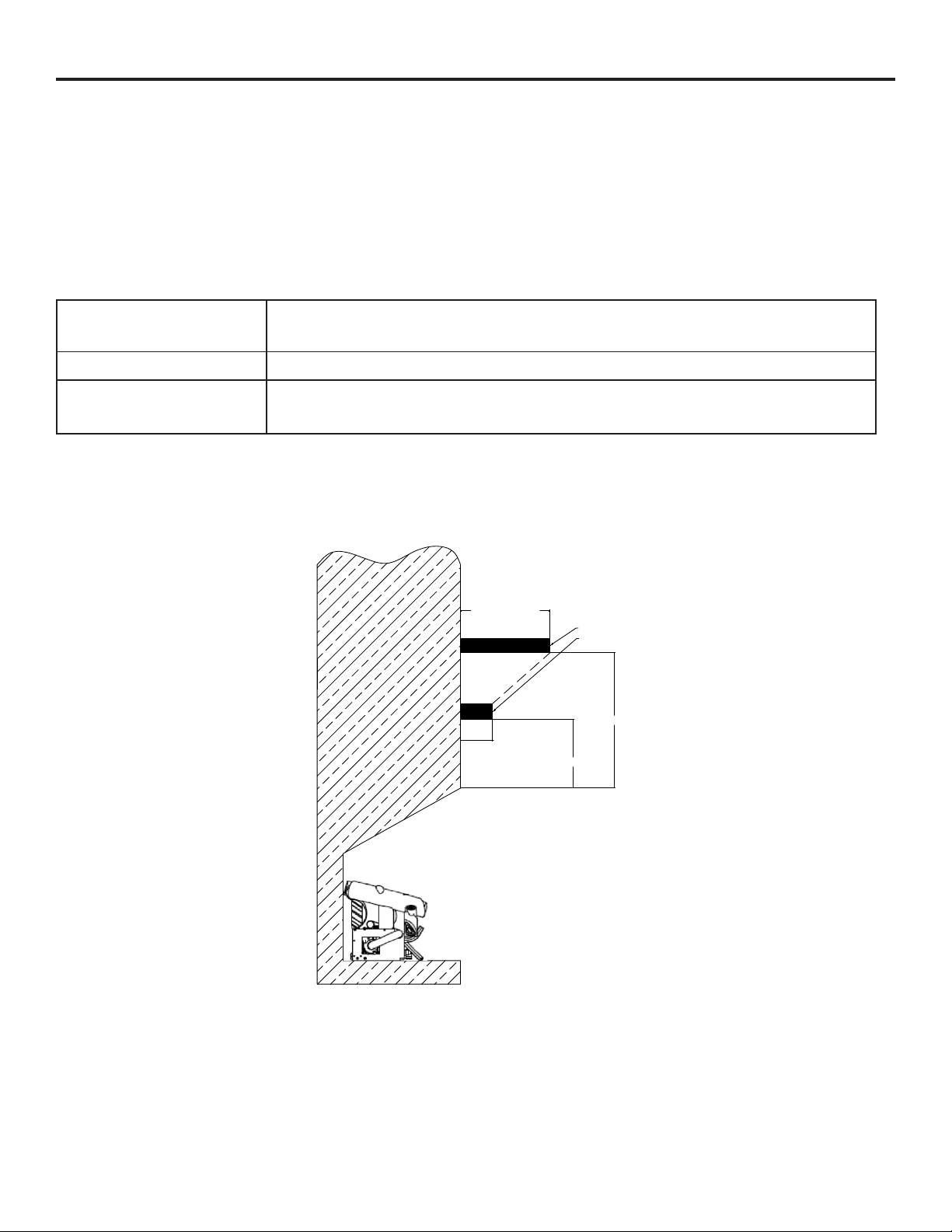

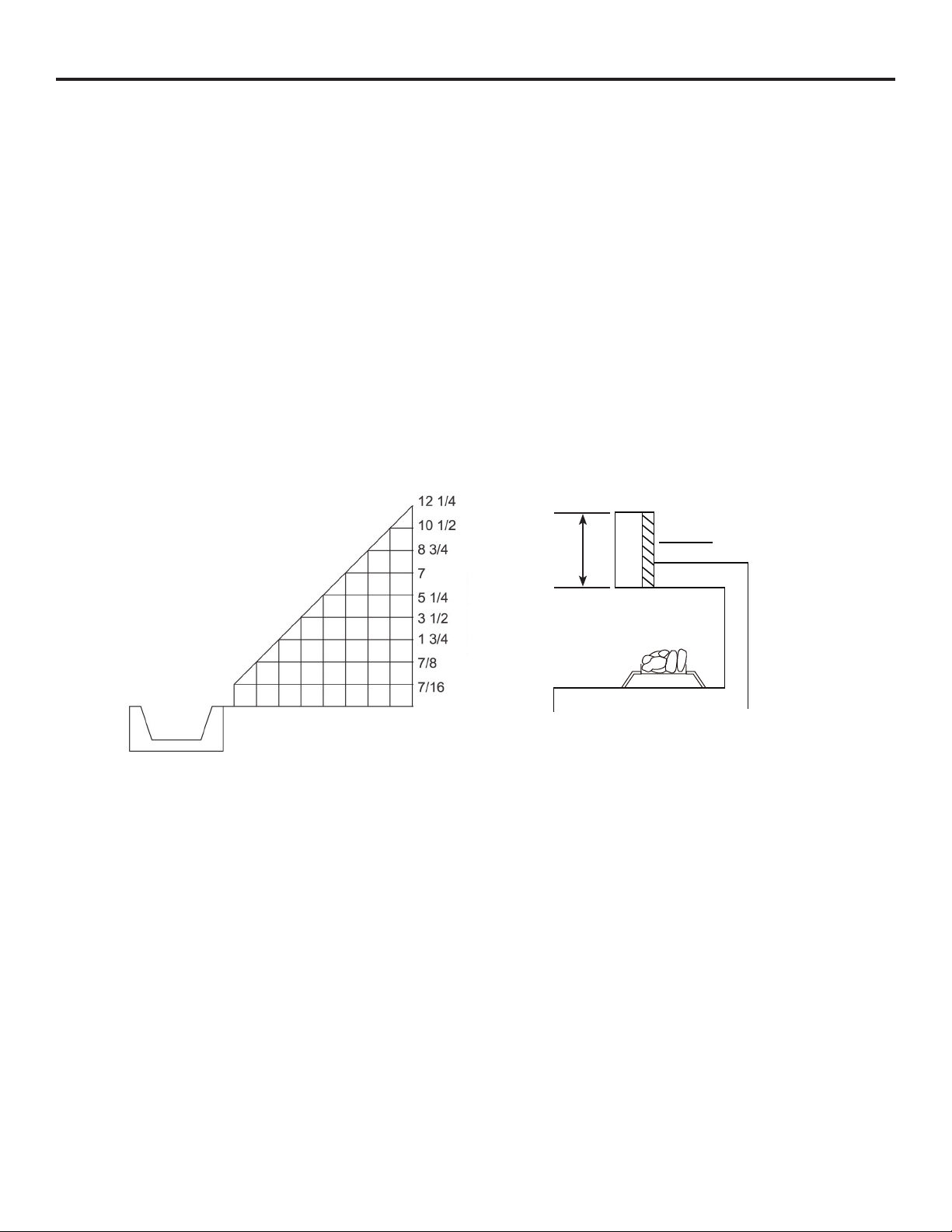

Fig. 7.1 - Minimum mantel clearances
14
INSTALLATION
FLOOR CLEARANCES
a) If installing appliance on oor level, you must maintain the minimum distance of 14 in. to
combustibles (see Fig. 9).
b) If combustible materials are less than 14 in. to the replace, you must install appliance at least
5 in. above the combustible ooring (see Fig. 8).
Hearth
Combustible
Material
Combustible
Material
5 in.
Min
14 in.
Min
NonCombustible
Material
Chimenea
Material
combustible
5 pulg.
mín.
Material
combustible 14 pulg.
mín.
Material no
combustible
Fig. 9 - Minimum replace
clearances if installed at oor level
Fig. 8 - Minimum replace
clearances above combustible ooring
Combustible
Material
Combustible
Material
Non-combustible
Material
Non-combustible
Hearth
5" min.
14" min.
15
INSTALLATION
WARNING: Failure to position the parts in accordance with these diagrams or failure to
use only parts specically approved with this heater may result in property damage or
personal injury.
Before beginning assembly or operation of the product, make sure all parts are present.
Compare parts with package contents list. If any part is missing or damaged, do not attempt
to assemble, install or operate the product. Contact customer service for replacement parts.
Estimated Assembly Time: 1 to 2 hours
Tools Required for Assembly (Not Included, unless otherwise stated):
Before installing heater, make sure you have the the following:
• Hardware package (provided with heater)
• Approved exible gas hose if allowed by local codes
• Sealant (resistant to natural or propane/LP gas)
• Electric drill with 3/16- in. drill bit
• Phillips screwdriver
• External regulator (supplied by installer if required)
• Piping (check local codes)
• Equipment shutoff valve
• Test gauge connection
• Sediment trap
• Tee joint
• Pipe wrench
• 3/8" NPT to 1/2" are tting
• Allen Wrench
UNPACKING
1. Remove logs, grate, and burner base assembly from carton. NOTE: Do not pick up burner base
assembly by burners as this could damage heater. Always handle base assembly by frame.
2. Remove all protective packaging applied to logs and heater for shipment.
3. Check all items for any shipping damage. If damaged, promptly inform dealer where you
purchased the heater.
Attachment Screws
(2) Pieces

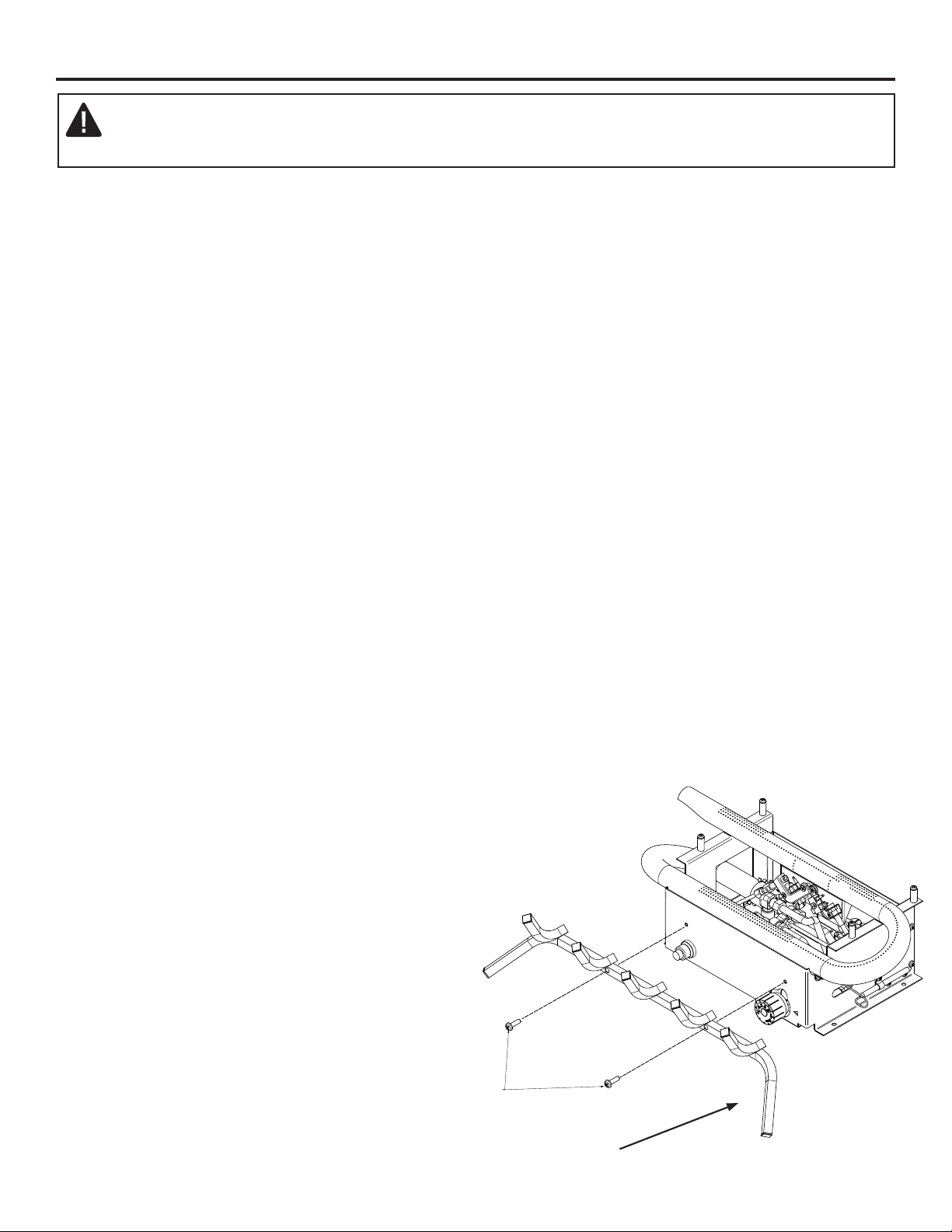

GRATE ASSEMBLY PROCEDURE
1. Position the grate in front of the burner
so the 2 legs are pointing downward, the
"grate ends" that the logs sit on are point-
ing upward, and the screw holes line up
with the screw holes on the burner unit
(See Fig. 11)
2. Hand tighten the grate to the burner with
(2) Attachment Screws, each at an equal
distance until hand tightening is no
longer possible.
3. Finish tightening each Attachment Screw
with a screw driver, but make sure not to
over tighten.

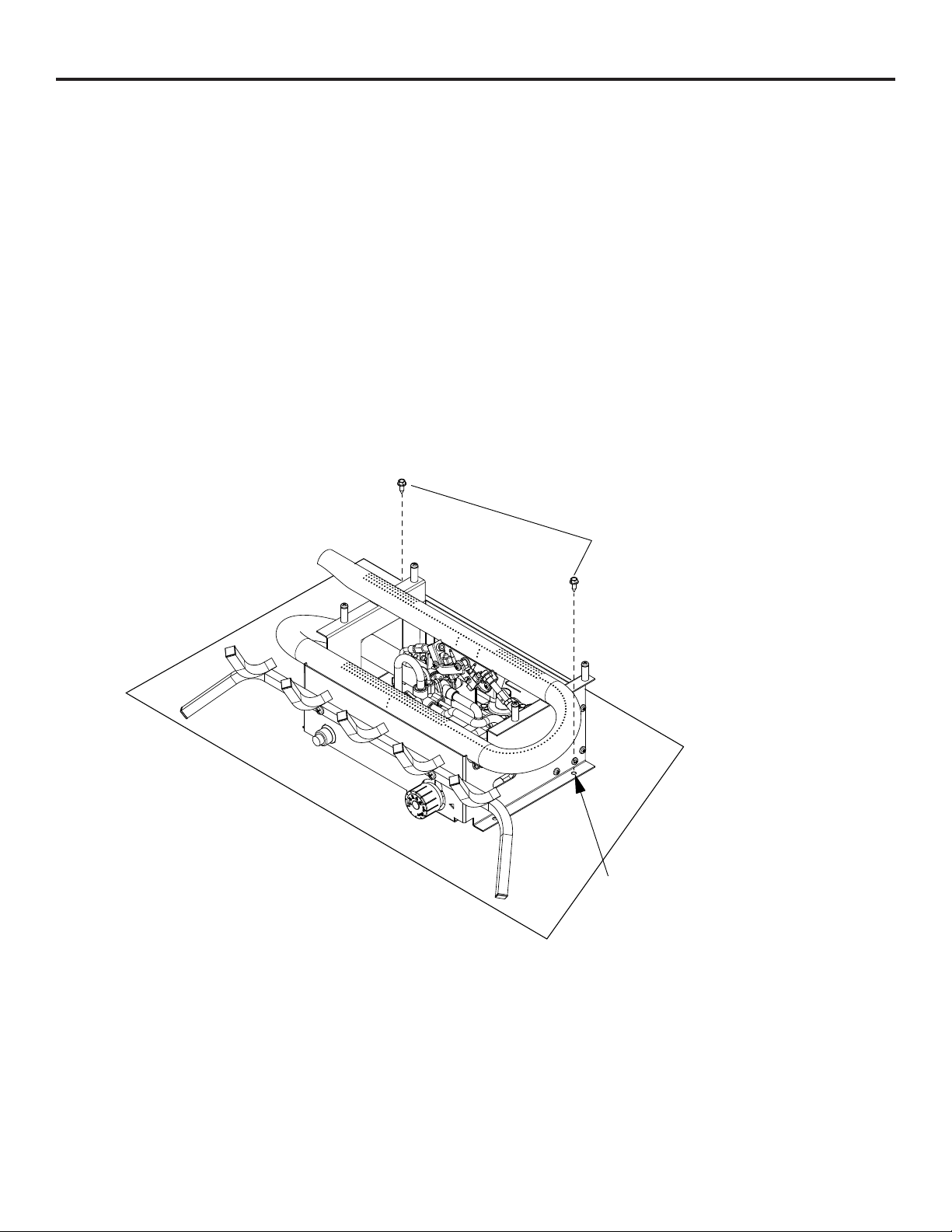

Fig. 11
Grate
16
INSTALLATION
GAS SELECTION INSTRUCTIONS
CAUTION: The knob to the gas selection means shall not be accessed or adjusted while the appli-
ance is in operation.
CAUTION: Two gas line installations at the same time are prohibited. The access plate to simple
switching means shall not be opened while heater is in operation.
Installation and adjustments shall be made by a qualied technician only.
NOTE: If you are connecting this appliance to propane do not make any adjustments. Proceed to
installing the gas line as instructed in the Owner’s Manual.
Convert to natural gas:
Step 1 - Remove access panel
WARNING: This appliance can be used with propane or natural gas. It is shipped from the
factory adjusted for use with propane.
Fig. 13 - Selector Valve
Access Panel
Panel Screws (4)
Step 2 - Adjust the gas selector valve
Push in on the selector valve Knob and rotate the knob
counter-clockwise until it stops. Release the knob (See Fig. 13)
Do not operate the appliance between locked positions.
Step 3 - Replace Access Panel
Reverse step 2 to convert back to propane gas.
PROPANE
POSITION
NATURAL GAS
POSITION
Fig. 8 - Selector Valve
LP
NG
LP
NG
Gas Selector Knob
Fig. 12 - Valve Access Panel
Gas Selector Knob
17
CONNECTING TO GAS SUPPLY
WARNING: A qualied service technician must connect heater to gas supply. Follow all local
codes.
CAUTION: Never connect heater directly to the gas supply. This heater requires an external
regulator (not supplied). The external regulator between the gas supply and heater must be installed.
Gas supplier provides external regulator for natural gas.
WARNING: Never connect heater to private (non-utility) gas wells. This gas is commonly known
as wellhead gas.
The installer must supply an external regulator for liquid propane. The external regulator is
provided by the gas supplier for natural gas. The external regulator will reduce incoming gas pres-
sure. You must reduce incoming gas pressure to between 11 and 14 in. of water column for propane
and between 6 and 14 in. of water column for natural gas. If you do not reduce incoming gas pres-
sure, heater regulator damage could occur. Install external regulator with the vent pointing down as
shown in Fig. 15. Pointing the vent down protects it from freezing rain or sleet.
* Purchase the optional equipment shutoff valve from your local Home Center store.
INSTALLATION
CAUTION: Use only new black iron or steel pipe. Internally tinned copper tubing
may be used in certain areas. Check your local codes. Use pipe of ½ in. diameter
or greater to allow proper volume gas to heater. If pipe is too small, loss of pressure
will occur. Installation must include an equipment shutoff valve, union, and plugged
1/8-in. NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must
be upstream from heater (See Fig. 15).
IMPORTANT: Install equipment shutoff valve in an accessible location. The equipment
shutoff valve is for turning on or shutting off the gas to the appliance. Apply pipe joint
sealant lightly to male threads. This will prevent excess sealant from going into pipe.
Excess sealant in pipe could result in clogged heater valves.
Approved
Flexible
Gas Line
or 1/2''
Black Pipe
Fig. 14 - Regulator Conversion

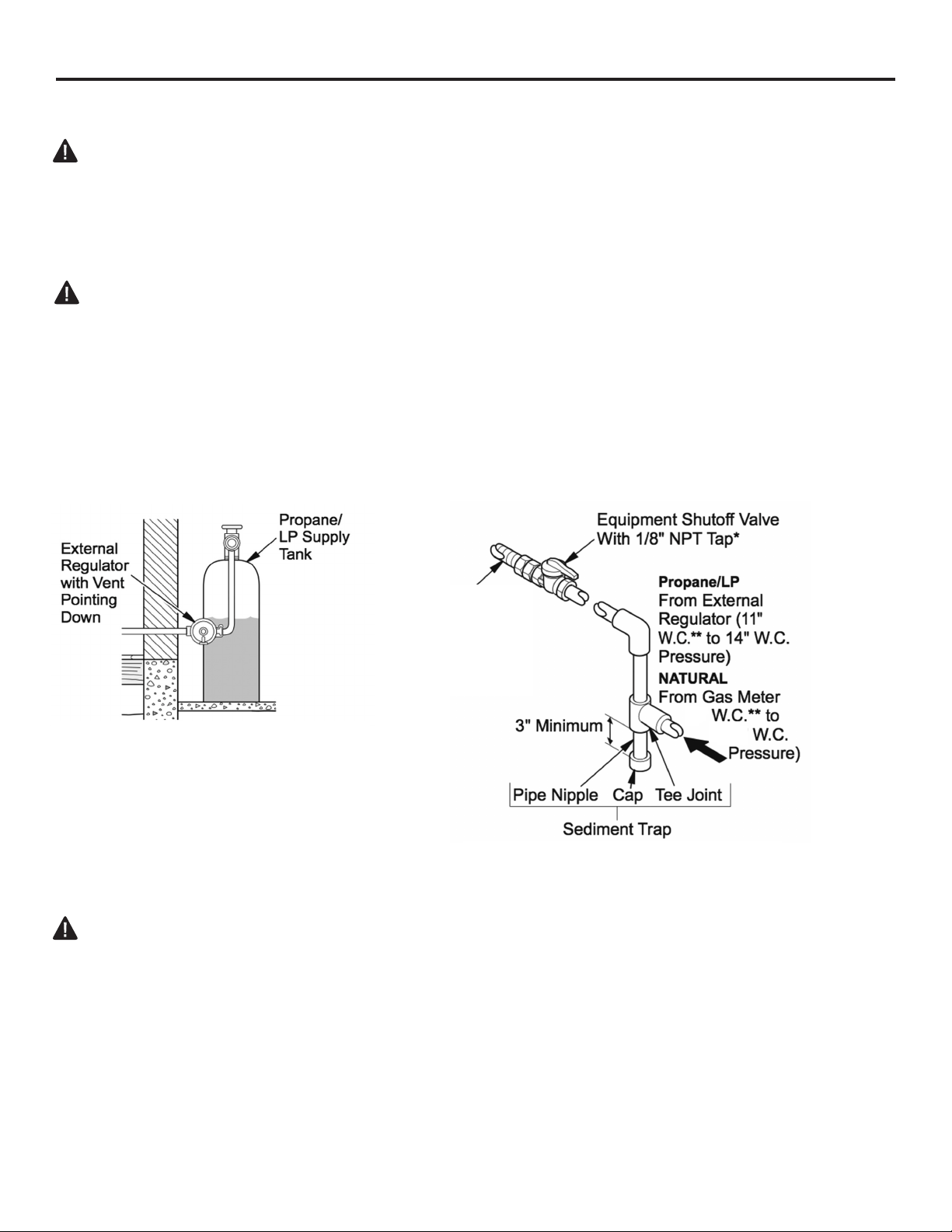

Fig. 15 - Gas Connection
(6''
14''
18
INSTALLATION

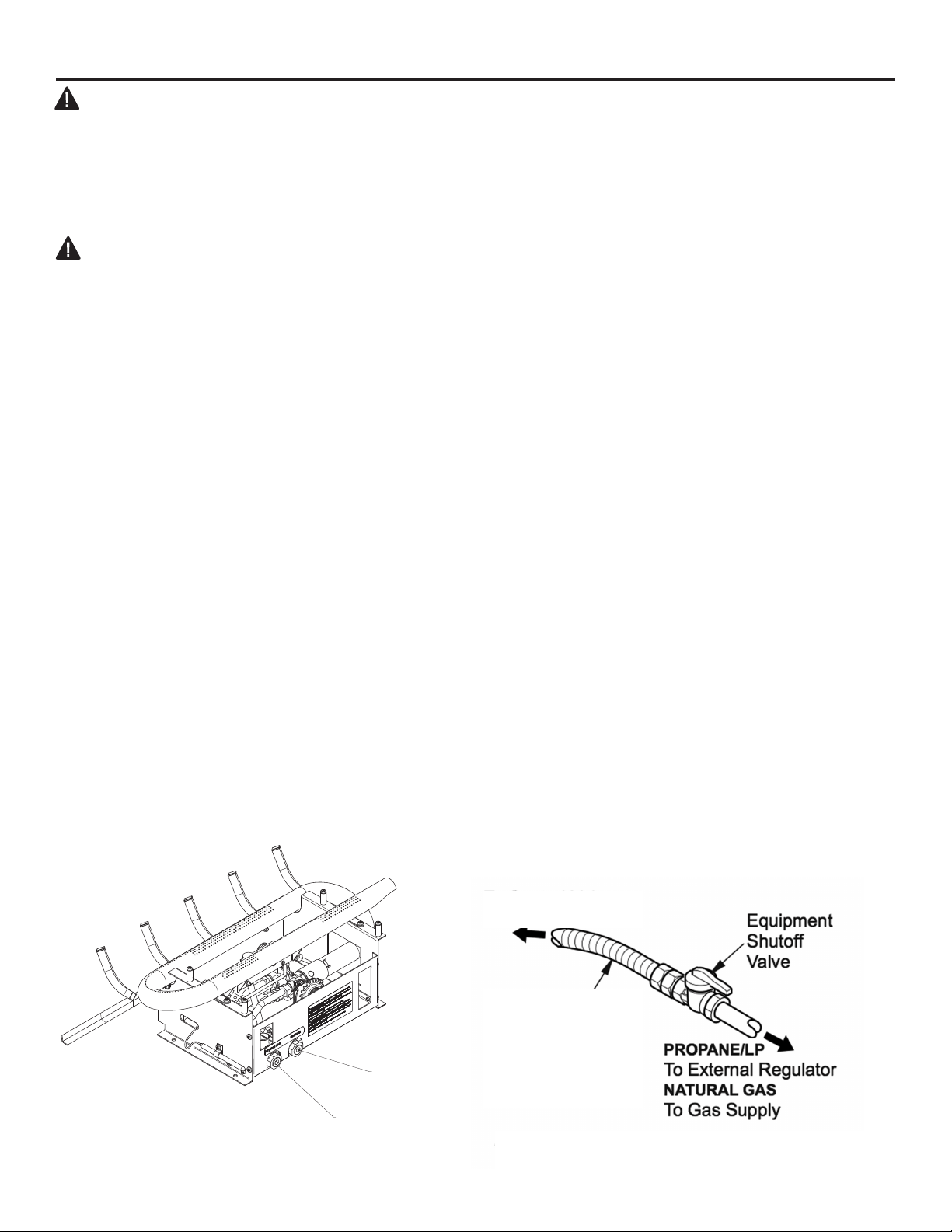

Fig. 16 - Attaching Flexible Gas Line
to Equipment Shutoff Valve
Flexible Gas Line or
Black Pipe to Heater
Cabinet Regulator
To Regulator
Installation Items Needed (Not Provided)
• 8'' Adjustable Wrench
• 8'' Pipe Wrench
• 1/2'' Flexible Gas Line (24'' Min.) or 1/2'' Black Pipe
• 90 Deg. 1/2 NPT x 3/8'' Flare Fitting or 3/8 NPT x 1/2 NPT' Street Elbow
• Sealant (Resistant to Propane (LP) Gas)
• Shut Off Valve
• Allen Wrench
1) A variety of options are possible for routing the Gas Connection Lines depending on where
your Gas Supply line is located.
NOTICE: Most building codes do not permit concealed gas connections. Check your local build-
ing code prior to using a Flexible Gas Line for this installation.
2) Identify the gas inlet on the Heater that corresponds to the fuel type for your installation. Re-
move the threaded plug by turning counterclockwise.
Install a 90 degree tting - not included). Be sure to use a gas resistant sealant on the 3/8 NPT
tting. Position the tting so the inlet line can be attached without binding.
3) Install the Gas Line to the 90 Deg. tting and attach to the Shut Off Valve.
4) Check all connections for gas leaks.
CAUTION: Use pipe joint sealant that is resistant to gas (PROPANE or NG). We
recommend that you install a sediment trap in a supply line. Locate sediment trap
where it is within reach for cleaning and not likely to freeze. Install in the piping
system between fuel supply and heater. A sediment trap traps moisture and contaminants.
This keeps them from going into heater controls. If sediment trap is not installed or is
installed incorrectly, heater may not run properly.
CAUTION: Avoid damage to regulator. Hold gas regulator with wrench when
connecting into gas piping and/or ttings. NG Models: 6 in. to 14 in. W.C. Gas
supplier provides external regulator for natural gas.
Propane (LP) Regulator
Gas Inlet
Natural Gas (NG)
Regulator Inlet
Caution: Two gas line installations at the same time are
prohibited.
19
INSTALLATION
CHECKING GAS CONNECTIONS
WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all
leaks immediately.
WARNING: Never use an open ame to check for a leak. Apply a mixture of liquid soap and water
to all joints. If bubbles form, there may be a leak. Correct all leaks immediately.
Pressure Testing Gas Supply Piping System
Test Pressures In Excess Of 1/2 PSIG ( 3.5kPa )
1. Disconnect heater with its appliance main gas valve (control valve) and equipment shutoff valve
from gas supply piping system. Pressures in excess of 1/2 PSIG will damage heater regulator.
2. Cap off open end of gas pipe where equipment shutoff valve was connected.
3. Pressurize supply piping system by either using compressed air or opening gas supply tank valve.
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and water to gas joints. If
bubbles form, there may be a leak.
5. Correct all leaks immediately.
6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnected ttings for leaks.
Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

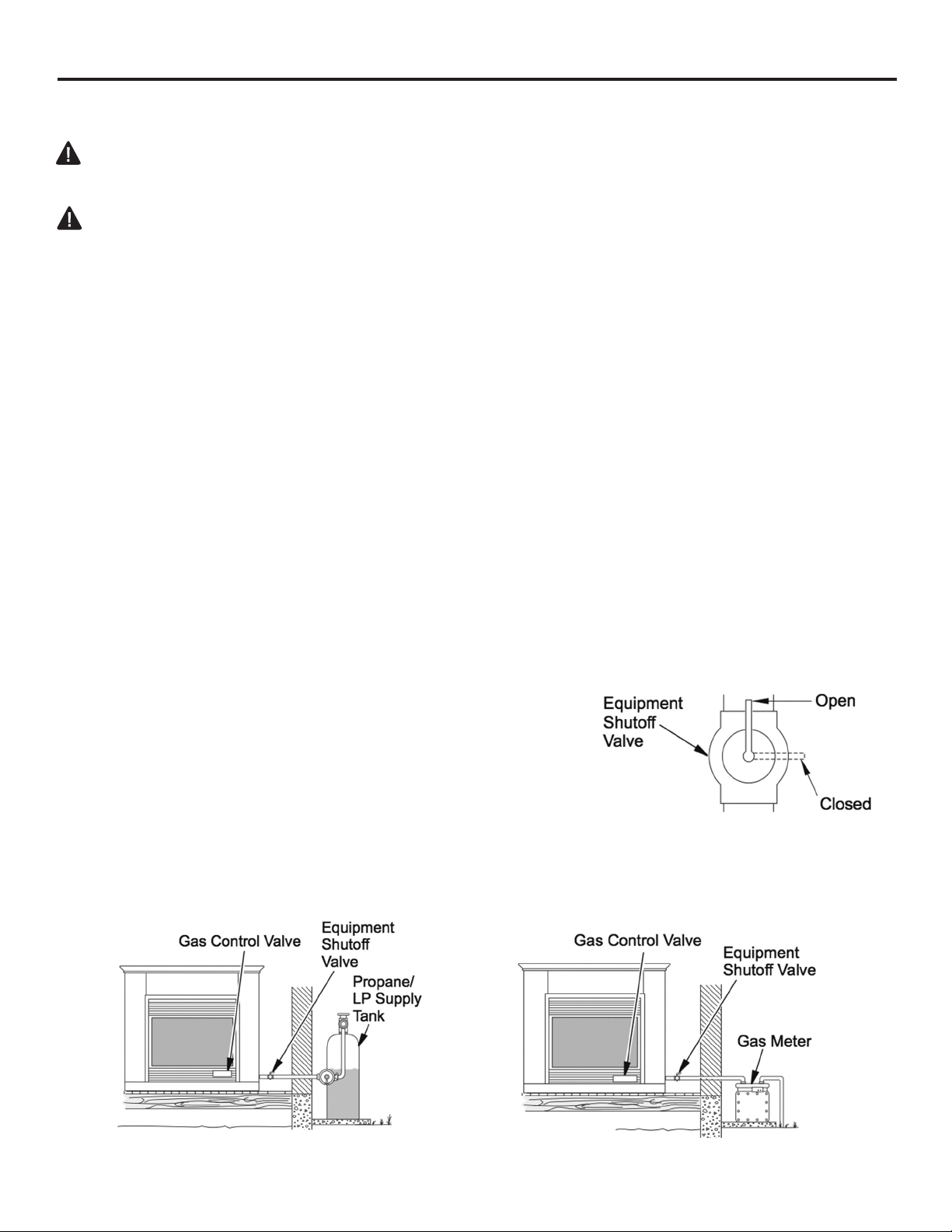

1. Close equipment shutoff valve (See Fig. 17).
2. Pressure supply piping system by either using compressed air or opening gas supply tank valve.
3. Check all joints from gas meter to equipment shutoff valve (See Fig. 18.1 or 18.2). Apply mixture of
liquid soap and water to gas joints. If bubbles form, there may be a leak.
4. Correct all leaks immediately.
Pressure Testing Heater Gas Connections
1. Open equipment shutoff valve (See Fig. 17).
2. Open gas supply tank valve.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from equipment shutoff valve to control valve
(See Fig. 18.1 or 18.2). Apply mixture of liquid soap and water to gas joints.
If bubbles form, there may be a leak.
5. Light heater (see Operation, page 23).
Check all other internal joints for leaks.
6. Turn off heater (see "To Turn Off Gas to Appliance," page 23).
Fig. 18.1 - Checking Gas Joints
(Propane/LP Only)
Fig. 17 - Equipment Shutoff Valve
Fig. 18.2 - Checking Gas Joints
(Natural Gas Only)
20
INSTALLATION
BEFORE INSTALLING THE APPLIANCE
- Turn off gas supply to replace or rebox.
- Clean replace oor and chimney before installing log set. Seal any ash. Clean out doors to protect
the unit from down drafts.
MOUNTING PROCEDURE
- Place grate/burner assembly into rebox with the front pan facing forward.
- Drill two (2) 5/32" diameter holes approximately 1" deep.
- Anchor the front pan to the oor using the (2) Concrete Attachment Screws (Not Included)
(See Fig. 11.1).
- Proper installation of the grate is essential to prevent any movement of the gas logs and
controls during operation.
Fig. 11.1
Mark Location using Log Set
and drill hole in Floor of
Fireplace aprrox. 1" deep to
accept Concrete Screws.
(Both Sides)
3/4 Hex Head Flanged
Concrete Screw (Not Supplied)
21
ASSEMBLING LOGS
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts
specically approved with this heater may result in property damage or personal injury.
CAUTION: After installation and peridically thereafter, check to ensure that no yellow ame comes in
contact with any log. With the heater set to High, check to see if yellow ames contact any log. If so,
reposition logs according to the log installation instructions in this manual. Yellow ames contacting
logs will create soot.
It is very important to install the logs exactly
as instructed. Do not modify logs; use only logs
supplied with heater. Each log is marked with a
number, and this number will help you identify
each log during installation.

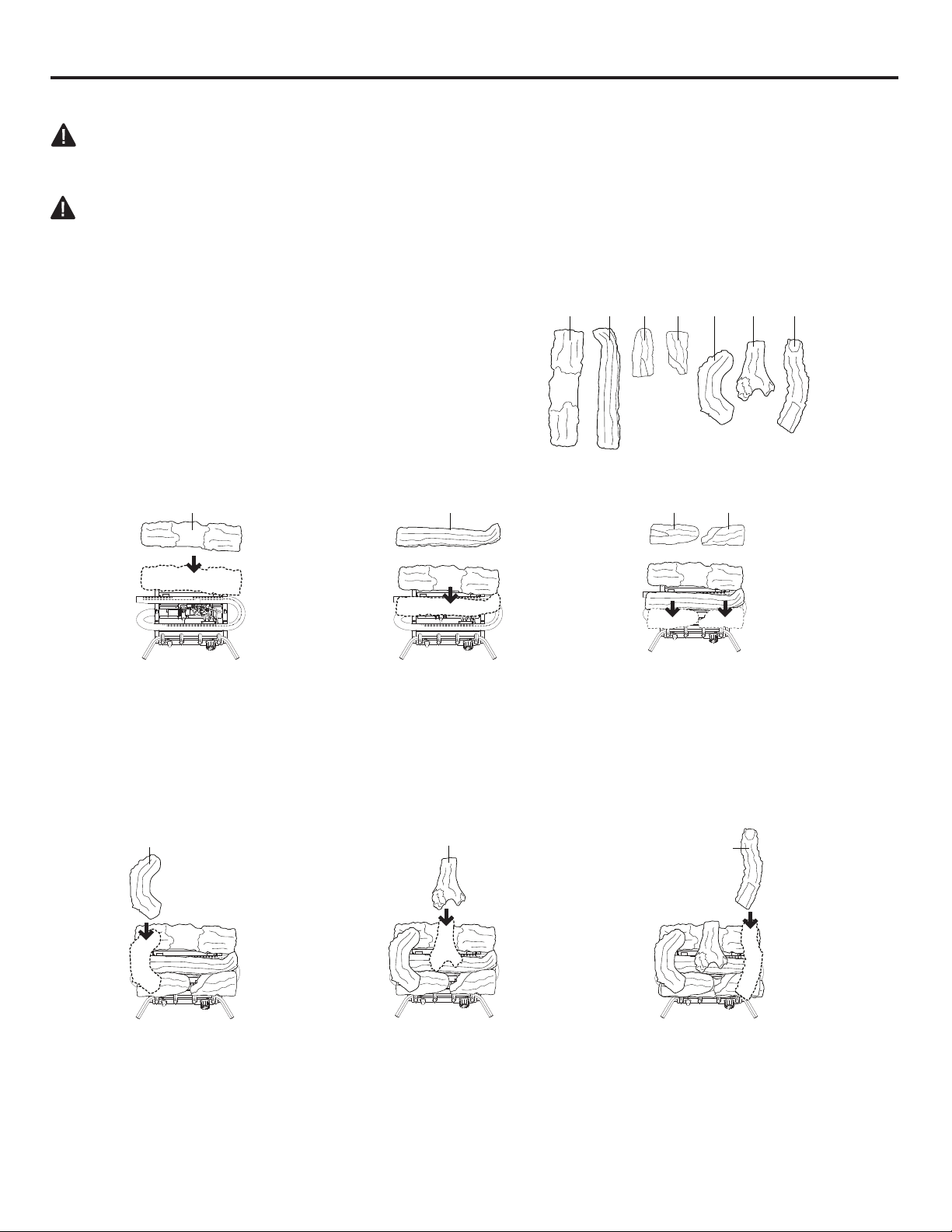

Provided Logs: 6
Fig. 19 - Installing Log #1 Fig. 20 - Installing Log #2 Fig. 21 - Installing Log #3
1. Insert log #1 onto pins in
rear grate base.
2. Insert log #2 onto pins in
middle grate base.
3. Place log #3 onto the
front grate. Make sure the
recessed areas on the log
match up with the grate,
and the log is centered on
grate.
Fig. 22 - Installing Log #4 Fig. 23 - Installing Log #5 Fig. 24 - Installing Log #6
4. Place log #4 so its pin
ts into the hole on the
top left recessed areas of
log #2.
5. Place log #5 so it is resting
in the top middle recessed
areas of log #1 and its pin ts
in the hole on the top of log #2
only (it should NOT be touching
log #3), and the front edge
does no over hang log #2.
6. Place log #6 so its pin
ts in the hole on the top
right recessed areas of
log #2.
1 2 3
4 5
6
1 2 3 4 5 6
VFL2-SO18DT / VFL2-EO18DT / VFL2-SO24DT / VFL2-EO24DT
22
ASSEMBLING LOGS
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts
specically approved with this heater may result in property damage or personal injury.
CAUTION: After installation and peridically thereafter, check to ensure that no yellow ame comes in
contact with any log. With the heater set to High, check to see if yellow ames contact any log. If so,
reposition logs according to the log installation instructions in this manual. Yellow ames contacting
logs will create soot.
It is very important to install the logs exactly
as instructed. Do not modify logs; use only logs
supplied with heater. Each log is marked with a
number, and this number will help you identify
each log during installation.
Provided Logs: 7
Fig. 19 - Installing Log #1 Fig. 20 - Installing Log #2 Fig. 21 - Installing Log #3 & Log #4
1. Insert log #1 onto pins in
rear grate base.
2. Insert log #2 onto pins in
middle grate base.
3. Place log #3 & log #4 onto
the front grate. Make sure the
recessed areas on the logs
match up with the grate, and the
logs are centered on grate.
Fig. 22 - Installing Log #5 Fig. 23 - Installing Log #6 Fig. 24 - Installing Log #7
4. Place log #5 so its pin
ts into the hole on the
top left recessed areas
of log #2.
5. Place log #6 so it is
resting in the top middle
recessed areas of log #1
and its pin ts in the hole
on the top of log #2.
6.Place log #7 so its pin
ts in the hole on the top
right recessed areas of
log #2.
1 2
3 4
5
6
7
VFL2-WW18DT / VFL2-WW24DT
1 2 3 5 6 74
23
OPERATION
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a re or explosion may
result causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by the electronic ignitor. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the oor
because some gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re department
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not
push in or turn by hand, don’t try to repair it, call a qualied service technician. Forced or attempted
repair may result in re or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualied service
technician to inspect the appliance and to replace any part of the control system and any gas control
which has been under water.
BATTERY INSTRUCTIONS
• Batteries are included.
• Remove batteries when depleted.
• Install/replace the batteries according to the type and quantity stated in table below.
• Do not mix old and new batteries. New batteries should be the same brand for best results.
• Be sure to observe proper polarity (+/-) when installing or replacing the batteries. Damage due to
improper battery installation may void the warranty on the product.
• For long periods of non-operation, remove batteries from all components for safety.
Component Type of Battery Battery Qty.
Ignitor AAA 1
Fig. 2
BATTERY INSTALLATION
1. Locate the Battery Ignitor on the
front face of the burner.
2. Step 2 – Unscrew the cap on
the Electronic Push Button ignitor
with your ngers by turning it
counterclockwise. (Fig. 2)
3. Insert the battery with the
positive (+) side facing forward.
4. Replace the cap by turning it
clockwise until the cap is nger
tight.
Ignitor Base
Ignitor Cap
AAA Battery
(Positive Side Facing Outward)
24

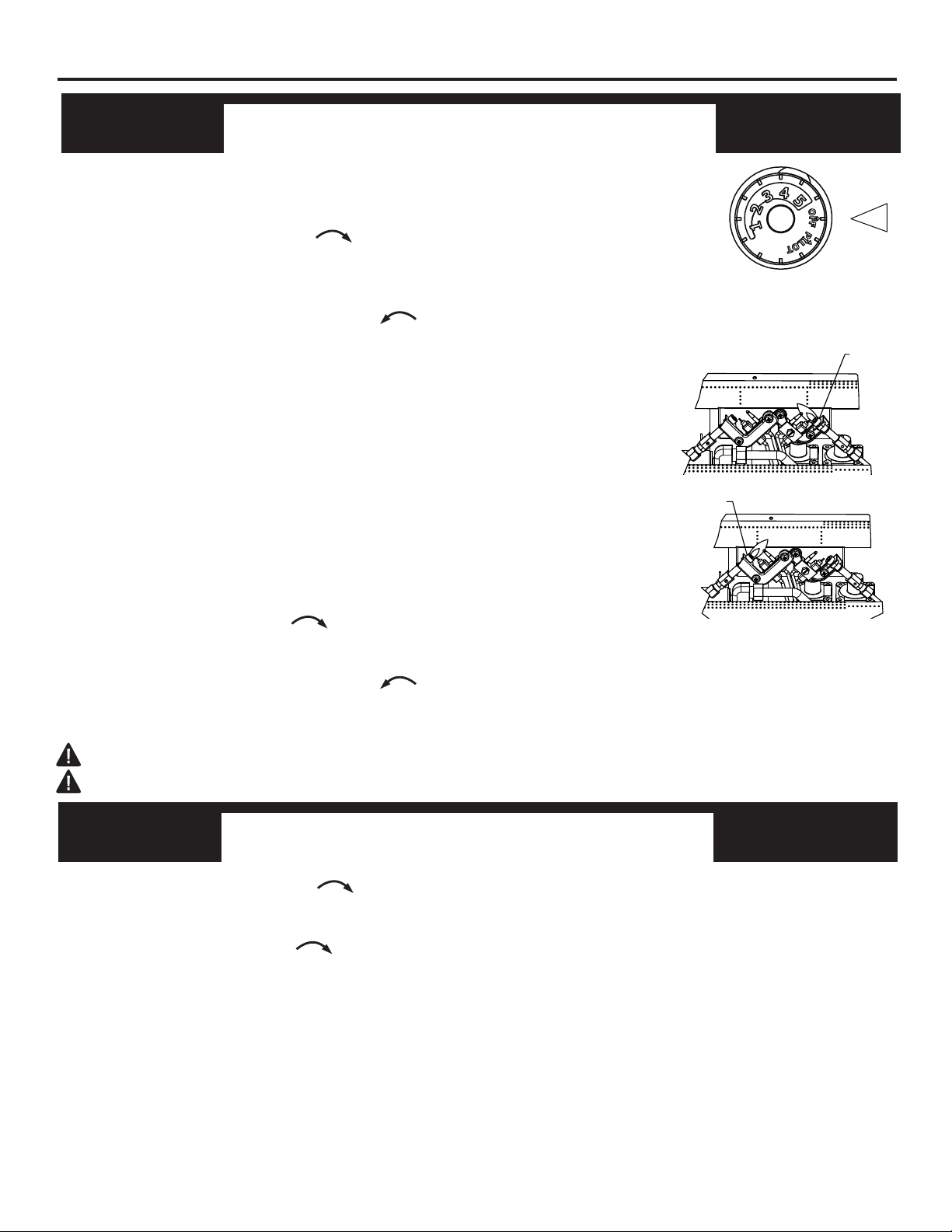

LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Turn control knob clockwise to the “OFF” position (See Fig. 25).
3. Wait ve (5) minutes to clear out any gas. Then smell for gas, including
near the oor. If you smell gas, STOP! Follow “B” in the safety informa-
tion above. If you don’t smell gas, go to the next step.
4. Turn control knob counterclockwise to the “PILOT” position.
Depress control knob.
5. With control knob depressed, push down on the ignitor button until the
pilot lights. The pilot is located behind the heater screen near the rear of
the burner.
• Do not attempt to light the pilot by hand.
6. Keep control knob depressed for (30) seconds after pilot lights. Release
control knob.
• If the control knob does not pop up when released, stop and immediately
call a qualied service technician or gas supplier.
• If pilot goes out repeat steps 3 through 7. Wait (1) minute before attempt-
ing to light pilot again. If after several tries the pilot still goes out, turn the
gas control knob clockwise to the “OFF” position and call a qualied
service technician.
7. Turn control knob counterclockwise to desired setting.
Fig. 25 - Control Knob
Fig. 26 - Pilot
OPERATION
TO TURN OFF GAS TO APPLIANCE
1. Turn control knob clockwise to the “OFF” position.
Shutting Off Burner Only (pilot stays lit )
Turn control knob clockwise to the PILOT position.
THERMOSTATIC CONTROL OPERATION
The thermostatic control valve used on this model differs from standard thermostats. Standard ther-
mostats simply turn the burner on and off. The thermostat sensing bulb on the control valve used on
this heater senses changes in room temperature and will vary the ame accordingly. When the room
temperature exceeds the set temperature the burner will shut off completely. The unit will cycle back
on as the room temperature drops below the set temperature. The control knob can be set to the de-
sired comfort level between 1 and 5.
WARNING: Any glass doors shall be completely opened while appliance is in operation.
WARNING: The replace screen must be in place while the appliance is in operation.
LP PILOT
NG PILOT
25
OPERATION
INSPECTING BURNERS
Check pilot ame pattern and burner ame patterns often.

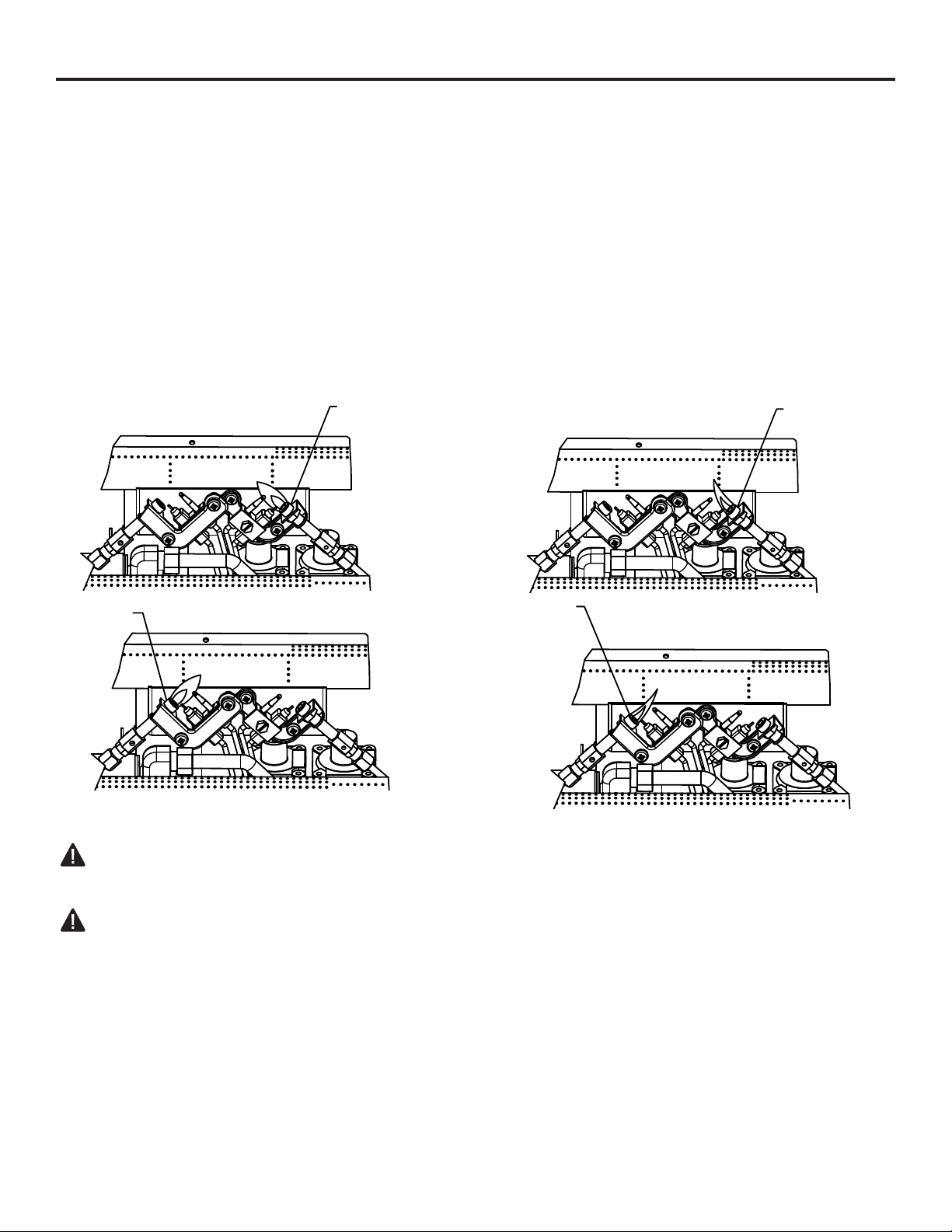

PILOT FLAME PATTERN
Figure 27 shows a correct pilot ame pattern. Figure 28 shows an incorrect pilot ame pattern. The
incorrect pilot ame is not touching the thermocouple. This will cause the thermocouple to cool. When
the thermocouple cools, the heater will shut down.
If pilot ame pattern is incorrect, as shown in Figure 28.
• turn heater off (see To Turn Off Gas to Appliance, page 23.
• see Troubleshooting, page 27.
WARNING: Do not allow fans to blow directly into the heater. Avoid any drafts that alter burner
ame patterns.
WARNING: Do not use a blower insert, heat exchanger insert or other acessory not approved for
use with this heater.
Fig. 27 - Correct Pilot Flame Pattern Fig. 28 - Incorrect Pilot Flame Pattern
LP PILOT
NG PILOT
LP PILOT
NG PILOT
26
CARE AND MAINTENANCE
WARNING: Turn off heater and let cool before servicing.
CAUTION: You must keep control areas, burner, and circulating air passageways of heater
clean. Inspect these areas of heater before each use. Have heater inspected yearly by a
qualied service person. Heater may need more frequent cleaning due to excessive lint
from carpeting, bedding material, pet hair, etc.
WARNING: Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting
and property damage.
BURNER ORIFICE HOLDER AND PILOT AIR INLET HOLE
The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean
burning ame. Keep these holes clear of dust, dirt, lint and pet hair. Clean these air inlet holes prior to
each heating season. Blocked air holes will create soot. We recommend that you clean the unit every
three months during operation and have heater inspected yearly by a qualied
service person.
We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt.
To clean these parts we recommend using compressed air no greater than 30 PSI. Your local
computer store, hardware store or home center may carry compressed air in a can. If using
compressed air in a can, please follow the directions on the can. If you don’t follow directions on the
can, you could damage the pilot assembly.

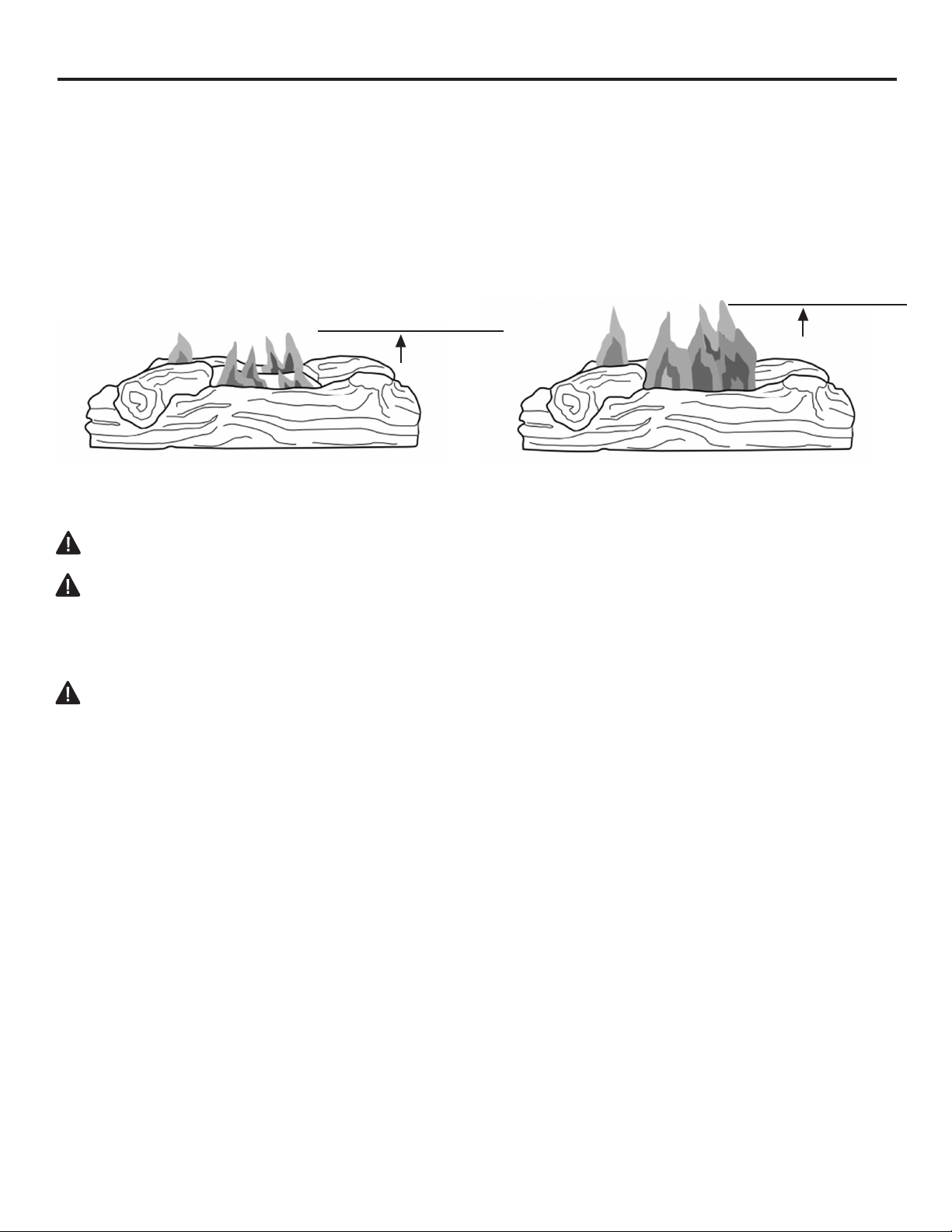

BURNER FLAME PATTERN
Figure 29 shows a correct burner ame pattern. Figure 30 shows an incorrect burner ame pattern.
The incorrect burner ame pattern shows sporadic, irregular ame tipping. The ame should not be
dark or have an orange/reddish tinge.
Note: When using the heater the rst time, the ame will be orange for approximately one hour until
the log cures.
If burner ame pattern is incorrect, as shown in Figure 30
• turn heater off (see To Turn Off Gas to Appliance, page 23).
• see Troubleshooting, page 27.
2-6 inches
above logs
6-12 inches
above logs
Fig. 29 - Correct/Normal Flame Pattern
with short ames
Fig. 30 -Incorrect/Abnormal Flame
Pattern with tall ames
27
CARE AND MAINTENANCE
LOG SET
• If you remove the log set for cleaning, refer to page 21, for placement instructions.
• Replace log set if broken or chipped (dime sized or larger).
CABINET
Air Passageways
Use a vacuum cleaner or pressurized air to clean.
Exterior
Use a soft cloth dampened with a mild soap and water mixture. Wipe the cabinet to remove dust.
1. Shut off unit including pilot. Allow unit to cool for at least 30 minutes.
2. Inspect burner, pilot and primary air inlet holes on orice holder for dust and dirt (See Fig. 31).
3. Blow air through the ports/slots and holes in the burner.
4. Check the orice holder located at the end of the burner tube again. Remove any large particles
of dust, dirt, lint or pet hair with a soft cloth or vacuum cleaner nozzle.
5. Blow air into the primary air holes on the orice holder.
6. In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.
Clean the pilot assembly also. A yellow tip on the pilot ame indicates dust and dirt in the pilot
assembly. There is a small pilot air inlet hole about 2" from where the pilot ame comes out of the
pilot assembly (see Figure 32). With the unit off, lightly blow air through the air inlet hole. You may
blow through a drinking straw if compressed air is not available.

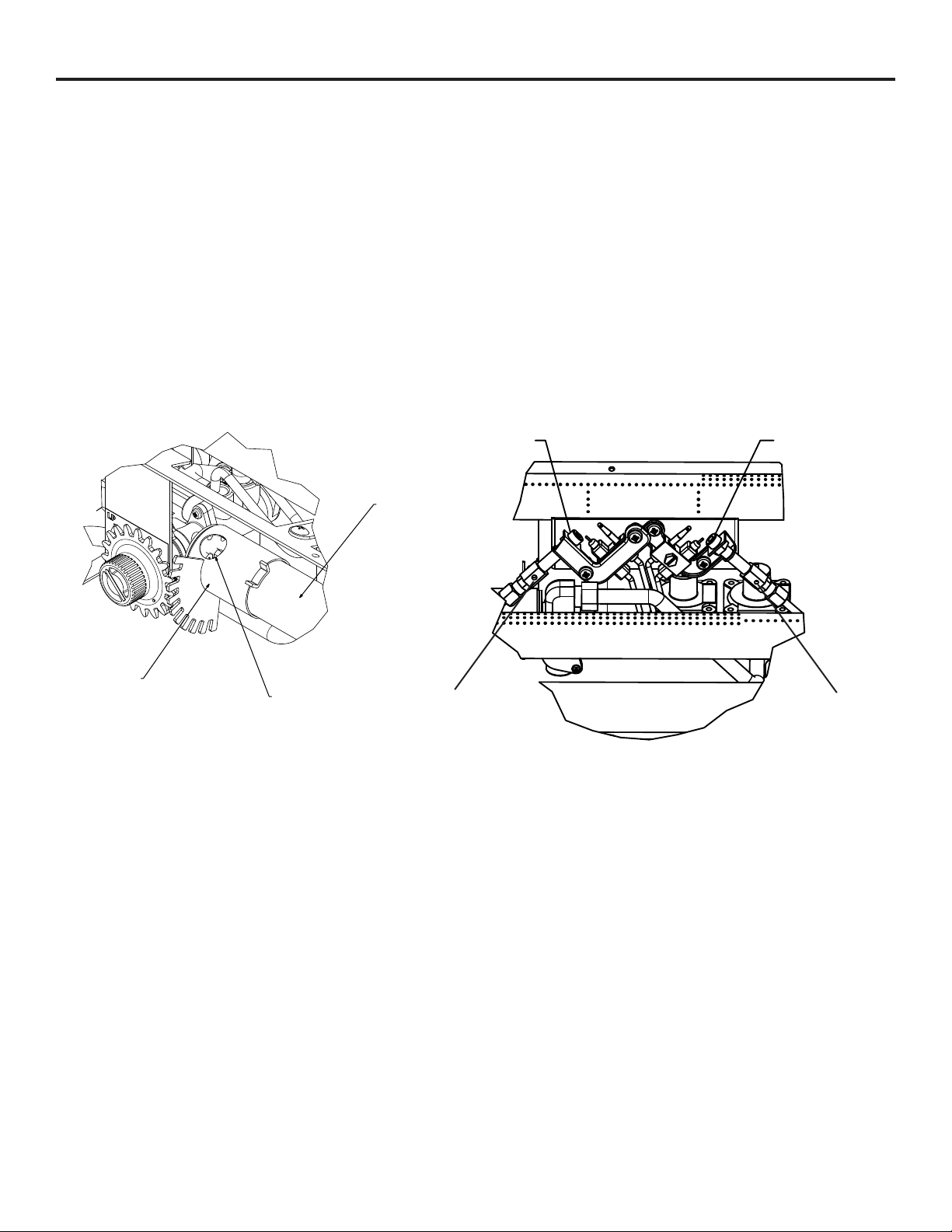

Primary Air
Inlet Hole
Burner Tube
Shutter
Fig. 31 - Primary Air Inlet
Slot on Burner Tube
Fig. 32 - Pilot Inlet Air Hole
(Propane/LP Gas)
LP PILOT
NG PILOT
Inlet air holeInlet air hole
28
TROUBLESHOOTING
WARNING: If you smell gas:
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re department.
IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning supplies, paint, paint
remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix
with combustion air and create odors.
WARNING: Make sure that power is turned off before proceeding.
WARNING: Turn off and let cool before servicing. Only a qualied service person should service
and repair heater.
CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/ pilot unit.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
When ignitor button
is pressed in, there
is no spark at ODS/
pilot.
There is a sputtering
sound coming from
the Liquid Propane
pilot that is a nuisance.
When operating on
Natural Gas (NG) and
the NG pilot is lit.
1. Use of Natural Gas. 1. Call Customer Service.
1. Ignitor electrode is
positioned wrong.
2. Ignitor electrode is broken.
3. Ignitor electrode is not
connected to ignitor cable.
4. Ignitor cable is pinched or
wet.
5. Damaged ignitor cable.
6. Bad Electronic Push
Button ignitor.
7. Bad Battery.
1. Replace electrode.
2. Replace electrode.
3. Replace ignitor cable
4. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry.
5. Replace ignitor cable.
6. Replace Electronic Push
Button ignitor.
7. Check Battery and replace if needed.
When ignitor button
is pressed in, there
is a spark at ODS/
pilot but no ignition.
1. Gas supply is turned off or
equipment shutoff valve is
closed.
2. Control knob not fully
pressed in while pressing
ignitor button.
3. Air in gas lines when
installed.
4. ODS / pilot is clogged.
5. Gas regulator setting is not
correct.
6. Control knob not in PILOT
position.
7. Depleted gas supply (propane).
1. Turn on gas supply or open equipment
shutoff valve.
2. Fully press in control knob while
pressing ignitor button.
3. Continue holding down control knob.
Repeat igniting operation until air is
removed.
4. Clean ODS/pilot (see Care and
Maintenance, page 25 & 26) or replace
ODS/pilot assembly.
5. Replace gas regulator.
6. Turn control knob to PILOT position.
7. Contact local propane/LP gas company.
SERVICE HINTS
When Gas Pressure Is Too Low
• pilot will not stay lit
• burners will have delayed ignition
• heater will not produce specied heat
• for propane/LP units, propane/LP gas supply may be low
You may feel your gas pressure is too low. If so, contact your local natural or propane/LP gas supplier.
29
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
ODS/pilot lights
but ame goes out
when control knob is
released.
1. Control knob is not fully
pressed in.
2. Control knob is not pressed
in long enough.
3. Equipment shutoff valve is
not fully open.
4. Thermocouple connection is
loose.
5. Thermocouple damaged.
6. Control valve damaged.
7. Wrong gas setting.
1. Press in control knob fully.
2. After ODS/pilot lights, keep control
knob pressed in 30 seconds.
3. Fully open equipment shutoff valve.
4. Hand tighten until snug, and then
tighten ¼ turn more.
5. Replace thermocouple.
6. Contact customer service.
7. Correct gas selection.
Burner(s) does not
light afterODS/pilot
is lit.
1. Burner orice is clogged.
2. Burner orice diameter is
too small.
3. Inlet gas pressure is too low.
1. Clean burner orice (see Care and
Maintenance, page 25 & 26) or contact
customer service.
2. Contact customer service.
3. Contact your gas supplier.
Delayed ignition of
burner(s).
1. Manifold pressure is too low.
2. Burner orice is clogged.
1. Contact your gas supplier.
2. Clean burner (see Care and Mainte-
nance, page 25 & 26) or contact cus-
tomer service.
Burner backring
during combustion.
1. Burner orice is clogged or
damaged.
2. Burner is damaged.
3. Gas regulator is damaged.
1. Clean burner orice (see Care and
Maintenance, page 25 & 26 or contact
customer service.
2. Contact dealer or customer service.
3. Replace gas regulator.
High yellow ame
during burner
combustion
1. Not enough air.
2. Gas regulator is defective.
3. Inlet gas pressure is too low.
1. Check burner for dirt and debris. If found,
clean burner (see Care and Maintenance,
page 25 & 26).
2. Replace gas regulator.
3. Contact your gas supplier.
Gas odor during
combustion.
1. Foreign matter between
control valve and burner.
2. Gas leak. (See Warning
Statement at top of page 27).
1. Take apart gas tubing and remove foreign
matter.
2. Locate and correct all leaks (see “Check-
ing Gas Connections,” page 19).
Heater produces a
clicking/ticking noise
just after burner is lit
or shut off.
1. Metal is expanding while
heating or contracting
while cooling.
1. This is common with most heaters. If
noise is excessive, contact qualied
service technician.
Burner(s) does not
light afterODS/pilot
is lit. (Heater is set
up for NG.)
1. Inlet gas pressure is too
high.
1. Contact your gas supplier.
30
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
White powder resi-
due forming within
burner box or on
adjacent walls or
furniture.
1. When heated, the vapors
from furniture polish, wax,
carpet cleaners, etc., turn
into white powder residue.
1. Turn heater off when using furniture
polish, wax, carpet cleaner or similar
products.
Heater produces
unwanted odors.
1. Heater is burning vapors
from paint, hair spray, glues,
etc. See IMPORTANT state-
ment, page 27.
2. Gas leak. See Warning
Statement, page 27.
3. Low fuel supply.
Heater shuts off
in use (ODS oper-
ates).
1. Not enough fresh air is
available.
2. Low line pressure.
3. ODS/pilot is partially
clogged.
1. Open window and/or door for
ventilation.
2. Contact local gas supplier.
3. Clean ODS/pilot (see Care and
Maintenance, page 25 & 26).
Gas odor exists
even when control
knob is in OFF posi-
tion.
1. Gas leak. See Warning
Statement at top of page 27.
2. Control valve is
defective.
Moisture/conden-
sation noticed on
windows.
1. Not enough combustion/
ventilation air.
Slight smoke or
odor during initial
operation
Heater produces
a whistling noise
when burner is lit.
1. Residues from
manufacturing process.
1. Problem will stop after a few hours of
operation.
1. Turning control knob to high (5)
position when burner is cold.
2. Air in gas line.
3. Air passageways on
heater are blocked.
4. Dirty or partially clogged
burner orice.
1. Ventilate room. Stop using odor
causing products while heater is
running.
2. Locate and correct all leaks (see
“Checking Gas Connections,” page 19).
3. Rell supply tank (Propane /LP models).
1. Locate and correct all leaks (see
“Checking Gas Connections”, page 19).
2. Contact customer service.
1. Refer to “Air for Combustion and
Ventilation” requirements, page 9.
1. Turn control knob to low (1) position and
let warm up for a minute.
2. Operate burner until air is removed from
line. Have gas line checked by local
propane/LP gas company.
3. Observe minimum installation
clearances (Fig. 5,6,7,8 page 13-14).
4. Clean burner (see Care and Maintenance,
page 25 & 26) or contact customer service.
31

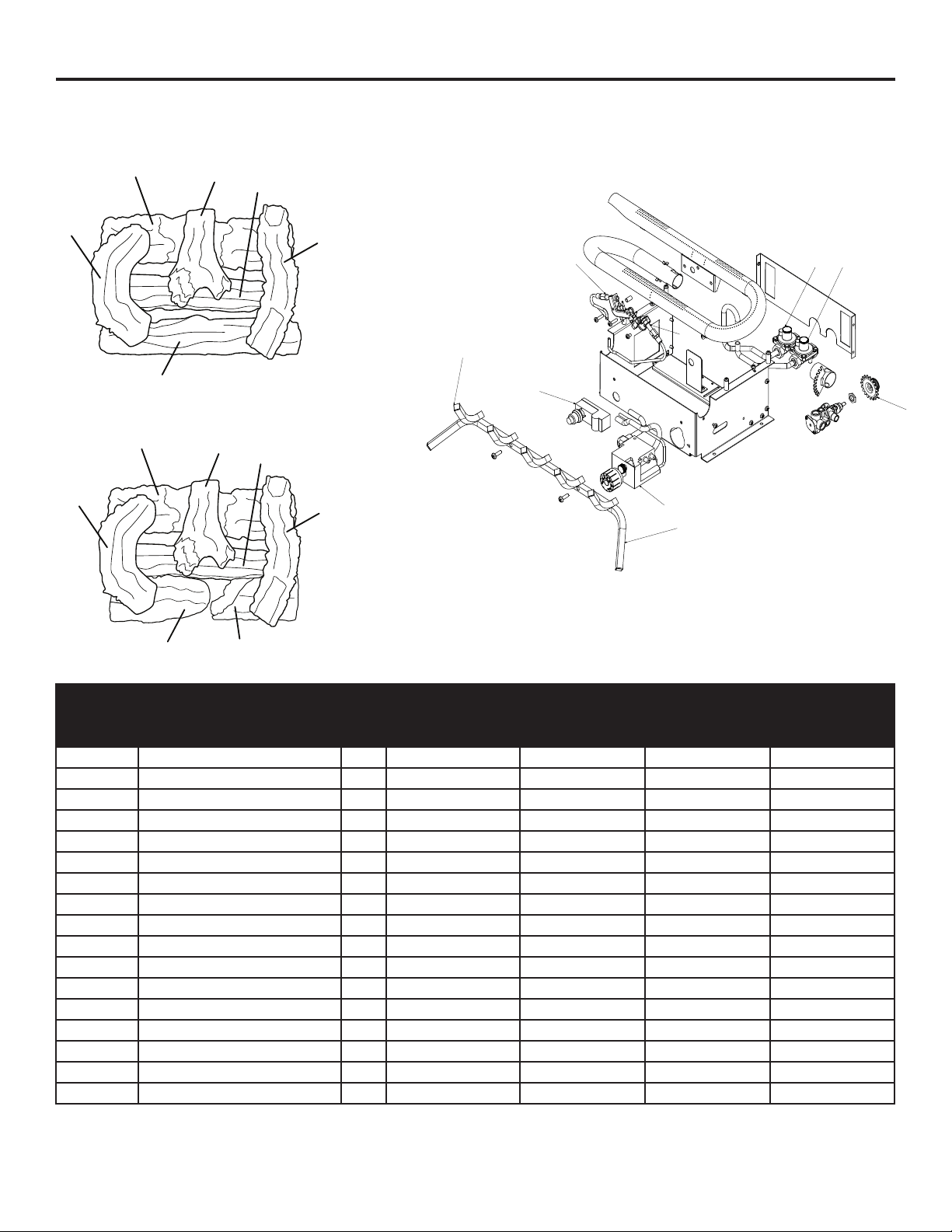

REPLACEMENT PARTS LIST
For replacement parts, call our Technical Service Department at 1-877-447-4768,
8:30 a.m. – 4:30 p.m.,
CST, Monday – Friday.
VFL2-SO18DT/
VFL2-EO18DT/
VFL2-SO24DT/
VFL2-EO24DT
VFL2-WW18DT/
VFL2-WW24DT
ITEM NO. DESCRIPTION QTY
PART NO.
VFL2-SO18DT
VFL2-EO18DT
VFL2-SO24DT
VFL2-EO24DT
VFL2-WW18DT VFL2-WW24DT
1 Log Set (complete) 1 DYDA18 DYDA24 DYWW18 DYWW24
1-1 Log 1 1 A-014A A-014A
H-0714A A-0014A
1-2 Log 2 1 H-1080A H-1086A
H-1080A H-1086A
1-3 Log 3 1 A-0639A A-0640
A-0014A H-0714
1-4 Log 4 1 H-0331 H-331A
H-0713B H-0713A
1-5 Log 5 1 H-0812 H-0812
H-0542 H-0542
1-6 Log 6 1 A-0668 A-0668
H-0374 H-0374
1-7 Log 7 1
A-0007 A-0007
2 Grate 1 GP287-01 GP288-01 GP287-01 GP288-01
3 Grate End Cap 1 GP287-02 GP287-02 GP287-02 GP287-02
4 ODS Pilot - NG 1 GZ20-30B GZ20-30B GZ20-30B GZ20-30B
5 ODS Pilot - LP 1 GZ20-29B GZ20-29B GZ20-29B GZ20-29B
6 Selector Knob 1 GZ20-17 GZ20-17 GZ20-17 GZ20-17
7-1 Regulator, NG 5" WC 1 GR-130B-GHP GR-130B-GHP GR-130B-GHP GR-130B-GHP
7-2 Regulator, LP 10" WC 1 GR-130A-GHP GR-130A-GHP GR-130A-GHP GR-130A-GHP
8 Ignitor Module 1 GZ20-32a GZ20-32a GZ20-32a GZ20-32a
9 Control Valve, Euro SIT 630 1 0630560 0630560 0630560 0630560
7-1
4
5
8
2
3
6
9
7-2
1-1
1-2
1-5
1-7
1-6
1-3 1-4
1-1
1-2
1-3
1-4
1-6
1-5
32
This limited warranty is extended to the original retail purchaser of this heater and warrants against any
2
2
two
two
years
years
33
34
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
Tel: (877) 447-4768
www.ghpgroupinc.com
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
