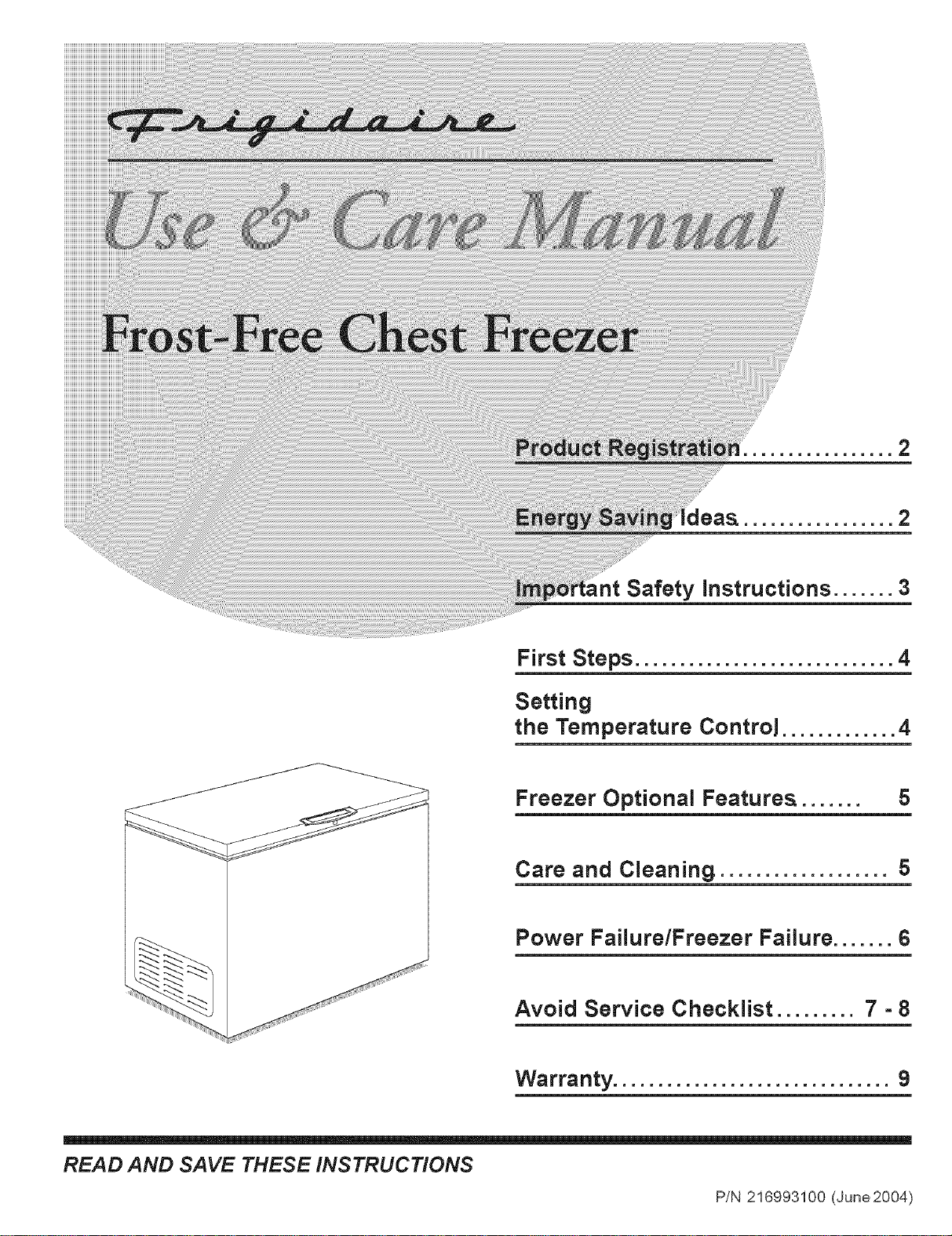

2
================= 2
Safety instructions ....... 3
First Steps ............................. 4
Setting
the Temperature ControJ ............. 4
Freezer Optional Features ....... 5
Care and Cleaning ................... 5
Power FailurelFreezer Failure ....... 6

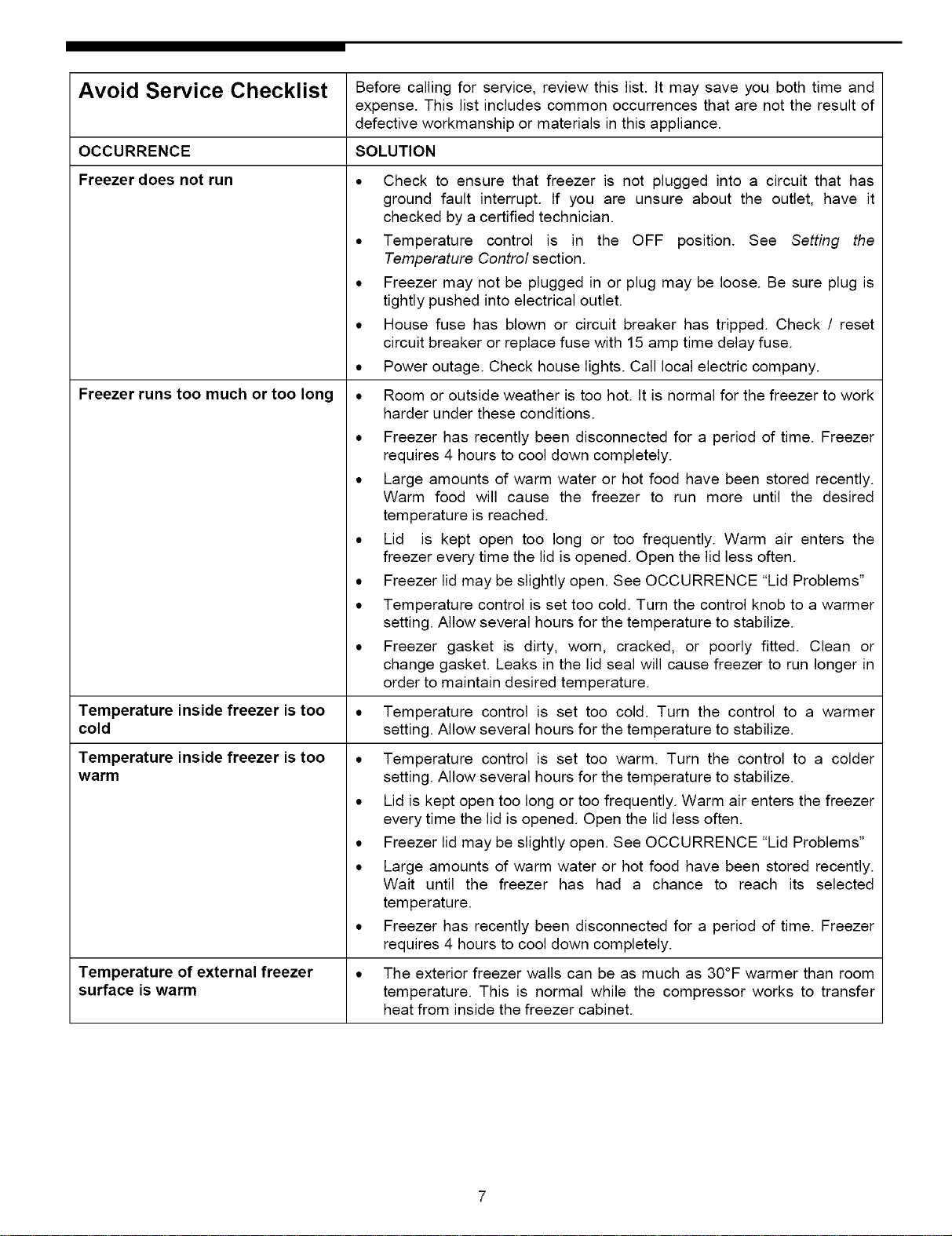

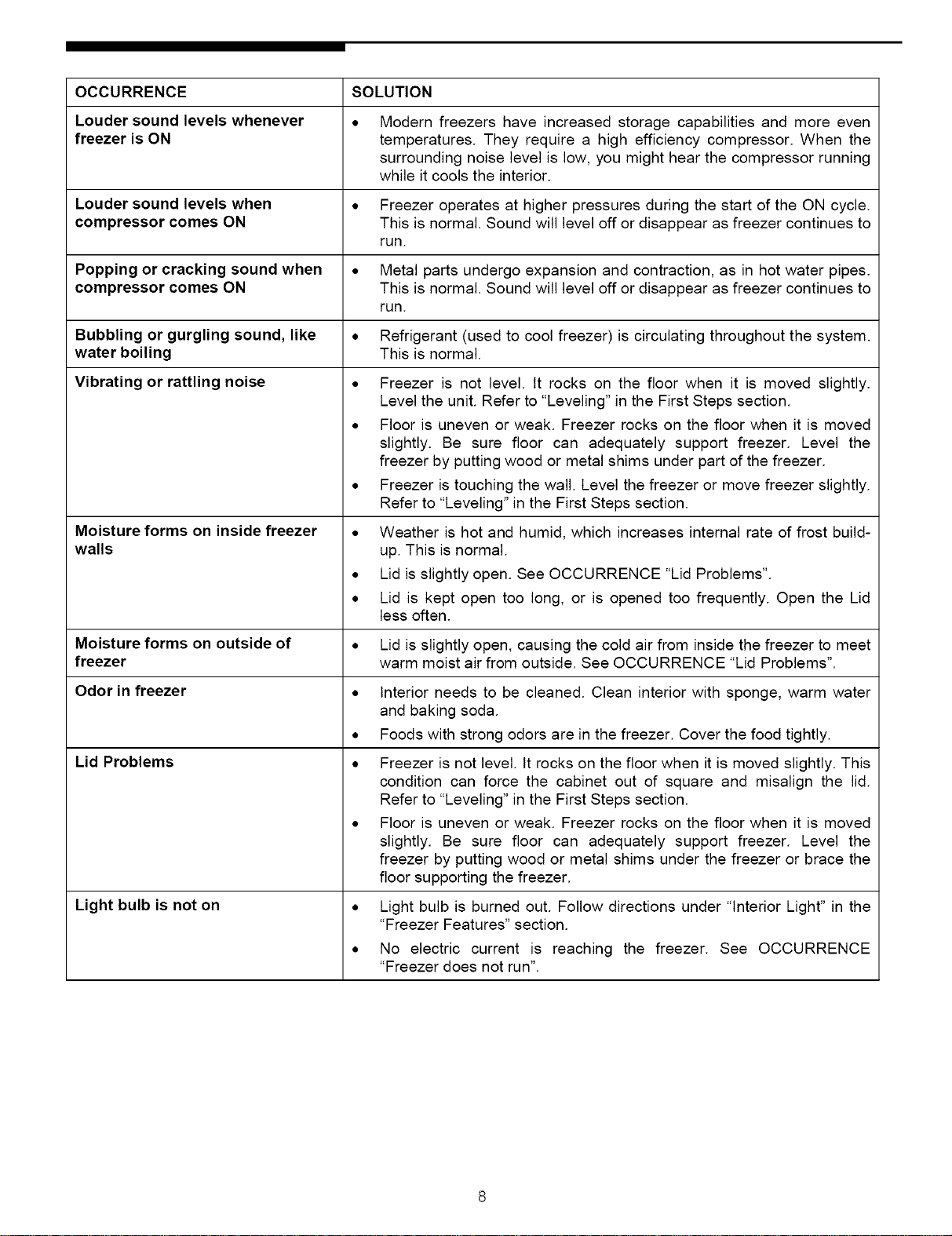

Avoid Service Checklist ......... 7 =8

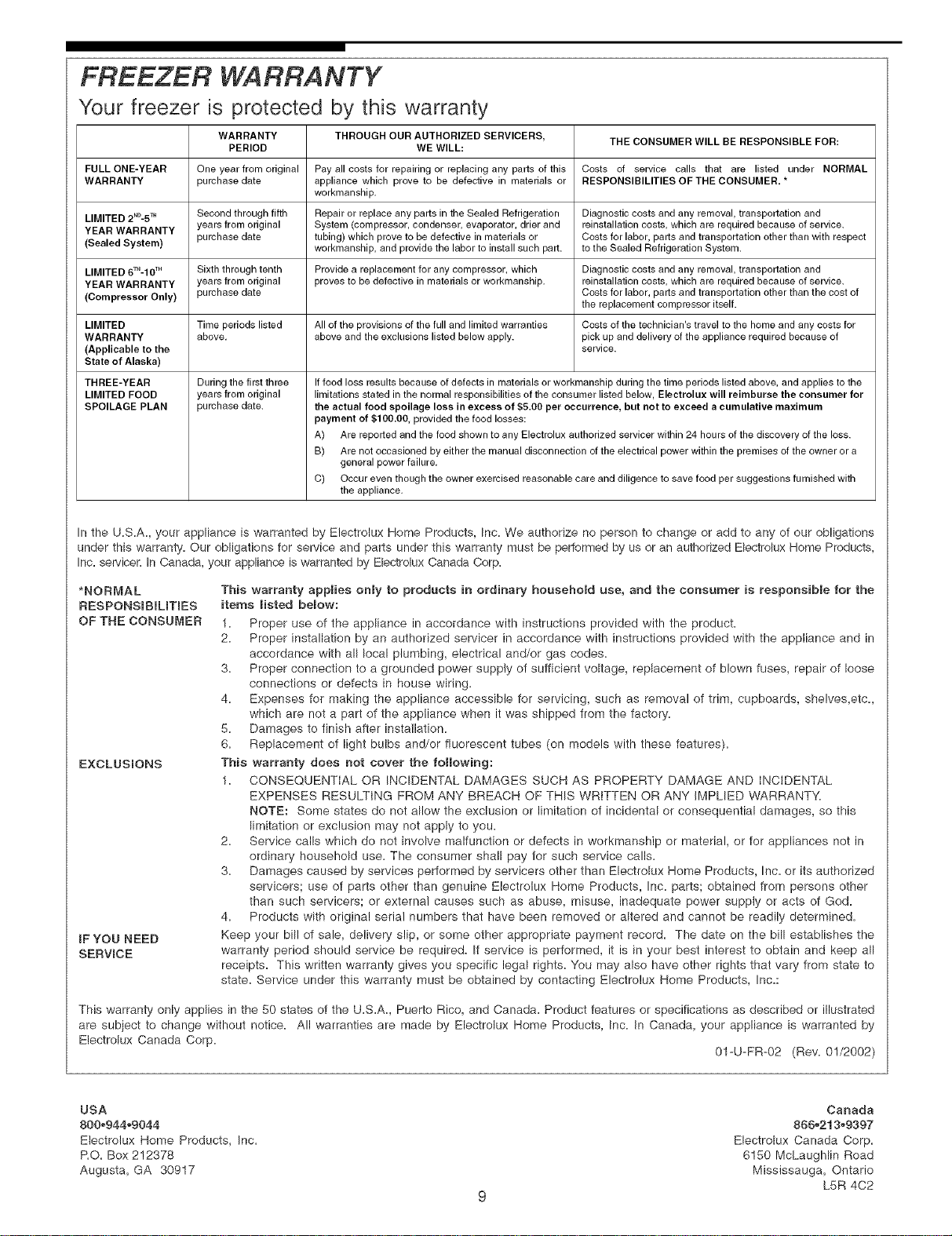

Warranty ............................... 9
READ AND SAVE THESE iNSTRUCTiONS
P/N 216993100 (June2004)

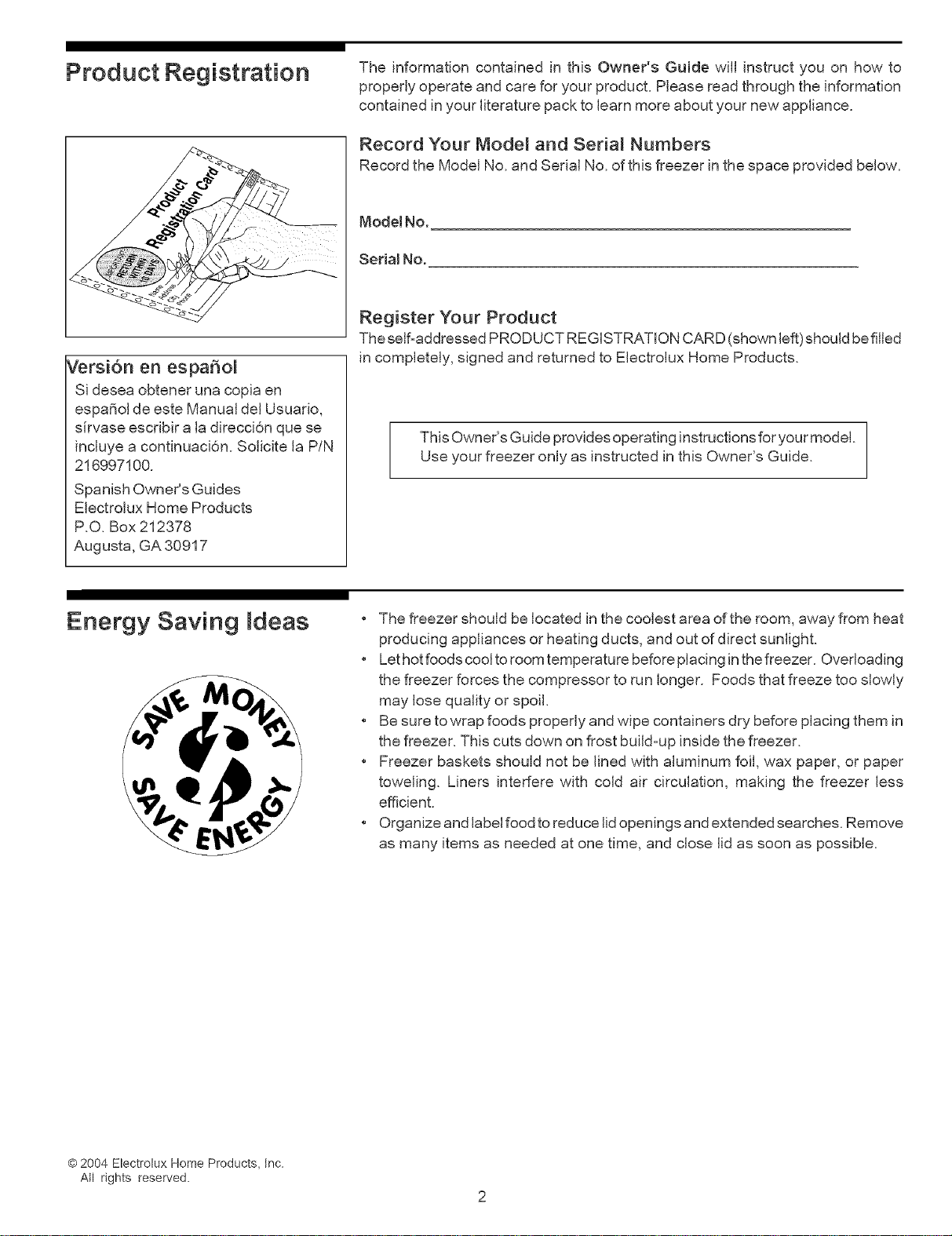

Product Registration
Versi6n en espaSo_
Si desea obtener una copia en
espa_ol de este Manual del Usuario,
sirvase escribir a Jadirecci6n que se
incluye a continuaci6n. Solicite la P/N
216997100.
Spanish Owner's Guides
Electroiux Home Products
P.O. Box 212378
Augusta, GA 30917
The information contained in this Owner's Guide wiJJinstruct you on how to
properly operate and care for your product. Please read through the information
contained in your literature pack to learn more about your new appliance.
Record Your Model and Serial Numbers
Record the Model No. and Serial No. of this freezer in the space provided below.
Register Your Product
The seJf_addressedPRODUCT REGiSTRATiON CARD (shown left)should be filled
in completely, signed and returned to Electrolux Home Products.
This Owner's Guide provides operating instructions for your model.
Use your freezer only as instructed in this Owner's Guide.
Energy Saving ideas
The freezer should be located in the coolest area of the room, away from heat
producing appliances or heating ducts, and out of direct sunlight.
Let hotfoods cool toroom temperature before placing in thefreezer. Overloading
the freezer forces the compressor to run longer. Foods that freeze too slowly
may lose quality or spoil.
Be sure to wrap foods properly and wipe containers dry before placing them in
the freezer. This cuts down on frost build-up inside the freezer.
Freezer baskets should not be lined with aluminum foil, wax paper, or paper
toweling. Liners interfere with cold air circulation, making the freezer less
efficient.
Organize and label food to reduce lidopenings and extended searches. Remove
as many items as needed at one time, and close lid as soon as possible.
© 2004 Electrolux Home Products, Inc.
All rights reserved.
2

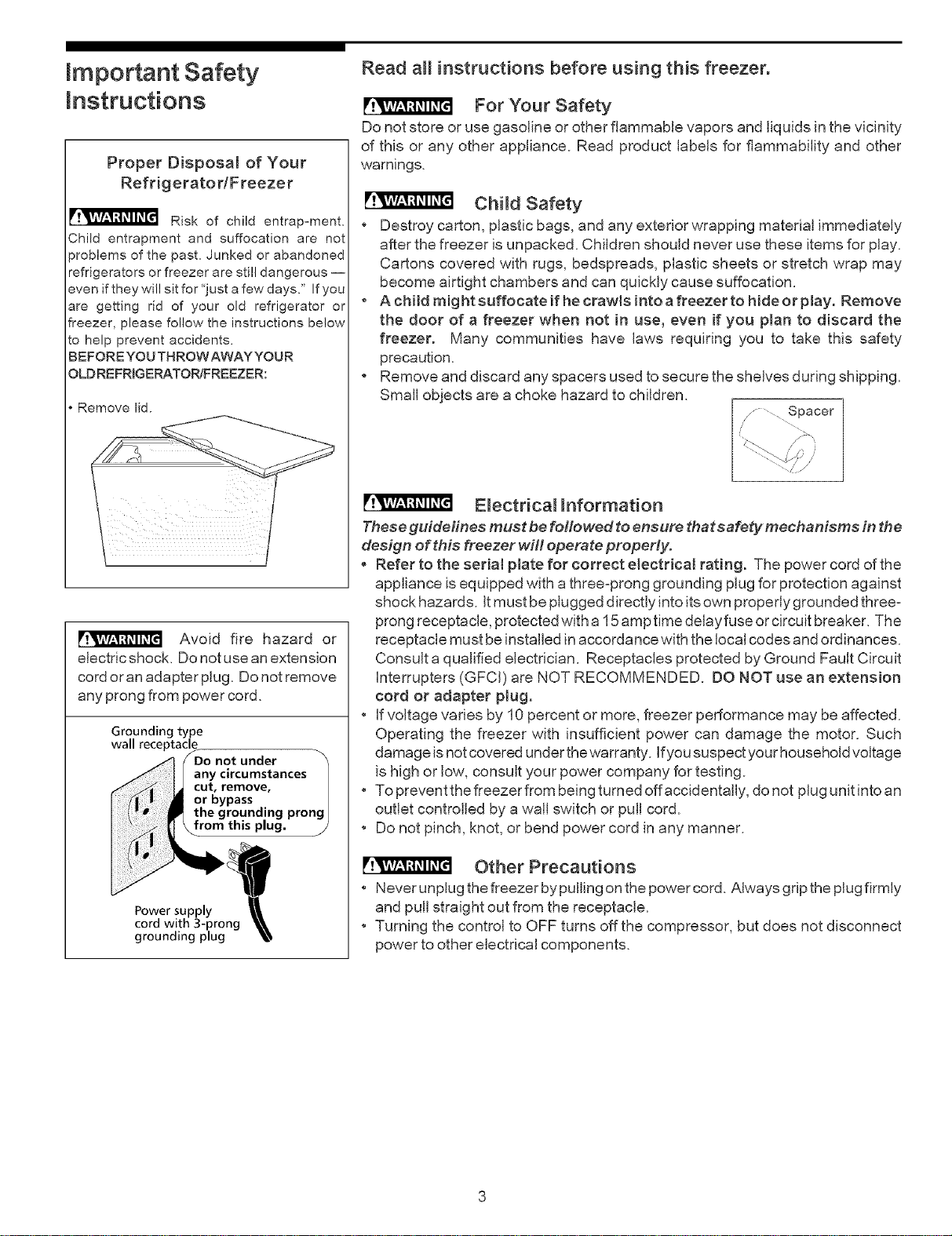

mmportant Safety
mnstructions
Vt._v_V±_:I_II_[€
Proper Disposa_ of Your
Refrigerator/Freezer
Risk of child entrap-menL
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators or freezer are still dangerous --
even if they will sit for "just a few days." If you
are getting rid of your old refrigerator or
freezer, please follow the instructions be!ow
to help prevent accidents.
BEFORE YOU THROWAWAYYOUR
OLD REFRIGERATOR/FREEZER:
Remove lid.
Avoid fire hazard or
electric shock. Do not use an extension
cord or an adapter plug. Do not remove
any prong from power cord.
Grounding type
wall receptacle
Power supply
cord with 3-prong
grounding plug
Read aH instructions before using this freezer.
For Your Safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance. Read product labels for flammability and other
warnings.
Chimd Safety
* Destroy carton, plastic bags, and any exterior wrapping material immediately
after the freezer is unpacked. Children should never use these items for play.
Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may
become airtight chambers and can quickly cause suffocation.
, A child mig ht suffocate if he crawls {nto afreezer to hide or play. Remove
the door of a freezer when not in use, even if you plan to discard the
freezer. Many communities have laws requiring you to take this safety
precaution.
* Remove and discard any spacers used to secure the shelves during shipping.
Small objects are a choke hazard to children.
;er
EJectricam _nformation
These guidelines must be fo//owed to ensure that satety mechanisms in the
design of this freezer will operate properly.
, Refer to the seriaJ plate for correct electrical rat{rig. The power cord of the
appliance is equipped with a three-prong grounding plug for protection against
shock hazards. It must be plugged directly into its own properly grounded three-
prong receptacle, protected with a 15amp time delayfuse or circuit breaker. The
receptacle must beinstalled inaccordance with the local codes and ordinances.
Consult a qualified electrician. Receptacles protected by Ground Fault Circuit
Interrupters (GFCI) are NOT RECOMMENDED. DO NOT use an extension
cord or adapter pmug.
• If voltage varies by 10 percent or more, freezer performance may be affected.
Operating the freezer with insufficient power can damage the motor. Such
damage is notcovered under the warranty. Ifyou suspect your household voltage
is high or low, consult your power company for testing.
• To prevent the freezer from being turned offaccidentally, do not plug unit into an
outlet controlled by a wall switch or pull cord.
• Do not pinch, knot, or bend power cord in any manner.
Other Precautions
• Never unplug the freezer by pulling on the power cord. Always grip the plugfirmly
and pull straight out from the receptacle.
• Turning the control to OFF turns off the compressor, but does not disconnect
power to other electrical components.

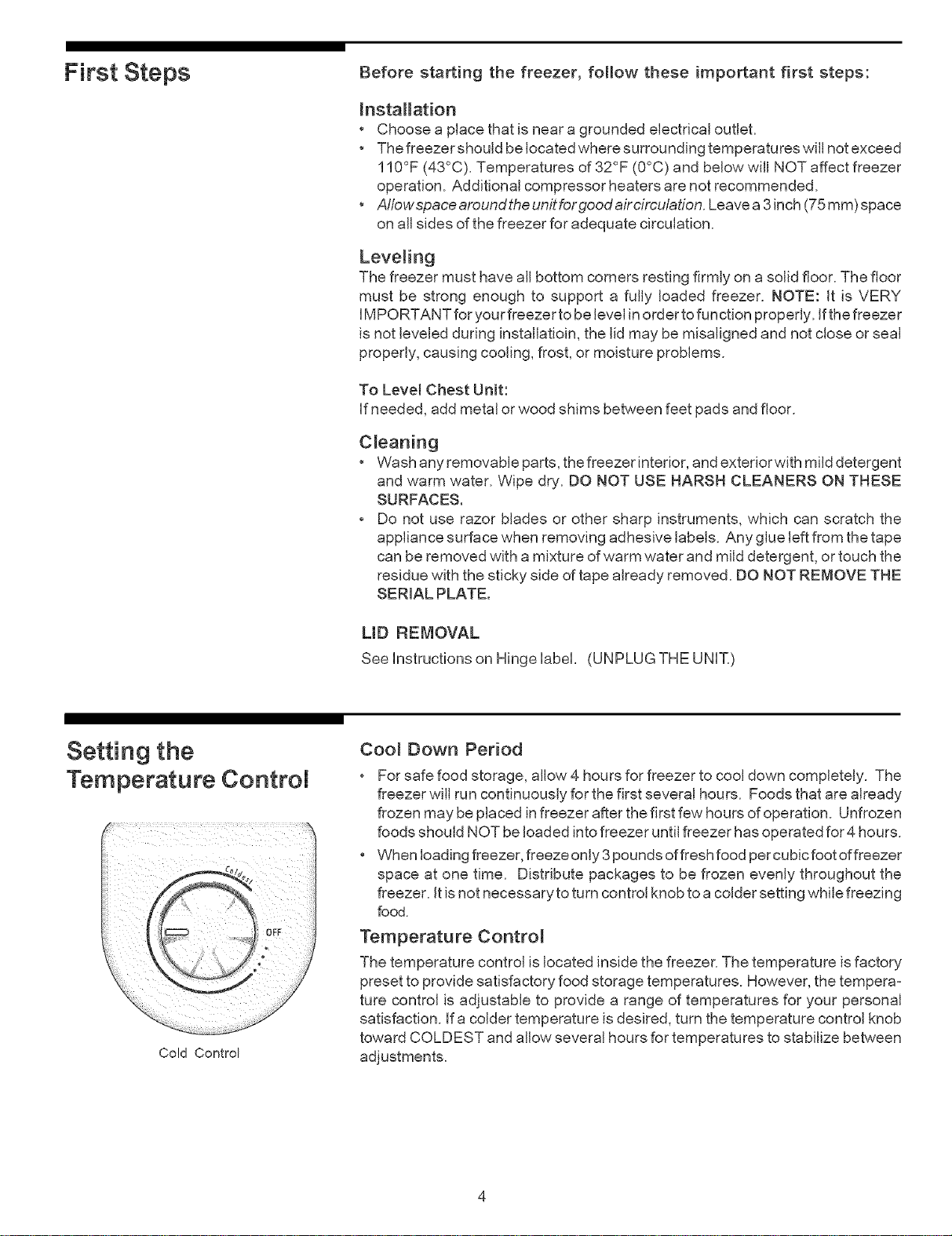

First Steps
Before starting the freezer, follow these important first steps:
R_staHation
° Choose a place that is near a grounded electricaJ outlet.
• The freezer shouJd be Jocatedwhere surrounding temperatures will not exceed
110°F (43°C). Temperatures of 32°F (0°C) and below will NOT affect freezer
operation. AdditionaJ compressor heaters are not recommended.
• Aflowspace aroundthe unit forgood aircircuJation. Leave a 3inch (75 mm) space
on all sides of the freezer for adequate circulation.
Leveling
The freezer must have all bottom corners resting firmly on a solid floor. The floor
must be strong enough to support a fully loaded freezer. NOTE: it is VERY
IMPORTANT for your freezer to be level in order tofunction properly. Ifthe freezer
is not leveled during instaJlatioin, the lid may be misaJigned and not close or seaJ
properly, causing cooling, frost, or moisture problems.
To Level Chest Unit:
if needed, add metaJor wood shims between feet pads and floor.
C_eaning
• Wash any removable parts, the freezer interior, and exterior with mild detergent
and warm water. Wipe dry. DO NOT USE HARSH CLEANERS ON THESE
SURFACES.
• Do not use razor blades or other sharp instruments, which can scratch the
appliance surface when removing adhesive labels. Any glue left from the tape
can be removed with a mixture of warm water and mild detergent, or touch the
residue with the sticky side of tape already removed. DO NOT REMOVE THE
SERIAL PLATE.
MD REMOVAL
See Instructions on Hinge label, (UNPLUG THE UNIT,)
Setting the
Temperature ControM
Cold Control
Coo_ Down Period
For safe food storage, allow 4 hours for freezer to cool down completely. The
freezer will run continuously for the first several hours. Foods that are already
frozen may be placed infreezer after the first few hours of operation. Unfrozen
foods should NOT be loaded into freezer until freezer has operated for 4 hours.
° When Joadingfreezer, freeze onJy3 pounds offresh food percubic foot offreezer
space at one time. Distribute packages to be frozen evenly throughout the
freezer. It is not necessary to turn control knob to a colder setting while freezing
food.
Temperature Control
The temperature control is located inside the freezer. The temperature is factory
preset to provide satisfactory food storage temperatures. However, the tempera-
ture control is adjustable to provide a range of temperatures for your personal
satisfaction. If a colder temperature is desired, turn the temperature control knob
toward COLDEST and allow several hours for temperatures to stabilize between
adjustments.

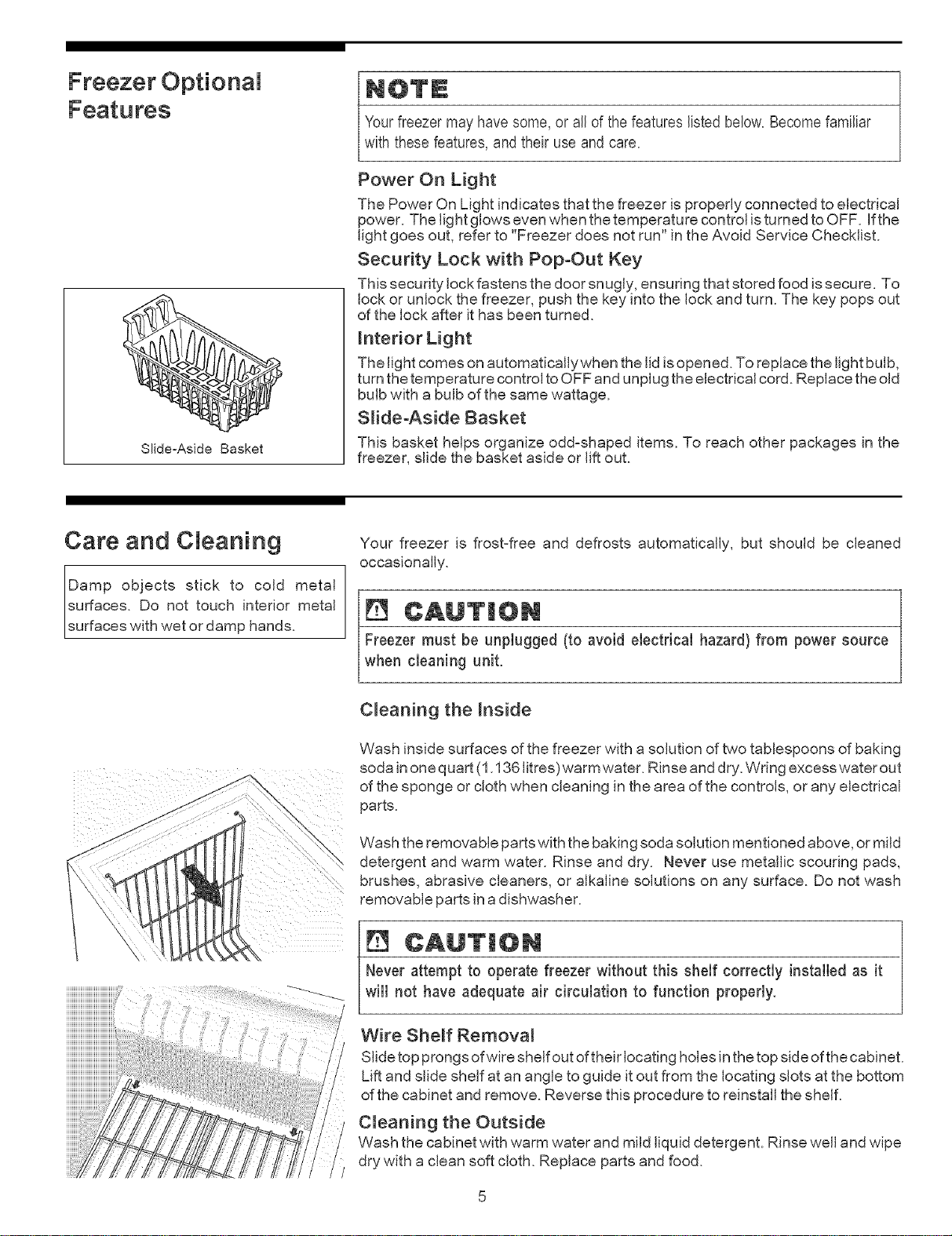

Features
Slide-Aside Basket
NOTE
Your freezer may have some, or all of the features listed below. Become familiar
use care,
_with these features, and their and
Power On Light
The Power On Light indicates that the freezer is properly connected to electrical
power. The light glows even when the temperature control isturned to OFF. If the
light goes out, refer to "Freezer does not run" in the Avoid Service Checklist.
Security Lock with Pop-Out Key
This security lock fastens the door snugly, ensuring that stored food is secure. To
lock or unlock the freezer, push the key into the lock and turn. The key pops out
of the lock after it has been turned.
_nterior Light
The light comes on automaticallywhen the lid isopened. To replace the light bulb,
turn the temperature control to OFF and unplug the electrical cord. Replace the old
bulb with a bulb of the same wattage.
SHale-Aside Basket
This basket helps organize odd-shaped items. To reach other packages in the
freezer, slide the basket aside or lift out.
Care and C eaning
Damp objects stick to cold metal
surfaces. Do not touch interior metal
surfaces with wet or damp hands.
Your freezer is frost-free and defrosts automatically, but should be cleaned
occasionally.
CAUTION
Freezer must be unplugged (to avoid electrical hazard) from power source
when cleaning unit.
Cleaning the inside
Wash inside surfaces of the freezer with a solution of two tablespoons of baking
soda inone quart (1.136 litres)warm water. Rinse and dry. Wring excess water out
of the sponge or cloth when cleaning in the area of the controls, or any electrical
parts.
Wash the removable parts with the baking soda solution mentioned above, or mild
detergent and warm water. Rinse and dry. Never use metallic scouring pads,
brushes, abrasive cleaners, or alkaline solutions on any surface. Do not wash
removable parts in a dishwasher.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
Never attempt to operate freezer without this shelf correctly installed as it
will not have adequate air circulation to function properly.
Wire Shelf Removal
Slide top prongs ofwire shelf out of their locating holes in the top side of the cabinet.
Lift and slide shelf at an angle to guide it out from the locating slots at the bottom
of the cabinet and remove. Reverse this procedure to reinstall the shelf.
Cleaning the Outside
Wash the cabinet with warm water and mild liquid detergent. Rinse well and wipe
dry with a clean soft cloth. Replace parts and food.

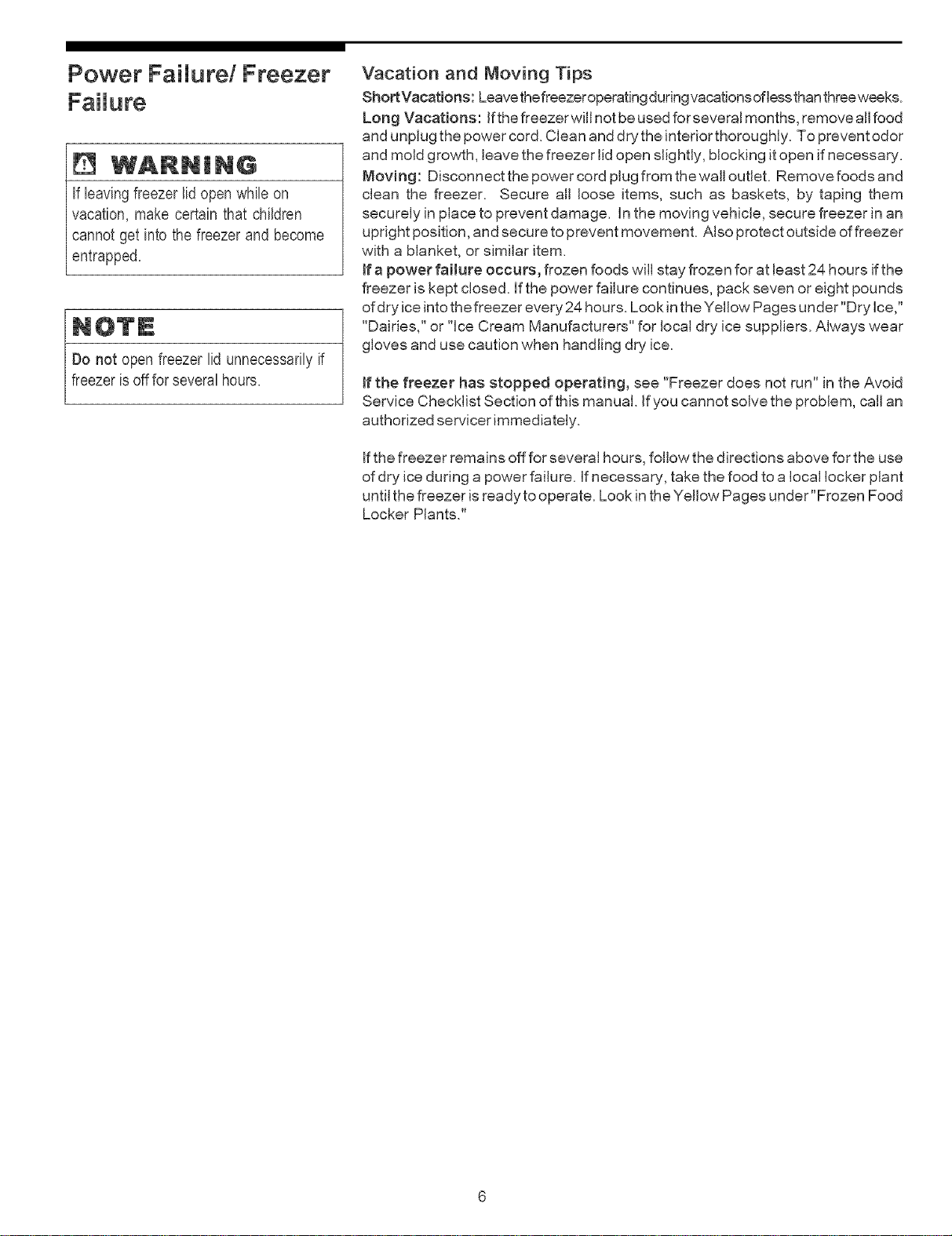

Power Fai urei Freezer
WARNING
If leavingfreezer lid open while on
vacation, make certain that children
cannot get into the freezer and become
entrapped.
Do not open freezer lid unnecessarily if
freezer isofffor several hours.
Vacation and Moving Tips
ShortVacations: Leavethefreezeroperating duringvacationsofless thanthreeweeks.
Long Vacations: Ifthe freezerwill notbe used forseveral months, removeall food
and unplug the power cord. Clean anddrythe interior thorougMy. To prevent odor
and mold growth, leave the freezer lid open slightly, blocking it open if necessary.
Moving: Disconnect the power cord plug from the wall outlet. Remove foods and
clean the freezer. Secure all loose items, such as baskets, by taping them
securely in place to prevent damage, in the moving vehicle, secure freezer in an
upright position, and secure to prevent movement. Also protect outside of freezer
with a blanket, or similar item.
If a power failure occurs, frozen foods will stay frozen for at least 24 hours if the
freezer is kept closed. Ifthe power failure continues, pack seven or eight pounds
of dry ice into the freezer every 24 hours. Look in the Yellow Pages under "Dry Ice,"
"Dairies," or "Ice Cream Manufacturers" for local dry ice suppliers. Always wear
gloves and use caution when handling dry ice.
If the freezer has stopped operating, see "Freezer does not run" in the Avoid
Service Checklist Section of this manual. If you cannot solve the problem, call an
authorized servicer immediately.
Ifthe freezer remains offfor several hours, follow the directions above for the use
of dry ice during a power failure. Ifnecessary, take the food to alocal locker plant
until the freezer is ready to operate. Look in the Yellow Pages under "Frozen Food
Locker Plants."
Avoid Service Checklist Before calling for service, review this list. It may save you both time and
expense. This list includes common occurrences that are not the result of
defective workmanship or materials in this appliance.
OCCURRENCE SOLUTION
Freezer does not run •
Freezer runs too much or too long
Temperature inside freezer is too
cold
Temperature inside freezer is too
warm
Temperature of external freezer •
surface is warm
Check to ensure that freezer is not plugged into a circuit that has
ground fault interrupt. If you are unsure about the outlet, have it
checked by a certified technician.
• Temperature control is in the OFF position. See Setting the
Temperature Control section.
• Freezer may not be plugged in or plug may be loose. Be sure plug is
tightly pushed into electrical outlet.
• House fuse has blown or circuit breaker has tripped. Check / reset
circuit breaker or replace fuse with 15 amp time delay fuse.
• Power outage. Check house lights. Call local electric company.
• Room or outside weather is too hot. It is normal for the freezer to work
harder under these conditions.
• Freezer has recently been disconnected for a period of time. Freezer
requires 4 hours to cool down completely.
• Large amounts of warm water or hot food have been stored recently.
Warm food will cause the freezer to run more until the desired
temperature is reached.
• Lid is kept open too long or too frequently. Warm air enters the
freezer every time the lid is opened. Open the lid less often.
• Freezer lid may be slightly open. See OCCURRENCE "Lid Problems"
• Temperature control is set too cold. Turn the control knob to a warmer
setting. Allow several hours for the temperature to stabilize.
• Freezer gasket is dirty, worn, cracked, or poorly fitted. Clean or
change gasket. Leaks in the lid seal will cause freezer to run longer in
order to maintain desired temperature.
• Temperature control is set too cold. Turn the control to a warmer
setting. Allow several hours for the temperature to stabilize.
• Temperature control is set too warm. Turn the control to a colder
setting. Allow several hours for the temperature to stabilize.
• Lid is kept open too long or too frequently. Warm air enters the freezer
every time the lid is opened. Open the lid less often.
• Freezer lid may be slightly open. See OCCURRENCE "Lid Problems"
• Large amounts of warm water or hot food have been stored recently.
Wait until the freezer has had a chance to reach its selected
temperature.
Freezer has recently been disconnected for a period of time. Freezer
requires 4 hours to cool down completely.
The exterior freezer walls can be as much as 30°F warmer than room
temperature. This is normal while the compressor works to transfer
heat from inside the freezer cabinet.
OCCURRENCE SOLUTION
Loudersoundlevelswhenever • Modern freezers have increased storage capabilities and more even
freezer is ON temperatures. They require a high efficiency compressor. When the
surrounding noise level is low, you might hear the compressor running
while it cools the interior.
Louder sound levels when • Freezer operates at higher pressures during the start of the ON cycle.
compressor comes ON This is normal. Sound will level off or disappear as freezer continues to
run.
Popping or cracking sound when • Metal parts undergo expansion and contraction, as in hot water pipes.
compressor comes ON This is normal. Sound will level off or disappear as freezer continues to
run.
Bubbling or gurgling sound, like • Refrigerant (used to cool freezer) is circulating throughout the system.
water boiling This is normal.
Vibrating or rattling noise
Moisture forms on inside freezer
walls
• Freezer is not level, tt rocks on the floor when it is moved slightly.
Level the unit. Refer to "Leveling" in the First Steps section.
• Floor is uneven or weak. Freezer rocks on the floor when it is moved
slightly. Be sure floor can adequately support freezer. Level the
freezer by putting wood or metal shims under part of the freezer.
• Freezer is touching the wall. Level the freezer or move freezer slightly.
Refer to "Leveling" in the First Steps section.
• Weather is hot and humid, which increases internal rate of frost build-
up. This is normal.
• Lid is slightly open. See OCCURRENCE "Lid Problems".
• Lid is kept open too long, or is opened too frequently. Open the Lid
less often.
Moisture forms on outside of • Lid is slightly open, causing the cold air from inside the freezer to meet
freezer warm moist air from outside. See OCCURRENCE "Lid Problems".
Odor in freezer • Interior needs to be cleaned. Clean interior with sponge, warm water
and baking soda.
• Foods with strong odors are in the freezer. Cover the food tightly.
Lid Problems •
Light bulb is not on
Freezer is not level. It rocks on the floor when it is moved slightly. This
condition can force the cabinet out of square and misalign the lid.
Refer to "Leveling" in the First Steps section.
Floor is uneven or weak. Freezer rocks on the floor when it is moved
slightly. Be sure floor can adequately support freezer. Level the
freezer by putting wood or metal shims under the freezer or brace the
floor supporting the freezer.
• Light bulb is burned out. Follow directions under "Interior Light" in the
"Freezer Features" section.
• No electric current is reaching the freezer. See OCCURRENCE
"Freezer does not run".
FREEZER WARRANTY
Your freezer is protected by this warranty
WARRANTY THROUGH OUR AUTHORIZED SERVICERS, THE CONSUMER WILL BE RESPONSIBLE FOR:
PERIOD WE WILL:
FULL ONE-YEAR One year from original Pay all costs for repairing or replacing any parts of this Costs of service calls that are listed under NORMAL
WARRANTY purchase date appliance which prove to be defective in materials or RESPONSIBILITIES OF THE CONSUMER. *
workmanship,
LIMITED 2ND-5TM Second through fifth Repair or replace any parts in the Sealed Refrigeration Diagnostic costs and any removal, transportation and
YEAR WARRANTY years from original System (compressor, condenser, evaporator, drier and reinstallation costs, which are required because of service.
(Sealed System) purchase date tubing) which prove to be defective in materials or Costs for labor, parts and transportation other than with respect
workmanship, and provide the labor to install such part. to the Sealed Refrigeration System.
LIMITED 6T"-10 TM Sixth through tenth Provide a replacement for any compressor, which Diagnostic costs and any removal, transportation and
YEAR WARRANTY years from original proves to be defective in materials or workmanship, reinstallation costs, which are required because of service.
(Compressor Only) purchase date Costs for labor, parts and transportation other than the cost of
the replacement compressor itself.
Time periods listed All of the provisions of the full and limited warranties Costs of the technician's travel to the home and any costs for
above, above and the exclusions listed below apply, pick up and delivery of the appliance required because of
service.
LIMITED
WARRANTY
(Applicable to the
State of Alaska)
THREE-YEAR
LIMITED FOOD
SPOILAGE PLAN
During the first three
years from original
purchase date.
If food loss results because of defects in materials or workmanship during the time periods listed above, and applies to the
limitations stated in the normal responsibilities of the consumer listed below, Electrolux will reimburse the consumer for
the actual food spoilage loss in excess of $5.00 per occurrence, but not to exceed a cumulative maximum
payment of $100.00, provided the food losses:
A) Are reported and the food shown to any Electrolux authorized servicer within 24 hours of the discovery of the loss.
B) Are not occasioned by either the manual disconnection of the electrical power within the premises of the owner or a
general power failure.
C) Occur even though the owner exercised reasonable care and diligence to save food per suggestions furnished with
the appliance.
In the U.S.A. your appliance is warranted by Electrolux Home Products, Inc. We authorize no person to change or add to any of our obligations
under this warranty. Our obligations for service and parts under this warranty must be performed by us or an authorized Electrolux Home Products,
Inc=servicer=In Canada, your appliance is warranted by Electrolux Canada Corp=
*NORt_AL
RESPONSIBILITmES
OF THE CONSUMER
EXCLUSIONS
IF YOU NEED
SERVICE
This warranty applies only to products ir_ordinary household use, and the consumer is responsible for the
items misted beRow:
1= Proper use of the appliance in accordance with instructions provided with the product.
2= Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3= Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring=
4= Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc.
which are not a part of the appliance when it was shipped from the factory.
5= Damages to finish after installation=
8. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in
ordinary household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by servicers other than Electrolux Home Products, Inc. or its authorized
servicers; use of parts other than genuine Electrolux Home Products, Inc= parts; obtained from persons other
than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God=
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the
warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all
receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by contacting Electrolux Home Products, Inc.:
This warranty only applies in the 80 states of the U=S=A. Puerto Rico, and Canada. Product features or specifications as described or illustrated
are subject to change without notice. All warranties are made by Electrolux Home Products, Inc= in Canada, your appliance is warranted by
Electrolux Canada Corp=
01-U-FR-02 (Rev. 01/2002)
USA
800.944_9044
Electrolux Home Products, Inc.
RO. Box 212378
Augusta, GA 30917
Canada
868.213,_9397
Electrolux Canada Corp=
8180 McLaughlin Road
Mississauga, Ontario
LSR 4C2
Notes
10
