USER MANUAL
Read the User Manual carefully before using the TV
and keep it for further reference,

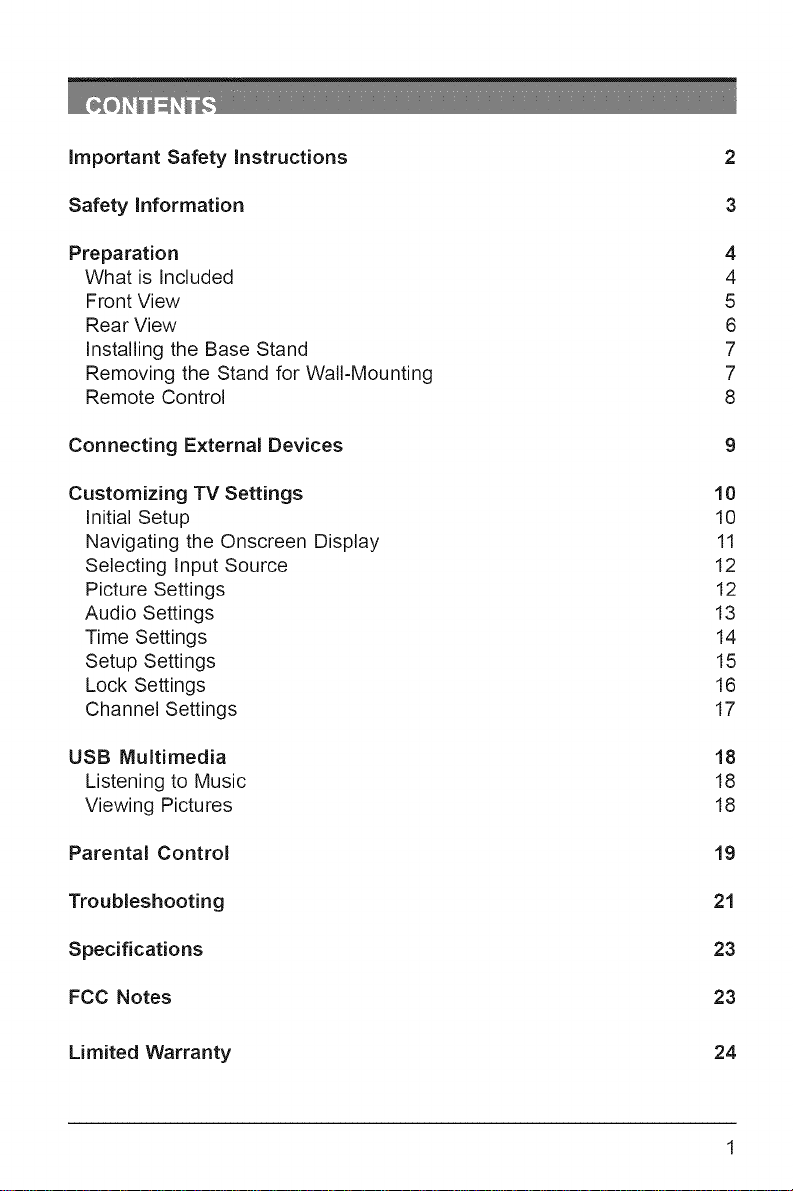

ImportantSafety Instructions
Safety Information
Preparation
What is Included
Front View
Rear View
Installing the Base Stand
Removing the Stand for Wall-Mounting
Remote Control
Connecting External Devices
Customizing TV Settings
Initial Setup

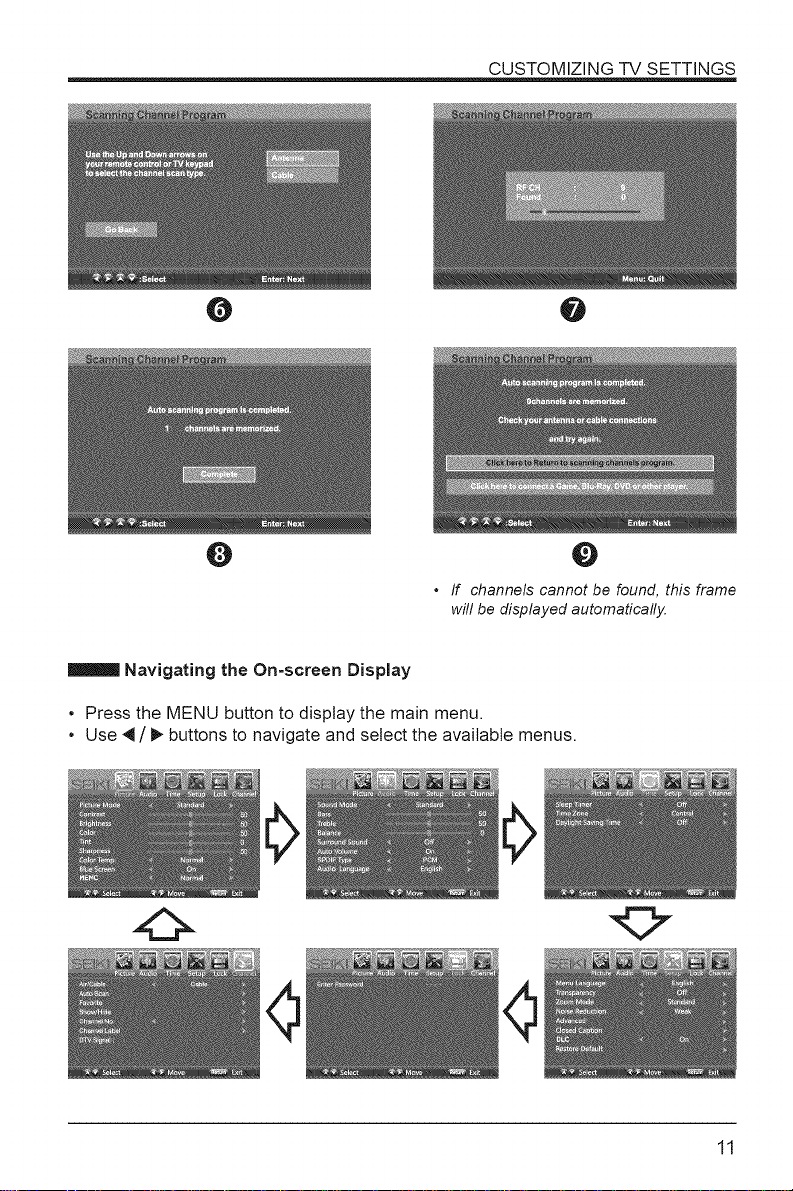

Navigating the Onscreen Display
Selecting Input Source
Picture Settings

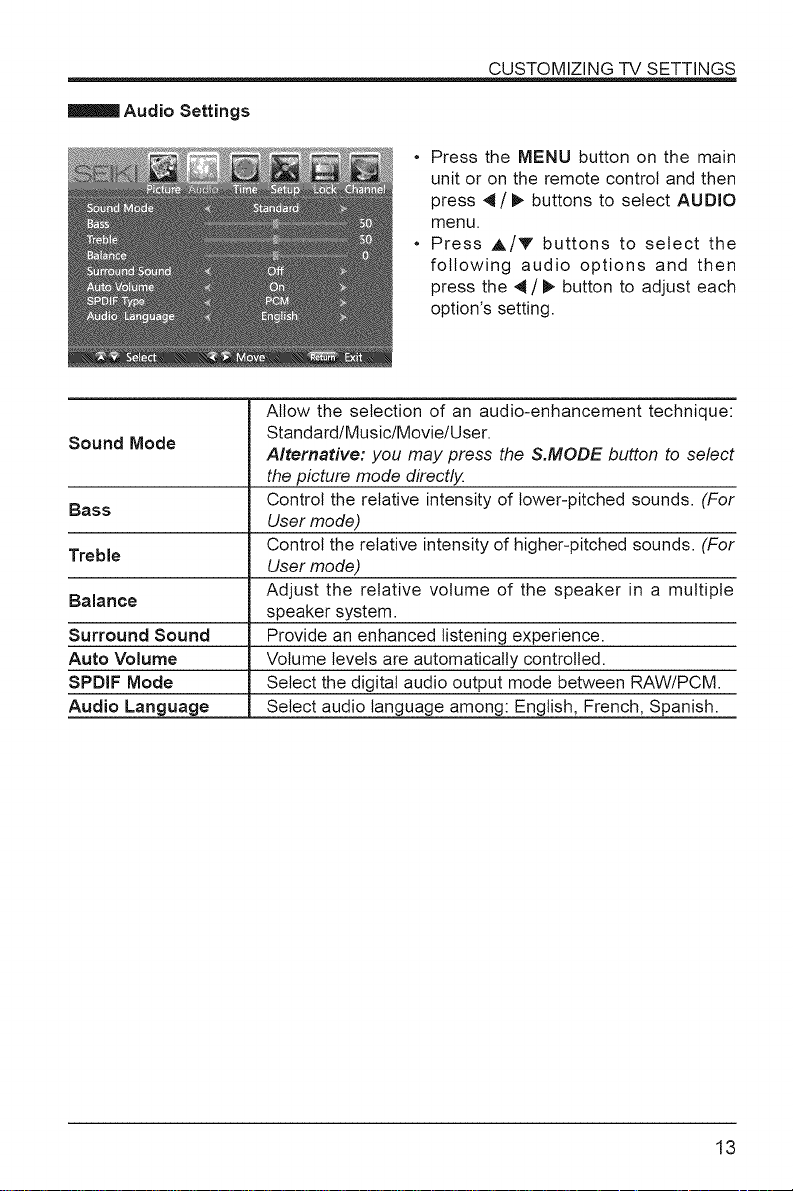

Audio Settings
Time Settings

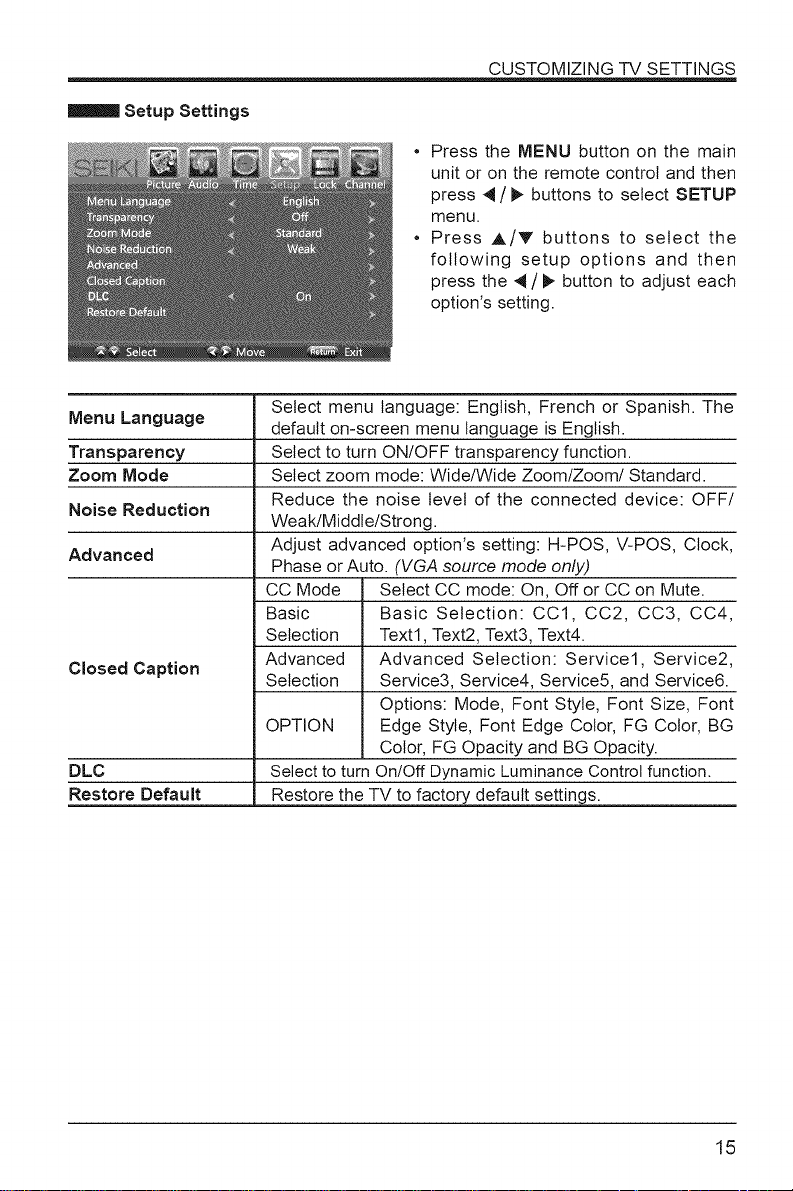

Setup Settings
Lock Settings

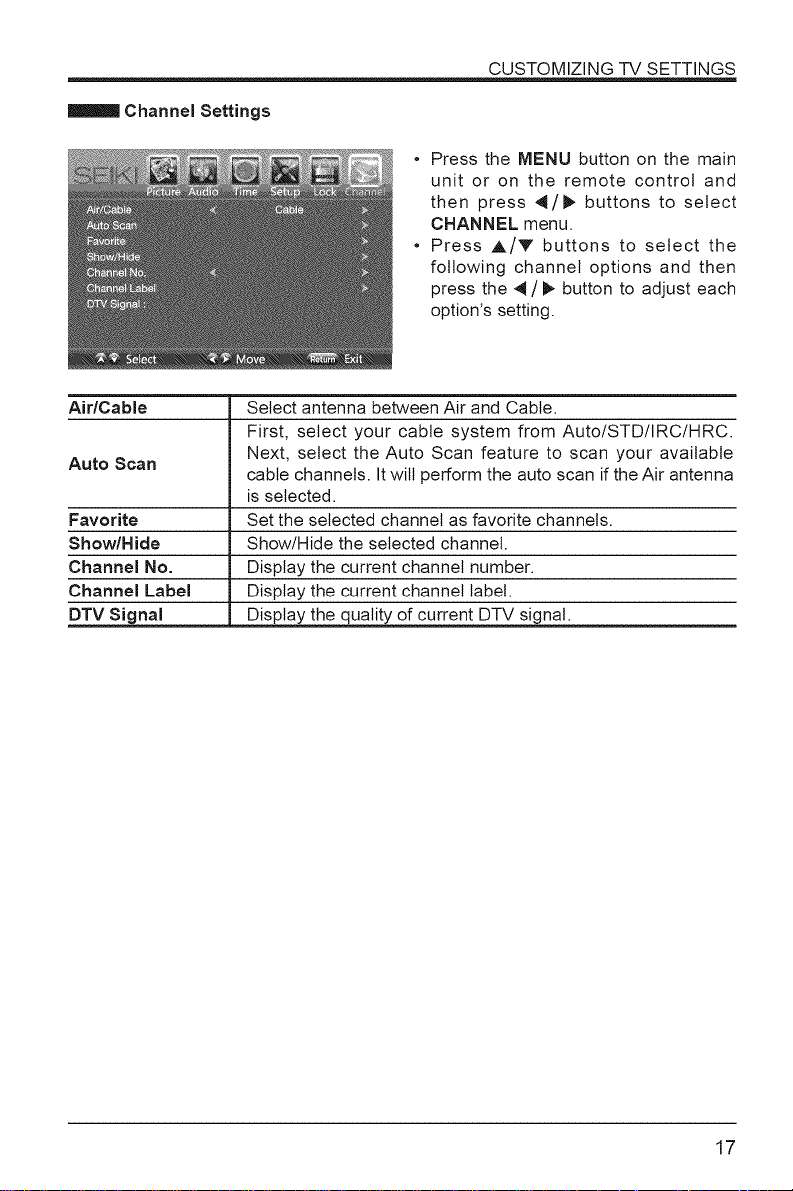

Channel Settings

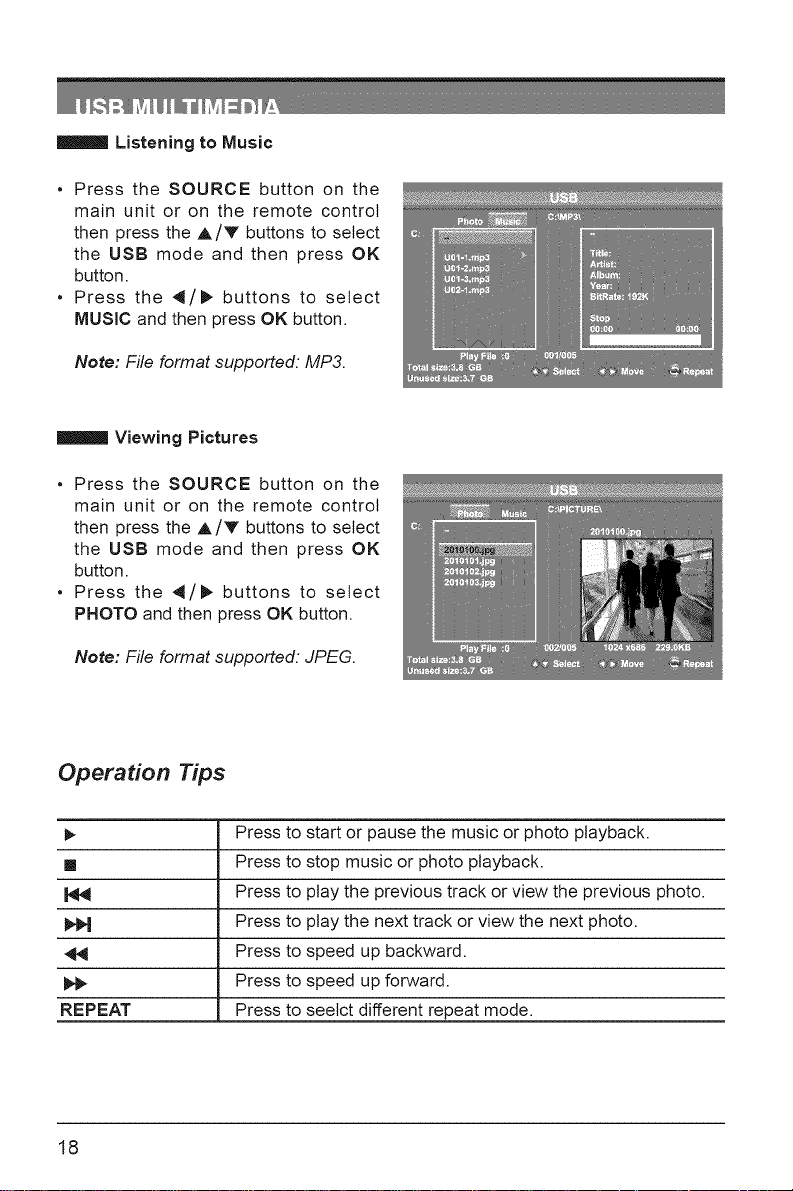

USB Multimedia
Listening to Music
Viewing Pictures

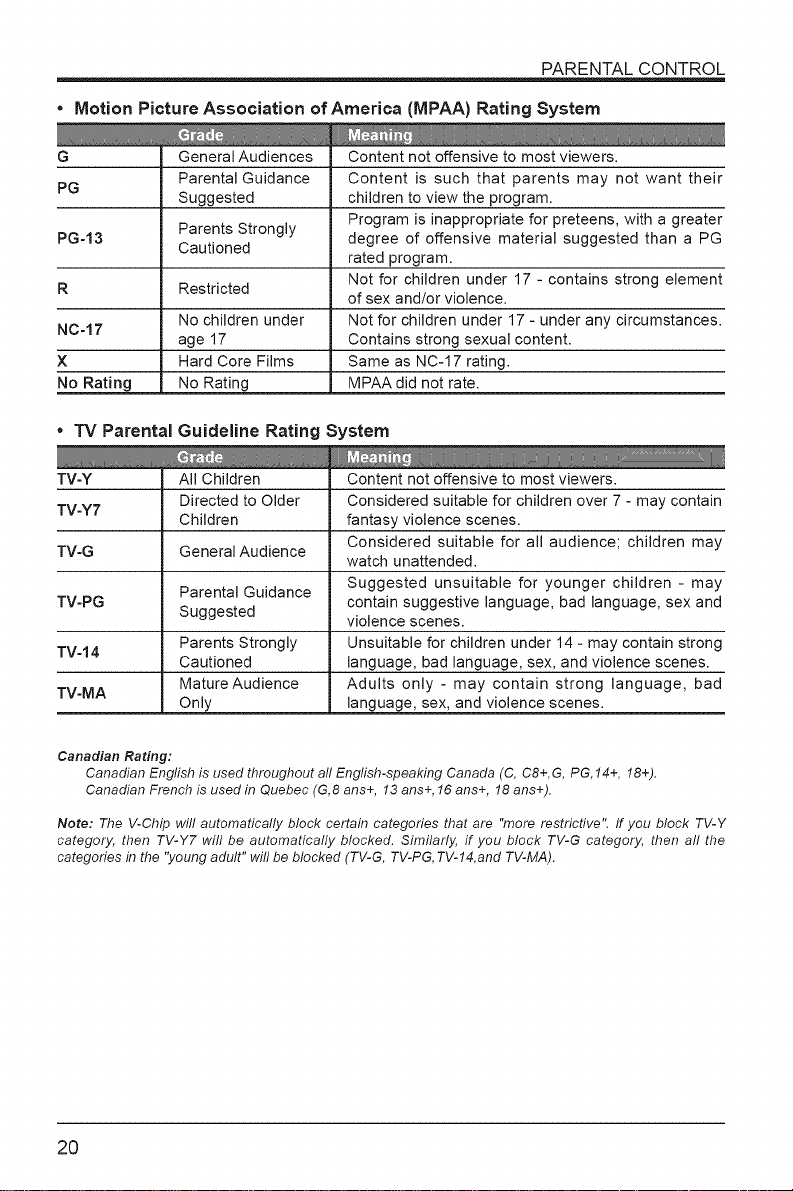

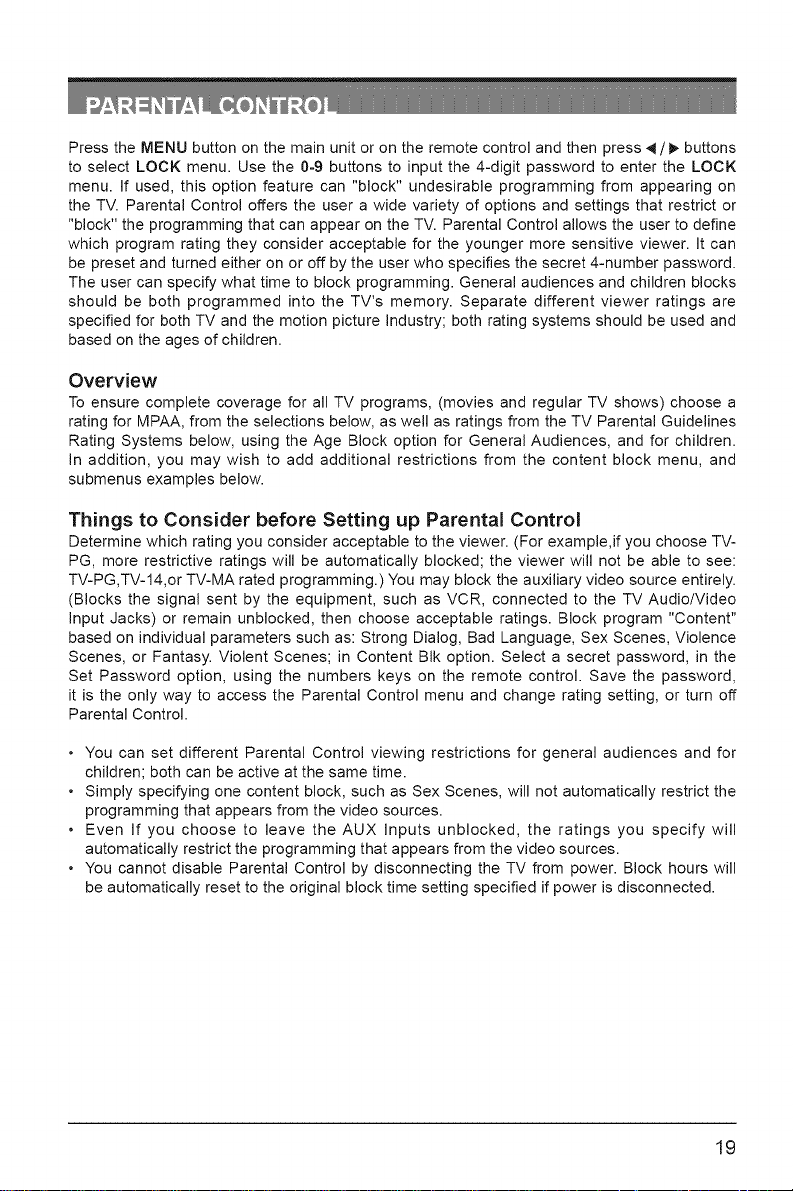

Parental Control

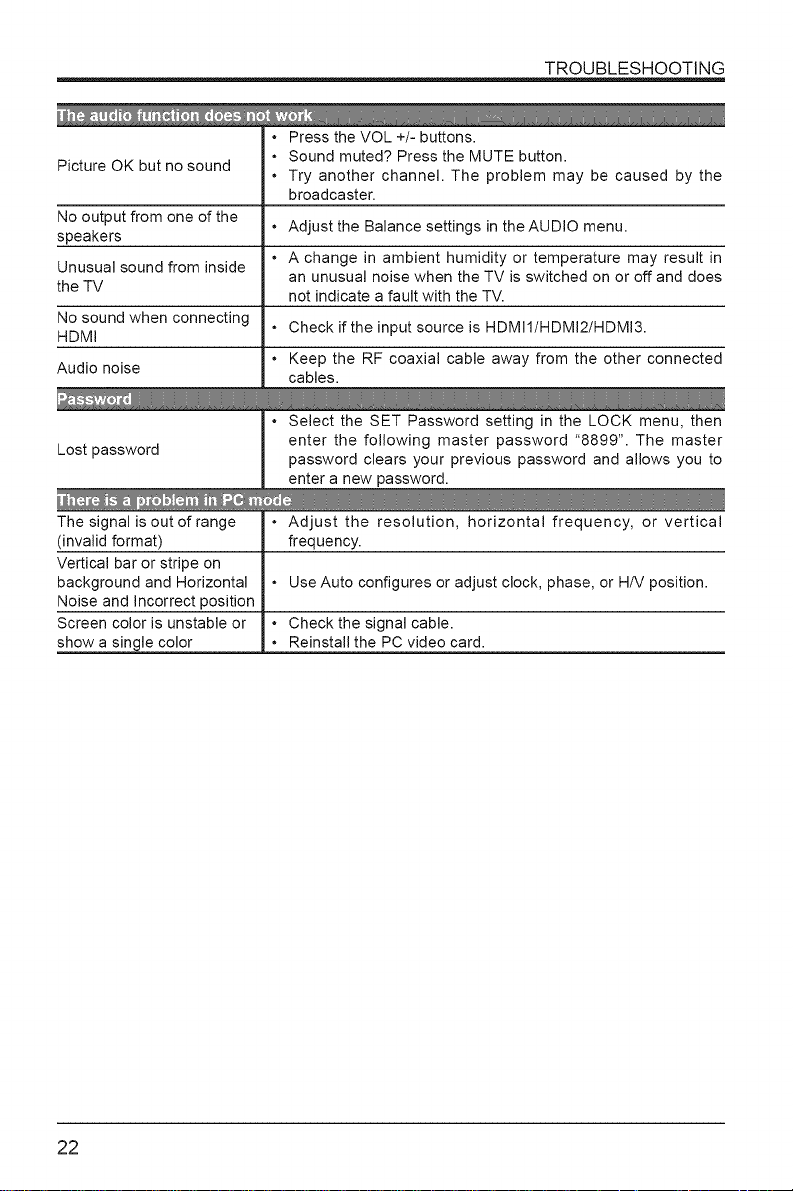

Troubleshooting

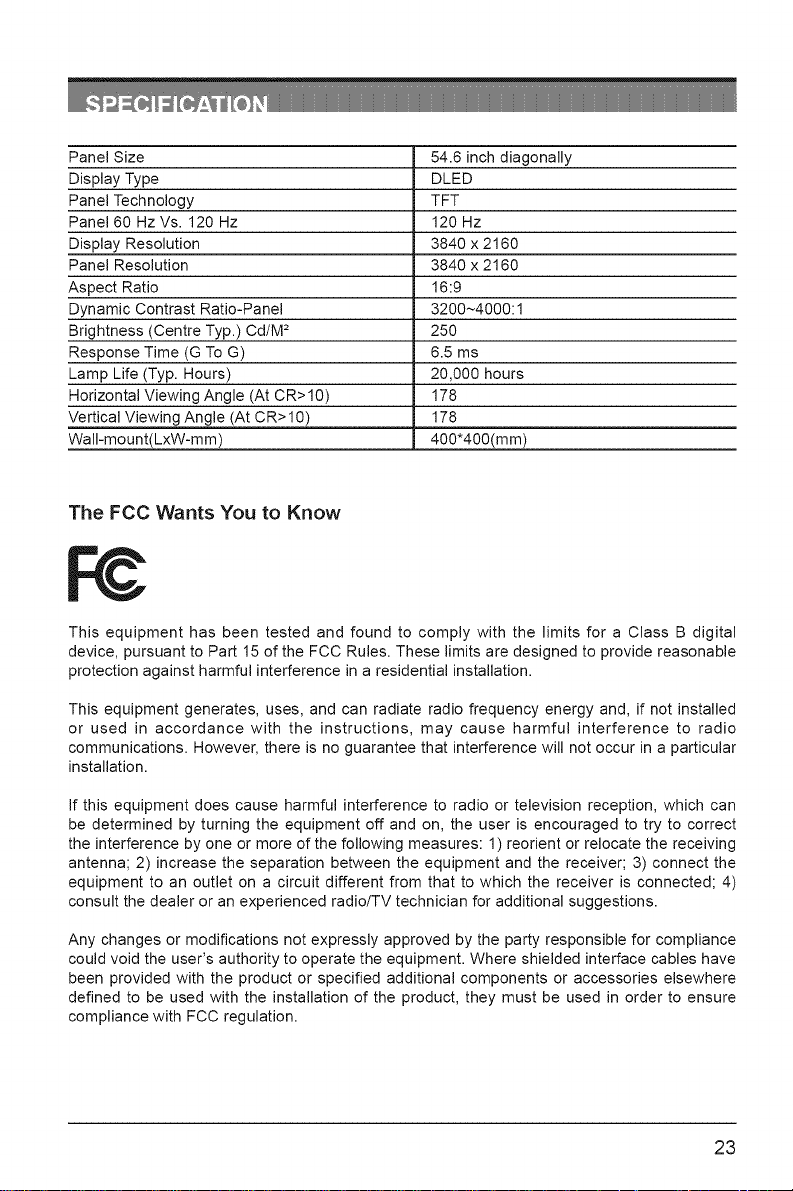

Specifications
FCC Notes
4
4
5
6
7
7
8
10
10
11
12
12
13
14
15
16
17
18
18
18
19
21
23
23

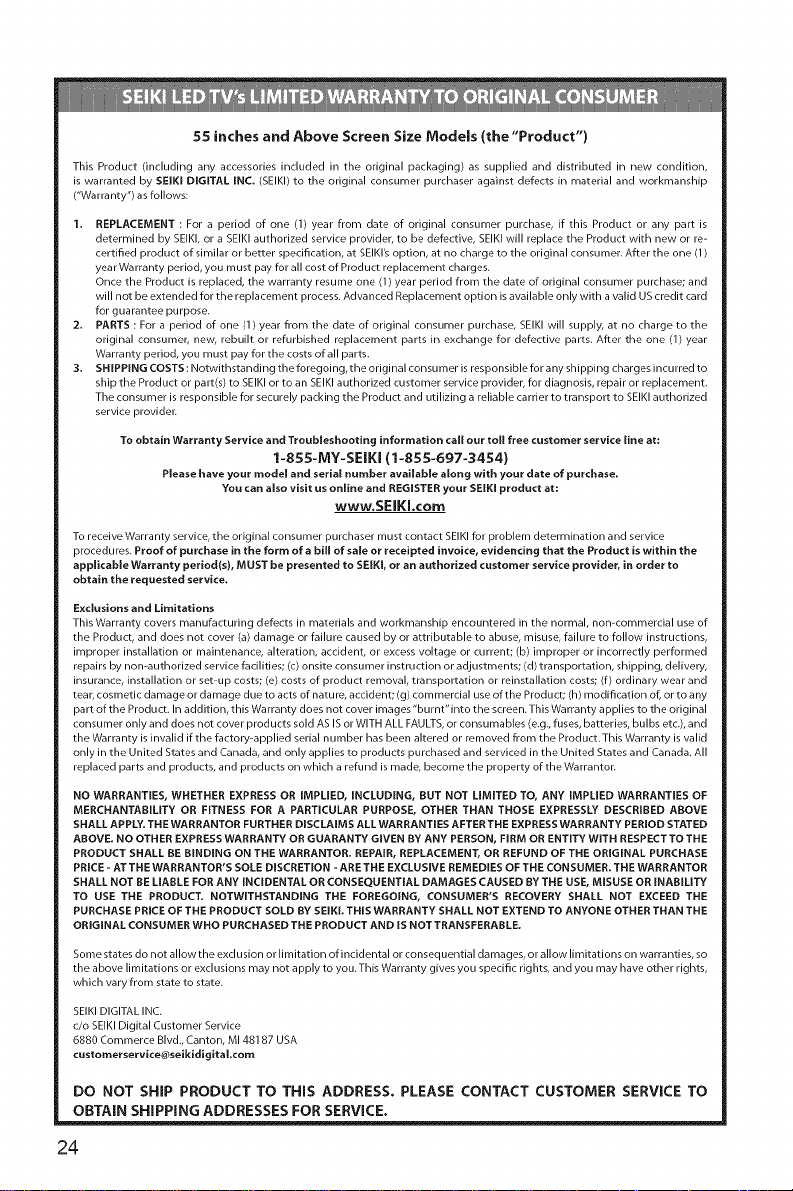

Limited Warranty
24
=
=
=
=
=
=

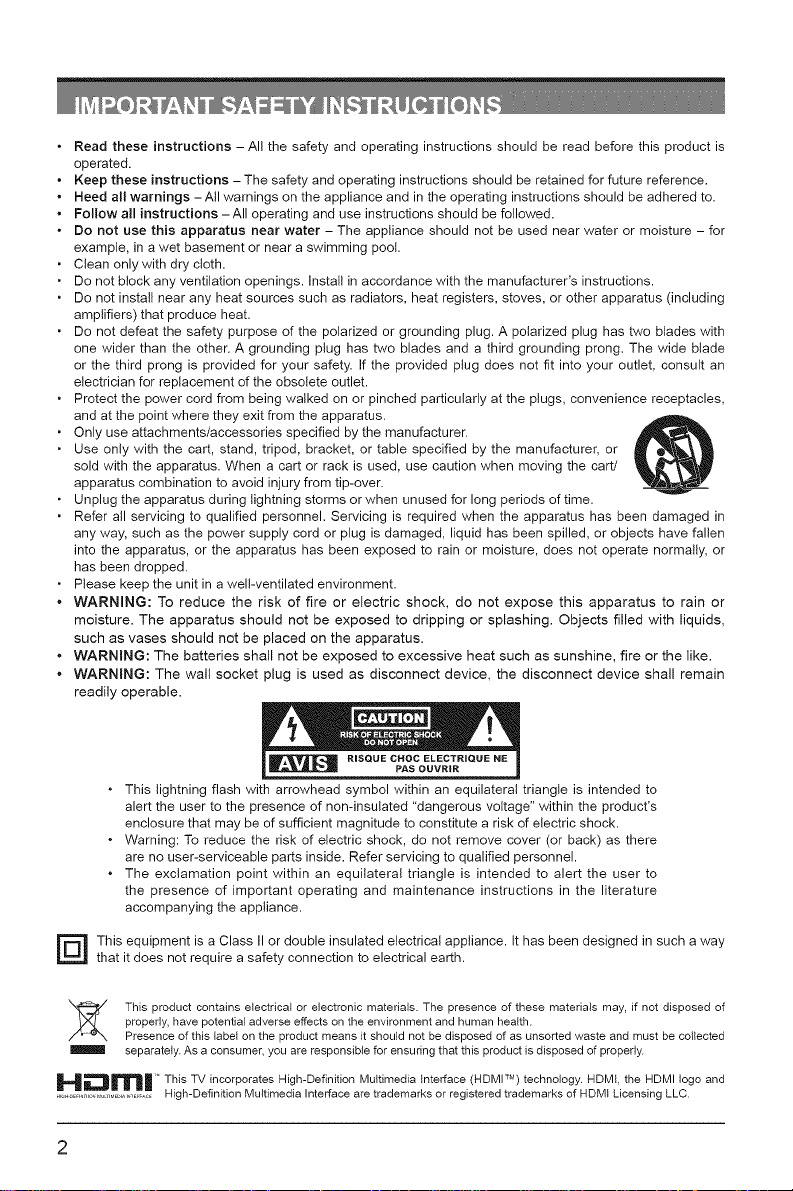

Read these instructions - All the safety and operating instructions should be read before this product is
operated.
Keep these instructions - The safety and operating instructions should be retained for future reference.
Heed all warnings -All warnings on the appliance and in the operating instructions should be adhered to.
Follow all instructions -All operating and use instructions should be followed.
Do not use this apparatus near water - The appliance should not be used near water or moisture - for
example, in a wet basement or near a swimming poot.
Clean only with dry ctoth.
Do not block any ventilation openings. Instalt in accordance with the manufacturer's instructions.
Do not instalt near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two btades with
one wider than the other. A grounding plug has two blades and a third grounding prong. The wide btade
or the third prong is provided for your safety, if the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsotete outlet.
Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles,
and at the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart or rack is used, use caution when moving the cart!
apparatus combination to avoid injury from tip-over.
Unplug the apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in
any way, such as the power supply cord or plug is damaged, liquid has been spilled, or objects have fallen
into the apparatus, or the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
Please keep the unit in a well-ventilated environment.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture. The apparatus should not be exposed to dripping or splashing. Objects filled with liquids,
such as vases should not be placed on the apparatus.
WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
WARNING: The wall socket plug is used as disconnect device, the disconnect device shall remain
readily operable.
RISQUE CHOC ELECTRIQUE NE
This lightning flash with arrowhead symbol within an equilateral triangte is intended to
alert the user to the presence of non-insulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
. Warning: To reduce the risk of electric shock, do not remove cover (or back) as there
are no user-serviceable parts inside. Refer servicing to qualified personnel.
. The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions in the literature
accompanying the appliance.
This equipment is a Class II or double insulated electrical appliance, it has been designed in such a way
that it does not require a safety connection to electrical earth.
This product contains electrical or electronic materials. The presence of these materials may, if not disposed of
properly, have potential adverse effects on the environment and human health.
Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected
separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.
H_m " This TV incorporatesHigh-Definition MultimediaInterface (HDMIT_)technology. HDMI,the HDMI logo and
.................................High-DefinitionMultimediaInterface aretrademarksor registeredtrademarksof HDMtLicensing LLC.
2

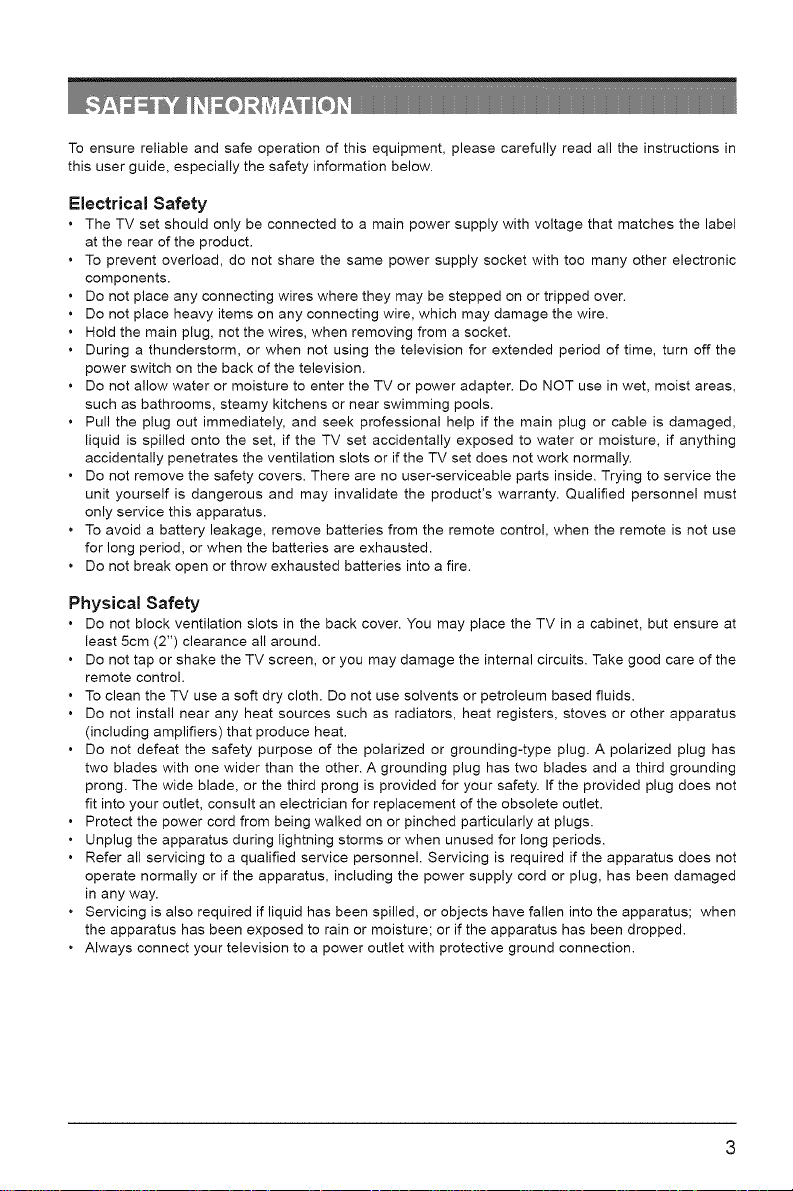

To ensure reliable and safe operation of this equipment, please carefully read all the instructions in
this user guide, especially the safety information below.
Electrical Safety
• The TV set should only be connected to a main power supply with voltage that matches the label
at the rear of the product.
• To prevent overload, do not share the same power supply socket with too many other electronic
components.
• Do not place any connecting wires where they may be stepped on or tripped over.
• Do not place heavy items on any connecting wire, which may damage the wire.
• Hold the main plug, not the wires, when removing from a socket.
• During a thunderstorm, or when not using the television for extended period of time, turn off the
power switch on the back of the television.
• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas,
such as bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged,
liquid is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything
accidentally penetrates the ventilation slots or if the TV set does not work normally.
• Do not remove the safety covers. There are no user-serviceable parts inside. Trying to service the
unit yourself is dangerous and may invalidate the product's warranty. Qualified personnel must
only service this apparatus.
• To avoid a battery leakage, remove batteries from the remote control, when the remote is not use
for long period, or when the batteries are exhausted.
• Do not break open or throw exhausted batteries into a fire.
Physical Safety
• Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at
least 5cm (2") clearance all around.
• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the
remote control.
• To clean the TV use a soft dry cloth. Do not use solvents or petroleum based fluids.
• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding plug has two blades and a third grounding
prong. The wide blade, or the third prong is provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs.
• Unplug the apparatus during lightning storms or when unused for long periods.
• Refer all servicing to a qualified service personnel. Servicing is required if the apparatus does not
operate normally or if the apparatus, including the power supply cord or plug, has been damaged
in any way.
• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when
the apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.
• Always connect your television to a power outlet with protective ground connection.

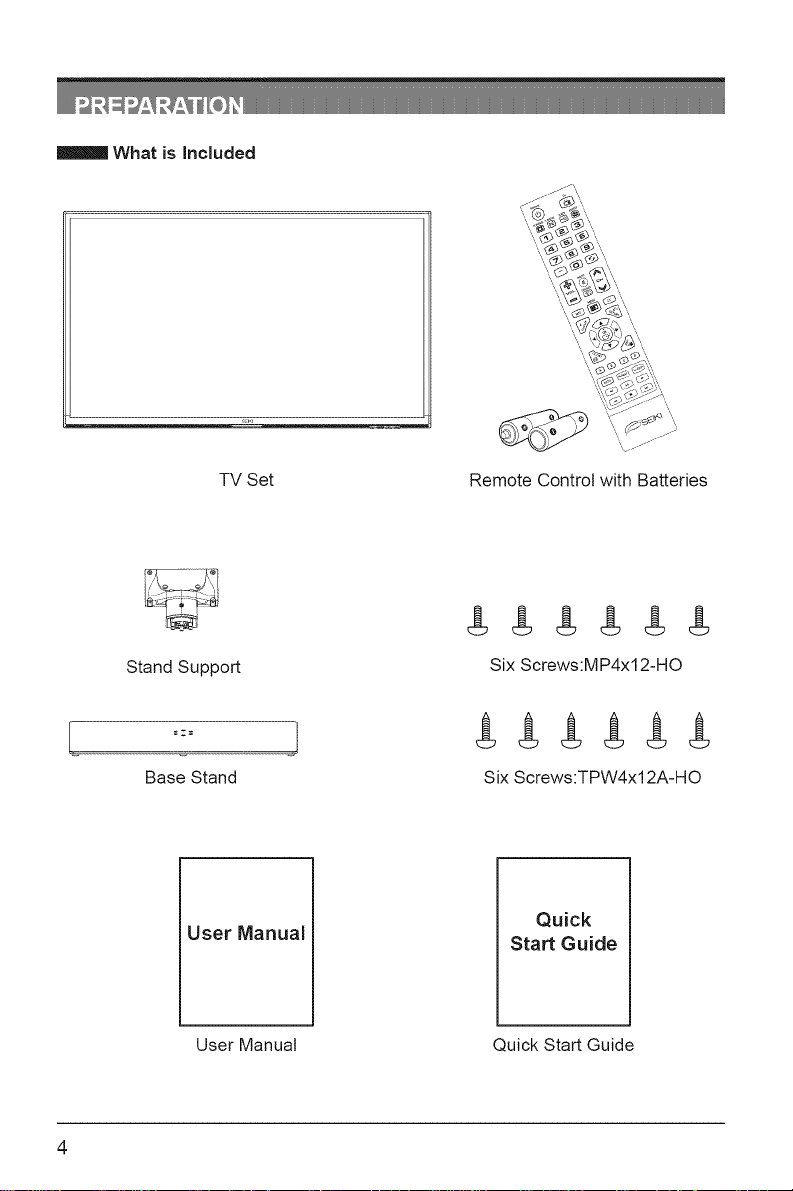

What is Included
TV Set
Remote Control with Batteries
Stand Support
Base Stand
Six Screws:MP4x12-HO
Six Screws:TPW4x12A-HO
User Manual
Quick
Start Guide
User Manual Quick Start Guide
4
PREPARATION
Front View
..................]_
1, POWER
Switch the TV between On / Standby mode.
2, SOURCE
Press to select among different input signal sources.
3. MENU
Display the OSD (on screen display) menu.
4, CH +/-
Press to select a channel.
5, VOL +/-
Press to adjust the volume.
6, POWER Indicator
Illuminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.
7, IR (Infrared Receiver)
Receive IR signals from the remote control.
PREPARATION
Rear View
1. Power Cord
Connect to AC power outlet.
2. DTV/TV Input
Connect to the antenna (750 VHF/UHF)
socket with the RF coaxial cable.
3. USB Port
Connect to a USB storage device to play
compatible audio and photo files. (USB
mode)
4. HDMllnputs
Connect to a High-Definition (HD) signal
output device.
5. Headphone Socket
Connect to the Headphones.
6. COAXIAL Digital Audio Output
Connect to the audio socket on the digital
audio system.
7. COMPONENT Input
Connect to AV devices with component
(Y/Pb/Pr) video output sockets.
8. AV Input
Connect to the composite VIDEO and
AUDIO (L/R) output sockets on external
video devices.
9. PC AUDIO Input
Connect to a computer audio output.
10. VGA Input
Connect to a computer or other devices
with a VGA interface.
PREPARATION

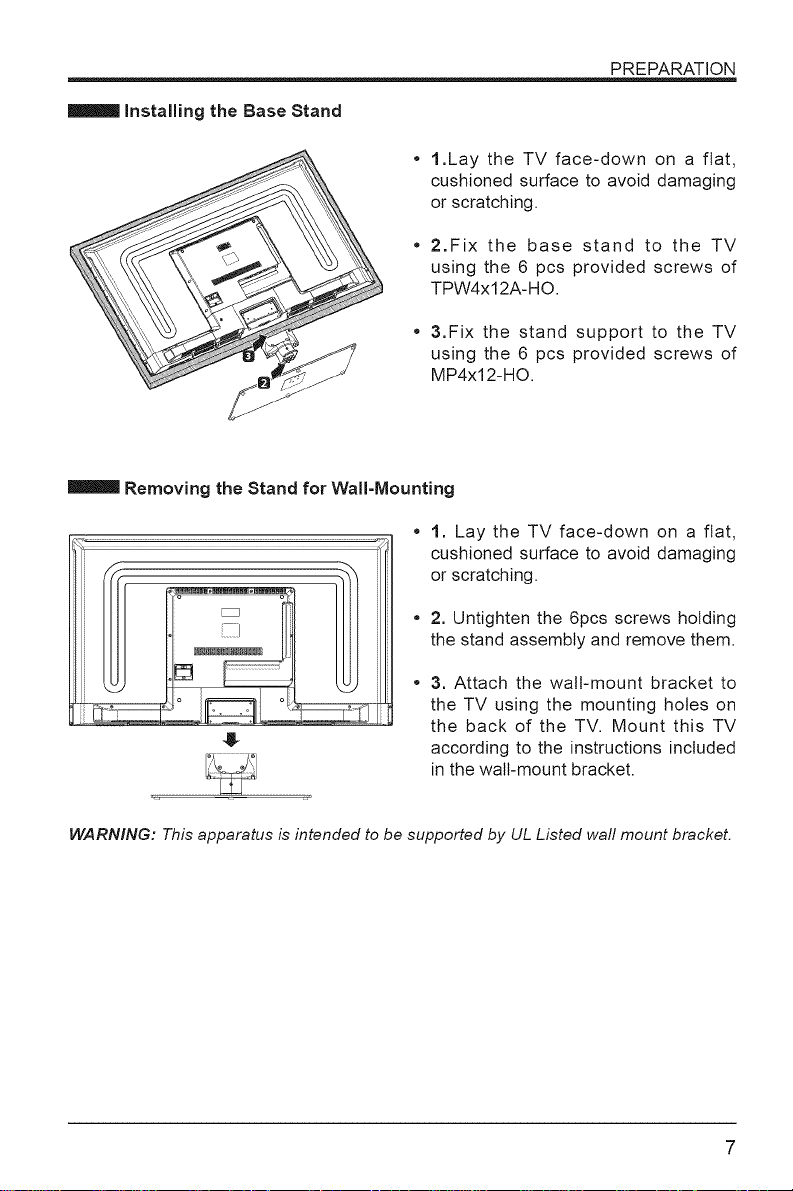

Installing the Base Stand
1.Lay the TV face-down on a flat,
cushioned surface to avoid damaging
or scratching.
2.Fix the base stand to the TV
using the 6 pcs provided screws of
TPW4x12A-HO.
3.Fix the stand support to the TV
using the 6 pcs provided screws of
MP4x12-HO.
Removing the Stand for Wall=Mounting
1. Lay the TV face-down on a flat,
cushioned surface to avoid damaging
or scratching.
2. Untighten the 6pcs screws holding
the stand assembly and remove them.
3. Attach the walt-mount bracket to
the TV using the mounting holes on
the back of the TV. Mount this TV
according to the instructions included
in the wall-mount bracket,
WARNING: This apparatus is intended to be supported by UL Listed waft mount bracket.
PREPARATION

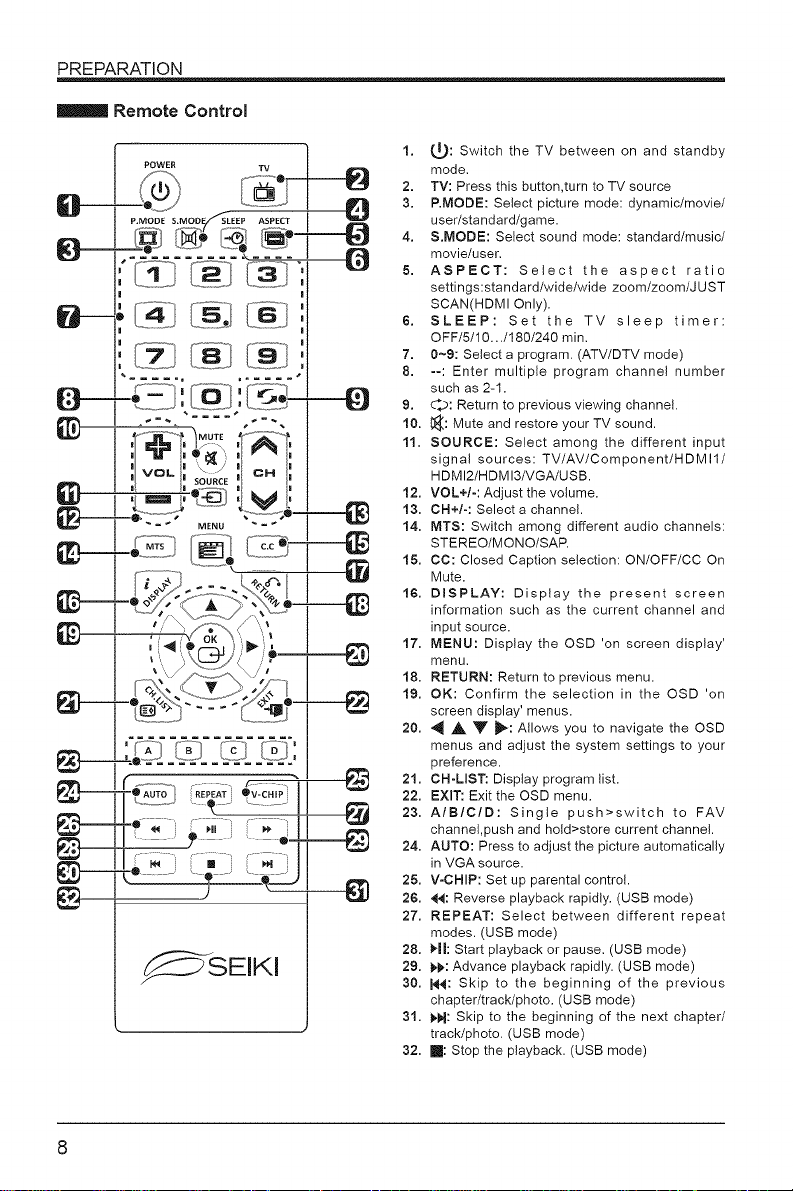

Remote Control
1. (D: Switch the TV between on and standby
mode.
2. TV: Press this button,turn to TV source
3, P.MODE: Select picture mode: dynamic/movie/
user/standard/game.
4, S,MODE: Select sound mode: standard/music/
movie/user.
5. ASPECT: Select the aspect ratio
settings:standard/wide/wide zoom/zoom/JUST
SCAN(HDMI Only).
6, SLEEP: Set the TV sleep timer:
OFF/5/10.../180/240 min.
7. 0-9: Select a program. (ATV/DTV mode)
8. -:: Enter multiple program channel number
such as 2-1.
9. _: Return to previous viewing channe!.
10. _: Mute and restore your TV sound.
11. SOURCE: Select among the different input
signal sources: TV/AV/Component/HDMI1/
HDMI2/HDMI3/VGA/USB.
12. VOL+/< Adjust the volume.
13. CH+/< Select a channel.
14. MTS: Switch among different audio channels:
STEREO/MONO/SAP.
15. CC: Closed Caption selection: ON/OFF/CC On
Mute.
16. DISPLAY: Display the present screen
information such as the current channel and
input source.
17. MENU: Display the OSD 'on screen display'
menu.
18. RETURN: Return to previous menu.
19. OK: Confirm the selection in the OSD 'on
screen display' menus.
20. _1 A _!" I_: Allows you to navigate the OSD
menus and adjust the system settings to your
preference.
21. CH-LIST: Display program list.
22. EXIT: Exit the OSD menu.
23. AIBICID: Single push>switch to FAV
channel,push and hold>store current channel.
24. AUTO: Press to adjust the picture automatically
in VGA source.
25. V:CHIP: Set up parental control.
26. ,€_: Reverse playback rapidly. (USB mode)
27. REPEAT: Select between different repeat
modes. (USB mode)
28. t_11:Start playback or pause. (USB mode)
29. t¢.: Advance playback rapidly. (USB mode)
30. I_: Skip to the beginning of the previous
chapter/track/photo. (USB mode)
31. t¢,1: Skip to the beginning of the next chapter/
track/photo. (USB mode)
32. Ira: Stop the playback. (USB mode)

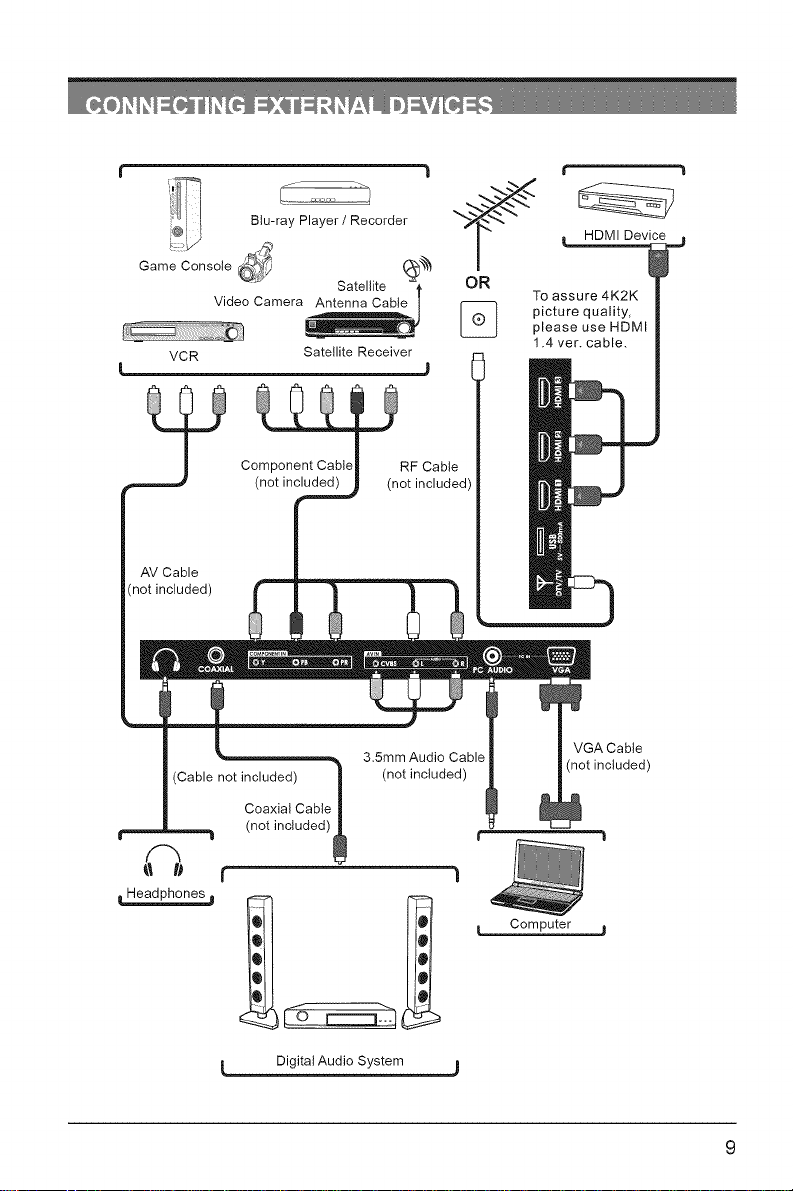

Btu-rayPlayer/ Recorder
Game Console (_
Satellite t
Video Camera Antenna Cable t
VCR Satellite Receiver
I !
y _ic_j
OR
To assure 4K2K
[_ picture quality,
please use HDMI
1.4 ver. cable.
AV Cable
motincluded)
(Cable not included)
Coaxial Cable
(not included)
Headphones
3.5mm Audio Cable
(not included)
Digitat Audio System j
VGA Cable
(not included)
Computer

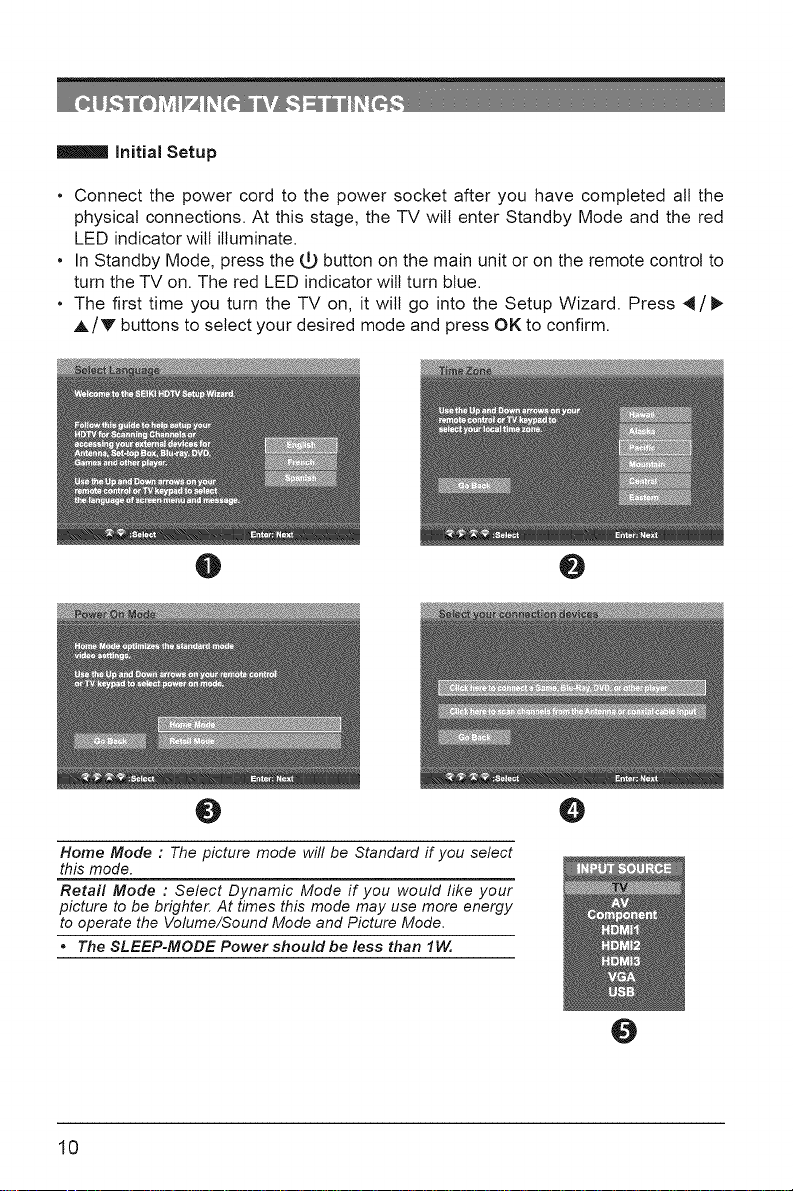

Initial Setup
• Connect the power cord to the power socket after you have completed all the
physical connections. At this stage, the TV wilt enter Standby Mode and the red
LED indicator wilt illuminate.
• In Standby Mode, press the (D button on the main unit or on the remote control to
turn the TV on. The red LED indicator will turn blue.
• The first time you turn the TV on, it will go into the Setup Wizard. Press 4/I_
A/V buttons to select your desired mode and press OK to confirm.
O O
0 0
Home Mode : The picture mode will be Standard if you select
this mode.
Retail Mode : Select Dynamic Mode if you would like your
picture to be brighter. At times this mode may use more energy
to operate the Volume/Sound Mode and Picture Mode.
• The SLEEP-MODE Power should be less than 1W.
10
O
O
Q
CUSTOMIZING TV SETTINGS
O
0
• If channels cannot be found, this frame
will be displayed automatically.
Navigating the On=screen Display
* Press the MENU button to display the main menu.
* Use 4 / _ buttons to navigate and select the available menus.
11
CUSTOMIZING TV SETTINGS
Selecting Input Source
• Press the SOURCE button on the
main unit or on the remote control to
display the Input Source list.
• Press A/V buttons to select your
desired input source among: TV/AV/
Component/HDMII/HDMI2/HDMI3/
VGA/USB and then press OK button
to confirm.
Picture Settings
• Press the MENU button on the main
unit or on the remote control and
then press _/1_ buttons to select
PICTURE menu.
• Press _/V buttons to select the
following picture options and then
press 4/I_ buttons to adjust each
option's setting.
Cycle among picture modes: Dynamic/Movie/User/
Picture Mode Standard/game.
Alternative: you may press the P.MODE button to
select the picture mode directly.
Contrast Adjust the difference between light and dark levels in
the pictures. (For User mode)
Increase or decrease the amount of white in the picture.
Brightness (For User mode)
Color Control the color intensity. (For User mode)
Tint Adjust the balance between red and green levels.
Sharpness Adjust the level of crispness in the edges between light
and dark areas of the picture. (For User mode)
Color Temperature Cycle among color temperatures: Cool/Normal/Warm.
Allow the blue background to turn On/Off during weak or
Blue Screen
no signal conditions.
Cycle among Motion Estimate and Motion
MEMC
Compensation modes:Normal/Strong/Off/Low.
12
CUSTOMIZING TV SETTINGS
Audio Settings
• Press the MENU button on the main
unit or on the remote control and then
press _/_, buttons to select AUDIO
menu.
• Press A/V buttons to select the
following audio options and then
press the 4/_ button to adjust each
option's setting.
Allow the selection of an audio-enhancement technique:
Standard/Music/Movie/User.
Sound Mode
Alternative: you may press the &MODE button to select
the picture mode directly.
Control the relative intensity of lower-pitched sounds. (For
Bass
User mode)
Control the relative intensity of higher-pitched sounds. (For
Treble
User mode)
Balance Adjust the relative volume of the speaker in a multiple
speaker system.
Surround Sound Provide an enhanced listening experience.
Auto Volume Volume levels are automatically controlled.
SPDIF Mode Select the digital audio output mode between RAW/PCM.
Audio Language Select audio language among: English, French, Spanish.
13
CUSTOMIZING TV SETTINGS
Time Settings
* Press the MENU button on the main
unit or on the remote control and then
press 4/_ buttons to select TIME
menu.
* Press A/V buttons to select the
following time options and then press
41/II_ button to adjust each option's
setting.
Select a period d time after which the TV automatically
Sleep Timer switches to standby mode: OFF/5/10/.../180/240 min.
Alternative: You may press the SLEEP button
repeatedly to select the number of minutes directly.
Select a Time Zone: Pacific/Alaska/Hawaii/ Eastern/
Time Zone
Central or Mountain.
Daylight Saving Time Select to turn On/Off daylight saving time.
14
Setup Settings
CUSTOMIZING TV SETTINGS
• Press the MENU button on the main
unit or on the remote control and then
press 4/_ buttons to select SETUP
menu.
• Press A/V buttons to select the
following setup options and then
press the 4/_" button to adjust each
option's setting.
Select menu language: English, French or Spanish. The
Menu Language default on-screen menu language is English.
Transparency Select to turn ON/OFF transparency function.
Zoom Mode Select zoom mode: Wide/Wide Zoom/Zoom/Standard.
Reduce the noise level of the connected device: OFF/
Noise Reduction
Weak/Middle/Strong.
Advanced Adjust advanced option's setting: H-POS, V-POS, Clock,
Phase or Auto. (VGA source mode only)
CC Mode Select CC mode: On, Off or CC on Mute.
Basic Basic Selection: CC1, CC2, CC3, CC4,
Selection Text1, Text2, Text3, Text4.
Closed Caption Advanced Advanced Selection: Service1, Service2,
Selection Service3, Service4, Service5, and Service6.
Options: Mode, Font Style, Font Size, Font
OPTION Edge Style, Font Edge Color, FG Color, BG
Color, FG Opacity and BG Opacity.
DLC Select to turn On/Off Dynamic Luminance Control function.
Restore Default Restore the TV to factory default settings.
15
CUSTOMIZING TV SETTINGS
Lock Settings
Note: The default password is "0000".
* Press the MENU button on the main
unit or on the remote control and then
press 4/I_ buttons to select LOCK
menu.
* Use the 0=9 buttons to input 4-digit
password to enter the LOCK menu.
* Press A/V buttons to select the
following options and then press the
4/I_ buttons to adjust each option's
setting.
Change Password
System Lock
US
Canada
RRT Setting
Reset RRT
Clear Lock
Use 0-9 buttons to input the old password and then input
the new 4-digit password. Re-enter new password for
confirmation.
Select to turn ON/OFF system lock. The following options
(US, Canada, RRT Setting and Reset RRT) will only be
accessible when you turn the system lock on.
TV RATING: Press OK button to lock or unlock
TV
TV rating.
Select MPAA rating: N/A,G, PG, PG-13, R,
MPAA
NC-17,or X.
Canada Select MPAA rating for English-speaking
English Canada: E, C, C8+, G, PG, 14% 18+.
Canada Select MPAA rating for Quebec Canada: E, G,
French 8 ans+, 13 ans+, 16 ans+, 18 ans+.
Set Rating Region Table.
Select to reset the RRT setting.
Clear all lock settings.
16
CUSTOMIZING TV SETTINGS
Channel Settings
• Press the MENU button on the main
unit or on the remote control and
then press 4/11_ buttons to select
CHANNEL menu.
• Press ,_,/V buttons to select the
following channel options and then
press the 4/I_ button to adjust each
option's setting.
Air/Cable Select antenna between Air and Cable.
First, select your cable system from Auto/STD/IRC/HRC.
Auto Scan Next, select the Auto Scan feature to scan your available
cable channels. It will perform the auto scan if the Air antenna
is selected.
Favorite Set the selected channel as favorite channels.
Show/Hide Show/Hide the selected channel.
Channel No. Display the current channel number.
Channel Label Display the current channel label.
DTV Signal Display the quality of current DTV signal.
17
Listening to Music
• Press the SOURCE button on the
main unit or on the remote control
then press the A/V buttons to select
the USB mode and then press OK
button.
• Press the 4/_ buttons to select
MUSIC and then press OK button.
Note: File format supported. MP3.
Viewing Pictures
• Press the SOURCE button on the
main unit or on the remote control
then press the A/V buttons to select
the USB mode and then press OK
button.
• Press the 4/_ buttons to select
PHOTO and then press OK button.
Note: File format supported. JPEG.
Operation Tips
Press to start or pause the music or photo playback.
[] Press to stop music or photo playback.
Press to play the previous track or view the previous photo.
Press to play the next track or view the next photo.
Press to speed up backward.
Press to speed up forward.
REPEAT Press to seelct different repeat mode.
18
Press the MENU button on the main unit or on the remote control and then press 41/1_ buttons
to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter the LOCK
menu. If used, this option feature can "block" undesirable programming from appearing on
the TV. Parental Control offers the user a wide variety of options and settings that restrict or
"block" the programming that can appear on the TV. Parental Control allows the user to define
which program rating they consider acceptable for the younger more sensitive viewer. It can
be preset and turned either on or off by the user who specifies the secret 4-number password.
The user can specify what time to block programming. General audiences and children blocks
should be both programmed into the TV's memory. Separate different viewer ratings are
specified for both TV and the motion picture industry; both rating systems should be used and
based on the ages of children.
Overview
To ensure complete coverage for all TV programs, (movies and regular TV shows) choose a
rating for MPAA, from the selections below, as well as ratings from the TV Parental Guidelines
Rating Systems below, using the Age Block option for General Audiences, and for children.
In addition, you may wish to add additional restrictions from the content block menu, and
submenus examples below.
Things to Consider before Setting up Parental Control
Determine which rating you consider acceptable to the viewer. (For example,if you choose TV-
PG, more restrictive ratings will be automatically blocked; the viewer will not be able to see:
TV-PG,TV-14,or TV-MA rated programming.) You may block the auxiliary video source entirely.
(Blocks the signal sent by the equipment, such as VCR, connected to the TV Audio/Video
input Jacks) or remain unblocked, then choose acceptable ratings. Block program "Content"
based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes, Violence
Scenes, or Fantasy. Violent Scenes; in Content BIk option. Select a secret password, in the
Set Password option, using the numbers keys on the remote control. Save the password,
it is the only way to access the Parental Control menu and change rating setting, or turn off
Parental Control.
• You can set different Parental Control viewing restrictions for general audiences and for
children; both can be active at the same time.
• Simply specifying one content block, such as Sex Scenes, will not automatically restrict the
programming that appears from the video sources.
• Even if you choose to leave the AUX inputs unblocked, the ratings you specify will
automatically restrict the programming that appears from the video sources.
• You cannot disable Parental Control by disconnecting the TV from power. Block hours will
be automatically reset to the original block time setting specified if power is disconnected.
19
PARENTAL CONTROL
Motion Picture Association of America (MPAA) Rating System
m
G General Audiences
Parental Guidance
PG
Suggested
Parents Strongly
PG-13
Cautioned
R Restricted
No children under
NC-17
age 17
X Hard Core Films
No Rating No Rating
Content not offensive to most viewers.
Content is such that parents may not want their
children to view the program.
Program is inappropriate for preteens, with a greater
degree of offensive material suggested than a PG
rated program.
Not for children under 17 - contains strong element
of sex and/or violence.
Not for children under 17 - under any circumstances.
Contains strong sexual content.
Same as NC-17 rating.
MPAA did not rate.
, "iV Parental Guideline Rating System
TV-Y All Children Content not offensive to most viewers.
Directed to Older Considered suitable for children over 7 - may contain
TV-Y7
Children fantasy violence scenes.
Considered suitable for all audience; children may
TV-G General Audience
watch unattended.
Parental Guidance Suggested unsuitable for younger children - may
TV-PG Suggested contain suggestive language, bad language, sex and
violence scenes.
Parents Strongly Unsuitable for children under 14 - may contain strong
TV-14
Cautioned language, bad language, sex, and violence scenes.
Mature Audience Adults only - may contain strong language, bad
TV-MA
Only language, sex, and violence scenes.
Canadian Rating:
Canadian English is used throughout all English-speaking Canada (C, CS+,G, PG, 14+, 18+).
Canadian French is used in Quebec (G,8 arts+, 13 arts+, 16 ans+, 18 ans+).
Note: The V-Chip will automatically block certain categories that are "more restrictive". If you block TV-Y
category, then TV-Y7 will be automatically blocked. Similarly. if you block TV-G category, then all the
categories in the "young adult" will be blocked (TV-G, TV-PG, TV-14,and TV-MA).
2O
If your TV does not operate normally or cannot be turned on, please check the
following troubleshooting questions. Remember also to check any other connected
electronic device, such as DVD or Blu-ray player to pinpoint the problem. If the TV
still fails to operate normally, please contact technical support.
The TV does not respond
when pressing any buttons
TV cannot be switched on
The remote control does not
work
Power is suddenly turned off
No picture & No Sound
Picture appears slowly after
switching on
No or poor color or poor
Horizontal/Vertical bar or
picture shaking
Poor reception on some
channels
• The TV may freeze up during use. Disconnect the power
cord from the power socket for a few minutes, Reconnect the
power cord and try to operate it again as usual,
• Check that the TV is connected to the power supply,
• Make sure all connected AV devices are switched off before
switching on your TV.
• Check to see if there are any objects between the TV and the
remote control causing an obstruction, Ensure that you are
pointing the remote control directly at the TV.
• Ensure that the batteries are installed with the correct polarity
(+ to +, - to -).
• Install new batteries.
• Check the power of the TV. The power supply maybe
interrupted.
• Check if the sleep timer is set.
• Check whether the Auto Standby is activated.
• Check whether the TV is switched on.
• Try another channel. The problem may be caused by the
broadcaster.
• This is normal; the image is muted during the TV startup
process. Please contact your service centre if the picture has
not appeared after five minutes.
• Adjust the settings in the PICTURE menu.
• Try another channel. The problem may be caused by the
broadcaster.
• Check if video cables are connected properly.
• Check for local interference such as an electrical appliance
or power tool.
• The station or cable channel may be experiencing problems;
tune to another station.
• Station signal may be weak, reposition the antenna for better
reception.
• Check for sources of possible interference.
Lines or streaks in pictures • Check antenna (change the position of the antenna.)
No pictures when connecting o Check if the input source is HDMI1/HDMI2/HDMI3.
HDMI
Pictures appear in wrong • Adjust the Aspect Ratio settings in the SETUP menu or press
ratio the ASPECT button on the remote control.
21
TROUBLESHOOTING
Picture OK but no sound
• Press the VOL +/- buttons.
• Sound muted? Press the MUTE button.
• Try another channel. The problem may be caused by the
broadcaster.
No output from one of the
• Adjust the Balance settings in the AUDIO menu.
speakers
• A change in ambient humidity or temperature may result in
Unusual sound from inside
an unusual noise when the TV is switched on or off and does
the TV
not indicate a fault with the TV.
No sound when connecting • Check if the input source is HDMII/HDMI2/HDMI3.
HDMI
Audio noise
Lost password
The signal is out of range
(invalid format)
Vertical bar or stripe on
background and Horizontal
Noise and incorrect position
Screen color is unstable or
show a single color
• Keep the RF coaxial cable away from the other connected
cables.
• Select the SET Password setting in the LOCK menu, then
enter the following master password "8899". The master
password clears your previous password and allows you to
enter a new password.
• Adjust the resolution, horizontal frequency, or vertical
frequency.
• Use Auto configures or adjust clock, phase, or H/V position.
• Check the signal cable.
• Reinstall the PC video card.
22
Panel Size 54.6 inch diagonally
Display Type DLED
Panel Technology TFT
Panel 60 HzVs. 120 Hz 120 Hz
Display Resolution 3840 x 2160
Panel Resolution 3840 x 2160
Aspect Ratio 16:9
Dynamic Contrast Ratio-Panel 3200~4000:1
Brightness (Centre Typ.) Cd/M 2 250
Response Time (G To G) 6.5 ms
Lamp Life (Typ. Hours) 20,000 hours
Horizontal Viewing Angle (At CR>10) 178
Vertical Viewing Angle (At CR> 10) 178
Wall-mount(LxW-mm) 400*400(ram)
The FCC Wants You to Know
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
or used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: 1) reorient or relocate the receiving
antenna; 2) increase the separation between the equipment and the receiver; 3) connect the
equipment to an outlet on a circuit different from that to which the receiver is connected; 4)
consult the dealer or an experienced radio/TV technician for additional suggestions.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. Where shielded interface cables have
been provided with the product or specified additional components or accessories elsewhere
defined to be used with the installation of the product, they must be used in order to ensure
compliance with FCC regulation.
23
SS inches and Above Screen Size Models (the"Product")
This Product (including any accessories included in the original packaging) as supplied and distributed in new condition,
is warranted by SEII{I DIGITAL INC. (SEIKI) to the original consumer purchaser against defects in material and workmanship
("Warranty") as follows:
1. REPLACEMENT : For a period of one (1) year from date of original consumer purchase, if this Product or any part is
determined by SEIKI, or a SEIKI authorized service provider, to be defective, SEIKI will replace the Product with new or re=
certified product of similar or better specification, at SEIKI's option, at no charge to the original consumer. After the one (1)
year Warranty period, you must pay for all cost of Product replacement charges.
Once the Product is replaced, the warranty resume one (1) year period from the date of original consumer purchase; and
will not be extended for the replacement process. Advanced Replacement option is available only with a valid US credit card
for guarantee purpose.
2. PARTS : For a period of one (1) year from the date of original consumer purchase, SEIKI will supply, at no charge to the
original consumer, new, rebuilt or refurbished replacement parts in exchange for defective parts. After the one (1) year
Warranty period, you must pay for the costs of all parts.
3. SNIPPING COSTS: Notwitbstanding theforegoing, tbe original consumer is responsibleforanyshipping cbarges incurredto
ship the Product or part(s) to SEIKI or to an SEIKI authorized customer service provider, for diagnosis, repair or replacement.
The consumer is responsible for securely packing the Product and utilizing a reliable carrier to transport to SEIKI authorized
service provider.
To obtain Warranty Service and Troubleshooting information call our toll free customer service llne at:
1-BSS-MY-SEIKI (1-855-697-3454)
Please have your model and serial number available along with your date of purchase.
You can also visit us online and REGISTER your SEIKI product at:
www.SEIKI.com
To receive Warranty service, the original consumer purchaser must contact SEIKI for problem determination and service
procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the Product is within the
applicable Warranty perlod(s), MUST be presented to SEIKI, or an authorized customer service provider, in order to
obtain the requested service.
Exclusions and Limitations
This Warranty covers manufacturing defects in materials and workmanship encountered in the normal, non-commercial use of
the Product, and does not cover (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions,
improper installation or maintenance, alteration, accident, or excess voltage or current; (b) improper or incorrectly performed
repairs by non=authorized service facilities; (c) onsite consumer instruction or adjustments; (d) transportation, shipping, delivery,
insurance, installation or set-up costs; (e) costs of product removal, transportation or reinstallation costs; (f) ordinary wear and
tear, cosmetic damage or damage due to acts of nature, accident; (g) commercial use of the Product; (h) modification of, or to any
part of the Product. In addition, this Warranty does not cover images "burnt" into the screen. This Warranty applies to the original
consumer only and does not cover products sold AS IS or WITH ALL FAULTS, or consumables (e.g., fuses, batteries, bulbs etc.), and
the Warranty is invalid if the factory-applied serial number has been altered or removed from the Product.This Warranty is valid
only in the United States and Canada, and only applies to products purchased and serviced in the United States and Canada. All
replaced parts and products, and products on which a refund is made, become the property of the Warranton
NO WARRANTIES, WHETHER EXPRESS OR iMPLiED, iNCLUDING, RUT NOT LIMITED TO, ANY iMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE
SHALL APPLY. TN E WARRANTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED
ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WiTH RESPECT TO THE
PRODUCT SHALL BE BINDING ON THE WARRANTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE
PRICE - AT THE WARRANTOR'S SOLE DISCRETION - ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. THE WARRANTOR
SHALL NOT RE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY
TO USE THE PRODUCT. NOTWITHSTANDING THE FOREGOING, CONSUMER'S RECOVERY SHALL NOT EXCEED THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SEIKL THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on warranties, so
the above limitations or exclusions may not apply to you. This Warranty gives you specific rights, and you may have other rights,
which vary from state to state.
SEIKI DIGITAL INC.
c/o SEIKI Digital Customer Service
6880 Commerce Blvd., Canton, M148187 USA
DO NOT SHIP PRODUCT TO THIS ADDRESS. PLEASE CONTACT CUSTOMER SERVICE TO
OBTAIN SHIPPING ADDRESSESFOR SERVICE.
24
ServiceHotline:
1-855-MY-SEIKi (1-855-697-3454)
© 2013 Seiki Digital Inc. All rights reserved. Printed in China
