ITEM #3415246
MODEL #HTD20005-BK
KENTON CEILING FAN
Harbor Breeze
®
and logo design are
trademarks or registered trademarks of
LF, LLC. All rights reserved.
1
Español p. 18
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could
also contact us at [email protected] or visit www.lowespartsplus.com.
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
SM20630
TABLE OF CONTENTS
2
Preparation .......................................................................................................................
Initial Installation Instructions ...........................................................................................
Wiring Instructions ............................................................................................................
Final Installation Instructions ............................................................................................
Operation Instructions ......................................................................................................
Care and Maintenance .....................................................................................................
Troubleshooting ...............................................................................................................
Limited Lifetime Warranty ...............................................................................................
FCC Warning ……………..................................................................................................
Safety Information ............................................................................................................
4
Package Contents ............................................................................................................
Hardware Contents ...................................................................................... ...................
3
4
5
6
8
9
11
13
14
15
16
Replacement Part List ......................................................................................................
17

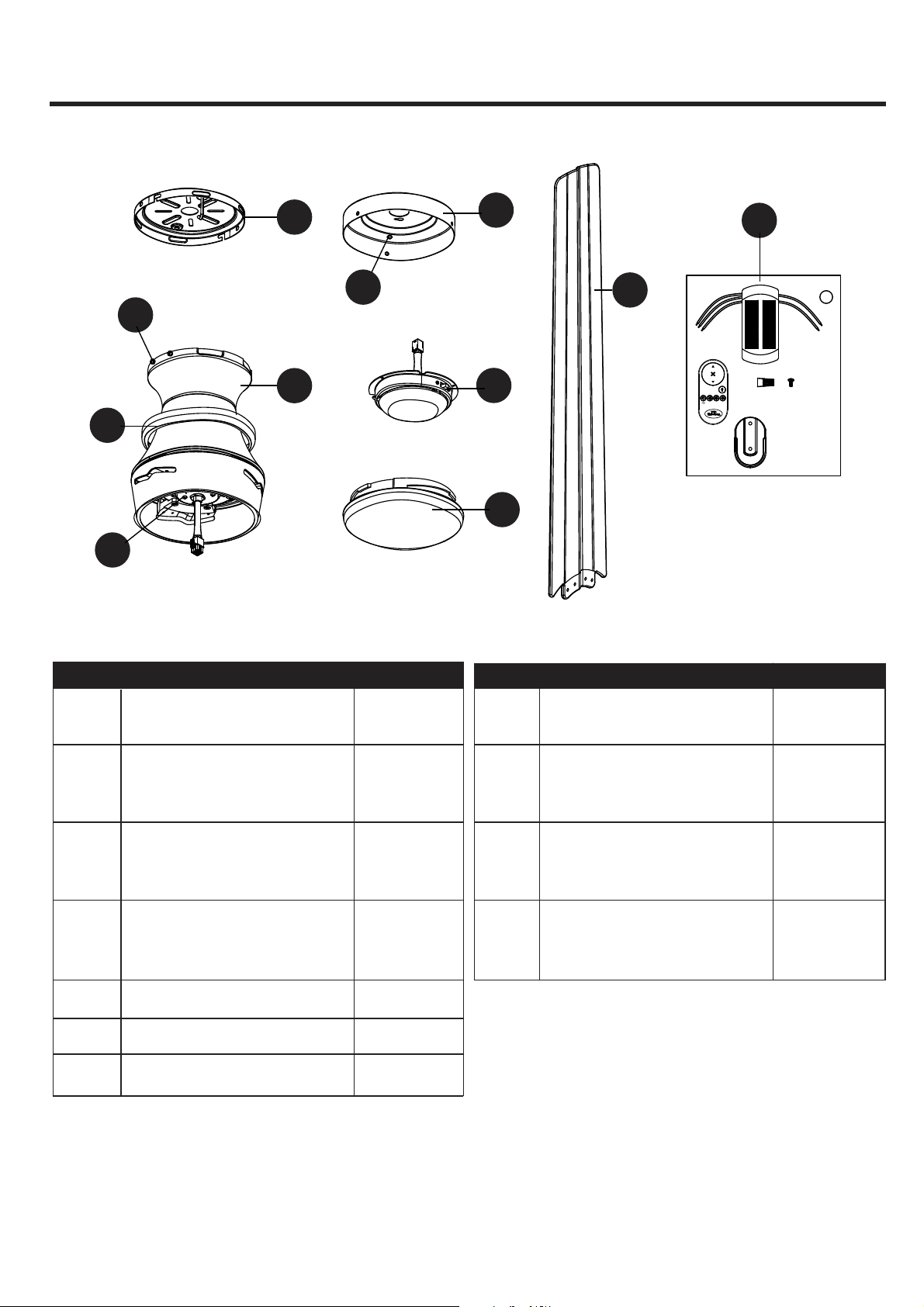

PACKAGE CONTENTS
1A Ceiling Plate
1B Motor Assembly
1C Switch Housing
3D Blade
1E Light Kit
1F Bowl
1G Remote Unit
3
PART DESCRIPTION QUANTITY
1H
Trim Ring [Preassembled
on Motor Assembly (B)]
4I
Mounting Screw
[Preassembled on Motor
Assembly (B )]
3J
Mounting Plate Screw
[Preassembled on Motor
Assembly (B )]
3K
Switch Housing Screw
[Preassembled on Switch
Housing (C )]
A
K
C
B
E
F
D
G
I
H
J
PART DESCRIPTION QUANTITY
X2X6
CR2032 3V
Blade Screw
Qty 12+1 extra
4
HARDWARE CONTENTS
SAFETY INFORMATION
(not shown actual size)
AA
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the product.
. All electrical connections must comply with local codes, ordinances or the National Electric Code (NEC).
Contact your municipal building department to inquire about your local codes, permits and/or inspections.
. Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse
or by switching off circuit breaker.
. Do not connect this fixture to an electrical system that does not provide a means for equipment grounding.
Never use a fixture in a two-wire system that is not grounded.
. If you are not sure your lighting system has a grounding means, do not attempt to install this fixture. Contact
a qualified, licensed electrician for information regarding proper grounding methods as required by the local
electrical code in your area.
. Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the floor
and at least 30 in. from the ends of the blades to any obstruction.
. If a dimmer control switch is used with this fixture, obtain professional advice to determine the correct type
and electrical rating required.
. The lighting fixture must be positioned so there is at least 1.64 ft. between the bulb and any illuminated
surface.
. For supply connections, if the conductor of a fan is identified as a grounded conductor, then it should be
connected to a grounded conductor power supply. If the conductor of a fan is identified as an ungrounded
conductor, then it should be connected to an ungrounded conductor power supply. If the conductor of a fan
is identified for equipment grounding, then it should be connected to an equipment-grounding conductor.
. Installing a fixture into an electrical system without a proper grounding means could allow metal parts of the
fixture to carry electrical currents. If any of the fixture wires, wire connections or splices are broken, cut or
loose during the mounting or normal operation of the fixture, under such conditon, anyone coming in contact
with the fixture is subject to electrical shock, which could cause serious injury or death.
. Connection of the bare or green fixture ground wire to the black or white house wires may allow metal parts
of the fixture to carry electrical currents. Under this condition anyone coming in contact with the fixture will
receive electrical shock, which could cause serious injury or death.
. Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires
to have contact with any surface having a sharp edge. Doing so may damage or cut the wire insulation,
which could cause serious injury or death from electric shock.
DANGER
5
WARNING
CAUTION
PREPARATION
Estimated Assembly Time:
and Wrench.
Chemical Burn Hazard. Keep batteries away from children. This remote contains a lithium button cell battery.
If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal
burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the
battery compartment does not close securely, stop using the product, remove the batteries, and keep it away
from children. If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
Dispose of cells properly and keep away from children. Even used cells may cause injury.
6

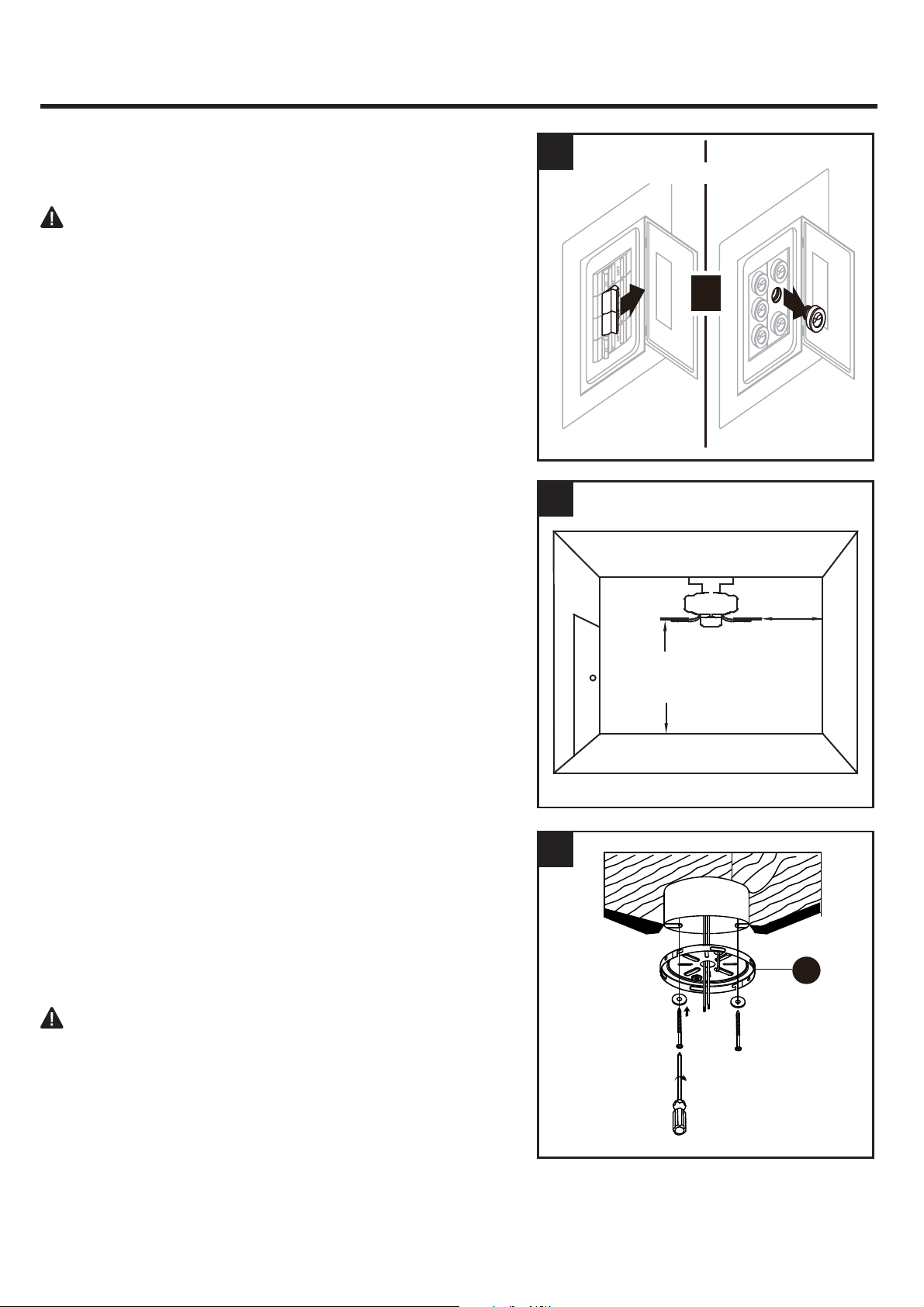

INITIAL INSTALLATION INSTRUCTIONS
This fan was designed to be mounted only on flat
ceilings and can be used on ceilings less than 9 feet
high (blades should be a minimum of 7 feet from the
floor. It is requred at least 30 inch from blade tip to
nearest wall or obstruction).
Fan mounting option:
2..
2
3
1
7 ft. MIN.
30 IN.
MIN.
DANGER:
Failure to disconnect power supply prior to
1.
Turn off circuit breakers and wall switch to the fan supply
line leads.
installation may result in serious injury or death.
or
T
Turn Off Power Source
3.
Check existing outlet box (not included) to ensure it is
securely fastened to at least two points in a structural
ceiling member and can support the full weight of the
fan.Once verified, install ceiling plate (A) to the outlet
box using the screws and washers provided with the
outlet box.
DANGER:
A loose outlet box can cause the fan to
wobble and increase the fan’s potential to fall, which
could result in serious injury or death.
A
7

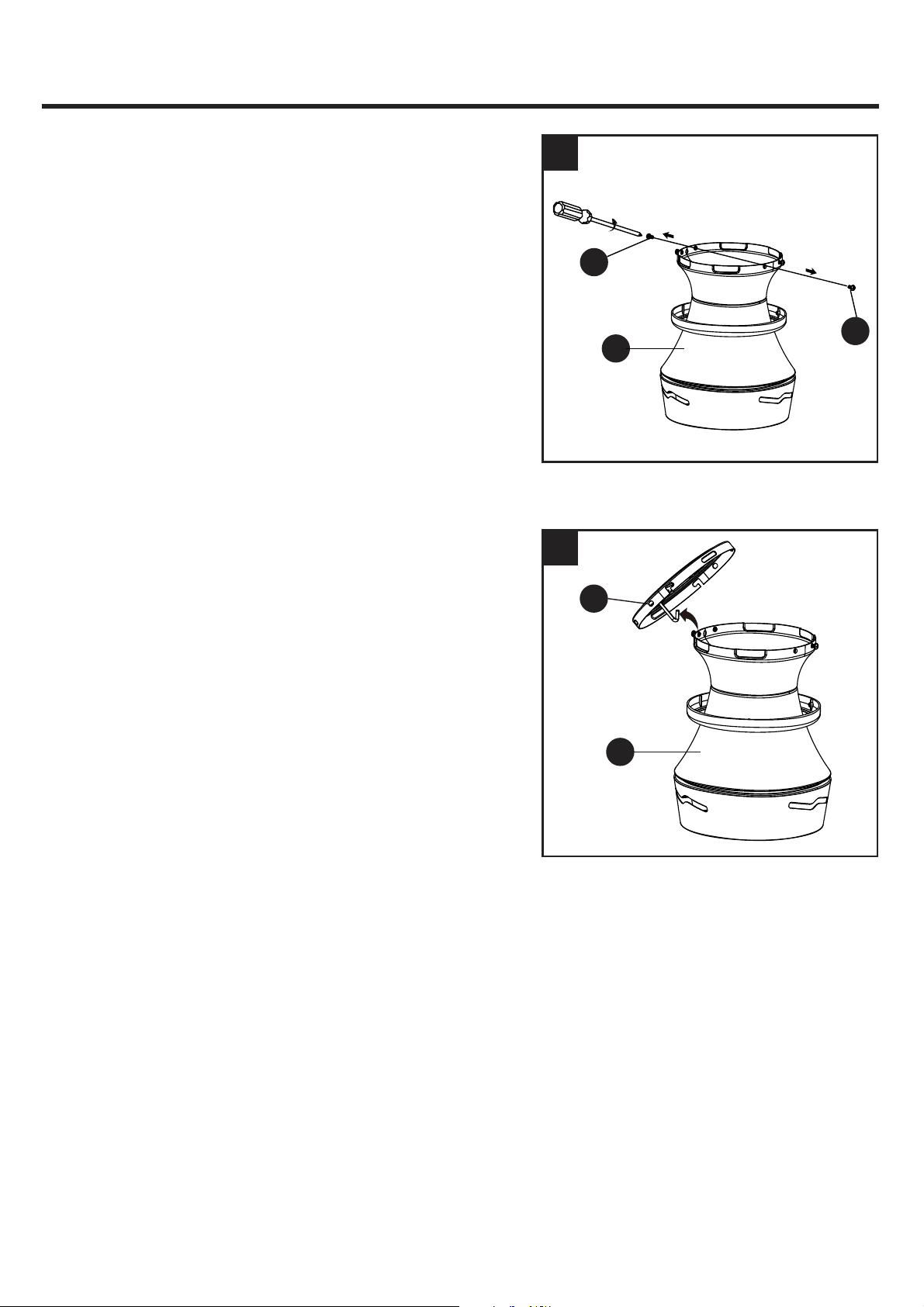

4. Partially remove two diagonal mounting screws (I) on
the round holes, keep for later use. And loosen the
other two screws (I).
5
. Hang the motor assembly (B) onto the hook from the
ceiling plate (A). This will allow for hands-free wiring.
INITIAL INSTALLATION INSTRUCTIONS
I
B
I
B
A
4
5
8

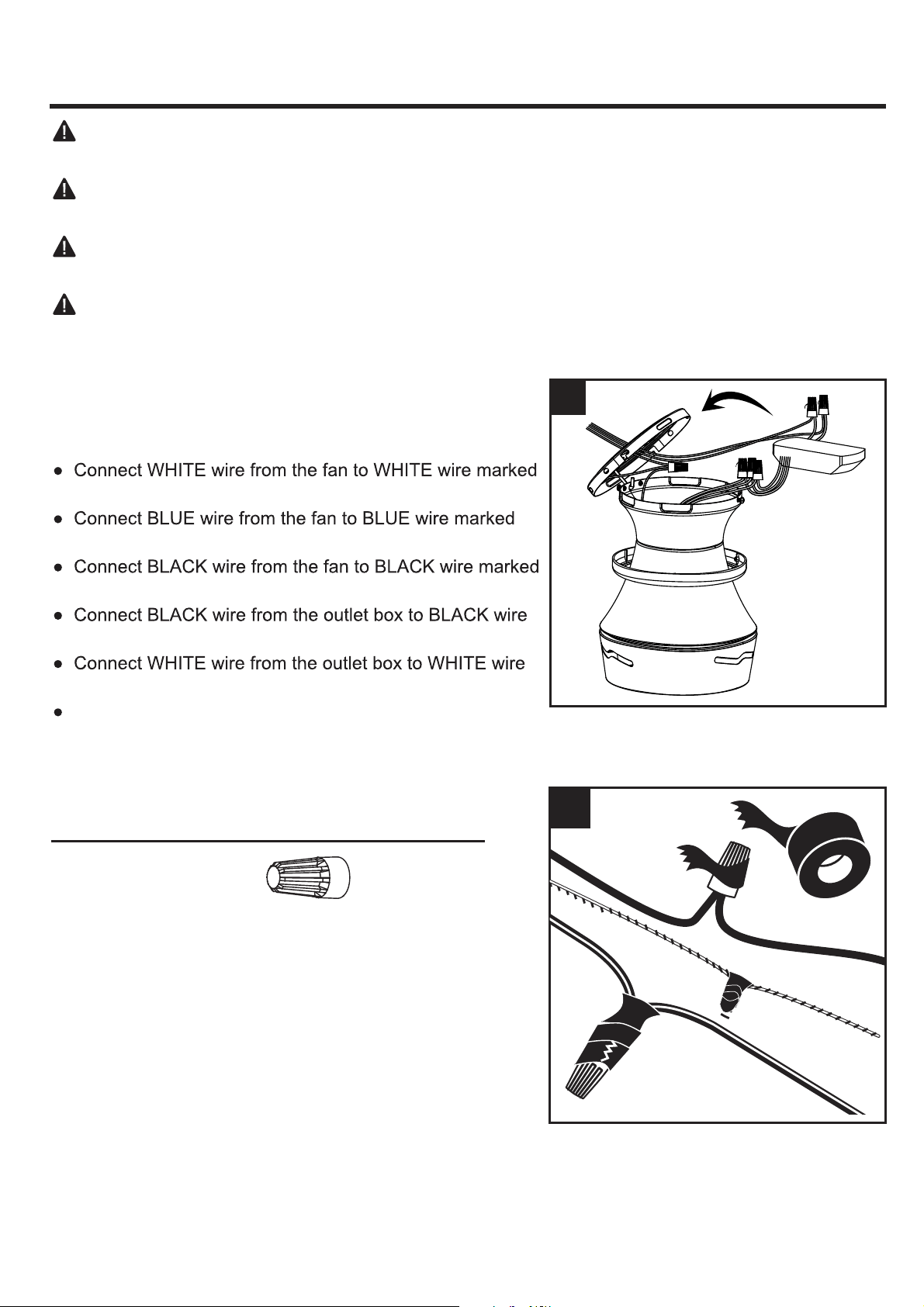

WIRING INSTRUCTIONS
1
Hardware Used
Wire Connector x 6
2.
Wrap electrical tape (not included) around each wire
connector and make sure no bare wire or wire strands
are visible after making connections. Then, turn wires
upward and carefully push them into the outlet box;
make sure the WHITE and GREEN connections are on
one side and the BLACK connections are on the other
side.
WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse
box before hanging.
WARNING: If you are not sure if the outlet box is grounded, contact a licensed electrician for
advice, as it must be grounded for safe operation.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine proper wiring.
WARNING: If you feel that you do not have enough electrical wiring knowledge or experience,
have your fan installed by a licensed electrician.
2
1. Follow steps below to wiring your fan, once wiring step
has been completed, slide the wired receiver into the
motor assembly (B) with the flat side of the receiver
facing the ceiling.
TO MOTOR N from the receiver.
FOR LIGHT from the receiver.
TO MOTOR L from the receiver.
marked AC IN L from the receiver.
marked AC IN N from the receiver.
Connect GROUND (GREEN) wires from ceiling plate
and fan assembly, to GROUND (GREEN or BARE
COPPER) from house.

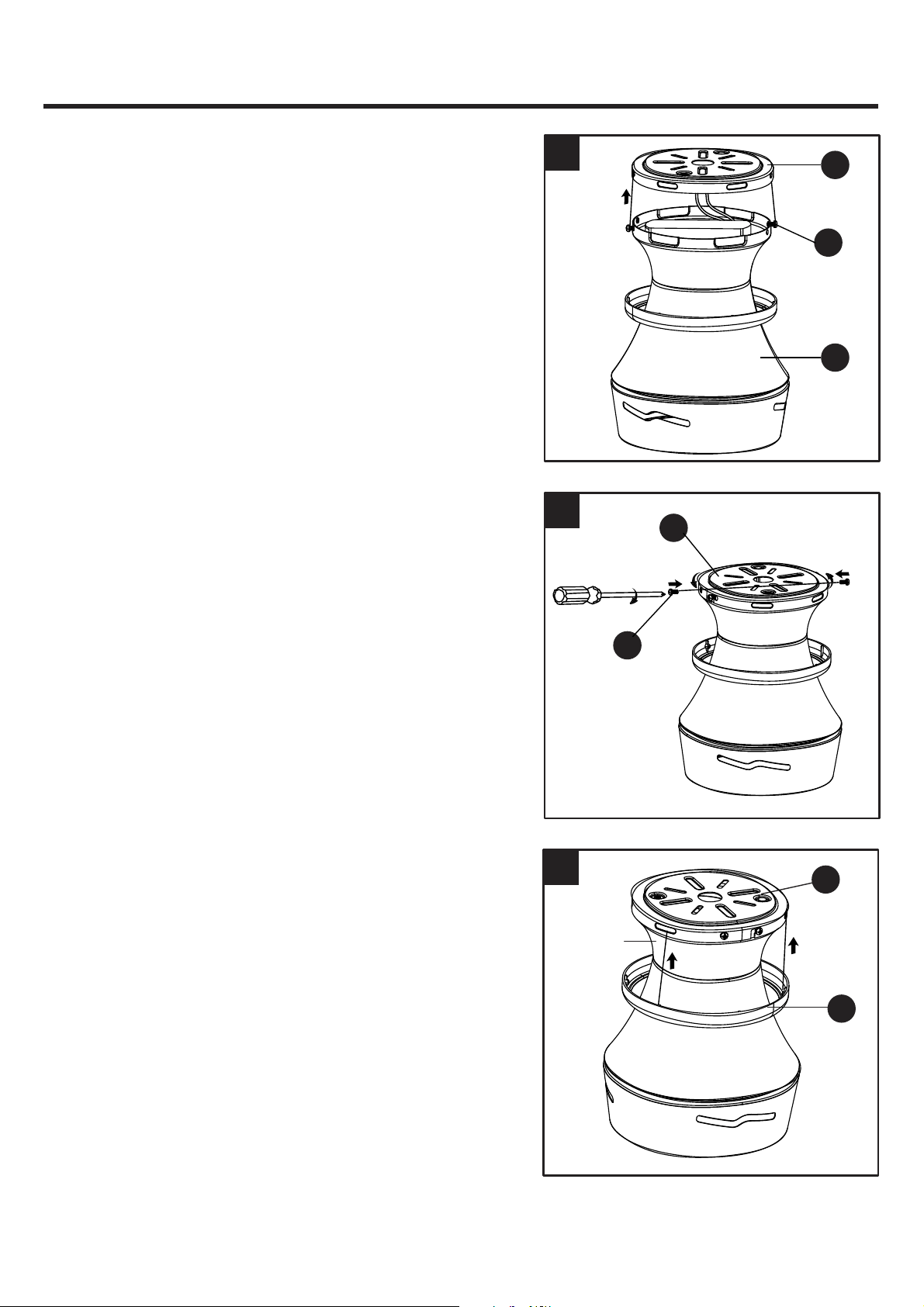

1. After wire connections, take the motor assembly (B)
off the hook.Raise the motor assembly (B) up to the
ceiling plate (A).Align two remained screws (I) on the
motor assembly (B) to the keyholes on the ceiling
plate (A), rotate clockwise until the screw heads
engage the keyhole slots fully. Make sure not to
break any wire connections.
2. Re-install two mounting screws (I) to the round holes,
securely tighten four (4) mounting screws (I).
9
FINAL INSTALLATION INSTRUCTIONS
11
2
A
A
I
I
B
3. Lift the trim ring (H) up, aligning four notches on the
canopy of motor assembly (B) with raised areas on the
inner side of trim ring (H) and pop it into the canopy.
3
Canopy
A
H
10

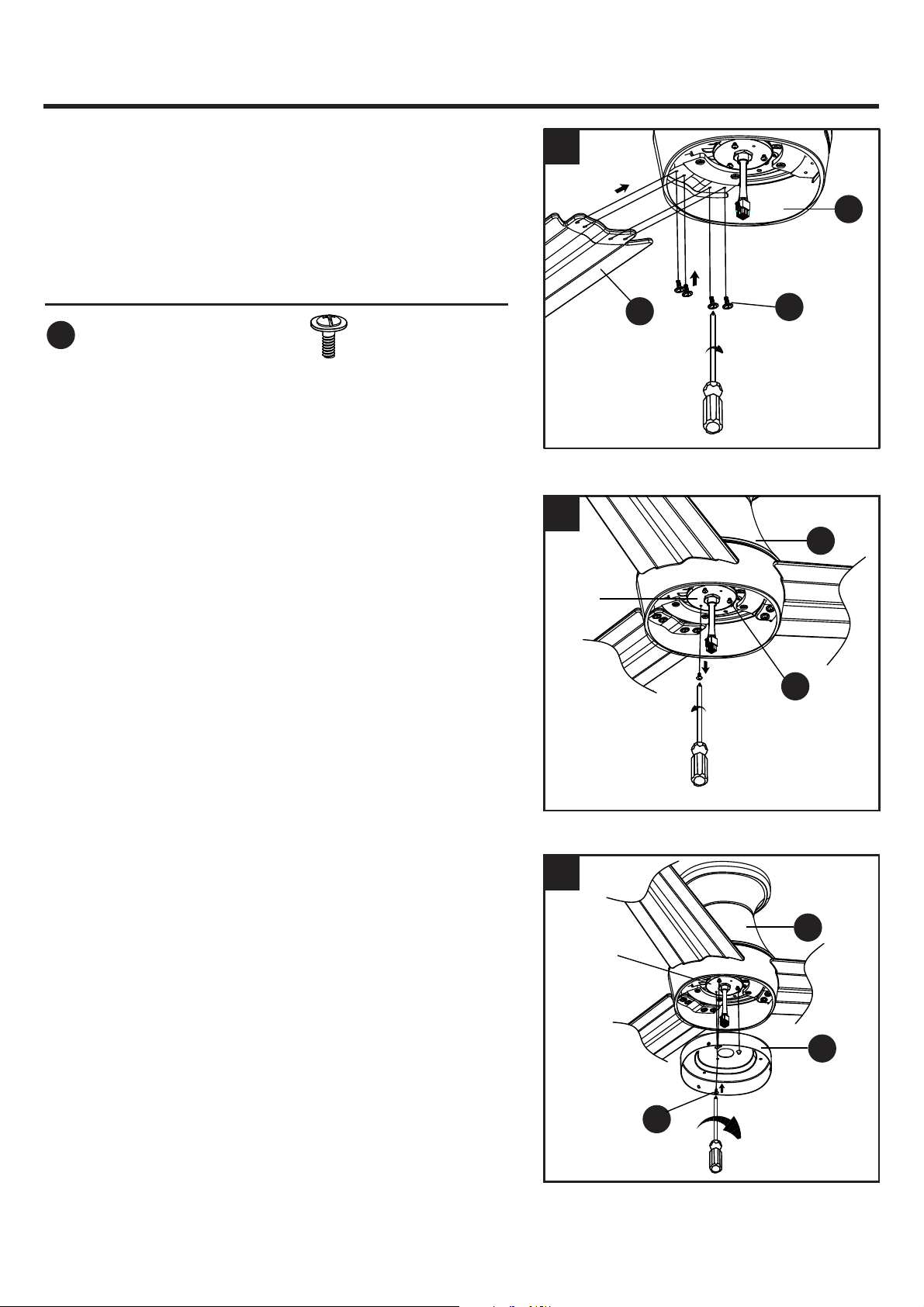

4. Insert blade (D) through slot on fan motor assembly
(B), align with four screws holes, securely tighten
with blade screws (AA). Repeat for remaining blades.
Hardware Used
x 12
AA
Blade Screw
5. Remove one of the mounting screws (J) on the
mounting plate of motor assembly (B) and keep for
later use. And loosen the other two.
4
B
AA
D
5
FINAL INSTALLATION INSTRUCTIONS
B
J
6
.
Insert the 9 pin connector from the motor assembly (B)
through the center hole in the switch housing (C).
Attach the switch housing (C) to the mounting plate on
the motor assembly (B) by placing the keyhole slots
from the switch housing (C) onto the two protruding
mounting screws (J ) heads. Adjust the switch housing
(C) until the screw heads are aligned with the keyholes,
then re-insert mounting screw (J) previously removed
on step 5. Tighten all mounting screws (J) securely.
Mounting Plate
Mounting
Plate
6
C
J
B
11
7
.
Remove three (3) screws (K) preassembled on the
switch housing (C). Attach the connector from the light
kit (E) to the connector from the motor assembly(B).
Align the three holes between the light kit (E) and the
switch housing (C). Re-install the switch housing screws
(K) to attach the light kit (E) to the switch housing (C).
Tighten all mounting screws (K) securely.
NOTE: The two connectors have keyholes that must
be mated correctly before they can be engaged.
8

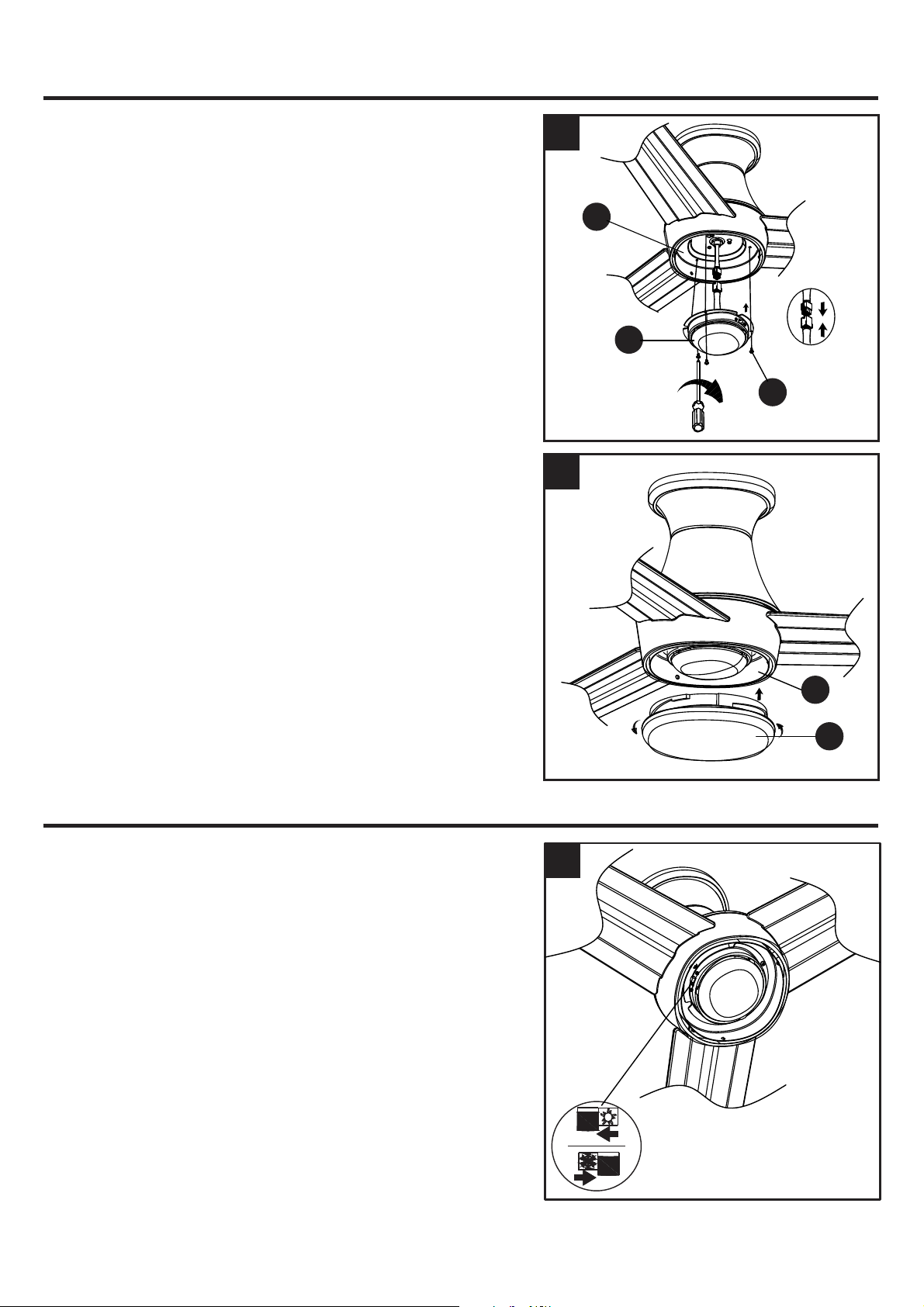

. Secure the bowl (F) to switch housing (C) by twisting
in a clockwise direction. Do not over-tighten.
FINAL INSTALLATION INSTRUCTIONS
7
C
E
K
8
C
F
OPERATION INSTRUCTIONS
1. When the season changes, you may want to change
the direction in which the fan spins.
In warmer weather, counterclockwise rotation creates a
downward airflow, which cools the air. Push the switch
LEFT and see a SUN icon.
In cooler weather, clockwise rotation creates an upward
airflow,which moves hot air from the ceiling. Push the
switch
RIGHT and see a SNOWFLAKE icon.
WARNING: Turn off and wait for fan to stop before
flipping the reverse switch.
NOTE: Use a small screwdriver or ballpoint pen to
move the reverse switch if you have difficulty doing so
by hand.
1
12
OPERATION INSTRUCTIONS
2
3
ON
DIM
4
ON
DIM

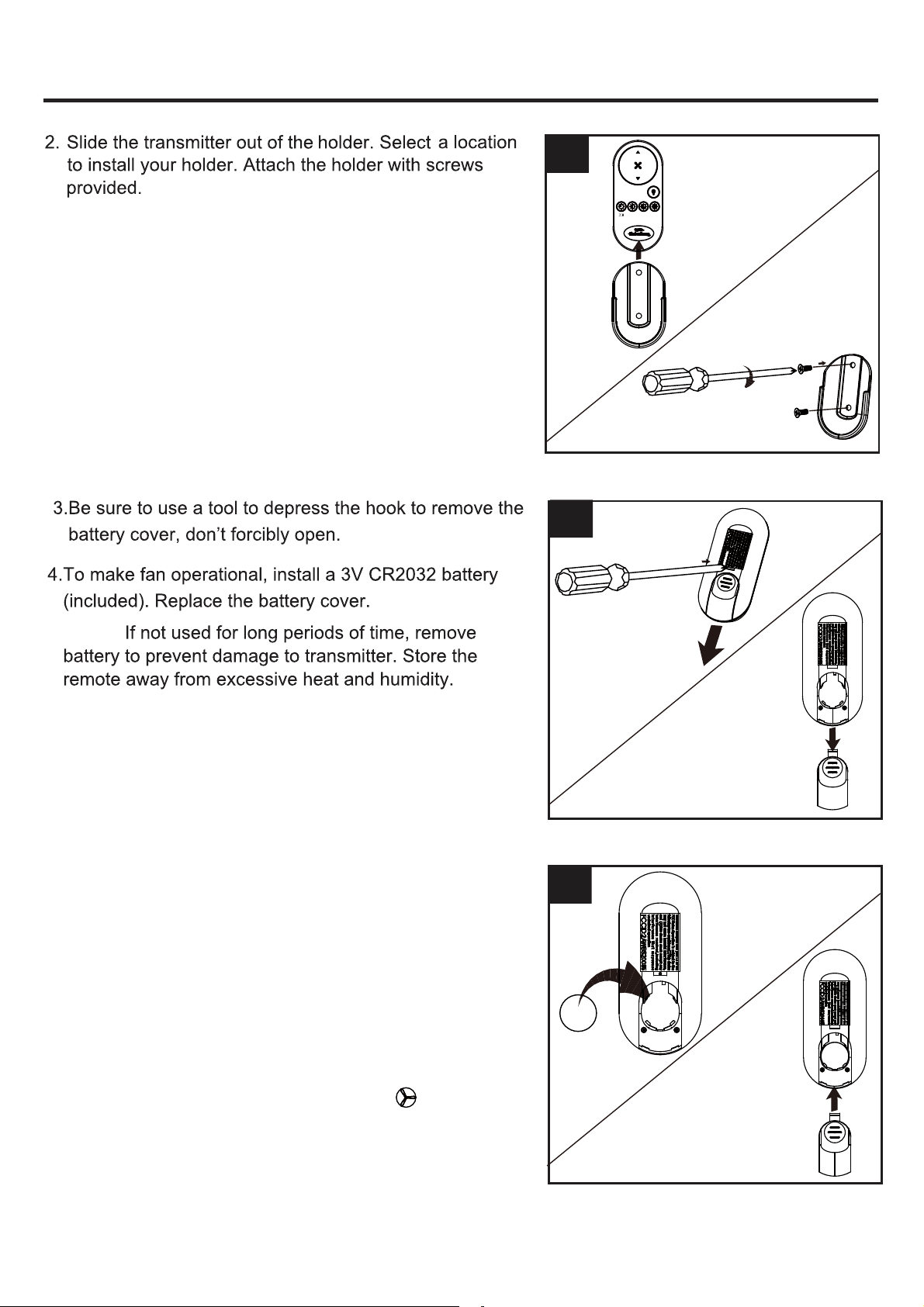

CR2032 3V
ON
DIM
CR2032 3V
NOTE: Each transmitter of this remote control carries
a unique ID code to facilitate communication between
paired devices. The ID code is set by factory and is
not user changeable. However, you will be required
to perform an “ID code learning ” process manually
under these circumstances:
•When your remote control is not responding(make
• If you have multiple fans installed within a close
proximity and want to control all fans using a same
remote transmitter.
NOTE: Each fan requires its own receiver.
NOTE:
sure battery is not flat)
•After you have replaced a faulty transmitter or
receiver with a new one.
Otherwise the remote control will not work. To perform
this process manually, follow steps below:
After installing and wiring the unit, restore power to
your fan, press and hold the transmitter “ ” button
for 5 seconds until the fan beeps to indicate the code
learning process have been completed. This operation
must be completed within 1 minute after restore power
to the fan.
13
OPERATING INSTRUCTIONS
Note:
This receiver has a preset memory function;
when the switch is turned OFF, the control will
remember the light intensity and fan speed. When the
switch is turned ON, the light and fan will resume
operation as they were prior to the switch being turned
OFF.
5. The buttons on the remote control the fan speed and
light as follows:
1
2
3
4
5
6
7
8
Fan ON/OFF
Brightness 25%
Brightness 50%
Brightness 75%
Brightness 100%
9
Light Dimmer switch:
a.) on “DIM”: with dimmer function.
b.) on “ON” : without dimmer function
Note: Factory set is on “DIM” position. If the light is
not dimmable, slide it to “ON” position, otherwise it
may cause the light to flicker.
CARE AND MAINTENANCE
Important:
Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
. At least twice each year, tighten all screws and lower canopy to check mounting plate screws.
. Clean fan housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades
with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for
added protection.
5
ON
DIM
ON
DIM
9
14
1. Set screws are loose. 1. Tighten all set screws.
2. Using non-approved speed control. 2. Some fan motors are sensitive to signals from solid-
state varible speed controls. DO NOT USE a solid-
state variable speed control.
3. Normal noise. 3. Allow "break-in" period of 24 hours. Most noises
associated with a new fan will disappear after this
period.
4. Wire connectors inside switch
housing rattling.
4. Check
to make sure wire connectors in switch
housing are not rattling against each other or against
the interior wall of the switch housing.
5. Cracked blade. 5. Replace blades.
6. The distance from canopy to ceiling
is too great.
6. Make sure upper canopy is a short distance from
ceiling. It should not touch the ceiling.
7. Glass is not secure. 7. Secure the glass.
1. Hanger bracket and/or ceiling outlet
box is not securely fastened.
1. Tighten the hanger bracket screws to the outlet box,
and/or secure outlet box.
2. Set screw in downrod assembly is
loose.
2. Tighten the set screw in the downrod assembly.
seated in canopy tabs.
3. Fan hanger ball is not properly 3. Turn power off, support the fan very carefully, and
check that the hanger ball is properly seated.
4. Set screw in motor coupling is loose. 4. Raise motor coupling up and tighten set screws
securely.
5. Blade is loose. 5. Check that all blades are screwed firmly into blade
holders.
Fan sounds noisy
Fan wobbles
TROUBLESHOOTING
PROBABLE CAUSE CORRECTIVE ACTION
PROBLEM
6. Blade holders are loose. 6. Check to be sure the fan blade irons seat firmly and
uniformly on the surface of the motor. If flanges are
seated incorrectly, loosen the flange screws and
retighten.
7. Blade out of balance. 7. Interchange two adjacent blades; this will redistribute
the weight and possibly result in smoother operation.
8. Fan too close to vaulted ceiling
8. Lower or move fan. Extension downrods may be
ordered.
9. Transition to different speed. 9. When switching from medium to low speed, you may
notice som
e fan wobble in the fan. When the fan
stabilizes at low speed, wobble should disappear.
10. Fan not securely mounted. 10. Make sure canopy and mounting bracket are
tightened securely to ceiling joist.
1. Power turned off, fuse blown or
circuit
breaker tripped.
1. Turn power on, replace fuse or reset breaker.
3. Motor reversing switch not engaged. 3. Push switch firmly right or left. Fan will not operate
when switch is in the middle.
1. Wrong wire connection.
1. Refer to Step 7, page 11 to ensure all wire
connections were done correctly.
Fan d
oes not start
2b. Check the plug connection in the switch housing.
2a. Turn power off and loosen canopy; check all
connections according to section WIRING
INSTRUCTIONS on page 8.
2. Loose w
ire connections or wrong
connections.
Light does not work
15
LIMITED LIFETIME WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and material present at
time of shipment from the factory for life (with limitations) from the date of purchase. This warranty
applies only to the original purchaser. The manufacturer agrees to correct such defect at no charge
or, at our option, replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the expressed responsibility of the purchaser. Any damage to the
ceiling fan by accident, misuse or improper installation, or by affixing accessories not produced by
this warranty, are at the purchaser’s own responsibility. The manufacturer assumes no responsibility
whatsoever for fan installation during the limited lifetime warranty. Any service performed by an
unauthorized person will render the warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions.
Any replacement of defective parts for the ceiling fan must be reported within the first year from
the date of purchase. For the balance of the warranty, call our customer service department at
888-251-1003 for return authorization and shipping instructions so that we may repair or replace the
ceiling fan. Any fan or parts returned improperly packaged is the sole responsibility of the purchaser.
There is no further expressed warranty. The manufacturer disclaims any and all implied warranties.
The duration of any implied warranty which can not be disclaimed is limited to the lifetime limited
period as specified in our warranty. The manufacturer shall not be liable for incidental, consequential
or special damages arising at or in connection with product use or performance except as may other
wise be accorded by law. This warranty gives you specific legal rights, and you also have other rights
which vary from state to state. This warranty supersedes all prior warranties.
NOTE: A small amount of “ wobble ” is normal and should not be considered a defect.
16
FCC WARNING
This device (including remote control and LED module) complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. Please note that changes or
modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Note: Both the remote control and LED module have been tested and found to comply with the limits
for Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protectionagainst harmful interference in a residential installation.
The remote control generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
L G Sourcing, Inc.
1000 Lowe’s Blvd.
Mooresville, NC 28117
888-251-1003
REPLACEMENT PART LIST
17
For replacement parts, call our customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected] or visit www.lowespartsplus.com.
A Ceiling Plate
A102-0365036
C Switch Housing
A121-0470019
D Blade
A141-0641019
E Light Kit
A187-0516019
F Bowl
A182-0502036
G Remote Unit
A137-0540032
AA Blade Screw
B166-1062005
Part Description Part#
Printed in China
AA
A
C
E
F
D
G
X2X6
CR2032 3V
