Contents
3
EN
1 Instructions 4
1.1 General safety instructions 4
1.2 Manufacturer’s liability 8
1.3 Appliance purpose 8
1.4 Identification plate 8
1.5 This user manual 8
1.6 Disposal 8
1.7 To save energy 9
1.8 How to read the user manual 10
1.9 To save energy 10
2 Description 11
2.1 General Description 11
2.2 Cooking hob 12
2.3 Control panel 13
2.4 Other parts 13
2.5 Available accessories 14
3 Use 15
3.1 Instructions 15
3.2 Using the accessories 16
3.3 Using the hob 17
3.4 Using the storage compartment 23
3.5 Using the oven 23
3.6 Cooking advice 25
3.7 Programmer clock 27
4 Cleaning and maintenance 32
4.1 Instructions 32
4.2 Cleaning the surfaces 32
4.3 Cleaning the hob 33
4.4 Removing the door 34
4.5 Removing the internal glass panels 35
4.6 Cleaning the oven cavity 36
4.7 Pyrolysis 37
4.8 Extraordinary maintenance 38
5 Installation 40
5.1 Positioning 40
5.2 Electrical connection 45
5.3 Instructions for the installer 47
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com
Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or flames
with water: Turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Do not place metal objects, such
as dishes or cutlery, on the hob
surface during use as they may
overheat.
• Do not touch the metal tip of the
temperature probe after cooking.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
Instructions
5
EN
• If you need to move food or at the
end of cooking, open the door 5 cm
for a few seconds, let the steam
come out, then open it fully.
• Do not open the storage
compartment (where present)
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS IN
THE STORAGE
COMPARTMENT (IF PRESENT)
OR NEAR THE APPLIANCE.
• DO NOT USE AEROSOLS IN THE
VICINITY OF THIS APPLIANCE
WHILST IT IS IN USE.
• Switch off the appliance
immediately after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
• In order to avoid hazard, if the
power supply cable is damaged,
contact technical support and
they will replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.

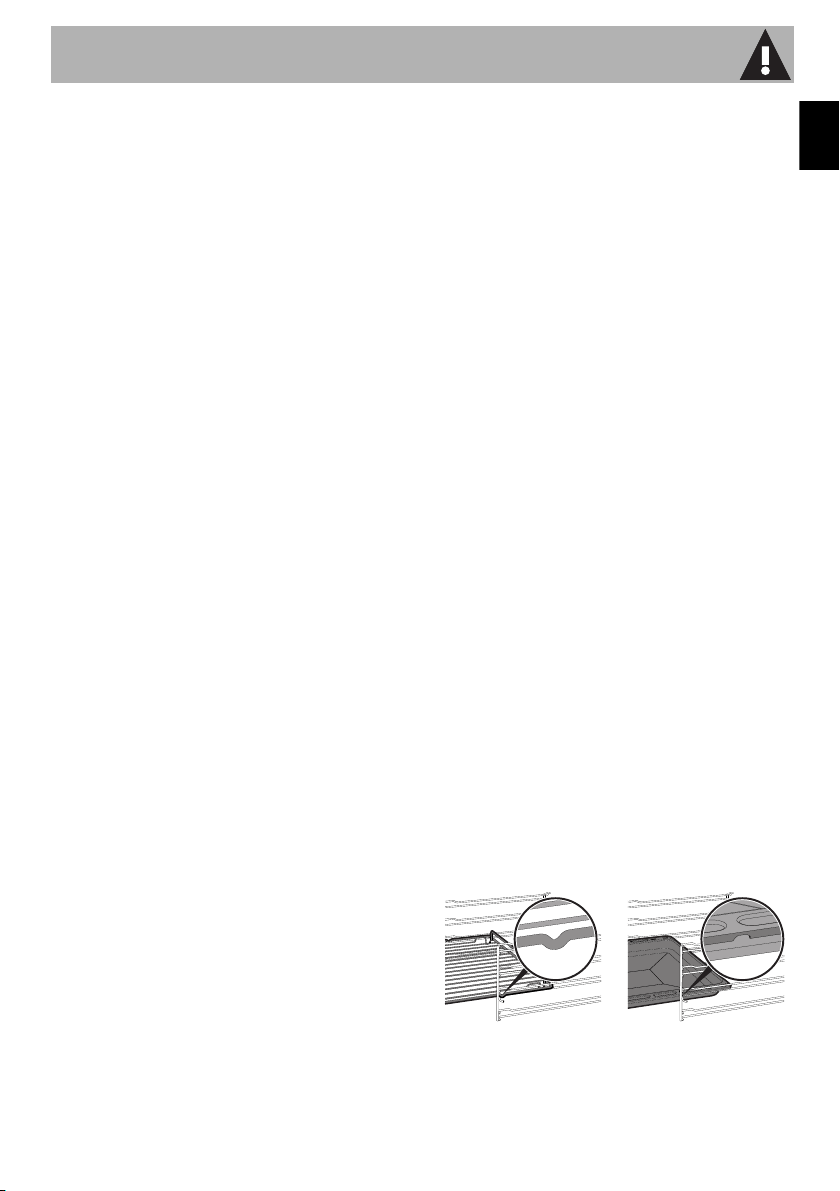

• Racks and trays should be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
Instructions
6
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these could
then heat up and catch fire. Be
very careful.
• Danger of fire: do not store items
on the cooking surfaces.
• Do not pull the cable to remove
the plug
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
• Do not spray any spray products
near the oven.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• If cracks or fissures form, or if the
glass ceramic cooking surface
breaks, turn off the appliance
immediately. Disconnect the
power supply and call Technical
Support.
• People who have pacemakers or
other similar devices fitted must
make sure that the operation of
these devices is not affected by the
induction field, the frequency
range of which is between 20 and
50 kHz.
• In conformity with the provisions
regarding electromagnetic
compatibility, the electromagnetic
induction cooking hob comes under
group 2 and class B (EN 55011).
Instructions
7
EN
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not wash removable parts such
as the hob pan support grids,
flame-spreader crowns and
burner caps in the dishwasher.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
Installation
• THIS APPLIANCE MUST NOT BE
INSTALLED IN BOATS OR
CARAVANS.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To avoid potential overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the terminal
board screws for the power supply
wires must be 1.5 - 2 Nm.
For this appliance
• After use, switch off the plates.
Never rely solely on the
cookware detector.
• Supervise children carefully as
they cannot readily see the
residual heat indication. After use
the cooking zones remain hot for
a certain period of time even if
they have been turned off. Keep
children away from the cooking
zones.
• The glass ceramic surface is highly
resistant to impact. However,
prevent hard, solid objects from
falling on the cooking surface as
they may cause it to break if they
are sharp.
Instructions
8
• Do not use the glass ceramic
cooking surface as a support
surface.
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
1.2 Manufacturer’s liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified
• Failure to comply with the
instructions in the user manual
• Tampering with any part of the
appliance
• The use of non-original spare parts.
1.3 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.5 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance.
Read this user manual carefully
before using the appliance.
1.6 Disposal
This appliance conforms to the
WEEE European directive
(2012/19/EU) and must be
disposed of separately from other
waste at the end of its service life.The
appliance does not contain
substances in quantities sufficient to
be considered hazardous to health
and the environment, in accordance
with current European directives.
Instructions
9
EN
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
• Deliver the appliance to the
appropriate recycling centre for
electrical and electronic
equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for
one basis.
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling centre.
1.7 To save energy
• Only preheat the appliance if the
recipe requires you to do so.
• Unless otherwise indicated on the
package, defrost frozen foods
before placing them in the oven.
• When cooking several types of
food it is recommended to cook
the foods one after the other to
make the best use of the already
hot oven.
• Use dark metal moulds: They help
to absorb the heat better.
• Remove all trays and racks which
are not required during cooking.
• Stop cooking a few minutes
before the time normally used.
Cooking will continue for the
remaining minutes with the heat
which has accumulated inside the
oven.
• Reduce any opening of the door
to a minimum to avoid heat
dispersal.
• Keep the inside of the oven clean
at all times.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
plastic bags.
Instructions
10
1.8 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice
Description
11
EN
2 Description

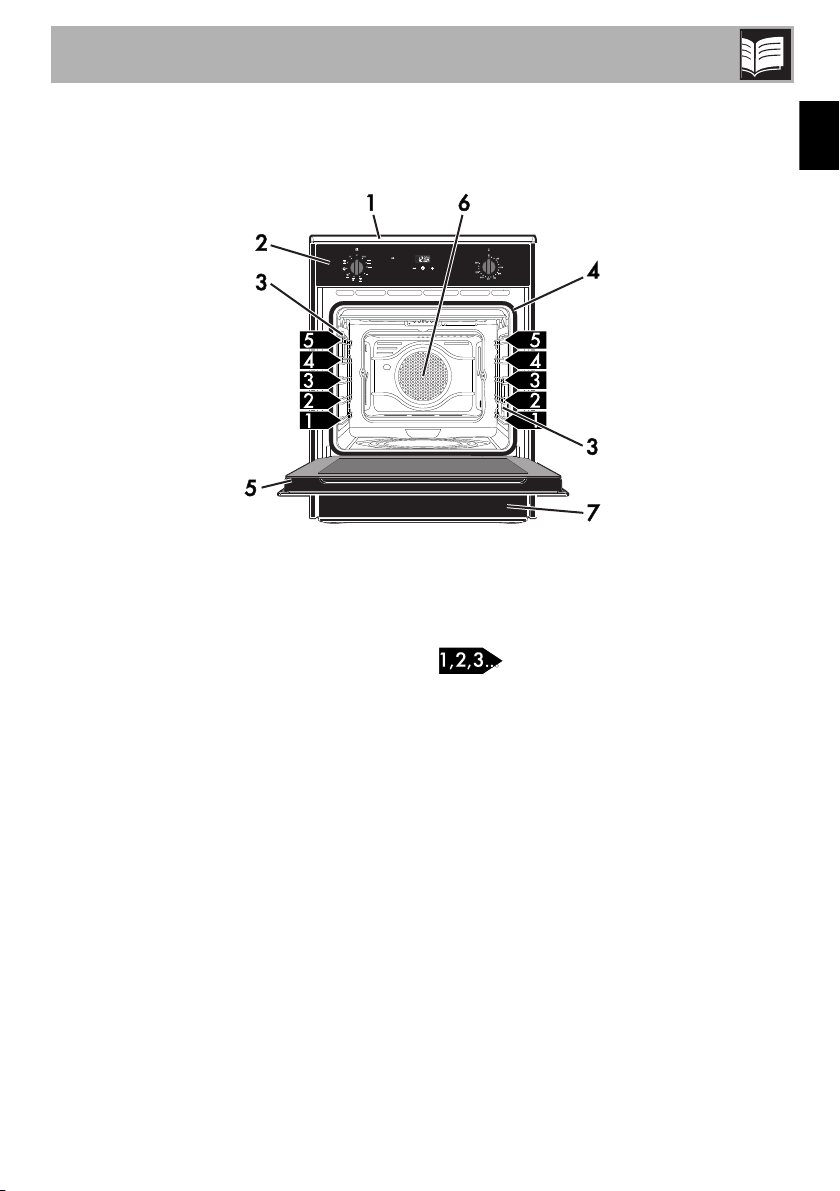

2.1 General Description
1 Cooking hob
2 Control panel
3 Oven light
4 Seal
5 Door
6 Fan
7 Storage compartment
Rack/tray support frame shelf
Description
12
2.2 Cooking hob
* power levels are indicative and can vary according to the pan used or the settings made.
Advantages of induction cooking • Energy saving thanks to the direct
transmission of energy to the pan
(suitable magnetisable cookware is
required) compared to traditional
electric cooking.
• Improved safety as the energy is only
transmitted to the pan placed on the hob.
• High level of energy transmitted from the
induction cooking zone to the base of
the pan.
• Rapid heating.
• Reduced danger of burns as the cooking
surface is only heated under the base of
the pan; foods which overflow do not
stick.
Zone Dimensions (H x L - mm)
Max. absorbed power
(W)*
Absorbed power in
Booster function (W)*
1 180 x 180 1850
2100
2 145 x 145 1200
1400
3 180 x 180 1850
2100
4 145 x 145 1200
1400
The hob is equipped with an
induction generator for each
cooking zone. Each generator
located under the glass ceramic
cooking surface creates an
electromagnetic field which
induces a thermal current in the
base of the pan. This means the
heat is no longer transmitted from
the hob to the pan but created
directly inside the pan by the
inductive current.
Description
13
EN
2.3 Control panel
1 Function knob
The oven's various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
2 Door lock indicator light
It comes on when the automatic cleaning
cycle (pyrolysis) is activated.
3 Programmer clock
Useful for displaying the current time and
programming the timer.
4 Indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
5 Temperature knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
settings.
2.4 Other parts
Oven shelves
The oven features shelves for positioning
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air that
exits from the rear of the appliance and
which may continue for a brief period of
time even after the appliance has been
turned off.
Description
14
Interior lighting
The oven interior lighting comes on when
the door is opened or any function is
selected, except for the and
functions.
2.5 Available accessories
Rack
Useful for holding cooking vessels.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Original and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Use
15
EN
3 Use
3.1 Instructions
High appliance temperature
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands using heat resistant
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly on very hot
trays.
• Do not allow children younger than 8
years old to come near the appliance
when in operation.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
• Oils and fat could catch fire if
overheated. Be very careful.
High temperature inside the
storage compartment
Danger of burns
• Do not open the storage compartment
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot after
using the oven.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven with
aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the cooking compartment.
• Do not use the open door to rest pans or
trays on the internal glass panel.
• Do not pour water directly on very hot
trays.
• Cookware should be placed inside the
perimeter of the hob.
• All cookware must have smooth, flat
bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Never place pans with bases which are
not perfectly flat and smooth.
• Avoid hard, solid objects falling on the
surface of the hob.
• In case you notice cracks or fissures, turn
off the appliance immediately,
disconnect the power supply and call
Technical Support.
• Do not use as a support surface.
Use
16
First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
Oven cavity
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
3.2 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
High temperature inside the
storage compartment during use
Danger of fire or explosion
• Do not spray any spray products near
the oven.
• Do not use or leave flammable materials
near the oven or the storage
compartment.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the oven unattended
during cooking operations where fats or
oils could be released.
• Remove from the oven compartment all
trays and racks not used during cooking.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Use
17
EN
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
3.3 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The induction hob is controlled by
means of the Touch Control sensor keys.
Lightly touch a symbol on the glass ceramic
surface. The buzzer will sound to confirm
every effective touch.
On/Off: turns the hob on or off.
Increase: increases the power level or
cooking time.
Decrease: reduces the power level or
cooking time.
Front left cooking zone
Rear left cooking zone
Rear right cooking zone
Front right cooking zone
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with
magnetic properties and a sufficiently large
base.
Suitable cookware:
• Enamelled steel cookware with thick
bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel,
ferritic stainless steel and aluminium with
a special base.
Unsuitable cookware:
• Copper, stainless steel, aluminium,
fireproof glass, wood, ceramic and
terracotta cookware.
To see whether the pan is suitable, bring a
magnet close to the bottom: if it is attracted,
the pan is suitable for induction cooking. If
you do not have a magnet, you can put a
small amount of water in the pan, place it
on a cooking zone and start the hot plate.
On first connection to the electrical
mains, an automatic check will be
carried out that will switch on all
indicator lights for a few seconds.
Use
18
If the symbol appears on the display, it
means the pan is not suitable.
Cookware recognition
When there is no saucepan on a cooking
zone or if the saucepan is too small, no
energy will be transmitted and the
symbol will appear on the display.
If there is a suitable saucepan on the
cooking zone, the recognition system
detects it and switches on the hob to the
power level set using the knob. Energy
transmission is also interrupted when the
saucepan is removed from the cooking
zone (the symbol will be shown on the
display).
If the cookware recognition function is
activated in spite of the saucepan or frying
pan on the cooking zone being smaller
than the zone itself, only the necessary
energy will be transmitted.
Cookware recognition limits: The minimum
diameter of the pan base is indicated by the
cross on the cooking zone.
Pans with smaller diameters risk not being
detected and therefore not activating the
inductor.
Use only cookware with a
perfectly flat bottom and suitable
for induction hot plates. Using
cookware with an irregular bottom
could jeopardise the efficiency of
the heating system so that
cookware is not detected on the
hot plate.
Use
19
EN
Limiting the cooking duration
The hob has an automatic device which
limits the duration of use.
If the cooking zone settings are not
changed, the maximum duration of
operation of each zone depends on the
power level selected.
When the device for limiting the duration of
use is activated, the cooking zone turns off,
a short alert sounds and if the zone is hot
the symbol appears on the display.
Protection from overheating
If the hob is used on full power for a long
period, the electronics will have trouble
cooling down if the room temperature is
high.
To avoid excessively high temperatures
forming in the electronics, the power to the
cooking zone is reduced automatically.
Power levels
The power in the cooking zone can be
adjusted to various levels. The table shows
the levels suitable for various types of
cooking.
* see booster function
Switching the hob on and off
Keep the On/Off key pressed in for at
least 1 second to activate the hob. Keep
key pressed in for at least 2 seconds to
deactivate the hob.
Switching on the cooking zone
After switching on the hob:
1. Select the required cooking zone using
the appropriate zone selection keys (e.g.
: rear right cooking zone).
2. Use keys and to select the
cooking power from 1 to 9, or else
activate the power function, see “ Power
Function”.
Set power level
Maximum cooking
duration in hours
1 8
26
3 - 4 5
54
6 - 7 - 8 - 9 1 ½
Power level Suitable for:
0 OFF position
1 - 2
Cooking small amounts of food
(minimum power)
3 - 4 Cooking
5 - 6
Cooking large quantities of
food, roasting larger portions
7 - 8 Roasting, slow frying with flour
9 Roasting
P *
Roasting / browning, cooking
(maximum power)
If no power value is selected within
a few seconds, the hob is
automatically deactivated.
Use
20
Switching off the cooking zone
1. Select the cooking zone you wish to
switch off using the zone selection keys.
2. Use the key to bring the power
value to 0 (zero).
Residual heat
If the cooking zone is still hot after being
switched off, the symbol will be
displayed on the display. The symbol clears
once the temperature drops below 60°C.
Power Function
After activating the required cooking zone:
1. Press the key to bring the power to
9.
2. Press the key again; the symbol
will be shown on the display.
Press key to deactivate the Power
function.
Minute minder timer
After activating the hob:
1. Press the and keys at the same
time; will be displayed.
2. Set the required time in minutes using the
and keys (hold the keys down
to set the time more quickly). Flashing
dots will appear to indicate the count.
3. At the end of the previously set time, the
hob will warn the user with a series of
Hold the On/Off key down
for at least 2 seconds to switch off
all cooking zones at the same time.
Improper use
Danger of burns
• Supervise children carefully as they
cannot readily see the residual heat
indicator. The cooking zones remain hot
for a certain period of time even after
they have been turned off. Make sure
that children never touch the hob.
This function allows you to use the
maximum possible power for the
cooking zone.
On the front left and rear right
cooking zones only:
The Power function is available for
10 minutes, after which the power
level drops automatically to 9.
This function is used to set a minute
minder timer, which will sound a
buzzer at the end of the pre-set
time (from 1 to 99 minutes).
Using the minute minder does not
switch off the cooking zones but
rather informs the user when the set
minutes have run out.
The timer can be activated while
the cooking zones are on or off.
Use
21
EN
buzzers. Press any key to stop the
buzzer.
Cooking zone automatic switch-off timer
1. If the cooking zone is not selected, press
keys and at the same time,
will appear on the display.
2. Press keys and again; if at least
one cooking zone is active, one flashing
dot will light up to indicate that the zone
is being timed.
3. Select the automatic switch-off time using
the and keys (hold the keys
down to set the time more quickly), or
select an additional zone using keys
and .
4. Press keys and at the same time
until a lighted dot appears under the
display of the zone whose set time you
wish to change. Once the relevant zone
is selected, use keys and to
change the previously selected time.
5. At the end of the previously set time, the
hob will deactivate the cooking zone
and warn the user with a series of
buzzers. Press any key to stop the
buzzer.
Control lock
After activating the hob:
1. Press keys and at the same
time.
2. Press the button after the beep.
The controls are now locked and will
appear on the display.
To unlock the controls:
1. Press keys and at the same
time.
Press the button after the beep.
To deactivate the minute minder
timer during the countdown, zero
the set time using key . When
the display shows the
timer will be deactivated.
This function is used to program the
automatic switch-off of each
cooking zone at the end of a
period of time (from 1 to 99
minutes).
If the timer is activated without an
active cooking zone it behaves like
an ordinary minute minder.
In case of a power failure the
control lock will be deactivated.
Use
22
Cooking guidelines
The table below shows the power values
which can be set, together with the
corresponding type of food. Settings may
vary depending on the amount of food and
consumer taste.
Setting the hob power limit
1. Switch off the cooker’s power supply
and wait 10 seconds before turning the
power back on.
2. Hold down all 4 zone selection keys
for at least 3
seconds. The appliance will beep. The
hob display will show the current power
limit (7.0 kW).
3. Press the and keys to adjust the
power limit to the required level (3.1 kW
or 4.5 kW).
4. Within 60 seconds, hold down all 4
zone selection keys
again for at least 3 seconds. The
appliance will beep again to confirm the
setting has been applied.
Power level Suitable for:
1 - 2
Heating food, keeping small
amounts of water on the boil,
and whipping up sauces with
egg yolk or butter.
3 - 4
Cooking solid or liquid food,
keeping water on the boil,
defrosting deep-frozen food,
cooking 2 or 3 egg
omelettes, fruit and
vegetables, various cooking
processes.
5 - 7
Stewing meat, fish and
vegetables, simmering food,
making jams, etc.
8-9
Roasting meat, fish, steaks
and liver; sautéing meat, fish,
eggs, etc.
P
Deep-frying potatoes, etc.,
or bringing water to the boil
rapidly.
The induction hob is configured to
operate at 7 kW. However, the
maximum power can be limited so
that it can work at 4.5 kW or 3.1
kW.
The power level of the hob must be
set within 2 minutes of it being
connected to the mains power
supply.
Use
23
EN
Examples of possible combinations
based on the set power
Power control
The hob is fitted with a power control
module that optimises/limits consumption. If
the overall set power levels exceed the
maximum limits permitted, the electronic
circuit board controls automatically the
power supplied by the hot plates.
The module tries to maintain the maximum
deliverable power levels. Levels set by the
automatic control will appear on the
display. The flashing of a power level
indicates that it will be automatically limited
to a new level selected by the power
control module.
3.4 Using the storage compartment
The storage compartment is at the bottom of
the cooker. To open it, pull the handle
towards you. It can be used to store
cookware or metallic objects necessary
when using the appliance.
3.5 Using the oven
Switching the oven on
To switch the oven on:
1. Select the cooking function using the
function knob.
2. Select the temperature using the
temperature knob.
Functions list
Power
(kW)
Plate
210 LH
Plate
180 LH
Plate
210 RH
Plate
180 RH
7,4
P7P7
9P9P
4,5
8888
0P8P
P708
3,0
8080
0P0P
7808
0878
Priority is given to the last zone set.
The power control module does
not affect the total power
consumption of the appliance.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes and in any case
particularly suitable for fatty meats
such as goose and duck.
Use
24
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and in combination
with the rotisserie (where fitted)
gives the food an even browning at
the end of cooking. Perfect for
sausages, ribs and bacon. This
function enables large quantities of
food, particularly meat, to be grilled
evenly.
Small grill
Using only the heat released from
the central element, this function
enables small portions of meat and
fish to be grilled for making kebabs,
toasted sandwiches and all types of
grilled vegetable side dishes.
Fan-assisted static
The operation of the fan, combined
with traditional cooking, ensures
uniform cooking even with complex
recipes. Perfect for biscuits and
cakes, even when simultaneously
cooked on several levels. (For
multiple-level cooking, we
recommend using the 2
nd
and 4
th
shelves.)
Fan-assisted grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan-assisted bottom
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
In pyrolytic models, the special
defrosting and proving functions are
brought together under the same
function.
Fan-assisted circular
The combination of the fan and the
circular element (incorporated in the
rear of the oven) allows you to cook
different foods on several levels, as
long as they need the same
temperatures and same type of
cooking. Hot air circulation ensures
instant and uniform distribution of
heat. It will be possible, for instance,
to cook fish, vegetables and biscuits
simultaneously (on different levels)
without mixing odours and flavours.
Turbo
The combination of fan-assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking.
Use
25
EN
3.6 Cooking advice
General advice
• Use a fan-assisted function to achieve
uniform cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
• Using more ovens at the same time might
affect the final cooking results.
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; if not, it
needs another few minutes cooking.
Advice for cooking with the Grill and the
Fan-assisted grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan-assisted grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
• With the Grill function, we recommend
that you turn the temperature knob to the
maximum value near the symbol to
optimise cooking.
Eco
This function is particularly suitable
for cooking on a single shelf with
low energy consumption.
It is recommended for all types of
food except those that may
produce a large amount of moisture
(e.g. vegetables).
To obtain maximum energy savings
and reduce cooking times, it is
recommended to place food in the
oven without preheating.
When using the ECO function,
avoid opening the door during
cooking.
Cooking (and preheating) times
are longer with the ECO function
and may depend on the amount of
food in the oven cavity
The ECO function is a delicate
cooking function and is
recommended for cooking that
does not require temperatures
higher than 210°C. It is
recommended that you select a
different function for cooking at
higher temperatures.
Pyrolysis
Setting this function, the oven
reaches temperatures up to 500°C,
destroying all the grease which
forms on the internal walls.
Use
26
• Foods should be seasoned before
cooking. Foods should also be coated
with oil or melted butter before cooking.
• Use the oven tray on the first bottom shelf
to collect fluids produced by grilling.
• Grilling processes should never last more
than 60 minutes using multifunction
ovens, 30 minutes inside the auxiliary
oven.
Advice for cooking desserts and biscuits
• Use dark metal moulds: they help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• To check whether the dessert is cooked
right through: at the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes
out of the oven, on the next occasion
reduce the set temperature by about
10°C, selecting a longer cooking time if
necessary.
• While cooking desserts or vegetables,
excessive condensation may form on the
glass. In order to avoid this, open the
door very carefully a couple of times
while cooking.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean
at all times.
Use
27
EN

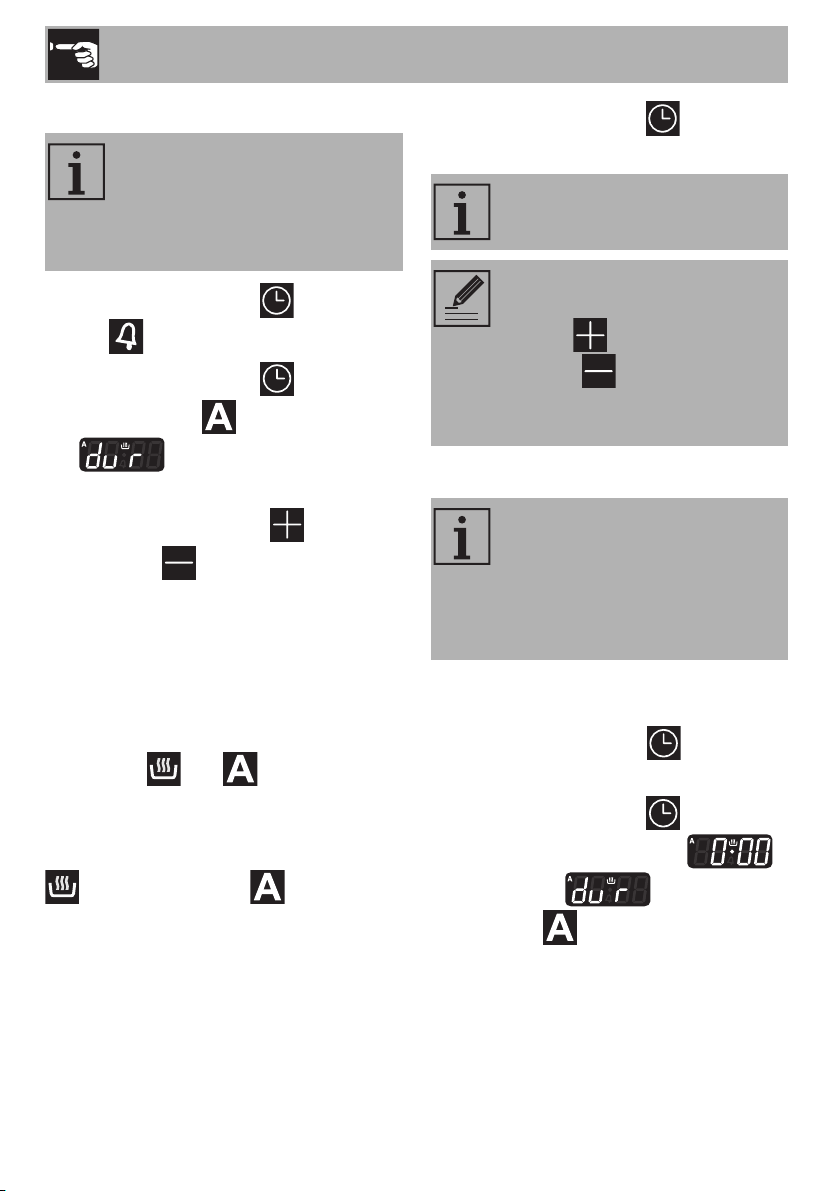

3.7 Programmer clock
Value decrease button
Clock button
Value increase button
Setting the time
On the first use, or after a power failure, the
digits will be flashing on the
appliance’s display.
1. Hold down the clock button for
two seconds. The dot between the
hours and the minutes flashes.
2. The time can be set via the value
increase button and value
decrease button. Keep the button
pressed in to increase or decrease
rapidly.
3. Wait 7 seconds. The dot between the
hours and the minutes stops flashing.
4. The symbol on the display
indicates that the appliance is ready to
start cooking.
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the button to reset the
programmer clock.
If the time is not set, the oven will
not switch on.
To change the time, hold down the
value increase button and
value decrease button at the
same time for two seconds, then
set the time.
Use
28
Timed cooking
1. Keep the clock button pressed until
the symbol appears.
2. Press the clock button again. On
the display the symbol and the text
appear, alternating with the
current time.
3. Use the value increase and value
decrease buttons to set the
required minutes of cooking.
4. Select a function and a cooking
temperature.
5. Wait approx. 5 seconds without
pressing any button in order for the
function to activate. The current time
and the and symbols will
appear on the display.
At the end of cooking the heating elements
will be deactivated. On the display, the
symbol turns off, the symbol
flashes and the buzzer sounds.
6. To turn the buzzer off, simply press one
of the programmer clock buttons.
7. Press the clock button to reset the
programmer clock.
Programmed cooking
1. Set the cooking time as described in the
previous point “Timed cooking”.
2. Hold the menu button down for 2
seconds.
3. Press the menu button again. The
display will show the digits
and the text in sequence,
while the symbol flashes (for
example, the current time is 17:30).
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
It is not possible to set a cooking
time of more than 10 hours.
To cancel the set programming
press and hold down the value
increase and the value
decrease buttons at the same
time and then turn the oven off
manually.
Programmed cooking is the
function which allows a cooking
operation to be started at a set
time and then ended after a
specific length of time set by the
user.
Use
29
EN
4. Press the or button to set the
required minutes. (for example 1 hour).
5. Press the menu button . The text
will appear on the display in
sequence with the pre-set cooking
duration added to the current time (for
example, the cooking end time shown
is 18:30).
6. Press the or button to set the
cooking end time. (for example,
19:30).
7. Wait approx. 7 seconds without
pressing any button in order for the
function to activate. The current time
appears and the and symbols
light up on the display.
8. Select a cooking temperature and
function.
9. At the end of cooking the heating
elements will be deactivated. On the
display, the symbol turns off, the
symbol flashes and the buzzer
sounds.
10. Return the function and temperature
knobs to 0.
11. To turn off the buzzer just press any
button of the programmer clock.
12. Press the and buttons at the
same time to reset the set program.
Bear in mind that a few minutes for
oven preheating must be added to
the cooking time.
It is not possible to set a cooking
time of more than 10 hours.
It is not possible to set a
programmed cooking time of more
than 24 hours.
After setting, hold the menu button
down for 2 seconds to
display the cooking time
remaining. Press the menu button
again. The display shows the
text and the remaining
cooking time in sequence.
Use
30
Minute minder timer
The minute minder timer can be activated at
any time.
1. Keep the clock button pressed for
per a few seconds. The display shows
the figures and the
symbol flashing between the hours and
minutes.
2. Use the value increase and value
decrease buttons to set the number
of minutes required.
3. Wait approx. 5 seconds without
pressing any button to finish setting the
minute minder. The current time and the
and symbols appear on the
display.
A buzzer will sound when the set time is
reached.
4. Press the value decrease button to
turn the buzzer off.
Modifying the set data
1. Press the clock button .
2. Use the value increase and value
decrease buttons to set the number
of minutes required.
Deleting the set data
1. Press the clock button .
2. Hold down the value increase and
value decrease buttons at the
same time.
3. Then switch off the oven manually if
cooking is in progress.
Selecting the buzzer
The buzzer can have 3 tones.
1. Hold down the value increase and
value decrease buttons at the
same time.
2. Press the clock button .
3. Press the value decrease button to
select a different buzzer tone.
The minute minder timer does not
stop the cooking operation but
rather informs the user when the set
time has run out.
The minute minder timer can be set
from 1 minute to a maximum of
23 hours and 59 minutes.
Use
31
EN
Cooking information table
Food
Weight
(Kg)
Function Shelf
Temperature
(°C)
Time
(minutes)
Lasagne
3 - 4 Static 1 220 - 230 45 - 50
Pasta bake
3 - 4 Static 1 220 - 230 45 - 50
Veal roast
2 Turbo/Circulaire 2 180 - 190 90 - 100
Pork loin
2 Turbo/Circulaire 2 180 - 190 70 - 80
Sausages
1.5 Fan with grill 4 280 15
Roast beef
1 Turbo/Circulaire 2 200 40 - 45
Roast rabbit
1.5 Circulaire 2 180 - 190 70 - 80
Turkey breast
3 Turbo/Circulaire 2 180 - 190 110 - 120
Roast pork neck
2 - 3 Turbo/Circulaire 2 180 - 190 170 - 180
Roast chicken
1.2 Turbo/Circulaire 2 180 - 190 65 - 70
1
st
surface 2
nd
surface
Pork chops
1.5 Fan with grill 4 280 15 5
Spare ribs
1.5 Fan with grill 4 280 10 10
Bacon
0.7 Grill 5 280 7 8
Pork fillet
1.5 Fan with grill 4 280 10 5
Beef fillet
1 Grill 5 280 10 7
Salmon trout
1.2 Turbo/Circulaire 2 150 - 160 35 - 40
Monkfish
1.5 Turbo/Circulaire 2 160 60 - 65
Turbot
1.5 Turbo/Circulaire 2 160 45 - 50
Pizza
1 Turbo/Circulaire 2 280 8 - 9
Bread
1 Circulaire 2 190 - 200 25 - 30
Focaccia
1 Turbo/Circulaire 2 180 - 190 20 - 25
Bundt cake
1 Circulaire 2 160 55 - 60
Tart
1 Circulaire 2 160 35 - 40
Ricotta cake
1 Circulaire 2 160 - 170 55 - 60
Jam tarts
1 Turbo/Circulaire 2 160 20 - 25
Paradise cake
1.2 Circulaire 2 160 55 - 60
Profiteroles
1.2 Turbo/Circulaire 2 180 80 - 90
Sponge cake
1 Circulaire 2 150 - 160 55 - 60
Rice pudding
1 Turbo/Circulaire 2 160 55 - 60
Brioches
0.6 Circulaire 2 160 30 - 35
The times indicated in the table do not include preheating times and are provided only as a guide.
Cleaning and maintenance
32
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the surfaces
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Ordinary daily cleaning
Always and only use specific products that
do not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges and sharp
scrapers as they will damage the surface.
Use normal, non-abrasive products and a
wooden or plastic tool, if necessary. Rinse
thoroughly and dry with a soft cloth or a
microfibre cloth.
Do not allow residues of sugary foods (such
as jam) to set inside the oven. If left to set for
too long, they might damage the enamel
lining of the oven.
Improper use
Risk of damage to surfaces
• Do not use steam jets for cleaning the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on steel
parts or parts with metallic finishes on the
surface (e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents on glass parts (e.g. powder
products, stain removers and metallic
sponges).
• Do not use rough or abrasive materials
or sharp metal scrapers.
• Do not wash the removable
components such as the hob pan stands,
flame-spreader crowns and burner caps
in a dishwasher.
After cleaning, dry the appliance
thoroughly to prevent any water or
detergent from interfering with its
operation or creating unsightly
marks.
Cleaning and maintenance
33
EN
4.3 Cleaning the hob
Cleaning the glass ceramic hob
Light coloured marks from pans with
aluminium bases can be easily cleaned off
with a cloth moistened in vinegar. After
cooking, remove any burnt residues; rinse
with water and dry thoroughly with a clean
cloth.
Dirt which may have fallen on the hob
while cleaning lettuce or potatoes can
scratch the hob when moving pans.
Consequently, remove any dirt from the
cooking surface immediately.
Changes in colour do not affect the
operation and stability of the glass. These
are not alterations to the material of the hob
but just residues which have not been
removed and have then carbonised.
Shiny surfaces can form due to the bases
of pans, especially aluminium ones, rubbing
on the surface, and due to the use of
unsuitable detergents. They are difficult to
remove using conventional cleaning
products. It may be necessary to repeat the
cleaning process several times. Use of
corrosive detergents or rubbing of pan
bases can wear away the decoration on
the hob over time and contribute to the
formation of stains.
Weekly cleaning
Clean and maintain the hob once a week
using an ordinary glass ceramic cleaning
product. Always follow the manufacturer’s
instructions. The silicon in these products
creates a protective, water-repellent
membrane which also resists dirt. All marks
stay on the membrane and can therefore be
removed easily. After cleaning, dry the
surface with a clean cloth. Make sure that
there is no detergent left on the cooking
surface as it might undergo an aggressive
reaction when heated up and could modify
the structure of the cooking surface.
Knobs
The knobs should be cleaned with a soft
cloth dampened with lukewarm water, then
dried carefully. They can be removed by
pulling them out from their housings.
Do not use aggressive products
containing alcohol or products for
cleaning steel and glass when
cleaning the knobs, as these
products could cause permanent
damage.
Cleaning and maintenance
34
4.4 Removing the door
For easier cleaning it is recommended to
remove the door and place it on a tea
towel.
To remove the door proceed as follows:
1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
2. Grasp the door on both sides with both
hands, lift it so that it forms an angle of
around 30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
We recommend the use of
cleaning products distributed by
the manufacturer.
Cleaning and maintenance
35
EN

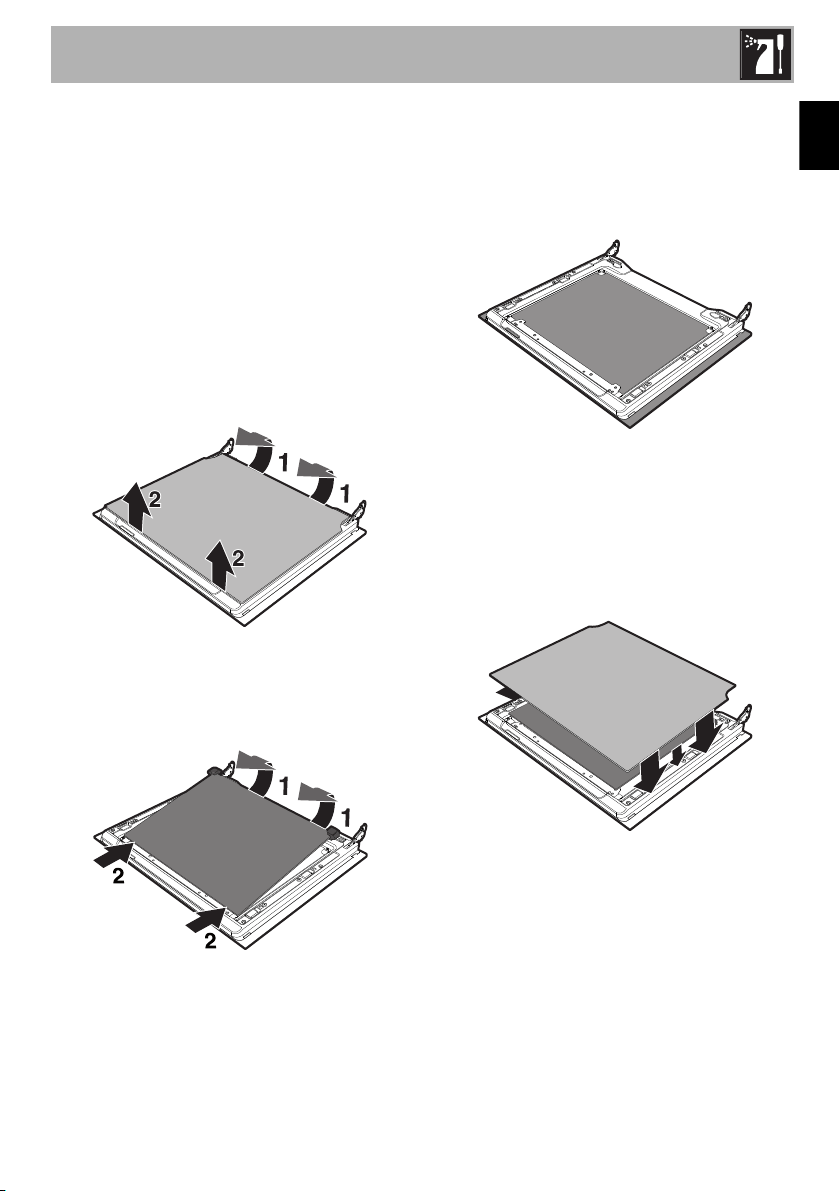

4.5 Removing the internal glass
panels
For easier cleaning the door internal glass
panels can be disassembled.
1. Remove the internal glass panel by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). In
this way, the 4 pins attached to the glass
detach from their housings in the oven
door.
3. Some models have an intermediate glass
panel. Remove the intermediate glass
panel by lifting it upwards.
4. Clean the external glass panel and the
panels previously removed. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
5. Replace the panels in the reverse order in
which they were removed.
6. Reposition the internal glass panel. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
Cleaning and maintenance
36
4.6 Cleaning the oven cavity
In order to keep your oven in the best
possible condition, clean it regularly after
letting it cool down.
Avoid letting food residue dry inside the
oven cavity, as this could damage the
enamel.
Take out all removable parts.
Cleaning the racks and trays
Clean the racks and trays with warm water
and non-abrasive detergents. Carefully
rinse and dry damp parts.
Removing rack/tray support frames
Removing the guide frames enables the
sides to be cleaned more easily. This
operation should be performed each time
the automatic cleaning cycle is used (on
some models only).
To remove the guide frames: Pull the frame
towards the inside of the oven to release it
from its groove A, then slide it out of the
seats B at the back.
When cleaning is complete, repeat the
above procedures to put the guide frames
back in.
For easier cleaning, we recommend
removing:
• The door
• The rack/tray support frames
• The oven seal
The oven should be operated at
the maximum temperature for
about 15-20 minutes after the use
of specific products, to burn off the
residues left inside the oven.
Cleaning and maintenance
37
EN
4.7 Pyrolysis
Preliminary operations
Before starting the pyrolytic cycle:
• Clean the internal glass pane following
the usual cleaning instructions.
• For very stubborn encrustations spray an
oven cleaning product onto the glass
(read the warnings on the product);
leave for 60 minutes, then rinse and dry
the glass using kitchen roll or a microfibre
cloth.
• Remove all accessories from the oven
cavity.
• Remove the rack/tray support frames.
• Close the door.
Setting up the pyrolytic function
1. Turn the function knob to the
symbol. Will appear on the
display alternating with the minimum
pyrolytic cycle time (2 hours).
2. Press the or button to set the
duration of the cleaning cycle from a
minimum of 2 hours to a maximum of
3 hours and 30 minutes.
3. Press the button to confirm the start
of the pyrolytic cycle.
4. One minute after the pyrolytic cycle has
started, the door is locked (the door
lock light lights up) by a device that
prevents it from being opened.
5. At the end of the pyrolytic cycle, all the
numbers on the display will flash and a
buzzer will sound to indicate the end of
the automatic cleaning cycle.
6. Move the function knob back to the “0”
position.
7. The door remains locked as long as the
temperature inside the oven returns to
safety levels.
Pyrolysis is an automatic high-
temperature cleaning procedure
which causes dirt to dissolve.
Thanks to this process, it is possible
to clean the inside of the oven very
easily.
Improper use
Risk of damage to surfaces
• Remove any food residues or large spills
from previous cooking operations from
the inside of the oven.
• Switch off the burners or electric hot
plates of the hob installed above the
oven.
• When the pyrolytic function is in
progress the surfaces may be
get hotter.
• Children should be kept away.
Recommended pyrolytic cycle
duration:
• Light dirt: 2 hours.
• Medium dirt: 2 hours 45 minutes.
• Heavy dirt: 3 hours 30 minutes.
It is not possible to select any
function once the door lock device
has been activated.
Cleaning and maintenance
38
8. Wait for the oven to cool down and
collect the residues deposited inside
with a damp microfibre cloth.
Setting of programmed pyrolytic cycle
It is possible to program the pyrolytic cycle
start time like all other cooking functions.
1. After having started the pyrolysis cycle
(see “Setting up the pyrolytic function”),
press and hold the button for
2 seconds.
2. Continue to press the button until
appears on the display.
3. Press the and buttons within
5 seconds to set the time at which you
want the cleaning cycle to end.
4. Press the button to confirm the
settings.
4.8 Extraordinary maintenance
Replacing the interior light bulb
1. Completely remove all accessories from
inside the oven.
2. Remove the racks/trays support frames.
Be careful not to turn the function
knob when setting the pyrolytic
cycle. If you do, the settings entered
via the programmer clock will be
deleted and you will have to reset
them.
During the first pyrolytic cycle,
unpleasant odours may occur due
to the normal evaporation of oily
manufacturing substances. This is
an absolutely normal phenomenon
which disappears after the first
pyrolytic cycle.
During the pyrolytic cycle the fans
produce a more intense level of
noise due to a greater rotation
speed. This is an absolutely normal
operation, intended to provide
more effective heat dispersal. At
the end of the pyrolytic cycle, the
fans will continue to operate for
long enough to avoid overheating
the walls of adjacent units and the
front of the oven.
Live parts
Danger of electrocution
• Disconnect the oven power supply.
• Use personal protective equipment.
Cleaning and maintenance
39
EN
3. Remove the bulb cover using a tool (e.g.
a screwdriver).
4. Slide out and remove the lamp.
5. Replace the lamp with one of the same
type (40W).
6. Replace the cover correctly, so that the
moulded part of the glass is facing the
door.
7. Press the cover completely down so that
it attaches perfectly to the bulb support.
Do not touch the halogen lamp
directly with your fingers, but wrap
it in an insulating material.
Installation
40
5 Installation
5.1 Positioning
This appliance may be installed next to
walls, one of which must be higher than the
worktop, at a minimum distance of X mm
from the side of the appliance, as shown in
figures “A” and “C” relative to the
installation classes.
Any wall units positioned above the
worktop of the appliance must be at a
minimum distance of at least Y mm. If a
hood is installed above the hob, refer to the
hood instruction manual to ensure the
correct clearance is left.
Depending on the type of installation, this
appliance belongs to classes:
A - Class 1
(Free-standing appliance)
Heavy appliance
Crushing hazard
• Position the appliance into the cabinet
cut-out with the help of a second person.
Pressure on the open door
Risk of damage to the appliance
• Never use the oven door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
door when open.
Heat production during appliance
operation
Risk of fire
• Veneers, adhesives or plastic coatings
on adjacent furniture should be
temperature-resistant (not less than
90 °C).
X 150 mm
Y 750 mm
Installation
41
EN

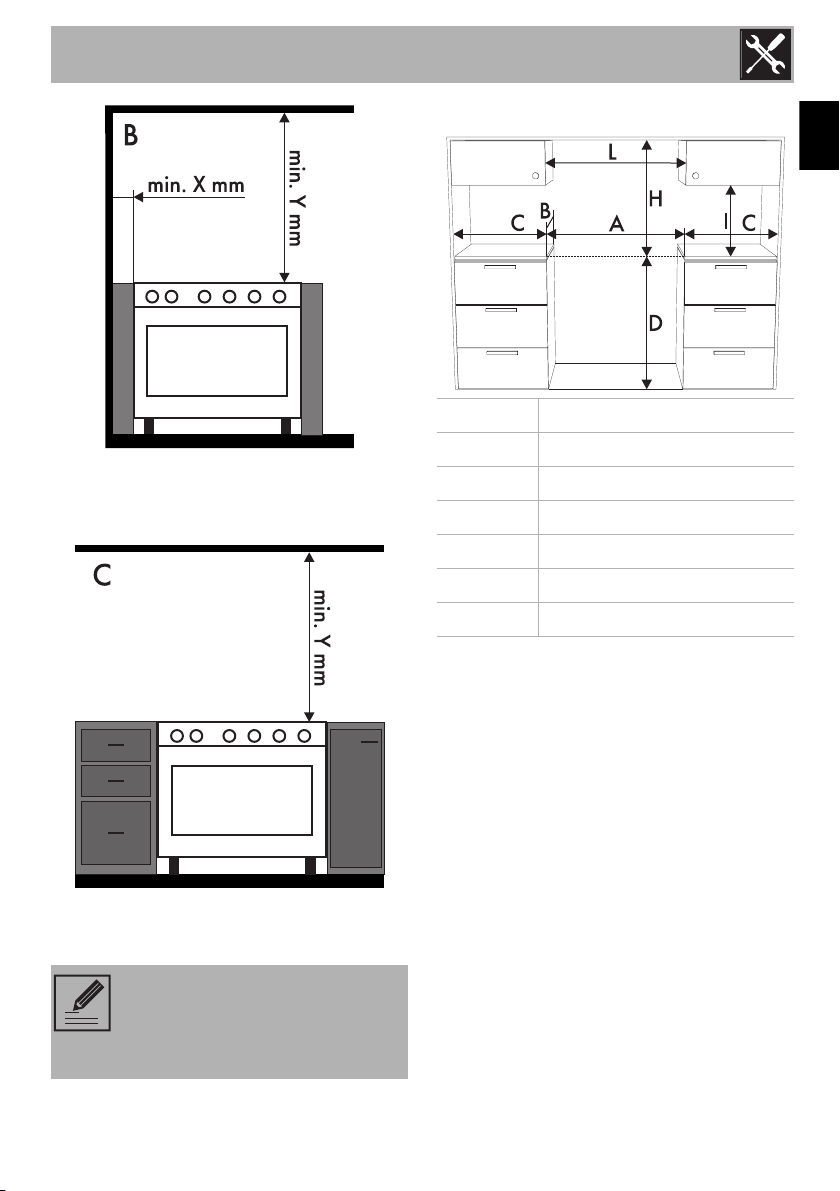

B - Class 2 subclass 1
(Built-in appliance)
C - Class 2 subclass 1
(Built-in appliance)
Appliance overall dimensions
1
Minimum distance from side walls or other
flammable material.
2
Minimum cabinet width (=A).
The appliance must be installed by
a qualified technician and
according to the regulations in
force.
A 600 mm
B 600 mm
C
1
min. 150 mm
D 900 - 915 mm
H 750 mm
I 450 mm
L
2
600 mm
Installation
42
Dimensions of the appliance: locations of
gas and electric connections (mm)
E = Electrical connection
Positioning and levelling
• After making the gas and electrical
connections, screw on the four feet
supplied with the appliance.
The appliance must sit level on the floor to
ensure stability.
• Screw or unscrew the bottom part of the
foot until the appliance is stable and
level on the floor.
A 124
B 32
F
min. 70
Max. 110
min. 105
Max. 160
H 770
L 598
Heavy appliance
Risk of damage to the appliance
• Insert the front feet first and then the rear
ones.
Installation
43
EN

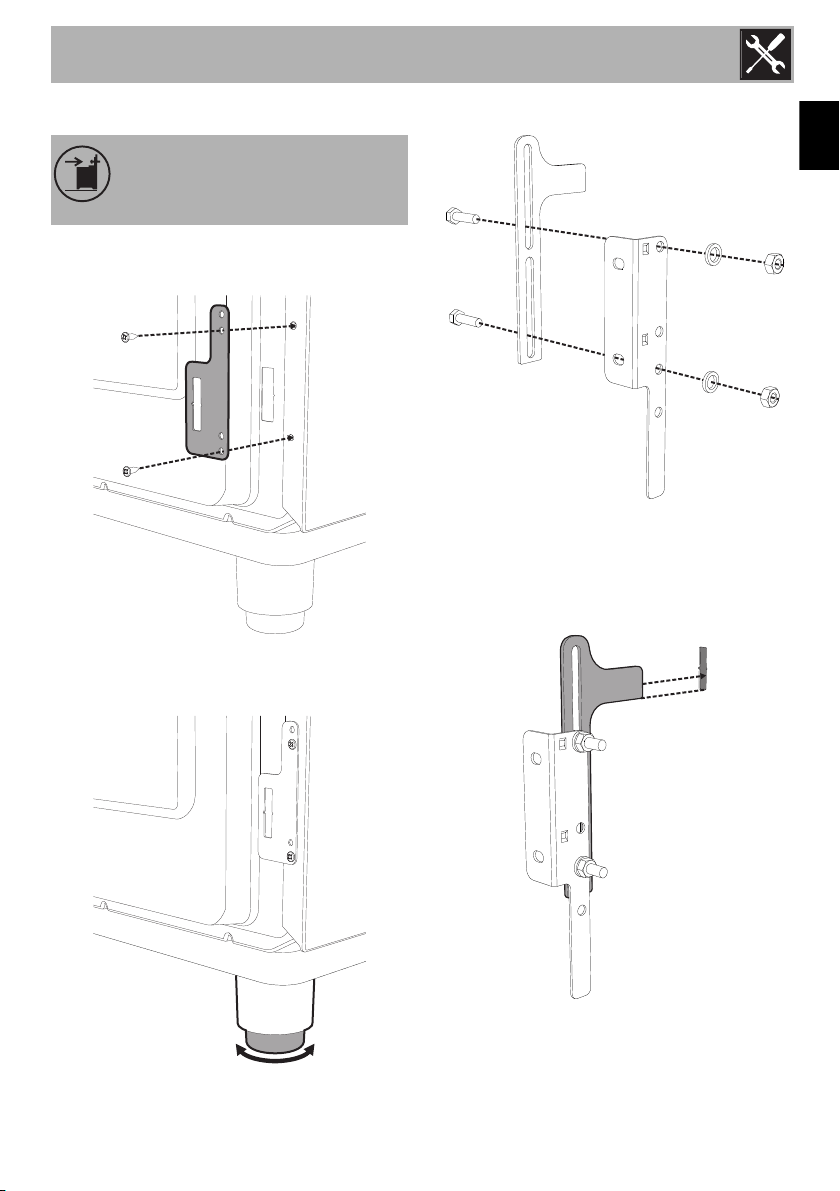

Fastening to the wall
1. Screw the wall fastening plate to the
rear of the appliance.
2. Adjust the height of the 4 feet.
3. Assemble the fastening bracket.
4. Align the base of the hook on the
fastening bracket with the base of the
slot on the wall fastening plate.
The anti-tip devices must be
installed in order to prevent the
appliance from tipping over.
Installation
44
5. Align the base of the fastening bracket
with the ground and tighten the screws
to fix the measurements.
6. Use 50 mm for the distance from the
side of the appliance to the bracket
holes.
7. Move the bracket onto the wall and
mark the position of the holes to be
drilled in the wall.
8. After drilling the holes in the wall, use
wall plugs and screws to fasten the
bracket to the wall.
9. Push the cooker towards the wall, and
at the same time, insert the bracket in
the plate fastened to the rear of the
appliance.
Installation
45
EN
5.2 Electrical connection
General information
Check the mains characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
The appliance can work in the following
modes:
• 220-240 V 2~
3 x 10 mm² three-core cable.
• 220-240 V 3~
4 x 4mm² four-core cable.
• 220-240 V 1N~
3 x 10 mm² three-core cable.
• 380-415 V 2N~
4 x 4mm² four-core cable.
• 380-415 V 3N~
5 x 1.5 mm² five-core cable.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technicians.
• Use personal protective equipment.
• The appliance must be connected to
ground in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
• Do not pull the cable to remove the plug.
• Use cables withstanding a temperature
of at least 90°C.
• The tightening torque of the screws of the
terminal board leads must be 1.5 - 2 Nm.
The values indicated above refer
to the cross-section of the internal
lead.
Installation
46

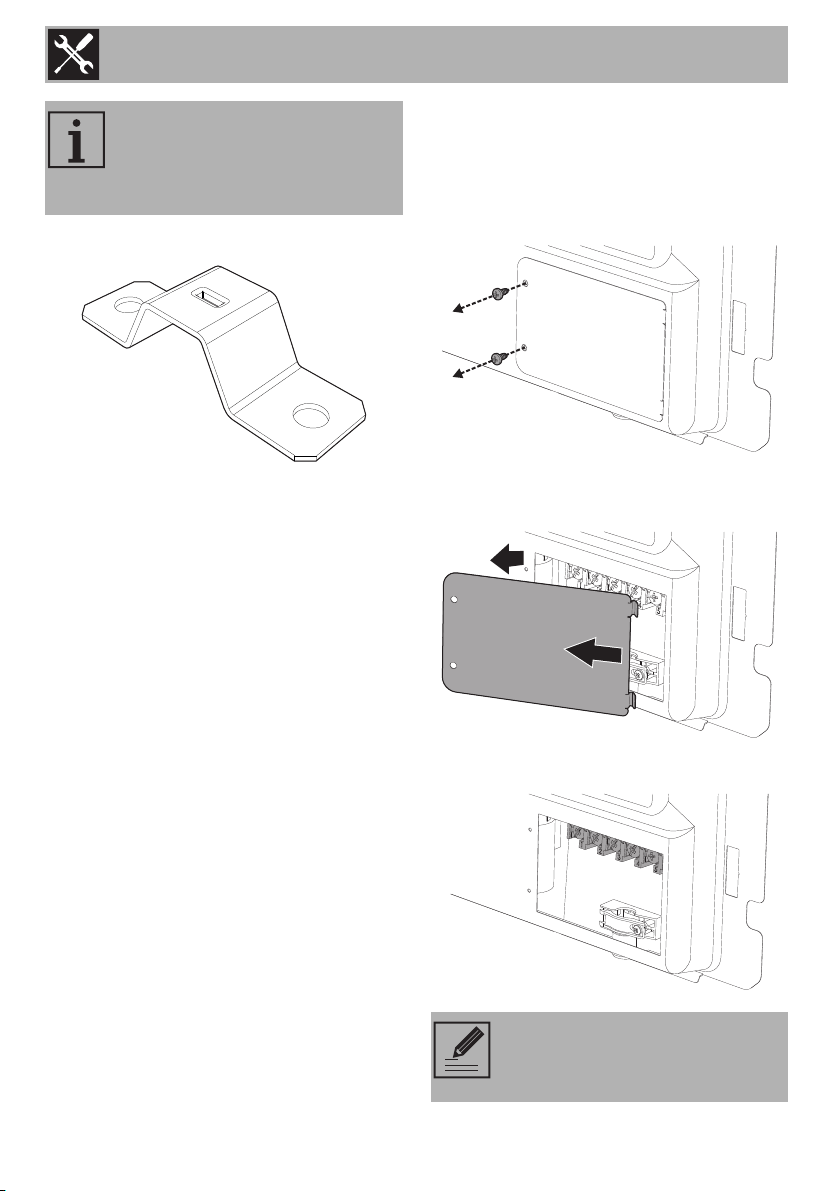

Replacement clamp
In the event of a single-phase or two-phase
supply with a three-core 3 x 10 mm²
cable, the existing clamp must be replaced
with the one supplied in order to ensure that
the cable is correctly fastened.
Fixed connection
Fit the power line with an all-pole
disconnection switch, with a clearance
between its contacts that allows the
complete disconnection as per the
overvoltage category III, in compliance
with the installation regulations.
Access to the terminal board
To connect the power supply cable, access
to the terminal board on the rear cover:
1. Remove the screws securing the lid to
the rear cover.
2. Slightly turn the lid and remove it from its
housing.
3. Install the power supply cable.
The aforementioned power cables
are sized taking into account the
coincidence factor (in compliance
with standard EN 60335-2-6).
Loosen the cable fastener screw
before installing the power supply
cable.
Installation
47
EN
4. At the end, reposition the lid on the rear
cover and secure it with the previously
removed screws.
5.3 Instructions for the installer
• The plug must be accessible after
installation. Do not bend or trap the
power cable.
• The appliance must be installed
according to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
