Washing Machine
EWW8024Q5WB
User Manual 2
2 www.electrolux.com
............................................ 8
................................. 9
CONTENTS
1.1
1.2
1.3
1.4
1.5
Conditions Of Use
Child Safety
General Safety
Installation
Use
1. SAFETY INFORMATION
....................... 4
................................. 5
............................. 5
................................... 6
.............................................. 6
2.1
2.2
Parts
Accessories
2. PRODUCT DESCRIPTION
3.1
3.2
3.3
3.4
3.5
3.6
Control Panel Description
Program Chart
Program Options Compatibility
Options
Settings
Start/Pause ( ) and Add
Clothes ( ) Touchpad
3. CONTROL PANEL
........... 10
............................. 11
.... 13
........................................ 13
........................................ 16
............... 17
4. BEFORE FIRST USE
.......................... 17
Visit our website to:
Warning / Caution-Safety information.
General information and tips
Environmental information.
Subject to change without notice.
WE’RE THINKING OF YOU
CUSTOMER CARE AND SERVICE
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time. Welcome to Electrolux.
We recommend the use of original spare parts.When contacting Service, ensure that
you have the following data available. The information can be found on the rating plate.
Model, PNC, Serial Number.
Get usage advice, brochures, trouble shooting, service information, buy accessories
& spare parts, online product registration :
Adherence to the directions for use in this manual is extremely important for health and
safety. Failure to strictly adhere to the requirements in this manual may result in personal
injury, property damage and affect your ability to make a claim under the Electrolux
manufacturer’s warranty provided with your product. Products must be used, installed
and operated in accordance with this manual. You may not be able to claim on the
Electrolux manufacturer’s warranty in the event that your product fault is due to failure to
adhere to this manual.
IMPORTANT INFORMATION THAT MAY IMPACT YOUR
MANUFACTURER’S WARRANTY
www.electrolux.com
3
IMPORTANT INFORMATION THAT MAY IMPACT YOUR
Loading The Laundry
Using Detergent And Additives
Options Setting
Starting A Cycle ( )
Interruption Of A Program
Changing A Program
Changing The Options
Opening The Door
At The End Of The Program
When The Washing Program
Is Completed, But There Is
Water In The Drum
AUTO Off Mode
................... 18
... 18
............................ 19
................. 20
........... 20
................... 20
................ 20
....................... 20
........ 20
...................... 21
.......................... 21
................................... 38
.................................. 40
................................... 41
........................... 41
................... 43
INTERNATIONAL WASH CODE
SYMBOLS
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
5.10
5.11
5. DAILY USE - WASHING (Only)
9.1
9.2
9.3
9.4
9.5
Preparing The Drying Cycle
Laundry Not Suitable For Drying
Garment Labels
Drying Cycle Duration
Additional Drying
9. DRYING HINTS
........ 26
. 26
........................... 26
................. 26
......................... 27
12.1
12.2
Possible Failures
Emergency Door Opening
12. TROUBLESHOOTING
......................... 33
........... 37
10.
......................................... 27
13. TECHNICAL DATA
........................... 38
14.1
14.2
14.3
14.4
14.5
Unpacking
Positioning
Water Inlet
Water Drainage
Electrical Connection
14. INSTALLATION
15.1
15.2
15.3
Packaging Materials
Old Machine
Ecological Hints
.................... 44
................................ 44
........................... 44
15. ENVIRONMENT CONCERNS
7.1
7.2
Washing Program +
“Dryness Level” Option
Washing Program +
“Time Dry ” Option
7. DAILY USE - WASHING & DRYING
(Non-Stop Program)
............. 22
................. 23
6. DAILY USE - DRYING (Only)
.............. 22
11.1
11.2
11.3
11.4
11.5
11.6
11.7
11.8
11.9
External Cleaning
Descaling
After Each Wash
Maintenance Wash With
“Tub Clean” Program
Cleaning The Dispenser Drawer
Cleaning The Drawer Recess
Cleaning The Pump
Cleaning The Water Inlet Filter
Frost Precautions
11. CARE AND CLEANING
........................ 28
.................................... 28
......................... 28
................... 28
. 28
..... 29
..................... 29
... 31
........................ 32
8.1
8.2
8.3
8.4
8.5
8.6
Sorting The Laundry
Temperatures
Before Loading The Laundry
Maximum Loads
Removing Stains
Detergents Type And Quantity
Of Detergent
8. WASHING HINTS
.................... 24
.............................. 24
....... 24
........................... 24
......................... 24
............................... 25
16. WARRANTY....................................... 47
4 www.electrolux.com
SAFETY INFORMATION
In the interest of your safety and to ensure the correct
use, before installing and first using the appliance, read
this user manual carefully, including its hints and
warnings.
This appliance is intended to be used in household and
similar applications such as:
farm houses;
by clients in hotels, motels, and other residential type
environments;
1.1 Conditions Of Use
To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety
features.
Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on
appliance use and safety.
1.
●
bed and breakfast type environtments;
●
areas for communal use in blocks of flats or in
launderettes.
●
staff kitchen areas in shops, offices and other working
environtment;
●
●
WARNING! The appliance must not be supplied
through an external switching device, such as timer,
or connected to a circuit that is regularly switched on
and off by utility.
5
with the appliance if it is moved or sold, so that everyone
●
●
●
●
This Washer-Dryer is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure that
they do not play with the appliance.
The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger of
suffocation! Keep them out of children’s reach.
Keep all detergents in a safe place out of children’s
reach.
1.2 Child Safety
1.3 General Safety
It is dangerous to alter the specifica-
tions or attempt to modify this product
in any way.
During high temperature wash
program the door glass may get hot.
Do not touch it!
Make sure that small pets do not
climb into the drum. To avoid this,
please check inside the drum before
using the appliance.
Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
Only use manufacturer’s
recommended quantities of fabric
softener and detergent. Damage to
the fabric or appliance can occur if
you exceed the recommended
amount.
Wash small items such as socks,
laces, washable belts etc in a
washing bag or pillow case as it is
possible for such items to slip down
between the tub and the inner drum.
Do not use your Washer-Dryer to
wash articles with whalebones,
material without hems or torn
material.
Make sure that children or pets do not climb into the
drum.
This machine is provided with child safety lock option
( ) to prevent children playing with the control panel.
(see page 16)
●
●
●
●
●
●
●
●
●
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
●
●
6 www.electrolux.com
Never use the Washer-Dryer if the
power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the Washer-Dryer is accessible.
This appliance is heavy. Care should
be taken when moving it.
When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
All packing and transit bolts must be
removed before use. Serious damage
can occur to the product and to
property if this is not adhered to. See
relevant section in the user manual.
Under no circumstances should you
attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
1.4 Installation
After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
If the appliance is installed on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their
connections after the installation.
Any plumbing work required to install
this appliance should be carried out
by a qualified plumber.
Any electrical work required to install
this appliance should be carried out
by a qualified electrician.
Only wash fabrics which are
designed to be machine washed.
Follow the instructions on each
garment label.
Do not overload the appliance. See
the relevant section in the user
manual.
Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat stains
such as paint, ink, rust, and grass
before washing.
Garments which have been in
contact with volatile petroleum
products should not be machine
washed. If volatile cleaning fluids are
used, care should be taken to ensure
that the fluid is removed from the
garment before placing in the
machine.
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
1.5 Use
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT
touch the wet clothes and metal
parts.
For safety reasons do not use
double adaptors, extension
cords and multi-plug adapters.
●
As some duvets and eiderdowns
should be washed/dried in large
commercial machine because of their
bulk, please check with the manufac-
turer of the item before washing/dry-
ing in a domestic machine.
7
●
●
●
●
Never tumble dry items which have
had contact with chemicals such as
dry cleaning fluid. These are of
volatile nature and could cause an
explosion. Only tumble dry items
which have been washed in water or
require airring.
Plastic detergent dispensers should
not remain in the drum during the
drying cycle, as the plastic used is not
designed to withstand the heat. If you
wish to wash-through-to dry you
should use the conventional detergent
dispenser drawer.
●
●
●
●
●
●
●
●
If it is unavoidable that fabrics contain
vegetable or cooking oil or have been
contaminated by hair care products
be placed in washer-dryer, it should
first be washed in hot water with extra
detergent - this will reduce, but not
eliminate the hazard. The “cool down”
cycle of washer-dryer is used to
reduce the temperature of the items.
It should not be removed from the
washer-dryer or piled or stacked
while hot.
The users should always check that
they have not left their gas lighters
(disposable or otherwise) in their
clothing.
Items that have been spotted or
soaked with vegetable or cooking oil
constitute a fire hazard and should
not placed in a washer-dryer.
Oil-affected items can ignite sponta-
neously, especially when exposed to
heat sources such as in washer-dry-
er. The items become warm, causing
an oxidation creates heat.
If the heat cannot escape, the items
can become hot enough to catch fire.
Piling, stacking or storing oil-affected
items can prevent heat from escaping
and so create a fire hazard.
Items containing foam rubber (also
known as latex foam) or similarly
textured rubber, like materials should
not be dried in a washer-dryer on a
heat setting.
Fabric softeners or similar products
should not be used in a washer-dryer
to eliminate the effects of static
electricity unless this practice is
specifically recommended by the
manufacturer of the fabric softener or
product.
Undergarments that contain metal
reinforcements should not be placed
in a washer-dryer. Damage to the
washer-dryer can result if metal
reinforcements come loose during
drying. When available a drying rack
could be used for such itmes.
Plastic articles such as shower caps
or babies’ waterproof napkin covers
should not be placed in washer-dryer.
Foam rubber materials can produce
fire by spontaneous combustion when
heated.
Items that have been previously
cleaned in, washed in, soaked in or
spotted with petrol/gasoline, dry-
cleaning solvents or other flammable
or explosive substances should not be
placed in washer-dryer.
Highly flammable substances
commonly used in domestic environ-
ments include acetone, denatured
alcohol, petrol/gasoline, kerosine, spot
removers (some brands), turpentine,
waxes and wax removers.
Never stop a washer-dryer before
the end of the drying cycle unless
all items are quickly removed and
spread out so that the heat is
dissipated.
CAUTION!
-
Do not dry cloths in washer-dryer
with dry clean solvents. Also, do not
use laundry enhancement products
during the drying cycle.
To minimize the risk of fire in a
washer-dryer, the following should be
observed:
-
8 www.electrolux.com

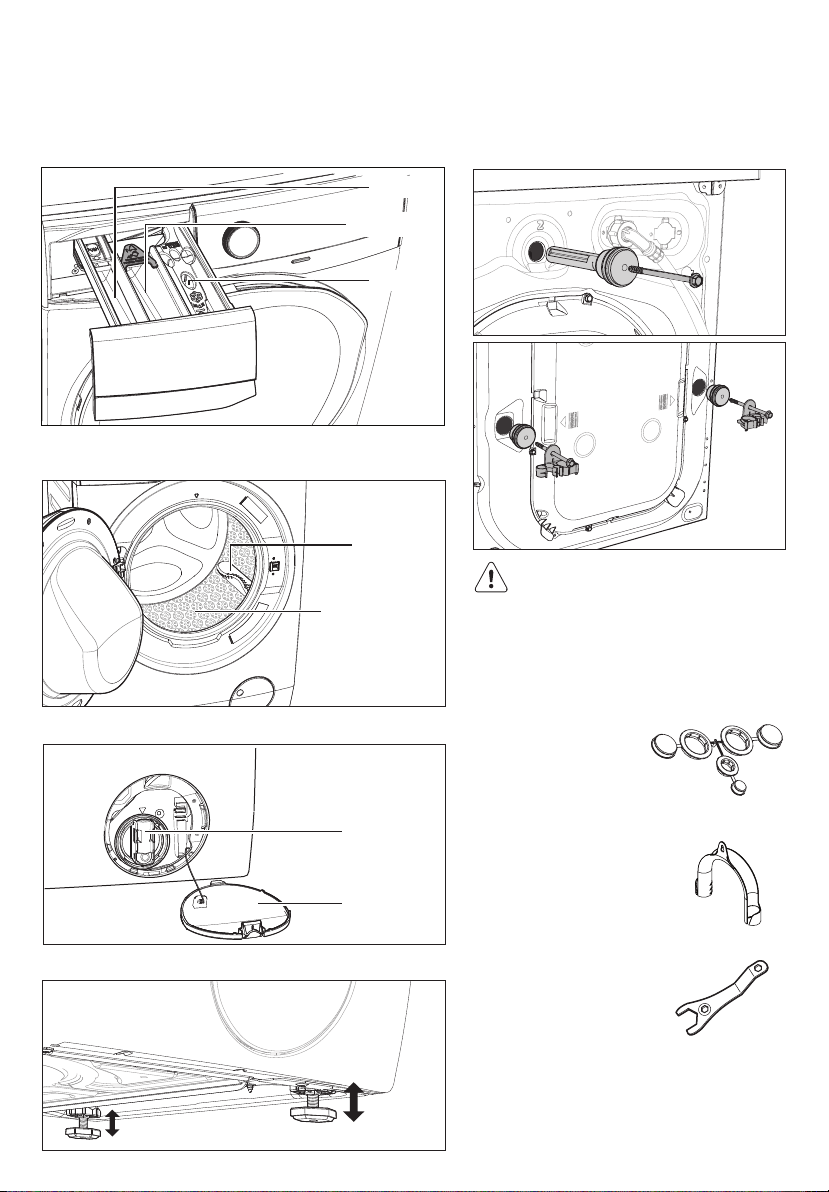

PRODUCT DESCRIPTION2.
Detergent/Softener
Dispenser
(see page 18)
Cabinet
Front Panel
Door
Drain Pump Filter
(see page 29)
Level Adjustment
Feet (Front)
Level Adjustment
Feet (Back)
Water Inlet Hose
(see page 41)
Transit Bolts &
Hose Support
Transit Bolts &
Hose Support
Mains Cable
Water Drain Hose
(see page 41)

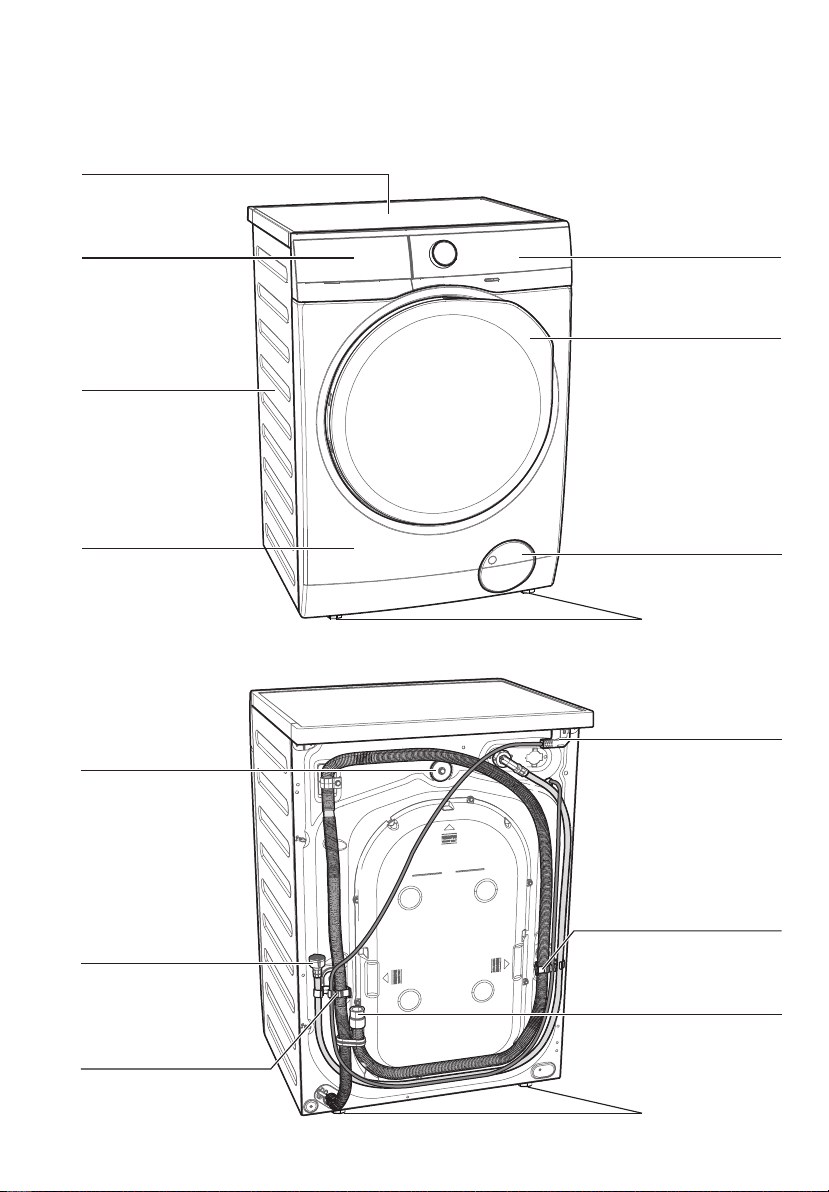

2.1 Parts
Worktop
Control Panel
(see page 10)
Transit Bolts
9
Drum Lifter
2.2 Accessories
To connect the drain hose
on the edge of a sink.
To close the holes on
the rear side of the
cabinet after the
removal of the transit
bolts.
Plastic Caps
Plastic Hose Guide
Stainless Steel
Washing Drum
Detergent/Softener Dispenser
(For more informations, see page 18, 28)
Door (when open)
(for more informations, see page 18)
Transit Bolt (when remove)
Transit bolts must be removed
before using the appliance.
Level Adjustment Feet
Softener
Prewash
Main Wash
Drain Pump Filter (when open)
Drain Pump
Filter Door
Drain Pump
Filter
Spanner
To adjust levelling legs.
To remove the transit
bolts.
10 www.electrolux.com
CONTROL PANEL3.

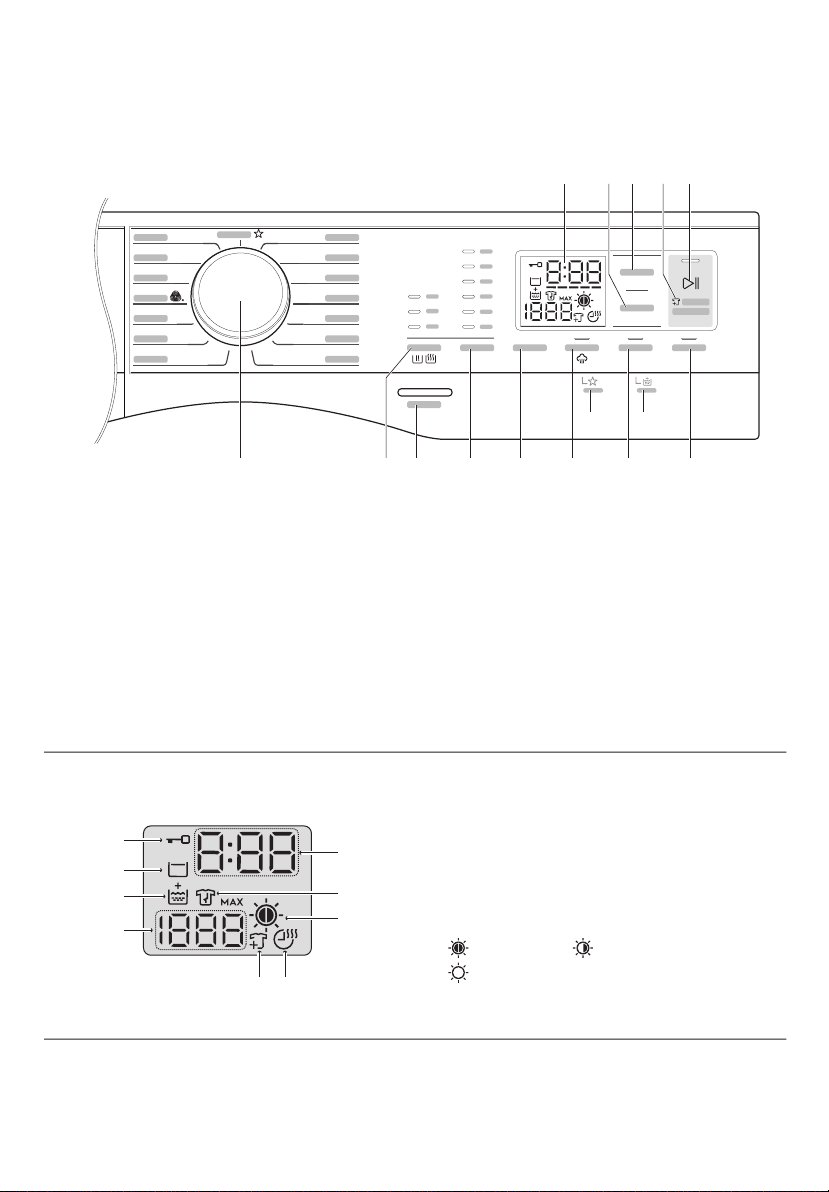

3.1 Control Panel Description
Display
A)
Door Lock Icon
B)
Rinse Hold Icon
C)
Extra Rinse Icon
D)
Spin Speed
E)
Add Clothes Icon
F)
Time Dry Icon
G)
Dryness Level Icon
H)
Anti Crease Phase Icon
I)
Program Time
A
I
H
G
EF
B
D
C
Extra dry Cupboard dry
Iron dry
2s
2s
ACDBE
NO
FG H
IJKLM
A
Program knob
I
Display
B
Mode Selection touchpad
J
Time Dry touchpad
C
On/Off button
K
Dryness Level touchpad
D
Temp touchpad
L
Pause to add Clothes option
E
Spin touchpad
M
Start/Pause touchpad
F
Hygienic Care touchpad
N
Favourite program save option
G
Prewash touchpad
O Extra Rinse Option
H
Delay Start touchpad
11
3.2 Program Chart
Program;
Temperature
range
Cold to 90°C
1200
rpm
Max.
1)
Max.
1)
Max.
1)
Max.
1)
Max.
1)
Max.
1)
Max.
1)
Max.
1)
1.5 kg 1 kg
4 kg –
4 kg 3 kg
1200
rpm
800
rpm
3 kg –
1200
rpm
1200
rpm
1200
rpm
1200
rpm
1.5 kg
1200
rpm
–––
–
Type of load and soil level Max.
Spin
Speed
Max. Load
(Dry Clothes)
Cold to 30°C
60°C
Lightly soiled synthetics or mixed fabrics.
Cold to 60°C
Cold to 60°C
30°C to 40°C
Bedding; Special program for one synthetic blanket,
duvet, bedspread and so on.
Rinse + Spin To rinse and spin the laundry.
Spin To spin the laundry and drain the water in
the drum.
Energy
Saver;
Cold, 40°C
2)
White and colourfast cotton. Set this program
to have a good washing results and decrease
the energy consumption. The time of the
washing program is extended.
Daily wear coloured cotton clothes such as
shirts, blouses, towels and undergarments.
Ideal for low level of soil.
Cottons;
Mixed;
Daily 39;
Quick 15;
Tub Clean
For cleaning the tub.
White and coloured cotton.
Synthetic or mixed fabric items.
1200
rpm
Cold to 40°C
Specially tested program for woollen
garments bearing the “Pure new woollen,
non-shrink, machine washable” label.
Wool ;
Wash Dry
1200
rpm
4 kg –
Cold to 40°C
Delicates;
Delicate fabrics such as acrylics, viscose,
polyester items.
Sports;
Cold to 40°C
A gentle program designed for mixed fabrics
found in delicate clothes.
1200
rpm
4 kg –
12 www.electrolux.com
Program;
Temperature
range
–––
1 kg
Type of load and soil level Max.
Spin
Speed
Max. Load
(Dry Clothes)
30°C, 40°C
Favourite Recall your favourite program.
1200
rpm
1 kg
WashDry 60;
Non-Stop washing and drying program for
3 - 5 shirts with lightly soil.
Max.
1)
30°C to 60°C
1200
rpm
4 kg
Full Wash 60;
Daily wear coloured cotton clothes such as
shirts, blouses, towels and undergarments.
Ideal for normal level of soil.
Woolmark Apparel Care - Blue
The wool wash cycle of this machine has been approved by The
Woolmark Company for the washing of wool garments labelled as
“hand wash” provided that the garments are washed according
to the instructions issued by the manufacturer of this machine.
Follow the garment care label for drying and other laundry instructions.
M1769
The Woolmark symbol is a Certification mark in many countries.
Wash Dry
1) Maximum capacity depended on the model of the Washer Dryer (see dened on the
control panel).
2) Energy Saver Program with 40degC option selected is recommended for a full load of
normally soiled cotton and is the Energy and Water rating label program.
13
Temperature Touchpad
Press this touchpad repeatedly to
increase or decrease the wash
temperature if you want your laundry to
be washed at a temperature different
from the one proposed by the
Washer-Dryer.
Spin Selection Touchpad
Press this touchpad repeatedly to
increase or decrease the spin speed or
select Rinse Hold, if you want your
laundry to be spun at a speed different
from the one proposed by the
Washer-Dryer.
3.4 Options
Wash/Dry Mode Touchpad
This touchpad is used to select Program
Mode of your machine. Program mode
available are :
1) Hygienic Care option can be combined with temperature 40°C to 90°C only.
2) Do not select a spin speed LOWER than that proposed by the appliance to avoid a
too long drying time so saving energy. In any case the reduction of the spin speed is
only possible after selecting drying.
3) This program can select only “Cupboard Dry” option.
3.3 Program Options Compatibility
Program
Option
Cottons
Mixed
Bedding
Sports
Energy Saver
Tub Clean
Spin
Rinse + Spin
Quick 15
Daily 39
Wool
Delicates
Favourite
WashDry 60
1)
2)
3)
2)
Dryness
Level
PrewashTime
Dry
Hygienic
Care
No
Spin
Rinse
Hold
Delay
Start
Extra
Rinse
Full Wash 60
●
●
●
If a mode is not compatible with
program selected, the symbol “ ”
will flash on display along with
buzzer sound.
Changing a running program mode
is possible only by switching off
the machine.
Wash-Only Mode (default)
Wash + Dry Mode
Dry-Only Mode
14 www.electrolux.com
The door stays locked with the
water in the drum. To continue
the cycle, you must press
(Start/Pause).
●
●
No spin option eliminates all the spin
phases and increase the number of
rinses.
No Spin ( )
By selecting this option the water of
the last rinse is not emptied out and
the drum turns regularly to prevent the
laundry creases.
The door is still locked to indicate that
the water must be emptied out.
Rinse Hold ( )
Prewash Touchpad
Select this option if you wish your laundry to
be pre-washed before the main wash. Use
this option for heavy soil. The indicator of this
option will be on.
Select this option to add approximately
30 minutes of tumbling in vapour after
the rinse cycle. The indicator of this
option will be on.
Hygienic Care ( ) Touchpad
Vapour may not necessarily be visible
inside the drum during a vapour cycle.
Vapour is created below the drum and
allowed to naturally rise into the
clothes.
At the end of the Vapour cycle, the
clothes will be warmer, softer and
detached from the drum.
If Vapour option is selected, rinse
temperatures will be elevated.
During a vapour cycle, you may notice
vapour exiting from the drain hose of
the Washer-Dryer, this is normal and
there is no cause for alarm.
Vapour may not be present during the
entire vapour cycle.
Vapour function is more effective with
half load.
NOTE
When you set this function, put the detergent
into the “ ” compartment. This function
increases the program duration.
●
●
●
●
If you wish to add laundry in the machine
during the delay time, press Start/Pause
touchpad to put the machine in pause mode.
Add laundry, close the door and press
Start/Pause touchpad again.
Delay Start Touchpad
This option makes it possible to delay the start
of the program by 30 min, 60 min or 90 min
and then by every hour from 2 to 20 hours.
The delay you have selected is indicated on
the display. The end time will increase in order
to show you the selected delay.
You must select this option after you have set
the program and before you press the
Start/Pause button.
You can cancel the delay time at any moment,
by pressing “Delay Start” touchpad repeatedly
till the display shows delay time “ ”, then
press the Start/Pause touchpad.
Time Dry ( ) Touchpad
If you wish to carry out a timed drying
program, keep pressing this touchpad until
the desired time is reached.
Maximum allowable timed drying changes
based on wash program selected.
The final time value is the total duration of
the washing + detachment + drying cycles.
●
●
NOTE
At the end of the program the appliance
performs the anti-crease phase for
approximately
10 minutes. During this time,
the display will show time remaining “ ”
and door is locked “ ”.
●
If you wish to open the door during
the anti-crease phase or interrupt it,
press Start/Pause touchpad.
15
●
●
●
●
The drying time can vary according to :
the final spin speed;
dryness level (Extra Dry or Cupboard
Dry or Iron Dry);
the type of laundry;
the size of load.
Duration of the drying cycle
After drying fluffy fabrics, such as new
towels, it is advisable to perform a
“Tub Clean” program to ensure that any
residue that may remain in the tub is
completely removed and does not stick to
garments dried afterwards. After each
drying cycle, clean the drain pump filter.
Please refer to care and cleaning in
section 11 “CARE AND CLEANING”.
Fibre residue
Type of fabric
Load
(kg)
Spin Speed
(rpm)
Suggested
Times (Hrs)
Cotton and linen
(bathrobes, bath towels, etc.).
Dry Time Option Guidelines:
Max.
1)
2.5 - 4.5
2
1200
1200
1200
3 - 4
2 - 3
1 - 2
Synthetic or mixed fabric items
( jumpers, blouses, underwear,
household linen, etc.).
Wool and hand washable wool.
3
1
1200
1200
2 - 3
1
1120
02
Dryness Level Touchpad
Press this touchpad to set dryness level
using auto sensing feature. The display
will show the selected option.
Level of dryness Type of fabric Load
Extra Dry
Ideal for towels or similar
Suitable for items to put
away without ironing
Cotton and linen
(bathrobes, bath towels, etc)
up to Max.
1)
kg
Cupboard Dry
Suitable for ironing
Iron Dry
Cotton and linen
(bathrobes, bath towels, etc)
Synthetics and mixed fabrics (jumpers,
blouses, underwear, household linen)
Cotton and linen
(sheets, tablecloths, shirts, etc.)
up to Max.
1)
kg
up to Max.
1)
kg
up to 3 kg
Dryness Option Guidelines:
●
●
●
Extra dry
Cupboard dry
Iron dry
Dryness level settings are based on
wash program selected.
●
The final time value is the total duration
of the washing + detachment + drying
cycles, calculated on a default load size.
●
NOTE
At the end of the program the appliance
performs the anti-crease phase for
approximately
10 minutes. During this
time, the display will show time remaining
“ ” and door is locked “ ”.
●
If you wish to open the door during
the anti-crease phase or interrupt it,
press Start/Pause touchpad.
1) Maximum capacity depended on the model of the Washer Dryer (see defined on the
control panel).
1) Maximum capacity depended on the model of the Washer Dryer (see defined on the
control panel).
16 www.electrolux.com
To save favourite program, press and
hold “
Hygienic Care ( )” touchpad
about 2 seconds and you will hear
“Bip, Bip” sound and “ ” is
flashing on the display.
Save Favourite ( ) Program
3.5 Settings
This setting permits you to either enable
or disable the buzzer at the end of the
program. As an example, you might wish to
disable this buzzer when you start a wash
when going to bed, so that when the wash
finished approximately 1 hour later, it will
not disturb you through the night.
Enabling/Disabling End-Of-Wash
Buzzer
Program settings that are frequently used
can be saved (e.g. Cotton, 60°C, 1200
rpm, with Prewash and Vapour).
To program/re-program Favourite with
your own selections and save them,
proceed as follows:
1. Put machine in Stand-By mode.
2. Select your desired wash settings.
To recall the favourite wash program,
turn selector knob to “Favourite ”
program. You will get acknowledgement
on the display when the Favourite
program is loaded.
3.
●
●
Additional drying
To prevent the formation of creases
or shrinking of fabrics, avoid
excessive drying.
WARNING!
Should the laundry still be too wet at the
end of the program, set another short
drying cycle.
The final part of a washer - dryer cycle
occurs without heat (cool down cycle).
This ensures the laundry will be left at
a low temperature.
Child Safety Lock ( ) Option
Your appliance is provided with CHILD
SAFETY LOCK which permits you to
leave the appliance unsupervised with
the door closed without having to worry
that children might be injured by or cause
damage to the appliance.
Set this option after pressing the
Start/Pause touchpad.
To activate the function, press and
hold “Prewash” and “Delay Start”
touchpads about 3 seconds until the
display shows the icon “ ”.
To set “Child Lock” option:
To deactivate the function, press and
hold “Prewash” and “Delay Start”
touchpads about 2 seconds until the
display shows the icon “ ”.
This function remains enabled
even after the appliance is
switched off.
The touchpads are locked
(except for the On/Off button).
●
●
If you press any touchpad while
Child Lock is activated, the icon
“ ” will flash on display
3 times along with buzzer sound.
●
●
Extra Rinse Option
This option is recommended for people
who are allergic to detergents, and in
areas where the water is very soft. Use
this option to add two rinse phases to a
program.
To activate the option, press and hold
“Prewash” touchpad about 2 seconds
until the display shows the icon “ ”.
To deactivate the option, press and
hold “Prewash” touchpad about
2 seconds until the icon “ ” goes off.
This option remains enabled even
after the appliance is switched off.
17
3.6 Start/Pause ( ) and
Add Clothes ( ) Touchpad
Error warning beeps such as critical
faults are not disabled.
This touchpad has 2 functions:
To disable the buzzer sound, press
“Temp” and “Spin” touchpads at the
same time about 3 seconds,
the icon “ ” will show on display
along with buzzer sound.
To return to default configuration press
these 2 touchpads at the same time
about 3 seconds, the icon “ ” will
show on display along with buzzer
sound.
●
●
Start/Pause ( )1.
To interrupt a program which is
running, press this touchpad to pause
the machine, the Start/Pause pilot light
flashes.
If you have selected a “Delay Start”
option, the countdown will begin and
will be shown on the display.
After you have selected the desired
program and options, press this
touchpad to start the machine. The
Start/Pause pilot light will stop flashing
and remain lit until the water level is
above the bottom edge of the door
then pilot light goes OFF.
BEFORE FIRST USE4.
Ensure that the electrical and water
connections comply with the
installation instructions.
Put 2 litres of water in the detergent
compartment for washing phase.
This activates the drain system.
1.
2.
3.
Select a Cottons cycle at 90 °C,
without any laundry in the machine, to
remove any manufacturing residue
from the drum and tub then start the
machine.
To restart the program from the point
at which it was interrupted, press this
touchpad again, the Start/Pause pilot
light will stop flashing.
Add Clothes ( )2.
To add clothes:
Pressing the “Start/Pause”
touchpad to pause the program.
You can only add clothes when
the icon “ ” shown on the
display.
1.
Wait for the machine to come to a
complete stop before opening the
door (wait for door lock “ ” icon
to turn off).
2.
Resume the program by pressing
“Start/Pause” touchpad again.
4.
Add clothing and close the door.
3.
During installation or before first use
you may observe some water in the
machine. This is a residual water left in
the machine after a full functional test
in the factory to ensure the machine is
delivered to customers in perfect
working order and is no cause for
concern.
NOTE
18 www.electrolux.com
●
●
DAILY USE - WASHING (Only)5.
Press the On/Off button to turn on the
Washer-Dryer. Turn the knob to set a
program. The Washer-Dryer will
propose a temperature and automati-
cally select the spin value provided for
the program you have chosen.
Check and remove objects (if there
are any) that could be trapped in the
fold.
1.
2.
5.1 Loading The Laundry
Connect the main plug to the main
socket.
Turn the water tap on.
3.
Place the laundry in the drum, one
item at a time, shaking them out as
much as possible. (Refer to page 24
“WASHING HINTS”)
5.
Close the door.
6.
4.
Make sure that no laundry
remains between the seal and
the door.

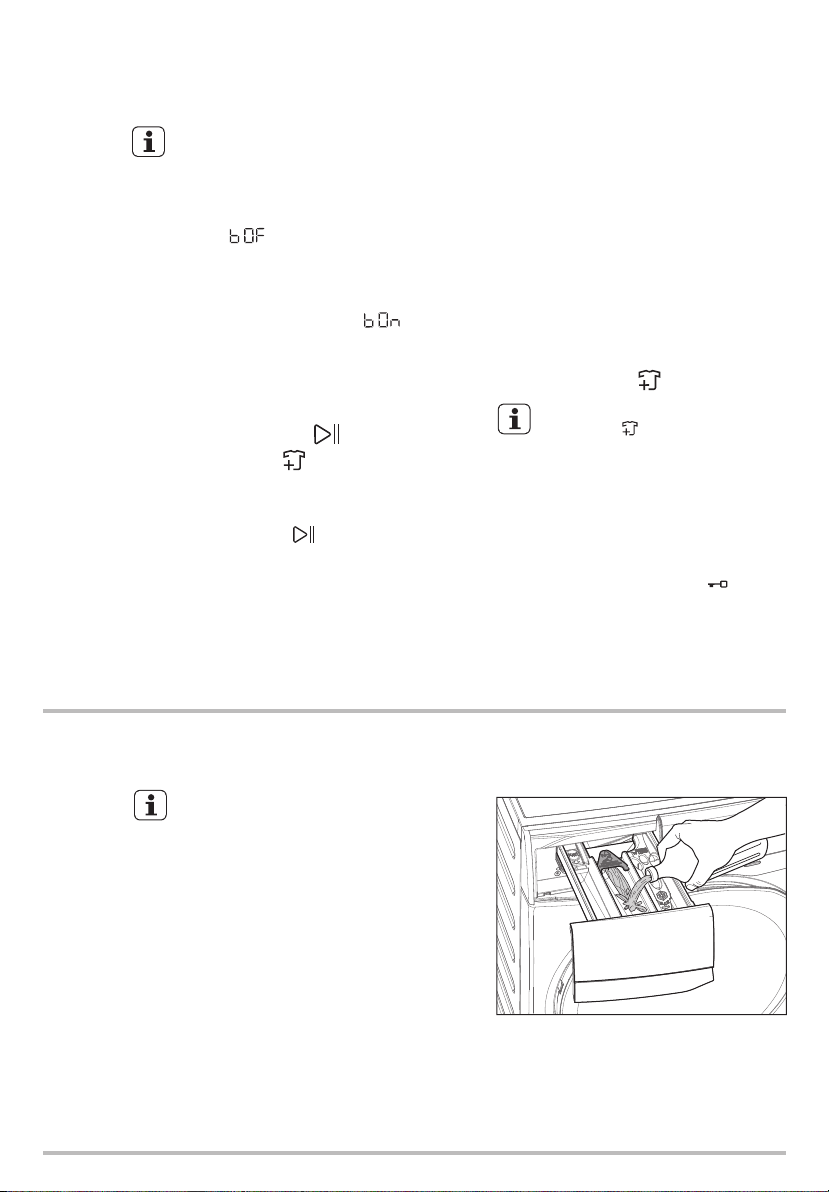

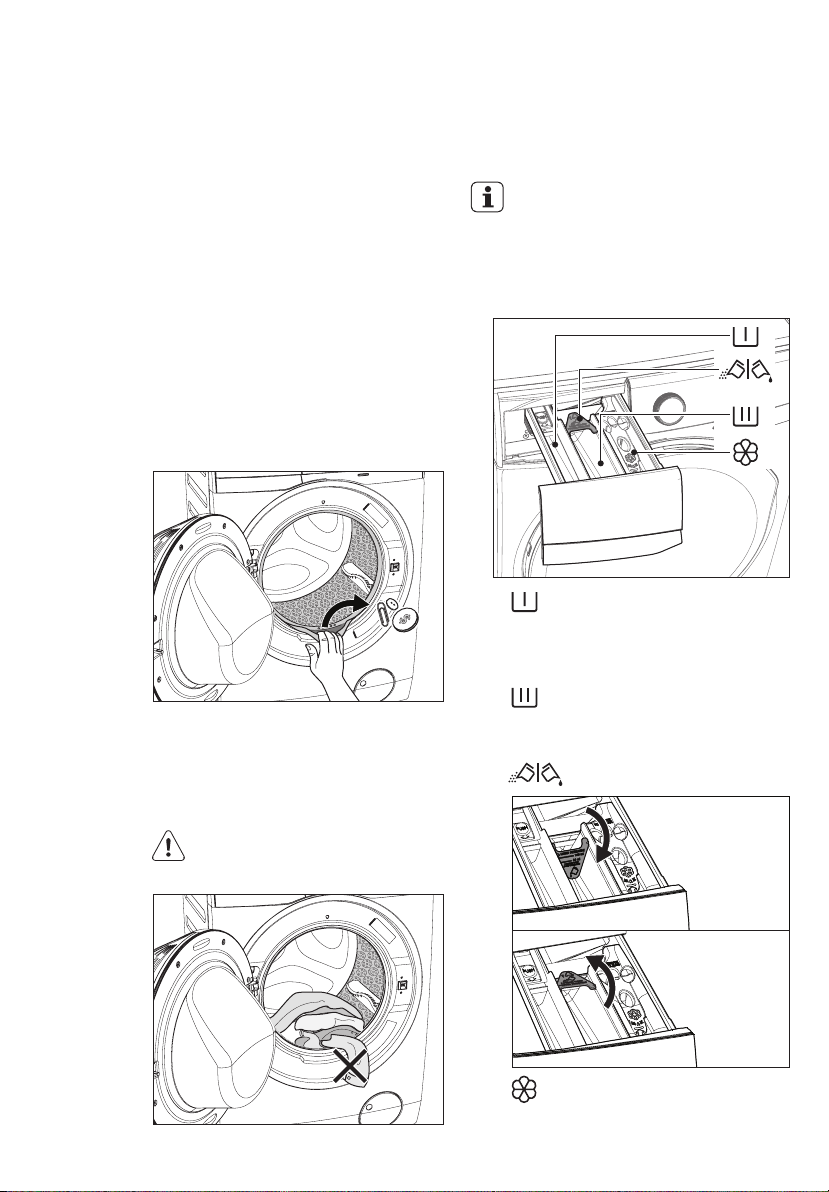

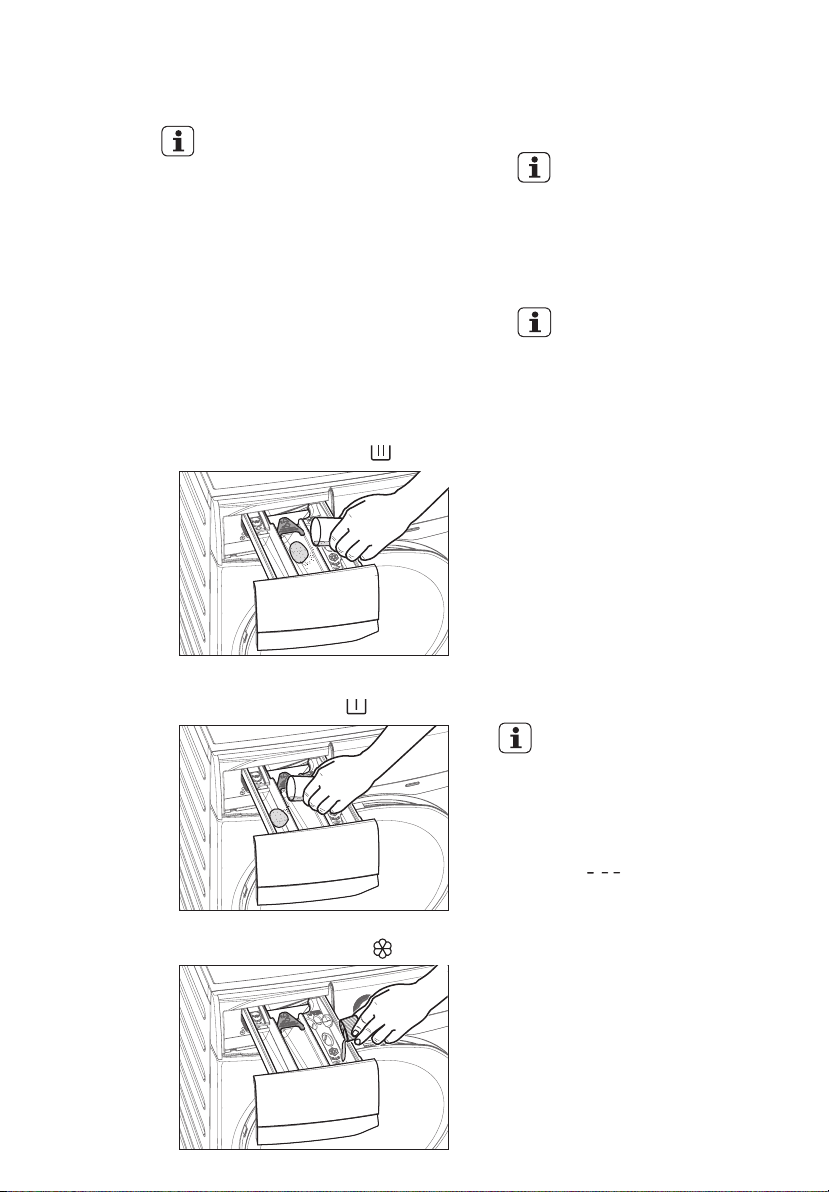

Detergent Dispenser Drawer
1.
The detergent dispenser is divided
into three compartments.
Please read “Detergents Type
and Quantity of Detergent”on
page 25 before use.
5.2 Using Detergent And
Additives
Compartment “PREWASH”
This compartment is only used for
detergent when a “Prewash” option
is selected.
Compartment “MAIN WASH”
This compartment is used for
detergent on all programs.
The selector knob can be turned either
clockwise or counter-clockwise.
●
Compartment “SOFTENER”
This compartment is used for fabric
conditioner and starching agent.
Detergent flap
Position down:
for liquid
detergent.
Position up:
for powder
detergent.
19

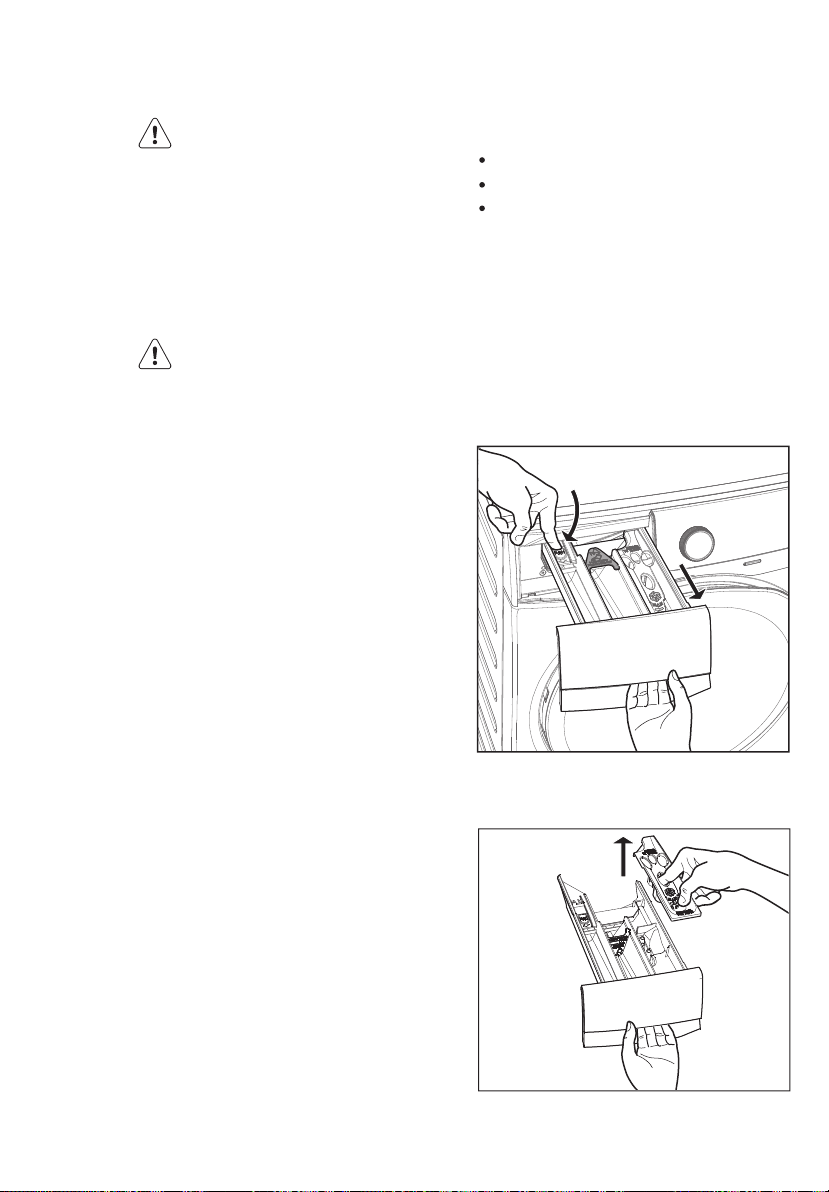

Measure out the amount of
detergent required, pour it into the
main wash compartment .
Do not use gelatinous or thick
liquid detergents.
Do not put more liquid than the
maximum level.
Do not set the “Delay Start”.
Do not set the “Prewash” phase.
When you use the liquid
detergent
Pull out the dispenser drawer until
it stops.
-
-
-
-
-
-
Measure out the detergent and the
fabric softener;
2.
Close the drawer gently.
-
Residues of detergent, softener
and water may remain in the
dispenser. It is recommended to
clean the dispenser regularly to
remove any residue.
The softener amount used must
not exceed the “MAX” mark in the
drawer.
If you use thick softeners it is
recommended to dilute with water.
If you want your laundry to be spun or
use temperature different from the one
proposed by the Washer-Dryer, press
“Spin” and “Temp” touchpads
repeatedly to change the spin speed
and temperature.
Press the option touchpads, if you
want your laundry to be washed with
special functions.
Different functions can be
combined which is dependent on
the program selected.
If an option is not compatible with
the wash program selected, the
symbol “ ” will flash on display
along with buzzer sound.
If you want to delay the start of the
washing program, press the
“Delay Start” touchpad repeatedly to
choose your Washer-Dryer delay
time.
5.3 Options Setting
−
−
1.
2.
NOTE
NOTE
NOTE
If you wish to carry out the
“Prewash” phase, pour it into the
compartment marked .
If required, pour fabric softener into
the compartment marked .
−
−
20 www.electrolux.com
The appliance will automatically adjust
the selected program duration
according to the type and size of the
load.
-
The display will show adjusted
program duration.
-
To start a program, press the Start/Pause
touchpad. The corresponding pilot light
will stop flashing and a default program
duration will be displayed on the screen.
5.4 Starting A Cycle ( )
After approx. 15 minutes from the start of
a program:
If you press any touchpad while a
program is operating, the symbol “ ”
will flash on display along with buzzer
sound. (except Start/Pause touchpad and
On/Off button)
To pause, press Start/ Pause.
The indicator will start flashing.
-
Press the Start/Pause again.
The program will continue.
-
Changing a running program is possible
only by switching off the appliance.
Press the “On/Off” button to cancel
the program and to turn off the
appliance.
-
5.5 Interruption Of A Program
5.6 Changing A Program
It may be possible to change some of the
options after a program has started.
Press the “On/Off” button again to
start the appliance.
-
5.7 Changing The Options
Press the touchpad Start/Pause. The
indicator will start flashing.
1.
If available change the options that
you wish.
2.
Press Start/Pause again. The program
will continue.
3.
While a program or the Delay Start is
operating, the appliance door is locked
and the display shows the indicator “ ”.
First, set the machine to PAUSE by
pressing the “Start/Pause” touchpad. Wait
until the door lock indicator goes off, then
the door can be opened.
If the door lock indicator “ ” does not
disappear, this means that the machine
is already heating and the water level is
above the bottom edge of the door or the
drum is turning. In this case the door
CAN NOT be opened. If you need to
open it, you must drain the water to open
the door.
In case of emergency please
refer to “Emergency door
opening” on page 37.
5.8 Opening The Door
NOTE
NOTE
Now you can set a new wash program
and change any available options. Press
Start/Pause to start the new program.
The appliance will not drain the water
(except programs; Vapour Refresh, Spin,
Rinse + Spin, TubClean).
The appliance stops automatically.
The acoustic signal will operate.
The display will show “ ”.
The indicator of the touchpad
Start/Pause goes off.
-
-
-
-
-
-
-
-
The door lock indicator “ ” goes off.
Remove the laundry from the
appliance. Make sure that the drum is
empty.
Keep the door partly open, to prevent
the mildew and odours.
Turn off the water tap.
5.9 At The End Of The Program
21
When the program is completed and
the door lock indicator “ ” goes off,
you can open the door.
5.10 When The Washing
Program Is Completed, But
There Is Water In The Drum
The drum turns regularly to prevent
the creases in the laundry.
(Option “Rinse Hold ” is used)
You must drain the water to
open the door.
The indicator “Start/Pause” flashes to
remind you to drain the water.
-
-
-
At the end of the program, the time
remaining can suddenly decrease from
7 minutes or less to 0 due to the
overestimated total program time during
the load sensing phase. In some cases
(with perfectly balanced load) the
program time can be shorter than the
time estimated after the load sensing
phase is completed. This is a normal
behavior of the machine and not a cause
for concern as it does not compromise its
performance.
5.11 AUTO Off Mode
The AUTO Off mode automatically
deactivates the appliance to decrease
the energy consumption when:
You do not press any buttons for 5
minutes before you press “Start/Pause”.
Press the “On/Off” button to activate
the appliance again.
After 5 minutes from the end of the
washing program.
Press the “On/Off” button to
reactivate the appliance. Display will
show the end of the last wash.
-
-
Press any touchpad again to show
the last wash program.
-
NOTE
The door lock indicator “ ” is on.
The door stays locked.
1.
To drain the water:
Press the “Start/Pause ” touchpad.
The appliance drains the water and
spins with the maximum spin speed
for selected program.
Alternatively, before pressing the
“Start/Pause” touchpad, you can press
the “Spin ” touchpad to change the
spin speed. You can select “No Spin
( )”, if you want the machine to
only drain the water.
2.
Press the “On/Off” button to deactivate
the appliance.
3.
After approximately 18 hours, if you do
not press Start/Pause touchpad, the
appliance will drain and spin automatically
(except for “Wool” program) .
NOTE
22 www.electrolux.com
DAILY USE - DRYING (Only)6.
The water tap must be open
and the drain hose must be
positioned in the sink or
connected to the drain pipe.
Make sure the load size does not
exceed the maximum drying
capacity of the machine.
2.
Press the On/Off button to turn on the
machine.
1.
Turn the knob to set a wash program
which can select drying option (refer
to Program Chart on page 11),
according to your clothes then press
Mode touchpad to switch your
machine to Dry Only Mode.
3.
If you wish to select an automatic
drying, press the “Dryness Level”
option until the icon corresponding to
the required dryness level appears on
the display. (see page 15)
4.
5.
Press “Start/Pause ” touchpad to
start the program. The time remaining
is updated every minute.
6.
If you wish to select a timed drying,
press the “Time Dry ” option
repeatedly until desired drying time
reached. (see page 14)
After anti-crease phase finish, the
door lock indicator “ ” goes off.
The display will show “ ”.
The display will show “ ” and
“Anti Crease ( )” icon is lit.
The door lock indicator “ ” is still
on.
The appliance will perform the anti-
crease phase for approximately 10
minutes.
If you wish to open the door
during the anti-crease phase
or interrupt it, press
Start/Pause touchpad.
The acoustic signal will operate.
-
-
-
-
At the end of the program :
7.
Press “On/Off” button to switch the
machine off.
8.
9.
At the end of each drying cycle,
the temperature of your clothing
will be high. For your safety,
please leave the door open to
let your clothes cool before
removing your laundry.
If a program is not compatible
with the drying option selected,
the symbol “ ” will flash on
display.
DAILY USE - WASHING & DRYING (Non-Stop Program)7.
Load the laundry and add detergent
and fabric softener. Make sure the load
size does not exceed the maximum
drying capacity of the machine.
1.
Turn the knob to set a wash program
which can select drying option (refer to
Program Chart on page 11), according
to your clothes then press Mode
touchpad to switch your machine to
Wash + Dry Mode.
2.
Select the required options by
pressing the relevant touchpads. If
possible, do not select a spin speed
lower than that proposed by the
machine to avoid unnecessary longer
drying time therefore saving energy.
3.
Set the dryness level by pressing
“Dryness Level” touchpad.
The display will then show the whole
duration of wash & dry cycle.
4.
Start the program by pressing
Start/Pause touchpad. The time
remaining is updated every minute on
the display.
5.
7.1 Washing Program + “Dryness Level” Option
23
●
●
●
●
NOTE
Load the laundry and add detergent
and fabric softener. Make sure the load
size does not exceed the maximum
drying capacity of the machine.
1.
Turn the knob to set a wash program
which can select drying option (refer to
Program Chart on page 11), according
to your clothes then press Mode
touchpad to switch your machine to
Wash + Dry Mode.
2.
Set the drying time by pressing
“Time Dry ” touchpad repeatedly
until desired drying time reached.
The display will then show the whole
duration of wash & dry cycle.
4.
Start the program by pressing
Start/Pause touchpad. The time
remaining is updated every minute on
the display.
5.
At the end of the program press the
On/Off button to switch the machine
off.
6.
Select the required options by
pressing the relevant touchpads. If
possible, do not select a spin speed
lower than that proposed by the
machine to avoid unnecessary longer
drying time therefore saving energy.
3.
At the end of the program press the
On/Off button to switch the machine off.
6.
7.2 Washing Program + “Time Dry ” Option
NOTE
Some drying level options are not
available for some programs.
If you set only 10 minutes of drying,
the appliance performs only a
Cooling phase.
●
When “Iron Dry ” option is selected,
the display time will be adjusted after
approximately 15 minutes from the
start of the program, based on the
laundry type and load size.
The display will show the new adjusted
time.
●
When “Extra Dry ” or “Cupboard
Dry ” is selected the display time
will be adjusted towards the end of the
drying cycle when machine senses
required dryness level has been
achieved. In case of laundry quantity
lower than maximum load capacity,
the time remaining can suddenly
decrease from e.g. approximately
minutes to .
If you wish to open the door during the
anti-crease phase or interrupt it, press
Start/Pause touchpad.
If you wish to open the door during
the anti-crease phase or interrupt it,
press Start/Pause touchpad.
At the end of each drying cycle,
the temperature of your clothing
will be high. For your safety,
please leave the door open to let
your clothes cool before
removing your laundry.
At the end of each drying cycle,
the temperature of your clothing
will be high. For your safety,
please leave the door open to let
your clothes cool before
removing your laundry.
If a program is not compatible
with the drying option selected,
the symbol “ ” will flash on
display.
24 www.electrolux.com

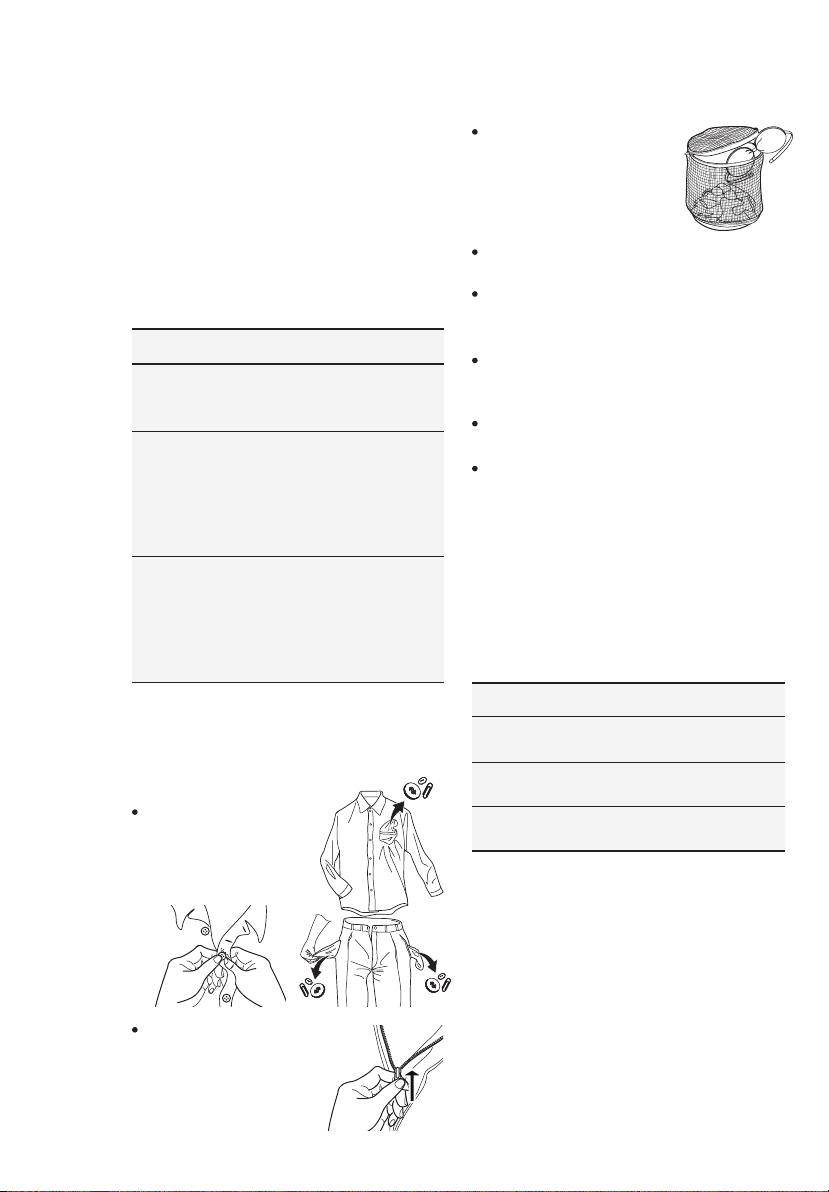

WASHING HINTS8.
Follow the wash code symbols on each
garment label and the manufacturer’s
washing instructions. Sort the laundry as
follows: whites, coloureds, synthetics,
delicates, woollens.
8.1 Sorting The Laundry
8.2 Temperatures
90°C
Temp Soil level
60°C
50°C
40°C
30°C
Cold
For normally soiled, colourfast
garments (e.g. shirts, night
dresses, pajamas....) in linen,
cotton or synthetic fibres and
for lightly soiled white cotton
(e.g.underwear).
For delicate items (e.g. net
curtains), mixed laundry
including synthetic fibres and
woollens bearing the label pure
new wool, machine washable,
non-shrink.
For normally soiled white
cottons and linen (e.g. teacloths,
towels, tablecloths, sheets...).
Never wash whites and coloured
fabrics together. Whites may lose their
“whiteness” in the wash.
New coloured items may run in the first
wash; they should therefore be
washed separately the first time.
Button up pillowcases,
close zip fasteners,
hooks and poppers.
Tie any belts or long
tapes.
Remove persistent stains before
washing.
Rub particularly soiled areas with a
special detergent or detergent paste.
Treat curtains with special care.
Remove hooks or tie them up in a bag
or a net.
Make sure that no
metal objects are
left in the laundry
(e.g. coin, hair clips,
safety pins, pins).
8.3 Before Loading The
Laundry
Recommended loads are indicated in the
program charts on page 11.
Washing a maximum load makes the
most efficient use of water and energy.
For heavily soiled laundry, reduce the
load size.
Cotton, linen
drum full but not too
tightly packed;
Clothes LoadQuantity
Synthetics
drum no more than
half full;
Delicate fabrics
and woollens
drum no more than
one third full.
8.4 Maximum Loads
Blood: treat fresh stains with cold water.
For dried stains, soak overnight in water
with a special detergent then rub in the
soap and water.
Stubborn stains may not be removed by
just water and detergent. It is therefore
advisable to treat them prior to washing.
8.5 Removing Stains
Wash bras, pantyhose
and other delicates in a
mesh laundry bag,
which you can purchase
from your supermarket.
Make sure that you wash lint collectors
separately from lint producers.
General rules:
25
Oil based paint: moisten with benzine
stain remover, lay the garment on a soft
cloth and dab the stain; treat several
times.
Dried grease stains: moisten with
turpentine, lay the garment on a soft
surface and dab the stain with the
fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or
a rust removing product used in cold
water. Be careful with rust stains which
are not recent since the cellulose
structure will already have been damaged
and the fabric tends to hole.
Mould stains: treat with bleach, rinse
well (whites and fast coloureds only).
Grass: soap lightly and treat with bleach
(whites and fast coloureds only).
Ball point pen and glue: moisten with
acetone (*), lay the garment on a soft
cloth and dab the stain.
Lipstick: moisten with acetone (*) as
above, then treat stains with methylated
spirits. Remove any residual marks from
white fabrics with bleach.
Red wine: soak in water and detergent,
rinse and treat with acetic or citric acid,
then rinse. Treat any residual marks with
bleach.
Ink: depending on the type of ink,
moisten the fabric first with acetone (*),
then with acetic acid; treat any residual
marks on white fabrics with bleach and
then rinse thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub
with detergent paste.
(*) do not use acetone on artificial silk.
Low sudsing detergent is required for this
Washer-Dryer to prevent oversudsing
problems, unsatisfactory washing result
and harm to the machine.
8.6 Detergents Type And
Quantity Of Detergent
Do not use wrong types of detergent,
such as Top Loading, Handwash
detergent or Soap-Based products in
your frontload Washer-Dryer. This can
result in excessive suds, longer cycle
time, low spin speeds, poor rinsing
and overloading of the motor.
The choice and quantity of detergent will
depend on ;
type of fabric (delicates, woollens,
cottons, etc.) ;
degree of soil ;
size of the load ;
wash temperature ; and
hardness of the water used.
the colour of clothes ;
Information on hardness of the water in
your area can be obtained from the
relevant water supply company, or from
your local authority.
You may have to try using the detergent
quantity as per manufacturers’
instructions then compare the wash
result to the list below and adjust the
amount of detergent for your future
washes accordingly.
Water hardness is classified by so-called
“degrees” of hardness.
The choice of detergent and use of
correct quantities not only affects your
wash performance, but also helps to
avoid waste and protect the environment.
Although biodegradable detergents
contain substances which in large
quantities can upset the delicate balance
of nature.
Low sudsing detergents designed for
front load washing machines are labelled
“Front Loading”, “high efficiency”, “HE”,
such as Cold Power for Front Loaders or
“Matic”.
Quantity of detergent to be
used
26 www.electrolux.com
DRYING HINTS9.
the washload to turn grey,
greasy clothes.
oversudsing,
inadequate rinsing.
reduced washing effect,
Not enough detergent causes:
Too much detergent causes:
you are washing a small load,
large amounts of foam during washing.
the laundry is lightly soiled,
Use less detergent if:
As a dryer, the appliance works on
condensation principle.
9.1 Preparing The Drying Cycle
For drying, follow the indications given on
the manufacturer’s labels:
The average drying time for a timed
drying are indicated in the “Time Dry ”
option (see page 14). The experience will
help you to dry your laundry in a more
suitable way according to the different
fabrics.
Therefore, the water tap must be open
and the drain hose must drain water into
a sink or into the drain pipe, even during
the drying cycle.
Before starting the drying program.
Make sure the load size does not
exceed the maximum drying capacity
of the machine. In order to obtain
good performances. (Refer page 11)
9.2 Laundry Not Suitable For
Drying
The detergent and any additives must be
placed in the appropriate compartments
of the dispenser drawer before starting
the wash program.
If using liquid detergents, a
program without prewash must
be selected.
Particularly delicate items such as
synthetic curtains, woollen and silk,
garments with metal inserts, nylon
stockings, bulky garments such as
anoraks, bed covers, quilts, sleeping
bags and duvets must not be machine
dried.
●
Avoid drying dark clothes with light
coloured fluffy items such as towels as
these can attract fluff.
●
speed of the final spin;
●
type of laundry;
●
weight of the load.
●
dryness level required (Extra dry,
Cupboard dry, Iron dry);
●
To avoid a static charge when drying
is completed, use either a fabric
softener when you are washing the
laundry or a fabric conditioner
specifically for tumble dryers.
●
Garments padded with foam-rubber or
materials similar to foam-rubber must
not be machine dried; they represent
a fire hazard.
●
Also, fabrics containing residue of
setting lotions or hair sprays, nail
solvents or similar solutions must not
be machine dried to avoid formation of
harmful vapours.
●
Remove the laundry when the
appliance has finished drying.
●
ATTENTION!
9.3 Garment Labels
9.4 Drying Cycle Duration
The drying time may vary depending on:
= May be tumble dried
= Drying at high temperature
= Drying at reduced temperature
= Do not tumble dry.
27

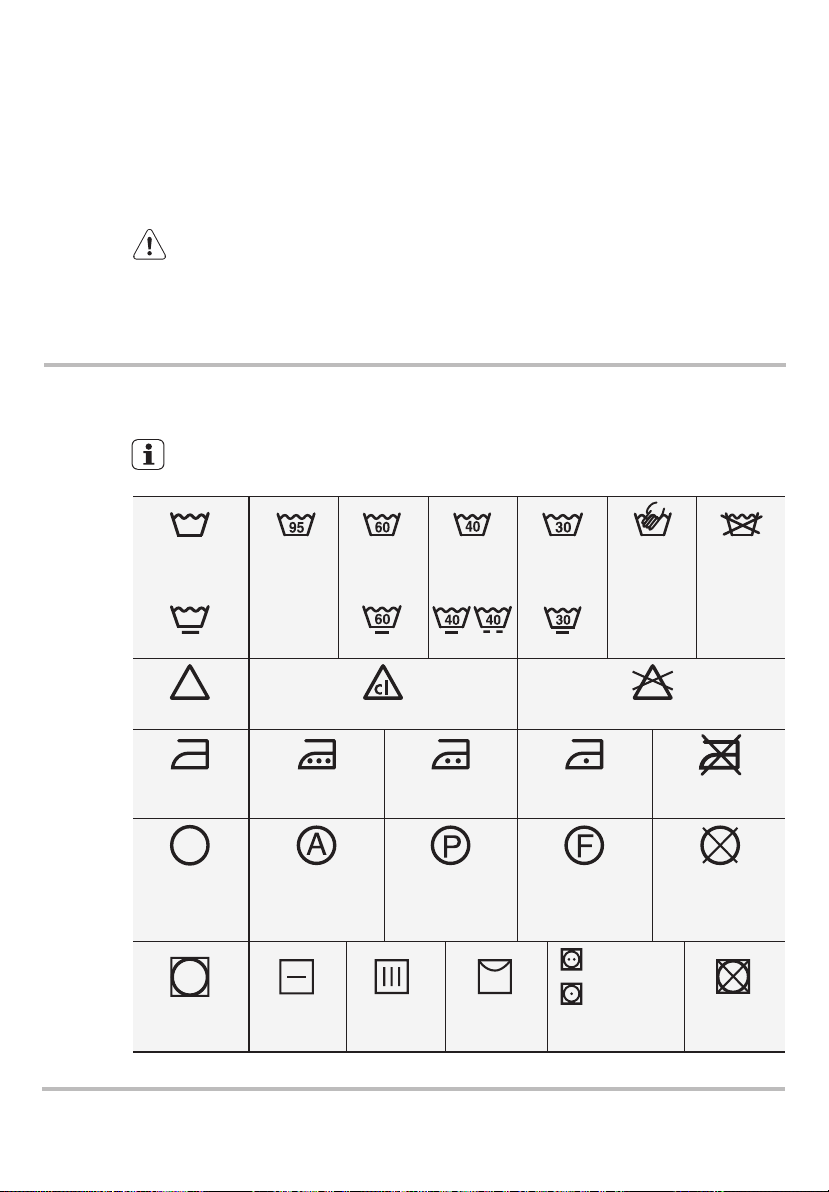

10. INTERNATIONAL WASH CODE SYMBOLS
These symbols appear on fabric labels, in order to help you choose the best
way to treat your laundry.
Bleach in cold water DO NOT bleach
Bleaching
Hand wash
Max. wash
temperature
95 °C
Hot iron
max. 200 °C
Dry cleaning in
all solvents
Dry cleaning in
perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning in
petrol, pure alcohol
and R 113
DO NOT
dry clean
Warm iron
max. 150 °C
Lukewarm iron
max. 110 °C
DO NOT iron
Max. wash
temperature
60 °C
Max. wash
temperature
40 °C
Max. wash
temperature
30 °C
DO NOT
wash at all
Ironing
Dry cleaning
Drying
Flat Tumble dry DO NOT
tumble dry
High
temperature
Low
temperature
On clothes
hanger
On the line
Energetic
wash
Delicate wash
If the laundry is still damp at the end of
the drying program, select a short drying
cycle again.
Do not over dry the laundry in order to
avoid creasing of fabrics or garments
shrinking.
9.5 Additional Drying
WARNING!
28 www.electrolux.com
CARE AND CLEANING11.
You must DISCONNECT the appliance
from the electricity supply, before you can
carry out any cleaning or maintenance
work.
The water we use normally contains lime.
It is a good idea to periodically use a
water softening powder in the machine.
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
Do not use alcohol, solvents or
chemical products.
Do this separately from any laundry
washing, and according to the softening
powder manufacturer's instructions.
This will help to prevent the formation of
lime deposits.
11.2 Descaling
11.1 External Cleaning
Leave the door open for a while. This
helps to prevent mould and stagnant
smells forming inside the appliance.
Keeping the door open after a wash will
also help to preserve the door seal.
11.3 After Each Wash
The washing powder and additive
dispenser drawer should be cleaned
regularly.
Remove the drawer by pressing the
catch downwards and by pulling it out.
11.5 Cleaning The Dispenser
Drawer
11.4 Maintenance Wash With
“Tub Clean” Program
With the use of low temperature washes
it is possible to get a build up of residues
inside the drum.
We recommend to use “Tub Clean”
program to clean the drum regularly to
remove any residue.
The drum should be empty of laundry.
Press Start/Pause to start the program.
Select the “Tub Clean” program.
To run a maintenance wash:
WARNING!
CAUTION!
To aid cleaning, the top part of the
additive compartment should be
removed.
29

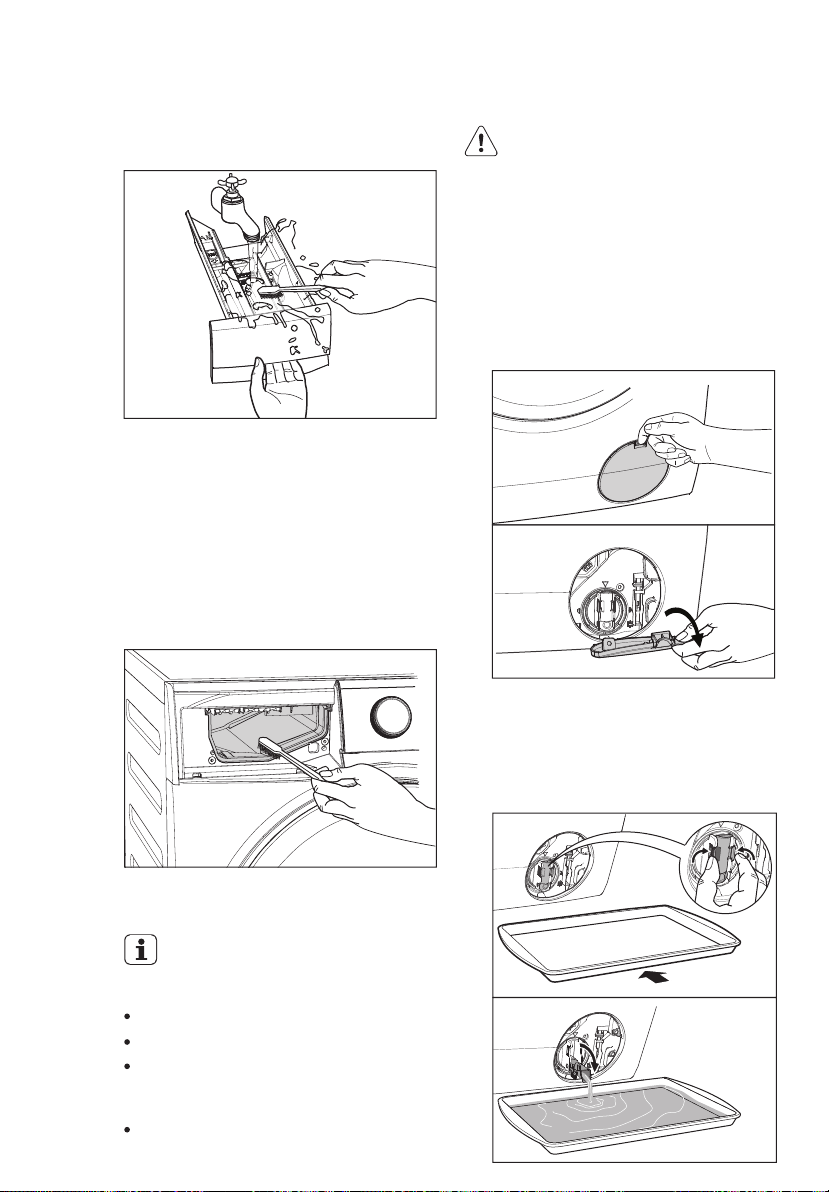

Flush it out under a tap to remove any
traces of accumulated powder.
Having removed the drawer, use a small
brush to clean the recess, ensuring that
all washing powder residue is removed
from the upper and lower part of the
recess. Replace the drawer and run the
rinse program without any clothes in the
drum.
11.6 Cleaning The Drawer
Recess
11.7 Cleaning The Pump
The appliance does not drain the water.
The drum cannot turn.
The appliance makes an unusual noise
because of the blockage of the drain
pump.
The display shows an alarm code
because of the problem with water drain.
Regularly examine the drain pump
and make sure that it is clean.
Clean the pump if:
1. Disconnect the mains plug from the
mains socket.
WARNING!
2.
Do not remove the filter while the
appliance is operating. Do not clean
the drain pump if the water in the
appliance is hot. The water must be
cold before you clean the drain pump.
To clean the drain pump:
1.
Open the drain pump door.
2. Place a suitable water container
below the recess of the drain pump
to collect the water that flows out.
Press the two levers and pull forward
the drainage duct to let the water flow
out.
30 www.electrolux.com

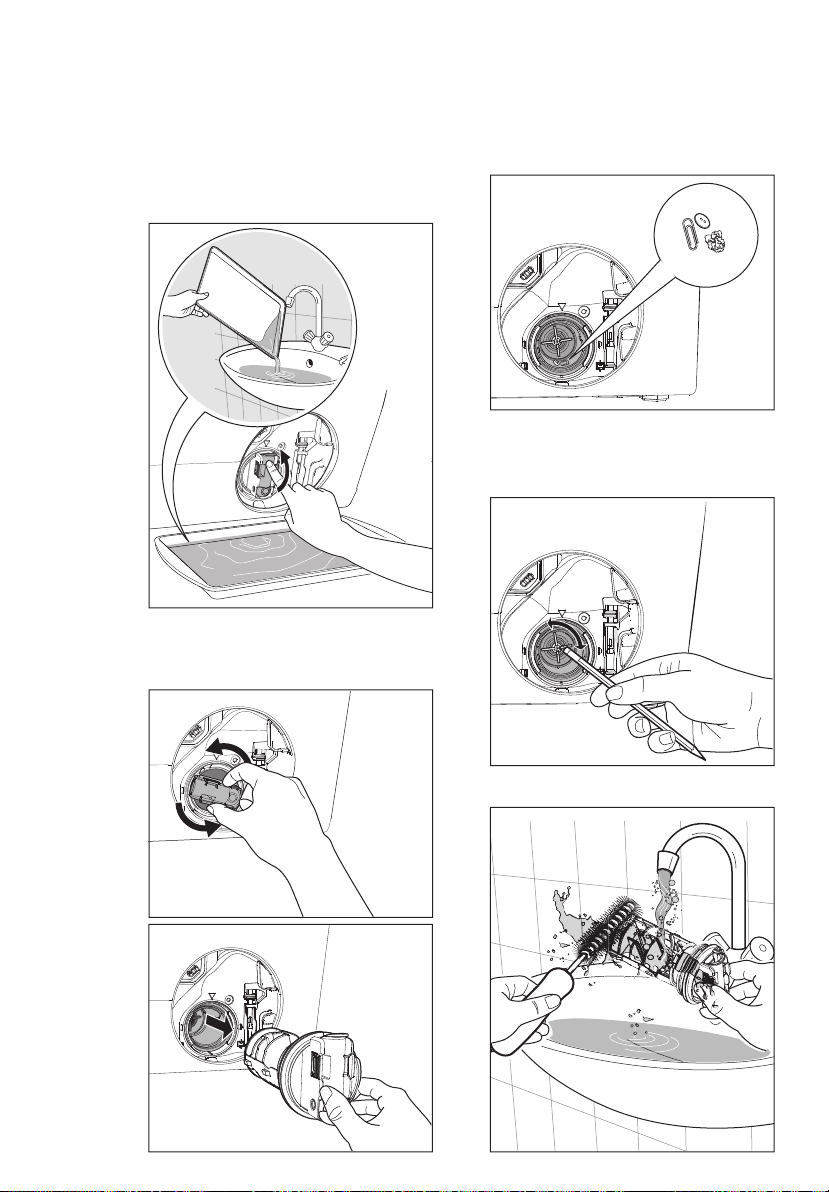

3. When the container is full of water,
put the drainage duct back again and
empty the container. Do step 2, 3
again and again until no more water
flows out from the drain pump.
5. Remove fluff and objects from the
pump (if there are any).
6. Make sure that the impeller of the
pump can turn. If this does not occur,
contact the service centre.
7. Clean the filter under the water tap.
4. Push back the drainage duct and
turn the filter counter-clockwise to
remove it.
31

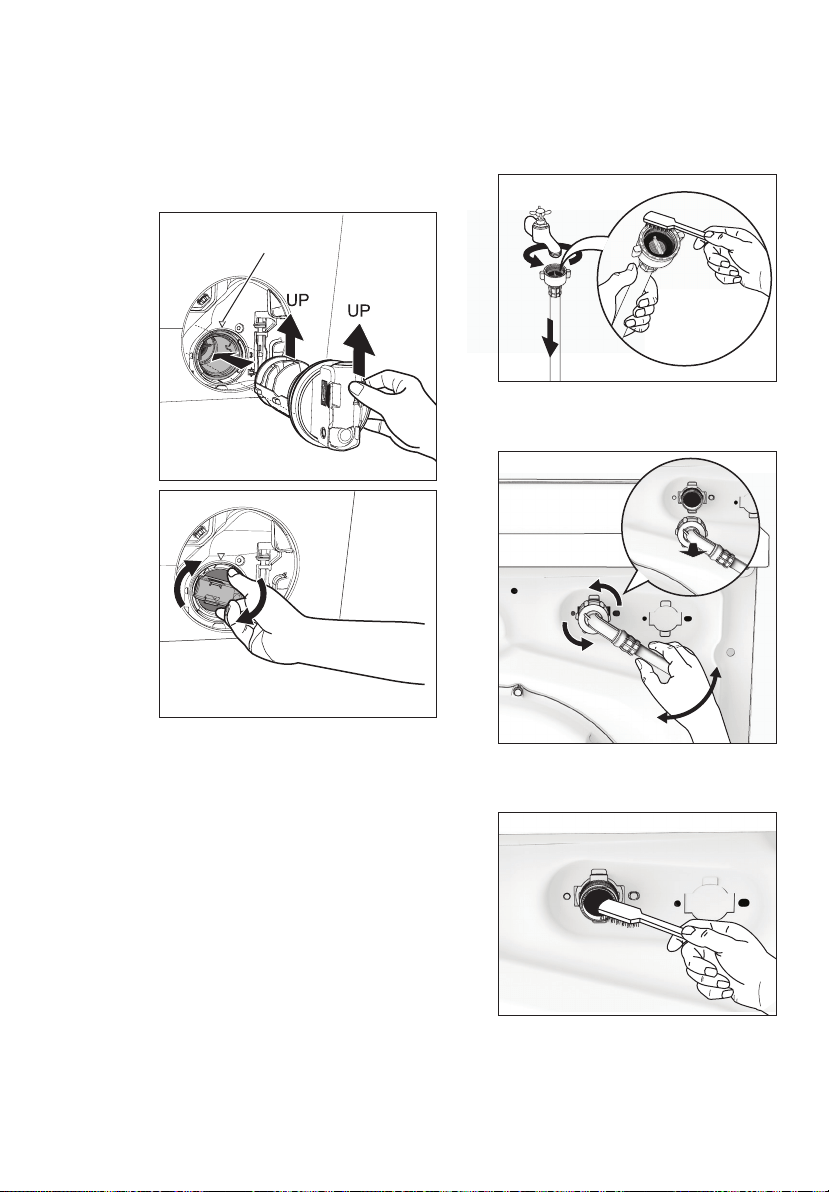

8. Put the filter back into the housing
with exposed section facing up.
Make sure that you correctly tighten
the filter to prevent leakages.
9. Close the drain pump door.
Remove the water inlet hose from
the water tap.
Clean the filter in the inlet hose with
a stiff brush.
If your water is very hard or contains
traces of lime deposit, the water inlet
filter may become clogged. It is therefore
a good idea to clean it from time to time.
11.8 Cleaning The Water Inlet
Filter
To clean the water inlet filters:
1.
Close the water tap.
2.
3.
4.
5.
6.
7. Open the water tap.
Remove the inlet hose behind the
appliance.
Clean the filter in the valve with a
stiff brush or a towel.
Install the inlet hose again. Make
sure that the couplings are tight to
prevent leakages.
Guide
32 www.electrolux.com

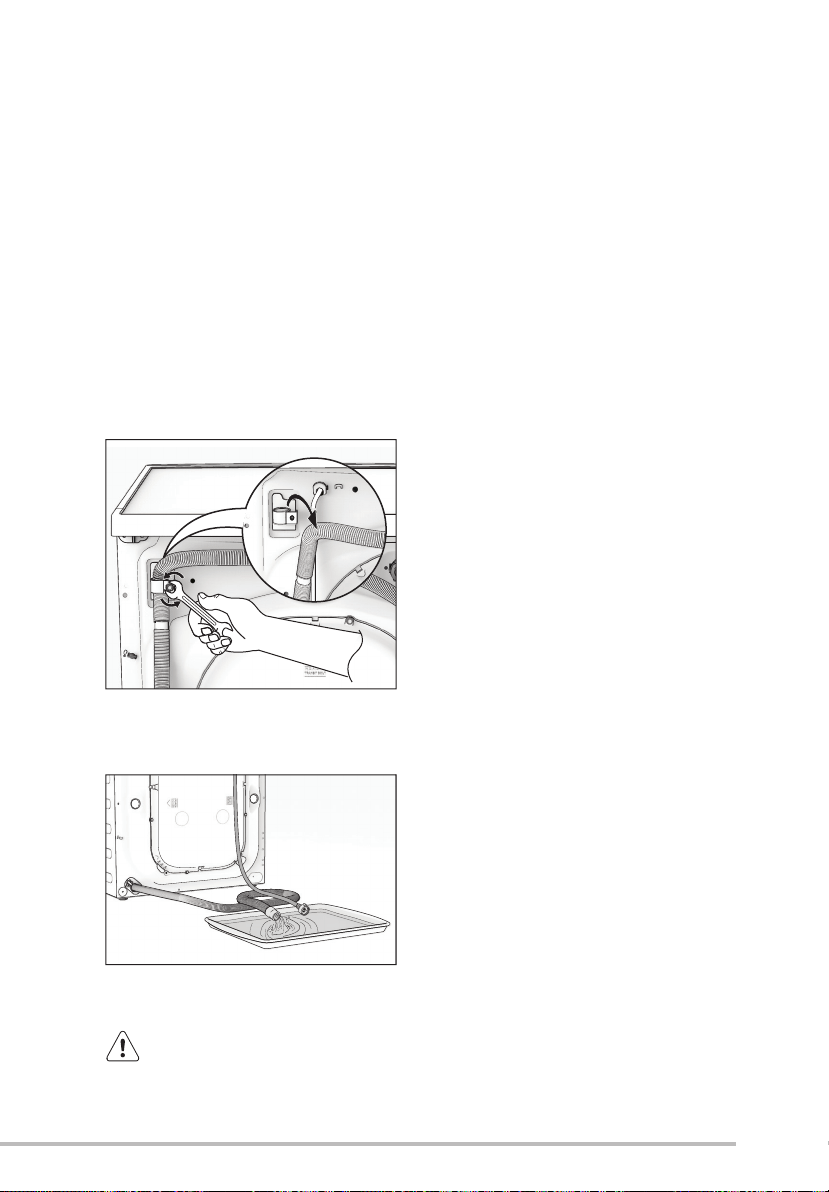

If the appliance is installed in an area
where the temperature can be less
than 0 °C, remove the remaining water
from the inlet hose and the
drain pump.
Emergency Drain
11.9 Frost Precautions
Disconnect the main plug from the
main socket. Turn off the water tap.
1.
2. Remove the water inlet hose.
3. Remove the drain hose from the rear
support and unhook it from sink or
spigot.
Put the end of the drain and inlet hose
in a container. Let the water flow out
of the hoses.
4.
5. When no more water flows, install the
inlet hose and the drain hose again.
Make sure that the temperature is
more than 0 °C before you use the
appliance again.
NOTE
33
12.1 Possible Failures
12. TROUBLESHOOTING
Certain problems are due to lack of
simple maintenance or oversights, which
can be solved easily without calling out
an engineer. Before contacting your local
Service Centre, please check
troubleshooting.
Once the problem has been eliminated,
press the Start/Pause button to restart
the program. If after all checks, the
problem persists, contact your local
Service Centre.
The appliance does not fill
with water properly.
The appliance door is open or
not closed correctly. Please
check the door!
The appliance does not drain
the water.
The main supply is unstable.
Wait until the main supply is
stable.
No communication between
electronic elements of the
appliance. Switch off and
switch on again.
WARNING! Deactivate the
appliance before you do the
checks.
Alarm Code:
The door has not been closed.
(Error code: )
Close the door firmly.
The plug is not properly
inserted into the power socket.
Insert the plug into the power
socket.
There is no power at the
socket.
Please check your domestic
electrical installation.
The Start/Pause touchpad has
not been pressed.
Press the Start/Pause
touchpad.
The “Delay Start” has been
selected.
If the laundry are to be
washed immediately, cancel
the “Delay Start”.
The Main supply is unstable.
(If appears on the
display.)
Wait until the main supply is
stable. Appliance will start
automatically.
The inlet hose is squashed or
kinked. (Error code: )
Check the inlet hose
connection.
The end of the drain hose is
too low. (Error code: )
Refer to relevant paragraph in
“water drainage” section.
The filter in the inlet hose is
blocked. (Error code: )
Clean the water inlet hose
filter.
The door is not properly closed.
(Error code: )
Close the door firmly.
The water tap is closed.
(Error code: )
Open the water tap.
Machine does
not start:
Machine does
not fill the
water:
Machine fills
then empties
immediately:
Malfunction Possible cause Solution
34 www.electrolux.com
Malfunction Possible cause Solution
Too much detergent or unsuitable
detergent (creates too much
foam) has been used.
Reduce detergent quantity
and use correct type of
detergent (refer page 25).
Check whether there are any leaks
from one of the inlet hose fittings. It
is not always easy to see this as
the water runs down the hose;
check to see if it is damp.
Check the water inlet hose
connection.
Too little detergent or unsuitable
detergent has been used.
Increase detergent
quantity or use different
detergent (refer page 25).
The program is still running. Wait until the end of cycle.
There is water in the drum.You must drain the water
to open the door (refer
“Opening The Door” on
page 20.
This problem may be caused by
a failure of the appliance.
Contact Service. If you
need to open the door,
please read carefully
“Emergency door opening”
on page 37.
Stubborn stains have not been
treated prior to washing.
Use commercial products
to treat the stubborn stains.
The correct temperature was not
selected.
Check if you have selected
the correct temperature.
Excessive laundry load. Reduce load.
The drain hose is damaged. Call Service.
There is water
on the floor:
Unsatisfac-
tory
washing
results:
The door will
not open:
The drain hose is squashed or
kinked. (Error code: )
Check the drain hose
connection.
The drain pump is clogged.
(Error code: )
Clean the drain filter.
Machine
does not
empty and/or
does not
spin:
The option “Rinse Hold”
has been selected.
Press Start/Pause
touchpad to drain the water
or select spin program.
The laundry is not evenly
distributed in the drum.
Pause the machine and
redistribute laundry
manually.
The transit bolts and packing
have not been removed.
Check the correct installa-
tion of the appliance.
The support feet have not been
adjusted.
Check the correct levelling
of the appliance.
Machine
vibrates or is
noisy:
35
Malfunction Possible cause Solution
Detergent over dose. Reduce the detergent
quantity or use another one.
(Refer page 25 “Detergents
Type And Quantity Of
Detergent”).
Machine unbalance. Redistribute laundry
manually in the drum and
start the spin phase again.
The laundry is not evenly
distributed in the drum.
Pause the machine and
redistribute laundry
manually.
There is very little laundry in the
drum.
Load more laundry.
Unstable floors eg. wooden floors. Refer to relevant paragraph
in “Positioning” section.
Machine
vibrates or is
noisy:
Cycle time
longer than
displayed:
The electronic unbalance detection
device has cut in because the
laundry is not evenly distributed in
the drum. The laundry is
redistributed by reverse rotation of
the drum.
This may happen several times
before the unbalance disappears
and normal spinning can resume. If,
after 10 minutes, the laundry is still
not evenly distributed in the drum,
the machine will not spin. In this
case, redistribute the load manually
and select the spin program.
Pause the machine and
redistribute laundry
manually.
Machine not installed properly.Make sure the levelling of
the appliance is correct.
Refer to “Installation”.
Transit bolts or packaging not
removed.
Make sure that the
packaging and/or the
transit bolts are removed.
Refer to “Unpacking”.
The load may be too small. Add more laundry in the
drum.
Machines based on modern technology operate very economical-
ly using very little water without affecting performance.
Spinning
starts late
or machine
does not
spin:
Machine
makes an
unusual
noise:
No water is
visible in
the drum:
The appliance calculated a new time according to the laundry
load.
The cycle is
shorter than
the time
displayed.
36 www.electrolux.com

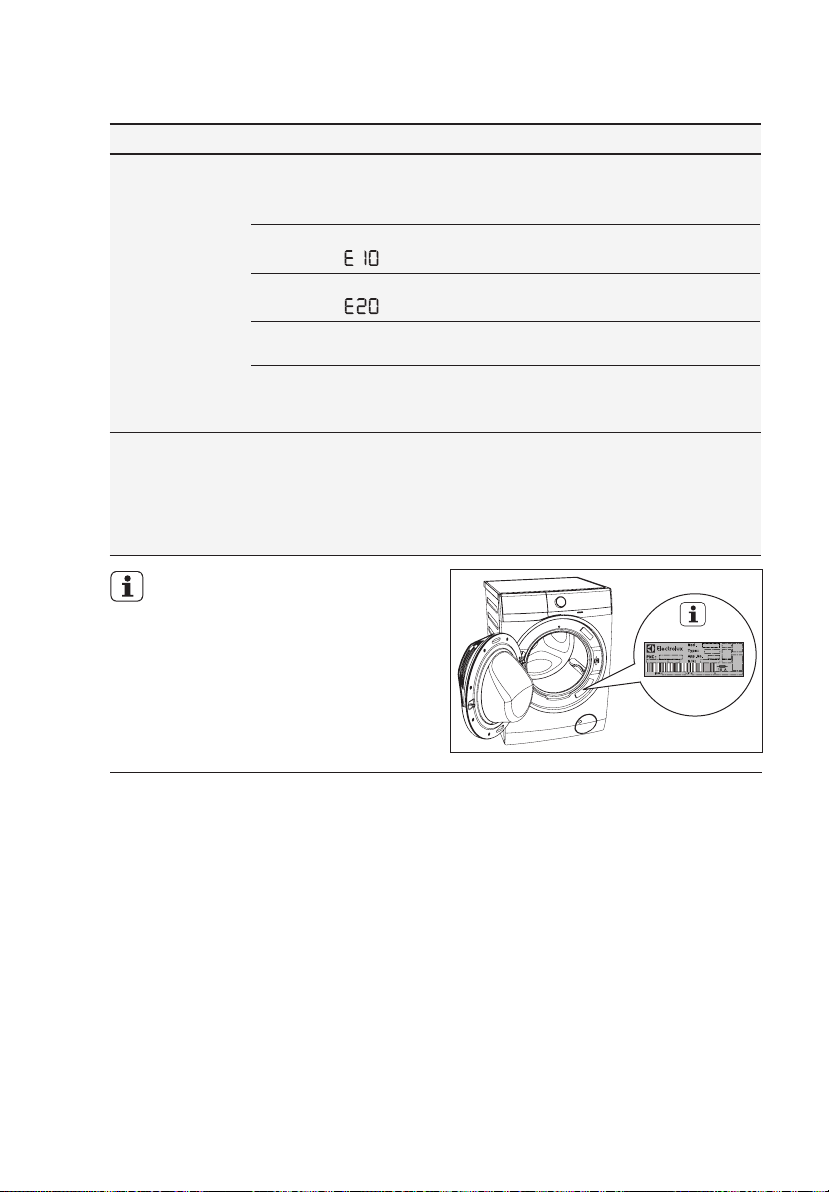

Malfunction Possible cause Solution
The “Time Dry” or the “Dryness
Level” degree has not been
selected.
Select the drying time or
the dryness level degree.
The water tap is not turned on.
(Error code: )
Open the water tap.
The drain filter is clogged.
(Error code: )
Clean the drain filter.
The machine is overloaded. Reduce the laundry load in
the drum.
The selected drying program,
time or dryness level was not
suitable for the laundry.
Select the suitable drying
program, time or dryness
level for the laundry.
Machine
does not dry
or does not
dry properly:
Machine is optimizing the drying
cycle according to the laundry type
and load size. It will vary for each
kind of fabric as the water
absorption is different.
This is a normal behavior
of the machine and not a
cause for concern as it
does not compromise its
performance.
Display time
is frozen at
the end of
drying cycle
for more than
30 minutes:
If you are unable to identify or solve the
problem, contact our service centre.
Before calling service centre, make a
note of the model, serial number and
purchase date of your machine: the
Service Centre will require this
information.
NOTE
37

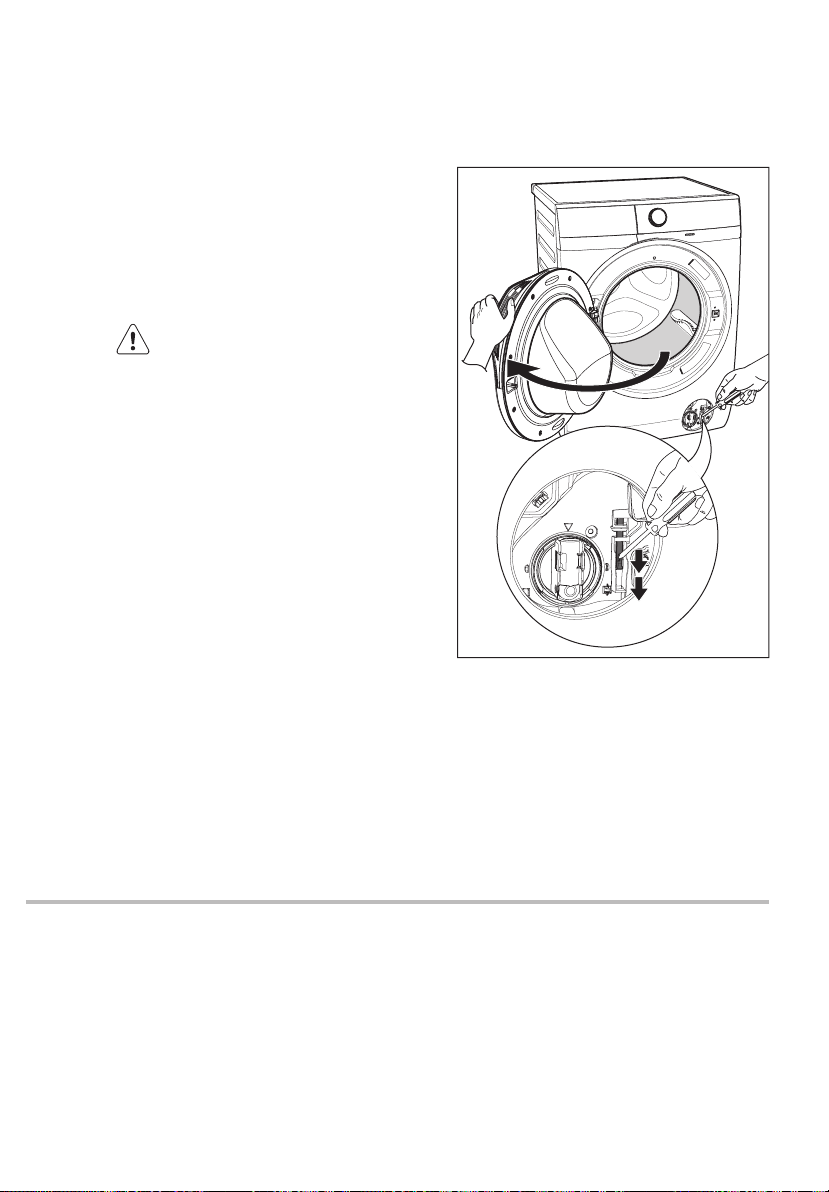

In case of power failure or appliance
failure, the appliance door remains
locked. The wash program continues
when power is restored. If the door
remains locked in case of failure, it is
possible to open it using the emergency
unlock feature.
Before opening the door:
12.2 Emergency Door Opening
Make sure that the water temperature
and the laundry are not hot. Wait until
they cool down if necessary.
WARNING!
Make sure that the drum is not
rotating. Wait until the drum stops
rotating if necessary.
Make sure that the water level inside
the drum is not too high. If necessary,
perform an Emergency Drain
(see page 32).
To open the door proceed as follows:
1. Press the On/Off button to switch the
appliance off.
2. Disconnect the mains plug from the
mains socket.
3. Open the filter cover.
4. Using a suitable tool to pulling the
emergency unlock strap (red strap)
downward twice (you will hear “click”
sound) and hold it, at the same time
pull the door handle to open the door.
If the door cannot open while holding
the strap, try to release it then open
the door.
5. Take out the laundry.
6. Close the filter flap.
38 www.electrolux.com

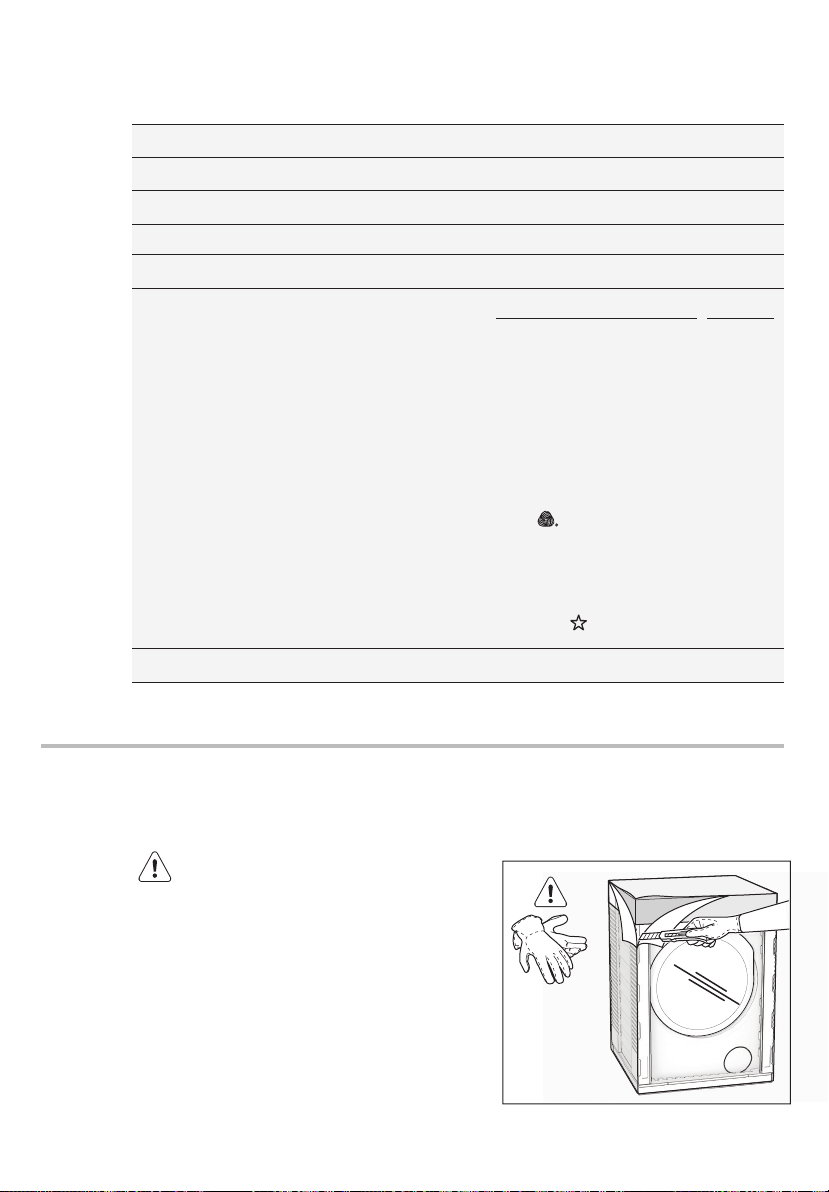

TECHNICAL DATA13.
Dimensions (Height / Width / Depth)
Maximum dry
clothes capacity
Spin speed (Maximum / Minimum) 1200 rpm / 400 rpm
Power supply (Voltage / Frequency)
Total power absorbed
Water supply pressure (Maximum / Minimum)
0.8 MPa / 0.05 MPa
Minimum fuse protection 10 A
Max.
1)
4 kg
4 kg
3 kg
4 kg
Max.
1)
–
Max.
1)
Max.
1)
1.5 kg
1.5 kg
4 kg
Max.
1)
1 kg
–
WashingProgram
Max.
1)
3 kg
–
–
–
Max.
1)
–
Max.
1)
Max.
1)
1 kg
–
–
4 kg
1 kg
–
Drying
1) Maximum capacity depended on the model of the Washer Dryer (see defined
on the control panel).
Cottons
Mixed
Delicates
Bedding
Sports
Energy Saver
Tub Clean
Spin
Rinse + Spin
Wool
Quick 15
Daily 39
Full Wash 60
WashDry 60
Favourite
INSTALLATION14.
14.1 Unpacking
85 X 60 X 57.5 cm
220 - 240 V~ / 50 Hz
Wash: 2000 W / Dry: 1100 W
You are advised to keep all transit
devices so that they can be refitted if the
machine ever has to be transported
again.
All transit bolts and packing must be
removed before using the appliance.
CAUTION!
Use gloves. Remove the external film.
If necessary, use a cutter.
1.
39

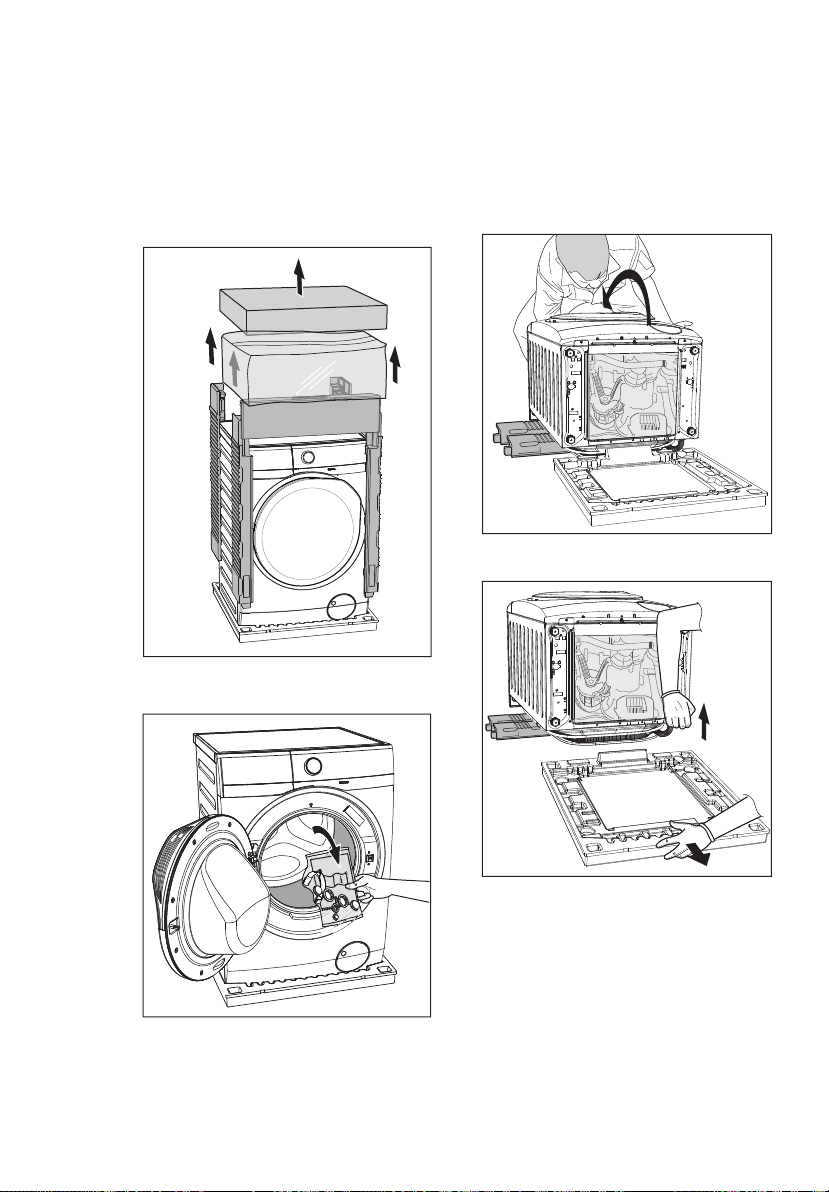

6.
7.
Remove the polystyrene base.
8.
Put one of the polystyrene packaging
elements on the floor behind the
appliance. Carefully put down the
appliance with the rear side on it.
Make sure not to damage the hoses.
Pull up the appliance in vertical
position.
Open the door. Remove all the items
from the drum.
5.
9.
Remove the power supply cable and
the drain and inlet hoses from the
hose holders (A) on the rear of the
appliance.
Remove the cardboard top.
2.
Remove the polystyrene packaging
materials.
3.
Remove the plastic bag which cover
the machine.
4.
40 www.electrolux.com

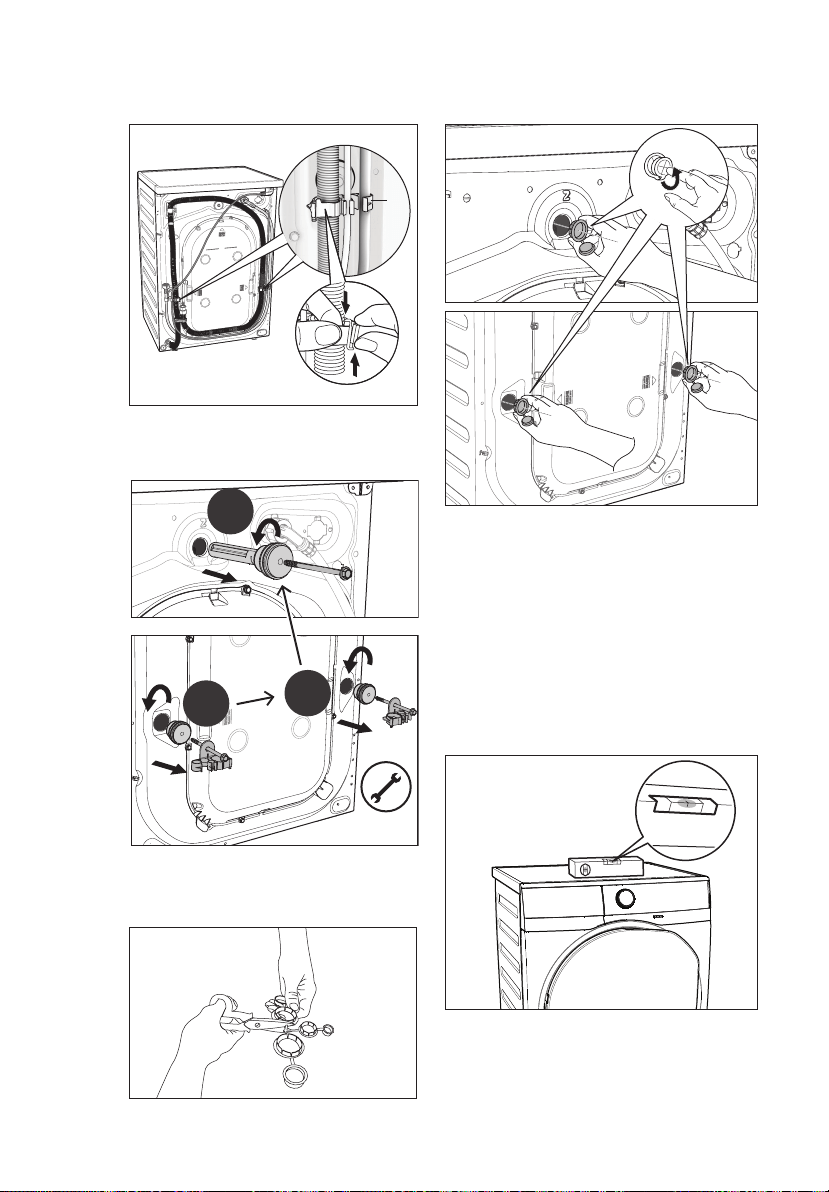

Use a spirit level on the top and side of
the machine to check the levels.
If you do not have a spirit level, as a
guide use the edge of a door frame,
cupboard or bench to check that the
machine is leveled.
It is important that your machine stands
firm and leveled on the floor to ensure
correct operation. The appliance must
not be installed behind a lockable door, a
sliding door or a door with a hinge on the
opposite side to avoid restricting the
machine door.
10.
11.
Pull out the plastic spacers.
12.
Put the plastic caps in the holes (X3).
You can find these caps in the user
manual bag.
Remove the three transit bolts.
A
1st
2nd
3rd
14.2 Positioning
41

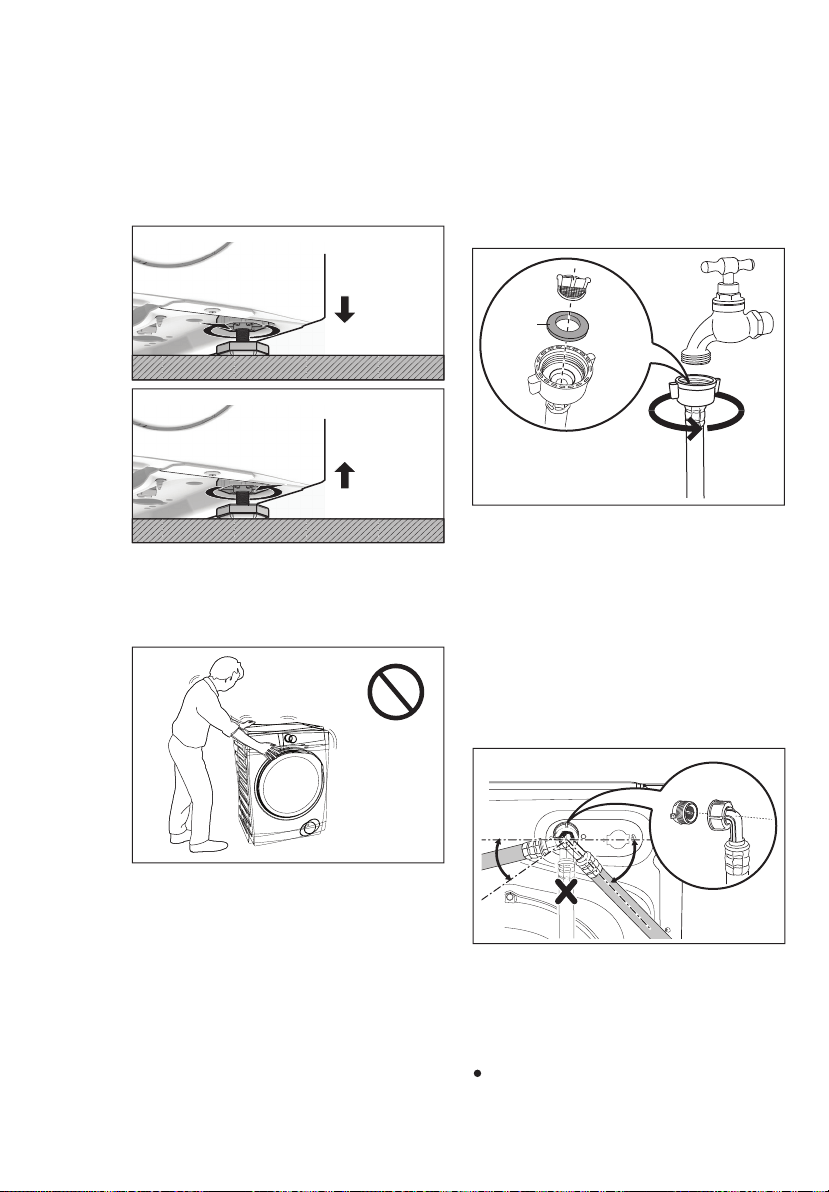

Loosen or tighten the feet to adjust the
level. A correct adjustment of the
appliance level prevents vibration, noise
and the movement of the appliance when
in operation.
Never place cardboard, wood or similar
materials under the machine to
compensate for any unevenness in the
floor. Install the machine on a flat hard
floor. Make sure that air circulation
around the machine is not impeded by
carpets, rugs etc.
When the Washer-Dryer is levelled, try to
rock it from corner to corner. If it does
rock, adjust the legs again until it is
levelled and does not rock.
Check that the machine does not touch
the wall or cupboard units.
Connect the water inlet hose to a tap
with 3/4” BSP thread.
Use the hose supplied with the Washer-
Dryer. DO NOT USE OLD HOSES.
14.3 Water Inlet
The inlet hose must not be lengthened.
If it is too short and you do not wish to
move the tap, you will have to purchase
a new, longer hose specially designed
for this type of use.
Loosen the ring nut to angle the hose to
the left or right depending on the position
of your water tap. Do not place the inlet
hose downwards. After positioning the
inlet hose, be sure to tighten the ring nut
again to prevent leaks.
The end of the drain hose can be
positioned in three ways:
Hooked over the edge of a sink,
using the plastic hose guide supplied
with the machine.
14.4 Water Drainage
check
45°
35°
clockwise “DOWN”
counter clockwise “UP”
42 www.electrolux.com

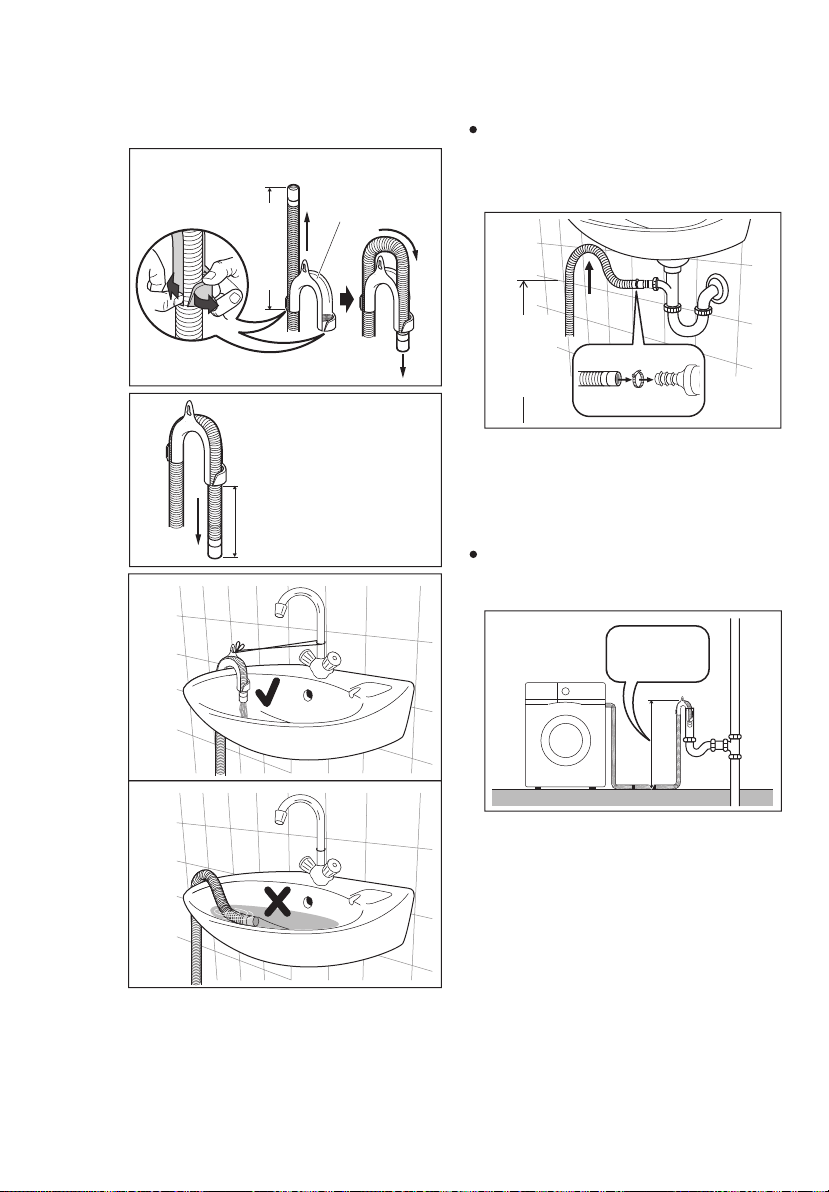

Fitting Hose Guide
bend
hose
2.
Adjust length to suit
trough.
Pull apart to
insert hose.
pull hose
1.
450 approx.
Hose
Guide
Push the drain hose onto the spigot
and secure with a clamp, ensure a
loop is formed in the drain hose to
prevent waste from the sink entering
the appliance.
In a sink, drain pipe branch.
Directly into a drain pipe, at a height
of not less than 60 cm and not more
than 90 cm.
The end of the drain hose must always
be ventilated, i.e. the inside diameter
of the drain pipe must be larger than
the outside diameter of the drain hose.
The drain hose must not be twisted or
curled. Run it along the floor; only the
part near the drainage point must be
raised.
In this case, make sure the end cannot
come unhooked when the machine will
be emptied. This could be done by tying
it to the tap with a piece of string or
attaching it to the wall.
For the correct functioning of the
machine, the drain hose must remain
hooked on the proper support piece
situated on the top part of back side of
the appliance.
This branch must be above the trap so
that the bend is at least 60 cm above
the ground.
Max.
90 cm
Min.
60 cm
Max. 90 cm
Min. 60 cm
43
14.5 Electrical Connection
The manufacturer declines any
responsibility for damage or
injury through failure to comply
with the above safety precaution.
Should the appliance power
supply cable need to be
replaced, this shall be carried
out by our Service Centre.
Connect the machine to an
earthed socket outlet.
CAUTION!
When the appliance is installed, the
power supply cable must be easily
accessible.
This machine is designed to operate on
a 220 - 240 V, single-phase, 50 Hz
supply.
“An incorrect power supply may void
your warranty.”
Check that your domestic electrical
installation can take the maximum load
required (refer TECHNICAL DATA), also
taking into account any other appliances
in use.
44 www.electrolux.com
The materials marked with the
symbol are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by
disposing them properly in appropriate
collection containers.
To save water, energy and to help
protect the environment, we recommend
that you follow these tips:
Use authorized disposal sites for your old
appliance. Help to keep your country tidy!
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product.
For more detailed information about
recycling of this product, please contact
your local city office, your household
waste disposal service or the shop where
you purchased the product.
15.1 Packaging Materials
15.3 Ecological Hints
15.2 Old Machine
ENVIRONMENT CONCERNS15.
Normally soiled laundry may be
washed without prewashing in order to
save detergent, water and time (the
environment is protected too!).
The machine works more economically
if it is fully loaded.
With adequate pre-treatment, stains
and limited soiling can be removed; the
laundry can then be washed at a lower
temperature.
Measure out detergent according to
the water hardness, the degree of
soiling and the quantity of laundry
being washed.
45
NOTE
46 www.electrolux.com
NOTE
47
www.electrolux.com
G0032388-002-A20691902
