LG Electronics LSXS22423W/00 LG refrigerator User Manual

Life's Good

Model Name>:=color number

www°lg°com

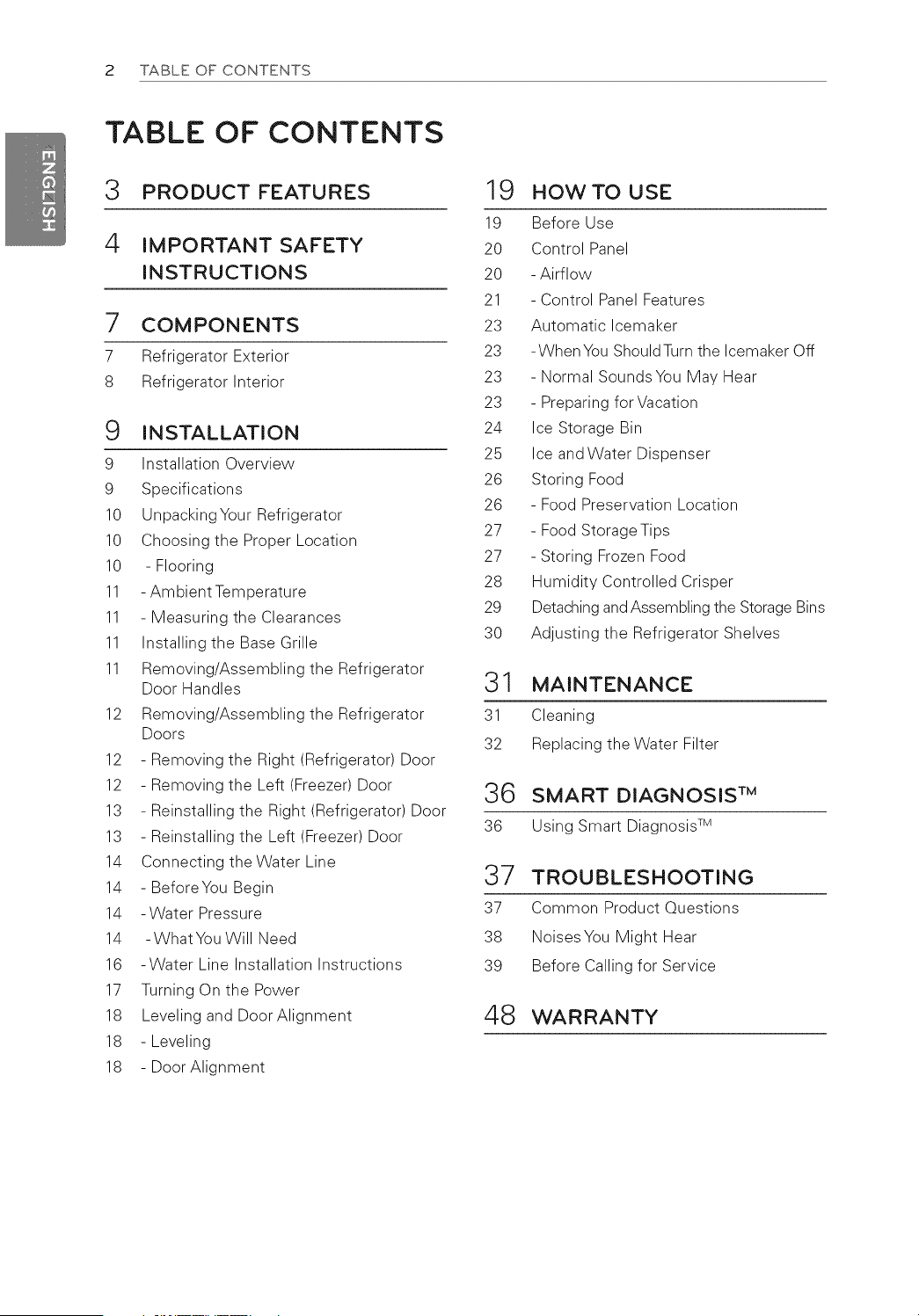

2 TABLE OF CONTENTS

TABLE OF CONTENTS

PRODUCT FEATURES

IMPORTANT SAFETY

INSTRUCTIONS

7 COMPONENTS

7 Refrigerator Exterior

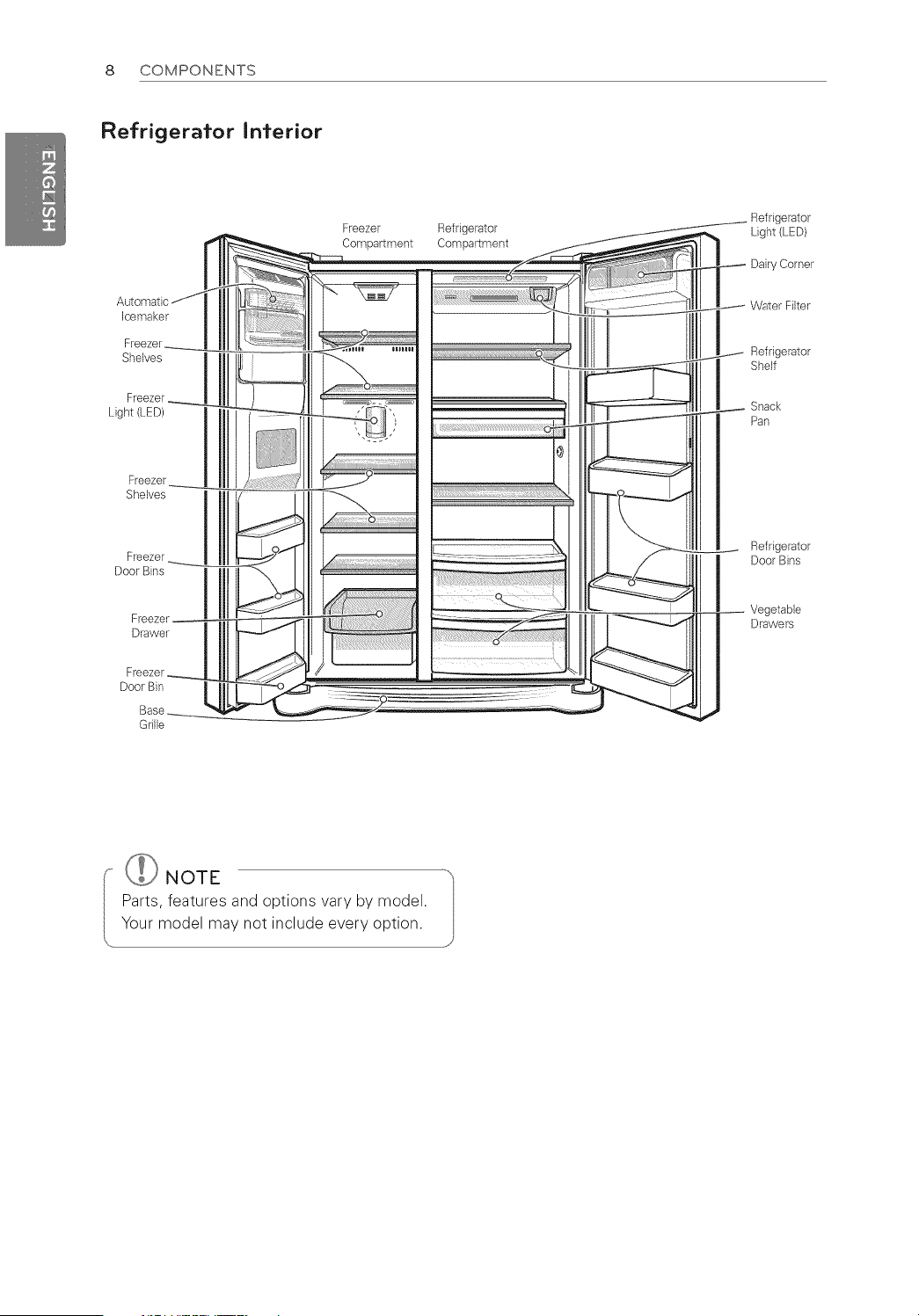

8 Refrigerator Interior

9 INSTALLATION

9 Installation Overview

9 Specifications

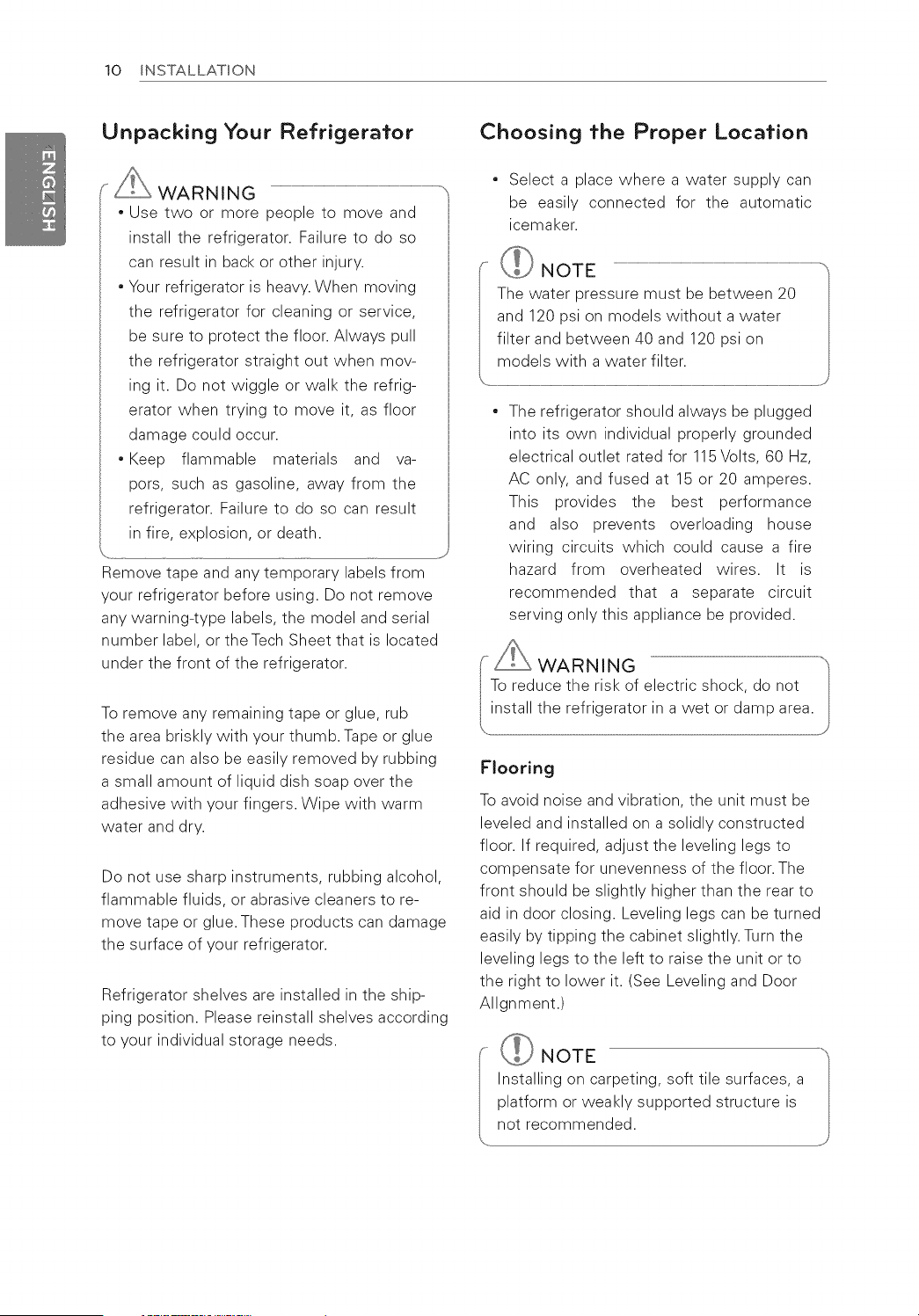

10 Unpacking Your Refrigerator

10 Choosing the Proper Location

10 - Flooring

11 - Ambient Temperature

11 - Measuring the Clearances

11 Installing the Base Grille

11 Removing!Assembling the Refrigerator

Door Handles

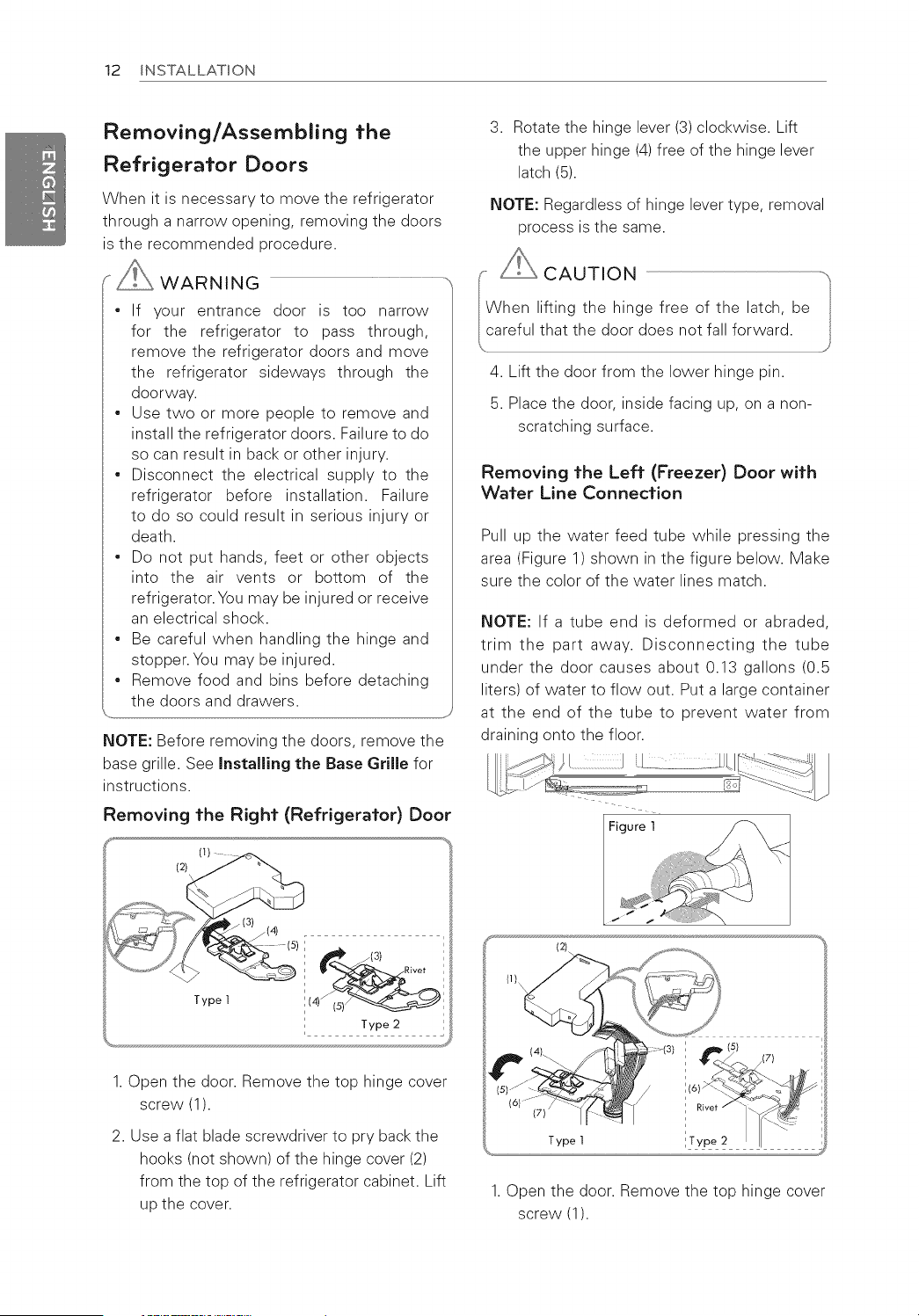

12 Removing/Assembling the Refrigerator

Doors

12 - Removing the Right (Refrigerator) Door

12 - Removing the Left (Freezer) Door

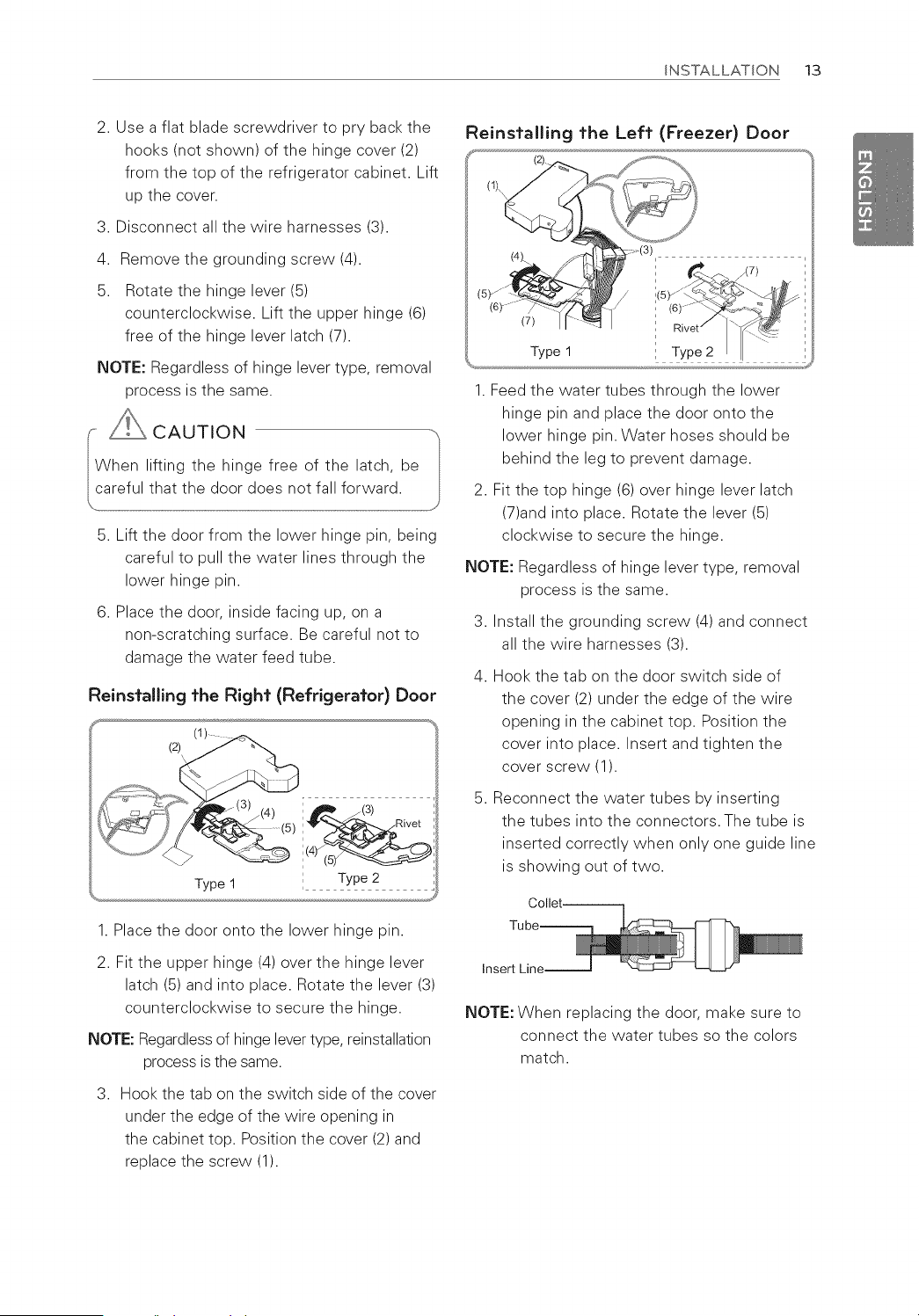

13 - Reinstalling the Right (Refrigerator) Door

13 - Reinstalling the Left (Freezer) Door

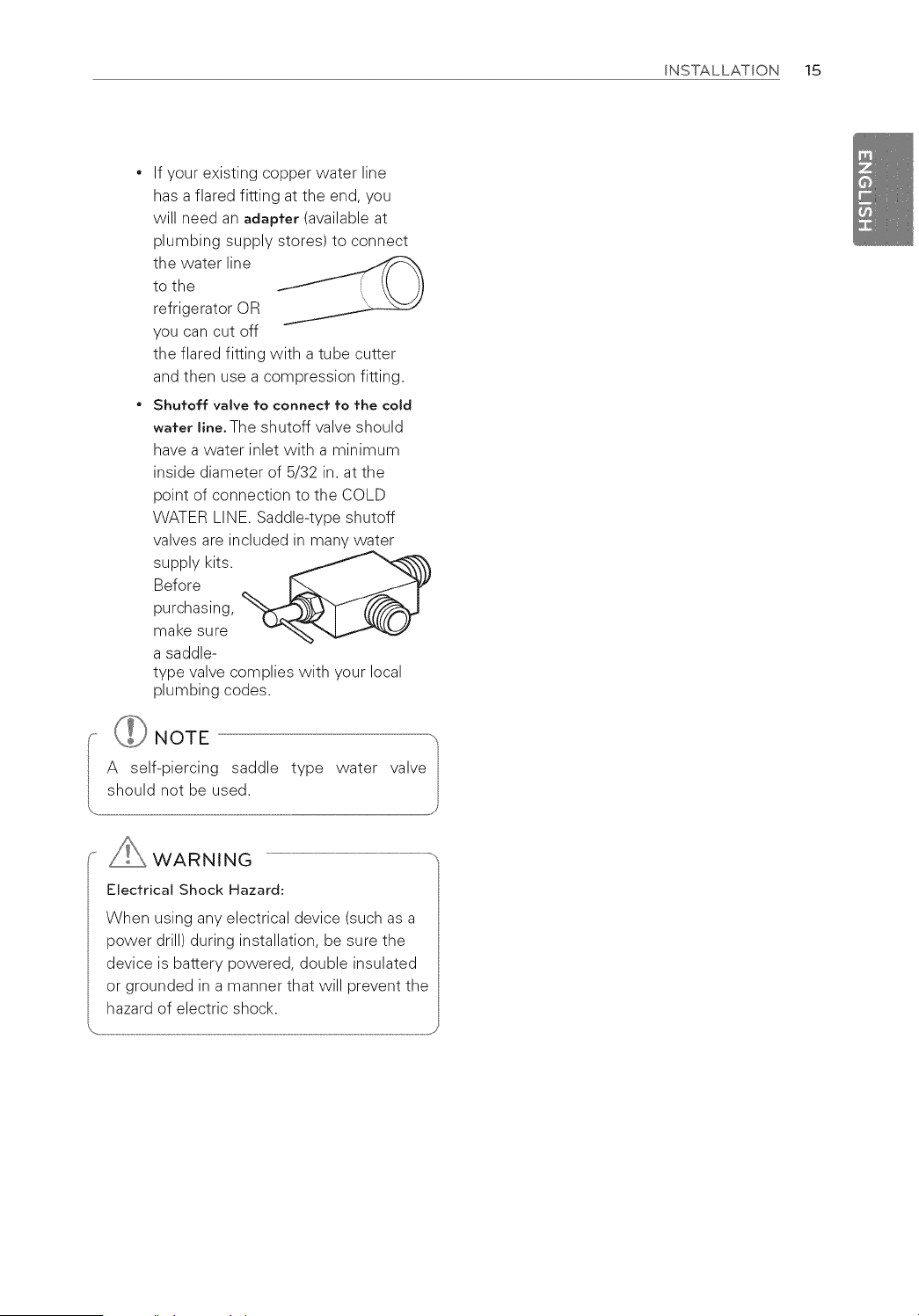

14 Connecting theWater Line

14 - BeforeYou Begin

14 -Water Pressure

14 - What You Will Need

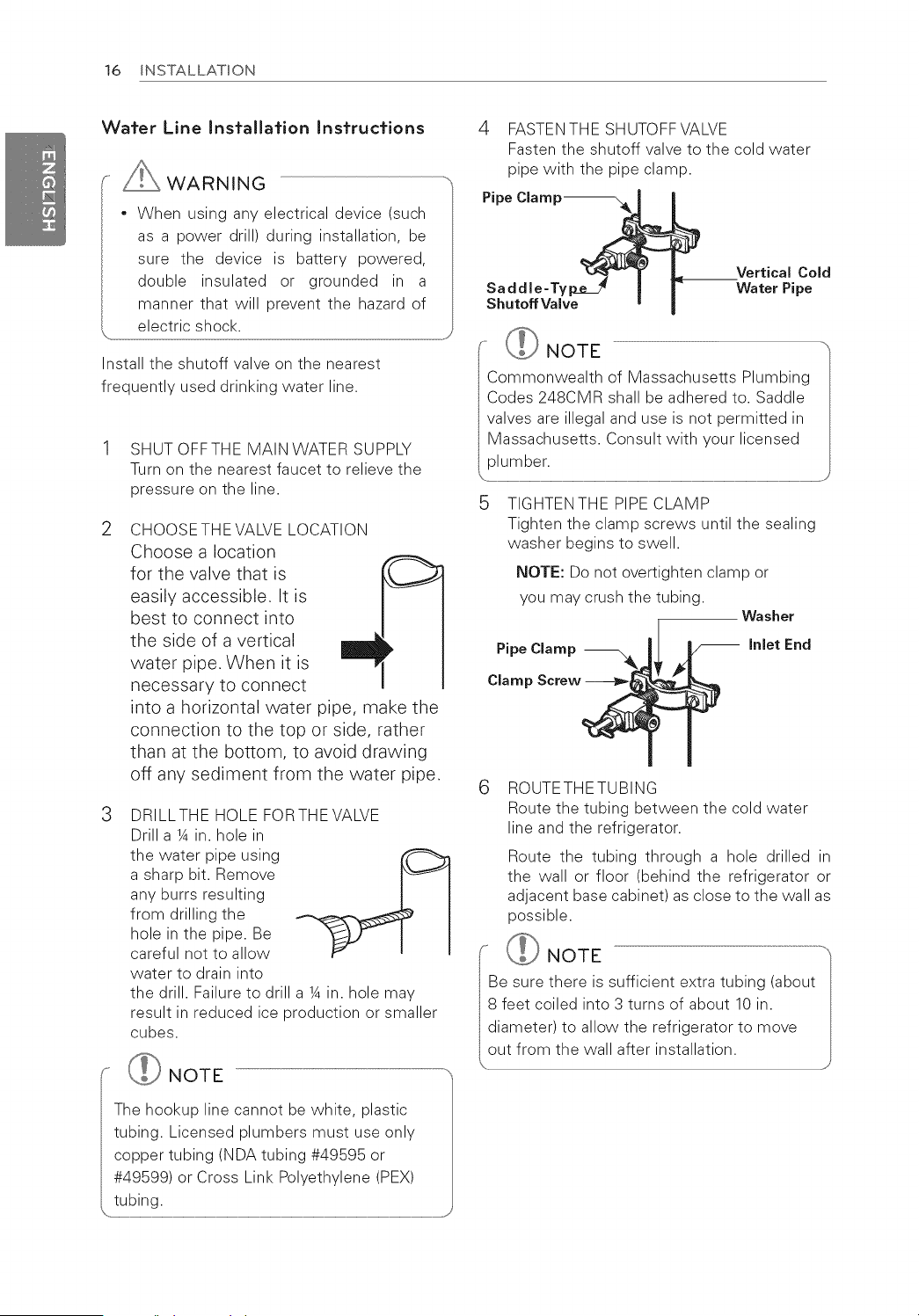

16 -Water Line Installation Instructions

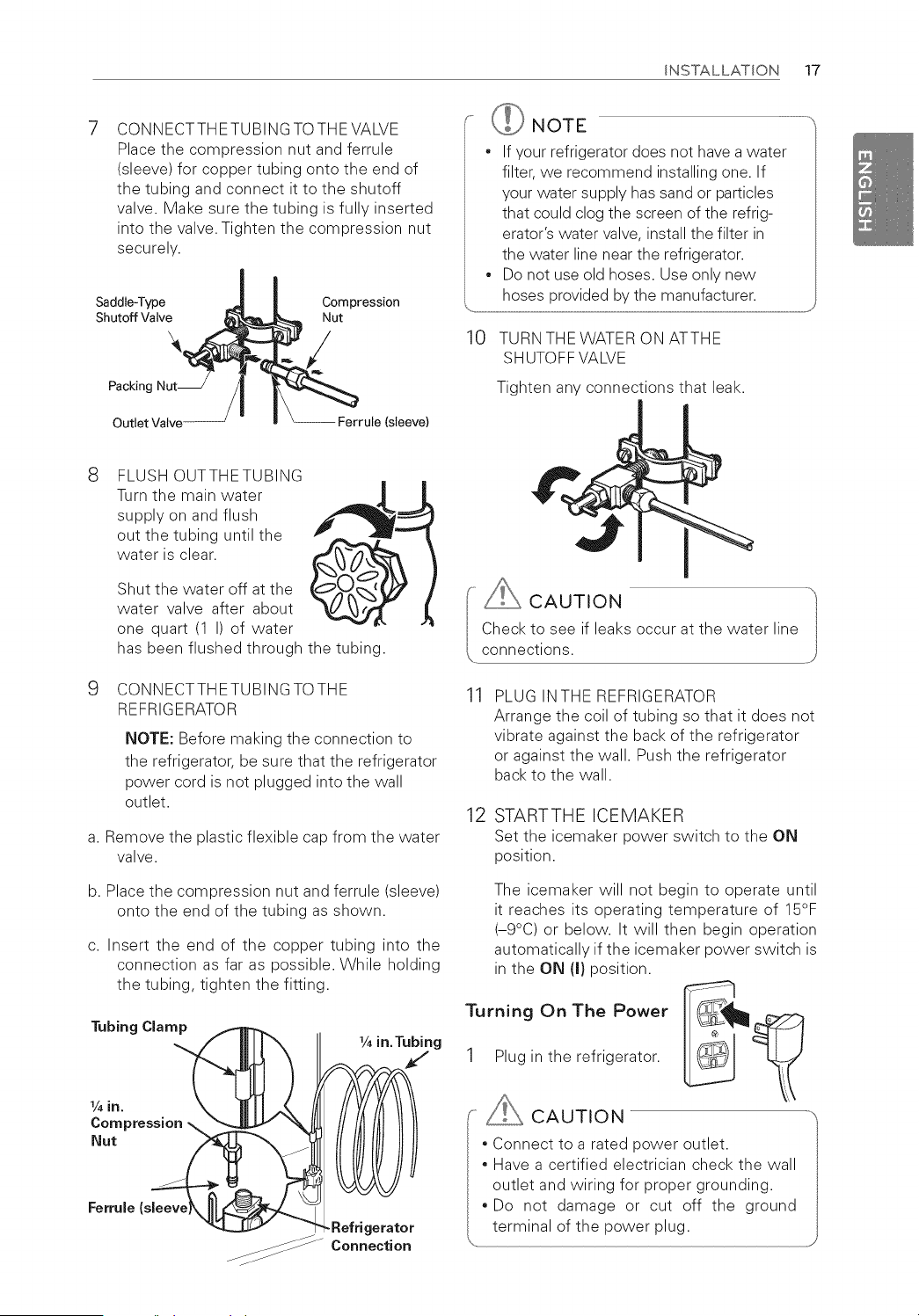

17 Turning On the Power

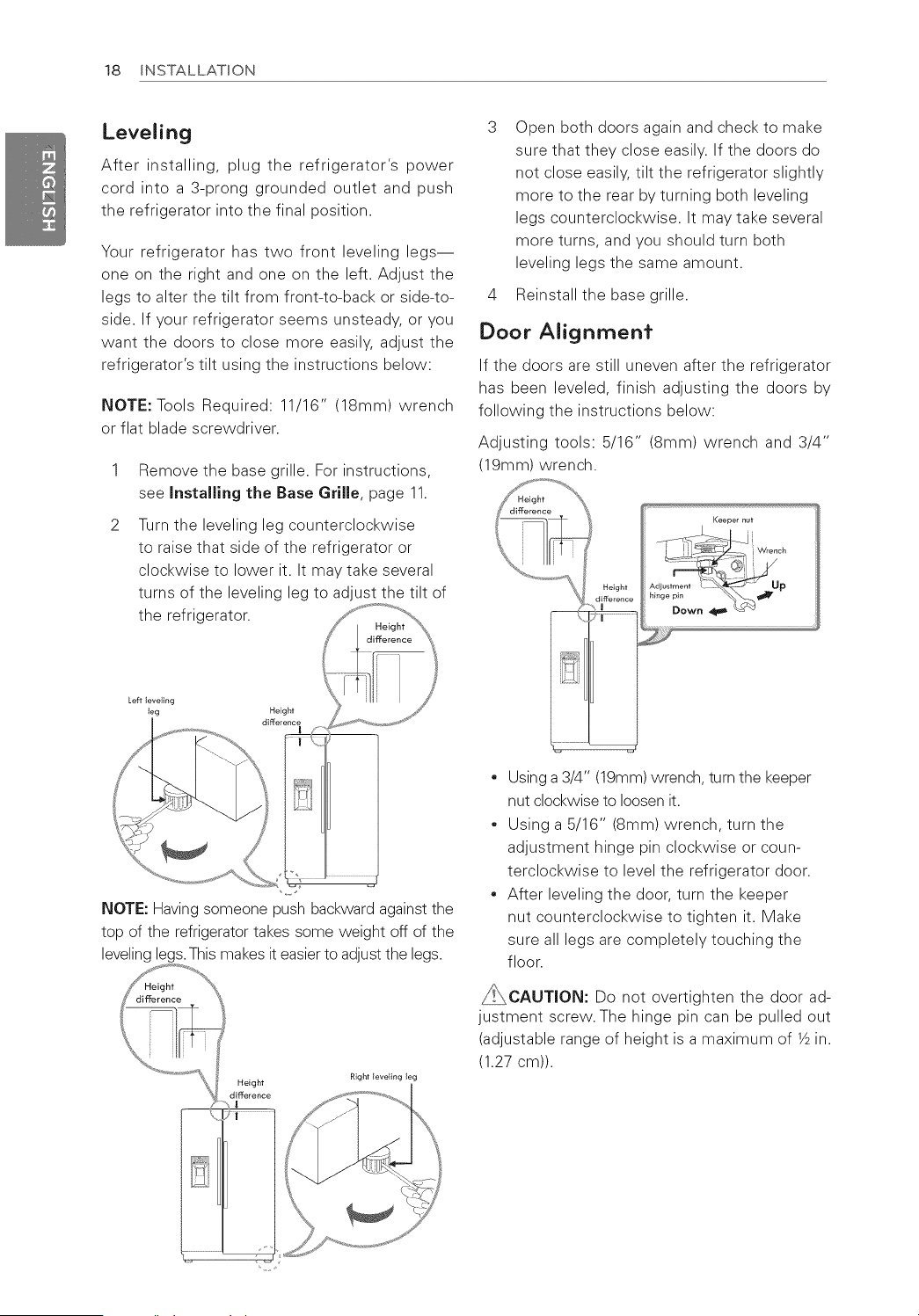

18 Leveling and Door Alignment

18 - Leveling

18 - Door Alignment

19 HOW TO USE

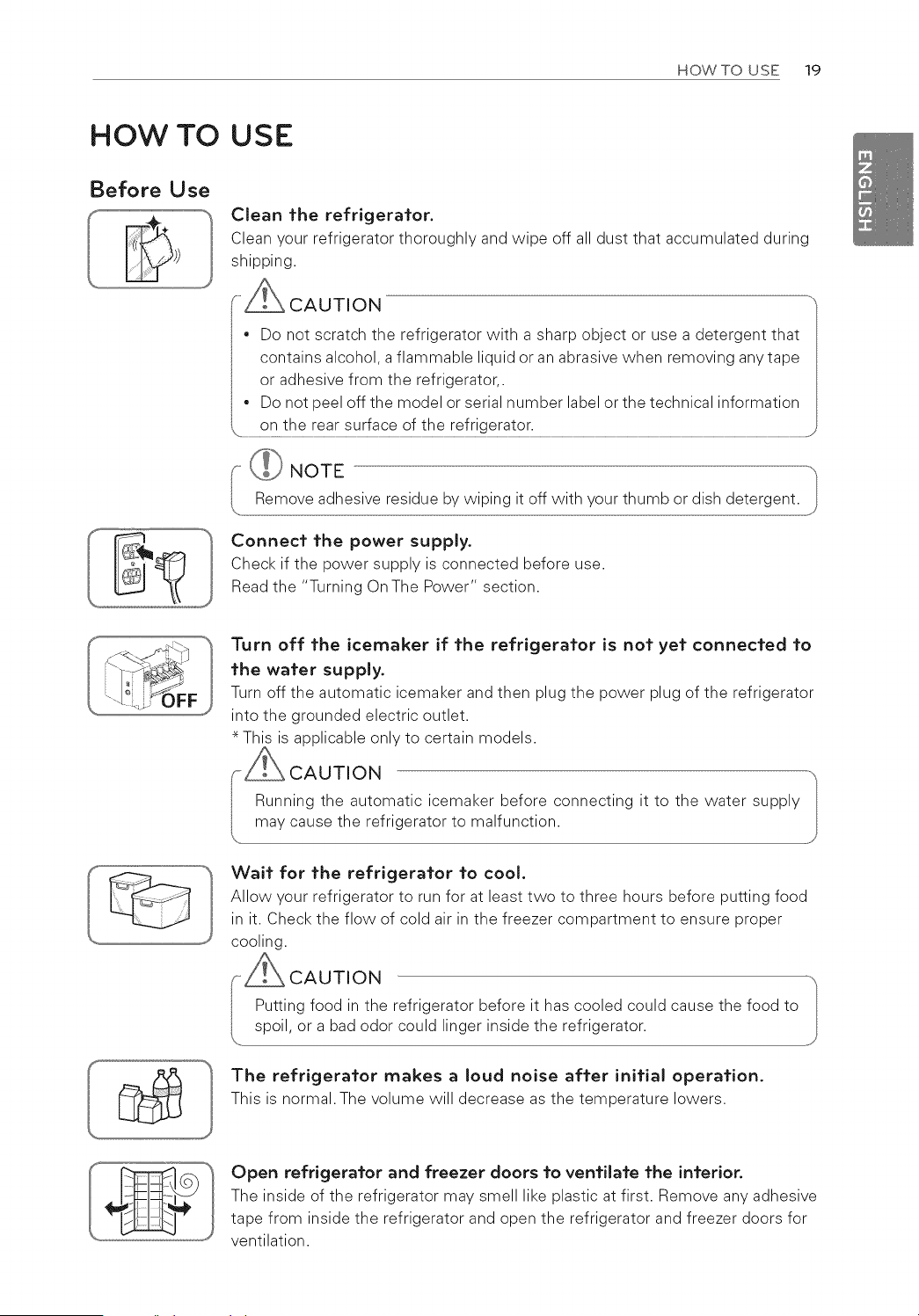

19 Before Use

20 Control Panel

20 - Airflow

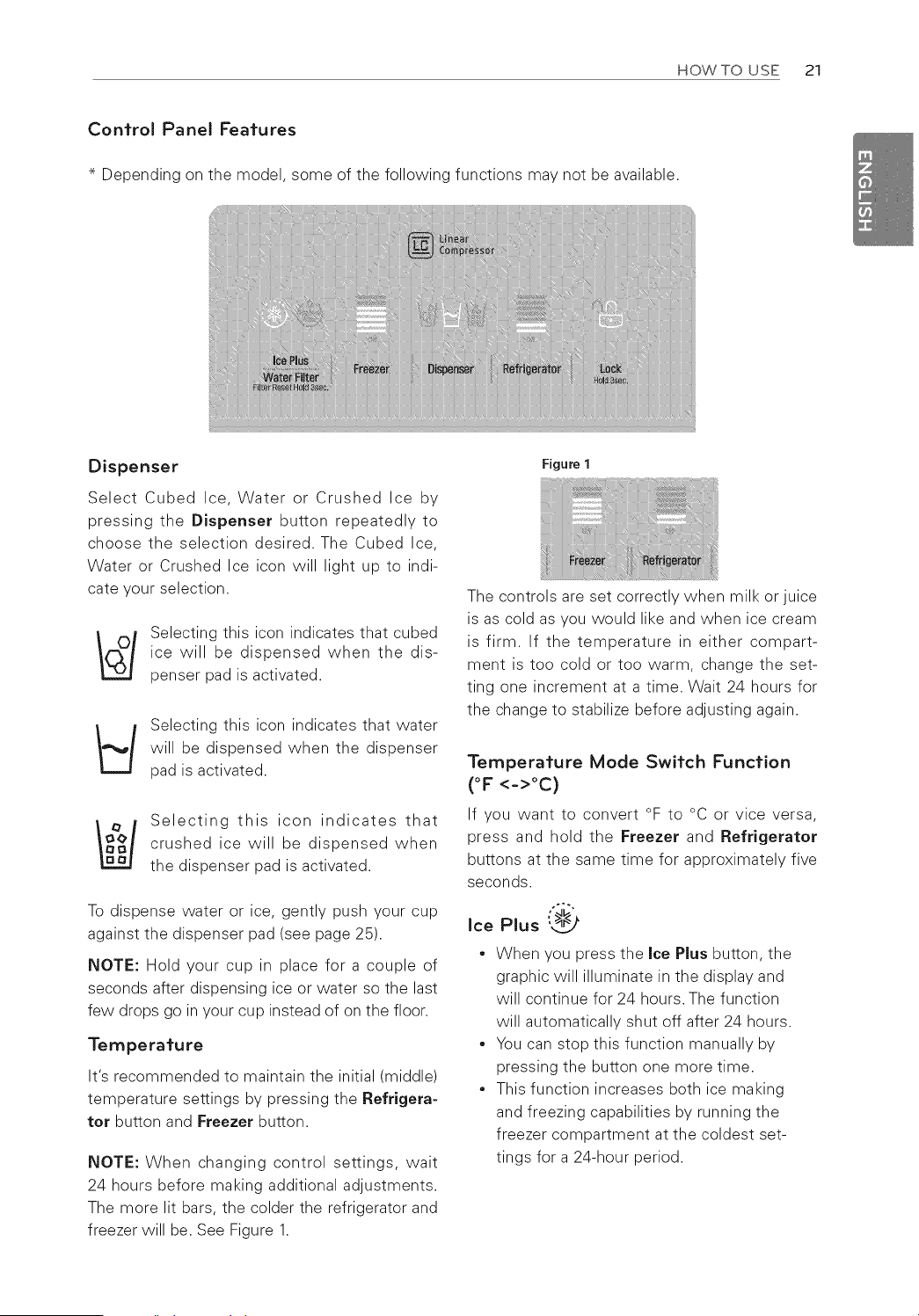

21 -Control Panel Features

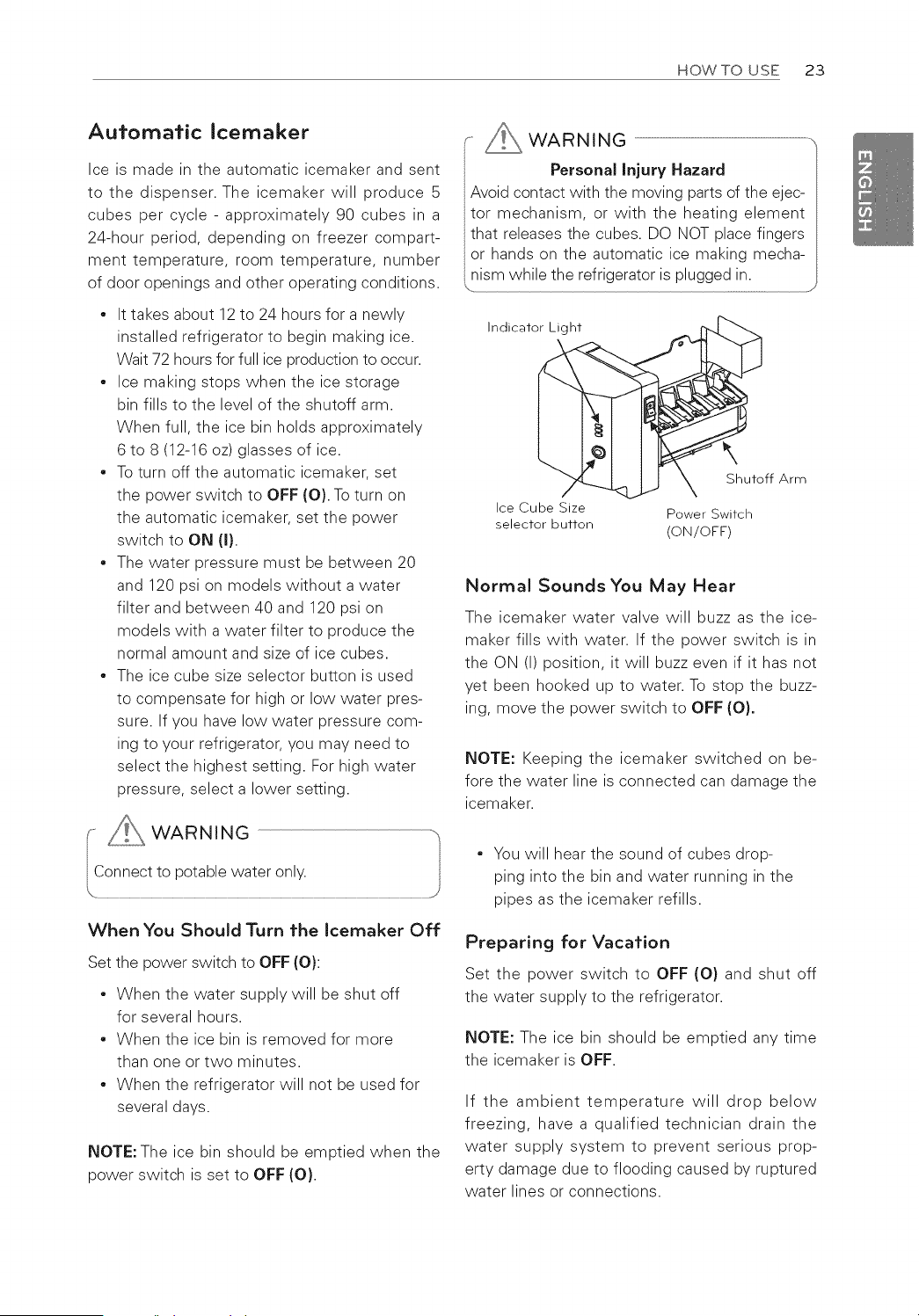

23 Automatic Icemaker

23 -WhenYou ShouldTurn the Icemaker Off

23 - Normal SoundsYou May Hear

23 - Preparing for Vacation

24 Ice Storage Bin

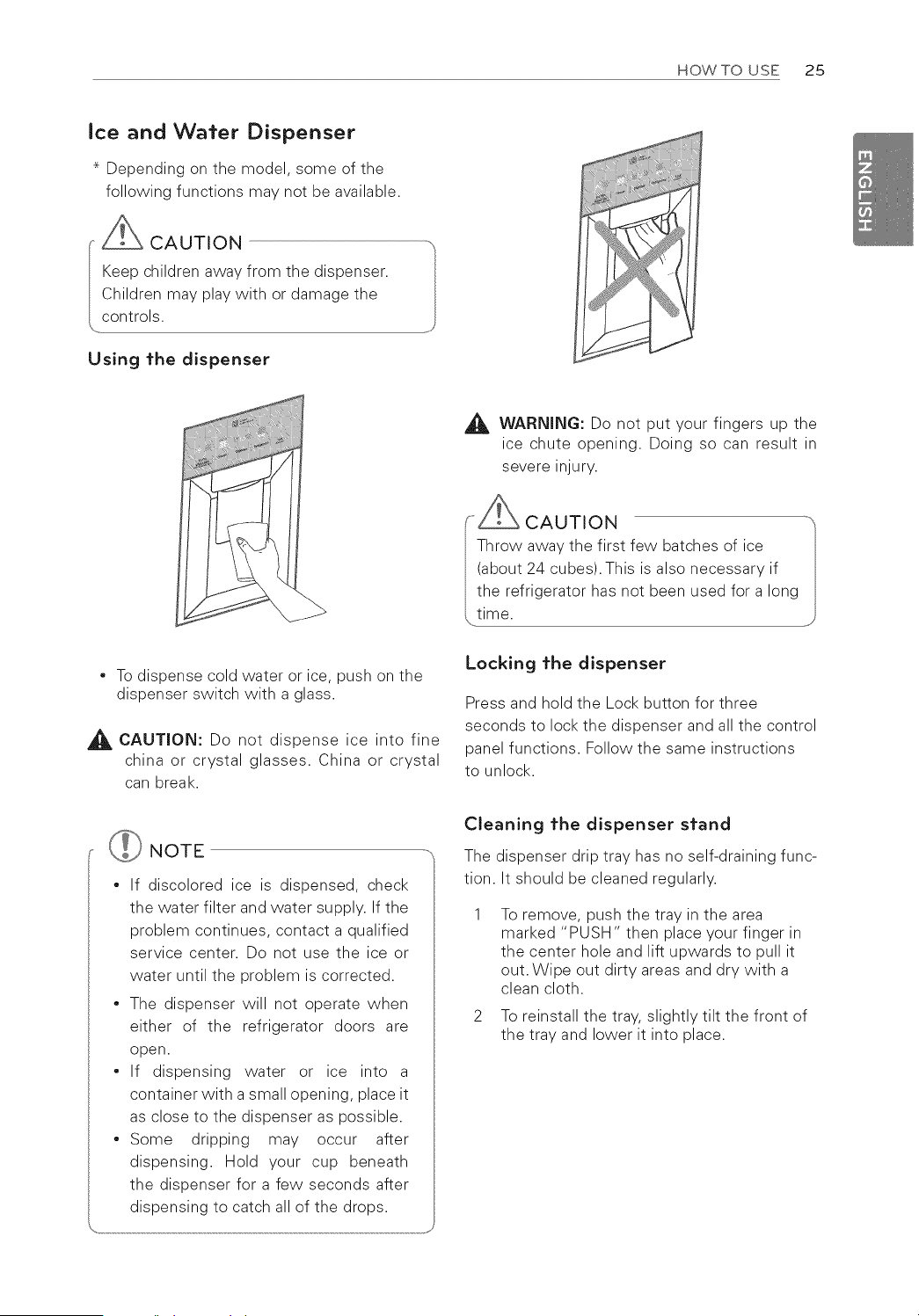

25 Ice andWater Dispenser

26 Storing Food

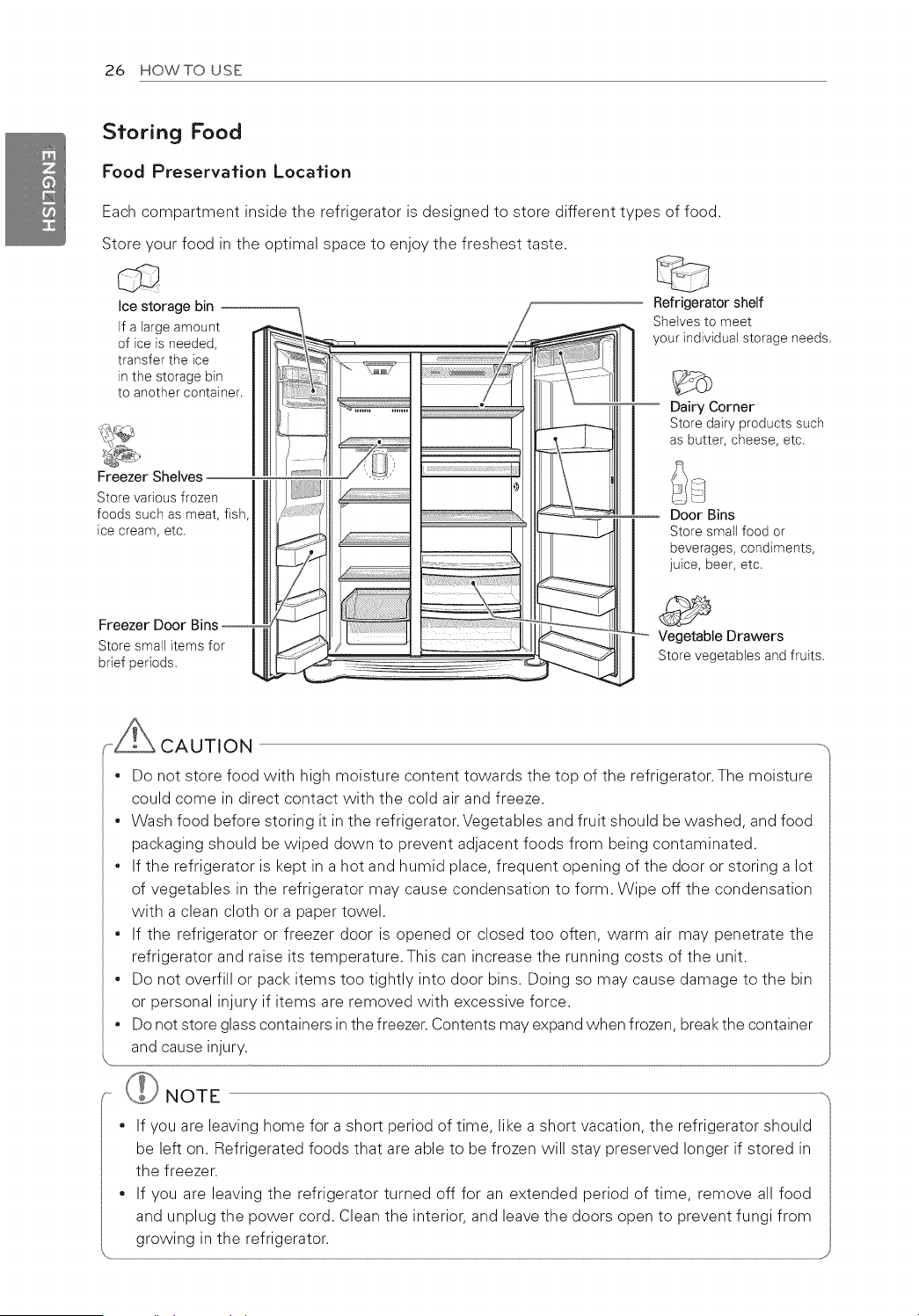

26 - Food Preservation Location

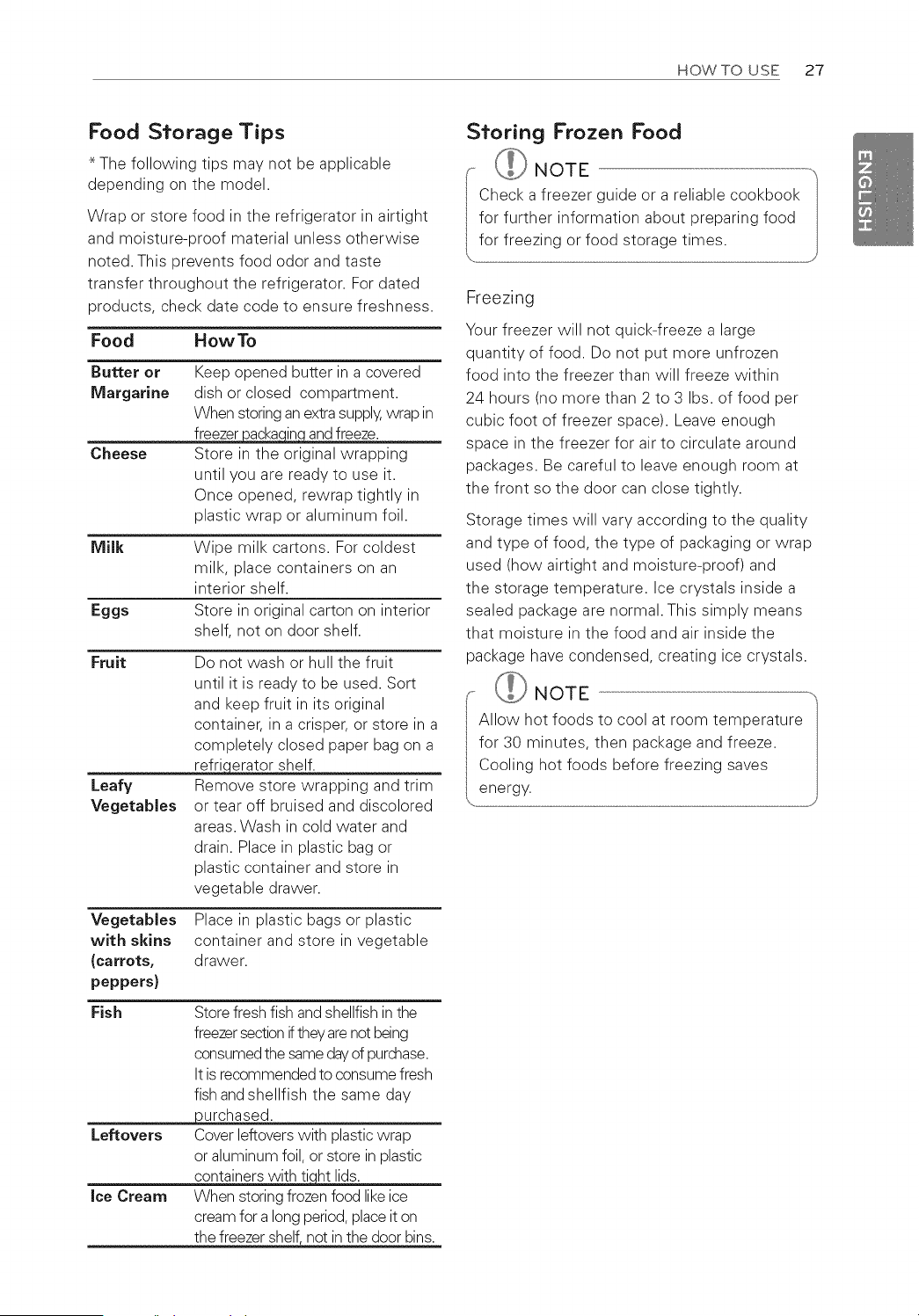

27 - Food Storage Tips

27 - Storing Frozen Food

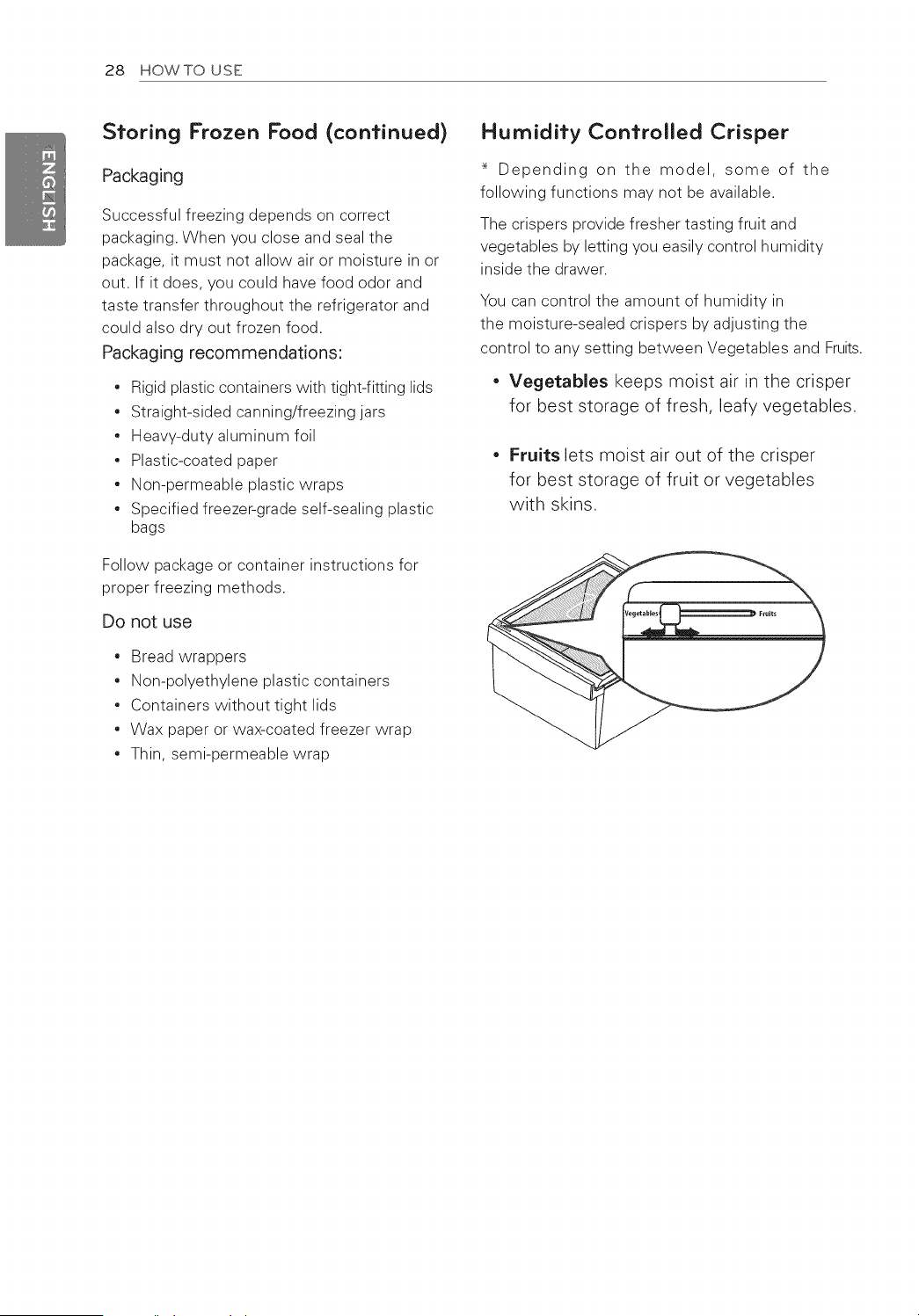

28 Humidity Controlled Crisper

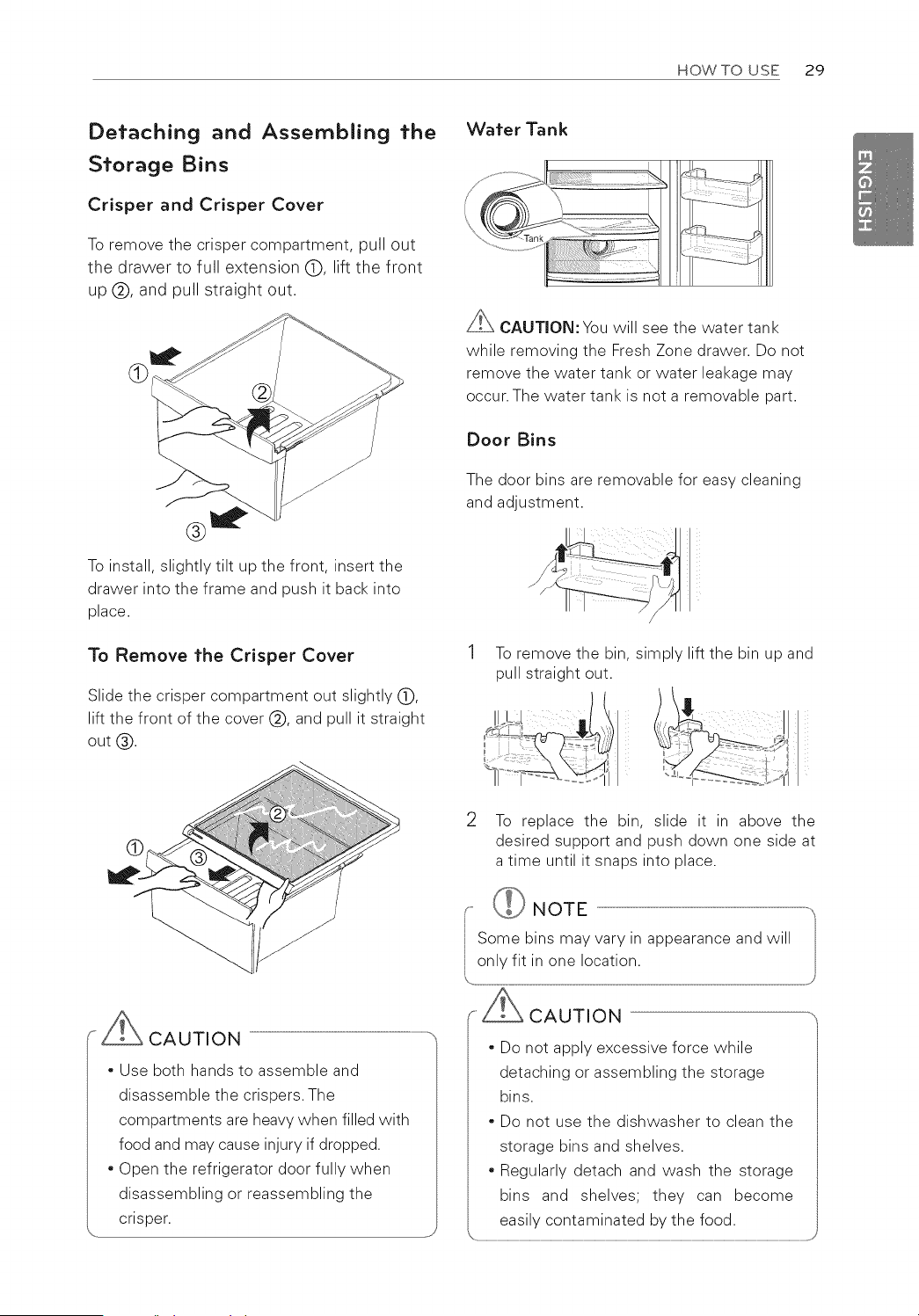

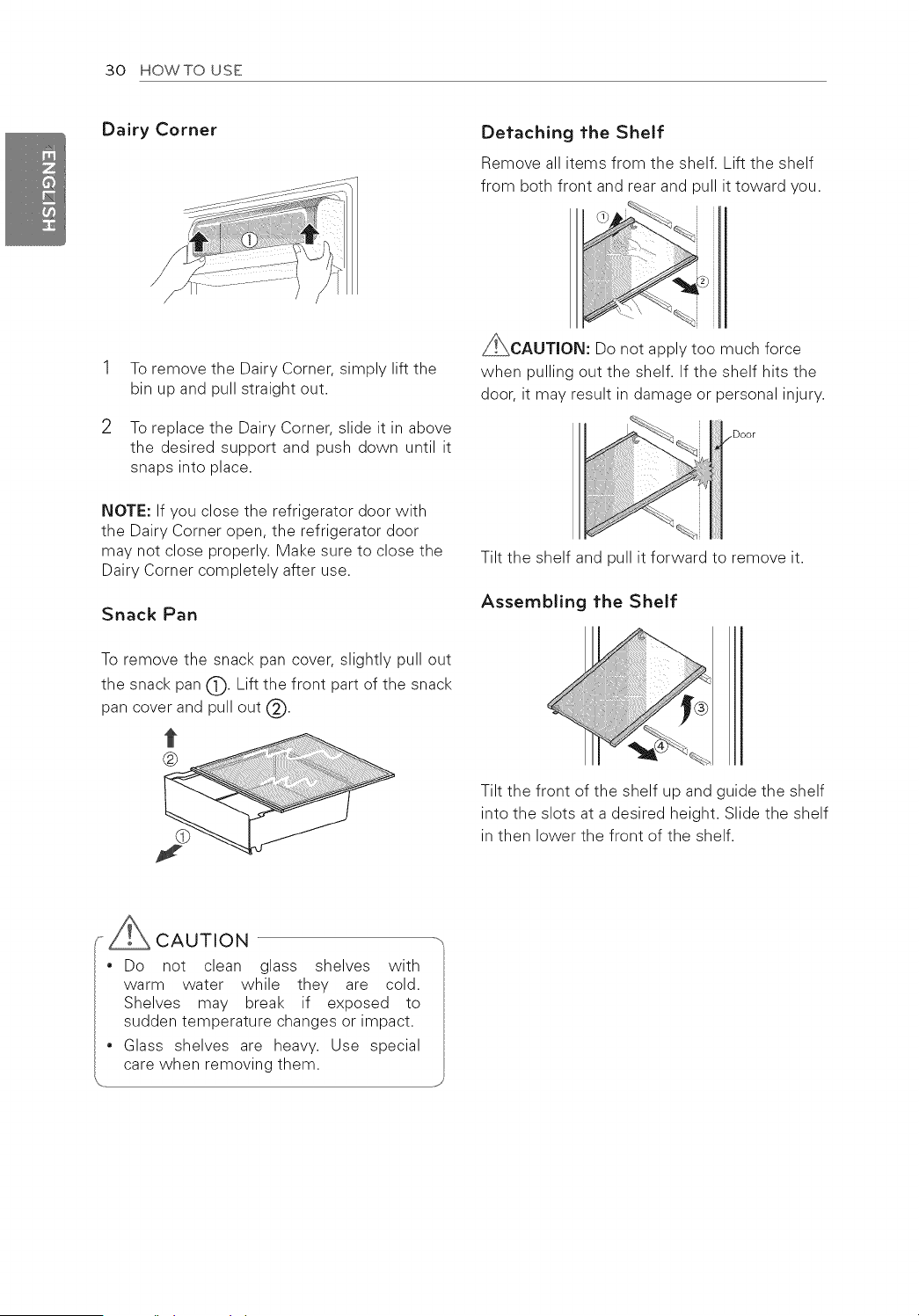

29 Detaching and Assembling the Storage Bins

30 Adjusting the Refrigerator Shelves

31 MAINTENANCE

31 Cleaning

32 Replacing the Water Filter

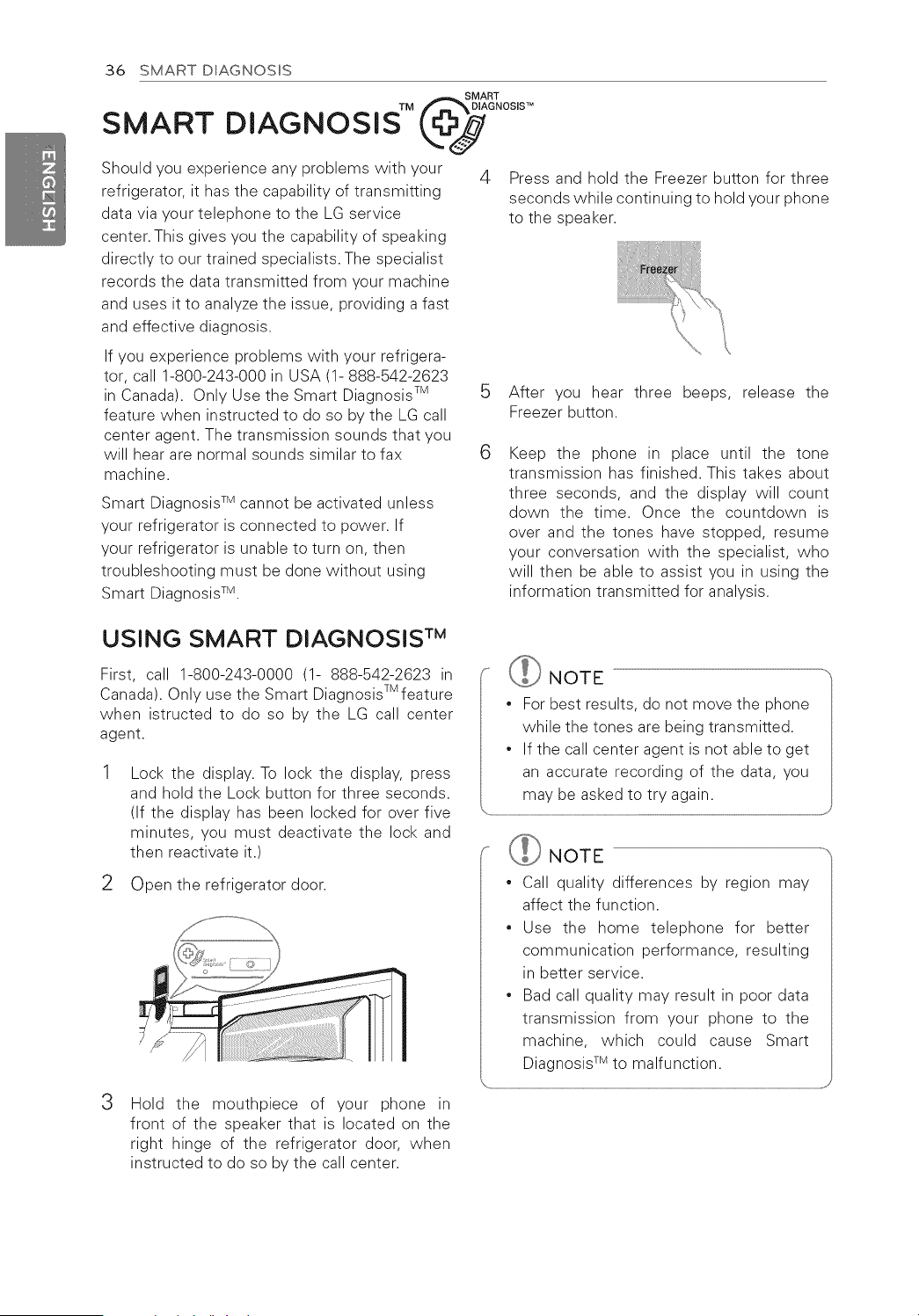

36 SMART DIAGNOSIS TM

36 Using Smart Diagnosis TM

37 TROUBLESHOOTING

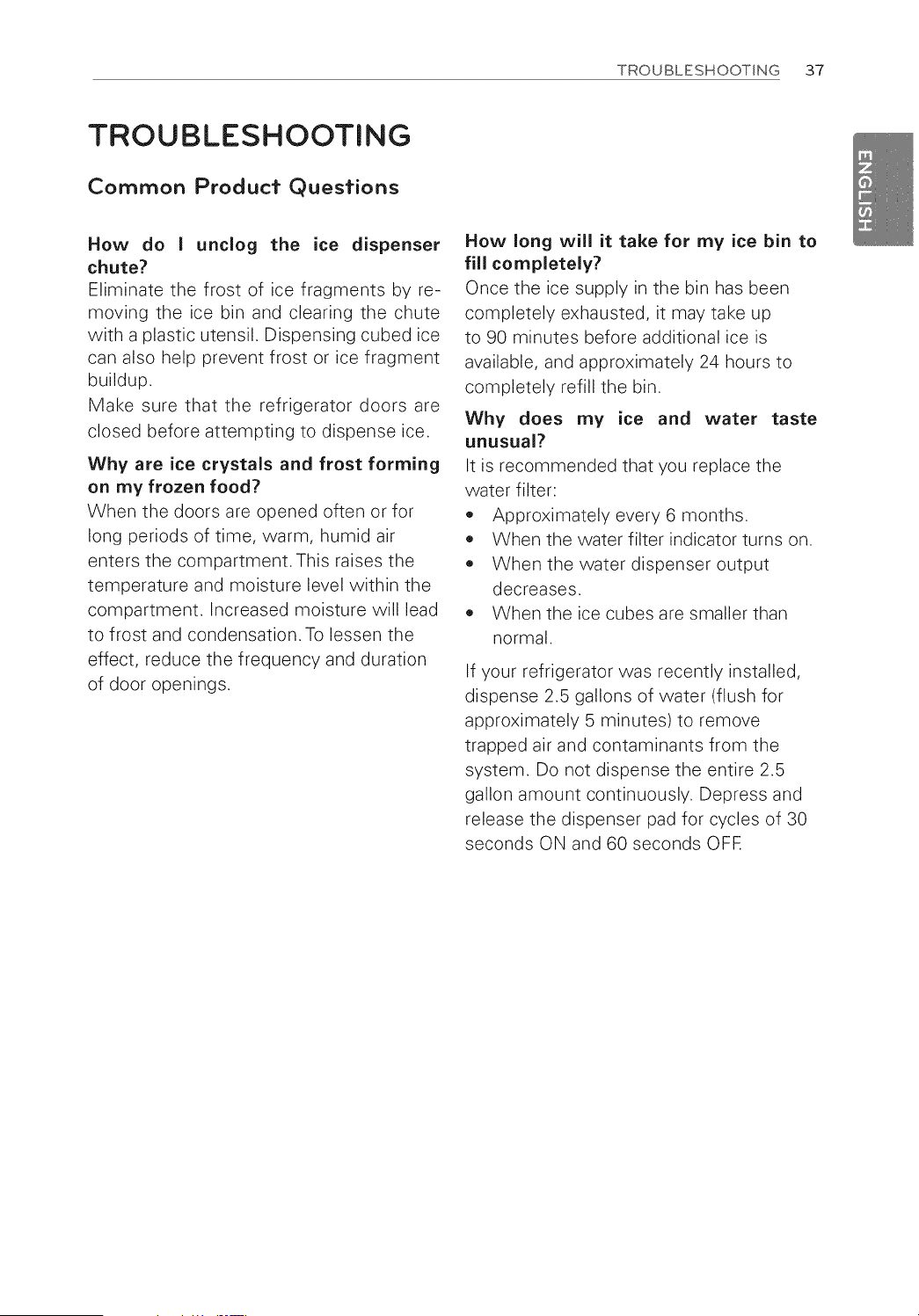

37 Common Product Questions

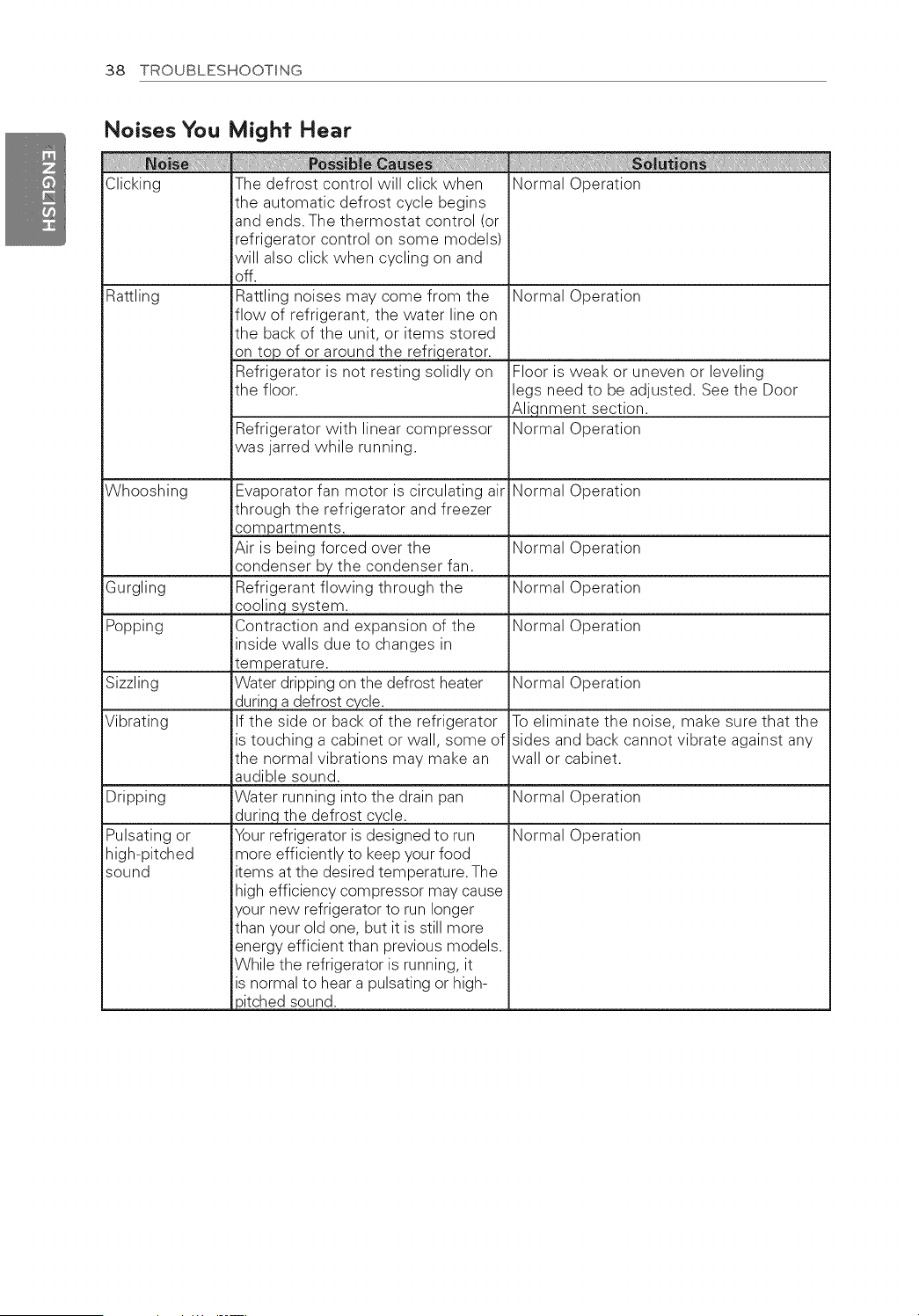

38 Noises You Might Hear

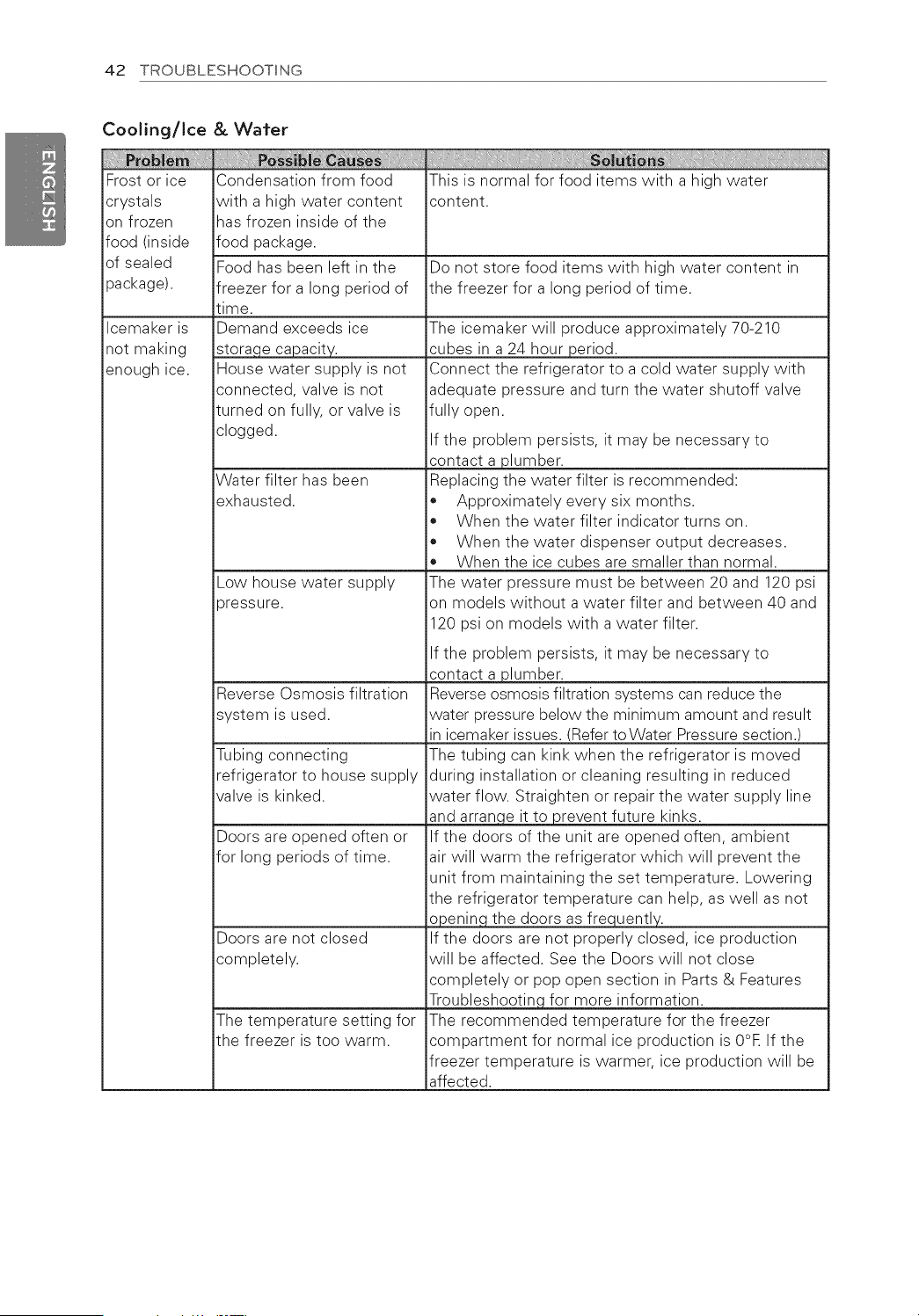

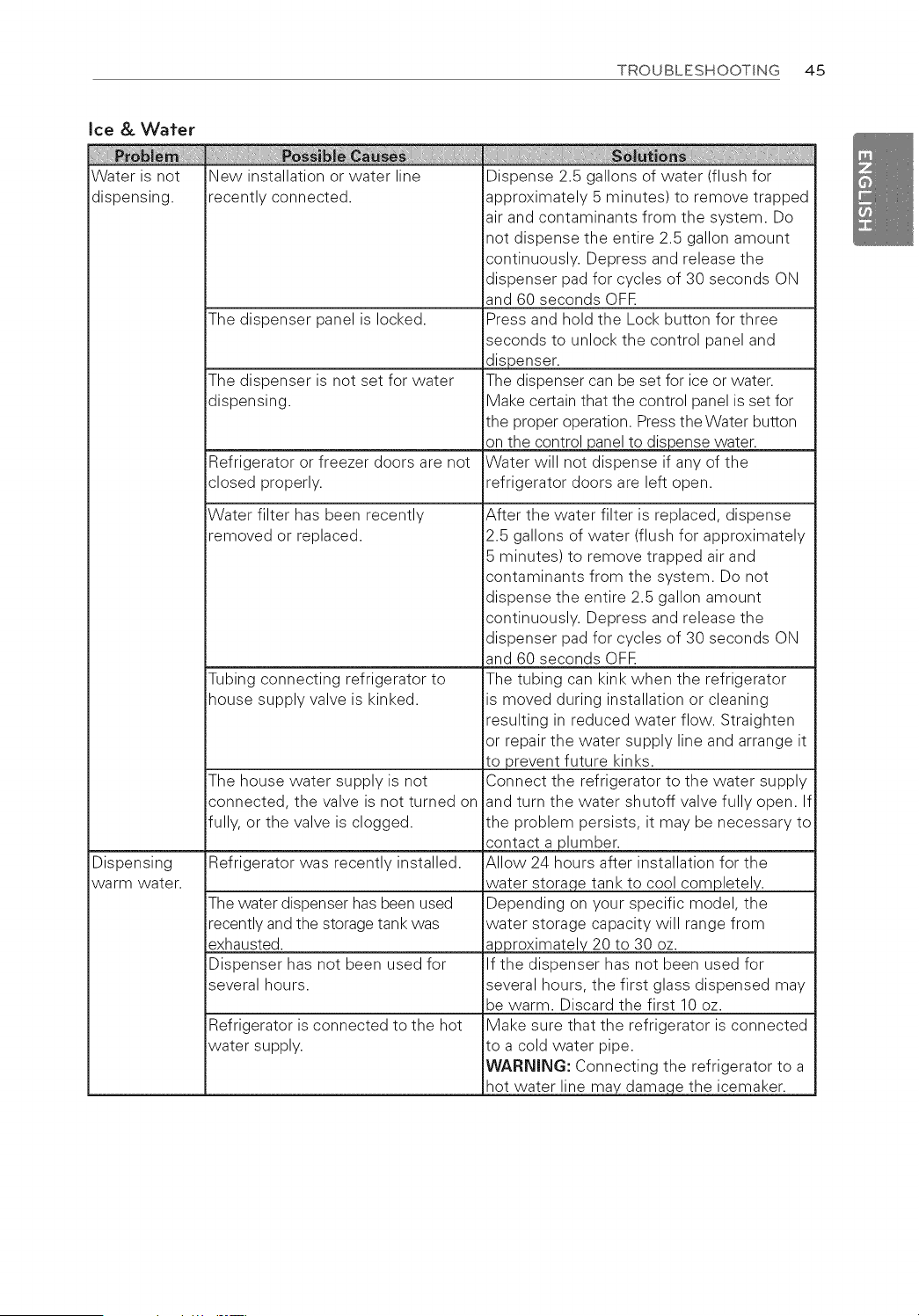

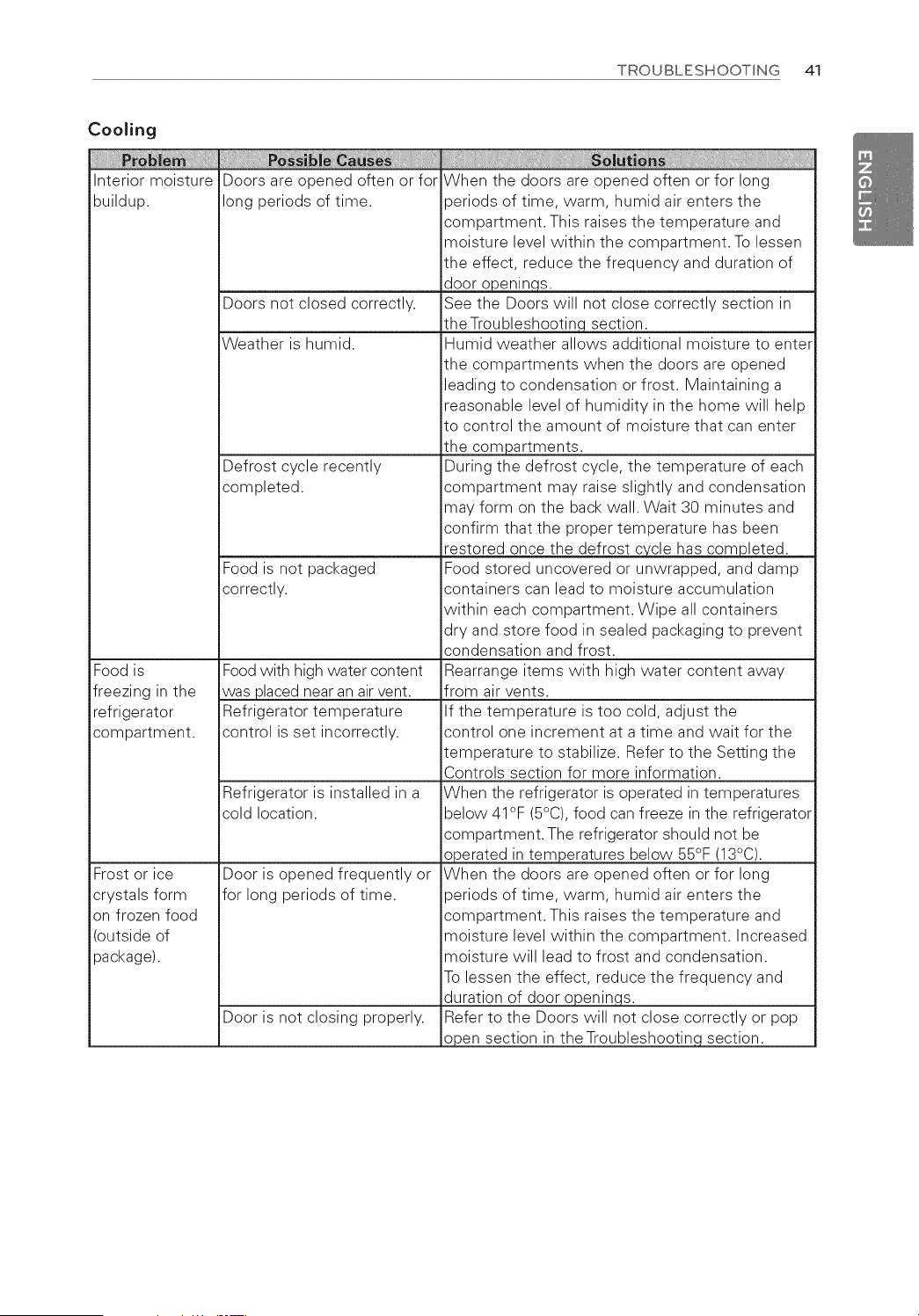

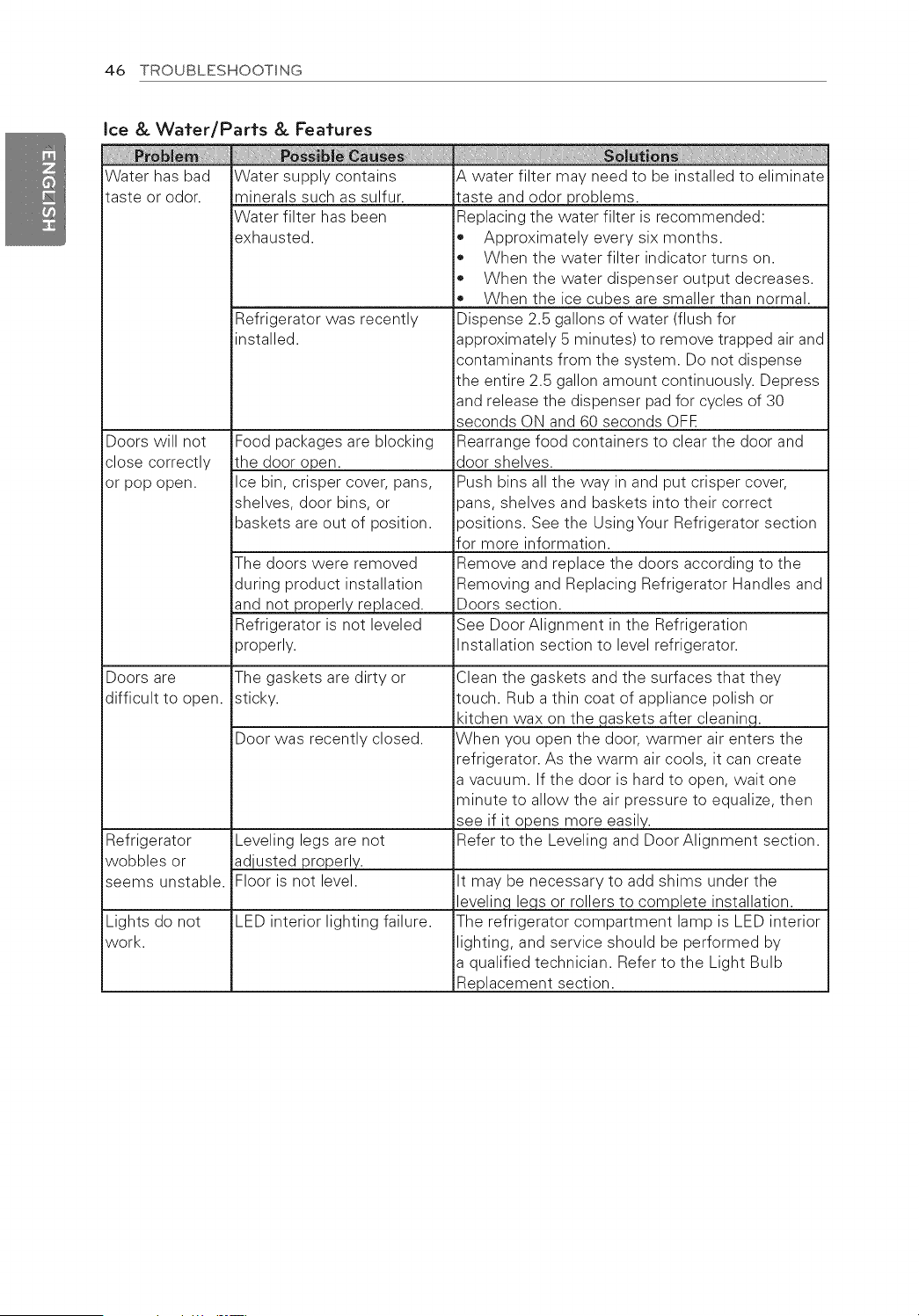

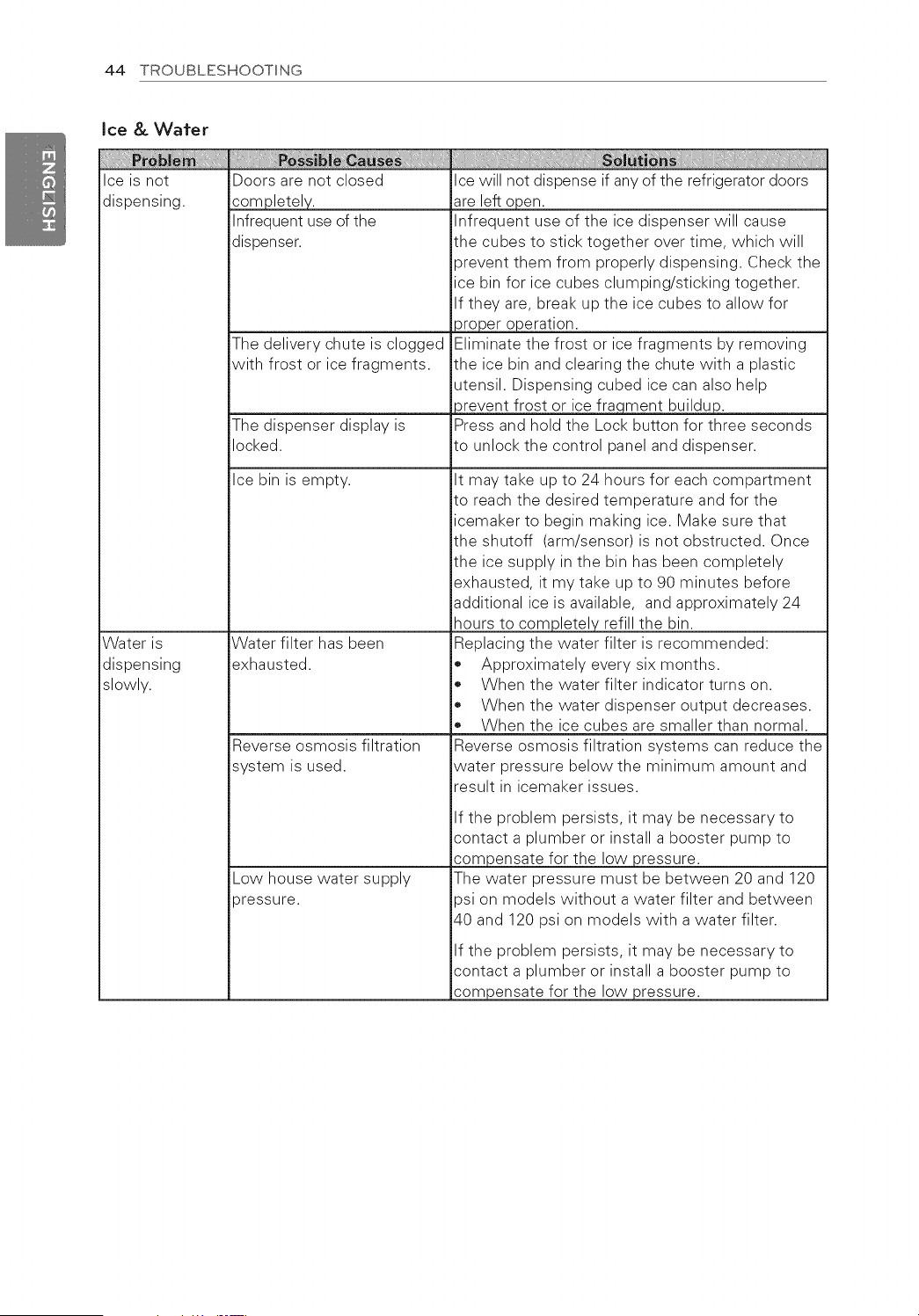

39 Before Calling for Service

48 WARRANTY

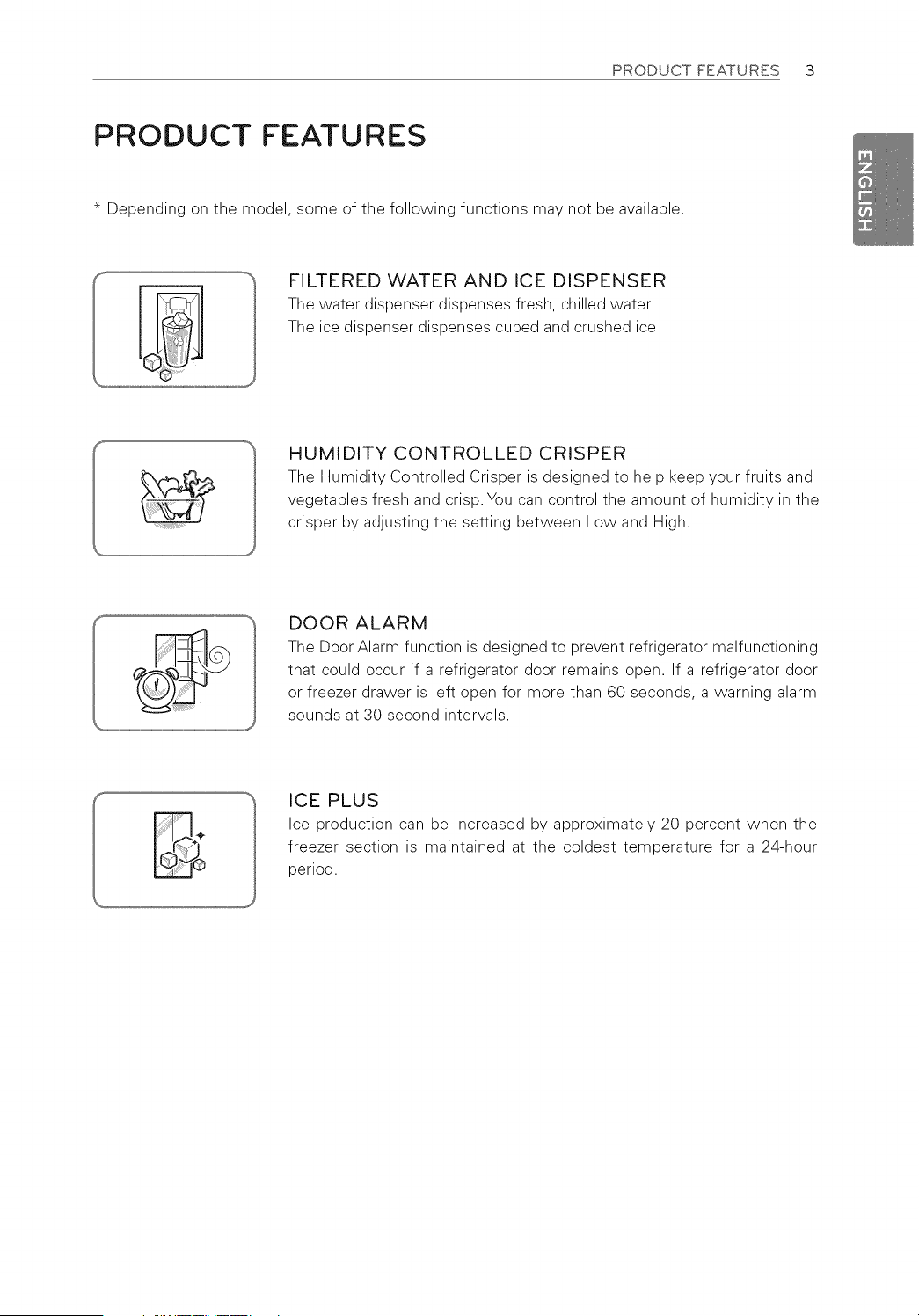

PRODUCT FEATURES 3

PRODUCT FEATURES

* Depending on the model, some of the following functions may not be available.

FILTERED WATER AND ICE DISPENSER

The water dispenser dispenses fresh, chilled water.

The ice dispenser dispenses cubed and crushed ice

HUMIDITY CONTROLLED CRISPER

The Humidity Controlled Crisper is designed to help keep your fruits and

vegetables fresh and crisp. You can control the amount of humidity in the

crisper by adjusting the setting between Low and High.

DOOR ALARM

The Door Alarm function is designed to prevent refrigerator malfunctioning

that could occur if a refrigerator door remains open, If a refrigerator door

or freezer drawer is left open for more than 60 seconds, a ,warning alarm

sounds at 30 second intervals,

ICE PLUS

Ice production can be increased by approximately 20 percent when the

freezer section is maintained at the coldest temperature for a 24-hour

period.

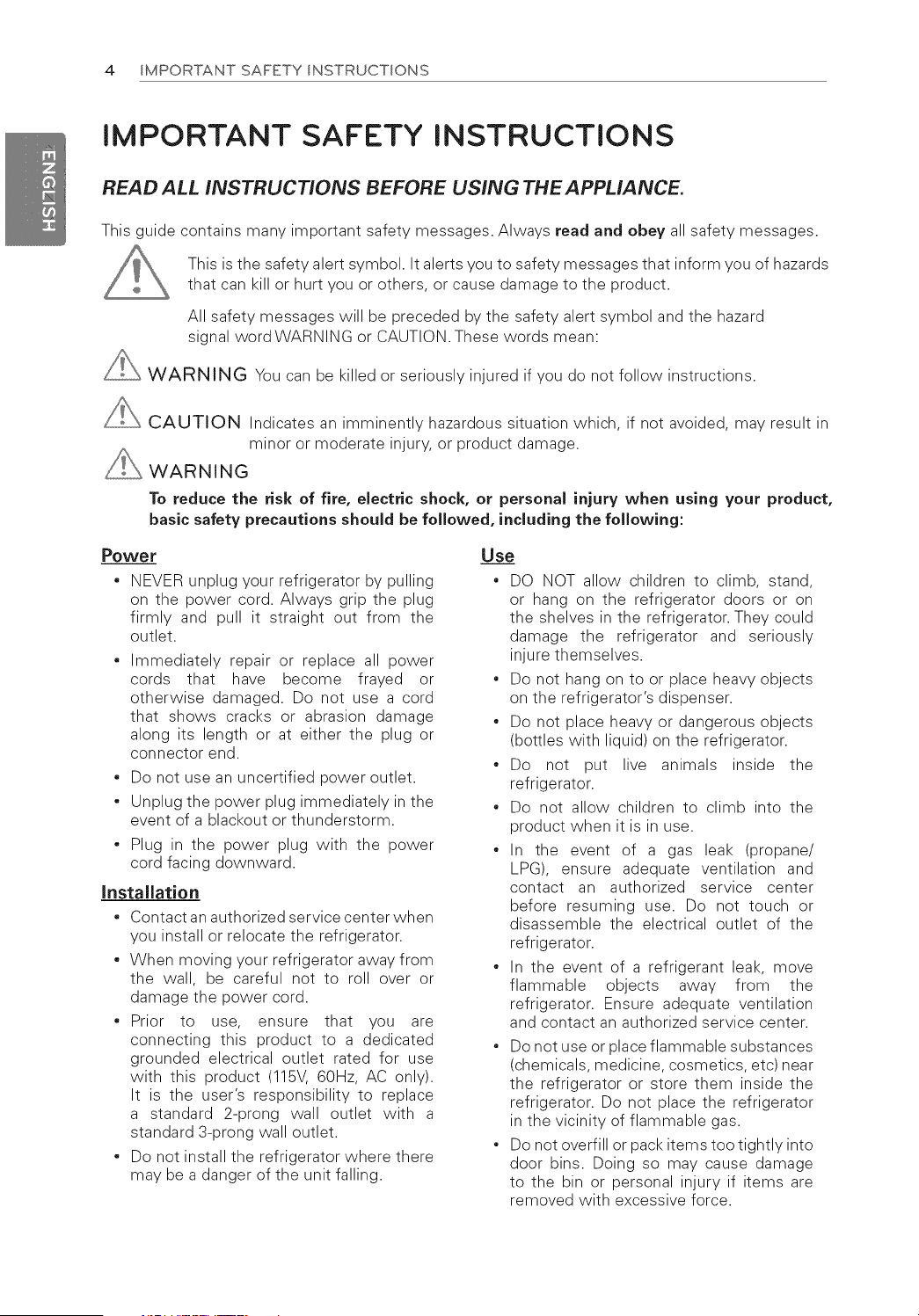

4 IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards

that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word WARNING or CAUTION. These words mean:

WARNING You can be killed or seriously injured if you do not follow instructions.

CAUTION Indicates an imminently hazardous situation which, if not avoided, may result in

minor or moderate injury, or product damage.

WARNING

To reduce the risk of fire, electric shock, or personal injury when using your product,

basic safety precautions should be followed, including the following:

Powe r

NEVER unplug your refrigerator by pulling

on the power cord. Always grip the plug

firmly and pull it straight out from the

outlet.

• Immediately repair or replace all power

cords that have become frayed or

otherwise damaged. Do not use a cord

that shows cracks or abrasion damage

along its length or at either the plug or

connector end.

• Do not use an uncertified power outlet.

• Unplug the power plug immediately in the

event of a blackout or thunderstorm.

• Plug in the power plug with the power

cord facing downward.

installation

• Contact an authorized service center when

you install or relocate the refrigerator.

• When moving your refrigerator away from

the wall, be careful not to roll over or

damage the power cord.

• Prior to use, ensure that you are

connecting this product to a dedicated

grounded electrical outlet rated for use

,with this product (115V, 60Hz, AC only).

It is the user's responsibility to replace

a standard 2-prong wall outlet with a

standard 3-prong wall outlet.

• Do not install the refrigerator where there

may be a danger of the unit falling.

Use

• DO NOT allow children to climb, stand,

or hang on the refrigerator doors or on

the shelves in the refrigerator. They could

damage the refrigerator and seriously

injure themselves.

• Do not hang on to or place heavy objects

on the refrigerator's dispenser.

• Do not place heavy or dangerous objects

(bottles with liquid) on the refrigerator.

• Do not put live animals inside the

refrigerator.

• Do not allow children to climb into the

product when it is in use.

• In the event of a gas leak (propane!

LPG), ensure adequate ventilation and

contact an authorized service center

before resuming use. Do not touch or

disassemble the electrical outlet of the

refrigerator.

• In the event of a refrigerant leak, move

flammable objects away from the

refrigerator. Ensure adequate ventilation

and contact an authorized service center.

• Do not use or place flammable substances

(chemicals, medicine, cosmetics, etc) near

the refrigerator or store them inside the

refrigerator. Do not place the refrigerator

in the vicinity of flammable gas.

• Do not overfill or pack items too tightly into

door bins. Doing so may cause damage

to the bin or personal injury if items are

removed with excessive force.

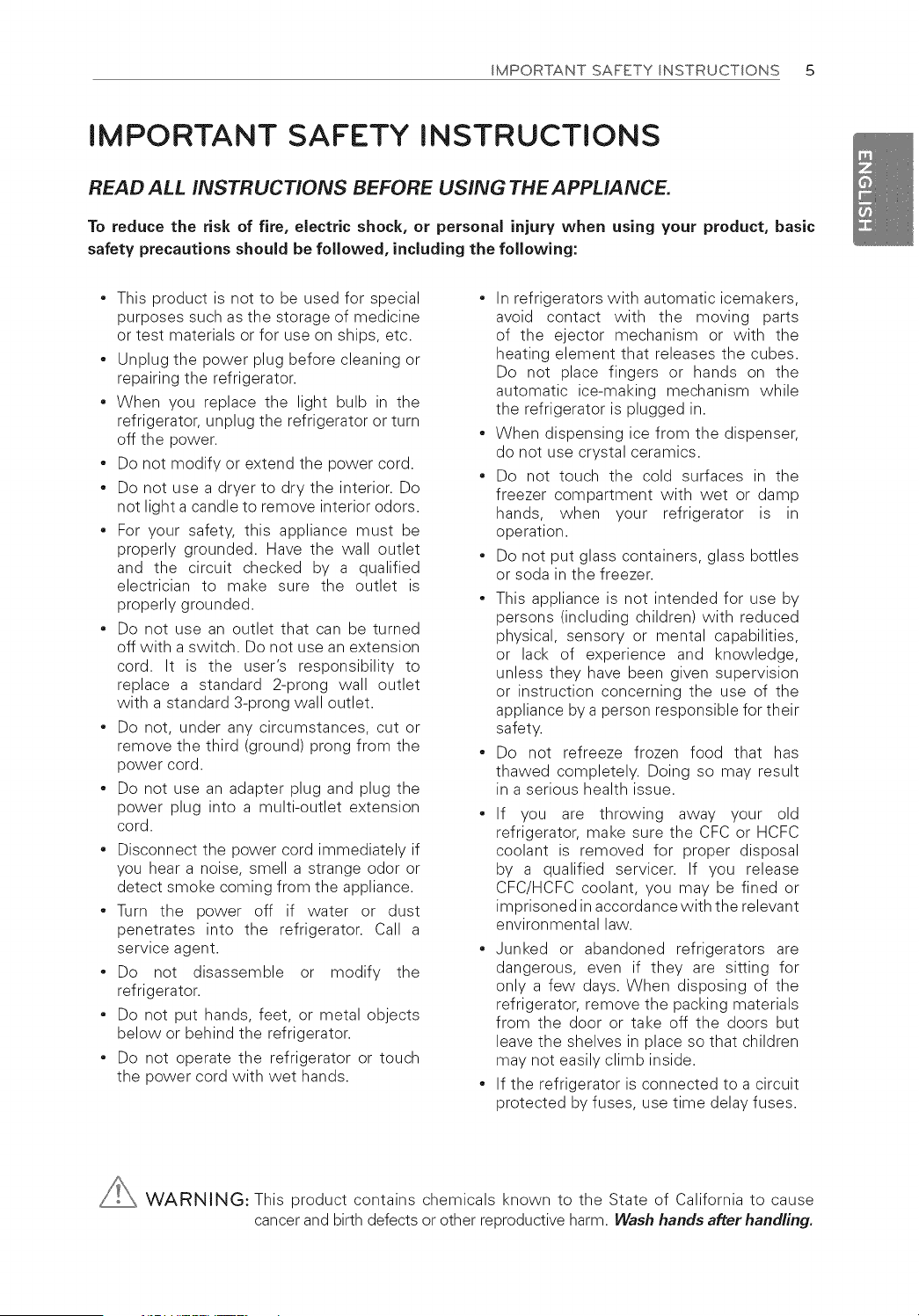

IMPORTANT SAFETY INSTRUCTIONS 5

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

To reduce the risk of fire, electric shock, or personal injury when using your product, basic

safety precautions should be followed, including the following:

• This product is not to be used for special

purposes such as the storage of medicine

or test materials or for use on ships, etc.

• Unplug the power plug before cleaning or

repairing the refrigerator.

• When you replace the light bulb in the

refrigerator, unplug the refrigerator or turn

off the power.

• Do not modify or extend the power cord.

• Do not use a dryer to dry the interior. Do

not light a candle to remove interior odors.

• For your safety, this appliance must be

properly grounded. Have the ,wall outlet

and the circuit checked by a qualified

electrician to make sure the outlet is

properly grounded.

• Do not use an outlet that can be turned

off with a switch. Do not use an extension

cord. It is the user's responsibility to

replace a standard 2-prong wall outlet

with a standard 3-prong wall outlet.

• Do not, under any circumstances, cut or

remove the third (ground) prong from the

power cord.

• Do not use an adapter plug and plug the

power plug into a multi-outlet extension

cord.

• Disconnect the power cord immediately if

you hear a noise, smell a strange odor or

detect smoke coming from the appliance.

• Turn the power off if ,water or dust

penetrates into the refrigerator. Call a

service agent.

• Do not disassemble or modify the

refrigerator.

• Do not put hands, feet, or metal objects

below or behind the refrigerator.

• Do not operate the refrigerator or touch

the power cord with wet hands.

• In refrigerators with automatic icemakers,

avoid contact with the moving parts

of the ejector mechanism or with the

heating element that releases the cubes.

Do not place fingers or hands on the

automatic ice-making mechanism while

the refrigerator is plugged in.

• When dispensing ice from the dispenser,

do not use crystal ceramics.

• Do not touch the cold surfaces in the

freezer compartment with wet or damp

hands, when your refrigerator is in

operation.

• Do not put glass containers, glass bottles

or soda in the freezer.

• This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities,

or lack of experience and knowledge,

unless they have been given supervision

or instruction concerning the use of the

appliance by a person responsible for their

safety.

• Do not refreeze frozen food that has

thawed completely. Doing so may result

in a serious health issue.

• If you are throwing away your old

refrigerator, make sure the CFC or HCFC

coolant is removed for proper disposal

by a qualified servicer. If you release

CFC/HCFC coolant, you may be fined or

imprisoned in accordance with the relevant

environmental law.

• Junked or abandoned refrigerators are

dangerous, even if they are sitting for

only a few days. When disposing of the

refrigerator, remove the packing materials

from the door or take off the doors but

leave the shelves in place so that children

may not easily climb inside.

• If the refrigerator is connected to a circuit

protected by fuses, use time delay fuses.

WARNING: This product contains chemicals known to the State of California to cause

cancer and birth defects or other reproductive harm. Wash hands after handling.

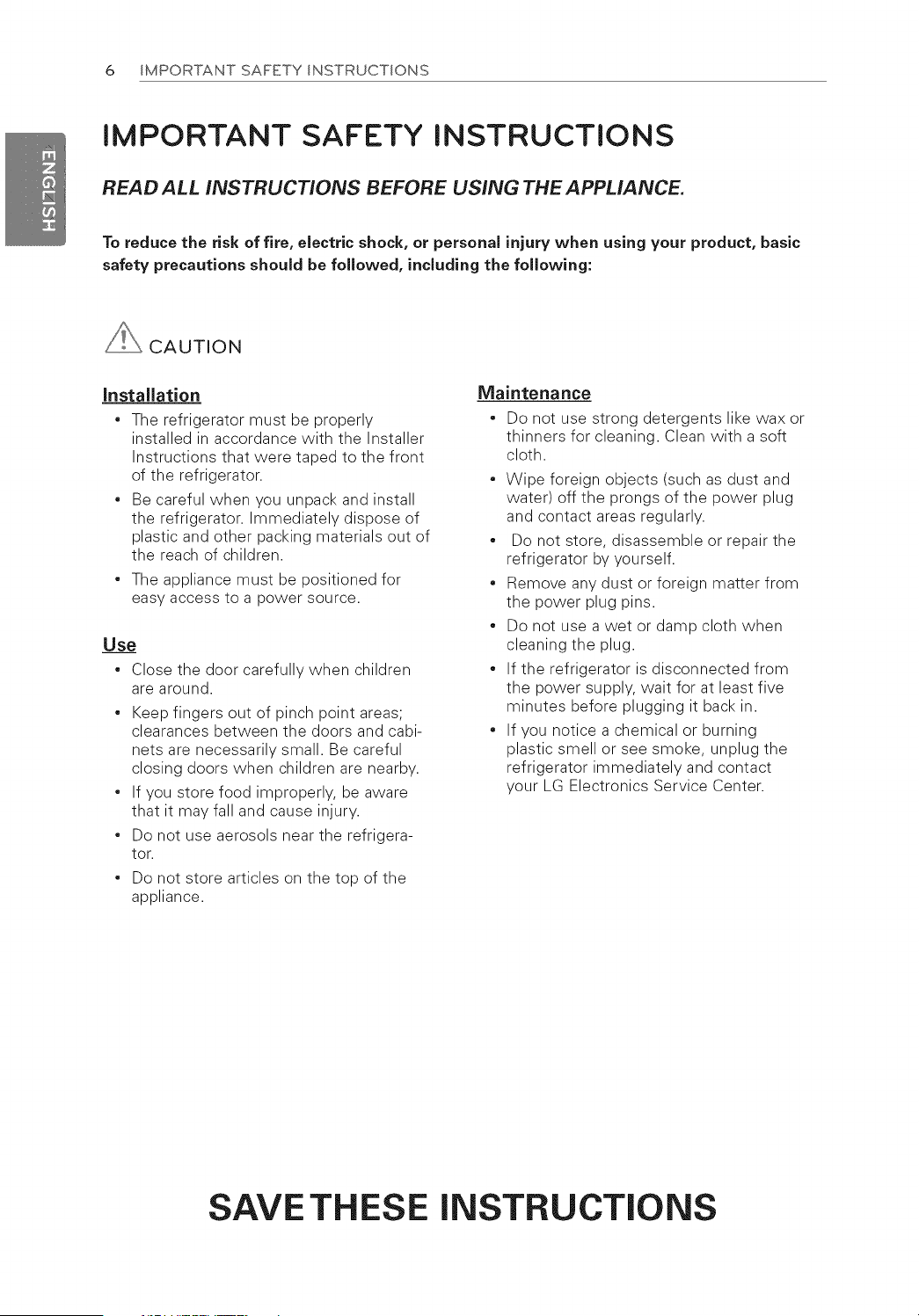

6 IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

To reduce the risk of fire, electric shock, or personal injury when using your product, basic

safety precautions should be followed, including the following:

CAUTION

installation

• The refrigerator must be properly

installed in accordance with the Installer

Instructions that were taped to the front

of the refrigerator.

• Be careful when you unpack and install

the refrigerator. Immediately dispose of

plastic and other packing materials out of

the reach of children.

• The appliance must be positioned for

easy access to a power source.

Use

• Close the door carefully when children

are around.

• Keep fingers out of pinch point areas;

clearances between the doors and cabi-

nets are necessarily small. Be careful

closing doors when children are nearby.

• If you store food improperly, be aware

that it may fall and cause injury.

• Do not use aerosols near the refrigera-

tor.

• Do not store articles on the top of the

appliance.

Maintenance

• Do not use strong detergents like wax or

thinners for cleaning. Clean with a soft

cloth.

• Wipe foreign objects (such as dust and

water) off the prongs of the power plug

and contact areas regularly.

• Do not store, disassemble or repair the

refrigerator by yourself.

• Remove any dust or foreign matter from

the power plug pins.

• Do not use a wet or clamp cloth when

cleaning the plug.

• If the refrigerator is disconnected from

the power supply, wait for at least five

minutes before plugging it back in.

• If you notice a chemical or burning

plastic smell or see smoke, unplug the

refrigerator immediately and contact

your LG Electronics Service Center.

SAVE THESE INSTRUCTIONS

COMPONENTS 7

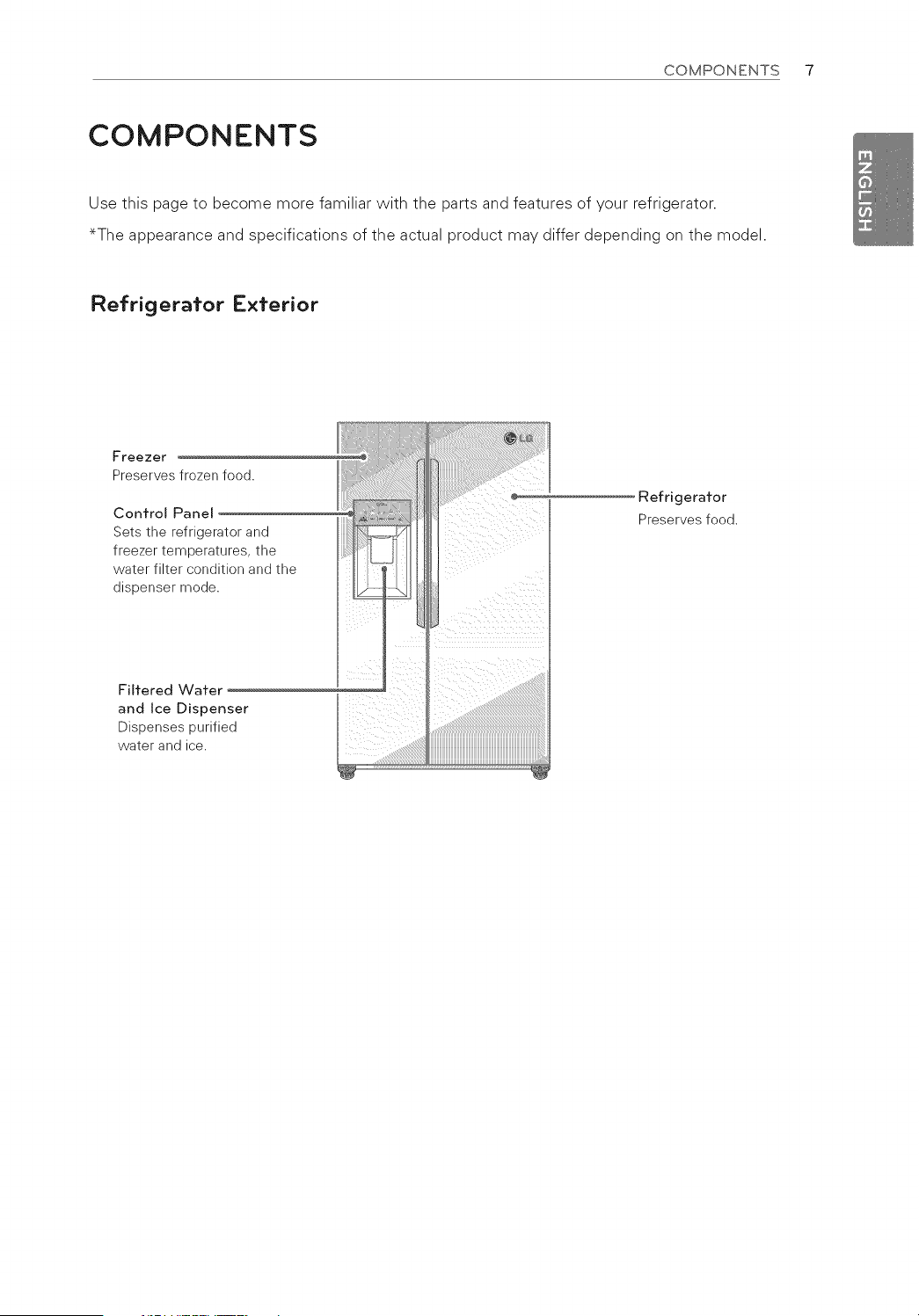

COMPONENTS

Use this page to become more familiar with the parts and features of your refrigerator.

*The appearance and specifications of the actual product may differ depending on the model.

Refrigerafor Exferior

Freezer

Preserves frozen food.

Confrol Panel

Sets the refrigerator and

freezer temperatures, the

water filter condition and the

dispenser mode.

Filfered Wafer

and Ice Dispenser

Dispenses purified

water and ice.

Refrigerafor

Preserves food.

8 COMPONENTS

Reffigerafor Inferior

Freezer Refrigerator

Compartment Compartment

Refrigerator

L}ght (LED)

Dairy Corner

Icemaker

Freezer.

Shelves

F:reezer

Light (LED)

Water Filter

Refrigerator

Shelf

Snack

Pan

Freezer

Shelves

Freezer

Door Bins

Freezer

Drawer

Refr}gerator

Door Bins

Vegetable

Drawers

Freezer

Door B}n

- NOTE ...."i

Parts, features and options vary by model.

Your model may not include every option.

INSTALLATION 9

INSTALLATION

Installation Overview

Please read the following installation instructions first after purchasing this product or transporting it

to another location.

1 Unpacking your

refrigerator

[

j '

2 Choosing the proper

location

4 Connecting fhe water 5 Leveling and Door

supply and water line Alignment

3 Disassembling/Assembling

NOTE ...............................................................

Connect to potable water

supply only,

Specifications

The appearance and specifications listed in this manual may vary due to constant product improvements.

Description Side by Side refrigerator

Electrical requirements 115Volts, 60 Hz, AC only, and fused at 15 amperes (minimum)

Min./Max.Water pressure 20 - 120 psi (138- 827 kPa) on models without water filter,

40 - 120 psi on models with filter

Dimensions

33"(W) X 32"(D) X 67"(H), 49 1/4" (D w/door open)

831 mm (W) X 811 mm (D) X 1694 mm (H), 1264 mm

(D w/door open)

Net weight 264.5 lb. (120 kg)

10 INSTALLATION

Unpacking Your Refrigerator

WARNING ..........................................................................................................................................................................................................

• Use two or more people to move and

install the refrigerator. Failure to do so

can result in back or other injury.

• Your refrigerator is heavy. When moving

the refrigerator for cleaning or service,

be sure to protect the floor. Always pull

the refrigerator straight out when mov-

ing it. Do not wiggle or ,walk the refrig-

erator when trying to move it, as floor

damage could occur.

• Keep flammable materials and va-

pors, such as gasoline, away from the

refrigerator. Failure to do so can result

in fire, explosion, or death.

Remove tape and any temporary labels from

your refrigerator before using. Do not remove

any warning-type labels, the model and serial

number label, or the Tech Sheet that is located

under the front of the refrigerator.

To remove any remaining tape or glue, rub

the area briskly with your thumb. Tape or glue

residue can also be easily removed by rubbing

a small amount of liquid dish soap over the

adhesive with your fingers. Wipe with ,warm

water and dry.

Do not use sharp instruments, rubbing alcohol,

flammable fluids, or abrasive cleaners to re-

move tape or glue. These products can damage

the surface of your refrigerator.

Refrigerator shelves are installed in the ship-

ping position. Please reinstall shelves according

to your individual storage needs.

Choosing the Proper Location

• Select a place where a water supply can

be easily connected for the automatic

icemaker.

The refrigerator should always be plugged

into its own individual properly grounded

electrical outlet rated for 115 Volts, 60 Hz,

AC only, and fused at 15 or 20 amperes.

This provides the best performance

and also prevents overloading house

wiring circuits which could cause a fire

hazard from overheated wires. It is

recommended that a separate circuit

serving only this appliance be provided.

WARNING

Flooring

To avoid noise and vibration, the unit must be

leveled and installed on a solidly constructed

floor. If required, adjust the leveling legs to

compensate for unevenness of the floor. The

front should be slightly higher than the rear to

aid in door closing. Leveling legs can be turned

easily by tipping the cabinet slightly. Turn the

leveling legs to the left to raise the unit or to

the right to lower it. (See Leveling and Door

Alignment.)

NOTE

Installing on carpeting, soft tile surfaces, a

platform or weakly supported structure is

not recommended.

INSTALLATION 11

Ambienf Temperafure

Install this appliance in an area where the

temperature is between 55°F (13°C) and 110°F

(43°C). If the temperature around the appli-

ance is too low or high, cooling ability may be

adversely affected.

Measuring fhe Clearances

Too small of a distance from adjacent items

may result in lowered freezing capability and

increased electricity consumption charges.

Allow at least 24 inches (61 cm) in front of the

refrigerator to open the doors, and at least

2 inches (5.08 cm) between the back of the

refrigerator and the ,wall.

24" (61 cm)

2" (5.08 cm)

Insfalling 1"he Base Grille

Removing fhe Base Grille

1 Open the doors (refrigerator and freezer).

2 With doors open, remove screws from base

grille. Remove base grille and set safely

aside.

Assembling fhe Base Grille

1 Place base grille into position and insert and

tighten screws.

Removing/Assembling fhe

Refrigerafor Door Handles

NOTE

When it is necessary to move the refrigerator

through a narrow opening, removing the

doors is the recommended procedure. If it

is necessary to remove the handles, follow

the directions below. The appearance of the

handle may vary from what is shown in the

illustrations

Removing fhe Handles

1 Loosen the set screws with a 3/32 in. Allen

wrench and remove the handle.

Loosen the mounting fasteners that connect

to the refrigerator door and handle using a

1A in. Allen wrench, remove the mounting

fasteners.

Mounting

Assembling fhe Handles

1 Assemble the mounting fasteners at both

ends of the handle using a 1A in. Allen

wrench.

Place the handle on the door by fitting

the handle footprints over the mounting

fasteners and tightening the set screws

with a 3/32 in. Allen wrench.

Mounting Fasteners

12 INSTALLATION

Removing/Assembling 1"he

Refrigerat"or Doors

When it is necessary to move the refrigerator

through a narrow opening, removing the doors

is the recommended procedure.

WARNING

• If your entrance door is too narrow

for the refrigerator to pass through,

remove the refrigerator doors and move

the refrigerator sideways through the

doorway.

• Use two or more people to remove and

install the refrigerator doors. Failure to do

so can result in back or other injury.

• Disconnect the electrical supply to the

refrigerator before installation. Failure

to do so could result in serious injury or

death.

• Do not put hands, feet or other objects

into the air vents or bottom of the

refrigerator. You may be injured or receive

an electrical shock.

• Be careful when handling the hinge and

stopper. You may be injured.

= Remove food and bins before detaching

the doors and drawers.

NOTE: Before removing the doors, remove the

base grille. See Installing the Base Grille for

instructions.

Removing the Right (Refrigerator) Door

Type I i(4y (5)/_

Type 2

1.Open the door. Remove the top hinge cover

screw (1).

2. Use a flat blade screwdriver to pry back the

hooks (not shown) of the hinge cover (2)

from the top of the refrigerator cabinet. Lift

up the cover.

3. Rotate the hinge lever (3) clockwise. Lift

the upper hinge (4) free of the hinge lever

latch (5).

NOTE: Regardless of hinge lever type, removal

process is the same.

CAUTION

When lifting the hinge free of the latch, be

careful that the door does not fall forward.

4. Lift the door from the lower hinge pin.

5. Place the door, inside facing up, on a non-

scratching surface.

Removing the Left (Freezer) Door with

Water Line Connection

Pull up the water feed tube while pressing the

area (Figure 1) shown in the figure below. Make

sure the color of the water lines match.

NOTE: If a tube end is deformed or abraded,

trim the part away. Disconnecting the tube

under the door causes about 0.13 gallons (0.5

liters) of water to flow out. Put a large container

at the end of the tube to prevent water from

draining onto the floor.

Figure 1

(2)_

1.Open the door. Remove the top hinge cover

screw (1).

INSTALLATION 13

2. Use a flat blade screwdriver to pry back the

hooks (not shown) of the hinge cover (2)

from the top of the refrigerator cabinet. Lift

up the cover.

3. Disconnect all the wire harnesses (3).

4. Remove the grounding screw (4).

5. Rotate the hinge lever (5)

counterclockwise. Lift the upper hinge (6)

free of the hinge lever latch (7).

NOTE: Regardless of hinge lever type, removal

process is the same.

CAUTION ......]

When lifting the hinge free of the latch, be

cal_e!,y_!_t ha!_!he do or d°es no!_!a!,!_f_?_iwa_id:......................

5. Lift the door from the lower hinge pin, being

careful to pull the ,water lines through the

lower hinge pin.

6. Place the door, inside facing up, on a

non-scratching surface. Be careful not to

damage the water feed tube.

Reinstalling the Right (Refrigerator) Door

ly =@ ...... _ ,

<., ..,.e,

".......... iI

Type 1 l Type 2

1. Place the door onto the lower hinge pin.

2. Fit the upper hinge (4) over the hinge lever

latch (5) and into place. Rotate the lever (3)

counterclockwise to secure the hinge.

NOTE: Regardless of hinge lever type, reinstallation

process is the same.

3. Hook the tab on the switch side of the cover

under the edge of the wire opening in

the cabinet top. Position the cover (2) and

replace the screw (1).

Reinstalling the Left (Freezer) Door

z(7)

(7)

Type 1 Type 2

1. Feed the water tubes through the lower

hinge pin and place the door onto the

lower hinge pin. Water hoses should be

behind the leg to prevent damage.

2. Fit the top hinge (6) over hinge lever latch

(7)and into place. Rotate the lever (5)

clockwise to secure the hinge.

NOTE: Regardless of hinge lever type, removal

process is the same.

3. Install the grounding screw (4) and connect

all the wire harnesses (3).

4. Hook the tab on the door switch side of

the cover (2) under the edge of the wire

opening in the cabinet top. Position the

cover into place. Insert and tighten the

cover screw (1).

5. Reconnect the ,water tubes by inserting

the tubes into the connectors. The tube is

inserted correctly when only one guide line

is showing out of two.

NOTE: When replacing the door, make sure to

connect the water tubes so the colors

match.

14 INSTALLATION

Connecting fhe Wafer Line

Before You Begin

This water line installation is not covered by the

refrigerator warranty. Follow these instructions

carefully to minimize the risk of expensive ,water

damage.

Water hammer (water banging in the pipes)

in house plumbing can cause damage to

refrigerator parts and can lead to water leakage

or flooding. Call a qualified plumber to correct

water hammer before installing the water

supply line to the refrigerator.

CAUTION

To prevent burns and product damage, only

connect the refrigerator water line to a cold

water supply.

If you use your refrigerator before connecting

the water line, make sure the icemaker power

switch is in the OFF (O) position.

CAUTION

Do not install the icemaker tubing in areas

where temperatures fall below freezing.

Wafer Pressure

You will need a cold water supply. The water

pressure must be between 20 and 120 psi on

models without a water filter and between 40

and 120 psi on models with a water filter. If the

water pressure does not reach the minimum

required pressure, a separate booster pump

may be required for normal automatic icemaker

and cool ,water dispensing operation.

If a reverse osmosis water filtration system is

connected to your cold water supply, this ,water

line installation is not covered by the refrigerator

,warranty. Follow these instructions carefully to

minimize the risk of expensive ,water damage.

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the reverse osmosis system needs

to be a minimum of 40 to 60 psi (2.8 kgf/cm2

N 4.2 kgf/cm2, or less than 2.0N3.0 sec. to fill a

cup of 7 oz capacity).

If the water pressure from the reverse osmosis

system is less than 21 psi or 1.5 kgf/cm2 (takes

more than 4.0 sec to fill a cup of 7 oz capacity):

• Check to see if the sediment filter in

the reverse osmosis system is blocked.

Replace the filter if necessary.

• Allow the storage tank on the reverse

osmosis system to refill after heavy usage.

• If the issue concerning ,water pressure

from reverse osmosis remains, call a

licensed, qualified plumber.

• All installations must be in accordance

with local plumbing code requirements.

Whaf You Will Need

• Copper Tubing, 14 in. outer diameter,

to connect the refrigerator to the water

supply. Be sure both ends of the tubing

are cut square.

To determine how

much tubing you

need: measure the

distance from the

water valve on the back of the refrigerator

to the water supply pipe. Then, add 8 feet

(2.4 m). Be sure there is sufficient extra

tubing (about 8 feet [2.4 m] coiled into 3

turns of about 10 in. [25 cm] diameter) to

allow the refrigerator to move out from

the ,wall after installation. Keep the total

length of the feed water pipe tube within

26 ft (8 m). Be careful to avoid getting a

kink in the tube. If the tube is longer than

26 ft (8 m), it may cause the water feed to

malfunction.

Power driU.

1/2in. or adjusfable

wrench.

Flat" blade and Phillips

head screwdrivers.

Two 1/4 in. oufer

diameter compression

nUtS and 2 ferrLl_es (s_eeves) to connect

the copper tubing to the shutoff valve and

the refrigerator water valve.

INSTALLATION 15

If your existing copper ,water line

has a flared fitting at the end, you

will need an adapter (available at

plumbing supply stores) to connect

the water line

to the

refrigerator OR

you can cut off

the flared fitting with a tube cutter

and then use a compression fitting.

Shufoff valve fo connecf fo fhe cold

wafer line. The shutoff valve should

have a water inlet with a minimum

inside diameter of 5/32 in. at the

point of connection to the COLD

WATER LINE. Saddle-type shutoff

valves are included in many water

supply kits. _

Before

purchasing,

make sure

a saddle-

type valve complies with your local

plumbing codes.

WARNING

Electrical Shock Hazard:

When using any electrical device (such as a

power drill) during installation, be sure the

device is battery powered, double insulated

or grounded in a manner that will prevent the

hazard of electric shock.

16 INSTALLATION

Water Line Insfallafion Insfrucfions

WARNING

• When using any electrical device (such

as a power drill) during installation, be

sure the device is battery powered,

double insulated or grounded in a

manner that ,will prevent the hazard of

electric shock.

Install the shutoff valve on the nearest

frequently used drinking water line.

SHUT OFFTHE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the

pressure on the line.

CHOOSE THE VALVE LOCATION

Choose a location

for the valve that is

easily accessible. It is

best to connect into

the side of a vertical

water pipe. When it is

necessary to connect

into a horizontal water pipe, make the

connection to the top or side, rather

than at the bottom, to avoid drawing

off any sediment from the water pipe.

DRILLTHE HOLE FORTHEVALVE

Drill a 14 in. hole in

the water pipe using

a sharp bit. Remove

any burrs resulting

from drilling the

hole in the pipe. Be

careful not to allow

water to drain into

the drill. Failure to drill a 14 in. hole may

result in reduced ice production or smaller

cubes.

The hookup line cannot be white, plastic

tubing. Licensed plumbers must use only

copper tubing (NDA tubing #49595 or

#49599) or Cross Link Polyethylene (PEX)

tubing.

4 FASTENTHE SHUTOFFVALVE

Fasten the shutoff valve to the cold water

pipe with the pipe clamp.

Saddle-T_

Shutoff Valve

Vertical Cold

Water Pipe

NOTE

Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle

valves are illegal and use is not permitted in

Massachusetts. Consult with your licensed

plumber.

........................................................................................................................................................................................................................................................................................................................................................................................................j'

5 TIGHTENTHE PIPE CLAMP

Tighten the clamp screws until the sealing

washer begins to swell.

NOTE: Do not overtighten clamp or

you may crush the tubing.

Washer

Pipe Clamp

Clamp Screw

ROUTETHETUBING

Route the tubing between the cold water

line and the refrigerator.

Route the tubing through a hole drilled in

the wall or floor (behind the refrigerator or

adjacent base cabinet) as close to the ,wall as

possible.

/_ NOTE

Be sure there is sufficient extra tubing (about

8 feet coiled into 3 turns of about 10 in.

diameter) to allow the refrigerator to move

out from the wall after installation

INSTALLATION 17

CONNECTTH E TUBING TO THE VALVE

Place the compression nut and ferrule

(sleeve) for copper tubing onto the end of

the tubing and connect it to the shutoff

valve. Make sure the tubing is fully inserted

into the valve. Tighten the compression nut

securely.

Saddle-Type

Shutoff Valve _

Packing Nut_

Outlet Valve_

Compression

_ Nut

_ Ferrule (sleeve)

NOTE

• If your refrigerator does not have a water

filter, ,we recommend installing one. If

your water supply has sand or particles

that could clog the screen of the refrig-

erator's water valve, install the filter in

the ,water line near the refrigerator.

• Do not use old hoses. Use only new

hoses provided by the manufacturer.

10 TURN THEWATER ON ATTHE

SHUTOFFVALVE

Tighten any connections that leak.

FLUSH OUTTHETUBING

Turn the main water

supply on and flush

out the tubing until the

water is clear.

Shut the water off at the

water valve after about

one quart (1 I) of water

has been flushed through the tubing.

CONNECTTHETUBINGTOTHE

REFRIGERATOR

NOTE: Before making the connection to

the refrigerator, be sure that the refrigerator

power cord is not plugged into the ,wall

outlet.

a. Remove the plastic flexible cap from the ,water

valve.

b. Place the compression nut and ferrule (sleeve)

onto the end of the tubing as shown.

c. Insert the end of the copper tubing into the

connection as far as possible. While holding

the tubing, tighten the fitting.

Tubing Clamp

-Refrigerator

Connection

Ferrule (sleeve

CAUTION

Check to see if leaks occur at the water line

connections.

11 PLUG INTHE REFRIGERATOR

Arrange the coil of tubing so that it does not

vibrate against the back of the refrigerator

or against the wall. Push the refrigerator

back to the ,wall.

12 STARTTHE ICEMAKER

Set the icemaker power switch to the ON

position.

The icemaker will not begin to operate until

it reaches its operating temperature of 15°F

(-9°C) or below. It will then begin operation

automatically if the icemaker power switch is

in the ON (I) position.

Turning On The Power I_lll_

1 Plug in the refrigerator.

CAUTION ......

__J

- Connect to a rated power outlet.

- Have a certified electrician check the wall

outlet and wiring for proper grounding.

-Do not damage or cut off the ground

terminal of the power plug.

18 INSTALLATION

Leveling

After installing, plug the refrigerator's power

cord into a 3-prong grounded outlet and push

the refrigerator into the final position.

Your refrigerator has two front leveling legs--

one on the right and one on the left. Adjust the

legs to alter the tilt from front-to-back or side-to-

side. If your refrigerator seems unsteady, or you

want the doors to close more easily, adjust the

refrigerator's tilt using the instructions below:

NOTE: Tools Required: 11/16" (18mm) wrench

or flat blade screwdriver.

1 Remove the base grille. For instructions,

see Installing the Base Grille, page 11.

Turn the leveling leg counterclockwise

to raise that side of the refrigerator or

clockwise to lower it. It may take several

turns of the leveling leg to adjust the tilt of

NOTE: Having someone push backward against the

top of the refrigerator takes some weight off of the

leveling legs.This makes it easier to adjust the legs.

_/_' Height

f difference

Right _eveling _eg

Height

difference

Open both doors again and check to make

sure that they close easily. If the doors do

not close easily, tilt the refrigerator slightly

more to the rear by turning both leveling

legs counterclockwise. It may take several

more turns, and you should turn both

leveling legs the same amount.

4 Reinstall the base grille.

Door Alignment

If the doors are still uneven after the refrigerator

has been leveled, finish adjusting the doors by

following the instructions below:

Adjusting tools: 5/16" (8mm) wrench and 3/4"

(19mm) wrench.

difference '_

i_ Keeper nut

...................... !_ , Adjustment LC_._ 1" Up

xd_ ........

• Using a 3/4" (19mm) wrench, turn the keeper

nut clockwise to loosen it.

• Using a 5/16" (8mm) wrench, turn the

adjustment hinge pin clockwise or coun-

terclockwise to level the refrigerator door.

• After leveling the door, turn the keeper

nut counterclockwise to tighten it. Make

sure all legs are completely touching the

floor.

_& CAUTION: Do not overtighten the door ad-

justment screw. The hinge pin can be pulled out

(adjustable range of height is a maximum of 1/2in.

(1.27 cm)).

HOWTO USE 19

HOWTO

Be{ore Use

USE

Clean the refrigerator.

Clean your refrigerator thoroughly and wipe off all dust that accumulated during

shipping.

CAUTION

• Do not scratchthe refrigeratorwith a sharp objector use a detergentthat

containsalcohol,a flammable liquidoran abrasivewhen removing any tape

or adhesivefrom the refrigerator,.

- Do not peel offthe model or serialnumber labelorthe technicalinformation

Connect the power supply.

Check if the power supply is connected before use.

Read the "Turning On The Power" section.

Turn off the icemaker if the refrigerator is not yet connected to

the water supply.

Turn off the automatic icemaker and then plug the power plug of the refrigerator

into the grounded electric outlet.

* This is applicable only to certain models.

CAUTION

Running the automatic icemaker before connecting it to the water supply

may cause the refrigerator to malfunction.

Wait for the refrigerator to cool.

Allow your refrigerator to run for at least two to three hours before putting food

in it. Check the flow of cold air in the freezer compartment to ensure proper

cooling.

CAUTION

inside the refrigerator.

The refrigerator makes a loud noise after initial operation.

This is normal. The volume ,will decrease as the temperature lowers.

Open refrigerator and freezer doors to ventilate the interior.

The inside of the refrigerator may smell like plastic at first. Remove any adhesive

tape from inside the refrigerator and open the refrigerator and freezer doors for

ventilation.

20 HOWTO USE

Confrol Panel

The refrigerator control functions as the ther-

mostat for the entire appliance (refrigerator and

freezer sections). The colder the setting, the

longer the compressor ,will run to keep the tem-

perature colder. The freezer control adjusts the

cold air flow from the freezer to the refrigerator.

Setting the freezer control to a lower tempera-

ture keeps more cold air in the freezer compart-

ment to make it colder.

Airflow

Cold air circulates from the freezer to the fresh

food section and back again through air vents in

the wall dividing the two sections. Be sure not

to block vents while packing your refrigerator.

Doing so will restrict airflow and may cause the

refrigerator temperature to become too warm

or cause interior moisture buildup. (See air flow

diagram below.)

iMPORTANT:

Because air circulates between both sections,

any odors formed in one section will transfer to

the other. You must thoroughly clean both sec-

tions to eliminate odors.

To prevent odor transfer and dried out food,

wrap or cover foods tightly. (See the Food Stor-

age Guide section for details.)

NOTE: If you close the refrigerator door, you

may see the freezer door open and close again

due to pressure from internal air flow.

HOWTO USE 21

Confro! Pane! Feafures

* Depending on the model, some of the following functions may not be available.

Dispenser

Select Cubed Ice, Water or Crushed Ice by

pressing the Dispenser button repeatedly to

choose the selection desired. The Cubed Ice,

Water or Crushed Ice icon will light up to indi-

cate your selection.

Selecting this icon indicates that cubed

ice will be dispensed when the dis-

penser pad is activated.

_j Selecting this icon indicates that water

will be dispensed when the dispenser

pad is activated.

/_/ electing this icon indicates that

crushed ice will be dispensed when

the dispenser pad is activated.

To dispense ,water or ice, gently push your cup

against the dispenser pad (see page 25).

NOTE: Hold your cup in place for a couple of

seconds after dispensing ice or water so the last

few drops go in your cup instead of on the floor.

Temperafure

It's recommended to maintain the initial (middle)

temperature settings by pressing the Refrigera-

tor button and Freezer button.

NOTE: When changing control settings, wait

24 hours before making additional adjustments.

The more lit bars, the colder the refrigerator and

freezer will be. See Figure 1.

Figure 1

The controls are set correctly ,when milk or juice

is as cold as you would like and when ice cream

is firm. If the temperature in either compart-

ment is too cold or too warm, change the set-

ting one increment at a time. Wait 24 hours for

the change to stabilize before adjusting again.

Temperafure Mode Swifch Funcfion

(°F <->°C)

If you want to convert °F to °C or vice versa,

press and hold the Freezer and Refrigerator

buttons at the same time for approximately five

seconds.

Ice Plus "_

• When you press the Ice Plus button, the

graphic will illuminate in the display and

will continue for 24 hours. The function

will automatically shut off after 24 hours.

• You can stop this function manually by

pressing the button one more time.

• This function increases both ice making

and freezing capabilities by running the

freezer compartment at the coldest set-

tings for a 24-hour period.

22 HOWTO USE

Wafer Filter Reset _

When the water filter indicator turns on, you

need to replace the water filter. After replacing

the water filter, press and hold the Water Filter

button for three seconds to turn the indicator

light off. You need to replace the water filter ap-

proximately every six months.

rhA

Lock C_

• The Lock button deactivates the controls

and dispenser functions. When power is

initially connected to the refrigerator, the

Lock function is off.

• If you ,want to activate the Lock function

to lock other buttons, press and hold the

Lock button for three seconds or more.

The Lock icon will display and the Lock

function is now enabled.

• When the Lock function is activated, no

other buttons will work. The dispenser

pad is also deactivated.

• To disable the Lock function, press and

hold the Lock button for approximately

three seconds.

Display Off Mode

The display lights up and stays lit for 60 seconds

when the refrigerator is initially plugged in. All

the display lights will then go off except the lock

and dispenser icon selected (crushed, water

or cubed), and the display only lights ,when the

door is opened or a display button is pressed.

The display will remain off until a door is opened

or a button is pressed. Once on, the display will

remain on for 20 seconds.

Demo Mode (For Store Use Only)

The Demo Mode disables all cooling in the

refrigerator and freezer sections to conserve

energy while on display in a retail store.

To deactivate:

With either refrigerator door opened, press and

hold the Refrigerator and Ice Plus buttons at

the same time for five seconds. The control

panel ,will beep and the temperature settings

will display to confirm that Demo Mode is deac-

tivated. Use the same procedure to activate the

Demo Mode.

Adjusting Confro! Settings

Give the refrigerator time to cool down com-

pletely before making final adjustments. It is

best to wait 24 hours to let the normal settings

(recommended in the Temperature section) sta-

bilize before making any changes. If you need

to adjust the temperature in the refrigerator or

freezer, start by adjusting the refrigerator tem-

perature and allow 24 hours for the temperature

to stabilize again. If it is still too warm or too

cold, then adjust the freezer control.

Use the settings listed in the chart below as

a guide. Always remember to wait at least 24

hours between adjustments

CONDITION/REASON

REFRIGERATORsectiontoo

warm.

• Door openedoften.

Largeamountof food added.

Roomtemperatureverywarm.

FREEZERsection too warm/ice

not madefast enough.

Dooropenedoften.

Largeamountof food added.

• Verycold (55°F(13°C))room

temperature.(Compressor

doesnot cycle often enough.)

Heavyice usage.

• Air vents blocked by items.

REFRIGERATORsectiontoo

cold.

Controls not setcorrectlyfor

yourconditions.

FREEZERsection too c01d.

• Controls not setcorrectlyfor

yourconditions.

RECOMMENDEDADJUSTMEKrr

Setthe REFRIGERATORcontrol

one degreecolder;wait 24 hours

for the new settingto take full

effect beforemakinganother

adiustment.

Set the FREEZERcontrol one

degreecolder; wait 24 hours

for the new setting to takefull

effect before makinganother

adjustment.

Move items out of air stream.

Setthe REFRIGERATORcontrol

onedegreewarmer;wait24

hoursfor thenew settingto take

full effect beforemakinganother

adiustment.

Set the FREEZERcontrol one

degreewarmer; wait 24 hours

for the new setting to takefull

effect before makinganother

adjustment.

HOWTOUSE 23

Automatic Icemaker

Ice is made in the automatic icemaker and sent

to the dispenser. The icemaker will produce 5

cubes per cycle - approximately 90 cubes in a

24-hour period, depending on freezer compart-

ment temperature, room temperature, number

of door openings and other operating conditions.

• It takes about 12 to 24 hours for a newly

installed refrigerator to begin making ice.

Wait 72 hours for full ice production to occur.

• Ice making stops when the ice storage

bin fills to the level of the shutoff arm.

When full, the ice bin holds approximately

6 to 8 (12-16 oz) glasses of ice.

• To turn off the automatic icemaker, set

the power switch to OFF 10}. To turn on

the automatic icemaker, set the power

switch to ON (I).

• The ,water pressure must be between 20

and 120 psi on models without a water

filter and between 40 and 120 psi on

models with a water filter to produce the

normal amount and size of ice cubes.

• The ice cube size selector button is used

to compensate for high or low water pres-

sure. If you have low water pressure com-

ing to your refrigerator, you may need to

select the highest setting. For high water

pressure, select a lower setting.

WARNING ........................................................................................................................................

Personal Injury Hazard

_,void contact with the moving parts of the ejec-

tor mechanism, or with the heating element

that releases the cubes. DO NOT place fingers

or hands on the automatic ice making mecha-

nism while the refrigerator is plugged in.

\__

Indicator Light

Shutoff Arm

Ice Cube Size Power Switch

selector button

(ON/OFF)

Normal Sounds You May Hear

The icemaker ,water valve ,will buzz as the ice-

maker fills with ,water. If the power switch is in

the ON (I) position, it will buzz even if it has not

yet been hooked up to ,water. To stop the buzz-

ing, move the power switch to OFF (O}.

NOTE: Keeping the icemaker switched on be-

fore the water line is connected can damage the

icemaker.

When You Should Turn the Icemaker Off

Set the power switch to OFF (0):

• When the water supply ,will be shut off

for several hours.

• When the ice bin is removed for more

than one or two minutes.

• When the refrigerator ,will not be used for

several days.

NOTE: The ice bin should be emptied when the

power switch is set to OFF (O}.

• You will hear the sound of cubes drop-

ping into the bin and water running in the

pipes as the icemaker refills.

Preparing for Vacation

Set the power switch to OFF (0) and shut off

the ,water supply to the refrigerator.

NOTE: The ice bin should be emptied any time

the icemaker is OFF.

If the ambient temperature will drop below

freezing, have a qualified technician drain the

water supply system to prevent serious prop-

erty damage due to flooding caused by ruptured

,water lines or connections.

24 HOWTOUSE

Automatic Icemaker (continued)

CAUTION ............................................................................................................................

• The first ice and water dispensed may

include particles or odor from the ,water

supply line or the water tank.

• Throw away the first few batches of ice

(about 24 cubes). This is also necessary

if the refrigerator has not been used for a

long time.

• Never store beverage cans or other items in

the ice bin for the purpose of rapid cooling.

Doing so may damage the icemaker or the

containers may burst.

• If discolored ice is dispensed, check the

water filter and ,water supply. If the prob-

lem continues, contact a qualified service

center. Do not use the ice or water until

until the problem is corrected.

• Keep children away from the dispenser.

Children may play with or damage the

controls.

• The ice passage may become blocked with

frost if only crushed ice is used. Remove

the frost that accumulates by removing

the ice bin and clearing the passage with a

rubber spatula. Dispensing cubed ice can

also help prevent frost buildup.

• Never use thin crystal glass or crockery to

collect ice. Such containers may chip or

break resulting in glass fragments in the ice.

• Dispense ice into a glass before filling it

with water or other beverages. Splashing

may occur if ice is dispensed into a glass

that already contains liquid.

• Never use a glass that is exceptionally

narrow or deep. Ice may jam in the ice

passage and refrigerator performance may

be affected.

• Keep the glass at a proper distance from

the ice outlet. A glass held too close to the

outlet may prevent ice from dispensing.

• To avoid personal injury, keep hands out of

the ice door and passage.

Never remove the dispenser cover.

Ice Storage Bin

The ice bin stores the ice cubes made by the

icemaker. If you need to remove the ice storage

bin, do so as follows:

NOTE: Use both hands to remove the ice bin to

avoid dropping it.

Lift the ice storage bin slightly (Z) and pull it out

(_) as shown in the figure.

HOWTO USE 25

Ice and Wafer Dispenser

* Depending on the model, some of the

following functions may not be available.

CAUTION

Keep children away from the dispenser.

Children may play with or damage the

controls.

Using the dispenser

WARNING: Do not put your fingers up the

ice chute opening. Doing so can result in

severe injury.

CAUTION

• To dispense cold water or ice, push on the

dispenser switch with a glass.

,_ CAUTION: Do not dispense ice into fine

china or crystal glasses. China or crystal

can break.

NOTE

• If discolored ice is dispensed, check

the water filter and ,water supply. If the

problem continues, contact a qualified

service center. Do not use the ice or

water until the problem is corrected.

• The dispenser will not operate when

either of the refrigerator doors are

open.

• If dispensing ,water or ice into a

container with a small opening, place it

as close to the dispenser as possible.

• Some dripping may occur after

dispensing. Hold your cup beneath

the dispenser for a few seconds after

dispensing to catch all of the drops.

time.

Locking the dispenser

Press and hold the Lock button for three

seconds to lock the dispenser and all the control

panel functions. Follow the same instructions

to unlock.

Cleaning the dispenser stand

The dispenser drip tray has no self-draining func-

tion. It should be cleaned regularly.

To remove, push the tray in the area

marked "PUSH" then place your finger in

the center hole and lift upwards to pull it

out. Wipe out dirty areas and dry with a

clean cloth.

To reinstall the tray, slightly tilt the front of

the tray and lower it into place.

26 HOWTO USE

Sforing Food

Food Preservafion Locafion

Each compartment inside the refrigerator is designed to store different types of food.

Store your food in the optimal space to enjoy the freshest taste.

Ice storage bin

If a largeamount

of ice is needed,

transfer the ice

in the storage bin

to anothercontainer.

Freezer Shelves

Store various frozen

foods such as meat, fish,

ice cream, etc.

Freezer Door

Store small items for

brief periods.

Refrigerator shelf

Shelvesto meet

your individualstorageneeds.

Dairy Corner

Store dairy products such

as butter, cheese, etc.

Door Bins

Store small food or

beverages, condiments,

juice, beer, etc.

Vegetable Drawers

Storevegetables and fruits.

CAUTION

• Do not store food ,with high moisture content towards the top of the refrigerator. The moisture

could come in direct contact with the cold air and freeze.

• Wash food before storing it in the refrigerator.Vegetables and fruit should be washed, and food

packaging should be ,wiped down to prevent adjacent foods from being contaminated.

• If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot

of vegetables in the refrigerator may cause condensation to form. Wipe off the condensation

with a clean cloth or a paper towel.

• If the refrigerator or freezer door is opened or closed too often, ,warm air may penetrate the

refrigerator and raise its temperature. This can increase the running costs of the unit.

• Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin

or personal injury if items are removed ,with excessive force.

- Do not store glass containers in the freezer. Contents may expand when frozen, break the container

and cause injury.

- NOTE '-

• If you are leaving home for a short period of time, like a short vacation, the refrigerator should

be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in

the freezer.

- If you are leaving the refrigerator turned off for an extended period of time, remove all food

and unplug the power cord. Clean the interior, and leave the doors open to prevent fungi from

HOWTO USE 27

Food Sforage Tips

The following tips may not be applicable

depending on the model.

Wrap or store food in the refrigerator in airtight

and moisture-proof material unless otherwise

noted. This prevents food odor and taste

transfer throughout the refrigerator. For dated

products, check date code to ensure freshness.

Food HowTo

Cheese

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply, wrap in

freezer acka in and freeze.

Store in the original wrapping

until you are ready to use it.

Once opened, rewrap tightly in

plastic wrap or aluminum foil.

Milk Wipe milk cartons. For coldest

milk, place containers on an

interior shelf.

Eggs Store in original carton on interior

shelf, not on door shelf.

Fruit Do not wash or hull the fruit

until it is ready to be used. Sort

and keep fruit in its original

container, in a crisper, or store in a

completely closed paper bag on a

refricjerator shelf.

Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold ,water and

drain. Place in plastic bag or

plastic container and store in

vegetable drawer.

Leafy

Vegetables

with skins

(carrots,

peppers}

Fish

Leftovers

Ice Cream

Place in plastic bags or plastic

container and store in vegetable

drawer.

Store fresh fish and shellfish in the

freezer section if they are not being

consumed the same day of purchase.

It is recommended to consume fresh

fish and shellfish the same day

purchased.

Cover leftovers with plastic wrap

or aluminum foil, or store in plastic

containers with _ lids.

When storing frozen food like ice

cream for a long period, place it on

the freezer shelf, not in the door bins.

Sforing Frozen Food

y_ NOTE

Check a freezer guide or a reliable cookbook

for further information about preparing food

Freezing

Your freezer will not quick-freeze a large

quantity of food. Do not put more unfrozen

food into the freezer than will freeze within

24 hours (no more than 2 to 3 Ibs. of food per

cubic foot of freezer space). Leave enough

space in the freezer for air to circulate around

packages. Be careful to leave enough room at

the front so the door can close tightly.

Storage times will vary according to the quality

and type of food, the type of packaging or wrap

used (how airtight and moisture-proof) and

the storage temperature. Ice crystals inside a

sealed package are normal. This simply means

that moisture in the food and air inside the

package have condensed, creating ice crystals.

..... NOTE .....................................................................................................................................................................

Allow hot foods to cool at room temperature

for 30 minutes, then package and freeze.

Cooling hot foods before freezing saves

energy.

28 HOWTO USE

Sforing Frozen Food (confinued)

Packaging

Successful freezing depends on correct

packaging. When you close and seal the

package, it must not allow air or moisture in or

out. If it does, you could have food odor and

taste transfer throughout the refrigerator and

could also dry out frozen food.

Packaging recommendations:

• Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic

bags

Follow package or container instructions for

proper freezing methods.

Do not use

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

Humidify Confrolled Crisper

* Depending on the model, some of the

following functions may not be available.

The crispers provide fresher tasting fruit and

vegetables by letting you easily control humidity

inside the drawer.

You can control the amount of humidity in

the moisture-sealed crispers by adjusting the

control to any setting between Vegetables and Fruits.

• Vegetables keeps moist air in the crisper

for best storage of fresh, leafy vegetables.

• Fruits lets moist air out of the crisper

for best storage of fruit or vegetables

with skins.

HOWTO USE 29

Det"aching and Assembling fhe

Sforage Bins

Crisper and Crisper Cover

To remove the crisper compartment, pull out

the drawer to full extension (_, lift the front

up (_), and pull straight out.

To install, slightly tilt up the front, insert the

drawer into the frame and push it back into

place.

To Remove the Crisper Cover

Slide the crisper compartment out slightly (_),

lift the front of the cover (_), and pull it straight

out (_.

CAUTION ........................................................................................................................................................

• Use both hands to assemble and

disassemble the crispers. The

compartments are heavy when filled with

food and may cause injury if dropped.

• Open the refrigerator door fully when

disassembling or reassembling the

crisper.

Wafer Tank

/¢,

LL>, CAUTION:You will see the water tank

while removing the Fresh Zone drawer. Do not

remove the water tank or water leakage may

occur. The water tank is not a removable part.

Door Bins

The door bins are removable for easy cleaning

and adjustment.

To remove the bin, simply lift the bin up and

pull straight out.

To replace the bin, slide it in above the

desired support and push down one side at

a time until it snaps into place.

NOTE ........................................................................................................................................................................,

Some bins may vary in appearance and will

only fit in one location.

__J

CAUTION

• Do not apply excessive force while

detaching or assembling the storage

bins.

• Do not use the dishwasher to clean the

storage bins and shelves.

• Regularly detach and wash the storage

bins and shelves; they can become

easily contaminated by the food.

30 HOWTO USE

Dairy Corner

Detaching the Shelf

Remove all items from the shelf. Lift the shelf

from both front and rear and pull it toward you.

To remove the Dairy Corner, simply lift the

bin up and pull straight out.

To replace the Dairy Corner, slide it in above

the desired support and push down until it

snaps into place.

NOTE: If you close the refrigerator door with

the Dairy Corner open, the refrigerator door

may not close properly. Make sure to close the

Dairy Corner completely after use.

Snack Pan

To remove the snack pan cover, slightly pull out

the snack pan (_. Lift the front part of the snack

pan cover and pull out (_).

_CAUTION: Do not apply too much force

when pulling out the shelf. If the shelf hits the

door, it may result in damage or personal injury.

.Door

Tilt the shelf and pull it forward to remove it.

Assembling the Shelf

Tilt the front of the shelf up and guide the shelf

into the slots at a desired height. Slide the shelf

in then lower the front of the shelf.

CAUTION

Do not clean glass shelves with

,warm water while they are cold.

Shelves may break if exposed to

sudden temperature changes or impact.

Glass shelves are heavy. Use special

care when removing them.

MAINTENANCE 31

MAINTENANCE

Cleaning

• Both the refrigerator and freezer sections defrost automatically; however, clean both sections

about once a month to prevent odors.

• Wipe up spills immediately.

• Always unplug the refrigerator before cleaning.

General Cleaning Tips

• Unplug refrigerator or disconnect power.

• Remove all removable parts, such as

shelves, crispers, etc.

• Use a clean sponge or soft cloth and a

mild detergent in warm water. Do not use

abrasive or harsh cleaners.

• Hand wash, rinse and dry all surfaces

thoroughly.

Exterior

Waxing external painted metal surfaces helps

provide rust protection. Do not wax plastic

parts. Wax painted metal surfaces at least

twice a year using appliance ,wax (or auto paste

wax). Apply ,wax with a clean, soft cloth.

For products ,with a stainless steel exterior,

use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use abrasive

or harsh cleaners. Dry thoroughly with a soft

cloth.

NOTE: Avoid door surface contact with

chemical products that contain phosphate

or chlorine, such as degreasers, detergents

containingTSP, and bleaches.

CAUTION

• Do not use a rough cloth or sponge

when cleaning the interior and exterior

of the refrigerator.

• Do not place your hand on the bottom

surface of the refrigerator when opening

and closing.

WARNING ................................................................................................................................................................................"/

Use non-flammable cleaner. Failure to do

so can result in fire, explosion, or death. ..,/

Inside Walls (allow freezer to warm up

so the cloth will not stick)

To help remove odors, you can wash the inside

of the refrigerator with a mixture of baking soda

and warm water. Mix 2 tablespoons of baking

soda to 1 quart of water (26 g soda to 1 liter

water.) Be sure the baking soda is completely

dissolved so it does not scratch the surfaces of

the refrigerator.

Door Liners and Gaskets

Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use cleaning

waxes, concentrated detergents, bleaches,

or cleaners containing petroleum on plastic

refrigerator parts.

Plastic Parts (covers and panels)

Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use window

sprays, abrasive cleansers, or flammable fluids.

These can scratch or damage the

material.

Condenser Coils

Use a vacuum cleaner with an attachment to

clean the condenser cover and vents. Do not

remove the panel covering the condenser coil

area.

32 MAINTENANCE

Replacing fhe Wafer Filler

It is recommended that you replace the water

filter:

• Approximately every

six months.

• When the ,water filter

indicator turns on.

• When the water

dispenser output

decreases.

When the ice cubes are smaller than normal.

1 Remove the old water filter.

Pinch the sides to open the ,water filter cover.

NOTE: Replacing the water filter causes a

small amount of water (around 1 oz. or 25

cc) to drain. Place a cup under the front end

of the ,water filter cover to collect any leaking

,water. Hold the water filter upright, once it is

removed, to prevent any remaining water from

spilling out of the ,water filter.

Pull the water filter

downward and turn

it counterclockwise

to pull it out. Make

sure to rotate the fil-

ter down completely

before pulling it out of

the manifold hole.

2 Replace with a new water filter.

Take the new ,water filter out of its packing

and remove the protective cover from the o-

rings. With water filter tabs in the horizontal

position, push the new water filter into the

manifold hole until it stops.

Rotate the water filter up into position and

close the cover. The cover will click when

closed correctly.

3 After the water filter is replaced, dispense

2.5 gallons of water (flush for approximately

five minutes) to remove trapped air and

contaminants from the system. Do not

dispense the entire 2.5 gallon amount

continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON and

60 seconds OFE

CAUTION ...................................................................................................................................................................................................................,_

o DO NOT operate refrigerator without

'i_i:lrl _i_t.er °r water filter bypass plug

NOTE -,,

• To purchase a replacement water filter:

Visit your local dealer or distributor

Web: Find Parts &Accessories from

Support section of Ig.com

Call : 1-800-243-0000 (USA)

1-888-542-2623 (Canada)

• Part number of the replacement water

filter: ADO73613401 (LTS00P)

MAINTENANCE 33

Performance Data Sheet

Replacement cartridge: ADQ73613401

The concentration of the indicated substances in water entering the system was reduced to a

concentration less than or equal to the permissible limit for ,water leaving the system as specified in

NSF/ANSI Standard 42 and Standard 53.

System tested and certified by NSF International against NSF/ANSI iStandard 42 and Standard 53 for the reduction of substances listed below.

Average

Contaminant Average NSFspecifiedChal- Avg % ProductWater

Reduction Influent lenge Reduction

Concentration Concentration

ChlorineTasteand

2.0 mg/L 2.0 mg/L ± 10% 97.5% 0.05mg/L

Odor

NominalParticulate

5,600,000 At least 10,000

ClassI,, pts/mL particles/mL 99.3% 73,000pts/ml

->0.5to < 1.0 pm

107to 108MFL;fibers

Asbestos 170MFL greater >99% < 1 MFL

than 10 pm in lenqth

Atrazine 0.0087mg/L 0.009mg/L ± 10% 94.2% 0.00005mg/L

Benzene 0.017 mg/L 0.015mg/L ± 10% 97% 0.005 mg/L

Carbofuran 0.073 mg/L 0.08mg/L ± 10% 98.8% 0.001mg/L

Lindane 0.002 mg/L 0.002mg/L ± 10% 98.8% 0.00002mg/L

P-Dichlorobenzene 0.263mg/L 0.225 mg/L± 10% 99.6% 0.001mg/L

Toxaphene 0.014 mg/L 0.015 mg/L± 10% 93.5% 0.001mg/L

2,4-D 0.25mg/L 0.210mg/L ± 10% 99.5% 0.012 mg/L

LeadpH@6.5 0.150mg/L 0.15mg/L ± 10% >99.3% 0.001 mg/L

LeadpH@8.5 0.150mg/L 0.15mg/L ± 10% >99.3% 0.001 mg/L

Mercury@ pH6.5 0.006mg/L 0.006mg/L± 10% 96.5 0.0002mg/L

Mercury@ pH8.5 0.0062mg/L 0.006 mg/L± 10% 86.9 0.0081mg/L

120,000 Minimum 50,000

Cyst_ cysts/L cysts/L 99.99% <1 cyst/L

Max Permissible

ProductWater

Concentration

N/A

0.003mg/L

0.005mg/L

0.04mg/L

0.0002mg/L

0.075mg/L

0.003mg/L

0.07mg/L

0.010mg/L

0.002mg/L

N/A

NSFReduction

Requirements

_>50%

_>85%

_>99%

N/A

_>99.95%

Based on the use of Cryptosporidium parvum oocysts

34 MAINTENANCE

Application Guidelines/

Water Supply Parameters

Service Flow 0.5 gpm (1.9 Ipm)

Community or private well

Water Supply - Potable Water

Water Pressure 20 -120 psi (138 - 827 kPa)

WaterTemperature 33°F - 100°F (0.6°C - 38°C

Capacity 200 gallons (757 liters)

It is essential that the manufacturer's recom-

mended installation, maintenance and filter

replacement requirements be carried out for the

product to perform as advertised.

,_ NOTE -,,

• While the testing was performed under

/ standard laboratory conditions, actual /

Replacement Cartridge: ADO73613401

For estimated costs of replacement elements

please call USA 1-800-243-0000CANADA

1- 888-542-2623 (24 hours per day/7 days per

week) or visit our website at www.lge.com

WARNING ................................................................

To reduce the risk associated with chok-

ing:

• Do not allow children under 3 years of

age to have access to small parts dur-

ing the installation of this product.

To reduce the risk associated with the

ingestion of contaminants:

• Do not use with water that is microbi-

ologically unsafe or of unknown quality

without adequate desinfection before or

after the system. Systems certified for

cyst reduction may be used on disin-

fected ,water that may contain filterable

cysts. EPA Establishment # 070595-

MEX-001

CAUTION

To reduce the risk associated with property

damage due to water leakage:

• Read and follow Use Instructions before

installation and use of this system.

• Installation and use MUST comply with

all state and local plumbing codes.

• Do not install if water pressure exceeds

120 psi (827 kPa). If your water pressure

exceeds 80 psi, you must install a pres-

sure limiting valve. Contact a plumbing

professional if you are uncertain how to

check your water pressure.

• Do not install where ,water hammer

conditions may occur. If water hammer

conditions exist you must install a water

hammer arrester. Contact a plumbing

professional if you are uncertain how to

check for this condition.

• Do not install on hot ,water supply lines.

The maximum operating water tem-

perature of this filter system is 100°F

(37.8°C).

• Protect filter from freezing. Drain filter

when temperatures drop below 40°F

(4.4°C).

• The disposable filter cartridge MUST be

replaced every 6 months, at the rated

capacity or if a noticeable reduction in

flow rate occurs.

• Protect from freezing, remove filter car-

tridge when temperatures are expected

to drop below 33 ° E

• Do not install systems in areas where

ambient temperatures may go above

110° F (43.3 ° C). Where a backflow

prevention device is installed on a water

system, a device for controlling pres-

sure due to thermal expansion must be

installed.

, Ensure all tubing and fittings are secure

and free of leaks.

Manufactured for LG Electronics by MCM Co.,

Ltd. 45-10, NowomRi, YiwoI-Myun, JinchumKun,

Chung-Buk, Korea.

MAINTENANCE 35

NS:F te ational

[,ACid Co., Lid.

Rcp@}iic ®_ K@rea

,All C(361PLYlH(TI s7_/1711NSriAHS <,Iz_57 ' 7"x ......

,', 7) M,[ &??I, KI/'@LII IIK}IFIIIIMEN'I+S

PROI)IIC3:'S ,,kI?ZARII:!IO IH ='HIISiSb OI:IICI, IL lISTING AR}i

A{IYIIIORIZI3{) ':IO :BI!iAR 1{'1i11}iKSI;' M>_R:K,

s i//,), i ,, ili!ili ii!!i @

L ;;iii%1iii

<: _i=" I ,?{,ii] D_I4: ;>_ :;_s

36 SMART DIAGNOSIS

SMART DIAGNOSIS

Should you experience any problems with your

refrigerator, it has the capability of transmitting

data via your telephone to the LG service

center. This gives you the capability of speaking

directly to our trained specialists. The specialist

records the data transmitted from your machine

and uses it to analyze the issue, providing a fast

and effective diagnosis.

4 Press and hold the Freezer button for three

seconds while continuing to hold your phone

to the speaker.

If you experience problems ,with your refrigera-

tor, call 1-800-243-000 in USA (1- 888-542-2623

in Canada). Only Use the Smart Diagnosis TM

feature when instructed to do so by the LG call

center agent. The transmission sounds that you

will hear are normal sounds similar to fax

machine.

Smart Diagnosis TMcannot be activated unless

your refrigerator is connected to power. If

your refrigerator is unable to turn on, then

troubleshooting must be done without using

Smart Diagnosis TM.

5 After you hear three beeps, release the

Freezer button.

Keep the phone in place until the tone

transmission has finished. This takes about

three seconds, and the display will count

down the time. Once the countdown is

over and the tones have stopped, resume

your conversation with the specialist, who

will then be able to assist you in using the

information transmitted for analysis.

USING SMART DIAGNOSIS TM

First, call 1-800-243-0000 (1- 888-542-2623 in

Canada). Only use the Smart DiagnosisSMfeature

when istructed to do so by the LG call center

agent.

Lock the display. To lock the display, press

and hold the Lock button for three seconds.

(If the display has been locked for over five

minutes, you must deactivate the lock and

then reactivate it.)

2 Open the refrigerator door.

Hold the mouthpiece of your phone in

front of the speaker that is located on the

right hinge of the refrigerator door, when

instructed to do so by the call center.

NOTE

• Call quality differences by region may

affect the function.

• Use the home telephone for better

communication performance, resulting

in better service.

• Bad call quality may result in poor data

transmission from your phone to the

machine, which could cause Smart

Diagnosis TMto malfunction.

TROUBLESHOOTING 37

TROUBLESHOOTING

Common Product Questions

How do I unclog the ice dispenser

chute?

Eliminate the frost of ice fragments by re-

moving the ice bin and clearing the chute

with a plastic utensil. Dispensing cubed ice

can also help prevent frost or ice fragment

buildup.

Make sure that the refrigerator doors are

closed before attempting to dispense ice.

Why are ice crystals and frost forming

on my frozen food?

When the doors are opened often or for

long periods of time, warm, humid air

enters the compartment. This raises the

temperature and moisture level within the

compartment. Increased moisture will lead

to frost and condensation. To lessen the

effect, reduce the frequency and duration

of door openings.

How long will it take for my ice bin to

fill completely?

Once the ice supply in the bin has been

completely exhausted, it may take up

to 90 minutes before additional ice is

available, and approximately 24 hours to

completely refill the bin.

Why does my ice and water taste

unusual?

It is recommended that you replace the

water filter:

,, Approximately every 6 months.

,, When the water filter indicator turns on.

,, When the water dispenser output

decreases.

,, When the ice cubes are smaller than

normal.

If your refrigerator was recently installed,

dispense 2.5 gallons of water (flush for

approximately 5 minutes) to remove

trapped air and contaminants from the

system. Do not dispense the entire 2.5

gallon amount continuously. Depress and

release the dispenser pad for cycles of 30

seconds ON and 60 seconds OFF.

38 TROUBLESHOOTING

Noises You Might Hear

Clicking

Rattling

Whooshing

Gurgling

Popping

Sizzling

Vibrating

Dripping

Pulsating or

high-pitched

sound

The defrost control will click when

the automatic defrost cycle begins

and ends. The thermostat control (or

refrigerator control on some models)

,will also click when cycling on and

off.

Rattling noises may come from the

flow of refrigerant, the ,water line on

the back of the unit, or items stored

on top of or around the refrigerator.

Refrigerator is not resting solidly on

the floor.

Refrigerator with linear compressor

,wasjarred while running.

Evaporator fan motor is circulating air

through the refrigerator and freezer

compartments.

Air is being forced over the

condenser by the condenser fan.

Refrigerant flowing through the

cooling system.

Contraction and expansion of the

inside walls due to changes in

temperature.

Water dripping on the defrost heater

during a defrost cycle.

If the side or back of the refrigerator

is touching a cabinet or wall, some of

the normal vibrations may make an

audible sound.

Water running into the drain pan

durinq the defrost cycle.

Your refrigerator is designed to run

more efficiently to keep your food

items at the desired temperature. The

high efficiency compressor may cause

your new refrigerator to run longer

than your old one, but it is still more

energy efficient than previous models.

While the refrigerator is running, it

is normal to hear a pulsating or high-

oitched sound.

iiiiii!!i! iiii iiii ii @i iiiiiiiiiiiiii iii iiiiii i iiiiJ i i i iiiii ii i! i i! i i! i i! i i! i i! i i! i i! i i! i i! i i! i i! i i! i i! ii¸

Normal Operation

Floor is weak or uneven or leveling

legs need to be adjusted. See the Door

Alignment section.

Normal Operation

To eliminate the noise, make sure that the

sides and back cannot vibrate against any

wall or cabinet.

Normal Operation

TROUBLESHOOTING 39

Before Calling for Service

Review this section before calling for service; doing so will save you both time and money.

Cooling

Refrigerator

and Freezer

section are

not cooling.

Cooling

System runs

too much.

The refrigerator control is set

to OFF (some models).

Refrigerator is set to Demo

Mode

Refrigerator is in the defrost

cycle.

Refrigerator ,was recently

installed.

Refrigerator ,was recently

relocated.

Refrigerator is replacing an

older model.

Refrigerator was recently

pluflqed in or power restored.

The door is opened often or

a large amount of food / hot

food was added.

Doors are not closed

completely.

Refrigerator is installed in a

hot location.

Condenser / back cover is

clogged.

Turn the control ON. Refer to the Setting the

Controls section for proper temperature settinqs.

Demo Mode allows the lights and control display

to work normally while disabling cooling, to save

energy while the refrigerator is on the showroom

floor. See the FAQs or the Setting the Controls

section of this manual for instructions on how to

disable Demo Mode.

During the defrost cycle, the temperature of each

compartment may rise slightly. Wait 30 minutes and

confirm the proper temperature has been restored

once the defrost cycle has completed.

It may take up to 24 hours for each compartment to

reach the desired temperature.

If the refrigerator ,was stored for a long period of

time or moved on its side, it is necessary for the

refrigerator to stand upright for 24 hours before

connectinq it to power.

Modern refrigerators require more operating time but

use less energy due to more efficient technology.

The refrigerator will take up to 24 hours to cool

completely.

Adding food and opening the door warms the

refrigerator, requiring the compressor to run longer

in order to cool the refrigerator back down. In order

to conserve energy, try to get everything you need

out of the refrigerator at once, keep food organized

so it is easy to find, and close the door as soon as

the food is removed. (Refer to the Feed Storage

Guide.)

Firmly push the doors shut. If they will not shut all

the way, see the Doors will not close completely or

pop open section in Troubleshootinq.

The compressor will run longer under warm

conditions. At normal room temperatures (70°F)

expect your compressor to run about 40% to 80%

of the time. Under warmer conditions, expect it to

run even more often. The refrigerator should not be

operated above 110°R

Use a vacuum cleaner with an attachment to clean

the condenser cover and vents. Do not remove the

panel coverinq the condenser coil area.

40 TROUBLESHOOTING

Cooling

Refrigerator or

Freezer section

is too warm.

Refrigerator or

Freezer section

is too cold.

Items in the

Cheese & Butter

and Condiment

bins are not as

cool as other

ttems in the

refrigerator.

Refrigerator ,was recently

installed.

The air vents are blocked.

Cold air circulates from the

freezer to the fresh food

section and back again

through air vents in the wall

dividing the two sections.

Doors are opened often or for

long periods of time.

Unit is installed in a hot

location.

A large amount of food or

hot food ,was added to either

compartment.

Doors not closed correctly.

Temperature control is not

set correctly.

Defrost cycle has recently

completed.

ncorrect temperature control

settings.

The Cheese & Butter and

Condiment bins will be

slightly warmer than the

refrigerator compartment.

It may take up to 24 hours for each compartment

to reach the desired temperature.

Locate air vents by using your hand to sense

airflow and move all packages that block vents

and restrict airflow. Rearrange items to allow air

to flow throughout the compartment. (Refer to

the Airflow diagram in the UsingYour Refrigerator

section.)

When the doors are opened often or for long

_eriods of time, ,warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. To lessen

the effect, reduce the frequency and duration of

door openings.

The refrigerator should not be operated in

temperatures above 110°R

Adding food warms the compartment requiring

the cooling system to run. Allowing hot food to

cool to room temperature before putting it in the

refrigerator will reduce this effect.

See the Doors ,will not close correctly or pop open

section in Parts & Features Troubleshooting.

If the temperature is too ,warm, adjust the

control one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

During the defrost cycle, the temperature of each

compartment may rise slightly and condensation

may form on the back wall. Wait 30 minutes and

confirm the proper temperature has been restored

once the defrost cycle has completed.

If the temperature is too cold, adjust the control

one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

This is normal. Items that you would like to keep

cooler should be stored in the refrigerator section.

TROUBLESHOOTING41

Cooling

Interior moisture

buildup.

Food is

freezing in the

refrigerator

compartment.

Frost or ice

crystals form

on frozen food

(outside of

package).

liiiiiii!iiiiilliiliii l iiiilii ! iiii i ilii! i/iii/lliiiiiii// /i

Doors are opened often or for

long periods of time.

Doors not closed correctly.

Weather is humid.

Defrost cycle recently

completed.

Food is not packaged

correctly.

Food with high water content

,was placed near an air vent.

Refrigerator temperature

control is set incorrectly.

Refrigerator is installed in a

cold location.

Door is opened frequently or

for long periods of time.

Door is not closing properly.

iiiiiiii!li iii iliii/ iiiiiHIili!iil¸ iiiiiiii! ill!iiiiiiiiiiiiiiI!ili/i!lli iiiii/iiiiiiiitiiii i ! iiiii iiii!i iii ii Iii!!iiiii! ii Hii !iiiii;ii i Hiiiii iiii i iiH!ii! ii i! i i! i iiii

When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. To lessen

the effect, reduce the frequency and duration of

door openinqs.

See the Doors will not close correctly section in

the Troubleshootinq section.

Humid ,weather allows additional moisture to enter

the compartments when the doors are opened

leading to condensation or frost. Maintaining a

reasonable level of humidity in the home will help

to control the amount of moisture that can enter

the compartments.

During the defrost cycle, the temperature of each

compartment may raise slightly and condensation

may form on the back wall. Wait 30 minutes and

confirm that the proper temperature has been

restored once the defrost cycle has completed.

Food stored uncovered or unwrapped, and damp

containers can lead to moisture accumulation

within each compartment. Wipe all containers

dry and store food in sealed packaging to prevent

condensation and frost.

Rearrange items with high ,water content away

from air vents.

If the temperature is too cold, adjust the

control one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

When the refrigerator is operated in temperatures

below 41°F (5°C), food can freeze in the refrigerator

compartment. The refrigerator should not be

operated in temperatures below 55°F (13°C).

When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. Increased

moisture will lead to frost and condensation.

To lessen the effect, reduce the frequency and

duration of door openinqs.

Refer to the Doors will not close correctly or pop

open section in the Troubleshootinq section.

42 TROUBLESHOOTING

Cooling/Ice

Frostorice

crystals

onfrozen

food(inside

ofsealed

package).

Icemakeris

notmaking

enoughice.

& Wafer

Condensationfromfood

witha high,watercontent

hasfrozeninsideofthe

foodpackage.

Foodhasbeenleftinthe

freezerforalongperiodof

time.

Demandexceedsice

storaqecapacity.

Housewatersupplyisnot

connected,valveisnot

turnedonfully,orvalveis

clogged.

Waterfilterhasbeen

exhausted.

Lowhousewatersupply

}ressure.

ReverseOsmosisfiltration

systemisused.

Tubingconnecting

refrigeratortohousesupply

valveis kinked.

Doorsareopenedoftenor

forlongperiodsoftime.

Doorsarenotclosed

completely.

Thetemperaturesettingfor

thefreezeristoo,warm.

Thisis normalforfooditemswithahighwater

content.

Donotstorefooditemswithhighwatercontentin

thefreezerforalongperiodoftime.

Theicemakerwillproduceapproximately70-210

cubesina24hourperiod.

Connecttherefrigeratortoacoldwatersupplywith

adequatepressureandturnthewatershutoffvalve

fullyopen.

Iftheproblempersists,it maybenecessaryto

contactaplumber.

Replacingthewaterfilterisrecommended:

• Approximatelyeverysixmonths.

• Whenthewaterfilterindicatorturnson.

• Whenthewaterdispenseroutputdecreases.

• Whentheicecubesaresmallerthannormal.

Thewaterpressuremustbebetween20and120psi

onmodelswithoutawaterfilterandbetween40and

120psionmodelswithawaterfilter.

Iftheproblempersists,it maybenecessaryto

contactaplumber.

Reverseosmosisfiltrationsystemscanreducethe

,waterpressurebelowtheminimumamountandresult

inicemakerissues.(RefertoWaterPressuresection.)

Thetubingcankinkwhentherefrigeratorismoved

duringinstallationorcleaningresultinginreduced

waterflow.Straightenorrepairthe,watersupplyline

andarrangeitto preventfuturekinks.

Ifthedoorsoftheunitareopenedoften,ambient

airwillwarmtherefrigeratorwhichwillpreventthe

unitfrommaintainingthesettemperature.Lowering

therefrigeratortemperaturecanhelp,aswellasnot

openinqthe doors as frequently.

If the doors are not properly closed, ice production

will be affected. See the Doors will not close

completely or pop open section in Parts & Features

Troubleshooting for more information.

The recommended temperature for the freezer

compartment for normal ice production is 0°R If the

freezer temperature is ,warmer, ice production will be

affected.

TROUBLESHOOTING43

Ice & Wafer

Icemakerisnot

makingenough

ice(continued).

Icehasbad

tasteorodor.

Icemakeris

makingtoo

muchice.

iiii iiii iiiilli iiiiiii iiiiii, iii ii ii!t li ili!liiiii ii

Refrigerator ,was recently

installed or icemaker recently

connected.

Icemaker not turned on.

The ice detecting sensor is

obstructed.

The refrigerator is not

connected to a water supply

or the supply shutoff valve is

not turned on.

Icemaker shutoff (arm or

sensor) obstructed.

Reverse osmosis water

filtration system is connected

to your cold water supply.

Water supply contains

minerals such as sulfur.

Icemaker ,was recently

installed.

The food has not been

stored properly in either

compartment.

The interior of the refrigerator

needs to be cleaned.

The ice storage bin needs to

be cleaned.

Icemaker shutoff (arm/sensor)

is obstructed

It may take up to 24 hours for each compartment to

reach the desired temperature and for the icemaker

to beqin makinq ice.

Locate the icemaker ON!OFF button on the display

and confirm that it is set to the Ice On mode.

Foreign substances or frost on the ice-detecting

sensor can interrupt ice production. Make sure

that the sensor area is clean at all times for proper

operation.

Connect the refrigerator to the water supply and

turn the water shutoff valve fully open.

If your icemaker is equipped with an ice shutoff

arm, make sure that the arm moves freely. If

your icemaker is equipped with the electronic ice

shutoff sensor, make sure that there is a clear path

between the two sensors.

Reverse osmosis filtration systems can reduce

the water pressure below the minimum amount

and result in icemaker issues. (Refer to theWater

Pressure section.)

A ,water filter may need to be installed to eliminate

taste and odor problems. NOTE: In some cases, a

filter may not help. It may not be possible to remove

all minerals/odor/taste in all water supplies.

Ice that has been stored for too long will shrink,

become cloudy, and may develop a stale taste.

Throw away old ice and make a new supply.

Rewrap the food. Odors may migrate to the ice if

food is not wrapped properly.

See the Care and Cleaning section for more

information.

Empty and wash the bin (discard old cubes).

Make sure that the bin is completely dry before

reinstallinq it.

Empty the ice bin. If your icemaker is equipped

with an ice shutoff arm, make sure that the arm

moves freely. If your icemaker is equipped with the

electronic ice shutoff sensor, make sure that there

is a clear path between the two sensors. Reinstall

the ice bin and wait 24 hours to confirm proper

operation.

44 TROUBLESHOOTING

Ice & Wafer

Ice is not

dispensing.

Water is

dispensing

slowly.

Doors are not closed

completely.

Infrequent use of the

dispenser.

The delivery chute is clogged

with frost or ice fragments.

The dispenser display is

locked.

Ice bin is empty.

Water filter has been

exhausted.

Reverse osmosis filtration

system is used.

Low house water supply

pressure.

Ice will not dispense if any of the refrigerator doors

are left open.

Infrequent use of the ice dispenser will cause

the cubes to stick together over time, which will

srevent them from properly dispensing. Check the

ice bin for ice cubes clumping/sticking together.

If they are, break up the ice cubes to allow for

proper operation.

Eliminate the frost or ice fragments by removing

the ice bin and clearing the chute with a plastic

utensil. Dispensing cubed ice can also help

srevent frost or ice fragment buildup.

Press and hold the Lock button for three seconds

to unlock the control panel and dispenser.

It may take up to 24 hours for each compartment

to reach the desired temperature and for the

icemaker to begin making ice. Make sure that

the shutoff (arm/sensor) is not obstructed. Once

the ice supply in the bin has been completely

exhausted, it my take up to 90 minutes before

additional ice is available, and approximately 24

hours to completely refill the bin.

Replacing the water filter is recommended:

• Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Reverse osmosis filtration systems can reduce the

water pressure below the minimum amount and

result in icemaker issues.

If the problem persists, it may be necessary to

contact a plumber or install a booster pump to

compensate for the low pressure.

The water pressure must be between 20 and 120

ssi on models without a water filter and between

40 and 120 psi on models with a water filter.

If the problem persists, it may be necessary to

contact a plumber or install a booster pump to

compensate for the low pressure.

TROUBLESHOOTING 4.6

Ice & Wafer

Water is not

dispensing.

Dispensing

,warm water.

t i i i iS_ i i

New installation or water line

recently connected.

The dispenser panel is locked.

The dispenser is not set for water

dispensing.

Refrigerator or freezer doors are not

closed properly.

Water filter has been recently

removed or replaced.

Tubing connecting refrigerator to

house supply valve is kinked.

iiiii iiiiii!i i ii !i iiiiiiiiiiii i iiii i!IIiiiiii i iiiiii iiiiiiiii;:iiIi iiiiii i@iiiiiii! iii iii iiiiiiii iiiiii iiiiiiii iiiWIiii i iiiii iiiiii illiiii ili i!

Dispense 2.5 gallons of water (flush for

approximately 5 minutes) to remove trapped

air and contaminants from the system. Do

not dispense the entire 2.5 gallon amount

continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON

and 60 seconds OFR

Press and hold the Lock button for three

seconds to unlock the control panel and

dispenser.

The dispenser can be set for ice or water.

Make certain that the control panel is set for

the proper operation. Press the Water button

on the control panel to dispense water.

Water will not dispense if any of the

refrigerator doors are left open.

After the ,water filter is replaced, dispense

2.5 gallons of water (flush for approximately

5 minutes) to remove trapped air and

contaminants from the system. Do not

dispense the entire 2.5 gallon amount

continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON

and 60 seconds OFR

The tubing can kink when the refrigerator

is moved during installation or cleaning

resulting in reduced water flow. Straighten

or repair the water supply line and arrange it

to prevent future kinks.

The house water supply is not Connect the refrigerator to the water supply

connected, the valve is not turned on and turn the water shutoff valve fully open. If

fully, or the valve is clogged, the problem persists, it may be necessary to

Refrigerator ,was recently installed.

The water dispenser has been used

recently and the storage tank ,was

exhausted.

Dispenser has not been used for

several hours.

Refrigerator is connected to the hot

water supply.

contact a plumber.

Allow 24 hours after installation for the

,water storaqe tank to cool completely.

Depending on your specific model, the

,water storage capacity will range from

approximately 20 to 30 oz.

If the dispenser has not been used for

several hours, the first glass dispensed may

be warm. Discard the first 10 oz.

Make sure that the refrigerator is connected

to a cold water pipe.

WARNING: Connecting the refrigerator to a

hot water line may damage the icemaker.

46 TROUBLESHOOTING

Ice & Wafer/Parts & Features

Water has bad Water supply contains

taste or odor. minerals such as sulfur.

Water filter has been

exhausted.

Doors will not

close correctly

or pop open.

Doors are

difficult to open.

Refrigerator

wobbles or

seems unstable.

Lights do not

work.

Refrigerator ,was recently

installed.

Food packages are blocking

the door open.

Ice bin, crisper cover, pans,

shelves, door bins, or

baskets are out of position.

The doors were removed

during product installation

and not properly replaced.

Refrigerator is not leveled

properly.

The gaskets are dirty or

sticky.

Door was recently closed.

Leveling legs are not

adjusted properly.

Floor is not level.

LED interior lighting failure.

A water filter may need to be installed to eliminate

taste and odor problems.

Replacing the water filter is recommended:

• Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Dispense 2.5 gallons of water (flush for

approximately 5 minutes) to remove trapped air and

contaminants from the system. Do not dispense

the entire 2.5 gallon amount continuously. Depress

and release the dispenser pad for cycles of 30

seconds ON and 60 seconds OFR

Rearrange food containers to clear the door and

door shelves.

Push bins all the way in and put crisper cover,

}ans, shelves and baskets into their correct

}ositions. See the UsingYour Refrigerator section

for more information.

Remove and replace the doors according to the

Removing and Replacing Refrigerator Handles and

Doors section.

See Door Alignment in the Refrigeration

Installation section to level refrigerator.

Clean the gaskets and the surfaces that they

touch. Rub a thin coat of appliance polish or

kitchen wax on the gaskets after cleaning.

When you open the door, ,warmer air enters the

refrigerator. As the warm air cools, it can create

a vacuum. If the door is hard to open, wait one

minute to allow the air pressure to equalize, then

see if it opens more easily.

Refer to the Leveling and Door Alignment section.

It may be necessary to add shims under the

leveling legs or rollers to complete installation.

The refrigerator compartment lamp is LED interior

lighting, and service should be performed by

a qualified technician. Refer to the Light Bulb

Replacement section.

TROUBLESHOOTING47

Parts & Features

Refrigerator has

an unusual odor.

The interior of

the refrigerator

is covered with

dust or soot.

The Air Filter may need to

be set to the MAX setting or

replaced.

The refrigerator is located

near a fire source, such as a

fireplace, chimney, or candle.

Set the Air Filter to the MAX setting. If the odor

does not go away within 24 hours, the filter may

need to be replaced. See the Replacing the Air

Filter section for replacement instructions.

Make sure that the refrigerator is not located

near a fire source, such as a fireplace, chimney or

candle.

48 WARRANTY

LG ELECTRONICS U.S.A., INC.

LG REFRIGERATOR LIMITED WARRANTY - U.S.A.

Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal home use, during

the warranty period set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to

the original retail purchaser of the product and applies only when purchased and used within the United States including

U.S. Territories. Proof of original retail purchase is required to obtain warranty service under this limited warranty.

WARRANTY PERIOD

Refrigerator

One (1) year from the date

of original retail purchase.

Sealed System

(Condenser, Dryer, Connecting Tube, Refrigerant and

Evaporator)

One (1) year from the date

of original retail purchase.

Seven (7) years from

the date of original retail

purchase.

Linear Compressor

Ten (10) years from the date of

original retail purchase.

Parts and Labor Parts and Labor Parts only Part only

(internal/functional parts (Consumer will be charged (Consumer will be charged for

only) for labor) labor)

Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or

operating the unit in an unsuitable environment will not be covered under this warranty.

Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days,

whichever is greater.

Replacement products and parts may be new or remanufactured.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED

WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER

THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT,

SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS,

OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion

or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion

or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from

state to state.

THIS LIMITED WARRANTY DOES NOT COVER=

1. Service trips to deliver, pick up, install, or repair the

product; instruct the customer on operation of the

product; repair or replace fuses or correct wiring or

plumbing, or correction of unauthorized repairs/

installation.

2. Failure of product to perform during power failures and

interruptions or inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen

water pipes, restricted drain lines, inadequate or

interrupted water supply or inadequate supply of air.

4. Damage resulting from operating the product in a

corrosive atmosphere or contrary to the instructions

outlined in the product owner's manual.

5. Damage to the product caused by accidents, pests and

vermin, lightning, wind, fire, floods, or acts of God

6. Damage resulting from misuse, abuse, improper

installation, repair, or maintenance. Improper repair

includes use of parts not approved or specified by LG.

7. Damage or failure caused by unauthorized modification

or alteration, or if it is used for other than the intended

purpose, or any water leakage where the unit was not

properly installed.

8. Damage or failure caused by incorrect electrical current,

voltage, or plumbing codes, commercial or industrial

use, or use of accessories, components, or consumable

cleaning products that are not approved by LG.

9. Damage caused by transportation and handling,

including scratches, dents, chips, and/or other damage

to the finish of your product, unless such damage

results from defects in materials or workmanship and

is reported within one (1) week of delivery (Call: 1-800-

243-0000)

lO. Damage or missing items to any display, open box,

discounted, or refurbished product.

11. Products with original serial numbers that have been

removed, altered, or can not be readily determined.

Model and Serial numbers, along with original retail

sales receipt, are required for warranty validation.

12. Increases in utility costs and additional utility

expenses.

13. Replacement of light bulbs, filters, or any consumable

parts.

14. Repairs when your product is used in other than normal

and usual household use (eg. commercial use, offices,

and recreational facilities) or contrary to the instructions

outlined in the product owner's manual.

15. Costs associated with removal of your product from your

home for repairs.

16.The removal and reinstallation of the product if it is

installed in an inaccessible location or is not installed

in accordance with published installation instructions,

including LG's owner's and installation manuals.

17. Shelves, door bins, drawers, handles, accessories, and

other parts besides those that were originally included

with this particular model.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

For complete warranty details and customer assistance,

please call or visit our website:

Call 1-800-243-0000 (24 hours a day, 365 days a year) and

select the appropriate option from the menu, or visit our website

at www.lg.com

Or by mail: LG Customer Information Center:

R O. Box 240007, 201 James Record Road Huntsville, Alabama

35813

ATTN: CIC

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

Life's Good

For irt<:t _ifi@s Or COlW KY@Y_IS;

visit wwwJg corn or call:

1-800-243-0000 usx,,<::::o_-,,,_J,,_

1-888-865-3026 us/,, <::::o_,_,_-_lu,,_

1-888-542-2623 cJ,,NJ,,rv,,

LG Electronics LSXS22423W/00 LG refrigerator

Product's Documents

User Manual

Specifications

LG Electronics LSXS22423W/00 Questions and Answers
