KitchenAid 5KSM165PSCPT0 stand mixer User Manual

5K45

5KSM45 - 5KSM180

Book.indb 1 5/4/2018 7:24:24 PM

Speed

control

lever

Beater height

adjustment

screw

(not shown)

PARTS AND FEATURES

Parts And Accessories ��3

STAND MIXER SAFETY

Important Safeguards ��4

Save These Instructions ��5

Electrical Requirements ��6

USING THE STAND MIXER

Speed Control Guide��7

Accessory Guide ��8

Attaching/Removing The Bowl �� 9

Lifting/Lowering The Motor Head �� 9

Attaching/Removing The Flat Beater, Flex Edge

Beater*, Wire Whip, Or Dough Hook ��10

Beater To Bowl Clearance ��11

Placing/Removing The Pouring Shield* ��11

Using The Pouring Shield* �� 12

Operating The Speed Control ��13

Optional Attachments ��13

TIPS FOR GREAT RESULTS

Egg Whites ��15

Whipped Cream ��15

Mixing Tips ��15

CARE AND CLEANING ��16

TROUBLESHOOTING �� 17

TABLE OF CONTENTS

Book.indb 2 5/4/2018 7:24:24 PM

PARTS AND FEATURES

PARTS AND ACCESSORIES

Motor head

Attachment hub

Speed

control

lever

Beater height

adjustment

screw

(not shown)

Attachment knob

Motor head

locking lever

(not shown)

Beater shaft

Bowl**

Bowl clamping plate

*Included with select models only� Also available as optional accessory�

**The bowl design and material depend on the Stand Mixer model�

Pouring shield*

Wire whip

3 L stainless steel bowl*

Dough hook

Flat beater

Flex Edge beater*

Book.indb 3 5/4/2018 7:24:25 PM

4 | STAND MIXER SAFETY

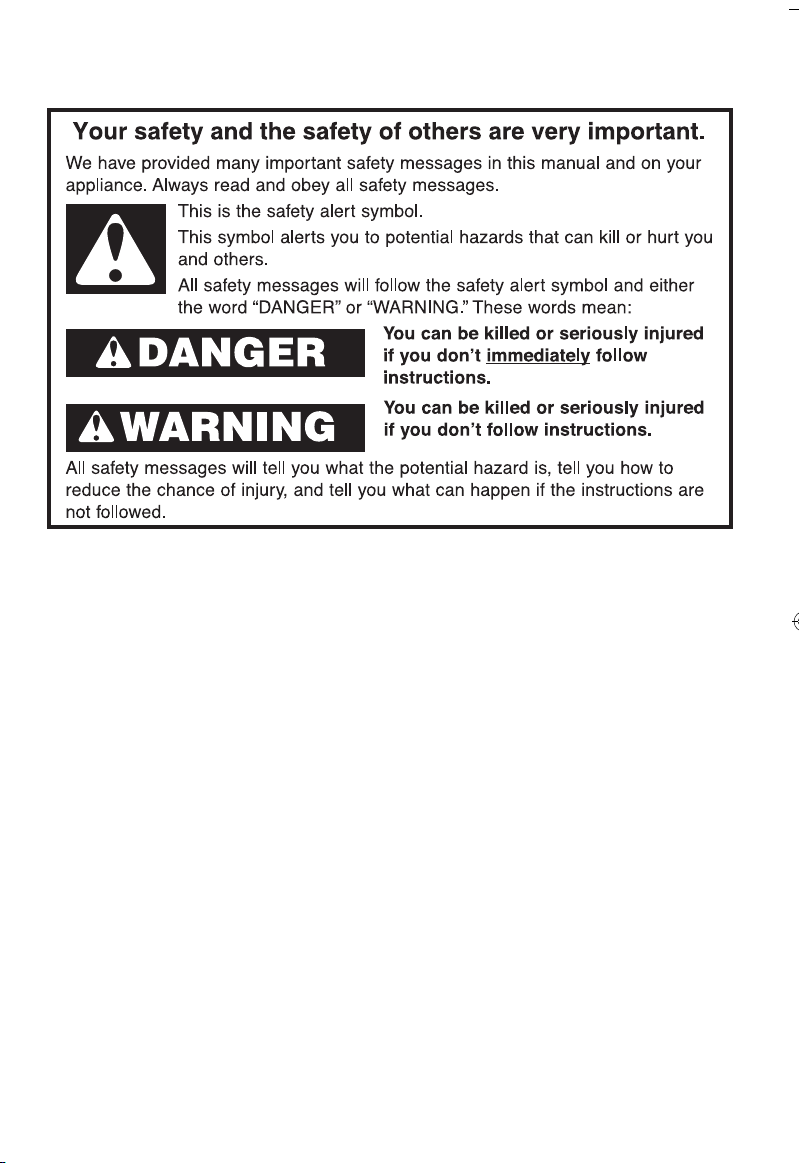

STAND MIXER SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety

precautions should always be followed, including

the following:

1. Read all instructions. Misuse of appliance may result

in personal injury.

2. To protect against risk of electrical shock, do not put

Stand Mixer in water or other liquid.

3. This appliance is not intended for use by persons

(including children) with reduced physical, sensory, or

mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

4. Unplug Stand Mixer from outlet when not in use,

before putting on or taking off parts and before

cleaning.

5. Avoid contacting moving parts. Keep hands, hair,

clothing, as well as spatulas and other utensils away

from beater during operation to reduce the risk of

injury to persons and/or damage to the Stand Mixer.

Book.indb 4 5/4/2018 7:24:25 PM

ENGLISH

STAND MIXER SAFETY | 5

6. Do not operate Stand Mixer with a damaged cord

or plug or after the Stand Mixer malfunctions, or is

dropped, or damaged in any manner.

7. The use of attachments not recommended or sold by

KitchenAid may cause re, electrical shock or injury.

8. Do not use the Stand Mixer outdoors.

9. Do not let the cord hang over edge of table or counter.

10. Remove at beater, wire whip, or dough hook fro

Stand Mixer before washing.

11. Children should be supervised to ensure that they do

not play with the appliance.

12. If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent, or similarly

qualied persons in order to avoid a hazard.

13. Never leave the appliance unattended while it is in

operation.

14. To avoid product damage, do not use the Stand Mixer

bowls in areas of high heat such as an oven,

microwave, or on a stovetop.

15. Refer to the “Care and Cleaning” section for

instructions on cleaning the surfaces in contact with

food.

16. This appliance is intended to be used in household and

similar applications such as:

- staff kitchen areas in shops, ofces, or other working

environments;

- farmhouses;

- by clients in hotels, motels and other residential type

environments;

- bed and breakfast type environments.

SAVE THESE INSTRUCTIONS

STAND MIXER SAFETY

Book.indb 5 5/4/2018 7:24:25 PM

6 | STAND MIXER SAFETY

ELECTRICAL REQUIREMENTS

STAND MIXER SAFETY

Electrical Shock Hazard

Plug into an earthed outlet.

Do not remove earth prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these

instructions can result in

death, fire, or electrical shock.

Wattage:

300 Watts MAX for

5KSM125 - 5KSM180 Series

275 Watts MAX for 5K45, 5KSM45,

5KSM95 Series

Voltage: 220-240 V

Hertz: 50-60 Hz

NOTE: If the plug does not fit in the

outlet, contact a qualified electrician�

Do not modify the plug in any way�

Do not use an adapter�

Do not use an extension cord� If the

power supply cord is too short, have a

qualified electrician or serviceman install

an outlet near the appliance�

Book.indb 6 5/4/2018 7:24:25 PM

ENGLISH

USING THE STAND MIXER | 7

NOTE: The speed control lever can be set between the speeds listed in the above chart

to obtain speeds 3, 5, 7, and 9 if a finer adjustment is required� Do not exceed Speed 2

when preparing yeast doughs as this may cause damage to the Stand Mixer�

SPEED CONTROL GUIDE

SPEED ACTION ATTACHMENT DESCRIPTION

1

STIR

For slow stirring, combining, mashing,

starting all mixing procedures. Use to add

ﬂour and dry ingredients to batter and to add

liquids to dry ingredients. Do not use Speed

1 to mix or knead yeast doughs.

2

SLOW

MIXING

For slow mixing, mashing, faster stirring. Use

to mix and knead yeast doughs, heavy batters

and candies, start mashing potatoes or other

vegetables, cut shortening into ﬂour, mix thin

or splashy batters.

4

MIXING,

BEATING

For mixing semi-heavy batters, such

as cookies. Use to combine sugar and

shortening and to add sugar to egg whites

for meringues. Medium speed for cake mixes.

6

BEATING,

CREAMING

For medium fast beating (creaming)

or whipping. Use to ﬁnish mixing cake,

doughnut, and other batters. High

speed for cake mixes.

8

FAST BEATING,

WHIPPING

For whipping cream, egg whites, and

boiled frostings.

10

FAST

WHIPPING

For whipping small amounts of cream,

egg whites, or for ﬁnal whipping of

mashed potatoes.

USING THE STAND MIXER

Book.indb 7 5/4/2018 7:24:25 PM

8 | USING THE STAND MIXER

USING THE STAND MIXER

ACCESSORY GUIDE

ACCESSORY USES

Flat beater and

Flex Edge beater*

for normal to heavy

mixtures:

Cakes, creamed frostings,

candies, cookies, pie pastry,

biscuits, meat loaf,

mashed potatoes

Wire whip for

mixtures that need

air incorporated:

Eggs, egg whites, heavy cream,

boiled frostings, sponge cakes,

mayonnaise, some candies

Dough hook for mixing

and kneading yeast

doughs:

Breads, rolls, pizza dough, buns

*Included with select models only� Also available as optional accessory�

Book.indb 8 5/4/2018 7:24:25 PM

ENGLISH

USING THE STAND MIXER | 9

ATTACHING/REMOVING THE BOWL

1

To attach bowl: Turn speed control

to “0�” Unplug Stand Mixer�

2

Hold the locking lever in the UNLOCK

position and tilt motor head back�

3

Place bowl on bowl clamping

plate� Turn bowl gently in

clockwise direction�

4

To remove bowl: Repeat steps

1 and 2� Turn bowl gently

counterclockwise�

USING THE STAND MIXER

1

To lift motor head: Push the locking

lever to the UNLOCK position and

lift the head� Once lifted, the lever

will automatically go back in LOCK

position to keep the head lifted�

2

To put down motor head: Push the

locking lever to UNLOCK and gently

bring the head down� The locking

lever will automatically go back in

LOCK position when the head is

down� Before mixing, test lock by

attempting to raise motor head�

LIFTING/LOWERING THE MOTOR HEAD

NOTE: Motor head should always be in LOCK position when using the Stand Mixer�

Book.indb 9 5/4/2018 7:24:26 PM

10 | USING THE STAND MIXER

USING THE STAND MIXER

*Included with select models only� Also available as optional accessory�

ATTACHING/REMOVING THE FLAT BEATER, FLEX EDGE BEATER*,

WIRE WHIP, OR DOUGH HOOK

1

To attach accessory: Turn speed

control to “0”� Unplug Stand Mixer�

4

To remove accessory: Repeat steps

1 and 2� Press accessory upward

as far as possible and turn to the

left� Then pull accessory from the

beater shaft�

2

Hold the locking lever in the UNLOCK

position and tilt motor head back�

3

Slip accessory onto beater shaft and

press upward as far as possible� Then,

turn accessory to the right, hooking

accessory over the pin on the shaft�

Book.indb 10 5/4/2018 7:24:26 PM

ENGLISH

USING THE STAND MIXER | 11

USING THE STAND MIXER

PLACING/REMOVING THE POURING SHIELD*

1

To place pouring shield: Turn speed

control to “0”� Unplug Stand Mixer�

Attach your chosen accessory� See the

“Attaching/removing the flat beater,

wire whip, or dough hook” section�

2

From the front of the Stand Mixer,

slide the pouring shield over the

bowl until the shield is centred� The

bottom rim of the shield should fit

within the bowl�

*Included with select models only� Also available as an optional accessory�

BEATER TO BOWL CLEARANCE

1

Turn speed control to “0”� Unplug

Stand Mixer�

2

Lift motor head� Turn screw slightly

counterclockwise (left) to raise flat

beater or clockwise (right) to lower

flat beater� Make adjustment with

flat beater, so it just clears surface

of bowl� If you overadjust the screw,

the bowl lock lever may not lock

into place�

Your Stand Mixer is adjusted at the factory so the ﬂat beater just clears the bottom of the

bowl� If, for any reason, the ﬂat beater hits the bottom of the bowl or is too far away from

the bowl, you can correct clearance easily�

NOTE: When properly adjusted, the flat beater will not strike on the bottom or side

of the bowl� If the flat beater or the wire whip is so close that it strikes the bottom

of the bowl, coating may wear off the beater or wires on whip may wear�

Book.indb 11 5/4/2018 7:24:26 PM

12 | USING THE STAND MIXER

USING THE STAND MIXER

3

To remove pouring shield:

Turn speed control to “0”�

Unplug Stand Mixer�

4

Lift the front of the pouring shield

clear of the bowl rim and pull forward�

Remove attachment and bowl�

USING THE POURING SHIELD*

1

For best results, rotate the shield

so the motor head covers the

U-shaped gap in the shield� The

pouring chute will be just to the

right of the attachment hub as

you face the Stand Mixer�

2

Pour the ingredients into the bowl

through the pouring chute�

Use the pouring shield to avoid having ingredients splashing out of the bowl when

mixing, as well as to easily pour ingredients in the bowl while mixing�

*Included with select models only� Also available as an optional accessory�

Book.indb 12 5/4/2018 7:24:27 PM

ENGLISH

USING THE STAND MIXER | 13

USING THE STAND MIXER

OPTIONAL ATTACHMENTS

KitchenAid offers a wide range of optional attachments such as food grinders or

pasta makers� They may be attached to the Stand Mixer attachment power shaft,

as shown here�

1

To attach: Turn speed control

to “0”� Unplug Stand Mixer�

2

Loosen attachment knob by turning

it counterclockwise� Remove

attachment hub cover�

OPERATING THE SPEED CONTROL

1

Plug Stand Mixer into proper

electrical outlet� Always set speed

control lever on lowest speed to

start, then gradually increase speed

to avoid splashing ingredients� See

“Speed control guide” chart�

2

Do not scrape bowl while Stand Mixer

is operating� The bowl and beater are

designed to provide thorough mixing

without frequent scraping� Scraping

the bowl once or twice during mixing

is usually sufficient�

NOTE: The Stand Mixer may warm up during use� Under heavy loads with extended

mixing time, the top of the unit may become hot� This is normal�

Book.indb 13 5/4/2018 7:24:27 PM

14 | USING THE STAND MIXER

USING THE STAND MIXER

3

Insert attachment shaft housing into

attachment hub, making certain that

attachment power shaft fits into

square attachment hub socket� It may

be necessary to rotate attachment

back and forth� When attachment

is in proper position, the pin on the

attachment will fit into the notch

on the hub rim�

4

Tighten attachment knob by turning

clockwise until attachment is

completely secured to Stand Mixer�

Plug into proper electrical outlet�

5

To remove: Turn speed control

to “0”� Unplug Stand Mixer�

6

Loosen attachment knob by

turning it counterclockwise� Rotate

attachment slightly back and forth

while pulling out�

7

Replace attachment hub cover�

Tighten attachment knob by turning

it clockwise�

NOTE: See the Use and Care Guide of each specific attachment for recommended

speed settings and operating times�

Book.indb 14 5/4/2018 7:24:27 PM

ENGLISH

TIPS FOR GREAT RESULTS | 15

EGG WHITES

WHIPPED CREAM

Place room temperature egg whites in clean, dry bowl� Attach bowl and wire whip�

To avoid splashing, gradually turn to designated speed and whip to desired stage�

AMOUNT SPEED

1 egg white GRADUALLY to 10

2 or more egg whites GRADUALLY to 8

Whipping stages

With your KitchenAid Stand Mixer, egg whites whip quickly� Avoid over whipping�

Pour cold whipping cream into chilled bowl� Attach bowl and wire whip� To avoid

splashing, gradually turn to designated speed and whip to desired stage�

AMOUNT SPEED

less than 200 ml (3/4 cup) GRADUALLY to 10

more than 200 ml (3/4 cup) GRADUALLY to 8

Whipping stages

Watch cream closely during whipping� Because your KitchenAid Stand Mixer whips so

quickly, there are just a few seconds between whipping stages�

TIPS FOR GREAT RESULTS

MIXING TIPS

Mixing time

Your KitchenAid Stand Mixer will mix

faster and more thoroughly than most

other electric mixers� Therefore, the

mixing time in most recipes must be

adjusted to avoid over beating�

To help determine the ideal mixing time,

observe the batter or dough and mix

only until it has the desired appearance

described in your recipe, such as “smooth

and creamy�” To select the best mixing

speeds, use the “Speed control guide”

section�

Adding ingredients

The standard procedure to follow when

mixing most batters, especially cake and

cookie batters, is to add:

1/3 dry ingredients

1/2 liquid ingredients

1/3 dry ingredients

1/2 liquid ingredients

1/3 dry ingredients

Use Speed 1 until ingredients have been

blended� Then gradually increase to

desired speed�

Always add ingredients as close to side of

bowl as possible, not directly into moving

beater� The pouring shield can be used to

simplify adding ingredients�

NOTE: If ingredients in very bottom

of bowl are not thoroughly mixed, the

beater is not far enough into the bowl�

See the “Beater to bowl clearance”

section�

Cake mixes

When preparing packaged cake mixes, use

Speed 4 for medium speed and Speed 6

for high speed� For best results, mix for the

time stated on the package directions�

Adding nuts, raisins, or candied fruits

Solid materials should be folded in the last

few seconds of mixing on Speed 1� The

batter should be thick enough to keep the

fruit or nuts from sinking to the bottom of

the pan during baking� Sticky fruits should

be dusted with ﬂour for better distribution

in the batter�

Book.indb 15 5/4/2018 7:24:27 PM

16 | CARE AND CLEANING

TIPS FOR GREAT RESULTS

Liquid mixtures

Mixtures containing large amounts of

liquid ingredients should be mixed at lower

speeds to avoid splashing� Increase speed

only after mixture has thickened�

Kneading yeast doughs

Always use the dough hook to mix

and knead yeast doughs� Use Speed 2

to mix or knead yeast doughs� Use of

any other speed creates high potential

for unit failure�

Do not use recipes calling for more than

900 g (7 cups) all-purpose ﬂour or 800 g

(6 cups) whole-wheat ﬂour when making

dough in a 4�3 L bowl�

Do not use recipes calling for more than

1 kg (8 cups) all-purpose ﬂour or 800 g

(6 cups) whole-wheat ﬂour when making

dough in a 4�8 L bowl�

CARE AND CLEANING

1

Always be sure to unplug Stand Mixer

before cleaning� Wipe Stand Mixer

with a soft, damp cloth� Do not use

household/commercial cleaners� Wipe

off beater shaft frequently, removing

any residue that may accumulate� Do

not immerse in water�

Electrical Shock Hazard

Plug into an earthed outlet.

Do not remove earth prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these

instructions can result in

death, fire, or electrical shock.

Book.indb 16 5/4/2018 7:24:27 PM

ENGLISH

TROUBLESHOOTING | 17

2

Bowl, pouring shield*, white flat

beater, Flex Edge beater*, and white

dough hook may be washed in a

dishwasher� Or, clean them thoroughly

in hot sudsy water and rinse

completely before drying�

Do not store beaters on shaft�

3

IMPORTANT: The wire whip is not

dishwasher-safe� Clean it thoroughly

in hot sudsy water and rinse

completely before drying� Do not

store wire whip on shaft�

*Included with select models only� Also available as an optional accessory�

TROUBLESHOOTING

Electrical Shock Hazard

Plug into an earthed outlet.

Do not remove earth prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these

instructions can result in

death, fire, or electrical shock.

Please read the following before calling

your service centre�

1. The Stand Mixer may warm up during

use� Under heavy loads with extended

mixing time periods, you may not be

able to comfortably touch the top of

the unit� This is normal�

2. The Stand Mixer may emit a pungent

odor, especially when new� This is

common with electric motors�

3. If the flat beater hits the bowl, stop the

Stand Mixer� See the “Beater to bowl

clearance” section�

If your Stand Mixer should malfunction

or fail to operate, please check the

following:

• Is the Stand Mixer plugged in?

• Is the fuse in the circuit to the Stand

Mixer in working order? If you have a

circuit breaker box, be sure the circuit

is closed�

• Turn off the Stand Mixer for 10-15

seconds, then turn it back on� If

the Stand Mixer still does not start,

allow it to cool for 30 minutes before

turning it back on�

CARE AND CLEANING

Book.indb 17 5/4/2018 7:24:27 PM

W11159894B 5/18

design of the stand mixer are trademarks in the U.S. and elsewhere.

KITCHENAID 和台式搅拌机的设计是在美国和其他地方的商标。

KITCHENAID 및스탠드믹서디자인은미국과다른국가에서의상표입니다.

KITCHENAID 和桌上型攪拌機設計是在美國和其他地區的商標。

Book.indb 68 5/4/2018 7:24:40 PM

KitchenAid 5KSM165PSCPT0 stand mixer

Product's Documents

User Manual

Specifications

KitchenAid 5KSM165PSCPT0 Questions and Answers
