2
CONTENTS
Important Safety Information
Weight Limit Capacities
Hardware Parts List
Pre Assembly Check List
Assembly Instructions
Computer Instructions
Exercise Instructions
Exploded Diagram
Parts List
Additional Information
Warranty Information
3
4
5
6 - 11
12-13
14-15
16-17
18-19
20
21
www.puretecfitness.com
3
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
1.
This Bike is intended for class H (H=Domestic) use only. It is not designed for
commercial use.
2.
This machine has been tested to EN 957.
3.
Read the OWNER’S OPERATION MANUAL and all accompanying literature and follow it
carefully before using your Bike.
4.
Keep children and pets away from the Bike at all times. Do not leave children unattended
in the same room with the Bike. The Bike is not a toy and therefore parents and
guardians should be aware of the natural tendency for children to play, leading to
situations and behaviour for which the Bike is not intended.
5.
If children are allowed to use the Bike their physical/mental development and above all,
temperament should be taken into account. Constant supervision is therefore needed.
6.
Position the Bike on a clear levelled surface which is clear of all obstacles as not to
restrict movement whilst exercising. DO NOT use the Bike near water or outdoors.
7.
Exercise equipment has moving parts. In the interest of safety, keep others, especially
children, at a safe distance while exercising.
8.
Never hold your breath while exercising. Breathing should remain at a normal rate in
conjunction with the level of exercise being performed.
9.
Rest adequately between workouts. Muscle tone develops during these rest periods.
Beginners should work out twice a week and increase gradually to 4 to 5 times per
week.
10.
Remove all jewellery, including rings, chains and pins before commencing exercise.
11.
Always wear suitable clothing and footwear during exercise. Do not wear loose fitting
clothing that could become entangled with the moving parts of your exercise machine.
IMPORTANT!!! THE MAXIMUM RECOMMENDED WEIGHT CAPACITY FOR YOUR
BIKE IS 110KGS.
THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND
SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT
YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW.
www.puretecfitness.com
6

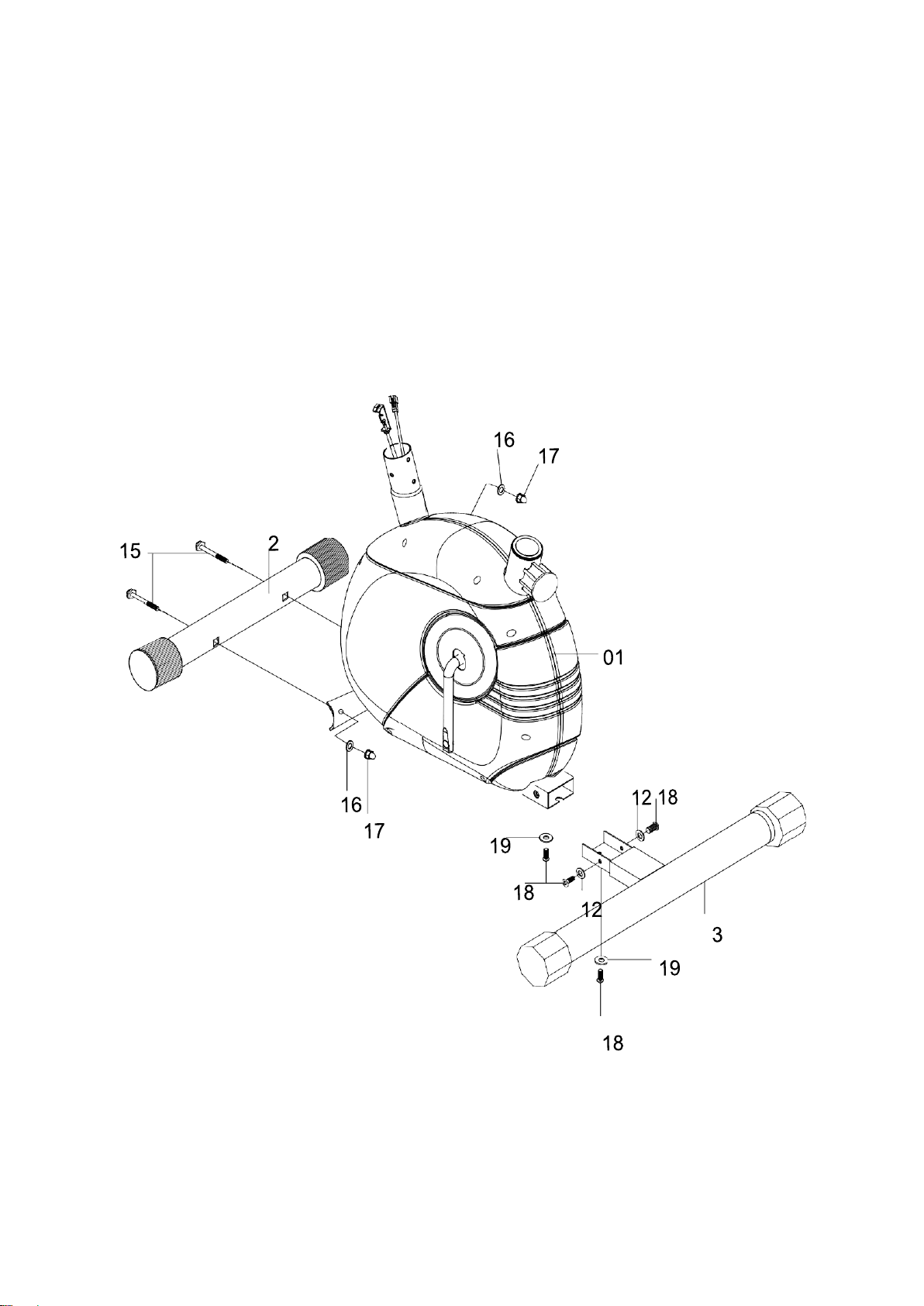

STEP 1
ASSEMBLY INSTRUCTION
Attach the front stabilizer (02) to the main frame (01), Secure using two curved washers
(16), two domed nuts (17) and allen bolts (15).
Attach the rear stabilizer (03) to the main frame (01), Secure using two allen screws (18),
two washers (19) from bottom. Secure using two allen screws (18) and two washers (12)
from sides.
www.puretecfitness.com
7

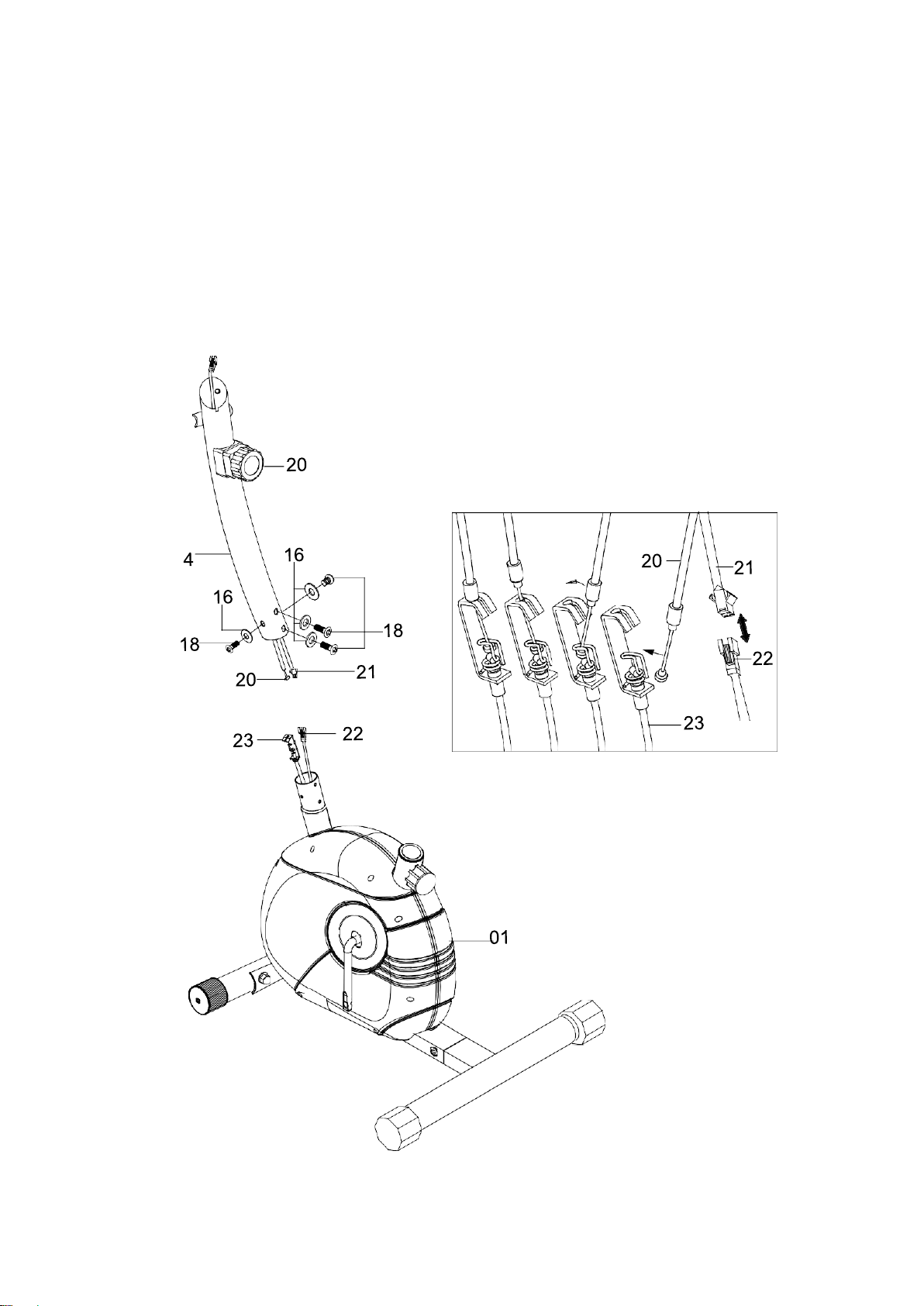

STEP 2
Attach the front post (04) to the main frame (01). Connect the middle sensor wire (21)
from the bottom of front post to the lower sensor wire (22) from the main fame.
Pull the tension connector from the upper tension cable (20) and slide in between the
opening on the connector holder on the lower tension cable (23). Pull the upper tension
cable upward and slide the wire through the slot on the bracket.
Drop down the upper tension cable so the fitting sits firmly on top of the bracket.
Secure the front post to the main frame with four allen screws (18) and four curved
washers (16).
www.puretecfitness.com
8
HOW TO CONNECT TENSION CONNECTOR
Slide the Cable wire from the
extension sensor wire
Connector in between the
opening on the wire holder on
sensor wire Connector.
Pull the extension sensor
wire Connector backward and
slide the wire through the slot
on the bracket.
Drop down the Connector
so the fitting sits firmly on top
of the bracket.
NOTE: In able to hold the Front Post while connecting the cables and wires，
extra help may be needed
www.puretecfitness.com
9

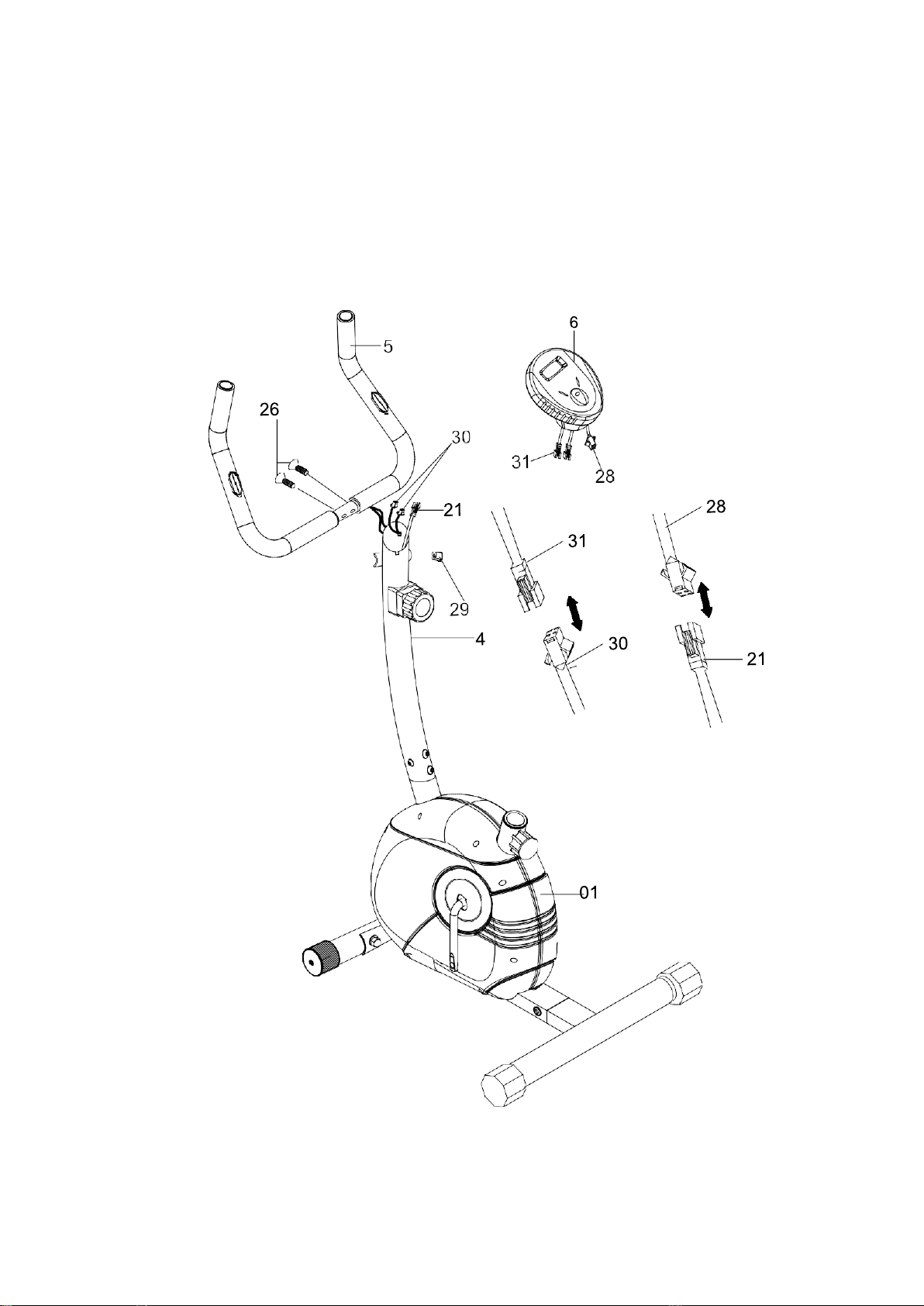

STEP 3
Attach the handlebar (05) to front of the front post (04), secure using two allen screw (26),
Insert the lower pulse (30) through grommet (29) on front post (04) and pull the middle
sensor wire (21) out of front post (04).
Connect lower pulse wire (30) with hand pulse wire (31) from computer (06).
Connect middle sensor wire (21) to back of upper sensor wire (28) from computer (06).
Slide the computer (06) onto the front post (04).
www.puretecfitness.com
10

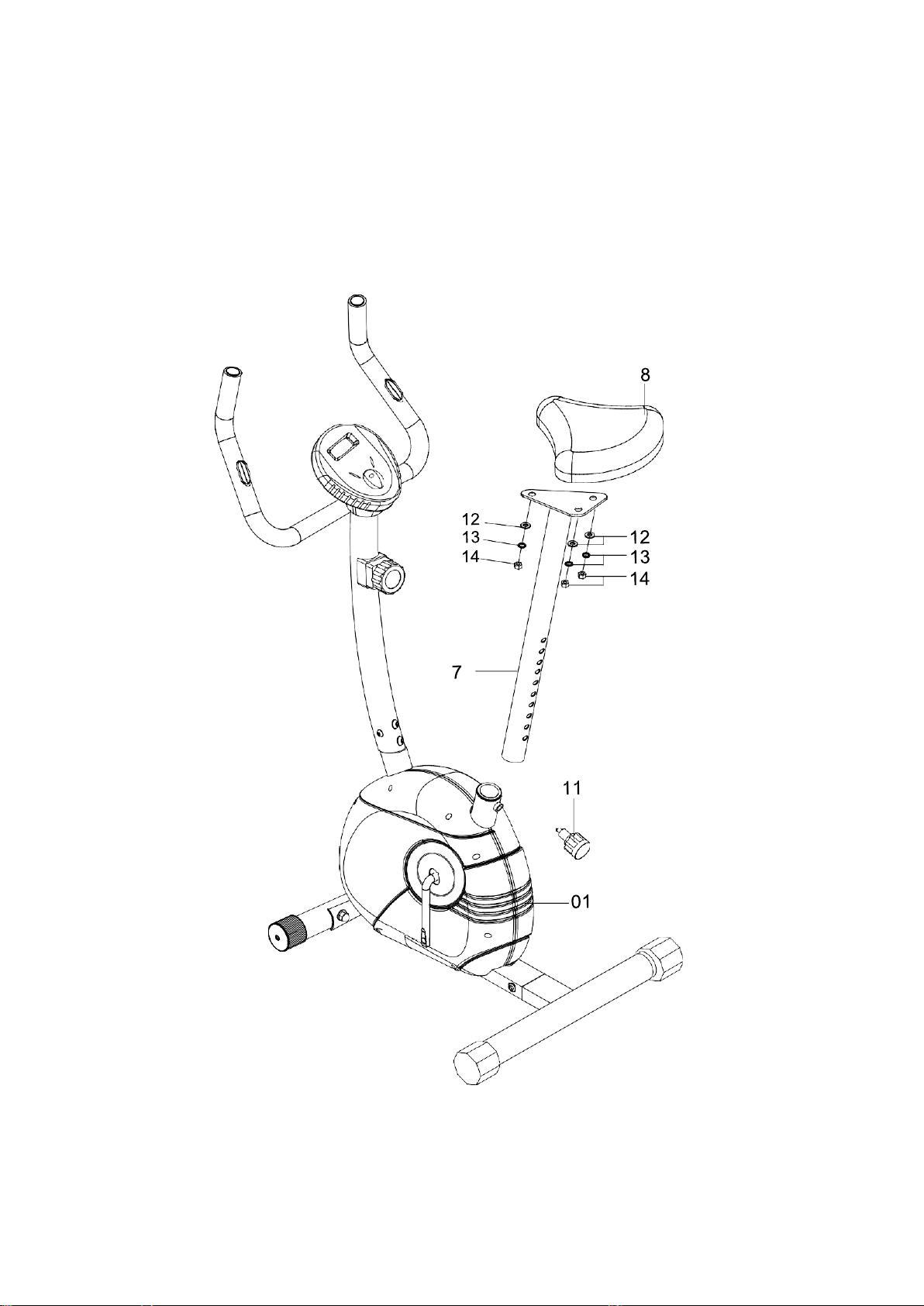

STEP 4
Remove the three washers (12), three lock washers (13), and three nylon nuts (14) from
the seat (08).
Attach the seat to the seat post (07). Secure it with three washers (12), three lock washers
(13), and three nylon nuts (14).
Insert the seat post into the opening on main frame (01). Thread the lock knob (11) through
the hole on seat post to securely lock it at desired height.
www.puretecfitness.com
11
STEP 5
Attach the left and right pedal straps to the left and right pedals (9/10).
Attach the left and right pedals (9/10) to the left and right crank arms.
Note: The pedals and crank arms are marked with "R" and "L". The left pedal (L) should be
threaded on clockwise and the right pedal (R) should be threaded on counter-clockwise.
CHECK ALL BOLTS AND NUTS ARE TIGHTENED
BEFORE USING THE MACHINE
www.puretecfitness.com
12
COMPUTER INSTRUCTIONS
FUNCTIONAL BUTTON:
MODE/RESET – Push down to select functions.
– Push down to reset time、distance、calories ODO and pulse for 4 seconds.
FUNCTIONS AND OPERATIONS
1.
S
CAN:
Press M
O
D
E
but
t
on
unt
il
▼
“ ” appear
s at S
C
A
N
posi
t
ion,
m
oni
t
or
will
rotat
e
through the following functions: time、speed、distance、calorie、ODO and pulse,
each display will be hold 4 seconds.
2.
TIME : Count the total time from exercise start to end.
3.
SPEED: Display current speed.
4.
DISTANCE: Count the distance from exercise start to end.
5.
CALORIE: Count the total calories from exercise start to end.
6.
ODOMETER：monitor will display the total accumulated distance.
7.
PULSE RATE: Press MODE button until “▼” appears at PULSE position.
Before measuring your pulse rate, please place your palms of your hands on both of
your contact pads and the monitor will show your current heart beat rate in beats per
minute(BPM) on the LCD after 6~7 seconds.
Remark: During the process of pulse measurement, because of the contact jamming,
the measurement value may be higher than the virtual pulse rate during the first 2~3
seconds, then will return to normal level. The measurement value can not be regarded
as the basis of medical treatment.
NOTE：
1.
If the display is faint or shows no figures ,please replace the batteries.
2.
The monitor will automatically shut off if there is no signal received after 4 minutes .
3.
The monitor will be auto-powered on when starting to exercise push button
w/signal in.
4.
The monitor will automatically start calculating when you start to exercise
and will stop calculating when you stop exercising for 4 seconds .
www.puretecfitness.com
13
SPECIFICATIONS:
FUNCTION
AUTO SCAN
Every 4 seconds
TIME
00:00’~99:59’
CURRENT
SPEED
The maximum signal can be
pickup is 99.9KM/H
TRIP
DISTANCE
0.00~99.99KM or 0.00~9999KM
CALORIES
0.1~999.9kCAL
ODO
0.1~999.9KM or 1 ~ 9999KM
PULSE
RATE
40~206BPM
BATTERY TYPE
2pcs of SIZE –AAA or UM –3
OPERATING
TEMPERATURE
0°C ~ +40°C
STORAGE
TEMPERATURE
-10°C ~ +60°C
www.puretecfitness.com
14
EXERCISE INSTRUCTIONS
Using your UPRIGHT BIKE will provide you with several benefits, it will improve your
physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose
weight.
1.
The Warm Up Phase
This stage helps get the blood flowing around the body and the muscles working properly. It
will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching
exercises as shown below. Each stretch should be held for approximately 30 seconds, do
not force or jerk your muscles into a stretch - if it hurts, STOP.
FORWARD
BENDS
SIDE BENDS OUTER THIGH
2.
The Exercise Phase
INNER THIGH
CALF / ACHILLES
This is the stage where you put the effort in. After regular use, the muscles in your legs will
become more flexible. Work to your but it is very important to maintain a steady tempo
throughout. The rate of work should be sufficient to raise your heart beat into the target
zone shown on the graph below.
This stage should last for a minimum of 12 minutes though most people start at about 15-20
minutes
www.puretecfitness.com
15
3.
The Cool Down Phase
This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of
the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The
stretching exercises should now be repeated, again remembering not to force or jerk your
muscles into the stretch.
As you get fitter you may need to train longer and harder. It is advisable to train at least
three times a week, and if possible space your workouts evenly throughout the week.
MUSCLE TONING
To tone muscle while on your UPRIGHT BIKE you will need to have the resistance set quite
high. This will put more strain on our leg muscles and may mean you cannot train for as
long as you would like. If you are also trying to improve your fitness you need to alter your
training program. You should train as normal during the warm up and cool down phases,
but towards the end of the exercise phase you should increase resistance making your legs
work harder. You will have to reduce your speed to keep your heart rate in the target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and longer
you work the more calories you will burn. Effectively this is the same as if you were
training to improve your fitness, the difference is the goal.
www.puretecfitness.com
18
PARTS LIST
PART NO.
DESCRIPTION
Q’TY
1
Main frame
1
2
Front stabilizer
1
3
Rear stabilizer
1
4
Front post
1
5
Handle
1
6
Computer
1
7
Seat post
1
8
Seat
1
9
Left pedal
1
10
Right pedal
1
11
Lock knob
1
12
WasherΦ17*Φ8
6
13
Lock washer
3
14
Nylon nut M8
4
15
Carriage bolt M8*65
2
16
Curved washerΦ8
6
17
Domed nut M8
2
18
Allen bolt M8*16
8
19
Flat washerΦ25.4*Φ8
2
20
Tension knob w/ Upper tension cable
1
21
Middle computer sensor wire
1
22
Lower computer sensor wire
1
23
Lower tension cable
1
24
Front stabilizer end cap
2
25
Crank
1
26
Screw M8*30
2
27
Rear stabilizer end cap
2
28
Upper computer wire
1
29
Grommet
1
30
Lower pulse wire
2
31
Hand pulse wire
2
32
Nut M10*1.25
3
33
Alxe for flywheel
1
34
Bearing
3
35
Flywheel
1
36
Copper washer
1
37
Spring cultch
1
38
Belt
1
www.puretecfitness.com
19
PARTS LIST
PART NO.
DESCRIPTION
Q’TY
39
Little belt pulley
1
40
Bearing
1
41
Bowl shaped spacer
1
42
Flange nut
2
43
BB parts
1
44
Magnet assembly
1
45
Allen bolt M8*85
1
46
Spacer
2
47
Bushing
1
48
Hex head screw M6*25
1
49
Nut M6
2
50
Spring for magnet assembly
1
51
Hex head screw M8*45
1
52
Nut M8
1
53
Spring for idler
1
54
Spacer
1
55
Allen screw M8*20
1
56
Idler wheel
1
57
Sensor bracket
1
58
Self tapping screw
4
59
Self tapping screw ST5*15
6
60
Chain cover L/R
1/1
61
Screw
1
www.puretecfitness.com
20
Packaging Disposal
ADDITIONAL INFORMATION
Government guidelines ask that we reduce the amount of waste material disposed of in
land fill sites. We therefore ask that you dispose of all packaging waste responsibly at
public recycling centres.
End of Life Disposal
We at Pure-Tec Limited hope you have many years of enjoyable use from your Bike.
However, a time will come when your Bike will come to the end of its useful life. Under
‘European WEEE Legislation‘ you are responsible for the appropriate disposal of your
Bike to a recognised public collection facility.
CARE AND MAINTENANCE
1. Inspect and tighten all parts before using the Bike.
2. The Bike can be cleaned using a damp cloth and mild non-abrasive detergent. DO
NOT use solvents.
3. Examine the Bike regularly for signs of damage or wear.
4. Failure to examine the Bike regularly may affect the safety level of the equipment.
5. Replace any defective components immediately and/or keep the Bike out of use until
repair.
www.puretecfitness.com
20
LIMITED WARRANTY
Pure-Tec warrants this product to be free from defects in workmanship and material, under
normal use and service conditions. Please refer to www.puretecfitness.com for warranty
terms. This warranty extends only to the original purchaser and is valid for home use only.
Pure-Tec’s obligation under this Warranty is limited to replacing damaged or faulty parts
at Pure-Tec’s option.
All returns must be pre-authorised by Pure-Tec. This warranty does not extend to any
product or damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage, purchasers own repairs or for products used for
commercial or rental purposes. No other warranty beyond that specifically set forth above
is authorised by Pure-Tec .
Pure-Tec is not responsible or liable for indirect, special or consequential damages arising
out of or in connection with the use or performance of the product or other damages with
respect to any economic loss, loss of property, loss of revenues or profits, loss of
enjoyments or use, costs of removal, installation or other consequential damages or
whatsoever natures.
The warranty extended hereunder is in lieu of any and all other warranties and any implied
warranties of merchantability or fitness for a particular purpose is limited in its scope and
duration to the terms set forth herein.
Your statutory rights are not affected.
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by contacting our Customer Solutions
Department, Monday to Friday, 8am – 5pm GMT :
Pure-Tec Limited
www.puretecfitness.com
Tel: +44 (0) 1482 212098
Email:[email protected]
Monday - Friday 0800 - 1700GMT
When ordering replacement parts, please give the following information,
1.
Model
2.
Description of Parts
3.
Part Number
4.
Date of Purchase
