Salamander Heater
OWNER’S MANUAL
Model：DR-PS11024 10KW 240V 60Hz 1P
DR-PS11524 15KW 240V 60Hz 1P
DR-PS31520 15KW 208V 60Hz 3P
IMPORTANT INSTRUCTIONS
READ & SAVE
2
Important Instructions………………………………………...3-4
Parts of the Heater ……………………….……………………5
Installing Instructions……………………….…………..…….6-9
Specifications and Wiring Diagram………………………. ..10-14
Operating Instructions……………………….………....……..15
Maintenance and Cleaning……………………………………16
Warranty Information ………………………………………….17
ARRANTY INFORMATION
TABLE OF CONTENTS
3
IMPORTANT INSTRUCTIONS
PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS
HEATER
NOTE: There may be a trace of smoke or odor when unit is first
operated. Don’t be alarmed. This indicates that a drop of oil fell
on the heating coil during the manufacturing process. It will
quickly evaporate and should not re-occur.
Make sure that the room in which the appliance is located is well
ventilated during this operation. It is normal for the appliance to
emit small cracking sounds when you turn it on for the first time.
Do not be alarmed.
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE,
ELECTRICAL SHOCK, AND INJURY TO PERSONS OR PROPERTY,
INCLUDING THE FOLLOWING:
1) Read all instructions before using this heater.
2) This heater is hot when in use. To avoid burns, do not let bare skin
touch hot surfaces. Keep combustible materials such as furniture,
pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m)
from the front of the heater and keep them away from the sides and
rear.
3) Extreme caution is necessary when any heater is used by or near
children or invalids and whenever the heater is left operating and
unattended.
4) Always switch off the heater when not in use.
5) Do not operate any heater after the heater malfunctions, has been
dropped, or damaged in any manner. Disconnect power at service
panel and have heater inspected by a licensed electrician before
reusing.
6) Do not use outdoors.
7) To disconnect heater, turn off power to heater circuit at main
disconnect panel.
8) Do not install closer than 4 feet (1.2 m) from any adjacent vertical
surfaces. Keep at least 1 foot (0.9 m) away from the back wall,
regardless of whether the wall mounting bracket is used.
4
9) When heater is installed on the cart, make sure the cart is
positioned on a level surface. Keep at least 4 feet (1.2 m) from any
adjacent vertical surface or wall. Keep at least 1 foot (0.9 m) from the
back wall.
10) Do not insert or allow foreign objects to enter any ventilation or
exhaust opening as this may cause an electric shock or fire, or
damage the heater.
11) To prevent a possible fire, do not block air intakes or exhaust in
any manner.
12) A heater has hot and arcing or sparking parts inside. To reduce the
risk of fire, do not use it in areas where gasoline, paint, or flammable
vapors and liquids are used or stored.
13) Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or
injury to persons.
14) This product must be installed by a certified/licensed electrician, in
accordance with local codes.
15) Do NOT use an extension cord.
16) This heater is not intended for use in bathrooms, laundry areas
and similar indoor locations. Never locate heater where it may fall into
a bathtub or other water container.
PET OWNER’S WARNING:
The health of some small pets including birds are extremely
sensitive to the fumes produced during the first-time use of many
appliances. These fumes are not harmful to humans but we
recommend that you do not use your heater around birds and
other small pets during its initial use until the anti-corrosion
coatings burn off.
SAVE THESE INSTRUCTIONS
5

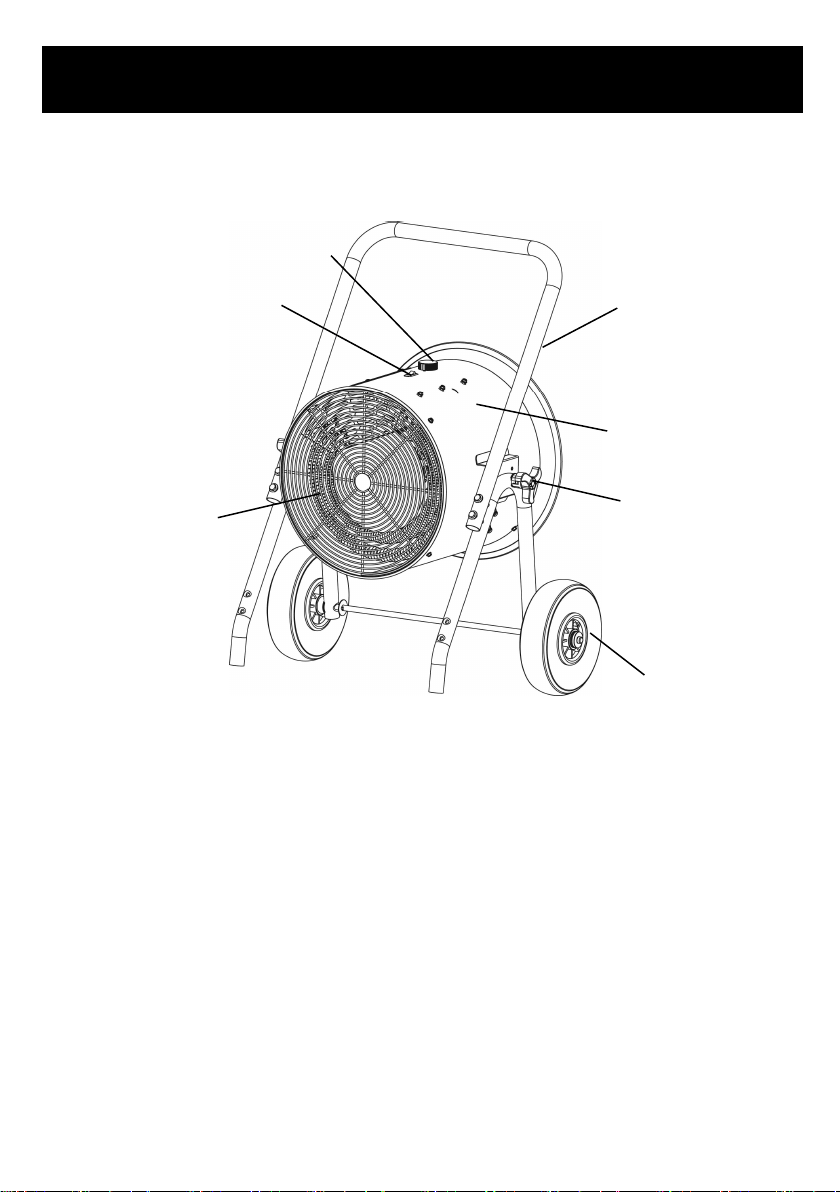

A. Handle
B. Heater Housing
C. Tilt adjustable knob
D. Wheel
E. Front Grill
F. ON/OFF Switch
G. Temperature Setting Knob
PARTS OF THE HEATER
A
D
E
G
F
B
C
6
WARNING:
All wiring must be installed by a certified/licensed
electrician.
The heater must be grounded in accordance with all national and local
building codes.
All wiring procedures and connections shall be in accordance
with the relevant national and local codes.
Before installation:
Disconnect the main supply connection.
DR-PS11024, the heater must be connected to an individual branch
circuit protected by a 55 Amp circuit breaker.
Supply cables must be equipped with a dual pole circuit breaker rated
at least 240V 55A/pole as the main cutoff switch of power to the heater.
DR-PS31520, the heater must be connected to an individual branch
circuit protected by a 55 Amp circuit breaker.
Supply cables must be equipped with a dual pole circuit breaker rated
at least 208V 55A/pole as the main cutoff switch of power to the heater.
DR-PS11524, the heater must be connected to an individual branch
circuit protected by an 80 Amp circuit breaker.
Supply cables must be equipped with a dual pole circuit breaker rated
at least 240V 80A/pole as the main cutoff switch of power to the heater.
WARNING: To reduce the risk of fire, do not store or use gasoline or
other flammable vapors and/or liquids in the vicinity of the heater.
INSTALLING INSTRUCTIONS
7
INSTALLATION INSTRUCTIONS:

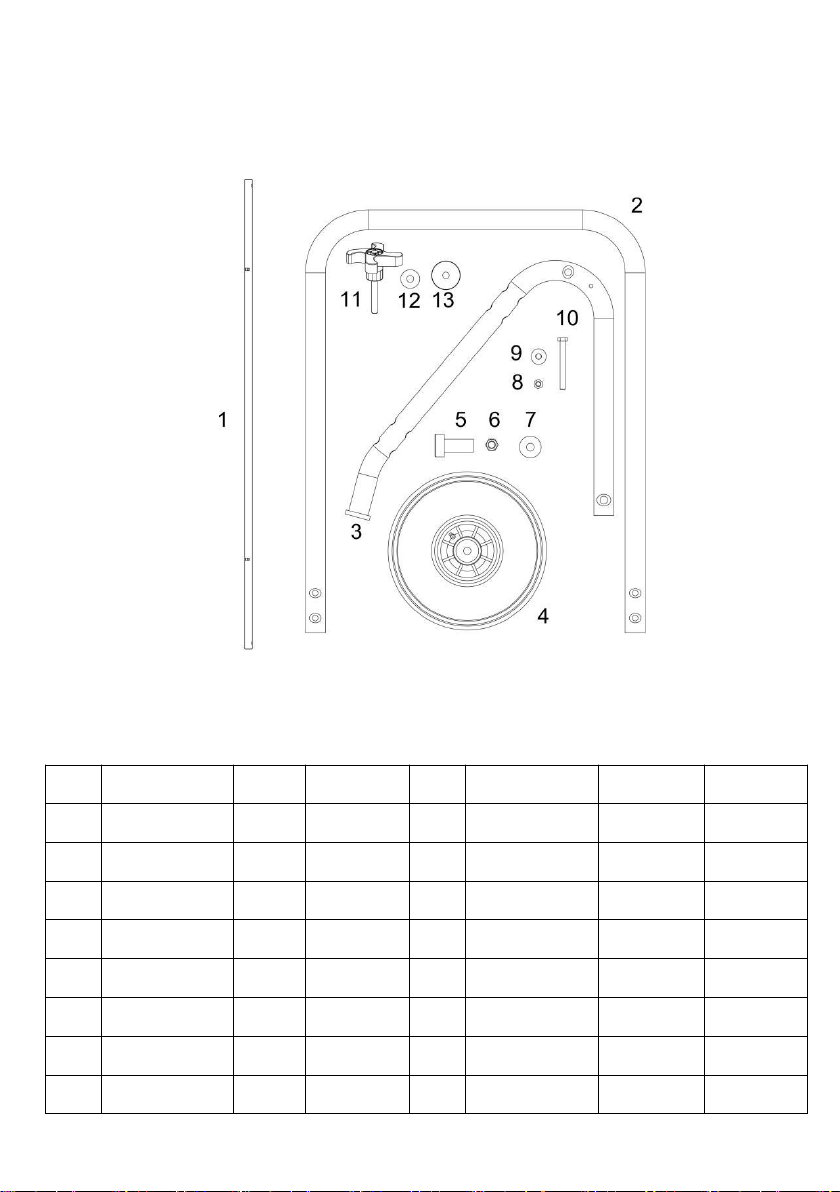

1. Open the package; take out the heater and the foot stand parts.
The parts list as below:
No.
Item
Spec
Quantity
No.
Item
Spec
Quantity
1
Axle
1
9
Washer
Φ8
8
2
Handle
1
10
Screw
M8X80
4
3
Foot Stand
2
11
Knob
2
4
Wheel
2
12
Washer
Φ10
2
5
Axle Sleeve
2
13
Rubber Pad
Φ50X10
2
6
Nut
M12
2
7
Washer
Φ12
4
8
Nut
M8
4
8

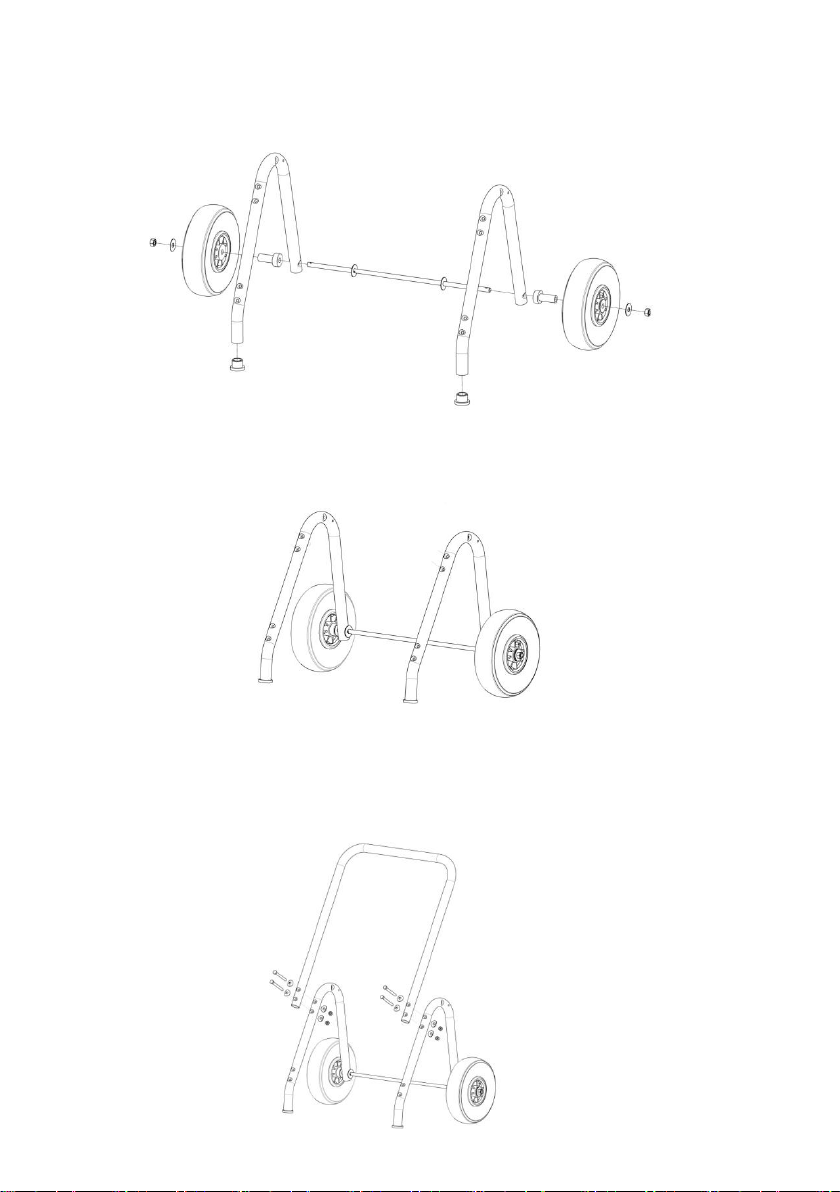

2. Use axle (item 1), axle sleeve (item 5), and washer (item 7) to
assemble the foot stand and the wheels as shown below:
3. Tighten the nuts (item 6) to the wheels as shown below:
4. Use the screw (item 10), washer (item 9), and nut (item 8) to
assemble the handle to the foot stand as shown below. Tighten the
nuts.
9

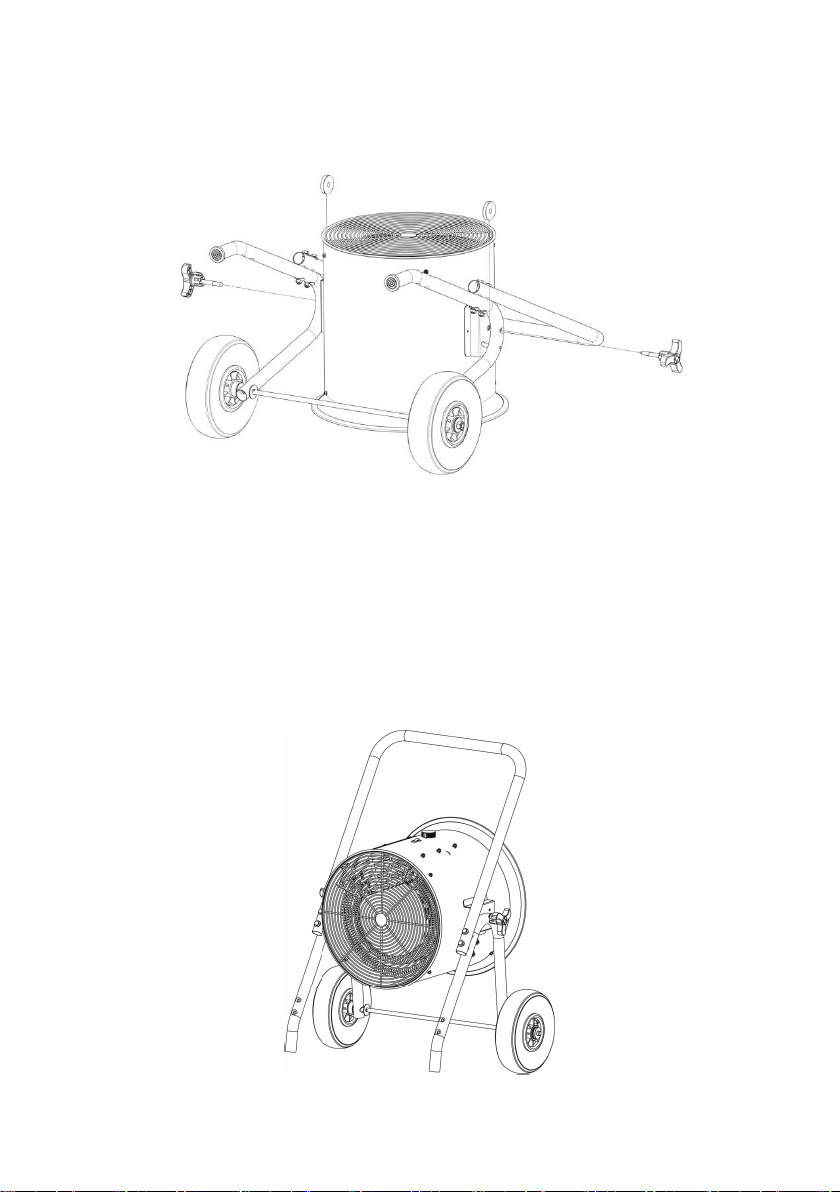

5. Use the rubber pad (item 13), washer (item 12), and the knobs (item
11) to assemble the heater to the foot stand. Tighten the knobs as
shown below:
6. Run the electrical power supply cable in flexible conduit and
connect to the wiring compartment.
7. Make the connections properly with connectors which are suitable
for the conductor size, including ground wires. After making the
connections, arrange the pigtail leads of unit and power supply
wires in the wiring compartment.
10
Salamander Heater with cart
Model: DR-PS11024
Volt: 240V, 1P
Watts: 10KW
Frequency: 60 Hz
Thermostat Temperature Range: 37˚F~104˚F (3˚C~40˚C)
Wiring diagram:
SPECIFICATIONS
DR-PS11024
11

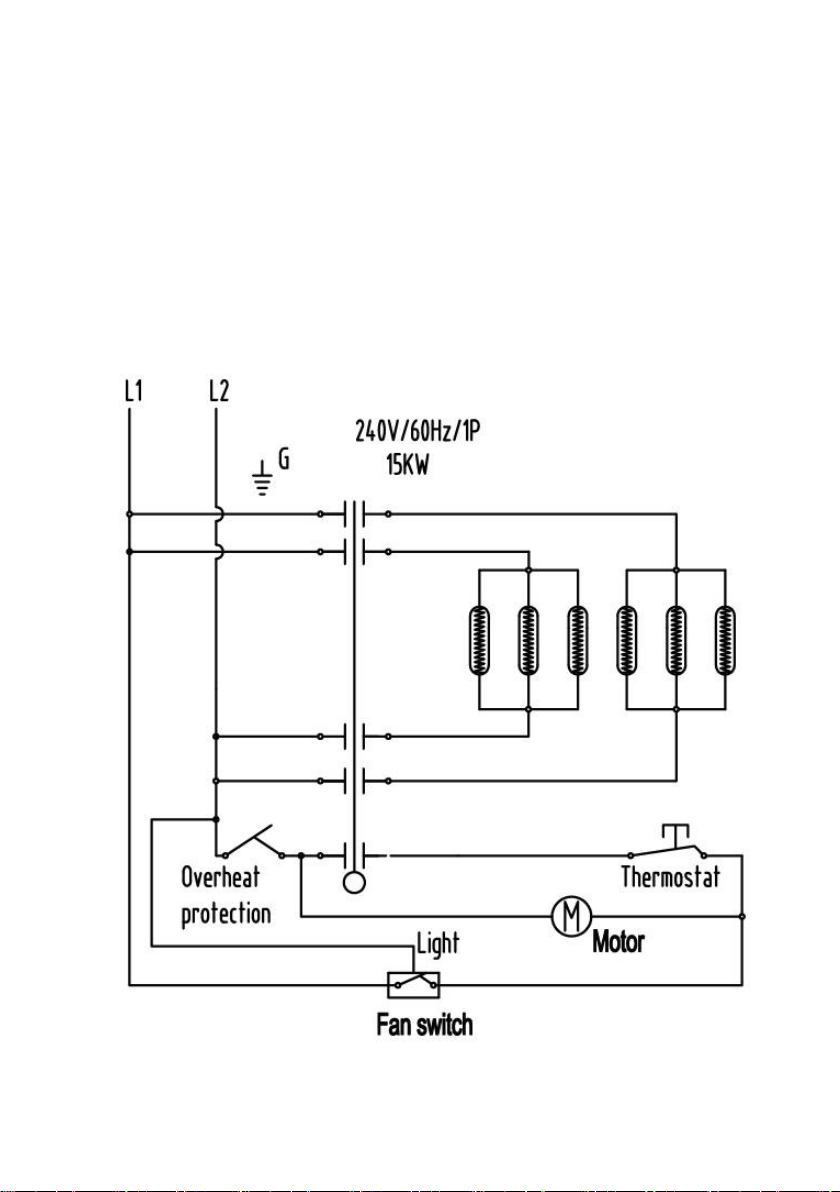

Model: DR-PS11524
Volt: 240V, 1P
Watts: 15KW
Frequency: 60 Hz
Thermostat Temperature Range: 37˚F~104˚F (3˚C~40˚C)
Wiring diagram:
DR-PS11524
12
Model: DR-PS31520
Volt: 208V, 3P
Watts: 15KW
Frequency: 60 Hz
Thermostat Temperature Range: 37˚F~104˚F (3˚C~40˚C)
Wiring diagram:
DR-PS31520
13
For 1 Phase Model: PS-10241, PS-15241
1. Open the wiring cover:
2. Connect the black live wire to L1, white live wire to L2 of the terminal
block.
3. Re-install the wiring cover to the heater.
L2 White Wire
L1 Black Wire
WIRING INSTRUCTIONS
14
For 3 Phase Model: DR-PS31520
1. Open the wiring cover:
2. Connect the red live wire to L1, black live wire to L2, and the white
live wire to L3 of the connector.
3. Re-install the wiring cover to the heater.
Ground Wire
L2: Black
Live Wire
L1: Red
Live Wire
L3: White
Live Wire
15
WARNING -
The heater must be properly installed before it is
used.
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC
FLASH :
Apply appropriate personal protective equipment (PPE) and
follow safe electrical work practices. See NFPA 70E.
A circuit breaker must be installed and serviced only by
qualified electrical personnel.
Always use a properly rated voltage sensing device to
confirm power is off.
Switch the ON/OFF switch to ON position to turn on the heater.
Then turn the thermostat to the farthest clockwise position. The
power indicator light will turn on, the fan will engage, and the unit
will begin heating the room. After the room reaches a comfortable
temperature, turn the thermostat counterclockwise until the heater
shuts off. The heater will automatically cycle around this preset
temperature. To increase the temperature, turn the thermostat
knob clockwise. To lower the temperature, turn the thermostat
counterclockwise.
Select a thermostat setting.
Ambient temperature is regulated by adjusting the thermostat to a
desired position. Allow the unit to operate and warm up the room.
When the desired temperature is reached, turn the control knob
counterclockwise until the heater turns off. This is your ideal setting.
The heater will start automatically when the room temperature drops
below this set point, and will turn off when the set point is reached.
To turn off the heater, switch the ON/OFF switch to OFF
position.
OPERATING INSTRUCTIONS
16
No user maintenance on this heater should be undertaken except
regular cleaning as described below. All other servicing or
maintenance should be performed by qualified service personnel.
Before any cleaning, make sure that:
1. Power supply is disconnected at the source.
2. Wait 60 minutes to ensure the heating element has cooled down.
Your heater is now ready for cleaning.
Regular Cleaning:
1. Do not spray cleaning liquids or other chemicals on the unit.
2. Interior dust can often be removed by using a vacuum cleaner with
a crevice tool attachment.
3. To clean enclosure, use a clean, soft, and lightly damp cloth to
gently wipe off the dirt from the surface of the unit. Be sure not to
wet the heating element or the switches. Allow the unit to dry
completely before use.
CAUTION: DO NOT ALLOW WATER TO RUN INTO THE INTERIOR
OF THE HEATER AS THIS COULD CREATE A FIRE OR ELECTRIC
SHOCK HAZARD, DAMAGING THE UNIT.
MAINTENCE AND CLEANING
INSTRUCTIONS(separate page)
17
This heater comes with a ONE-YEAR LIMITED COMPONENT
WARRANTY. If your unit does not appear to be working properly,
please contact our service center by calling 1-800-317-1688. Prior to
your call, we encourage you to visit our service related website
www.DrHeaterUSA.com for troubleshooting tips and service
instructions if needed.
Warranty Information
Register your product at our website:
Or visit DrHeaterUSA.com/register-your-heater
Feedback
Love it? Help us make the product more for you.
Let us know with a customer review.
Please visit: https://www.amazon.com/review/review-your-purchases#
At Dr. Heater USA, we are committed to bringing top quality alternative
& supplemental heating products to our customers.
