Electrolux EW23CS75QS1 refrigerator User Manual

Electrolux

EN FREEZER ,' REFRIGERATOR

FR REFRIGERATEUR,,' CONGELATEUR

ES REFRIGERADOR CON CONGELADOR

USE AND CARE GUIDE

GUIDE D'UTILISATION ET D'ENTRETIEN

GUIA DE USO Y CUIDADO

808733401 September 2013

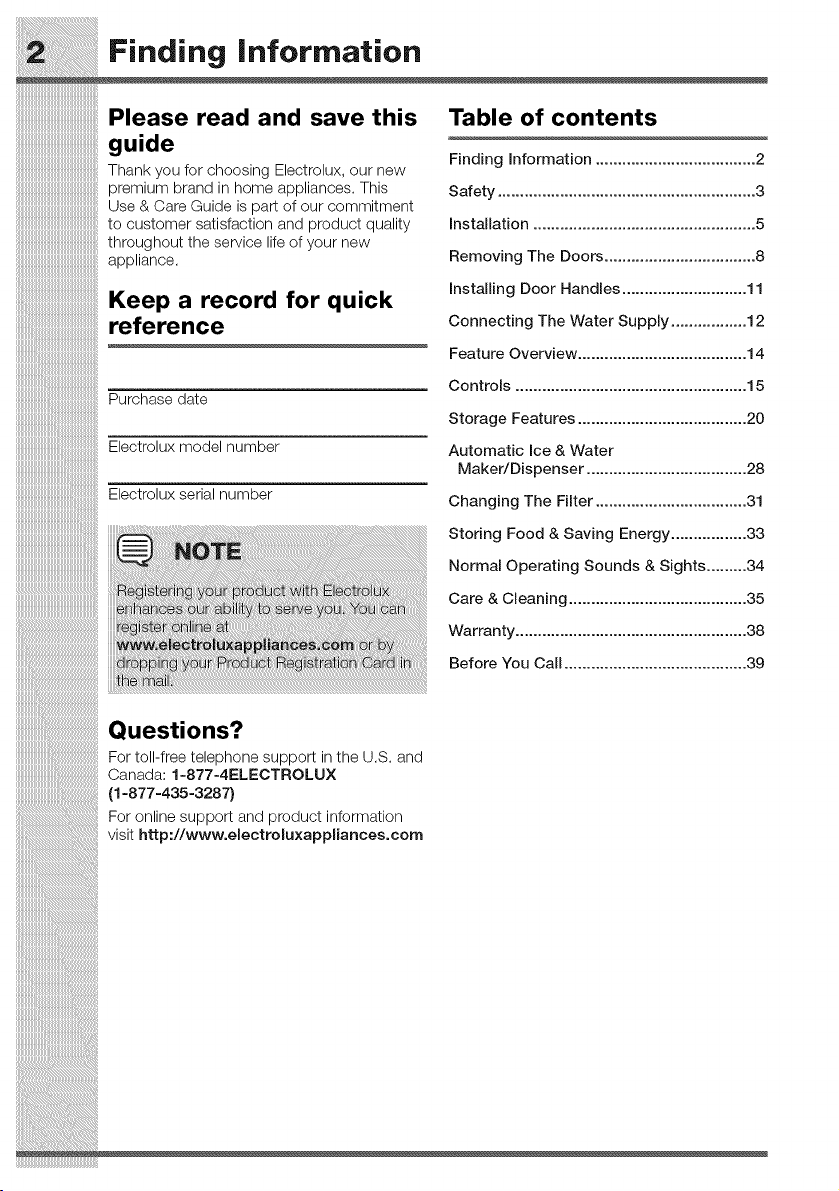

Finding information

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiillPlease read and save this Table of contents

.......................................................guide

::::::::::::::::::::::::::::::::::::::::::::::::::::::::

[ Thank you for choosing Electrolux, our new

premium brand in home appliances. This

Use & Care Guide is part of our commitment

to customer satisfaction and product quality

[ throughout the service life of your new

appliance.

ElectroluxElectroluxPurchasereferenceKeepdateaserialmOdelreCordnumbernumber for quick

Finding Information .................................... 2

Safety .......................................................... 3

Installation .................................................. 5

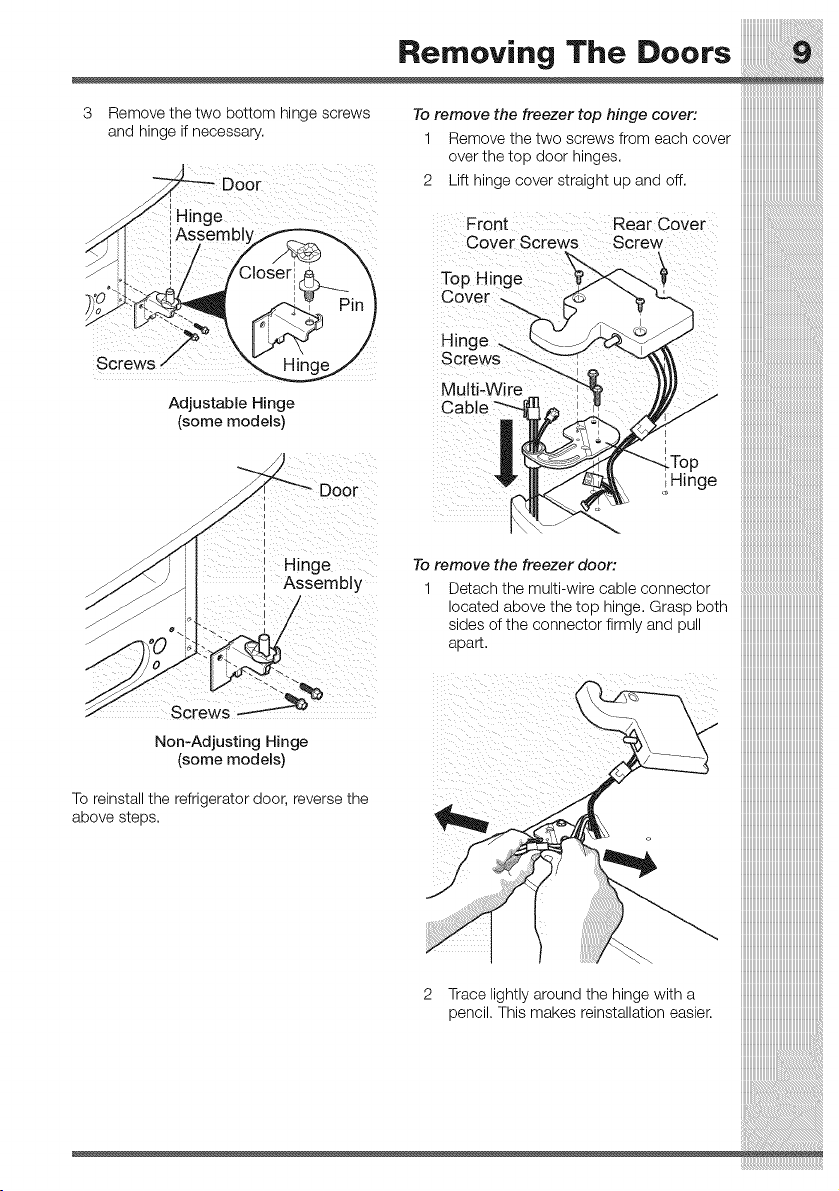

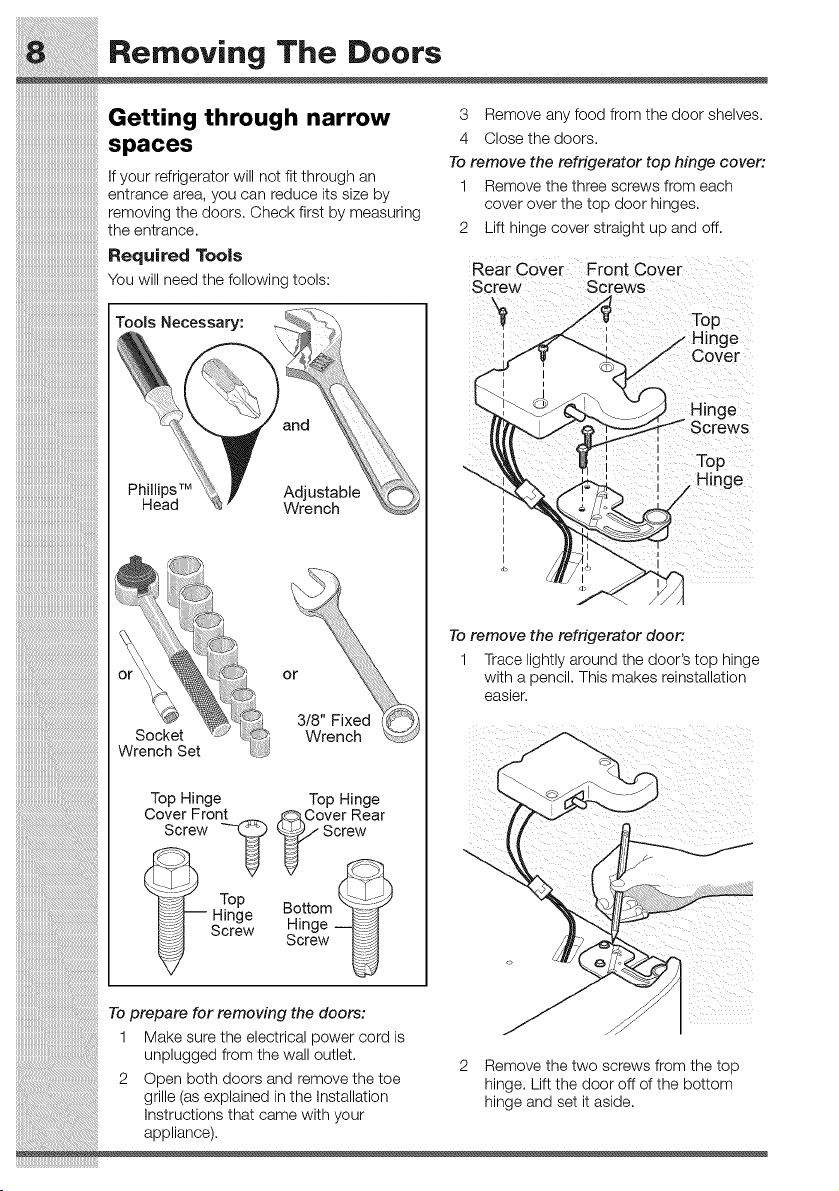

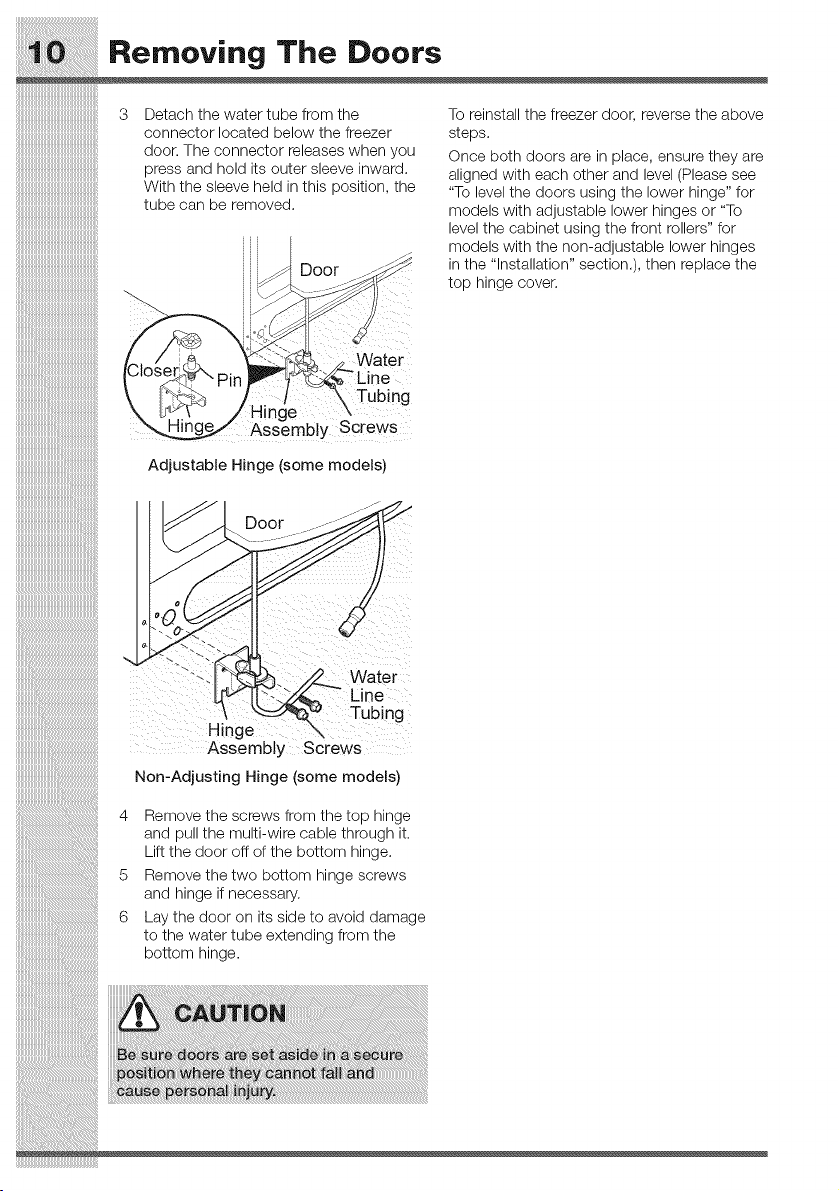

Removing The Doors .................................. 8

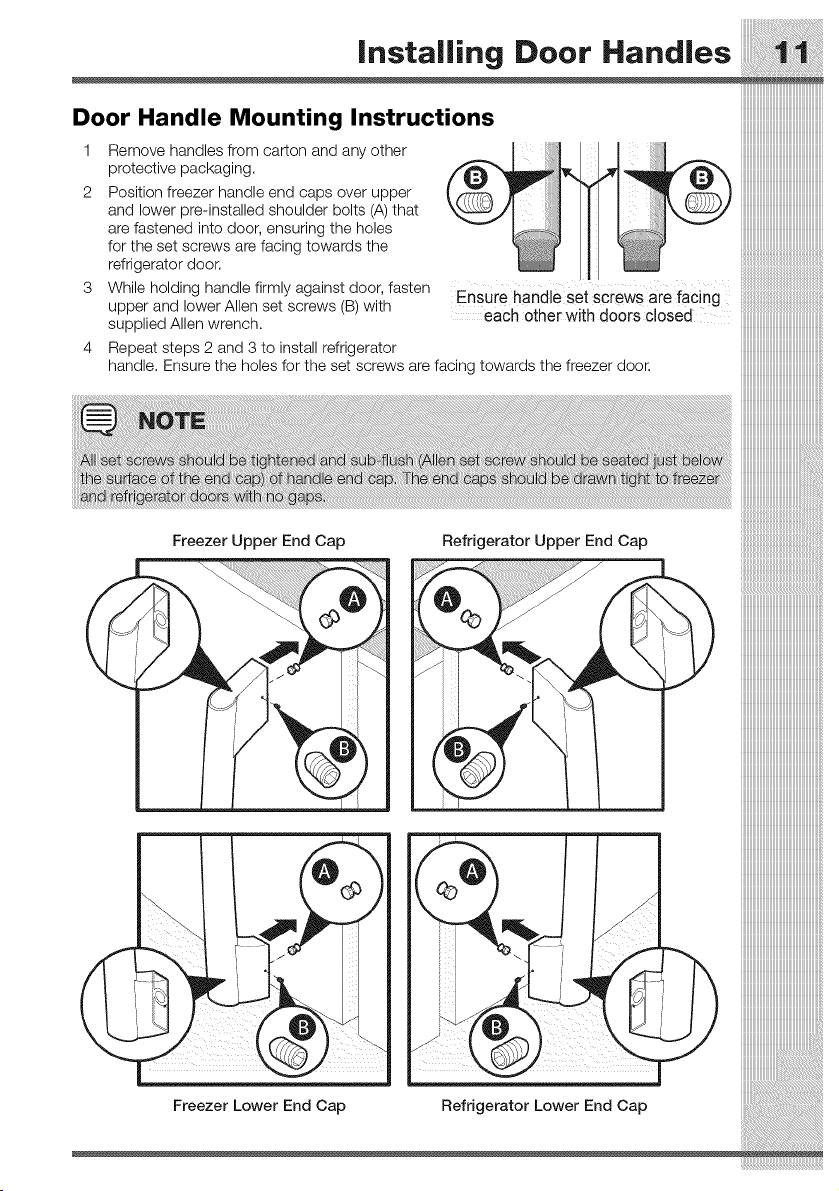

Installing Door Handles ............................ 11

Connecting The Water Supply ................. 12

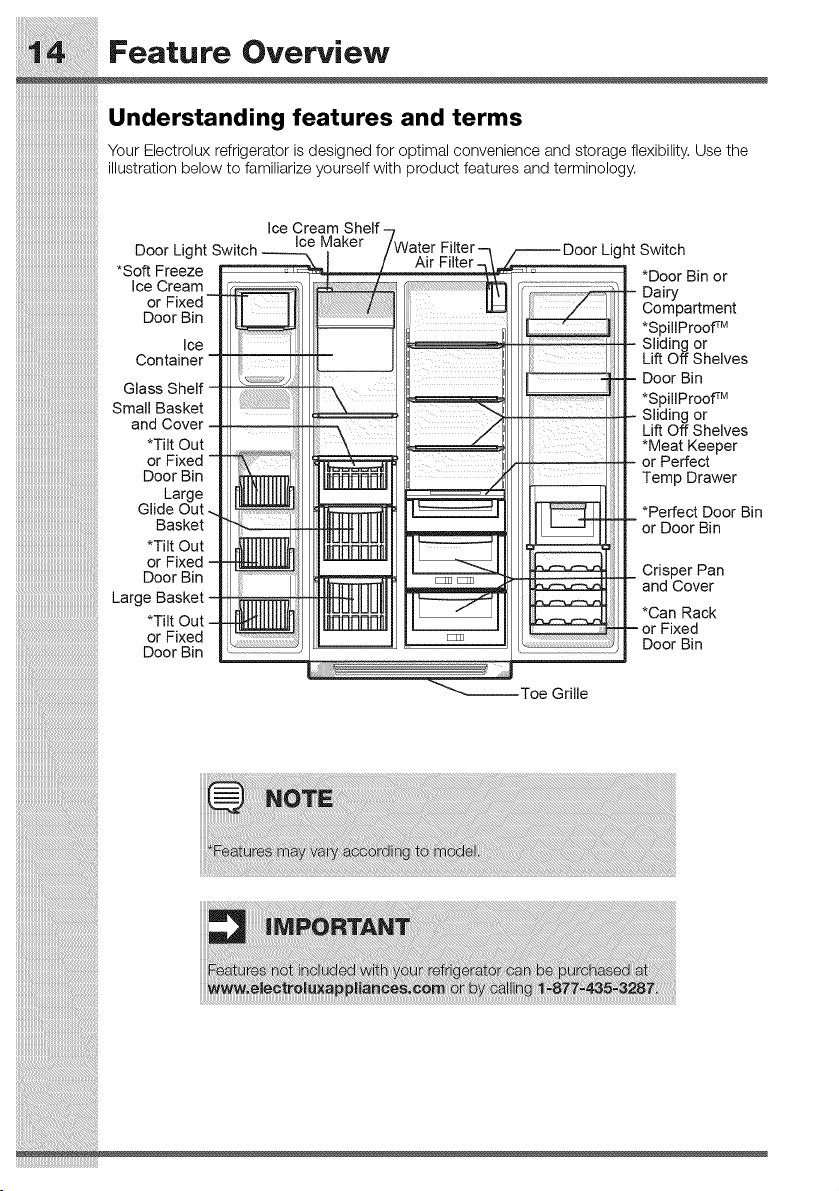

Feature Overview ...................................... 14

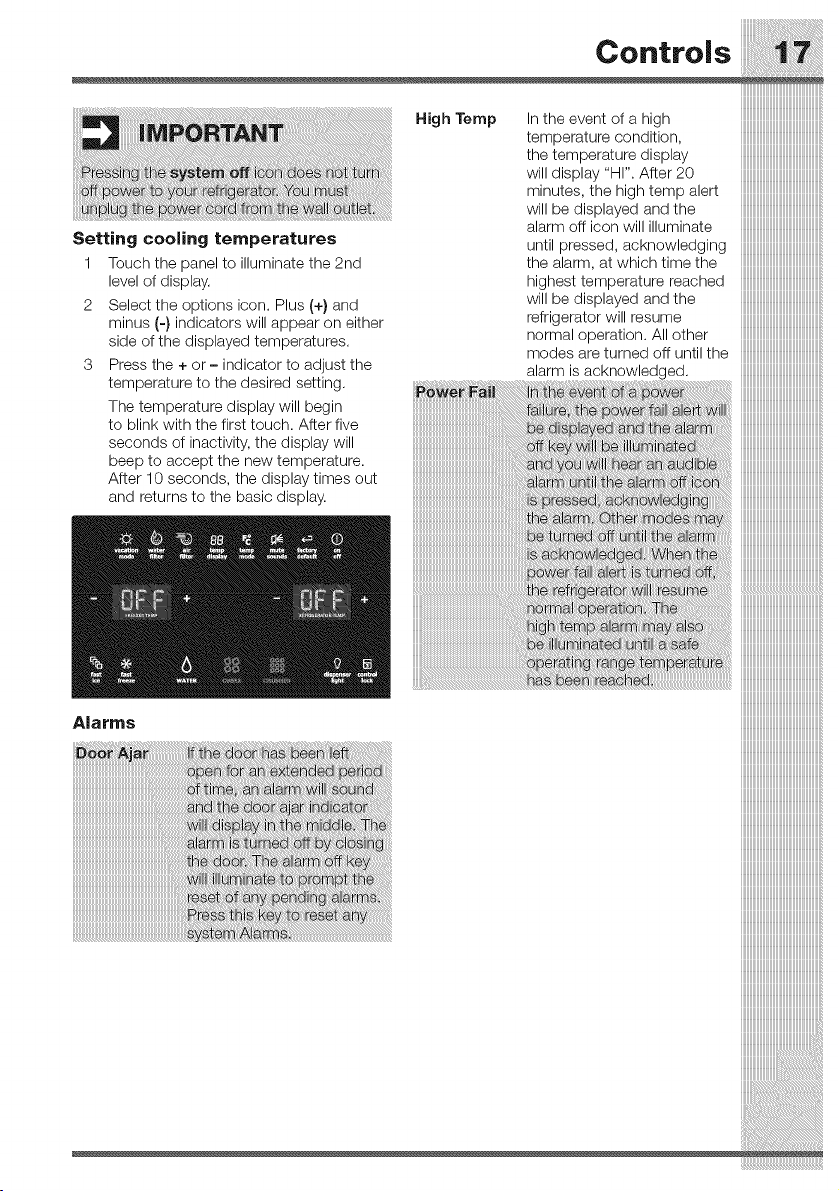

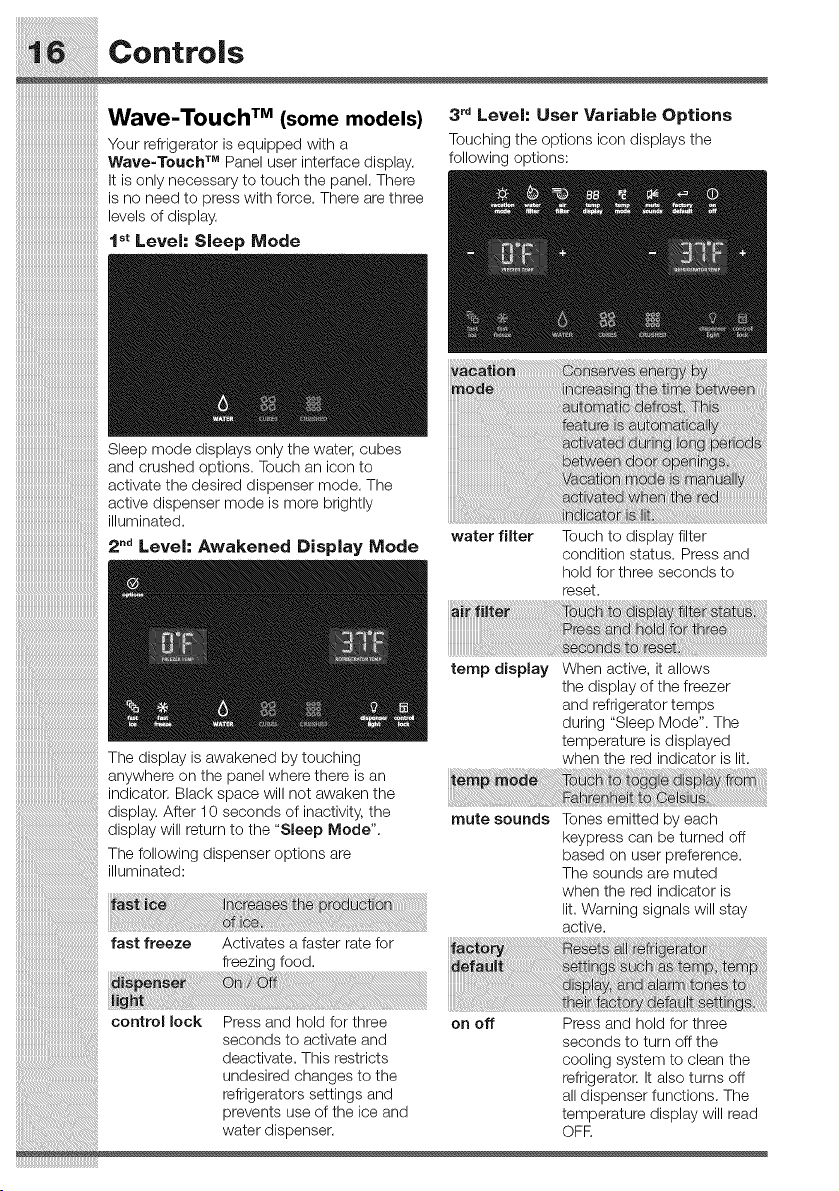

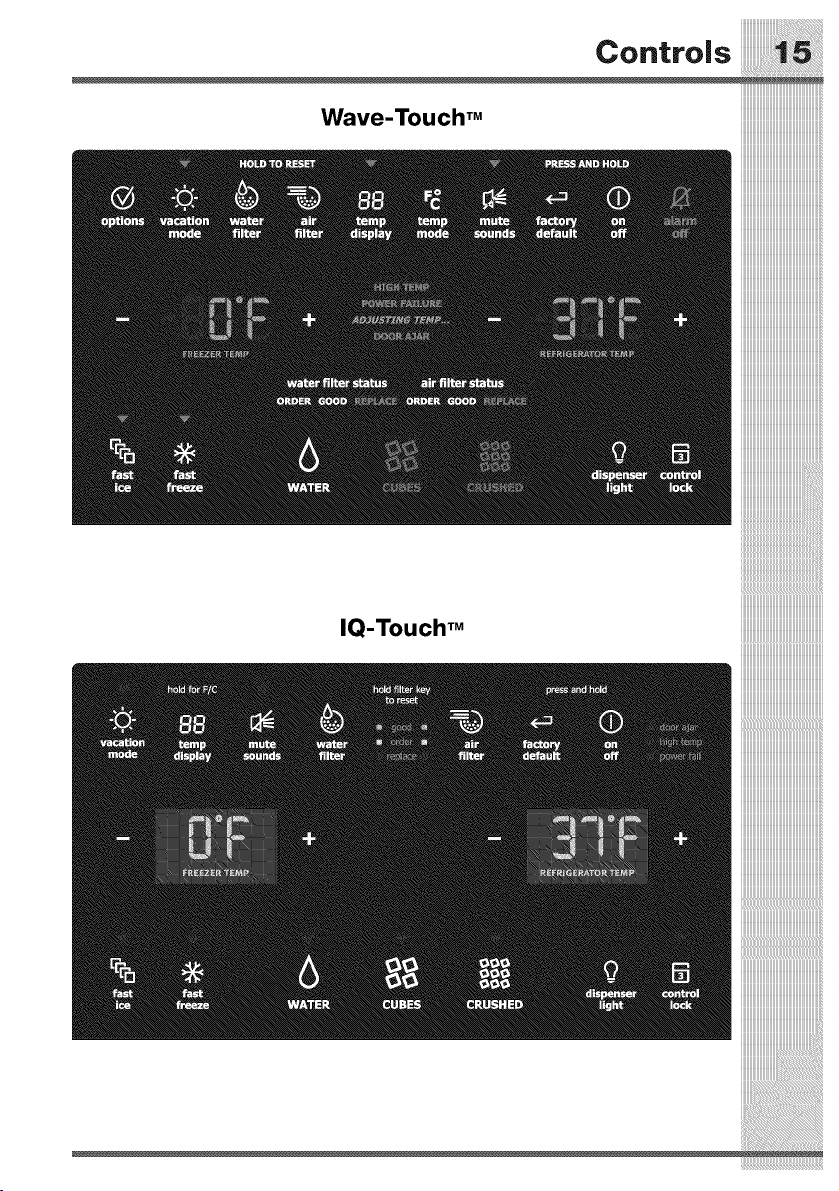

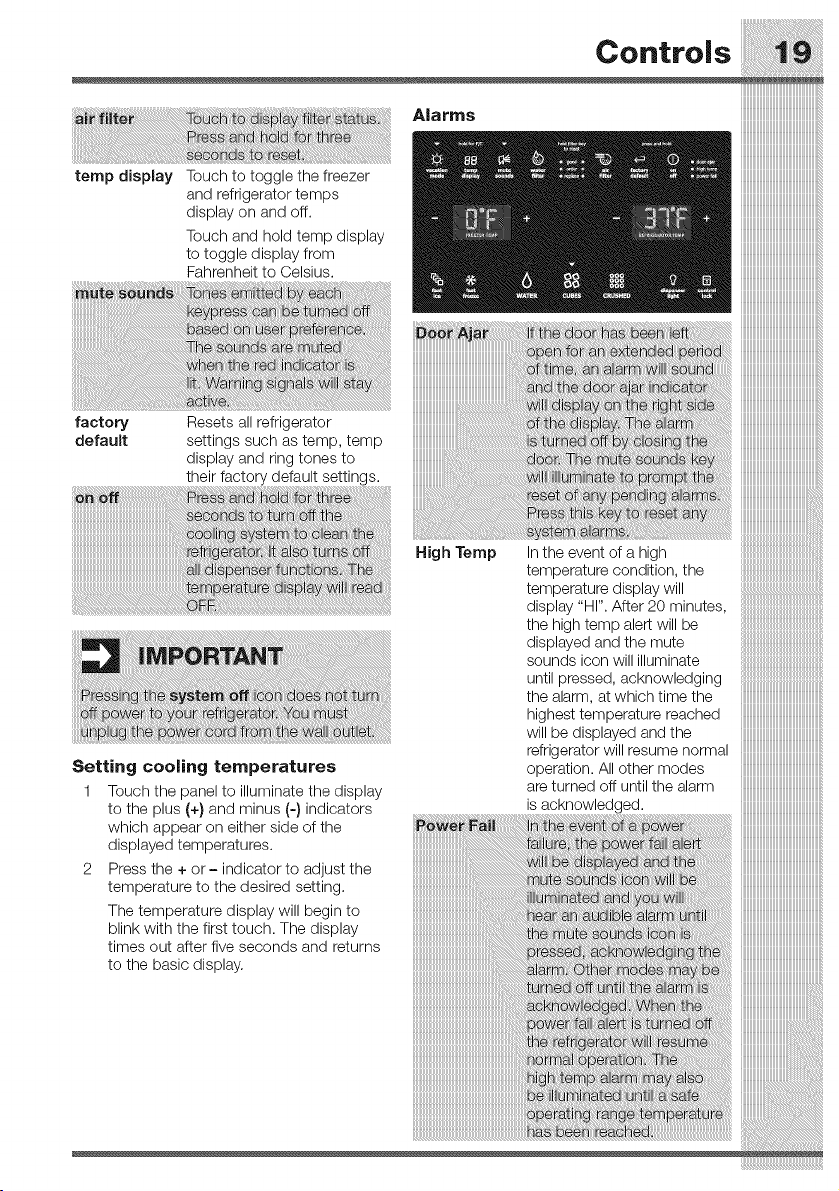

Controls .................................................... 15

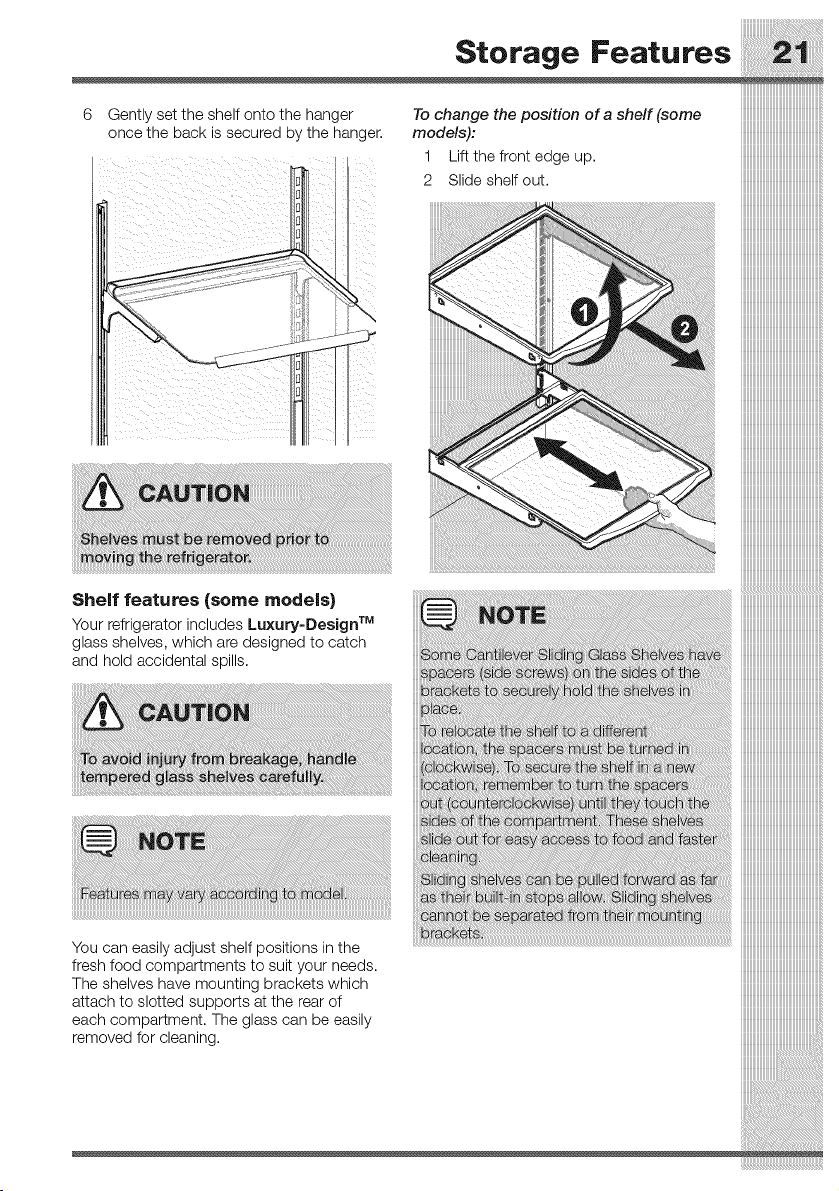

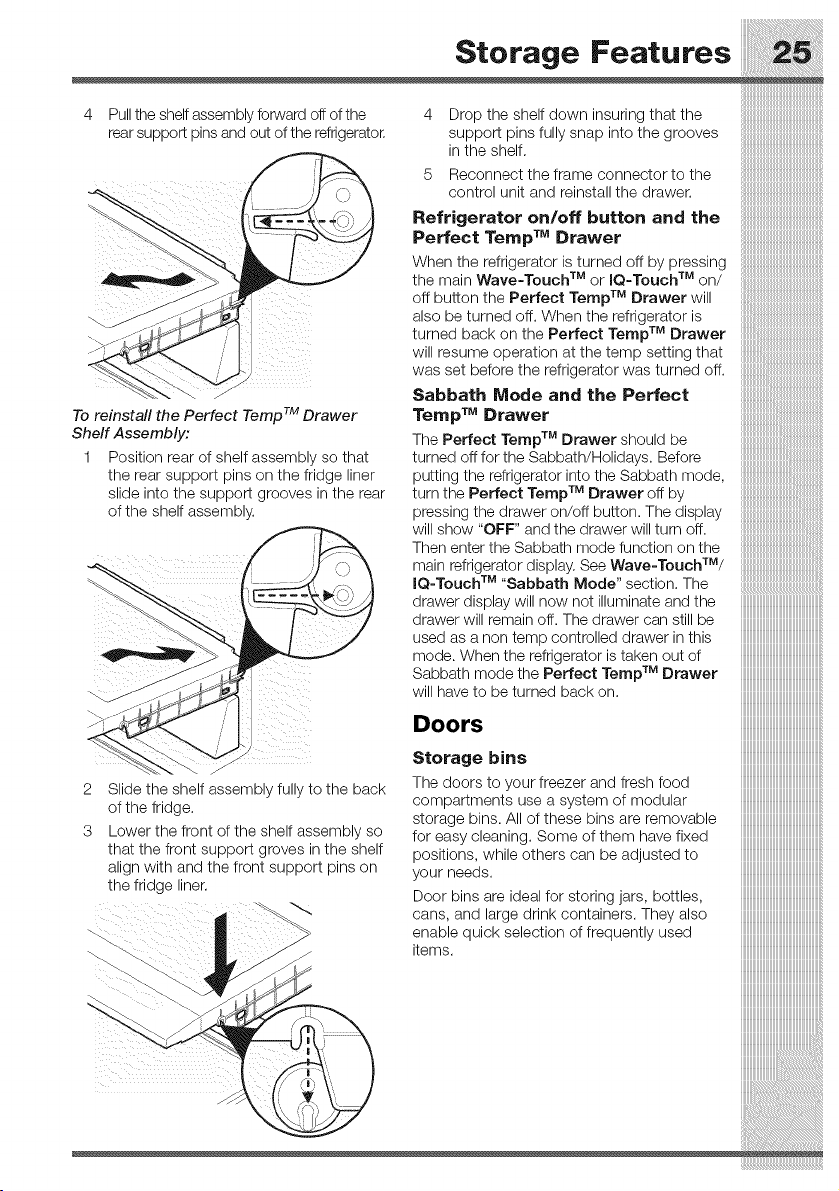

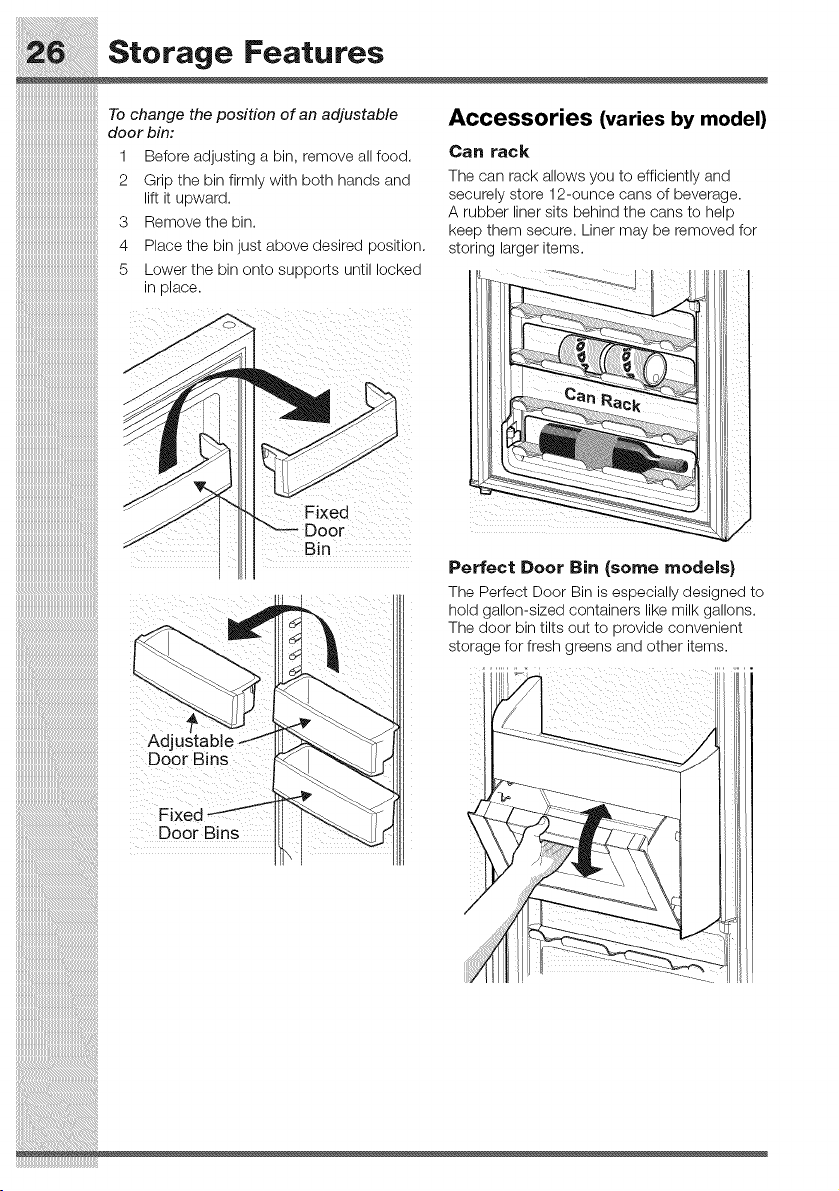

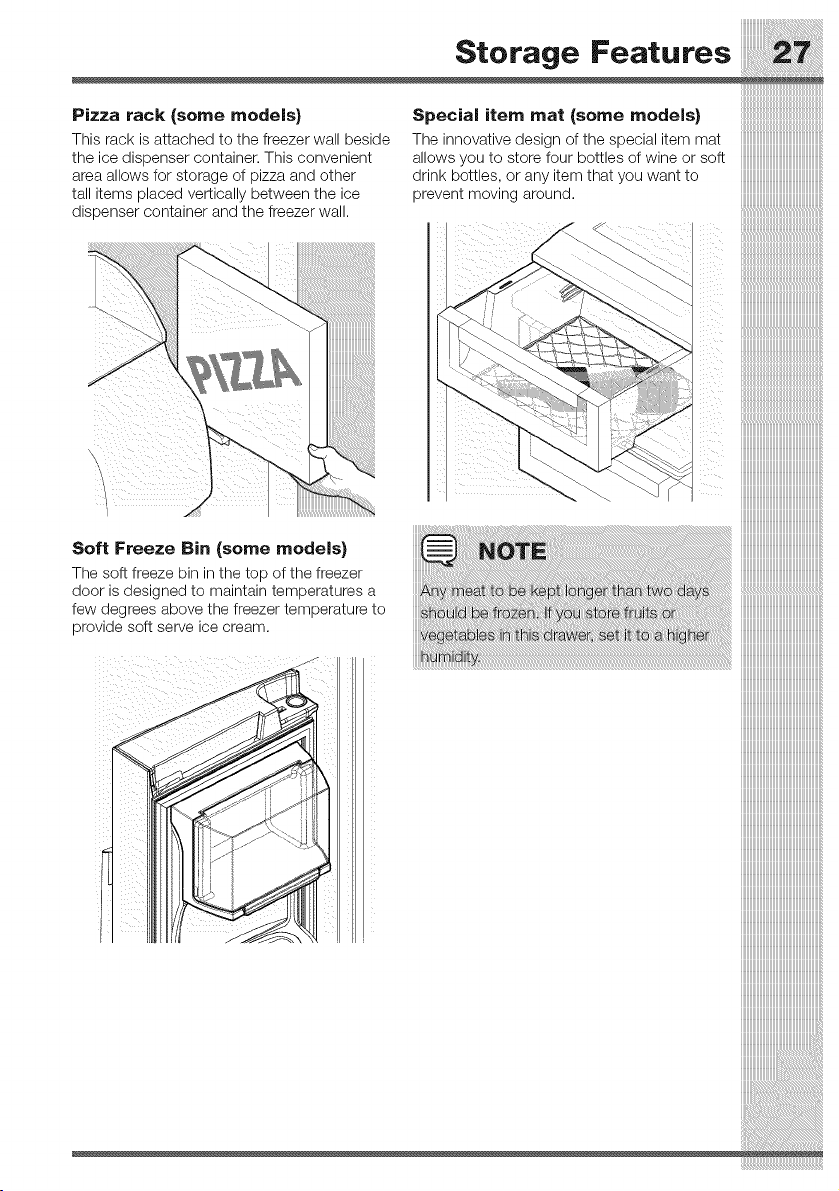

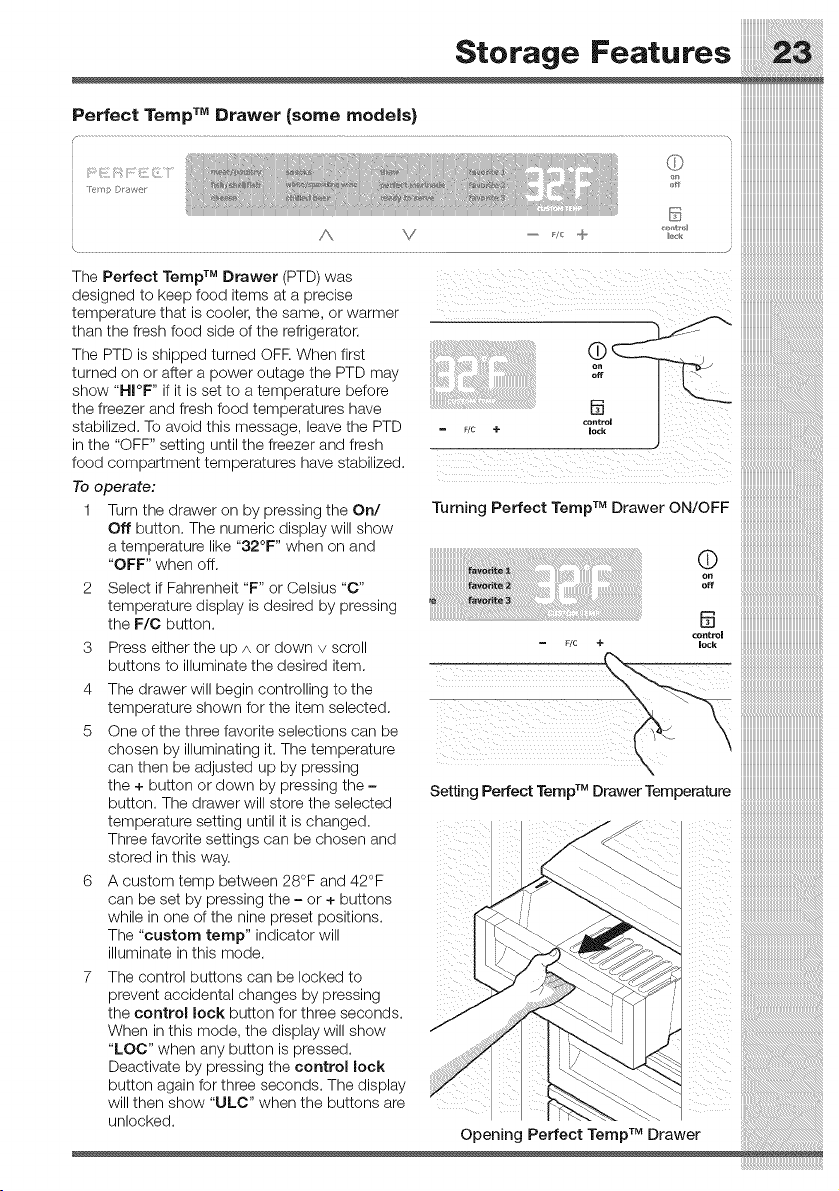

Storage Features ...................................... 20

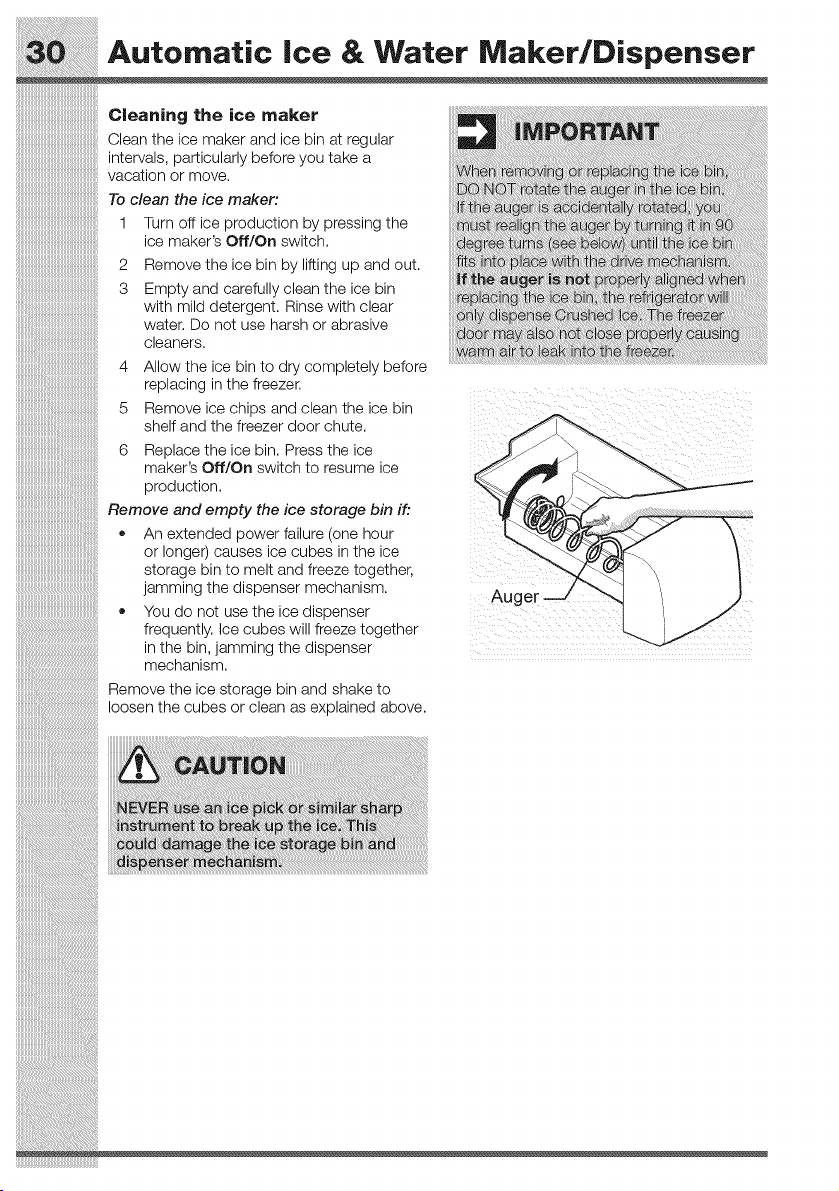

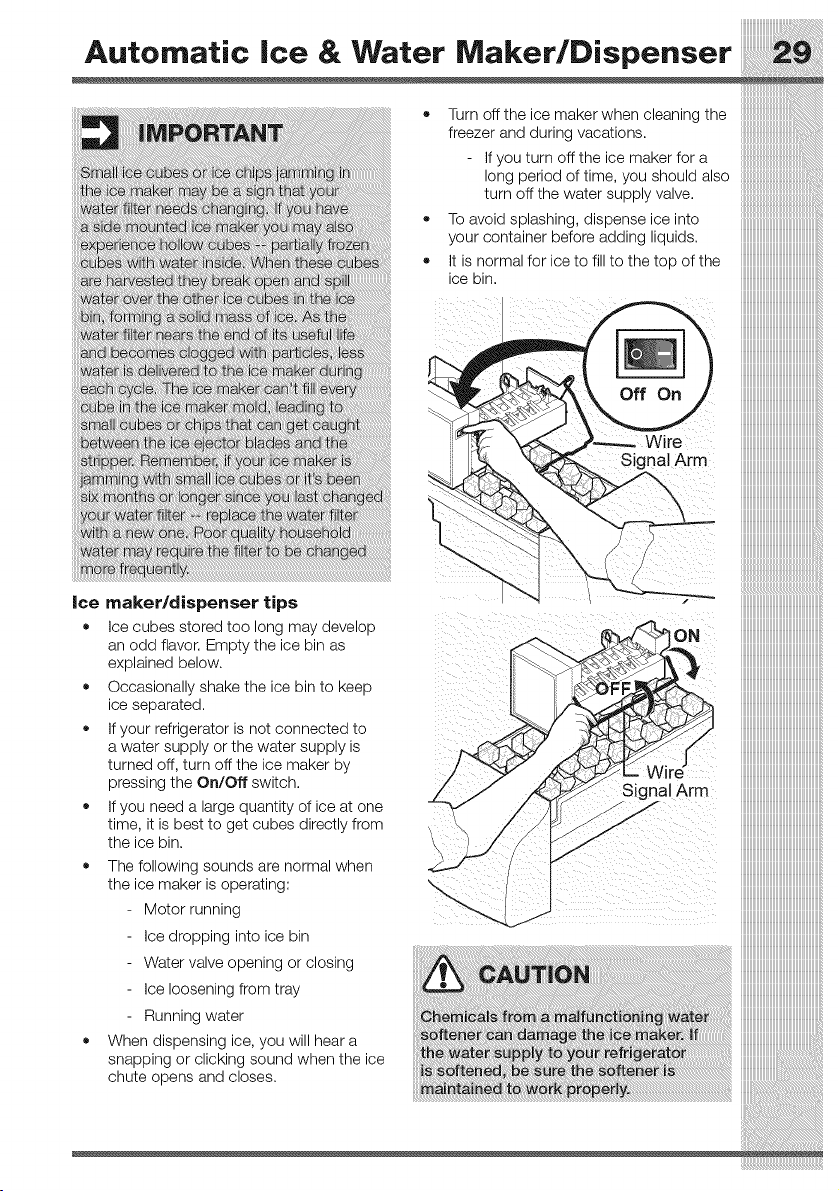

Automatic ice & Water

Maker/Dispenser .................................... 28

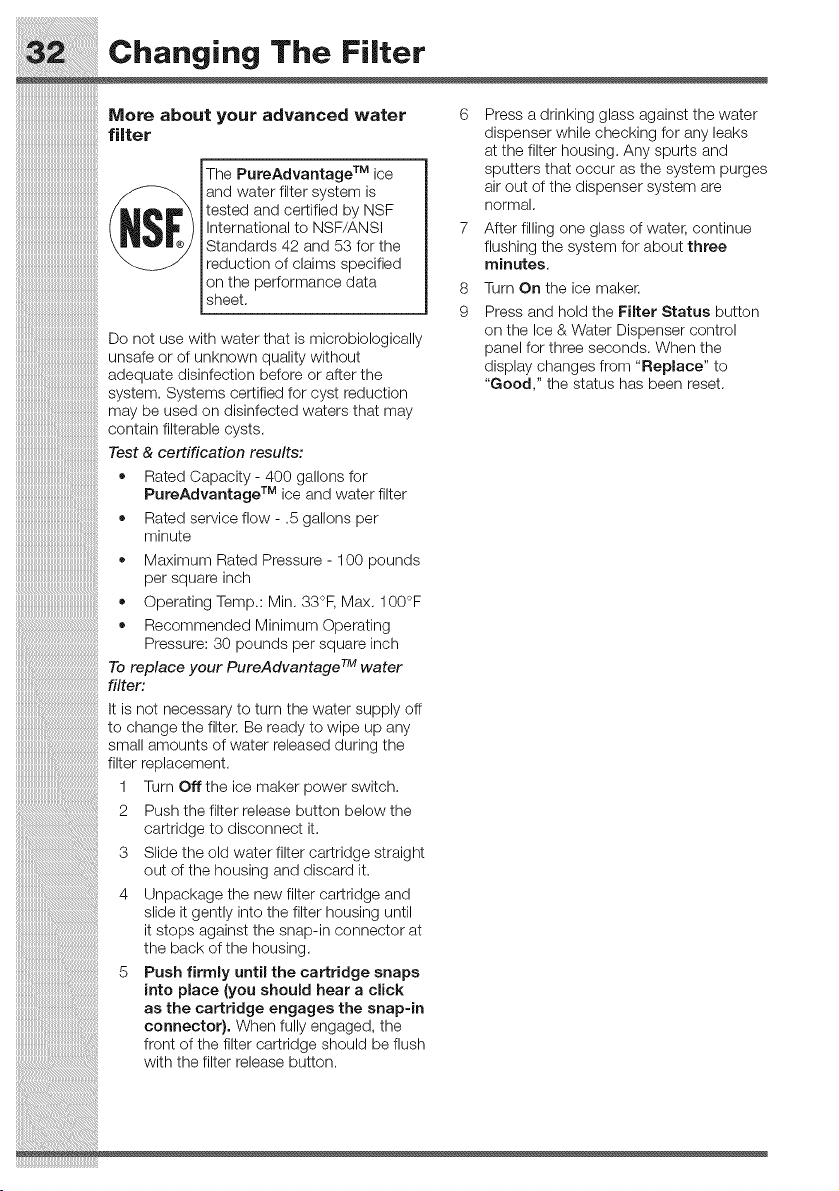

Changing The Filter .................................. 31

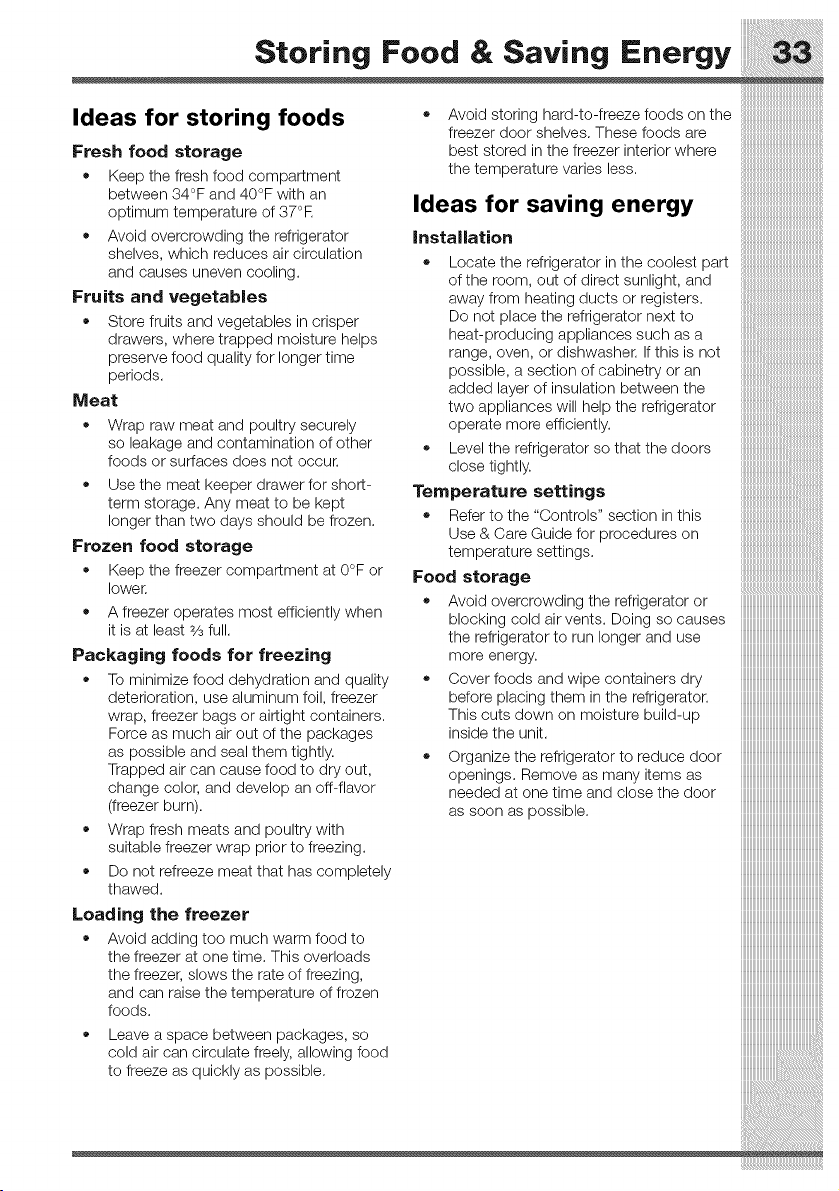

Storing Food & Saving Energy ................. 33

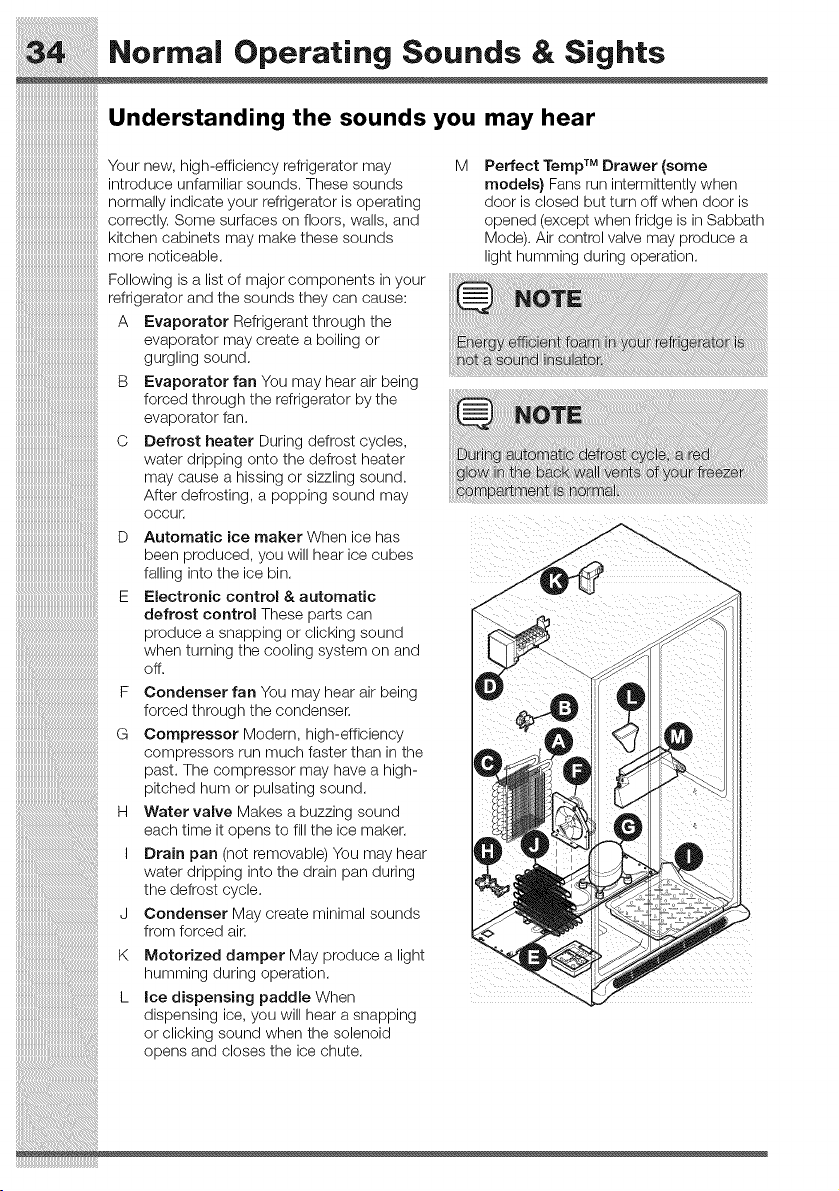

Normal Operating Sounds & Sights ......... 34

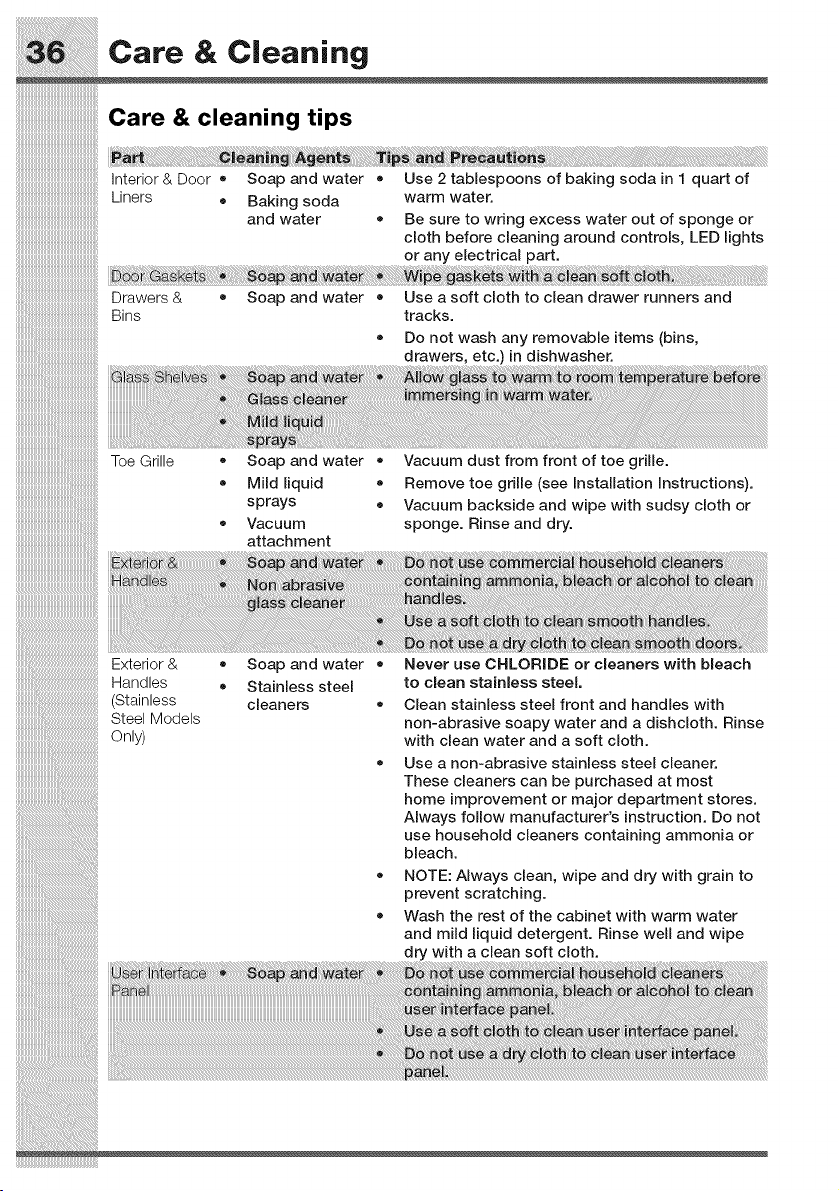

Care & Cleaning ........................................ 35

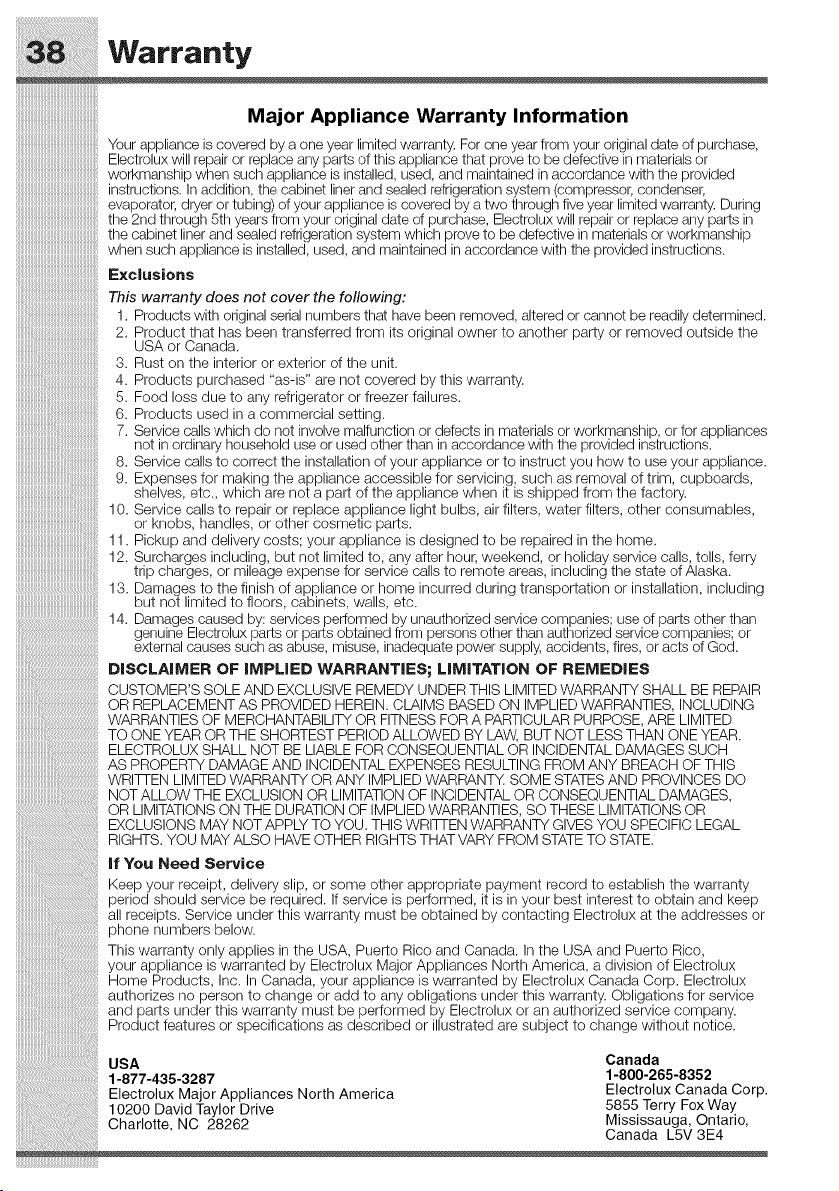

Warranty .................................................... 38

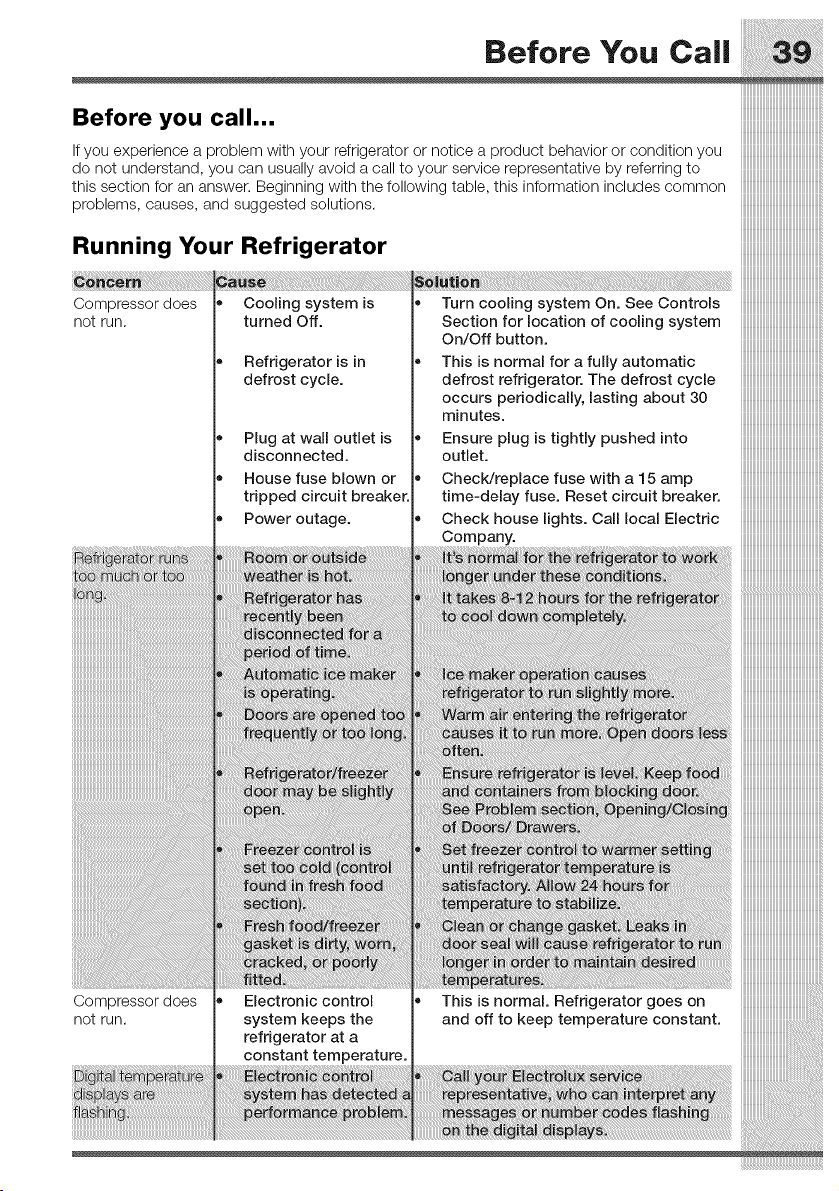

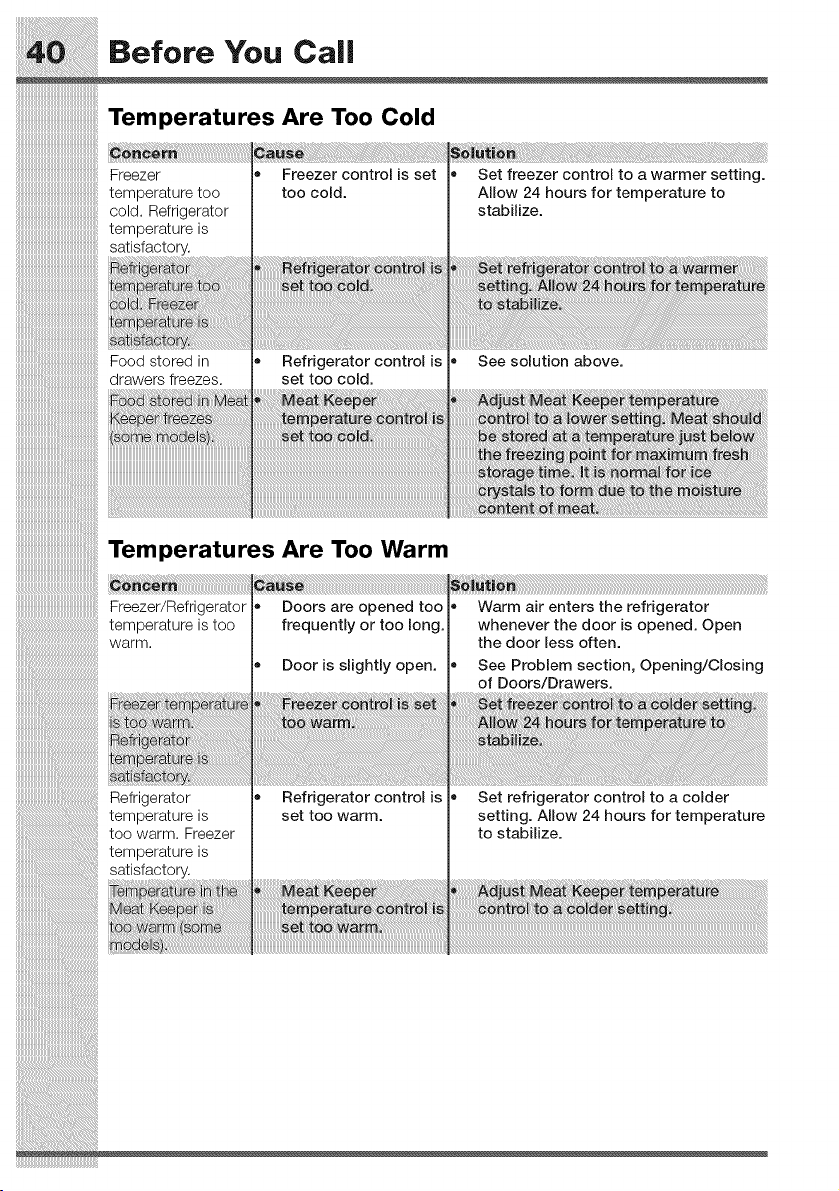

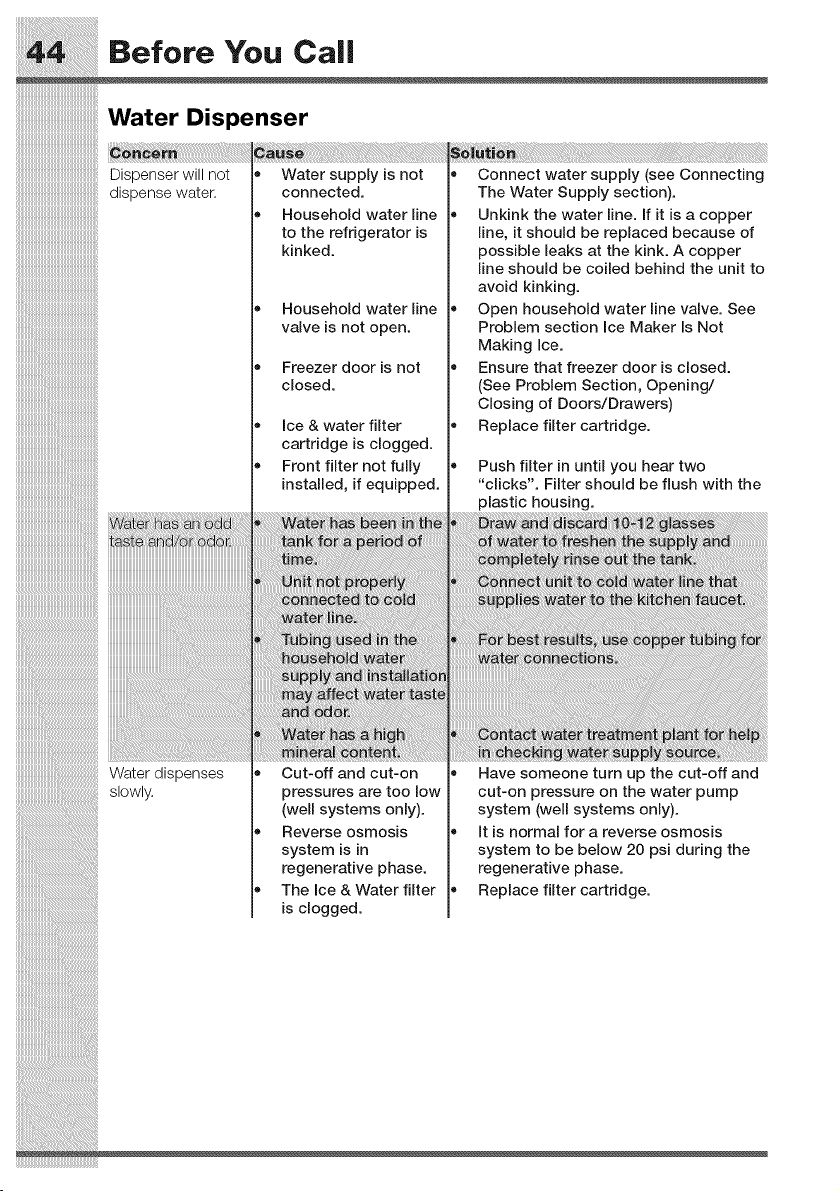

Before You Call ......................................... 39

Questions?

For toll-free telephone support in the U.S. and

Canada: 1-877-4ELECTROLUX

(1-877-435-3287)

For online support and product information

visit http://www.electroluxappliances.com

Safety

Important Safety Instruc- GeneralSafety

tions -- DO not store or use gasoline, or other

flammable liquids, near this or any

other appliance. Read product labels

for warnings regarding flammability and

other hazards.

• Do not operate the refrigerator in the

presence of explosive fumes.

• Avoid contact with any moving parts of

Safety Precautions the automatic ice maker.

Do not attempt to install or operate your unit • Remove all staples from the carton

until you have read the safety precautions to avoid cut injuries. Staples can also

in this manual. Safety items throughout this damage finishes if they come in contact

manual are labeled with a Danger, Warning or with other appliances or furniture.

Caution based on the risk type. Child Safety

Definitions Packing Materials,

This is the safety alert symbol. It is used to • Packing cartons covered with rugs,

alert you to potential personal injury hazards, bedspreads, plastic sheets or stretch

Obey all safety messages that follow this

wrap may become airtight chambers and

symbol to avoid possible injury or death, can quickly cause suffocation.

• Destroy or recycle the product's carton,

plastic bags, and any other exterior

wrapping material immediately after the

refrigerator is unpacked. Children should

never play with these items.

ChildEntra rnentAndSuffocation:

• These problems are not limited to the

past. Whether junked, abandoned or

temporarily stored (even for a few hours),

unattended refrigerators and freezers are

dangerous. Please take the precautions

listed below.

Proper Disposal Of Refrigeratorsl

Free,ers

We strongly encourage responsible appliance

recycling/disposal methods. Check with your

utility company or visit

www.eoergystar.gov/recycleformore

information on recycling your old refrigerator.

Before you throw away your old

refrigeratorlfreezer,

• Removethedoors.

• Leave the shelves

in place so

children may not

easily climb inside.

• Have refrigerant

removed by a

qualified service

technician .......................................................................................................

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!!!i

i!iiiiilSafety

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!,Electrical information

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

_i_i

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiL

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii•

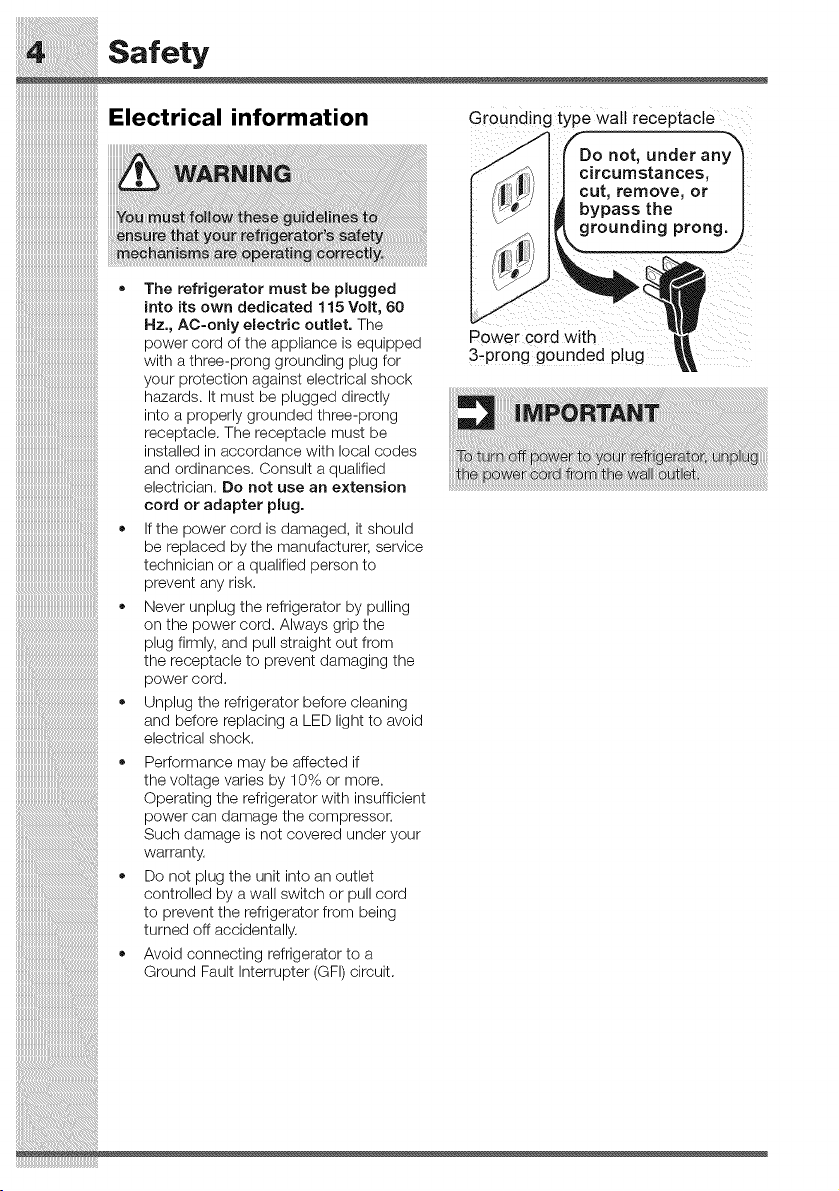

The refrigerator must be plugged

into its own dedicated 115 Volt, 60

Hz., AC-only electric out_et. The

power cord of the appliance is equipped

with a three-prong grounding plug for

your protection against electrical shock

hazards. It must be plugged directly

into a properly grounded three-prong

receptacle. The receptacle must be

installed in accordance with local codes

and ordinances. Consult a qualified

electrician. Do not use an extension

cord or adapter plug.

If the power cord is damaged, it should

be replaced by the manufacturer, service

technician or a qualified person to

prevent any risk.

Never unplug the refrigerator by pulling

on the power cord, Always grip the

plug firmly, and pull straight out from

the receptacle to prevent damaging the

power cord.

Unplug the refrigerator before cleaning

and before replacing a LED light to avoid

electrical shock.

Performance may be affected if

the voltage varies by 10% or more.

Operating the refrigerator with insufficient

power can damage the compressor.

Such damage is not covered under your

warranty.

Do not plug the unit into an outlet

controlled by a wall switch or pull cord

to prevent the refrigerator from being

turned off accidentally.

Avoid connecting refrigerator to a

Ground Fault Interrupter (GFI) circuit.

Grounding type Walt receptacle

Power cord with

3-p[0ng gounded p!ug

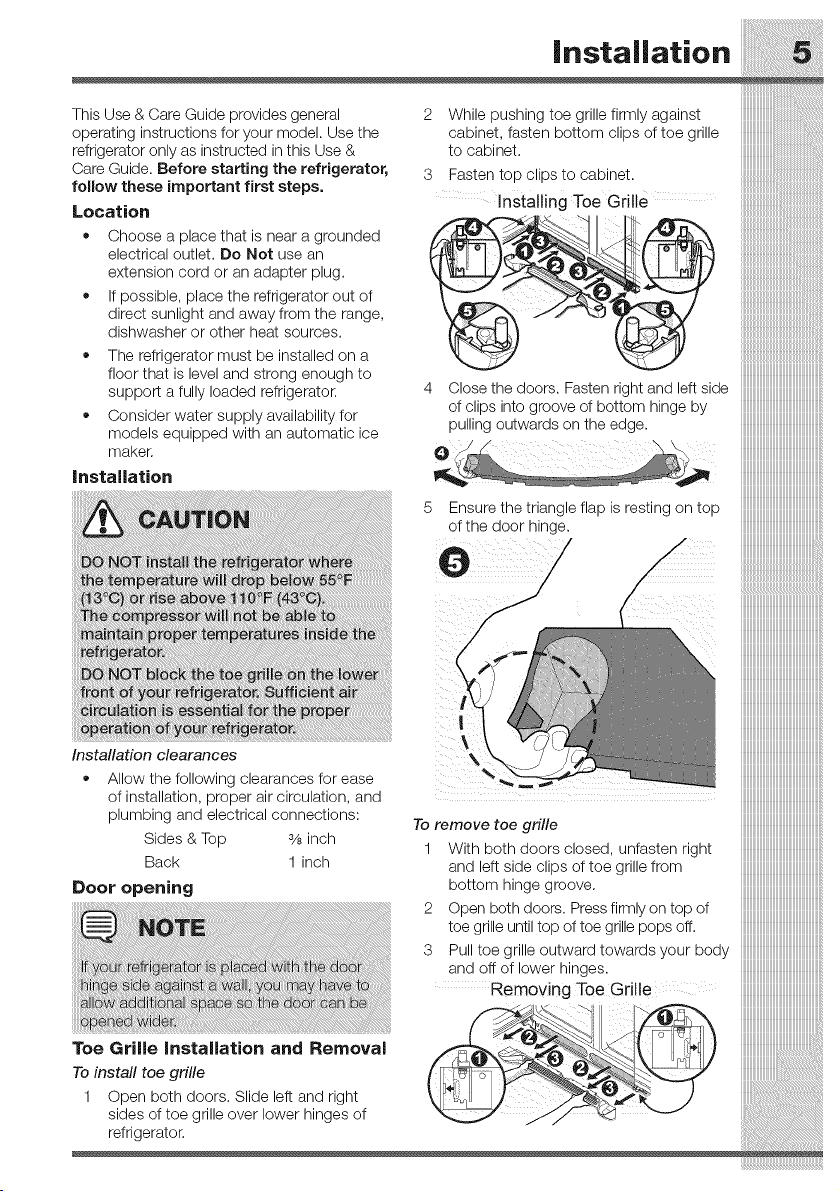

Installation

This Use & Care Guide provides general

operating instructionsfor your model. Use the

refrigerator only as instructed in this Use &

Care Guide. Before starting the refrigerator,

follow these important first steps.

Location

= Choose a place that is near a grounded

electrical outlet. Do Not use an

extension cord or an adapter plug.

• If possible, place the refrigerator out of

direct sunlight and away from the range,

dishwasher or other heat sources.

• The refrigerator must be installed on a

floor that is level and strong enough to

support a fully loaded refrigerator.

Consider water supply availability for

models equipped with an automatic ice

maker.

installation

2 While pushing toe grille firmly against

cabinet, fasten bottom clips of toe grille

to cabinet.

3 Fasten top clips to cabinet.

Installing Toe Grille

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

4 Close the doors. Fasten right and left side iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

ofclipsintogrooveofbottom hingeby iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

pulling outwards on the edge. iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiii

5 Ensurethetriangleflapisrestingontop iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

ofthedoorhinge, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Installation clearances

Allow the following clearances for ease

of installation, proper air circulation, and

plumbing and electrical connections:

Sides & Top s/sinch

Back 1 inch

Door opening

Toe Grille installation and Removal

To install toe grille

1 Open both doors. Slide left and right

sides of toe grille over lower hinges of

refrigerator.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

I iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

:\ iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Toremovetoegrille iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

1 With both doorsclosed, unfasten right iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

and leftsideclipsoftoegrillefrom iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

bottomhingegroove, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

2 Open bothdoors. Pressfirmlyontopof iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

toe grille until top of toe grille pops off. iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

3 Pull toe grille outward towards your body iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

andoffoflowerhinges, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

RemovingToeerille iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

|nstallation

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_ Your refrigerator should be positioned

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii[ito allow easy access to a counter when

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!iremoving food. Forbest useofdrawers and

freezer baskets, the refrigerator should be

in a position where both the refrigerator and

freezer doors can be fully opened.

Guidelines for final positioning of your

refrigerator:

o All four corners of the cabinet must rest

firmly on the floor.

The cabinet should be level at the front

and rear.

The sides should tilt 1Ainch (6 ram) from

front to back (to ensure that doors close

and seal properly).

Doors should align with each other and

be level.

All of these conditions can be met by

raising or lowering the adjustable front

rollers.

To level the doors using the adjustable

lower hinge (some models):

1 Before leveling either door, remove

set screw that locks door height into

position. (The door cannot be adjusted

without set screw removed).

2 If the refrigerator door is lower than

the freezer door, raise the refrigerator

door by turning the adjustment screw

clockwise using a 7/16 inch wrench.

(See illustration.)

3 If the freezer door is lower than the

refrigerator door, raise the freezer

door by turning the adjustment screw

clockwise using a 7/16 inch wrench.

(See illustration.)

Raise

Door__Door TA "

Door } Door

To level the cabinet using the front rollers:

1 Open both doors and remove the toe

grille (see "Toe Grille Installation and

Removal" in the "Installation" section).

2 Close the doors and use a flat-blade

screwdriver or _,t inch socket wrench to 4 After leveling, verify door stop contacts

raise or lower the front rollers, lower hinge and top of door does

not contact upper hinge through full

3 Ensure both doors are bind-free with movement of door (from fully closed to

their seals touching the cabinet on all fully open).

four sides.

5 Reinstall set screw, locking the door

Raise height.

Flange.._ _L-_.-

.... }J

\_ (( -Hinge

I _\ \\ r _1 set Screw

_ (some models)

'-- Hinge

7/16" Wrench and

3/32" Hex Key (some models)

6 Replace the toe grille by fitting it into

place (see "Toe Grille Installation and

NOTE: Level the unit with the adjustable Removal" in the "installation" section).

rollers before leveling the doors.

installation

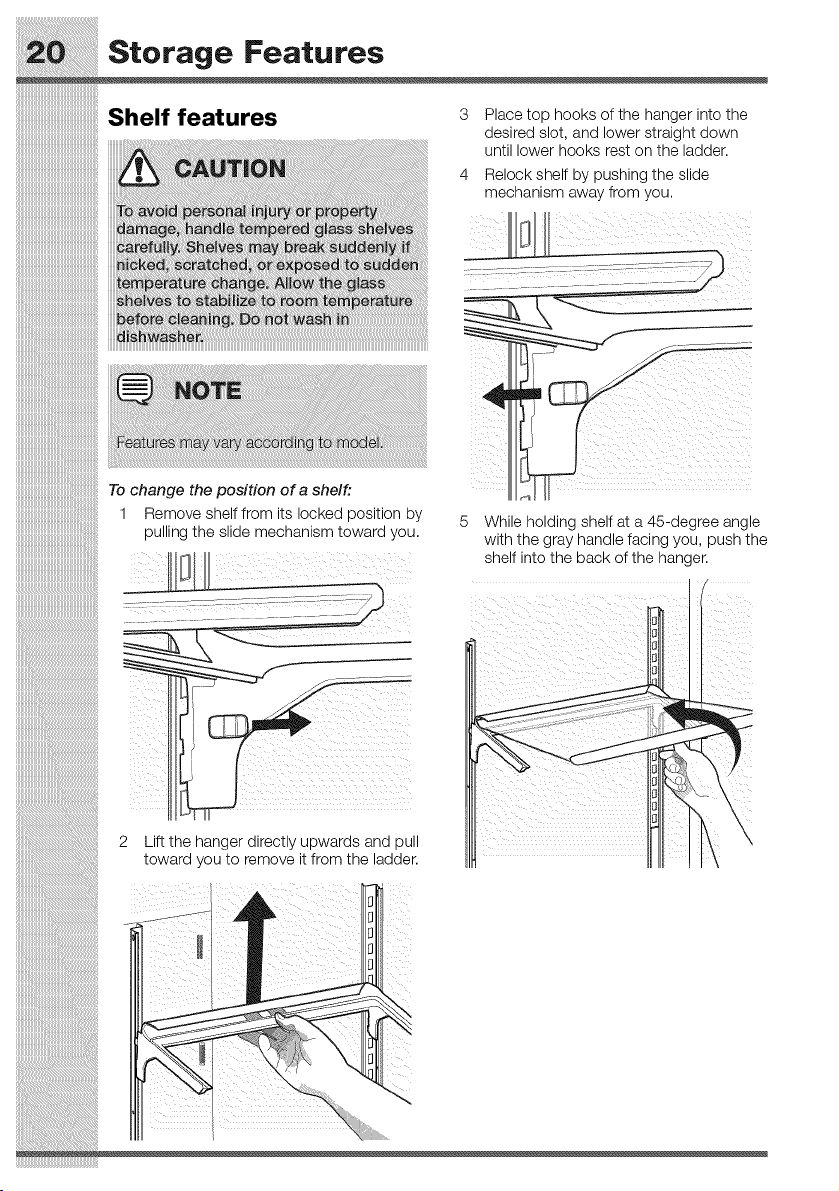

Installing Shelves 4 Relock shelf by pushing the slide

Your refrigerator was shipped with the shelf mechanism away from you.

hanger and shelf locking clip installed in their

shipping position, Below are the instructions IFH

to install the shelves in your desired locations.

1 Remove shelf from its locked position by J

pulling the slide mechanism toward you.

5 While holding shelf at a 45-degree angle

wltn tne gray nanale facing you, ousn tne

shelf nto the back of the nanger.

2 Lift the hanger directly upwards and pull

toward you to remove it from the ladder,

6 Gentl_ 3et the shelf onto tne nanger

once tne IOaCKISsecurea Dy tne nanger.

3 Place top hooks of the hanger into the

desired slot, and lower straight down

until lower hooks rest on the ladder.

iiiiillRemoving The Doors

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_Getting through narrow 3 Remove any food from the door shelves,

:::::::::::::::::::::::::::::::::::::::::::::::::::::::

4 Close the doors.

To remove the refrigerator top hinge coven

1 Remove the three screws from each

cover over the top door hinges.

2 Lift hinge cover straight up and off.

To remove the refrigerator door'.

1 Trace lightly around the door's top hinge

with a pencil. This makes reinstallation

easier.

2 Remove the two screws from the top

hinge. Lift the door off of the bottom

hinge and set it aside,

Removing The Doors

3 Remove the two bottom hinge screws To remove the freezer top hinge cover:

and hinge if necessary. 1

Remove the two screws from each cover

over the to_) uoor ninges.

2 Lift nlnge cover stralgnt up ana Dff.

Hinge

Screws /

Adjustable Hinge

(some models)

Front Rear Cover

Cover Screws Screw

Top Hinge

Cover ..

Hinge ..

Multi-Wire

Hinge

Screws

Non-Adjusting Hinge

(some models)

To reinstall the refrigerator door, reverse the

above steps.

To remove the freezer door:

1 Detach the multi-wire ca_)le connector

iocatea above IRe ICp nlnge. Grasp ootr

sides of the connector firrr y and ou

aoai'[.

2 Trace lightly around the hinge with a

pencil. This makes reinstallation easier.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Detach the water tube from the

connector located below the freezer

door. The connector releases when you

press and hold its outer sleeve inward.

With the sleeve held in this position, the

tube can be removed.

To reinstall the freezer door, reverse the above

steps.

Once both doors are in place, ensure they are

mmmmmmmmmmmmmmmmmm,_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i

71717171717171717171717171717171717171717171717171717i_i

aligned with each other and level (Please see

"To level the doors using the lower hinge" for

models with adjustable lower hinges or "To

level the cabinet using the front rollers" for

models with the non-adjustable lower hinges

in the "Installation" section.), then replace the

top hinge cover.

Tubing

Hinge \

Assembly Screws

Non-Adjusting Hinge (some models)

4 Remove the screws from the top hinge

and pull the multi-wire cable through it.

Lift the door off of the bottom hinge.

5 Remove the two bottom hinge screws

and hinge if necessary.

6 Lay the door on its side to avoid damage

to the water tube extending from the

bottom hinge.

|nstalling Door Handles

Door Handle Mounting Instructions

1 Remove handles from carton and any other

protective packaging.

2 Position freezer handle end caps over upper

and lower pre-installed shoulder bolts (A) that

are fastened into door, ensuring the holes

for the set screws are facing towards the

refrigerator door.

3 While holding handle firmly against door, fasten

upperand IowerAIlen set screws (B) with Ensure hand!esetscrewsare facing

supplied Allen wrench, each other with doors closed

Repeat steps 2 and 3 to install refrigerator

handle. Ensure the holes for the set screws are facing towards the freezer door.

Freezer Upper End Cap Refrigerator Upper End Cap

Freezer Lower End Cap Refrigerator Lower End Cap

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Connecting The Water Supply

needed, measure the distance from the

ice maker inlet valve at the back of the

refrigerator to your cold water pipe. Then

add approximately 7 feet (2.1 meters),

so the refrigerator can be moved out for

cleaning (as shown).

A shutoff valve to connect the water

supply line to your household water

system. DO NOT use a self-piercing type

shutoff valve.

Do not reuse compression fitting or use

thread seal tape.

A compression nut and ferrule (sleeve)

for connecting a copper water supply

line to the ice maker inlet valve.

Before Installing The Water Supply Line,

You Will Need:

Basic Tools: adjustable wrench,

flat-blade screwdriver, and PhillipsTM

screwdriver

Access to a household cold water line

with water pressure between 30 and

100 psi.

A water supply line made of 1Ainch

(6.4mm) OD, copper or stainless steel

tubing. To determine the length of tubing

To Connect Water Supply Line To Ice

Maker Inlet Valve

1. Disconnect refrigerator from electric

power source.

2. Place end of water supply line into sink

or bucket. Turn ON water supply and

flush supply line until water is clear. Turn

OFF water supply at shutoff valve.

3. Remove plastic cap from water valve

inlet and discard cap.

4. If you use copper tubing - Slide brass

compression nut, then ferrule (sleeve)

onto water supply line. Push water

supply line into water valve inlet as far as

it will go (1Ainch/6.4 mm). Slide ferrule

(sleeve) into valve inlet and finger tighten

compression nut onto valve. Tighten

another half turn with a wrench; DO NOT

over tighten. See Figure 1.

Connecting The Water Supply il

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

10.

If you use stainless steel tubing - The

nut and ferrule are already assembled on

the tubing. Slide compression nut onto

valve inlet and finger tighten compression

nut onto valve. Tighten another half turn

with a wrench; DO NOT over tighten.

See Figure 2. Steel

5. With steel clamp and screw, secure /" water line

water supply line (copper tubing only) to

rear panel of refrigerator as shown.

6. Coil excess water supply line (copper "Water Valve

tubing only), about 21/_turns, behind Bracket

refrigerator as shown and arrange coils

so they do not vibrate or wear against

any other surface.

7. Turn ON water supply at shutoff valve L

and tighten any connections that leak. -- Water Valve

8. Reconnect refrigerator to electrical power

source. 6 ft. Stainless Steel water line from

9. To turn ice maker on, lower wire signal household water supply

arm (side mounted) or set the ice

maker's On/Off power switch to the "1"

position (rear mounted).

Test system before use. Check for leaks

again after 24 hours.

Plastic Water

Maker Fill

Tube

(Sleeve)

water line

Bracket

• Water Valve

)er water line

from household

(!nclude enough tubing in loop to allow

moving refrigerator out fOr cleaning:)

Figure 1

Plastic

Inlet

Figure 2

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

CCCCCCCCCCC:I

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!ill!

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

,ii i4 !!!!!ii!i;iFeature Overview

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!,Understanding features and terms

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i Your Electrolux refrigerator is designed for optimal convenience and storage flexibility. Use the

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii:iillustration below to familiarize yourself with product features and terminology.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii:i IceCream

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i DoorLightSwitch Ice Maker _ghtSwitch

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

*Soft Freeze

IceCreamDoorOrBin

Ice

Container

Glass Shelf

Small Basket

and Cover

*Tilt Out

or Fixed

Door Bin

Large

Glide Out

Basket

*Tilt Out

or Fixed

.....................................................Door Bin

Large Basket

*Tilt Out

or Fixed

Door Bin

*Door Bin or

Dairy

Compartment

*SpilIProoff M

Sliding or

Lift Off Shelves

Door Bin

*SpilIProoff M

Sliding or

Lift Off Shelves

*Meat Keeper

or Perfect

Temp Drawer

*Perfect Door Bin

or Door Bin

Crisper Pan

and Cover

*Can Rack

or Fixed

Door Bin

Controls

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

Wave-Touch_- iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Controls

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Wave-Touch TM (some models) 3 rdLevel: User Variable Options

Your refrigerator is equipped with a Touching the options icon displays the

Wave=Touch TM Panel user interface display, following options:

It is only necessary to touch the panel. There

is no need to press with force. There are three

levels of display.

I st Level: Sleep Mode

Sleep mode displays only the water, cubes

and crushed options. Touch an icon to

activate the desired dispenser mode. The

active dispenser mode is more brightly

illuminated.

2 "d Level: Awakened Display Mode

The display is awakened by touching

anywhere on the panel where there is an

indicator. Black space will not awaken the

display. After 10 seconds of inactivity, the

display will return to the "Sleep Mode".

The following dispenser options are

illuminated:

fast freeze Activates a faster rate for

freezing food.

water filter

Touch to display filter

condition status. Press and

hold for three seconds to

reset.

temp display When active, it allows

the display of the freezer

and refrigerator temps

during "Sleep Mode". The

temperature is displayed

when the red indicator is lit.

mute sounds Tones emitted by each

keypress can be turned off

based on user preference.

The sounds are muted

when the red indicator is

lit, Warning signals will stay

active.

control lock Press and hold for three on off

seconds to activate and

deactivate, This restricts

undesired changes to the

refrigerators settings and

prevents use of the ice and

water dispenser.

Press and hold for three

seconds to turn off the

cooling system to clean the

refrigerator. It also turns off

all dispenser functions. The

temperature display will read

OFR

co.tro=s

¸I

Setting cooling temperatures

1 Touch the panel to illuminate the 2nd

level of display.

2 Select the options icon. Plus (+} and

minus (=} indicators will appear on either

side of the displayed temperatures.

3 Press the + or = indicator to adjust the

temperature to the desired setting.

The temperature display will begin

to blink with the first touch. After five

seconds of inactivity, the display will

beep to accept the new temperature.

After 10 seconds, the display times out

and returns to the basic display.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

In the event of a high

temperature condition,

the temperature display

will display "HI". After 20

minutes, the high temp alert

will be displayed and the

alarm off icon will illuminate

until pressed, acknowledging

the alarm, at which time the

highest temperature reached

will be displayed and the

refrigerator will resume

normal operation. All other

modes are turned off until the

alarm is acknowledged.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

!!!!!!!!!!!!!!!!!!!!!!!!!!!!

ZZZZZZZ

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Controls

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_Wave-TouchTM/IQ-Touch TM IQ-Touch TM (some models)

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i_"Sabbath Mode" (somem_e_s)

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii;iiThe Sabbath Mode isafeaturethat disables

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!iportions of the refrigerator and its controls

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_ for both Wave=Touch TMand IQ=Touch TM, in

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiilaccordance with observance of the weekly

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii:iSabbath and religious holidays within the

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_Orthodox Jewish community.

Sabbath Mode isturned ON and OFF by

pressing and holding both the freezer "-" and

the refrigerator "+" indicators for five seconds

for both the Wave-Touch TMand I¢-Touch TM

modes. The display shows "Sb" while in

Sabbath mode.

In the Sabbath Mode, the high temp alarm is

activeforhealth reasons. Ira hightemperature

Your refrigerator is equipped with a

IQ-Touch TM Panel user interface display. It

is only necessary to touch the panel. There is

no need to press with force. There are three

dispenser modes:

1 Water

2 ice Cubes

3 Crushed ice

A red indicator light will be illuminated above

the active mode.

Touch the icon to activate the options below.

Any of the following options that are activated

have a red indicator light above the icon.

fast freeze Activates a faster rate for

freezing food

control lock Press and hold for three

seconds to activate and

deactivate. This restricts

undesired changes to the

refrigerators settings and

prevents use of the ice and

water dispenser.

water filter

Touch to display filter

condition status. Press and

hold for three seconds to

reset.

A|arms iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

temp display Touch to toggle the freezer iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

and refrigeratortemps iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

displayonandoff, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Touch and hold temp display iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

totoggledisplayfrom iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Fahrenheitto Celsius. iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

factory

default

Resets all refrigerator

settings such as temp, temp

display and ring tones to

their factory default settings.

Setting cooling temperatures

iiiiiiiiiiiiiiiiiiii

Touch the panel to illuminate the display

to the plus (+} and minus (-) indicators

which appear on either side of the

displayed temperatures.

Press the + or- indicator to adjust the

temperature to the desired setting.

The temperature display will begin to

blink with the first touch. The display

times out after five seconds and returns

to the basic display.

High Temp In the event of a high

temperature condition, the

temperature display will ..........................................................

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

display "HI". After 20 minutes,

the high temp alert will be

displayed and the mute

sounds icon will illuminate

until pressed, acknowledging

the alarm, at which time the

highest temperature reached

will be displayed and the

refrigerator will resume normal

operation. All other modes

are turned off until the alarm

is acknowledged.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Storage Features

3 Place top hooks of the hanger into the

desired slot, and lower straight down

until lower hooks rest on the ladder.

4 Relock shelf by pushing the slide

mechanism away from you.

To change the position of a shelf."

1 Remove shelf from its locked position by

pulling the slide mechanism toward you.

5 While holding shelf at a 45-degree angle

with the gray handle facing you, push the

shelf into tne PaCKof the nange_

Storage Features

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

6 Gently set the shelf onto the hanger To change the position era shelf (some iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

once the back is secured by the hanger, models): iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

I 1 Lift the front edge up. iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

2 Slide shelf out. iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

_ ................... iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

_ _ iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

_!i iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_iil

She|f features (some mode|s}

Your refrigerator includes Lu×ury=Design TM

glass shelves, which are designed to catch

and hold accidental spills.

llll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_llilli

You can easily adjust shelf positions in the

fresh food compartments to suit your needs,

The shelves have mounting brackets which

attach to slotted supports at the rear of

each compartment. The glass can be easily

removed for cleaning.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

_;_ Drawers

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii[iYourrefrigeratorincludesavarietyofstorage

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_drawers. These drawers usually are located in

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_ fixed positions at the bottom of the fresh food

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiilcompartment. Some models are supplied with

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii[isoft close slides which close by themselves

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_the last 11/2inches of travel.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

Storage Features

Crisper humidity control

Crisper drawers include a sliding control for

adjusting the humidity inside the crisper. This

feature can extend the life of certain fresh

vegetables that keep longer in high humidity.

Upper Crisper

Highe[ Lower Lower Higher

Humid ty Humidity Humidity Humidity

Crispers

Crisper drawers are designed for storing fruits,

vegetables, and other fresh produce. Before

storing items in a crisper:

• Wash items in clear water and remove

excess water.

• Wrap any items that have strong odors

or high moisture content.

To remove the Crisper Drawer:

1 Using your thumb, press down on the

plastic tab (some models).

2 While holding down the plastic tab, lift

front slightly and pull drawer up and out.

Lower Crisper

Lower Higher

Humidity Humidity

Meat keeper {some models)

Some models are equipped with a meat

keeper drawer for short-term storage of bulk

meat items. This drawer includes a sliding

control for adjusting the temperature inside.

Any meat to be kept longer than two days

should be frozen. If you store fruits or

vegetables in this drawer, set it to a warmer

temperature to prevent freezing.

Special

- Items

Rack

Meat

Pan

Special items rack {some models)

The innovative design of _ne special i_ems

racK allOWS•OU;:o sl[ore four bottles of wine or

soft drink bottles.

ThePerfect Temp TM Drawer (PTD) was

designed to keep food items at a precise

temperature that is cooler, the same, or warmer

than the fresh food side of the refrigerator.

The PTD is shipped turned OFR When first

turned on or after a power outage the PTD may

show "Hl°F '' if it is set to a temperature before

the freezer and fresh food temperatures have

stabilized. To avoid this message, leave the PTD

in the "OFF" setting until the freezer and fresh

food compartment temperatures have stabilized.

To operate:

1 Turn the drawer on by pressing the On/

Off button. The numeric display will show

a temperature like "32°F '' when on and

"OFF" when off.

2 Select if Fahrenheit "F" or Celsius "C"

temperature display is desired by pressing

the F/C button.

3 Press either the up A or down v scroll

buttons to illuminate the desired item.

4 The drawer will begin controlling to the

temperature shown for the item selected.

5 One of the three favorite selections can be

chosen by illuminating it. The temperature

can then be adjusted up by pressing

the + button or down by pressing the -

button. The drawer will store the selected

temperature setting until it is changed.

Three favorite settings can be chosen and

stored in this way.

6 A custom temp between 28°F and 42°F

can be set by pressing the - or + buttons

while in one of the nine preset positions.

The "custom ternp" indicator will

illuminate in this mode.

7 The control buttons can be locked to

prevent accidental changes by pressing

the control lock button for three seconds.

When in this mode, the display will show

"LOC" when any button is pressed.

Deactivate by pressing the control lock

button again for three seconds. The display

will then show "ULC" when the buttons are

unlocked.

Turning Perfect Temp TM Drawer ON/OFF

off

_o.t_,l iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

SettingPerfectTemp DrawerTemperature !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!i

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiill

Opening Perfect Temp TM Drawer

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Storage Features

To remove the Perfect Temp TMDrawer

frame and pan for cleaning:

1 Using your thumb, press down on the

plastic tab.

2 While holding down the plastic tab, lift

front slightly and pull drawer up and out.

To remove the Perfect Temp TMShelf Assembly:

1 Carefullyunplug the connector (located at

the top right corner) from the control unit

under the shelf by pressing the catch release.

3 Lift the front of the shelf assembly up off

of the front support pins.

Storage Features 25

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiil

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

4 Pull the shelf assembly forward off of the 4 Drop the shelf down insuringthat the iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

rear support pins and out of the refrigerator, support pins fully snap into the grooves iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

in the shelf, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

5 Reconnect the frame connector to the iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

control unit and reinstall the drawer, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

To reinstall the Perfect Temp TMDrawer

Shelf Assembly:

1 Position rear of shelf assembly so that

the rear support pins on the fridge liner

slide into the support grooves in the rear

of the shelf assembly,

Slide the shelf assembly fully to the back

of the fridge.

Lower the front of the shelf assembly so

that the front support groves in the shelf

align with and the front support pins on

the fridge liner.

Refrigerator on/off button and the

Perfect Ternp TM Drawer

When the refrigerator is turned off by pressing

the main Wave=Touch TM or IQ-Touch TM on/

off button the Perfect Ternp TM Drawer will

also be turned off. When the refrigerator is

turned back on the Perfect Ternp TM Drawer

will resume operation at the temp setting that

was set before the refrigerator was turned off.

Sabbath Mode and the Perfect

Ternp TM Drawer

The Perfect TernpTM Drawer should be

turned off for the Sabbath/Holidays. Before

putting the refrigerator into the Sabbath mode,

turn the Perfect Temp TM Drawer off by

pressing the drawer on/off button. The display

will show "OFF" and the drawer will turn off.

Then enter the Sabbath mode function on the

main refrigerator display. See Wave-TouchTM/

IQ-Touch TM "Sabbath Mode" section. The

drawer display will now not illuminate and the

drawer will remain off, The drawer can still be

used as a non temp controlled drawer in this

mode. When the refrigerator is taken out of

Sabbath mode the Perfect Ternp Drawer

will have to be turned back on.

Doors

Storagebins

The doors to your freezer and fresh food

compartments use a system of modular

storage bins. All of these bins are removable

for easy cleaning. Some of them have fixed

positions, while others can be adjusted to

your needs.

Door bins are ideal for storing jars, bottles,

cans, and large drink containers. They also

enable quick selection of frequently used

items.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Storage Features

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!iTo change the position of an adjustable Accessories (varies by model)

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_1

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii2

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii:¸¸ 3

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i4

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

door bin:

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Before adjusting a bin, remove all food.

Grip the bin firmly with both hands and

lift it upward.

Remove the bin.

Place the bin just above desired position.

Lower the bin onto supports until locked

in place.

Can rack

The can rack allows you to efficiently and

securely store 12-ounce cans of beverage.

A rubber liner sits behind the cans to help

keep them secure. Liner may be removed for

storing larger items.

_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_ii_:iiiiii

Fixed

¸Bin¸

Perfect Door Bin (some models)

The Perfect Door Bin is especially designed to

hold gallon-sized containers like milk gallons.

The door bin tilts out to provide convenient

storage for fresh greens and other items.

Thisrackisattachedtothefreezerwallbeside

theicedispensercontainer.Thisconvenient

areaallowsforstorageofpizzaandother

tallitemsplacedverticallybetweentheice

dispensercontainerandthefreezerwall.

Storage Features

Pizza rack (some models) Special item mat (some models)

The innovative design of the special item mat

allows you to store four bottles of wine or soft

drink bottles, or any item that you want to

prevent moving around.

_ iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Soft Freeze Bin (some models)

The soft freeze bin in the top of the freezer

door is designed to maintain temperatures a

few degrees above the freezer temperature to

provide soft serve ice cream.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Automatic ice & Water Maker/Dispenser

Priming the water supply

system

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Your refrigerator's water supply system

includes several tubing lines, an advanced

water filter, a distribution valve bank, and a

reserve tank to ensure ample supply to the ice

and water dispenser at all times. This system

needs to be completely filled with water when

first connected to an external supply line.

_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_:iiiiii

To prime the water supply system;

Using the ice maker after installation

Before making ice for the first time, be sure

to prime the water supply system. Air in new

plumbing lines can result in two or three

empty ice maker cycles. Furthermore, if the

system is not flushed, the first ice cubes may

be discolored or have an odd flavor.

1 Begin filling the tank by pressing and

holding a drinking glass against the

water dispenser paddle.

2 Keep the glass in this position until water

comes out of the dispenser. It may take

about 11/2minutes.

Continue dispensing water for about

three minutes to flush the system and

plumbing connections of any impurities

(stopping to empty the glass as

necessary).

Ice maker operation & care

The ice maker, ice bin, and dispenser feeding

mechanism are located in the top of the

freezer compartment. After the refrigerator is

installed properly and has cooled for several

hours, the ice maker can produce ice within

24 hours. It can completely fill an ice bin in

about two days.

The ice maker produces four to six pounds

of ice every 24 hours depending on usage

conditions. Ice is produced at a rate of eight

cubes every 75 to 90 minutes.

Turning the ice maker on and off

Ice production is controlled by the ice maker's

On/Off power switch. To gain access to

the ice maker, pull the extra shelf out (some

models). Press the switch to the "O" position

to turn it Off and press to the "1" position to

turn it On.

iiiilI

al Arm

Automatic ice & Water Maker/Dispenser

• Turn off the ice maker when cleaning the

freezer and during vacations.

If you turn off the ice maker for a

long period of time, you should also

turn off the water supply valve.

• To avoid splashing, dispense ice into

your container before adding liquids,

It is normal for ice to fill to the top of the

ice bin.

Signal Arm

ice maker/dispenser tips

Ice cubes stored too long may develop

an odd flavor. Empty the ice bin as

explained below,

Occasionally shake the ice bin to keep

ice separated.

If your refrigerator is not connected to

a water supply or the water supply is

turned off, turn off the ice maker by

pressing the On/Off switch.

If you need a large quantity of ice at one

time, it is best to get cubes directly from

the ice bin,

The following sounds are normal when

the ice maker is operating:

- Motor running

- Ice dropping into ice bin

- Water valve opening or closing

- Ice loosening from tray

- Running water

When dispensing ice, you will hear a

snapping or clicking sound when the ice

chute opens and closes,

Ire

Signal Arm

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Automatic ice & Water Maker/Dispenser

Cleaning the ice maker

Clean the ice maker and ice bin at regular

intervals, particularly before you take a

vacation or move.

To clean the ice maker:

1 Turn off ice production by pressing the

ice maker's Off/On switch,

2 Remove the ice bin by lifting up and out,

3 Empty and carefully clean the ice bin

with mild detergent, Rinse with clear

water. Do not use harsh or abrasive

cleaners.

4 Allow the ice bin to dry completely before

replacing in the freezer.

5 Remove ice chips and clean the ice bin

shelf and the freezer door chute.

6 Replace the ice bin. Press the ice

maker's Off/On switch to resume ice

production.

Remove and empty the ice storage bin if:

An extended power failure (one hour

or longer) causes ice cubes in the ice

storage bin to melt and freeze together,

jamming the dispenser mechanism. Auge

You do not use the ice dispenser

frequently. Ice cubes will freeze together

in the bin, jamming the dispenser

mechanism.

Remove the ice storage bin and shake to

loosen the cubes or clean as explained above.

Changing The Filter

Locating the filters

Your refrigerator is equipped with separate

water and air filtering systems. The water filter

system filters all dispensed drinking water, as

well as the water used to produce ice. The air

filter removes odors and impurities from the

refrigerator compartment.

Water filter

The water filter is located at the top right side

of the fresh food compartment.

Air filter

The air filter is located at the top of the fresh

food compartment next to the water filter.

Replacing the air filter

In general, you should change the air filter

every six months (the filter status light on

the Touch Panel prompts you to replace

the filter after six months) to ensure optimal

Replacing the water filter

In general, you should change the water filter

every six months to ensure highest possible

water quality. The Water Filter Status light

on the Touch Panel prompts you to replace

the filter after a standard amount of water

(400 gallons for PureAdvantage TM) has

flowed through the system.

If your refrigerator has not been used for a

period of time (during moving for example),

change the filter before reinstalling the

refrigerator.

filtering of refrigerator odors. You may want

FiltE

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii.......

to adjust this time period depending on the

types and amounts of food you typically

store in your refrigerator. To replace your

PureAdvantage TM air filter:

1 Pull the air filter housing straight out.

2 Remove the old filter and discard it.

3 Unpack the new filter and place it inside

the housing.

4 Slide the housing back into position.

5 Press and hold the Air Filter Reset

button on the electronic control panel

for three seconds. When the display

changes from "Replace" to "Good," the

status has been reset.

6 The Air Filter Reset will turn itself off

after a few seconds.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

O ¸¸ ........................................................i

Push iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

i To iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Release iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

OutlSlide iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Remove ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Orderingreplacementfilters iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Ordernewf,tersbyca,ingto,-free,S77/SOS-4_,iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

vis_ingwww.ebctrduxappliances.com,orseeing iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

thedealerwhereyouboughtyourrefrigerator, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Electrolux recommends that you order extra filters iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

when you first installyour refrigerator,and that you iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

replace your filters at least once every six months, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Here isthe product numberto requestwhen iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

ordering: iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

PureAdva°tage'" iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Water Filter- Part #EWF01 iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Air Filter - Part #EAFCBF

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Changing The Filter

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_More about your advanced water 6

The PureAdvantage TM ice

and water filter system is

tested and certified by NSF

International to NSF/ANSI

Standards 42 and 53 for the

reduction of claims specified

sheet,onthe performance data

Do not use with water that is microbiologically

unsafe or of unknown quality without

adequate disinfection before or after the

system. Systems certified for cyst reduction

may be used on disinfected waters that may

contain filterable cysts.

Test & certification results:

• Rated Capacity- 400 gallons for

PureAdvantage TM ice and water filter

Rated service flow - .5 gallons per

minute

Maximum Rated Pressure - 100 pounds

....................................................per square inch

• Operating Temp.: Min. 33°E Max. 100°F

• Recommended Minimum Operating

Pressure: 30 pounds per square inch

To replace your PureAdvantage TMwater

filter:

Press a drinking glass against the water

dispenser while checking for any leaks

at the filter housing. Any spurts and

sputters that occur as the system purges

air out of the dispenser system are

normal.

After filling one glass of water, continue

flushing the system for about three

minutes.

Turn On the ice maker.

Press and hold the Fi_ter Status button

on the Ice & Water Dispenser control

panel for three seconds. When the

display changes from "Replace" to

"Good," the status has been reset.

It is not necessary to turn the water supply off

to change the filter. Be ready to wipe up any

small amounts of water released during the

filter replacement.

1 Turn Off the ice maker power switch.

2 Push the filter release button below the

cartridge to disconnect it.

3 Slide the old water filter cartridge straight

out of the housing and discard it.

4 Unpackage the new filter cartridge and

slide it gently into the filter housing until

it stops against the snap-in connector at

the back of the housing.

5 Push firmly until the cartridge snaps

into p_ace (you should hear a click

as the cartridge engages the snap=in

connector). When fully engaged, the

front of the filter cartridge should be flush

with the filter release button.

Storing Food & Saving Energy 33

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiZ

Ideas for storing foods

Fresh food storage

* Keep the fresh food compartment

between 34°F and 40°F with an

optimum temperature of 37°R

o Avoid overcrowding the refrigerator

shelves, which reduces air circulation

and causes uneven cooling.

Fruits and vegetables

* Store fruits and vegetables in crisper

drawers, where trapped moisture helps

preserve food quality for longer time

periods.

Meat

Wrap raw meat and poultry securely

so leakage and contamination of other

foods or surfaces does not occur.

o Use the meat keeper drawer for short-

term storage. Any meat to be kept

longer than two days should be frozen.

Frozen food storage

* Keep the freezer compartment at 0_'For

lower.

o A freezer operates most efficiently when

it is at least s/sfull.

Packaging foods for freezing

= To minimize food dehydration and quality

deterioration, use aluminum foil, freezer

wrap, freezer bags or airtight containers.

Force as much air out of the packages

as possible and seal them tightly.

Trapped air can cause food to dry out,

change color, and develop an off-flavor

(freezer burn).

Wrap fresh meats and poultry with

suitable freezer wrap prior to freezing.

o Do not refreeze meat that has completely

thawed.

Loading the freezer

= Avoid adding too much warm food to

the freezer at one time. This overloads

the freezer, slows the rate of freezing,

and can raise the temperature of frozen

foods.

o Leave a space between packages, so

cold air can circulate freely, allowing food

to freeze as quickly as possible.

• Avoid storing hard-to-freezefoodsonthe

freezer door shelves. These foods are iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

best stored in the freezer interior where iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiil

thetemperaturevaries less. iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiil

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

Ideas for saving energy iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

installation iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

= Locate the refrigerator in the coolest part iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

of the room, out of direct sunlight, and

away from heating ducts or registers.

Do not place the refrigerator next to

heat-producing appliances such as a

range, oven, or dishwasher. If this is not

possible, a section of cabinetry or an

added layer of insulation between the

two appliances will help the refrigerator

operate more efficiently.

Level the refrigerator so that the doors

close tightly.

Temperature settings

= Refer to the "Controls" section in this

Use & Care Guide for procedures on

temperature settings.

Food storage

Avoidovercrowdingtherefrigeratoror iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

blocking cold airvents. Doing socauses iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

therefrigeratortorunlongerand use iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

moreenergy, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Coverfoodsandwipecontainersdry iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

before placing them inthe refrigerator, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Thiscutsdown on moisture build-up iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

insidetheunit, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

• Organizetherefrigeratortoreducedoor iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

openings. Remove as many items as iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

needed atonetimeand closethe door iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

assoonaspossib_e, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

....... iiiii!!! Normal Operating Sounds & Sights

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!,Understanding the sounds you may hear

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiilYournew, high-efficiencyrefrigeratormay M

introduce unfamiliar sounds. These sounds

normally indicate your refrigerator is operating

correctly. Some surfaces on floors, walls, and

kitchen cabinets may make these sounds

more noticeable.

Following is a list of major components in your

refrigerator and the sounds they can cause:

A Evaporator Refrigerant through the

evaporator may create a boiling or

gurgling sound.

B Evaporator fan You may hear air being

forced through the refrigerator by the

evaporator fan.

C Defrost heater During defrost cycles,

water dripping onto the defrost heater

may cause a hissing or sizzling sound.

After defrosting, a popping sound may

OCCUr.

D Automatic ice maker When ice has

been produced, you will hear ice cubes

....................................................falling into the ice bin.

.........................................................E E_ectronic control & automatic

defrost control These parts can

produce a snapping or clicking sound

when turning the cooling system on and

off.

Perfect Temp TM Drawer (some

models) Fans run intermittently when

door is closed but turn off when door is

opened (except when fridge is in Sabbath

Mode). Air control valve may produce a

light humming during operation.

F Condenser fan You may hear air being

forced through the condenser.

G Compressor Modern, high-efficiency

compressors run much faster than in the

past. The compressor may have a high-

pitched hum or pulsating sound.

H Water valve Makes a buzzing sound

each time it opens to fill the ice maker.

I Drain pan (not removable) You may hear

water dripping into the drain pan during

the defrost cycle.

J Condenser May create minimal sounds

from forced air.

Motorized damper May produce a light

humming during operation.

Ice dispensing paddle When

dispensing ice, you will hear a snapping

or clicking sound when the solenoid

opens and closes the ice chute.

Care & Cleaning

Protecting your investment

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Keeping your refrigerator clean maintains appearance and prevents odor build-up. Wipe up

any spills immediately and clean the freezer and fresh food compartments at least twice a year.

When cleaning, take the following precautions:

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

• Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions

on any surface.

• Never use CHLORIDE or cleaners with bleach to clean stainless steel.

• Do not wash any removable parts in a dishwasher.

• Always unplug the electrical power cord from the wall outlet before cleaning.

uuuuuuuuuuuuuuuuuuuuuuuuu_

• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments

which can scratch the appliance surface.

• Do not remove the serial plate.

Refer to the guide on the next page for details on caring and cleaning specific areas of your

refrigerator.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Care & Cleaning

Care & cleaning tips

Interior & Door • Soap and water • Use 2 tablespoons of baking soda in 1 quart of

Liners • Baking soda warm water.

and water • Be sure to wring excess water out of sponge or

cloth before cleaning around controls, LED lights

::::::::::::::::::::::::::::::::::::::::::::::::::::::::

or any electrical part.

Drawers & = Soap and water • Use a soft cloth to clean drawer runners and

Bins tracks.

Do not wash any removable items (bins,

drawers, etc.) in dishwasher.

Toe Grille

• Soap and water •

• Mild liquid

sprays

• Vacuum

attachment

Vacuum dust from front of toe grille.

Remove toe grille (see Installation instructions).

Vacuum backside and wipe with sudsy cloth or

sponge. Rinse and dry.

Exterior & • Soap and water

Handles = Stainless steel

(Stainless cleaners

Steel Models

Only)

Never use CHLORIDE or cleaners with bleach

to clean stainless steel

Clean stainless steel front and handles with

non-abrasive soapy water and a dishcloth. Rinse

with clean water and a soft cloth.

Use a non-abrasive stainless steel cleaner.

These cleaners can be purchased at most

home improvement or major department stores.

Always follow manufacturer's instruction. Do not

use household cleaners containing ammonia or

bleach.

* NOTE: Always clean, wipe and dry with grain to

prevent scratching.

Wash the rest of the cabinet with warm water

and mild liquid detergent. Rinse well and wipe

dry with a clean soft cloth.

Care & Cleaning

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

Vacation & moving tips

Short Leave refrigerator operating during vacations of three weeks or less.

Vacations , Use all perishable items from refrigerator compartment.

• Turn automatic ice maker off and empty ice bin, even if you will only be

gone for a few days.

Moving

Remove all food and ice.

if using handcart, load from side.

Adjust rollers all the way up to protect them during sliding or moving.

Pad cabinet to avoid scratching surface.

Replacing LED Lights

Both the freezer and fresh food compartments of

your refrigerator include LED lights. Always use

Electrolux parts for replacement.

To replace LED Lights:

1 Unplug your refrigerator's power cord.

2 Remove light cover by pushing up and out.

3 Hold the LED cover with one hand and pull

the connector with the other hand while

pressing the connector latch.

4 Replace LED light and snap in place

assuring the light is facing in toward the

unit (inside fresh food and freezer) or facing

outward on bottom of fresh food doors.

LED Light Removal

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiil

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiill

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii::

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiil'_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiill

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii'_

Ordering Replacement LED Lights

Order new LEDs by calling 877-808-4195, online

at www.electroluxicon.com, or through the dealer

where you bought the refrigerator.

LED Light Harness Removal

::::::::::::::::::::::::::::::::::::::::::::::::::::::::

Major Appliance Warranty Information

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,

Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or

workmanship when such appliance is installed, used, and maintained in accordance with the provided

instructions. In addition, the cabinet liner and sealed refrigeration system (compressor, condenser,

evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During

the 2nd through 5th years from your original date of purchase, Electrolux will repair or replace any parts in

the cabinet liner and sealed refrigeration system which prove to be defective in materials or workmanship

when such appliance is installed, used, and maintained in accordance with the provided instructions.

Exclusions

;; T,,,iswa,'rantydoesnotcovortho o,ow ng:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the

USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,

shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables,

or knobs, handles, or other cosmetic parts.

11. Pickup and delivery costs; your appliance is designed to be repaired in the home.

12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry

trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

.............................................................................................................13. Damages to the finish of appliance or home incurred during transportation or installation, including

but not limited to floors, cabinets, walls, etc.

14. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR

OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED

TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.

ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH

AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS

WRIqq-EN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO

NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,

OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR

EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRIqq-EN WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

if You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty

period should service be required. If service is performed, it is in your best interest to obtain and keep

all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or

phone numbers below.

This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico,

your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux

Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux

authorizes no person to change or add to any obligations under this warranty. Obligations for service

and parts under this warranty must be performed by Electrolux or an authorized service company.

Product features or specifications as described or illustrated are subject to change without notice.

USA Canada

1-877-435-3287 1-800-265-8352

Electrolux Major Appliances North America Electrolux Canada Corp.

10200 David Taylor Drive 5855 Terry Fox Way

Charlotte, NC 28262 Mississauga, Ontario,

Canada L5V 3E4

Before You CaiJ

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

Before you call...

Ifyouexperiencea problemwithyourrefrigeratoror noticea productbehavioror conditionyou

do not understand, you car, usually avoid a call to your service representative by referring to

this section for an answer. Beginning with the following table, this information includes common

problems, causes, and suggested solutions.

Running Your Refrigerator

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Compressor does Cooling system is Turn cooling system On. See Controls

not run. turned Off. Section for location of cooling system

On/Off button.

Refrigerator is in This is normal for a fully automatic

defrost cycle, defrost refrigerator. The defrost cycle

occurs periodically, lasting about 30

minutes.

Plug at wall outlet is Ensure plug is tightly pushed into

disconnected, outlet.

House fuse blown or ChecWreplace fuse with a 15 amp

tripped circuit breaker, time-delay fuse. Reset circuit breaker.

Power outage. Check house lights. Call local Electric

Company.

Compressor does

not run.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Before You Cail

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!,Temperatures Are Too Cold

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiill

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i Freezer Freezer control is set Set freezer control to a warmer setting.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i temperature too too cold. Allow 24 hours for temperature to

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiilcold. Refrigerator stabilize.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiitemperature is

_ satisfactory

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Food stored in

drawers freezes.

See solution above.

Temperatures Are Too Warm

Freezer/Refrigerator

temperature is too

warm.

Refrigerator

temperature is

too warm. Freezer

temperature is

satisfactory.

Refrigerator control is

set too warm.

Warm air enters the refrigerator

whenever the door is opened. Open

the door less often.

See Problem section, Opening/Closing

of Doors/Drawers.

Set refrigerator control to a colder

setting. Allow 24 hours for temperature

to stabilize.

Before You CaiJ

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

Water/Moisture/Frost Inside Refrigerator iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Moisture collects on

inside of refrigerator

walls.

Moisture collects in

bottom of drawer.

Weather is hot and

humid.

Door is slightly open.

Door is opened too

often or too long.

Open containers.

Washed vegetables

and fruit drain while in

the drawer.

Fruits and vegetables

Therateoffrostbuildupand internal iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

sweatingincreases, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

SeeProblemsection, Opening/Closing iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

ofDoors/Drawers. iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Opendoorlessoftentoallowinternal iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

temperaturetostabilize, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Keepcontainerscovered. iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Dryitemsbeforeputtingtheminthe iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

drawer. Watercollecting in bottom of iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

drawer_snorma_, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Routinelycleanoutoldfruitsand iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

are kept past their vegetables especiallyiftheybegin to iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

prime breakdown, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii:

Perfect Temp TM Drawer (some models) iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Displaydoesnot Removepanand insureconnectoris iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

illuminate or shows fully engaged. (See Storage Features iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

"CE" iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Before You Call

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Automatic Ice Maker

Ice maker power switch Turn on power switch.iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_ Ice maker is

_ not making

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_any ice.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

is Off.

Water supply is not

connected to refrigerator.

Household water line

valve is not open.

Freezer is not cold

enough.

Household water line to

the refrigerator is kinked.

Valve on cold water pipe

is clogged or restricted by

foreign material. If valve is

of the self-piercing type,

it may not have created

a sufficiently sized hole

in tube for water to pass

through.

Check to see if the water

dispenser is dispensing

water.

Water filter is not

completely seated.

is being held down by

some item in the freezer.

ice has picked up

odor or flavor from

strong food stored in

refrigerator or freezer.

Ice not used frequently

enough.

Connect water supply (see Installation

Instructions).

Turn on household water line valve.

See Problem section, Temperatures Are

Too Warm.

Unkink the water line. If it is a copper line,

it should be replaced because of possible

leaks at the kink. A copper line should be

coiled behind the unit to avoid kinking.

Turn off household water line valve.

Remove valve. Ensure that valve is not a

self-piercing valve. Clean valve. Replace

valve if necessary.

If not, the ice & water filter cartridge

is clogged or restricted, and must be

replaced.

Push firmly until the water filter snaps into

place (you should hear two clicks).

Move item and release wire signal arm.

Remove any ice cubes frozen together

over wire signal arm.

Cover foods tightly. Discard stale ice. ice

maker will produce fresh supply.

Discard stale ice.

Before You Cail

Ice Dispenser

Water supply is not

connected.

Household water line

to the refrigerator is

kinked.

Ice storage bin is

empty.

Freezer temperature

is set too warm.

Household water Hne

valve is not open.

Freezer door is not

closed.

Dispenser will not

dispense ice.

Ice dispensing arm

has been held in

for more than 4-5

minutes.

The Water Supply section).

Unkink the water line. If it is a copper

line, it should be replaced because of

possible leaks at the kink. A copper

line should be coiled behind the unit to

avoid kinking.

Ensure ice maker is turned on. When

the first supply of ice is dropped into

the bin, the dispenser should operate.

Turn freezer control to a higher setting

so that ice cubes will be made. When

first supply of ice is made, dispenser

should operate.

Open household water line valve.

Allow sufficient time for the ice to

be made. When ice is made, the

dispenser should operate.

Ensure freezer door is closed. (See

Problem Section, Opening/Closing of

Doors/Drawers)

Motor is overloaded. Motor overload

protector will reset in approximately 3

minutes. Ice can then be dispensed.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Before You Cail

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

.......................................................Water Dispenser

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_

Water dispenses

slowly.

Water supply is not

connected.

Household water line

to the refrigerator is

kinked.

Household water line

valve is not open.

Freezer door is not

closed.

ice & water filter

cartridge is clogged.

Front filter not fully

installed, if equipped.

Cut-off and cut-on

pressures are too low

(well systems only).

Reverse osmosis

system is in

regenerative phase.

The Ice & Water filter

is clogged.

Connect water supply (see Connecting

The Water Supply section).

Unkink the water line. If it is a copper

line, it should be replaced because of

possible leaks at the kink. A copper

line should be coiled behind the unit to

avoid kinking.

Open household water line valve. See

Problem section Ice Maker Is Not

Making ice.

Ensure that freezer door is closed.

(See Problem Section, Opening/

Closing of Doors/Drawers)

Replace filter cartridge.

Push filter in until you hear two

"clicks". Filter should be flush with the

plastic housing.

Have someone turn up the cut-off and

cut-on pressure on the water pump

system (well systems only).

It is normal for a reverse osmosis

system to be below 20 psi during the

regenerative phase.

Replace filter cartridge.

Before You Cail

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

Odors In Refrigerator

Interior is dirty. Interior needs to be = See Care & Cleaning Tips.

cleaned.

Food with strong • Cover food tightly. Turn on air filtration

odors is stored in system. Air filter may need to be

refrigerator, changed more frequently if foods with

strong odors are routinely stored in

refrigerator.

Opening/Closing Of Doors/Drawers

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_

Door(s) will not Door was closed too Close both doors gently.

close, hard, causing other

door to open slightly.

Refrigerator is not Ensure floor is level and solid, and can

level. It rocks on the adequately support the refrigerator.

floor when moved Contact a carpenter to correct a

slightly, sagging or sloping floor.

Refrigerator is Ensure floor is level and solid, and can

touching a wall or adequately support the refrigerator.

cabinet. Contact a carpenter to correct a

sagging or sloping floor.

we iiii

LED Light Is Not On

LED light is not or,. LED light is burned See Replacing LED Lights in Care and

out. Cleaning section.

No electric current is See Problem section, Running Your

reaching refrigerator. Refrigerator.

Control system Close and reopen door(s) to enable

has disabled lights lights.

because one or both

doors were left open

too ong

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i

Electrolux EW23CS75QS1 refrigerator

Product's Documents

User Manual

Specifications

Electrolux EW23CS75QS1 Questions and Answers
