Kenmore®
Wall Oven
Horno de pared doble
* = color number, número de color
Use & Care Guide
Manual de Uso y Cuidado
English / Español
Model/Modèle: 790.4952*, .4953*
P/N A00538403 Rev A
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A
.www.kenmore.com
www.sears.com
Sears Canada Inc.
Toronto (Ontario) Canada M5B 2C3
All rights reserved. Printed in the USA.
2
Table of Contents
KENMORE LIMITED WARRANTY ................................................................. 2
Before setting oven controls ......................................................................... 8
Oven vent location .....................................................................................8
Oven Controls ................................................................................................. 9
Care and Cleaning ..................................................................................... 23
Cleaning Various Parts of Your Oven ..................................................23
Removing and Replacing the Oven Door ............................................24
Replacing the oven light .........................................................................25
Before You Call ........................................................................................... 26
Oven Baking .............................................................................................26
Solutions to Common Problems ..............................................................27
Please carefully read and save these instructions
This Use & Care guide contains operating instructions for your appliance and feature information for several models. Your product
may not have all the described features. The graphics shown are representative. The graphics on your appliance may not look
exactly like those shown. Common sense and caution must be practices with installing, operating and maintaining any appliance.
KENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly installed,
operated and maintained according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option of seller.
For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty
This warranty applies for only 90 DAYS from the sale date in the United States, and is void in Canada, if this appliance is ever used for other
than private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
3. Discoloration of cooktop surfaces resulting from normal use.
4. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.
5. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.
6. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit
breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
7. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that
was not in accord with electrical, gas or plumbing codes.
8. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all
supplied instructions.
9. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for
other than its intended purpose.
10. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils
other than those recommended in all instructions supplied with the product.
11. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
12. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification
logo.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warran-
ties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of inciden-
tal or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations
may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada*.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
* In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user or servicer travel and transpor-
tation expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where an authorized servicer is not available.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3
Save these instructions for future reference.
3
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Read all instructions before using this appli-
ance.
This manual contains important safety
symbols and instructions. Please pay
attention to these symbols and follow all
instructions given.
Do not attempt to install or operate your
appliance until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
WARNING or CAUTION statement based on
the risk type.
Warnings and important instructions
appearing in this guide are not meant to
cover all possible conditions and situations
that may occur. Common sense, caution, and
care must be exercised with installing, main-
taining, or operating your appliance.
DEFINITIONS
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
Indicates a potentially hazardous
situation which, if not avoided, may result in
death or serious injury.
Indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT - Indicates installation, opera-
tion, maintenance, or valuable information
that is not hazard related.
NOTE - Indicates a short, informal reference
– something written down to assist the
memory or for future reference.
IMPORTANT INSTRUCTIONS FOR
UNPACKING AND INSTALLATION
IMPORTANT - Read and follow the below
instructions and precautions for unpacking,
installing, and servicing your appliance:
Remove all tape and packaging before using
the appliance. Destroy the carton and plastic
bags after unpacking the appliance. Never
allow children to play with packaging
material. Do not remove the wiring label and
other literature attached to the appliance.
Do not remove model/serial number plate.

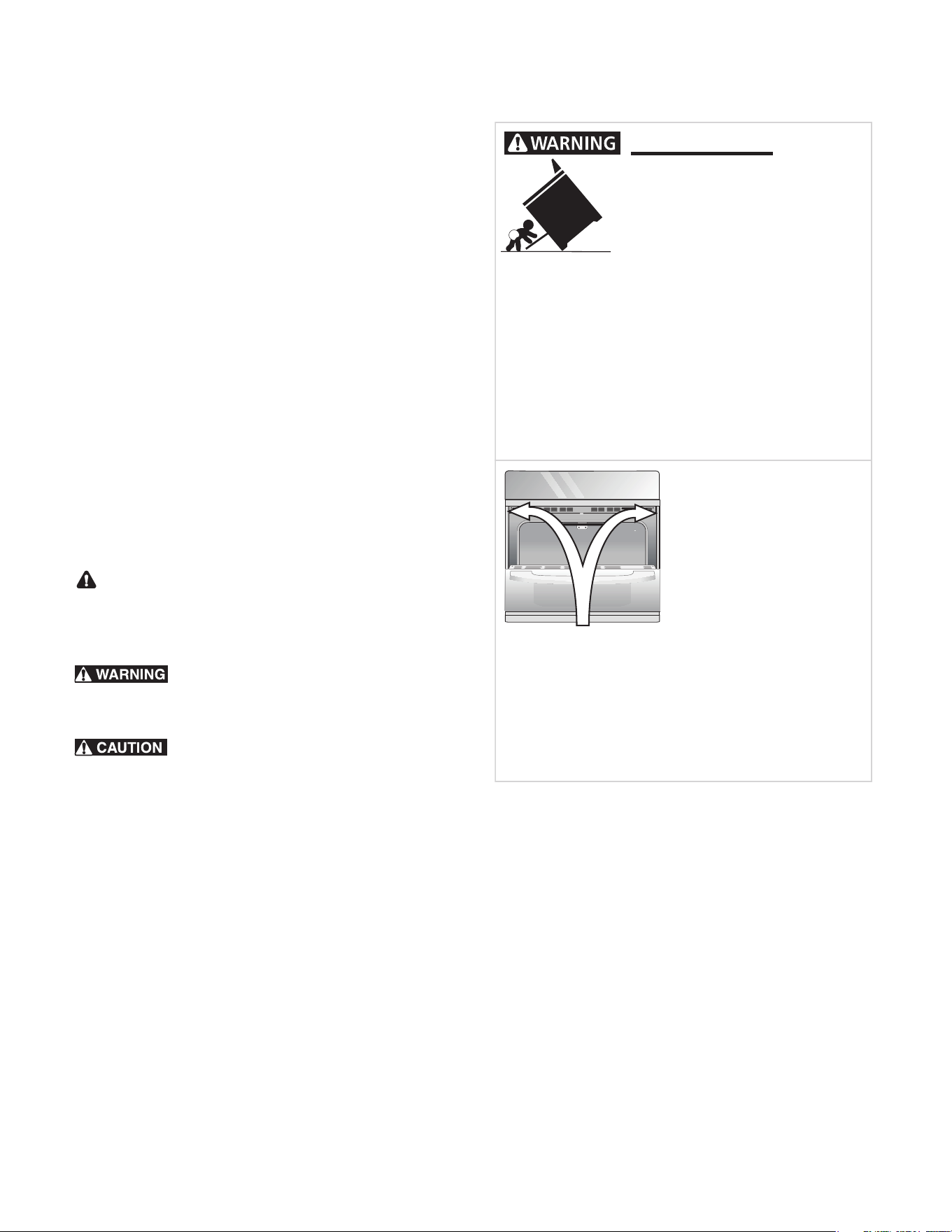

Tip Over Hazard
• A child or adult can tip the
oven and be killed.
• Install the anti-tip device to
oven and/or structure per
installation instructions.
• Ensure the anti-tip device is re-engaged
when the oven is moved.
• Do not operate the oven without the
anti-tip device in place and engaged.
• Failure to follow these instructions can
result in death or serious burns to children
and adults.
Refer to the installation
instructions supplied
with your appliance for
proper installation.
Check for proper instal-
lation with a visual
check that the anti-tip
screws are present.
Anti-tip mounting
holes
Test the installation with light downward
pressure on the open oven door. The oven
should not tip forward.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
4
Cold temperatures can damage the elec-
tronic control. When using this appliance for
the first time, or when the appliance has not
been used for an extended period of time, be
sure the appliance has been in temperatures
above 32ºF (0ºC) for at least 3 hours before
turning on the power to the appliance.
Never modify or alter the construction of the
appliance by removing the leveling legs,
panels, wire covers, anti-tip brackets/screws,
or any other part of the appliance.
Be sure to have an appropriate foam-type
fire extinguisher available, visible, and easily
accessible located near the appliance.
GROUNDING INSTRUCTIONS
Avoid fire hazard or electrical
shock. Failure to follow this warning may
cause serious injury, fire, or death.
Avoid fire hazard or electrical
shock. Do not use an adapter plug, use an
extension cord, or remove grounding prong
from the power cord. Failure to follow this
warning may cause serious injury, fire, or
death.
Proper Installation—Be sure your appliance is
properly installed and grounded by a
qualified technician. In the United States,
install in accordance with the National Fuel
Gas Code ANSI Z223.1/NPFA No. 54, latest
edition and National Electrical Code NFPA
No. 70 latest edition, and local electrical
code requirements. In Canada, install in
accordance with CAN/CGA B149.1 and
CAN/CGA B149.2 and CSA Standard C22.1,
Canadian Electrical code, Part 1-latest
editions and local electrical code require-
ments. Install only per installation instructions
provided in the literature package for this
appliance.
For personal safety, this appliance must be
properly grounded. For maximum safety, the
power cord must be securely connected to an
electrical outlet or junction box that is the
correct voltage, is correctly polarized and
properly grounded, and protected by a
circuit breaker in accordance with local
codes.
It is the personal responsibility of the
consumer to have the appropriate outlet or
junction box with the correct, properly
grounded wall receptacle installed by a
qualified electrician. It is the responsibility
and obligation of the consumer to contact a
qualified installer to assure that the electrical
installation is adequate and is in confor-
mance with all local codes and ordinances.
See the installation instructions packaged
with this appliance for complete installation
and grounding instructions.
IMPORTANT INSTRUCTIONS FOR USING
THE APPLIANCE
Storage In or On Appliance—
Flammable materials should not be stored in
an oven or microwave, near surface burners
or elements, or in the storage or warmer
drawer (if equipped). This includes paper,
plastic, and cloth items, such as cookbooks,
plastic ware, and towels, as well as
flammable liquids. Do not store explosives,
such as aerosol cans, on or near the appli-
ance.
Do not leave children alone -
Children should not be left alone or unat-
tended in the area where appliance is in use.
They should never be allowed to sit or stand
on any part of the appliance, including the
storage drawer, lower broiler drawer, warmer
drawer, or lower double oven.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
5
Do not store items of interest to
children in the cabinets above the appliance
or on the backguards of ranges. Children
climbing on or near the appliance to reach
items could be seriously injured.
Do not allow children to climb or
play around the appliance. The weight of a
child on an open oven door may cause the
appliance to tip, resulting in serious burns or
other injury. An open drawer when hot may
cause burns.
Stepping, leaning, or sitting on
the door or drawers of this appliance can
result in serious injuries and also cause
damage to the appliance.
Never cover any slots, holes, or
passages in the oven bottom or cover an
entire oven rack with any materials, such as
aluminum foil or aftermarket oven liners.
Aluminum foil and other liners may trap heat,
causing a fire hazard.
Do not use oven or warmer
drawer (if equipped) for storage.
Never use your appliance as a
space heater to heat or warm the room.
Doing so may result in carbon monoxide
poisoning and overheating of the appliance.
When heating fat or grease,
watch it closely. Grease may catch fire if it
becomes too hot.
Do not use water or flour on
grease fires. Smother fire or flame or use dry
chemical or foam-type extinguisher. Cover
the fire with a pan lid or use baking soda.
Use dry potholders. Moist or
damp potholders on hot surfaces may result
in burns from steam. Do not let potholders
touch hot cooking areas. Do not use towels or
other bulky cloths.
Do not heat unopened food
containers - Build-up of pressure may cause
container to burst and result in injury.
Wear proper apparel - Loose-
fitting or hanging garments should never be
worn while using the appliance. Do not let
clothing or other flammable materials
contact hot surfaces.
Do not touch surface burners or
elements, areas near these burners or
elements, interior surfaces of the oven, or the
warmer drawer (if equipped). Surface
burners and elements may be hot even
though they appear cool. Areas near surface
burners and elements may become hot
enough to cause burns. During and after use,
do not touch, or let clothing or other
flammable materials touch these areas until
they are cool. These areas may include the
cooktop, surfaces facing the cooktop, oven
vent areas, oven door, and oven window.
Do not attempt to operate the
appliance during a power failure. If the
power fails, always turn off the appliance. If
the appliance is not turned off and the power
resumes, electric surface elements may
resume operation when power is restored.
Once the power resumes, reset the clock and
the oven function.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
Protective liners—Do not use aluminum foil,
aftermarket oven liners, or any other
materials or devices to line oven bottom,
oven racks, or any other part of the appli-
ance. Only use aluminum as recommended
for baking, such as lining cookware or as a
cover placed on food. Any other use of
protective liners or aluminum foil may result
in a risk of electric shock or fire or a short
circuit.
Use care when opening oven door, lower
oven door, or warmer drawer (some models).
Stand to the side of the appliance when
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
6
opening the door of a hot oven. Let hot air or
steam escape before you remove or replace
food in the oven.
Keep oven vent ducts unobstructed. Touching
surfaces in this area when the oven is on may
cause severe burns. Do not place plastic or
heat-sensitive items on or near the oven vent.
These items can melt or ignite.
Placement of oven racks - Always place oven
racks in desired location while oven is cool. If
rack must be moved while oven is hot, do not
let potholder contact hot burner or element
in oven. Use potholders and grasp the rack
with both hands to reposition. Remove all
cookware and utensils before moving the
rack.
Do not use a broiler pan without its insert.
Broiler pans and inserts allow dripping fat to
drain away from the high heat of the broiler.
Do not cover the broiler insert with aluminum
foil; exposed fat and grease could ignite.
Do not cook food on the oven bottom.
Always cook in proper cookware and always
use the oven racks.
IMPORTANT INSTRUCTIONS FOR
CLEANING YOUR APPLIANCE
Before manually cleaning any
part of the appliance, be sure all controls are
turned off and the appliance is cool.
Cleaning a hot appliance can cause burns.
Clean the appliance regularly to keep all
parts free of grease that could catch fire. Do
not allow grease to accumulate. Greasy
deposits in the fan could catch fire.
Always follow the manufacturer’s recom-
mended directions for use of kitchen cleaners
and aerosols. Be aware that excess residue
from cleaners and aerosols may ignite,
causing damage and injury.
Clean ventilating hoods frequently - Grease
should not be allowed to accumulate on
hood or filter. Follow the manufacturer’s
instructions for cleaning vent hoods.
IMPORTANT INSTRUCTIONS FOR SELF
CLEANING OVENS
Do not clean the oven door gasket. The door
gasket is essential for a good seal. Care
should be taken not to rub, damage, or move
the gasket.
Do not use oven cleaners. No commercial
oven cleaner or oven liner protective coating
of any kind should be used in or around any
part of the appliance.
Use the self clean cycle to clean only the
parts listed in this manual.
Before using self clean, remove the broiler
pan, any food, utensils, and cookware from
the oven, storage drawer or warming drawer
(if equipped). Remove oven racks unless
otherwise instructed.
Some birds are extremely sensitive to the
fumes given off during the self clean cycle of
any oven. Move birds to another well-venti-
lated room.
IMPORTANT INSTRUCTIONS FOR SERVICE
AND MAINTENANCE
Do not repair or replace any part of the
appliance unless specifically recommended
in the manuals. All other servicing should be
done only by a qualified technician. This
reduces the risk of personal injury and
damage to the appliance.
Always contact your dealer, distributor,
service agent, or manufacturer about
problems or conditions you do not under-
stand.
Ask your dealer to recommend a qualified
technician and an authorized repair service.
Know how to disconnect the power to the
appliance at the circuit breaker or fuse box
in case of an emergency.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
7
Remove the oven door from any unused oven
if it is to be stored or discarded.
Do not touch a hot oven light bulb with a
damp cloth. Doing so could cause the bulb to
break. Handle halogen lights (if equipped)
with paper towels or soft gloves. Disconnect
the appliance or shut off the power to the
appliance before removing and replacing
the bulb.
Important Safety Notice - The California
Safe Drinking Water and Toxic Enforcement
Act requires the governor of California to
publish a list of substances known to cause
cancer, birth defects, or other reproductive
harms, and requires businesses to warn
customers of potential exposures to such
substances.
PRODUCT RECORD
In the space below, record the date of
purchase, model and serial number of your
product. You will find the model and serial
number printed on an identification plate.
See
Figure 1 for serial plate location.
Model No. __________________________
Serial No. ___________________________
Date of Purchase _____________________
Save sales receipt for future reference.
To locate the serial plate, open the oven door.
The serial plate is attached to the left side of
the oven frame.

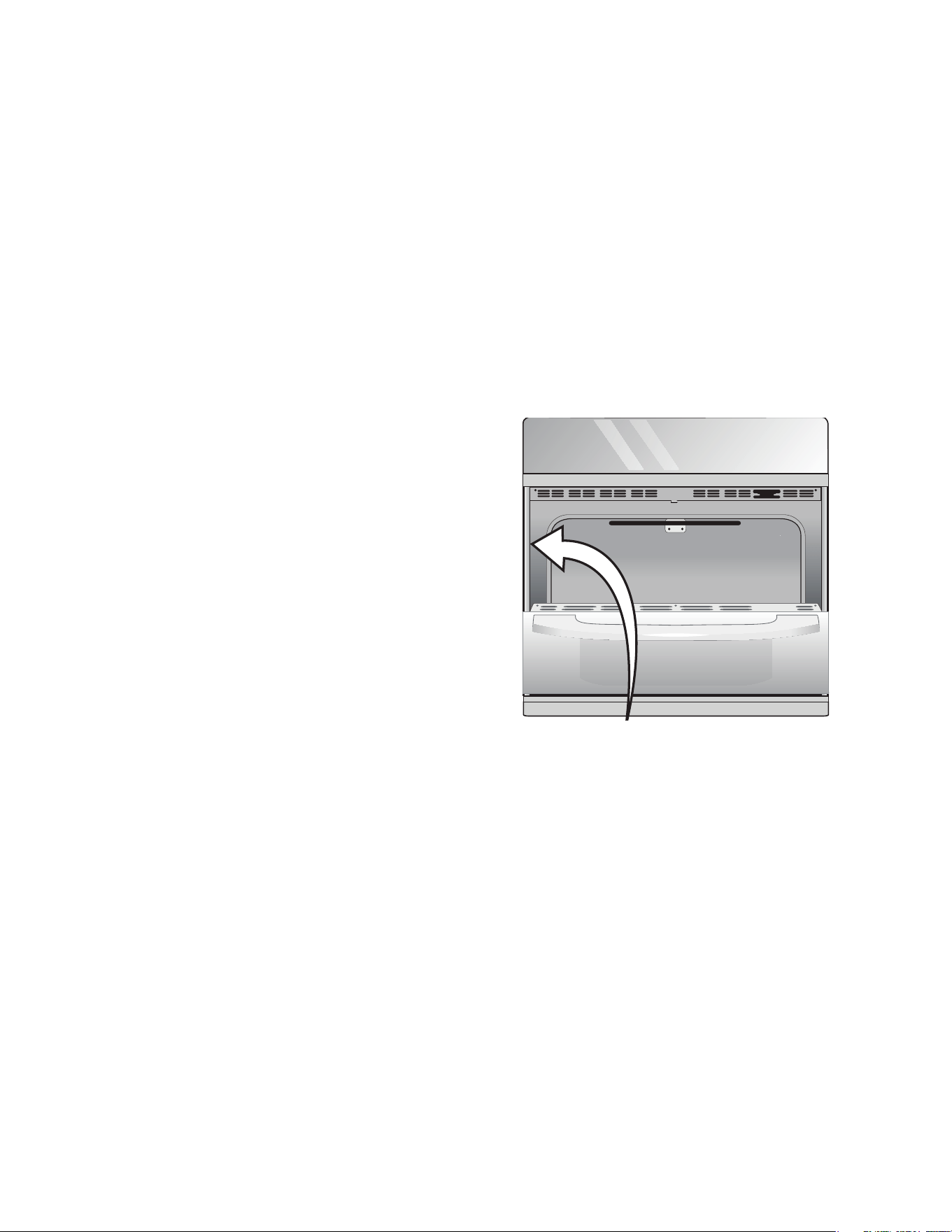

Figure 1: Serial plate location
8
Before setting oven controls
Oven vent location
The oven vent is located under the left side of the control panel
(
Figure 2). When the oven is on, warm air passes through this
vent. This venting is necessary for proper air circulation in the
oven and good baking results. Steam or moisture may appear
near the oven vent, this is normal. Do not block oven vent
.
Always use pot holders or oven mitts when using
the oven. When cooking, the oven interior and exterior and oven
racks will become very hot which can cause burns.
Protective Liners — Do not use aluminum foil to
line the oven bottom. Only use aluminum foil as recommended
in this manual. Improper installation of these liners may result in
risk of electric shock or fire. Do not line the oven walls, racks,
bottom, or any other part of the oven with aluminum foil. Doing
so will alter heat distribution, produce poor baking results, and
may cause permanent damage to the oven interior. During self
clean temperatures, the oven will be hot enough to melt foil.
Removing, arranging and replacing racks:
Arranging - always arrange the oven racks when the oven is
cool (prior to operating the oven.
To remove - pull the rack forward until it stops. Lift up front of
rack and slide out.
To replace - fit oven rack onto the rack guides on both sides of
oven walls. Tilt the front of oven rack upward and slide the rack
back into place. Be sure oven racks are level before using.
Type of oven racks
The flat oven rack (some models) or flat handle oven rack (some
models) may be used for most cooking needs.
The offset oven rack (on some models) is designed to place the
base of the rack about 1/2 of a rack position lower than flat
oven racks. This design allows several additional positions
between the flat rack positions.
To maximize oven cooking space place the
bottom oven rack
(on some models) in the lowest rack position for roasting large
cuts of meat.
This model comes with lubricated porcelain oven racks, which
can remain in the oven during the self-clean cycle. Do not clean
the vegetable oil lubrication off the racks. It is important that
the sides of the oven racks always have a light coating of
vegetable oil. To maintain optimal rack performance, re-apply a
thin layer of vegetable oil to the sides of the rack after every
self-clean cycle or when the rack becomes difficult to slide.
Air circulation in the oven
For best baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or back
of the oven cavity. Hot air must be able to circulate around the
cookware in the oven for even heat to reach around the food.

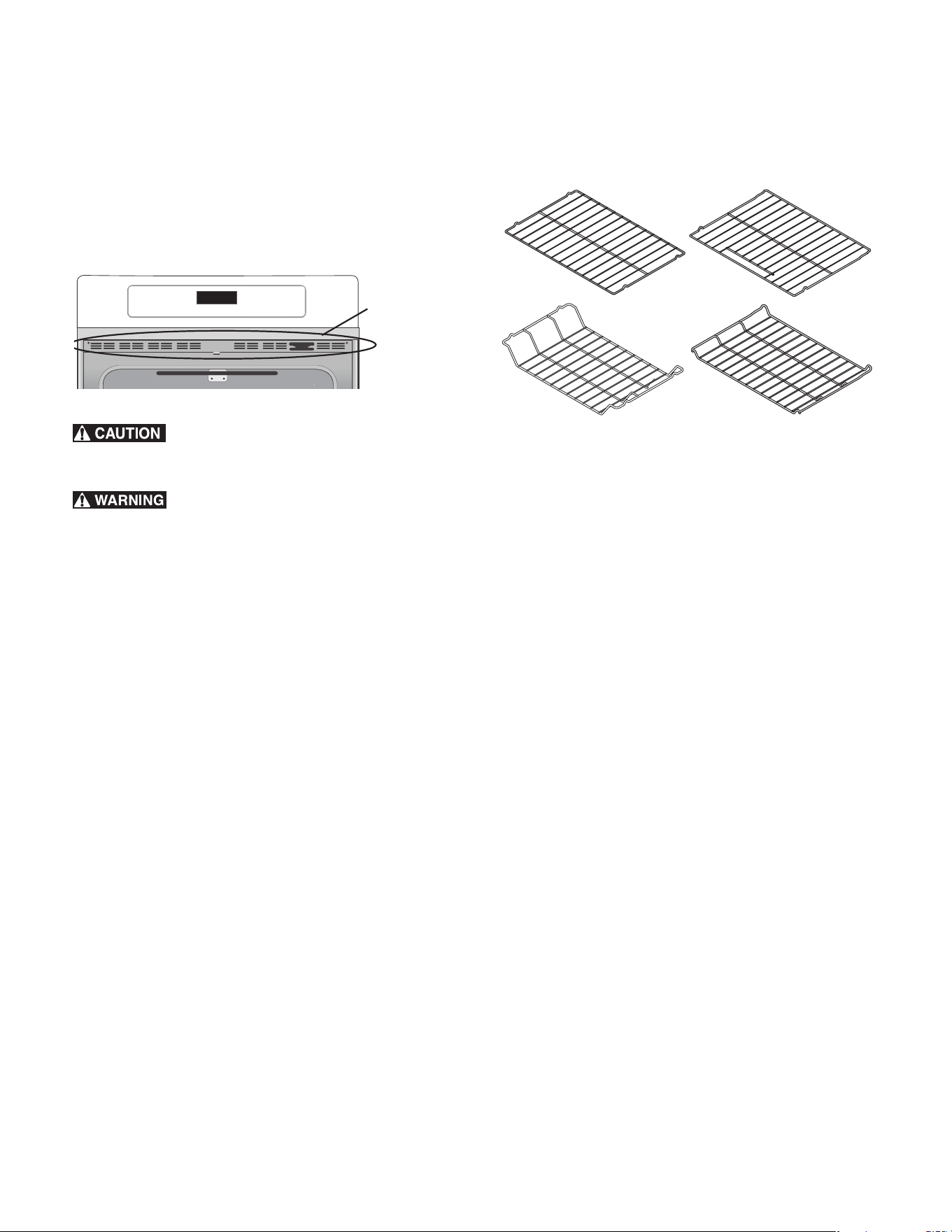

Figure 2:
oven vent
location
Figure 3:
at oven rack
bottom oven
rack
at handle
oven rack
oset
oven rack
9

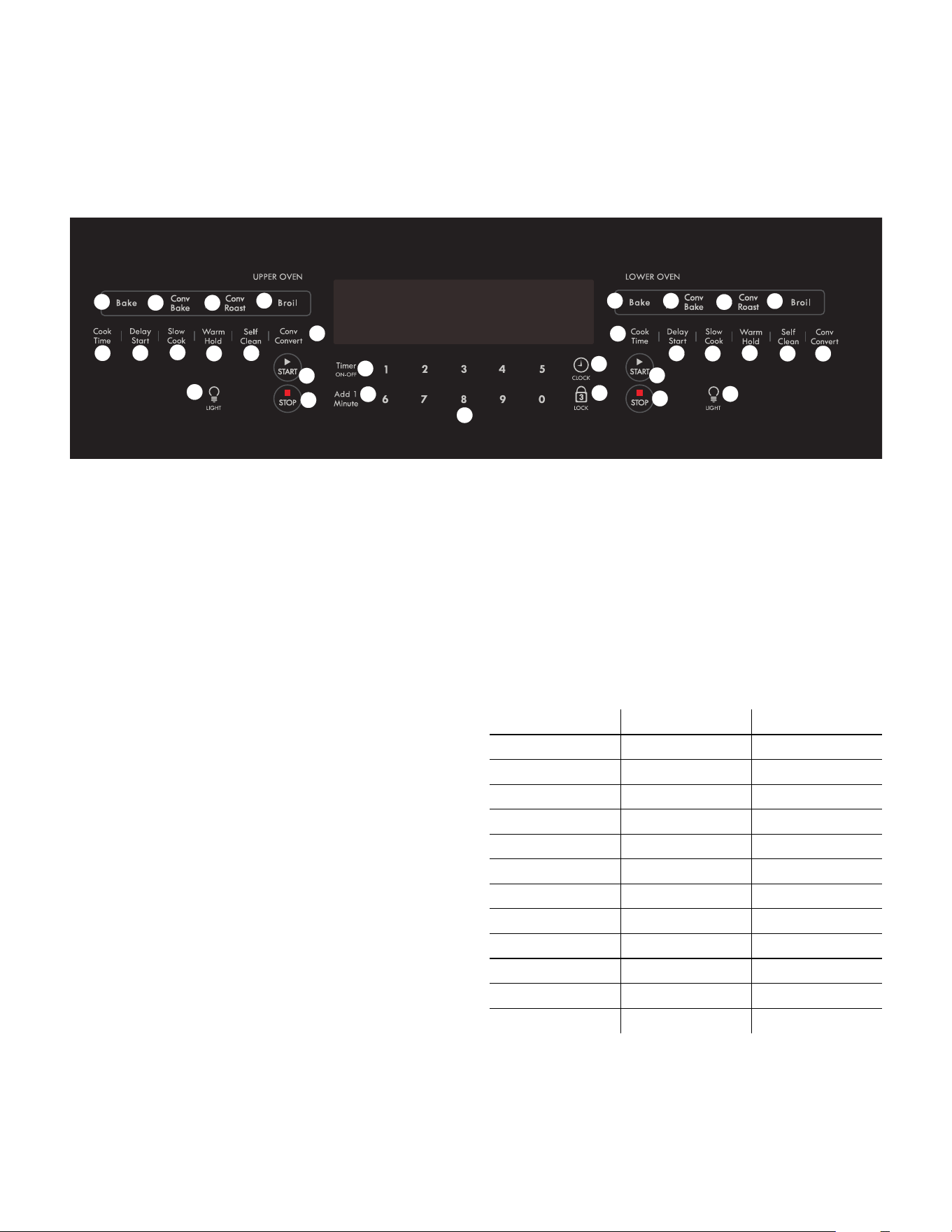

Oven Controls
1. Bake - Used to enter the normal bake feature.
2. Conv Bake - Used to select the Convection Bake feature.
3. Conv Roast - Used to select the Convection Roast mode.
4. Broil - Used to select variable broil feature.
5. Cook Time - Used to enter the length of the cook time
desired.
6. Delay Start - Used to set the desired start time for baking.
May be used with Cook Time to program a delayed timed
bake or clean cycle.
7. Slow Cook - Used to select the Slow Cook Feature cycle.
8. Warm & Hold - Used to set the Warm & Hold function.
9. Self Clean - Used to set a 2 to 4 hours Self-Clean cycle.
10. Conv Convert - Used to select the Convection Convert
feature that works with Conv Bake..
11. START - Used to start all oven features (except Oven Light)
12. STOP - Used to cancel any oven function except Clock and
Timer.
13. Oven Light - Used to turn oven light on and off.
14. Timer on-off - Used to set or cancel Timer. The minute timer
does not start or stop cooking.
15. Add 1 Minute - Used to add additional minutes to Timer.
16. Clock - Used to set the time of day.
17. Oven Lockout - Used to lock the oven keys and oven door.
18. Numeric Keypad - Used to enter temperature and times.
Minimum & maximum control settings
All of the features listed below have minimum and maximum
time or temperature settings that may be entered into the
control. An entry acceptance beep will sound each time a
control key is touched (the Oven Lockout is delayed 3 seconds).
An entry error tone (3 short beeps) will sound if the entry of the
temperature or time is below the minimum or above the
maximum settings for the feature.
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the
various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in
this Use & Care Guide.
1
2 3
4
5
6
7
8
9
10
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
16
17
13
11
12
18
Feature Min temp. or time Max temp or time
PreHeat 170°F/77°C 550°F/288°C
Bake 170°F/77°C 550°F/288°C
Broil 400°F/205°C 550°F/288°C
Timer 0:01 Min. 11:59 Hr./Min.
Self Clean 2 hours 4 hours
Conv Bake 170°F/77°C 550°F/288°C
Conv Convert 170°F/77°C 550°F/288°C
Conv Roast 170°F/77°C 550°F/288°C
Slow Cook Lo (225°F/180°C) Hi (225°F/180°C)
Cook Time 0:01 Min. 11:50 Hr./Min.
Delay Time 12 Hr. 1:00 Hr./Min. 12:59 Hr./Min.
Delay Time 24 Hr. 0:00 Hr./Min. 23:59 Hr./Min.
10
Oven Controls
Setting the Clock
The key is used to set the clock. The clock may be set for
12 or 24 hour time of day operation. The clock has been preset
at the factory for the 12 hour operation. When the range is first
plugged in, or when the power supply to the range has been
interrupted, the time in the display will flash. Press . The
display will stop flashing.

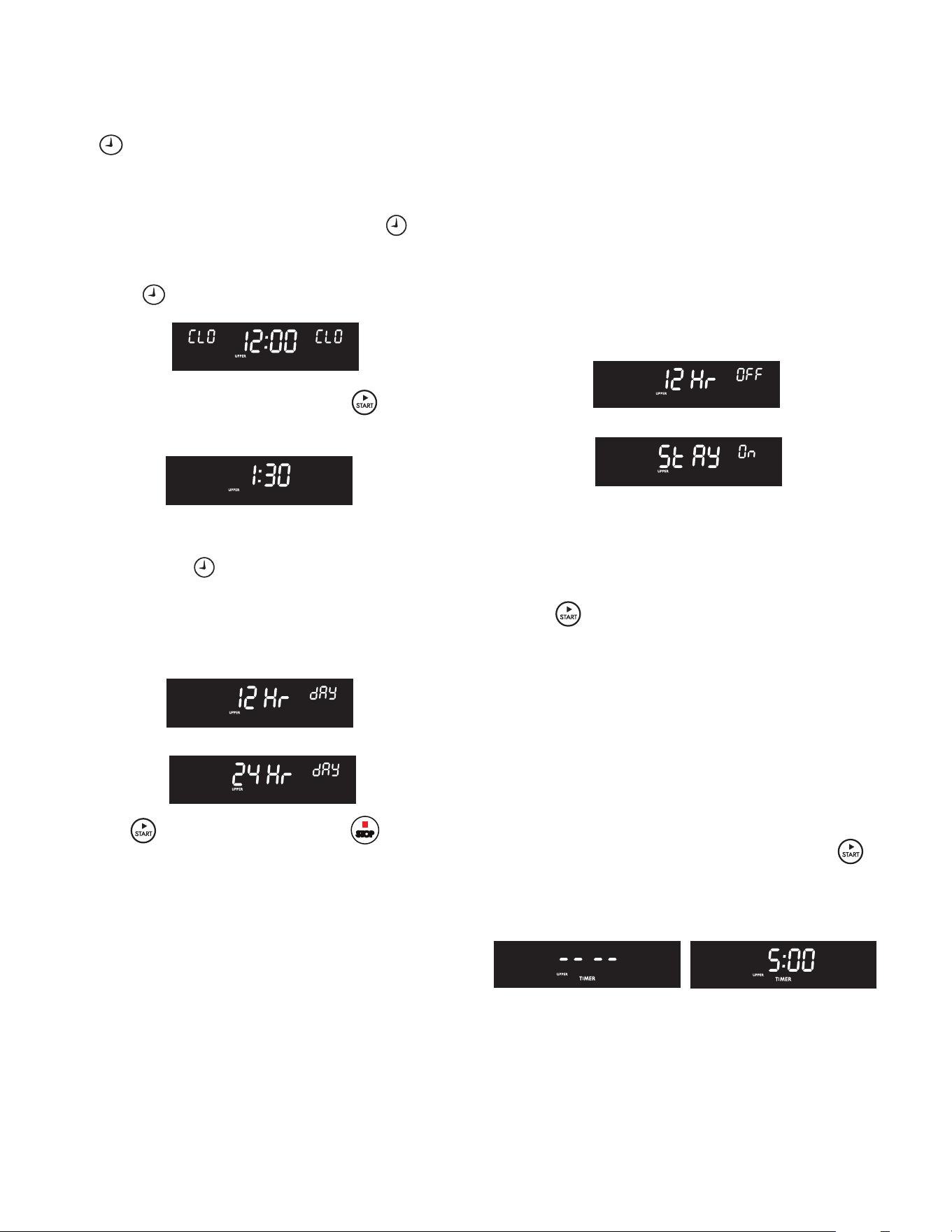

Example: Setting the clock for 1:30:
1. 1 Press . CLO will appear in the display. )
2. Press 1 3 0 keys to set time of day. Press
3. Time of day will now appear in the display.
Changing between 12 or 24 hour time of day display
1. Press and hold for 7 seconds until 12Hr or 24Hr
appears in the display.
2. Press Self-Clean to switch between the 12 and 24 hour time
of day displays. The display will show either 12Hr of 24Hr
(figure)
3. Press to accept the change or press to reject.
4. Reset the correct time as prescribed in Setting the Clock
above. Note: if the 24 hour time of day was selected, the
clock will now display time from 0:00 through 23:59 hours.
Setting Continuous Bake or 12 Hour Energy Saving
The
Timer on-off and Self-Clean keys control the Continuous
Bake or 12 hour Energy Saving features. The oven control has a
factory preset 12 Hour Energy Saving feature that shuts off the
oven control if left on for more than 11 hours and59 minutes. The
oven can be programed to override this feature for Continuous
baking.
To set the Continuos Bake or 12 Hour Energy feature:
1. Press and hold Timer on-off for about 7 seconds. The
dashes will change to show either
12Hr OFF or Stay On in
the display and the control will beep once.d
2. Press Self-Clean to switch between the 12Hr Energy saving
and Continuous Bake features. Note: 12 Hr OFF indicates
the control is set for the 12 hour energy saving mode.
Stay
On indicates the control is set for the Continuous Bake
mode.
3. Press to accept your selection and the display will
return to show the time of day.
Setting Oven Timer
The
Timer on-off controls the Timer and serves as an extra timer
that will beep when the set time has run out. It does not start or
stop cooking. The Timer feature can be used during any of the
other oven control functions, except Self-Clean and Sabbath.
To set Timer (example 5 minutes)
1. Press Timer on-off. When dashes appear in the display
press the number 5 key (for this example) and press .
The time will begin to count down.
2. Note: If the start key is not pressed timer will return to time
of day after 30 seconds.
3. When timer runs out, End and TIMER show in display. The
clock will beep 3 times every 30 seconds until Timer on-off
is pressed. Press Timer on-off to cancel the timer at any
time. Once canceled the display show the time of day.
11
Oven Controls
To Set Add 1 Minute Feature
The key is used to set the Add 1 Minute feature. When
the key is pressed, 1 minute is added to the Timer feature if this
feature is already active. If the Minute Timer feature is not
active and the is pressed, the Timer feature will become
active and will begin counting down from 1 minute. For further
information on how to set the Minute Timer feature see To Set
the Minute Timer instructions above.
Setting the Oven Lockout
The controls the Oven Lockout feature. The Oven Lockout
feature automatically locks the oven door and prevents the oven
from being turned on. It does not disable the clock, Timer or the
interior oven lights. The ovens can be locked individually.
To activate the Oven lockout feature:
1. Press and hold for 3 seconds.
2. After 3 seconds, DOOR, LOCKED will flash and Loc will
appear in the display
Once the oven door is locked the
DOOR and LOCKED indicator
will stop flashing and remain in the display. Allow 15 seconds for
the oven door to lock.
To reactivate normal oven operation by unlocking door:
1. Press and hold for 3 seconds. Loc will disappear from
the display. DOOR and LOCKED will flash in the display
until the door has completely unlocked and the oven will be
operational.
Setting Silent Control Operation
The
Self-Clean and Delay Start keys control the Silent Control
operation feature. The Silent Control operation feature allows
the oven control to be operated without sounds or beeps
whenever necessary. If desired the control can be programmed
for silent operation and later returned to operating with all the
normal sounds and beeps.
To change from normal sound to silent operation:
1. Press and hold Delay Start for 7 seconds. The display will
show dashes and then change to bEEP ON in the display.
2. Press Self Clean to switch between normal sound operation
and silent mode (beep off).
Press to accept the change or press to reject the
change.
Note: The control will always beep at the end of a timer and will
beep when a set temperature has been reached, even if the
control is set to silent operation.
A
A
12
Oven Controls
Setting Temperature display -- Fahrenheit or Celsius
The
Broil and Self-Clean keys control the Fahrenheit or Celsius
temperature display modes. The oven control can be
programmed to display temperatures in Fahrenheit or Celsius.
The oven has been preset at the factory to display in Fahrenheit.
Note: both ovens will be changed at the same time.
To change display from Celsius to Fahrenheit or Fahrenheit to
Celsius:
1. Press and hold Broil for about 6 seconds. A beep will sound,
550 will appear BROIL will flash in the display. Continue to
hold key until it beeps and F or C appears in the display.
The F means the oven is set for temperatures in Fahrenheit
and the C showing means the oven is set for temperatures to
display in Celsius.
2. Press Self-Clean and toggle to switch between Fahrenheit or
Celsius modes.
3. Press to accept the change or press to reject the
change.
Operating Oven Lights
The interior oven lights will turn ON when the oven door is
opened.
Press to turn oven light ON an OFF whenever the oven door
is closed.
The interior oven lights are located on the rear wall of the oven
interior and are covered with a glass shield. The glass shield
protects the bulb from high temperatures and should always be
in place whenever the oven is in use.
For best baking results, do not leave oven light on while cooking.
To replace the interior oven lights, see
Replacing oven lights in
the Care and Cleaning section.
Setting Cook Time
The
Bake and Cook Time keys control the Cook Time feature.
The automatic timer of the Cook Time feature will turn the oven
off after cooking for the desired amount of time you selected.

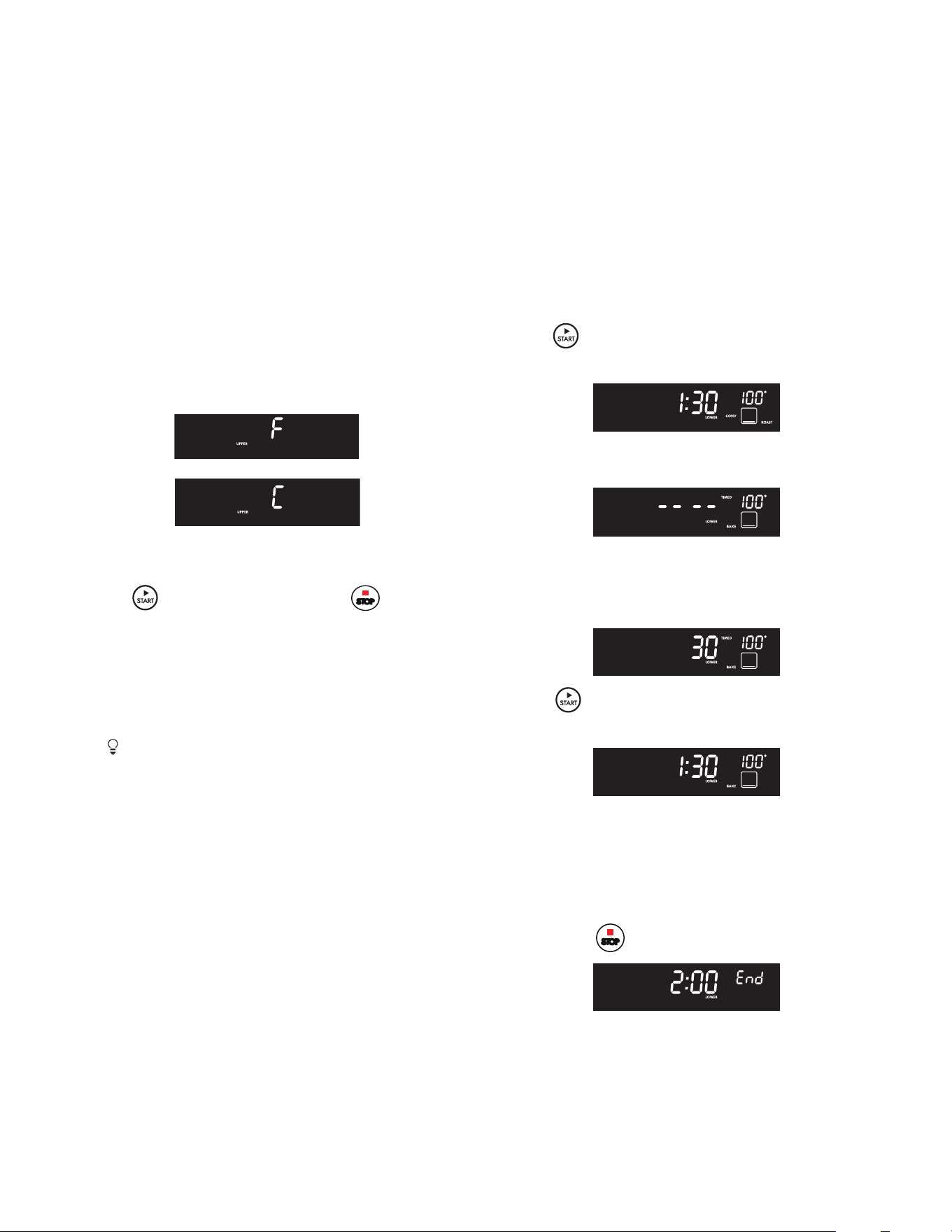

To program the oven to begin baking immediately and to shut
off automatically (example: Bake at 350°F for 30 minutes)
1. Be sure the clock is set for the correct time of day
2. Arrange oven racks and place food in oven.
3. Press Bake.
4. Press . The actual oven temperature will appear in the
display..
5. Press Cook Time. Dashes will appear in the display.
6. Enter desired bake time by pressing 30. Note: Baking time
can be set for any time between 1 minute and 11 hours and
59 minutes.
7. Press . The display returns to the time of day (shown
here as 1:30).
To check the bake time remaining, press
cook time once and the
time left in the baking process will appear for a few seconds in
the display. A beep will sound once the oven has reached the set
temperature. When the bake time finishes, END and the time of
day will show in the display and the oven turns off automati-
cally. The control will beep 3 times and continue to beep every
30 seconds until is pressed.
13
Oven Controls
Setting Delay Start
The
Bake, Cook Time, and Delay Start keys control the Delay
Start feature. The automatic timer of the Delay Start will turn
the oven on and off at the time you select in advance.
Note: If the clock is set for normal 12 hour display mode the
Delayed Time Bake or Delayed Timed Convection Bake cycle
can not be set to start more than 12 hours in advance.

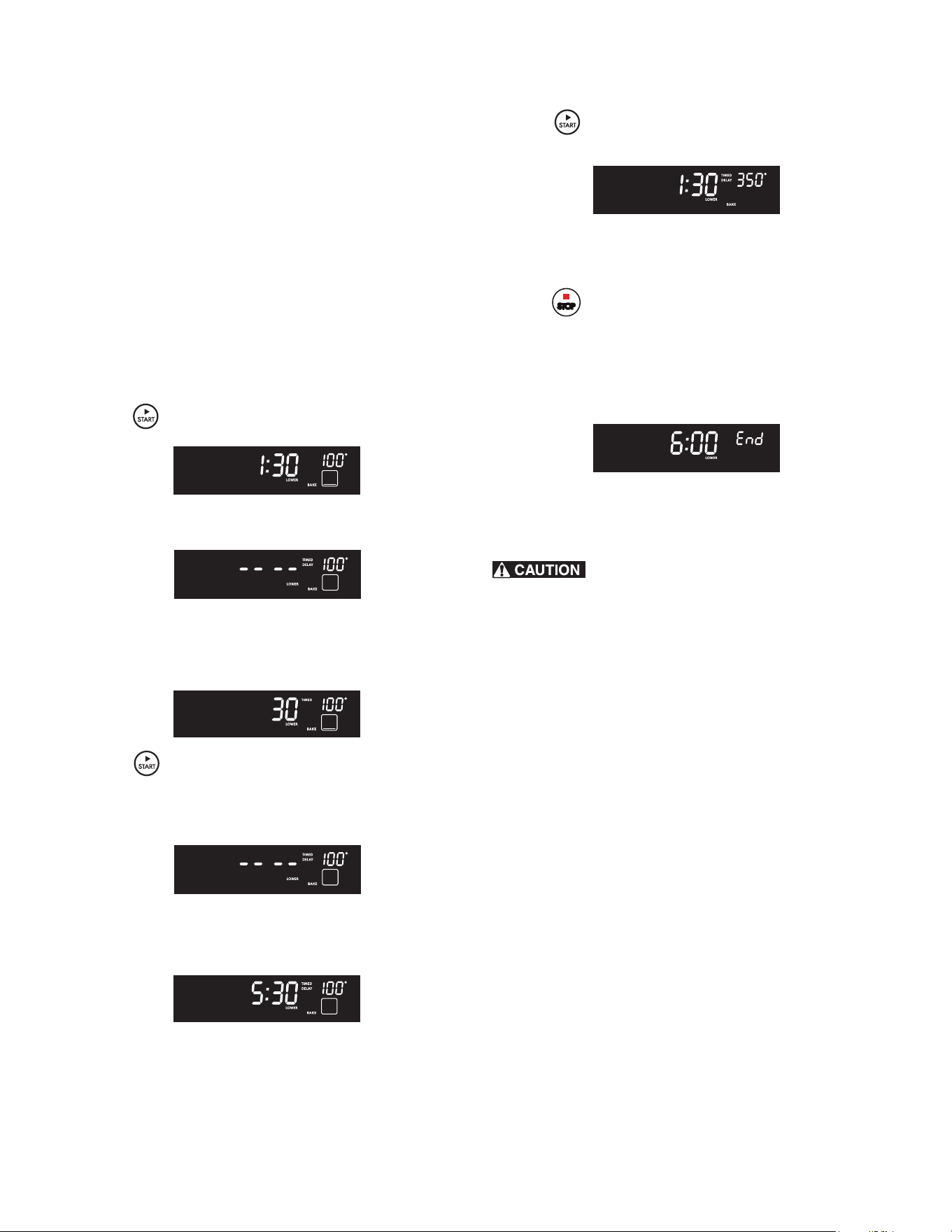

To program the oven for a delayed BAKE start time and to shut
off automatically (example: baking at 350°F for 30 minutes and
starting at 5:30)
1. Be sure that the clock is set with the correct time of day.
2. Arrange oven rack(s) and place the food in the oven.
3. Press Bake
4. Press . The actual oven temperature will be displayed.
5. Press Cook Time.. Dashes will appear in the display.
6. Enter the desired baking time by using the numeric keypad
and pressing 3 0. Note: Baking time can be set from 1
minute to 11 hours and 59 minutes..
7. Press .
8. Press Delay Start. Dashes will appear in the display.
9. Enter the desired start time using the numeric keypad 5 3 0.
10. Press . The current time of day will appear in the
display. The set temperature will also show in the display.
11. When the desired start time is reached, the oven icon will
appear in the display and the oven will start to bake at the
previously selected temperature.
12. Press when baking is finished or at any time to cancel
the Delayed Time Bake feature.
When the bake time runs out:
1. END will appear in the display and the oven will turn off
automatically.
2. The control will beep 3 times. The control will continue to
beep 3 times every 30 seconds until STOP is pressed.
FOOD POISONING HAZARD. Do not let food
sit for more than one hour before or after cooking. Doing so can
result in food poisoning or sickness. Foods that can easily spoil
such as milk, eggs, fish, meat or poultry, should be chilled in the
refrigerator first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and should
be removed promptly when finished cooking
Warm & Hold™
Warm & Hold will keep cooked foods warm and ready for
serving for up to 3 hours after cooking has finished. After 3
hours the Warm & Hold will shut off automatically. Warm &
Hold should only be used with foods that are already at serving
temperatures. Warm & Hold will maintain the oven temperature
at 170° F (77°C).
Example - To set Warm & Hold:
1. Press Warm & Hold. HLd will appear in the display.
2. Press START. Warm & Hold will automatically turn off after
3 hours.
To turn Warm & Hold off at any time press
STOP.
To set Warm & Hold to turn on automatically once a bake time
is set or while the oven is baking:
3. Press Warm & Hold.
4. Press START. The oven is now set to turn on automatically
after the Timed Bake or Delay Start Bake has finished.
14
Oven Controls
Setting Bake
Use the bake feature whenever the recipe calls for baking using
normal temperatures. A reminder tone will sound indicating
when the set baking temperature is reached and to place the
food in the oven. The convection fan will run while the oven
preheats, but not during baking.
Bake may be set for any oven temperature between 170°F
(77°C) to 550°F (288°C).
To set Bake with a default temperature of 350°F:
1. Press Bake.
2. Press .
3. To cancel Bake at any time, press .
To set Bake for an oven temperature of 425°F:
1. Press Bake.
2. Enter 4 2 5 using numeric keypad.
3. Press .
To cancel Bake at any time, press .
Important note:
When setting Bake or any cooking feature that preheats the
oven (except Broil), the convection fan will turn on and stay on
until the oven reaches set temperature.
The oven is factory set to run no longer than 12 hours. If you wish
to cook continuously, see “Setting Continuous Bake setting or 12
Hour Energy Saving” on
page 10.
Baking Tips:
• Preheat your oven before using the bake mode.
• During preheat, the three elements and the convection fan
are used in cycle to quickly heat the oven.
• Use only one rack and center the pans as much as possible
on rack 2 or 3.
• If using two racks, place the oven racks in positions 2 and 4.
• Allow 2” to 4” (5,1 to 10,2cm) around the bakeware for
proper air circulation.
• Be sure the pans do not touch each other, the door, sides or
back of the oven.
• Do not open the oven door often. Opening the door will
reduce the temperature and may increase cook time.
.
Baking layer cakes with 1 or 2 oven racks:
For best baking results when baking cakes or cookies using 2
oven racks, place bakeware in rack positions 3 and 5 (for rack 5
use the offset rack if provided).

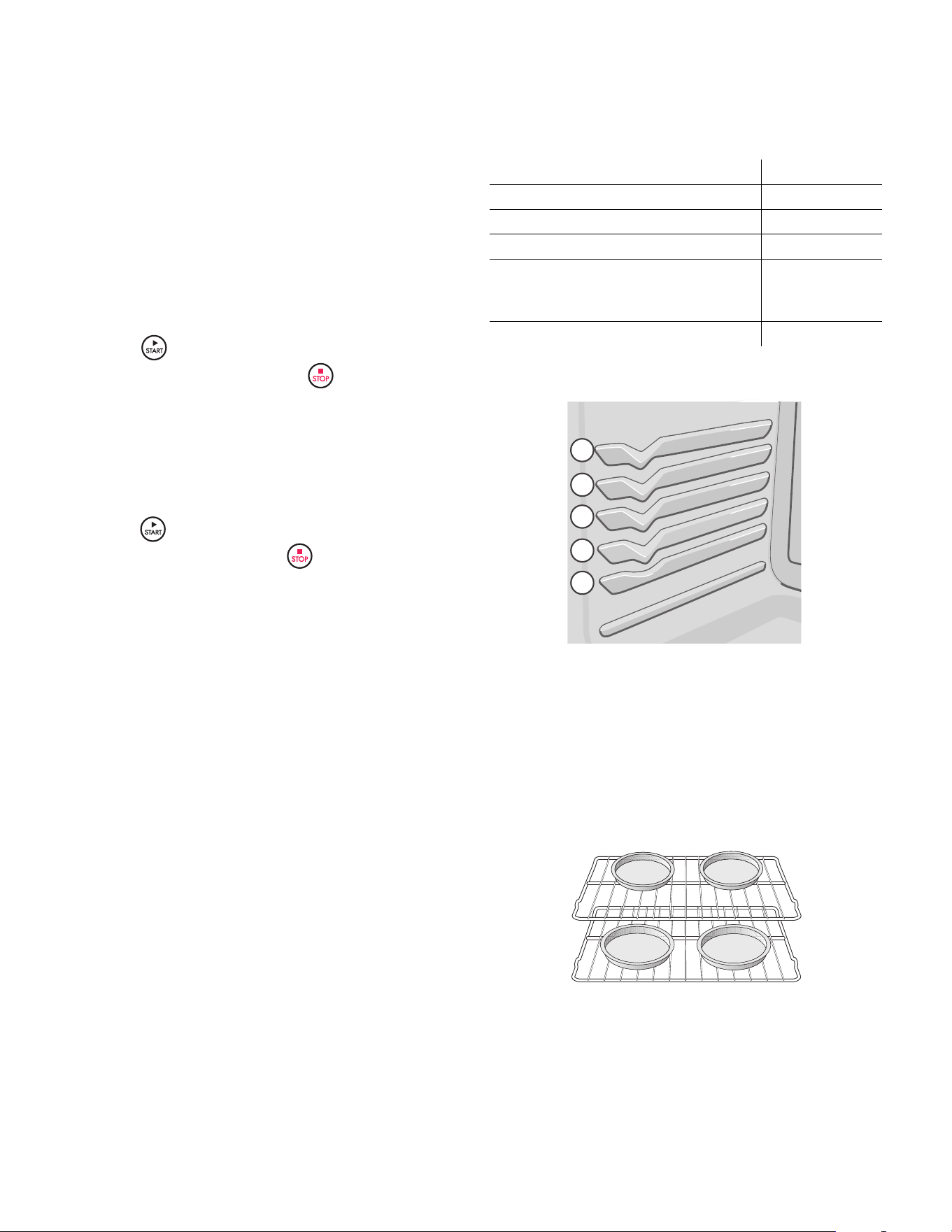

Table 1: Suggested Bake rack positions
Food Position
Broiling meats, chicken, fish 3 or 4
Cookies, cakes, pies, biscuits, (single rack) 2 or 3
Using multiple racks for items above 2 and 4
Frozen pies, angel food cake, yeast bread, 1
or 2 casseroles, small cuts of meat and
poultry
1 or 2
Turkey, roast beef, ham 1 or offset rack
Figure 4: Wall oven rack positions
Figure 5: Pan spacing for best results when baking
1
2
3
5
4
15
Setting Broil
The
Broil key controls the Broil feature. When broiling, heat
radiates downward from the oven broiler for even coverage.
The Broil temperature may be set between 400°F and 550°F.
(Table 2)
The broil pan and broil pan insert used together allow dripping
grease to drain and be kept away from the high heat of the
oven broiler (
Figure 6). Do not use the broil pan without the
insert. Do not cover the broil pan insert with foil. The exposed
grease could catch fire. To purchase them, call Sears at 1-800-
4-MY-HOME (1-800-469-4663) and order broiler pan kit
5304442087.
The broil burner may appear to have cooled
after it has been turned off. The burners may still be hot and
burns may occur if these burners are touched before they have
cooled sufficiently.
Always use pot holders or oven mitts when using
the oven. When cooking, the oven interior, oven racks, and
cooktop will become very hot which can cause burns..
Should an oven fire occur, leave the oven door
closed and turn off the oven. If the fire continues, throw baking
soda on the fire or use a fire extinguisher. Do not put water or
flour on the fire. Flour may be explosive and water can cause a
grease fire to spread and cause personal injury
To set the oven to broil at 550°F.
1. Arrange the interior oven rack.
2. Press Broil. If a lower broil temperature is desired (minimum
broil temperature setting is 400°F), press the desired
temperature before continuing. Close the oven door.
3. Preheat the oven for 5 minutes.
4. Place the broiler pan insert on the broiler pan. Then place
the food on the broiler pan insert. Be sure to center the
broiler pan directly under the broiler element...
Important: When broiling foods, keep the oven door closed.
Broiling is direct heat cooking and will produce some smoke. If
smoke is excessive, place food further away from the broil
element. Always watch food carefully to prevent burning

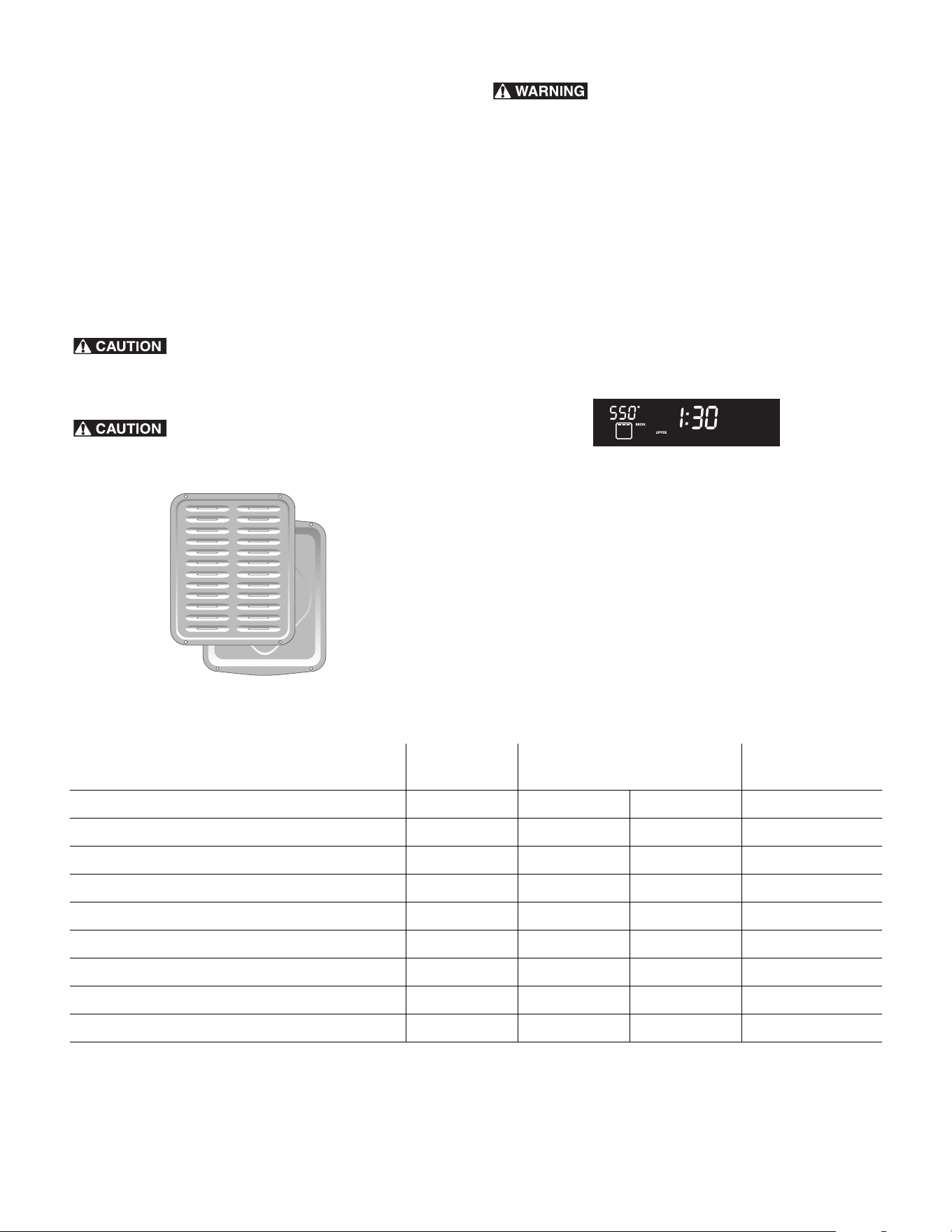

Figure 6: Broil pan and insert
Table 2: Suggested broil temperature settings
Food item Rack Position Temperature Cook time
1st side 2nd side
Doneness
Steak 1” thick 3rd or 4th 550°F 6:00 4:00 Rare
3rd or 4th 550°F 7:00 5:00 Medium
Pork Chops 3/4 “thick 3rd or 4th 550°F 8:00 6:00 Well
Chicken - Bone In 3rd 450°F 20:00 10:00 Well
Chicken Boneless 3rd or 4th 450°F 8:00 6:00 Well
Fish 3rd 500°F 13:00 - Well
Shrimp 3rd 550°F 5:00 - Well
Hamburger 1” thick 3rd or 4th 550°F 9:00 7:00 Medium
3rd or 4th 550°F 10:00
8:00
Well
The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C)
means some food poisoning organisms may survive." (Source: Safe Food Book, Your Kitchen Guide, USDA). The lowest temperature
recommended by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC).
16
Oven Controls
Setting Convection Bake
The
Convect Bake key controls the Convection Bake feature. Use
the Convection Bake feature when cooking speed is desired. The
oven can be programmed for Convection baking at any temper-
ature between 170°F (77°C) to 550°F (288°C).
Convection baking uses a fan to circulate the oven’s heat evenly
and continuously within the oven (
Figure 7). This improved heat
distribution allows for fast, even cooking and browning results. It
also gives better baking results when using 2 or 3 racks at the
same time. Breads and pastries brown more evenly. Convection
bake cooks most foods faster and more evenly than conven-
tional baking.
Convection Baking Guidelines
1. When using Convection Bake, decrease your normal
cooking times. Adjust the cook time for desired doneness as
needed. Time reductions will vary depending on the amount
and type of food to be cooked. Cookies and biscuits should
be baked on pans with no sides or very low sides to allow
heated air to circulate around the food. Food baked on
pans with a dark finish will cook faster.Preheating is not
necessary when cooking casseroles with Convection Bake.
2. When using Convection Bake with a single rack, place oven
rack in position 2 or 3. (
Figure 8)If cooking on multiple
racks, place the oven racks in positions 1 and 3.
3. Do not open the oven door often. Opening the door will
reduce the temperature and may increase cook time.
.
To set the oven for Convection Bake and temperature to 350°F
1. Arrange interior oven racks and place food in oven.
2. Press Convect Bake
3. Press . The actual oven temperature will be displayed.
Note: The oven icon will appear and the rotating fan will
start running in the display. The bake, broil and convection
element icons will show intermittently in the display indi-
cating which element is on to help the oven reach the
desired temperature.
4. A beep will sound once the oven temperature reaches
350°F.
Note: The convection fan will start as soon as the oven is set for
Convection Bake.
Press to cancel Convection Bake at any time.

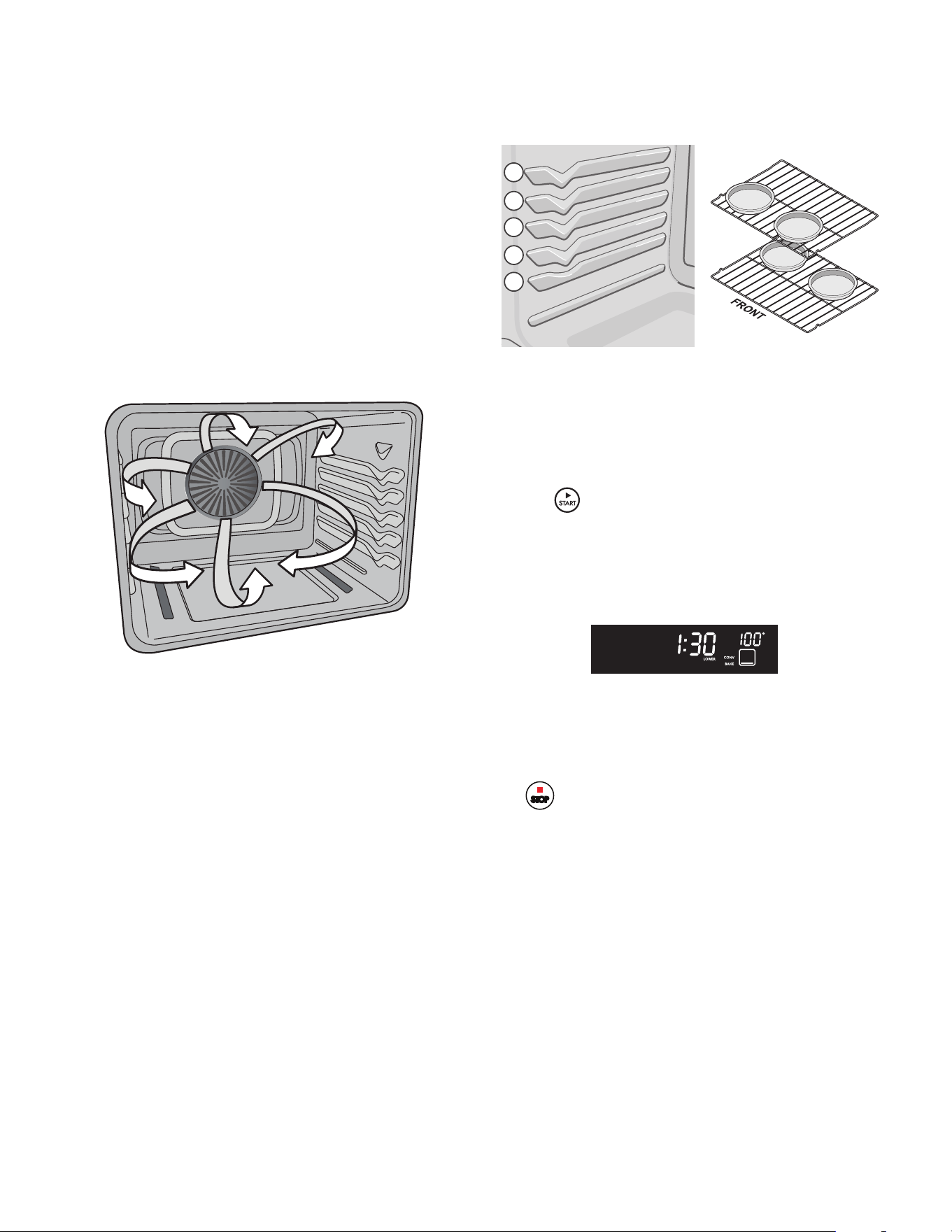

Figure 7: Air circulation in the convection function
Figure 8: Convection rack positions and pan spacing
1
2
3
5
4
17
Setting Convection Roast
The
Conv Roast key may be used when cooking certain food
items. Conv Roast combines a cook cycle with the convection
fan and element to roast meats and poultry. Preheating is not
necessary for meats and poultry. Heated air circulates around
the food from all sides, sealing in juices and flavors. Foods are
crisp brown on the outside while staying moist on the inside. Do
not cover food during convection roast.
Example - To Set the Convection Roast feature at 375°F
1. Arrange oven racks.
2. Press Conv Roast.
3. Enter the desired roasting temperature using the numeric
keypad 3 7 5.
4. Press START. The actual temperature and the fan icon will
be displayed.
5. Press STOP to stop Convection Roast at any time.
Roasting Rack Instructions (if equipped)
When preparing meats for convection roasting, use broiler pan
and insert along with the roasting rack. The broiler pan will
catch grease spills and the insert will prevent grease splatters.
The roasting rack will allow the heat to circulate around the
meat.
1. Place oven rack on bottom or next to the bottom rack
position. Hot air circulates under the food for even cooking
increases browning on the underside. Make sure the
roasting rack is securely seated on the insert in the broiler
pan. Do not use the broiler pan without the insert. Do not
cover the insert with aluminum foil.
2. Position food (fat side up) on the roasting rack.
3. Place the broiler pan on the oven rack.
To prevent food from contacting the broil
element and to prevent grease splattering, Do not use the
roasting rack when broiling.
Setting Convection Convert feature
Pressing the Conv Convert key automatically converts the
cooking temperature entered for any standard baking recipe to
the lower temperature required for convection baking.
Convection Convert MUST be used with the Convection Bake
key. Cook Time or Delay Start function may be added.
Using Convection Convert (Bake) feature to automatically adjust
oven temperature (example: setting oven for 350°F):
1. Arrange interior oven racks and place food in oven.
2. Press
3. If a Cook Time or Delay Start is desired enter times now.
4. Press . Conv Bake and the oven temperature adjust-
ment will appear briefly in the display as shown in the
display below as set for 325F°. A beep will sound once the
adjusted temperature is reached.
Note: When used with a Cook Time or a Delay Start setting, the
Convection Convert feature will display a CF for check food
when the bake time is 75% complete.
At this time the oven control will sound 3 long beeps at regular
intervals until baking has finished. When the bake time has
completely finished the control will display
End and will sound 3
long beeps every 30 seconds until STOP is pressed.
The oven icon will show a rotating fan in the square. This fan
icon indicates when the Convection Fan is operating.
Press to cancel Convection feature at any time.
Note: The minimum amount of cook time using the Convection
Convert feature with a Cook Time or Delay Start function is 20
minutes.
18
Setting the Slow Cook feature
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness. Foods that can easily spoil such as
milk, eggs, fish, meat or poultry, should be chilled in the refriger-
ator first. Even when chilled, they should not stand in the oven
for more than 1 hour before cooking begins, and should be
removed promptly when finished cooking.
The
Slow Cook key is used to activate this feature. The Slow
Cook feature may be used to cook foods more slowly, at lower
oven temperatures and provides cooking results much the same
way as a Slow Cooker or Crock-Pot. The Slow Cook feature is
ideal for roasting beef, pork & poultry. Slow Cooking meats may
result in the exterior of meats becoming dark but not burnt. This
is normal.
There are 2 settings available, high (Hi) or low (Lo). The low
setting is best for cooking foods from 8 to 9 hour time period.
The high setting is best for cooking foods from 4 to 5 hour time
period. The maximum cook time for the Slow Cook feature is 12
hours unless the oven control has been changed to the Contin-
uous Bake mode. This feature may be used with the additional
settings of a Cook Time or a Delayed Start.
Cooking and Preparation tips for Slow Cook
• Completely thaw all frozen foods before cooking with the
Slow Cook feature.
• When using a single rack, place in position 2 or 3.
• Position multiple racks to accommodate size of cooking
utensils when cooking multiple food items.
• Do not open the oven door often or leave the door open
when checking foods. If the oven heat escapes often, the
Slow Cook time may need to extended.
• Cover the foods to keep them moist or use a loose or vented
type cover to allow foods to turn crisp or brown.
• Cook times will vary; depending on the weight, fat content,
bone & the shape of the food.
• Use the recipe’s recommended food temperature and a
food thermometer to determine when the food is done.
• Preheating the oven will not be necessary when using the
Slow Cook feature.
• Add any cream or cheese sauces during the last hour of
cooking.
To Program the Oven to begin baking with the Slow Cook
feature
1. Place food in oven.
2. Press . SLO and HI will appear in the display.
3. If Lo setting is preferred, press again. Lo will appear
in the display.
4. Press to activate the slow cook feature.
5. If desired, add Cook Time or Delay Start settings at this
time.
6. To cancel the Slow Cook feature any time press .
Restoring factory default settings
Your appliance is programmed with default control settings.
Over time, users may make changes to these settings. The
following options have settings that can be modified and may
have been changed since the appliance was new:
• 12 or 24 hour display mode
• Continuous bake or 12-Hour Energy Savings mode
• Silent or audible control
• Oven temperature display (Fahrenheit or Celsius)
• Oven temperature adjustments (offsets)
• Stored recipes
If you choose to restore factory default settings, ALL of the
above user preferences will be restored to their original settings
(factory default). The oven temperature offset will reset and any
stored recipes will be cleared.
To restore oven control to factory default settings:
1. When the oven is in idle and no cooking function is in oper-
ation, press and hold the 7 key until the acceptance tone
sounds (about 6 seconds)
2. Press START. The control is now reset to default settings.
19
Oven Controls
Adjusting Oven Temperature
Before adjusting, be sure to follow recipe times and tempera-
tures. Test a recipe by using a temperature setting higher or
lower than the recommended temperature. The baking results
should help you to decide how much of an adjustment is
needed. If you think the oven is cooking too hot or too cool for
the temperature you select, you can adjust the actual oven
temperature to be more or less than what is displayed.
The temperature in the oven is pre-set at the factory. When first
using the oven.
To adjust the oven temperature higher
1. Press Bake for 6 seconds. UPO 0 will appear in the display.
2. To increase the temperature use the number keys to enter
the desired change (Example 30°F) 3 0. The temperature
may be increased as much as 35°F (19°C).
3. Press to accept the temperature change and the
display will return to the time of day. Press Off to reject the
change if necessary.
To adjust the oven temperature lower
1. Press Bake for 6 seconds. UPO 0 will appear in the display.
2. To decrease the temperature use the number keys to enter
the change (Example -30°F) 3 0 and then press
. The
temperature may be decreased as much as 35°F (19°C).
3. Press to accept the temperature change and the
display will return to the time of day.
4. Press STOP to reject the change if necessary.
Important: Do not use oven thermometers such as those found in
grocery stores to check the temperature settings inside your
oven. These oven thermometers may vary as much as 20°F to
40°F (11°C to 22°C) from actual temperatures.
Setting the Sabbath Feature (for use on Jewish Sabbath
and Holidays)
The
Cook Time and Delay Start keys are used
to set the Sabbath feature.
For further assistance, guidelines for proper
usage, and a complete list of models with the
Sabbath feature, please visit the web at
www.star-k.org.
The Sabbath feature may only be used with the Bake function.
Once the oven is properly set using Bake with the Sabbath
feature active, the oven will remain ON until cancelled. The
Sabbath feature overrides the factory preset 12-Hour Energy
Saving feature.
If the oven light is needed during the Sabbath, press Oven light
before activating the Sabbath feature. Once the oven light is
turned ON and the Sabbath feature is active, the oven light will
remain ON until the Sabbath feature is turned OFF. If the oven
light needs to be OFF, be sure to turn the oven light OFF before
activating the Sabbath feature.
To Program the Oven to Begin Baking Immediately & activate
the Sabbath feature (example: baking at 350°F)
1. Be sure that the clock is set to correct time of day and place
food in oven.
2. Press Bake.
3. Press START. The actual oven temperature will appear in the
display.
4. If you desire to set the oven control for a Cook Time or
Delay Start do so at this time. If not, skip to the next step.
Refer to the Cook Time or Delay Start section for complete
instructions. Remember the oven will shut down after using
Cook Time or Delay Start and therefore may only be used
once during the Sabbath and Jewish Holidays. The
maximum Delay Start time is 11 hours & 59 minutes.
5. The oven will turn on and begin heating. If you need to set
both ovens for the Sabbath, both should be set at this time.
6. Press and hold both the Cook Time and Delay Start keys for
at least 3 seconds. SAb will appear in the display. Once
SAb appears in the display the oven control will no longer
beep or display any further changes. The oven is properly
set for the Sabbath feature.
20
Oven Controls
Note: You may change the oven temperature once baking has
started. Press Bake, enter the oven temperature change (170 to
550°F) and then press START twice (for Jewish Holidays only).
Remember that the oven control will no longer beep or display
any further changes once the oven is set for the Sabbath
feature.
The oven may be turned OFF at any time by first pressing
STOP
(this will turn the oven OFF only). To turn OFF the Sabbath
feature press and hold both the Cook Time and Delay Start keys
for at least 3 seconds. This also turns off the oven.
SAb will
disappear from the display.
Power failure while using Sabbath feature:
Should you experience a power failure or interruption, the oven
will shut off. When power is returned, SF (Sabbath Failure) will
be displayed and the oven will not turn back on automatically. If
your food was nearly fully cooked, you may allow the trapped
heat in the oven to finish the cooking process. Otherwise, you
should remove the food when the power failure occurs, because
you may only start the oven once during the Sabbath and Jewish
Holidays.
After the Sabbath observance turn OFF the Sabbath feature.
Press and hold both the BAKE TIME and DELAY START keys for
at least 3 seconds. SAb will disappear from the display and the
oven may be used with all normal functions.
For further assistance, guidelines for proper usage, and a
complete list of models with the Sabbath feature, please visit
the web at
www. star-k.org.
Self-Cleaning Operation
During the self-cleaning cycle, the outside of
the range can become very hot to the touch. Do not leave small
children unattended near the appliance.
The health of some birds is extremely sensitive
to the fumes given off during the self-clean cycle of any range.
Move birds to another well ventilated room.
Do not line the oven walls, racks, bottom or any
other part of the appliance with aluminum foil. Doing so will
destroy heat distribution, produce poor baking results and cause
permanent damage to the interior (aluminum foil will melt to the
interior surface of the oven).
Do not force the oven door open. This can damage the
automatic door locking system. Use caution when opening the
door after the self-cleaning cycle is completed. The oven may
still be very hot.
Note: See additional cleaning information for the oven door in
General Care & Cleaning on page 23.

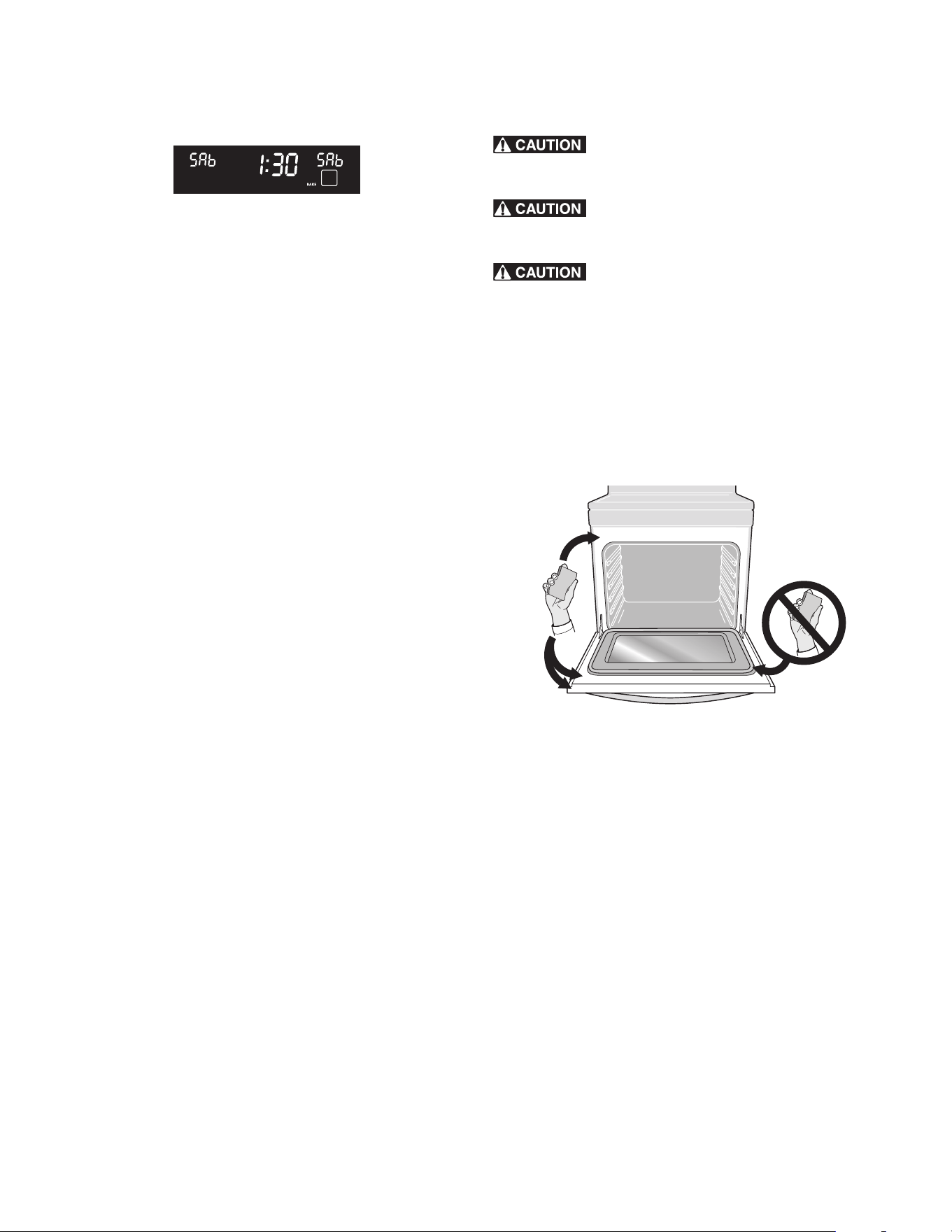

Figure 9: Care in cleaning oven by hand
21
Oven Controls
Self-Cleaning Oven
A self-cleaning oven cleans itself with high temperatures (well
above cooking temperatures) which eliminate soils completely
or reduces them to a fine powdered ash you can wipe away
with a damp cloth.
Adhere to the following cleaning precautions
• Allow the oven to cool before cleaning.
• Wear rubber gloves when cleaning any exterior parts of the
oven manually.
• Do not use oven cleaners or oven protective coatings in or
around any part of the oven interior.
• Do not clean the oven door gasket. The woven material of
the oven door gasket is essential for a good seal. Care
should be taken not to rub, damage or remove the gasket.
• Do not use any cleaning materials on the oven door gasket.
Doing so could cause damage.
• Remove all utensils and any aluminum foil. These items
cannot withstand high cleaning temperatures.
• Porcelain Coated Racks: Some ovens come with lubricated
porcelain oven racks, which can remain in the oven during
the self-clean cycle. Do not clean this vegetable oil lubrica-
tion off the racks. It is important that the sides of the oven
racks always have a light coating of vegetable oil. To
maintain optimal rack performance, re-apply a thin layer of
vegetable oil to the sides of the rack after every self-clean
cycle or when the rack becomes difficult to slide.
• Chrome Oven Racks: Some models come with chrome oven
racks, which have to be removed from the oven during the
self-clean cycle or else their finish will turn dull and their
color slightly blue. If left in, after the cycle is complete and
the oven has cooled, rub the sides of the oven racks with
wax paper or a cloth containing a small amount of salad oil
(this will make the racks glide easier into the rack position).
Clean chrome oven racks by using a mild cleaner following
manufacturer’s instructions. Rinse with clean water and dry.
• Before starting the self-cleaning cycle, hand clean any soil
from the oven frame, the door liner outside the oven door
gasket, and the small area at the front center of the oven.
These surfaces are not in the self-cleaning area. Clean with
soap and water. Burned-on residue can be cleaned off with
a stiff nylon brush and water or nylon scrubber.
• Remove any excess soil and debris from oven bottom
before starting self-clean. Large spillovers can cause heavy
smoke or fire when subjected to high temperatures.
• Do not allow foods with a high sugar or acid content (milk,
tomatoes, sauerkraut, fruit juices, pie fillings, etc.) to remain
on surfaces. They may leave a dull spot even after cleaning.
• Do not hand clean the oven door gasket or it will be perma-
nently damaged.
To Start the Self-Clean Cycle
The
Self-Clean key controls the self Clean feature. If you are
planning to use the oven directly after a self-clean cycle
remember to allow time for the oven to cool down and the oven
door to unlock. This normally takes about one hour. So a 3 hour
self-clean cycle will actually take about 4 hours to complete.
*It
is recommend to use a 2 hour self-clean cycle for
light soils, a 3
hour cycle for
average soils.
To avoid possible burns use care when opening
the oven door after the self-cleaning cycle. Stand to the side of
the oven when opening the door to allow hot air or steam to
escape.
Do not force the oven door open. This can damage the
automatic door locking system. Use caution and avoid possible
burns when opening the door after the self-cleaning cycle has
completed. The oven may still be very hot.
To start an immediate Self-Clean cycle or to set a Delay Start
time of 4:30 and shut-off automatically (example is a default 3
hour Self-Clean Cycle)
1. Be sure clock is set for correct time of day and door is
closed.
2. Press Self -Clean. CLEAN will flash and 3:00 HR will show in
the display. The oven will automatically clean for a 3 hour
period (default clean cycle). Note: if a 2 or 4 hour clean
time is desired, press
2 0 0 for 2 hour or 4 0 0 for a 4 hour
clean time.
3. Press . The DOOR LOCKED icon will flash; CLEAN
icon and the letters CLn will remain in the display.
4. As soon as the control is set, the motor driven oven door
lock will begin to close automatically. Once the door has
been locked the DOOR LOCKED indicator light will stop
flashing and remain on. Also, the oven icon will appear in
the display.
Note: Allow 15 seconds for the oven door to lock.
22
Oven Controls
If a delay Self-Clean feature is desired, finish step 6-9.
5. Press Self-Clean. Dashes will appear in the display.
6. Enter the start time numbers 4 3 0 and press . CLEAN,
DELAY, LOCK, and DOOR will be displayed.
7. The control will start the self-cleaning at the set start time,
for the period of time previously selected. At that time, the
icon
DELAY will go out.
When the self-clean cycle is completed:
8. HOT will appear in the display. The time of day, the DOOR
LOCKED and CLEAN icon will remain in the display.
9. Once the oven has cooled down for approximately 1 HOUR,
and the DOOR LOCKED icon is no longer displayed, the
oven door can then be opened.
Stopping or Interrupting a Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a self-cleaning cycle
due to excessive smoke or fire in the oven:
1. Press .
2. The oven door can only be opened after the oven has
cooled down for approximately 1 HOUR and the DOOR
LOCKED icon is no longer displayed.
Note: If your clock is set for normal 12 hour display mode the
Delayed Self-Clean cycle can never be set to start more than 12
hours in advance. To set for Delayed Self-Clean Cycle 12-24
hours in advance set the control for the 24 hour time of day
display mode.
23
Care and Cleaning
Cleaning Various Parts of Your Oven
Before cleaning any part of the oven, be sure all controls are turned off and the oven is cool. Remove spills and any heavy soiling as
soon as possible. Regular cleaning will reduce the difficulty of major cleaning later.
Surface Type Recommendation
Aluminum and Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted body parts
Painted decorative trims
Use a soft cloth and clean with mild dish detergent and water or a 50/50 solution of vinegar
and water. Follow by rinsing the area with clean water; dry and polish with a soft cloth. Glass
cleaners may be used if sprayed on a soft cloth first. Do not spray liquids directly on the oven
control and display area. Do not use large amounts of water on the control panel. Excess
water on the control area may cause damage to the appliance. Do not use other liquid
cleaners, abrasive cleaners, scouring pads, or paper towels. They will damage the finish.
Control panel
Control keypad membrane
Decorative trim (some models)
Before cleaning the control panel, turn all controls off and activate oven lockout (on some
models). Do not use abrasive cleaners on any of these materials; they can scratch. Clean
using hot, soapy water and a cloth or sponge. Be sure to squeeze excess water from cloth or
sponge before wiping control panel, especially when wiping around the controls area. Excess
water in or around the controls may cause damage to the appliance.
Stainless Steel (some models) Always rub in direction of metal grain to avoid damaging. Do not use cleaners with high
concentrations of chlorides or chlorine. Do not use harsh scrubbing cleaners. Polish with a lint-
free cloth. Always be sure to wipe excess cleaner/polish off from the metal surface as bluish
stains may occur during future oven heating that cannot be removed. Clean heavier soils with
hot, soapy water and a cloth or sponge. Rinse and dry using clean water and a cloth.
Black Stainless Steel (some models) Clean stainless steel with warm soapy water using a clean sponge or cloth. Rinse with clean
water and dry with a soft, clean cloth. Do not use any store bought cleaners like stainless steel
cleaners or any other types of cleaners containing abrasives, chlorides, chlorine, or ammonia.
It is recommended to use mild dish soap and water or a 50/50 solution of water and vinegar.
Porcelain enamel broiler pan and
insert (available by mail order)
Door liner and body parts
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of
clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper
towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a
soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the
porcelain may become damaged during future heating.
Porcelain coated oven racks This model comes with lubricated porcelain oven racks, which can remain in the oven during
the self-clean cycle. Do not clean this vegetable oil lubrication off the racks. It is important
that the sides of the oven racks always have a light coating of vegetable oil. To maintain
optimal rack performance, re-apply a thin layer of vegetable oil to the sides of the rack after
every self-clean cycle or when the rack becomes difficult to slide.
Oven door Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse well.
You may use a glass cleaner on the outside glass of the door. Do not immerse the door in
water. Do not spray or allow water or the glass cleaner to enter the door vents. Do not use
oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of
the oven door.
Do not clean the oven door gasket. On self-clean models, the oven door gasket is made of a
woven material which is essential for a good seal. Care should be taken not to rub, damage,
or remove this gasket.
24
Care and Cleaning
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage,
lay the door flat with the inside of the door facing down.
To remove the oven door:
1. Open oven door completely, horizontal with floor (See
Figure 10).
2. Pull the door hinge locks on both left and right door hinges
down from the oven frame completely toward the oven
door (See Figure 11). A tool such as a small flat-blade
screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides.
Do not use the oven door handle (See Figure 12).
4. Close the door to about 10 degrees from the door frame
(Figure 12
5. Lift the oven door hinge arms over the roller pins located on
each side of the oven frame (See Figure 12).
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door sides.
Do not use the oven door handle (See Figure 12).
2. Holding the oven door at the same angle as the removal
position (See Figure 12), seat the hook of the hinge arm over
the roller pins located on each side of the oven door frame
(See
Figure 13). The hook of the hinge arms must be fully
seated onto the roller pins.
3. Fully open the oven door, horizontal with floor (See
Figure 10).
4. Push the door hinge locks up toward and into the oven
frame on both left and right oven door hinges to the locked
position (Figure 11).
5. Close the oven door.
Important:
Special Door Care Instructions - Most oven doors contain glass
that can break. Do not close the oven door until all the oven
racks are fully in place. Do not hit the glass with pots, pans, or
any other object. Scratching, hitting, jarring, or stressing the
glass may weaken its structure causing an increased risk of
breakage at a later time.

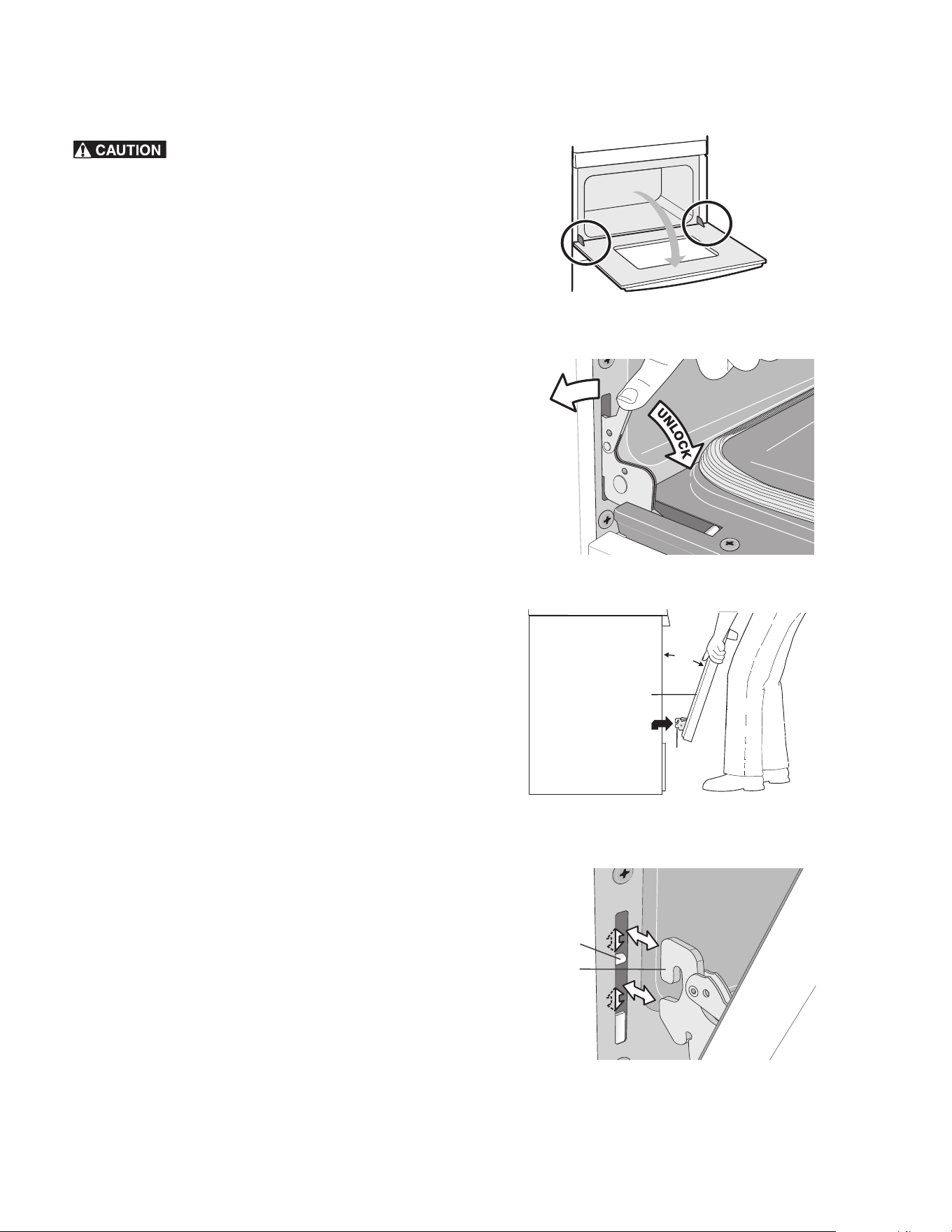

Figure 10: Door hinge location
Figure 11: Door hinge locks
Figure 12: Holding door for removal
Figure 13: Location of hinge arm and roller pin
Oven door
hinge
locations
L
O
C
K
about
10°
hinge
oven
door
roller
pin
hinge
arm
25
Care and Cleaning
Replacing the oven light
Be sure the oven is unplugged and all parts are
cool before replacing oven light.
The interior oven lights are located at the rear of the oven cavity
and are covered with a glass shield. The glass shield must be in
place whenever the oven is in use (See
Figure 14).
To replace the oven interior light bulb:
Important note:
Do not allow your fingers to touch the new bulb when replacing.
This will shorten the life of the bulb. Use a paper towel or cotton
glove while handling the new bulb when installing.
1. Turn electrical power off at the main source or unplug the
appliance.
2. Remove interior oven light shield by turning a quarter turn
counter-clockwise.
3. Replace bulb with a new T-4 type Halogen 25 watt
appliance bulb.
4. Replace glass oven light shield by rotating clockwise.
5. Turn power back on again at the main source (or plug the
appliance back in).
6. Be sure to reset the time of day on the clock.

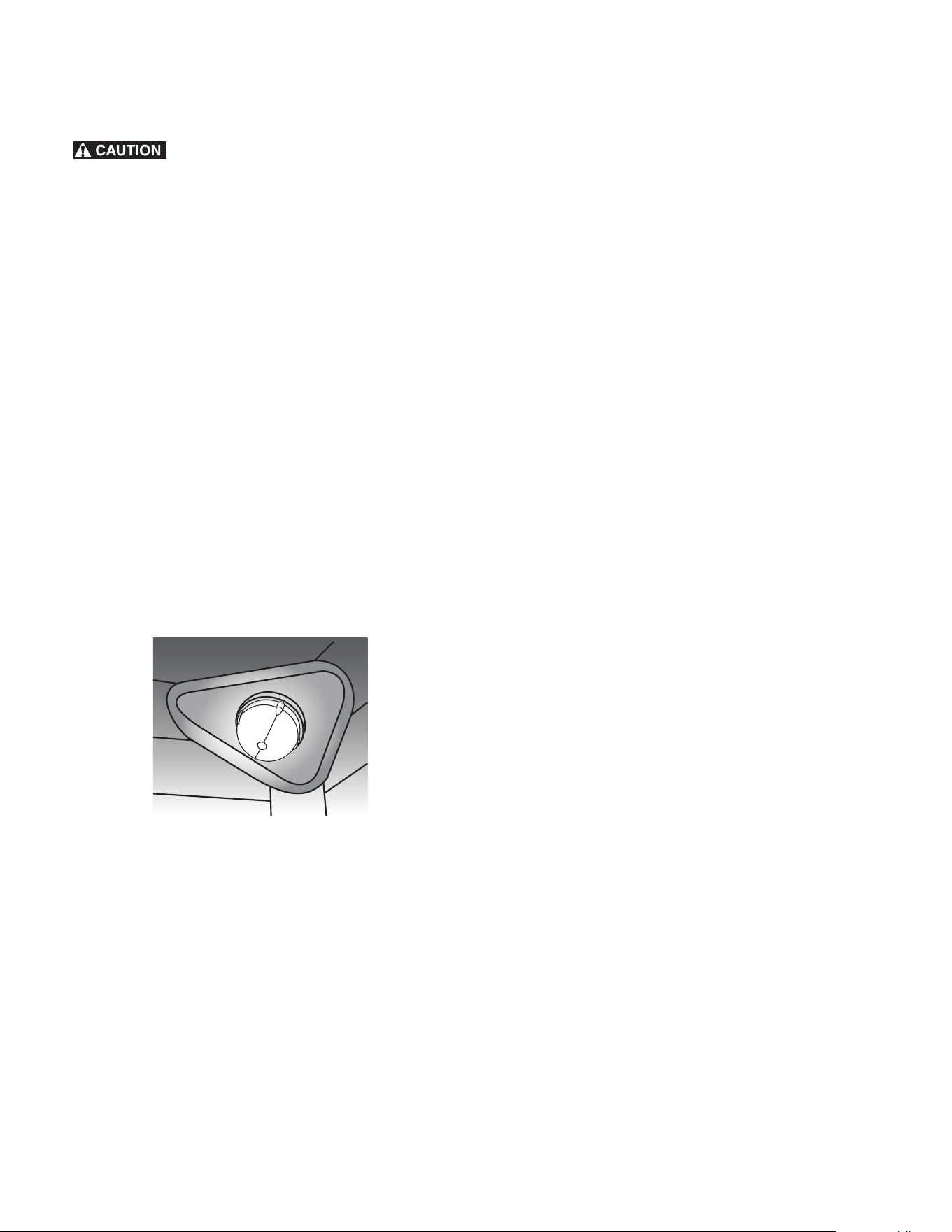

Figure 14: Wall oven Halogen light
26
Before You Call
Oven Baking
For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the
oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

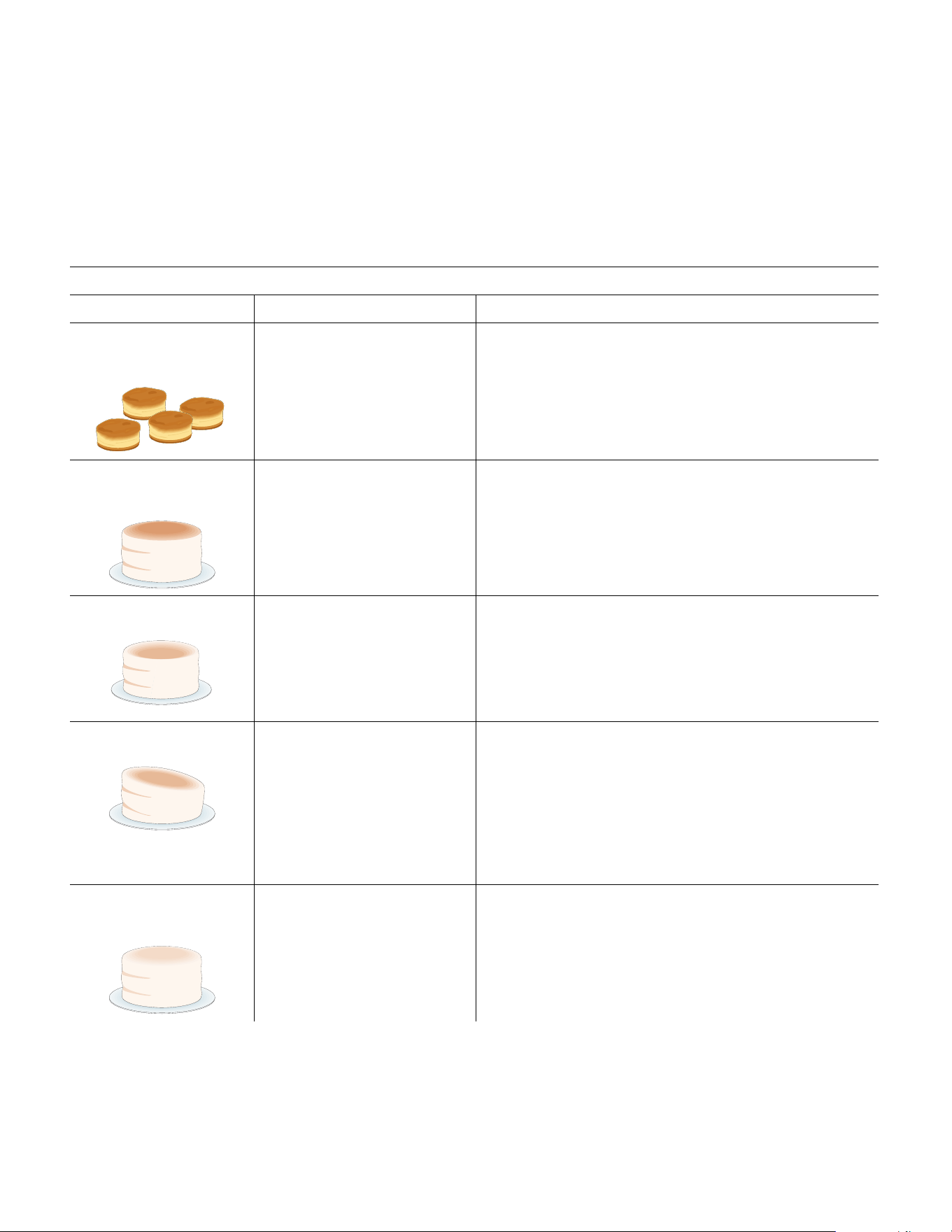

Baking Problems and Solutions
Baking Problems Causes Corrections
Cookies and biscuits burn
on the bottom.
• Cookies and biscuits put into
oven before the preheating
time is completed.
• Oven rack is overcrowded.
• Dark pans absorbs heat too
fast.
• Allow oven to preheat to desired temperature before
placing food in oven.
• Choose pan sizes that will permit 2” to 4” of air space (5.1
cm to 10.2 cm) on all sides when placed in the oven.
• Use a medium weight baking sheet.
Cakes too dark on top or
bottom
• Cakes put in oven before
preheating time is completed.
• Rack position too high or too
low.
• Oven too hot.
• Allow oven to preheat to the selected temperature before
placing food in the oven.
• Use proper rack position for baking needs.
• Set oven temperature 25°F/12°C lower than recommended.
Cakes not done in center
• Oven too hot.
• Incorrect pan size.
• Pan not centered in oven.
• Set oven temperature 25°F/12°C lower than recommended.
• Use pan size suggested in recipe.
• Use proper rack position and place pan so there is 5.1 cm to
10.2 cm (2” to 4”) of space on all sides of pan.
Cakes not level.
• Oven not level.
• Pan too close to oven wall or
rack overcrowded.
• Pan warped.
• Oven light left on during
baking.
• Place a marked glass measuring cup filled with water on
the center of the oven rack. If the water level is uneven,
refer to the installation instructions for leveling the oven.
• Be sure to allow 5.1 cm to 10.2 cm (2” to 4”) of clearance
on all sides of each pan in the oven.
• Do not use pans that are dented or warped.
• Do not leave oven light on while baking.
Foods not done when
cooking time is over.
• Oven too cool.
• Oven overcrowded.
• Oven door opened too
frequently.
• Set oven temperature 25°F/12°C higher than suggested
and bake for the recommended time.
• Be sure to remove all pans from the oven except the ones to
be used for baking.
• Open oven door only after shortest recommended baking
time.
27
Before You Call
Solutions to Common Problems
Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the
problem listed:
Problem Solution
Poor baking results Many factors effect baking results. Use proper oven rack position. Center food in the oven
and space pans to allow air to circulate. Preheat oven to the set temperature before placing
food in the oven. Try adjusting the recipe's recommended temperature or baking time. See
“Adjusting Oven Temperature” on page 19 if you feel the oven is too hot or cold.
Oven does not operate. The time of day is not set. The oven clock must first be set in order to operate the oven.
Be sure oven controls are set properly. See
“Setting the Clock” on page 10 and review
instructions for the desired cooking function in this manual.
Service wiring is not complete.
Oven light does not work. Be sure the oven light is secure in the socket. See
“Replacing the oven light” on page 25.
Flames inside oven or smoking from
oven vent.
Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe up
excessive spills before starting oven. If flames or excessive smoke are present when using
broil, see
“Setting Bake” on page 14.
Self clean does not work. Oven control not set properly. Review “Self-Cleaning Operation” on page 20.
Oven racks do not slide easily. This model comes with lubricated porcelain oven racks, which can remain in the oven during
the self-clean cycle. Do not clean the vegetable oil lubrication off the racks. It is important
that the sides of the oven racks always have a light coating of vegetable oil. To maintain
optimal rack performance, re-apply a thin layer of vegetable oil to the sides of the rack
after every self-clean cycle or when the rack becomes difficult to slide.
Oven smokes excessively when
broiling.
Incorrect setting. Follow broiling instructions in
“Setting Bake” on page 14.
Meat too close to the broil element. Reposition broil rack to provide proper clearance
between the meat and broil element. Remove excess fat from meat. Cut remaining fatty
edges to prevent curling.
Grease build up on oven surfaces. Regular cleaning is necessary when broiling frequently.
Grease or food splatters will cause excessive smoking.
Oven control panel beeps and
displays any F or E code error.
Oven control has detected a fault or error condition. Press STOP to clear the error code. Try
bake or broil function. If the F or E code error repeats, turn off power to appliance, wait 5
minutes and then repower appliance. Set clock with correct time of day. Try bake or broil
function again. If fault recurs, press STOP to clear.
Soil not completely removed after
self clean.
Self Clean was interrupted. Review instructions in
“Self-Cleaning Oven” section on page 21.
Excessive spills on oven bottom. Clean before starting self clean.
Failure to clean soil from the oven frame, the door liner outside the oven door gasket, and
the small area at the front center of the oven bottom. These areas are not in the self-
cleaning area, but they get hot enough to burn on residue. Clean these areas before starting
the self-cleaning cycle. Burned-on residue can be cleaned with a stiff nylon brush and water
or a nylon scrubber. Be careful not to damage the oven gasket.
28
Before You Call
Appliance is not level. Poor installation. Place oven rack in center of oven. Place a level on the oven rack.
Kitchen cabinet alignment may make oven appear not level. Be sure cabinets are square
and have sufficient room for appliance clearance.
Cabinets not square or are built in too tightly. Contact builder or installer to make appliance
accessible.
Fan noise occurring after the oven is
turned off.
Some models are equipped with a cooling fan that cools internal components and controls
humidity. It is normal for this fan to continue to run for an extended period of time, even
when the oven is turned off. The fan will run until the appliance is cooled sufficiently.
Solutions to Common Problems
Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the
problem listed:
Problem Solution
Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore
Elite® product is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That’s when
having a Master Protection Agreement can save you money and
aggravation.
The Master Protection Agreement also helps extend the life of
your new product. Here’s what the Agreement* includes:
Parts and labor not just for repairing defects, but to help keep
products operating properly under normal use. Our coverage
goes well beyond the product warranty. No deductibles, no
functional failure excluded from coverage— real protection.
Expert service by experienced service technicians trusted in
millions of homes every year.
Unlimited service calls and nationwide service, as often as
you want us, whenever you want us.
“No-lemon” guarantee – replacement of your covered
product after three separate product failures occur within
twelve months and a fourth repair is required. Includes free
delivery and instal-lation, if necessary, of replacement
product.
Product replacement if your covered product can’t be fixed.
Annual Preventive Maintenance Check at your request – no
extra charge.
Fast help by phone – phone support from a service agent on
all products to help troubleshoot problems. Think of us as a
“talking owner’s manual.”
Power surge protection against electrical damage due to
power fluctuations.
$300 Food Loss Protection for any food spoilage that is the
result of mechanical failure of any covered refrigerator or
freezer.
Service Promise: $50 if first attempt repair of your covered
product can’t be accomplished and product is not usable
while awaiting further repair service.
25% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that
it takes for you to schedule service. You can call anytime day or
night.
The Master Protection Agreement is a risk free purchase. If you
cancel for any reason during the product warranty period, we
will provide a full refund. Or, a prorated refund anytime after the
product warranty period expires. Purchase your Master Protection
Agreement today!
Some limitations and exclusions apply. For prices and additional
information call 1-800-827-6655.
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, call
1-844-553-6667.
Acuerdos principales de protección
Enhorabuena por hacer una compra inteligente. Su nuevo producto
Kenmore Elite® está diseñado y fabricado para disfrutar de años de
funcionamiento confiable. Pero como todos los productos, puede requerir
de mantenimiento preventivo o reparación de vez en cuando. Por ello,
disponer de un Acuerdo de protección principal puede ahorrarle dinero
y molestias.
El Acuerdo de protección principal también ayuda a prolongar la vida
útil de su nuevo producto. Esto es lo que incluye el Acuerdo*:
No sólo las piezas y la mano de obra para la reparación de
defectos, sino también para ayudar a mantener los productos
funcionando correctamente en condiciones normales de uso. Nuestra
cobertura va mucho más allá de la garantía del producto. Sin
deducibles y sin insuficiencia funcional excluida de la cobertura.
Protección real.
Mantenimiento realizado por técnicos expertos con la confianza de
millones de hogares cada año.
Servicio de llamadas ilimitado y servicio a nivel nacional, tan a
menudo como desee y siempre que quiera.
Garantía sin sorpresas: sustitución del producto después de tres fallos
independientes dentro de un plazo de doce meses y cuando se
requiera una cuarta reparación. Incluye entrega gratuita y, si es
necesario, la instalación del producto de reemplazo.
Sustitución del producto si el producto cubierto no puede arreglarse.
Mantenimiento preventivo anual a petición: sin cargo extra.
Ayuda rápida por teléfono: asistencia telefónica de un técnico para
ayudarle a resolver los problemas con todos los productos. Piense en
nosotros como un manual del propietario "hablado".
Protección contra los daños eléctricos por sobretensión debido a las
fluctuaciones del suministro.
Protección contra la pérdida de alimentos de 300 $ por cualquier
deterioro de los alimentos como resultado de una avería mecánica
de cualquier refrigerador o congelador cubierto por la garantía.
Promesa de servicio: 50 $ si el primer intento de reparación de su
producto cubierto por la garantía no tiene éxito y el producto no
puede utilizarse mientras espera al servicio de reparación.
25% de descuento sobre el precio habitual de cualquier servicio de
reparación no cubierto y en las piezas instaladas.
Una vez adquirido el Acuerdo, una simple llamada telefónica es todo lo
que necesita para programar el servicio. Puede llamar a cualquier hora
del día o de la noche.
El Acuerdo de protección principal es una compra libre de riesgo. Si lo
cancela por cualquier motivo durante el período de garantía del
producto, le proporcionaremos un reembolso completo. O bien, un
reembolso prorrateado en cualquier momento después de la expiración
del período de garantía del producto. Compre hoy su Acuerdo de
protección principal.
Se aplican algunas limitaciones y exclusiones. Para consultar los
precios e información adicional llame al 1-800-827-6655.
Servicio de instalación de Sears
Para ponerse en contacto con el servicio profesional de Sears para la
Instalación de electrodomésticos, abridores de puertas de garaje,
calentadores de agua y otros importantes objetos para el hogar, llame
al 1-844-553-6667.
