Kenmore 79097993410 Elite electric range User Manual

Kenmore Elite®

Electric Range

* = color number, número de color

Use & Care Guide

Manual de Uso y Cuidado

English/ Español

Model: 790.9799

P/N 808576401 Rev A

Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com

www.sears.com

Table of Contents

Kenmore Elite Limited Warranty ............................................................ 2

Before Setting Surface Controls.................................................................. 9

Setting Surface Controls............................................................................. 11

Before Setting Oven Controls ................................................................... 14

Oven Controls ............................................................................................. 15

Warm & Hold™ ......................................................................................26

Adjusting Oven Temperatures ...............................................................28

Care and Cleaning ..................................................................................... 31

General Cleaning ....................................................................................32

Before You Call ........................................................................................... 36

Oven Baking .............................................................................................36

Solutions to Common Problems ..............................................................37

Kenmore Elite Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a

defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free

repair.

For five years from the date of purchase, if the cooktop glass fails due to thermal shock or the cooktop elements are defective, call

1-800-4-MY-HOME® to arrange for free repair. After the first year from purchase date, you must pay the labor cost of part

installation.

This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family

purposes.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.

2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all instructions

supplied with the product.

3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

4. A service technician to instruct the user in correct product installation, operation or maintenance.

5. A service technician to clean or maintain this product.

6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the

product.

7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recom-

mended in all instructions supplied with the product.

9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties,

including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed

by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or

limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness,

so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Save these instructions for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

This manual contains important safety

symbols and instructions. Please pay

attention to these symbols and follow all

instructions given.

Do not attempt to install or operate your

appliance until you have read the safety

precautions in this manual. Safety items

throughout this manual are labeled with a

WARNING or CAUTION statement based on

the risk type.

Warnings and important instructions

appearing in this guide are not meant to

cover all possible conditions and situations

that may occur. Common sense, caution, and

care must be exercised with installing, main-

taining, or operating your appliance.

DEFINITIONS

This is the safety alert symbol. It is used to

alert you to potential personal injury

hazards. Obey all safety message that

follow this symbol to avoid possible injury or

death.

IMPORTANT – Indicates installation, opera-

tion, maintenance, or valuable information

that is not hazard related.

NOTE – Indicates a short, informal reference

– something written down to assist the

memory or for future reference.

- Indicates a potentially

hazardous situation which, if not avoided,

may result in death or serious injury

- Indicates a potentially

hazardous situation which, if not avoided,

may result in minor or moderate injury.

Tip Over Hazard

To check if the anti-tip bracket is installed

properly, use both arms and grasp the rear

edge of the range back. Carefully attempt

to tilt range forward. When properly

installed, the range should not tilt forward.

Refer to the anti-tip bracket installation

instructions supplied with your range for

proper installation.

Range

leveling leg

Anti-tip

bracket

• A child or adult can tip the

range and be killed.

• Verify the anti-tip device

has been installed to ﬂoor or

wall.

• Ensure the anti-tip device is re-engaged to

ﬂoor or wall when the range is moved.

• Do not operate the range without the

anti-tip device in place and engaged.

• Failure to follow these instructions can

result in death or serious burns to children

and adults.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

IMPORTANT INSTRUCTIONS FOR UNPACKING

AND INSTALLATION

IMPORTANT - Read and follow the below

instructions and precautions for unpacking,

installing, and servicing your appliance:

• Remove all tape and packaging before

using the appliance. Destroy the carton

and plastic bags after unpacking the

appliance. Never allow children to play

with packaging material. Do not remove

the wiring label and other literature

attached to the appliance. Do not remove

model/serial number plate.

• Cold temperatures can damage the elec-

tronic control. When using this appliance

for the first time, or when the appliance

has not been used for an extended

period of time, be sure the appliance has

been in temperatures above 32ºF (0ºC)

for at least 3 hours before turning on the

power to the appliance.

• Never modify or alter the construction of

the appliance by removing the leveling

legs, panels, wire covers, anti-tip

brackets/screws, or any other part of the

appliance.

• Be sure to have an appropriate foam-

type fire extinguisher available, visible,

and easily accessible located near the

appliance.

GROUNDING INSTRUCTIONS

Avoid fire hazard or electrical

shock. Failure to follow this warning may

cause serious injury, fire, or death.

Avoid fire hazard or electrical

shock. Do not use an adapter plug, use an

extension cord, or remove grounding prong

from the power cord. Failure to follow this

warning may cause serious injury, fire, or

death.

Proper Installation—Be sure your appliance

is properly installed and grounded by a

qualified technician. In the United States,

install in accordance with the National Fuel

Gas Code ANSI Z223.1/NPFA No. 54, latest

edition and National Electrical Code NFPA

No. 70 latest edition, and local electrical

code requirements. In Canada, install in

accordance with CAN/CGA B149.1 and

CAN/CGA B149.2 and CSA Standard

C22.1, Canadian Electrical code, Part 1-

latest editions and local electrical code

requirements. Install only per installation

instructions provided in the literature

package for this appliance.

For personal safety, this appliance must be

properly grounded. For maximum safety, the

power cord must be securely connected to an

electrical outlet or junction box that is the

correct voltage, is correctly polarized and

properly grounded, and protected by a

circuit breaker in accordance with local

codes.

It is the personal responsibility of the

consumer to have the appropriate outlet or

junction box with the correct, properly

grounded wall receptacle installed by a

qualified electrician. It is the responsibility

and obligation of the consumer to contact a

qualified installer to assure that the electrical

installation is adequate and is in confor-

mance with all local codes and ordinances.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

See the installation instructions packaged

with this appliance for complete installation

and grounding instructions.

IMPORTANT INSTRUCTIONS FOR USING

YOUR APPLIANCE

Storage In or On Appliance—

Flammable materials should not be stored in

an oven, near surface elements, or in the

warmer drawer (if equipped). This includes

paper, plastic, and cloth items, such as cook-

books, plastic ware, and towels, as well as

flammable liquids. Do not store explosives,

such as aerosol cans, on or near the range.

Do Not Leave Children Alone -

Children should not be left alone or unat-

tended in the area where appliance is in use.

They should never be allowed to sit or stand

on any part of the appliance, including the

storage drawer, lower broiler drawer,

warmer drawer, or lower double oven.

Do not store items of interest to

children in the cabinets above a range.

Children climbing on the range to reach items

could be seriously injured.

Do not allow children to climb or

play around the oven. The weight of a child

on an open over door may cause the oven to

tip, resulting in serious burns or other injury.

An open drawer when hot may cause burns.

Stepping, leaning, or sitting on

the door or drawers of this appliance can

result in serious injuries and also cause

damage to the appliance.

Never cover any slots, holes, or

passages in the oven bottom or cover an

entire oven rack with materials, such as

aluminum foil. Aluminum foil linings may trap

heat, causing a fire hazard.

Do not use oven warmer drawer

(if equipped) for storage.

Never use your appliance as a

space heater to heat or warm the room.

Doing so may result in carbon monoxide

poisoning and overheating of the appliance.

When heating fat or grease,

watch it closely. Grease may catch fire if it

becomes too hot.

Do not use water or flour on

grease fires. Smother fire or flame or use

dry chemical or foam-type extinguisher.

Cover the fire with a pan lid or use baking

soda.

Use dry potholders.

Moist or

damp potholders on hot surfaces may result

in burns from steam. Do not let potholders

touch hot cooking areas. Do not use towels or

other bulky cloths

Do not heat unopened food

containers - Build-up of pressure may cause

container to burst and result in injury.

Wear proper apparel when

cooking. Loose-fitting or hanging garments

should never be worn while using this appli-

ance. Do not let clothing or other flammable

materials come into contact with hot surfaces

Do not touch surface heating units

or surface cooking elements, areas near

these units or elements, interior surface of the

oven, or the warmer drawer (if equipped).

Surface heating areas and oven heating

elements may be hot even though they

appear cool. Areas near surface cooking

units may become hot enough to cause burns.

During and after use, do not touch, or let

clothing or other flammable materials touch

these areas until they are cool. These areas

may include the cooktop, surfaces facing the

cooktop, oven vent areas, oven door, and

oven window.

240V grounded

wall receptacle

Power supply

cord with 4-prong

grounding plug

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

Do not attempt to operate the

appliance during a power failure. If the

power fails, always turn off the appliance. If

the appliance is not turned off and the

power resumes, electric surface elements

may resume operation when power is

restored. Once the power resumes, reset the

clock and the oven function.

IMPORTANT INSTRUCTIONS FOR USING

YOUR RADIANT COOKTOP

• Know which knob or key controls each

surface heating area. Place cookware

with food on the cooking area before

turning it on. Turn the cooking area off

before removing the cookware.

• Cookware handles should be turned

inward and not extend over adjacent

surface elements — To reduce the risk of

burns, ignition of flammable materials,

and spillage due to unintentional contact

with the utensil, the handle of the

cookware should be positioned so that it

is turned inward, and does not extend

over other cooking areas.

• Use proper pan size - This appliance is

equipped with one or more surface units

of different sizes. Select cookware with

flat bottoms that match the surface unit

size. Using the proper cookware on the

cooking area will improve efficiency.

• Glazed cooking utensils— Only certain

types of glass, glass/ceramic, ceramic,

earthenware, or other glazed utensils are

suitable for cooktop service without

breaking due to the sudden change in

temperature. Check the manufacturer’s

recommendations for cooktop use.

• Improper cookware may break due to

sudden changes in temperature. Check

the cookware manufacturer’s recommen-

dations for cooktop use.

• Never leave surface elements unat-

tended. Boil-overs may cause smoking

and greasy spills may ignite. A pan that

has boiled dry could be damaged and

may damage the cooktop.

• Do not use a searing grill meant for use

with a broiler pan on the cooktop. The

searing grill is not designed for use on the

cooktop. Doing so may result in a fire.

• When you are flaming foods under a

ventilating hood, turn on the fan.

IMPORTANT INSTRUCTIONS FOR GLASS

AND CERAMIC COOKTOPS ONLY

• Do Not Clean or Operate a Broken

Cooktop. If cooktop should break,

cleaning solutions and spillovers may

penetrate the broken cooktop and create

a risk of electric shock. Contact a

qualified technician immediately.

• Clean cooktop glass with caution. If a wet

sponge or cloth is used to wipe spills on a

hot cooking area, be careful to avoid a

steam burn. Some cleaners can produce

harmful fumes if applied to a hot surface.

• Avoid scratching the cooktop glass with

sharp objects.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

IMPORTANT INSTRUCTIONS FOR USING

YOUR OVEN

• Protective Liners - Do not use aluminum

foil, aftermarket oven liners, or any other

materials or devices to line oven bottom,

oven racks, or any other part of the

appliance. Only use aluminum as recom-

mended for baking, such as lining

cookware or as a cover placed on food.

Any other use of protective liners or

aluminum foil may result in a risk of

electric shock or fire or a short circuit.

• Use care when opening oven door, lower

oven door, or warmer drawer (some

models). Stand to the side of the

appliance when opening the door of a

hot oven. Let hot air or steam escape

before you remove or replace food in the

oven.

• Keep oven vent ducts unobstructed.

Touching surfaces in this area when the

oven is on may cause severe burns. Do not

place plastic or heat-sensitive items on or

near the oven vent. These items can melt

or ignite.

• Placement of oven racks - Always place

oven racks in desired location while oven

is cool. If rack must be moved while oven

in hot, do not let potholder contact hot

heating element in oven. Use potholders

and grasp the rack with both hands to

reposition. Remove all cookware and

utensils before moving the rack.

• Do not use a broiler pan without its insert.

Broiler pans and inserts allow dripping

fat to drain away from the high heat of

the broiler. Do not cover the broiler insert

with aluminum foil; exposed fat and

grease could ignite.

• Do not cook food on the oven bottom.

Always cook in proper cookware and

always use the oven racks.

IMPORTANT INSTRUCTIONS FOR

CLEANING YOUR OVEN

Before manually cleaning any

part of the appliance, be sure all controls

are turned off and the appliance is cool.

Cleaning a hot appliance can cause burns.

• Clean the appliance regularly to keep all

parts free of grease that could catch fire.

Do not allow grease to accumulate.

Greasy deposits in the fan could catch

fire.

• Always follow the manufacturer’s recom-

mended directions for use of kitchen

cleaners and aerosols. Be aware that

excess residue from cleaners and aerosols

may ignite causing damage and injury.

• Clean ventilating hoods frequently.

Grease should not be allowed to accumu-

late on the hood or filter. Follow the

manufacturer’s instructions for cleaning

vent hoods.

IMPORTANT INSTRUCTIONS FOR SELF-

CLEANING OVENS

• Do not clean the oven door gasket. The

door gasket is essential for a good seal.

Care should be taken not to rub, damage,

or move the gasket.

• Do not use oven cleaners. No commercial

oven cleaner or oven liner protective

coating of any kind should be used in or

around any part of the appliance.

• Use the self clean cycle to clean only the

parts listed in this manual.

• Before using self clean, remove the broiler

pan, any food, utensils, and cookware

from the oven, storage drawer or

warming drawer (if equipped). Remove

oven racks unless otherwise instructed.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

• Some birds are extremely sensitive to the

fumes given off during the self clean cycle

of any oven. Move birds to another well-

ventilated room.

IMPORTANT INSTRUCTIONS FOR SERVICE

AND MAINTENANCE

• Do not repair or replace any part of the

appliance unless specifically recom-

mended in the manuals. All other servicing

should be done only by a qualified tech-

nician. This reduces the risk of personal

injury and damage to the appliance.

• Always contact your dealer, distributor,

service agent, or manufacturer about

problems or conditions you do not under-

stand.

• Ask your dealer to recommend a

qualified technician and an authorized

repair service. Know how to disconnect

the power to the appliance at the circuit

breaker or fuse box in case of an emer-

gency.

• Remove the oven door from any unused

oven if it is to be stored or discarded.

• Do not touch a hot oven light bulb with a

damp cloth. Doing so could cause the bulb

to break. Handle halogen lights (if

equipped) with paper towels or soft

gloves. Disconnect the appliance or shut

off the power to the appliance before

removing and replacing the bulb.

• Important Safety Notice - The California

Safe Drinking Water and Toxic Enforce-

ment Act requires the governor of Cali-

fornia to publish a list of substances

known to cause cancer, birth defects, or

other reproductive harms, and requires

businesses to warn customers of potential

exposures to such substances.

Product Registration and Customer

Information

The serial plate is located on top of the

range’s lower front panel, and can be clearly

viewed when door is open

Serial Plate Location

Record the date of purchase, model and

serial number of your product in the corre-

sponding space below.

Model Number:_______________________

Serial Number:_______________________

Date of Purchase: _____________________

Save your sales receipt for future reference.

Figure 1: Open oven door to view the serial plate information.

Before Setting Surface Controls

Using Proper Cookware

The size and type of cookware used will influence the radiant

element power level setting needed for best cooking results.

Be sure to follow the recommendations for using proper

cookware shown on this page.

Cookware Material Types

The cookware material determines how evenly and quickly heat

is transferred from the surface element to the pan bottom.

•Aluminum - Excellent heat conductor. Some types of food

will cause it to darken (Anodized aluminum cookware resists

staining & pitting). If aluminum pans slide across the ceramic

cooktop, they may leave metal marks which will resemble

scratches. Remove these marks immediately.

• Copper - Excellent heat conductor but discolors easily. May

leave metal marks on ceramic glass (see Aluminum).

• Stainless - Slow heat conductor with uneven cooking results.

Is durable, easy to clean and resists staining.

•Cast Iron - A slow heat conductor however will retain heat

very well. Cooks evenly once cooking temperature is

reached. Not recommended for use on ceramic cooktops.

• Porcelain-enamel on metal - Heating characteristics will

vary depending on base material. Porcelain-enamel

coating must be smooth to avoid scratching ceramic

• Glass - Slow heat conductor. Not recommended for ceramic

cooktop surfaces because it may scratch the glass.

Do not allow aluminum foil, empty glass-

porcelain cookware or ANY material that can melt to make

contact with the ceramic cooktop. If these items melt on the

cooktop they may damage the ceramic cooktop. If the

cookware melts it will damage the cooktop! Be sure to follow all

the cookware manufacturer’s suggestions when using any type

of cookware on the ceramic cooktop.

About the ceramic glass cooktop

The ceramic cooktop has radiant surface elements located

below the surface of the glass. The design of the ceramic

cooktop outlines the area of the surface element underneath. Be

sure to match the pan size with the diameter of the element

outline on the cooktop and only flat-bottomed cookware should

be used. The type and size of cookware, the number of surface

elements in use and their settings are all factors that will affect

the amount of heat that will spread to areas beyond the surface

elements. The areas surrounding the elements may become hot

enough to cause burns.

Always lift cookware before moving on the ceramic cooktop.

Any cookware that has rough or dirty bottoms can mark and

scratch the ceramic glass surface. Only flat-bottom cookware

should be used.

Radiant surface elements may appear to

have cooled after they have been turned off.

The glass surface may still be hot and burns may occur if the

glass surface is touched before it has cooled sufficiently.

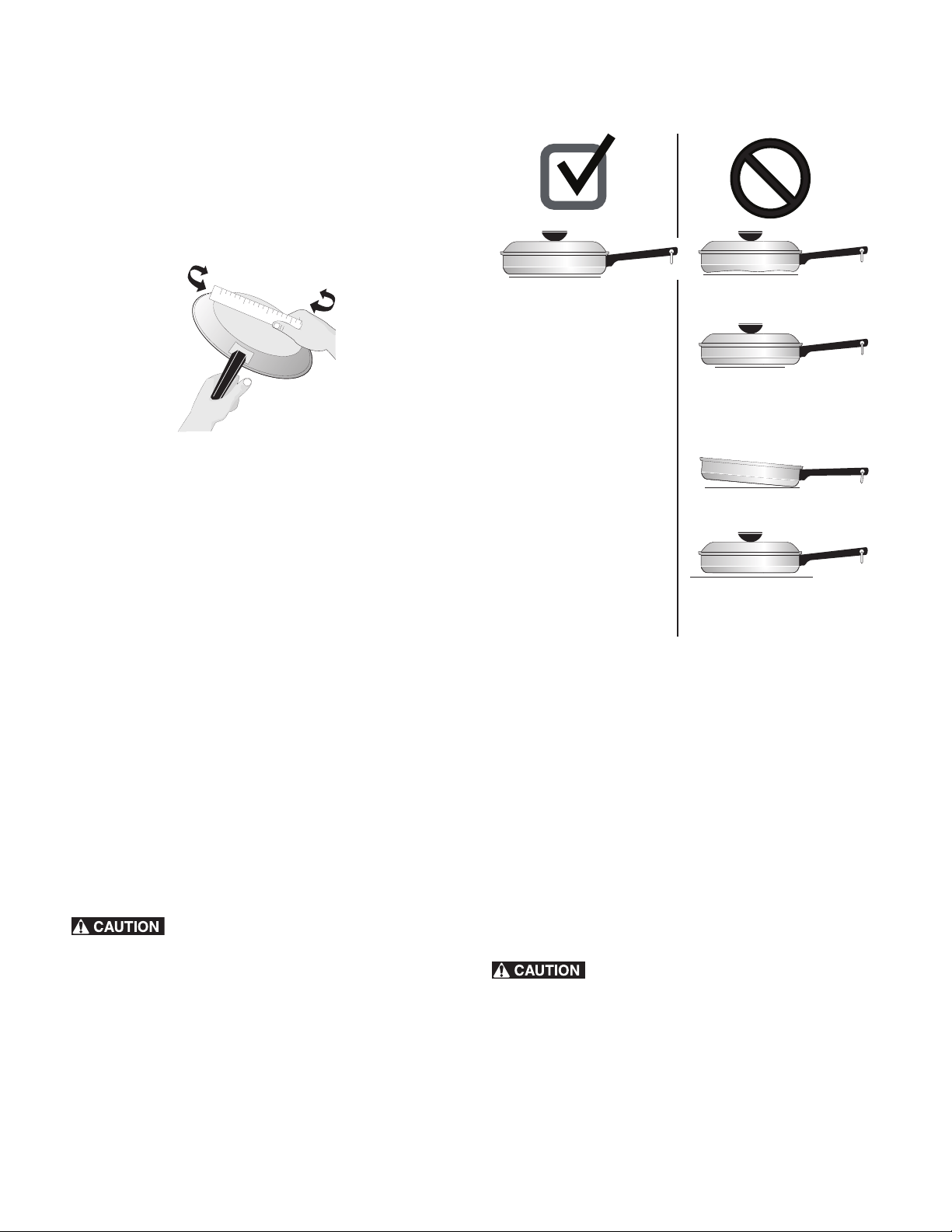

Figure 2: Check pan for flat bottom using ruler

• Flat bottom and straight

sides.

• Tight ﬁtting lids.

• Weight of handle does

not tilt pan. Pan is well

balanced

• Pan sizes match the

amount of food to be

prepared and the size

of the surface element.

• Made of material that

conducts heat well.

• Easy to clean.

• Always match pot

diameter to element

size.

• Curved and warped pans.

• Cookware larger than

cooking area marked on

cooktop by more than

one-half inch or 12mm.

• Heavy handle tilts pan.

• Pan is smaller than the

heating area marked on

cooktop.

Before Setting Surface Controls

About the Radiant Surface Elements

The element temperature rises gradually and evenly. As the

temperature rises, the element will glow red. To maintain the

selected setting, the element will cycle on and off. The heating

element retains enough heat to provide a uniform and consistent

heat during the off cycle. For efficient cooking, turn off the

element several minutes before cooking is complete. This will

allow residual heat to complete the cooking process.

Locations of the Radiant Surface Elements and Controls

Your range is equipped with radiant surface elements with

different wattage ratings. The ability to heat food quicker and

in larger volumes increases as the element wattage increases.

The radiant surface elements are located on the cooktop as

follows: (

Figure 3)

• Two smaller 7 inch radiant elements located at the right

and left rear position and a bridge element.

• An expandable 6 , 9 or 12 inch element located at the

right front position;

• A warmer zone at the center rear od the cooktop.

• A single 6 inch element at the right rear of the cooktop.

Important: When any cooktop element is turned on the Element

On indicator light will glow. When the surface becomes very hot

the Hot Element indicator light will glow and remain on until the

cooktop element has cooled to a safe temperature.

Radiant elements have a limiter that allows the element to cycle

on and off, even at the HI setting. This helps to prevent damage

to the ceramic glass cooktop. Cycling at the HI setting is normal

and can also occur if the cookware is too small for the radiant

element or if the cookware bottom is not flat (Refer to page 9

for using correct cookware instructions with the cooktop).

Home Canning

Be sure to read and observe all the following points when home

canning with your appliance. Check with the USDA (United

States Department of Agriculture) website and be sure to read

all the information they have available as well as follow their

recommendations for home canning procedures.

Tips and procedures for canning foods:

• Use only quality flat bottom canners when home canning.

Use a straight-edge to check canner bottom.

• Use only a completely flat bottom canner with no ridges

that radiate from the bottom center when home canning

using a ceramic cooktop.

• Make sure the diameter of the canner does not exceed 1

inch beyond the surface element markings or element. It is

recommended to use smaller diameter canners on electric

coil and ceramic glass cooktops. Start with hot tap water to

bring water to boil more quickly.

• Use the highest heat seating when first bringing the water

to a boil. Once boiling is achieved, reduce heat to lowest

possible setting to maintain that boil.

• Never place or straddle a cooking utensil over two

different surface cooking areas at the same time. This will

cause uneven heating results and may cause the ceramic

cooktop to fracture.

• (White glass cooktops only) Due to the high intensity of

heat generated by the surface elements, the glass surface

will turn light green when the element is first turned off. This

phenomenon is normal and the glass will come back to its

original white color after it has completely cooled down.

Important note: Please read detailed instructions for ceramic

glass cooktop cleaning in the General Care & Cleaning section

and Before You Call checklist section of this Use and Care

Guide.

Figure 3: Single elements (left w/ bridge element) Warmer

Zone (rear) and triple element (front right)

Setting Surface Controls

Operating Surface Controls

The size and type of cookware used, and the amount and type

of food being cooked will influence the surface element power

level setting needed for best cooking results. Once an element is

heating it will cycle on and off to maintain the heat setting. The

element on indicator light will glow once an element is turned

on.

Suggested settings for single and dual (some models)

radiant surface elements

Radiant surface elements may appear to

have cooled after they have been turned off.

The glass surface may still be hot and burns may occur if the

glass surface is touched before it has cooled sufficiently.

Do not place plastic items such as salt and

pepper shakers, spoon holders or plastic wrappings on top of

the range when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if placed

too close to the surface elements.

Do not allow aluminum foil, empty glass-

porcelain cookware or ANY material that can melt to make

contact with the ceramic cooktop. If these items melt on the

cooktop they may damage the ceramic cooktop.

ELEMENT ON AND HOT SURFACE indicator lights

Your appliance is equipped with different types of surface

indicator lights that will glow on the control panel.

The ELEMENT ON indicator light will glow when any surface

element is turned on.

The HOT SURFACE indicator light will glow when any surface

cooking element heats up and will remain on until the cooktop

has cooled to a moderate level

Note: The surface control knobs do not have to be set exactly on

a particular spot. Use the graphics provided as a guide and

adjust the control knob as needed. Each surface element

provides a constant amount of heat at each setting. Refer to

Table 1 for suggested settings.

The size and type of cookware used will influence the setting

needed for best cooking results.

Table 1: Suggested settings for various cooking needs

Settings Type of Cooking

High (HI-9) Start most foods, bring water

to boil, pan broiling

Medium high (7-8) Continue a rapid boil, fry,

deep fat fry

Medium (5-6) Maintain a slow boil, thicken

sauces and gravies, steam

vegetables

Medium-low (2-4) Keep foods cooking, poach,

stew

Low (LO-1) Keep warm, melt, simmer

Figure 4: ELEMENT ON and HOT SURFACE indicators

Element On Hot Surface

Setting Surface Controls

Single Element Control

The cooktop has two or three single radiant surface elements:

the left rear and left front elements, and the right rear element.

The left front element may also be used with the bridge

element.

To operate the single element:

1. Place correctly sized cookware on single radiant surface

element.

2. Turn the control knob and adjust temperatures from Lo to

HI.

3. When cooking is complete, turn the radiant surface element

off before removing the cookware.

Important notes:

• For efficient cooking, turn off the element several minutes

before cooking is complete. This will allow residual heat to

complete the cooking process.

• Refer to the suggested radiant surface element settings for

suggested power level settings as shown in the table on this

page. A glowing red surface heating area extending

beyond the bottom edge of the cookware indicates the

cookware is too small for the surface heating area.

Triple Surface Element

The expandable element can handle 6 inch, 9 inch, or 12 inch

cookware. The triple element is especially useful for canning or

heating large amounts of water.

To operate the triple surface element:

1. Place correctly sized cookware on the triple surface

element.

2. Push in and turn the control knob to the element size that

best fits the cookware.

3. Each surface element provides a constant amount of heat at

each setting.

4. When finished cooking, turn the control knob to OFF before

removing the cookware.

Important notes:

• Start most cooking operations on a higher setting and then

turn to a lower setting to finish cooking.

• Radiant elements have a limiter that allows the radiant

heating element to cycle on and off, even at the HI setting.

This helps prevent damage to the ceramic smoothtop.

Cycling at the HI setting is normal and will occur more often

if the cookware is too small for the radiant element or if the

cookware bottom is not flat.

• A glowing red surface heating area extending beyond the

bottom edge of the cookware indicates the cookware is too

small for the surface heating area.

• Be sure to read the detailed instructions for ceramic glass

cooktop maintenance and cleaning in the Care & Cleaning

and Before You Call sections of this Use & Care Guide.

Figure 5: Single element control

Figure 6: Triple element control knob

Setting Surface Controls

Bridge Control

On the left side of the cooktop there are two single elements

with a bridge element between them. When turned on, the

bridge control allows for a larger cooking area by cycling at

the same temperature as the left front element and can accom-

modate specialized cookware.

To operate the bridge element:

1. Turn the control knob clockwise to activate the front element

and the bridge element.

2. When the bridge element is active, it will maintain the same

heat setting as the left front element.

3. To turn on the front element only, turn the control knob

counter-clockwise to the desired setting.

Important: Use only cookware specifically designed for use

with the bridge element.

Do not place plastic items such as salt and

pepper shakers, spoon holders or plastic wrappings on top of

the range when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if placed

too close to the surface elements.

Do not allow aluminum foil, empty glass-

porcelain cookware or any material that can melt to make

contact with the ceramic cooktop. If these items melt on the

cooktop they may damage the ceramic cooktop. Do not

straddle cookware between two cooking surfaces unless the

cookware is designed for that purpose.

Warmer Zone

Unlike other radiant elements, the warmer

zone will not glow red when it is hot, but becomes hot enough to

cause burns. Use the warmer zone feature to keep cooked

foods hot such as vegetables, gravies, casseroles, soups, stews,

breads, and pastries at serving temperature. Avoid placing

hands on or near the warmer zone until the hot surface indicator

light is off. Always use potholders or oven mitts when removing

food from the warmer zone as cookware and plates will be hot.

• Always start with hot food. Do not heat cold food on the

warmer zone. All food placed on the warmer zone should

be covered with a lid to maintain quality.

• For best results, when warming pastries or breads, the cover

should have an opening to allow moisture to escape. Do not

use plastic wrap to cover food. Plastic may melt onto the

surface and be very difficult to clean.

• Use only plates, and cookware recommended for oven and

cooktop use on the warmer zone.

• The warmer zone is on when the indicator light is lit.

Food Poisoning Hazard. Do not let food sit for

more than one hour before or after cooking. Doing so can result

in food poisoning or sickness.

Figure 7: Bridge element

Figure 8: Warmer Zone control

Table 2: Recommended settings for WARMER ZONE

Food Item Heating level

Breads and Pastries LO (Low)

Casseroles LO (Low)

Dinner Plates with food LO (Low)

Meats MED (Medium)

Sauces MED (Medium)

Vegetables MED (Medium)

Fried foods HI (High)

Hot beverages HI (High)

Soups (clear) HI (High)

Before Setting Oven Controls

Oven Vent Location

The oven vent is located under the control knobs. When the oven

is in use, warm air passes through this vent for proper air circu-

lation and provides good baking results. Steam or moisture may

appear near the oven vent. This is normal. Do not block this

vent.

Cooling Fan

The cooling fan may continue to run for a while even after the

oven has been turned off; this is normal.

Protective liners — Do no

t line the oven walls, racks, botto

m or

any other parts of the range with aluminum foil. Doing so will

alter heat distribution, produce poor baking results, and may

cause permanent damage to the oven interior. During self clean

temperatures the oven will be hot enough to melt foil.

Use aluminum foil only as recommended in this manual.

Improper installation or use of these liners may result in risk of

electric shock or fire.

Oven Racks

Always use potholders or oven mitts when removing food or

adjusting the oven racks. Wait until the oven has completely

cooled if possible. Oven racks may be very hot and may cause

burns. Remove all oven racks and rack ladders before starting

a self clean cycle. Clean oven racks according to the instructions

provided in the Care and Cleaning section.

IMPORTANT!

To prevent possible damage to the oven, do not attempt to

close the oven door until all oven racks are fully positioned

inside the oven cavity.

Your appliance comes with the following rack type (See

Figure 11:

• Flat handle oven racks are used for most cooking needs

and can be placed in most oven rack positions.

Arranging, Removing, and Replacing Oven Racks

• To arrange - Always arrange the oven racks when the oven

is cool (prior to operating the oven).

• To remove - For ease of removal, racks should not be

placed in adjacent rack positions. Pull the oven rack

straight forward until it reaches the stop position. Lift up

front of oven rack slightly and slide out.

• To replace - place the oven rack on the rack guides on the

oven walls. Tilt the front of the rack upward slightly and

slide the oven rack back into place.

Figure 9: Oven vent location

Figure 10: Make sure that the hook end of the ladder rack is at

the top of the oven cavity when installed

Ladder racks

Ladder rack

supports

Hook end

Figure 11: Type of oven racks

Oven Controls

1. Bake - Use to start a normal Bake function.

2. Broil - Use to select Broil function.

3. Convec Bake - Use to cook with convection feature.

4. Convec Convert - Use to convert regular recipe tempera-

ture to a convection recipe temperature.

5. Convec Roast - Use for roasting hams, turkey, roasts.

6. Slow Cook - Use for cooking foods requiring long cooking

times at lower temperatures.

7. Oven Lock - Use to lock oven controls.

8. Warm & Hold - Use to keep cooked food warm and at

serving temperature for up to 3 hours.

9. Numeric keys - Use to enter temperatures and cooking

times, and use to enter time of day when setting clock.

10. START - Use to start oven functions.

11. Up / Down arrows - Use to adjust settings, temperature,

and times, and lock the oven.

12. STOP - Use to cancel any oven function except clock and

timer.

13. Timer ON/Off - Use to set and cancel the timer.

14. Add 1 Minute -Each press of this key adds one minute of

time to an active timer or will start timer when timer is idle.

15. Cook Time - Use to set a specific amount of time needed

for cooking and turn off cooking automatically.

16. Delay Start - Use to set delay cooking or delay self clean.

17. Self Clean - Use to select any time between 2 and 4 hr

Self-Clean cycle.

18. Temp Probe - Use to set for cooking with probe feature.

19. Oven Light- Use to turn oven light on and off.

20. CLOCK - Use to set time of day.

Minimum & Maximum Control Settings

All of the cooking features listed have minimum and maximum

time and temperature settings that may be entered into the con-

trol. An entry error tone (3 short beeps) will sound if the entry of

the temperature or time is below the minimum allowable setting

or above the maximum setting for the cooking feature.

Important note:

The oven control works with both the numeric keypad and the

Up / Down arrow keys. For cooking functions as well as for the

Timer and the Clock functions, you may press the Up / Down

arrows to adjust the temperature or use the number keys.

Regardless of the method you choose, always press the START

key to initiate the function.

NOTE: The Up / Down arrows will not operate with the Add 1

Minute and Warm & Hold functions. If an arrow key is pressed

to program a function that is invalid, the control will sound a

triple beep.

Feature Min. Temp or Time Max. Temp or Time

Bake 170°F (77°C) 550°F (288°C)

Broil 400°F (205°C) 550°F (288°C)

Timer 1 minute 11 hrs. 59 mins.

Self Clean 2 Hours 4 Hours

Temp Probe 140°F (60°C) 210°F (99°C)

Warm & Hold 170°F (77°C) 3 Hours

Cook Time 1 Minute 11:59

Delay Time 12 Hr. 1:00 12:59

Delay Time 24 Hr. 0:00 23:59

Convec Bake 170°F (77°C) 550°F (288°C)

Convec Roast 170°F (77°C) 550°F (288°C)

Clock 12 Hr. 1:00 12:59

Clock 24 Hr. 0:00 23:59

Slow Cook LO 225°F (108°C) HI 275°F (134°C)

Oven Controls

Setting Clock

When the appliance is first powered up, 12:00 will flash in the

display. The time of day must first be set before operating the

oven.

To set clock to 1:30:

1. Press .

2. Enter 1 3 0 using numeric keypad or press the Up / Down

arrow keys until 130 appears in the display.

3. Press START.

Important note:

The clock cannot be changed when a Cook Time, Self Clean,

Delay Start, or cooking feature is active.

Setting 12 Hour or 24 Hour Display Mode

The clock display mode allows you to select 12 hr or 24 hr

modes. The factory pre-set clock display mode is 12 hours.

To set 12 hr or 24 hr display mode:

1. Press and hold for 6 seconds.

2. Press the Up / Down arrow keys to toggle between 12 Hr

day or 24 Hr day display modes (

Figure 12).

3. Press START to accept the choice.

Add 1 Minute

Use the Add 1 Minute feature to set additional minutes to the

timer. Each press of the key will add 1 additional minute. If

Add 1 Minute is pressed when the timer is not active, the timer

will activate and begin counting down from 1 minute.

To add 2 minutes to the timer:

Press Add 1 Minute twice.

Setting Timer

The minute timer allows you to track your cooking times without

interfering with the cooking process. The timer may be set from

a minimum time of 1 minute to a maximum of 11 hours and 59

minutes.

To set timer for 5 minutes:

1. Press Timer ON/OFF.

2. Enter 5 using numeric keypad or press the Up arrow key

until 5 appears in the display.

3. Press START to start the timer. When set time ends, END

will show in the display and the control will sound a beep

three times every 30 seconds until Timer ON/OFF key is

pressed.

To cancel the timer when active, press Timer ON/OFF again.

Important note:

• The timer does not start or stop the cooking process. It

serves as an extra minute timer that will beep when the set

time has run out.

• When timer is set for more than 1 hour it will display hours

and minutes until 1 hour remains. When less than 1 hour

remains, the display counts down in minutes and seconds.

With under1 minute remaining, only seconds will display.

• If the timer is active during a cooking process, the timer will

show in the display. To view the status of any other active

oven function, press the key of the cooking function once

and it will appear in the display for a few seconds.

Operating Oven Lights

The interior oven lights will automatically turn on when the oven

door is opened. Oven lights will not operate during a self clean

cycle.

Press to turn the interior oven lights on and off whenever

the oven door is closed.

The interior oven lights are located on the rear wall of the oven

interior and are covered with a glass shield. The glass shield

protects the bulb from high temperatures and should always be

in place whenever the oven is in use.

To replace the interior oven light, see

“Replacing Oven Lights”

on page 35.

Figure 12: 12 Hr day and 24 Hr day settings

Oven Controls

Changing Between Continuous Bake Setting or 12 Hour

Energy Saving

The oven control has a factory preset built-in 12 Hour Energy

Saving feature that will turn off the oven if the oven is left on

for more than 12 hours. The control may be programmed to

override this feature to bake continuously.

To change between continuous bake or 12 hour energy

saving feature:

1. Press and hold Timer ON/OFF for 6 seconds

2. Press the Up / Down arrow keys to toggle between 12

Hour OFF or Stay On feature (Figure 13).

3. Press START to accept choice.

Changing Temperature Display to Fahrenheit (ºF) or

Celsius (ºC)

The electronic oven control is set to display °F when shipped

from the factory. The display may be changed to show either °F

or ºC oven temperatures.

To change temperature display mode from °F to °C or from

°C to °F:

1. Press and hold Broil for 6 seconds.

2. Once F (or C) appears in the display, press the Up / Down

arrow keys to toggle between Fahrenheit and Celsius

temperature display modes (

Figure 14).

3. Press START to accept the choice.

Important note:

The oven temperature display cannot be changed during the

cooking process or if a Delay Start has been set or Self Clean is

active.

Setting Silent or Audible Control mode

Silent mode allows the oven control to operate without audible

tones. The control may be programmed for silent operation and

later reset to operate with all the normal audible tones.

To set for silent or audible mode:

1. Press and hold Delay Start for 6 seconds.

2. Press the Up / Down arrow keys to toggle between bEEP

On or bEEP OFF (

Figure 15).

3. Press START to accept the choice.

Setting Oven Lock

The control may be programmed to lock the oven door and lock

the oven control keys

To activate the oven lock feature:

1. Be sure oven door is completely closed.

2. Press and hold both the Oven Lock key for 3 seconds. The

motor driven door latch mechanism will begin locking the

oven door automatically. Do not open the oven door. Allow

about 15 seconds for the oven door to completely lock.

Once door is locked, the word DOOR with a lock icon will

appear in the display.

To cancel the oven lockout feature:

1. Press and hold both the Oven Lock key for 3 seconds. The

motor door latch will begin unlocking the oven door auto-

matically. Do not open the oven door. Allow about 15

seconds for the oven door to completely unlock.

2. When the word DOOR with a lock icon no longer displays,

the oven door may be opened, and the oven control

keypad will be available for use.

Important note:

• To avoid damage to the oven door latching mechanism, do

not attempt to open or close the oven door whenever the

word DOOR with a lock icon is displayed.

• If a control key is pressed when oven lockout is active, the

control will triple beep indicating the key action is not

available when the oven lockout feature is active.

Figure 13: 12 Hr and continuous operation settings

Figure 14: Display showing Fahrenheit and Celsius

Figure 15: Display showing audible and silent operation

Oven Controls

Setting Bake

Use the bake feature whenever the recipe calls for baking using

normal temperatures. A reminder tone will sound indicating

when the set bake temperature is reached and to place the

food in the oven. The convection fan will turn on when the oven is

preheating and turn off once the oven reaches the set tempera-

ture. The oven will cycle on and off and the display will show

the bake element indicator icon cycle as the oven maintains the

proper baking temperature.

Bake may be set for any oven temperature between 170°F

(77°C) to 550°F (288°C).

Baking tips

• Fully preheat the oven before cooking items like cookies,

biscuits, and breads.

• For layer cakes use bake function for best results.

• For pastries and breads, use the convection bake function

for best results when using multiple racks.

• For best results when using Bake for cakes on two oven

racks, place racks in positions 3 and 7 (Figure 16) and

place pans as shown in Figure 15.

• Allow at least 2 inches (5 cm) of space between bakeware

for proper air circulation.

• Dark or dull pans absorb more heat than shiny bakeware,

resulting in dark or overbrowning of foods. It may be

necessary to reduce the oven temperature or cook time to

prevent overbrowning of some foods.

• Shiny pans are recommended for cakes, cookies, and

muffins.

• Do not open oven door often. Opening the door will reduce

the temperature in the oven and extend baking time.

• When using any single rack, use rack position 5 so that the

food is in the center of the oven.

To set Bake for oven temperature of 425°F:

Always use pot holders or oven mitts when using

the oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

1. Press Bake.

2. Enter 4 2 5 using numeric keypad or press the Up arrow

key until 4 2 5 appears in the display.

3. Press START. The word BAKE will appear on the display.

To cancel Bake at any time, press STOP.

Figure 16: Oven rack positions

Figure 17: Pan settings

Oven Controls

Convection Bake

Convection functions use a fan to circulate the oven's heat

continuously around the oven. This improved heat distribution

allows for even cooking and browning on multiple racks. Breads

and pastry brown more evenly.

Convec Bake may be set for any oven temperature between

170°F (77°C) and 550°F (288°C).

Benefits of convection baking include:

• Can cook up to 25% faster.

Baking tips

• For pastries and breads, use the convection bake function

for best results when using multiple racks.

• Allow at least 2 inches (5 cm) of space between bakeware

for proper air circulation.

• Fully preheat the oven before cooking items like cookies,

biscuits, and breads.

• When using any single rack, use rack position 5 so that the

food is in the center of the oven.

• When using two oven racks, place in positions 2 and 7

(Figure 18) and place bakeware as shown in Figure 19.

• When using three racks for baking position racks on 2, 5,

and 8.

• Cookies and biscuits should be baked on pans with no sides

or very low sides to allow heated air to circulate around the

food.

• Dark or dull bakeware absorbs more heat than shiny

bakeware. It may be necessary to reduce oven

temperature and cook time to prevent overbrowning of

some foods. Shiny bakeware is recommended for cakes,

cookies, and muffins.

• Do not open oven door often. Opening the door will reduce

the temperature in the oven and may increase cook time.

• Unless the recipe is written for convection cooking, reduce

oven temperature 25°F from recipe’s recommended oven

temperature. Follow the remainder of the recipe’s

instructions using the minimum recommended cook time.

To set Convection Bake with a default oven set temperature

of 350°F:

1. Press Convec Bake.

2. Press START. The convection fan will turn on and remain on

during convection cooking.

To cancel Convec Bake at any time, press STOP.

Important notes:

• If the oven door is opened when Convec Bake is active, the

convection fan will stop rotating until the oven door is

closed.

• When using Convec Bake, cook time reductions may vary

depending on the amount and type of food being cooked.

Figure 18: Air movement using convection

Figure 19: Baking on multiple levels

Oven Controls

Setting Convection Convert

Pressing Convec Convert automatically converts the cooking

temperature entered for any standard baking recipe to the

lower temperature required for convection baking.

To add Convec Convert to convection baking using default oven

set temperature of 350°F:

1. Press Convec Bake.

2. The default temperature of 350° will appear in the

display.

3. Press START. The oven will start baking at the default

temperature of 350°.

4. Press Convec Convert.

5. The oven temperature will automatically change to the

proper convection baking temperature.

To cancel Convec Convert at any time, press STOP.

Using Convection Convert with a set cook time:

The Convec Convert function will display a CF message when

programmed with Cook Time, then again as a reminder to check

food when the cook time is 75% complete (

Figure 20).

Important: The oven control will sound one long beep at regular

intervals and display the CF message until the set cook time has

finished. When the cook time has completely finished the

display will show

End and the control sound three beeps every

30 seconds until STOP is pressed.

To program oven for Convection Convert with recipe temper-

ature of 425°F and to shut-off after 30 minutes:

1. Press Convec Bake.

2. The default temperature of 350° will appear in the

display.

3. Enter 4 2 5 using numeric keypad or press the Up arrow

key until 4 2 5 appears in the display.

4. Press START.

5. Press Cook Time.

6. Dashes (

-----) will appear in the display.

7. Enter 3 0 using numeric keypad or press the Up arrow key

until 3 0 appears in the display.

8. Press START.

9. Press Convec Convert.

10. The oven temperature will automatically change to the

proper convection baking temperature.

To cancel Convection Convert at any time, press STOP.

Important note:

• When Convection Convert is used with a set Cook Time, the

function will display a CF message as a reminder to check

food when the cook time is 75% complete.

• Convec Convert may be used with convection baking that is

not programmed for a specific cooking time if so desired.

• If the oven door is opened when any convection function is

active, the convection fan will stop rotating until the oven

door is closed.

• Do not open the oven door too often. Doing so will extend

the cooking time of most foods.

Figure 20: Check Food reminder shown in display

Oven Controls

Setting Cook Time

Use Cook Time to set the amount of time needed for baking.

The oven will turn on immediately and stop automatically after

the set cook time ends.

To program oven to bake with oven default temperature of

350°F and to shut-off after 30 minutes:

Food Poisoning Hazard. Do not let food sit for

more than one hour before or after cooking. Doing so can result

in food poisoning or sickness.

1. Press Cook Time.

2. Enter 3 0 using numeric keypad or press the Up arrow key

until 3 0 appears in the display.

3. Press START to accept.

4. Press Bake.

5. Press START. The word BAKE will appear on the display.

When the programmed cook time ends:

End will appear in the display window, and the oven will shut-

off automatically (

Figure 21). The oven control will beep three

times every 30 seconds as a reminder until STOP is pressed.

Important note:

• The Cook Time feature may be set with Bake, Convection

Bake, Convection Roast, and Slow Cook. Cook Time or

Delay Start will not operate with the Broil function.

• The maximum cook time setting is 11 hours and 59 minutes

unless oven is set for continuous cooking.

To change the oven temperature or cook time after baking

has started:

1. Press Bake (for oven temperature) or Cook Time.

2. Press or and release when the desired temper-

ature or cook time setting appears in the display. When the

cook time runs out, End will appear in the display. The oven

control will beep three times every minute until STOP is

pressed.

Setting Delay Start

Delay Start sets a delayed starting time to oven cooking or

cleaning functions. Prior to setting a delay start, be sure the

time of day is set correctly.

To program oven for a Delay Start beginning at 5:30, to shut-

off automatically after 50 minutes and for baking at 375°F:

Food Poisoning Hazard. Do not let food sit for

more than one hour before or after cooking. Doing so can result

in food poisoning or sickness. Foods that can easily spoil such as

milk, eggs, fish, meat, or poultry should be chilled in the refrig-

erator first. Even when chilled, they should not stand in the oven

for more than 1 hour before cooking begins and should be

removed promptly when finished cooking.

Always use pot holders or oven mitts when using

the oven. When cooking the oven interior, oven racks, and cook-

top will become very hot which can cause burn.

1. Press Cook Time.

2. Enter 5 0 using numeric keypad or press the Up arrow key

until 5 0 appears in the display.

3. Press START to accept.

4. Press Delay Start.

5. Enter 5 3 0 using numeric keypad or press the Up arrow

key until 5 3 0 appears in the display.

6. Press START to accept.

7. Press Bake.

8. Enter 3 7 5 using numeric keypad or press the Up arrow

key until 3 7 5 appears in the display.

9. Press START.

When the programmed cook time ends:

End will appear in the display window, and the oven will shut

off automatically. The oven control will beep three times every

30 seconds as a reminder until STOP key is pressed.

Important note:

Delay Start may be set using a 24 hr clock. To set clock for 24

Hr operation, See

“Setting 12 Hour or 24 Hour Display Mode”

on page 16 for more information. The Delay Start feature may

be used with Convection Bake, Convection Roast, Convection

Convert, Bake, Slow Cook, and Self Clean functions. Delay Start

or Cook Time will not operate with the Broil function.

Figure 21: Display showing cooking has ended

Oven Controls

Setting Convection Roast

The Convection Roast function combines a cook cycle with the

convection fan to roast meats and poultry. Meats cooked using

the Convection Roast function will be juicier, and poultry will be

crisp on the outside while staying tender and moist on the inside.

Convection Roast may be set for any oven temperature

between 170°F (77°C) and 550°F (288°C).

If an oven fire occurs, turn the oven off and do

not open the door. Use a Class B/C fire extinguisher. Do not put

water or flour on the fire. Flour can be explosive and water can

cause a grease fire to spread possibly causing personal injury.

Do not use the broiler pan without the insert. A

roasting rack (some models) can be used when convection

roasting. Do not cover the broil pan or insert with aluminum foil;

the exposed grease could ignite.

Convection roasting tips:

• If the oven door is opened when any convection function is

active, the convection fan will stop rotating until the oven

door is closed.

• Carefully follow your recipe’s temperature and time recom-

mendations or refer to the convection roast recommenda-

tions for additional information.

• Do not open the oven door too often, doing so will release

heat and extend the cooking time of most food.

• Roast food on the lowest rack of the oven.

• Preheating is not necessary when roasting foods using

Convection Roast. Since Convection Roast cooks food faster,

the cook time may be reduced up to 25% of the recom-

mended cook time of your recipe. If necessary, increase

cooking time until the desired doneness is obtained.

• The broiler pan will catch grease drippings, and the grid

will help prevent splatters. The roasting rack will hold the

meat. Use the offset rack on rack position 1if available.

• Do not cover foods when dry roasting because this will

prevent the meat from browning properly.

To set Convection Roast with a default oven set temperature

of 350°F:

1. Press Convec Roast.

2. Press START.

To cancel Convection Roast at any time, press STOP.

Meat Weight Oven Temp Internal Temp Minutes per lb.

Beef Standing rib roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30

Rib eye roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30

Tenderloin roast 2 to 3 lb. 400°F (204ºC) *160ºF (71ºC) 15-25

Poultry Turkey whole** 12 to 16 lb. 325°F (163ºC) 180°F (82ºC) 8-10

Turkey whole** 16 to 20 lb 325°F (163ºC) 180°F (82ºC) 10-15

Turkey whole** 20 to 24 lb. 325°F (163ºC) 180°F (82ºC) 12-16

Chicken 3 to 4 lb. 350°F-375°F (177ºC-191ºC)* 180°F (82ºC) 12-16

Pork Ham roast, fresh 4 to 6 lb. 325°F (163ºC) 160°F (71ºC) 30-40

Shoulder blade roast 4 to 6 lb. 325°F (163ºC) 160°F (71ºC) 20-30

Loin 3 to 4 lb. 325°F (163ºC) 160°F (71ºC) 20-25

Pre-cooked ham 5 to 7 lb. 325°F (163ºC) 160°F (71ºC) 30-40

* The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some food poison-

ing organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.) The lowest temperature recommended by the USDA is

145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC)** Stuffed turkey requires additional roasting time. Shield legs and breast with foil

to prevent over browning and drying of the skin.

Oven Controls

Setting Broil

The Broil function cooks meats that require direct exposure to

radiant heat for optimum browning results. Broil is factory

preset to broil at 550°F. The Broil temperature may be set at

any temperature between 400°F (205°C) and 550°F (288°C).

Broil Auto Shut Off: If oven door is open for more than one

minute during Broil the control will beep. If door is not closed it

will turn off Broil element after another 30 seconds.

• Broiling can produce smoke. If smoke is excessive, place

food further away from the broil element

• Always arrange oven racks when the oven is cool. Broil with

door closed.

• The broil pan with broil pan insert allow the grease to drain

away from the high heat of the broiler and help avoid

spatter and reduce smoking. Do not use the pan without the

insert. Do not cover the insert with foil - the exposed grease

could ignite. Note: If a broiler pan and insert are not

supplied with the appliance, they may be purchased from

Sears. Call 1-800-4-MY-HOME (1-800-4663) and order

broil pan kit 5304442087.

• When broiling, always pull the oven rack out to the stop

position before turning or removing foo

Always use pot holders or oven mitts when using

the oven. When cooking, the oven interior, oven racks, and

cooktop will become very hot which can cause burns.

Should an oven fire occur, close the oven door

and turn the oven off. If the fire continues, use a fire extin-

guisher. Do not put water or flour on fire. Flour may be explo-

sive.

To set Broil with the default broil oven temperature of 550°F:

1. Arrange the oven racks when cool.

2. For optimum browning results, preheat oven for 2 minutes

before adding food.

3. Press Broil. Broil with the door closed. Press START. The

oven will broil at the default temperature of 550°F

(288°C) To set to a lower broil temperature, press and hold

the Down arrow key until the desired temperature is

reached. The lowest setting the oven control will accept for

Broil is 400°F.

4. To adjust the Broil temperature, press Broil again and then

the Up or Down arrow key to set new temperature.

5. Broil on one side until food is browned; turn an broil other

side until done to your satisfaction.

6. When finished broiling, press STOP.

7. To cancel Broil at any time, press STOP.

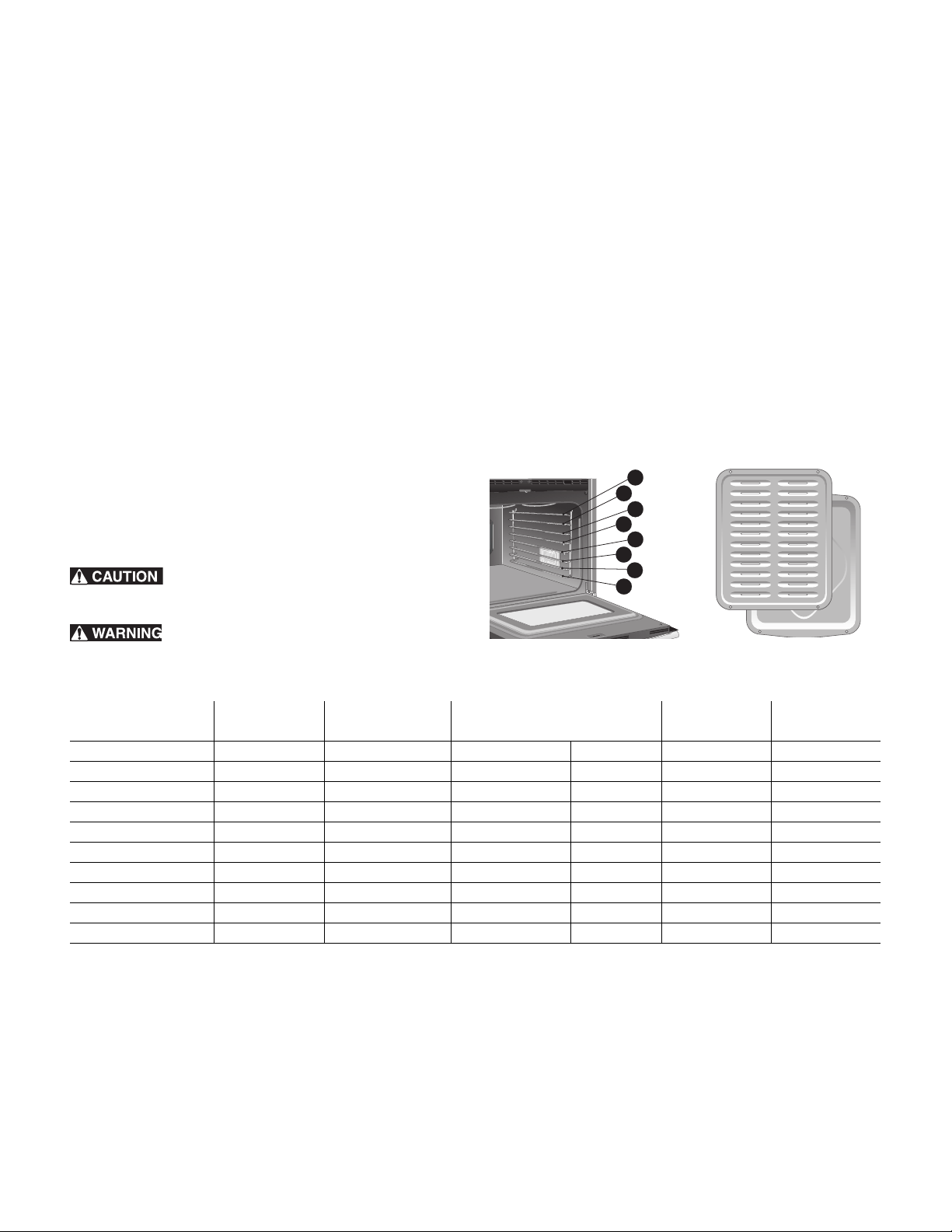

Oven rack positions (L) and broil pan with insert (R)

Food Rack Position Temperature Cook time (minutes)

1st side 2nd side

Internal

Temperature

Doneness

Steak 1” thick 8th 550°F (288°C) 5 5 140ºF (60ºC) Rare*

Steak 1” thick 7th or 8th 550°F (288°C) 8 6 145ºF (63ºC) Medium

Steak 1” thick 7th or 8th 550°F (288°C) 10 9 170°F (77ºC) Well

Pork Chops 3/4” thick 7th 550°F (288°C) 10 8 170°F (77ºC) Well

Chicken bone-in 5th or 6th 450°F (232°C) 22 12 170°F (77ºC) Well

Chicken boneless 5th or 6th 450°F (232°C) 10 8 170°F (77ºC) Well

Fish 7th 500°F (260°C) 15 n/a 170°F (77ºC) Well

Shrimp 7th 550°F (288°C) 7 n/a 170°F (77ºC) Well

Hamburger 1” thick 8th** 550°F (288°C) 11 9 145ºF (63ºC) Medium

Hamburger 1” thick 7th 550°F (288°C) 12 10 170°F (77ºC) Well

* The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means

some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA) The lowest temperature recommended

by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC). NOTE: Broiling is direct heat cooking and will pro-

duce some smoke. If smoke is excessive, place food further away from element. Always watch foods carefully to prevent burning.

Oven Controls

Temp Probe

When cooking meat such as roasts, hams or poultry, use the

temp probe function to check the internal temperature without

any guesswork. For some foods, especially poultry and roasts,

testing the internal temperature is the best method to insure

properly cooked meats.

Important note:

• Use only the temp probe supplied with appliance. Using

any other probe or device may result in damage to

appliance and the temp probe receptacle.

• Never leave or store temp probe inside oven.

• Handle the temp probe carefully when inserting and

removing from food or probe receptacle.

• Do not use tongs or any other kitchen utensils to pull on

temp probe cable when inserting or removing from food or

receptacle.

• Defrost food completely before inserting temp probe to

avoid damaging probe.

• To avoid possibility of burns, after cooking carefully unplug

temp probe using a pot holder to protect hands.

Proper temp probe placement:

• Always insert temp probe so that the probe tip rests in the

center of the thickest part of meat.

• Do not allow temp probe to touch bone or cookware.

• For bone-in ham or lamb, insert temp probe into the center

of lowest large muscle or joint.

• For dishes such as meat loaf or casseroles, insert temp

probe into center of food.

• When cooking fish, insert temp probe just above the gill.

• For whole poultry or turkey, insert temp probe into the

thickest part of the breast (

Figure 24).

Figure 22: Parts of the meat probe

handle

probe

cable

probe

sensor

handle

probe

connector

Figure 23:

Figure 24: Setting probe into the breast

1/2

Oven Controls

Setting the Temp Probe

To set temp probe:

1. Prepare the food and properly insert the temperature

probe into the food. Do not preheat or start cooking before

properly inserting the temp probe. Probe should be

inserted into the food and receptacle while the oven is still

cool.

2. Place the prepared food on the desired oven rack position

and slide into the oven.

3. Plug the temp probe into the probe receptacle located on

top left front oven cavity. When the temp probe is correctly

plugged into receptacle, the probe icon will illuminate in

the oven control display.

4. Press Temp Probe once, then enter the desired internal

temperature of the food using the numeric key pads or the

up or down arrows (default setting is 170ºF/ 77ºC).

5. Press to accept the temp probe target temperature.

Close the oven door.

6. Set the oven control for Bake, Conv Bake or Conv Roast and

the desired oven temperature. The temp probe cannot be

set with Broil or Self Clean.

7. During the cooking process the actual temp probe tempera-

ture will display. To see the target temperature of the food,

press Temp Probe once. After 6 seconds the display will

again show the actual temp probe temperature. If the

target temperature of the food needs to be changed

during the cooking process, press Temp Probe once and use

the numeric keys or up and down arrows to adjust the

target temperature. Press to accept any change.

8. The oven control will sound 3 beeps once the internal target

temperature of the food is reached. The oven will automat-

ically change to a Warm & Hold setting and display the

probe target temperature. Warm & Hold will maintain the

oven temperature at 170° F (77°C) for up to three hours or

until canceled.

9. Press to cancel cooking at any time.

To set the oven to continue cooking after reaching the probe

target temperature:

1. Press Temp Probe and hold for 6 seconds.

2. Press Up or Down arrow key and toggle until the Continu

message appears then press to accept.

To set the oven to cancel cooking and automatically start

Warm & Hold after reaching the probe target temperature:

1. Press Temp Probe and hold for 6 seconds.

2. Press Self Clean and toggle until CAnCEL message

appears then press to accept.

Figure 25: Probe placed into receptacle

probe

receptacle

Minimal Internal Cooking temperatures

Food type Internal temperature

Beef, veal, lamb-roasts, steak & chops

Medium 160°F (71°C)

Well done 170°F (77°C)

Fresh pork-roasts, steaks & chops

Medium 160°F (71°C)

Well done 170°F (77°C)

Ham 160°F (71°C)

Poultry

Whole chicken, turkey 165°F (74°C)

Poultry breasts, roasts 165°F (74°C)

Stuffing (cooked alone or in bird) 165°F (74°C)

Leftovers 165°F (74°C)

Information courtesy the U.S. Department of Agriculture Food Safety and Inspec-

tion Service. The U.S. Department of Agriculture states, “Rare fresh beef is popu-

lar, but you should know that cooking it to only 140°F/60°C means some food

poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide,

USDA) The lowest temperature recommended by the USDA is 145°F/63°C for

medium rare fresh beef.

Figure 26: Probe set to continue cooking

Figure 27: Probe set to cancel cooking

Oven Controls

Setting Slow Cook

The Slow Cook feature cooks foods more slowly and at lower

oven temperatures for longer periods of time. Two Slow Cook

settings are available: high (Hi) and low (Lo). The high setting is

best for cooking foods between 4 and 5 hours. The low setting is

best for cooking foods up to 9 hours or longer.

Food poisoning hazard. Do not let food sit for

more than one hour before or after cooking. Doing so can result

in food poisoning or sickness.

Tips for best results when using Slow Cook:

• Completely thaw all frozen foods before cooking.

• When using a single oven rack, place in oven rack position

2 or 3. Position racks to accommodate the size of various

bakeware when cooking multiple food items.

• Do not open the oven door often or leave the door open

when checking foods. If the oven heat escapes often, the

Slow Cook time may need to be extended.

• Cover to keep foods moist or uncover to allow foods to turn

crisp or brown.

• Roasts may be left uncovered so browning can occur. Cook

times will vary depending on the weight, fat content, bone,

and the shape of the roast. Preheating the oven will not be

necessary when using the Slow Cook feature.

• Add any cream or cheese sauces during the last hour of

cooking.

Important note:

• Slow Cook may be used with additional settings of Cook

Time and Delay Start.

• The maximum cook time for Slow Cook function is 11 hours

and 59 minutes unless the control has been changed to the

continuous bake mode.

To set Slow Cook:

1. Position bakeware in oven and close oven door.

2. Press Slow Cook. HI will appear in the display, indicating

the default temperature setting is for high.

3. If a low setting is needed,

press the Down arrow key to

select the low setting.

4. Press

START to activate Slow Cook.

To cancel Slow Cook at any time, press

STOP.

Warm & Hold™

Warm & Hold should only be used with foods that are already

at serving temperatures. Warm & Hold will keep cooked foods

warm and ready for serving for up to 3 hours after cooking has

finished. After 3 hours the Warm & Hold will shut-off automati-

cally. Warm & Hold will keep the oven temperature at 170° F

(77°C).

Food poisoning hazard. Do not let food sit for

more than one hour before or after cooking. Doing so can result

in food poisoning or sickness. Foods that can easily spoil such as

milk, eggs, fish, meat or poultry, should be chilled in the refrig-

erator first. Even when chilled, they should not stand in the oven

for more than 1 hour before cooking begins, and should be

removed promptly when finished cooking.

To set Warm & Hold:

1. If needed, arrange oven racks and place cooked food in

oven.

2. Press Warm & Hold. Hold WARM will appear in the

display. (If no other keys are touched within 25 seconds the

request for Warm & Hold will clear.)

3. Press

START. Warm & Hold will automatically turn on and

then turn off after 3 hours unless cancelled.

To turn Warm & Hold off at any time, press

STOP.

To add Warm & Hold to turn ON after baking 45 minutes

with a set temperature of 425°F:

1. Press Cook Time.

2. Enter 4 5 using numeric keypad.

3. Press

START.

4. Press Bake and enter 425 on numeric keypad.

5. Press

START to accept.

6. Press Warm & Hold. Hold WARM will appear in the

display.

7. Press

START. When the cook time is over, the Warm & Hold

will automatically turn ON. The Warm & Hold function will

automatically turn OFF after 3 hours.

Important note: Warm & Hold may be set when finished

cooking or may be added to automatically turn on after

cooking using Cook Time. Delay Start may also be added.

Oven Controls

Setting the Sabbath Feature (for use on the Jewish

Sabbath and Holidays)

For further assistance, guidelines for proper

usage, and a complete list of models with the

Sabbath feature, please visit the web at

www.star-k.org.

This appliance provides special settings for use when observing

the Jewish Sabbath/Holidays. Sabbath mode disables all audi-

ble tones or visual display changes on the oven control. Bake

heating is the only cooking feature available while in the Sab-

bath mode. Oven controls are locked during Sabbath mode.

You must first set the Bake feature and temperature(s) needed

for the oven, the Cook Time, and Delay Start options (if

needed). Any settings made prior to setting the Sabbath mode

will be visible in the displays. The Cook Time option, if set prior

to the Sabbath mode, will give one audible alert at the end of

Cook Time.

The Sabbath mode will override the factory preset 12 hour

energy saving mode, and the appliance will stay on until the

cooking features are cancelled. If any of the cooking features

are cancelled when the appliance is in the Sabbath mode, no

audible or visual indicators will be available to verify the can-

cellation.

If the oven interior lights are needed, be sure to activate them

prior to setting the Sabbath mode. Once the oven light is turned

on and the Sabbath mode is active, the oven light will remain on

until the Sabbath mode is turned off and the oven lights are

turned off. The oven door will not activate the interior oven

lights when the oven door is opened or closed.

It is recommended that any oven temperature modification

made within an active Sabbath mode be followed with two

presses of the START key. This will insure the oven remains on

even if an attempt is made to set the oven temperature outside

of its temperature range. If the oven temperature is set outside

of the temperature range, the oven will default to the nearest

available temperature. Try to set the desired oven temperature

again.

Food poisoning hazard. Do not let food sit for

more than one hour before or after cooking. Doing so can result

in food poisoning or sickness.

To program oven to Bake with default oven temperature of

350°F and activate the Sabbath feature:

1. Be sure the clock is set with the correct time of day.

2. Arrange oven racks, place bakeware in oven, and close

oven door.

3. Press Bake.

4. Press

START.

5. If Cook Time or Delay Start are not needed, skip this step

and continue to step 6. If a Cook Time or Delay Start are

desired enter the times at this point. See

“” and “Setting

Delay Start” on page 18 for detailed instructions.

6. Press and hold Cook Time and Delay Start simultaneously

for about 3 seconds to set the Sabbath feature. Once the

feature is set, SAb will appear in the display indicating the

oven is properly set for the Sabbath feature (

Figure 28).

Important note:

• Do not attempt to activate any other oven function except

Bake while the Sabbath feature is active. The following

keys will function correctly when the Sabbath feature is

active: 0-9 number keypad, Bake,

START, and STOP. All

other keys should not be used once the Sabbath feature is

active.

• You may change the oven temperature once baking has

started. Press Bake, use the numeric keypad to enter the

oven temperature change (170°F to 550F°), and press

START (for Jewish Holidays only).

• Remember that the oven control will no longer provide

audible tones or display any further changes when the

Sabbath feature is active.

• Remember the oven will shut-off automatically after

completing a Cook Time, Delay Start, or Warm & Hold and

therefore may only be used once during the Sabbath/

Jewish Holidays.

• If a Delay Start time longer than 11 hours and 59 minutes is

desired, set the oven control for the 24 hour day display

mode setting. For detailed instructions, see

“Setting 12 Hour

or 24 Hour Display Mode”

on page 16 for more informa-

tion.

Figure 28: Oven set for Sabbath bake

Oven Controls

To turn the oven off and keep the Sabbath feature active:

Press

STOP.

To turn off the Sabbath feature:

Press and hold both Cook Time and Delay Start simultaneously

for at least 3 seconds to turn the Sabbath feature off. The

control will provide an acceptance tone, and SAb will

disappear from the display. The oven is no longer programmed

for the Sabbath feature.

What to do during a power failure or power interruption after

the Sabbath feature was activated:

Should you experience a power failure or interruption, the oven

will shut-off. When power is restored the oven will not turn back

on automatically. The oven will remember that it is set for the

Sabbath, and the oven display will show the message SF for

Sabbath failure (

Figure 29).

The food may be safely removed from the oven while still in the

Sabbath feature, however the oven cannot be turned back on

until after the Sabbath/Holidays. After the Sabbath obser-

vance turn off the Sabbath feature. Press and hold both Cook

Time and Delay Start keys for at least 3 seconds simultaneously

to turn the Sabbath feature off. SF will disappear from the

display, and the oven may be used with all normal functions.

Restoring Factory Default Settings

Your appliance was set with predetermined (default) oven

control settings. Over time, users may have made changes to

these settings. The following options may have been modified

since the appliance was new:

• 12 or 24 hr display mode

• Meat Probe settings (Continue/Cancel cooking and start

Keep Warm)

• Continuous bake or 12 hour energy savings mode

• Silent or audible control

• Oven temperature display (Fahrenheit or Celsius)

• Oven temperature adjustments (UPO)

If you choose to restore any of the options to a

factory default setting using this method, all of the above user

settings will be restored to the factory default settings. This

includes the oven temperature offset that will reset to (0) zero

To restore oven control to factory default settings:

1. Press and hold 7 on numeric keypad until acceptance tone

sounds (about 6 seconds).

2. Press

START. The control has been reset with the default

settings.

Adjusting Oven Temperatures

Your appliance has been factory calibrated and tested to

ensure accurate baking temperatures. For the first few uses,

follow your recipe times and temperature recommendations

carefully. If you think the oven is cooking too hot or too cool for

your recipe times, you may adjust the control so the oven cooks

hotter or cooler than the oven temperature displayed.

The oven temperature may be increased as much as +35°F

(+19°C) or decreased -35°F (-19°C) from the factory cali-

brated settings.

To increase (+) or decrease (-) the oven temperature by 20°F:

1. Press and hold Bake until the control produces an audible

tone (about 6 seconds). The factory offset temperature of

0 (zero) should appear in the display.

2. Enter 2 0 using numeric keypad.

3. To offset the oven by -20°F, press the Down arrow key until

the display reads -20.

4. Press

START to accept change.

Important note:

• Oven temperature adjustments will not change the Broil or

Self Clean function temperatures.

• Do not use oven thermometers such as those found in

grocery stores to check the temperature settings inside your

oven. These oven thermometers may vary as much as 20 to

40°F degrees from actual temperatures.

• The oven temperature adjustment may be made if your

oven control is set to display temperatures in °C (Celsius).

Minimum and maximum settings for Celsius range from plus

(+)19°C to minus (-) 19°C.

Figure 29: Display showing Sabbath Failure

Oven Controls

Self Clean

A self cleaning oven cleans itself with high temperatures (well

above normal cooking temperatures), which eliminate soils com-

pletely or reduces them to a fine powdered ash you can wipe

away afterwards with a damp cloth. This function can be pro-

grammed for any duration between 2 and 4 hours.

Read full instructions including warnings and cautions before

starting Self Clean. Be sure to read all following caution and

important statements before starting a self clean cycle.

Do not leave small children unattended near

appliance. During self clean cycle, the outside of the oven can

become very hot and cause burns if touched.

Do not line the oven walls, racks, oven bottom,

or any part of the range with aluminum foil. This will cause per-

manent damage to the oven interior and destroy heat distribu-

tion, and will met to the oven interior.

Do not force the oven door open. This will

damage the automatic door locking system. Use caution when

opening the oven door after the self clean cycle ends. The oven

may still be very hot and cause burns. To avoid possible burns,

stand to side of oven when opening door to allow steam or hot

air to escape.

The health of some birds is extremely sensitive

to fumes given off during the self clean cycle of any range.

Move birds to a well ventilated room.

The oven bake and broil elements may appear

to have cooled after they have been turned off. These elements

may still be hot and burns may occur if elements are touched

before they have cooled.

Important notes:

• Completely remove any accessories from oven cavity to

avoid damage to oven racks.

• Remove all items from the oven and cooktop including

cookware, utensils, and any aluminum foil. Aluminum foil will

not withstand high temperatures from a self clean cycle and

will melt.

• Do not use oven cleaners or oven protective coatings in or

around any part of the oven interior.

• Clean any soil from the oven frame, the door liner outside

the oven door gasket, and the small area at the front center

of the oven bottom (

Figure 30). These areas heat

sufficiently to burn soil on. Clean using soap and water

prior to starting Self Clean.

• Remove any excessive spills. Any spills on the oven bottom

should be wiped up and removed before starting a Self

Clean cycle. To clean use hot, soapy water and a cloth.

Large spills can cause heavy smoke or fire when subjected

to high temperatures.

• Do not allow food spills with high sugar or acid content

(such as milk, tomatoes, sauerkraut, fruit juices, or pie

fillings) to remain on the surface as they may leave a dull

spot even after cleaning.

• Do not clean the oven door gasket. The woven material in

the gasket is essential for a good seal. Care should be

taken not to rub, damage, or remove the oven door gasket.

Doing so could cause damage to the door gasket and

compromise the performance of the oven.

• The kitchen area should be well ventilated using an open

window, ventilation fan, or exhaust hood during the first

Self Clean cycle. This will help eliminate the normal odors.

• Do not attempt to open the oven door when the OVEN

LOCK indicator light is flashing. Allow about 15 seconds for

the motorized door latch mechanism to completely lock or

unlock the oven door.

• When the clean time finishes, the oven door will remain

locked until the range has cooled sufficiently. In addition to

the clean time that was programmed, you must allow about

1 additional hour for the oven to cool before you will be

able to open the oven door.

• To avoid possible burns, stand to side of oven when opening

door to allow steam or hot air to escape.

Figure 30: Areas to clean and avoid

Oven Controls

Setting Self Clean

Important: This model comes with lubricated porcelain oven

racks which can remain in the oven during the self clean. Do not

clean this vegetable oil lubrication off the racks. It is important

that the sides of the oven racks always have a light coating of

vegetable oil. To maintain optimal rack performance, reapply a

think layer of vegetable oil to the side of the racks after every

self clean cycle or when the racks become difficult to slide.

To set self clean:

1. Remove all items from the oven. Be sure oven door is

completely closed.

2. Press Self Clean and the default 3 hour clean time will

appear in the display. You may accept the default 3 hour

clean time by going to step 3, or choose a different clean

time. Press Self Clean and use the numeric keypad or Up /

Down arrow keys to select any time between 2 hours and

4 hours. Once you have the desired clean time selected

proceed to Step 3.

3. Press

START to activate Self Clean.

4. A motor driven door lock mechanism will begin locking the

oven door automatically. Do not attempt to open the oven

door (allow 15 seconds for the lock mechanism to lock the

oven). Once the oven door has locked, CLEAN will appear

in the display indicating Self Clean has started.

Do not force the oven door open while the self

clean is active. This will damage the automatic door locking

system.

When Self Clean is finished:

Use caution when opening the oven door after

self cleaning. The oven may still be very hot and can cause

burns. To avoid possible burns use care when opening the oven

door after the self clean cycle. Stand to the side of the oven

when opening the oven door to allow hot air or steam to

escape.

1. CLEAN message will turn off, and Hot will appear in

display window.

2. Once the oven has cooled down (about 1 hour) and Hot is

no longer displayed, the oven door may be opened.

3. When the oven interior has completely cooled, wipe away

any residue or powdered ash with a damp cloth or paper

towel.

Setting Delay Start Self Clean

To start a delay Self Clean with default clean time of 3 hours

and a start time of 9:00 o’clock:

1. Be sure the clock is set with the correct time of day, the oven

is empty, and all oven racks are removed. Be sure oven

door is completely closed.

2. Press Delay Start.

3. Using numeric keypad, enter 9 0 0 or press the Up arrow

key until 9 0 0 appears in the display.

4. Press

START to accept

5. Press Self Clean.

6. Press

START.

If it becomes necessary to stop Self Clean when active:

1. Press

STOP.

2. If Self Clean has heated the oven to a high temperature,

allow enough time for the oven to cool.

3. Before restarting Self Clean, be sure to read important

notes below.

Important note:

• If your clock is set with the (default) 12 hr display mode, the

Delay Start for a Self Clean can only be programmed to

start up to 11 hours and 59 minutes after the time showing

in the display (be sure to set the clock to current time

before programming a delay start).

• To set a Delay Start Self Clean to begin 12 or more hours

(maximum is 23 hours and 59 minutes) after the time of

setting, be sure to first set the control in the 24 Hr display

mode.

• If Self Clean was active and then interrupted by a power

failure or cancelled before the oven was thoroughly

cleaned, it may be necessary to run another Self Clean

cycle.

• If the oven temperature was high enough when Self Clean

was interrupted the oven control may not allow another Self

Clean cycle to be set for up to 4 hours.

Care and Cleaning

Cleaning Various Parts of Your Oven

Before cleaning any part of the oven, be sure all controls are turned off and the oven is cool. Remove spills and any heavy soiling

as soon as possible. Regular cleaning will reduce the difficulty of major cleaning later.

Surface Type Recommendation

Control knobs

Painted body parts

Painted decorative trim

Aluminum, plastic or vinyl trim

• For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-

up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30-60

minutes. Rinse with a damp cloth and dry. Do not use abrasive cleaners on any of these

materials; they can scratch. To remove control knobs, turn to OFF position. Grasp firmly

and pull straight off the shaft. To replace knobs after cleaning, line up the flat sides of

both knob and shaft, then push knob into place.

Control panel

Control keypad membrane

Decorative trim (some models)

• Before cleaning the control panel, turn all controls off, activate oven lockout (on some

models), and if needed remove any knobs from panel. Do not use abrasive cleaners on

any of these materials; they can scratch. Clean using hot, soapy water and a cloth or

sponge. Be sure to squeeze excess water from cloth or sponge before wiping control

panel, especially when wiping around the controls area. Excess water in or around the

controls may cause damage to the appliance. When rinsing, use clean water and a cloth

or sponge and be sure to squeeze excess water from cloth or sponge before wiping the

control panel.

Porcelain enamel parts and door liner • Gentle scrubbing with a soapy non-abrasive scouring pad will remove most spots. Rinse

with a 1:1 solution of clear water and ammonia. If necessary, cover difficult spots with an

ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp

cloth, and then scrub with a soap-filled non-abrasive scouring pad. Rinse and wipe dry

with a clean cloth. Do not allow food spills with high sugar or acid content (milk,

tomatoes, sauerkraut, fruit juices, or pie filling) to remain on the surface; they may cause

a dull spot even after cleaning.

Oven interior • For oven interior remove excessive spillovers from oven cavity bottom before starting Self

Clean. Clean any soils from oven frame and door liner outside the oven door gasket. For

important cleaning precautions, read all the instructions in

“Self Clean” on page 29.

Porcelain oven racks • This model comes with lubricated porcelain oven racks, which can remain in the oven

during the self-clean cycle. So not clean this vegetable oil lubrication off the racks. It is

important that the sides of the oven racks always have a light coating of vegetable oil.

To maintain optimal rack performance, re-apply a thin layer of vegetable oil to the sides

of the rack after every self-clean cycle or when the rack becomes difficult to slide.

Oven door • Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse

well. You may use a glass cleaner on the outside glass of the oven door. Do not immerse

the door in water. Do not spray or allow water or the glass cleaner to enter the door

vents. Do not use oven cleaners, cleaning powders, or any harsh abrasive cleaning

materials on the outside of the oven door.

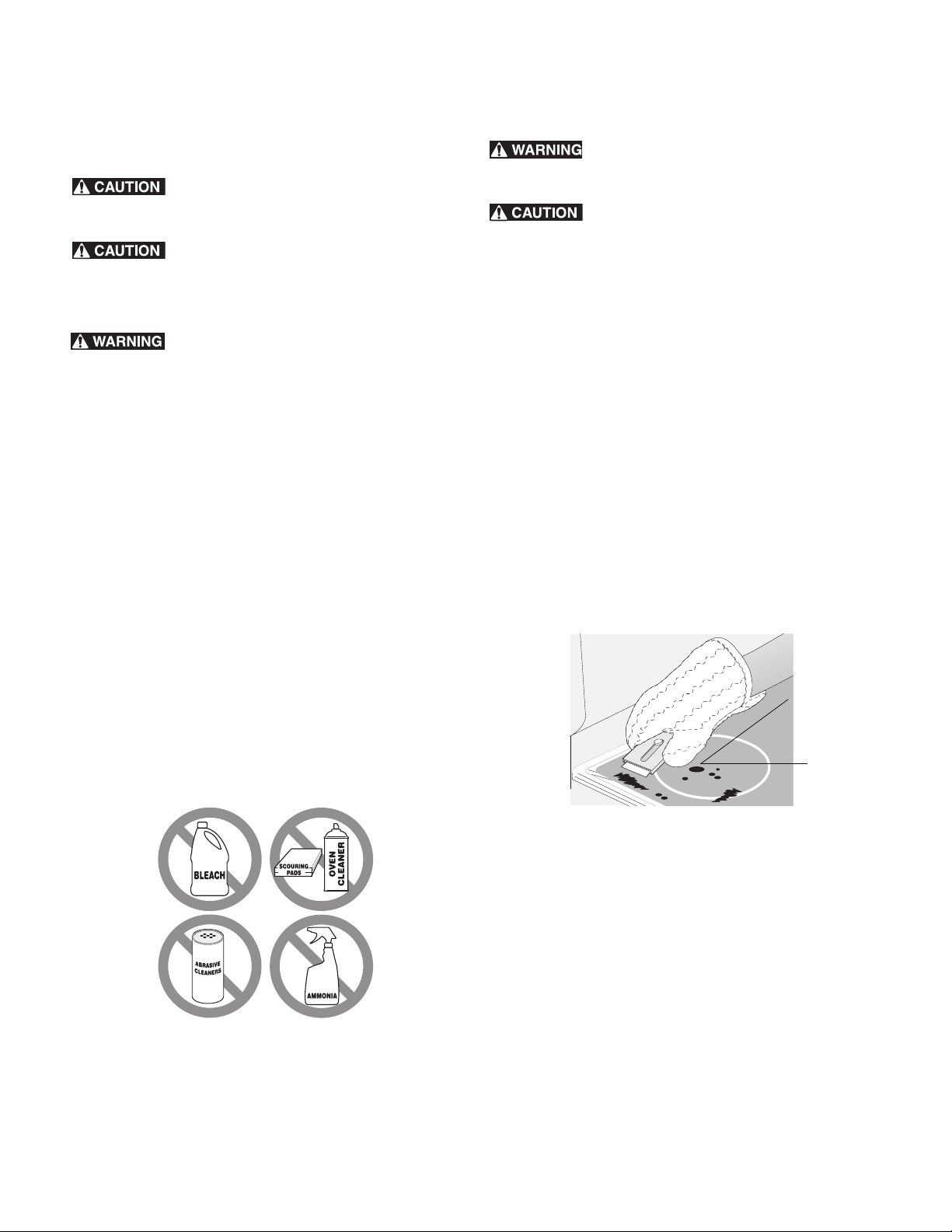

Care and Cleaning

General Cleaning

Before manually cleaning any part of the

range, be sure all controls are turned off and the range is cool.

The range may be hot and can cause burns.

Using ammonia to clean the oven is not

recommended. However, if used, ammonia must be rinsed thor-

oughly before operating the oven. Provide adequate ventilation.

Aluminum foil and utensils

Never cover any slots, holes, or passages in the

oven bottom or cover an entire oven rack with materials such as

aluminum foil. Aluminum foil linings may trap heat, causing a

fire hazard.

• Protective Liners — Do not use aluminum foil to line the

oven bottom. Only use aluminum foil as recommended in

this manual. Improper installation of these liners may result

in risk of electric shock, or fire.

Do not use the following on the cooktop (Figure 31):

• Do not use abrasive cleaners and scouring pads, such as

metal and some nylon pads. They may scratch the cooktop,

making it more difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach,

ammonia or oven cleaners, as they may etch or discolor the

cooktop.

• Do not use dirty sponges, cloths or paper towels, as they

can leave soil or lint on the cooktop which can burn and

cause discoloration.

Important note:

Damage to the ceramic glass cooktop may occur if you use an

abrasive type cleaning pad. Only use cleaning products that

have been specifically designed for ceramic glass cooktops.

Cooktop Cleaning

Do not use a cooktop cleaner on a hot cooktop.

The fumes can be hazardous to your health, and can chemically

damage the ceramic-glass surface.

Before cleaning the cooktop, be sure the

controls are turned to OFF and the cooktop is cool. The glass

surface could be hot and burns may occur if the glass surface is

touched before it has cooled sufficiently.

For light to moderate soil:

Apply a few drops of cooktop cleaning cream directly to the

cooktop. Use a clean paper towel to clean the entire cooktop

surface. Make sure the cooktop is cleaned thoroughly, leaving

no residue. Do not use the towel you use to clean the cooktop for

any other purpose.

For heavy, burned on soil:

Apply a few drops of cooktop cleaning cream directly to the

soiled area. Rub the soiled area using a non-abrasive cleaning

tool, applying pressure as needed. Do not use the pad you use

to clean the cooktop for any other purpose.

If soils remain, carefully scrape soils with a metal razor blade

scraper, holding scraper at a 30 degree angle to the surface

(

Figure 32). Remove loosened soils with cooktop cleaning cream

and buff surface clean.

Plastic or foods with a high sugar content need be removed

immediately if spilled or melted onto the ceramic cooktop

surface. Permanent damage (such as pitting of the cooktop

surface) may occur if not removed immediately. After turning

the surface elements off, use a razor blade scraper or a metal

spatula with a mitt and scrape the soil from the hot surface (as

illustrated). Allow the cooktop to cool, and use the same method

for heavy or burned on soils.

Figure 31: Cleaning products to avoid

Figure 32: Cooktop cleaning

30°

Care and Cleaning

Cooktop Maintenance

Consistent and proper cleaning is essential to maintaining your

ceramic glass cooktop.

Prior to using your cooktop for the first time, apply a ceramic

cooktop cleaning cream (available in most hardware, grocery

and department stores) to the ceramic surface. Clean and buff

with a clean paper towel. This will make cleaning easier when

soiled from cooking. Cooktop cleaning creams leave a protec-

tive finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop

can cause metal markings on the cooktop surface. These marks

should be removed immediately after the cooktop has cooled

using the cooktop cleaning cream. Metal marks can become

permanent if not removed prior to future use. Cookware (cast

iron, metal, ceramic or glass) with rough bottoms can mark or

scratch the cooktop surface.

Important:

• Do not slide anything metal or glass across the cooktop.

• Do not use cookware with dirt or dirt build up on bottom;

replace with clean cookware before using.

• Never use your cooktop as a cutting board or work surface

in the kitchen.

• Do not drop heavy or hard objects on the ceramic glass

cooktop, they may cause it to crack.

Broiler Pan Cleaning Tips

To prevent grease from baking on, remove the broiler pan from

the oven as soon as cooking is completed. Use potholders or

oven mitts because the broiler pan is extremely hot. Pour off

grease. Soak the pan in hot, soapy water. Clean the broiler pan

and insert as soon as possible after each use. If necessary, use

soap-filled steel wool pads. Heavy scouring may scratch the

insert.

Aluminum Foil, Aluminum Utensils, and Oven Liners

Never cover any slots, holes, or passages in the oven bottom or

cove

r an enti

re oven rack with materials such as aluminum foil.

Doing so blocks air flow through the oven and may cause carbon

monoxide poisoning. Aluminum foil linings may trap heat, causing

a fire hazard.

Protective liners—Do not use aluminum foil to line th

e oven

bottom. The high heat of the oven can melt these materials to the

oven cavity and ruin the oven. These types of materials can also

reduce the effectiveness of the air circulation in the oven and

produce poor baking results.

Only use aluminum foil as recommended in this manual.

Improper installation of these liners may result in risk of electric

shock or fire.

• Aluminum foil - Use of aluminum foil on a hot cooktop can

damage the cooktop. Do not use thin aluminum cooking

utensils or allow aluminum foil to touch the surface elements

under any circumstances.

• Aluminum utensils - The melting point of aluminum is much

lower than that of other metals. If aluminum pans are

allowed to boil dry when using the cooktop, the utensil will

be damaged or destroyed.

•Oven racks - Do not use aluminum foil to cover the oven

racks. During self clean the oven temperature can become

hot enough to melt aluminum cooking utensils or aluminum

foil and could result in permanent damage to the oven

interior and porcelain finish.

Figure 33: Do not slide cookware across cooktop

Figure 34: Broil pan and insert

Care and Cleaning

Removing and Replacing the Oven Door

Important: The door is very heavy. For safe, temporary storage,

lay the door flat with the inside of the door facing down.

To prevent possible burns, do not atte

mpt to remove the oven

door until the oven has completely cooled. To remove the oven

door:

1. Open oven door completely, horizontal with floor.

2. Pull up the lock located on each hinge support toward front

of the oven until the lock stops. You may have to apply a

little upward pressure on the lock to pull it up (Figure 36

and Figure 37).

3. Grasp the door by the sides, and close the door until the

door frame makes contact with the unlocked hinges.

4. Pull the bottom of the door toward you while rotating the

top of the door toward the appliance to completely

disengage the hinge levers (Figure 38).

To Replace Oven Door:

Firmly grasp both sides of oven door along the door sides. Do

not use the oven door handle (Figure 38).

Hold the oven door at the same angle as the removal position.

Carefully insert the hinge levers into the oven frame until you

feel the hinge levers are seated into the hinge notches. The

hinge arms must be fully seated into the hinge notches before

the oven door can be fully opened. (Figure 38).

Fully open the oven door, horizontal with floor (Figure 35).

Push the door hinge locks up toward and into the oven frame on

both left and right oven door hinges to the locked position

(Figure 36).

Close the oven door.

Special Care Instructions

Most oven doors contain glass that can break. Follow these

recommendations:

• Do not close the oven door until all the oven racks are fully

in place inside the oven cavity.

• Do not hit the glass with pots, pans, or any other object.

• Scratching, hitting, jarring, or stressing the glass may

weaken its structure causing an increased risk of breakage

at a later time.

Figure 35: Door hinge location

Figure 36: Door hinge locked

Figure 37: Unlocking door hinge

Figure 38: Remove door position

Oven door

hinge

locations

Care and Cleaning

Replacing Oven Lights

Your oven is equipped with interior oven lights that ramp up

gradually when the oven door is opened. The oven lights can

also be turned on when the door is closed by using the oven

light switch located on the control panel.

To remove and replace a light bulb:

Be sure the range is unplugged and all parts are cool before

rep

acing oven light. Wear a leather-faced glove for protection

against possible broken glass. Do not allow your fingers to touch

the new bulb when replacing. Use a clean soft cloth or paper

towel to cover the new bulb when installing.

1. Turn electrical power off at the main source or unplug the

appliance.

2. To remove the glass shield, pull the back side of the shield

toward the inside of the oven in a manner to lift it up from

the oven side. The glass shield should come out easily by

pushing a little toward front of the wall oven (

Figure 39).

3. Replace the halogen appliance bulb.

4. Gently push the glass shield toward the oven wall until it is

firmly seated against the oven wall.

5. Reconnect electrical power to the appliance or turn power

back on.

Figure 39: Glass shield and oven light bulb

Lift backside of

glass shield and

remove it.

Halogen

Light Bulb

Before You Call

Oven Baking

For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the

oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

Baking Problems and Solutions

Baking Problems Causes Corrections

Cookies and biscuits burn

on the bottom

• Cookies and biscuits put into

oven before the preheating

time is completed.

• Oven rack is overcrowded.

• Dark pans absorbs heat too

fast.

• Allow oven to preheat to desired temperature before

placing food in oven.

• Choose pan sizes that will permit 2” to 4” of air space (5.1

cm o 10.2 cm) on all sides when placed in the oven.

• Use a medium weight baking sheet.

Cakes too dark on top or

bottom

• Cakes put in oven before

preheating time is completed.

• Rack position too high or too

low.

• Oven too hot.

• Allow oven to preheat to the selected temperature before

placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F/13°C lower than recom-

mended.

Cakes not done in center • Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Set oven temperature 25°F/13°C lower than recom-

mended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is 5.1 cm

to 10.2 cm (2” to 4”) of space on all sides of pan.

Cakes not level • Oven not level.

• Pan too close to oven wall or

rack overcrowded.

• Pan warped.

• Place a marked glass measuring cup filled with water on

the center of the oven rack. If the water level is uneven,

refer to the installation instructions for leveling the oven.

• Be sure to allow 5.1 cm to 10.2 cm (2” to 4”) of clearance

on all sides of each pan in the oven.

• Do not use pans that are dented or warped.

Foods not done when

cooking time is over

• Oven too cool.

• Oven overcrowded.

• Oven door opened too

frequently.

• Set oven temperature 25°F/13°C higher than suggested

and bake for the recommended time.

• Be sure to remove all pans from the oven except the ones

to be used for baking.

• Open oven door only after shortest recommended baking

time.

Before You Call

Solutions to Common Problems

Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the

problem listed:

Problem Solution

Poor baking results • Many factors effect baking results. Use proper oven rack position. Center food in the

oven and space pans to allow air to circulate. Preheat oven to the set temperature

before placing food in the oven. Try adjusting the recipe's recommended temperature

or baking time. See

“Setting Self Clean” on page 30 if you feel the oven is too hot or

cold.

Oven does not operate • The time of day is not set. The oven clock must first be set in order to operate the oven.

• Be sure oven controls are set properly. See

“Setting Clock” on page 16 and review

instructions for the desired cooking function in this manual.

• Service wiring is not complete.

Oven light does not work • Be sure the oven light is secure in the socket. See

“Replacing Oven Lights” on page 35.

Flames inside oven or smoking from

oven vent

• Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe

up excessive spills before starting oven. If flames or excessive smoke are present when

using broil, see

“Setting Broil” on page 23.

Surface element is too hot or not hot

enough

• Incorrect surface control setting. Adjust power level setting.

Surface element does not heat or

does not heat evenly

• Be sure the correct surface control is turned on for element needed.

• Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavy-

weight cookware. Flat pans heat better than warped pans. Cookware materials and

weight of the material affect heating.

• Heavy and medium-weight pans heat evenly. Because lightweight pans heat unevenly,

foods may burn easily.

Scratches or abrasions on cooktop

surface

• Coarse particles such as salt or hardened soils between cooktop and utensils can cause

scratches. Be sure cooktop surface and bottoms of utensils are clean before usage.

Small scratches do not affect cooking and will become less visible with time.

• Cleaning materials not recommended for ceramic-glass cooktop have been used. Apply

a cooktop cleaning cream to the ceramic surface. Buff with a non-abrasive cloth or

sponge.

• Cookware with rough bottom was used. Use smooth, flat-bottomed cookware.

Brown streaks or specks on cooktop

surface

• Boilovers are cooked onto surface. Use razor blade scraper to remove soil.

Self clean does not work • Oven control not set properly. Review

“Setting Self Clean” on page 30.

Porcelain coated oven racks do not

slide easily

• This model comes with lubricated porcelain oven racks which can remain in the oven

during the self clean. Do not clean this vege

table

oil lubrication off the racks. It is

important that the sides of the oven racks always have a light coating of vegetable oil.

To maintain optimal rack performance, reapply a thin layer of vegetable oil to the side

of the racks after every self clean cycle or when the racks become difficult to slide.

Before You Call

Oven smokes excessively when

broiling

• Incorrect setting. Follow broiling instructions on page 22.

• Meat too close to the broil element. Reposition broil rack to provide proper clearance

between the meat and broil element. Remove excess fat from meat. Cut remaining fatty

edges to prevent curling.

• Grease build up on oven surfaces. Regular cleaning is necessary when broiling

frequently. Grease or food splatters will cause excessive smoking.

Oven control panel beeps and

displays any F or E code error

• Oven control has detected a fault or error condition. Press STOP to clear the error code.

Try bake or broil function. If the F or E code error repeats, turn off power to appliance,

wait 5 minutes and then repower appliance. Set clock with correct time of day. Try bake

or broil function again. If fault recurs, press STOP to clear.

Soil not completely removed after

self clean

• Self Clean was interrupted. Review instructions in

“Setting Self Clean” section on

page 30.

• Excessive spills on oven bottom. Clean before starting self clean.

• Failure to clean soil from the oven frame, the door liner outside the oven door gasket

and the small area at the front center of the oven bottom. These areas are not in the

self-cleaning area, but get hot enough to burn on residue. Clean these areas before

starting the clean cycle. Burned-on residue can be cleaned with a stiff nylon brush and

water or a nylon scrubber. Be careful not to damage the oven gasket.

Convection fan does not rotate • Oven door is open. Convection fan will turn off if oven door is opened when convection

is active. Close oven door.

Fan noise occurring after the oven is

turned off

• Some models are equipped with a cooling fan that runs during the cooking process to

cool internal electronic components. It is normal for this fan to continue to run for an

extended period of time, even when the oven is off.

Kenmore 79097993410 Elite electric range

Product's Documents

User Manual

Specifications

Kenmore 79097993410 Questions and Answers
