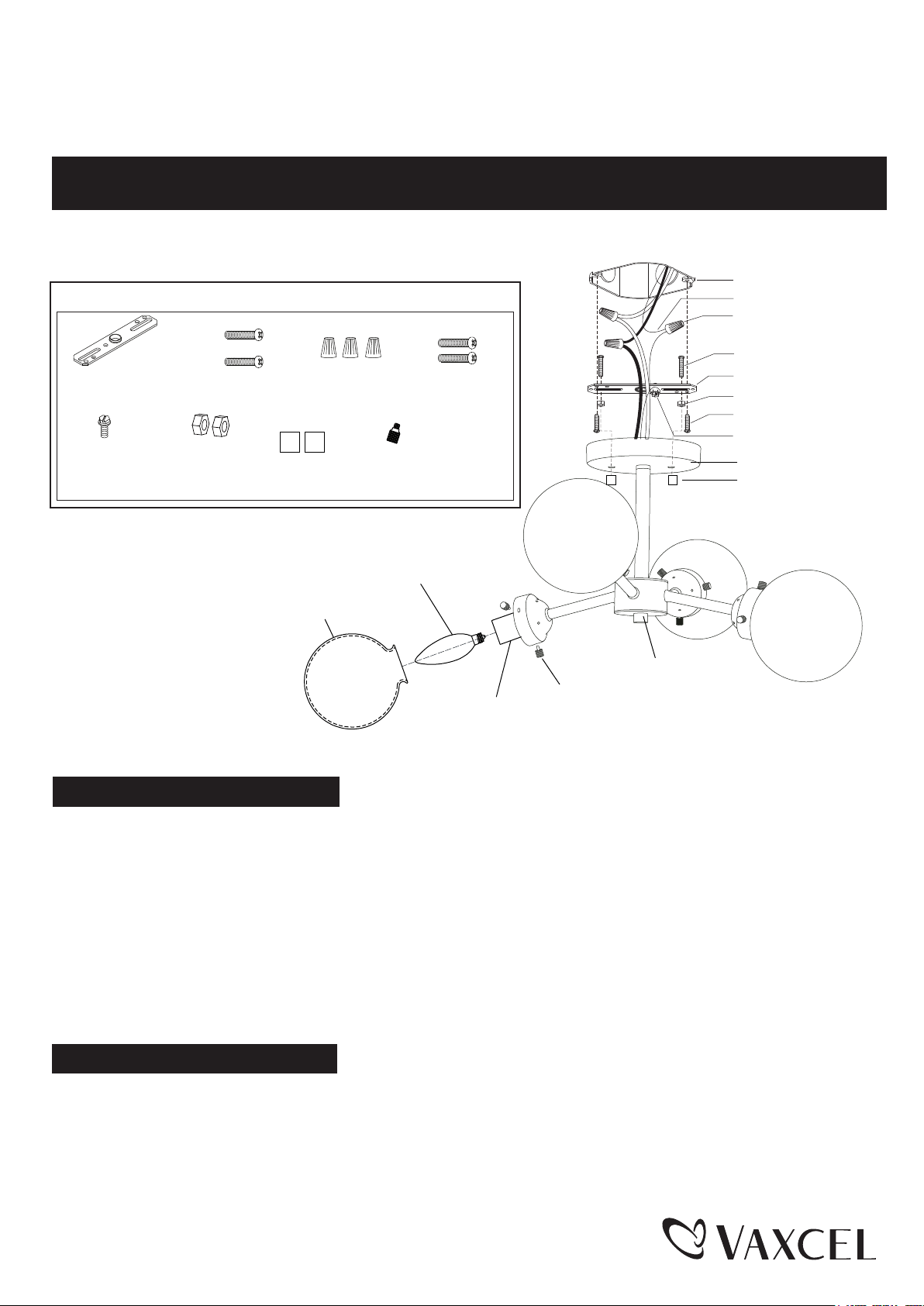

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
161021
Outlet Box
House Grounding Wire
Wire Nut(C)
Fixture Mounting Screw (D)
Mounting Strap(A)
Green Grounding Screw(E)
Canopy
Ball Nut(G)
Fixture light
Lock Nut(F)
Mounting Screw(B)
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0133
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
1. Attach two fixture mounting screws to the mounting strap, and then secure it with two lock nuts. Adjust the length of the
fixture mounting screws if necessary.
2. Attach the mounting strap to the outlet box using two mounting screws.
3. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follows:
---Connect the black wire from the fixture to the black wire from the power source.
---Connect the white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green grounding screw, and then connect it to the
house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
4. Install the bulbs (not included). Check relamping label at socket area or packaging for maximum allowed wattage.
5. Attach the glass shade onto the socket and tighten it with set screws.
6. Attach the canopy onto the outlet and tighten it with two ball nuts.
Turn off the power at fuse or circuit box
Installation Steps
Turn on the power at fuse or circuit box
Bulb Type B 40W
(not included)
Glass Shade
Socket
Set Screw (H)
Hardware Package (included):
Mounting Strap (A)
Green Grounding
Screw (E)
Fixture Mounting
Screw(D)
Mounting Screw (B)
Wire Nut (C)
Lock Nut (F)
Ball Nut (G)
Set Screw (H)
161021

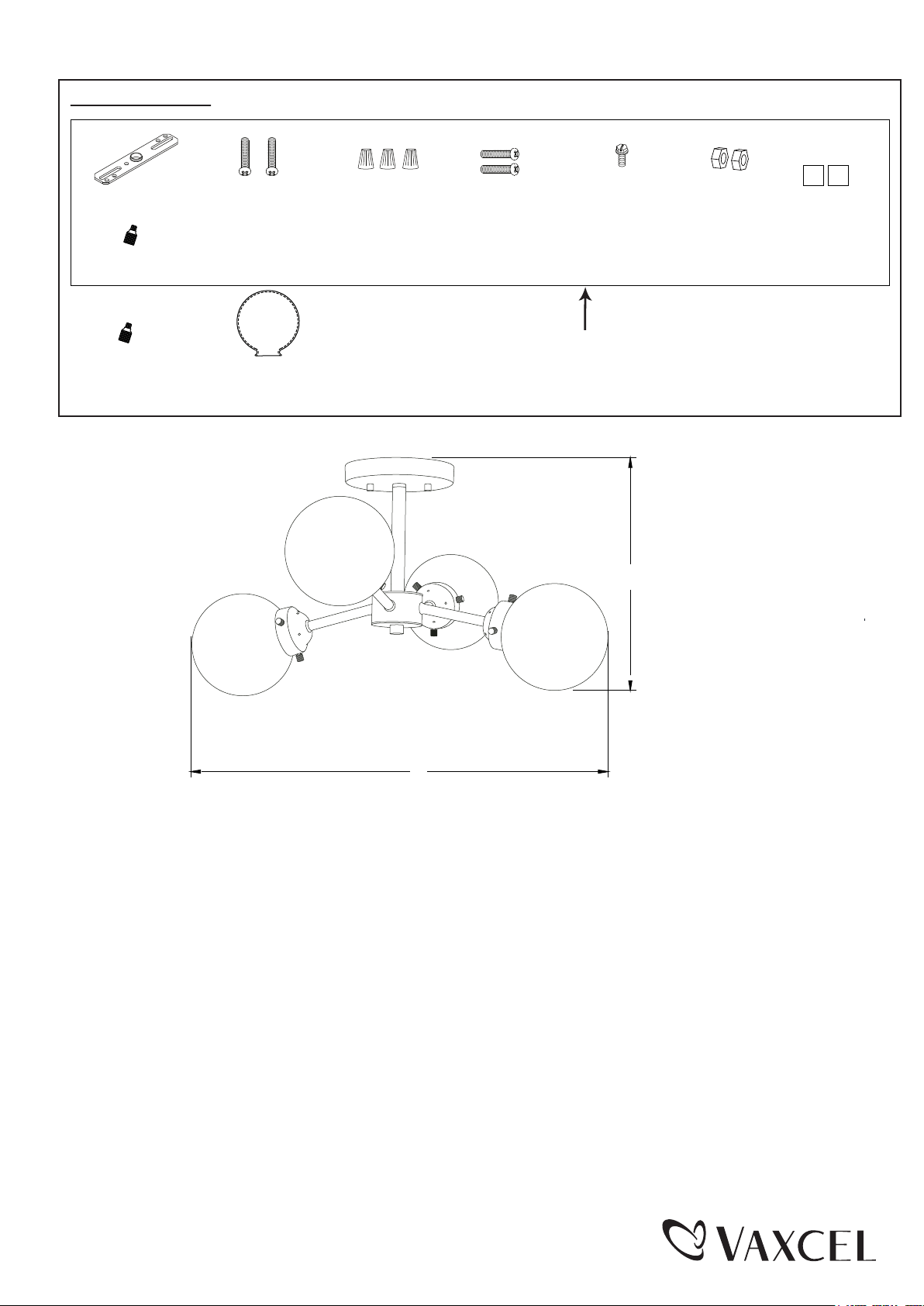

Spare Parts List:
Assembly Kit
5641MM (1SET)
The following parts are available for re-order if damaged or missing.
Set Screw
5642SS (1 SET)
X12
Glass Shade
9847CG
A: 10-1/2”
B: 20”
Mounting Strap (A)
Set Screw (H)
Green Grounding
Screw (E)
Fixture Mounting
Screw(D)
Mounting Screw (B)
Wire Nut (C)
Lock Nut (F)
Ball Nut (G)
A
B
