Assembly instructions
Stock No.85675 Part No.DST3W
2-In-1 Stair Climber
Sack Truck
DRAPER TOOLS LTD, HURSLEY ROAD, CHANDLER'S FORD, EASTLEIGH, HANTS. SO53 1YF. U.K.
www.drapertools.com e-mail: [email protected]
SRMC0716

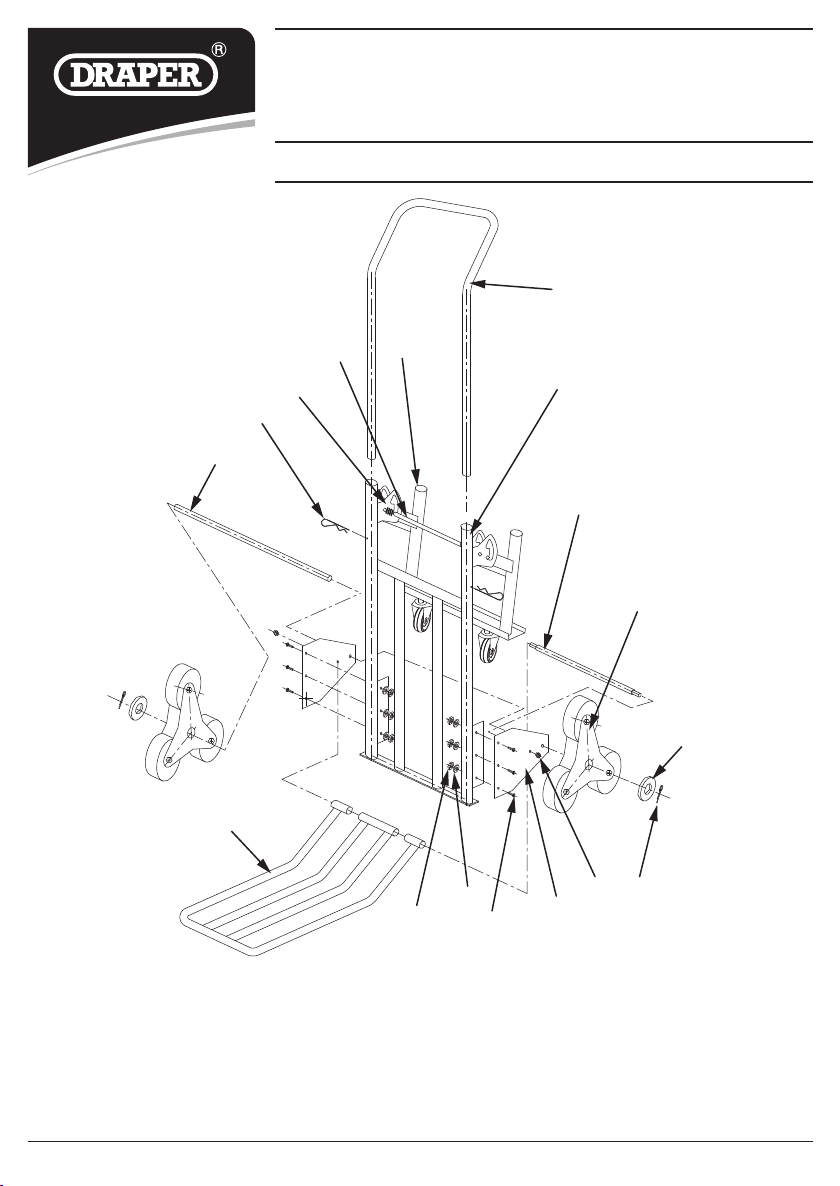

Handle
Frame
Connecting bar
Tri-wheel assembly x2
Big washer x2
Cotter pin x2
Lock nut x2
Axle bracket plate x2
Bolt x6
Spring washer x6
Lock nut x6
Movable toe plate
Axle
B Cotter pin x2
Spring
Sprung lock bar
Platform handle fixing

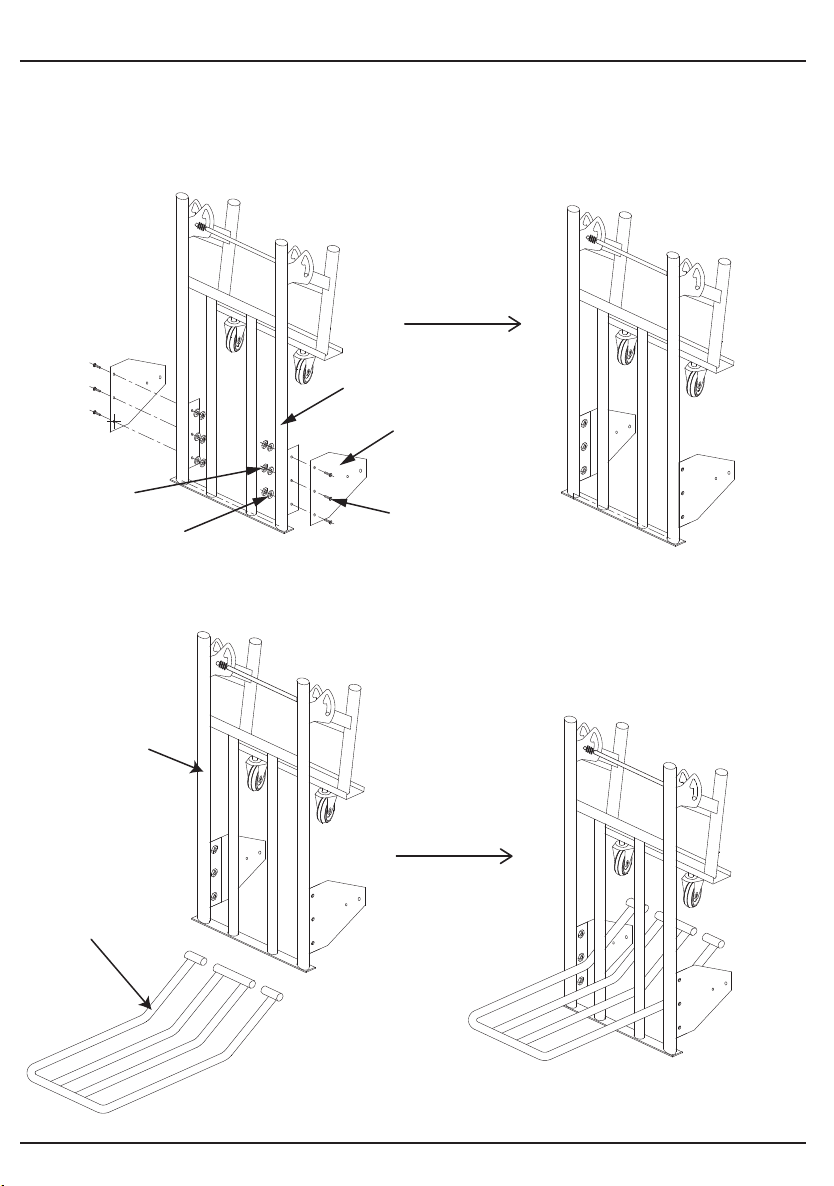

Step 2:
Plug the Movable Toe Plate into the Frame in the way shown below.
After assembly
After assembly
2
ASSEMBLY INSTRUCTIONS
Step 1:
Fix the Axle Bracket Plate onto the Frame , using the Bolts , Spring Washers and Nuts
. Do not fully tighten the nut, leave 3mm of moving space for the next step of assembly.
After assembly
After assembly
3
ASSEMBLY INSTRUCTIONS

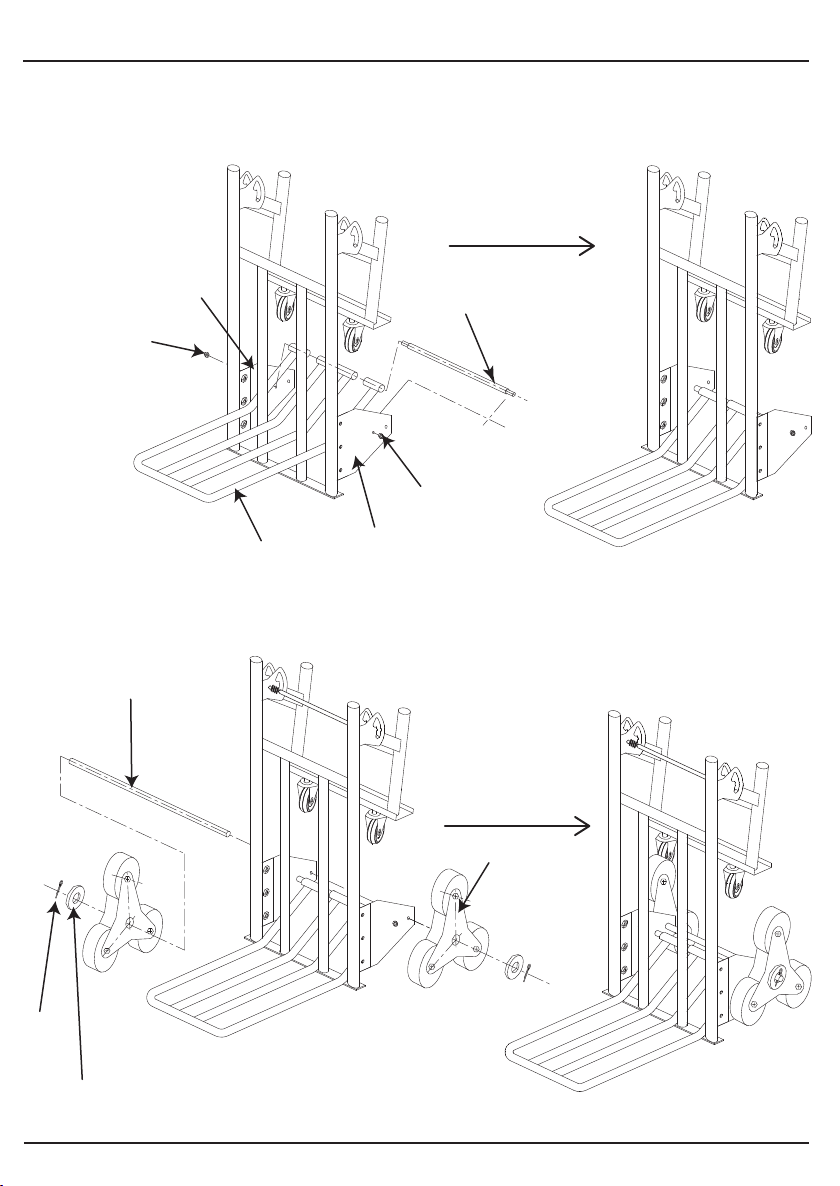

Step 3:
Slide the Connecting Bar through the Movable Toe Plate , and then attach the Axle Plate to
the each end of the connecting bar, using both of the Lock Nuts . At this step, fully tighten the nut
mentioned in the Step 1.
Step 4:
Slide the Axle
through two Tri-wheel Assembly as showed below, using both of the Big
Washers , and both of Cotter Pins .

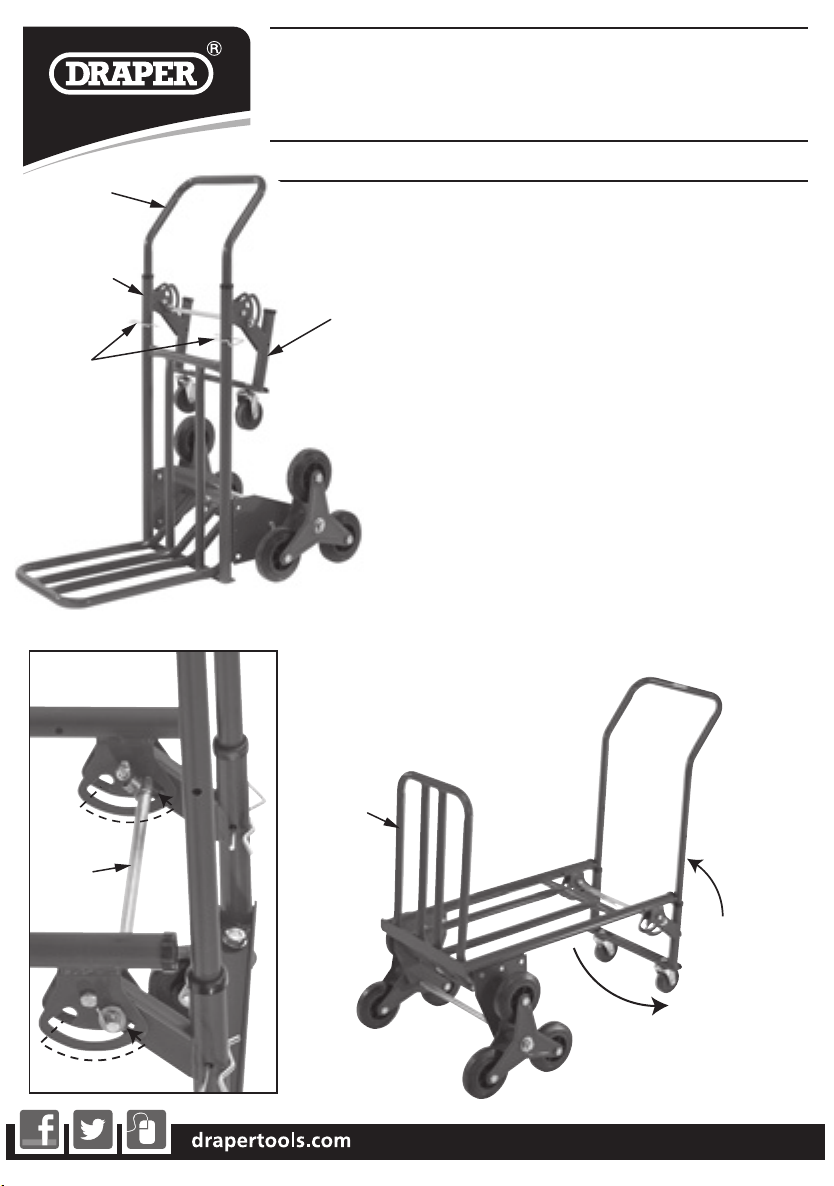

Upright Sack Truck to Platform Truck
Stock No.85675 Part No.DST3W
2-In-1 Stair Climber
Sack Truck
SRMC0716
Remove the 2 cotter pins and remove the
tubular handle section , then re-insert it into
the corresponding sockets of the folding rear
castor wheel section . Align the holes in the
frames of both sections and insert the 2 cotter
pins to lock in place.
Pull back through 90° on the axle of the front
triple wheel units so that the rear castors meet
the ground and the vertical back rest of the sack
truck now forms the horizontal bed of the
platform truck.
Release the sprung locking bar to its 2nd
position whilst turning the handlethrough 90°.
The rear castor wheel assembly will be locked in
place in the vertical position.
The hinged toe-plate of the sack truck forms
a back rest and is held upright by goods placed on
the platform of the truck.
Perform the above steps in reverse to convert the
platform truck back to the sack truck.
Lift handle
Castors lower
