BEVERAGE COOLER
User Manual
MODELS:
SCR314L
SCR489OS
SPR314LOS
BAR14
BAR141S
BC14
BC143S
Write Serial No. (on back of unit) here:
Felix Storch, Inc.
Summit Appliance Division
An ISO 9001:2015 registered
company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
2
(Page intentionally left blank.)
3
TABLE OF CONTENTS
Appliance Safety 4
Important Safeguards 4-6
Location of Parts 7
Installation Instructions 8-10
Before Using your Appliance 8
Installation of your Appliance 8
Electrical Connection 8-9
Extension Cord 9
Installing the Door Handle 9
Reversing the Door Swing 10
Operating your Appliance 11-12
Control Panel 11
Door Lock 11
Defrosting 12
Shelves 12
Care and Maintenance 12-13
Cleaning your Appliance 12
Power Failure 12
Vacations 12
Moving your Appliance 12
Energy Saving Tips 13
Troubleshooting 14
Notes 15
Limited Warranty 16
4
APPLIANCE SAFETY
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. The symbol alerts you to potential hazards
that can
kill or injure you and others. All safety messages will follow the Safety
Alert Symbol
and either the words "DANGER" or "WARNING".
DANGER means that failure to heed this
safety
statement may result in severe
personal injury
or death.
WARNING means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury,
or
death.
All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury,
and let you know what can happen if the instructions are not followed
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:
• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter,
and do not use an extension cord.
• Replace all panels before operating.
• It is recommended that a separate circuit serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
• Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
5
•
This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a) which is
environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase
the
greenhouse effect. Care must be taken during transportation and setting up of the appliance
that no
parts of the cooling system are damaged. Leaking coolant can ignite and may damage the
eyes. In
the event of any damage:
-
Avoid open flames and anything that creates a spark,
-
Disconnect from the electrical power line,
-
Air the room in which the appliance is located for several minutes, and
-
Contact the Service Department for advice.
•
The more coolant there is in an appliance, the larger the room it should be installed in. In the event
of a leakage, if the appliance is in a small room, there is the danger of combustible gases building
up. For every ounce of coolant at least 325 cubic feet of room space is required. The amount of
coolant in the appliance is stated on the data plate on the back of the appliance. It is hazardous for
anyone other than an Authorized Service Person to carry out servicing or repairs to this appliance.
•
Take serious care when handling, moving, and using the appliance to avoid either damaging the
refrigerant tubing or increasing the risk of a leak.
•
Replacing component parts and servicing shall be done by factory authorized service personnel
so as to minimize the risk of possible ignition due to incorrect parts or improper service.
FOLLOW WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
• Use two or more people to move and install appliance. Failure to do so can result in back or
other
injury.
• To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F
(32°C). (Optimum
operation occurs within the range 72º to 78ºF, or 23º- 26ºC.) This unit must
be installed in an area
protected from the elements, such as wind, rain, water spray or drips.
• The appliance should not be located next to ovens, grills or other sources of high heat.
• The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
• Do not kink or pinch the power supply cord of the appliance.
• The size of the fuse (or circuit breaker) should be 15 amperes.
• It is important that the appliance be leveled in order to work properly. You may need to make
several adjustments to level it.
• All installations must be in accordance with local plumbing code requirements.
• Make certain that the pipes are not pinched, kinked or damaged during installation.
• Check for leaks after connection.
• Never allow children to operate, play with or crawl inside the appliance.
• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
• Use this appliance only for its intended purpose as described in this User Manual.
• Keep fingers out of the “pinch point” areas. Clearances between the door and cabinet are
necessarily small. Be careful closing doors when children are in the area.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
•
Do not damage the refrigerant circuit.
6
•
Do not use electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances
are still dangerous, even if they will “just sit in the garage a few days”.
Before discarding your old refrigerator:
✓
Take off the doors
✓
Leave the shelves in place so that children may not easily climb inside.
– SAVE THESE INSTRUCTIONS –
7
LOCATION OF PARTS
8
INSTALLATION INSTRUCTIONS
Before Using your Appliance
•
Remove the exterior and interior packing.
•
Before connecting the appliance to the power source, let it stand upright for approximately 2
hours. This reduces the possibility of a malfunction in the cooling system from handling during
transportation.
•
Clean the interior surface with lukewarm water using a soft cloth.
•
Install the handle on the door. (See page 8.)
Installation of your Appliance
The appliance is designed for free-standing installation, indoor and outdoor use.
CAUTION: This appliance is designed for storing and cooling beverages and drinks. Do not
store
perishable food, medicine or other medical products.
•
Place your Beverage Cooler on a floor that is strong enough to support it when it is fully loaded.
To level the unit, adjust the front leveling legs.
•
For free-standing installation, leave 5 inches (127mm) of space around the back and
sides of the
unit to allow proper air circulation to cool the compressor and condenser.
NOTE: It is recommended that you do not install the appliance near an oven, radiator or other
heating source. Direct sunlight may affect the acrylic coating and heat sources may
increase
electrical consumption. Don’t install in a location where the temperature will
fall below 60°F (16°C).
For best performance, do not install the appliance behind a
cabinet door or block the base grille.
•
Avoid locating the unit in moist areas.
•
Plug the Beverage Cooler into an exclusive, properly grounded wall outlet. Do not under
any
circumstances cut or remove the third (ground) prong from the power cord. Any
questions concerning
power and/or grounding should be directed toward a certified electrician
or an authorized service center.
Electrical Connection
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped
with a three-prong plug that mates with standard three-prong wall outlets to minimize
the possibility of
electrical shock.
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by a qualified electrician or an authorized service center.
9
Do not under any circumstances cut or remove the third (ground) prong from the power cord
supplied. For
personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~ 60Hz three-prong grounded electrical
outlet. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is
properly grounded.
When a standard 2-prong wall outlet is encountered, it is your responsibility
and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left
exposed or
dangling.
The appliance should always be plugged into its own individual electrical outlet which has a
voltage rating
that matches the rating label on the appliance. This provides the best
performance and also prevents
overloading house wiring circuits that could cause a fire
hazard from overheating. Never unplug the
appliance by pulling on the power cord. Always grip
the plug firmly and pull straight out from the receptacle.
Repair or replace immediately all power
cords that have become frayed or otherwise damaged. Do not use
a cord that shows cracks or
abrasion damage along its length or at either end. When moving the appliance,
be careful not to
damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you
do not
use an extension cord with this appliance. However, if you must use an extension cord, it is
absolutely
necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding
type plug and outlet and that the electrical rating of the cord be 115 volts and
at least 10 amperes.

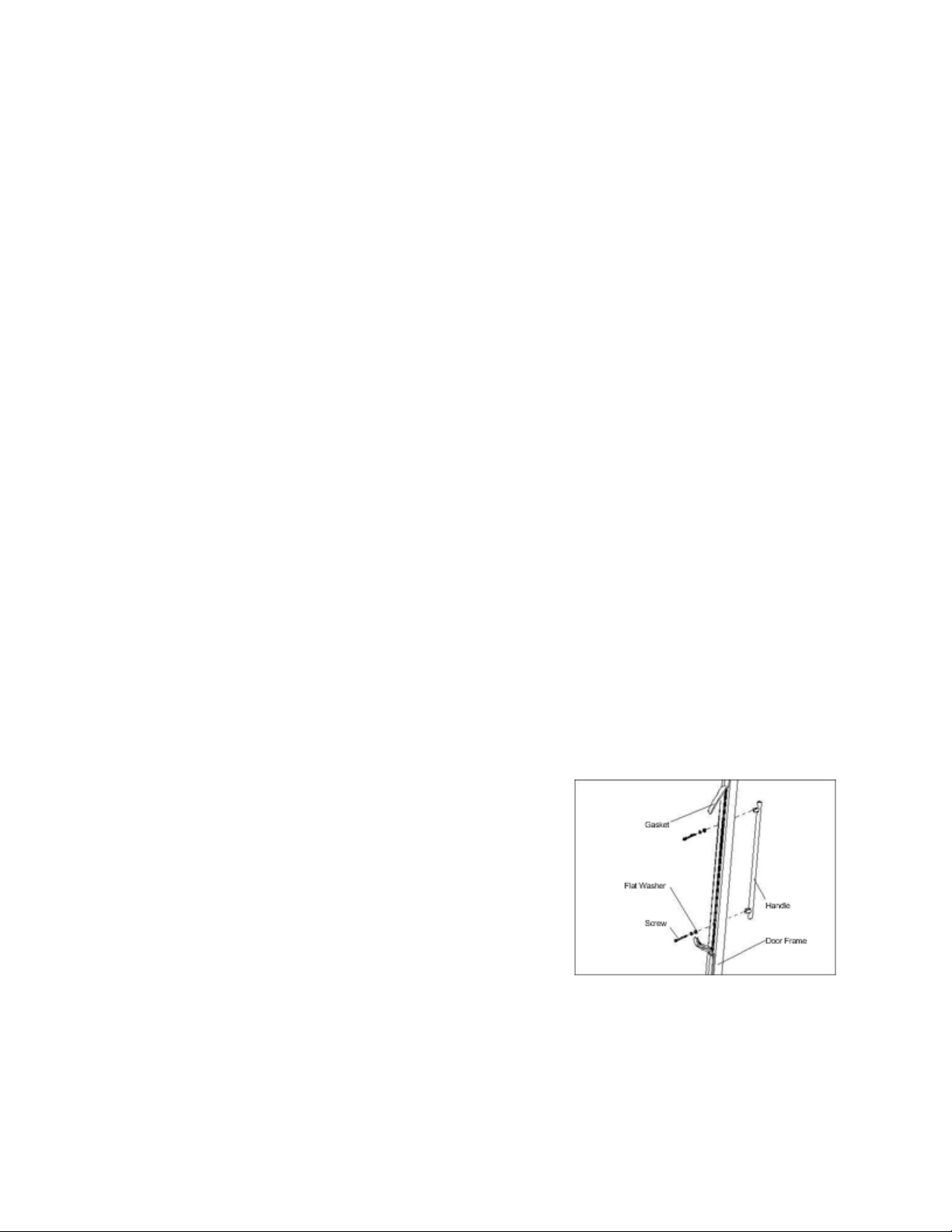

Installing the Door Handle
This beverage cooler includes a stainless steel handle that is not required to operate the unit. To
install the handle, follow the instructions below:
1. Remove the door gasket on the side you wish to install
the door handle. You will see two designated holes for
handle installation. The gasket is easily displaced by
hand. No tools are necessary.
2. Install the fridge handle tightly, as shown, with two screws
and flat washers provided. DO NOT overtighten, as this
will cause damage to the handle and stainless steel door
frame.
3. Replace the door gasket to its original position.
10
Reversing the Door Swing
This diagram will explain how to reverse the door swing of your beverage cooler. Be careful to pay
attention to the numbering of the steps below.
11
OPERATING YOUR APPLIANCE
It is recommended you install the appliance in a place where the ambient temperature is between
72º and
78ºF (23º-26ºC). If the ambient temperature is above or below the recommended
temperatures, the
performance of the unit may be affected. For example, placing your unit in
extremely cold or hot conditions
may cause interior temperatures to fluctuate. The range of 34-46ºF
(1-8ºC) may not be reached.
Control Panel
Mechanical Control

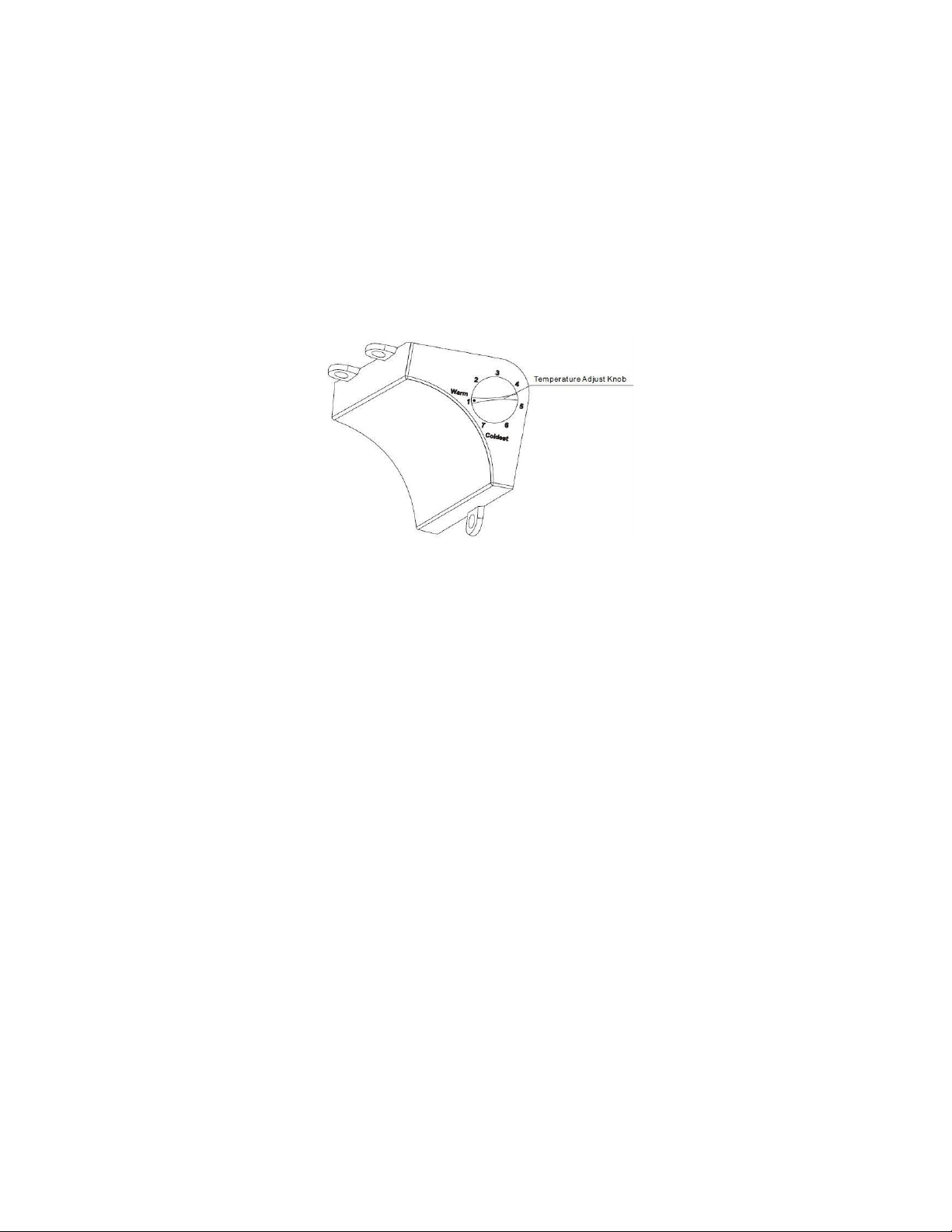

• There is a TEMP-ADJ knob inside the beverage cooler. The temperature in the cabinet can be
adjusted within the range 34-46°F
(1-8°C).
• To lower the temperature in the cabinet, turn the TEMP-ADJ knob from left to right (clockwise)
by the indicating black dot on the knob. The coldest setting is 7, and the warmest setting is 1.
• When using the appliance for the first time, turn the knob to Coldest or 7 to cool down the
cabinet quickly.
• The LED light inside is automatically controlled. When you open the door, the light will
turn on
immediately and when you close the door, the light will turn off automatically.
NOTE: If the unit is unplugged, or power is lost or turned off, you must wait 3 to 5 minutes
before
restarting the unit. If you attempt to restart before this time delay, the unit will
not start.
• When you use the unit for the first time or restart the unit after it has been shut off for a long
time, there could be a few degrees variance between the temperature you select and the one
indicated on the LED readout. This is normal and is due to the length of the activation time.
There should not be a problem once the unit has been running for a few hours.
Door Lock
Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the User Manual. Insert the key into the
lock and
turn it counterclockwise to unlock the door. To lock the door, do the reverse operation,
making sure the
metal pin is engaged completely. Remove the key and put it in a secure place for
safekeeping.
12
Defrosting
This appliance requires no manual defrosting. During the operation of the compressor, ice will
build up on
the evaporator plate which is at the back of inner cabinet. During the compressor’s off-
cycle, the ice will
melt, drip down, and collect in a tray above the compressor, where the
compressor’s heat evaporates the
water. If you notice excessive ice build-up on the evaporator, try
setting the temperature slightly higher.
Also, be sure that the door gasket is sealing well.
Shelves
The unit has two removable, chrome-plated wire shelves. To take out a shelf, first remove its
contents,
then raise the back of the shelf slightly and pull the shelf out.
CARE AND MAINTENANCE
Cleaning your Appliance
1. Turn off the power, unplug the appliance, and remove all items, including shelves.
2. Wash the inside surfaces with a solution of warm water and baking soda (about 2
tablespoons of
baking soda to a quart of water).
3. Wash the shelves with a mild detergent solution.
4. Wring excess water out of the sponge or cloth when cleaning the area where the controls are
located,
or any electrical parts.
5. Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe
dry with a
clean soft cloth.
6. Do not use steel wool or a steel brush on the stainless steel.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of
your
appliance if you minimize the number of times the door is opened. If the power is going to be off
for a longer
period of time, you need to take the proper steps to protect the contents.
Vacations
• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn
off the
appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the door open
slightly, blocking it open if necessary.
Moving your Appliance
1. Remove all stored items.
2. Securely tape down all loose items (shelves) inside your appliance.
3. Turn the adjustable legs up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also,
protect the
outside of the appliance with a blanket or similar item.
13
Energy Saving Tips
The appliance should be located in the coolest area of the room, away from heat producing
appliances
and out of direct sunlight.
Ensure that the unit is adequately ventilated.
Do not keep the door open any longer than necessary.
Failure to unplug the appliance during cleaning
could result in electrical shock or other personal
injury.
CALIFORNIA CARB/SNAP DISCLOSURE
This product uses eco-friendly hydrocarbon refrigerant and fully complies with California
CARB regulations.
However, we are required by California Law to provide the following disclosure statement in every
product sold in California.
"This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited
Substances' for that specific end-use, in accordance with California Code of Regulations, title 17,
section 95374. This disclosure statement has been reviewed and approved by Felix Storch, Inc. and
Felix Storch, Inc. attests, under penalty of perjury, that these statements are true and accurate."
This product does not use any refrigerants on the 'List of Prohibited Substances'"
14
TROUBLESHOOTING
You can solve many common problems easily, possibly saving you the cost of a service call. Try the
suggestions below to see if you can solve the problem before calling a service technician.
Problem
Possible Cause
The appliance is not running.
The appliance is not plugged in.
The appliance is not turned on.
Check the voltage of the installation.
Check if the circuit breaker or the fuse has
blown.
The appliance is not cold enough.
Check the temperature control setting.
Check if the ambient temperature is beyond the
appliance operating temperature.
The door is opened too frequently.
The door is not sealing properly.
Insufficient free space around the appliance.
The compressor starts and stops frequently.
The external temperature is high.
A large quantity of bottles has been put into the
cabinet.
The appliance is opened frequently.
The door is not properly closed.
The cabinet has not been correctly set.
The LED lights do not operate.
The appliance is not plugged in.
The fuse has blown.
The LED lights are broken.
Vibrations
Check and ensure that the appliance is level.
The appliance makes a lot of noise.
The rattling noise may come from the flow of
the refrigerant, which is normal.
At the end of a cooling cycle, you can hear the
noise of water circulating.
Expansion and contraction of the internal walls
may cause a cracking sound.
The appliance is not level.
Check if the fan is in good condition.
The door does not close properly.
The appliance is not level.
The door seal is dirty or damaged.
The shelves are not positioned correctly.
A part of the contents of the appliance is
preventing the door from closing.
15
NOTES
16
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated
and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-
specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by
a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing
defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable
standards, and are not covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance,
to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters)
are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper
installation, installation not in accordance with electrical or plumbing codes, or use of products not
approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is
not installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS
PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
Revised Jan 2020
Felix Storch, Inc.
Summit Appliance Division
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
WARNING: This product can expose you to chemicals including
Nickel (Metallic) which is known to the State of California to cause
cancer. For more information go to www.P65Warnings.ca.gov
Note: Nickel is a component in all stainless steel and some other metallic
compositions.
