OWNER’S MANUAL >> ALL-WEATHER SPEAKERS
SB-AW-6-BLK SB-AW-6-WHT
Thank you for purchasing a great product from one of the best sounding speaker lines available
today. We appreciate your purchase and are committed to providing the highest
quality products possible.

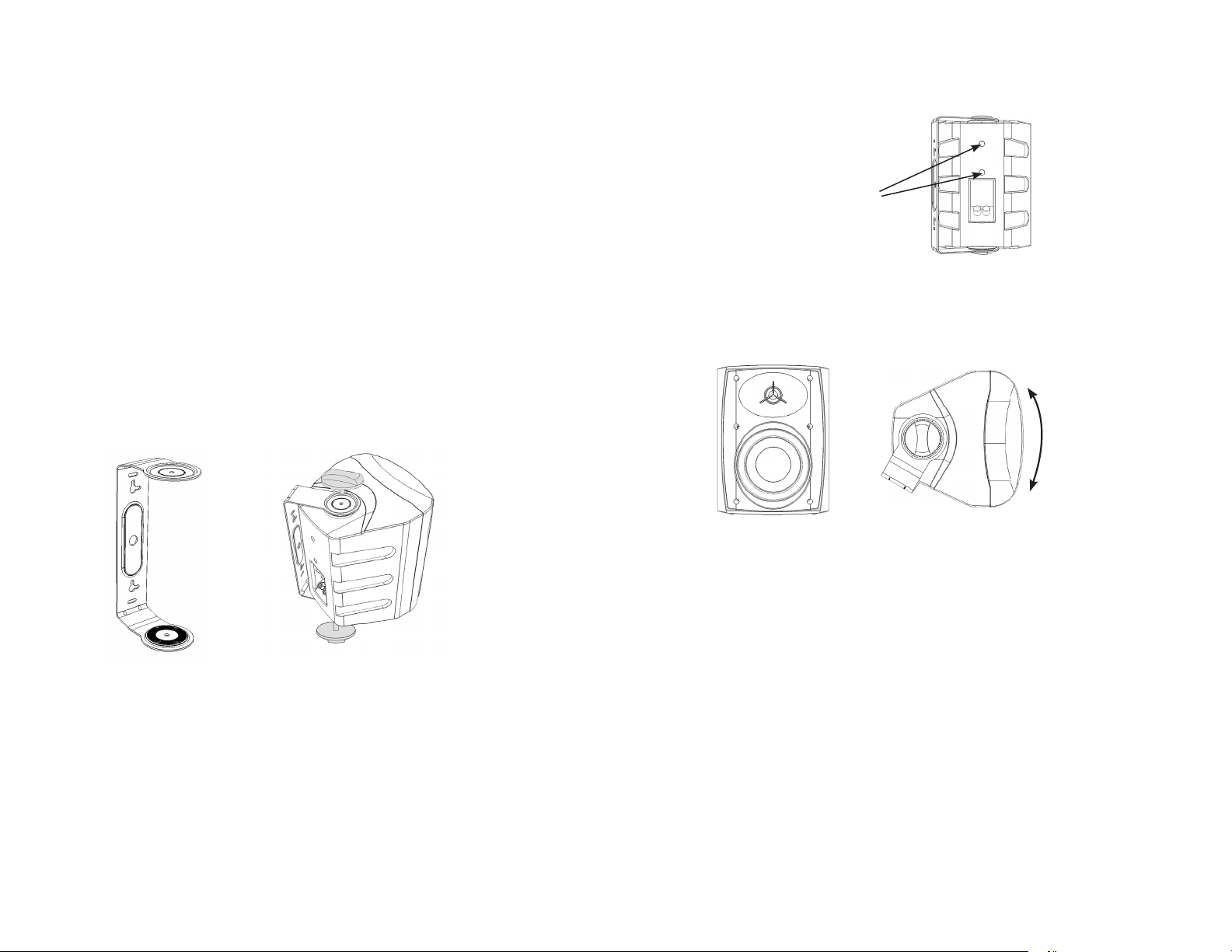

The SunBrite™ All-Weather models are a superb choice for almost any type of outdoor audio
installation, or any location where moisture can be a problem. They have been designed with
advanced technological components that allow for high performance and a lifetime of enjoyment.
WARRANTY
Limited Lifetime Warranty
SunBrite™ speakers have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all
components found to be defective in material or workmanship under normal conditions of use. This warranty
shall not apply to products which have been abused, modied or disassembled. Products to be repaired
under this warranty must be returned to a designated service center with prior notication and an assigned
return authorization number (RA).
Lifetime
ADJUSTMENTS
• Refer to the manual for the receiver or amplier to make sound adjustments such as bass, treble and
balance to obtain the preferred sound.
CONNECTING AND CHECKING SPEAKER PHASE
To ensure proper speaker connections, perform the following steps:
1. At each loudspeaker connection, ensure that at least 2 inches of each conductor are separated.
Strip the insulation on each conductor approximately ¼” and insert into the speaker terminals.
Ensure that there are no stray strands of wire protruding from the connectors. Observe proper
polarity (+ to + and – to – for each speaker and at the amplier).
If the speakers are connected out of phase, the woofers will not be moving in tandem. This will
result in sound that lacks bass and sounds “thin” or “distant” with vocals. If the sound is not right
and markings on the wire to verify polarity cannot be seen, try this simple test:
• Sit with equal distance to the speakers.
• Play some music with the receiver set to Mono.
• Listen to the bass. Is it full or thin? Listen to volume of the bass as well.
• Turn off the receiver and reverse the connections for one of the speakers.
• Repeat test at the same volume level. When the sound has the loudest and best sounding
bass and also sounds best in the vocal region, the connections are correct and in-phase.
CONNECTING TO A SUNBRITETV
Connect the sound bar to Signature and Pro Model SunBriteTVs using the included 5 pin male
connector wire (DIN Cable). Connect the wire ends as shown in the diagram below.
L– R–
L+ R+
CLEANING
• Use a soft cloth or paper towel with mild detergent to clean the speaker.
Red Wire (L+)
BlackWire (L–)
White Wire (R+)
Yellow Wire (R–)
170515
