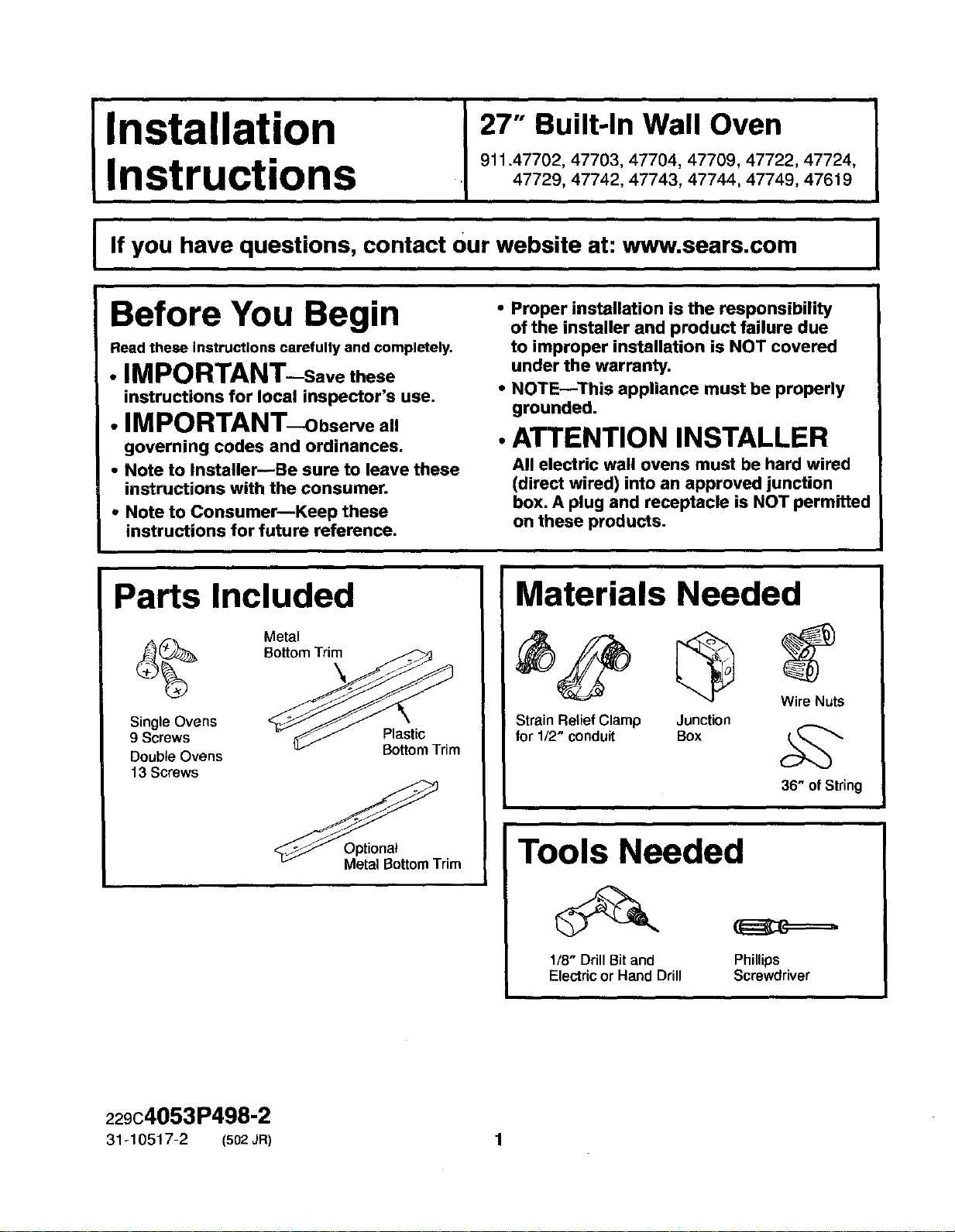

Installation
Instructions
I If you have questions, contact
I
27" Built-In Wall Oven
911.47702,47703,47704,47709,47722,47724,
47729,47742,47743,47744,47749,47619
Our website at: www.sears.com
I
Before You Begin
Read these instructions carefully and completely.
• IMPORTANT-save these
instructions for local inspector's use.
• IMPORTANT-obeerve a.
governing codes and ordinances.
• Note to Installer--Be sure to leave these
instructions with the consumer.
• Note to Consumer--Keep these
instructions for future reference.
• Proper installation is the responsibility
of the installer and product failure due
to improper installation is NOT covered
under the warranty.
• NOTE--This appliance must be properly
grounded.
•ATTENTION INSTALLER
All electric wall ovens must be hard wired
(direct wired) into an approved junction
box. A plug and receptacle is NOT permitted
on these products.
Parts Included
Metal
_ Bottom Trim
Single Ovens
9 Screws Plastic
Double Ovens Bottom Trim
13 Screws
Optional
Metal Bottom Trim
Materials Needed
Wire Nuts
Strain Relief Clamp Junction
for 1/2" conduit Box (_ _-
36" ofString
Tools Needed
1/8" Drill Bit and
Electric or Hand Drill
Phillips
Screwdriver
229c4053P498-2
31-10517-2 (502JR) 1
