2
1
1.1
B0900130 1
Product tested in accordante with EN62471
Risk Group 2
PRUDENZA:
NON FISSARE LA LAMPADA IN FUNZIONE.
PUÒ ESSERE DANNOSO PER GLI OCCHI.
CAUTION:
DO NOT STARE AT OPERATING LAMP.
MAY BE HARMFUL T O THE EYES.
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Notes
Recommendations for correct
use of the appliance
For your safety
Important
Directions for avoiding
appliance damage
Warning
Indications for avoiding injury
to people
Important directions for safety and the environment
If this appliance is replacing an existing appliance which must be
removed or disposed of, make sure that it does not become a dan-
gerous trap for children by cutting its power supply cable and ren-
dering it impossible to close the door. Use the same caution at the
end of the lifespan of the new appliance.
This appliance is designed to refrigerate beverages and foods and
is intended for domestic use.
The appliance must be installed by following the instructions in the
Installation Guide, particular care should be taken not to obstruct the
vent openings of the appliance and of the built-in units.
The appliance features a concentrated lighting system with LED
lamps. Do not stare into these lamps when they are on to avoid pos-
sible eyesight damage.
This warning is also contained on the label attached to the inside of
the refrigerator door.
When the freezer is functioning do not touch the inner surfaces in
stainless steel with wet or damp hands, since skin may stick to the
very cold surfaces.
Do not use any type of electrical equipment inside of the food
conservation compartments.
When positioning the shelves, do not place fingers in the shelf
slide guides.
Do not position containers of ammable liquids near the appliance.
Completely switch off the appliance and unplug the power supply
cable during cleaning operations. If the plug is not easily reached, it
is a good idea to turn off the breaker or remove the fuse that controls
the socket that the appliance is connected to.
The packaging parts can be dangerous for children: do not allow
children to play with the plastic bags, plastic lm or Styrofoam.
Any repairs must be performed by a qualified Fhiaba Service
technician.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or lack of experience and knowledge
unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
Do not damage the appliance refrigerant circuit pipes.
Do not store explosive substances such as aerosol cans with a am-
mable propellant in this appliance.
3
1
1.2
1.3
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Pay special attention to correct disposal procedure for all the pack-
aging materials.
The appliance must not be disposed of with urban waste. Contact lo-
cal waste disposal centers for on how to dispose of recyclable waste.
Prior to disposal, cut the power supply cord and make it impossible
to close the door.
During disposal, avoid damage to the refrigeration circuit.
The appliance does not contain hazardous substances for the atmos-
pheric ozone layer, neither in the refrigeration circuit nor in the insulation.
Caring for the environment
Important directions for safety and the environment
Failure to follow the instructions regarding sanitizing can compromise
the hygienic safety of the water dispensed.
When using the appliance for the rst time and every time the lter
is changed, it is recommended to let the water ow in the circuit using
the “Manual Cleaning” and discard the ice produced in the rst 24
hours.
If the water dispenser has not been used for more than 4/5 days, it is
advisable to clean the circuit and run off the rst litre of water.
Reposition the removable water dispenser (if present), ensuring your
hands are hygienically clean.
Clean the ice bucket or drawer regularly but using only drinking
water.
The lter must be changed when indicated on the control panel
or when the ice/water dispenser has not been used for more than 30
days.
With each lter replacement, sanitise the ice and/or water distribu-
tion system using a food grade disinfectant (with sodium hypochlo-
rite), which does not alter the characteristics of the materials, or use
the “Sanitising Kit” available from the After-Sales Service. Rinse with at
least 2 litres of water before use.
Only original spare parts supplied by the manufacturer should be
used when replacing components in the ice and water dispenser.
Any work on the appliance must be carried out by a qualied tech-
nician or the After-sales Service.
Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present)
4
2
2.1
2.2
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Make sure that installation is performed correctly, adhering to all direc-
tions in the specic installation manual provided with the appliance.
Installation
Connection to the electrical power supply

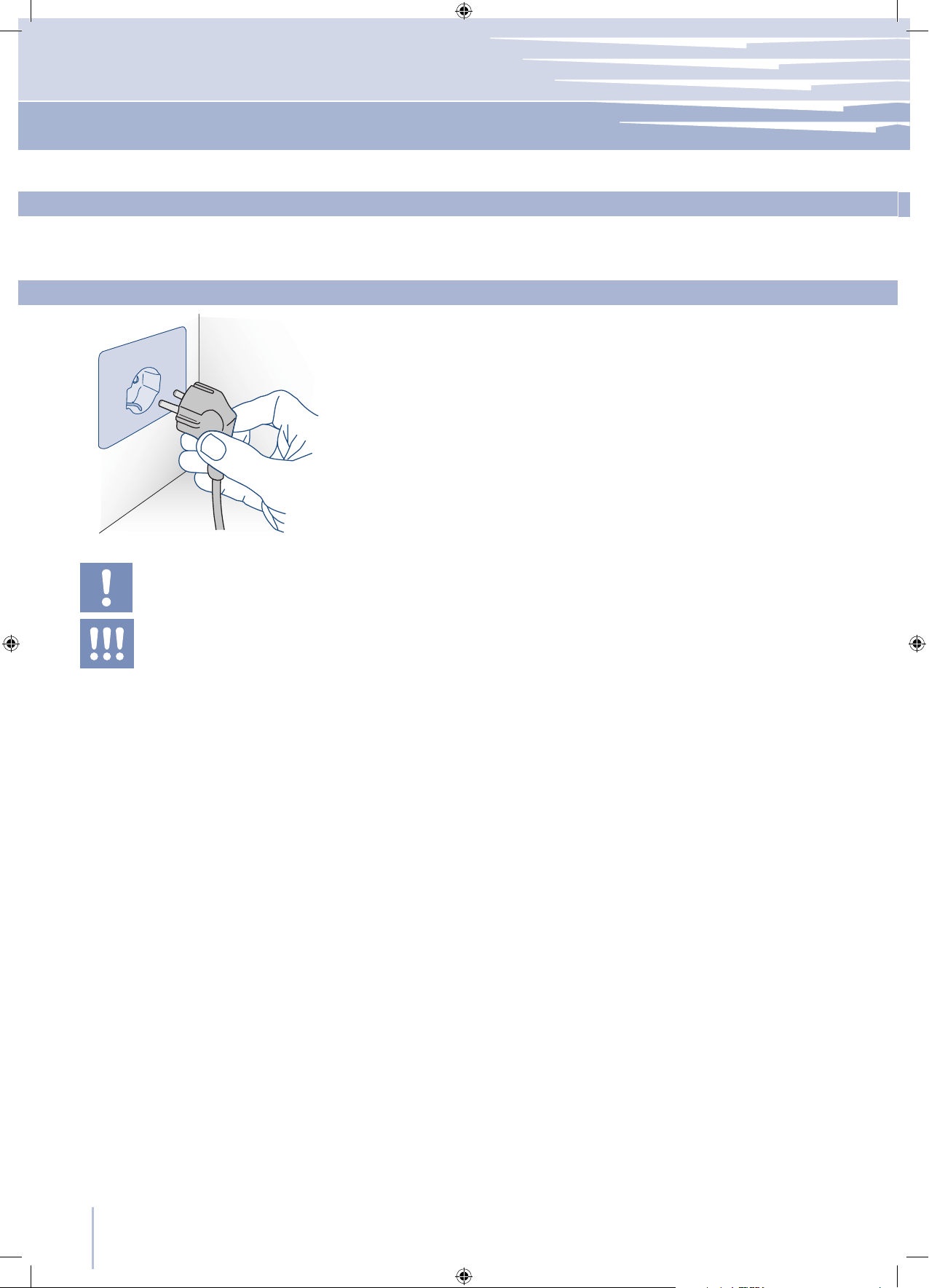

The appliance is equipped with a Schuko type 16A plug and must be
connected to the electrical power supply through a corresponding
Schuko socket.
Do not use extension cords and/or multiple adapters for the power
supply connection.
Do not use extension cords and/or mul-
tiple adapters for the power supply con-
nection.
Installation
If energy is supplied through an alter-
native energy power source (solar, ge-
othermal, etc..) or if home automation
systems are installed, it is necessary to
install the Alternative Energy Kit to inte-
grate the unit into the power grid.
5
2
2.3
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
The models provided with Ice Maker require a connection to the do-
mestic water supply system. This can be executed through the pro-
vided water hose with 3/4” threading.
The system pressure must be between 0.05 MPa and 0.5 MPa (between
0.5 Bar and 5 Bar).
Differents pressures can cause malfunctions or leaks in the water sys-
tem. The appliance should be supplied only with drinkable water.
The appliance should be supplied only
with drinkable water.
Make sure that installation is performed
correctly, according to all of the directions
in the specic installation manual provid-
ed with the appliance.
Connection to the water system
Installation
Do not attempt to use a locally sourced
garden hose threaded adapter or braid-
ed supply line. It will strip the threads on
the appliance water connection sole-
noid.
6
3
3.1
3.2
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Before starting
Know your appliance
Congratulations for having purchased your new Fhiaba:
from now on you can use our innovative conservation sys-
tem, which will allow you to keep all of your food in the
best way possible.
This manual will answer most of your questions about the
product’s features. Should you require further information,
please check our website
www.fhiaba.com
or write us an e-mail at
Before calling, write down the model type and serial
number which are available on the warranty certicate
and on the rating plate located on the bottom left-hand
corner of the appliance, behind the bottom drawer and
any messages which may have appeared on the dis-
play.
+39 0434 420 160
Exclusive design by Giugiaro
The Fhiaba TriMode refrigeration system and the efcient
separation of internal compartments ensures maximum
freshness and offers excellent conservation of foods in the
three compartments: refrigerator, Crisper-Fresco and freezer
It is also possible, should there be a need, to further in-
crease the exibility of the appliance by making the freezer
compartment operate as a refrigerator or as a Crisper-Fres-
co compartment
The Crisper-Fresco compartment has a low temperature
and controlled humidity, providing excellent conservation in
superior preservation conditions for fresh foods
Electronic control guarantees constant temperature and
humidity levels set by the user and provides real-time com-
partment temperature readings.
An interactive menu (Menu) allows customized manage-
ment of appliance functions and the visualization of func-
tioning messages
Power save features to reduce consumption during vaca-
tion periods
Main features
Ample drawer space with Soft self-closing systems in the Crisp-
er-Fresco area
Ice Maker for automatic ice production of variable cube
size
Easily replaceable water lter located inside the refrigera-
tor
Patented adjustable shelf system, with shelves that can be
positioned at any level inside of the refrigerator without hav-
ing to be removed
Stainless steel surface both inside and outside, with ne
aluminum trim
Patented hinge system that permits automatic door clos-
ing
External drawers with to self-closing system
Localized lighting with LEDs
Anti-tipping system by means of wall mounting brackets
7
3
3.3

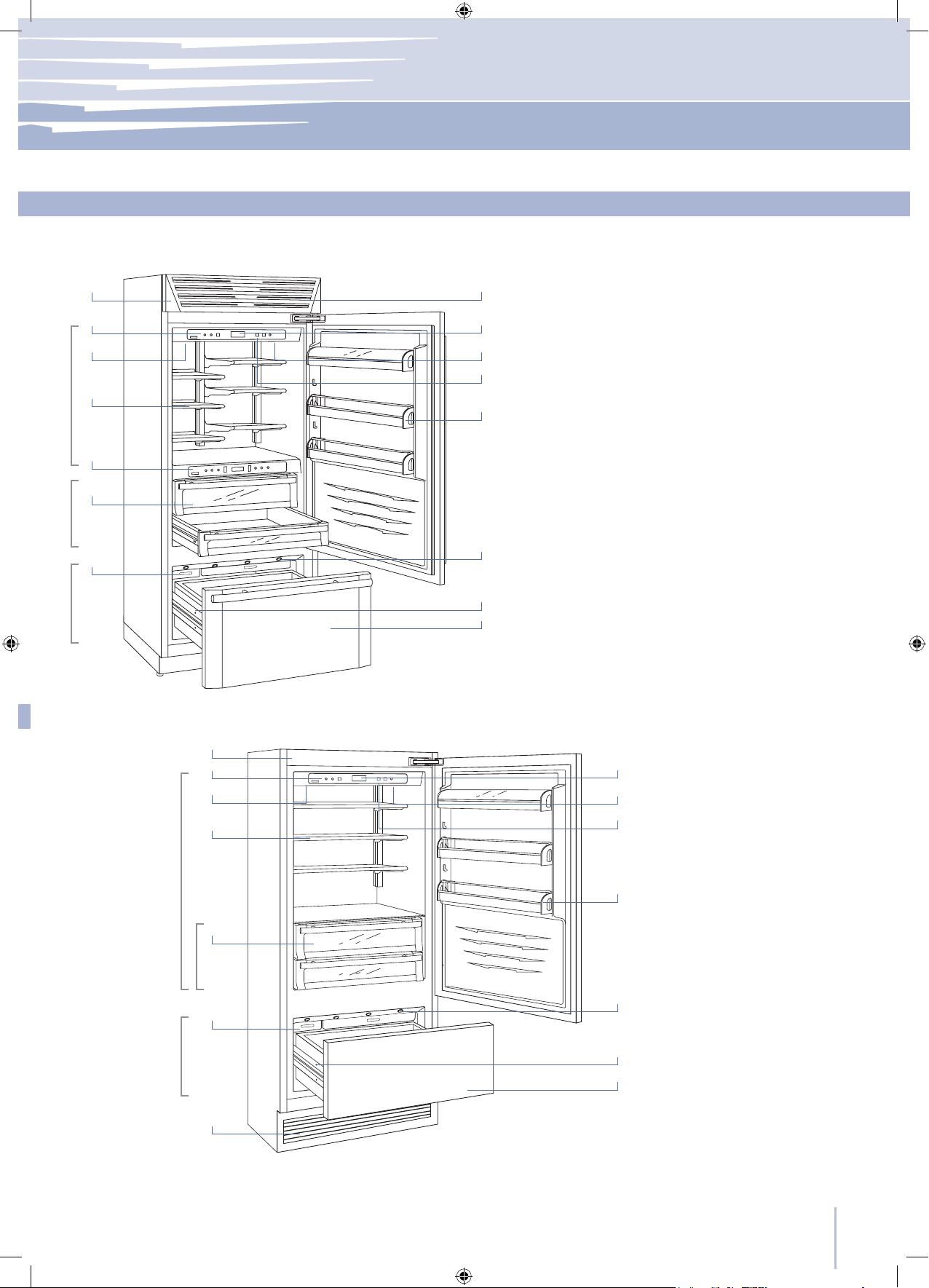

1 9
10
11
12
13
14
15
16
2
3
4
5
6
8
1
10
11
12
13
14
15
16
2
3
4
7
8
9
Low Temp
TriMode
TriMode
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Before starting
Main components
Single drawer Fridge
1 Stainless steel structure with
aluminum trim
2 Control panel with Menu
3 Water Filter
4 Patented shelf positioning
system
5 Control panel, Fresco area
6 Fresco compartment with
controlled humidity
7 “Low Temp” drawer with
controlled humidity
8 Automatic icemaker
9 Double refrigeration system
10 Temperature display
11 Sound signals
12 Vacation function
13 Spacious door shelves
14 Innovative lighting
15 Automatic door and
drawer closure
16 Frezer compartment that
can be transformed into
a refrigerator or Fresco
compartment
(TriMode function)
1T Models
0T Models
Fridge
Fresco
Fridge
8
3
3.3
1
7
8
9
10
11
12
13
2
3
4
5
6
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Before starting
Two drawer Fridge
1 Stainless steel structure with
aluminum trim
2 Control panel with Menu
3 Water Filter
4 Patented shelf positioning
system
5 Automatic icemaker
6 Double refrigeration system
7 Temperature display
8 Sound signals
9 Vacation function
10 Spacious door shelves
11 Innovative lighting
12 Frezer compartment that
can be transformed into
a refrigerator or Fresco
compartment
(TriMode function)
13 Automatic door and
drawer closure
Main components
0H Models
FridgeTriMode
9
3
3.3
3.3
3.3
Componenti principali
Componenti principali
Componenti principali
3.5
3.6
3.4
123456798
ICE MAKER
ENTER
FRIDGE
UNIT
1
Unit
2
Fridge
3
Menu
4
Up/down
Fridge
5
Display
6
Up/Down
Freezer
(TriMode)
7
Enter
8
Ice maker
9
Alarm
CRISPER
10 11 12
11
Display
13
Crisper
12
Up/Down
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Before starting
The innovative electronic control system designed by Fhiaba maintains constant temperature on the three compart-
ments and visualizes it on the control panel display.
It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/
or visual messages should occur any malfunction in the appliance.
Main control panel
Fresco control panel
Electronic Control
Switches the appliance (all compartments) between ON and STAND BY
(press for three seconds).
Allows switching on and off of only the refrigerator compartment
(press for three seconds).
Allows access to the appliance function menu
It shows the temperature of the refrigerator and freezer compartments,
the date and time, Menu functions and visual messages.
By selecting Up/Down the preset temperature can be changed ac-
cording to the selected function mode (freezer, refrigerator, Fresco).
Confirms activation or deactivation of the selections made in the
Menu.
Allows activating or deactivating the automatic ice production.
Blinks to signal user alerts such as door left open, also in combination with
a sound signal which can be deactivated by pressing the button.
Using the Up and Down buttons, it is possible to change the set tempera-
ture of the refrigerator and navigate through the interactive menu.
Shows the temperature of the Fresco compartment.
Allows switching on and off of only the Fresco compartment (press
for three seconds).
Using the Up and Down buttons, it is possible to change the tempera-
ture set for the Fresco compartment.
10
4
4.1
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Appliance switching on and off
If at the rst startup the Standby message does not
appear, but another message appears, it means
that the appliance has already started the cooling
process. If this is the case, deactivate any possi-
ble sound signal by pressing the Alarm button
,
close the door and wait until the set temperature
is reached.
During the rst startup, it will not be possible to use
the Menu to modify the factory settings until the
preset temperature has been reached.
Each time the appliance is switched on it goes
trough a self-diagnosis procedure lasting three
minutes before completely starting up.
If only the refrigerator compartment or the Fresco
compartment is switched off, the specic fan will
continue to operate to prevent the formation
of unpleasant odors and mold.
Before switching off the appliance for a long pe-
riod of time, remove all of the items inside and
leave the doors and drawers open to prevent the
formation of unpleasant odors and mold.
When the appliance is connected to the electrical power supply but
has not yet been switched on, the display shows the message
Tis is a safety message to warn that the appliance is connected to the
mains, and all the panel buttons are off.
To switch on all the appliance compartments, press the Unit button
for three seconds.
First startup
When the appliance is rst switched on the TriMode compartment is
set to the “freezer” mode. After switching on it remains always on and
can be switched off only by switching off the complete appliance.
Press Unit
for three seconds.
During long absence periods it is recommended to switch off the refrigera-
tor by pressing the Unit button
for three seconds and disconnecting the
electrical plug or the breaker controlling the socket.
Completely empty the refrigerator, clean and dry it and leave the doors
and drawers partially open to prevent unpleasant odors.
Switching off the Refrigerator and Fresco
compartments
Restarting
Switching off for long periods
Switching on and off
Use the same buttons to restart.
The freezer compartment always stays on and cannot be switched off
except by completely switching off the appliance by pressing the Unit
button
for three seconds.
11
4
4.3
4.4
4.2
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
An integrated control system provides information through lighted sig-
nals or text messages visualized on the display.
The information signal is always visualized with a xed text message,
while a malfunction signal is visualized with blinking text.
The sound signal that accompanies some malfunction signals can be de-
activated by pressing the Alarm button
on the main control panel.
The list of malfunction signals is located at the back of this manual.
Appliance switching on and off
Each model has been carefully tested before leaving the factory and
is adjusted in such a way to ensure high performance and low con-
sumption. Usually, it is not necessary to modify the settings.
Nevertheless, according to special needs, it is possible to modify the
set temperatures as follows:
Refrigeration Compartment
Fresco Compartment
Freezer Compartment
(TriMode)
From +2°C to +8°C (from 35.6°F to 46.4°F), the recommended preset
temperature is +5°C (41°F).
To adjust the temperature use the Up/Down buttons
.
Upon touching these buttons the newly set temperature will appear in
the display. To modify this temperature, use the buttons until reaching
the desired temperature.
From -2°C to +2°C (from 28.4°F to 35.6°F), the recommended preset
temperature is 0°C (32°F).
To adjust the temperature use the Up/Down buttons
.
Upon touching these buttons the newly set temperature will appear in
the display. To modify this temperature, use the buttons until reaching
the desired temperature.
From -15°C to -22°C (from 5°F to -7.6°F), the recommended tempera-
ture is preset at -18° (0°F).
To adjust the temperature use the Up/Down buttons
.
Upon touching these buttons the newly set temperature will appear in
the display. To modify this temperature, use the buttons until reaching
the desired temperature.
In case the compartment is used as refrigerator or Fresco compart-
ment (TriMode function) the recommended and preset temperatures
will correspond to those indicated for the respective compartments.
The temperature shown can vary slightly in re-
spect to the set temperature following frequent
openings of the doors or insertion of room tem-
perature foods or large quantities of foods.
6 to 12 hours are necessary to reach the select-
ed temperature.
Ice Maker Activation
The Ice Maker button
located on the main control panel permits
activation of the automatic icemaker.
The button is illuminated when the icemaker is functioning.
A prewash of the hydraulic circuit should be performed before acti-
vating the Ice Maker for the rst time. To do this touch at the same time
buttons Enter and Ice Maker .
After a few minutes the Ice Maker can be activated.
Information and malfunction messages on the display
How to adjust the temperature for different requirements
Do not activate the Ice Maker unless the appli-
ance is connected to the water mains.
12
5
5.1
5.2
FRIDGE
UNIT
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Settings and Special Functions
It is possible to customized the functions of your Fhiaba to adapt it to
diverse usage needs, resetting the main parameters (Settings) or acti-
vating special functions (Functions).
Functions are visualized on the main display by pressing the Menu but-
ton
.
The Up/Down buttons
permit scrolling the available functions, which
can be selected by pressing the Enter button
. The display visualizes
the current functioning status.
Using the Up/Down buttons
, it is also possible to scroll through the
selected function, activating or deactivating by pressing the Enter but-
ton
. Once the function is conrmed, the display will automatically
visualize the main menu to select other functions.
At any time it is possible to return to the previous selection through the
FhiabaAccess button
.
The language of the messages appearing on the display can be
changed by operating as follows:
Enter the Menu by pressing the Menu button
select Settings via the
Up/Down buttons
and conrm via Enter . Then select the Language
function and the desired language.
To prevent an inadvertent change to the settings
the keypad is automatically locked after a cer-
tain period of time.
To re-activate the Menu function, press simulta-
neously the Menu button
and the Down but-
ton for at least three seconds.
Customization and language settings
Special functions activated through the Menu
The function lowers the refrigerator temperature to +2°C (35.6°F) for 12
hours, permitting more rapid cooling of food that has just been placed
in. Once the 12 hours have expired, the function deactivates automati-
cally, returning to the previously set temperature. It is possible to pro-
gram a timed activation of the function. After a prolonged interruption
of electrical current, it is necessary to reactivate the function.
It is possible to program the function with a delay of 1 to 12 hours.
To use special functions, select the Menu button
and use the Up/Down
button
to access the menu, conrming the selection .

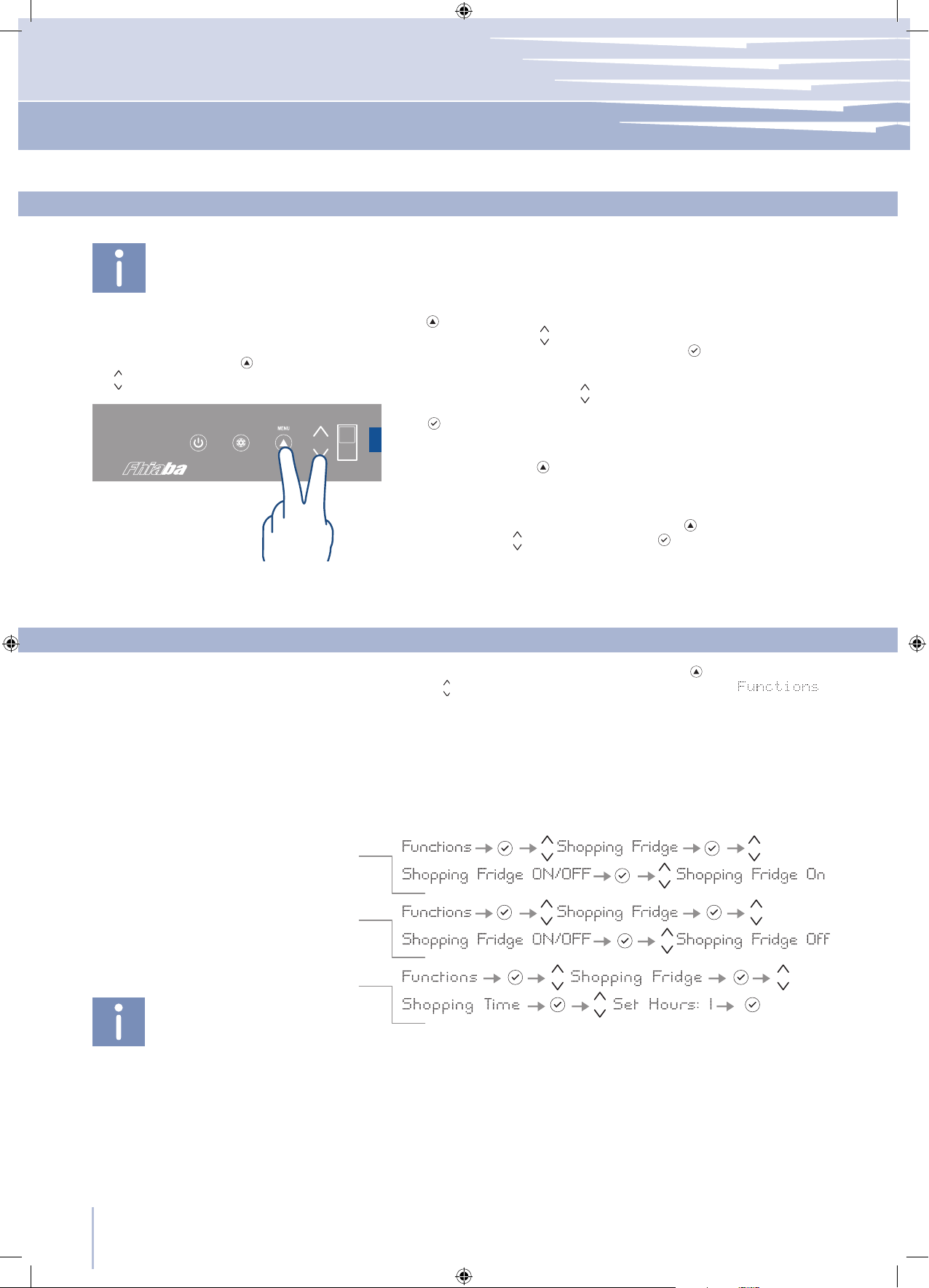

Shopping Fridge
How to activate
How to deactivate
How to program timed activation
The various Shopping Modes help prepare the cooling,
Fridge and TriMode compartments for the introduction
of a heat load which can consist of fresh food or other
items which may have warmed during transport. The
more quickly an item can be cooled or frozen the bet-
ter it will be preserved.
This mode can also be effective at maintaining com-
partment temperatures while entertaining when high-
er than average door and drawer openings are an-
ticipated.
13
5
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
It is possible to program a period from 1 to 90 days.
It is possible to program the function with a delay of 1 to 12 hours.
Settings and Special Functions
This function must be activated at least 24 hours before inserting room
temperature items into the freezer, or several hours before placing into
the freezer previously frozen items which have been subject to a slight
temperature rise. This function is automatically deactivated when the pro-
grammed time period expires. It is possible o program timed activation of
the function.
If interrupted by a prolonged interruption of the electrical power, it is nec-
essary to reactivate the function.

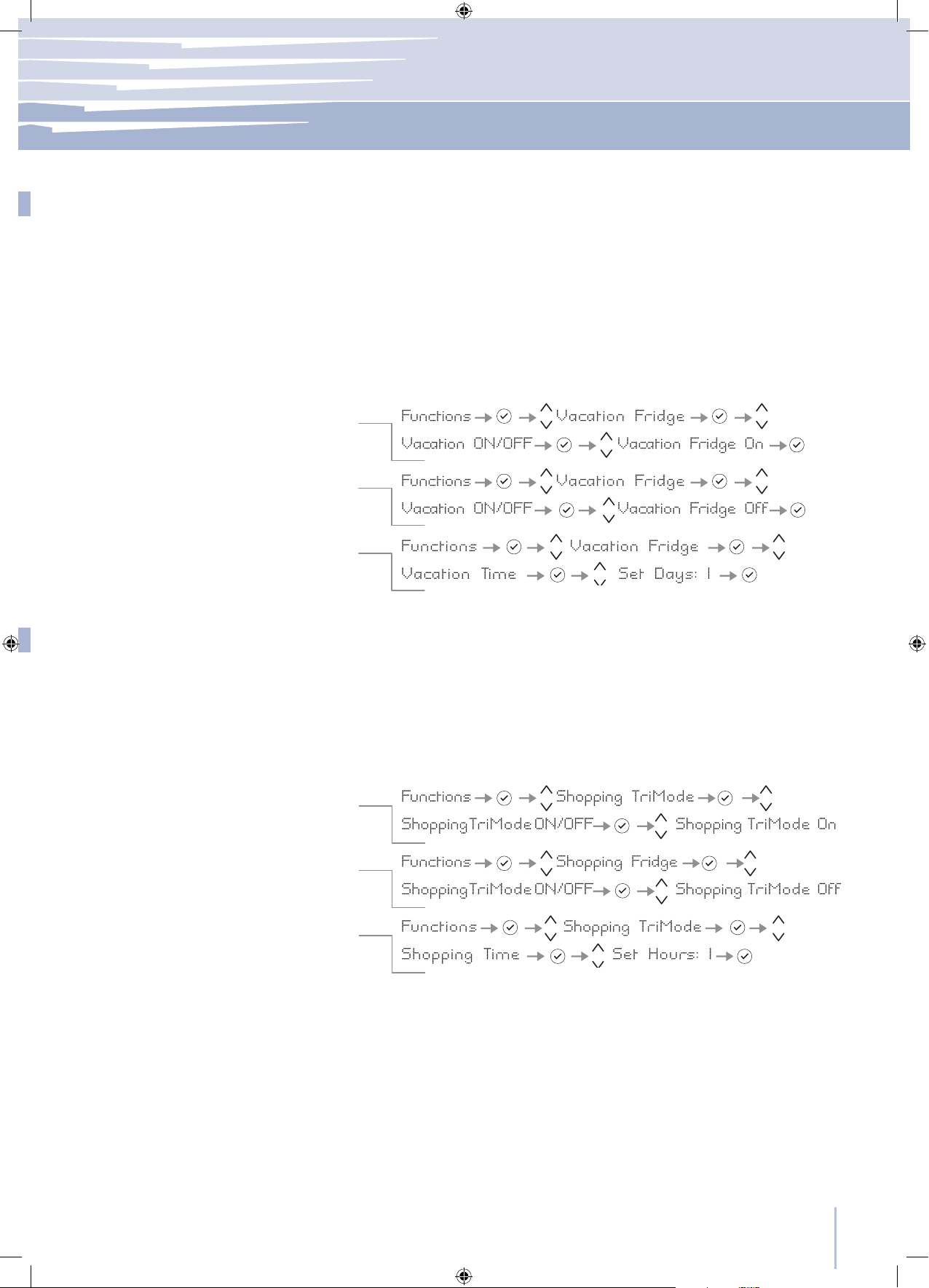

Shopping TriMode
This function (recommended in case of prolonged absences since it al-
lows considerable energy savings) brings the refrigerator compartment
temperature to +14°C (57.2°F). It is possible to program the duration, or it
can be manually deactivated upon re-entry after a period of absence.
This function remains active even if during the period of absence there is a
prolonged interruption of electrical power.
How to activate
How to activate
How to deactivate
How to program timed activation
How to deactivate upon re-entry
How to program the duration
Vacation Fridge
14
5
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Settings and Special Functions
The IceMaker function permits selecting the size of the ice cubes, by
choosing between Large (base setting) or Medium, and activation of
the SuperIce function, which increases the quantity of produced ice.
The SuperIce function deactivates automatically after 24 hours.
This function can be activated when it is necessary to cool off bever-
ages quickly, by placing them inside the freezer compartment.
It is possible to select a duration of 1 to 45 minutes.
A sound signal will indicated when the optimal temperature has been
reached. After removing the beverages, deactivate the sound signal
by pressing the Alarm button
.
Bottle Cooler
Ice Maker
How to activate
How to activate the cube size function
How to deactivate
How to deactivate
How to program the duration
How to activate the SuperIce function
How to deactivate
It is possible to program a period from 1 to 90 days.
This function (recommended in case of prolonged absences since it
allows considerable energy savings) brings the TriMode compartment
temperature to - 18°C (46.4°F).
It is possible to program the duration, or it can be manually deacti-
vated upon re-entry after a period of absence.
This function remains active even if during the period of absence there
is a prolonged interruption of electrical power.
How to activate
How to deactivate upon re-entry
How to program the duration
Vacation TriMode
15
5
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Settings and Special Functions
The function makes it possible to comply to certain religious observ-
ances requiring that the operation of the appliance is not affected by
the opening or closing of the doors (the thermostatic control, the inner
lighting and the ice maker are deactivated).
The View Status function permits visualizing the time left before the
lter needs to be replaced.
The Reset Filter function sets to zero the time left before the lter needs
to be replaced. It is necessary to set the meter to zero each time the
cartridge is replaced.
This function is to be activated when it is not necessary to lter the
water, because excellent quality water is already available from the
home water system.
If ice production has been disabled or unused for a long period it is
recommended to perform a Manual Clean function to ush out water
which has sat in the system during this period. Repeat the operation
until the water is clean.
Correctly position the ice tray or another suit-
able container under the IceMaker to collect
water, then close the drawer.
At the end of the operation, wash the tray.
Sabbath Mode (Optional)
Water Filter
Reset Filter
Bypass Filter
Manual Clean, Water Filter
How to activate
How to deactivate
How to check the status of the lter
How to set the ltered water meter to zero
How to activate lter Bypass
How to deactivate lter Bypass
How to manually clean the lter
16
5
5.3
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161

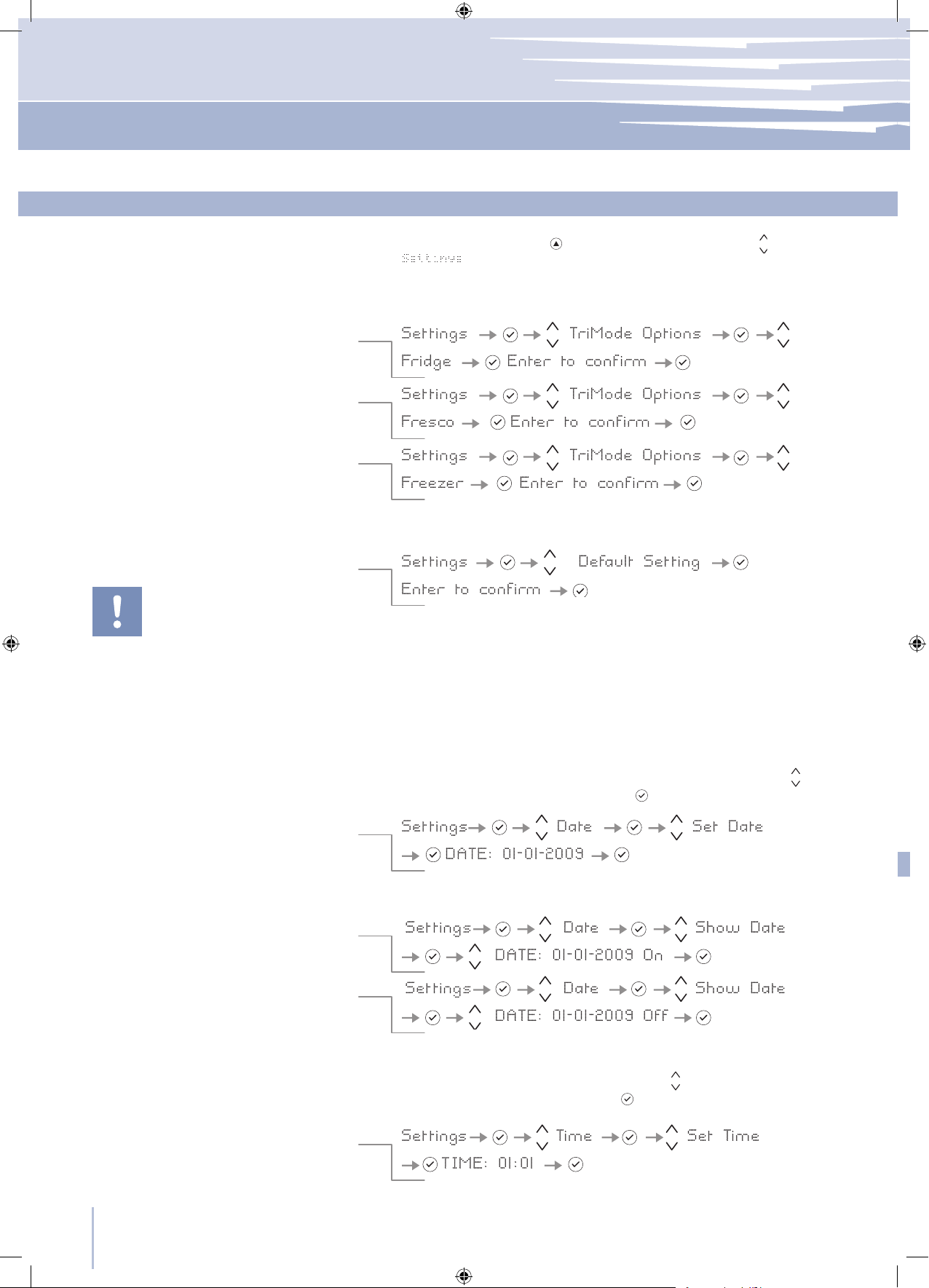

Settings and Special Functions
Time
Set Time
How to set the time
This offers the possibility to reset default factory settings and can-
cels any previous changes.
Default Setting
How to reset default settings
Using this function it is possible to deactivate/activate the date visuali-
zation on the display.
Show Date
How to activate the date
How to deactivate the date
Date
Set Date
How to set the date
Select the Menu button
and used the Up/Down button to select
.
The freezer compartment can, if required, be converted to the re-
frigeration o Fresco operating mode.
TriMode Options
How to set the Fridge function
How to set the Fresco function
How to revert to the Freezer function
Basic settings of the Menu
ATTENTION: If the default settings are restored, the
default mode of the TriMode compartment is freezer
mode. If it was previously being used in refrigerator
or Fresco mode be sure to set it back to your desired
setting.
The display shows the hours and minutes in the format hh:mm and
with hh: blinking. Use the Up/Down buttons to modify the setting
and then conrm by pressing Enter to go on to the next setting.
Once the minutes are conrmed, the time will be set.
The display will show the date in the format dd:mm:yy
(day:month:year), the day will blink. Use the Up/Down buttons
to
modify the setting, conrm with Enter to go on to the next setting;
once the year is conrmed the date will be set.
17
5-6
6.1
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
This function permits visualizing the temperature in Centigrade or Fahr-
enheit degrees. Normally, the appliance is set for visualization in cen-
tigrade degrees.
Set °C/°F
How to set the temperature in Centigrade
How to set the temperature in Fahrenheit
Internal Layout
Internal Layout (positioning, adjustment, removal)
Fresco Drawer
Through this function it is possible to activate/deactivate the constant
visualization of the time.
The function allows selection of the language for the display messages.
This function selects the display at 12 or 24 h.
Show Time
How to activate the permanent time
How to deactivate
Language
Italian
English
French
German
Spanish
Set 12/24
How to set the display to 12 h
How to set the display to 24 h
TriMode Drawer
Fixed to the slide guides with two thumbscrews.
to remove the drawer, unscrew the thumbscrews and remove the
drawer.
The upper TriMode can be removed using the same method used
for the Fresco drawer
to remove the inner TriMode drawer unscrew the thumbscrews.
When replacing the drawers, make certain the back of the drawers
engage under the clips on the slide guides.
1
2
18
6
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Internal Layout
The door shelves can be easily removed for cleaning
Hold the door shelf at the sides and push it upwards to release it from
its seat, then pull it outwards.
Reverse the procedure to reinstall.
Door Shelves
The shelves are sliding and can be easily re-positioned by the user as
follows:
release the locking knob by turning i anti-clockwise
lift or lower the shelf to the desired position
re-tighten the locking knob
to remove a shelf it is necessary to slide it up to the top
Shelves
Located in the upper drawer of the freezer compartment
after removal, make sure to reposition it correctly.
Ice Tray
Do not place hands or ngers near the Icemaker
when in function.
19
7
7.1
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Activation and use of the Ice Maker
Activation and use of the Ice Maker
Do the ice cubes have an unusual odor?
Operating noises
Quite normal noises
Do not place any bottles or food for rapid cool-
ing in the ice cube container. The ice maker may
become blocked and be damaged.
If the ice is not used frequently is advisable to
empty the ice bin once every 8-10 days.
It is normal that some ice cubes stick to one
another. If the ice is not frequently used, the
older cubes can become opaque, and will
have a strange avor and become smaller.
The Icemaker automatically deactivates if the
Vacation function is activated.
When the Icemaker is started for the rst time,
it is recommended to dispose of the rst full
bin of ice.
If the equipment has been switched off for a
month or more, it is recommended to perform
a water cleaning cycle.
The ice maker will only produce ice with the
TriMode compartment set to Freezer Mode.
The ice maker will continue to operate even
when the ice bin is not in position

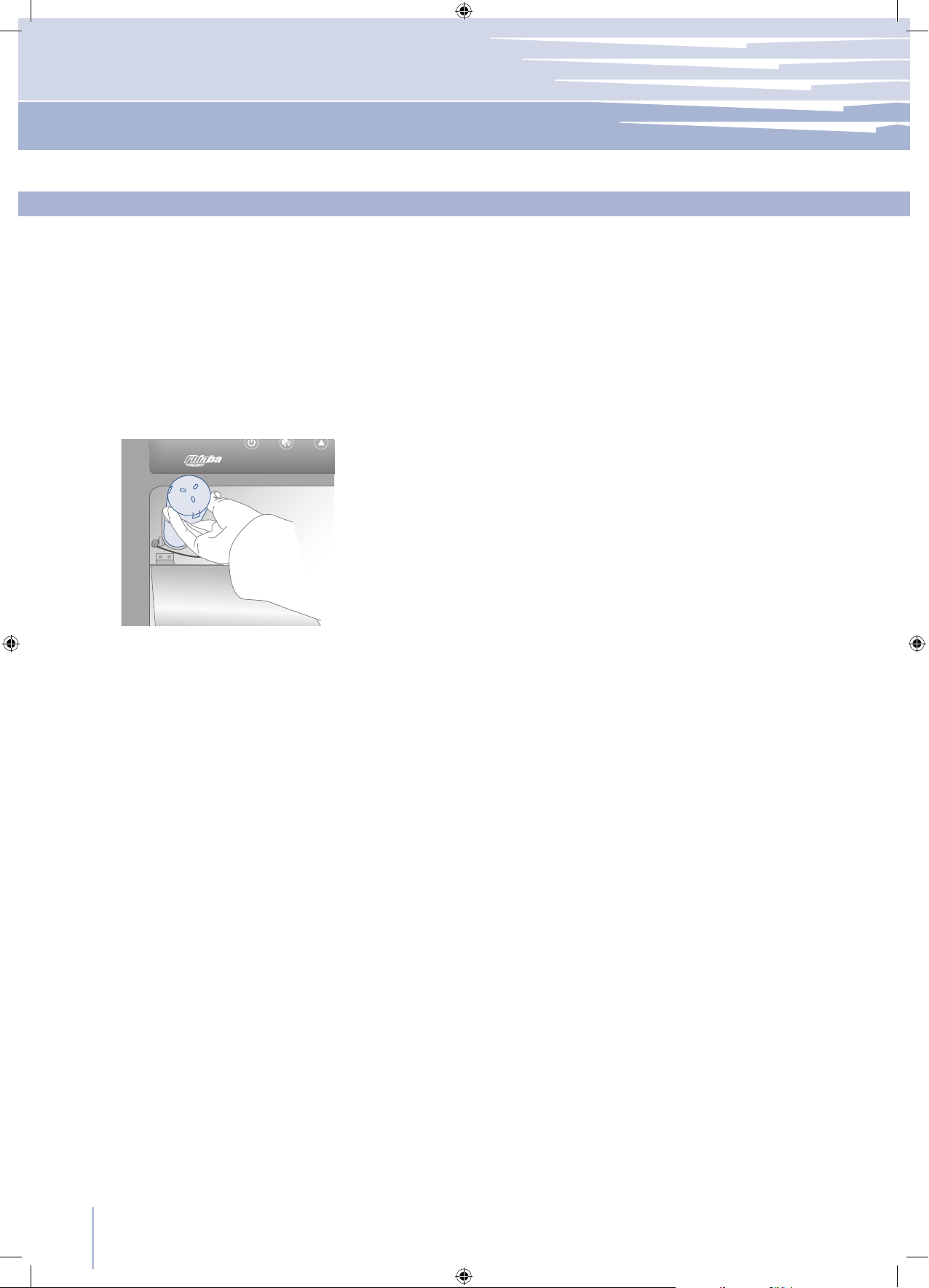

To activate the Ice Maker after installation of the appliance, press the
Icemaker button
.
Please note that 12 to 24 hours are necessary before ice production
may begin. The production is of 10 cubes per cycle in approximately
10 cycles in 24 hours.
The yield depends on the temperature set in the freezer, the room
temperature and the frequency of door opening.
If the appliance is operating without being connected to the water
system, make sure that the Icemaker is deactivated by pressing the
button .
The Ice Maker produces ice until the ice tray is full and will automati-
cally stop once the maximum level is reached.
With the SuperIce function, it is possible to increase the quantity of ice
produced a 24 hours, while the Set Cube Size function permits selec-
tion of the size of the produced ice cubes.
At factory default settings Ice Maker can produce approx. 100 ice
cubes within 24 hours.
Ice is a porous material which can absorb odors from the environment.
Ice cubes which have been in the ice cube container for a long time
may absorb odors, stick together and slowly become smaller.
We recommend that old ice cubes not be used.
Other means of preventing odors:
The ice cube container should be cleaned occasionally with warm
water. Make sure that you switch off the ice maker before clearing the
container. Rinse out and wipe dry.
Check the contents of the freezer for spoiled or out-of-date food.
All odorous foods should be wrapped thoroughly or stored in airtight
containers to prevent the build-up of odors.
The water lter may have to be replaced in some models.
In some cases the quality of the water connection in the house
should be checked.
Grumbling: refrigerating unit is running. Fan in the recirculating air
system is running.
Bubbling, humming or gurgling noises: refrigerant is owing through
the tubes.
Clicking: motor is switching on or off. Solenoid valve on the water
connection is opening/closing.
Rumbling: ice cubes are falling into the ice cube container.
Note: the appliance is powered by two independent compressors.
It is therefore normal to always have one of two compressors in opera-
tion.
20
7
7.2
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Activation and use of the Ice Maker
Water Filter
Filter Replacement
The Water Filter makes available high-quality water for the production
of ice cubes. It provides up to 3000 liters of water for a maximum time
of six months.
On some models, on the upper right of the control panel it is possible to
monitor the use status of the lter: when the entire area is illuminated
the lter has just been replaced; the white illuminated area indicates
that the lter capacity is below 20%. When the lter is nearly expired
the message “Replace Filter Cartridge” will appear on the display.
The lter is located inside the refrigerator compartment, above the top
glass panel. Prior to changing the lter, switch off the Ice Maker by press-
ing the IceMaker button. Then enter the Fhiaba Access Menu and set
“Manual Clean” function. At the end of the cleaning cycle remove the
water from the ice tray and wipe it dry.
Open the top glass panel and carefully rotate the lter cartridge for a
quarter rotation in a counter clockwise direction until it detaches from its
housing. It is normal for a small quantity of water to come out. Remove
the cap of the new cartridge and insert it into the housing by gently ro-
tating it for a quarter rotation in a clockwise direction until it locks into
place.
21
8
8.1
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Lighting
Lighting
To provide optimum interior lighting, LED strips illuminate the refrigera-
tor compartment from the top and sets of LED lights directly illuminate
different areas of the refrigerator compartment, of the Crisper-Fresco
drawers and the freezer drawer.
In case of malfunction and/or wearing out of the lighting system, the
repair should be carried out by a qualied Fhiaba Service techni-
cian.
22
9.1
9.2
9
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Food Preservation
General directions
Fridge
from +2° to +8 °C
(from 35,6°F to 46,4°F)
Crisper - Fresco
from -2°C to +2 °C
(from 28,4°F to 35,6°F)
TriMode
from -15° to -22 °C
(from 5°F to -7,6°F)
Low Temp
Fridge
from +2° to +8 °C
(from 35,6°F to 46,4°F)
TriMode
from -15° to -22 °C
(from 5°F to -7,6°F)
To fully use the capacity of the TriMode compartment:
remove the drawer
remove the top drawer
install the supports delivered with the units (on request)
TriMode compartment
Your Fhiaba is designed to ensure precise, constant temperatures and
appropriate humidity levels in all compartments.
In addition, the double refrigeration ensures that frozen foods and
ice do not absorb the odor of fresh foods and that the humidity in the
refrigerator does not freeze and build up frost.
Nevertheless, to properly preserve all of your foods, it is not enough to
have an excellent refrigerator. It is also necessary to know the rules for
correct food preservation.
Do bear in mind that all foods will inevitably change their characteris-
tics over the passage of time. This change begins long before the food
is consumed, since foods contain micro organisms which multiply and
can cause deterioration. This process occurs more rapidly due to im-
proper handling, preservation temperatures and humidity levels.
It is therefore recommended to follow the directions presented below
which will permit using your refrigerator/freezer in the most effective and
safe manner to keep your foods in the best way for as long as possible.
Bear in mind that the Crisper-Fresco area is the area for preserving the
most delicate fresh foods, since it ensures constant average tempera-
ture near freezing.
Periodically check that all foods are in a perfect state of preserva-
tion. It is usually quite clear when a food item is deteriorated, due to
mold, unpleasant odor and unpleasant aspect. Nevertheless, there
are cases in which these conditions are not so evident. If you believe
that a food item was kept for an excessive period of time and may
be deteriorated, do not consume this item or even taste it, even if it
seems to still be healthy, since the bacteria that cause deterioration
of food can also cause poisoning and illness.
When in doubt, throw the food away.
23
9
9.3
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Food Preservation
How to maintain good food quality
Always take the following precautions:
Place any packages of raw meat, sh or poultry in plastic bags so
that they do not drip on other foods.
Purchase meat, poultry and sh last. Do not leave your groceries in
a warm car after shopping. Keep a freezer bag in your car and use it
in case of very high temperatures or long trips.
Check the production dates and “best before” times on foods to be
sure that they are fresh.
Be very careful when buying fresh foods, and only buy a quantity
that can be consumed during your planned preservation period.
When possible, let warm foods adjust to room temperature for at
least two hours before placing them in the refrigerator, unless you
have activated the Shopping function before.
When buying groceries
When placing foods in Check the refrigeration temperature of the various compartments on
the control panel:
The refrigerator temperature must be 8°C (45°F) or lower and the
freezer temperature must be -18°C (0°F)
Follow the recommendations regarding the preservation times and
temperatures indicated in the tables to follow.
Keep raw meat, sh and poultry separate from other foods and
avoid any possible drippings.
When placing in the refrigerator your meat, sh or poultry, leave
these in their original packaging, unless the packaging is ripped or
punctured. Repeated handling could introduce bacteria into these
foods.
To keep food in the freezer is a good idea to use freezer containers,
with plastic freezer bags or aluminum foil around the freezer contain-
ers, if you intend to preserve the food for more than two months. This
will minimize dehydration and deterioration
Label and date the packages
To keep foods in the refrigerator, wrap these in plastic lm or deposit
them in plastic containers or vacuum packed containers to avoid dry-
ing. Always mark with the date the packages or containers.
Be careful to correctly position the food items on the shelves in a way
that does not obstruct the air circulation vents inside the compartment.
When preparing food
Wash all items that have come in contact with food
Carefully wash hands before and after contact with food
Sterilize containers, utensils and kitchen tools that have come into
contact with meat, sh and poultry.
Sterilize sponges used to wash kitchenware weekly.
Use plastic gloves if you have any hand condition.
Defrost foods in the refrigerator or in the microwave oven, not on
the countertop. If you use a microwave oven to defrost food, cook
the food immediately.
Marinate food only in the refrigerator.
Rinse sh and poultry before cooking.
Avoid contamination when preparing dishes. Keep raw meat, sh,
poultry and their liquids away from other food items.
For example, do not use the same surface or the same utensils for
preparing meat, sh, poultry and vegetables.
Keep your cutting boards perfectly clean, whether made from wood
or plastic.
Wash cutting boards with warm water and soap, and rinse with a
diluted disinfecting solution.
When placing foods in
24
24
9
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Food Preservation
When cooking food
When you have leftovers
Do not taste raw or partially cooked meat, poultry, sh and eggs.
Cook meat at a temperature of 75°C (167°F) or higher.
For cuts of meat over 5 cm, use a meat thermometer to check the
temperature. For thinner cuts of meat, to check if it is cooked, check
the color of the juice and whether it is clear or pink.
If you are cooking meat which is not yet defrosted, increase the
cooking time one and half times the normal duration.
Bear in mind that roasted meat and poultry, when cooked in the
oven, need temperatures of 160°C (320°F) or higher.
Cook the egg whites and yolks until they are well done.
Do not use the same containers that have contained raw or par-
tially cooked eggs.
If your oven or microwave is equipped with a probe for temperature
control, use it - internal temperatures are the best gauge for deter-
mining cooking completion.
Keep leftovers in the refrigerator or in the freezer in small closed
containers. Before placing them in the refrigerator, make sure that
they have cooled off. Therefore let at least two hours pass after cook-
ing and make sure that there is adequate air circulation around the
container, so that the food can cool off quickly - this practice avoids
increasing the temperature in the fridge / freezer compartment and
subsequent cooling cycles as a result.
Date leftover containers and use them within the recommended
time.
Completely cover and heat leftovers before serving.
Boil sauces and soups. Consume leftovers after they have been
heated to a temperature of at least 75°C (167°F).
If you think the food is gone bad, or when in doubt, throw it away.
When a high level of humidity is present either in
the environment or in the foods placed in the Fre-
sco drawers, the bottom of the Fresco compart-
ment might be covered with some water or ice (if
the temperature is set between 0°C and -2C°).
Such condition is normal and it is due to the high
humidity levels of the Fresco compartment; high
humidity together with low temperatures is what
guarantees a longer preservation of foods.
Water or ice can disappear on its own if the air
humidity level should lower; it is also possible to
remove the water with a towel. If a thin layer of
ice has formed, set the temperature of the Fresco
compartment to +2°C and after one day remove
the water with a towel.
If the layer of ice is thicker, it might be necessary
to shut off the Fresco compartment for one day in
order to melt it.
A characteristic unique to Fhiaba products is the combination of
micro beaded stainless steel crisper drawers and the main stainless
steel interior liner that help generate and maintain optimum internal
humidity levels for extended preservation of fruit and vegetables.
A natural condition that may occur, is the accumulation of water on
the bottom of the refrigeration compartment below the bottom crisp-
er. This is dependant on a number of factors, ambient temperature
and humidity levels in the surrounding environment, moisture levels
on fruit and vegetables placed in the refrigerator, frequency in which
the main door is opened and exposed to the ambient environment.
This temporary presence of water on the bottom is the result of the
high humidity environment maintained in the compartment and is
absolutely normal, and under normal operating conditions should be
eliminated. However, in rare occasions where there may be an exces-
sive amount of condensation simply remove the bottom drawer and
wipe access water away.
25
9
9.4
9.5
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Food Preservation
Vegetables
Frozen food
Fruit
Ice cream
Packaged meat
Fresh meat, sh and poultry
Eggs
Milk, cream and fresh cheeses
Cheeses
Leftovers
Wash vegetables in cold water and dry well. Place vegetables in vacuum
packed containers, plastic containers or vegetable bags in a Fresco Drawer.
Place food in plastic bags for the freezer. These bags must be hermetically
sealed against air and humidity. Do not refreeze defrosted meat.
Wash and dry fresh fruit. Pack very aromatic fruit in plastic bags.
Fruit should be placed in the high humidity Fresco compartment.
The rmness of ice cream depends on the quantity of cream that it con-
tains. In general, high-quality ice cream has large amounts of cream,
therefore a very low temperature in the freezer will be necessary to
maintain its rmness.
Consequently, ice cream without much rmness is not necessarily an
indication of a temperature problem as raised above normal levels.
Place in the refrigerator in its original packaging.
After opening, wrap the remaining food in plastic bags or aluminum foil.
Remove the original packaging, then put in plastic bags or containers
and immediately place in the refrigerator.
Place the eggs in their package or container into the refrigerator with-
out washing them. Check the “best before” date and at any rate use
the eggs within two weeks of purchasing.
These should be kept in their original closed packaging. Place these on
refrigerator shelves and consume these within ve days of purchase.
Place these in the Fresco drawer in their original packaging.
Once opened, close these hermetically in plastic bags or aluminum foil.
Let these cool off and cover hermetically with aluminum foil or place
in sealed containers to prevent drying or the spread of odors.
Recommendations for preserving fresh food
Recommendations for preserving frozen food
After a prolonged interruption of electrical
power, once the electrical power is reacti-
vated, an audible signal will indicate if the
temperature has raised above normal lev-
els. In addition to this the display will show
for one minute the highest temperature de-
tected inside the compartments, to allow the
user to decide how to better use the food
items.
After one minute the display will resume nor-
mal operation, while the Alarm button
will
continue to blink.
Press the Alarm button to display the high-
est recorded temperatures.
26
10
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Recommended times for Food Preservation
Fresh foods
Preservation area
Time
Raw meats
Large cuts Fresco Compartment 4 days
Beef steaks, poultry and wild game Fresco Compartment 3 days
Ground meat Fresco Compartment 1-2 days
Carpaccio Fresco Compartment Immediately
Cooked meat
Boiled meat and roasted meat Refrigerator Compartment 2 days
Meat sauce Refrigerator Compartment 6 days
Fish
Raw and cooked sh Fresco Compartment 2 days
Other
Soups and broths Refrigerator Compartment 2 days
Pasta Refrigerator Compartment 2 days
Opened cold cuts Fresco Compartment 3 days
Fresh cheeses Fresco Compartment 2-3 days
Well sealed aged cheeses Refrigerator Compartment Several months
Eggs (fresh and unwashed) Refrigerator Compartment 2 weeks
Opened cans Refrigerator Compartment 2-3 days
Raw vegetables (in perforated bags) Fresco Compartment 1 week
Frozen foods
Preservation area
Time
Beef, veal, lamb and goat meat Freezer Compartment (steaks) 6-12 months
Beef, veal, lamb and goat meat Freezer Compartment (Meat with bone) 4-6 months
Ground beef Freezer Compartment 1-2 months
Pork Freezer Compartment (Without bones) 4-6 months
Pork Freezer Compartment (With bones) 2-3 months
Ground pork Freezer Compartment 1-2 months
Meat leftovers Freezer Compartment 2-3 months
Whole chicken and turkey Freezer Compartment 8-12 months
Goose, duck and pheasant Freezer Compartment 4-8 months
Fish Freezer Compartment 1-2 months
Shellsh Freezer Compartment 2-3 months
Cooked food Freezer Compartment 1-2 months
Vegetables Freezer Compartment 8-12 months
Fruit Freezer Compartment 6-12 months
Desserts and cakes Freezer Compartment 2-3 months
11
11.1
11.2
11.3
27
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Care and Cleaning
Care and Cleaning
Condenser cleaning
Internal cleaning
Scrupulously follow the detailed directions that
can be found in the provided kit and never
use abrasive or metallic products which could
scratch and damage the satin nishing on the
appliance permanently.
Before performing any sort of cleaning, disconnect
the appliance from the electrical power supply.
Make sure you do not damage the refrigerant
circuit in any way.
Do not bring cold glass parts into contact with
boiling water.
Do not wash any parts of the refrigerator in a
dishwashing machine since this could damage
or irreparably deform the parts.
Clean the internal and removable parts by washing them with a solu-
tion of lukewarm water, a small amount of dishwashing detergent.
Rinse and dry right away.
Do not use mechanical devices or other methods to speed up defrosting.
The edges of the condenser are sharp, there-
fore use adequate protection for the hands and
arms when cleaning the condenser.
Do not use water on the electrical parts, lights
and control panel.
To clean the parts made of steel use a microber cloth and the sponge
provided in the kit with the appliance. Always use the cloth and sponge
in the direction of the steel’s satin nish.
Every now and then, to polish the steel, wipe with a slightly damp micro-
ber cloth.
Do not use the sponge on aluminium parts, such as the handles and the
proles of the glass shelves.
You should use special care to keep the ventilation openings in the ap-
pliance or in the cabinet that houses it free of obstructions.
A ventilation grille is located either at the top of the appliance or at the
bottom according to the model type.
A foam lter is placed behind the grille to protect from dust the ventilation
system (for only StandPlus series)
To clean it use a vacuum cleaner with a soft brush attachment at maxi-
mum power, sweeping it along the vent slits. In case of a signicant dust
build up, the ventilation grille can be removed to allow a more accurate
cleaning of the lter.
Take care also to check the condition of the nned condenser and clean
it from dust if needed.
Operate as follows:
Switch off the appliance by pressing the Unit button on the main
control panel for approx 3 seconds.
On models with ventilation at the base remove the grille at the bottom
(magnetically attached) and take it off. On models with ventilation lift the
grille as shown in the picture.
Thoroughly clean the grille and the foam lter, by means of a vacuum
cleaner and the soft brush attachment.
Wait approx 30 minutes, until the nned condenser cools down to room
temperature, then clean it thoroughly from any dust build up as shown in
the picture, taking care not to damage it.
Start up the appliance again, by pressing the Unit button on the main
control panel for approx 3 seconds.
28
12
12.1
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Troubleshooting Guide
Troubleshooting Guide
Did you leave the doors open for a long period of time?
Do the doors close perfectly?
If the doors do not close perfectly, contact your installer.
In case of frost or ice build up in the Crisper-Fresco compartment,
due to frequent and prolonged opening of the doors, deactivate the
Crisper-Fresco function via the button on the control panel. Wait until
the frost or ice melt, then remove the drawer and dry the sides and
bottom of the compartment.
Clean the appliance completely according to the instructions.
Hermetically cover all the food. Do not conserve food for prolonged
periods of time.
The appliance is designed to ensure a fully hermetic closure. When
the door is closed, a vacuum condition can occur: in this case it is
necessary to wait a few seconds until the pressure balances before
opening the door.
Check to see if the appliance was accidently placed into Sabbath
Mode
Ice or frost build up inside the refrigerator
or freezer
Unpleasant odors inside the refrigerator
The doors are difcult to open
Appliance is cooling but lights and display
are not working
If you notice malfunctions in your appliance, use this guide before
calling for service: this guide can help you personally resolve the
problem or could provide important information to be conveyed to
the service technician to ensure rapid and effective repair.
A malfunction is usually indicated by a message on the display.
Problems that cannot be solved by the user are signaled through a
malfunction code.
Is the appliance connected to the electrical power supply?
Is electrical power available at the electricity socket?
Is the Unit button
activated?
Is the unit in ‘Demo’ Mode?
Does the display show a malfunction code?
Is the temperature adjusted correctly?
Were the doors or drawers open for a long period of time?
Were large quantities of food recently inserted?
Is the unit in ‘Demo’ Mode?
Bear in mind that during very hot weather and with very high tem-
peratures in the room it is normal that the compressor remains on for
prolonged periods of time.
Were the doors or drawers open for a long period of time?
Were large quantities of food recently inserted?
Check that the doors are closed and that the food or containers do
not obstruct the perfect closure of the door.
Is one or more compartments in Shopping Mode?
It is normal to hear noises from the ventilators or compressors during
operation or during the defrost phase.
Noise could be more marked depending on the position of the appli-
ance and the surrounding environment.
If the climate is very humid, the formation of condensation is normal.
Opening the door or drawers for prolonged periods of time can con-
tribute to the formation of condensation.
In any case, make sure that the doors are always perfectly closed.
Malfunction message
The refrigerator or the freezer does not work
The refrigerator or the freezer
is warmer than usual
The appliance remains in function
for a long time period
If you hear unusual noises
Condensation inside and outside
of the refrigerator
29
12
12.2
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Troubleshooting Guide
Malfunction indications appearing on the display
Display message Malfunction description
Power Failure!! Prolonged interruption of electrical power
the appliance resumes work automatically, the display shows the warmest temperatures
achieved
Door Fridge OPEN Fridge door open
the message appears after few minutes from the door opening
TriMode OPEN Freezer door open
the message appears after few minutes from the door opening
Replace lter Replace lter cartridge
message appears when only 30% of lter capacity is left
Fridge too warm Fridge too warm
see Troubleshooting Guide
Fridge too cold Fridge too cold
wait for 12 hours: if malfunction persists call Customer Care for advice
Fresco too warm Fresco Compartment too warm
see Troubleshooting Guide
Fresco too cold Fresco Compartment too cold
wait for 12 hours: if malfunction persists call Customer Care for advice
TriMode too warm Freezer too warm
see Troubleshooting Guide
TriMode too cold Freezer too cold
wait for 12 hours: if malfunction persists call Customer Care for advice
Error Code... Functional problems
call Customer Care who may help you to salve the problem or put you in contact with the
nearest Service Agent
On average, the Ice Maker produces approximately 10 cubes of ice
every two and half hours.
When the Ice Maker is started for the rst time, it is recommended to
empty the rst full tray of ice cubes.
If the refrigerator was switched off for more than one month or if the car-
tridge was not changed for more than six months, it could be necessary
to replace the lter cartridge.
Contact a plumber or a water treatment expert to make sure that the
problem is not due to the water supply.
If the ice is not used frequently, it is possible that blocks of ice may form.
It is recommended to remove the block of ice cubes and then let the
Ice Maker ll the ice tray again.
Make sure that the Ice Maker is on (Icemaker button
on).
To switch on the Ice Maker press the button.
Make sure that the appliance is connected to the water supply.
The Ice Maker does not produce
sufcient amounts of ice
The ice has an unusual avor or color
If the unit you purchased was used as a show-
room model it may be in a special energy-saving
mode called Demo Mode where the appliance
appears to be operating (lights work and false
temperatures are displayed) but no cooling actu-
ally takes place. If you suspect your appliance is
in Demo Mode please contact your point of pur-
chase for assistance with disabling this feature.
The ice cubes freeze into one block
The Ice Maker does not work
30
13
13.1
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Before calling for service
Before calling for service
If our recommendations were not sufcient to solve the problem,
please get in touch with our Customer Care Center for further support
via our website at
www.fhiaba.com
or by sending an email to
You can also contact us on the phone at
+39 0434 420 160
If necessary, we will place you in contact with the Fhiaba Service
Center nearest to you.
Before calling, write down the model type and serial number and any
messages which may have appeared on the display.
This information is available on the warranty certicate and on the
rating plate which is located on the cabinet’s frame, on the bottom
left side, behind the bottom drawer.
FUNCTIONS
31
14
14.1
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Fhiaba Access Menu Map
Functions
FUNCTIONS
Shopping Fridge
Shopping TriMode
Shopping ON/OFF
Shopping ON/OFF
Vacation ON/OFF
Vacation ON/OFF
Shopping Fridge Off
Shopping TriMode Off
Vacation Fridge Off
Vacation TriMode Off
Bottle Cooler Off
Super Ice Off
Bypass Filter Off
View Status
Set Cooling Time
Set Cube Size
Sabbath Mode Off
Status Filter
Shopping Fridge On
Shopping TriMode On
Vacation Fridge On
Vacation TriMode On
Bottle Cooler On
Super Ice On
Bypass Filter On
Reset Filter
Bypass Filter
Shopping Time
Shopping Time
Vacation Time
Vacation Time
Cooler ON/OFF
Super Ice ON/OFF
Sabbath Mode On
Manual Clean
Set Hours: 1
Set Hours: 1
Set Hours: 1
Set Hours: 1
Set Time: 20 min
Size: LARGE
Vacation Fridge
Vacation TriMode
Bottle Cooler
Ice Maker
Set Sabbath Mode
Water Filter
32
14
14.2
www.fhiaba.com ∙ [email protected] ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Fhiaba Access Menu Map
Setting
SETTINGS
TriMode Options
Default Setting
Freezer
Fresco
Enter to Conrm
DATE: 01-01-2009 On
TIME: 01:01 On
Set: 24
Set Date
Set Time
italiano
français
english
Set °C
DATE: 01-01-2009 Off
TIME: 01:01 Off
Set: 12
Fridge
Show Date
Set View
Show Time
deutsch
español
Set °F
DATE: 01-01-2009
TIME: 01:01
Date
Time
Language
Set °C/°F
Fhiaba srl Via Fiumicino, 20 · 33082 · Azzano Decimo · PN · Italy · Tel +39 0434 420160 · Fax +39 0434 420161
E-mail: [email protected] · www.fhiaba.com · Info Line 800-Fhiaba (800-344222)
11-11-2014
www.fhiaba.com
Info Line
800 - Fhiaba
.
(800-344222)
B09000109 EN
