About your new product
With your newly purchased product, you can enjoy the following:
- MP3 and WMA playback (see MUSIC MODE section)
- FM radio*** (see RADIO MODE section)
- Recording: FM*** and voice (see MAKING RECORDINGS section)
***FM radio is only available to some regional versions.
Included accessories
Headphones USB cable
Neck-strap CDROM with user manual, drivers,
FAQ, music management softwares
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 1
2

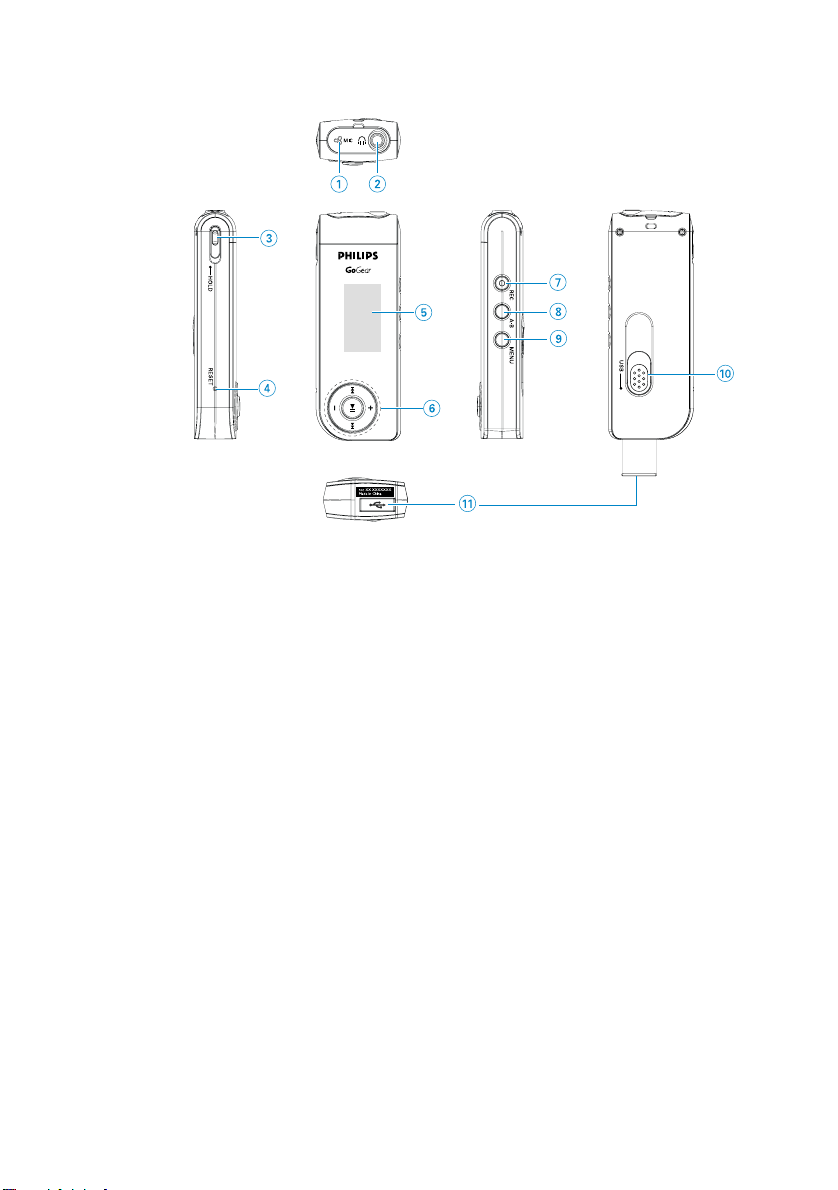

Overview of controls and connections
1 MIC Microphone
2 p Headphones jack
3 HOLD Disable key press
4 RESET Restore the player
5 Display Dynamically displays menu, options and track information
6 J( / )K Rewind / Fast forward; Up / Down to 1 level
2; Power on / off and Play / Pause; confirms a menu setting
Volume + / - Volume control; Scroll; Skip to previous / next
7 REC Start or Stop Voice / FM recording***
8 A - B Repeat or loop a sequence
9 MENU For menu options
0 USB slider Push USB connector in / out
! USB USB cable connector
***FM radio is only available to some regional versions.
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 2
3
Preparations
Install software
1 Insert the supplied CD into your computer's CD-ROM drive.
If the CD does not autorun, please click the .exe file from the root directory of the CD.
2 Select your language and follow screen instructions to complete installation of
Windows Media Player and Firmware Manager.
Powering your player
Your player has a built-in USB rechargeable battery. To charge your player, slide the USB connector to
the LOCK position. Connect your player directly to your computer's USB port.
➔ A USB connection screen will show as soon as your player is connected.
Charge your player for 4 hours or until the battery icon stops blinking.
Note:You cannot charge your player when your computer is off.
Organize and transfer your music
Your player will appear as a new USB mass storage in Windows Explorer.
You can organize files and transfer music to your device during USB connection.
1 Click and highlight one or more music track to transfer between your player and your computer.
2 Use drag and drop actions to complete your transfer.
Safely disconnect your device
Exit any active application working with your player. Safely remove your device by clicking
from your task tray.
WINDOWS98SE USERS:There is no icon.
Simply disconnect your device after file transfer completes.
(File transfer completes when stops animating.)
ATTENTION!
WINDOWS 98SE USERS:
To avoid installation problems, DO NOT CONNECT your device to the computer
until AFTER installation completes.
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 3
4
Powering on / off
Power on: Press and hold 2; until the PHILIPS splash screen appears.
Power off: Press and hold 2; again until there is no display on the screen.
TIP
Your device automatically powers down if there is no operation and no music played for
the duration defined in SETTINGS > TIME OUT.
✔
Indication of power level
You can see the approximate power level of your batteries on the display.
Battery full Battery two-thirds full
Battery half full Battery low
Battery empty
TIP
When the batteries are nearly empty, the battery low screen blinks.
Your device will power down in less than 60 seconds.
Your device will save all settings and un-finished recordings before it powers down.
✔
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 4
5
Root menu
When your device powers up, you will see the Root menu. Otherwise, press and hold MENU to go
to the root menu.
Navigation
Your device has an intuitive menu navigation system to guide you through various settings
and operations. Use +, -, J( , )K to browse through menus. Press 2; to confirm your selection.
To exit any current mode or play activity, press MENU or the J( key.
Music enter to play your digital music tracks
Radio enter to listen to your radio presets
Recordings enter to play and manage recordings
Folder enter to browse your music tracks or recordings by folders
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 5
6
MUSIC mode: Playback (also applicable to playback
of recordings)
From the root menu, select MUSIC to enter the MUSIC library. Your device will play all your music
alphabetically in the music library as you press 2; .
Go to next track Press )K
Go to previous track Press J(
Pause music Press 2; during playback
Forward search Press and hold )K
Backward search Press and hold J(
Volume control + / -
Basic Operation Controls to press
Folder view
1 The Folder view will display your music and recordings in alphabetical order.
From the root menu, select FOLDER to enter the folder view.
The FOLDER view will display your music according to how you arrange them in folders
when you transfer by drag and drop.
Folders and tracks will be listed according to alphabetical order.
2 Use the + key to go to the previous track or folder.
Use the - key to go to the next track or folder.
Use the )K key to go into a folder.
Use the J( key to go up one folder level.
3 Press 2; to select an item.
➔ A small pop-up window comes up.
4 Select Play to start playing all the tracks from the selected point in the chosen folder.
Select Delete to delete the chosen item.
TIP
You can only delete tracks (but not folders) in the folder view.
✔
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 6
7
Advanced features in playback
A-B REPEAT
To repeat or loop a sequence in a track:
1 Press A-B at your chosen starting point;
➔ appears on the screen.
2 Press A-B again at your chosen end point;
➔ appears on the screen, and the repeat sequence begins.
PLAY MODES
You can set your device to play music tracks randomly (Shuffle ) and / or
repeatedly (repeat ).
Changing play modes
1 Press MENU. Select Play modes.
2 Use scroll controls to select the following options.
Off Normal playback
Repeat 1 Play one track repeatedly
Repeat all Play all tracks repeatedly
Shuffle Play all tracks randomly
Shuffle repeat Play all tracks randomly and repeatedly
Repeat folder Play all tracks within folder repeatedly
Shuffle folder Play all tracks within folder randomly
Icon Meaning
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 7
8
EQUALIZERS
You can set your device to play music tracks with different EQ (equalizers).
Changing equalizers
1 Press MENU. Select EQUALIZER.
2 Use scroll controls to select Rock, Funk, Jazz, Classic, Hip Hop, Dance, Custom, or Off.
Custom EQ
The Equalizer custom setting provides 5 adjustable bands: Bass, Low, Mid, High and Treble.
1 Press MENU. Select EQUALIZER > Custom.
2 Press J( or )K to select your band.
➔ Selected band flashes.
3 Press + once or more to increase the band setting.
Press - once or more to reduce the band setting.
4 The newly set custom eq can be immediately heard if you are playing music
TIP
- The Custom EQ screen times out when there is more than 5 seconds of inactivity.
✔
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 8
9
Radio mode***
From the root menu, select RADIO to enter the radio mode.
Manual tune
1 From the root menu, select RADIO to enter the radio mode.
2 Press MENU. Select Manual Tune. Press 2; to confirm.
3 Press J( and )K to search the station or press and hold )K to search for the
next available station.
4 Press 2; to save your preset.
Auto tune
1 Press MENU. Select Autotune. Press 2; to confirm.
➔ Your device will automatically select up to 30 strongest available
stations.
Playing a preset station
1 From the root menu, select RADIO to enter the radio mode and tune
to your preferred station.
2 Press J( to scroll up or )K to scroll down for your preset.
3 The preset will be automatically played.
***FM radio is only available to some regional versions.
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 9
10
Making recordings
When your device is not connected to the computer, you can make voice or radio recordings.
Making voice recording
1 Make sure you are not in the radio mode and music or recordings is in stop or pause status.
2 Press REC to start voice recording.
➔ Device shows the recording state.
3 Press REC again to stop voice recording.
➔ Device shows the saving state. Your voice recording will be saved
on your device
(filename = VOICE REC > MIC-xxx.wav; xxx = track number).
Making FM recording***
1 In the radio mode, tune to your preset station.
2 Press REC to start FM recording.
➔ Device shows the recording state.
3 Press REC again to stop FM recording.
➔ Device shows the saving state. Your FM recording will be saved on
your device
(filename = FM REC > FM-xxx.wav; xxx = track number).
***FM radio is only available to some regional versions.
Playing recordings
You can find your recordings in the RECORDINGS library or via Folder View(see related chapter).
Searching for your desired recording
1 From the root menu, select RECORDING to enter the recording library.
Your device will play all your recordings alphabetically in the recording library as you press 2;.
2 Press 2; to pause the currently playing recording.
3 Press )K for next or J( for previous recordings.
TIP
Playback of recordings functions the same way as in the MUSIC library.
See MUSIC library: Playback for more information.
✔
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 10
11
Customizing settings
1 Press MENU for settings options.
2 Press + to scroll up or - to scroll down for your option. Press )K for next or J( for
previous levels.
3 Press 2; to confirm your selection.
4 Press MENU or J( to exit the existing settings screens.
Playmodes Off / Repeat 1 / Repeat all / Shuffle / Shuffle repeat / Repeat
folder / Shuffle folder
Equalizer Rock / Funk / Jazz / Classic / Hip Hop / Dance / Custom / Off
Delete
Power Save On / Off
Scroll status Normal / Slow / Fast
Screen saver
Display Clock vertical / Clock horizontal / Animation
Time 60 sec / 30 sec / 10 sec / Off
Time out 3 minutes / 5 minutes / 10 minutes / 30 minutes / Off
Sleep timer 15 minutes / 30 minutes / 45 minutes / 60 minutes / Off
Resume On / Off
Set day and time Day and Time screens
Language English / French / German / Spanish / Italian / Dutch / Portuguese
Swedish / Polish
Information FW version / Memory available
Factory settings Restore Factory settings
Setting Options
TIP
- Options for each setting are shown on the device display.
- Available settings vary with selected mode.
✔
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 11
12
About Firmware Manager
Your device is controlled by an internal program called firmware. With Firmware Manager, you can
update and restore your device with a few simple clicks.
Install Firmware Manager
1 Insert the supplied CD into your computer’sCD-ROM drive.
2 Follow screen instructions to begin and complete installation.
Update and restore firmware
1 Insert the supplied CD into your computer’s CD-ROM drive.
2 Install Firmware Manager from the supplied CD to your computer.
3 Connect to the Internet. Launch Firmware Manager.
4 Follow on screen instructions to complete firmware restore.
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 12
13
Hang up Press the reset button
Cannot power up Connect your device to your computer and charge until the
battery indicator stops blinking.
Press 2; and power up the device.
In case of device error, connect your device to the
computer. Use Firmware Manager to restore your device.
Device shows "Memory Full" Connect your device to the computer. Delete unwanted files.
Unplug safely. Record again.
Symptom Solution
Troubleshooting
If a fault occurs, first check the points listed in the following pages. For further help and other
troubleshooting tips, please also check out FAQs at www.philips.com/support.
If you are unable to find a solution by following these hints, consult your dealer or service center.
WARNING:
Under no circumstances should you try to repair the set yourself, as this will invalidate
the warranty.
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 13
14
Safety and Maintenance
General maintenance
To avoid damage or malfunction:
- Do not expose to excessive heat caused by heating equipment or direct sunlight.
- Do not drop your player or allow objects to fall on your player.
- Do not allow your player to be submersed in water. Do not expose earphone socket or
USB connector to water as water entering the set may cause major damage.
- Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives as
these may harm the set.
- Active mobile phones in the vicinity may cause interference.
- Backup your files. Please ensure that you retain the original files that you have downloaded to your
device. Philips is not responsible for any loss of content if the product becomes damaged or not
readable / legible.
About operating and storage temperatures
- Operate in a place where the temperature is always between 0 and 35
o
C (32 to 95
o
F).
- Store in a place where the temperature is always between -20 and 45
o
C (-4 to 113
o
F).
- Battery life may shorten in low temperature conditions..
Take care when using headphones
Hearing safety
Listen at a moderate volume. Using headphones at high volume can impair your hearing. We recommend
headphone no. SHE775 for this product.
Important (for models with bypacked headphones):
Philips guarantees compliance with the maximum sound power of its audio players as determined by
relevant regulatory bodies only with the original model of provided headphones.
In case this one needs replacement, we recommend that you contact your retailer to order a model
identical to that of the original provided by Philips.
Traffic safety
Do not use headphones while driving or cycling as you may cause an accident.
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 14
15
Copyright information
- All other brand and product names are trademarks of their respective companies or organizations.
- Unauthorized duplication of any recordings downloaded from the internet or made from audio
CDs is a violation of copyright laws and international treaties.
- The making of unauthorized copies of copy-protected material, including computer programmes, files,
broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal
offence.This equipment should not be used for such purposes.
Environmental information
We have reduced the packaging to its minimum and made it easy to separate into materials: cardboard,
PS, PE, PET.
Your set consists of material which can be recycled if disassembled by a specialized company
Please observe the local regulations to dispose of packaging, exhausted batteries and old equipment.
Disposal of your old product
Your product is designed and manufactured with high quality materials and components, which can be
recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means the product is
covered by the European Directive 2002/96/EC
Please inform yourself about the local separate collection system for electrical and electronic
products.
Please act according to your local rules and do not dispose of your old products with your normal house-
hold waste. The correct disposal of your old product will help prevent potential negative
consequences for the environment and human health.
Modifications
Modifications not authorized by the manufacturer may void user authority to operate this device.
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 15
16
Notice for the USA
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules.These limits are designed to provide reasonable protection against harmful
interference in a residential installation.This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Notice for Canada
This Class B digital apparaatus complies with Canadian ICES-003.
The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10.
Operation is subject to the following two conditions:
1.This device may not cause harmful interference, and
2.This device must accept any interference received, including interference that may cause undesired
operation.
Notice for the European Union
This product complies with the radio interference requirements of the European Union.
Philips
SA170
Philips
SA175
Philips
SA178
Philips
SA179
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 16
17
Technical Data
Power supply Rechargeable Li-polymer 280mAh
Picture / Display Dual color OLED, 128 x 64 pixels
Sound Channel separation 40 dB
Equalizer customizable
Equalizer settings Rock / Funk / Jazz / Classic / Hip Hop / Dance /
Custom / Off
Frequency response 30-18 000 Hz
Signal to noise ratio >85 dB
Output Power (RMS) 2 x 5 mW
Audio Playback
Compression format MP3 (8-320 kbps and VBR; Sample rate: 8, 11.025, 16, 22.050, 24, 32, 44.1, 48 kHz)
WAV
WMA (5-192 kbps)
ID3-tag support Album and title name
Audio Capturing Built-in microphone Mono
Voice recording WAV
FM recording*** WAV
***FM radio is only available to some regional versions.
Storage Media SA170 128 MB NAND Flash*
SA174 256 MB NAND Flash*
SA175 256 MB NAND Flash*
SA177 512 MB NAND Flash*
SA178 512 MB NAND Flash*
SA179 1 GB NAND Flash*
*available storage capacity will be less
Tuner / Reception / Transmission Auto store / Tuner band: FM***
***FM radio is only available to some regional versions.
Connectivity Headphone 3.5 mm, USB 2.0
Music transfer via Windows Media Player or Windows Explorer
Data transfer via Windows Explorer
System Requirements Windows
R
98 SE/Me/2000(SP3 or above) or XP(SP1 or above)
Mac OS 9.2.2 or above
Pentium Class MMX 166 MHz processor or better
96 MB RAM
50 MB hard drive space
Internet connection
Microsoft Internet Explorer 5.5 or later
Video display card
Soundcard
USB port
PHILIPS reserves the right to make design and specification changes for product improvement
without prior notice.
SA170_ENGLISH.qxd 9/2/05 12:19 PM Page 17
18
About Windows Media Player
With Windows Media Player you can easily manage your digital music collection and transfer music to
your device.
M
Install Windows Media Player and
Firmware Manager
1 Insert the supplied CD into your computer's CD-ROM drive.
2 Follow screen instructions to begin and complete installation.
3 Install Windows Media Player.
4 Fill in necessary information when prompted to do so.
Note:
Copy protect (DRM) music that has not been transferred to your device using
Windows Media Player can not be played on your device.
SA170_wmp_ENG_WMP10.qxd 9/5/05 9:51 AM Page 18
19
Launch Windows Media Player 10
1 Connect your device to your computer using the supplied USB cable.
The USB connection screen will automatically appear.
2 Launch Windows Media Player.
TIP
Please refer to your computer’s manual for the exact position of your USB port.
Look for the USB symbol on the processing unit of your computer.
✔
SA170_wmp_ENG_WMP10.qxd 9/2/05 12:45 PM Page 19
20
*Actual display varies with use.
Search and add tracks to the Library
1 Go to File menu. Click Add to Library > By Searching Computer.
2 Click Browse in the dialog box to point to the folder you want to add to.
3 Complete the information in the dialog box, and then click Search.
4 Files will be added to the Library.
SA170_wmp_ENG_WMP10.qxd 9/2/05 12:45 PM Page 20
21
Transfer tracks to your device
TIP
Simply connect your device to your computer, choose the synchronization
method you want, and you're ready to synchronize your library to your device.
Choose a synchronization method:
Automatic. With this option, the Player synchronizes content to the device when you connect
it to your computer or when you change synchronization settings.The Player synchronizes your
entire library if it can fit, or the Player synchronizes your favorite content first.
Manual. With this option, you pick specific files or playlists you want to synchronize each time
you want to make changes to the content on your device.
✔

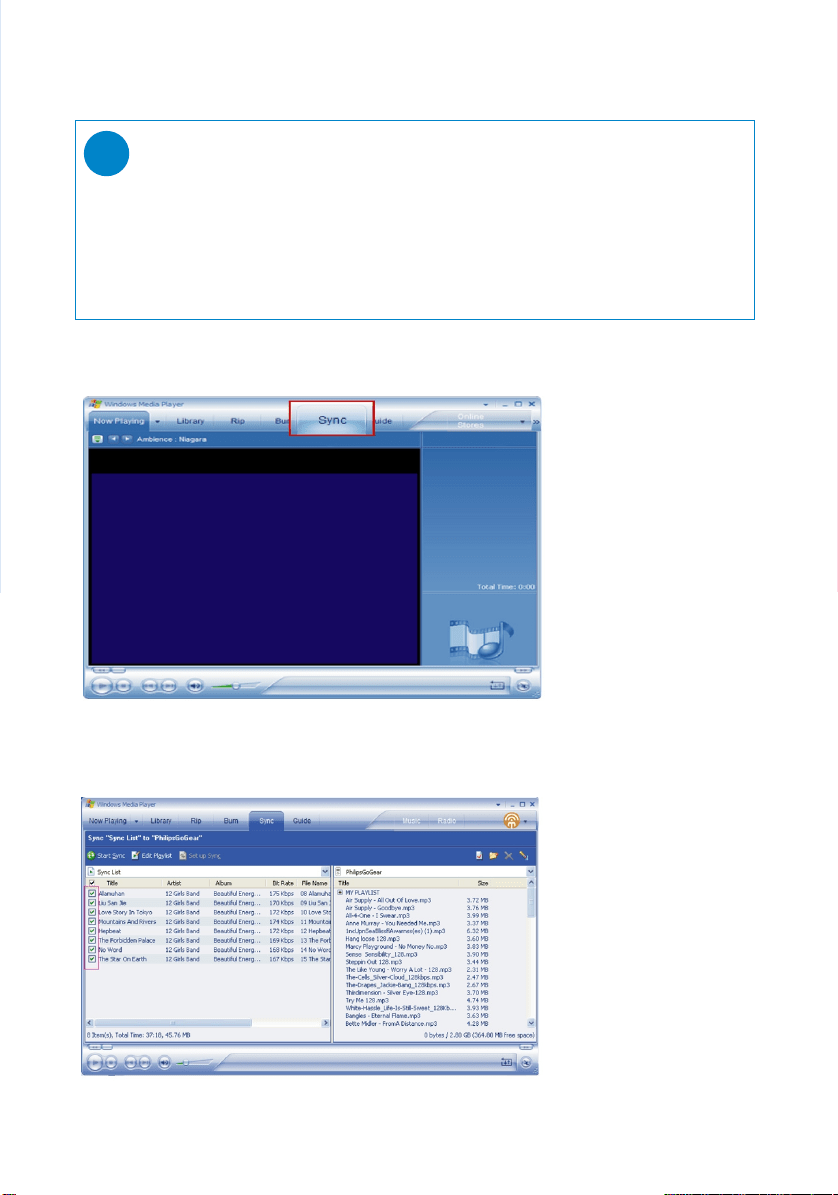

1 Click on Sync.
2 In the Items to Copy pane, show the playlist, category, or other items that you want to copy
that you want to copy. Clear the check boxes next to any files you do not want to copy.
SA170_wmp_ENG_WMP10.qxd 9/2/05 12:45 PM Page 21
22
3 In the Items on Device pane, show the device that you want to copy files to, i.e. GoGear Audio /
Philips GoGear . Clear the check boxes next to any files you do not want to copy..
4 Click the Start Sync button
TIP
For further details of music transfer on WMP 10, go to the help section of Windows Media
Player and click Help > Synchronizing content to devices.
✔
SA170_wmp_ENG_WMP10.qxd 9/2/05 12:45 PM Page 22
23
*Actual display varies with use.

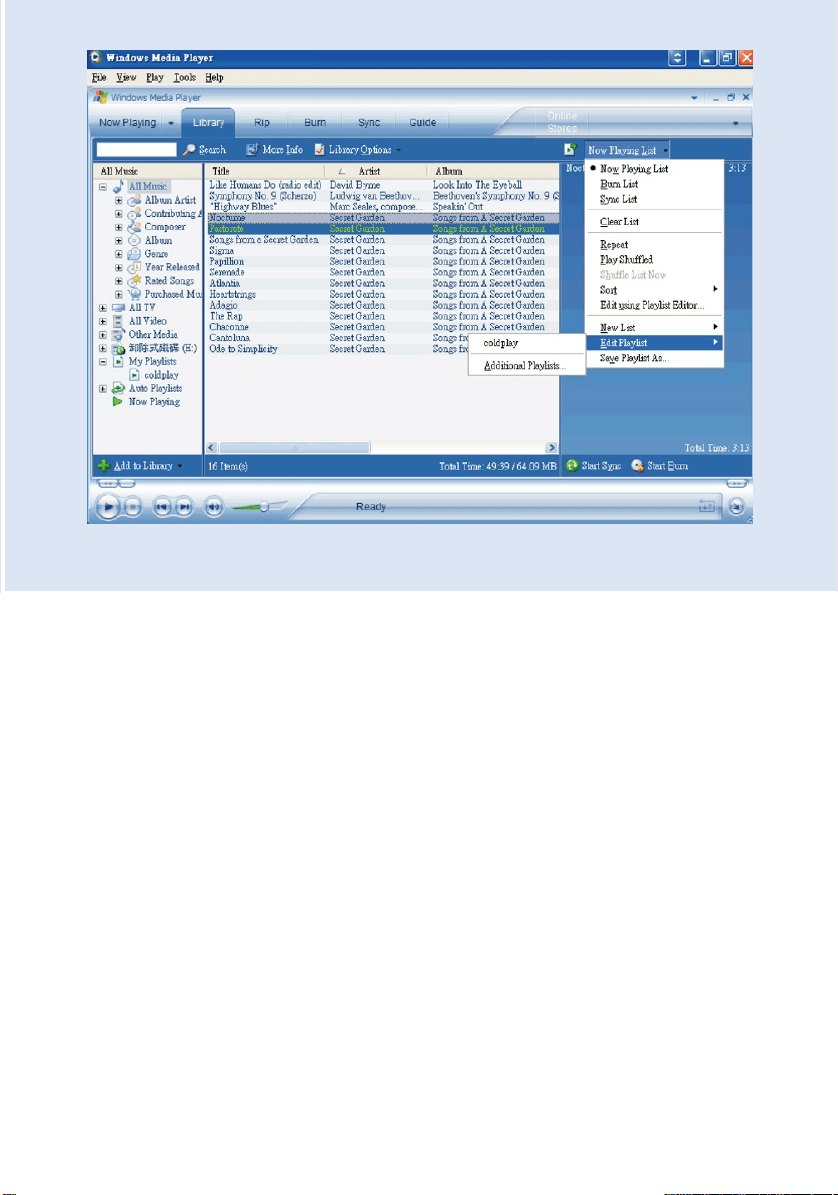

Add Tracks to a Playlist on your PC using WMP
1 Click to highlight an item.
2 Right click on the item and select Add to > Additional Playlist.
3 From the Add to Playlist pop-up window, select an existing playlist or add new one.
4 The selection is added to playlist.
TIP
Press and hold <Ctrl> on your keyboard and click to select more than one item.
To select consecutive items, click the first item, press and hold <Shift> on your
keyboard, and then click the last item.
✔
SA170_wmp_ENG_WMP10.qxd 9/2/05 12:45 PM Page 23
24
*Actual display varies with use.
TIP
Press and hold <Ctrl> on your keyboard and click to select more than one item.
To select consecutive items, click the first item, press and hold <Shift> on your
keyboard, and then click the last item.
✔

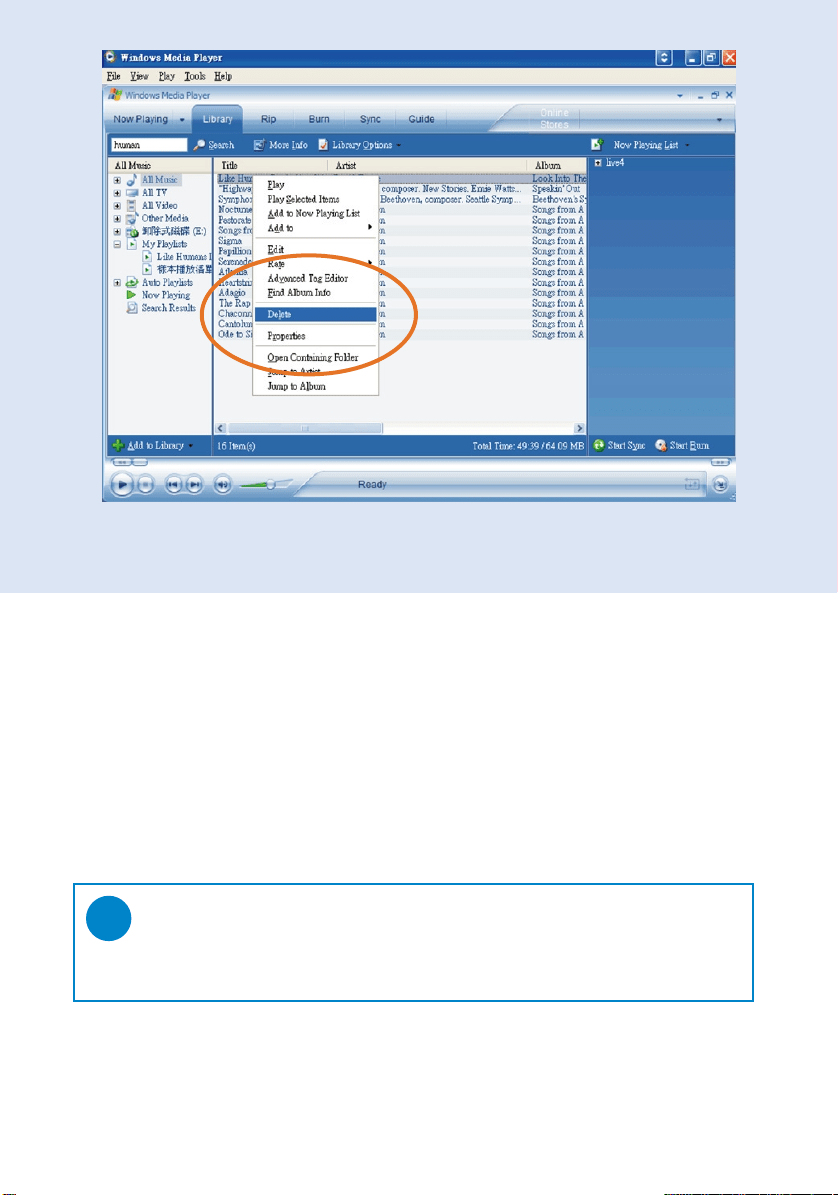

Delete Tracks and Playlists
1 Click to highlight an item.
2 Right click and select Delete to delete.
SA170_wmp_ENG_WMP10.qxd 9/2/05 12:45 PM Page 24
25
*Actual display varies with use.
Edit Track Information
1 Click on a track.
2 Right click and select Edit.
3 Click on the text boxes to edit relevant information.
SA170_wmp_ENG_WMP10.qxd 9/2/05 12:45 PM Page 25
26
*Actual display varies with use.
Search for Tracks
1 Type a search string in the Search field.
2 Click on Search to start searching.
3 You will see tracks that contain the search string.
4 You can play, transfer, delete or add these tracks.
SA170_wmp_ENG_WMP10.qxd 9/2/05 12:45 PM Page 26
27
Upgrades
We know you will enjoy your product for a long time. For best performance, we recommend that
you regularly check in to www.philips.com for free upgrades of the latest software and firmware for
your product.
Firmware Upgrade
Your device is controlled by an internal program called firmware. You can install the latest firmware from
the bypacked CD and download it from www.philips.com/support to keep your device updated.
TIP
Please charge your device fully before firmware upgrade. This will ensure steady power
supply for completing the whole process.
✔
1 Install the latest Philips Firmware Manager from the bypacked CD. Philips Firmware Manager
will automatically notify you if any new updates are available.
2 Connect your device to your computer (powered by the supplied AC/DC adapter if
applicable).
3 Launch Firmware Manager User Interface by right-clicking on this icon in the taskbar
and selecting “Launch Firmware Manager” or from the Desktop icons or by going to
Start ➔ Programs ➔ Philips Firmware Manager ➔ or from the desktop.
4 Follow on screen instructions to complete firmware restore.
If your:
- internet connection is activated
- your Firmware Manager has been installed on your PC
- your device is connected and powered on
then your Firmware Manager will pop-up a message if new firmware is available for your device
SA170_wmp_ENG_WMP10.qxd 9/2/05 12:45 PM Page 27
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V.
or their respective owners
2005 © Koninklijke Philips Electronics N.V. All rights reserved.
www.philips.com
Printed in China
SA170 COVER 1 8/25/05 12:11 PM Page 2
