60cm built under dishwasher with ComfortLift, MaxiFlex cutlery drawer, AirDry technology, beam on
floor cycle indicator and 14 place settings.
RRP AUS $2,249.00
ESF97400RKX
ESF97400RKX - 60cm built under dishwasher
Product Details
FEATURES
ComfortLift
ComfortLift makes it easy to
load and unload.
MaxiFlex
MaxiFlex drawer space can
be adapted to the load.
SatelliteClean
SatelliteClean reaches all
items with water jets.
ExtraHygiene
ExtraHygiene removes
99.99% bacteria & viruses*.
Beam on Floor
Beam-on-Floor shows you
when its time to unload.
AirDry
Allows natural airflow in
towards the end of the cycle
ensuring dry dishes
Eco program
Eco program is water and
energy efficient.
BENEFITS
RAISING THE STANDARD
ComfortLift is the first of its kind, making it easier than ever to
load and unload your dishes. The unique hinge mechanism
allows you to gently lift the lower rack, meaning you no longer
need to bend down low to load and unload heavy plates,
platters, pots, and pans.
MAKE ROOM FOR MORE
The MaxiFlex drawer accommodates everything from spoons
to spatulas. From multiple cutlery sets to over-sized utensils,
the flexible dividers mean you can customise the drawer
according to the load. Flatware is kept separate from larger
items and the added depth increases the capacity for each
cycle.
THE GLASS-CARE SPECIALIST
SoftGrips and SoftSpikes gently support your delicate glasses,
safeguarding them from damage, while the dedicated glassware
program means you no longer have to hand wash. SoftGrips
gently secure each individual glass stem, while the rubber
SoftSpikes cushion glassware from vibration during the wash
cycle so they do not move around.
MAX COVERAGE. MAX CLEAN
SatelliteClean shoots multiple jets of water into every corner of
the dishwasher to ensure every item is thoroughly cleaned. The
double rotation movement continuously changes the angle of
the water jets to ensure maximum coverage, delivering
outstanding cleaning results.
ESF97400RKX
ESF97400RKX - 60cm built under dishwasher
CLEAN WITH EXTRA HYGIENE
The ExtraHygiene function gives you maximum cleaning
performance with hygienic care. With the ExtraHygiene
function, the final rinse phase heats up to above 60C and
keeps the temperature high for minimum 10 minutes to sanitize
your dishes, removing more than 99.99% of bacteria and
viruses.**ExtraHygiene removes more than 99.99% of bacteria
and viruses* with water heated above 60C.*Tested for
Micrococcus leteus and MS2 bacteriophage in external test
performance by Swissatest Testmaterialien AG in 2021 (Test
report No. 20212029)
STATUS CHECK FROM A DISTANCE
Beam-on-Floor projects the status of your wash program so
that you can easily see when its time to unload. A red spot on
the floor means that the program is still running, while a green
spot means that it is completed.
UP TO 3X BETTER DRYING*
AirDry technology finishes each cycle with a breath of fresh
air, performing three-times better than closed-door systems.
The door automatically opens 10 cms towards the end of the
drying phase, without you lifting a finger. This allows air to
circulate inside, leaving plates and cutlery completely dry and
spotless at the end of the cycle, whilst also saving energy.*
Compared with our closed system.
SWITCH TO ECO
Suitable for cleaning normally soiled tableware, the Eco
Program is the most efficient program for water and energy
consumption.
ESF97400RKX
ESF97400RKX - 60cm built under dishwasher
Specifications
PRODUCT PROFILE
Domestic warranty details
(yrs)
2
Type of Dishwashers built under
Place settings 14
Drying system AirDry
Number of spray arms 3
Top shower Yes
SPECIFICATION
Water efficiency star rating
WELS
5
Water consumption (litres) 11.2
Energy Star Rating 3.5
Energy consumption cold
water (kWhr/yr)
273
Noise level dBA 44
Water supply cold or hot (maximum
60°C)
Basket colour grey
Service cord length 1600
Inverter system Yes
DIMENSIONS
Total height (mm) 818
Total width (mm) 596
WASH PROGRAMS
Number of
Programs
8
ESF97400RKX
ESF97400RKX - 60cm built under dishwasher
DIMENSIONS
Total depth (mm) 570
WASH PROGRAMS
Programs Quick 30 min,Regular 90 min,AUTO
Sense,Machine Care,rinse and hold,Light 60
min,Heavy 160 min,ECO 180 min
Wash option Delay start (1-24
hours),ExtraHygiene,GlassCare,ExtraPower
Range of
temperatures
4
CONTROL PANEL
Control panel
type
Touch Control electronic
Top mounted
control panel
Yes
Control panel
finish
stainless steel
Display
indicators
delay start,Beam On Floor Two
Coloured,rinse aid,service
code,program
selected,ExtraHygiene,ExtraPower
FEATURES
Other Features beam on floor indicator,Auto
Off,delay start
Water safety system aqua control
Dispenser detergent,rinse aid
Number of spray levels 3
EXTERIOR
Door finish dark stainless steel
Side colour grey
UPPER BASKET
Upper basket features soft spikes for tall
glass,SoftGrip,Foldable glass
rack,easy lift adjustable upper
basket
ESF97400RKX
ESF97400RKX - 60cm built under dishwasher
EXTERIOR
Plinth colour (kickboard) no plinth supplied
Removable worktop No
UPPER BASKET
Foldable cup shelves 4
Foldable Racks 2
LOWER BASKET
Lower Basket Features ComfortLift
Foldable Racks 4
Foldable cup shelves 0
HOSES
Inlet hose length 1600
extension hose spare part
SHIPPING
Shipping Volume (m3) 0.376
Shipping Weight (Kg) 47.7
Pack Dimensions Height
(mm)
870
Pack Dimension Width
(mm)
635
Pack Dimension Depth
(mm)
680
STUFFING QUANTITIES
40ft HC 150
ESF97400RKX
ESF97400RKX - 60cm built under dishwasher

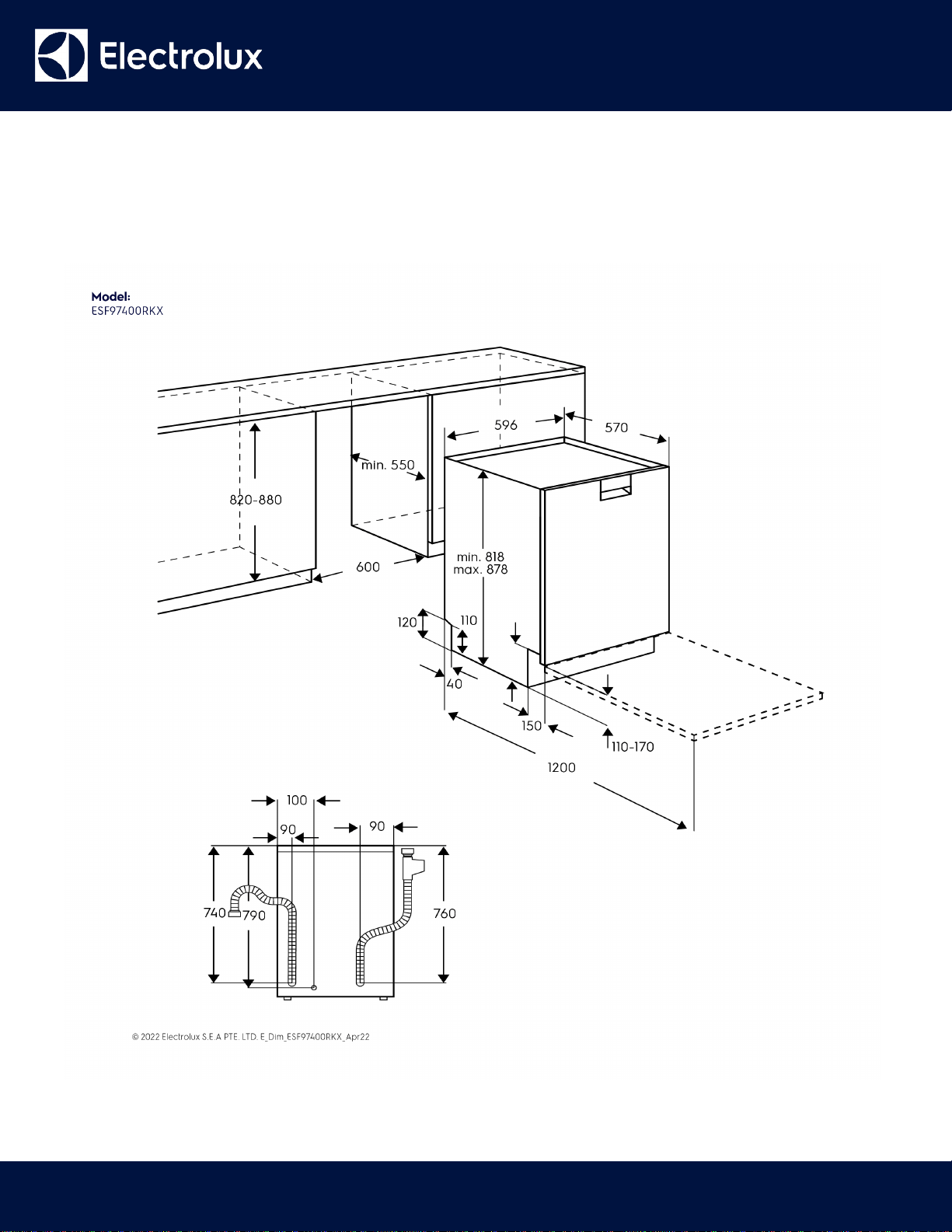

Dimensions
ESF97400RKX
ESF97400RKX - 60cm built under dishwasher
