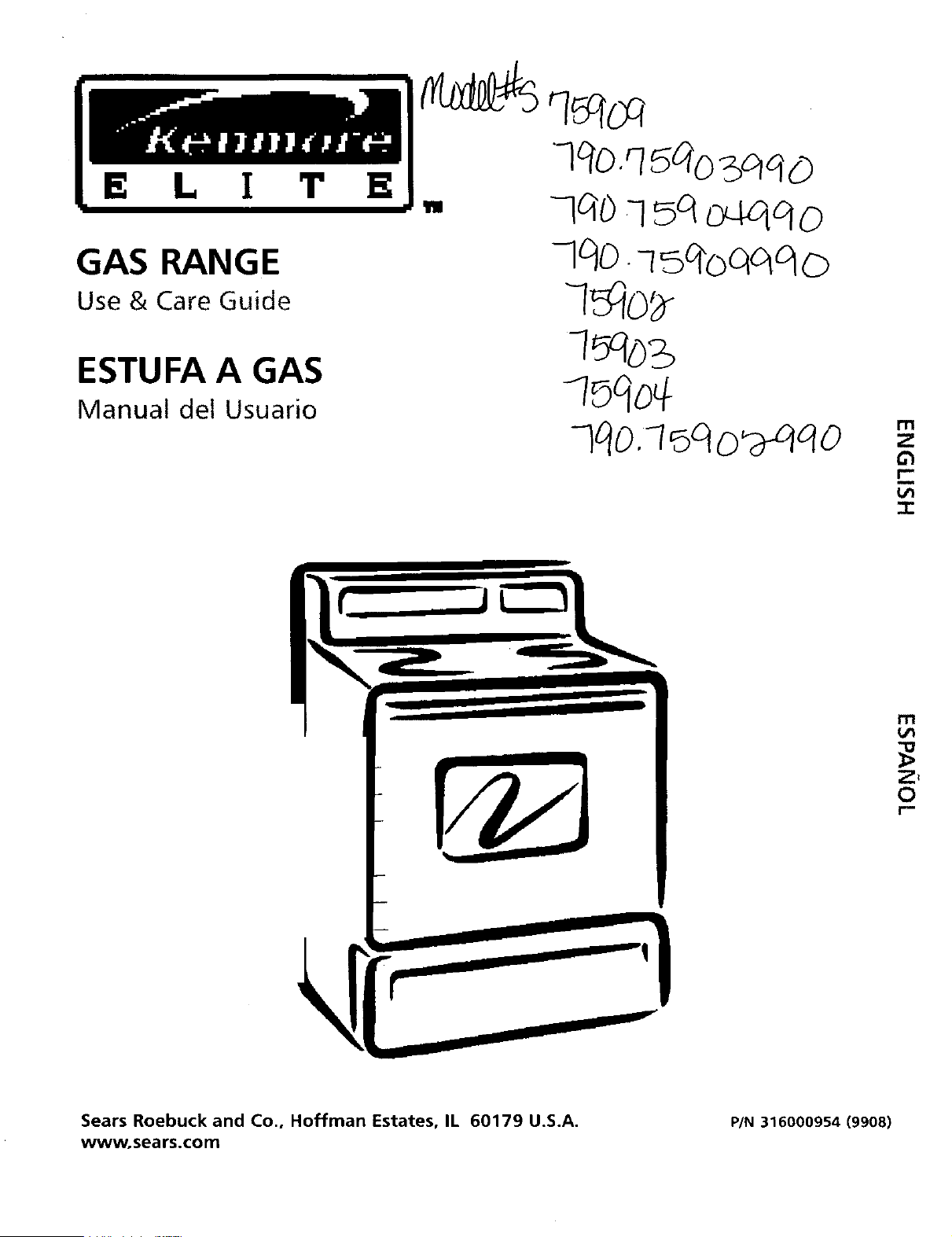

_. L I T E
GAS RANG E
Use & Care Guide
ESTUFA A GAS
Manual del Usuario
q oq
qCto.fl5dtO%qq©
-la0 N_q _qq o
Nqo. qsq'oqqq©
-qclo.-75qo_qqo
Z
r-
-t"
r J
IT/
_n
Zl
0
I'-
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. PIN 316000954 (9908)
www, sears.com

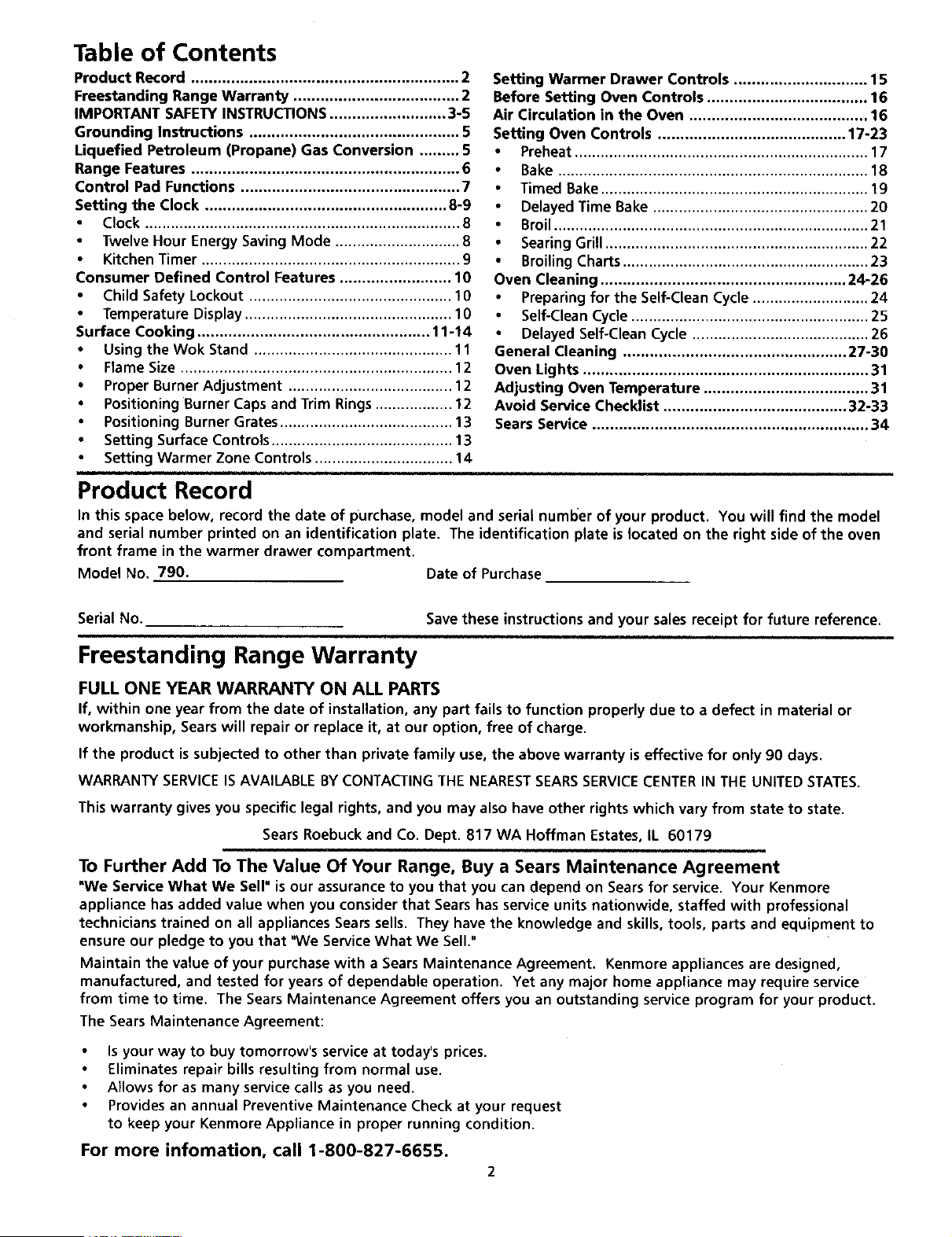

Table of Contents
Product Record ............................................................ 2
Freestanding Range Warranty ..................................... 2
IMPORTANT SAFETY INSTRUCTIONS .......................... 3-5

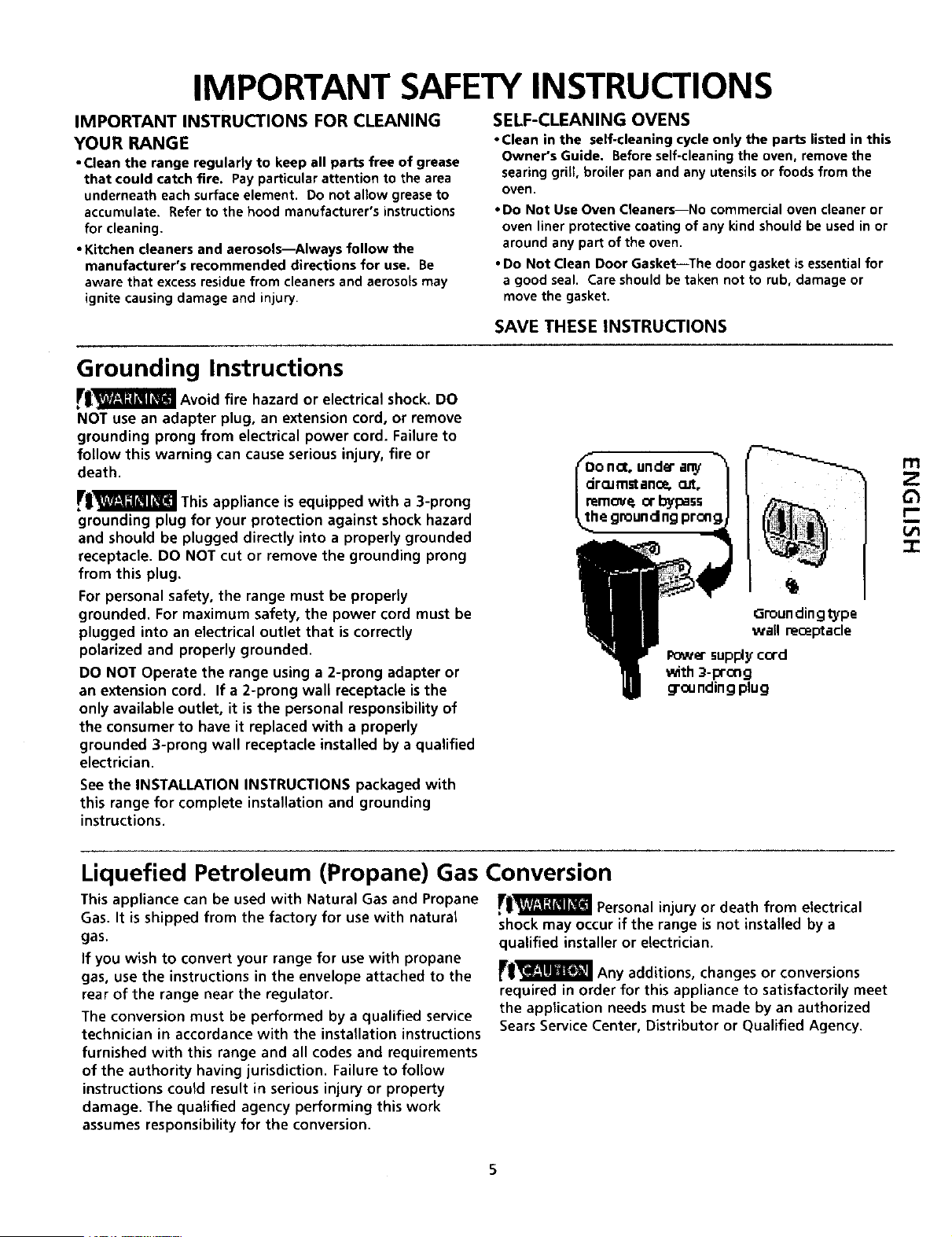

Grounding Instructions ............................................... 5
Liquefied Petroleum (Propane) Gas Conversion ......... 5

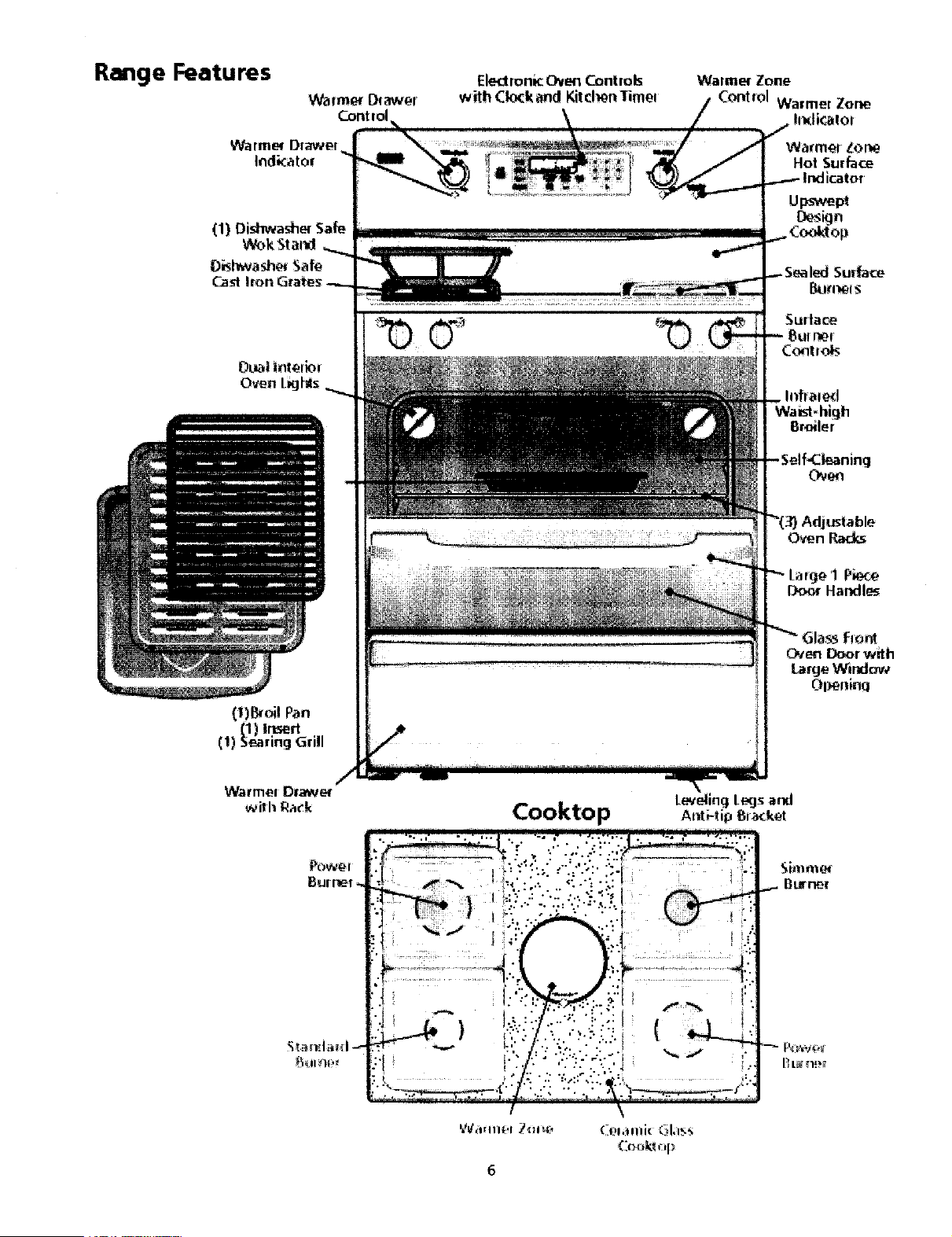

Range Features ............................................................ 6

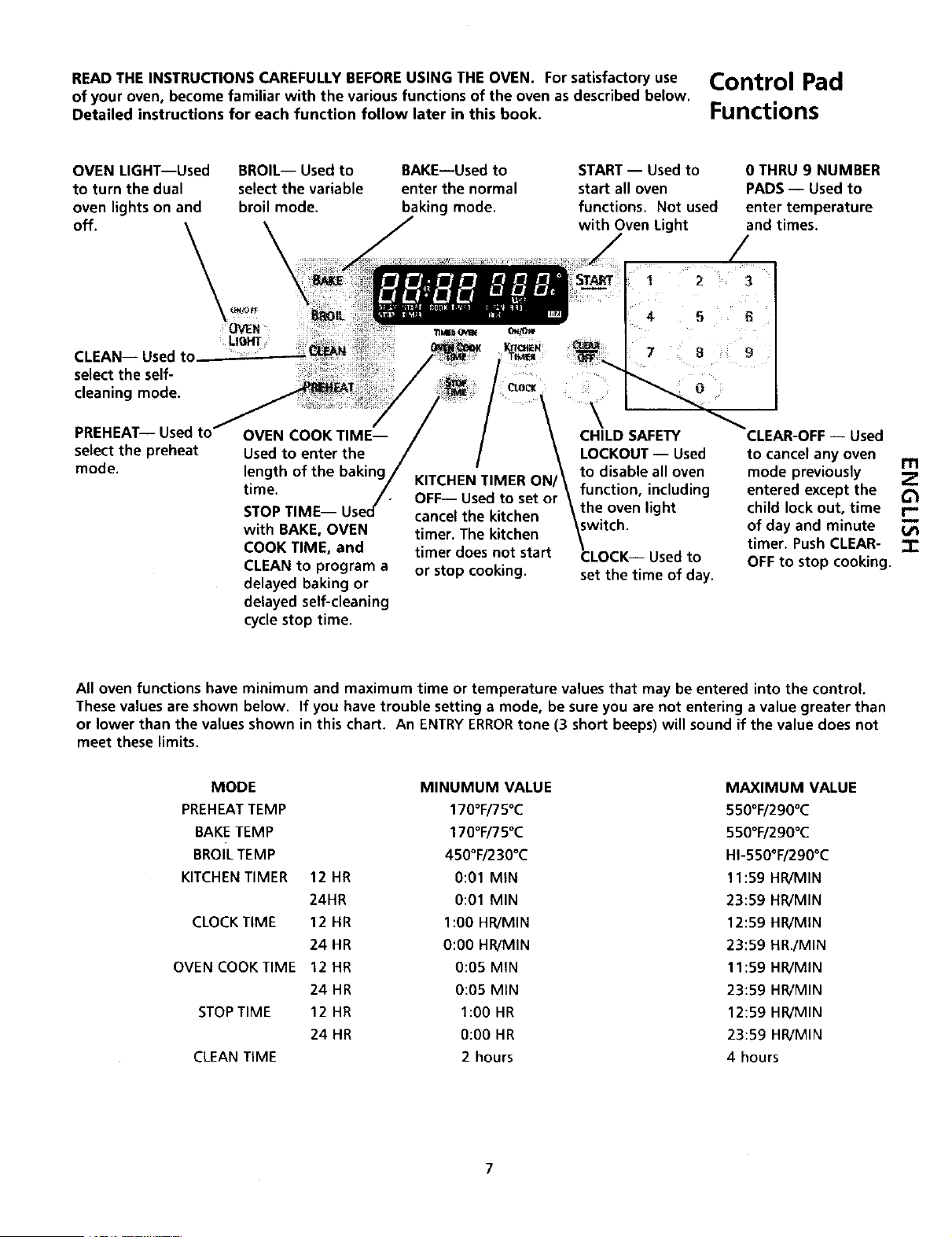

Control Pad Functions ................................................. 7

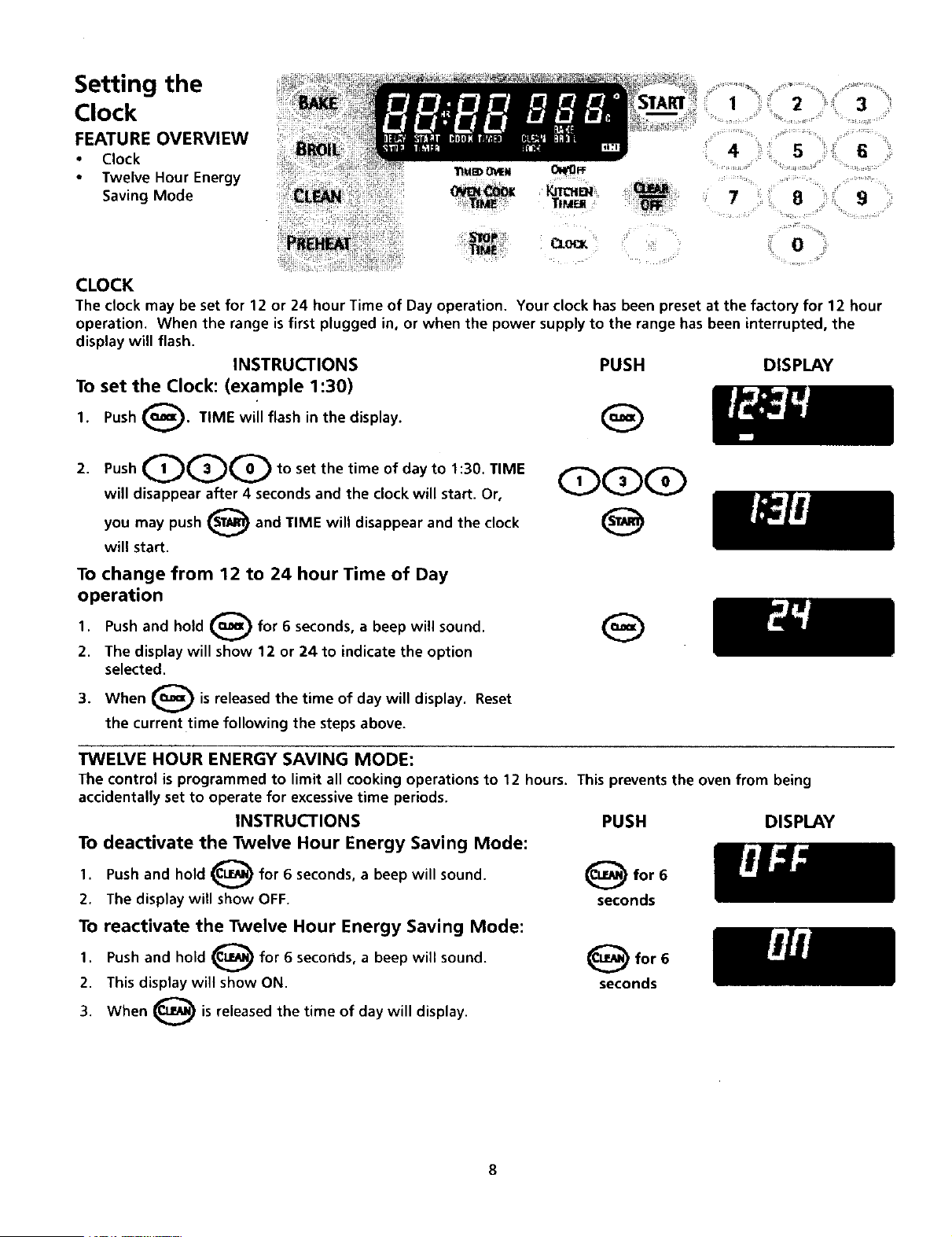

Setting the Clock ...................................................... 8-9
Clock ......................................................................... 8
Twelve Hour Energy Saving Mode ............................. 8

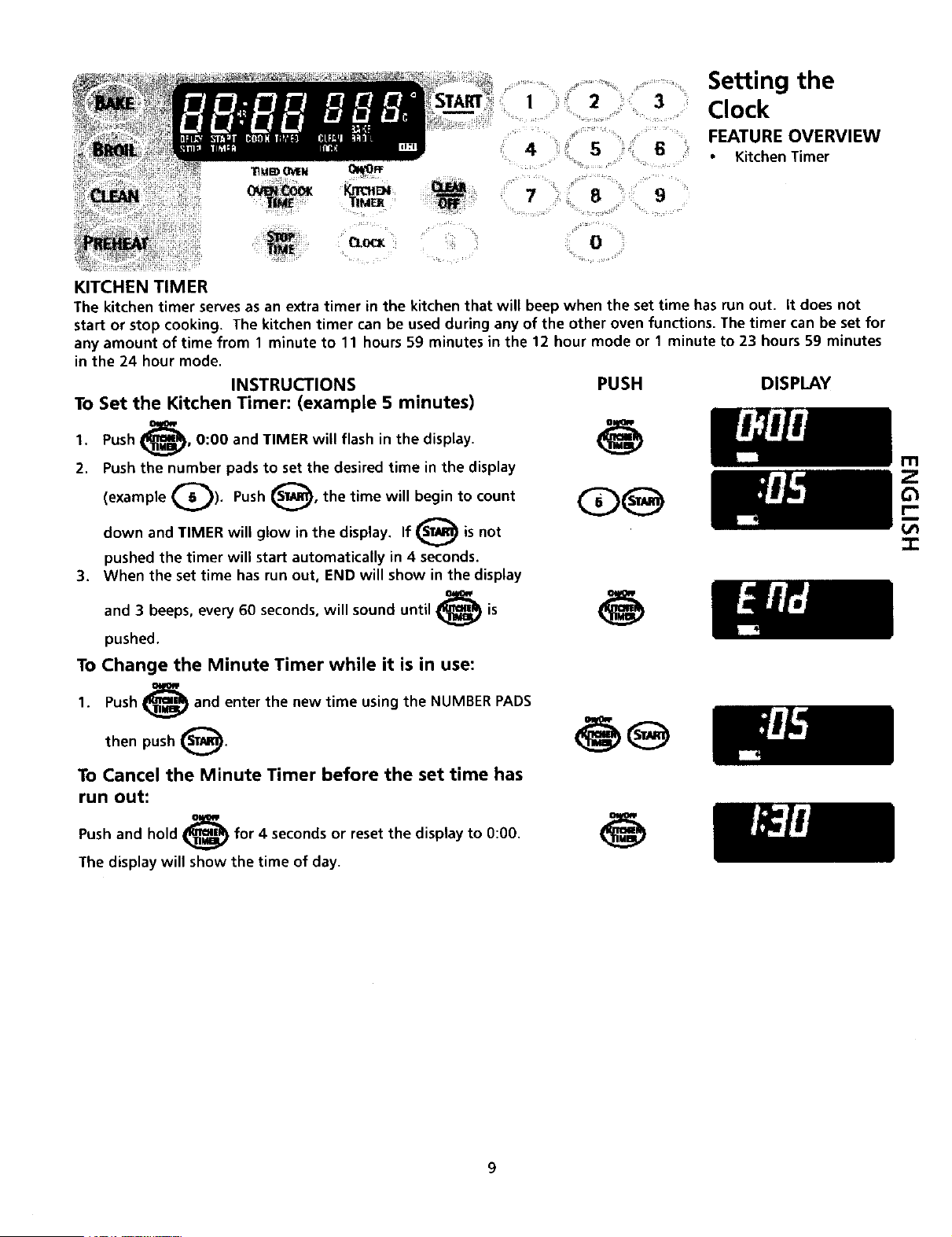

• Kitchen Timer ............................................................ 9

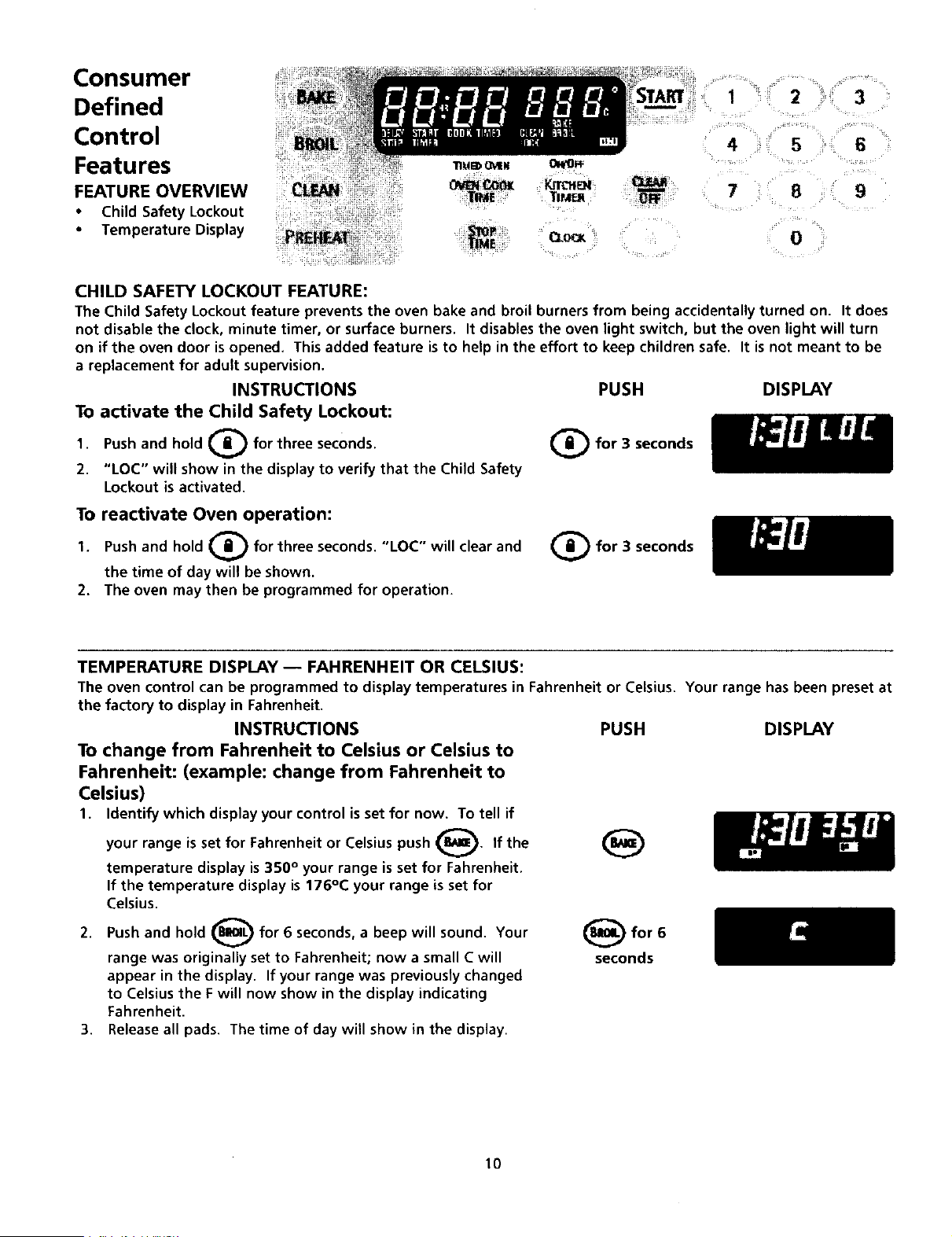

Consumer Defined Control Features ......................... 10
• Child Safety Lockout ............................................... 10
• Temperature Display ................................................ 10
Surface Cooking .................................................... 11-14

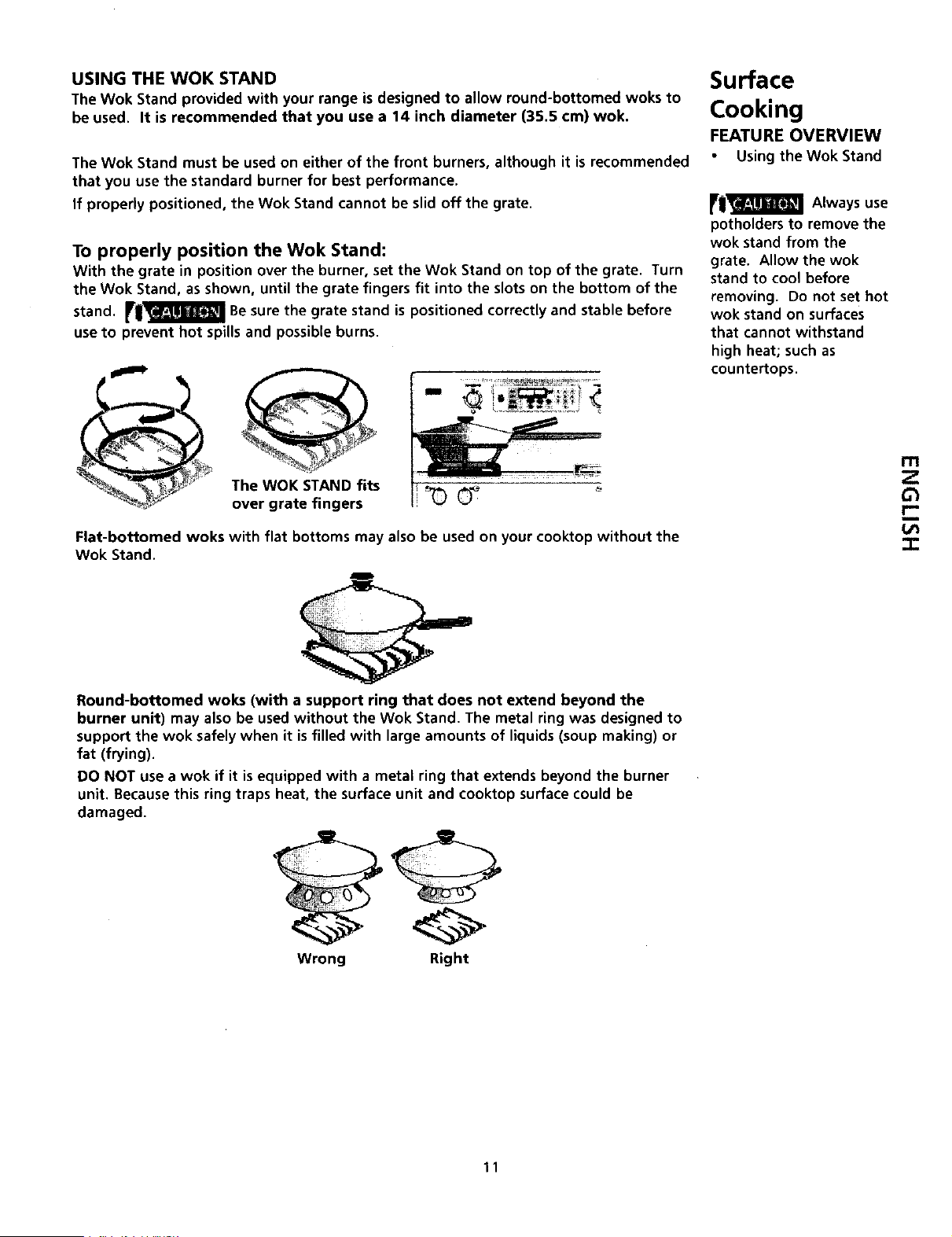

• Using the Wok Stand .............................................. 11

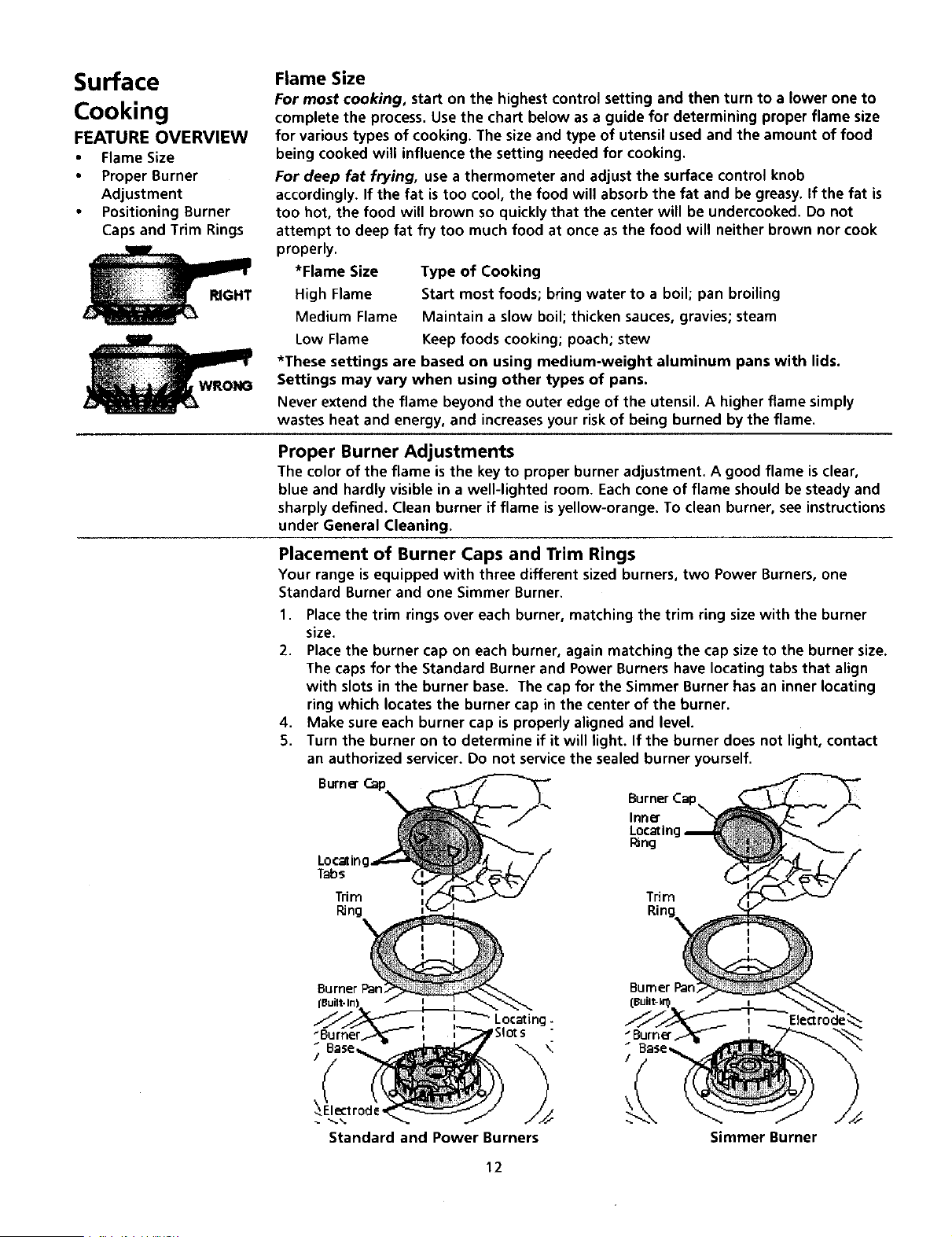

• Flame Size ............................................................... 12
• Proper Burner Adjustment ...................................... 12

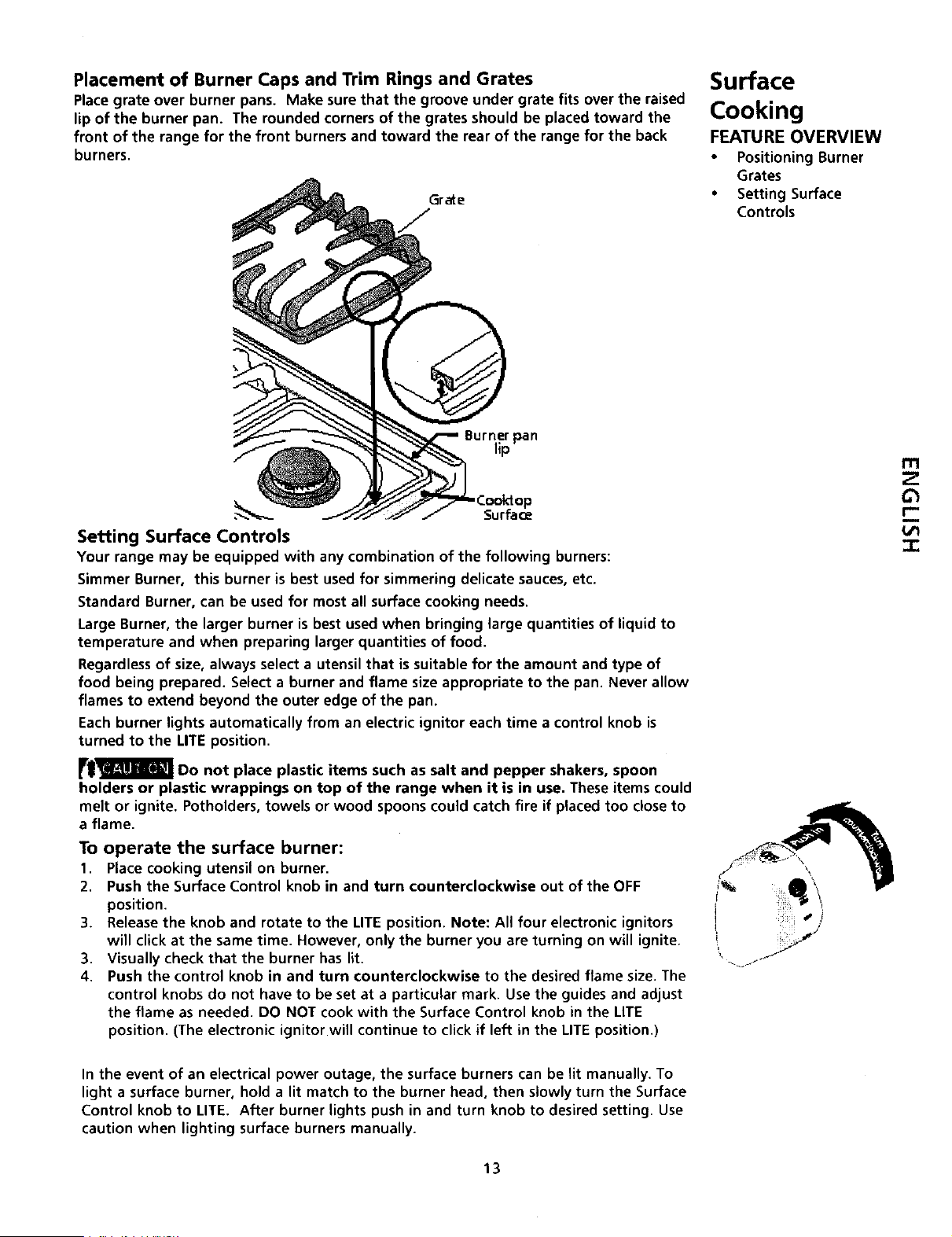

• Positioning Burner Caps and Trim Rings .................. 12
• Positioning Burner Grates ........................................ 13
• Setting Surface Controls .......................................... 13

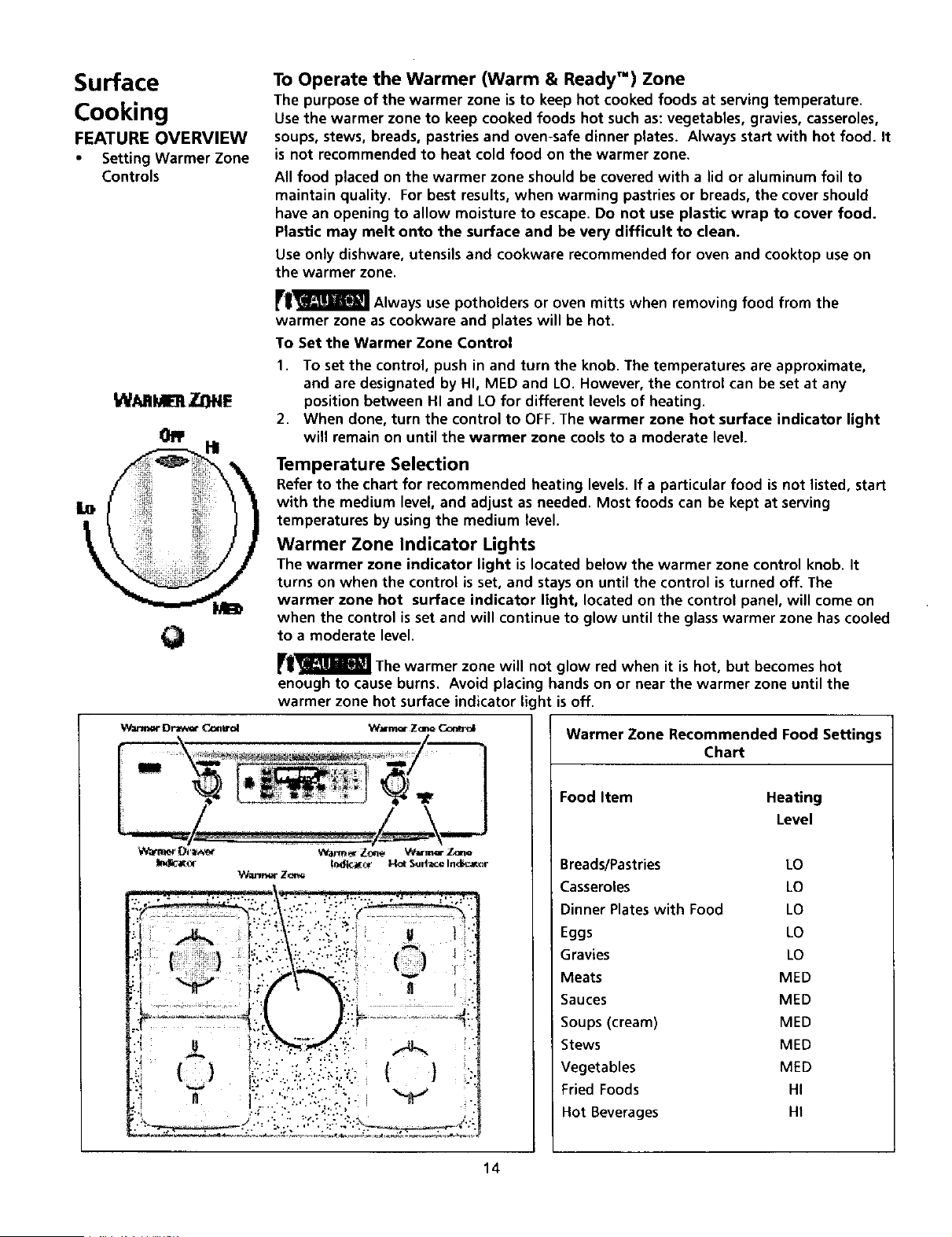

Setting Warmer Zone Controls ................................ 14

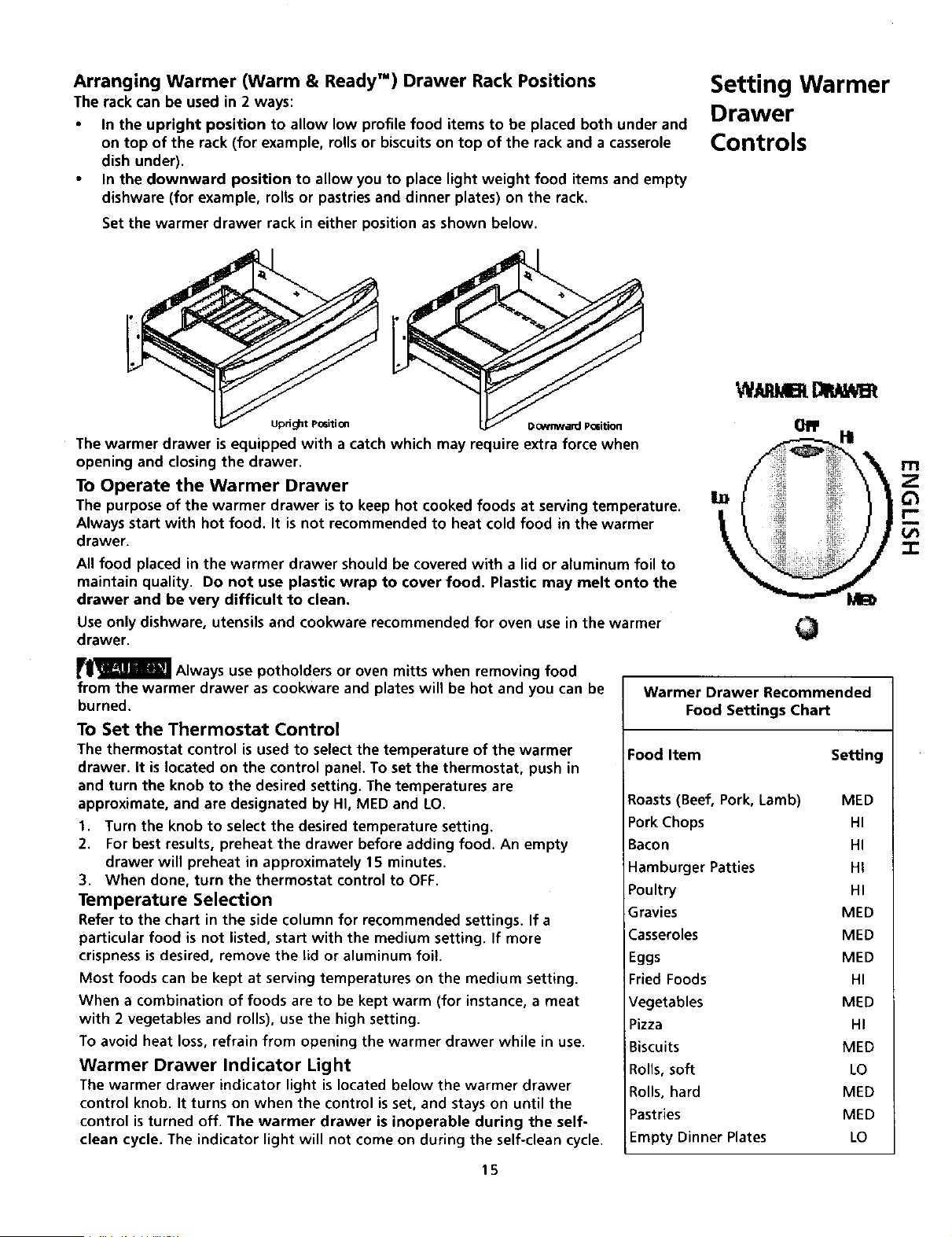

Setting Warmer Drawer Controls .............................. 15

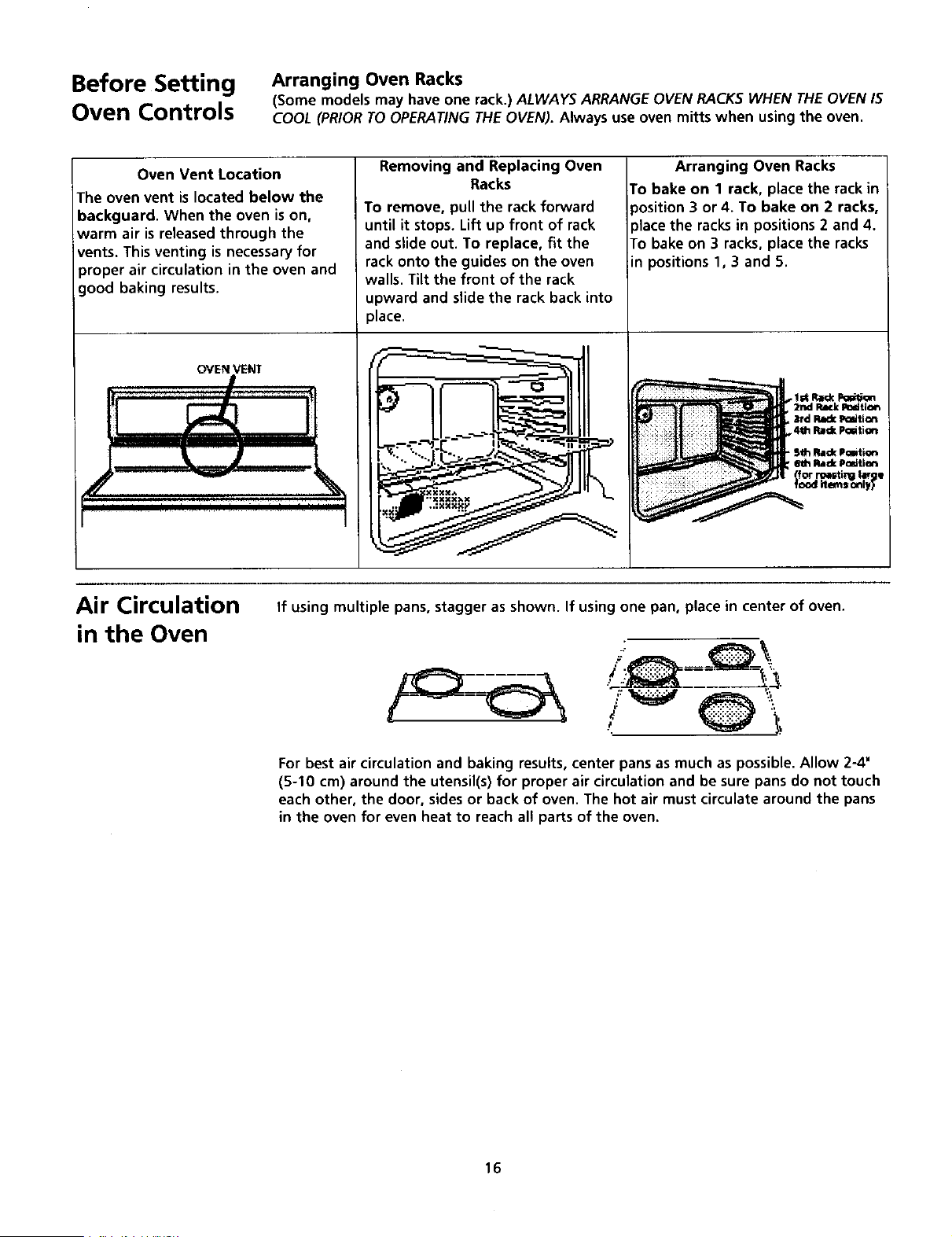

Before Setting Oven Controls .................................... 16
Air Circulation in the Oven ........................................ 16
Setting Oven Controls .......................................... 17-23

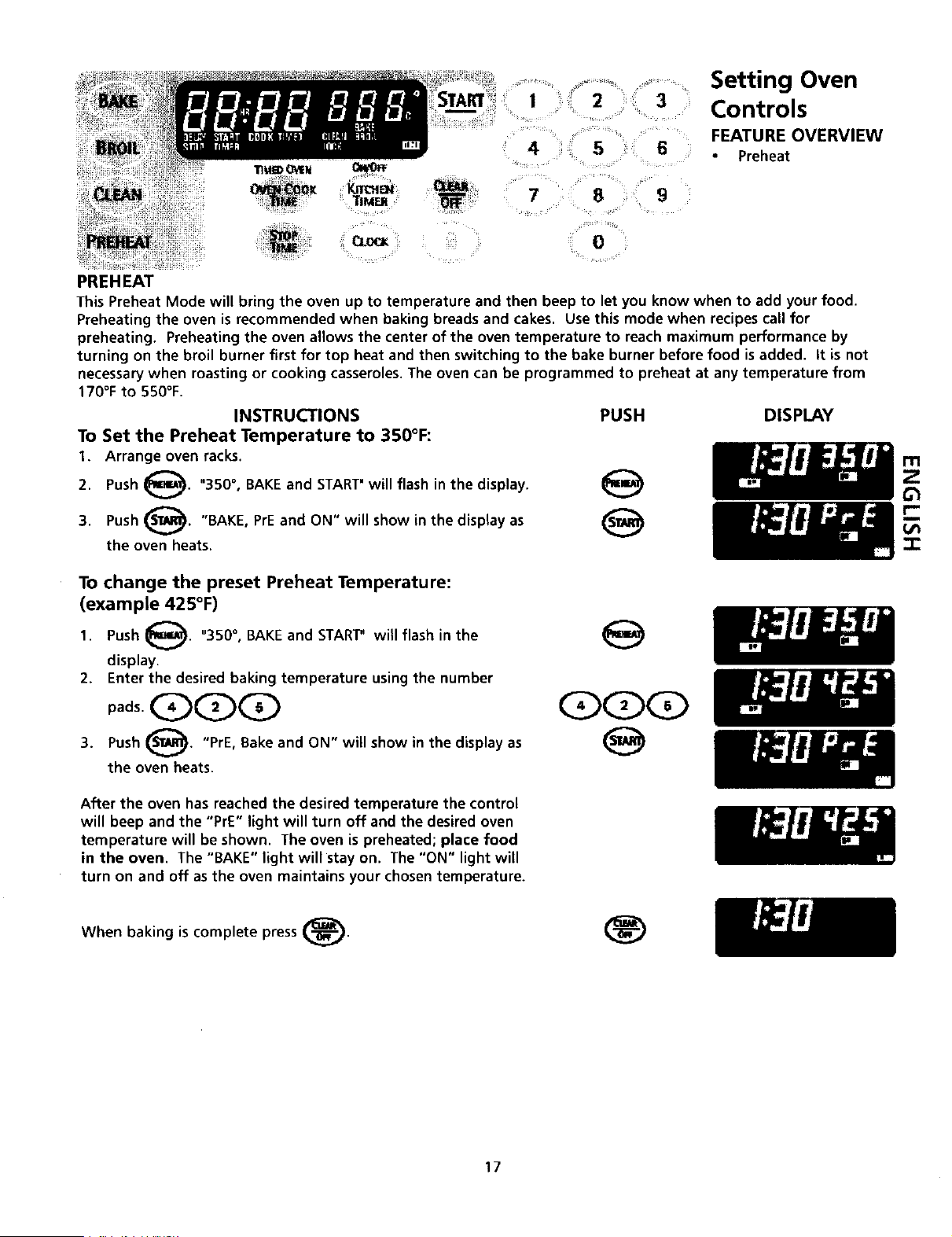

Preheat .................................................................... 17

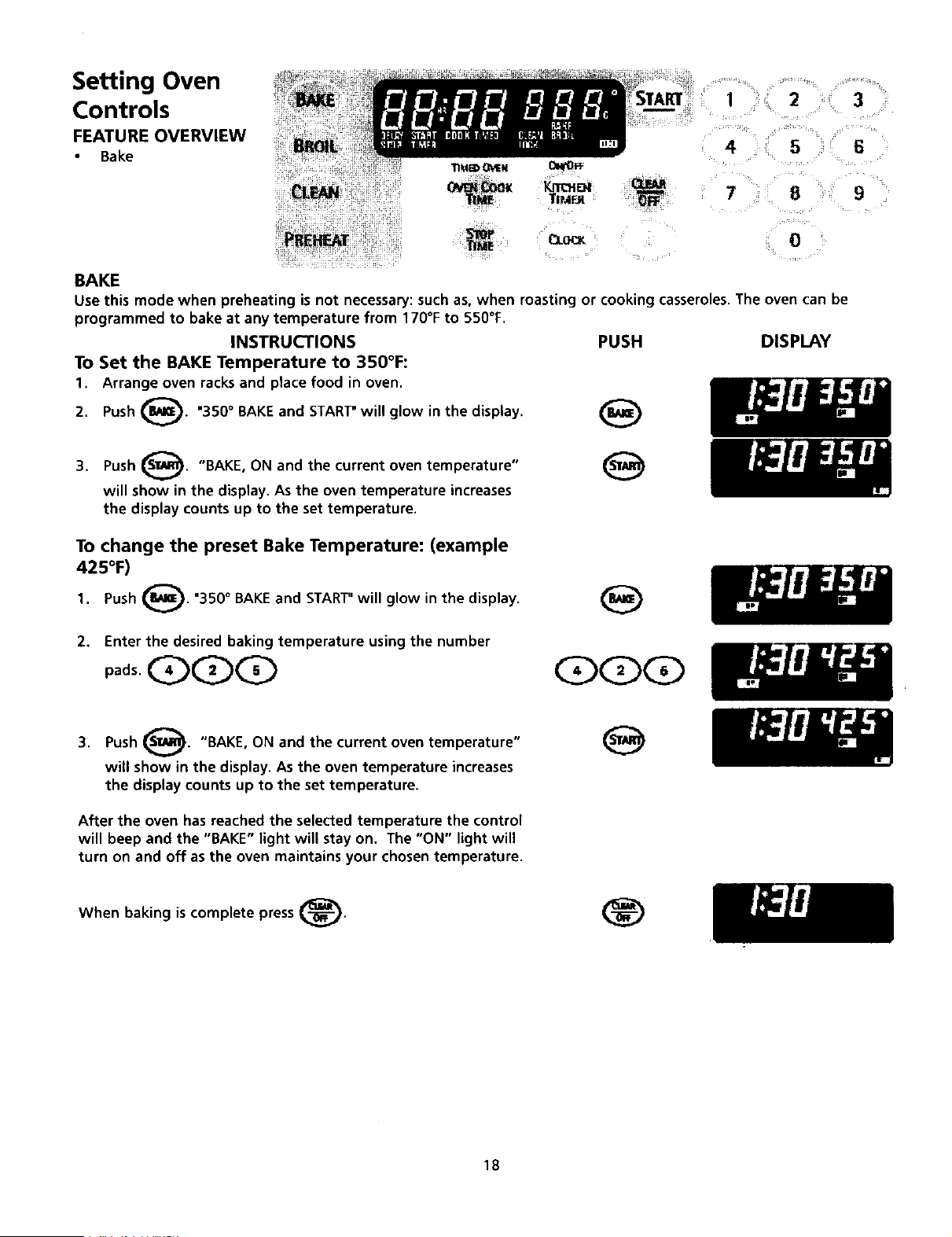

• Bake ........................................................................ 18

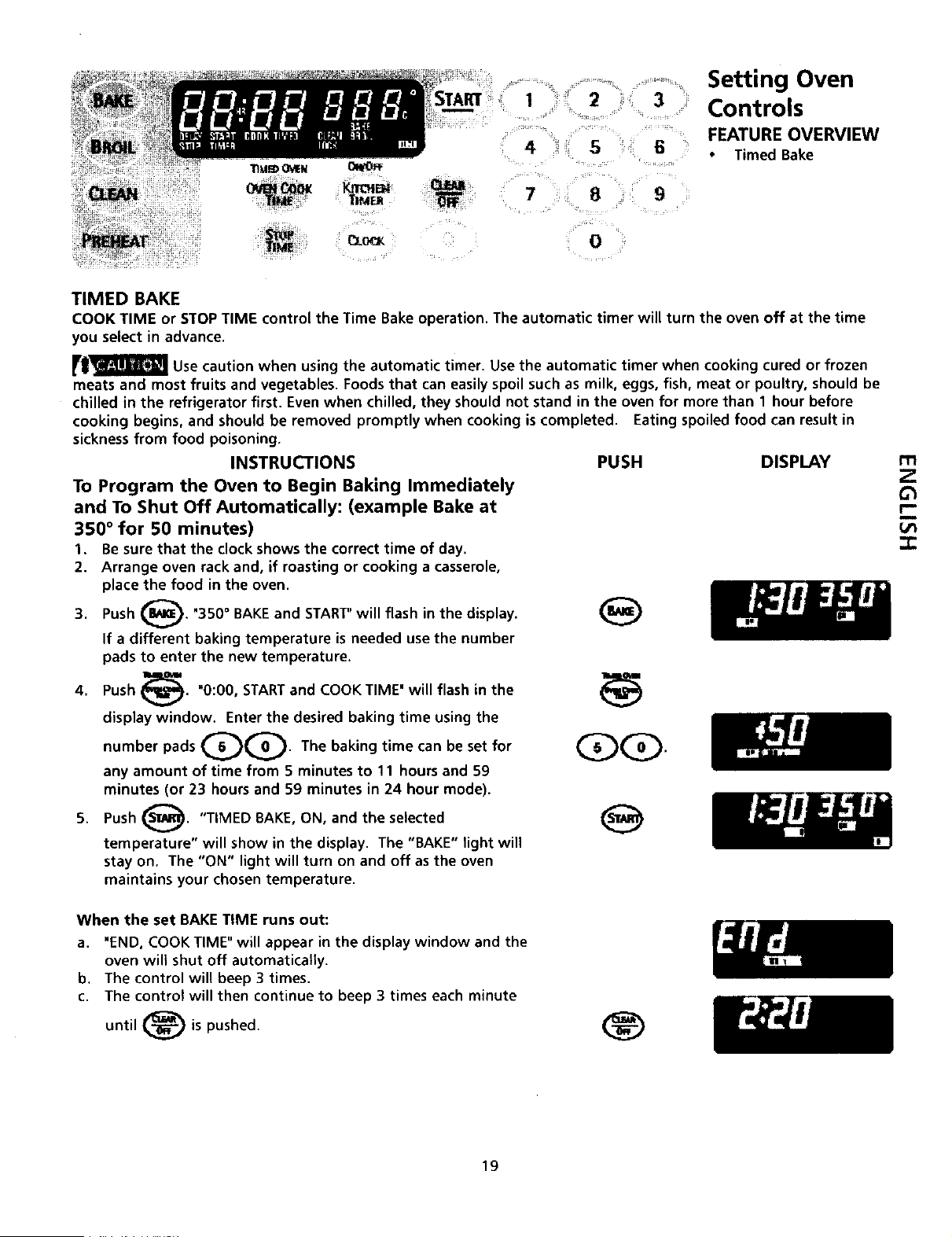

• Timed Bake.............................................................. 19

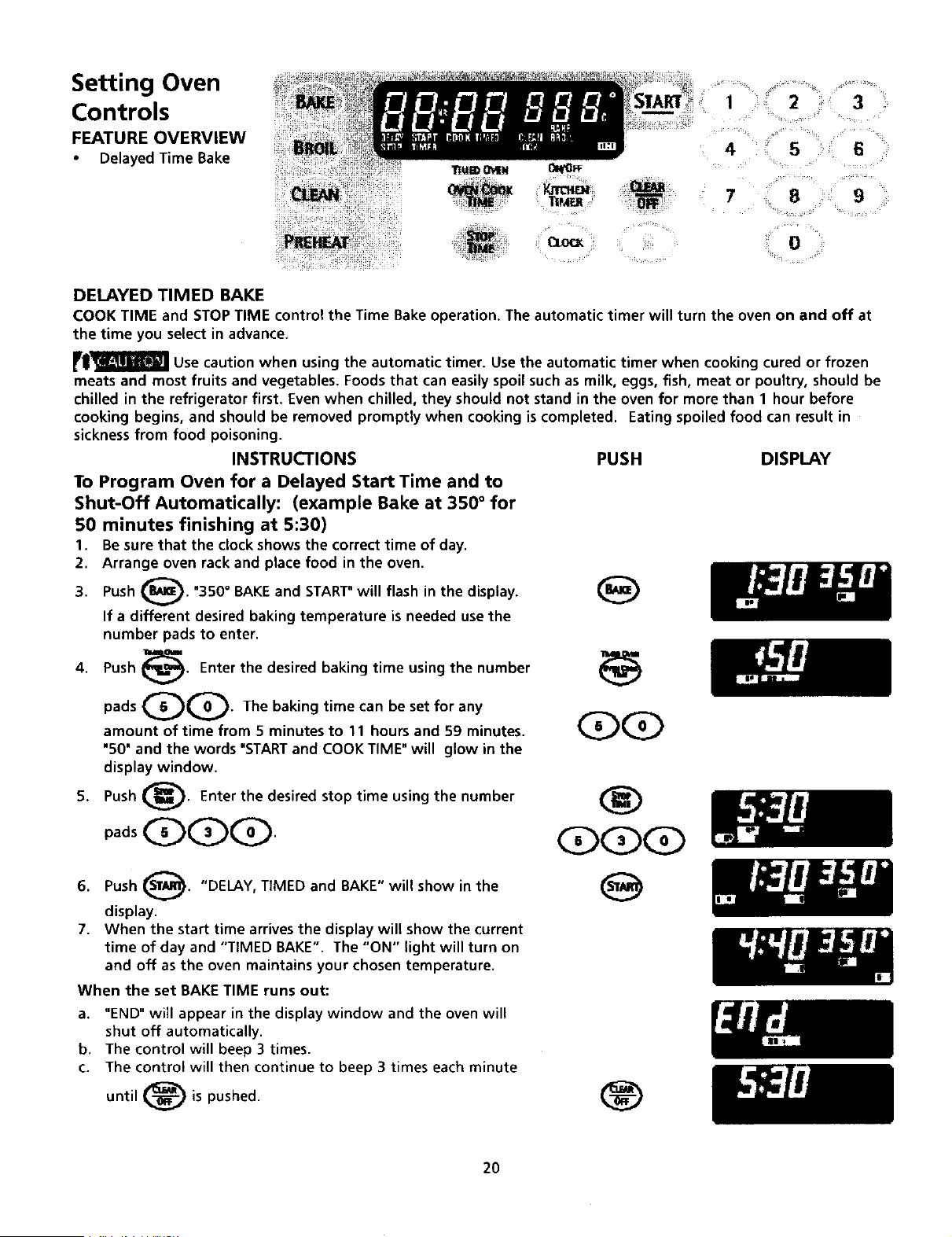

DelayedTime Bake .................................................. 20

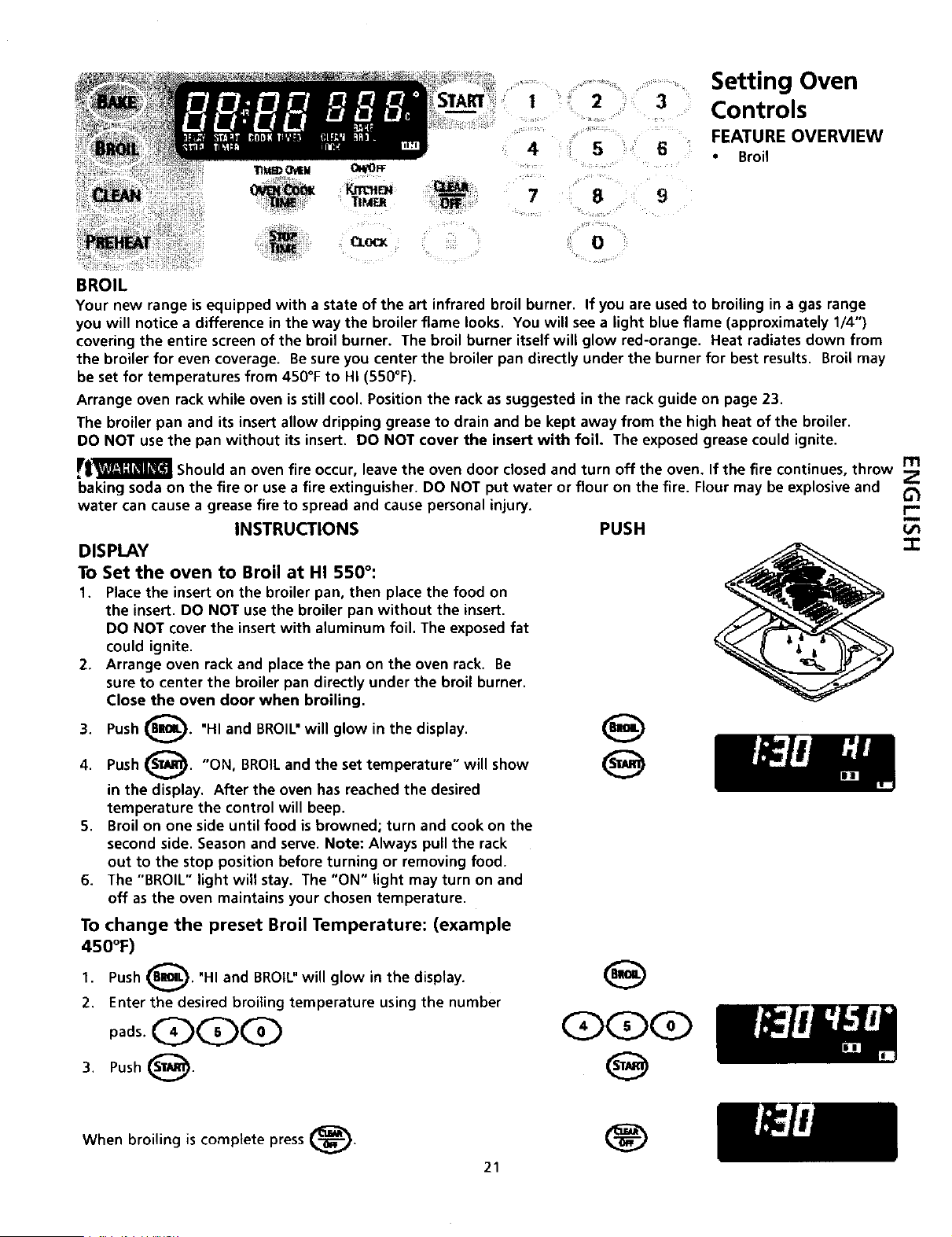

Broil......................................................................... 21

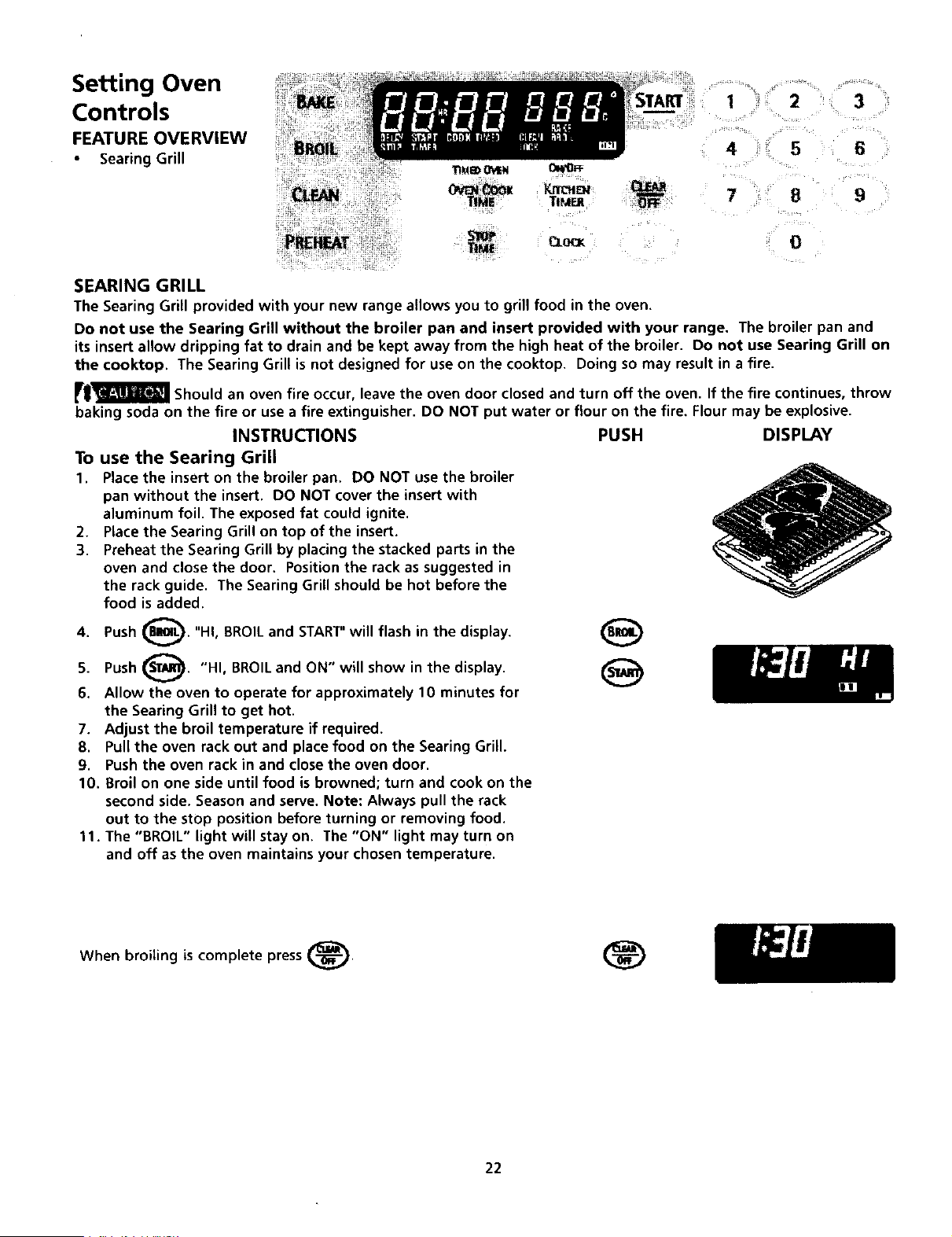

Searing Grill ............................................................. 22

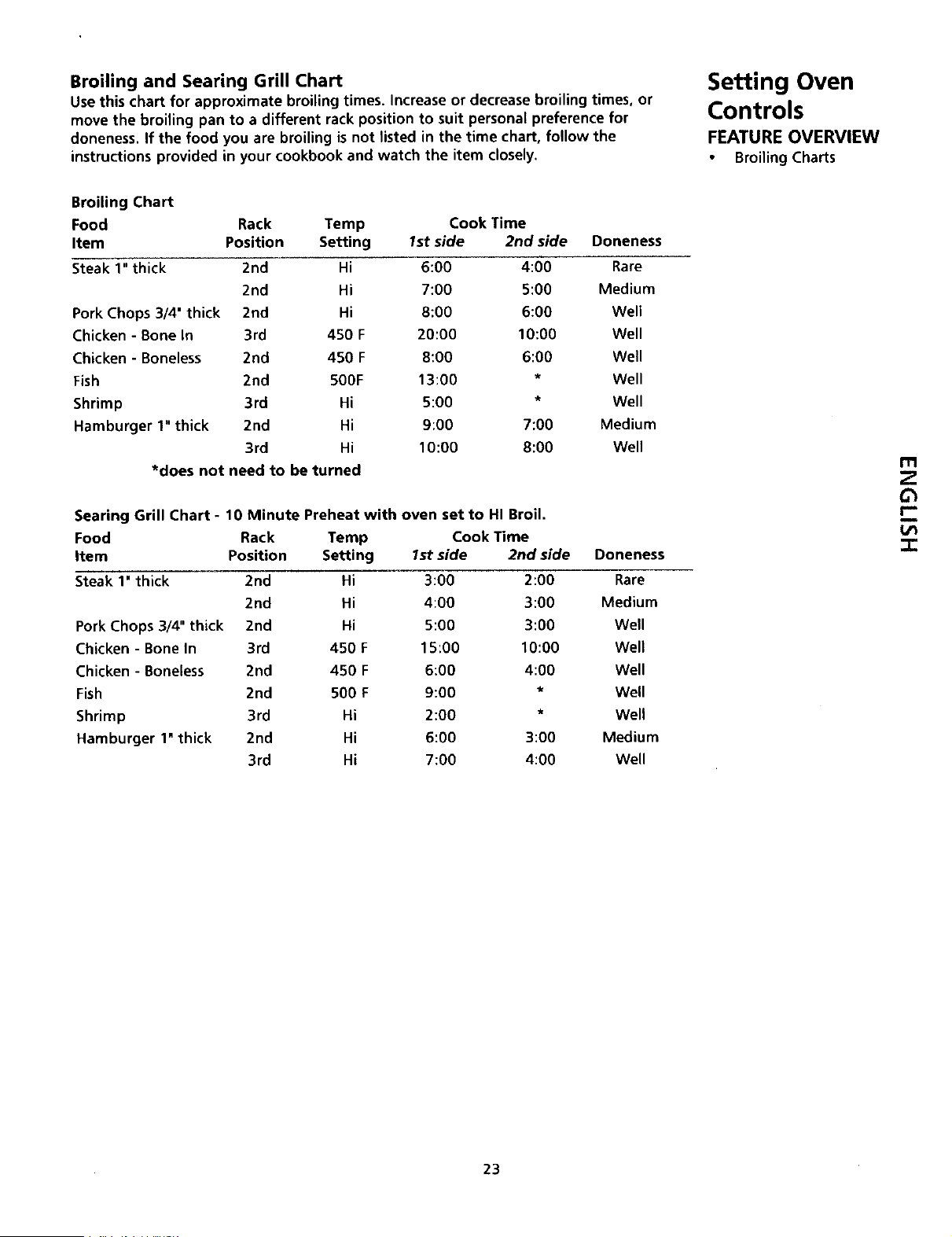

BroilingCharts ......................................................... 23
Oven Cleaning ....................................................... 24-26

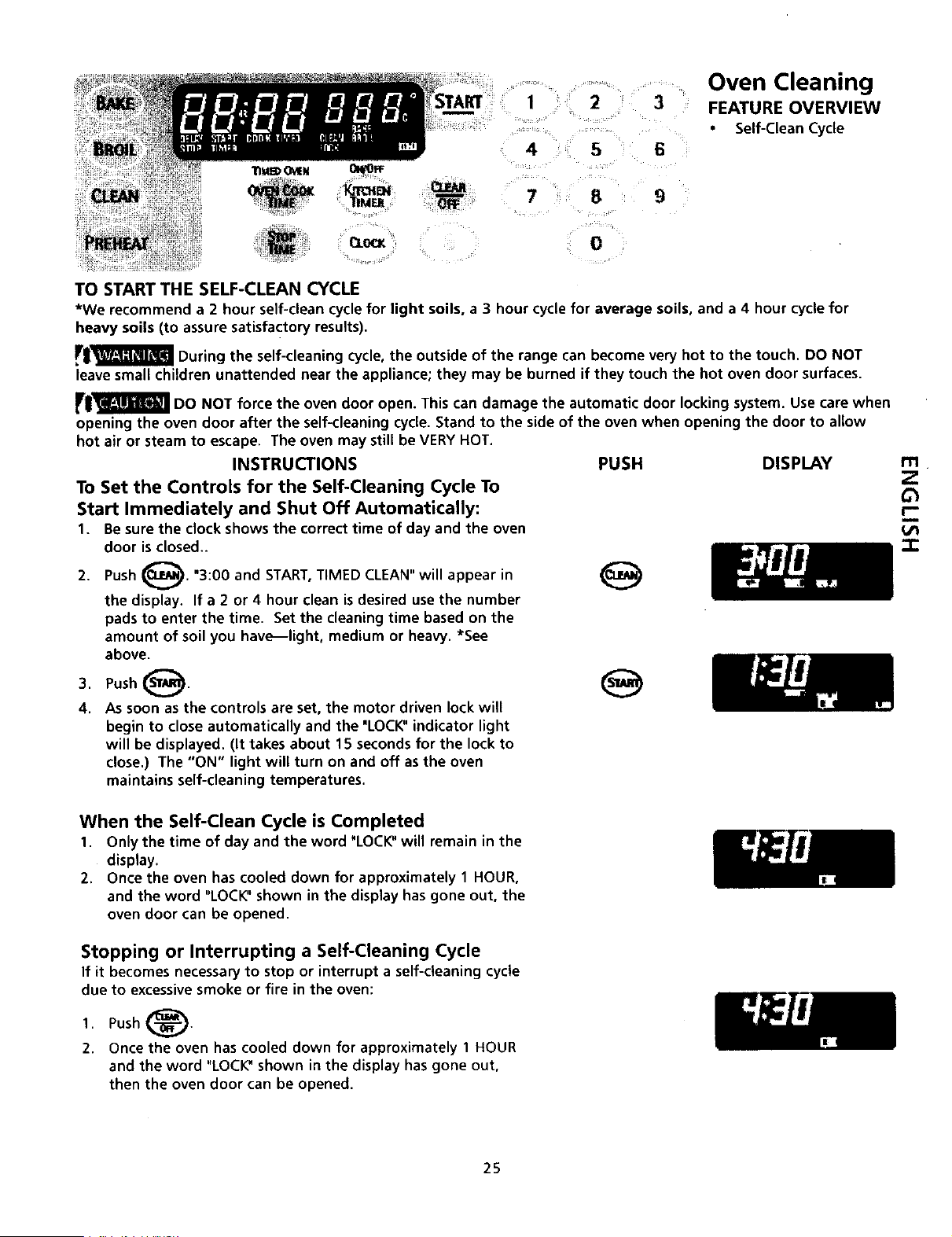

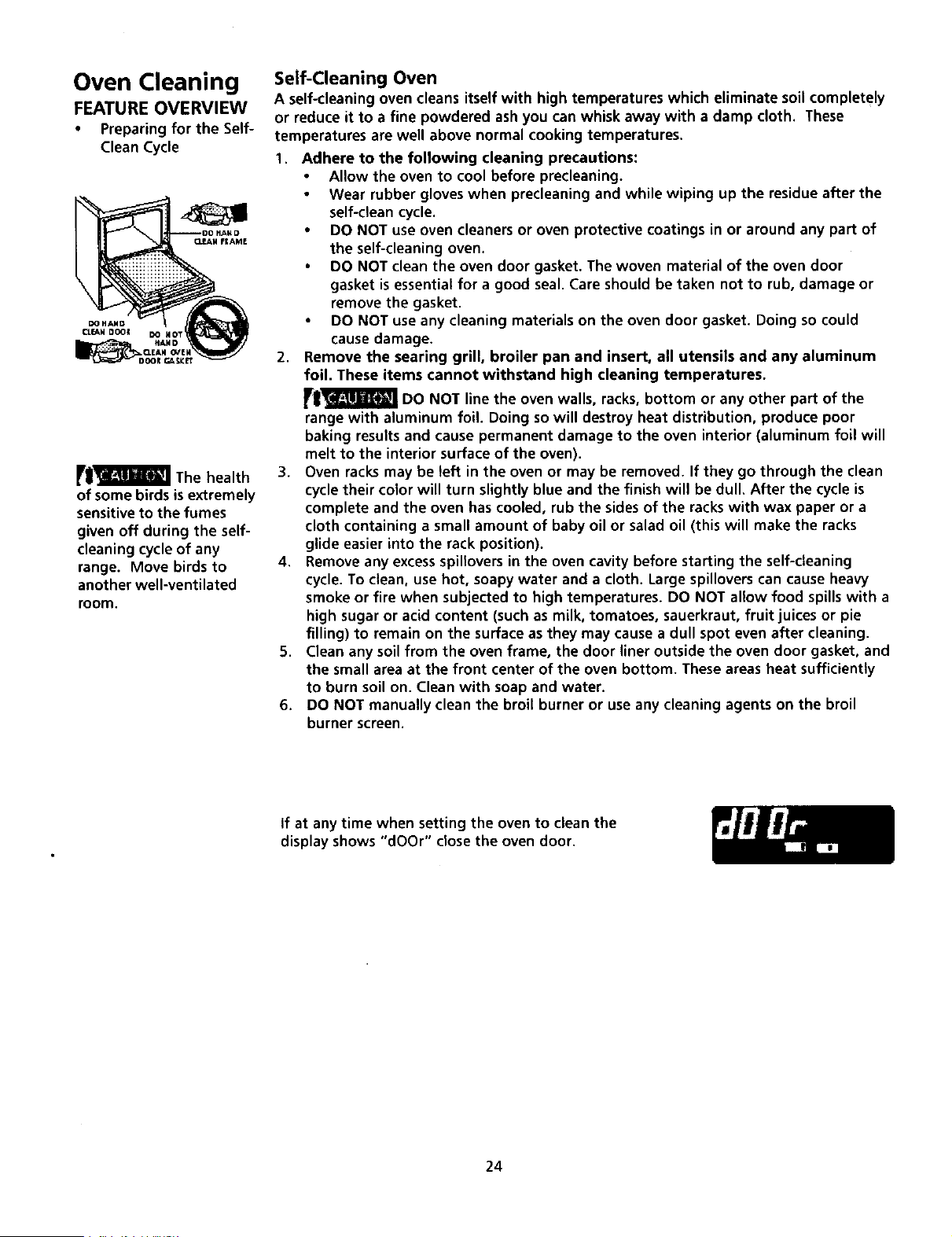

• Preparing for the Self-Clean Cycle ........................... 24
• Self-Clean Cycle ....................................................... 25

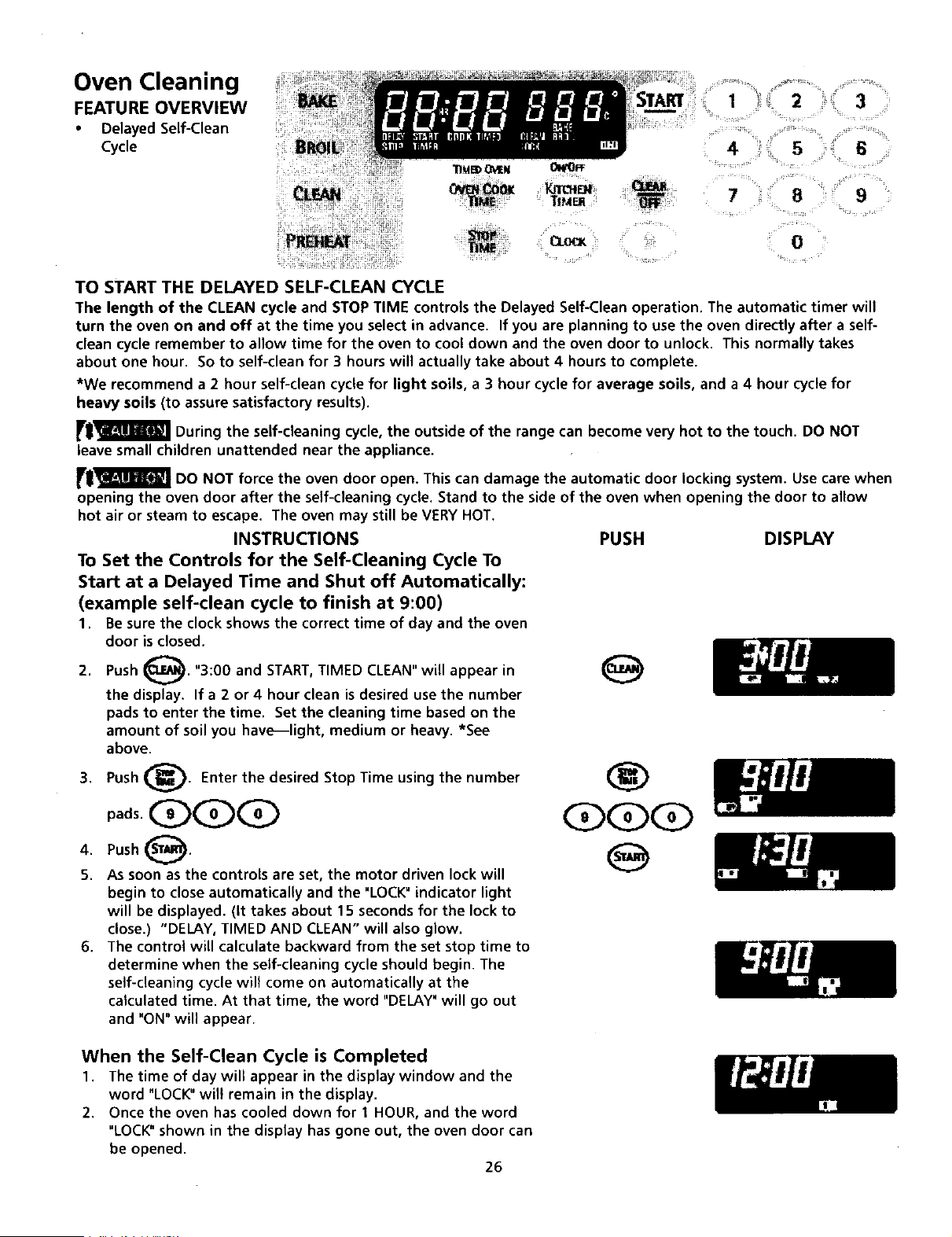

Delayed Self-Clean Cycle ......................................... 26

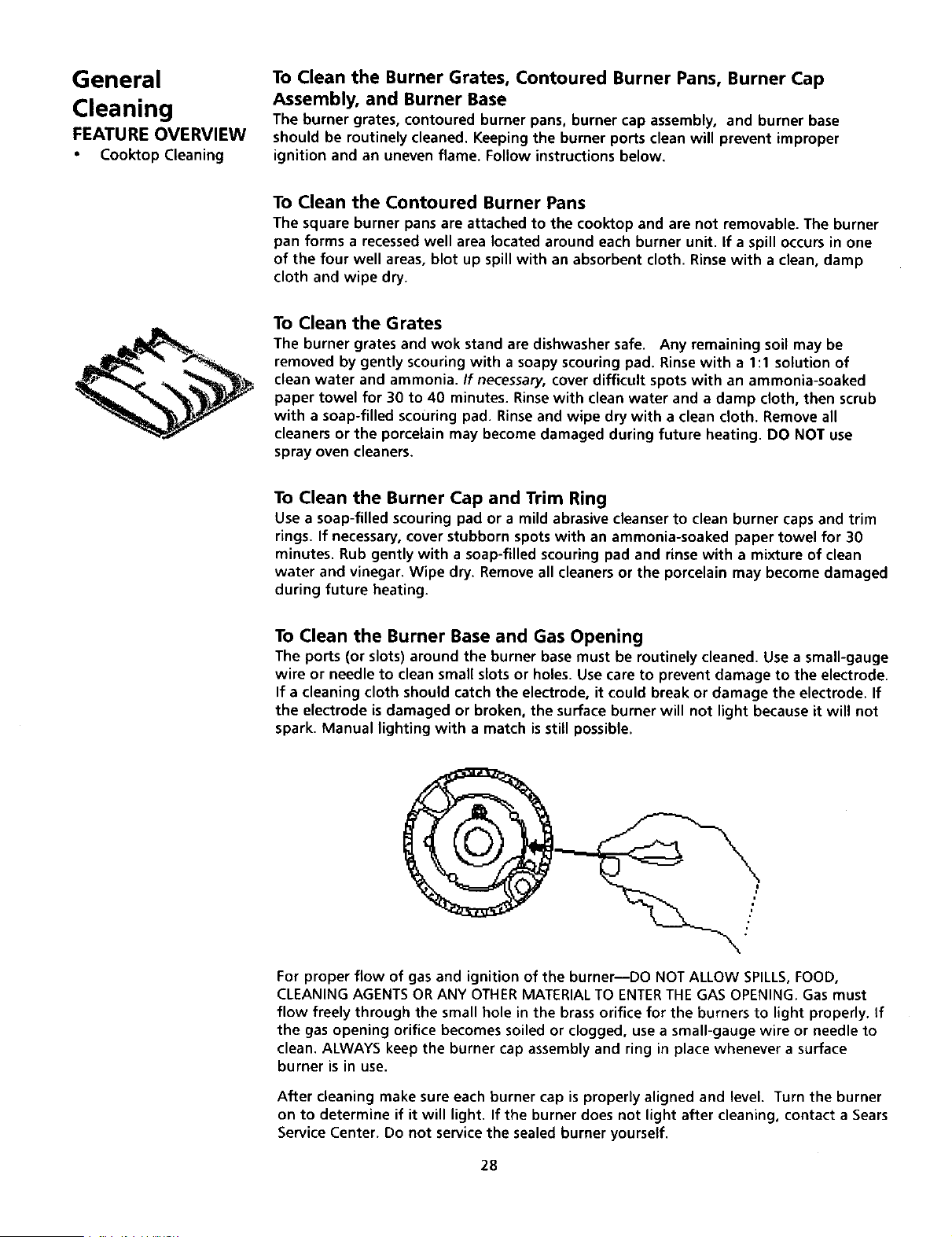

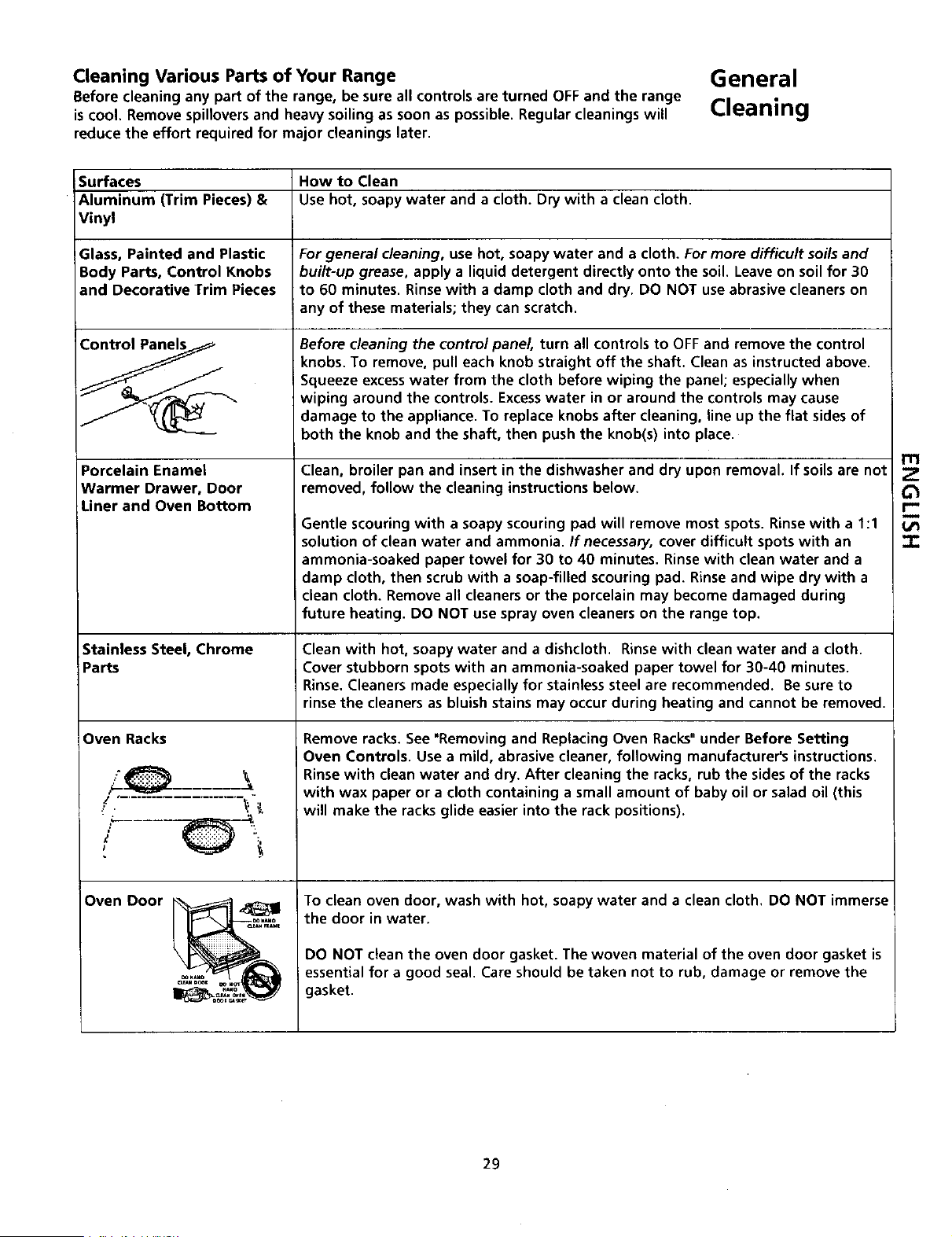

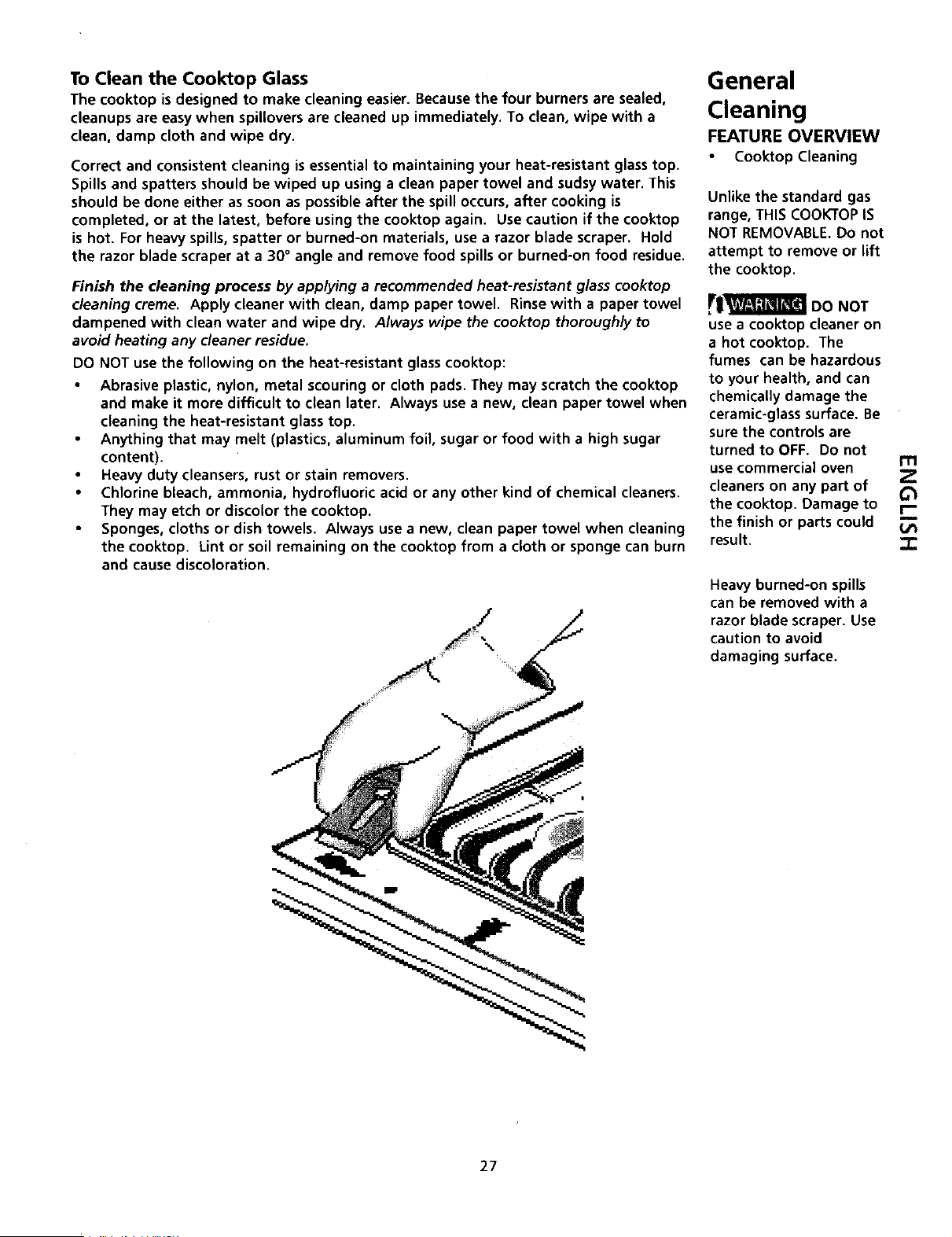

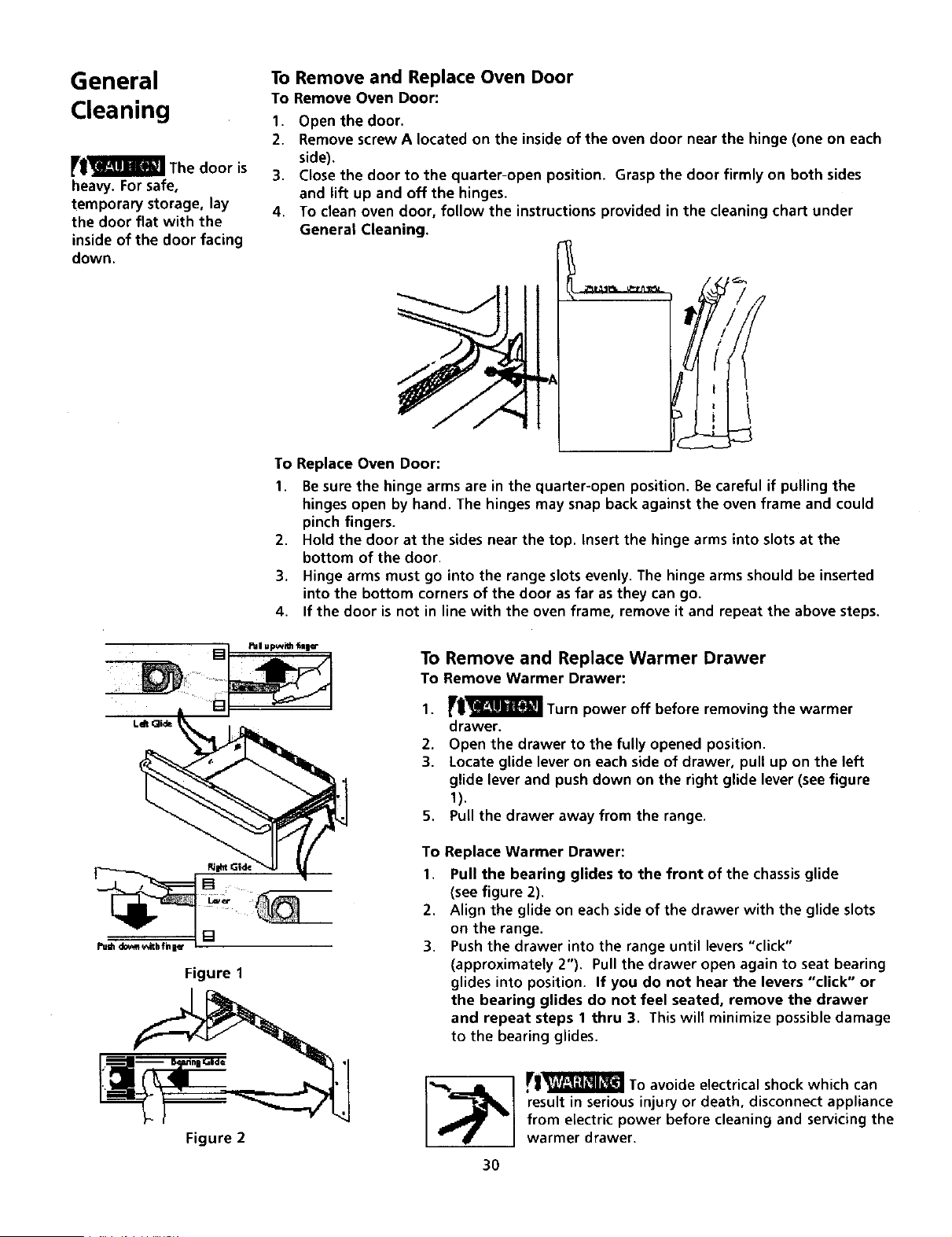

General Cleaning .................................................. 27-30

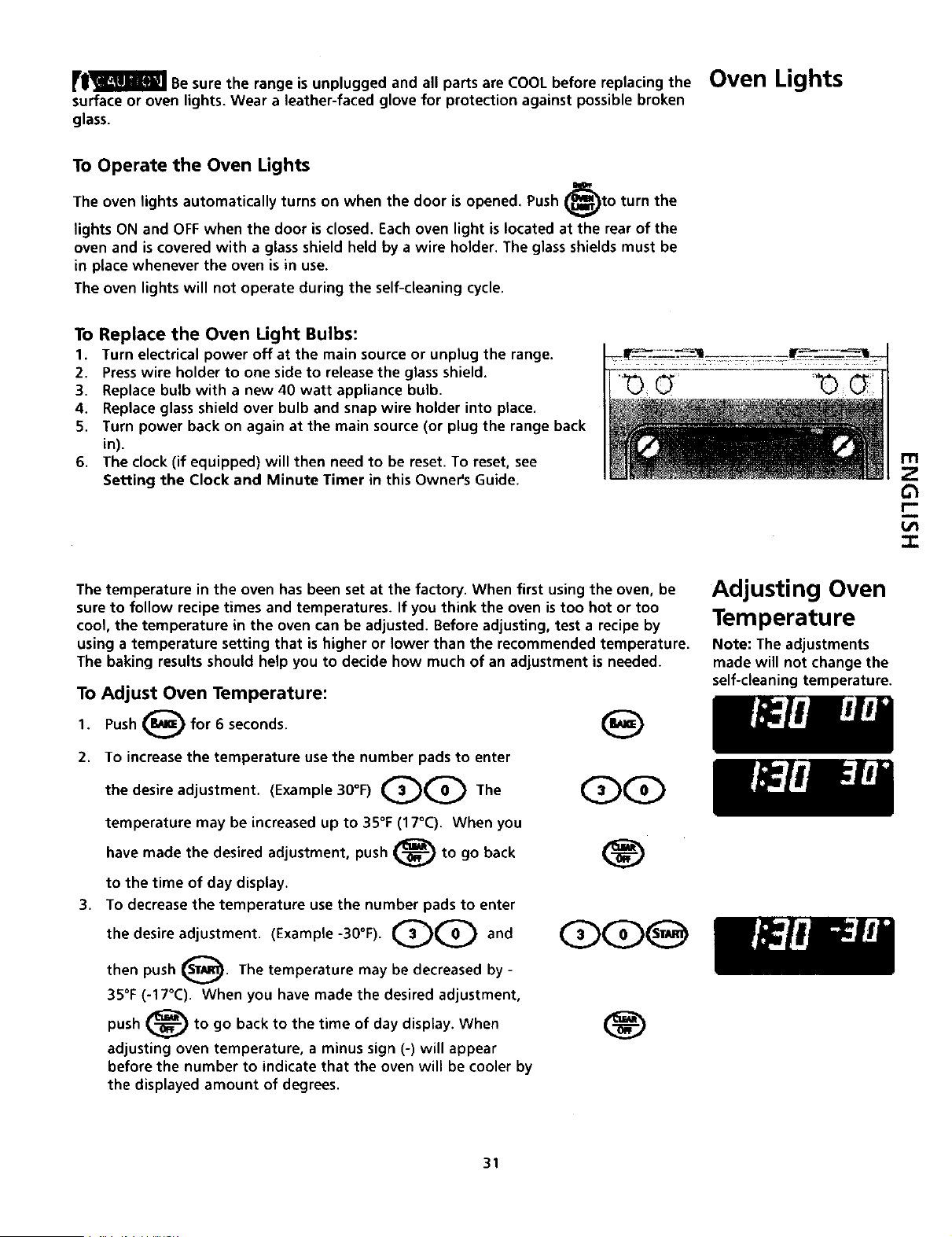

Oven Lights ................................................................ 31
Adjusting Oven Temperature ..................................... 31

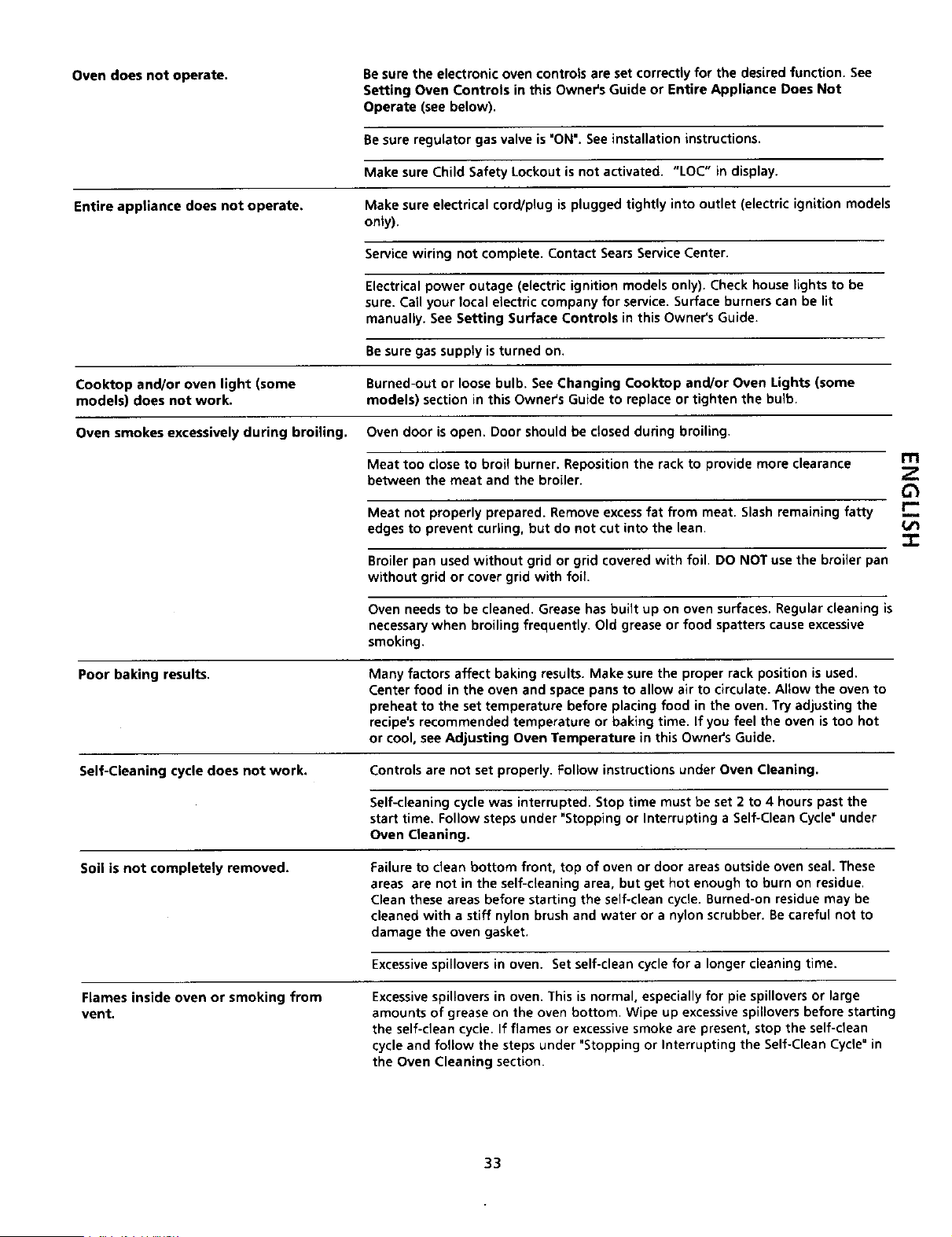

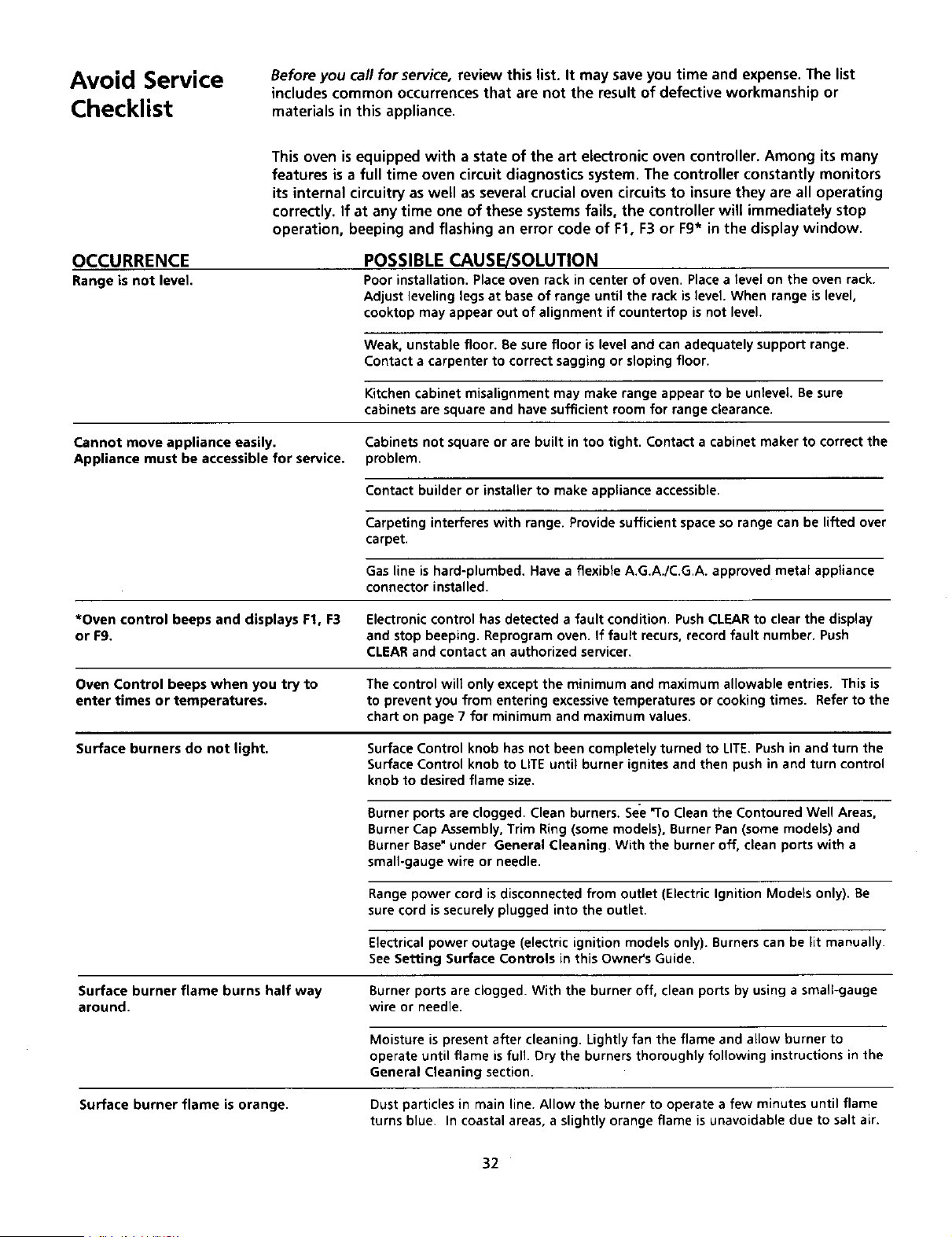

Avoid Service Checklist ......................................... 32-33

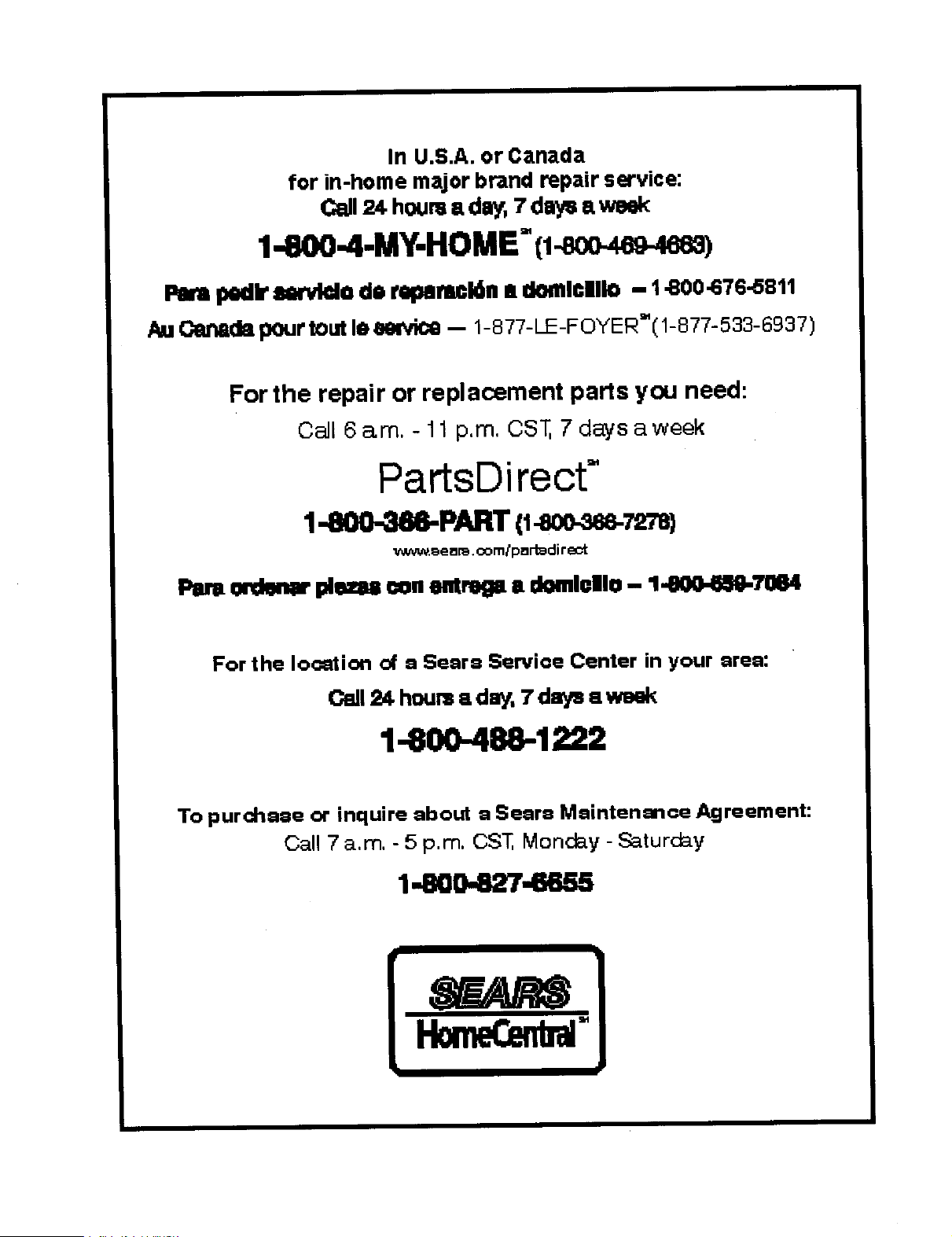

Sears Service .............................................................. 34
Product Record
In this space below, record the date of purchase, model and serial number of your product. You will find the model
and serial number printed on an identification plate. The identification plate is located on the right side of the oven
front frame in the warmer drawer compartment.
Model No. 790. Date of Purchase
Serial No.
Save these instructions and your sales receipt for future reference.
Freestanding Range Warranty
FULL ONE YEAR WARRANTY ON ALL PARTS
If, within one year from the date of installation, any part fails to function properly due to a defect in material or
workmanship, Sears will repair or replace it, at our option, free of charge.
If the product is subjected to other than private family use, the above warranty is effective for only 90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Roebuck and Co. Dept. 817 WA Hoffman Estates, IL 60179
To Further Add To The Value Of Your Range, Buy a Sears Maintenance Agreement
"We Service What We Sell" is our assurance to you that you can depend on Sears for service. Your Kenmore
appliance has added value when you consider that Sears has service units nationwide, staffed with professional
technicians trained on all appliances Sears sells. They have the knowledge and skills, tools, parts and equipment to
ensure our pledge to you that "We Service What We Sell."
Maintain the value of your purchase with a Sears Maintenance Agreement. Kenmore appliances are designed,
manufactured, and tested for years of dependable operation. Yet any major home appliance may require service
from time to time. The Sears Maintenance Agreement offers you an outstanding service program for your product.
The Sears Maintenance Agreement:
Is your way to buy tomorrow's service at today's prices.
Eliminates repair bills resulting from normal use.
Allows for as many service calls as you need.
Provides an annual Preventive Maintenance Check at your request
to keep your Kenmore Appliance in proper running condition.
For more infomation, call 1-800-827-6655.
2

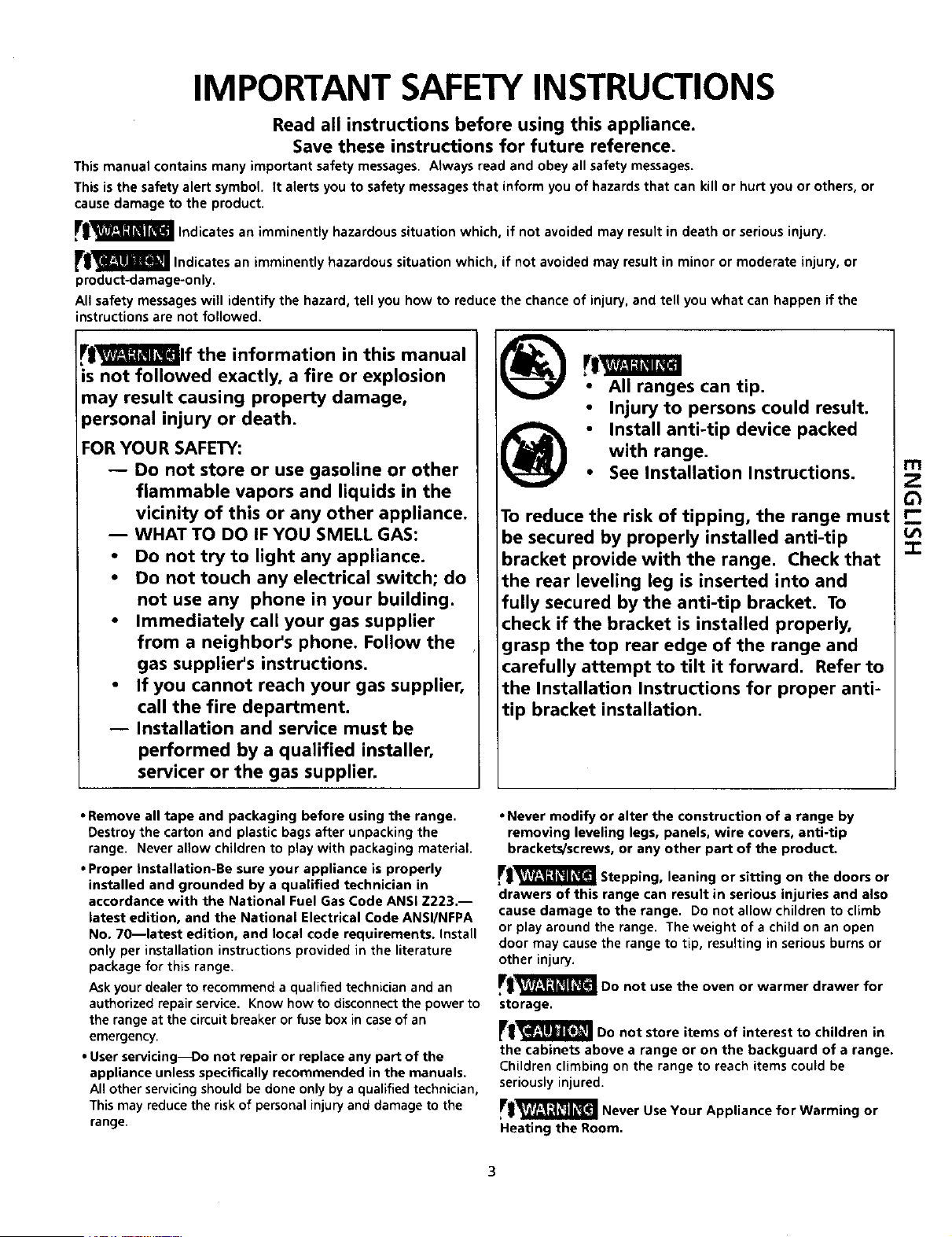

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains many important safety messages. Atways read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or
cause damage to the product.
Ilrl_j_ Indicates an imminently hazardous situation which, if not avoided may result in death or serious injury.
_I Indicates an imminently hazardous situation which, if not avoided may result in minor or moderate injury, or
product-damage-only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
V_lf the information in this manual
is not followed exactly, a fire or explosion
may result causing property damage,
:)ersonal injury or death.
fl3 a= m
FOR YOUR SAFETY:
-- Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
-- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
-- Installation and service must be
performed by a qualified installer,
servicer or the gas supplier.
I®:
All ranges can tip.
Injury to persons could result.
Install anti-tip device packed
with range.
See Installation Instructions.
To reduce the risk of tipping, the range must
be secured by properly installed anti-tip
bracket provide with the range. Check that
the rear leveling leg is inserted into and
fully secured by the anti-tip bracket. To
check if the bracket is installed properly,
grasp the top rear edge of the range and
carefully attempt to tilt it forward. Refer to
the Installation Instructions for proper anti-
tip bracket installation.
/11
-1-
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to play with packaging material.
• Proper Installatlon-Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Fuel Gas Code ANSI Z223.--
latast edition, and the National Electrical Code ANSI/NFPA
No. 70--latest edition, and local code requirements. Install
only per installation instructions provided in the literature
package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power to
the range at the circuit breaker or fuse box in case of an
emergency.
• User servicing_Do not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicingshould be done only by a qualified technician,
Thismay reduce the riskof personal injuryand damage to the
range
• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
VI_I_ Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb
or play around the range. The weight of a child on an open
door may cause the range to tip, resulting in serious burns or
other injury.
VI_ Do not use the oven or warmer drawer for
storage.
FII Do not store items of interest to children in
the cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be
seriously injured.
Ilri_l_J_ Never Use Your Appliance for Warming or
Heating the Room.
3

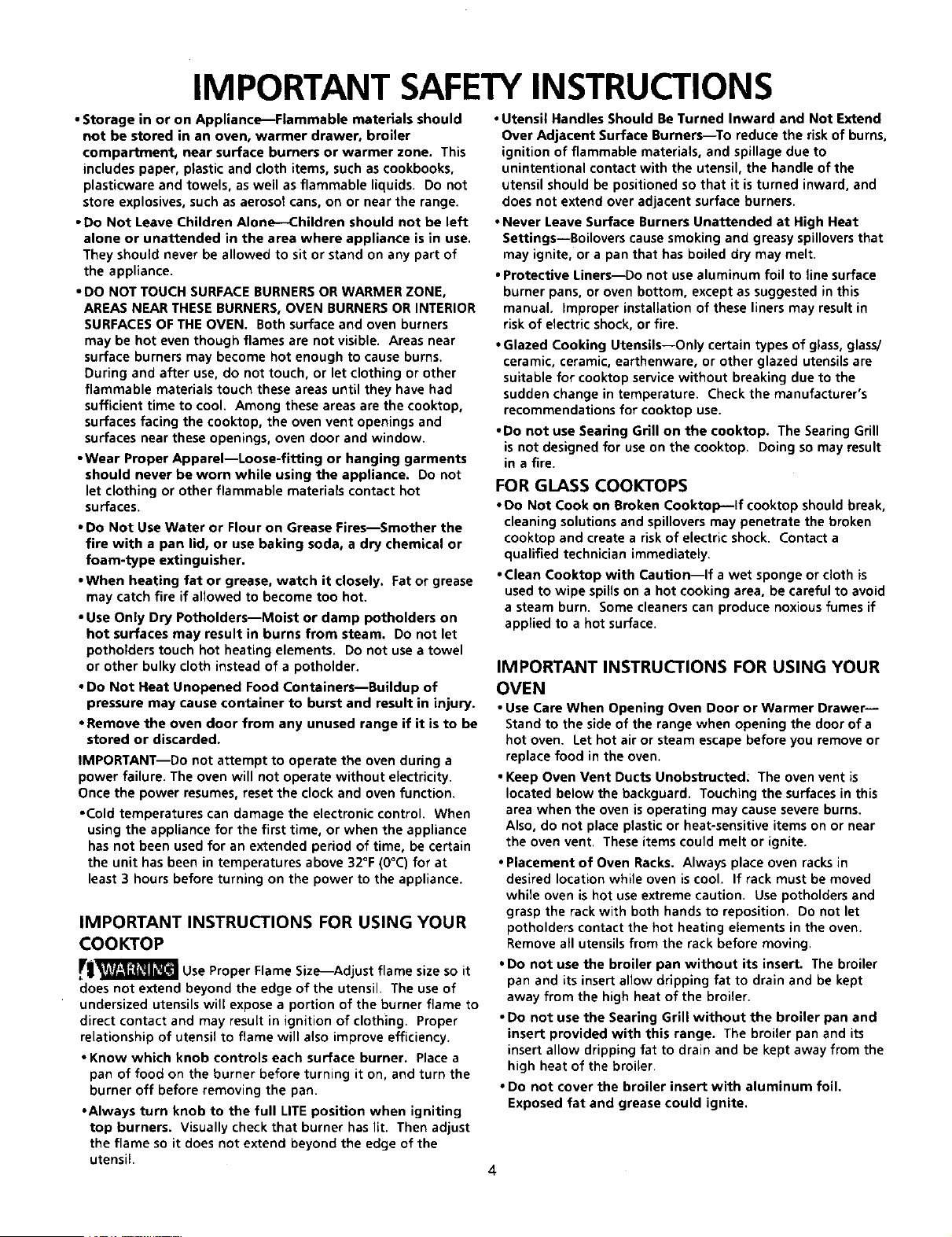

IMPORTANT SAFETY INSTRUCTIONS
• Storage in or on Appliance_Flammable materials should
not be stored in an oven, warmer drawer, broiler
compartment, near surface burners or warmer zone. This
includes paper, plastic and cloth items, such as cookbooks,
plasticware and towels, as well as flammable liquids. Do not
store explosives, such as aerosol cans, on or near the range.
• Do Not Leave Children Alone--Children should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of
the appliance.
• DO NOT TOUCH SURFACE BURNERS OR WARMER ZONE,
AREAS NEAR THESE BURNERS, OVEN BURNERS OR INTERIOR
SURFACES OF THE OVEN. Both surface and oven burners
may he hot even though flames are not visible. Areas near
surface burners may become hot enough to cause burns.
During and after use, do not touch, or let clothing or other
flammable materials touch these areas until they have had
sufficient time to cool. Among these areas are the cooktop,
surfaces facing the cooktop, the oven vent openings and
surfaces near these openings, oven door and window.
• Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not
let clothing or other flammable materials contact hot
surfaces.
• Do Not Use Water or Flour on Grease Fires--Smother the
fire with a pan lid, or use baking soda, a dry chemical or
foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat or grease
may catch fire if allowed to become too hot.
• Use Only Dry Potholders--Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
pothoiders touch hot heating elements. Do not use a towel
or other bulky cloth instead of a potholder.
• Do Not Heat Unopened Food Containers--Buildup of
pressure may cause container to burst and result in injury.
• Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANT--Do not attempt to operate the oven during a
power failure. The oven will not operate without electricity.
Once the power resumes, reset the clock and oven function.
• Cold temperatures can damage the electronic control. When
using the appliance for the first time, or when the appliance
has not been used for an extended period of time, be certain
the unit has been in temperatures above 32°F (0°C) for at
least 3 hours before turning on the power to the appliance.
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOKTOP
_i_ Use Proper Flame Size--Adjust flame size so it
does not extend beyond the edge of the utensil. The use of
undersized utensils will expose a portion of the burner flame to
direct contact and may result in ignition of clothing. Proper
relationship of utensil to flame will also improve efficiency.
• Know which knob controls each surface burner. Place a
pan of food on the burner before turning it on, and turn the
burner off before removing the pan.
• Always turn knob to the full LITE position when igniting
top burners. Visually check that burner has lit. Then adjust
the flame so it does not extend beyond the edge of the
utensil.
• Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface Burners--To reduce the riskof burns,
ignition of flammable materials, and spillage due to
unintentional contact with the utensil, the handle of the
utensil should be positioned so that it isturned inward, and
does not extend over adjacent surface burners.
• Never Leave Surface Burners Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
• Protective Liners--Do not use aluminum foil to line surface
burner pans, or oven bottom, except as suggested in this
manual. Improper installation of these liners may result in
riskof electric shock, or fire.
• Glazed Cooking Utensils--Only certain types of glass,glass,'
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cooktop servicewithout breaking due to the
sudden change in temperature. Check the manufacturer's
recommendations for cooktop use.
• Do not use Searing Grill on the cooktop. The Searing Grill
is not designed for useon the cooktop. Doing so may result
in a fire.
FOR GLASS COOKTOPS
• DO Not Cook on Broken Cooktop--If cooktop should break,
cleaning solutions and spillovers may penetrate the broken
cooktop and create a risk of electric shock. Contact a
qualified technician immediately.
• Clean Cooktop with Caution--If a wet sponge or cloth is
used to wipe spills on a hot cooking area, be careful to avoid
a steam burn. Some cleaners can produce noxious fumes if
applied to a hot surface.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
• Use Care When Opening Oven Door or Warmer Drawer--
Stand to the side of the range when opening the door of a
hot oven. Let hot air or steam escape before you remove or
replace food in the oven.
• Keep Oven Vent Ducts Unobstructed; The oven vent is
located below the backguard. Touching the surfaces in this
area when the oven is operating may cause severe burns.
Also, do not place plastic or heat-sensitive items on or near
the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot use extreme caution. Use potholders and
grasp the rack with both hands to reposition. Do not let
potholders contact the hot heating elements in the oven.
Remove all utensils from the rack before moving.
• Do not use the broiler pan without its insert. The broiler
pan and its insert allow dripping fat to drain and be kept
away from the high heat of the broiler.
• Do not use the Searing Grill without the broiler pan and
insert provided with this range. The broiler pan and its
insert allow dripping fat to drain and be kept away from the
high heat of the broiler.
• Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.
4
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of grease
that could catch fire. Pay particular attention to the area
underneath each surface element. Do not allow grease to
accumulate. Refer to the hood manufacturer's instructions
for cleaning.
• Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use, Be
aware that excess residue from cleaners and aerosols may
ignite causing damage and injury.
SELF-CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in this
Owner's Guide. Before self-cleaning the oven, remove the
searing grill, broiler pan and any utensils or foods from the
oven.
• Do Not Use Oven Cleaners--No commercial oven cleaner or
oven liner protective coating of any kind should be used in or
around any part of the oven.
• Do Not Clean Door Gasket--The door gasket is essential for
a good seal. Care should be taken not to rub, damage or
move the gasket.
SAVE THESE INSTRUCTIONS
Grounding Instructions
Vt_l_ Avoid fire hazard or electrical shock. DO
NOT use an adapter plug, an extension cord, or remove
grounding prong from electrical power cord. Failure to
follow this warning can cause serious injury, fire or
death.
r|_ This appliance is equipped with a 3-prong
grounding plug for your protection against shock hazard
and should be plugged directly into a properly grounded
receptacle. DO NOT cut or remove the grounding prong
from this plug.
For personal safety, the range must be properly
grounded. For maximum safety, the power cord must be
plugged into an electrical outlet that is correctly
polarized and properly grounded.
DO NOT Operate the range using a 2-prong adapter or
an extension cord. If a 2-prong wall receptacle isthe
only available outlet, it is the personal responsibility of
the consumer to have it replaced with a properly
grounded 3-prong wall receptacle installed by a qualified
electrician.
See the INSTALLATION INSTRUCTIONS packaged with
this range for complete installation and grounding
instructions.
oroundingtype
wall receptacle
Power supply cord
_th :_-prong
grounding plug
rn
Z
L/1
"1-
Liquefied Petroleum (Propane) Gas Conversion
This appliance can be used with Natural Gas and Propane
Gas. It is shipped from the factory for use with natural
gas.
If you wish to convert your range for use with propane
gas, use the instructions in the envelope attached to the
rear of the range near the regulator.
The conversion must be performed by a qualified service
technician in accordance with the installation instructions
furnished with this range and all codes and requirements
of the authority having jurisdiction. Failure to follow
instructions could result in serious injury or property
damage. The qualified agency performing this work
assumes responsibility for the conversion.
_|_ Personal injury or death from electrical
shock may occur if the range is not installed by a
qualified installer or electrician.
_|_ Any additions, changes or conversions
required in order for this appliance to satisfactorily meet
the application needs must be made by an authorized
Sears Service Center, Distributor or Qualified Agency.
D,..an_eFeatures Eledrowcoven Controls
with Clockand Kit€lan 1iraqi
W'armer Drawer
Indkato_
(1) DishwasherSale
V.A)kStau_
(1)l_oil Pan
(1)insert
(1) SearingGrill
Warmer Zone
(0_101 Warmer Zone
IIWli_lOl
Warmer Dr_er
with _a_k
Cooktop
Bur net _,
Burrm_
6
READTHE INSTRUCTIONS CAREFULLYBEFOREUSING THE OVEN. For satisfactory use Control Pad
of your oven, become familiar with the various functions of the oven as described below.
Detailed instructions for each function follow later in this book. Functions
OVEN LIGHT--Used BROIL-- Used to
to turn the dual select the variable
oven lights on and broil mode.
off.
i OVEN
LIOH_
CLEAN-- Used to
select the self-
cleaning mode.
PREHEAT-- Used to"
select the preheat
mode.
OVEN COOK TIME--
Used to enter the
length of the
time.
with BAKE, OVEN
COOK TIME, and
CLEAN to program a
delayed baking or
delayed self-cleaning
cycle stop time.
BAKE--Used to
enter the normal
baking mode.
START-- Used to
start all oven
functions. Not used
with Oven Light
7
0 THRU 9 NUMBER
PADS -- Used to
enter temperature
and times.
, ...... .i ¸ _
to disable all oven
KITCHEN T!MER ON/\ function, including
ul-I--- used to set or_ _
• \ the oven light
cancel the kitchen \ .
timer. The kitchen._ _wltch.
timer does not start CLOCK-- Used to
or stop cooking, set the time of day.
CLEAR-OFF -- Used
to cancel any oven
mode previously
entered except the
child lock out, time r-
of day and minute
timer. Push CLEAR- -I-
OFF to stop cooking.
All oven functions have minimum and maximum time or temperature values that may be entered into the control.
These values are shown below. If you have trouble setting a mode, be sure you are not entering a value greater than
or lower than the values shown in this chart. An ENTRYERRORtone (3 short beeps) will sound if the value does not
meet these limits.
MODE MINUMUM VALUE MAXIMUM VALUE
PREHEAT TEMP 170°F/75°C 550°F/290°C
BAKE TEMP 170°F/75°C 550°F/290°C
BROI'LTEMP 450°F/230°C HI-S50°F/290°C
KITCHEN TIMER 12 HR 0:01 MIN 11:59 HR/MIN
24HR 0:01 MIN 23:59 HR/MIN
CLOCK TIME 12 HR 1:00 HR/MIN 12:59 HR/MIN
24 HR 0:00 HR/MIN 23:59 HR./MIN
OVEN COOK TIME 12 HR 0:05 MIN 11:59 HR/MIN
24 HR 0:05 MIN 23:59 HR/MIN
STOP TIME 12 HR 1:00 HR 12:59 HR/MIN
24 HR 0:00 HR 23:59 HR/MIN
CLEAN TiME 2 hours 4 hours
Setting the
Clock
FEATURE OVERVIEW
Clock
Twelve Hour Energy
Saving Mode ...............
CLOCK
The clock may be set for 12 or 24 hour Time of Day operation. Your clock has been preset at the factory for 12 hour
operation. When the range is first plugged in, or when the power supply to the range has been interrupted, the
display will flash.
INSTRUCTIONS PUSH DISPLAY
To set the Clock: (example 1:30)
1. Push (_). TIME will flash in the display. _)
2.
PushQQQ tosetthetimeofdayto,:30T,ME
will disappear after 4 seconds and the clock will start. Or,
and TIME will disappear and the clockpushyou may
will start.
To change from 12 to 24 hour Time of Day
operation
1. Push and hold _ for 6 seconds, a beep will sound.
2. The display will show 12 or 24 to indicate the option
selected.
3. When _ is released the time of day will
display.
Reset
the current time following the steps above.
TWELVE HOUR ENERGY SAVING MODE:
The control is programmed to limit all cooking operations to 12 hours. This preventsthe oven from being
accidentally set to operate for excessive time periods.
INSTRUCTIONS
To deactivate the Twelve Hour Energy Saving Mode:
1. Push and hold _ for 6 seconds, a beep will sound.
2. The display will show OFF.
To reactivate the Twelve Hour Energy Saving Mode:
1. Push and hold _ for 6 seconds, a beep will sound.
2. This display will show ON.
3. When _--_ is released the time of day will
display.
PUSH DISPLAY
_for 6
seconds
_for 6
seconds
8
0
Setting the
Clock
FEATURE OVERVIEW
• Kitchen Timer
KITCHEN TIMER
The kitchen timer servesas an extra timer in the kitchen that will beep when the set time has run out. It does not
start or stop cooking. The kitchen timer can be used during any of the other oven functions. The timer can be set for
any amount of time from 1 minute to 11 hours 59 minutes in the 12 hour mode or 1 minute to 23 hours 59 minutes
in the 24 hour mode.
INSTRUCTIONS PUSH
TO Set the Kitchen Timer: (example 5 minutes)
1. Push ,_, 0:00 and TIMER will flash in the display. (_
2. Push the number pads to set the desired time in the display
examp,eQ, Pushthetimew,,,begiotocount
down and TIMER will glow in the display. If _1_ is not
pushed the timer will start automatically in 4 seconds.
3. When the set time has run out, END will show in the display
and 3 beeps, every 60 seconds, will sound until {_1 is (_
pushed.
To Change the Minute Timer while it is in use:
1. Push _ and enter the new time using the NUMBER
PADS
then push (_.
To Cancel the Minute Timer before the set time has
run out:
Push and hold t_ for 4 seconds or reset the display to O:00. (_
The display will show the time of day.
DISPLAY
-I-
9
Consumer
Defined
Control
Features
FEATURE OVERVIEW
• Child Safety Lockout
• Temperature Display
TIMER
(_0_,
%
START 3
1
4
7
2
5
8
0
9
CHILD SAFETY LOCKOUT FEATURE:
The Child Safety Lockout feature prevents the oven bake and broil burners from being accidentally turned on. It does
not disable the clock, minute timer, or surface burners. It disables the oven light switch, but the oven light will turn
on if the oven door is opened. This added feature is to help in the effort to keep children safe. It is not meant to be
a replacement for adult supervision.
INSTRUCTIONS
To activate the Child Safety Lockout:
1. Push and hold _ for three seconds.
2. "LOC" will show in the display to verify that the Child Safety
Lockout is activated.
PUSH DISPLAY
Q for 3 seconds
To reactivate Oven operation:
Push and hold (_ for three seconds. "LOC" will clear and
1.
the time of day will be shown.
2. The oven may then be programmed for operation.
Q for 3 seconds
TEMPERATURE DISPLAY -- FAHRENHEIT OR CELSIUS:
The oven control can be programmed to display temperatures in Fahrenheit or Celsius. Your range hasbeen preset at
the factory to display in Fahrenheit.
INSTRUCTIONS PUSH
To change from Fahrenheit to Celsius or Celsius to
Fahrenheit: (example: change from Fahrenheit to
Celsius)
1. Identify which display your control is set for now. To tell if
is set for Fahrenheit or Celsius push _---_. If the _--_your range
temperature display is 350 ° your range is set for Fahrenheit.
If the temperature display is 176°C your range is set for
Celsius.
DISPLAY
2. Push and hold __RoI_}for 6 seconds, a beep will sound. Your
range was originally set to Fahrenheit; now a small C will
appear in the display. If your range was previously changed
to Celsius the F will now show in the display indicating
Fahrenheit.
3. Release all pads. The time of day will show in the display.
_for 6
seconds
10
USINGTHEWOKSTAND
TheWokStandprovidedwithyour range is designed to allow round-bottomed woks to
be used. It is recommended that you use a 14 inch diameter (35.5 cm) wok.
The Wok Stand must be used on either of the front burners, although it is recommended
that you use the standard burner for best performance.
If properly positioned, the Wok Stand cannot be slid off the grate.
To properly position the Wok Stand:
With the grate in position over the burner, set the Wok Stand on top of the grate. Turn
the Wok Stand, as shown, until the grate fingers fit into the slots on the bottom of the
stand. _|_ Be sure the grate stand is positioned correctly and stable before
use to prevent hot spills and possible burns.
The WOK STAND fits
over grate fingers
ii O
Flat-bottomed woks with flat bottoms may also be used on your cooktop without the
Wok Stand.
Surface
Cooking
FEATURE OVERVIEW
Using the Wok Stand
[!lrlll_l_!_ Always use
potholders to remove the
wok stand from the
grate. Allow the wok
stand to cool before
removing. Do not set hot
wok stand on surfaces
that cannot withstand
high heat; such as
countertops.
rlq
r-
t_
-r-
Round-bottomed woks (with a support ring that does not extend beyond the
burner unit) may also be used without the Wok Stand. The metal ring was designed to
support the wok safely when it is filled with large amounts of liquids (soup making) or
fat (frying).
DO NOT use a wok if it is equipped with a metal ring that extends beyond the burner
unit. Because this ring traps heat, the surface unit and cooktop surface could be
damaged.
Wrong Right
11
Surface
Cooking
FEATURE OVERVIEW
Flame Size
Proper Burner
Adjustment
Positioning Burner
Caps and Trim Rings
RIGHT
Flame Size
For most cooking, start on the highest control setting and then turn to a lower one to
complete the process. Use the chart below as a guide for determining proper flame size
for various types of cooking. The size and type of utensil used and the amount of food
being cooked will influence the setting needed for cooking.
For deep fat frying, use a thermometer and adjust the surface control knob
accordingly. If the fat is too cool, the food will absorb the fat and be greasy. If the fat is
too hot, the food will brown so quickly that the center will be undercooked. Do not
attempt to deep fat fry too much food at once as the food will neither brown nor cook
properly.
*Flame Size
High Flame
Medium Flame
Low Flame
Type of Cooking
Start most foods; bring water to a boil; pan broiling
Maintain a slow boil; thicken sauces, gravies; steam
Keep foods cooking; poach; stew
*These settings are based on using medium-weight aluminum pans with lids.
Settings may vary when using other types of pans.
Never extend the flame beyond the outer edge of the utensil. A higher flame simply
wastes heat and energy, and increases your risk of being burned by the flame.
Proper Burner Adjustments
The color of the flame is the key to proper burner adjustment. A good flame is clear,
blue and hardly visible in a well-lighted room. Each cone of flame should be steady and
sharply defined. Clean burner if flame is yellow-orange. To clean burner, see instructions
under General Cleaning.
Placement of Burner Caps and Trim Rings
Your range isequipped with three different sized burners, two Power Burners,one
Standard Burnerand one Simmer Burner.
1. Placethe trim rings over each burner, matching the trim ring size with the burner
size.
2. Placethe burner cap on each burner, again matching the cap size to the burner size.
The caps for the Standard Burner and Power Burners have locating tabs that align
with slots in the burner base. The cap for the Simmer Burner has an inner locating
ring which locates the burner cap in the center of the burner.
4. Make sure each burner cap is properly aligned and level.
5. Turn the burner on to determine if it will light. If the burner does not light, contact
an authorized servicer. Do not service the sealed burner yourself.
Locatinc
Tabs
Inner
Locating
Ring
Standard and Power Burners
12
Simmer Burner
Placement of Burner Caps and Trim Rings and Grates
Place grate over burner pans. Make sure that the groove under grate fits over the raised
lip of the burner pan. The rounded corners of the grates should be placed toward the
front of the range for the front burners and toward the rear of the range for the back
burners.
Grate
Surface
Cooking
FEATURE OVERVIEW
Positioning Burner
Grates
• Setting Surface
Controls
lippan
Setting Surface Controls
Your range may be equipped with any combination of the following burners:
Simmer Burner, this burner is best used for simmering delicate sauces, etc.
Standard Burner, can be used for most all surface cooking needs.
Large Burner, the larger burner is best used when bringing large quantities of liquid to
temperature and when preparing larger quantities of food.
Regardless of size, always select a utensil that is suitable for the amount and type of
food being prepared. Select a burner and flame size appropriate to the pan. Never allow
flames to extend beyond the outer edge of the pan.
Each burner lights automatically from an electric ignitor each time a control knob is
turned to the LITE position.
_1_ Do not place plastic items such as salt and pepper shakers, spoon
holders or plastic wrappings on top of the range when it is in use. These items could
melt or ignite. Potholders, towels or wood spoons could catch fire if placed too close to
a flame.
To operate the surface burner:
1. Place cooking utensil on burner.
2. Push the Surface Control knob in and turn counterclockwise out of the OFF
position.
3. Release the knob and rotate to the LITE position. Note: All four electronic ignitors
will click at the same time. However, only the burner you are turning on will ignite.
3. Visually check that the burner has lit.
4. Push the control knob in and turn counterclockwise to the desired flame size. The
control knobs do not have to be set at a particular mark. Use the guides and adjust
the flame as needed. DO NOT cook with the Surface Control knob in the LITE
position. (The electronic ignitor will continue to click if left in the LITE position.)
rl1
Z
r--
m
:3:
In the event of an electrical power outage, the surface burners can be lit manually. To
light a surface burner, hold a lit match to the burner head, then slowly turn the Surface
Control knob to LITE. After burner lights push in and turn knob to desired setting. Use
caution when lighting surface burners manually.
13
Surface
Cooking
FEATURE OVERVIEW
Setting warmer zone
Controls
To Operate the Warmer (Warm & Ready") Zone
The purpose of the warmer zone is to keep hot cooked foods at serving temperature.
Use the warmer zone to keep cooked foods hot such as: vegetables, gravies, casseroles,
soups, stews, breads, pastries and oven-safe dinner plates. Always start with hot food. It
is not recommended to heat cold food on the warmer zone.
All food placed on the warmer zone should be covered with a lid or aluminum foil to
maintain quality. For best results, when warming pastries or breads, the cover should
have an opening to allow moisture to escape. Do not use plastic wrap to cover food.
Plastic may melt onto the surface and be very difficult to clean.
Use only dishware, utensils and cookware recommended for oven and cooktop use on
the warmer zone.
_|!_L_I_ Always use potholders or oven mitts when removing food from the
warmer zone as cookware and plates will be hot.
1"o Set the Warmer Zone Control
1, To set the control, push in and turn the knob. The temperatures are approximate,
and are designated by HI, MED and LO, However, the control can be set at any
position between HI and LO for different levels of heating.
2. When done, turn the control to OFF,The warmer zone hot surface indicator light
will remain on until the warmer zone cools to a moderate level.
Q
Temperature Selection
Refer to the chart for recommended heating levels. If a particular food is not listed, start
with the medium level, and adjust as needed. Most foods can be kept at serving
temperatures by using the medium level.
Warmer Zone Indicator Lights
The warmer zone indicator light is located below the warmer zone control knob. It
turns on when the control is set, and stays on until the control is turned off. The
warmer zone hot surface indicator light, located on the control panel, will come on
when the control is set and will continue to glow until the glass warmer zone has cooled
to a moderate level.
I_!_ The warmer zone will not glow red when it is hot, but becomes hot
enough to cause burns. Avoid placing hands on or near the warmer zone until the
warmer zone hot surface indicator light off.
W=m_,Z_o _ Warmer Zone Recommended Food Settings
Chart
_ Zoil_ Wmrm_ Zs_lo
_u_r_ur Z_
Food Item Heating
Level
Breads/Pastries LO
Casseroles LO
Dinner Plates with Food LO
Eggs LO
Gravies LO
Meats MED
Sauces MED
Soups (cream) MED
Stews MED
Vegetables MED
Fried Foods HI
Hot Beverages HI
Warmer Or_ Comrol
14
Arranging Warmer (Warm & Ready") Drawer Rack Positions
The rack can be used in 2 ways:
• In the upright position to allow low profile food items to he placed both under and
on top of the rack (for example, rollsor biscuitson top of the rack and a casserole
dish under),
In the downward position to allow you to place light weight food items and empty
dishware (for example, rolls or pastriesand dinner plates) on the rack,
Set the warmer drawer rack in either position as shown below.
Setting Warmer
Drawer
Controls
The warmer drawer is equipped with a catch which may require extra force when
opening and closing the drawer.
To Operate the Warmer Drawer
The purpose of the warmer drawer is to keep hot cooked foods at serving temperature.
Always start with hot food. It is not recommended to heat cold food in the warmer
drawer.
All food placed in the warmer drawer should be covered with a lid or aluminum foil to
maintain quality. Do not use plastic wrap to cover food. Plastic may melt onto the
drawer and be very difficult to clean.
Use only dishware, utensils and cookware recommended for oven use in the warmer
drawer.
Always use potholders or oven mitts when removing food
from the warmer drawer as cookware and plates will be hot and you can be
burned.
To Set the Thermostat Control
The thermostat control is used to select the temperature of the warmer
drawer. It is located on the control panel. To set the thermostat, push in
and turn the knob to the desired setting. The temperatures are
approximate, and are designated by HI, MED and LO.
1. Turn the knob to select the desired temperature setting.
2. For best results, preheat the drawer before adding food. An empty
drawer will preheat in approximately 15 minutes.
3. When done, turn the thermostat control to OFF.
Temperature Selection
Refer to the chart in the side column for recommended settings. If a
particular food is not listed, start with the medium setting. If more
crispness is desired, remove the lid or aluminum foil.
Most foods can be kept at serving temperatures on the medium setting.
When a combination of foods are to be kept warm (for instance, a meat
with 2 vegetables and rolls), use the high setting.
To avoid heat loss, refrain from opening the warmer drawer while in use.
Warmer Drawer Indicator Light
The warmer drawer indicator light is located below the warmer drawer
control knob. It turns on when the control is set, and stays on until the
control isturned off. The warmer drawer is inoperable during the self-
clean cycle. The indicator light will not come on during the self-dean cycle.
Q
Warmer Drawer Recommended
Food Settings Chart
Food Item Setting
Roasts (Beef, Pork, Lamb) MED
Pork Chops HI
Bacon HI
Hamburger Patties HI
Poultry HI
Gravies MED
Casseroles MED
Eggs MED
Fried Foods HI
Vegetables MED
Pizza HI
Biscuits MED
Rolls, soft LO
Rolls. hard MED
Pastries MED
Empty Dinner Plates LO
I
15
rn
Before Setting
Oven Controls
Arranging Oven Racks
(Some models may have one rack.) ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS
COOL (PRIOR TO OPERATING THE OVEN). Always use oven mitts when using the oven.
Oven Vent Location
The oven vent is located below the
backguard. When the oven is on,
warm air is released through the
vents. This venting is necessary for
proper air circulation in the oven and
good baking results.
OVEN VENT
Removing and Replacing Oven
Racks
To remove, pull the rack forward
until it stops. Lift up front of rack
and slide out. To replace, fit the
rack onto the guides on the oven
walls. Tilt the front of the rack
upward and slide the rack back into
place,
Arranging Oven Racks
To bake on 1 rack, place the rack in
position 3 or 4. To bake on 2 racks,
)lacethe racksin positions 2 and 4.
To bake on 3 racks, place the racks
m positions 1, 3 and 5.
Air Circulation
in the Oven
If using multiple pans, stagger as shown. If using one pan, place in center of oven.
......
For best air circulation and baking results, center pans as much as possible. Allow 2-4"
(5-10 cm) around the utensil(s) for proper air circulation and be sure pans do not touch
each other, the door, sides or back of oven. The hot air must circulate around the pans
in the oven for even heat to reach all parts of the oven.
16
Oven
,, eLL,n
1 2 3
..... Controls
......... _....... ...... FEATURE OVERVIEW
Preheat
PREHEAT
This Preheat Mode will bring the oven up to temperature and then beep to let you know when to add your food.
Preheating the oven is recommended when baking breads and cakes. Use this mode when recipes call for
preheating. Preheating the oven allows the center ofthe oven temperature to reach maximum performance by
turning on the broil burner first for top heat and then switching to the bake burner before food is added, it is not
necessary when roasting or cooking casseroles. The oven can be programmed to preheat at any temperature from
170°F to 550°F.
INSTRUCTIONS PUSH
To Set the Preheat Temperature to 350°F:
1. Arrange oven racks.
2. Push _. "350 °, BAKE and START' will flash in the display.
3. Push (_. "BAKE, PrE and ON" will show in the display as
the oven heats.
DISPLAY
To change the preset Preheat Temperature:
(example 425°F)
1. Push _. "350 °, BAKE and START" will flash in the
display.
2. Enter the desired baking temperature using the number
padsQQQ
3. Push _S_. "PrE, Bake and ON" will show in the display
as
the oven heats.
e
Q( Q
After the oven has reached the desired temperature the control
will beep and the "PrE" light will turn off and the desired oven
temperature will be shown. The oven is preheated; place food
in the oven. The "BAKE" light will stay on. The "ON" light will
turn on and off as the oven maintains your chosen temperature.
G_
r--
When baking is complete press _.
17
Setting Oven
Controls START 1
FEATURE OVERVIEW
Bake 4
TIMFII
2
5
8
0
BAKE
Use this mode when preheating is not necessary: such as, when roasting or cooking casseroles. The oven can be
programmed to bake at any temperature from 170°F to 550°F.
INSTRUCTIONS PUSH DISPLAY
To Set the BAKE Temperature to 350°F:
1. Arrange oven racks and place food in oven.
2. Push _--_. '350 ° BAKE and START" will glow in the display.
V
v
3. Push _1_. "BAKE, ON and the current
oven
temperature"
willshow in the display.As the oven temperature increases
the displaycounts up to the set temperature.
To change the preset Bake Temperature: (example
425°F)
1. Push (_. "350 ° BAKE and START" will glow in the display.
2. Enter the desired baking temperature using the number
padsQQQ G)QQ
3
B
9
3. Push _T_. "BAKE, ON and the
current oven
temperature"
will show in the display. As the oven temperature increases
the display counts up to the set temperature.
After the oven has reached the selected temperature the control
will beep and the "BAKE" light will stay on. The "ON" light will
turn on and off as the oven maintains your chosen temperature.
When baking is complete press (_). ®
18
Setting Oven
Controls
FEATURE OVERVIEW
• Timed Bake
TIMED BAKE
COOK TIME or STOPTIME control the Time Bake operation. The automatic timer will turn the oven off at the time
you select in advance.
_r!_3_l_ll Use caution when using the automatic timer. Use the automatic timer when cooking cured or frozen
meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be
chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before
cooking begins, and should be removed promptly when cooking iscompleted. Eating spoiled food can result in
sickness from food poisoning.
INSTRUCTIONS PUSH DISPLAY
To Program the Oven to Begin Baking Immediately
and To Shut Off Automatically: (example Bake at
350 ° for 50 minutes)
1. Be sure that the clock shows the correct time of day.
2. Arrange oven rack and, if roasting or cooking a casserole,
place the food in the oven.
3. Push (_. '350 ° BAKE and START" will flash in the display. ____
If a different baking temperature is needed use the number
pads to enter the new temperature.
Push _j. "0:00, START and COOK TIME' will flash in the _'_
4.
display window. Enter the desired baking time using the
number pads QQ. The baking time can be set for QQ.
any amount of time from 5 minutes to 11 hours and 59
minutes (or 23 hours and 59 minutes in 24 hour mode).
5. Push (_. "TIMED BAKE, ON, and the selected
temperature" will show in the display. The "BAKE" light will
stay on. The "ON" light will turn on and off as the oven
maintains your chosen temperature.
When the set BAKE TIME runs out:
a. 'END, COOK TIME" will appear in the display window and the
oven will shut off automatically.
b. The control will beep 3 times.
c. The control will then continue to beep 3 times each minute
until _ is pushed. ®
rn
Z
I--
i
-1-
19
Setting Oven
Controls
FEATURE OVERVIEW
Delayed Time Bake
1
4
7
_ _ .,v-_ ,_
2 3
5 fi
8 9
0
DELAYED TIMED BAKE
COOK TIME and STOPTIME control the Time Bakeoperation. The automatic timer will turn the oven on and off at
the time you select in advance.
I__ Use caution when using the automatic timer. Use the automatic timer when cooking cured or frozen
meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be
chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before
cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in
sickness from food poisoning.
INSTRUCTIONS PUSH DISPLAY
To Program Oven for a Delayed Start Time and to
Shut-Off Automatically: (example Bake at 350 ° for
50 minutes finishing at 5:30)
1. Be sure that the dock shows the correct time of day.
2. Arrange oven rack and place food in the oven.
Push _--_. "350 ° BAKE and START" will flash in the display.
3.
If a different desired baking temperature is needed use the
number pads to enter.
4. Push _. Enter the desired baking time using the number
pads QQ. The baking time can be set for any
amount of time from 5 minutes to 11 hours and 59 minutes. _
"50' and the words 'START and COOK TIME' will glow in the
display window,
5. Push (_. Enter the desired stop time using the number i_)
QQQ
padsQQQ,
6. Push _1_. "DELAY, TIMED and BAKE" will show in the
display.
7. When the start time arrives the display will show the current
time of day and "TIMED BAKE". The "ON" light will turn on
and off as the oven maintains your chosen temperature,
When the set BAKE TIME runs out:
a. "END" will appear in the display window and the oven will
shut off automatically.
b. The control will beep 3 times.
c. The control will then continue to beep 3 times each minute
until (_ is pushed. ®
2O
................. Setting Oven
t 2 3 Controls
FEATURE OVERVIEW
4 5 6 Broil
7 8 9
O
BROIL
Your new range isequipped with a state of the art infrared broil burner. If you are used to broiling in a gas range
you will notice a difference in the way the broiler flame looks. You will see a light blue flame (approximately 1/4")
covering the entire screenof the broil burner. The broil burner itself will glow red-orange. Heat radiates down from
the broiler for even coverage. Besure you center the broiler pan directly under the burner for best results. Broil may
be set for temperatures from 450°F to HI (550°F).
Arrange oven rack while oven isstill cool. Position the rackas suggested in the rack guide on page 23.
The broiler pan and its insert allow dripping grease to drain and be kept away from the high heat of the broiler.
DO NOT usethe pan without its insert. DO NOT cover the insert with foil. The exposed grease could ignite.
_ Should an oven fire occur, leave the oven door closed and turn off the oven. If the fire continues, throw r1"l
Z
baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and
water can cause a grease fire to spread and cause personal injury, r'-
INSTRUCTIONS PUSH
-I-
DISPLAY
To Set the oven to Broil at HI 550°:
1, Place the insert on the broiler pan, then place the food on
the insert. DO NOT use the broiler pan without the insert.
DO NOT cover the insert with aluminum foil. The exposed fat
could ignite.
2, Arrange oven rack and place the pan on the oven rack. Be
sure to center the broiler pan directly under the broil burner.
Close the oven door when broiling.
3. Push _). "HI and BROIL"will glow in the
display.
4. Push _1_. "ON, BROIL and the set temperature" will show
in the display. After the oven has reached the desired
temperature the control will beep.
5. Broil on one side until food is browned; turn and cook on the
second side. Season and serve. Note: Always pull the rack
out to the stop position before turning or removing food.
6. The "BROIL" light will stay. The "ON" light may turn on and
off as the oven maintains your chosen temperature.
To change the preset Broil Temperature: (example
450°F)
1. Push (_. 'HI and BROIL"will glow in the display.
2. Enter the desired broiling temperature using the number
padsQQQ
3, Push _.
QQQ
0
When broiling is complete press I_. (_
21
Setting Oven
Controls
FEATURE OVERVIEW
Searing Grill
STAR'IF 1 2
4 5
7 8
O
3
6
9
SEARING GRILL
The Searing Grill provided with your new range allows you to grill food in the oven,
Do not use the Searing Grill without the broiler pan and insert provided with your range. The broiler pan and
its insert allow dripping fat to drain and be kept away from the high heat of the broiler. Do not use Searing Grill on
the cooktop. The Searing Grill is not designed for use on the cooktop. Doing so may result in a fire.
Ftl_l_ Should an oven fire occur, leave the oven door closed and turn off the oven. If the fire continues, throw
baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire, Flour may be explosive.
INSTRUCTIONS PUSH DISPLAY
To use the Searing Grill
1. Place the insert on the broiler pan. DO NOT use the broiler
pan without the insert. DO NOT cover the insert with
aluminum foil. The exposed fat could ignite.
2. Place the Searing Grill on top of the insert.
3. Preheat the Searing Grill by placing the stacked parts in the
oven and close the door. Position the rack as suggested in
the rack guide. The Searing Grill should be hot before the
food is added.
4. Push E___. "HI, BROIL and START"will flash in the
display.
5. Push _'_. "HI, BROIL and ON" will show in the
display.
6. Allow the oven to operate for approximately 10 minutes for
the Searing Grill to get hot.
7. Adjust the broil temperature if required.
8. Pull the oven rack out and place food on the Searing Grill.
9. Push the oven rack in and close the oven door.
10. Broil on one side until food is browned; turn and cook on the
second side. Season and serve. Note: Always pull the rack
out to the stop position before turning or removing food.
11. The "BROIL" light will stay on. The "ON" light may turn on
and off as the oven maintains your chosen temperature.
When broiling is complete press (_.
22
Broiling and Searing Grill Chart
Use this chart for approximate broiling times. Increase or decrease broiling times, or
move the broiling pan to a different rack position to suit personal preference for
doneness. If the food you are broiling is not listed in the time chart, follow the
instructions provided in your cookbook and watch the item closely.
Broiling Chart
Food Rack Temp Cook Time
Item Position Setting 1st side 2nd side Doneness
Steak 1" thick 2nd Hi 6:00 4:00 Rare
2nd Hi 7:00 5:00 Medium
Pork Chops 3/4" thick 2nd Hi 8:00 6:00 Well
Chicken - Bone In 3rd 450 F 20:00 10:00 Well
Chicken - Boneless 2nd 450 F 8:00 6:00 Well
Fish 2nd 500F 13:00 * Well
Shrimp 3rd Hi 5:00 * Well
Hamburger 1" thick 2nd Hi 9:00 7:00 Medium
3rd Hi 10:00 8:00 Well
*does not need to be turned
Searing Grill Chart - 10 Minute Preheat with oven set to HI Broil.
Food Rack Temp Cook Time
item Position Setting 1st side 2nd side Doneness
Steak 1' thick 2nd Hi 3:00 2:00 Rare
2nd Hi 4:00 3:00 Medium
Pork Chops 3/4" thick 2nd Hi 5:00 3:00 Well
Chicken - Bone In 3rd 450 F 1S;00 10:00 Well
Chicken - Boneless 2nd 450 F 6:00 4:00 Well
Fish 2nd 500 F 9:00 * Well
Shrimp 3rd Hi 2:00 * Well
Hamburger 1' thick 2nd Hi 6:00 3:00 Medium
3rd Hi 7:00 4:00 Well
Setting Oven
Controls
FEATURE OVERVIEW
Broiling Charts
r-
i
L/1
23
Oven Cleaning
FEATURE OVERVIEW
• Preparing for the Self-
Clean Cycle
_AM FRAME
_1!1_ The health
of some birds is extremely
sensitive to the fumes
given off during the self-
cleaning cycle of any
range. Move birds to
another well-ventilated
room.
Self-Cleaning Oven
A self-cleaning oven cleans itself with high temperatures which eliminate soilcompletely
or reduce it to a fine powdered ashyou can whisk away with a damp cloth. These
temperatures are well above normal cooking temperatures.
1. Adhere to the following cleaning precautions:
Allow the oven to cool before precleaning.
Wear rubber gloveswhen precleaning and while wiping up the residue after the
self-clean cycle.
• DO NOT use oven cleaners or oven protective coatings in or around any part of
the self-cleaning oven.
DO NOT clean the oven door gasket. The woven material of the oven door
gasket isessentialfor a good seal. Care should be taken not to rub, damage or
remove the gasket.
DO NOT use any cleaning materials on the oven door gasket. Doing so could
causedamage.
2. Remove the searing grill, broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
_111_1_1 DO NOT line the oven walls, racks, bottom or any other part of the
range with aluminum foil. Doing sowill destroy heat distribution, produce poor
baking resultsand cause permanent damage to the oven interior (aluminum foil will
melt to the interior surface of the oven).
3. Oven racksmay be left in the oven or may be removed. If they go through the clean
cycletheir color will turn slightly blue and the finish will be dull. After the cycleis
complete and the oven hascooled, rub the sidesof the rackswith wax paper or a
cloth containing a small amount of baby oil or salad oil (this will make the racks
glide easier into the rack position).
4. Remove any excessspinoversin the oven cavity before starting the self-cleaning
cycle. To clean, usehot, soapy water and a cloth. Largespillovers can causeheavy
smoke or fire when subjected to high temperatures. DO NOT allow food spillswith a
high sugaror acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie
filling) to remain on the surfaceas they may causea dull spot even after cleaning.
5. Clean any soil from the oven frame, the door liner outside the oven door gasket, and
the small area at the front center of the oven bottom. These areas heat sufficiently
to burn soil on. Clean with soap and water.
6. DO NOT manually clean the broil burner or useany cleaning agents on the broil
burner screen.
If at any time when setting the oven to cJean the
display shows "dOOr" close the oven door,
24
STA_ 1 [ 2 3
4 5 6
7 8 9
Oven Cleaning
FEATURE OVERVIEW
• Self-Clean Cycle
TO START THE SELF-CLEAN CYCLE
*we recommend a 2 hour self-clean cycle for light soils, a 3 hour cycle for average soils, and a 4 hour cycle for
heavy soils (to assure satisfactory results).
V_[_ During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT
leave small children unattended near the appliance; they may be burned if they touch the hot oven door surfaces.
F|_I_ DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow
hot air or steam to escape. The oven may still be VERY HOT,
INSTRUCTIONS
To Set the Controls for the Self-Cleaning Cycle To
Start Immediately and Shut Off Automatically:
1. Be sure the clock shows the correct time of day and the oven
door is closed..
PUSH DISPLAY
2•
Push _um_. "3:00 and START, TIMED CLEAN" will appear in
the display. If a 2 or 4 hour clean is desired use the number
pads to enter the time. Set the cleaning time based on the
amount of soil you have--light, medium or heavy. *See
above.
O
3. Push(_.
4. As soon as the controls are set, the motor driven lock will
begin to close automatically and the 'LOCK" indicator light
will be displayed. (It takes about 15 seconds for the lock to
close.) The "ON" light will turn on and off asthe oven
maintains self-cleaning temperatures,
When the Self-Clean Cycle is Completed
1. Only the time of day and the word 'LOCK" will remain in the
display.
2. Once the oven has cooled down for approximately 1 HOUR,
and the word "LOCK" shown in the display has gone out, the
oven door can be opened•
Stopping or Interrupting a Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a self-cleaning cycle
due to excessive smoke or fire in the oven:
1,
2.
Push (_•
Once the oven has cooled down for approximately 1 HOUR
and the word %OCK' shown in the display has gone out,
then the oven door can be opened.
m •
Z
C_
:Z
25
Oven Cleaning
FEATURE OVERVIEW 1
• Delayed Self-Clean ........ .......... .
Cycle 4 ,5 6
TIMER
i 0
TO START THE DELAYED SELF-CLEAN CYCLE
The length of the CLEAN cycle and STOP TIME controls the Delayed Self-Clean operation. The automatic timer will
turn the oven on and off at the time you select in advance. If you are planning to use the oven directly after a self-
clean cycle remember to allow time for the oven to cool down and the oven door to unlock. This normally takes
about one hour. So to self-clean for 3 hours will actually take about 4 hours to complete.
*We recommend a 2 hour self-dean cycle for light soils, a 3 hour cycle for average soils, and a 4 hour cycle for
heavy soils (to assure satisfactory results).
_I1_ During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT
leave small children unattended near the appliance.
__ DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow
hot air or steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS
To Set the Controls for the Self-Cleaning Cycle To
Start at a Delayed Time and Shut off Automatically:
(example self-clean cycle to finish at 9:00)
1. Be sure the clock shows the correct time of day and the oven
door is closed.
2,
Push _J_l_. "3:00 and START, TIMED CLEAN" will appear in
the display. If a 2 or 4 hour clean is desired use the number
pads to enter the time. Set the cleaning time based on the
amount of soil you have--light, medium or heavy. *See
above.
3. Push _{,_). Enter the desired Stop Time using the number
padsQQQ
4. Push _.
5. As soon as the controls are set, the motor driven lock will
begin to close automatically and the "LOCK" indicator light
will be displayed. (It takes about 15 seconds for the lock to
close.) "DELAY, TIMED AND CLEAN" will also glow.
6. The control will calculate backward from the set stop time to
determine when the self-cleaning cycle should begin. The
self-cleaning cycle will come on automatically at the
calculated time. At that time, the word "DELAY" will go out
and "ON" will appear.
PUSH DISPLAY
®
QQQ
When the Self-Clean Cycle is Completed
1. The time of day will appear in the display window and the
word "LOCK"will remain in the display.
2. Once the oven has cooled down for 1 HOUR, and the word
=LOCK=shown in the display has gone out, the oven door can
be opened.
26
To Clean the Cooktop Glass
The cooktop isdesigned to make cleaning easier. Becausethe four burners are sealed,
cleanups are easy when spillovers are cleaned up immediately. To clean, wipe with a
clean, damp cloth and wipe dry.
Correct and consistent cleaning is essential to maintaining your heat-resistant glass top.
Spills and spatters should be wiped up using a clean paper towel and sudsy water. This
should be done either as soon as possible after the spill occurs, after cooking is
completed, or at the latest, before using the cooktop again. Use caution if the cooktop
is hot. For heavy spills, spatter or burned-on materials, use a razor blade scraper. Hold
the razor blade scraper at a 30 ° angle and remove food spills or burned-on food residue.
Finish the cleaning process by applying a recommended heat-resistant glass cooktop
cleaning creme. Apply cleaner with clean, damp paper towel. Rinse with a paper towel
dampened with clean water and wipe dry. Always wipe the cooktop thoroughly to
avoid heating any cleaner residue.
DO NOT use the following on the heat-resistant glass cooktop:
Abrasive plastic, nylon, metal scouring or cloth pads. They may scratch the cooktop
and make it more difficult to clean later. Always use a new, clean paper towel when
cleaning the heat-resistant glass top.
Anything that may melt (plastics, aluminum foil, sugar or food with a high sugar
content).
Heavy duty cleansers, rust or stain removers.
• Chlorine bleach, ammonia, hydrofluoric acid or any other kind of chemical cleaners.
They may etch or discolor the cooktop.
Sponges, cloths or dish towels. Always use a new, clean paper towel when cleaning
the cooktop. Lint or soil remaining on the cooktop from a cloth or sponge can burn
and cause discoloration.
General
Cleaning
FEATURE OVERVIEW
Cooktop Cleaning
Unlike the standard gas
range, THIS COOKTOP IS
NOT REMOVABLE. Do not
attempt to remove or lift
the cooktop.
_|_ DO NOT
use a cooktop cleaner on
a hot cooktop. The
fumes can be hazardous
to your health,and can
chemicallydamage the
ceramic-glasssurface.Be
surethe controlsare
turned to OFF. Do not
rll
use commercial oven Z
cleaners on any part of /_1
the cooktop. Damage to r"
the finish or parts could
result. "I"
Heavy burned-on spills
can be removed with a
razor blade scraper. Use
caution to avoid
damaging surface.
27
General
Cleaning
FEATURE OVERVIEW
• Cooktop Cleaning
To Clean the Burner Grates, Contoured Burner Pans, Burner Cap
Assembly, and Burner Base
The burner grates, contoured burner pans, burner cap assembly, and burner base
should be routinely cleaned, Keeping the burner ports clean will prevent improper
ignition and an uneven flame. Follow instructions below,
To Clean the Contoured Burner Pans
The square burner pans are attached to the cooktop and are not removable. The burner
pan forms a recessed well area located around each burner unit. if a spill occurs in one
of the four well areas, blot up spill with an absorbent cloth. Rinse with a clean, damp
cloth and wipe dry.
To Clean the Grates
The burner grates and wok stand are dishwasher safe. Any remaining soil may be
removed by gently scouring with a soapy scouring pad. Rinse with a 1:1 solution of
clean water and ammonia. If necessary, cover difficult spots with an ammonia-soaked
paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, then scrub
with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all
cleaners or the porcelain may become damaged during future heating. DO NOT use
spray oven cleaners.
TO Clean the Burner Cap and Trim Ring
Use a soap-filled scouring pad or a mild abrasive cleanser to clean burner caps and trim
rings. If necessary, cover stubborn spots with an ammonia-soaked paper towel for 30
minutes. Rub gently with a soap-filled scouring pad and rinse with a mixture of clean
water and vinegar. Wipe dry. Remove all cleaners or the porcelain may become damaged
during future heating.
TO Clean the Burner Base and Gas Opening
The ports (or slots) around the burner base must be routinely cleaned. Use a small-gauge
wire or needle to clean small slots or holes. Use care to prevent damage to the electrode.
If a cleaning cloth should catch the electrode, it could break or damage the electrode. If
the electrode is damaged or broken, the surface burner will not light because it will not
spark. Manual lighting with a match isstill possible.
For proper flow of gas and ignition of the burner--DO NOT ALLOW SPILLS, FOOD,
CLEANING AGENTS OR ANY OTHER MATERIAL TO ENTER THE GAS OPENING. Gas must
flow freely through the small hole in the brass orifice for the burners to light properly, if
the gas opening orifice becomes soiled or clogged, use a small-gauge wire or needle to
clean. ALWAYS keep the burner cap assembly and ring in place whenever a surface
burner is in use.
After cleaning make sure each burner cap is properly aligned and level. Turn the burner
on to determine if it will light. If the burner does not light after cleaning, contact a Sears
Service Center. Do not service the sealed burner yourself.
28
Cleaning Various Parts of Your Range
Before cleaning any part of the range, be sure all controls are turned OFF and the range
is cool. Remove spinovers and heavy soiling as soon as possible. Regular cleanings will
reduce the effort required for major (:leanings later.
General
Cleaning
Surfaces
Aluminum (Trim Pieces) &
Vinyl
Glass, Painted and Plastic
Body Parts, Control Knobs
and Decorative Trim Pieces
Porcelain Enamel
Warmer Drawer, Door
Liner and Oven Bottom
Stainless Steel, Chrome
Parts
Oven Racks
/
F .....
ovenDoor
How to Clean
Use hot, soapy water and a cloth. Dry with a clean cloth.
For general cleaning, use hot, soapy water and a cloth. For more difficult soils and
built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30
to 60 minutes. Rinse with a clamp cloth and dry. DO NOT use abrasive cleaners on
any of these materials; they can scratch.
Before cleaning the control panel, turn all controls to OFF and remove the control
knobs. To remove, pull each knob straight off the shaft. Clean as instructed above.
Squeeze excess water from the cloth before wiping the panel; especially when
wiping around the controls. Excess water in or around the controls may cause
damage to the appliance. To replace knobs after cleaning, line up the flat sides of
both the knob and the shaft, then push the knob(s) into place.
Clean, broiler pan and insert in the dishwasher and dry upon removal. If soils are not
removed, follow the cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clean water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a
damp cloth, then scrub with a soap-filled scouring pad. Rinse and wipe dry with a
clean cloth. Remove all cleaners or the porcelain may become damaged during
future heating. DO NOT use spray oven cleaners on the range top.
Clean with hot, soapy water and a dishcloth. Rinse with clean water and a cloth.
Cover stubborn spots with an ammonia-soaked paper towel for 30-40 minutes.
Rinse. Cleaners made especially for stainless steel are recommended. Be sure to
rinse the cleaners as bluish stains may occur during heating and cannot be removed.
Remove racks. See "Removing and Replacing Oven Racks" under Before Setting
Oven Controls. Use a mild, abrasive cleaner, following manufacturer's instructions.
Rinse with clean water and dry. After cleaning the racks, rub the sides of the racks
with wax paper or a cloth containing a small amount of baby oil or salad oil (this
will make the racks glide easier into the rack positions).
To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT immerse
the door in water.
DO NOT clean the oven door gasket. The woven material of the oven door gasket is
essential for a good seal. Care should be taken not to rub, damage or remove the
gasket.
rtl
Z
r-
29
General
Cleaning
I_|_ The door is
heavy. For safe,
temporary storage, lay
the door flat with the
inside of the door facing
down.
To
To
1.
2.
3.
4.
Remove and Replace Oven Door
Remove Oven Door:
Open the door.
Remove screw A located on the inside of the oven door near the hinge (one on each
side).
Close the door to the quarter-open position. Grasp the door firmly on both sides
and lift up and off the hinges.
To clean oven door, follow the instructions provided in the cleaning chart under
General Cleaning.
To Replace Oven Door:
1. Be sure the hinge arms are in the quarter-open position. Be careful if pulling the
hinges open by hand. The hinges may snap back against the oven frame and could
pinch fingers.
2. Hold the door at the sides near the top. Insert the hinge arms into slots at the
bottom of the door.
3. Hinge arms must go into the range slots evenly. The hinge arms should be inserted
into the bottom corners of the door as far as they can go.
4. If the door is not in line with the oven frame, remove it and repeat the above steps.
[]j FuI up_,_ h|e"
LeE Gide _ .
Figure 1
Figure 2
To Remove and Replace Warmer Drawer
To Remove Warmer Drawer:
1.
2.
3.
5.
To
1.
2.
3.
__ Turn power off before removing the warmer
drawer.
Open the drawer to the fully opened position.
Locate glide lever on each side of drawer, pull up on the left
glide lever and pushdown on the right glide lever (see figure
1).
Pull the drawer away from the range.
Replace Warmer Drawer:
Pull the bearing glides to the front of the chassis glide
(see figure 2).
Align the glide on each side of the drawer with the glide slots
on the range.
Push the drawer into the range until levers "click"
(approximately 2"). Pull the drawer open again to seat bearing
glides into position. If you do not hear the levers "click" or
the bearing glides do not feel seated, remove the drawer
and repeat steps 1 thru 3. This will minimize possible damage
to the bearing glides.
,_|_ To avoide electrical shock which can
result in serious injury or death, disconnect appliance
from electric power before cleaning and servicing the
warmer drawer.
3O
_rl_ Be sure the range is unplugged and all parts are COOL before replacing the Oven Lights
surface or oven lights. Wear a leather-faced glove for protection against possible broken
glass.
To Operate the Oven Lights
The oven lights automatically turns on when the door is opened, Push (_to turn the
lights ON and OFF when the door is closed. Each oven light is located at the rear of the
oven and is covered with a glass shield held by a wire holder. The glass shields must be
in place whenever the oven is in use.
The oven lights will not operate during the self-cleaning cycle.
To Replace the Oven Light Bulbs:
1. Turn electrical power off at the main source or unplug the range.
2. Press wire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back
in).
6. The clock (if equipped) will then need to be reset. To reset, see
Setting the Clock and Minute Timer in this Owner's Guide.
!11
Z
r-
-r
The temperature in the oven has been set at the factory. When first using the oven, be
sure to follow recipe times and temperatures. If you think the oven is too hot or too
cool, the temperature in the oven can be adjusted. Before adjusting, test a recipe by
using a temperature setting that is higher or lower than the recommended temperature.
The baking results should help you to decide how much of an adjustment is needed.
To Adjust Oven Temperature:
1. Push _ for 6 seconds.
2. To increase the temperature use the number pads to enter
the desire adjustment. (Example 30°F)QQ The QQ
temperature may be increased up to 35°F (17°C). When you
have made the desired adjustment, push (_ to go back (_
to the time of day display.
3. To decrease the temperature use the number pads to enter
the desireadjustment. (Example-30°F). QQ
and
push _. The temperature may be decreased by -
then
35°F (-17°C). When you have made the desired adjustment,
_--_ to go back to the time of day display. When _--_push
v
adjusting oven temperature, a minus sign (-) will appear
before the number to indicate that the oven will be cooler by
the displayed amount of degrees.
Adjusting Oven
Temperature
Note: The adjustments
made will not change the
self-cleaning temperature.
31
Avoid Service
Checklist
Before you call for service, review this list. It may save you time and expense. The list
includes common occurrences that are not the result of defective workmanship or
materials in this appliance.
OCCURRENCE
Range is not level.
This oven is equipped with a state of the art electronic oven controller. Among its many
features is a full time oven circuit diagnostics system. The controller constantly monitors
its internal circuitry as well as several crucial oven circuits to insure they are all operating
correctly. If at any time one of these systems fails, the controller will immediately stop
operation, beeping and flashing an error code of F1, F3 or F9* in the display window.
POSSIBLE CAUSE/SOLUTION
Poor installation. Place oven rack in center of oven. Place a level on the oven rack.
Adjust leveling legs at base of range until the rack is level When range is level,
cooktop may appear out of alignment if countertop is not level.
Weak, unstable floor. Be sure floor is level and can adequately support range.
Contact a carpenter to correct sagging or sloping floor.
Kitchen cabinet misalignment may make range appear to be unleveL Be sure
cabinets are square and have sufficient room for range clearance.
Cannot move appliance easily. Cabinets not square or are built in too tight. Contact a cabinet maker to correct the
Appliance must be accessible for service, problem.
Contact builder or installer to make appliance accessible.
Carpeting interferes with range. Provide sufficient space so range can be lifted over
carpet.
Gas line is hard-plumbed. Have a flexible A.G.A./C.G.A. approved metal appliance
connector installed.
*Oven control beeps and displays Ft, F3 Electronic control has detected a fault condition. Push CLEAR to clear the display
or F9. and stop beeping. Reprogram oven. If fault recurs, record fault number. Push
CLEAR and contact an authorized servicer.
Oven Control beeps when you try to The control will only except the minimum and maximum allowable entries. This is
enter times or temperatures, to prevent you from entering excessive temperatures or cooking times. Refer to the
chart on page 7 for minimum and maximum values.
Surface burners do not light. Surface Control knob has not been completely turned to LITE. Push in and turn the
Surface Control knob to LITE until burner ignites and then push in and turn control
knob to desired flame size.
Burner ports are clogged. Clean burners. See "To Clean the Contoured Well Areas,
Burner Cap Assembly, Trim Ring (some models), Burner Pan (some models) and
Burner Base" under General Cleaning. With the burner off, clean ports with a
small-gauge wire or needle.
Range power cord is disconnected from outlet (Electric Ignition Models only). Be
sure cord is securely plugged into the outlet.
Electrical power outage (electric ignition models only). Burners can be lit manually.
See Setting Surface Controls in this Owner's Guide.
Surface burner flame burns half way
around.
Burner ports are clogged. With the burner off, clean ports by using a small-gauge
wire or needle.
Moisture is present after cleaning. Lightly fan the flame and allow burner to
operate until flame is full. Dry the burners thoroughly following instructions in the
General Cleaning section.
Surface burner flame is orange.
Dust particles in main line. Allow the burner to operate a few minutes until flame
turns blue. In coastal areas, a slightly orange flame is unavoidable due to salt air.
32
Oven does not operate.
Be sure the electronic oven controls are set correctly for the desired function. See
Setting Oven Controls in this Owner's Guide or Entire Appliance Does Not
Operate (see below).
Be sure regulator gas valve is"ON=. See installation instructions.
Make sure Child Safety Lockout isnot activated. "LOC" in display.
Entire appliance does not operate,
Make sure electrical cord/plug is plugged tightly into outlet (electric ignition models
only).
Service wiring not complete. Contact Sears Service Center.
Electrical power outage (electric ignition models only). Check house lights to be
sure. Call your local electric company for service. Surface burners can be lit
manually. See Setting Surface Controls in this Owner's Guide.
Be sure gas supply is turned on.
Cooktop and/or oven light (some
models) does not work.
Burned-out or loose bulb. See Changing Cooktop and/or Oven Lights (some
models) section in this Owner's Guide to replace or tighten the bulb.
Oven smokes excessively during broiling. Oven door is open. Door should be closed during broiling,
Meat too close to broil burner. Reposition the rack to provide more clearance
between the meat and the broiler.
Meat not properly prepared. Remove excess fat from meat. Slash remaining fatty
edges to prevent curling, but do not cut into the lean.
Broiler pan used without grid or grid covered with foil. DO NOT use the broiler pan
without grid or cover grid with foil.
Oven needs to be cleaned. Grease has built up on oven surfaces. Regular cleaning is
necessary when broiling frequently. Old grease or food spatters cause excessive
smoking.
Poor baking results. Many factors affect baking results. Make sure the proper rack position isused.
Center food in the oven and space pans to allow air to circulate. Allow the oven to
preheat to the set temperature before placing food in the oven. Try adjusting the
recipe'srecommended temperature or baking time. If you feel the oven is too hot
or cool, see Adjusting Oven Temperature in this Owner's Guide.
Self-Cleaning cycle does not work.
Controls are not set properly. Follow instructions under Oven Cleaning.
Self-cleaning cycle was interrupted. Stop time must be set 2 to 4 hours past the
start time. Follow steps under "Stopping or Interrupting a Self-Clean Cycle=under
Oven Cleaning.
Soil is not completely removed. Failure to clean bottom front, top of oven or door areas outside oven seal. These
areas are not in the self-cleaning area, but get hot enough to burn on residue.
Clean these areas before starting the self-clean cycle. Burned-on residue may be
cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to
damage the oven gasket.
Excessivespillovers in oven. Set self-clean cycle for a longer cleaning time.
Flames inside oven or smoking from
vent.
Excessive spillovers in oven. This is normal, especially for pie spillovers or large
amounts of grease on the oven bottom. Wipe up excessive spillovers before starting
the self-clean cycle. If flames or excessive smoke are present, stop the self-clean
cycle and follow the steps under "Stopping or Interrupting the Self-Clean Cycle = in
the Oven Cleaning section.
r11
Z
Gh
i--
n
"1-
33
In U.S.A. or Canada
for in-home major brand repair service:
Call24 hours8 day,7 days a week
1-800-4-MY-HOME" (l,.eoo.4e lee
PI'I iI_llt Illlr,'_lo do rlqIIIIIl_lt II dontlclllo -- 1-800-676-6811
Au CI"MIdl pour to_ le _rvi_ -- 1-877-LE-FOYEIR"(1-877-533-6937)
For the repair or replacement parts you need:
Call 6&m.- 11p,m, CST,7 days aweek
PartsDirect"
1-800-386-PAR1"{1 72"18)
vwe_v._enra,com,tpor'_,di ract
Pare ocdlmtm,pl_ con entrega a domlonlo- l.eoo.as.Toe4
For the location of a Seare Servioe Center in your area:
Call 24.houma day, 7 dayBaweek
1-800-488-1222
To purchase or inquire about a Seers= Maintensmce Agreement:
Call 7a.m. - 5 p.m. CST. Monday - Saturday
1-800-827-6655
