i,iiii:i_G_
OWNFR'S MANUAL
BOTTOM FREE
REFRIGERATOR _! l
Please read this manual carefully before operating
your set and retain it for future reference.
MANUAl ............DE USUARIO
REFRIGERADOR
CON CONGELADOR INFERIOR
Lea detenidamente este manual antes de empezar
a utilizar el refrigerador y gu_rdelo como referencia
para el futuro.
Model Name/Nombre de Modelo _=color number/nOmero de color
GM-B258R4 _
GM-L26AN_JP
LMX2598S _ GM-L268F_XP
P!No, MFL67227302

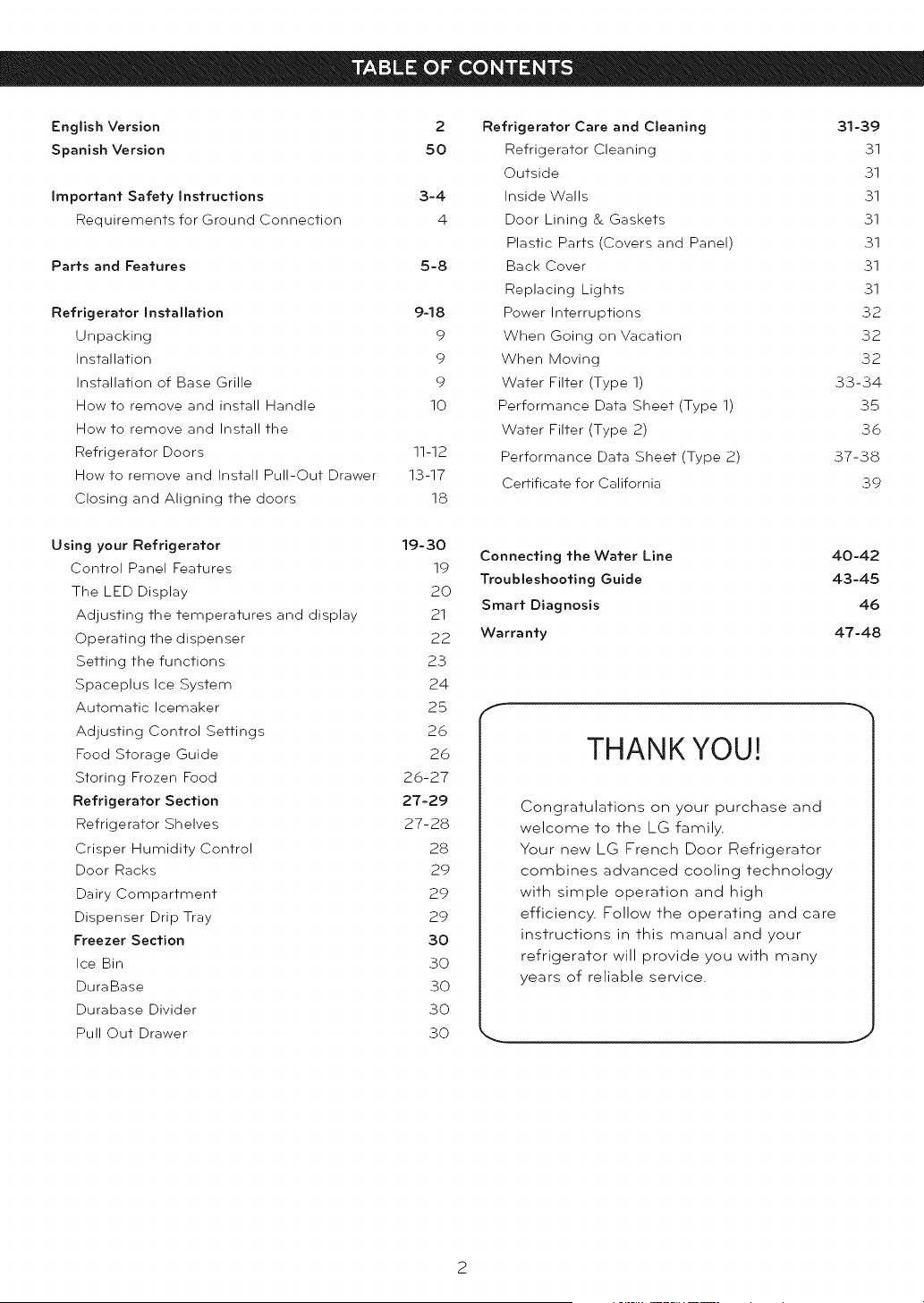

English Version 2
Spanish Version 50
Important Safety Instructions
Requirements for Ground Connection
3-4
4
Parts and Features 5-8
Refrigerator Installation 9-18

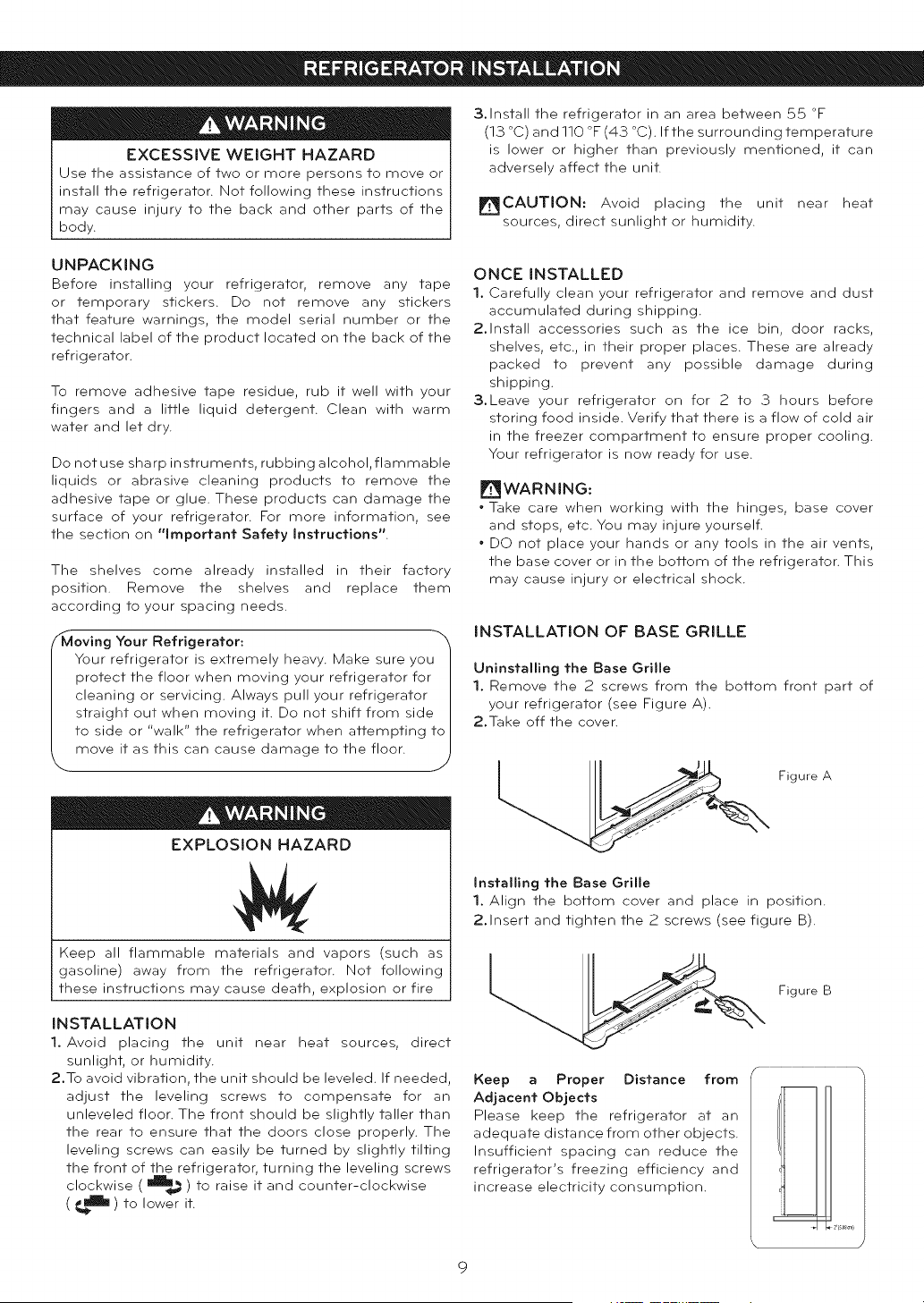

Unpacking 9
Installation 9
Installation of Base Grille 9

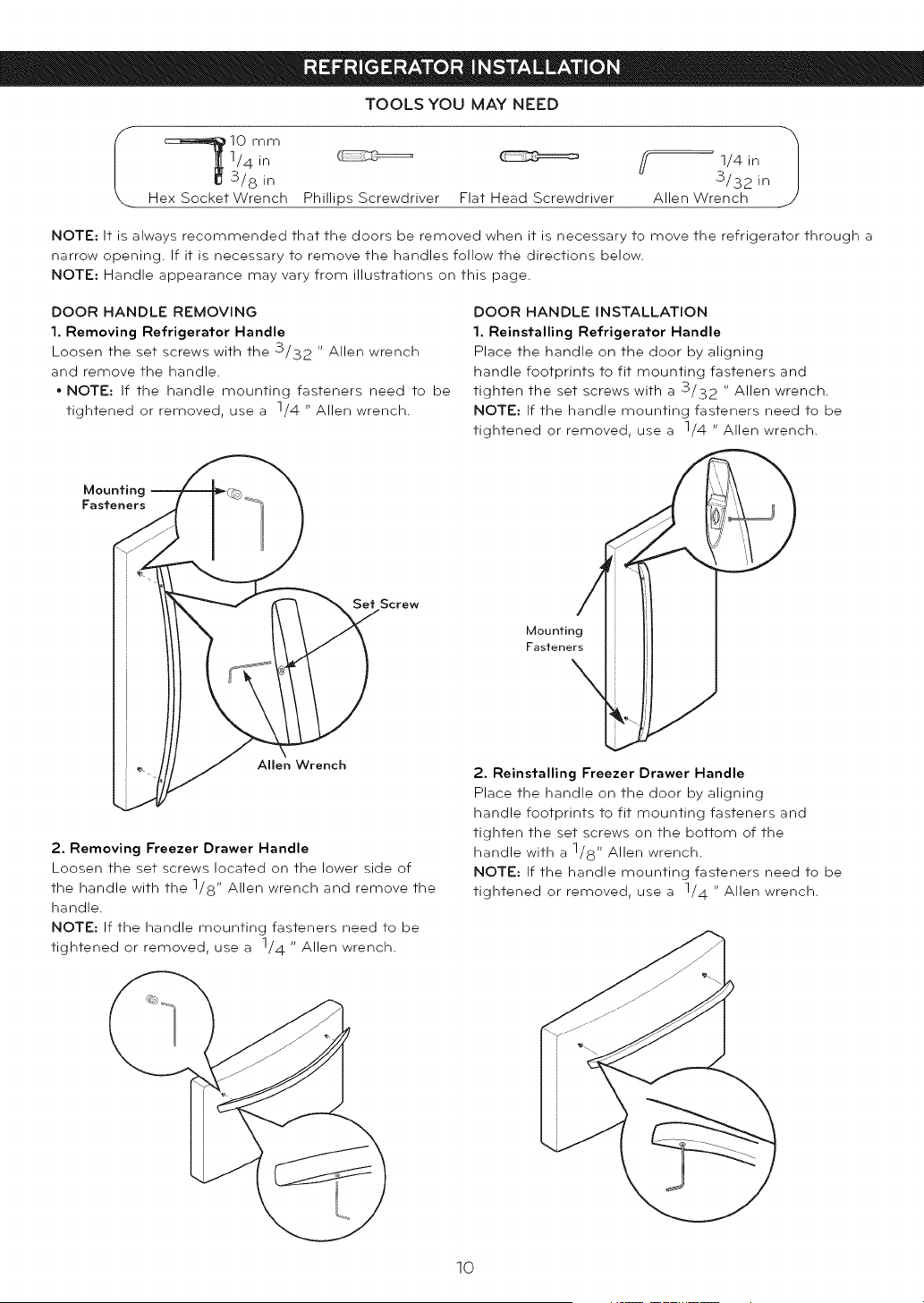

How to remove and install Handle 10

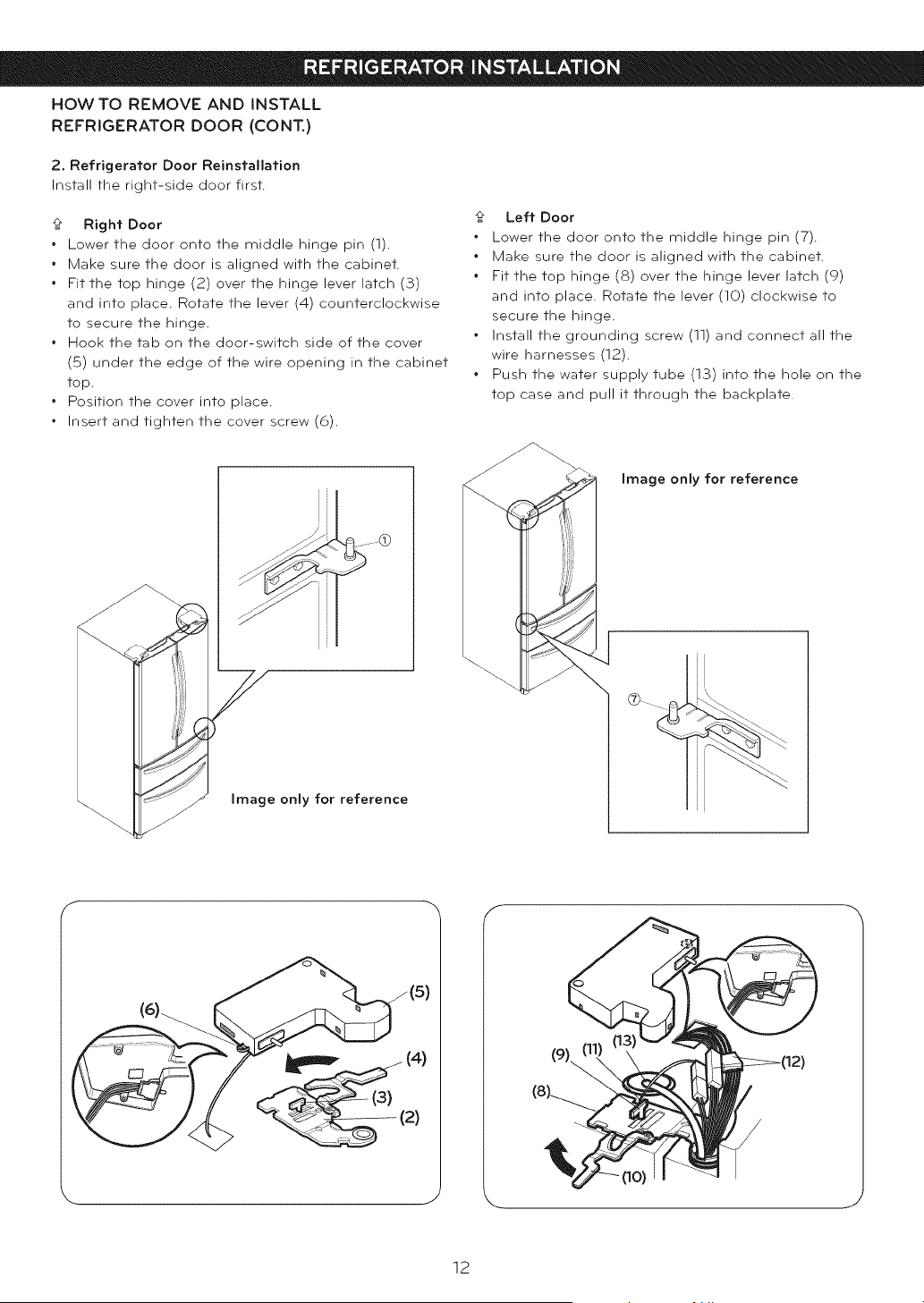

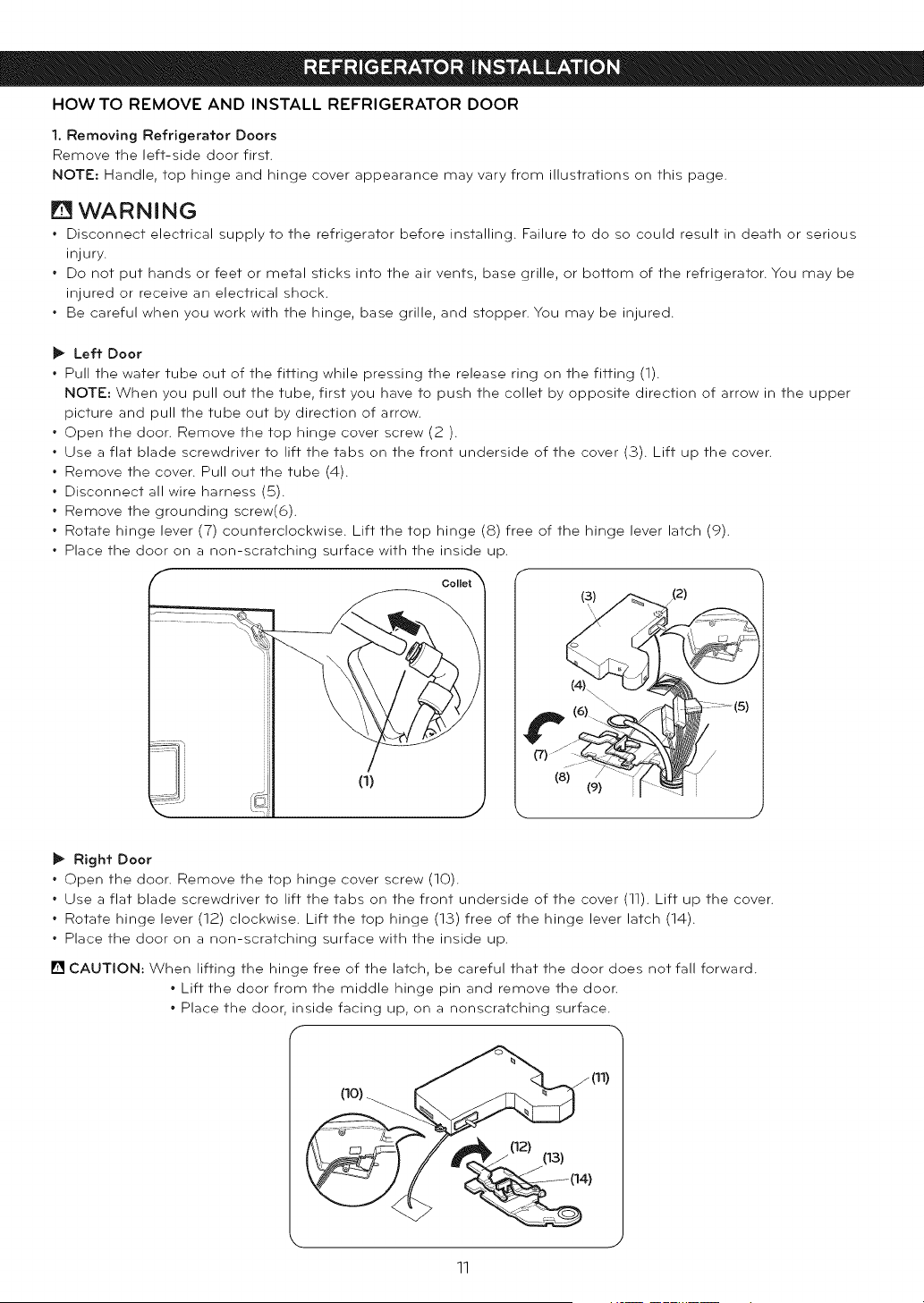

How to remove and Install the
Refrigerator Doors 11-12

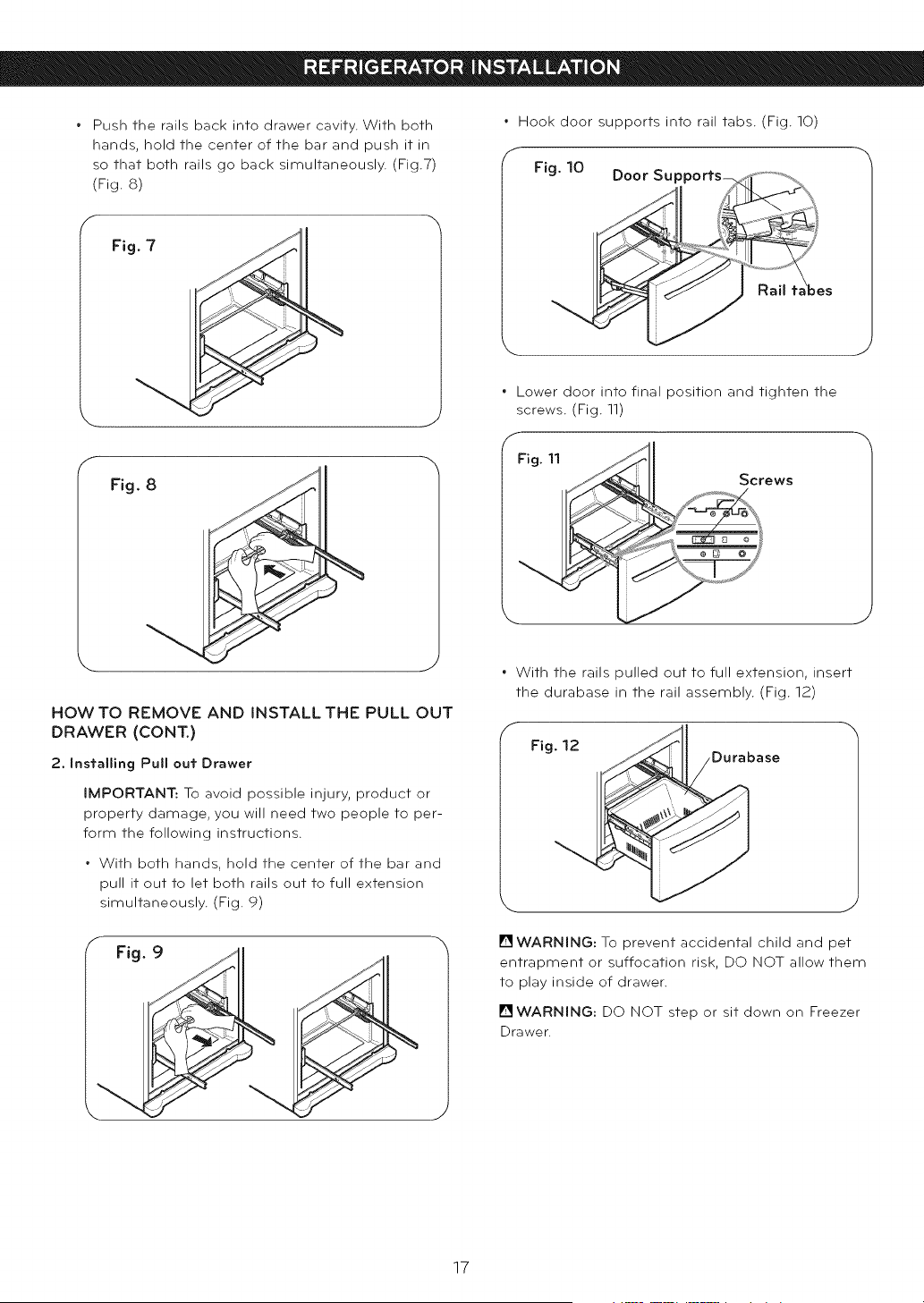

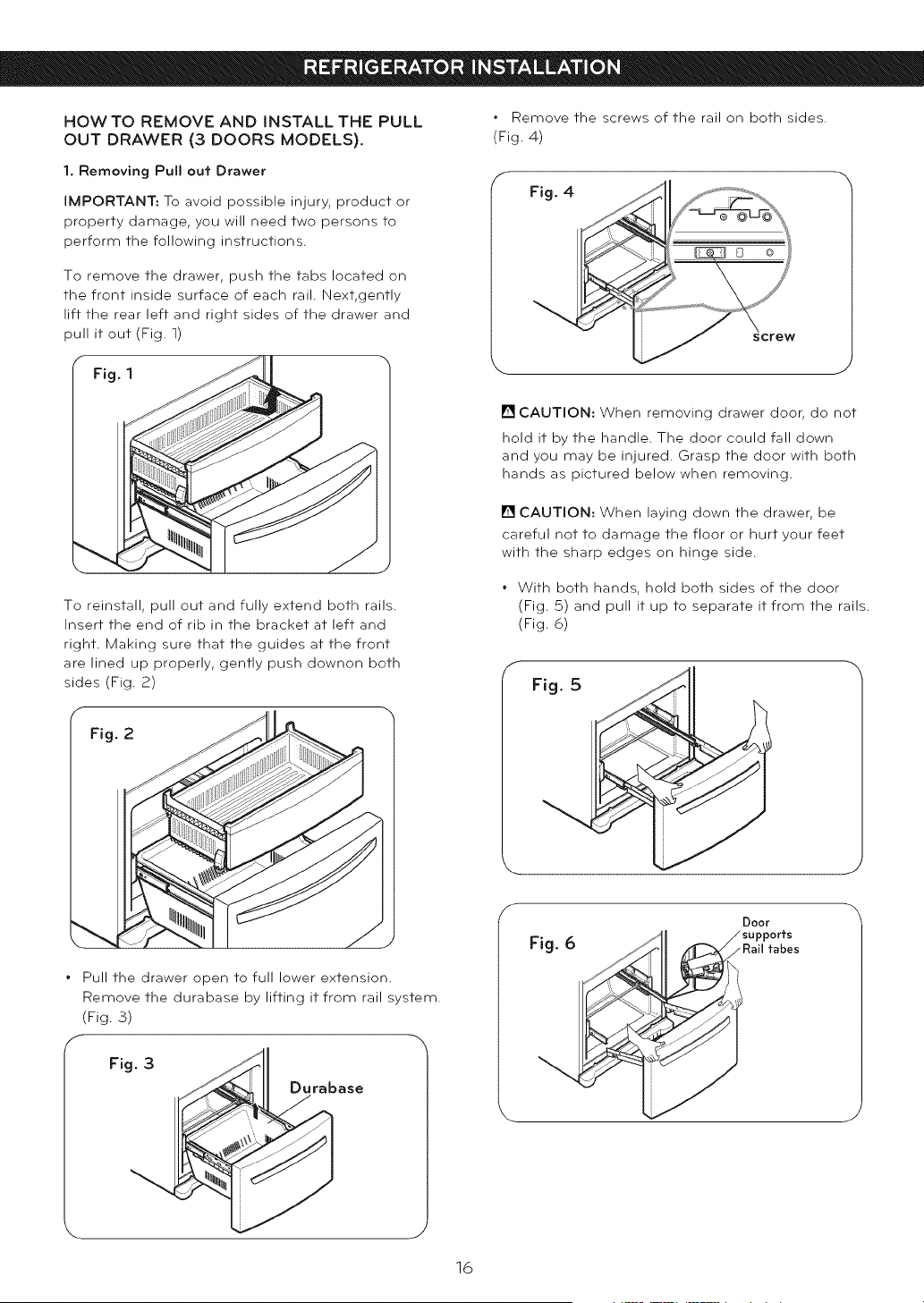

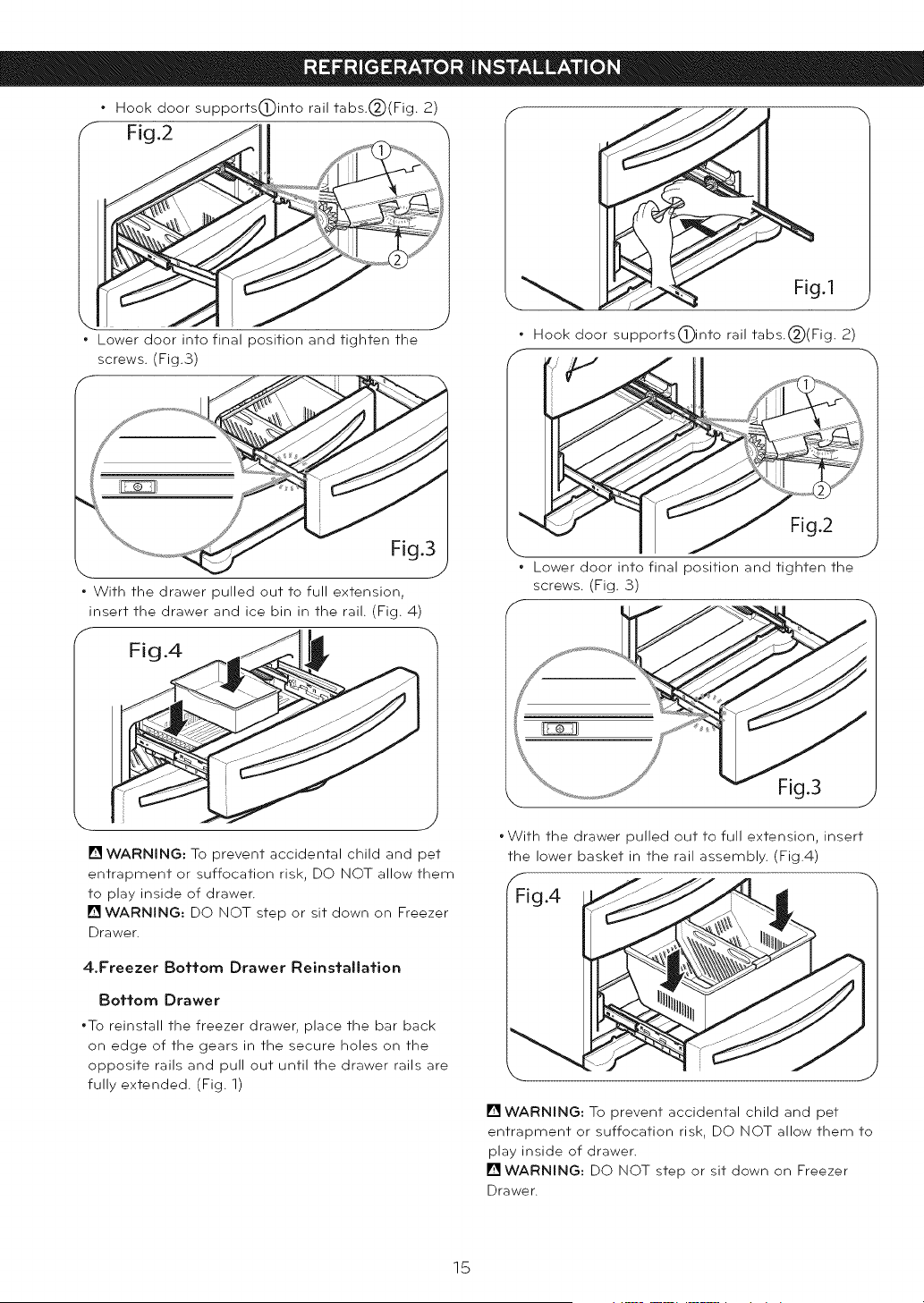

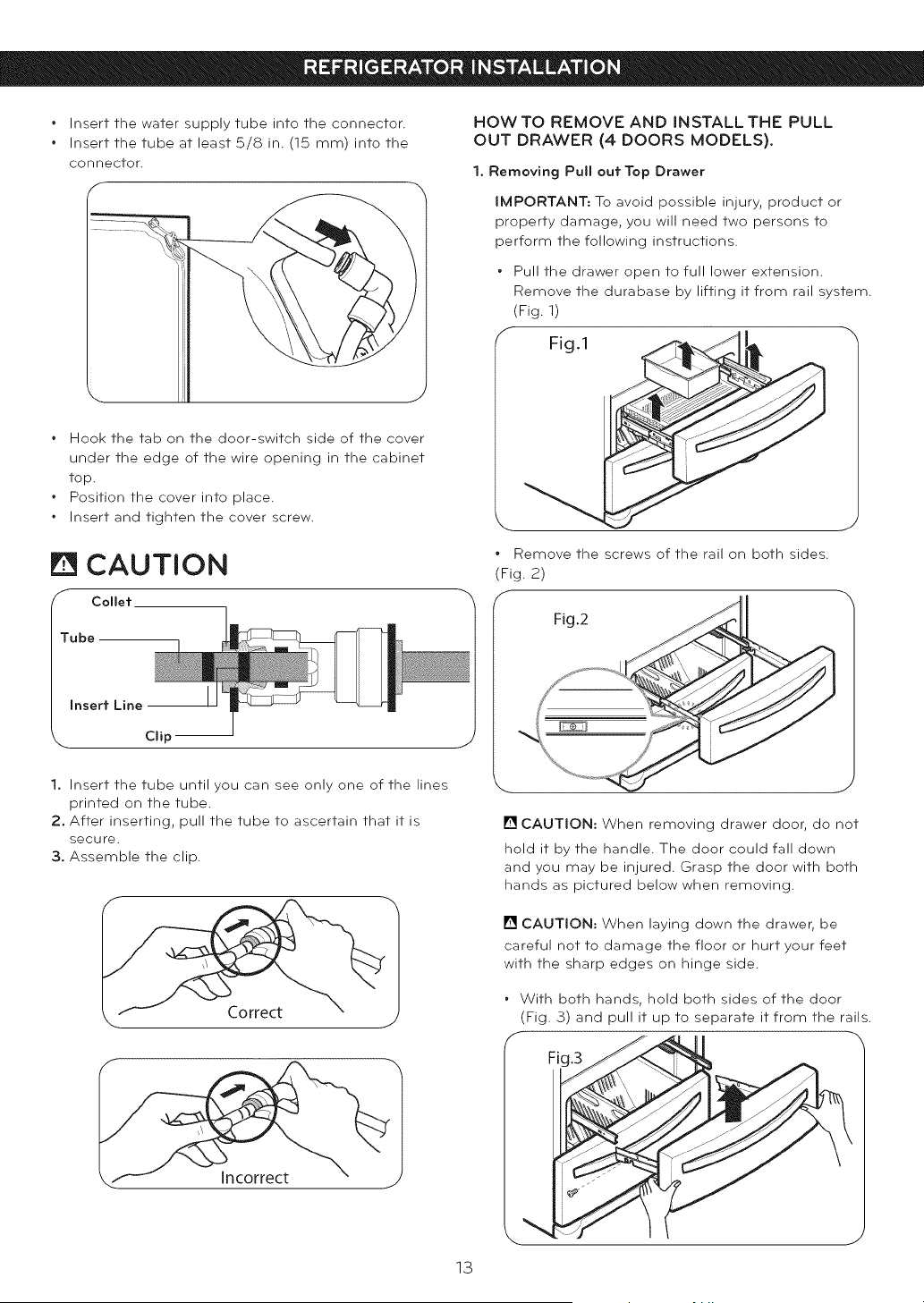

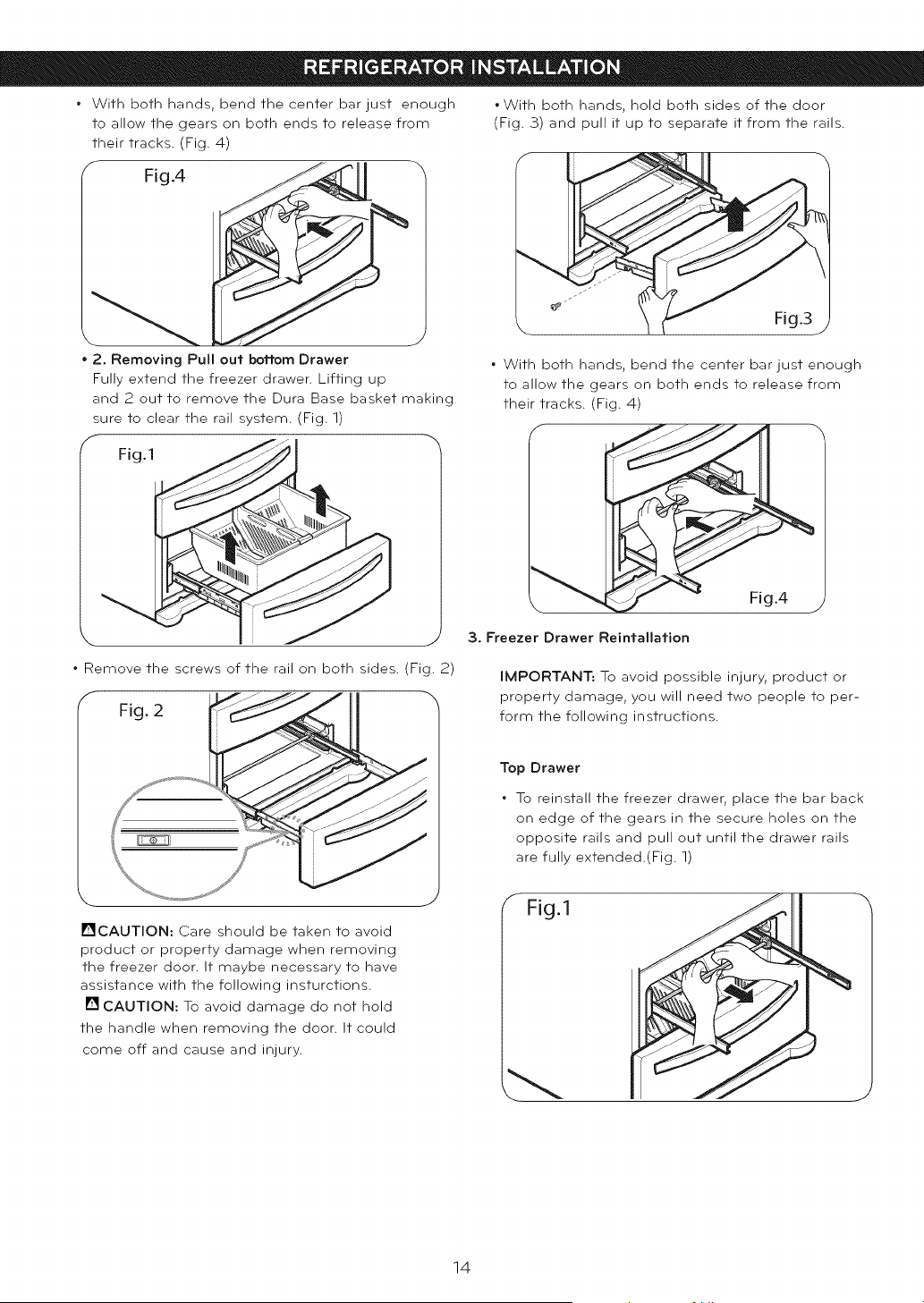

How to remove and Install Pull-Out Drawer 13-17

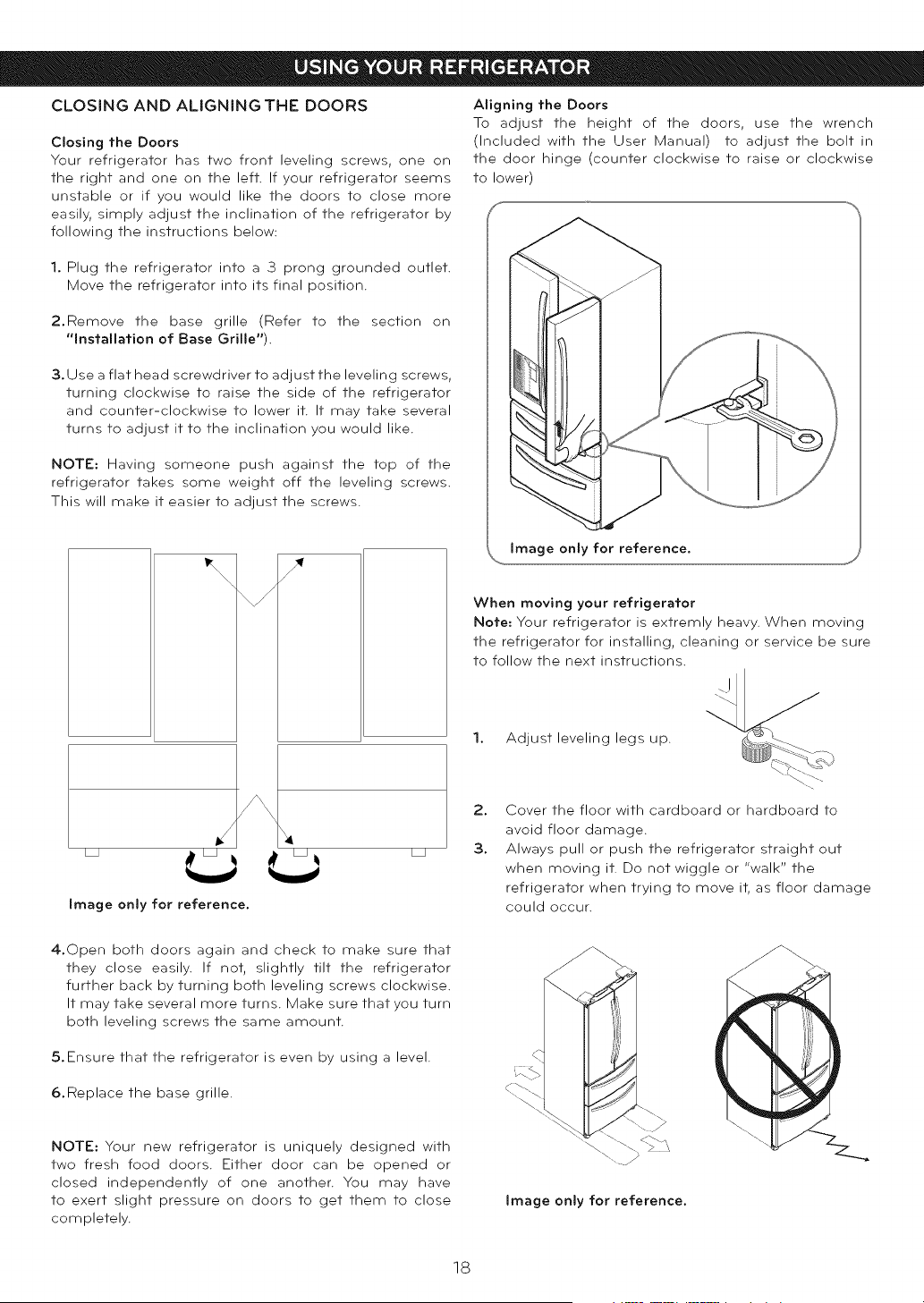

Closing and Aligning the doors 18

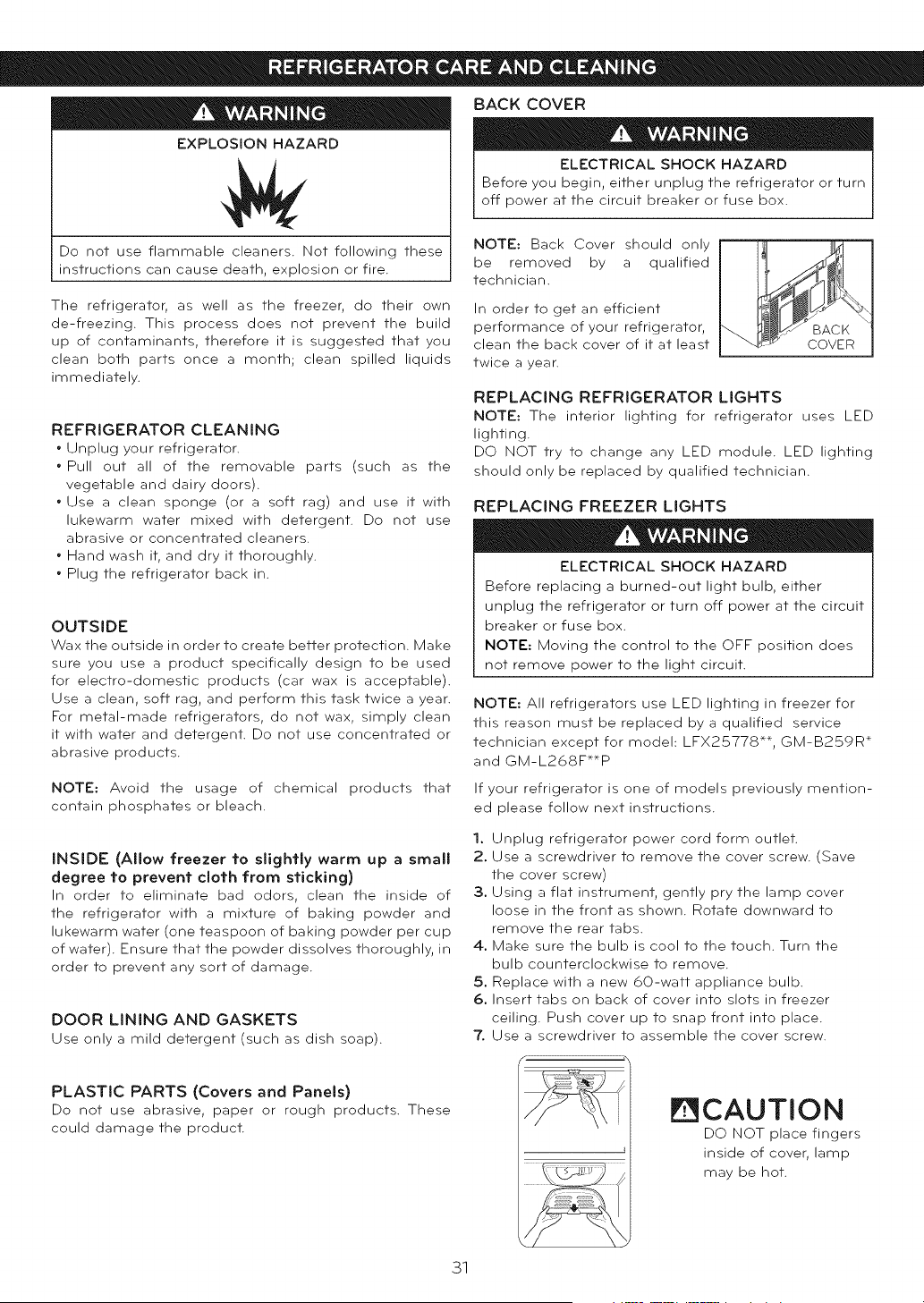

Refrigerator Care and Cleaning 31-39
Refrigerator Cleaning 31
Outside 31
Inside Walls 31
Door Lining & Gaskets 31
Plastic Parts (Covers and Panel) 31
Back Cover 31
Replacing Lights 31

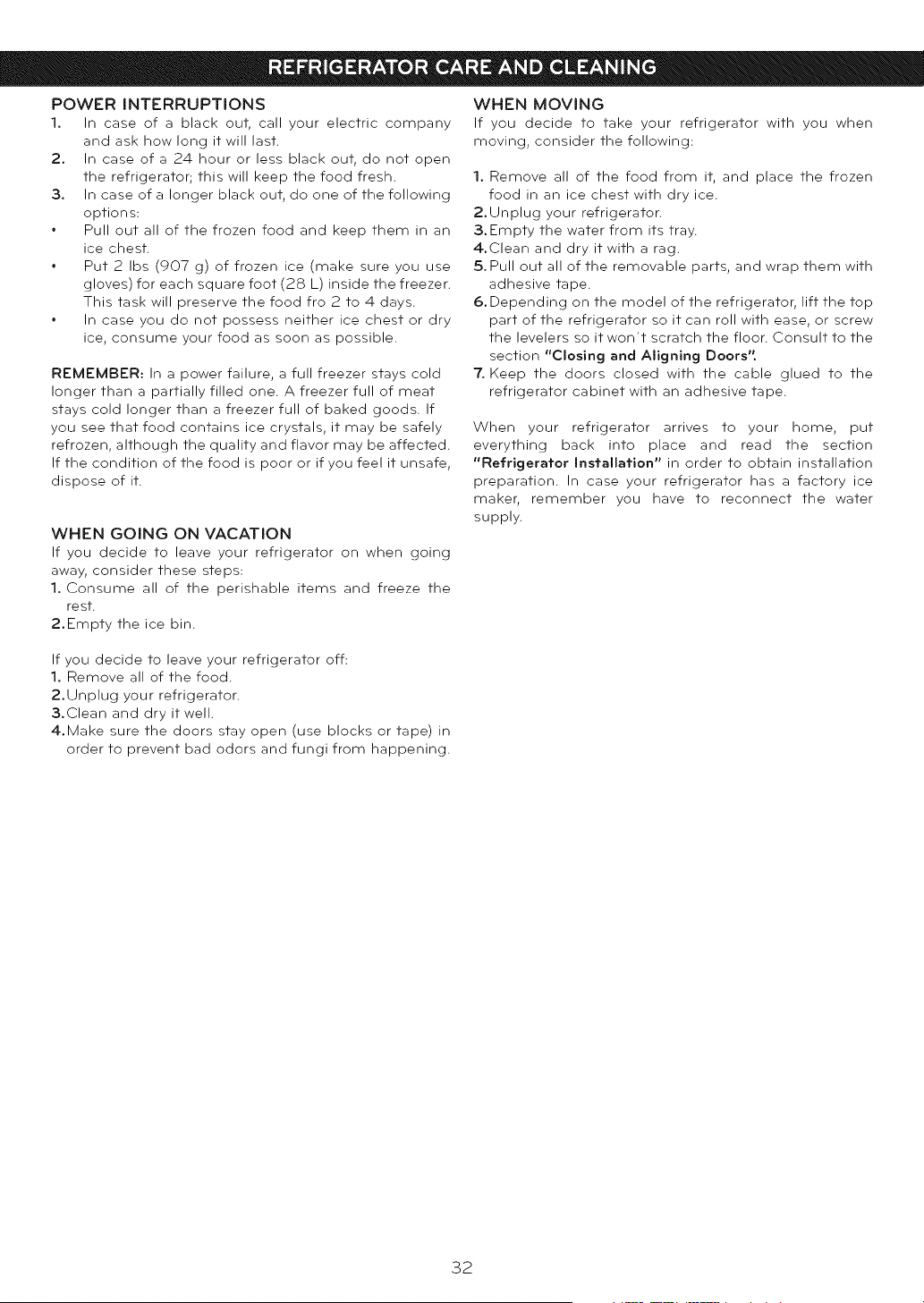

Power Interruptions 32
When Going on Vacation 32
When Moving 32

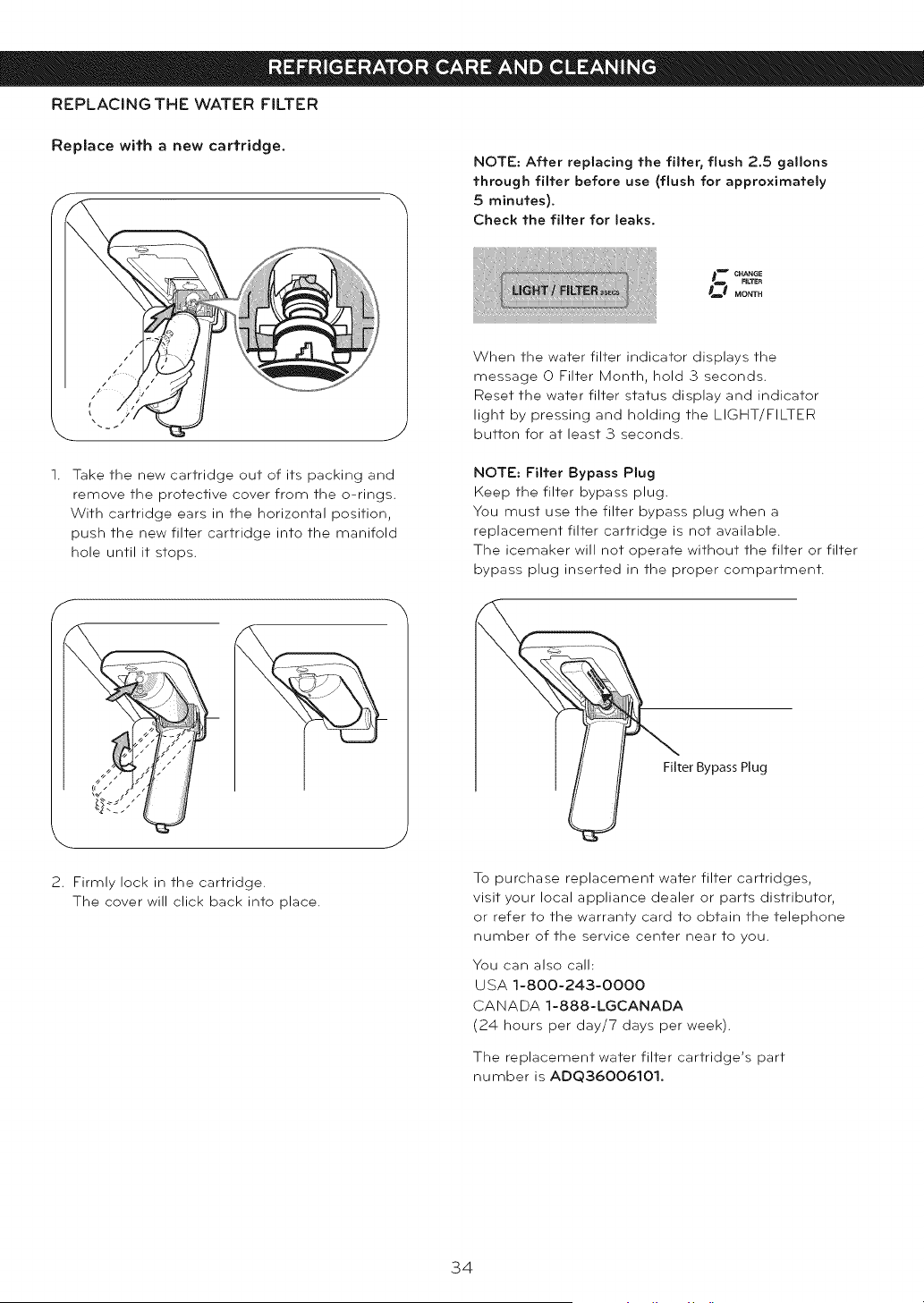

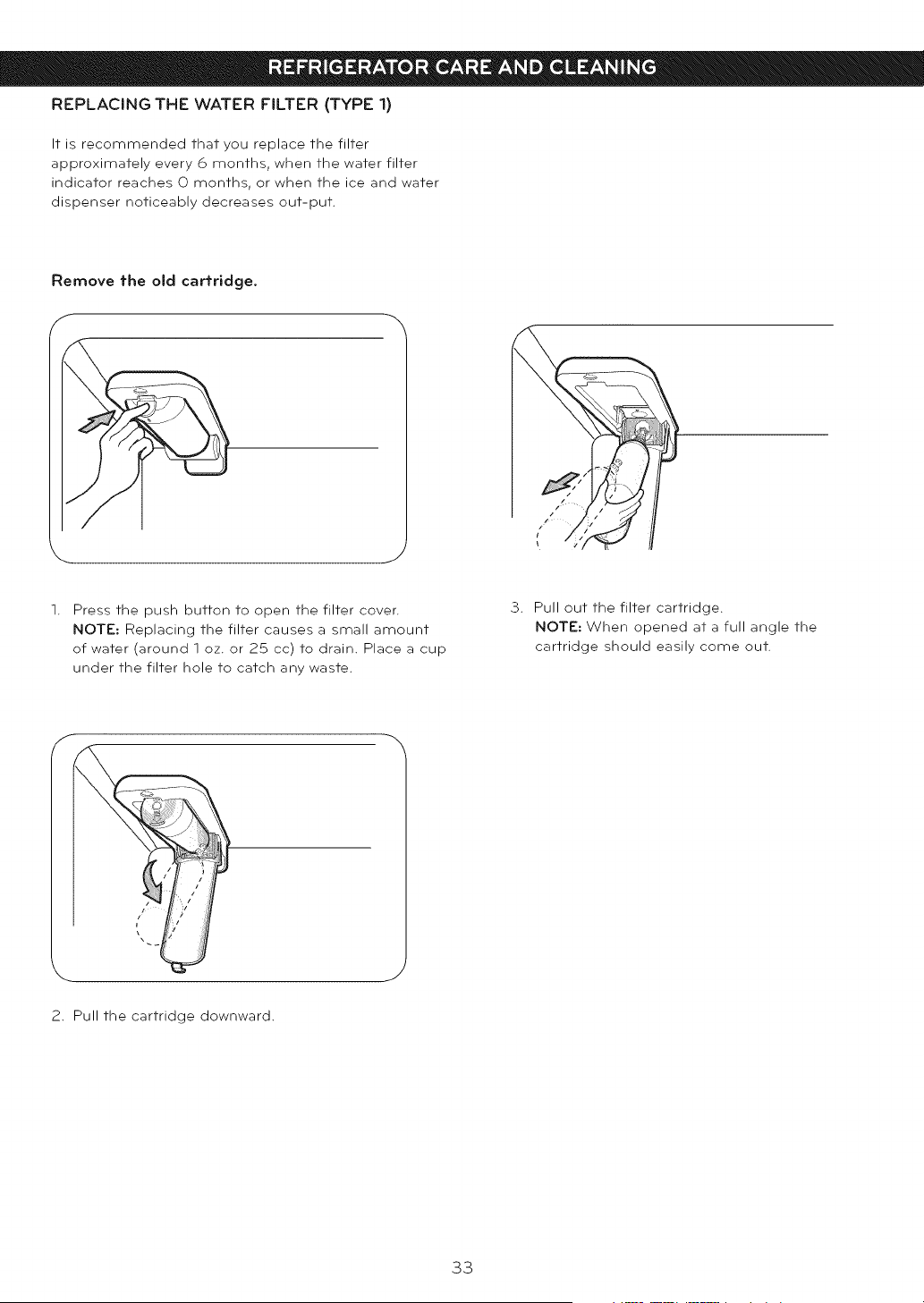

Water Filter (Type 1) 33-34

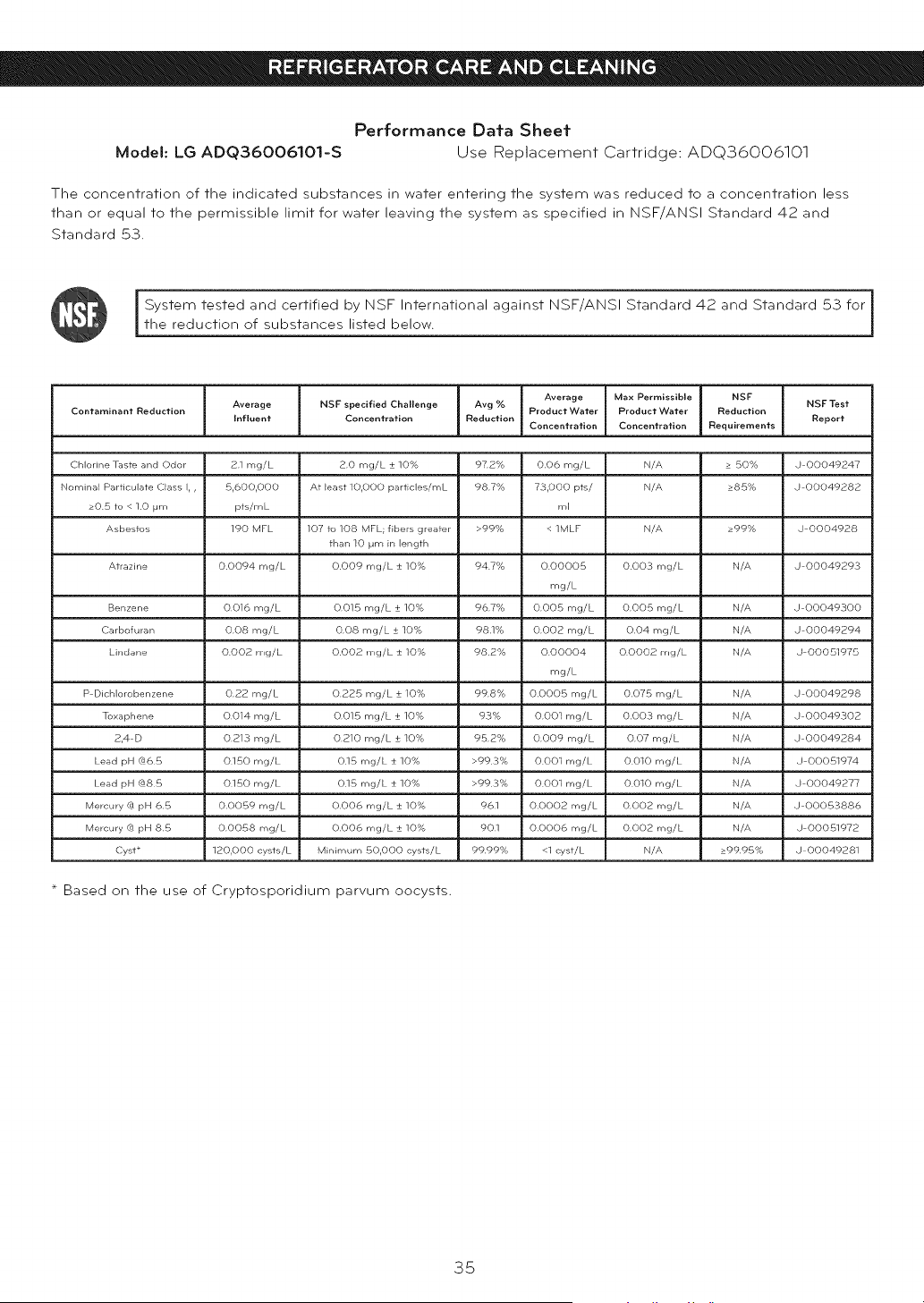

Performance Data Sheet (Type 1) 35

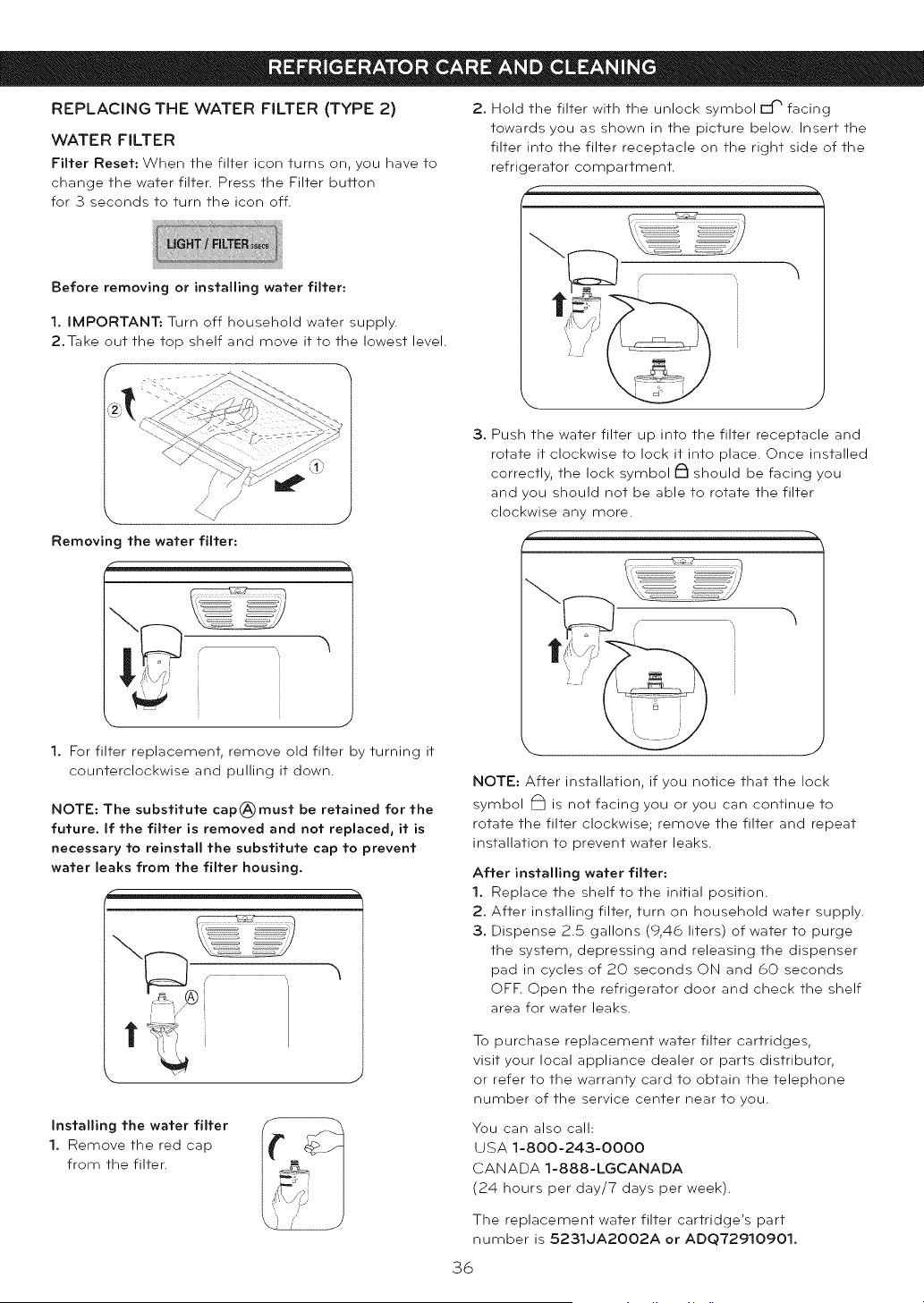

Water Filter (Type 2) 36

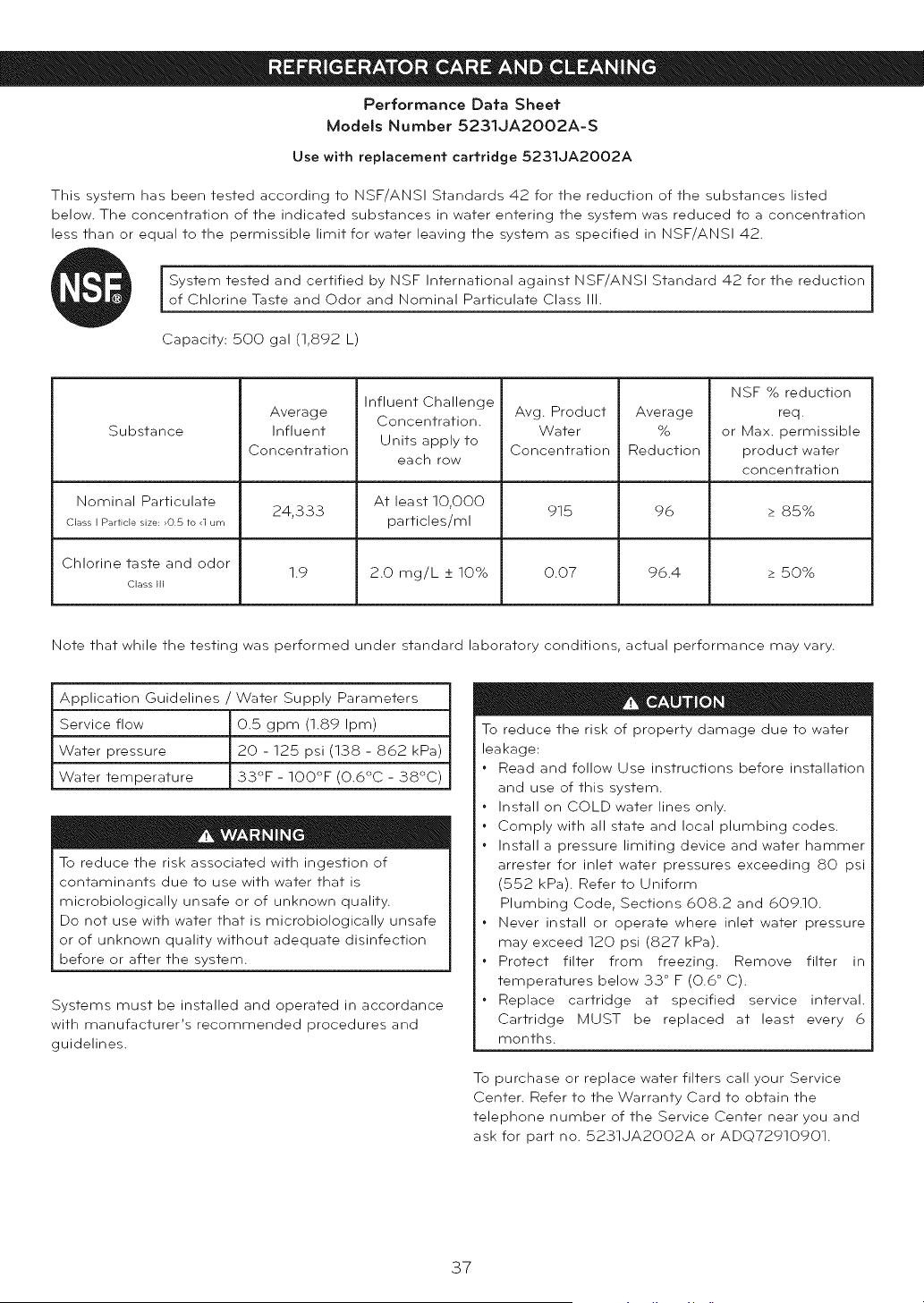

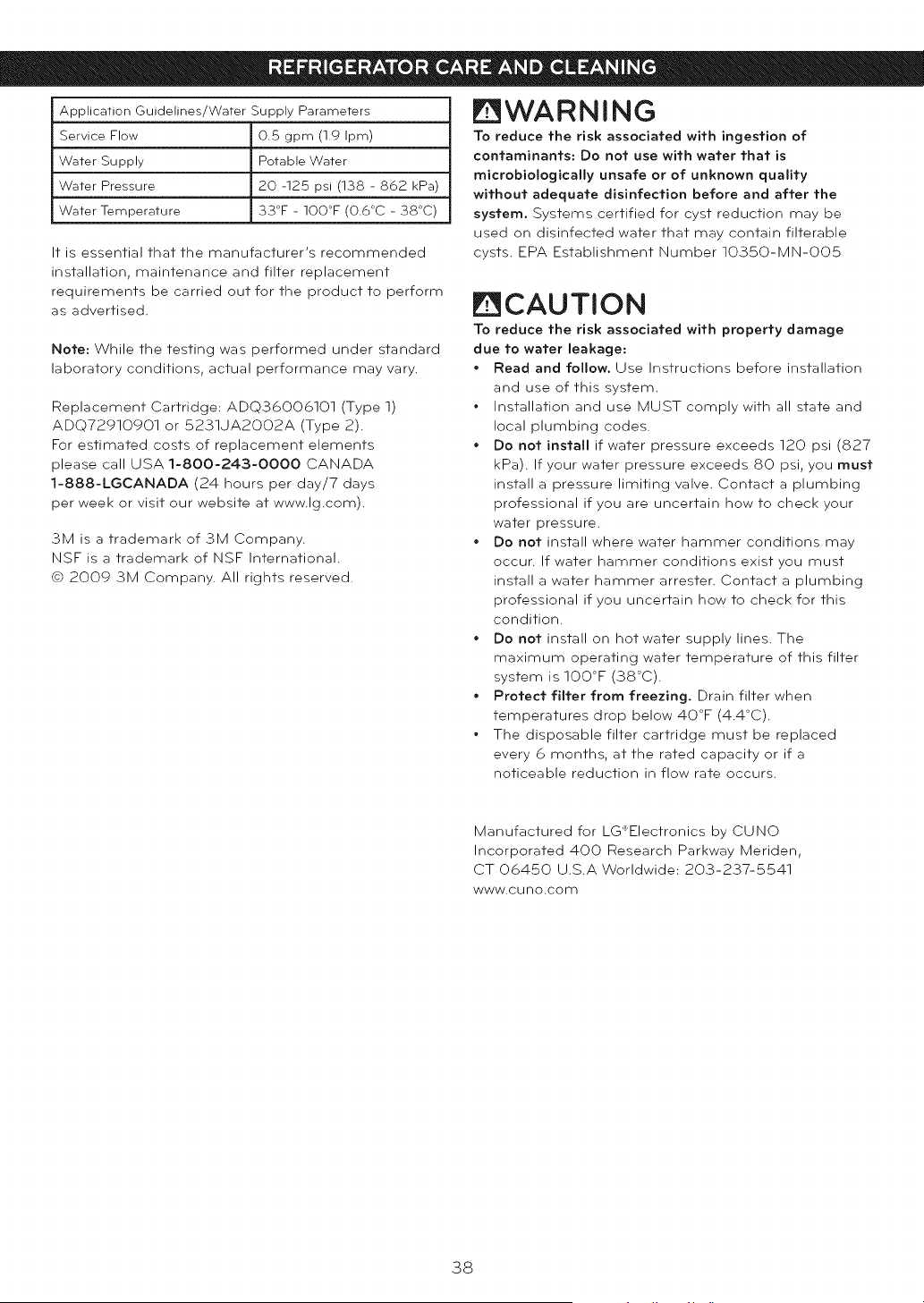

Performance Data Sheet (Type 2) 37-38
Certificate for California 39
Using your Refrigerator 19-30

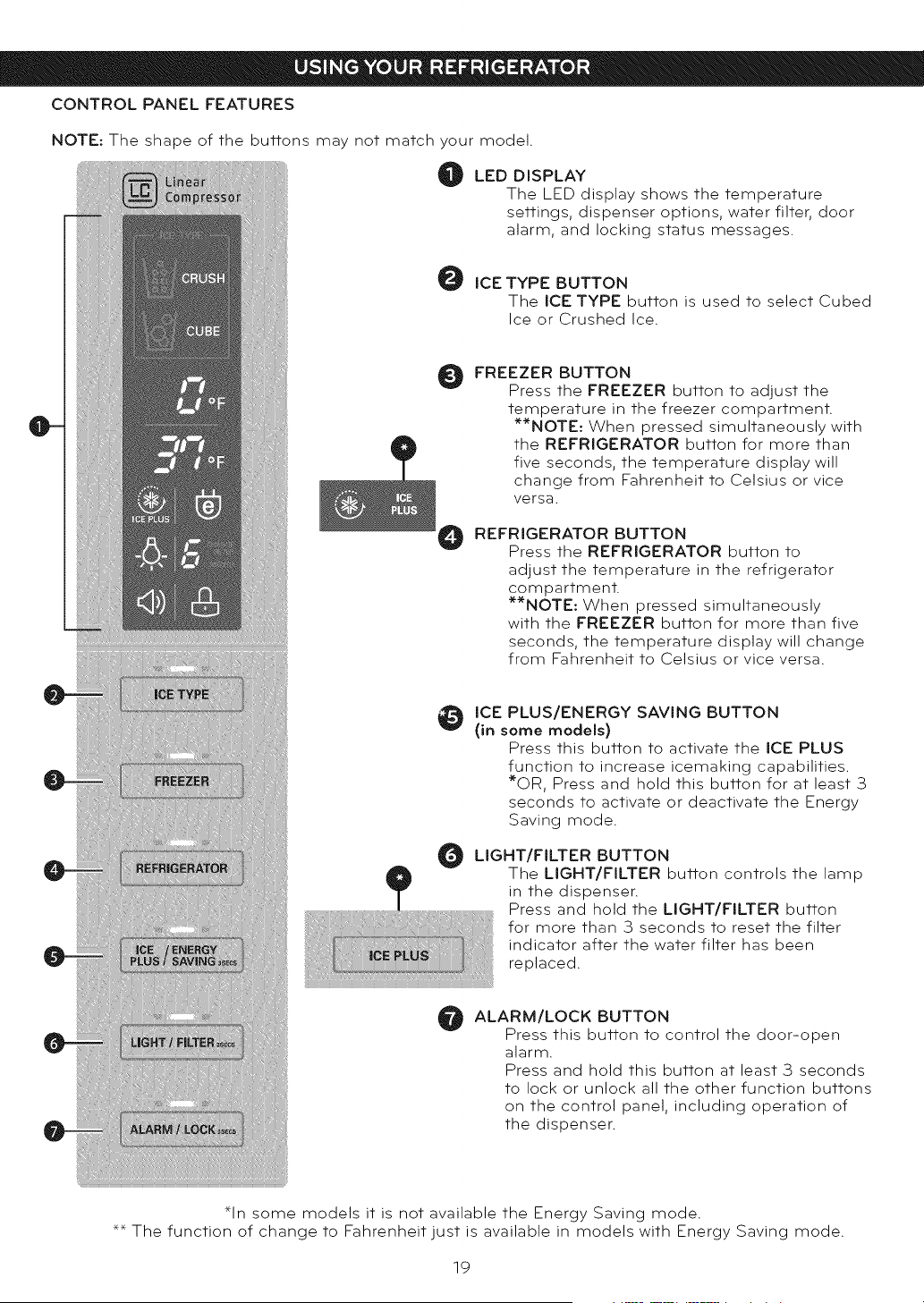

Control Panel Features 19

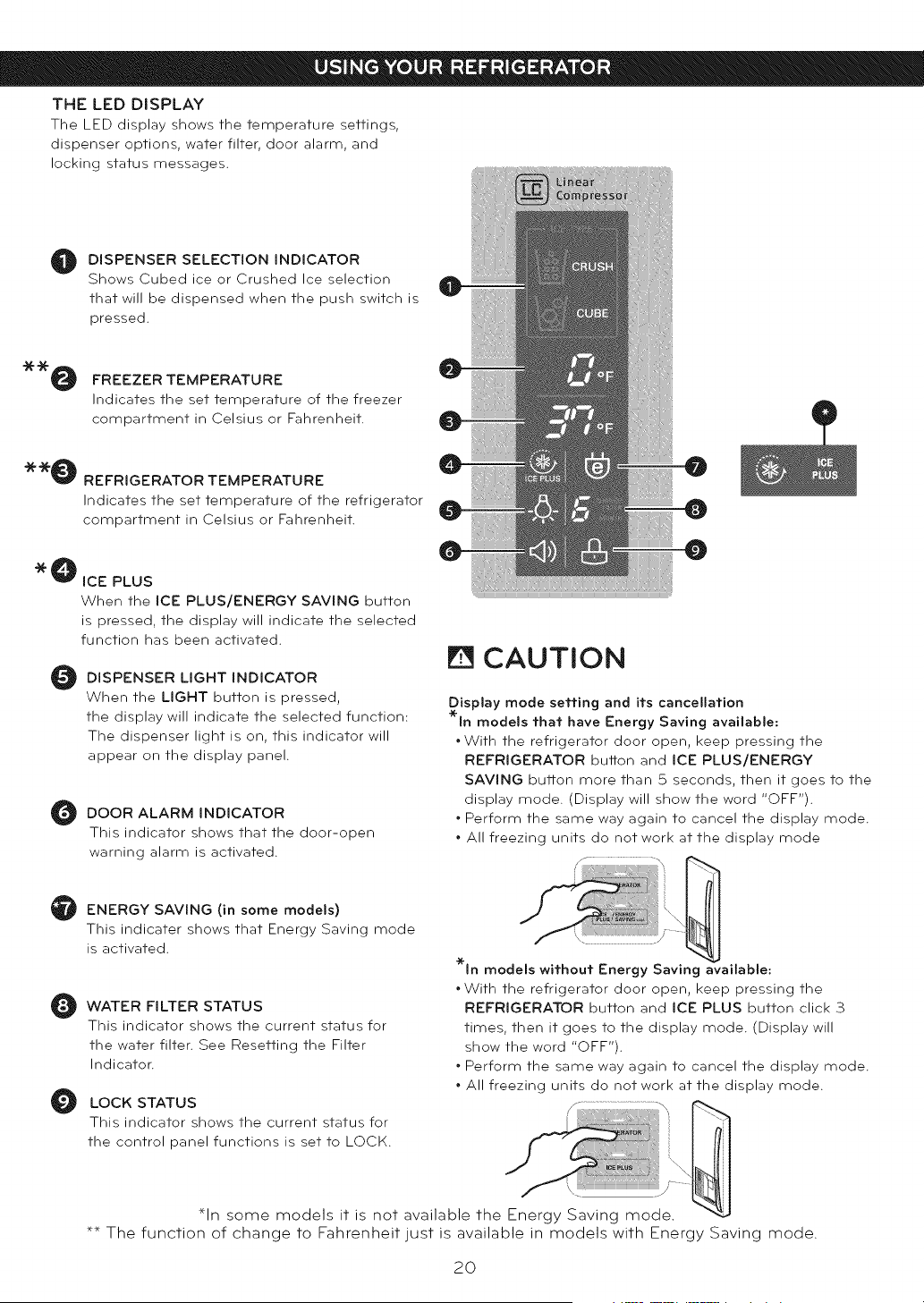

The LED Display 20

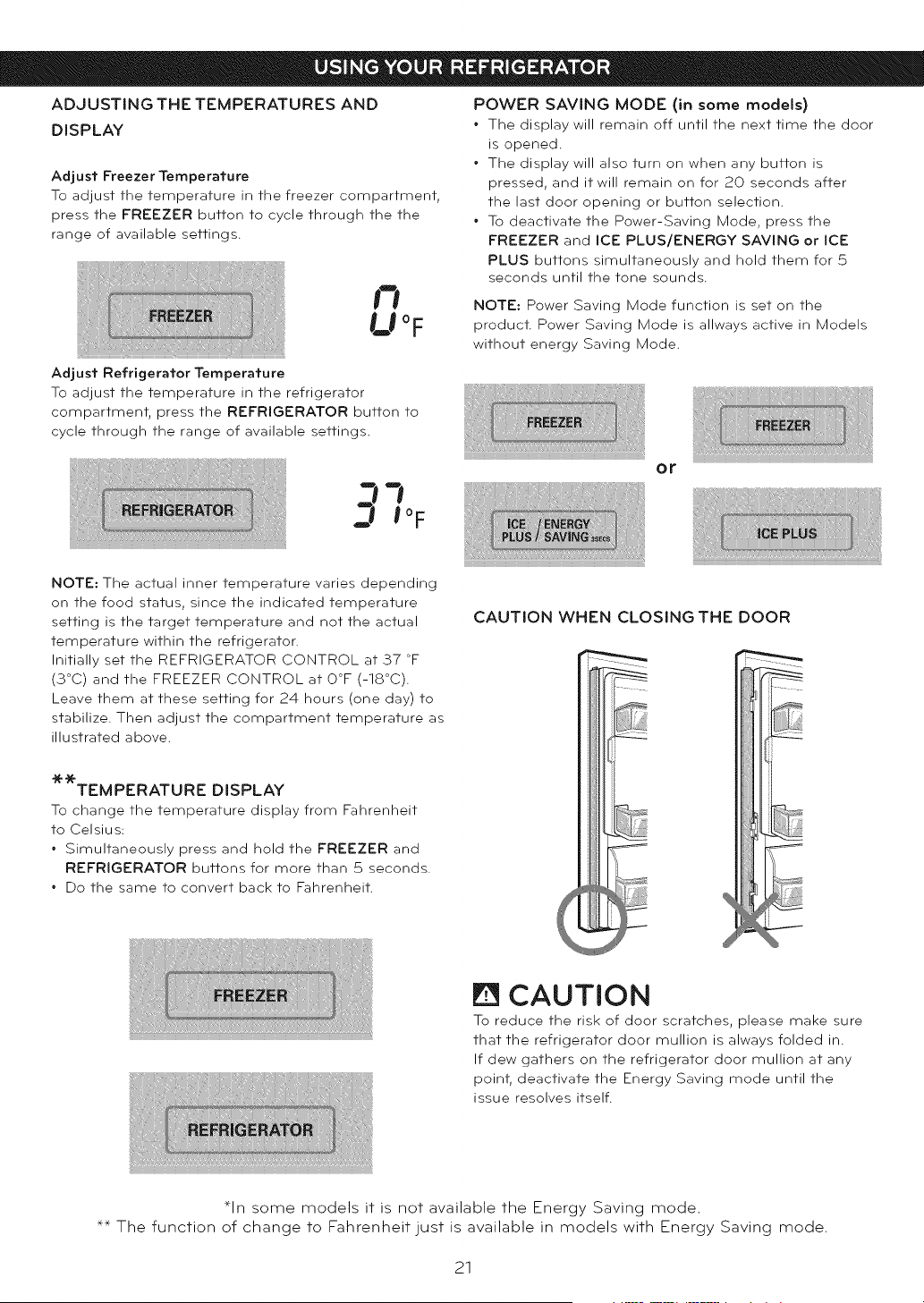

Adjusting the temperatures and display 21

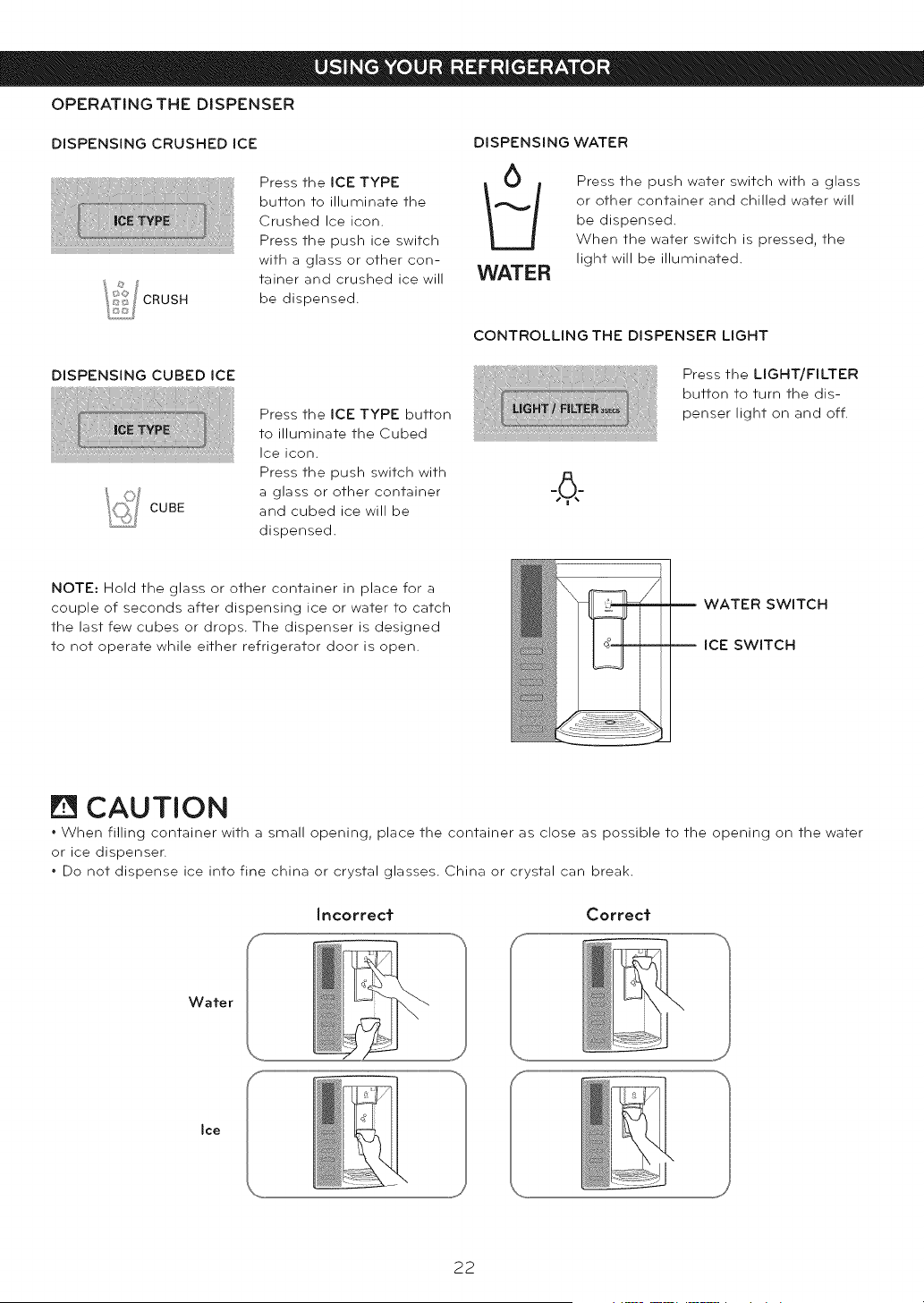

Operating the dispenser 22

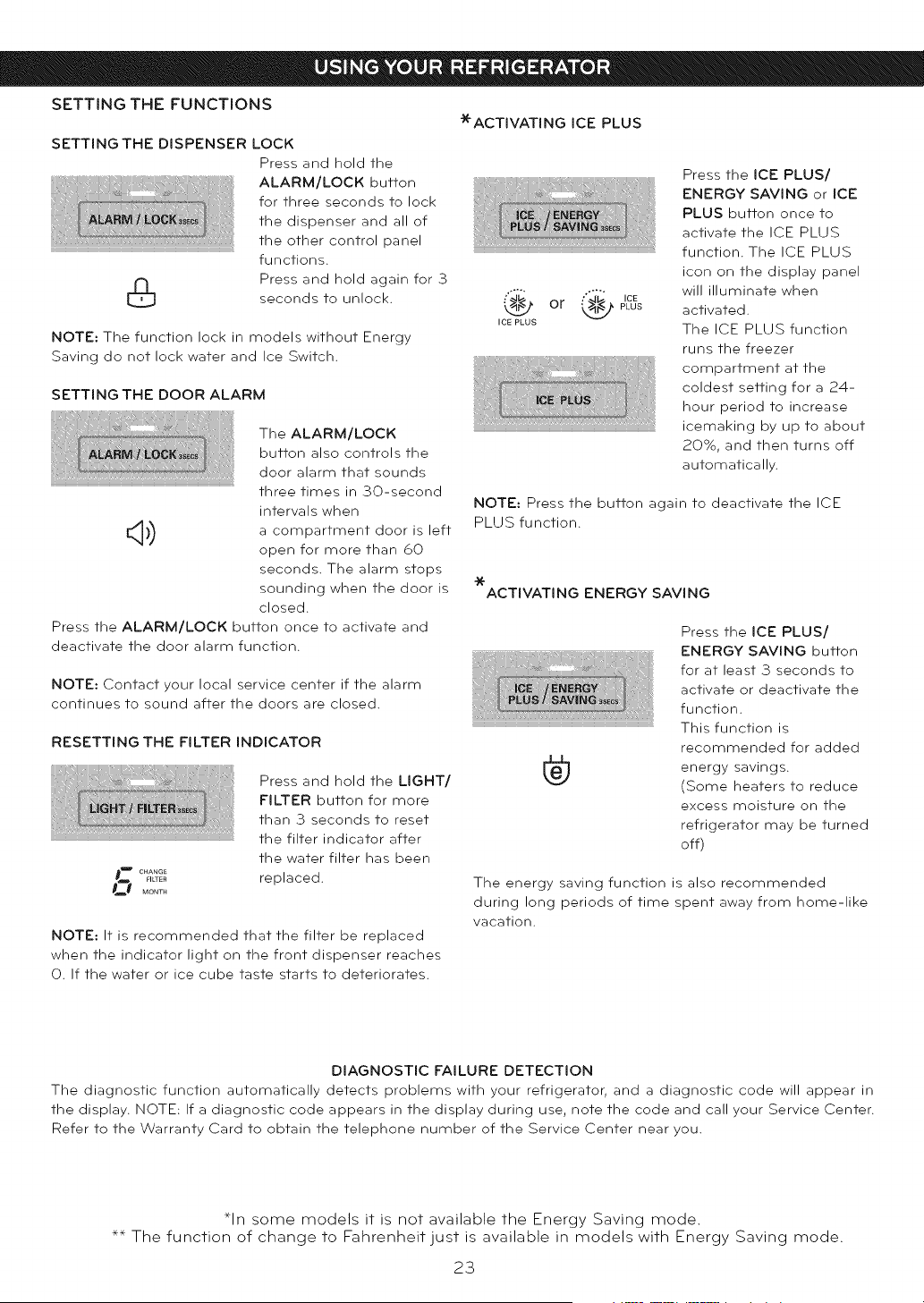

Setting the functions 23

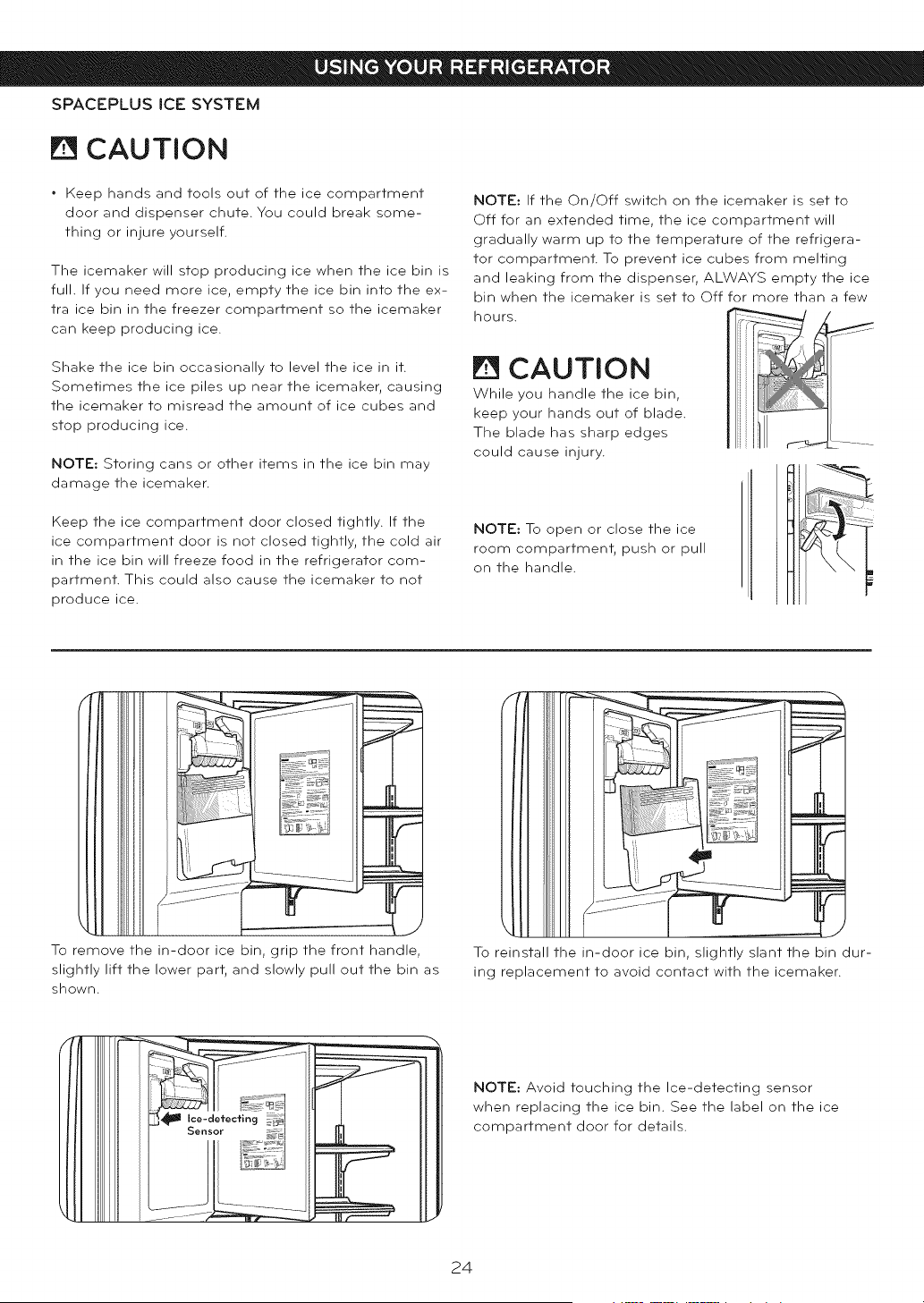

Spaceplus Ice System 24

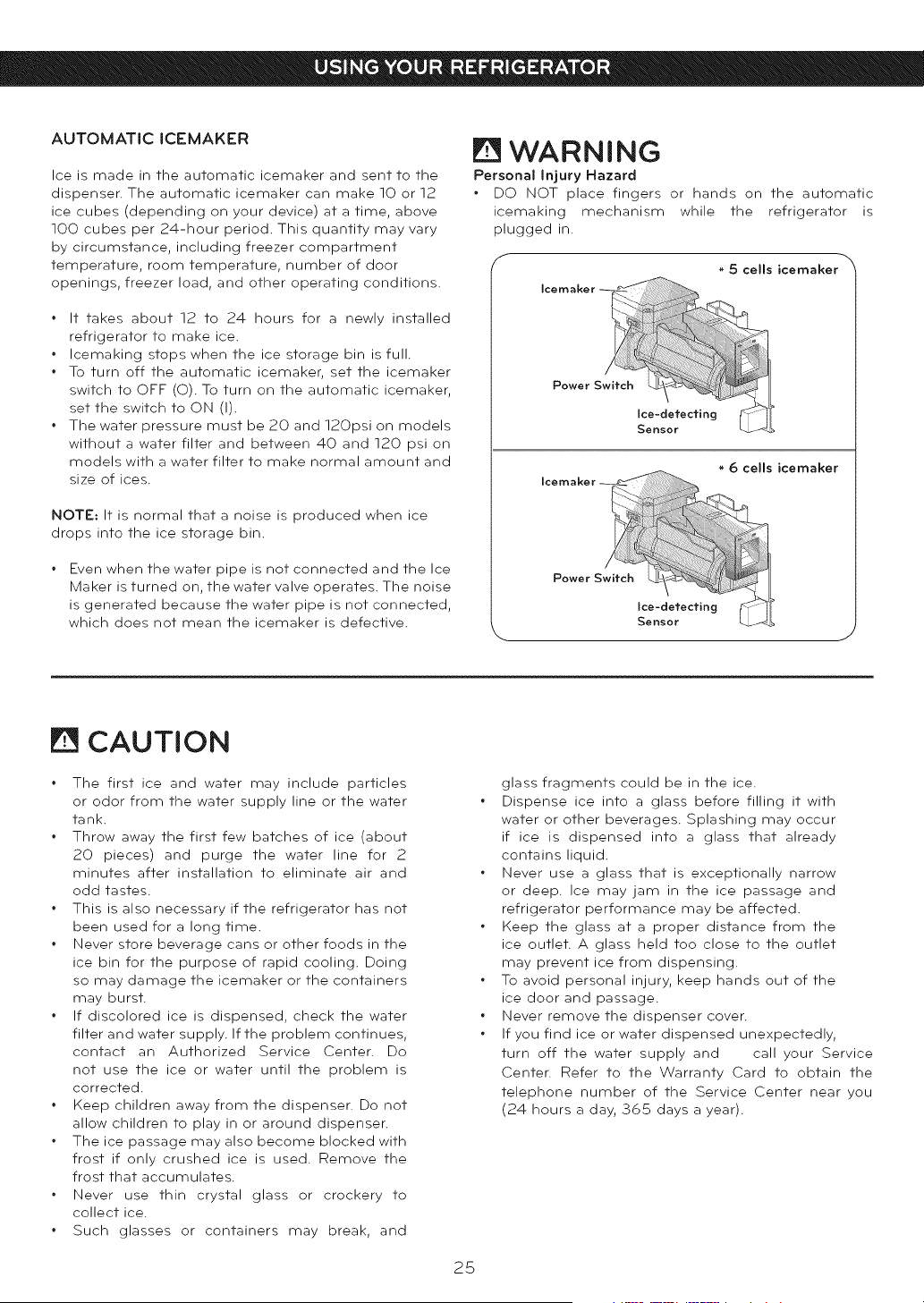

Automatic Icemaker 25

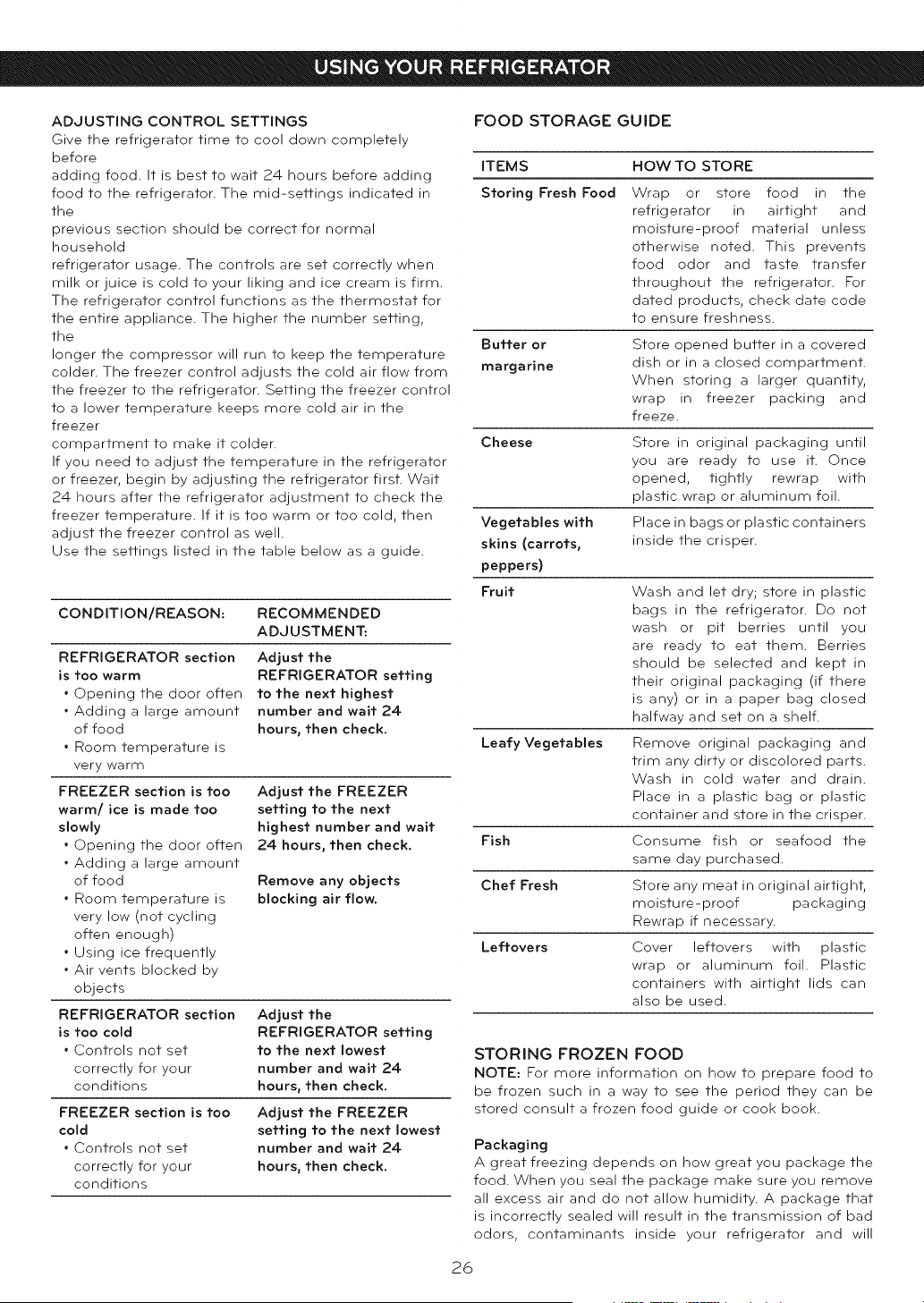

Adjusting Control Settings 26
Food Storage Guide 26
Storing Frozen Food 26-27
Refrigerator Section 27-29

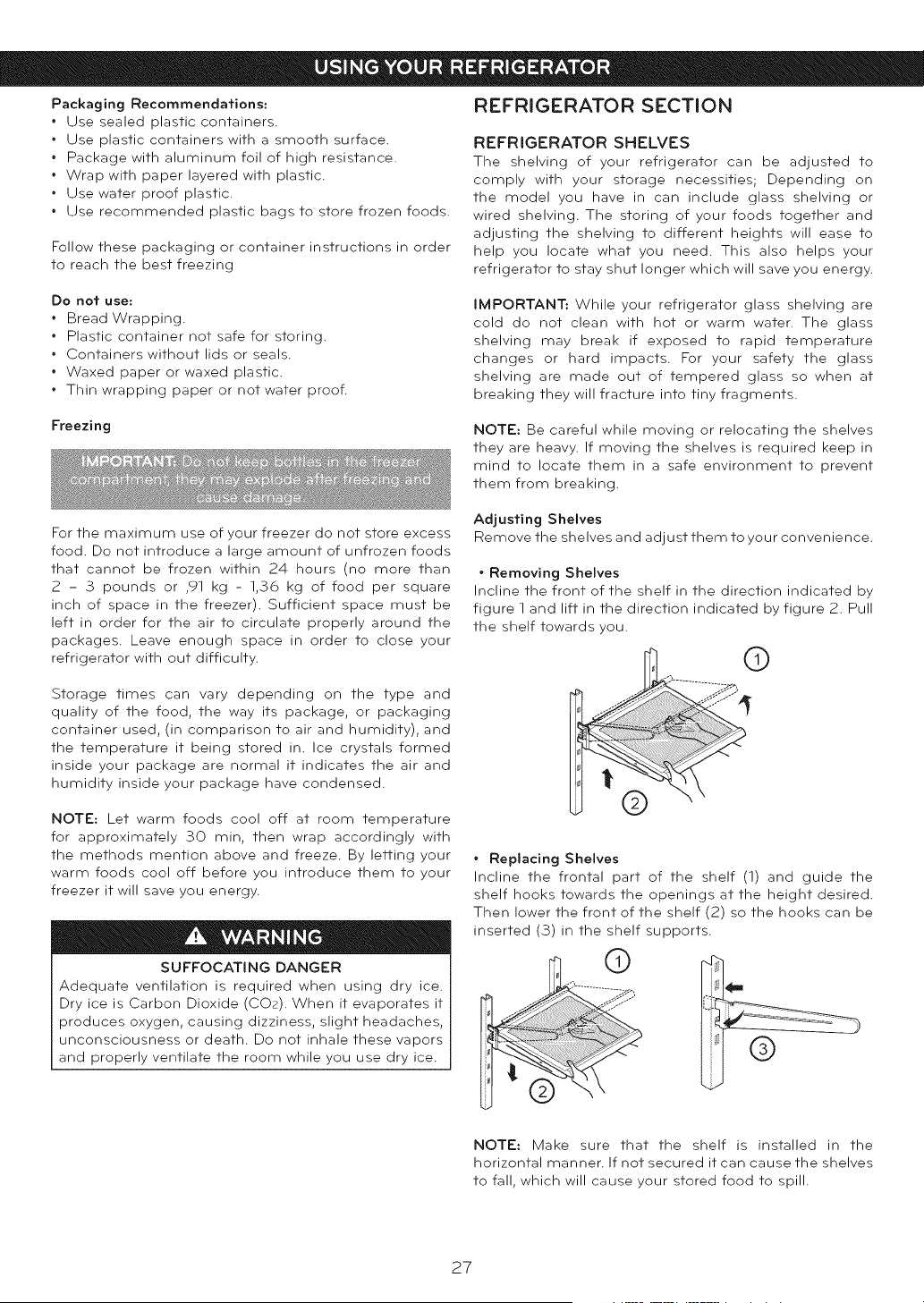

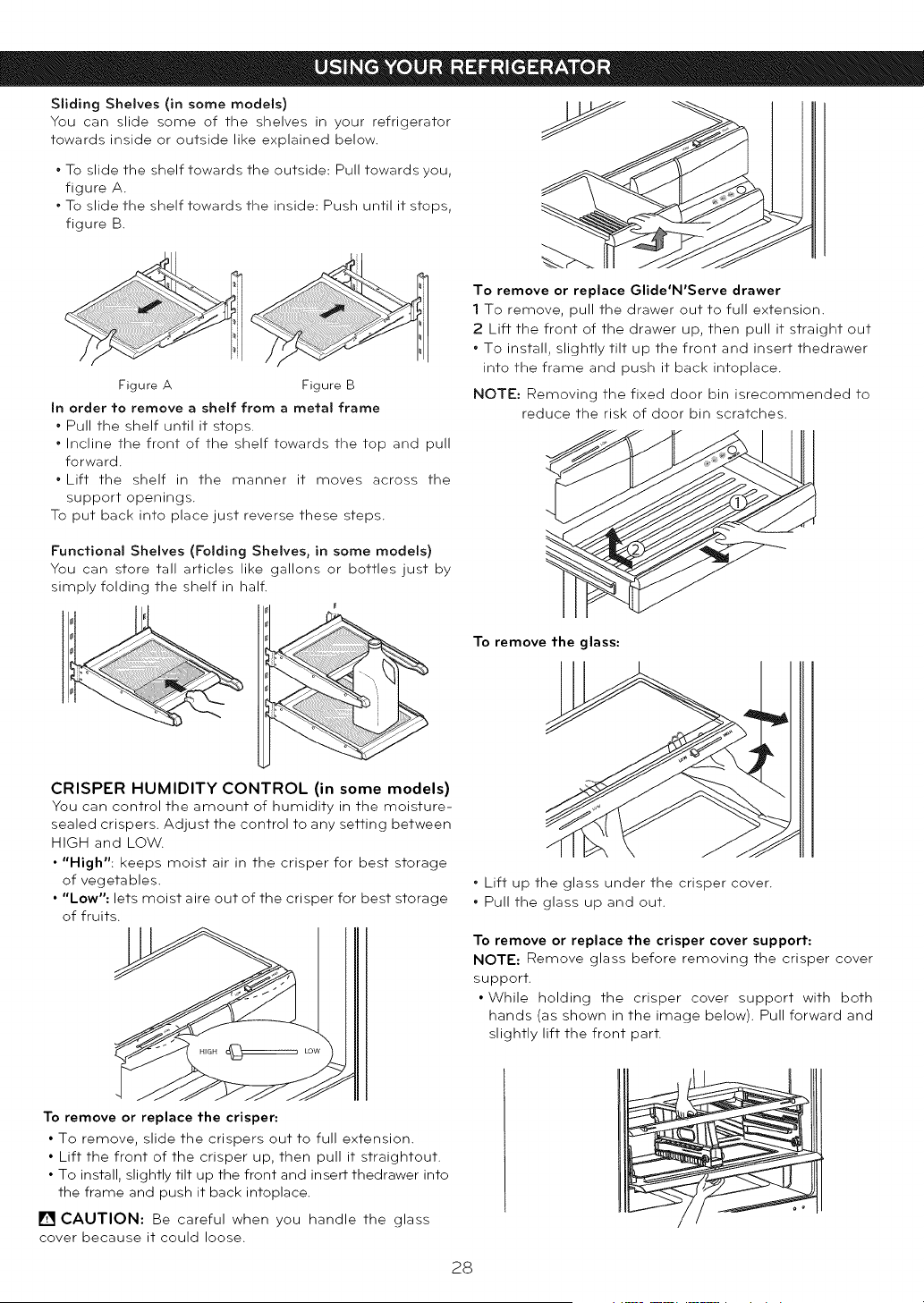

Refrigerator Shelves 27-28
Crisper Humidity Control 28
Door Racks 29
Dairy Compartment 29
Dispenser Drip Tray 29

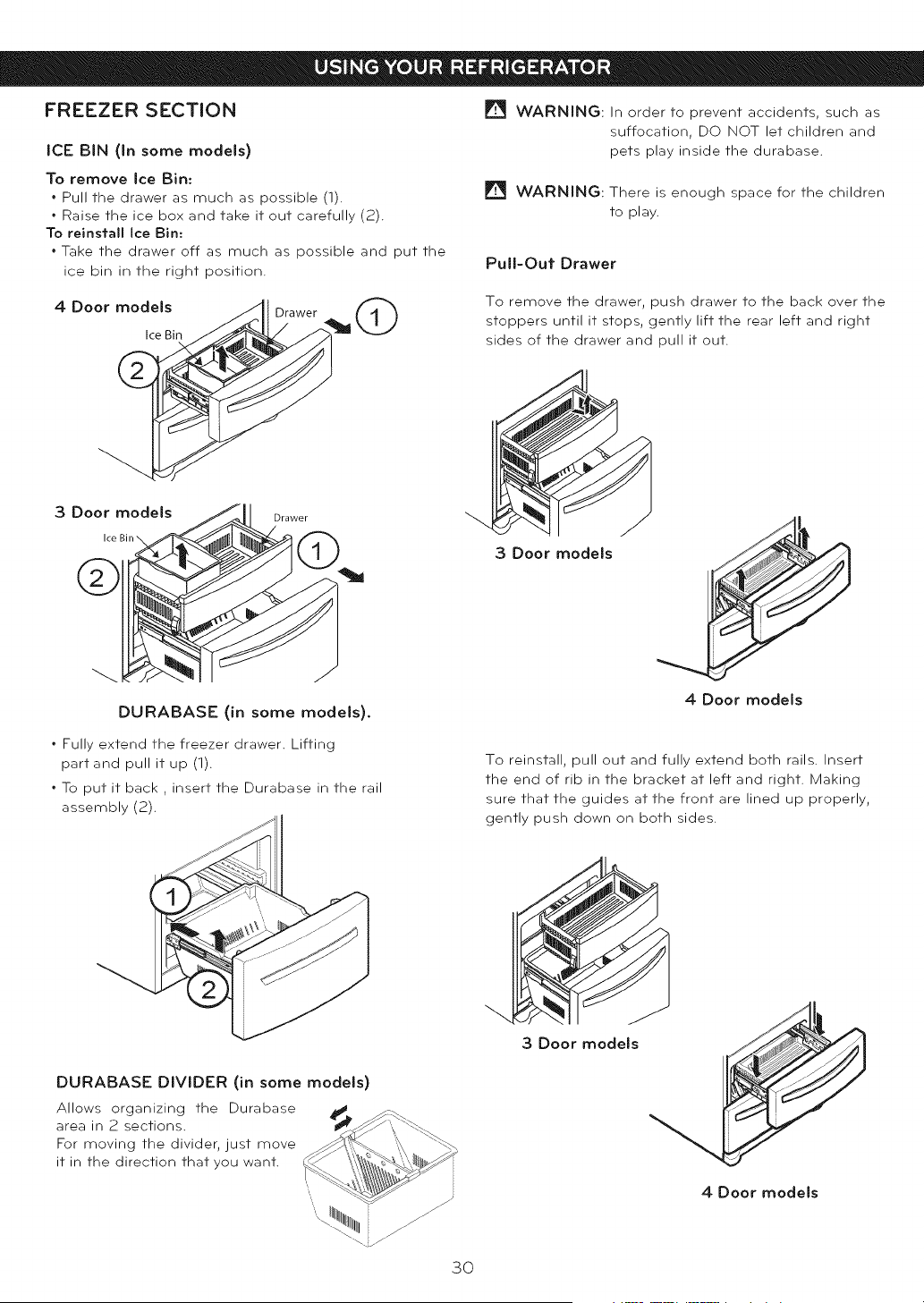

Freezer Section 30
Ice Bin 30
DuraBase 30
Durabase Divider 30
Pull Out Drawer 30

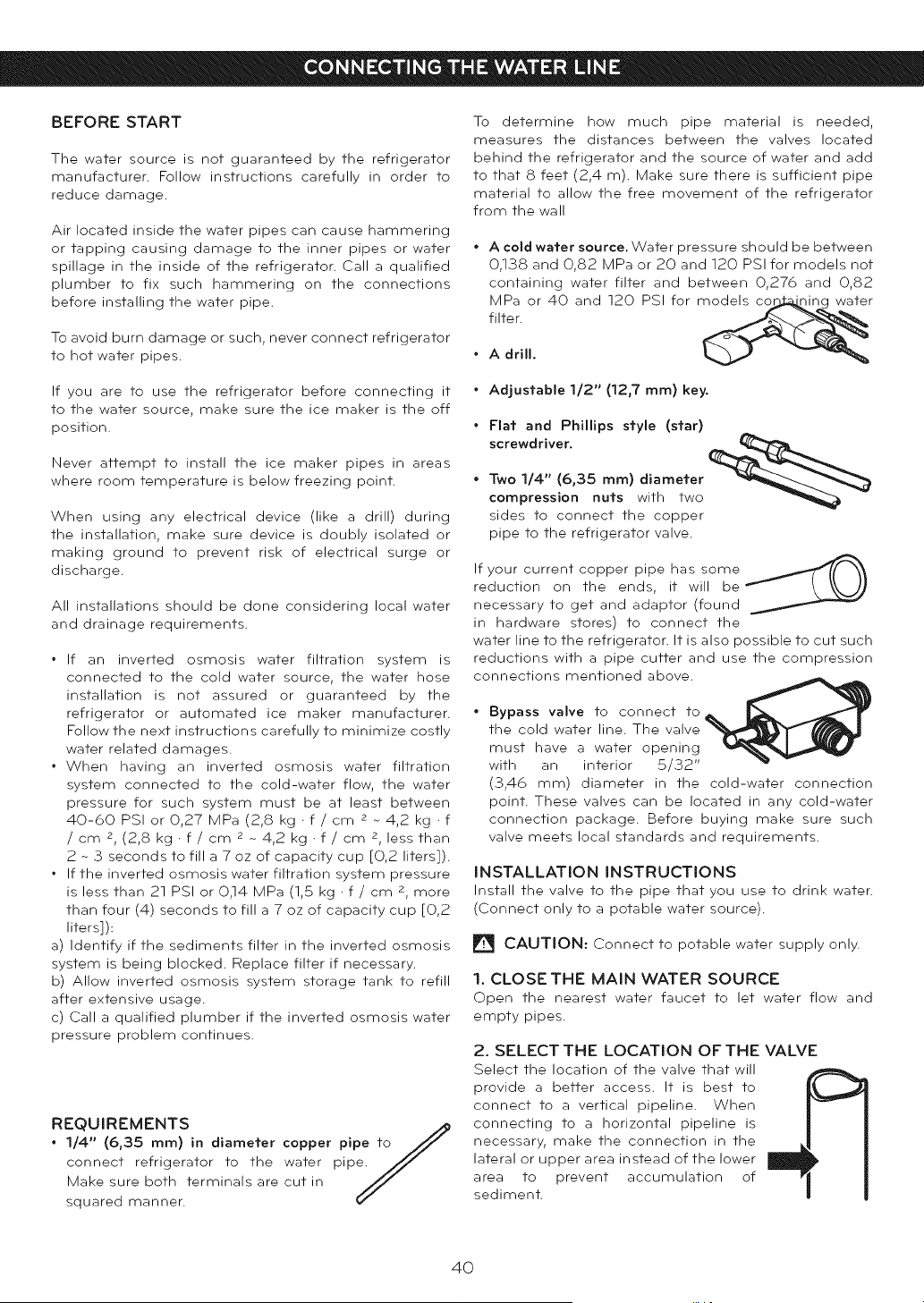

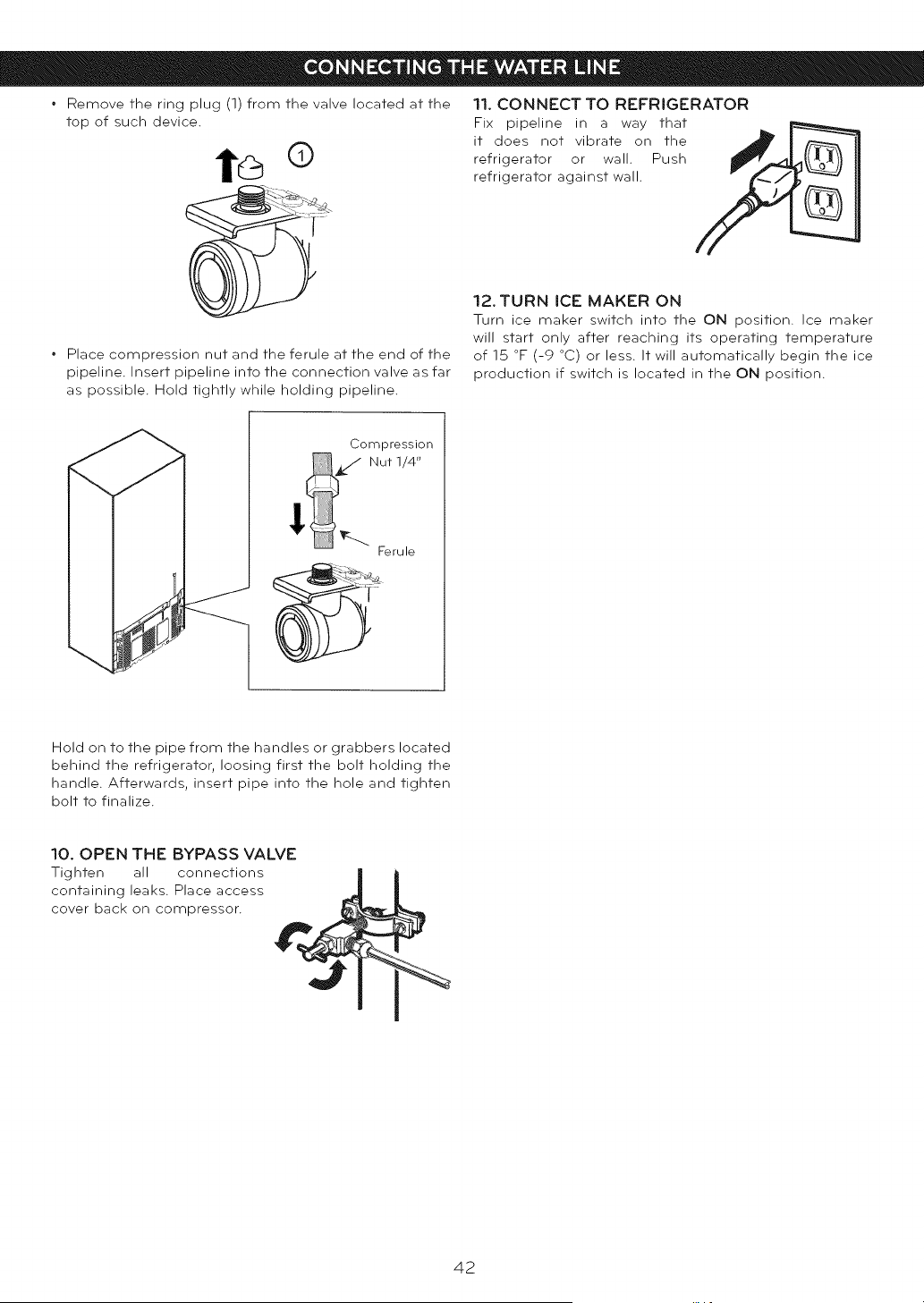

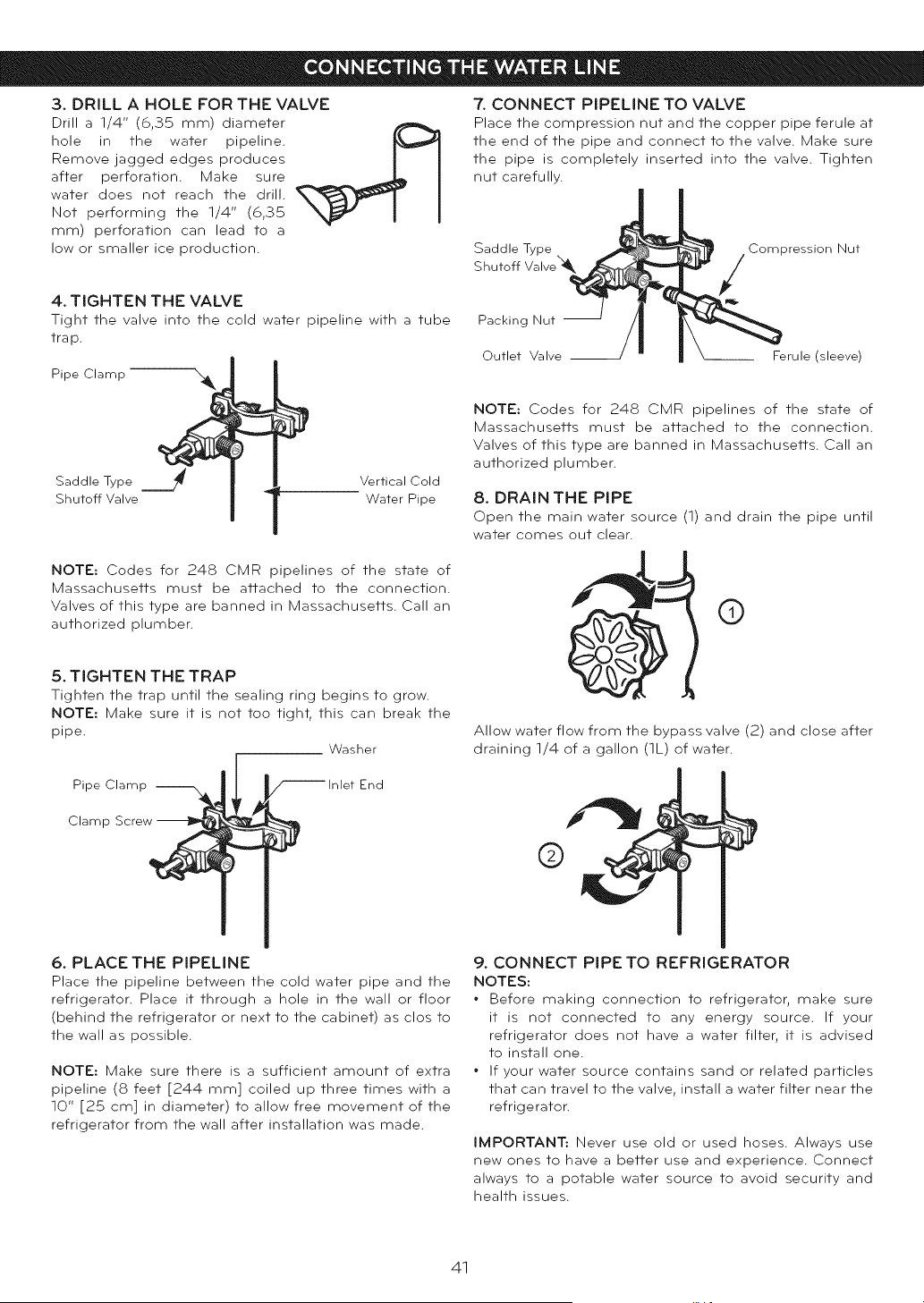

Connecting The Water Line 40-42

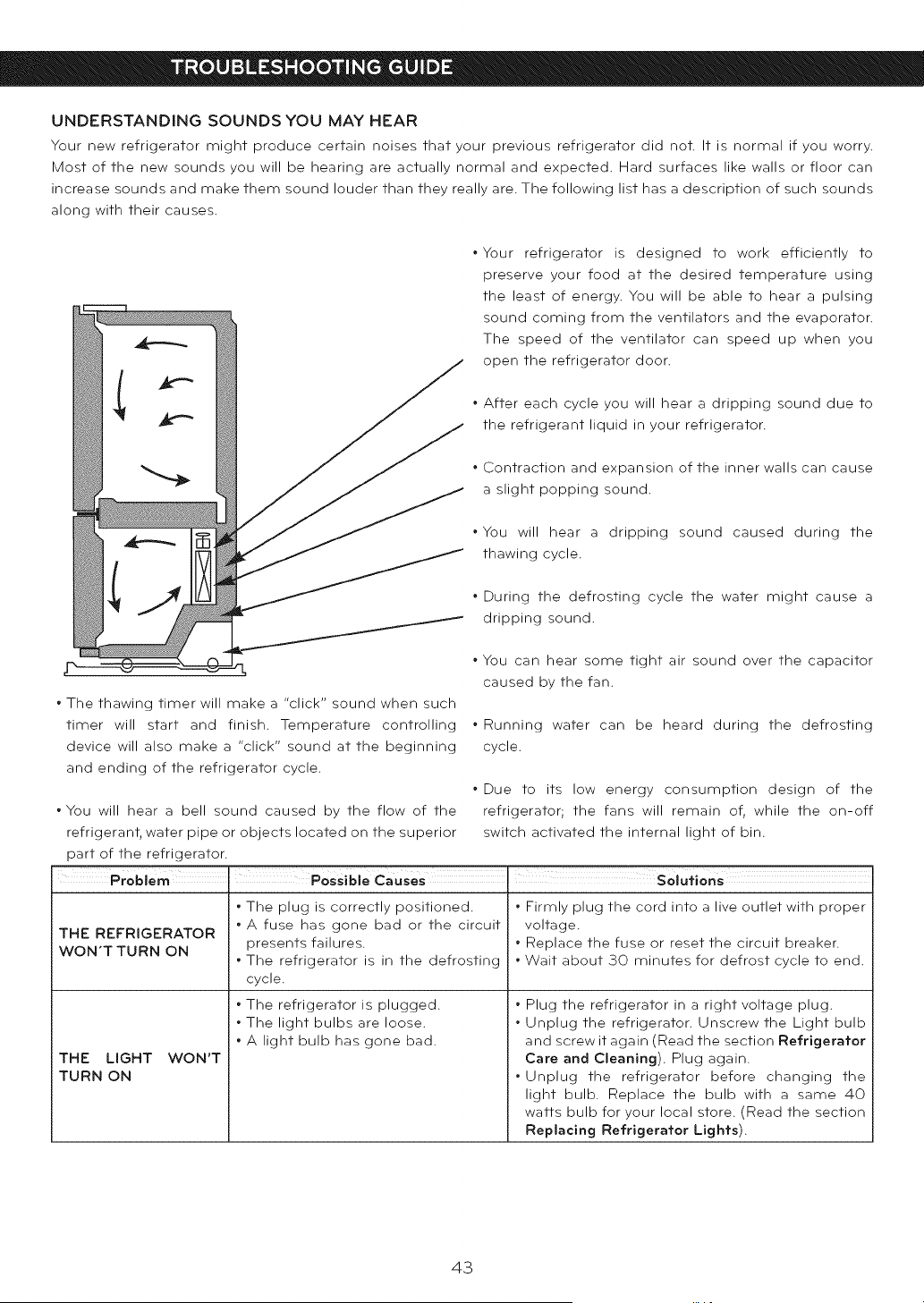

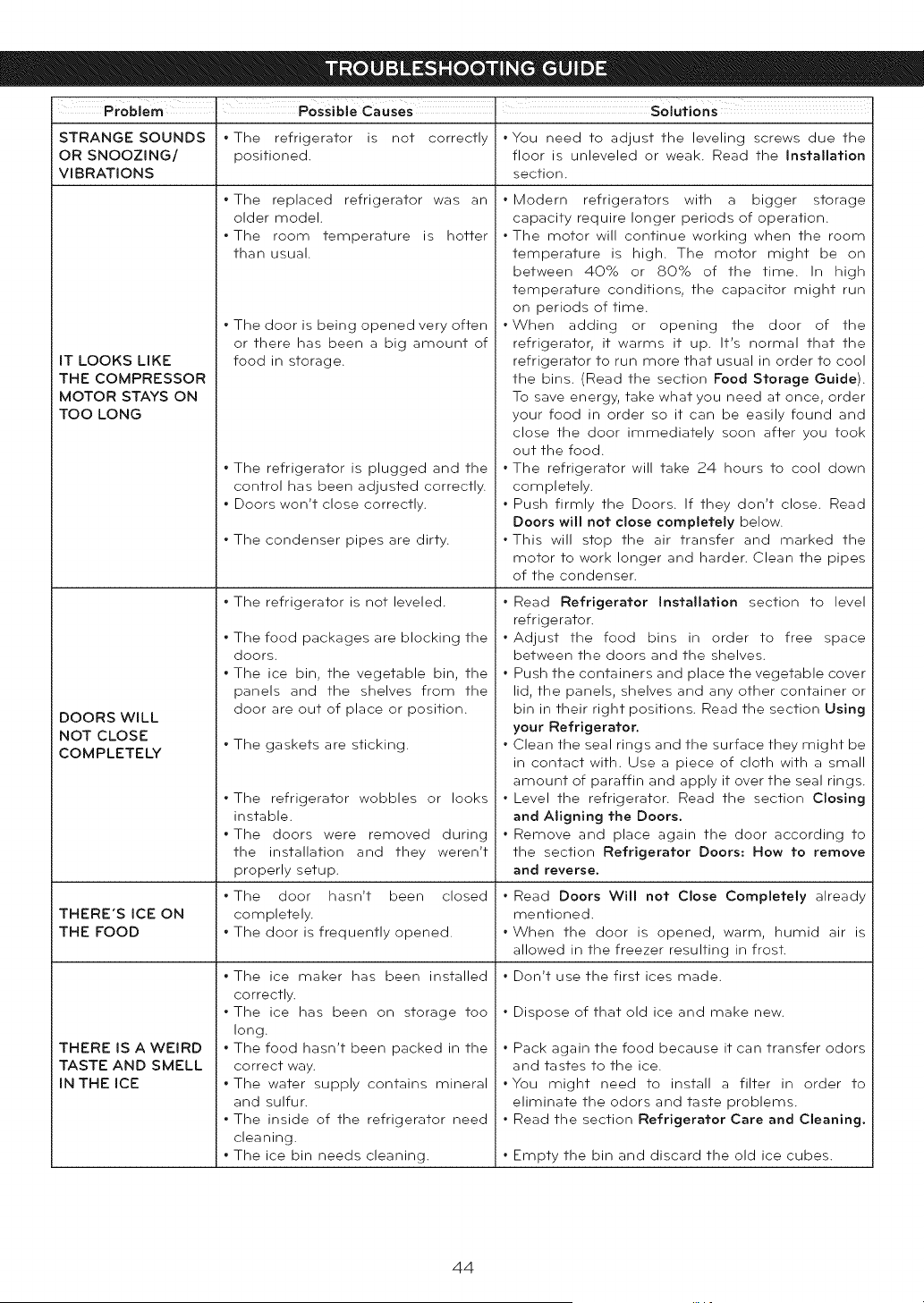

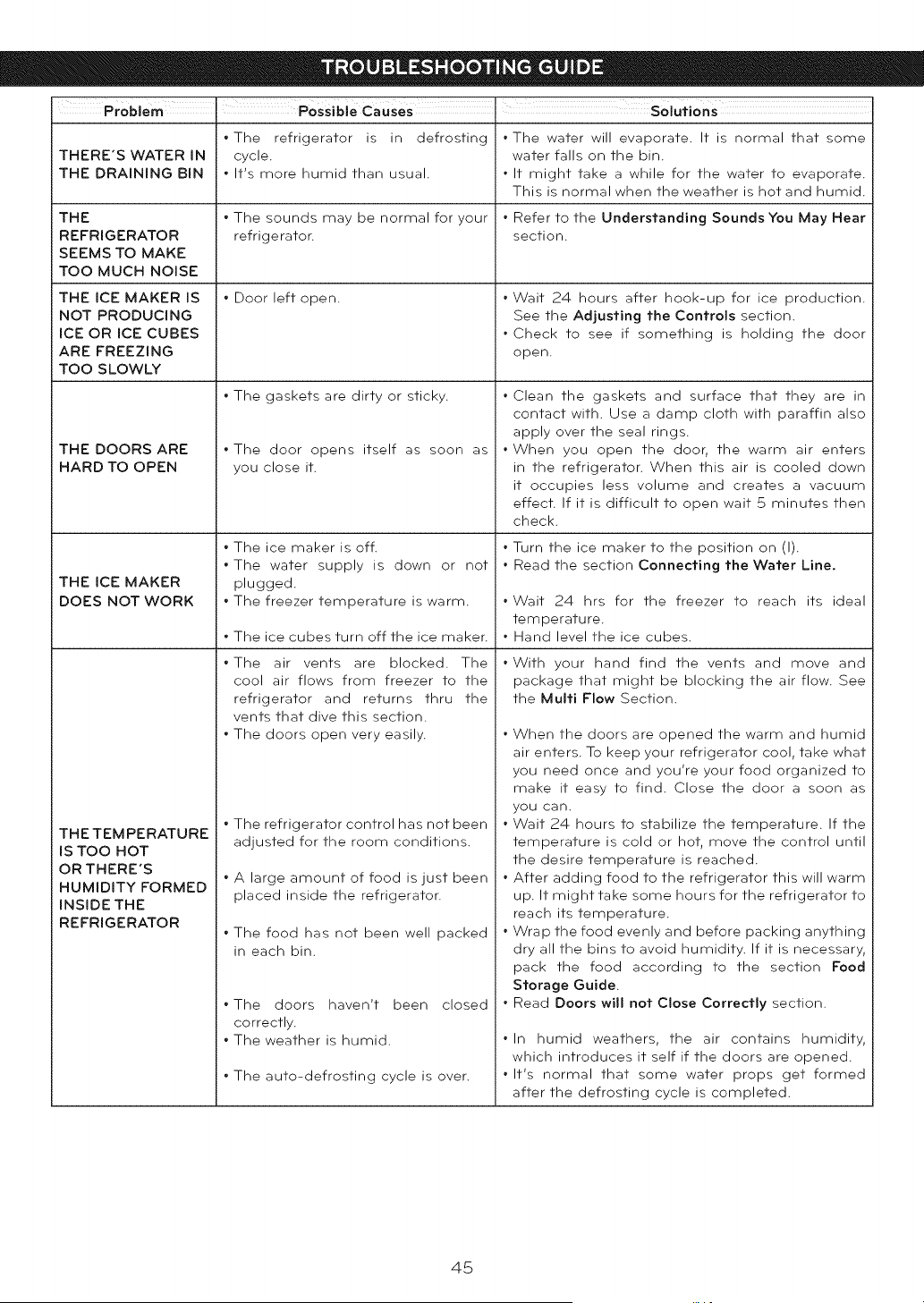

Troubleshooting Guide 43-45

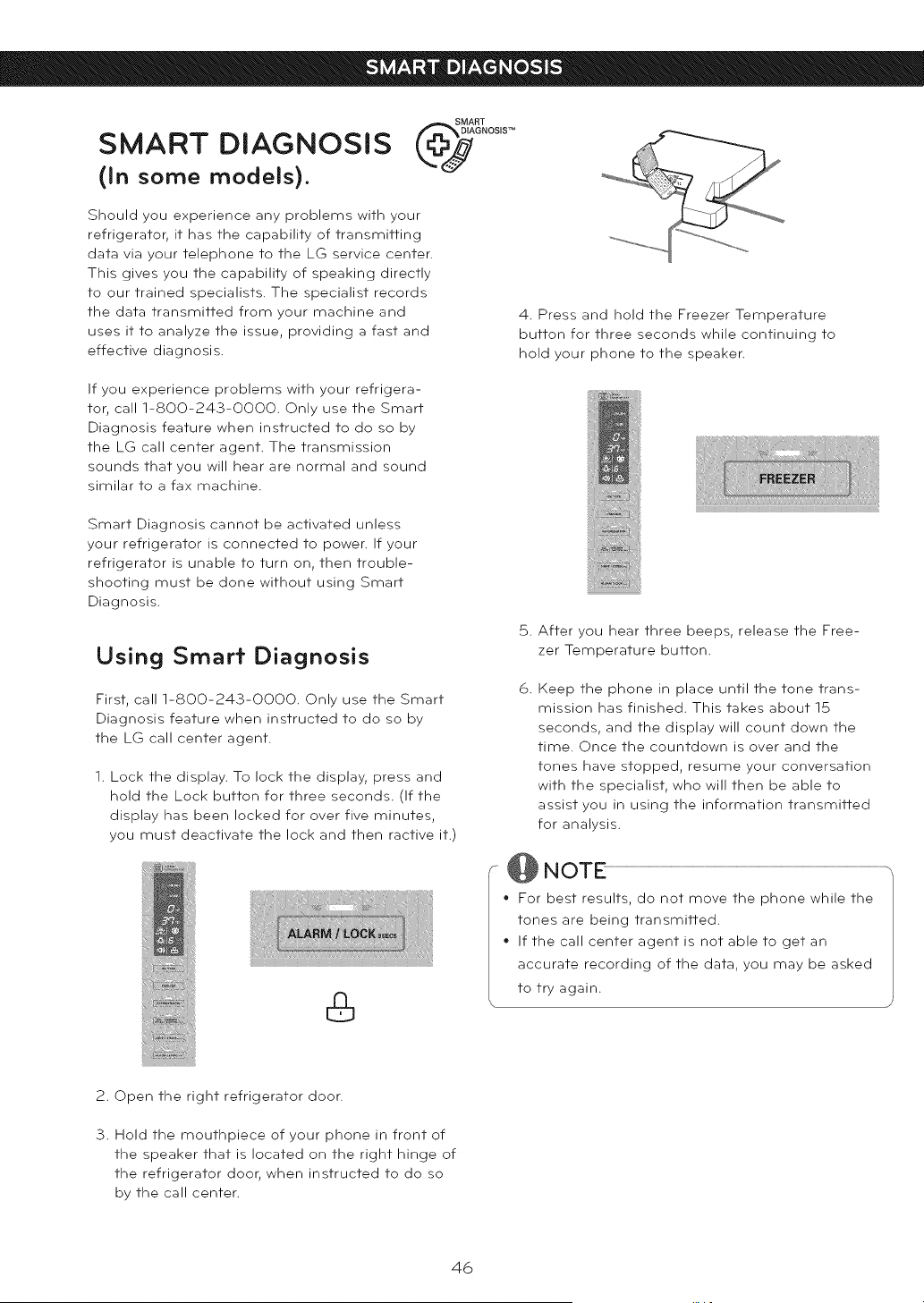

Smart Diagnosis 46

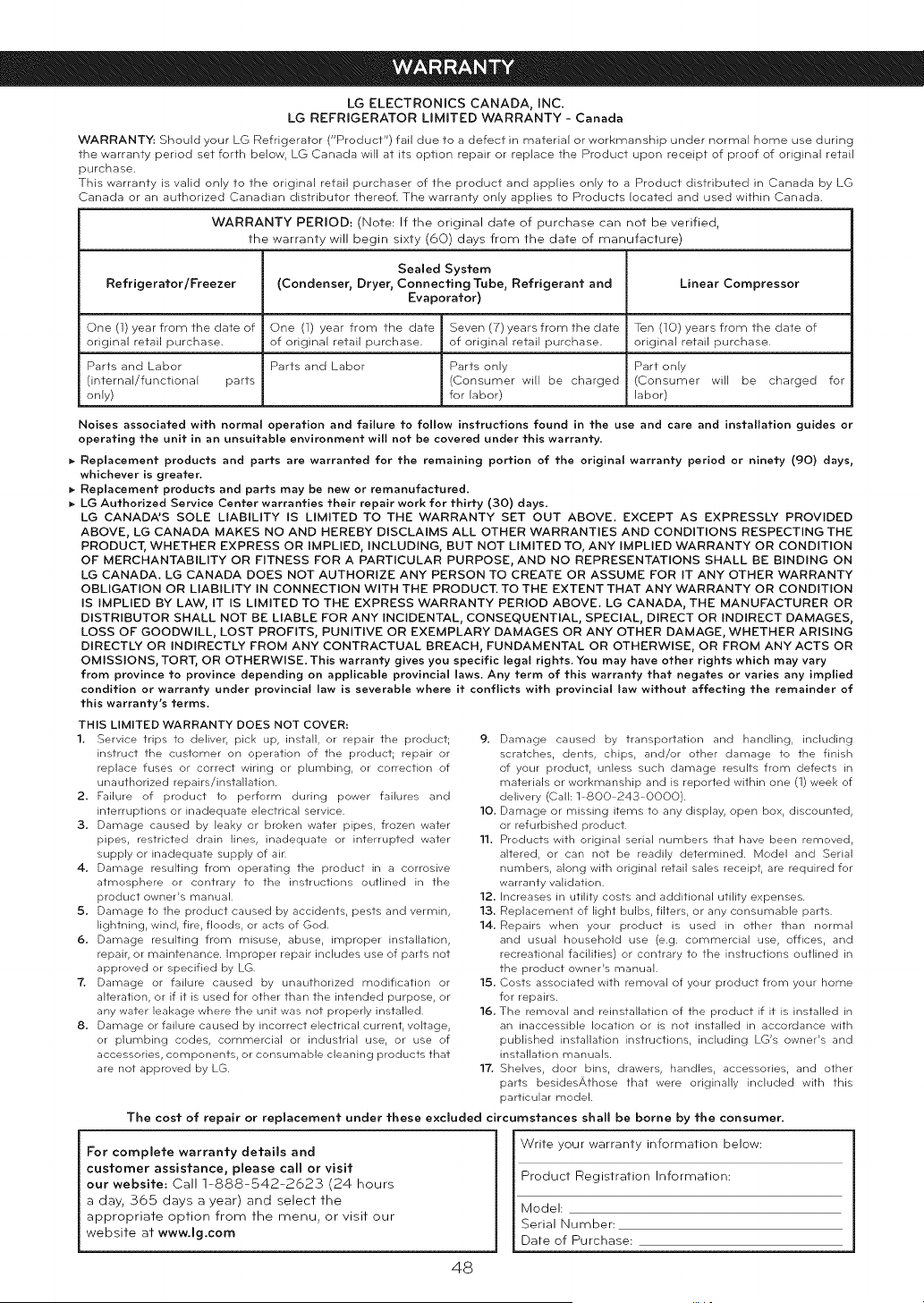

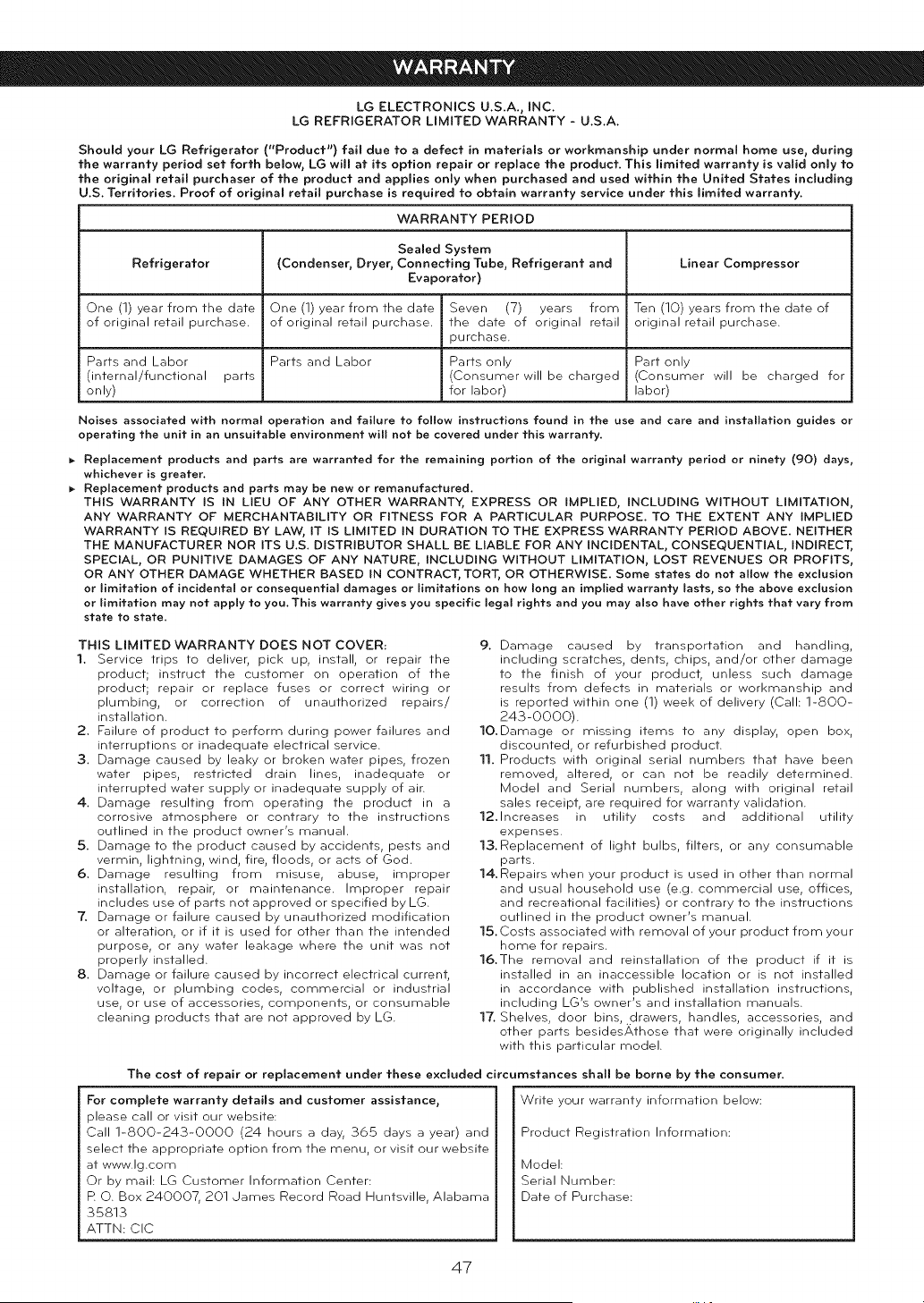

Warranty 47-48
THANKYOU!
Congratulations on your purchase and
welcome to the LG family.
Your new LG French Door Refrigerator
combines advanced cooling technology
with simple operation and high
efficiency. Follow the operating and care
instructions in this manual and your
refrigerator will provide you with many
years of reliable service.
J

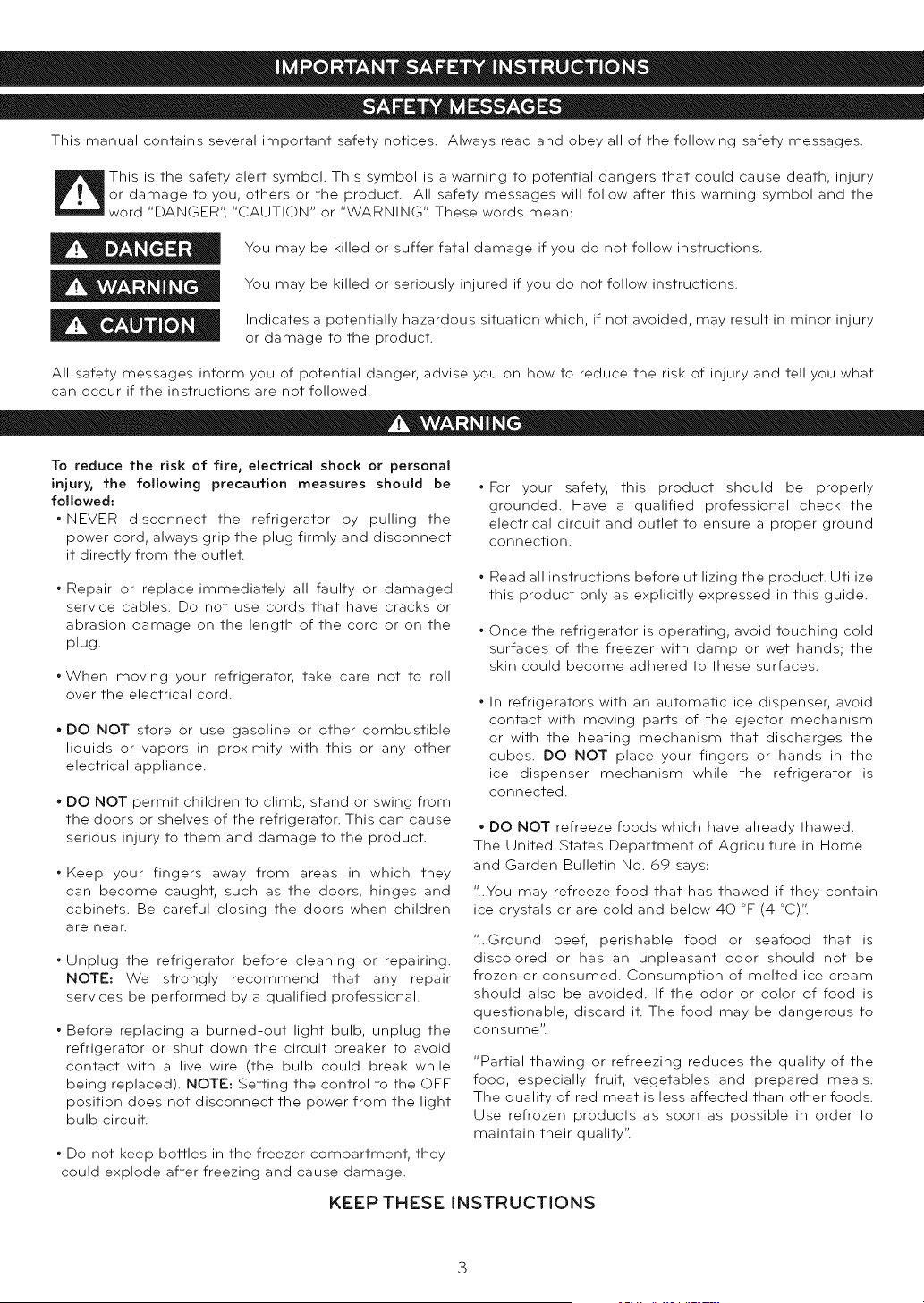

This manual contains several important safety notices. Always read and obey all of the following safety messages.
This is the safety alert symbol. This symbol is a warning to potential dangers that could cause death, injury
or damage to you, others or the product. All safety messages will follow after this warning symbol and the
word "DANGER", "CAUTION" or "WARNING'( These words mean:
You may be killed or suffer fatal damage if you do not follow instructions.
You may be killed or seriously injured if you do not follow instructions.
Indicates a potentially hazardous situation which, if not avoided, may result in minor injury
-- or damage to the product.
All safety messages inform you of potential danger, advise you on how to reduce the risk of injury and tell you what
can occur if the instructions are not followed.
To reduce the risk of fire, elecfrical shock or personal
injury, the following precau¢ion measures should be
followed:
• NEVER disconnect the refrigerator by pulling the
power cord, always grip the plug firmly and disconnect
it directly from the outlet.
Repair or replace immediately all faulty or damaged
service cables. Do not use cords that have cracks or
abrasion damage on the length of the cord or on the
plug.
• When moving your refrigerator, take care not to roll
over the electrical cord.
* DO NOT store or use gasoline or other combustible
liquids or vapors in proximity with this or any other
electrical appliance.
• DO NOT permit children to climb, stand or swing from
the doors or shelves of the refrigerator. This can cause
serious injury to them and damage to the product.
Keep your fingers away from areas in which they
can become caught, such as the doors, hinges and
cabinets. Be careful closing the doors when children
are near.
• Unplug the refrigerator before cleaning or repairing.
NOTE: We strongly recommend that any repair
services be performed by a qualified professional.
Before replacing a burned-out light bulb, unplug the
refrigerator or shut down the circuit breaker to avoid
contact with a live wire (the bulb could break while
being replaced). NOTE: Setting the control to the OFF
position does not disconnect the power from the light
bulb circuit.
• Do not keep bottles in the freezer compartment, they
could explode after freezing and cause damage.
For your safety, this product should be properly
grounded. Have a qualified professional check the
electrical circuit and outlet to ensure a proper ground
connection.
• Read all instructions before utilizing the product. Utilize
this product only as explicitly expressed in this guide.
• Once the refrigerator is operating, avoid touching cold
surfaces of the freezer with damp or wet hands; the
skin could become adhered to these surfaces.
In refrigerators with an automatic ice dispenser, avoid
contact with moving parts of the ejector mechanism
or with the heating mechanism that discharges the
cubes. DO NOT place your fingers or hands in the
ice dispenser mechanism while the refrigerator is
connected.
• DO NOT refreeze foods which have already thawed.
The United States Department of Agriculture in Home
and Garden Bulletin No. 69 says:
'(.You may refreeze food that has thawed if they contain
ice crystals or are cold and below 40 °F (4 °C)'(
'(..Ground beef, perishable food or seafood that is
discolored or has an unpleasant odor should not be
frozen or consumed. Consumption of melted ice cream
should also be avoided. If the odor or color of food is
questionable, discard it. The food may be dangerous to
consume".
"Partial thawing or refreezing reduces the quality of the
food, especially fruit, vegetables and prepared meals.
The quality of red meat is less affected than other foods.
Use refrozen products as soon as possible in order to
maintain their quality'(
KEEP THESE INSTRUCTIONS

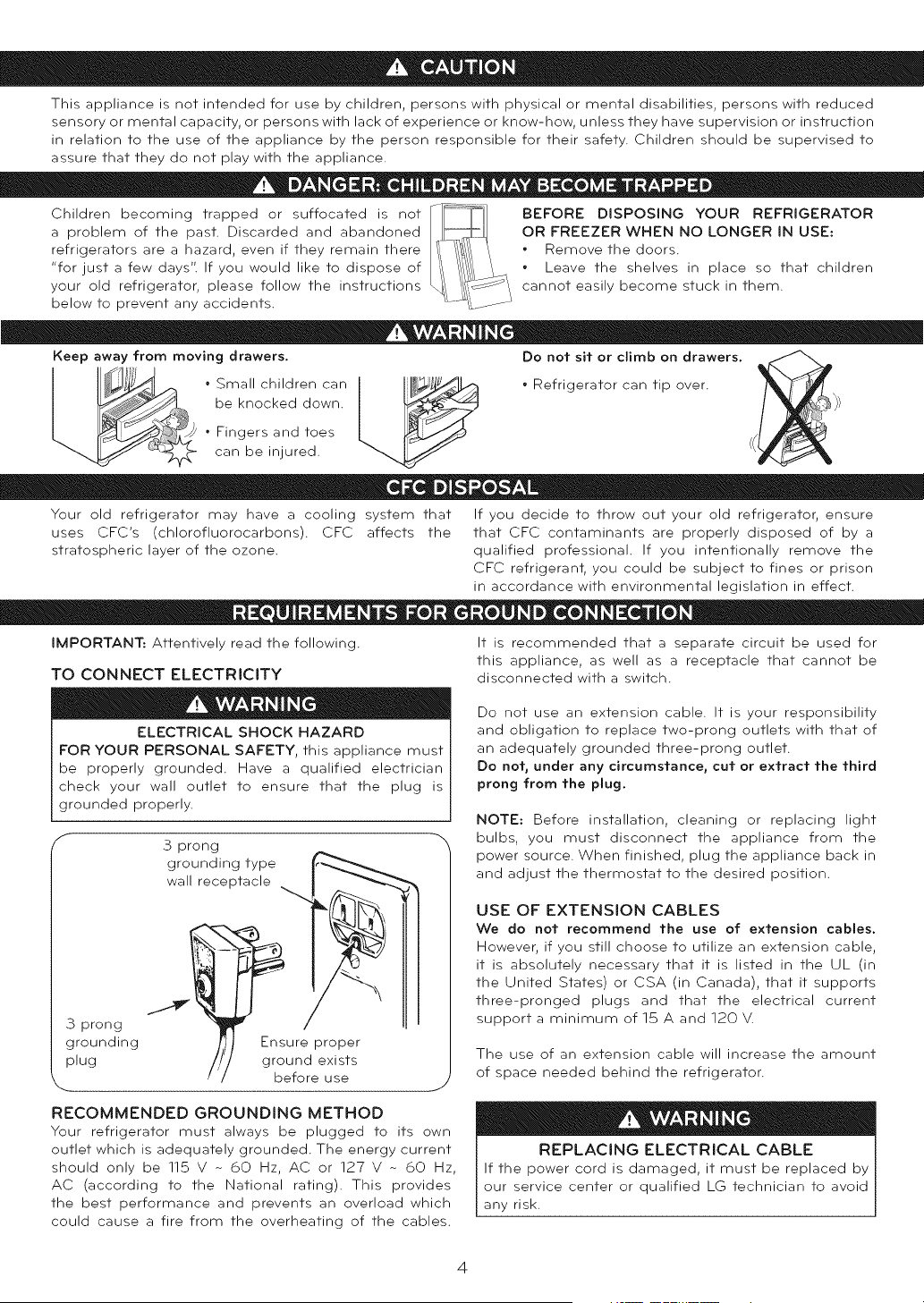

This appliance is not intended for use by children, persons with physical or mental disabilities, persons with reduced
sensory oF mental capacity, oF persons with lack of experience oF know-how, unless they have supervision oF instruction
in relation to the use of the appliance by the person responsible for their safety. Children should be supervised to
assure that they do not play with the appliance.
Children becoming trapped or suffocated is not
a problem of the past. Discarded and abandoned
refrigerators are a hazard, even if they remain there
"for just a few days't If you would like to dispose of
your old refrigerator, please follow the instructions
below to prevent any accidents.
BEFORE DISPOSING YOUR REFRIGERATOR
OR FREEZER WHEN NO LONGER IN USE:
• Remove the doors.
• Leave the shelves in place so that children
cannot easily become stuck in them.
Keep away from moving drawers.
_ • Small children can
be knocked down.
Fingers and toes
can be injured.
Do not sit or climb on drawers.
• Refrigerator can tip over.
Your old refrigerator may have a cooling system that If you decide to throw out your old refrigerator, ensure
uses CFC's (chlorofluorocarbons). CFC affects the that CFC contaminants are properly disposed of by a
stratospheric layer of the ozone, qualified professional. If you intentionally remove the
CFC refrigerant, you could be subject to fines or prison
in accordance with environmental legislation in effect.
IMPORTANT: Attentively read the following.
TO CONNECT ELECTRICITY
ELECTRICAL SHOCK HAZARD
FOR YOUR PERSONAL SAFETY, this appliance must
be properly grounded. Have a qualified electrician
check your wall outlet to ensure that the plug is
grounded properly.
/-
3 prong
grounding
plug
3 prong
grounding type
wall receptacle
Ensure proper
ground exists
before use
It is recommended that a separate circuit be used for
this appliance, as well as a receptacle that cannot be
disconnected with a switch.
Do not use an extension cable. It is your responsibility
and obligation to replace two-prong outlets with that of
an adequately grounded three-prong outlet.
Do not, under any circumstance, cut or extract the third
prong from the plug.
NOTE: Before installation, cleaning or replacing light
bulbs, you must disconnect the appliance from the
power source. When finished, plug the appliance back in
and adjust the thermostat to the desired position.
USE OF EXTENSION CABLES
We do not recommend the use of extension cables.
However, if you still choose to utilize an extension cable,
it is absolutely necessary that it is listed in the UL (in
the United States) or CSA (in Canada), that it supports
three-pronged plugs and that the electrical current
support a minimum of 15 A and 120 V.
The use of an extension cable will increase the amount
of space needed behind the refrigerator.
RECOMMENDED GROUNDING METHOD
Your refrigerator must always be plugged to its own
outlet which is adequately grounded. The energy current
should only be 115 V N 60 Hz, AC or 127 V N 60 Hz,
AC (according to the National rating). This provides
the best performance and prevents an overload which
could cause a fire from the overheating of the cables.
REPLACING ELECTRICAL CABLE
If the power cord is damaged, it must be replaced by
our service center or qualified LG technician to avoid
any risk.
4

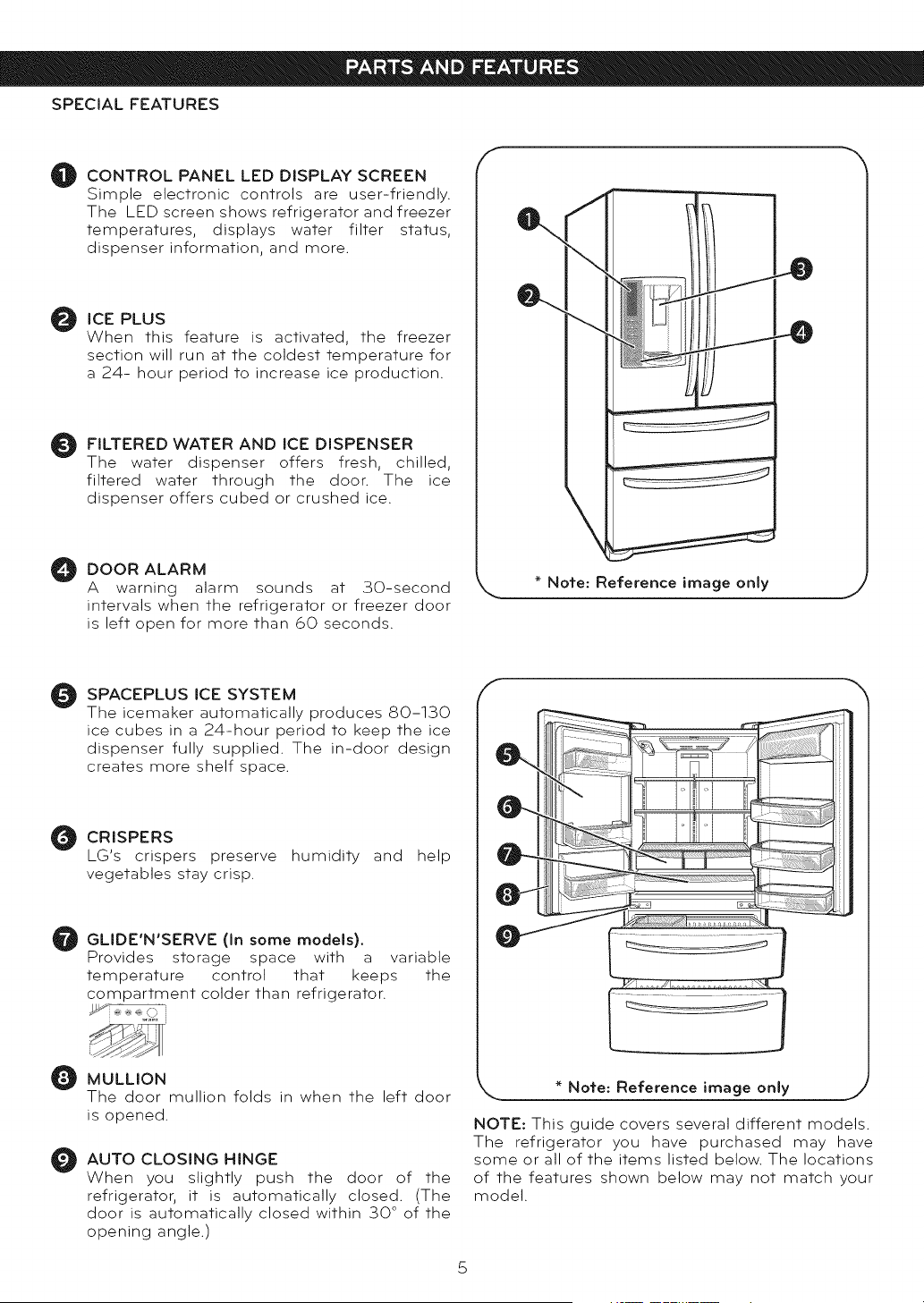

SPECIAL FEATURES
O ONTROL PANEL LED DISPLAY SCREEN
Simple electronic controls are user-friendly.
The LED screen shows refrigerator and freezer
temperatures, displays water filter status,
dispenser information, and more.
ICE PLUS
When this feature is activated, the freezer
section will run at the coldest temperature for
a 24- hour period to increase ice production.
O ILTERED WATER AND ICE DISPENSER
The water dispenser offers fresh, chilled,
filtered water through the door. The ice
dispenser offers cubed or crushed ice.
DOOR ALARM
A warning alarm sounds at 30-second
intervals when the refrigerator or freezer door
is left open for more than 60 seconds.
0..
* Note: Reference image only
SPACEPLUS ICE SYSTEM
The icemaker automatically produces 80-130
ice cubes in a 24-hour period to keep the ice
dispenser fully supplied. The in-door design
creates more shelf space.
O RISPERS
LG's crispers preserve humidity and help
vegetables stay crisp.

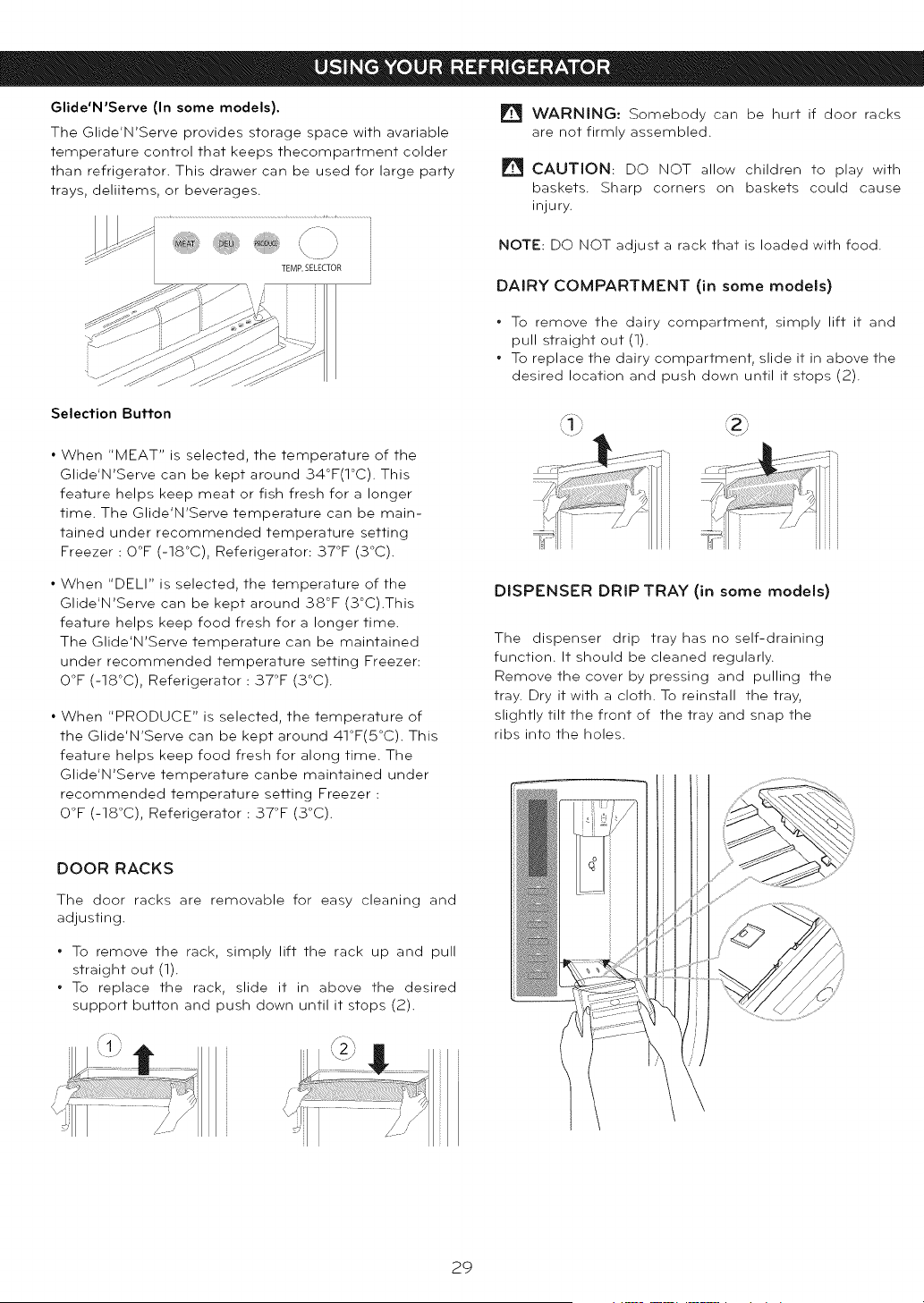

O GLIDE'N'SERVE (In some models).
Provides storage space with a variable
temperature control that keeps the
compartment colder than refrigerator.
O
O
MULLION
The door mullion folds in when the left door
is opened.
AUTO CLOSING HINGE
When you slightly push the door of the
refrigerator, it is automatically closed. (The
door is automatically closed within 30 ° of the
opening angle.)
f
* Note: Reference image only ,j
NOTE: This guide covers several different models.
The refrigerator you have purchased may have
some or all of the items listed below. The locations
of the features shown below may not match your
model.

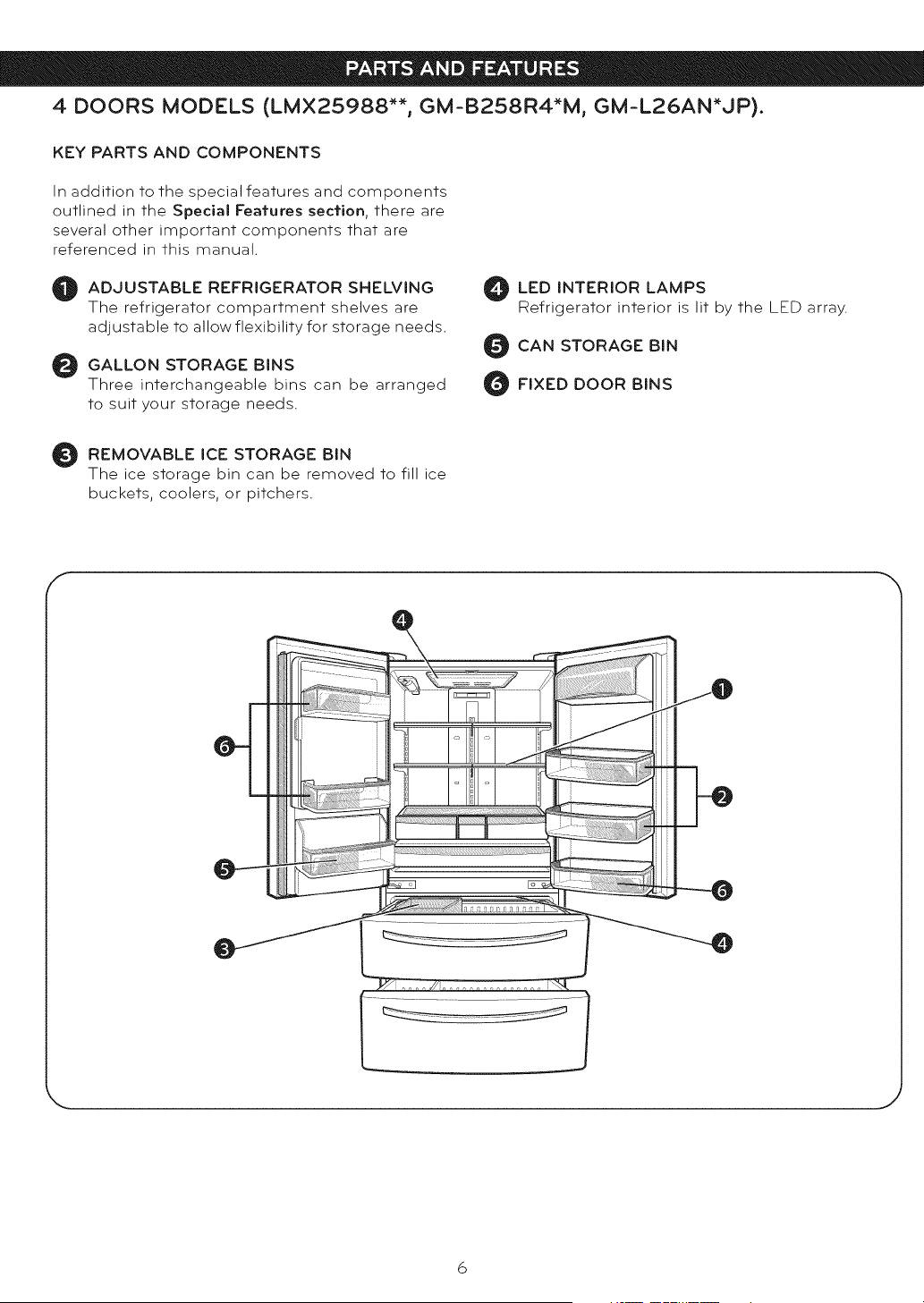

4 DOORS MODELS (LMX25988**, GM-B258R4*M, GM-L26AN*JP).

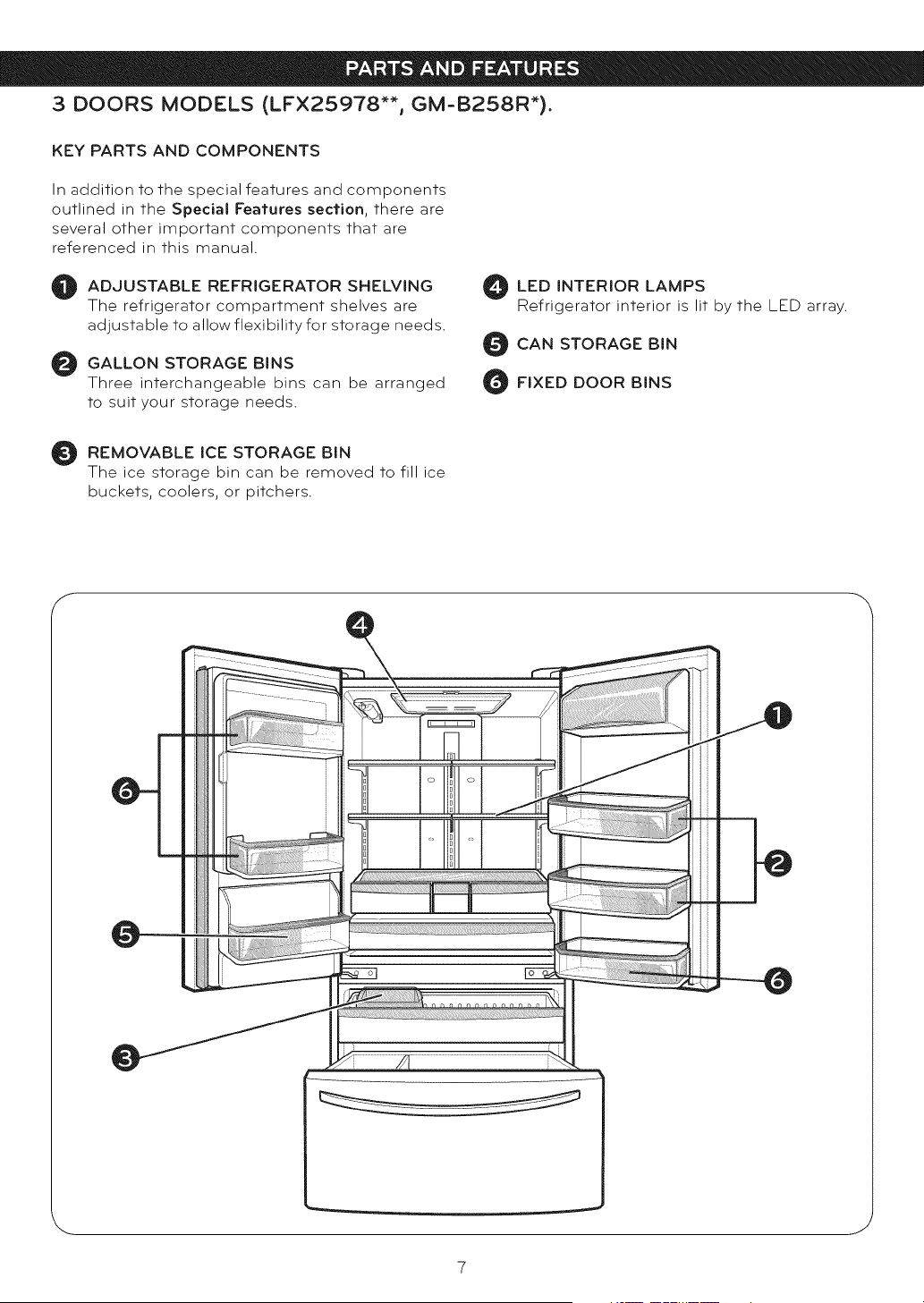

KEY PARTS AND COMPONENTS
In addition to the special features and components
outlined in the Special Features secfion, there are
several other important components that are
referenced in this manual.
O DJUSTABLE REFRIGERATOR SHELVING
The refrigerator compartment shelves are
adjustable to allow flexibility for storage needs.
O ALLON STORAGE BINS
Three interchangeable bins can be arranged
to suit your storage needs.
LED INTERIOR LAMPS
Refrigerator interior is lit by the LED array.
O CAN STORAGE BIN
O FIXEDDOOR BINS
O EMOVABLE ICE STORAGE BIN
The ice storage bin can be removed to fill ice
buckets, coolers, or pitchers.
f
J
3 DOORS MODELS (LFX25978**, GM-B258R*).
KEY PARTS AND COMPONENTS
In addition to the special features and components
outlined in the Special Features section, there are
several other important components that are
referenced in this manual.
O DJUSTABLE REFRIGERATOR SHELVING
The refrigerator compartment shelves are
adjustable to allow flexibility for storage needs.
O ALLON STORAGE BINS
Three interchangeable bins can be arranged
to suit your storage needs.
LED INTERIOR LAMPS
Refrigerator interior is lit by the LED array.
CAN STORAGE BIN
O FIXED DOOR BINS
O EMOVABLE ICE STORAGE BIN
The ice storage bin can be removed to fill ice
buckets, coolers, or pitchers.
J

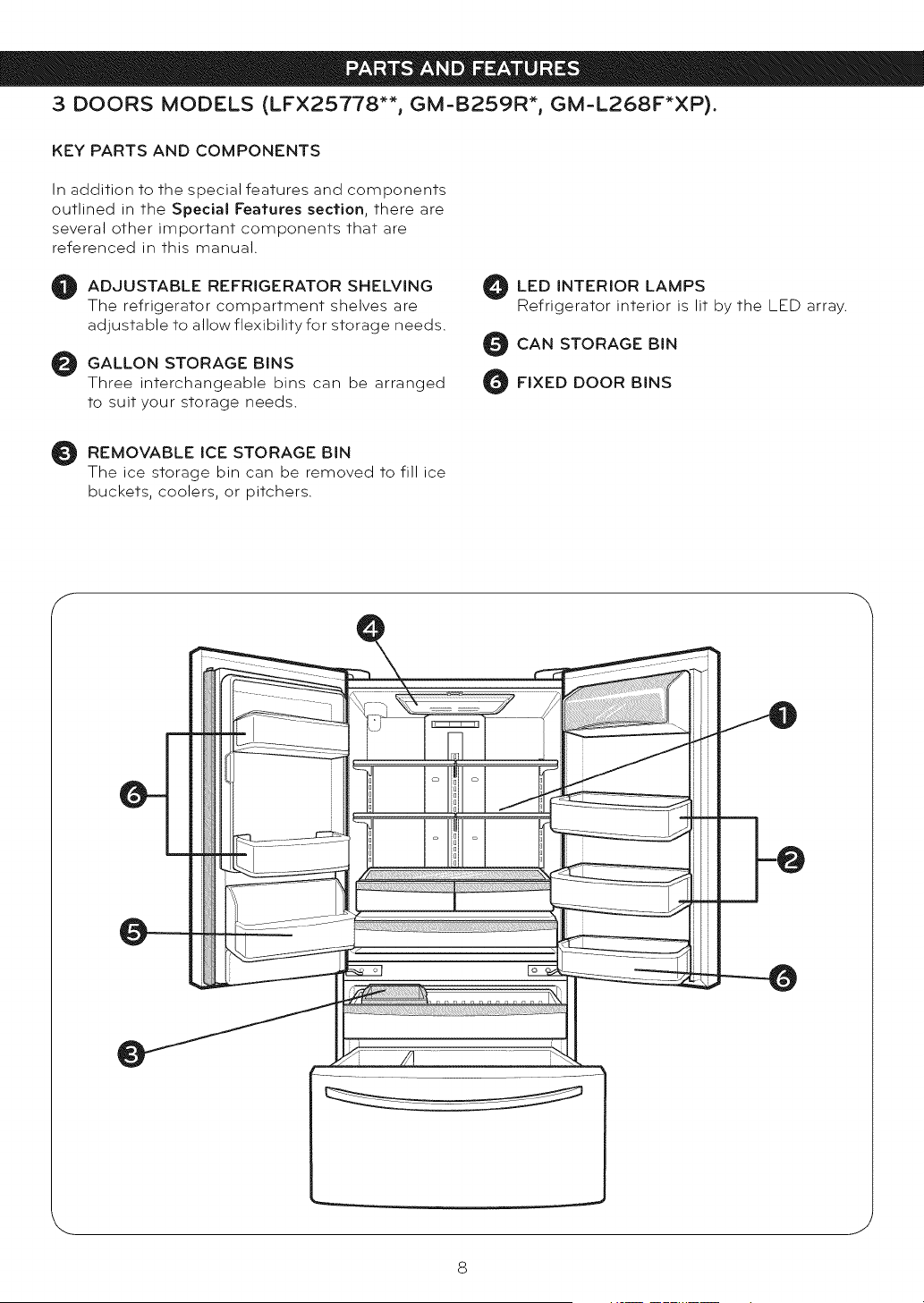

3 DOORS MODELS (LFX25778**, GM-B259R*, GM-L268F*XP).
KEY PARTS AND COMPONENTS
In addition to the special features and components
outlined in the Special Features section, there are
several other important components that are
referenced in this manual.
O DJUSTABLE REFRIGERATOR SHELVING
The refrigerator compartment shelves are
adjustable to allow flexibility for storage needs.
O ALLON STORAGE BINS
Three interchangeable bins can be arranged
to suit your storage needs.
LED INTERIOR LAMPS
Refrigerator interior is lit by the LED array.
CAN STORAGE BIN
O FIXED DOOR BINS
O EMOVABLE ICE STORAGE BIN
The ice storage bin can be removed to fill ice
buckets, coolers, or pitchers.
J
EXCESSIVE WEIGHT HAZARD
Use the assistance of two or more persons to move or
install the refrigerator Not following these instructions
may cause injury to the back and other parts of the
body
3. Install the refrigerator in an area between 55 °F
(13 °C) and 110 °F (43 °C)If the surrounding temperature
is lower or higher than previously mentioned, it can
adversely affect the unit
_CAUTION: Avoid placing the unit near heat
sources, direct sunlight or humidity
UNPACKING
Before installing your refrigerator, remove any tape
or temporary stickers Do not remove any stickers
that feature warnings, the model serial number or the
technical label of the product located on the back of the
refrigerator
To remove adhesive tape residue, rub it well with your
fingers and a little liquid detergent Clean with warm
water and let dry
Do not use sharp instruments, rubbing alcohol, flammable
liquids or abrasive cleaning products to remove the
adhesive tape or glue These products can damage the
surface of your refrigerator For more information, see
the section on "Important Safety Instructions"
The shelves come already installed in their factory
position Remove the shelves and replace them
according to your spacing needs
f_Moving Your Refrigerator: "_
Your refrigerator is extremely heavy Make sureyouJ
protect the floor when moving your refrigerator for /
cleaning or servicing Always pull your refrigerator /
straight out when moving it Do not shift from side /
to side or "walk" the refrigerator when attempting to I
move it as this can cause damage to the floor J
J
EXPLOSION HAZARD
Keep all flammable materials and vapors (such as
gasoline) away from the refrigerator Not following
these instructions may cause death, explosion or fire
INSTALLATION
1. Avoid placing the unit near heat sources, direct
sunlight, or humidity
2.7-o avoid vibration, the unit should be leveled If needed,
adjust the leveling screws to compensate for an
unleveled floor The front should be slightly taller than
the rear to ensure that the doors close properly The
leveling screws can easily be turned by slightly tilting
the front of the refrigerator, turning the leveling screws
clockwise ( _ ) to raise it and counter-clockwise
( _,,,,m_ ) to lower it
ONCE INSTALLED
1. Carefully clean your refrigerator and remove and dust
accumulated during shipping
2. Install accessories such as the ice bin, door racks,
shelves, etc, in their proper places These are already
packed to prevent any possible damage during
shipping
3. Leave your refrigerator on for 2 to 3 hours before
storing food inside Verify that there is a flow of cold air
in the freezer compartment to ensure proper cooling
Your refrigerator is now ready for use
_I_WARNING:
oTake care when working with the hinges, base cover
and stops, etc You may injure yourself
• DO not place your hands or any tools in the air vents,
the base cover or in the bottom of the refrigerator This
may cause injury or electrical shock
INSTALLATION OF BASE GRILLE
Uninstalling the Base Grille
1. Remove the 2 screws from the bottom front part of
your refrigerator (see Figure A)
2.Take off the cover
Figure A
Installing the Base Grille
1. Align the bottom cover and place in position
2. Insert and tighten the 2 screws (see figure B)
Figure B
Keep a Proper Distance from
Adjacent Objects
Please keep the refrigerator at an
adequate distance from other objects
Insufficient spacing can reduce the
refrigerator's freezing efficiency and
increase electricity consumption
2'(S08_)
J
TOOLS YOU MAY NEED
I c::::::::_j_ 10 mm 1
_[1/4 in 1/4 in
3/8 in 3/32 in
Hex Socket Wrench Phillips Screwdriver Flat Head Screwdriver Allen Wrench
NOTE: It is always recommended that the doors be removed when it is necessary to move the refrigerator through a
narrow opening. If it is necessary to remove the handles follow the directions below.
NOTE: Handle appearance may vary from illustrations on this page.
DOOR HANDLE REMOVING
1. Removing Refrigerator Handle
Loosen the set screws with the 3/32 " Allen wrench
and remove the handle.
* NOTE: If the handle mounting fasteners need to be
tightened or removed, usea 1/4 " Allen wrench.
DOOR HANDLE INSTALLATION
1. Reinstalling Refrigerator Handle
Place the handle on the door by aligning
handle footprints to fit mounting fasteners and
tighten the set screws with a 3/32 " Allen wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed, usea 1/4 " Allen wrench.
Mounting
Fasteners
Set Screw
Mounting
Fasteners
Allen Wrench
2. Removing Freezer Drawer Handle
Loosen the set screws located on the lower side of
the handle with the 1/8" Allen wrench and remove the
handle.
NOTE: If the handle mounting fasteners need to be
tightened or removed, use a 1/4''Allenwrench.
2. Reinstalling Freezer Drawer Handle
Place the handle on the door by aligning
handle footprints to fit mounting fasteners and
tighten the set screws on the bottom of the
handle with a 1/8" Allen wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed, usea 1/4''Allenwrench.
10
HOWTOREMOVEANDINSTALLREFRIGERATORDOOR
1. Removing Refrigerator Doors
Remove the left-side door first
NOTE: Handle, top hinge and hinge cover appearance may vary from illustrations on this page
WARNING
• Disconnect electrical supply to the refrigerator before installing Failureto do so could result in death or serious
injury
• Do not put hands or feet or metal sticks into the air vents, base grille, or bottom of the refrigerator You may be
injured or receive an electrical shock
• Be careful when you work with the hinge, base grille, and stopper You may be injured
Left Door
• Pull the water tube out of the fitting while pressing the release ring on the fitting (1)
NOTE: When you pull out the tube, first you have to push the collet by opposite direction of arrow in the upper
picture and pull the tube out by direction of arrow
• Open the door Remove the top hinge cover screw (2)
Usea flat blade screwdriver to lift the tabs on the front underside of the cover (3) Lift up the cover
Remove the cover Pull out the tube (4)
Disconnect all wire harness (5)
Remove the grounding screw(6)
Rotate hinge lever (7) counterclockwise Lift the top hinge(S) free of the hinge lever latch (9)
Place the door on a non-scratching surface with the inside up
f
2)
(6)_
Right Door
• Open the door Remove the top hinge cover screw (10)
• Usea flat blade screwdriver to lift the tabs on the front underside of the cover (11) Lift up the cover
• Rotate hinge lever (12) clockwise Lift the top hinge (13) free of the hinge lever latch (14)
• Place the door on a non-scratching surface with the inside up
[] CAUTION: When lifting the hinge free of the latch, be careful that the door does not fall forward
• Lift the door from the middle hinge pin and remove the door
• Place the door, inside facing up, on a nonscratching surface
(lO).
(13)
11
HOWTOREMOVEANDiNSTALL
REFRIGERATORDOOR(CONT.)
2. Refrigerator Door Reinstallation
Install the right-side door first.
Right Door
• Lower the door onto the middle hinge pin (1).
• Make sure the door is aligned with the cabinet.
• Fit the top hinge (2) over the hinge lever latch (3)
and into place. Rotate the lever (4) counterclockwise
to secure the hinge.
• Hook the tab on the door-switch side of the cover
(5) under the edge of the wire opening in the cabinet
top.
• Position the cover into place.
• Insert and tighten the cover screw (6).
_= Leff Door
• Lower the door onto the middle hinge pin (7).
• Make sure the door is aligned with the cabinet.
• Fit the top hinge (S) over the hinge lever latch (9)
and into place. Rotate the lever (10) clockwise to
secure the hinge.
• Install the grounding screw (11) and connect all the
wire harnesses (12).
• Push the water supply tube (13) into the hole on the
top case and pull it through the backplate.
Image only for reference
Image only for reference
\
(4)
(3)
2)
(9)\
/
12
Insert the water supply tube into the connector.
Insert the tube at least 5/8 in. (15 ram) into the
connector.
• Hook the tab on the door-switch side of the cover
under the edge of the wire opening in the cabinet
top.
• Position the cover into place.
• Insert and tighten the cover screw.
HOW TO REMOVE AND INSTALL THE PULL
OUT DRAWER (4 DOORS MODELS).
1. Removing Pull oufTop Drawer
IMPORTANT: To avoid possible injury, product or
property damage, you will need two persons to
perform the following instructions.
• Pull the drawer open to full lower extension.
Remove the durabase by lifting it from rail system.
(Fig. 1)
Fig.1
CAUTION
f/ Collef
Tube
Insert Line
, Clip --
1. Insert the tube until you can see only one of the lines
printed on the tube.
2. After inserting, pull the tube to ascertain that it is
secure.
3. Assemble the clip.
J
• Remove the screws of the rail on both sides.
(Fig. 2)
[] CAUTION: When removing drawer door, do not
hold it by the handle. The door could fall down
and you may be injured. Grasp the door with both
hands as pictured below when removing.
[] CAUTION: When laying down the drawer, be
careful not to damage the floor or hurt your feet
with the sharp edges on hinge side.
With both hands, hold both sides of the door
(Fig. 3) and pull it up to separate it from the rails.
Fig.3
incorrect
13
° With both hands, bend the center bar just enough °With both hands, hold both sides of the door
to allow the gears on both ends to release from (Fig. 3) and pull it up to separate it from the rails.
their tracks. (Fig. 4)
Fig.4
• 2. Removing Pull out boftom Drawer
Fully extend the freezer drawer. Lifting up
and 2 out to remove the Dura Base basket making
sure to clear the rail system. (Fig. 1)
Fig.l,, z
• Remove the screws of the rail on both sides. (Fig. 2)
Fig. 2
[]CAUTION: Care should be taken to avoid
product or property damage when removing
the freezer door. It maybe necessary to have
assistance with the following insturctions.
[] CAUTION: To avoid damage do not hold
the handle when removing the door. It could
come off and cause and injury.
• With both hands, bend the center bar just enough
to allow the gears on both ends to release from
their tracks. (Fig. 4)
3. Freezer Drawer Reinfallation
IMPORTANT: To avoid possible injury, product or
property damage, you will need two people to per-
form the following instructions.
Top Drawer
° To reinstall the freezer drawer, place the bar back
on edge of the gears in the secure holes on the
opposite rails and pull out until the drawer rails
are fully extended.(Fig. 1)
Fig.1
14
• Hook door supportsC)into rail tabs.(_)(Fig. 2)
f Fig.2
• Lower door into final position and tighten the
screws. (Fig.3)
Fig.1
y
• Hook door supportsC)into rail tabs.(_)(Fig. 2)
p-
• With the drawer pulled out to full extension,
insert the drawer and ice bin in the rail. (Fig. 4)
Fig.4 -'_
!!_ WARNING: To prevent accidental child and pet
entrapment or suffocation risk, DO NOT allow them
to play inside of drawer.
!_WARNING: DO NOT step or sit down on Freezer
Drawer.
4.Freezer Bottom Drawer Reinsfallafion
Bottom Drawer
• To reinstall the freezer drawer, place the bar back
on edge of the gears in the secure holes on the
opposite rails and pull out until the drawer rails are
fully extended. (Fig. 1)
• Lower door into final position and tighten the
screws. (Fig. 3)
Fig.3
• With the drawer pulled out to full extension, insert
the lower basket in the rail assembly. (Fig.4)
f
Fig.4
_IWARNING: To prevent accidental child and pet
entrapment or suffocation risk, DO NOT allow them to
play inside of drawer.
[]WARNING: DO NOT step or sit down on Freezer
Drawer.
15
HOWTOREMOVEANDiNSTALLTHEPULL
OUTDRAWER(3 DOORSMODELS).
1. Removing Pull out Drawer
IMPORTANT: To avoid possible injury, product or
property damage, you will need two persons to
perform the following instructions.
To remove the drawer, push the tabs located on
the front inside surface of each rail. Next, gently
lift the rear left and right sides of the drawer and
pull it out (Fig. 1)
• Remove the screws of the rail on both sides.
(Fig. 4)
Fig. 4
screw
[] CAUTION: When removing drawer door, do not
hold it by the handle. The door could fall down
and you may be injured. Grasp the door with both
hands as pictured below when removing.
[] CAUTION: When laying down the drawer, be
careful not to damage the floor or hurt your feet
with the sharp edges on hinge side.
To reinstall, pull out and fully extend both rails.
Insert the end of rib in the bracket at left and
right. Making sure that the guides at the front
are lined up properly, gently push downon both
sides (Fig. 2)
Pull the drawer open to full lower extension.
Remove the durabase by lifting it from rail system.
(Fig. 3)
• With both hands, hold both sides of the door
(Fig. 5) and pull it up to separate it from the rails.
(Fig. 6)
Fig. 5
S
Door
supporfs
Rail tabes
16
Push the rails back into drawer cavity. With both
hands, hold the center of the bar and push it in
so that both rails go back simultaneously. (Fig.7)
(Fig. S)
Fig.7
Fig. 8
HOW TO REMOVE AND INSTALL THE PULL OUT
DRAWER (CONT)
2. Installing Pull our Drawer
IMPORTANT: To avoid possible injury, product or
property damage, you will need two people to per-
form the following instructions.
With both hands, hold the center of the bar and
pull it out to let both rails out to full extension
simultaneously. (Fig. 9)
f
Hook door supports into rail tabs. (Fig. 10)
Fig. 10 Door Su
• Lower door into final position and tighten the
screws. (Fig. 11)
f
Fig. 11 .
J
J
• With the rails pulled out to full extension, insert
the durabase in the rail assembly. (Fig. 12)
Fig ase
!_ WARNING: To prevent accidental child and pet
entrapment or suffocation risk, DO NOT allow them
to play inside of drawer.
!._WARNING: DO NOT step or sit down on Freezer
Drawer.
17
CLOSINGANDALiGNiNGTHEDOORS
Closing the Doors
Your refrigerator has two front leveling screws, one on
the right and one on the left. If your refrigerator seems
unstable or if you would like the doors to close more
easily, simply adjust the inclination of the refrigerator by
following the instructions below:
1. Plug the refrigerator into a 3 prong grounded outlet.
Move the refrigerator into its final position.
2. Remove the base grille (Refer to the section on
"Installation of Base Grille").
3. Use a flat head screwdriver to adjust the leveling screws,
turning clockwise to raise the side of the refrigerator
and counter-clockwise to lower it. It may take several
turns to adjust it to the inclination you would like.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This will make it easier to adjust the screws.
Aligning the Doors
To adjust the height of the doors, use the wrench
(Included with the User Manual) to adjust the bolt in
the door hinge (counter clockwise to raise or clockwise
to lower)
Image only for reference.
When moving your refrigerator
Note: Your refrigerator is extremly heavy. When moving
the refrigerator for installing, cleaning or service be sure
to follow the next instructions.
1. Adjust leveling legs up.
Image only for reference.
L_
4.0pen both doors again and check to make sure that
they close easily. If not, slightly tilt the refrigerator
further back by turning both leveling screws clockwise.
It may take several more turns. Make sure that you turn
both leveling screws the same amount.
5. Ensure that the refrigerator is even by using a level.
6. Replace the base grille.
NOTE: Your new refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of one another. You may have
to exert slight pressure on doors to get them to close
completely.
2.
3.
Cover the floor with cardboard or hardboard to
avoid floor damage.
Always pull or push the refrigerator straight out
when moving it. Do not wiggle or "walk" the
refrigerator when trying to move it, as floor damage
could occur.
>
Image only for reference.
1S
CONTROL PANEL FEATURES
NOTE: The shape of the buttons may not match your model.
O
LED DISPLAY
The LED display shows the temperature
settings, dispenser options, water filter, door
alarm, and locking status messages.
O ICE TYPE BUTTON
The ICE TYPE button is used to select Cubed
Ice or Crushed Ice.
O
O
FREEZER BUTTON
Press the FREEZER button to adjust the
temperature in the freezer compartment.
**NOTE: When pressed simultaneously with
the REFRIGERATOR button for more than
five seconds, the temperature display will
change from Fahrenheit to Celsius or vice
versa.
REFRIGERATOR BUTTON
Press the REFRIGERATOR button to
adjust the temperature in the refrigerator
compartment.
**NOTE: When pressed simultaneously
with the FREEZER button for more than five
seconds, the temperature display will change
from Fahrenheit to Celsius or vice versa.
@
ICE PLUS/ENERGY SAVING BUTTON
(in some models)
Press this button to activate the ICE PLUS
function to increase icemaking capabilities.
*OR, Press and hold this button for at least 3
seconds to activate or deactivate the Energy
Saving mode.
LIGHT/FILTER BUTTON
The LIGHT/FILTER button controls the lamp
in the dispenser.
Press and hold the LIGHT/FILTER button
for more than 3 seconds to reset the filter
indicator after the water filter has been
replaced.
O
ALARM/LOCK BUTTON
Press this button to control the door-open
alarm.
Press and hold this button at least 3 seconds
to lock or unlock all the other function buttons
on the control panel, including operation of
the dispenser.
*In some models it is not available the Energy Saving mode.
** The function of change to Fahrenheit just is available in models with Energy Saving mode.
19
THE LED DISPLAY
The LED display shows the temperature settings,
dispenser options, water filter, door alarm, and
locking status messages.
O DISPENSER SELECTION INDICATOR
Shows Cubed ice or Crushed Ice selection
that will be dispensed when the push switch is
pressed.
"_'_O FREEZER TEMPERATURE
Indicates the set temperature of the freezer
compartment in Celsius or Fahrenheit.
"_'_O REFRIGERATOR TEMPERATURE
Indicates the set temperature of the refrigerator
compartment in Celsius or Fahrenheit.
_" ICE PLUS
When the ICE PLUS/ENERGY SAVING button
is pressed, the display will indicate the selected
function has been activated.
O ISPENSER LIGHT INDICATOR
When the LIGHT button is pressed,
the display will indicate the selected function:
The dispenser light is on, this indicator will
appear on the display panel.
DOOR ALARM INDICATOR
This indicator shows that the door-open
warning alarm is activated.
CAUTION
Display mode setting and its cancellation
*In models that have Energy Saving available:
o With the refrigerator door open, keep pressing the
REFRIGERATOR bulton and ICE PLUS/ENERGY
SAVING buffon more than 5 seconds, then it goes to the
display mode. (Display will show the word "OFF").
o Perform the same way again to cancel the display mode.
o All freezing units do not work at the display mode
/
O ENERGY SAVING (in some models)
This indicater shows that Energy Saving mode
is activated.
O WATER FILTER STATUS
This indicator shows the current status for
the water filter. See Resetting the Filter
Indicator.
O LOCK STATUS
This indicator shows the current status for
the control panel functions is set to LOCK.
\ ............................................................
*In models without Energy Saving available:
o With the refrigerator door open, keep pressing the
REFRIGERATOR button and ICE PLUS button click 3
times, then it goes to the display mode. (Display will
show the word "OFF").
o Perform the same way again to cancel the display mode.
o All freezing units do not work at the display mode.
*In some models it is not available the Energy Saving mode.
** The function of change to Fahrenheit just is available in models with Energy Saving mode.
2O
ADJUSTINGTHETEMPERATURESAND
DISPLAY
Adjust Freezer Temperature
To adjust the temperature in the freezer compartment,
press the FREEZER button to cycle through the the
range of available settings.
POWER SAVING MODE (in some models)
• The display will remain off until the next time the door
is opened.
• The display will also turn on when any button is
pressed, and it will remain on for 20 seconds after
the last door opening or button selection.
• To deactivate the Power-Saving Mode, press the
FREEZER and OCE PLUS/ENERGY SAVING or OCE
PLUS buttons simultaneously and hold them for 5
seconds until the tone sounds.
NOTE: Power Saving Mode function is set on the
product. Power Saving Mode is allways active in Models
without energy Saving Mode.
Adjust Refrigerator Temperature
To adjust the temperature in the refrigerator
compartment, press the REFRIGERATOR button to
cycle through the range of available settings.
or
NOTE: The actual inner temperature varies depending
on the food status, since the indicated temperature
setting is the target temperature and not the actual
temperature within the refrigerator.
Initially set the REFRIGERATOR CONTROL at 37 °F
(3°C) and the FREEZER CONTROL at O°F (-1S°C).
Leave them at these setting for 24 hours (one day) to
stabilize. Then adjust the compartment temperature as
illustrated above.
TEMPERATURE DISPLAY
To change the temperature display from Fahrenheit
to Celsius:
• Simultaneously press and hold the FREEZER and
REFRIGERATOR buttons for more than 5 seconds.
• Do the same to convert back to Fahrenheit.
CAUTION WHEN CLOSING THE DOOR
CAUTION
To reduce the risk of door scratches, please make sure
that the refrigerator door mullion is always folded in.
If dew gathers on the refrigerator door mullion at any
point, deactivate the Energy Saving mode until the
issue resolves itself.
_ln some models it is not available the Energy Saving mode.
_ The function of change to Fahrenheit just is available in models with Energy Saving mode.
21
OPERATINGTHEDISPENSER
DISPENSING CRUSHED ICE
CRUSH
Press the ICE TYPE
button to illuminate the
Crushed Ice icon.
Press the push ice switch
with a glass or other con-
tainer and crushed ice will
be dispensed.
DISPENSING WATER
WATER
Press the push water switch with a glass
or other container and chilled water will
be dispensed.
When the water switch is pressed, the
light will be illuminated.
CONTROLLING THE DISPENSER LIGHT
DISPENSING CUBED ICE
CUBE
Press the ICE TYPE button
to illuminate the Cubed
Ice icon.
Press the push switch with
a glass or other container
and cubed ice will be
dispensed.
-,,o,-
Press the LIGHT/FILTER
button to turn the dis-
penser light on and off.
NOTE: Hold the glass or other container in place for a
couple of seconds after dispensing ice or water to catch
the last few cubes or drops. The dispenser is designed
to not operate while either refrigerator door is open.
WATER SWITCH
ICE SWITCH
CAUTION
• When fillingcontainer with a small opening, place the container as close as possible to the opening on the water
or ice dispenser.
• Do not dispense ice into fine china or crystal glasses. China or crystal can break.
Incorrect Correct
Wafer
Ice
22
SETTINGTHEFUNCTIONS
"X'ACTIVATING ICE PLUS
SETTING THE DISPENSER LOCK
Press and hold the
ALARM/LOCK button
for three seconds to lock
the dispenser and all of
the other control panel
functions.
Press and hold again for 3
[_ seconds to unlock.
NOTE: The function lock in models without Energy
Saving do not lock water and Ice Switch.
SETTING THE DOOR ALARM
The ALARM/LOCK
button also controls the
door alarm that sounds
three times in 30-second
intervals when
d)'} a compartment door is left
open for more than 60
seconds. The alarm stops
sounding when the door is
closed.
Press the ALARM/LOCK button once to activate and
deactivate the door alarm function.
NOTE: Contact your local service center if the alarm
continues to sound after the doors are closed.
RESETTING THE FILTER INDICATOR
_ CHANGE
FILTER
_aR__ MONTH
Press and hold the LIGHT/
FILTER button for more
than 3 seconds to reset
the filter indicator after
the water filter has been
replaced.
NOTE: It is recommended that the filter be replaced
when the indicator light on the front dispenser reaches
O. If the water or ice cube taste starts to deteriorates.
or PLUS
ICE PLUS
Press the ICE PLUS/
ENERGY SAVING or ICE
PLUS button once to
activate the ICE PLUS
function. The ICE PLUS
icon on the display panel
will illuminate when
activated.
The ICE PLUS function
runs the freezer
compartment at the
coldest setting for a 24-
hour period to increase
icemaking by up to about
20%, and then turns off
automatically.
NOTE: Press the button again to deactivate the ICE
PLUS function.
ACTIVATING ENERGY SAVING
®
Press the ICE PLUS/
ENERGY SAVING button
for at least 3 seconds to
activate or deactivate the
function.
This function is
recommended for added
energy savings.
(Some heaters to reduce
excess moisture on the
refrigerator may be turned
off)
The energy saving function is also recommended
during long periods of time spent away from home-like
vacation.
DIAGNOSTIC FAILURE DETECTION
The diagnostic function automatically detects problems with your refrigerator, and a diagnostic code will appear in
the display. NOTE: If a diagnostic code appears in the display during use, note the code and call your Service Center.
Refer to the Warranty Card to obtain the telephone number of the Service Center near you.
*In some models it is not available the Energy Saving mode.
** The function of change to Fahrenheit just is available in models with Energy Saving mode.
23
SPACEPLUS ICE SYSTEM
CAUTION
• Keep hands and tools out of the ice compartment
door and dispenser chute. You could break some-
thing or injure yourself.
The icemaker will stop producing ice when the ice bin is
full. If you need more ice, empty the ice bin into the ex-
tra ice bin in the freezer compartment so the icemaker
can keep producing ice.
Shake the ice bin occasionally to level the ice in it.
Sometimes the ice piles up near the icemaker, causing
the icemaker to misread the amount of ice cubes and
stop producing ice.
NOTE: Storing cans or other items in the ice bin may
damage the icemaker.
Keep the ice compartment door closed tightly. If the
ice compartment door is not closed tightly, the cold air
in the ice bin will freeze food in the refrigerator com-
partment. This could also cause the icemaker to not
produce ice.
NOTE: If the On/Off switch on the icemaker is set to
Off for an extended time, the ice compartment will
gradually warm up to the temperature of the refrigera-
tor compartment. To prevent ice cubes from melting
and leaking from the dispenser, ALWAYS empty the ice
bin when the icemaker is set to Off for more than a few
hours.
CAUTION
While you handle the ice bin,
keep your hands out of blade.
The blade has sharp edges
could cause injury.
NOTE: To open or close the ice
room compartment, push or pull
on the handle.
To remove the in-door ice bin, grip the front handle,
slightly lift the lower part, and slowly pull out the bin as
shown.
i
I
m
To reinstall the in-door ice bin, slightly slant the bin dur-
ing replacement to avoid contact with the icemaker.
NOTE: Avoid touching the Ice-detecting sensor
when replacing the ice bin. See the label on the ice
compartment door for details.
24
AUTOMATICICEMAKER
Ice is made in the automatic icemaker and sent to the
dispenser. The automatic icemaker can make 10 or 12
ice cubes (depending on your device) at a time, above
100 cubes per 24-hour period. This quantity may vary
by circumstance, including freezer compartment
temperature, room temperature, number of door
openings, freezer load, and other operating conditions.
• It takes about 12 to 24 hours for a newly installed
refrigerator to make ice.
• Icemaking stops when the ice storage bin is full.
• To turn off the automatic icemaker, set the icemaker
switch to OFF (0). To turn on the automatic icemaker,
set the switch to ON (I).
• The water pressure must be 20 and 120psi on models
without a water filter and between 40 and 120 psi on
models with a water filter to make normal amount and
size of ices.
NOTE: It is normal that a noise is produced when ice
drops into the ice storage bin.
Even when the water pipe is not connected and the Ice
Maker is turned on, the water valve operates. The noise
is generated because the water pipe is not connected,
which does not mean the icemaker is defective.
WARNING
Personal Injury Hazard
• DO NOT place fingers or hands on the automatic
icemaking mechanism while the refrigerator is
plugged in.
f
* 5 cells icemaker
lcemaker
Power Switch
_ce-detecting
Sensor
Sensor
El CAUTION
• The first ice and water may include particles
or odor from the water supply line or the water
tank.
° Throw away the first few batches of ice (about
20 pieces) and purge the water line for 2
minutes after installation to eliminate air and
odd tastes.
° This is also necessary if the refrigerator has not
been used for a long time.
• Never store beverage cans or other foods in the
ice bin for the purpose of rapid cooling. Doing
so may damage the icemaker or the containers
may burst.
° If discolored ice is dispensed, check the water
filter and water supply. If the problem continues,
contact an Authorized Service Center. Do
not use the ice or water until the problem is
corrected.
• Keep children away from the dispenser. Do not
allow children to play in or around dispenser.
° The ice passage may also become blocked with
frost if only crushed ice is used. Remove the
frost that accumulates.
• Never use thin crystal glass or crockery to
collect ice.
• Such glasses or containers may break, and
glass fragments could be in the ice.
• Dispense ice into a glass before filling it with
water or other beverages. Splashing may occur
if ice is dispensed into a glass that already
contains liquid.
• Never use a glass that is exceptionally narrow
or deep. Ice may jam in the ice passage and
refrigerator performance may be affected.
° Keep the glass at a proper distance from the
ice outlet. A glass held too close to the outlet
may prevent ice from dispensing.
° To avoid personal injury, keep hands out of the
ice door and passage.
• Never remove the dispenser cover.
° If you find ice or water dispensed unexpectedly,
turn off the water supply and call your Service
Center. Refer to the Warranty Card to obtain the
telephone number of the Service Center near you
(24 hours a day, 3(>5 days a year).
25
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely
before
adding food. It is best to wait 24 hours before adding
food to the refrigerator. The mid-settings indicated in
the
previous section should be correct for normal
household
refrigerator usage. The controls are set correctly when
milk or juice is cold to your liking and ice cream is firm.
The refrigerator control functions as the thermostat for
the entire appliance. The higher the number setting,
the
longer the compressor will run to keep the temperature
colder. The freezer control adjusts the cold air flow from
the freezer to the refrigerator. Setting the freezer control
to a lower temperature keeps more cold air in the
freezer
compartment to make it colder.
If you need to adjust the temperature in the refrigerator
or freezer, begin by adjusting the refrigerator first. Wait
24 hours after the refrigerator adjustment to check the
freezer temperature. If it is too warm or too cold, then
adjust the freezer control as well.
Use the settings listed in the table below as a guide.
CONDITION/REASON: RECOMMENDED
ADJUSTMENT:
REFRIGERATOR section Adjust the
is too warm REFRIGERATOR setting
• Opening the door often tothe next highest
oAdding a large amount number and wait 24
of food
• Room temperature is
very warm
FREEZER section is too
warm/ice is made too
slowly
• Opening the door often
• Adding a large amount
of food
• Room temperature is
very low (not cycling
often enough)
• Using ice frequently
• Air vents blocked by
objects
REFRIGERATOR section
is too cold
• Controls not set
correctly for your
conditions
hours, then check.
Adjust the FREEZER
setting to the next
highest number and wait
24 hours, then check.
Remove any objects
blocking air flow.
Adjust the
REFRIGERATOR setting
to the next lowest
number and wait 24
hours, then check.
FREEZER section is too
cold
• Controls not set
correctly for your
conditions
Adjust the FREEZER
setting to the next lowest
number and wait 24
hours, then check.
FOOD STORAGE GUIDE
ITEMS HOW TO STORE
Storing Fresh Food Wrap or store food in the
refrigerator in airtight and
moisture-proof material unless
otherwise noted. This prevents
food odor and taste transfer
throughout the refrigerator. For
dated products, check date code
to ensure freshness.
Buffer or
margarine
Store opened butter in a covered
dish or in a closed compartment.
When storing a larger quantity,
wrap in freezer packing and
freeze.
Cheese
Vegetables with
skins (carrots,
peppers)
Fruit
Leafy Vegetables
Fish
Chef Fresh
Leftovers
Store in original packaging until
you are ready to use it. Once
opened, tightly rewrap with
plastic wrap or aluminum foil.
Place in bags or plastic containers
inside the crisper.
Wash and let dry; store in plastic
bags in the refrigerator. Do not
wash or pit berries until you
are ready to eat them. Berries
should be selected and kept in
their original packaging (if there
is any) or in a paper bag closed
halfway and set on a shelf.
Remove original packaging and
trim any dirty or discolored parts.
Wash in cold water and drain.
Place in a plastic bag or plastic
container and store in the crisper.
Consume fish or seafood the
same day purchased.
Store any meat in original airtight,
moisture-proof packaging
Rewrap if necessary.
Cover leftovers with plastic
wrap or aluminum foil. Plastic
containers with airtight lids can
also be used.
STORING FROZEN FOOD
NOTE: For more information on how to prepare food to
be frozen such in a way to see the period they can be
stored consult a frozen food guide or cook book.
Packaging
A great freezing depends on how great you package the
food. When you seal the package make sure you remove
all excess air and do not allow humidity. A package that
is incorrectly sealed will result in the transmission of bad
odors, contaminants inside your refrigerator and will
26
Packaging Recommendations:
Use sealed plastic containers.
Use plastic containers with a smooth surface.
Package with aluminum foilof high resistance.
Wrap with paper layered with plastic.
Use water proof plastic.
Use recommended plastic bags to store frozen foods.
Follow these packaging or container instructions in order
to reach the best freezing
REFRIGERATOR SECTION
REFRIGERATOR SHELVES
The shelving of your refrigerator can be adjusted to
comply with your storage necessities; Depending on
the model you have in can include glass shelving or
wired shelving. The storing of your foods together and
adjusting the shelving to different heights will ease to
help you locate what you need. This also helps your
refrigerator to stay shut longer which will save you energy.
Do not use:
• Bread Wrapping.
• Plastic container not safe for storing.
• Containers without lids or seals.
• Waxed paper or waxed plastic.
• Thin wrapping paper or not water proof.
IMPORTANT: While your refrigerator glass shelving are
cold do not clean with hot or warm water. The glass
shelving may break if exposed to rapid temperature
changes or hard impacts. For your safety the glass
shelving are made out of tempered glass so when at
breaking they will fracture into tiny fragments.
Freezing
NOTE: Be careful while moving or relocating the shelves
they are heavy. If moving the shelves is required keep in
mind to locate them in a safe environment to prevent
them from breaking.
For the maximum use of your freezer do not store excess
food. Do not introduce a large amount of unfrozen foods
that cannot be frozen within 24 hours (no more than
2 - 3 pounds or ,91 kg - 1,36 kg of food per square
inch of space in the freezer). Sufficient space must be
left in order for the air to circulate properly around the
packages. Leave enough space in order to close your
refrigerator with out difficulty.
Adjusting Shelves
Remove the shelves and adjust them to your convenience.
• Removing Shelves
Incline the front of the shelf in the direction indicated by
figure 1 and lift in the direction indicated by figure 2. Pull
the shelf towards you.
Storage times can vary depending on the type and
quality of the food, the way its package, or packaging
container used, (in comparison to air and humidity), and
the temperature it being stored in. Ice crystals formed
inside your package are normal it indicates the air and
humidity inside your package have condensed.
NOTE: Let warm foods cool off at room temperature
for approximately 30 rain, then wrap accordingly with
the methods mention above and freeze. By letting your
warm foods cool off before you introduce them to your
freezer it will save you energy.
SUFFOCATING DANGER
Adequate ventilation is required when using dry ice.
Dry ice is Carbon Dioxide (C02). When it evaporates it
produces oxygen, causing dizziness, slight headaches,
unconsciousness or death. Do not inhale these vapors
and properly ventilate the room while you use dry ice.
• Replacing Shelves
Incline the frontal part of the shelf (1) and guide the
shelf hooks towards the openings at the height desired.
Then lower the front of the shelf (2) so the hooks can be
inserted (3) in the shelf supports.
®
NOTE: Make sure that the shelf is installed in the
horizontal manner. If not secured it can cause the shelves
to fall, which will cause your stored food to spill.
27
Sliding Shelves (in some models)
You can slide some of the shelves in your refrigerator
towards inside or outside like explained below.
• To slide the shelf towards the outside: Pull towards you,
figure A.
• To slide the shelf towards the inside: Push until it stops,
figure B.
Figure A Figure B
In order to remove a shelf from a metal frame
• Pull the shelf until it stops.
• Incline the front of the shelf towards the top and pull
forward.
• Lift the shelf in the manner it moves across the
support openings.
To put back into place just reverse these steps.
To remove or replace Glide'N'Serve drawer
1 To remove, pull the drawer out to full extension.
2 Lift the front of the drawer up, then pull it straight out
• To install, slightly tilt up the front and insert thedrawer
into the frame and push it back intoplace.
NOTE: Removing the fixed door bin isrecommended to
reduce the risk of door bin scratches.
Functional Shelves (Folding Shelves, in some models)
You can store tall articles like gallons or bottles just by
simply folding the shelf in half.
¢ €
To remove the glass:
CRISPER HUMIDITY CONTROL (in some models)
You can control the amount of humidity in the moisture-
sealed crispers. Adjust the control to any setting between
HIGH and LOW.
• "High": keeps moist air in the crisper for best storage
of vegetables.
• "Low": lets moist aire out of the crisper for best storage
of fruits.
• Lift up the glass under the crisper cover.
• Pull the glass up and out.
To remove or replace the crisper cover support:
NOTE: Remove glass before removing the crisper cover
support.
• While holding the crisper cover support with both
hands (as shown in the image below). Pull forward and
slightly lift the front part.
To remove or replace the crisper:
• To remove, slide the crispers out to full extension.
• Lift the front of the crisper up, then pull it straightout.
• To install, slightly tilt up the front and insert thedrawer into
the frame and push it back intoplace.
[] CAUTION: Be careful when you handle the glass
cover because it could loose.
28
Glide'N'Serve (In some models).
The Glide'N'Serve provides storage space with avariable
temperature control that keeps thecompartment colder
than refrigerator. This drawer can be used for large party
trays, deliitems, or beverages.
TEMP. SELECTOR
WARNING: Somebody can be hurt if door racks
are not firmly assembled.
CAUTION: DO NOT allow children to play with
baskets. Sharp corners on baskets could cause
injury.
NOTE: DO NOT adjust a rack that is loaded with food.
DAIRY COMPARTMENT (in some models)
• To remove the dairy compartment, simply lift it and
pull straight out (1).
• To replace the dairy compartment, slide it in above the
desired location and push clown until it stops (2).
Selection Button
• When "MEAT" is selected, the temperature of the
Glide'N'Serve can be kept around 34°F(1°C). This
feature helps keep meat or fish fresh for a longer
time. The Glide'N'Serve temperature can be main-
tained under recommended temperature setting
Freezer : O°F (-1S°C), Referigerator: 37°F (3°C).
When "DELl" is selected, the temperature of the
Glide'N'Serve can be kept around 3S°F (3°C).This
feature helps keep food fresh for a longer time.
The Glide'N'Serve temperature can be maintained
under recommended temperature setting Freezer:
O°F (-1S°C), Referigerator : 37°F (3°C).
• When "PRODUCE" is selected, the temperature of
the Glide'N'Serve can be kept around 41°F(5°C). This
feature helps keep food fresh for along time. The
Glide'N'Serve temperature canbe maintained under
recommended temperature setting Freezer :
O°F (-1S°C), Referigerator : 37°F (3°C).
DOOR RACKS
The door racks are removable for easy cleaning and
adjusting.
• To remove the rack, simply lift the rack up and pull
straight out (1).
• To replace the rack, slide it in above the desired
support button and push clown until it stops (2).
DISPENSER DRIP TRAY (in some models)
The dispenser drip tray has no self-draining
function. It should be cleaned regularly.
Remove the cover by pressing and pulling the
tray. Dry it with a cloth. To reinstall the tray,
slightly tilt the front of the tray and snap the
ribs into the holes.
29
FREEZER SECTION
ICE BIN (In some models)
To remove Ice Bin:
• Pull the drawer as much as possible (1).
° Raise the ice box and take it out carefully (2).
To reinstall Ice Bin:
• Take the drawer off as much as possible and put the
ice bin in the right position.
WARNING: In order to prevent accidents, such as
suffocation, DO NOT let children and
pets play inside the durabase.
WARNING: There is enough space for the children
to play.
Pull-Out Drawer
4 Door models Drawer (_
Ice Bin
To remove the drawer, push drawer to the back over the
stoppers until it stops, gently lift the rear left and right
sides of the drawer and pull it out.
3 Door models
Ice Bin \
Drawer
DURABASE (in some models).
• Fully extend the freezer drawer. Lifting
part and pull it up (1).
• To put it back, insert the Durabase in the rail
assembly (2).
3 Door models
4 Door models
To reinstall, pull out and fully extend both rails. Insert
the end of rib in the bracket at left and right. Making
sure that the guides at the front are lined up properly,
gently push clown on both sides.
DURABASE DIVIDER (in some models)
Allows organizing the Durabase
area in 2 sections.
For moving the divider, just move
it in the direction that you want.
3O
3 Door models
.j
4 Door models
EXPLOSIONHAZARD
Donotuseflammablecleaners.Notfollowingthese
instructionscancausedeath,explosionorfire.
Therefrigerator,aswellasthefreezer,do theirown
de-freezing.Thisprocessdoesnotpreventthebuild
upofcontaminants,thereforeit issuggestedthatyou
cleanbothpartsoncea month;cleanspilledliquids
immediately.
REFRIGERATORCLEANING
• Unplugyourrefrigerator.
• Pullout all of the removableparts(suchas the
vegetableanddairydoors).
• Usea cleansponge(ora softrag)anduseit with
lukewarmwatermixedwithdetergent.Donot use
abrasiveorconcentratedcleaners.
• Handwashit,anddryitthoroughly.
• Plugtherefrigeratorbackin.
OUTSIDE
Waxtheoutsideinordertocreatebetterprotection.Make
sureyouusea productspecificallydesignto beused
forelectro-domesticproducts(carwaxisacceptable).
Useaclean,softrag,andperformthistasktwiceayear.
Formetal-maderefrigerators,donotwax,simplyclean
itwithwateranddetergent.Donotuseconcentratedor
abrasiveproducts.
NOTE;Avoidthe usageof chemicalproductsthat
containphosphatesorbleach.
BACK COVER
ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or turn
off power at the circuit breaker or fuse box.
NOTE: Back Cover should only
be removed by a qualified
technician.
In order to get an efficient
performance of your refrigerator,
clean the back cover of it at least
twice a year.
REPLACING REFRIGERATOR LIGHTS
NOTE: The interior lighting for refrigerator uses LED
lighting.
DO NOT try to change any LED module. LED lighting
should only be replaced by qualified technician.
REPLACING FREEZER LIGHTS
ELECTRICAL SHOCK HAZARD
Before replacing a burned-out light bulb, either
unplug the refrigerator or turn off power at the circuit
breaker or fuse box.
NOTE: Moving the control to the OFF position does
not remove power to the light circuit.
NOTE: All refrigerators use LED lighting in freezer for
this reason must be replaced bya qualified service
technician except for model: LFX25778**, GM-B259R *
and GM-L268F**P
If your refrigerator is one of models previously mention-
ed please follow next instructions.
INSIDE (Allow freezer to slightly warm up a small
degree to prevent cloth from sticking)
In order to eliminate bad odors, clean the inside of
the refrigerator with a mixture of baking powder and
lukewarm water (one teaspoon of baking powder per cup
of water). Ensure that the powder dissolves thoroughly, in
order to prevent any sort of damage.
DOOR LINING AND GASKETS
Use only a mild detergent (such as dish soap).
1. Unplug refrigerator power cord form outlet.
2. Use a screwdriver to remove the cover screw. (Save
the cover screw)
3. Using a flat instrument, gently pry the lamp cover
loose in the front as shown. Rotate downward to
remove the rear tabs.
4. Make sure the bulb is cool to the touch. Turn the
bulb counterclockwise to remove.
5. Replace with a new 60-watt appliance bulb.
6. Insert tabs on back of cover into slots in freezer
ceiling. Push cover up to snap front into place.
7. Use a screwdriver to assemble the cover screw.
PLASTIC PARTS (Covers and Panels)
Do not use abrasive, paper or rough products. These
could damage the product.
CAUTION
DO NOT place fingers
inside of cover, lamp
may be hot.
31
POWER iNTERRUPTiONS
1. In case of a black out, call your electric company
and ask how long it will last.
2. In case of a 24 hour or less black out, do not open
the refrigerator; this will keep the food fresh.
3. In case of a longer black out, do one of the following
options:
• Pull out all of the frozen food and keep them in an
ice chest.
• Put 2 Ibs (907 g) of frozen ice (make sure you use
gloves) for each square foot (28 L) inside the freezer.
This task will preserve the food fro 2 to 4 days.
• In case you do not possess neither ice chest or dry
ice, consume your food as soon as possible.
REMEMBER: In a power failure, a full freezer stays cold
longer than a partially filled one. A freezer full of meat
stays cold longer than a freezer full of baked goods. If
you see that food contains ice crystals, it may be safely
refrozen, although the quality and flavor may be affected.
If the condition of the food is poor or if you feel it unsafe,
dispose of it.
WHEN GOING ON VACATION
If you decide to leave your refrigerator on when going
away, consider these steps:
1. Consume all of the perishable items and freeze the
rest.
2. Empty the ice bin.
WHEN MOVING
If you decide to take your refrigerator with you when
moving, consider the following:
1. Remove all of the food from it, and place the frozen
food in an ice chest with dry ice.
2.Unplug your refrigerator.
3. Empty the water from its tray.
4.Clean and dry it with a rag.
5. Pull out all of the removable parts, and wrap them with
adhesive tape.
6. Depending on the model of the refrigerator, lift the top
part of the refrigerator so it can roll with ease, or screw
the levelers so it won't scratch the floor. Consult to the
section "Closing and Aligning Doors':
7. Keep the doors closed with the cable glued to the
refrigerator cabinet with an adhesive tape.
When your refrigerator arrives to your home, put
everything back into place and read the section
"Refrigerator Installation" in order to obtain installation
preparation. In case your refrigerator has a factory ice
maker, remember you have to reconnect the water
supply.
If you decide to leave your refrigerator off:
1. Remove all of the food.
2.Unplug your refrigerator.
3.Clean and dry it well.
4. Make sure the doors stay open (use blocks or tape) in
order to prevent bad odors and fungi from happening.
32
REPLACINGTHEWATERFILTER(TYPEI)
It is recommended that you replace the filter
approximately every 6 months, when the water filter
indicator reaches 0 months, or when the ice and water
dispenser noticeably decreases out-put.
Remove the oOd cartridge.
f
].
Press the push button to open the filter cover.
NOTE: Replacing the filter causes a small amount
of water (around 1 oz. or 25 cc) to drain. Place a cup
under the filter hole to catch any waste.
3.
Pull out the filter cartridge.
NOTE: When opened at a full angle the
cartridge should easily come out.
S
z
z
\
\
2. Pull the cartridge downward.
33
REPLACINGTHEWATERFILTER
Replace with a new cartridge.
J
NOTE: After replacing the filter_ flush 2.5 gallons
through filter before use (flush for approximately
5 minutes).
Check the filter for leaks.
FILTER
_ CHANGE
MONTH
When the water filter indicator displays the
message 0 Filter Month, hold 3 seconds.
Reset the water filter status display and indicator
light by pressing and holding the LIGHT/FILTER
button for at least 3 seconds.
1.
Take the new cartridge out of its packing and
remove the protective cover from the o-rings.
With cartridge ears in the horizontal position,
push the new filter cartridge into the manifold
hole until it stops.
NOTE: Filter Bypass Plug
Keep the filter bypass plug.
You must use the filter bypass plug when a
replacement filter cartridge is not available.
The icemaker will not operate without the filter or filter
bypass plug inserted in the proper compartment.
F
J
Filter Bypass Plug
2. Firmly lock in the cartridge.
The cover will click back into place.
To purchase replacement water filter cartridges,
visit your local appliance dealer or parts distributor,
or refer to the warranty card to obtain the telephone
number of the service center near to you.
You can also call:
USA 1-800-243-0000
CANADA 1-888-LGCANADA
(24 hours per day/7 days per week).
The replacement water filter cartridge's part
number is ADQ36006101.
34
PerformanceDataSheet
ModeELGAD036006101-S UseReplacementCartridge:AD036006101
The concentration of the indicated substances in water entering the system was reduced to a concentration less
than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and
Standard 53.
i System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for_
i
1
the reduction of substances listed below.
Contaminant Reduction
Average Max Permissible NSF
Average NSF specified Challenge Avg % Product Water Product Water Reduction
InRuent Concentration Reduction
Concentration Concentration Requirements
NSF Test
Report
Chlorine Taste and Odor 21 mg/L 20 mg/L + 10% 972% 006 mg/L N/A > 80% J 00049247
Nominal Particulate Class I, , 8,600,000 At least 10,000 particles/mL 987% 73,000 pts/ N/A >88% d 00049282
>05 to < 10 _m pts/mL ml
Asbestos 190 MFL 107 to 108 MFL; fibers greater >99% < 1MLF N/A >99% J 0004928
Atrazine
Benzene
Carbofuran
Lh_daHe
P Dichlorobenzene
Toxaphene
2,4 D
Lead pH @65
Lead pH @85
Mercury @ pH 65
Mercury @ pH 85
Cyst _
00094 mg/L
0016 mg/L
008 mg/L
0002 H_g/L
022 mg/L
0014 mg/L
0213 mg/L
0150 mg/L
0150 mg/L
00089 mg/L
00088 mg/L
120,000 cysts/L
than 10 _m in length
0009 mg/L + 10%
947%
0015 mg/L + 10% 967%
008 mg/L ± 10% 981%
0002 H_g/L + 10% 982%
0225 mg/L + 10% 998%
0015 mg/L + 10% 93%
0210 mg/L ± 10% 952%
015 mg/L + 10% >993%
015 mg/L + 10% >993%
0006 mg/L + 10% 961
0006 mg/L + 10% 901
Minimum 80,000 cysts/L 9999%
0 00008
mg/L
0005 mg/L
0002 mg/L
000004
mg/L
00008 mg/L
0001 mg/L
0009 mg/L
0001 mg/L
0001 mg/L
00002 mg/L
00006 mg/L
<1 cyst/L
0003 mg/L
0008 mg/L
004 mg/L
00002 mg/L
0075 mg/L
0003 mg/L
007 mg/L
0010 mg/L
0010 mg/L
0002 mg/L
0002 mg/L
N/A
N/A J 00049293
N/A J 00049300
N/A J 00049294
N/A d 00051975
J 00049298
J 00049302
J 00049284
J 00051974
J 00049277
J 00053886
J 00051972
J 00049281
N/A
N/A
N/A
N/A
N/A
N/A
N/A
>9998%
Based on the use of Cryptosporidium parvum oocysts.
35
REPLACINGTHEWATERFILTER(TYPE2)
WATER FILTER
Filter Reset: When the filter icon turns on, you have to
change the water filter. Press the Filter button
for 3 seconds to turn the icon off.
Before removing or installing water filter:
1. IMPORTANT: Turn off household water supply.
2.Take out the top shelf and move it to the lowest level.
Removing the water filter:
, h
\ J
1. For filter replacement, remove old filter by turning it
counterclockwise and pulling it down.
NOTE: The substitute cap(_)must be retained for the
future. If the filter is removed and not replaced, it is
necessary to reinstall the substitute cap to prevent
water leaks from the filter housing.
Installing the water filter
1. Remove the red cap
from the filter.
2. Hold the filter with the unlock symbol E_ " facing
towards you as shown in the picture below. Insert the
filter into the filter receptacle on the right side of the
refrigerator compartment.
h
J
3. Push the water filter up into the filter receptacle and
rotate it clockwise to lock it into place. Once installed
correctly, the lock symbol _ should be facing you
and you should not be able to rotate the filter
clockwise any more.
h
NOTE: After installation, if you notice that the lock
symbol _] is not facing you or you can continue to
rotate the filter clockwise; remove the filter and repeat
installation to prevent water leaks.
After installing water filter:
1. Replace the shelf to the initial position.
2. After installing filter, turn on household water supply.
3. Dispense 2.5 gallons (9,46 liters) of water to purge
the system, depressing and releasing the dispenser
pad in cycles of 20 seconds ON and 60 seconds
OFR Open the refrigerator door and check the shelf
area for water leaks.
To purchase replacement water filter cartridges,
visit your local appliance dealer or parts distributor,
or refer to the warranty card to obtain the telephone
number of the service center near to you.
You can also call:
USA 1-800-243-0000
CANADA 1-888-LGCANADA
(24 hours per day/7 days per week).
The replacement water filter cartridge's part
number is 5231JA2002A or ADO72910901.
36
Performance Dafa Sheer
Models Number 5231JA2002A-S
Use with replacement cartridge 5231JA2002A
This system has been tested according to NSF/ANSI Standards 42 for the reduction of the substances listed
below. The concentration of the indicated substances in water entering the system was reduced to a concentration
less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI 42.
i System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction j
i
of Chlorine Taste and Odor and Nominal Particulate Class III.
1
Capacity: 500 gal (1,892 L)
Substance
Average
Influent
Concentration
Influent Challenge
Concentration.
Units apply to
each row
Avg. Product
Water
Concentration
Average
%
Reduction
NSF % reduction
req.
or Max. permissible
product water
concentration
Nominal Particulate At least 10,000
24,333 915 96 >_85%
(:lass I Particle size: >05 to <1.... particles/ml
Chlorine taste and odor
1.9 2.0 mg/L _+10% 0.07 96.4 >_50%
(:lass III
Note that while the testing was performed under standard laboratory conditions, actual performance may vary.
Application Guidelines / Water Supply Parameters
Service flow 0.5 gpm (1.89 Ipm)
Water pressure 20 - 125 psi (138 - 862 kPa)
Water temperature 33°F - IO0°F (0.6°C - 38°C)
To reduce the risk associated with ingestion of
contaminants due to use with water that is
microbiologically unsafe or of unknown quality.
Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection
before or after the system.
Systems must be installed and operated in accordance
with manufacturer's recommended procedures and
guidelines.
To reduce the risk of property damage due to water
leakage:
• Read and follow Use instructions before installation
and use of this system.
• Install on COLD water lines only.
• Comply with all state and local plumbing codes.
• Install a pressure limiting device and water hammer
arrester for inlet water pressures exceeding 80 psi
(552 kPa). Refer to Uniform
Plumbing Code, Sections 608.2 and 609.10.
• Never install or operate where inlet water pressure
may exceed 120 psi (827 kPa).
• Protect filter from freezing. Remove filter in
temperatures below 33 ° F (0.6 ° C).
• Replace cartridge at specified service interval.
Cartridge MUST be replaced at least every 6
months.
To purchase or replace water filters call your Service
Center. Refer to the Warranty Card to obtain the
telephone number of the Service Center near you and
ask for part no. 5231JA2002A or ADQ72910901.
37
Application Guidelines/Water Supply Parameters
Service Flow 0.5 gpm (1.9 Ipm)
Water Supply Potable Water
Water Pressure 20 -125 psi (138 - 862 kPa)
Water Temperature 33°F - IO0°F (0.6°C - 38°C)
It is essential that the manufacturer's recommended
installation, maintenance and filter replacement
requirements be carried out for the product to perform
as advertised.
Note: While the testing was performed under standard
laboratory conditions, actual performance may vary.
Replacement Cartridge: ADO36006101 (Type 1)
ADO72910901 or 5231JA2002A (Type 2).
For estimated costs of replacement elements
please call USA 1-800-245-0OOO CANADA
1-888-LGCANADA (24 hours per day/7 days
per week or visit our website at www.lg.com).
3M is a trademark of 3M Company.
NSF is a trademark of NSF International.
{© 2009 3M Company. All rights reserved.
WARNING
To reduce the risk associated with ingestion of
contaminants: Do not use with water that is
microbiologically unsafe or of unknown quality
without adequate disinfection before and after the
system. Systems certified for cyst reduction may be
used on disinfected water that may contain filterable
cysts. EPA Establishment Number 10350-MN-005
I CAUTION
To reduce the risk associated with property damage
due to water leakage:
• Read and follow. Use Instructions before installation
and use of this system.
• Installation and use MUST comply with all state and
local plumbing codes.
• Do not install if water pressure exceeds 120 psi (827
kPa). If your water pressure exceeds 80 psi, you must
install a pressure limiting valve. Contact a plumbing
professional if you are uncertain how to check your
water pressure.
• Do not install where water hammer conditions may
occur. If water hammer conditions exist you must
install a water hammer arrester. Contact a plumbing
professional if you uncertain how to check for this
condition.
• Do not install on hot water supply lines. The
maximum operating water temperature of this filter
system is IO0°F (38°C).
• Protect filter from freezing. Drain filter when
temperatures drop below 40°F (4.4°C).
° The disposable filter cartridge must be replaced
every 6 months, at the rated capacity or if a
noticeable reduction in flow rate occurs.
Manufactured for LG_Electronics by CUNO
Incorporated 400 Research Parkway Meriden,
CT 06450 U.S.A Worldwide: 203-237-5541
www.cuno.com
38
State of California
Department of Public Health
Water Treatment Device
Certificate Number
09-2018
Date Issued: December 15, 2009
Trademark/Model DesiRnafion
ADQ 36006101-S
_cement Elements
ADQ36006101
Manufacturer: Cuno Inc.
i .
The water treatment devket S) listed on this certificate have met the testing requirements pursuant to Section
116830 of the Health and Safety Code for the following health related contaminants:
Microbiolo_icai Contaminants and Turbidity
s t s v C s 0 t s e b s A
OrRanic C
2,4-D Re n
Atrazine
Benzene
Carbofuran
Lindane
p-Dichlorobenzene
Toxaphene
Rated Service Capacity: 200 gal Rated Service Flow: 0.5 gpm
Conditions bf Certification:
39
BEFORE START
The water source is not guaranteed by the refrigerator
manufacturer Follow instructions carefully in order to
reduce damage
Air located inside the water pipes can cause hammering
or tapping causing damage to the inner pipes or water
spillage in the inside of the refrigerator Call a qualified
plumber to fix such hammering on the connections
before installing the water pipe
To avoid burn damage or such, never connect refrigerator
to hot water pipes
If you are to use the refrigerator before connecting it
to the water source, make sure the ice maker is the off
position
Never attempt to install the ice maker pipes in areas
where room temperature is below freezing point
When using any electrical device (like a drill) during
the installation, make sure device is doubly isolated or
making ground to prevent risk of electrical surge or
discharge
All installations should be done considering local water
and drainage requirements
° If an inverted osmosis water filtration system is
connected to the cold water source, the water hose
installation is not assured or guaranteed by the
refrigerator or automated ice maker manufacturer
Follow the next instructions carefully to minimize costly
water related damages
° When having an inverted osmosis water filtration
system connected to the cold-water flow, the water
pressure for such system must be at least between
40-60 PSIor0,27 MPa (2,8 kg f /cmz N4,2 kg f
/ cm a,(2,S kg f / cmz N4,2 kg f / cm Z, lessthan
2 _ 3 seconds to fill a 7 oz of capacity cup [0,2 liters])
° If the inverted osmosis water filtration system pressure
is less than 21 PSI or 0,14 MPa (1,5 kg f / cm z, more
than four (4) seconds to fill a 7 oz of capacity cup [0,2
liters]):
a) Identify if the sediments filter in the inverted osmosis
system is being blocked Replace filter if necessary
b) Allow inverted osmosis system storage tank to refill
after extensive usage
c) Call a qualified plumber if the inverted osmosis water
pressure problem continues
REQUIREMENTS j• 1/4" (6,35 ram) in diameter copper pipe to
connect refrigerator to the water pipe ///
Make sure both terminals are cut in _//
squared manner
To determine how much pipe material is needed,
measures the distances between the valves located
behind the refrigerator and the source of water and add
to that S feet (2,4m) Make sure there is sufficient pipe
material to allow the free movement of the refrigerator
from the wall
A cold water source. Water pressure should be between
0,13S and 0,$2 MPa or 20 and 120 PSI for models not
containing water filter and between 0,276 and 0,$2
MPa or 40 and 120 PSI for m_r
filter
A drill.
Adjustable 1/2" (12,7 ram) key.
Flat and Phillips style (star)
screwdriver.
Two 1/4" (6,35 ram) diameter
compression nuts with two
sides to connect the copper
pipe to the refrigerator valve
If your current copper pipe has some /(/r -,_
reduction on the ends, it will be
necessary to get and adaptor (found
in hardware stores) to connect the
water line to the refrigerator It is also possible to cut such
reductions with a pipe cutter and use the compression
connections mentioned above
* Bypass valve to connect to
the cold water line The valve
must have a water opening
with an interior 5/32"
(3,46 ram) diameter in the cold-water connection
point These valves can be located in any cold-water
connection package Before buying make sure such
valve meets local standards and requirements
INSTALLATION INSTRUCTIONS
Install the valve to the pipe that you use to drink water
(Connect only to a potable water source)
CAUTION: Connect to potable water supply only
1. CLOSE THE MAIN WATER SOURCE
Open the nearest water faucet to let water flow and
empty pipes
2. SELECT THE LOCATION OF THE VALVE
Select the location of the valve that will
provide a better access It is best to
connect to a vertical pipeline When
connecting to a horizontal pipeline is
necessary, make the connection in the
lateral or upper area instead of the lower
area to prevent accumulation of
sediment
4O
3. DRILLA HOLEFORTHEVALVE
Drill a 1/4" (6,35 ram) diameter
hole in the water pipeline.
Remove jagged edges produces
after perforation. Make sure
water does not reach the drill.
Not performing the 1/4" (6,35
ram) perforation can lead to a
low or smaller ice production.
4. TIGHTEN THE VALVE
Tight the valve into the cold water pipeline with a tube
trap.
Pipe Clamp --_
Saddle Type _
Shutoff Valve
Vertical Cold
Water Pipe
7.CONNECT PIPELINE TO VALVE
Place the compression nut and the copper pipe ferule at
the end of the pipe and connect to the valve. Make sure
the pipe is completely inserted into the valve. Tighten
nut carefully.
Saddle Type
Outlet Valve
. Compression Nut
_erule (sleeve)
NOTE: Codes for 248 CMR pipelines of the state of
Massachusetts must be attached to the connection.
Valves of this type are banned in Massachusetts. Call an
authorized plumber.
8. DRAIN THE PIPE
Open the main water source (I)and drain the pipe until
water comes out clear.
NOTE: Codes for 248 CMR pipelines of the state of
Massachusetts must be attached to the connection.
Valves of this type are banned in Massachusetts. Call an
authorized plumber.
5. TIGHTEN THE TRAP
Tighten the trap until the sealing ring begins to grow.
NOTE: Make sure it is not too tight, this can break the
pipe.
Washer
Pipe Clamp _ _ i//-'----Inlet End
Clamp Screw_
Allow water flow from the bypass valve (2) and close after
draining 1/4 of a gallon (1L) of water.
)
6. PLACE THE PIPELINE
Place the pipeline between the cold water pipe and the
refrigerator. Place it through a hole in the wall or floor
(behind the refrigerator or next to the cabinet) as clos to
the wall as possible.
NOTE: Make sure there is a sufficient amount of extra
pipeline (8 feet [244 ram] coiled up three times with a
10" [25 cm] in diameter) to allow free movement of the
refrigerator from the wall after installation was made.
9. CONNECT PIPE TO REFRIGERATOR
NOTES:
• Before making connection to refrigerator, make sure
it is not connected to any energy source. If your
refrigerator does not have a water filter, it is advised
to install one.
• If your water source contains sand or related particles
that can travel to the valve, install a water filter near the
refrigerator.
IMPORTANT: Never use old or used hoses. Always use
new ones to have a better use and experience. Connect
always to a potable water source to avoid security and
health issues.
41
° Remove the ring plug (1) from the valve located at the
top of such device.
®
• Place compression nut and the ferule at the end of the
pipeline. Insert pipeline into the connection valve as far
as possible. Hold tightly while holding pipeline.
11.CONNECT TO REFRIGERATOR
Fix pipeline in a way that
it does not vibrate on the
refrigerator or wall. Push
refrigerator against wall.
12. TURN ICE MAKER ON
Turn ice maker switch into the ON position. Ice maker
will start only after reaching its operating temperature
of 15 °F (-9 °C) or less. It will automatically begin the ice
production if switch is located in the ON position.
Compression
Nut 1/4"
Ferule
Hold on to the pipe from the handles or grabbers located
behind the refrigerator, loosing first the bolt holding the
handle. Afterwards, insert pipe into the hole and tighten
bolt to finalize.
10. OPEN THE BYPASS VALVE
Tighten all connections
containing leaks. Place access
cover back on compressor.
42
UNDERSTANDING SOUNDS YOU MAY HEAR
Your new refrigerator might produce certain noises that your previous refrigerator did not. It is normal if you worry.
Most of the new sounds you will be hearing are actually normal and expected. Hard surfaces like walls or floor can
increase sounds and make them sound louder than they really are. The following list has a description of such sounds
along with their causes.
• The thawing timer will make a "click" sound when such
timer will start and finish. Temperature controlling
device will also make a "click" sound at the beginning
and ending of the refrigerator cycle.
oyou will hear a bell sound caused by the flow of the
refrigerant, water pipe or objects located on the superior
part of the refrigerator.
Your refrigerator is designed to work efficiently to
preserve your food at the desired temperature using
the least of energy. You will be able to hear a pulsing
sound coming from the ventilators and the evaporator.
The speed of the ventilator can speed up when you
open the refrigerator door.
• After each cycle you will hear a dripping sound clue to
the refrigerant liquid in your refrigerator.
Contraction and expansion of the inner walls can cause
a slight popping sound.
You will hear a dripping sound caused during the
thawing cycle.
During the defrosting cycle the water might cause a
dripping sound.
You can hear some tight air sound over the capacitor
caused by the fan.
Running water can be heard during the defrosting
cycle.
Due to its low energy consumption design of the
refrigerator; the fans will remain of, while the on-off
switch activated the internal light of bin.
Problem I PossJbl" eCauses. SoJufions
THE REFRIGERATOR
WON'T TURN ON
• The plug is correctly positioned.
• A fuse has gone bad or the circuit
presents failures.
• The refrigerator is in the defrosting
cycle.
• The refrigerator is plugged.
• The light bulbs are loose.
• A light bulb has gone bad.
THE LIGHT WON'T
TURN ON
• Firmly plug the cord into a live outlet with proper
voltage.
• Replace the fuse or reset the circuit breaker.
• Wait about 30 minutes for defrost cycle to end.
• Plug the refrigerator in a right voltage plug.
• Unplug the refrigerator. Unscrew the Light bulb
and screw it again (Read the section Refrigerator
Care and Cleaning). Plug again.
oUnplug the refrigerator before changing the
light bulb. Replace the bulb with a same 40
watts bulb for your local store. (Read the section
Replacing Refrigerator Lights).
43
Problem , PoSsible Causes Solutions
STRANGE SOUNDS ,The refrigerator is not correctly ,You need to adjust the leveling screws due the
OR SNOOZING/ positioned, floor is unleveled or weak. Read the Installation
Vl BRATIONS section.
IT LOOKS LIKE
THE COMPRESSOR
MOTOR STAYS ON
TOO LONG
DOORS WILL
NOT CLOSE
COMPLETELY
THERE'S ICE ON
THE FOOD
THERE IS A WEIRD
TASTE AND SMELL
IN THE ICE
• The replaced refrigerator was an
older model.
• The room temperature is hotter
than usual.
• The door is being opened very often
or there has been a big amount of
food in storage.
• The refrigerator is plugged and the
control has been adjusted correctly.
• Doors won't close correctly.
• The condenser pipes are dirty.
• The refrigerator is not leveled.
• The food packages are blocking the
doors.
• The ice bin, the vegetable bin, the
panels and the shelves from the
door are out of place or position.
• The gaskets are sticking.
• The refrigerator wobbles or looks
instable.
• The doors were removed during
the installation and they weren't
properly setup.
• The door hasn't been closed
completely.
• The door is frequently opened.
• The ice maker has been installed
correctly.
• The ice has been on storage too
long.
• The food hasn't been packed in the
correct way.
• The water supply contains mineral
and sulfur.
• The inside of the refrigerator need
cleaning.
• The ice bin needs cleaning.
• Modern refrigerators with a bigger storage
capacity require longer periods of operation.
• The motor will continue working when the room
temperature is high. The motor might be on
between 40% or 80% of the time. In high
temperature conditions, the capacitor might run
on periods of time.
• When adding or opening the door of the
refrigerator, it warms it up. It's normal that the
refrigerator to run more that usual in order to cool
the bins. (Read the section Food Storage Guide).
To save energy, take what you need at once, order
your food in order so it can be easily found and
close the door immediately soon after you took
out the food.
• The refrigerator will take 24 hours to cool down
completely.
• Push firmly the Doors. If they don't close. Read
Doors will not close completely below.
• This will stop the air transfer and marked the
motor to work longer and harder. Clean the pipes
of the condenser.
• Read Refrigerator Installation section to level
refrigerator.
• Adjust the food bins in order to free space
between the doors and the shelves.
• Push the containers and place the vegetable cover
lid, the panels, shelves and any other container or
bin in their right positions. Read the section Using
your Refrigerator.
• Clean the seal rings and the surface they might be
in contact with. Use a piece of cloth with a small
amount of paraffin and apply it over the seal rings.
• Level the refrigerator. Read the section Closing
and Aligning the Doors.
• Remove and place again the door according to
the section Refrigerator Doors: How to remove
and reverse.
• Read Doors Will not Close Completely already
mentioned.
• When the door is opened, warm, humid air is
allowed in the freezer resulting in frost.
• Don't use the first ices made.
• Dispose of that old ice and make new.
• Pack again the food because it can transfer odors
and tastes to the ice.
• You might need to install a filter in order to
eliminate the odors and taste problems.
• Read the section Refrigerator Care and Cleaning.
• Empty the bin and discard the old ice cubes.
44
Problem I PossibleCauSes I
• The refrigerator is in defrosting ,The water will evaporate. It is normal that some
THERE'S WATER IN cycle, water falls on the bin.
THE DRAINING BIN • It's more humid than usual. • It might take a while for the water to evaporate.
This is normal when the weather is hot and humid.
• The sounds may be normal for your • Refer to the Understanding Sounds You May Hear
refrigerator, section.
THE
REFRIGERATOR
SEEMS TO MAKE
TOO MUCH NOISE
THE ICE MAKER IS
NOT PRODUCING
ICE OR ICE CUBES
ARE FREEZING
TOO SLOWLY
THE DOORS ARE
HARD TO OPEN
THE ICE MAKER
DOES NOT WORK
• Door left open.
• The gaskets are dirty or sticky.
• The door opens itself as soon as
you close it.
• The ice maker is off.
• The water supply is down or not
plugged.
• The freezer temperature is warm.
• The ice cubes turn off the ice maker.
• The air vents are blocked. The
cool air flows from freezer to the
refrigerator and returns thru the
vents that dive this section.
• The doors open very easily.
• The refrigerator control has not been
adjusted for the room conditions.
• A large amount of food is just been
placed inside the refrigerator.
• The food has not been well packed
in each bin.
• The doors haven't been closed
correctly.
• The weather is humid.
• The auto-defrosting cycle is over.
THETEMPERATURE
IS TOO HOT
ORTHERE'S
HUMIDITY FORMED
INSIDETHE
REFRIGERATOR
• Wait 24 hours after hook-up for ice production.
See the Adjusting the Controls section.
• Check to see if something is holding the door
open.
• Clean the gaskets and surface that they are in
contact with. Use a damp cloth with paraffin also
apply over the seal rings.
• When you open the door, the warm air enters
in the refrigerator. When this air is cooled down
it occupies less volume and creates a vacuum
effect. If it is difficult to open wait 5 minutes then
check.
• Turn the ice maker to the position on (I).
• Read the section Connecting the Water Line.
• Wait 24 hrs for the freezer to reach its ideal
temperature.
• Hand level the ice cubes.
• With your hand find the vents and move and
package that might be blocking the air flow. See
the Multi Flow Section.
• When the doors are opened the warm and humid
air enters. To keep your refrigerator cool, take what
you need once and you're your food organized to
make it easy to find. Close the door a soon as
you can.
• Wait 24 hours to stabilize the temperature. If the
temperature is cold or hot, move the control until
the desire temperature is reached.
• After adding food to the refrigerator this will warm
up. It might take some hours for the refrigerator to
reach its temperature.
• Wrap the food evenly and before packing anything
dry all the bins to avoid humidity. If it is necessary,
pack the food according to the section Food
Storage Guide.
• Read Doors will not Close Correctly section.
• In humid weathers, the air contains humidity,
which introduces it self if the doors are opened.
• It's normal that some water props get formed
after the defrosting cycle is completed.
45
SMART DIAGNOSIS
(In some models).
Should you experience any problems with your
refrigerator, it has the capability of transmitting
data via your telephone to the LG service center.
This gives you the capability of speaking directly
to our trained specialists. The specialist records
the data transmitted from your machine and
uses it to analyze the issue, providing a fast and
effective diagnosis.
If you experience problems with your refrigera-
tor, call 1-800-243-0000. Only use the Smart
Diagnosis feature when instructed to do so by
the LG call center agent. The transmission
sounds that you will hear are normal and sound
similar to a fax machine.
Smart Diagnosis cannot be activated unless
your refrigerator is connected to power. If your
refrigerator is unable to turn on, then trouble-
shooting must be done without using Smart
Diagnosis.
Using Smarf Diagnosis
First, call 1-800-243-0000. Only use the Smart
Diagnosis feature when instructed to do so by
the LG call center agent.
1. Lock the display. To lock the display, press and
hold the Lock button for three seconds. (If the
display has been locked for over five minutes,
you must deactivate the lock and then ractive it.)
4. Press and hold the Freezer Temperature
button for three seconds while continuing to
hold your phone to the speaker.
5. After you hear three beeps, release the Free-
zer Temperature button.
6.
Keep the phone in place until the tone trans-
mission has finished. This takes about 15
seconds, and the display will count down the
time. Once the countdown is over and the
tones have stopped, resume your conversation
with the specialist, who will then be able to
assist you in using the information transmitted
for analysis.
NOTE ...................................................................................................................................................................................................................................................................................................................................
* For best results, do not move the phone while the
tones are being transmitted.
If the call center agent is not able to get an
accurate recording of the data, you may be asked
to try again.
2. Open the right refrigerator door.
3. Hold the mouthpiece of your phone in front of
the speaker that is located on the right hinge of
the refrigerator door, when instructed to do so
by the call center.
46
LG ELECTRONICS U.S.A., INC.
LG REFRIGERATOR LIMITED WARRANTY - U.S.A.
Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal home use, during
the warranty period set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to
the original retail purchaser of the product and applies only when purchased and used within the United States including
U.S. Territories. Proof of original retail purchase is required to obtain warranty service under this limited warranty.
WARRANTY PERIOD
Sealed System
Refrigerator (Condenser_ Dryer_ Connecting Tube, Refrigerant and Linear Compressor
Evaporator)
One (1) year from the date One (1) year from the date Seven (7) years from Ten (10) years from the date of
of original retail purchase of original retail purchase the date of original retail original retail purchase
purchase
Parts and Labor Parts and Labor Parts only Part only
(internal/functional parts (Consumer will be charged (Consumer will be charged for
only) for labor) labor)
Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or
operating the unit in an unsuitable environment will not be covered under this warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (gO) days,
whichever is greater.
Replacement products and parts may be new or remanufactured.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED
WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER
THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY iNCIDENTAL, CONSEQUENTIAL, INDIRECT,
SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS,
OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not altow the exclusion
or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion
or limitation may not apply to you.This warranty gives you specific legal rights and you may also have other rights that vary from
state to state.
THIS LIMITED WARRANTY DOES NOT COVER:
3. Service trips to deliver, pick up, install, or repair the
product; instruct the customer on operation of the
product; repair or replace fuses or correct wiring or
plumbing, or correction of unauthorized repairs/
installation.
2. Failure of product to perform during power failures and
interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen
water pipes, restricted drain lines, inadequate or
interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the product in a
corrosive atmosphere or contrary to the instructions
outlined in the product owner's manual.
5. Damage to the product caused by accidents, pests and
vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from misuse, abuse, improper
installation, repair, or maintenance. Improper repair
includes use of parts not approved or specified by LG.
7. Damage or failure caused by unauthorized modification
or alteration, or if it is used for other than the intended
purpose, or any water leakage where the unit was not
properly installed.
8. Damage or failure caused by incorrect electrical current,
voltage, or plumbing codes, commercial or industrial
use, or use of accessories, components, or consumable
cleaning products that are not approved by LG
9. Damage caused by transportation and handling,
including scratches, dents, chips, and/or other damage
to the finish of your product, unless such damage
results from defects in materials or workmanship and
is reported within one (1) week of delivery (Call: 1-800-
243-0000)
]O. Damage or missing items to any display, open box,
discounted, or refurbished product
11. Products with original serial numbers that have been
removed, altered, or can not be readily determined
Model and Serial numbers, along with original retail
sales receipt, are required for warranty validation
]2.Increases in utility costs and additional utility
expenses
]3. Replacement of light bulbs, filters, or any consumable
parts
]4. Repairs when your product is used in other than normal
and usual household use (eg commercial use, offices,
and recreational facilities) or contrary to the instructions
outlined in the product owner's manual
,5. Costs associated with removal of your product from your
home for repairs
]6.The removal and reinstallation of the product if it is
installed in an inaccessible location or is not installed
in accordance with published installation instructions,
including LG's owner's and installation manuals
17. Shelves, door bins, .drawers, handles, accessories, and
other parts besidesAthose that were originally included
with this particular model
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
For complete warranty details and customer assistance,
please call or visit our website:
Call 1-800-243-0000 (24 hours a day, 3.65 days a year) and
select the appropriate option from the menu, or visit our website
at www.Ig.eom
Or by mail: LG Customer Information Center:
P O. Box 240007, 201 James Record Road Huntsville, Alabama
35813
ATTN: CIC
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
47
LG ELECTRONICS CANADA, INC.
LG REFRIGERATOR LIMITED WARRANTY - Canada
WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship under normal home use during
the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail
purchase.
This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG
Canada or an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.
WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,
the warranty will begin sixty (60) days from the date of manufacture)
Sealed System
Refrigerator/Freezer (Condenser, Dryer, Connecting Tube, Refrigerant and Linear Compressor
Evaporator)
One (]) year from thedaleof One (1) year from the date Seven(7) yearsfromlhedale °[bn (10) years from thedale of
original retail purchase, of original retail purchase, of original retail purchase, original retail purchase.
Parts and Labor Parts and Labor Parts only Part only
(internal/functional parts (Consumer will be charged (Consumer will be charged for
only) for labor) labor)
Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or
operating the unit in an unsuitable environment will not be covered under this warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days,
whichever is greater.
Replacement products and parts may be new or remanufactured.
LG Authorized Service Center warranties their repair work for thirty (30) days.
LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED
ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE
PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON
LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY
OBUGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION
IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR
DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES,
LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING
DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR
OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may have other rights which may vary
from province to province depending on applicable provincial
condition or warranty under provincial law is severable where
this warranty's terms.
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, install, or repair the product;
instruct the customer on operation of the product; repair or
replace fuses or correct wiring or plumbing, or correction of
unauthorized repairs/installation
2. Failure of product to perform during power failures and
interruptions or inadequate eleetrical service
3. Damage caused by leaky or broken water pipes, frozen water
pipes, restricted drain lines, inadequate or interrupted water
supply or inadequate supply of air
4. Damage resulting from operating the product in a corrosive
atmosphere or contrary to the instructions outlined in the
product owner's manual
5. Damage to the product caused by aceidents, pests and vermin,
lightning, wind, fire, floods, or acts of God
6. Damage resulting from misuse, abuse, improper installation,
repair, or maintenance Improper repair includes use of parts not
approved or specified by LG
7. Damage or failure caused by unauthorized rnodifieation or
alteration, or if it is used for other than the intended purpose, or
any water leakage where the unit was not properly installed
8. Damage or failure caused by incorreet eleetrical current, voltage,
or plumbing codes, commercial or industrial use, or use of
accessories, components, or consumable cleaning products that
are not approved by LG
laws. Any term of this warranty that negates or varies any implied
if conflicts with provincial law without affecting the remainder of
9. Damage caused by transportation and handling, including
scratches, dents, chips, and/or other damage to the finish
of your product, unless such damage results from defects in
materials or workmanship and is reported within one (1) week of
delivery (Call: 1-800-243-0000)
10. Damage or missing items to any display, open box, diseounted,
or refurbished product
11. Products with original serial numbers that have been removed,
altered, or can not be readily determined Model and Serial
numbers, along with original retail sales receipt, are required for
warranty validation
12. Increases in utility costs and additional utility expenses
13. Replacement of light bulbs, filters, or any consumable parts
14. Repairs when your product is used in other than normal
and usual household use (eg commercial use, offices, and
recreational facilities) or contrary to the instructions outlined in
the product owneHs manual
15. Costs associated with removal of your product from your home
for repairs
16. The removal and reinstallation of the product if it is installed in
an inaccessible location or is not installed in accordance with
published installation instructions, including LG's owner's and
installation manuals
17. Shelves, door bins, drawers, handles, aceessories, and other
parts besides_,those that were originally included with this
particular model
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
For complete warranty details and
customer assistance, please call or visit
our website: Call 1-888-542-2623 (24 hours
a day, 365 days a year) and select the
appropriate option from the menu, or visit our
websife at www.lg.com
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
48
Life's Good
1-800-243-0000 USA, Consfne
1-888-865-3026 USA, Commerca User
1-888-542-2623 CANADA
www.lg.com
