Sku Number: 351-8505
2LT SEMI-FLUSH MOUNT
Model Number: ISF785A02BN-M
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST
PACKAGE CONTENTS
HARDWARE CONTENTS Note: Hardware not shown actual size.
05-19
A
B
C
D
Black wire
x 1
White wire
x 1
MM
Ground wire
x 1
Wire Nut
x 3
AA
CC
DD
Electrical Box Screw
x 2
BB
EE
FF
LL
Star Washer
x 2
Cap Nut
x 2
Easy Connect™
Mounting Bracket
x 1
HH
GG
Stem
x 1
Rod
x 1
Small Metal Cover
x 1
II
KK
JJ
Hex Nut
X 2
Fiber Washer
x 1
Big Metal Cover
x 1
L
2
3
IMPORTANT SAFETY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
BB
PREPARATION
Please read and understand this entire manual before attempting to assemble,
operate or install the product.
Please save this instruction manual.
WARNING
• Turn off electricity at main fuse box (or circuit breaker box) before beginning
installation by removing fuse (or switching off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture
installation. Do not permit wires to contact any surface having a sharp edge.
To do so may damage or cut the wire insulation, which could cause serious
injury or death from electric shock.
• This product must be installed in accordance with the applicable installation code by
a person familiar with the construction and operation of the product and the hazards
involved.
CAUTION
• All electrical connections must be in agreement with local codes, ordinances or
the national electric code (NEC). Contact your municipal building department to
learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC.
Consult a qualified electrician before installation.
• Do not connect this fixture to an electrical system that does not provide a means for
equipment grounding. Never use a fixture in a two-wire system that is not grounded.
If you are not sure your lighting system has a grounding means, do not attempt to
install this fixture. Contact a qualified, licensed electrician for information with regards
to proper grounding methods as required by the local electrical code in your area.
• If a dimmer control switch is used with this fixture, obtain professional advice to
determine the correct type and electrical rating required.
Before beginning assembly, installation or operation of product, make sure all parts
are present. Compare parts with package contents list and diagram on previous page.
If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers,
Electrical Tape, Wire Cutters, Safety Glasses, Ladder, Wire Stripper
2. Install the Easy Connect™ mounting
bracket (BB) to the electrical box using two
electrical box screws (CC).
1. Spread the arms evenly.
CC
Electrical
Box
(L)
Black (Live)
(N)
White
(Neutral)
Green
(Ground)
Green
(Ground)
Green
(Ground)
L
(L)
Black (Live)
(L)
Black (Live)
(N)
White
(Neutral)
(N)
White
(Neutral)
L
N
3. Option 1: Connect (push) electrical wires
from electric box (house wiring) into correct
inserts.
L
N
4. Connect (push) electrical wires from
fixture (A) into correct inserts.
Black (live), White (neutral), Green (ground)
Option 2: For multiple green (ground), black
(live) and white (neutral) wires joined in the
electrical box (house wiring), attach a single
“green” (NN), “black” (MM) and “white” (LL)
jumper wire before connecting. Strip 7mm
from the 6” jumper wires supplied. Then
connect (push) wires into the correct inserts.
Green
(Ground)
LL
NN
MM
(L)
Black (Live)
(N)
White
(Neutral)
L
N
AA
A
5. Once connections of wires are completed, carefully
tuck wires and wire nuts (AA) into the electrical box
making sure no bare wire (on the black and white) is
visible at the wire nuts (AA).
6. Tuck electrical wires into outlet box and position
fixture over studs on mounting bracket assembly.
Secure fixture in place with star washers (DD) and
cap nuts (EE).
Note: If required, assemble body and spread the arms
of the fixture out evenly.
FF
HH
GG
II
KK
JJ
A
DD
EE
Stud
4
5
ASSEMBLY INSTRUCTIONS (continued)
Bulb
TROUBLESHOOTING
1) The light does not come on at all:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
a) Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST
5-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING
®
light fixture fails due to a defect in material and workmanship within five (5) years
from the date of purchase, simply bring this light fixture with your original sales
receipt back to your nearest MENARDS
®
retail store. At its discretion, PATRIOT
LIGHTING
®
agrees to have the lighting fixture replaced with the same or similar
PATRIOT LIGHTING
®
product free of charge, within the stated warranty period,
when returned by the original purchaser with original sales receipt. This warranty:
(1) excludes expendable parts including but not limited to light bulbs; (2) does not
cover damage that has resulted from abuse or misuse; and (3) does not cover any
losses, labor, injuries to persons/property or costs. This warranty does give you
specific legal rights and you may have other rights, which vary from state to state.
CARE AND MAINTENANCE
• To clean, turn off and wipe with a damp, non-abrasive cloth.
• When cleaning, use only a soft brush or lint free cloth to avoid scratching the finish.
• Abrasive cleaning agents are not required and should be avoided to prevent damage
to the finish.
• Clean glass with water only.
B
C
D

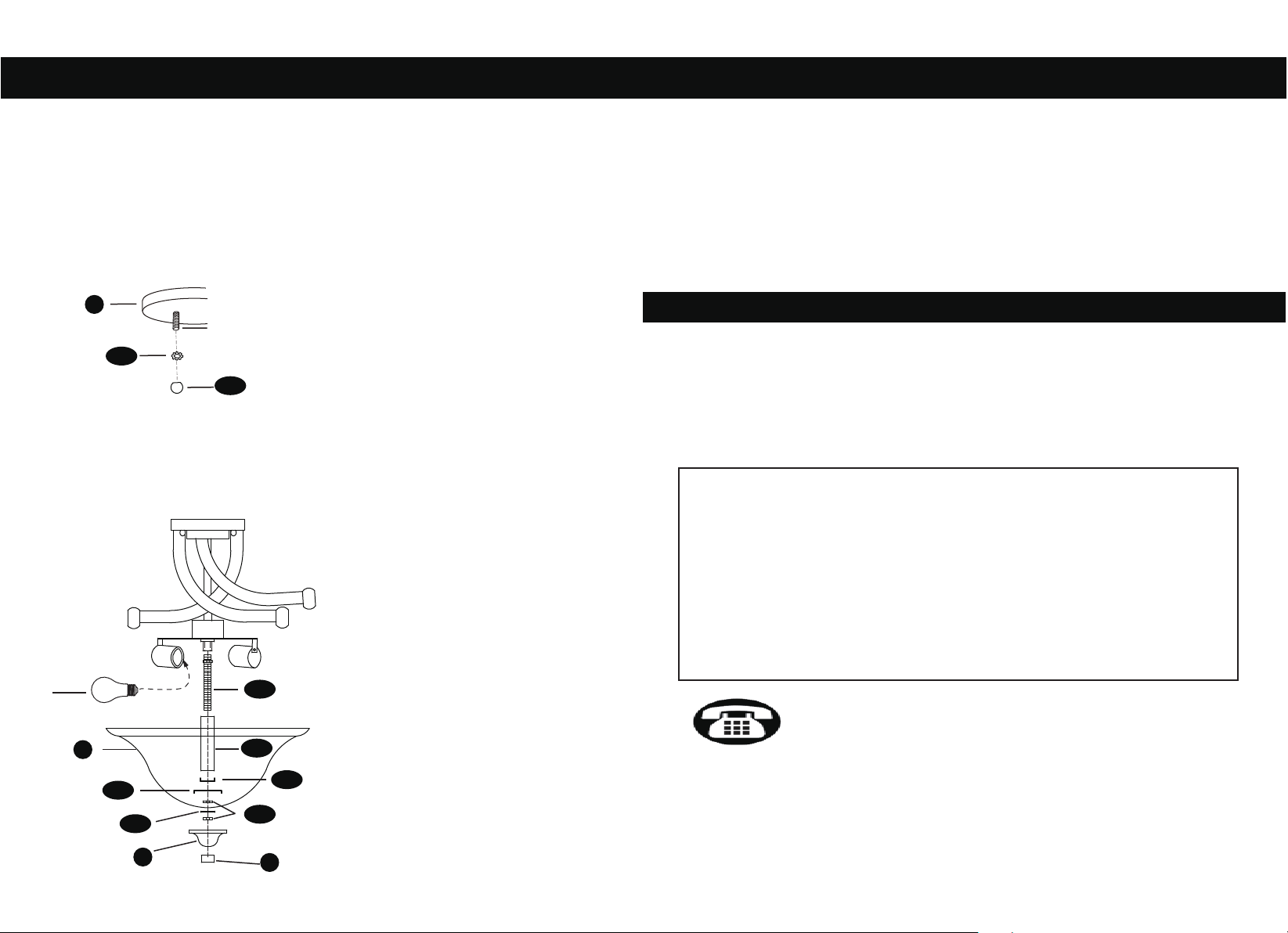

7. Attach the stem (FF) to the fixture (A). Install the
rod (GG) and metal covers (HH & II) against the stem
(FF) by hex nut (KK). Secure the glass (B) in place
using the fiber washer (JJ), hex nuts (KK), decorative
cap (C) and finial (D).
8. Install proper bulb type and wattage (not included).
