Safety Instructions & Operator's Manual for
SCRAMBLER
ZERO-TURN
HYDRO DRIVE
SERIES 6
MODELS
SZT18336BVE
SZT18386BVE
MODEL NUMBER EXPLANATION
I S I Z IT 118133
MOOE'O"S'O"A'r'o"'I I I
DRIVE SYSTEM TYPE
ENGINE HORSE POWER *
CUTTING WIDTH
16 IBIVIEI
ENGINE TYPE
SERIES DESIGNATION
S - Scrambler 18 - 18.0 HP Engine 33 - 33" Cutting Deck 6 - Series Designation B - Briggs Engine E - Electric Start
ZT - Zero Turn 38 - 38" Cutting Deck V - Over Head Valve
Thank you for buying a SNAPPER Product! Before operating your SCRAMBLER, read this manual carefully
and pay particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 - 4. Remember that all
power equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in
accordance with the operating instructions and common sense!
NOTE: Specifications are correct at time of printing and are subject to change without notice.
* Actual sustained equipment horsepower will likely be lower due to operating limitations and environmental factors.
SNAPPER McDonough, GA., 30253 U.S.A.
COPYRIGHT @ 2004
SNAPPER - A DIVISION OF SIMPLICITY MFG. INC.
ALL RIGHTS RESERVED
MANUAL No. 5-0407 (I.R. 7/27/04)
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This powerful cutting machine is capable of amputating hands and feet and can throw objects that
can cause injury and damage! Failure to comply with the following SAFETY instructions could result in serious
injury or death to the operator or other persons. The owner of the machine must understand these instructions
and must allow only persons who understand these instructions to operate machine. Each person operating
the machine must be of sound mind and body and must not be under the influence of any substance, which
might impair vision, dexterity or judgment. If you have any questions pertaining to your machine which your
dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER,
McDonough, Georgia 30253. Phone: (1-800-935-2967).
PROTECTION FOR CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the
machine and the mowing activity. Children who have been
given rides in the past may suddenly appear in the mowing
area for another ride and be run over or backed over by the
machine.Never assume that children will remain where you
last saw them.
1. KEEP children out of the mowing area and under the
watchful care of a responsible adult other than the
operator.
2. DO NOT allow children in yard when machine is
operated (even with the blade OFF).
3. DO NOT allow children or others to ride on machine,
attachments or towed equipment (even with the blades
OFF). They may fall and be seriously injured.
4. DO NOT allow pre-teenage children to operate
machine.
5. ALLOW only responsible adults & teenagers with
mature judgment under close adult supervision to
operate machine.
6. DO NOT operate blades in reverse. STOP BLADES.
LOOK and SEE behind and down for children, pets and
hazards before and while backing.
7. USE EXTRA CARE when approaching blind corners,
shrubs, trees, or other objects that may obscure vision.
PROTECTION AGAINST TIPOVERS
(Continued From Previous Column)
5. STAY ALERT for holes and other hidden hazards. Tall
grass can hide obstacles. Keep away from ditches,
washouts, culverts, fences and protruding objects.
6. KEEP A SAFE DISTANCE (at least 3 feet) away from
edge of ditches and other drop offs. The machine
could turn over if an edge caves in.
7. Always begin forward motion slowly and with caution.
8. Use weights or a weighted load carrier in accordance
with instructions supplied with a grass catcher. DO
NOT operate machine on slopes exceeding 10 degrees
(18% grade) when equipped with grass catcher.
9. DO NOT put your foot on the ground to try to stabilize
the machine.
10. DO NOT operate machine on wet grass. Reduced
traction could cause sliding.
11. Chose a low enough speed setting so that you will not
have to stop or shift on a slope. Tires may lose traction
on slopes even though the brakes are functioning
properly.
12. DO NOT operate machine under any condition where
traction, steering or stability is doubtful.
13. Always keep the machine in gear when going down
slopes. DO NOT shift to neutral (or actuate hydro roll
release) and coast downhill.
PROTECTION AGAINST TIPOVERS
Slopes are a major factor related to loss-of-control and tip-
over accidents, which can result in severe injury or death.
All slopes require extra CAUTION. If you cannot back up
the slope or if you feel uneasy on the slope, DO NOT mow
it. Use extra care with grass catchers or other attachments;
these affect the handling and the stability of the machine.
1. DO NOT operate machine on slopes exceeding 15
degrees (27% grade).
2. Exercise EXTREME CAUTION on slopes above 10
degrees (18% grade). Turn blades OFF when traveling
uphill. Use a slow speed and avoid sudden or sharp
turns.
3. DO NOT operate machine back and forth across face
of slopes. Operate up and down. Practice on slopes
with blades off.
4. AVOID starting, stopping or turning on slopes. If
machine stops going uphill or tires lose traction, turn
blades OFF and back slowly straight down the slope.
PREPARATION
1. Read, understand, and follow instructions and
warnings in this manual and on the machine, engine
and attachments. Know the controls and the proper
use of the machine before starting.
2. Only mature, responsible persons shall operate the
machine and only after proper instruction.
3. Data indicates that operators age 60 and above, are
involved in a large percentage of mower-related
injuries. These operators should evaluate their ability
to operate the mower safely enough to protect
themselves and others from serious injury.
4. Handle fuel with extra care. Fuels are flammable and
vapors are explosive. Use only an approved fuel
container. DO NOT remove fuel cap or add fuel with
engine running. Add fuel outdoors only with engine
stopped and cool. Clean spilled fuel from machine. DO
NOT smoke.
5. Practice operation of machine with BLADES OFF to
learn controls and develop skills.

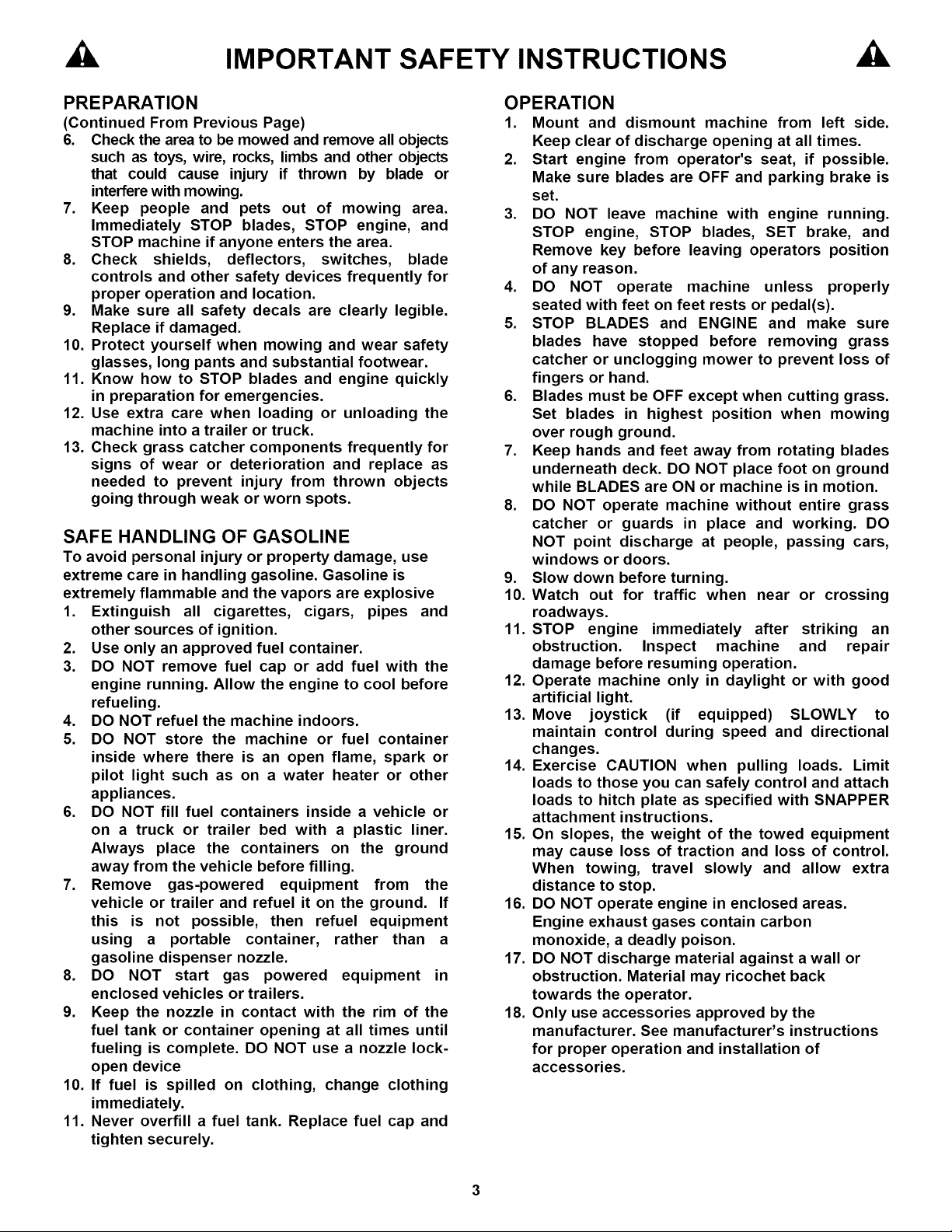

IMPORTANT SAFETY INSTRUCTIONS
PREPARATION
(Continued From Previous Page)
6. Check the area to be mowed and remove all objects
such as toys, wire, rocks, limbs and other objects
that could cause injury if thrown by blade or
interferewith mowing.
7. Keep people and pets out of mowing area.
Immediately STOP blades, STOP engine, and
STOP machine if anyone enters the area.
8. Check shields, deflectors, switches, blade
controls and other safety devices frequently for
proper operation and location.
9. Make sure all safety decals are clearly legible.
Replace if damaged.
10. Protect yourself when mowing and wear safety
glasses, long pants and substantial footwear.
11. Know how to STOP blades and engine quickly
in preparation for emergencies.
12. Use extra care when loading or unloading the
machine into a trailer or truck.
13. Check grass catcher components frequently for
signs of wear or deterioration and replace as
needed to prevent injury from thrown objects
going through weak or worn spots.
SAFE HANDLING OF GASOLINE
To avoid personal injury or property damage, use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive
1. Extinguish all cigarettes, cigars, pipes and
other sources of ignition.
2. Use only an approved fuel container.
3. DO NOT remove fuel cap or add fuel with the
engine running. Allow the engine to cool before
refueling.
4. DO NOT refuel the machine indoors.
5. DO NOT store the machine or fuel container
inside where there is an open flame, spark or
pilot light such as on a water heater or other
appliances.
6. DO NOT fill fuel containers inside a vehicle or
on a truck or trailer bed with a plastic liner.
Always place the containers on the ground
away from the vehicle before filling.
7. Remove gas-powered equipment from the
vehicle or trailer and refuel it on the ground. If
this is not possible, then refuel equipment
using a portable container, rather than a
gasoline dispenser nozzle.
8. DO NOT start gas powered equipment in
enclosed vehicles or trailers.
9. Keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete. DO NOT use a nozzle lock-
open device
10. If fuel is spilled on clothing, change clothing
immediately.
11. Never overfill a fuel tank. Replace fuel cap and
tighten securely.
OPERATION
1. Mount and dismount machine from left side.
Keep clear of discharge opening at all times.
2. Start engine from operator's seat, if possible.
Make sure blades are OFF and parking brake is
set.
3. DO NOT leave machine with engine running.
STOP engine, STOP blades, SET brake, and
Remove key before leaving operators position
of any reason.
4. DO NOT operate machine unless properly
seated with feet on feet rests or pedal(s).
5. STOP BLADES and ENGINE and make sure
blades have stopped before removing grass
catcher or unclogging mower to prevent loss of
fingers or hand.
6. Blades must be OFF except when cutting grass.
Set blades in highest position when mowing
over rough ground.
7. Keep hands and feet away from rotating blades
underneath deck. DO NOT place foot on ground
while BLADES are ON or machine is in motion.
8. DO NOT operate machine without entire grass
catcher or guards in place and working. DO
NOT point discharge at people, passing cars,
windows or doors.
9. Slow down before turning.
10. Watch out for traffic when near or crossing
roadways.
11. STOP engine immediately after striking an
obstruction. Inspect machine and repair
damage before resuming operation.
12. Operate machine only in daylight or with good
artificial light.
13. Move joystick (if equipped) SLOWLY to
maintain control during speed and directional
changes.
14. Exercise CAUTION when pulling loads. Limit
loads to those you can safely control and attach
loads to hitch plate as specified with SNAPPER
attachment instructions.
15. On slopes, the weight of the towed equipment
may cause loss of traction and loss of control.
When towing, travel slowly and allow extra
distance to stop.
16. DO NOT operate engine in enclosed areas.
Engine exhaust gases contain carbon
monoxide, a deadly poison.
17. DO NOT discharge material against a wall or
obstruction. Material may ricochet back
towards the operator.
18. Only use accessories approved by the
manufacturer. See manufacturer's instructions
for proper operation and installation of
accessories.

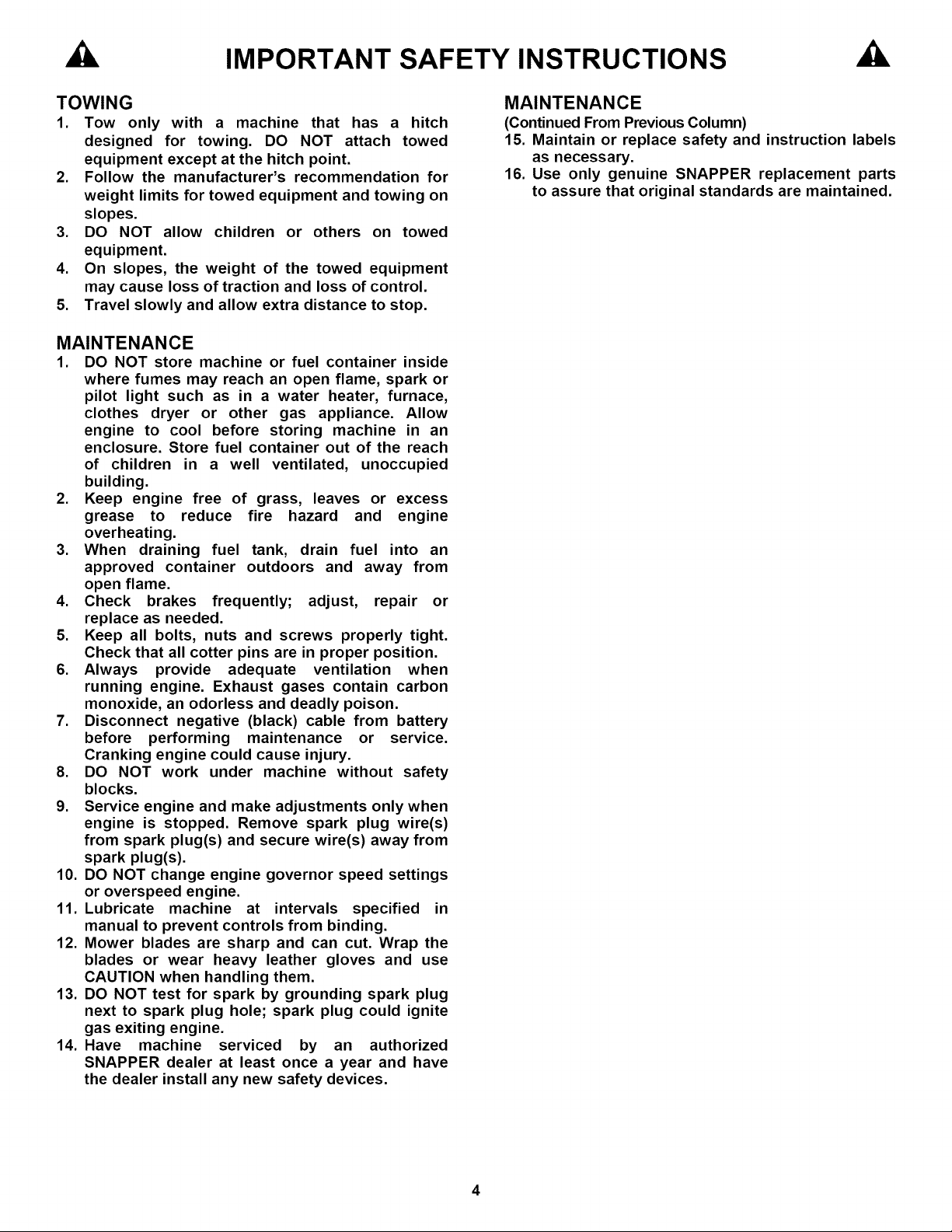

IMPORTANT SAFETY INSTRUCTIONS
TOWING
1. Tow only with
a machine that has a hitch
designed for towing. DO NOT attach towed
equipment except at the hitch point.
2. Follow the manufacturer's recommendation for
weight limits for towed equipment and towing on
slopes.
3. DO NOT allow children or others on towed
equipment.
4. On slopes, the weight of the towed equipment
may cause loss of traction and loss of control.
5. Travel slowly and allow extra distance to stop.
MAINTENANCE
(Continued From Previous Column)
15. Maintain or replace safety and instruction labels
as necessary.
16. Use only genuine SNAPPER replacement parts
to assure that original standards are maintained.
MAINTENANCE
1. DO NOT store machine or fuel container inside
where fumes may reach an open flame, spark or
pilot light such as in a water heater, furnace,
clothes dryer or other gas appliance. Allow
engine to cool before storing machine in an
enclosure. Store fuel container out of the reach
of children in a well ventilated, unoccupied
building.
2. Keep engine free of grass, leaves or excess
grease to reduce fire hazard and engine
overheating.
3. When draining fuel tank, drain fuel into an
approved container outdoors and away from
open flame.
4. Check brakes frequently; adjust, repair or
replace as needed.
5. Keep all bolts, nuts and screws properly tight.
Check that all cotter pins are in proper position.
6. Always provide adequate ventilation when
running engine. Exhaust gases contain carbon
monoxide, an odorless and deadly poison.
7. Disconnect negative (black) cable from battery
before performing maintenance or service.
Cranking engine could cause injury.
8. DO NOT work under machine without safety
blocks.
9. Service engine and make adjustments only when
engine is stopped. Remove spark plug wire(s)
from spark plug(s) and secure wire(s) away from
spark plug(s).
10. DO NOT change engine governor speed settings
or overspeed engine.
11. Lubricate machine at intervals specified in
manual to prevent controls from binding.
12. Mower blades are sharp and can cut. Wrap the
blades or wear heavy leather gloves and use
CAUTION when handling them.
13. DO NOT test for spark by grounding spark plug
next to spark plug hole; spark plug could ignite
gas exiting engine.
14. Have machine serviced by an authorized
SNAPPER dealer at least once a year and have
the dealer install any new safety devices.

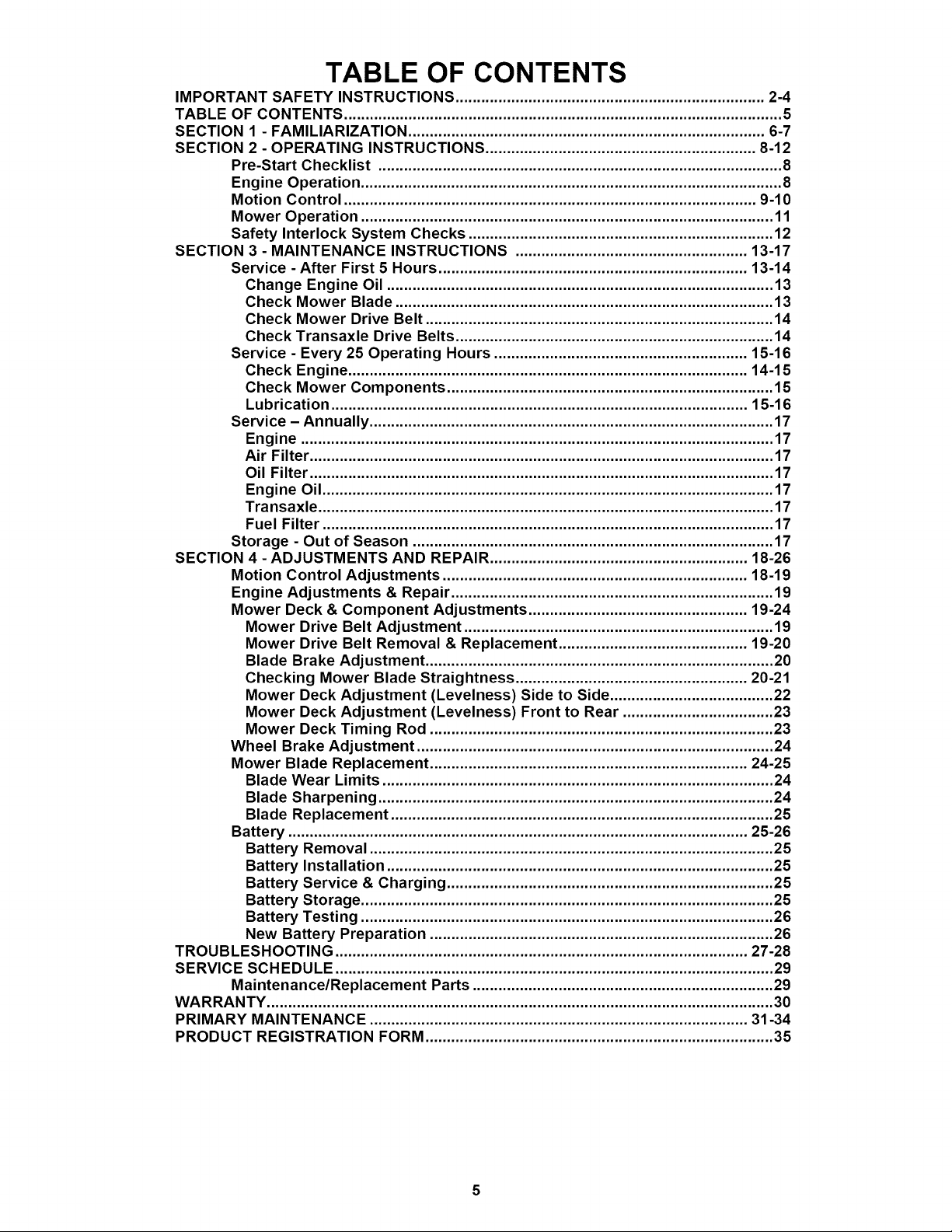

TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ........................................................................ 2-4
TABLE OF CONTENTS ...................................................................................................... 5
SECTION 1 - FAMILIARIZATION ................................................................................... 6-7
SECTION 2 - OPERATING INSTRUCTIONS ............................................................... 8-12
Pre-Start Checklist .............................................................................................. 8
Engine Operation .................................................................................................. 8

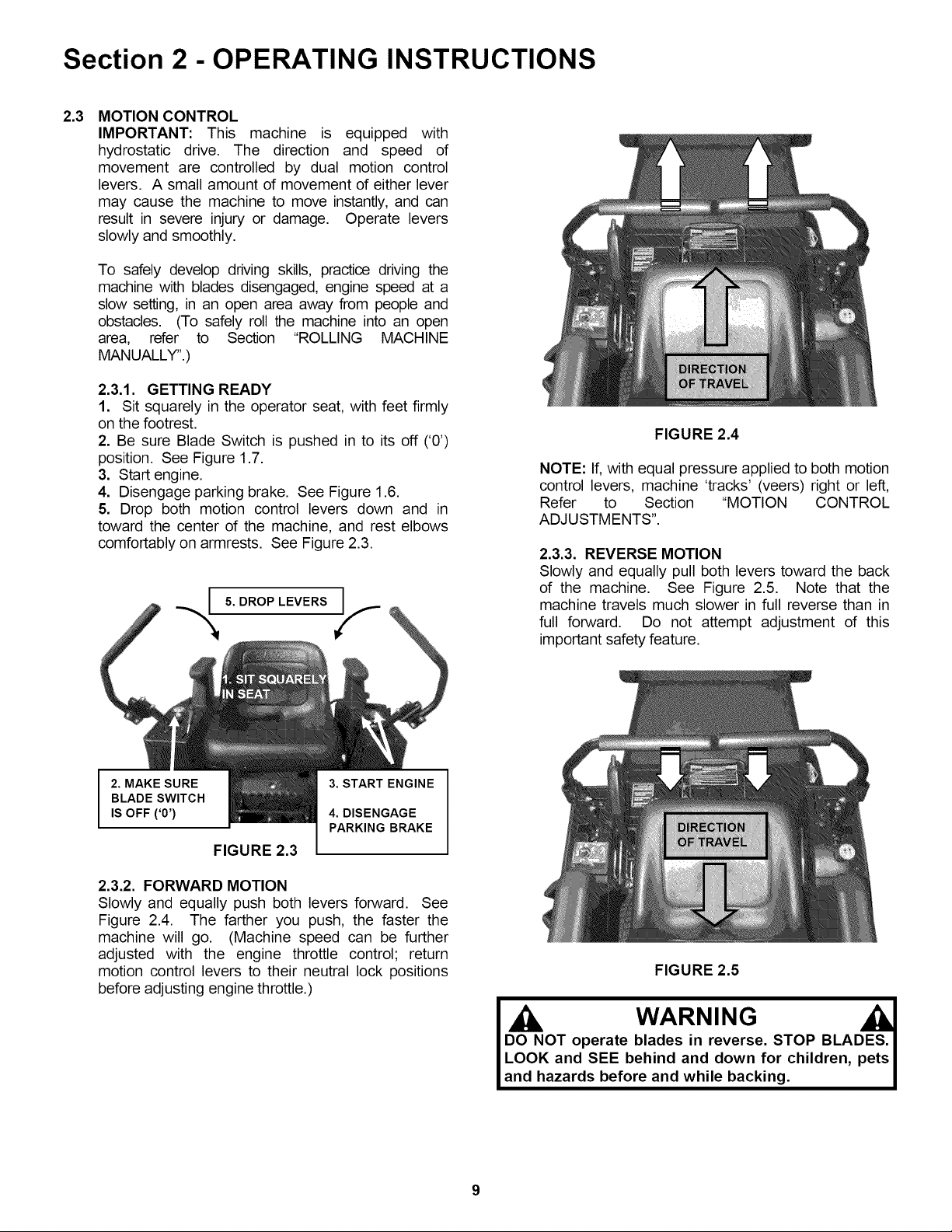

Motion Control ................................................................................................ 9-10

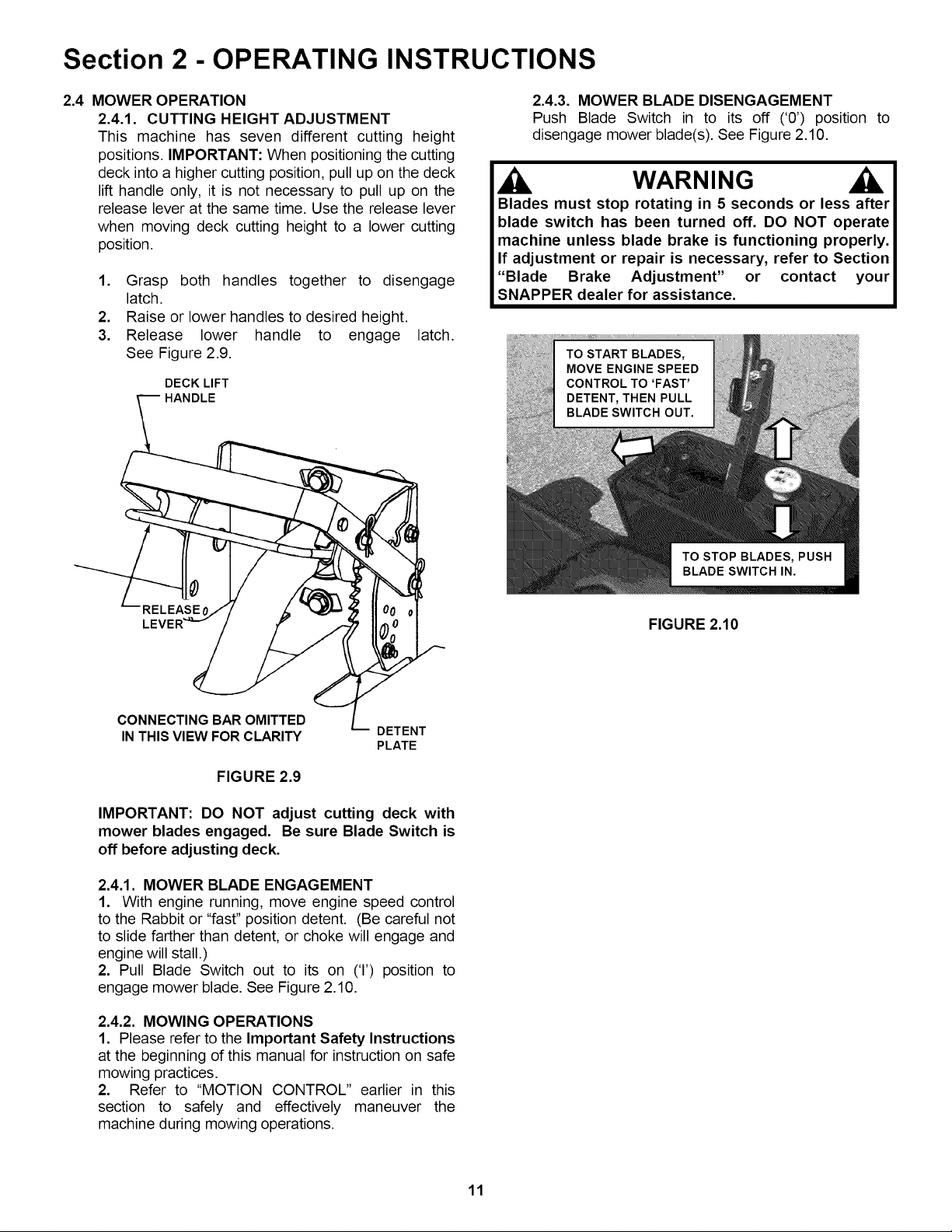

Mower Operation ................................................................................................ 11
Safety Interlock System Checks ....................................................................... 12
SECTION 3 - MAINTENANCE INSTRUCTIONS ...................................................... 13-17

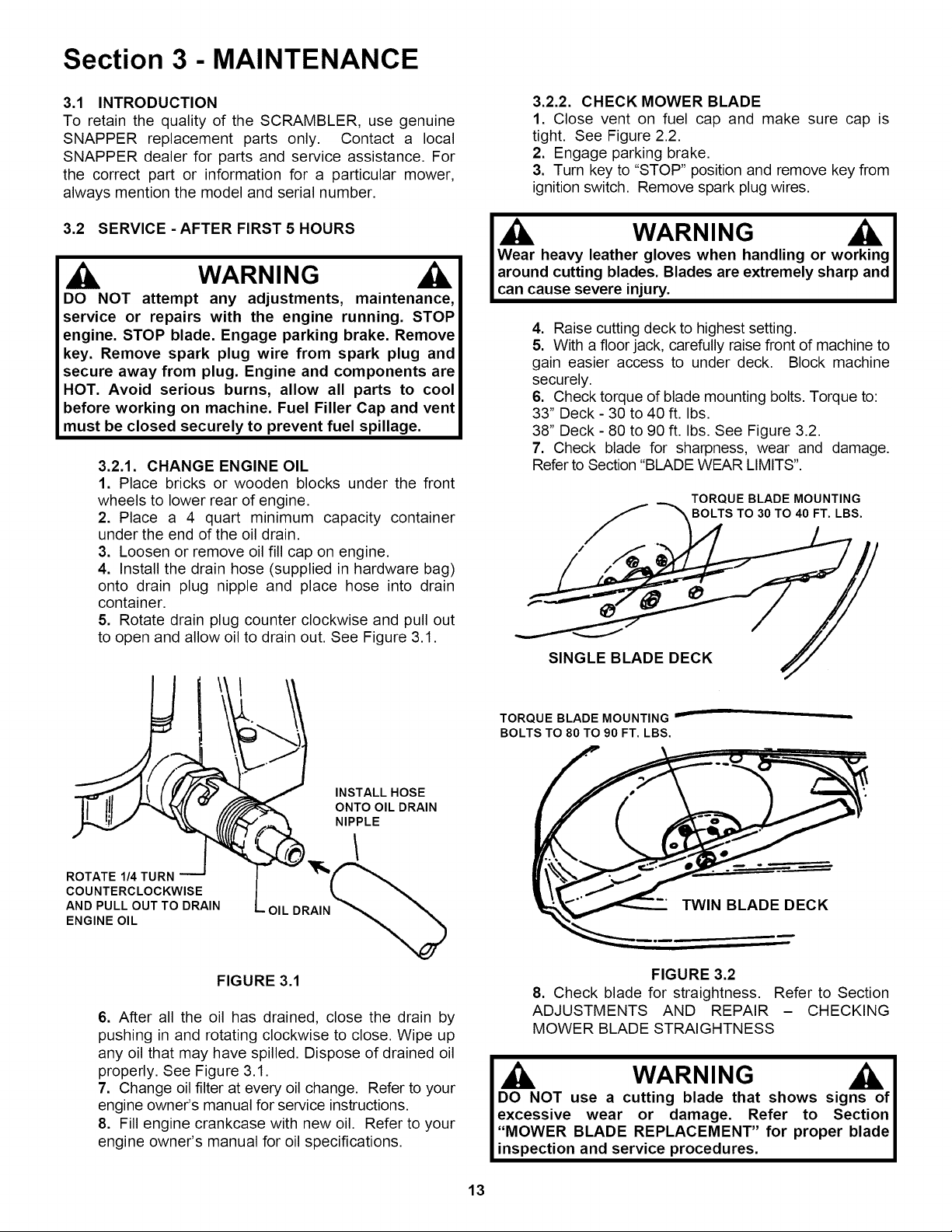

Service - After First 5 Hours ........................................................................ 13-14
Change Engine Oil .......................................................................................... 13
Check Mower Blade ........................................................................................ 13
Check Mower Drive Belt ................................................................................. 14

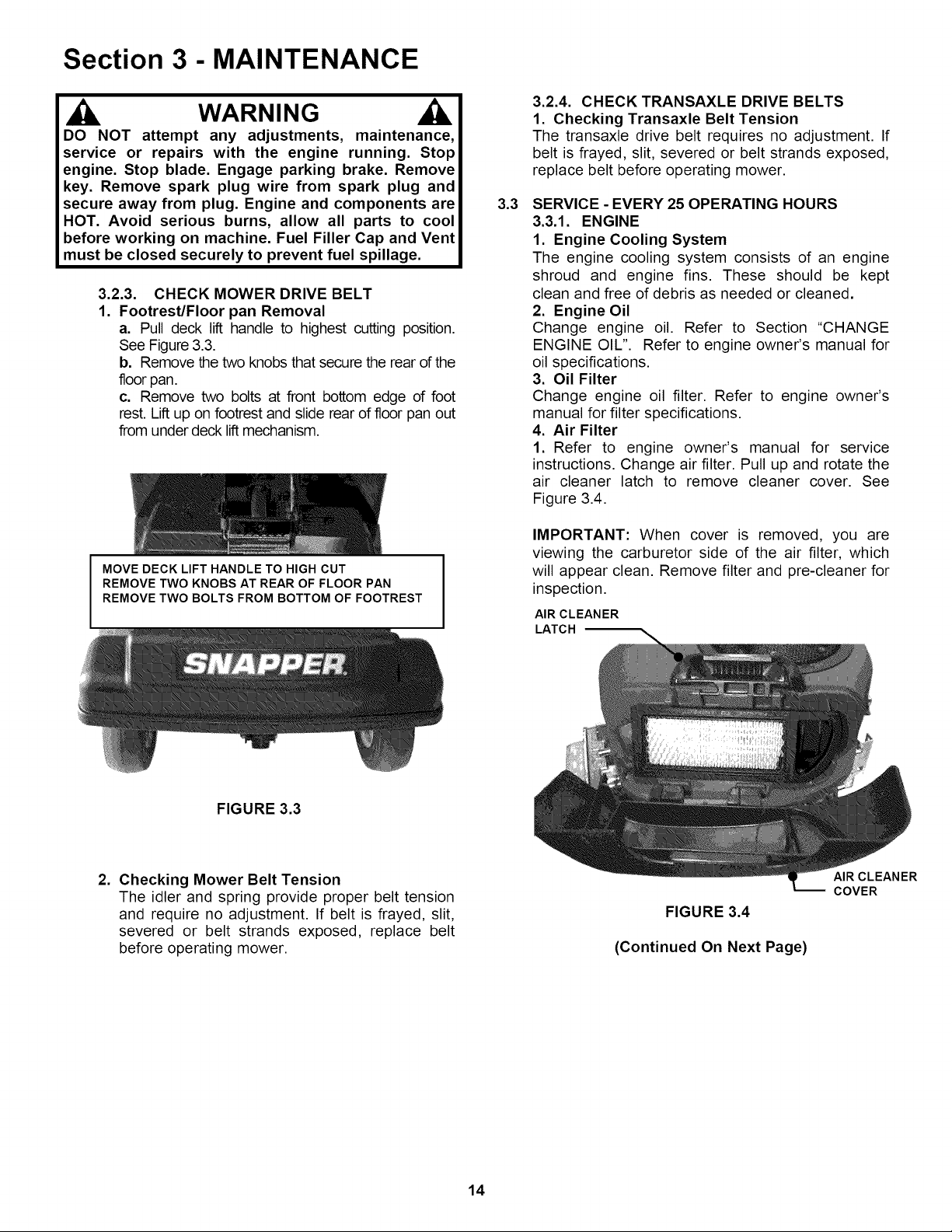

Check Transaxle Drive Belts .......................................................................... 14

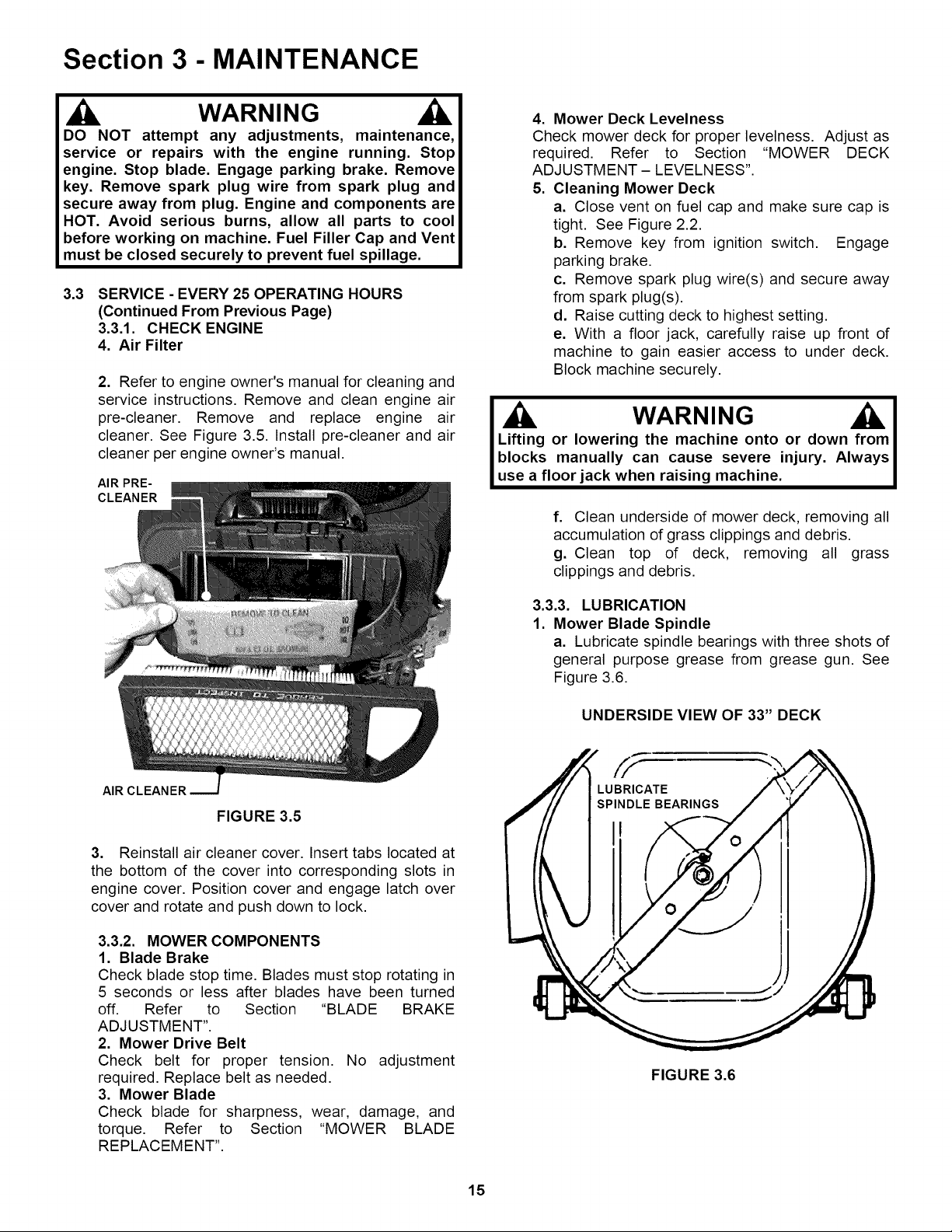

Service - Every 25 Operating Hours ........................................................... 15-16
Check Engine ............................................................................................. 14-15
Check Mower Components ............................................................................ 15
Lubrication ................................................................................................. 15-16

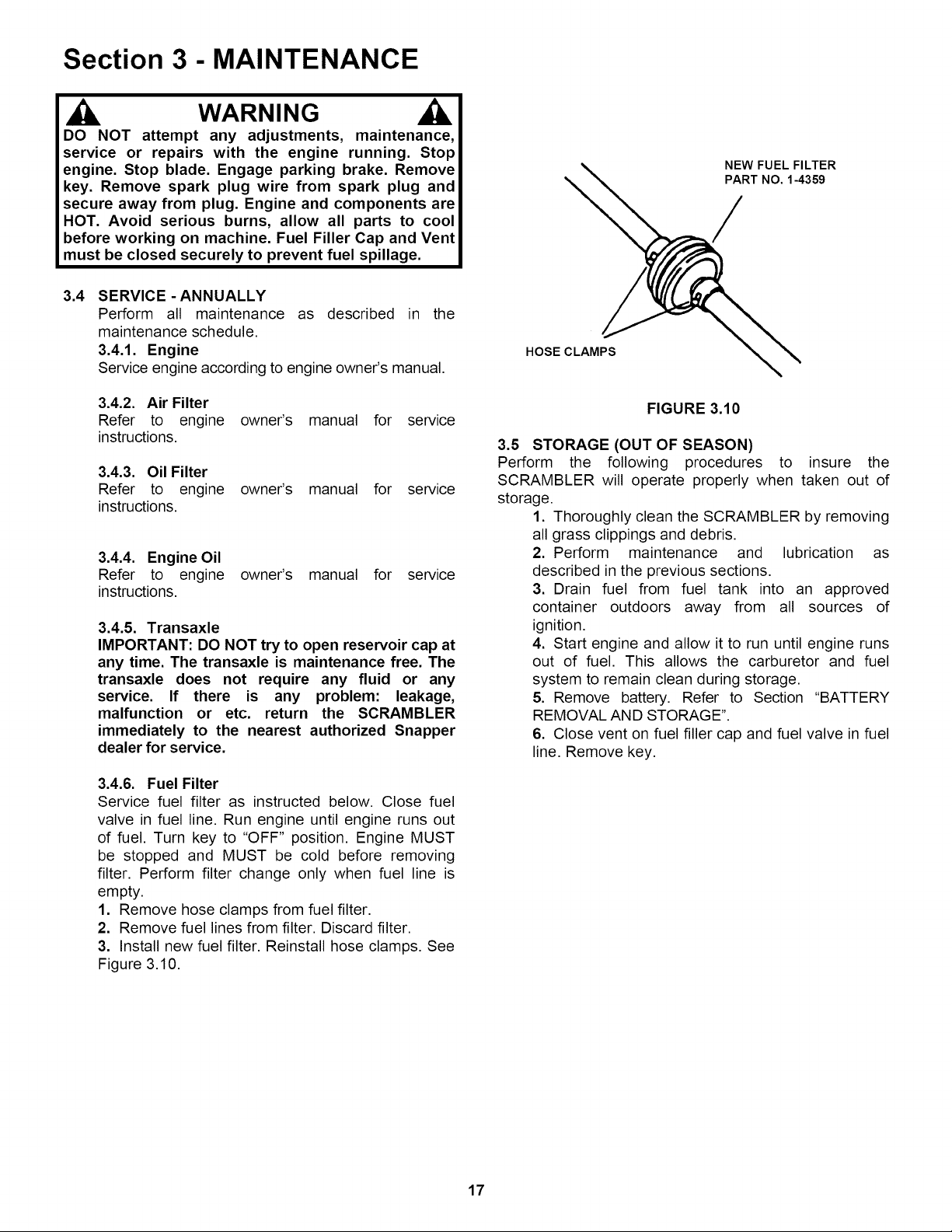

Service - Annually .............................................................................................. 17
Engine .............................................................................................................. 17
Air Filter ............................................................................................................ 17
Oil Filter ............................................................................................................ 17
Engine Oil ......................................................................................................... 17
Transaxle .......................................................................................................... 17
Fuel Filter ......................................................................................................... 17
Storage - Out of Season .................................................................................... 17
SECTION 4 - ADJUSTMENTS AND REPAIR ............................................................ 18-26

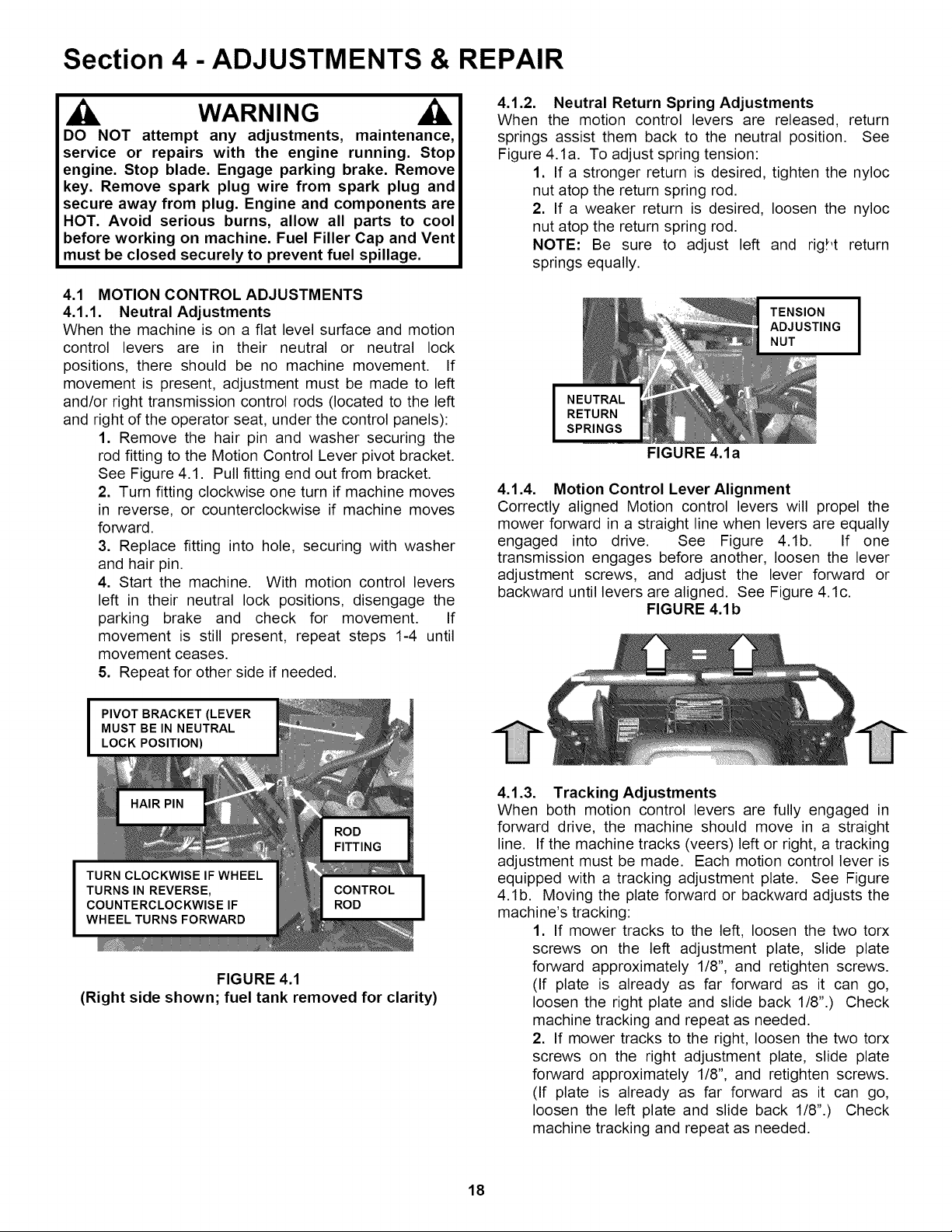

Motion Control Adjustments ....................................................................... 18-19
Engine Adjustments & Repair ........................................................................... 19
Mower Deck & Component Adjustments ................................................... 19-24

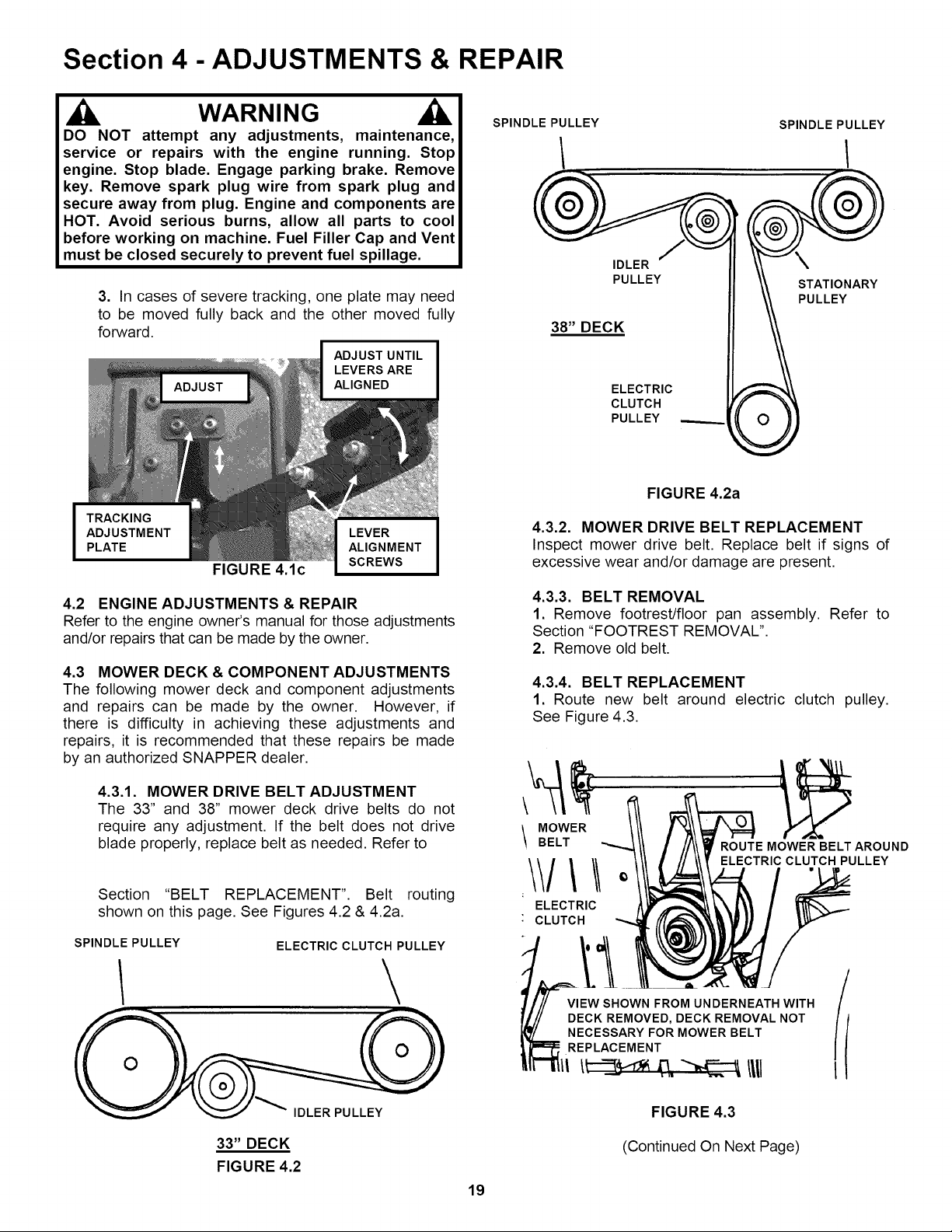

Mower Drive Belt Adjustment ........................................................................ 19
Mower Drive Belt Removal & Replacement ............................................ 19-20
Blade Brake Adjustment ................................................................................. 20
Checking Mower Blade Straightness ...................................................... 20-21

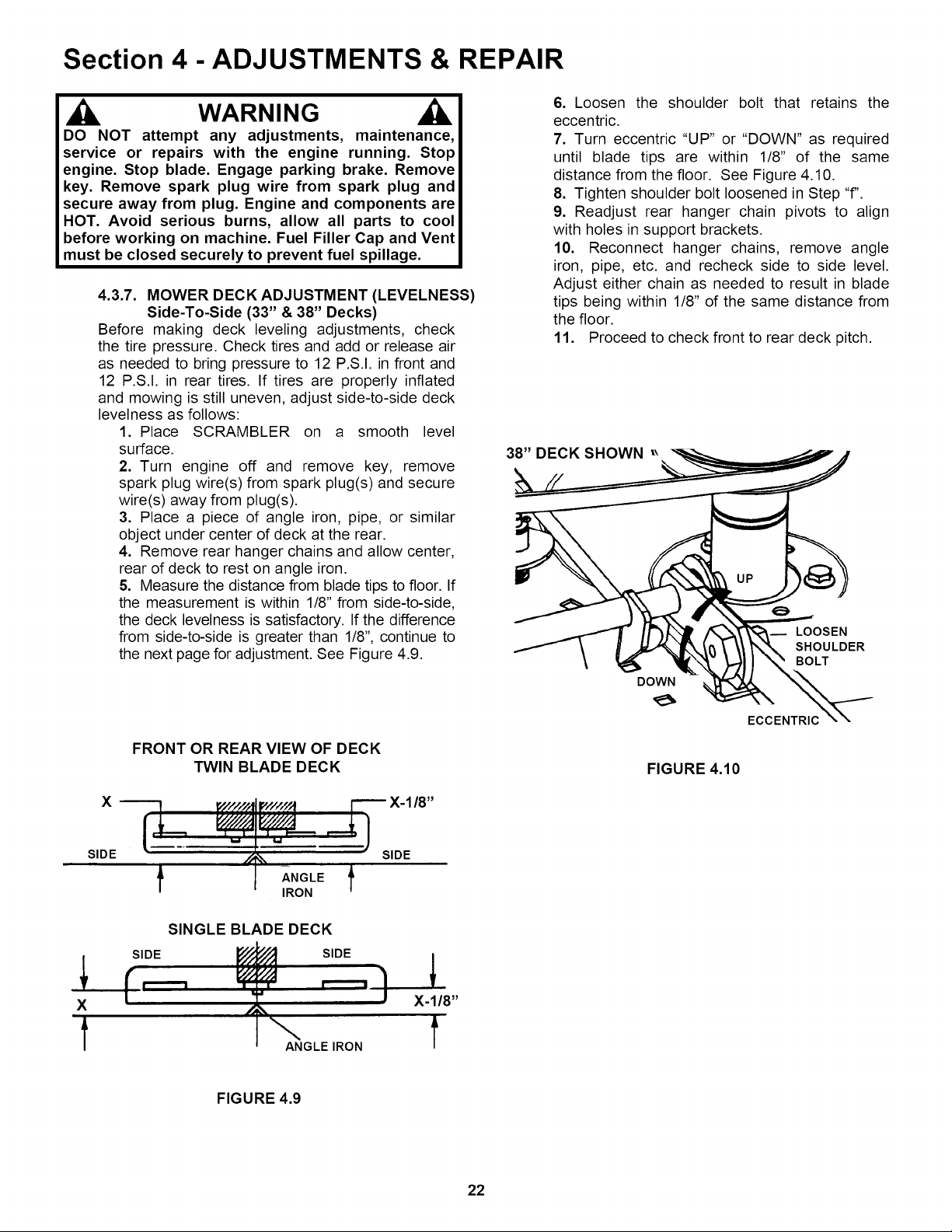

Mower Deck Adjustment (Levelness) Side to Side ...................................... 22

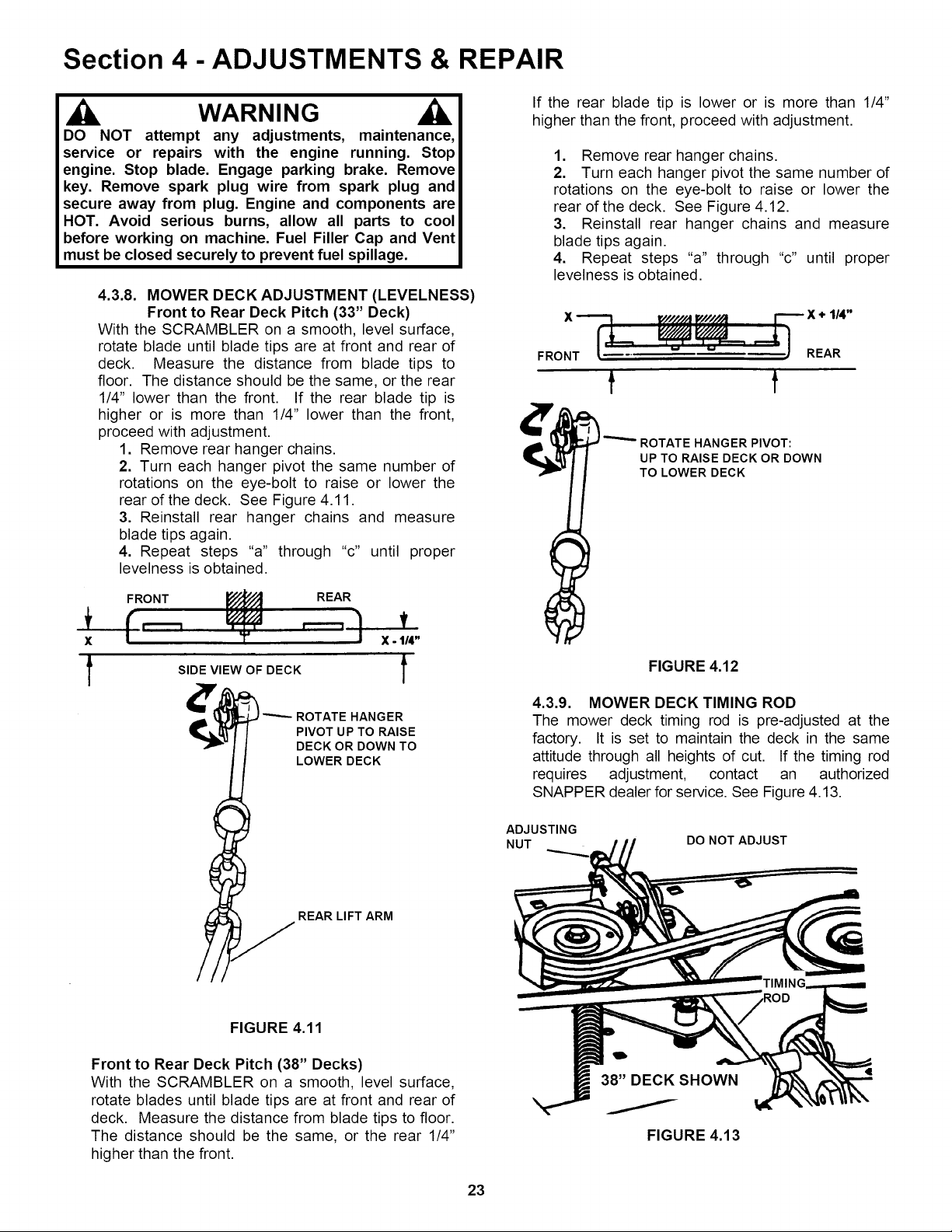

Mower Deck Adjustment (Levelness) Front to Rear ................................... 23
Mower Deck Timing Rod ................................................................................ 23
Wheel Brake Adjustment ................................................................................... 24
Mower Blade Replacement .......................................................................... 24-25
Blade Wear Limits ........................................................................................... 24
Blade Sharpening ............................................................................................ 24
Blade Replacement ......................................................................................... 25
Battery ........................................................................................................... 25-26
Battery Removal .............................................................................................. 25
Battery Installation .......................................................................................... 25
Battery Service & Charging ............................................................................ 25
Battery Storage ................................................................................................ 25
Battery Testing ................................................................................................ 26
New Battery Preparation ................................................................................ 26

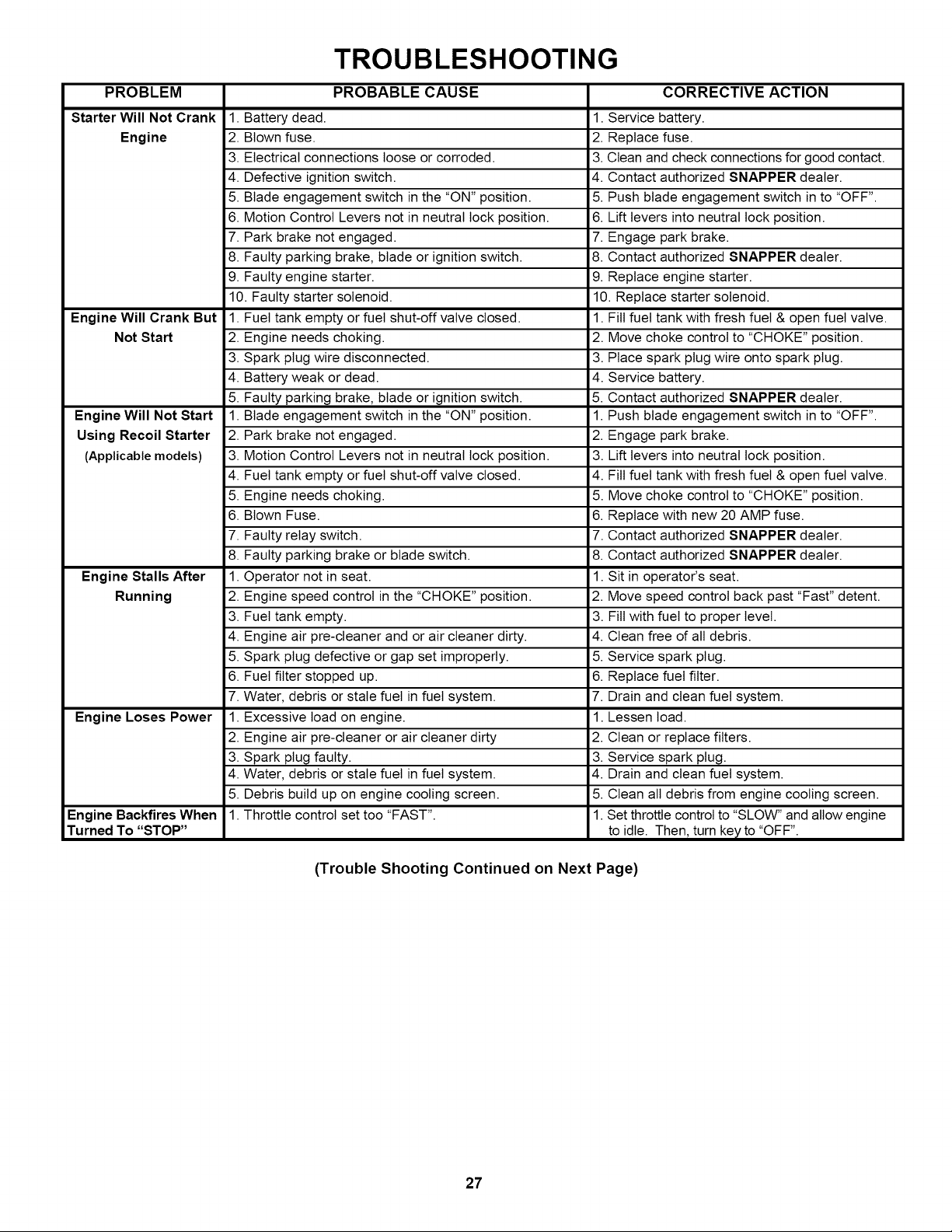

TROUBLESHOOTING ................................................................................................ 27-28

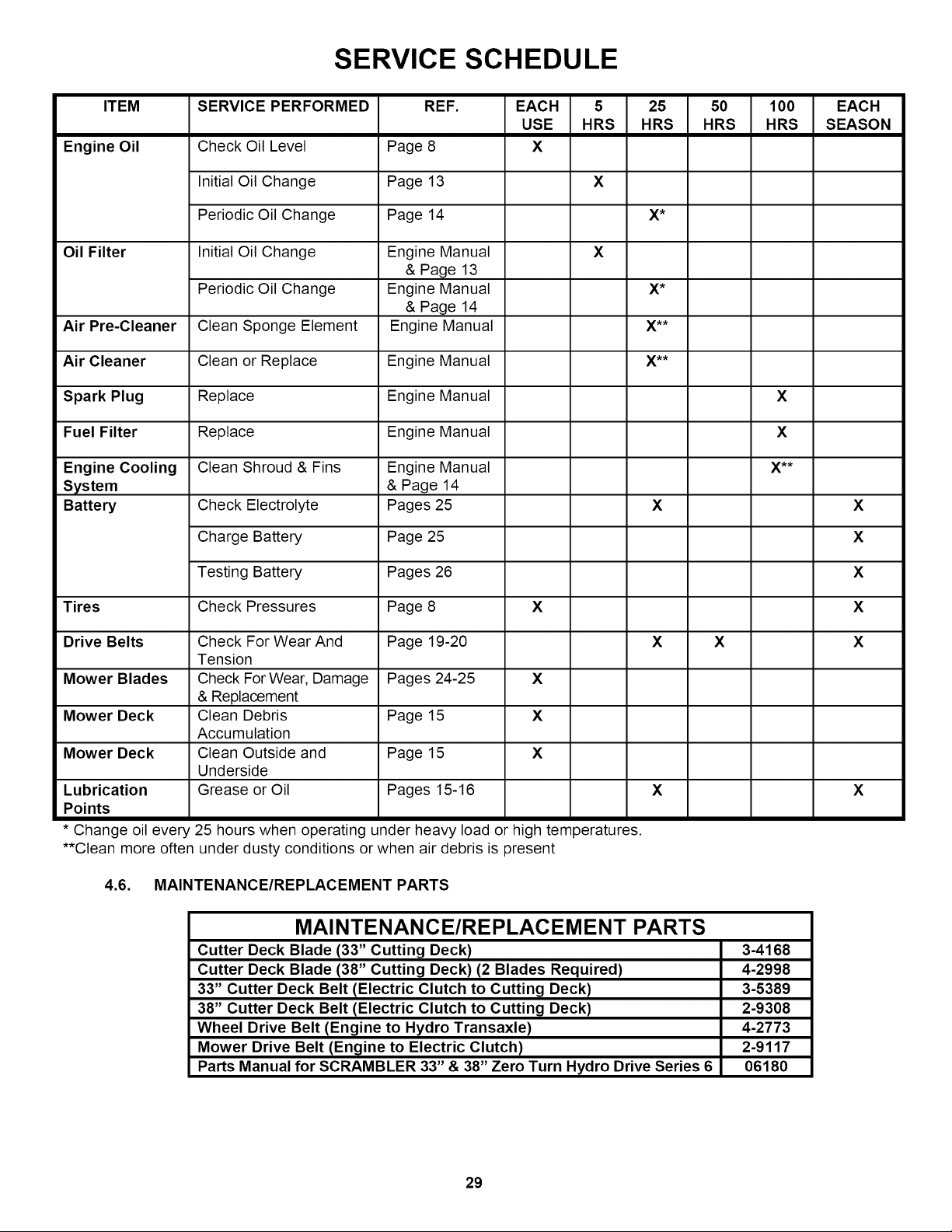

SERVICE SCHEDULE ...................................................................................................... 29
Maintenance/Replacement Parts ...................................................................... 29
WARRANTY ...................................................................................................................... 30

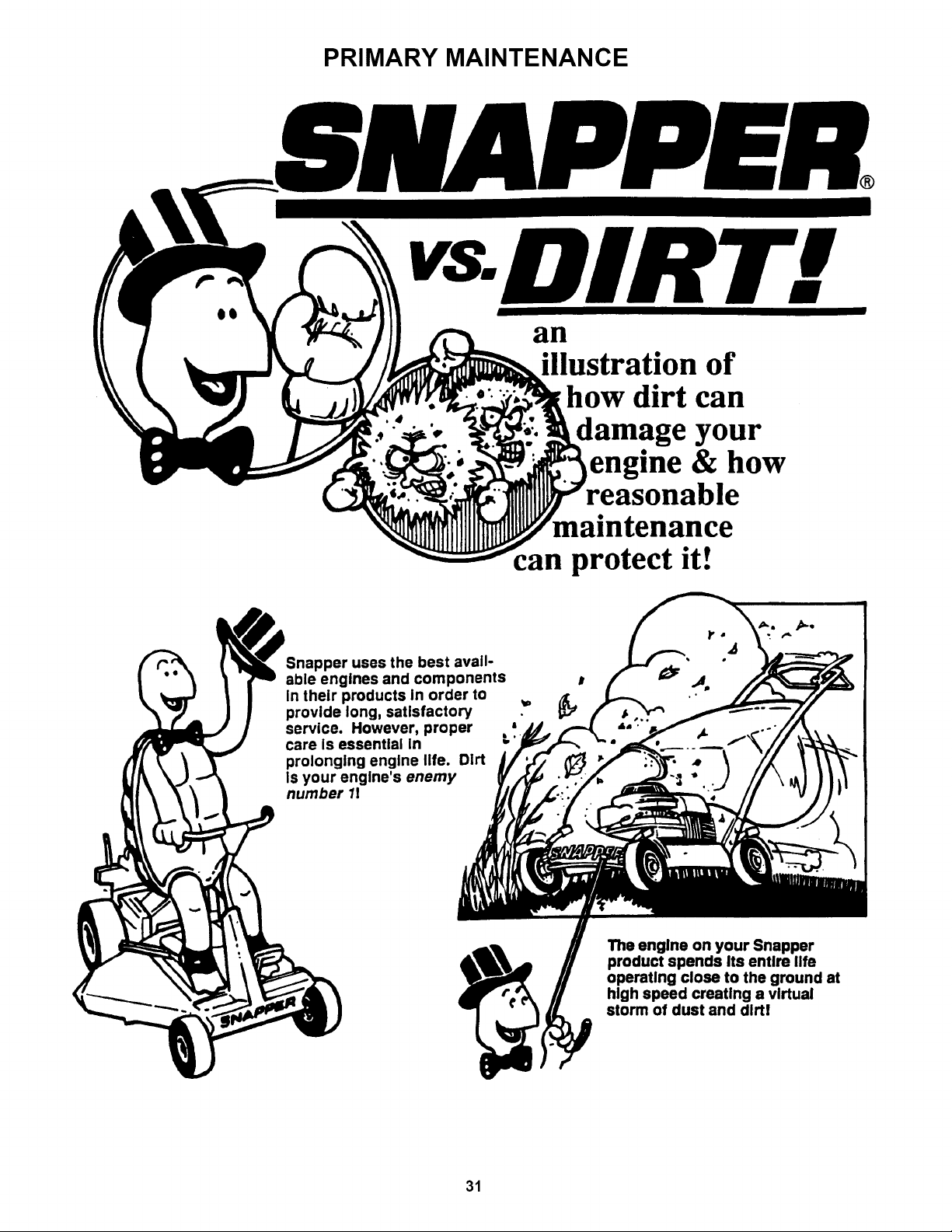

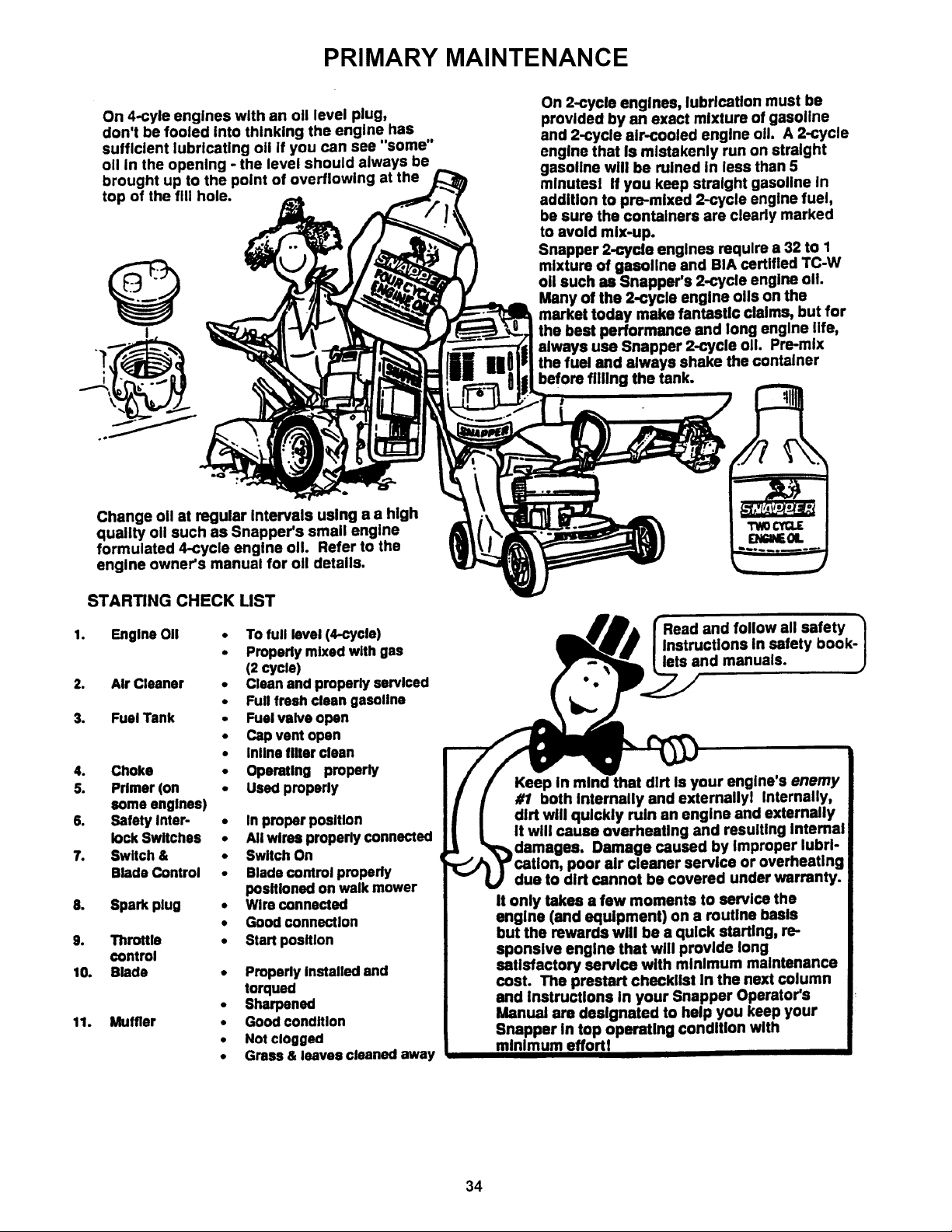

PRIMARY MAINTENANCE ........................................................................................ 31-34

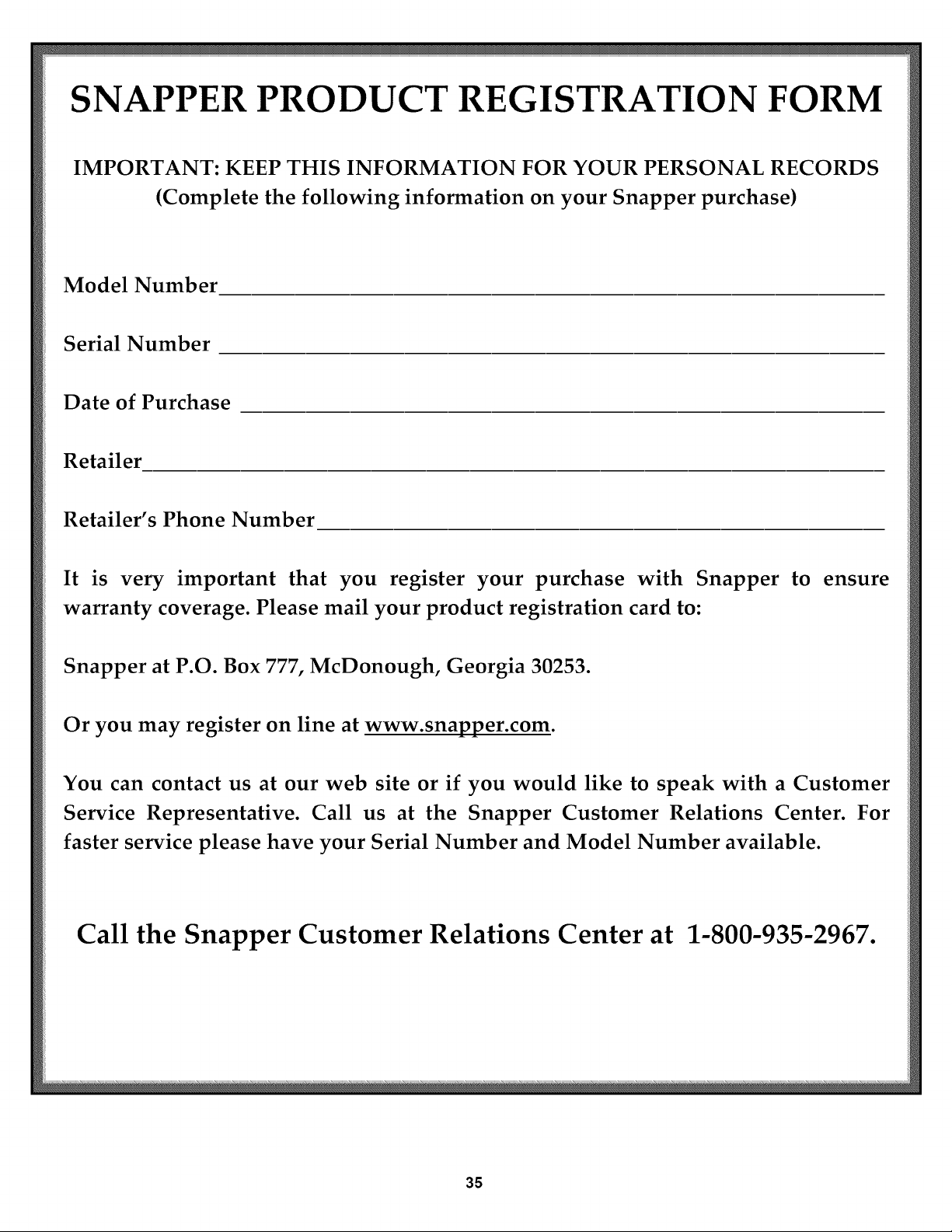

PRODUCT REGISTRATION FORM ................................................................................. 35
Section 1 - FAMILIARIZATION
RIGHT MOTION OPERATOR'S
CONTROLLEVER SEAT
FUEL TANK
ENGINE SPEED &
CHOKE CONTROL
RIGHT CONTROL
PANEL
BLADE
SWITCH
DECK
DISCHARGE
DEFLECTOR
IMPORTANT! The figures and illustrations in this I
manual are provided for reference only and may I
differ from your specific model. Contact your I
Snapper dealer if you have questions. I
ARM REST (2)
IGNITION
SWITCH
LEFT MOTION
CONTROL LEVER
PARKING
BRAKE
LEFT CONTROLPANEL
_ CUTTING DECK HEIGHT
ADJUSTMENTHANDLE
FLOOR
PAN
FOOT
REST
CUTTING DECK
FIGURE
1.1 INTRODUCTION
This manual has been prepared for operators of the
SNAPPER SCRAMBLER ZERO-TURN MOWER. Its
purpose, aside from recommending standard operating
procedures and routine service requirements, is to
promote SAFETY through the use of accepted operating
practices. Read, Understand and Follow the IMPORTANT
SAFETY INSTRUCTIONS on Pages 2 - 4 of this manual
and All SAFETY messages on the machine and its
attachments before operating. SNAPPER recommends
returning the machine to an authorized SNAPPER dealer
annually for inspection and addition of any new devices,
which might upgrade the safety of the mower.
1.1
1.2 NOMENCLATURE
The nomenclature drawing above, Figure 1.1, shows the
essential parts of the machine. It is recommended that
all operators of this equipment become thoroughly
familiar with the controls, components, and operation of
this machine before operating. Specific details involving
the engine are found in the separate engine owner's
manual. Study these manuals before operating and
keep both handy for future reference. For the nearest
SNAPPER dealer in your area, check the yellow pages
under the heading LAWN MOWERS. For engine parts
and service, look for the engine manufacturer's dealers
under the heading, ENGINES - gasoline.
Section 1 - FAMILIARIZATION
1.3 BASIC CONTROLS AND THEIR FUNCTIONS
The figures below identify each of the operator controls
and their basic function. Controls will be described in
greater detail further on in this manual.
1.3.1. IGNITION SWITCH (Left Control Panel)
Starts and stops engine. Refer to Section "ENGINE
OPERATION" for further details.
FIGURE 1.2
1.3.4. MOTION CONTROL LEVERS
Controls direction and steering of machine when
driving. Refer to Section "MOTION CONTROL" for
detailed operation of motion control levers.
FIGURE 1.5
(Levers shown in Neutral Lock Position)
1.3.2. ENGINE SPEED & CHOKE CONTROL
(Right Control Panel)
Controls engine speed; built-in choke control past
'Fast' detent in throttle control.
FAST (DETENT)
FIGURE 1.3
1.3.3. PARKING BRAKE
(Next to Left Control Panel)
Applies park brake.
1.3.5. CUTTING DECK ADJUSTMENT HANDLE
(Forward of Operator Seat)
Adjusts cutting deck height. Refer to Section
"MOWER OPERATION" for further details.
FIGURE 1.6
1.3.6. BLADE SWITCH (Right Control Panel)
Engages and disengages cutting blade(s). Refer to
Section "MOWER OPERATION" for further details.
FIGURE 1.7
FIGURE 1.4

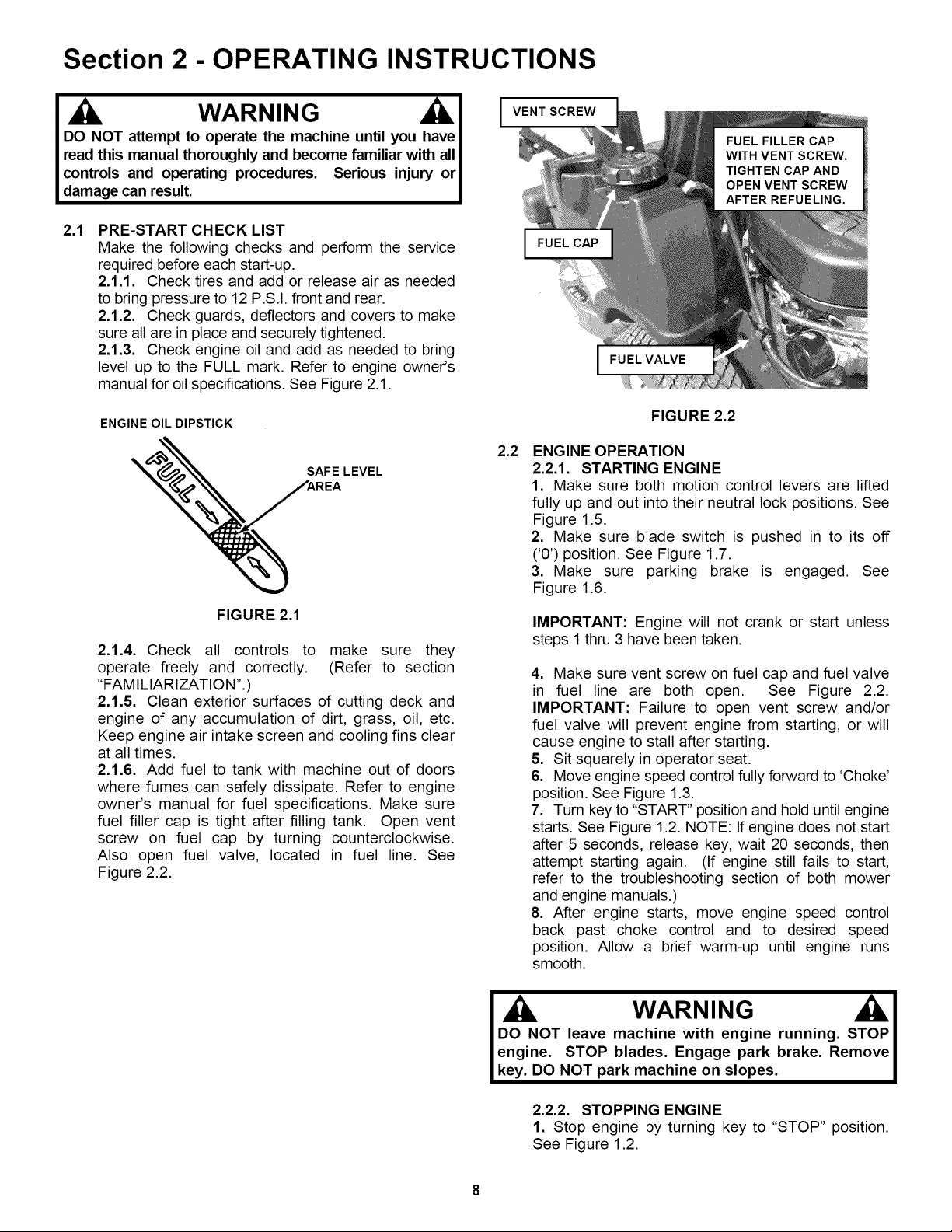

Section 2 -OPERATING INSTRUCTIONS
WARNING
DO NOT attempt to operate the machine until you have I
read this manual thoroughly and become familiar with all
controls and operating procedures. Serious injury or J
damage can result.
I
2.1 PRE-START CHECK LIST
Make the following checks and perform the service
required before each start-up.
2.1.1. Check tires and add or release air as needed
to bring pressure to 12 P.S.I. front and rear.
2.1.2. Check guards, deflectors and covers to make
sure all are in place and securely tightened.
2.1.3. Check engine oil and add as needed to bring
level up to the FULL mark. Refer to engine owner's
manual for oil specifications. See Figure 2.1.
ENGINE OIL DIPSTICK
FIGURE 2.1
2.1.4. Check all controls to make sure they
operate freely and correctly. (Refer to section
"FAMILIARIZATION".)
2.1.5. Clean exterior surfaces of cutting deck and
engine of any accumulation of dirt, grass, oil, etc.
Keep engine air intake screen and cooling fins clear
at all times.
2.1.6. Add fuel to tank with machine out of doors
where fumes can safely dissipate. Refer to engine
owner's manual for fuel specifications. Make sure
fuel filler cap is tight after filling tank. Open vent
screw on fuel cap by turning counterclockwise.
Also open fuel valve, located in fuel line. See
Figure 2.2.
VENT SCREW
FIGURE 2.2
2.2 ENGINE OPERATION
2.2.1. STARTING ENGINE
1. Make sure both motion control levers are lifted
fully up and out into their neutral lock positions. See
Figure 1.5.
2. Make sure blade switch is pushed in to its off
('0') position. See Figure 1.7.
3. Make sure parking brake is engaged. See
Figure 1.6.
IMPORTANT: Engine will not crank or start unless
steps 1 thru 3 have been taken.
4. Make sure vent screw on fuel cap and fuel valve
in fuel line are both open. See Figure 2.2.
IMPORTANT: Failure to open vent screw and/or
fuel valve will prevent engine from starting, or will
cause engine to stall after starting.
5. Sit squarely in operator seat.
6. Move engine speed control fully forward to 'Choke'
position. See Figure 1.3.
7. Turn key to "START" position and hold until engine
starts. See Figure 1.2. NOTE: If engine does not start
after 5 seconds, release key, wait 20 seconds, then
attempt starting again. (If engine still fails to start,
refer to the troubleshooting section of both mower
and engine manuals.)
8. After engine starts, move engine speed control
back past choke control and to desired speed
position. Allow a brief warm-up until engine runs
smooth.
IL WARNING
DO NOT leave machine with engine running. STOP
engine. STOP blades. Engage park brake. Remove
key. DO NOT park machine on slopes.
2.2.2. STOPPING ENGINE
1. Stop engine by turning key to "STOP" position.
See Figure 1.2.
Section 2 -OPERATING INSTRUCTIONS
2.3 MOTION CONTROL
IMPORTANT: This machine is equipped with
hydrostatic drive. The direction and speed of
movement are controlled by dual motion control
levers. A small amount of movement of either lever
may cause the machine to move instantly, and can
result in severe injury or damage. Operate levers
slowly and smoothly.
To safely develop driving skills, practice driving the
machine with blades disengaged, engine speed at a
slow setting, in an open area away from people and
obstacles. (To safely roll the machine into an open
area, refer to Section "ROLLING MACHINE
MANUALLY".)
2.3.1. GETTING READY
1. Sit squarely in the operator seat, with feet firmly
on the footrest.
2. Be sure Blade Switch is pushed in to its off ('0')
position. See Figure 1.7.
3. Start engine.
4. Disengage parking brake. See Figure 1.6.
5. Drop both motion control levers down and in
toward the center of the machine, and rest elbows
comfortably on armrests. See Figure 2.3.
_1 5. DROP LEVERS
FIGURE 2.4
NOTE: If, with equal pressure applied to both motion
control levers, machine 'tracks' (veers) right or left,
Refer to Section "MOTION CONTROL
ADJUSTMENTS".
2.3.3. REVERSE MOTION
Slowly and equally pull both levers toward the back
of the machine. See Figure 2.5. Note that the
machine travels much slower in full reverse than in
full forward. Do not attempt adjustment of this
important safety feature.
I
2. MAKE SURE
BLADE SWITCH
IS OFF ('0')
FIGURE 2.3
3. START ENGINE
4. DISENGAGE
PARKING BRAKE
2.3.2. FORWARD MOTION
Slowly and equally push both levers forward. See
Figure 2.4. The farther you push, the faster the
machine will go. (Machine speed can be further
adjusted with the engine throttle control; return
motion control levers to their neutral lock positions
before adjusting engine throttle.)
FIGURE 2.5
WARNING
DO NOT operate blades in reverse.STOP BLADES.
LOOK and SEE behind and down forchildren,pets
and hazards before and while backing. |
Section 2 -OPERATING INSTRUCTIONS
2.3.4. CONVENTIONAL TURNING
1. To turn left, slowly ease back on the left lever
while keeping or increasing pressure on the right
lever. See Figure 2.6. The more you ease off on the
left lever and/or push on the right lever, the tighter the
turn.
2. To turn right, slowly ease back on the right lever
while keeping or increasing pressure on the left lever.
The more you ease off on the right lever and/or push
on the left lever, the tighter the turn.
FIGURE 2.6
(Left turn shown; right turn opposite)
2.3.5. ZERO-TURNING
1. To Zero-turn left, push the right lever forward
while pulling the left lever back into reverse. See
Figure 2.7.
2. To Zero-turn right, push the left lever forward
while pulling the right lever back
WARNING h,J
Zero-turning the machine at any speed can result in
operator disorientation, or in operator being thrown
from the machine. Exercise extreme caution when
executing a zero-turn.
2.3.6. STOPPING MOTION
1. Return both motion control levers to neutral.
2. If driving is not to be resumed immediately, lift
levers fully up and out into their neutral lock positions
and engage parking brake.
IMPORTANT NOTE: Machine may not come to a
complete stop immediately after returning to neutral,
especially if machine is on even a slight incline.
Always stop machine on level ground and engage
parking brake.
WARNING
DO NOT leave machine with engine running, STOP
engine, STOP blades, Engage park brake, Remove
key, DO NOT park machine on slopes,
2.3.7. ROLLING MACHINE MANUALLY
To roll the machine without the engine running,
pressure within the hydraulic pumps must be
released. A control lever is located next to the battery
compartment under the operator seat. Tilt the seat up
and slide the lever down to release pressure and
allow machine to roll freely. NOTE: Always return
lever to "UP" position after rolling. See Figure 2.8.
DO NOT USE CONTROL TO COAST DOWN SLOPES.
RELEASE PRESSURE ONLY WHEN ENGINE IS OFF AND
MACHINEMOTIONCANBE CONTROLLED.
FIGURE 2.7
(Left zero-turn shown; right turn opposite)
SLIDE CONTROL
LEVER UP TO
DRIVE MACHINE _ _'_=_--=.,_,_ .._.- _ -_.=
_ f
LJI. I _ BATTERY "
SLIDE CONTROL LEVER
DOWN TO ROLL
MACHINE /
FIGURE 2.8
10
Section 2 -OPERATING INSTRUCTIONS
2.4 MOWER OPERATION
2.4.1. CUTTING HEIGHT ADJUSTMENT
This machine has seven different cutting height
positions. IMPORTANT: When positioning the cutting
deck into a higher cutting position, pull up on the deck
lift handle only, it is not necessary to pull up on the
release lever at the same time. Use the release lever
when moving deck cutting height to a lower cutting
position.
1. Grasp both handles together to disengage
latch.
2. Raise or lower handles to desired height.
3. Release lower handle to engage latch.
See Figure 2.9.
DECK LIFT
HANDLE
2.4.3. MOWER BLADE DISENGAGEMENT
Push Blade Switch in to its off ('0') position to
disengage mower blade(s). See Figure 2.10.
Blades must stop rotating in 5 seconds or less after
blade switch has been turned off. DO NOT operate
machine unless blade brake is functioning properly.
If adjustment or repair is necessary, refer to Section
"Blade Brake Adjustment" or contact your
SNAPPER dealer for assistance.
FIGURE 2.10
CONNECTING BAR OMITTED
IN THIS VIEW FOR CLARITY
DETENT
PLATE
FIGURE 2.9
IMPORTANT: DO NOT adjust cutting deck with
mower blades engaged. Be sure Blade Switch is
off before adjusting deck.
2.4.1. MOWER BLADE ENGAGEMENT
1. With engine running, move engine speed control
to the Rabbit or "fast" position detent. (Be careful not
to slide farther than detent, or choke will engage and
engine will stall.)
2. Pull Blade Switch out to its on (T) position to
engage mower blade. See Figure 2.10.
2.4.2. MOWING OPERATIONS
1. Please refer to the Important Safety Instructions
at the beginning of this manual for instruction on safe
mowing practices.
2. Refer to "MOTION CONTROL" earlier in this
section to safely and effectively maneuver the
machine during mowing operations.
11
Section 2 -OPERATING INSTRUCTIONS
2.5 SAFETY INTERLOCK SYSTEM CHECKS
This machine is equipped with an electrical safety
interlock system that is provided for the safety of the
operator and others. All safety devices must be in place
and functioning properly before operating the machine.
Perform the following interlock system checks
periodically during the operating season. Contact your
authorized Snapper dealer if you have questions.
WARNING I
DO NOT operate machine if any safety interlock or l
safety device is not in place and functioning properly.
DO NOT attempt to defeat, modify or remove any safety
device. I
ENGINE MUST NOT START IF:
1) Parking Brake is not engaged OR
2) Blade Switch is pulled out to its on ('r) position
OR
3) Either or both Motion Control Levers are not in
their neutral lock positions.
ENGINE SHOULD START IF:
1) Park Brake is engaged AND
2) Blade Switch is pushed in to its off ('0') position
AND
3) Motion Control Levers are in their neutral lock
positions.
ENGINE MUST BEGIN TO STOP IF:
1) Operator rises off of seat with Blade Switch in
"ON" blades engaged position OR,
2) Operator rises off of seat with Park Brake not in
engaged position.
3) Operator rises off of seat with either or both
Motion Control Levers removed from their
neutral lock positions.
IMPORTANT: Engine will continue to run if Operator
reseats prior to engine coming to a complete stop.
To restart the blades, first move the Blade Switch to
the "OFF" position and then back to the "ON"
position. After coming to a complete stop, the blade
switch must be moved to the "OFF" position, the
Motion Control Levers placed in the neutral lock
position, and the Park Brake engaged before engine
can be restarted. Engine and blades must come to a
complete stop within 5 seconds after the operator
rises off the seat or the blade switch is moved to the
"OFF" position.
12
Section 3 - MAINTENANCE
3.1 INTRODUCTION
To retain the quality of the SCRAMBLER, use genuine
SNAPPER replacement parts only. Contact a local
SNAPPER dealer for parts and service assistance. For
the correct part or information for a particular mower,
always mention the model and serial number.
3.2 SERVICE - AFTER FIRST 5 HOURS
WARNING
NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
DO
3.2.1. CHANGE ENGINE OIL
1. Place bricks or wooden blocks under the front
wheels to lower rear of engine.
2. Place a 4 quart minimum capacity container
under the end of the oil drain.
3. Loosen or remove oil fill cap on engine.
4. Install the drain hose (supplied in hardware bag)
onto drain plug nipple and place hose into drain
container.
5. Rotate drain plug counter clockwise and pull out
to open and allow oil to drain out. See Figure 3.1.
ROTATE 1/4 TURN
COUNTERCLOCKWISE
AND PULL OUT TO DRAIN
ENGINE OIL
i!
k
FIGURE 3.1
6. After all the oil has drained, close the drain by
pushing in and rotating clockwise to close. Wipe up
any oil that may have spilled. Dispose of drained oil
properly. See Figure 3.1.
7. Change oil filter at every oil change. Refer to your
engine owner's manual for service instructions.
8. Fill engine crankcase with new oil. Refer to your
engine owner's manual for oil specifications.
3.2.2. CHECK MOWER BLADE
1. Close vent on fuel cap and make sure cap is
tight. See Figure 2.2.
2. Engage parking brake.
3. Turn key to "STOP" position and remove key from
ignition switch. Remove spark plug wires.
ll WARNING
Wear heavy leather gloves when handling or working
around cutting blades. Blades are extremely sharp and
can cause severe injury.
4. Raise cutting deck to highest setting.
5. With a floor jack, carefully raise front of machine to
gain easier access to under deck. Block machine
securely.
6. Check torque of blade mounting bolts. Torque to:
33" Deck - 30 to 40 ft. Ibs.
38" Deck - 80 to 90 ft. Ibs. See Figure 3.2.
7. Check blade for sharpness, wear and damage.
Refer to Section "BLADE WEAR LIMITS".
TORQUE BLADE MOUNTING
_ --_BOLTS TO 30 TO 40 FT. LBS.
TORQUE BLADE MOUNTING
BOLTS TO 80 TO 90 FT. LBS.
TWIN BLADE DECK
FIGURE 3.2
8. Check blade for straightness. Refer to Section
ADJUSTMENTS AND REPAIR - CHECKING
MOWER BLADE STRAIGHTNESS
I , lll WARNING
DO NOT use a cutting blade that shows signs of
excessive wear or damage. Refer to Section
"MOWER BLADE REPLACEMENT" for proper blade
inspection and service procedures.
13
Section 3 - MAINTENANCE
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
3.2.3. CHECK MOWER DRIVE BELT
1. Footrest/Floor pan Removal
a. Pull deck lift handle to highest cutting position.
See Figure 3.3.
b. Remove the two knobs that secure the rear of the
floor pan.
c. Remove two bolts at front bottom edge of foot
rest. Lift up on footrest and slide rear of floor pan out
from under deck lift mechanism.
MOVE DECK LIFT HANDLE TO HIGH CUT
REMOVE TWO KNOBS AT REAR OF FLOOR PAN
REMOVE TWO BOLTS FROM BOTTOM OF FOOTREST
3.3
3.2.4. CHECK TRANSAXLE DRIVE BELTS
1. Checking Transaxle Belt Tension
The transaxle drive belt requires no adjustment. If
belt is frayed, slit, severed or belt strands exposed,
replace belt before operating mower.
SERVICE - EVERY 25 OPERATING HOURS
3.3.1. ENGINE
1. Engine Cooling System
The engine cooling system consists of an engine
shroud and engine fins. These should be kept
clean and free of debris as needed or cleaned.
2. Engine Oil
Change engine oil. Refer to Section "CHANGE
ENGINE OIL". Refer to engine owner's manual for
oil specifications.
3. Oil Filter
Change engine oil filter. Refer to engine owner's
manual for filter specifications.
4. Air Filter
1. Refer to engine owner's manual for service
instructions. Change air filter. Pull up and rotate the
air cleaner latch to remove cleaner cover. See
Figure 3.4.
IMPORTANT: When cover is removed, you are
viewing the carburetor side of the air filter, which
will appear clean. Remove filter and pre-cleaner for
inspection.
AIR CLEANER
LATCH
FIGURE 3.3
2. Checking Mower Belt Tension
The idler and spring provide proper belt tension
and require no adjustment. If belt is frayed, slit,
severed or belt strands exposed, replace belt
before operating mower.
FIGURE 3.4
(Continued On Next Page)
AIR CLEANER
COVER
14
Section 3 - MAINTENANCE
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
3.3 SERVICE - EVERY 25 OPERATING HOURS
(Continued From Previous Page)
3.3.1. CHECK ENGINE
4. Air Filter
2. Refer to engine owner's manual for cleaning and
service instructions. Remove and clean engine air
pre-cleaner. Remove and replace engine air
cleaner. See Figure 3.5. Install pre-cleaner and air
cleaner per engine owner's manual.
AIR PRE-
CLEANER
4. Mower Deck Levelness
Check mower deck for proper levelness. Adjust as
required. Refer to Section "MOWER DECK
ADJUSTMENT- LEVELNESS".
5. Cleaning Mower Deck
a. Close vent on fuel cap and make sure cap is
tight. See Figure 2.2.
b. Remove key from ignition switch. Engage
parking brake.
c. Remove spark plug wire(s) and secure away
from spark plug(s).
d. Raise cutting deck to highest setting.
e. With a floor jack, carefully raise up front of
machine to gain easier access to under deck.
Block machine securely.
WARNING
Lifting or lowering the machine onto or down from
blocks manually can cause severe injury. Always
use a floor jack when raising machine.
f. Clean underside of mower deck, removing all
accumulation of grass clippings and debris.
g. Clean top of deck, removing all grass
clippings and debris.
3.3.3. LUBRICATION
1. Mower Blade Spindle
a. Lubricate spindle bearings with three shots of
general purpose grease from grease gun. See
Figure 3.6.
UNDERSIDE VIEW OF 33" DECK
AIR CLEANER
FIGURE 3.5
3. Reinstall air cleaner cover. Insert tabs located at
the bottom of the cover into corresponding slots in
engine cover. Position cover and engage latch over
cover and rotate and push down to lock.
3.3.2. MOWER COMPONENTS
1. Blade Brake
Check blade stop time. Blades must stop rotating in
5 seconds or less after blades have been turned
off. Refer to Section "BLADE BRAKE
ADJUSTMENT".
2. Mower Drive Belt
Check belt for proper tension. No adjustment
required. Replace belt as needed.
3. Mower Blade
Check blade for sharpness, wear, damage, and
torque. Refer to Section "MOWER BLADE
REPLACEMENT".
FIGURE 3.6
15
Section 3 - MAINTENANCE
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
2. Mower Deck Linkage
Lubricate all mower deck linkage pivot points with a
light coat of motor oil.
3. Front Wheel Bearings
Lubricate front wheel bearings with five shots of
general purpose grease from grease gun. See
Figure 3.7.
I
!
.,4",,i
I "
o
LUBRICATE
FRONT WHEEL
BEARINGS
FIGURE 3.7
4. Front Caster Wheel Pivot Shaft
The footrest/floor pan assembly will have to be
removed to lubricate the pivot shaft. The access hole
is at the rear of the front structure underneath the
footrest.
a. The pivot shaft grease fitting can be accessed
through a hole at the rear of the front structure.
Lubricate pivot shaft with three shots of general
purpose grease from grease gun. See Figure 3.8.
FRONT STRUCTURE
ACCESS HOLE
LUBRICATE
PIVOT
SHAFTS
FRONT COVER
REMOVED
FIGURE 3.8
5. Parking Brake Pivot Bushings
Lubricate both parking brake pivot bushings with
three shots general purpose grease from grease
gun. See Figure 3.9
6. Motion Control Pivot Bushings
Lubricate left and right motion control pivot bushings
with three shots general purpose grease from grease
gun. See Figure 3.9
UNDERSIDE OF SCRAMBLER
SHOWN WITH DECK REMOVED.
DECK REMOVAL NOT
NECESSARY FOR LUBRICATION.
PARKING BRAKE
PIVOT BUSHING
MOTION CONTROL
PIVOT BUSHING
FIGURE 3.9
(Right side shown)
16
Section 3 - MAINTENANCE
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
3.4 SERVICE - ANNUALLY
Perform all maintenance as described in the
maintenance schedule.
3.4.1. Engine
Service engine according to engine owner's manual.
3.4.2. Air Filter
Refer to engine owner's manual for service
instructions.
3.4.3. Oil Filter
Refer to engine owner's manual for service
instructions.
3.4.4. Engine Oil
Refer to engine owner's manual for service
instructions.
3.4.5. Transaxle
IMPORTANT: DO NOT try to open reservoir cap at
any time. The transaxle is maintenance free. The
transaxle does not require any fluid or any
service. If there is any problem: leakage,
malfunction or etc. return the SCRAMBLER
immediately to the nearest authorized Snapper
dealer for service.
3.4.6. Fuel Filter
Service fuel filter as instructed below. Close fuel
valve in fuel line. Run engine until engine runs out
of fuel. Turn key to "OFF" position. Engine MUST
be stopped and MUST be cold before removing
filter. Perform filter change only when fuel line is
empty.
1. Remove hose clamps from fuel filter.
2. Remove fuel lines from filter. Discard filter.
3. Install new fuel filter. Reinstall hose clamps. See
Figure 3.10.
\
NEW FUEL FILTER
PART NO. 1-4359
HOSE CLAMPS
FIGURE 3.10
3.5 STORAGE (OUT OF SEASON)
Perform the following procedures to insure the
SCRAMBLER will operate properly when taken out of
storage.
1. Thoroughly clean the SCRAMBLER by removing
all grass clippings and debris.
2. Perform maintenance and lubrication as
described in the previous sections.
3. Drain fuel from fuel tank into an approved
container outdoors away from all sources of
ignition.
4. Start engine and allow it to run until engine runs
out of fuel. This allows the carburetor and fuel
system to remain clean during storage.
5. Remove battery. Refer to Section "BATTERY
REMOVAL AND STORAGE".
6. Close vent on fuel filler cap and fuel valve in fuel
line. Remove key.
17
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
4.1.2. Neutral Return Spring Adjustments
When the motion control levers are released, return
springs assist them back to the neutral position. See
Figure 4.1a. To adjust spring tension:
1. If a stronger return is desired, tighten the nyloc
nut atop the return spring rod.
2. If a weaker return is desired, loosen the nyloc
nut atop the return spring rod.
NOTE: Be sure to adjust left and right return
springs equally.
4.1 MOTION CONTROL ADJUSTMENTS
4.1.1. Neutral Adjustments
When the machine is on a flat level surface and motion
control levers are in their neutral or neutral lock
positions, there should be no machine movement. If
movement is present, adjustment must be made to left
and/or right transmission control rods (located to the left
and right of the operator seat, under the control panels):
1. Remove the hair pin and washer securing the
rod fitting to the Motion Control Lever pivot bracket.
See Figure 4.1. Pull fitting end out from bracket.
2. Turn fitting clockwise one turn if machine moves
in reverse, or counterclockwise if machine moves
forward.
3. Replace fitting into hole, securing with washer
and hair pin.
4. Start the machine. With motion control levers
left in their neutral lock positions, disengage the
parking brake and check for movement. If
movement is still present, repeat steps 1-4 until
movement ceases.
5. Repeat for other side if needed.
TENSION
ADJUSTING
NUT
FIGURE 4.1a
4.1.4. Motion Control Lever Alignment
Correctly aligned Motion control levers will propel the
mower forward in a straight line when levers are equally
engaged into drive. See Figure 4.1b. If one
transmission engages before another, loosen the lever
adjustment screws, and adjust the lever forward or
backward until levers are aligned. See Figure 4.1c.
FIGURE 4.1b
PIVOT BRACKET (LEVER
MUST BE IN NEUTRAL
LOCK POSITION)
FIGURE 4.1
(Right side shown; fuel tank removed for clarity)
4.1.3. Tracking Adjustments
When both motion control levers are fully engaged in
forward drive, the machine should move in a straight
line. If the machine tracks (veers) left or right, a tracking
adjustment must be made. Each motion control lever is
equipped with a tracking adjustment plate. See Figure
4.1b. Moving the plate forward or backward adjusts the
machine's tracking:
1. If mower tracks to the left, loosen the two torx
screws on the left adjustment plate, slide plate
forward approximately 1/8", and retighten screws.
(If plate is already as far forward as it can go,
loosen the right plate and slide back 1/8".) Check
machine tracking and repeat as needed.
2. If mower tracks to the right, loosen the two torx
screws on the right adjustment plate, slide plate
forward approximately 1/8", and retighten screws.
(If plate is already as far forward as it can go,
loosen the left plate and slide back 1/8".) Check
machine tracking and repeat as needed.
18
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
3. In cases of severe tracking, one plate may need
to be moved fully back and the other moved fully
forward.
ADJUST UNTIL
LEVERS ARE
ALIGNED
TRACKING
ADJUSTMENT
PLATE
FIGURE 4.1c
LEVER
ALIGNMENT
SCREWS
4.2 ENGINE ADJUSTMENTS & REPAIR
Refer to the engine owner's manual for those adjustments
and/or repairs that can be made by the owner.
4.3 MOWER DECK & COMPONENT ADJUSTMENTS
The following mower deck and component adjustments
and repairs can be made by the owner. However, if
there is difficulty in achieving these adjustments and
repairs, it is recommended that these repairs be made
by an authorized SNAPPER dealer.
4.3.1. MOWER DRIVE BELT ADJUSTMENT
The 33" and 38" mower deck drive belts do not
require any adjustment. If the belt does not drive
blade properly, replace belt as needed. Refer to
Section "BELT REPLACEMENT". Belt routing
shown on this page. See Figures 4.2 & 4.2a.
SPINDLE PULLEY ELECTRIC CLUTCH PULLEY
IDLER PULLEY
33" DECK
FIGURE 4.2
SPINDLE PULLEY
IDLER
PULLEY
SPINDLE PULLEY
38" DECK
ELECTRIC
CLUTCH
PULLEY
r
FIGURE 4.2a
4.3.2. MOWER DRIVE BELT REPLACEMENT
Inspect mower drive belt. Replace belt if signs of
excessive wear and/or damage are present.
4.3.3. BELT REMOVAL
1. Remove footrest/floor pan assembly. Refer to
Section "FOOTREST REMOVAL".
2. Remove old belt.
4.3.4. BELT REPLACEMENT
1. Route new belt around electric clutch pulley.
See Figure 4.3.
MOWER
BELT
/Ill//
ELECTRIC
• CLUTCH
ROUTE MOWER BELT AROUND
ELECTRIC CLUTCH PULLEY
/
VIEW SHOWN FROM UNDERNEATH WITH /
(
DECK REMOVED, DECK REMOVAL NOT
NECESSARY FOR MOWER BELT
REPLACEMENT
I ,q. !/ill
FIGURE 4.3
(Continued On Next Page)
19
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
4.3.4. BELT REPLACEMENT
(Continued From Previous)
2. Route belt around stationary idler.
3. Remove spring that is connected to idler pulley.
Loosen nut and bolt that secures idler pulley to idler
arm. Route belt between belt guide and idler pulley.
4. Route belt onto spindle pulley. Make sure belt is
inside spindle pulley belt guide.
5. Reinstall idler pulley spring. See Figure 4.4.
NOTE: The idler belt guide should be positioned so
the Iocator tab fits into the corresponding hole
found on the idler arm. See Figure 4.4. Tighten bolt
securely.
6. Reinstall footrest/floor pan assembly.
BELT REPLACEMENTS
Engine to Hydro Pumps (All Models) Part No. 4-2773
Engine to Electric Clutch (All Models) Part No. 2-9117
Electric Clutch to Mower (33" Decks) Part No. 3-5389
Electric Clutch to Mower (38" Decks) Part No. 2-9308
IDLER ARM AND BELT
GUIDE DETAIL
MOWER
BELT
_TAB MUST GO
T OC TO
STATIONARY BELT
PULLEY GUIDE
IDLER
ARM
FIGURE 4.4
4.3.5. BLADE BRAKE ADJUSTMENT
The SNAPPER SCRAMBLER is equipped with an
electric clutch/brake that should stop blade rotation
in 5 seconds or less after being turned off. If blades
continue to rotate longer than 5 seconds,
adjustment or replacement is required. When
properly adjusted, a .010" to .012" feeler gauge will
fit thru the three inspection slots located on the side
of the clutch as shown. See Figure 4.5. Excessive
clearance can adversely affect the function of the
clutch and produce blade stop times over 5
seconds. To adjust, turn the three adjusting nuts
clockwise to reduce clearance. The clearance at
each of the three slots must be set the same.
FIGURE 4.5
.010" TO .012" J
FEELER GAUGE
WARNING
Blades must stop rotatingin 5 seconds or less after
blades have been turned off. DO NOT operate
machine until blade brake has been adjusted or
repairedand is functioningproperly.Contact your
SNAPPER dealerforassistance.
4.3.6. CHECKING MOWER BLADE
STRAIGHTNESS
The straightness of the mower blade(s) is essential
for smooth, even mowing. Check blade
straightness as follows. NOTE: Follow Steps 1
thru 4 for all deck sizes.
1. Close vent on fuel cap and make sure cap is
tight. Figure 2.2.
2. Remove key from ignition switch. Engage
parking brake.
3. Remove spark plug wire(s) and secure away
from spark plug(s).
4. Raise cutting deck to highest setting. With a
floor jack, carefully raise front of machine to gain
easier access to under deck. Block machine
securely.
(Continued On Next Page)
20
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
4.3.6. CHECKING MOWER BLADE
STRAIGHTNESS
(Continued From Previous Page)
(Checking the 33" Deck Blade)
5. Select a point on the deck and mark for
reference.
6. Mark blade tips as "A" and "B".
7. Rotate blade until blade tip "A" is at deck
reference mark.
8. Measure the distance between deck lip and
blade tip. NOTE: On 33" decks, the measurement
between the blade tip and deck lip should be 3/8".
See Figure 4.6.
9. Repeat step 8 with blade tip "B".
10. If measurement between blade tips and deck
are different and there is more than 1/16" difference
between blade tip measurements, blade is bent and
must be replaced with new blade.
MARK
BLADE
ENDS
LIP
(Checking The 38" Deck Blades)
NOTE: Follow Steps 1 thru 4 for all deck sizes.
11. Mark each blade's tips as "A" and "B". See
Figure 4.7.
12. Rotate both blades until blade cutting edges
"A" are at their closest point.
13. Measure the distance between both "A" blade
cutting edges and deck. See Figure 4.7.
FIGURE 4.7
14. Rotate blade until blade cutting edges "B" are
together. See Figure 4.8.
15. If the measurements differ by more than 1/16"
between either set of blade tips, one or both blades
are bent and must be replaced with new blades.
MEASURE FROM BLADE
TIPS TO DECK
X + 1/16"
FROM BLADE
TIP TO OUTER DECK
LIP
FIGURE 4.6
FIGURE 4.8
21
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
4.3.7. MOWER DECK ADJUSTMENT (LEVELNESS)
Side-To-Side (33" & 38" Decks)
Before making deck leveling adjustments, check
the tire pressure. Check tires and add or release air
as needed to bring pressure to 12 P.S.I. in front and
12 P.S.I. in rear tires. If tires are properly inflated
and mowing is still uneven, adjust side-to-side deck
levelness as follows:
1. Place SCRAMBLER on a smooth level
surface.
2. Turn engine off and remove key, remove
spark plug wire(s) from spark plug(s) and secure
wire(s) away from plug(s).
3. Place a piece of angle iron, pipe, or similar
object under center of deck at the rear.
4. Remove rear hanger chains and allow center,
rear of deck to rest on angle iron.
5. Measure the distance from blade tips to floor. If
the measurement is within 1/8" from side-to-side,
the deck levelness is satisfactory. If the difference
from side-to-side is greater than 1/8", continue to
the next page for adjustment. See Figure 4.9.
FRONT OR REAR VIEW OF DECK
TWIN BLADE DECK
X
SIDE
6. Loosen the shoulder bolt that retains the
eccentric.
7. Turn eccentric "UP" or "DOWN" as required
until blade tips are within 1/8" of the same
distance from the floor. See Figure 4.10.
8. Tighten shoulder bolt loosened in Step "f".
9. Readjust rear hanger chain pivots to align
with holes in support brackets.
10. Reconnect hanger chains, remove angle
iron, pipe, etc. and recheck side to side level.
Adjust either chain as needed to result in blade
tips being within 1/8" of the same distance from
the floor.
11. Proceed to check front to rear deck pitch.
38" DECK SHOWN i_
DOWN
LOOSEN
SHOULDER
BOLT
ECCENTRIC
FIGURE 4.10
X
f
SINGLE BLADE DECK
SIDE _ SIDE
J x-1/a"
#_%GLE IRON I
FIGURE 4.9
22
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
4.3.8. MOWER DECK ADJUSTMENT (LEVELNESS)
Front to Rear Deck Pitch (33" Deck)
With the SCRAMBLER on a smooth, level surface,
rotate blade until blade tips are at front and rear of
deck. Measure the distance from blade tips to
floor. The distance should be the same, or the rear
1/4" lower than the front. If the rear blade tip is
higher or is more than 1/4" lower than the front,
proceed with adjustment.
1. Remove rear hanger chains.
2. Turn each hanger pivot the same number of
rotations on the eye-bolt to raise or lower the
rear of the deck. See Figure 4.11.
3. Reinstall rear hanger chains and measure
blade tips again.
4. Repeat steps "a" through "c" until proper
levelness is obtained.
÷
x
t
FRONT _ REAR
SIDE VIEW OF DECK
t
X - 1/4"
t
ROTATE HANGER
PIVOT UP TO RAISE
DECK OR DOWN TO
LOWER DECK
REAR LIFT ARM
FIGURE 4.11
Front to Rear Deck Pitch (38" Decks)
With the SCRAMBLER on a smooth, level surface,
rotate blades until blade tips are at front and rear of
deck. Measure the distance from blade tips to floor.
The distance should be the same, or the rear 1/4"
higher than the front.
If the rear blade tip is lower or is more than 1/4"
higher than the front, proceed with adjustment.
1. Remove rear hanger chains.
2. Turn each hanger pivot the same number of
rotations on the eye-bolt to raise or lower the
rear of the deck. See Figure 4.12.
3. Reinstall rear hanger chains and measure
blade tips again.
4. Repeat steps "a" through "c" until proper
levelness is obtained.
FRO:T [--_ _-/_A _ --_} :E+AII4"
f
ROTATE HANGER PIVOT:
UP TO RAISE DECK OR DOWN
TO LOWER DECK
FIGURE 4.12
4.3.9. MOWER DECK TIMING ROD
The mower deck timing rod is pre-adjusted at the
factory. It is set to maintain the deck in the same
attitude through all heights of cut. If the timing rod
requires adjustment, contact an authorized
SNAPPER dealer for service. See Figure 4.13.
ADJUSTING
NUT DO NOT ADJUST
TIMING_
FIGURE 4.13
23
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.
Wear heavy leather gloves when handling or working
around cutting blades. Blades are extremely sharp and
can cause severe injury. DO NOT use a cutting blade
that shows signs of excessive wear or damage.
4.4 WHEEL BRAKE ADJUSTMENT
Adjust the wheel brake if wheels turn when parking
brake is engaged. Adjust the wheel brake by turning
wheel brake adjusting nut clockwise to increase
braking action or counter clockwise to decrease
braking action. See Figure 4.14.
ADJUST
COUNTER-
CLOCKWISE TO
DECREASE
BRAKE
UNDERSIDE VIEW OF MACHINE
ADJUST
CLOCKWISE
TOINCREASE
BRAKE
4.5
FIGURE 4.14
MOWER BLADE REPLACEMENT
4.5.1. BLADE WEAR LIMITS
1. Inspect blade frequently for signs of excessive
wear or damage. See Figure 4.15.
"_ WEAR LIMIT
. _,,,_ "___ (NOTCH STARTS)
_'_,,J REPLACE WITH NEW BLADE.
4.5.2. BLADE SHARPENING
1. Close vent in fuel cap and make sure cap is
tight. See Figure 2.2.
2. Remove key from ignition switch. Engage parking
brake.
3. Remove spark plug wire(s) and secure away from
spark plug(s).
4. Raise cutting deck to highest setting.
5. With a floor jack, carefully raise front of machine to
gain easier access to under deck. Block machine
securely.
6. Remove blade(s). See Figure 4.16.
7. Inspect condition of blade. See Figure 4.14.
8. If blade is in good condition, sharpen at 22 to 28
degrees. DO NOT sharpen beyond existing cutting
edge. See Figure 4.17.
9. Check blade balance after sharpening. If
necessary, correct blade balance by grinding the
heavy end of blade.
10.Reinstall blade. See Figure 4.16. Torque blade
mounting bolts to recommended range of:
33" Deck - 30 to 40 ft. Ibs.
38" Deck - 80 to 90 ft. Ibs.
w.................................... •
DO NOT SHARPEN
BEYOND ORIGINAL
CUTTING EDGE
•, ................................... ,P
FIGURE 4.16
22° TO X
BLADE TIP /
/
ORIGINAL CUTTING EDGE
FIGURE 4.15
FIGURE 4.17
24
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade.Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug.Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage. DO
NOT attempt to service or charge the battery while it is
installed on the SCRAMBLER. Shield the positive
terminal with terminal cover located on battery
harness. This prevents metal from touching the
positive terminal, which could cause sparks. Cables
must be connected to battery terminals in the proper
position as shown.
5. Slow charge battery at 1 amp for 10 hours.
6. If battery will not accept charge or is partially
charged after 10 hours of charging at 1 amp,
replace with new battery, Part Number 6-0753.
BLACK
NEGATIVE (-)
CABLE
RED
POSITIVE(+)
CABLE
4.5 MOWER BLADE REPLACEMENT
4.5.3. BLADE REPLACEMENT
1. Remove blade(s). See Figure 4.17. Replace
blade(s) if it shows signs of excessive wear or
damage. See chart below for replacement
BLADE REPLACEMENT CHART
33" Blade [ 1-9523
38" Blades [ 2-4466 (Requires Two)
4.6 BATTERY
4.6.1. BATTERY REMOVAL
1. Tilt seat up to gain access to battery.
2. Observe and note cable positions on battery.
See Figure 4.18.
3. Disconnect cables from battery terminals,
disconnecting BLACK (Negative) cable first.
Disconnect RED (Positive) battery cable. Slide
battery from battery cradle.
4. Retain mounting bolts and nuts for future use.
4.6.2. BATTERY INSTALLATION
1. Slide battery into battery cradle.
2. Connect cables to battery terminals. Connect
RED (Positive) cable first. Connect BLACK
(Negative) cable. See Figure 4.18.
3. Place the positive (+) terminal insulator over
positive terminal and cable. See Figure 4.18.
4.6.3. BATTERY SERVICE
1. Remove battery. Refer to Section "BATTERY
REMOVAL".
2. Place battery in a well-ventilated area on a level
surface.
3. Using distilled water, refill cells as required to
cover cell plates of which can also be visualized
through the plastic battery case.
4. With cell caps removed, connect battery charger
to battery terminals. Red to positive (+) terminal
and black to negative (-) terminal.
FIGURE 4.18
WARNING
The electrolyte (acid) produces a highly explosive gas.
Keep all sparks, flame and fire away from area when
charging battery or when handling electrolyte or
battery. Electrolyte (acid) is a highly corrosive liquid.
Wear eye protection. Wash affected areas immediately
after having eye or skin contact with electrolyte (acid).
Battery acid is corrosive. Rinse empty acid containers
with water and mutilate before discarding. If acid is
spilled on battery, bench, or clothing, etc., Flush with
clear water and neutralize with baking soda. DO NOT
attempt to charge battery while installed on the
SCRAMBLER. DO NOT use "BOOST" chargers on the
battery. If battery is removed, DO NOT operate engine
without insulating Positive + battery cable terminal with
electrical tape, or sparking from the battery cables can
result.
4.6.4. BATTERY STORAGE
When SCRAMBLER is to be stored out of season,
it is recommended the battery be removed, charged
and stored.
1. Remove battery. (Refer to Section "BATTERY
REMOVAL").
2. Perform battery service.
3. Bring battery to full charge, if required.
4. Store battery in an area away from the
SCRAMBLER on a wood surface. DO NOT STORE
BATTERY ON A CONCRETE SURFACE.
25
Section 4 - ADJUSTMENTS & REPAIR
4.6.5. BATTERY TESTING
There are two types of battery tests: Unloaded and
Loaded. The unloaded test is the procedure that
will be discussed. It's the simplest and most
commonly used. An unloaded test is made on a
battery without discharging current. To perform
unloaded testing, check charge condition using
either a hydrometer or voltmeter.
1. Using a voltmeter, voltage readings appear
instantly to show the state of charge. Remember to
hook the positive lead to the battery's positive
terminal, and the negative lead to the negative
terminal.
2. A hydrometer measures the specific gravity of
each cell. The specific gravity tells the degree of
charge; generally, a specific gravity of about 1.265
to 1.280 indicates full charge. A reading of 1.230 to
1.260 indicates the battery should be charged. The
Battery Condition chart below shows the charge
level as measured by syringe float hydrometer,
digital voltmeter and five ball hydrometer.
4.6.6. NEW BATTERY PREPARATION
1. Remove battery from carton.
2. Place battery in a well ventilated area on a level
non-concrete surface.
3. Remove battery cell caps. Fill cells as required
with electrolyte (purchased separately) to proper
level. Filling battery with electrolyte will bring the
battery to 80% charged state.
4. With cell caps removed, connect battery charger
to battery terminals; RED to positive (+) and BLACK
to negative (-) terminal.
WARNING
DO NOT OVERFILL! DO NOT attempt to charge l
battery while installed on the SCRAMBLER. DO NOT
use "BOOST" chargers on the battery.
IMPORTANT: DO NOT place anything in new battery
other than specified electrolyte.
5. Slow charge the battery at 1 amp for 2 hours to
bring the battery to full charge.
6. After charging, check level of electrolyte and
add as needed to bring to proper level.
7. Reinstall cell caps.
8. Install battery into power unit. Connect over flow
tube.
9. Connect positive (+) cable (red) first, from wiring
harness to the positive terminal (+) on battery
using bolt and nut provided in hardware bag.
Connect negative (-) cable (black)last, to negative
terminal (-) on battery using bolt and nut. Apply a
small amount of grease over terminals to prevent
corrosion.
WARNING
Shield the positive terminal with terminal cover
located on battery harness. This prevents metal from
touching the positive terminal, which could cause
sparks.
State of Charge
100% Charged w/Sulfate Stop
100% Charged
75% Charged
50% Charged
25% Charged
0% Charged
Battery Condition
Syringe Hydrometer
1.280
1.265
1.210
1.160
1.120
Less than 1.100
Chart
Digital Voltmeter
12.80v
12.60v
12.40v
12.10v
11.90v
Less than 11.80v
Five Ball Hydrometer
Five Balls Floating
Four Balls Floating
Three Balls Floating
Two Balls Floating
One Ball Floating
Zero Balls Floating
26
PROBLEM
Starter Will Not Crank
Engine
Engine Will Crank But
Not Start
Engine Will Not Start
Using Recoil Starter
(Applicable models)
Engine Stalls After
Running
Engine Loses Power
Engine Backfires When
Turned To "STOP"
TROUBLESHOOTING
PROBABLE CAUSE
1. Battery dead•
2. Blown fuse•
3. Electrical connections loose or corroded•
4. Defective ignition switch•
5. Blade engagement switch in the "ON" position•
6. Motion Control Levers not in neutral lock position•
7. Park brake not engaged•
CORRECTIVE ACTION
1. Service battery.
2. Replace fuse•
3. Clean and check connections for good contact•
4. Contact authorized SNAPPER dealer•
5. Push blade engagement switch in to "OFF".
6. Lift levers into neutral lock position•
7. Engage park brake•
8. Faulty parking brake, blade or ignition switch. 8. Contact authorized SNAPPER dealer.
9. Faulty engine starter. 9. Replace engine starter.
10. Faulty starter solenoid. 10. Replace starter solenoid.
1. Fuel tank empty or fuel shut-off valve closed. 1. Fill fuel tank with fresh fuel & open fuel valve.
2. Engine needs choking. 2. Move choke control to "CHOKE" position.
3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.
4.
5.
1.
2.
3.
4.
5.
6.
7.
8.
1.
2.
3.
4.
5.
Battery weak or dead• 4.
Faulty parking brake, blade or ignition switch• 5.
Blade engagement switch in the "ON" position• 1
Park brake not engaged• 2.
Motion Control Levers not in neutral lock position• 3.
Fuel tank empty or fuel shut-off valve closed• 4.
Engine needs choking• 5.
Blown Fuse. 6.
Faulty relay switch• 7.
Faulty parking brake or blade switch• 8.
Operator not in seat. 1
Engine speed control in the "CHOKE" position• 2.
Fuel tank empty• 3.
Engine air pre-cleaner and or air cleaner dirty• 4.
Spark plug defective or gap set improperly• 5.
6. Fuel filter stopped up. 6.
7. Water, debris or stale fuel in fuel system• 7.
1. Excessive load on engine• 1
2. Engine air pre-cleaner or air cleaner dirty 2.
3. Spark plug faulty• 3.
4. Water, debris or stale fuel in fuel system• 4.
5. Debris build up on engine cooling screen• 5.
1. Throttle control set too "FAST"• 1.
Service battery.
Contact authorized SNAPPER dealer.
• Push blade engagement switch in to "OFF".
Engage park brake.
Lift levers into neutral lock position.
Fill fuel tank with fresh fuel & open fuel valve.
Move choke control to "CHOKE" position.
Replace with new 20 AMP fuse.
Contact authorized SNAPPER dealer.
Contact authorized SNAPPER dealer.
• Sit in operator's seat.
Move speed control back past "Fast" detent.
Fill with fuel to proper level.
Clean free of all debris.
Service spark plug.
Replace fuel filter.
Drain and clean fuel system.
• Lessen load.
Clean or replace filters.
Service spark plug.
Drain and clean fuel system.
Clean all debris from engine cooling screen.
Set throttle control to "SLOW" and allow engine
to idle. Then, turn key to "OFF".
(Trouble Shooting Continued on Next Page)
27
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE CORRECTIVE ACTION
Excessive Vibration 1. Damaged, out of balance or bent mower blades. 1. Service mower blade(s).
2. Loose blade components. 2. Service and tighten loose parts.
3. Loose or missing air lift (if equipped). 3. Replace air lifts. Tighten to proper torque.
4. Lumpy or frayed belt. 4. Replace belt.
5. Bent Idler, stationary or spindle pulley. 5. Replace pulley.
Rider Will Not Move Or 1. Motion Control Levers in neutral "N" position. 1. Move levers in desired position.
Loss Of Traction 2. Roll release lever is in "ROLL" position. 2. Move roll release lever to the engaged position.
3. Low transmission hydraulic oil level. 3. Contact authorized SNAPPER dealer.
4. Parking Brake engaged. 4. Move parking brake to disengaged position.
5. Traction drive belt requires replacement. 5. Replace traction drive belt.
Blade(s) Not Cutting 1. Blade engagement switch in the "OFF" position. 1. Move blade switch to the "ON" position.
2. Clutch belt slipping. 2. Replace clutch belt.
3. Mower belt slipping. 3. Replace mower belt.
4. Electric clutch not functioning. 4. Contact authorized SNAPPER dealer.
Cutting Grass 1. Uneven tire pressure. 1. Bring to proper pressure.
Improperly 2. Cutting height too low or high. 2. Adjust cutting height.
3. Engine speed too slow. 3. Move engine speed control to "FAST" position.
4. Forward speed too fast. 4. Move joystick to a slower speed.
5. Terraced cut, side to side. 5. Adjust side to side level.
6. Excessive deck pitch, front to rear. 6. Adjust front to rear pitch.
7. Cutting blade(s) dull or damaged. 7. Sharpen cutting edges or replace blade(s).
8. Blade belt slipping. 8. Replace blade belt.
9. Check electric clutch. 9. Adjust to proper specifications.
10. Check clutch belt. 10. Replace clutch belt.
Poor Grass Discharge 1. Engine speed too slow. 1. Move engine speed control to "FAST" position.
2. Forward speed too fast. 2. Move joystick to a slower speed.
3. Grass is wet. 3. Mow when grass is dry.
4. Excessively worn or damaged blade(s). 4. Service mower blade(s).
5. Build up of grass clippings and debris under deck. 5. Clean deck.
6. Improper blade(s) installed on deck. 6. Install proper SNAPPER blades.
7. Blade(s) installed improperly on deck. 7. Install blades properly.
Battery Will Not Charge 1. Poor cable connections. 1. Clean cables and battery terminals.
2. Bad battery cell(s). 2. Replace with new battery.
3. Faulty alternator. 3. Contact engine manufacturer's dealer.
Oil Leaking 1. Leaking hose fittings, clamps or reservoir. 1. Verify fittings and hose clamps are tight.
28
SERVICE SCHEDULE
ITEM
Engine Oil
SERVICE PERFORMED REF.
Check Oil Level Page 8
EACH 5
USE HRS
X
25
HRS
5O
HRS
100
HRS
Initial Oil Change Page 13
X
Periodic Oil Change Page 14
X*
Oil Filter
Air Pre-Cleaner
Initial Oil Change
Periodic Oil Change
Clean Sponge Element
Engine Manual
& Page 13
Engine Manual
& Page 14
Engine Manual
X
Air Cleaner Clean or Replace Engine Manual
X**
Spark Plug Replace Engine Manual
X
Fuel Filter Replace Engine Manual
X
Engine Cooling Clean Shroud & Fins Engine Manual
System & Page 14
Battery Check Electrolyte Pages 25
Charge Battery Page 25
X
X**
Testing Battery Pages 26
Tires Check Pressures Page 8 X
Drive Belts Check For Wear And Page 19-20
Tension
Mower Blades Check ForWear, Damage Pages 24-25 X
& Replacement
Mower Deck Clean Debris Page 15 X
Accumulation
Mower Deck Clean Outside and Page 15 X
Underside
Pages 15-16
Lubrication Grease or Oil
Points
* Change oil every 25 hours when operating under heavy load or high temperatures.
**Clean more often under dusty conditions or when air debris is present
X X
X
4.6. MAINTENANCE/REPLACEMENT PARTS
MAINTENANCE/REPLACEMENT PARTS
Cutter Deck Blade (33" Cutting Deck) 3-4168
Cutter Deck Blade (38" Cutting Deck) (2 Blades Required) 4-2998
33" Cutter Deck Belt (Electric Clutch to Cutting Deck) 3-5389
38" Cutter Deck Belt (Electric Clutch to Cutting Deck) 2-9308
Wheel Drive Belt (Engine to Hydro Transaxle) 4-2773
Mower Drive Belt (Engine to Electric Clutch) 2-9117
Parts Manual for SCRAMBLER 33" & 38" Zero Turn Hydro Drive Series 6 06180
EACH
SEASON
X
X
X
X
X
X
29
2 YEAR LIMITED WARRANTY
For two (2) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through
any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts
found upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
For ninety (90) days from purchase date for the original purchaser's commercial, rental, or other non-residential use,
SNAPPER, through any authorized SNAPPER dealer will replace, free of charge, any part or parts found upon
examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
All transportation costs incurred by the purchaser in submitting material to an authorized SNAPPER dealer for
replacement under this warranty must be paid by the purchaser.
This warranty does not apply to certain transmissions, to engines and their components, and batteries, as these items
are warranted separately. This warranty does not apply to parts that have been damaged by accident, alteration,
abuse, improper lubrication, normal wear, or other cause beyond the control of SNAPPER. This warranty does not
cover any machine or component part that has been altered or modified changing safety, performance, or durability.
Batteries have a one (1) year warranty period with free replacement if required for one (1) year from the original
purchase date. SNAPPER will not be responsible for any installation cost incurred. The battery warranty only covers
original equipment batteries and does not cover damage to the battery or machine caused by neglect or abuse
destruction by fire, explosion, freezing, overcharging, improper maintenance, or use of improper electrolyte.
There is no other express warranty.
DISCLAIMER OF WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to two (2)
years from purchase date for the original purchaser's residential or other non-commercial use, and ninety (90)
days from purchase for the original purchaser's commercial, rental or other non-residential use, and to the
extent permitted by law, any and all implied warranties are excluded. This is the exclusive remedy. Liabilities
for consequential damages, under any and all warranties are excluded.
Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
WARNING: THE USE OF REPLACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY IMPAIR THE
SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND WARRANTY BY SNAPPER
ASSOCIATED WITH THE USE OF SUCH PARTS.
IMPORTANT: Please fill out the attached SNAPPER Product Registration Card immediately and mail to:
Snapper's Product Registration Center, P.O. Box 1379, McDonough, Georgia 30253
30
PRIMARY MAINTENANCE
®
vs.DIRT I
an
illustration of
how dirt can
ge your
engine & how
reasonable
maintenance
can protect it!
Snapper uses the best avail-
able engines and components
in their products in order to
provide long, satisfactory
service. However, proper
care is essential In
prolonging engine life. Dirt
Is your engine's enemy
number 11
The engine on your Snapper
product spends Its entire life
operating close to the ground at
high speed creating a virtual
storm of dust and dirtl
31
PRIMARY MAINTENANCE
gulp about 12
gallons of air for
every gallon of
used. Because of
its working environ-
ment, the air avaUable
to your Snapper engine Is "
heavily saturated with air-
borne dirt particles.
__Knowing that dirt will
quickly ruin an engine,
", manufacturers equip their
engines with extremely
efficient air cleaners to
filter out the harmful dirt.
As the dirt parUcles are stopped,
they build up and begin to clog
the outside of the filter. This
reduces the amount of air
available to the engine and causes
an over-rich fuel mixture which re-
suits In the following adverse
effects:
An Improperly serviced, dirt
clogged air cleaner will:
1. Increase fuel consumption
2. cause power loss
3. result In hard starting
4. create smoke from unburned
fuel
5. produce carbon build-up
Internally
6. foul spark plug electrodes
7. score cylinder walls
8. burn valves
g. wear out the engine pre-
maturely
10. COST YOU MONEY!
Damage caused by a poorly serviced air
cleaner is not covered under the engine
warranties. So, save yourself unnecessary
expenses and undue aggravation by keeping
the afr cleaner properly serviced at the Intervals
specified In the engine owner's manual.
It doesn't take long to service an air cleaner.
Follow the specific instructions In the engine
owner's manual for the type filter used. Pre-
vent dirt from falling Into the carburetor Intake
when servicing your air cleaner• Make sure
components are Installed In correct sequence
after servicing to prevent unfiltered air from
entering the engine. Some servicing hints on
several common types are:
32
PRIMARY MAINTENANCE
Generally, wash foam-type filters
In a dishwashlng detergent and
water solution. Rinse and wring
dry, then saturate with oil and
squeeze out excess. Failure to
re-oil this type filter will ruin the
engine.
Clean paper elements by tapping
lightly. Blowing with air will
rupture paper elements.
Use a flashlight to detect clogged
or torn paper elements - replace If
damaged in any way.
Air is also needed to keep
your engine cool. Dirt, dust
& debris build up to restrict
and clog cooling air Intake
screens and fins. Clean
screens and fins at frequent
Intervals. The engine blower
housing and shrouds should
be removed at least once
each season or more often
l under dry, dusty conditions
for a thorough cleaning of
fins.
Failure to keep external
surfaces clean not only
presents fire hazards, but
causes overheating and
resulting engine damages
such as:
1. distorted valve guides
2. sticking valves
t ° o. 3. scuffed, scored
,,,. walls
4. overspeedlng
5. loss of power
6. complete failure of
engine.
Dirt can also be introduced
into an engine In dirty fuel
from a contaminated
container. Always use clean
fresh fuel from a clean
container to guard against
dirt, sludge and water
contamination.
Be aware that fuel breaks
down in storage and forms
gummy compounds which
will block carburetor pass-
ages. Never use fuel more
than 3 months old. Drain
tank then run the engine out
of fuel before storing during
the off-season.
An engine must also have proper lubrication.
All engines use some oil. On 4-cycle engines,
CHECK OIL LEVEL BEFORE EACH START-UP.
Wipe area clean around the oll check plug or
dipstick opening to keep dirt from falling Into
the engine when checking the oil. Always
check with the machine on a level surface.
On engines with dipstick, keep the level up to,
but not over, the FULL mark. When adding oil,
allow time for all of the oll to flow down the fill
tube to prevent a false full reading when the
level could actually be low and result In engine
damage.
33
PRIMARY MAINTENANCE
On 4-cyle engines with an oil level plug,
don't be fooled into thinking the engine has
sufficient lubricating oil if you can see "some"
oil in the opening - the level should always be
brought up to the point of overflowing at the
top of the fill hole.
I
On 2-cycle engines, lubrication must be
provided by an exact mixture of gasoline
and 2-cycle air-cooled engine oil A 2-cycle
engine that Is mistakenly run on straight
gasoline will be ruined in less than 5
mlnutesl If you keep straight gasoline in
addition to pre-mixed 2-cycle engine fuel,
be sure the containers are clearly marked
to avoid mix-up.
Snapper 2-cycle engines require a 32 to 1
mixture of gasoline and BIA certified TC-W
oil such as Snapper's 2-cycle engine o11.
Many of the 2-cycle engine oils on the
market today make fantastic claims, but for
the best performance and long engine life,
always use Snapper 2-cycle oil Pre-mix
the fuel and always shake the container
before filling the tank.
Change oil at regular Intervals using a a high
quality oil such as Snapper's small engine
formulated 4-cycle engine o11. Refer to the
engine owner's manual for oil details.
STARTING CHECK LIST
1. Engine OII
2. Air Cleaner
3. Fuel Tank
4. Choke
5. Primer (on
some engines)
6. Safety Inter-
lock Switches
7. Switch &
Blade Control
8. Spark plug
9. Throttle
control
10. Blade
11. Muffler
• To full level (4-cycle)
• Properly mixed with gas
(2 cycle)
• Clean and properly serviced
• Full fresh clean gasoline
• Fuelvalve open
• Capvent open
• Inlinefilter clean
• Operating properly
• Used properly
• In proper position
• All wires properlyconnected
• Switch On
• Bladecontrol propedy
positionedon walk mower
• Wire connected
• GOOdconnection
• Start position
• Properly installed end
torqued
• Sharpened
• Good condition
• Not clogged
• Grass & leaves cleaned away
and follow all safety
Instructions in safety book-
Jlets and manuals.
Keep In mind that dirt Is your engine's enemy
#1 both Internally and externallyl Internally,
dirt will quickly ruin an engine and externally
It will cause overhcaUng and resulting internal
Damage caused by Improper lubrl- i
poor air cleaner service or overheating i
due to dirt cannot be covered under warranty.
It only takes a few moments to service the
engine (and equipment) on a routine baals
but the rewards will be a quick starting, re-
sponslve engine that will provide long
satisfactory service with minimum maintenance
cost. The prestart check,st In the next column
and Instructions in your Snapper Operator's
Manual am designated to help you keep your
Snapper In top operating condition with
minimum effortl
34
SNAPPER PRODUCT REGISTRATION FORM
IMPORTANT: KEEP THIS INFORMATION FOR YOUR PERSONAL RECORDS
(Complete the following information on your Snapper purchase)
Model Number
Serial Number
Date of Purchase
Retailer
Retailer's Phone Number
It is very important that you register your purchase with Snapper to ensure
warranty coverage. Please mail your product registration card to:
Snapper at P.O. Box 777, McDonough, Georgia 30253.
Or you may register on line at www.snapper.com.
You can contact us at our web site or if you would like to speak with a Customer
Service Representative. Call us at the Snapper Customer Relations Center. For
faster service please have your Serial Number and Model Number available.
Call the Snapper Customer Relations Center at 1-800-935-2967.
35
Safety Instructions & Operator's Manual for
SCRAMBLER
ZERO-TURN
HYDRO DRIVE
SERIES 6
IMPORTANT
Snapper products are built using engines that meet or exceed all applicable emissions requirements on the
date manufactured. The labels on those engines contain very important emissions information and critical
safety warnings. Read, Understand, and Follow all warnings and instructions in this manual, the engine
manual, and on the machine, engine and attachments. If you have any questions about your Snapper product,
contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper, McDonough,
GA. 30253. Phone: (1-800-935-2967).
WARNING
BATTERY POSTS, TERMINALS AND RELATED ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,
CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR
OTHER REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.
WARNING
ENGINE EXHAUST, SOME OF ITS CONSTITUENTS, AND CERTAIN VEHICLE COMPONENTS CONTAIN OR
EMIT CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR OTHER
REPRODUCTIVE HARM.
SNAPPER McDonough, GA., 30253 U.S.A.
COPYRIGHT © 2004
SNAPPER - A DIVISION OF SIMPLICITY MFG. INC.
ALL RIGHTS RESERVED
MANUAL No. 5-0407 (I.R. 7/27/04)
36
